220 mm (8-11/16”)
169 mm (6-5/8”)
35 mm (1-3/8”)
Combined impedance
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new power
amplifier.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided
below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.
Model XR401-4/XH401-4 Serial number
US Resid en ce Only
Register Online
Register your Kenwood product at ww w.Kenwoodusa.com
B5A-2348-00/00 (KV/WV)
XR401-4
XH401-4
CLASS D FOUR CHANNEL POWER AMPLIFIER
INSTRUCTION MANUAL
AMPLIFICATEUR DE PUISSANCE 4 CANAUX CLASSE D
MODE D’EMPLOI
AMPLIFICADOR DE POTENCIA DE 4 CANALES CLASE D
MANUAL DE INSTRUCCIONES
Safety precautions
WARNING
To prevent injury or fire, take the following
precautions:
• Mounting and wiring this product requires skills and
experience. For safety’s sake, leave the mounting and
wiring work to professionals.
• When extending the ignition, battery, or ground wires,
make sure to use automotive-grade wires or other wires
with the range of 14 mm (AWG 6) to 21 mm (AWG 4)
to prevent wire deterioration and damage to the wire
coating.
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools) inside the
unit.
• If the unit starts to emit smoke or strange smells, turn
off the power immediately and consult your KENWOOD
dealer.
• Do not touch the unit during use because the surface of
the unit becomes hot and may cause burns if touched.
CAUTION
To prevent damage to the machine, take the
following precautions:
• Be sure the unit is connected to a 12V DC power supply
with a negative ground connection.
• Do not open the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct
sunlight or excessive heat or humidity. Also avoid places
with too much dust or the possibility of water splashing.
• When replacing a fuse, only use a new one with the
prescribed rating. Using a fuse with the wrong rating
may cause your unit to malfunction.
• To prevent a short circuit when replacing a fuse, first
disconnect the wiring harness.
NOTE
• If you experience problems during installation, consult
your KENWOOD dealer.
• If the unit does not seem to be working right, consult
your KENWOOD dealer.
Cleaning the unit
If the front panel gets dirty, turn off the power and wipe
the panel with a dry silicon cloth or soft cloth.
CAUTION
Do not wipe the panel with a hard cloth or a cloth
dampened by volatile solvents such as paint thinner and
alcohol. They can scratch the surface of the panel and/or
cause the indicator letters to peel off.
To prevent battery rise
When the unit is used in the ACC ON position without
turning the engine ON, it depletes the battery. Use it after
starting the engine.
Protection function
The protection function is activated in the following
situations:
This unit is equipped with a protection function for
protecting this unit and your speakers from various
accidents or problems that can occur.
When the protection function is triggered, the power
indicator goes off and the amplifier stops operating.
• When a speaker wire may be short-circuited.
• When a speaker output contacts ground.
• When the unit malfunctions and a DC signal is sent to
the speaker output.
• When the internal temperature is high and unit won’t
operate.

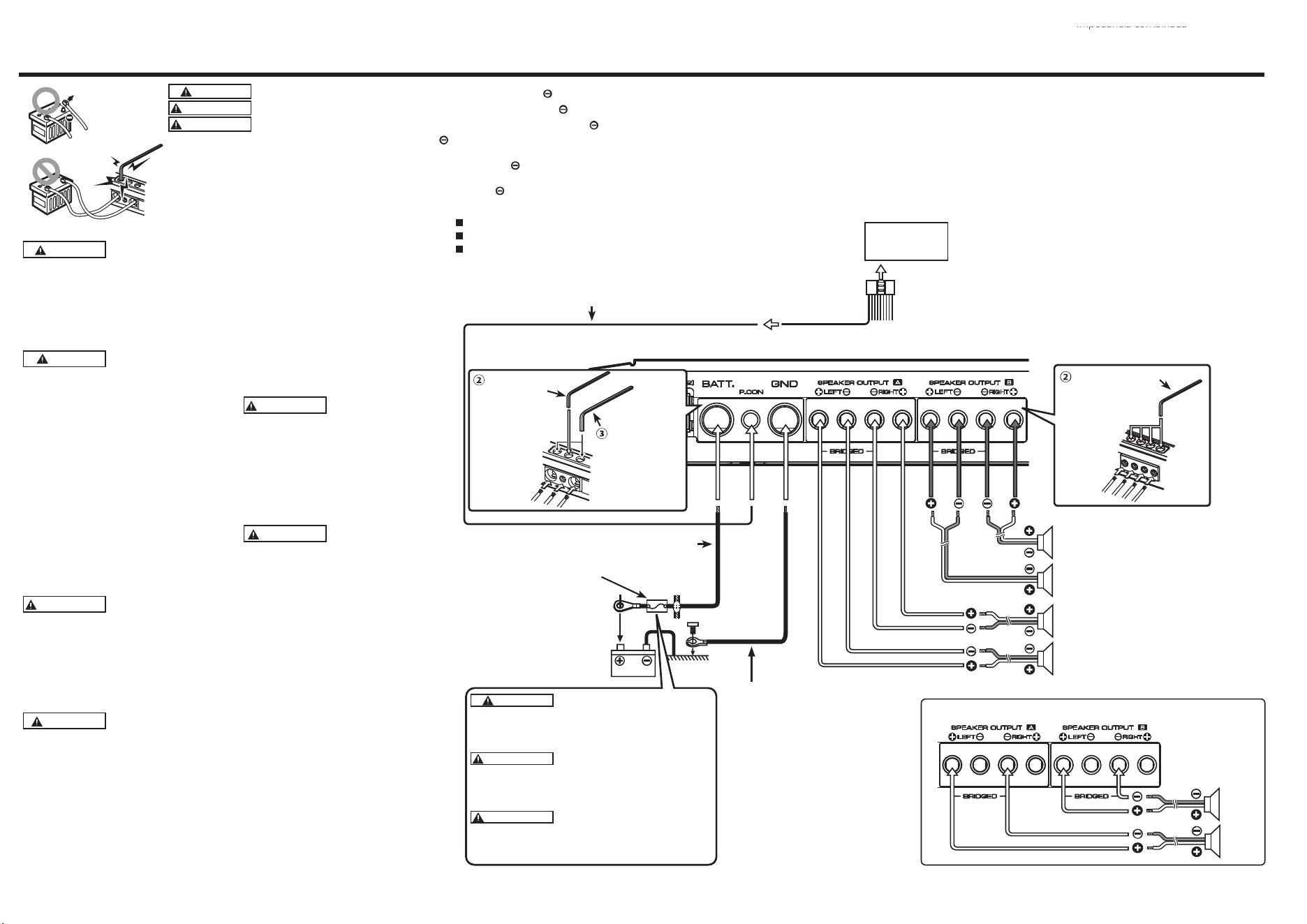

Wiring
• Take the battery wire for this unit directly from the
battery. If it’s connected to the vehicle’s wiring harness,
it can cause blown fuses etc.
• If a buzzing noise is heard from the speakers when the
engine is running, connect a line noise filter (optional)
to each of the battery wire.
• Do not allow the wire to directly contact the edge of
the iron plate by using Grommets.
• Connect the ground wire to a metal part of the car
chassis that acts as an electrical ground passing
electricity to the battery‘s negative terminal. Do not
turn the power on if the ground wire is not connected.
• Be sure to install a protective fuse in the power cord
near the battery. The protective fuse should be the
same capacity as the unit’s fuse capacity or somewhat
larger.
• For the power cord and ground, use a vehicle type
(fireproof) power wring cord. (Use a power wiring cord
with the range of 14 mm (AWG 6) to 21 mm (AWG 4).
• When more than one power amplifier are going to be
used, use a power supply wiring wire and protective
fuse of greater current-handling capacity than the total
maximum current drawn by each amplifier.

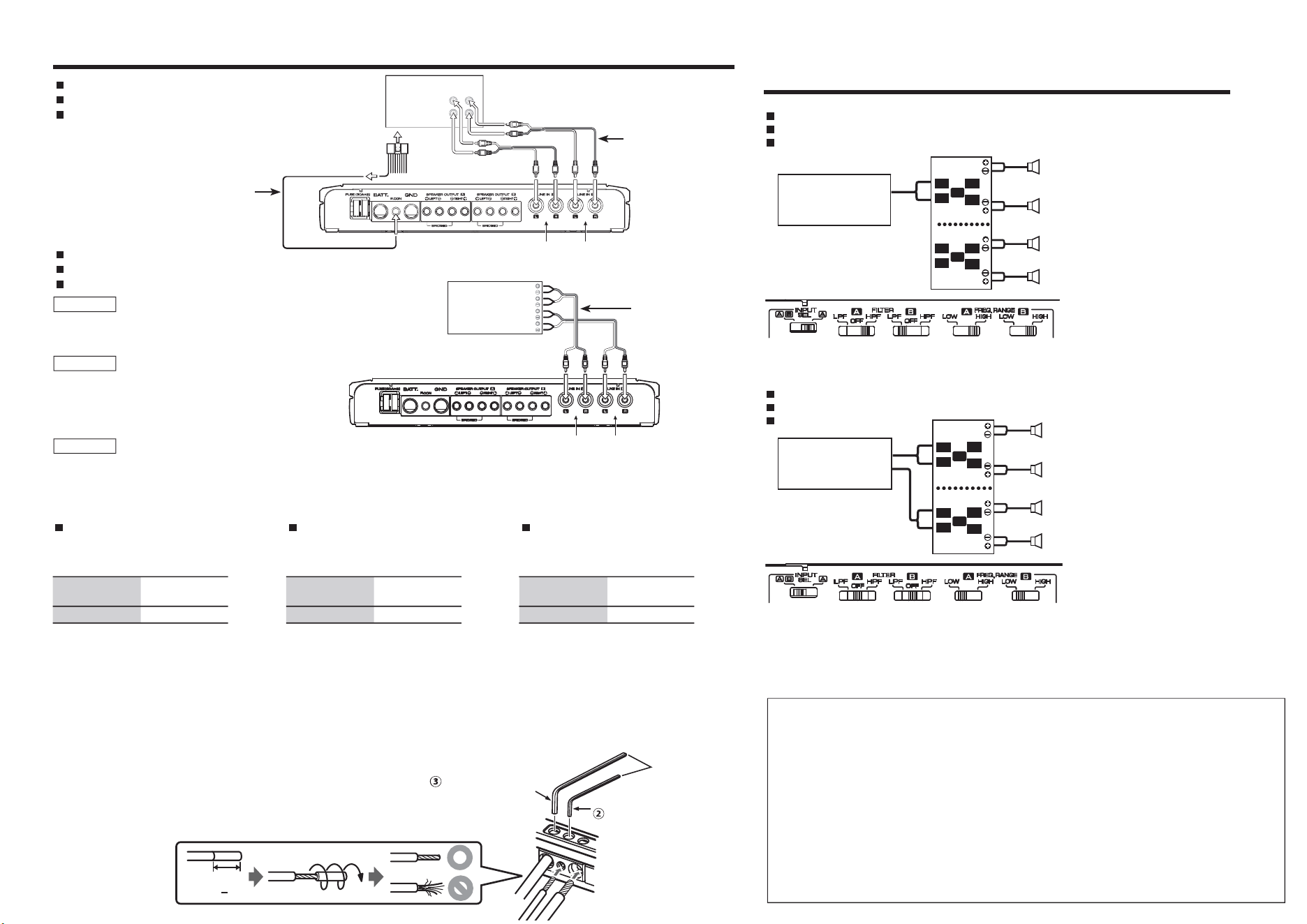

Speaker selection
• Using speakers with smaller input ratings than the
amplifier’s output power would result in smoke
generation or equipment failure.
• The impedance of the speakers that are going
to be connected should be 2Ω or greater (for
stereo connections), or 4Ω or greater (for bridged
connections). When more than one set of speakers are
going to be used, calculate the combined impedance
of the speakers and then connect suitable speakers to
the amplifier.
<Example>
© 2017 JVC KENWOOD Corporation
Accessories / Accessoires / Accesorios
ø4×16 mm
Self-tapping screws
Vis taraudeuses
Tornillo autorroscantes
4
Remote controller
Télécommande
Controlador remoto
1
Washer
Rondelle
Arandela
1
2.5 mm
Hexagon wrench
Clé polygonale
Llave hexagonal
1
6 m (19.7 ft)
Remote cable
Câble de la
télécommande
Cable del mando a
distancia
1
Hex nut
Écrou hexagonal
Tuerca hexagonal
1
4.0 mm
Hexagon wrench
Clé polygonale
Llave hexagonal
1
Dimensions / Dimensions / Dimensiones

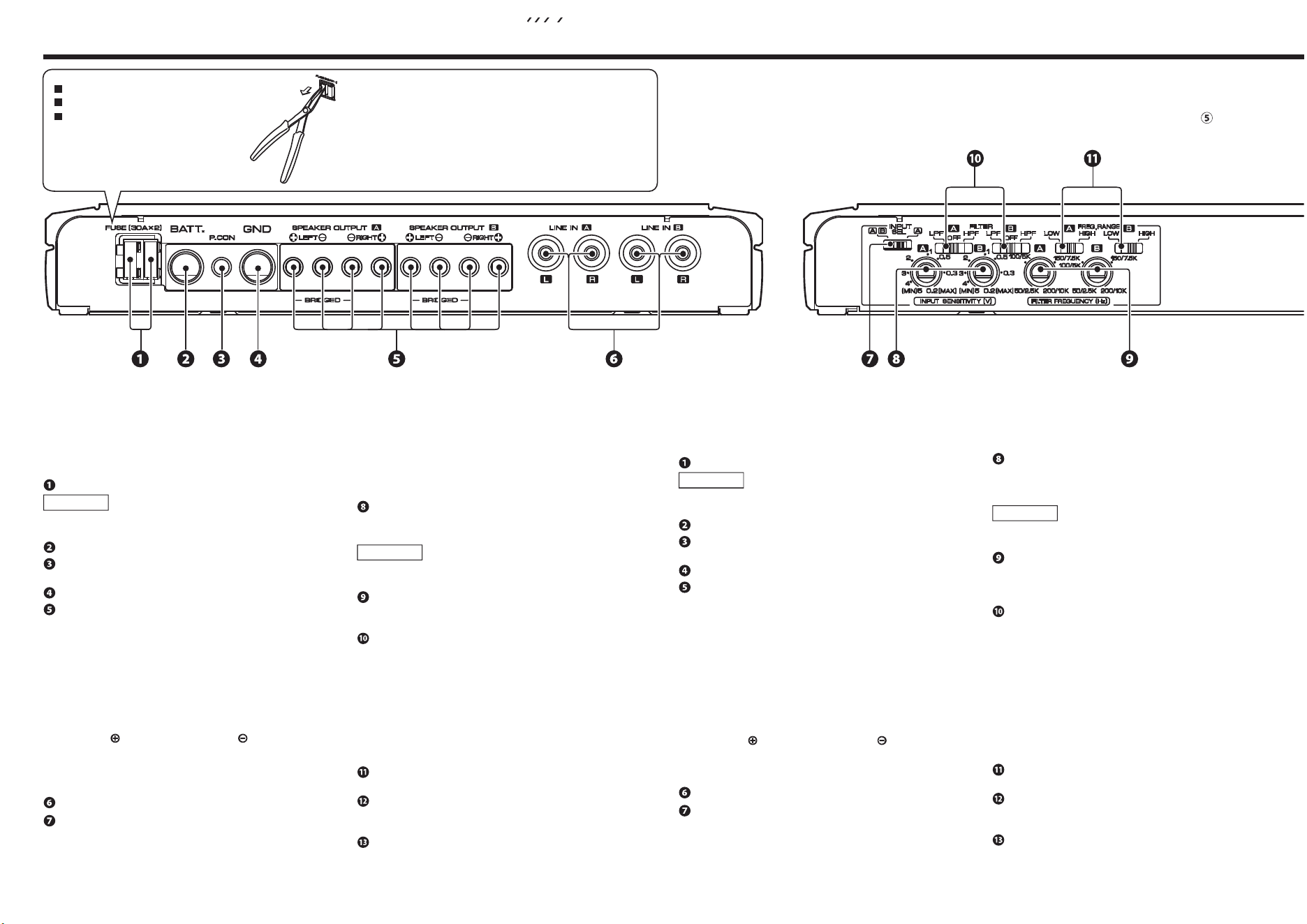

Power indicator
When the power is turned on, the Power
indicator lights.
Indicateur d’alimentation
Lorsque l’alimentation est activée, l’indicateur
d’alimentation s’illumine.
Indicador de potencia
Cuando la alimentación se activa, el indicador
de potencia se ilumina.
