Foldable 3-Wheel
Golf Push Cart
SLGZX9
New Deluxe Scorecard Holder,
Upper & Lower Brackets with Strap
www.SereneLifeHome.com
2
WARNING:
• For your own safety, please read and understand these
warnings and keep this user guide for future reference.
• Always make sure the cart is fully extended and locked
before use. Always make sure the cart is folded and locked
properly before lifting or transporting.
• Do not run while using this product.
• Do not use accessories other than those designed for use
with your cart.
• Keep all packing materials away from children and recycle
where possible or where required by law.
MAINTENANCE
• To clean the trolley, wipe with a soft, dry cloth.
• Car polish may be used to maintain nish.
• Lubricate moving parts every 6 months.
WARNING:
• Keep hands and ngers away from moving or sliding parts!
• Always keep control of the buggy - Do not let it run down hills
without full control.
www.SereneLifeHome.com
3

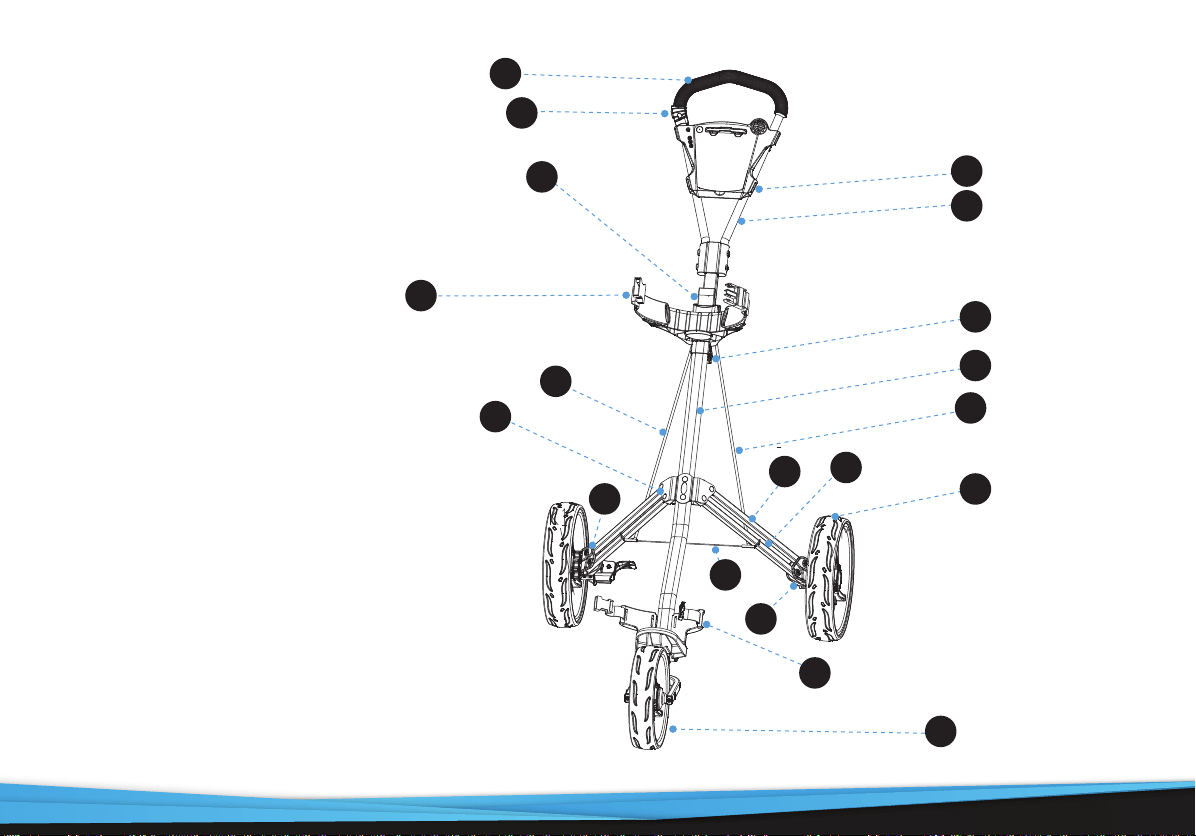

PARTS LIST
A Foam
B Umbrella Holder Base
C Scorecard Holder
D Hand Grip
E Sliding Lock
F Upper Bracket
G Joint
H Main Frame Tube
I Leg Bracket
J2 Holes Leg Frame
J1 3 Holes Leg Frame
K Right Wheel Mechanism
K1 Left Wheel Mechanism
L Anti-Splay Wire
M Rear Wheel
N Lower Bracket
P Front Wheel
Q Left Weight Stabilizer
Q1 Right Weight Stabilizer
A
B
E
F
C
D
G
H
Q
Q1
J
J1
M
L
K
K1
I
N
P
www.SereneLifeHome.com
4

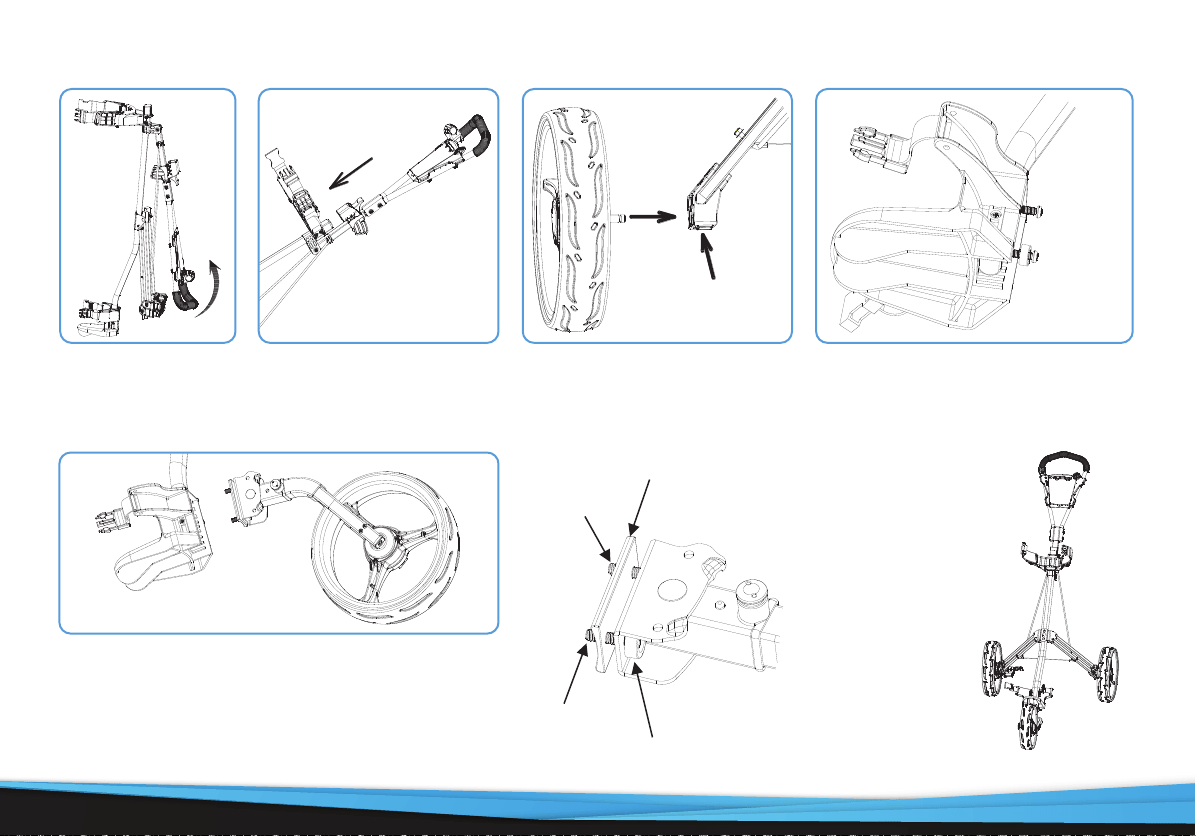

ASSEMBLY DETAILS
Fig. 1
M5*24
Plastic piece
M5*26
Plastic piece
Fig. 2
Fig. 3
Fig. 4
M5*24
M5*26m
Lift the handle to
level position as Fig. 1
Move the slide lock down
side and lock to upper
bracket as Fig. 2
Press the red button on the
wheel lock mechanism to
assembly rear wheel as Fig. 3
Remove the screws and Plastic
piece as Fig. 4.
Take out the xed steel piece from the front
wheel package, then going the screws through
the holes and keep the "up" toward upper as
Fig. 5.
Completely unfolding
and assembly as Fig. 6.
Fig. 5
Fig. 6
www.SereneLifeHome.com
5

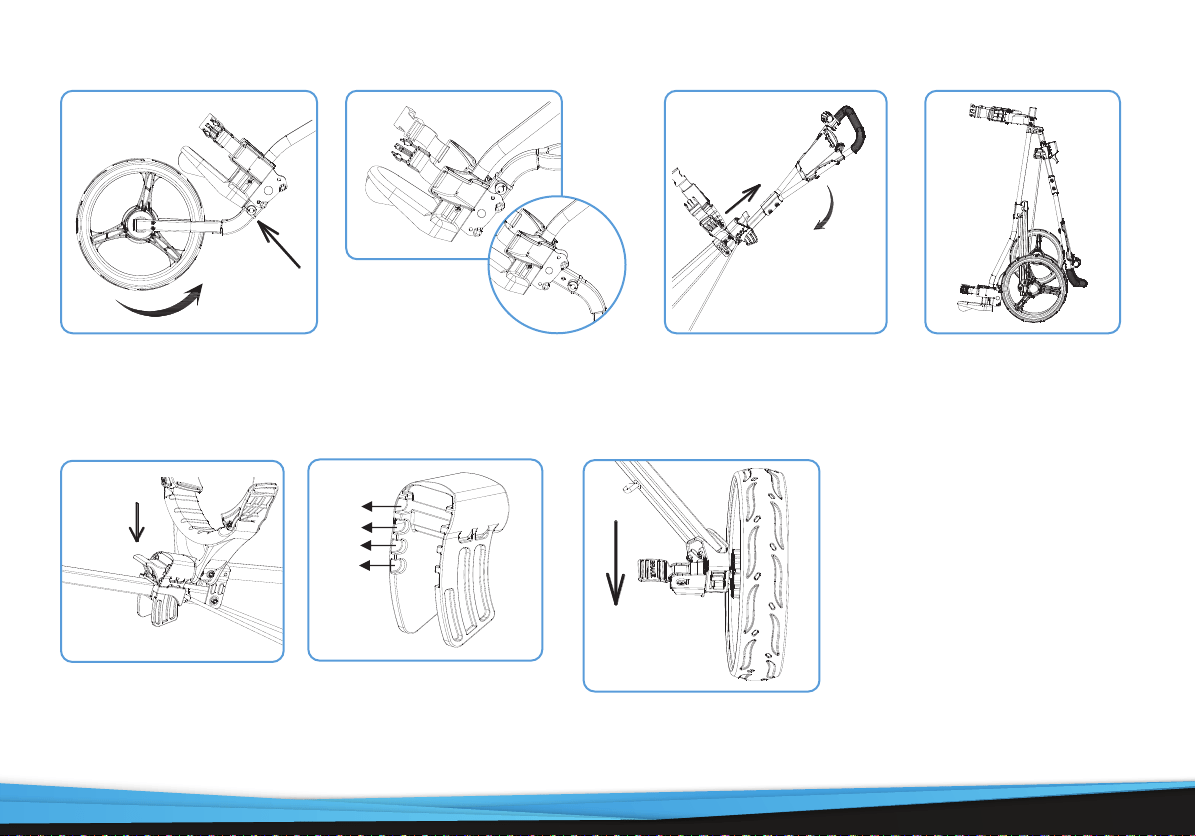

FOLDING STEPS
SLIDE LOCK MECHANISM FOOT BRAKE MECHANISM
Fig. 7
Fig. 8
Press the red button to release the front wheel, then fold until
the pin inserts in the hole as Fig. 7 and 8.
Move the slide lock up to
release the handle as Fig. 9
Fig. 10 shows the
folded position
Press the red button and
adjust the slide lock to
required handle height
as Fig. 11
When the red brake pedal is
engaged, it should work with a
gentle downward pressure; If it
does not, slightly move the
wheels until the braking pin can
seat easily. The mechanism
should last for years if treated
good. Step on the brake pad to
activate and pull o to
deactivate the brake as Fig. 13
1
2
3
4
Adjustable handle with 4
positions height as Fig. 12
Fig. 9
Fig. 10
Fig. 13
Fig. 12
Fig. 11
