EN FREEZER £ REFRIGERATOR USE AND CARE GUIDE
FR REFRIGERATEUR iCONGELATEUR GUIDE D:UTILISATION ET D:ENTRETIEN
:i:i:iiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

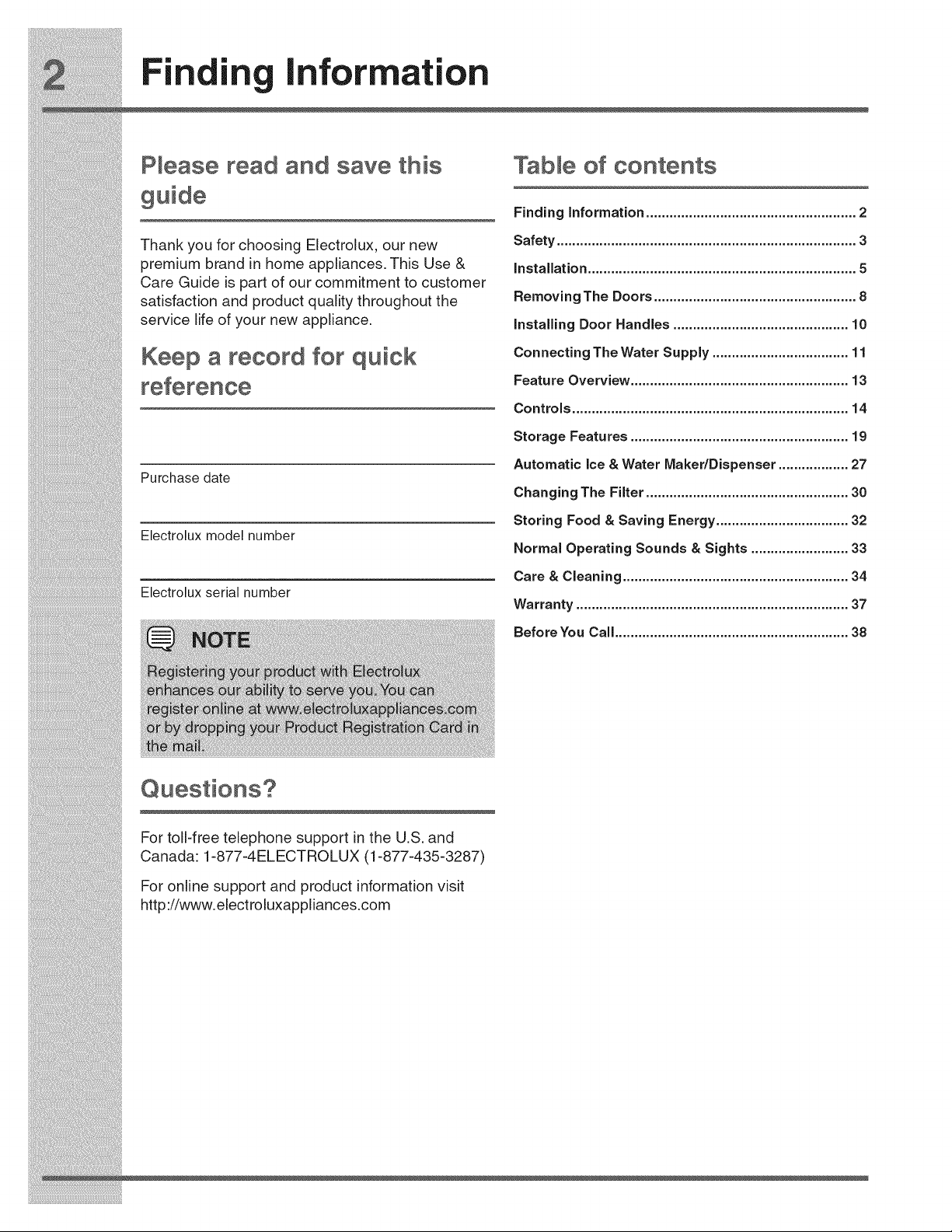

Finding information
Please read and save this Tabmeof contents
Thank you for choosing Electrolux, our new
premium brand in home appliances. This Use &
Care Guide is part of our commitment to customer
satisfaction and product quality throughout the
service life of your new appliance.
Keep a record for quick
Purchase date
Electrolux model number
Electrolux serial number
Finding Information ...................................................... 2
Safety ............................................................................. 3
Installation ..................................................................... 5
Removing The Doors .................................................... 8

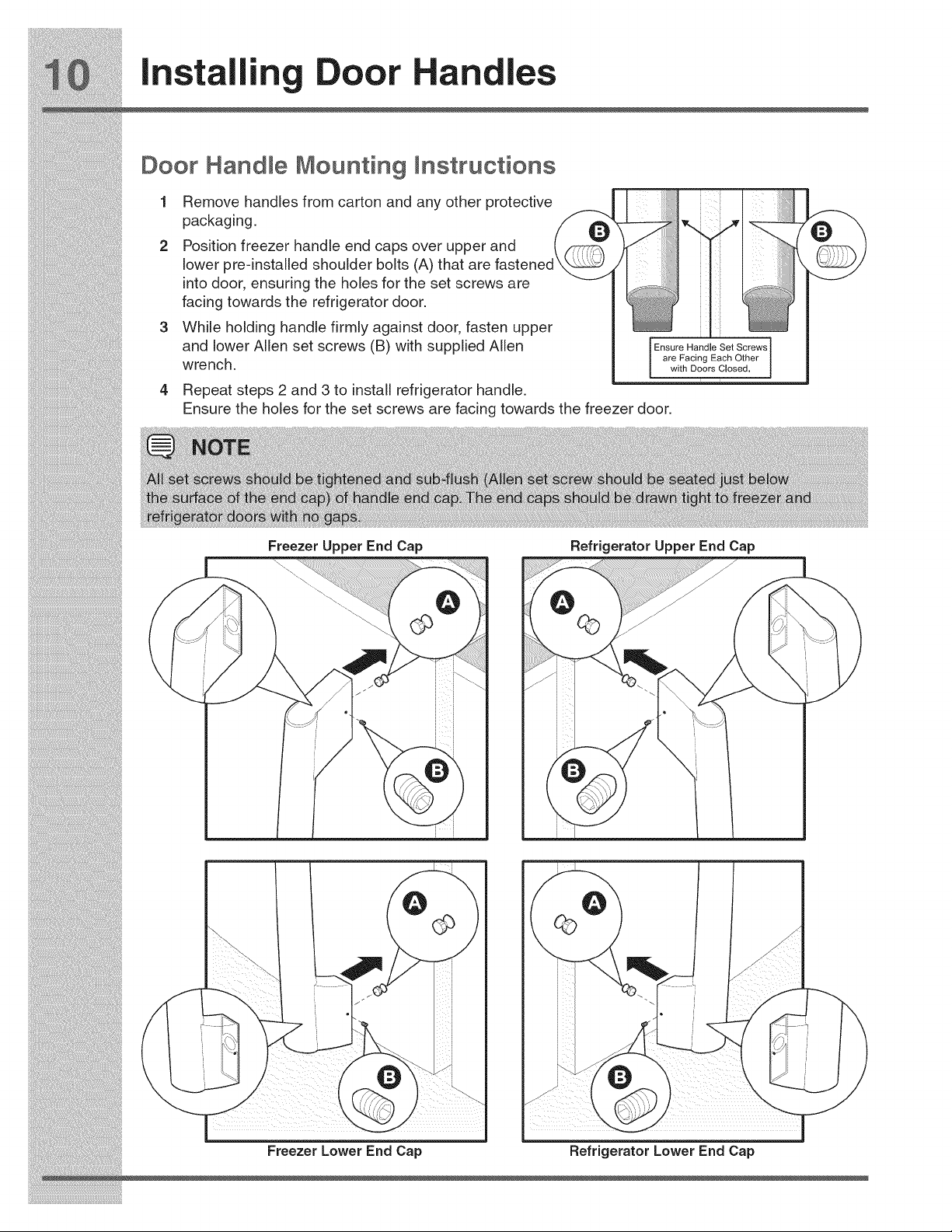

Installing Door Handles ............................................. 10
Connecting The Water Supply ................................... 11
Feature Overview ........................................................ 13

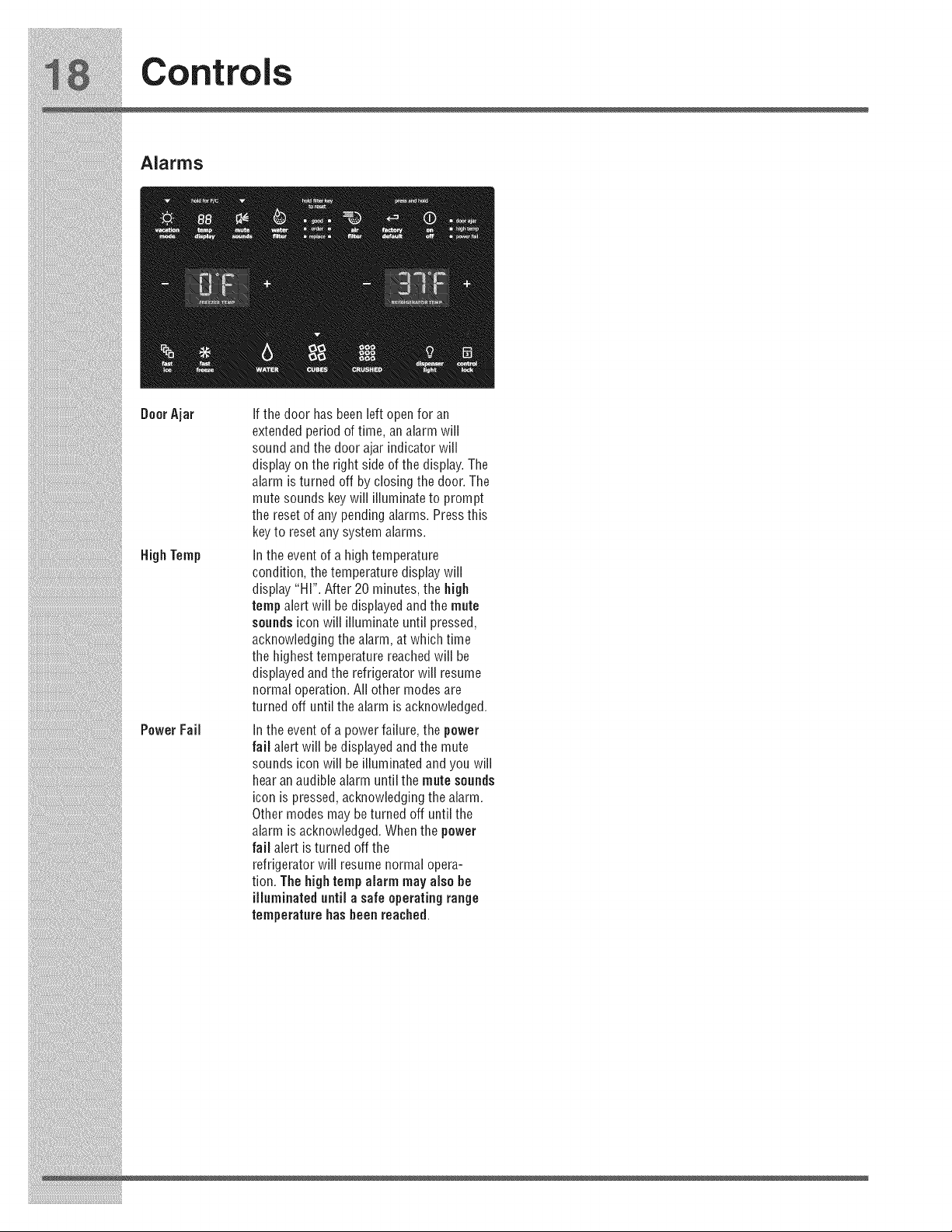

Controls ....................................................................... 14

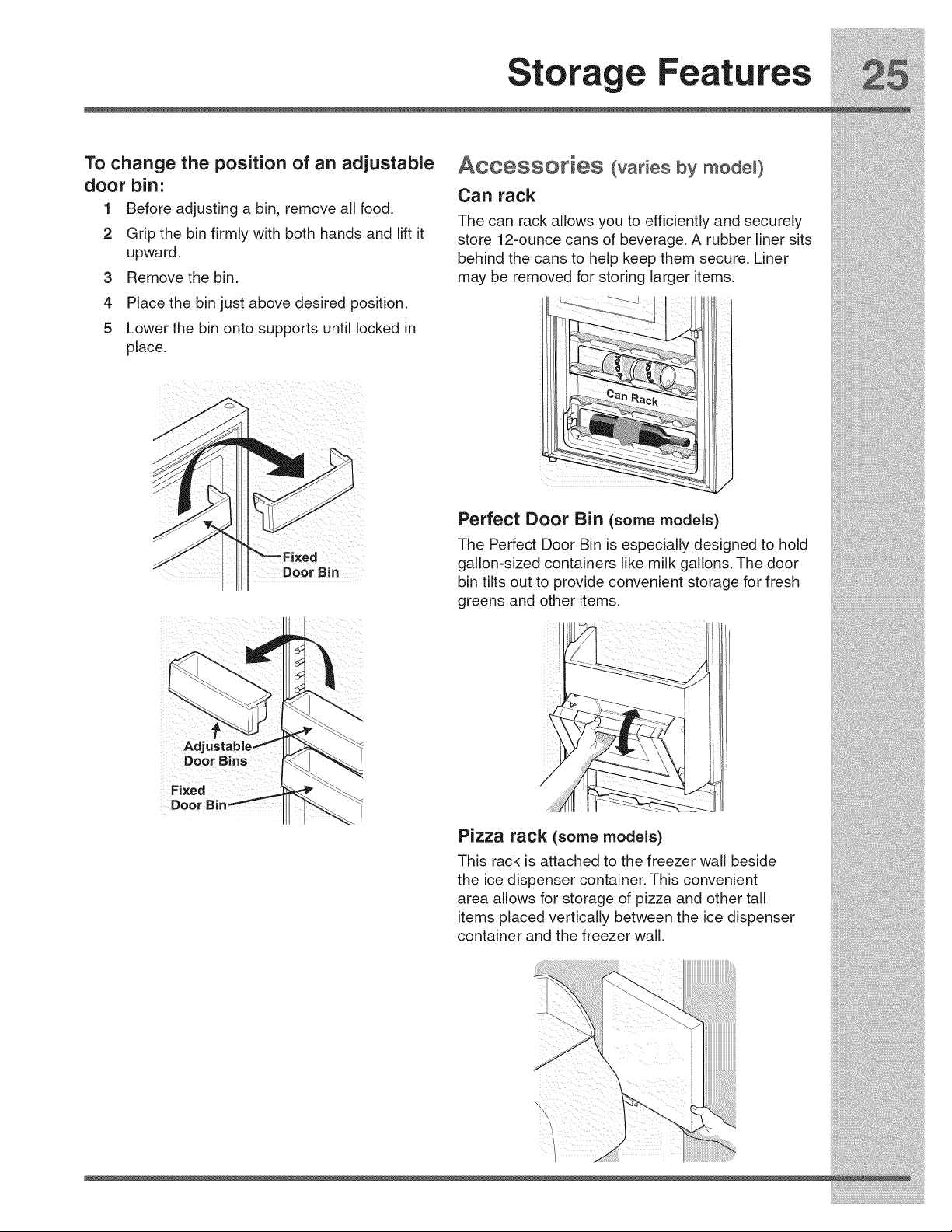

Storage Features ........................................................ 19
Automatic Ice & Water Maker/Dispenser .................. 27

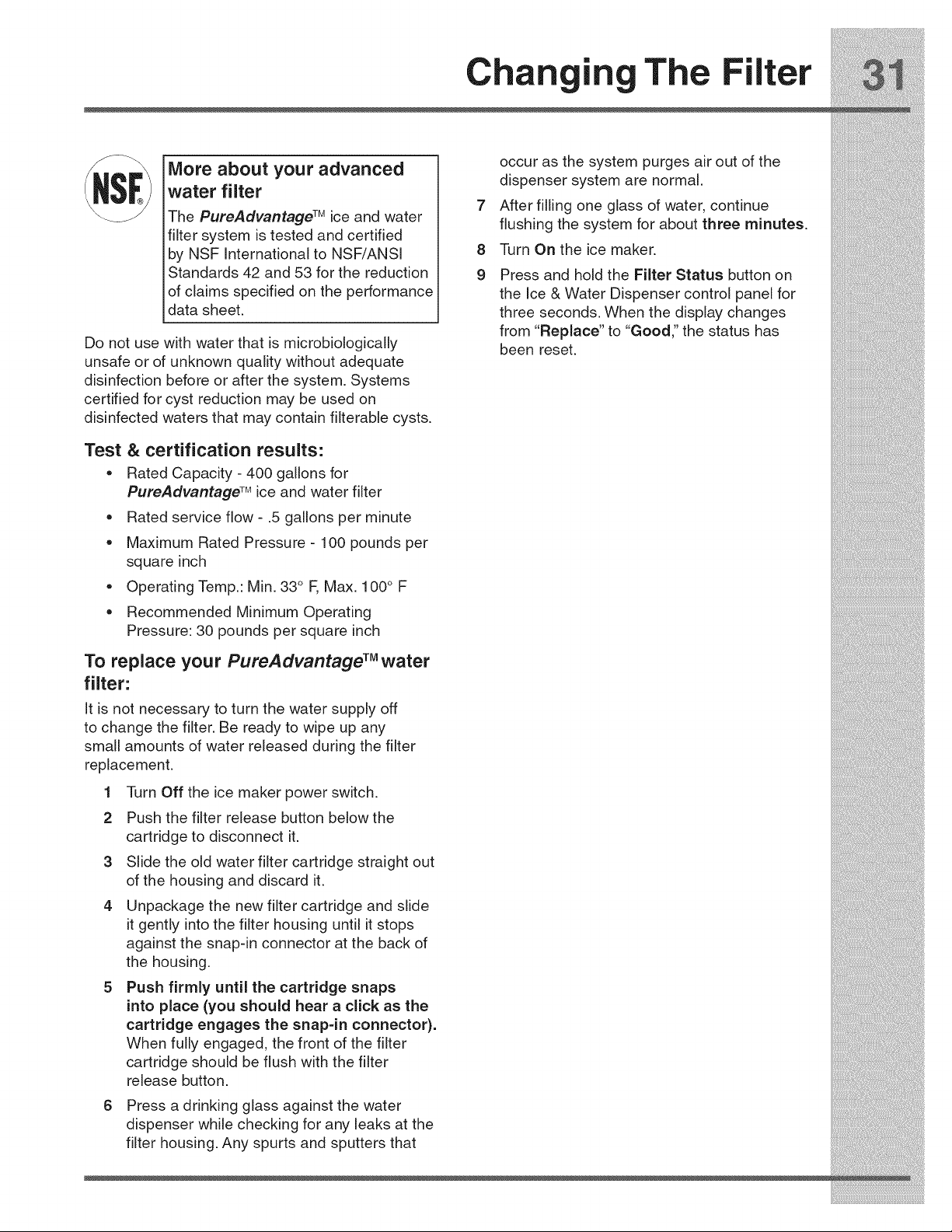

Changing The Filter .................................................... 30
Storing Food & Saving Energy .................................. 32
Normal Operating Sounds & Sights ......................... 33

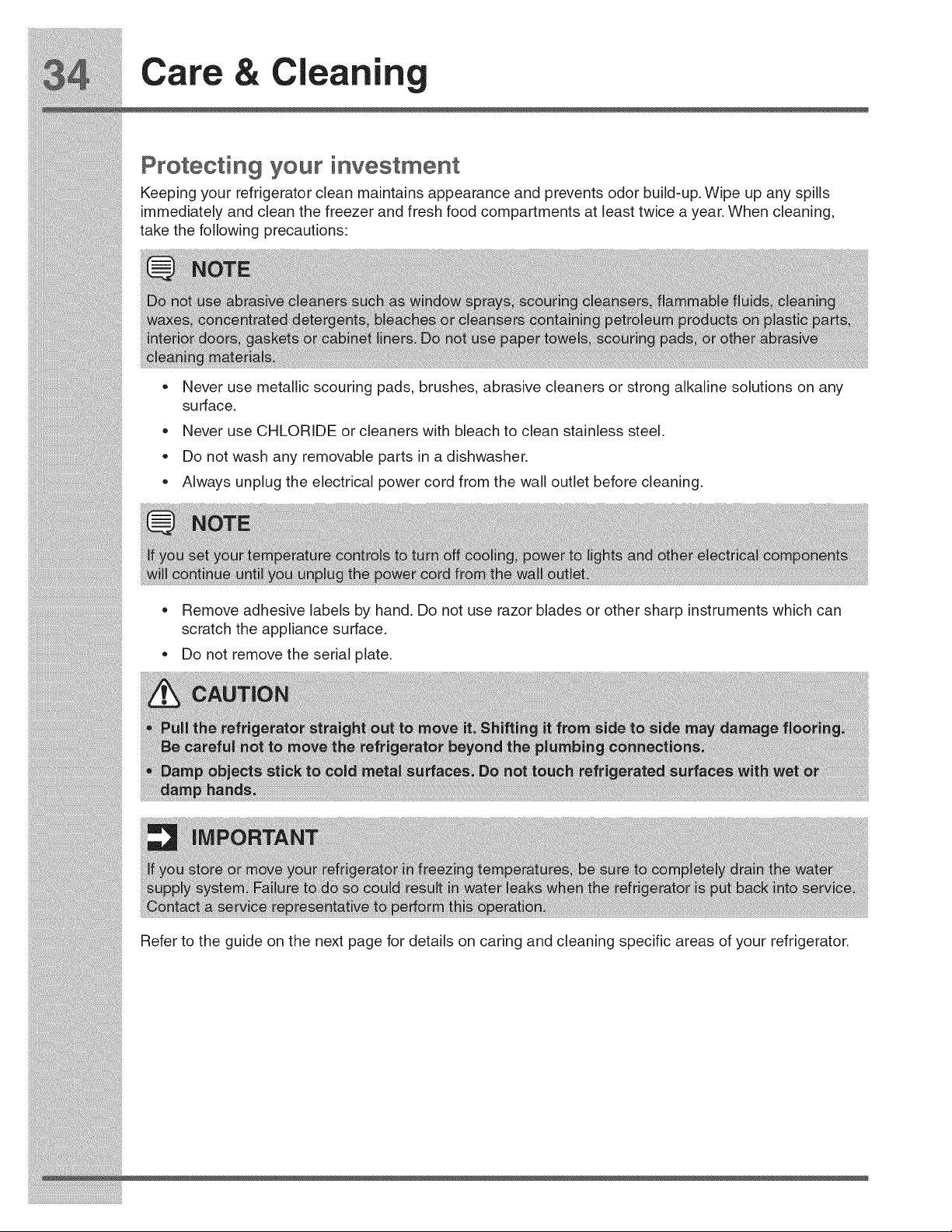

Care & Cleaning .......................................................... 34
Warranty ...................................................................... 37
Before You Call ............................................................ 38
Questions?
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit
http ://www.elect roluxappliances.com

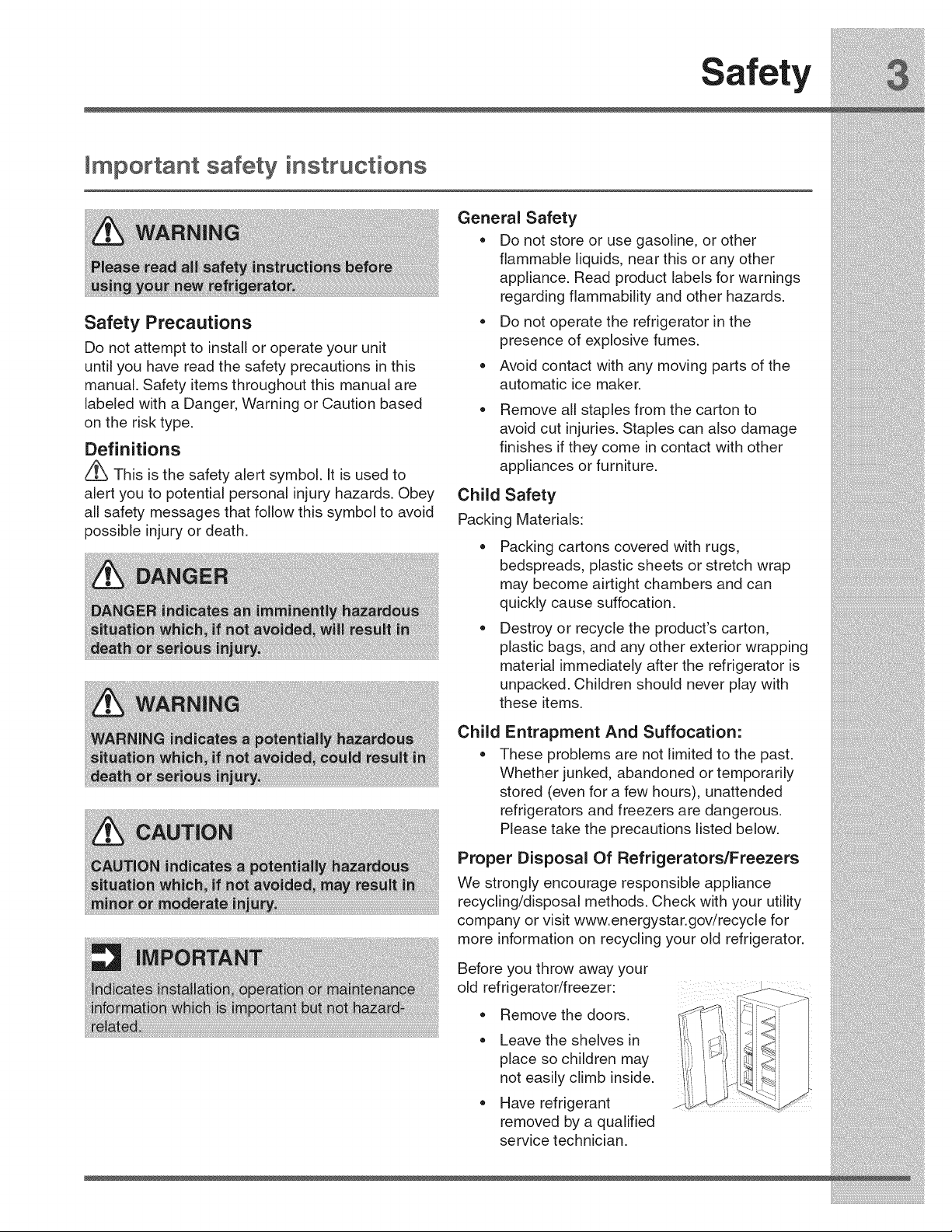

Safety
Important safety instructions
Safety Precautions
Do not attempt to install or operate your unit
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a Danger, Warning or Caution based
on the risk type.
Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid
possible injury or death.
General Safety
= Do not store or use gasoline, or other
flammable liquids, near this or any other
appliance. Read product labels for warnings
regarding flammability and other hazards.
= Do not operate the refrigerator in the
presence of explosive fumes.
= Avoid contact with any moving parts of the
automatic ice maker.
Remove all staples from the carton to
avoid cut injuries. Staples can also damage
finishes if they come in contact with other
appliances or furniture.
Child Safety
Packing Materials:
Packing cartons covered with rugs,
bedspreads, plastic sheets or stretch wrap
may become airtight chambers and can
quickly cause suffocation.
Destroy or recycle the product's carton,
plastic bags, and any other exterior wrapping
material immediately after the refrigerator is
unpacked. Children should never play with
these items.
Child Entrapment And Suffocation:
These problems are not limited to the past.
Whether junked, abandoned or temporarily
stored (even for a few hours), unattended
refrigerators and freezers are dangerous.
Please take the precautions listed below.
Proper Disposal Of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your
old refrigerator/freezer:
Remove the doors.
Leave the shelves in
place so children may
not easily climb inside.
Have refrigerant
removed by a qualified
service technician.
Safety

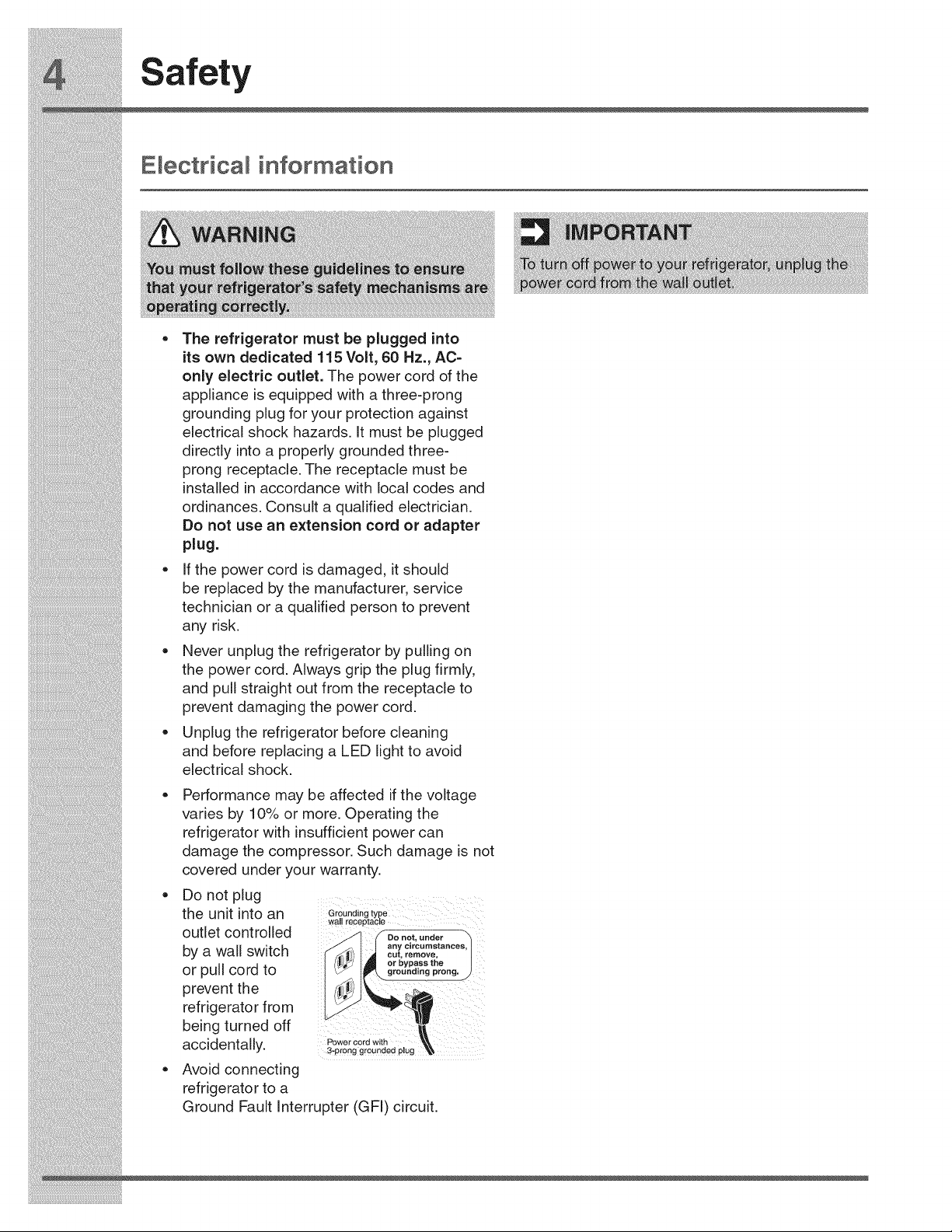

Emectricaminformation
=The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz., AC-
only electric outlet. The power cord of the
appliance is equipped with a three-prong
grounding plug for your protection against
electrical shock hazards. It must be plugged
directly into a properly grounded three-
prong receptacle. The receptacle must be
installed in accordance with local codes and
ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter
plug.
= If the power cord is damaged, it should
be replaced by the manufacturer, service
technician or a qualified person to prevent
any risk.
• Never unplug the refrigerator by pulling on
the power cord. Always grip the plug firmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
• Unplug the refrigerator before cleaning
and before replacing a LED light to avoid
electrical shock.
Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigerator with insufficient power can
damage the compressor. Such damage is not
covered under your warranty.
• Do not plug
the unit into an
outlet controlled
by a wall switch
or pull cord to
prevent the
refrigerator from
being turned off
accidentally.
• Avoid connecting
refrigerator to a
Grounding type
wall receutacle
//_ not, under
fDO
orb,pao.,,e
l_ ,_g .... ding prong. J
3P°Nnr _ °grdoWnitc_ d plug
Ground Fault Interrupter (GFI) circuit.
Instal ion
This Use & Care Guide provides general operating
instructions for your model. Use the refrigerator
only as instructed in this Use & Care Guide. Before
starting the refrigerator, follow these important
first steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
if possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
The refrigerator must be installed on a floor
that is level and strong enough to support a
fully loaded refrigerator.
Consider water supply availability for models
equipped with an automatic ice maker.

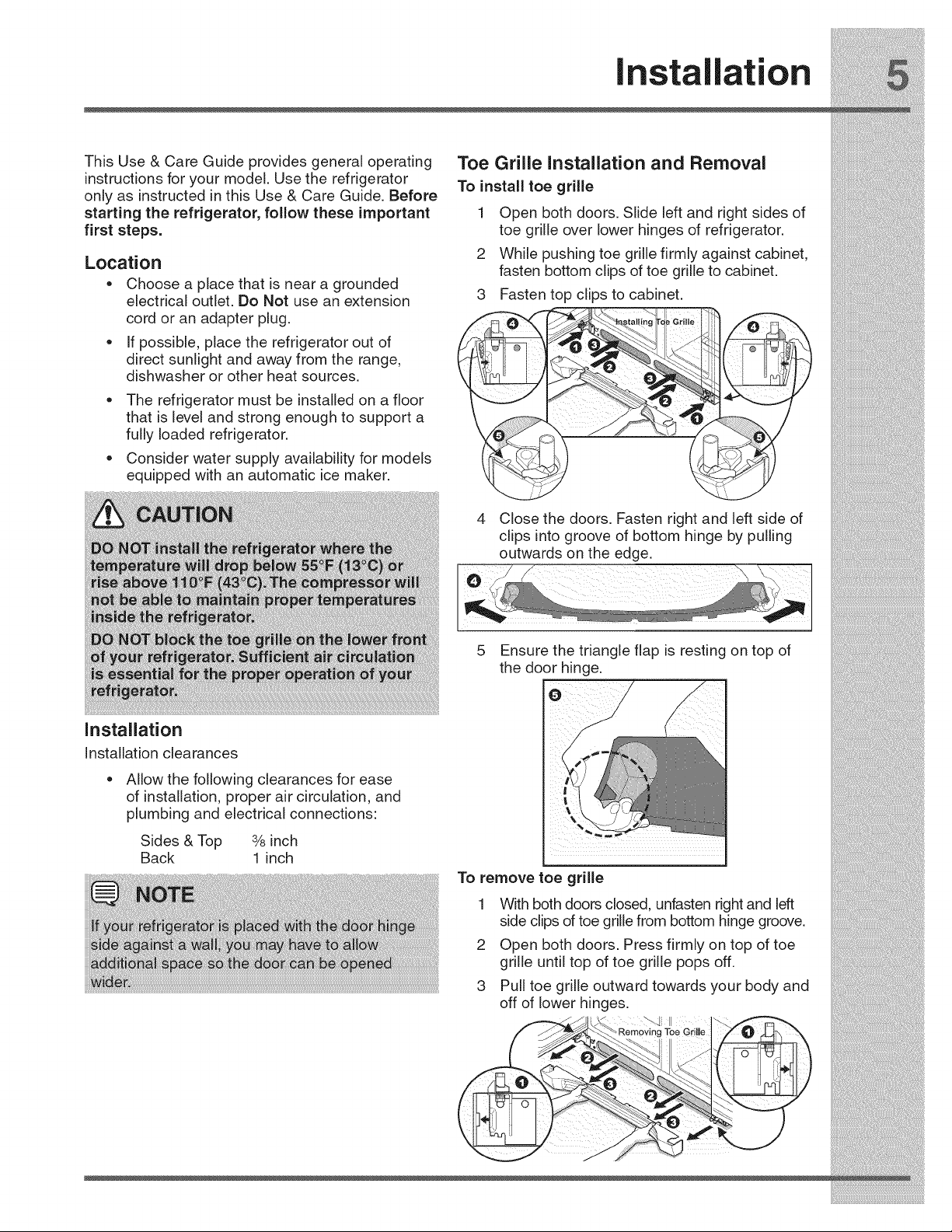

Installation
Installation clearances
Toe Grille Installation and Removal
To install toe grille
1 Open both doors. Slide left and right sides of
toe grille over lower hinges of refrigerator.
2 While pushing toe grille firmly against cabinet,
fasten bottom clips of toe grille to cabinet.
3 Fasten top clips to cabinet.
4 Close the doors. Fasten right and left side of
clips into groove of bottom hinge by pulling
outwards on the edge.
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ¾ inch
Back 1 inch
5Ensure the triangle flap is resting on top of
the door hinge.
Q
To remove toe grille
1 With both doors closed, unfasten right and left
side clips of toe grille from bottom hinge groove.
2 Open both doors. Press firmly on top of toe
grille until top of toe grille pops off.
3Pull toe grille outward towards your body and
off of lower hinges.
I
_ Removing Toe Gd
Instal ion

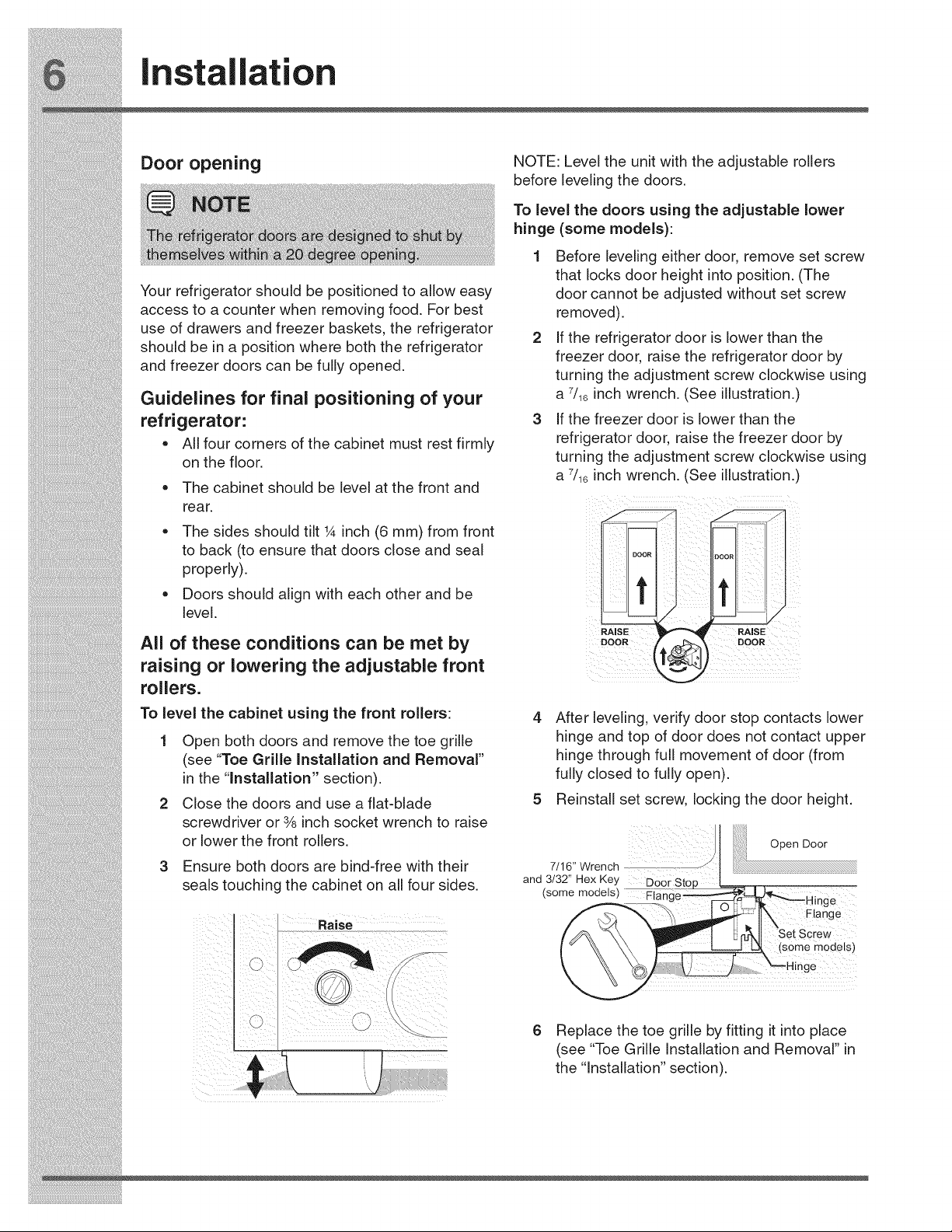

Door opening
Your refrigerator should be positioned to allow easy
access to a counter when removing food. For best
use of drawers and freezer baskets, the refrigerator
should be in a position where both the refrigerator
and freezer doors can be fully opened.
Guidelines for final positioning of your
refrigerator:
= All four corners of the cabinet must rest firmly
on the floor.
The cabinet should be level at the front and
rear.
The sides should tilt 1Ainch (6 mm) from front
to back (to ensure that doors close and seal
properly).
Doors should align with each other and be
level.
All of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:
1 Open both doors and remove the toe grille
(see "Toe Grille Installation and Removal"
in the "installation" section).
2 Close the doors and use a flat-blade
screwdriver or ¾ inch socket wrench to raise
or lower the front rollers.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides.
Raise
NOTE: Level the unit with the adjustable rollers
before leveling the doors.
To level the doors using the adjustable lower
hinge (some models):
1 Before leveling either door, remove set screw
that locks door height into position. (The
door cannot be adjusted without set screw
removed).
2 If the refrigerator door is lower than the
freezer door, raise the refrigerator door by
turning the adjustment screw clockwise using
a 7/16inch wrench. (See illustration.)
3 If the freezer door is lower than the
refrigerator door, raise the freezer door by
turning the adjustment screw clockwise using
a 7/16inch wrench. (See illustration.)
i
RAISE RAISE
DOOR DOOR
4 After leveling, verify door stop contacts lower
hinge and top of door does not contact upper
hinge through full movement of door (from
fully closed to fully open).
5 Reinstall set screw, locking the door height.
a n d 3_/12'6'"HWere_( ch Open Door
somemode
II "SetScrew
:Hinge
6 Replace the toe grille by fitting it into place
(see "Toe Grille Installation and Removal" in
the "Installation" section).
Instal ion

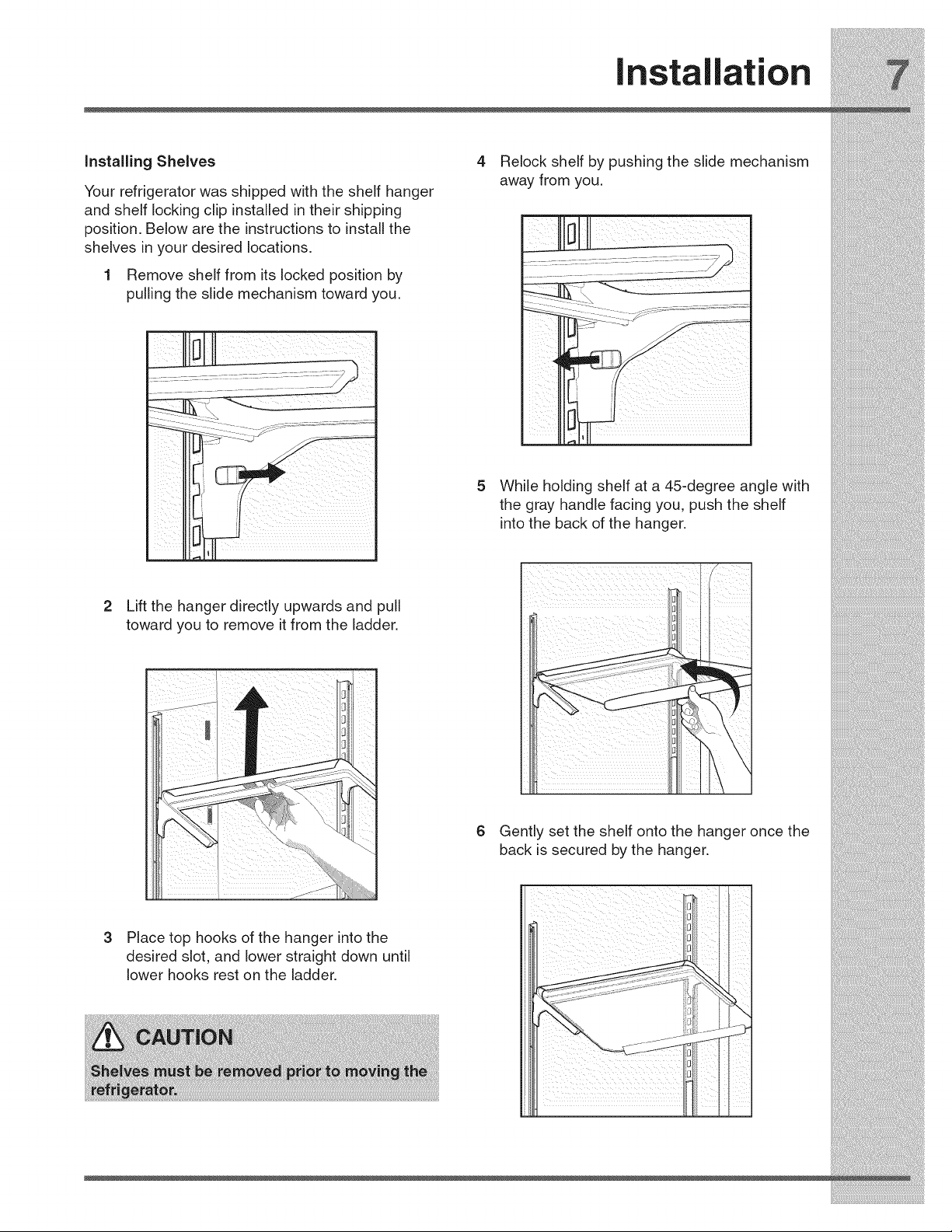

Installing Shelves
Your refrigerator was shipped with the shelf hanger
and shelf locking clip installed in their shipping
position. Below are the instructions to install the
shelves in your desired locations.
1 Remove shelf from its locked position by
pulling the slide mechanism toward you.
4Relock shelf by pushing the slide mechanism
away from you.
5While holding shelf at a 45-degree angle with
the gray handle facing you, push the shelf
into the back of the hanger.
2Lift the hanger directly upwards and pull
toward you to remove it from the ladder.
6Gently set the shelf onto the hanger once the
back is secured by the hanger.
3 Place top hooks of the hanger into the
desired slot, and lower straight down until
lower hooks rest on the ladder.

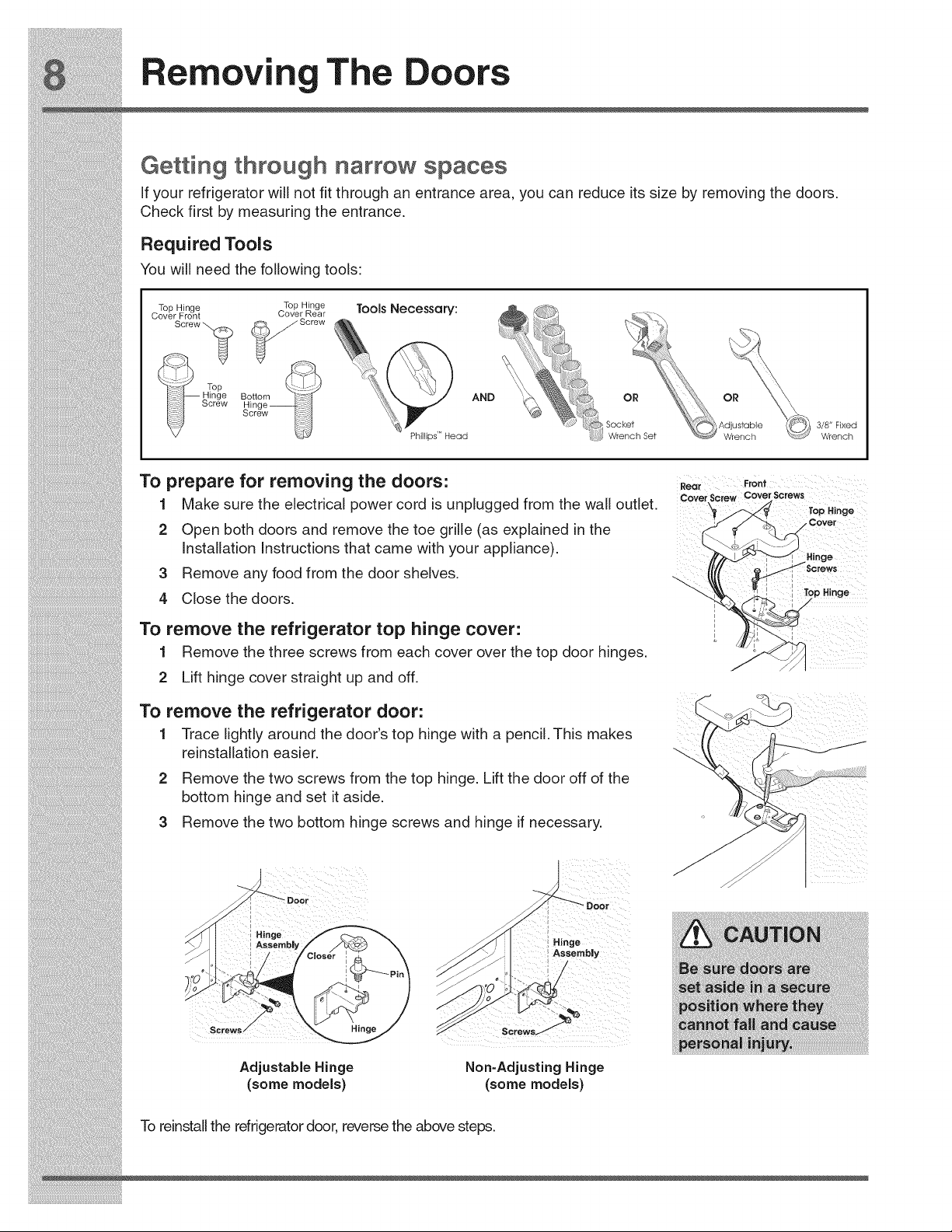

Removing The Doors
Getting through narrow spaces
If your refrigerator wi[[ not fit through an entrance area, you can reduce its size by removing the doors.
Check first by measuring the entrance.
Required Tools
You will need the following tools:
Top Hinge Top Hinge TOOLS Necessary:
Cover Front Cover Rear
Screw _ _ Screw
Top Screw _ Phillips'" Head_ _%gwe B_tt__
AND
3/8" Fixed
Wrench
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Open both doors and remove the toe grille (as explained in the
Installation Instructions that came with your appliance).
3 Remove any food from the door shelves.
4 Close the doors.
To remove the refrigerator top hinge cover:
1 Remove the three screws from each cover over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the refrigerator door:
1 Trace lightly around the door's top hinge with a pencil. This makes
reinstallation easier.
2 Remove the two screws from the top hinge. Lift the door off of the
bottom hinge and set it aside.
3 Remove the two bottom hinge screws and hinge if necessary.
Adjustable Hinge
(some models)
Non-Adjusting Hinge
(some models)
Rear Front
Cover Screw Cover Screws
ToP Hinge
_p Hinge
To reinstall the refrigerator door, reverse the above steps.
Removing The Doors

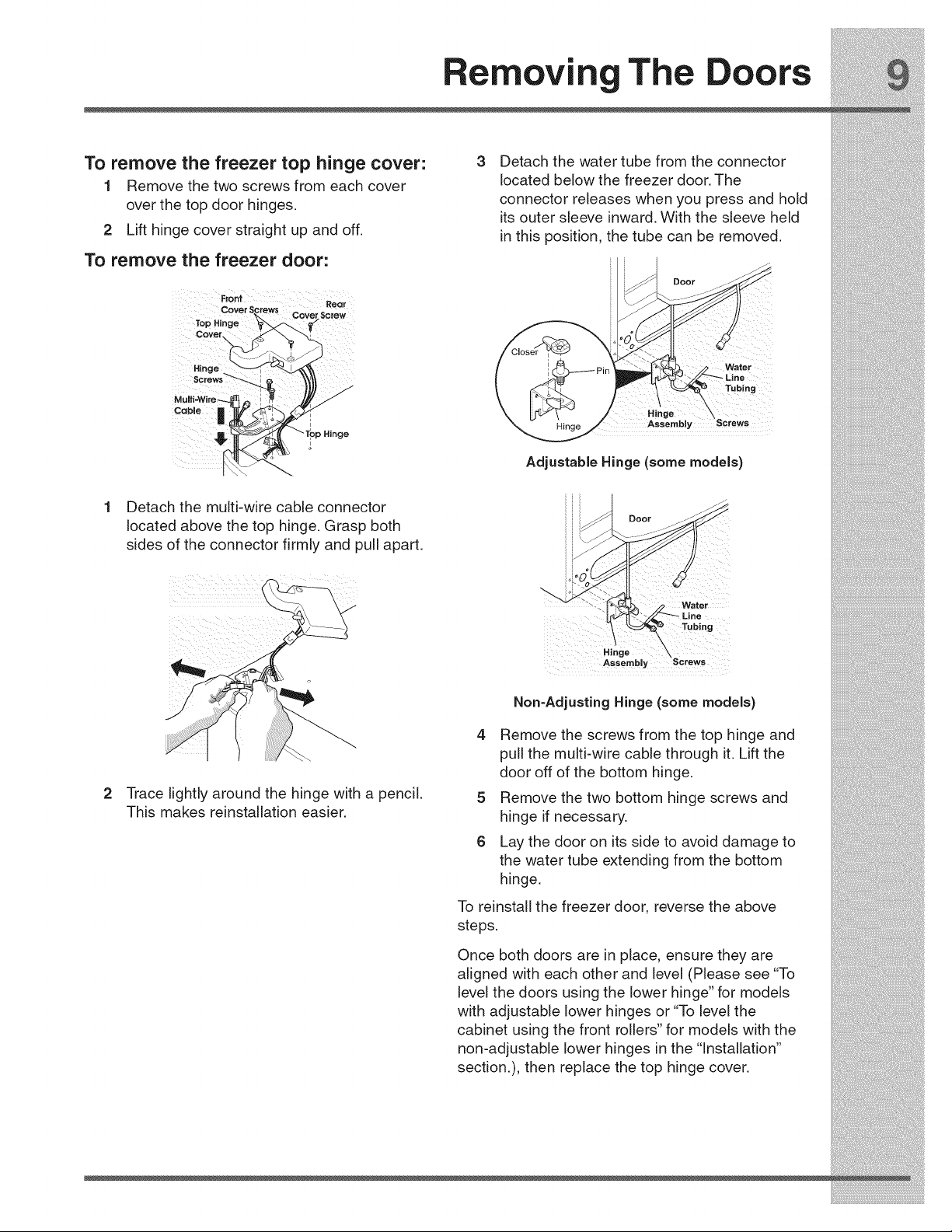

To remove the freezer top hinge cover:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the freezer door:
Front Rear
Cover Screws
"_. Cover Screw
TopHinge _\_
Hinge
ooo,e
Detach the multi-wire cable connector
located above the top hinge. Grasp both
sides of the connector firmly and pull apart.
3 Detach the water tube from the connector
located below the freezer door. The
connector releases when you press and hold
its outer sleeve inward. With the sleeve held
in this position, the tube can be removed.
Adjustable Hinge (some models)
2Trace lightly around the hinge with a pencil.
This makes reinstallation easier.
Non-Adjusting Hinge (some models)
4 Remove the screws from the top hinge and
pull the multi-wire cable through it. Liftthe
door off of the bottom hinge.
5 Remove the two bottom hinge screws and
hinge if necessary.
6 Lay the door on its side to avoid damage to
the water tube extending from the bottom
hinge.
To reinstall the freezer door, reverse the above
steps.
Once both doors are in place, ensure they are
aligned with each other and level (Please see "To
level the doors using the lower hinge" for models
with adjustable lower hinges or "To level the
cabinet using the front rollers" for models with the
non-adjustable lower hinges in the "Installation"
section.), then replace the top hinge cover.
Instal ng Door andles
Door Handle Mounting Instructions
1 Remove handles from carton and any other protective
packaging.
2 Position freezer handle end caps over upper and
lower pre-insta[[ed shoulder bolts (A) that are fastened
into door, ensuring the holes for the set screws are
facing towards the refrigerator door.
3 While homing handle firmly against door, fasten upper
and lower Allen set screws (B) with supplied Allen
wrench.
4
I Ensure Handle Set Screws
are Facing Each Other
with Doors Closed,
Repeat steps 2 and 3 to install refrigerator handle.
Ensure the holes for the set screws are facing towards the freezer door.
Freezer Upper End Cap Refrigerator Upper End Cap
Freezer Lower End Cap Refrigerator Lower End Cap

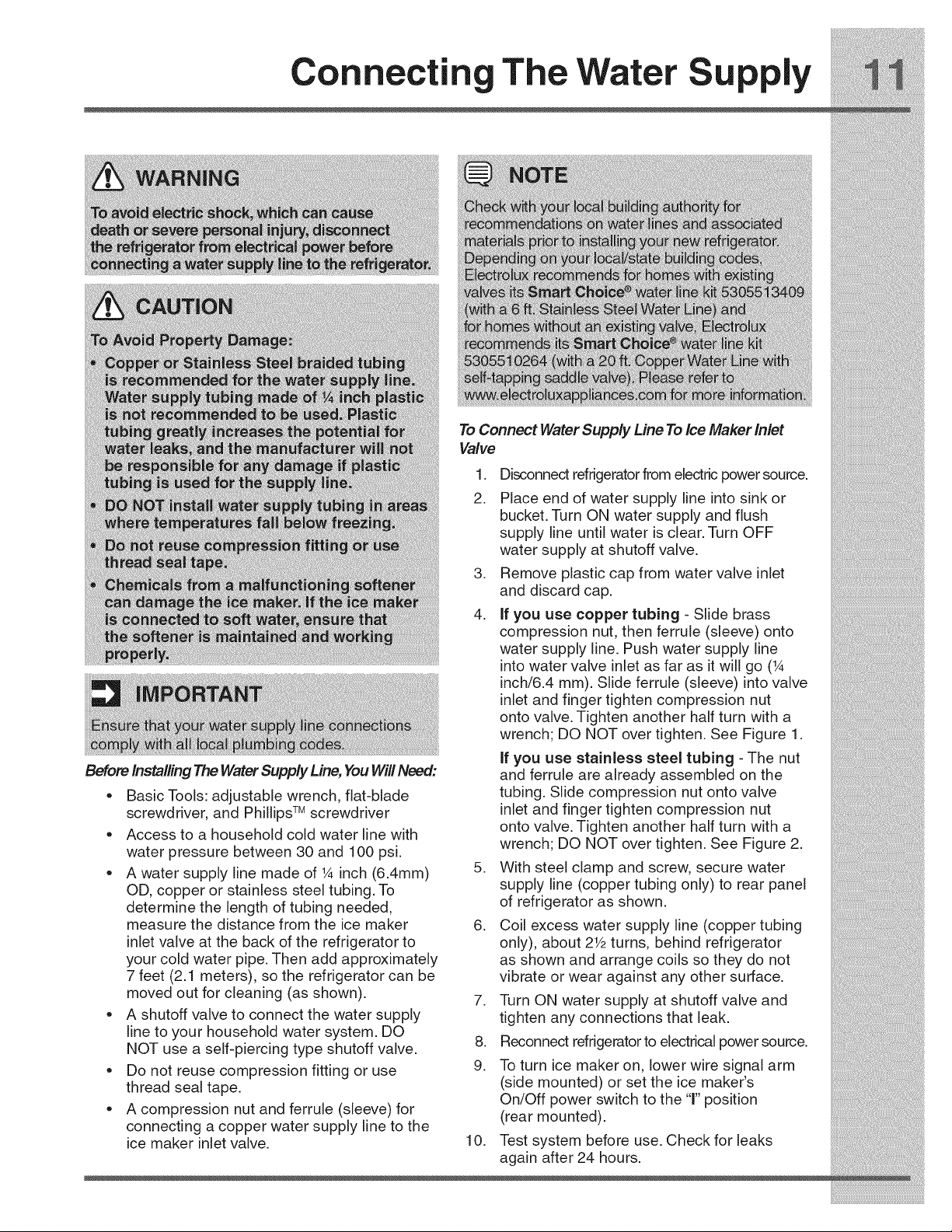

Connecting The Water Supply
Before InstallingThe Water Supply Line,You Will Need:
Basic Tools: adjustable wrench, flat-blade
screwdriver, and Phillips TM screwdriver
Access to a household cold water line with
water pressure between 30 and 100 psi.
A water supply line made of 1Ainch (6.4ram)
OD, copper or stainless steel tubing. To
determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator to
your cold water pipe. Then add approximately
7 feet (2.1 meters), so the refrigerator can be
moved out for cleaning (as shown).
A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
Do not reuse compression fitting or use
thread seal tape.
A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.
To Connect Water Supply Line To Ice Maker Inlet
Valve
,
2.
,
4.
,
,
,
8.
9.
10.
Disconnect refrigeratorfrom electric power source.
Place end of water supply line into sink or
bucket. Turn ON water supply and flush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
Remove plastic cap from water valve inlet
and discard cap.
If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto
water supply line. Push water supply line
into water valve inlet as far as it will go (X
inch/6.4 ram). Slide ferrule (sleeve) into valve
inlet and finger tighten compression nut
onto valve. Tighten another half turn with a
wrench; DO NOT over tighten. See Figure 1.
If you use stainless steel tubing - The nut
and ferrule are already assembled on the
tubing. Slide compression nut onto valve
inlet and finger tighten compression nut
onto valve. Tighten another half turn with a
wrench; DO NOT over tighten. See Figure 2.
With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel
of refrigerator as shown.
Coil excess water supply line (copper tubing
only), about 2Y2turns, behind refrigerator
as shown and arrange coils so they do not
vibrate or wear against any other surface.
Turn ON water supply at shutoff valve and
tighten any connections that leak.
Reconnect refrigerator to electrical power source.
To turn ice maker on, lower wire signal arm
(side mounted) or set the ice maker's
On/Off power switch to the 'T' position
(rear mounted).
Test system before use. Check for leaks
again after 24 hours.
Connecting The Water Supply

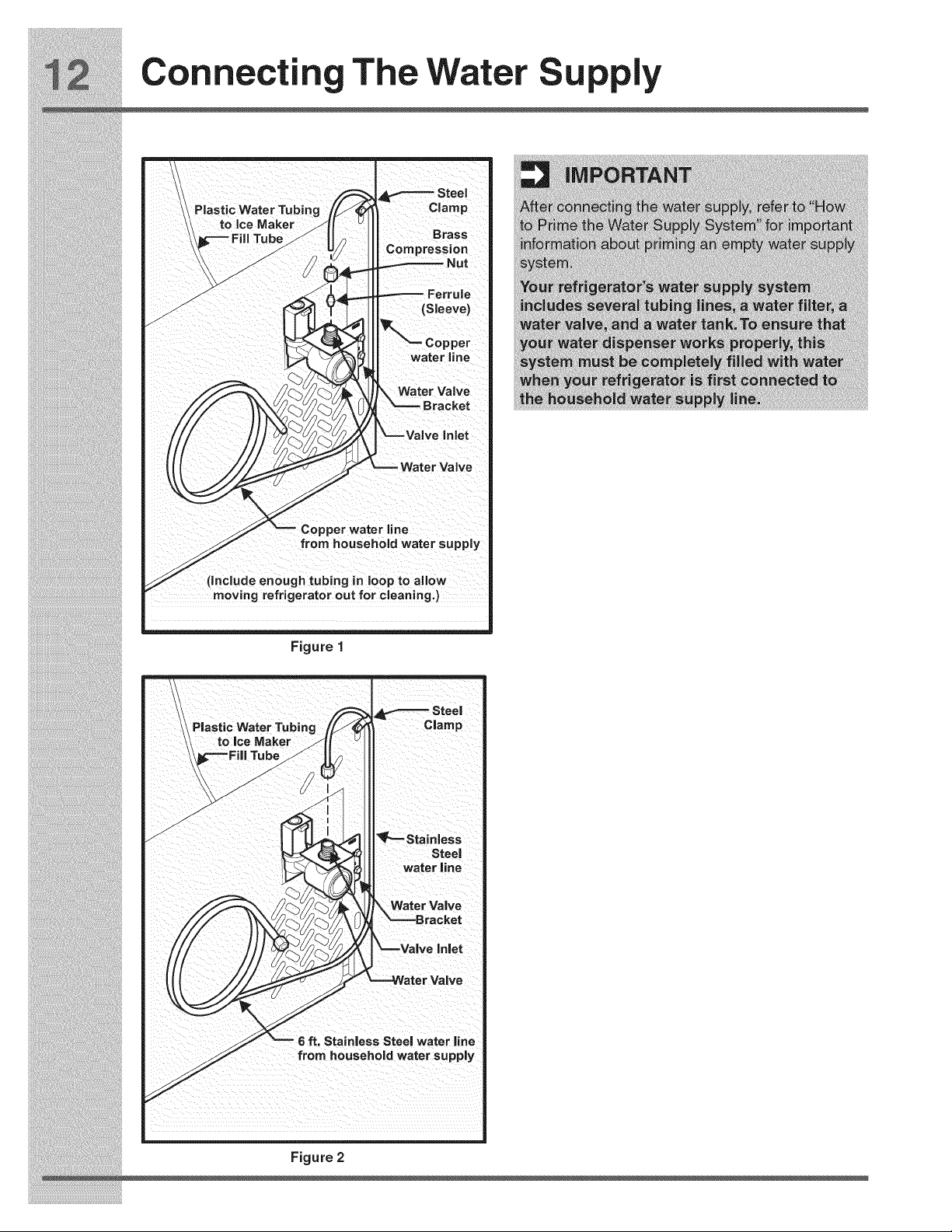

Figure 1
ing
Figure 2

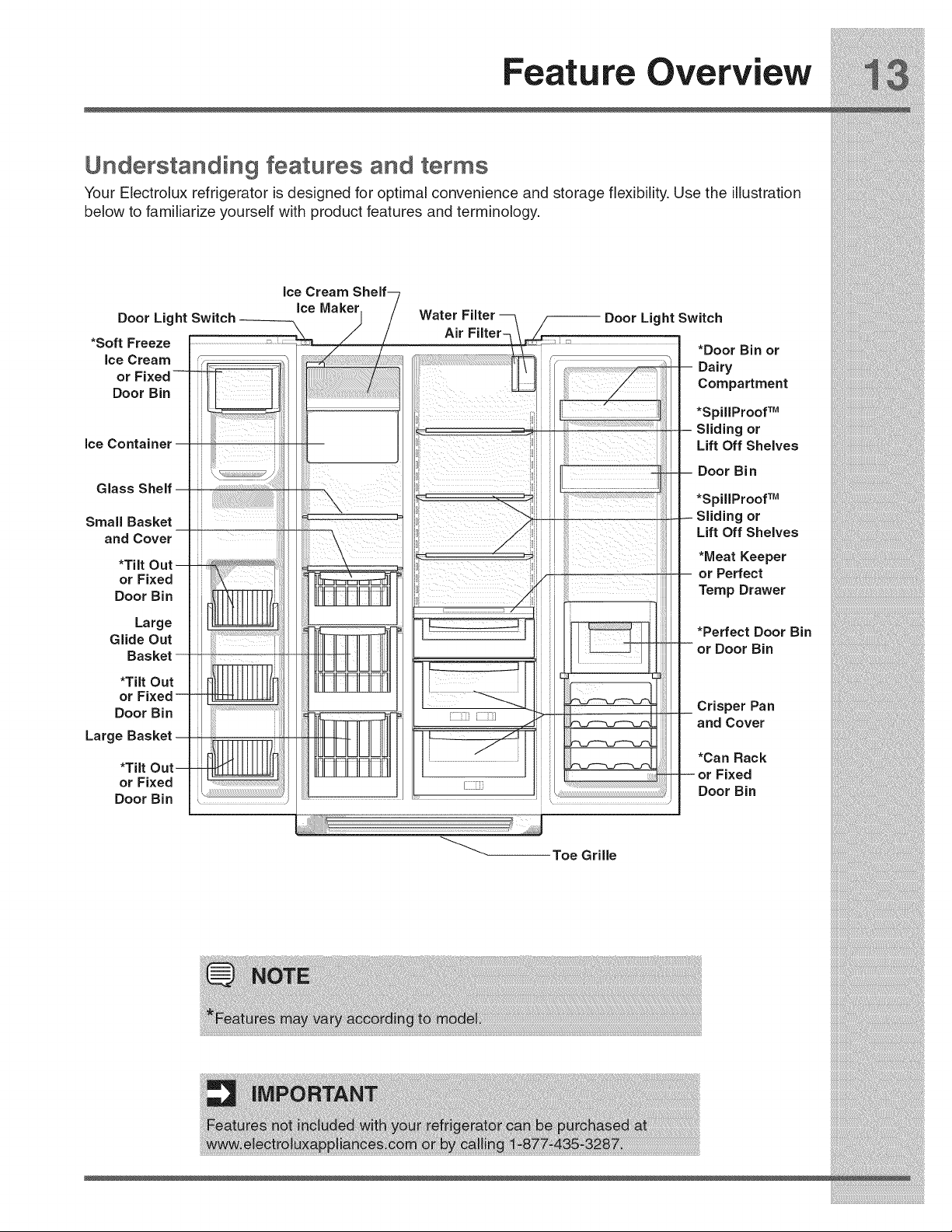

Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility, Use the illustration
below to familiarize yourself with product features and terminology,
Door Light Switch
*Soft Freeze
Ice Cream
or
Door Bin
ice
Glass
Small Basket
and Cover
Large
Glide Out
*Tilt Out
or
Door Bin
Large
*Tilt
or Fixed
Door Bin
Ice Cream
Ice Maker Water Filter /-- Door Light Switch
Air
*Door Bin or
Dairy
Compartment
*SpiBProof TM
Sliding or
Lift Off Shelves
Door Bin
*SpiBProof TM
Sliding or
Lift Off Shelves
*Meat Keeper
or Perfect
Temp Drawer
*Perfect Door Bin
or Door Bin
Crisper Pan
and Cover
*Can Rack
Fixed
Door Bin
Toe Grille
Controls

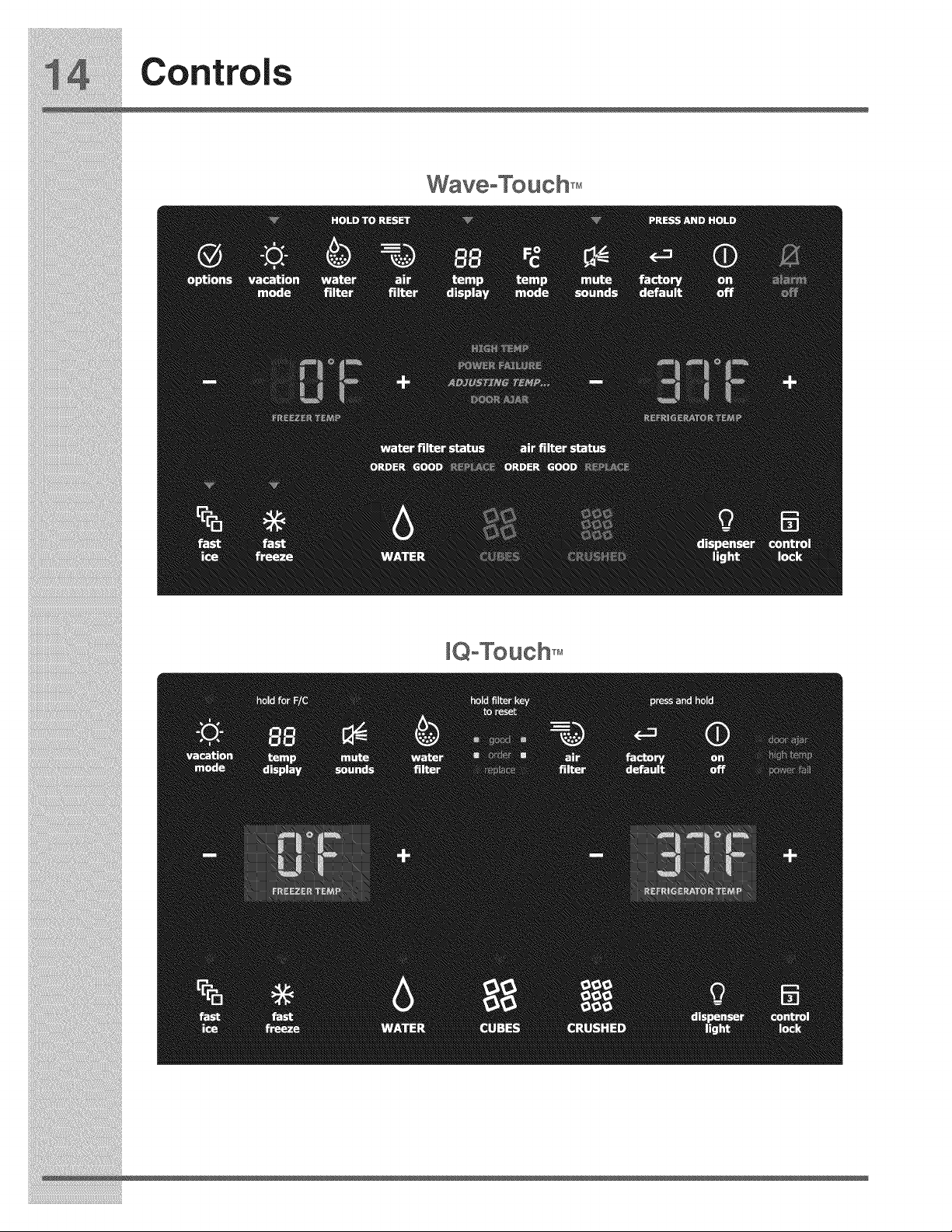

Controls

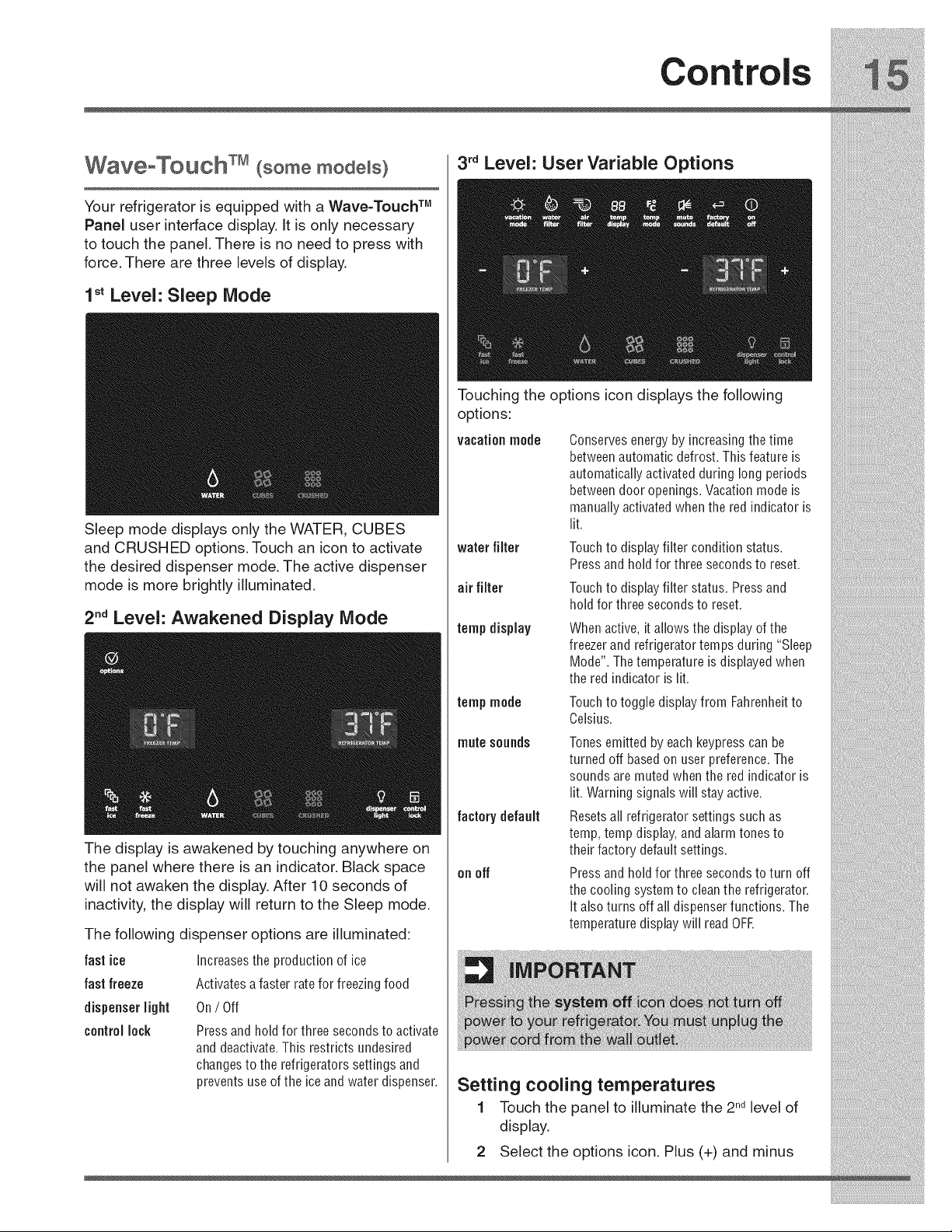

Wav÷oTouch TM (some models)
Your refrigerator is equipped with a Wave=Touch TM
Panel user interface display. It is only necessary
to touch the panel. There is no need to press with
force. There are three levels of display.
1st Level" Sleep Mode
Sleep mode displays only the WATER, CUBES
and CRUSHED options. Touch an icon to activate
the desired dispenser mode. The active dispenser
mode is more brightly illuminated.
2ndLevel: Awakened Display Mode
The display is awakened by touching anywhere on
the panel where there is an indicator. Black space
will not awaken the display. After 10 seconds of
inactivity, the display will return to the Sleep mode.
The following dispenser options are illuminated:
fast ice increases the production of ice
fast freeze Activates a faster rate for freezing food
dispenser light On /Off
controllock Press and hold for three seconds to activate
and deactivate. This restricts undesired
changesto the refrigerators settings and
prevents use of the ice and water dispenser.
3'd Level: User Variable Options
Touching the options icon displays the following
options:
vacationmode Conservesenergy by increasingthe time
betweenautomatic defrost. This feature is
automatically activated during long periods
between door openings. Vacation mode is
manually activated when the red indicator is
lit.
waterfilter Touch to display filter condition status.
Press and hold for three seconds to reset.
air filter Touchto display filter status. Pressand
hold for three seconds to reset.
temp display When active, it allows the display of the
freezer and refrigerator temps during "Sleep
Mode". The temperature is displayed when
the red indicator is lit.
tempmode Touchto toggledisplayfrom Fahrenheitto
Celsius.
mute sounds
factory default
on off
Tones emitted by each keypress can be
turned off based on user preference.The
sounds are muted when the red indicator is
lit. Warning signals will stay active.
Resets all refrigerator settings such as
temp, temp display, and alarm tones to
their factory default settings.
Press and hold for three seconds to turn off
the cooling system to clean the refrigerator.
It also turns off all dispenser functions. The
temperature display will read OFF.
Setting cooling temperatures
1 Touch the panel to illuminate the 2 ndlevel of
display.
2 Select the options icon, Plus (+) and minus
Controls
3
(-) indicators will appear on either side of the
displayed temperatures.
Press the + or - indicator to adjust the
temperature to the desired setting.
The temperature display will begin to blink
with the first touch. After five seconds of
inactivity, the display will beep to accept
the new temperature. After 10 seconds, the
display times out and returns to the basic
display.
Alarms
BoorAjar
HighTemp
Power Fail
If the door has been left open for an
extended period of time, an alarm will
sound and the door ajar indicator will
display in the middle. The alarm is turned
off by closing the door. The alarm off key
will illuminate to prompt the reset of any
pending alarms. Pressthis keyto reset any
system Alarms.
In the event of a high temperature
condition, the temperature display will
display "HI". After 20 minutes, the high
temp alert will be displayed and the alarm
off icon will illuminate until pressed,
acknowledging the alarm, at which time
the highest temperature reached will be
displayed andthe refrigerator will resume
normal operation. All other modes are
turned off until the alarm is acknowledged.
In the event of a power failure, the power
fail alert will be displayed and the alarm
off key will be illuminated and you will hear
an audible alarm until the alarm off icon is
pressed, acknowledging the alarm. Other
modes may be turned off until the alarm is
acknowledged. When the powerfail alert is
turned off, the refrigerator will resume
normal operation. The high temp alarm
may also he illuminated until a safe
operatingrange temperature has been
reached.

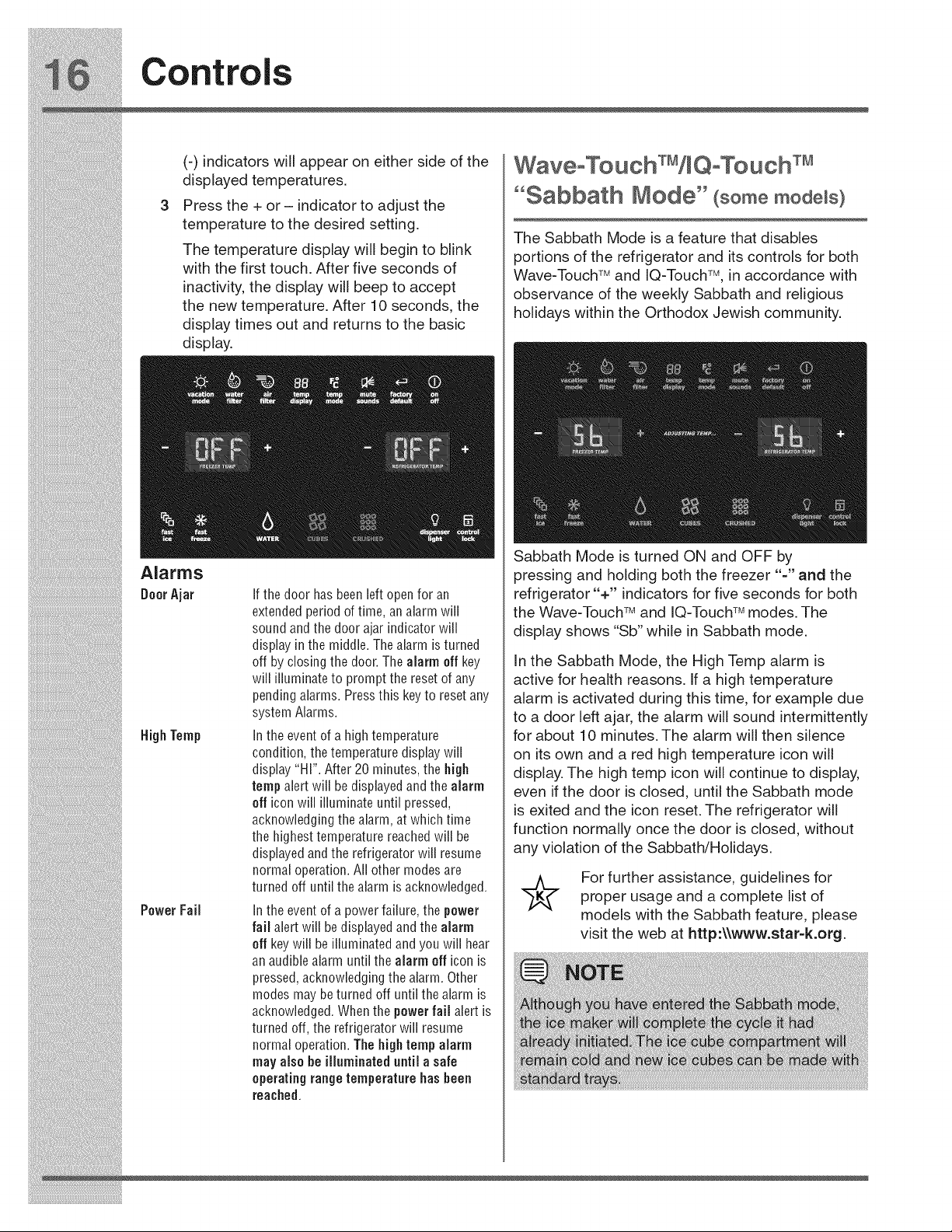

Wave-TouchTM/IQoTouchTM
"Sabbath Mode" (somemodels)
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls for both
Wave-Touch TM and IQ-TouchT% in accordance with
observance of the weekly Sabbath and religious
holidays within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the freezer "J' and the
refrigerator "+" indicators for five seconds for both
the Wave-Touch TM and IQ-Touch TM modes. The
display shows "Sb" while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is
active for health reasons. If a high temperature
alarm is activated during this time, for example due
to a door left ajar, the alarm will sound intermittently
for about 10 minutes. The alarm will then silence
on its own and a red high temperature icon will
display. The high temp icon will continue to display,
even if the door is closed, until the Sabbath mode
is exited and the icon reset. The refrigerator will
function normally once the door is closed, without
any violation of the Sabbath/Holidays.
For further assistance, guidelines for
proper usage and a complete list of
models with the Sabbath feature, please
visit the web at http:\\www.star=k.org.
Controls

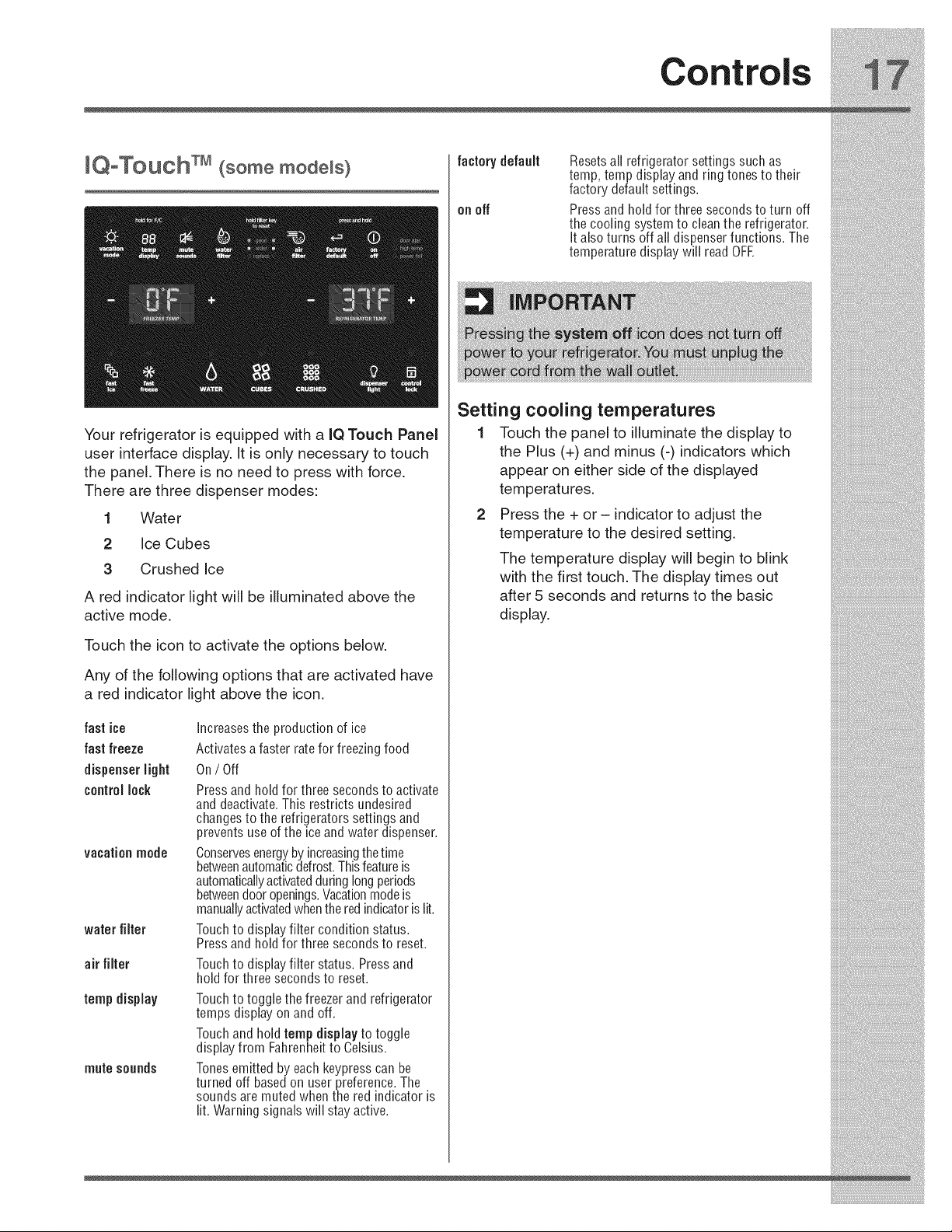

IQoTouch TM(some models)
Your refrigerator is equipped with a IQ Touch Panel
user interface display. It is only necessary to touch
the panel. There is no need to press with force.
There are three dispenser modes:
1 Water
2 Ice Cubes
3Crushed Ice
A red indicator light will be illuminated above the
active mode.
Touch the icon to activate the options below.
Any of the following options that are activated have
a red indicator light above the icon.
fast ice
fast freeze
dispenserlight
controllock
vacationmode
water filter
air filter
temp display
mutesounds
Increases the production of ice
Activates a faster rate for freezing food
On /Off
Press and hold for three seconds to activate
and deactivate. This restricts undesired
changesto the refrigerators settings and
prevents use of the ice and water dispenser.
Conservesenergyby increasingthetime
betweenautomaticdefrost.Thisfeatureis
automaticallyactivatedduring long periods
betweendoor openings.Vacationmodeis
manuallyactivatedwhenthe red indicatoris lit.
Touchto display filter condition status.
Press and hold for three seconds to reset.
Touchto display filter status. Pressand
hold for three seconds to reset.
Touchto toggle the freezer and refrigerator
temps display on and off.
Touchand hold temp display to toggle
display from Fahrenheitto Celsius.
Tones emitted by each keypress can be
turned off based on user preference.The
sounds are muted when the red indicator is
lit. Warning signals will stay active.
factory default
onoff
Resets all refrigerator settings such as
temp, temp display and ring tones to their
factory default settings.
Press and hold for three seconds to turn off
the cooling system to clean the refrigerator.
It also turns off all dispenser functions. The
temperature display will read OFF.
Setting cooling temperatures
1 Touch the panel to illuminate the display to
the Plus (+) and minus (-) indicators which
appear on either side of the displayed
temperatures.
2 Press the + or - indicator to adjust the
temperature to the desired setting.
The temperature display will begin to blink
with the first touch. The display times out
after 5 seconds and returns to the basic
display.
Controls
Alarms
DoorAjar
HighTemp
PowerFail
If the door has been left open for an
extended period of time, an alarm will
sound and the door ajar indicator will
display on the right side of the display.The
alarm is turned off by closing the door. The
mute sounds keywill illuminate to prompt
the reset of any pending alarms. Press this
key to reset any system alarms.
In the event of a high temperature
condition, the temperature display will
display "HI". After 20 minutes, the high
temp alert will be displayed and the mute
sounds icon will illuminate until pressed,
acknowledging the alarm, at which time
the highest temperature reached will be
displayed andthe refrigerator will resume
normal operation. All other modes are
turned off until the alarm is acknowledged.
In the event of a power failure, the power
fail alert will be displayed and the mute
sounds icon will be illuminated and you will
hear an audible alarm until the mute sounds
icon is pressed, acknowledging the alarm.
Other modes may be turned off until the
alarm is acknowledged. When the power
fail alert is turned off the
refrigerator will resume normal opera-
tion. The high temp alarm may also he
illuminated until a safe operatingrange
temperaturehas been reached.
Storage Features

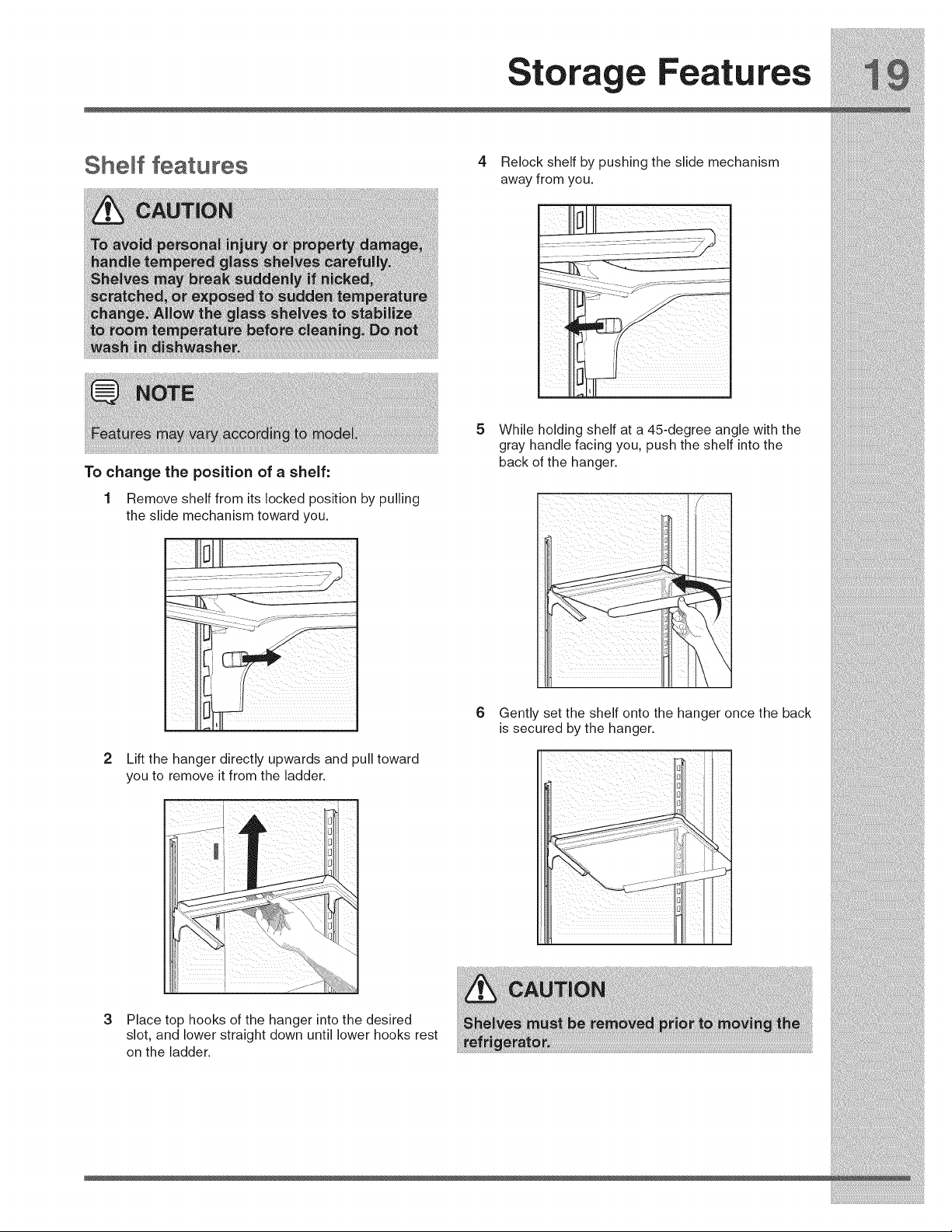

Shemf features 4 Relock shelf by pushing the slide mechanism
away from you.
To change the position of a shelf:
1 Remove shelf from its locked position by pulling
the slide mechanism toward you.
2 Lift the hanger directly upwards and pull toward
you to remove it from the ladder.
5
6
While holding shelf at a 45-degree angle with the
gray handle facing you, push the shelf into the
back of the hanger.
Gently set the shelf onto the hanger once the back
is secured by the hanger.
3 Place top hooks of the hanger into the desired
slot, and lower straight down until lower hooks rest
on the ladder.
Storage Features

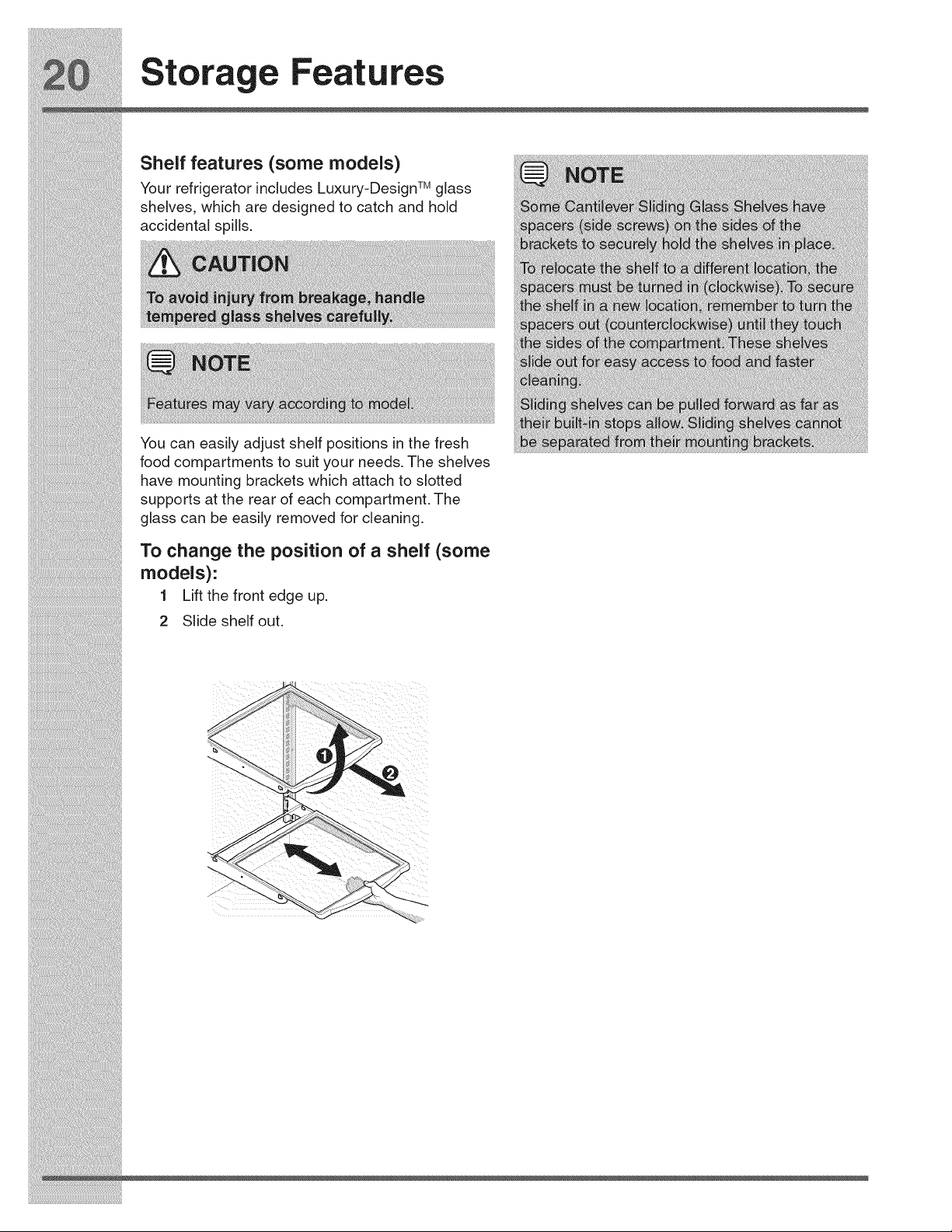

Shelf features (some models)
Your refrigerator includes Luxury-DesignTM glass
shelves, which are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the fresh
food compartments to suit your needs. The shelves
have mounting brackets which attach to slotted
supports at the rear of each compartment. The
glass can be easily removed for cleaning.
To change the position of a shelf (some
models):
1 Lift the front edge up.
2 Slide shelf out.
Storage Features

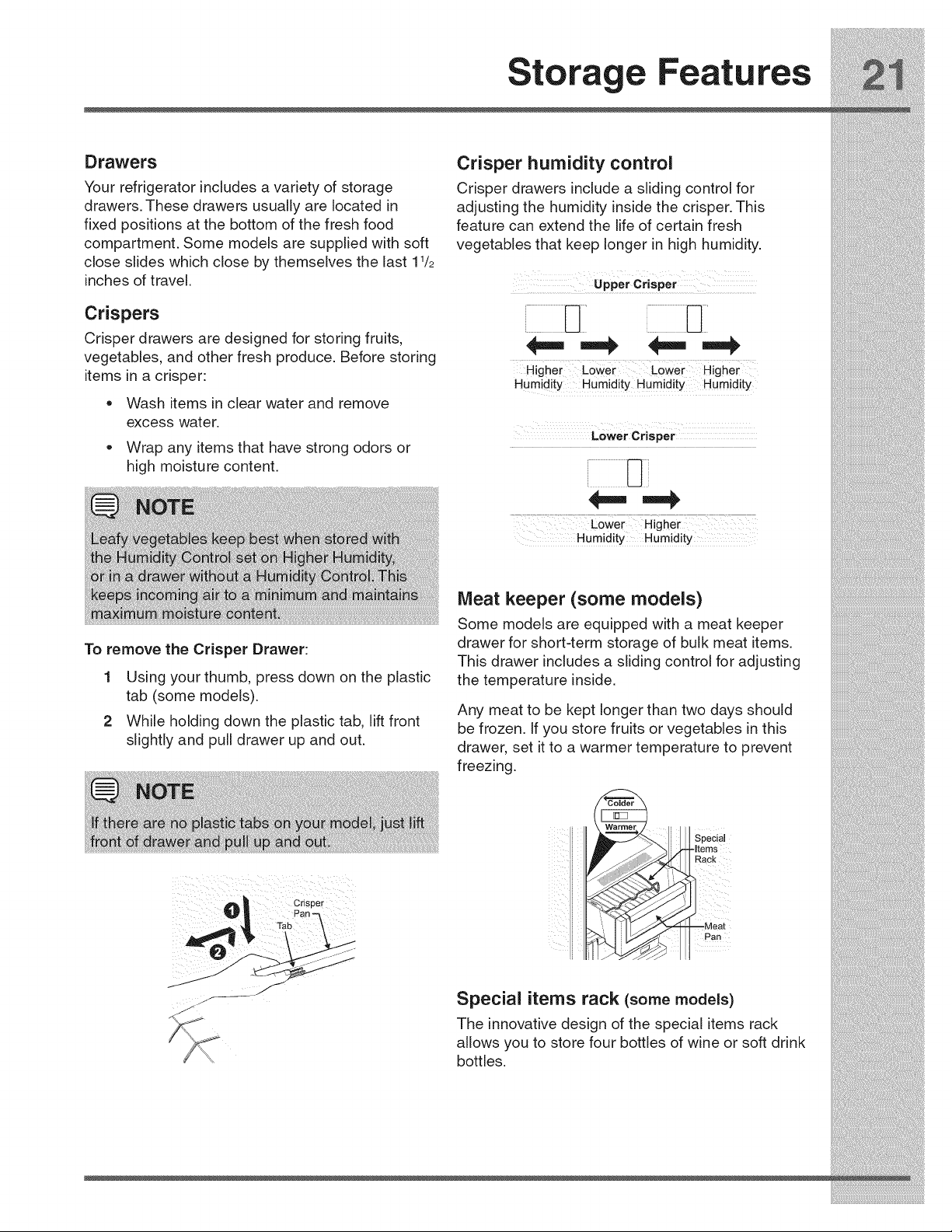

Drawers
Your refrigerator includes a variety of storage
drawers. These drawers usually are located in
fixed positions at the bottom of the fresh food
compartment. Some models are supplied with soft
close slides which close by themselves the last 11/2
inches of travel.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce. Before storing
items in a crisper:
Wash items in clear water and remove
excess water.
•Wrap any items that have strong odors or
high moisture content.
Crisper humidity control
Crisper drawers include a sliding control for
adjusting the humidity inside the crisper. This
feature can extend the life of certain fresh
vegetables that keep longer in high humidity.
............................... .......
D D
Humidity Humidity Humidity Humidity
Lower Crisper
Humidity Humidity
To remove the Crisper Drawer:
1 Using your thumb, press down on the plastic
tab (some models).
2 While holding down the plastic tab, lift front
slightly and pull drawer up and out.
Meat keeper (some models)
Some models are equipped with a meat keeper
drawer for short-term storage of bulk meat items.
This drawer includes a sliding control for adjusting
the temperature inside.
Any meat to be kept longer than two days should
be frozen. If you store fruits or vegetables in this
drawer, set it to a warmer temperature to prevent
freezing.
Special
-Items
Rack
Meat
Par
Special items rack (some models)
The innovative design of the special items rack
allows you to store four bottles of wine or soft drink
bottles.
Storage Features

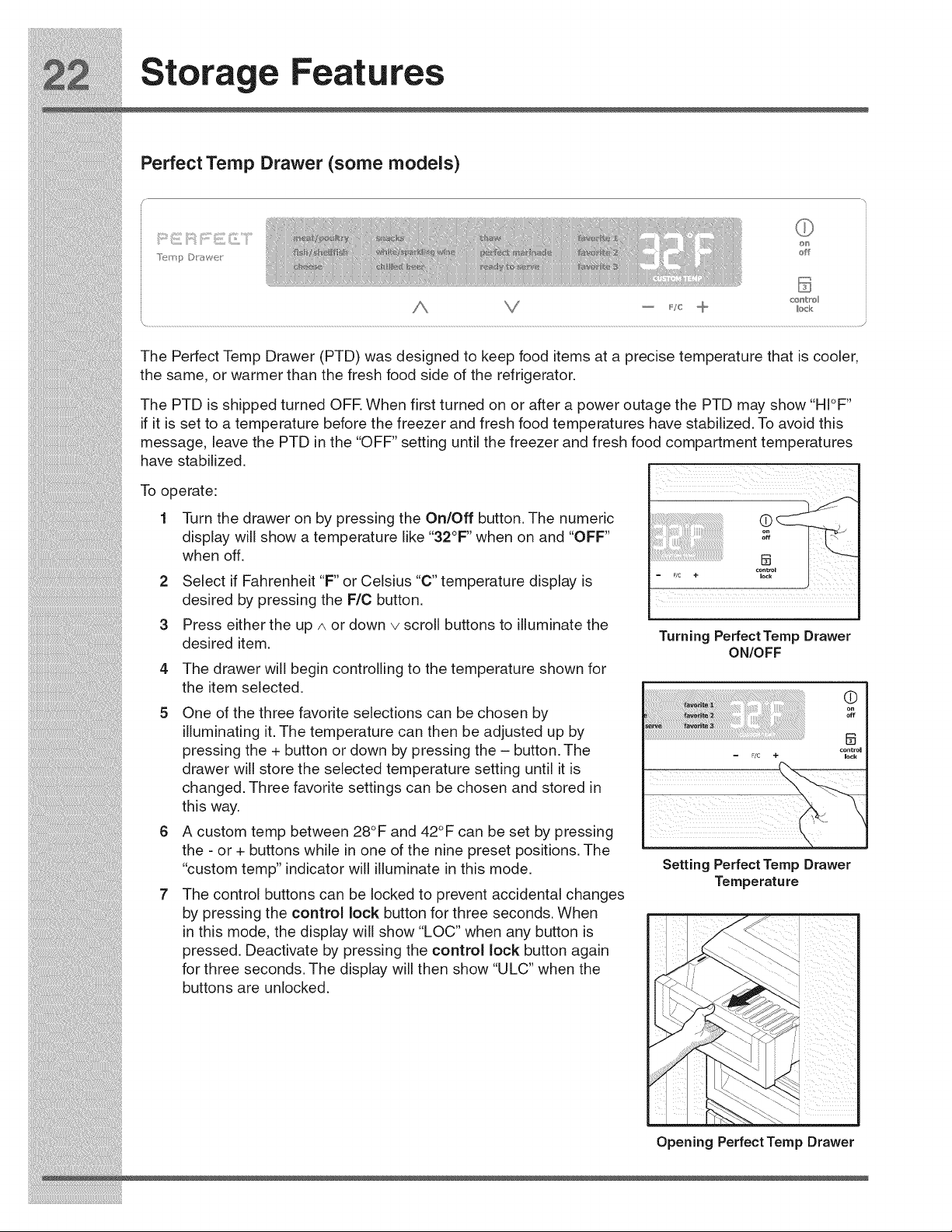

Perfect Temp Drawer (some models)
F:::_{!£i:i:::iiliiic:_{iii!iill_i!iii:ii:ili:il__.....
_emp L:/r_sw : r
The Perfect Temp Drawer (PTD) was designed to keep food items at a precise temperature that is cooler,
the same, or warmer than the fresh food side of the refrigerator.
The PTD is shipped turned OFR When first turned on or after a power outage the PTD may show "HI°F ''
if it is set to a temperature before the freezer and fresh food temperatures have stabilized. To avoid this
message, leave the PTD in the "OFF" setting until the freezer and fresh food compartment temperatures
have stabilized.
To operate:
1 Turn the drawer on by pressing the On/Off button. The numeric
display will show a temperature like "32°F '' when on and "OFF"
when off.
2 Select if Fahrenheit "F" or Celsius "C" temperature display is
desired by pressing the F/C button.
3 Press either the up _,or down v scroll buttons to illuminate the
desired item.
4 The drawer will begin controlling to the temperature shown for
the item selected.
5 One of the three favorite selections can be chosen by
illuminating it. The temperature can then be adjusted up by
pressing the + button or down by pressing the - button. The
drawer will store the selected temperature setting until it is
changed. Three favorite settings can be chosen and stored in
this way.
6 A custom temp between 28°F and 42°F can be set by pressing
the - or + buttons while in one of the nine preset positions. The
"custom temp" indicator will illuminate in this mode.
7 The control buttons can be locked to prevent accidental changes
by pressing the control lock button for three seconds. When
in this mode, the display will show "LOC" when any button is
pressed. Deactivate by pressing the control lock button again
for three seconds. The display wil! then show "ULC" when the
buttons are unlocked.
Turning PerfectTemp Drawer
ON/OFF
Setting Perfect Temp Drawer
Temperatu re
Opening Perfect Temp Drawer
Storage Features

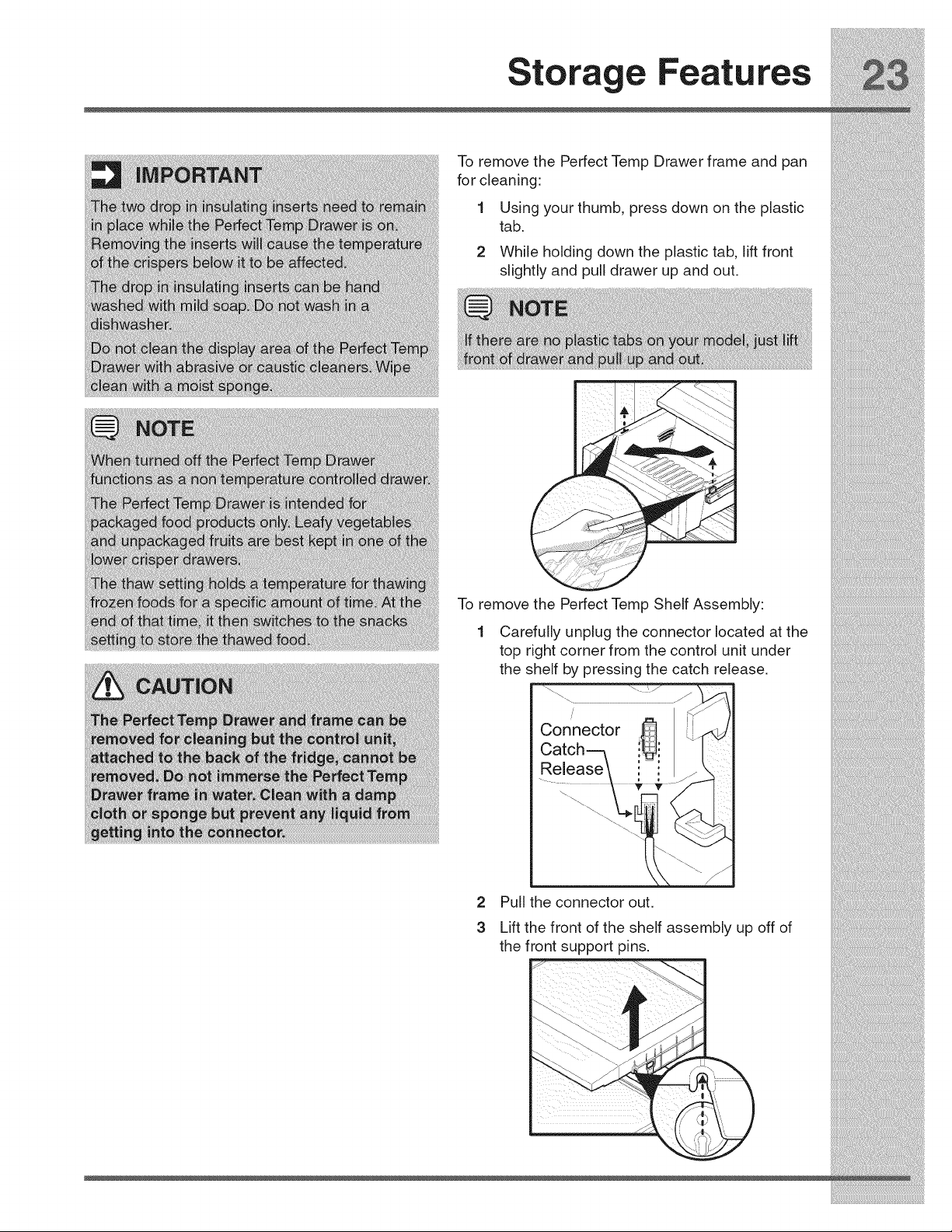

To remove the Perfect Temp Drawer frame and pan
for cleaning:
1 Using your thumb, press down on the plastic
tab.
2 While holding down the plastic tab, lift front
slightly and pull drawer up and out.
To remove the Perfect Temp Shelf Assembly:
1 Carefully unplug the connector located at the
top right corner from the control unit under
the shelf by pressing the catch release.
2 Pull the connector out.
3 Lift the front of the shelf assembly up off of
the front support pins.
Storage Features

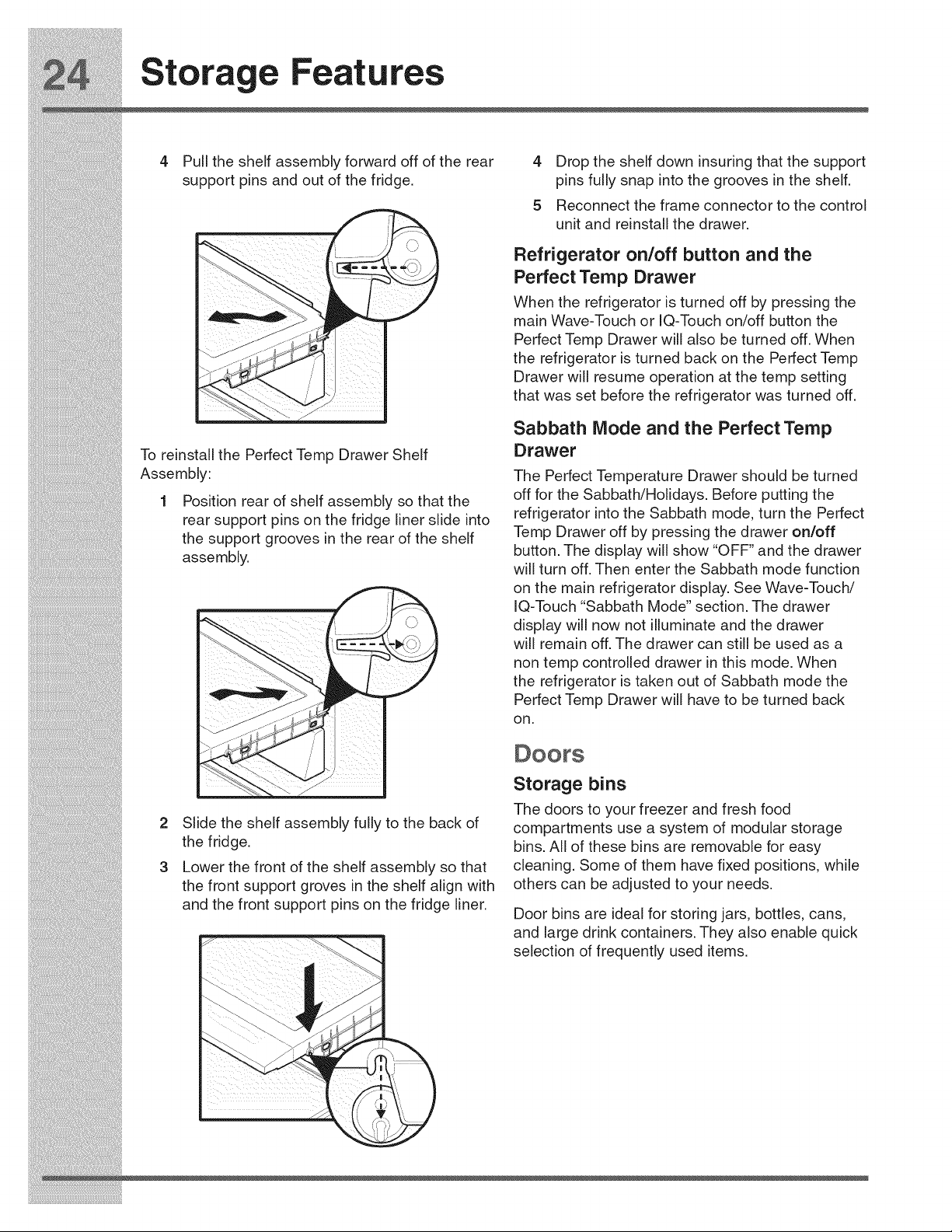

4 Pull the shelf assembly forward off of the rear
support pins and out of the fridge.
To reinstall the Perfect Temp Drawer Shelf
Assembly:
Position rear of shelf assembly so that the
rear support pins on the fridge liner slide into
the support grooves in the rear of the shelf
assembly.
2 Slide the shelf assembly fully to the back of
the fridge.
3 Lower the front of the shelf assembly so that
the front support groves in the shelf align with
and the front support pins on the fridge liner.
4 Drop the shelf down insuring that the support
pins fully snap into the grooves in the shelf.
5 Reconnect the frame connector to the control
unit and reinstall the drawer.
Refrigerator on/off button and the
Perfect Temp Drawer
When the refrigerator is turned off by pressing the
main Wave-Touch or IQ-Touch on/off button the
Perfect Temp Drawer will also be turned off. When
the refrigerator is turned back on the Perfect Temp
Drawer will resume operation at the temp setting
that was set before the refrigerator was turned off.
Sabbath Mode and the Perfect Temp
Drawer
The Perfect Temperature Drawer should be turned
off for the Sabbath/Holidays. Before putting the
refrigerator into the Sabbath mode, turn the Perfect
Temp Drawer off by pressing the drawer on/off
button. The display will show "OFF" and the drawer
will turn off. Then enter the Sabbath mode function
on the main refrigerator display. See Wave-Touch/
IQ-Touch "Sabbath Mode" section. The drawer
display will now not illuminate and the drawer
will remain off. The drawer can still be used as a
non temp controlled drawer in this mode. When
the refrigerator is taken out of Sabbath mode the
Perfect Temp Drawer will have to be turned back
OR.
DOO[S
Storage bins
The doors to your freezer and fresh food
compartments use a system of modular storage
bins. All of these bins are removable for easy
cleaning. Some of them have fixed positions, while
others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans,
and large drink containers. They also enable quick
selection of frequently used items.
Storage Features
To change the position of an adjustable
door bin:
1 Before adjusting a bin, remove all food.
2 Grip the bin firmly with both hands and lift it
upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in
place.
Aooessories (varies by modeO
Can rack
The can rack allows you to efficiently and securely
store 12-ounce cans of beverage. A rubber liner sits
behind the cans to help keep them secure. Liner
may be removed for storing larger items.
DOOr Bin
Adj
Door Bins
Fixed
I
Perfect Door Bin (some models)
The Perfect Door Bin is especially designed to hold
gallon-sized containers like milk gallons. The door
bin tilts out to provide convenient storage for fresh
greens and other items.
Pizza rack (some models)
This rack is attached to the freezer wall beside
the ice dispenser container. This convenient
area allows for storage of pizza and other tall
items placed vertically between the ice dispenser
container and the freezer wall.

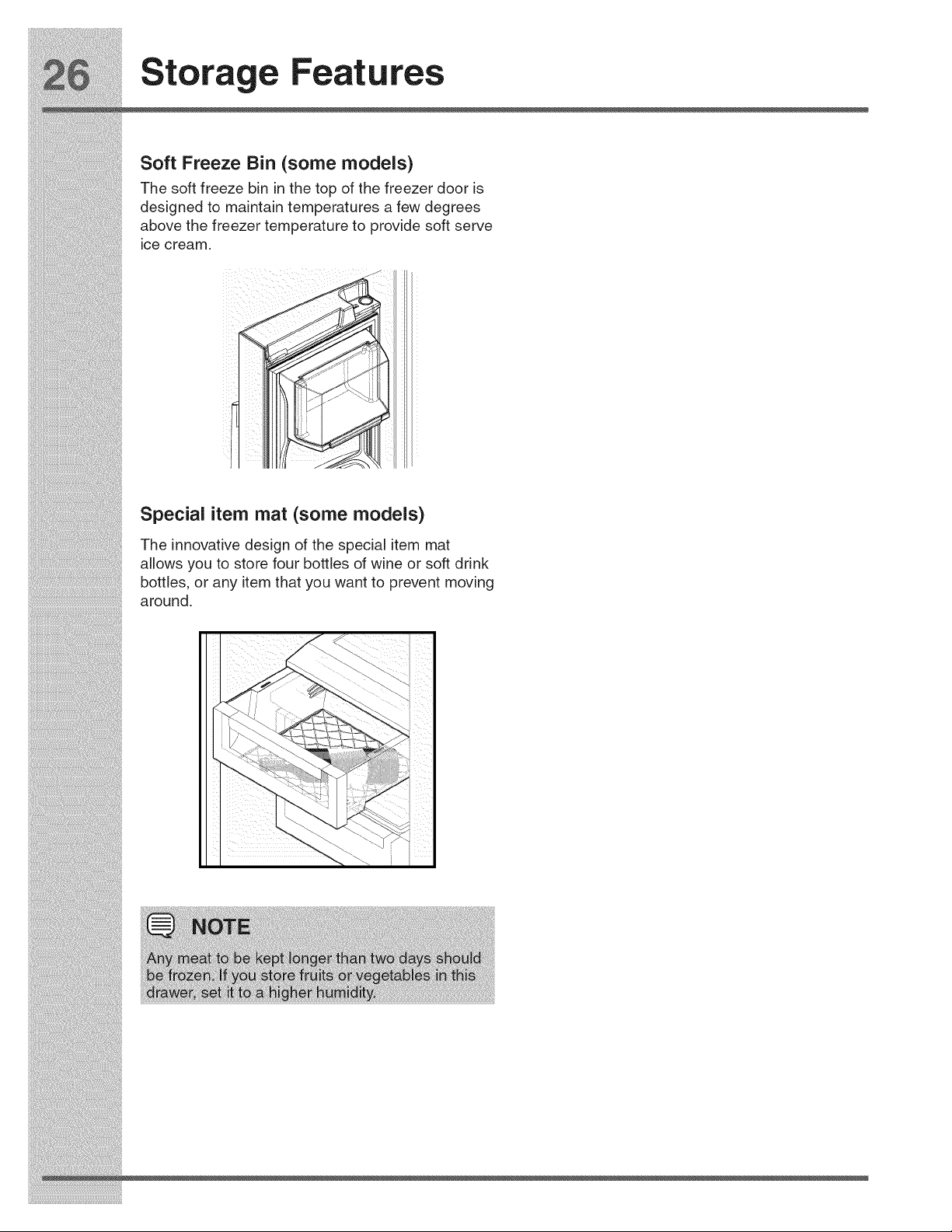

Storage Features
Soft Freeze Bin (some models)
The soft freeze bin in the top of the freezer door is
designed to maintain temperatures a few degrees
above the freezer temperature to provide soft serve
ice cream.
Special item mat (some models)
The innovative design of the special item mat
allows you to store four bottles of wine or soft drink
bottles, or any item that you want to prevent moving
around.
Automatic ice & Water ker/Dispenser

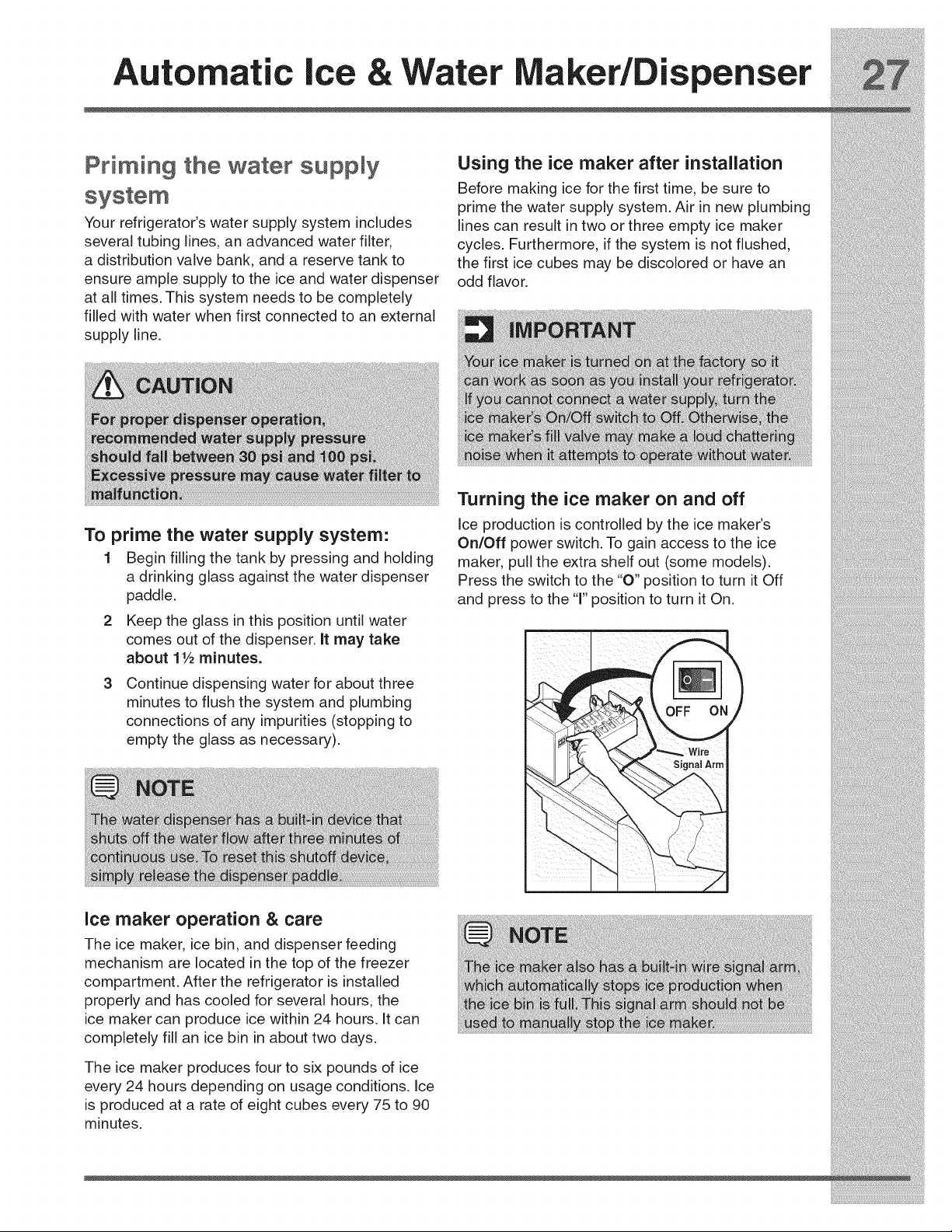

Priming the water supply
Your refrigerator's water supply system includes
several tubing lines, an advanced water filter,
a distribution valve bank, and a reserve tank to
ensure ample supply to the ice and water dispenser
at all times. This system needs to be completely
filled with water when first connected to an external
supply line.
Using the ice maker after installation
Before making ice for the first time, be sure to
prime the water supply system. Air in new plumbing
lines can result in two or three empty ice maker
cycles. Furthermore, if the system is not flushed,
the first ice cubes may be discolored or have an
odd flavor.
To prime the water supply system:
1 Begin filling the tank by pressing and holding
a drinking glass against the water dispenser
paddle.
2Keep the glass in this position until water
comes out of the dispenser, it may take
about 11/2minutes.
3Continue dispensing water for about three
minutes to flush the system and plumbing
connections of any impurities (stopping to
empty the glass as necessary).
Ice maker operation & care
The ice maker, ice bin, and dispenser feeding
mechanism are located in the top of the freezer
compartment. After the refrigerator is installed
properly and has cooled for several hours, the
ice maker can produce ice within 24 hours. It can
completely fill an ice bin in about two days.
The ice maker produces four to six pounds of ice
every 24 hours depending on usage conditions. Ice
is produced at a rate of eight cubes every 75 to 90
minutes.
Turning the ice maker on and off
Ice production is controlled by the ice maker's
On/Off power switch. To gain access to the ice
maker, pull the extra shelf out (some models).
Press the switch to the "O" position to turn it Off
and press to the 'T' position to turn it On.

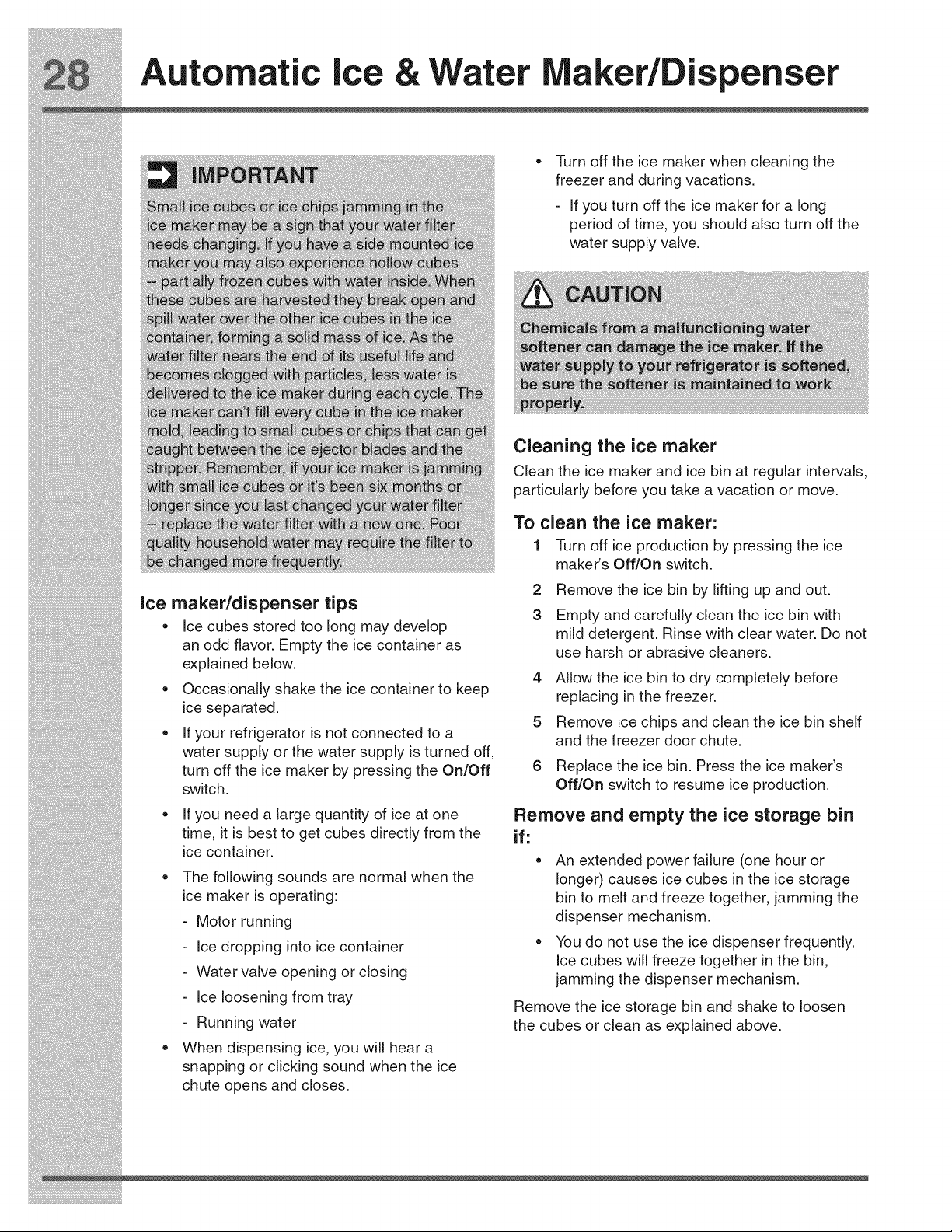

Automatic ice & Water aker/Dispenser
Turn off the ice maker when cleaning the
freezer and during vacations.
If you turn off the ice maker for a long
period of time, you should also turn off the
water supply valve.
ice maker/dispenser tips
= Ice cubes stored too long may develop
an odd flavor. Empty the ice container as
explained below.
• Occasionally shake the ice container to keep
ice separated.
= If your refrigerator is not connected to a
water supply or the water supply is turned off,
turn off the ice maker by pressing the On/Off
switch.
= If you need a large quantity of ice at one
time, it is best to get cubes directly from the
ice container.
= The following sounds are normal when the
ice maker is operating:
Motor running
Ice dropping into ice container
- Water valve opening or closing
Ice loosening from tray
Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals,
particularly before you take a vacation or move.
To clean the ice maker:
1 Turn off ice production by pressing the ice
maker's Off/On switch.
2
3
Remove the ice bin by lifting up and out.
Empty and carefully clean the ice bin with
mild detergent. Rinse with clear water. Do not
use harsh or abrasive cleaners.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Remove ice chips and clean the ice bin shelf
and the freezer door chute.
6 Replace the ice bin. Press the ice maker's
Off/On switch to resume ice production.
Remove and empty the ice storage bin
if:
= An extended power failure (one hour or
longer) causes ice cubes in the ice storage
bin to melt and freeze together, jamming the
dispenser mechanism.
• You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice storage bin and shake to loosen
the cubes or clean as explained above.

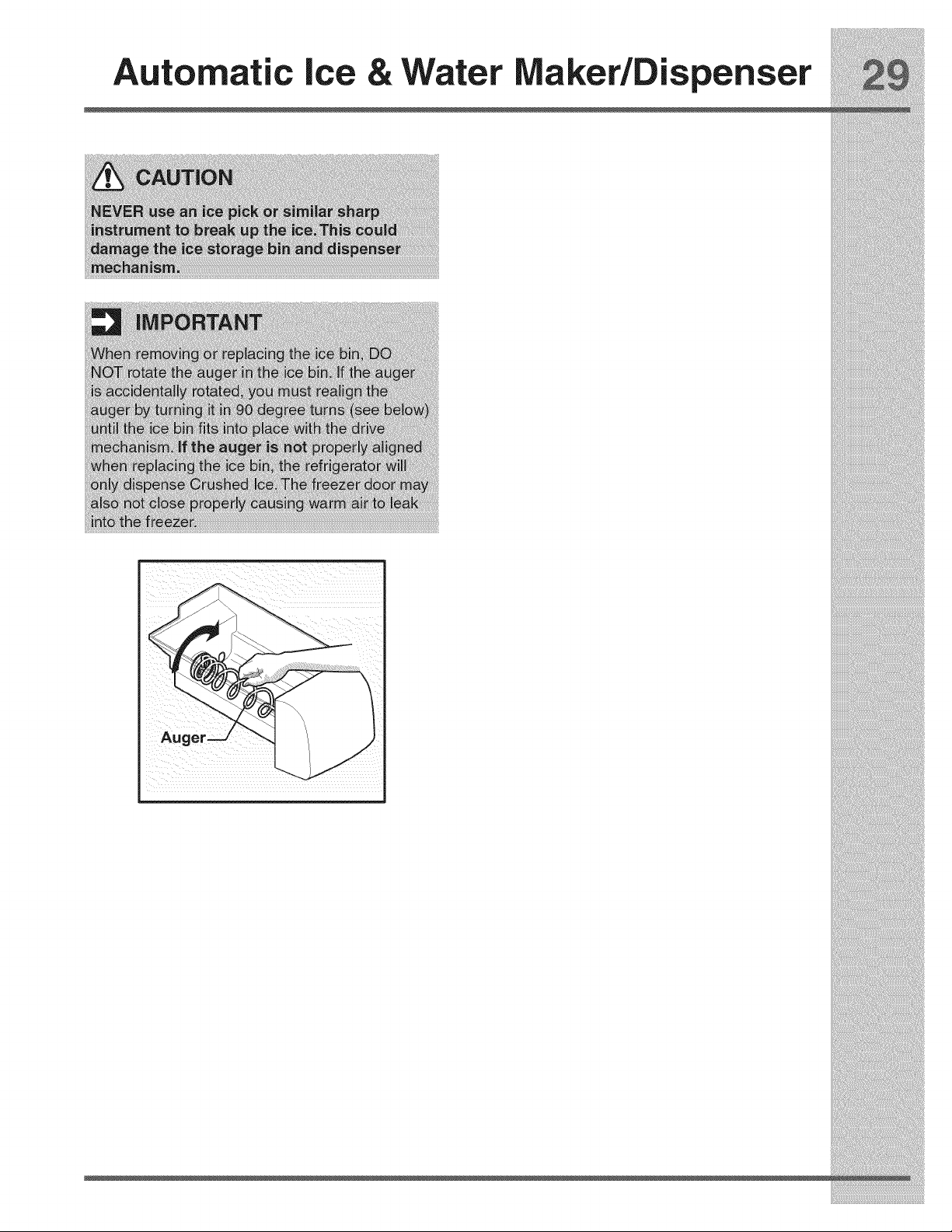

Automatic ice & Water _ker/Dispenser

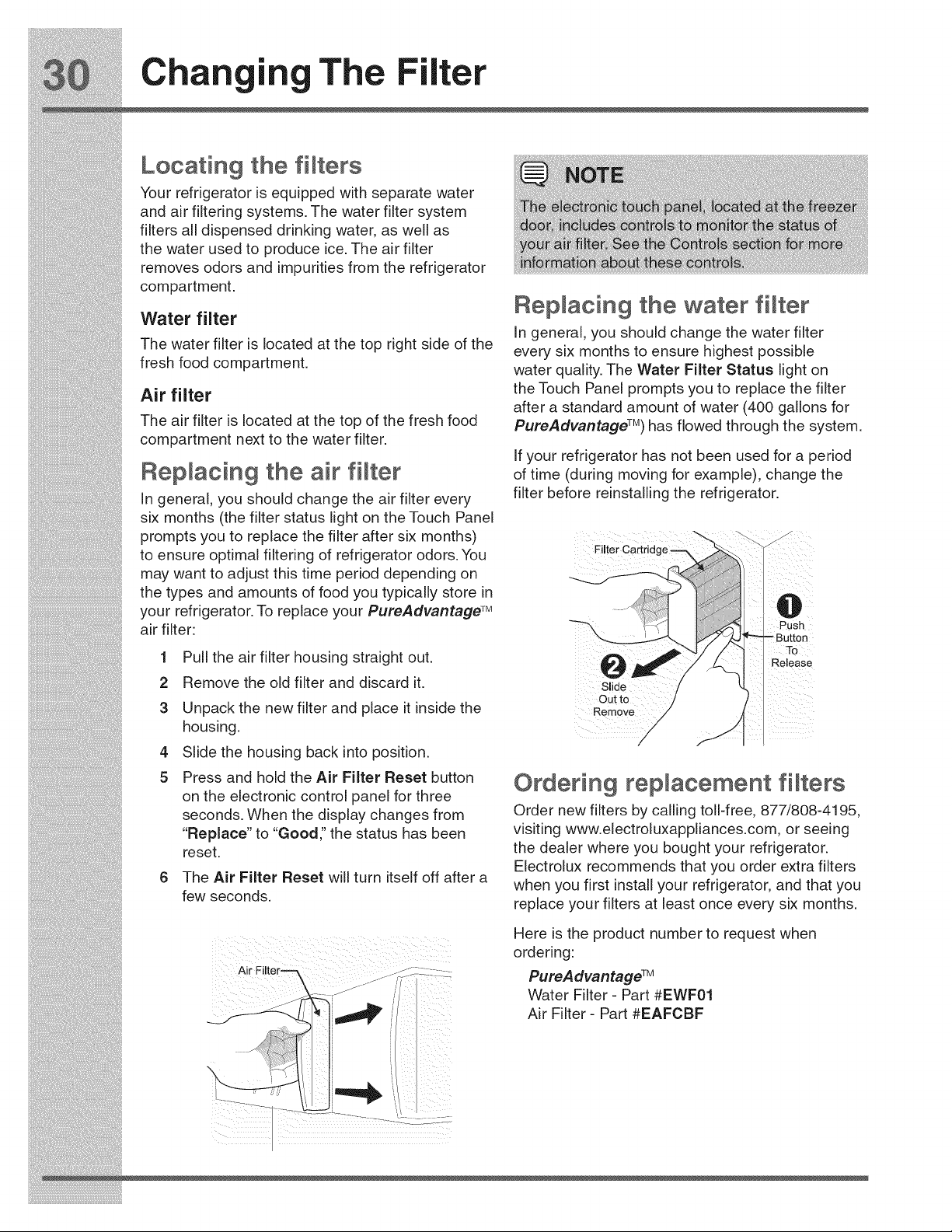

Changing The liter
Locating the fi ters
Your refrigerator is equipped with separate water
and air filtering systems. The water filter system
filters all dispensed drinking water, as well as
the water used to produce ice. The air filter
removes odors and impurities from the refrigerator
compartment.
Water filter
The water filter is located at the top right side of the
fresh food compartment.
Air filter
The air filter is located at the top of the fresh food
compartment next to the water filter.
Repmacin9 the air fi ter
In general, you should change the air filter every
six months (the filter status light on the Touch Panel
prompts you to replace the filter after six months)
to ensure optimal filtering of refrigerator odors. You
may want to adjust this time period depending on
the types and amounts of food you typically store in
your refrigerator. To replace your PureAdvantage TM
air filter:
1
2
3
4
5
6
Pull the air filter housing straight out.
Remove the old filter and discard it.
Unpack the new filter and place it inside the
housing.
Slide the housing back into position.
Press and hold the Air Filter Reset button
on the electronic control panel for three
seconds. When the display changes from
"Replace" to "Good," the status has been
reset.
The Air Filter Reset will turn itself off after a
few seconds.
Air Filter-..-,
jj j_J- ............
..... jJ
Repmacin9 the water fi ter
In general, you should change the water filter
every six months to ensure highest possible
water quality. The Water Filter Status light on
the Touch Panel prompts you to replace the filter
after a standard amount of water (400 gallons for
PureAdvantage TM) has flowed through the system.
If your refrigerator has not been used for a period
of time (during moving for example), change the
filter before reinstalling the refrigerator.
OTM
Push
To
Release
Slide
Out te
Remove
Ordering repmacement fi ters
Order new filters by calling toll-free, 877/808-4195,
visiting www.electroluxappliances.com, or seeing
the dealer where you bought your refrigerator.
Electrolux recommends that you order extra filters
when you first install your refrigerator, and that you
replace your filters at least once every six months.
Here is the product number to request when
ordering:
PureA dva ntage TM
Water Filter -Part #EWF01
Air Filter -Part #EAFCBF
Changin The Filter
More about your advanced
water filter
The PureAdvantage TM ice and water
filter system is tested and certified
by NSF international to NSF/ANSI
Standards 42 and 53 for the reduction
of claims specified on the performance
data sheet.
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
Test
o
& certification results:
Rated Capacity - 400 gallons for
PureAdvantage TM ice and water filter
• Rated service flow - .5 gallons per minute
• Maximum Rated Pressure - 100 pounds per
square inch
• Operating Temp.: Min. 33 ° F, Max. 100 ° F
• Recommended Minimum Operating
Pressure: 30 pounds per square inch
To replace your PureAdvantage TM water
filter:
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the filter
replacement.
1 Turn Off the ice maker power switch.
2 Push the filter release button below the
cartridge to disconnect it.
3 Slide the old water filter cartridge straight out
of the housing and discard it.
4 Unpackage the new filter cartridge and slide
it gently into the filter housing until it stops
against the snap-in connector at the back of
the housing.
5Push firmly until the cartridge snaps
into place (you should hear a click as the
cartridge engages the snap=in connector).
When fully engaged, the front of the filter
cartridge should be flush with the filter
release button.
6 Press a drinking glass against the water
dispenser while checking for any leaks at the
filter housing. Any spurts and sputters that
7
8
9
occur as the system purges air out of the
dispenser system are normal.
After filling one glass of water, continue
flushing the system for about three minutes.
Turn On the ice maker.
Press and hold the Filter Status button on
the Ice & Water Dispenser control panel for
three seconds. When the display changes
from "Replace" to "Good," the status has
been reset.

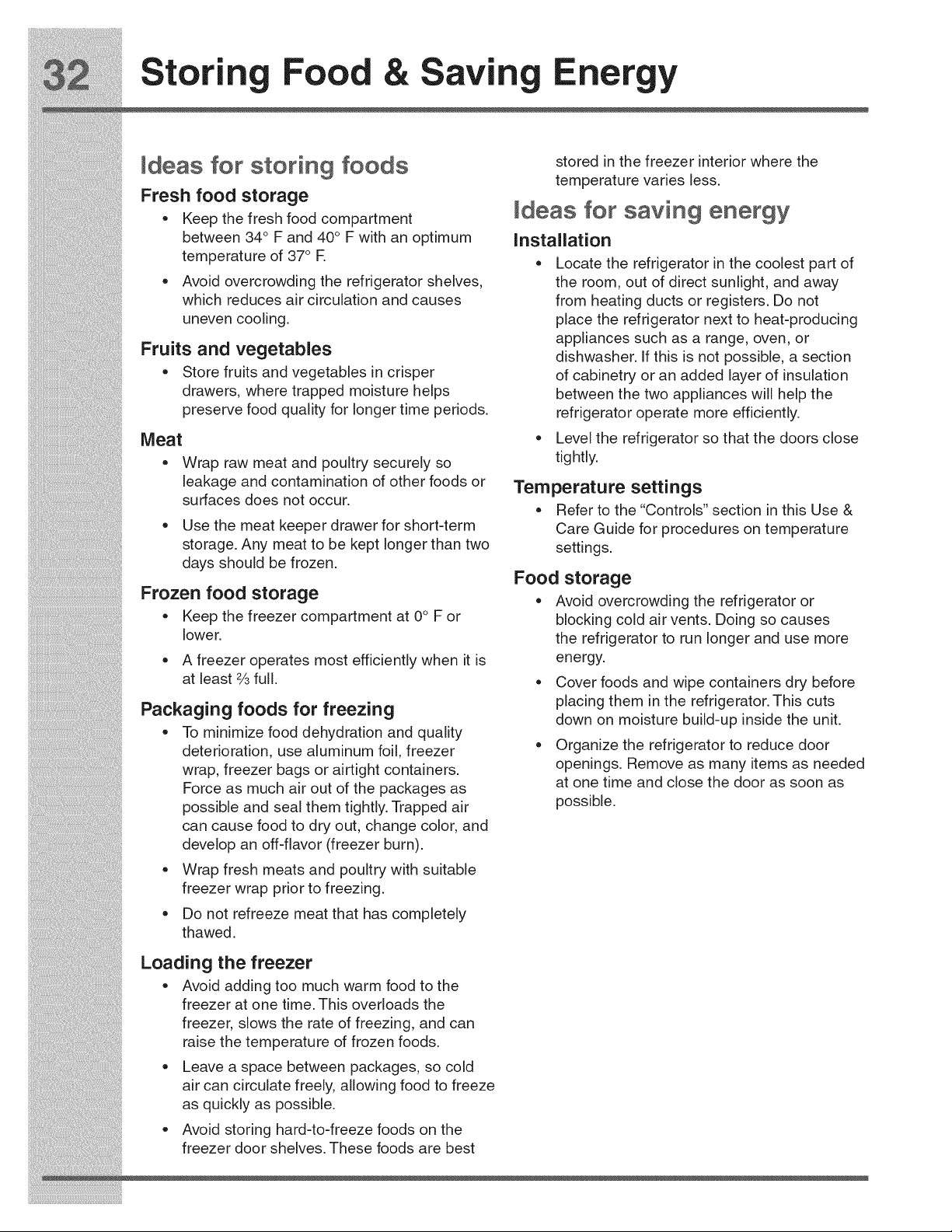

Storing Food & Savin Energy
Ideas for storing foods
Fresh food storage
= Keep the fresh food compartment
between 34 ° F and 40 ° F with an optimum
temperature of 37° E
Avoid overcrowding the refrigerator shelves,
which reduces air circulation and causes
uneven cooling.
Fruits and vegetables
Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preserve food quality for longer time periods.
Meat
Wrap raw meat and poultry securely so
leakage and contamination of other foods or
surfaces does not occur.
Use the meat keeper drawer for short-term
storage. Any meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0° F or
lower.
A freezer operates most efficiently when it is
at least ¾ full.
Packaging foods for freezing
To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color, and
develop an off-flavor (freezer burn).
Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
Do not refreeze meat that has completely
thawed.
Loading the freezer
•Avoid adding too much warm food to the
freezer at one time. This overloads the
freezer, slows the rate of freezing, and can
raise the temperature of frozen foods.
•Leave a space between packages, so cold
air can circulate freely, allowing food to freeze
as quickly as possible.
•Avoid storing hard-to-freeze foods on the
freezer door shelves. These foods are best
stored in the freezer interior where the
temperature varies less.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest part of
the room, out of direct sunlight, and away
from heating ducts or registers. Do not
place the refrigerator next to heat-producing
appliances such as a range, oven, or
dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors close
tightly.
Temperature settings
= Refer to the "Controls" section in this Use &
Care Guide for procedures on temperature
settings.
Food storage
Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so causes
the refrigerator to run longer and use more
energy.
Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts
down on moisture build-up inside the unit.
Organize the refrigerator to reduce door
openings. Remove as many items as needed
at one time and close the door as soon as
possible.

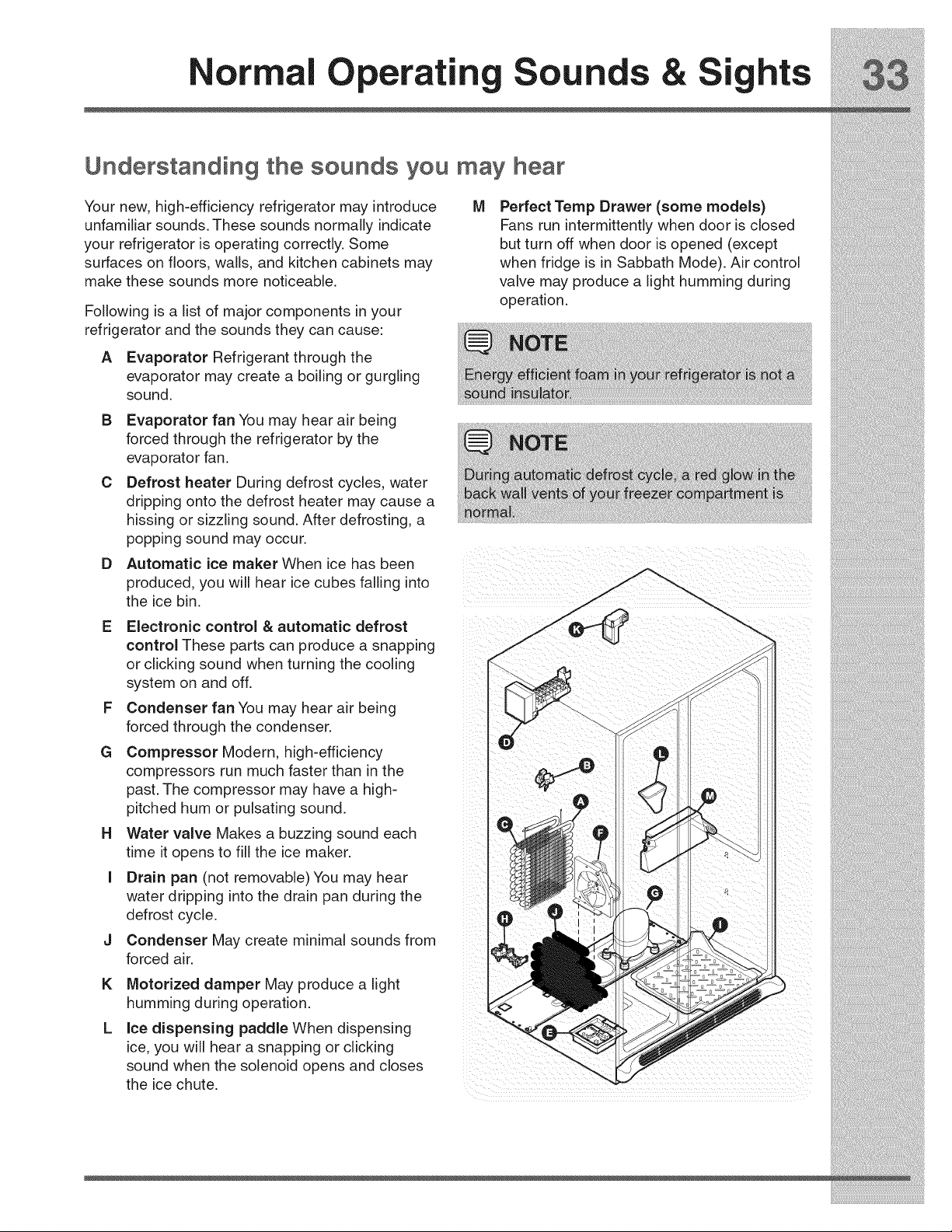

D
poppingsoundmayoccur.
AutomaticicemakerWhenicehasbeen
produced,youwillhearicecubesfallinginto
theicebin.
E Electroniccontrol & automatic defrost
control These parts can produce a snapping
or clicking sound when turning the cooling
system on and off.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than in the
past. The compressor may have a high-
pitched hum or pulsating sound.
H Water valve Makes a buzzing sound each
time it opens to fill the ice maker.
I Drain pan (not removable) You may hear
water dripping into the drain pan during the
defrost cycle.
J Condenser May create minimal sounds from
forced air.
K
L
Motorized damper May produce a light
humming during operation.
ice dispensing paddle When dispensing
ice, you will hear a snapping or clicking
sound when the solenoid opens and closes
the ice chute.
Care & Cleanin
Protecting your investment
Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any spills
immediately and clean the freezer and fresh food compartments at least twice a year. When cleaning,
take the following precautions:
Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any
surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Do not wash any removable parts in a dishwasher.
Always unplug the electrical power cord from the wall outlet before cleaning.
Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can
scratch the appliance surface.
Do not remove the serial plate.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

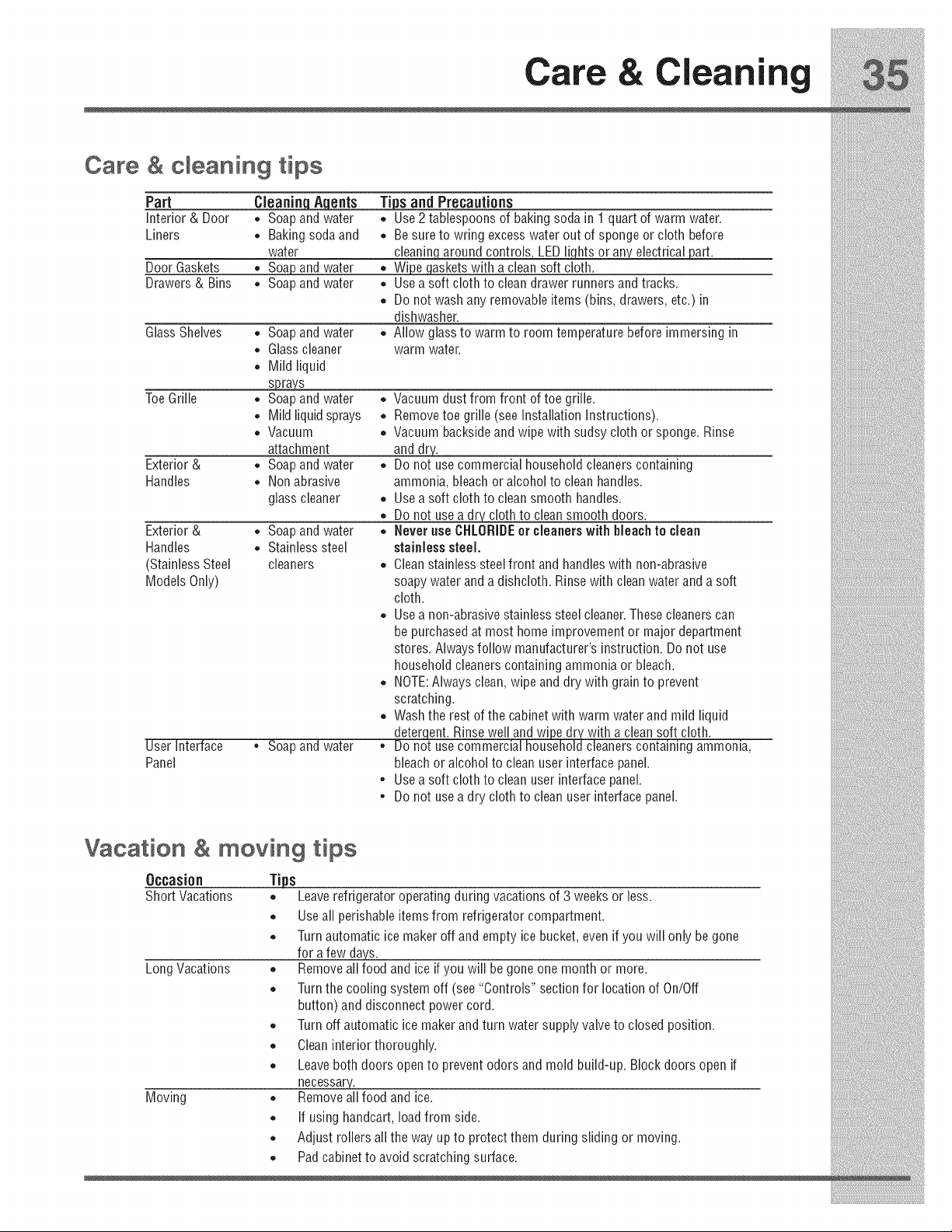

Care & Cleaning
Care & cleaning tips
Part Cleaninq Agents
Interior & Door • Soap and water
Liners • Bakingsoda and
water
Door Gaskets • Soap and water
Drawers & Bins • Soap and water
Glass Shelves • Soap and water
Glass cleaner
Mild liquid
Toe Grille • Soap and water
Mild liquid sprays
Vacuum
attachment
Exterior & • Soap and water
Handles • Non abrasive
glass cleaner
Exterior & • Soap and water
Handles • Stainless steel
(Stainless Steel cleaners
Models Only)
[Jser Interface = Soap and water
Panel
and Precautions
Use 2 tablespoons of baking soda in 1 quart of warm water.
Be sure to wring excess water out of sponge or cloth before
cleanin around controls LED li htsoran electricallbart.
_askets with a clean soft cloth.
Use a soft cloth to clean drawer runners and tracks.
Do not wash any removable items (bins, drawers, etc.) in
dishwasher.
Allow glass to warm to room temperature before immersing in
warm water.
,, Vacuum dust from front of toe grille.
Remove toe grille (see Installation Instructions).
Vacuum backsideand wipe with sudsy cloth or sponge. Rinse
and
Do not use commercial household cleaners containing
ammonia, bleach or alcohol to clean handles.
Use a soft cloth to clean smooth handles.
Do not use a dry cloth to clean smooth doors.
Never use CHLORIDEor cleanerswith bleach to clean
stainless steel.
= Clean stainless steel front and handles with non-abrasive
soapy water and a dishcloth. Rinse with clean water and a soft
cloth.
Use a non-abrasive stainless steel cleaner.These cleaners can
be purchased at most home improvement or major department
stores. Always follow manufacturer's instruction. Do not use
household cleanerscontaining ammonia or bleach.
NOTE:Always clean, wipe and dry with grain to prevent
scratching.
Wash the rest of the cabinet with warm water and mild liquid
deterflent. Rinse wellAn_rv with a clean soft cloth.
• Do not use commercial household cleanerscontaining ammonia,
bleach or alcohol to clean user interface panel.
• Use a soft cloth to clean user interface panel.
• Do not use a dry cloth to clean user interface panel.
Vacation
Occasion
Short Vacations
Long Vacations
Moving
& moving tips
Tips
Leaverefrigerator operating during vacations of 3 weeks or less.
Useall perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be gone
for a few days.
Removeall food and ice if you will be gone one month or more.
Turn the cooling system off (see "Controls" section for location of On/Off
button) and disconnect power cord.
Turn off automatic ice makerand turn water supply valve to closed position.
Clean interior thoroughly.
Leaveboth doors open to prevent odors and mold build-up. Block doors open if
necessary.
Removeall food and ice.
If using handcart, load from side.
Adjust rollers all the way up to protect them during sliding or moving.
Padcabinet to avoid scratching surface.

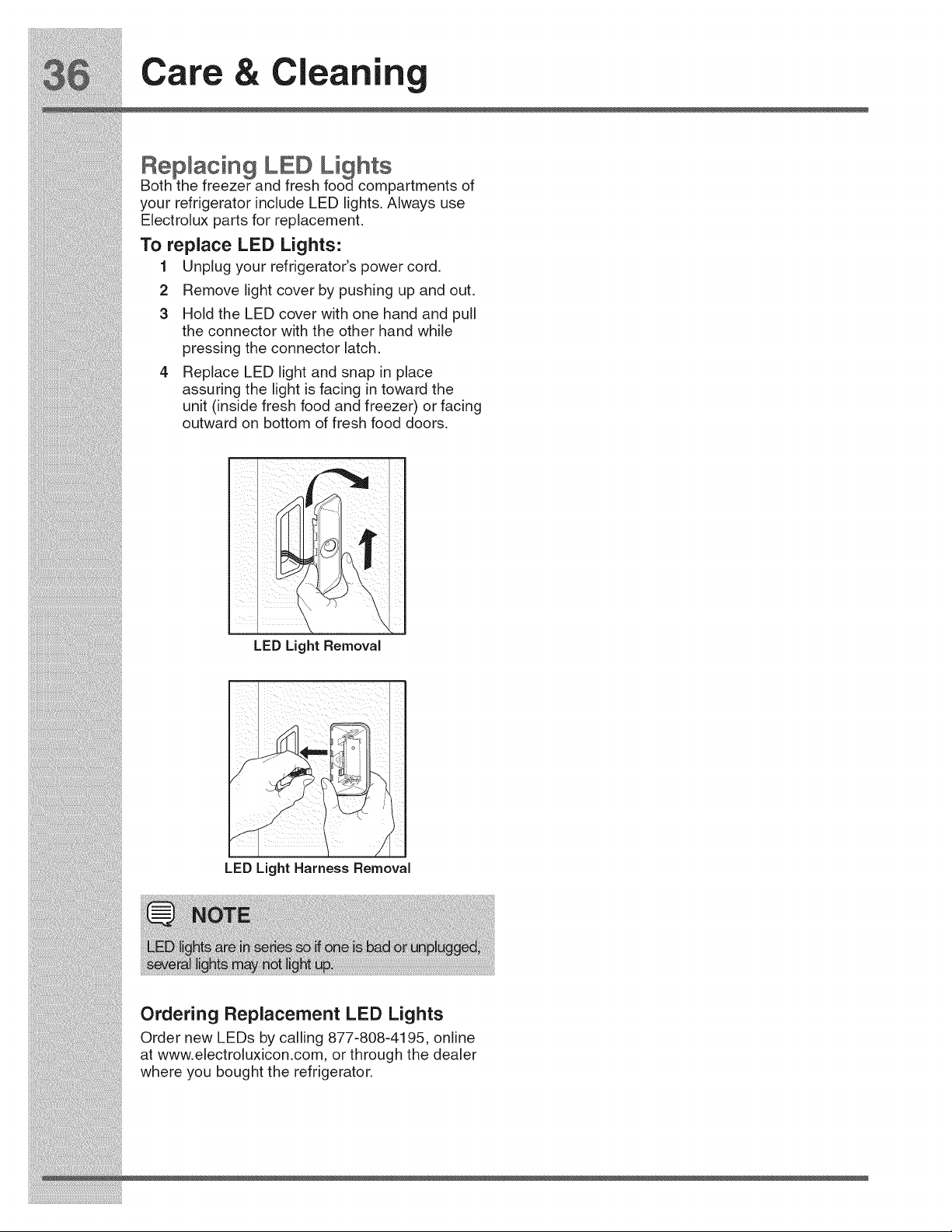

Care & Cleanin
Replacing LED Lights
Both the freezer and fresh food compartments of
your refrigerator include LED lights. Always use
E[ectro[ux parts for replacement.
To replace LED Lights:
1 Unplug your refrigerator's power cord.
2 Remove light cover by pushing up and out.
3Hold the LED cover with one hand and pull
the connector with the other hand while
pressing the connector latch,
4Replace LED light and snap in place
assuring the light is facing in toward the
unit (inside fresh food and freezer) or facing
outward on bottom of fresh food doors,
LED Light Removal
LED Light Harness Removal
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online
at www.electroluxicon.com, or through the dealer
where you bought the refrigerator.
Warranty
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or
replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and
maintained in accordance with the provided instructions. In addition, the cabinet liner and sealed refrigeration system (compressor,
condenser, evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During the 2rid through
5th years from your original date of purchase, Electrolux will repair or replace any parts in the cabinet liner and sealed refrigeration
system which prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance
with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a
part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas, including the state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors,
cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT
AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONEYEAR ORTHE SHORTEST PERIOD ALLOWED BY LAW,
BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OFTHIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SOTHESE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLYTOYOU.THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required.
If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by
contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux
Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux
Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts
under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described
or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4

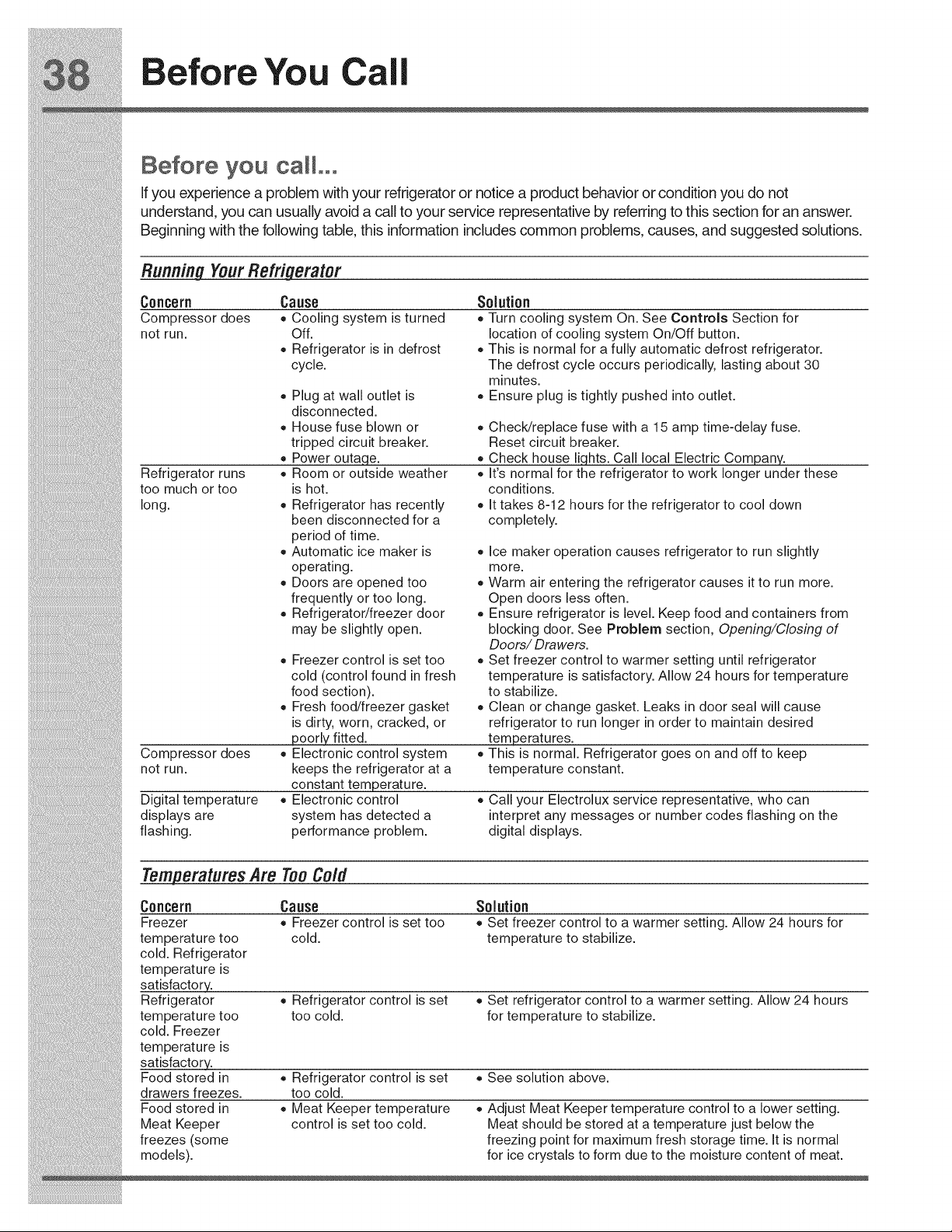

re You Call
Before you ca l°°°
If you experience a problem with your refrigerator or notice a product behavior or condition you do not
understand, you can usually avoid a call to your service representative by referring to this section for an answer.
Beginning with the following table, this information includes common problems, causes, and suggested solutions.
RunningYourRefrLqerator
Concern
Compressor does
not run.
Refrigerator runs
too much or too
long.
Compressor does
not run.
Cause
= Cooling system is turned
Off.
• Refrigerator is in defrost
cycle.
Plug at wall outlet is
disconnected.
House fuse blown or
tripped circuit breaker.
Power outaqe.
Room or outside weather
is hot.
Refrigerator has recently
been disconnected for a
period of time.
Automatic ice maker is
operating.
Doors are opened too
frequently or too long.
Refrigerator/freezer door
may be slightly open.
Freezer control is set too
cold (control found in fresh
food section).
Fresh food/freezer gasket
is dirty, worn, cracked, or
poorly fitted.
Electronic control system
keeps the refrigerator at a
constant temperature.
Solution
Turn cooling system On. See Controls Section for
location of cooling system On!Off button.
This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.
Check!replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
Check house lights. Call local Electric Company.
It's normal for the refrigerator to work longer under these
conditions.
It takes 8-12 hours for the refrigerator to cool down
completely.
Ice maker operation causes refrigerator to run slightly
more.
Warm air entering the refrigerator causes it to run more.
Open doors less often.
Ensure refrigerator is level. Keep food and containers from
blocking door. See Problem section, Opening/Closing of
Doors/Drawers.
Set freezer control to warmer setting until refrigerator
temperature is satisfactory. Allow 24 hours for temperature
to stabilize.
Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired
temperatures.
This is normal. Refrigerator goes on and off to keep
temperature constant.
Digital temperature • Electronic control • Call your Electrolux service representative, who can
displays are system has detected a interpret any messages or number codes flashing on the
flashing, performance problem, digital displays.
TemperaturesAre TooCold
Concern Cause Solution
Freezer • Freezer control is set too • Set freezer control to a warmer setting. Allow 24 hours for
temperature too cold. temperature to stabilize.
cold. Refrigerator
temperature is
satisfactory.
Refrigerator • Refrigerator control is set • Set refrigerator control to a warmer setting. Allow 24 hours
temperature too too cold. for temperature to stabilize.
cold. Freezer
temperature is
satisfactory.
Food stored in • Refrigerator control is set • See solution above.
drawers freezes, too cold.
Food stored in • Meat Keeper temperature
Meat Keeper control is set too cold.
freezes (some
models).
Adjust Meat Keeper temperature control to a lower setting.
Meat should be stored at a temperature just below the
freezing point for maximum fresh storage time. It is normal
for ice crystals to form due to the moisture content of meat.
re You Call

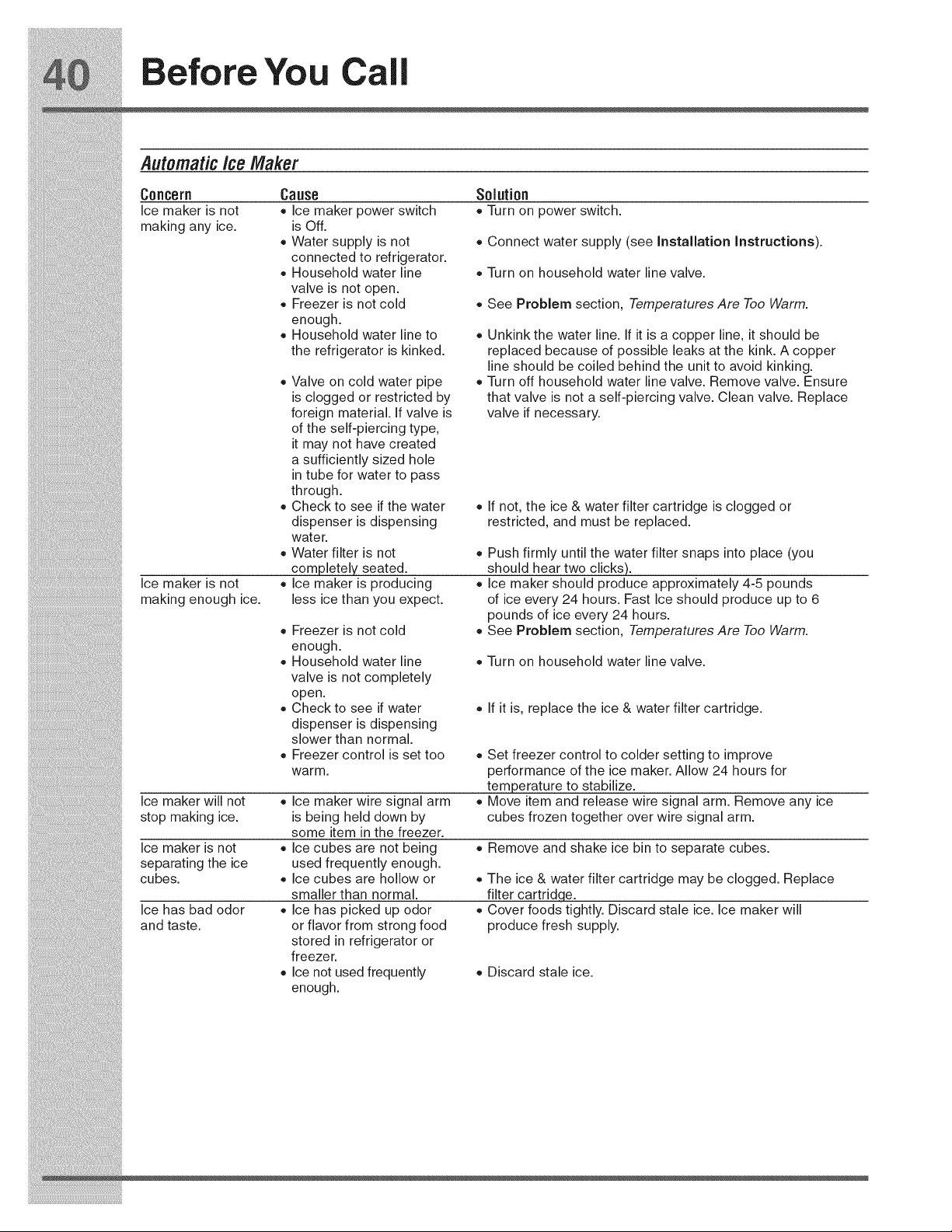

AutomaticIce Maker
Concern Cause Solution
Ice maker is not = Ice maker power switch = Turn on power switch.
making any ice. is Off.
• Water supply is not
connected to refrigerator.
Household water line
valve is not open.
Freezer is not cold
enough.
Household water line to
the refrigerator is kinked.
Ice maker is not
making enough ice.
Ice maker will not
stop making ice.
Ice maker is not
separating the ice
cubes.
Ice has bad odor
and taste.
Valve on cold water pipe
is clogged or restricted by
foreign material. If valve is
of the self-piercing type,
it may not have created
a sufficiently sized hole
in tube for water to pass
through.
Check to see if the water
dispenser is dispensing
water.
Water filter is not
completely seated.
Ice maker is producing
less ice than you expect.
Freezer is not cold
enough.
Household water line
valve is not completely
open.
Check to see if water
dispenser is dispensing
slower than normal.
Freezer control is set too
warm.
Ice maker wire signal arm
is being held down by
some item in the freezer.
Ice cubes are not being
used frequently enough.
Ice cubes are hollow or
smaller than normal.
Ice has picked up odor
or flavor from strong food
stored in refrigerator or
freezer.
Ice not used frequently
enough.
Connect water supply (see Installation Instructions).
Turn on household water line valve.
See Problem section, Temperatures Are Too Warm.
Unkink the water line. If it is a copper line, it should be
replaced because of possible leaks at the kink. A copper
line should be coiled behind the unit to avoid kinking.
Turn off household water line valve. Remove valve. Ensure
that valve is not a self-piercing valve. Clean valve. Replace
valve if necessary.
If not, the ice & water filter cartridge is clogged or
restricted, and must be replaced.
Push firmly until the water filter snaps into place (you
should hear two clicks).
Ice maker should produce approximately 4-5 pounds
of ice every 24 hours. Fast Ice should produce up to 6
pounds of ice every 24 hours.
See Problem section, Temperatures Are Too Warm.
Turn on household water line valve.
If it is, replace the ice & water filter cartridge.
Set freezer control to colder setting to improve
performance of the ice maker. Allow 24 hours for
temperature to stabilize.
Move item and release wire signal arm. Remove any ice
cubes frozen together over wire signal arm.
Remove and shake ice bin to separate cubes.
The ice & water filter cartridge may be clogged. Replace
filter cartridqe.
Cover foods tightly. Discard stale ice. Ice maker will
produce fresh supply.
Discard stale ice.

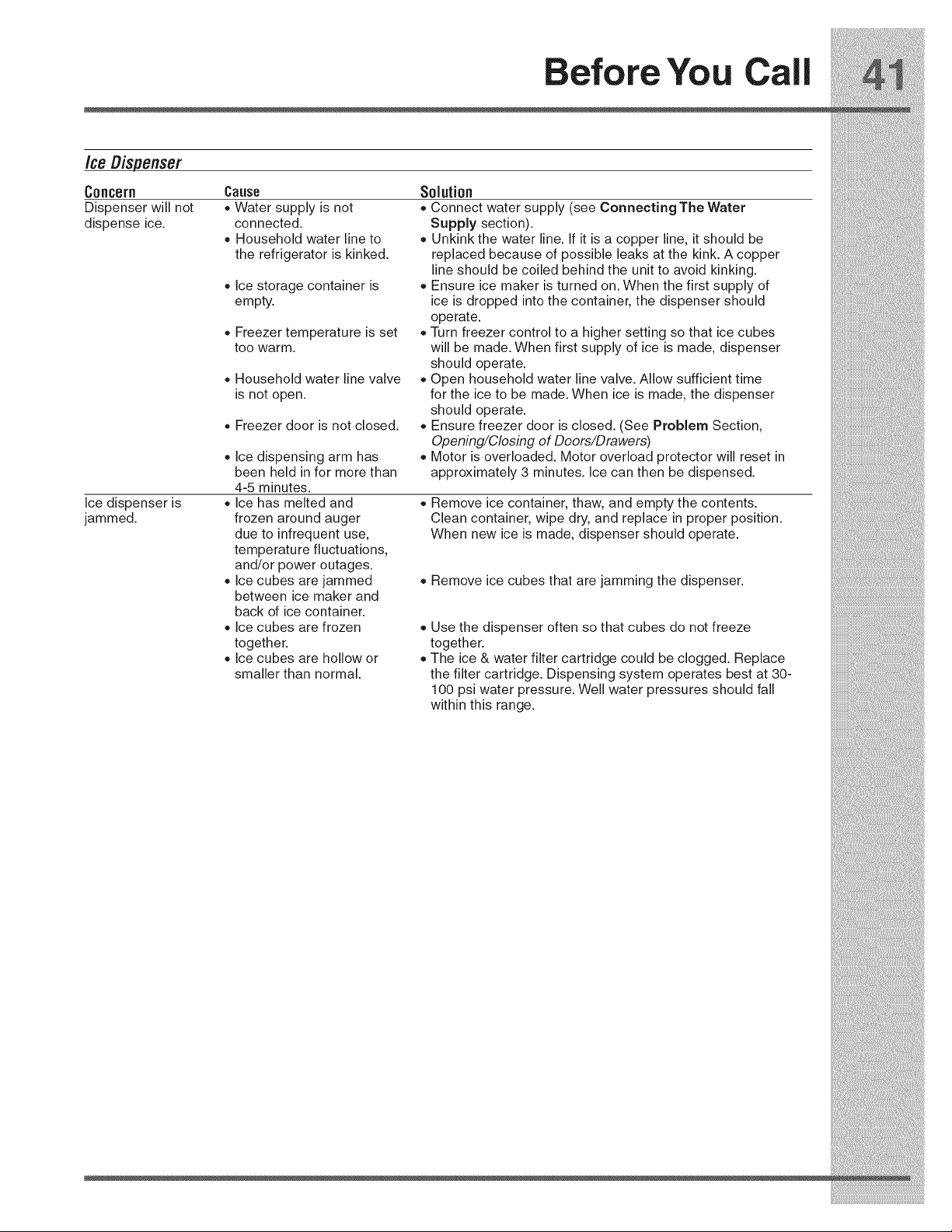

re You Call
lee Dispenser
Concern
Dispenser will not
dispense ice.
Ice dispenser is
jammed.
Cause
• Water supply is not
connected.
Household water line to
the refrigerator is kinked.
Ice storage container is
empty.
Freezer temperature is set
too warm.
Household water line valve
is not open.
Freezer door is not closed.
Ice dispensing arm has
been held in for more than
4-5 minutes.
Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.
Ice cubes are jammed
between ice maker and
back of ice container.
Ice cubes are frozen
together.
Ice cubes are hollow or
smaller than normal.
SoJution
• Connect water supply (see Connecting The Water
Supply section).
Unkink the water line. If it is a copper line, it should be
replaced because of possible leaks at the kink. A copper
line should be coiled behind the unit to avoid kinking.
Ensure ice maker is turned on. When the first supply of
ice is dropped into the container, the dispenser should
operate.
Turn freezer control to a higher setting so that ice cubes
will be made. When first supply of ice is made, dispenser
should operate.
Open household water line valve. Allow sufficient time
for the ice to be made. When ice is made, the dispenser
should operate.
Ensure freezer door is closed. (See Problem Section,
Opening/Closing of Doors/Drawers)
Motor is overloaded. Motor overload protector will reset in
approximately 3 minutes. Ice can then be dispensed.
Remove ice container, thaw, and empty the contents.
Clean container, wipe dry, and replace in proper position.
When new ice is made, dispenser should operate.
Remove ice cubes that are jamming the dispenser.
Use the dispenser often so that cubes do not freeze
together.
The ice & water filter cartridge could be clogged. Replace
the filter cartridge. Dispensing system operates best at 30-
100 psi water pressure. Well water pressures should fall
within this range.

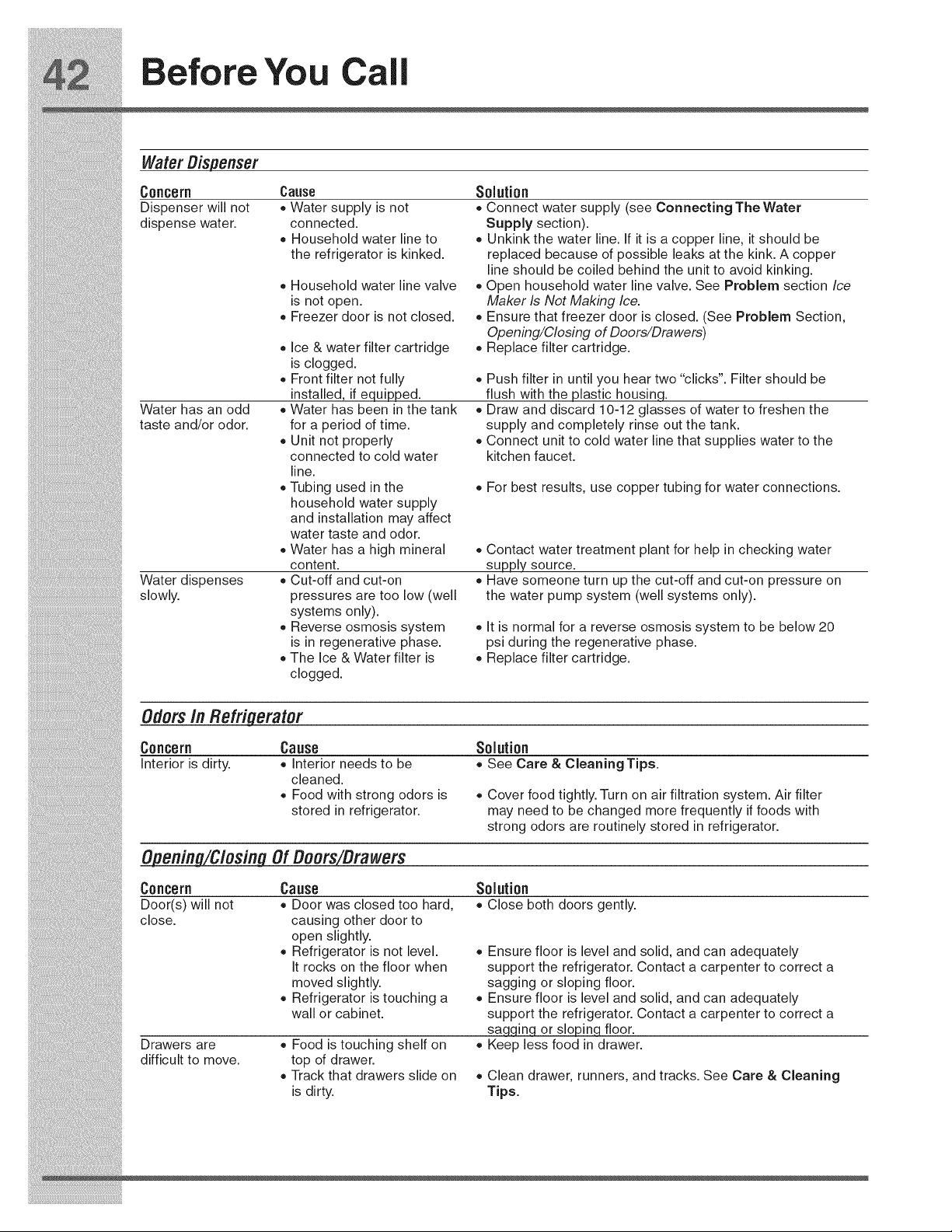

re You Call
Water Dispenser
Concern
Dispenser will not
dispense water.
Water has an odd
taste and/or odor.
Water dispenses
slowly.
Cause
• Water supply is not
connected.
• Household water line to
the refrigerator is kinked.
• Household water line valve
is not open.
Freezer door is not closed.
Ice & water filter cartridge
is clogged.
Front filter not fully
installed, if equipped.
Water has been in the tank
for a period of time.
Unit not properly
connected to cold water
line.
Tubing used in the
household water supply
and installation may affect
water taste and odor.
Water has a high mineral
content.
Cut-off and cut-on
pressures are too low (well
systems only).
Reverse osmosis system
is in regenerative phase.
The Ice & Water filter is
clogged.
Solution
•Connect water supply (see Connecting The Water
Supply section).
Unkink the water line. If it is a copper line, it should be
replaced because of possible leaks at the kink. A copper
line should be coiled behind the unit to avoid kinking.
Open household water line valve. See Problem section Ice
Maker Is Not Making Ice.
Ensure that freezer door is closed. (See Problem Section,
Opening/Closing of Doors/Drawers)
Replace filter cartridge.
Push filter in until you hear two "clicks". Filter should be
flush with the plastic housinq.
Draw and discard 10-12 glasses of water to freshen the
supply and completely rinse out the tank.
Connect unit to cold water line that supplies water to the
kitchen faucet.
For best results, use copper tubing for water connections.
Contact water treatment plant for help in checking water
supply source.
Have someone turn up the cut-off and cut-on pressure on
the water pump system (well systems only).
It is normal for a reverse osmosis system to be below 20
psi during the regenerative phase.
Replace filter cartridge.
Odors/n RefrLqerator
Concern
Interior is dirty.
Cause
Interior needs to be
cleaned.
. Food with strong odors is
stored in refrigerator.
Solution
oSee Care & CieaningTips.
Cover food tightly. Turn on air filtration system. Air filter
may need to be changed more frequently if foods with
strong odors are routinely stored in refrigerator.
Openin#/Closin# Of Boors/Drawers
Concern Cause Solution
Door(s) will not = Door was closed too hard, = Close both doors gently.
close, causing other door to
open slightly.
Refrigerator is not level.
It rocks on the floor when
moved slightly.
Refrigerator is touching a
wall or cabinet.
Drawers are • Food is touching shelf on
difficult to move. top of drawer.
Track that drawers slide on
is dirty.
Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct a
sagging or sloping floor.
Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct a
saq,qinq or slopinq floor.
Keep less food in drawer.
Clean drawer, runners, and tracks. See Care & Cleaning
Tips.

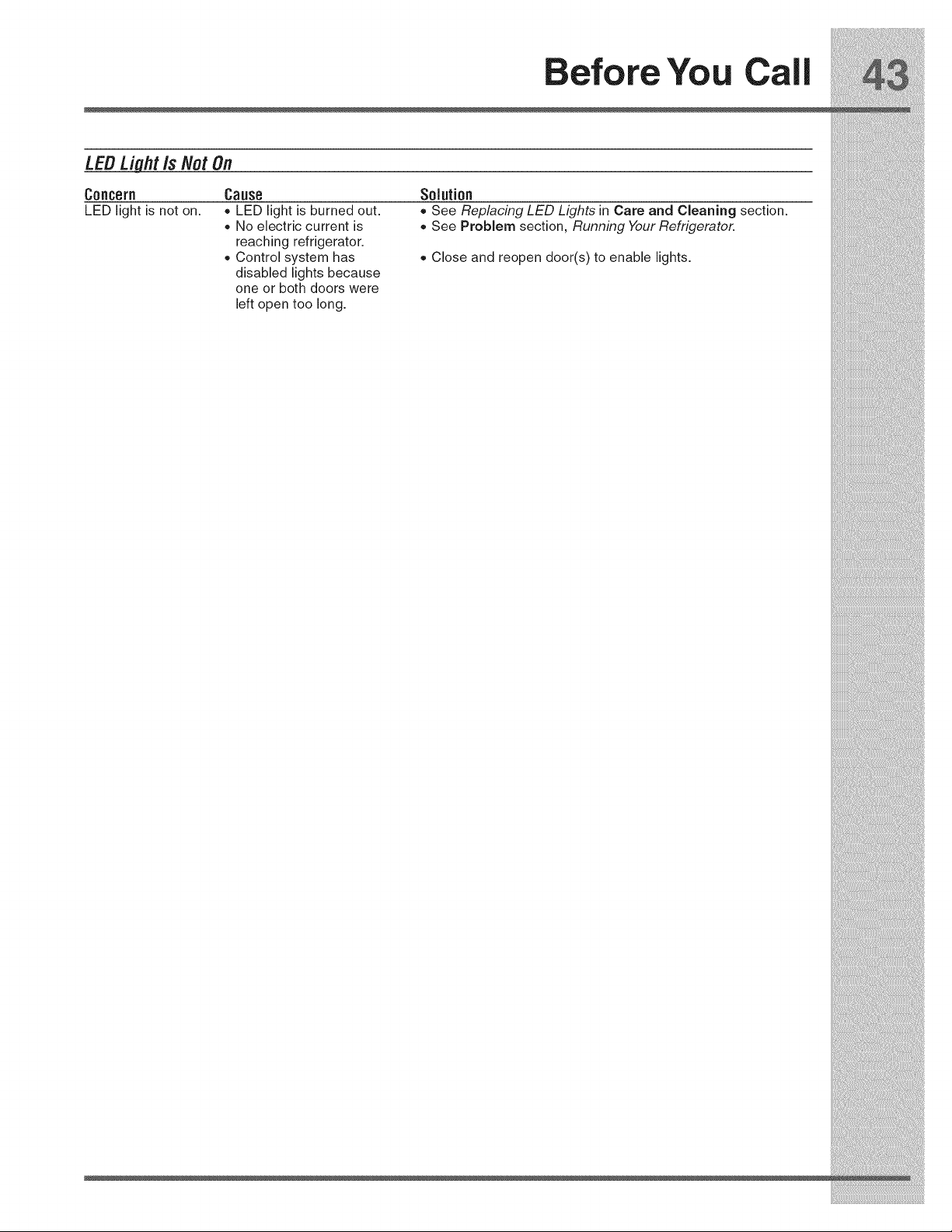

re You Call
LEDLight/s/Pot On
Corlcsrri
LED light is not on.
Cause
o LED light is burned out.
No electric current is
reaching refrigerator.
Control system has
disabled lights because
one or both doors were
left open too long.
S01uti0n
•See Replacing LED Lights in Care and Cleaning section.
See Problem section, Running Your Refrigerator.
Close and reopen door(s) to enable lights.
