Electric Range
Estufa el_ctricia
Modeis, lViodelos 790.9503_, 9504_.
• = color number, n_mero de co{or
ii'%
iii................
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. p/n 316417251 (0604)
Table of Contents
Free-Standing Range Warranty ........................................... 2
Product Record ................................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS .......................... 3-4
Master Protection Agreements ........................................... 5
Before Setting Oven Controls ........................................... 6-7
Setting Surface Controls ..................................................... 7
Surface Cooking ................................................................. 7
Oven Control Functions ....................................................... 8
Setting Oven Controls .................................................... 8-10
Adjusting Your Oven Temperature ..................................... 11
General Care & Cleaning .............................................. 12-15
Before You Make a Service Call ................................... 16-17
Sears Service .................................................... Back Cover
Product Record
In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on an identification plate. This serial
plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment. See bottom of
this page for the serial plate location.
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect
in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free repair. If this
appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein, implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada M5B 2B8
Serial Plate Location
You will find the model and serial number printed on a serial plate. This
serial plate is located on the right side of the oven front frame behind the
lower panel or storage drawer compartment.
Please see the illustration at right for the exact location.
Remember to record the serial number for future reference (See top of this
page) under Product Record.
iI!liiiii! ! iii
Serial plate location;
lower panel (on some models)
or /
storage drawer.
important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This SYmbol wi! I help alert you to situation s that may cause serious bodily harm, death or property damage .
This symbol will help alert you to situations ihat may Cause bodily injury or property damage.
Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSl/NFPA No.
70 latest edition and local electrical code requirements.
Install only per installation instructions provided in the
literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified
technician. This may reduce the risk of personal injury and
damage to the range.
Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti=tip
bracketslscrews, or any other part of the product.
, All ranges can tip.
, Injury to persons could result.
,, Install anti-tip device packed with range.
, See Installation Instructions.
To reduce the risk of
tipping, the range must be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully secured
by the anti-tip bracket by removing lower
panel or storage drawer. For models with a
warmer drawer, grasp the top rear edge of
the range and carefully attempt to tilt it
forward. Refer to the Installation Instructions
for proper anti-tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door
may cause the range to tip, resulting in serious burns or other
injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
Never Use Your Appliance for Warming or
Heating the Room.
* Storage in or on Appliance--Flammable materials should
not be stored in an oven, warmer drawer, near surface
units or in the storage drawer, This includes paper, plastic
and cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the range.
* Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
* DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,
HEATING ELEMENTS OR iNTERiOR SURFACES OF THE OVEN.
Both surface units and oven heating elements may be hot
even though they are dark in color. Areas near surface units
may become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time to cool.
Among these areas are the cook top, surfaces facing the cook
top, the oven vent openings and surfaces near these
openings, oven door and window.
* Wear Proper Apparel--Loose=fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
* Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam=type extinguisher.
* When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
* Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of a potholder.
* Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in injury.
* Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure, if the power fails, always turn off the range, if the
range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the
clock and oven function.
iii...............
important Safety instructions
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit
off before removing the pan.
Use Proper Pan Size--This appliance is equipped with one
or more surface units of different sizes. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion
of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to element
will also improve efficiency.
Utensil Handles Should Be Turned inward and Not Extend
Over Adjacent Surface Elements--To reduce the risk of
burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of the utensil
should be positioned so that it is turned inward, and does not
extend over adjacent surface units.
Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
Do Not immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water.
Heating elements clean themselves during normal operation.
Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cook top use.
When flaming foods under a ventilating hood, turn the fan
on.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the
door of a hot oven. Let hot air or steam escape before you
remove or replace food in the oven.
Keep Oven Vent Ducts Unobstructed. The oven vent is
located under the left rear surface element if your model is
equipped with coil elements. The oven vent is located below
the backguard for models equipped with ceramic-glass cook
tops. Touching the surfaces in this area when the oven is
operating may cause severe burns. Also, do not place plastic
or heat-sensitive items on or near the oven vent. These items
could melt or ignite.
Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
,,Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this
manual. Improper installation of these liners may result in risk
of electric shock, or fire.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate.
Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
Clean Ventilating Hoods Frequently--Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructions for cleaning.
FOR CERAMIC-GLASS COOK TOP MODELS
* Do Not Cook on Broken Cook Top--If cook top should break,
cleaning solutions and spillovers may penetrate the broken
cook top and create a risk of electric shock. Contact a
qualified technician immediately.
* Clean Cook Top with Caution--If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid
a steam burn. Some cleaners can produce noxious fumes if
applied to a hot surface.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of substances
known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential
exposure to such substances.

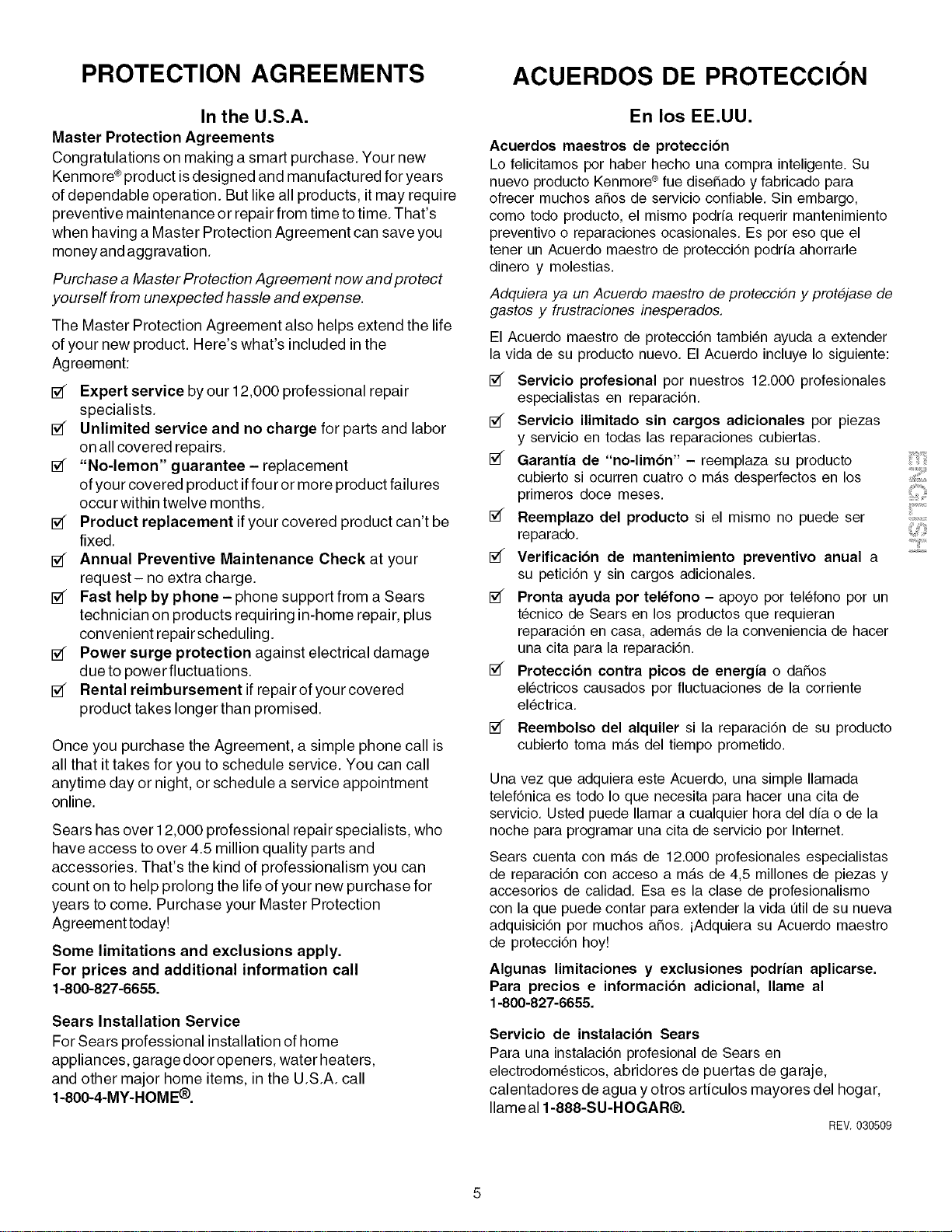

PROTECTION AGREEMENTS ACUERDOS DE PROTECCION
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore C_product isdesigned and manufactured for years
of dependable operation. But like all products, it may require
preventive maintenance or repair from time totime. That's
when having a Master Protection Agreement can save you
money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life
of your new product. Here's what's included in the
Agreement:
5_ Expert service by our 12,000 professional repair
specialists.
5_ Unlimited service and no charge for parts and labor
on all covered repairs.
5_ "No-lemon" guarantee- replacement
of your covered product iffour or more product failures
occur within twelve months.
5_ Product replacement if your covered product can't be
fixed.
5_ Annual Preventive Maintenance Check at your
request- no extra charge.
5_ Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling.
5_ Power surge protection against electrical damage
due to power fluctuations.
5_ Rental reimbursement if repair of your covered
product takes longer than promised.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME ®.
En los EE.UU.
Acuerdos maestros de proteccibn
Lo felicitamos por haber hecho una compra inteligente. Su
nuevo producto Kenmore®rue dise_ado y fabricado para
ofrecer muchos a_os de servicio confiable. Sin embargo,
como todo producto, el mismo podrta requerir mantenimiento
preventivo o reparaciones ocasionales. Es por eso que el
tenet un Acuerdo maestro de protecci6n podrfa ahorrarle
dinero y molestias.
Adquiera ya un Acuerdo maestro de proteccion y protejase de
gastos y frustraciones inesperados.
El Acuerdo maestro de protecci6n tambi_n ayuda a extender
la vida de su producto nuevo. El Acuerdo incluye Io siguiente:
5_ Servicio profesional por nuestros 12.000 profesionales
especialistas en reparaci6n.
5_ Servicio ilimitado sin cargos adicionales por piezas
y servicio en todas las reparaciones cubiertas.
5_ Garantia de "no-limbn" - reemplaza su producto
cubierto si ocurren cuatro o mas desperfectos en los
primeros doce meses.
5_ Reemplazo del producto si el mismo no puede ser
reparado.
5_ Verificacibn de mantenimiento preventivo anual a
su petici6n y sin cargos adicionales.
5_ Pronta ayuda por tel_fono - apoyo por tel_fono por un
t6cnico de Sears en los productos que requieran
reparaci6n en casa, ademas de la conveniencia de hacer
una cita para la reparaci6n.
5_ Proteccibn contra picos de energia o da_os
el_ctricos causados pot fluctuaciones de la corriente
el_ctrica.
Reembolso del alquiler si la reparaci6n de su producto
cubierto toma mas del tiempo prometido.
Una vez que adquiera este Acuerdo, una simple Ilamada
telef6nica es todo Io que necesita para hacer una cita de
servicio. Usted puede Ilamar a cualquier hora del dfa o de la
noche para programar una cita de servicio por Internet.
Sears cuenta con ma.sde 12.000 profesionales especialistas
de reparaci6n con acceso a mas de 4,5 millones de piezas y
accesorios de calidad. Esa es la clase de profesionalismo
con la que puede contar para extender la vida t_tilde su nueva
adquisici6n por muchos a_os. iAdquiera su Acuerdo maestro
de protecci6n hoy!
Algunas limitaciones y exclusiones podrian aplicarse.
Para precios e informacibn adicional, Ilame al
1-800-827-6655.
Servicio de instalacibn Sears
Para una instalaci6n profesional de Sears en
electrodom_sticos, abridores de puertas de garaje,
calentadores de agua y otros artfculos mayores del hogar,
Ilameal 1-888-SU-HOGAR®.
REV.030509
.........iiii.....
Before Setting Oven Controls
OVEN VENT
C _
Oven Vent Location
For models equipped with ceramic cooktops, the oven vent is located under
the left rear side of the control panel. When the oven is on, warm air is
released through the vent. This venting is necessary for proper air circulation
in the oven and good baking results. DO NOT BLOCK OVEN VENT.
Arranging Oven Racks
AL WAYS ARRANGE OVEN RACKS WHEN THE 0 VEN IS COOL (PRIOR
TO OPERA lING THE OVEN). Always use oven mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides
on the oven walls. Tilt the front of the rack upward and slide the rack back into place.
Rack
positions
RECOMMENDED RACK POSiTiONS FOR
BROiLiNG, BAKING & ROASTING
Food
Broiling meats, chicken or fish
Cookies, cakes, pies, biscuits & muffins
Frozen pies, angel food cake, yeast, bread,
casseroles, small cuts of meat or poultry
Turkey, roast or ham
Rack Position
1,2or3
3or4
5
5
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter of
the element outline on the cooktop. Heat istransferred up through the surface of the cooktop to the cookware. Only fiat-
bottomed cookware should be used. The type and size of cookware, the number of surface elements in use and their
settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to cause burns.
O0 00 .............
®0 O0 .........
LEFT FRONT LEFTREAR
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain the
selected setting, the element will cycle on and off. The heating
element retains enough heat to provide a uniform and consistent
heat during the off cycle. The ceramic fixture thermally insulates the
heating element, concentrating heat inthe heating zone. For
efficient cooking, turn off the element several minutes before cooking
is complete. This will allow residual heat to complete the cooking
process.
NOTE: Please read detailed instructionsfor ceramic glass cooktop
cleaning in the General Care & Cleaning and Before You Call
checklist sections of this Use & Care Guide.
NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to
prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small
for the radiant element or ifthe cookware bottom isnot flat.
Before Setting Oven Controls
ELEME_T ON
Element ON and Hot Surface Indicator Lights
Your range is equipped with two different surface control lights that will glow on your
range-- the Element On indicator light and a Hot Surface indicator light.
The Element On located on the control panel, will glow when any surface element is
turned on. A quick glance at this light after cooking is an easy check to be sure all
surface controls are turned off.
The Hot Surface indicator light, located on the control panel, will glow as the surface
cooking area heats up and will REMAIN ON until the glass cooktop has cooled to a
MODERATE level.
To Operate Single Radiant
Surface Elements
Setting Surface Controls
1. Place correctly sized cookware on the radiant surface element.
HOTSURFACE
2.
Push in and turn the surface control knob in either direction to the desired setting.
Start most cooking operations on a higher setting and then turn to a lower setting
to finish cooking. The surface control knobs do not have to be set exactly on a
particular mark. Use the marks as a guide and adjust the control knob as needed.
Each surface element provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the bottom edge of the
cookware indicates the cookware istoo small for the surface heating area.
3. When cooking iscompleted, turn the surface element off before removing the
cookware. Note: the Element On indicator light will glow when one or more
elements are turned on. A quick glance at the indicator light(s) when cooking is
__ -- finished is an easy check to be sure all control knobs are turned off. The Hot
Surface indicator light will continue to glow AFTER the control knob is turned to
the "Off" position and will glow until the heating surface area has cooled sufficiently.
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur ifthe glass surface istouched before it has cooled sufficiently.
iii...............
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
Surface Cooking
Using proper cookware
Cookware should have flat
bottoms that make good contact
with the entire surface heating
element. Check for flatness by
rotating a ruler across the bottom
of the cookware (See Fig.l).
Be sure to follow the
recommendations for using
cookware as shown in Fig. 2.
Fig. 1
Note: The size and type of cookware used will influence the setting
needed for best cooking results.
Deep fat frying - Use a thermometer and adjust the surface
control knob accordingly. If the fat istoo cool, the food will absorb
the fat and be greasy. If the fat istoo hot, the food will brown so
quickly that the center will be undercooked. Do not attempt to deep
fat fry too much food at once as the food will neither brown or cook
properly.
*CORRECT iNCORRECT
t t
• Fiat bottom and straight
sides.
Q Tight fitting lids.
• Weight of handle does not
tilt pan. Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of
the surface element.
o Made of a material that
conducts heat well.
• Easy to clean.
® Always match pot diameter
to element surface
diameter,
o Curved and warped pan
bottoms,
e Pan overhangs element by
more than one-half inch.
• Pan is smaller than
element.
® Heavy handle tilts pan.
Fig. 2

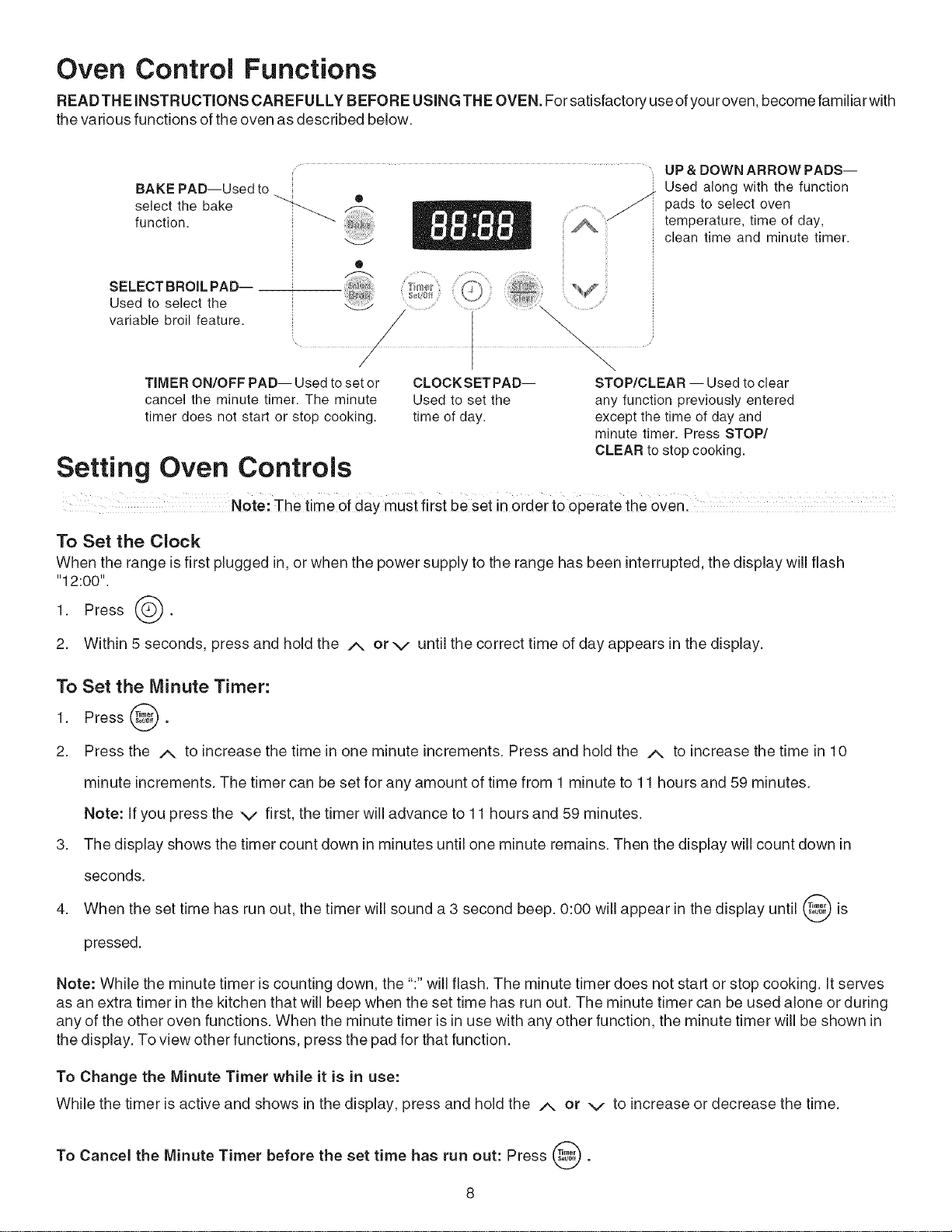

Oven Control Functions
READTHEINSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory useof youroven, become familiarwith
the various functions of the oven as described below.
BAKE PAD--Used to
select the bake
function.
SELECT BROIL PAD--
Used to select the
variable broil feature.
...... UP& DOWNARROW PADS--
Used along with the function
" _ pads to select eventemperature, time of day,
clean time and minute timer.
®
/
TIMER ON/OFF PAD-- Used to set or
cancel the minute timer. The minute
timer does not start or stop cooking.
Setting Oven Controls
CLOCK SET PAD--
Used to set the
time of day.
\
STOP/CLEAR -- Used to clear
any function previously entered
except the time of day and
minute timer. Press STOP/
CLEAR to stop cooking.
Note: The time OfdaY must firSt beset in 0ider to operate the even:
To Set the Clock
When the range isfirst plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press _o
2. Within 5 seconds, press and hold the /_. or v until the correct time of day appears in the display.
To Set the Minute Timer:
t. Press @.
2. Press the /--, to increase the time in one minute increments. Press and hold the /_ to increase the time in t 0
minute increments. The timer can be set for any amount of time from t minute to t t hours and 59 minutes.
Note: If you press the v first, the timer will advance to t t hours and 59 minutes.
3. The display shows the timer count down in minutes until one minute remains. Then the display will count down in
seconds.
When the set time has run out, the timer will sound a 3 second beep. 0:00 will appear in the display until @ is
4.
pressed.
Note: While the minute timer is counting down, the ":" will flash. The minute timer does not start or stop cooking. It serves
as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or during
any of the other oven functions. When the minute timer is in use with any other function, the minute timer will be shown in
the display. To view other functions, press the pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the A or v to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press @.
Setting Oven Controls

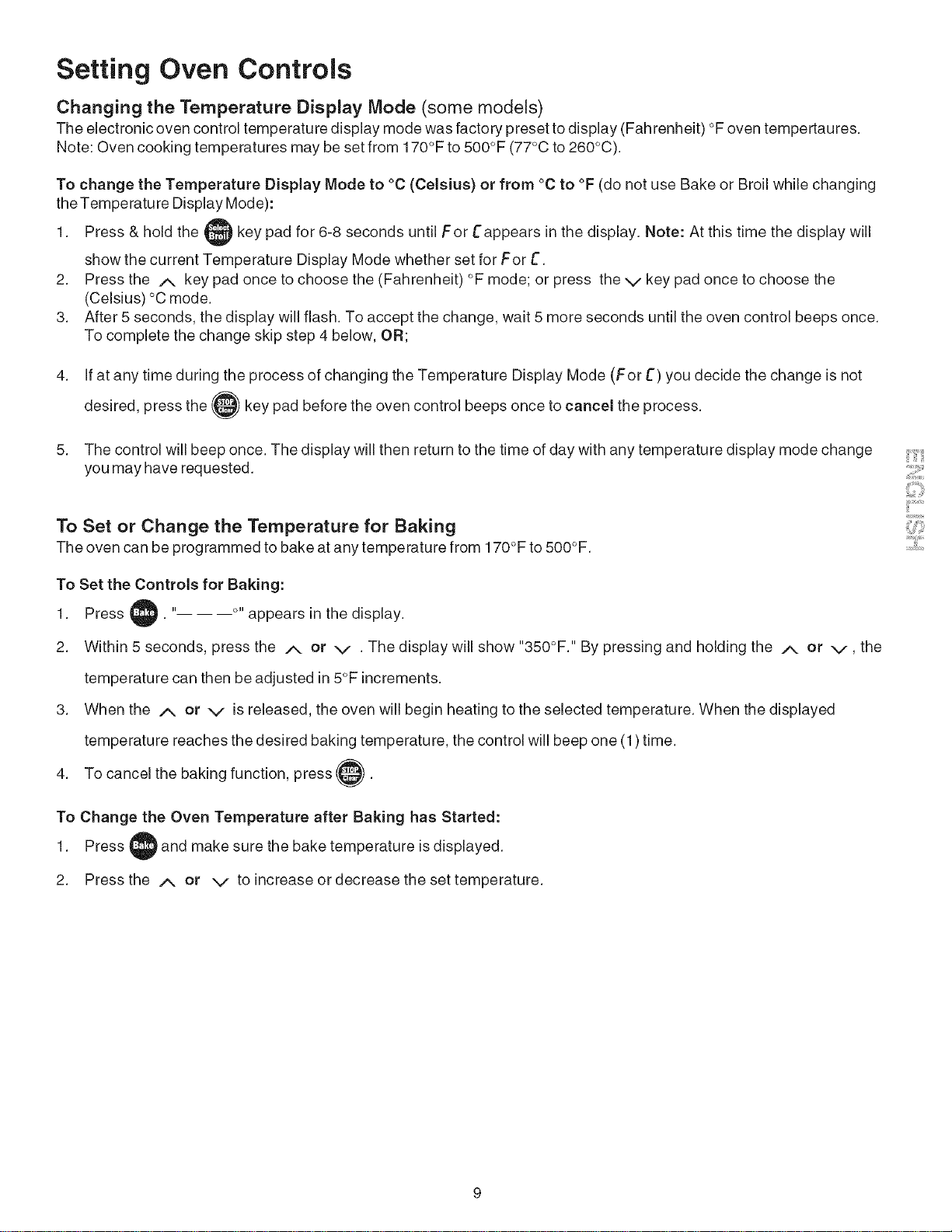

Changing the Temperature Display Mode (some models)
The electronic oven control temperature display mode was factory preset to display (Fahrenheit) °F oven tempertaures.
Note: Oven cooking temperatures may be set from 170°F to 500°F (77°C to 260°C).
To change the Temperature Display Mode to °C (Celsius) or from °C to °F (do not use Bake or Broil while changing
the Temperature Display Mode):
1. Press & hold the key pad for 6-8 seconds until For ['appears in the display. Note: At this time the display will
show the current Temperature Display Mode whether set for For ['.
2. Press the A key pad once to choose the (Fahrenheit) °F mode; or press the v key pad once to choose the
(Celsius) °C mode.
3. After 5 seconds, the display will flash. To accept the change, wait 5 more seconds until the oven control beeps once.
To complete the change skip step 4 below, OR;
4. if at any time during the process of changing the Temperature Display Mode (For [') you decide the change isnot
desired, press the key pad before the oven control beeps once to cancel the process.
5. The control will beep once. The display will then return to the time of day with any temperature display mode change
you may have requested.
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 500°F.
To Set the Controls for Baking:
1. Press ., .... appears in the display.
2. Within 5 seconds, press the A or v . The display will show "350°F." By pressing and holding the A or v, the
temperature can then be adjusted in 5°F increments.
3. When the A or v isreleased, the oven will begin heating to the selected temperature. When the displayed
temperature reaches the desired baking temperature, the control will beep one (1) time.
4. To cancel the baking function, press q
To Change the Oven Temperature after Baking has Started:
1. Press and make sure the bake temperature is displayed.
2. Press the A or v to increase or decrease the set temperature.
Setting Oven Controls
Should an oven fire occur,
close the oven door and turn off the oven.
If the fire continues, use a fire
extinguisher. DO NOT put water or flour
on the fire. Flour may be explosive.

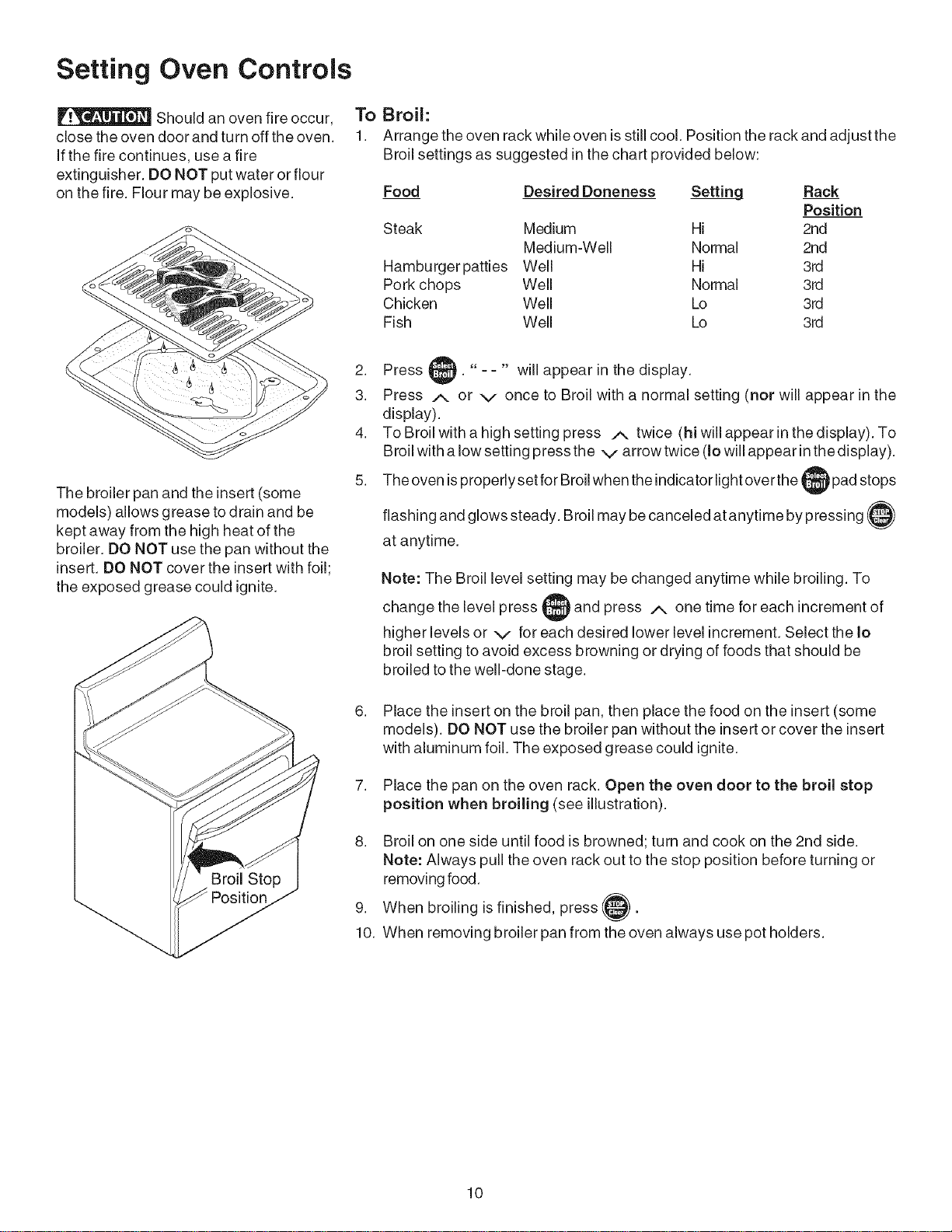

To Broil:
1. Arrange the oven rack while oven isstill cool. Position the rack and adjust the
Broil settings as suggested in the chart provided below:
Food Desired Doneness Setting Rack
Position
Steak Medium Hi 2nd
Medium-Well Normal 2nd
Hamburger patties Well Hi 3rd
Pork chops Well Normal 3rd
Chicken Well Lo 3rd
Fish Well Lo 3rd
The broiler pan and the insert (some
models) allows grease to drain and be
kept away from the high heat of the
broiler. DO NOT use the pan without the
insert. DO NOT cover the insert with foil;
the exposed grease could ignite.
2. Press " - - " will appear in the display.
3. Press A or v once to Broil with a normal setting (nor will appear in the
display).
4. To Broil with a high setting press A twice (hi will appear in the display). To
Broil with a low setting press the v arrow twice (Io will appear inthe display).
5. The oven isproperly set for Broil when the indicatorlight overthe
pad stops
flashing and glows steady. Broil may be canceled at anytime by pressing,
at anytime.
Note: The Broil level setting may be changed anytime while broiling. To
change the level press and press A one time for each increment of
higher levels or v for each desired lower level increment. Select the Io
broil setting to avoid excess browning or drying of foods that should be
broiled to the well-done stage.
6. Place the insert on the broil pan, then place the food on the insert (some
models). DO NOT use the broiler pan without the insertor cover the insert
with aluminum foil. The exposed grease could ignite.
7. Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling (see illustration).
8.
Broil on one side until food is browned; turn and cook on the 2nd side.
Note: Always pull the oven rack out to the stop position before turning or
removing food.
9. When broiling isfinished, press
10. When removing broiler pan from the oven always use pot holders.
10

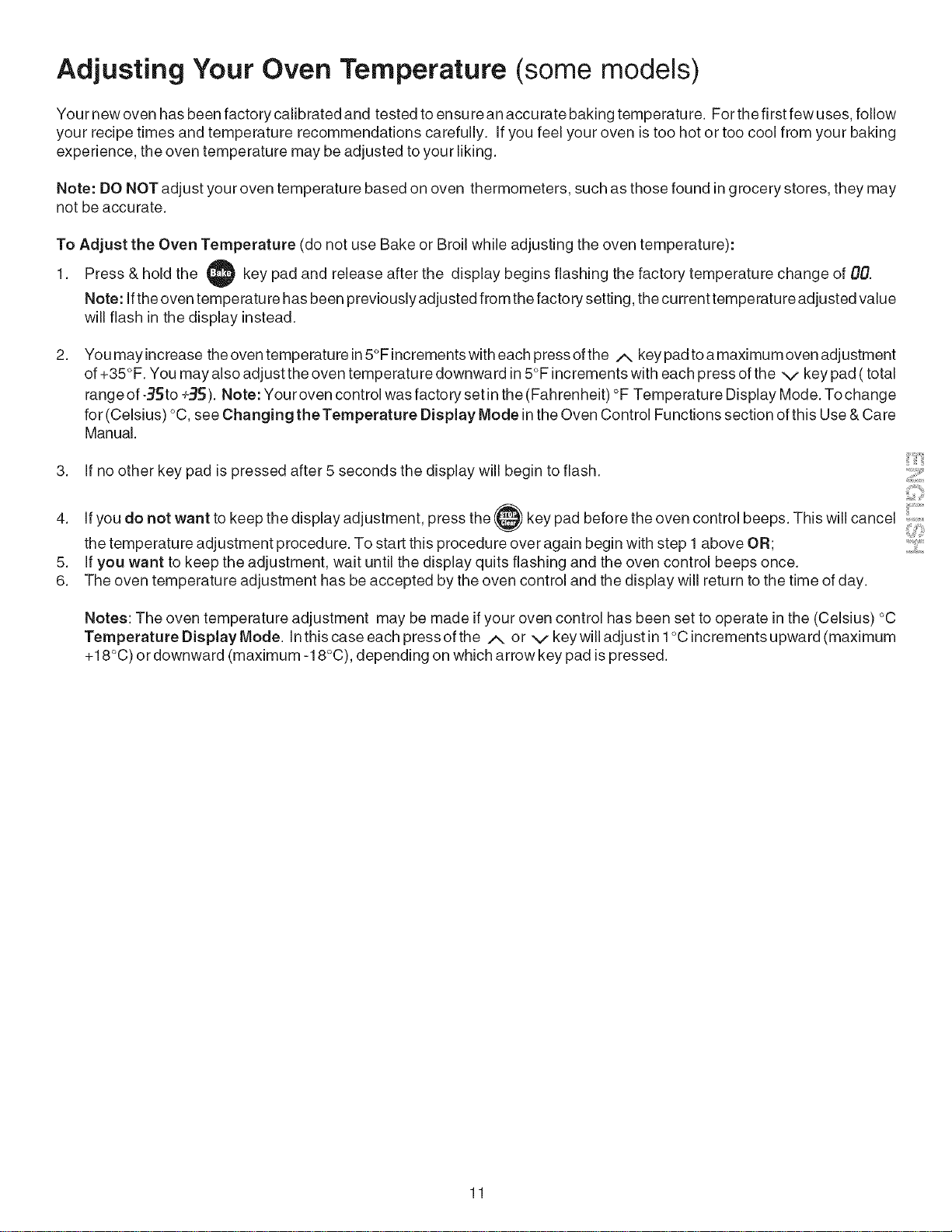

Adjusting Your Oven Temperature (some models)
Your new oven has been factory calibrated and tested to ensure an accurate baking temperature. For the first few uses, follow
your recipe times and temperature recommendations carefully. If you feel your oven is too hot or too cool from your baking
experience, the oven temperature may be adjusted to your liking.
Note: DO NOT adjust your oven temperature based on oven thermometers, such as those found in grocery stores, they may
not be accurate.
To Adjust the Oven Temperature (do not use Bake or Broil while adjusting the oven temperature):
1. Press & hold the key pad and release after the display begins flashing the factory temperature change of O0.
Note: If the oven temperature has been previouslyadjusted from the factory setting, the current temperature adjusted value
will flash in the display instead.
2.
You may increase the oven temperatu re in 5°F increments with each press ofthe/,,, key pad to a maximu m oven adjustment
of +35°F. You may also adjust the oven temperature downward in 5°F increments with each press of the v key pad (total
range of -35to ÷3S). Note: Your oven control was factory set in the (Fahrenheit) °F Temperature Display Mode. To change
for (Celsius) °C, see Changing theTemperature Display Mode in the Oven Control Functions section of this Use & Care
Manual.
3. If no other key pad is pressed after 5 seconds the display will begin to flash.
4.
5.
6.
If you do not want to keep the display adjustment, press the_ key pad before the oven control beeps. This will cancel
the temperature adjustment procedure. To start this procedure over again begin with step 1 above OR;
If you want to keep the adjustment, wait until the display quits flashing and the oven control beeps once.
The oven temperature adjustment has be accepted by the oven control and the display will return to the time of day.
Notes: The oven temperature adjustment may be made if your oven control has been set to operate in the (Celsius) °C
Temperature Display Mode. Inthis case each press of the /_ or v key will adjust in 1°C increments upward (maximum
+18°C) or downward (maximum -18°C), depending on which arrow key pad is pressed.
11

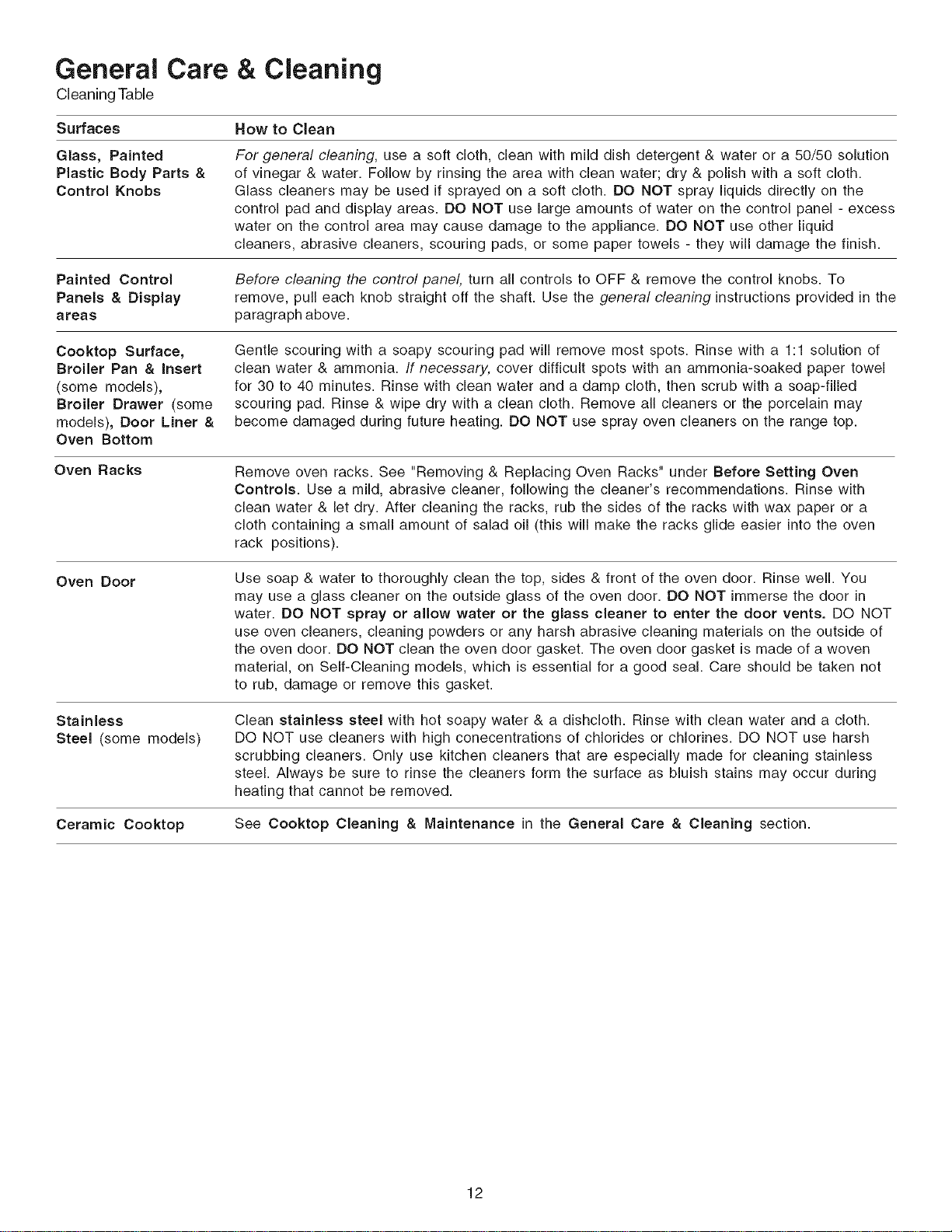

General Care & Cleaning
Cleaning Table
Surfaces How to Clean
Glass, Painted
Plastic Body Parts &
Control Knobs
For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution
of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth.
Glass cleaners may be used if sprayed on a soft cloth. DO NOT spray liquids directly on the
control pad and display areas. DO NOT use large amounts of water on the control panel - excess
water on the control area may cause damage to the appliance. DO NOT use other liquid
cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish.
Painted Control
Panels & Display
areas
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To
remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the
paragraph above.
Cooktop Surface,
Broiler Pan & Insert
(some models),
Broiler Drawer (some
models), Door Liner &
Oven Bottom
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel
for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled
scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on the range top.
Oven Racks
Remove oven racks. See "Removing & Replacing Oven Racks" under Before Setting Oven
Controls. Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with
clean water & let dry. After cleaning the racks, rub the sides of the racks with wax paper or a
cloth containing a small amount of salad oil (this will make the racks glide easier into the oven
rack positions).
Over Door
Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You
may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in
water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT
use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of
the oven door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not
to rub, damage or remove this gasket.
Stainless
Steel (some models)
Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth.
DO NOT use cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless
steel. Always be sure to rinse the cleaners form the surface as bluish stains may occur during
heating that cannot be removed.
Ceramic Cooktop See Cooktop Cleaning & Maintenance in the General Care & Cleaning section.
12
General Care & Cleaning

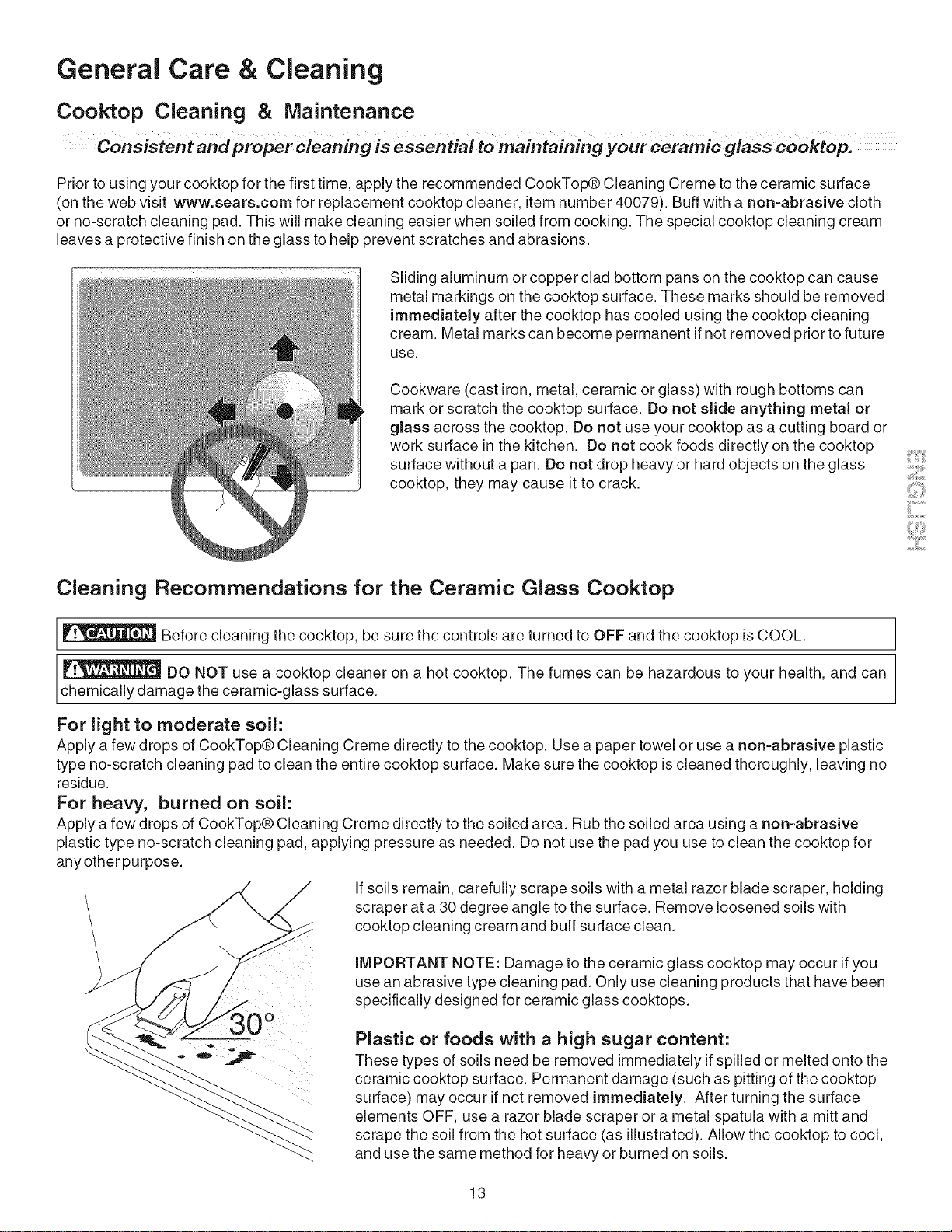

Cooktop Cleaning & Maintenance
Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop,
Prior to using your cooktop for the first time, apply the recommended CookTop@ Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the cooktop cleaning
cream. Metal marks can become permanent ifnot removed prior to future
use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can
mark or scratch the cooktop surface. Do not slide anything metal or
glass across the cooktop. Do not use your cooktop as a cutting board or
work surface in the kitchen. Do not cook foods directly on the cooktop
surface without a pan. Do not drop heavy or hard objects on the glass
cooktop, they may cause itto crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non=abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop iscleaned thoroughly, leaving no
residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non=abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.
J
If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.
iMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning products that have been
specifically designed for ceramic glass cooktops.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately ifspilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool,
and use the same method for heavy or burned on soils.
13

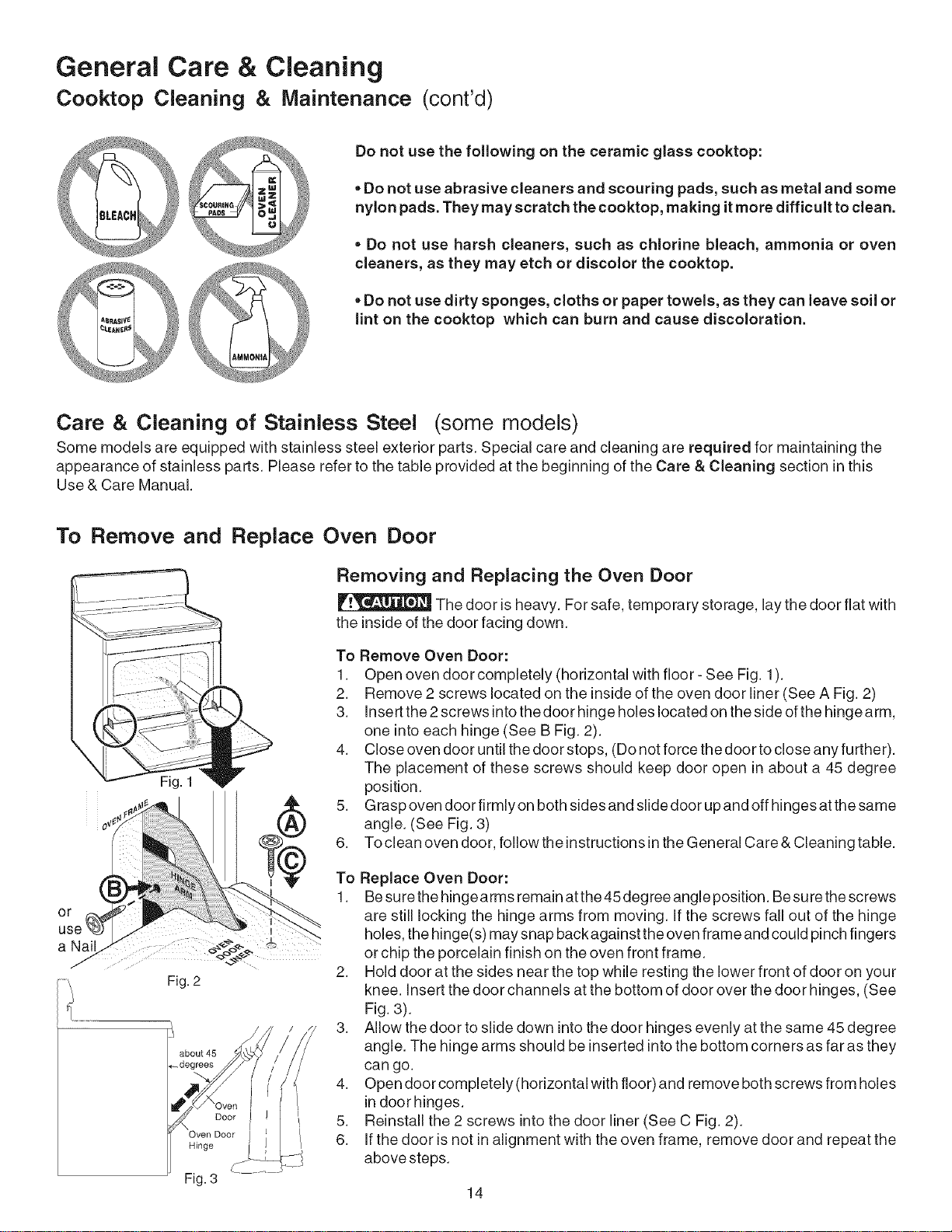

General Care & Cleaning
Cooktop Cleaning & Maintenance (cont'd)
Do not use the foJJowing on the ceramic glass cooktop:
=Do not use abrasive cleaners and scouring pads, such as metal and some
nyJon pads. They may scratch the cooktop, making itmore difficult to cJean.
• Do not use harsh cleaners, such as chJorine bleach, ammonia or oven
cJeaners, as they may etch or discoJor the cooktop.
Do not use dirty sponges, cJoths or paper towels, as they can JeavesoiJ or
Jint on the cooktop which can burn and cause discoJoration.
Care & Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the Care & CJeaning section in this
Use & Care Manual.
To Remove and Replace Oven Door
Fig. 1
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2)
3. Insert the 2 screws intothe door hinge holes located on the side of the hinge arm,
one into each hinge (See B Fig. 2).
4. Close oven door until the door stops, (Do not force the door to close any further).
The placement of these screws should keep door open in about a 45 degree
position.
5. Grasp oven door firmlyon both sides and slide door up and off hinges at the same
angle. (See Fig. 3)
6. To clean oven door, follow the instructionsinthe General Care & Cleaning table.
or
a Nail
Fig. 2
about 45
Hinge
Fig. 3
To Replace Oven Door:
1. Besurethehingearmsremainatthe45degreeangleposition. Besurethescrews
are still locking the hinge arms from moving. If the screws fall out of the hinge
holes, the hinge(s) may snap back against the oven frame and could pinch fingers
or chip the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on your
knee. Insert the door channels at the bottom of door over the door hinges, (See
Fig. 3).
3. Allow the door to slide down intothe door hinges evenly at the same 45 degree
angle. The hinge arms should be inserted intothe bottom corners as far as they
can go.
4. Open door completely (horizontal with floor) and remove both screws from holes
in door hinges.
5. Reinstall the 2 screws intothe door liner (See C Fig. 2).
6. If the door is not inalignment with the oven frame, remove door and repeat the
above steps.
14

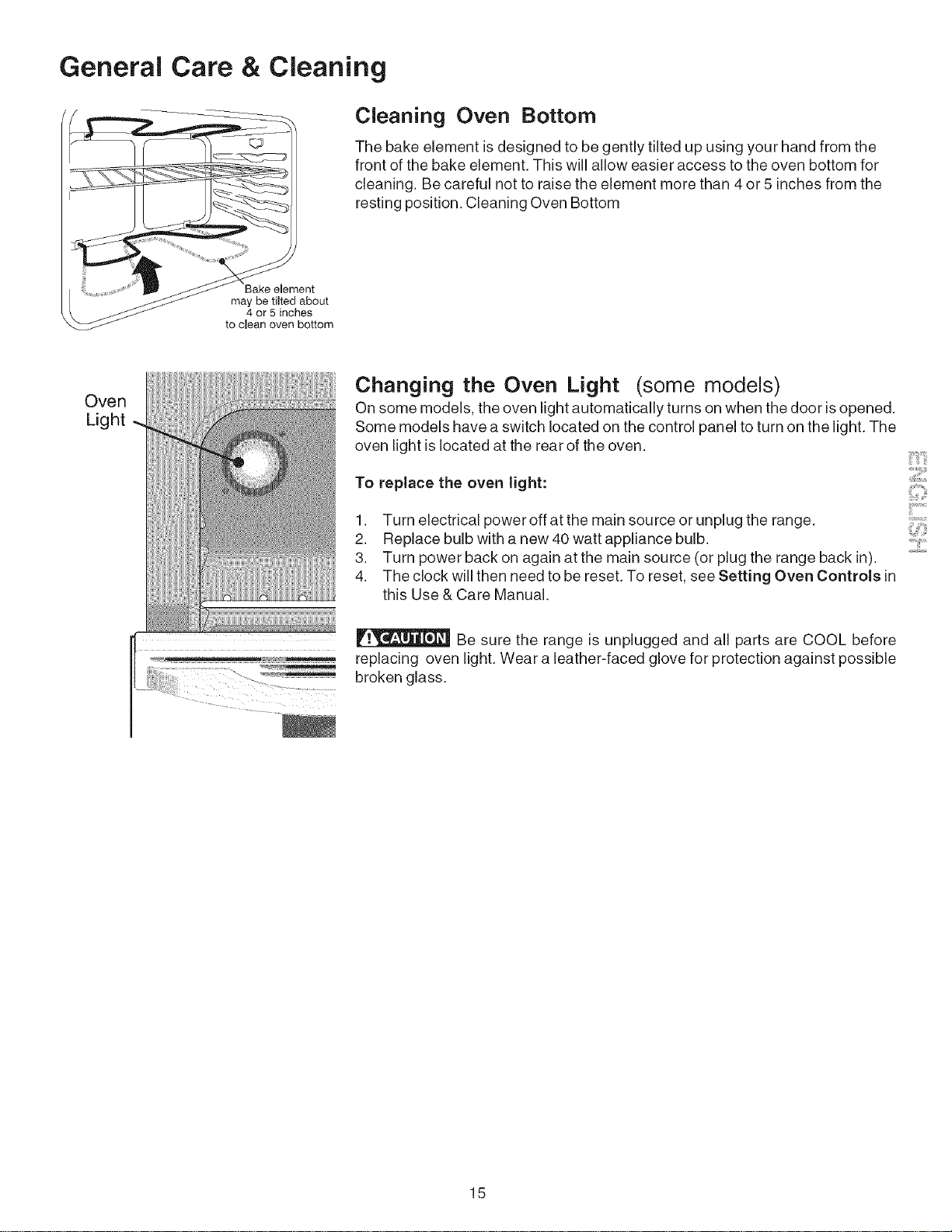

General Care & Cleaning
Cleaning Oven Bottom
The bake element isdesigned to be gently tilted up using your hand from the
front of the bake element. This will allow easier access to the oven bottom for
cleaning. Be careful not to raise the element more than 4 or 5 inches from the
resting position. Cleaning Oven Bottom
Bake element
may be tilted about
4 or 5 inches
to clean oven bottom
Ove n
Light
Changing the Oven Light (some models)
On some models, the oven light automatically turns on when the door isopened.
Some models have a switch located on the control panel to turn on the light. The
oven light islocated at the rear of the oven.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Replace bulb with a new 40 watt appliance bulb.
3. Turn power back on again at the main source (or plug the range back in).
4. The clock will then need to be reset. To reset, see Setting Oven Controls in
this Use & Care Manual.
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection against possible
broken glass.
15

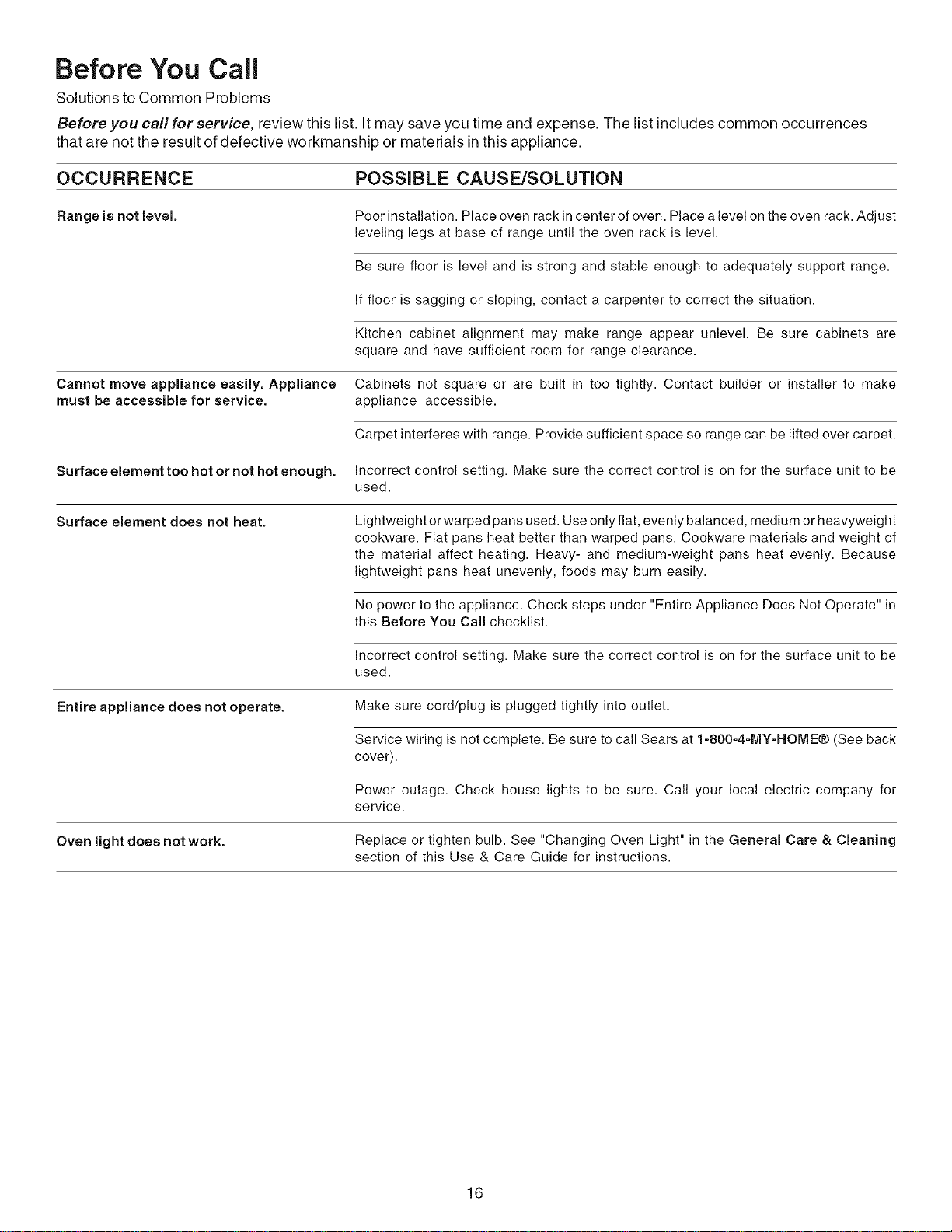

Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level.
Cannot move appliance easily. Appliance
must be accessible for service.
Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
Surfaceelementtoo hotornothotenough. Incorrect control setting. Make sure the correct control is on for the surface unit to be
used.
Surface element does not heat. Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy- and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in
this Before You Call checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be
used.
Entire appliance does not operate.
Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Be sure to call Sears at 1-800=4-MY-HOME® (See back
cover).
Power outage. Check house lights to be sure. Call your local electric company for
service.
Oven light does not work. Replace or tighten bulb. See "Changing Oven Light" in the General Care & Cleaning
section of this Use & Care Guide for instructions.
16

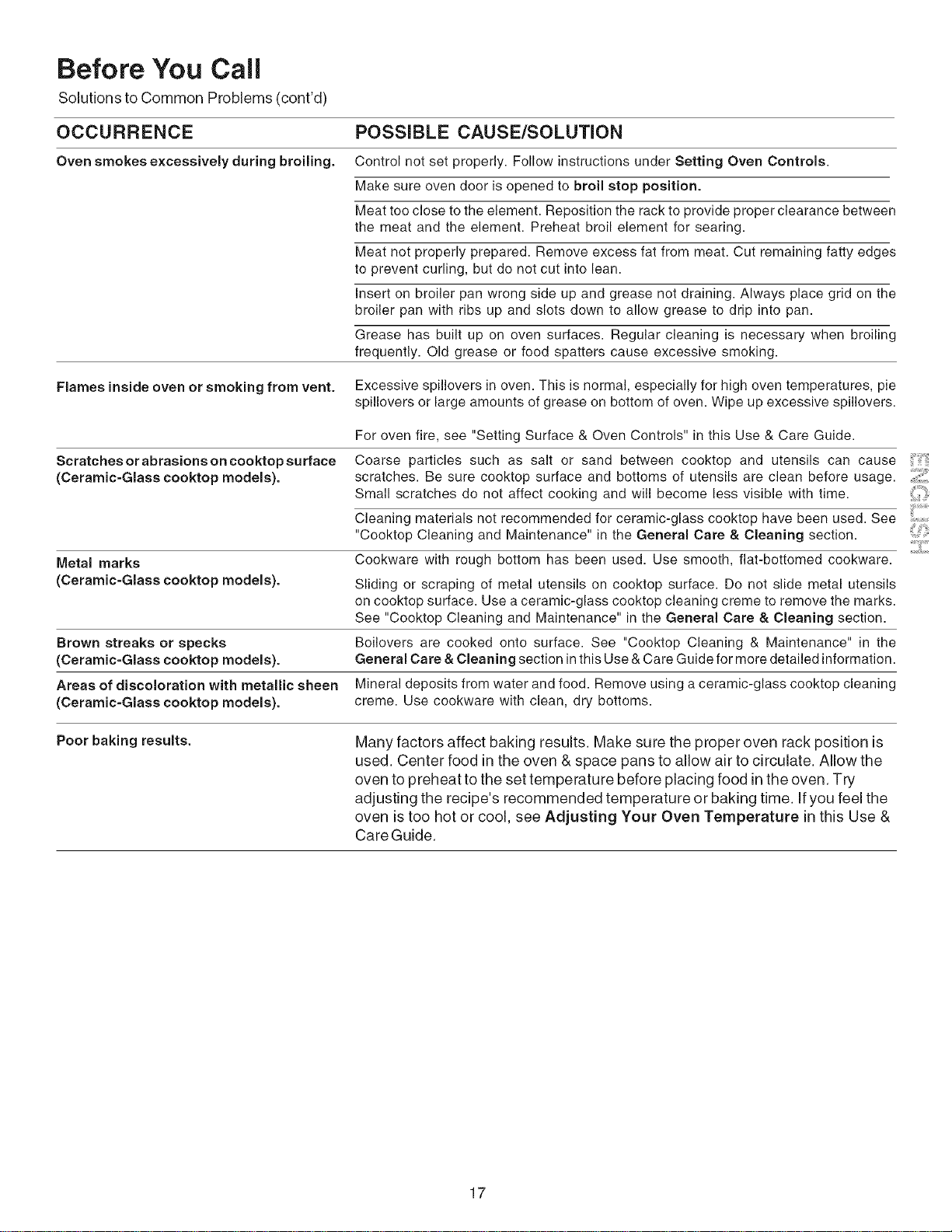

Before You Call
Solutions to Common Problems (cont'd)
OCCURRENCE
Oven smokes excessively during broiling.
Flames inside oven or smoking from vent.
Scratches or abrasions on cooktop surface
(Ceramic-Glass cooktop models).
Metal marks
(Ceramic-Glass cooktop models).
Brown streaks or specks
(Ceramic=Glass cooktop models).
Areas of discoloration with metallic sheen
(Ceramic-Glass cooktop models).
Poor baking results.
POSSIBLE CAUSE/SOLUTION
Control not set properly. Follow instructions under Setting Oven Controls.
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance between
the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do not cut into lean.
insert on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers.
For oven fire, see "Setting Surface & Oven Controls" in this Use & Care Guide.
Coarse particles such as salt or sand between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils
on cooktop surface. Use aceramic-glass cooktop cleaning creme to remove the marks.
See "Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Boilovers are cooked onto surface. See "Cooktop Cleaning & Maintenance" in the
General Care & Cleaning section in this Use &Care Guide for more detailed information.
Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
creme. Use cookware with clean, dry bottoms.
Many factors affect baking results. Make sure the proper oven rack position is
used. Center food in the oven & space pans to allow air to circulate. Allow the
oven to preheat to the set temperature before placing food in the oven. Try
adjusting the recipe's recommended temperature or baking time. If you feel the
oven istoo hot or cool, see Adjusting Your Oven Temperature in this Use &
Care Guide.
17
www.sears.ca
TM
® Registered Trademark / Trademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TMMarca de F_brica / SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce I MDMarque deposee de Sears Brands, LLC ® Sears Brands, LLC
