Owner’s Manual
Package Contents
Installation
Product Features
Este guía esta disponible en
español en la página de Tripp Lite:
www.tripplite.com/support
Ce guide est disponible en français
sur le site Web de Tripp Lite :
www.tripplite.com/support
Русскоязычная версия настоящего
краткого руководства представлена
на веб-сайте компании Tripp Lite по
адресу: www.tripplite.com
HDMI In-Line Signal Booster/Extender
Model: B122-000
Extends a 1080p (@ 24 Hz) signal up to 125 ft. (38 m) from source to extension cable
• No software or drivers required
• External power not required in most installations
• HDCP compliant
• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
B122-000 HDMI Active Extender
Owner’s Manual
Notes:
• Test to make sure the entire installation works properly before pulling
cables through ceilings/walls.
• Most installations will not require power. However, a Micro USB port is
provided in the event power is needed. If an image does not appear after
performing the following steps, connect a Micro USB cable from the port on
the unit to a USB computer, monitor or USB wall charger port, such
as Tripp Lite’s U280-002-W12.
1

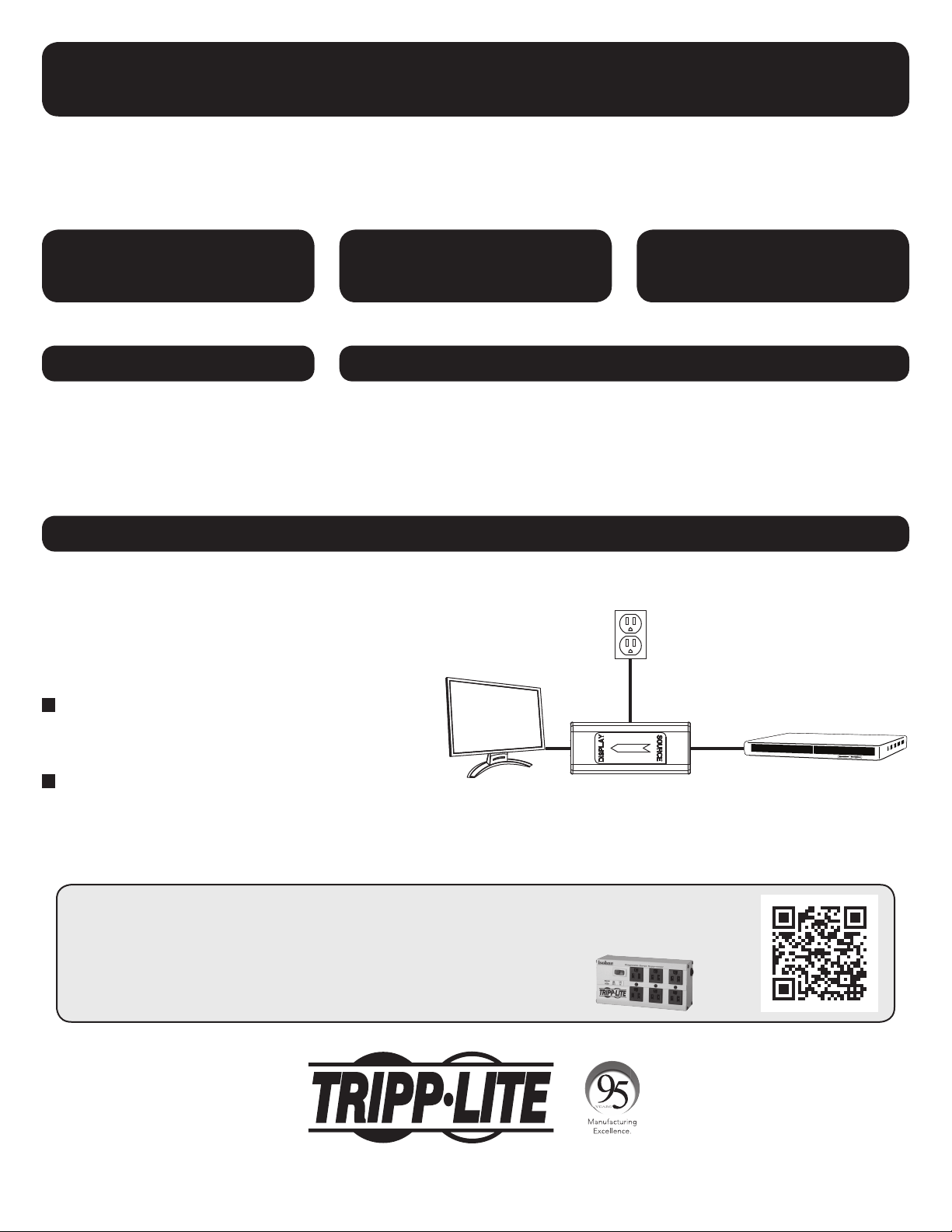

Connect the longer HDMI cable between the source and
the connector on the B122-000 labeled “Source.”
Note: For extension distances over 75 ft. (23 m), use 24 AWG
HDMI cable such as Tripp Lite’s P568-100-HD.
2
Connect the shorter HDMI cable between the monitor
and the connector on the B122-000 labeled “Display.”
Note: The HDMI cable connecting the monitor to the
B122-000 must be no longer than 16 ft. (5 m).
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
BLU-RAY PLAYER
1080p (24 Hz)
B122-000MONITOR
