E L I TE
®
Electric Range
Estufa el6ctrica
Models, Modelos 790.9659*
*=color number, ntJmero de color
iii...........
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. pin 316417253 (0606)

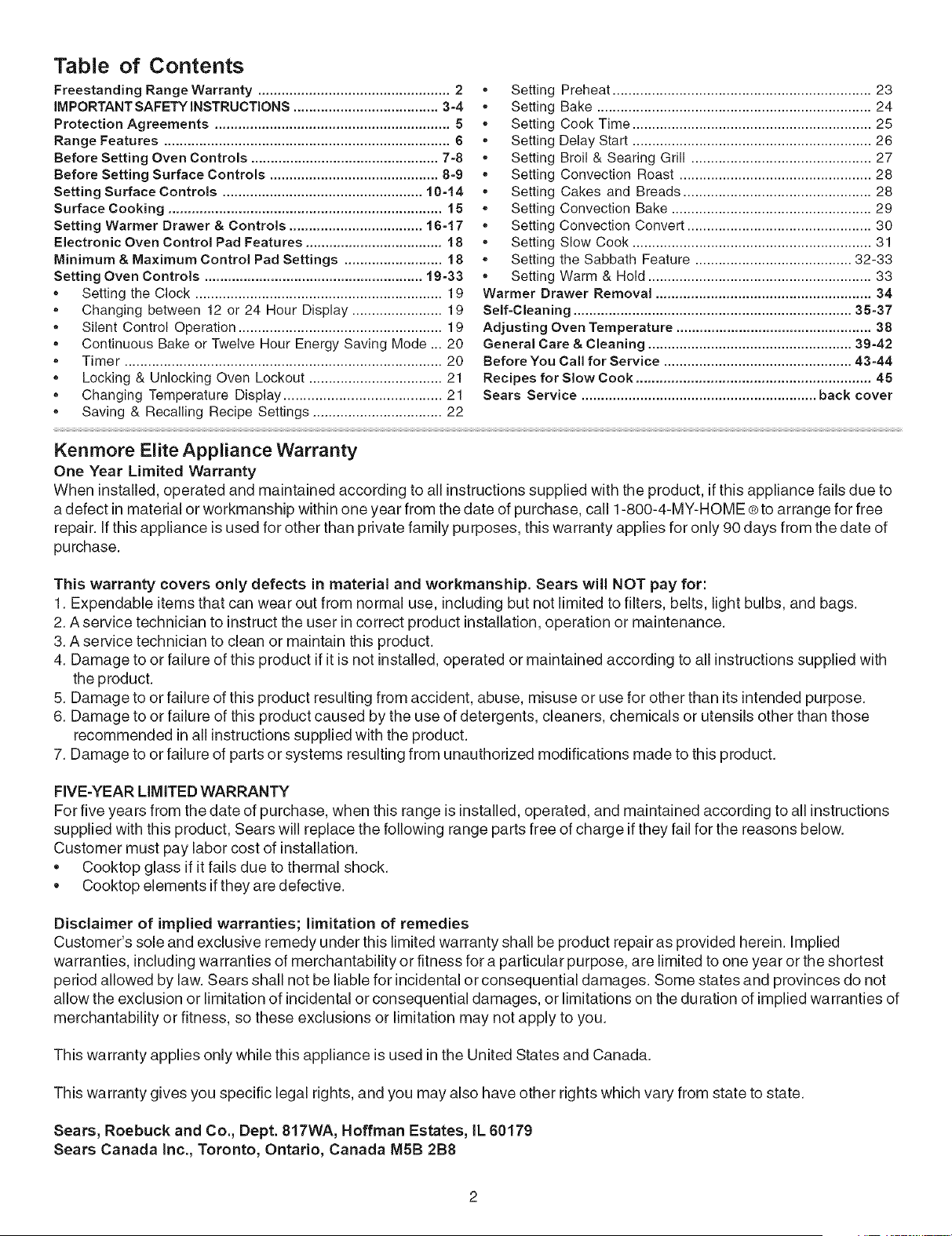

Table of Contents
Freestanding Range Warranty ................................................. 2
iMPORTANT SAFETY iNSTRUCTiONS ..................................... 3-4

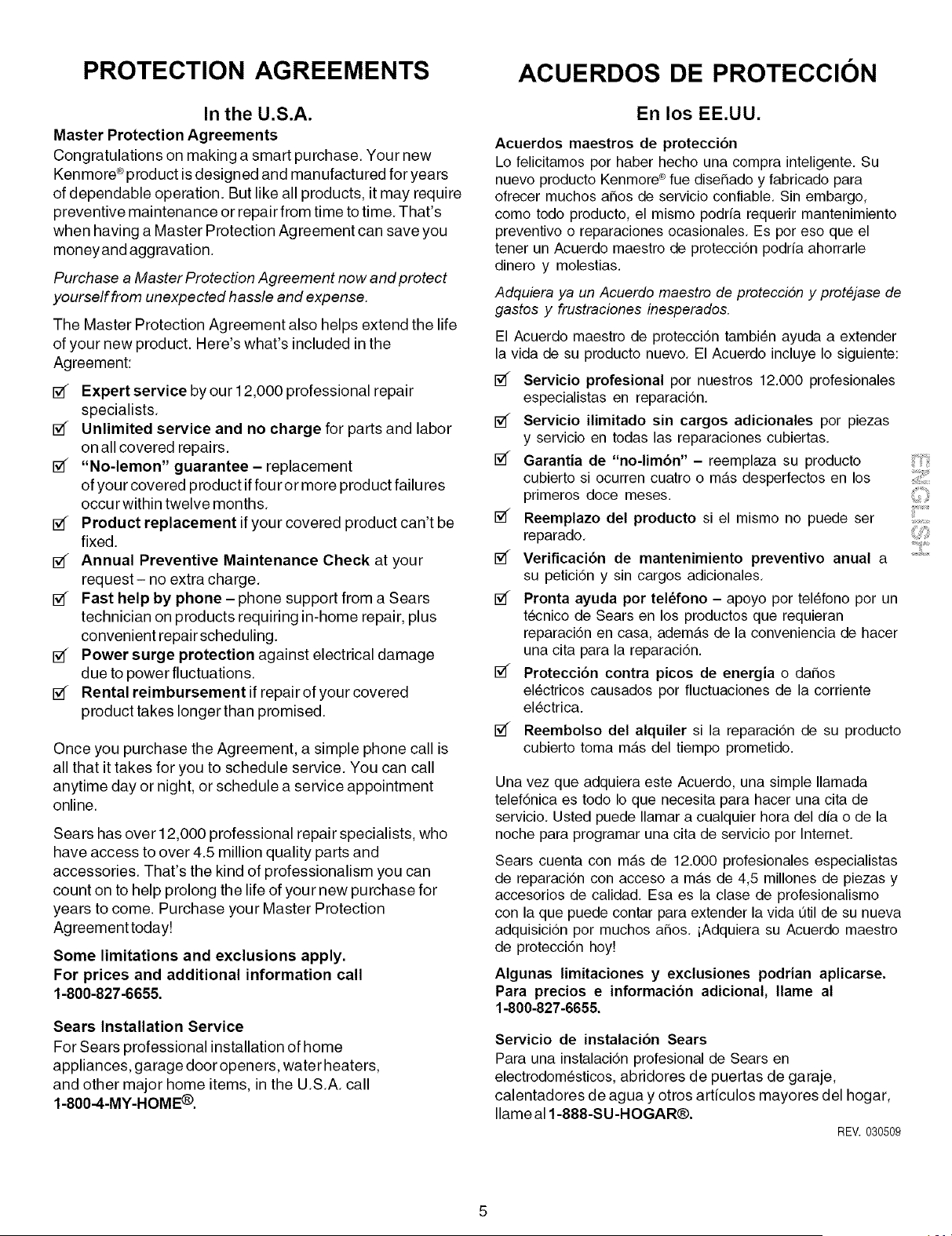

Protection Agreements ............................................................ 5

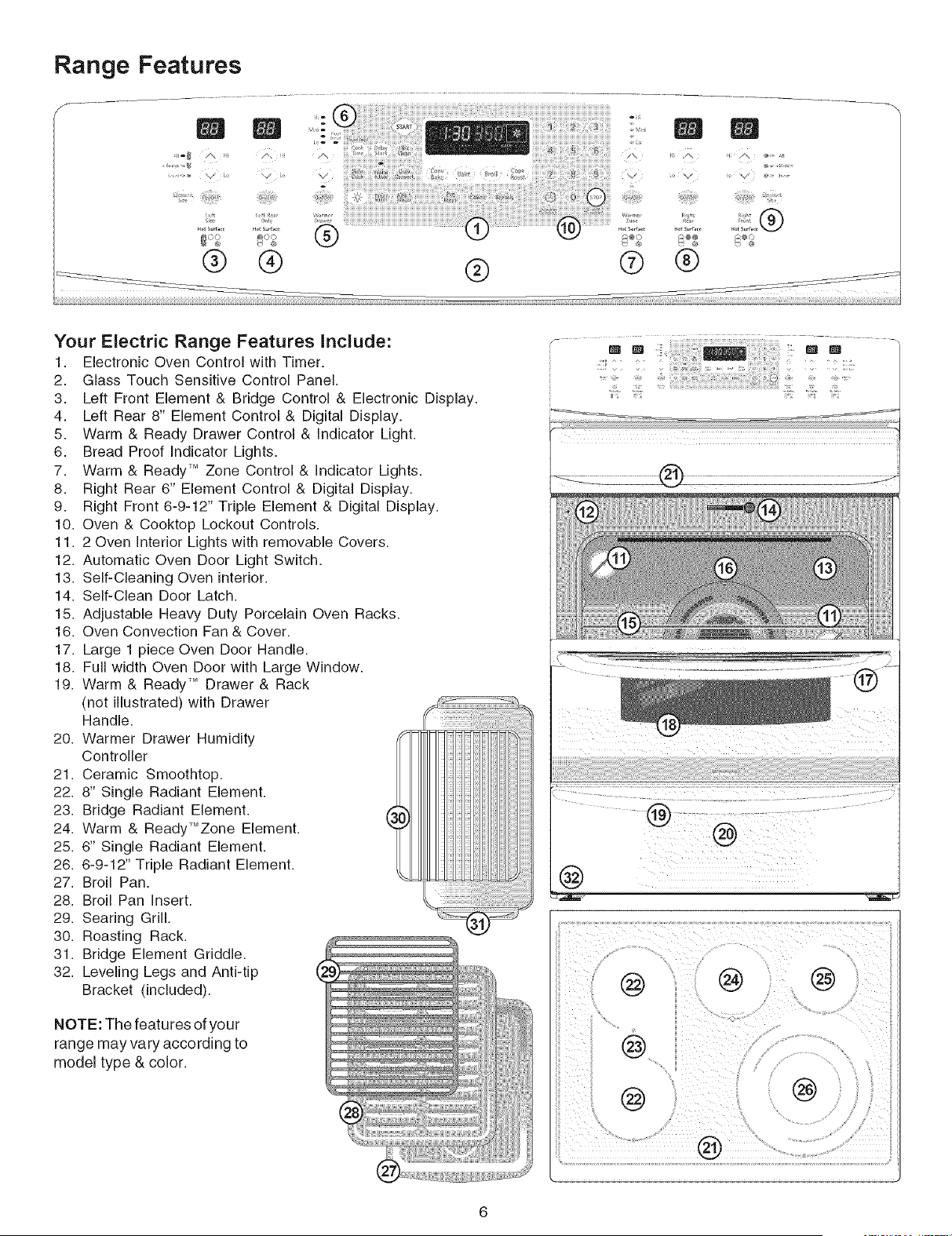

Range Features ......................................................................... 6

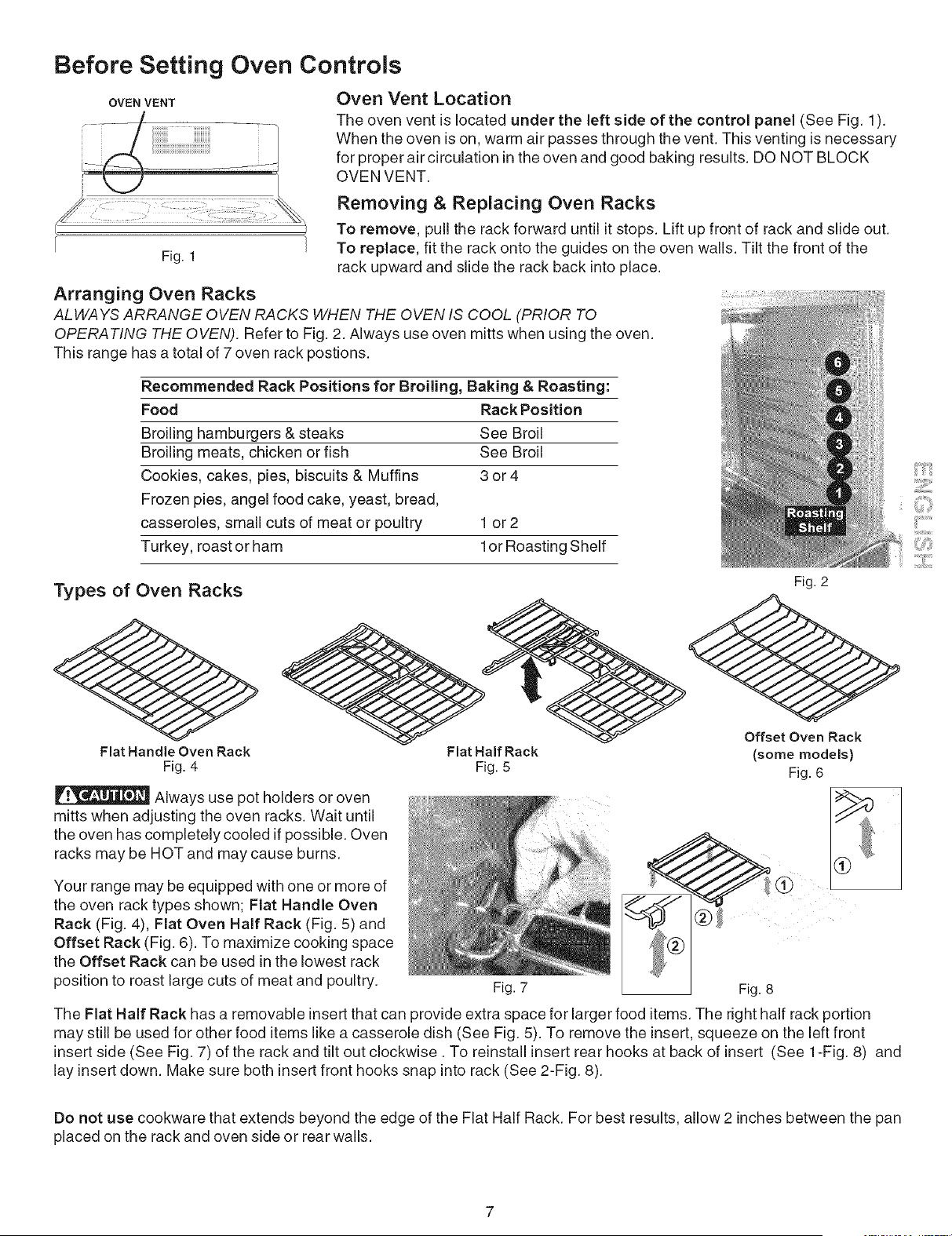

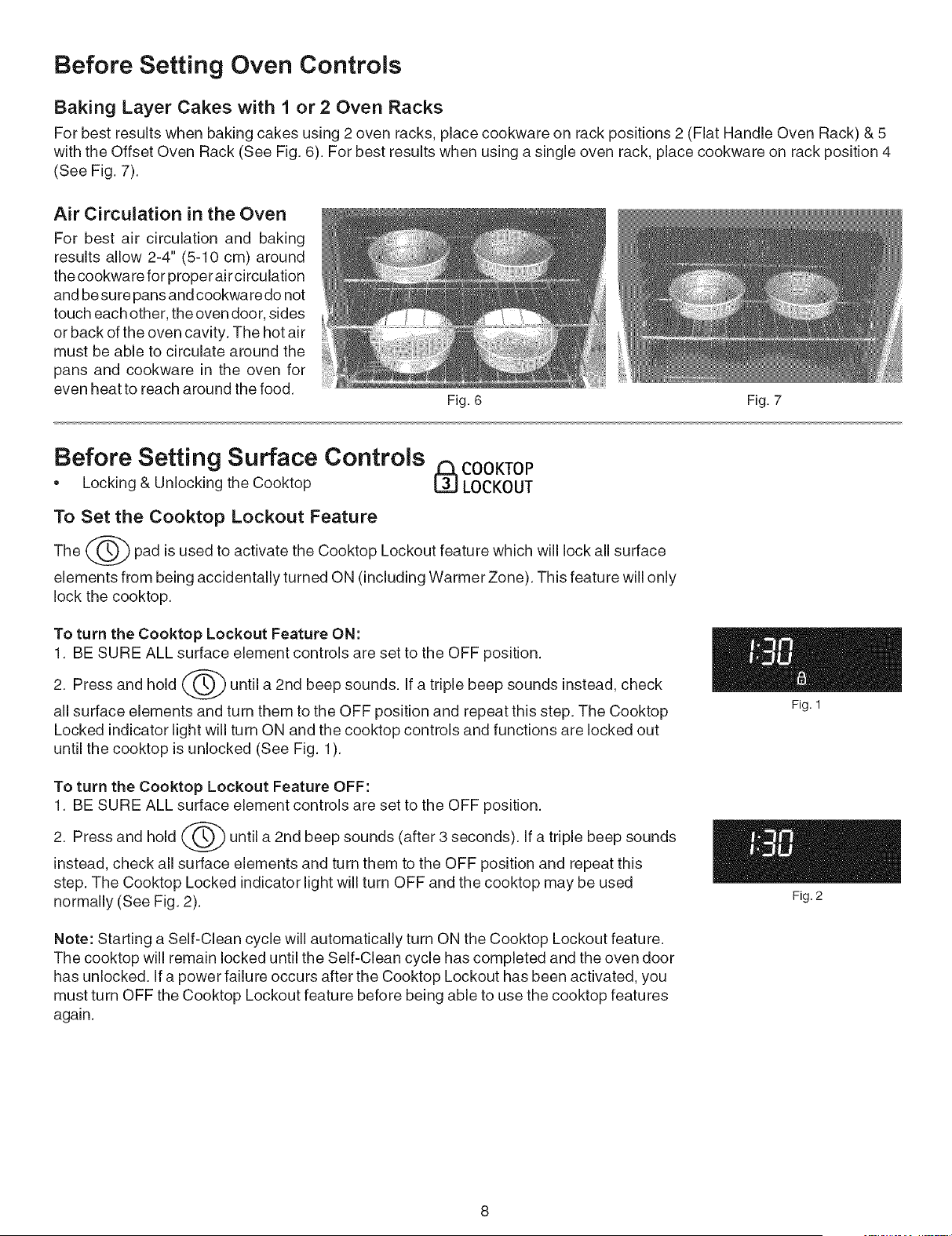

Before Setting Oven Controls ................................................ 7-8

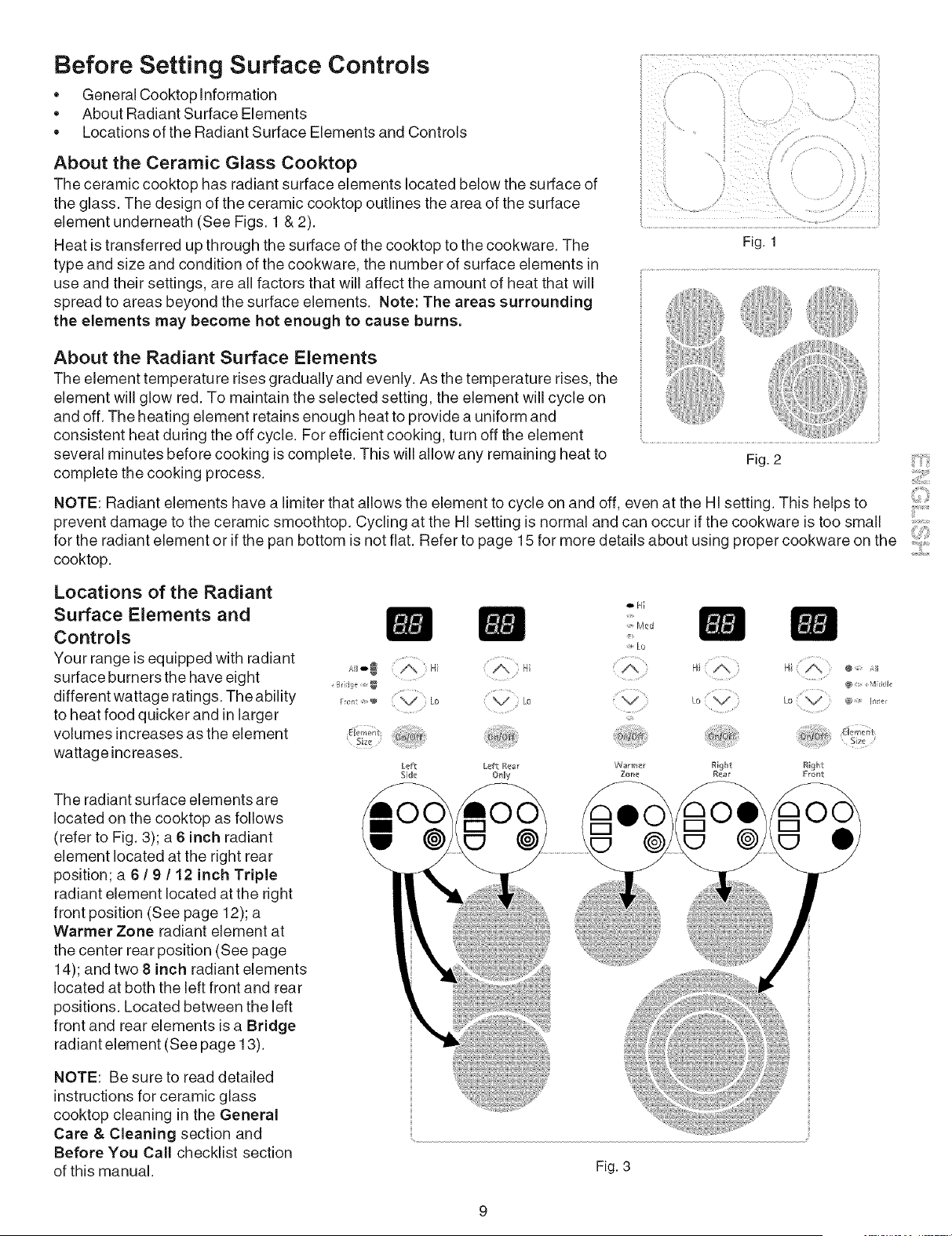

Before Setting Surface Controls ........................................... 8-9

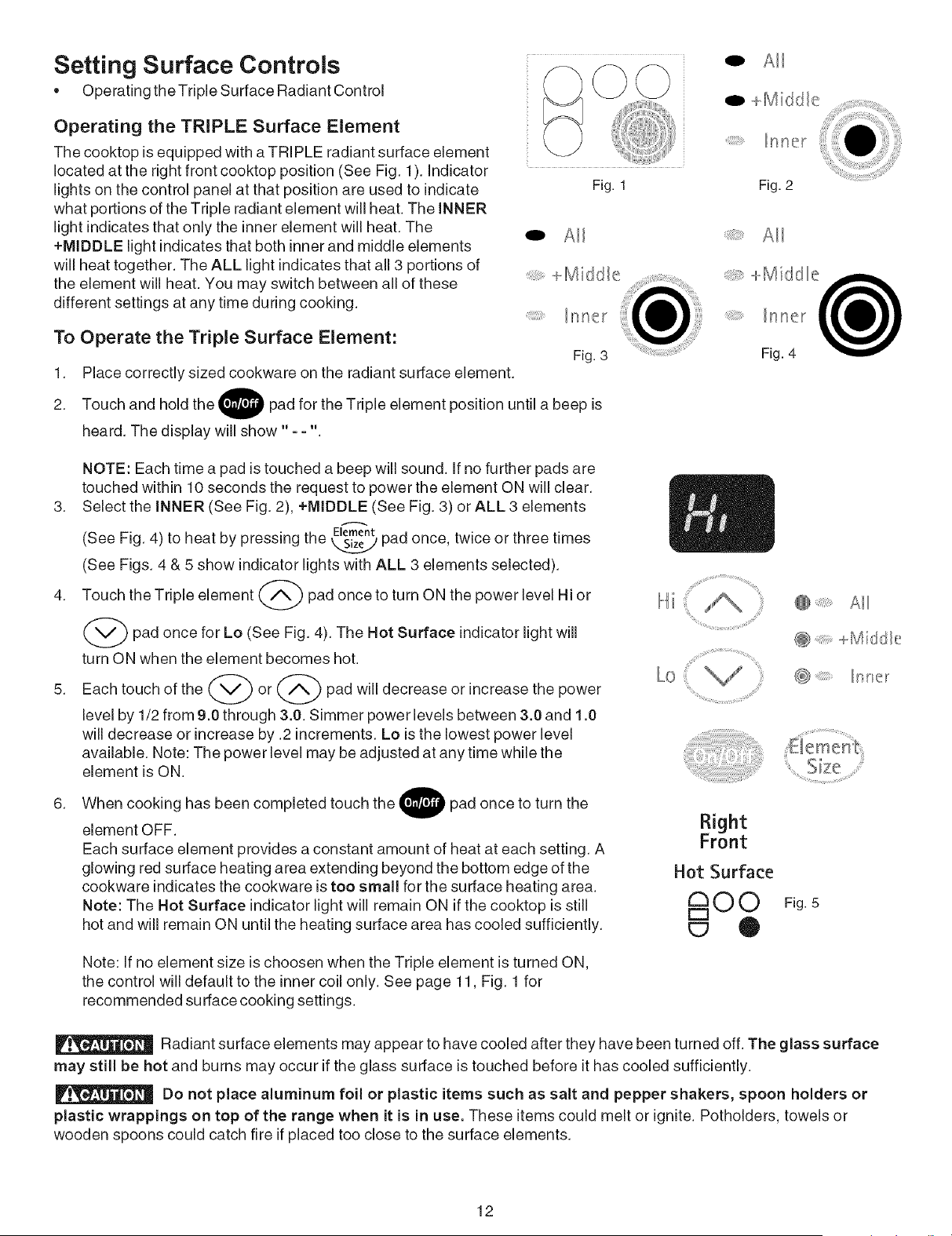

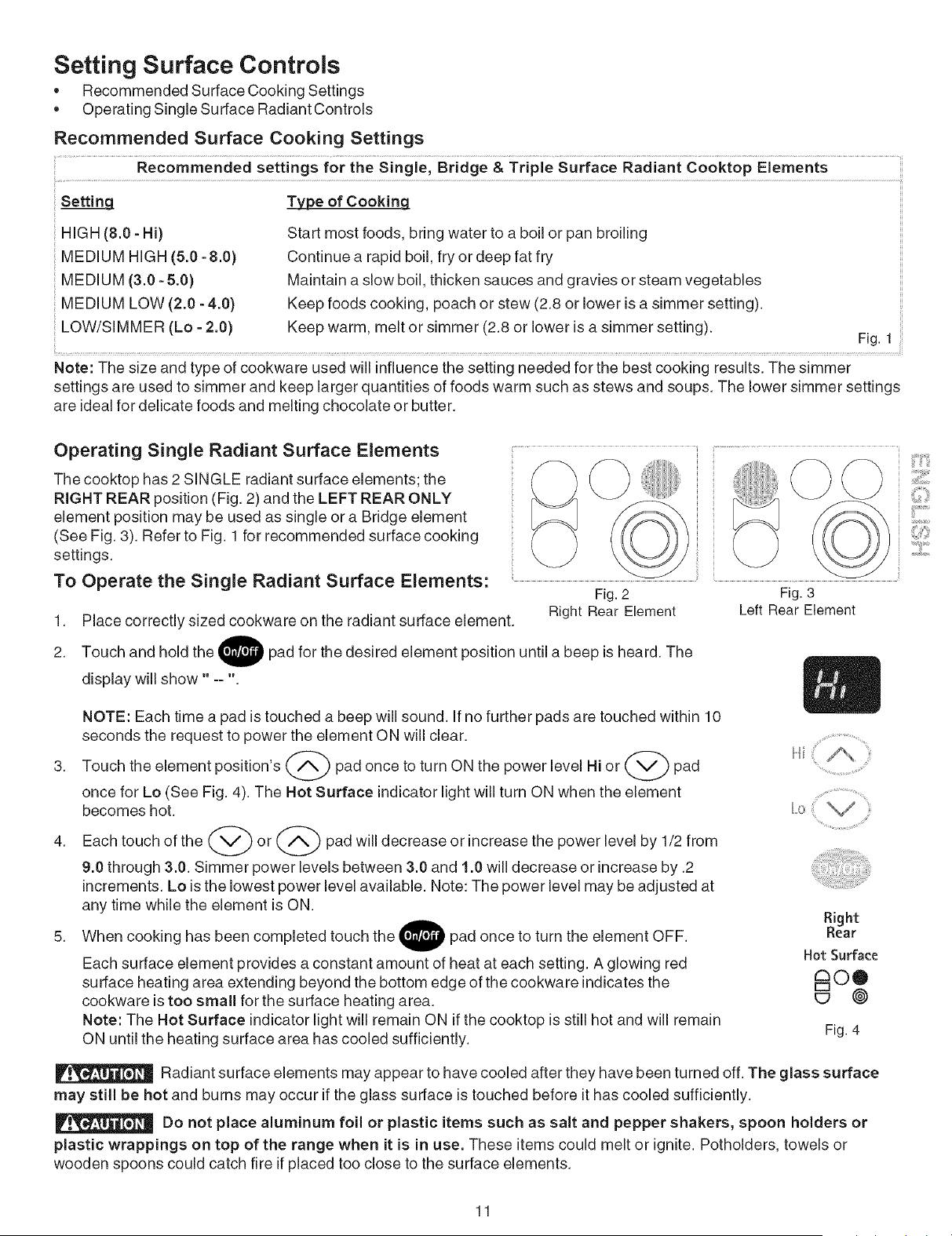

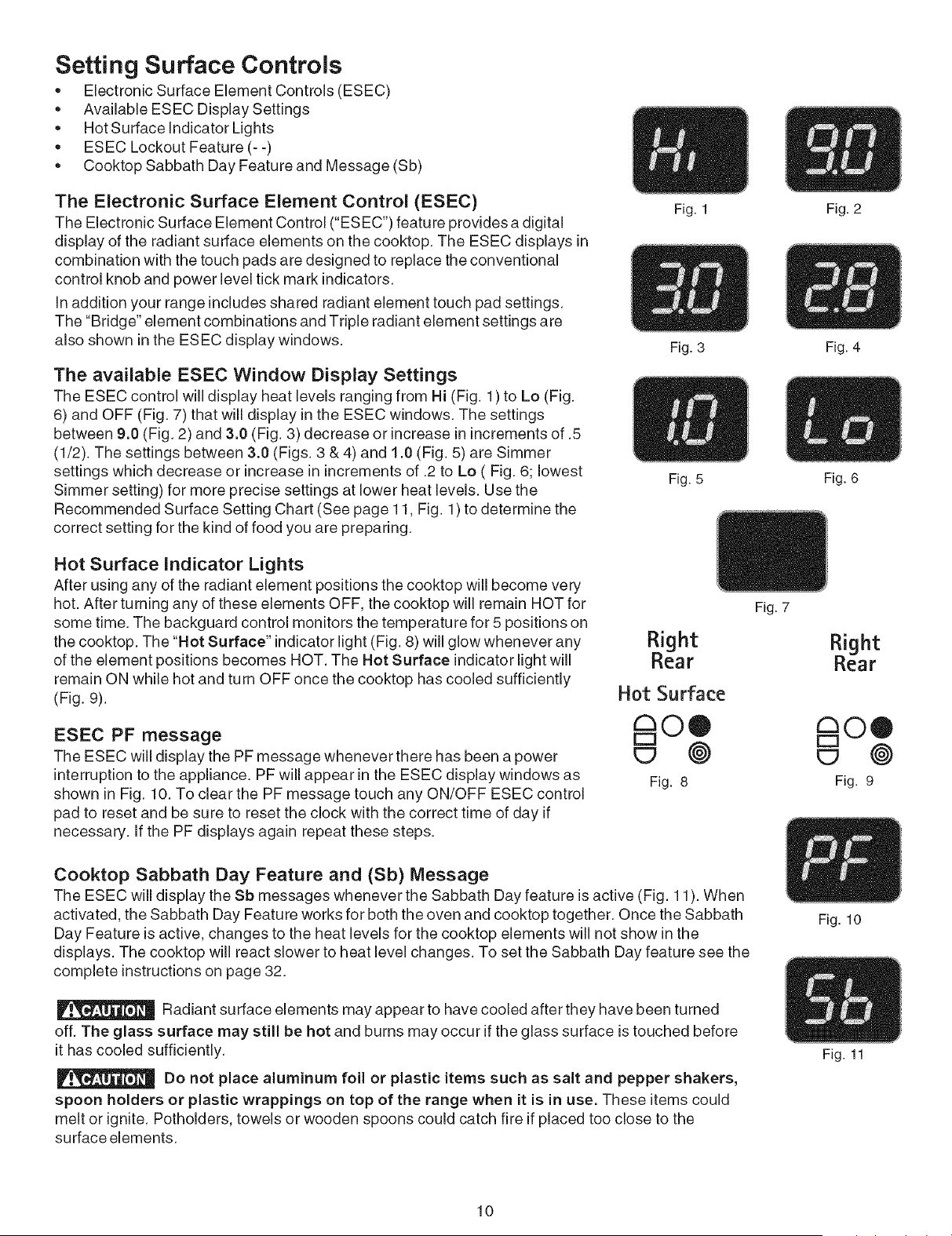

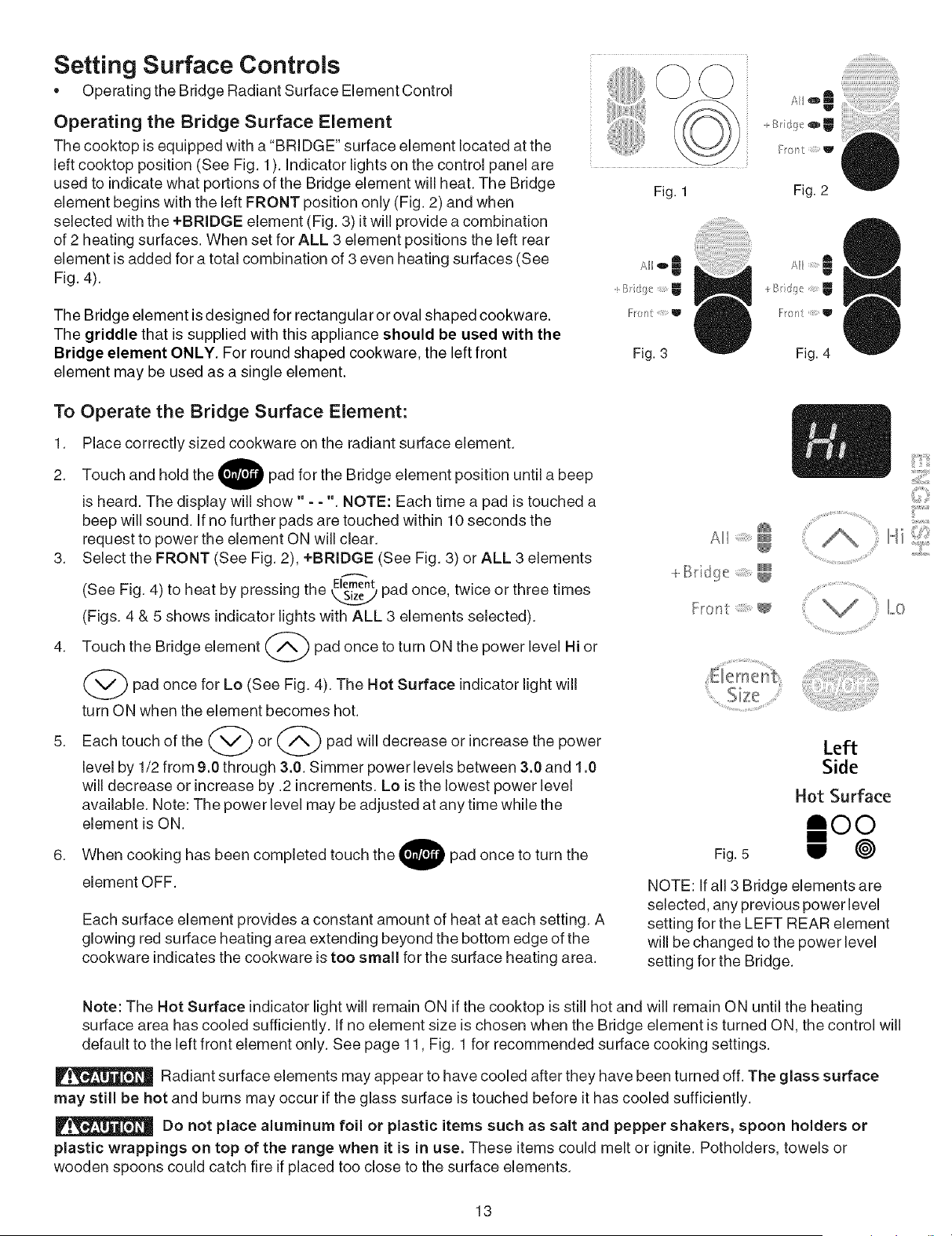

Setting Surface Controls ................................................... 10-14

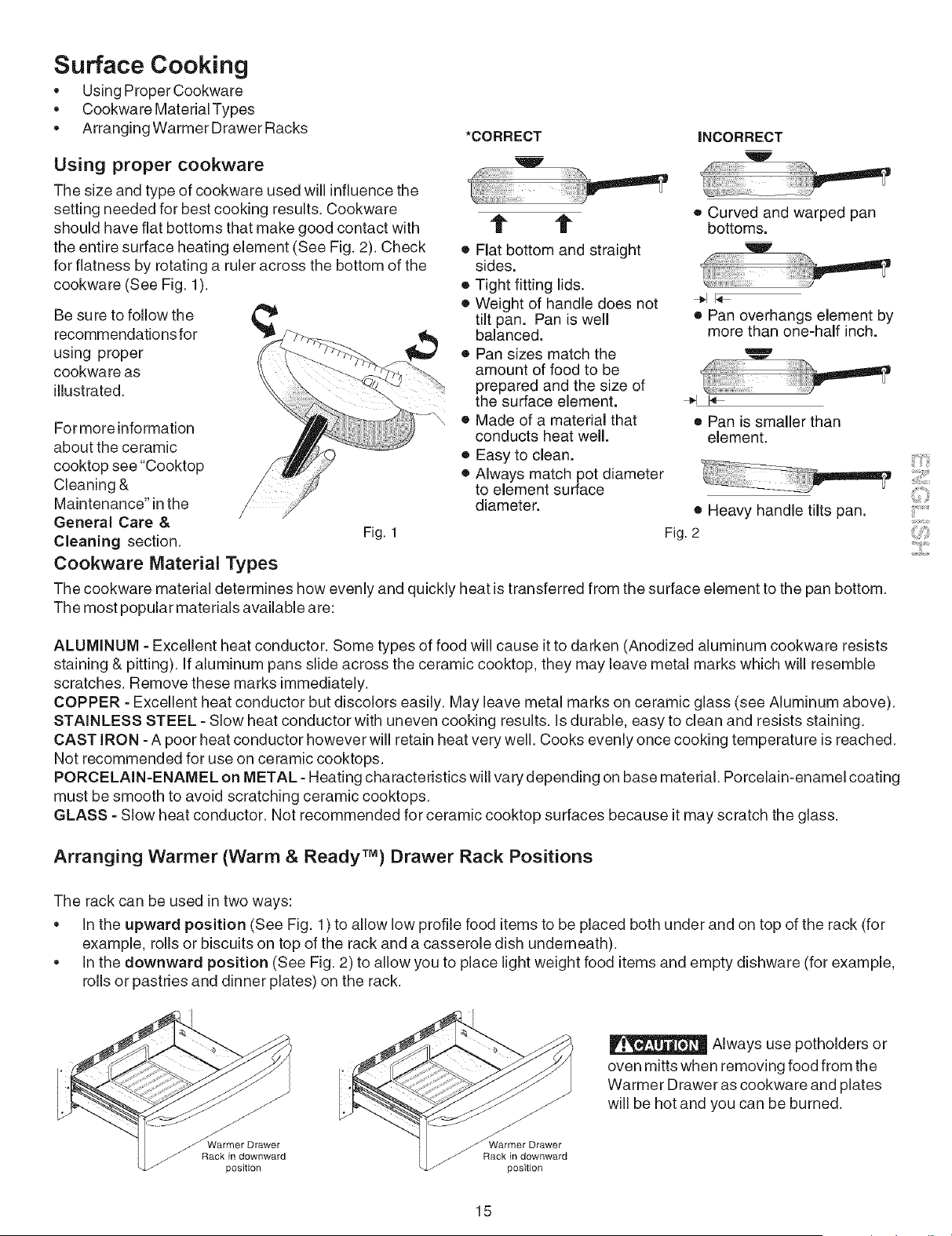

Surface Cooking ...................................................................... 15

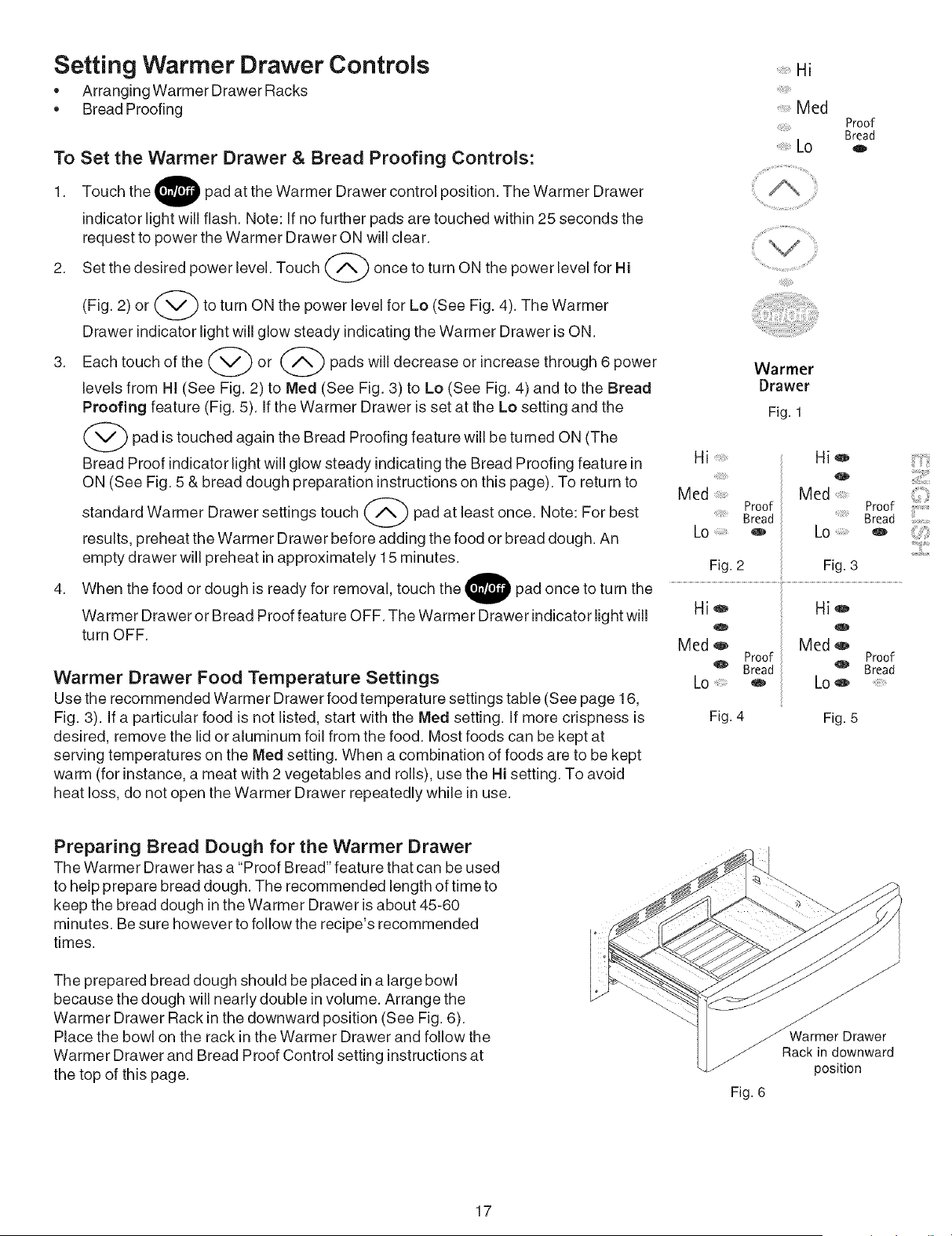

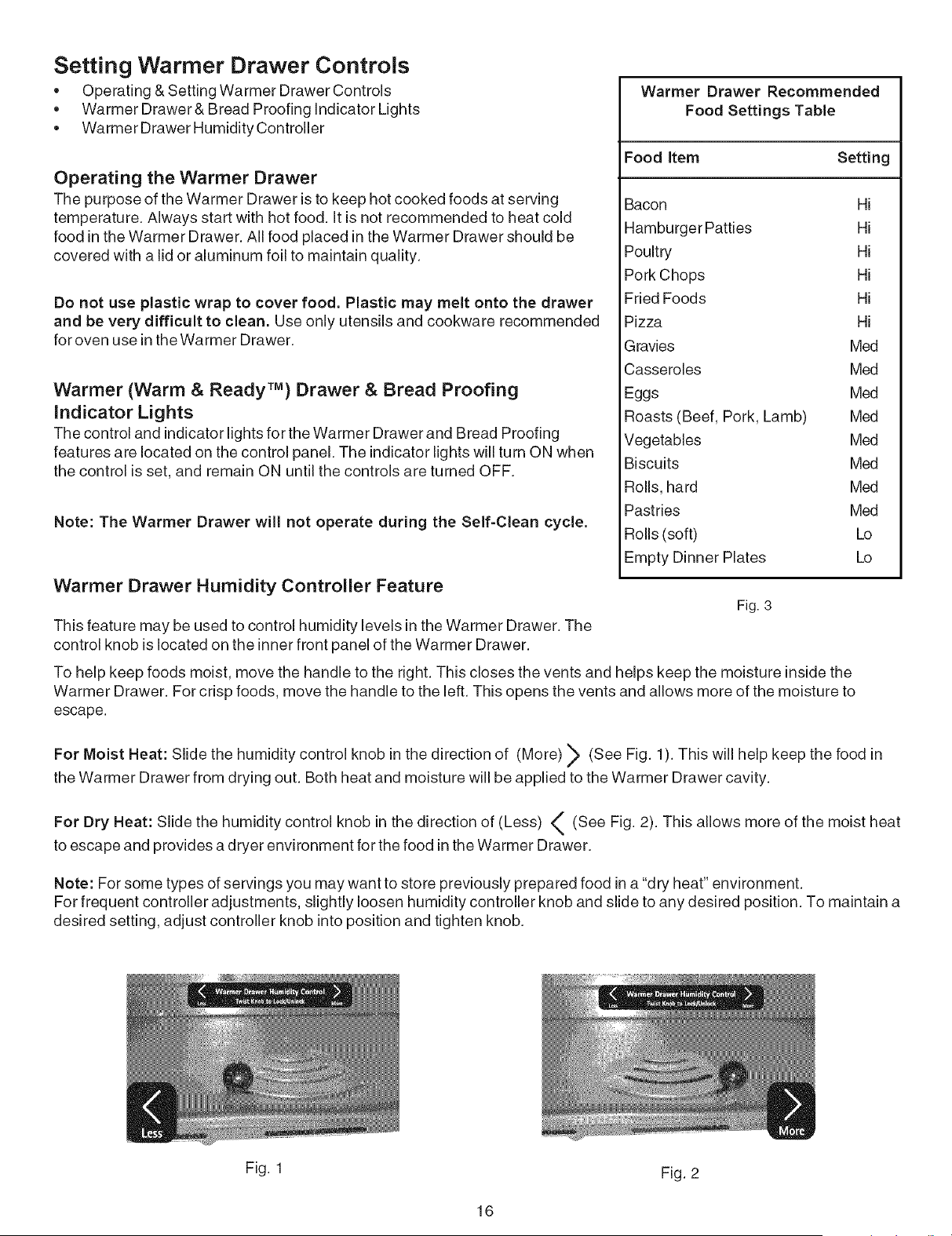

Setting Warmer Drawer & Controls .................................. 16-17

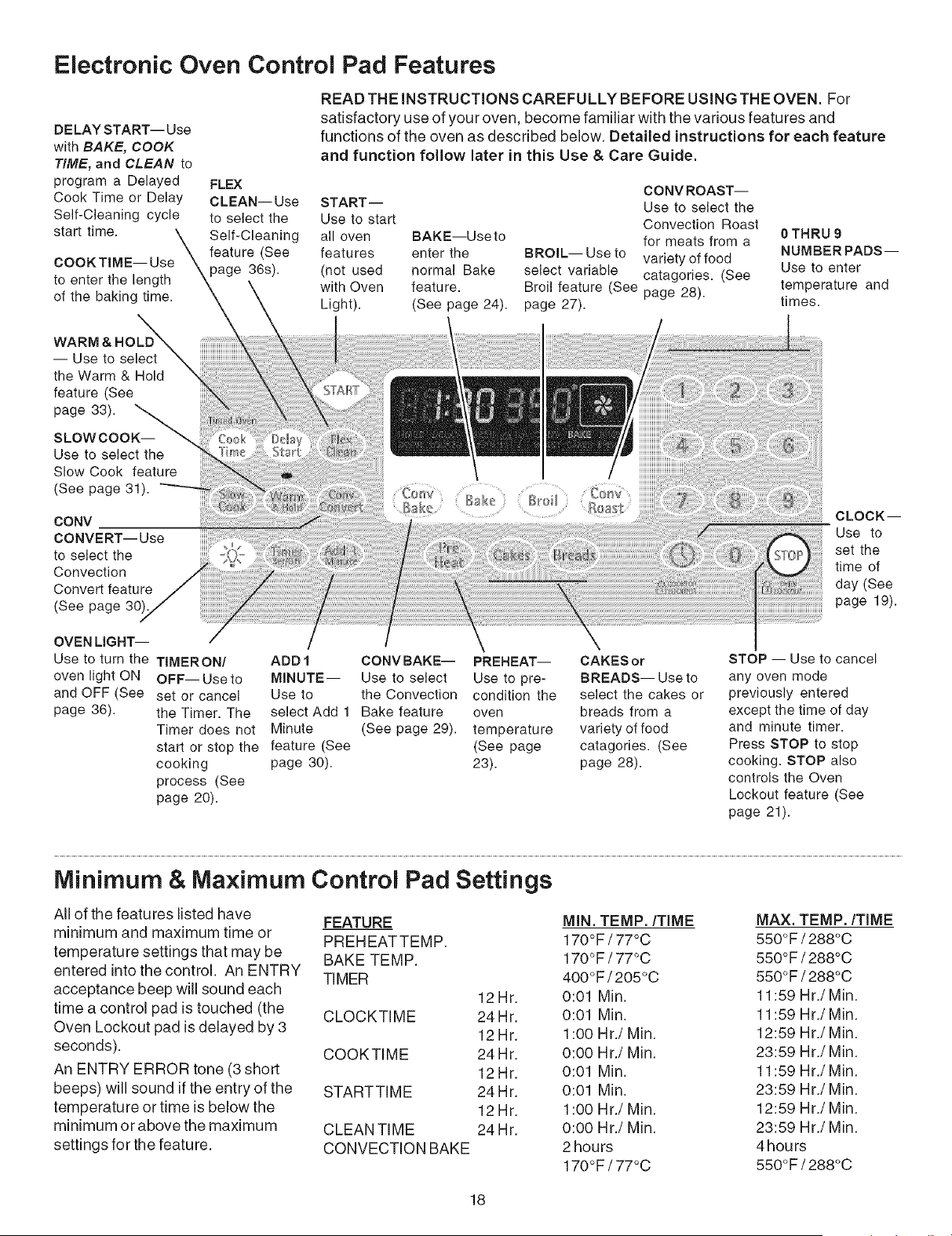

Electronic Oven Control Pad Features ................................... 18
Minimum &Maximum Control Pad Settings ......................... 18
Setting Oven Controls ........................................................ 19-33

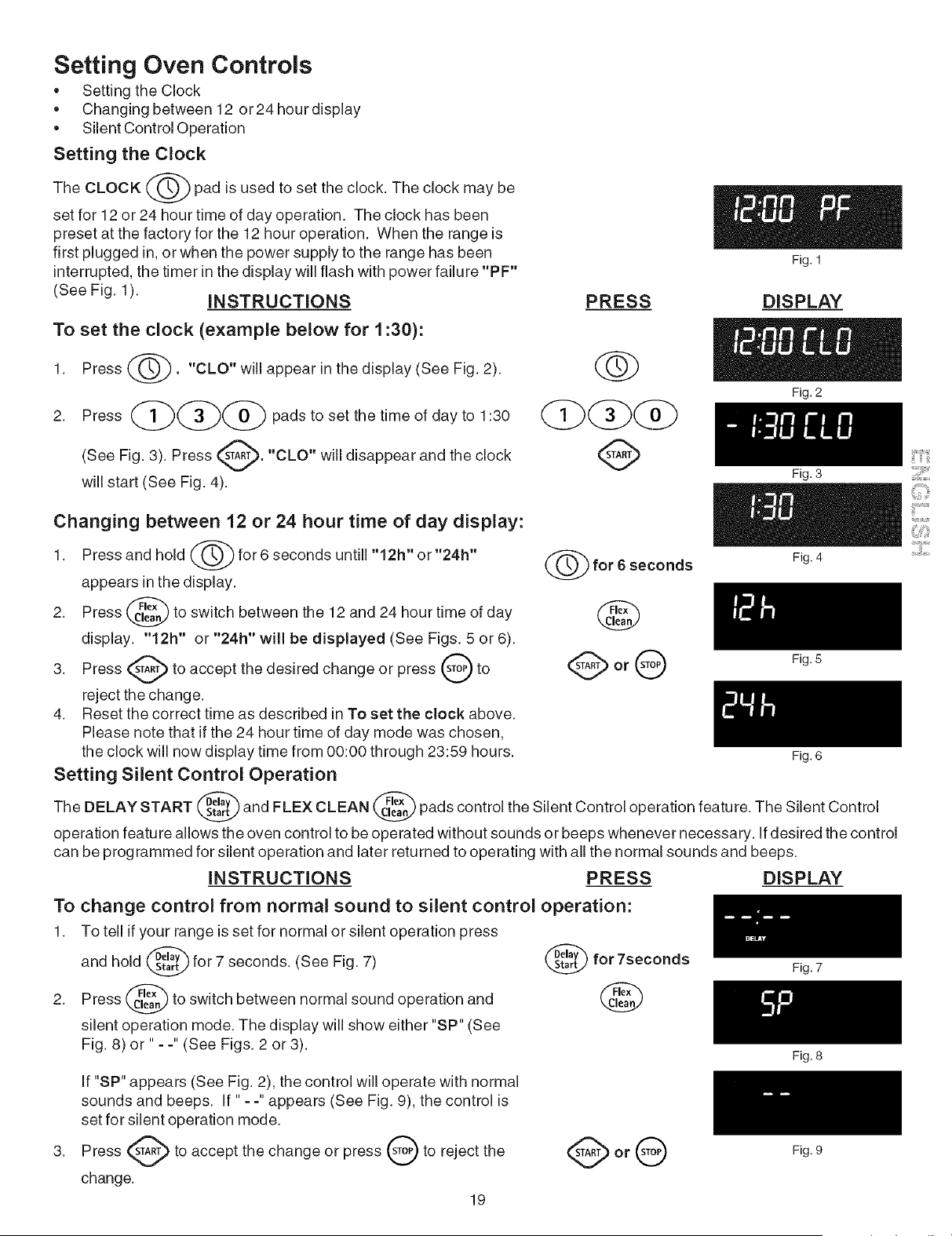

, Setting the Clock ............................................................... 19
, Changing between 12 or 24 Hour Display ....................... 19
, Silent Control Operation .................................................... 19

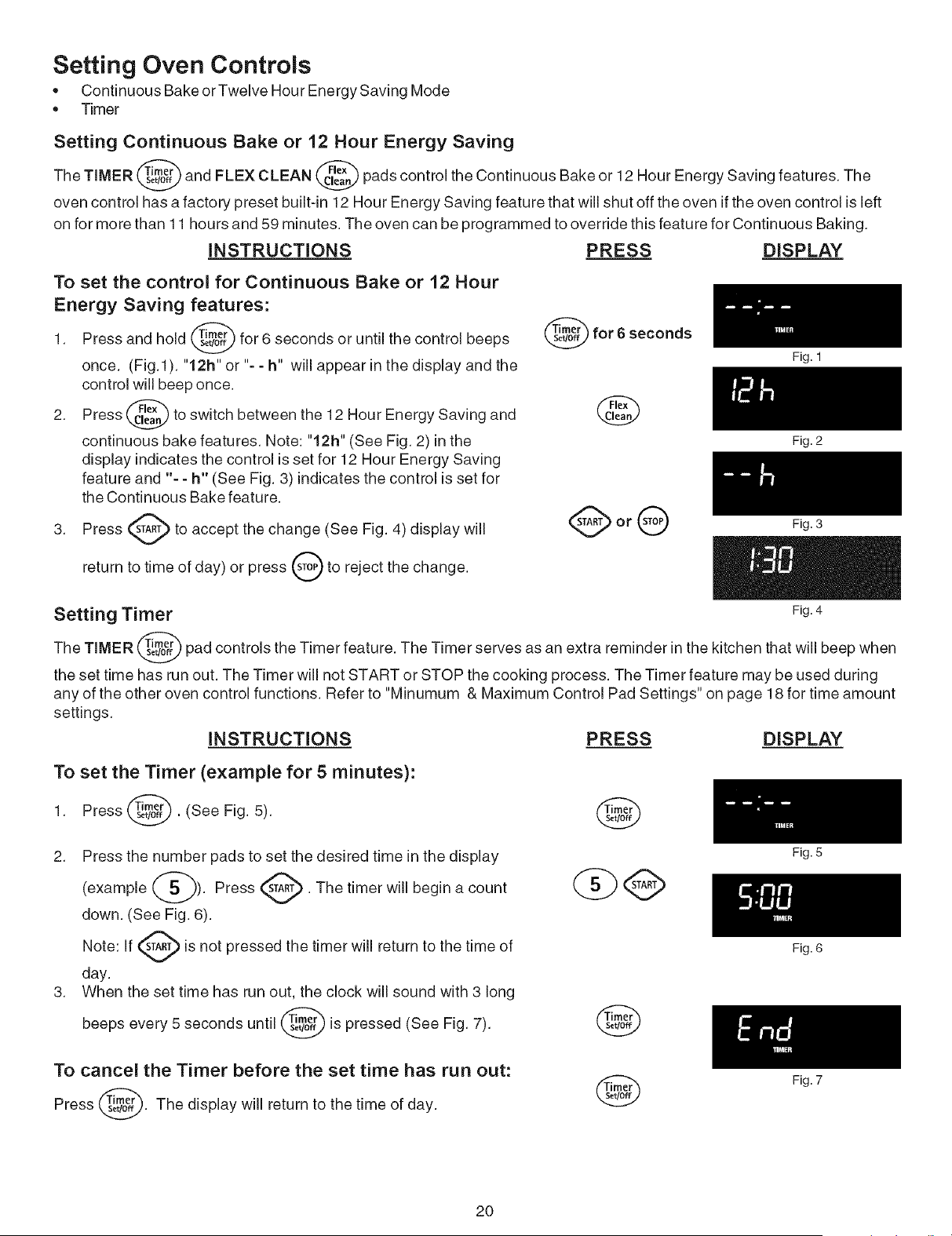

,, Continuous Bake or Twelve Hour Energy Saving Mode ... 20
,, Timer ................................................................................. 20

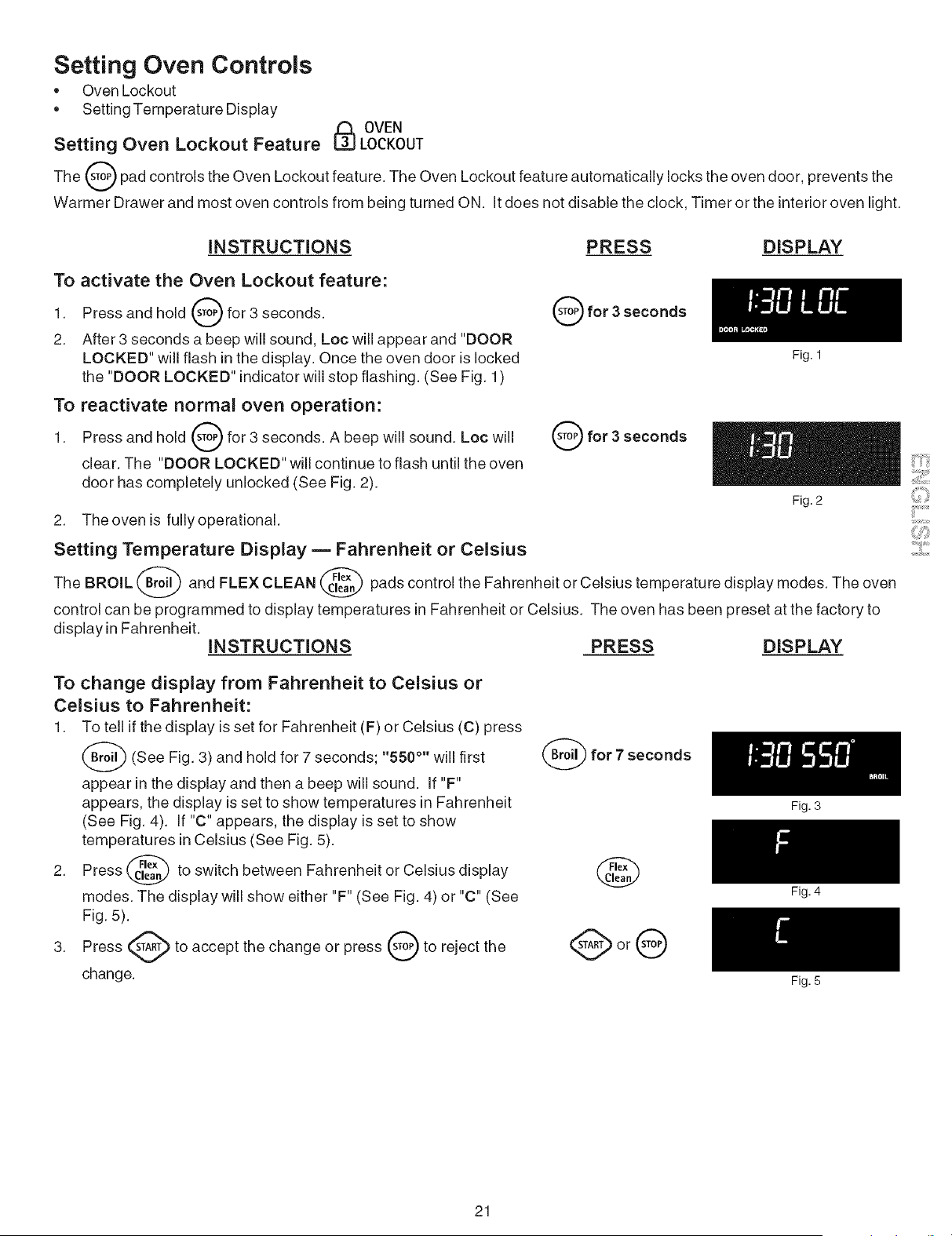

,, Locking & Unlocking Oven Lockout .................................. 21
,, Changing Temperature Display........................................ 21

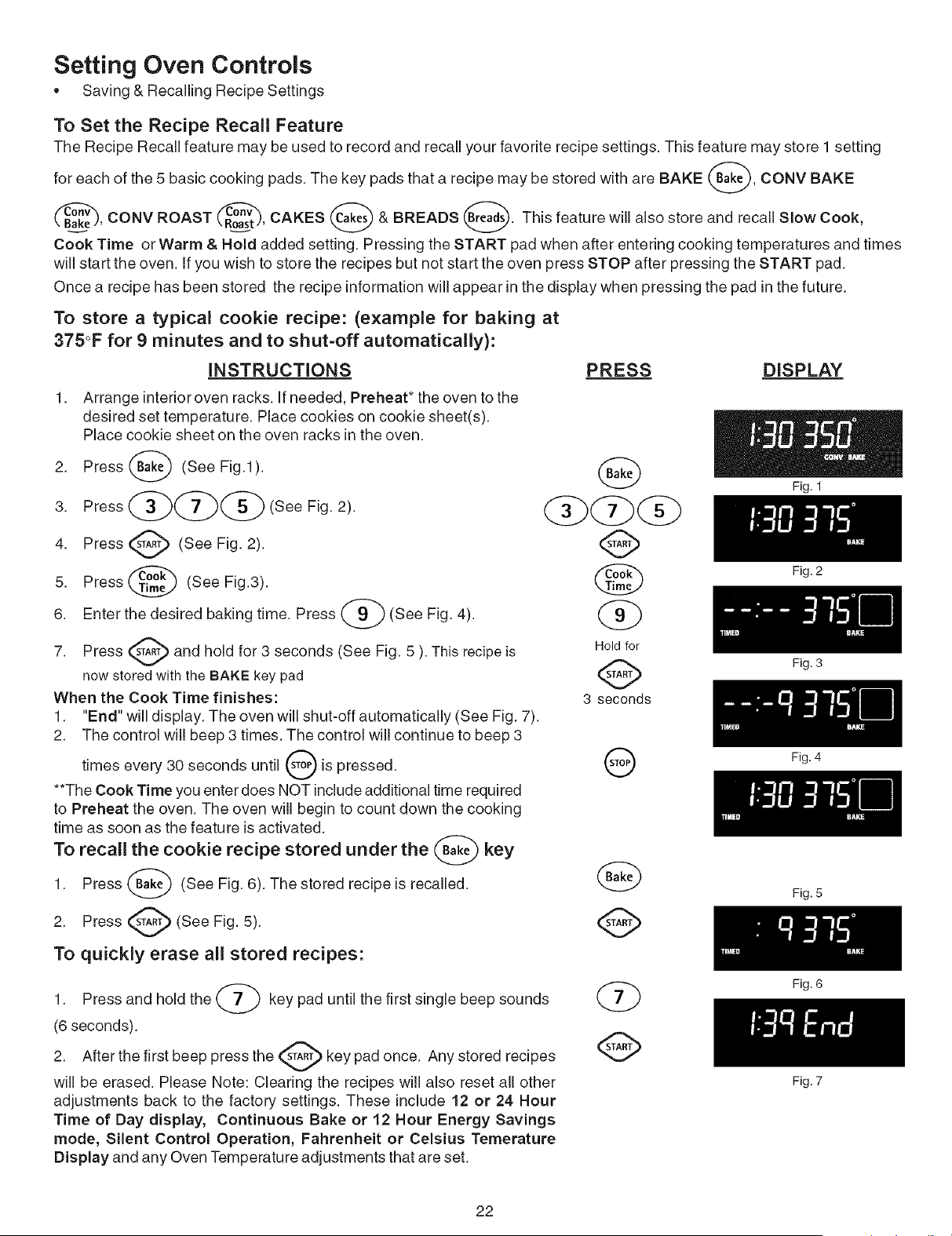

,, Saving & Recalling Recipe Settings ................................. 22

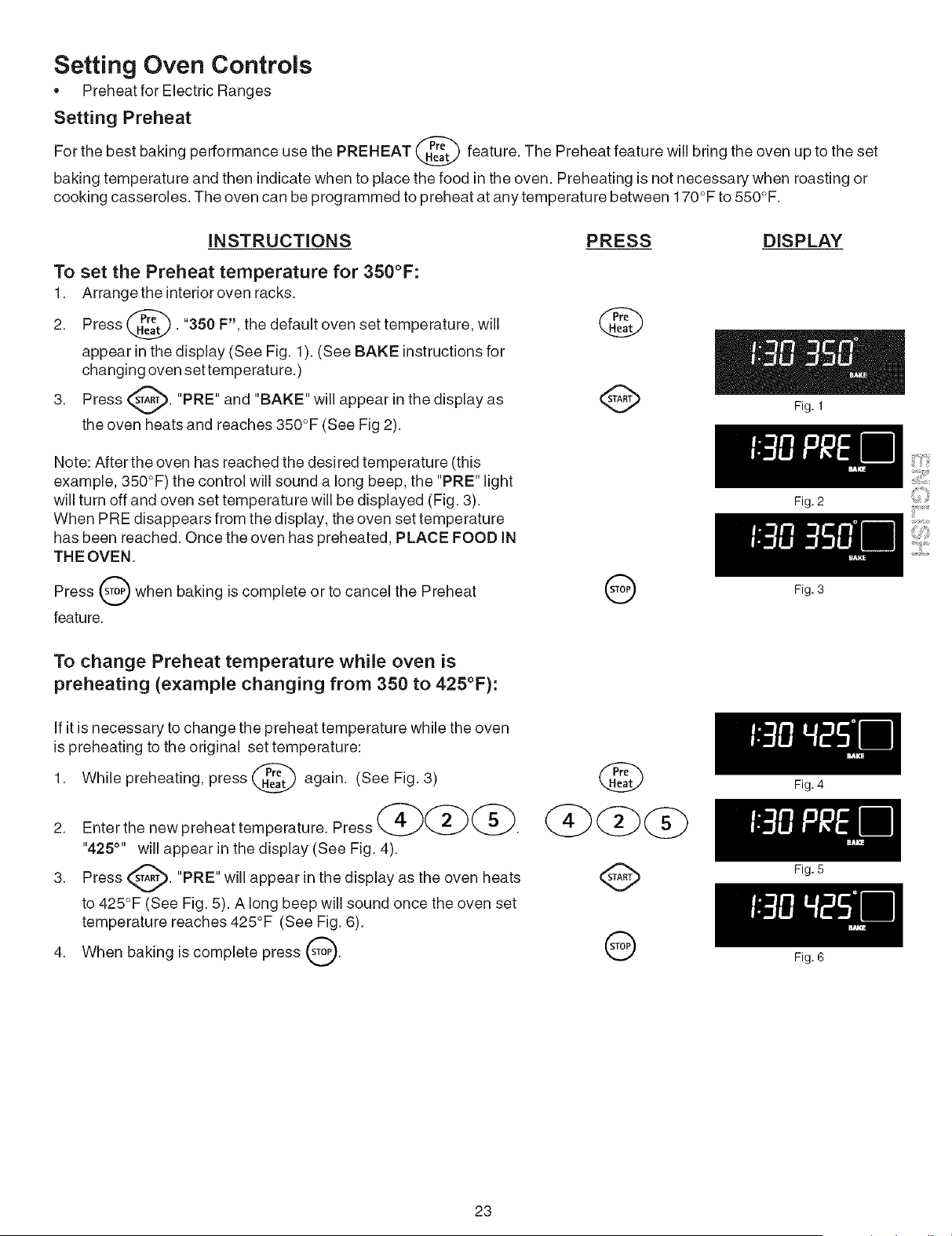

,, Setting Preheat .................................................................. 23

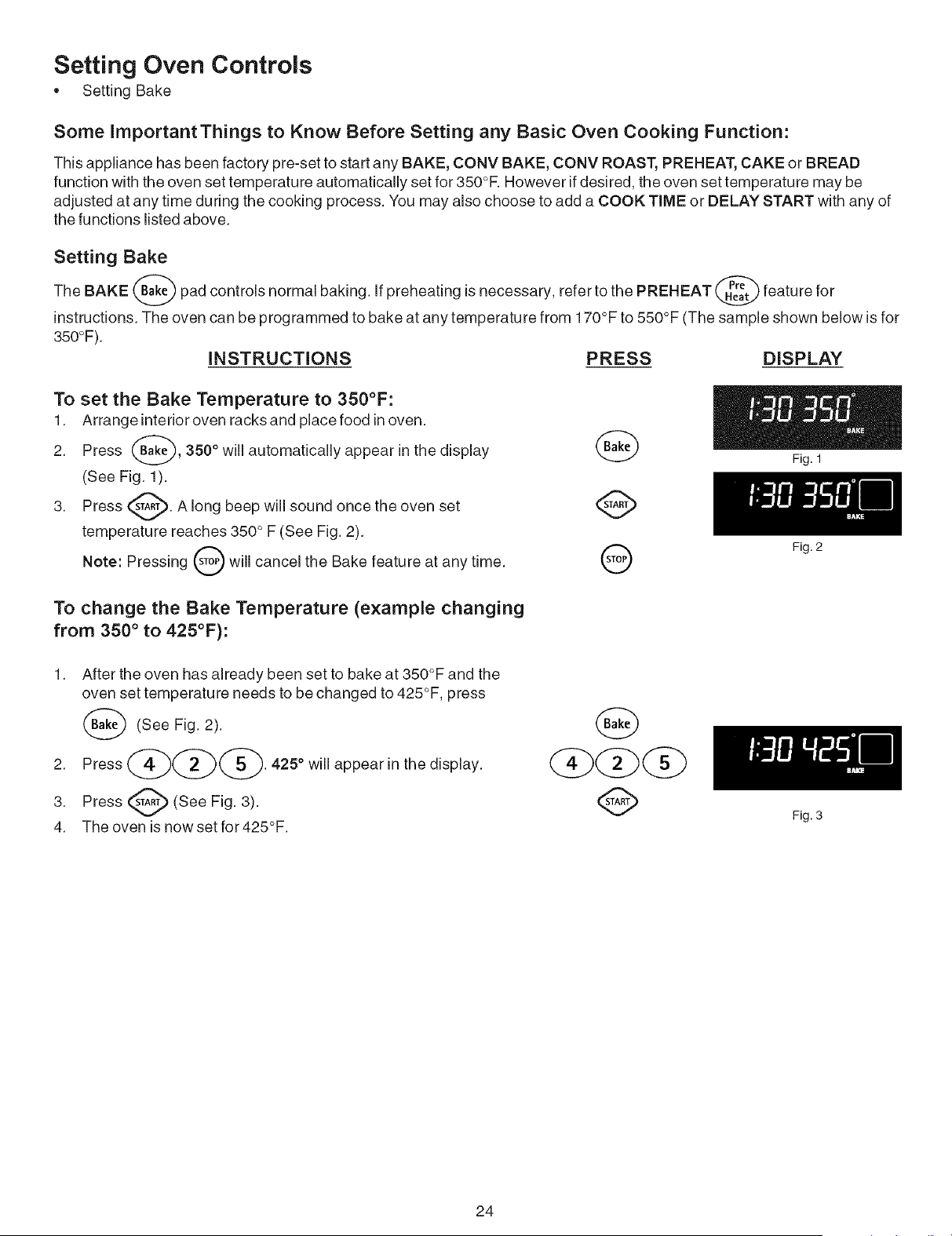

,, Setting Bake ...................................................................... 24

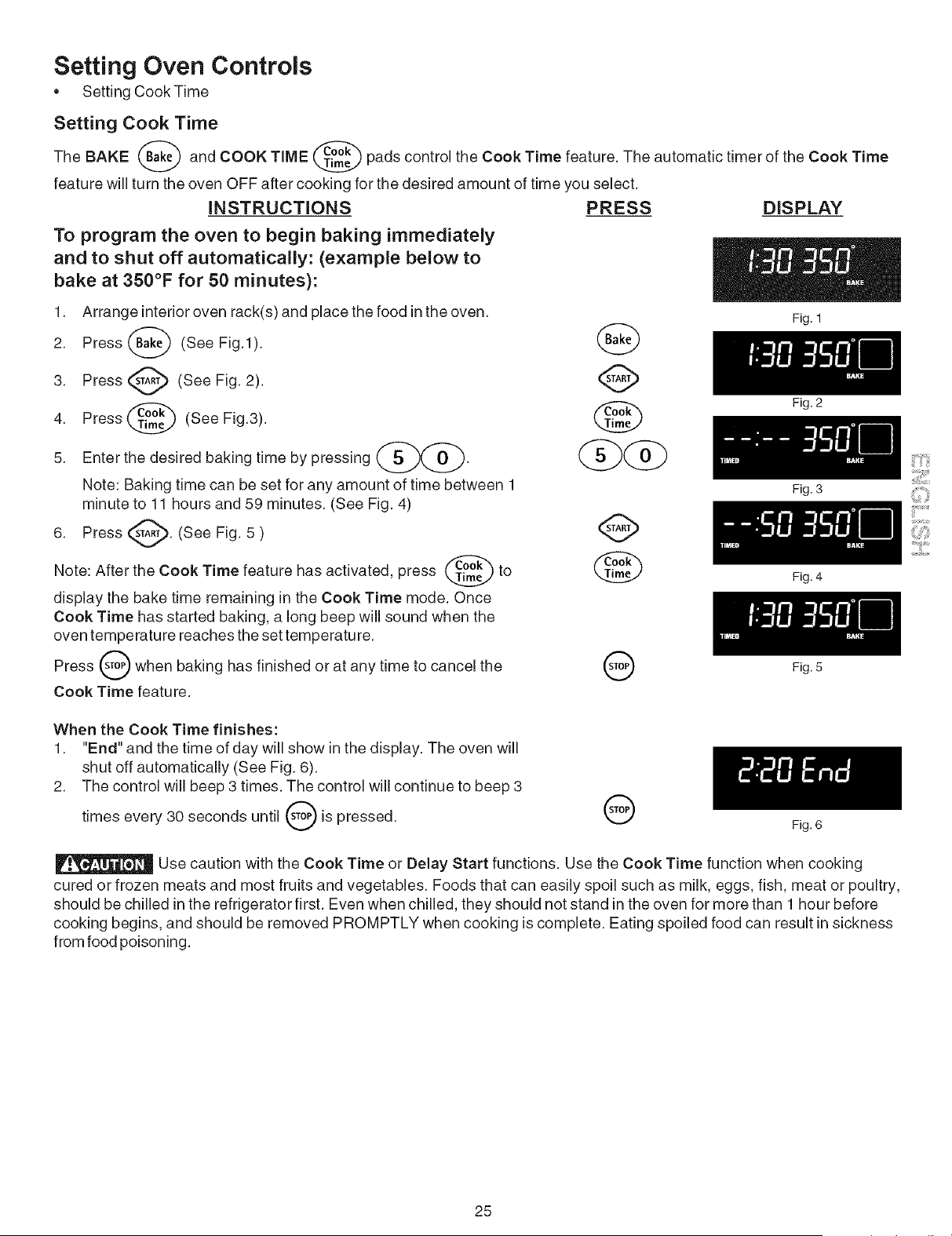

,, Setting Cook Time ............................................................. 25

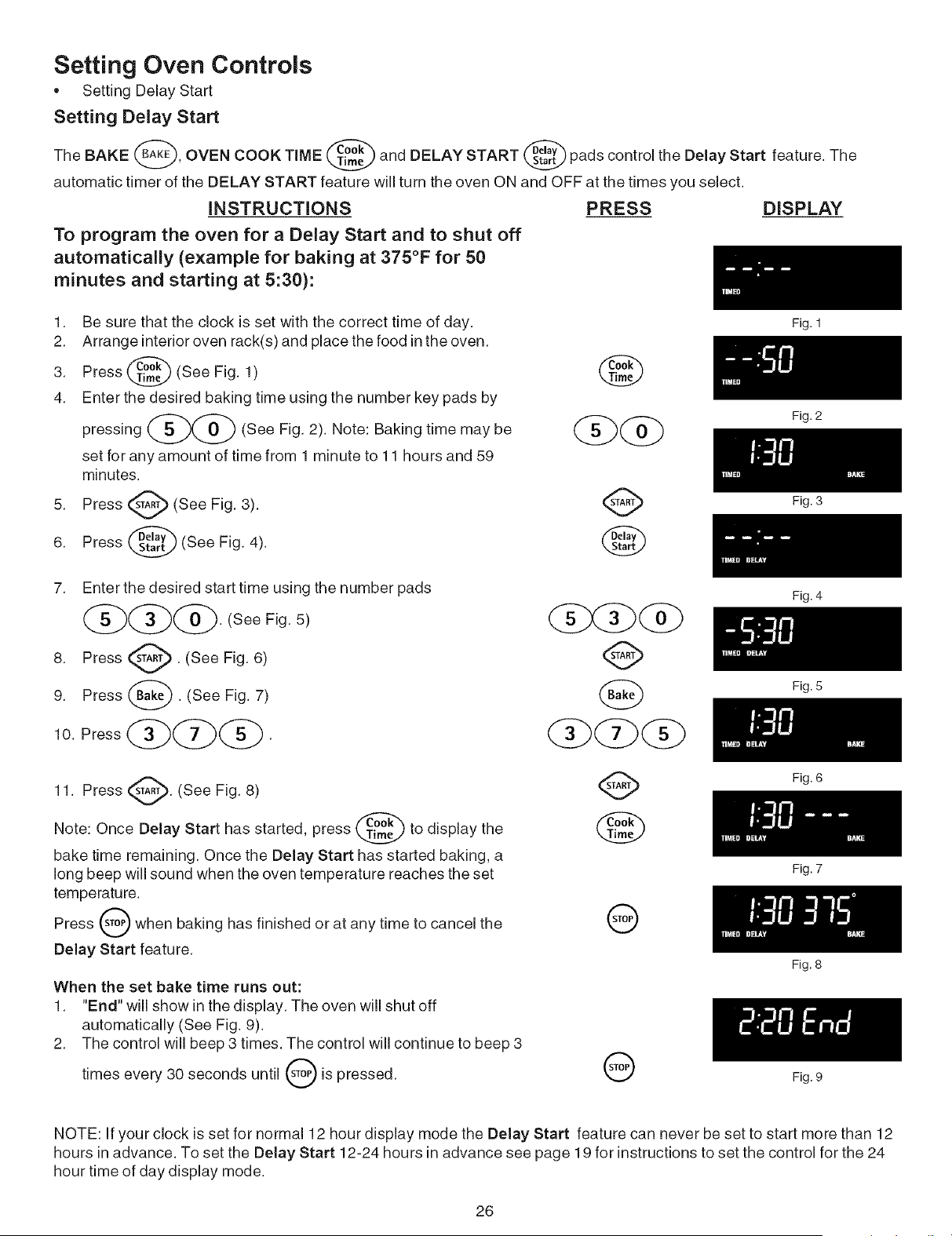

,, Setting Delay Start ............................................................. 26

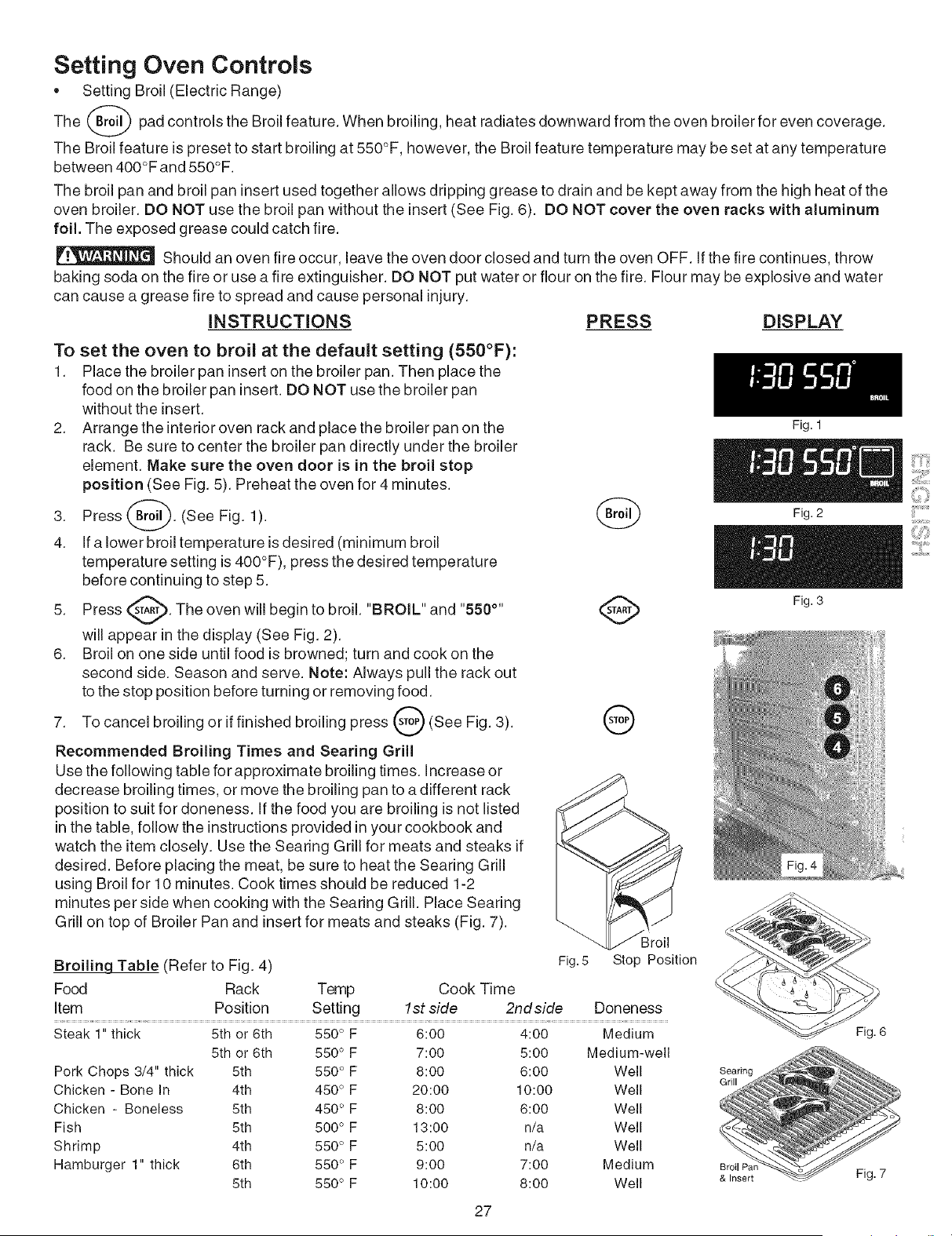

,, Setting Broil & Searing Grill .............................................. 27

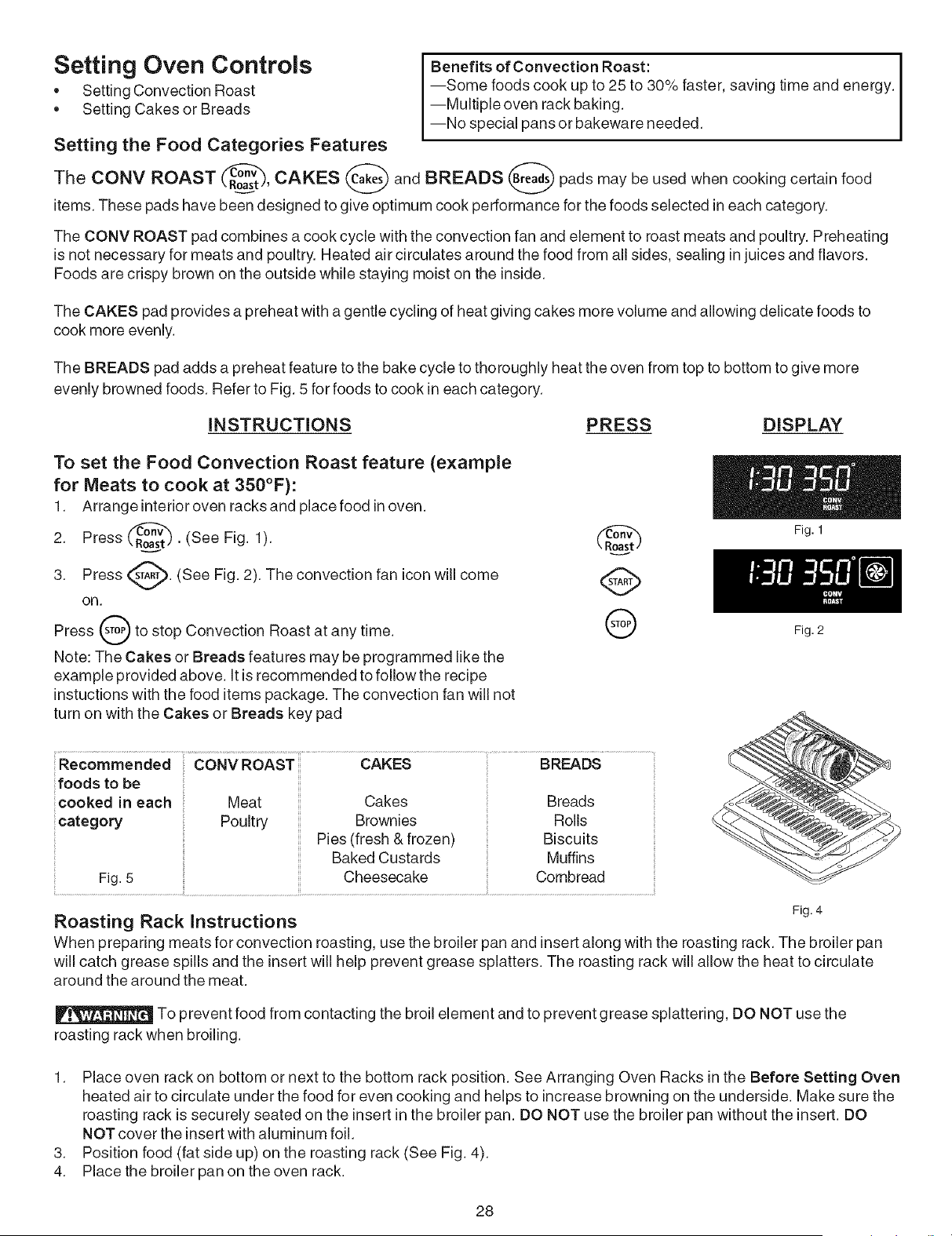

,, Setting Convection Roast ................................................. 28
,, Setting Cakes and Breads ................................................ 28

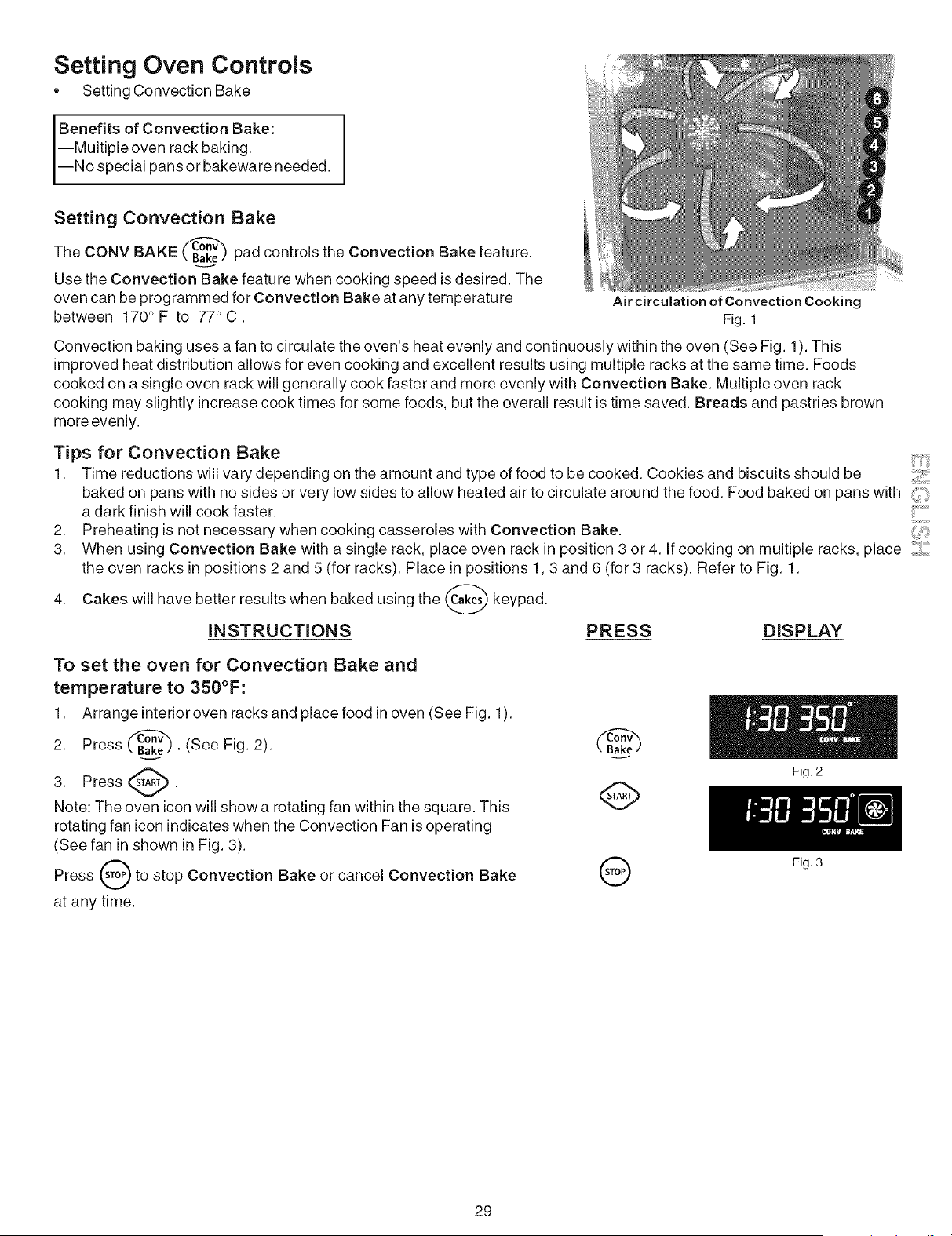

,, Setting Convection Bake ................................................... 29

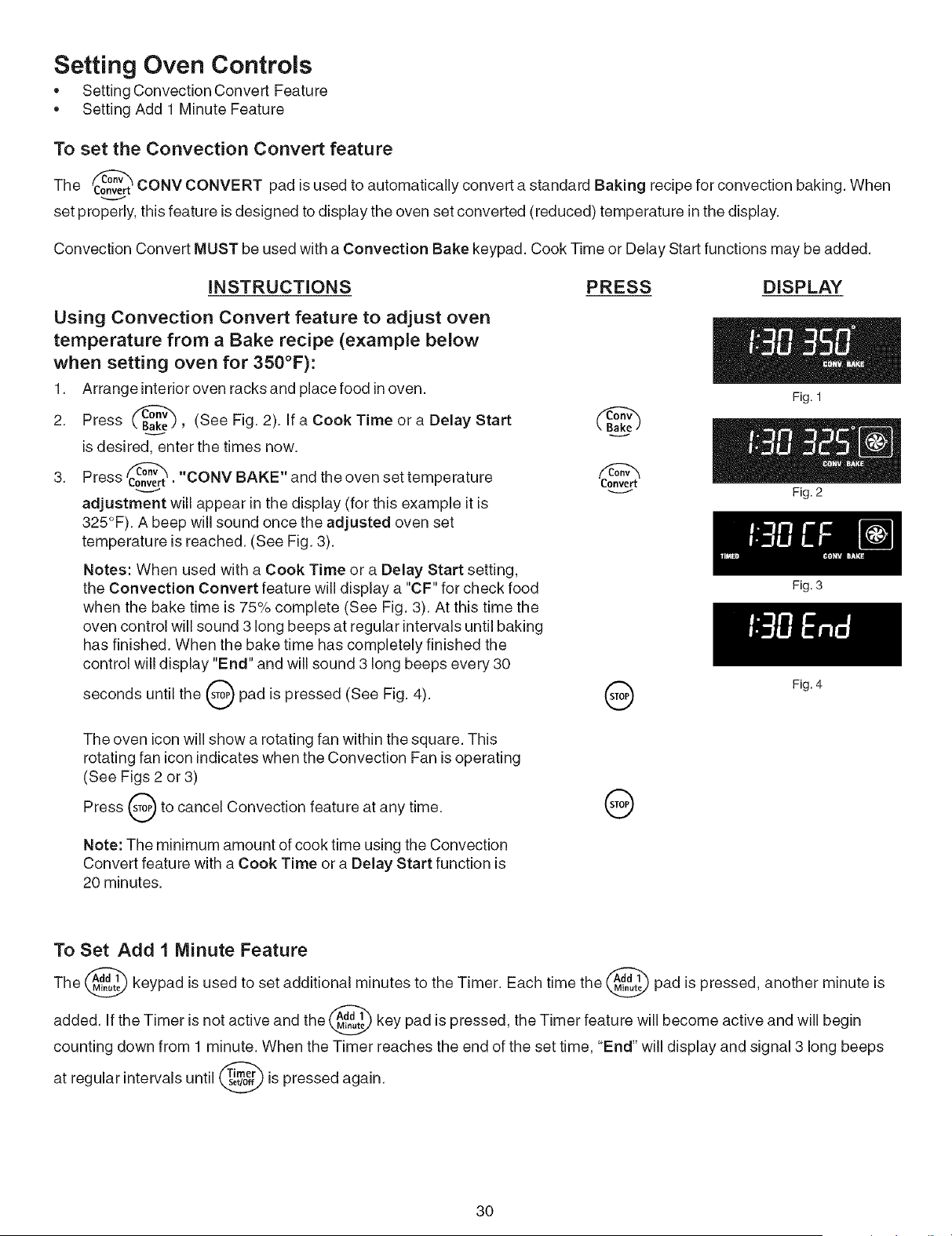

,, Setting Convection Convert ............................................... 30

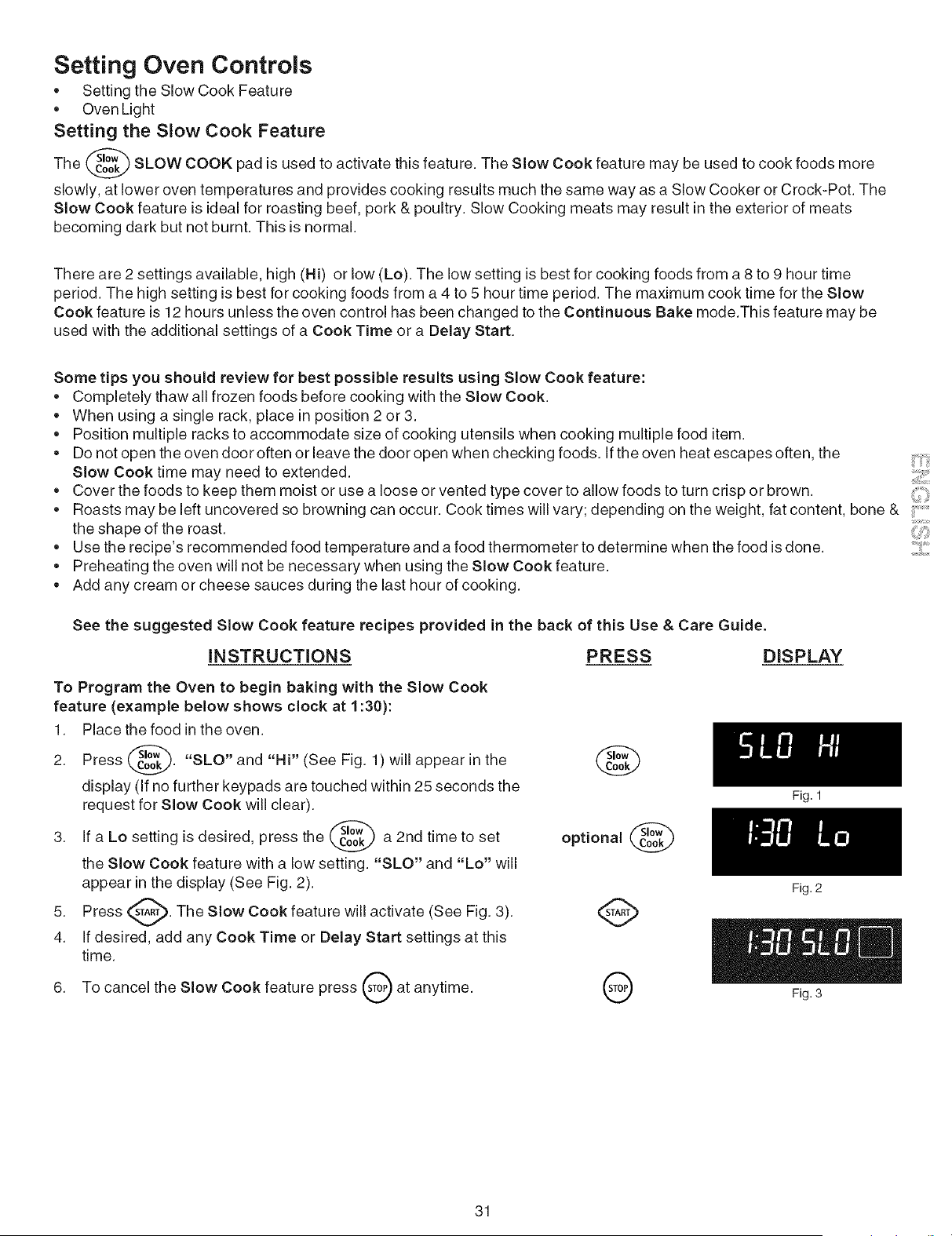

,, Setting Slow Cook ............................................................. 31

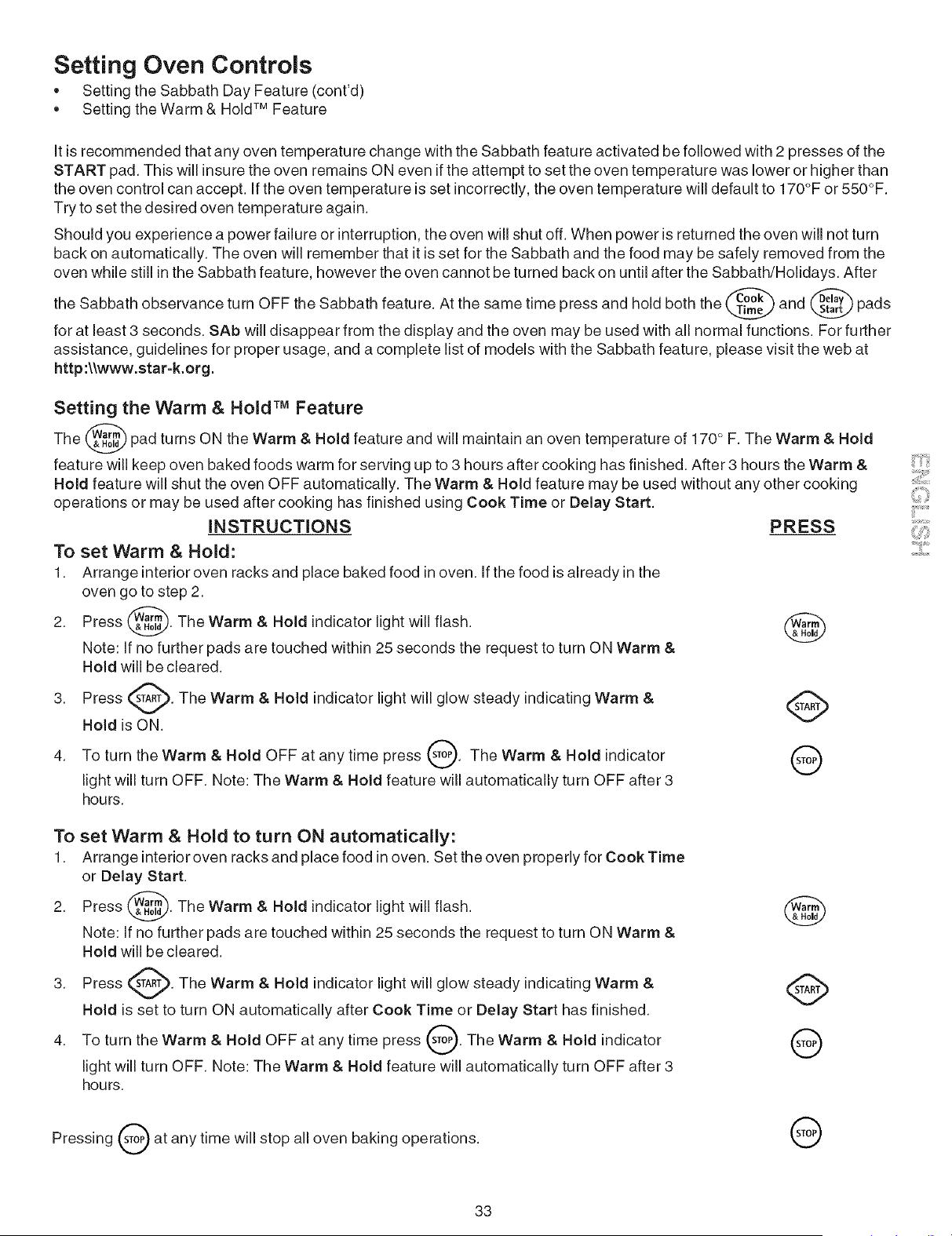

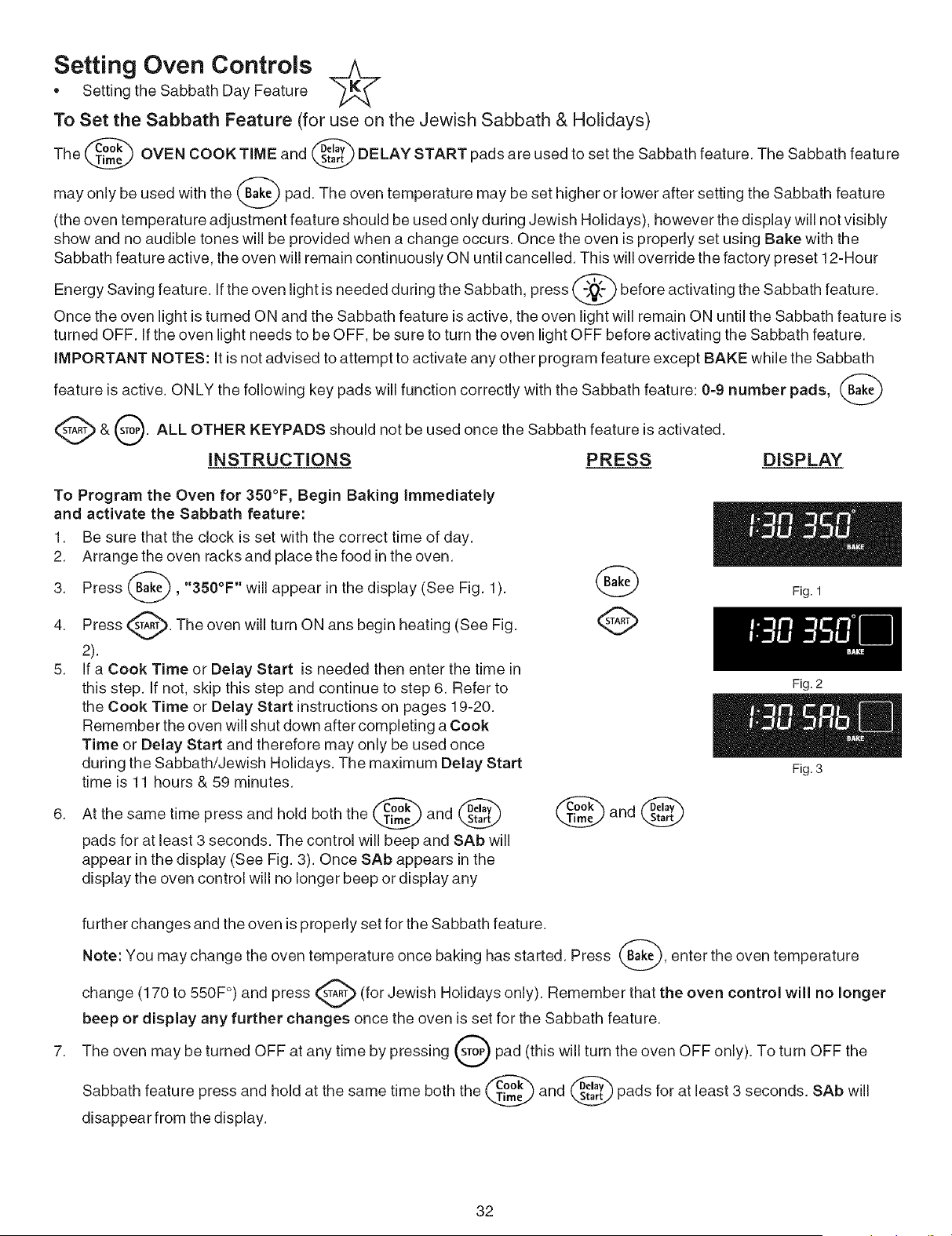

,, Setting the Sabbath Feature ........................................ 32-33
,, Setting Warm & Hold ......................................................... 33

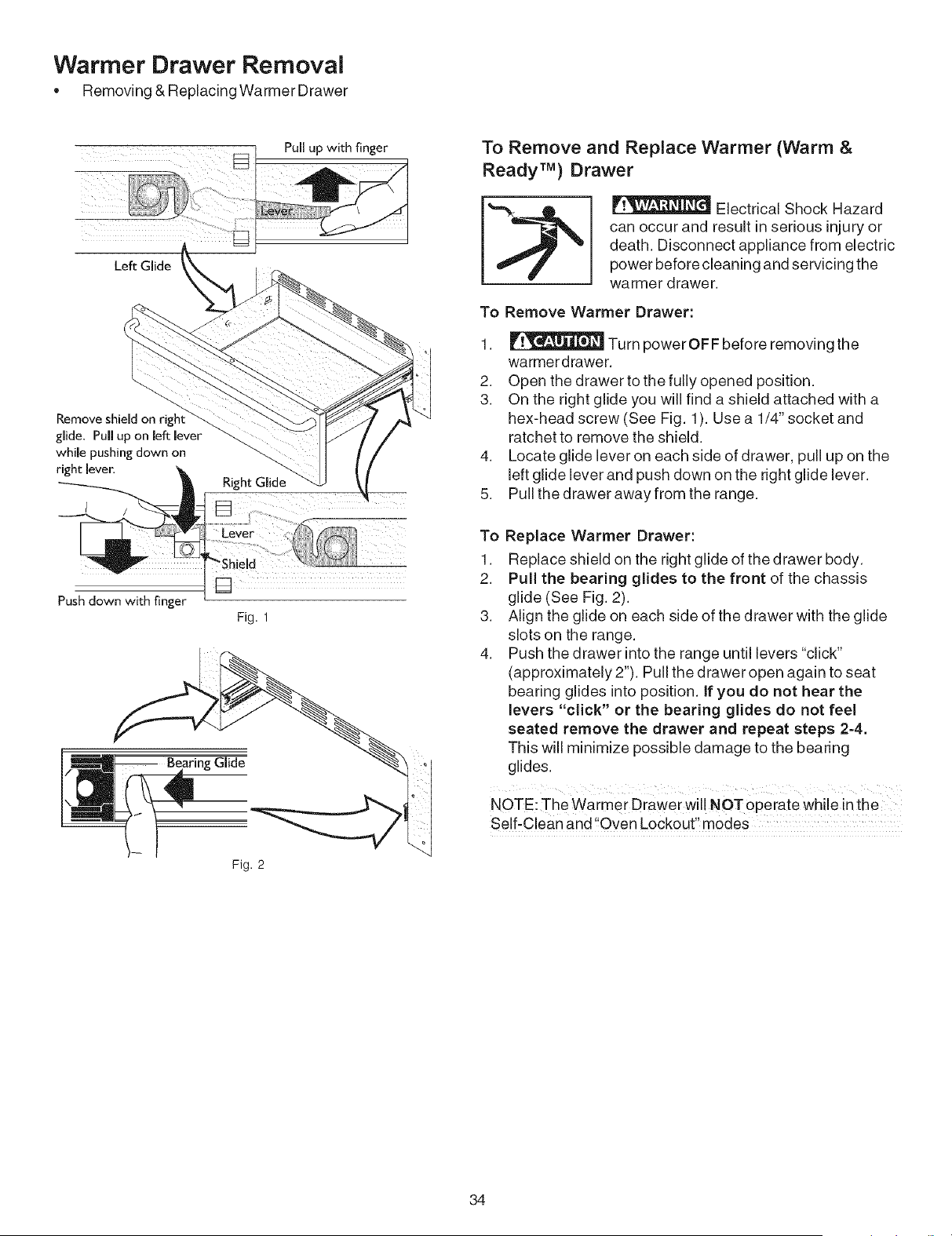

Warmer Drawer Removal ....................................................... 34

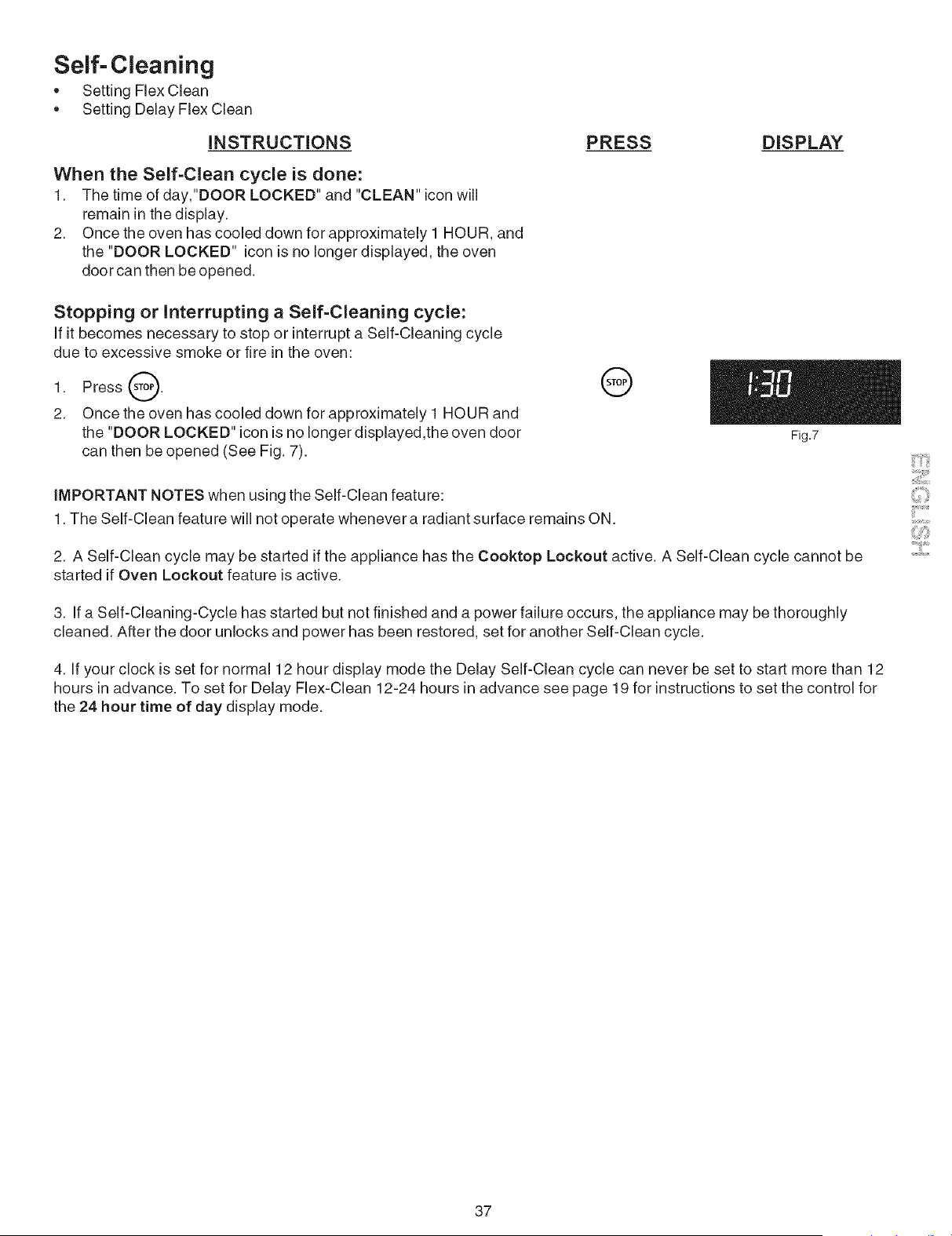

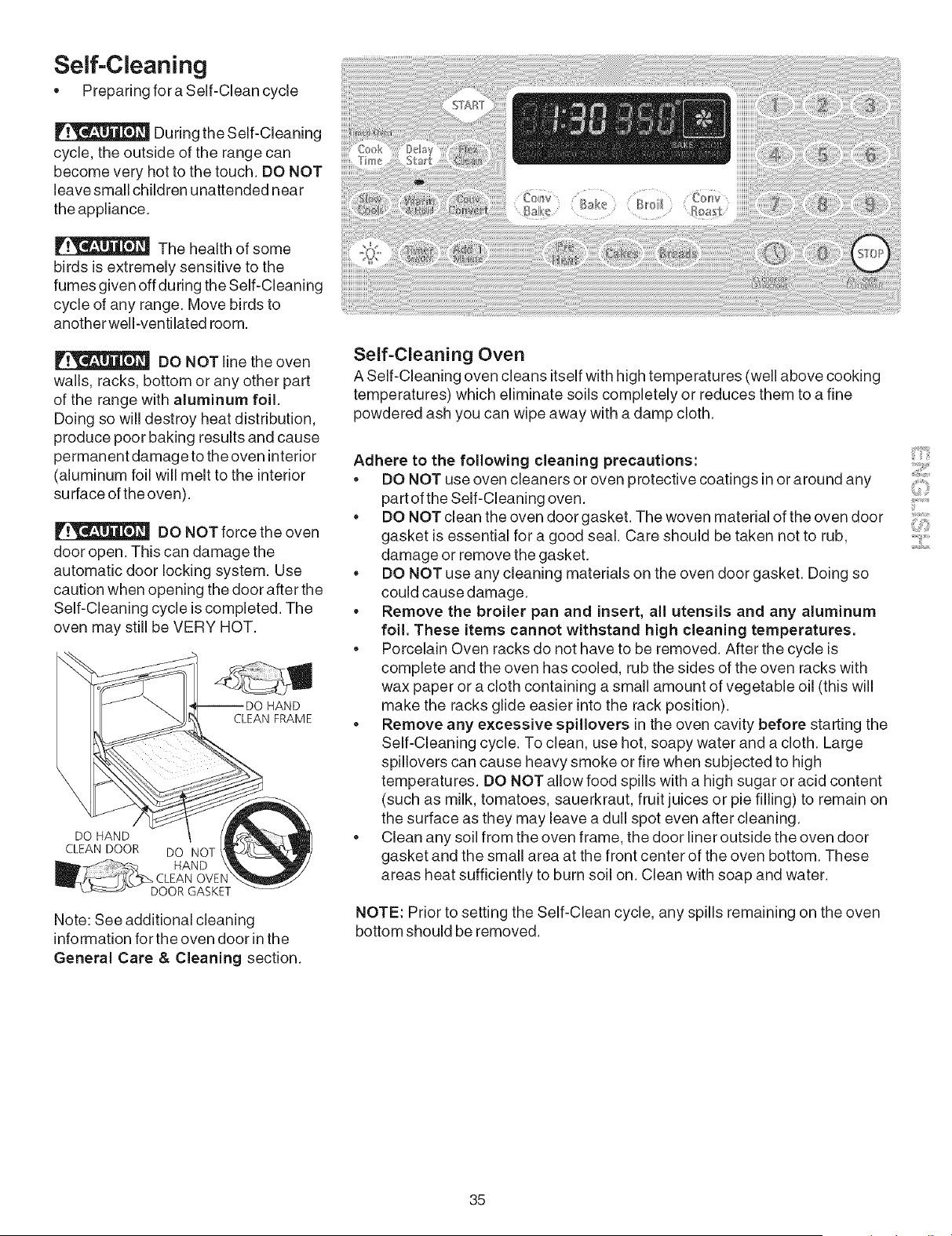

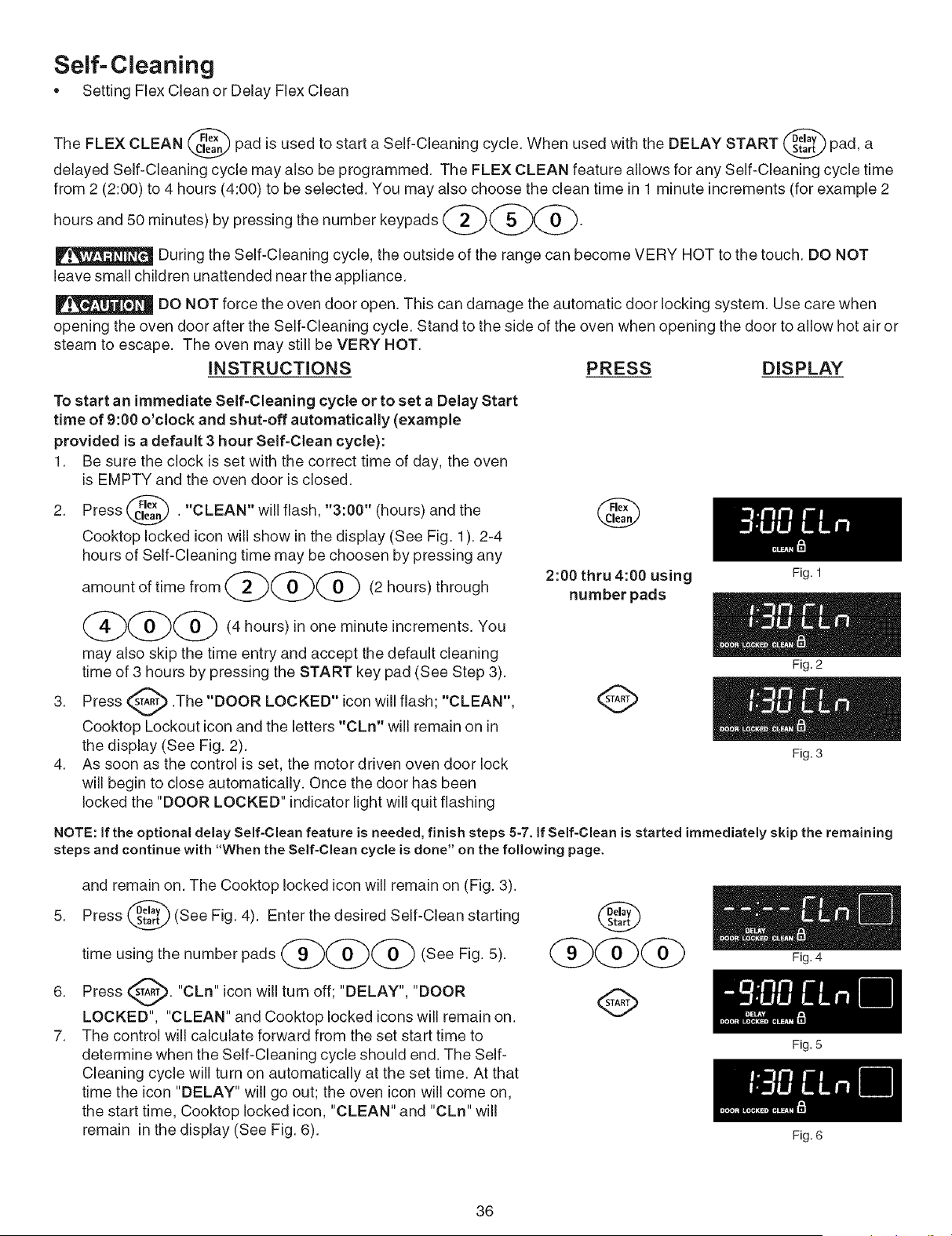

Self-Cleaning ....................................................................... 35-37

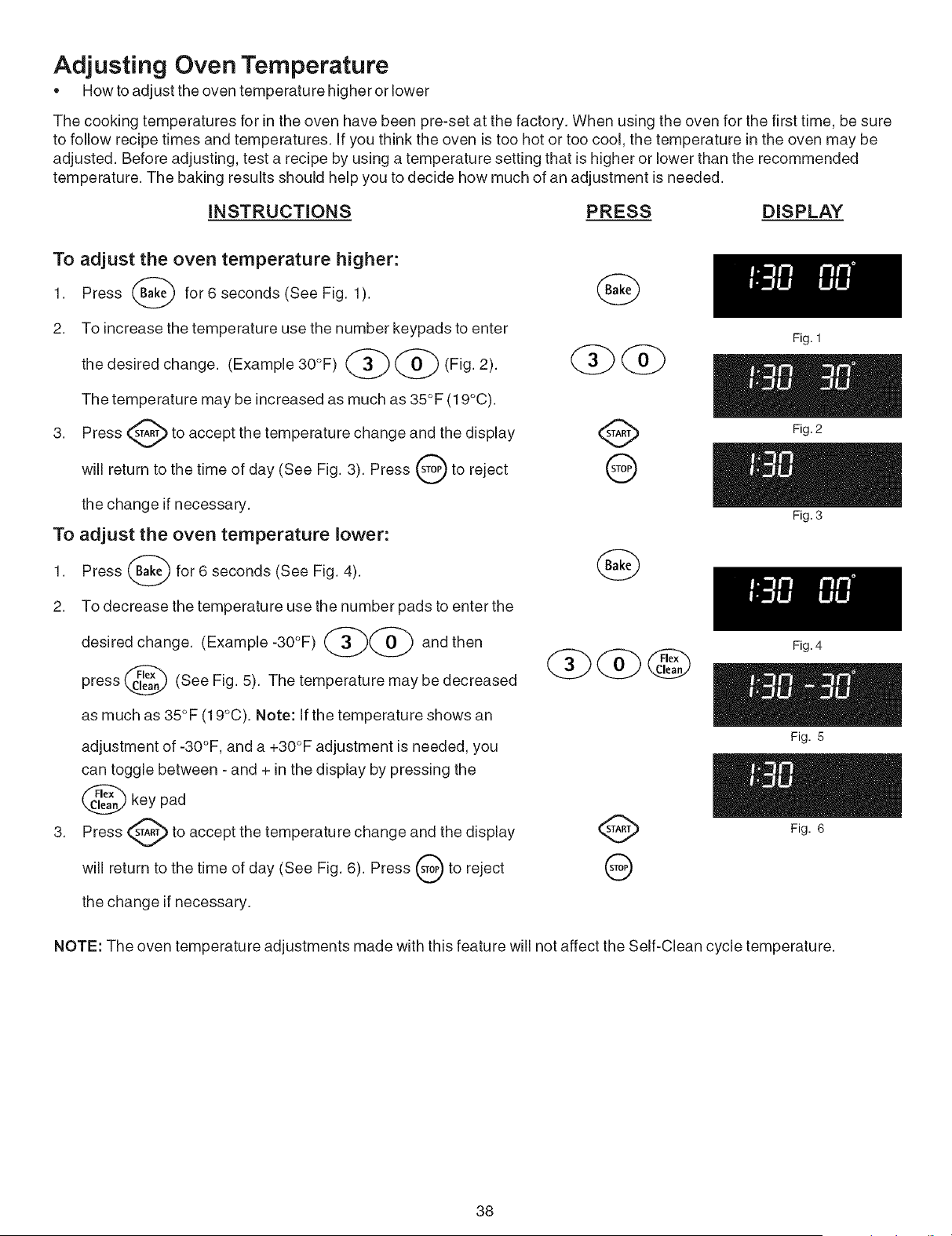

Adjusting Oven Temperature .................................................. 38

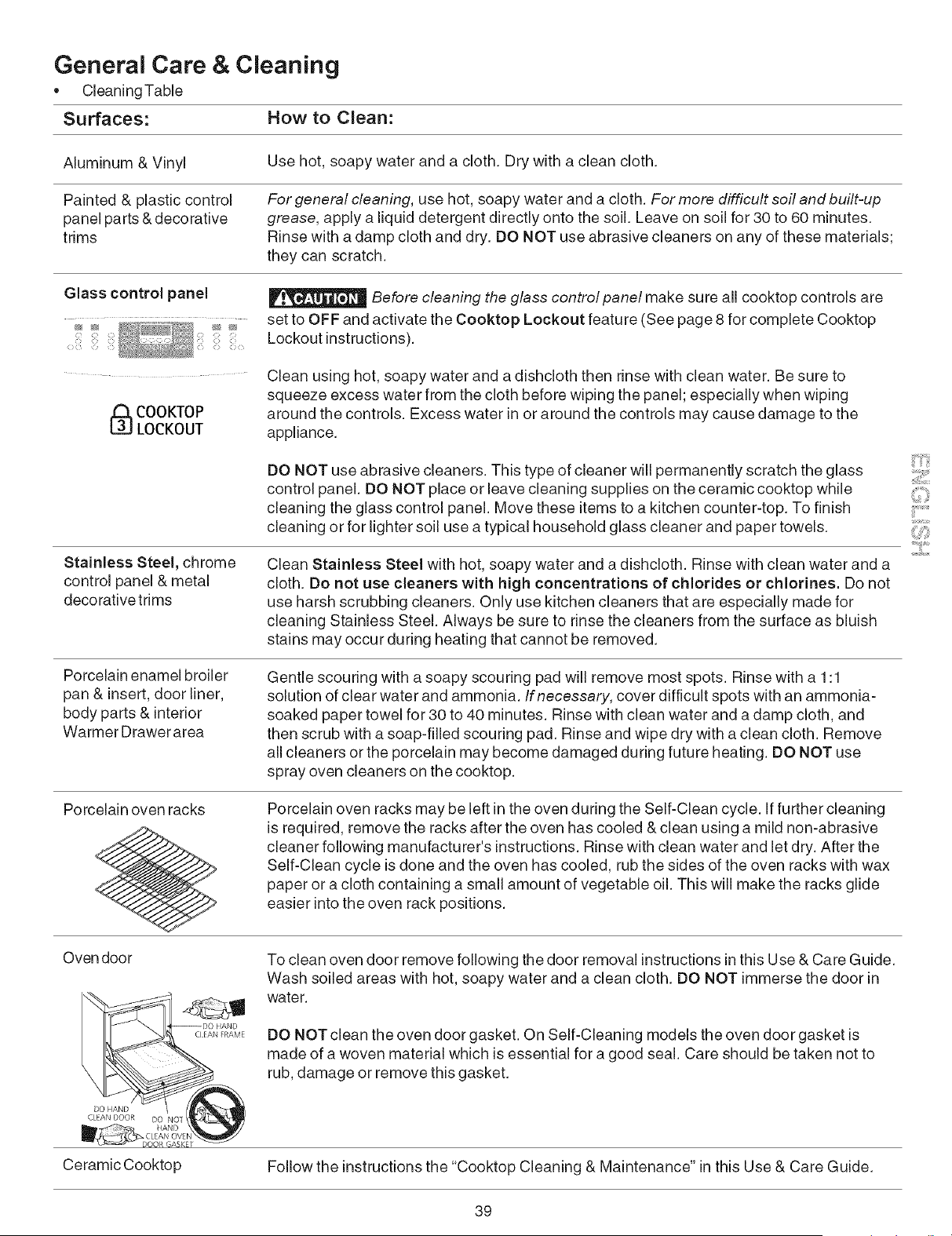

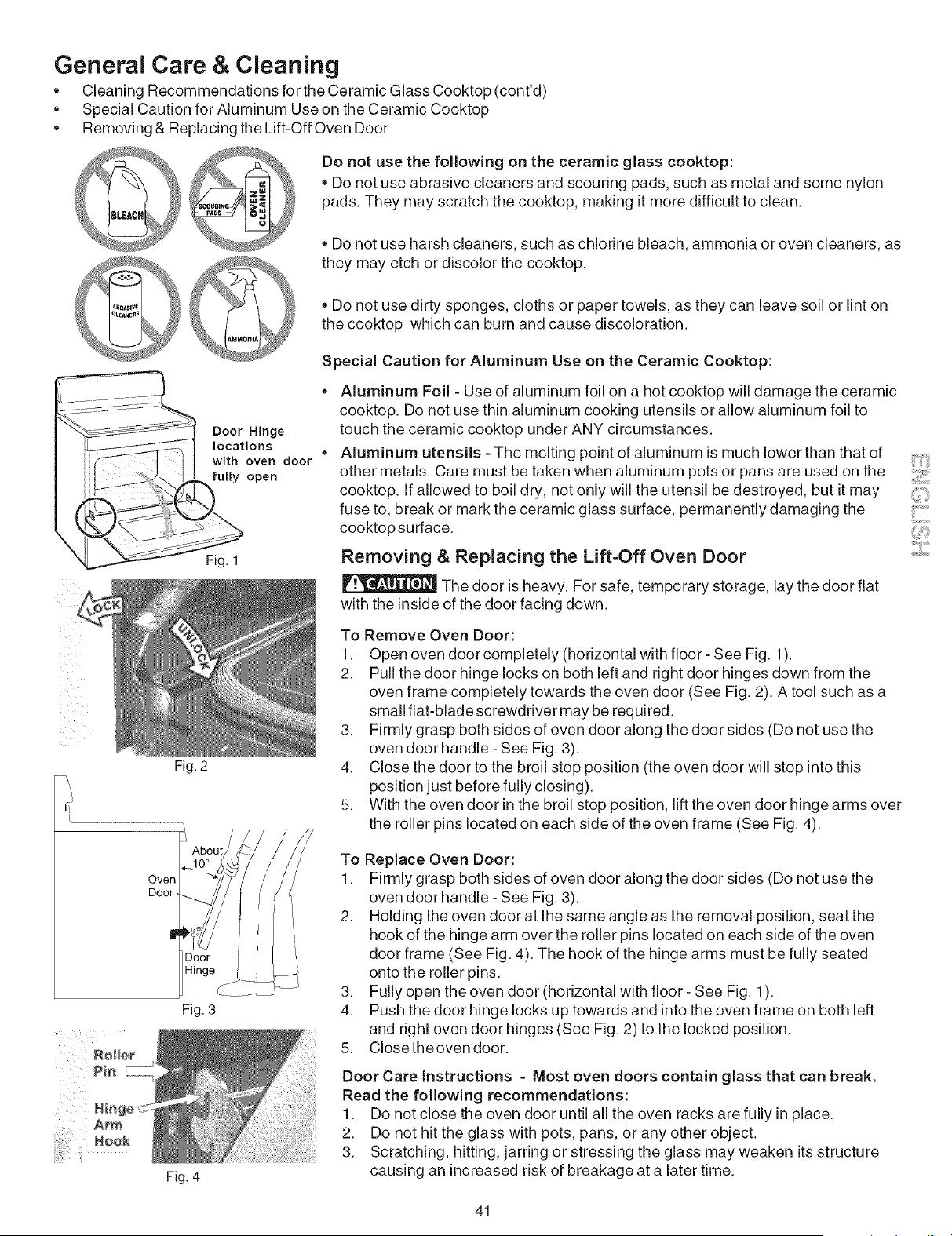

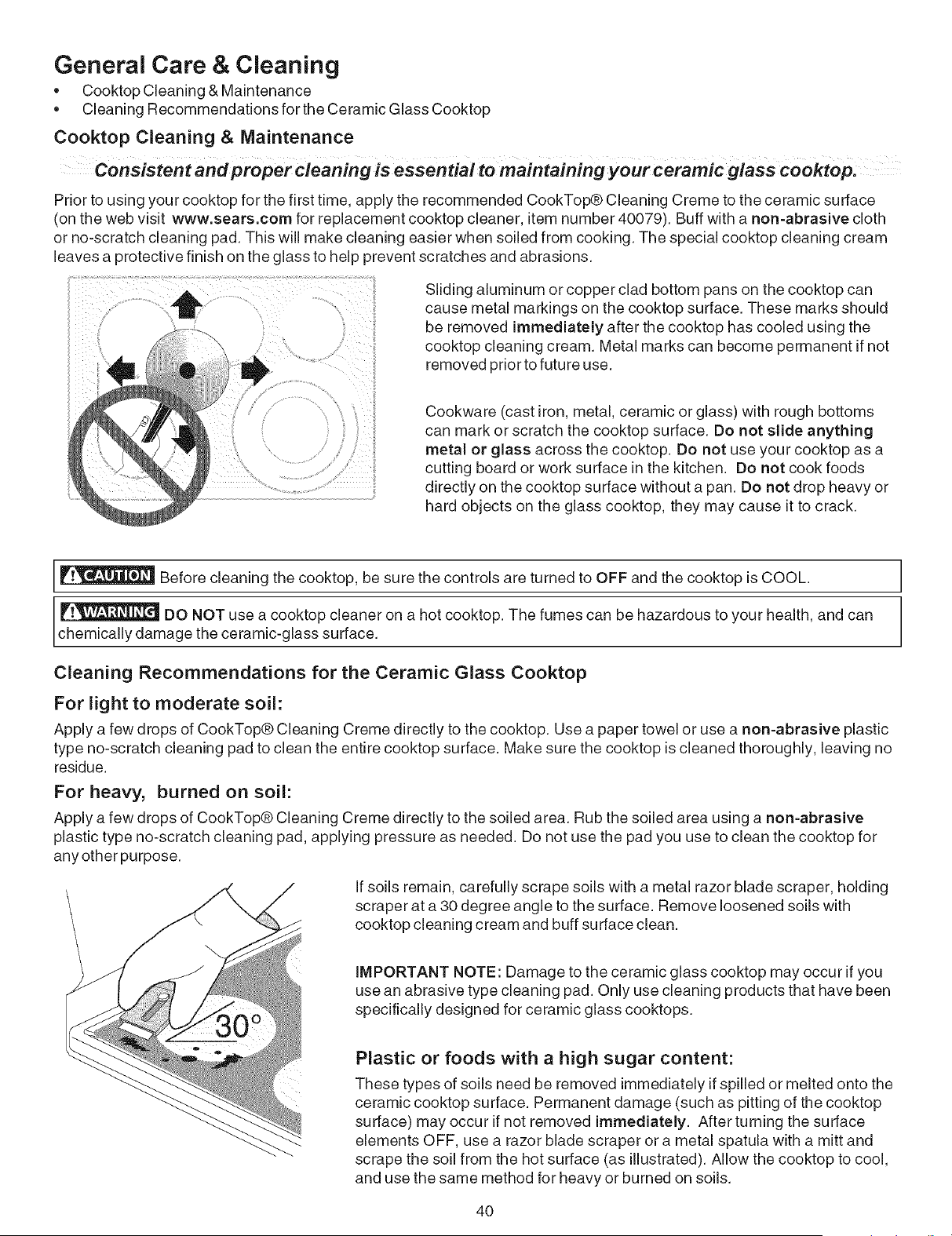

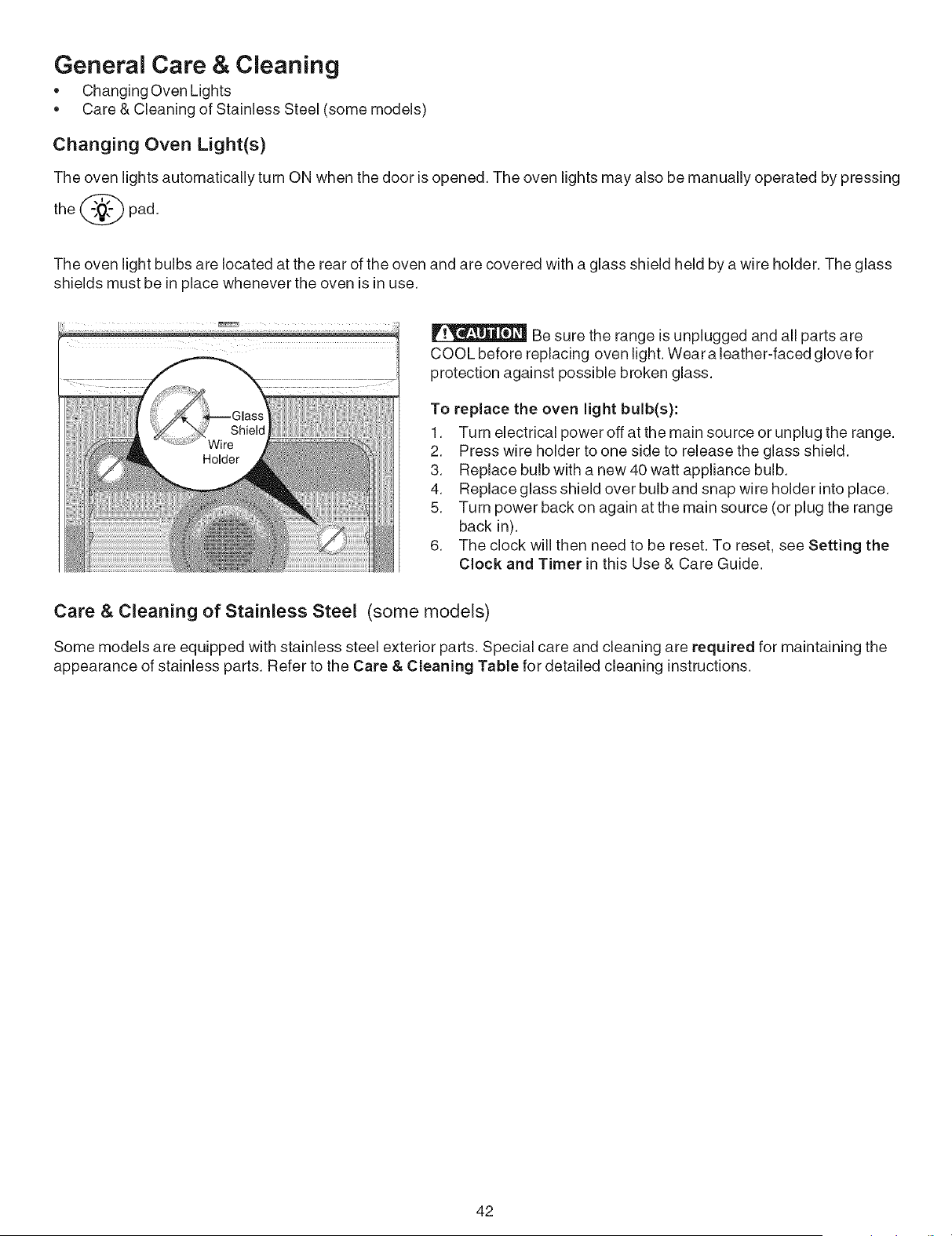

General Care & Cleaning .................................................... 39-42

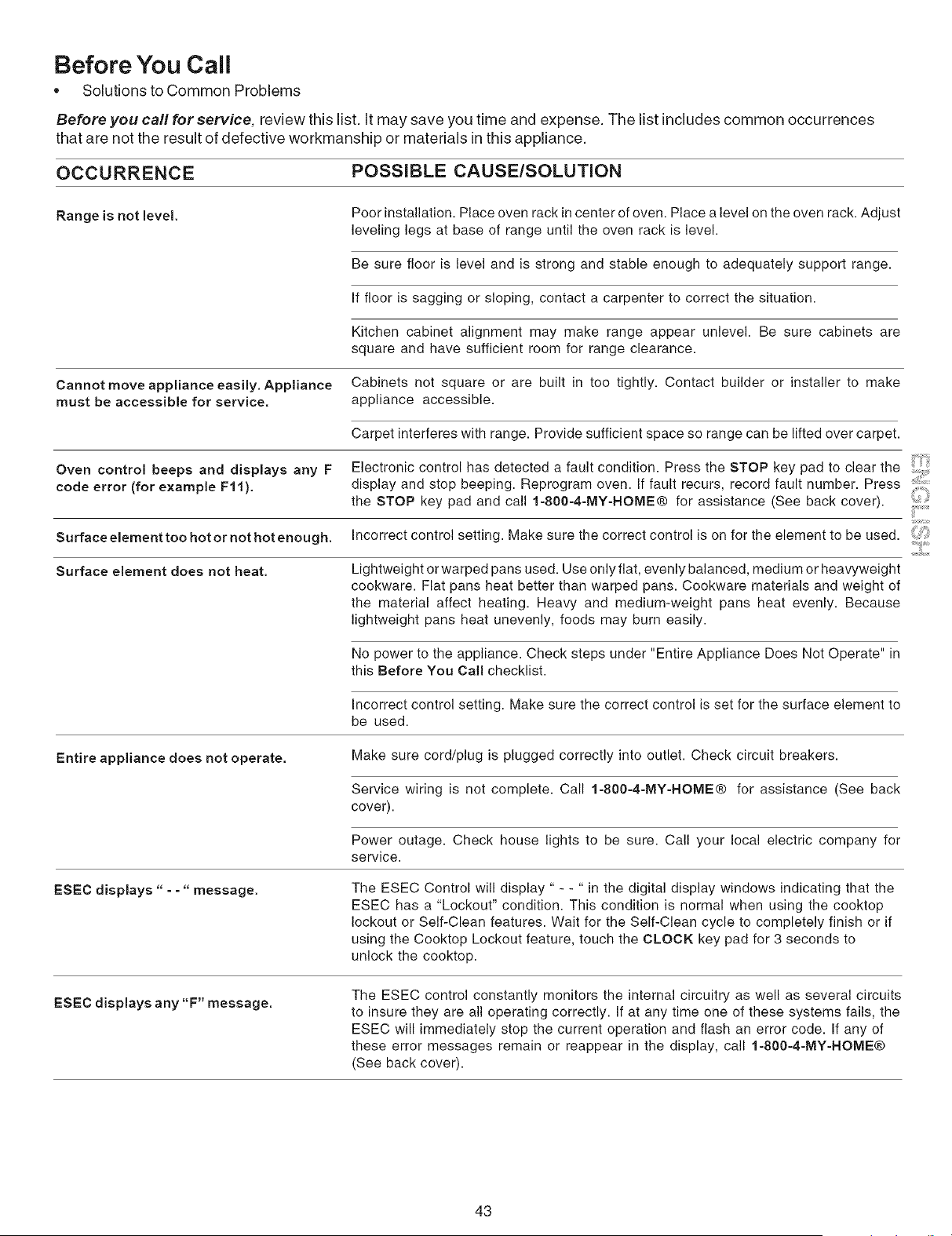

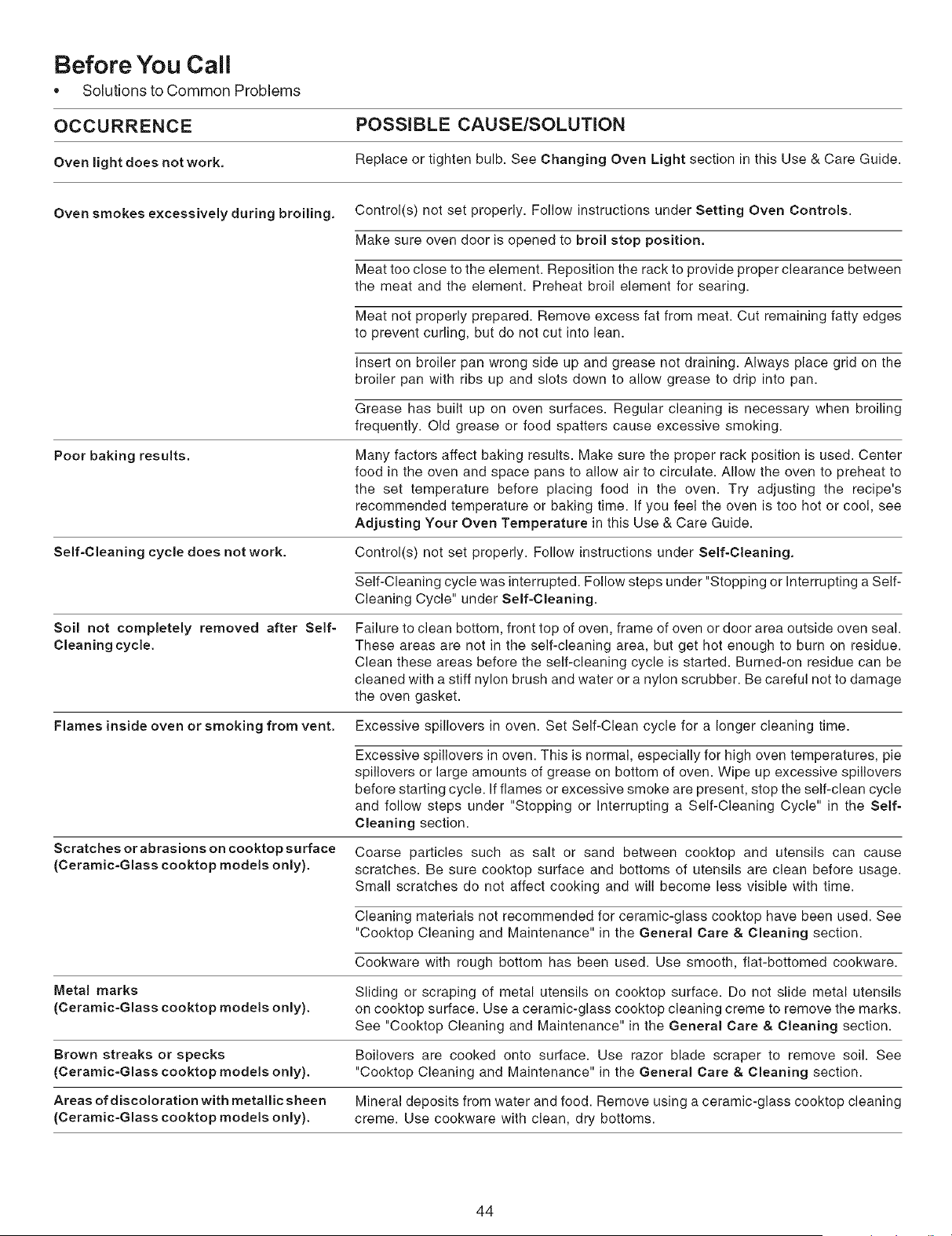

Before You Cal! for Service ................................................ 43-44

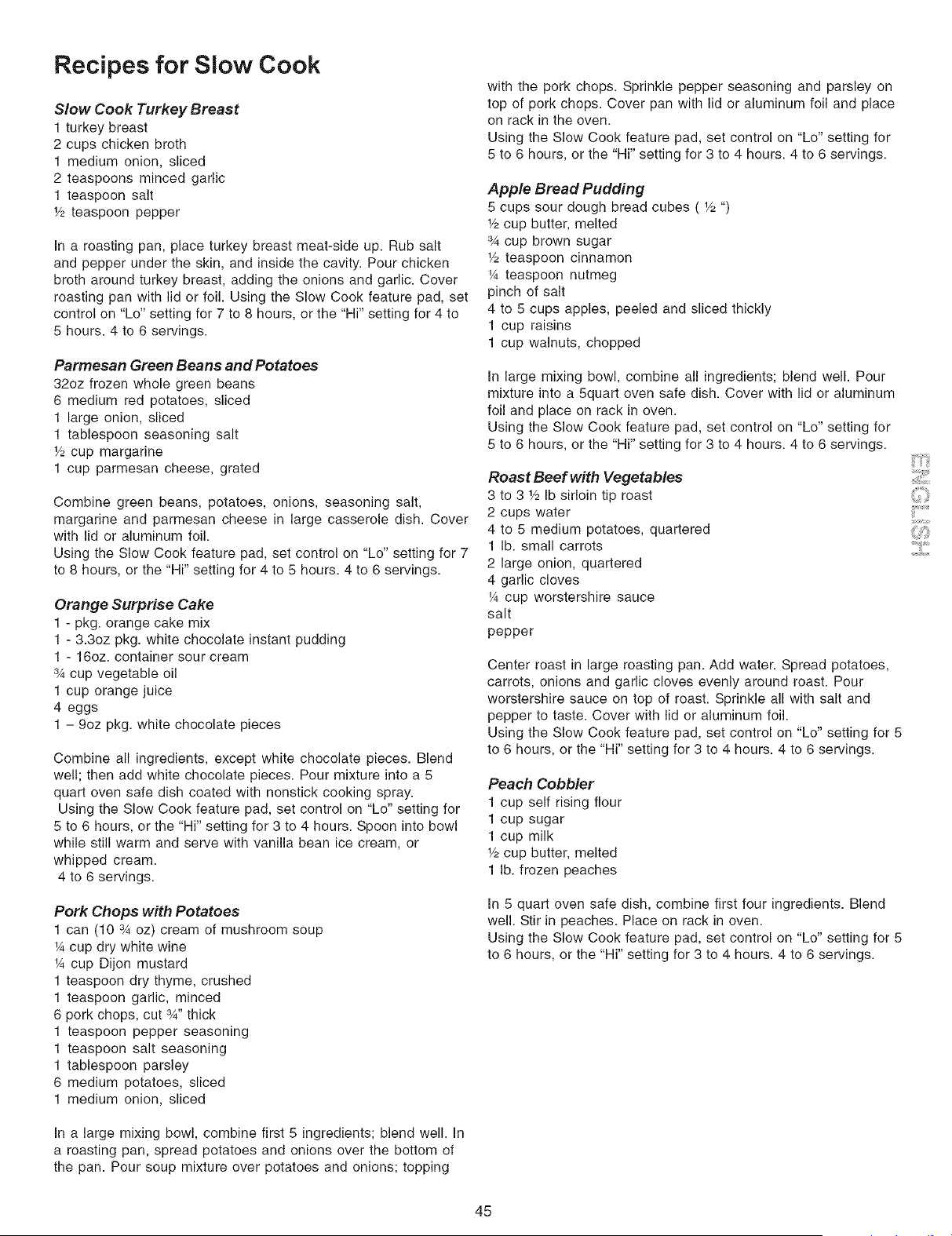

Recipes for Slow Cook ............................................................ 45

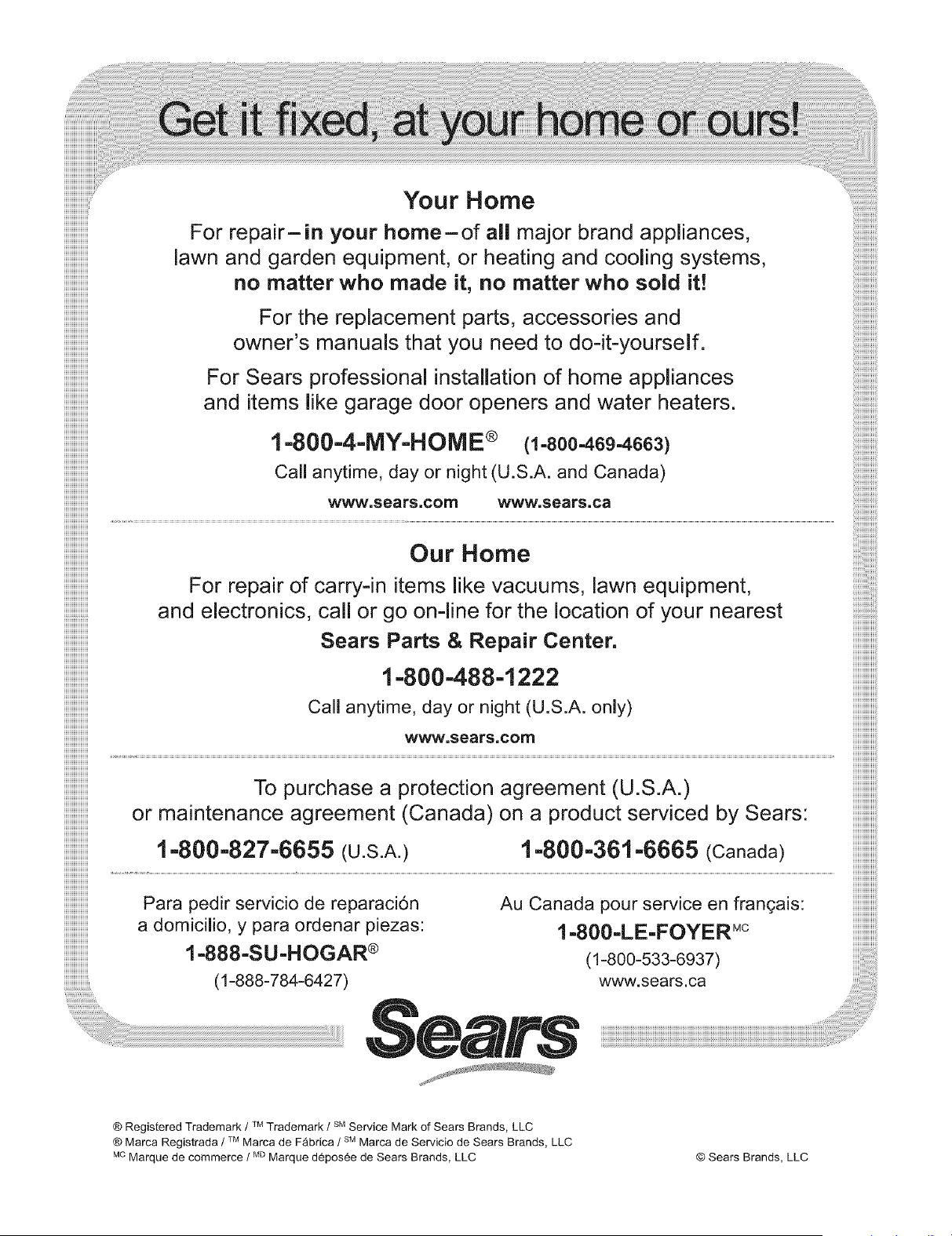

Sears Service ............................................................ back cover
Kenmore Elite Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructionssupplied with the product, if this appliance fails due to
a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for free
repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user incorrect product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
FIVE-YEAR LIMITED WARRANTY
For five years from the date of purchase, when this range is installed, operated, and maintained according to all instructions
supplied with this product, Sears will replace the following range parts free of charge if they fail for the reasons below.
Customer must pay labor cost of installation.
• Cooktop glass if it fails due to thermal shock.
Cooktop elements if they are defective.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

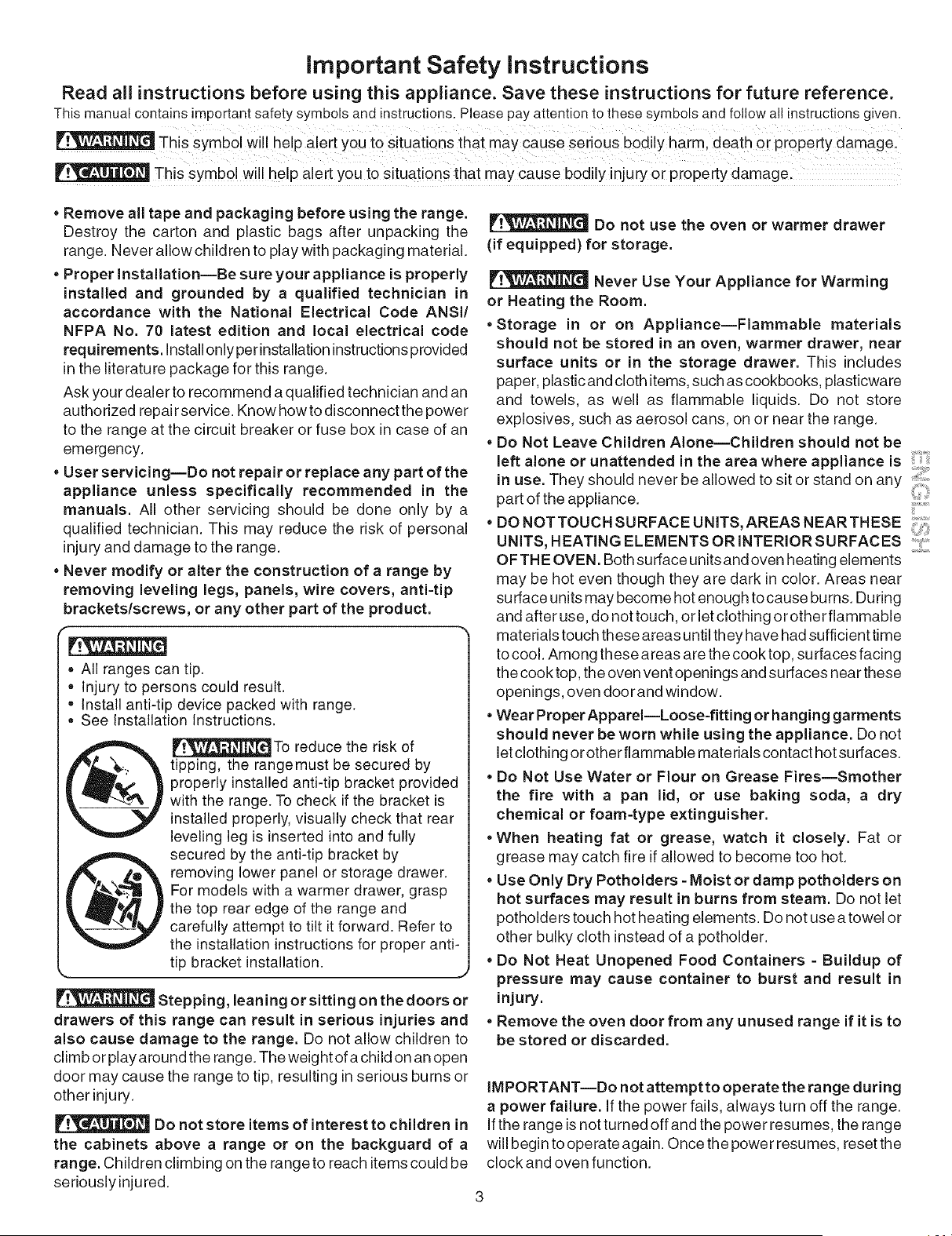

important Safety instructions
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This symbol will he!p alert You to situations that may Cause serioUs bodily harm, death Orproperty damage
This symbol wi!! he!p alert you to situations that may cause bodily injury or property damage,
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Installonly perinstallation instructionsprovided
in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repairservice. Know howto disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
, User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
Never modify or alter the construction of arange by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
,All ranges can tip.
= Injury to persons could result.
, Install anti-tip device packed with range.
, See Installation Instructions.
_To reduce the risk of
tipping, the rangemust be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti-
tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weig ht of a child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
sedouslyinjured.
_Do not use the oven or warmer drawer
(if equipped) for storage.
Never Use Your Appliance for Warming
or Heating the Room.
*Storage in or on Appliance--Flammable materials
should not be stored in an oven, warmer drawer, near
surface units or in the storage drawer. This includes
paper, plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range.
Do Not Leave Children Alone--Children should not be
left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on any
part of the appliance.
"Be NOT TOUCH SU RFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES ..............
OF THE OVEN. Bothsurtaceunitsand oven heatingelements
may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During
and after use, do not touch, or let clothing orotherfiammable
materials touch these areas until they have had sufficient time
to cool. Among these a teas are the cook top, surfaces facing
the cook top, the oven vent openings and surfaces near these
openings, oven doorand window.
Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not
let clothing or other flammable materials contact hot surfaces.
, Do Not Use Water or Flour on Grease Fires--Smother
the fire with apan lid, or use baking soda, adry
chemical or foam-type extinguisher.
, When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
, Use Only Dry Potholders - Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of a potholder.
* Do Not Heat Unopened Food Containers - Buildup of
pressure may cause container to burst and result in
injury.
, Remove the oven door from any unused range if it is to
be stored or discarded.
IMPORTANT--Do not attempt to operate the range during
apower failure. If the power fails, always turn off the range.
If the range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset the
clock and oven function.

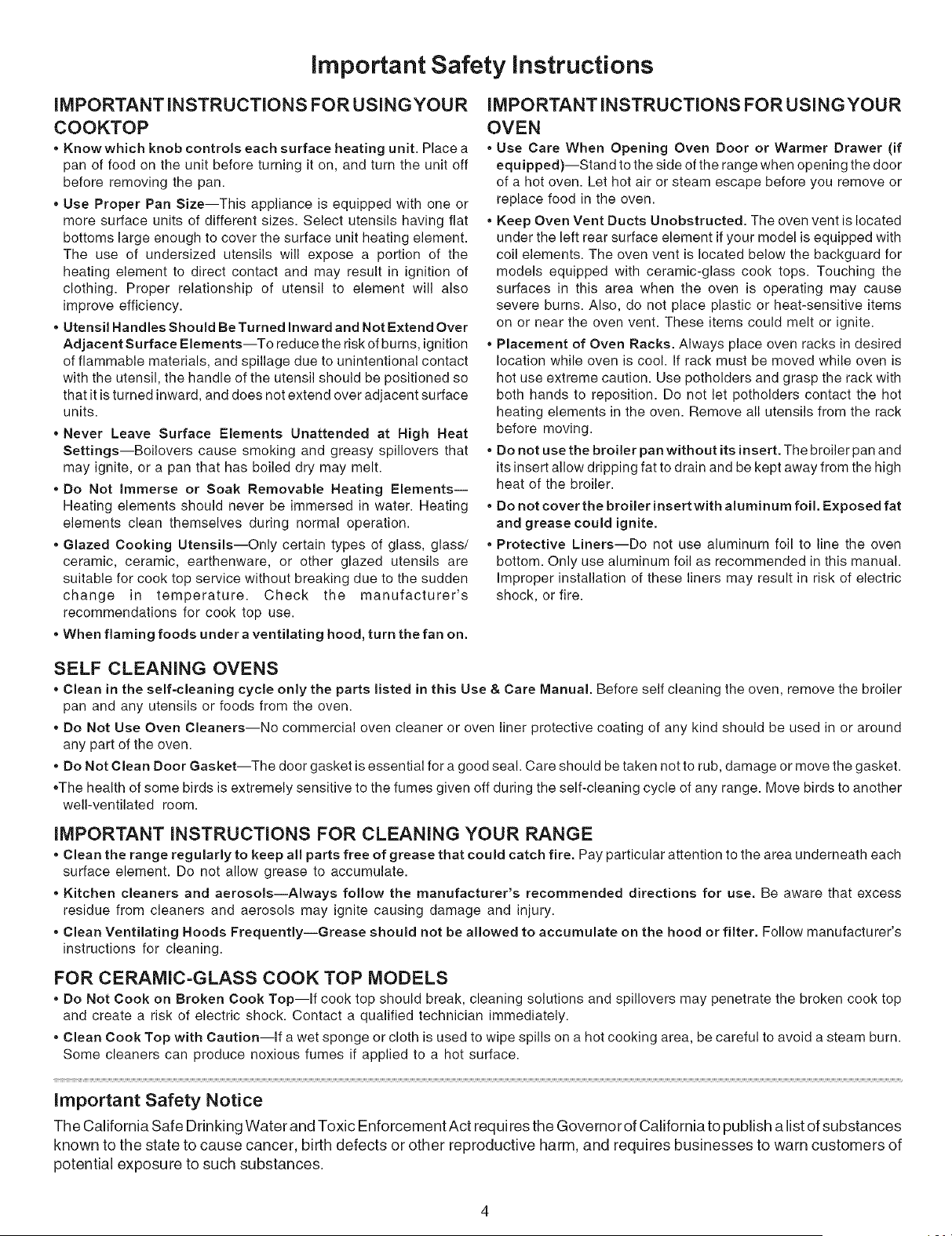

important Safety instructions
IMPORTANT INSTRUCTIONS FOR USINGYOUR
COOKTOP
•Know which knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
+ Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
Do Not immerse or Soak Rernovable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
+ Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
When flaming foods under a ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USINGYOUR
OVEN
+ Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
+ Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
+ Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
+ Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
+Do not cover the broiler insert with aluminum foil, Exposed fat
and grease could ignite.
+ Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
SELF CLEANING OVENS
Clean in the self=cleaning cycle only the parts listed in this Use & Care Manual, Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
+Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
+Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
,,The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
"Clean the range regularly to keep all parts free of grease that could catch fire, Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use, Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's
instructions for cleaning.
FOR CERAMIC=GLASS COOK TOP MODELS
+ Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediately.
+ Clean Cook Top with Caution--if a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requi res the Governor of California to publish a list of substances
known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of
potential exposure to such substances.
PROTECTION AGREEMENTS ACUERDOS DE PROTECCION
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®product is designed and manufactured for years
of dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's
when having a Master Protection Agreement can save you
moneyand aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life
of your new product. Here's what's included in the
Agreement:
5_ Expert service by our 12,000 professional repair
specialists.
5_ Unlimited service and no charge for parts and labor
on all covered repairs.
5_ "No-lemon" guarantee- replacement
of your covered product if four or more product failu res
occur within twelve months.
5_ Product replacement if your covered product can't be
fixed.
5_ Annual Preventive Maintenance Check at your
request- no extra charge.
5_ Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling.
5_ Power surge protection against electrical damage
due to power fluctuations.
5_ Rental reimbursement if repair of your covered
product takes longer than promised.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME ®.
En los EE.UU.
Acuerdos maestros de protecci6n
Lo felicitamos por haber hecho una compra inteligente. Su
nuevo producto Kenmore®rue diseSado y fabricado para
ofrecer muchos aSos de servicio confiable. Sin embargo,
como todo producto, el mismo podrfa requerir mantenimiento
preventivo o reparaciones ocasionales. Es por eso que el
tenet un Acuerdo maestro de protecci6n podrfa ahorrarle
dinero y molestias.
Adquiera ya un Acuerdo maestro de protecci6n y protejase de
gastos y frustraciones inesperados.
El Acuerdo maestro de protecci6n tambi_n ayuda a extender
la vida de su producto nuevo. El Acuerdo incluye Io siguiente:
5_ Servicio profesional por nuestros 12.000 profesionales
especialistas en reparaci6n.
5_ Servicio ilimitado sin cargos adicionales por piezas
y servicio en todas las reparaciones cubiertas.
5_ Garantia de "no-lim6n" - reemplaza su producto
cubierto si ocurren cuatro o mas despertectos en los
primeros doce meses.
5_ Reemplazo del producto si el mismo no puede ser
reparado.
5_ Verificaci6n de mantenimiento preventivo anual a
su petici6n y sin cargos adicionales.
5_ Pronta ayuda pot tel_fono - apoyo por tel_fono por un
t_cnico de Sears en los productos que requieran
reparaci6n en casa, ademas de la conveniencia de hacer
una cita para la reparaci6n.
5_ Protecci6n contra picos de energia o da_os
el_ctricos causados pot fluctuaciones de la corriente
el_ctrica.
5_ Reembolso del alquiler si la reparaci6n de su producto
cubierto toma mas del tiempo prometido.
Una vez que adquiera este Acuerdo, una simple Ilamada
telef6nica es todo Io que necesita para hacer una cita de
servicio. Usted puede Ilamar a cualquier hora del dfa o de la
noche para programar una cita de servicio por Internet.
Sears cuenta con ma.s de 12.000 profesionales especialistas
de reparaci6n con acceso a mas de 4,5 millones de piezas y
accesorios de calidad. Esa es la clase de profesionalismo
con la que puede contar para extender la vida t_tilde su nueva
adquisici6n por muchos a_os. iAdquiera su Acuerdo maestro
de protecci6n hoy!
Algunas limitaciones y exclusiones podrian aplicarse.
Para precios e informaci6n adicional, Ilame al
1-800-827-6655.
Servicio de instalaci6n Sears
Para una instalaci6n profesional de Sears en
electrodom_sticos, abridores de puertas de garaje,
calentadores de agua y otros artfculos mayores del hogar,
Ilame al 1-888-SU-HOGAR®.
REV.030509
i:i:ii...........
Range Features
® ®
Your Electric Range Features Include:
1. Electronic Oven Control with Timer.
2. Glass Touch Sensitive Control Panel.
3. Left Front Element & Bridge Control & Electronic Display.
4. Left Rear 8" Element Control & Digital Display.
5. Warm & Ready Drawer Control & Indicator Light.
6. Bread Proof Indicator Lights.
7. Warm & Ready _" Zone Control & Indicator Lights.
8. Right Rear 6" Element Control & Digital Display.
9. Right Front 6-9-12" Triple Element & Digital Display.
10. Oven & Cooktop Lockout Controls.
11. 2 Oven Interior Lights with removable Covers.
12. Automatic Oven Door Light Switch.
13. Self-Cleaning Oven interior.
14. Self-Clean Door Latch.
15. Adjustable Heavy Duty Porcelain Oven Racks.
16. Oven Convection Fan & Cover.
17. Large 1 piece Oven Door Handle.
18. Full width Oven Door with Large Window.
19. Warm & Ready _ Drawer & Rack
(not illustrated) with Drawer
Handle.
20. Warmer Drawer Humidity
Controller
21. Ceramic Smoothtop.
22. 8" Single Radiant Element.
23. Bridge Radiant Element.
24. Warm & Ready_Zone Element.
25. 6" Single Radiant Element.
26. 6-9-12" Triple Radiant Element.
27. Broil Pan.
28. Broil Pan Insert.
29. Searing Grill.
30. Roasting Rack.
31. Bridge Element Griddle.
32. Leveling Legs and Anti-tip
Bracket (included).
NOTE: The features of your
range may vary according to
model type & color.
@
Before Setting Oven Controls
OVEN VENT Oven Vent Location
The oven vent is located under the left side of the control panel (See Fig. 1).
When the oven is on, warm air passes through the vent. This venting is necessary
for proper air circulation in the oven and good baking results. DO NOT BLOCK
OVENVENT.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out.
Fig. 1 To replace, fit the rack onto the guides on the oven walls. Tilt the front of the
rack upward and slide the rack back into place.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Refer to Fig. 2. Always use oven mitts when using the oven.
This range has a total of 7 oven rack postions.
Recommended Rack Positions for Broiling, Baking &Roasting:
Food Rack Position
Broiling hamburgers & steaks See Broil
Broiling meats, chicken or fish See Broil
Cookies, cakes, pies, biscuits & Muffins 3 or 4
Frozen pies, angel food cake, yeast, bread,
casseroles, small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1or Roasting Shelf
Types of Oven Racks
Flat Handle Oven Rack Flat Half Rack
Fig. 4 Fig. 5
Always use pot holders or oven
mitts when adjusting the oven racks. Wait until
the oven has completely cooled if possible. Oven
racks may be HOT and may cause burns.
Your range may be equipped with one or more of
the oven rack types shown; Flat Handle Oven
Rack (Fig. 4), Flat Oven Half Rack (Fig. 5) and
Offset Rack (Fig. 6). To maximize cooking space
the Offset Rack can be used in the lowest rack
position to roast large cuts of meat and poultry. Fig. 7
Fig. 2
Offset Oven Rack
(some models)
Fig. 6
Fig. 8
The Flat Half Rack has a removable insert that can provide extra space for larger food items. The right half rack portion
may still be used for other food items like a casserole dish (See Fig. 5). To remove the insert, squeeze on the left front
insert side (See Fig. 7) of the rack and tilt out clockwise. To reinstall insert rear hooks at back of insert (See 1-Fig. 8) and
lay insert down. Make sure both insert front hooks snap into rack (See 2-Fig. 8).
iiii_!!iii:i
Do not use cookware that extends beyond the edge of the Flat Half Rack. For best results, allow 2 inches between the pan
placed on the rack and oven side or rear walls.
Before Setting Oven Controls
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes using 2 oven racks, place cookware on rack positions 2 (Flat Handle Oven Rack) & 5
with the Offset Oven Rack (See Fig. 6). For best results when using a single oven rack, place cookware on rack position 4
(See Fig. 7).
Air Circulation in the Oven
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookwa refor proper aircirculation
and be su repans and cookwa re do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the
pans and cookware in the oven for
even heat to reach around the food.
Fig. 6 Fig. 7
Before Setting Surface Controls COOKTOP
• Locking & Unlocking the Cooktop _ LOCKOUT
To Set the Cooktop Lockout Feature
The _-Q_ pad is used to activate the Cooktop Lockout feature which will lock all surface
elements from being accidentally turned ON (including Warmer Zone). This feature will only
lock the cooktop.
To turn the Cooktop Lockout Feature ON:
1. BE SURE ALL surface element controls are set to the OFF position.
2. Press and hold _ until a 2nd beep sounds. If a triple beep sounds instead, check
all surface elements and turn them to the OFF position and repeat this step. The Cooktop
Locked indicator light will turn ON and the cooktop controls and functions are locked out
until the cooktop is unlocked (See Fig. 1).
Fig. 1
To turn the Cooktop Lockout Feature OFF:
1. BE SURE ALL surface element controls are set to the OFF position.
2. Press and hold _ until a 2nd beep sounds (after 3 seconds). If a triple beep sounds
instead, check all surface elements and turn them to the OFF position and repeat this
step. The Cooktop Locked indicator light will turn OFF and the cooktop may be used
normally (See Fig. 2). Fig. 2
Note: Starting a Self-Clean cycle will automatically turn ON the Cooktop Lockout feature.
The cooktop will remain locked until the Self-Clean cycle has completed and the oven door
has unlocked. If a power failure occurs after the Cooktop Lockout has been activated, you
must turn OFF the Cooktop Lockout feature before being able to use the cooktop features
again.
Before Setting Surface Controls
• General Cooktop Information
• About Radiant Surface Elements
• Locations of the Radiant Surface Elements and Controls
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of
the glass. The design of the ceramic cooktop outlines the area of the surface
element underneath (See Figs. 1 & 2).
Heat is transferred up through the surface of the cooktop to the cookware. The
type and size and condition of the cookware, the number of surface elements in
use and their settings, are all factors that will affect the amount of heat that will
spread to areas beyond the surface elements. Note: The areas surrounding
the elements may become hot enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the temperature rises, the
element will glow red. To maintain the selected setting, the element will cycle on
and off. The heating element retains enough heat to provide a uniform and
consistent heat during the off cycle. For efficient cooking, turn off the element
several minutes before cooking is complete. This will allow any remaining heat to
complete the cooking process.
ii iii _I
ii iii_ I
Fig. 1
Fig. 2
NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to }.........
prevent damage to the ceramic smoothtop. Cycling at the HI setting is normal and can occur if the cookware is too small
for the radiant element or if the pan bottom is not flat. Refer to page 15 for more details about using proper cookware on the
cooktop. ....
Locations of the Radiant
Surface Elements and
Controls
Your range is equipped with radiant
surface burners the have eight
different wattage ratings. The ability
to heat food quicker and in larger
volumes increases as the element
wattage increases.
The radiant surface elements are
located on the cooktop as follows
(refer to Fig. 3); a 6 inch radiant
element located at the right rear
position; a 6 /9/12 inch Triple
radiant element located at the right
front position (See page 12); a
Warmer Zone radiant element at
the center rear position (See page
14); and two 8 inch radiant elements
located at both the left front and rear
positions. Located between the left
front and rear elements is a Bridge
radiant element (See page 13).
oH_
,q_o_ A _n A P A ;i Hi! A
Siz_t
Left Lef_Re_ Wa_r_r
H _\ ¢ All
Size
NOTE: Be sure to read detailed
instructions for ceramic glass
cooktop cleaning in the General
Care & Cleaning section and
Before You Call checklist section
of this manual. Fig. 3
Setting Surface Controls
• Electronic Surface Element Controls (ESEC)
• Available ESEC Display Settings
• Hot Surface Indicator Lights
• ESEC Lockout Feature (- -)
Cooktop Sabbath Day Feature and Message (Sb)
The Electronic Surface Element Control (ESEC)
The Electronic Surface Element Control ("ESEC') feature provides a digital
display of the radiant surface elements on the cooktop. The ESEC displays in
combination with the touch pads are designed to replace the conventional
control knob and power level tick mark indicators.
In addition your range includes shared radiant element touch pad settings.
The "Bridge" element combinations and Triple radiant element settings are
also shown in the ESEC display windows.
The available ESEC Window Display Settings
The ESEC control will display heat levels ranging from Hi (Fig. 1) to Lo (Fig.
6) and OFF (Fig. 7) that will display in the ESEC windows. The settings
between 9.0 (Fig. 2) and 3.0 (Fig. 3) decrease or increase in increments of .5
(1/2). The settings between 3.0 (Figs. 3 & 4) and 1.0 (Fig. 5) are Simmer
settings which decrease or increase in increments of .2 to Lo ( Fig. 6; lowest
Simmer setting) for more precise settings at lower heat levels. Use the
Recommended Surface Setting Chart (See page 11, Fig. 1) to determine the
correct setting for the kind of food you are preparing.
Hot Surface Indicator Lights
After using any of the radiant element positions the cooktop will become very
hot. After turning any of these elements OFF, the cooktop will remain HOT for
some time. The backguard control monitors the temperature for 5 positions on
the cooktop. The "Hot Surface" indicator light (Fig. 8) will glow whenever any
of the element positions becomes HOT. The Hot Surface indicator light will
remain ON while hot and turn OFF once the cooktop has cooled sufficiently
(Fig. 9).
ESEC PF message
The ESEC will display the PF message whenever there has been a power
interruption to the appliance. PF will appear in the ESEC display windows as
shown in Fig. 1O. To clear the PF message touch any ON/OFF ESEC control
pad to reset and be sure to reset the clock with the correct time of day if
necessary. If the PF displays again repeat these steps.
Fig. 1
Fig. 3
Fig. 5
Right
Rear
Hot Surface
Boo
Fig. 8
Cooktop Sabbath Day Feature and (Sb) Message
The ESEC will display the Sb messages whenever the Sabbath Day feature is active (Fig. 11). When
activated, the Sabbath Day Feature works for both the oven and cooktop together. Once the Sabbath
Day Feature is active, changes to the heat levels for the cooktop elements will not show in the
displays. The cooktop will react slower to heat level changes. To set the Sabbath Day feature see the
complete instructions on page 32.
Radiant surface elements may appear to have cooled after they have been turned
off. The glass surface may still be hot and burns may occur if the glass surface is touched before
it has cooled sufficiently.
Do not place aluminum foil or plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when it is in use, These items could
melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the
surface elements.
Fig. 7
Fig. 2
Fig. 4
Fig. 6
Right
Rear
c ©O
El
Fig. 9
10
Fig. 10
Fig. 11
Setting Surface Controls
• Recommended Surface Cooking Settings
• Operating Single Surface Radiant Controls
Recommended Surface Cooking Settings
Recommended settings for the Single, Bridge & Triple Surface Radiant Cooktop Elements
Setting T_tpe of Cooking
HiGH (8.0 - Hi) Start most foods, bring water to a boil or pan broiling
MEDIUM HiGH (5.0 -8.0) Continue a rapid boil, fry or deep fat fry
MEDIUM (3.0 - 5.0) Maintain a slow boil, thicken sauces and gravies or steam vegetables
MEDIUM LOW (2.0 - 4.0) Keep foods cooking, poach or stew (2.8 or lower is a simmer setting).
LOW/SIMMER (Lo - 2.0) Keep warm, melt or simmer (2.8 or lower is a simmer setting). Fig. 1
Note: The size and type of cookware used will influence the setting needed for the best cooking results. The simmer
settings are used to simmer and keep larger quantities of foods warm such as stews and soups. The lower simmer settings
are ideal for delicate foods and melting chocolate or butter.
Operating Single Radiant Surface Elements
The cooktop has 2 SINGLE radiant surface elements; the
RIGHT REAR position (Fig. 2) and the LEFT REAR ONLY
element position may be used as single or a Bridge element
(See Fig. 3). Refer to Fig. 1 for recommended surface cooking _
settings, i[
To Operate the Single Radiant Surface Elements: Fig.2 Fig. 3
1. Place correctly sized cookware on the radiant surface element. Right Rear Element Left Rear Element
Touch and hold the O pad for the desired element position until a beep is heard. The
2.
display will show" --"
NOTE: Each time a pad is touched a beep will sound. If no further pads are touched within 10
seconds the request to power the element ON will clear.
3. Touch the element position's _'-/N-'_ pad once to turn ON the power level Hi or _'-V-"_ pad
V
once for Lo (See Fig. 4). The Hot Surface indicator light will turn ON when the element
becomes hot.
4. Each touch of the _ or _ pad will decrease or increase the power level by 1/2 from
9.0 through 3.0. Simmer power levels between 3.0 and 1.0 will decrease or increase by .2
increments. Lo is the lowest power level available. Note: The power level may be adjusted at
any time while the element is ON.
When cooking has been completed touch the O pad once to turn the element OFF.
5.
Each surface element provides a constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge of the cookware indicates the
cookware is too small for the surface heating area.
Note: The Hot Surface indicator light will remain ON if the cooktop is still hot and will remain
ON until the heating surface area has cooled sufficiently.
_?' ....................%.¸¸¸¸¸¸¸¸¸
Right
Rear
Hot Surface
@
Fig. 4
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders or
plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or
wooden spoons could catch fire if placed too close to the surface elements.
11
Setting Surface Controls
• Operating the Triple Surface Radiant Control
Operating the TRIPLE Surface Element
The cooktop is equipped with a TRIPLE radiant surface element
located at the right front cooktop position (See Fig. 1 ). Indicator
lights on the control panel at that position are used to indicate
what portions of the Triple radiant element will heat. The iNNER
light indicates that only the inner element will heat. The
+MIDDLE light indicates that both inner and middle elements
will heat together. The ALL light indicates that all 3 portions of
the element will heat. You may switch between all of these
different settings at any time during cooking.
Fig. 1
To Operate the Triple Surface Element:
Fig. 3
1. Place correctly sized cookware on the radiant surface element.
Touch and hold the O pad for the Triple element position until a beep is
2.
v
heard. The display will show" - - ".
O
e, + Mid d Ie ......................
....
Fig. 2
All
_Mddle
_{_iiiiiiiiiiiiiiiiiiiiii_i_'i'_, @
Fig. 4
NOTE: Each time a pad is touched a beep will sound. If no further pads are
touched within 10 seconds the request to power the element ON will clear.
3. Select the iNNER (See Fig. 2), +MIDDLE (See Fig. 3) or ALL 3 elements
Element ._ ....
(See Fig. 4) to heat by pressing the k,,size_jJpau u.,,_, twice or three times
(See Figs. 4 & 5 show indicator lights with ALL 3 elements selected).
4. TouchtheTripleebment@padoncetoturnONthepowerleveIHior
pad for Lo The Hot Surface indicator will
once (See Fig. 4). light
turn ON when the element becomes hot.
5. Each touch of the _ or _-A') pad will decrease or increase the power
v
level by 1/2 from 9.0 through 3.0. Simmer power levels between 3.0 and 1.0
will decrease or increase by .2 increments. Lo is the lowest power level
available. Note: The power level may be adjusted at any time while the
element is ON.
6. When cooking has been completed touch the O pad once to turn the
element OFF.
Each surface element provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the bottom edge of the
cookware indicates the cookware is too small for the surface heating area.
Note: The Hot Surface indicator light will remain ON if the cooktop is still
hot and will remain ON until the heating surface area has cooled sufficiently.
Note: If no element size is choosen when the Triple element is turned ON,
the control will default to the inner coil only. See page 11, Fig. 1 for
recommended surface cooking settings.
{ }
Lo %/
Right
Front
Hot Surface
r_
@ +Mddle
Fig. 5
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders or
plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or
wooden spoons could catch fire if placed too close to the surface elements.
12
Setting Surface Controls
• Operating the Bridge Radiant Surface Element Control
Operating the Bridge Surface Element
The cooktop is equipped with a "BRIDGE" surface element located at the
left cooktop position (See Fig. 1). indicator lights on the control panel are
used to indicate what portions of the Bridge element will heat. The Bridge
element begins with the left FRONT position only (Fig. 2) and when
selected with the +BRIDGE element (Fig. 3) it will provide a combination
of 2 heating surfaces. When set for ALL 3 element positions the left rear
element is added for a total combination of 3 even heating surfaces (See
Fig. 4).
The Bridge element is designed for rectangular or oval shaped cookware.
The griddle that is supplied with this appliance should be used with the
Bridge element ONLY. For round shaped cookware, the left front
element may be used as a single element.
Fig. 1
/\ o i
JR} Pt qlP
Fig. 3
AIo I
Ftotfl: W
Fig. B
Fig. 4
To Operate the Bridge Surface Element:
1. Place correctly sized cookware on the radiant surface element.
Touch and hold the O pad for the Bridge element position until
2. a beep
is heard. The display will show" - - ". NOTE: Each time a pad is touched a
beep will sound. If no further pads are touched within 10 seconds the
request to power the element ON will clear.
3. Select the FRONT (See Fig. 2), +BRIDGE (See Fig. 3) or ALL 3 elements
Element ,4
(See Fig. 4) to heat by pressing the k_ pau once, twice or three times
(Figs. 4 & 5 shows indicator lights with ALL 3 elements selected).
4. Touch the Bridge element (/X_'_ pad once to turn ON the power level Hi or
(_pad for Lo The Hot Surface indicator will
once (See Fig. 4). light
turn ON when the element becomes hot.
5. Each touch of the (_ or _ pad will decrease or increase the power
v v
level by 1/2 from 9.0 through 3.0. Simmer power levels between 3.0 and 1.0
will decrease or increase by .2 increments. Lo is the lowest power level
available. Note: The power level may be adjusted at any time while the
element is ON.
6. When cooking has been completed touch the O pad once to turn the
v
element OFF.
Each surface element provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the bottom edge of the
cookware indicates the cookware is too small for the surface heating area.
-I Bridgl¢,
m
ii! iiillV L,o
¸¸.¸.¸:¸¸¸¸¸¸.¸¸¸.¸¸¸¸¸¸..¸%¸¸
Fig. 5
Left
Side
Hot Surface
NOTE: If all 3 Bridge elements are
selected, any previous power level
setting for the LEFT REAR element
will be changed to the power level
setting for the Bridge.
Note: The Hot Surface indicator light will remain ON if the cooktop is still hot and will remain ON until the heating
surface area has cooled sufficiently. If no element size is chosen when the Bridge element is turned ON, the control will
default to the left front element only. See page 11, Fig. 1 for recommended surface cooking settings.
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place aluminum foil or plastic items such as salt and pepper shakers, spoon holders or
plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or
wooden spoons could catch fire if placed too close to the surface elements.
13

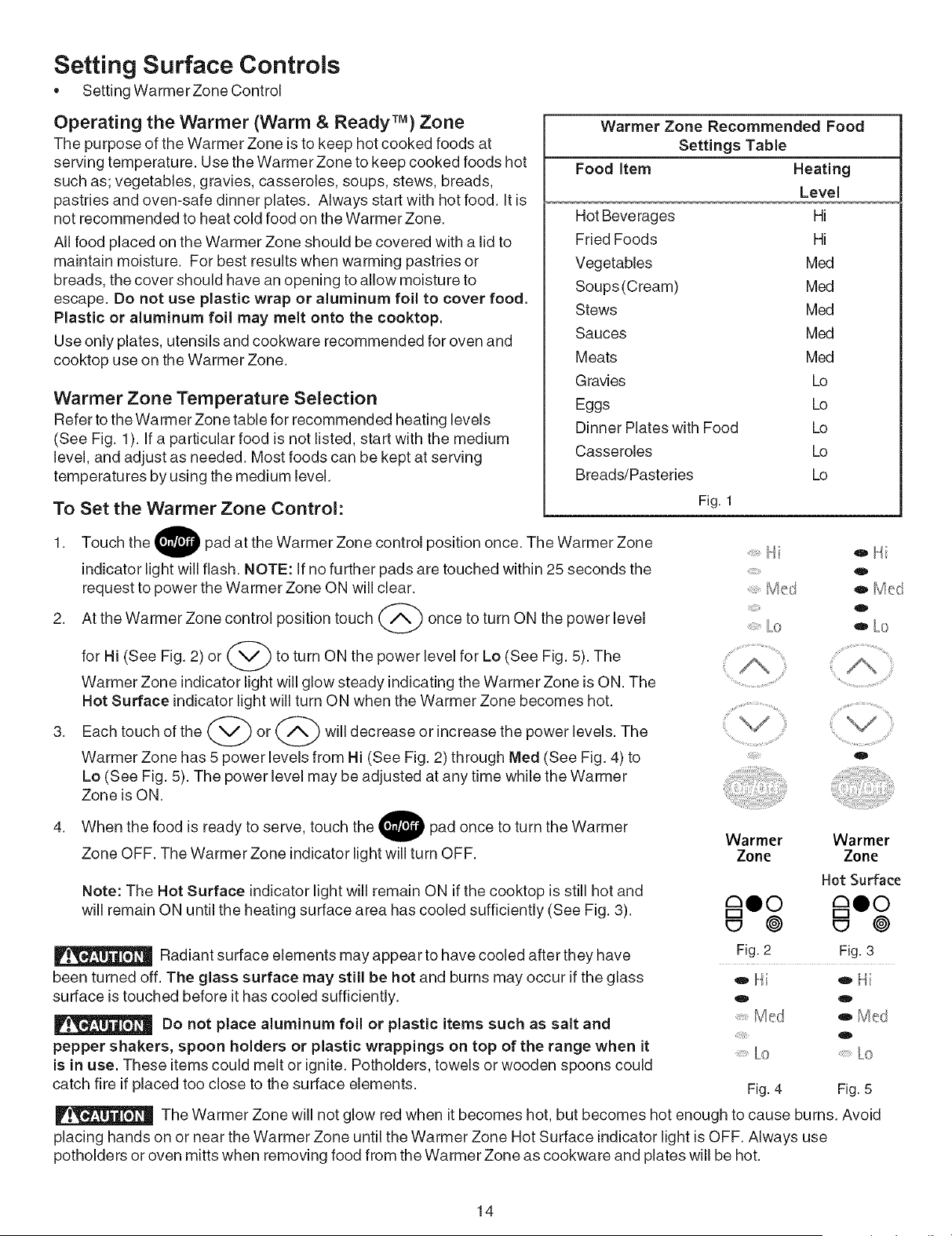

Setting Surface Controls
* Setting Warmer Zone Control
Operating the Warmer (Warm & Ready TM) Zone
The purpose of the Warmer Zone is to keep hot cooked foods at
serving temperature. Use the Warmer Zone to keep cooked foods hot
such as; vegetables, gravies, casseroles, soups, stews, breads,
pastries and oven-safe dinner plates. Always start with hot food. It is
not recommended to heat cold food on the Warmer Zone.
All food placed on the Warmer Zone should be covered with a lid to
maintain moisture. For best results when warming pastries or
breads, the cover should have an opening to allow moisture to
escape. Do not use plastic wrap or aluminum foil to cover food.
Plastic or aluminum foil may melt onto the cooktop.
Use only plates, utensils and cookware recommended for oven and
cooktop use on the Warmer Zone.
Warmer Zone Temperature Selection
Refer to the Warmer Zone table for recommended heating levels
(See Fig. 1). If a particular food is not listed, start with the medium
level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.
To Set the Warmer Zone Control:
Warmer Zone Recommended Food
Settings Table
Food item Heating
Level
Hot Beverages Hi
Fried Foods Hi
Vegetables Med
Soups (Cream) Med
Stews Med
Sauces Med
Meats Med
Gravies Lo
Eggs Lo
Dinner Plates with Food Lo
Casseroles Lo
Breads/Pasteries Lo
Fig. 1
.
3.
Touch the q ) pad at the Warmer Zone control position once. The Warmer Zone
indicator light will flash. NOTE: If no further pads are touched within 25 seconds the
request to power the Warmer Zone ON will clear.
At the Warmer Zone control position touch C/X) once to turn ON the power level
for Hi (See Fig. 2) or _ to turn ON the power level for Lo (See Fig. 5). The
Warmer Zone indicator light will glow steady indicating the Warmer Zone is ON. The
Hot Surface indicator light will turn ON when the Warmer Zone becomes hot.
Each touch of the CVb or C/X-"_ will decrease or increase the power levels. The
Warmer Zone has 5 power levels from Hi (See Fig. 2) through Meal (See Fig. 4) to
Lo (See Fig. 5). The power level may be adjusted at any time while the Warmer
Zone is ON.
Hi o Hi
Med o M_,d
Lo _ Le
\,,/
o
4. When the food is ready to serve, touch the q ) pad once to turn the Warmer
Zone OFF. The Warmer Zone indicator light will turn OFF.
Warmer Warmer
Zone Zone
Note: The Hot Surface indicator light will remain ON if the cooktop is still hot and
will remain ON until the heating surface area has cooled sufficiently (See Fig. 3).
Hot Surface
8eo 8eo
Radiant surface elements may appear to have cooled after they have Fig. 2 Fig. 3
been turned off. The glass surface may still be hot and burns may occur if the glass o Hi o t
surface is touched before it has cooled sufficiently, o
Do not place aluminum foil or plastic items such as salt and Med _ Med
pepper shakers, spoon holders or plastic wrappings on top of the range when it Lo ........Lo
is in use. These items could melt or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements. Fig. 4 Fig. 5
The Warmer Zone will not glow red when it becomes hot, but becomes hot enough to cause burns. Avoid
placing hands on or near the Warmer Zone until the Warmer Zone Hot Surface indicator light is OFF. Always use
potholders or oven mitts when removing food from the Warmer Zone as cookware and plates will be hot.
14
Surface Cooking
Using Proper Cookware
Cookware Material Types
Arranging Warmer Drawer Racks
Using proper cookware
The size and type of cookware used will influence the
setting needed for best cooking results. Cookware
should have flat bottoms that make good contact with
the entire surface heating element (See Fig. 2). Check
for flatness by rotating a ruler across the bottom of the
cookware (See Fig. 1).
Be sure to follow the _.
recommendations for
using proper
cookware as
illustrated.
Formore information
about the ceramic
cooktop see "Cooktop
Cleaning &
Maintenance" in the
General Care &
Cleaning section.
Cookware Material Types
*CORRECT
W
t t
® Flat bottom and straight
sides.
® Tight fitting lids.
• Weight of handle does not
tilt pan. Pan is well
balanced.
e Pan sizes match the
O
@
®
amount of food to be
prepared and the size of
the surface element.
Made of a material that
conducts heat well.
Easy to clean.
Always match pot diameter
to element surface
diameter.
INCORRECT
e Curved and warped pan
bottoms.
ii }[}}
o Pan overhangs element by
more than one-half inch.
!
w
÷1 I,_
• Pan is smaller than
element.
• Heavy handle tilts pan.
Fig. 1 Fig. 2
The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom.
The most popular materials available are:
ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists
staining & pitting). {f aluminum pans slide across the ceramic cooktop, they may leave metal marks which will resemble
scratches. Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.
CAST }RON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached.
Not recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL- Heating characteristics will vary depending on base material. Porcelain-enamel coating
must be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.
Arranging Warmer (Warm & Ready TM) Drawer Rack Positions
The rack can be used in two ways:
•In the upward position (See Fig. 1) to allow low profile food items to be placed both under and on top of the rack (for
example, rolls or biscuits on top of the rack and a casserole dish underneath).
•In the downward position (See Fig. 2) to allow you to place light weight food items and empty dishware (for example,
rolls or pastries and dinner plates) on the rack.
position
/
position
Always use potholders or
oven mitts when removing food from the
Warmer Drawer as cookware and plates
will be hot and you can be burned.
15
Setting Warmer Drawer Controls
• Operating & Setting Warmer Drawer Controls
• Warmer Drawer & Bread Proofing Indicator Lights
Warmer Drawer Humidity Controller
Operating the Warmer Drawer
The purpose of the Warmer Drawer is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food in the Warmer Drawer. All food placed in the Warmer Drawer should be
covered with a lid or aluminum foil to maintain quality.
Do not use plastic wrap to cover food. Plastic may melt onto the drawer
and be very difficult to clean. Use only utensils and cookware recommended
for oven use in the Warmer Drawer.
Warmer (Warm & Ready TM) Drawer & Bread Proofing
Indicator Lights
The control and indicator lights for the Warmer Drawer and Bread Proofing
features are located on the control panel. The indicator lights will turn ON when
the control is set, and remain ON until the controls are turned OFF.
Note: The Warmer Drawer will not operate during the Self-Clean cycle.
Warmer Drawer Humidity Controller Feature
Warmer Drawer Recommended
Food Settings Table
Food item Setting
Bacon Hi
Hamburger Patties Hi
Poultry Hi
Pork Chops Hi
Fried Foods Hi
Pizza Hi
Gravies Med
Casseroles Med
Eggs Med
Roasts (Beef, Pork, Lamb) Med
Vegetables Med
Biscuits Med
Rolls, hard Med
Pastries Med
Rolls (soft) Lo
Empty Dinner Plates Lo
Fig. 3
This feature may be used to control humidity levels in the Warmer Drawer. The
control knob is located on the inner front panel of the Warmer Drawer.
To help keep foods moist, move the handle to the right. This closes the vents and helps keep the moisture inside the
Warmer Drawer. For crisp foods, move the handle to the left. This opens the vents and allows more of the moisture to
escape.
For Moist Heat: Slide the humidity control knob in the direction of (More) > (See Fig. 1). This will help keep the food in
the Warmer Drawer from drying out. Both heat and moisture will be applied to the Warmer Drawer cavity.
For Dry Heat: Slide the humidity control knob in the direction of (Less) < (See Fig. 2). This allows more of the moist heat
to escape and provides a dryer environment for the food in the Warmer Drawer.
Note: For some types of servings you may want to store previously prepared food in a "dry heat" environment.
For frequent controller adjustments, slightly loosen humidity controller knob and slide to any desired position. To maintain a
desired setting, adjust controller knob into position and tighten knob.
Fig. 1 Fig. 2
16
Setting Warmer Drawer Controls
• Arranging Warmer Drawer Racks
• Bread Proofing
To Set the Warmer Drawer & Bread Proofing Controls:
t. Touch the I0_ pad at the Warmer Drawer control position. The Warmer Drawer
v
indicator light will flash. Note: If no further pads are touched within 25 seconds the
request to power the Warmer Drawer ON will clear.
2. Set the desired power level. Touch _A_ once to turn ON the power level for Hi
to turn ON the power level for Lo (See Fig. 4). The Warmer
(Fig. 2) or
Drawer indicator light will glow steady indicating the Warmer Drawer is ON.
3. Each touch of the CV_ or CA-'_ pads will decrease or increase through 6 power
levels from HI (See Fig. 2) to Med (See Fig. 3) to Lo (See Fig. 4) and to the Bread
Proofing feature (Fig. 5). Jfthe Warmer Drawer is set at the Lo setting and the
(_pad is touched the Bread feature will be turned ON
again Proofing (The
Bread Proof indicator light will glow steady indicating the Bread Proofing feature in
ON (See Fig. 5 & bread dough preparation instructions on this page). To return to
standard Warmer Drawer settings touch CAb pad at least once. Note: For best
V
results, preheat the Warmer Drawer before adding the food or bread dough. An
empty drawer will preheat in approximately 15 minutes.
4. When the food or dough is ready for removal, touch the ) pad once to turn the
Warmer Drawer or Bread Proof feature OFF. The Warmer Drawer indicator light will
turn OFF.
Warmer Drawer Food Temperature Settings
Use the recommended Warmer Drawer food temperature settings table (See page 16,
Fig. 3). Jfa particular food is not listed, start with the Meal setting. Jfmore crispness is
desired, remove the lid or aluminum foil from the food. Most foods can be kept at
serving temperatures on the Meal setting. When a combination of foods are to be kept
warm (for instance, a meat with 2 vegetables and rolls), use the Hi setting. To avoid
heat loss, do not open the Warmer Drawer repeatedly while in use.
, Hi
Med
Proof
Bread
Lo o
iiiiiiii:i,:,,
Warmer
Drawer
Fig. 1
Med
Proof
Bread
ko @[p
Fig. 2
Hio
o
Med
Proof
' Bread
Lo o
Fig. 3
Hi,_
O
Med_
LO
0
Mede,
Proof Proof
Bread _ Bread
Fig. 4 Fig. 5
Preparing Bread Dough for the Warmer Drawer
The Warmer Drawer has a "Proof Bread" feature that can be used
to help prepare bread dough. The recommended length of time to
keep the bread dough in the Warmer Drawer is about 45-60
minutes. Be sure however to follow the recipe's recommended
times.
The prepared bread dough should be placed in a large bowl
because the dough will nearly double in volume. Arrange the
Warmer Drawer Rack in the downward position (See Fig. 6).
Place the bowl on the rack in the Warmer Drawer and follow the
Warmer Drawer and Bread Proof Control setting instructions at
the top of this page.
f Warmer Drawer
J Rack in downward
Jposition
Fig. 6
17
Electronic Oven Control Pad Features
DELAY START-- Use
with BAKE, COOK
TIME, and CLEAN to
program a Delayed
Cook Time or Delay
Self-Cleaning cycle
start time.
COOKTIME--Use
to enter the length
of the baking time.
FLEX
CLEAN--Use
to select the
Self-Cleaning
feature (See
page 36s).
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various features and
functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Use & Care Guide.
CONVROAST--
START-- Use to select the
Use to start Convection Roast
all oven BAKE--Useto for meats from a 0 THRU 9
features enter the BROIL-- Use to variety of food NUMBER PADS-
(not used normal Bake select variable catagories. (See Use to enter
with Oven feature. Broil feature (See page 28). temperature and
Light). (See page 24). page 27). times.
-- Use to select
the Warm & Hold
feature (See
page 33).
SLOWCOOK--
Use to select the
Slow Cook feature
(See page 31).
CONV
CONVERT-- Use
to select the
Convection
Convert feature
(See page 30).
OVEN LIGHT--
Use to turn the TiMERON/
oven light ON OFF-- Use to
and OFF (See set or cancel
page 36). the Timer. The
Timer does not
start or stop the feature (See
cooking page 30).
process (See
page 20).
CLOCK--
Use to
set the
time of
day (See
page 19).
ADD 1 CONVBAKE-- PREHEAT-- CAKESor STOP -- Use to cancel
MINUTE-- Use to select Use to pre- BREADS--Use to any oven mode
Use to the Convection condition the select the cakes or previously entered
select Add 1 Bake feature oven breads from a except the time of day
Minute (See page 29). temperature variety of food and minute timer.
(See page catagories. (See Press STOP to stop
23). page 28). cooking. STOP also
controls the Oven
Lockout feature (See
page 21).
Minimum &Maximum Control Pad Settings
All of the features listed have
minimum and maximum time or
temperature settings that may be
entered into the control. An ENTRY
acceptance beep will sound each
time a control pad is touched (the
Oven Lockout pad is delayed by 3
seconds).
An ENTRY ERROR tone (3 short
beeps) will sound if the entry of the
temperature or time is below the
minimum or above the maximum
settings for the feature.
FEATURE MIN. TEMP./TIME MAX. TEMP./TIME
PREH EATTEMP. 170°F /77°C 550°F /288°C
BAKE TEMP. 170°F /77°C 550°F /288°C
TIMER 400°F /205°C 550 °F /288 °C
12Hr. 0:01 Min. 11:59 Hr./Min.
CLOCKTIME 24Hr. 0:01 Min. 11:59 Hr./Min.
12Hr. 1:00 Hr./Min. 12:59 Hr./Min.
COOKTIME 24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.
12Hr. 0:01 Min. 11:59 Hr./Min.
STARTTIME 24 Hr. 0:01 Min. 23:59 Hr./Min.
12Hr. 1:00 Hr./Min. 12:59 Hr./Min.
CLEAN TIME 24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.
CONVECTION BAKE 2 hours 4 hours
170°F /77°C 550°F /288°C
18
Setting Oven Controls
Setting the Clock
Changing between 12 or 24 hour display
Silent Control Operation
Setting the Clock
The CLOCK _ pad is used to set the clock. The clock may be
set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the range is
first plugged in, or when the power supply to the range has been
interrupted, the timer in the display will flash with power failure "PF"
(See Fig. 1). INSTRUCTIONS
To set the clock (example below for 1:30):
."CLO" will appear in the display (See Fig. 2).1. Press
2. Press (_)(_)(_ pads to set the time of day to 1:30
(See Fig. 3). Press _. "CLO" will disappear and the clock
will start (See Fig. 4).
Changing between 12 or 24 hour time of day display:
1. Press and hold _-_ for 6 seconds untill "12h" or"24h"
appears in the display.
Press _cc_ax,_to switch between the 12 and 24 hour time of
2. day
V
display. "12h" or "24h" will be displayed (See Figs. 5 or 6).
3. Press _'_ to accept the desired change or press _'_ to
reject the change.
4. Reset the correct time as described in To set the clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 00:00 through 23:59 hours.
Setting Silent Control Operation
Fig. 1
PRESS
G
(_fot 6 seconds
DISPLAY
Fig. 2
Fig. 3
_/////_,J,,
Fig. 4
Fig. 6
The DELAY START (,._) and FLEX CLEAN (,.c_a'_pads control the Silent Control operation feature. The Silent Control
v
operation feature allows the oven control to be operated without sounds or beeps whenever necessary, if desired the control
can be programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound to silent control operation:
1. To tell if your range is set for normal or silent operation press
and hold _ss_-_tY_for 7 seconds. (See Fig. 7)
2. Press _ to switch between normal sound operation and
silent operation mode. The display will show either "SP" (See
Fig. 8) or" - -" (See Figs. 2 or 3).
_for 7seconds
If "SP" appears (See Fig. 2), the control will operate with normal
sounds and beeps. If " - -" appears (See Fig. 9), the control is
set for silent operation mode.
3. Press @ to accept the change or press Q to reject the @orQ
change.
19
Fig. 7
Fig. 8
Fig. 9
Setting Oven Controls
•Continuous Bake or Twelve Hour Energy Saving Mode
•Timer
Setting Continuous Bake or 12 Hour Energy Saving
TIMER _i_?oe_and FLEX CLEAN _ pads control the Continuous Bake or 12 Hour Energy Saving
The features. The
oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left
on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.
INSTRUCTIONS PRESS DISPLAY
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold _si_o_ for 6 seconds or until the control beeps
once. (Fig.l). "12h" or "- - h" will appear in the display and the
control will beep once.
2. Press _c_.xnj_to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "12h" (See Fig. 2) in the
display indicates the control is set for 12 Hour Energy Saving
feature and "- - h" (See Fig. 3) indicates the control is set for
the Continuous Bake feature.
to accept the change (See Fig. 4) display
3. Press will
return to time of day) or press _ to reject the change.
Setting Timer
_for6seconds
Fig. 1
Fig. 2
Fig. 4
The TIMER _r_ pad controls the Timer feature. The Timer serves as an extra reminder in the kitchen that will beep when
v
the set time has run out. The Timer will not START or STOP the cooking process. The Timer feature may be used during
any of the other oven control functions. Refer to "Minumum & Maximum Control Pad Settings" on page 18 for time amount
settings.
INSTRUCTIONS PRESS DISPLAY
To set the Timer (example for 5minutes):
1. Press _. (See Fig. 5).
2. Press the number pads to set the desired time in the display
/example PressG.> Thetimerwillbeginacount
down. (See Fig. 6).
Note: if _ is not pressed the timer will return to the time of
day.
3. When the set time has run out, the clock will sound with 3 long
beeps every 5 seconds until _si_oer) is pressed (See Fig. 7).
To cancel the Timer before the set time has run out:
Press _. The display will return to the time of day.
2O
Fig. 5
Fig. 6
Fig. 7
Setting Oven Controls
• Oven Lockout
• Setting Temperature Display
,_ OVEN
Setting Oven Lockout Feature L_ LOCKOUT
The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the
v
Warmer Drawer and most oven controls from being turned ON. It does not disable the clock, Timer or the interior oven light.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
Press and hold _ for 3 seconds.
1.
2. After 3 seconds a beep will sound, Loc will appear and "DOOR
LOCKED" will flash in the display. Once the oven door is locked
the "DOOR LOCKED" indicator will stop flashing. (See Fig. 1)
To reactivate normal oven operation:
Press and hold _ for 3 seconds. A beep will sound. Loc will
1.
v
clear. The "DOOR LOCKED" will continue to flash until the oven
door has completely unlocked (See Fig. 2).
Q for 3seconds
Q for 3seconds
Fig. 1
2. The oven is fully operational.
Setting Temperature Display m Fahrenheit or Celsius
The BROIL _roil_ and FLEX CLEAN _ pads control the Fahrenheit or Celsius temperature display modes. The oven
control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
INSTRUCTIONS PRESS DISPLAY
Fig. 2
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
1. To tell if the display is set for Fahrenheit (F) or Celsius (C) press
_(See Fig. 3) 7 seconds; "550 °''
and hold for will first
appear in the display and then a beep will sound. If "F"
appears, the display is set to show temperatures in Fahrenheit
(See Fig. 4). If "C" appears, the display is set to show
temperatures in Celsius (See Fig. 5).
Press _cc_,-'_ to switch between Fahrenheit or Celsius
2. display
modes. The display will show either "F" (See Fig. 4) or "C" (See
Fig. 5).
3. Press _ to accept the change or press _ to reject the
v
change.
_for 7seconds
< orQ
21
Fig. 3
Fig. 4
Fig. 5
Setting Oven Controls
• Saving & Recalling Recipe Settings
To Set the Recipe Recall Feature
The Recipe Recall feature may be used to record and recall your favorite recipe settings. This feature may store I setting
for each of the 5 basic cooking pads. The key pads that a recipe may be stored with are BAKE _B_ak_,CONV BAKE
_'), CONV ROAST _'), CAKES _ & BREADS _. This feature will also store and recall Slow Cook,
Cook Time or Warm & Hold added setting. Pressing the START pad when after entering cooking temperatures and times
will start the oven. If you wish to store the recipes but not start the oven press STOP after pressing the START pad.
Once a recipe has been stored the recipe information will appear in the display when pressing the pad in the future.
To store a typical cookie recipe: (example for baking at
375°F for 9 minutes and to shut=off automatically):
INSTRUCTIONS
1. Arrange interior oven racks. If needed, Preheat* the oven to the
desired set temperature. Place cookies on cookie sheet(s).
Place cookie sheet on the oven racks in the oven.
2. Press _ (See Fig.l).
3. Press _(__ (See Fig. 2).
(See Fig. 2).
4. Press
5. Press d°m°_'_ (See Fig.3).
6. Enter the desired baking time. Press _ (See Fig. 4).
7. Press _ and hold for 3 seconds (See Fig. 5 ). This recipe is
now stored with the BAKE key pad
When the Cook Time finishes:
t. "End" will display. The oven will shut-off automatically (See Fig. 7).
2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until _'_ is pressed.
**The Cook Time you enter does NOT include additional time required
to Preheat the oven. The oven will begin to count down the cooking
time as soon as the feature is activated.
To recall the cookie recipe stored under the _Bake'_key
q
1. Press __Bak_j_(See Fig. 6). The stored recipe is recalled.
(_ (See Fig. 5).
2. Press
To quickly erase all stored recipes:
PRESS DISPLAY
G
Hold for
3 seconds
Fig. 1
Q
Fig. 2
Fig. 3
Fig. 4
Fig. 5
1. Press and hold the (,,,7) key pad until the first single beep sounds
(6 seconds).
beep press the (_ key pad once. Any stored recipes
2. After the fi rst
will be erased. Please Note: Clearing the recipes will also reset all other
adjustments back to the factory settings. These include 12 or 24 Hour
Time of Day display, Continuous Bake or 12 Hour Energy Savings
mode, Silent Control Operation, Fahrenheit or Celsius Temerature
Display and any Oven Temperature adjustments that are set.
22
Fig. 6
Fig. 7
Setting Oven Controls
• Preheat for Electric Ranges
Setting Preheat
For the best baking performance use the PREHEAT _ feature. The Preheat feature will bring the oven up to the set
baking temperature and then indicate when to place the food in the oven. Preheating is not necessary when roasting or
cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to 550°F.
INSTRUCTIONS
To set the Preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press _. "350 F', the default oven set temperature, will
appear inthe display (See Fig. 1). (See BAKE instructions for
changing oven set temperature.)
3. Press _"_. "PRE" and "BAKE" will appear in the display as
the oven heats and reaches 350°F (See Fig 2).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control will sound a long beep, the "PRE" light
will turn off and oven set temperature will be displayed (Fig. 3).
When PRE disappears from the display, the oven set temperature
has been reached. Once the oven has preheated, PLACE FOOD IN
THE OVEN.
Press (sTo_when baking is complete or to cancel the Preheat
feature.
PRESS DISPLAY
@
Fig. 1
Fig. 2
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
(f it is necessary to change the preheat temperature while the oven
is preheating to the original set temperature:
preheating, press @ again. (See Fig. 3)
1. While
2. Enter the new preheat temperature. Press
"425 °" wiU appear in the display (See Fig. 4).
3. Press _. "PRE" will appear in the display as the oven heats
to 425°F (See Fig. 5). A long beep will sound once the oven set
temperature reaches 425°F (See Fig. 6).
4. When baking is complete press Q.
Fig. 4
23
Fig. 5
Setting Oven Controls
• Setting Bake
Some ImportantThings to Know Before Setting any Basic Oven Cooking Function:
This appliance has been factory pre-set to start any BAKE, CONV BAKE, CONV ROAST, PREHEAT, CAKE or BREAD
function with the oven set temperature automatically set for 350°R However if desired, the oven set temperature may be
adjusted at any time during the cooking process. You may also choose to add a COOK TiME or DELAY START with any of
the functions listed above.
Setting Bake
The BAKE _Bake_pad controls normal baking, if preheating is necessary, refer to the PREHEAT _ feature for
instructions. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for
350°F).
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 3S0°F:
1. Arrange interioroven racks and place food in oven.
2. Press _, 350 ° will automatically appear in the display
(See Fig. 1).
3. Press sty,,,). A long beep will sound once the oven set
temperature reaches 350 ° F (See Fig. 2).
(_ will cancel the Bake feature at any time.
Note: Pressing
G
Q
Fig. 1
To change the Bake Temperature (example changing
from 350 ° to 425°F):
After the oven has already been set to bake at 350°F and the
oven set temperature needs to be changed to 425°F, press
(See Fig. 2).
2. Press 425 ° will appear in the display.
(See Fig. 3).
3. Press
4. The oven is now set for 425°F.
G
Fig. 2
Fig. 3
24
Setting Oven Controls
• Setting Cook Time
Setting Cook Time
The BAKE _ak_) and COOK TIME _TTC_m°_pads control the Cook Time feature. The automatic timer of the Cook Time
feature will turn the oven OFF after cooking for the desired amount of time you select.
INSTRUCTIONS PRESS
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1. Arrange interior oven rack(s) and place the food in the oven.
2. Press Ba_ (See Fig.l).
(See Fig. 2).
3. Press
_TCi°m_ek (See Fig.3).
4. Press
5. Enter the desired baking time by pressing (5)_'_.
Note: Baking time can be set for any amount of time between 1
minute to 11 hours and 59 minutes. (See Fig. 4)
_. (See Fig. 5 )
6. Press
Note: After the Cook Time feature has activated, press _TC_P°ek')to
display the bake time remaining in the Cook Time mode. Once
Cook Time has started baking, a long beep wi[[ sound when the
oven temperature reaches the set temperature.
Press @ when baking has finished or at any time to cancel the
Cook Time feature.
@
d _PG
Q
DISPLAY
Fig. 1
When the Cook Time finishes:
1. "End" and the time of day will show in the display. The oven will
shut off automatically (See Fig. 6).
2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until O is pressed. Q
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Use caution with the Cook Time or Delay Start functions. Use the Cook Time function when cooking
cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed PROMPTLY when cooking is complete. Eating spoiled food can result in sickness
from food poisoning.
25
Setting Oven Controls
Setting Delay Start
Setting Delay Start
BAKE (_, OVEN COOK TIME _) and DELAY START @ pads control the Delay Start
The feature. The
automatic timer of the DELAY START feature will turn the oven ON and OFF at the times you select.
INSTRUCTIONS PRESS DISPLAY
To program the oven for a Delay Start and to shut off
automatically (example for baking at 375°F for 50
minutes and starting at 5:30):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
@ (See Fig. 1)
3. Press
4. Enter the desired baking time using the number key pads by
pressing (__ (See Fig. 2). Note: Baking time may be
set for any amount of time from 1 minute to 11 hours and 59
minutes.
(_ (See Fig. 3).
5. Press
6. Press (_D_ia,7")(See Fig. 4). @
Fig. 1
Fig. 2
7.
8.
9. Press
10. Press
Enter the desired start time using the number pads
Press (_. (See Fig. 6)
(_. (See Fig. 7)
Fig. 3
Fig. 4
_. (See Fig. 8)
11. Press
Delay Start has started, press (_TC_m°_j_to display
Note: Once the
bake time remaining. Once the Delay Start has started baking, a
long beep will sound when the oven temperature reaches the set
temperature.
Press O when baking has finished or at any time to cancel the
Delay Start feature.
Q
When the set bake time runs out:
1. "End" win show in the display. The oven win shut off
automatically (See Fig. 9).
2. The control will beep 3 times. The control will continue to beep 3
times every 30 seconds until O is pressed.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
NOTE: If your clock is set for normal 12 hour display mode the Delay Start feature can never be set to start more than 12
hours in advance. To set the Delay Start 12-24 hours in advance see page 19 for instructions to set the control for the 24
hour time of day display mode.
26
Setting Oven Controls
• Setting Broil (Electric Range)
The _Broil_ pad controls the Broil featu re. When broiling, heat radiates downward from the oven broiler for even coverage.
The Broil feature is preset to start broiling at 550°F, however, the Broil feature temperature may be set at any temperature
between 400°F and 550°F.
The broil pan and broil pan insert used together allows dripping grease to drain and be kept away from the high heat of the
oven broiler. DO NOT use the broil pan without the insert (See Fig. 6). DO NOT cover the oven racks with aluminum
foil. The exposed grease could catch fire.
Should an oven fire occur, leave the oven door closed and turn the oven OFF. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS PRESS DISPLAY
To set the oven to broil at the default setting (550°F):
t. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert. DO NOT use the broiler pan
without the insert.
2. Arrange the interior oven rack and place the broiler pan on the
rack. Be sure to center the broiler pan directly under the broiler
element. Make sure the oven door is in the broil stop
position (See Fig. 5). Preheat the oven for 4 minutes.
3. Press __Broil_.(See Fig. 1).
4. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press _. The oven will begin to broil. "BROIL" and "550 °"
will appear in the display (See Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
7. To cancel broiling or if finished broiling press Q (See Fig. 3).
Recommended Broiling Times and Searing Grill
Use the following table for approximate broiling times, increase or
decrease broiling times, or move the broiling pan to a different rack
position to suit for doneness. If the food you are broiling is not listed
in the table, follow the instructions provided in your cookbook and
watch the item closely. Use the Searing Grill for meats and steaks if
desired. Before placing the meat, be sure to heat the Searing Grill
using Broil for 10 minutes. Cook times should be reduced 1-2
minutes per side when cooking with the Searing Grill. Place Searing
Grill on top of Broiler Pan and insert for meats and steaks (Fig. 7).
Q
Broiling Table (Refer to Fig. 4) Fig.5
Food Rack Temp Cook Time
item Position Setting 1st side 2ndside Doneness
Steak 1" thick 5th or 6th 550° F 6:00 4:00 Medium
Broil
Stop Position
5th or 6th 550 ° F 7:00 5:00 Medium-well
Pork Chops 3/4" thick 5th 550 ° F 8:00 6:00 Well
Chicken - Bone In 4th 450 ° F 20:00 10:00 Well
Chicken - Boneless 5th 450 ° F 8:00 6:00 Well
Fish 5th 500 ° F 13:00 n/a Well
Shrimp 4th 550 ° F 5:00 n/a Well
Hamburger 1" thick 6th 550 ° F 9:00 7:00 Medium
5th 550 ° F 10:00 8:00 Well
Fig. 1
Fig. 2 .........
Fig. 3
Fig. 6
Searing
Grill
Broil Pan 7
& Insert fly.
27
Setting Oven Controls
• Setting Convection Roast
Setting Cakes or Breads
Setting the Food Categories Features
Benefits of Convection Roast:
--Some foods cook up to 25 to 30% faster, saving time and energy.
--Multiple oven rack baking.
--No special pans or bakeware needed.
The CONV ROAST podsmoy. os dwho,-,cook.o0c ,to,o,ood
items. These pads have been designed to give optimum cook performance for the foods selected in each category.
The CONV ROAST pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating
is not necessary for meats and poultry. Heated air circulates around the food from all sides, sealing in juices and flavors.
Foods are crispy brown on the outside while staying moist on the inside.
The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to
cook more evenly.
The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more
evenly browned foods. Refer to Fig. 5 for foods to cook in each category.
INSTRUCTIONS PRESS DISPLAY
To set the Food Convection Roast feature (example
for Meats to cook at 350°F):
t. Arrange interior oven racks and place food in oven.
2. Press _. (See Fig. t).
3. Press _. (See Fig. 2). The convection fan icon will come
on.
Press Q to stop Convection Roast at any time.
Note: The Cakes or Breads features may be programmed like the
example provided above. It is recommended to follow the recipe
instuctions with the food items package. The convection fan will not
turn on with the Cakes or Breads key pad
O
Fig. 1
Fig. 2
Recommended CONV ROAST CAKES BREADS
foods to be
cooked in each Meat Cakes Breads
category Poultry Brownies Rolls
Pies (fresh & frozen) Biscuits
Baked Custards Muffins
Fig. 5 Cheesecake Combread
Fig. 4
Roasting Rack Instructions
When preparing meats for convection roasting, use the broiler pan and insert along with the roasting rack. The broiler pan
will catch grease spills and the insert will help prevent grease splatters. The roasting rack will allow the heat to circulate
around the around the meat.
To prevent food from contacting the broil element and to prevent grease splattering, DO NOT use the
roasting rack when broiling.
1. Place oven rack on bottom or next to the bottom rack position. See Arranging Oven Racks in the Before Setting Oven
heated air to circulate under the food for even cooking and helps to increase browning on the underside. Make sure the
roasting rack is securely seated on the insert in the broiler pan. DO NOT use the broiler pan without the insert. DO
NOT cover the insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 4).
4. Place the broiler pan on the oven rack.
28
Setting Oven Controls
• Setting Convection Bake
I
Benefits of Convection Bake: i
--Multiple oven rack baking. I
--No spec a pans or bakeware needed.
Setting Convection Bake
The CONY BAKE _") pad controls the Convection Bake feature.
Use the Convection Bake feature when cooking speed is desired. The
oven can be programmed for Convection Bake at any temperature
between 170° F to 77 ° C. Air circulation of Convection Cooking
Fig. 1
Convection baking uses a fan to circulate the oven's heat evenly and continuously within the oven (See Fig. 1). This
improved heat distribution allows for even cooking and excellent results using multiple racks at the same time. Foods
cooked on a single oven rack will generally cook faster and more evenly with Convection Bake. Multiple oven rack
cooking may slightly increase cook times for some foods, but the overall result is time saved. Breads and pastries brown
more evenly.
Tips for Convection Bake
1. Time reductions will vary depending on the amount and type of food to be cooked. Cookies and biscuits should be
baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with ti,_
a dark finish will cook faster. }.........
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place
the oven racks in positions 2 and 5 (for racks). Place in positions 1,3 and 6 (for 3 racks). Refer to Fig. 1.
4. Cakes will have better results when baked using the keypad.
INSTRUCTIONS PRESS DISPLAY
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven (See Fig. 1).
2. Press _. (See Fig. 2).
3. Press _--_ d
Note: The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See fan in shown in Fig. 3).
to stop Convection Bake or cancel Convection Bake
Press
at any time.
Fig. 2
Q Fig. 3
29
Setting Oven Controls
• Setting Convection Convert Feature
Setting Add 1 Minute Feature
To set the Convection Convert feature
The _ CONY CONVERT pad is used to automatically convert a standard Baking recipe for convection baking. When
set properly, this feature is designed to display the oven set converted (reduced) temperature in the display.
Convection Convert MUST be used with a Convection Bake keypad. Cook Time or Delay Start functions may be added.
INSTRUCTIONS PRESS
Using Convection Convert feature to adjust oven
temperature from a Bake recipe (example below
when setting oven for 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press _, (See Fig. 2). If a Cook Time or a Delay Start
is desired, enter the times now.
3. Press _. "CONV BAKE" and the oven set temperature
adjustment will appear in the display (for this example it is
325°F). A beep will sound once the adjusted oven set
temperature is reached. (See Fig. 3).
Notes: When used with a Cook Time or a Delay Start setting,
the Convection Convert feature will display a "CF" for check food
when the bake time is 75% complete (See Fig. 3). At this time the
oven control will sound 3 long beeps at regular intervals until baking
has finished. When the bake time has completely finished the
control will display "End" and will sound 3 long beeps every 30
seconds until the _ pad is pressed (See Fig. 4).
DISPLAY
Fig. 1
Fig. 2
Fig. 3
Fig. 4
The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See Figs 2 or 3)
Press _ to cancel Convection feature at any time.
Note: The minimum amount of cook time using the Convection
Convert feature with a Cook Time or a Delay Start function is
20 minutes.
®
To Set Add I Minute Feature
The _ keypad is used to set additional minutes to the Timer. Each time the _ pad is pressed, another minute is
added. If the Timer is not active and the _ key pad is pressed, the Timer feature will become active and will begin
counting down from 1 minute. When the Timer reaches the end of the set time, "End" will display and signal 3 long beeps
at regular intervals until @ is pressed again.
3O
Setting Oven Controls
• Setting the Slow Cook Feature
Oven Light
Setting the Slow Cook Feature
The _o°o_ SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot. The
Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats
becoming dark but not burnt. This is normal.
There are 2 settings available, high (Hi) or low (Lo). The low setting is best for cooking foods from a 8 to 9 hour time
period. The high setting is best for cooking foods from a 4 to 5 hour time period. The maximum cook time for the Slow
Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode.This feature may be
used with the additional settings of a Cook Time or a Delay Start.
Some tips you should review for best possible results using Slow Cook feature:
•Completely thaw all frozen foods before cooking with the Slow Cook.
• When using a single rack, place in position 2 or 3.
• Position multiple racks to accommodate size of cooking utensils when cooking multiple food item.
• Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to extended.
• Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
• Roasts may be left uncovered so browning can occur. Cook times will vary; depending on the weight, fat content, bone & }}.........
the shape of the roast.
• Use the recipe's recommended food temperature and a food thermometer to determine when the food is done. ................, ....
• Preheating the oven will not be necessary when using the Slow Cook feature.
• Add any cream or cheese sauces during the last hour of cooking.
See the suggested Slow Cook feature recipes provided in the back of this Use & Care Guide.
INSTRUCTIONS PRESS DISPLAY
To Program the Oven to begin baking with the Slow Cook
feature (example below shows clock at 1:30):
1. Place the food in the oven.
2. Press _. "SLO" and "Hi" (See Fig. 1) will appear in the
V
display (If no further keypads are touched within 25 seconds the
request for Slow Cook will clear).
3. If a Lo setting is desired, press the _--__o_j_a 2nd time to set
the Slow Cook feature with a low setting. "SLO" and "Lo" will
appear in the display (See Fig. 2).
5. Press _'_. The Slow Cook feature will activate (See Fig. 3).
4. If desired, add any Cook Time or Delay Start settings at this
time.
6. To cancel the Slow Cook feature press (_ at anytime.
optional
Fig. 1
Fig. 2
QFig. 3
31
Setting Oven Controls
• Setting the Sabbath Day Feature
To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)
@ OVEN COOK TiME and @ DELAY START pads are used to set
The the Sabbath feature. The Sabbath feature
may only be used with the _B_,ake_pad. The oven temperature may be set higher or lower after setting the Sabbath feature
(the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly
show and no audible tones will be provided when a change occurs. Once the oven is properly set using Bake with the
Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour
feature, if the oven light is needed during the Sabbath, press d',Ob before activating the Sabbath feature.
Energy Saving
v
Once the oven lightis turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is
turned OFF. If the oven light needs to be OFF, be sure to turn the oven lightOFF before activating the Sabbath feature.
iMPORTANT NOTES: it is not advised to attempt to activate any other program feature except BAKE while the Sabbath
feature is active. ONLY the following key pads will function correctly with the Sabbath feature: 0-9 number pads, _ak_
@& @. ALL OTHER KEYPADS should not be used the Sabbath feature is activated.
once
INSTRUCTIONS PRESS DISPLAY
To Program the Oven for 350°F, Begin Baking immediately
and activate the Sabbath feature:
1. Be sure that the clock is set with the correct time of day.
2. Arrange the oven racks and place the food in the oven.
3. Press _, "350°F" will appear in the display (See Fig. 1).
@. The oven will turn ON ans begin heating (See Fig.
4. Press
2).
5. If a Cook Time or Delay Start is needed then enter the time in
this step. If not, skip this step and continue to step 6. Refer to
the Cook Time or Delay Start instructions on pages 19-20.
Remember the oven will shut down after completing a Cook
Time or Delay Start and therefore may only be used once
during the Sabbath/Jewish Holidays. The maximum Delay Start
time is 11 hours & 59 minutes.
the same time press and hold both the _ and _
6. At
pads for at least 3 seconds. The control will beep and SAb will
appear in the display (See Fig. 3). Once SAb appears in the
display the oven control will no longer beep or display any
and @
Fig. 1
Fig. 2
Fig. 3
7.
further changes and the oven is properly set for the Sabbath feature.
Note: You may change the oven temperature once baking has started. Press (_, enter the oven temperature
change (170 to 550F °) and press @ (for Jewish Holidays only). Remember that the oven control will no longer
beep or display any further changes once the oven is set for the Sabbath feature.
The oven may be turned OFF at any time by pressing @ pad (this will turn the oven OFF only). To turn OFF the
Sabbath feature press and hold at the same time both the @ and @ pads for at least 3 seconds. SAb will
disappear from the display.
32
Setting Oven Controls
• Setting the Sabbath Day Feature (cont'd)
• Setting the Warm & Hold TM Feature
It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the
START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than
the oven control can accept. If the oven temperature is set incorrectly, the oven temperature will default to 170°F or 550°F.
Try to set the desired oven temperature again.
Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not turn
back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed from the
oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath/Holidays. After
the Sabbath observance turn OFF the Sabbath feature. At the same time press and hold both the d_b and pads
V
for at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further
assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at
http :\\www,star-k,org,
Setting the Warm & Hold TM Feature
The _w_or_pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170 ° F. The Warm & Hold
v
feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &
Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other cooking
operations or may be used after cooking has finished using Cook Time or Delay Start.
INSTRUCTIONS PRESS
To set Warm & Hold:
t. Arrange interior oven racks and place baked food inoven. If the food is already in the
oven go to step 2.
2. Press _w_. The Warm & Hold indicator light will flash. _')
Note: If no further pads are touched within 25 seconds the request to turn ON Warm &
Hold will be cleared.
3. Press _. The Warm & Hold indicator light will glow steady indicating Warm &
v
Hold is ON.
4. To turn the Warm & Hold OFF at any time press _. The Warm & Hold indicator
light will turn OFF. Note: The Warm & Hold feature will automatically turn OFF after 3
hours.
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the oven properly for Cook Time
or Delay Start.
2. Press _w_or_.The Warm & Hold indicator light will flash.
Note: If no further pads are touched within 25 seconds the request to turn ON Warm &
Hold will be cleared.
3. Press sT_,,_. The Warm & Hold indicator light will glow steady indicating Warm &
Hold is set to turn ON automatically after Cook Time or Delay Start has finished.
4. To turn the Warm & Hold OFF at any time press @. The Warm & Hold indicator
light will turn OFF. Note: The Warm & Hold feature will automatically turn OFF after 3
hours.
Pressing Q at any time will stop all oven baking operations. Q
33
Warmer Drawer Removal
Removing & Replacing Warmer Drawer
Pull up with finger
Remove shield on right "_.
glide. Pull up on left lever
while pushing down on
right lever. \"
Push down with finger
Fig. 1
tgGlide
Fig. 2
To Remove and Replace Warmer (Warm &
Ready TM) Drawer
Electrical Shock Hazard
can occur and result in serious injury or
death. Disconnect appliance from electric
power before cleaning and servicing the
warmer drawer.
To
1.
2.
3.
4,
5.
Remove Warmer Drawer:
Turn power OFF before removing the
warmerdrawer.
Open the drawer to the fully opened position.
On the right glide you will find a shield attached with a
hex-head screw (See Fig. 1). Use a 1/4" socket and
ratchet to remove the shield.
Locate glide lever on each side of drawer, pull up on the
left glide lever and push down on the right glide lever.
Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis
glide (See Fig. 2).
3. Align the glide on each side of the drawer with the glide
slots on the range.
4. Push the drawer into the range until levers "click"
(approximately 2"). Pull the drawer open again to seat
bearing glides into position. If you do not hear the
levers "click" or the bearing glides do not feel
seated remove the drawer and repeat steps 2-4.
This will minimize possible damage to the bearing
glides.
NOTE: The Warmer Drawer will NOT operate while in the
Self-Clean and !!Oven Lockout" modes
34
Self-Cleaning
,, Preparing fora Self-Clean cycle
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near
the appliance.
The health of some
birds is extremely sensitive to the
fumes given off during the Self-Cleaning
cycle of any range. Move birds to
another well-ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part
of the range with aluminum foil.
Doing so will destroy heat distribution,
produce poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
su rface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
I HAND
CLEAN FRAME
DO HAND
CLEAN DOOR DO NOT
HAND
OVEN
DOOR GASKET
Note: See additional cleaning
information for the oven door in the
General Care & Cleaning section.
iiiiiiTi_F__ .....
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
,DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
•DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
, DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
, Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
, Porcelain Oven racks do not have to be removed. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of vegetable oil (this will
make the racks glide easier into the rack position).
•Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.
•Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
i=ii...........
ii=:
i iiiJl
......ii.....
35
Self-Cleaning
• Setting Flex Clean or Delay Flex Clean
The FLEX CLEAN _'_ pad is used to start a Self-Cleaning cycle. When used with the DELAY START (,_x) pad, a
delayed Self-Cleaning cycle may also be programmed. The FLEX CLEAN feature allows for any Self-Cleaning cycle time
from 2 (2:00) to 4 hours (4:00) to be selected. You may also choose the clean time in 1 minute increments (for example 2
hours and 50 minutes) by pressing the number keypads
During the Self-Cleaning cycle, the outside of the range can become VERY HOT to the touch. DO NOT
leave small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To start an immediate Self-Cleaning cycle or to set a Delay Start
time of 9:00 o'clock and shut=off automatically (example
provided is adefault 3hour Self-Clean cycle):
1. Be sure the clock is set with the correct time of day, the oven
is EMPTY and the oven door is closed.
2. Press _ ."CLEAN" will flash, "3:00" (hours) and the
Cooktop locked icon will show in the display (See Fig. 1 ). 2-4
hours of Self-Cleaning time may be choosen by pressing any
amount of time from _@@ (2 hours) through
( bdbdb (4ho°rs ,nonom,n.to,ncrom nts
may also skip the time entry and accept the default cleaning
time of 3 hours by pressing the START key pad (See Step 3).
3. Press _'_ .The "DOOR LOCKED" icon will flash; "CLEANg'
Cooktop Lockout icon and the letters "CLn" will remain on in
the display (See Fig. 2).
4. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
@
2:00 thru 4:00 using Fig.1
number pads
Fig. 2
Fig. 3
NOTE: If the optional delay Self-Clean feature is needed, finish steps 5-7. If Self-Clean is started immediately skip the remaining
steps and continue with "When the Self-Clean cycle is done" on the following page.
and remain on. The Cooktop locked icon will remain on (Fig. 3).
5. Press d_ (See Fig. 4). Enter the desired Self-Clean starting
time using the number pads @@@ (See Fig. 5).
6. Press _. "CLn" icon will turn off; "DELAY", "DOOR
LOCKED", "CLEAN" and Cooktop locked icons will remain on.
7. The control will calculate forward from the set start time to
determine when the Self-Cleaning cycle should end. The Self-
Cleaning cycle will turn on automatically at the set time. At that
time the icon "DELAY" will go out; the oven icon will come on,
the start time, Cooktop locked icon, "CLEAN" and "CLn" will
remain in the display (See Fig. 6).
@
Fig. 4
36
Fig. 5
Fig. 6
Self-Cleaning
Setting Flex Clean
Setting Delay Flex Clean
INSTRUCTIONS
When the Se{f-Ciean cycle is done:
1. The time of day, "DOOR LOCKED" and "CLEAN" icon will
remain in the display.
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened.
PRESS DISPLAY
Stopping or Interrupting a Self-Cleaning cycle:
If it becomes necessary to stop or interrupt a Self-Cleaning cycle
due to excessive smoke or fire in the oven:
1. PressQ. Q
2. Once the oven has cooled down for approximately 1 HOUR and
the "DOOR LOCKED" icon is no longer displayed,the oven door Fig.7
can then be opened (See Fig. 7).
IMPORTANT NOTES when using the Self-Clean feature:
1. The Self-Clean feature will not operate whenever a radiant surface remains ON.
2. A Self-Clean cycle may be started if the appliance has the Cooktop Lockout active. A Self-Clean cycle cannot be
started if Oven Lockout feature is active.
3. If a Self-Cleaning-Cycle has started but not finished and a power failure occurs, the appliance may be thoroughly
cleaned. After the door unlocks and power has been restored, set for another Self-Clean cycle.
4. If your clock is set for normal 12 hour display mode the Delay Self-Clean cycle can never be set to start more than 12
hours in advance. To set for Delay Flex-Clean 12-24 hours in advance see page 19 for instructions to set the control for
the 24 hour time of day display mode.
37
Adjusting Oven Temperature
,, How to adjust the oven temperature higher or lower
The cooking temperatures for in the oven have been pre-set at the factory. When using the oven for the first time, be sure
to follow recipe times and temperatures. If you think the oven is too hot or too cool, the temperature in the oven may be
adjusted. Before adjusting, test a recipe by using a temperature setting that is higher or lower than the recommended
temperature. The baking results should help you to decide how much of an adjustment is needed.
INSTRUCTIONS PRESS DISPLAY
To adjust the oven temperature higher:
1. Press _ak_ for 6 seconds (See Fig. 1).
2. To increase the temperature use the number keypads to enter
change. (Example 30°F) (_) (_ (Fig. 2).
the desired
The temperature may be increased as much as 35°F (19°C).
3. Press _ to accept the temperature change and the display
return to the time of day (See Fig. 3). Press Q to reject
will
the change if necessary.
To adjust the oven temperature lower:
1. Press (_ for 6 seconds (See Fig. 4).
2. To decrease the temperature use the number pads to enter the
desired change. (Example -30°F) and then
press _ (See Fig. 5). The temperature may be decreased
as much as 35°F (19°C). Note: If the temperature shows an
adjustment of -30°F, and a +30°F adjustment is needed, you
can toggle between -and + in the display by pressing the
_key pad
3. Press _ to accept the temperature change and the display
will return to the time of day (See Fig. 6). Press 0 to reject
the change if necessary.
®
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
NOTE: The oven temperature adjustments made with this feature will not affect the Self-Clean cycle temperature.
38
General Care & Cleaning
•Cleaning Table
Surfaces: How to Clean:
Aluminum & Viny{ Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted & plastic control For general cleaning, use hot, soapy water and a cloth. For more difficult soil and built-up
panel parts & decorative grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.
trims Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials;
they can scratch.
Glass control panel Before cleaning the glass controlpanel make sure all cooktop controls are
set to OFF and activate the Cooktop Lockout feature (See page 8 for complete Cooktop
Lockout instructions).
_ COOKTOP
LOCKOUT
Clean using hot, soapy water and a dishcloth then rinse with clean water. Be sure to
squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance.
DO NOT use abrasive cleaners. This type of cleaner will permanently scratch the glass
control panel. DO NOT place or leave cleaning supplies on the ceramic cooktop while
cleaning the glass control panel. Move these items to a kitchen counter-top. To finish
cleaning or for lighter soil use a typical household glass cleaner and paper towels.
Stainless Steel, chrome
control panel & metal
decorative trims
Clean Stainless Steel with hot, soapy water and a dishcloth. Rinse with clean water and a
cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning Stainless Steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.
Porcelain enamel broiler
pan & insert, door liner,
body parts & interior
Warmer Urawerarea
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-
soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove
all cleaners or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
Porcelain oven racks Porcelain oven racks may be left in the oven during the Self-Clean cycle. If further cleaning
is required, remove the racks after the oven has cooled & clean using a mild non-abrasive
cleaner following manufacturer's instructions. Rinse with clean water and let dry. After the
Self-Clean cycle is done and the oven has cooled, rub the sides of the oven racks with wax
paper or a cloth containing a small amount of vegetable oil. This will make the racks glide
easier into the oven rack positions.
Oven door To clean oven door remove following the door removal instructions in this Use & Care Guide.
Wash soiled areas with hot, soapy water and a clean cloth. DO NOT immerse the door in
water.
DO NOT clean the oven door gasket. On Self-Cleaning models the oven door gasket is
made of a woven material which is essential for a good seal. Care should be taken not to
rub, damage or remove this gasket.
Ceramic Cooktop Follow the instructions the "Cooktop Cleaning & Maintenance" in this Use & Care Guide.
39
i:i:ii...........
........J_....
General Care & Cleaning
• Cooktop Cleaning & Maintenance
• Cleaning Recommendations for the Ceramic Glass Cooktop
Cooktop Cleaning & Maintenance
Consistent and propercleaning is essential to maintaining yourceramic glasS cooktOp.
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can
cause metal markings on the cooktop surface. These marks should
be removed immediately after the cooktop has cooled using the
cooktop cleaning cream. Metal marks can become permanent if not
removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms
can mark or scratch the cooktop surface. Do not slide anything
metal or glass across the cooktop. Do not use your cooktop as a
cutting board or work surface in the kitchen. Do not cook foods
directly on the cooktop surface without a pan. Do not drop heavy or
hard objects on the glass cooktop, they may cause it to crack.
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
Cleaning Recommendations for the Ceramic Glass Cooktop
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no
residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.
IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning products that have been
specifically designed for ceramic glass cooktops.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool,
and use the same method for heavy or burned on soils.
40
General Care &Cleaning
e
o
o
Cleaning Recommendations for the Ceramic Glass Cooktop (cont'd)
Special Caution for Aluminum Use on the Ceramic Cooktop
Removing & Replacing the Lift-Off Oven Door
o,<_ Do not use the following on the ceramic glass cooktop:
__ • Do not use abrasive cleaners and scouring pads, such as metal and some nylon
ABRASlV_
eLEA_E_S
pads. They may scratch the cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as
they may etch or discolor the cooktop.
Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on
the cooktop which can burn and cause discoloration.
Special Caution for Aluminum Use on the Ceramic Cooktop:
Door Hinge
locations
with oven door
fully open
Fig. 1
Fig. 2
Aluminum Foil =Use of aluminum foil on a hot cooktop will damage the ceramic
cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to
touch the ceramic cooktop under ANY circumstances.
Aluminum utensils -The melting point of aluminum is much lower than that of
other metals. Care must be taken when aluminum pots or pans are used on the
cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may
fuse to, break or mark the ceramic glass surface, permanently damaging the
cooktop surface.
Removing & Replacing the Lift=Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1 ).
2. Pull the door hinge locks on both left and right door hinges down from the
oven frame completely towards the oven door (See Fig. 2). A tool such as a
small flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).
i:i:ii...........
Oven
Door
Fig. 3
Fig. 4
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the
hook of the hinge arm over the roller pins located on each side of the oven
door frame (See Fig. 4). The hook of the hinge arms must be fully seated
onto the roller pins.
3. Fully open the oven door (horizontal with floor- See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left
and right oven door hinges (See Fig. 2) to the locked position.
5. CIosetheoven door.
Door Care }nstructions - Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
41
General Care & Cleaning
•Changing Oven Lights
• Care & Cleaning of Stainless Steel (some models)
Changing Oven Light(s)
The oven lights automatically turn ON when the door is opened. The oven lights may also be manually operated by pressing
the _ pad.
The oven light bulbs are located at the rear of the oven and are covered with a glass shield held by a wire holder. The glass
shields must be in place whenever the oven is in use.
Wire
Holder
Be sure the range is unplugged and all parts are
COOL before replacing oven light. Weara leather-faced glove for
protection against possible broken glass.
To replace the oven light bulb(s):
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range
back in).
6. The clock will then need to be reset. To reset, see Setting the
Clock and Timer in this Use & Care Guide.
Care & Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning Table for detailed cleaning instructions.
42
Before You Call
•Solutions to Common Problems
Before yeu call for service, review this list. it may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance Cabinets not square or are built in too tightly. Contact builder or installer to make
must be accessible for service, appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
Oven control beeps and displays any F Electronic control has detected a fault condition. Press the STOP key pad to clear the
code error (for example F11). display and stop beeping. Reprogram oven. If fault recurs, record fault number. Press
the STOP key pad and call 1-800-4-MY-HOME® for assistance (See back cover). .........
:iiJ
Surfaceelementtoo hotor not hotenough. Incorrect control setting. Make sure the correct control is on for the element to be used.
Surface element does not heat. Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in
this Before You Call checklist.
Incorrect control setting. Make sure the correct control is set for the surface element to
be used.
Entire appliance does not operate. Make sure cord/plug is plugged correctly into outlet. Check circuit breakers.
Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See back
cover).
Power outage. Check house lights to be sure. Call your local electric company for
service.
ESEC displays " - -" message. The ESEC Control will display " - - " in the digital display windows indicating that the
ESEC has a "Lockout" condition. This condition is normal when using the cooktop
lockout or Self-Clean features. Wait for the Self-Clean cycle to completely finish or if
using the Cooktop Lockout feature, touch the CLOCK key pad for 3 seconds to
unlock the cooktop.
ESEC displays any "F" message. The ESEC control constantly monitors the internal circuitry as well as several circuits
to insure they are all operating correctly. If at any time one of these systems fails, the
ESEC will immediately stop the current operation and flash an error code. If any of
these error messages remain or reappear in the display, call 1-800-4-MY-HOME®
(See back cover).
43
Before You Call
• Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven light does not work. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls.
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance between
the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do not cut into lean.
Insert on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Poor baking results, Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is too hot or cool, see
Adjusting Your Oven Temperature in this Use & Care Guide.
Self-Cleaning cycle does not work. Control(s) not set properly. Follow instructions under Self-Cleaning.
Self-Cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting a Self-
Cleaning Cycle" under Self=Cleaning.
Soil not completely removed after Self-
Cleaning cycle.
Failure to clean bottom, front top of oven, frame of oven or door area outside oven seal.
These areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before the self-cleaning cycle is started. Burned-on residue can be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.
Flames inside oven or smoking from vent. Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.
Scratches or abrasions on cooktop surface
(Ceramic-Glass cooktop models only).
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers
before starting cycle. If flames or excessive smoke are present, stop the self-clean cycle
and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Self-
Cleaning section.
Coarse particles such as salt or sand between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Metal marks
(Ceramic-Glass cooktop models only).
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils
on cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks.
See "Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Brown streaks or specks Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See
(Ceramic-Glass cooktop models only). "Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.
Areas of discoloration with metallic sheen Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
(Ceramic-Glass cooktop models only), creme. Use cookware with clean, dry bottoms.
44
Recipes for Slow Cook
Slow Cook Turkey Breast
1 turkey breast
2 cups chicken broth
1 medium onion, sliced
2 teaspoons minced garlic
1 teaspoon salt
V2 teaspoon pepper
In a roasting pan, place turkey breast meat-side up. Rub salt
and pepper under the skin, and inside the cavity. Pour chicken
broth around turkey breast, adding the onions and garlic. Cover
roasting pan with lid or foil. Using the Slow Cook feature pad, set
control on "Lo" setting for 7 to 8 hours, or the "Hi" setting for 4 to
5 hours. 4 to 6 servings.
Parmesan Green Beans and Potatoes
320z frozen whole green beans
6 medium red potatoes, sliced
1 large onion, sliced
1 tablespoon seasoning salt
V2 cup margarine
1 cup parmesan cheese, grated
Combine green beans, potatoes, onions, seasoning salt,
margarine and parmesan cheese in large casserole dish. Cover
with lid or aluminum foil.
Using the Slow Cook feature pad, set control on "Lo" setting for 7
to 8 hours, or the "Hi" setting for 4 to 5 hours. 4 to 6 servings.
Orange Surprise Cake
1 - pkg. orange cake mix
1 - 3.3oz pkg. white chocolate instant pudding
1 - 16oz. container sour cream
3Acup vegetable oil
1 cup orange juice
4 eggs
1 - 9oz pkg. white chocolate pieces
Combine all ingredients, except white chocolate pieces. Blend
well; then add white chocolate pieces. Pour mixture into a 5
quart oven safe dish coated with nonstick cooking spray.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. Spoon into bowl
while still warm and serve with vanilla bean ice cream, or
whipped cream.
4 to 6 servings.
Pork Chops with Potatoes
1 can (10 3Aoz) cream of mushroom soup
¼ cup dry white wine
¼ cup Dijon mustard
1 teaspoon dry thyme, crushed
1 teaspoon garlic, minced
6 pork chops, cut 3A" thick
1 teaspoon pepper seasoning
1 teaspoon salt seasoning
1 tablespoon parsley
6 medium potatoes, sliced
1 medium onion, sliced
In a large mixing bowl, combine first 5 ingredients; blend well. In
a roasting pan, spread potatoes and onions over the bottom of
the pan. Pour soup mixture over potatoes and onions; topping
with the pork chops. Sprinkle pepper seasoning and parsley on
top of pork chops. Cover pan with lid or aluminum foil and place
on rack in the oven.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Apple Bread Pudding
5 cups sour dough bread cubes ( 1/2")
1/2cup butter, melted
3A cup brown sugar
1/2teaspoon cinnamon
¼ teaspoon nutmeg
pinch of salt
4 to 5 cups apples, peeled and sliced thickly
1 cup raisins
1 cup walnuts, chopped
In large mixing bowl, combine all ingredients; blend well. Pour
mixture into a 5quart oven safe dish. Cover with lid or aluminum
foil and place on rack in oven.
Using the Slow Cook feature pad, set control on "Lo" setting for
5 to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Roast Beef with Vegetables
3 to 3 Y2 Ib sirloin tip roast
2 cups water
4 to 5 medium potatoes, quartered
1 lb. small carrots
2 large onion, quartered
4 garlic cloves
¼ cup worstershire sauce
salt
pepper
Center roast in large roasting pan. Add water. Spread potatoes,
carrots, onions and garlic cloves evenly around roast. Pour
worstershire sauce on top of roast. Sprinkle all with salt and
pepper to taste. Cover with lid or aluminum foil.
Using the Slow Cook feature pad, set control on "Lo" setting for 5
to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
Peach Cobbler
1 cup self rising flour
1 cup sugar
1 cup milk
1/2cup butter, melted
1 lb. frozen peaches
In 5 quart oven safe dish, combine first four ingredients. Blend
well. Stir in peaches. Place on rack in oven.
Using the Slow Cook feature pad, set control on "Lo" setting for 5
to 6 hours, or the "Hi" setting for 3 to 4 hours. 4 to 6 servings.
i:i:ii...........
45
....,_,iii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!!iiiiii_i
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do=it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1=800=4-MY=HOM E®(1=800=469=4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
® Registered Trademark /TMTrademark /SM Service Mark of Sears Brands, LLC
® Marca Registrada /TMMarca de F_brica /SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce /MDMarque depos6e de Sears Brands, LLC © Sears Brands, LLC
