Goodman CPLE30-1A User Manual
Goodman CPLE30-1A split-system heat pump
INSTALLATION & OPERATING INSTRUCTIONS
For CPLE30-1A.
PDF File Manual
,
14 pages
,
Read Online
|
Download pdf file

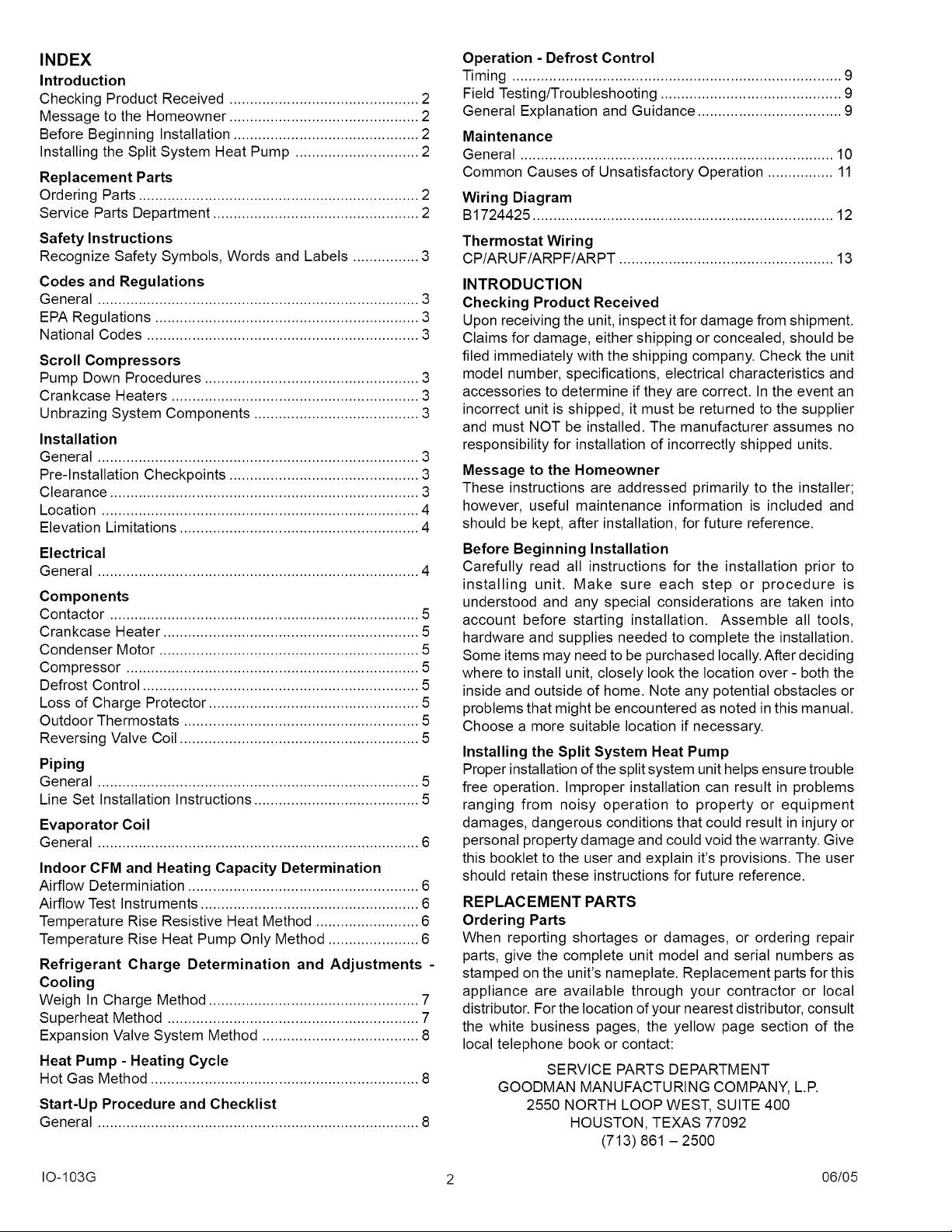

Introduction
Checking Product Received
Message To The Homeowner
Before Beginning Installation
Installing The Split System Heat Pump
Replacement Parts
Ordering Parts
Service Parts Department

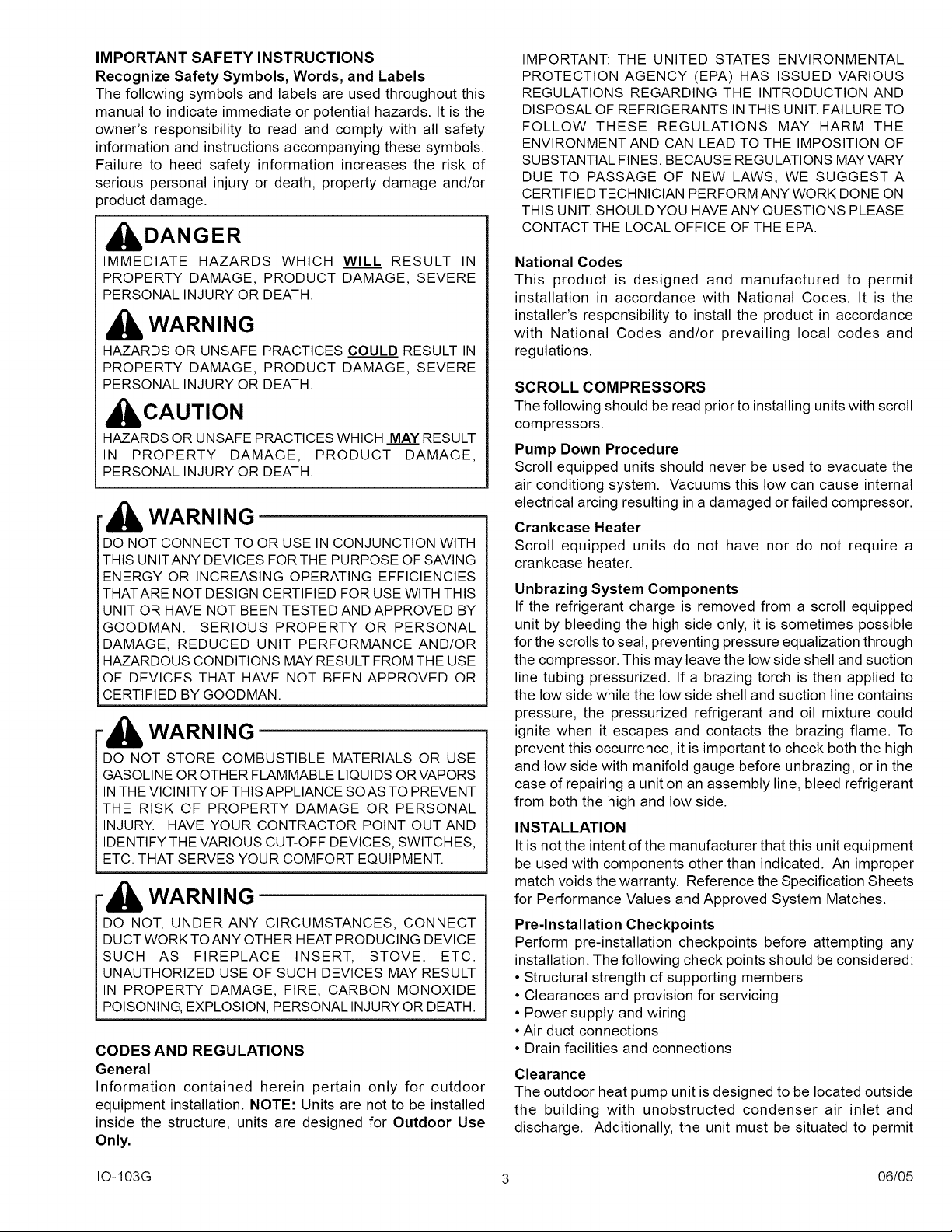

Safety Instructions
Recognize Safety Symbols, Words And Labels
Codes And Regulations
General
EPA Regulations
National Codes
Scroll Compressors
Pump Down Procedures
Crankcase Heaters
Unbrazing System Components
Installation
General
Pre–Installation Checkpoints

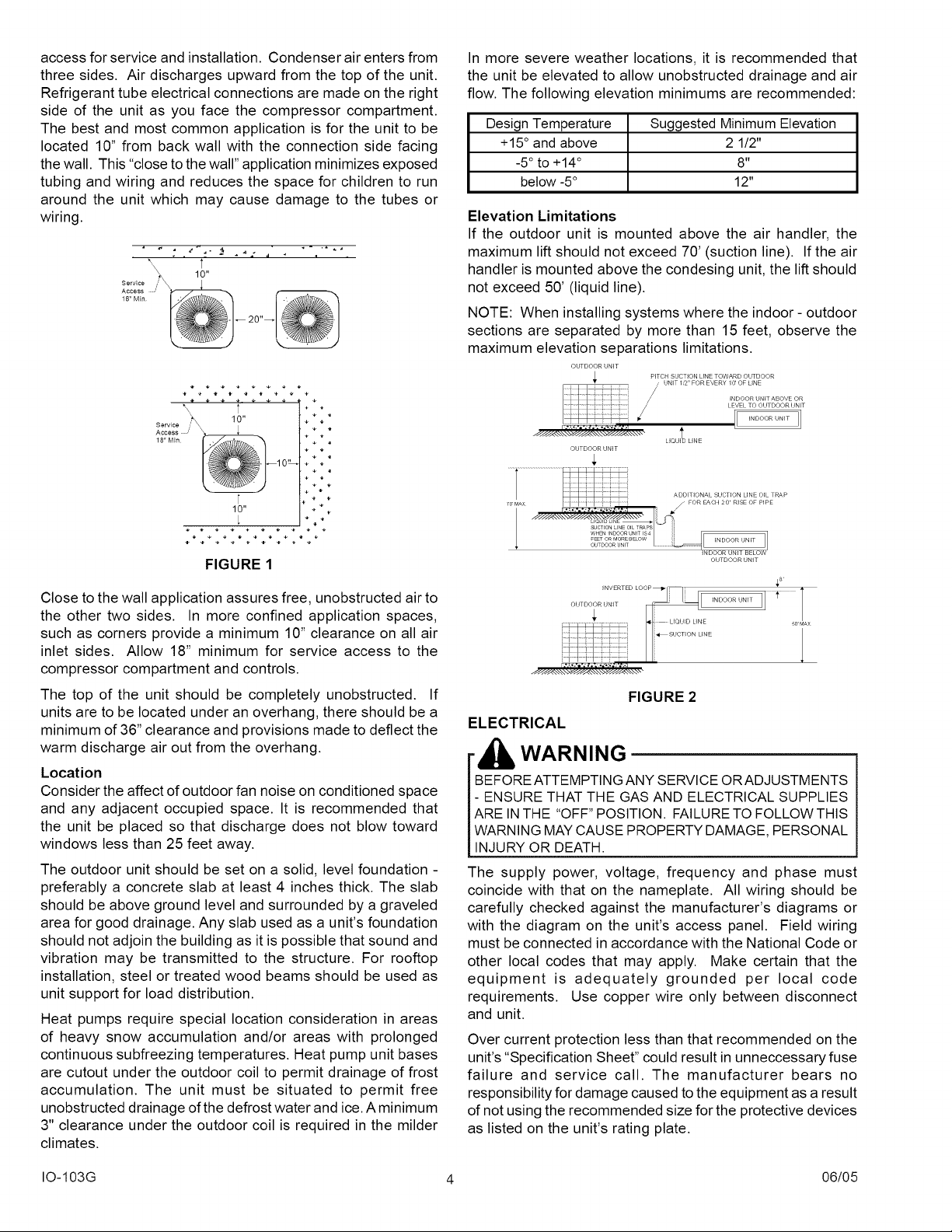

Clearance
Location
Elevation Limitations
Electrical
General

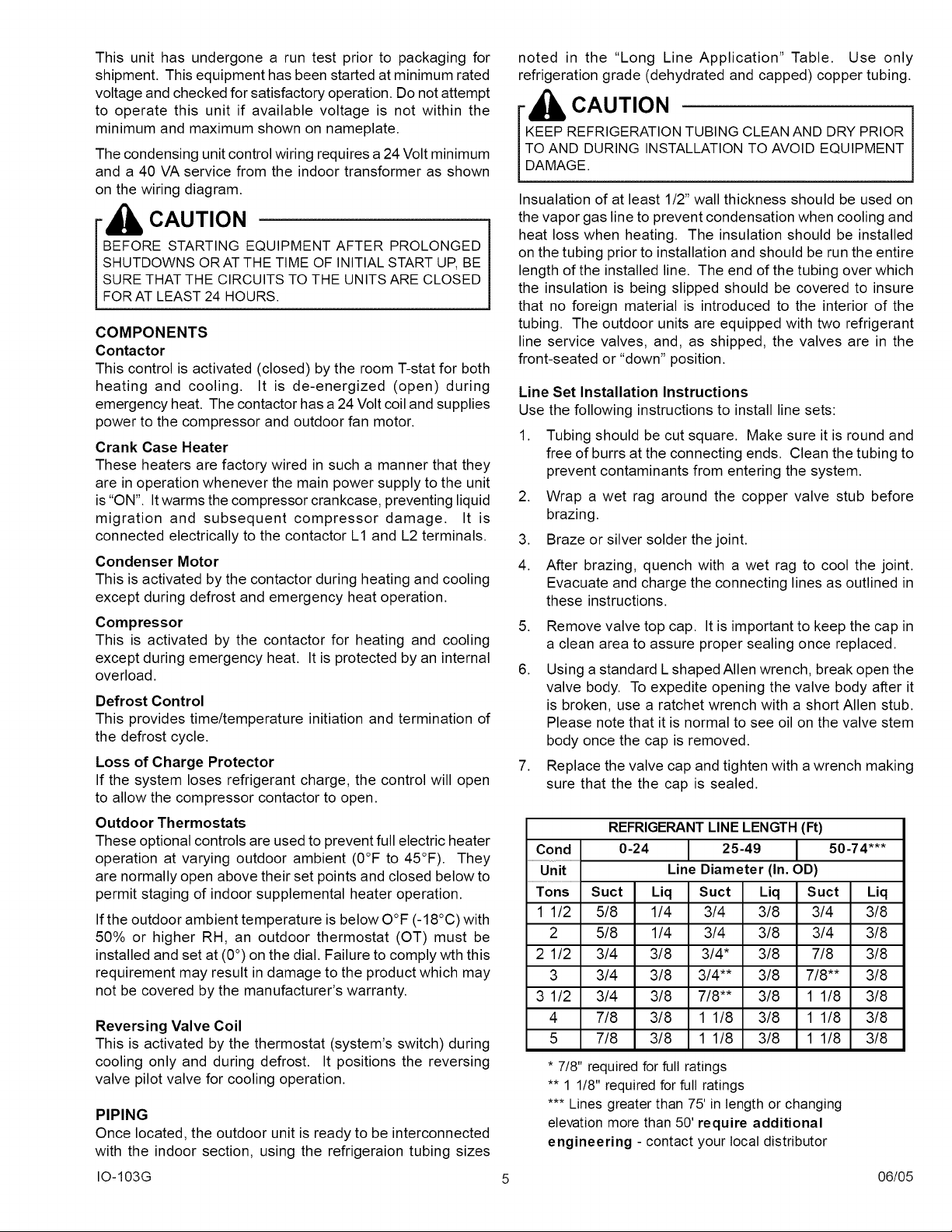

Components
Contactor
Crankcase Heater
Condenser Motor Compressor
Defrost Control
Loss Of Charge Protector
Outdoor Thermostats
Reversing Valve Coil
Piping
General
Line Set Installation Instructions

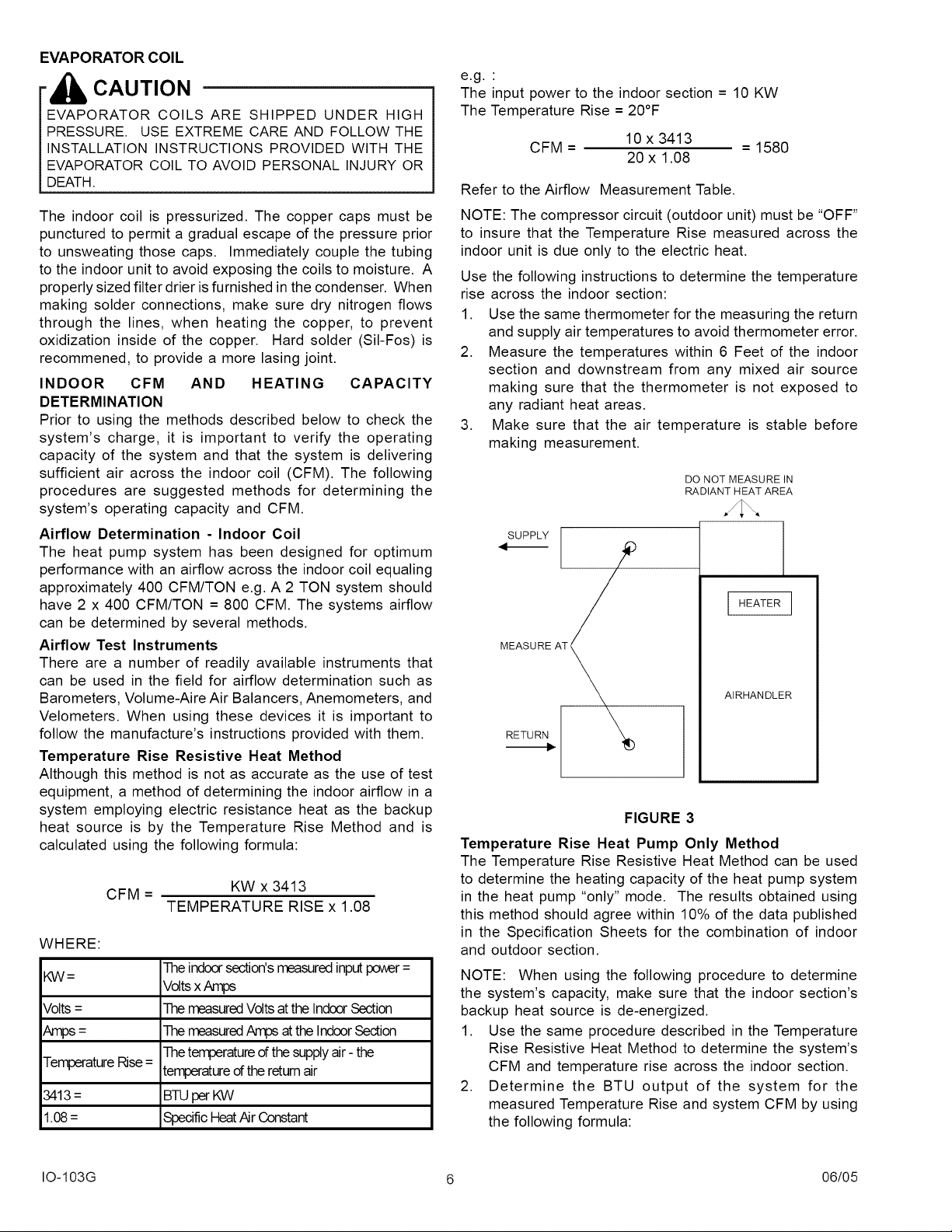

Evaporator Coil
General
Indoor CFM And Heating Capacity Determination
Airflow Determiniation
Airflow Test Instruments
Temperature Rise Resistive Heat Method
Temperature Rise Heat Pump Only Method

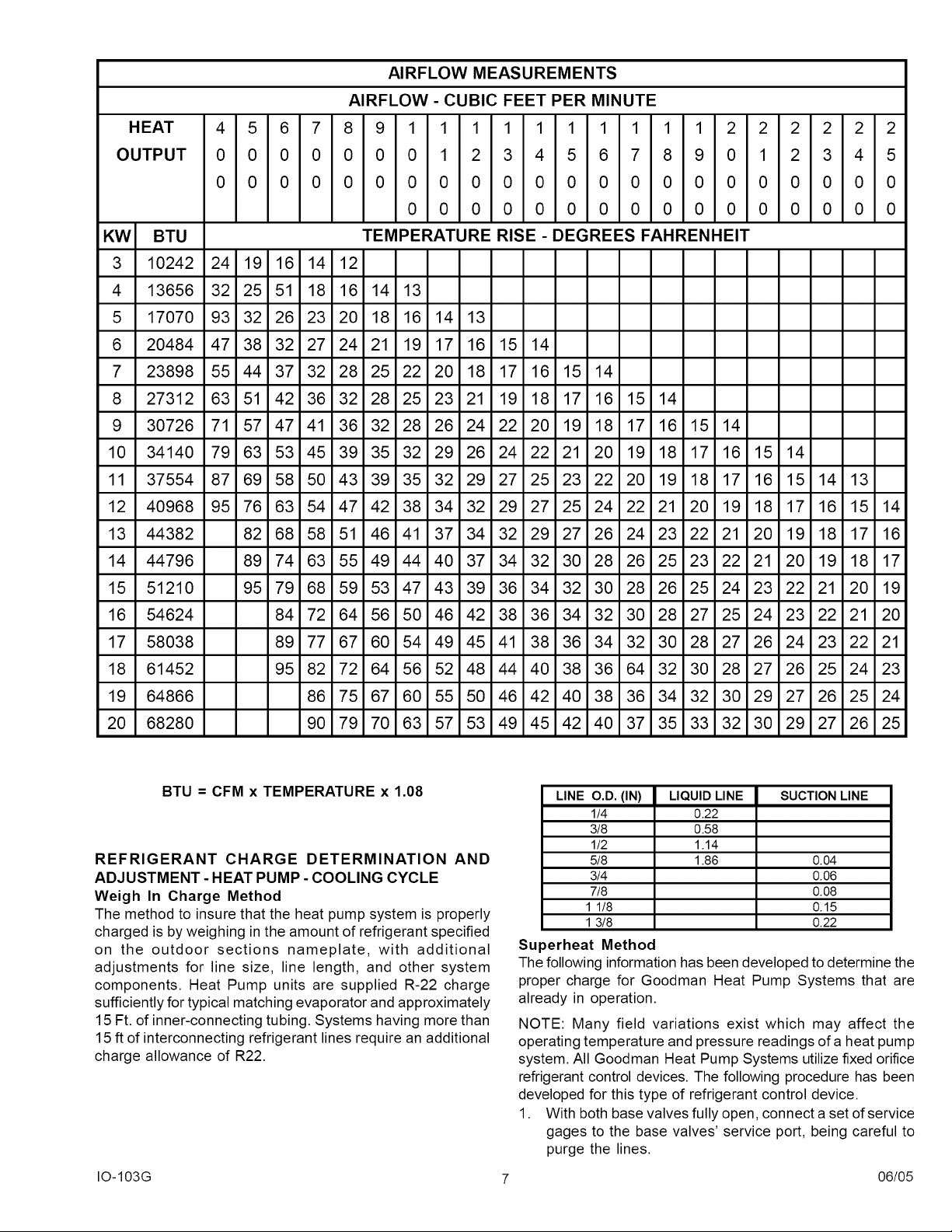

Refrigerant Charge Determination And Adjustments – Cooling
Weigh In Charge Method
Superheat Method

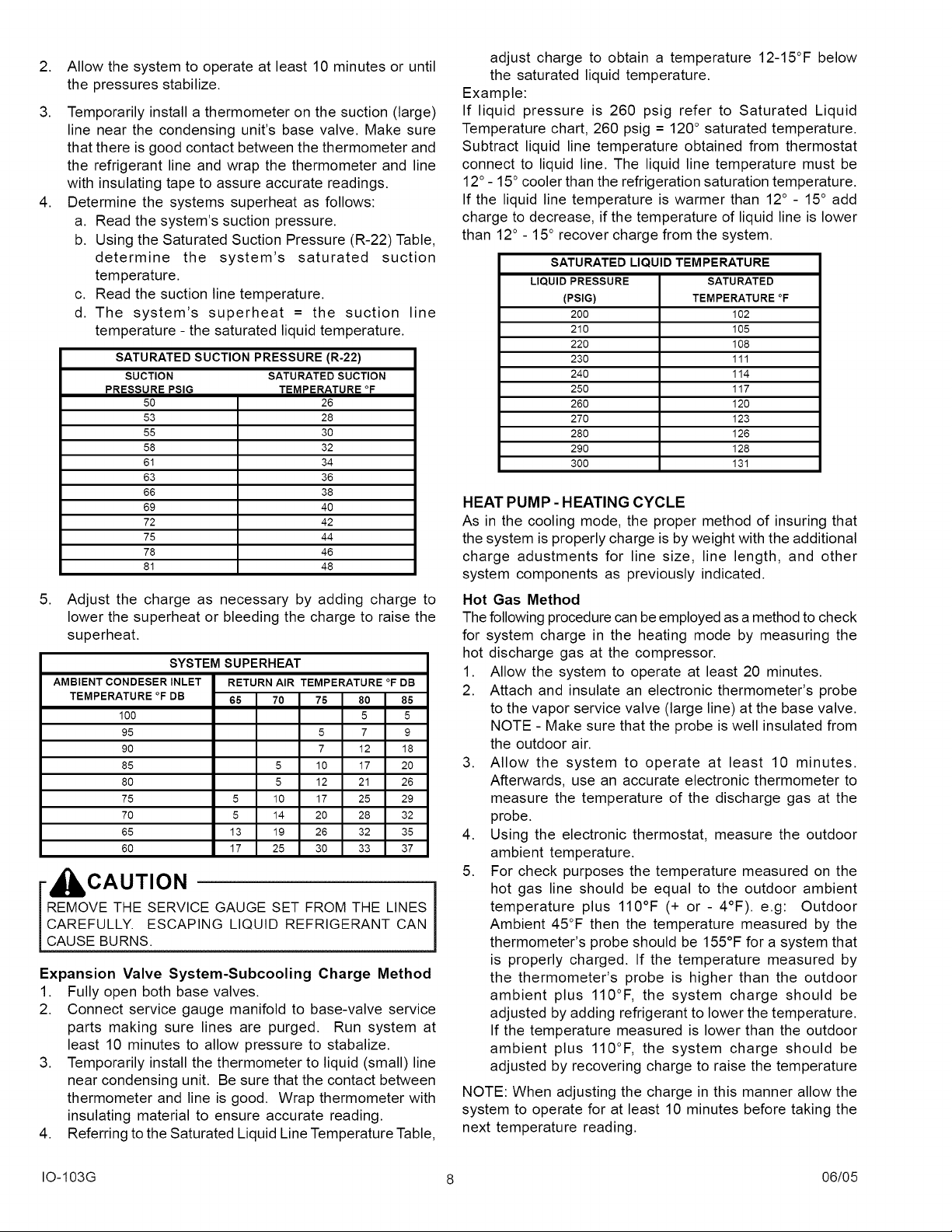

Expansion Valve System Method
Heat Pump – Heating Cycle
Hot Gas Method

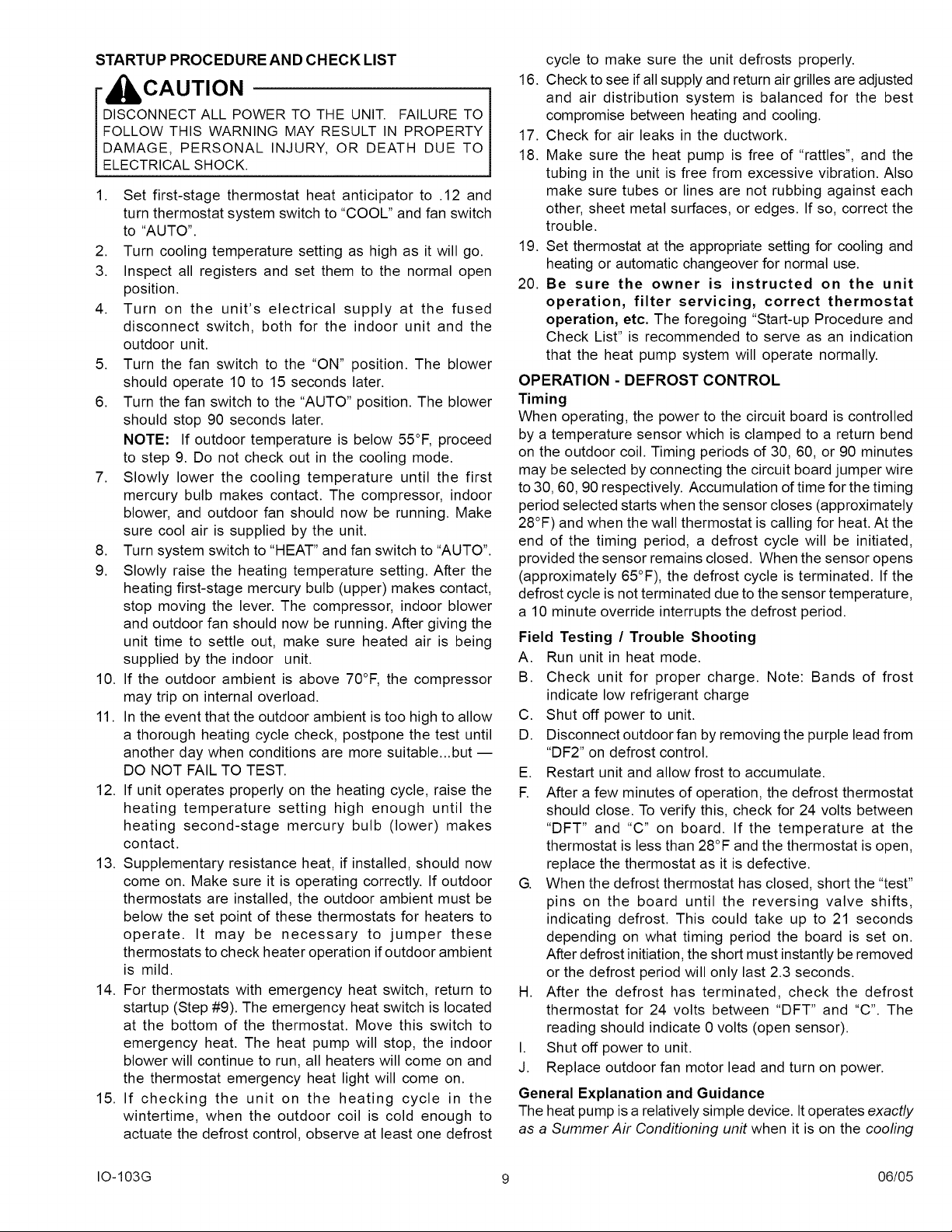

Start–Up Procedure And Checklist
General
Operation – Defrost Control
Timing
Field Testing/Troubleshooting

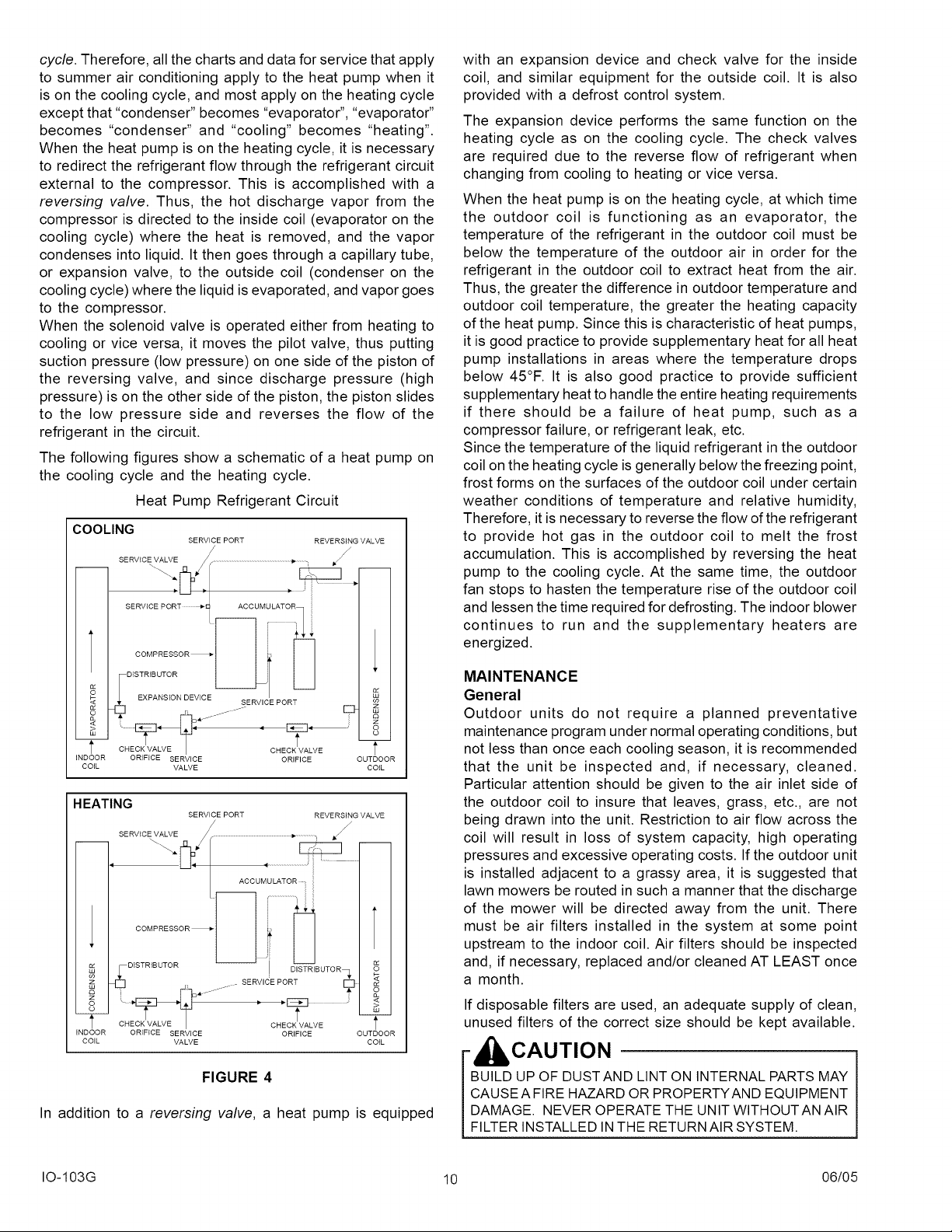

General Explanation And Guidance
Maintenance
General

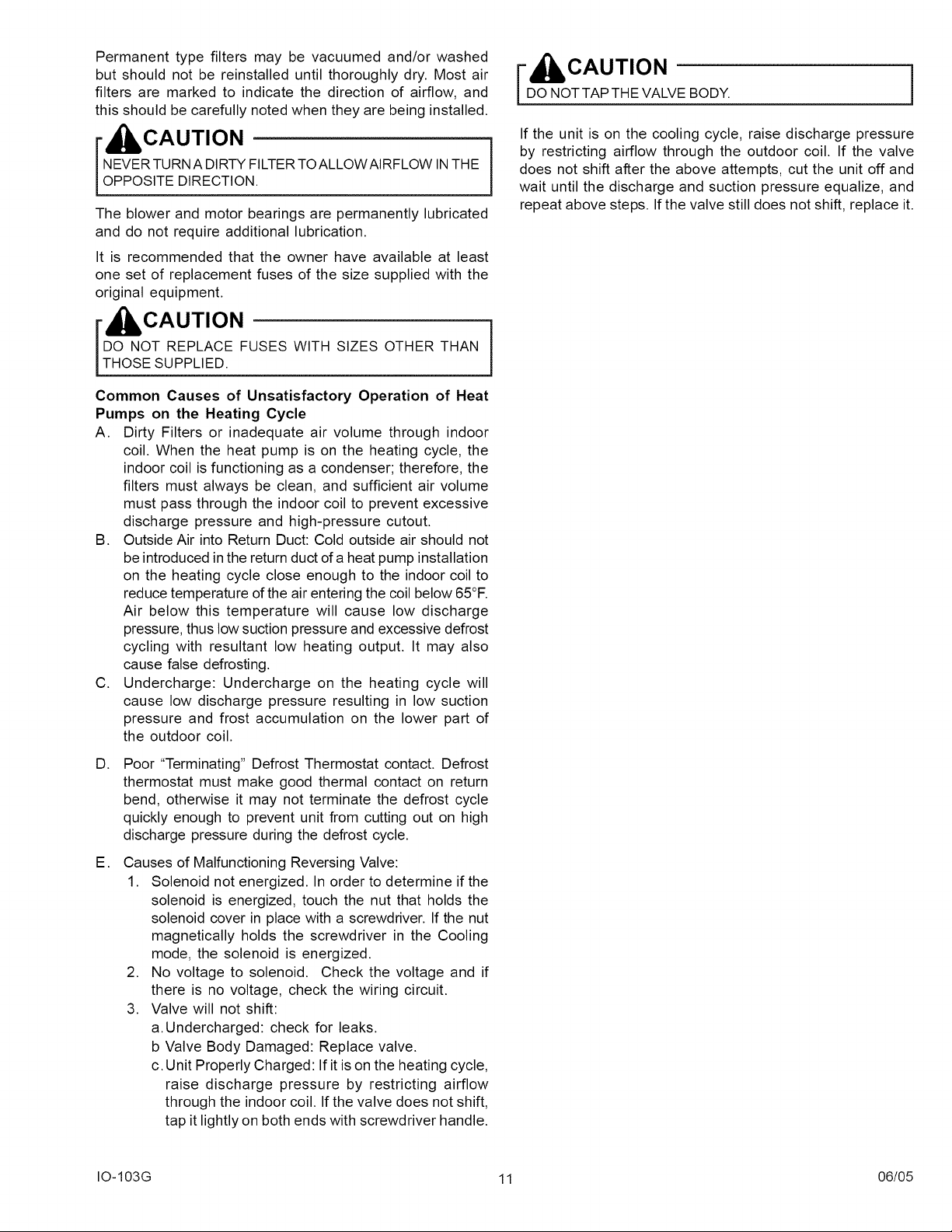

Common Causes Of Unsatisfactory Operation

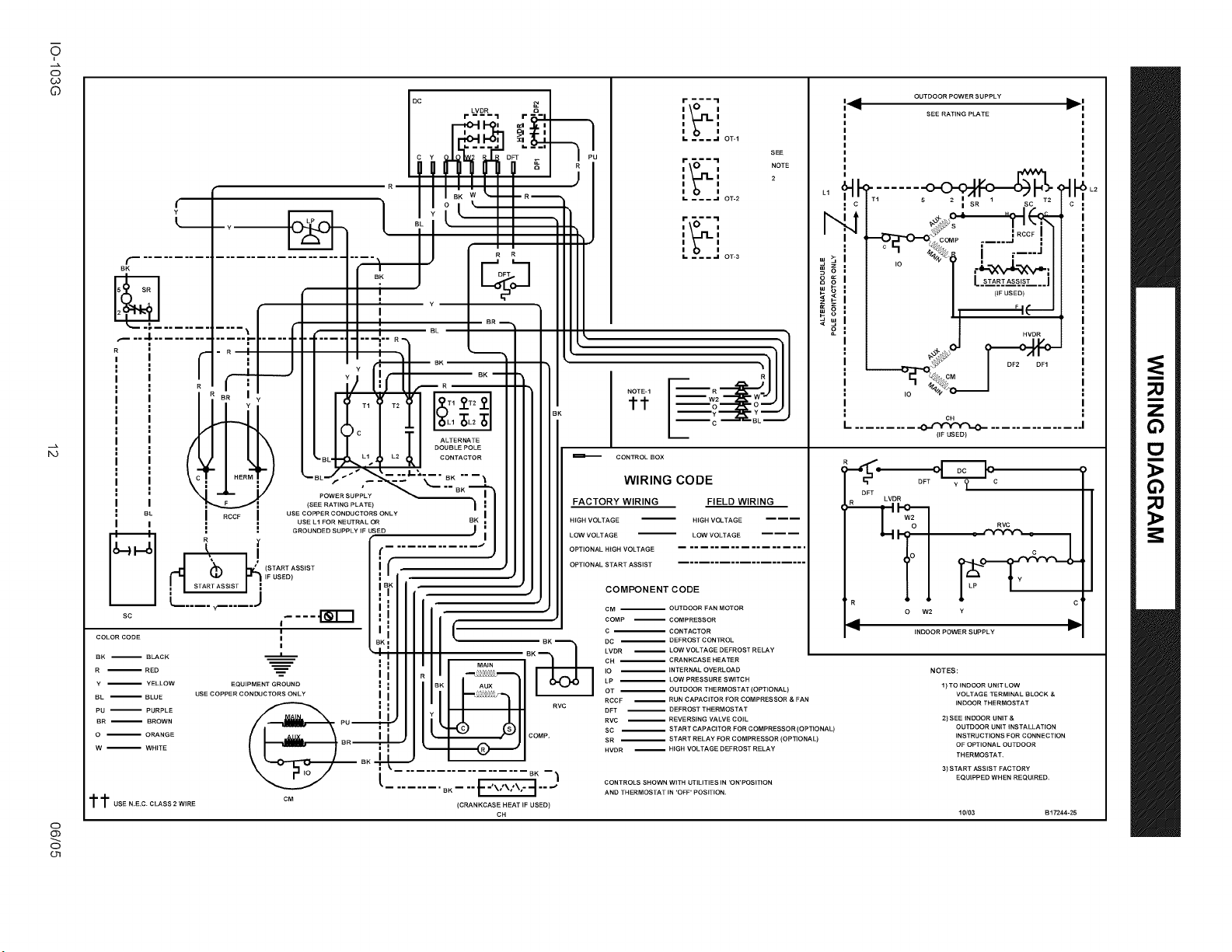

Wiring Diagram
B1724425

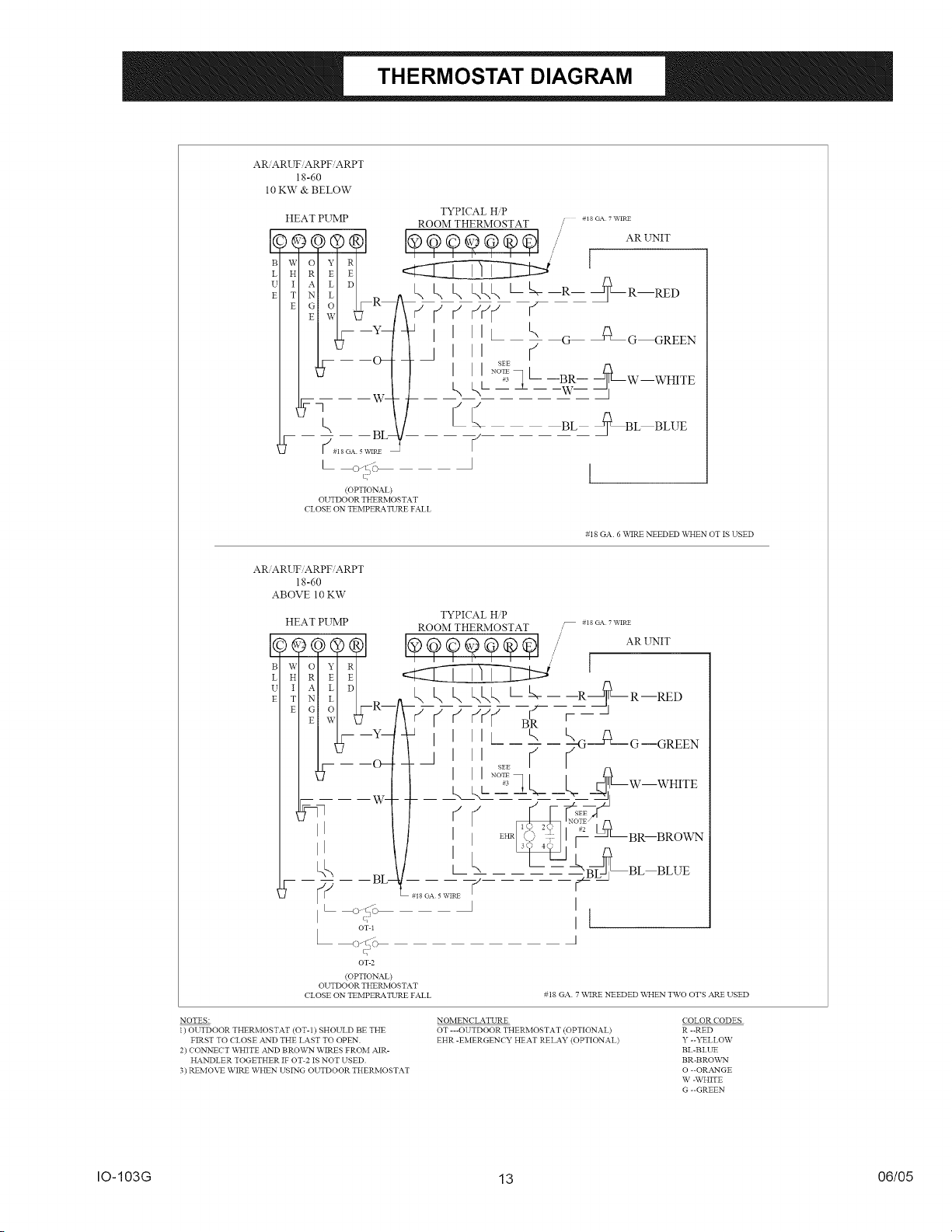

Thermostat Wiring
