NEC LCD Series
You can
register your
product online at
www.nectech.com/
productregistration
1525X.wpc 11/5/99, 12:55 PM1
Index
Warning .............................................................. 1
Contents...............................................................2
Quick Start ........................................................3-8
Controls ..........................................................9-11
Recommended Use.........................................12-13
Specifications ..................................................... 14
Features ........................................................15-16
Troubleshooting .............................................17-18
References.......................................................... 19
Limited Warranty ................................................20
TCO’99 ........................................................21-22
Avertissement ..................................................... 25
Contenu .............................................................26
Mise en marche rapide ..................................27-32
Commandes ..................................................33-36
Usage recommandé .......................................37-38
Fiche technique................................................... 39
Fonctions............................................................ 40
Dépannage ........................................................41
Références.......................................................... 42
Garantie limitée ..................................................43
TCO’99 ........................................................44-45
1525X.wpc 11/5/99, 12:55 PM2
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING
CAUTION
RISK OF ELECTRIC SHOCK • DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This
symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations
according to C.S.A. C22.2 No. 950.
FCC Information
1.
Use the attached specified cables with the LA-1526HMW
color monitor so as not to interfere
with radio and television reception.
(1)
Please use the supplied power cable or equivalent to ensure FCC compliance.
(2) Please use the supplied AC Adapter (#A1240T01).
(3) Please use supplied DVI to DFP adapter
(4) Please use supplied shielded video signal cable.
(5) Please use supplied DVI-D to DVI-D cable.
(6) Please use supplied USB cable.
Use of other cables and adapters may cause interference with radio and television
reception.
2.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician
for additional suggestions. The user may find the following booklet, prepared by the Federal
Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference
Problems.“ This booklet is available from the U.S. Government Printing Office, Washington,
D.C., 20402, Stock No. 004-000-00345-4.
1
1525X.wpc 11/5/99, 12:55 PM3
Contents
2

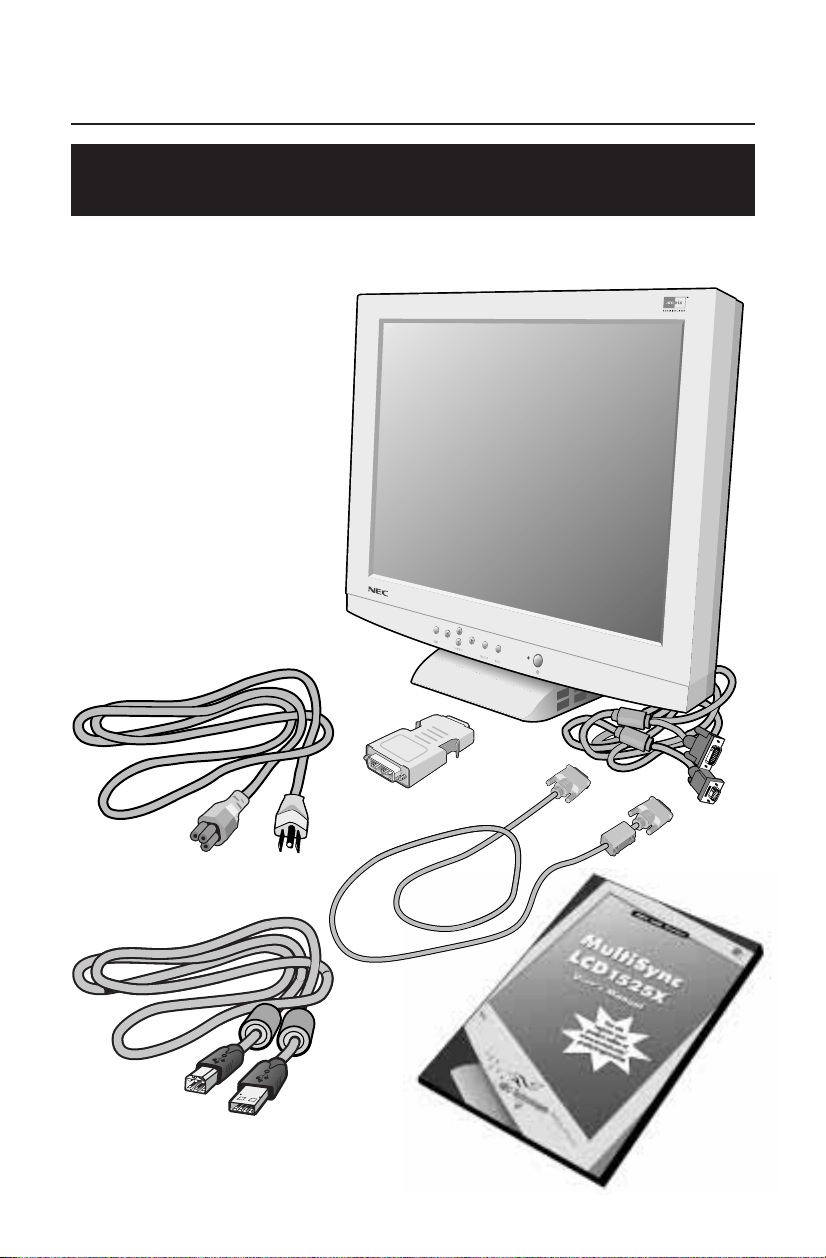

Your new NEC Technologies MultiSync
®
LCD monitor box* should
contain the following:
• MultiSync LCD1525X
™
monitor with tilt/swivel base
• Power Cord (# 70810786)
• AC Adapter (#A1240T01)
(located in base)
• DVI to DFP Adapter
• Video Signal Cable
• DVI-D to DVI-D Cable
• USB Cable
• User’s Manual
* Remember to save your original box and
packing material to transport or ship the monitor.
Power Cord
MultiSync LCD1525X
monitor with Video Signal Cable
You can register your product online at
www.nectech.com/productregistration
M
u
ltiS
y
n
c
L
C
D
1
5
2
5
X
D
V
I
/
D
-
S
U
B
USB Cable
DVI-D to DVI-D
Cable
User’s Manual
DVI to DFP Adapter
1525X.wpc 11/5/99, 12:55 PM4
Quick Start
To attach the MultiSync
®
LCD monitor to your system, follow these
instructions:
1. Turn off the power to your computer.

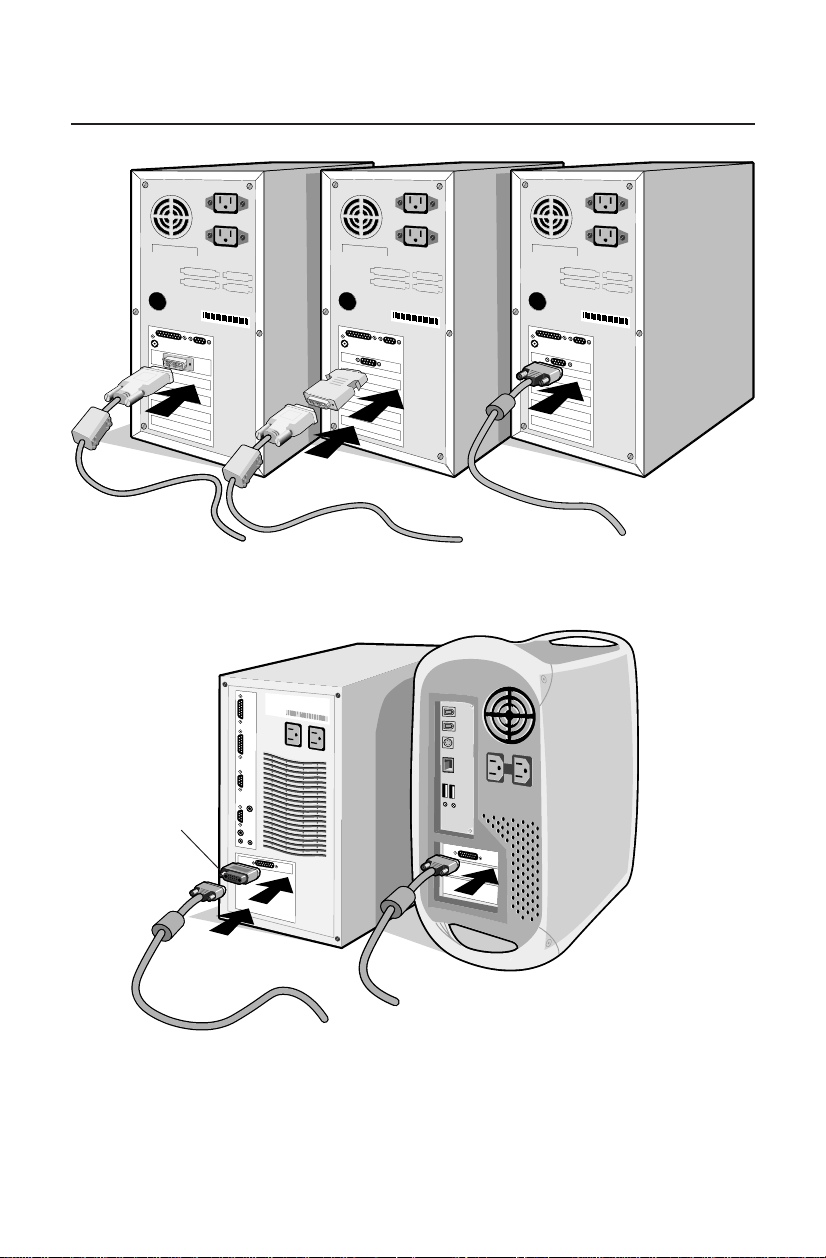

2. For the PC with DVI digital output: Connect the DVI signal cable to the connector of the
display card in your system (Figure A.1). Tighten all screws.
For the PC with DFP digital output: Connect the MultiSync LCD
1525X
™
DVI to DFP
Adapter to the computer (Figure A.2). Attach the DVI signal cable to the MultiSync
LCD
1525X DVI to DFP Adapter. Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.3).
To connect a secondary PC with analog output, connect the MultiSync LCD1525X
DVI to D-SUB cable to the connector of the display card in your system.
For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then
attach the 15-pin mini D-SUB signal cable to the MultiSync Macontosh cable adapter
(Figure B.1).
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
NOTE: To obtain the MultiSync Macintosh cable adapter or MultiSync LCD1525X DVI
to D-SUB cable call NEC Technologies at (800) 820-1230
3.

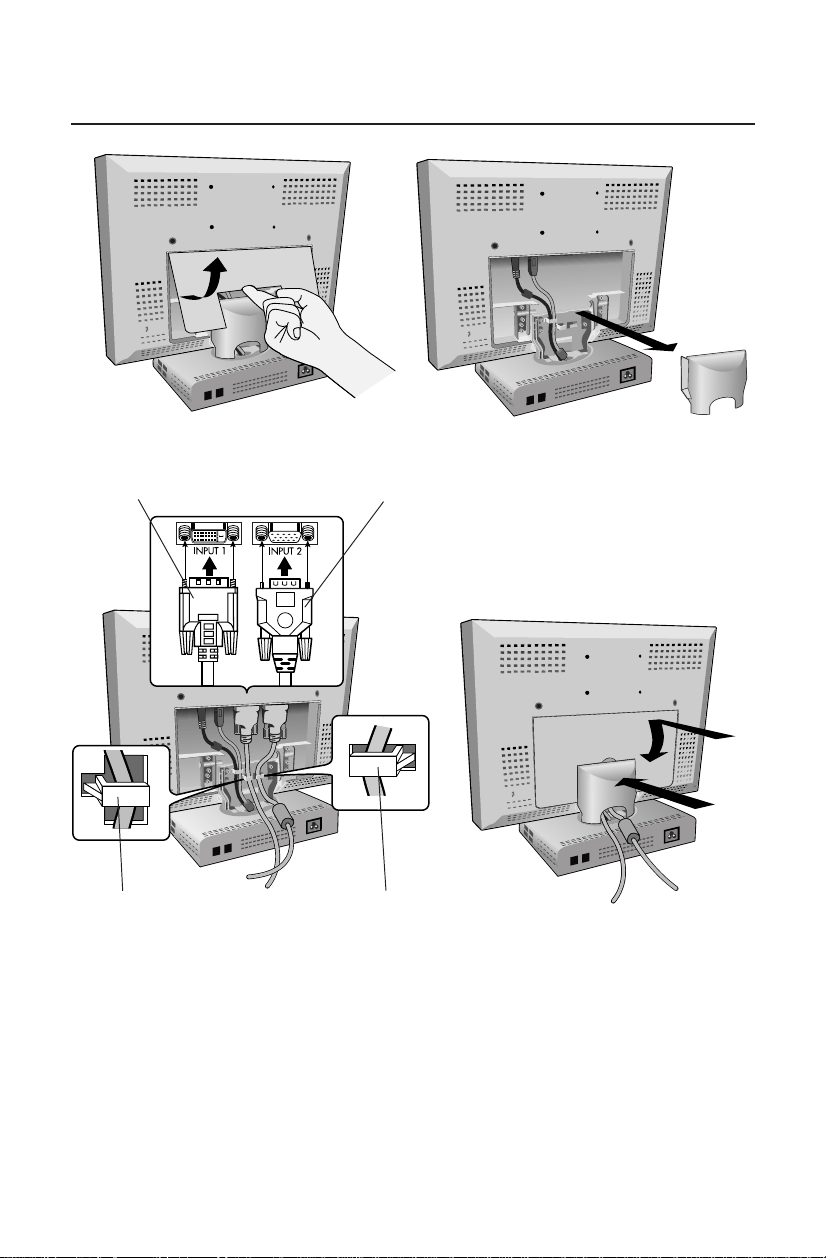

Remove connector cover and cable cover. Connect the DVI signal cable to the connec-
tor on the back of the monitor. Place the DVI video signal cable under Clip A. Connect
the 15-pin mini D-SUB signal cable to the connector on the back of the monitor. Place
the video signal cable under Clip B.
(Figure C.1).
Replace connector cover and cable cover.

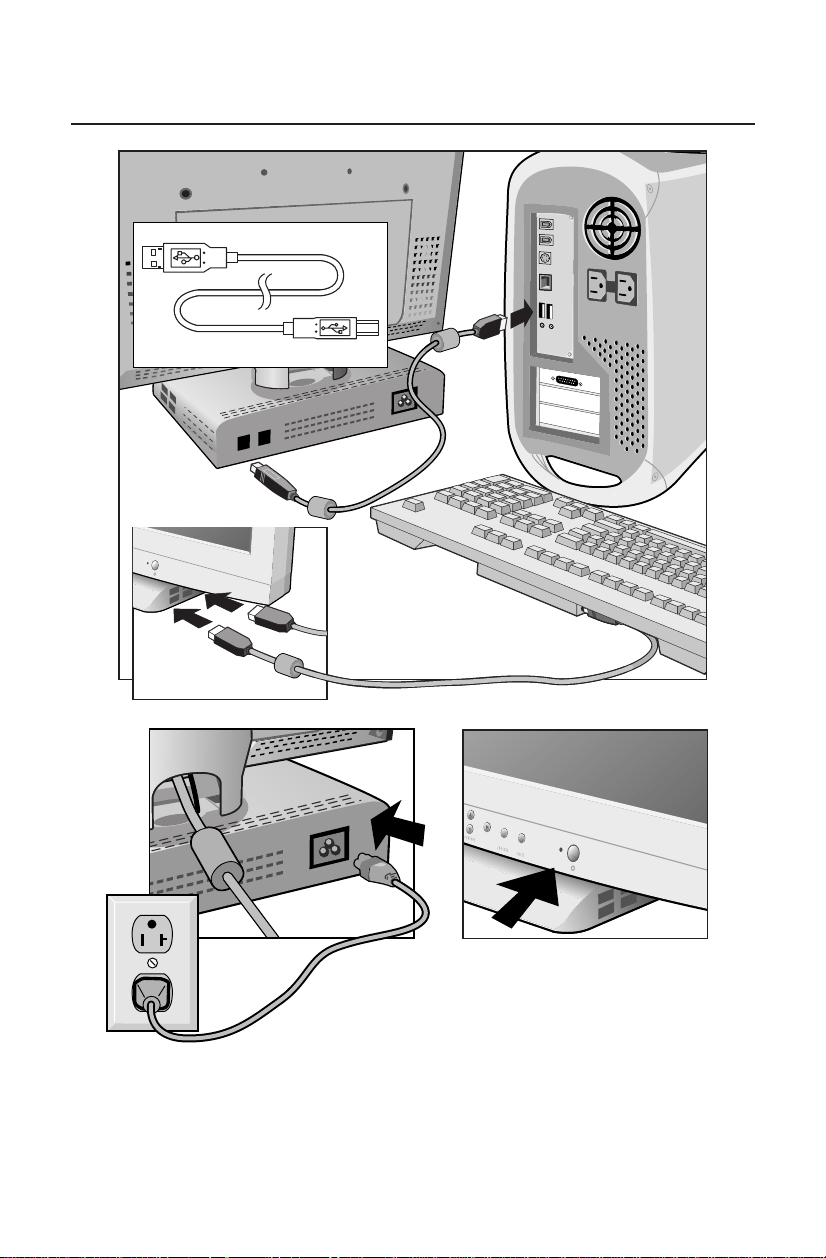

4. Using the USB cable, connect the B type connector to the USB upstream port on the
back of the monitor and A type connector to the downstream part on the computer
(Figure D.1). If you are using the cord from the USB device, use one of the downstream
ports on the side of the monitor (Figure E.1).
NOTE: Incorrect cable connections may result in irregular operation, damage
display quality/components of LCD module and/or shorten the module’s life.
5. Connect one end of the power cord to the AC Adapter (#A12420T01) on the back of
the monitor and the other end to the power outlet (Figure F.1).
6. Turn on the monitor (Figure G.1) and the computer.
7.
To complete the setup of your MultiSync LCD monitor, use the following OSM
™
controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User’s Manual for a full description of these OSM controls.
NOTE: For download information on the Windows
®
95/98 INF file for your MultiSync
LCD
1525X monitor, refer to the References section of this User’s Manual.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User’s Manual.
3
1525X.wpc 11/5/99, 12:55 PM5
4
Quick Start cont.
Figure B.1
Note: Some Macintosh
systems do not require a
Mactintosh cable adapter
Figure A.1 Figure A.2 Figure A.3
Macintosh Cable
Adapter
(not included)
1525X.wpc 11/5/99, 12:55 PM6
5
Quick Start cont.
Clip A Clip B
Figure C.1
DVI D-SUB
1525X.wpc 11/5/99, 12:55 PM7
M
ultiSync LC
D
1
5
D
V
I
/
D
-
S
U
B
M
u
l
t
i
S
y
n
c
L
C
D
1
5
2
5
X
6
A Type
B Type
Figure E.1
Figure D.1
Figure F.1 Figure G.1
Quick Start cont.
1525X.wpc 11/5/99, 12:55 PM8
7
Quick Start cont.

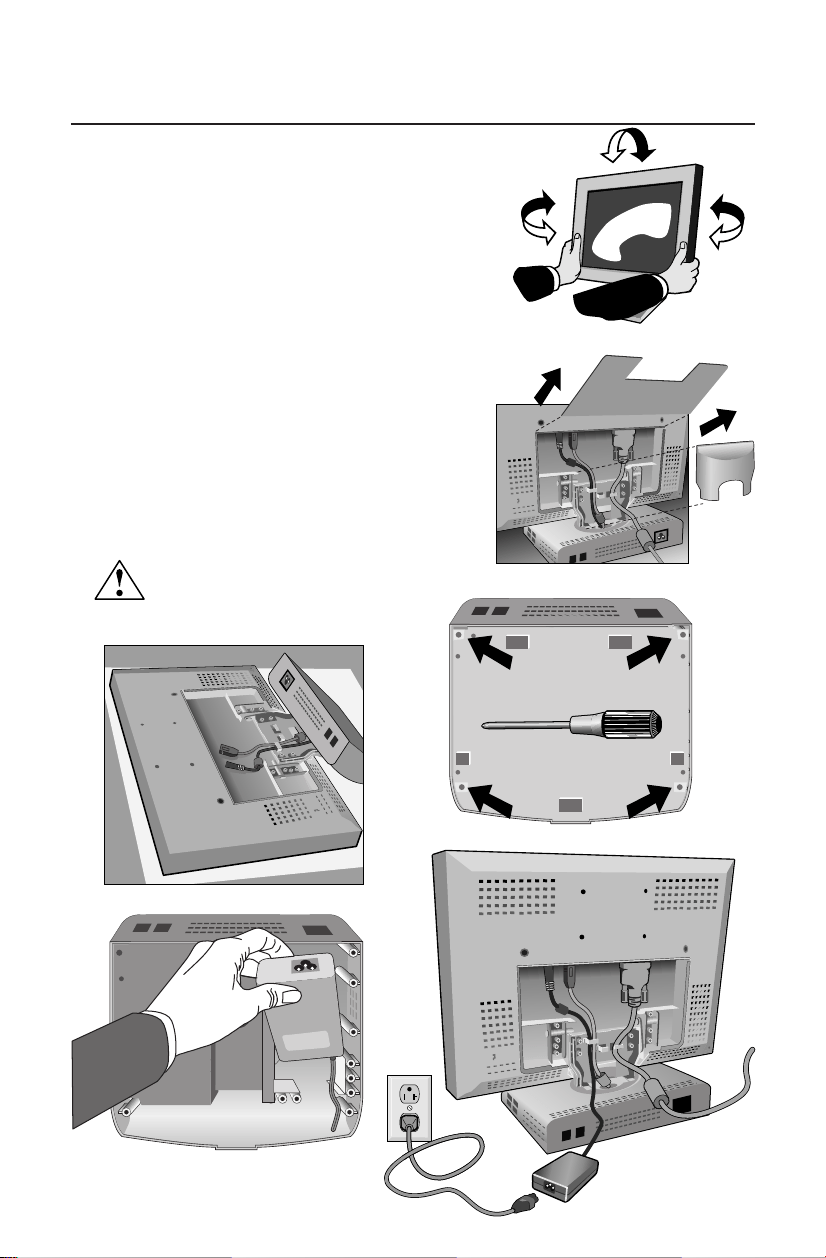

Tilt
Grasp both sides of the monitor screen with your
hands and adjust the tilt as desired (Figure TS.1).
Remove AC Adapter from Monitor Stand
To remove the AC Adapter
1. Remove the back panel and remove cable
cover (Figure AC.1).
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure AC.2).
4. Remove the 4 screws on the bottom of the
stand and lift bottom panel (Figure AC.3).
5. Pull out the AC Adapter and cord (Figure AC.4).
6. Reattach the bottom panel to the stand. Tighten all
screws. To connect the AC Adapter outside of the
stand, plug the AC Adapter cord to the back of the
monitor “DC in” (Figure AC.5).
7. Reverse this process to reinstall the AC Adapter
inside the monitor stand.
Figure TS.1
Figure AC.1
Figure AC.2
Figure AC.3
Figure AC.4
Figure AC.5
CAUTION
Please use only the supplied
AC Adapter (#A1420T01).
1525X.wpc 11/5/99, 12:55 PM9
8
Quick Start cont.
Figure R.1
Figure R.2
Non-abrasive surface
CAUTION
Figure R.3

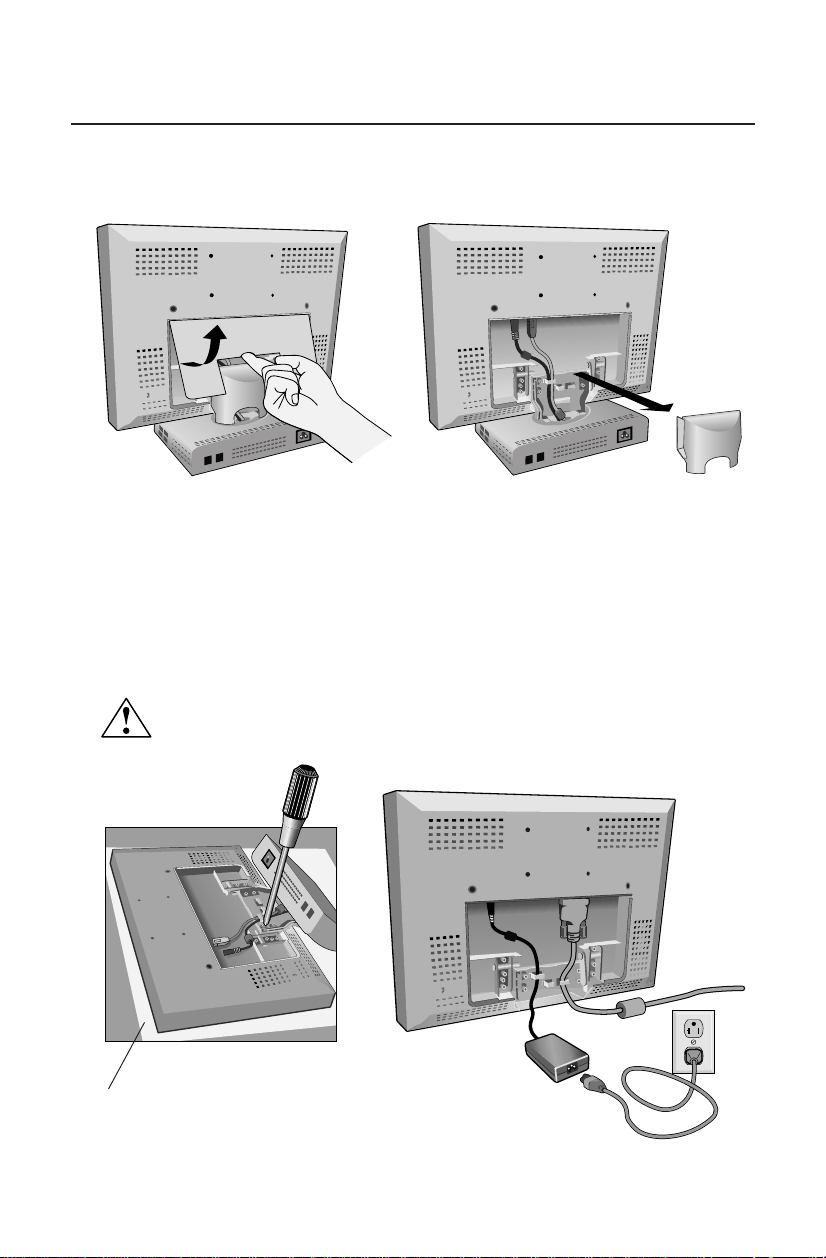

Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Remove the back cover and the cable cover (Figure R.1).
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure R.2).
4. Remove the 4 screws connecting the monitor to the stand and lift off the stand
assembly (Figure R.2). The monitor is now ready for mounting in an alternate
manner.
5. Connect the AC Adapter cord to the back of the monitor marked “DC in” (Figure R.3).
6. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
When the monitor stand is removed, the USB capabilities
will be disabled.
Please use only the supplied
AC Adapter (#A1240T01).
1525X.wpc 11/5/99, 12:55 PM10
9
INPUT SELECT
If no OSM menu is displayed, video input and USB upstream can be changed by
pressing the PROCEED button.
: Changes only video
: Changes video and USB
OSM
™
(On-Screen-Manager) Controls
To access OSM press any of control buttons ( , , , ).
The OSM controls on the front of the monitor function as follows:
Control Main Menu Sub-Menu
EXIT Exits the OSM controls. Exits to the OSM controls main menu.
CONTROL / Moves the highlighted Moves the highlighted area
area up/down to select up/down to select one of the controls.
one of the controls.
CONTROL / Proceeds to the selected Moves the bar in the + or – direction to
menu choice (indicated increase or decrease the adjustment.
by the highlighted area)
PROCEED Has no function Activates Auto Adjust feature. In Tools and
Information Mode, opens additional window.
RESET Resets the highlighted control Resets the highlighted control to the
menu to the factory setting. factory setting.
NOTE: When RESET is pressed, a warning window will appear
allowing you to cancel the reset function.
Brightness and Contrast
BRIGHTNESS:
Adjusts the overall image and background screen brightness.
CONTRAST:
Adjusts the image brightness in relation to the background.
AUTO ADJUST: (Analog Input Only)
Corrects the image displayed for non-
standard video inputs.
Auto Adjust (Analog Input Only): Adjusts the Position, H. Size
and Fine settings.
Position (Analog Input Only)
H. POSITION: Controls horizontal image position within the display
area of the LCD.
H. POSITION: Controls vertical image position within the display area
of the LCD.
AUTO ADJUST: Automatically sets the horizontal and vertical image
position within the display area of the LCD.
Controls
1525X.wpc 11/5/99, 12:55 PM11
10
Controls cont.
Image Adjust (Analog Input Only)
H.SIZE: Adjusts the horizontal size by increasing or decreasing this setting.
FINE: Improves focus, clarity and image stability by increasing or decreasing the
Fine setting.
AUTO ADJUST: Automatically adjusts H. Size or Fine settings.
AccuColor
®
Control Systems
Color presets 1 trough 5. Five color presets select the desired color setting. If a
setting is adjusted, the name of the setting will change to Custom.
Color Gain (Red, Green, Blue): Increases or decreases Red, Green or Blue color
depending upon which is selected. The change in color will appear on screen
and the direction (increase or decrease) will be shown by the color bars.
Tool
LANGUAGE: OSM
™
control menus are available in seven languages.
OSM POSITION: You can choose where you would like the OSM control
image to appear on your screen. Selecting OSM Location allows you to
manually adjust the position of the OSM control menu left, right, up or down.
OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the
OSM Turn Off submenu, you can select how long the monitor waits after the last
touch of a button to shut off the OSM control menu. The preset chocies are 10,
20, 30, 60 and 120 seconds.
OSM LOCK OUT: This control completely locks out access to all OSM control
functions. When attempting to activate OSM controls while in the Lock Out
mode, a screen will appear indicating the OSM controls are locked out. To
activate the OSM Lock Out function, press PROCEED, then
and hold down
simultaneously. To de-activate the OSM Lock Out, press PROCEED, then
and hold down simultaneously.
VIDEO DETECT: Selects the method of video detection when more than one
computer is connected.
NONE: The Monitor will not search the other video input port unless the
monitor is turned on.
FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode.
When current video input signal is not present, then the monitor searches for a
video signal from the other video input port. If the video signal is present in the
other port, then the monitor switches the video source input port to the new found
video source automatically. The monitor will not look for other video signals while
the current video source is present.
LAST DETECT:
The video input has to be switched to the “LAST DETECT” mode.
When the monitor is displaying a signal from the current source and a new
secondary source is supplied to the monitor, then the monitor will automatically
switch to the new video source. When current video input signal is not present,
then the monitor searches for a video signal from the other video input port. If the
video signal is present in the other port, then the monitor switches the video
source input port to the new found video source automatically. The monitor will
not look for other video signals while the current video
source is present.
1525X.wpc 11/5/99, 12:56 PM12
11
Controls cont.
DVI SELECT: This function selects the DVI input mode. When the DVI selection
has been changed, you must restart your computer.
DIGITAL: DVI digital input is available.
ANALOG: DVI analog input is available.
FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control
settings back to the factory settings. The RESET button will need to be held down
for several seconds to take effect. Individual settings can be reset by highlighting
the control to be reset and pressing the RESET button.
RESOLUTION NOTIFIER: This optimal resolution is 1024 x 768. If ON is
selected, a message will appear on the screen after 2 minutes, notifying you that
the resolution is not at 1024 x 768.
Information
DISPLAY MODE: Provides information about the current resolution display and
technical data including the preset timing being used and the horizontal and
vertical frequencies.
MONITOR INFO: Indicates the model and serial numbers of your monitor.
OSM
™
Warning No Signal: This function gives a warning when there is no
signal present. After power is turned on or when there is a change of input
signal or video is inactive, the No Signal windoe will appear. The PROCEED
button opens the DVI SELECTION CONTROL, as indicated in the section for
DVI selection.
Resolution Notifier: This function gives a warning of use with optimized
resolution. After power is turned on or when there is a change of input signal
or the video signal doesn’t have proper resolution, the Resolution Notifier
window will open. This function can be disable in the TOOL menu.
Out of Range: This function gives a recommendation of the optimized
resolution and refresh rate. After the power is turned on or there is a change
of input signal or the video signal doesn’t have proper timing, the Out Of
Range menu will appear. The PROCEED button opens the DVI SELECTION
CONTROL, as indicated in the section for DVI selection.
Check Cable: This function will advise you to check all Video Inputs on the
monitor and computer to make sure they are properly connected.
1525X.wpc 11/5/99, 12:56 PM13
12
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC
®
LCD COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and
opening or removing covers may expose you to dangerous shock hazards or other
risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch danger-
ous voltage points, which can be harmful or fatal or may cause electric shock, fire
or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may
cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the
monitor may fall, causing serious damage to the monitor.
• When operating the MultiSync LCD monitor with its AC 220-240V power supply,
use a power supply cord that matches the power supply voltage of the AC power
outlet being used. The power supply cord you use must have been approved by
and comply with the safety standards of your country (type HOSVV-F should be
used except in U.K.).
• Use supplied AC Adapter. Do not place any objects onto the AC Adapter and do
not use the AC Adapter outdoors.
• The inside of the flourescent tube located within the LCD monitor contains mercury.
Please follow the bylaws or rules of your municipality to dispose of the tube
properly.
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse
installed for use with this monitor. If a power cord is not supplied with this monitor,
please contact your supplier.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Allow adequate ventilation around the monitor so that heat can properly
dissipate. Do not block ventilated openings or place the monitor near a
radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system
from the power supply. The monitor should be installed close to a power
outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
Recommended Use
CAUTION
1525X.wpc 11/5/99, 12:56 PM14
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for
warm-up.
• Adjust the monitor height so that the top of the
screen is at or slightly below eye level. Your eyes
should look slightly downward when viewing the
middle of the screen.
•
Position your monitor no closer than 16 inches and
no further away than 28 inches from your eyes. The
optimal distance is 21 inches.
• Rest your eyes periodically by focusing on an object
at least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and
other light sources to minimize glare and reflections. Adjust the monitor tilt so that
ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any
cleaning solution or glass cleaner!
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head
while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image
persistence (after-image effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
•
Adjust the Brightness until the background raster disappears
•
Do not position the Contrast control to its maximum setting
•
Use the preset Size and Position controls with standard signals
•
Use the preset Color Setting
•
Use non-interlaced signals with a vertical refresh rate between 60-75Hz
•
Do not use primary color blue on a dark background, as it is difficult to see and
may produce eye fatigue to insufficient contrast
For more detailed information on setting up a healthy work environment, call NEC
at (800) 820-1230, NEC FastFacts
™
information at (630) 467-4363 and request
document #900108 or write the American National Standard for Human Factors
Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard
No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica,
California 90406.
13
Recommended Use cont.
1525X.wpc 11/5/99, 12:56 PM15
Specifications
14
Monitor MultiSync
®
LCD1525X
™
Notes
Specifications Monitor
LCD Module Diagonal: 15.0 inch Active matrix; thin film transistor (TFT)
Viewable Image Size: 15.0 inch liquid crystal display (LCD); 0.30 mm dot
Native Resolution (Pixel Count): 1024 x 768 pitch; 200cd/m
2
white luminence;
350:1 contrast ratio, typical
Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: TMDS
™
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Display Colors 16,777,216 colors Depends on display card used.
Viewing Angle Left/Right: ± 60°
Up: 45°
Down: 55°
Synchronization Horizontal: 24.8 kHz to 60.0 kHz Digital Input: 24.8 kHz to 60.0 kHz
Range Vertical: 56.2 Hz to 75.1 Hz 56.2 Hz to 75.1 Hz
Resolutions Supported 720 x 400*: VGA text
Some systems may not support
Resolution based on
horizontal and
640 x 480* at 60 Hz to 75 Hz
all modes listed.
vertical frequencies only
800 x 600* at 56 Hz to 75 Hz
832 x 624* at 75 Hz
1024 x 768 at 60 Hz to 75 Hz ..................
NEC cites recommended resolution at
75 Hz for optimal display performance.
Active Display Area Horizontal:
304.1 mm/12.1 inches Dependent upon signal timing used,
Vertical:
228.1 mm/9.1 inches and does not
include border area.
USB Hub I/F:
USB Specification Revision 1.1
Port: Upstream 2
Downstream 4
Load Current: Maximum 0.5A per port
Power Supply
AC 100 – 240 V @ 50/60 Hz
Current Rating 0.75 A @ 100
–
120 V/0.45 A @ 220 – 240 V
Dimensions
370 mm (W) x 360 mm (H) x 158 mm (D)
14.6 inches (W) x 14.2 inches (H) x 6.2 inches (D)
Weight 4.5 kg
10.0 lbs
Environmental Considerations
Operating Temperature: 5°C to 35°C/41°F to 95°F
Humidity: 30% to 80%
Feet: 3,000m/10,000 Feet
Storage Temperature: -10°C to +60°C/14°F to 140°F
Humidity: 10% to 85%
Feet: 9,500m/31,500 Feet
* Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may
appear different. This is normal and necessary for all current flat panel technologies when displaying non-native
resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to
full screen, an interpolation of the resolution must be done.
NOTE: Technical specifications are subject to change without notice.
1525X.wpc 11/5/99, 12:56 PM16
15
Features
ambix™ Technology: Dual input technology allowing both analog and digital
inputs off of one connector (DVI-I) as well as additional legacy analog support off
of a traditional 15-pin VGA connector. Provides traditional MultiSync
®
technol-
ogy compatibility for analog as well as TMDS
™
-based (Transition Minimized
Differential Signaling) digital compatibility for digital inputs. TMDS-based digital
interfaces include DVI-D, DFP and P&D.
DVI-I: The intergrated interface ratified by the Digital Display Working Group
(DDWG) that allows both digital and analog connectors off of one port. The “I”
stands for integration for both digital and analog, The digital portion is TMDS-
based.
DVI-D: The digital-only subset of DVI ratified by the Digital Display Working
Group (DDWG) for digital connections between computers and displays. As a
digital-only connector, analog support is not provided off a DVI-D connector. As
a TMDS-based digital only connection, only a simple adapter is necessary for
compatibility between DVI-D and other TMDS-based digital connectors such as
DFP and P&D.
DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is
signal compatible with DVI. As a TMDS-based digital only connection, only a
simple adapter is necessary for compatibility between DFP and other TMDS-
based digital connectors such as DVI and P&D.
P&D (Plug and Display): The VESA standard for digital flat panel monitor
interfaces. It is more robust than DFP since it allows for other options off a signal
connector (options like USB, analog video and IEEE-1394-995). The VESA
committe has recognized that DFP is a subset of P&D. As a TMDS-based connec-
tor (for the digital input pins), only a simple adapter is necessary for compatibility
between P&D and other TMDS-based digital connector such as DVI and DFP.
NuCycle
™
Plastic: A special silicone compound for PC resin, being extremely
flame retardant, safe and environmentally friendly.
Dual Inputs: Offers dual inputs, allowing you to connect the monitor to two
systems. You can easily switch between computers with a touch of a button on the
front control panel.
USB Hubs: There is a USB Hub, two upstream ports and four downstream ports.
You can use two sets of computers with one monitor.
Reduced Footprint: Provides the ideal solution for environments requiring
superior image quality but with size and weight limitations. The monitor’s small
footprint and low weight allow it to be moved or transported easily from one
location to another.
1525X.wpc 11/5/99, 12:56 PM17
16
Features cont.
AccuColor
®
Control System: Allows you to adjust the colors on your screen and
customize the color accuracy of your monitor to a variety of standards.
OSM
™
(On-Screen Manager) Controls: Allow you to quickly and easily adjust all
elements of your screen image via simple to use on-screen menus.
ErgoDesign
®
Features: Enhance human ergonomics to improve the working
environment, protect the health of the user and save money. Examples include
OSM controls for quick and easy image adjustments, tilt/swivel base for pre-
ferred angle of vision, small footprint and compliance with MPRII guidelines for
lower emissions.
Plug and Play: The Microsoft
®
solution with the Windows
®
95/98 operating
system facilitates setup and installation by allowing
the monitor to send its
capabilities (such as screen size and resolutions supported)
directly to your
computer, automatically optimizing display performance.
IPM
™
(Intelligent Power Manager) System: Provides innovative power-saving
methods that allow the monitor to shift to a lower power consumption level when
on but not in use, saving two-thirds of your monitor energy costs, reducing
emissions and lowering the air conditioning costs of the workplace.
Multiple Frequency Technology: Automatically adjusts monitor to the display
card’s scanning frequency, thus displaying the resolution required.
FullScan
™
Capability: Allows you to use the entire screen area in most resolu-
tions, significantly expanding image size.
VESA Standard Mounting Interface: Allows users to connect their MultiSync
monitor to any VESA standard third party mounting arm or bracket. Allows for
the monitor to be mounted on a wall or an arm using any third party compliant
device.
OSM Display Screen Copyright 1999 by NEC Technologies, Inc.
1525X.wpc 11/5/99, 12:56 PM18
17
Troubleshooting
No picture
•
The signal cable should be completely connected to the display card/computer.
• The display card should be completely seated in its slot.
• Power button and computer Power button should be in the ON position.
• Check to make sure that a supported mode has been selected on the display
card or system being used. (Please consult display card or system manual to
change graphics mode.)
• Check the monitor and your display card with respect to compatibility and
recommended settings.
• Check the signal cable connector for bent or pushed-in pins.
• Check the cables of Video input 1 or Video input 2 to make sure they are
properly connected. Then make sure the input select is set to the proper Video
input.
• Check the DVI Selection in OSM.
Power Button does not respond
• Unplug the power cord of the monitor from the AC outlet to turn off and reset
the monitor, or simultaneously press the RESET and Power buttons.
Image persistence
• Image persistence is when a “ghost” of an image remains on the screen even
after the monitor has been turned off. Unlike CRT monitors, LCD monitors’
image persistence is not permanent. To alleviate image persistence, turn the
monitor off for as long as an image was displayed. If an image was on the
monitor for one hour and a ”ghost” of that image remains, the monitor
should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC Technologies recommends
using a screen saver at regular intervals whenever the screen is idle.
Image is unstable, unfocused or swimming is apparent
• Signal cable should be completely attached to the computer.
• Use the OSM
™
Image Adjust controls to focus and adjust display by
increasing or decreasing the fine total. When the display mode is changed,
the OSM Image Adjust settings may need to be re-adjusted.
• Check the monitor and your display card with respect to compatibility and
recommended signal timings.
• If your text is garbled, change the video mode to non-interlace and use
60Hz refresh rate.
LED on monitor is not lit
(no green or amber color can be seen)
• Power Switch should be in the ON position and power cord should be
connected.
• Make certain the computer is not in a power-saving mode (touch the
keyboard or mouse).
1525X.wpc 11/5/99, 12:56 PM19
18
Troubleshooting cont.
Display image is not sized properly
• Use the OSM Image Adjust controls to increase or decrease the H. Size.
• Check to make sure that a supported mode has been selected on the display
card or system being used. (Please consult display card or system manual to
change graphics mode.)
USB Hub does not operate
• Check to make sure the USB cord is properly connected. Refer to your USB
devise User’s Manual.
• Check the OSM INPUT SELECT and the USB input connector on the back of the
monitor.
No Video
• If no video is present on the screen, turn the Power button off and on again.
1525X.wpc 11/5/99, 12:56 PM20
19
References
• BBS (978) 742-8706
NEC Technologies’ Remote Bulletin Board System is an electronic service
accessible with your system and a modem. Communication parameters
are: 300/1200/2400/9600/14.4k/28.8k/33.6k bps, no parity, 8-data bits,
1 stop bit
• Customer Service/
Technical Support (800) 632-4662
Fax (978) 635-7049
• Electronic Channels:
Internet e-mail: [email protected]
Internet ftp site: ftp.nectech.com
World Wide Web: http://www.nectech.com
Product Registration: http://www.nectech.com/productregistration
Windows
®
95/98 INF File: http://cssweb.nectech.com/common/drivers.htm
then download the file NECMSINF.ZIP.
• FastFacts™ Information (630) 467-4363
INFORMATION DESCRIPTION DOCUMENT #
Glossary Definition of terms related 900203
to functions, features and
installation of the
MultiSync
®
monitor
More Information Names and addresses of 900204
other groups involved in
standards and features of
the MultiSync monitor
Macintosh Connection Detailed information on 153006
connecting the MultiSync
monitor to a Macintosh
Healthy Work Environment Detailed information on 900108
setting up a healthy work
environment
• Literature & Sales Info (800) NEC-INFO [(800) 632-4636]
• MultiSync Fulfillment (800) 820-1230
[For software & accessories]
• TeleSales (800) 284-4484
1525X.wpc 11/5/99, 12:56 PM21
20
Limited Warranty
NEC Technologies, Inc. (hereinafter “NECTECH”), warrants this Product to be free from
defects in material and workmanship and, subject to the conditions set forth below, agrees
to repair or replace (at NECTECH’s sole option) any part of the enclosed unit which proves
defective for a period of three (3) years from the date of first consumer purchase. Spare parts
are warranted for ninety (90) days. Replacement parts or units may be new or refurbished and
will meet specifications of the original parts or unit.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. This warranty is limited to the original purchaser of the Product and is not
transferable. This warranty covers only NECTECH-supplied components. Service required as
a result of third party components is not covered under this warranty. In order to be covered
under this warranty, the Product must have been purchased in the U.S.A. or Canada by the
original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by
NECTECH. No warranty service is provided outside of the U.S.A. or Canada. Proof of
Purchase will be required by NECTECH to substantiate date of purchase. Such proof of
purchase must be an original bill of sale or receipt containing name and address of seller,
purchaser, and the serial number of the product.
It shall be your obligation and expense to have the Product shipped, freight prepaid, or
delivered to the authorized reseller from whom it was purchased or other facility authorized
by NECTECH to render the services provided hereunder in either the original package or a
similar package affording an equal degree of protection. All Products returned to NECTECH
for service MUST have prior approval, which may be obtained by calling 1-800-632-4662.
The Product shall not have been previously altered, repaired, or serviced by anyone other
than a service facility authorized by NECTECH to render such service, the serial number
of the product shall not have been altered or removed. In order to be covered by this warranty
the Product shall not have been subjected to displaying of fixed images for long periods of
time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated
contrary to the instructions contained in the User’s Manual. Any such conditions will void this
warranty.
NECTECH SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL,
OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NECTECH
PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF
ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE
LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.
This Product is warranted in accordance with the terms of this limited warranty. Consumers
are cautioned that Product performance is affected by system configuration, software, the
application, customer data, and operator control of the system, among other factors. While
NECTECH Products are considered to be compatible with many systems, specific functional
implementation by the customers of the Product may vary. Therefore, suitability of a Product
for a specific purpose or application must be determined by consumer and is not warranted
by NECTECH.
For the name of your nearest authorized NECTECH service facility, contact NECTECH
at 1-800-632-4662.
1525X.wpc 11/5/99, 12:56 PM22
TCO’99
21
Congratulations! You have just purchased a TCO’99 approved and
labeled product! Your choice has provided you with a product devel-
oped for professional use. Your purchase has also contributed to
reducing the burden on the environment and also to the further
development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encourag-
ing the adaptation of goods and services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during the manufacturing. Since it has not been
possible for the majority of electronics equipment to be recycled in a satisfactory way, most
of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (Internal) and natural (external) environments.
Since all methods of conventional electricity generation have a negative effect on the
environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an enormous amount of energy
since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO’99 scheme which provides for international and
environmental labelling of personal computers. The labelling scheme was developed as a joint
effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet
(The Swedish National Energy Administration).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other
things. The product must be prepared for recycling and the manufacturer is obliged to have an
environmental plan which must be adhered to in each country where the company implements its
operational policy. The energy requirements include a demand that the computer and/or display,
after a certain period of inactivity, shall reduce its power consumption to a lower level in one or
more stages. The length of time to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction
of electric and magnetic fields, physical and visual ergonomics and good usability.
Environmental Requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn,
they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of
flame retardant substances. Most flame retardants contain bromine or chloride and these are
related to another group of environmental toxins, PCBs, which are suspected to give rise to severe
health effects, including reproductive damage in fisheating birds and mammals, due to the bio-
1525X.wpc 11/5/99, 12:56 PM23
22
TCO’99 cont.
accumulative* processes. Flame retardants have been found in human blood and researchers fear
that disturbances in foetus development may occur.
TCO’99 demand requires that plastic components weighing more than 25 grams must not contain
flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in
the printed circuit boards since no substitutes are available.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.
TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the
electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system
and is toxic in high doses.
TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no
mercury is present in any of the electrical or electronics components associated with the display unit.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and
thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of
ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing
and assembly of the product or its packaging.
*Bio-accumulative is defined as substances which accumulate within living organisms.
**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit
SE-114 94 Stockholm
SWEDEN
FAX Number: +46 8 782 92 07
E-mail (Internet): [email protected]
You may also obtain current information on TCO’99 approved and labelled products by
visiting their website at: http://www.tco-info.com/
1525X.wpc 11/5/99, 12:56 PM24
Declaration of the Manufacturer
We hereby certify that the color monitor
MultiSync
®
LCD
1525X
™
(LA-1526HMW)
is in compliance with
Council Directive 73/23/EEC:
– EN 60950
Council Directive 89/336/EEC:
– EN 55022
– EN 55024
– EN 61000-3-2
– EN 61000-3-3
and marked with
NEC Home Electronics, LTD.
686-1, NISHIOI OI-MACHI,
ASHIGARAKAMI-GUN
KANAGAWA 258-8533, JAPAN
23
1525X.wpc 11/5/99, 12:56 PM25
Part No.
Printed in Japan
NEC LCD Series
PROPRIETARY NOTICE AND LIABILITY DISCLAIMER
The information disclosed in this document, including all designs and related materials, is the valuable property of NEC
Technologies and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this
document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights
are expressly granted to others.
The NEC Technologies product(s) discussed in this document are warranted in accordance with the terms of the Limited
Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon
factors such as system configuration, customer data and operator control. Since implementation by customers of each
product may vary, the suitability of specific product configurations and applications must be determined by the customer
and is not warranted by NEC Technologies.
To allow for design and specification improvements, the information in this document is subject to change at any time
without notice. Reproduction of this document or portions thereof without prior approval of NEC Technologies is
prohibited.
DECLARATION OF CONFORMITY
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
U.S. Responsible Party: NEC Technologies, Inc.
Address: 1250 North Arlington Heights Road
Itasca, Illinois 60143
Tel. No.: (630) 467-5000
Type of Product: Computer Monitor
Equipment Classification: Class B Peripheral
Model: LA-1526HMW
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
MultiSync is a registered trademark of NEC Technologies, Inc. in the U.S. and of NEC Home Electronics, Ltd. in Canada, UK, Germany, France,
Spain, Italy, Austria, Benelux, Switzerland, Denmark, Finland, Norway and Saudi Arabia. AccuColor, OptiClear and ErgoDesign are
registered trademarks of NEC Technologies, Inc. in the U.S. and Canada. LCD1525X, IPM, FastFacts, Reduced Magnetic Field, FullScan and
OSM are trademarks of NEC Technologies, Inc. in the U.S. and Canada. NEC is a registered trademark of NEC Corporation Copyright 1999
by NEC Technologies, Inc. OSM Display Screens Copyright 1999 by NEC Technologies, Inc. Windows is a registered trademark of Microsoft
Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks
of their respective owners.
As a ENERGY STAR
®
Partner, NEC Technologies has determined that this product meets the Energy Star guidelenes for energy efficiency.
The ENERGY STAR emblem does not represent EPA endorsement of any product or service.
1525X.wpc 11/5/99, 12:56 PM26
