Bosch HSH23505ME/01 User Manual
Bosch HSH23505ME/01 FREE-STANDING GAS COOKER
User Manual
For HSH23505ME/01.
PDF File Manual
,
36 pages
,
Read Online
|
Download pdf file
[en] Instructions for installation and use
Ú Table of contents[en] Instructions for installation and use
Instruction manual
Safety precautions
Before installation
Damage during transport
Incorrect connection.
Safety notes
Hot surfaces
m Risk of burns!
m Risk of fire!
m Risk of fire!
m Risk of short circuit!
m Risk of scalding!
Hot accessories and ovenware
m Risk of burns!
Overheated oil and fat
m Risk of fire!
Insufficient ventilation when cooking on gas burners
m Risk of asphyxiation!
m Risk of fire!
Incorrect repairs
m Risk of electric shock!
Glass hob cover
m Risk of injury!
Safety valve
Faults in the gas installation/smell of gas
Causes of damage
Caution!
Oven
Caution!
Storage compartment
Caution!
Your new appliance
HSG727155M, HSG727125M, HSG723054M, HSG728155M and HSH728155M
The control panel
The hob
Types of gas burner
Control knob for hotplates
Accessories
Optional accessories
Steam outlet
m Risk of burns!
The oven
Control knob for oven
Control knob for grill
Function button for oven lighting
Function button for rotary spit
Accessories
The timer
Control knob for timer
The storage compartment
m Risk of fire!
Your new appliance
HSG725154M
The control panel
The hob
Types of gas burner
Control knob for hotplates
Electric hotplates
Accessories
Steam outlet
m Risk of burns!
The oven
Control knob for oven
Control knob for grill
Function button for oven lighting
Function button for rotary spit
Accessories
The timer
Control knob for timer
The storage compartment
m Risk of fire!
Your new appliance
Model HSG722054M
The control panel
The hob
Types of gas burner
Control knob for hotplates
Accessories
Optional accessories
Steam outlet
m Risk of burns!
The oven
Control knob for oven
Function button for oven lighting
Function button for rotary spit
Accessories
The timer
Control knob for timer
The storage compartment
m Risk of fire!
Before using the oven for the first time
Baking out the oven
Cooking compartment initial cleaning
1. Clean the outside of the appliance with a soft, damp cloth.
2. If the hook-in racks have already been fitted, unhook and remove them. For information on removing the racks, see the section “Removing and refitting hook-in racks.”
3. Clean the cooking compartment with warm soapy water.
Heating up the oven gas burner
1. Open the hob cover and appliance door.
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
3. After 45 minutes, switch the oven off by turning the control knob clockwise to position Û.
Heating up the grill gas burner
1. Open the appliance door.
2. Press the control knob for the grill, turn it anti-clockwise to position — and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
3. After 30 minutes, switch the grill off by turning the control knob clockwise to position Û.
1. Open the appliance door.
2. Press the control knob for the oven, turn it clockwise to position ( and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
3. After 30 minutes, switch the grill off by turning the control knob anti-clockwise to position Û.
Recleaning the cooking compartment
Cleaning the burner lids and cups
1. Clean the burner lids (A) and cups (B) with water and washing-up liquid.
2. Dry the parts off well.
3. Place each burner cup (B) on the burner (C).
4. Ensure the burner cap (A) is fitted correctly onto the burner cup (B).
Cleaning the accessories
How to operate your hob
Operating gas burners
Switching on the gas burner
1. Press the control knob for the required burner and turn it to position —.
2. Keep the control knob pressed for a few seconds until the flame stabilises.
3. Adjust the burner to the desired flame setting.
Switching off the gas burner
m Risk of fire!
Operating electric hotplates
How to operate your oven
HSG728155M, HSG727155M, HSG727125M, HSG725154M, HSG723054M or HSH728155M
Operating the oven gas burner
1. Open the appliance door.
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then carefully close the appliance door.
3. Set the required temperature using the control knob. Do not turn the knob beyond 140.
Switching off the oven gas burner
m Risk of fire!
Operating the grill gas burner
Switching on the grill gas burner
1. Open the appliance door.
2. Press the control knob for the grill and turn it anti-clockwise to position —.
The gas burner ignites.
3. Adjust the burner to the desired flame setting.
4. Carefully close the appliance door.
m Risk of fire!
Using the combination mode
Switching on combination mode
1. Open the appliance door.
2. Switch on the oven gas burner by pressing the control knob for the oven and turning it anti-clockwise to minimun position ü (on knob, between Û and 140).
The gas burner ignites.
3. Carefully close the appliance door.
4. Keep the appliance door closed. After 5 minutes switch on the grill gas burner by pressing the control knob for the grill and turning it anti-clockwise to position —.
The gas burner ignites.
Keep the control knob pressed for a few seconds until the flame stabilises.
Note
5. After 10 minutes, carefully open the appliance door and place the dish inside.
6. Carefully close the appliance door.
7. Using the control knob, set the desired temperature and heat setting for both burners.
1. Set the oven gas control knob to the minimum position ü (on knob, between Û and 140).
2. Keep the appliance door closed. Switch on the grill gas burner by pressing the control knob for the grill and turning it anti-clockwise to position —.
The gas burner ignites.
3. After 10 minutes, set the desired temperatures.
1. Keep the appliance door closed. Switch on the oven gas burner by pressing the control knob for the oven and turning it anti-clockwise to maximun position 250.
The gas burner ignites.
2. Immediately after ignition, set the oven gas control knob to the minimum position ü (on knob, between Û and 140)).
3. After 10 minutes, set the desired temperatures.
Switching off combination mode

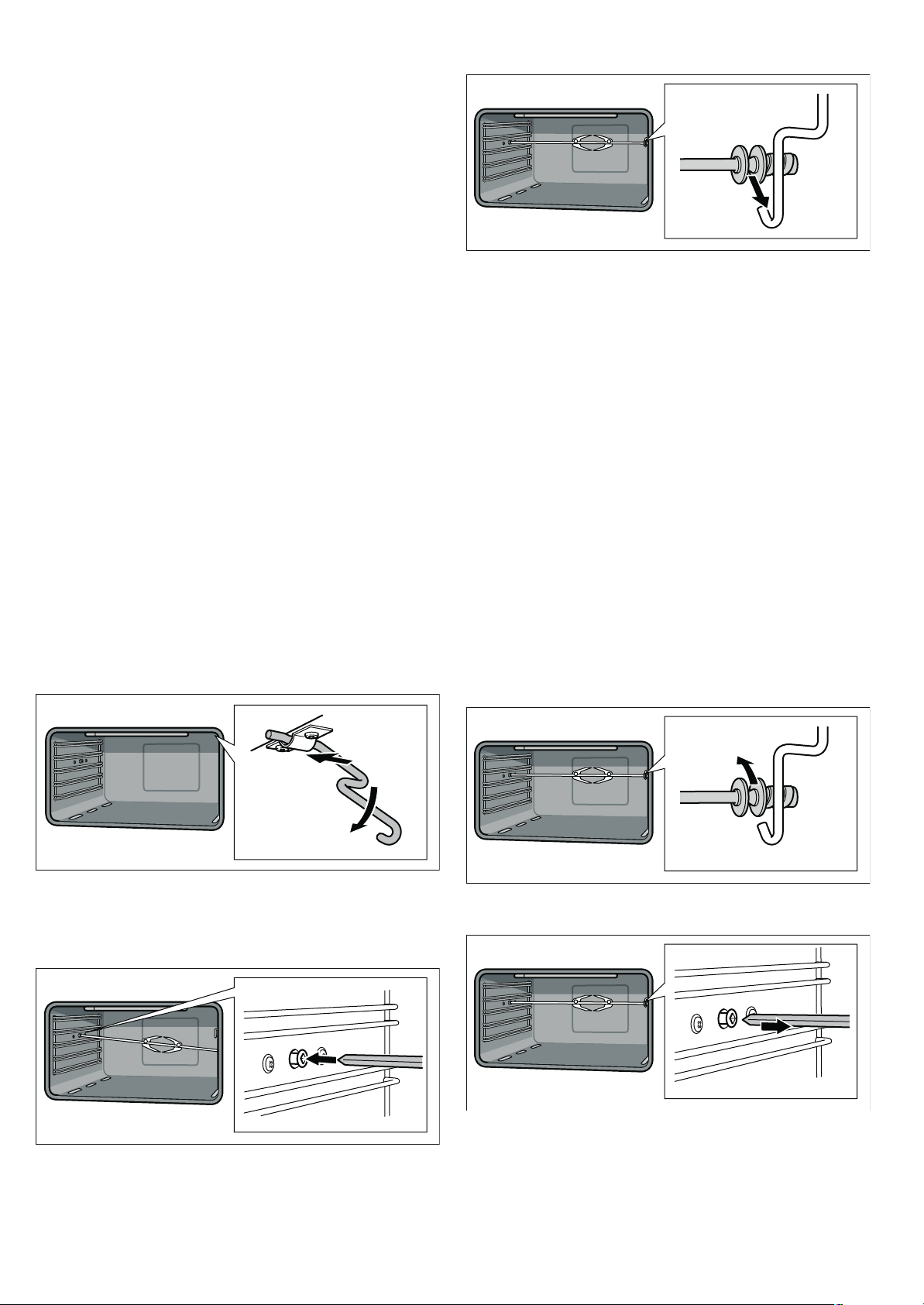

Using the rotary spit
Inserting the rotary spit
m Risk of burns!
1. Hook the spit holder into the bracket on the ceiling of the cooking compartment.
If you require to preheat the oven, hook in the holder before preheating.
2. If the oven has been preheated, only attach the rotary spit if you are using an oven cloth or wearing (thermal) oven gloves. To attach the spit, slide one end into the recessed adapter in the left-hand side panel of the cooking compartment.
3. Hook the other end into the holder.
4. Pour a little water into the baking tray and slide this into shelf position 1 to collect the drips of fat.
Removing the rotary spit
m Risk of burns!
m Risk of burns!
1. Carefully open the appliance door. Carefully remove the rotary spit from the holder.
2. Carefully withdraw the rotary spit from the recessed adapter in the side panel and remove it from the oven.
3. Take out the baking tray.
How to operate your oven
HSG722054M
Operating the oven gas burner
1. Open the appliance door.
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then carefully close the appliance door.
3. Set the required temperature using the control knob. Do not turn the knob beyond 140.
Switching off the oven gas burner
m Risk of fire!
Operating the grill gas burner
Switching on the grill gas burner
1. Open the appliance door.
2. Press the control knob for the oven, turn it clockwise to position ( and keep the control knob pressed for a few seconds until the flame has stabilised. Do not turn the knob beyond this setting.
3. Carefully close the appliance door.
m Risk of fire!
Using the rotary spit
Inserting the rotary spit
m Risk of burns!
1. Hook the spit holder into the bracket on the ceiling of the cooking compartment.
If you require to preheat the oven, hook in the holder before preheating.
2. If the oven has been preheated, only attach the rotary spit if you are using an oven cloth or wearing (thermal) oven gloves. To attach the spit, slide one end into the recessed adapter in the left-hand side panel of the cooking compartment.
3. Hook the other end into the holder.
4. Pour a little water into the baking tray and slide this into shelf position 1 to collect the drips of fat.
Removing the rotary spit
m Risk of burns!
m Risk of burns!
1. Carefully open the appliance door. Carefully remove the rotary spit from the holder.
2. Carefully withdraw the rotary spit from the recessed adapter in the side panel and remove it from the oven.
3. Take out the baking tray.
How to use the timer
Cleaning and care
m Risk of electric shock!
m Risk of burns!
Catalytic cooking compartment panels
Cleaning agents
m Risk of injury!
Removing and fitting the appliance door
m Risk of injury!
Removing the appliance door
1. Open the appliance door
2. Lift up the locking levers on both sides.
3. Close the appliance door until you can feel resistance at around 15° (in relation to the closed appliance door).
4. Grip the appliance door on either side with both hands.
5. Close the appliance door a little further.
6. Lift the door upwards and at an angle to remove it.
Fitting the appliance door
1. Hold the appliance door at an angle.
2. Insert both hinges, left and right, into the supports.
3. Position the door so that the hinge grooves engage on both sides.
4. Open the appliance door.
5. Fold in the locking levers on both sides.
6. Close the appliance door.
Cleaning the hook-in racks
Removing the hook-in racks
1. Take hold of the bottom of the hook-in rack and pull it slightly forward.
2. Take hold of the top of the hook-in rack and pull it up and out of the drill holes.
Inserting the hook-in rack
1. Insert the upper hooks into the drill holes in the side panel.
2. Pull the hook-in rack slightly downwards and insert the lower hooks into the drill holes.
Troubleshooting
m Risk of injury!
Replacing the oven light bulb
m Risk of electric shock!
1. Open the appliance door.
2. Lay a tea towel in the cooking compartment if it is cold to prevent damage.
3. Unscrew the glass cover from the oven light bulb inside the cooking compartment by turning it anti-clockwise.
4. Replace the oven light bulb with one of the same type.
Voltage: 230 V;
Power: 25 W;
Thread: E14;
5. Screw the glass cover of the oven light bulb back on.
6. Remove the tea towel and switch the circuit breaker back on.
After-sales service
Energy and environment tips
Saving energy with your oven
Saving energy with the hob
Environmentally-friendly disposal
Tested for you in our cooking studio.
Notes
Boiling and frying
Baking
Baking tips
Roasting and grilling
Roasting tips
Grilling tips
Tips on using the rotary spit
Notes on tables
Roasting tips
Installation instructions
Safety precautions
Before installing
Unpacking
Appliance class
Appliance dimensions
Adjacent units
Rating plate
Guidelines for ventilation
Installation
Fitting the adjustable feet
1. Remove all parts that are not permanently fixed, especially the pan supports and burners.
2. Remove the accessories from the oven.
3. Tilt the appliance by lifting one side from the floor.
4. Screw the adjustable feet and the plates into the mounting holes on the underside of the appliance. If you then want to move the appliance, fully screw in the adjustable feet.
5. Only finally level the appliance when the electricity and gas have been connected and all of the installation work has been completed.
Fitting the splash guard
1. Remove the packaging and the protective film from the splash guard.
2. Screw the splash guard onto the rear of the appliance using the 2 screws, each with a washer, retaining washer and nut.
Electrical connection
Connecting the mains cable
Replacing the mains cable
1. Open the terminal box.
2. Loosen the screw (A) on the terminal block.
3. Loosen the screw contacts.
4. Install a mains cable.
Note
5. Connect the yellow-green wire to terminal (<).
Note
6. Connect the blue neutral wire to terminal (N).
7. Connect the cable to terminal (L).
Gas connection
Gas connection on the appliance
Default setting of the burners
Connecting to natural gas
1. Screw the connecting piece ISO 7-1 (C) and the seal (B) to the gas connection (A).
2. Hold the connecting piece (C) with a spanner and screw it to a fixed connecting line (D) or a flexible gas connecting hose.
Connecting to liquefied gas
1. Screw the corrugated tube union (C) and the seal (B) to the gas connection (A).
2. Slide a flexible gas connecting hose onto the corrugated tube union (C).
Flexible hose
Installing the safety valve
Checking for leaks
Initial use

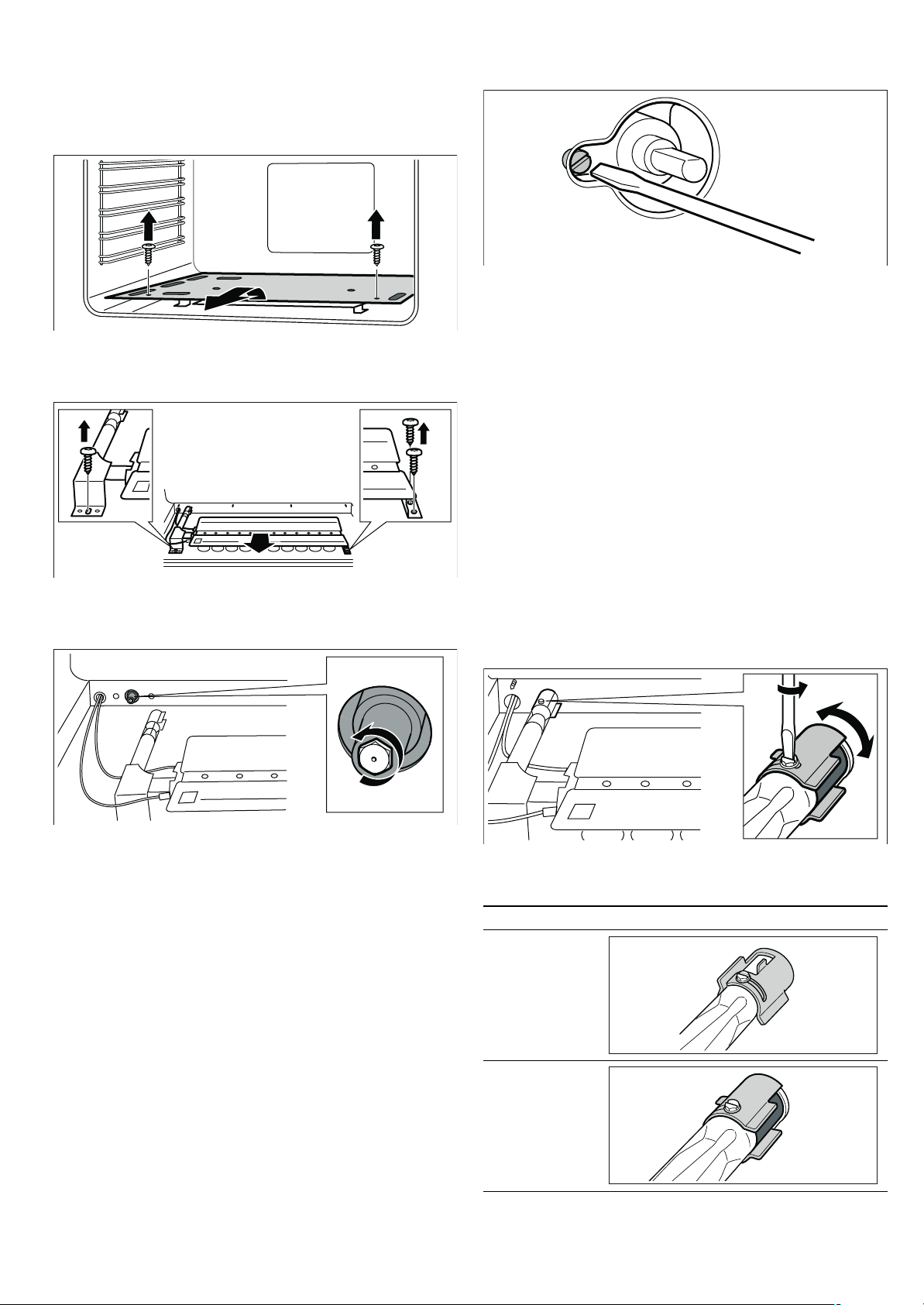

Converting the gas type
Hotplate burners
1. Disconnect the appliance from the power supply.
2. Remove the pan supports.
3. Remove the burner caps (A) and burner cups (B) from the burners (C).
4. Remove the nozzle (D) and replace it with an appropriate nozzle for the new type of gas (see section "General nozzle table").
5. Replace the gas label with the new gas label that was supplied with the nozzle set.
6. Place each burner cup (B) on the burner (C).
7. Position the relevant burner cap (A) exactly on top of the cup (B).
8. Refit the pan supports.
1. Switch on the gas burner.
2. Turn the control knob for the gas burner towards the small flame setting.
3. Remove the control knob for the gas burner.
4. Adjust the internal setting screw until a stable flame is burning correctly.
Loosen the setting screw to increase the gas flow or tighten it to decrease the gas flow.
Check that the flame does not go out when the gas flow is quickly changed between maximum and minimum, and vice versa.
The setting is correct when the height of the small flame is approx. 3 to 4 mm.
HSG728155M, HSG727155M, HSG727125M, HSG725154M, HSH728155M:
HSG723054M, HSG722054M:
5. Refit the control knob for the gas burner.
Oven burner
1. Remove the removable floor of the oven by undoing the 2 screws at the front and pulling the floor out upwards and towards the front.
2. Undo the two screws on the right and the one screw on the left of the oven burner and pull the burner upwards and towards the front slightly.
3. Unscrew the nozzle and replace it with a nozzle which is suitable for the new type of gas (see "General nozzle table" section).
4. Replace the gas label with the new label that was supplied with the nozzle set.
5. To reassemble the oven burner, follow the instructions in the reverse order.
1. Open the appliance door.
2. Press the control knob for the oven and turn it anti-clockwise to the maximum setting of 250. The gas burner ignites. Hold the control knob depressed for around 15 seconds and then release it.
3. Close the appliance door.
4. Remove the control knob.
5. Through the gas tap opening in the control panel, loosen the internal setting screw.
6. Replace the control knob and heat the oven for 15 minutes.
7. Then turn the control knob to the minimum setting 140.
8. Remove the control knob again.
9. Now, through the gas tap opening in the control panel, adjust the internal setting screw until a stable flame is burning correctly.
Loosen the adjuster screw to increase the gas flow or tighten it to decrease the gas flow. The setting is correct when the height of the small flame is approx. 3 to 4 mm.
10. Refit the control knob.
11. Make sure that the flame does not go out when the gas flow is changed quickly from maximum to minimum and vice versa, and when the appliance door is opened and closed.
1. Undo the screw.
2. Turn the cover clockwise or anti-clockwise.
The correct cover position can be determined from the following table:
3. Tighten the screw again.
4. To reassemble, follow the instructions in the reverse order and pay attention to the 4 screws in the back wall of the cooking compartment when inserting the removable floor.
Grill burner
1. Undo the screw on the left and the 2 screws on the right of the grill burner and pull the burner downwards and towards the front slightly.
2. Unscrew the nozzle and replace it with a nozzle which is suitable for the new type of gas (see "General nozzle table" section).
3. Replace the gas label with the new label that was supplied with the nozzle set.
4. To reassemble, follow the instructions in the reverse order.
1. Open the appliance door.
2. Press the control knob for the oven and turn it anti-clockwise to the maximum setting of 250. The gas burner ignites. Hold the control knob depressed for around 15 seconds and then release it.
3. Close the appliance door.
4. Remove the control knob.
5. Through the gas tap opening in the control panel, loosen the internal setting screw.
6. Replace the control knob and heat the oven for 15 minutes.
7. Then turn the control knob to the minimum setting 140.
8. Remove the control knob again.
9. Now, through the gas tap opening in the control panel, adjust the internal setting screw until a stable flame is burning correctly.
Loosen the setting screw to increase the gas flow or tighten it to decrease the gas flow. The setting is correct when the height of the small flame is approx. 3 to 4 mm.
10. Refit the control knob.
11. Make sure that the flame does not go out when the gas flow is changed quickly from maximum to minimum and vice versa, and when the appliance door is opened and closed.
1. Undo the screw.
2. Push the inner cover forwards or backwards.
The correct cover position can be determined from the following table:
3. Tighten the screw again.
General nozzle table
Positioning and levelling
Positioning the appliance
Levelling the appliance
Page 1/36
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
[en
] Instru
ct
ion
s f
or inst
a
lla
tio
n
an
d use
HSH7281
55M, HSG72.1..M,
HSG72.05
4M
F
ree standing co
oker
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 38315978_hsh23505me-01.pdf
File size: 3.09 MB
File Language: English
Pages: 36
Author: Bosch
File created: 2013-01-23
Published: 2023-12-11
Updated: 2023-12-10
Download File
Other documents for Bosch HSH23505ME/01
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: HSH23505ME/01
Category:
Cookers
See other models:
DIB091K50/01
KAN56V10AU/07
GSL11425GB/01
HEN100470/03
SBI40M35EU/36
Related Products
GE - General Electric JGBC17PEA1AD
GE - General Electric JGBP40WEC4WW
GE - General Electric JGBP31WEC1WW
GE - General Electric JGBP35SEJ4SS
GE - General Electric RGB845WEC5WW
Bosch HSH23505ME/03
Bosch HSB734357Z/01
Bosch HSB735255N/01
Bosch HSB734355Z/01
Bosch HSB737357Z/01
Bosch HSB734355Z/03
Bosch HSB736256E/01
Bosch HSB734355Z/02
Bosch HSC140651B/01
Bosch HSC140651A/01
Table of Contents
×
[en] Instructions for installation and use
1
Ú Table of contents[en] Instructions for installation and use
3
Instruction manual
4
Safety precautions
4
Before installation
4
Damage during transport
4
Incorrect connection.
4
Safety notes
4
Hot surfaces
4
m Risk of burns!
4
m Risk of fire!
4
m Risk of fire!
4
m Risk of short circuit!
4
m Risk of scalding!
4
Hot accessories and ovenware
4
m Risk of burns!
4
Overheated oil and fat
4
m Risk of fire!
4
Insufficient ventilation when cooking on gas burners
4
m Risk of asphyxiation!
4
m Risk of fire!
4
Incorrect repairs
4
m Risk of electric shock!
4
Glass hob cover
4
m Risk of injury!
4
Safety valve
4
Faults in the gas installation/smell of gas
5
Causes of damage
5
Caution!
5
Oven
5
Caution!
5
Storage compartment
5
Caution!
5
Your new appliance
6
HSG727155M, HSG727125M, HSG723054M, HSG728155M and HSH728155M
6
The control panel
7
The hob
7
Types of gas burner
7
Control knob for hotplates
7
Accessories
7
Optional accessories
7
Steam outlet
7
m Risk of burns!
7
The oven
8
Control knob for oven
8
Control knob for grill
8
Function button for oven lighting
8
Function button for rotary spit
8
Accessories
8
The timer
8
Control knob for timer
8
The storage compartment
9
m Risk of fire!
9
Your new appliance
9
HSG725154M
9
The control panel
10
The hob
10
Types of gas burner
10
Control knob for hotplates
10
Electric hotplates
10
Accessories
10
Steam outlet
10
m Risk of burns!
10
The oven
11
Control knob for oven
11
Control knob for grill
11
Function button for oven lighting
11
Function button for rotary spit
11
Accessories
11
The timer
11
Control knob for timer
11
The storage compartment
12
m Risk of fire!
12
Your new appliance
12
Model HSG722054M
12
The control panel
13
The hob
13
Types of gas burner
13
Control knob for hotplates
13
Accessories
13
Optional accessories
13
Steam outlet
13
m Risk of burns!
13
The oven
14
Control knob for oven
14
Function button for oven lighting
14
Function button for rotary spit
14
Accessories
14
The timer
14
Control knob for timer
14
The storage compartment
14
m Risk of fire!
14
Before using the oven for the first time
15
Baking out the oven
15
Cooking compartment initial cleaning
15
1. Clean the outside of the appliance with a soft, damp cloth.
15
2. If the hook-in racks have already been fitted, unhook and remove them. For information on removing the racks, see the section “Removing and refitting hook-in racks.”
15
3. Clean the cooking compartment with warm soapy water.
15
Heating up the oven gas burner
15
1. Open the hob cover and appliance door.
15
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
15
3. After 45 minutes, switch the oven off by turning the control knob clockwise to position Û.
15
Heating up the grill gas burner
15
1. Open the appliance door.
15
2. Press the control knob for the grill, turn it anti-clockwise to position — and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
15
3. After 30 minutes, switch the grill off by turning the control knob clockwise to position Û.
15
1. Open the appliance door.
15
2. Press the control knob for the oven, turn it clockwise to position ( and keep the control knob pressed for a few seconds until the flame has stabilised. Then close the appliance door.
15
3. After 30 minutes, switch the grill off by turning the control knob anti-clockwise to position Û.
15
Recleaning the cooking compartment
15
Cleaning the burner lids and cups
15
1. Clean the burner lids (A) and cups (B) with water and washing-up liquid.
15
2. Dry the parts off well.
15
3. Place each burner cup (B) on the burner (C).
15
4. Ensure the burner cap (A) is fitted correctly onto the burner cup (B).
15
Cleaning the accessories
15
How to operate your hob
15
Operating gas burners
15
Switching on the gas burner
15
1. Press the control knob for the required burner and turn it to position —.
15
2. Keep the control knob pressed for a few seconds until the flame stabilises.
15
3. Adjust the burner to the desired flame setting.
15
Switching off the gas burner
16
m Risk of fire!
16
Operating electric hotplates
16
How to operate your oven
16
HSG728155M, HSG727155M, HSG727125M, HSG725154M, HSG723054M or HSH728155M
16
Operating the oven gas burner
16
1. Open the appliance door.
16
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then carefully close the appliance door.
16
3. Set the required temperature using the control knob. Do not turn the knob beyond 140.
16
Switching off the oven gas burner
16
m Risk of fire!
16
Operating the grill gas burner
16
Switching on the grill gas burner
16
1. Open the appliance door.
16
2. Press the control knob for the grill and turn it anti-clockwise to position —.
16
The gas burner ignites.
16
3. Adjust the burner to the desired flame setting.
16
4. Carefully close the appliance door.
16
m Risk of fire!
16
Using the combination mode
17
Switching on combination mode
17
1. Open the appliance door.
17
2. Switch on the oven gas burner by pressing the control knob for the oven and turning it anti-clockwise to minimun position ü (on knob, between Û and 140).
17
The gas burner ignites.
17
3. Carefully close the appliance door.
17
4. Keep the appliance door closed. After 5 minutes switch on the grill gas burner by pressing the control knob for the grill and turning it anti-clockwise to position —.
17
The gas burner ignites.
17
Keep the control knob pressed for a few seconds until the flame stabilises.
17
Note
17
5. After 10 minutes, carefully open the appliance door and place the dish inside.
17
6. Carefully close the appliance door.
17
7. Using the control knob, set the desired temperature and heat setting for both burners.
17
1. Set the oven gas control knob to the minimum position ü (on knob, between Û and 140).
17
2. Keep the appliance door closed. Switch on the grill gas burner by pressing the control knob for the grill and turning it anti-clockwise to position —.
17
The gas burner ignites.
17
3. After 10 minutes, set the desired temperatures.
17
1. Keep the appliance door closed. Switch on the oven gas burner by pressing the control knob for the oven and turning it anti-clockwise to maximun position 250.
17
The gas burner ignites.
17
2. Immediately after ignition, set the oven gas control knob to the minimum position ü (on knob, between Û and 140)).
17
3. After 10 minutes, set the desired temperatures.
17
Switching off combination mode
17
Using the rotary spit
17
Inserting the rotary spit
17
m Risk of burns!
17
1. Hook the spit holder into the bracket on the ceiling of the cooking compartment.
17
If you require to preheat the oven, hook in the holder before preheating.
17
2. If the oven has been preheated, only attach the rotary spit if you are using an oven cloth or wearing (thermal) oven gloves. To attach the spit, slide one end into the recessed adapter in the left-hand side panel of the cooking compartment.
17
3. Hook the other end into the holder.
17
4. Pour a little water into the baking tray and slide this into shelf position 1 to collect the drips of fat.
17
Removing the rotary spit
18
m Risk of burns!
18
m Risk of burns!
18
1. Carefully open the appliance door. Carefully remove the rotary spit from the holder.
18
2. Carefully withdraw the rotary spit from the recessed adapter in the side panel and remove it from the oven.
18
3. Take out the baking tray.
18
How to operate your oven
18
HSG722054M
18
Operating the oven gas burner
18
1. Open the appliance door.
18
2. Press the control knob for the oven, turn it anti-clockwise to position 250 °C and keep the control knob pressed for a few seconds until the flame has stabilised. Then carefully close the appliance door.
18
3. Set the required temperature using the control knob. Do not turn the knob beyond 140.
18
Switching off the oven gas burner
18
m Risk of fire!
18
Operating the grill gas burner
18
Switching on the grill gas burner
18
1. Open the appliance door.
18
2. Press the control knob for the oven, turn it clockwise to position ( and keep the control knob pressed for a few seconds until the flame has stabilised. Do not turn the knob beyond this setting.
18
3. Carefully close the appliance door.
18
m Risk of fire!
19
Using the rotary spit
19
Inserting the rotary spit
19
m Risk of burns!
19
1. Hook the spit holder into the bracket on the ceiling of the cooking compartment.
19
If you require to preheat the oven, hook in the holder before preheating.
19
2. If the oven has been preheated, only attach the rotary spit if you are using an oven cloth or wearing (thermal) oven gloves. To attach the spit, slide one end into the recessed adapter in the left-hand side panel of the cooking compartment.
19
3. Hook the other end into the holder.
19
4. Pour a little water into the baking tray and slide this into shelf position 1 to collect the drips of fat.
19
Removing the rotary spit
19
m Risk of burns!
19
m Risk of burns!
19
1. Carefully open the appliance door. Carefully remove the rotary spit from the holder.
19
2. Carefully withdraw the rotary spit from the recessed adapter in the side panel and remove it from the oven.
19
3. Take out the baking tray.
19
How to use the timer
20
Cleaning and care
20
m Risk of electric shock!
20
m Risk of burns!
20
Catalytic cooking compartment panels
20
Cleaning agents
20
m Risk of injury!
21
Removing and fitting the appliance door
21
m Risk of injury!
21
Removing the appliance door
21
1. Open the appliance door
21
2. Lift up the locking levers on both sides.
21
3. Close the appliance door until you can feel resistance at around 15° (in relation to the closed appliance door).
21
4. Grip the appliance door on either side with both hands.
21
5. Close the appliance door a little further.
21
6. Lift the door upwards and at an angle to remove it.
21
Fitting the appliance door
21
1. Hold the appliance door at an angle.
21
2. Insert both hinges, left and right, into the supports.
21
3. Position the door so that the hinge grooves engage on both sides.
21
4. Open the appliance door.
21
5. Fold in the locking levers on both sides.
21
6. Close the appliance door.
21
Cleaning the hook-in racks
22
Removing the hook-in racks
22
1. Take hold of the bottom of the hook-in rack and pull it slightly forward.
22
2. Take hold of the top of the hook-in rack and pull it up and out of the drill holes.
22
Inserting the hook-in rack
22
1. Insert the upper hooks into the drill holes in the side panel.
22
2. Pull the hook-in rack slightly downwards and insert the lower hooks into the drill holes.
22
Troubleshooting
22
m Risk of injury!
22
Replacing the oven light bulb
23
m Risk of electric shock!
23
1. Open the appliance door.
23
2. Lay a tea towel in the cooking compartment if it is cold to prevent damage.
23
3. Unscrew the glass cover from the oven light bulb inside the cooking compartment by turning it anti-clockwise.
23
4. Replace the oven light bulb with one of the same type.
23
Voltage: 230 V;
23
Power: 25 W;
23
Thread: E14;
23
5. Screw the glass cover of the oven light bulb back on.
23
6. Remove the tea towel and switch the circuit breaker back on.
23
After-sales service
23
Energy and environment tips
23
Saving energy with your oven
23
Saving energy with the hob
23
Environmentally-friendly disposal
23
Tested for you in our cooking studio.
24
Notes
24
Boiling and frying
24
Baking
24
Baking tips
24
Roasting and grilling
25
Roasting tips
25
Grilling tips
25
Tips on using the rotary spit
25
Notes on tables
25
Roasting tips
26
Installation instructions
27
Safety precautions
27
Before installing
27
Unpacking
27
Appliance class
27
Appliance dimensions
28
Adjacent units
28
Rating plate
28
Guidelines for ventilation
29
Installation
29
Fitting the adjustable feet
29
1. Remove all parts that are not permanently fixed, especially the pan supports and burners.
29
2. Remove the accessories from the oven.
29
3. Tilt the appliance by lifting one side from the floor.
29
4. Screw the adjustable feet and the plates into the mounting holes on the underside of the appliance. If you then want to move the appliance, fully screw in the adjustable feet.
29
5. Only finally level the appliance when the electricity and gas have been connected and all of the installation work has been completed.
29
Fitting the splash guard
29
1. Remove the packaging and the protective film from the splash guard.
29
2. Screw the splash guard onto the rear of the appliance using the 2 screws, each with a washer, retaining washer and nut.
29
Electrical connection
29
Connecting the mains cable
29
Replacing the mains cable
29
1. Open the terminal box.
29
2. Loosen the screw (A) on the terminal block.
29
3. Loosen the screw contacts.
30
4. Install a mains cable.
30
Note
30
5. Connect the yellow-green wire to terminal (<).
30
Note
30
6. Connect the blue neutral wire to terminal (N).
30
7. Connect the cable to terminal (L).
30
Gas connection
30
Gas connection on the appliance
30
Default setting of the burners
30
Connecting to natural gas
30
1. Screw the connecting piece ISO 7-1 (C) and the seal (B) to the gas connection (A).
30
2. Hold the connecting piece (C) with a spanner and screw it to a fixed connecting line (D) or a flexible gas connecting hose.
30
Connecting to liquefied gas
30
1. Screw the corrugated tube union (C) and the seal (B) to the gas connection (A).
30
2. Slide a flexible gas connecting hose onto the corrugated tube union (C).
30
Flexible hose
30
Installing the safety valve
31
Checking for leaks
31
Initial use
31
Converting the gas type
31
Hotplate burners
31
1. Disconnect the appliance from the power supply.
31
2. Remove the pan supports.
31
3. Remove the burner caps (A) and burner cups (B) from the burners (C).
31
4. Remove the nozzle (D) and replace it with an appropriate nozzle for the new type of gas (see section "General nozzle table").
31
5. Replace the gas label with the new gas label that was supplied with the nozzle set.
31
6. Place each burner cup (B) on the burner (C).
31
7. Position the relevant burner cap (A) exactly on top of the cup (B).
31
8. Refit the pan supports.
31
1. Switch on the gas burner.
31
2. Turn the control knob for the gas burner towards the small flame setting.
31
3. Remove the control knob for the gas burner.
31
4. Adjust the internal setting screw until a stable flame is burning correctly.
31
Loosen the setting screw to increase the gas flow or tighten it to decrease the gas flow.
31
Check that the flame does not go out when the gas flow is quickly changed between maximum and minimum, and vice versa.
31
The setting is correct when the height of the small flame is approx. 3 to 4 mm.
31
HSG728155M, HSG727155M, HSG727125M, HSG725154M, HSH728155M:
31
HSG723054M, HSG722054M:
31
5. Refit the control knob for the gas burner.
31
Oven burner
32
1. Remove the removable floor of the oven by undoing the 2 screws at the front and pulling the floor out upwards and towards the front.
32
2. Undo the two screws on the right and the one screw on the left of the oven burner and pull the burner upwards and towards the front slightly.
32
3. Unscrew the nozzle and replace it with a nozzle which is suitable for the new type of gas (see "General nozzle table" section).
32
4. Replace the gas label with the new label that was supplied with the nozzle set.
32
5. To reassemble the oven burner, follow the instructions in the reverse order.
32
1. Open the appliance door.
32
2. Press the control knob for the oven and turn it anti-clockwise to the maximum setting of 250. The gas burner ignites. Hold the control knob depressed for around 15 seconds and then release it.
32
3. Close the appliance door.
32
4. Remove the control knob.
32
5. Through the gas tap opening in the control panel, loosen the internal setting screw.
32
6. Replace the control knob and heat the oven for 15 minutes.
32
7. Then turn the control knob to the minimum setting 140.
32
8. Remove the control knob again.
32
9. Now, through the gas tap opening in the control panel, adjust the internal setting screw until a stable flame is burning correctly.
32
Loosen the adjuster screw to increase the gas flow or tighten it to decrease the gas flow. The setting is correct when the height of the small flame is approx. 3 to 4 mm.
32
10. Refit the control knob.
32
11. Make sure that the flame does not go out when the gas flow is changed quickly from maximum to minimum and vice versa, and when the appliance door is opened and closed.
32
1. Undo the screw.
32
2. Turn the cover clockwise or anti-clockwise.
32
The correct cover position can be determined from the following table:
32
3. Tighten the screw again.
32
4. To reassemble, follow the instructions in the reverse order and pay attention to the 4 screws in the back wall of the cooking compartment when inserting the removable floor.
33
Grill burner
33
1. Undo the screw on the left and the 2 screws on the right of the grill burner and pull the burner downwards and towards the front slightly.
33
2. Unscrew the nozzle and replace it with a nozzle which is suitable for the new type of gas (see "General nozzle table" section).
33
3. Replace the gas label with the new label that was supplied with the nozzle set.
33
4. To reassemble, follow the instructions in the reverse order.
33
1. Open the appliance door.
33
2. Press the control knob for the oven and turn it anti-clockwise to the maximum setting of 250. The gas burner ignites. Hold the control knob depressed for around 15 seconds and then release it.
33
3. Close the appliance door.
33
4. Remove the control knob.
33
5. Through the gas tap opening in the control panel, loosen the internal setting screw.
33
6. Replace the control knob and heat the oven for 15 minutes.
33
7. Then turn the control knob to the minimum setting 140.
33
8. Remove the control knob again.
33
9. Now, through the gas tap opening in the control panel, adjust the internal setting screw until a stable flame is burning correctly.
33
Loosen the setting screw to increase the gas flow or tighten it to decrease the gas flow. The setting is correct when the height of the small flame is approx. 3 to 4 mm.
33
10. Refit the control knob.
33
11. Make sure that the flame does not go out when the gas flow is changed quickly from maximum to minimum and vice versa, and when the appliance door is opened and closed.
33
1. Undo the screw.
33
2. Push the inner cover forwards or backwards.
33
The correct cover position can be determined from the following table:
33
3. Tighten the screw again.
33
General nozzle table
34
Positioning and levelling
34
Positioning the appliance
34
Levelling the appliance
34
Search:
×
Search
