MAGNOLIA
INSTALLATION, OPERATING AND MAINTENANCE GUIDE
2
I GENERAL ........................................................................................................... 3
II WARNINGS ......................................................................................................... 3
III INSTALLATION .................................................................................................... 4
III.1 Preliminary Indications .................................................................................... 4
III.2 Secure the hood to the ceiling ........................................................................... 5
III.3 Electrical Connection ...................................................................................... 5
IV USE ................................................................................................................ 5
V OPERATION ........................................................................................................ 6
V.I Remote control operation .................................................................................. 6
V.2 Delayed self-switching off ................................................................................. 6
V.3 Maintenance reminder ..................................................................................... 6
V.4 24h Confort function ........................................................................................ 7
VI MAINTENANCE AND CLEANING ................................................................................. 7
VI.1 Metal grease filter .......................................................................................... 7
VI.2 Long-Life anti-odor filter (for ductless hoods) ........................................................ 7
VI.3 Hood Cleaning ............................................................................................... 7
VI.4 Lighting ...................................................................................................... 7
VII DISCONTINUATION .............................................................................................. 7
120V – 60HZ
3
I GENERAL
Installation, operating and maintenance instructions for cooker hood model MAGNOLIA.
120V – 60HZ
READ AND SAVE THESE INSTRUCTIONS
II WARNINGS
CAUTION: Automatically Operated Device – To Reduce The Risk Of Injury
Disconnect From Power Supply Before Servicing.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control
Device.
PAY ATTENTION TO:
A) THE NEED FOR FREQUENT CLEANING OF ALL GREASE FROM THE FAN AND FROM ALL OTHER GREASE-LADEN
SURFACES;
B) THE NEED FOR FREQUENT REMOVAL AND CLEANING OF ANY FILTER UNIT PROVIDED.
WARNING: To provide protection against electric shock, connect to properly grounded outlets only.
For Residential Use Only
WARNING: GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
WARNING – Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
WARNING – TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING – TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
THE MINIMUM DISTANCE BETWEEN THE SUPPORTING SURFACE OF THE COOKING HOB AND THE LOWEST PART OF
THE RANGE HOOD MUST BE NOT LESS THAN 26IN (65 CM) WITH A GAS HOB.
4
READ AND SAVE THESE INSTRUCTIONS
Keep these instructions in a safe place and pass them on to any future user. Read these instructions carefully before
installing or using the range hood.
Before connecting the appliance to the power supply make sure that the voltage (V) and frequency (Hz) listed on the
data plate correspond with the household electrical supply. This data must correspond to prevent appliance damage.
Installation work and repairs should only be performed by a qualified technician under all applicable codes and standards.
Repairs and other work by unqualified persons could be dangerous.
In the event of a fault, please contact the Technical Service authorized to provide genuine parts. When contacting the
Technical Service, please quote the model and the serial number of your appliance. These are shown on the data plate.
Ensure that power to the appliance is OFF while the appliance is not in use.
During thunderstorms switch-off the main switch of the house electrical system or if the device is equipped with a plug,
simply unplug it.
Use this appliance only in the manner intended by the manufacturer and no other than exhausting cooking fumes on
domestic kitchens.
The manufacturer does not accept any liability for damages caused by people, animals, or things, by installation and
maintenance mistakes, or by any illegitimate use.
Observe the following essential safety instructions during the use of any electrical appliance:
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance.
•To prevent the risk of fire it is compulsory to disconnect the appliance from the power supply before cleaning or
servicing the hood;
•Do not pull, take off, or twist the cable coming out from the appliance, even though this has been disconnected from
the main power supply.
•Do not sprinkle or throw any water directly on the appliance.
•Do not stick any sharp tool inside the exhausting holes and into the air outlet.
•Do not take out the filters to reach the internal sides of the appliance in case the main switch of the house electrical
system is not off.
•Do not flambé or grill with an open flame beneath the hood. Flames could be drawn up into the hood by the suction
and the filters may ignite.
•Pay particular attention while frying. Heat oils slowly on low or medium settings.
•CAUTION: Accessible parts may become hot when used with cooking appliances.
•It is forbidden to use the hood as a support surface unless it is expressly indicated.
•Only use the fixing screws supplied with the product for installation.
III INSTALLATION
III.1 Preliminary Indications
Carefully read the guide before installation and use of the appliances.
The installation requires safety equipment and a range of tools as per Fig. 3.1.1.
With the hood correctly installed, the minimum distance between the supporting surface of the cooking hob and the
lowest part of the range hood must be not less than 28in – 30in for both electric and gas cooktops (Fig. 3.1.2).
If the mounting instructions of the gas hob indicate a wider distance, respect it.
It must not be superimposed on stoves with an upper radiating plate.
Respect all the air discharge regulations.
The air must not be discharged in a pipe used to discharge exhaust fumes produced by gas-fed equipment or fuel-fed
equipment.
The room must be adequately ventilated when the hood is used together with other gas or fuel types of equipment.
The hood is equipped with all the necessary fastenings for its installation, which are suitable for most surfaces.
Verify that the installation surface is strong.
Installation must be carried out by qualified installers according to present regulations.
CAUTION: Accessible parts may become hot when used with cooking appliances.
5
III.2 Secure the hood to the ceiling

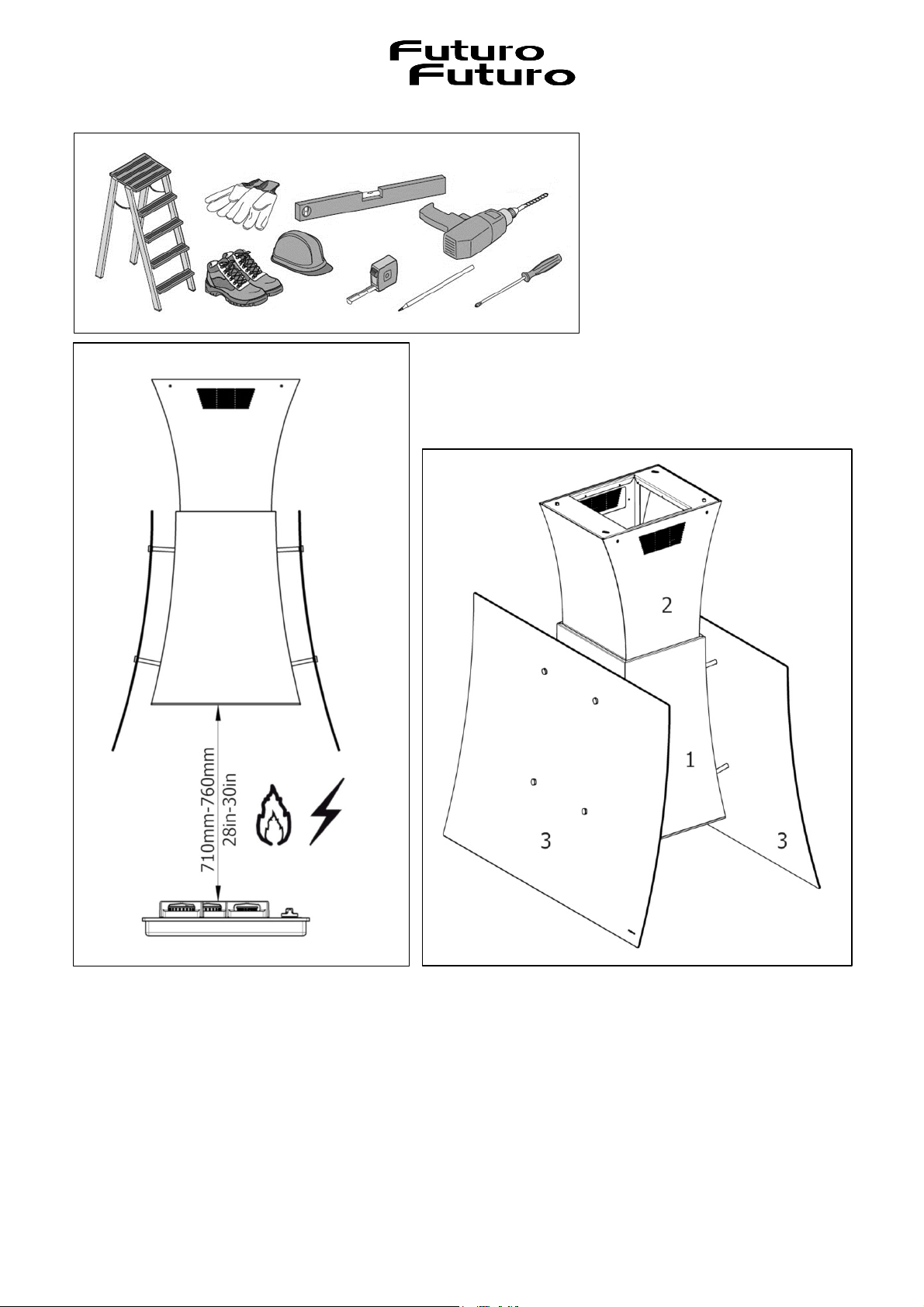

The unit (Fig. 3.2.1) is composed of the following elements:
1) Hood module
2) Telescopic chimney
3) Glasses
All fixtures are provided with the cookerhood.
To install the hood, refer to Fig.3.2.2.
Before installing the cookerhood, remove the anti-grease filters, disassemble and remove the bottom unit by
disconnecting the electrical connectors of the lights and of the display, then proceed with the disassemby of the canopy
unit, the blower unit and the telescopic chimney.
Before proceeding with the installation, place the cables inside the niche, as illustrated in Fig. 3.2.3-A.

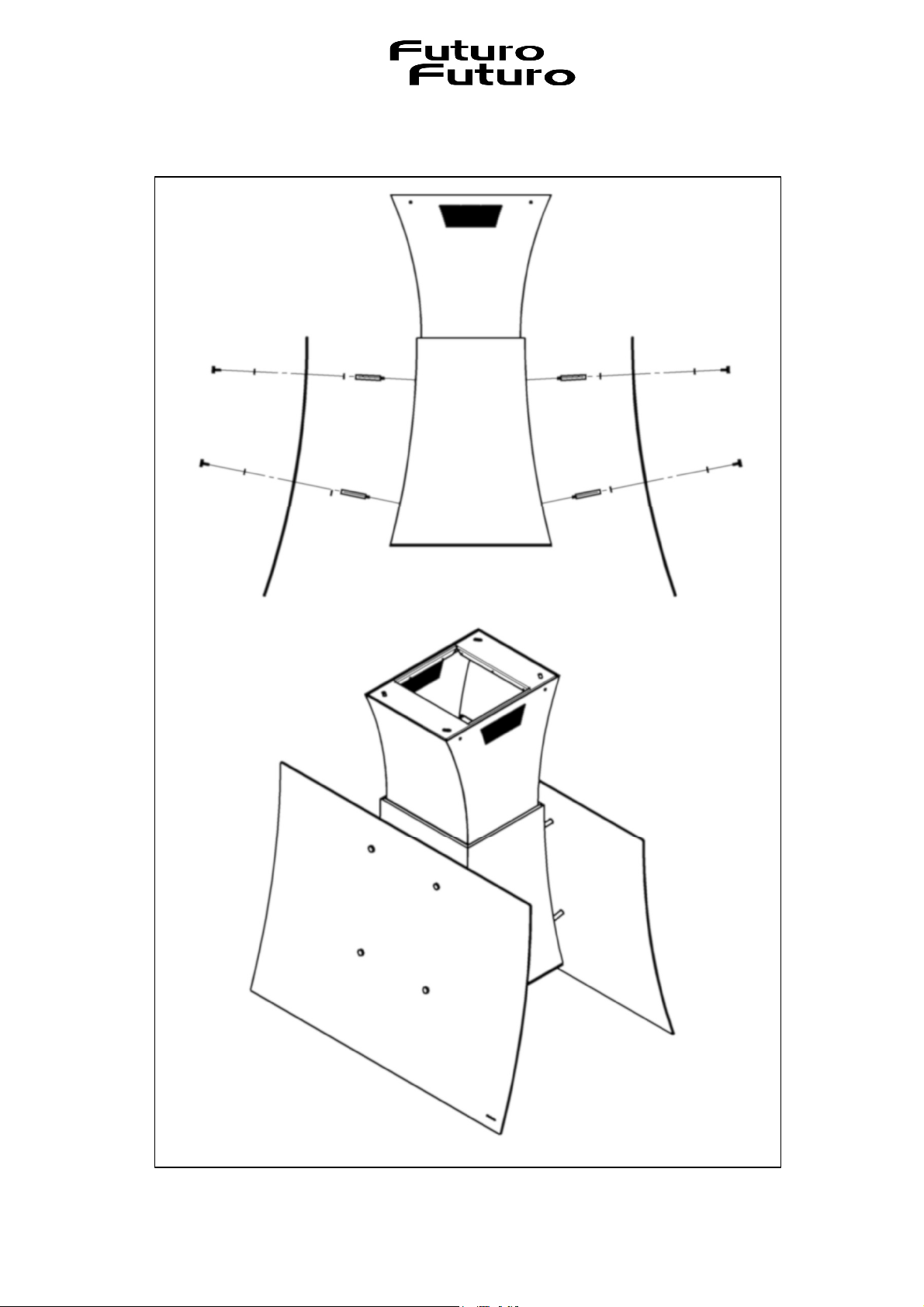

Mounting the main structure to the ceiling
1) Secure the telescopic structure to the ceiling using the anchor bolts provided (Fig. 3.2.4) in the kit.
2) Adjust the height of the telescopic structure by turning the screws illustrated in Fig. 3.2.5.
The Canopy unit extends 376 mm past H and the minimum clearance between the appliance and the gas hob is
650mm, or between the appliance and the induction hob is 500, as illustrated in Fig. 3.1.2.
Mounting and installing the telescopic chimney
3) Mount the chimney unit and secure in place to the structure previously secured to the ceiling with the screws
as illustrated in Fig. 3.2.6.

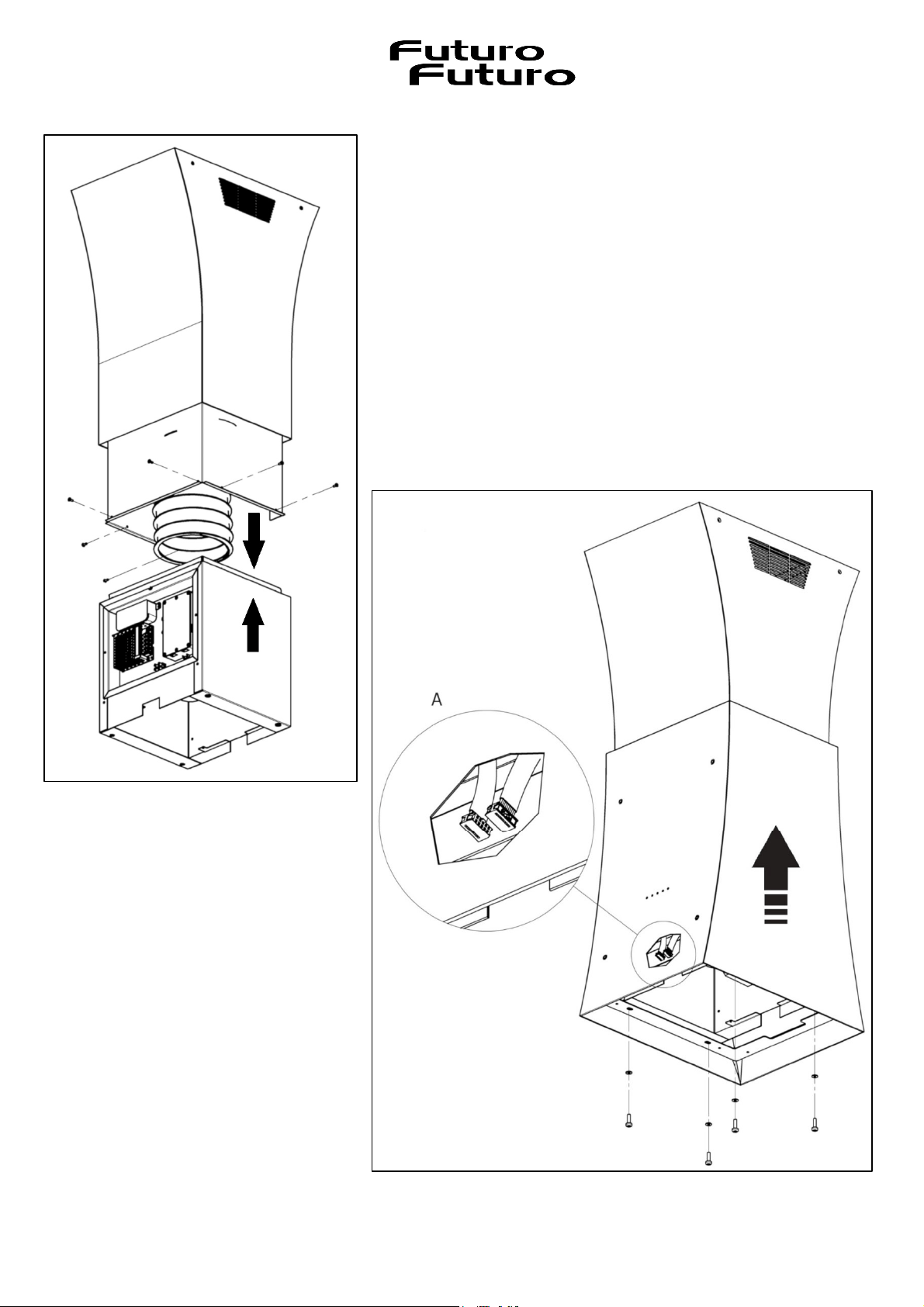

4) Install the blower box unit inside the telescopic structure and secure it with the screws as illustrated in Fig.3.2.7.
Mounting and installing the canopy unit
5) Mount the canopy unit to the telescopic structure and secure in place with the screw fixtures to the extractor unit
as illustrated in Fig. 3.2.8.
Mounting and installing the bottom unit

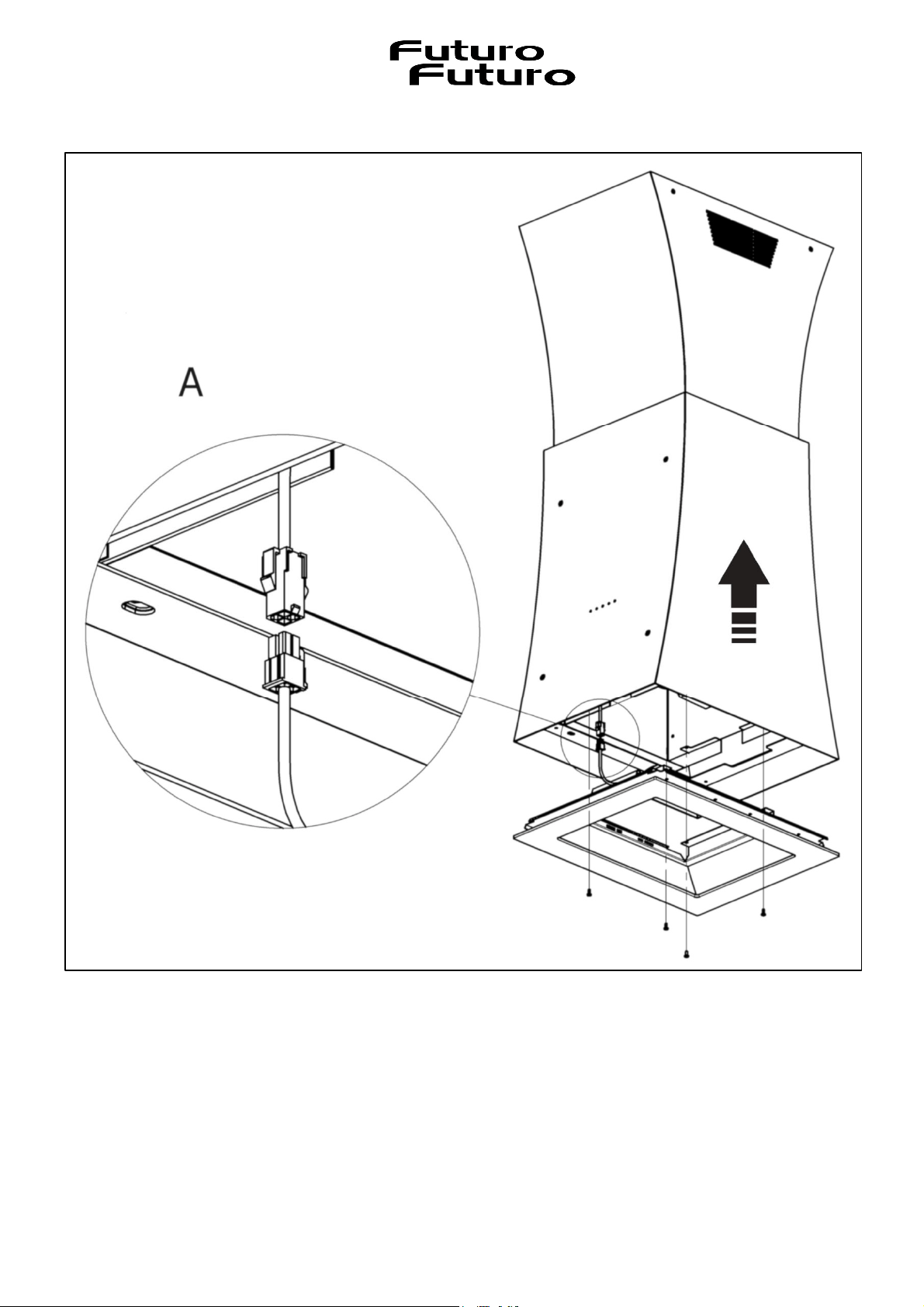

6) Connect the LED indicator lights power cable from the blowe unit to the canopy unit, Fig. 3.2.8-A.
7) Connect the lighting power cable between the extractor unit and the bottom unit, Fig. 3.2.9-A.
8) Secure the bottom unit to the blower unit using the 4 screws as illustrated in Fig. 3.2.9.
Mounting and installing glass panels
9) Mount the glass panels and secure in place using the screws and washers provided (Fig. 3.2.10).

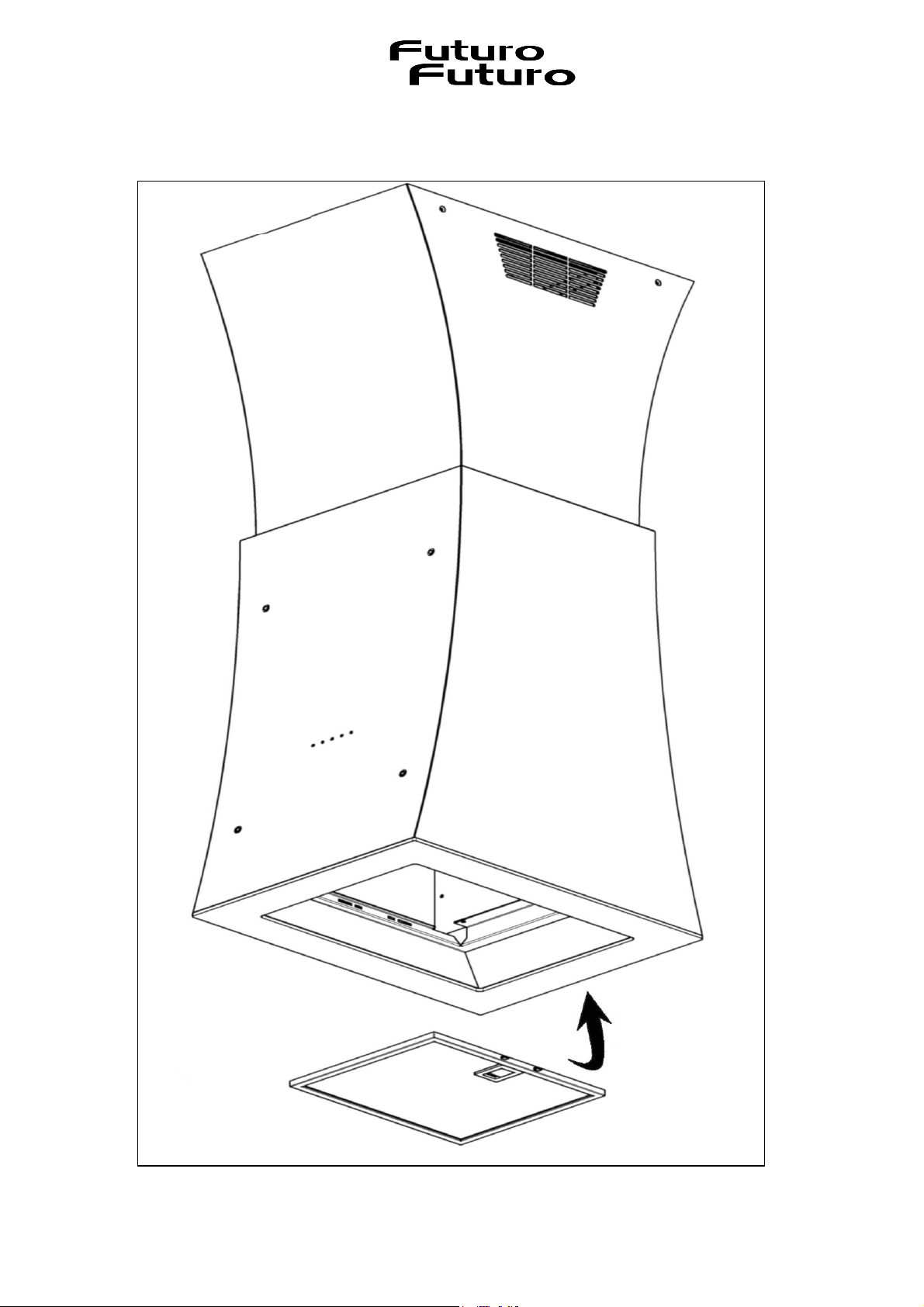

Reinstall the anti-grease filters (Fig. 3.2.11).
III.3 Electrical Connection
The electrical connection must be carried out ONLY by qualified technicians.
The electrical protection of the electrical connection upstream of the equipment must comply with the regulations in force.
Any change to the electrical installation necessary to install the hood should only be undertaken by qualified staff.
After installation, insulated parts and those carrying electricity must be protected from any possible contact.
Caution! If the electrical connection is carried out incorrectly or not meeting the regulations, it may
damage part of the appliance and the warranty will not be valid.
Warning! Before making the electrical connection, turn the main switch of the domestic system to "off".
These appliances must be earthed.
The appliance is supplied without plug and must be connected to the electrical system with a voltage of 120V and a
frequency of 60Hz.
One type of connection to the electrical network is possible:
Stable connection to the network by interposing a bipolar switch to ensure disconnection from the
network, with a contact opening distance allowing complete disconnection under the conditions of
the overvoltage category III, by the installation rules (Fig. 3.3.1.).
Earth connection (yellow-green wire) should not be interrupted.
If the power cord is damaged, it must be replaced by the manufacturer or its authorized service
center or by a qualified technician, to prevent any risk.
IV USE
This cooker hood can be installed in ducted or filtering mode.
Ducted (external evacuation, Fig. 4.1). Remove any anti-odor filters if present. Kitchen smokes are vented outside through
a flue (not provided with the hood) joined to the exhaust pipe flue connector. This pipe must not under any circumstances
be connected to cooker, boiler or burner exhaust pipes, etc. Install this flue after completing what is described in the
INSTALLATION.
The use of pipes and holes on the wall with a smaller diameter than the motor output will cause a decrease
in suction performance and an increase in the noise level.
Use as short as possible tubes and with few curves. Use pipes with smooth internal surfaces
.
3.3.1
6
Filtering mode (ductless, Fig. 4.2). The cooking fumes pass through the Long-Life anti-odor filter (not supplied with the
hood, Fig. 6.2.2) to be purified and recycled into the kitchen. The use of anti-odor filters reduces the performance of the
hood.
V OPERATION
The hood is supplied with a multispeed blower. The hood should be run at low speed under normal conditions and at
higher speeds only when there is a heavy build-up of fumes or odours. Ideally, the hood should be switched on as soon
as cooking is started and then kept on until all odours have been eliminated.
V.I Remote control operation
Remote control pairing
The hoods come paired to the remote control they ship with.
If the remote control is replaced, it is necessary to carry out a new pairing.
Turn the hood on, all the LEDs in the hood will light up (Fig. 5.1.1) for 1 second and, after, only one will stay on. Within
10 seconds, press and hold down any key on the remote control until an acoustic signal will confirm that the remote
control is paired.
When the LED turns off, the pairing is finished and it will no longer be possible to pair the remote control.
Remote control operation

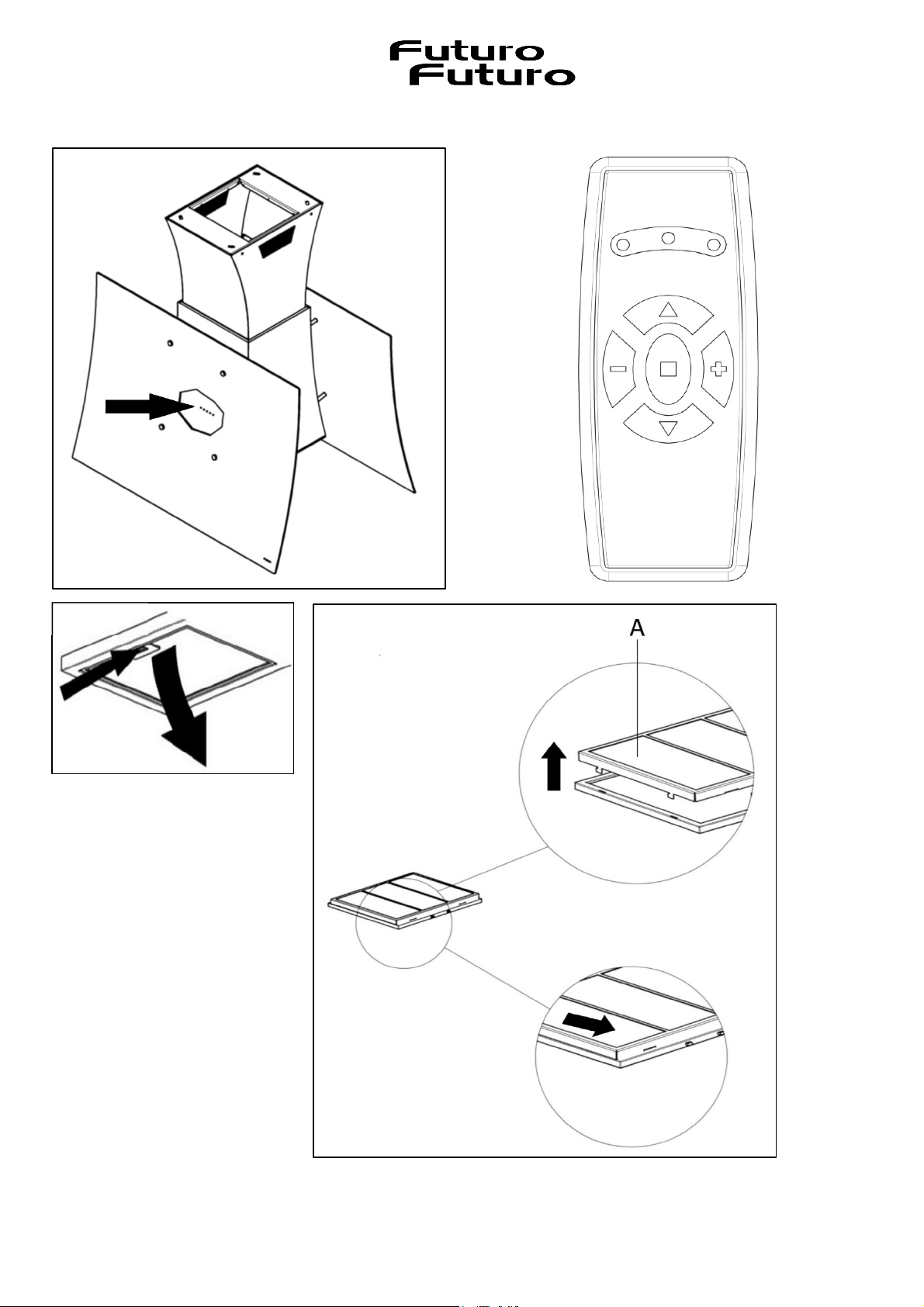

For the remote control buttons, refer to Fig. 5.1.2.
On-Off blower.
The blower always starts in 2nd speed.
If pressed for a long time, the 24h comfort function is activated which can be interrupted by pressing button, the
hood will also switch off.
On lighting.
Single click allow to switch from the maximum to the minimum brightness.
Held click (with the lights on) allows to dim the light.
Off lighting.
Held click (with the lights on) allows to tune the light.
While the blower is on, single click to increase the speed up to the fourth.
Held click (with the blower off) allows the reset of the timer for the grease and anti-odour filters, an acoustic signal
confirms the reset.
With the blower is on, single click to decrease the speed down to the first.
Held click (with the blower on) allows the time delay shut-off (the blower switches to first speed and switches off after
15 minutes). The time delay shut-off is deactivated by switching off the blower with the button .
V.2 Time delay shut-off
This function allows to programme the delayed switch-off of the hood after cooking.
The automatic shut-off is preset at 15 minutes and at the first speed. After 15 minutes, the blower and the lighting
switch off automatically. To activate it, held click the key while the hood is on at any speed.
V.3 Maintenance reminder
Metal anti-grease filters
Once the hood is switched off, after 30-hours functioning, all the LEDs indicator lights (Fig. 5.1.1) switch on with a fixed
light for 30 seconds to remind that the anti-grease metal filter needs cleaning.
To set the timer to zero keep the button pressed with the aspirator switched off, otherwise the timer will remain
set on 30-hour functioning and the reminder will appear when the hood is switched off again.
Long-Life anti-odor filter (for ductless hoods)
Every 120 hours of hood operation, when the hood is switched off, all the LEDs indicator lights (Fig. 5.1.1) turn on with
a flashing light for 30 seconds as a reminder of the regeneration of the Long-Life filter and the cleaning of the metal
anti-grease filters. To reset the timer, simply hold down the key with the blower off, otherwise, the device will give
the alarm again the next time the hood is switched off.
7
V.4 24h Comfort function
This function allows the continuous air renewal in your kitchen when the hob and the range hood are not being used.
Air extraction cycles are activated at programmed time intervals: 5 min ON – 25 min OFF. These timed cycles clean the
air of any lingering odours as cigarette smoke, detergents and stagnant and stuffy smells. This function is easy to activate
and deactivate when required or can be left on for 24 hours.
To activate this function, held click ; to deactivate it, click and the hood will also switch off.
VI MAINTENANCE AND CLEANING
VI.1 Metal grease filter
Particular attention should be paid to the metal grease filter, which has the function of retaining the fat particles
contained in the vapors. The grease filter must be washed when the warning appears or at least once a month, use hot
water and detergent (or put it in the dishwasher). The filter may become discolored after a few washes. This is normal
and does not mean that it needs to be replaced.
To carry out maintenance on the grease filter, it is essential to remove it from the hood. With the hood turned off, the
filter can be removed by its handle (Fig. 6.1.1). At this point, you can proceed with the filter cleaning. It is recommended
to reinsert the grease filter only when it is perfectly dry.
VI.2 Long-Life anti-odor filter (for filtering hoods)
The Long-Life anti-odor filter, where present, captures all the odors present in the cooking fumes, guaranteeing pure
air in your kitchen. It does not have to be replaced frequently like an ordinary activated charcoal filter, it can be
regenerated every 3-4 months, or according to the frequency of use of the hood, by a normal washing cycle in the
dishwasher at about 70°C without any type of detergent, followed by drying in the oven for 30 minutes at 70°C. To keep
its efficiency high, it is recommended to replace the Long-Life filter after 6/8 regeneration cycles.
To replace the Long-Life anti-odor filter simply remove the metal grease filter (Fig. 6.1.1) and slide the frame enclosing
the anti-odor filter towards the rear (Fig. 6.2.1). Take the frame including the Long Life anti-odour filter and regenerate
it (Fig. 6.2.1-A). The filter must be requested to the manufacturer. To install a new Long-Life anti-odor filter, remove
the metal grease filter (Fig. 6.2.1), place the new Long-Life anti-odor filter on top and slide it to hook it to the metal
filter. Reinstall the metal grease filter (Fig. 3.2.10).
VI.3 Hood Cleaning
The hood must be cleaned immediately after installation and removal of the protective film to eliminate any residual
adhesive or other impurities. The hood must be cleaned frequently both internally and externally (at least once a month).
Do not allow dirt to accumulate on the surfaces of the hood.
Do not use acid or basic products or abrasive sponges to clean the external parts of the hood. Clean the hood with a
sponge moistened with hot water and a small quantity of neutral soap (for example dish soap) to eliminate any grease
particles that may have deposited.
Rinse with a damp cloth, carefully remove all the soap, following the direction of the satin finish of the steel surface.
Drying is particularly important, especially in areas where the water is very hard and leaves limescale deposits.
VI.4 Lighting
The hood is equipped with LED lighting which, in addition to offering excellent lighting and limited energy consumption,
guarantee a considerable duration over time. In case of replacement, contact the assistance service.
VII DISCONTINUATION
The discontinuation means the definitive shutdown and disassembly of the appliance.
After discontinuation, the appliance can be installed on another piece of furniture, privately resold, or disposed of.
Caution! For discontinuation, it is necessary to switch the appliance off and disconnect the power
Disassembly requires that the device is accessible and has been disconnected from the power supply.
To do this, follow the installation instructions in reverse order.
Warning! Before any maintenance or cleaning operation, disconnect the hood from the power
supply by setting the main switch of the domestic system to "off".
ATTENTION: the grease collected in the filters can easily catch fire and it is therefore extremely
important to clean the metallic filters regularly as per instructions
8
3.1.1
3.2.1

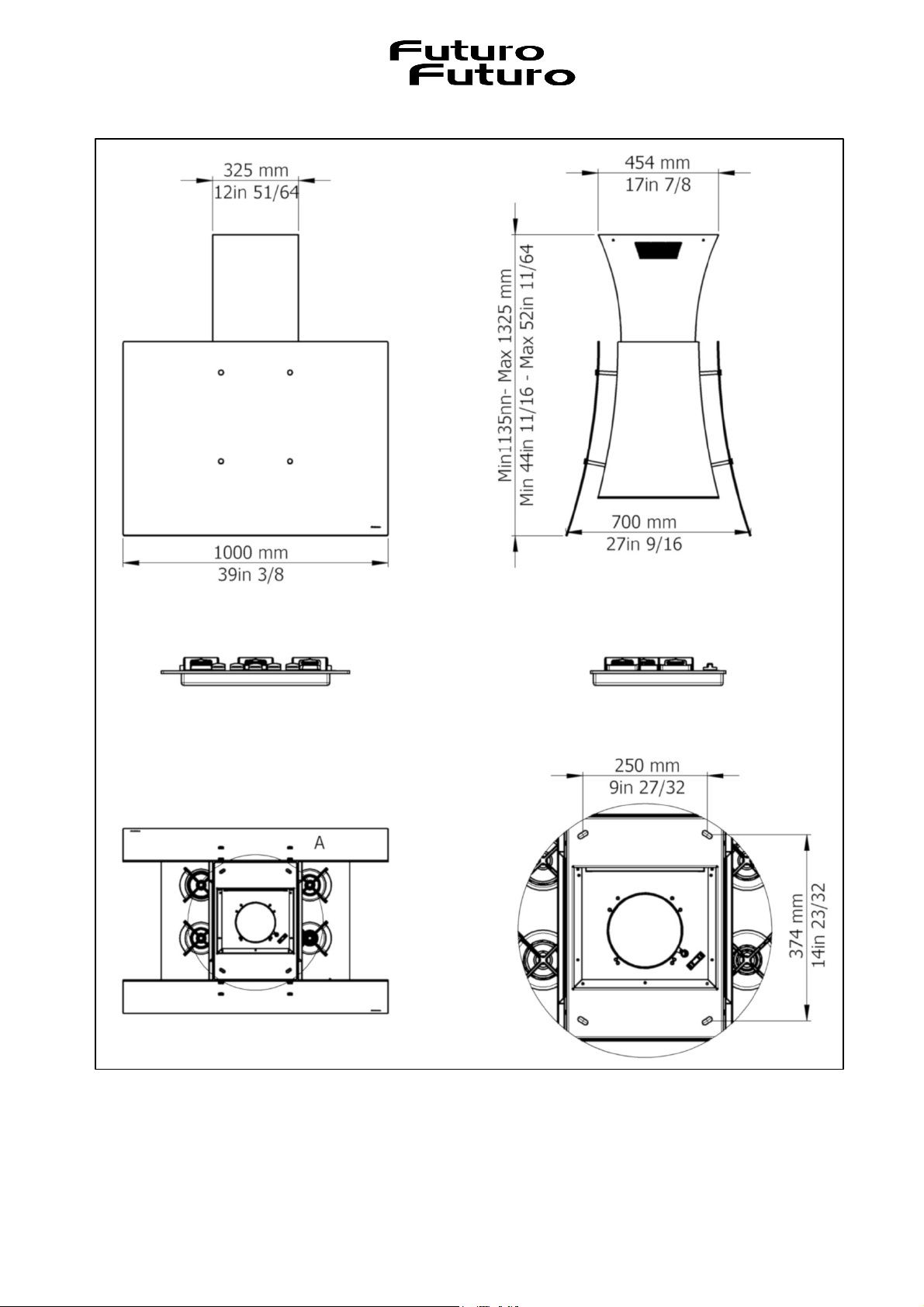

3.1.2
9
3.2.2
10
3.2.5
3.2.3
3.2.4
3.2.6
11
3.2.8
3.2.
7
12
3.2.9
13
3.2.10
14
3.2.11
15

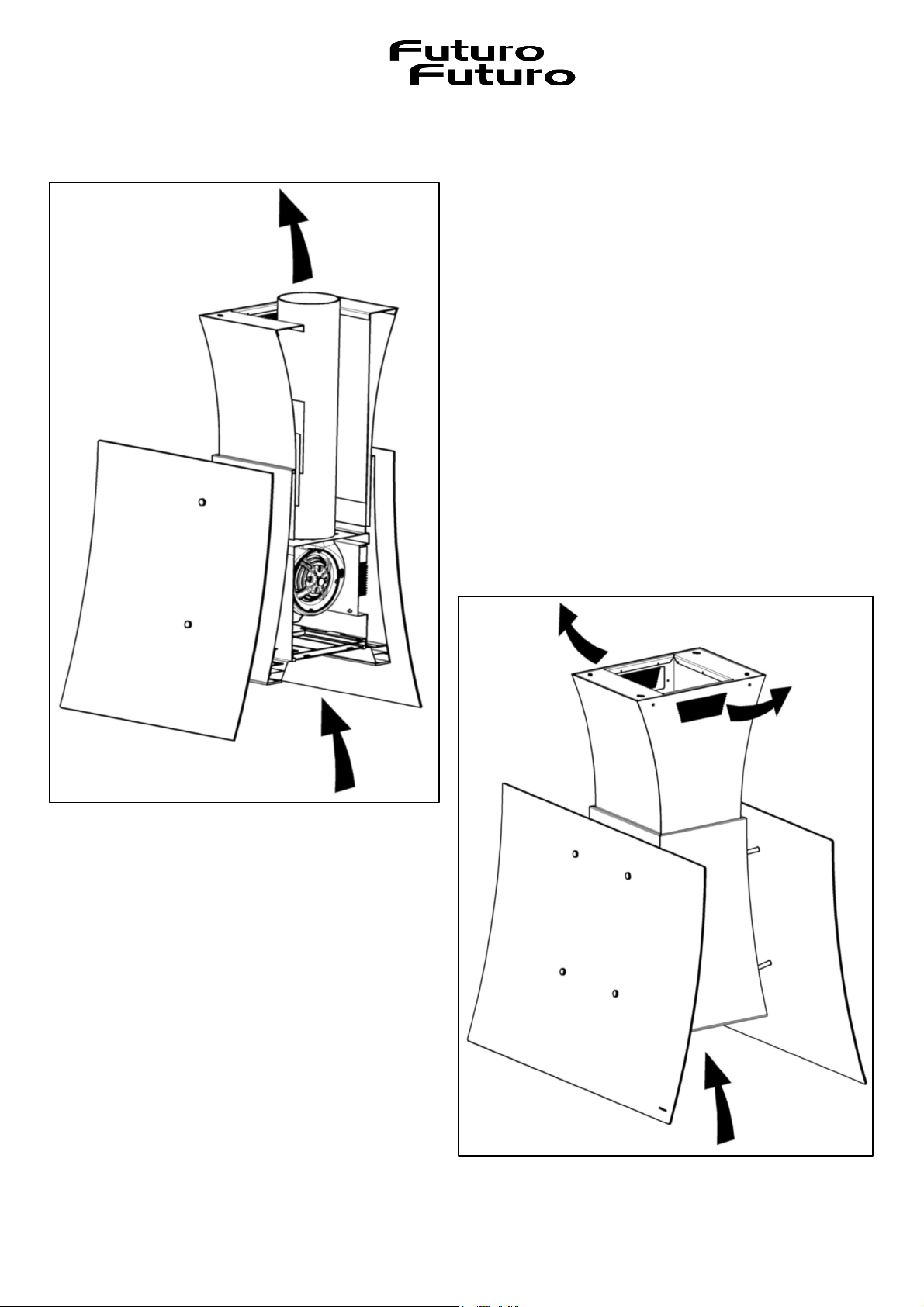

4.2 DUCTLESS
M
OD
E
4.1 DUCTED
M
OD
E
16
395.814
5.1.2
6.1.1
6.2.1
5.1.1
