Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it. Help
to recycle waste of electrical and electronic appliances.
Do not dispose appliances marked with this symbol
with the household waste. Return the product to your
!"# $%&"'" ()*$+#"( (,'$!%$"!),#",$'!-%$.-)("(/# $!0"&1$
WARNING!
!"#$%&$!'()*+$%*$"),%-./!%'0
2(3"!))&",$,4&$#// (#)"&$+%!.$,4&$.#()3$3-// '1$5-,$!6$,4&$.#()3$"#7 &$#)8$8(3/!3&$
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
EN
3
1-Safety information ......................................................................................................................... 4
2-Product description ...................................................................................................................... 7
3-Control panel .................................................................................................................................. 8
4-Programmes .................................................................................................................................11
5-Consumption ................................................................................................................................12
6-Daily use .........................................................................................................................................13
7-Eco-friendly washing ..................................................................................................................18
8-Care and cleaning ........................................................................................................................19
9-Troubleshooting ...........................................................................................................................22
10-Installation ...................................................................................................................................25
11-Technical data .............................................................................................................................29
1-Safety information
EN
4
!"#$!%&'()*+(,-%#,%)+!%.//0(.,*!%"#$%)+!%1$&)%)(2!%$!.3%)+!%"#00#'-
ing safety hints!
WARNING!
!"#$!%1$&)%4&!
▶ Make sure there is no transport damage.
▶ Make sure all transport bolts are removed.
▶ Remove all packaging and keep out of children´s reach.
▶ Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶ This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶ Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶ Children shall not play with the appliance.
▶ Do not let children or pets come close to the appliance when the
door is open.
▶ Store washing agents out of reach of children.
▶ 9- $-/$:(/3;$<=$ !!3&$,4%S$#)8$,#>&$"#%&$+!%$3.# $(,&.3$,!$/%&-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
▶ Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶ Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶ Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶ 2!$)!,$-3&$!%$3,!%&$?#..#7 &$8&,&%*&),$!%$8%'$" &#)()*$#*&),$()$
close vicinity to the appliance.
▶ 2!$)!,$-3&$#)'$?#..#7 &$3/%#'3$()$" !3&$@("()(,'$,!$,4&$#// (#)"&1
▶ Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
EN
1-Safety information
5
WARNING!
Daily use
▶ 2!$)!,$%&.!@&$!%$()3&%,$,4&$/ -*$()$,4&$/%&3&)"&$!+$?#..#7 &$*#3
▶ Do not hot wash foam rubber or sponge-like materials.
▶ 2!$)!,$A#34$#)'$ #-)8%'$A4("4$(3$/! -,&8$A(,4$?!-%1
▶ Do not open detergent drawer during any wash cycle.
▶ Do not touch the door during the washing process, it gets hot.
▶ Do not open the door if the water level is visibly over the porthole.
▶ 2!$)!,$+!%"&$,4&$8!!%$,!$!/&)1$B4&$8!!%$(3$<,,&8$A(,4$#$3& +C
lock device and will open shortly after the washing procedure is
ended.
▶ DA(,"4$!6$,4&$#// (#)"&$#+,&%$&#"4$A#34$/%!*%#..&$#)8$7&+!%&$
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶ Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and
maintenance.
▶ Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶ Keep the lower part of the porthole clean and open door and
detergent drawer if appliance is not in use to prevent odours.
▶ Do not use water spray or steam to clean the appliance.
▶ Replace a damaged supply cord only by the manufacturer, its
3&%@("&$#*&),$!%$3(.( #% '$E-# (<&8$/&%3!)3$()$!%8&%$,!$#@!(8$#$
hazard.
▶ Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶ The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶ Never install the appliance outdoors in a damp place, or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak cut power supply and allow
the machine to dry naturally.
1-Safety information
EN
6
Intended use
This appliance is intended for washing machine-washable laundry
only. Anytime follow the instructions given on the label of each gar-
ment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
54#)*&3$!%$.!8(<"#,(!)3$,!$,4&$8&@("&$#%&$)!,$# !A&81$F)(),&)8&8$
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶ Install or use the appliance only where the temperature is above
5 °C.
▶ Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶ Do not install the appliance in direct sunlight or in the near of
heat sources(e.g. stoves, heaters).
▶ Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electrician.
▶ Do not use multi-plug adapters and extension cables.
▶ Make sure only the delivered electric cable and hose set are used.
▶ Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶ F3&$#$3&/#%#,&$&#%,4&8$3!">&,$+!%$,4&$/!A&%$3-// '$A4("4$
is easy accessible after installation. The appliance must be
earthed.
▶ G#>&$3-%&$,4&$4!3&$H!(),3$#)8$"!))&",(!)3$#%&$<%.$#)8$,4&%&$(3$
no leakage.
EN

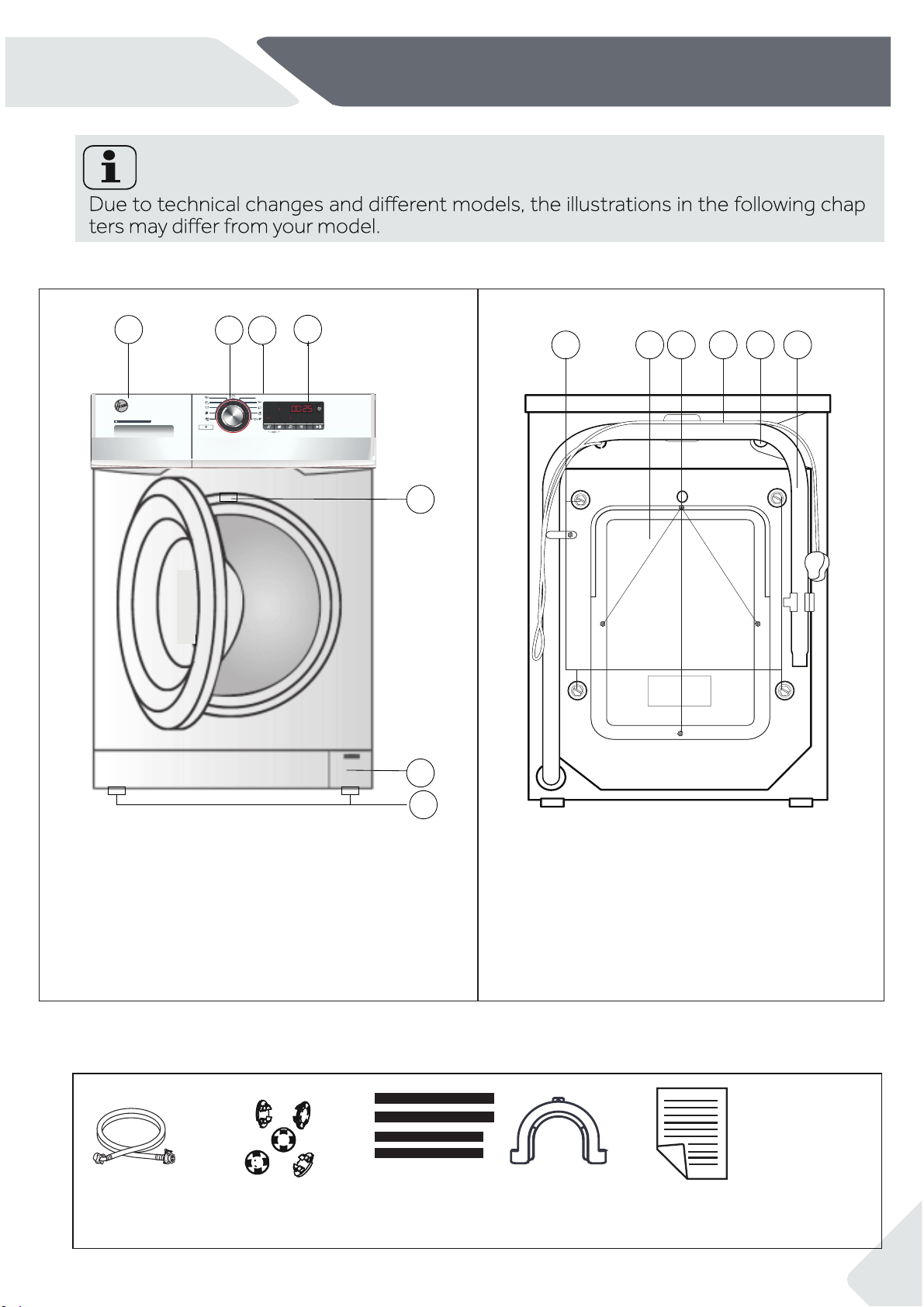

2-Product description
7
Note:
-
2.1 Picture of appliance
2.2 Accessories
Check the accessories and literature in occordance with this list (Fig.: 2-3).
Inlet hose-
assembly
5 Blanking
plugs
Drain hose
bracket
Warranty
card
2-3
Noise red-
uction pads
6
7
5
Temp
Speed Intense
Delay
Start/Pause
Extra rinse
HW80-BP14636
BLDC motor
+++
A
Auto weightCapacityEnergy
8kg
Self Clean
1
4
3
Temp
Speed Intense
Delay
Start/Pause
Extra rinse
R
+++
A
Energy Capacity
7kg
rpm
1400
HW70-BP14636
1000
T1
T2
T3
S1
S2
S4
S3
T4
1
3
4
2
65
1 Detergent /Softener drawer
3 Worktop
5 Rating plate
6 Sevice flap
7 Adjustable feet
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S4)
4 Power cord
5 Water inlet vave
6 Drain hose
2-1 2-2
2
2 Programmer selector
4 Display
20°
40°
60°
90°
800
1000
1400
400
H-WASH 300
PLUS
1400 - Inverter - Active Steam
20°C
15'
59'
ECO
40-60

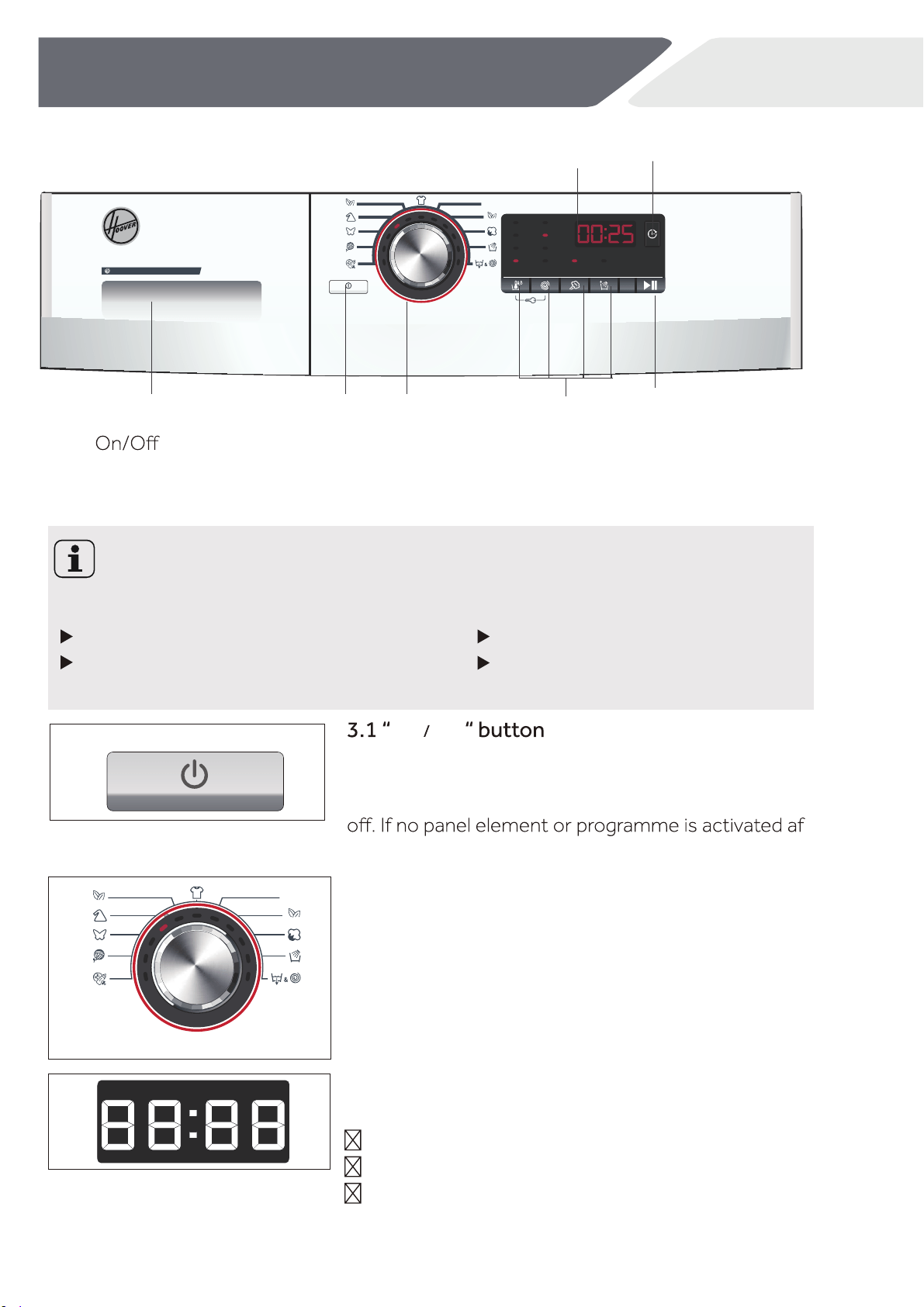

3-Control panel
EN
8
Press this bu
on off
tton (Fig. 3-2) gently to switch on, the dis-
play is shining, the indicator of the “Start/Pause” button
is flashing. Press it again for about 2 seconds to switch
-
ter a while machine will shut down automatically.
3.2 Programme selector
By turning the knob (Fig. 3-3) one of 11 programmes
can be selected, related LED will light up, its default
settings will be displayed.
3.3 Display
The display (Fig. 3-4) shows following information:
Washing time
End time delay
Error codes and service information
3-4
Note : Acoustic signal
In following cases an acoustic signal sounds:
when pressing a button
when turning the programme selector
at the end of programme
in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE.
3-2
3-3
3-1
3 6
4
5
7
1 “ “ button
2 Programme selector
3 Display
4 Detergent /Softener drawer
5 Function buttons
6 “Delay” button
7 “Start/Pause“ button
1 2
20°
40°
60°
90°
800
1000
1400
400
H-WASH 300
PLUS
1400 - Inverter - Active Steam
20°C
15'
59'
ECO
40-60
20°C
15'
59'
ECO
40-60
EN
3-Control panel
9

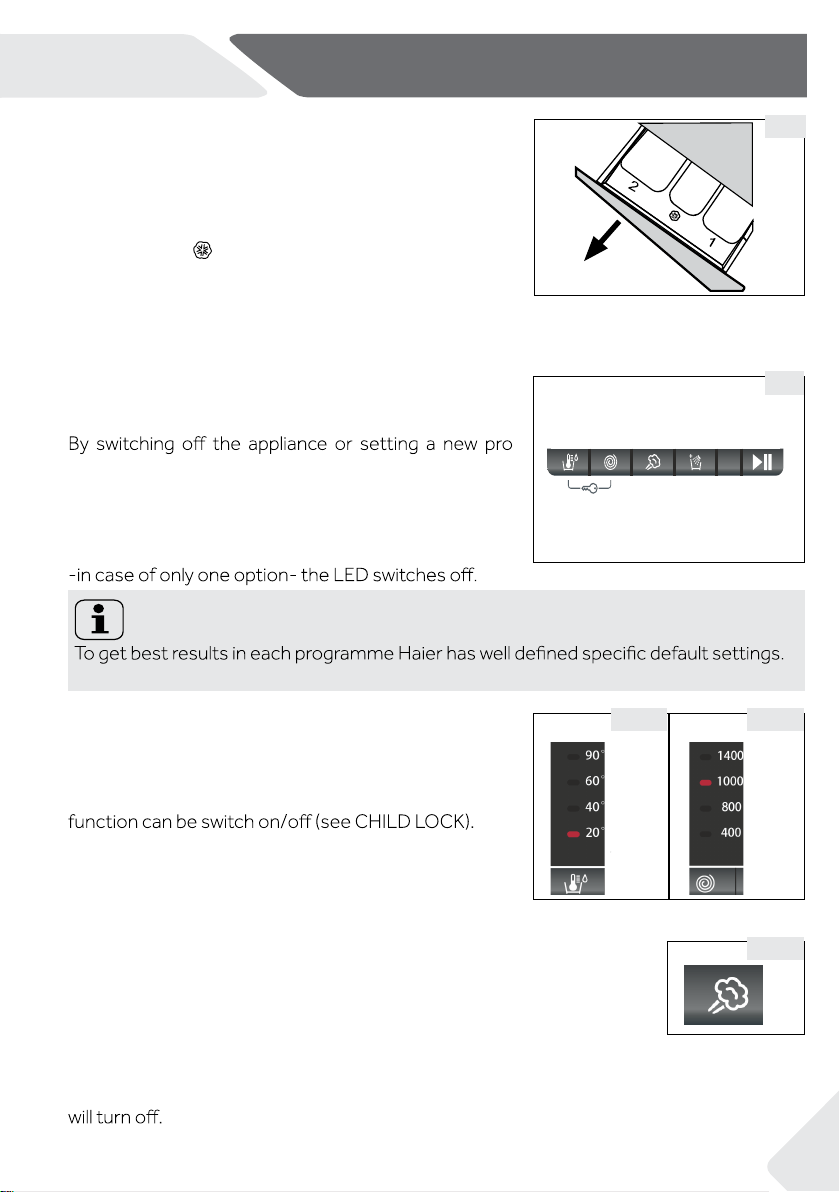

3.4 Detergent / Softener drawer
3.5 Function buttons
Open the drawer, three compartments can be seen
(Fig. 3-5):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment : Softener, Conditioning agent etc.
The recommendation on the type of detergents is suit-
able for the various washing temperatures, please refer
to the manual of detergent.
The function buttons (Fig. 3-6 ) enables additional op-
tions in the selected programme before programme
start. The related indicators are displayed.
-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights or
Note: Factory settings
If there is no special requirement default settings are recommended.
3.5.1-Function button “ Temp.“
Press this button (Fig. 3-7-1) to change the washing
temperature of the programme. If no value is illuminat-
ed the water will not be heated.
In conjunction with the “Steam” button, the child lock
3.5.2-Function button “Speed”
Press this button (Fig. 3-7-2) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
3.5.3-Function button “Steam“
Press this button (Fig. 3-7-3) to activate the steam function.
When this function is activated the default temperature is the maxi-
mum temperature of the programme selected.
This function can be activated only with the following programmes:
HYGIENE DELICATES SYNTHETICS FAST 20C° COTTON
When the function is activated the led above the button will light up.
Pushing again this button the function can be deactivated and the led above the button
3-5
3-7-1 3-7-2
3-6
3-7-3
3-Control panel
EN
10
When the function is activated the temperature of the programme cannot be changed.
If “Temp.” button is pushed the “Steam” function will be deactivated. You can activate
“Steam” function only before to start any programme. You cannot activate “Steam” func-
tion while the appliance is already executing a programme.
.

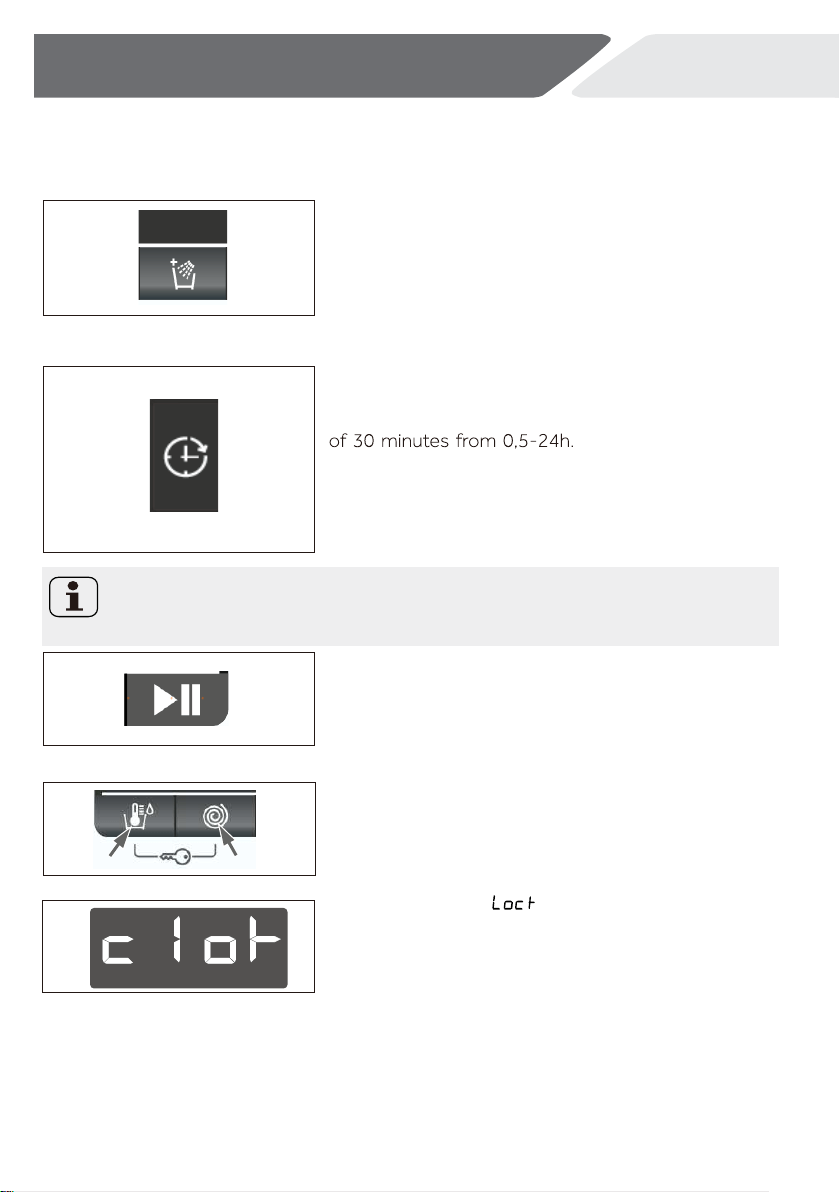

3.5.4 Function button“Extra rinse“
Press this button (Fig. 3-10) to rinse the laundry more
intense with fresh water. This is recommended for
people with sensitive skin.
By pressing the button several times one to three ad-
ditional cycles can be selected. They appear in the dis-
play with P--1 /P--2 /P--3 .
3.7 “Start/Pause“ button
Press this button (Fig. 3-12) gently to start or inter-
rupt the currently displayed programme. During pro-
gramme setting and during programme run the LED
above the button is shining, or if interrupted blinking.
3.6 “Delay” button
Press this button (Fig. 3-11) to start the programme
with a delay. End time delay could be increased in steps
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.8 Child lock
Press button “Temp.“ and ”Speed” (Fig. 3-13) for 3
seconds simultaneously to block all panel elements
against activation.
For unlocking please press again
the two buttons.
The display shows (Fig. 3-14) if a button will be
pressed, when the child lock is activated. The change
is not running.
3-14
Start/Pause
Press “Start/Pause”but-
ton to activate the time delay.It is not applicable to pr-
ogramme SPIN.
3-11
3-10
Start/Pause
3-12
3-13
EN

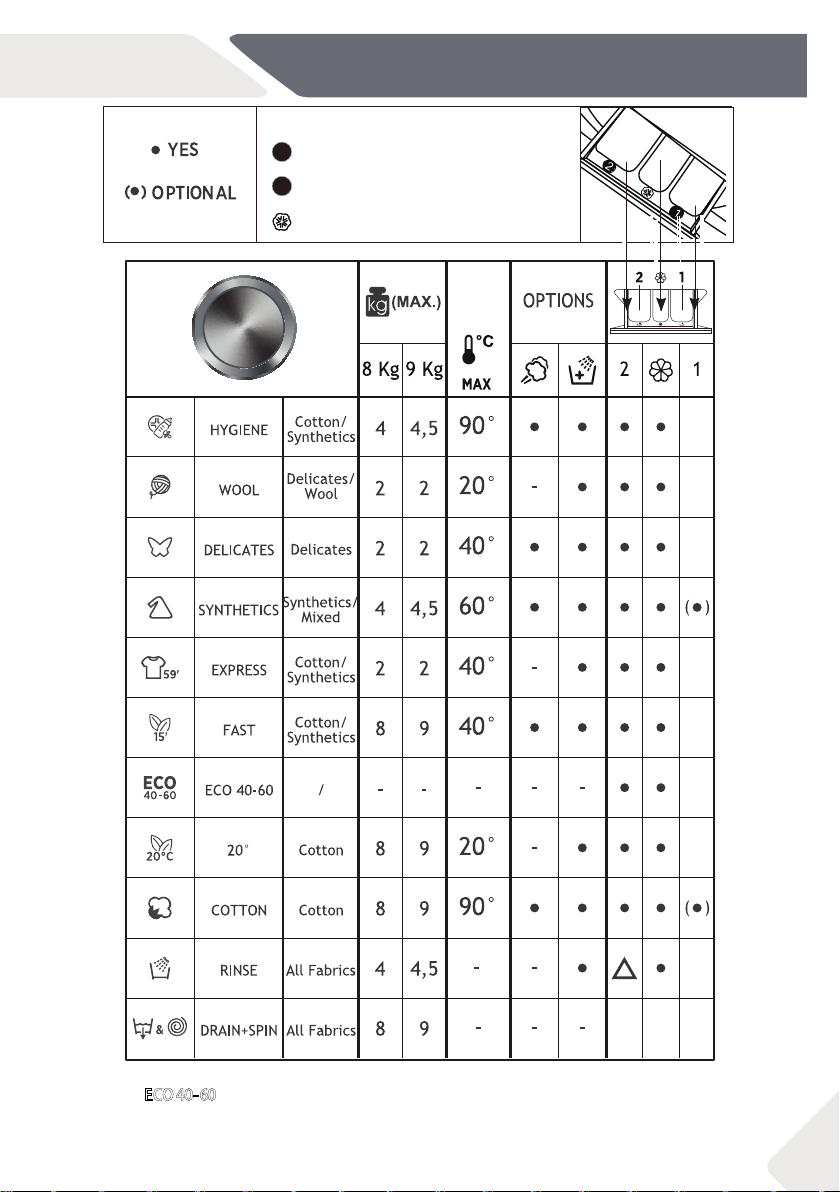

4-Programmes
11
*
STANDARD PROGRAMME ACCORDING TO (EU) No 2019/2023
Detergent compartment for:
1
Water inlet only, no detergent
2
Detergent
Softener or care product
The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to
be washable at 40°C or 60°C, together in the same cycle. This programme is used to
assess the compliance with the EU Ecodesign legislation (environmentally friendly
products design).
5-Consumption
EN
12
Scan QR code on energy label for energy consumption information.
The actual energy consumption may differ from the declared one according to local
conditions.
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programs.The display shows AUtO.
EN
6-Daily use
13
6.3 Preparing laundry
▶ Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk etc.) and to how dirty they are
(Fig. 6-3). Pay attention to the care labelling of
washing labels.
▶ Separate white clothes from coloured ones.
U.#(" '+0+:1-=" &-M&%0-#">1#&" 9!" (.)="&+" '(-'V" %3"
they fade or run.
▶ Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶ W.1;-)&#"$%&(+:&"(-;#H"=-0%'.&-#".)=">)-0!"$+-
N-)"&-M&%0-"#:'(".#">)-"':1&.%)#".1-"&+"9-"/:&"%)&+"
a wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
▶ Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶ X0.'-" #-)#%&%N-" %&-;#" 0%V-" 0.:)=1!" $%&(+:&" >1;"
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash
bag.
▶ R)3+0="0.1*-"/%-'-#"+3"3.91%'"#:'(".#"9-="#(--&#H"
bedspreads etc.
▶ Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
6-3

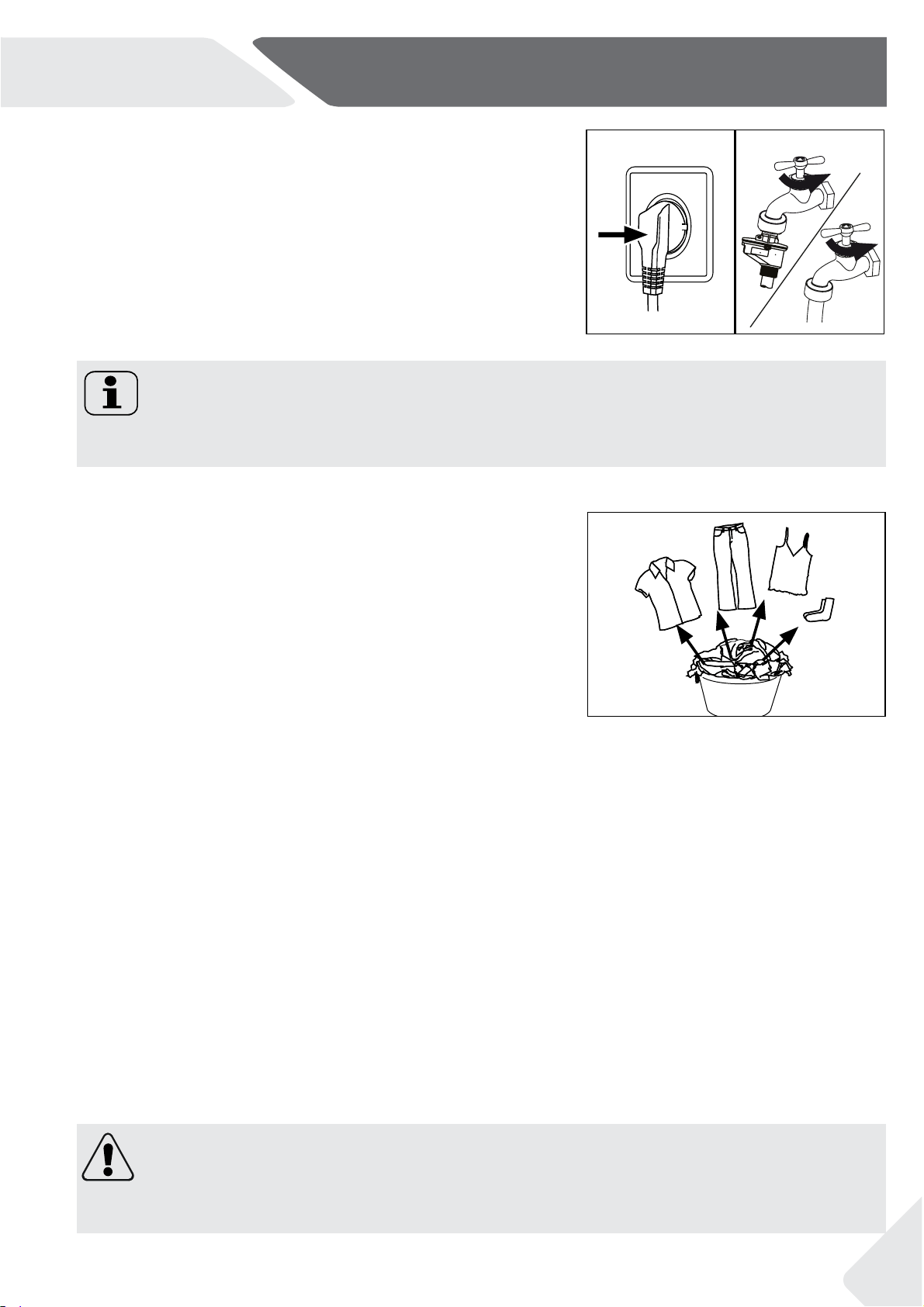

6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section INSTALLATION.
6.2 Water connection
▶ Before connecting check the cleanliness and clar-
ity of the water inlet.
▶ Turn on the tap (Fig.6-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
6-1 6-2
6-Daily use
EN
14

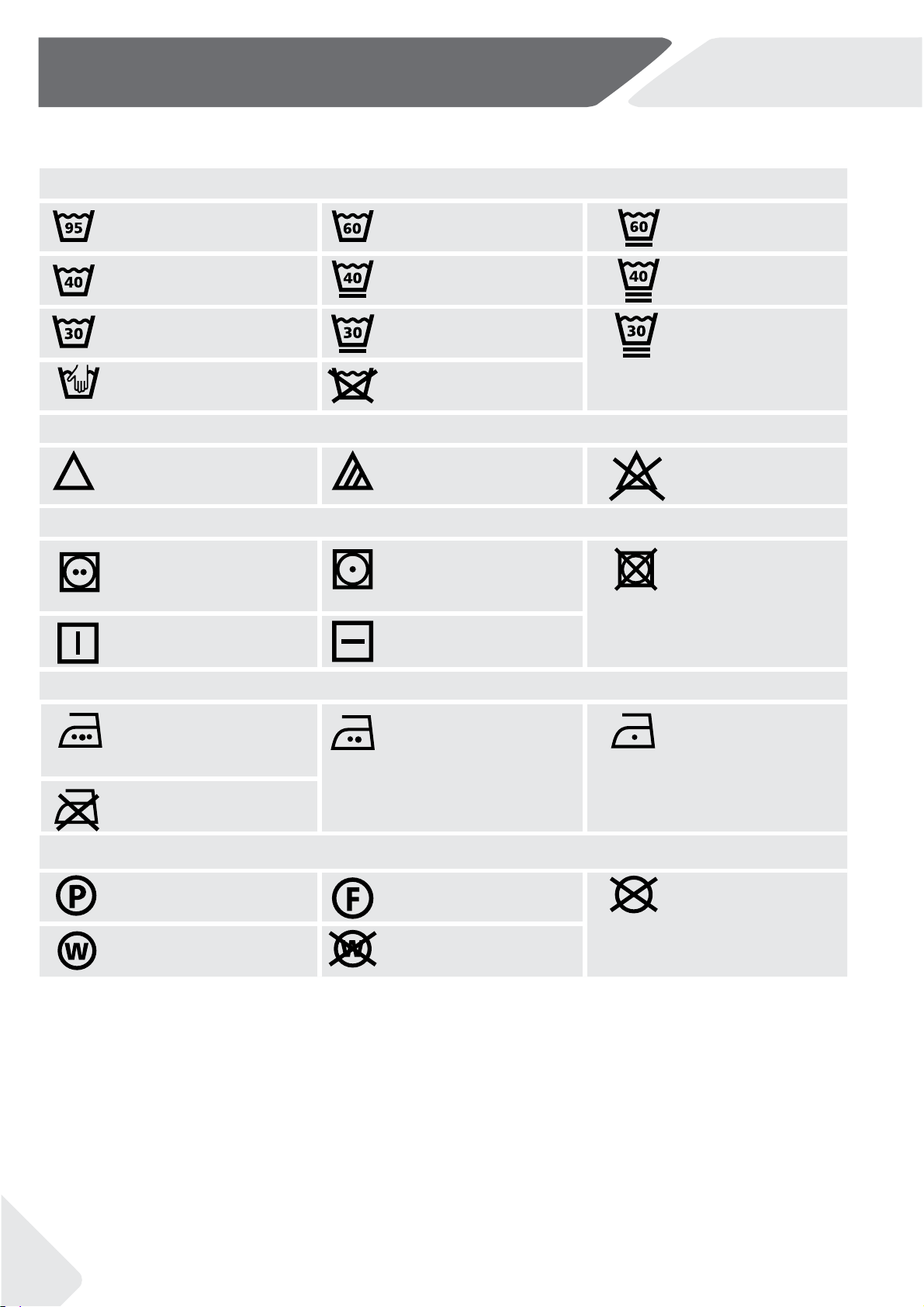

Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
H<*I1,,)*&8?#01;()?1#J8<1#
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.4 Loading the appliance
▶ Put in the laundry piece by piece.
▶ 6+)Y&"+N-10+.=7"Z+&-"&(-"=%,-1-)&";.M%;:;"0+.=".''+1=%)*"&+"/1+*1.;;-#["\:0-"+3"
thumb for maximum load: Keep six inches between load and drum top.
▶ Close the door carefully. Make sure that no pieces of laundry are pinched.
GB
6-Daily use
15
6.5 Selecting detergent
W
Use only machine wash approved detergent.
ergents, e.g. for synthetic and woolen fabric.
Mind always detergent manufacturer recommendations.
Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
FAST
L/P L/P - - o
SYNTHETICS
- - L/P L/P o
COTTON
HANDWASH
DELICATES - - L/P L/P o
L/P L/P - - o
HYGIENE
L L - -
- -
- -
o
- - - - -
- -
RINSE
DRAIN+SPIN
20°C
L = gel-/liquid detergent P = powder detergent O = optional
_
= no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
Laundry powder: 20°C to 90°C* (best use: 40-60°C)
Color detergent: 20°C to 60°C (best use: 30-60°C)
Wool/delicate detergent: 20°C to 30°C ( best use:20-30°C)
L/P L/P - - o
- - o
ECO 40-60
EXPRESS 15
-
L/P L/P
-
- L/P
L/P L/P
-
o
o
6-Daily use
EN
16

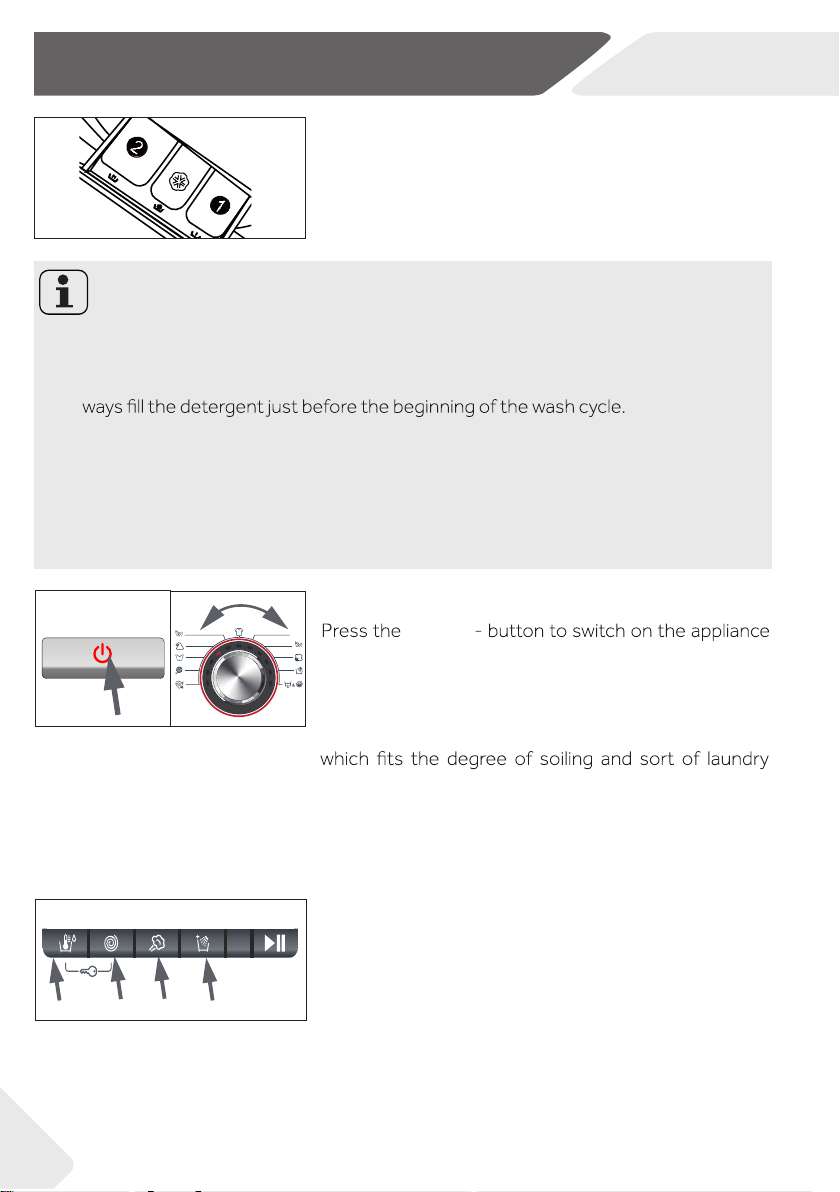

6.7 Switch on the appliance
(Fig. 6-4). The LED of the “Start/Pause“ button is flas-
hing.
6.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 6-3)
3. Push back the drawer gently.
Note:
Remove detergent residues before next wash cycle from the detergent drawer.
Do not overuse detergent or softener.
Please follow the instruction on the detergent package.
Al
Concentrated liquid detergent should be diluted before adding into compartment 2.
The best use of liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
Do not use liquid detergent if “end time delay“ is selected.
Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Select a programme
To get the best washing results, select a programme
type.
Turn the programme knob (Fig. 6-5) to select the right
programme. Related programme LED lights up and
the default settings are displayed.
6.9 Add individual selections
Select required options and settings (Fig. 6-6); refer to
CONTROL PANEL.
6-3
6-4 6-5
6-6
Temp
Speed Intense
Delay
Start/Pause
Extra rinse
“on/off”
20°C
15'
59'
ECO
40- 60
EN
6-Daily use
17

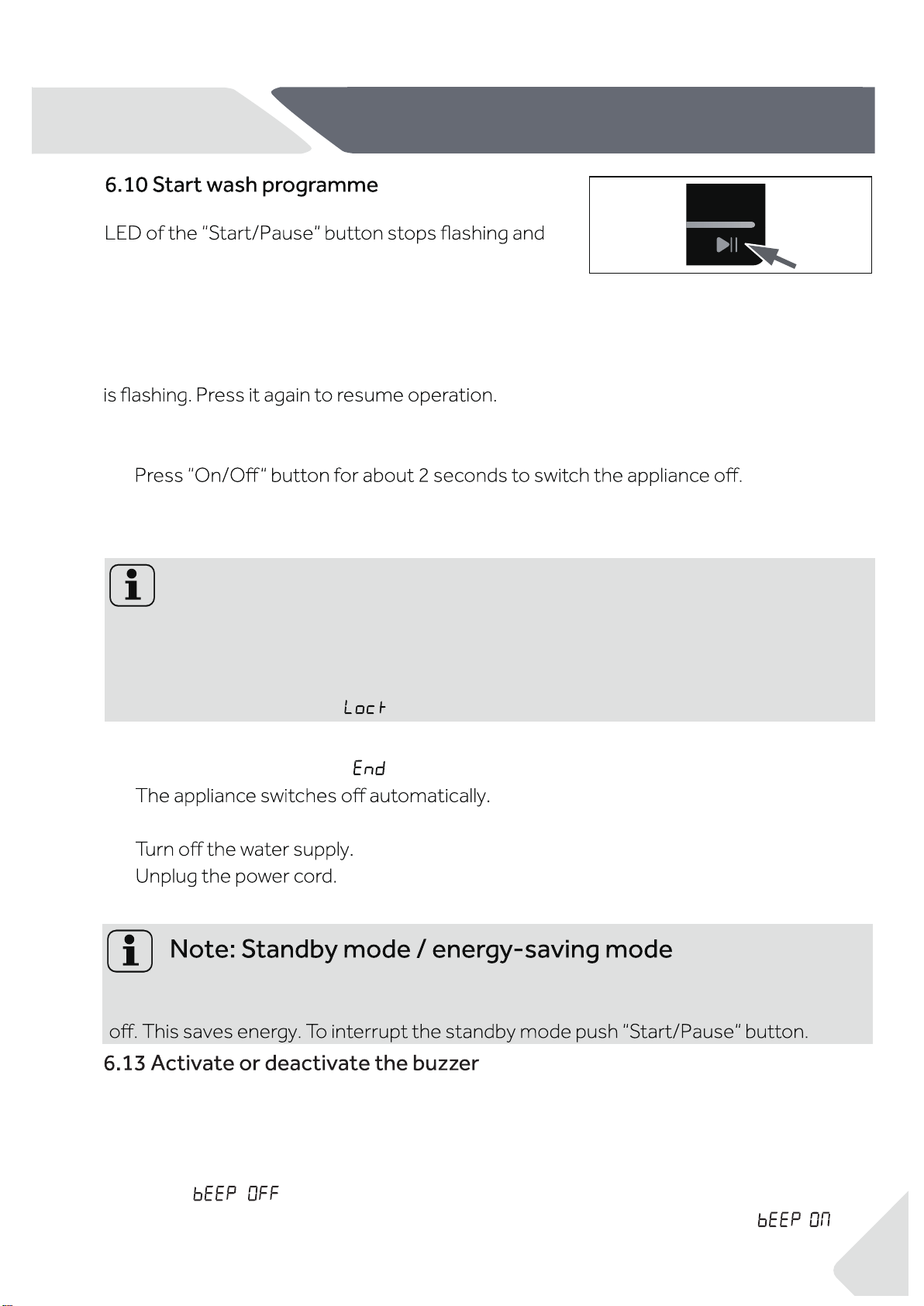

6.12 After washing
1. At programme cycle end
is displayed.
2.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4.
5.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the SPIN programme.
3. Press the “Steam“ button and “Extra rinse” button at the same time for about 3
seconds. “
” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again. “
” will
be displayed.
6.11 Interrupt / cancel wash programme
To interrupt a running programme press gently “Start/Pause“. The LED above the button
To cancel a running programme and all its individual settings:
1. Press “Start/Pause” button to interrupt the running programme.
2.
3.
Note: Door lock
For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door; is displayed
The switched on appliance will go into standby mode if it will not be activated within 2
minutes before starting the program or at the end of programme. The display switches
Press “Start/Pause“ button (Fig. 6-8) to start. The
lights up continuously.
Appliance operates according to present settings.
Changes are only possible by cancelling the pro-
gramme.
6-8
Press “On/Off” button to turn on the appliance,select programme
Spin and then se-
3.
lect
"no Speed"(speed lights are off) ,start the machine to drain the
water.
4.
After closing the programme to restart the appliance,select a new programme and start it.
7-Eco-friendly washing
EN
18
@6)(-,68+6'*AA7$-+<?,6<(0A+$1<+
▶ To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶ Do not overload (hand width clearance above laundry).
▶ For slightly soiled laundry select the Express 15min programme.
▶ Apply exact dosages of each washing agent.
▶ Choose the lowest adequate washing temperature - modern detergents are ef-
%#"(/&.2$#.(0/"/*$G(., $QRS<?$
▶ Raise default settings only due to heavy staining.
▶ Select max. spinning speed if a domestic dryer is used.

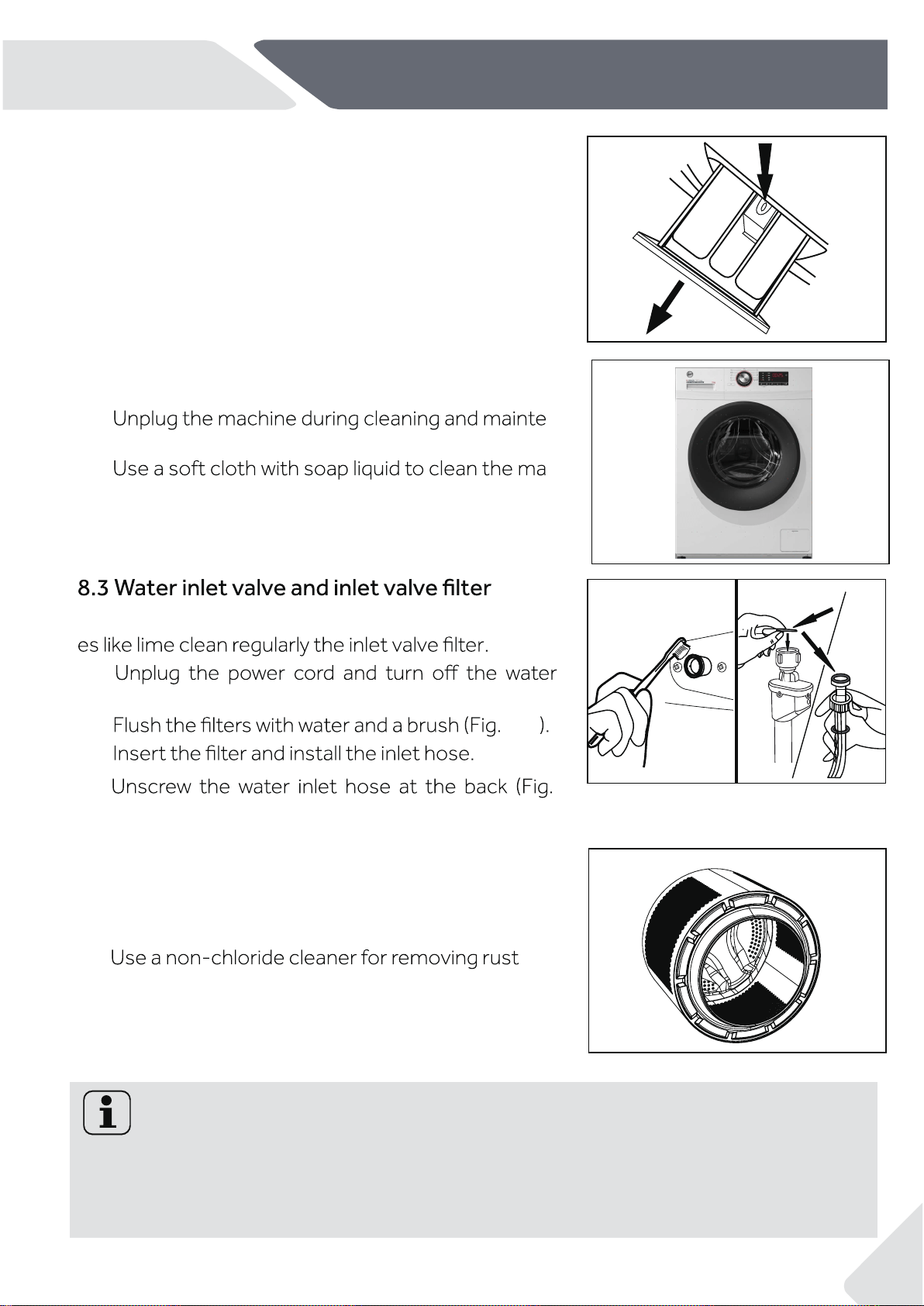

8.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 8-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
8.2 Cleaning the machine
-
nance.
-
chine case (Fig. 8-2) and rubber components.
Do not use organic chemicals or corrosive sol-
vents.
Note: Hygiene
For regular maintenance we recommend to run programme HYGIENE with no load in
order to remove possible corruptive residues quarterly. It is better to use a small
amount of special machine cleaner in washing agent compartment (2).
To prevent blockage of water supply by solid substanc-
supply.
8-4) of the appliance as well as on the tap.
8.4 Cleaning the drum
Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig. 8-5) because
they cause rust stains and damage.
stains. Observe the warning hints of the cleaning
agent manufacturer.
Do not use any hard objects or steel wool for
cleaning.
8-3 8-4
8-5
8-1
1
2
8-2
EN
8-Care and cleaning
19
8-3
8-Care and cleaning
EN
20

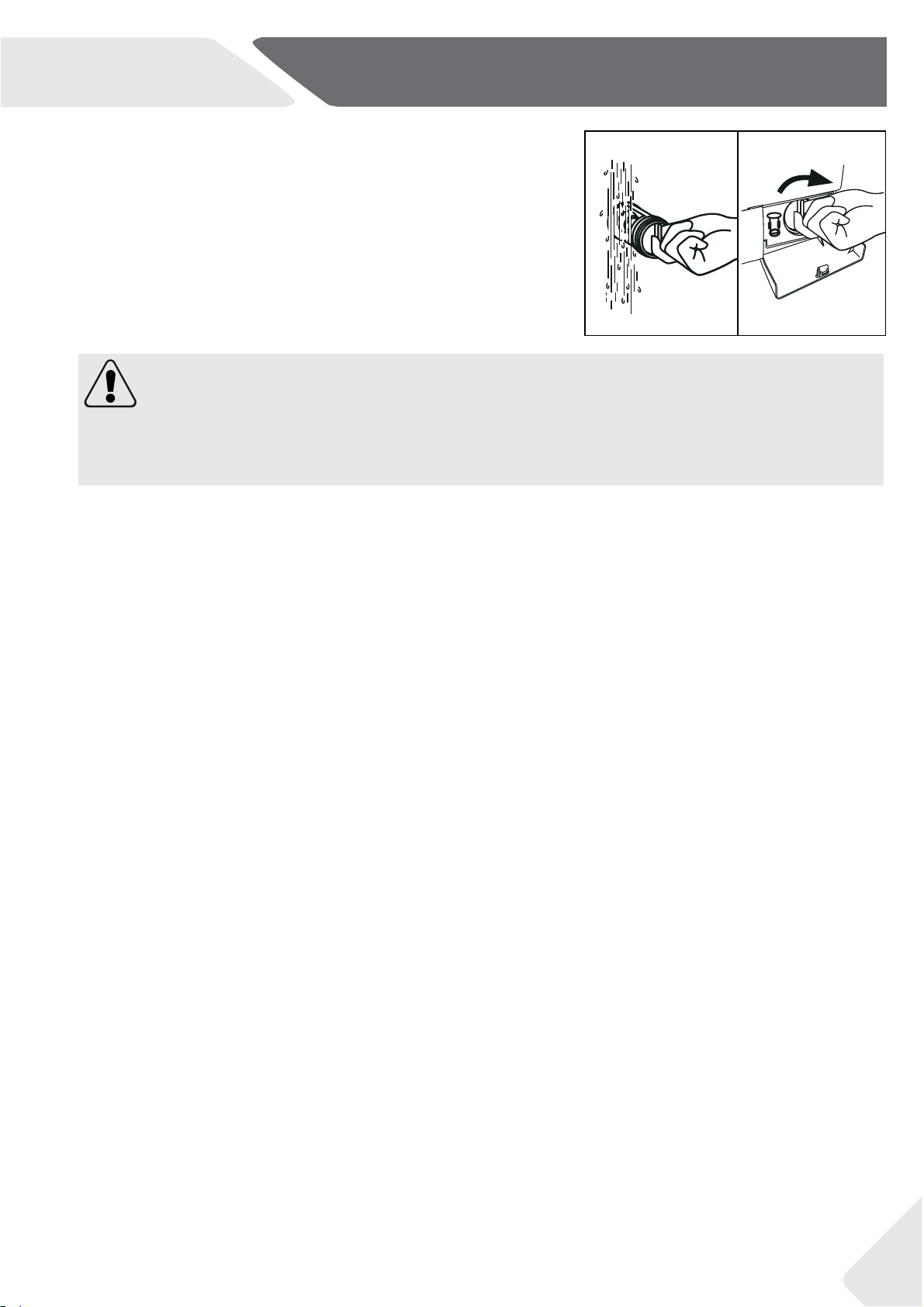

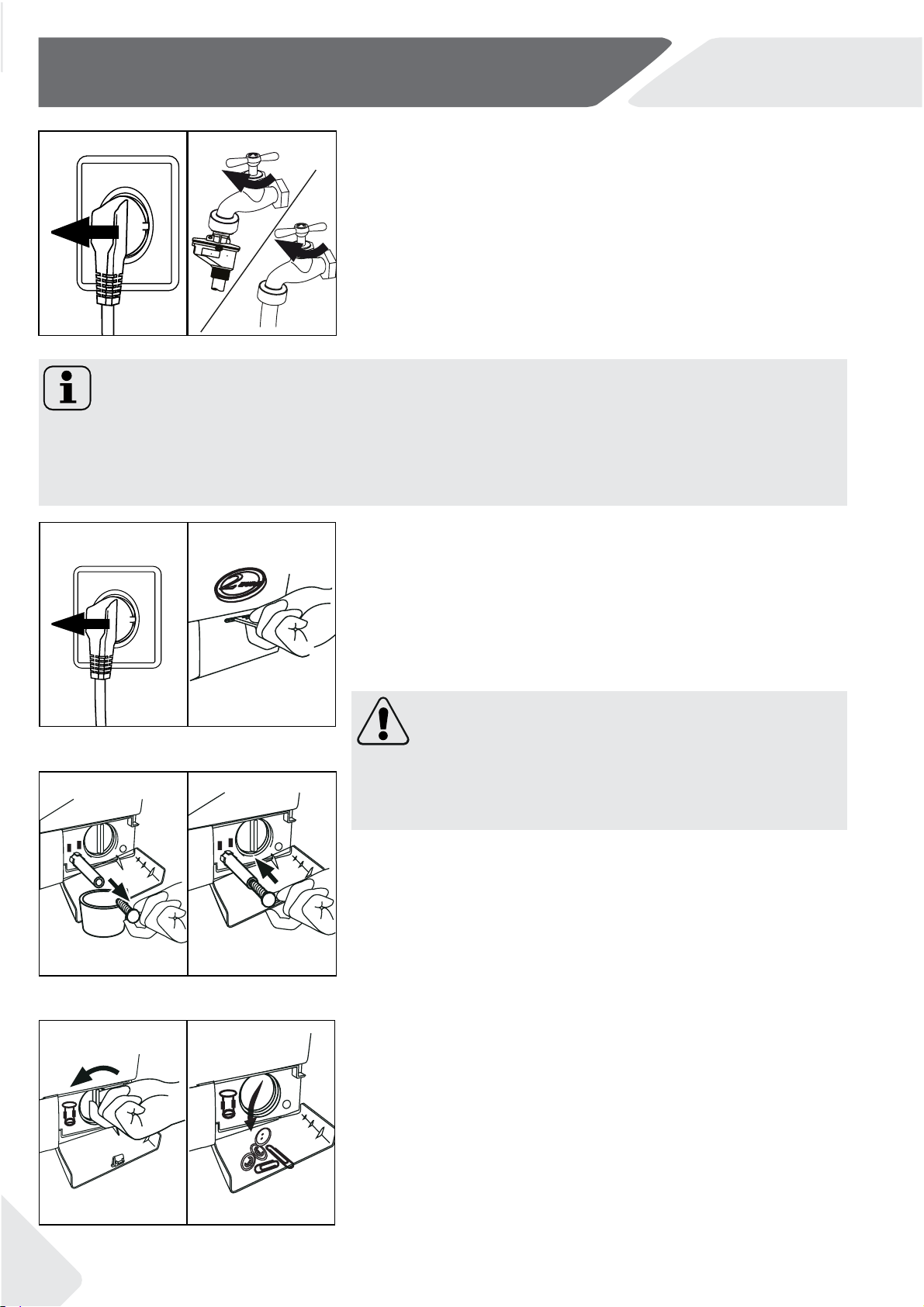

1. =1+/$,>$0/)$1/5.1*$&!($40#!"/($LV"*?$WXWM?
2. D5(/$'(+N"#($A05?$7,1$#0/$("&!(+$1'($0$#,"/$,+$0$
screwdriver (Fig. 8-9).
3. B+,N")($0$A0&$#,/&0"/(+$&,$#0&#!$.(0#!$ 0&(+$
LV"*?$WXZRM?$=!(+($#,1.)$G($G"**(+$04,1/&'[
4. Pull the drainhose out and hold its end above the
container (Fig. 8-10).
5. Take the sealing plug out of the drainhose (Fig.
8-10).
6. After complete drainage close drainhose (Fig.
8-11). and push it back into the machine.
7. @/'#+( $0/)$+(4,N($#,1/&(+$#.,#U "'($&!($
5145$%.&(+$LV"*?$WXZHM?
8. Remove contaminants and dirt (Fig. 8-13).
8.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig. 8-6).
2. =1+/$,>$ 0&(+$'155.2$LV"*?$WX\M?
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and without leakage.
WARNING!
J#0.)"/*$I"'U[$]0&(+$"/$&!($5145$%.&(+$#0/$G($N(+2$
!,&[$3(-,+($0/2$0#&",/$5.(0'($(/'1+($ 0&(+$!0'$
cooled down.
Note: Hygiene
After long periods of disuse we recommended to run programme HYGIENE with no
load and small amount of detergent in washing agent compartment (2) or special ma-
chine cleaner to remove possibly corruptive residues.
B! $E18?$DA'+-
<.(0/$&!($%.&(+$,/#($0$4,/&!$0/)$#!(#U$&!($5145$%.&(+$
for instanvce if the appliance:
▶ Doesn´t drain the water.
▶ Doesn´t spin.
▶ Cause unusual noise while running.
8-8 8-9
8-6 8-7
8-10 8-11
8-12 8-13
EN
8-Care and cleaning
21
CAUTION!
▶ B145$%.&(+$'(0."/*$!0'$&,$G($#.(0/$0/)$1/!1+&?$9-$&!($.")$"'$/,&$-1..$&"*!&(/()^$
water can escape.
▶ =!($%.&(+$41'&$G($"/$5.0#(^$,+$"&$402$.(0)$&,$.(0U0*(?
9. <.(0/$#0+(-1..2$5145$%.&(+^$(?*?$1'"/*$+1//"/*$ 0&(+$
(Fig. 8-14).
10. I(%_$"&$&!,+,1*!.2$LV"*?$WXZ`M?$
11. <.,'($'(+N"#($A05?
8-14 8-15
9-Troubleshooting
GB
22
9.2 Troubleshooting with display code
Problem Cause Solution
•
Drainage error
•
• Check drain hose installation.
• Lock error. • Shut the door properly.
•
•
Drain hose is self syphoning.
•
Make sure that tap is fully opened and water
pressure is normal.
•
Check drain hose installation.
•
Water protective level error. • Contact the After sales service.
of a problem please check all shown possibilities and follow below instructions before you
contact an after sales service. See CUSTOMER SERVICE.
WARNING!
▶ Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
▶
improper repairs can cause considerable consequential damages..
▶ A damaged power cable should only be replaced by the manufacturer, its service
9.1 Information codes
Following codes are displayed only for information referring to the washing cycle. No
measures must be performed.
Code Message
1:25
The remaining wash cycle time will be 1 hour and 25 minutes.
6:30
The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 min-
utes.
P--1/2/3
1/2/3 additional rinses are choosen (see FUNCTION BUTTONS Extra rinse“).
End
cLrd
Function child lock is activated.
Loc
Door is closed because of high water level, high water temperature or spinning cy-
cle.
bEEP OFF
The buzzer is deactivated.
bEEP ON
The buzzer is activated.
SPEEd Up
Function “Speed up” is activated.
Water level not reached.
1-
CLR FLTR
E2
E4
E8
Function “Speed up” is activated.Function “Speed up” is activated.
“
EN
9-Troubleshooting
23
E-,0A+8 Cause 5,A1'(,6
'2
• Temperature sensor error. • Contact the After sales service.
'.
• Heating error.
• Contact the After sales service.
'8
• Motor error. • Contact the After sales service.
'9
• Water level sensor error.
• Contact the After sales service.
':+ or ':3%or%
':-
• Abnormal communication error.
• Contact the After sales service.
;!<
• @/G0.0/#()$.,0)$$(++,+? • Check and balance laundry load in the drum.
E-,0A+8 Cause 5,A1'(,6
Washing machine fails
to operate.
• Programme is not yet started. • Check programme and start it.
• Door is not properly closed. • Close the door properly.
• Machine has not been switched on. • Switch the machine on.
• Power failure. • Check power supply.
• Child lock is activated. • Deactivate child lock.
Washing machine
"..$/,&$G($%..()$ "&!$
water.
• No water. • Check water tap.
• Inlet hose is kinked. • Check inlet hose.
• 9/.(&$!,'($%.&(+$"'$G.,#U()? • @/G.,#U$"/.(&$!,'($%.&(+?$
• Water pressure is less than 0.03 MPa.
• Check water pressure.
• Door is not properly closed. • Close the door properly.
• Water supply failure. • Ensure the water supply.
Machine is draining
!".($G("/*$%..()?
• Height of drain hose is below 80 cm.
• Make sure that drain hose is
properly installed.
• Drain hose end could reach into
water.
• Make sure the drain hose is not
in water.
Drainage failure. • Drain hose is blocked. • @/G.,#U$)+0"/$!,'(?
• B145$%.&(+$"'$G.,#U()? • <.(0/$5145$%.&(+?
• Drain hose end is higher than 100 cm
0G,N($A,,+$.(N(.?
• Make sure that drain hose is
properly installed.
Strong vibration while
spinning.
• Not all transportation bolts have
been removed.
• Remove all transportation bolts
.
• Appliance has no solid position.
• Ensure solid ground and a levelled
position.
• Machine load is not correct. • Check load weight and balance.
Operation stops
before completing
wash cycle.
• Water or electric failure. • Check power and water supply.
Operation stops for
a period of time.
• Appliance displays error code. • Consider display codes.
• Problem due to load pattern. • Reduce or adjust load.
• Programme performs soaking cycle.
• Cancel programme and restart.
F!#$H-,10A+</,,'(6:$>('/,1'$.(<?A*7$&,.+
9-Troubleshooting
EN
24
-
ance, disconnect the power supply and contact the customer service.

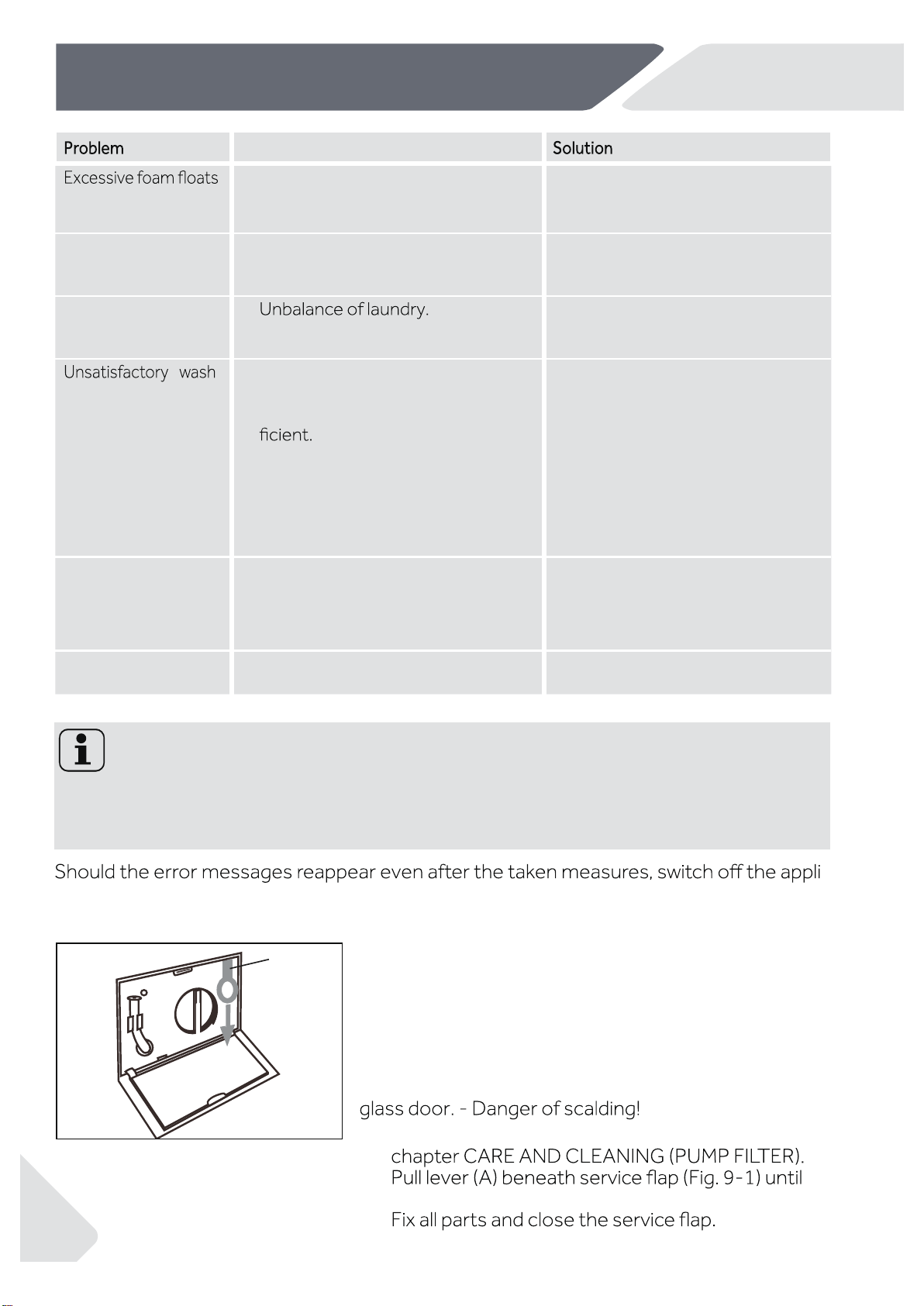

9.4 In case of power failure
The current programme and its setting will be saved.
When power supply is restored operation will be re-
sumed.
In case of power failure during programme run door
opening is mechanically blocked. If the laundry is to
be removed, the water level must not be visible in the
Lower the water level according to step 1 to 6 of
door is unlocked by a gentle click.
A
9-1
Note: Foam formation
If too much foam is inspected during spin cycle, motor stops and drain pump will be ac-
tivated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends
without spinning.
Cause
drum and/or deter-
gent drawer.
• Detergent is not a appropriate. • Check detergent recommen-
dations.
• Excessive use of detergent. • Reduce amount of detergent.
Automatic adjust-
ment of washing
time.
• Washing programme duration will
be adjusted.
• This is normal and doesn‘t af-
fect functionality.
Spinning fails. •
• Check machine load and laun-
dry and run a spinning pro-
gramme again
.
-
ing result.
• Degree of pollution does not agree
with selected programme.
• Select an other programme.
• Detergent quantitiy was not suf-
• Choose the detergent acc. to
the degree of pollution and
according.to manufaturer
• Maximum load has been exceeded. • Reduce loading.
• Laundry was unevenly distributed
in the drum.
• Loose the laundry.
Washing powder
residues are on the
laundry.
• Insoluble particles of detergent can
remain as white spots on the laun-
dry.
• Perform extra rinse.
• Try to brush the points from
the dry laundry.
• Choose an other detergent.
Laundry has grey
patches.
• Caused by fats such as oils, creams
or ointments.
• Pretreat the laundry with a
special cleaner.
specifications
EN
25
Remove all packaging material including polystyrene base, keep them out of children´s

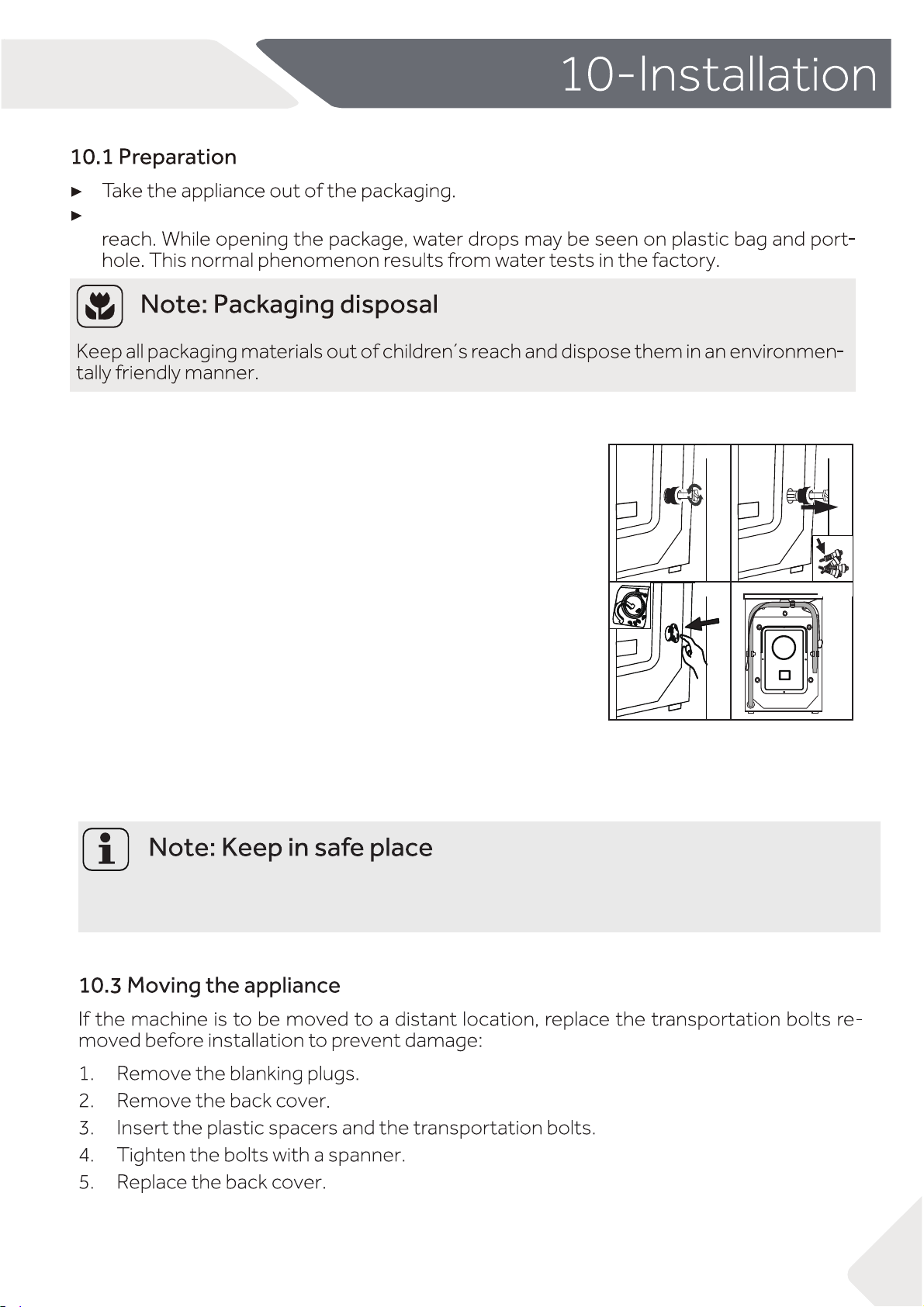

10.2 Dismantle the transportation bolts
The transportation bolts are designed for clamping
anti-vibration components inside the appliance during
transportation to prevent inner damage.
1.
2.
Remove all 4 bolts on the rear side and take out
plastic spacers (Fig. 10-1)(Fig. 10-2).
Fill left holes with blanking plugs
Keep the transportation bolts in a safe place for later use ,Whenever the appliance is to be
moved at first reinstall the bolts.
(Fig. 10-3)(Fig. 10-4).
10-1
10-2
10-410-3
5
5
7
6
5
5
7
6
4
5
EN

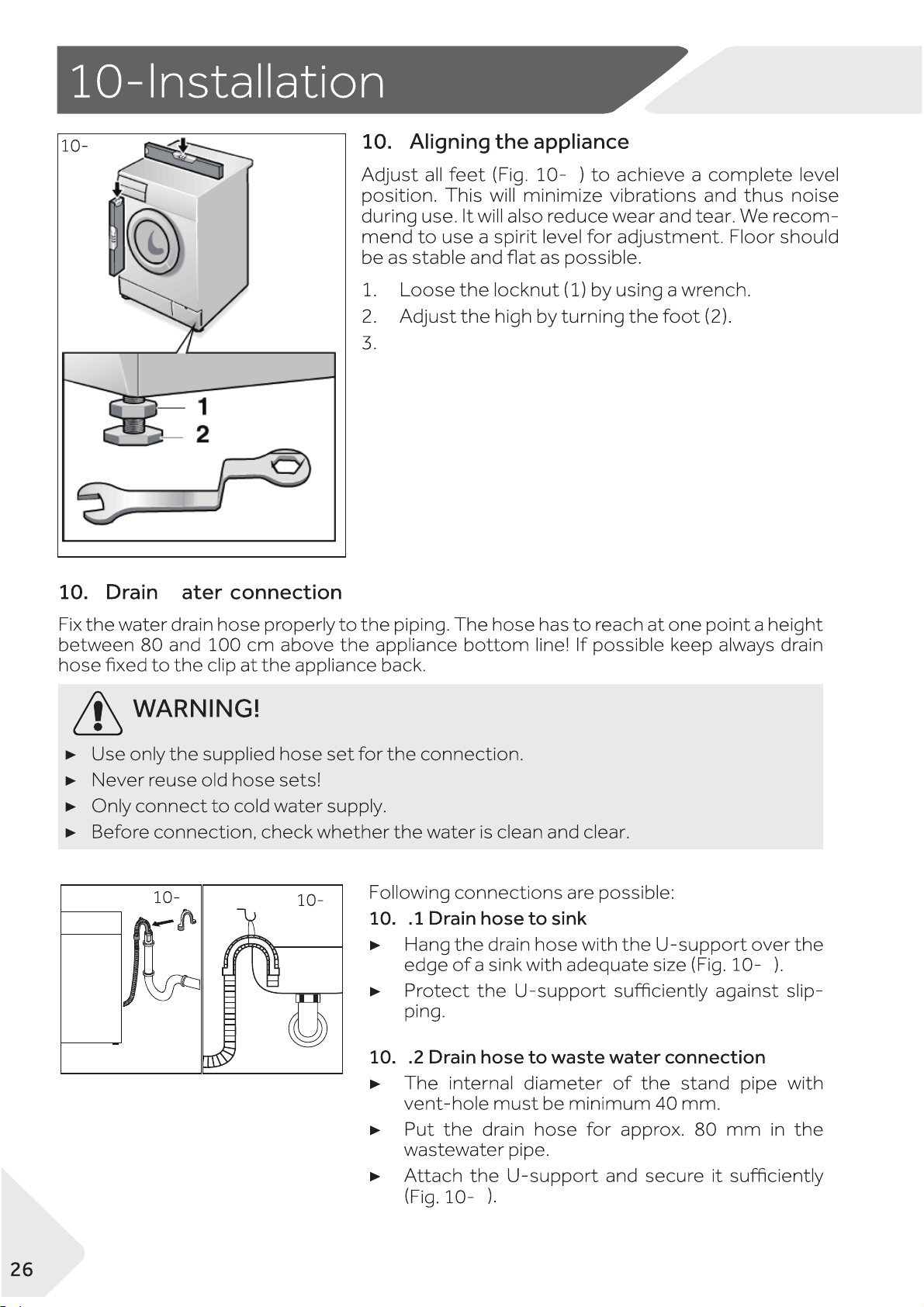

Tighten locknut (1) against the housing.
w

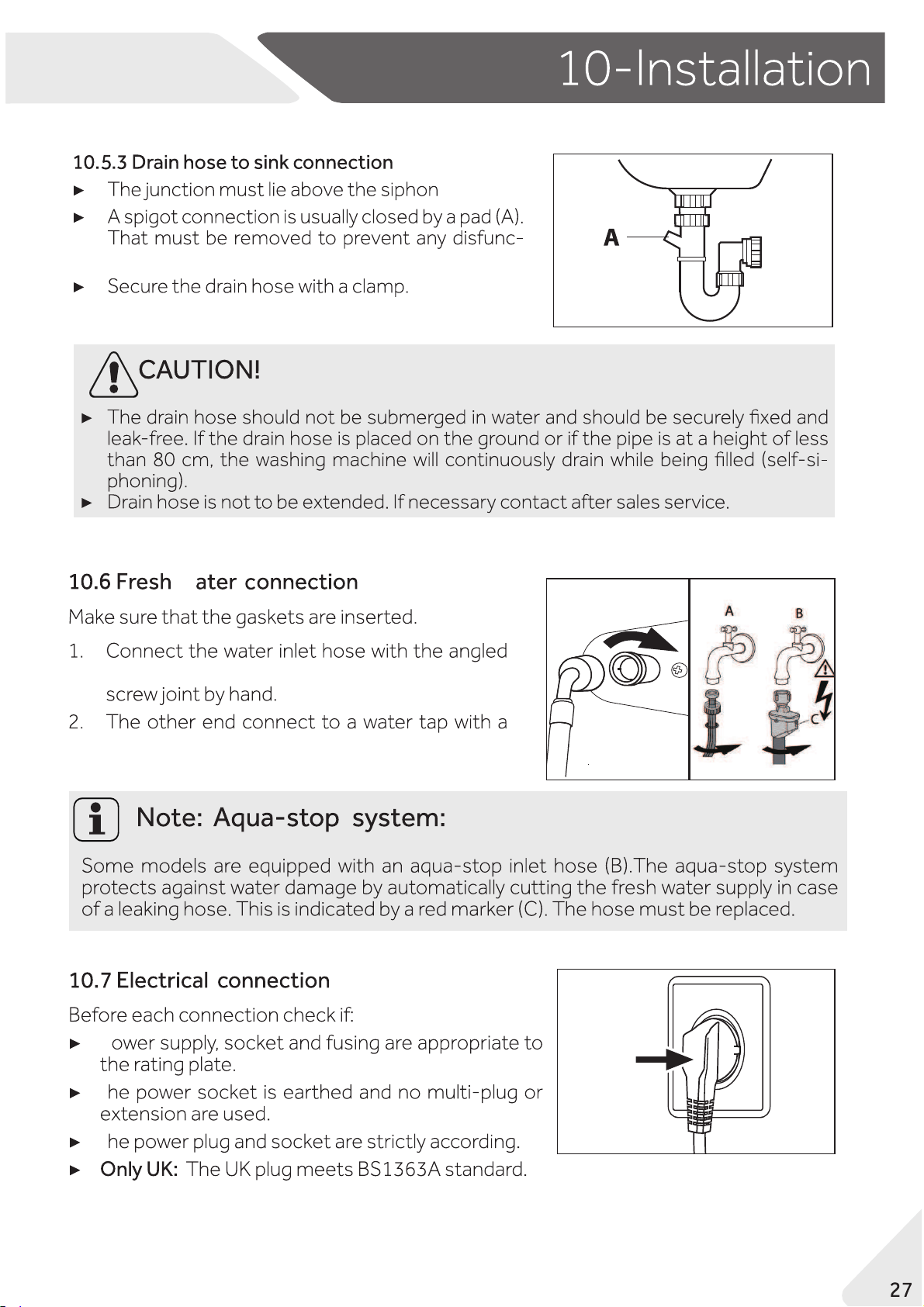

EN
tion(Fig.10-8)
10-8
10-9
10-10
end to the appliance(Fig.10-9).Tighten the
3/4'' thread(Fig.10-10).
10-11
Put the plug into the socket(Fig.10-11)
.
.
P
T
T
w
EN

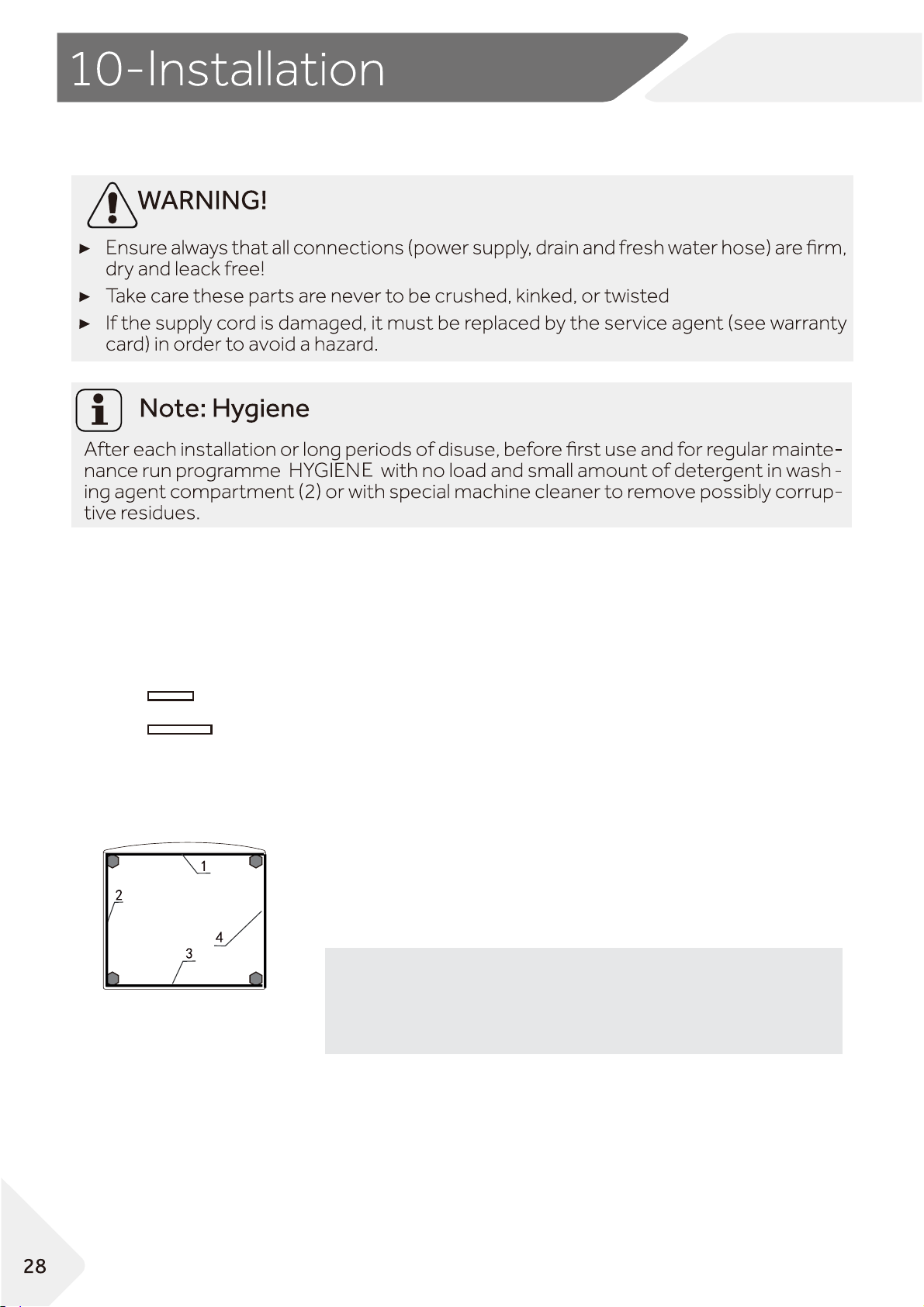

10.8
(2.2 Accessories Sponge)
1. When opening the shrink package, you will find the noise
reduction pads.
These are used for reducing noise.
(Fig. 10-12)
2. Lay the washing machine down to its side, porthole
pointing upwards,
bottom side towards operator.
3. Take out the noise reduction pads and remove the
double-sided adhesive
protective
film; the noise
reduction pads under the
washing machine
cabinet
as shown in (Figure 10-13).(two longer pads in position
1and 3, two shorter pads in
position 2 and 4). Finally
set
the machine upright again.
Warm tip:
Noise reduction pad is optional , could help to reduce
noise , please assemble it or not according to your own
demand.
10-12
2x
2x
10-13
.
Noise reduction pads installation instructions
EN
11-Technical data
29
Voltage in V 220-240 V~/50Hz
Current in A 10
Max power in W 2000
Water pressure in MPa 0.03≤P ≤1
Netto weight in kg 7472
11.1 Additional technical data
11.3 Standards and Directives
This product meets the requirements of all applicable EC directives with the correspon-
ding harmonised standards, which provide for CE marking.
Note: The exact height of your washer is dependent on how far the feet are extended from
the base of the machine. The space where you install your washer needs to be at least
40mm wider and 20mm deeper than its dimensions.
TOP VIEWWALLFRONT VIEW
A
B
E
D
C
PRODUCT DIMENSIONS
B
Overall width of product mm
A Overall height of product mm
C
Overall depth of product
(To main control board size) mm
D
Depth of door open mm
E Minimum door clearance
to adjacent wall mm
11.2 Product dimensions
850 850
595 595
550 600
1050 1100
400 400
RH3W 48HMCB-S
RH3W 48HMCB-80
RH3W 49HMCB-S
RH3W 49HMCB-80
RH3W 48HMCB-S
RH3W 48HMCB-80
RH3W 49HMCB-S
RH3W 49HMCB-80
-
RH3W HMC-S
-
- 2021.06 -
