TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS
BOOK FOR FUTURE REFERENCE.
,Super Capaei_ 465 withACCUBAKE®System
4.65 Cubic Foot Oven
MODEL SF385PEG SF387LEG
8273153
®
&ppliances
UseCare
A Note to You ............ 2
Range Safety ............ 3
Parts and Features .... 5
Using Your Range ...... 6
Using the Self-
Cleaning Cycle ........ 20
Caring for Your
Range ...................... 23

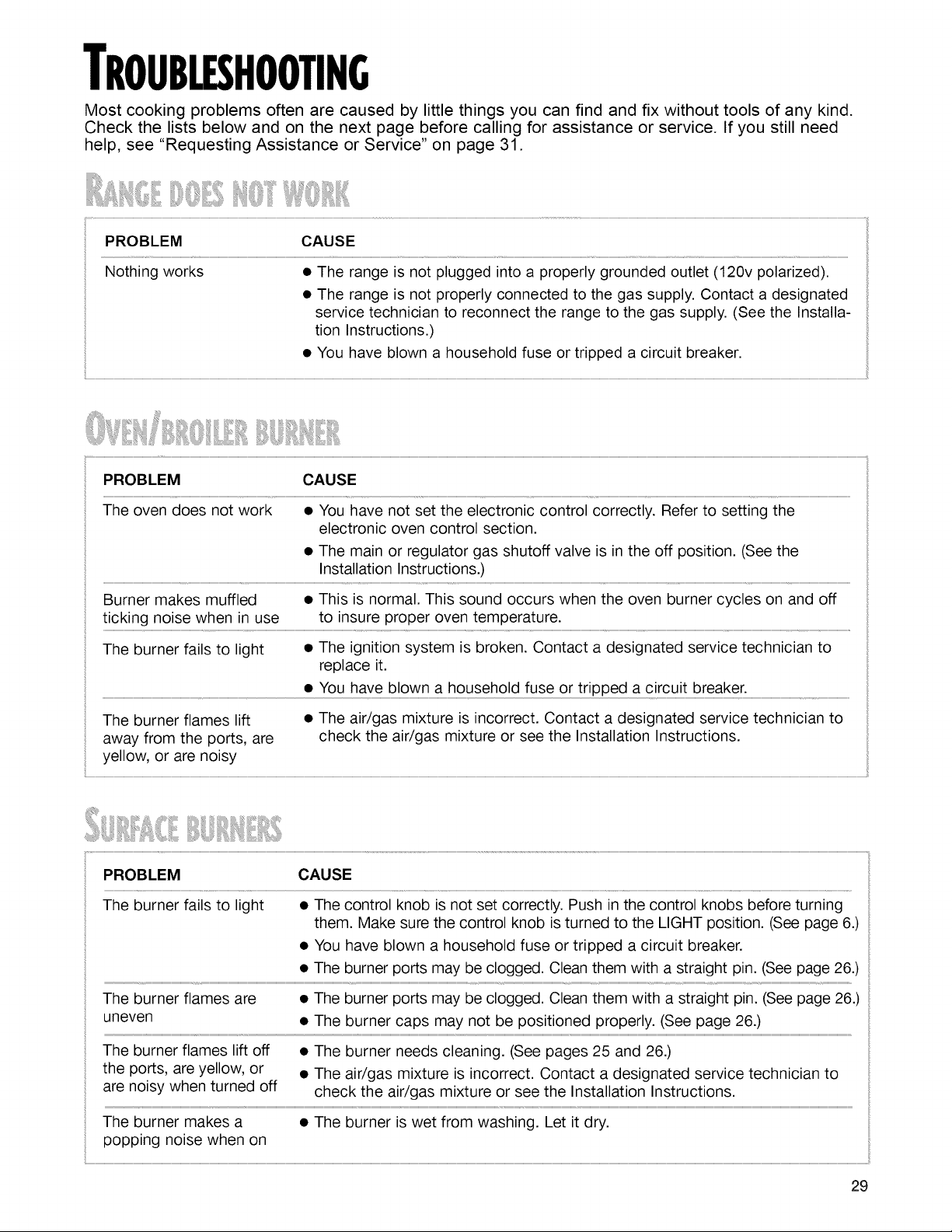

Troubleshooting ...... 29

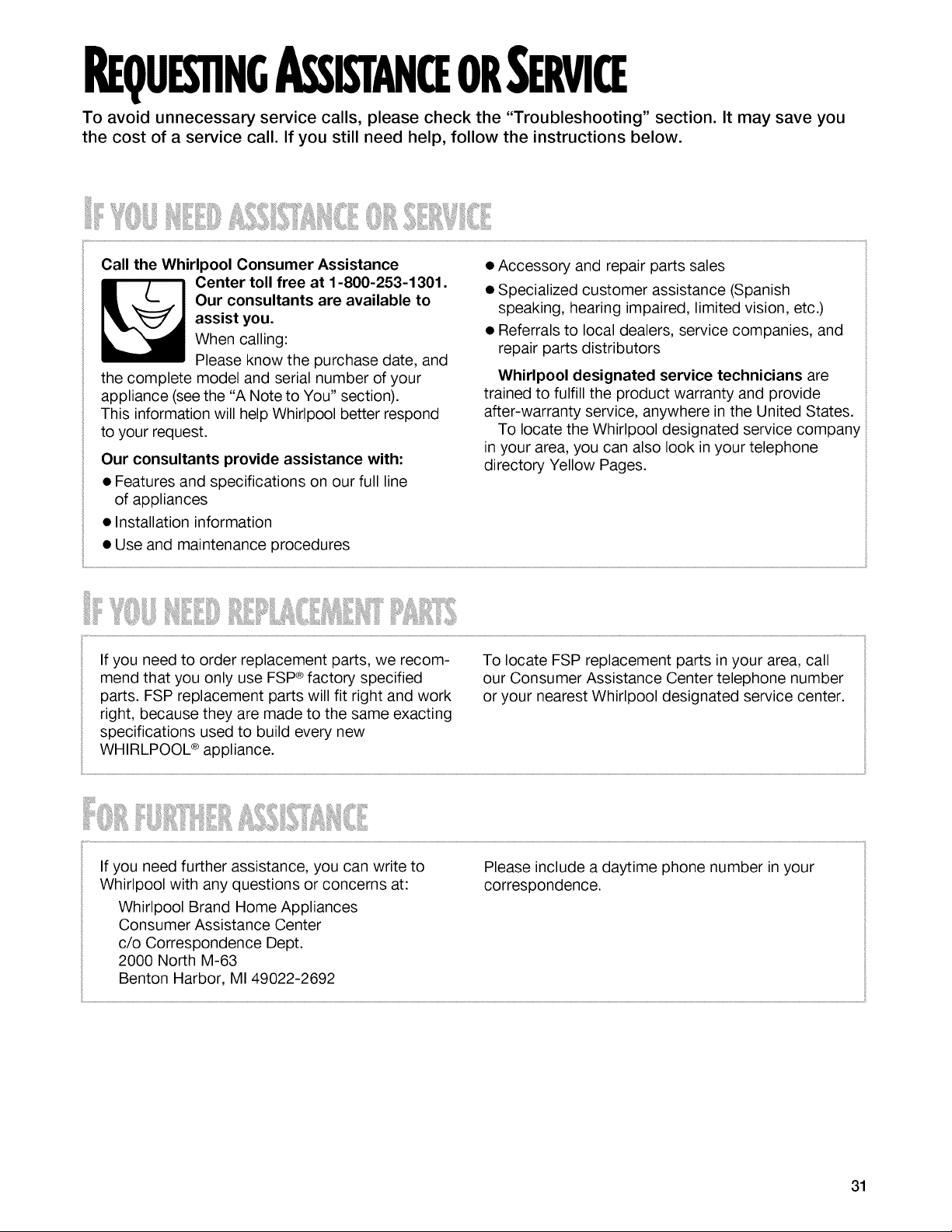

Requesting
Assistance or
Service .................... 31

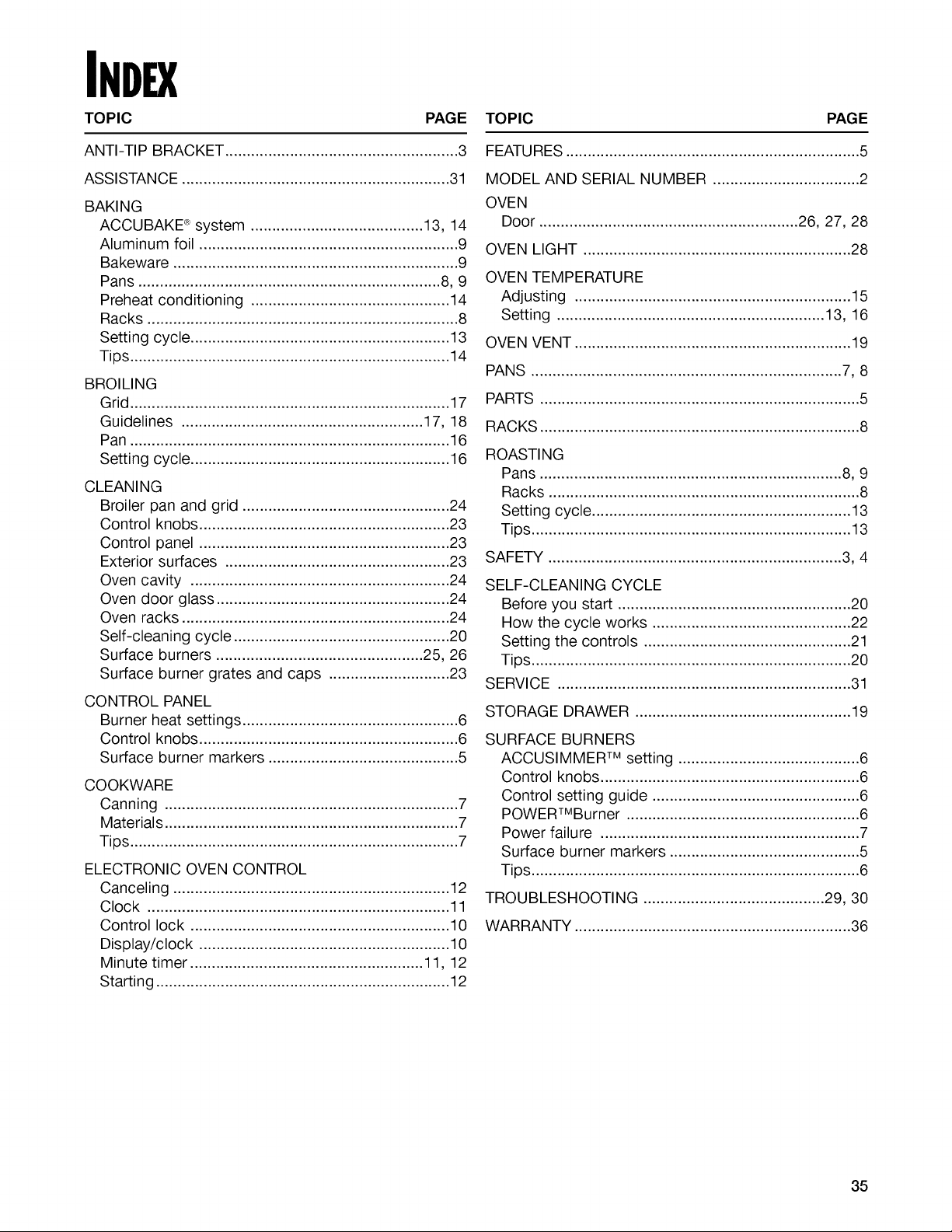

Index ........................ 35

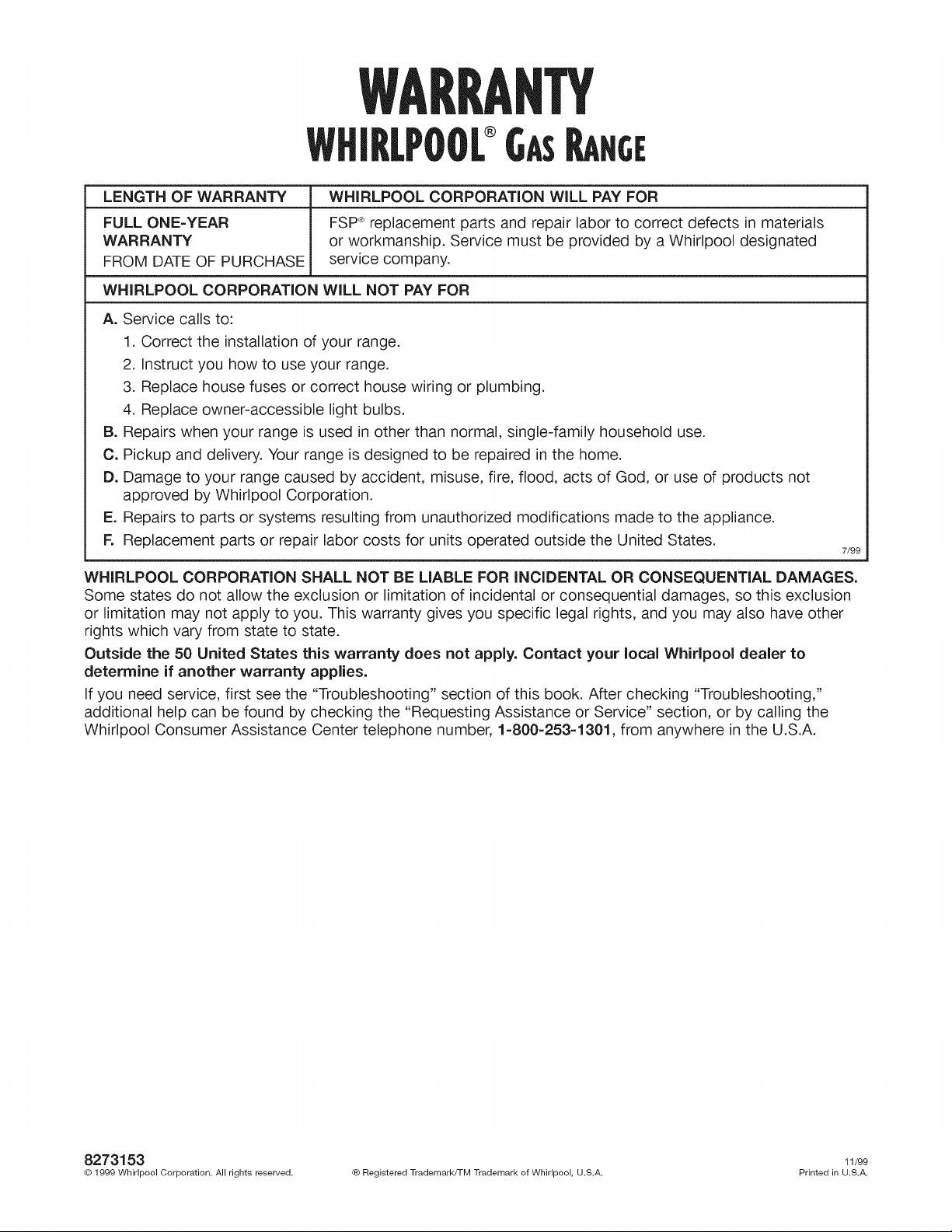

Warranty .................. 36
Call our Consumer Assistance Center
with questions or comments.
www.whirlpool.com

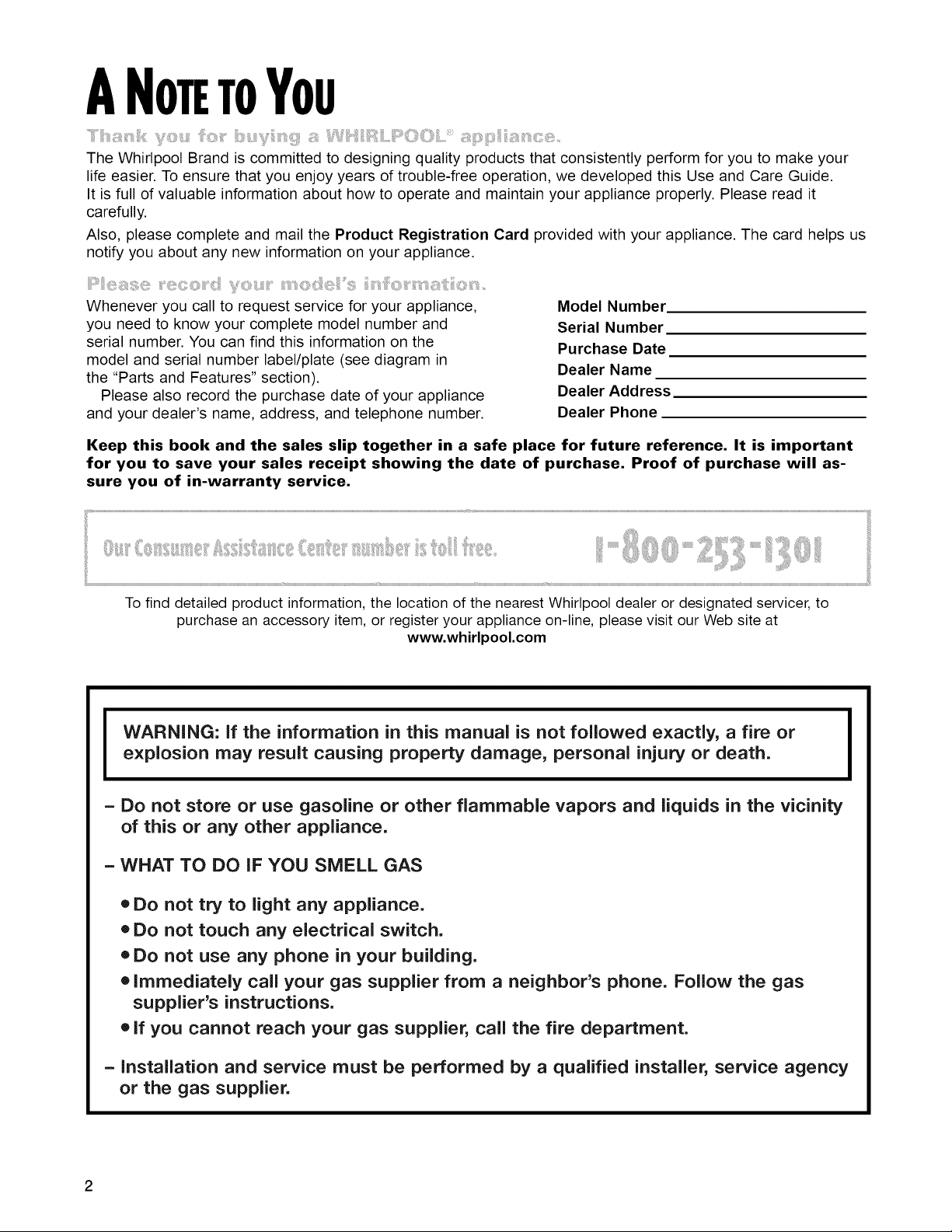

ANOTETOYOU
_iiiii_ _o_ _©_" _il_ _ W_'_::_©©_ _ _,__
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly. Please read it
carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
_@_9@ _@©©_ _©_iiii/i!_ _:_ _s_©_,,,_T_@_©__
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the "Parts and Features" section).
Please also record the purchase date of your appliance
and your dealer's name, address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will as-
sure you of in-warranty service.
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• if you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency
or the gas supplier.

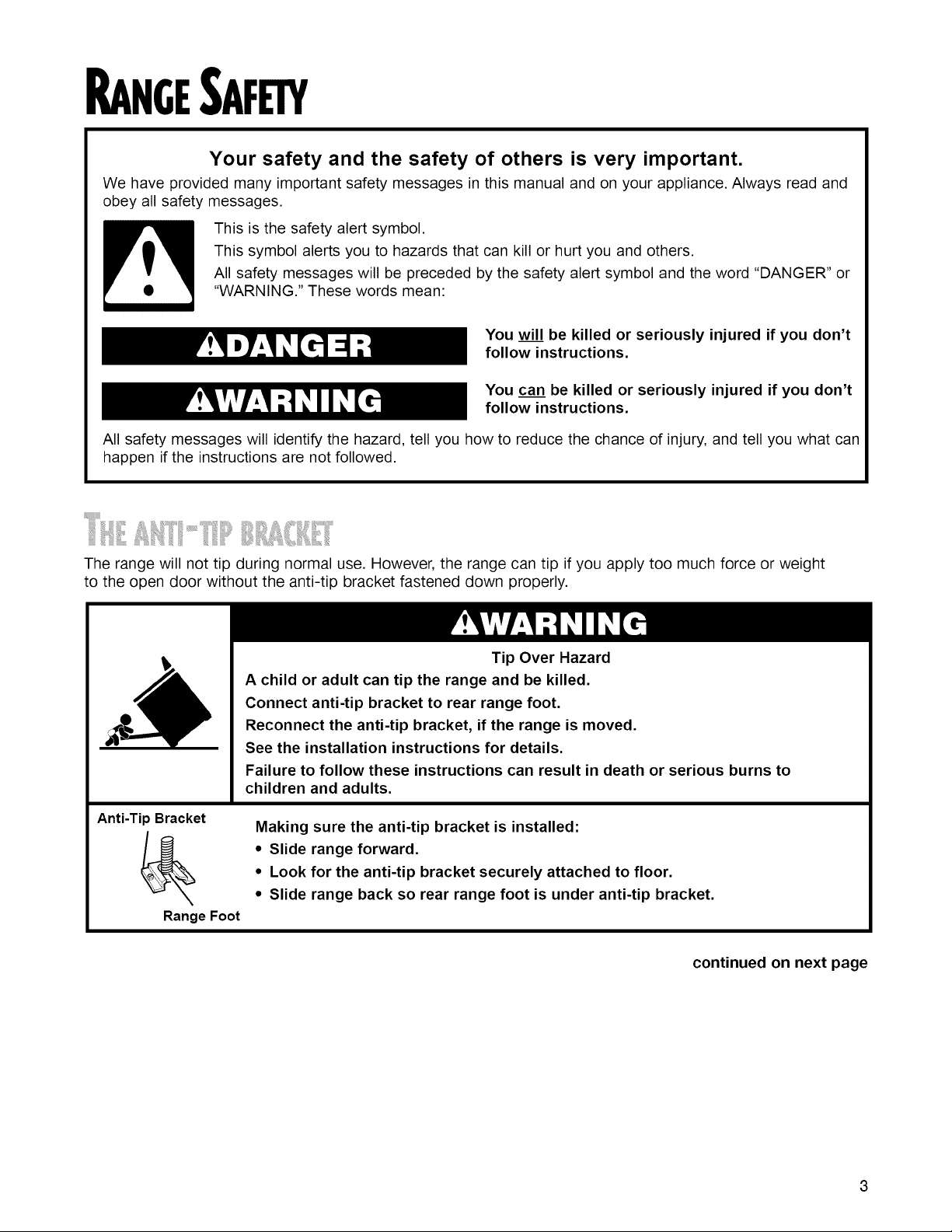

RANGESAFETV
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to
children and adults.
Making sure the anti-tip bracket is installed:
,, Slide range forward.
,, Look for the anti-tip bracket securely attached to floor.
,, Slide range back so rear range foot is under anti-tip bracket.
continued on next page
3

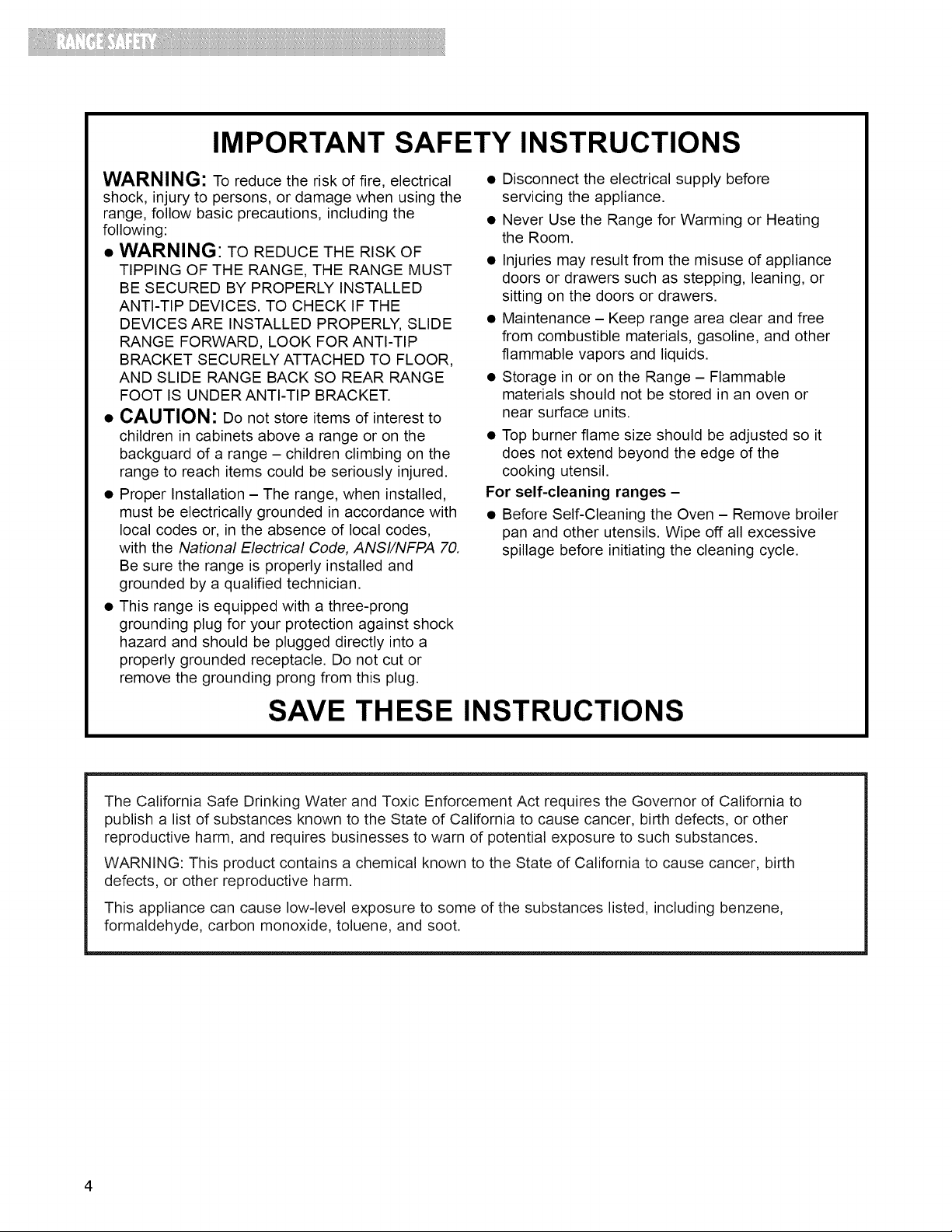

IMPORTANT SAFETY INSTRUCTIONS
WARNI NG: Toreduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
• WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE
DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP
BRACKET SECURELY ATTACHED TO FLOOR,
AND SLIDE RANGE BACK SO REAR RANGE
FOOT IS UNDER ANTI-TIP BRACKET.
• CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
• Proper Installation - The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70.
Be sure the range is properly installed and
grounded by a qualified technician.
• This range is equipped with a three-prong
grounding plug for your protection against shock
hazard and should be plugged directly into a
properly grounded receptacle. Do not cut or
remove the grounding prong from this plug.
• Disconnect the electrical supply before
servicing the appliance.
• Never Use the Range for Warming or Heating
the Room.
• Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
• Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
• Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Top burner flame size should be adjusted so it
does not extend beyond the edge of the
cooking utensil.
For self-cleaning ranges -
• Before Self-Cleaning the Oven - Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances,
WARNING: This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm,
This appliance can cause low=level exposure to some of the substances listed, including benzene,
formaldehyde, carbon monoxide, toluene, and soot,

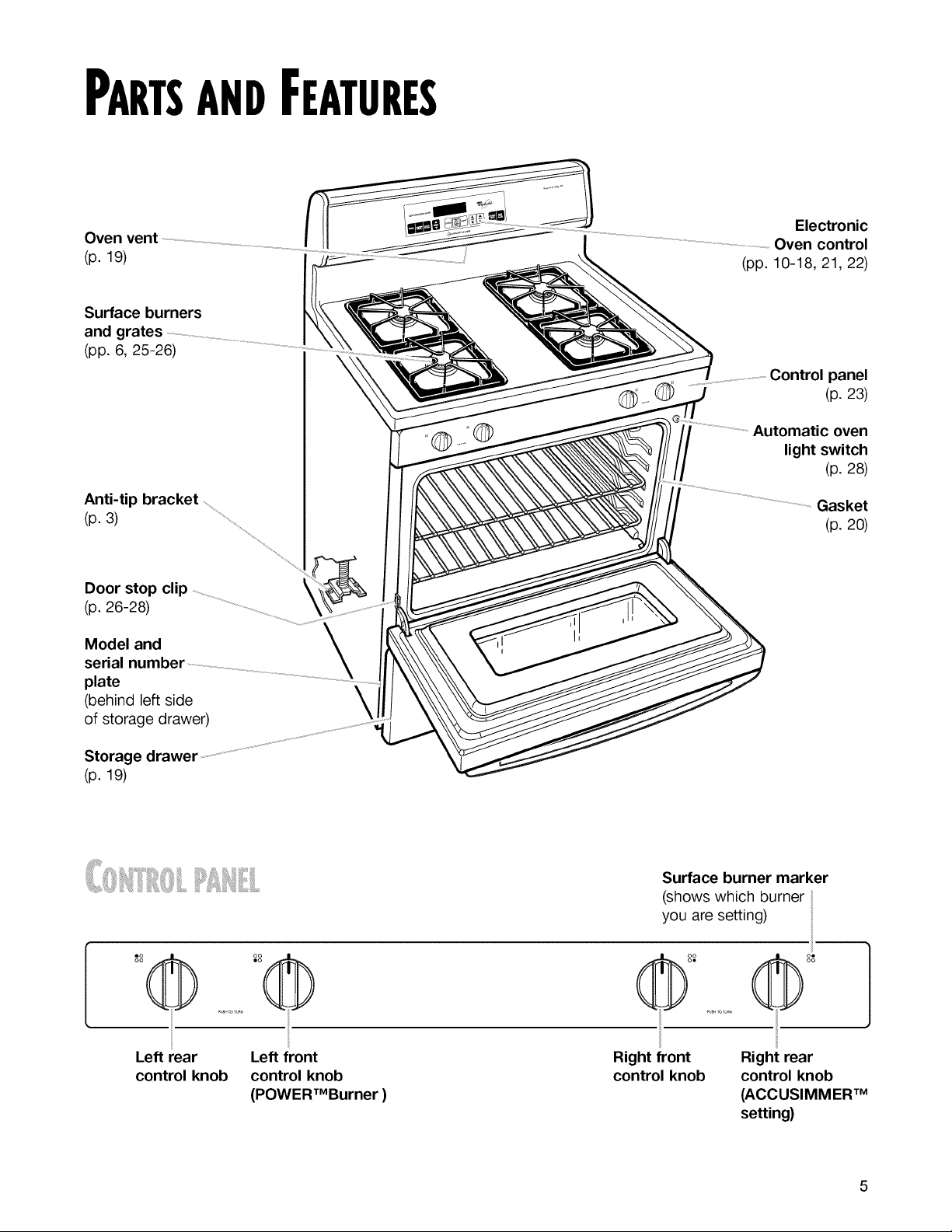

PARTSANDFEATURES
Oven vent
(p. 19)

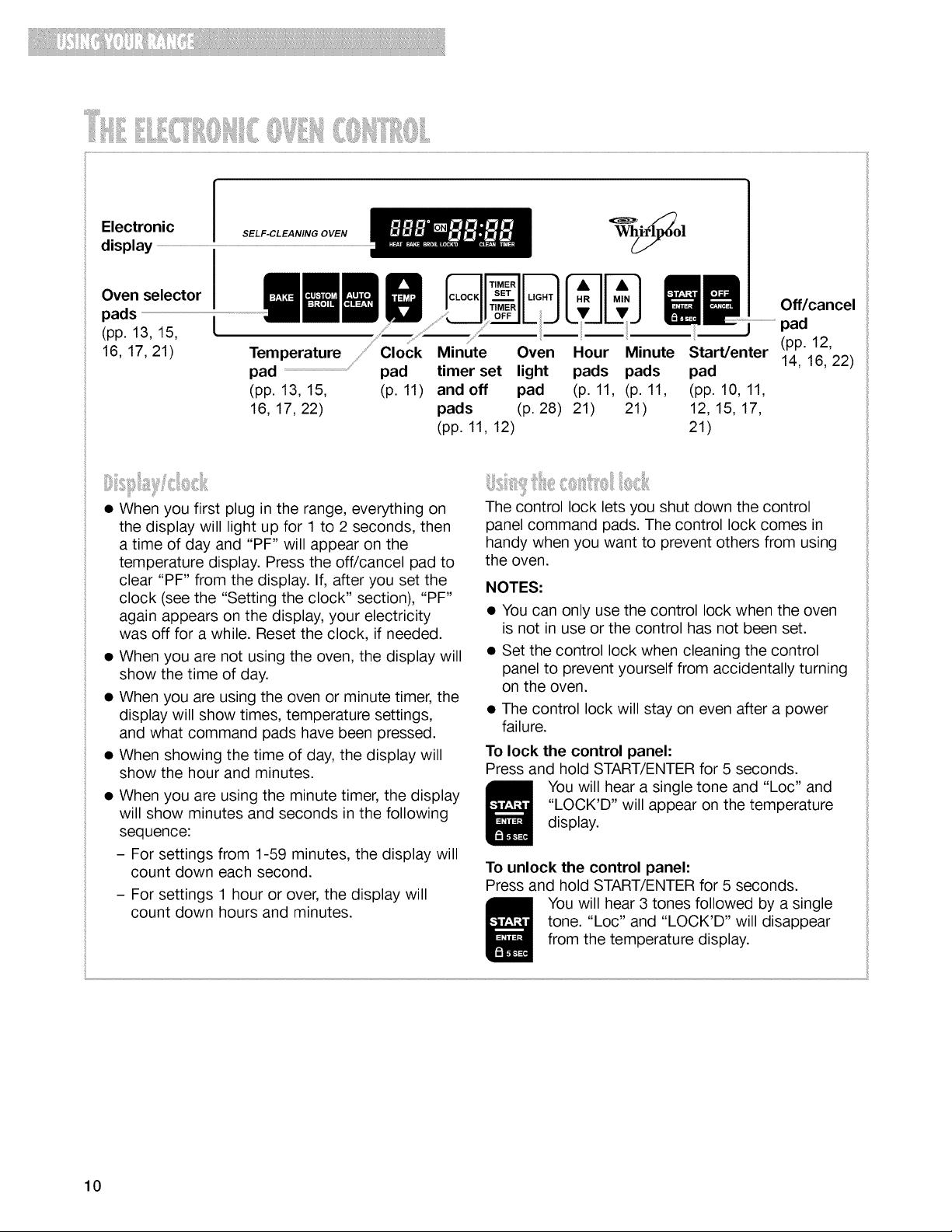

Electronic
Oven control
(pp. 10-18, 21, 22)
Surface burners
and g
(pp. 6, 25-26)
Anti-tip
(p. 3)
Control panel
(p. 23)
Automatic oven
light switch
(p. 28)
Gasket
(p. 20)

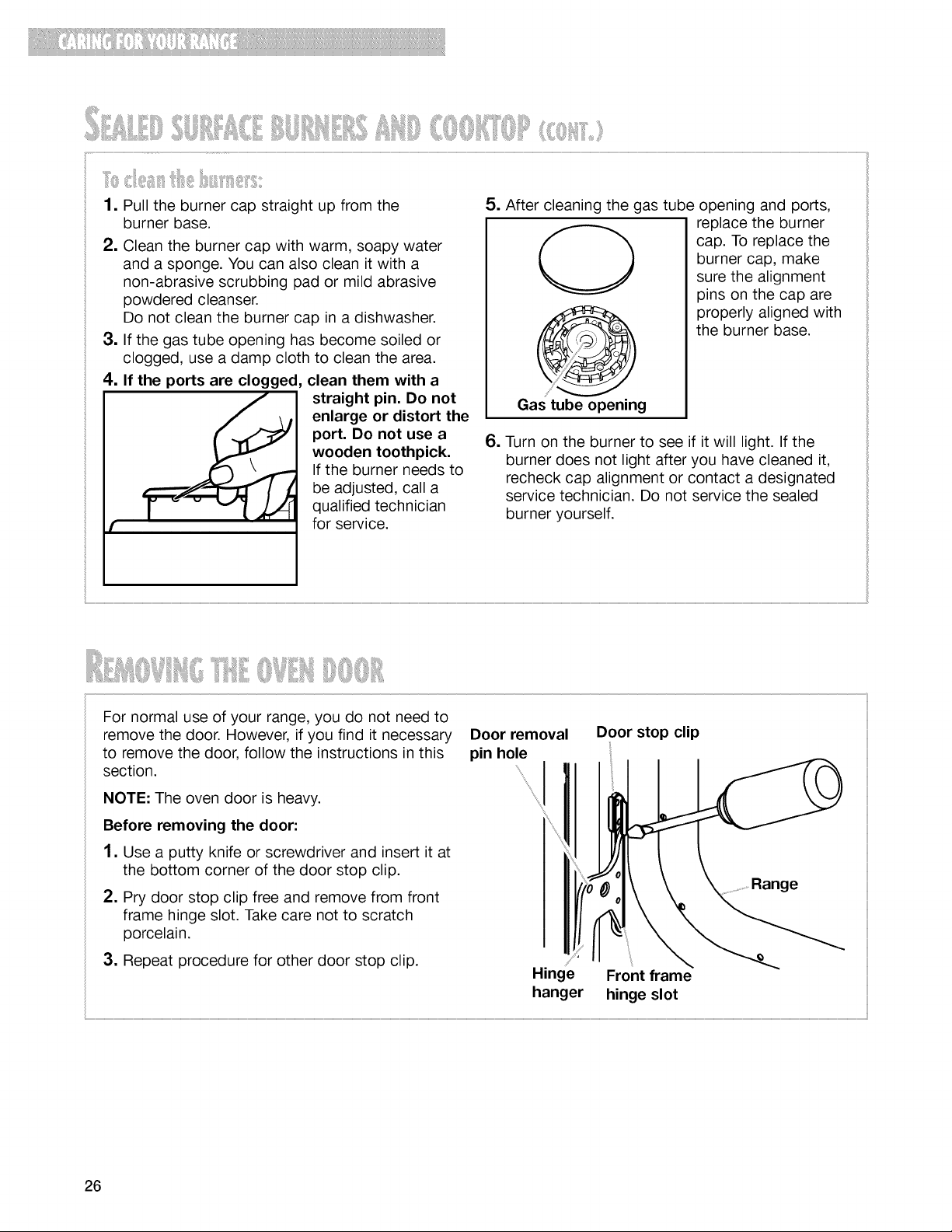

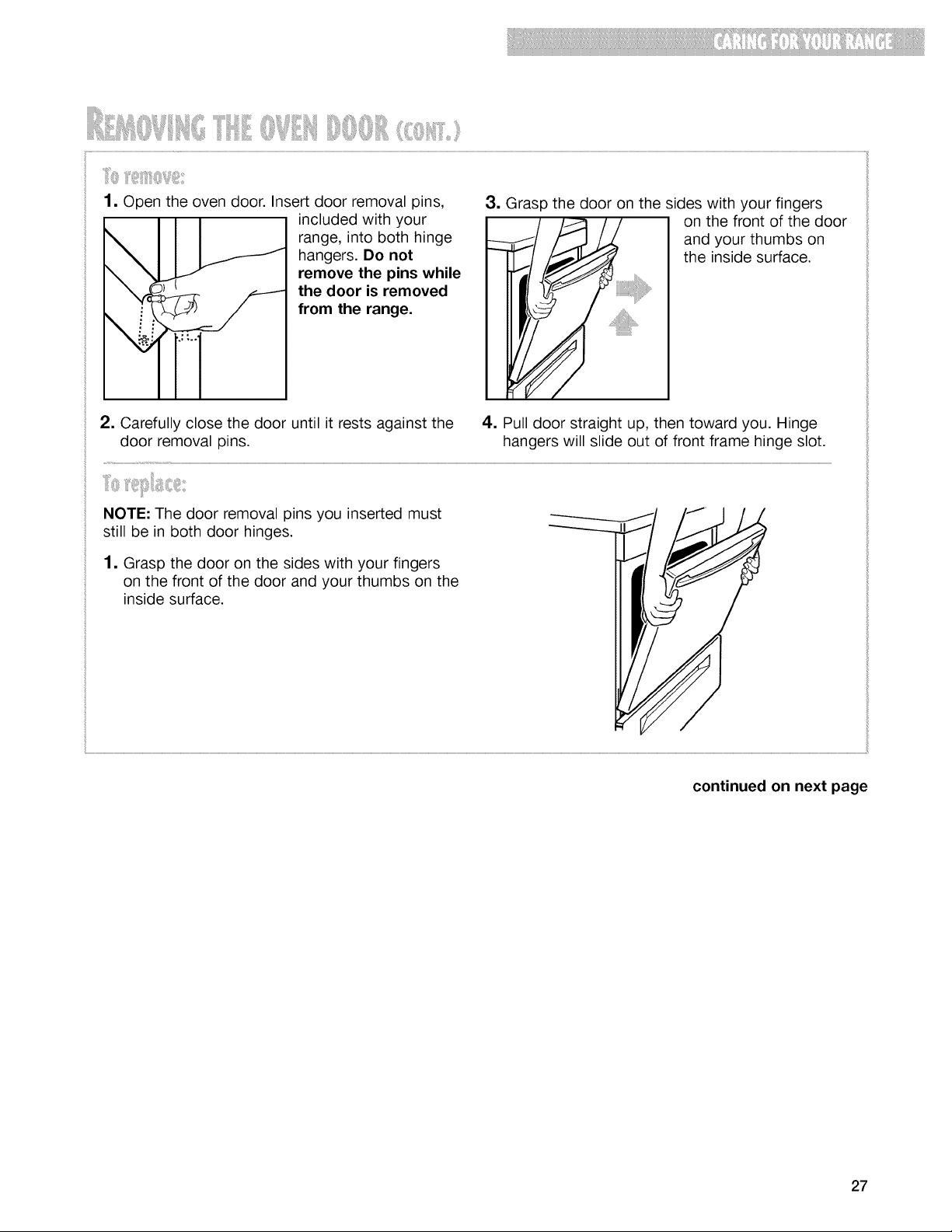

Door stop clip
(p. 26-28)
Model and
serial
plate
(behind left side
of storage drawer)
Storage drawer
(p. 19)
\
Left rear
control knob
oo®
,o
Left front
control knob
(POWERTMBurner)
Surface burner marker
(shows which burner
you are setting)
oOO
Right front
control knob
Right rear
control knob
(ACCUSIMMER TM
setting)
5

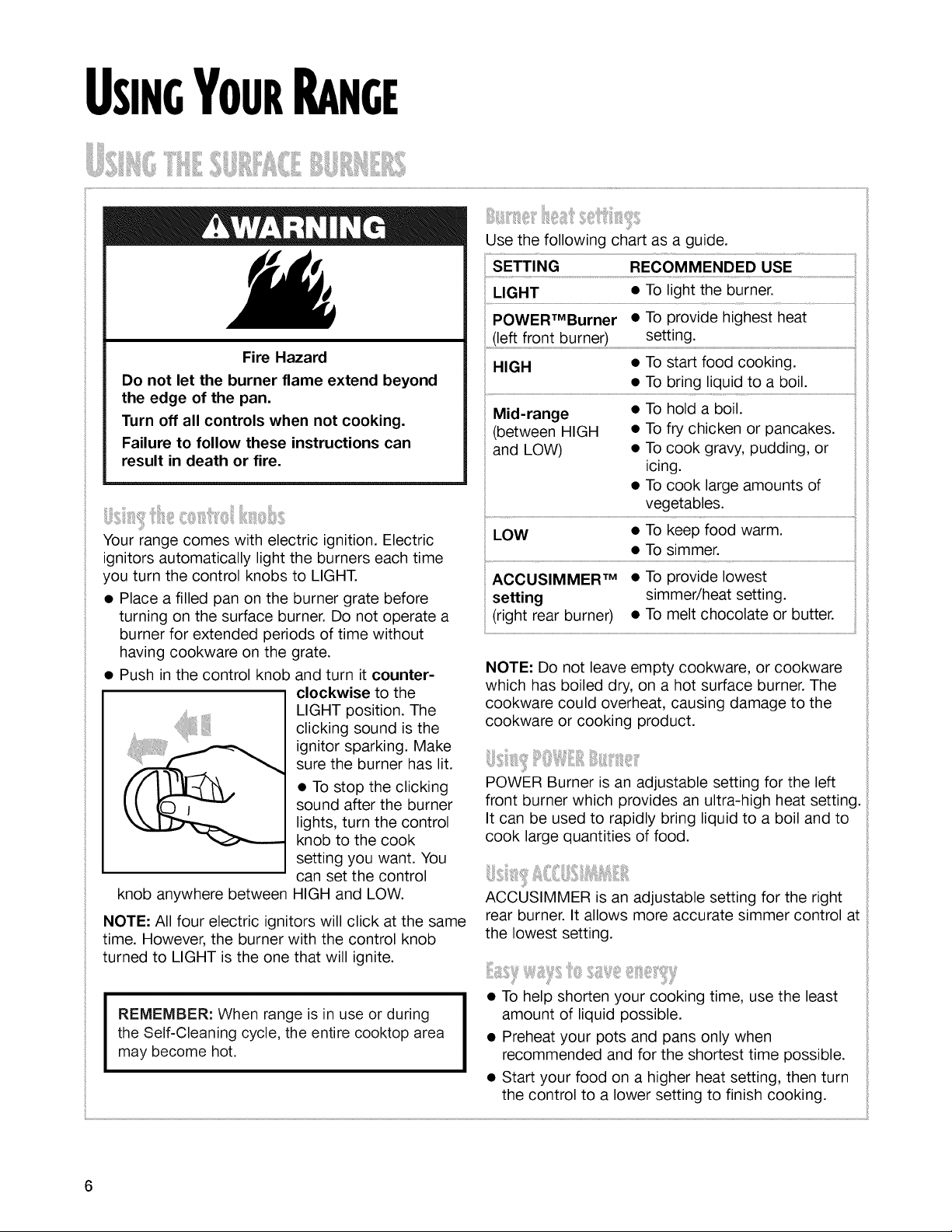

USINGYOURRANGE
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
Your range comes with electric ignition. Electric
ignitors automatically light the burners each time
you turn the control knobs to LIGHT.
• Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
• Push in the control knob and turn it counter-
clockwise to the
LIGHT position. The
clicking sound is the
ignitor sparking. Make
sure the burner has lit.
• To stop the clicking
sound after the burner
lights, turn the control
knob to the cook
setting you want. You
can set the control
knob anywhere between HIGH and LOW.
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LIGHT is the one that will ignite.
REMEMBER: When range is in use or during
the Self-Cleaning cycle, the entire cooktop area
may become hot.
Use the following chart as a guide.
POWERTMBurner • To provide highest heat
Mid-range
(between HIGH
and LOW)
HIGH • To start food cooking.
• To bring liquid to a boil.
• To hold a boil.
• To fry chicken or pancakes.
• To cook gravy, pudding, or
icing.
• To cook large amounts of
vegetables.
• To simmer.
ACCUSIMMERTM • To provide lowest
setting simmer/heat setting.
(right rear burner) • To melt chocolate or butter.
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
I!: !!i;iiii! i?!!iill¸iii li ii i i!iiiii!!i!iiiill
POWER Burner is an adjustable setting for the left
front burner which provides an ultra-high heat setting.
It can be used to rapidly bring liquid to a boil and to
cook large quantities of food.
ACCUSIMMER is an adjustable setting for the right
rear burner. It allows more accurate simmer control at
the lowest setting.
• To help shorten your cooking time, use the least
amount of liquid possible.
• Preheat your pots and pans only when
recommended and for the shortest time possible.
• Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
¸ i:idl ,

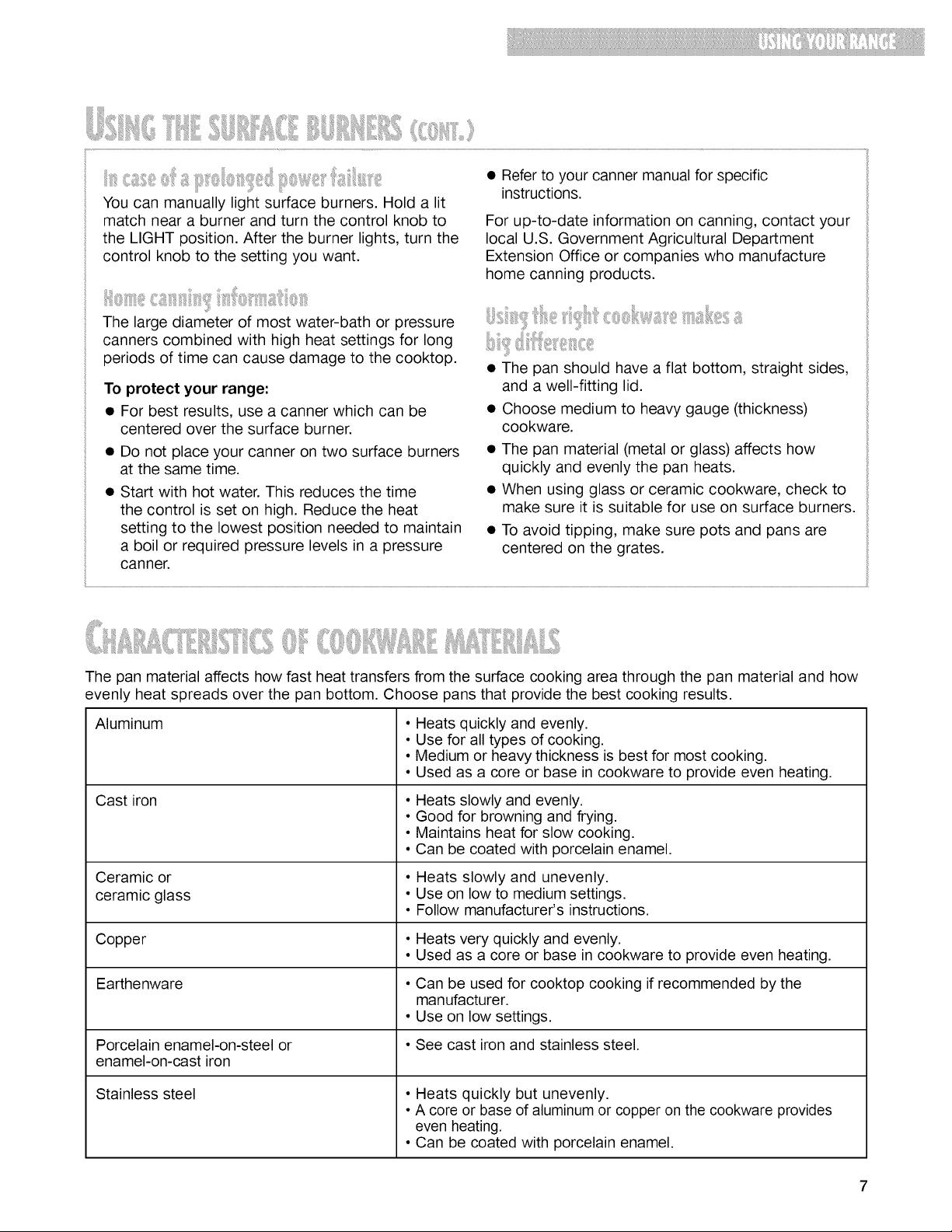

You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LIGHT position. After the burner lights, turn the
control knob to the setting you want.
!l"lii;i ii iiiiii! ¸ i;;: i iiiii il iliii! i i=,!!Ii'
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
• For best results, use a canner which can be
centered over the surface burner.
• Do not place your canner on two surface burners
at the same time.
• Start with hot water. This reduces the time
the control is set on high. Reduce the heat
setting to the lowest position needed to maintain
a boil or required pressure levels in a pressure
canner.
• Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact your
local U.S. Government Agricultural Department
Extension Office or companies who manufacture
home canning products.
• The pan should have a flat bottom, straight sides,
and a well-fitting lid.
• Choose medium to heavy gauge (thickness)
cookware.
• The pan material (metal or glass) affects how
quickly and evenly the pan heats.
• When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
• To avoid tipping, make sure pots and pans are
centered on the grates.
ii !IillIiiil iJ !iii,1]:! 'l'l!iii
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum
Cast iron
Ceramic or
ceramic glass
Copper
Earthenware
Porcelain enamel-on-steel or
enamel-on-cast iron
Stainless steel
• Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
• Heats slowly and unevenly.
• Use on low to medium settings.
• Follow manufacturer's instructions.
• Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
• Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
• See cast iron and stainless steel.
• Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
7
li,,,,i}:iiJi!l',,,,,!ii'Tii,,!i!il iiJi!
!ii%_iiili'iii!_i_,_'_iiii_,,!_¸i_,,_i_i_i:::l_ii!i__iii!i:i'_,_ii:iiiilii[_i"_!_i_

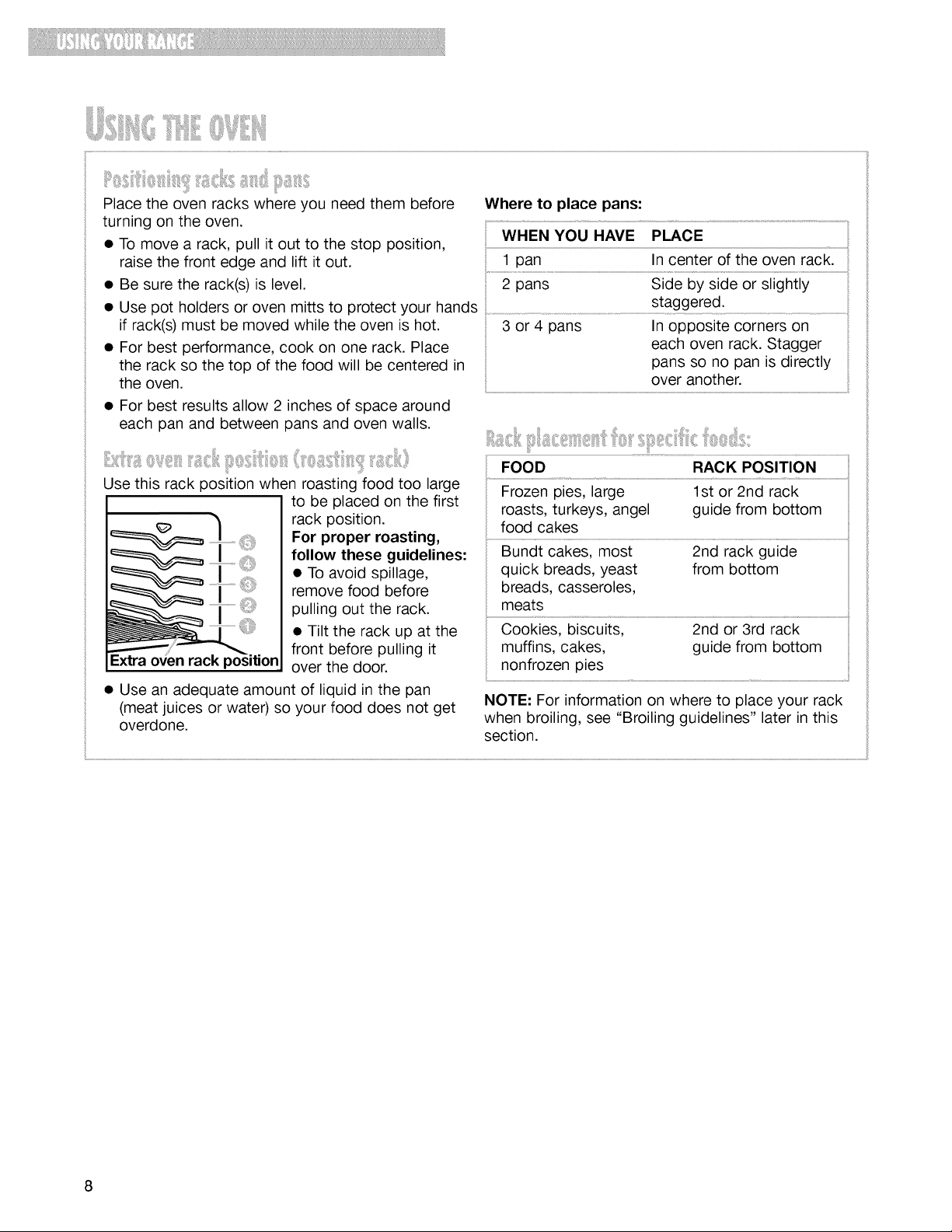

Place the oven racks where you need them before
turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
• For best results allow 2 inches of space around
each pan and between pans and oven walls.
iiki':'_":_i!__i_:_i_'_i'g_!_,_"!i'il_',ii!!<:iI,ili:i_i_:_:,:i!iii_iiii_'_l:iii!,_i:t,iii'_i,_iiii'iii_ii:_i_ii!_,:'I:iii!_iii_,,!illl¸¸ii'_'ii_ii_li:;:ii,_ii::}
Use this rack position when roasting food too large
to be placed on the first
oven rack :ion
rack position.
For proper roasting,
follow these guidelines:
• To avoid spillage,
remove food before
pulling out the rack.
• Tilt the rack up at the
front before pulling it
over the door.
• Use an adequate amount of liquid in the pan
(meat juices or water) so your food does not get
overdone.
Where to place pans:
WHEN YOU HAVE PLACE
1 pan In center of the oven rack.
2 pans Side by side or slightly
3 or 4 pans In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
.................. ................................................................................ackgui de ....................................................................
quick breads, yeast from bottom
breads, casseroles,
meats
NOTE: For information on where to place your rack
when broiling, see "Broiling guidelines" later in this
section.
_iiiilIii_,i_i _iii!ii_iiii_!!iijiiI_,iiil_!iiJiii_I_!! !_ti_!i!_ijil!_ii!i!i_i!_t_

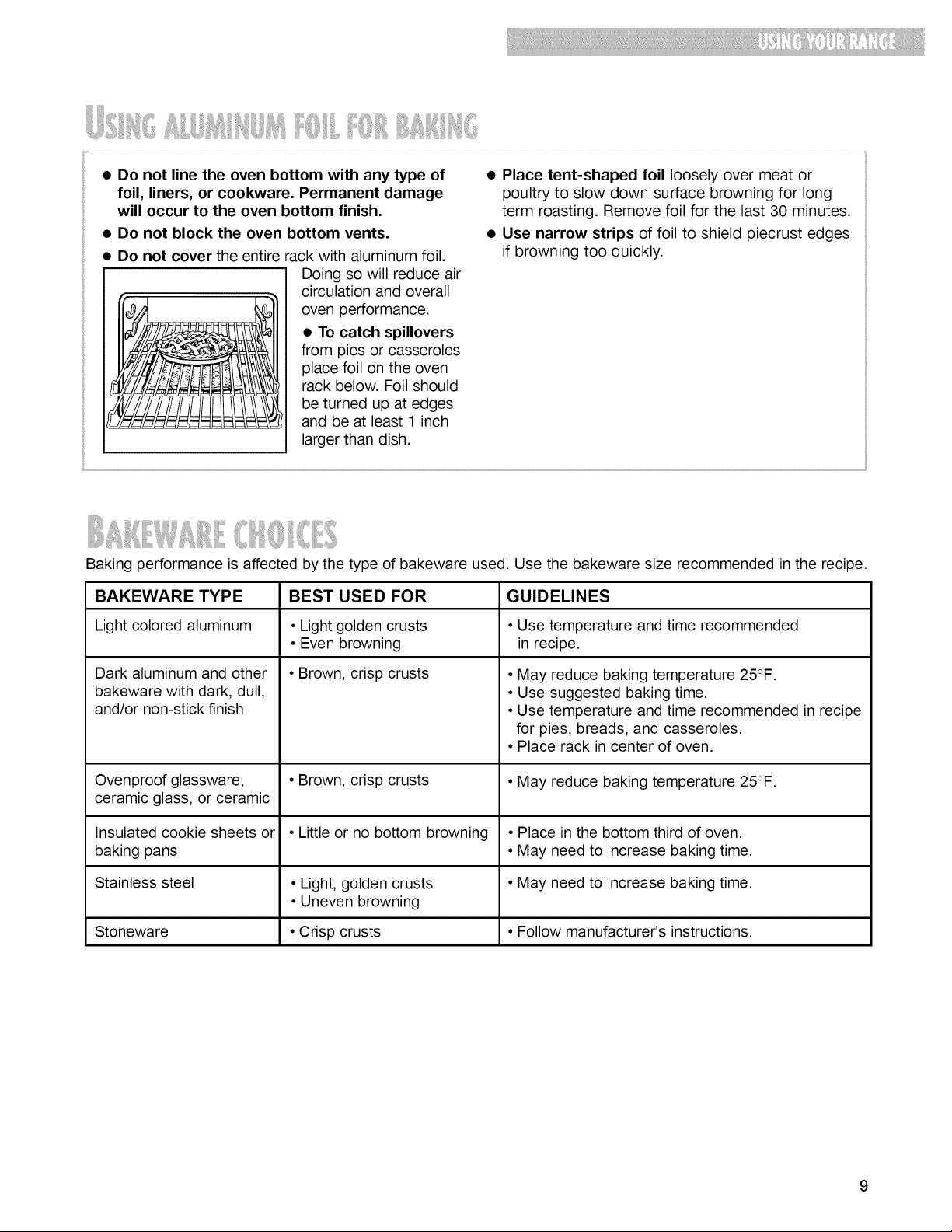

• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage
will occur to the oven bottom finish.
• Do not block the oven bottom vents.
• Do not cover the entire rack with aluminum foil.
] Doing so will reduce air
J
circulation and overall
oven performance.
• To catch spillovers
from pies or casseroles
place foil on the oven
rack below. Foil should
be turned up at edges
and be at least 1 inch
larger than dish.
• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term roasting. Remove foil for the last 30 minutes.
• Use narrow strips of foil to shield piecrust edges
if browning too quickly.
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE BEST USED FOR GUIDELINES
Light colored aluminum • Light golden crusts • Use temperature and time recommended
• Even browning in recipe.
• Brown, crisp crusts
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F.
ceramic glass, or ceramic
Insulated cookie sheets or • Little or no bottom browning • Place in the bottom third of oven.
baking pans • May need to increase baking time.
Stainless steel • Light, golden crusts • May need to increase baking time.
• Uneven browning
Stoneware • Crisp crusts • Follow manufacturer's instructions.
9
Electronic
display
Oven selector
pads
(pp. 13, 15, 1
16, 17, 21)
SELF-CLEANING OVEN
Temperature Clock Minute Oven
pad .........................................................................................pad timer set light
(pp. 13, 15, (p. 11) and off pad
16, 17, 22) pads (p. 28) 21)
(pp. 11, 12)
/..I1-1 O.,°ance,
LV/LVJ pad
Hour Minute Start/enter (pp. 12,
14, 16, 22)
pads pads pad
(p. 11, (p. 11, (pp. 10, 11,
21) 12, 15, 17,
21)
• When you first plug in the range, everything on
the display will light up for 1 to 2 seconds, then
a time of day and "PF" will appear on the
temperature display. Press the off/cancel pad to
clear "PF" from the display. If, after you set the
clock (see the "Setting the clock" section), "PF"
again appears on the display, your electricity
was off for a while. Reset the clock, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or minute timer, the
display will show times, temperature settings,
and what command pads have been pressed.
• When showing the time of day, the display will
show the hour and minutes.
• When you are using the minute timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1-59 minutes, the display will
count down each second.
- For settings 1 hour or over, the display will
count down hours and minutes.
The control lock lets you shut down the control
panel command pads. The control lock comes in
handy when you want to prevent others from using
the oven.
NOTES:
• You can only use the control lock when the oven
is not in use or the control has not been set.
• Set the control lock when cleaning the control
panel to prevent yourself from accidentally turning
on the oven.
• The control lock will stay on even after a power
failure.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and "Loc" and
"LOCK'D" will appear on the temperature
display.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear 3 tones followed by a single
tone. "Loc" and "LOCK'D" will disappear
from the temperature display.
10
i!i¸i!:!iliii,!_iliiiil!i!iii!_I_t!,il

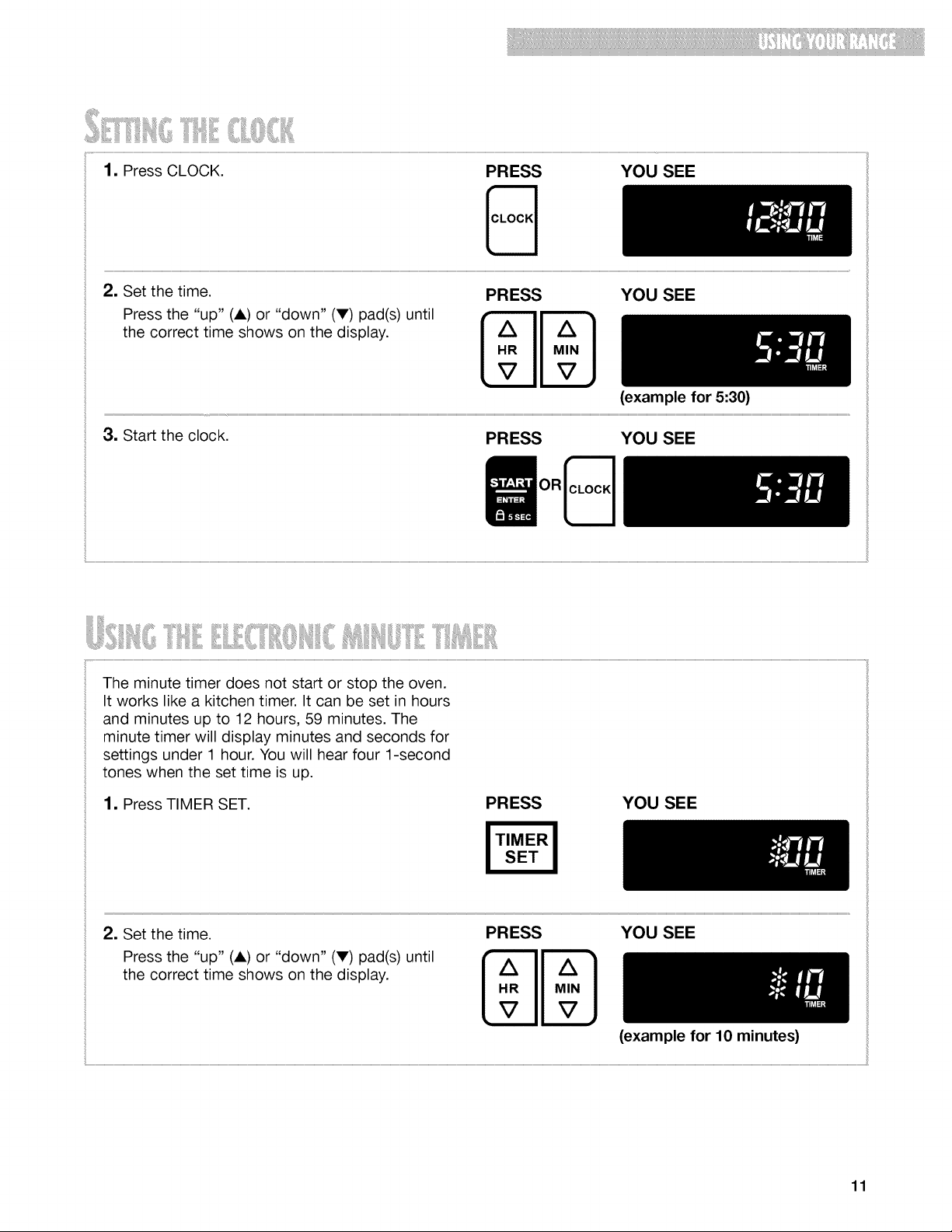

1. Press CLOCK. PRESS YOU SEE
2, Set the time. PRESS YOU SEE
Press the "up" (1) or "down" (V) pad(s) until
the correct time shows on the display.
(example for 5:30)
3, Start the clock. PRESS YOU SEE
The minute timer does not start or stop the oven.
It works like a kitchen timer. It can be set in hours
and minutes up to 12 hours, 59 minutes. The
minute timer will display minutes and seconds for
settings under 1 hour. You will hear four 1-second
tones when the set time is up.
1, Press TIMER SET. PRESS YOU SEE
2, Set the time. PRESS YOU SEE
Press the "up" (1) or "down" (V) pad(s) until t'_l_
UW
the correct time shows on the display.
(example for 10 minutes)
11
I,_i;i71111ili=iJi!!! i!L!7i,,7[!ii_iiii_i!_ii_ii7i_il_i!t[ ]!] i_!!i_i_!i!iii (_i)i;;i_mi:;ii

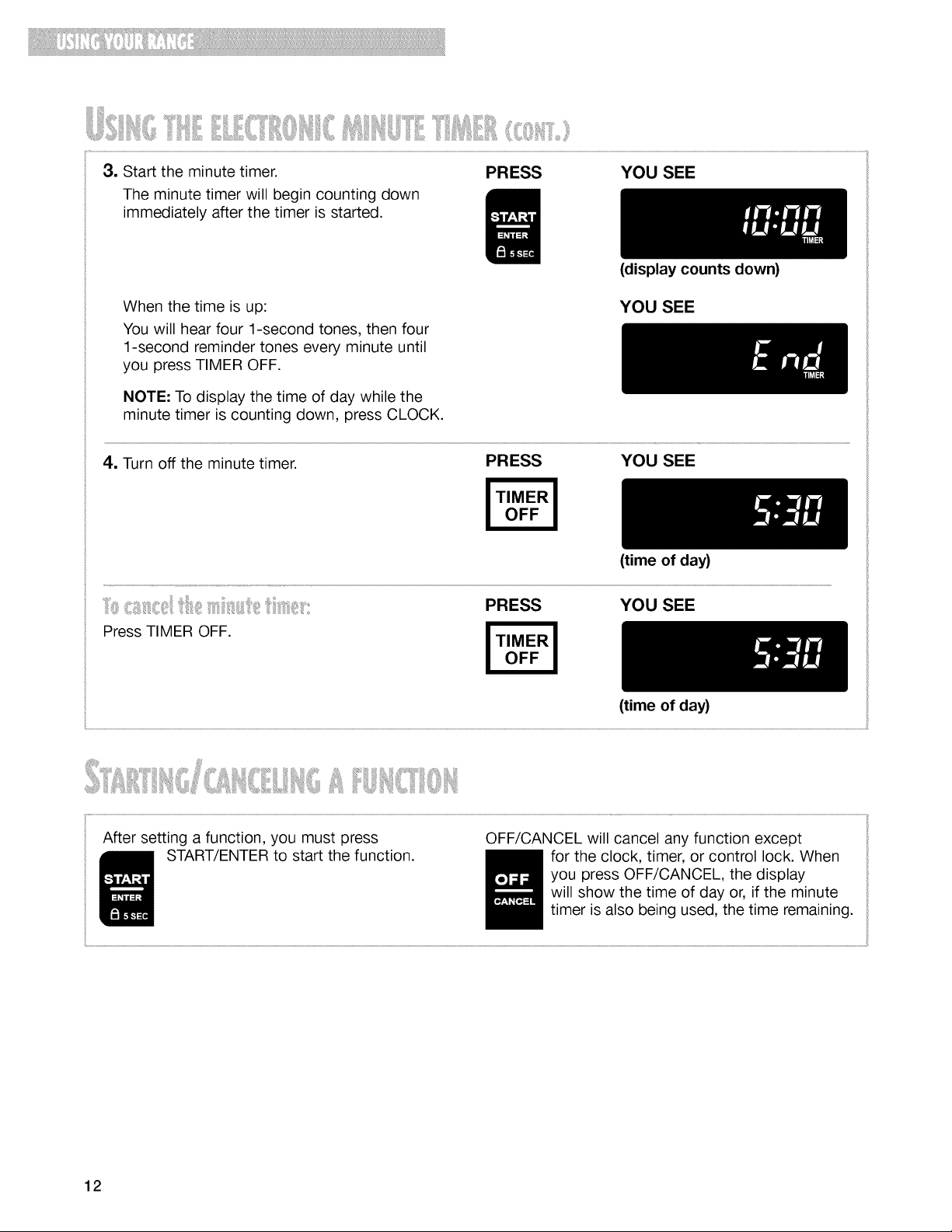

3. Start the minute timer. PRESS YOU SEE
The minute timer will begin counting down
immediately after the timer is started.
When the time is up:
You will hear four 1-second tones, then four
1-second reminder tones every minute until
you press TIMER OFF.
NOTE: To display the time of day while the
minute timer is counting down, press CLOCK.
(display counts down)
YOU SEE
4. Turn off the minute timer. PRESS YOU SEE
(time of day)
PRESS YOU SEE
Press TIMER OFF.
I'# 1
(time of day)
After setting a function, you must press
START/ENTER to start the function.
OFF/CANCEL will cancel any function except
for the clock, timer, or control lock. When
you press OFF/CANCEL, the display
will show the time of day or, if the minute
timer is also being used, the time remaining.
12

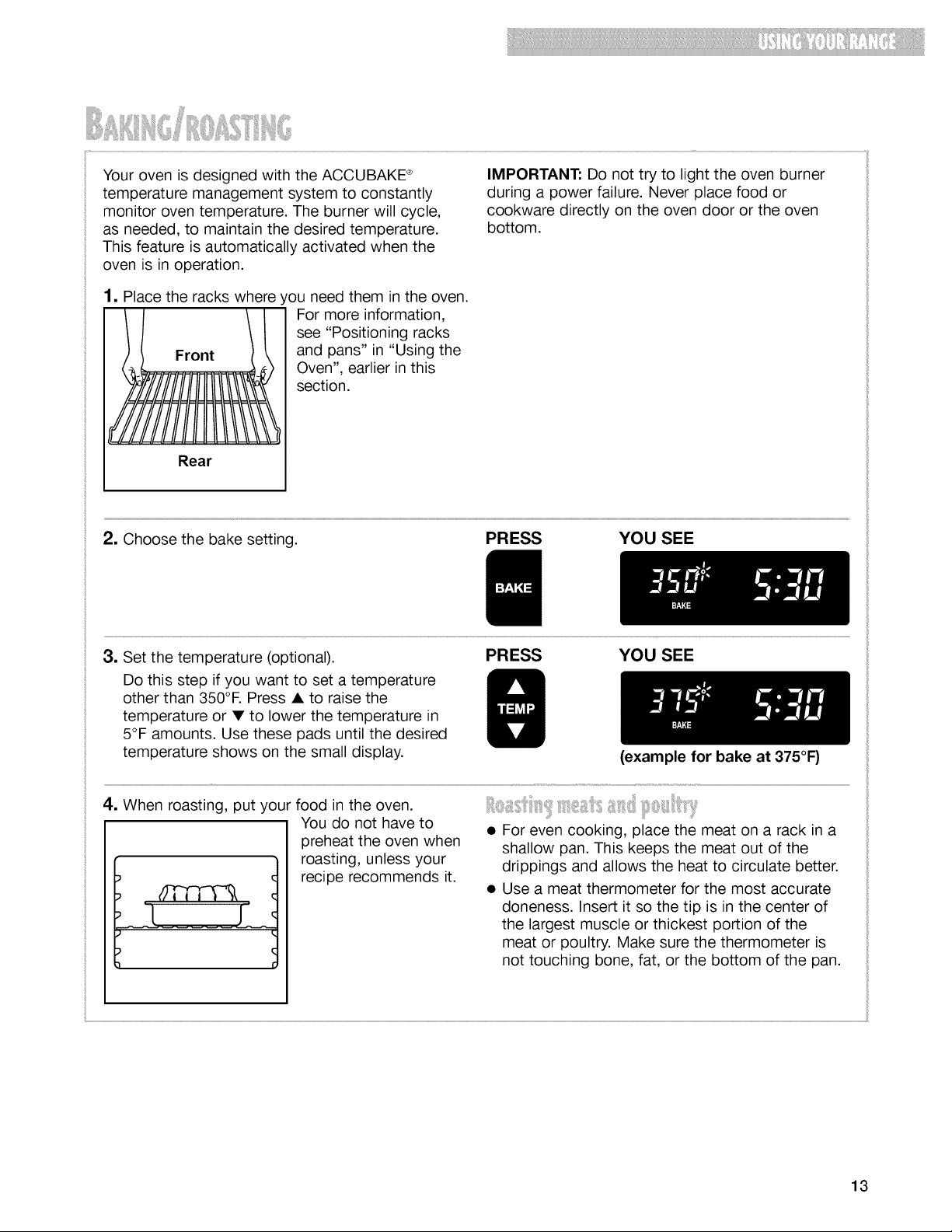

YourovenisdesignedwiththeACCUBAKE®
temperaturemanagementsystemto constantly
monitoroventemperature.Theburnerwillcycle,
asneeded,to maintainthedesiredtemperature.
Thisfeatureisautomaticallyactivatedwhenthe
ovenisin operation.
1. Placetherackswhereyouneedthemintheoven.
Formoreinformation,
see"Positioningracks
Front andpans"in "Usingthe
Oven",earlierinthis
section.
Rear
IMPORTANT: Do not try to light the oven burner
during a power failure. Never place food or
cookware directly on the oven door or the oven
bottom.
2. Choose the bake setting. PRESS YOU SEE
3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°R Press • to raise the
temperature or • to lower the temperature in
5°F amounts. Use these pads until the desired
temperature shows on the small display.
(example for bake at 375°F)
4. When roasting, put your food in the oven.
You do not have to
preheat the oven when
roasting, unless your
recipe recommends it.
/TFGq-11
• For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
• Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the
meat or poultry. Make sure the thermometer is
not touching bone, fat, or the bottom of the pan.
13

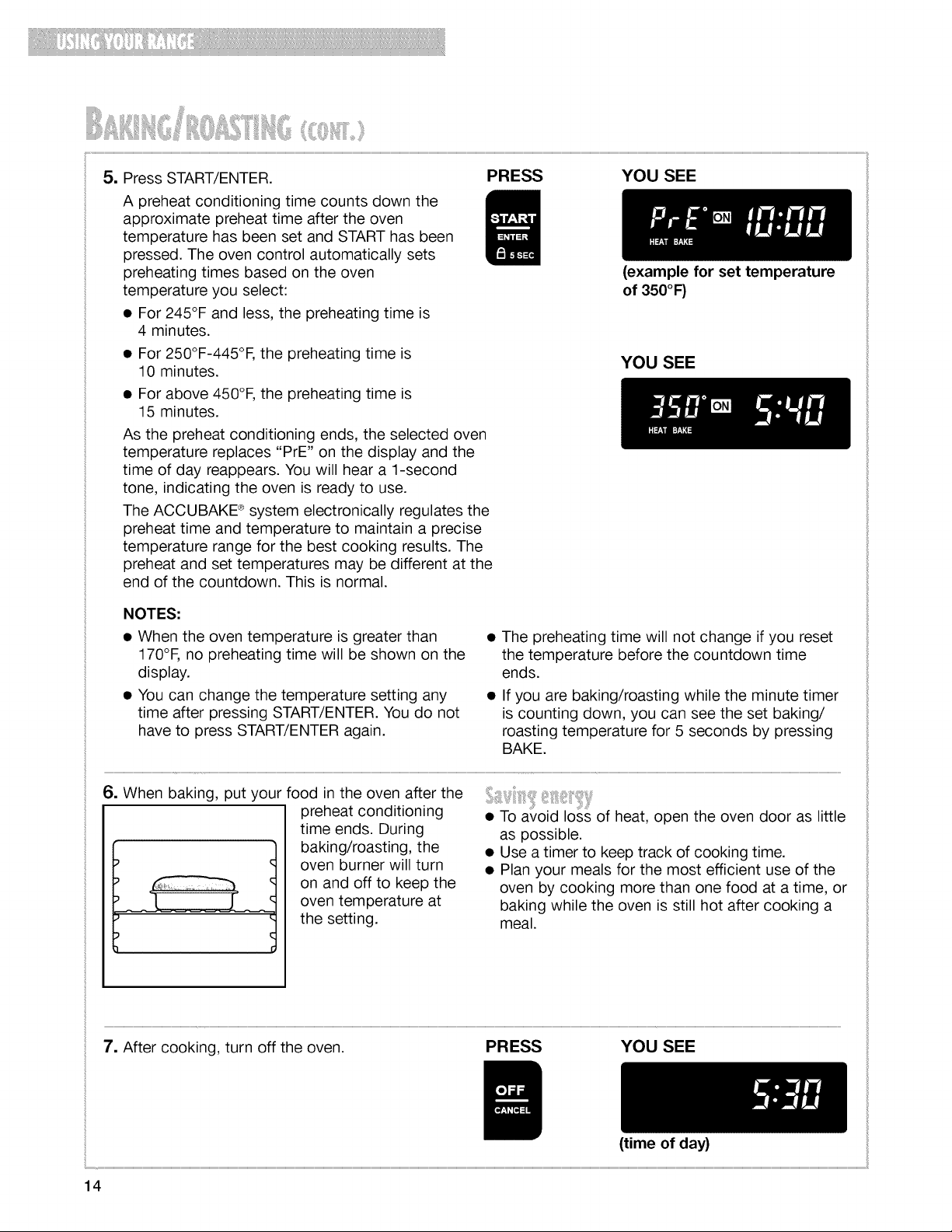

5. PRESS YOU SEE
Press START/ENTER.
A preheat conditioning time counts down the
approximate preheat time after the oven
temperature has been set and START has been
pressed. The oven control automatically sets
preheating times based on the oven
temperature you select:
• For 245°F and less, the preheating time is
4 minutes.
• For 250°F-445°F, the preheating time is
10 minutes.
• For above 450°F, the preheating time is
15 minutes.
As the preheat conditioning ends, the selected oven
temperature replaces "PrE" on the display and the
time of day reappears. You will hear a 1-second
tone, indicating the oven is ready to use.
The ACCUBAKE ® system electronically regulates the
preheat time and temperature to maintain a precise
temperature range for the best cooking results. The
preheat and set temperatures may be different at the
end of the countdown. This is normal.
(example for set temperature
of 35001=}
YOU SEE
NOTES:
• When the oven temperature is greater than
170°F, no preheating time will be shown on the
display.
• You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
• The preheating time will not change if you reset
the temperature before the countdown time
ends.
• If you are baking/roasting while the minute timer
is counting down, you can see the set baking/
roasting temperature for 5 seconds by pressing
BAKE.
6. When baking, put your food in the oven after the
preheat conditioning
time ends. During
baking/roasting, the
oven burner will turn
on and off to keep the
oven temperature at
the setting.
• To avoid loss of heat, open the oven door as little
as possible.
• Use a timer to keep track of cooking time.
• Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven. PRESS YOU SEE
(time of day)
14

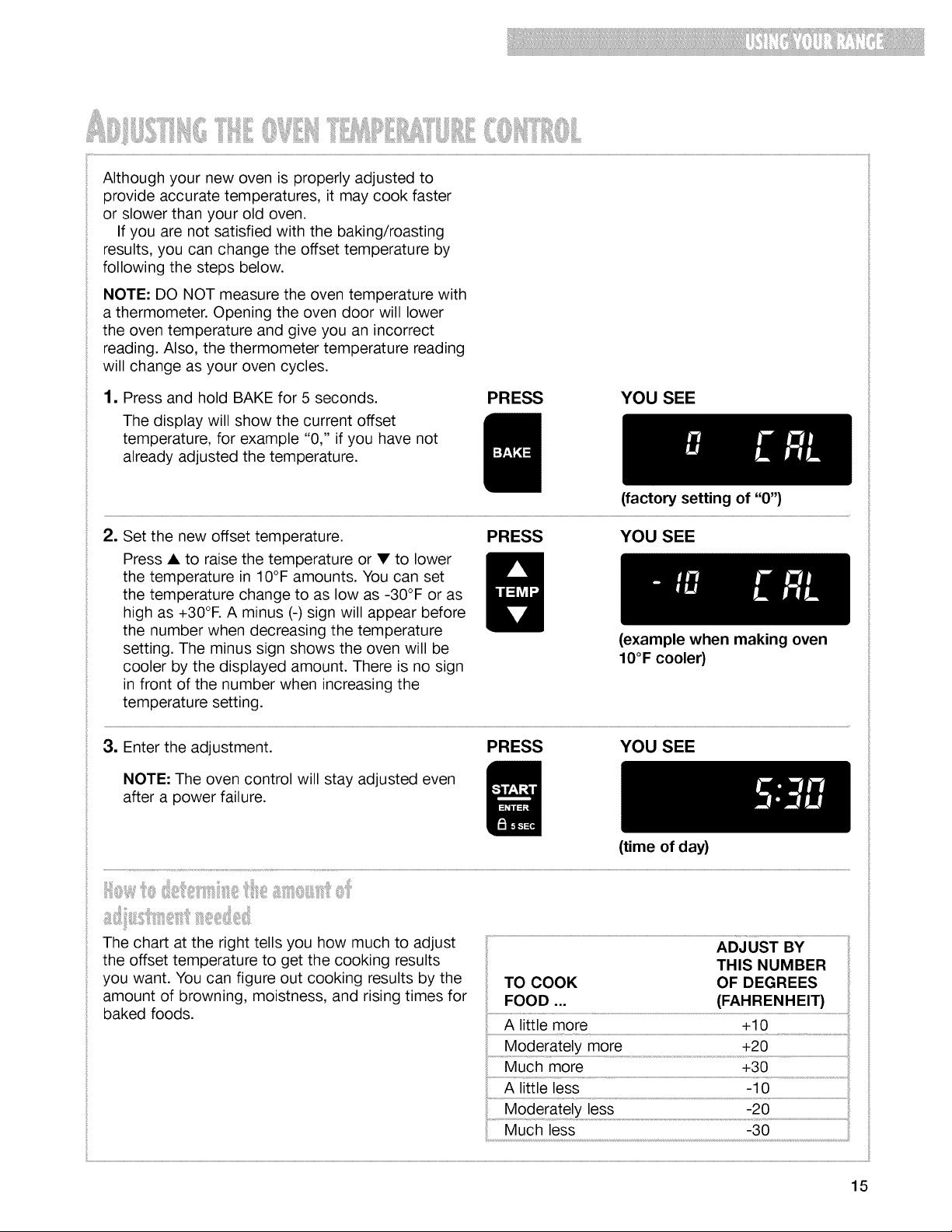

Althoughyournewovenis properlyadjustedto
provideaccuratetemperatures,it maycookfaster
orslowerthanyouroldoven.
Ifyouarenotsatisfiedwiththe baking/roasting
results,youcanchangetheoffsettemperatureby
followingthestepsbelow.
NOTE:DONOTmeasuretheoventemperaturewith
athermometer.Openingtheovendoorwill lower
theoventemperatureandgiveyouanincorrect
reading.Also,thethermometertemperaturereading
willchangeasyourovencycles.
1. Press and hold BAKE for 5 seconds.
The display will show the current offset
temperature, for example "0," if you have not
already adjusted the temperature.
PRESS YOU SEE
(factory setting of "0")
2. PRESS YOU SEE
Set the new offset temperature.
Press • to raise the temperature or • to lower
the temperature in 10°F amounts. You can set
the temperature change to as low as -30°F or as
high as +30°1=.A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
temperature setting.
(example when making oven
10°F cooler)
3. Enter the adjustment. PRESS YOU SEE
NOTE: The oven control will stay adjusted even
after a power failure.
(time of day)
The chart at the right tells you how much to adjust
the offset temperature to get the cooking results
you want. You can figure out cooking results by the
amount of browning, moistness, and rising times for
baked foods.
THIS NUMBER
TO COOK OF DEGREES
FOOD ... (FAHRENHEIT)
A little more +10
..................Moderate!y more ................................................................................................................................................+20..................................................................................................
Much more +30
A little less -10
......................Moderately !ess....................................................................................................................................................................................................................................................
15

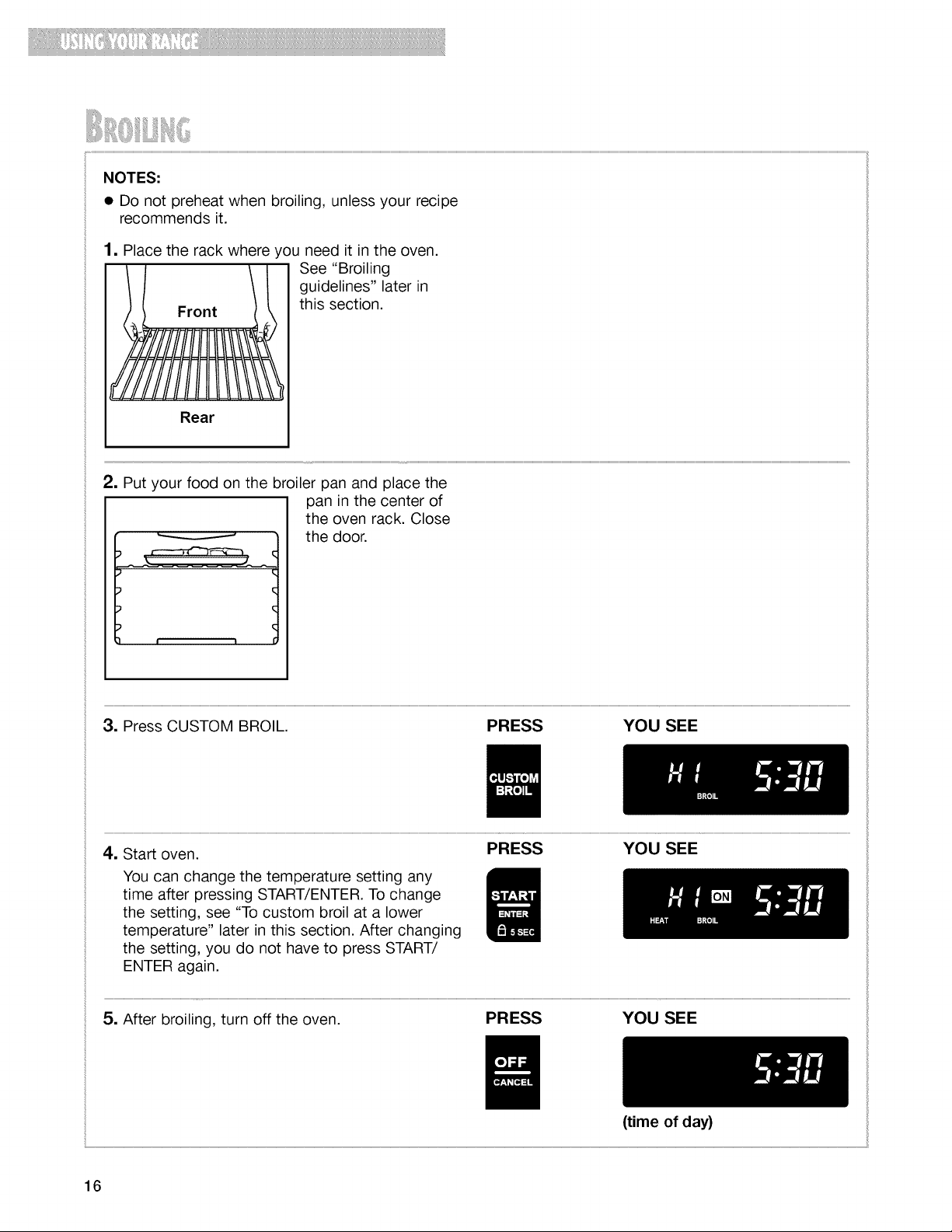

NOTES:
• Do not preheat when broiling, unless your recipe
recommends it.
1, Place the rack where you need it in the oven.
See "Broiling
guidelines" later in
this section.
Front
Rear
2, Put your food on the broiler pan and place the
pan in the center of
the oven rack. Close
• _ the door.
3. Press CUSTOM BROIL. PRESS YOU SEE
4. Start oven.
You can change the temperature setting any
time after pressing START/ENTER. To change
the setting, see "To custom broil at a lower
temperature" later in this section. After changing
the setting, you do not have to press START/
ENTER again.
PRESS YOU SEE
5. After broiling, turn off the oven. PRESS YOU SEE
(time of day)
16
!_":_i::_i_i:!i_:_!ii_iii:_i::_i]_iiiii_ii;_:ii::_i_'_0ii!ii_,_:ii_'ii__i!iiil_i_i,i_,_i_i;iii' iiii:'_ii;_ii_ii_ii::i;_;_:Ui:!_:_"iii!!::_:

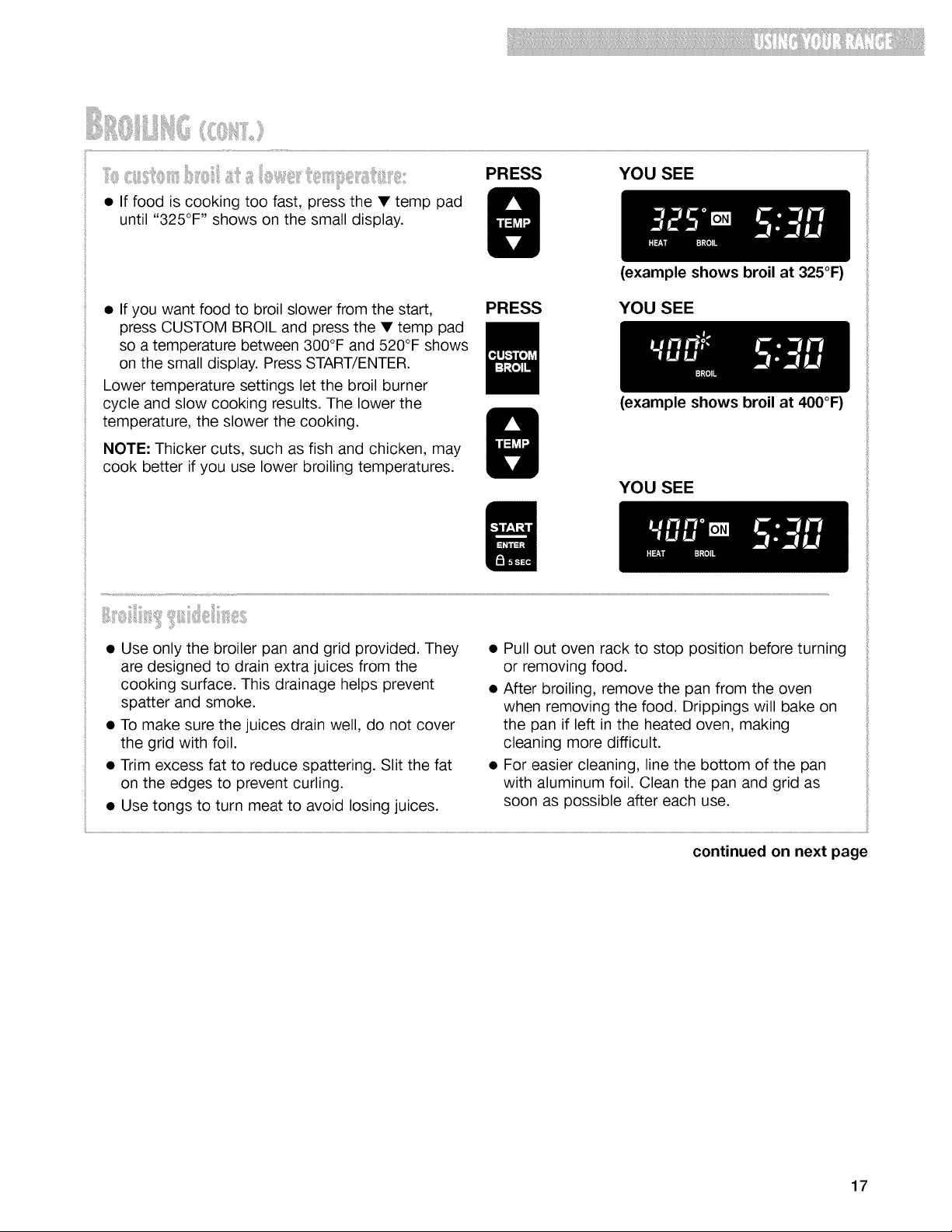

• If food is cooking too fast, press the • temp pad
until "325°F '' shows on the small display.
PRESS YOU SEE
• If you want food to broil slower from the start,
press CUSTOM BROIL and press the • temp pad
so a temperature between 300°F and 520°F shows
on the small display. Press START/ENTER.
Lower temperature settings let the broil burner
cycle and slow cooking results. The lower the
temperature, the slower the cooking.
NOTE: Thicker cuts, such as fish and chicken, may
cook better if you use lower broiling temperatures.
PRESS
(example shows broil at 325°F)
YOU SEE
(example shows broil at 400°F)
YOU SEE
• Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
• Pull out oven rack to stop position before turning
or removing food.
• After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making
cleaning more difficult.
• For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
continued on next page
17
i:iI{iiIi i {iii ii I,!ii!,
i_i<:ii_iiii_iiii_,_i¸¸!!ii_iii_i!!!iiiiiiiI_iii!_!;;<,_:_,<i_
Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food
3 in or more from broil burner.
I I
<
<
<
4 8-10 4-5
Frankfurters 4 6-7 3-4
bone-in pieces 3 18-20 18-20
boneless breasts 4 12-16 11-16
Fish 4
fillets ¼-_" thick 8-10 4-5
steaks _-1" thick 15-18 7-9
Times are guidelines only and may need to be adjusted for individual tastes.
Very thin cuts, such as fish fillets, may not need to be turned.
18
Hotairandmoistureescapefromtheoventhrough
aventthatisnearthe middleofthebackguard.The
ventletsaircirculateproperly.Becarefulnotto
blockthevent,oryouwillgetpoorbaking/roasting
results.
NOTE: Never store plastics, paper, or other items
that could melt or burn near the oven vent, or any
of the surface burners.
Oven vent
Use the storage drawer to store cookware. You can
remove the drawer to make it easier to clean under
the range.
1, Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2, Lift the back of the drawer slightly and slide it all
the way out.
1, Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2, Lift the front of the drawer and push it in until
the metal stops on the drawer slide rails clear
the upper drawer guides. Then slide the drawer
closed.
/ Drawer
Lower slide rail rail
(inside drawer
opening) Upper drawer ......................Lower
guides ........................drawer guide
(on inside walls)
19
USINGTHESELF-CLEANINGCYCLE
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
' iJ'iiil; !iIi iiiii,i!iii''¸
Before you start the Self-Cleaning cycle, make
sure you:
NOTE: DO NOT clean, move, or bend the gasket.
You may get poor cleaning, baking, and roasting.
• Hand-clean the areas shown. They do not get
hot enough during the Self-Cleaning cycle for
soil to burn away. Use hot water and detergent
or a soapy, steel-wool pad for cleaning.
• Do not let water, cleaner, etc., enter slots on door
and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
• Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
• Wipe up food spills containing sugar as soon as
possible after the oven cools down. When sugar
is heated to a high temperature in the Self-
Cleaning cycle, the high temperature can cause
the sugar to burn and react with the porcelain.
This can cause staining and etching, pitting, or
faint white spots.
• Remove the oven racks from the oven if you
want them to remain shiny. You can clean the
oven racks in the Self-Cleaning cycle, but they
will become harder to slide. (See the "Cleaning
chart" in the "Caring for Your Range" section.) If
you clean the racks in the Self-Cleaning cycle,
place them on the 2nd and 4th rack guides. (The
guides are counted from bottom to top.)
• Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the Self-
Cleaning cycle. Exposure to the fumes may result
in death to certain birds. Always move birds to
another closed and well ventilated room.
TIPS:
DO NOT
hand-clean
gasket
Hand-clean
frame
_,, ,2
Hand-clean
door around
edge
Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat, odors,
and smoke.
• Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in more smoke than usual.
• Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
• Remove any combustible items, such as paper
napkins, from the storage drawer. This includes
utensils with plastic handles that can become
overheated and melt.
• Do not leave plastic utensils on the cooktop. They
may melt.
• Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
• The oven light will not work during the Self-
Cleaning cycle.
20

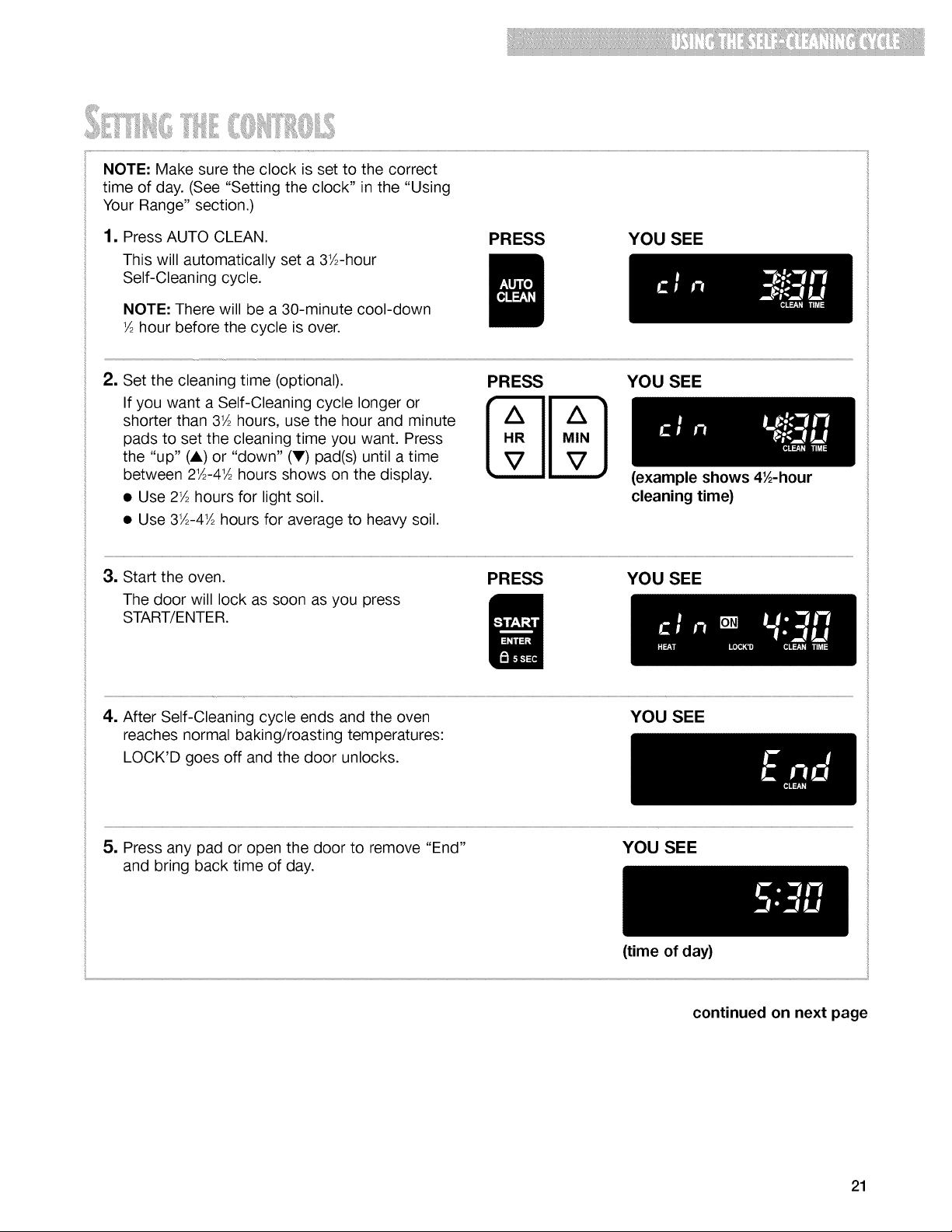

NOTE:Makesuretheclockissetto thecorrect
timeof day.(See"Settingtheclock"inthe "Using
YourRange"section.)
1. Press AUTO CLEAN.
This will automatically set a 31/_-hour
Self-Cleaning cycle.
PRESS YOU SEE
NOTE: There will be a 30-minute cool-down
1/_hour before the cycle is over.
2. Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or
shorter than 3½ hours, use the hour and minute
pads to set the cleaning time you want. Press
the "up" (A) or "down" (V) pad(s) until a time
between 2½-41/_hours shows on the display.
• Use 21/_hours for light soil.
• Use 3½-4½ hours for average to heavy soil.
PRESS YOU SEE
(example shows 4½-hour
cleaning time)
3. Start the oven. PRESS YOU SEE
The door will lock as soon as you press
START/ENTER.
4, After Self-Cleaning cycle ends and the oven YOU SEE
reaches normal baking/roasting temperatures:
LOCK'D goes off and the door unlocks.
i
5. Press any pad or open the door to remove "End" YOU SEE
and bring back time of day.
(time of day)
continued on next page
21

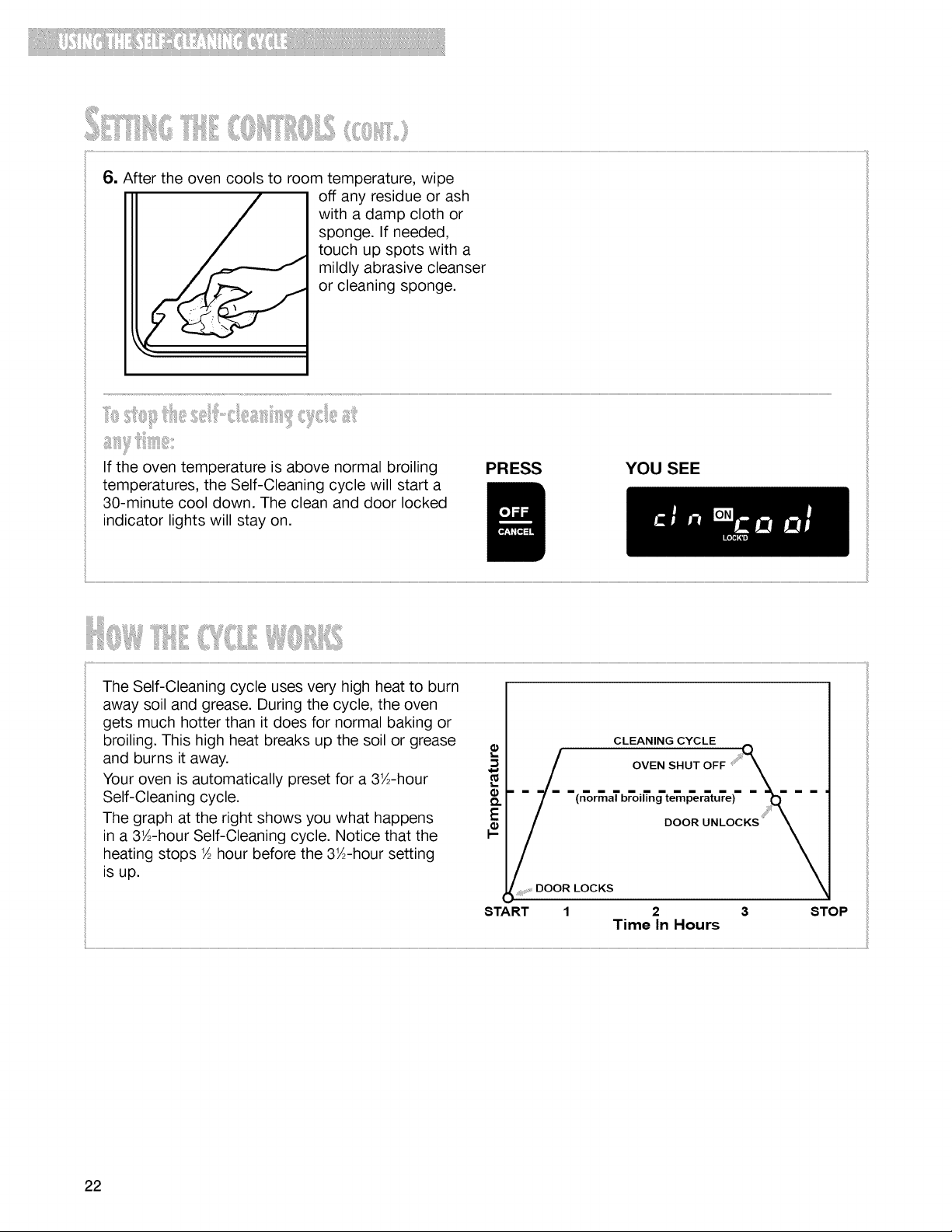

6. Aftertheovencoolsto roomtemperature,wipe
off anyresidueorash
withadampclothor
sponge.If needed,
touchup spotswitha
mildlyabrasivecleanser
orcleaningsponge.
Iftheoventemperatureisabovenormalbroiling PRESS YOUSEE
temperatures,theSelf-Cleaningcyclewillstarta
30-minutecooldown.Thecleananddoorlocked
indicatorlightswillstayon.
!"_,li!ii_,_i_!__........I,,,!i!_il:"'J_i_",_i:i_,,,,!!iiil_I,_iiliii_il_,:i,,_i::!i
The Self-Cleaning cycle uses very high heat to burn
away soil and grease. During the cycle, the oven
gets much hotter than it does for normal baking or
broiling. This high heat breaks up the soil or grease
and burns it away.
Your oven is automatically preset for a 3½-hour
Self-Cleaning cycle.
The graph at the right shows you what happens
in a 31/_-hourSelf-Cleaning cycle. Notice that the
heating stops 1/_hour before the 3½-hour setting
_sup.
&
E
CLEANING CYCLE
tb
OVEN SHUT OFF
_&,
(normal br'oilTng-te_p'er_tu_e)- - X - -
R LOCKS DOOR UNLOCKS _
START 1 2 3 STOP
Time In Hours
22

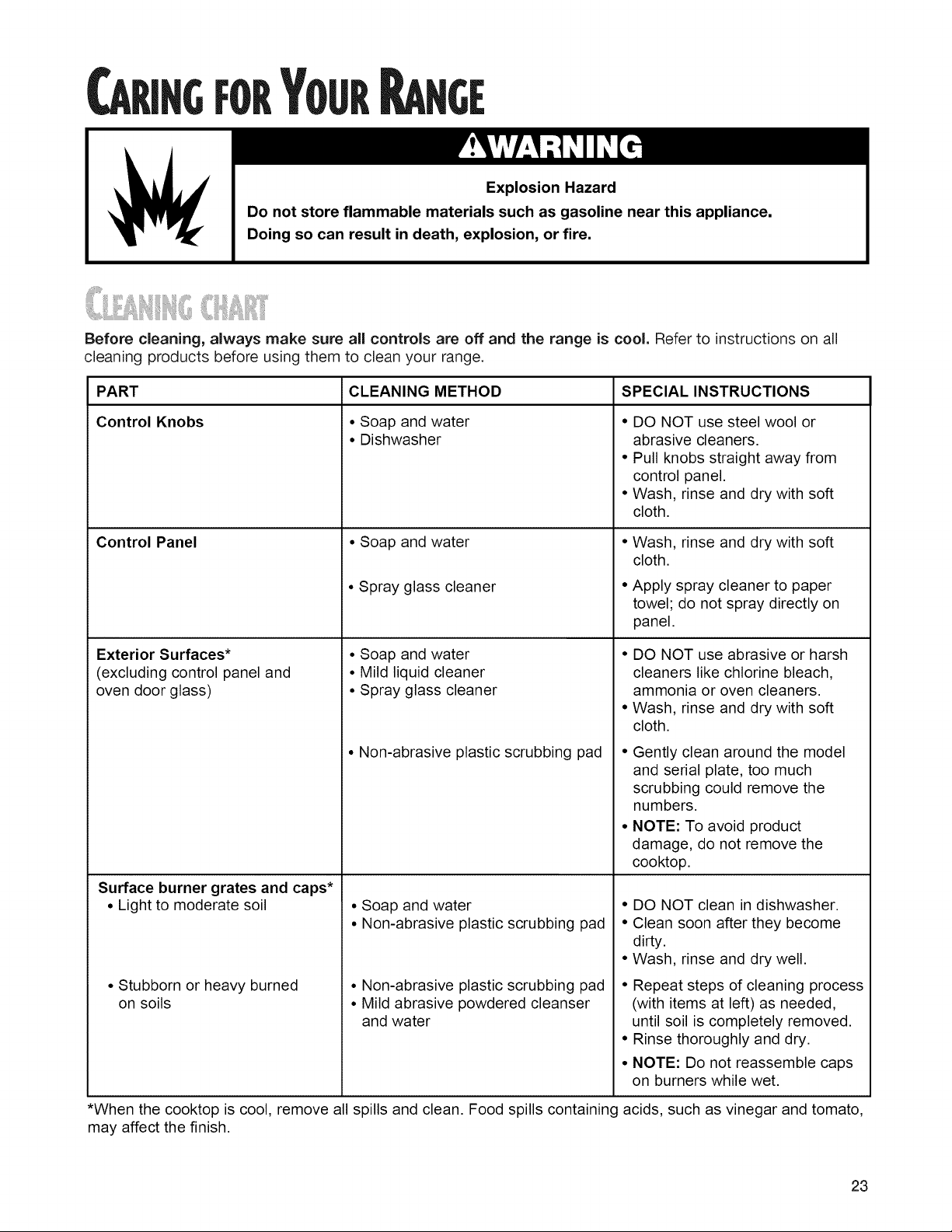

Explosion Hazard
Do not store flammable materials such as gasoline near this appliance.
Doing so can result in death, explosion, or fire.
il:i
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
PART
Control Knobs
Control Panel
Exterior Surfaces*
(excluding control panel and
oven door glass)
Surface burner grates and caps*
• Light to moderate soil
• Stubborn or heavy burned
on soils
CLEANING METHOD
• Soap and water
• Dishwasher
• Soap and water
• Spray glass cleaner
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic scrubbing pad
• Soap and water
• Non-abrasive plastic scrubbing pad
• Non-abrasive plastic scrubbing pad
• Mild abrasive powdered cleanser
and water
SPECIAL INSTRUCTIONS
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft
cloth.
• Wash, rinse and dry with soft
cloth.
• Apply spray cleaner to paper
towel; do not spray directly on
panel.
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft
cloth.
• Gently clean around the model
and serial plate, too much
scrubbing could remove the
numbers.
• NOTE: To avoid product
damage, do not remove the
cooktop.
• DO NOT clean in dishwasher.
• Clean soon after they become
dirty.
• Wash, rinse and dry well.
• Repeat steps of cleaning process
(with items at left) as needed,
until soil is completely removed.
• Rinse thoroughly and dry.
• NOTE: Do not reassemble caps
on burners while wet.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish.
23
i,iillli,iiJi ,iZllI'' i

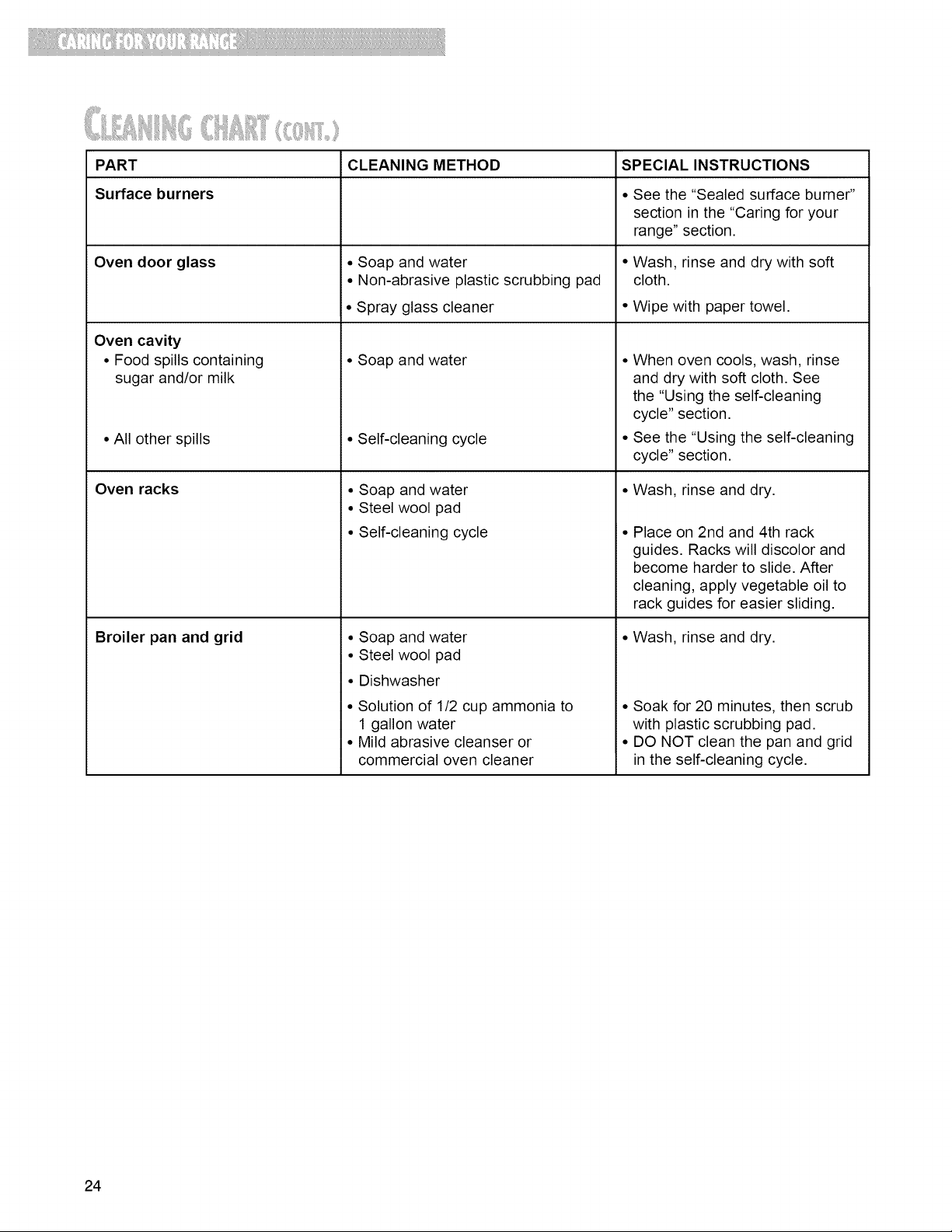

PART
Surface burners
Oven door glass
Oven cavity
• Food spills containing
sugar and/or milk
• All other spills
Oven racks
Broiler pan and grid
CLEANING METHOD
• Soap and water
• Non-abrasive plastic scrubbing pad
• Spray glass cleaner
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of 1/2 cup ammonia to
1 gallon water
• Mild abrasive cleanser or
commercial oven cleaner
SPECIAL INSTRUCTIONS
• See the "Sealed surface burner"
section in the "Caring for your
range" section.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth. See
the "Using the self-cleaning
cycle" section.
• See the "Using the self-cleaning
cycle" section.
• Wash, rinse and dry.
Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid
in the self-cleaning cycle.
24
i!i,_!!_i!iii,lii!lli_ii_iiii_i_i:i!!!i_iiiiii!lilili!i_iiiiii!i!_iiiiiiiji!iii_i!ilii _iiil_iil_!_il_ill!ii_'_'
iiiiiiI_i:!!_:_iii!iJiii,!iiill_¸'ii_!I'_!!:i_i;_ii:_t"t_ili_::J_ii_¸i_:i_iii:_iii'_i:!!i_l_

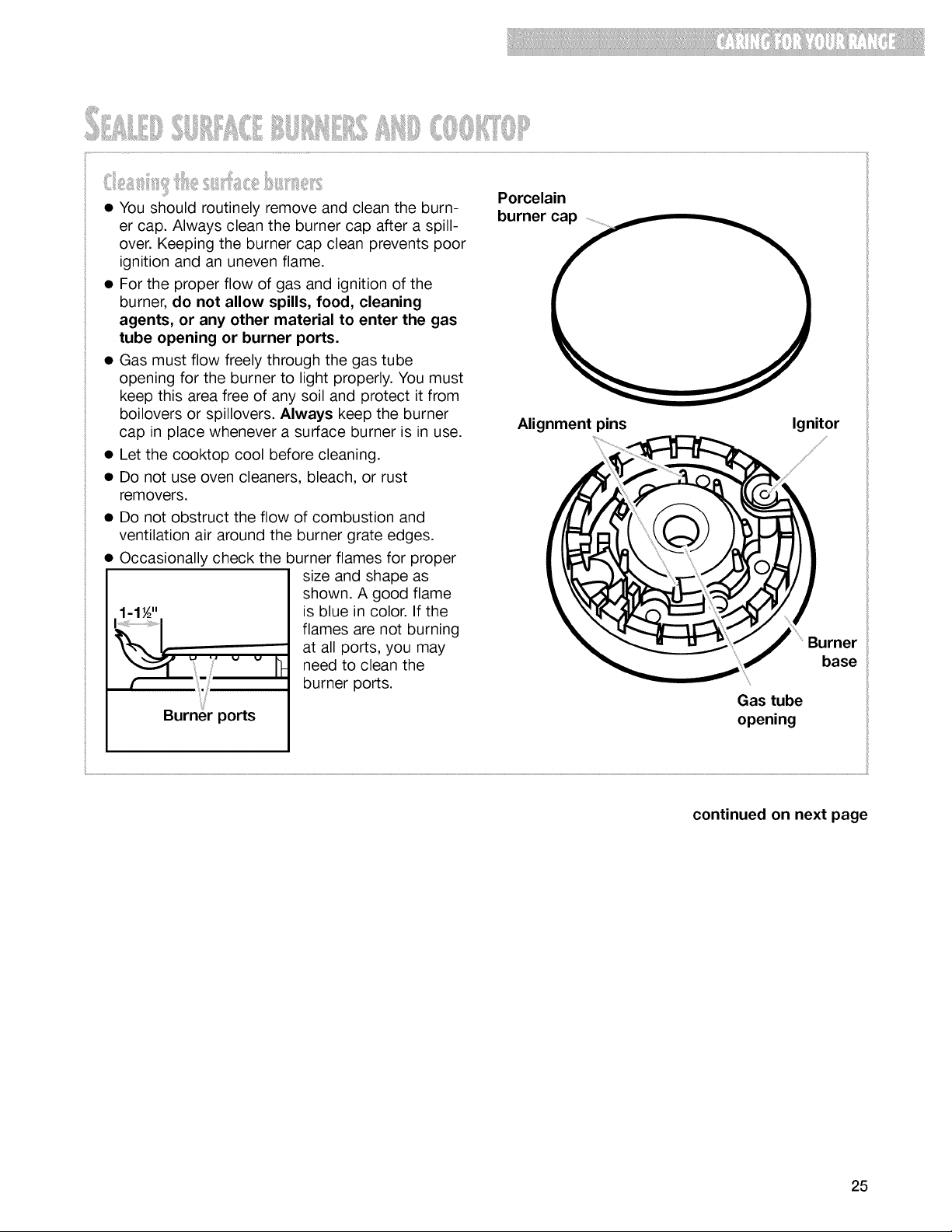

• You should routinely remove and clean the burn-
er cap. Always clean the burner cap after a spill-
over. Keeping the burner cap clean prevents poor
ignition and an uneven flame.
• For the proper flow of gas and ignition of the
burner, do not allow spills, food, cleaning
agents, or any other material to enter the gas
tube opening or burner ports.
• Gas must flow freely through the gas tube
opening for the burner to light properly. You must
keep this area free of any soil and protect it from
boilovers or spillovers. Always keep the burner
cap in place whenever a surface burner is in use.
• Let the cooktop cool before cleaning.
• Do not use oven cleaners, bleach, or rust
removers.
• Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
• Occasionally check the burner flames for proper
size and shape as
shown. A good flame
1-1_" is blue in color. If the
flames are not burning
at all ports, you may
v ,, I]- need to clean the
f burner ports.
II
Burner ports
Porcelain
burner
Alignment pins Ignitor
: .............
Burner
base
\
Gas tube
opening
continued on next page
25
ii!jiii_]!tiii_iiill!_1_:Jiii_ii!!_iillii_i_i!i!!_iiii!il_ii_!!ii_iii)l_ii_!!]i!_','I_i:_i:_i_!:)
1.
il;ii_,_lili!i_:il_ii)iii_i_!_[ii!_ii[f_'[:_!_:
Pull the burner cap straight up from the
burner base.
2. Clean the burner cap with warm, soapy water
and a sponge. You can also clean it with a
non-abrasive scrubbing pad or mild abrasive
powdered cleanser.
Do not clean the burner cap in a dishwasher.
3. If the gas tube opening has become soiled or
clogged, use a damp cloth to clean the area.
4, If the ports are clogged, clean them with a
straight pin. Do not
enlarge or distort the
port. Do not use a
wooden toothpick.
If the burner needs to
be adjusted, call a
qualified technician
for service.
5. After cleaning the gas tube opening and ports,
replace the burner
O cap. To replace the
@
Gas tube opening
burner cap, make
sure the alignment
pins on the cap are
properly aligned with
the burner base.
6. Turn on the burner to see if it will light. If the
burner does not light after you have cleaned it,
recheck cap alignment or contact a designated
service technician. Do not service the sealed
burner yourself.
For normal use of your range, you do not need to
remove the door. However, if you find it necessary
to remove the door, follow the instructions in this
section.
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door removal Door stop clip
i
pin hole
Hinge Front frame
hanger hinge slot
26
liliii!i!iii0?llli_lii i! i! itli_i_!!i!i_!liii__)Iii_iiiilllI:0ii¸_iiii!:)
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not
remove the pins while
the door is removed
from the range.
3. Grasp the door on the sides with your fingers
on the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the
door removal pins.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.
NOTE: The door removal pins you inserted must
still be in both door hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
continued on next page
27

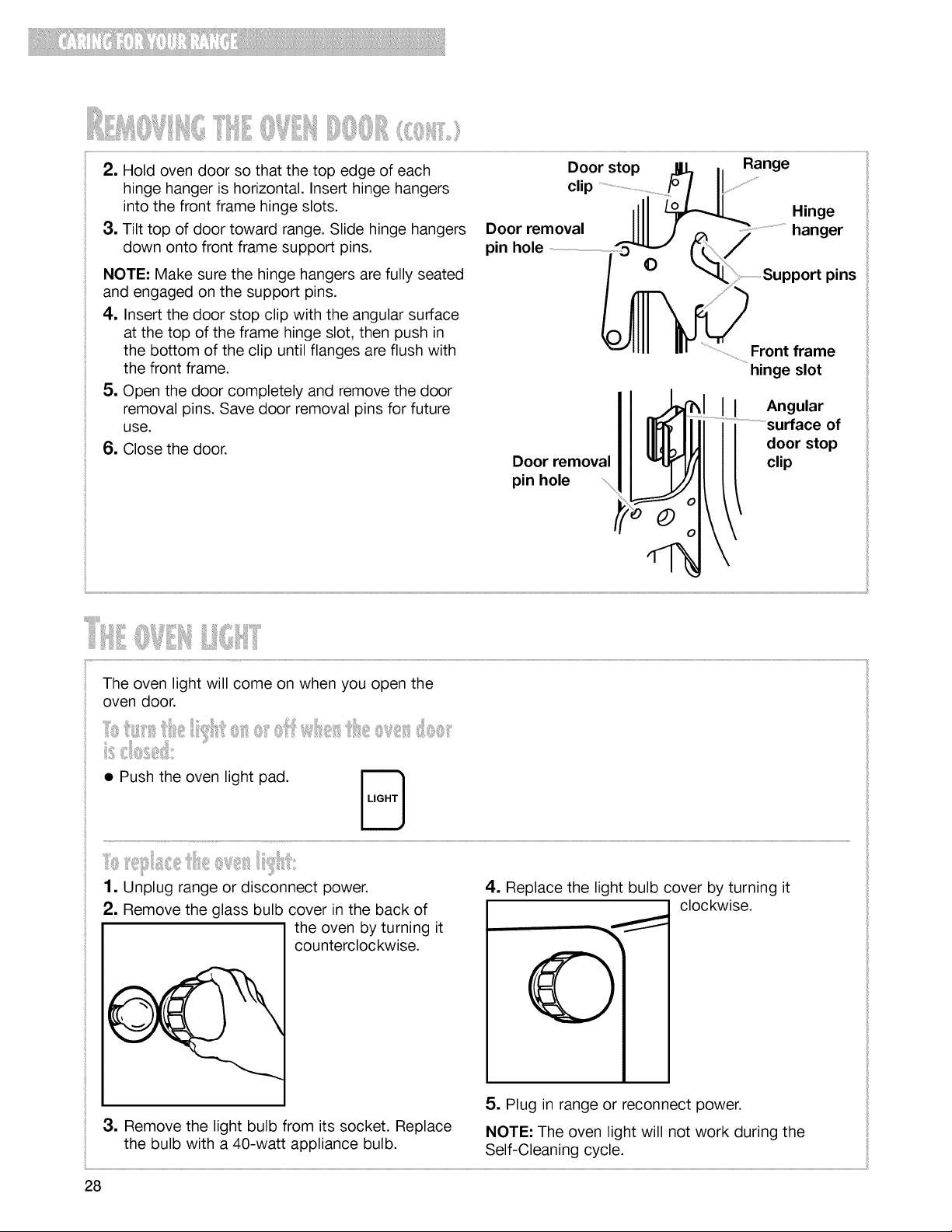

2, Holdovendoorsothatthetopedgeofeach
hingehangerishorizontal.Inserthingehangers
intothefrontframehingeslots.
3, Tilt top of door toward range. Slide hinge hangers
down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully seated
and engaged on the support pins.
4, Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5, Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6, Close the door.
Door stop r_ II Range
clip ................................................................................F I I!..........................................
I111 _ Hinge
Door removal _1111)r -" .................................hanger
pin hole
O
pins
Door removal
pin hole .............
II
Front frame
hinge slot
Angular
surface of
door stop
clip
"'i'"!,i!! i]!(i1,,[!....
The oven light will come on when you open the
oven door.
• Push the oven light pad. F_
U
1. Unplug range or disconnect power.
2, Remove the glass bulb cover in the back of
the oven by turning it
counterclockwise.
4, Replace the light bulb cover by turning it
clockwise.
5, Plug in range or reconnect power.
3, Remove the light bulb from its socket. Replace NOTE: The oven light will not work during the
the bulb with a 40-watt appliance bulb. Self-Cleaning cycle.
28
TROUBLESHOOTING
Most cooking problems often are caused by little things you can find and fix without tools of any kind.
Check the lists below and on the next page before calling for assistance or service. If you still need
help, see "Requesting Assistance or Service" on page 31.
!ii i!i!iij i , i iiii! !i iiil!iilillifiiii ! !Jili
PROBLEM CAUSE
Nothing works • The range is not plugged into a properly grounded outlet (120v polarized).
• The range is not properly connected to the gas supply. Contact a designated
service technician to reconnect the range to the gas supply. (See the Installa-
tion Instructions.)
• You have blown a household fuse or tripped a circuit breaker.
PROBLEM CAUSE
The oven does not work • You have not set the electronic control correctly. Refer to setting the
electronic oven control section.
• The main or regulator gas shutoff valve is in the off position. (See the
Installation Instructions.)
Burner makes muffled • This is normal. This sound occurs when the oven burner cycles on and off
ticking noise when in use to insure proper oven temperature.
The burner fails to light • The ignition system is broken. Contact a designated service technician to
replace it.
................................................................................................................................................................................................• You have b!own a household fuse or tripped a circu!t breaker: .......................................................................................................................................
The burner flames lift
away from the ports, are
yellow, or are noisy
• The air/gas mixture is incorrect. Contact a designated service technician to
check the air/gas mixture or see the Installation Instructions.
/............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
PROBLEM CAUSE
The burner fails to light • The control knob is not set correctly. Push in the control knobs before turning
them. Make sure the control knob is turned to the LIGHT position. (See page 6.)
• You have blown a household fuse or tripped a circuit breaker.
• The burner ports may be clogged. Clean them with a straight pin. (See page 26.)
The burner flames are • The burner ports may be clogged. Clean them with a straight pin. (See page 26.)
uneven • The burner caps may not be positioned properly. (See page 26.)
The burner flames lift off • The burner needs cleaning. (See pages 25 and 26.)
the ports, are yellow, or
• The air/gas mixture is incorrect. Contact a designated service technician to
are noisy when turned off check the air/gas mixture or see the Installation Instructions.
The burner makes a • The burner is wet from washing. Let it dry.
popping noise when on
29

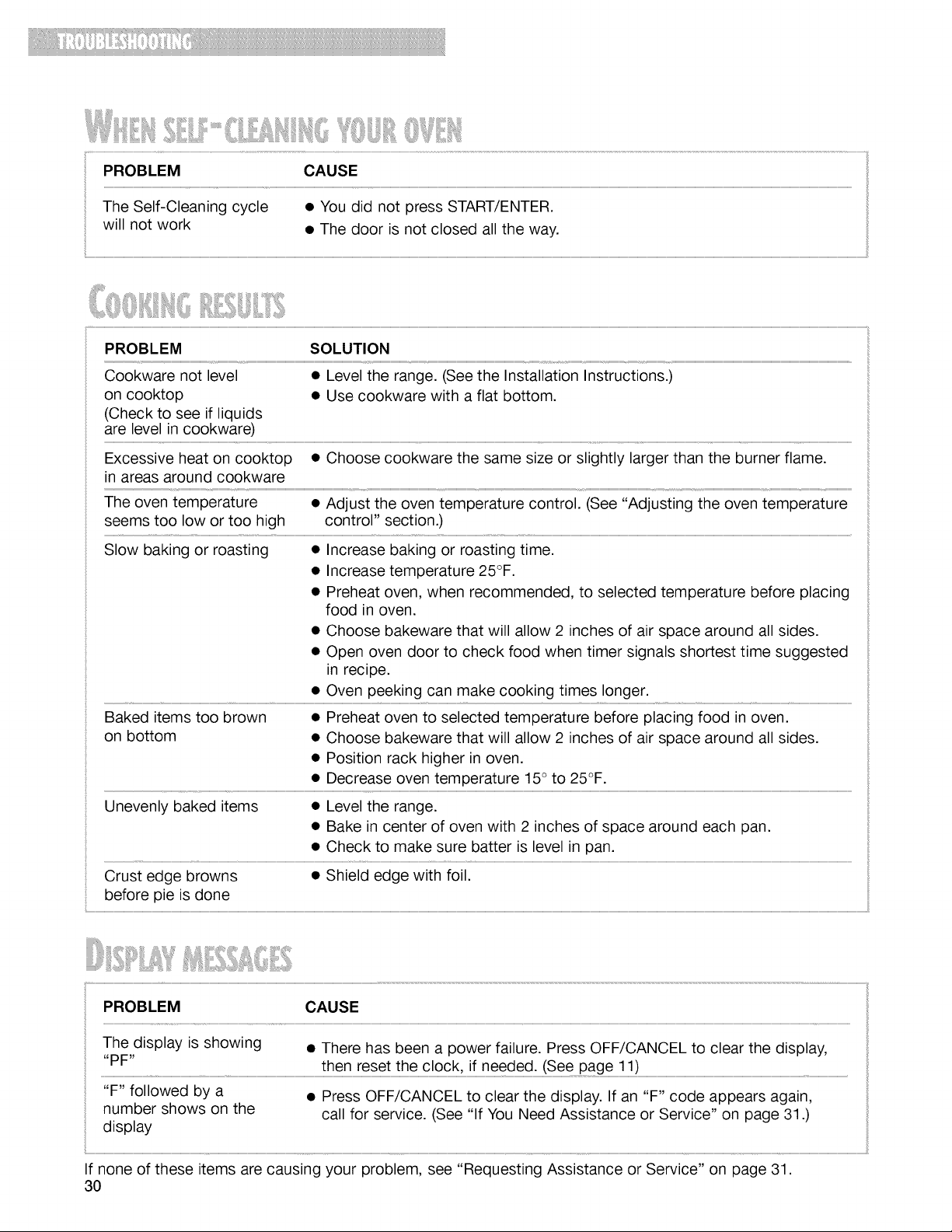

PROBLEM SOLUTION
Cookware not level • Level the range. (See the Installation Instructions.)
on cooktop • Use cookware with a flat bottom.
(Check to see if liquids
are level in cookware)
Excessive heat on cooktop • Choose cookware the same size or slightly larger than the burner flame.
in areas around cookware
The oven temperature • Adjust the oven temperature control. (See "Adjusting the oven temperature
seems too low or too high control" section.)
Slow baking or roasting • Increase baking or roasting time.
• Increase temperature 25°F.
• Preheat oven, when recommended, to selected temperature before placing
food in oven.
• Choose bakeware that will allow 2 inches of air space around all sides.
i
• Open oven door to check food when timer signals shortest time suggested
in recipe.
i
• Oven peeking can make cooking times longer.
i
Baked items too brown • Preheat oven to selected temperature before placing food in oven.
i
on bottom • Choose bakeware that will allow 2 inches of air space around all sides.
i
• Position rack higher in oven.
i
• Decrease oven temperature 15 ° to 25°F.
Unevenly baked items • Level the range.
• Bake in center of oven with 2 inches of space around each pan.
i
• Check to make sure batter is level in pan.
i
Crust edge browns • Shield edge with foil.
before pie is done
i
PROBLEM CAUSE
If none of these items are causing your problem, see "Requesting Assistance or Service" on page 31.
3O
REQUES'nNGASSISTANCEORSERVICE
To avoid unnecessary service calls, please check the "Troubleshooting" section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
ill
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see the "A Note to You" section).
This information will help Whirlpool better respond
to your request.
Our consultants provide assistance with:
• Features and specifications on our full line
of appliances
• Installation information
• Referrals to local dealers, service companies, and
repair parts distributors
Whirlpool designated service technicians are
trained to fulfill the product warranty and provide
after-warranty service, anywhere in the United States.
To locate the Whirlpool designated service company
in your area, you can also look in your telephone
directory Yellow Pages.
• Use and maintenance procedures
If you need to order replacement parts, we recom-
mend that you only use FSP®factory specified
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL ® appliance.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest Whirlpool designated service center.
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
31
32
33
34
INDEX
TOPIC PAGE TOPIC PAGE
ANTI-TIP BRACKET ...................................................... 3
ASSISTANCE .............................................................. 31
BAKING
ACCUBAKE _ system ........................................ 13, 14
Aluminum foil ............................................................ 9
Bakeware .................................................................. 9
Pans ...................................................................... 8, 9
Preheat conditioning .............................................. 14
Racks ........................................................................ 8
Setting cycle ............................................................ 13
Tips .......................................................................... 14
BROILING
Grid .......................................................................... 17
Guidelines ........................................................ 17, 18
Pan .......................................................................... 16
Setting cycle ............................................................ 16
CLEANING
Broiler pan and grid ................................................ 24
Control knobs .......................................................... 23
Control panel .......................................................... 23
Exterior surfaces .................................................... 23
Oven cavity ............................................................ 24
Oven door glass ...................................................... 24
Oven racks .............................................................. 24
Self-cleaning cycle .................................................. 20
Surface burners ................................................ 25, 26
Surface burner grates and caps ............................ 23
CONTROL PANEL
Burner heat settings .................................................. 6
Control knobs ............................................................ 6
Surface burner markers ............................................ 5
COOKWARE
Canning .................................................................... 7
Materials .................................................................... 7
Tips ............................................................................ 7
ELECTRONIC OVEN CONTROL
Canceling ................................................................ 12
Clock ...................................................................... 11
Control lock ............................................................ 10
Display/clock .......................................................... 10
Minute timer ...................................................... 11, 12
Starting .................................................................... 12
FEATURES .................................................................... 5
MODEL AND SERIAL NUMBER .................................. 2
OVEN
Door ............................................................ 26,27,28
OVEN LIGHT .............................................................. 28
OVEN TEMPERATURE
Adjusting ................................................................ 15
Setting .............................................................. 13, 16
OVEN VENT ................................................................ 19
PANS ........................................................................ 7,8
PARTS .......................................................................... 5
RACKS .......................................................................... 8
ROASTING
Pans ...................................................................... 8, 9
Racks ........................................................................ 8
Setting cycle ............................................................ 13
Tips .......................................................................... 13
SAFETY .................................................................... 3,4
SELF-CLEANING CYCLE
Before you start ...................................................... 20
How the cycle works .............................................. 22
Setting the controls ................................................ 21
Tips .......................................................................... 20
SERVICE .................................................................... 31
STORAGE DRAWER .................................................. 19
SURFACE BURNERS
ACCUSIMMER TM setting .......................................... 6
Control knobs ............................................................ 6
Control setting guide ................................................ 6
POWERTMBurner ...................................................... 6
Power failure ............................................................ 7
Surface burner markers ............................................ 5
Tips ............................................................................ 6
TROUBLESHOOTING .......................................... 29, 30
WARRANTY ................................................................ 36
35
WHIRLPOOL°GAsAANC;e
LENGTH OF WARRANTY WHIRLPOOL CORPORATION WILL PAY FOR
FULL ONE-YEAR FSP® replacement parts and repair labor to correct defects in materials
WARRANTY or workmanship. Service must be provided by a Whirlpool designated
FROM DATE OF PURCHASE service company.
WHIRLPOOL CORPORATION WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner-accessible light bulbs.
Repairs when your range is used in other than normal, single-family household use.
Pickup and delivery. Your range is designed to be repaired in the home.
Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirlpool Corporation.
Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
Replacement parts or repair labor costs for units operated outside the United States.
B.
C.
D.
E.
F.
7/99
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR iNCiDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion
or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Outside the 50 United States this warranty does not apply. Contact your local Whirlpool dealer to
determine if another warranty applies.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting,"
additional help can be found by checking the "Requesting Assistance or Service" section, or by calling the
Whirlpool Consumer Assistance Center telephone number, 1=800=253=1301, from anywhere in the U.S.A.
8273153 11/99
® 1999 Whirlpool Corporation. All rights reserved. ® Registered Trademark/TM Trademark of Whirlpool, U.S.A. Printed in U.S.A.
