English
Table of Contents
Important Safety Instructions ..............................................................................2, 3
About Your Mixer
Model 5K45SS Mixer Features ........................................................................4, 5
Model 5K5SS/5KPM5 Mixer Features .............................................................6, 7
Using your KitchenAid
®
Attachments .................................................................8
Beater To Bowl Clearance .................................................................................. 8
Care and Cleaning ...............................................................................................8
Planetary Mixing Action .......................................................................................9
Mixer Use ............................................................................................................9
Speed Control Guide ..........................................................................................9
Mixing Tips ............................................................................................................10
Mixing and Kneading Yeast Dough .............................................................10, 11
Egg Whites ......................................................................................................... 11
Whipped Cream ................................................................................................11
When You Need Service ......................................................................................12
Mixer Warranty ..................................................................................................... 12
Important Safety Instructions
When reading the Instructions Manual…
Pay special attention to sections marked by
the following words:
These help you avoid accidents that could
lead to injury for someone using the product
incorrectly.
These help you avoid damage to the product
and/or other property.
“NOTE:” or “IMPORTANT”
These sections give you helpful tips on using the
product.
WARNING
w
CAUTION
w
9706978B_02_EN_v04.indd 2 12/17/14 2:10 PM
English
R-3
wWARNING
save these instructions
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, INJURY TO PERSONS, OR DAMAGE
WHEN USING THE MIXER, FOLLOW BASIC
PRECAUTIONS, INCLUDING THE FOLLOWING:
1. Read all instructions.
2. To protect against risk of electrical
shock, never immerse mixer in water or
other liquid.
3. Be sure that the prongs on the plug of
the unit mate with the electrical wall
receptacle into which it will be plugged.
Observation of proper grounding
techniques and local electrical codes is
required.
4. Do not let children operate or play with
mixer.
5. Close supervision is necessary when any
appliance is used by or near children. Do
not leave mixer unattended while it is
operating.
6. Unplug mixer from outlet when not in
use, before inserting or removing parts,
and before cleaning.
7. Avoid contacting moving parts. Keep
hands, hair, clothing, as well as spatulas
and other utensils away from beater
during operation to prevent injury, and/
or damage to the mixer.
8. Do not operate mixer unattended or
near edge of work surface. When used
for heavy loads or at high speeds, mixer
may move on work surface.
9. Remove flat beater, wire whip or dough
hook from mixer before washing.
10. Do not operate any appliance with a
damaged cord set or after the appliance
has been dropped or damaged in any
manner. If the supply cord is damaged,
it must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard.
11. The use of attachments not
recommended by KitchenAid may cause
fire, electrical shock or injury.
12. Do not use outdoors.
13. Do not let cord hang over edge
of table or counter, or touch hot
surfaces.
14. When using a mixer model with a tilt
head, the head must be completely
down before locking. Before mixing,
make sure lock is in position by
attempting to raise head.
15. Do not use an extension cord.
16. When making dough with the
mixer, never use recipes calling for
more than the following maximum
measurements: Model 5K45SS – 1.12
kg (8 cups) of all-purpose flour or
840 g (6 cups) of whole wheat flour.
Models 5K5SS, 5KPM5, and 5KSM5 –
1.4 kg (10 cups) of all-purpose flour or
1120 g (8 cups) of whole wheat flour.
17. When making dough with the mixer,
never operate mixer continuously for
more than 10 minutes.
18. Be careful when lifting mixer as it is
heavy.
19. Use the mixer only for its intended
function.
20. ELECTRICAL REQUIREMENTS: Your
KitchenAid
®
Mixer operates on a regular
220-240 volt A.C., 50-60 hertz house
current. The wattage rating for your
KitchenAid
®
Mixer is printed on the
trim band. This wattage is determined by
using the attachment which draws the
greatest power. Other recommended
attachments may draw significantly less
power.
21. Be certain the attachment hub is
secure (tighten attachment knob) prior
to using mixer to avoid any possibility
of the attachment hub falling into the
bowl during mixing.
This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments
9706978B_02_EN_v04.indd 3 12/17/14 2:10 PM
English
5K45SS Mixer Features
R-4
R-4
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
Motor Head
Motor Head
Locking Lever
(not shown)
Attachment Knob
Attachment Hub
Flat Beater
Wire Whip
Dough Hook
Speed
Control
Lever
Bowl Clamping Plate
Beater Shaft
4.5 Qt (4.3 L)
Stainless
Steel Bowl
9706978B_02_EN_v04.indd 4 12/17/14 2:10 PM
TO LOCK MOTOR HEAD IN RAISED
POSITION
• Push locking lever up into UNLOCK
position and hold.
• Tilt motor head back.
• Move locking lever into LOCK position.
TO LOCK MOTOR HEAD IN
OPERATING POSITION
• Push locking lever up into UNLOCK
position and hold.
• Lower motor head until it is completely
down into operating position.
• Move locking lever into LOCK position.
• Before mixing, test motor head lock by
attempting to raise head.
NOTE: Motor head should always be
kept in LOCK position when using mixer.
TO OPERATE CONTROL SPEED
• Speed control lever should always be
set on lowest speed for starting, then
gradually moved to desired higher speed
to avoid splashing ingredients out of
bowl. See “Speed Control Guide.”
0 1 2 4 6 8 10
English
R-5
TO ATTACH BOWL
• Be sure speed control is OFF.
• Tilt motor head back.
• Place bowl on bowl-clamping plate.
• Turn bowl gently in clockwise direction
(see picture above).
• Sit pouring shield on bowl.
TO REMOVE BOWL
• Turn speed control to OFF.
• Tilt motor head back.
• Turn bowl in counterclockwise
direction.
TO ATTACH FLAT BEATER,
WIRE WHIP, OR DOUGH HOOK
• Turn speed control to OFF and unplug.
• Raise motor head.
• Slip beater onto beater shaft and press
upward as far as possible.
• Turn beater to right, hooking beater
over pin on shaft.
TO REMOVE FLAT BEATER,
WIRE WHIP OR DOUGH HOOK
• Turn speed control to OFF and unplug.
• Raise motor head.
• Press beater upward as far as possible
and turn left.
• Pull beater from beater shaft.
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
OFF ON
9706978B_02_EN_v04.indd 5 12/17/14 2:10 PM
English
R-6
Heavy Duty
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
Motor Head
Bowl Lift Handle
(not shown)
Spring Latch and
Bowl Pin
(not shown)
Attachment
Knob
Attachment Hub
Locating Pins
Wire Whip
Flat Beater
Dough Hook
Speed Control
Lever
Bowl Support
Beater
Shaft
5 Qt (4.8 L)
Stainless Steel Bowl
5K5SS/5KPM5 Mixer Features
9706978B_02_EN_v04.indd 6 12/17/14 2:10 PM
TO ATTACH FLAT BEATER,
WIRE WHIP, OR DOUGH HOOK
• Turn speed control to OFF and unplug.
• Lower bowl by rotating bowl lift handle
downward.
• Slip flat beater on beater shaft and press
upward as far as possible.
• Turn beater to right, hooking beater
over the pin on shaft.
TO REMOVE FLAT BEATER,
WIRE WHIP, OR DOUGH HOOK
• Turn speed control to OFF and unplug.
• Lower bowl by rotating bowl lift handle
downward.
• Press beater upward as far as possible
and turn left.
• Pull beater from beater shaft.
TO OPERATE CONTROL SPEED
• Speed control lever should always be
set on lowest speed for starting, then
gradually moved to desired higher
speed to avoid splashing ingredients out
of bowl. See “Speed Control Guide.”
OVERLOAD RESET BUTTON
(Model 5KPM50 only)
• If the mixer is overloaded, the Overload
Reset Button will pop out and the mixer
will shut off. Turn the Speed Control
Lever to OFF. Wait a few minutes, then
push in the Overload Reset Button.
Turn the Speed Control Lever to the
desired speed and continue mixing.
English
R-7
TO ATTACH BOWL
• Be sure speed control is OFF.
• Place bowl lift handle in down position.
• Fit bowl supports over locating pins.
• Press down on back of bowl until bowl
pin snaps into spring latch.
• Sit pouring shield on bowl.
• Raise bowl before mixing.
NOTE: Check that bowl and pouring
shield are properly in place (5KPM5
models).
TO REMOVE BOWL
• Place bowl lift handle in down position.
• Grasp bowl handle and lift straight up
and off locating pins.

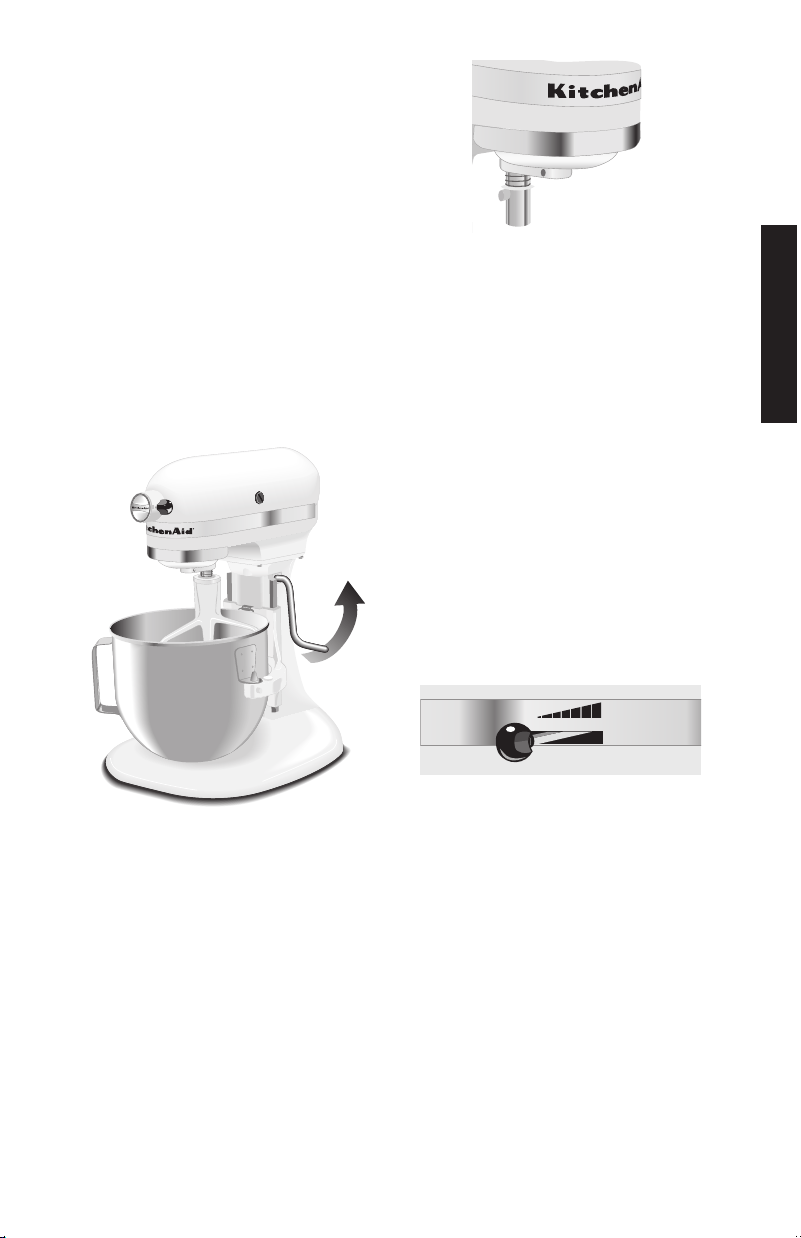

TO RAISE BOWL
• Rotate handle back and up until it snaps
into the locked vertical position.
• Bowl must always be in raised, locked
position when mixing.
TO LOWER BOWL
• Rotate handle back and down.
Heavy Duty
0 1 2 4 6 8 10
9706978B_02_EN_v04.indd 7 12/17/14 2:10 PM
English
R-8
Flat Beater, for normal to heavy mixtures,
such as:
cakes biscuits
creamed frostings crumpets
candies meat loaf
cookies mashed potatoes
pie pastry
Dough Hook for mixing and kneading
yeast doughs, such as:
breads coffee cakes
rolls buns
Using Your KitchenAid® Attachments
Beater To Bowl Clearance
Wire Whip for mixtures which need to
incorporate air, such as:
eggs sponge cakes
egg whites mayonnaise
heavy cream some candies
boiled frostings
Model 5K45SS:
• Lift motor head.
• Turn screw (A) slightly to the left to
raise flat beater and to the right to
lower flat beater.
• Make adjustment with flat beater, so it
just clears surface of bowl.
A
Model
5K5SS/5KSM5/5KPM5
• Place bowl lift handle in
down position.
• Turn screw (B) slightly
to the left to raise flat
beater and to the right
to lower flat beater.
• Make adjustments with
flat beater, so it just clears surface of bowl.
NOTE: Flat beater must not strike on bottom
or side of bowl when properly adjusted. If
beater or wire whip is adjusted too close so
that it strikes bottom of bowl, coating may
wear off of beaters or wires may wear through
on wire whip.
Scraping sides of bowl may be necessary
under certain conditions regardless of beater
adjustment. Mixer must be stopped to scrape
bowl or damage to mixer may occur.
Bowl, flat beater and dough hook may
be washed in an automatic dishwasher.
The wire whip and these other basic
accessories can be cleaned thoroughly in
hot sudsy water and rinsed completely
before drying.
Lubrication: Motor bearings are self-
lubricating and should require no further
attention under normal use.
ELECTRICAL SHOCK HAZARD
ALWAYS BE SURE TO UNPLUG
MIXER BEFORE CLEANING TO AVOID
POSSIBLE ELECTRICAL SHOCK.
Wipe mixer with a damp cloth. DO
NOT IMMERSE IN WATER. Wipe off
beater shaft frequently, removing any
residue that may accumulate.
WARNING
Care and Cleaning of Your Mixer
B
Your mixer is adjusted at the factory so
that the flat beater just clears the bottom
of the bowl. If, for any reason, the flat
beater strikes the bottom of the bowl, or
is too far away from the bowl, clearance
can be corrected as follows:
See the Stand Mixer Attachments Use and Care Guide for speed settings and operating
times.
w
9706978B_02_EN_v04.indd 8 12/17/14 2:10 PM
English
R-9
Planetary Mixing Action
Mixer Use
Speed Control Guide
PERSONAL INJURY HAZARD
To avoid personal injury and damage
to the beater, do not attempt to scrape
bowl while mixer is operating; turn
mixer off. Should scraper or other
object drop into bowl, turn motor OFF
before removing.
WARNING
The bowl and beater are designed to
provide thorough mixing without frequent
scraping. Scraping the bowl once or twice
during mixing is usually sufficient.
The mixer may warm up during use.
Under heavy loads with extended mixing
time, you may not be able to comfortably
touch the top of the unit. This is normal.
Your KitchenAid
®
Mixer will mix faster
and more thoroughly than most other
electric mixers. Therefore, the mixing
time in most recipes must be adjusted to
avoid overbeating.
NUMBER OF SPEED
1 STIR For slow stirring, combining, mashing, starting all mixing
procedures. Use to add flour and dry ingredients to batter, add
liquids to dry ingredients, and combine heavy mixtures.
2 SLOW MIXING For slow beating, mashing, faster stirring. Use to beat heavy
batters and candies, start mashing potatoes or other vegetables,
cut shortening into flour, beat thin or splashy batters, and mix
and knead yeast dough. Use with Can Opener attachment.
4 MIXING, BEATING For mixing semi-heavy batters such as cookies. Use to cream
sugar and shortening and add sugar to egg whites for meringues.
Medium speed for cake mixes. Use with attachments: Food
Grinder, Rotor Slicer/Shredder and Fruit/Vegetable Strainer.
6 BEATING, For beating or creaming, medium fast whipping. Use to finish
CREAMING mixing cakes, doughnut and other batters. High speed for cake
mixes. Use with Citrus Juice attachment.
8 FAST BEATING, For whipping cream, egg whites, and boiled frostings.
WHIPPING
10 FAST For whipping small amounts of cream and egg whites. Use with
WHIPPING Pasta Maker and Grain Mill attachments.
NOTE: The Speed Control Lever can be set between the above speeds if a finer adjustment is required.
During operation, the
flat beater moves around
the stationary bowl, at
the same time turning in
the opposite direction
on its own axis. The
diagram shows the
complete coverage of
the bowl made by the
path of the beater.
w
9706978B_02_EN_v04.indd 9 12/17/14 2:10 PM
English
NOTE: If liquid ingredients are added too
quickly, they will form a pool around the
dough hook and slow down mixing process.
4. Continuing on speed 2, gently tap
remaining flour around sides of bowl,
1/2 cup (125 mL) at a time, as needed.
Mix until dough clings to hook and cleans
sides of bowl, about 2 minutes.
Mixing Tips
Mixing and Kneading Yeast Dough
R-10
beater. The Pouring Shield can be used to
simplify adding ingredients.
NOTE: If ingredients in very bottom
of bowl are not thoroughly mixed, the
beater is not far enough into the bowl.
See “Beater to Bowl Clearance.”
Cake Mixes
When preparing packaged cake mixes,
use Speed 4 for medium speed and Speed
6 for high speed. For best results, mix for
the time stated on the package directions.
Adding Nuts, Raisins or
Candied Fruits
Solid materials should be folded in the last
few sections of mixing on Stir Speed. The
batter should be thick enough to keep the
fruits and nuts from sinking to the bottom
of the pan during baking. Sticky fruits
should be dusted with flour for better
distribution in the batter.
Liquid Mixture
Mixtures containing large amounts of
liquid ingredients should be mixed at
lower speeds to avoid splashing. Increase
speed only after mixture has thickened.
Converting Your Recipe to the Mixer
The mixing instructions found in this book
can be used to convert your favorite
recipes for use with your KitchenAid
®
Mixer.
To help determine a mixing procedure,
your own observations and experience will
be needed. Watch the batter or dough and
mix only until it has the desired appearance
described in your recipe, such as “smooth
and creamy.” Use the “Speed Control
Guide” to help determine proper mixing
speeds.
Adding Ingredients
The standard procedure to follow when
mixing most batters, especially cake and
cookie batters, is to add:
1/3 dry ingredients
1/2 liquid ingredients
1/3 dry ingredients
1/2 liquid ingredients
1/3 dry ingredients
Use Stir Speed until ingredients have
been blended. Then gradually increase to
desired speed.
Always add ingredients as close to side of
bowl as possible, not directly into moving
1. Place all dry ingredients including yeast into
bowl, except last 1 to 2 cups (250 mL to
500 mL) flour.
2. Attach bowl and dough hook. Lock
5K45SS head or raise 5K5SS/5KPM5
bowl. Turn to Speed 2 and mix about
15 seconds or until ingredients are
combined.
3. Continuing on Speed 2, gradually add liquid
ingredients to flour mixture, about 30
seconds to 1 minute. Mix 1 minute longer.
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
9706978B_02_EN_v04.indd 10 12/17/14 2:10 PM
English
Egg Whites
Whipped Cream
R-11
Place room temperature egg whites in
clean, dry bowl. Attach bowl and wire
whip. To avoid splashing, gradually turn
to designated speed and whip to desired
stage. See chart below.
Amount Speed
1 egg white Gradually to 10
2-4 egg whites Gradually to 8
6 or more egg whites Gradually to 6
WHIPPING STAGES
Frothy:
Large, uneven air bubbles.
Begin to hold shape:
Air bubbles are fine and compact; product
is white.
Pour cream into chilled bowl. Attach
bowl and wire whip. To avoid splashing,
gradually turn to designated speed and
whip to desired stage. See chart below.
Amount Speed
59 mL (1/4 cup) Gradually to 10
118 mL (1/2 cup) Gradually to 10
236 mL (1 cup) Gradually to 8
472 mL (2 cups) Gradually to 8
WHIPPING STAGES
Begins to thicken:
Cream is thick and custard-like.
KitchenAid
St. Joseph, Michigan, USA
0 1 2 4 6 8 10
5. When dough clings to hook, knead on
Speed 2 for 2 minutes or until dough is
smooth and elastic.
6. Unlock and raise head on 5K45SS or
lower bowl on 5K5SS/5KSM5 and remove
dough from hook.
NOTE: These instructions illustrate bread
making with the Rapid Mix method. When
using the conventional method, dissolve
yeast in warm water in warmed bowl. Add
remaining liquids and dry ingredients –
except last 1 to 2 cups (250 mL to 500 mL)
flour. Turn to Speed 2 for about 1 minute,
or until ingredients are thoroughly mixed.
Proceed with steps 4 through 6.
Holds its shape:
Cream forms soft peaks when wire whip
is removed. Can be folded into other
ingredients when making deserts and
sauces.
Stiff:
Cream stands in stiff, sharp peaks when
wire whip is removed. Use for topping
on cakes or desserts, or filling for cream
puffs.
NOTE: Watch cream closely during
whipping; there are just a few seconds
between whipping stages. DO NOT
OVERWHIP.
Soft peak:
Tips of peaks fall over when wire whip is
removed.
Almost stiff:
Sharp peaks form when wire whip is
removed, but whites are actually soft.
Stiff but not dry:
Sharp, stiff peaks form when wire whip is
removed. Whites are uniform in color and
glisten.
Stiff and dry:
Sharp, stiff peaks form when wire whip is
removed. Whites are speckled and dull in
appearance.
9706978B_02_EN_v04.indd 11 12/17/14 2:10 PM
English
When You Need Service
Please read the following before
calling your service center.
1. The mixer may warm up during use.
Under heavy loads with extended
mixing time periods, you may not be
able to comfortably touch the top of the
unit. This is normal.
2. The mixer may emit a pungent odor,
especially when new. This is common
with electric motors.
3. If flat beater strikes bowl, stop the
mixer. See “Beater to Bowl Clearance.”
If your mixer should malfunction
or fail to operate, please check the
following:
1. Is your mixer plugged in?
2. Is the fuse in the circuit to the mixer
in working order? If you have a circuit
breaker box, be sure the circuit is
closed.
3. Are the bowl and pouring shield
properly in place (5KPM5 models)?
4. If the problem is not due to one of
the above items, see “How to Obtain
Service.”
HOW TO OBTAIN SERVICE:
All service should be handled locally by
an authorized KitchenAid Service Center.
Contact the dealer from whom the unit
was purchased to obtain the name of the
nearest authorized KitchenAid service
facility.
12/14
Printed in U.S.A.
9706978B
©2014. All rights reserved
Heavy Duty Mixer Warranty
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES.
LENGTH OF
WARRANTY:
ONE YEAR FULL
WARRANTY FROM
date of purchase.
KITCHENAID WILL
PAY FOR:
Replacement parts
and repair labor
costs to correct
defects in materials or
workmanship. Service
must be provided by an
Authorized KitchenAid
Service Center.
KITCHENAID WILL
NOT PAY FOR:
A. Repairs when mixer
is used for operations
other than normal
food preparation.
B. Damage resulting from
accidents, alterations,
misuse, abuse, or
installation/operation
not in accordance with
local electrical codes.
Specifications subject to change without notice.
KitchenAid Europa, Inc.
Nijverheidslaan 3 Box 5
Strombeek-Bever (Brussels)
1853 BELGIUM
© 2014. All rights reserved.
Specications subject to change without notice.
9706978B_02_EN_v04.indd 12 12/17/14 2:10 PM
KitchenAid Europa, Inc.
Nijverheidslaan 3 Box 5
Strombeek-Bever (Brussels)
1853 BELGIUM
Form No. 9706978 Rev. B
9706978B_Cover_v01.indd 4 12/18/14 10:14 AM
