OWNER’S MANUAL
Screw Jacks SJ-5T/10T/15T/20T/25T
WARNING
• Read and understand the entire contents of this manual before attempting to use the screw jack.
• Never lift more than the rated capacity.
• Always make sure jack is on a flat, level, and hard surface.
• Always center jack under load.
• Never allow load to “tilt” on the jack as the jack may kick out causing injury to the operator and/or the
load to fall.
• When using more than one jack to lift a load, each jack must have the lifting capacity of the entire
load being lifted.
• Never force the screw past its safety stop.
• Always replace damaged or missing labels.
Operation
1. Select a screw jack with the proper lifting capacity.
2. Place on a flat, hard surface beneath the load to be lifted.
3. Use your hand to turn the screw out until it contacts the surface to be lifted.
4. Insert steel turning bar (not supplied) in hole under lifting pad. See Parts List for optional turning bar.
5. Rotate turning bar counter-clockwise until desired height is reached.
WARNING
Each JET screw jack is provided with a safety stop to prevent the screw from coming all the way out
when the stop is reached! Do not force the screw! Never force the screw past the safety stop!
Failure to comply may cause serious injury and/or damage to property and the jack!
Specifications
Stock
No.
Model
No.
Capacity
(tons)
Screw
Size O.D.xL
(in)
Bar
Hole
Size
(in)
Head
Dia.
(in)
Base
Dia.
(in)
Min.
Height
(in)
Max.
Height
(in)
Net
Weight
(lbs)
441305 SJ-5T 5 1x6-1/4 9/16 3-1/4 4-1/2 9-1/2 13-3/8 9
441310 SJ-10T 10 1-1/2x8-5/16 11/16 3-1/4 5-1/4 11-1/2 17-13/16 16
441315 SJ-15T 15 1-5/8x10-3/16 13/16 3-1/4 6 13-13/16 21-3/8 23
441320 SJ-20T 20 2x11-13/16 1 4 6-7/8 15-13/16 24-7/8 34
441325 SJ-25T 25 2-1/16x12-5/8 1 4 7-5/16 16-5/8 26-3/8 40
JET P.O. BOX 1349 Phone: 253-351-6000
WMH Tool Group Auburn, WA 98071-1349 Fax: 1-800-274-6840
www.jettools.com e-mail jet@wmhtoolgroup.com M-
441305 05/02

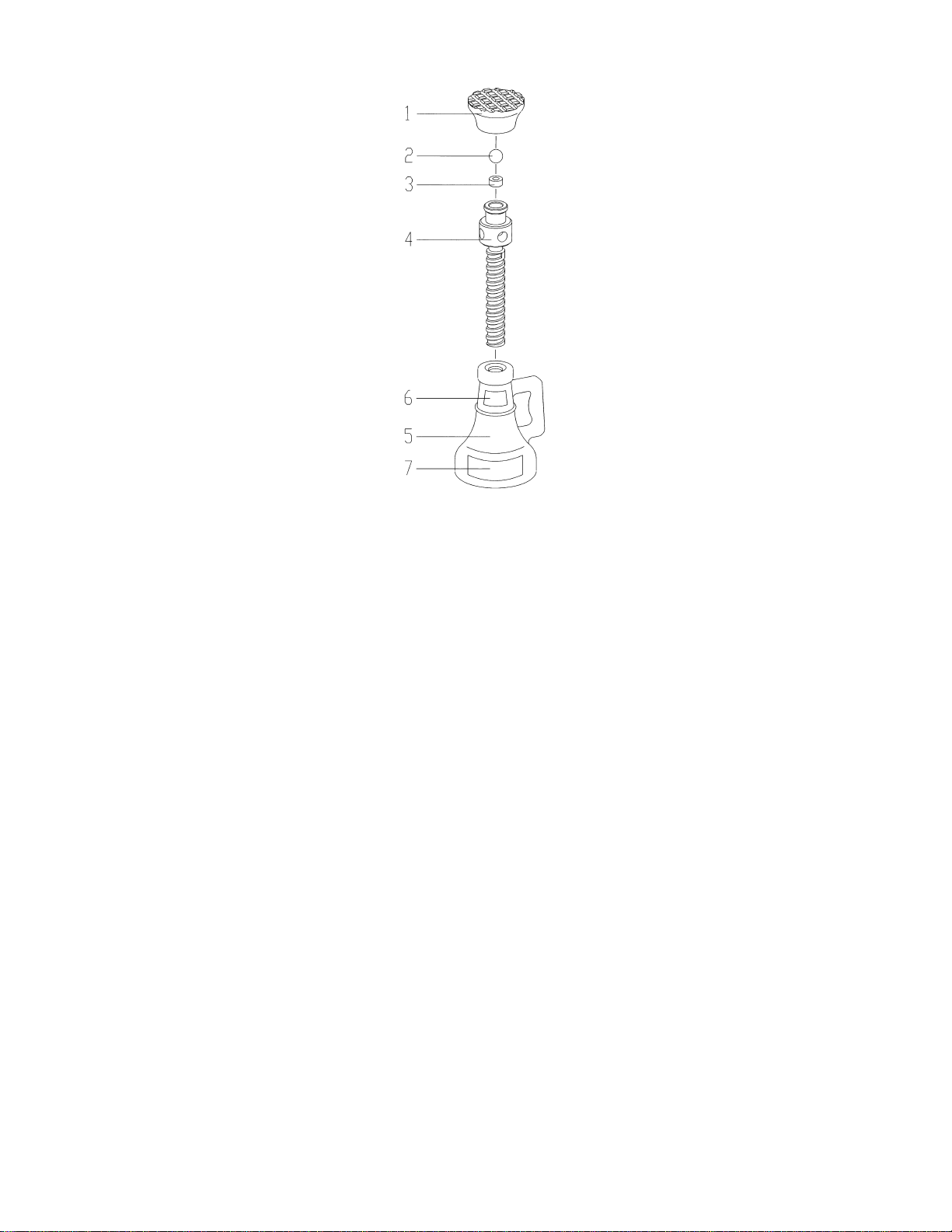

Screw Jack Breakdown
Parts List for SJ-5T/10T/15T/20T/25T Screw Jacks
Index Part
No. No. Description Size Qty.
1..........SJ5T-1............................. Support (SJ-5T, SJ-10T, SJ-15T) .................. .................................1
............SJ20T-1........................... Support (SJ-20T, SJ-25T).............................. .................................1
2..........SB-3/4.............................. Steel Ball (SJ-5T, SJ-10T, SJ-15T)................3/4"...........................1
............SJ20T-02......................... Steel Ball (SJ-20T, SJ-25T)........................... 29/32”.......................1
3..........SJ5T-03........................... Shim (SJ-5T, SJ-10T, SJ-15T) ...................... .................................1
............SJ20T-03......................... Shim (SJ-20T, SJ-25T).................................. .................................1
4..........SJ5T-04........................... Main Screw ................................................... .................................1
............SJ10T-04......................... Main Screw ................................................... .................................1
............SJ15T-04......................... Main Screw ................................................... .................................1
............SJ20T-04......................... Main Screw ................................................... .................................1
............SJ25T-04......................... Main Screw ................................................... .................................1
5..........SJ5T-05........................... Body.............................................................. .................................1
............SJ10T-05......................... Body.............................................................. .................................1
............SJ15T-05......................... Body.............................................................. .................................1
............SJ20T-05......................... Body.............................................................. .................................1
............SJ25T-05......................... Body.............................................................. .................................1
6..........SJ5T-ID ........................... I.D. Label....................................................... .................................1
............SJ10T-ID.......................... I.D. Label....................................................... .................................1
............SJ15T-ID.......................... I.D. Label....................................................... .................................1
............SJ20T-ID.......................... I.D. Label....................................................... .................................1
............SJ25T-ID.......................... I.D. Label....................................................... .................................1
7..........SJ5T-WL.......................... Warning Label............................................... .................................1
............SJ10T-WL........................ Warning Label............................................... .................................1
............SJ15T-WL........................ Warning Label............................................... .................................1
............SJ20T-WL........................ Warning Label............................................... .................................1
............SJ25T-WL........................ Warning Label............................................... .................................1
Optional Accessory
............440301............................. Steel Turning Bar (fits SJ-5T)........................ 1/2” x 18”..................1
............440302............................. Steel Turning Bar (fits SJ-10T)......................5/8” x 24”..................1
............440303............................. Steel Turning Bar (fits SJ-15T)......................3/4” x 36”..................1
............440304............................. Steel Turning Bar (fits SJ-20T/25T)...............1” x 42”.....................1
