NIKKOR Z 28mm f/2.8 (SE)
En
User’s Manual
C T1F01(11)
7MMA6511-01
2
Before using this product, please read these instructions carefully. You
will also need to consult the camera manual.
• This lens is intended exclusively for use with mirrorless cameras featur-
ing a Nikon Z mount.
• Update the camera firmware to the latest version. With earlier versions,
the camera may fail to detect the lens correctly and some features
may not be available. The latest version of the camera firmware can
be downloaded from the Nikon Download Center at the URL below.
https://downloadcenter.nikonimglib.com/
For Your SafetyFor Your Safety
To prevent damage to property or injury to yourself or to others, read
“For Your Safety” in its entirety before using this product.
Keep these safety instructions where all those who use this product
will read them.
A WARNING: Failure to observe the precautions marked with this
icon could result in death or severe injury.
A CAUTION: Failure to observe the precautions marked with this
icon could result in injury or property damage.
AA WARNINGWARNING
• • Do not disassemble or modify this product. Do not disassemble or modify this product.
Do not touch internal parts that become exposed as the result Do not touch internal parts that become exposed as the result
of a fall or other accident.of a fall or other accident.
Failure to observe these precautions could result in electric shock or
other injury.
• • Should you notice any abnormalities such as the product Should you notice any abnormalities such as the product
producing smoke, heat, or unusual odors, immediately producing smoke, heat, or unusual odors, immediately
disconnect the camera power source.disconnect the camera power source.
Continued operation could result in fire, burns or other injury.
3
AA WARNINGWARNING
• • Keep dry. Keep dry.
Do not handle with wet hands. Do not handle with wet hands.
Failure to observe these precautions could result in fire or electric shock.
• • Do not use this product in the presence of ammable dust or Do not use this product in the presence of ammable dust or
gas such as propane, gasoline or aerosols.gas such as propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
• • Do not directly view the sun or other bright light source Do not directly view the sun or other bright light source
through the lens.through the lens.
Failure to observe this precaution could result in visual impairment.
• • Keep this product out of reach of children.Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product
malfunction. In addition, note that small parts constitute a choking
hazard. Should a child swallow any part of this product, seek
immediate medical attention.
• • Do not handle with bare hands in locations exposed to Do not handle with bare hands in locations exposed to
extremely high or low temperatures.extremely high or low temperatures.
Failure to observe this precaution could result in burns or frostbite.
AA CAUTIONCAUTION
• • Do not leave the lens pointed at the sun or other strong light Do not leave the lens pointed at the sun or other strong light
sources.sources.
Light focused by the lens could cause fire or damage to product’s
internal parts. When shooting backlit subjects, keep the sun well out
of the frame. Sunlight focused into the camera when the sun is close
to the frame could cause fire.
• • Do not leave the product where it will be exposed to extremely Do not leave the product where it will be exposed to extremely
high temperatures, for an extended period such as in an high temperatures, for an extended period such as in an
enclosed automobile or in direct sunlight.enclosed automobile or in direct sunlight.
Failure to observe this precaution could result in fire or product
malfunction.
4
AA CAUTIONCAUTION
• • Do not transport cameras or lenses with tripods or similar Do not transport cameras or lenses with tripods or similar
accessories attached.accessories attached.
Failure to observe this precaution could result in injury or product
malfunction.
Notices for Customers in the U.S.A.Notices for Customers in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Federal Communications Commission (FCC) Radio Frequency Federal Communications Commission (FCC) Radio Frequency
Interference StatementInterference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for
help.
5
CAUTIONSCAUTIONS
Modications
The FCC requires the user to be notified that any changes or modifi-
cations made to this device that are not expressly approved by Nikon
Corporation may void the user’s authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road,
Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
Notice for Customers in CanadaNotice for Customers in Canada
CAN ICES-3 B / NMB-3 B
6
Using the LensUsing the Lens

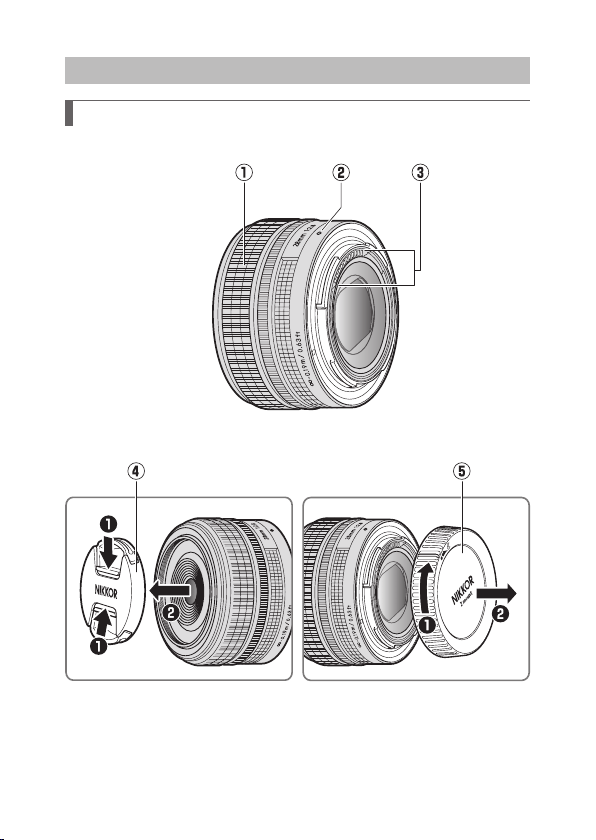

Parts of the Lens: Names and FunctionsParts of the Lens: Names and Functions
See below for the names and functions of the parts of the lens.
7
q
Control ring
Autofocus mode selected:
In autofocus mode, rotate the ring to
adjust a setting such as [Focus (M/A)] or
[Aperture] assigned using the camera.
For more information, see the descrip-
tion of [Custom control assignment],
[Custom controls], or [Custom controls
(shooting)] in the camera manual.
—
Manual focus mode selected:
Rotate the ring to focus.
—
w
Lens mounting
mark
Use when mounting the lens on the
camera.
See
A
(08)
e
CPU contacts
Used to transfer data to and from the
camera.
—
r
Lens cap (front
cap)
— —
t
Lens cap (rear cap)
— —
8
A
Attachment and Removal Attachment and Removal
Attaching the Lens
z
Turn the camera o, remove the body cap, and detach the
rear lens cap.
x
Position the lens on the camera body, keeping the mount-
ing mark on the lens aligned with the mounting mark on
the camera body, and then rotate the lens counterclockwise
until it clicks into place.
Removing the Lens
z
Turn the camera o.
x
Press and hold the lens release button while turning the
lens clockwise.
When ShootingWhen Shooting
The focus position may change if you turn the camera off and then
on again after focusing. If you have focused on a pre-selected location
while waiting for your subject to appear, we recommend that you do
not turn the camera off until the picture is taken.
Using the Lens on Cameras with a Built-in FlashUsing the Lens on Cameras with a Built-in Flash
Shadows may be visible in photos where light from the built-in flash is
obscured by the lens.
• For the latest information on focal lengths and subject distances at
which shadows will not appear in photos taken with a built-in flash,
visit the site below.
https://downloadcenter.nikonimglib.com/
9
Cameras with AF-Assist IlluminatorsCameras with AF-Assist Illuminators
The lens may block the light from the camera AF-assist illuminator.
• For the latest information on using the lens with cameras that have
built-in AF-assist illuminators, visit the site below.
https://downloadcenter.nikonimglib.com/
Precautions for UsePrecautions for Use
• Do not pick up or hold the lens or camera using only the lens caps.
• Keep the CPU contacts clean.
• Replace the lens caps when the lens is not in use.
• Do not leave the lens in humid locations or in locations in which it may
be exposed to moisture. Rusting of the internal mechanism can cause
irreparable damage.
• Do not leave the lens next to open flames or in other extremely hot
locations. Extreme heat could damage or warp the reinforced plastic
exterior.
• Taking the lens from a warm to a cold environment or vice versa may
cause damaging condensation inside and outside the lens.
Place the lens in a sealed bag or plastic case before taking it across a
temperature boundary.
The lens can be taken from the bag or case once it has had time to
adjust to the new temperature.
• We recommend that you place the lens in a case (available separately)
to protect it from scratches during transport.
10
Lens CareLens Care
• Removing dust is normally sufficient to clean the glass surfaces of the
lens.
• Smudges, fingerprints, and other oily stains can be removed from
the lens surface using a soft, clean cotton cloth or lens cleaning tis-
sue lightly dampened with a small amount of ethanol or lens cleaner.
Wipe gently from the center outwards in a circular motion, taking care
not to leave smears or touch the lens with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean
the lens.
• Neutral Color (NC) filters (available separately) and the like can be used
to protect the front lens element.
• Do not store with naphtha or camphor moth balls or in direct sunlight.
If the lens will not be used for an extended period, store it in a cool, dry
location to prevent mold and rust.
11
Accessories Accessories
Supplied AccessoriesSupplied Accessories
• LC-52B Lens Cap (front cap)
• LF-N1 Lens Cap (rear cap)
Compatible AccessoriesCompatible Accessories
• CL-C4 Lens Case
• 52 mm filters
D
Filters
Use only one lter at a time.
12
©
2021 Nikon Corporation
SpecicationsSpecications
MountMount Nikon Z mount
Focal lengthFocal length 28 mm
Maximum apertureMaximum aperture f/2.8
Lens constructionLens construction 9 elements in 8 groups (including 2 aspherical ele-
ments)
Angle of viewAngle of view • FX format: 75°
• DX format: 53°
Focusing systemFocusing system Internal focusing system
Minimum focus Minimum focus
distance (measured distance (measured
from focal plane)from focal plane)
0.19 m (0.63 ft)
Maximum reproduc-Maximum reproduc-
tion ratiotion ratio
0.2×
Diaphragm bladesDiaphragm blades 7 (rounded diaphragm opening)
Aperture rangeAperture range f/2.8 – 16
Filter-attachment sizeFilter-attachment size 52 mm (P = 0.75 mm)
DimensionsDimensions Approx. 71.5 mm (2.9 in.) maximum diam-
eter × 43 mm (1.7 in.)
(distance to end of lens from camera lens mount ange)
WeightWeight Approx. 160 g (5.7 oz)
Nikon reserves the right to change the appearance, specications, and per-
formance of this product at any time and without prior notice.
