42438 REV G 6.8.2017
Table of Contents: Page:
Installation Instructions for Square and Linear Glass Guards....……………………………........................ 2

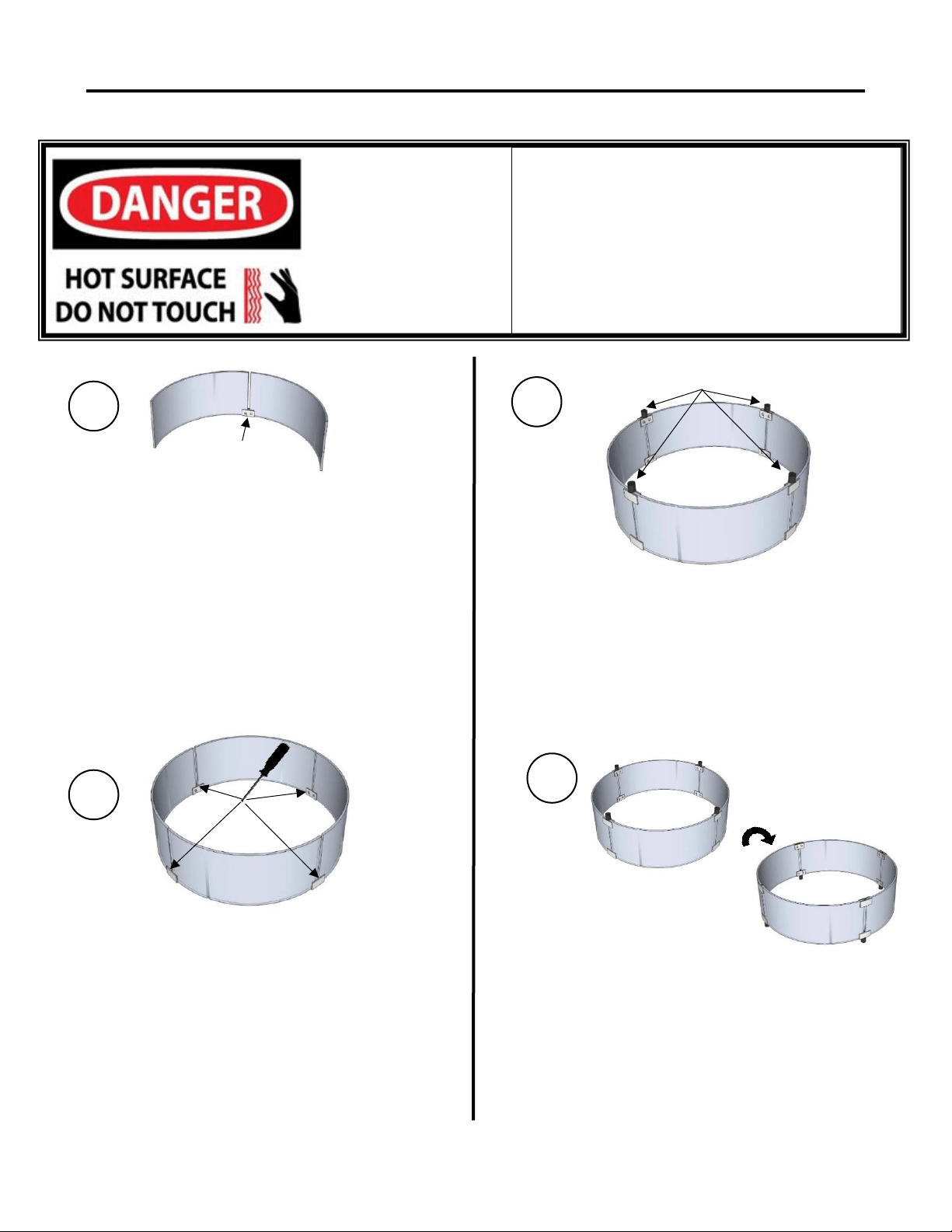

Installations Instructions for Round Glass Guards (4 Panels)………………………………………..………….... 3

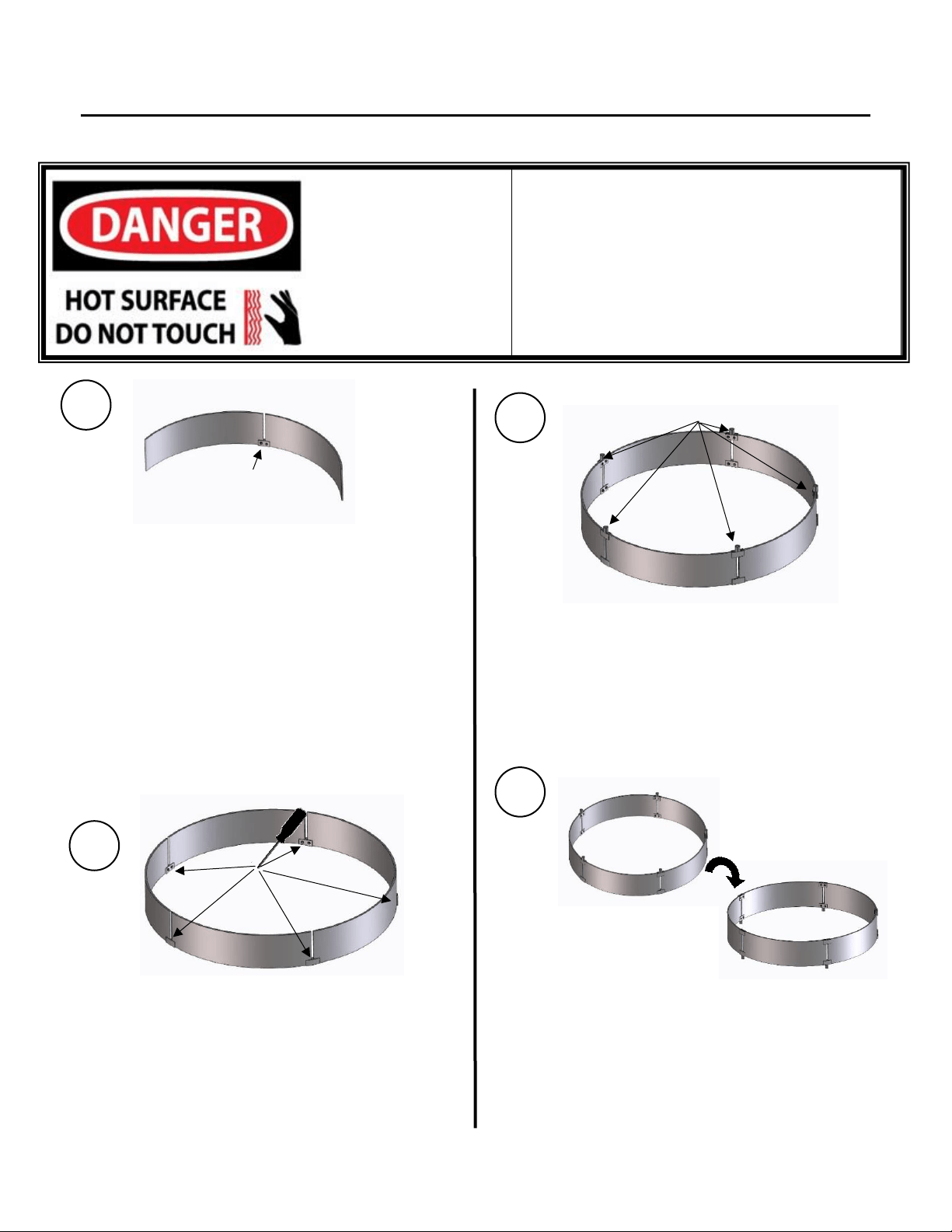

Installations Instructions for Round Glass Guards (5 Panels) …….……………………………..…..…………… 4

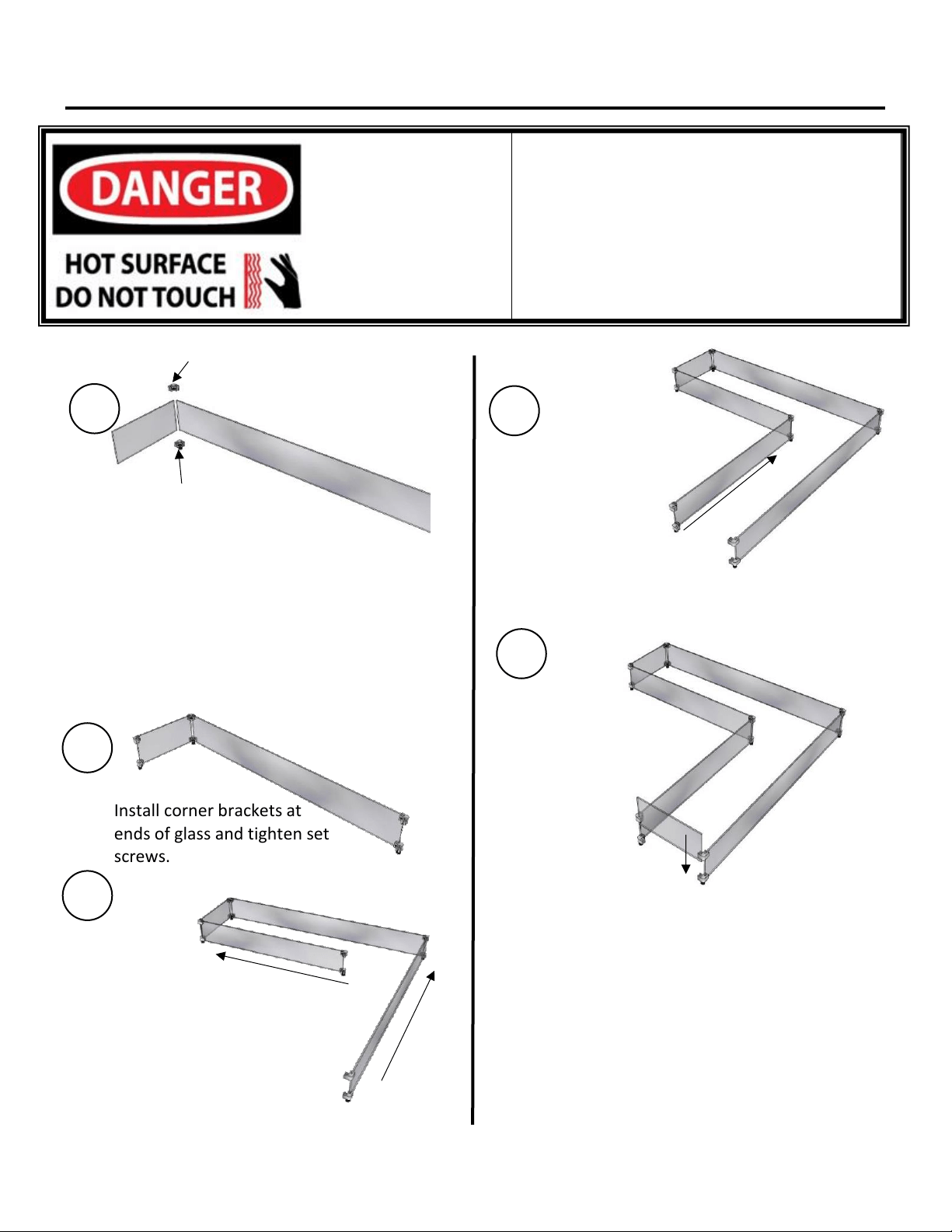

Installation Instructions for L-Shaped Glass Guards…………………..……………………………….…..…………. 5
Care and Usage Tips and Limited Warranty Information ………..…………………..……………..……………… 6
Glass Guard
Assembly instructions for Glass Guard-2424, Glass Guard-20, Glass Guard-1224, Glass Guard-1242, Glass Guard-12-R,
Glass Guard-20-R, Glass Guard-30-R, Glass Guard-1242-L, Glass Guard-WV and Glass Guard-1616
Included in this Kit (Note: Included items differ for each kit. See below for your specific model)
Square and Linear Glass Guards:
- Glass Guard-2424, Glass Guard-1616, Glass Guard-20:
- 4 Glass panels of equal length
- 8 Corner brackets; 4 top, 4 bottom
- Glass Guard-1224, Glass Guard-WV, and Glass Guard-1242:
- 2 Long, 2 short panels.
- 8 Corner brackets; 4 top, 4 bottom
Round Glass Guards:
- Glass Guard-12-R, Glass Guard-20-R:
- 4 round panels of equal length
- 8 rounded brackets; 4 top and 4 bottom
- Glass Guard-30-R:
- 5 round panels of equal length
- 10 rounded brackets; 5 top and 5 bottom
L-shaped Glass Guards:
- Glass Guard-1242-L:
- 2 Long panels, 2 medium panels, 2 short panels
- 12 Corner brackets; 6 top, 6 bottom
Top
Brackets
Bottom
Brackets
Corner Brackets
for square and linear glass guards:
Keep children away.
CAREFULLY SUPERVISE children near fire pit.
Alert children and adults to hazards of high
temperatures.
High Temperatures may ignite clothing or other
flammable materials.
Clothing, furniture and other flammable materials
must not be placed on or near the glass guard.
Do not leave appliance unattended while burning.
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
Top
Brackets
Bottom
Brackets
Rounded Brackets
for Round Glass Guards:
What Is Needed
Phillips Screwdriver (Hand tools ONLY, do NOT use power tools for assembly)
Soft leather gloves for handling glass panels
Soft non-abrasive surface for assembly
Two people are recommended for assembly
