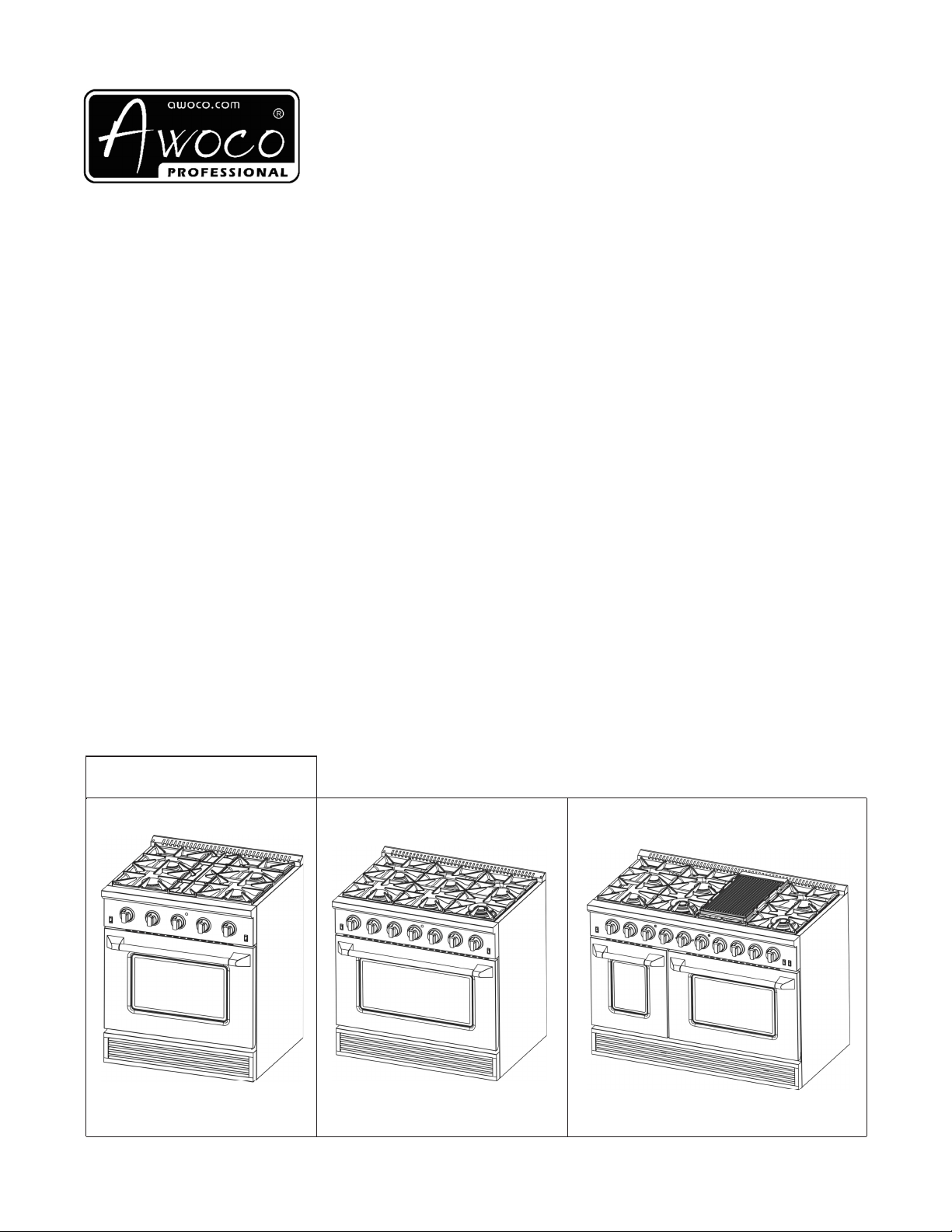

JK48A1
JK36A1
JK30A1
MODEL NUMBERS:
FREESTANDING
DUAL FUEL
RANGE
USER MANUAL
2
Thank you for purchasing Awoco professional range.
Please read this manual carefully before installing and setting up your
new range for the first time.
Should you encounter any questions or issues when installing or
setting up your new range, please refer to the Troubleshooting section
of this manual. If your questions are not described in this manual,
please feel free to contact us through our website www.awoco.com.
Please store this manual in a safe place for future reference.
Website: www.awoco.com Customer Support: 1-888-412-3428
3
CAUTION
IMPORTANT
SAFETY INSTRUCTIONS
Definitions
This is a safety alert symbol. It will alert you to potential personal or property
safety hazards. Obey all safety messages to avoid any property damage,
personal injury or death.
WARNING - Indicates a potentially hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION - Indicates a moderate hazardous situation which, if not avoided,
could result in minor or moderate injury.
CAUTION – when used without the safety alert symbol, indicates a potentially
hazardous situation which, if not avoided, could result in property damage.
IMPORTANT - Used for installation, operation and maintenance information that
are not related to safety.
If the information in this manual is not followed exactly, a fire or an explosion
may occur and cause property damage, personal injury or even death.
What to do if you smell gas?
DO NOT turn on the lights or use any appliances.
DO NOT use any phones in the house.
Call the gas company immediately from your neighbor’s phone. Follow the
gas supplier’s instructions.
If you cannot reach the gas company, call the fire department.
4
IMPORTANT
IMPORTANT
The installation and service of your range product must be performed by a
licensed installer, an approved service agency or the gas company.
ELECTRICAL GROUNDING INSTRUCTIONS
This indoor cooking appliance is equipped with a three-prong (grounding) plug for your
protection against shock hazard and should be plugged directly into a properly grounded three-
pronged receptacle. DO NOT cut or remove the grounding prong from this plug.

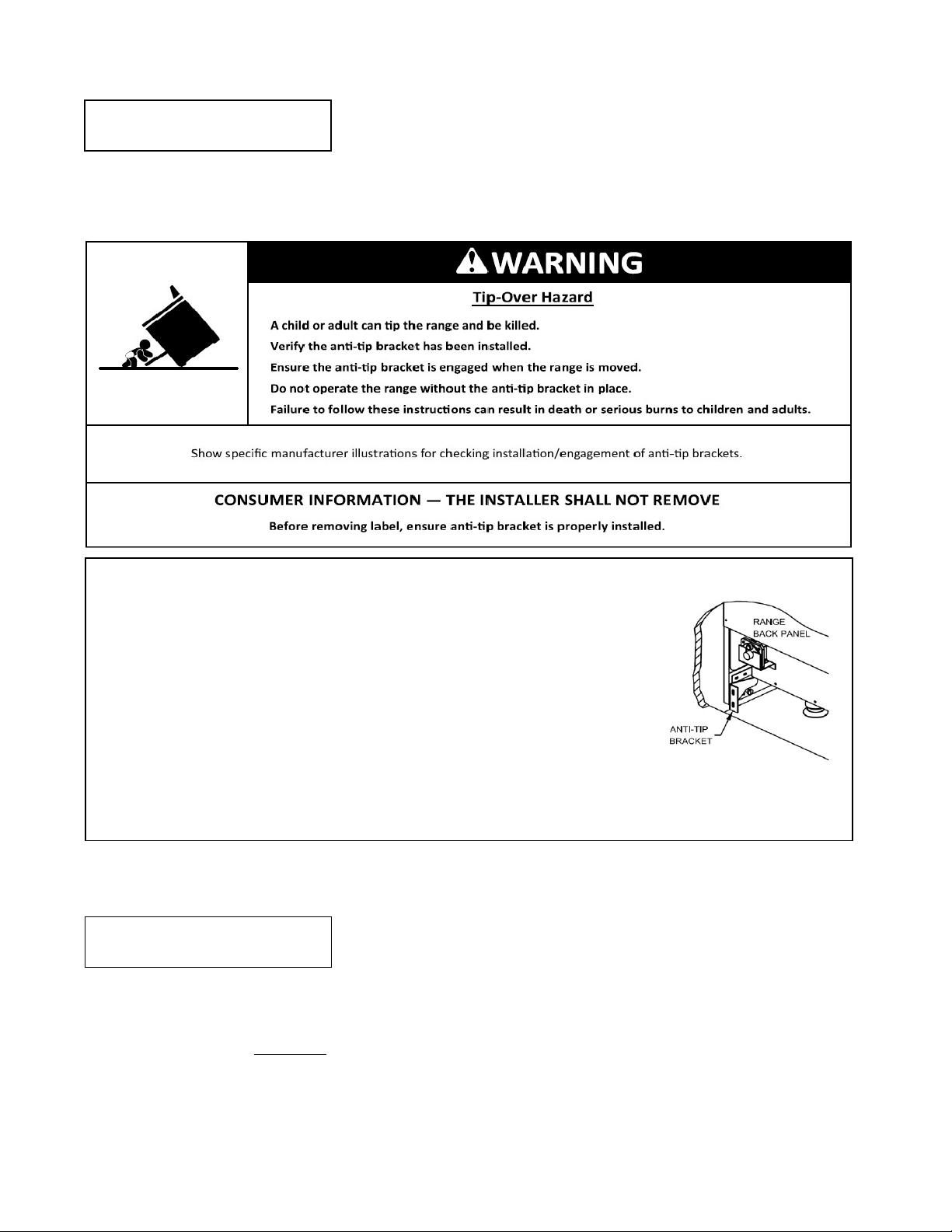

Before moving the range to the desired location, an anti-tip bracket
must be installed to reduce the risk of tipping of the range.
Follow these steps to properly install the provided anti-tip
bracket:
1. Take measurements and determine the location to install the
anti-tip bracket.
2. Safely and slightly tilt the front of the range upward and move
the range until its back reaches the rear wall. (Make sure the
pin has slid under the bracket.)
3. Put down the range and make sure that it’s firmly standing without tilting to any
sides.
5
UNPACKING AND HANDLING
Extremely Heavy.
Proper equipment and adequate manpower are needed when moving the range
to avoid personal injury or damage to the unit or the floor. The unit is heavy and
rest on adjustable steel legs.
Failure to follow this advice may result in damage or personal injury.
Do not store or use gasoline, liquid propane cylinder or other flammable vapors and liquids in
the vicinity of this range.
The installation and service of the range must be performed by a qualified installer, an
approved service agency or the gas company.
Proposition 65
This product can expose you to chemicals known to the State of California to cause cancer or
birth defect or other reproductive harms. For more information, visit www.P65Warnings.ca.gov.
Partially burning of the gas can result in generating low level of listed substances, including
formaldehyde, benzene, soot and carbon monoxide. This is caused primarily from the
incomplete combustion of natural gas or LP gas. Adjusting the burners properly will reduce
incomplete combustion and its by-products.
By opening a window, using a ventilating hood or fan can minimized the exposure to these
substances.
DO NOT lift the range by the oven door handles!!
6
INSTALLATION AND OPERATION INSTRUCTIONS
To ensure proper and safe operation, read all instructions before using the product. Install or
locate the product only in accordance with the provided Installation Instructions.
All servicing should be performed by a qualified technician.
Do not attempt to adjust, repair, service or replace any part of your appliance unless it is
specifically recommended in this guide.
Do not use the range for warming or heating the room.
Do not leave children alone or unattended in the area where the range is in use. Never
allow them to sit or stand on any part of the range. Do not let children play with the
range.
Have the technician show you the location of the gas shut off valve and how to shut it off
in an emergency situation.
Always disconnect power to the appliance before any type of servicing.
Do not use abrasive or caustic cleaners or detergents on this appliance. They may
cause permanent damage to the surface.

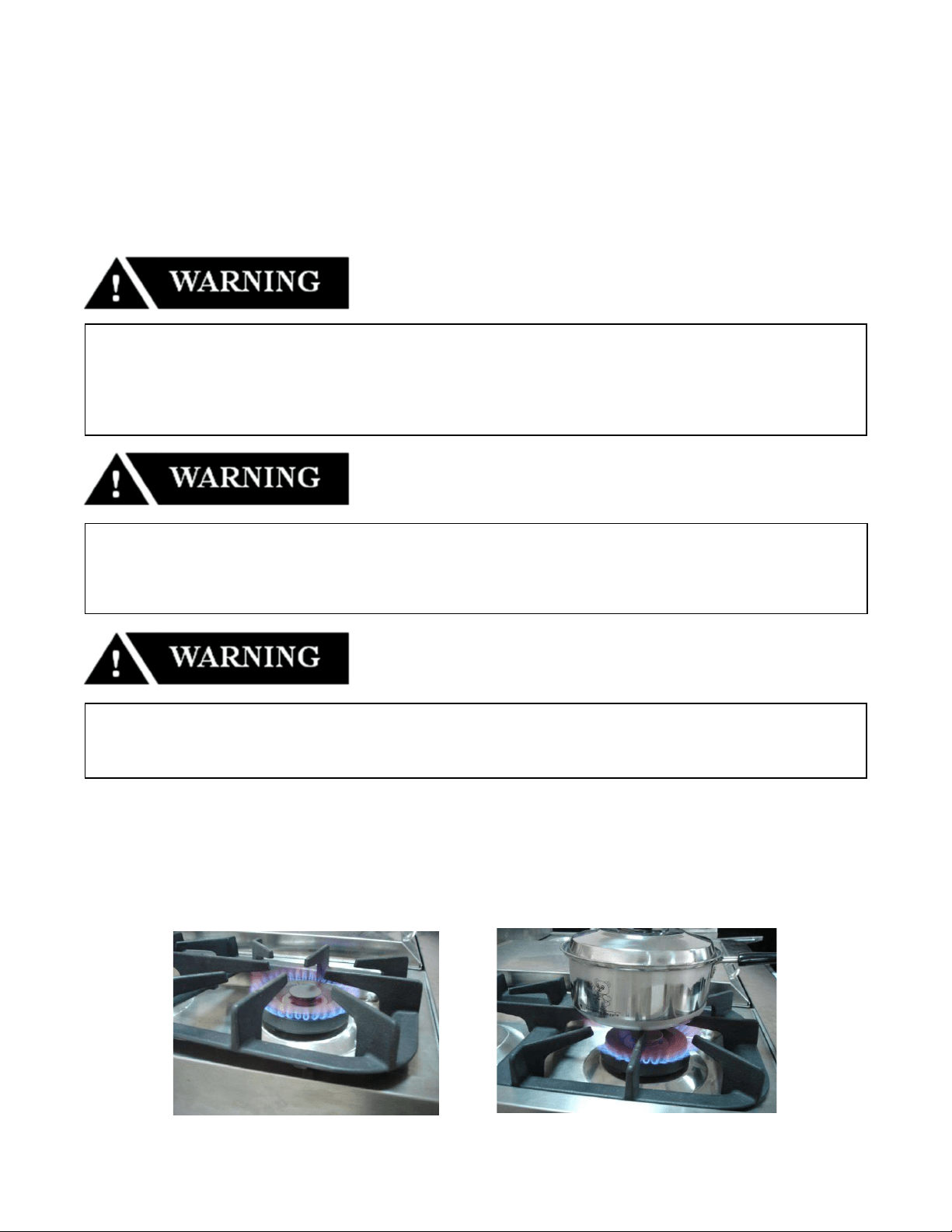

When cooking, set the burner controls so that the flame heats only the bottom of the
utensil and does not overlap at the sides of the utensil.
Utensils (pots and pans) that conduct heat slowly, i.e., glass pots, should be used in
conjunction with burner flames at a low or medium setting.
Turn off all controls and wait for appliance parts to cool down before touching them. Do
not touch the burner grates or surrounding areas until cool.
Do not use water on grease fires.
Clean appliance with caution.
Always turn pot handles to the side or back of the range. Do not turn handles towards
the area where they can be easily burned. Handles should not extend over to the
adjacent burners.
Use the range only for cooking tasks as outlined in this manual. When using the range,
do not touch the grates, burner caps, burner bases, or any other parts in proximity to the
flame. These components may be hot enough to cause burns.
Use dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from
steam.
Do not install or put the pot holder in the hot surface areas.
Do not use a towel or other bulky cloth.
Do not heat unopened food containers. The pressure built up inside the container may
cause the container to explode and result in injury.
During and after use, do not touch the interior surfaces of the oven until cool.
7
IMPORTANT
The appliance shall not be used for space heating. This information
is based on safety considerations. All openings in the wall behind the
appliance and in the floor under the appliance shall be sealed.
INSTALLATION INSTRUCTIONS
Keep the appliance area clear and free of combustible materials, gasoline and other flammable
vapors.
Gas Supply Requirements
Installation of this range must conform with local codes, or in the absence of local codes, the
National Fuel Gas Code ANSI Z223.1 / NFPA 54. In Canada, installation must conform to the
current natural Gas Installation Code, CAN 1-1.1-M81 and with local codes where applicable.
This range has been design-certified according to ANSI Z21.1b-2012 latest edition.
A statement of the maximum gas supply pressure in accordance with the inlet pressure rating
of the gas appliance pressure regulator is shown below:
MINIMUM GAS SUPPLY PRESSURE TO APPLIANCE FOR LP GAS ---14.0 IN.W.C.;
MINIMUM GAS SUPPLY PRESSURE TO APPLIANCE FOR NG --- 6 IN.W.C.;
APPLIANCE REGULATOR IS SET AT 5.0 IN. W.C. OUTLET PRESSURE.
Do not obstruct the flow of combustion air into the range and ventilation air away from the
range.
Ventilation: it is recommended that the unit be operated with an overhead vented exhaust hood
of sufficient size and capacity.
Before installing the range, you must locate and install the included anti-tip bracket to the wall
for your range.
The use of cabinets for storage above the appliance may result in a potential fire hazard.
Combustible items may ignite; metallic items may become hot and cause burns. If a cabinet
storage is to be provided, the risk can be reduced by installing a range hood that projects
horizontally a minimum of 5" (12.7cm) beyond the bottom of the cabinets.
8
INSTALLATION INSTRUCTIONS

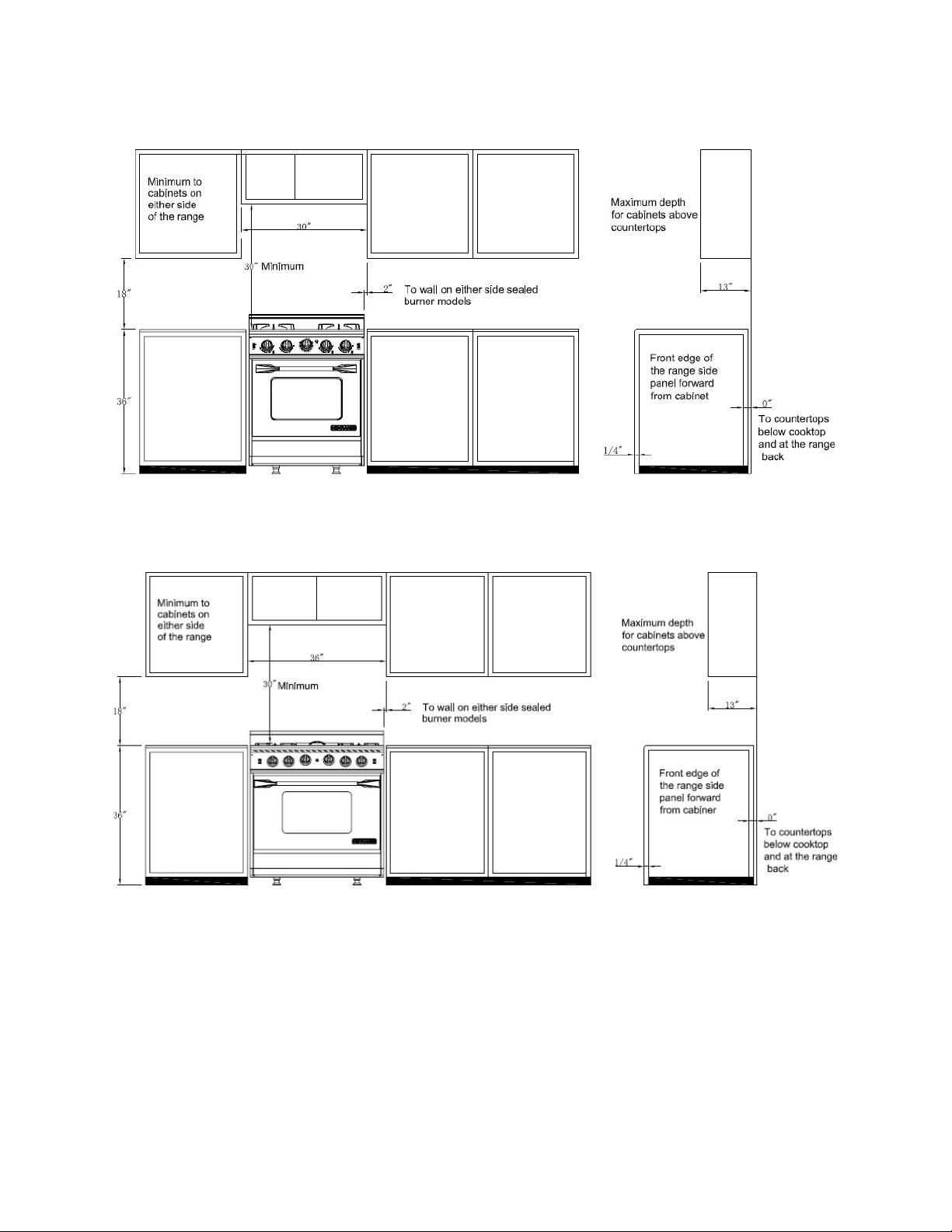

Dimensions and Clearances
The range may be installed flush to the rear wall. You may install a non-combustible material
on the rear wall above the range and up to the vent hood. It is not necessary to install non-
combustible materials behind the range below the counter top height.
The distance from either side of the range above the counter top to combustible sidewalls must
be at least 10 inches.

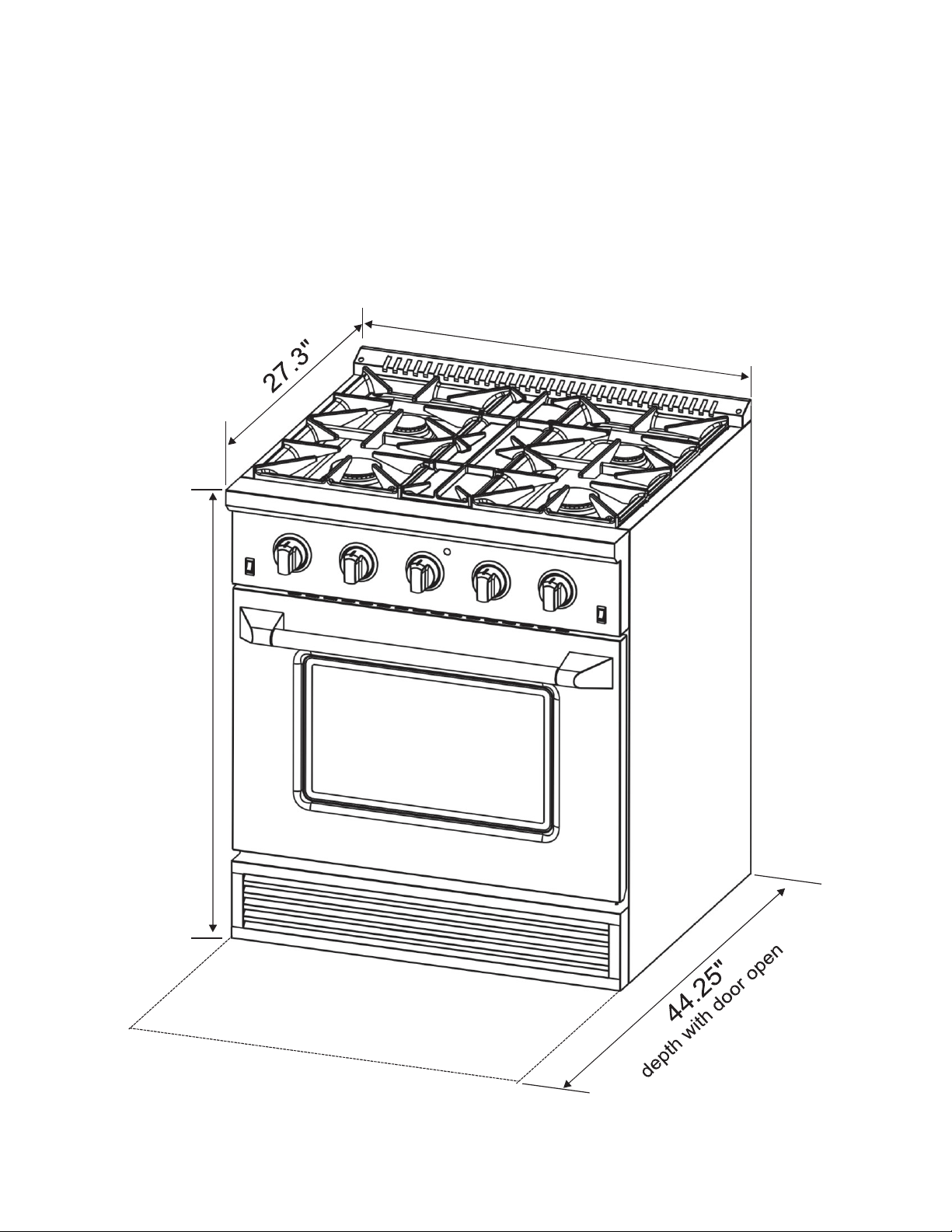

30"
36"
9

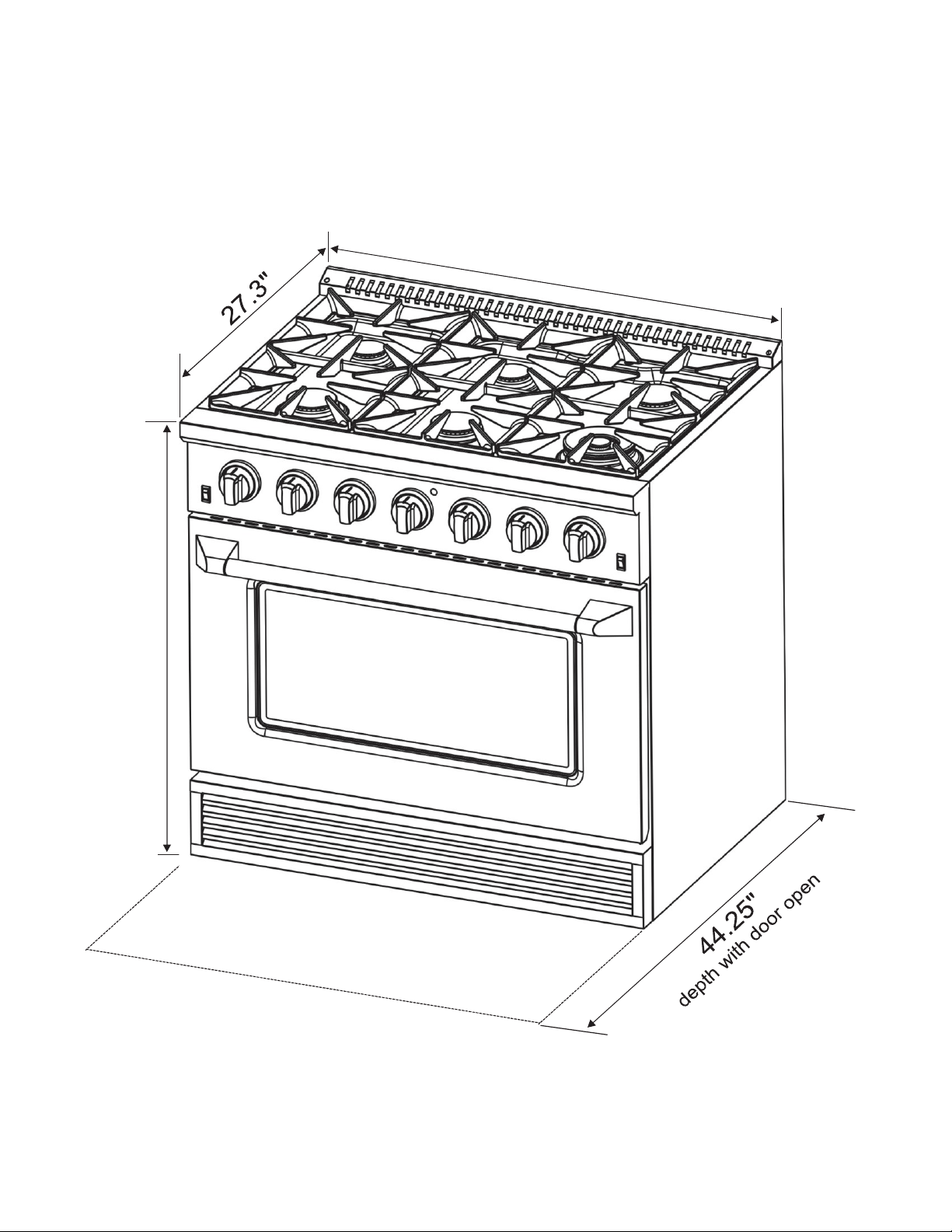

36"
36"
10

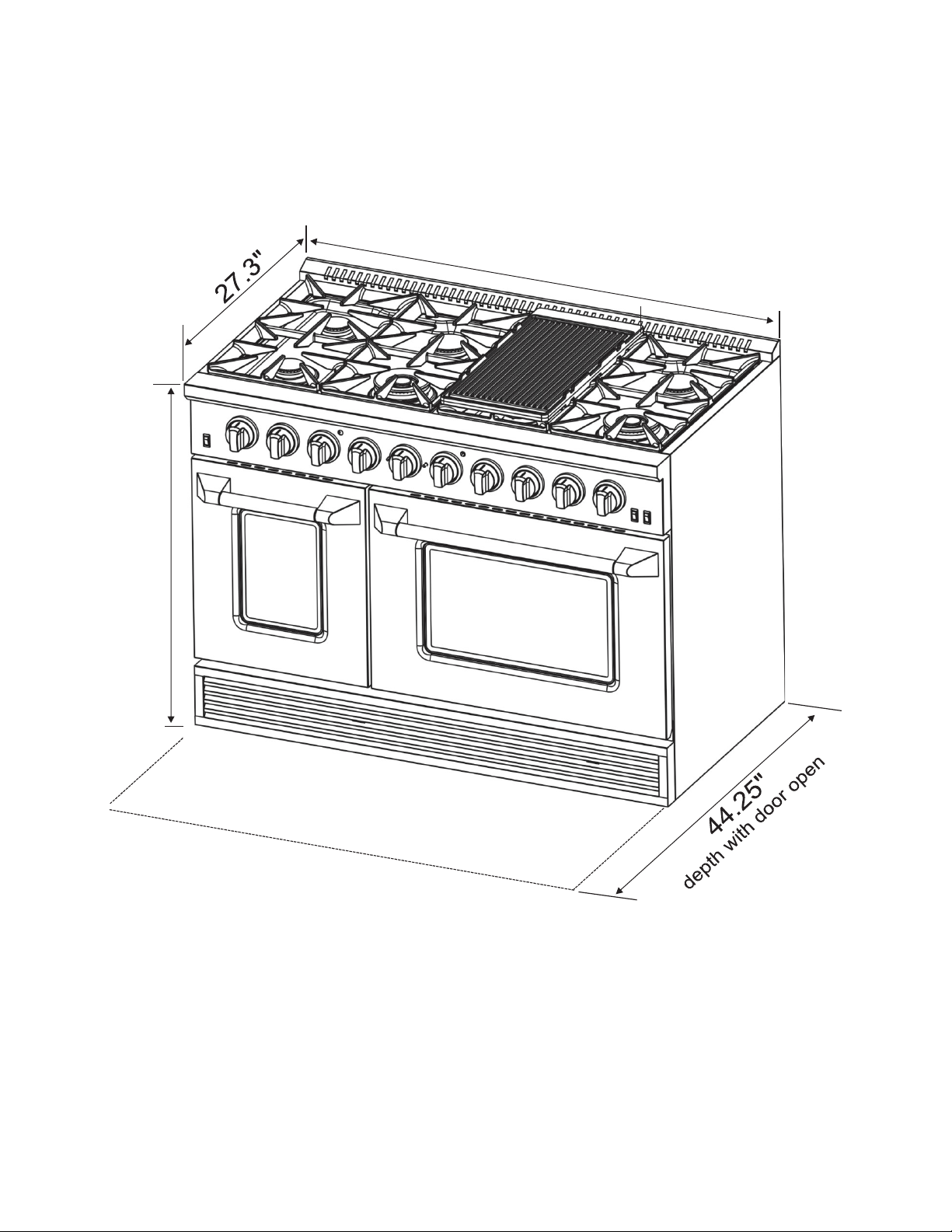

48"
36"
11

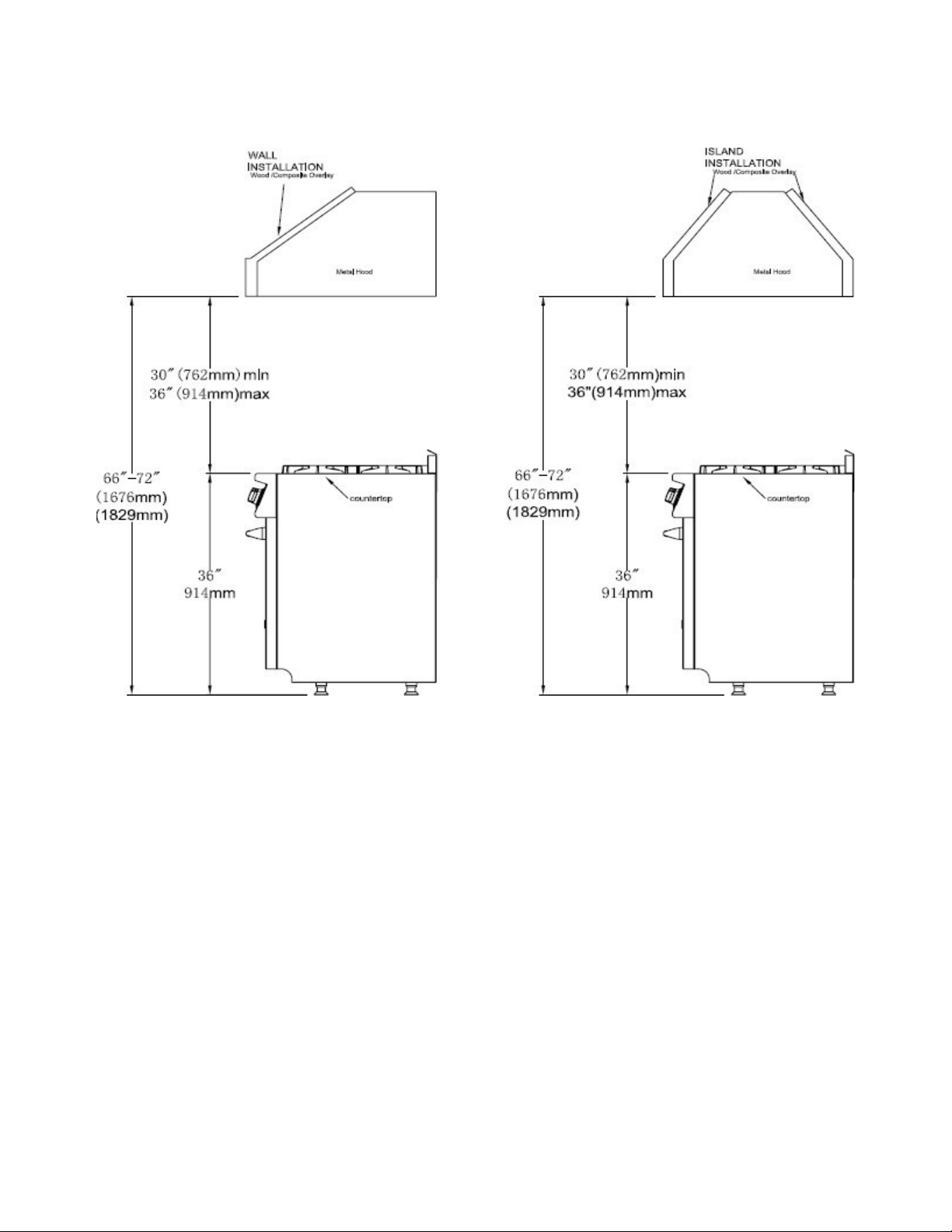

Dimensions and Clearances Examples
30” Range Installation Diagram
36” Range Installation Diagram
13
Electrical Grounding Instructions: this indoor gas cooking appliance is equipped
with a three-prong (grounding) plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-pronged receptacle.
Do Not cut or removes the grounding prong from the plug.
Caution Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
INSTALLATION INSTRUCTIONS
Electric Power Supply Requirements
Your range must be electrically grounded in accordance with local codes or, in the absence of
local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In
Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian
Electrical Code Part 1 and/or local codes. A copy of this standard may be obtained from:
National Fire Protection Association, 1 Batterymarch Park, Quincy, Massachusetts 02269-
9101.
The power supply must be the correct polarity. Reversed polarity will result in continuous
sparking of the electrodes, even after flame ignition. If there is any doubt as to whether the
power supply has the correct polarity or grounded, have it checked by a qualified electrician.
Use 120V, 60Hz, and properly grounded branch circuit protected by a 15-amp or 20-amp
circuit breaker or time delay fuse.
14
INSTALLATION INSTRUCTIONS
Grounding
•
The power cord is equipped with a three-prong (grounding) plug which mates with a
standard three-prong grounding wall receptacle to minimize the possibility of electrical
shock hazard from the range.
•
All cords connected to the appliance shall include instructions related to the location of
the wall receptacle and a warning to the user to disconnect the electrical supply before
serving the appliance.
•
Where a standard two-prong wall receptacle is encountered, it is the responsibility and
obligation of the customer to have it replaced with a properly grounded three- prong wall
receptacle. Do not cut or remove the grounding prong from the power cord.
Connecting the Gas to the Range
•
This range is designed to be used with natural gas (NG) or liquid propane gas (LP) and
operate at a pressure of 6” of water column on natural gas (NG) or 11” of water column
on propane gas (LP).
•
When converting this range to use with other type of gas, be it from natural gas to liquid
propane gas or wise versa, the conversion modification must be made and tested by a
qualified installer before the next use of the range with that gas. Conversion kits (burner
nozzles / orifices) are included in the user manual bag.
•

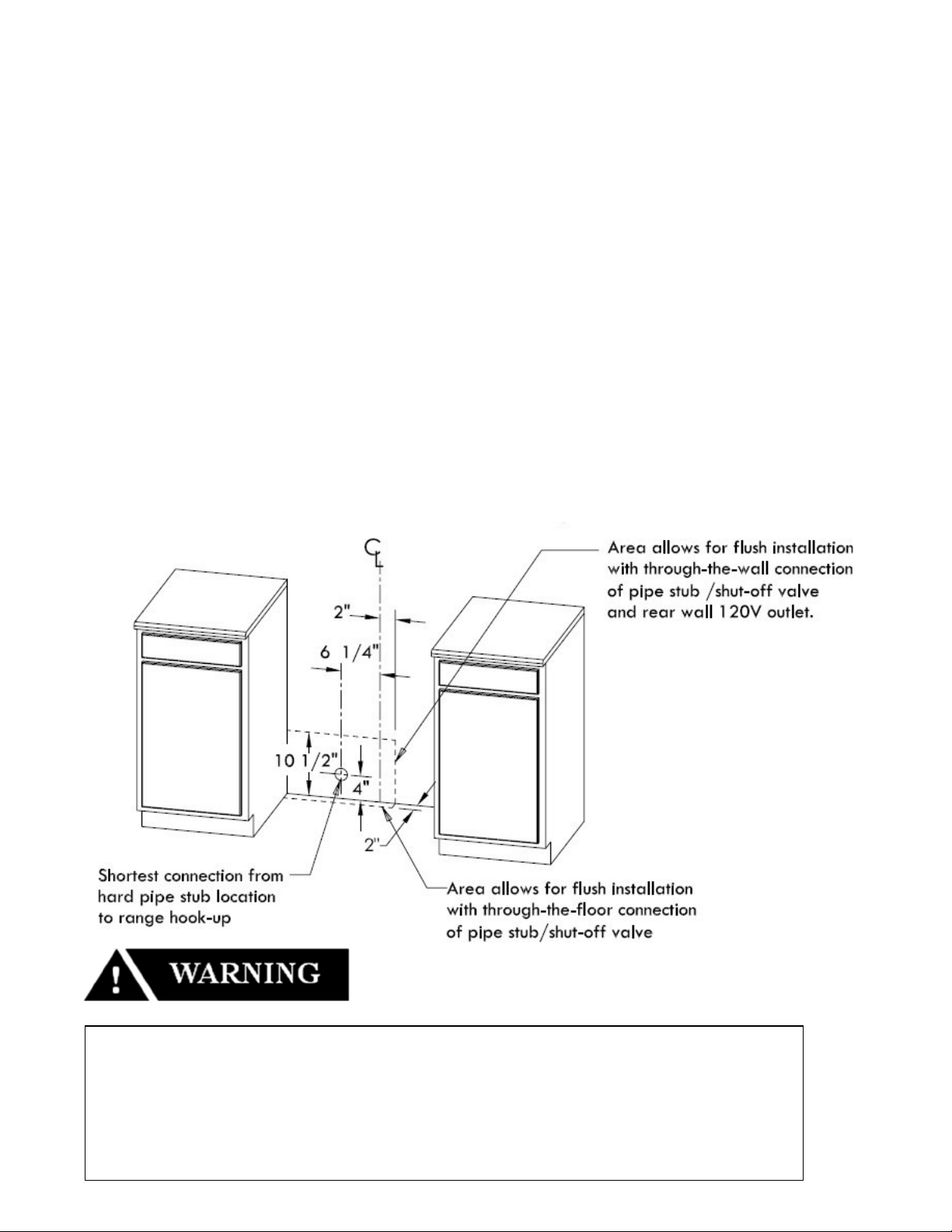

Install a manual gas line shut-off valve in the gas line in an easily accessed location
outside the range in the gas piping external to the appliance for the purpose of turning
on or shutting off the gas to the appliance.
•
Install a male ½” flare union adapter to ½” NPT internal thread elbow at inlet of
regulator. On models equipped with standard twin burners, install the male pipe thread
end of the ½” flare union adapter to the ½” NPT internal thread at inlet of pressure
regulator. Use a wrench on the regulator fitting to avoid damage.
•
Install a male ½” or ¾” flare union adapter to the NPT internal thread of the manual shut-
off valve, taking care to secure the shut-off valve to keep it from turning.
•
The gas supply pressure for checking the regulator setting is 6 in. (Natural Gas) and
11inch（LP Gas). Connect the flexible gas line connector to the regulator on the range.
Position the range to permit connection at the shut-off valve.
•
When all connections have been made, check that all range controls are in the “off”
position and turn on the main gas supply valve.
•
To check if there’s a leak in all connections, do the following:
o Use some soapy water (50% water and 50% soap) or a leak detector at all joints
and connections.
o DO NOT use a flame to check for gas leak.
•
The appliance must be isolated from the building’s gas supply piping system by closing
its individual manual shut-off valve during any pressure testing of the gas supply piping
system at test pressure equal to or less than ½ psig (3.5kPa).
15
Hood Installation (Optional)
•
The bottom of the hood should be 30′′ min. to 36′′ max. above the counter top.
•
This would typically result in the bottom of the hood being 66′′ to 72′′ above the floor.
•
These dimensions provide safe and efficient operation of the hood.
After Installation:
•
Check the ignition of all cooktop burners.
•
Check the air shutter adjustment – sharp blue flame, with no yellow tipping or lifting
flames. Check ignition of oven burner.
•
Visually check tubular burner (oven burner) re-ignition to be sure both rows of burner
ports are relighting each time.
•
Check for gas leaks at all gas connections (using a gas detector, never a flame). Check
oven bake and convection bake function.
16
COOKTOP OPERATION

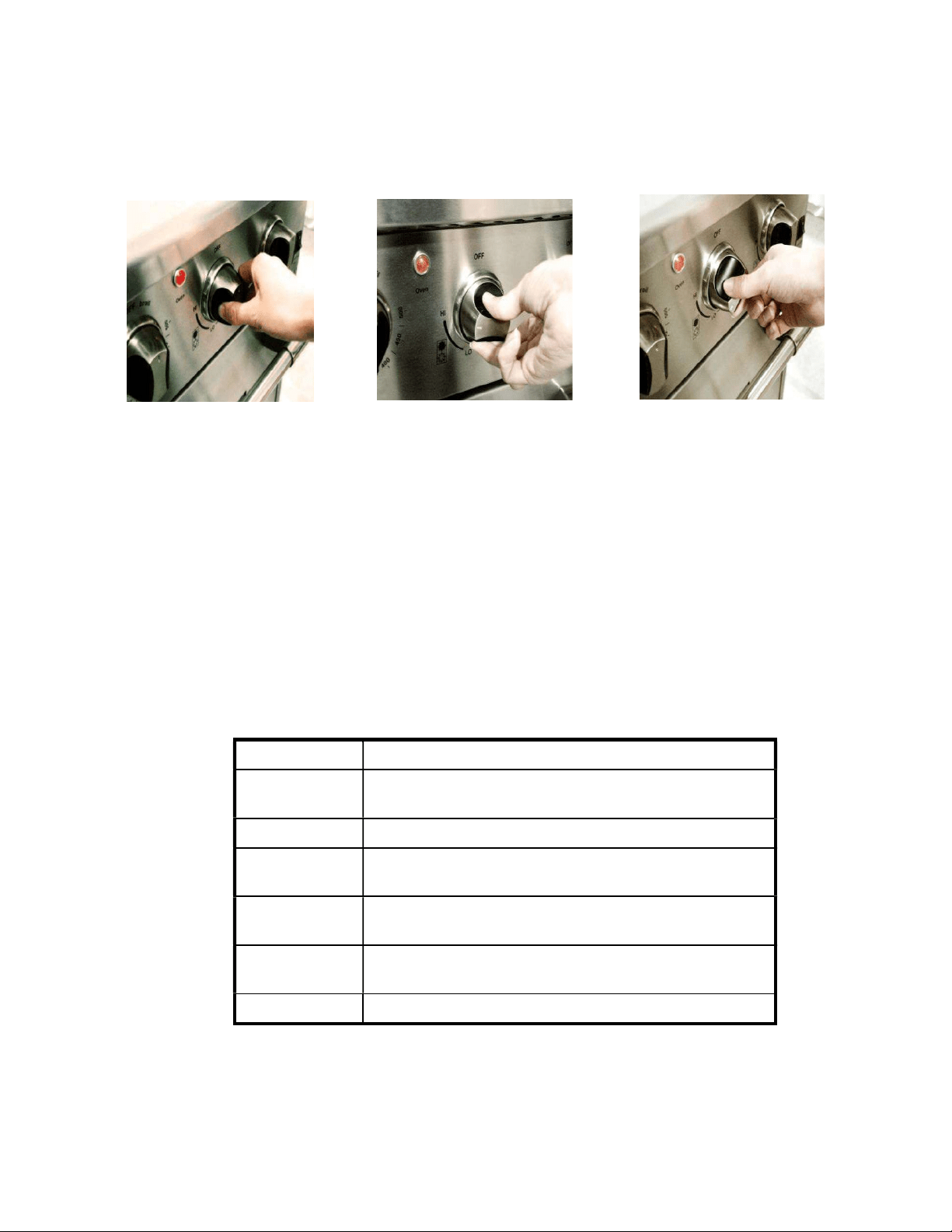

Surface Burner Ignition
Push to release the gas. Turn to Adjust to appropriate
Ignite and ‘Hi’ position. flame height.
To light the surface burners, push and turn the appropriate control knob counterclockwise to a
“Hi” position. You will hear a clicking noise – the sound of the electric sparks igniting all the
burners.
Once the burner ignition has been achieved, turn the burner control knob to adjust the flame
size. If the knob stays at “Hi”, it will continue to click.
NOTE: When one burner is turned to the “Hi” position, ALL the burners will spark but only that
burner can be lit up. Do not attempt to disassemble or clean around any burners while another
burner is on. Do not touch any burner caps, burner bases, or igniters while the igniters are
sparking.
Heat Settings:
Hi
Ignites the burners.
Simmer
Melting small quantities, steaming rice, warming food,
melting chocolate or butter.
Low
Melting large quantities.
Low-Medium
Low-temperature frying, simmering large quantities,
heating milk, cream sauces, gravies.
Medium
Sautéing and browning, braising, pan-frying, maintaining
slow boil on large quantities.
Medium – Hi
High-temperature frying, pan boiling, maintaining slow
boil on large quantities.
Hi
Boiling liquid quickly, deep frying.
17

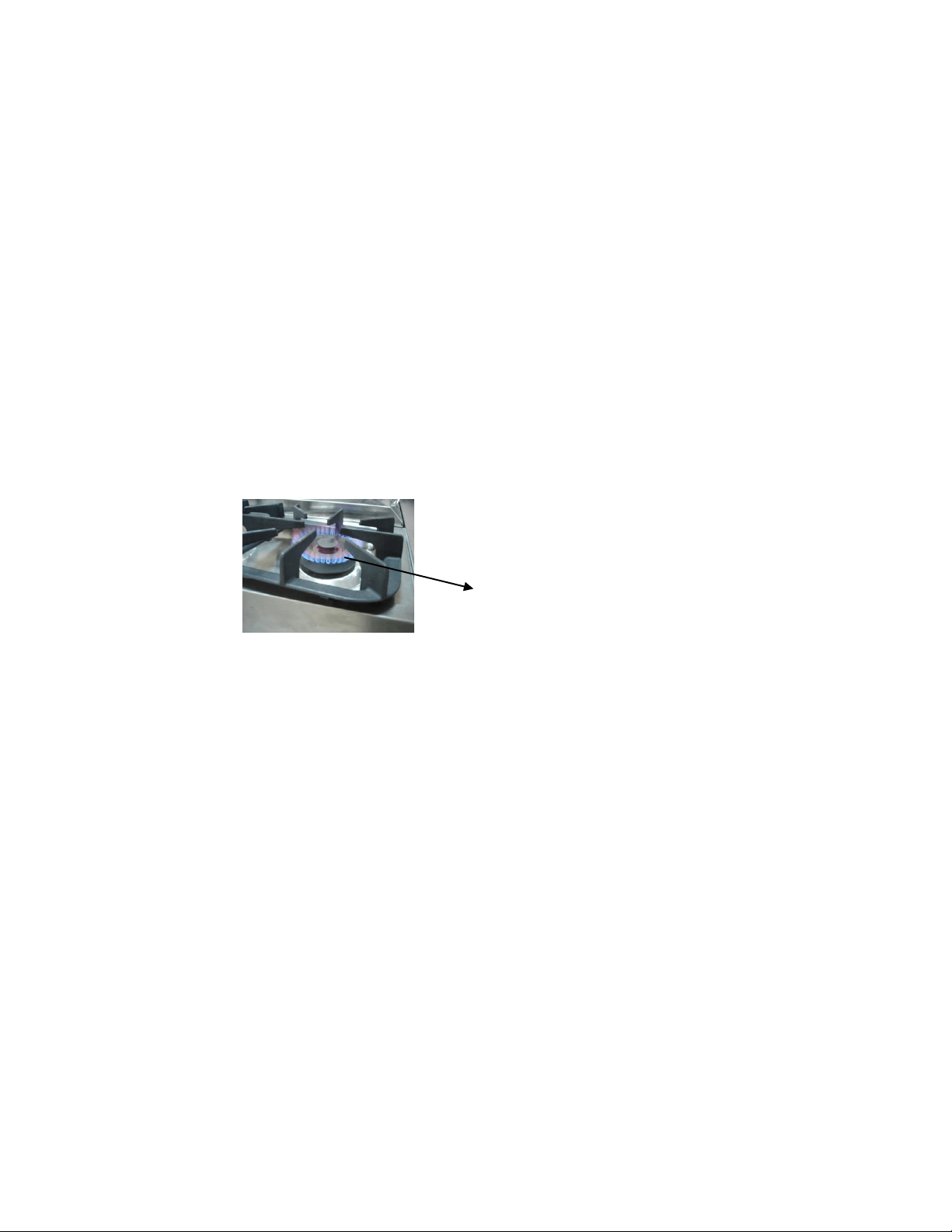

Flame Approximately 1-½” High
Cooktop Operation
Simmer and Boil
•
A smaller flame will give the best simmer results. Small flames offer precise cooking
performance for delicate foods, keeping food warm, melting chocolate or butter and for
cookings that require low heat for a long period of time.
•
The highest (larger) flame settings provide the maximum heat that is available on your
range. This setting should be used for heavy cooking loads such as water boiling and
pasta cooking.
Flame Size
•
When you select the flame size, watch the flame when you turn the knob.
•
Any flame larger than the bottom of the cookware is wasted.
•
The flame should be steady and blue in color. Foreign material in the gas line may
cause an orange flame during initial operation.
Power Failure
•
If the gas does not ignite within four seconds, turn off the valve and allow at least five
minutes for any gas to dissipate. Repeat the ignition procedure.
•
If the power fails, the surface burners can be ignited manually. Hold a lit match near the
burner and turn knob counterclockwise to “HI”. After the burner is ignited, turn the knob
to your desired setting.
Cooktop
•
To prevent the cooktop from discoloring or stained, clean the cooktop after each use,
and wipe away acidic or sugary spills as soon as the cooktop is cooled.
•
The sealed burners of your range are not secured to the cooktop and are designed to
be removed. Boil overs or spills will not seep underneath the cooktop. The burners
should be cleaned after each use.
18
FOOD SAFETY
According to the United States Department of Agriculture: DO NOT hold foods at
temperatures between 40
o
F to 140
o
F for more than 2 hours. Cooking raw foods below
275
o
F is not recommended.
Cooktop Operation
Oven Vent
•
Do not block the ducts at the rear of the range when cooking in the oven. It is important
that the flow of hot air from the oven and fresh air into the oven burner never be
interrupted. Avoid touching the vent opening or nearby surfaces during oven or broiler
operation – they may become hot.
Burner Grates
•
The grates must be properly positioned before cooking. Improper installation of the
grates may result in scratching of the cooktop and/or poor combustion.
•
Do not operate the burners without a pan or utensil on the grates.
Never step, lean or sit on the opened oven door or drawer of this range.
Otherwise, it may result in personal injury and damage to the range.
Never use this appliance as a space heater to heat or warm the room, doing
so many result in carbon monoxide poisoning and overheating of the oven.
Never use this appliance as a storage space and storage cabinet areas
19
Oven Operation
Never cover any slots, holes or passages in the oven bottom or cover an entire rack
with materials such as aluminum foil. Doing so will block the air flow through the oven
and may cause carbon monoxide poisoning. Aluminum foil lining may also trap heat,
causing a fire hazard. Do not use Aluminum Foil on any porcelain surface. Doing so will
cause damage the porcelain that affect the life of the porcelain.
Oven Function
Natural Airflow Bake occurs when heat is transferred into the oven from the bake burners in
the bottom of the oven cavity. Heat is then circulated by natural airflow. This is a traditional
bake setting.
Infrared Broil
The broil burner is located at the top of the oven. This burner heats the metal screen until it
glows. The glowing screen produces the infrared heat, searing the outside of the broiled foods
and sealing in juices.
Convection Bake
Heat is transferred from the bake burners in the bottom of the oven cavity to the oven cavity
itself. The convection fan in the rear of the oven then circulates it. This convection process
provides more even heat distribution throughout the oven cavity. Multiple rack use is possible
for the large baking jobs. Convection cooking is faster, can be accomplished at lower
temperatures and provides more even temperatures than the regular cooking.
20
BEFORE BAKING OR BROILING
The oven and broiler should be turned on to burn off the manufacturing oils. Turn
the oven on to 450˚F (230˚C) for 20 to 30 minutes; then turn the oven knob to
“Broil” for the same length of time. It is recommended to turn on the ventilator
above the range at the same time.
Convection Roast
The convection fan will evenly circulate the heated air over and around the food inside the
broiler pan. The heated air seals in juices quickly for a moist and tender product with a rich
golden-brown exterior. When convection roasting, it is important that you use the broiler pan
for best convection roasting results. The pan is used to catch grease spills and has a cover to
prevent grease splatters.
Convection Defrost
With temperature control off, the motorized fan in the rear of the oven circulates the air. The
fan accelerates the natural defrosting of the food without heat. To avoid illness and food waste,
do not allow defrosted food to remain in the oven for more than two hours without being
cooked.
Convection Dehydrate
With the temperature control on 175
o
F, warm air is radiated from the bake burners in the
bottom of the oven cavity and is circulated by a motorized fan in the rear of the oven. Over a
period of time, the water is removed from the food by evaporation. Removal of water inhibits
growth of microorganisms and retards the activity of enzymes.
21
Broiler Operation
Note: The oven door must be closed during broiling operation.
Broiling is a method of cooking tender cuts of meat directly under the infrared broiler in the
oven. Broiling in the oven is accomplished with the oven door closed. It is normal and
necessary for some smoke to be present to give the food a broiled flavor.
Preheating
Preheating is suggested when searing rare steaks (Remove the broiler pan before preheating
with the infrared broiler. Foods will stick on hot metal). To preheat, turn the “Oven” selector
knob to the “Broil” position. Wait for the burner to become hot, approximately 2 minutes.
Preheating is not necessary when broiling meat well-done.

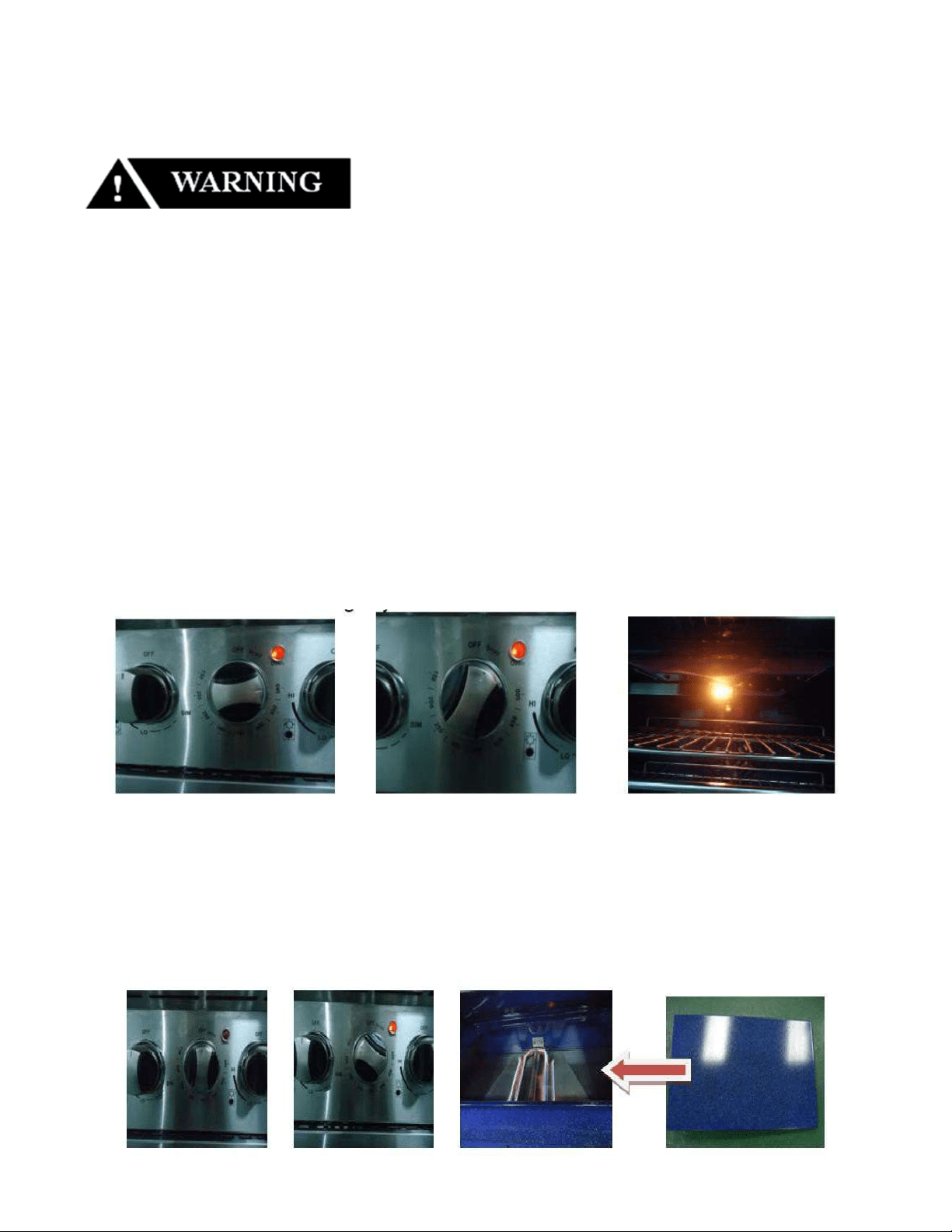

To Broil
Broil one side until the food is browned; turn and cook on the second side. Season and serve.
Always pull the rack out to the “stop” position before turning or removing food.
Setting Broil
The “Oven” selector knob controls the Broil feature. When broiling, heat radiates downward
from the oven broiler for even coverage. The Broil feature temperature is 500˚F (260˚C).
The broil pan and insert used together allow dripping grease to drain and be kept away from
the high heat of the oven broiler. DO NOT use the broil pan without the insert. DO NOT cover
the broil pan insert with foil. The exposed grease could catch fire.
To set the oven to Broil:
•
Place the broiler pan insert on the broiler pan. Then place the food on the broiler pan
insert.
•
Arrange the interior oven rack and place the broiler pan on the rack. Be sure to center the
broiler pan and position it directly under the broil burner. If preheating the broil burner first,
position the broiler pan after the broil burner is preheated.
•
Turn selector knob to Broil. The oven indicator light will remain on until the selector knob
is turned to the “OFF” position or the temperature control cycles off.
22
When using the appliance for the first time, the oven and broiler burners
should be turned on the burn off the manufacture oils. Turn the oven on the
450 ℉ (230 ℃) for 20 to 30 minutes, then turn the oven control knob to “Broil”
for the same length of time. It is recommended to turn on the ventilator above
the range at this time
Griddle Operation
Before Using the Griddle
•
Clean the griddle thoroughly with warm, soapy water to remove dust or any protective
coating.
•
Rinse with clean water and wipe off to dry with soft, clean, lint-free towel/cloth.
•
A stainless steel cover that is sized to fit on top of the surface when the griddle is not
being used is provided. Please note – the cover must be removed before turning the
griddle on.
•
Make sure the grease tray is under the front edge of the griddle. Position the tray under
the griddle overhang to catch grease or food residue.
Using the Griddle
•
Push and turn the control knob counterclockwise to the preferred cooking temperature.
•
Preheat the griddle for 10-12 minutes
•
When the griddle is preheated to the desired temperature, the indicator light will turn on.
•
Butter or cooking oil can be added for more flavor, then place the food to cook.
CAUTION:
The surface of the griddle is hot after use. Please allow sufficient time for the griddle to cool
prior to cleaning.
23
Care and Cleaning
Cooktop
•
To avoid electrical shock or burns, turn off all controls and ensure the cooktop is cool
before cleaning.
•
Before cleaning the cooktop, ensure that all burners are turned off and that all
components are cool enough to safely touch.
•
Do not use harsh or abrasive cleaning agents, waxes, polishers or commercial cooktop
cleaners to clean the cooktop.
•
Use only a sponge, soft cloth, fibrous or plastic brush, and nylon pad for cleaning.
•
Always dry the components completely before the next cooking.
Control Panel, Door Handle, Control Housing
•
Clean the control panel, door handle and control housing with a solution of mild
detergent and warm water.
•
Do not use abrasive cleaners or scrubbers; they will permanently damage the finish.
•
Dry the components with a soft, lint-free cloth.
Oven Window
•
Clean all glass surfaces with a solution of mild detergent and hot water. Use a mild
glass cleaner to remove fingerprint or smears.
•
Dry completely with a soft, lint-free cloth.
Porcelain Surfaces
•
Clean the oven interior and the inner door liners with a solution of mild detergent and
hot water. Rinse and dry with a soft cloth. Do not use abrasives or commercial oven
cleaners.
Stainless Steel Surfaces
•
Do not use any cleaning product containing chlorine bleach.
•
Do not use a steel-wool pad; it will scratch the surface.
•
Use a hot, damp cloth with a mild detergent. Use a clean, hot, damp cloth to remove
any soap residues. Dry with a dry, clean cloth.
Metal Finishes
•
Wash with soap and water, glass cleaner, or mild liquid sprays.
Plastic Finishes
•
When control panel trim and end caps are cool, clean with soap and water, rinse and
dry.
24
•
Use a glass cleaner and soft cloth.
Oven Racks
•
Clean oven racks with solution of detergent and hot water. To clean heavy soil, use a
scouring pad such as steel wool with plenty of water.
Oven Frame
•
Clean with hot water, soap-filled steel-wool pads or cleaners. Rinse well with clean
water and dry.
Oven Gasket
•
Do not clean the gasket. The fiberglass material of the oven door gasket cannot
withstand abrasion.
•
It is necessary for the gasket to remain intact.
Replacing the Oven Light
•
Turn off the power at the main power supply.
•
Remove the lens cover from the housing by pulling it straight out.
•
To prevent electrical shock or personal injury, make sure the oven and the light bulb are
cool and power to the oven has been turned off before replacing the light bulb. Make
sure the lens cover is back in place when using the oven.
Outer Oven Door
•
Use soap and water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may also use a glass cleaner to clean the glass on the outside of the door.
•
Do not use oven cleaners, cleansing powders of harsh abrasives on the outside of the
door.
Inner Oven Door
•
Do not allow excess water to run into any holes or slots in the door. Any soap left on the
liner may cause additional stains when the oven is heated.
25
Troubleshooting
Before calling for service, please review the possible issues and solutions shown in the
table below.
Issue
Possible Cause
Solution
Nothing works.
•
Oven is not connected to the
electrical power.
•
Power supply is not energized.
•
Have oven connected to a properly sized
electrical power supply by a qualified
electrician.
•
Have an electrician check the power
supply, including the house circuit
breaker, wiring and fuses
Top burners do not light
or do not burn evenly.
•
Plug on range is not
completely inserted in the
electrical outlet.
•
Burner holes on the side of the
burner may be clogged.
•
Make sure the unit is properly connected
to the power supply.
•
Remove the burner heads and clean
them. Check the electrode area for
burned-on food or grease.
Burner flames are large
and yellow.
•
Burner bezel ports are
clogged.
•
Burner ports or burner caps
are not positioned properly.
•
Cooktop is being operated
with the wrong type of gas.
•
Regulator is not installed, is
faulty, or is set for the wrong
type of gas.
•
Clean burner bezel ring ports with
straightened paper clip, needle, or wire.
•
Remove and carefully re-install burner
bezel and caps.
•
Ensure that the type of cooktop matches
the natural gas supply.
•
Check installation, replace regulator, or
set the regulator for the proper gas.
Sparking but no
flame ignition.
•
Gas shut-off valve is in the
“OFF” position.
•
Turn shut-off valve to the ‘ON’ position.
Igniters spark
continuously after
flame ignition.
•
Power supply polarity is
reversed.
•
Igniters are wet or dirty.
•
Have the polarity corrected.
•
Dry or clean the igniters.
Burner flame goes out
at low setting.
•
Low gas supply pressure.
•
Air intake holes around the
knobs are obstructed.
•
Contact the gas company.
•
Remove any obstruction.
Oven will not heat.
•
Oven settings are not
corrected.
•
Follow mode selection and clock settings
as specified in Oven Operation section of
the manual.
Foods over-cooked or
under-cooked.
•
Incorrect cooking time or
temperature.
•
Adjust time, temperature, or rack
position.
‘Cracking’ or ‘Popping’
sound.
•
This is the sound of metal
heating and cooling.
•
This is normal.
