Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Appliance purpose 8
1.6 Disposal 8
1.7 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Control panel 11
3 Use 12
3.1 Instructions 12
3.2 Preliminary operations 13
3.3 Using the hob 13
3.4 Special functions 19
3.5 Timer functions 20
3.6 Error codes 22
4 Cleaning and maintenance 23
4.1 Instructions 23
4.2 Cleaning the surfaces 23
4.3 Ordinary weekly cleaning 23
4.4 Food stains or residues 23
4.5 What to do if... 24
5 Installation 25
5.1 Electrical connection 25
5.2 Instructions for the installer 26
5.3 Power limitation procedure (for installer only) 26
5.4 Safety instructions 27
5.5 Section cut from the countertop 28
5.6 Mounting 29
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very
hot.
• Never touch the heating elements
during use.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance is not intended for
use by persons (including
children) with reduced physical,
sensory or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervised or
instruction concerning use of the
appliance by a responsible
person for their safety.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat:
danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• Do not use the Booster and
Double Booster functions to heat
fats or oils – Fire hazard!
• CAUTION – The cooking
process has to be supervised. A
short term cooking process has to
be supervised continuously.
• Warning – Unattended cooking
on a hob with fat or oil can be
dangerous and may result in a
fire.
• Metallic objects such as knives,
forks, spoons and lids should not
be placed on the hotplate since
they can get hot.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
Instructions
5
EN
• WARNING: If the surface is
cracked, switch off the appliance
to avoid the possibility of an
electric shock.
• Do not use or store flammable
materials near the appliance or
directly underneath the cooktop.
• NEVER USE AEROSOL CANS
NEAR THE APPLIANCE WHILE
IT IS IN OPERATION.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal
protective equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Have authorised persons carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• If the supply cord is damaged, it
must be replaced by the
manufacturer or its service agent
or a similarly qualified person in
order to avoid a hazard.
• Danger of fire – Do not store items
on the cooking surface.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not place hot pans on the
control panel.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use as a support surface.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not use a steam cleaner to
clean this appliance.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful.
• Fire hazard: never store objects
on the cooking surface.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• The cooking vessels or griddle
plates should be placed inside
the perimeter of the cooktop.
• All cookware must have smooth,
flat bottoms.
Instructions
6
• If any liquid does boil over or spill,
remove the excess from the
cooktop.
• Take care not to spill acidic
substances such as lemon juice or
vinegar onto the cooktop.
• Do not spill sugar or sweet
mixtures on the cooktop during
cooking.
• Do not place materials or
substances that could melt or
catch fire (paper, plastic or
aluminium foil) on the appliance
while it is in use.
• Place the cookware directly on
the glass ceramic surface.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• This appliance is not intended to
be operated by means of
external timer or separate remote
control system.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• Check that the piece of furniture
material is heat resistant.
• Check that the piece of furniture
has the required slots.
• To prevent overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• The power cable must only be
installed and replaced by
authorised persons.
• If the electrical supply is restricted,
means of all-pole disconnection
must be accessible and
incorporated in the fixed wiring in
accordance with the wiring rules.
Instructions
7
EN
For this appliance
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Avoid hard, solid objects falling
on the cooking surface.
• Do not use the cooktop if the
pyrolytic cycle is taking place
inside any oven installed below.
• Do not touch or clean the cooktop
surface during operation or when
the residual heat indicator lights
are still on.
• Activate the control lock when
you have children or pets which
could reach the cooktop.
• After use the cooking zones
remain hot for a certain period of
time after they have been turned
off. Do not touch the cooktop
surfaces.
• Switch off the hot plates after use.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot easily see the
indication that there is residual
heat. After use the cooking zones
remain hot for a certain period of
time even if they have been
turned off. Keep children away
from the cooking zones.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects falling onto the cooking
surface as they may cause it to
break if they are sharp.
• The glass ceramic cooking
surface must not be used as a
surface for placing objects.
• Remove any traces of liquid from
the lid (if fitted) before opening.
• Leave the cooking surface to cool
before closing the lid.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not jeopardised
by the inductive field, whose
frequency range is between 20
and 50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooktop comes under
group 2 and class B (EN
55011).
Instructions
8
• This appliance complies with
current safety and
electromagnetic compatibility
standards and legislation.
However, people who wear
pacemakers should keep a
minimum distance of 20-30 cm
between the pacemaker and the
appliance when it is in operation.
Contact the pacemaker
manufacturer for further
information.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.3 Manufacturer liability
• The manufacturer declines all
liability for damage to persons or
property caused by:
• use of the appliance other than
the one envisaged;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare
parts.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and in an
accessible place for the whole
working life of the appliance.
• Read this user manual carefully
before using the appliance.
1.6 Disposal
This appliance conforms to the
WEEE European directive
(2012/19/EU) and must be
disposed of separately from other
waste at the end of its service life.
The appliance does not contain
substances in quantities sufficient to
be considered hazardous to health
and the environment, in accordance
with current European directives.
Instructions
9
EN
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling facility for
electrical and electronic
equipment waste, or deliver it
back to the retailer when
purchasing an equivalent
product, on a one for one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling facility.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the power cable from the
socket.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice
Description
10
2 Description
2.1 General Description
Maximum absorbed power table (Watt)
* power levels are approximate and may vary according to the pan used or the settings made.
Advantages of induction cooking • Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the
hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed. Reduced danger
of burns as the cooking surface is only
heated under the base of the pan; food
that overflows does not stick.
Zones
Dimensions
H x L (mm)
Level 9 Booster Double Booster
1 - 2 210 x 210 2300 3000 -
3 - 4 160 x 160 1400 1850 2100
5 250 x 250 2300 3000 -
The appliance is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
Description
11
EN
2.2 Control panel
1 On/Off button
2 Pause button.
3 Cooking zone and timer setting area
4 Cooking zone display
5 Timer display
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power level exceeds the
maximum limit permitted, the electronic
circuit board will automatically manage the
power supplied by the hot plates. The
module tries to maintain the maximum
deliverable power levels. Levels set by the
automatic control will appear on the
display.
This area has 5 radial LEDs that
branch out from the button to
the buttons, which light up to
indicate that the corresponding
cooking zone has been activated.
Priority is given to the last zone that
was set in chronological order.
The power control module does
not affect the total power
consumption of the appliance.
Use
12
3 Use
3.1 Instructions
High temperature
Danger of burns
• Protect your hands by wearing heat-
proof gloves during use.
• Do not touch or clean the hob surface
during operation or when the residual
heat indicator lights are still on.
• Do not put empty pans or frying pans on
switched on cooking zones.
• Keep children under the age of 8 away
from the appliance when it is in use.
• Activate the controls lock when you
have children or pets which could reach
the hob.
• After use the cooking zones remain hot
for a certain period of time after they
have been turned off. Do not touch the
hob surfaces.
High temperature
Danger of fire or explosion
• Do not use or leave flammable materials
near the appliance or directly
underneath the hob.
• Do not cook in closed tins or containers,
plastic kitchenware or containers.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• In case you notice cracks or fissures or
you cannot turn off the appliance,
disconnect the power supply and
contact the Assistance Centre.
Improper use
Risk of damage to surfaces
• Do not use the hob if the pyrolytic cycle
is taking place inside any oven installed
below.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
cooking surface.
• Do not use the hob as a support surface.
Use
13
EN
3.2 Preliminary operations
In order to remove any moisture that could
have accumulated during the manufacturing
process and for the electronic circuits and
control keypad to work properly:
1. Remove the protective films from the
external surfaces of the appliance and
accessories.
2. Remove any labels (apart from the
technical data plate).
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The induction hob is controlled by
means of the Touch control sensor buttons.
Lightly touch a symbol on the glass ceramic
surface. A beep will sound to confirm every
effective touch.
Switching on the hob for the first time
Press the button to switch on the hob;
a sound will be emitted to confirm that it is
switched on. The cooking zone displays
show .
List of symbols
On/Off button: turns the hob on or off.
Pause button: pauses the appliance’s
functions.
Value increase button
Value decrease button.
Timer activation button.
Warming function icon.
Cooking zone display
Shows the selected power level for each
zone.
Timer display
Shows the digits of the independent minute
minder timer and the timed cooking timer.
Minimum cookware diameter
Make sure that the minimum diameter of the
pans is the same as those indicated in the
following table.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.
Zones
Ø
minimum (cm)
Ø
recommended
(cm)
1 - 2 9 - 11 21
3 - 4 7 - 9 16
5 11 - 13 25
Use
14
Bear in mind the following:
• Centre the pans with respect to the cross
printed on the cooking zones.
• Do not cover the control panel.
• Do not place the pans next to the edges
of the glass.
• If you use a griddle, it must be a
maximum size of 36 x 25 cm and must
only be used horizontally on zone 5,
after preheating for 2/3 minutes at low
power.
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking.
If you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate.
The symbol alternating with ,
means that the pan is not suitable or that
there is no pan.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the hot plate.
Make sure that the pans do not
cover the control panel.
Use
15
EN
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use. If the cooking
zone settings are not changed, the
maximum duration of operation for each
zone depends on the power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off.
A short sound is emitted and if the zone is
hot, the residual heat indicators are
displayed.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
If the temperature of the internal electronic
components exceeds the safety threshold,
the appliance will switch off automatically
and “ER21” will be displayed (see “Error
codes”).
Advice on energy-saving
• The diameter of the base of the pan must
not exceed the width of the silk-screened
cooking zone.
• Pans must not be placed outside the
perimeter of the hob or above the front
control panel.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also helps to retain vitamins
contained in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker
and the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Set power level
Maximum cooking dura-
tion in hours
18 ½
26 ½
35 ½
44 ½
53 ½
6 - 7 - 8 - 9 1 ½
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.
Use
16
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
* see Booster and Double Booster function
Switching the hob on and off
Keep the On/Off button pressed in
for at least 1 second to activate the hob.
Press it again for at least one second to
deactivate it.
Switching on the cooking zone
automatically
After switching on the hob:
• Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
• The button corresponding to the zone on
which the pan has been placed turns on
automatically and displays . The
corresponding radial LED will light up.
• Select the zone using the corresponding
button.
Adjusting the cooking zone
After selecting a cooking zone, use the
and buttons to scroll through the
power levels. Press and hold the above
buttons to scroll more quickly.
The display of the zone being used will
indicate the selected power level.
The power level selection is cyclical. This
means that when the maximum level
(Booster or Double Booster) is selected, the
button restarts the selection from level
0 and, from level 0 the levels can be
selected in descending order using the
button.
Power level Suitable for:
0 OFF setting
Keep warm/on the boil
1 - 2
Cooking small amounts of food
(minimum power)
3 - 4 Normal cooking
5 - 6
Cooking large quantities of food,
roasting larger portions
7 - 8 Roasting, slow frying with flour
9 Roasting
P /
Roasting / Browning, cooking
(maximum power)*
If no power value is selected within
a few seconds, the hob is
automatically deactivated.
The hob is provided with an
automatic pan sensing system.
Use
17
EN
Switching off the cooking zone
Use the or buttons until level
is selected.
Warming Function
To activate the Warming function, first turn
on the hob, then:
1. Select a cooking zone using the
button; the corresponding display shows
.
2. Press again, the display of the
selected cooking zone shows the
symbol next to the symbol.
To deactivate the Warming function, simply
select any other power level or switch off
the appliance.
Booster Function
After switching on the hob and having
selected a cooking zone, use the or
buttons until the power level is
selected on the display. Select any other
power level to deactivate the Booster
function.
Hold the On/Off button
down for at least 2 seconds to
switch off all cooking zones at the
same time.
This function allows you to keep
cooked food warm or to keep
water on the boil. This corresponds
to a power level of between 0 and
1.
Improper use
Danger of burns
• Do not use the Booster and Double
Booster functions to heat fats or oils as
they could catch fire.
This function allows you to use the
maximum available power of the
cooking zone in order to bring a
large amount of water to the boil
rapidly.
Use
18
Double Booster Function (only for zones
3 and 4)
The Double Booster function allows more
power to be supplied compared to the
Booster function.
After having activated the Booster function
for zones 3 or 4, press the button.
Symbols , and will be
displayed in sequence. Select any other
power level to deactivate the Double
Booster function.
Residual heat indicators
After use, and even when the appliance is
switched off, the displays of the cooking
zones show the following symbols, in order
of increasing temperature: , and
, to indicate that the corresponding
zone is still hot.
The relative residual heat indicators
disappear as soon as the temperature falls
below the safety threshold.
Cooking guidelines
The table below shows the power values
which can be set, together with the
corresponding type of food. Settings may
vary depending on the amount of food and
consumer taste.
The Booster and Double Booster
functions remain active for a
maximum of 5 minutes, after which
the power is reduced
automatically to level 9.
Improper use
Danger of burns
• Supervise children carefully as they
cannot easily see the residual heat
indicators. The cooking zones remain
hot for a certain period of time even
after they have been turned off. Make
sure that children never touch the hob.
Power level Suitable for:
1 - 2
Reheating food, keeping small
amounts of water on the boil,
and whipping up sauces with
egg yolk or butter.
3 - 4
Cooking solid or liquid food,
keeping water on the boil,
defrosting deep-frozen food,
cooking 2- or 3-egg
omelettes, fruit and
vegetables, various cooking
processes.
5 - 7
Stewing meat, fish and
vegetables, simmering food,
making jams etc.
8-9
Cooking or frying meat, fish,
steaks and liver; browning
meat, fish, eggs, etc.
Booster and
Double Booster
Bringing water to the boil
rapidly.
Use
19
EN
3.4 Special functions
Pause function
Press the button to activate the Pause
function when at least one cooking zone
active. The symbol and the icon
will appear above the Pause button on the
displays of all the cooking zones.
To deactivate the Pause function:
1. Press the button.
2. Then press any button .
3. The pause function has now been
deactivated and the previously set
functions are restored.
Controls lock
This is useful to prevent functions being
activated by mistake (e.g. by children). In
order for the controls lock to be activated,
the hob must be switched on, without pans
and with the cooking zones set to 0:
1. Press the and buttons at the
same time; an acoustic signal is emitted.
2. Press the button immediately;
another acoustic signal is emitted.
The controls are now locked and the
symbols appear on the cooking zone
displays. They flash for about 10 seconds,
after which the hob switches off.
When the hob is switched on again, the
cooking zone displays again show :
• Press the and buttons at the
same time to temporarily deactivate the
controls lock. It will be restored the next
time the appliance is switched on.
• To deactivate the controls lock
permanently, follow the instructions
described for activating it.
If a zone is hot, the symbol will be
displayed alternating with the symbol.
• This function pauses the
operation of all the cooking
zones and all the timers that are
in progress.
• The Pause function can be
maintained for a maximum of 10
minutes, after which the
appliance switches off.
• The cooking time limitation and
the residual heat indicators
remain enabled during the
Pause function, while the
Booster functions are
deactivated.
• When the power comes back
on after a power failure, the
pause function will be
deactivated.
This function allows you to disable
all the buttons of the appliance,
except for the button. The
lock remains active even if the hob
is turned off and then on again.
Use
20
3.5 Timer functions
Minute minder timer
After having switched on the hob, without
having selected a cooking zone:
1. Wait for about 10 seconds; the displays
of the cooking zones start to flash.
2. Press the button.
3. The timer display shows and
the flashing LED below it lights up.
4. Press again to increase
the number of minutes and to
decrease them. Keep the buttons
pressed to increase or decrease the
number of minutes more quickly.
After a few moments, the timer will start the
countdown; the LED below it becomes
steady.
When the time elapses, the timer display
shows the figures “00” and a sound is
emitted. Press any button to silence it.
Modifying or deactivating the timer
To modify or deactivate the timer during the
countdown:
1. Press the button to activate the hob
(if it is off) and wait 10 seconds. If the
hob is on, press the
button.
• The timer display will show the minutes
remaining.
2. Use the or buttons to
modify or reset the timer.
3. After a few moments, the timer will start
the new countdown or will be
deactivated.
• This function is used to set a timer
that will emit a sound at the end
of the pre-set time. It does not
stop the operation of the
cooking zones.
• The minute minder timer remains
active even if the appliance is
turned off.
• A maximum of 99 minutes can
be set.
When the countdown has less than
one minute to go, the display
shows the decreasing seconds
and a flashing LED appears at the
bottom right.
If more than one timer is active, the
timer display will show the minutes
remaining for the timer that is
closest to finishing.
Use
21
EN
Timed cooking
To set timed cooking, you first have to select
a cooking zone using one of the
buttons.
After having selected the relevant cooking
zones, the setting, modification and
deactivation of the timed cooking timers
follows the same logic as the minute minder
timer (see the relative instructions - “Timer
functions”).
Once a timed cooking timer has been
activated, a LED will come on around the
timer display indicating the position of the
relative cooking zone (e.g. front left zone
and rear right zone: ).
Recall Function
If the appliance is switched off
unintentionally, carry out the following
procedure within 6 seconds:
1. Switch on the appliance.
• The flashing symbol appears on the
cooking zone displays.
2. Press the pause button immediately
to restore the functions that were
previously active.
Restorable functions:
1 Cooking zone power levels.
2 Minute minder timer and timed cooking
timer.
3 Heating accelerator.
4 Booster and Double Booster Functions.
5 Controls lock.
No other functions will be restored.
• This function is used to program
the automatic switch-off of each
cooking zone at the end of the
required time.
• Timed cooking can be set for all
cooking zones.
• An independent timer can be set
together with timed cooking
timers.
• A maximum of 99 minutes can
be set.
This is used to restore some
functions that have already been
started after the appliance has
been switched off unintentionally.
Use
22
3.6 Error codes
If the appliance malfunctions or operates
incorrectly, the associated error code
appears on the cooking zones display.
The error codes always begin with “E..” or
“Er..”, followed by a number.
The following error codes can be corrected
without having to contact the Technical
Support Service.
• Er03: Remove any materials or pans
from the area of the front control panel.
• E2: Make sure that the pans are suitable
for induction cooking and that they are
not empty; allow the appliance to cool
down.
For all other errors, make a note of the
code, if possible, and contact Technical
Support.
If these error codes appear
frequently, contact Technical
Support.
Cleaning and maintenance
23
EN
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
4.3 Ordinary weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass cleaning product.
Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it will undergo a corrosive
reaction when heated up and could modify
the structure of the cooking surface.
4.4 Food stains or residues
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar.
Remove any burnt-on residues after
cooking; then rinse with water and dry
thoroughly with a clean cloth.
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not spill sugar or sweet mixtures on
the hob during cooking.
• Do not place materials or substances
that could melt (plastic or aluminium
foil).
• Keep sensor buttons clean at all times
and do not rest any object on them.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts. Use wooden or plastic
utensils.
Cleaning and maintenance
24
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Use of
corrosive detergents or rubbing of pan
bases can wear away the decoration on
the hob over time and contribute to the
formation of stains.
4.5 What to do if...
The hob does not work:
• Make sure that the hob is connected
and that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature
is not too high or too low.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and
contact Technical Support.
Installation
25
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance, depending on the model,
can be connected as follows:
• 380-415 V 3N~
5 x 2.5 mm² five-core cable.
• 220-240 V 3~ / 380-415 V 2N~
4 x 4mm² four-core cable.
• 220-240 V 1N~
5 x 4 mm² five-core cable
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains supply.
• Do not pull the cable to unplug the
appliance.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of the
terminal supply wires must be 1.5 - 2Nm.

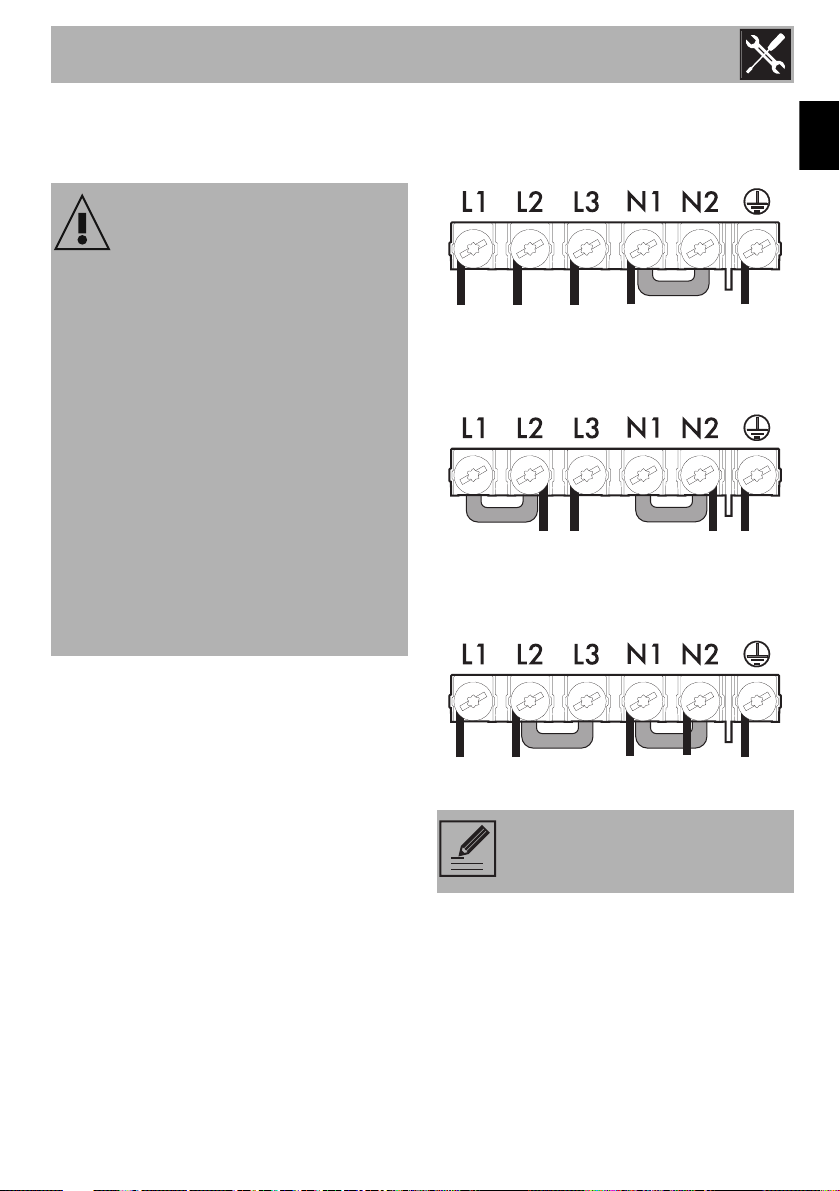

For all types of connection, always
use the jumpers provided.
Installation
26
Fixed connection
Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Testing
At the end of installation, carry out a brief
inspection test. If the hob fails to operate,
after checking that you have carried out the
instructions correctly, unplug the appliance
and contact Technical Support.
5.2 Instructions for the installer
• Do not bend or trap the power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
5.3 Power limitation procedure (for
installer only)
Accessing the technical menu
In order to modify the maximum power
absorbed by the appliance, you have to
access the technical menu. When
connecting to the mains supply for the first
time or after disconnecting and
reconnecting the appliance, follow these
instructions within 2 minutes:
1. Press and hold .
2. With the button pressed, press
; an acoustic signal is emitted.
3. Immediately afterwards, press the
button of the front left zone; another
acoustic signal is emitted.
.
Run the power cable in the rear
part of the unit. Make sure that it
does not come into contact with
the lower part of the hob or a built-
in oven below it.
Be careful when connecting
additional electrical appliances.
Connection cables must not come
into contact with hot cooking
zones.
• This appliance is factory set to
operate at 7.4 kW.
• The technical menu has a total of
4 options. They are indicated by
the letter “C” and a progressive
number. They have different
levels of adjustment.
Installation
27
EN
You have now accessed the technical menu
and the buttons can be released.
The display of the front left zone shows the
code associated with the option: the
symbol appears alternating with . The
rear left zone display shows the adjustment
levels corresponding to the power levels.
They can be selected using the button
of the front left zone.
Exiting from the technical menu
To exit from the technical menu and save the
changes:
1. Press the button, all the cooking
zone displays show the symbol and
an acoustic signal is emitted.
2. Press any button; all the indicator lights
come on for a few seconds and the
appliance switches off.
To exit from the technical menu without
saving the changes:
1. Press the button; the appliance will
be restarted.
Power level adjustments table
5.4 Safety instructions
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
You can only scroll through the
levels in the upwards direction:
once the maximum level has been
reached, the selection starts from
the beginning again.
Using the button in the
technician menu, you can access
the options indicated by codes
“C1”, “C2” and “C3”, but it is not
possible to select the level of
adjustment.
Adjustment level Power level (kW)
0 (default) 7.4
1 6.0
2 5.5
3 5.0
4 4.5
5 4.0
6 3.6
7 3.0
8 2.5
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not obstruct the ventilation grille in
front of the product during mounting.
Installation
28
The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the mounting
illustrations.

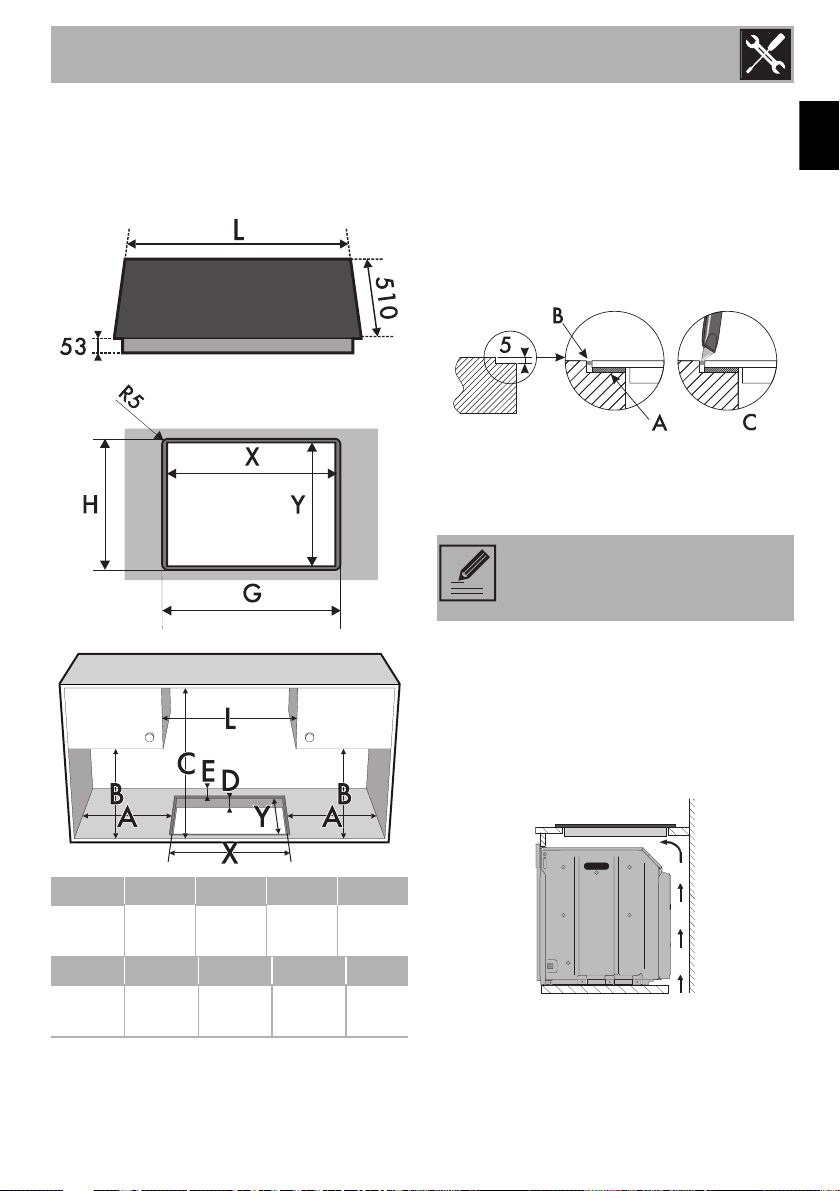

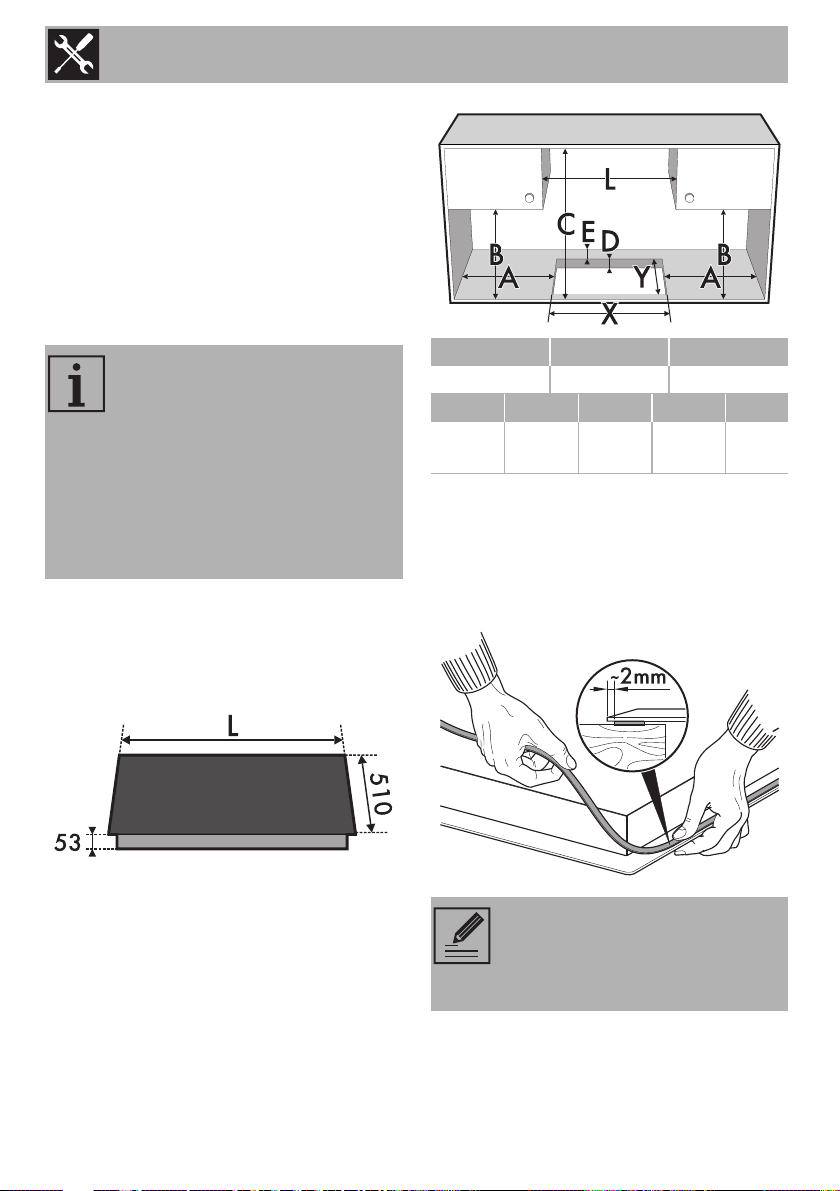

5.5 Section cut from the countertop
Make a hole in the countertop of the unit
according to the dimensions shown in the
figure (mm).
Dimensions for flush mounting
Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
L X Y
900 839 ÷ 844 482 ÷ 486
A B C D E
min.
50
min.
460
min.
750
20÷60
min.
50
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob, if necessary,
without damaging it.
Installation
29
EN
Flush built-in model
For this kind of hobs additional milling is
needed in the recessed hole if you wish to
install the hob flush with the work surface.
After laying the adhesive seal (A) on the
glass surface and after positioning and
securing the hob, fill the edges with
insulating silicone (B) and wipe away any
excess.
In the event the hob needs to be removed,
cut the silicone using a cutter before
attempting to remove it (C).

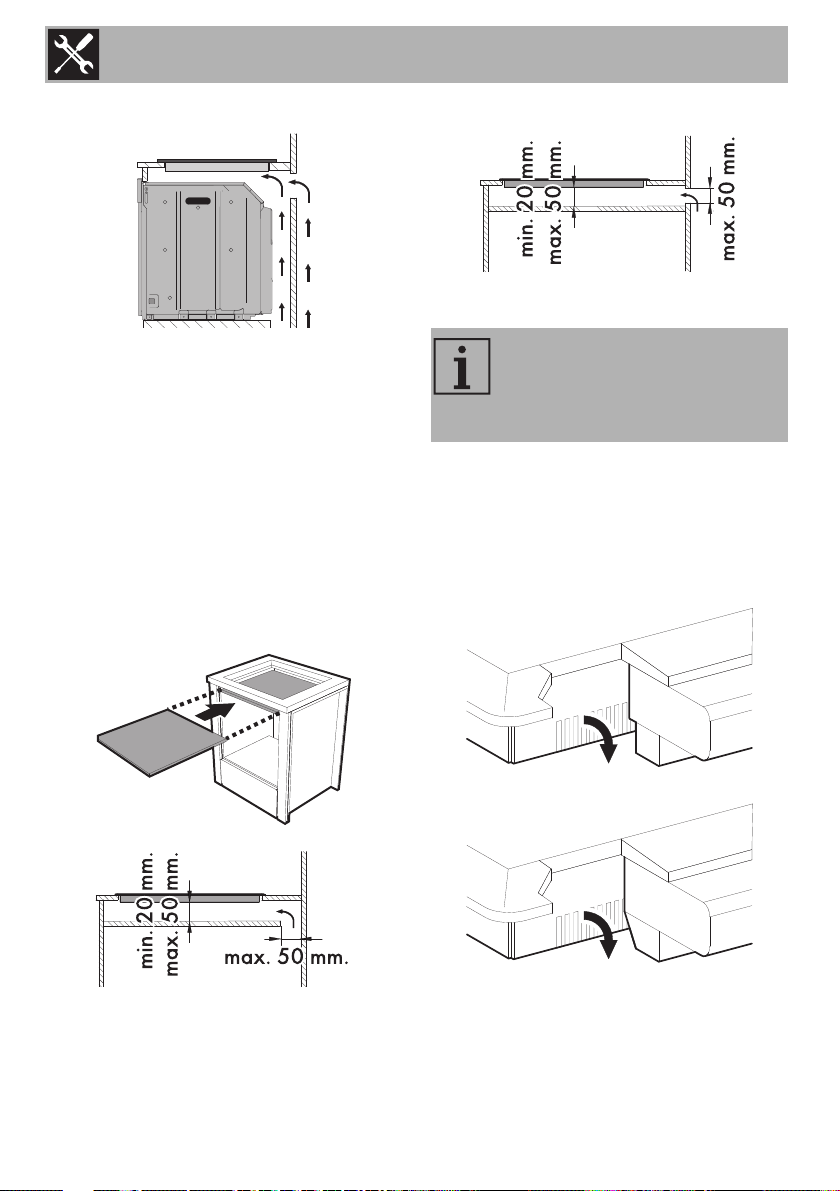

5.6 Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen units or other built-in appliances
must be enough to ensure sufficient
ventilation and air discharge. If installed
above an oven, a space must be left
between the bottom of the hob and the top
of the appliance installed below.
opens on bottom
L H G X Y
900 514 904
839 ÷
844
482 ÷
486
A B C D E
min.
50
min.
460
min.
750
20÷60
min.
50
If installed on top of an oven, the
latter must be equipped with a
cooling fan.
Installation
30
opens on bottom and on rear
On top of an empty kitchen unit or
drawers
If there are other pieces of furniture (lateral
walls, drawers, etc.), dishwashers or fridges
under the hob, a double-layer wooden
base must be installed at least 20 mm from
the bottom of the hob to avoid any
accidental contact. It must only be possible
to remove the double-layer base using
suitable equipment.
opens on bottom
opens on rear
Ventilation
The illustrations below show two examples
of installation suitable for proper ventilation
and one example of incorrect installation to
be avoided.
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
Installation
31
EN
Spring clips
To ensure the hob is fixed and centred as
accurately as possible, the clips provided
must be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in
place.
