Casio PX-800 Digital Piano User Manual

PX800ES1B

USER’S GUIDE

GUÍA DEL USUARIO

Please keep all information for future reference.

Guarde toda información para tener como referencia futura.

Safety Precautions

Before trying to use the piano, be sure to read

the separate “Safety Precautions”.

Precauciones de seguridad

Antes de intentar usar el piano, asegúrese de

leer las “Precauciones de seguridad” separadas.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your

safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the

apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS.

When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate

the apparatus in a way that secures easy access to the power cord.

Declaration of Conformity

Model Number: PX-800

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert

the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature

accompanying the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

Company and product names used in this manual may be registered trademarks of others.

This mark applies in EU countries only.

CASIO Europe GmbH

Bornbarch 10, 22848 Norderstedt, Germany

This mark applies to the PX-800V only.

Please kee

all information for future reference.

E-1

Contents

General Guide ................................... E-2

TEMPO/SETTING Button........................................... E-4

– (T/NO) Button and + (S/YES) Button .................... E-4

Power Supply .................................... E-5

Connections ...................................... E-6

Connecting Headphones ............................................ E-6

Connecting Audio Equipment or an Amplifier............. E-6

Bundled and Optional Accessories............................. E-6

Playing with Different Tones ........... E-7

Selecting and Playing a Tone..................................... E-7

To assign a tone to the VARIOUS/GM TONES

keyboard key .............................................................. E-9

To adjust the brilliance of a tone................................. E-9

Layering Two Tones ................................................. E-10

Splitting the Keyboard between Two Tones ............. E-10

Using Effects............................................................. E-11

Using the Digital Piano’s Pedals............................... E-13

Using the Metronome ............................................... E-13

Playing Back Built-in Songs .......... E-15

Playing Back All of the Built-in Songs....................... E-15

Playing Back a Specific Music Library Song............. E-16

Practicing with a Music Library Song........................ E-16

Recording and Play Back............... E-17

Songs and Tracks..................................................... E-17

To record to a specific track of a specific song......... E-18

To record to one track of a song while listening

to the playback of the other track.............................. E-19

Playing Back from Digital Piano Memory.................. E-19

Deleting Recorded Data ........................................... E-20

Configuring Settings with the

Keyboard ......................................... E-21

Keyboard Keys Used for Configuring Settings ......... E-21

To configure settings with the keyboard ................... E-22

To configure a setting using the

TUNE/OTHERS key ................................................. E-22

To configure a setting using the

MIDI/OTHERS key.................................................... E-22

Keyboard Setting Reference..................................... E-23

Connecting to a Computer............. E-26

Connecting to the MIDI Terminal ..............................E-26

Connecting to the USB Port......................................E-26

USB Mode and MIDI Mode .......................................E-27

Expanding the Selections in the Music Library .........E-28

To install the SMF conversion software

(SMF Converter) ....................................................... E-28

Using an SD Memory Card............. E-29

Inserting and Removing an SD Memory Card ..........E-30

Playing Back a File Stored on an

SD Memory Card ......................................................E-30

Transferring Song Data from an

SD Memory Card to Digital Piano Memory ............... E-31

Saving Song Data Recorded on the

Digital Piano to an SD Memory Card ........................E-32

Formatting an SD Memory Card ...............................E-33

SD Memory Card Errors............................................E-34

Reference......................................... E-41

Troubleshooting ........................................................E-41

Product Specifications...............................................E-43

Operating Precautions ..............................................E-44

Appendix............................................ A-1

Tone List .....................................................................A-1

Drum Assignment List .................................................A-2

Song List .....................................................................A-3

MIDI Implementation Chart

Assembling the Stand .............................................................................................. E-35

Unpacking................................................................. E-35

Assembling the Stand............................................... E-35

To connect cords.......................................................E-39

To install the music stand..........................................E-40

PX800_e.book 1 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-2

General Guide

2 6 753 4

Front

Bottom

* The power cord of the PX-800 is hard-wired to the digital piano.

PX800_e.book 2 ページ２００６年１０月１２日　木曜日　午後１２時５分

General Guide

E-3

CAUTION

• Make sure that the cover is fully open whenever you are playing on the keyboard. A partially open cover can suddenly close

unexpectedly and pinch your fingers.

NOTE

• The names shown here are always indicated in bold when they appear within the text of this manual.

1-1 Power supply box

-2 AC power jack

2 Pedal connector

3 MIDI OUT/IN terminals

4 USB port

5 Speaker connector

6 LINE OUT R, L/MONO jacks

7 PHONES jack

8 Display

9 TONE lamp

bk SONG lamp

bl – (T

T/NO) button, + (S

S/YES) button

bm TONE/SONG button

bn SONG PLAY/STOP button

bo TEMPO/SETTING button

bp PART/TRACK button

L/1 lamp

R/2 lamp

bq CARD button

br RECORDER button

PLAY lamp, REC lamp

bs GRAND PIANO button

bt METRONOME button

ck Power lamp

cl POWER button

cm VOLUME controller

cn SD CARD SLOT

PX800_e.book 3 ページ２００６年１０月１２日　木曜日　午後１２時５分

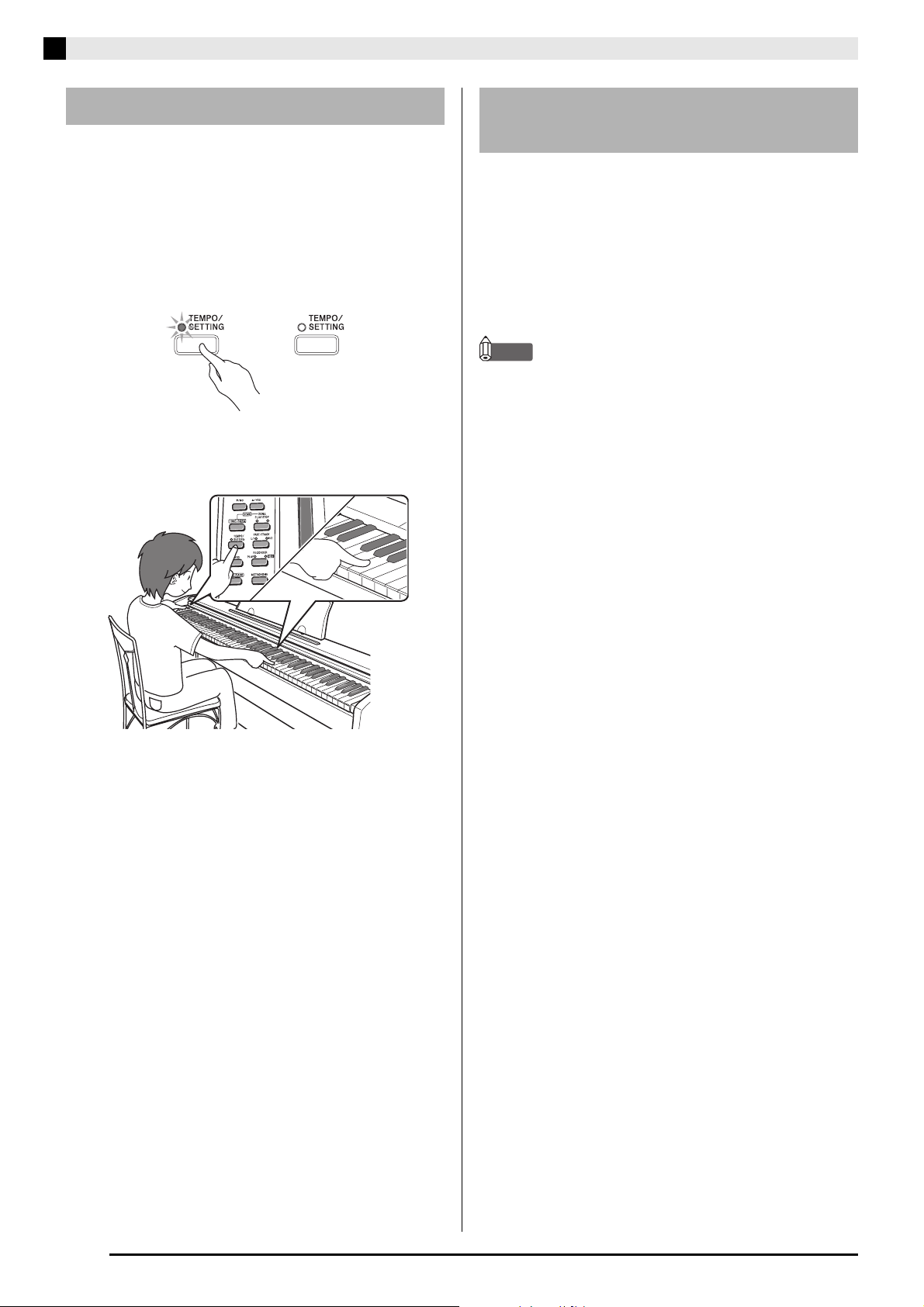

E-4

General Guide

The TEMPO/SETTING button is used when

configuring a variety of different digital piano settings.

The following are TEMPO/SETTING button basics.

z The lamp above the TEMPO/SETTING button

flashes while the button is depressed, and goes out

when the button is released.

z To change a setting, hold down the TEMPO/

SETTING button as you press the keyboard key that

is assigned the setting you want to select.

Example: “Selecting a Tone Using the Keyboard

Keys” on page E-8.

z See the “Keyboard Keys Used for Configuring

Settings” on page E-21 for details about the various

settings that can be selected using TEMPO/

SETTING button and keyboard key combinations.

You can change a displayed setting by pressing the

– (T

T/NO) or + (S

S/YES) button as you hold down the

TEMPO/SETTING button.

z Holding down either button changes the value at

high speed.

Example: “Selecting and Playing a Tone” on page

E-7.

NOTE

• Pressing the – (T

T/NO) and + (S

S/YES) buttons at the

same time will return the displayed value to its default

setting.

TEMPO/SETTING Button

Flashing Off

– (T

T/NO) Button and

+ (S

S/YES) Button

PX800_e.book 4 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-5

Power Supply

Your digital piano runs on standard household power.

Be sure to turn off power whenever you are not using

the digital piano.

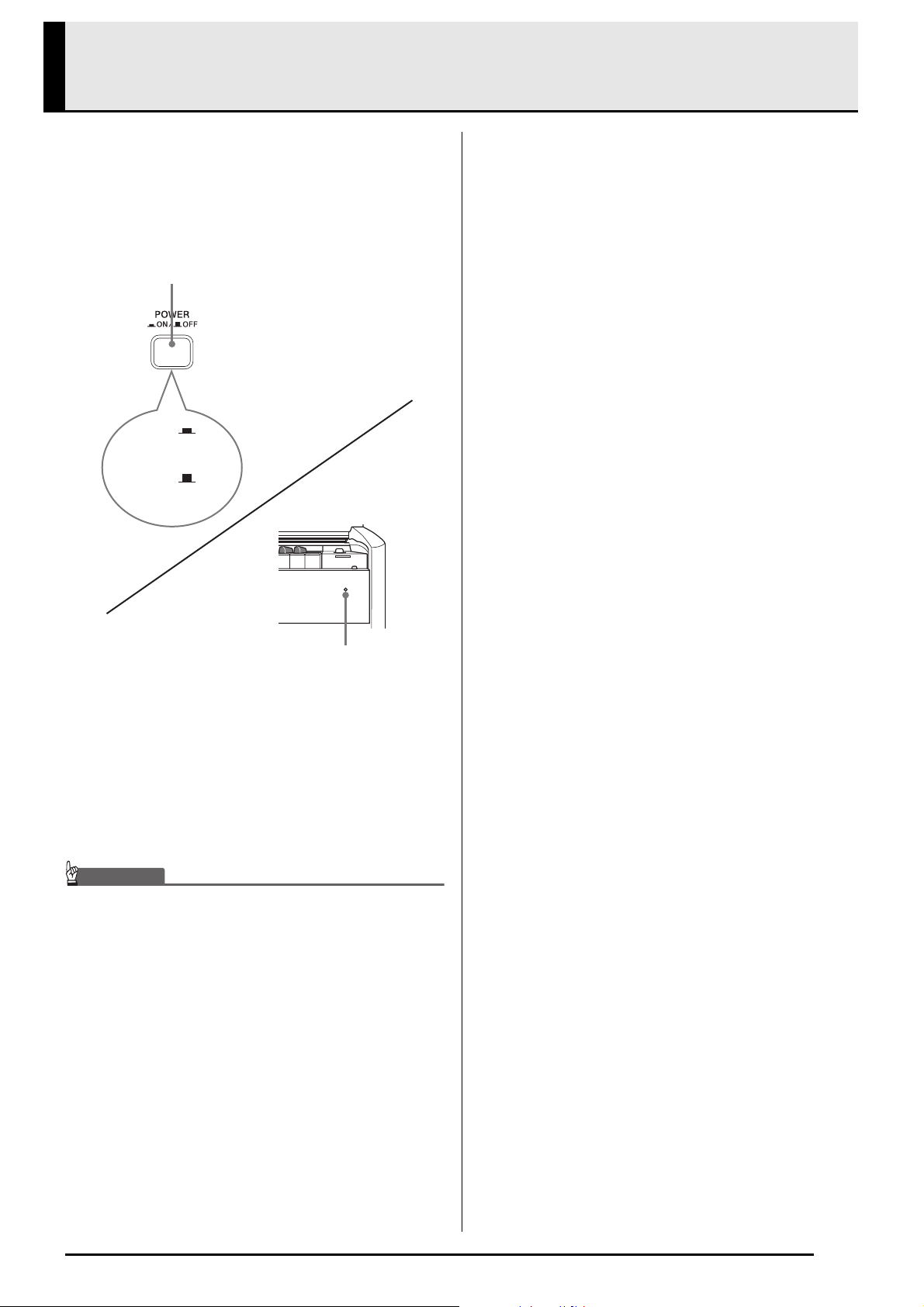

Make sure that the POWER button is in the

OFF position (raised).

Connect the power cord that comes with the

digital piano to the AC power jack on the

bottom of the digital piano.*

* PX-800V only

Plug the power cord into a household power

outlet.

IMPORTANT!

• Always make sure that the POWER button is the OFF

position before plugging in or unplugging the power cord.

• The shape of the power cord plug and household power

outlet receptacle differ according to country and

geographical area. The illustration shows just one

example of the shapes that are available.

• The power cord of the PX-800 is hard-wired to the digital

piano.

z Make sure the power lamp is completely turned off

before unplugging the power cord from the power

outlet. Be sure to read and observe all of the safety

precautions concerning power supply.

OFF

POWER button

Front

Power lamp

(Power lamp on)

(Power lamp off)

PX800_e.book 5 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-6

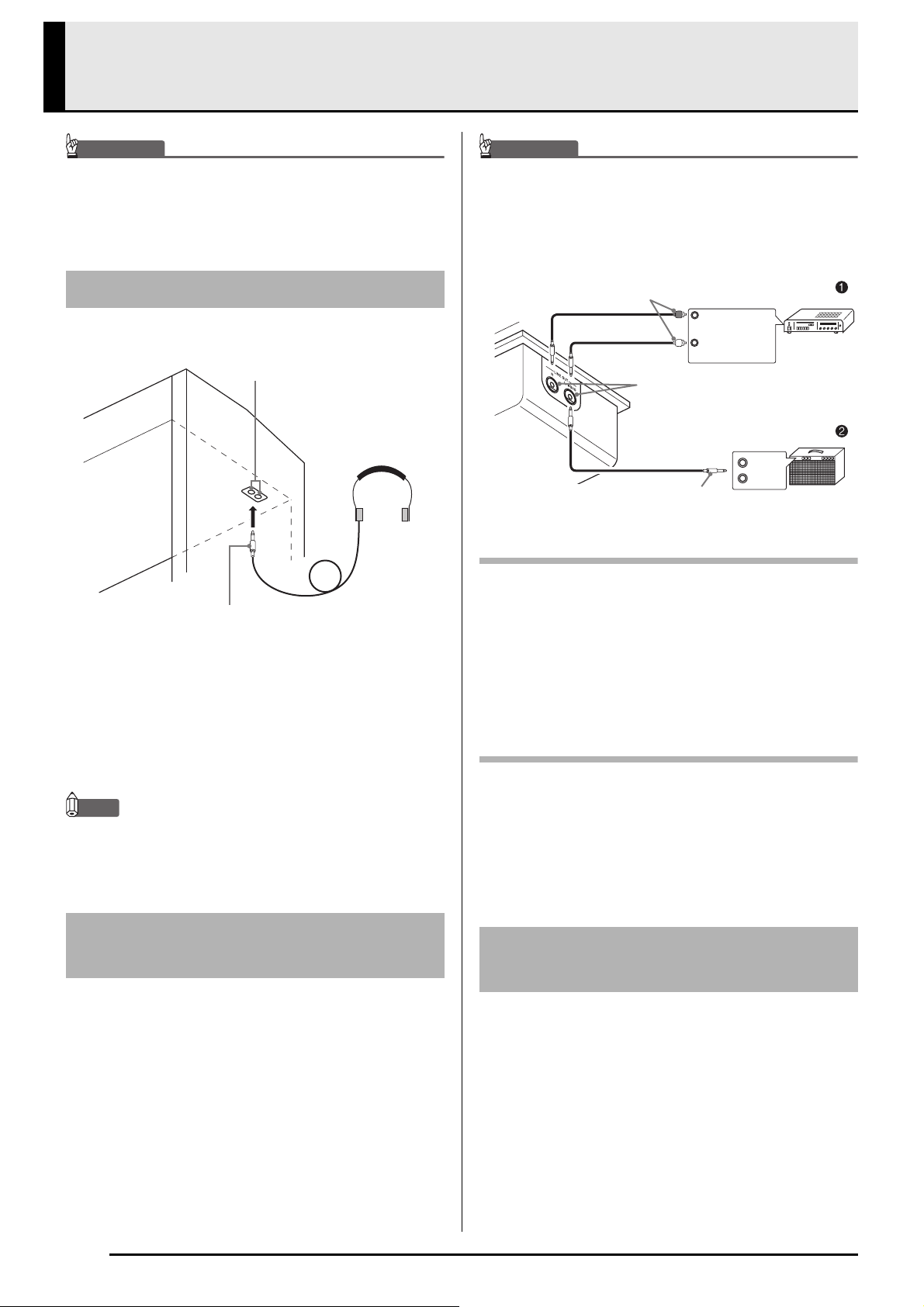

Connections

IMPORTANT!

• Whenever connecting something to the digital piano, first

use the VOLUME controller to set the volume to a low

level. After connecting, you can adjust the volume to the

level you want.

Bottom

Connect commercially available headphones to the

PHONES jack. Connecting headphones to the

PHONES jack cuts off output to the speakers, which

means you can practice even late at night without

bothering others. To protect your hearing, make sure

that you do not set the volume level too high when

using headphones.

NOTE

• Be sure to push the headphones plug into the PHONES

jack as far as it will go. If you don’t, you may hear sound

from only one side of the headphones.

You can connect audio equipment or a music amplifier

to the digital piano and then play through external

speakers for more powerful volume and better sound

quality.

IMPORTANT!

• The digital piano automatically adjusts sound output to

optimize for headphone output (when headphones are

connected) or built-in speaker output (when headphones

are not connected). Note that this feature also affects the

sound output from the LINE OUT R and L/MONO jacks.

Connecting Audio Equipment (Figure 1)

R (Right) is the right channel and L/MONO (Left) is the

left channel. Use commercially available connection

cords to connect as shown in Figure 1. Normally, you

should set the input selector of the audio equipment to

the terminal where the digital piano is connected (AUX

IN, etc.) Adjust volume using the digital piano’s

VOLUME controller.

Connecting a Music Amplifier (Figure 2)

R (Right) is the right channel and L/MONO (Left) is the

left channel. Connecting to the L/MONO jack only

outputs a mixture of both channels. Use a

commercially available connection cord to connect as

shown in Figure 2. Adjust volume using the digital

piano’s VOLUME controller.

Use only accessories that are specified for use with this

digital piano.

Use of unauthorized accessories creates the risk of fire,

electric shock, and personal injury.

Connecting Headphones

Connecting Audio Equipment

or an Amplifier

Commercially available

headphones

Stereo standard plug

PHONES jack

Bundled and Optional

Accessories

INPUT 1

INPUT 2

Audio amplifier AUX IN jack, etc.

Guitar amplifier

Keyboard amplifier, etc.

Pin plug

LEFT

(White)

Standard jack

Standard plug

RIGHT

(Red)

PX800_02_e.fm 6 ページ２００６年１０月１２日　木曜日　午後４時１３分

E-7

Playing with Different Tones

Your digital piano has the following types of tones

built in.

* You can select these tones using keyboard keys. The

name of the tones assigned to each keyboard key is

marked above the keys. For details about selecting

these tones, see “Selecting a Tone Using the

Keyboard Keys” on page E-8.

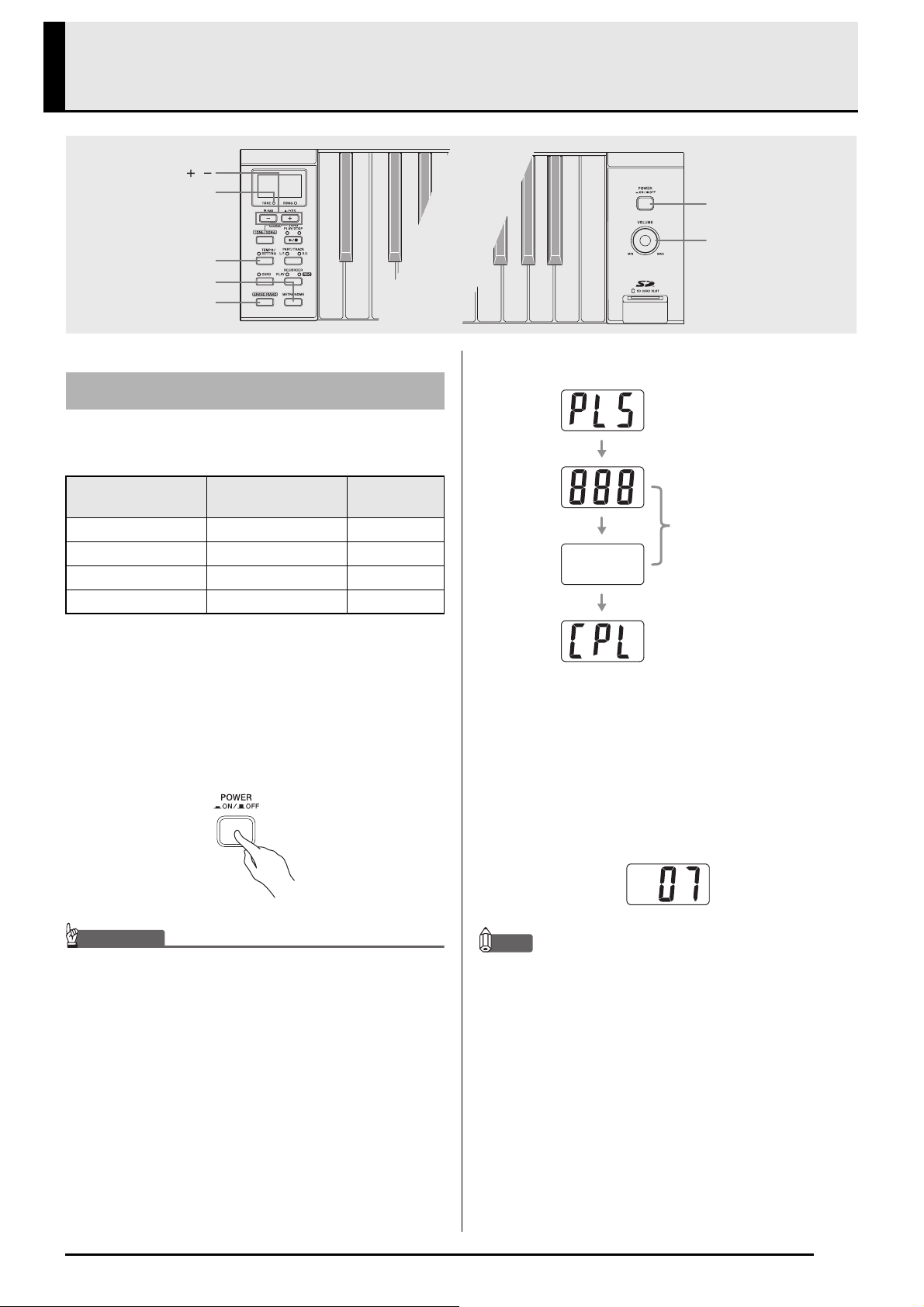

Press the POWER button to turn on the

digital piano.

IMPORTANT!

• When you turn on the digital piano, it performs a power

up operation in order to prepare its system. The power up

operation takes about 10 seconds, and is indicated by

the following messages appearing on the display.

Select the tone you want.

z To select the GRAND PIANO tone, simply press the

GRAND PIANO button.

• To select another tone, find its tone name in the

“Tone List” on page A-1 and note its tone number.

Example: To select Tone Number 07, Harpsichord

•Use the + and – buttons to change the displayed

tone number until it matches the one you want (07

in this example).

NOTE

• There are two sets of tone numbers, one set from 01 to 12

and another set from 001 to 150. Pressing the + button

while 12 is displayed will change the tone number to 001.

Similarly, pressing the – button while 001 is displayed

will change the tone number to 12.

• Holding down either button changes the displayed value

at high speed.

Use the VOLUME controller to adjust the

volume level.

Try playing something on the digital piano.

POWER

VOLUME

GRAND PIANO

METRONOME

TEMPO/SETTING

TONE

Selecting and Playing a Tone

Tone Numbers Tone Type

Number of

Tones

01 to 12 Keyboard* 12

001 to 020 Various 20

021 to 148 GM (General MIDI) 128

149, 150 Drum Sets 2 sets

(Please wait!)

(Preparing system)

(Complete!)

PX800_e.book 7 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-8

Playing with Different Tones

NOTE

•The DSP* effect will be applied if you select a tone with DSP.

• Note that the digital piano’s DSP resources are limited. Because of this, selecting a tone with DSP can cause notes that are

currently being played to cut off (if they are being played using a tone with DSP), or it can remove the DSP effect from an

operation (layer, split, demo tune) that was previously assigned a tone with DSP.

(* See page E-12)

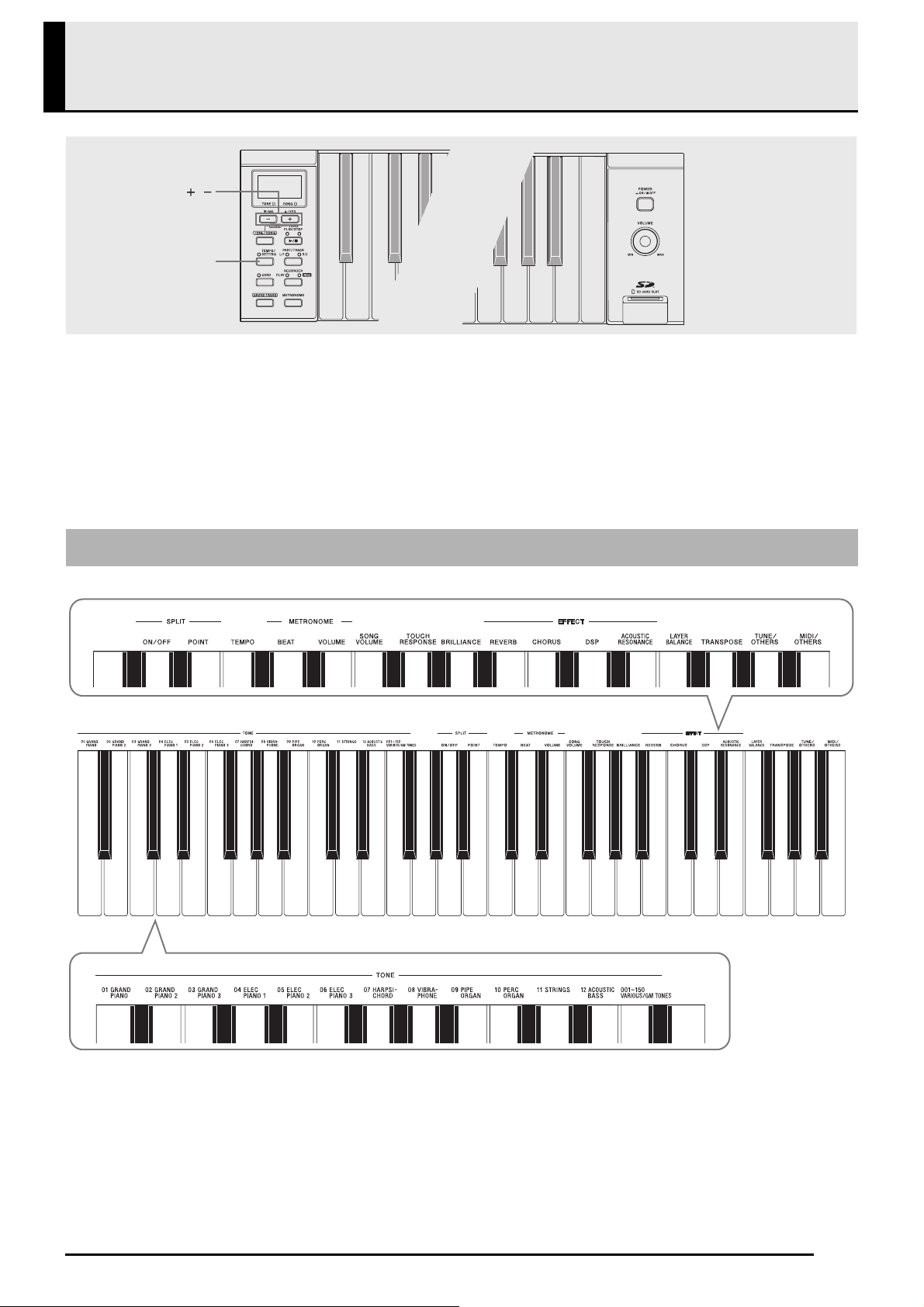

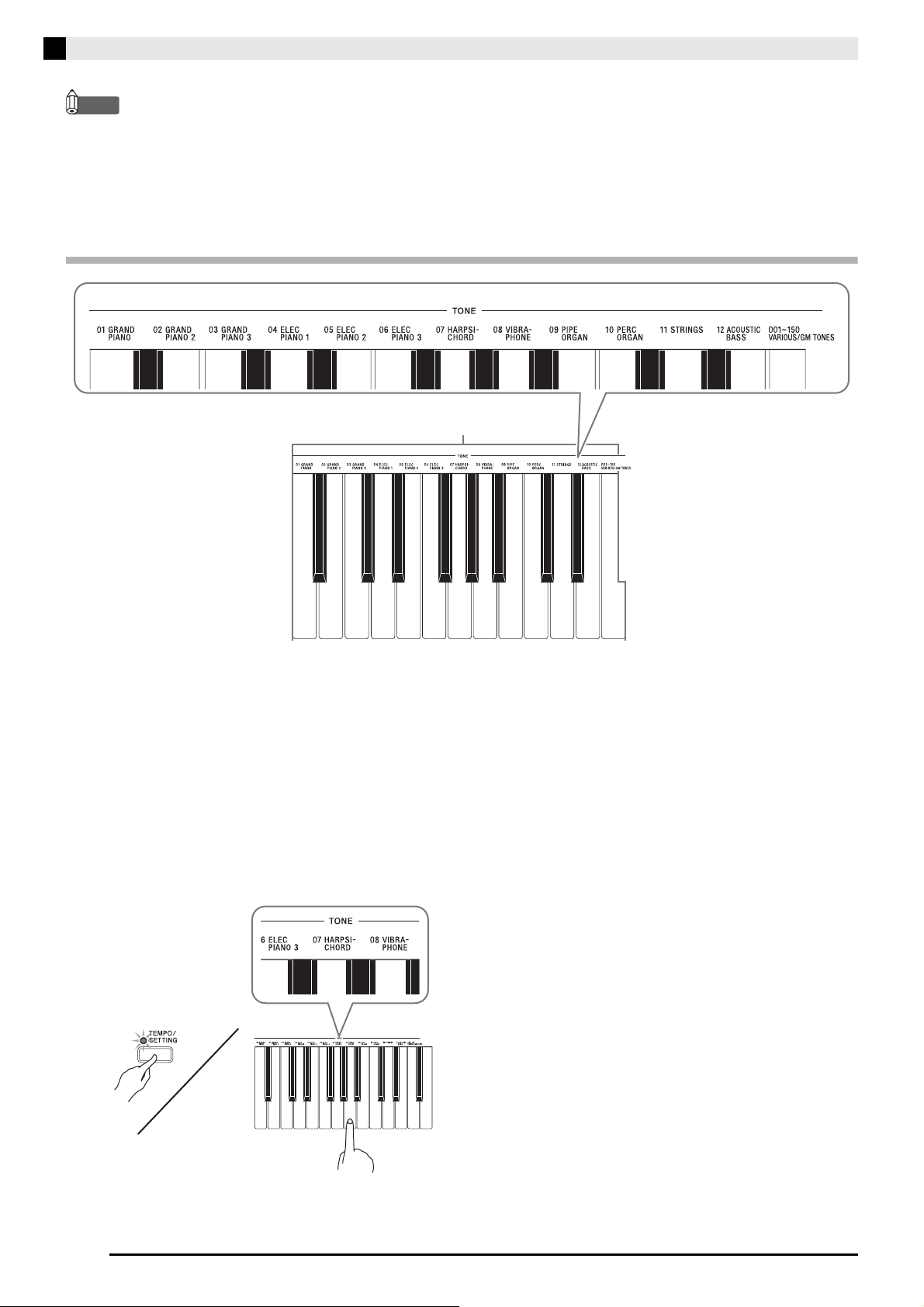

Selecting a Tone Using the Keyboard Keys

While holding down the TEMPO/SETTING button, press the keyboard key that corresponds to the

tone you want to select.

• This will cause the lamp above the button to flash and the tone number of the selected tone to appear on the display.

* A note does not sound when you press the keyboard key to select a tone.

A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2

Tone Setting Keys

A0 : 01 Grand Piano

0 : 02 Grand Piano 2

1 : 03 Grand Piano 3

1 :04 Electric Piano 1

1 :05 Electric Piano 2

1 :06 Electric Piano 3

1 :07 Harpsichord

A1 : 08 Vibraphone

1 : 09 Pipe Organ

2 : 10 Percussive Organ

2 : 11 Strings

2 : 12 Acoustic Bass

2 : 001 to 150 Various/GM Tones

PX800_e.book 8 ページ２００６年１０月１２日　木曜日　午後１２時５分

Playing with Different Tones

E-9

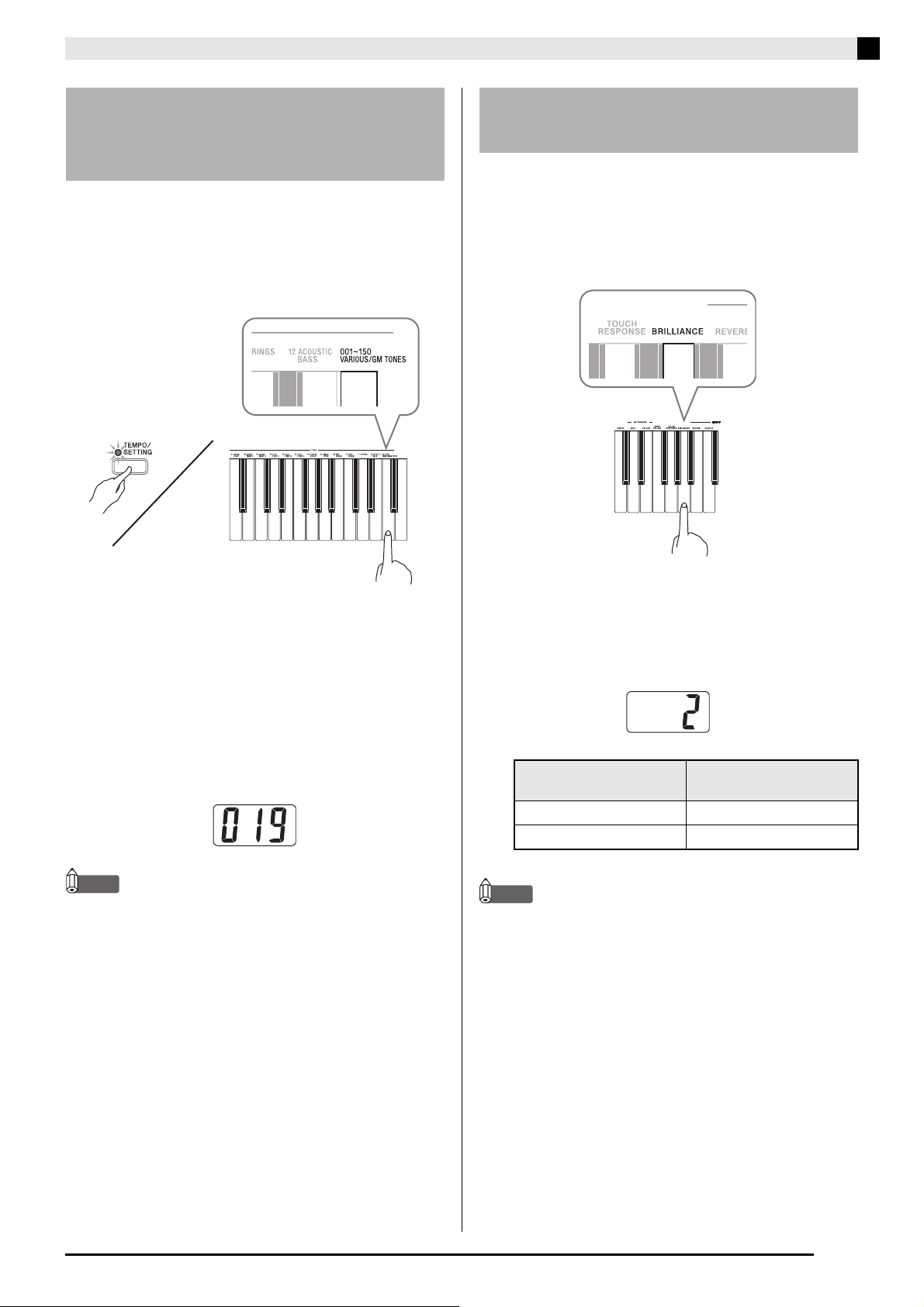

While holding down the TEMPO/SETTING

button, press the VARIOUS/GM TONES

keyboard key. Keep the TEMPO/SETTING

button depressed until you finish step 2 of this

procedure.

• This will cause the TEMPO/SETTING button to flash

and the tone number of the Various, GM, or Drum

Sets Tone currently assigned to the keyboard key to

appear on the display.

Use the + and – buttons to display the tone

number of the Various, GM, or Drum Sets

Tone you want to assign to the VARIOUS/GM

TONES key.

Example: 019 FANTASY

NOTE

• If a drum set is assigned to the VARIOUS/GM TONES

key, keyboard keys sound drum sounds. See page A-2

for information about the drum sounds that are assigned

to each of the keyboard keys.

While holding down the TEMPO/SETTING

button, press the BRILLIANCE keyboard key.

Keep the TEMPO/SETTING button

depressed until you finish step 2 of this

procedure.

• This will cause the lamp above the TEMPO/

SETTING button to flash and the currently selected

brilliance value to appear on the display.

Use the + and – buttons to change the

displayed value.

NOTE

• Pressing the + and – buttons at the same time while

holding down the TEMPO/SETTING button (step 2)

will return the brilliance setting to its default value.

To assign a tone to the

VARIOUS/GM TONES

keyboard key

To adjust the brilliance of a

tone

For this type of sound:

Select a value in this

range:

Soft and smooth –3 to –1

Bright and sharp 1 to 3

PX800_e.book 9 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-10

Playing with Different Tones

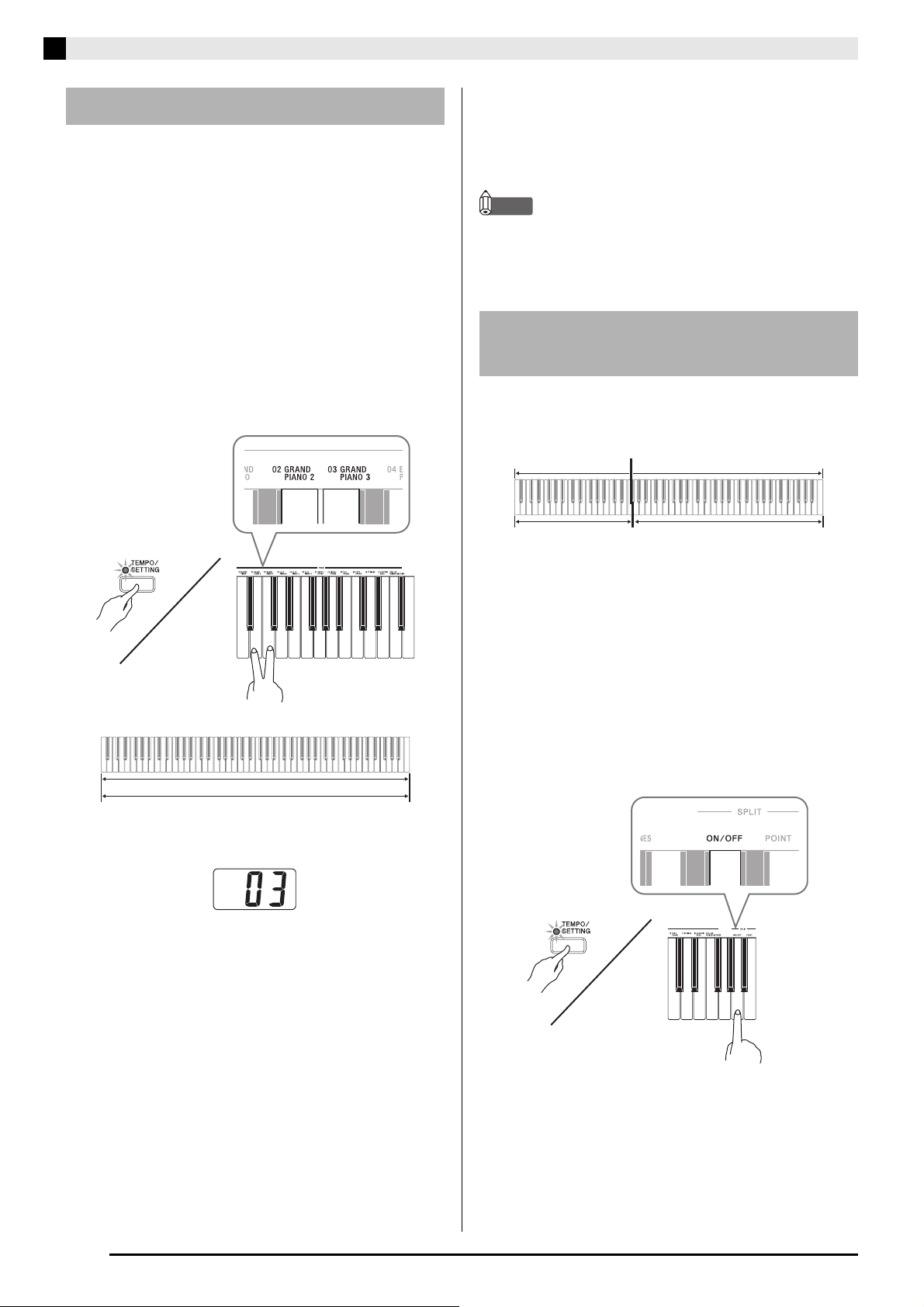

Use the following procedure to layer two tones, so they

sound at the same time.

Hold down the TEMPO/SETTING button until

you finish step 2 of this procedure.

While holding down the keyboard key that

corresponds to the main tone, press any

nearby keyboard key that corresponds to

another tone.

• The second key you press is the layered tone. We will

be changing it in step 3, below.

Example: While holding down the GRAND PIANO 2

key, press the GRAND PIANO 3 key.

• The tone numbers of the layered tone will appear on

the display.

Use the + and – buttons to change the

displayed tone number to the one you want to

select.

Example: 11 STRINGS

Try playing something on the keyboard.

To unlayer the keyboard, select another tone

by pressing the GRAND PIANO button or by

using the procedure under “Selecting a Tone

Using the Keyboard Keys” (page E-8).

NOTE

• You can adjust the balance between the main tone and

layered tone. See “Configuring Settings with the

Keyboard” on page E-21 for more information.

You can assign different tones to keys on the left side

and the right side of the keyboard.

Use the procedure under “Selecting and

Playing a Tone” on page E-7 to select the

high range tone.

Example: GRAND PIANO 2

While holding down the TEMPO/SETTING

button, press the SPLIT ON/OFF keyboard

key. Keep the TEMPO/SETTING button

depressed until you finish step 3 of this

procedure.

Layering Two Tones

GRAND PIANO 2

GRAND PIANO 3

Splitting the Keyboard

between Two Tones

Split Point

Low Range High Range

STRINGS GRAND PIANO 2

PX800_e.book 10 ページ２００６年１０月１２日　木曜日　午後１２時５分

Playing with Different Tones

E-11

Use the + and – buttons to turn keyboard split

on or off.

• Releasing the TEMPO/SETTING button will cause

the display to change to the number of the currently

selected low-range tone.

Use the procedure under “Selecting and

Playing a Tone” on page E-7 to select the low

range tone.

Example: 11 STRINGS

NOTE

• You can also specify the location of the keyboard split

point. See “Configuring Settings with the Keyboard” on

page E-21 for more information.

• You can configure the keyboard so it is layered with two

tones in the high range. To do this, first perform the layer

operation (page E-10). After that, split the keyboard as

described above.

Reverb. . . .Makes your notes resonate.

Chorus . . .Adds more breadth to your notes.

Acoustic Resonance . . .

When the damper pedal is pressed,

reproduces the harmonic resonance within

a grand piano.

DSP . . . . . .Digitally processes tones to for more

sophisticated effects. Each tone is preset

with a default DSP effect (drawbar organ

tone + rotary speaker, for example).

To configure reverb and chorus effect

settings

While holding down the TEMPO/SETTING

button, press the REVERB or CHORUS

keyboard key. Keep the TEMPO/SETTING

button depressed until you finish step 2 of this

procedure.

• This will cause the lamp above the TEMPO/

SETTING button to flash and the currently selected

reverb or chorus value to appear on the display.

Reverb

Chorus

When the display

shows this:

It means this:

oFF Keyboard split off

on Keyboard split on

Using Effects

PX800_e.book 11 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-12

Playing with Different Tones

Use the + and – buttons to change the

displayed value.

• Reverb Value

•Chorus Value

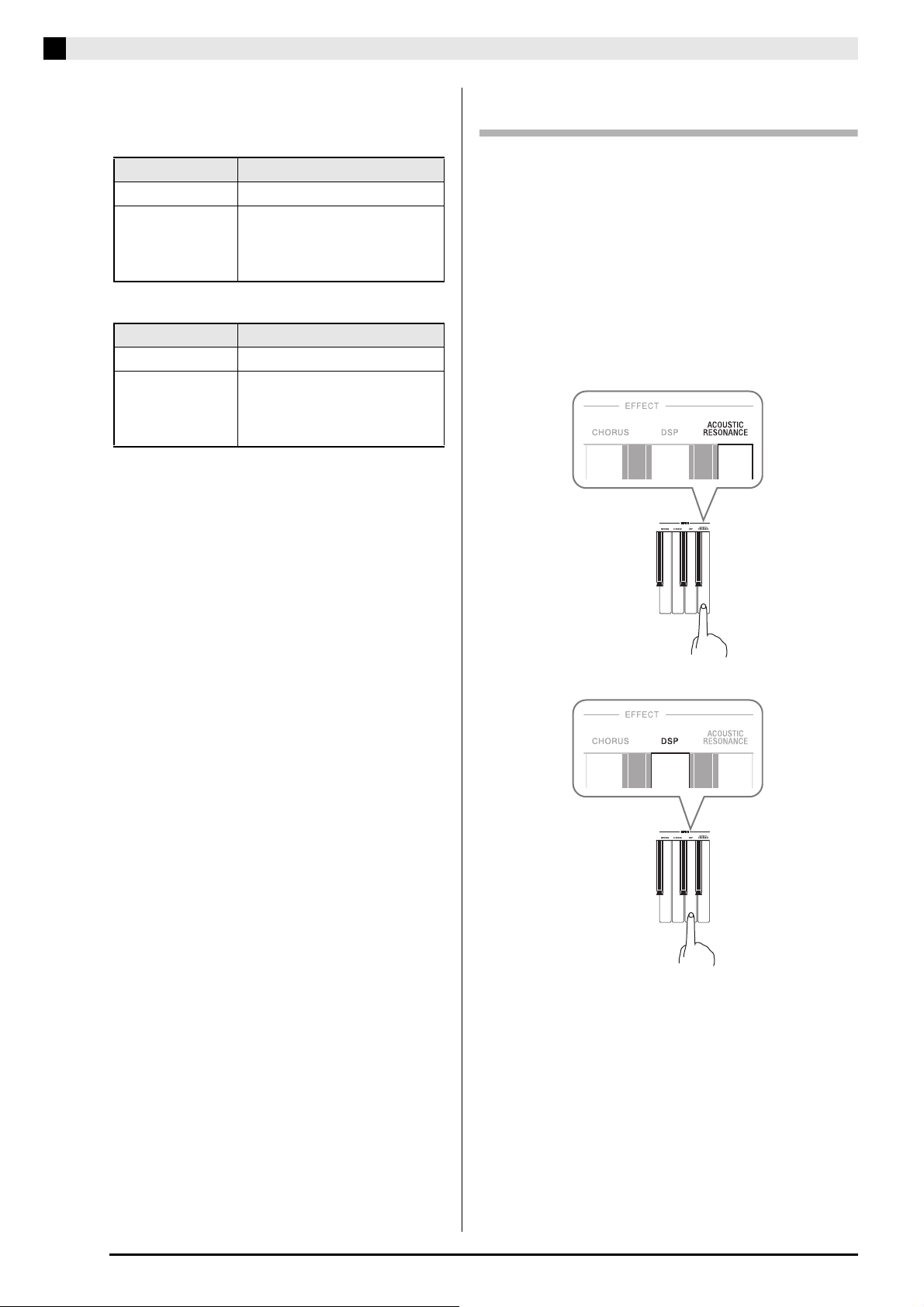

To turn acoustic resonance and DSP on

or off

While holding down the TEMPO/SETTING

button, press the ACOUSTIC RESONANCE

or DSP keyboard key. Keep the TEMPO/

SETTING button depressed until you finish

step 2 of this procedure.

• This will cause the lamp above the TEMPO/

SETTING button to flash and the currently selected

acoustic resonance or DSP setting to appear on the

display.

Acoustic Resonance

DSP

To do this: Select this setting:

Turn off reverb oFF

Turn on reverb

1: Room

2: Small Hall

3: Large Hall

4: Stadium

To do this: Select this setting:

Turn off chorus oFF

Turn on chorus

1: Light Chorus

2: Medium Chorus

3: Deep Chorus

4: Flanger (Whooshing effect)

PX800_e.book 12 ページ２００６年１０月１２日　木曜日　午後１２時５分

Playing with Different Tones

E-13

Use the + and – buttons to change the

displayed setting.

NOTE

• While the keyboard is layered, the DSP on/off setting

affects the layered tone only. While the keyboard is split,

the DSP on/off setting affects the low range tone only.

• Turning on DSP will apply the DSP effect to tones with

DSP only. It will not be applied to any other type of tone.

Your digital piano comes equipped with three pedals:

damper, soft, and sostenuto

Pedal Functions

z Damper Pedal

Pressing the damper pedal while playing will cause

the notes you play to reverberate for a very long

time.

• When GRAND PIANO, GRAND PIANO 2, or

GRAND PIANO 3 is selected as the tone, pressing

this pedal will cause notes to reverberate just like

the damper pedal on an acoustic grand piano.

Half-pedal operation (pressing the pedal part way)

is also supported.

z Soft Pedal

Pressing this pedal while playing suppresses notes

played on the keyboard after the pedal was pressed,

and makes them sound softer.

z Sostenuto Pedal

Only the notes of the keys that are depressed when

this pedal is pressed are sustained until the pedal is

released.

Press the METRONOME button.

• This starts the metronome.

• The two lamps above the SONG PLAY/STOP button

flash in time with the metronome beat.

To change the beat, hold down the

METRONOME button as you use the + and –

buttons to make adjustments.

• You can select a beat value in the range of 2 through

6. Specifying 0 as the setting plays a straight click,

without any chime. This setting lets you practice with

a steady beat.

While holding down the TEMPO/SETTING

button, use the + and – buttons to adjust the

tempo in a range of 20 to 255 beats per

minute.

Press the METRONOME button again to stop

the metronome.

NOTE

• You can also set the beat setting (step 2) using the

procedure described under “Configuring Settings with

the Keyboard” on page E-21.

When the display

shows this:

It means this:

oFF Effect off

on Effect on

Using the Digital Piano’s

Pedals

Soft pedal

Damper pedal

Sostenuto pedal

Using the Metronome

PX800_02_e.fm 13 ページ２００６年１０月１２日　木曜日　午後６時５３分

E-14

Playing with Different Tones

To adjust the metronome volume

NOTE

• You can perform the following procedure at any time,

regardless of whether or not the metronome is sounding.

While holding down the TEMPO/SETTING

button, press the METRONOME VOLUME

keyboard key. Keep the TEMPO/SETTING

button depressed until you finish step 2 of this

procedure.

• This will cause the lamp above the TEMPO/

SETTING button to flash and the current metronome

volume setting to appear on the display.

Use the + and – buttons to change the

metronome volume setting in the range of 0

to 42.

PX800_e.book 14 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-15

Playing Back Built-in Songs

IMPORTANT!

• After you select a built-in song, it can take a number of

seconds for the song data to be loaded. While the data is

being loaded, the song number will flash on the display,

and the keyboard keys and button operations will be

disabled. If you are playing something on the keyboard,

the following operation will cause output to stop.

Your digital piano has a total of 72 built-in songs. You

can use the procedure to play back all of the songs, one

after the other.

* A “keyboard tone demo tune” is a demo tune that

use the tone that is currently assigned to the

keyboard for its melody.

While holding down the TONE/SONG button,

press the SONG PLAY/STOP button.

• This will start sequential playback from keyboard

tone demo tune t.01, up to the last Music Library song

L.60.

• You can play along with a song on the keyboard as it

is playing. The tone assigned to the keyboard is the

one that is preset for the song that is playing.

• You can use the + and – buttons to skip sequentially

between songs during playback.

• Pressing the + and – buttons at the same time will

return to keyboard tone demo tune t.01.

Press the SONG PLAY/STOP button again to

stop built-in song play.

SONG PLAY/STOP

PART/TRACK

TONE/SONG

TONE

SONG

Playing Back All of the Built-in

Songs

Type

Number of

Songs

Display Indicator

Keyboard tone

demo tune*

TONE lamp flashes,

song number displayed

Music Library 60

SONG lamp flashes,

song number displayed

PX800_e.book 15 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-16

Playing Back Built-in Songs

The Music Library includes both preset songs (01 to

60), plus up to 10 songs (61 to 70) that have been saved

to digital piano memory from a computer* or loaded

SD memory card (page E-29). You can use the

procedure below to select one of these songs and play it

back.

* You can download music data from the Internet and

then transfer it from your computer to digital piano

memory. See “Expanding the Selections in the Music

Library” on page E-28 for more information.

Press the TONE/SONG button so the SONG

lamp is lit.

• Each press of the TONE/SONG button toggles

between the TONE and SONG indicator lamps.

• This will cause the currently selected song number to

appear on the display.

Find the song number of the song you want to

play in the song list on page A-3.

Use the + and – buttons to display the song

number of the song you want to play.

Press the SONG PLAY/STOP button.

• This starts the playback of the song.

To stop playback, press the SONG PLAY/

STOP button again.

• Playback will stop automatically when the end of the

song is reached.

NOTE

•Pressing the + and – buttons at the same time will select

song number 01.

• You can change tempo, volume, and pre-count settings

for playback. See “Configuring Settings with the

Keyboard” on page E-21 for more information.

You can turn off the left hand part or right hand part of

a Music Library song and play along on the piano.

NOTE

• The Music Library includes a number of duets. While a

duet is selected, you can turn off the first piano <Primo>

or second piano <Secondo> tone and play along with the

song.

PREPARATION

• Select the song you want to practice and adjust the

tempo. See “Configuring Settings with the Keyboard” on

page E-21.

• A number of tunes have tempo changes part way

through in order to produce specific musical effects.

Use the PART/TRACK button to turn off a

part.

•Each press of the PART/TRACK button cycles

through the part settings as shown below. The

indicator lamps above the button show which part is

turned off.

Press the SONG PLAY/STOP button.

• This starts playback, without the part you turned off

in step 1.

Play the missing part on the keyboard.

To stop playback, press the SONG PLAY/

STOP button again.

Playing Back a Specific Music

Library Song

Practicing with a Music

Library Song

Left hand

Right hand

Both parts

Right hand

part off

Left hand

part off

PX800_e.book 16 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-17

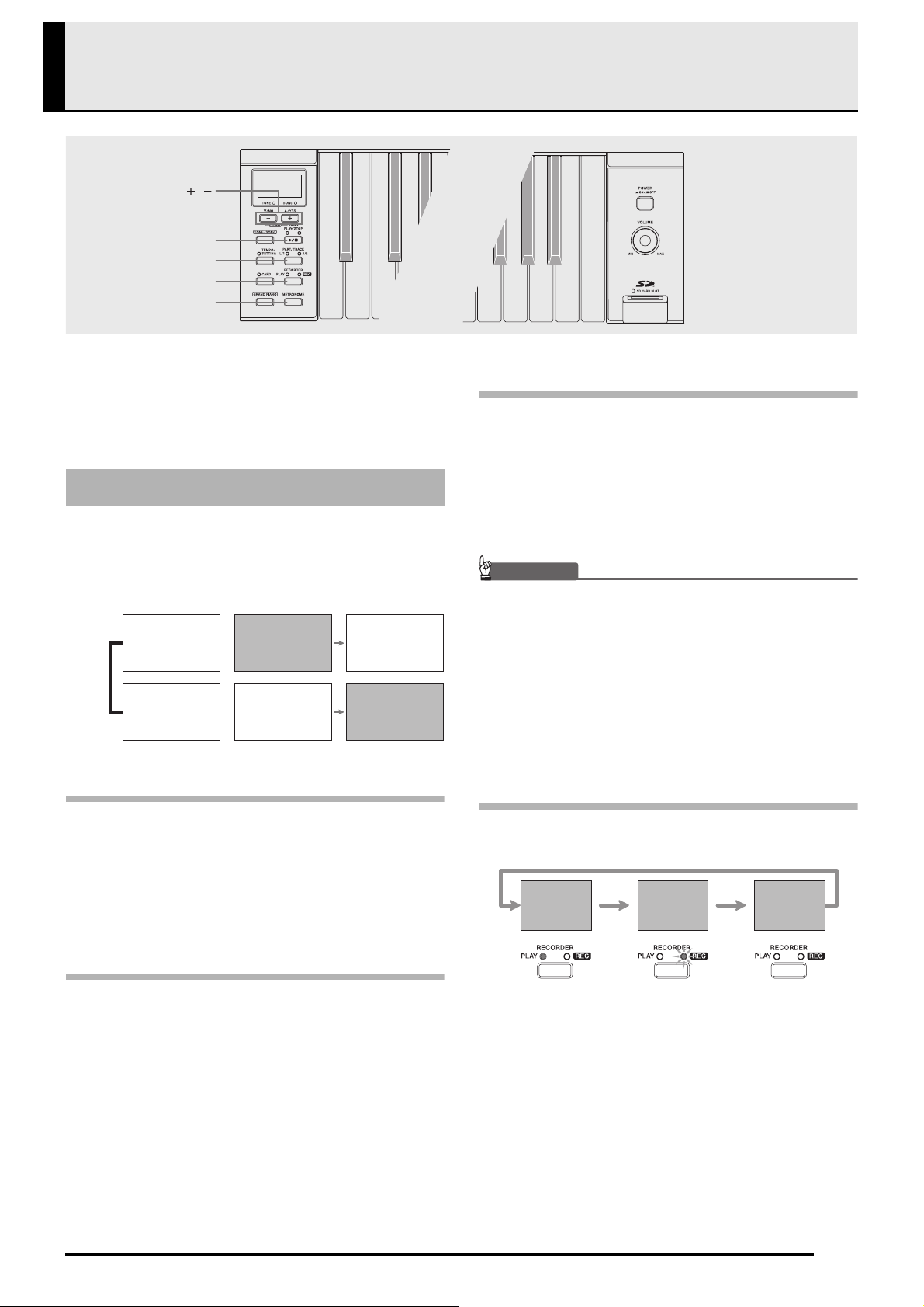

Recording and Play Back

You can store the notes you play in digital piano

memory for later playback. You can have up to five

songs in memory at one time.

A track is a container of recorded data, and each song

consists of two tracks: Track 1 and Track 2. You can

record each track separately and then combine them so

they play back together as a single song.

Memory Capacity

• Digital piano memory can hold about 50,000 notes

total, for five songs. Each song can contain up to

about 10,000 notes.

• Recording stops automatically and the REC lamp

goes out if the number of notes in memory exceeds

the maximum.

Recorded Data

•Keyboard play

•Tone used

• Pedal operations

• Reverb and chorus settings

• Tempo setting

• Layer and split settings (Track 1 only)

Recording Data Storage

• Starting a new recording deletes any data that was

previously recorded in memory.

• Should power fail during recording, all of the data in

the track you are recording will be deleted.

• You can save memory data to external media, if you

want. See “Using an SD Memory Card” on page E-29

for more information.

IMPORTANT!

• CASIO COMPUTER CO., LTD. takes no responsibility

for any damages, lost profits, or claims by third parties

arising from the deletion of recorded data due to

malfunction, repair, or for any other reason.

• After you select a song, it can take a number of seconds

for the song data to be loaded. While the data is being

loaded, the song number will flash on the display, and the

keyboard keys and button operations will be disabled. If

you are playing something on the keyboard, the following

operation will cause output to stop.

Using the RECORDER Button

Each press of the RECORDER button cycles through

the recording options in the sequence shown below.

METRONOME

RECORDER

PART/TRACK

SONG PLAY/STOP

Songs and Tracks

Song

Record

While playing

back. . .

Track 2

Track 1

Playback

Standby

Record

Standby

Normal

Lit Flashing Off

PX800_e.book 17 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-18

Recording and Play Back

After recording to either of the tracks of a song, you can

record to the other track while listening to playback

what you recorded in the first track.

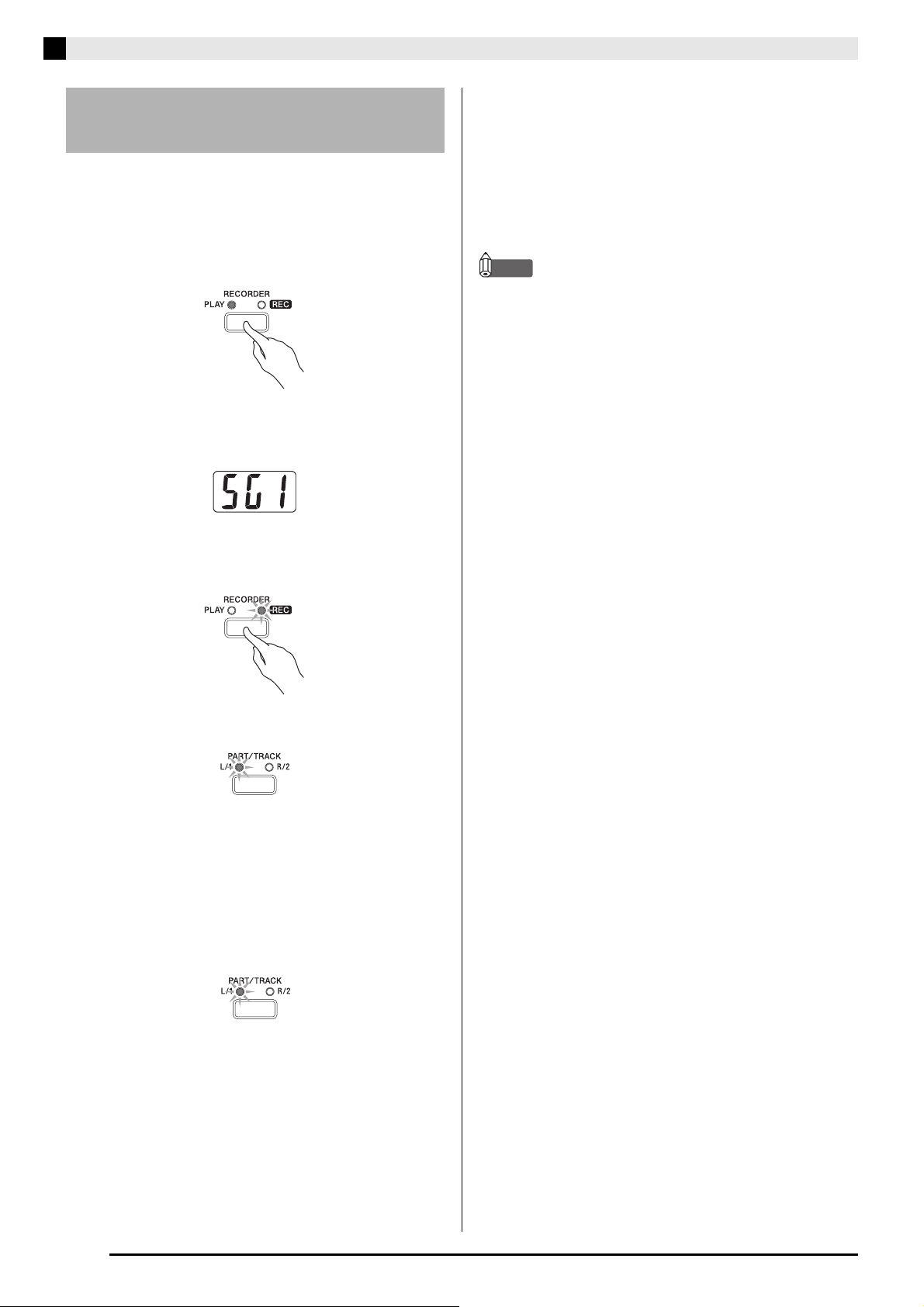

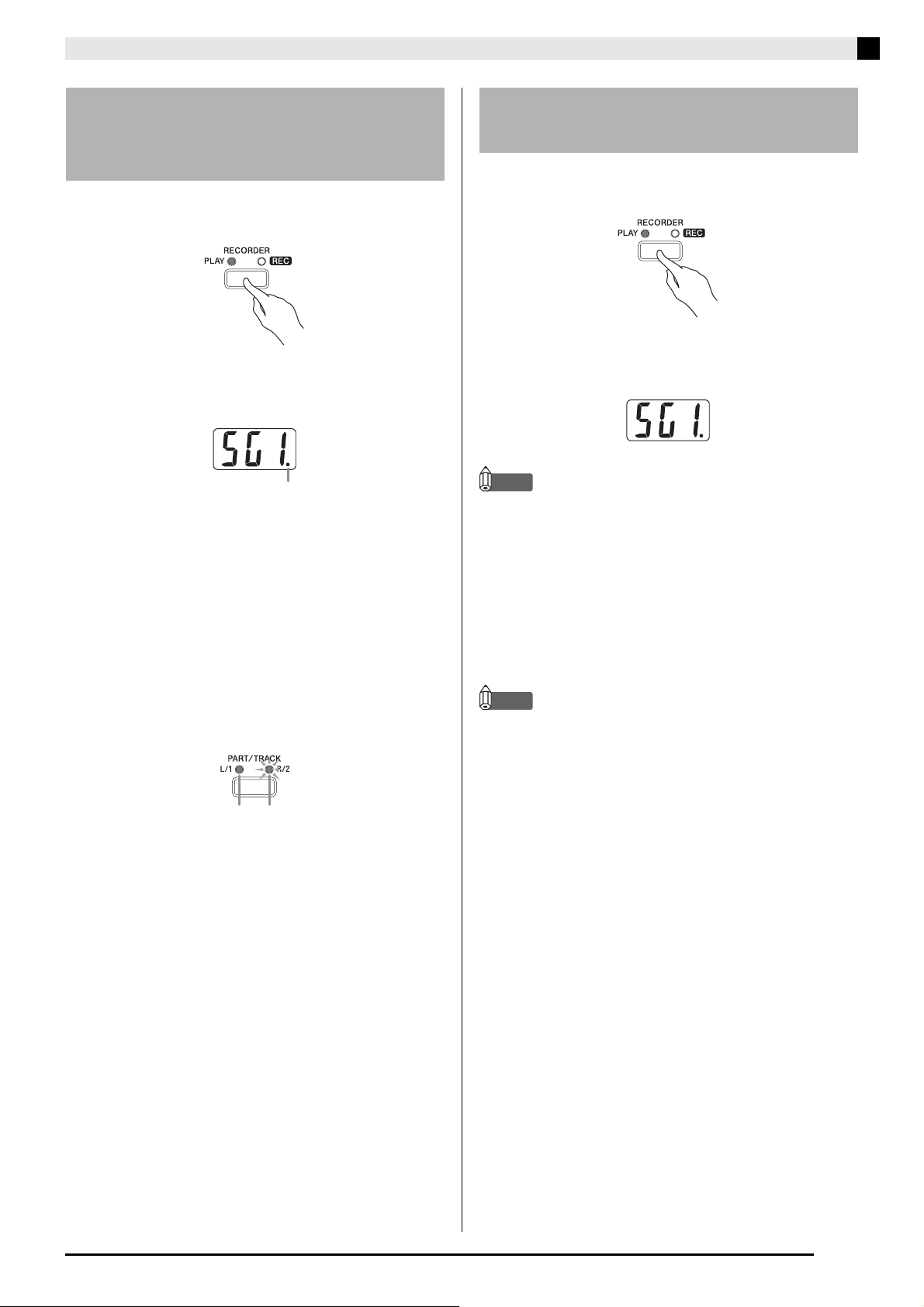

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

Press the RECORDER button so the REC

lamp is flashed.

• At this time the L/1 lamp will flash to indicate that the

digital piano is standing by for recording to Track 1.

Use the PART/TRACK button to select the

track to which you want to record.

• Make sure that the indicator lamp for the record track

is flashing.

Track 1: L/1 lamp

Track 2: R/2 lamp

Example: Track 1 Selected

Select the tone and effects you want to use in

your recording, and set the tempo you want.

•Tone (page E-7)

* After selecting the tone you want, press the TONE/

SONG button one more time so the SONG lamp is

lit.

• Effect (page E-11)

• Tempo (page E-24)

NOTE

• It is a good idea to use a relatively slow tempo when

recording.

• If you want the metronome to sound during recording,

press the METRONOME button.

Start playing something on the keyboard.

• Recording will start automatically.

To stop recording, press the SONG PLAY/

STOP button again.

• This will cause the REC lamp to go out, and the lamp

above the button of the track to which you recorded

will light.

• To play back the track you just recorded, press the

SONG PLAY/STOP button.

After you are finished recording or playing

back, press the RECORDER button so the

PLAY lamp and REC lamp are off.

To record to a specific track of

a specific song

PX800_e.book 18 ページ２００６年１０月１２日　木曜日　午後１２時５分

Recording and Play Back

E-19

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

Press the RECORDER button so the REC

lamp is flashed.

• This will cause the L/1 lamp to flash.

Use the PART/TRACK button to select the

track to which you want to record.

• Make sure that the indicator lamp for the record track

is flashing.

Example: To listen to playback of Track 1 as you record

to Track 2

Select the tone and effects you want to use

for your recording.

Press the SONG PLAY/STOP button or play

something on the keyboard.

• This will start both playback of the recorded track

and recording to the other track.

To stop recording, press the SONG PLAY/

STOP button.

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display a song

number (1 to 5).

NOTE

• When a song has something recorded in both tracks, you

can turn off one track and play back just the other track,

if you want. Whether a track is on or off is indicated by

the lamps above the PART/TRACK button. Each press of

the PART/TRACK button cycles through the different

possible track on/off settings.

Press the SONG PLAY/STOP button.

This starts playback of the song and/or track you

selected.

NOTE

• You can change the tempo setting as a track is playing.

• You cannot change the tone setting during playback.

• Press the SONG PLAY/STOP button again to stop

playback.

To record to one track of a

song while listening to the

playback of the other track

This indicator appears when the track already

contains recorded data.

Lit (Play) Flashing (Record Standby)

Playing Back from Digital

Piano Memory

PX800_e.book 19 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-20

Recording and Play Back

The following procedure deletes a specific track of a

song.

IMPORTANT!

• The procedure below deletes all of the data of the

selected track. Note that the delete operation cannot be

undone. Check to make sure you really do not need the

data in digital piano memory before you perform the

following steps.

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display the

number of the song (1 to 5) that contains the

track you want to track.

Press the RECORDER button so the REC

lamp is flashed.

Use the PART/TRACK button to select the

track you want to delete.

• This causes the lamp of the selected track to flash.

Hold down the RECORDER button until “dEL”

(dELete) appears on the display.

Press the S

S/YES button.

• This deletes the selected track and enters record

standby.

• To cancel the delete operation, press the T

T/NO

button in place of the S

S/YES button.

Deleting Recorded Data

PX800_e.book 20 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-21

Configuring Settings with the Keyboard

You can use the TEMPO/SETTING button in combination with the keyboard keys to configure a wide range of

digital piano settings, including the key, keyboard touch, MIDI settings, etc.

• The same basic procedure (explained under “To configure settings with the keyboard” on page E-22) can be used

for all settings. The only difference is the keyboard key that you press.

• See the “Keyboard Setting Reference” on page E-23 for information about the settings you can configure using

this procedure.

Keyboard Keys Used for Configuring Settings

TEMPO/SETTING

A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4

PX800_e.book 21 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-22

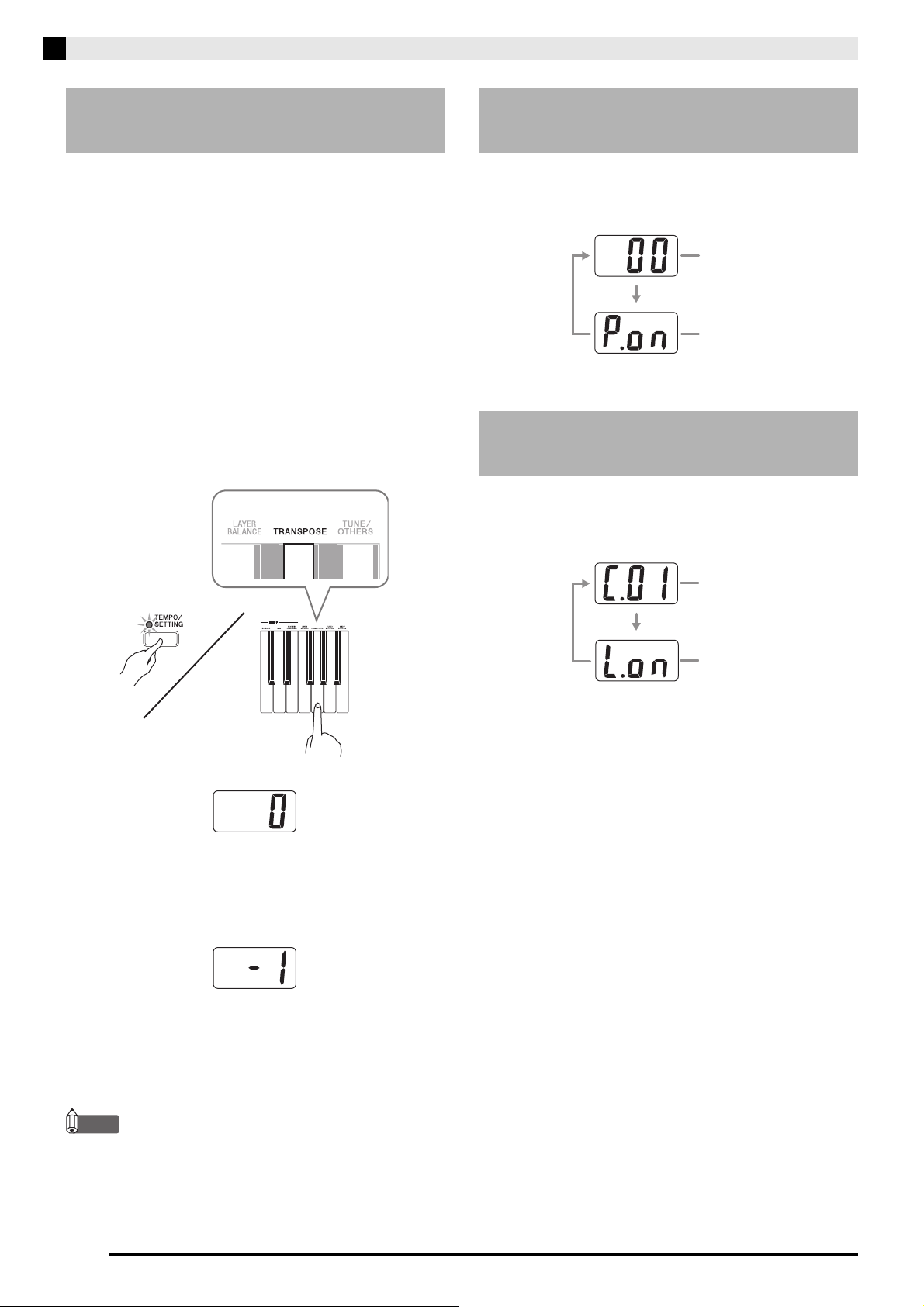

Configuring Settings with the Keyboard

Use the “Keyboard Setting Reference” on

page E-23 to find the setting you want to

configure, and note its keyboard key.

Example: To change the key, you would need to use the

keyboard key labeled TRANSPOSE

While holding down the TEMPO/SETTING

button, press the keyboard key for the setting

you want to configure. In this example, we will

press the TRANSPOSE key. Keep the

TEMPO/SETTING button depressed until you

finish step 3 of this procedure.

• The TEMPO/SETTING button lamp will flash and

the current setting of the item you are configuring

will appear on the display.

Use the + and – buttons to change the

setting.

Example: Lower the TRANSPOSE by one semitone by

changing the displayed value to –1.

Release the TEMPO/SETTING button to

complete the setting procedure.

• This causes the indicator lamp above the button to

turn off.

NOTE

• Pressing the + and – buttons at the same time will change

the displayed setting to its default value.

Pressing the TUNE/OTHERS key in step 2 of the above

procedure will toggle between the two settings

described below.

Pressing the MIDI/OTHERS key in step 2 of the above

procedure will cycle between the two settings

described below.

To configure settings with the

keyboard

To configure a setting using

the TUNE/OTHERS key

To configure a setting using

the MIDI/OTHERS key

Tuning setting

Pre-count setting

(“P” stands for “Pre-count”.)

Send Channel setting

(“C” stands for “Channel”.)

Local Control setting

(“L” stands for “Local”.)

PX800_e.book 22 ページ２００６年１０月１２日　木曜日　午後１２時５分

Configuring Settings with the Keyboard

E-23

■ Keyboard

Keyboard Setting Reference

To change this

setting:

Use this keyboard

key:

Settings Description

Keyboard touch

response

TOUCH RESPONSE oFF : Off

1 : Strong sound is

produced even

when relatively

light pressure is

applied.

2:Normal

3 : Normal sound is

produced even

when relatively

strong pressure is

applied.

Specifies the relative touch of the keyboard keys.

Key of the keyboard TRANSPOSE –6 to 0 to 5 Raises or lowers the tuning of the digital piano in

semitone steps.

NOTE

• Using TRANSPOSE to raise the key of the

digital piano can cause notes at the highest

range of a tone to become distorted.

Keyboard tuning TUNE/OTHERS –50 to 0 to 50 Raises or lowers the overall pitch of the digital piano

to match another instrument. The setting range is

plus or minus 50 cents (100 cents = 1 semitone) from

the standard pitch of A4 = 440.0Hz.

When configuring this setting, use the procedure

under “To configure a setting using the TUNE/

OTHERS key” on page E-22.

PX800_e.book 23 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-24

Configuring Settings with the Keyboard

■ Tones

*Display Indicator

■ Song/Metronome

To change this

setting:

Use this keyboard

key:

Settings Description

Tone selection TONE See “Tone List” on

page A-1.

See page E-8.

Layered tone volume

balance

LAYER BALANCE –24 to 0 to 24 Specifies the volume balance between layered tones.

A lower value reduces the volume level of the

layered tone.

Split on/off SPLIT ON/OFF on: On, oFF: Off See page E-10.

Split point SPLIT POINT A0 to C8* Specifies the location of the keyboard split point.

The selected keyboard key is the lowest note of the

high range (right) keyboard.

Brilliance BRILLIANCE –3 to 0 to 3 See page E-9.

Reverb REVERB oFF (Off), 1 to 4 See page E-11.

Chorus CHORUS oFF (Off), 1 to 4 See page E-11.

DSP EFFECT on: On, oFF: Off See page E-12.

Acoustic Resonance EFFECT on: On, oFF: Off See page E-12.

Display

Settings ABCDEFGF

To change this

setting:

Use this keyboard

key:

Settings Description

Tempo TEMPO 20 to 255 Specifies the tempo of Music Library songs, the

metronome, recording and playback, etc.

Metronome beat METRONOME BEAT 0, 2 to 6 Turns the metronome on or off.

Metronome volume METRONOME

VOLUME

0 to 42 Specifies the metronome volume.

Song volume SONG

VOLUME

0 to 42 Specifies the volume of built-in song playback,

independent of overall volume control using the

VOLUME controller.

Pre-count TUNE/OTHERS P.on: On

P.oF: Off

Turns the pre-count before playback of a Music

Library song on or off. When configuring this

setting, use the procedure under “To configure a

setting using the TUNE/OTHERS key” on page E-

22.

NOTE

• When playing a song from the user area or from

an SD memory card, the pre-count may not

sound, even though the pre-count setting is

turned on.

PX800_e.book 24 ページ２００６年１０月１２日　木曜日　午後１２時５分

Configuring Settings with the Keyboard

E-25

■ MIDI

To change this

setting:

Use this keyboard

key:

Settings Description

Send Channel MIDI/OTHERS C.01 to C.16 Specifies one of the MIDI channels (1 through 16) as

the Send Channel, which is used for sending MIDI

messages to an external device. When configuring

this setting, use the procedure under “To configure a

setting using the MIDI/OTHERS key” on page E-22.

Local Control MIDI/OTHERS L.on: On

L.oF:

Off

When Local Control is turned on, pressing the

keyboard’s keys plays the notes using the currently

selected built-in tone, and also sends the applicable

MIDI messages out the MIDI OUT port. Turning off

Local Control cuts off the digital piano’s sound

source, so no sound is produced by the digital piano

when keys are pressed. This capability comes in

handy when you want to turn off the digital piano’s

keyboard and play on an external sequencer or other

device. When configuring this setting, use the

procedure under “To configure a setting using the

MIDI/OTHERS key” on page E-22.

PX800_e.book 25 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-26

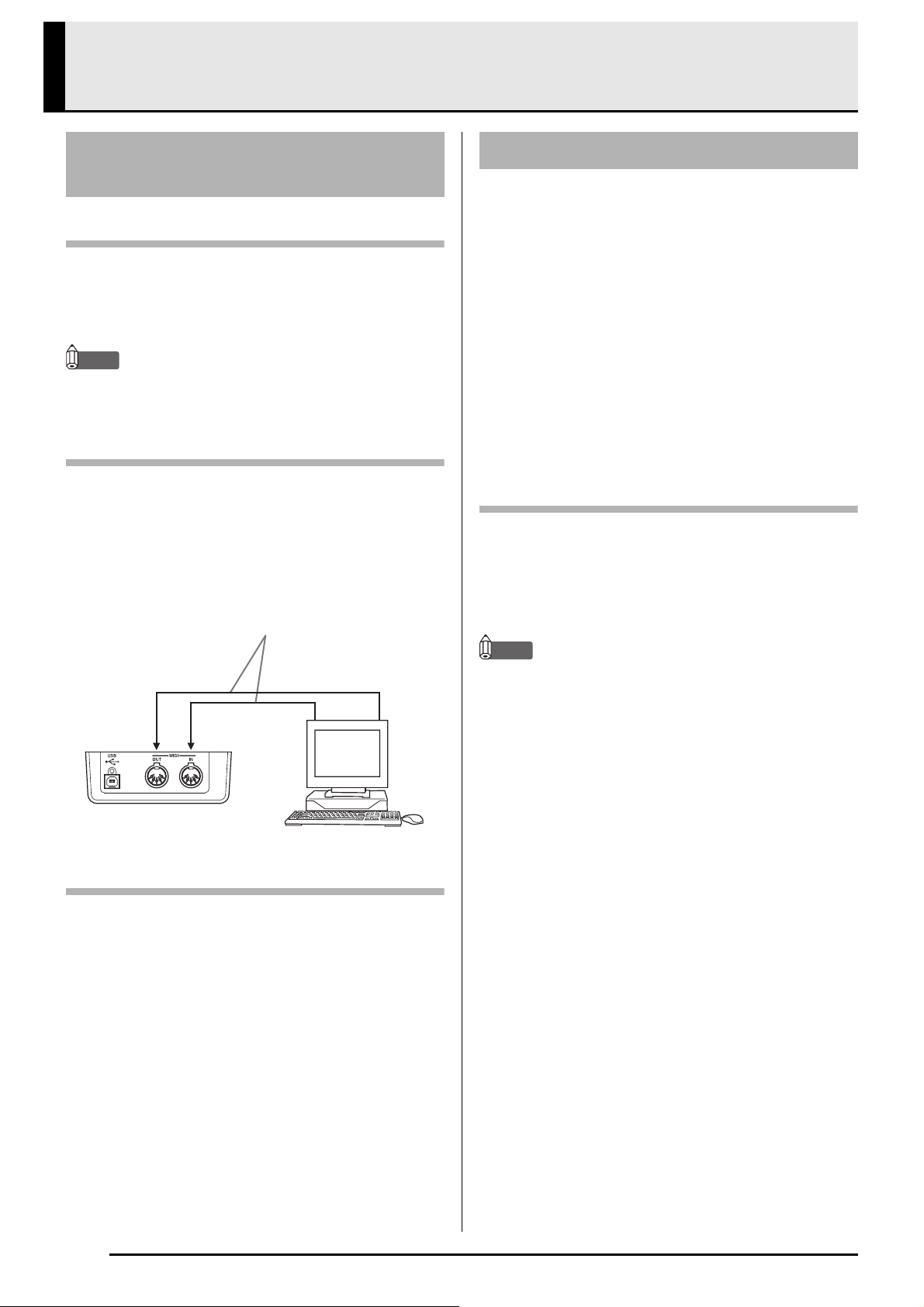

Connecting to a Computer

What is MIDI?

MIDI is a standard for digital signals and connectors

that allows musical instruments, computers, and other

devices, regardless of manufacturer, to exchange data

with each other.

NOTE

• For details about MIDI implementation, visit:

http://world.casio.com/

MIDI Connections

Connecting your computer or other external MIDI

device to the digital piano’s MIDI OUT/IN terminals

makes it possible for them to exchange MIDI messages

and record and playback keyboard notes on the

connected device.

Bottom

MIDI Settings

You can use the procedure in “Configuring Settings

with the Keyboard” (page E-21) to configure MIDI

settings. See page E-25 for a description of the settings

and information about how to configure them.

The digital piano’s USB port makes it quick and simple

to connect to a computer. You can install a USB MIDI

driver from the CD-ROM that comes bundled with the

digital piano onto a computer equipped with a USB

port. After that, you can connect the digital piano to

your computer and run commercially available MIDI

software on your computer to exchange MIDI data

with the digital piano. You can also transfer data you

downloaded from the CASIO MUSIC SITE to the

digital piano.

Note that you need to purchase a commercially

available USB cable to connect the digital piano’s USB

port to a computer’s USB port.

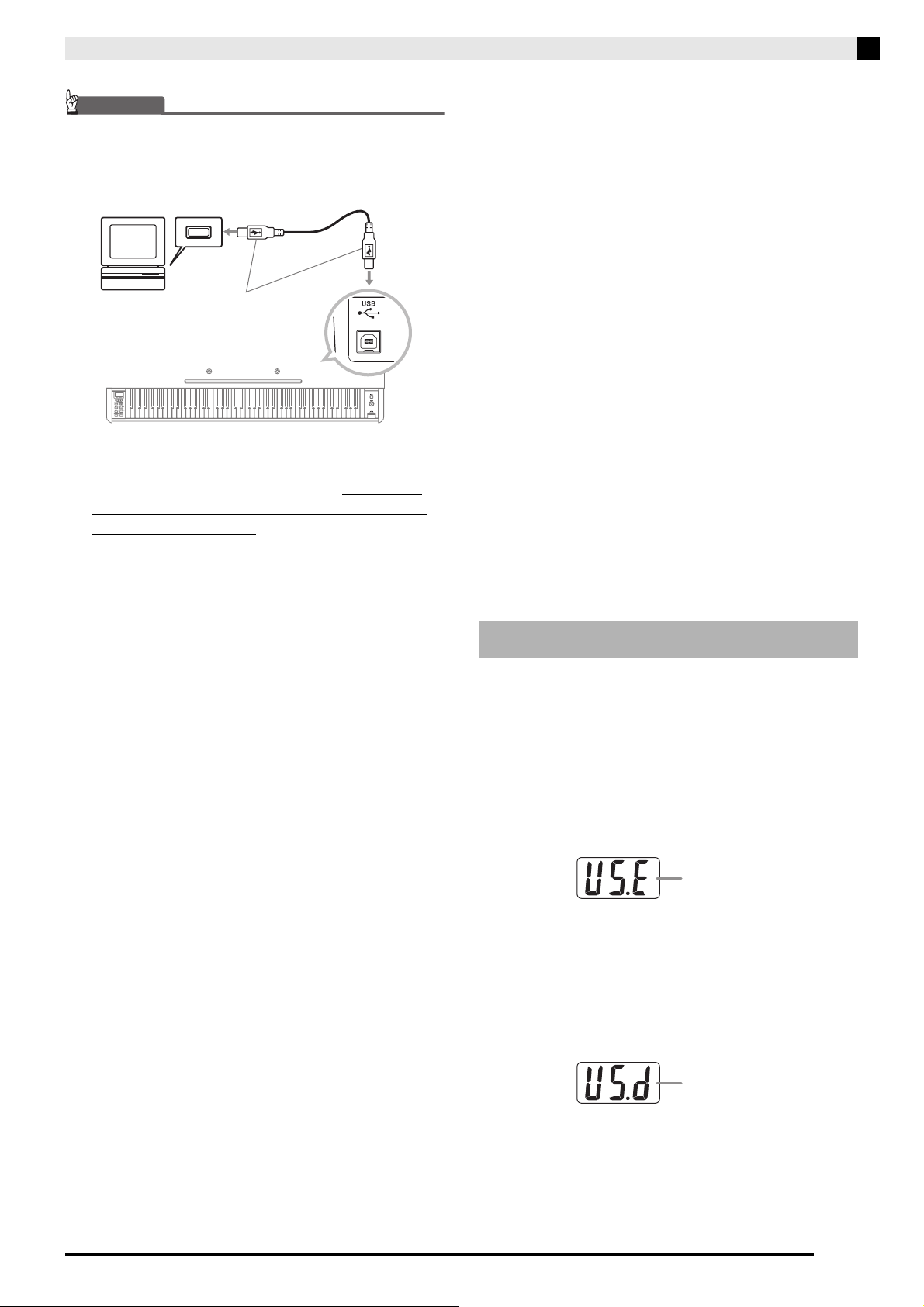

To connect to a computer using the USB

port

On the computer to which you plan to

connect, install the USB MIDI driver from the

CD-ROM that comes bundled with the digital

piano.

NOTE

• Before installing the USB MIDI driver, be sure to read the

contents of the “readme.txt” file in the “English” folder

on the bundled CD-ROM.

• For details about how to install the USB MIDI driver, see

the “CASIO USB MIDI Driver User’s Guide”

(manual_e.pdf)

that is also on the bundled CD-ROM.

Use a commercially available USB cable (A-B

type) to connect the digital piano to the

computer.

Connecting to the MIDI

Terminal

MIDI Cable

MIDI OUT MIDI IN

Connecting to the USB Port

PX800_03_e.fm 26 ページ２００６年１０月１２日　木曜日　午後４時１４分

Connecting to a Computer

E-27

IMPORTANT!

• Make sure that the digital piano is turned off before

connecting or disconnecting the USB cable to it.

*1 You need to have Adobe Reader or Acrobat Reader

installed on your computer in order to view the

contents of the “CASIO USB MIDI Driver User’s

Guide” (manual_e.pdf). If your computer does not

have Adobe Reader or Acrobat Reader installed

already, use the procedure below to install it.

To install Adobe Reader (Acrobat Reader

)

Place the CD-ROM that comes with the

digital piano into your computer’s CD-ROM

drive.

On the CD-ROM, navigate to the “Adobe”/

“English” folder and double-click

“ar601enu.exe” (or “ar505enu.exe

”). Follow

the instructions that appear on your computer

screen to install the driver.

*2 Adobe Reader cannot be installed using the

“ar601enu.exe” file on a computer running

Windows 98. If your computer is running

Windows 98, click “ar505enu.exe” to install

Acrobat Reader.

Minimum Computer System Requirements

Supported Operating Systems

Windows

XP Professional, Windows

XP Home

Edition, Windows

2000 Professional, Windows

Me,

Windows

98SE, Windows

Driver Minimum Computer System

Requirements

The following are the minimum computer system

requirements for running the USB MIDI driver.

z Universal

• IBM AT or compatible computer

• USB port that provides normal operation under

Windows

• CD-ROM drive (for installation)

• At least 2MB of free hard disk space (not including

space required for Adobe Reader)

z Windows XP

• Pentium 300MHz or higher

• 128MB minimum memory

z Windows 2000

• Pentium 166MHz or higher

• 64MB minimum memory

z Windows Me, Windows 98SE, Windows 98

• Pentium 166MHz or higher

• 32MB minimum memory

Your digital piano has two data communication

modes: a USB mode and a MIDI mode.

The digital piano will enter the USB mode

automatically whenever a connection is established

between it and the USB driver running on a connected

computer. If there is no computer connected to the USB

port, the digital piano will enter the MIDI mode.

USB Mode

The above indicator appears for about three seconds

after a USB connection is established. For details about

using the MIDI device functions in the USB mode, see

the “CASIO USB MIDI Driver User’s Guide”

(manual_e.pdf) on the bundled CD-ROM.

MIDI Mode

The above indicator appears for about three seconds

after a USB connection terminated. The MIDI mode is

used when sending and receiving data over the digital

piano’s MIDI terminals.

USB connector

Computer

USB port

USB cable

(A-B type)

Digital piano USB port

USB Mode and MIDI Mode

USB enabled

USB disabled

PX800_e.book 27 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-28

Connecting to a Computer

You can store up to 10 songs you have downloaded

with your computer as songs 61 through 70 of the

Music Library and practice along with them as they

play, just as you do with the built-in songs.

You can also use the CASIO SMF conversion software

(SMF Converter) to convert SMF data you have

purchased or created and save it as a Music Library

song.

NOTE

• You will not be able to transfer data from a computer to

the digital piano during playback or recording of song

data, during a data save or recall operation, etc. Wait

until the current operation is complete before

transferring data.

Place the CD-ROM that comes with the

digital piano into the CD-ROM drive of a

computer that is equipped with a USB port.

Navigate to the CD-ROM and double-click the

“SMFConv-e.exe” file. Next, follow the

instructions that appear on your computer

screen to install the software.

• Before installing SMF Converter, be sure to read the

contents of the “smfreadme.txt” file. A version of

this file is provided in each language folder on the

CD-ROM.

For information about using SMF Converter, double-

click [index.html] in the [help] folder, which was

created when you installed SMF Converter. You can

also access user documentation from the Windows

[Start] menu by clicking [Programs] – [CASIO] – [SMF

Converter] – [manual].

• A browser that supports frames (like Internet

Explorer 4 or Netscape Navigator 4.04 or higher) is

required to view the SMF Converter manual.

Minimum Computer System Requirements

z Operating System

Windows 98SE

Windows Me

Windows XP Professional

Windows XP Home Edition

z Storage

At least 10 MB of available disk space

z USB Interface

You also can download the SMF conversion software

from the CASIO Website.

• In addition to the software itself, the CASIO MUSIC

SITE will also provide you with information about

its installation and use. You can also find out the

latest news about your digital piano and other

CASIO musical instruments, and much more.

NOTE

• Your digital piano supports SMF Format 0 and Format 1.

Expanding the Selections in

the Music Library

SMF data

CASIO SMF conversion software

Music Library (Songs 61 to 70)

To install the SMF conversion

software (SMF Converter)

CASIO MUSIC SITE

http://music.casio.com/

PX800_e.book 28 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-29

Using an SD Memory Card

Your digital piano’s SD memory card

slot makes it possible for you to store

song data on a commercially

available SD memory card.

The digital piano also can read SMF song data and

CASIO format song data from an SD memory card.

z Supported SD Memory Cards

The maximum supported SD memory card size is 1

GB. Use of any SD memory card with greater

capacity is not supported.

z Supported Data Types and SD Memory Card

Operations

*1 If the first two characters of the filename of song

data are not a two-digit number from 01 to 99,

one of the letters in parentheses (according to

data type) will be displayed as the data type

indicator.

*2 Song data recorded with the digital piano can be

saved as SMF Format 0 data.

*3 The digital piano will not be able to correctly

play a file that has more than 17 tracks.

z Data Display Information

IMPORTANT!

• Use only SD memory cards. Operation is not guaranteed

when any other type of memory card is used.

SD Memory Card and SD Memory Card

Slot Precautions

IMPORTANT!

• Whenever handling an SD memory card, be sure to

observe the instructions and precautions in the user

documentation that comes with it.

• SD memory cards have a write-protect switch that

protects against accidental deletion of data.

• Avoid using an SD memory card in the following types of

areas. Such conditions can corrupt data stored on the

memory card.

• Areas subjected to high temperature, high humidity, and

corrosive gas

• Areas subjected to strong electrostatic charge and

digital noise

• Never touch the contacts of an SD memory card when

loading it or removing it from the digital piano.

• Never remove the SD memory card from the digital piano

or turn off the digital piano while it is reading data from or

writing data to the memory card. Doing so can corrupt the

data on the memory card and damage the SD memory

card slot.

• Never insert anything besides an SD memory card into

the SD memory card slot. Doing so creates the risk of

malfunction.

• Inserting an SD memory card that carries an electrostatic

charge into the SD memory card slot can cause

malfunction of the digital piano. If this happens, turn off

the digital piano and then back on again.

CARD

TEMPO/SETTING

TONE/SONG

SONG PLAY/STOP

RECORDER

/NO, /YES

SONG

SD Memory Card Slot

Data Type

Display

File Name

Extension

Supported SD

Memory Card

Operations

SMF Data

(Format 0)

U (v) .MID Playback,

transfer to user

area, save to

SD memory

card*

SMF Data

(Format 1)*

U (v) .MID Playback,

transfer to user

area

Song data

converted using

CASIO SMF

conversion

software

(CASIO Format

Data)

C (d) .CM2 Playback,

transfer to user

area

Song data

recorded on the

digital piano

(CASIO Format

Data)

r (q) .CSR Transfer to

recorder area,

save to SD

memory card

Song Number (01 to 99)Data Type

PX800_03_e.fm 29 ページ２００７年６月４日　月曜日　午前１１時５８分

E-30

Using an SD Memory Card

• An SD memory card can become quite warm after very

long use in the SD memory card slot. This is normal and

does not indicate malfunction.

• An SD memory card has a limited service life. After very

long use, you may start to experience problems with

storing data to, or reading or deleting data from the

memory card. When this happens, you need to purchase

a new SD memory card.

Using an SD Memory Card with the Digital

Piano

When using an SD Memory card, first be sure to format

the memory card on the digital piano. For details, see

“Formatting an SD Memory Card” on page E-33.

IMPORTANT!

• Note that the SD memory card must be oriented correctly

when you insert it into the SD memory card slot. Trying to

force the memory card into the slot can damage the card

and the slot.

• Never remove the SD memory card from the card slot or

turn off the digital piano while any data access operation

(save, read, format) is being performed. Doing so can

corrupt the data on the memory card and damage the SD

memory card slot.

To insert an SD memory card

With the SD memory card facing upwards as

shown in the illustration, angle the card

downwards as you insert it into the SD

memory card slot.

• Push the card into the slot until you hear it click into

place.

To remove an SD memory card

IMPORTANT!

• Before removing the SD memory card, check to make

sure that the lamp above the CARD button is not lit. If the

lamp is lit or flashing, it means that the card is being

accessed, and that you should not remove it.

Gently press the SD memory card slightly

further into the slot and then release it.

• This will cause the memory card to disengage and

eject partially.

Pull the memory card out of the slot.

Playback of SMF format data and song data converted

using SMF conversion software to CASIO CM2 format.

IMPORTANT!

• Note the following important precautions whenever

playing back a data file you copied to a memory card with

a computer. To perform the procedure below, you must

have an SD memory card to which SMF data has been

copied from a computer. Insert an SD memory card that

has been formatted on the digital piano into the memory

card slot of your computer, and copy the data you want to

play back from your computer into the memory card

folder named “MUSICDAT”. Note that you will not be able

to play back the data on the digital piano if it is not

located inside the “MUSICDAT” folder. If you create a

sub-directory inside of the “MUSICDAT” folder, the digital

piano will not be able to load any data inside the sub-

directory.

• After you select a song data, it can take a number of

seconds for the song data to be loaded. While the data is

being loaded, the song number will flash on the display,

and the keyboard keys and button operations will be

disabled. If you are playing something on the keyboard,

the following operation will cause output to stop.

Press the CARD button.

• The CARD button lamp will light and a song number

will appear on the display.

Use the + and – buttons to display the song

number of the song you want to play.

Press the SONG PLAY/STOP button to start

playback.

* Note that CASIO COMPUTER CO., LTD. shall not be

held liable for any loss of data stored on an SD memory

card.

Inserting and Removing an SD

Memory Card

Front

Playing Back a File Stored on

an SD Memory Card

CASIO format song

PX800_03_e.fm 30 ページ２００７年６月４日　月曜日　午前１１時５８分

Using an SD Memory Card

E-31

To stop playback, press the SONG PLAY/

STOP button.

After you are finished using the SD memory

card, keep pressing the CARD button until its

lamp turns off.

NOTE

• You can change tempo, volume, and pre-count settings

for playback. See “Configuring Settings with the

Keyboard” on page E-21 for more information.

You can use the procedures in this section to transfer

song data from an SD memory card to the digital piano

user area

or recorder area.

*1 Music Library Songs 61 to 70

*2 Memory area where songs recorded on the digital

piano are stored.

z Supported Data

User Area. . . . . . .SMF format data and song data

converted using SMF conversion

software (CASIO CM2 format)

Recorder Area. . .Song data recorded on the digital

piano (CASIO CSR format)

PREPARATION

• Insert the SD memory card that contains the data you

want to transfer into the digital piano’s SD memory card

slot.

IMPORTANT!

• Never perform any operation on the digital piano while

data is being saved to or transferred from an SD memory

card. Performing any operation can cause SD memory

card data to be deleted or damaged, making transfer of

the data impossible.

To transfer song data from an SD memory

card to the digital piano user area

Press the TONE/SONG button so the SONG

lamp is lit.

Use the + and – buttons to display the

number of the user area song (Music Library

song number 61 through 70) to which you

want to transfer the data.

Hold down the CARD button until its lamp

starts to flash slowly and “LdU” (Load User

area) appears on the display.

Use the + and – buttons to display the file

number of the data you want to transfer to

digital piano memory.

When everything is the way you want, press

the TEMPO/SETTING button to begin data

transfer.

• The message “CPL” (ComPLete) will appear on the

display to let you know when data transfer is

complete. The number of the user area to which the

data was transferred will be shown on the display.

z To interrupt an ongoing data transfer operation,

press the CARD button.

z If the user area song number you select already

contains data, pressing TEMPO/SETTING in step 5

will display “rEP” (rEPlace) to confirm that you

want to replace the existing data with the data you

are transferring. Press the

S/YES button to replace

the data. To cancel the operation, press the

T/NO

button in place of the

S/YES button.

Transferring Song Data from

an SD Memory Card to Digital

Piano Memory

This mark indicates that the currently displayed user area

song number has data stored already.

PX800_e.book 31 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-32

Using an SD Memory Card

To transfer song data from an SD memory

card to the recorder area

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display the

number of the recorder area song (1 through

5) to which you want to transfer the data.

Hold down the CARD button until its lamp

starts to flash slowly and “Ldr” (Load recorder

area) appears on the display.

Use the + and – buttons to display the song

number of the data you want to transfer to

digital piano memory.

When everything is the way you want, press

the TEMPO/SETTING button to begin data

transfer.

• The message “CPL” (ComPLete) will appear on the

display to let you know when data transfer is

complete. The number of the recorder area to which

the data was transferred will be shown on the

display.

z To interrupt an ongoing data transfer operation,

press the CARD button.

z If the recorder area song number you select already

contains data, pressing TEMPO/SETTING in step 5

will display “rEP” (rEPlace) to confirm that you

want to replace the existing data with the data you

are transferring. Press the

S/YES button to replace

the data. To cancel the operation, press the

T/NO

button in place of the

S/YES button.

You can save song data that you recorded on the digital

piano to an SD memory card as SMF Format 0 data or

CASIO CSR data.

PREPARATION

• Insert an SD memory card that has been formatted on the

digital piano into the digital piano’s SD memory card

slot. Make sure that the write-protect switch of the SD

memory card is not in the write-protect position.

IMPORTANT!

• Never perform any operation on the digital piano while

data is being saved to or transferred from an SD memory

card. Performing any operation can cause SD memory

card data to be deleted or damaged, making transfer of

the data impossible.

Press the RECORDER button so the PLAY

lamp is lit.

Use the + and – buttons to display the song

number (1 to 5) of the song you want to save.

Hold down the CARD button until its lamp

starts to flash slowly and “Ldr” (Load recorder

area) appears on the display.

Press the CARD button again.

• This will cause the CARD button lamp to flash at a

higher speed and “SvC” (Save as CSR file) to appear

on the display. This indicates that the song will be

saved as CASIO format CSR data.

• If you want to save the song as SMF Format 0 data,

press the CARD button again. This will cause “SvS”

(Save as SMF0 file) to appear on the display.

This mark indicates that the currently displayed song number

has data stored already.

Saving Song Data Recorded

on the Digital Piano to an SD

Memory Card

PX800_03_e.fm 32 ページ２００６年１０月１３日　金曜日　午後１２時４９分

Using an SD Memory Card

E-33

Use the + and – buttons to select the file

number where you want to save the song

data.

When everything is the way you want, press

the TEMPO/SETTING button to begin saving

data.

• The message “CPL” (ComPLete) will appear on the

display to let you know when the save operation is

complete.

z To interrupt an ongoing save operation, press the

CARD button.

z If the SD memory card already contains a data file

with the same file number, pressing TEMPO/

SETTING in step 6 will display “rEP” (rEPlace) to

confirm that you want to replace the existing file

with the file you are saving. Press the

S/YES button

to replace the file.

• To cancel the operation, press the

T/NO button in

place of the

S/YES button.

Use the procedures in this section to format an SD

memory card.

IMPORTANT!

• Before performing the procedure below, check to make

sure that the SD memory card does not contain any data

you might need.

• The SD memory card format performed by your digital

piano is a “quick format”. If you want to completely delete

all of the data on the card, format it on you computer or

using some other device.

PREPARATION

• Insert the SD memory card you want to format into the

digital piano’s SD memory card slot. Make sure that the

write-protect switch of the SD memory card is not in the

write-protect position.

While holding down the TEMPO/SETTING

button, press the CARD button. Keep the

TEMPO/SETTING button depressed until you

finish step 2 of this procedure.

• This will cause “For” (Format) to appear on the

display.

Press the S

S/YES button to start formatting.

• “PLS” (PLeaSe wait) remains on the display while the

formatting operation is performed. Never try to

perform any other operation on the digital piano

while the memory card is being formatted. The

message “CPL” will appear on the display to let you

know when the format operation is complete.

z To cancel the format operation, press the

T/NO

button in place of the

S/YES button.

Release the TEMPO/SETTING button to

complete the formatting procedure.

• This causes the indicator lamp above the button to

turn off.

Formatting an SD Memory

Card

This mark indicates that the currently displayed song number

has data stored already.

PX800_e.book 33 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-34

Using an SD Memory Card

SD Memory Card Errors

Display

Message

Cause Action

No SD memory card loaded in the SD memory

card slot or the card is not loaded correctly.

Correctly insert the SD memory card into the SD memory card

slot. (Page E-30)

You are trying to load data from an SD memory

card that does not contain any data that is

supported by this digital piano.

1. Use an SD memory card that contains files that can be

loaded into digital piano memory.

2. When copying data was copied to an SD memory card from

a computer, copy it to the “MUSICDAT” folder. (Page E-30)

The SD memory card is damaged or the card

was removed while it was being accessed.

1. Use an SD memory card that was formatted on the digital

piano. (Page E-33)

2. Use a different SD memory card.

The SD memory card is full. Use a different SD memory card.

An SD memory card was removed while some

operation was in progress.

Never remove a card from the card slot while a card access

operation is in progress.

Attempt to overwrite the song data file that is

read-only.

Save the file to a different SD memory card or under a different

number.

The data file you are trying to transfer to the

digital piano is too large.

When playing back a file stored on an SD memory card or

loading data to the user area, select a data file that is no larger

than about 318 KB.

When loading song data to the recorder area, you can only

select song data that was recorded on this model of digital

piano.

You are attempting to load SMF (Standard MIDI

File) data that is not Format 0 or Format 1.

Use only Format 0 or Format 1 SMF data.

You are trying to store data to an SD memory

card that is write-protected.

1. Use a different SD memory card.

2. If you want to write to the SD memory card, change the

write-protect position to enable writing. (Page E-29)

There is a problem with the SD memory card

data format or the data is corrupted.

Use different data or a different SD memory card.

PX800_e.book 34 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-35

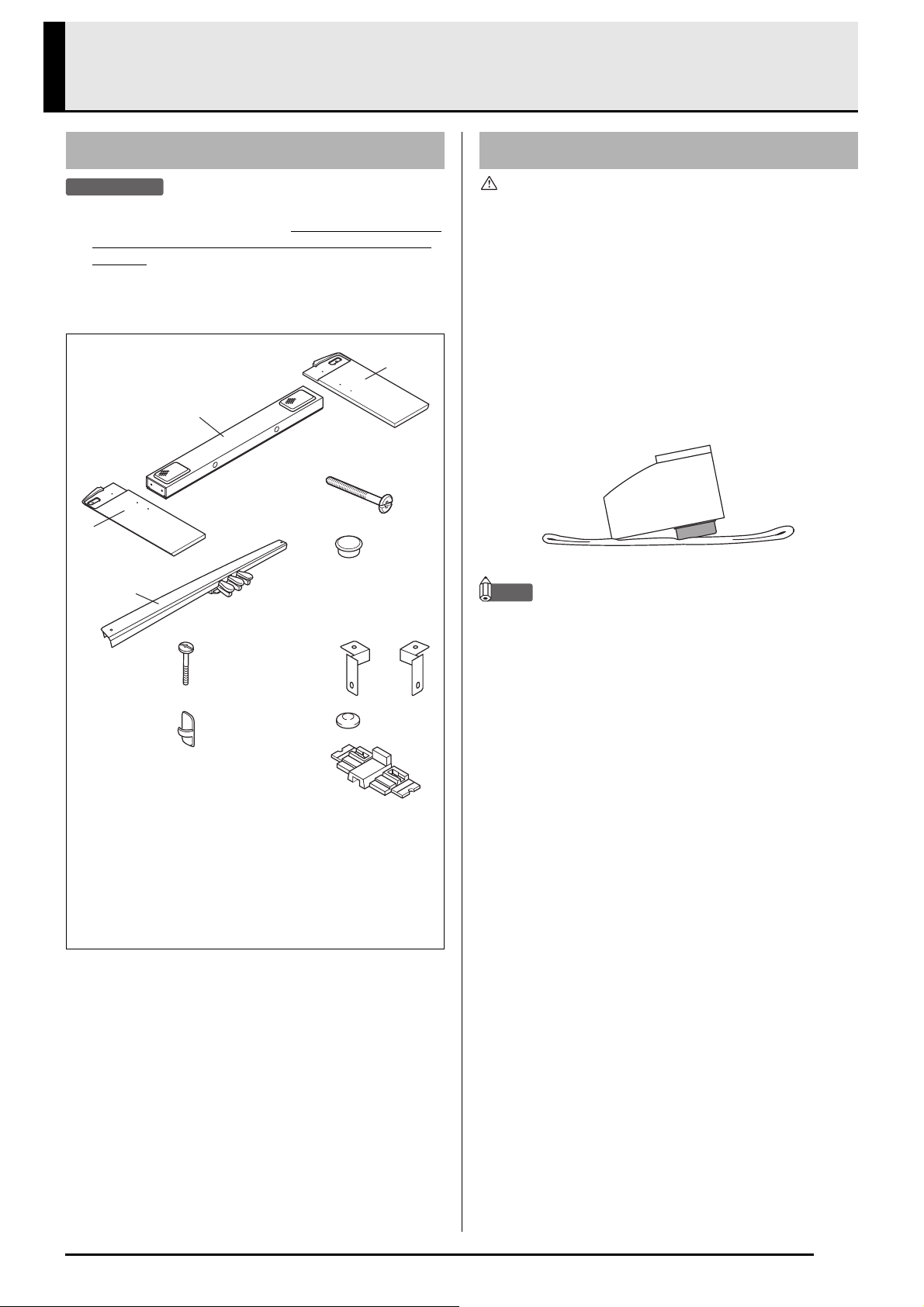

Assembling the Stand

PREPARATION

• Before starting assembly, check to make sure that you

have all the parts shown below. You can find the screws

in a plastic bag inside of the polystyrene foam packing

material.

• This stand does not include any of the tools required for

assembly. It is up to you to prepare a large Philips head

(+) screwdriver for assembly.

CAUTION

• The stand should be assembled by two people working

together.

• The stand should be assembled on a flat surface.

• Do not remove the tape securing the keyboard cover in

place until assembly is complete. Removing the tape can

cause the keyboard cover to open and close during

assembly, creating the risk of personal injury to your

hands and fingers.

• Take care that you do not pinch your fingers between

parts when assembling them.

• When placing the digital piano on the floor, be sure to

place it on something soft (a blanket, cushion, etc.). Do

not place the digital piano directly onto the floor.

NOTE

• When attaching the digital piano and the speaker box C

to side panels A and B, lay the entire assembly on its

side.

• Be sure to follow the proper procedure when assembling

the stand. Be especially careful in the case of steps 2 and

3. Reversing these two steps creates the risk that the

connector will not be plugged in fully.

Unpacking

(a) (b)

Side panel ........................... ×1

Speaker box ........................ ×1

Screws ................................ ×8

Screw caps (Brown) ............ ×8

Pedal unit ............................ ×1

Screws ................................ ×2

Crips.................................... ×2

Bracket................................ ×1

Screw caps (Black) ............. ×2

Polystyrene foam packing

material (Required for stand

assembly.)........................... ×1

Assembling the Stand

PX800_e.book 35 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-36

Assembling the Stand

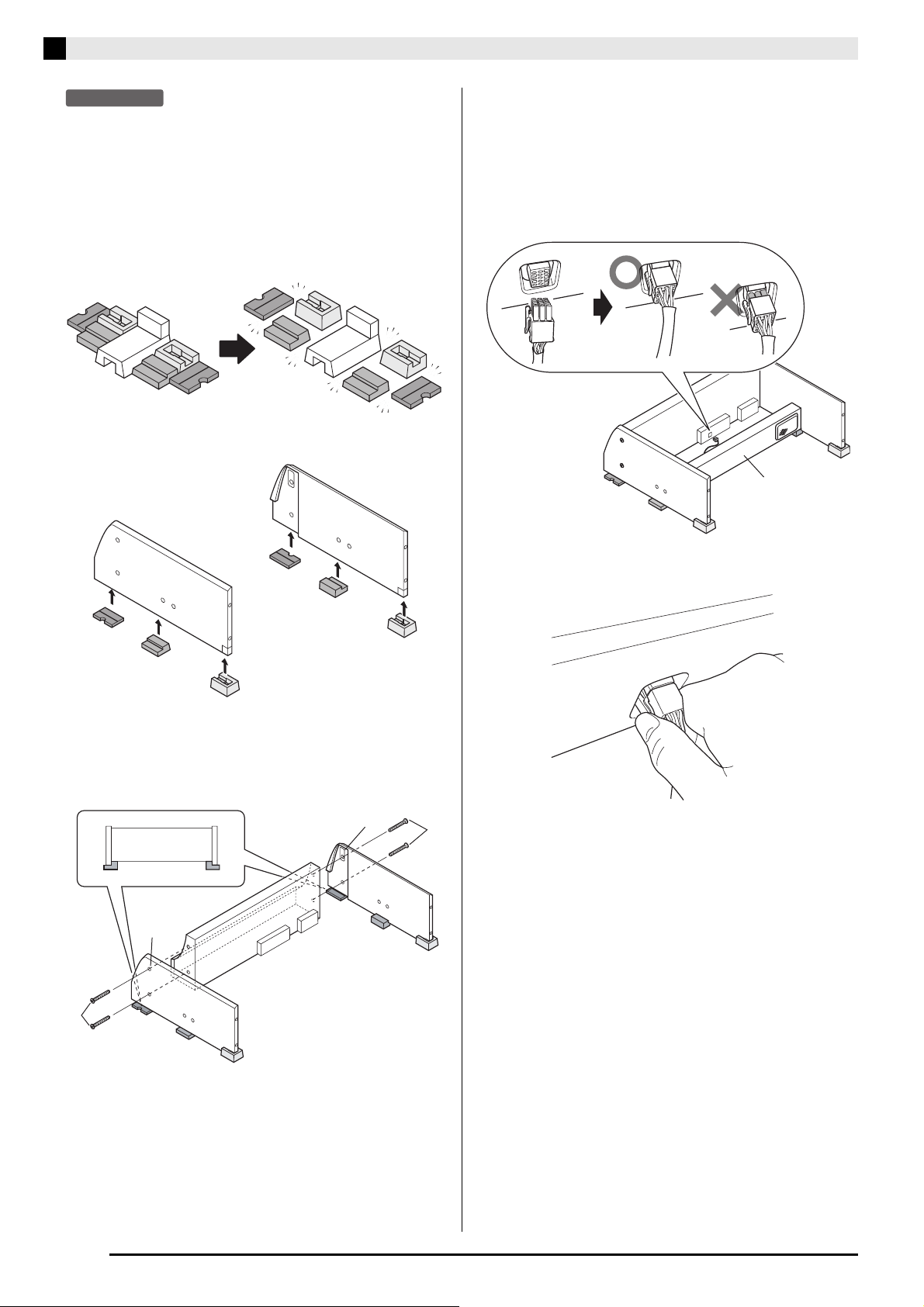

PREPARATION

• Before starting assembly of the stand, divide the

polystyrene foam packing material K into the sections

shown in Figure 1. Use the packing material to secure

side panels A and B as shown in Figure 2. You will have

an easier time assembling the stand if the side panels are

raised as shown in the illustration.

• If you do not have any packing material available for

some reason, use a magazine or some other thick item.

Attach side panels A and B to the digital

piano. Secure the side panels using four

screws D.

Plug the speaker box C cable into the

speaker connector on the bottom of the digital

piano.

• Stand the speaker box C up on its edge as shown in

the illustration when connecting the cable.

• Press the plug fully into the connector as far as it will

go.

• When disconnecting the connector, press the hook as

shown in the illustration below as you pull out.

Figure 1

Figure 2

PX800_e.book 36 ページ２００６年１０月１２日　木曜日　午後１２時５分

Assembling the Stand

E-37

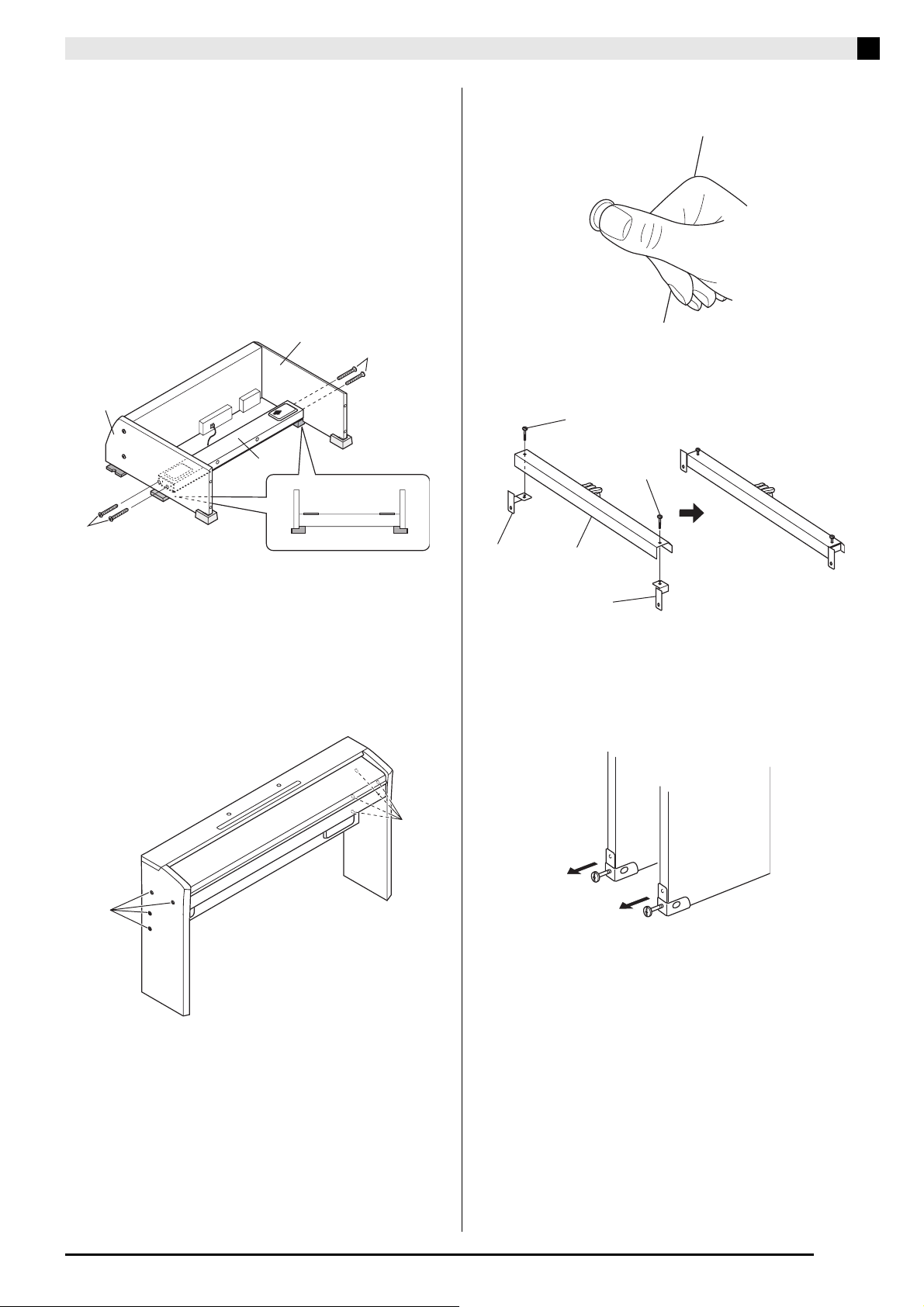

With the speaker box C laying on its side as

shown in the illustration, secure side panels

A and B to the speaker box C. Secure the

side panels using four screws D.

• Align the screw holes of the speaker box C with the

screw holes of the side panels as you install the

screws D.

• Partially tighten the screws on one side of the speaker

box C and then fully tighten the screws on the other

side.

• Next, fully tighten the screws that you partially

tightened.

• You can also install the speaker box C so it faces

towards the back of the stand.

After ensuring that all of the screws are fully

tightened, remove the packing material and

stand up the stand.

• Cover each of the eight side panel screws with screw

caps E.

• Insert screw caps at the locations indicated in the

illustration and press them in as far as they will go.

Attach the brackets I to the pedal unit F,

and temporarily secure them with screws G.

Remove the screws that hold the corner

brackets in place on the back corners (the

corners away from the pianist) of the side

panels.

-(a)

-(b)

PX800_e.book 37 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-38

Assembling the Stand

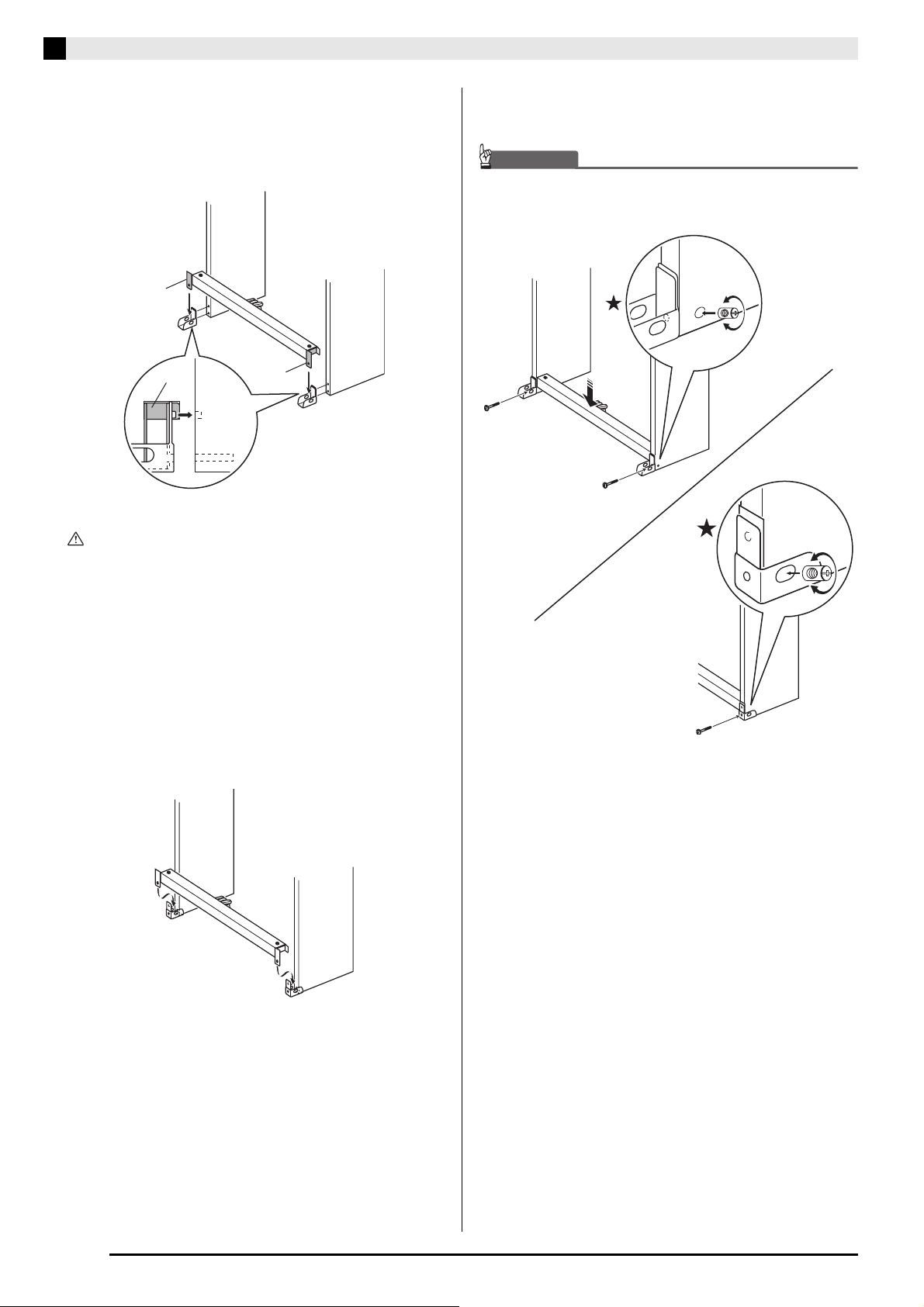

Turn around the corner brackets as shown in

the illustration, and insert them between

pedal unit brackets I

-(a)

and I

-(b)

, and the

edges of the side panels.

WARNING

• The corner brackets help to prevent the stand from

tipping over. Whenever the stand is in a location that is

not up against a wall, reorient the corner brackets as

shown in the illustration. Leaving the corner brackets in

their original orientations can make it easy for the stand

to tip over towards the back, creating the risk of personal

injury.

Locating the Stand against a Wall

Leaving the anti-tipping brackets in their original

orientation, insert the pedal unit brackets between the

anti-tipping brackets and the edges of the side panels.

Secure the corner brackets to the stand using

the screws you removed in step 6.

IMPORTANT!

• When tightening the corner bracket screws, press down

on the pedal unit to ensure that the pedal part comes into

contact with the floor.

• The side panels have joint connectors inside that engage

with the corner bracket screws. If you have trouble

inserting the screws into the joint connector screw holes,

use a screwdriver to rotate the joint connector and adjust

the position of the screw hole for easier access. See the

detail drawing (marked with a star) in the above

illustration.

-(a)

)

PX800_e.book 38 ページ２００６年１０月１２日　木曜日　午後１２時５分

Assembling the Stand

E-39

To tighten the joint connector and screw

(1) Rotate the screw counterclockwise about three

turns to ensure that the screw is in the center of the

joint connector.

(2) Slowly rotate the screw clockwise and confirm that

it tightens without resistance. If you feel any

resistance, it means that the screw is not engaging

properly with the joint connector. Rotate the screw

counterclockwise again and try to get it to engage

properly.

(3) If you experience problems getting the screw to

engage properly, use a screwdriver to rotate the

joint connector 180 degrees. Next perform steps (1)

and (2) again to engage the screw from the screw

hole on the other side.

* Forcibly tightening a screw while it is not engaged

properly can strip the threads of the screw and joint

connector, making them unusable.

Securely tighten the screws G that you

temporarily tightened in step 5.

10.

Cover the screw heads with the caps J.

Orienting the pedal unit plug as shown in the

illustration, plug it into the pedal connector on

the bottom of the digital piano. Secure the

pedal cord with clips H.

• Attach the clips H at two locations to the stand’s side

panel as shown in the illustration.

Connect the speaker power cord that comes

out of the power supply box to the speaker

box.

Check to make sure that the POWER button

is in the OFF position (raised). If power is on,

press the POWER button to turn it off.

To connect cords

Pedal unit plug

Speaker power cord

PX800_e.book 39 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-40

Assembling the Stand

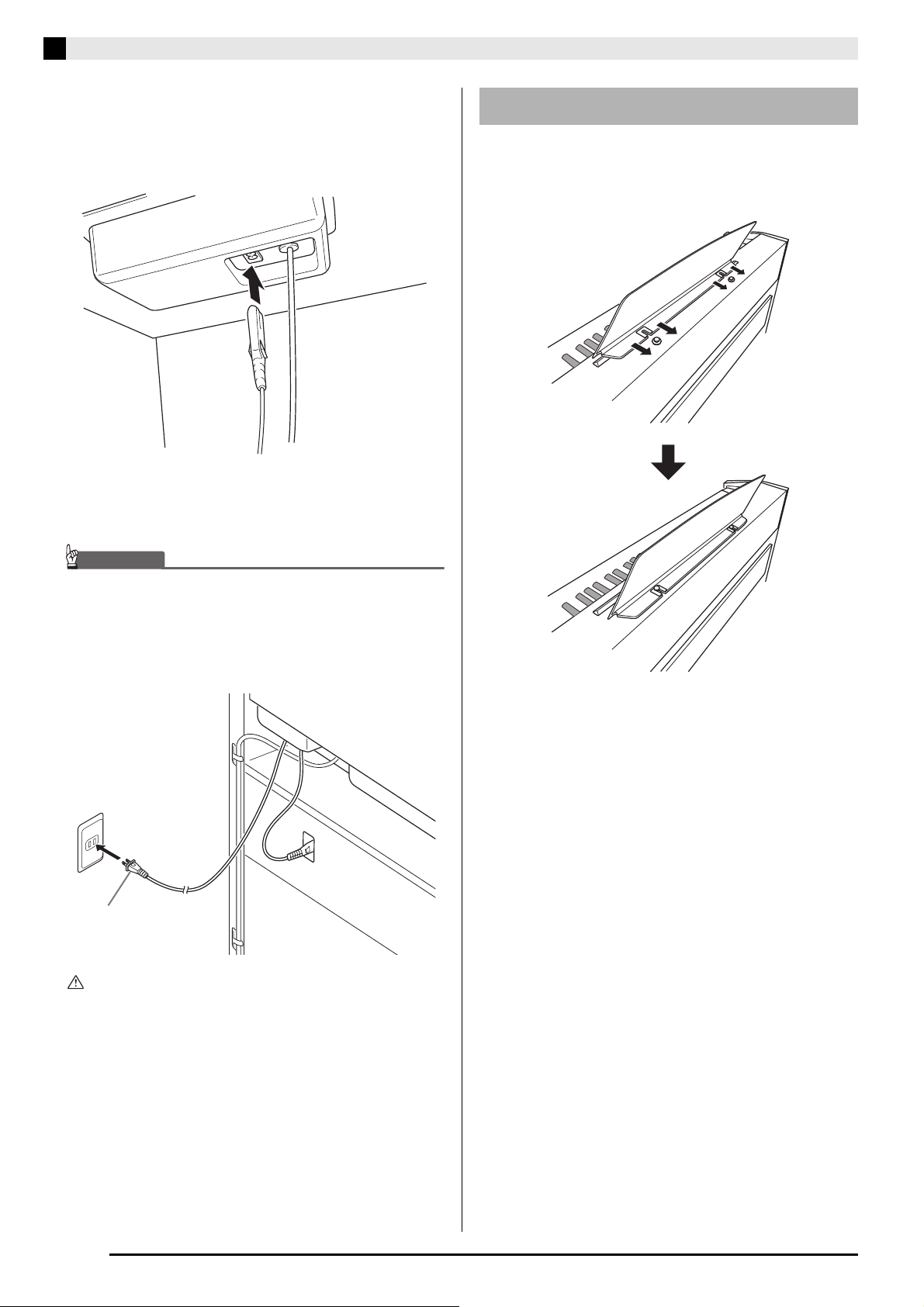

Plug the power cord that comes with the

digital piano into the AC power jack on the

bottom of the digital piano.

* PX-800V only

Plug the power cord into a household power

outlet.

IMPORTANT!

• The shape of the power cord plug and household power

outlet receptacle differ according to country and

geographical area. The illustration shows just one

example of the shapes that are available.

• The power cord of the PX-800 is hard-wired to the digital

piano.

CAUTION

• The screws of the stand can work loose due to the effects

of temperature and humidity changes, vibration, etc.

Because of this, you need to periodically check the

screws for proper tightness. Retighten any loose screws

you find.

• To power the digital piano, use a power outlet that

allows easy access when plugging in or unplugging the

power cord.

Slide the music stand under the two bolts on

the top of the digital piano as shown in the

illustration and then tighten the bolts.

Power plug

To install the music stand

PX800_e.book 40 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-41

Reference

Troubleshooting

Problem Cause Action See Page

No sound is

produced when I

press a keyboard key.

1. The VOLUME controller is set to

“MIN”.

2. Headphones are connected to the

digital piano.

3. MIDI Local Control is turned off.

1. Rotate the VOLUME controller more

towards “MAX”.

2. Unplug the headphones from the

digital piano.

3. Turn on the Local Control setting.

) E-7

) E-6

) E-25

The pitch of the

digital piano is off.

1. The digital piano’s key setting is

something other than “0”.

2. Digital piano tuning is incorrect.

1. Change the key setting to “0”, or turn

digital piano power off and then back

on again.

2. Adjust digital piano tuning, or turn the

digital piano off and then back on

again.

) E-23

No sound is

produced when I try

to play back a built-in

song or a recorded

song.

1. The VOLUME controller is set to

“MIN”.

2. Headphones are connected to the

digital piano.

1. Rotate the VOLUME controller more

towards “MAX”.

2. Unplug the headphones from the

digital piano.

) E-7

) E-6

When I play

something on the

digital piano, my

connected external

MIDI sound source

does not sound.

1. The digital piano’s send channel is

different from the send channel of the

external MIDI sound source.

2. The volume or expression setting of

the external sound source is “0”.

1. Change the send channel settings of

the digital piano and/or the external

MIDI sound source so they are the

same.

2. Adjust the volume and expression

settings of the external sound source.

) E-25

) External

sound

source

user’s guide

No sound is

produced when

playing MIDI data

from a computer.

The USB cable is not connected

correctly.

Check to make sure that the USB cable is

connected correctly.

) E-26

When connected to a

computer over a USB

connection, playing

on the keyboard

produces unnatural

sounds.

The computer’s MIDI THRU function is

turned on.

Turn off MIDI THRU on the computer, or

turn off digital piano Local Control.

) E-25

I can’t store data to

an SD memory card.

1. The SD memory card is write-

protected.

2. The card is not inserted properly into

the SD memory card slot.

3. There is not enough room available on

the SD memory card.

4. The capacity of the SD memory card is

not supported by the digital piano.

5. The SD memory card is damaged.

1. Change the write-protect position to

enable writing.

2. Insert the card properly.

3. Use a different SD memory card.

4. Use an SD memory card with a

supported capacity.

5. Use a different SD memory card.

) E-29

) E-30

) E-29

I can’t load data from

an SD memory card.

1. The card is not inserted properly into

the SD memory card slot.

2. The capacity of the SD memory card is

not supported by the digital piano.

3. The SD memory card is damaged.

4. When the data was copied to the card

from a computer, it was copied to a

folder other than “MUSICDAT”.

1. Insert the card properly.

2. Use an SD memory card with a

supported capacity.

3. Use a different SD memory card.

4. Move the data to the “MUSICDAT”

folder.

) E-30

) E-29

) E-30

PX800_03_e.fm 41 ページ２００６年１０月１２日　木曜日　午後４時４７分

E-42

Reference

Playback stops part

way through while

transferring song

data from my

computer.

Digital noise from the USB cable or power

cord caused data communication your

computer and digital piano to be

interrupted.

Stop song playback, disconnect the USB

cable from the digital piano, and then

reconnect it. Next, try playing back the

song again.

If this does not solve the problem, quit the

MIDI software you are using, disconnect

the USB cable from the digital piano, and

then reconnect it. Next, restart the MIDI

software and then try playing back the

song again.

) E-26

“E-A” appears on the

display immediately

after power is turned

on.

Built-in flash memory is corrupted. Contact your nearest CASIO service

provider.

A tone’s quality and

volume sounds

slightly different

depending where it is

played on the

keyboard.

This is an unavoidable result of the digital sampling process,* and does not indicate malfunction.

* Multiple digital samples are taken for the low range, middle range, and high range of the original

musical instrument. Because of this, there may be a very slight difference in tonal quality and volume

between sample ranges.

Problem Cause Action See Page

PX800_03_e.fm 42 ページ２００６年１０月１２日　木曜日　午後４時４７分

Reference

E-43

All of the items in these specifications apply to the PX-800 and PX-800V, unless specifically noted otherwise.

• Specifications and designs are subject to change without notice.

• The power cord of the PX-800 is hard-wired to the digital piano.

• The power cord of the PX-800V is detachable.

Product Specifications

Model PX-800/PX-800V

Keyboard 88-key piano keyboard, with Touch Response

Maximum Polyphony 128 notes

Tones 162 (with Layer and Split)

Effects DSP, Reverb (4 types), chorus (4 types), Acoustic Resonance, Brilliance (–3 to +3)

Metronome • Beats: 0, 2, 3, 4, 5, 6

• Tempo Range: 20 to 255

Demo Songs • Number of Songs: 72 songs (All-song repeat play)

Music Library • Number of Songs: 60

User Songs: Up to 10 (Up to approximately 3.1 MB; up to approximately 318 KB per song)*

* Based on 1 KB = 1024 bytes, 1 MB = 1024

bytes.

• Song volume: Adjustable

• Part On/Off: L, R

Recorder • Functions: Real-time recording, playback

• Number of Songs: 5

• Number of Tracks: 2

• Capacity: Approximately 50,000 notes total (Up to approximately 10,000 notes per song)

• Recorded Data Protection: Built-in flash memory

Pedals Damper, soft, sostenuto

Other Functions • Touch Select: 3 types, Off

• Transpose: 1 octave (–6 to 0 to 5)

• Tuning: A4 = 440.0 Hz ±50 cents (variable)

MIDI 16-channel multi-timbre receive

SD Memory Card • SD memory card slot

• Supported SD Memory Cards: Up to 1 GB (Larger capacity cards not supported.)

• Functions: SMF playback, data storage, data recall, card format

Inputs/Outputs • PHONES jack: Stereo standard jacks × 2

Output impedance: 30

Ω

Output Voltage: 2.0V (RMS) MAX

• MIDI OUT/IN terminals

• LINE OUT R, L/MONO jacks: Standard jacks × 2

Output impedance: 1.1

Ω

Output Voltage: 2.2V (RMS) MAX

• USB port: Type B

• Pedal connector

Speakers

12cm × 2 +

5cm × 2 (Output 20W + 20W)

Power Requirements PX-800: 120V

PX-800V: 220-240V

Power Consumption PX-800: 60W

PX-800V: 60W

Dimensions Digital Piano and Stand: 143.6 (W) × 29.8 (D) × 79.6 (H) cm (56

× 11

× 31

inch)

Weight Digital Piano and Stand: approximately 41.0 kg (90.3 lbs)

PX800_e.book 43 ページ２００６年１０月１２日　木曜日　午後１２時５分

E-44

Reference

Be sure to read and observe the following operating

precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high

humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of

the product, but interference from the product can

cause audio or video interference of a nearby

device.

■ User Maintenance

• Never use benzene, alcohol, thinner, or other

chemical agents to clean the product.

• To clean the product or its keyboard, wipe with a

soft cloth moistened in a weak solution of water

and a mild neutral detergent. Wring all excess

moisture from the cloth before wiping.

■ Included and Optional Accessories

Use only accessories that are specified for use with

this product. Use of unauthorized accessories creates

the risk of fire, electric shock, and personal injury.

■ Weld Lines

Lines may be visible on the exterior of the product.

These are “weld lines” that result from the plastic

molding process. They are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever

using this product. Be especially careful when

playing late at night to keep the volume at levels that

do not disturb others. Other steps you can take when

playing late at night are closing the window and

using headphones.

• Any reproduction of the contents of this manual,

either in part or its entirety, is prohibited. Except

for your own, personal use, any other use of the

contents of this manual without the consent of

CASIO is prohibited under copyright laws.

• IN NO EVENT SHALL CASIO BE LIABLE FOR

ANY DAMAGES WHATSOEVER (INCLUDING,

WITHOUT LIMITATION, DAMAGES FOR LOSS

OF PROFITS, BUSINESS INTERRUPTION, LOSS

OF INFORMATION) ARISING OUT OF THE USE

OF OR INABILITY TO USE THIS MANUAL OR

PRODUCT, EVEN IF CASIO HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

• The contents of this manual are subject to change

without notice.

Operating Precautions

PX800_e.book 44 ページ２００６年１０月１２日　木曜日　午後１２時５分

A-1

Appendix/Apéndice

Tone List/Lista de tonos

No./

Tone Name/

Nombre de tonos

Program

Change/

Cambio de

programa

Bank Select

MSB

MSB de

selección

de banco

Maximum

Polyphony

/Polifonía

máxima

DSP

01 GRAND PIANO 0 48 64 —

02 GRAND PIANO 2 0 49 128 —

03 GRAND PIANO 3 1 48 64 —

04 ELEC PIANO 1 4 48 128 Enhancer

05 ELEC PIANO 2 5 49 64 3Band EQ

06 ELEC PIANO 3 5 48 128 Enhancer

07 HARPSICHORD 6 48 128 3Band EQ

08 VIBRAPHONE 11 48 128 Tremolo

09 PIPE ORGAN 19 49 128 —

10 PERC ORGAN 17 48 64 Rotary

11 STRINGS 49 48 128 3Band EQ

12 ACOUSTIC BASS 32 48 128 3Band EQ

Various

001 MELLOW PIANO 0 50 64 —

002 ROCK PIANO 1 49 128 —

003 DANCE PIANO 1 50 128 —

004 MODERN PIANO 1 51 64 —

005 PIANO PAD 0 51 64 —

006 HONKY-TONK 3 48 64 —

007 OCTAVE PIANO 3 49 64 —

008 DYNO ELEC.PIANO 4 49 128 Auto Pan

009 POP ELEC.PIANO 4 50 64 Tremolo

010 E.GRAND 80 2 48 128 —

011 CLAVI 7 48 128 Enhancer

012 CHURCH ORGAN 19 48 64 —

013 DRAWBAR ORGAN 16 48 128 Rotary

014 ROCK ORGAN 16 49 128

Drive

Rotary

015 STEEL STR.GUITAR 25 48 128 —

016 SYNTH-STRINGS 50 48 128 3Band EQ

017 CHOIR 52 48 64 —

018SYNTH-PAD 904864—

019 FANTASY 88 48 64 —

020 NEW AGE 88 49 64 3Band EQ

021 GM PIANO 1 0 0 128 —

022 GM PIANO 2 1 0 128 —

023 GM PIANO 3 2 0 128 —

024 GM HONKY-TONK 3 0 64 —

025 GM E.PIANO 1 4 0 128 —

026 GM E.PIANO 2 5 0 128 —

027 GM HARPSICHORD 6 0 128 —

028 GM CLAVI 7 0 128 —

029 GM CELESTA 8 0 128 —

030 GM GLOCKENSPIEL 9 0 128 —

031 GM MUSIC BOX 10 0 64 —

032 GM VIBRAPHONE 11 0 128 —

033 GM MARIMBA 12 0 128 —

034 GM XYLOPHONE 13 0 128 —

035 GM TUBULAR BELL 14 0 128 —

036 GM DULCIMER 15 0 64 —

037 GM ORGAN 1 16 0 128 —

038 GM ORGAN 2 17 0 64 —

039 GM ORGAN 3 18 0 64 —

040 GM PIPE ORGAN 19 0 64 —

041 GM REED ORGAN 20 0 128 —

042 GM ACCORDION 21 0 64 —

043 GM HARMONICA 22 0 128 —

044 GM BANDONEON 23 0 64 —

045

GM NYLON

STR.GUITAR

24 0 128 —

046

GM STEEL

STR.GUITAR

25 0 128 —

047 GM JAZZ GUITAR 26 0 128 —

048 GM CLEAN GUITAR 27 0 128 —

049 GM MUTE GUITAR 28 0 128 —

050 GM OVERDRIVE GT 29 0 64 —

051 GM DISTORTION GT 30 0 64 —

052 GM GT HARMONICS 31 0 128 —

053 GM ACOUSTIC BASS 32 0 128 —

054 GM FINGERED BASS 33 0 128 —

055 GM PICKED BASS 34 0 128 —

056 GM FRETLESS BASS 35 0 128 —

057 GM SLAP BASS 1 36 0 128 —

058 GM SLAP BASS 2 37 0 128 —

059 GM SYNTH-BASS 1 38 0 64 —

060 GM SYNTH-BASS 2 39 0 128 —

061 GM VIOLIN 40 0 128 —

062 GM VIOLA 41 0 128 —

063 GM CELLO 42 0 128 —

064 GM CONTRABASS 43 0 128 —

065

GM TREMOLO

STRINGS

44 0 128 —

066 GM PIZZICATO 45 0 128 —

067 GM HARP 46 0 128 —

068 GM TIMPANI 47 0 128 —

069 GM STRINGS 1 48 0 128 —

070 GM STRINGS 2 49 0 128 —

071

GM SYNTH-

STRINGS 1

50 0 128 —

072

GM SYNTH-

STRINGS 2

51 0 128 —

073 GM CHOIR AAHS 52 0 128 —

074 GM VOICE DOO 53 0 128 —

075 GM SYNTH-VOICE 54 0 128 —

076

GM ORCHESTRA

HIT

55 0 64 —

077 GM TRUMPET 56 0 128 —

078 GM TROMBONE 57 0 128 —

079 GM TUBA 58 0 128 —

080 GM MUTE TRUMPET 59 0 128 —

081 GM FRENCH HORN 60 0 64 —

082 GM BRASS 61 0 128 —

083 GM SYNTH-BRASS 1 62 0 64 —

084 GM SYNTH-BRASS 2 63 0 64 —

085 GM SOPRANO SAX 64 0 128 —

086 GM ALTO SAX 65 0 128 —

087 GM TENOR SAX 66 0 128 —

088 GM BARITONE SAX 67 0 128 —

089 GM OBOE 68 0 128 —

090 GM ENGLISH HORN 69 0 128 —

091 GM BASSOON 70 0 128 —

092 GM CLARINET 71 0 128 —

093 GM PICCOLO 72 0 128 —

094 GM FLUTE 73 0 128 —

095 GM RECORDER 74 0 128 —

096 GM PAN FLUTE 75 0 128 —

097 GM BOTTLE BLOW 76 0 128 —

098 GM SHAKUHACHI 77 0 64 —

No./

Tone Name/

Nombre de tonos

Program

Change/

Cambio de

programa

Bank Select

MSB

MSB de

selección

de banco

Maximum

Polyphony

/Polifonía

máxima

DSP

PX800_s.book 1 ページ２００６年１０月１７日　火曜日　午後４時３３分

A-2

Appendix/Apéndice

NOTE

• “I” : indicates the same sound as STANDARD SET.

NOTA

• “I” : indica el mismo sonido que STANDARD SET.

099 GM WHISTLE 78 0 128 —

100 GM OCARINA 79 0 128 —

101 GM SQUARE LEAD 80 0 64 —

102

GM SAWTOOTH

LEAD

81 0 64 —

103 GM CALLIOPE 82 0 64 —

104 GM CHIFF LEAD 83 0 64 —

105 GM CHARANG 84 0 64 —

106 GM VOICE LEAD 85 0 64 —

107 GM FIFTH LEAD 86 0 64 —

108 GM BASS+LEAD 87 0 64 —

109 GM FANTASY 88 0 64 —

110 GM WARM PAD 89 0 128 —

111 GM POLYSYNTH 90 0 64 —

112 GM SPACE CHOIR 91 0 64 —

113 GM BOWED GLASS 92 0 64 —

114 GM METAL PAD 93 0 64 —

115 GM HALO PAD 94 0 64 —

116 GM SWEEP PAD 95 0 128 —

117 GM RAIN DROP 96 0 64 —

118 GM SOUND TRACK 97 0 64 —

119 GM CRYSTAL 98 0 64 —

120 GM ATMOSPHERE 99 0 64 —

121 GM BRIGHTNESS 100 0 64 —

122 GM GOBLINS 101 0 64 —

123 GM ECHOES 102 0 128 —

124 GM SF 103 0 64 —

125 GM SITAR 104 0 128 —

126 GM BANJO 105 0 128 —

127 GM SHAMISEN 106 0 128 —

128 GM KOTO 107 0 128 —

129 GM THUMB PIANO 108 0 128 —

130 GM BAGPIPE 109 0 64 —

131 GM FIDDLE 110 0 128 —

132 GM SHANAI 111 0 128 —

133 GM TINKLE BELL 112 0 128 —

134 GM AGOGO 113 0 128 —

135 GM STEEL DRUMS 114 0 64 —

136 GM WOOD BLOCK 115 0 128 —

137 GM TAIKO 116 0 128 —

138 GM MELODIC TOM 117 0 128 —

139 GM SYNTH-DRUM 118 0 128 —

140

GM REVERSE

CYMBAL

119 0 128 —

141 GM GT FRET NOISE 120 0 128 —

142 GM BREATH NOISE 121 0 128 —

143 GM SEASHORE 122 0 64 —

144 GM BIRD 123 0 64 —

145 GM TELEPHONE 124 0 128 —

146 GM HELICOPTER 125 0 128 —

147 GM APPLAUSE 126 0 64 —

148 GM GUNSHOT 127 0 128 —

Drum Sets

149 STANDARD SET 0 120 128 —

150 BRUSH SET 40 120 128 —

No./

Tone Name/

Nombre de tonos

Program

Change/

Cambio de

programa

Bank Select

MSB

MSB de

selección

de banco

Maximum

Polyphony

/Polifonía

máxima

DSP

Drum Assignment List/

Lista de sonidos de batería

STANDARD SET

BRUSH SET

HIGH Q

SLAP

SCRATCH PUSH

SCRATCH PULL

STICKS

SQUARE CLICK

METRONOME CLICK

METRONOME BELL

STANDARD 1 KICK 2

STANDARD 1 KICK 1

SIDE STICK

STANDARD 1 SNARE 1

HAND CLAP 1

STANDARD 1 SNARE 2

LOW TOM 2

CLOSED HI-HAT

LOW TOM 1

PEDAL HI-HAT

MID TOM 2

OPEN HI-HAT

MID TOM 1

HIGH TOM 2

CRASH CYMBAL 1

HIGH TOM 1

RIDE CYMBAL 1

CHINESE CYMBAL

RIDE BELL

TAMBOURINE 1

SPLASH CYMBAL

COWBELL

CRASH CYMBAL 2

VIBRA-SLAP

RIDE CYMBAL 2

HIGH BONGO

LOW BONGO

MUTE HIGH CONGA

OPEN HIGH CONGA

LOW CONGA

HIGH TIMBALE

LOW TIMBALE

HIGH AGOGO

LOW AGOGO

CABASA

MARACAS

SHORT HI WHISTLE

LONG LOW WHISTLE

SHORT GUIRO

LONG GUIRO

CLAVES

HIGH WOOD BLOCK

LOW WOOD BLOCK

MUTE CUICA

OPEN CUICA

MUTE TRIANGLE

OPEN TRIANGLE

SHAKER

JINGLE BELL

BELL TREE

CASTANETS

MUTE SURDO

OPEN SURDO

APPLAUSE

APPLAUSE 2



BRUSH KICK 2

BRUSH KICK 1

BRUSH SIDE STICK

BRUSH TAP

BRUSH SLAP

BRUSH SWIRL



BRUSH CRASH CYMBAL 1



BRUSH RIDE CYMBAL 1



BRUSH RIDE BELL

TAMBOURINE 2

BRUSH SPLASH CYMBAL



BRUSH CRASH CYMBAL 2



BRUSH RIDE CYMBAL 2



Key/Note Number

Número de clave/nota

PX800_s.book 2 ページ２００６年１０月１７日　火曜日　午後４時３３分

Appendix/Apéndice

A-3

Song List/Lista de canciones

No./Nº Song Name/Nombre de canciones

01 Nocturne Op.9-2

02 Fantaisie-Impromptu Op.66

03 Étude Op.10-3 “Chanson de l’adieu”

04 Étude Op.10-5 “Black Keys”

05 Étude Op.10-12 “Revolutionary”

06 Étude Op.25-9 “Butterflies”

07 Prélude Op.28-7

08 Valse Op.64-1 “Petit Chien”

09 Valse Op.64-2

10 Moments Musicaux 3

11 Impromptu Op.90-2

12 Marche Militaire 1 (Duet)

13 Frühlingslied [Lieder Ohne Worte Heft 5]

14 Fröhlicher Landmann [Album für die Jugend]

15 Von fremden Ländern und Menschen [Kinderszenen]

16 Träumerei [Kinderszenen]

17 Tambourin

Menuet BWV Anh.114 [Clavierbüchlein der Anna Magdalena

Bach]

19 Inventio 1 BWV 772

20 Inventio 8 BWV 779

21 Inventio 13 BWV 784

22 Praeludium 1 BWV 846 [Das Wohltemperierte Klavier 1]

23 Le Coucou

24 Gavotte

25 Sonatina Op.36-1 1st Mov.

26 Sonatine Op.20-1 1st Mov.

27 Sonate K.545 1st Mov.

28 Sonate K.331 3rd Mov. “Turkish March”

29 Rondo K.485

30 Für Elise

31 Marcia alla Turca

32 Sonate Op.13 “Pathétique” 1st Mov.

33 Sonate Op.13 “Pathétique” 2nd Mov.

34 Sonate Op.13 “Pathétique” 3rd Mov.

35 Sonate Op.27-2 “Moonlight” 1st Mov.

36 Rhapsodie 2

37 Waltz Op.39-15 (Duet)

38 Liebesträume 3

39 Blumenlied

40 La Prière d’une Vierge

41 Csikos Post

42 Humoresque Op.101-7

43 Melodie [Lyrische Stücke Heft 2]

44 Sicilienne Op.78

45 Berceuse [Dolly] (Duet)

46 Arabesque 1

47 La Fille aux Cheveux de Lin [Préludes]

48 Passepied [Suite bergamasque]

49 Gymnopédie 1

50 Je Te Veux

51 Salut d’Amour

52 The Entertainer

53 Maple Leaf Rag

54 L’arabesque [25 Etüden Op.100]

55 La Styrienne [25 Etüden Op.100]

56 Ave Maria [25 Etüden Op.100]

57 Le retour [25 Etüden Op.100]

58 La chevaleresque [25 Etüden Op.100]

59 No.13 [Études de Mécanisme Op.849]

60 No.26 [Études de Mécanisme Op.849]

61 - 70 User area songs/Canciones del área de usuario

PX800_s.book 3 ページ２００６年１０月１７日　火曜日　午後４時３３分

Function... Transmitted Recognized Remarks

Basic

Channel

1 - 16

Default

Changed

Note

Number

21 - 108 0 - 127

0 - 127

1True voice

Program

Change

0 - 127

:True #

After

Touch

Control

Change

Pitch Bender

System Exclusive

Key’s

Ch’s

Velocity

9nH v = 1 - 127

8nH v = 64

9nH v = 1 - 127

9nH v = 0.8nH V =

Note ON

Note OFF

Mode

Mode 3

Default

Messages

Altered

System

Common

: Song Pos

: Song Sel

: Tune

Aux

Messages

Remarks

: Local ON/OFF

: All notes OFF

: Active Sense

: Reset

System

Real Time

: Clock

: Commands

0,32

6, 38

100, 101

120

121

Bank select

Modulation

Data entry

Volume

Pan

Expression

DSP Parameter0

DSP Parameter1

DSP Parameter2

DSP Parameter3

Damper

Sostenuto

Soft pedal

Vibrato rate

Vibrato depth

Vibrato delay

DSP Parameter4

DSP Parameter5

DSP Parameter6

DSP Parameter7

Reverb send

Chorus send

RPN LSB, MSB

All sound off

Reset all controller

Model PX-800 Version : 1.0

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O : Yes

X : No

*4, *5

MIDI Implementation Chart

*1: Depends on tone

*1: Depende del tono.

**:no relation

**: sin relación

*2 : For details, see MIDI Implementation at http://world.casio.com/.

*2 : Si desea más información, vea Implementación MIDI en http://world.casio.com/

*3 : Pitch Bend Sensitivity, Fine Tune, Coarse Tune, Modulation Depth, Null

*3 : Sensibilidad de inflexión de tono, afinación precisa, afinación poco precisa, profundidad de modulación, nulo

*4 : Universal Real-time Exclusive Messages: Master Volume, Master Balance, Master Fine Tuning, Master Coarse Tuning, Reverb Parameter,

Chorus Parameter, GM System Message

*4 : Mensajes exclusivos de sistemas universales en tiempo real: Volumen maestro, balance maestro, afinación precisa maestra, afinación

poco precisa maestra, parámetro de reverberación, parámetro de coro, mensaje de sistema GM

*5 : This model’s System Exclusive Message

• For details about footnotes 3 through 5, see MIDI Implementation at http://world.casio.com/

*5 : Mensaje exclusivo del sistema de este modelo

• Si desea más información sobre los pies de página, vea Implementación MIDI en http://world.casio.com/

This recycle mark indicates that the packaging conforms to

the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se

ajusta a la legislación de protección ambiental en Alemania.

MA0706-B Printed in China

PX800ES1B
