WARNING:Failuretoreadandfollowthesewarningsandinstructionsmay resultinseriousinjury,includingdamaged
property,sopleasepaycloseattentionandexhibittheutmostcare.
•TheDigitalBackupCameraisdesignedasanaidtothedriverindetectingpotentiallyhazardousdrivingconditions,
obstructions,andlargestationaryobjects.You,thedriver,mustalsoremembertodrivesafelyandproperly.Useofthe
DigitalBackupCameraisnotasubstituteforsafe,properandlegaldrivingpractices.
•Neverbackupwhilelookingonlyatthescreen.Youshouldalwayscheckbehindandaround
thevehiclewhenbacking
upjustasyouwouldifthevehicledidnothavetheDigitalBackupCamera.Alwaysmakesureyourdrivingareaisclear.
Alwaysbackupslowlyandwithcaution.
•NeverdependontheBackupCameraentirelywhenbackingup.Theimageonthescreen
isdifferentfromactualand
realͲtimeconditions.ObjectsviewedintherearviewmonitordifferfromactualdistancesbecauseawideͲanglelensis
used.Sousethecameraasanaidandalwaysfollowintendeddrivingpracticestoproperlyjudgedistancesfromobjects.
•TheBackupCamera'sassistedlow
luxlightingperformancefeatureisalsoanaidtoadriver.Alwaysuseyourowneyes
toconfirmthevehicle’ssurroundings,asthedisplayedimagemaybenotwelllitornotentirelyvisible.Alwaysproceed
withcautionandperformdoubleͲchecksbeforeproceeding.
•Theareadisplayedbythe
BackupCameraislimited.Itdoesnotdisplayobjectsthatareclosetoorjustbelowthe
bumper,underneaththevehicle,orobjectsoutofthecamera’sview.Thecamera'sviewcanchangeaccordingtoyour
vehicle'sorientationontheroadorchangingroadconditions.
•Besuretoalways
checkthecameraisproperlyfunctioning,isproperlypositionedandsecurelymounted.
•Makesureyourtrunkorhatchoperatescorrectly,asintended,beforeand afterinstallation.
•Proceedwithcautionwhencleaningyourvehiclearoundthecamera.Avoidexcesswaterexposurearoundthecamera
especiallywithsprayingora
powerwasher.
•Pleasemakesuretokeepthecameracleanandunobstructedfromanydebris
•Followalltrafficlawsandmotorvehicleregulations.
•Consultlocallawsandregulationsforanyrestrictionsoninstallationoruse.
•UsingaBackupCameraSystemisnotadequateenoughto
completelyeliminateavehicle’sblindspot.Alwaysremember
todrivewithcaution,followingalltrafficlaws.
Pleasereadalloftheinstallation instructionscarefullybeforeinstalling the product.Improperinstallation willvoid
manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as
guidelines to assist in installing the system.Please consult an experienced technician if you are not comfortable
installing
the product.Prior to usingandinstallingtheBackup CameraSystem,pleasereadthe safetyinformation
providedinthisusermanual.Besuretousetheproductasoutlinedinthisusermanual.Altercationormodifications
carriedoutwithoutappropriateauthorizationmayinvalidatetheuser'srighttooperatetheequipment.
SystemInstallationandWiring
CameraSysteminstallationondieselvehiclesmayrequireaslightlydifferentwiring install.Theseinstallationinstructionsdonotapply
toalltypesofvehicles.Theyaremeantonlyasageneralguideduetothelargenumberofvehiclemakesandmodels.Consultyour
localmotorvehiclelawsontheuse
ofthisproducttobesureitispermitted.Throughinstallationofthisbackupcamerasystem,you
shouldbesureastonotdegrade,damageor compromise the safety ofanysystemordeviceonyourvehicle.Improper installation
and wiring of the vehicle backͲup camera system may damage
the vehicle's electrical system, including vital vehicle computer and
operating systems. That could lead to an accident or fire, causing property damage and /or serious personal injury. It is highly
recommendedtoseekprofessionalinstallationadvicefromaqualifiedautoelectricianor,inthealternative,tohavetheinstallation
performedby
aqualifiedautoelectrician.
PleaseensurethatyourmonitorissecuredandmountedwhereitwouldNOTobstructanyOEMvehiclesafetyfeatures.Inaneventof
anaccident,manufacturerisnotresponsibleforbodilyinjury caused bythemonitor being a projectile. Select location for mounting
the monitor in
desired location. Ensure monitor location will not obstruct your vision while driving. The manufacturer assumes no
liabilityfordamagecausedtoyourvehicleduetoimproperinstallationoruse.
QuickInstallation:
Thebackupcamerasystemiscompatiblewithawiderangeofvehiclesandvideodisplaymonitors.
Thiskitincludesnecessarywiringandcableconnectoraccessoriessufficient fortypicalconnections.However,
additional accessory cables and installation materials may be necessary for a completely secure and
operationalbackupcameraperformance.

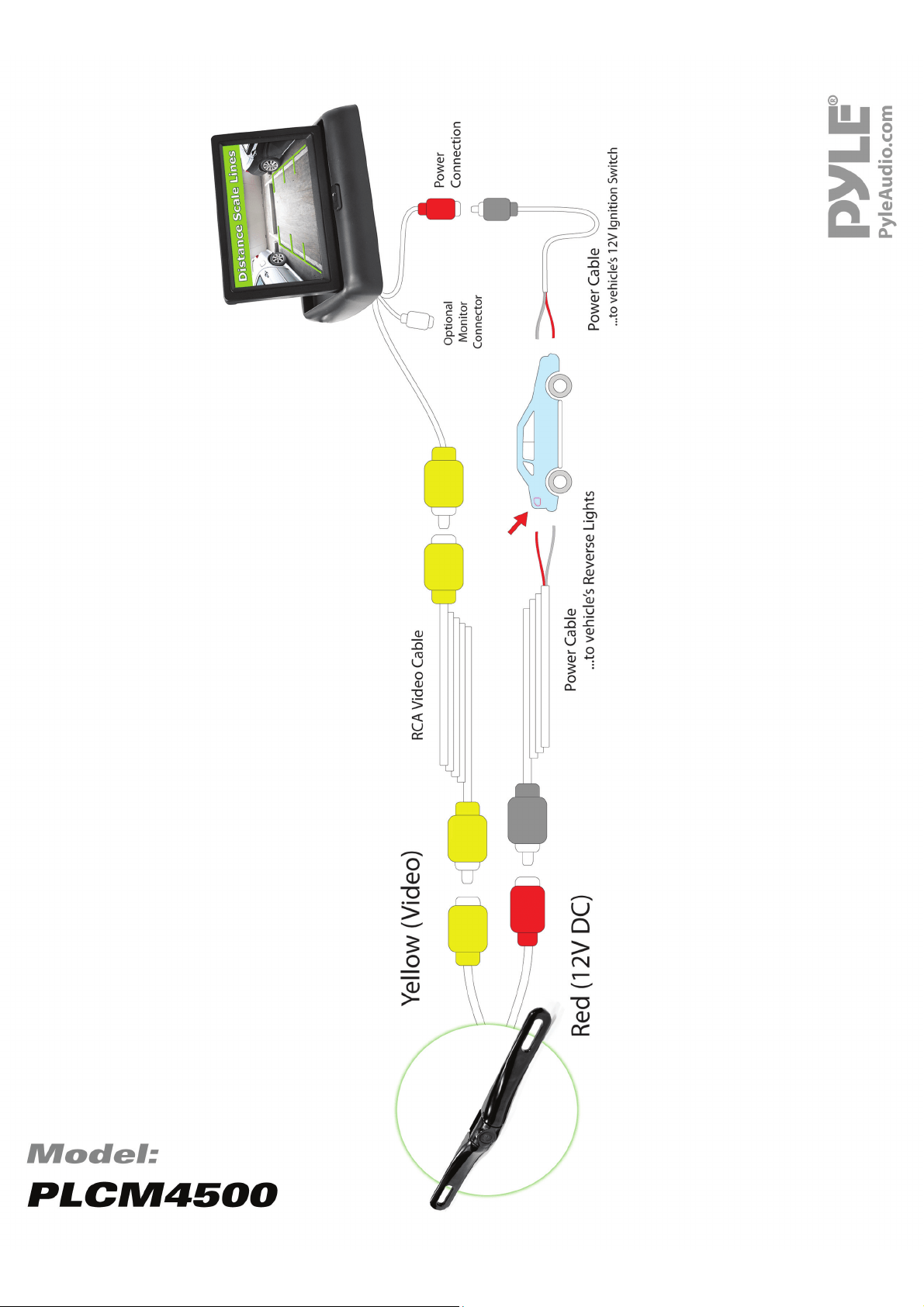

Connectthecamera,usingtheredcable,oftheDC12Vpowercable,tothepositive12Vreversetaillightinthe
rearofyourcar.Youmayneedtotemporarilyremoveaninteriorpanelorothercover.Then,connecttheblack
wire,oftheDC12Vpowercable,andground
properly.Thisconnectedpowerandgroundcableconnectstothe
camera,andwillsupplypowertothecameradirectly.(Redwireispositive,blackwireisnegative)
ThenusetheincludedyellowRCAvideoconnectorcable,andrunthatcabletotheyellowRCAvideoconnector
jackofthecamera,
totheRCAvideoconnectorofacompatiblevideodisplaymonitor.
Connectthemonitor,usingtheredcable,oftheDC12Vpowercabletoyourvehicle'sfusepanel
(preferablyto
the12Vignitionswitch)
Ͳwhichwillonlybepoweredwhenyourvehicleison,oractivatedbykey.Thenconnect
theblackwire,oftheDC12Vinput,andgroundproperly.Thisconnectionwillsupplypowertothemonitor
directly.
ͲDeterminethebestlocationforthecamera(Thecameraispreferablymountedjustabovethelicenseplate).
Ͳ Be sure when running the connection cables to leave a small amount of slack so you can still move the camera around the license
plate,ifyoudecidetoslightlyadjustthe
camera'spositioningatalatertime.
Ͳ After installation test the camera before use. Placing your vehicle in reverse should provide a picture in the monitor within the
rearviewmirrorassembly.
Mountthecamerainthedesiredlocation,thenconnecttheincludedRCAvideocable,fromthecamera,andrunthe
cablethroughto
yourvideodisplay'sRCAconnection.Makesuretorouteallcablesandwiringintheleastobtrusiveroutepossibleastoavoidconflict
withothervehiclecircuitryandtoensureasafeandstableinstallation/connection.
Caution:Thisunitisdesignedtooperateona12V/24VDCNEGATIVEGROUNDelectricalsystems.Connectingtoothertypesofelectrical
systemswillcausedamagetoyourvehicle.Pleasecontactthemanufacturerifyouareunawareofthesystemtypeinyourvehicle.
