User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 3
1.5 Conformity..................................................................... 4
2 General safety instructions.................................. 4
3 Putting into operation........................................... 6
3.1 Switching on appliance............................................... 6
3.2 Inserting the components.......................................... 6
4 Foods management............................................... 6
4.1 Storing food.................................................................. 6
4.2 Storage times............................................................... 7
5 Saving energy........................................................ 7
6 Controls................................................................. 7
6.1 Controls and displays.................................................. 7
6.1.1 Status display..............................................................7
6.1.2 Navigation.................................................................... 7
6.1.3 Display symbols..........................................................8
6.2 Control concept............................................................ 8
6.2.1 Activating/deactivating the function..................... 8
6.2.2 Selecting function value........................................... 8
6.2.3 Activating/deactivating settings.............................8
6.2.4 Selecting the setting value.......................................8
6.2.5 Go to the Customer menu......................................... 9
6.3 Functions....................................................................... 9
Turn off appliance.......................................................9
WiFi.............................................................................. 9
Temperature...............................................................10
SuperFrost.................................................................10
PartyMode.................................................................. 10
SabbathMode........................................................... 10
EnergySaver............................................................... 11
IceMaker / MaxIce.....................................................11
Ice cubes.....................................................................11
TubeClean................................................................... 11
Display brightness.....................................................11
Door alarm..................................................................12
Entry lock....................................................................12
Language....................................................................12
Info...............................................................................12
Reminder.....................................................................12
Reset........................................................................... 12
6.4 Fault messages............................................................ 12
6.4.1 Warnings.................................................................... 12
6.4.2 Message......................................................................13
6.4.3 DemoMode................................................................. 13
7 Features................................................................. 13
7.1 Drawers.......................................................................... 13
7.2 Pull-out board with IceTower..................................... 14
7.3 Glass shelves................................................................ 16
7.4 IceMaker........................................................................ 17
7.5 VarioSpace.................................................................... 17
7.6 Accessories................................................................... 17
8 Maintenance.......................................................... 17
8.1 Disassembling / assembling pull-out systems...... 17
8.2 Defrosting the appliance............................................ 20
8.3 Cleaning the appliance............................................... 20
9 Customer help....................................................... 21
9.1 Technical specifications............................................. 21
9.2 Operating noises.......................................................... 21
9.3 Technical fault.............................................................. 21
9.4 Customer Services....................................................... 23
9.5 Model plate................................................................... 23
10 Shutting down....................................................... 23
11 Disposal................................................................. 23
11.1 Preparing appliance for disposal.............................. 23
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 23
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front
of these instruction or by entering the
service number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig. Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
2 * Depending on model and options
Symbol Explanation
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
SIFNh 51..
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for damage during transport. If you have
any complaints, please contact your retailer or Customer
Services (see 9.4 Customer Services) .
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
User Guide
-
Installation Guide

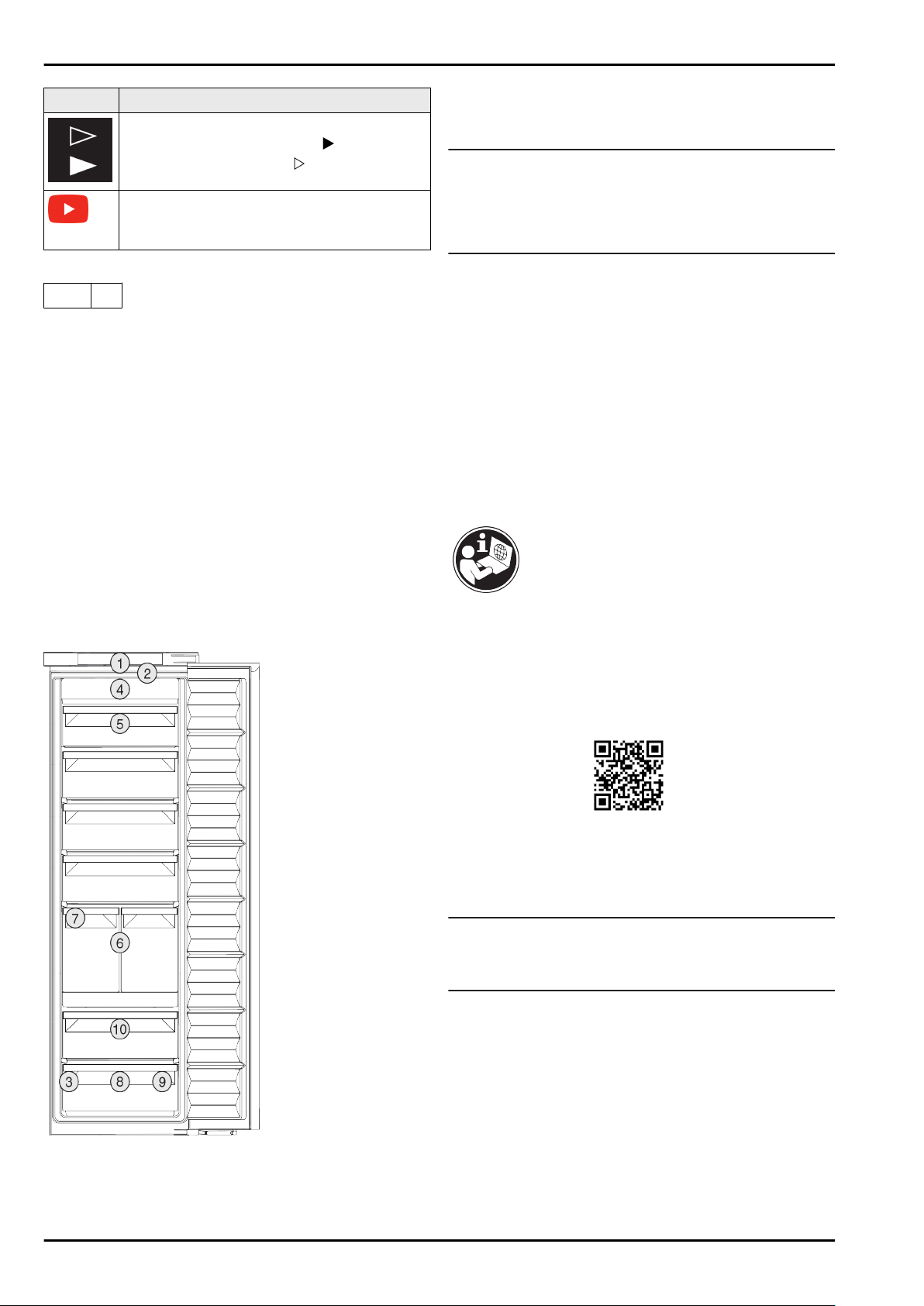

1.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
Equipment
(1)
Controls (6) IceTower
(2) Lighting (7) IceMaker
(3) Serial tag (8) Freezer tray, cold storage
accumulator
(4) NoFrost (9) Ice cube scoop
(5) Tilting drawer (10) VarioSpace
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice-app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see WiFi) .
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
Appliance at a glance
* Depending on model and options 3
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high
humidity
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C
1.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2 General safety instructions
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only install, connect and dispose of the
appliance according to the instructions.
-
Only use the appliance when is installed.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.
-
The manufacturer is not liable for damage
caused by a faulty fixed water connection.
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
General safety instructions
4 * Depending on model and options
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
-
WARNING: Do not damage the refrigerant
circuit.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
-
Danger of tipping if the door is opened
before the appliance is properly installed.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

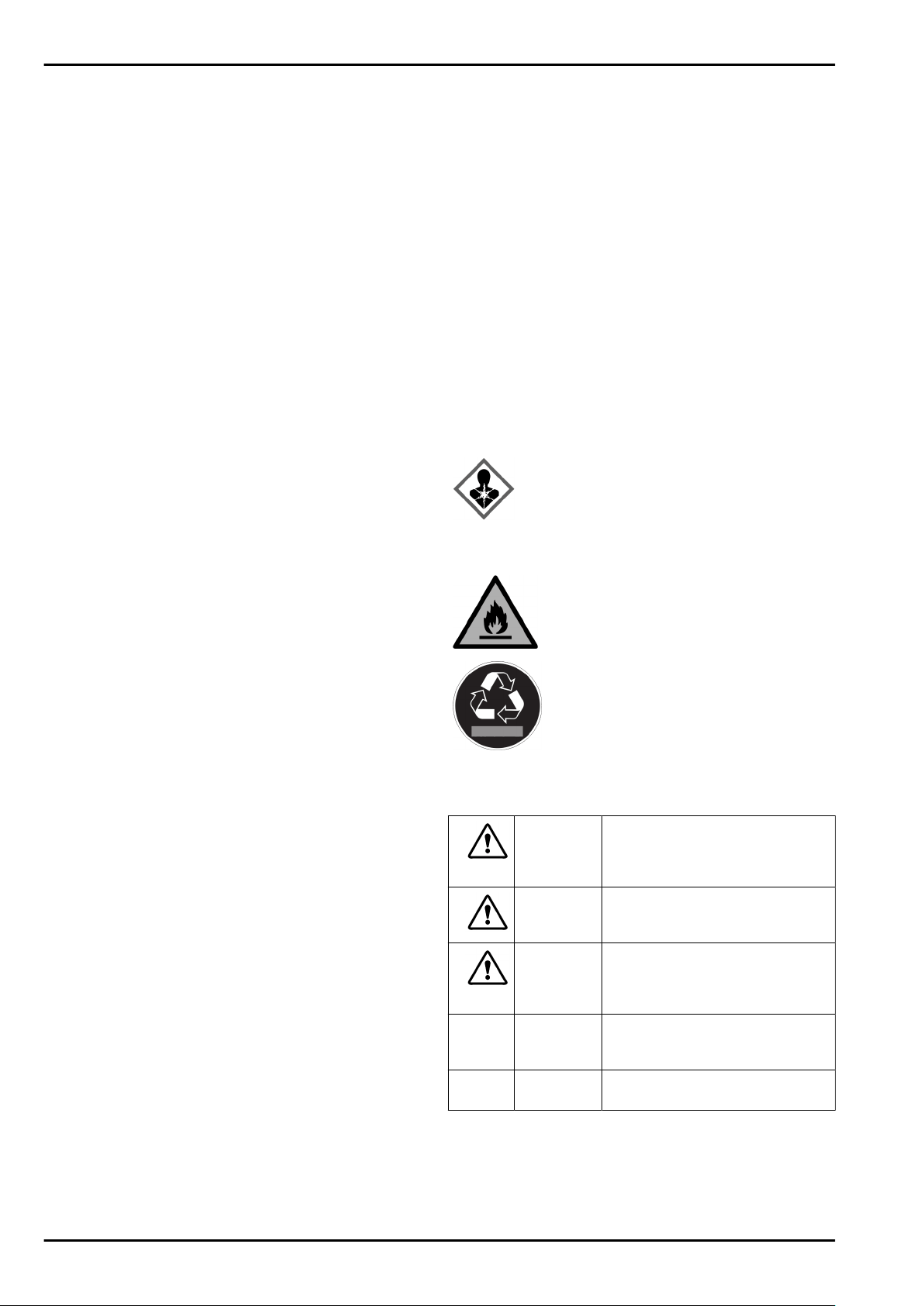

Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. It refers to
the foam-padded panels in the door and/or
the housing. This advice is only relevant to
recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
General safety instructions
* Depending on model and options 5
3 Putting into operation
3.1 Switching on appliance
Ensure that the following conditions are met:
q
Appliance is installed and connected according to instal‐
lation instructions.
q
All adhesive strips, adhesive and protective films as well
as transport safety devices in and on the appliance are
removed.
q
All marketing leaflets are removed from the drawers.

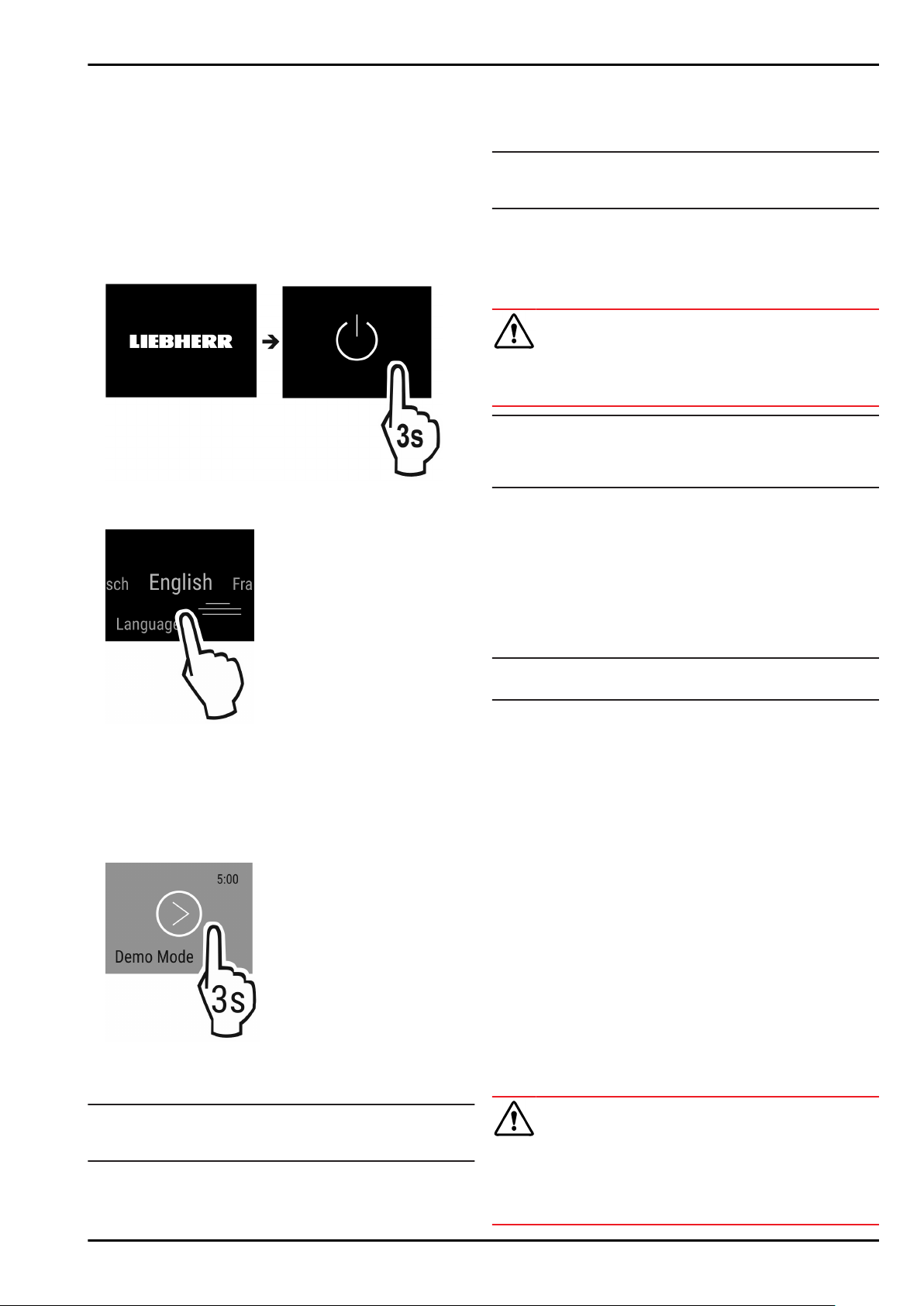

Fig. 2
u
Switch on the appliance using the display.
Fig. 3
u
Select the language.
w
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate
DemoMode within the next 5 minutes.
Fig. 4
u
Press DemoMode for 3 seconds.
w
DemoMode is deactivated.
Note
The manufacturer recommends:
u
Store frozen foods at -18 °C or colder.
3.2 Inserting the components
u
Insert the supplied components to make the most of your
appliance.
Note
You can purchase accessories from the Liebherr household
appliance store (home.liebherr.com).
4 Foods management
4.1 Storing food
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
When storing food, always observe the following:
q
Air vents on the inside rear wall are unobstructed.
q
Air vents on the fan are unobstructed.
q
Food is in sealed packaging.
q
Raw meat and fish are in clean, sealed containers to
prevent them coming into contact with or dripping onto
other foods.
q
Foods are not stored too closely together, as the air
needs to circulate.
Note
Failure to follow these guidelines can lead to food perishing.
4.1.1 Freezer compartment
This provides a dry, frosty storage climate at -18 °C. A frosty
climate is great for storing frozen food and frozen goods for
several months, making ice cubes and freezing fresh food.
Freezing food
You can freeze as many kilograms of fresh food within 24
hours as indicated on the nameplate (see 9.5 Model plate)
under "freezing capacity ... kg/24h".
So that the food is rapidly frozen through to the core, keep
to the following quantities per pack:
-
Fruit, vegetables up to 1 kg
-
Meat up to 2.5 kg
Before freezing goods, please make sure of the following:
q
SuperFrost is activated (see 6.3 Functions) when the
amount of food to freeze exceeds approx. 2 kg.
q
With a small amount of frozen goods: SuperFrost is acti‐
vated approx. 6 hours prior.
q
With the maximum amount of frozen goods: SuperFrost is
activated approx. 24 hours prior.
Arrange your food as follows:
CAUTION
Risk of injury from glass fragments!
Drink bottles and cans may explode if frozen. This applies
particularly to carbonated drinks.
u
Only freeze drink bottles and cans when using the bottle
timer function.
Putting into operation
6 * Depending on model and options
For appliances smaller than 122 cm:
With a small amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
With a maximum amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
For appliances larger than or exactly 122 cm:
With a small amount of frozen goods:
u
Distribute packaged groceries across all drawers, but do
not place any groceries in the top drawer.
With a maximum amount of frozen goods:
u
Distribute packaged groceries across all drawers.
u
If possible, place groceries at the back of the drawer near
the rear wall.
For all appliances:
With a maximum amount of frozen goods:
u
Once SuperFrost deactivates automatically, place food
into the drawer.
Defrost the food
- In the fridge
- In the microwave
- In the stove/oven
- At room temperature
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Only take out the food you need at the time.
u
Cook defrosted food as soon as possible.
Freezer tray
Use the freezer tray for berries, herbs, vegetables and other
small goods without them freezing together in the process.
The food keeps its shape and is easier to separate into
portions later on.
You can also store the freezer packs in the freezer tray to
save space.
u
Spread food, unsealed, at a good distance apart, over the
whole surface of the freezer tray.
4.2 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Recommended storage period for various types of food
Ice cream at -18 °C 2 to 6 months
Sausages, ham at -18 °C 2 to 3 months
Bread, baked goods at -18 °C 2 to 6 months
Game, pork at -18 °C 6 to 9 months
Fatty fish at -18 °C 2 to 6 months
Lean fish at -18 °C 6 to 8 months
Cheese at -18 °C 2 to 6 months
Poultry, beef at -18 °C 6 to 12 months
Vegetables, fruit at -18 °C 6 to 12 months
5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
6 Controls
6.1 Controls and displays
The display provides a quick overview of the temperature
setting and the status of functions and settings. You
can control the functions and settings either by deacti‐
vating/activating them or by selecting a value.
6.1.1 Status display

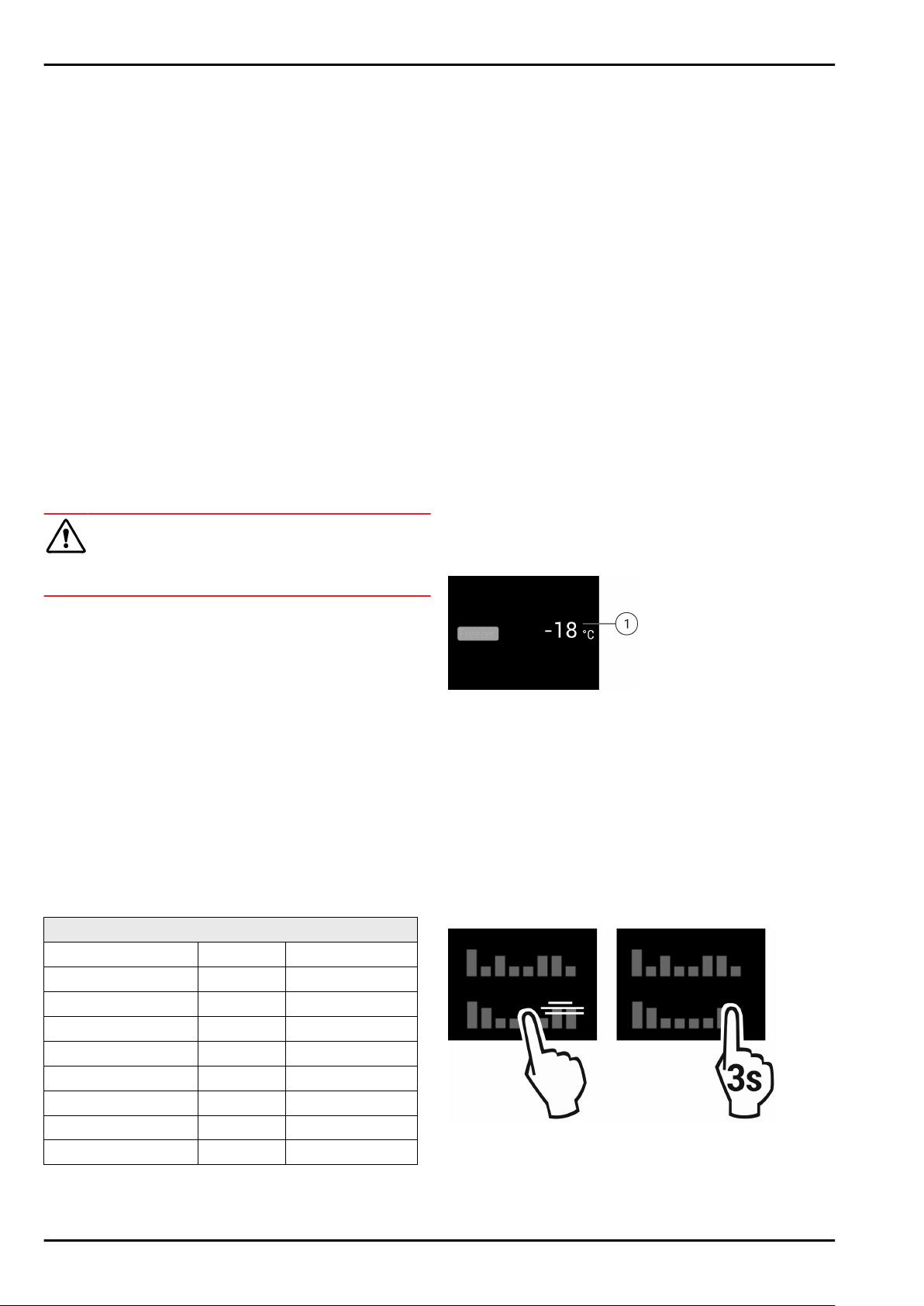

Fig. 5
(1)
Temperature display
The Status display shows the set temperatures and is the
home display. From there, you can navigate to the options
and settings.
6.1.2 Navigation
Navigate in the menu to access the individual functions.
An audible signal sounds after confirming a function or
setting. If no selection is made after 10 seconds the display
switches to the Status display.
The appliance is operated by swiping and confirming in the
display:
Fig. 6
Saving energy
* Depending on model and options 7

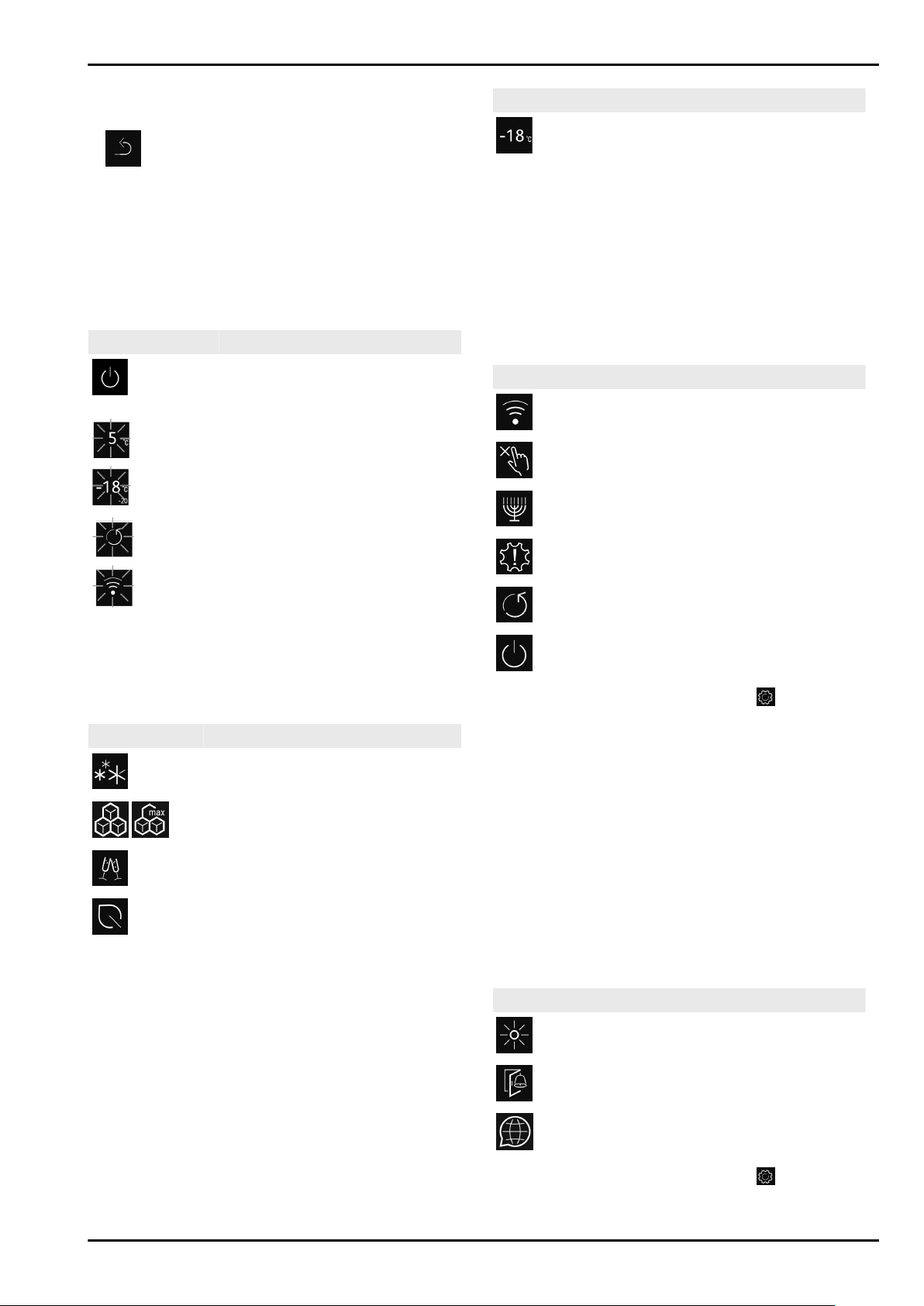

Back:
-
Confirm your selection in the submenu. The display
returns to the menu.
-
. The display returns to the function/setting.
Back to Status display:
-
Close and open the door.
-
Wait 10 seconds. The display switches to the Status
display.
6.1.3 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
6.2 Control concept
6.2.1 Activating/deactivating the function
You can activate/deactivate the following functions:
Symbol
Function
SuperFrost
x
IceMaker and MaxIce
x
PartyMode
x
EnergySaver
x
When function is on, the appliance works harder. This
means appliance noise when operating may be louder for
a short while, and more energy will be consumed.
u
Swipe left in the display until the function appears.
u
Confirm selected function with a short tap.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the
submenu:
Symbol
Function
Setting the temperature
Switch the appliance on/off
u
Swipe left in the display until the function appears.
u
Confirm selected function with a short tap.
u
Select the setting value by swiping the display.
Setting the temperature
u
Confirm with a short tap.
w
You hear the confirmation tone.
w
The display changes to blue when it is activated.
w
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:
Symbol
Setting
WiFi
1
Entry lock
2
SabbathMode
2
Reminders
1
Reset
2
Switch off
2
u
Swipe left in the display until Settings
appears.
u
Tap to confirm settings.
u
Swipe until you see the setting you want.
1
Activate setting (shortpress)
u
Tap briefly to confirm.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Setting is on / off.
2
Activate setting (longpress)
u
Press the selection for 3 seconds to confirm.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the
submenu:
Symbol
Settings
Brightness
Door alarm
Language
u
Swipe left in the display until Settings appears.
u
Tap to confirm settings.
u
Swipe until you see the setting you want.
Controls
8 * Depending on model and options
u
Tap briefly to confirm.
u
Select the desired setting value by swiping the display.
u
Tap briefly to confirm.
w
You hear the confirmation tone.
w
Status appears briefly in the submenu.
w
Display switches back to the menu.
6.2.5 Go to the Customer menu
You can see the following settings in the Customer menu:
Symbol Function
TubeClean
2
Ice cubes
1
Software
u
Swipe left in the display until the settings
appear.
u
Tap settings.
w
The submenu appears.
u
Swipe left in the display until the appliance information
appears.
u
Press for 3 seconds.
w
The input menu for a numerical code appears.
u
Enter the numerical code 151.
w
The customer menu appears.
u
Swipe left in the display until the desired setting
appears.
1
Select the value
u
Confirm with a short tap.
w
You hear the confirmation tone.
w
Status appears briefly in the display.
w
Display switches back to the menu.
2
Activate the setting
u
To confirm, press the display for 3 seconds.
w
You hear the confirmation tone.
w
Status appears on the display.
w
The symbol flashes as long as the appliance is working.
6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance

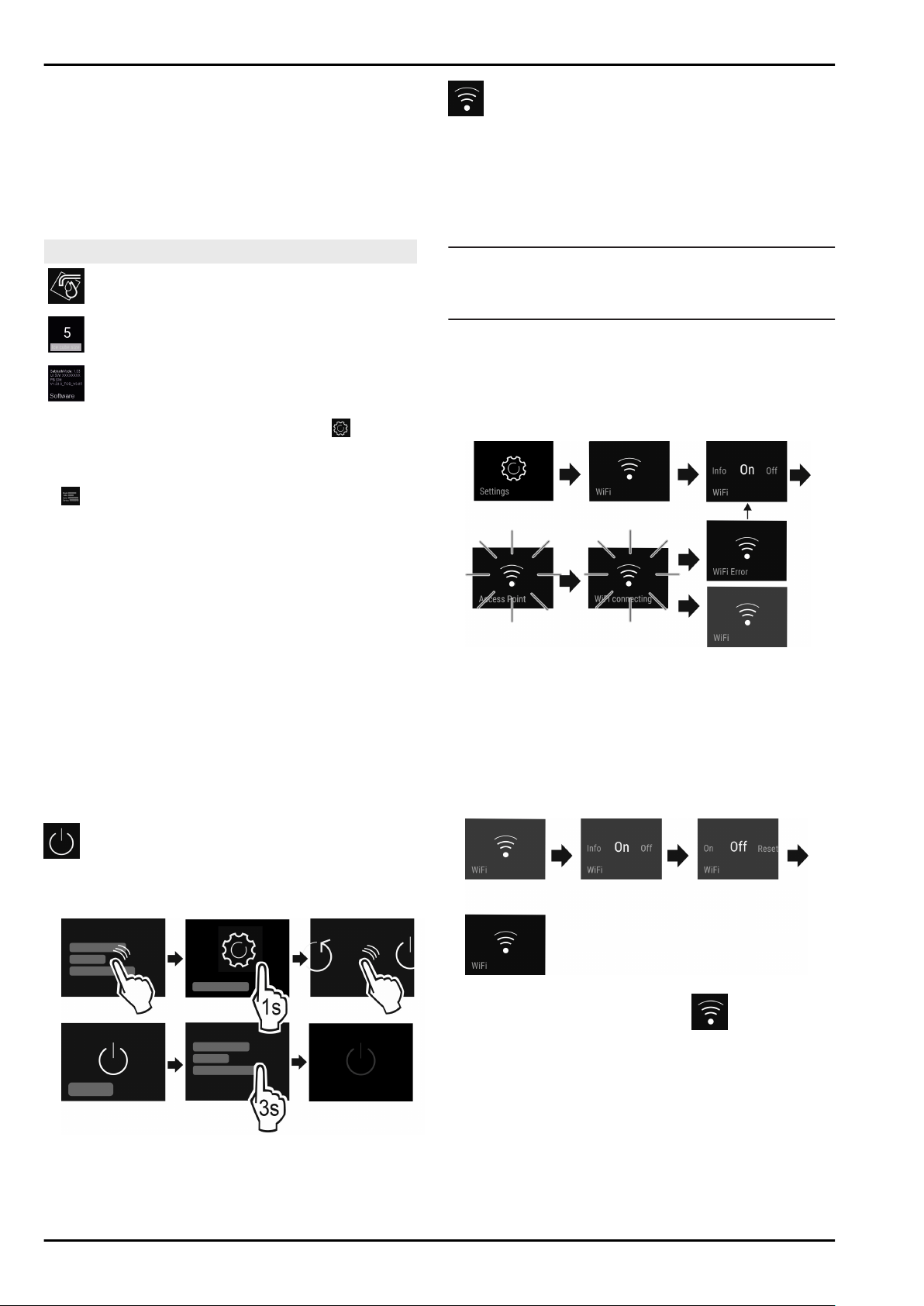

Fig. 7
u
Turning off the IceMaker .
u
Activating/deactivating (see 6.2 Control concept) .
w
Off: Display goes black.
WiFi
Use this function to connect your appliance to the WiFi. You
can then operate it via the SmartDevice app on a mobile
device. You can also use this function to disconnect or reset
the WiFi connection. To connect your appliance to the WiFi,
you need the SmartDeviceBox. For more information about
the SmartDeviceBox and how to use the SmartDevice app:
(see 1.3 SmartDevice)
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
Establishing a WiFi connection
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
Fig. 8
u
Activate the setting. (see 6.2 Control concept)
w
Connection is established: Connecting appears. The
symbol flashes.
w
Connection is established: WiFi appears, the display
turns blue.
w
Connection failed: WiFi Error appears.
Disconnecting from the WiFi
u
Deactivate the setting. (see 6.2 Control concept)
Fig. 9
w
There is no connection: Symbol is permanently
visible.
Resetting the WiFi connection
u
Reset settings. (see 6.2 Control concept)
Controls
* Depending on model and options 9

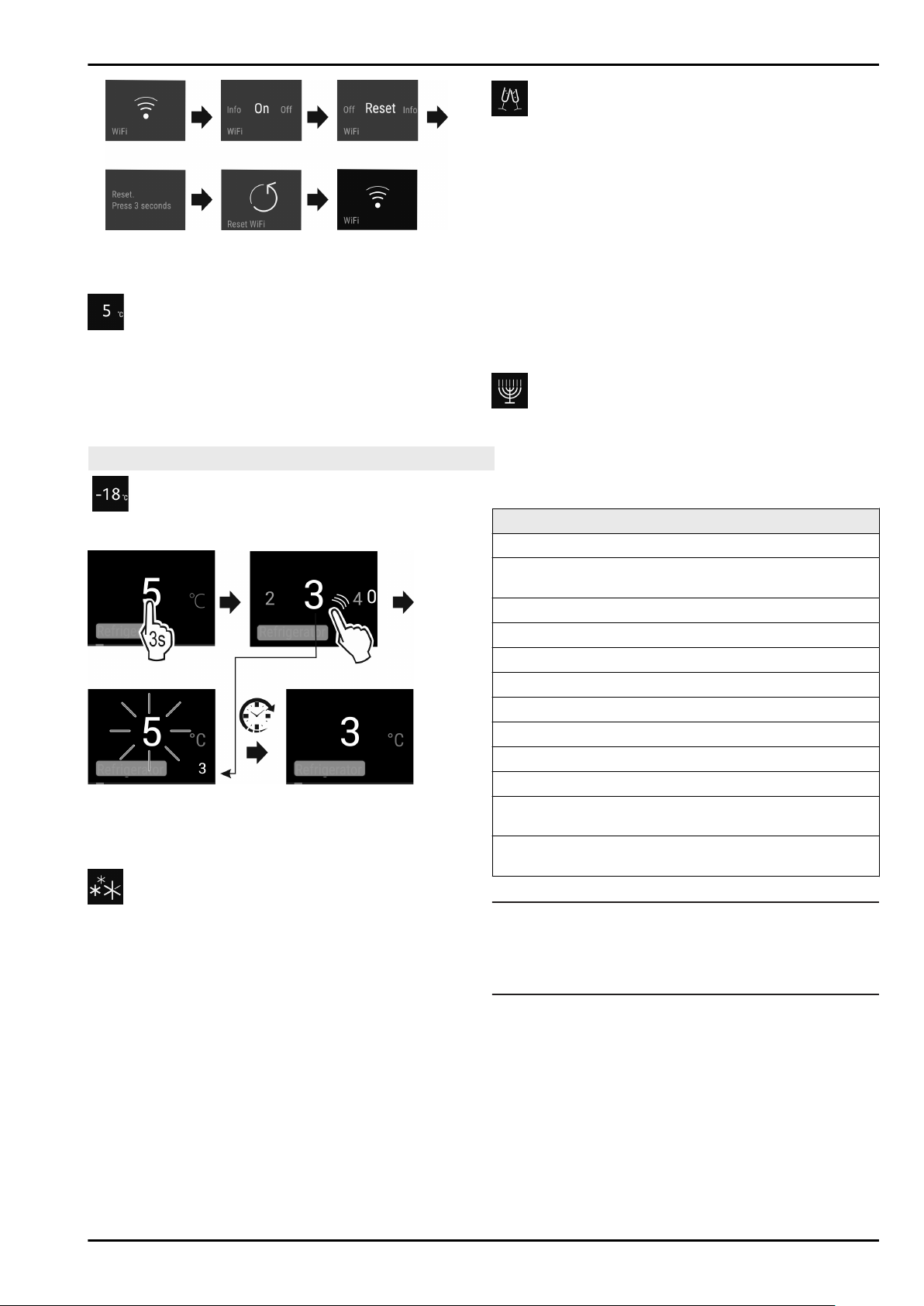

Fig. 10
w
The connection and other settings are reset to the
factory settings.
Temperature
The temperature depends on the following factors:
-
The amount of times the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of food
Freezer compartment
Recommended setting
-18 °C
Setting the temperature
Fig. 11
u
Set the value. (see 6.2 Control concept) .
w
Set temperature is shown at the bottom right of the
display.
SuperFrost
This function selects the lowest freezing temperature. This
gives you colder storage temperatures.
Use:
-
For storing more than 2 kg fresh food every day.
-
Freezing fresh food quickly to the core.
-
Increasing the cold reserves in the stored goods before
defrosting the appliance.
Activating/deactivating the function
With a small amount to freeze:
u
Activate 6 hours before use.
With a maximum amount to freeze:
u
Activate 24 hours before use.
u
Activating/deactivating (see 6.2 Control concept) .
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
PartyMode
This option offers an assortment of special functions and
settings that are useful if you are having a party.
The following functions are on:
-
SuperFrost
-
IceMaker and MaxIce
All the functions can be adjusted flexibly and separately.
Changes are discarded when the function turns off.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
w
On: All functions are activated at the same time.
w
Deactivated: Previously set temperatures are restored.
After 24 hours the function turns off automatically.
SabbathMode
With this function you can activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions will be switched off. This allows your appliance to
meet religious requirements on Jewish holidays such as the
Sabbath and comply with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate
SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
The interior lighting is off.
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The IceMaker is out of operation.
The defrost cycle only works for the specified time without
taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Controls
10 * Depending on model and options
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
u
Call up the settings menu. (see 6.2 Control concept)
u
Swipe left or right until corresponding function is
displayed.

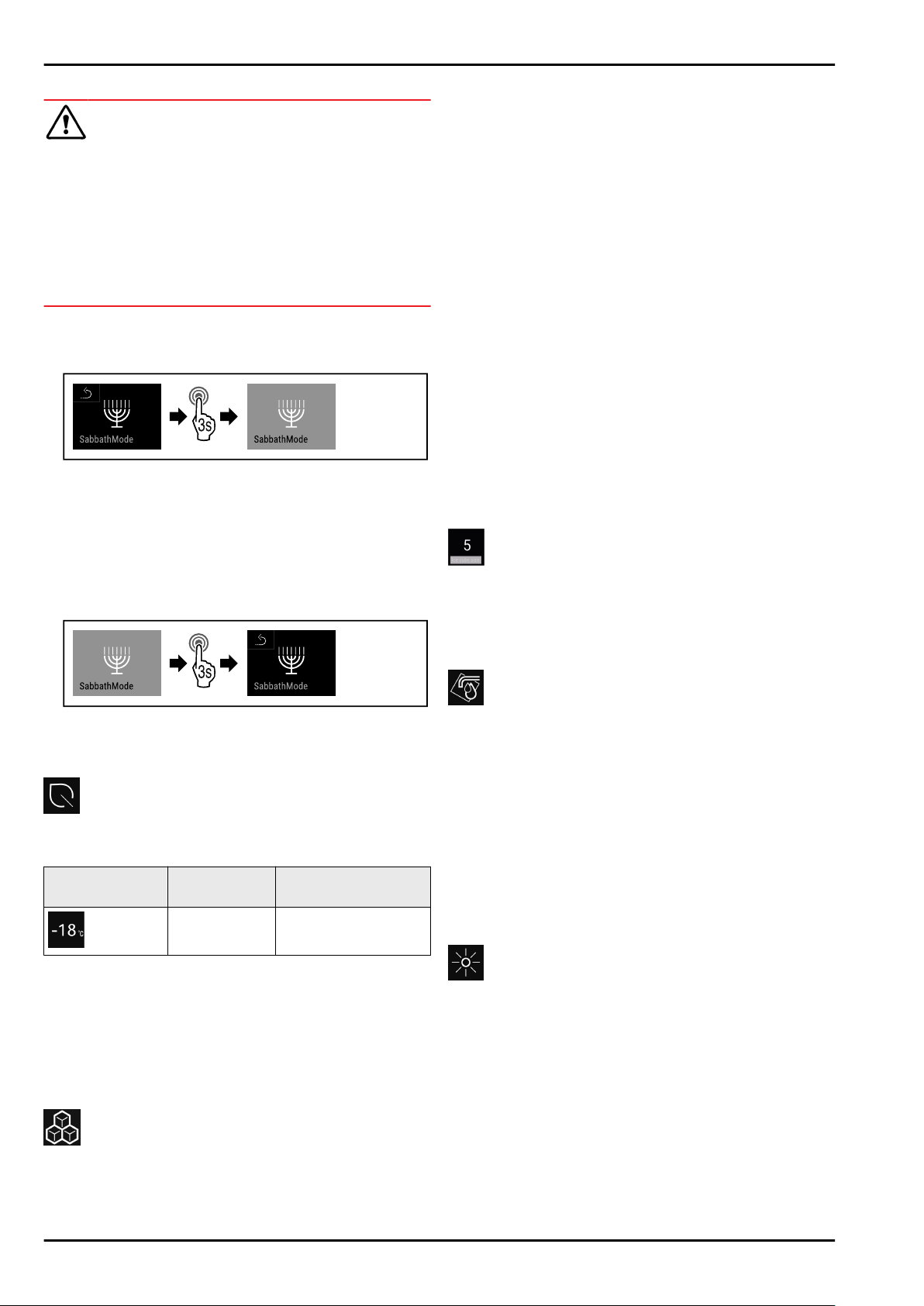

Fig. 12
u
Complete the steps (see Fig. 124) .
w
SabbathMode is activated.
w
Status display continuously shows SabbathMode.
Deactivating SabbathMode
u
Call up the settings menu. (see 6.2 Control concept)
u
Swipe left or right until corresponding function is
displayed.
Fig. 13
u
Complete the steps (see Fig. 125) .
w
SabbathMode is deactivated.
EnergySaver
This function reduces energy consumption. If you activate
this function, the cooling temperature increases.
Temperature zone
Recommended
setting
Temperature when
EnergySaver activated
-18 °C -16 °C
Use:
-
Save energy.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
w
Activated: Higher temperatures are set in all temperature
zones.
w
Deactivated: Previously set temperatures are restored.
IceMaker / MaxIce
This function creates ice cubes.
Use:
-
If this function is activated, you can decide between the
normal IceMaker function and MaxIce.
-
The MaxIce function enables your appliance to make
approx. 1.5 kg of ice cubes per 24 h within a short time.
The ice cube size can be set with the ice cube size function.
(see Ice cubes)
The lines can be cleaned with the TubeClean function.
(see TubeClean)
Activating the function
Ensure that the following conditions are met:
q
The water supply is established at the fixed water
connection. See installation instructions.
q
IceMaker is put into operation. (see 7.4 IceMaker)
u
Activate the function. (see 6.2 Control concept)
-or-
u
Activate the function via the Liebherr SmartDevice-App.
w
It can take up to 24 hours for the first ice cubes to be
made.
Deactivating the function
u
Deactivate the function. (see 6.2 Control concept)
w
If ice cubes are currently being made, the system
completes the process. After that, the IceMaker switches
off.
Ice cubes
Set the ice cube size.
Choose the setting
u
Set the size in the Customer menu (see 6.2 Control
concept) .
TubeClean
This setting cleans the IceMaker pipes.
Ensure that the following conditions are met:
q
IceMaker cleaning is ready (see 8.3.4 Cleaning the
IceMaker) .
Activating the setting
u
Activate the setting in the Customer menu
(see 6.2 Control concept) .
w
The rinse process is ready (max. 60 min.): Symbol flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off automati‐
cally.
Display brightness
Set the brightness level of the display.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100%
Choose the setting
u
Set the level (see 6.2 Control concept) .
Controls
* Depending on model and options 11
Door alarm
Set the time before the door alarm (see Close the door)
sounds.
The options are as follows:
-
1 min
-
2 min
-
3 min
-
Off
Choose the setting
u
Set the time (see 6.4 Fault messages) .
Entry lock
This setting prevents unintentional use of the appliance,
e.g. by children.
Use:
-
Avoid settings being changed unintentionally.
-
Avoid the appliance being switched off unintentionally.
-
Avoid the temperature being changed unintentionally.
Activating/deactivating settings
u
Activating/deactivating. (see 6.2 Control
concept)
Language
This setting lets you choose the language of the display.
Choose from the following languages:
-
German
-
English
-
French
-
Spanish
-
Italian
-
Dutch
-
Czech
-
Polish
-
Portuguese
-
Russian
-
Chinese
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Control concept) .
Info
This setting allows the appliance information to be read out
as well as access to the customer menu.
It provides the following information:
-
Model name
-
Index
-
Serial number
-
Service number
Show appliance data
u
Swipe in the display until Settings appears.
u
Confirm the display.
u
Swipe in the display until About appears.
u
Read the appliance info.
Reminder
Reminders are given out acoustically by a beep and visually
by a symbol in the display. The signal gets louder until the
alert stops.
Activating the setting
u
Activating/deactivating (see 6.2 Control concept) .
Reset
This function resets all settings to the factory settings. All
settings that you have made thus far will be reset to their
original values.
Activating the setting
u
Activate (see 6.2 Control concept) .
6.4 Fault messages
Fault messages appear in the display. There are two catego‐
ries of fault message:
Category
Meaning
Message Reminder of general procedures. You can carry
out these procedures to eliminate the message.
Warning Appears when there are malfunctions. A signal
sounds in addition to the display. The signal
becomes louder until you acknowledge by
tapping the display. You can eliminate simple
defects yourself. For more serious defects, you
must contact customer service.
6.4.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Power cut
This message appears if the freezer temperature increased
due to a power cut. After the power is restored, the appli‐
ance continues to work at the set temperature.
u
Stop alarm: Confirm the message.
w
Temperature alert appears (see Temperature alarm) .
Temperature alarm
This message appears if the temperature does not match
the set temperature.
Variations in temperature could be because:
-
Hot, fresh food was inserted.
-
Too much warm room air flowed in when rearranging and
removing food.
Controls
12 * Depending on model and options
-
The power was cut off for a while.
-
The appliance is faulty.
When the fault is eliminated the appliance continues to
work at the set temperature.
u
Confirm the display.
w
The highest temperature is shown.
u
Confirm display again.
w
The status display is displayed.
w
The current temperature is shown.
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 9.4 Customer Services)
6.4.2 Message
Insert IceMaker drawer
This message appears if the IceMaker drawer is open.
u
Push in the IceMaker drawer.
w
The message disappears.
w
The IceMaker produces ice cubes.
6.4.3 DemoMode
If “D” appears on the display, demo mode is on. This option
is designed for retailers, as it turns off all the cooling func‐
tions.
Stopping DemoMode
If you see the following running in the display:
u
Confirm the display within the countdown.
w
DemoMode is off.
If the timer is not running:
u
Unplug the appliance.
u
Plug the appliance in again.
w
DemoMode is off.
7 Features
7.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Leave the bottom drawer in the appliance!
u
Always leave the fan air vents clear on the back wall!
7.1.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.
Removing drawer

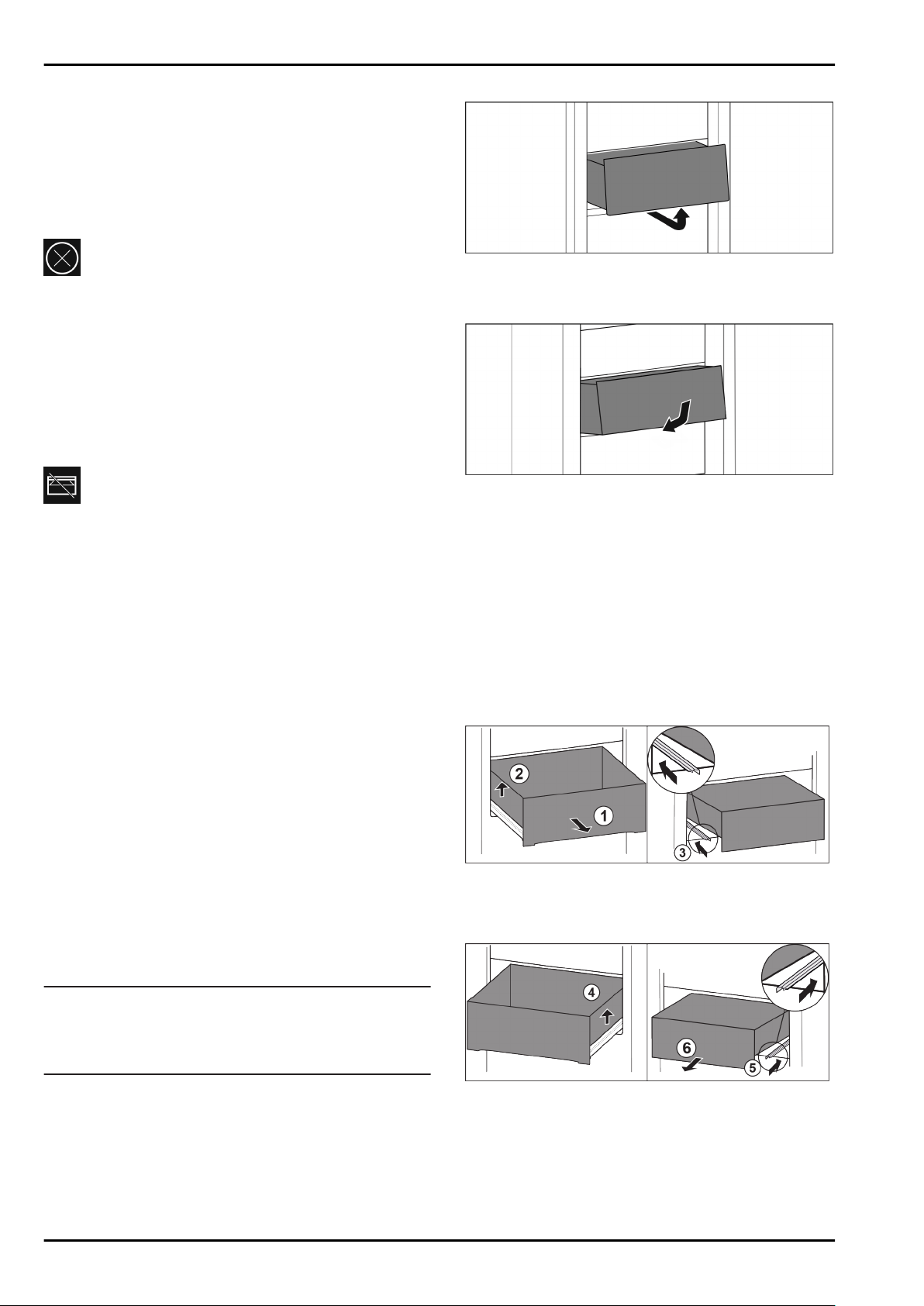

Fig. 14
u
Remove drawer as shown in the illustration.
Inserting drawer
Fig. 15
u
Insert drawer as shown in the illustration.
7.1.2 Drawer on telescopic rails*
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Drawer on glass shelf
The drawer guided on a glass shelf is a partial pull-out.
Removing drawer
Fig. 16
u
Pull out drawer as far as it will go. Fig. 16 (1)
u
Lift drawer on the left. Fig. 16 (2)
u
Insert left rail. Fig. 16 (3)
Fig. 17
u
Lift drawer on the right. Fig. 17 (4)
u
Insert right rail. Fig. 17 (5)
u
Remove drawer to the front. Fig. 17 (6)
Features
* Depending on model and options 13

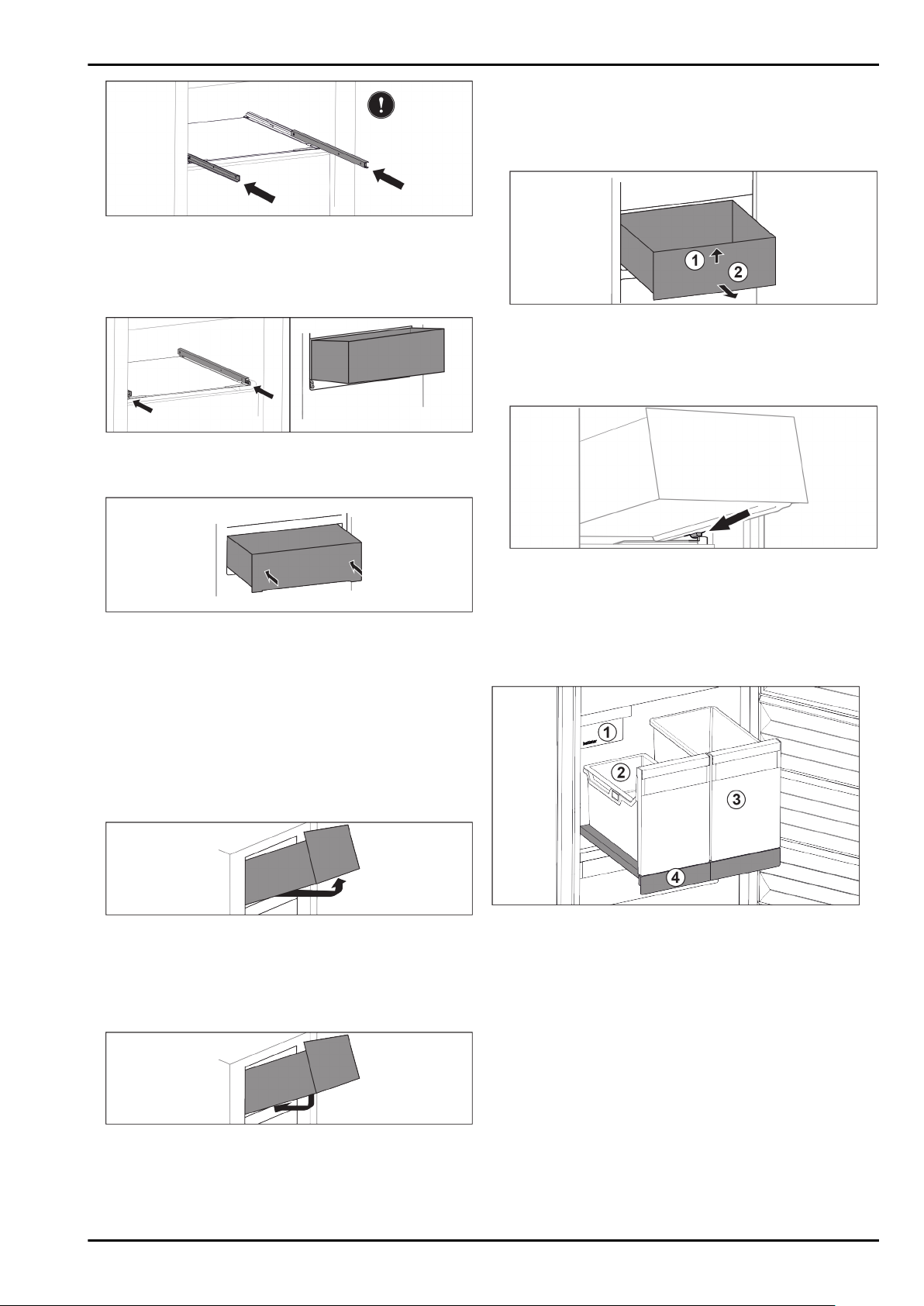

Fig. 18
If the rails are not yet fully inserted after removing the
drawer:
u
Push rails in completely.
Inserting drawer
Fig. 19
u
Slide rails in.
u
Place drawer on rails at an angle.
Fig. 20
u
Lower drawer.
u
Slide in drawer to the back.
7.1.3 Top tilting drawer
When you pull out the top drawer, it tilts forward. This gives
you a better view into the drawer. The function depends on
the height of the appliance.
When you remove the tilting drawers, you can use the glass
shelf below them as a storage shelf.
Removing drawer
Fig. 21
u
Pull out drawer as far as it will go.
u
Lift drawer up at the front and at the same time push up
at the back from below.
u
Remove drawer to the front.
Inserting drawer
Fig. 22
u
Position drawer as shown.
w
The drawer rests on the glass panel.
u
Lift drawer slightly from below at the back and slide over
the lip.
u
Slide in drawer to the back.
7.1.4 Drawer on moulded rib*
The drawer runs directly on the moulded rib. There are no
rails.
Removing drawer
Fig. 23
u
Pull out drawer as far as it will go.
u
Lift up drawer at the front. Fig. 23 (1)
u
Remove drawer to the front. Fig. 23 (2)
Inserting drawer
Fig. 24
u
Place drawer at an angle behind the stoppers on the
moulded rib. (see Fig. 136)
u
Lower drawer.
u
Slide in drawer to the back.
7.2 Pull-out board with IceTower
Fig. 25 Pull-out board with IceTower
(1)
IceMaker (3) Container for pizza or
alcoholic beverages, for
example
(2) Hang-on tray for ice
cubes
(4) Pull-out board
There are two high (IceTower) containers on the pull-out
board. Ice cubes from the IceMaker are collected and stored
in the Fig. 25 (2) container. The container Fig. 25 (3) is suit‐
able for storing tall foodstuffs or beverages such as pizzas
or alcoholic drinks.
The pull-out board with IceTower is mounted on a glass
shelf with pull-out rails. You can dismantle the pull-out
board for cleaning.
Features
14 * Depending on model and options
7.2.1 Dismantling the pull-out board with
IceTower
Removing the container

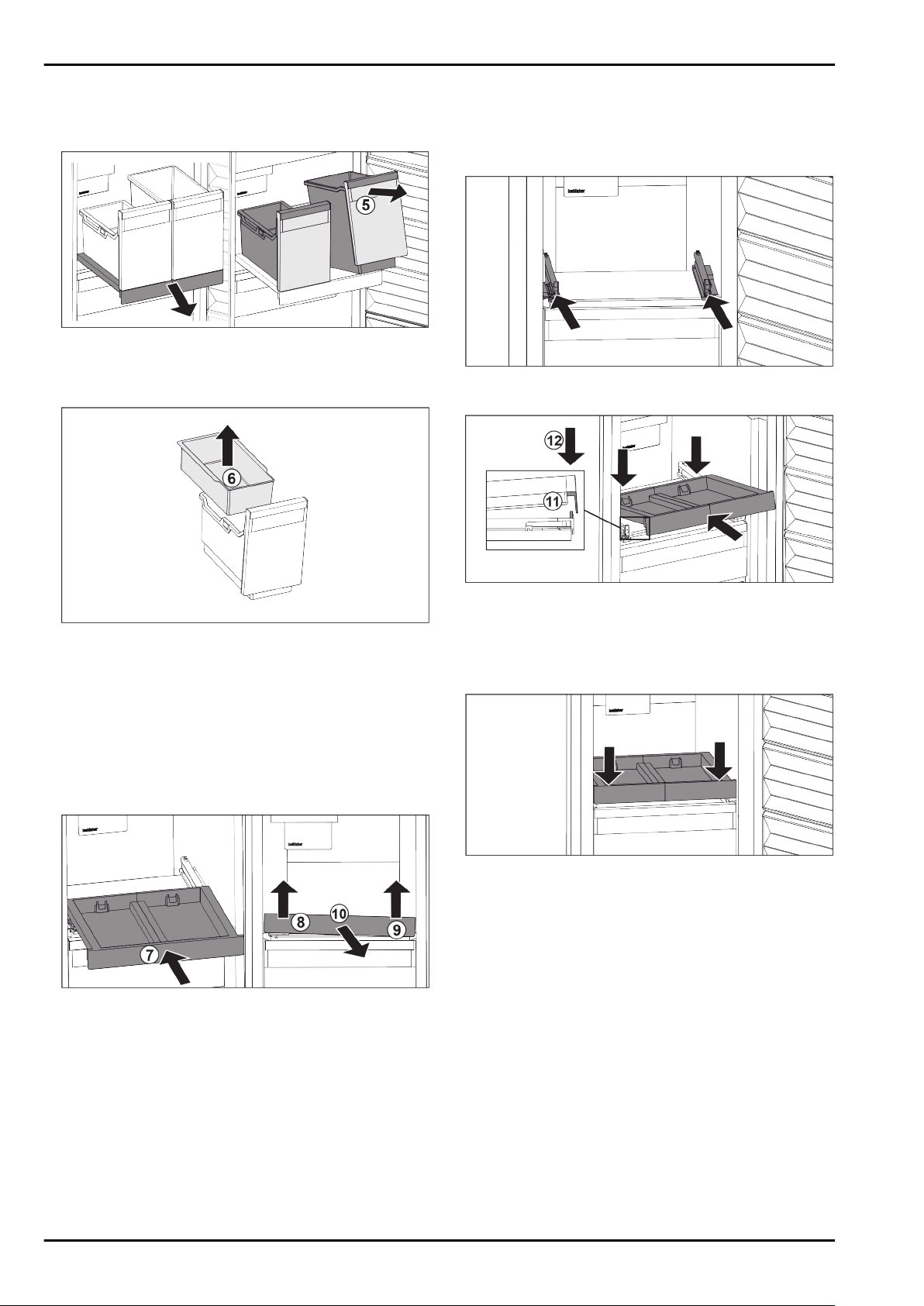

Fig. 26
u
Pull out the pull-out board.
u
Lift the container Fig. 26 (5) at the front.
u
Remove the container.
Fig. 27
u
Remove the hang-on tray Fig. 27 (6).
u
If there are ice cubes in the hang-on tray: Empty the
hang-on tray.
w
The container and hang-on tray have been removed and
you can clean them. (see 8.3.3 Clean the components)
Removing the pull-out board
Ensure that the following conditions are met:
q
Containers have been removed. (see 7.2.1.1 Removing the
container)
Fig. 28
u
Slide in the pull-out board. Fig. 28 (7)
u
Lift the pull-out board on the front left. Fig. 28 (8)
u
Lift the pull-out board on the front right. Fig. 28 (9)
w
Pull-out board is detached from the attachment at the
front.
u
Take out the pull-out board to the front. Fig. 28 (10)
w
The pull-out board has been removed and you can clean
it. (see 8.3.3 Clean the components)
Removing the glass shelf from under the pull-out board
(see 7.3 Glass shelves)
7.2.2 Inserting the pull-out board with IceTower
Inserting the glass shelf from under the pull-out board
(see 7.3 Glass shelves)
Inserting the pull-out board
Fig. 29
u
Slide the rails in.
Fig. 30
u
Place the pull-out board in at an angle behind the front
lug.
u
Slide in at an angle. Make sure that the stop is behind the
lug on both sides. Fig. 30 (11)
u
Lower the pull-out board at the front. Fig. 30 (12)
Fig. 31
u
Push the pull-out board down at the front.
w
Pull-out board clicks into place.
Inserting the container
Ensure that the following conditions are met:
q
The pull-out board is inserted. (see 7.2.2.2 Inserting the
pull-out board)
Features
* Depending on model and options 15

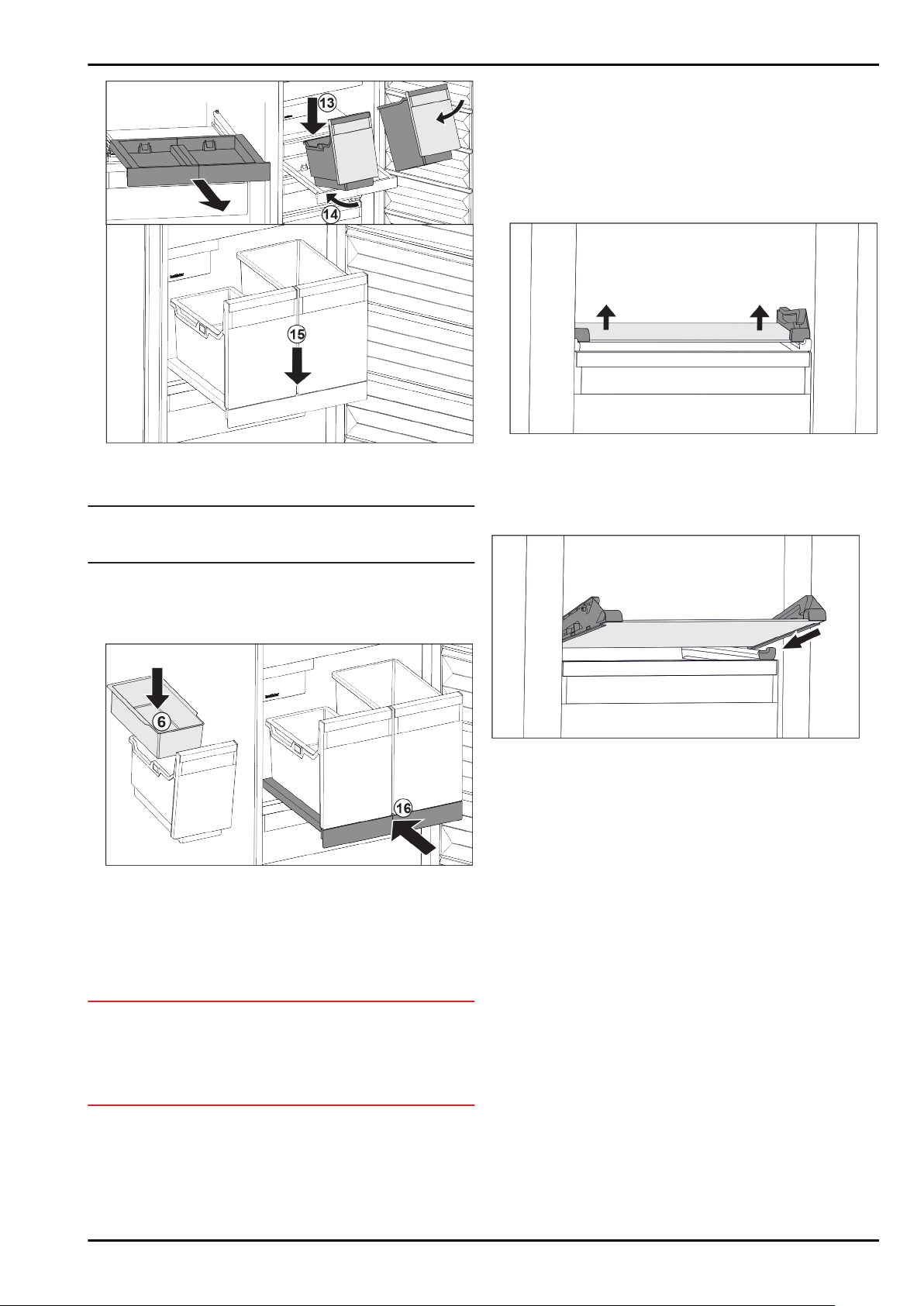

Fig. 32
u
Pull out the pull-out board.
u
Hold the pull-out board with one hand.
Note
The containers are shaped in a way that they cannot be
interchanged.
u
Place the container at an angle on the pull-out board.
Fig. 32 (13)
u
Slide the container to the back at an angle. Fig. 32 (14)
u
Place container in the front. Fig. 32 (15)
Fig. 33
u
Insert hang-on tray Fig. 33 (6) for ice cubes.
u
Slide in the pull-out board with (IceTower) container.
Fig. 33 (16)
w
Pull-out shelf with IceTower is fully inserted.
7.3 Glass shelves
NOTICE
Impermissible removal of the glass panel above the
IceTower!
Damage to the IceMaker. The IceMaker is attached to the
glass panel above the IceTower.
u
Do not remove the glass panel above the IceTower.
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
7.3.1 Removing / inserting the glass shelf
under the tilting drawer
The glass shelf is located under the top tilting drawer.
Make sure that the following requirements are fulfilled:
q
Drawer has been removed. (see 7.1.3 Top tilting drawer)
Removing glass shelf
Fig. 34 Tilting drawer glass shelf
u
Push glass shelf upwards from below on both sides. (see
Fig. 146)
u
Take out the glass shelf to the front.
Inserting glass shelf
Fig. 35 Tilting drawer glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 147)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
w
Glass shelf clicks into place.
7.3.2 Removing / inserting the glass shelf
Depending on the equipment, the glass shelf may be
located under the drawer.
Depending on the equipment, the glass shelf may be
located under the IceTower.
Make sure that the following requirements are fulfilled:
q
Glass shelf under the drawer: The drawer has been
removed. (see 7.1 Drawers)
q
Pull-out board under IceTower: IceTower has been
removed. (see 7.2 Pull-out board with IceTower)
Features
16 * Depending on model and options
Removing glass shelf

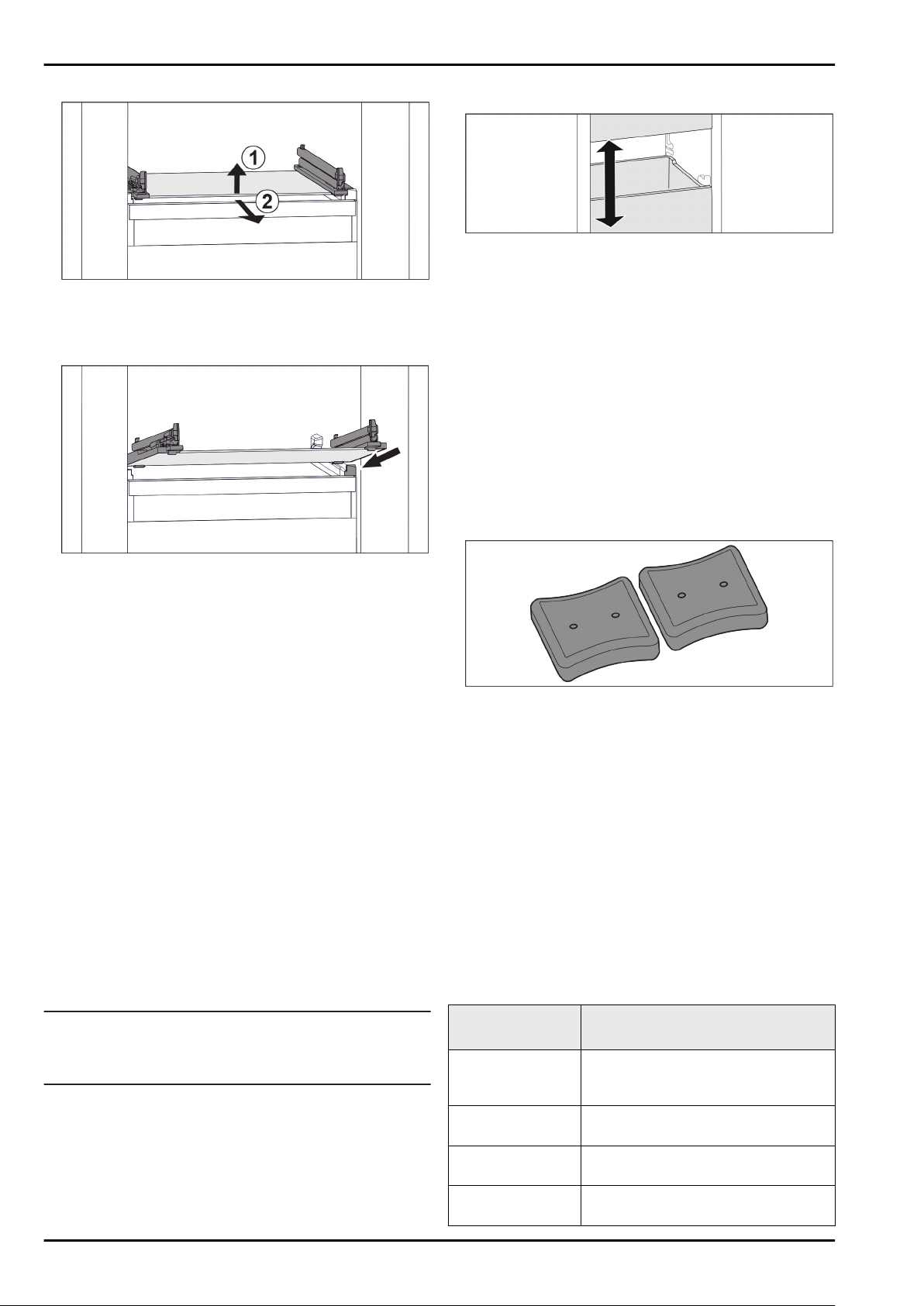

Fig. 36 Example illustration of glass shelf
u
Lift glass shelf at the front. Fig. 36 (1)
u
Take out glass shelf to the front. Fig. 36 (2)
Inserting glass shelf
Fig. 37 Example illustration of glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 149)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
7.4 IceMaker
The IceMaker will produce ice cubes for household use only.
Ensure that the following conditions are met:
-
IceMaker is cleaned (see 8 Maintenance) .
-
IceMaker drawer is fully inserted.
7.4.1 Producing ice cubes
The volume depends on the freezing temperature. The
colder the temperature, the more ice cubes the system can
produce in a certain time period.
After the IceMaker is turned on for the first time, it can take
up to 24 hours for the first ice cubes to be made.
u
Activate the IceMaker function (see 6.2 Control concept) .
u
To make a high number of ice cubes: Activate the MaxIce
function (see 6.2 Control concept) .
u
Distribute the ice cubes evenly in the drawer to increase
the capacity.
u
Closing the drawer: IceMaker starts making ice cubes
again automatically.
Note
When a certain level is reached in the IceMaker drawer, it
stops producing ice cubes. The IceMaker does not fill the
drawer all the way to the top.
7.5 VarioSpace
Fig. 38
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
u
Note the weight limits on the drawers and glass panels
(see 9.1 Technical specifications) .
7.6 Accessories
7.6.1 Freezer pack
Freezer packs prevent the temperature rising too quickly
should there be a power cut.
The freezer packs are in the drawer.
You can store the freezer packs in the freezer tray.
Using the freezer pack
Fig. 39
When the freezer packs are fully frozen:
u
Place on the frozen goods in the top, front part of the
freezer.
8 Maintenance
8.1 Disassembling / assembling pull-
out systems
8.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled /
cannot be disassembled
Drawer on appli‐
ance base or glass
shelf
cannot be disassembled
Drawer on glass
shelf
can be disassembled
(see 8.1.2.1 Drawer on glass shelf)
Top tilting drawer can be disassembled (see 8.1.3 Top
tilting drawer)
Drawer on
moulded rib*
can be disassembled
(see 8.1.4 Drawer on moulded rib*) *
Maintenance
* Depending on model and options 17

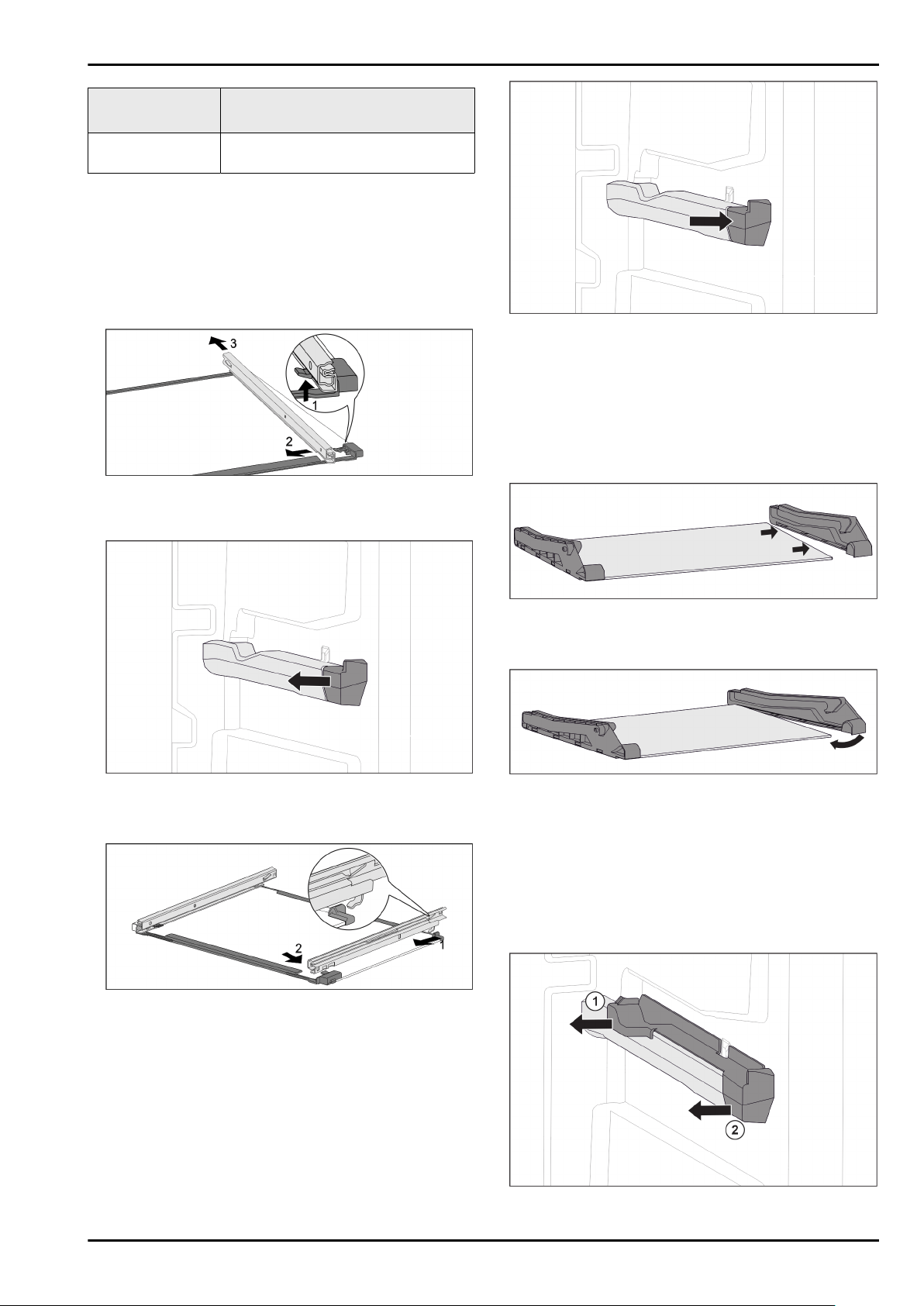

Pull-out system can be disassembled /
cannot be disassembled
IceTower can be disassembled
(see 8.1.5 IceTower)
8.1.2 Drawer on telescopic rails*
Drawer on glass shelf
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed.
q
Glass shelf has been removed. (see 7.3 Glass shelves)
Fig. 40 Glass shelf with rails
u
Push up front click-in hooks. (1)
u
Move pull-out rails to the side (2) and to the rear (3).
Fig. 41 Attachment on the right moulded rib
u
Remove moulded rib attachment sideways.
Installing pull-out system
Fig. 42 Glass shelf with rails
u
Hook in rail at the back. (1)
u
Hook in rail at the front. (2)
Fig. 43 Attachment on the right moulded rib
u
Press attachment onto moulded rib.
8.1.3 Top tilting drawer
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.3 Top tilting drawer)
q
Glass shelf has been removed. (see 7.3 Glass shelves)
Fig. 44 Glass shelf with side parts
u
Pull off side part from glass shelf sideways.
Installing pull-out system
Fig. 45 Glass shelf with side parts
u
Place on side part at the back.
u
Press side part onto glass shelf at the front.
8.1.4 Drawer on moulded rib*
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed. (see 7.1.4 Drawer on moulded
rib*)
Fig. 46 Attachment on the right moulded rib
u
Grab attachment at the back from below.
Maintenance
18 * Depending on model and options

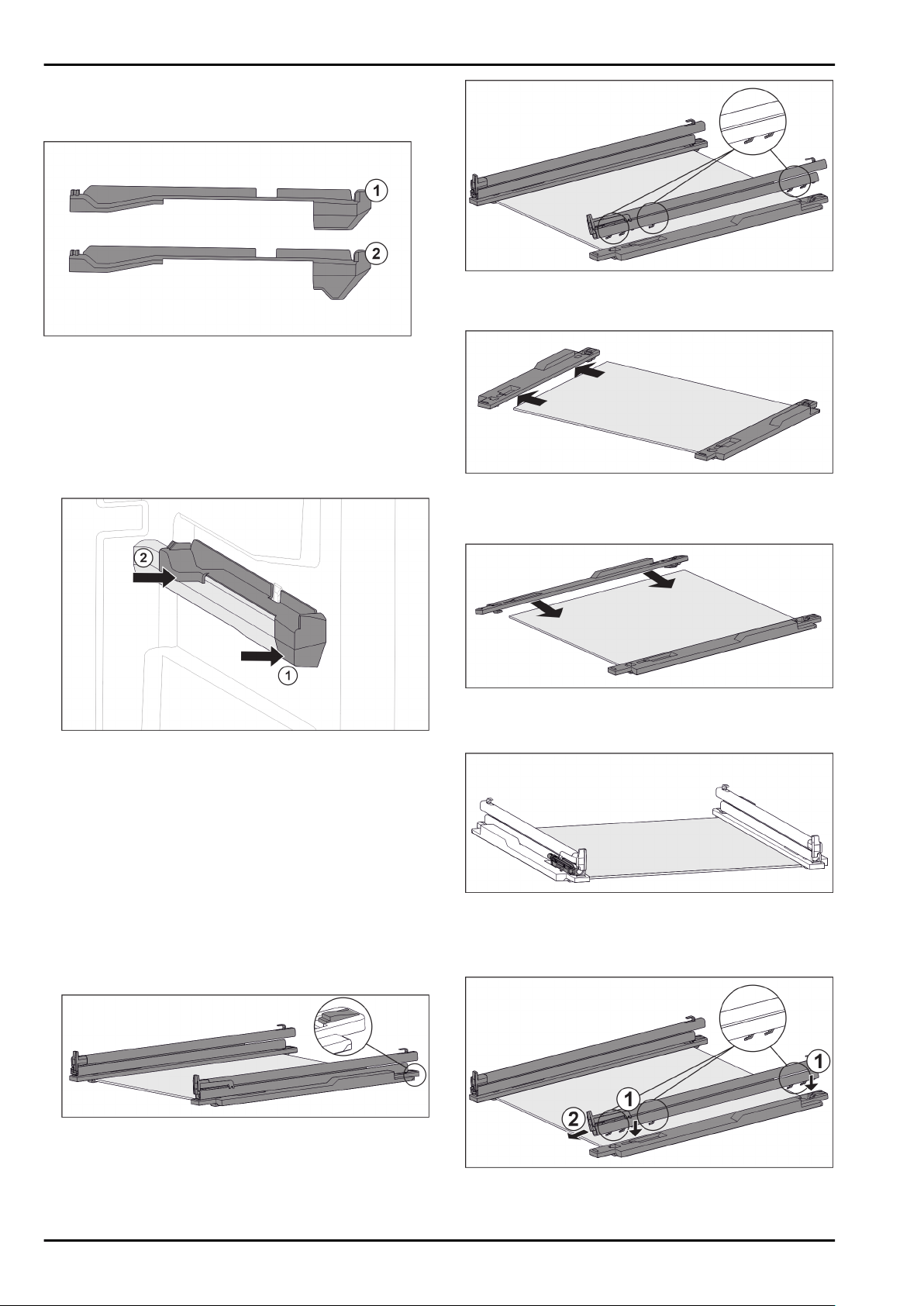

u
Pull off attachment at the back sideways. Fig. 46 (1)
u
Pull off attachment at the front sideways. Fig. 46 (2)
Installing pull-out system
Fig. 47 Comparing attachments
There are two different attachments in the appliance. The
attachment above the lowest drawer Fig. 47 (2) has a three-
cornered edge. All other attachments Fig. 47 (1) have a
straight edge.
u
Fit attachment Fig. 47 (2) with the three-cornered edge
above the lowest drawer.
u
Fit attachment Fig. 47 (1) with straight edge in all other
positions.
Fig. 48 Attachment on the right moulded rib
u
Position attachment on moulded rib at the front.
Fig. 48 (1)
u
Press on attachment at the back. Fig. 48 (2)
8.1.5 IceTower
Disassembling pull-out system
Make sure the following prerequisites are met:
q
IceTower has been removed. (see 7.2 Pull-out board with
IceTower)
q
Glass shelf has been removed. (see 7.3 Glass shelves)
u
Place pull-out board on a table.
w
You are able to remove the rails more easily from the
glass shelf.
Fig. 49 Glass shelf with rails and retaining parts
u
Press down retaining part at the rear (see Fig. 161) and at
the same time push the rail back.
Fig. 50 Glass shelf with rails and retaining parts
w
The rail hooks are released from the retaining part.
u
Remove rail from retaining part.
Fig. 51 Glass shelf with retaining part
u
Remove retaining part from glass shelf sideways.
Installing pull-out system
Fig. 52 Glass shelf with retaining part
u
Fit retaining part on glass shelf.
u
Push retaining part onto glass shelf as far as it will go.
Fig. 53 Damping mechanism
The damping mechanism is attached to the left rail. (see
Fig. 165) There is no damping mechanism attached to the
right rail.
Fig. 54 Glass shelf with rails and retaining parts
Install rail with damping mechanism:
Maintenance
* Depending on model and options 19
u
Place rail hooks onto the openings of the left retaining
part. Fig. 54 (1)
u
Push rail forwards. Fig. 54 (2)
w
Rail latches in audibly.
Install rail without damping mechanism:
u
Place rail hooks onto the openings of the right retaining
part. Fig. 54 (1)
u
Push rail forwards. Fig. 54 (2)
w
Rail latches in audibly.
8.2 Defrosting the appliance
8.2.1 Defrosting with NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not need to be defrosted.
8.3 Cleaning the appliance
8.3.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
8.3.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).
8.3.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- IceTower pull-out board
- Drawer
Please note: Do not remove the magnet on the drawer.
The magnet ensures the functionality of the IceMaker.
- Freezer tray
Clean with a damp cloth:*
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60 °C:
- Ice cube scoop
u
To disassemble components: see the relevant section.
u
Clean the components.
8.3.4 Cleaning the IceMaker
There are various options for cleaning the IceMaker.
Cleaning is required in the following cases:
q
Initial operation
q
If out of use for more than 5 days.
Ensure that the following conditions are met:
q
IceMaker drawer is emptied.
q
IceMaker drawer is in place.
q
The IceMaker is activated. (see 6.2 Control concept)
First use or after a long period of non-use
Clean the IceMaker with the TubeClean function.
u
Place a 1.5 l empty container (max. height 10 cm) into the
drawer under the IceMaker.
u
Activate the TubeClean function. (see 6.2 Control
concept)
w
The rinse process is prepared (max. 60 min.): Symbol
flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off automati‐
cally.
u
Remove the IceMaker drawer and remove the container.
u
Clean the IceMaker drawer with warm water and a little
detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
u
Dispose of any ice cubes that were made 24 hours after
the first ice cubes.
If cleaning is required
Clean the IceMaker by hand.
u
Remove the IceMaker drawer and clean with warm water
and a little detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
8.3.5 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 6.3 Functions) .
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
Maintenance
20 * Depending on model and options
9 Customer help
9.1 Technical specifications
Temperature range
Freeze -28 °C to -15 °C
Maximum freezer quantity / 24 hrs
Freezer compart‐
ment
See the type plate under “Freezer
goods … /24 hours”
Maximum component capacity
Features Appliance
width
550 mm
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions, appli‐
ance
dimen‐
sions)
Drawer on glass
shelf
(see 7.1.1 Drawer on
appliance base or
glass shelf)
12 kg 15 kg --
Drawer on moulded
rib*
(see 7.1.4 Drawer
on moulded rib*) *
14 kg* 19 kg* 19 kg*
Drawer on glass
shelf
(see 7.1.2 Drawer
on telescopic
rails*)
12 kg 15 kg 22 kg
Maximum load weight of equipment in kg
Equipment Appliance width
600 mm (see
installation instruc‐
tions, appliance
dimensions)
Drawer on glass shelf
(see 7.1.1 Drawer on appliance base
or glass shelf)
22
Drawer on glass shelf
(see 7.1.2 Drawer on telescopic
rails*)
22
Ice cube production with IceMaker*
Ice cube produc‐
tion / 24 h
At a temperature of -18 °C: 0.8 kg of
ice cubes
Maximum ice
cube production /
24 hours
With the MaxIce function on: 1.2 kg of
ice cubes
9.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 6.3 Functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
9.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
Customer help
* Depending on model and options 21
9.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Protecting food: Lay freezer packs on top of the food or
use another freezer if the power is off for a prolonged
period.
u
Do not re-freeze defrosted food,
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see 1.4 Appliance range of use) .
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service (see 9.4 Customer Serv‐
ices) .
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
u
Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Services (see 9.4 Customer Services) .
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
9.3.2 Features
Defect Cause Remedy
You cannot acti‐
vate the IceMaker.
→ The appliance and therefore the
IceMaker are not connected.
u
Connect the appliance (see the Installation Guide).
The IceMaker is
not producing ice
cubes.
→ The IceMaker is not on.
u
Activate the IceMaker.
→ The drawer of the IceMakers is not
connected properly.
u
Push the drawer in correctly.
→ The water connection is not open.
u
Open the water connection.
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting turns off automatically after approx. 15
min. with the door open.
Customer help
22 * Depending on model and options

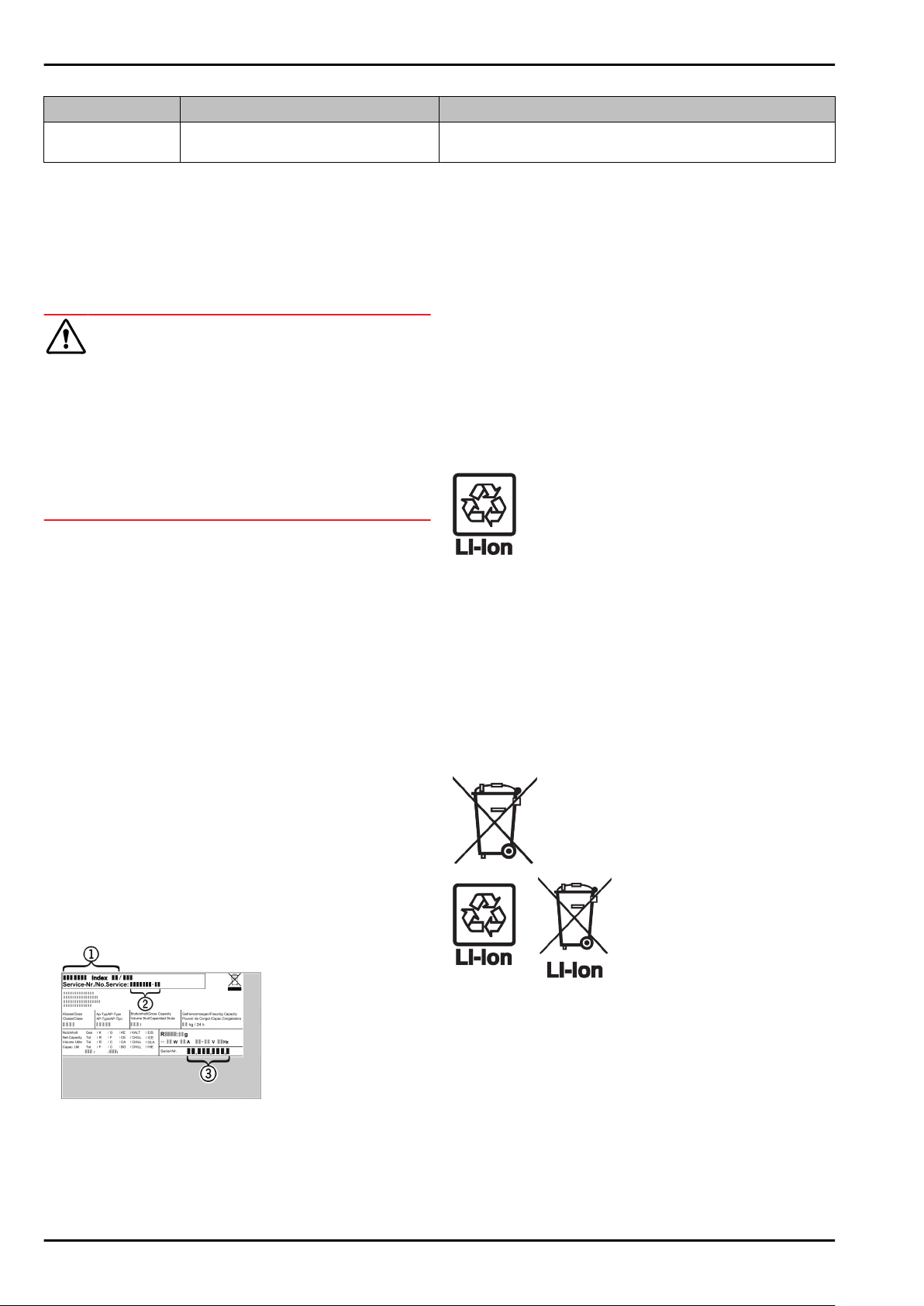

Defect Cause Remedy
→ The LED interior light is faulty or
the lid is damaged.
u
Contact customer service (see 9.4 Customer Services) .
9.4 Customer Services
First check if you can fix the error yourself (see 9 Customer
help) . If you can't, contact Customer Services.
Please refer to the enclosed “Liebherr-Service” brochure for
the address.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 8 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
9.4.1 Contact Customer Services
Make sure you have the following appliance data at the
ready:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Look up the appliance information on the display
(see Info) .
-or-
u
Referring to appliance info on the nameplate
(see 9.5 Model plate) .
u
Note down the appliance information.
u
Notify Customer Services of the following: Give us the
appliance data.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow any further instructions given by Customer Serv‐
ices.
9.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 55
(1)
Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
10 Shutting down
u
Empty the appliance.
u
Turn off the IceMaker .
u
Turn off the appliance .
u
Remove mains connector.
u
Remove appliance connector if required: Remove and
move from left to right at the same time.
u
Clean the appliance (see 8.3 Cleaning the appliance) .
u
Leave the door open to avoid bad smells building up.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
Shutting down
* Depending on model and options 23
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
24 * Depending on model and options
Disposal
* Depending on model and options 25
home.liebherr.com/fridge-manuals
Integrated freezer
Issue date: 20221221
Part number index: 7088285-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
