Whi#l ol
A Note to You .................. 2
Range Safety ................... 3
Parts and Features ......... 6
Using Your Range ........... 8
Using the
Self°Cleaning Cycle ...... 38
Caring for
Your Range .................... 44
Troubleshooting ............ 52
Requesting
Assistance
or Service ...................... 54
Index .............................. 55
Warranty ........................ 56
Call our Consumer Assistance Center
with questions or comments.
MODELS RS610PXG RS675PXG RS696PXG
3191537
www.whirlpool.com
....iiiit_ili_Ei,li_ii,ii',:_!_'oi_._ii;©_i__ii::_iil.iii,_ii_i='i_i_ii,li_!!!i::;_ _!iii__ii_ii;_i!iiii-iiiiiiiiii;:i:iilliL.i_:_;_OOiL¸_¸¸_¸¸;iii_;i_iii:]_,ii::)iiiiiii;iiii_iiii;_,o_!!!i_.

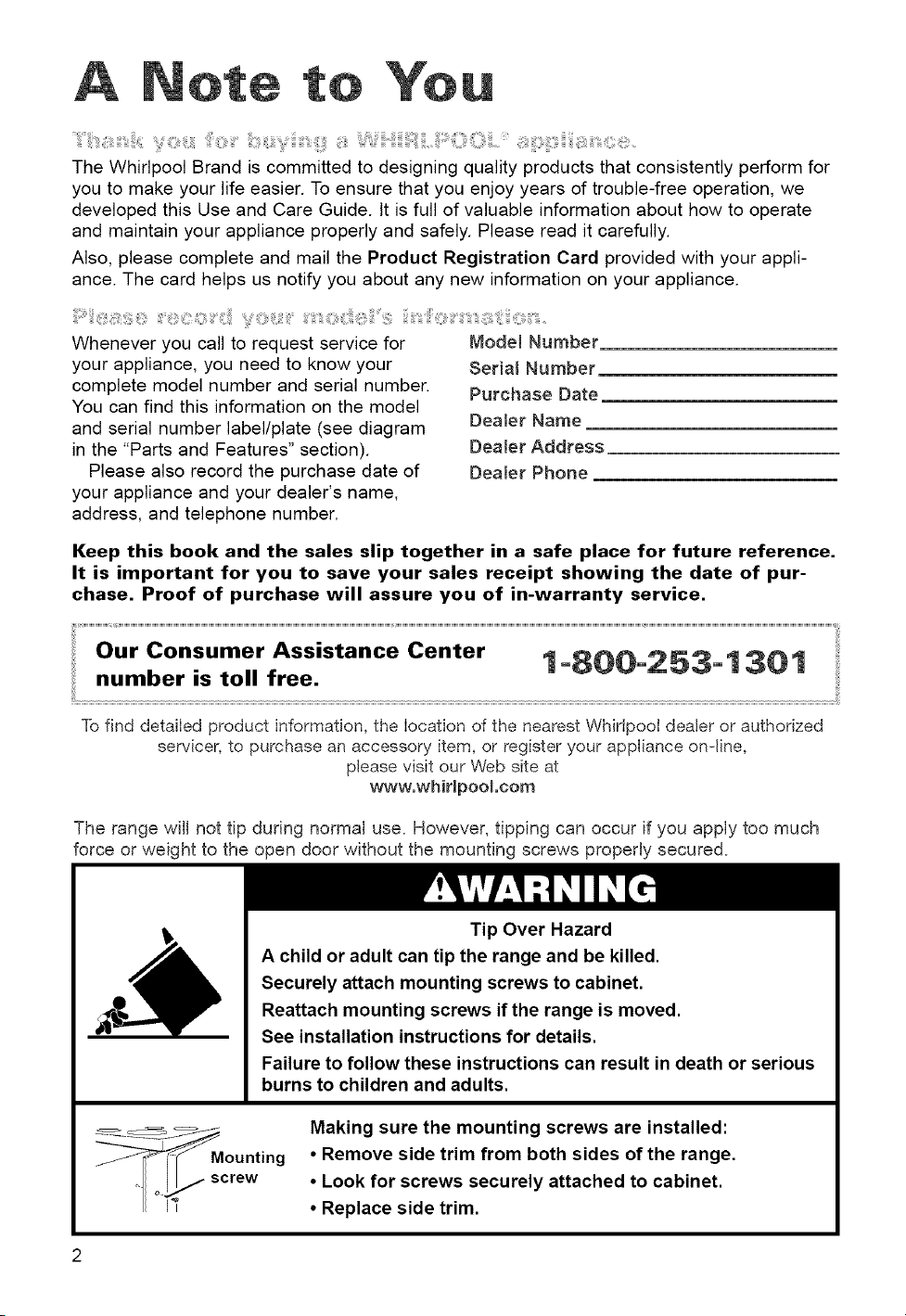

The Whirlpool Brand is committed to designing quality products that consistently perform for
you to make your life easier. To ensure that you enjoy years of trouble-free operation, we
developed this Use and Care Guide. It is full of valuable information about how to operate
and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Product Registration Card provided with your appli-
ance. The card helps us notify you about any new information on your appliance.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label/plate (see diagram
in the "Parts and Features" section).
Please also record the purchase date of
your appliance and your dealer's name,
address, and telephone number.
Model Number
SeNai Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
It is important for you to save your sales receipt showing the date of pur-
chase. Proof of purchase will assure you of in-warranty service.
Our Consumer Assistance Center 1-800-253-1301
number is toll free.
To find detailed product information, the location of the nearest WhiripooI dealer or authorized
servicer, to purchase an accessory item, or register your appliance online,
please visit our Web site at
www.whiHpool.com
The range wit not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the mounting screws properly secured.
Mounting
screw
Tip Over Hazard
A child or adult can tip the range and be killed.
Securely attach mounting screws to cabinet.
Reattach mounting screws if the range is moved.
See installation instructions for details.
Failure to follow these instructions can result in death or serious
burns to children and adults.
Making sure the mounting screws are installed:
• Remove side trim from both sides of the range.
• Look for screws securely attached to cabinet.
• Replace side trim.

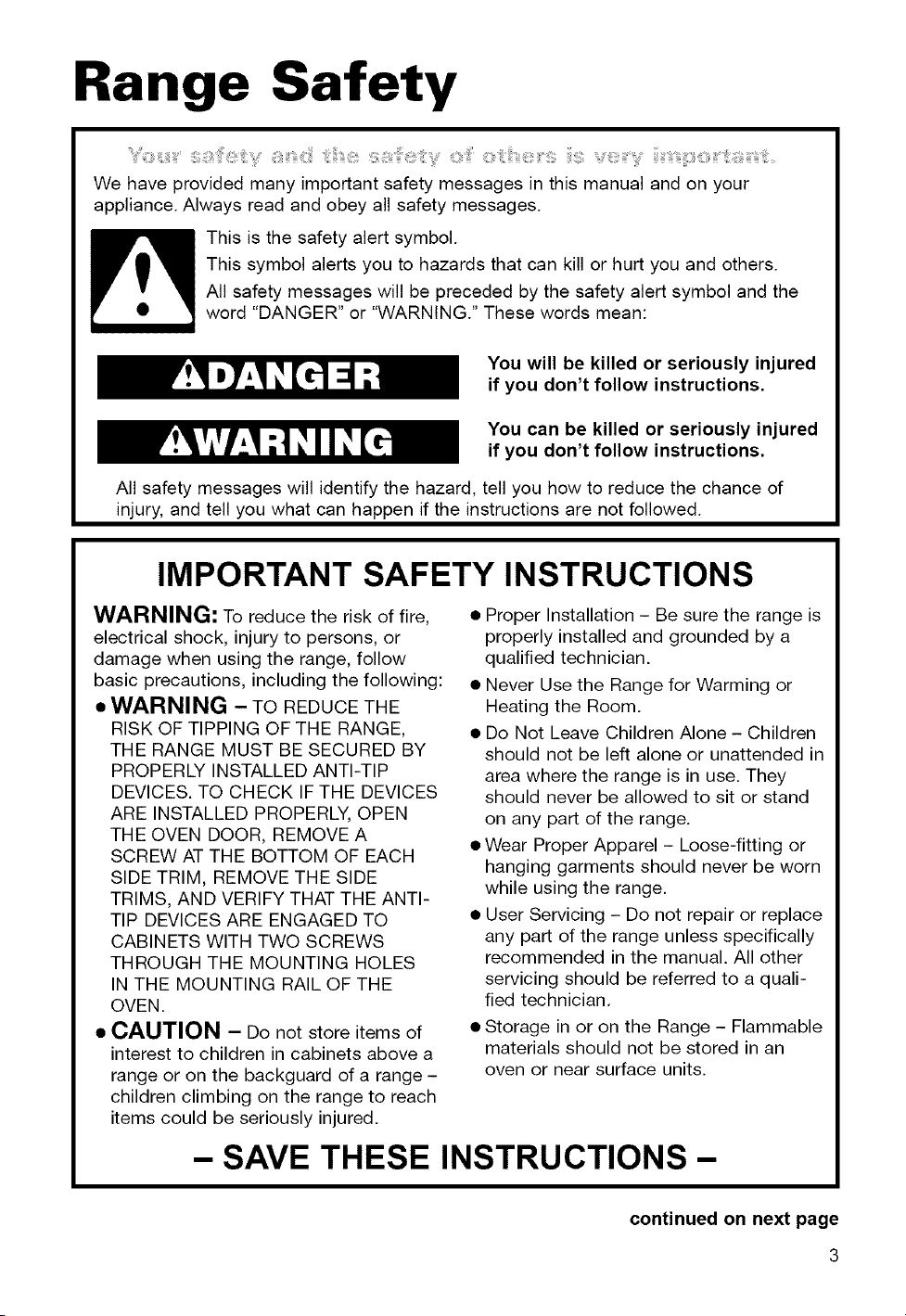

Range Safety
_'©_,_ _i_ ¸ _:_ _@ _ _ _!_ _S _!_ _,©_
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING." These words mean:
You will be killed or seriously injured
if you don't follow instructions.
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire,
electrical shock, injury to persons, or
damage when using the range, follow
basic precautions, including the following:
• WARNING - TO REDUCETHE
RISK OF TIPPING OF THE RANGE,
THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP
DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, OPEN
THE OVEN DOOR, REMOVE A
SCREW AT THE BOTTOM OF EACH
SIDE TRIM, REMOVE THE SIDE
TRIMS, AND VERIFY THAT THE ANTI-
TIP DEVICES ARE ENGAGED TO
CABINETS WITH TWO SCREWS
THROUGH THE MOUNTING HOLES
IN THE MOUNTING RAIL OF THE
OVEN.
• CAUTION - Do not store items of
interest to children in cabinets above a
range or on the backguard of a range -
children climbing on the range to reach
items could be seriously injured.
• Proper Installation - Be sure the range is
properly installed and grounded by a
qualified technician.
• Never Use the Range for Warming or
Heating the Room.
• Do Not Leave Children Alone - Children
should not be left alone or unattended in
area where the range is in use. They
should never be allowed to sit or stand
on any part of the range.
• Wear Proper Apparel - Loose-fitting or
hanging garments should never be worn
while using the range.
• User Servicing - Do not repair or replace
any part of the range unless specifically
recommended in the manual. All other
servicing should be referred to a quali-
fied technician.
• Storage in or on the Range - Flammable
materials should not be stored in an
oven or near surface units.
- SAVE THESE INSTRUCTIONS -
continued on next page
3

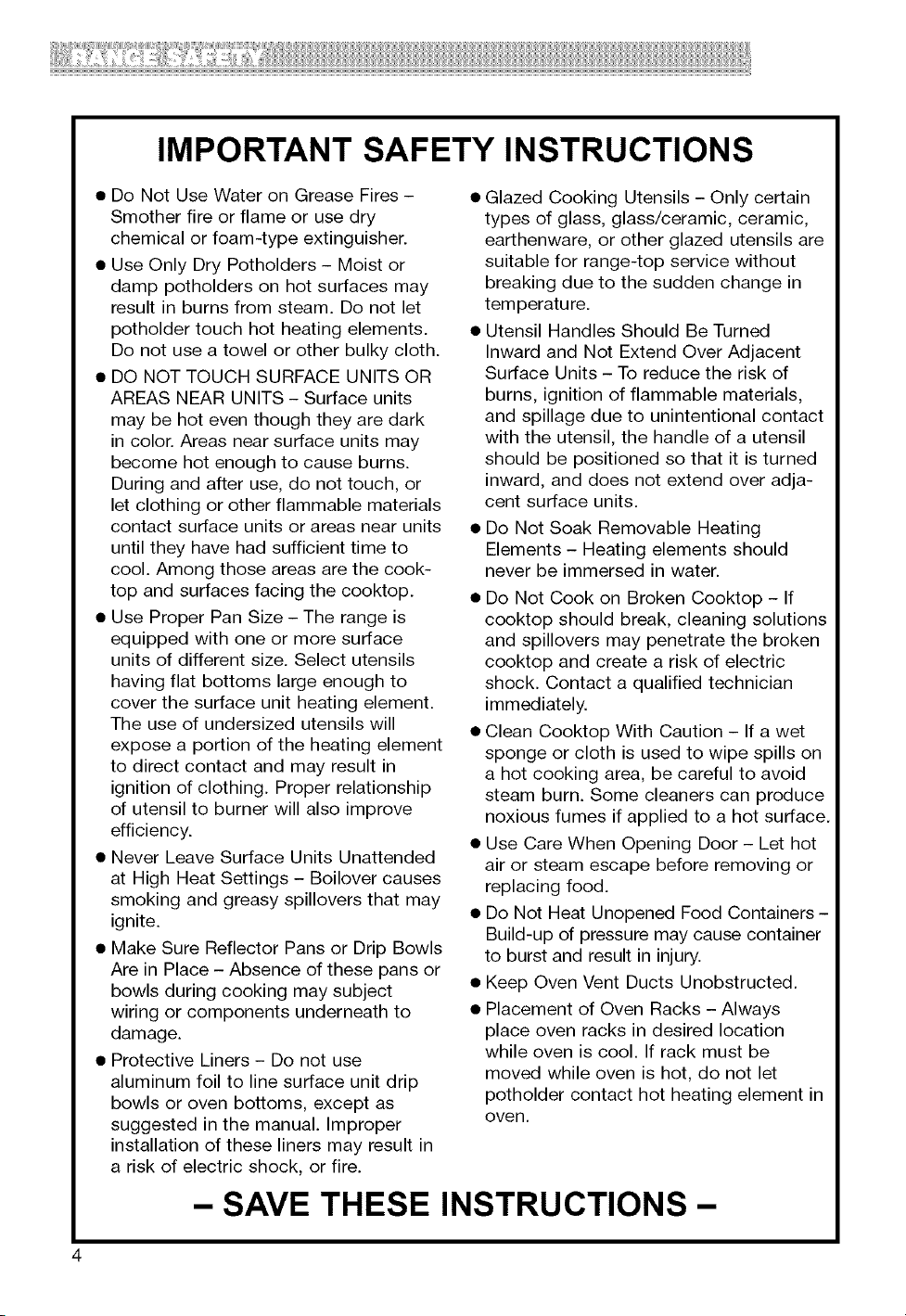

IMPORTANT SAFETY INSTRUCTIONS
• Do Not Use Water on Grease Fires -
Smother fire or flame or use dry
chemical or foam-type extinguisher.
• Use Only Dry Potholders - Moist or
damp potholders on hot surfaces may
result in burns from steam. Do not let
potholder touch hot heating elements.
Do not use a towel or other bulky cloth.
• DO NOT TOUCH SURFACE UNITS OR
AREAS NEAR UNITS - Surface units
may be hot even though they are dark
in color. Areas near surface units may
become hot enough to cause burns.
During and after use, do not touch, or
let clothing or other flammable materials
contact surface units or areas near units
until they have had sufficient time to
cool. Among those areas are the cook-
top and surfaces facing the cooktop.
• Use Proper Pan Size - The range is
equipped with one or more surface
units of different size. Select utensils
having flat bottoms large enough to
cover the surface unit heating element.
The use of undersized utensils will
expose a portion of the heating element
to direct contact and may result in
ignition of clothing. Proper relationship
of utensil to burner will also improve
efficiency.
• Never Leave Surface Units Unattended
at High Heat Settings - Boilover causes
smoking and greasy spillovers that may
ignite.
• Make Sure Reflector Pans or Drip Bowls
Are in Place - Absence of these pans or
bowls during cooking may subject
wiring or components underneath to
damage.
• Protective Liners - Do not use
aluminum foil to line surface unit drip
bowls or oven bottoms, except as
suggested in the manual. Improper
installation of these liners may result in
a risk of electric shock, or fire.
• Glazed Cooking Utensils - Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are
suitable for range-top service without
breaking due to the sudden change in
tem peratu re.
• Utensil Handles Should Be Turned
Inward and Not Extend Over Adjacent
Surface Units - To reduce the risk of
burns, ignition of flammable materials,
and spillage due to unintentional contact
with the utensil, the handle of a utensil
should be positioned so that it is turned
inward, and does not extend over adja-
cent surface units.
• Do Not Soak Removable Heating
Elements - Heating elements should
never be immersed in water.
• Do Not Cook on Broken Cooktop - If
cooktop should break, cleaning solutions
and spillovers may penetrate the broken
cooktop and create a risk of electric
shock. Contact a qualified technician
immediately.
• Clean Cooktop With Caution - If a wet
sponge or cloth is used to wipe spills on
a hot cooking area, be careful to avoid
steam burn. Some cleaners can produce
noxious fumes if applied to a hot surface.
• Use Care When Opening Door - Let hot
air or steam escape before removing or
replacing food.
• Do Not Heat Unopened Food Containers -
Build-up of pressure may cause container
to burst and result in injury.
• Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks - Always
place oven racks in desired location
while oven is cool. If rack must be
moved while oven is hot, do not let
potholder contact hot heating element in
oven.
- SAVE THESE INSTRUCTIONS -

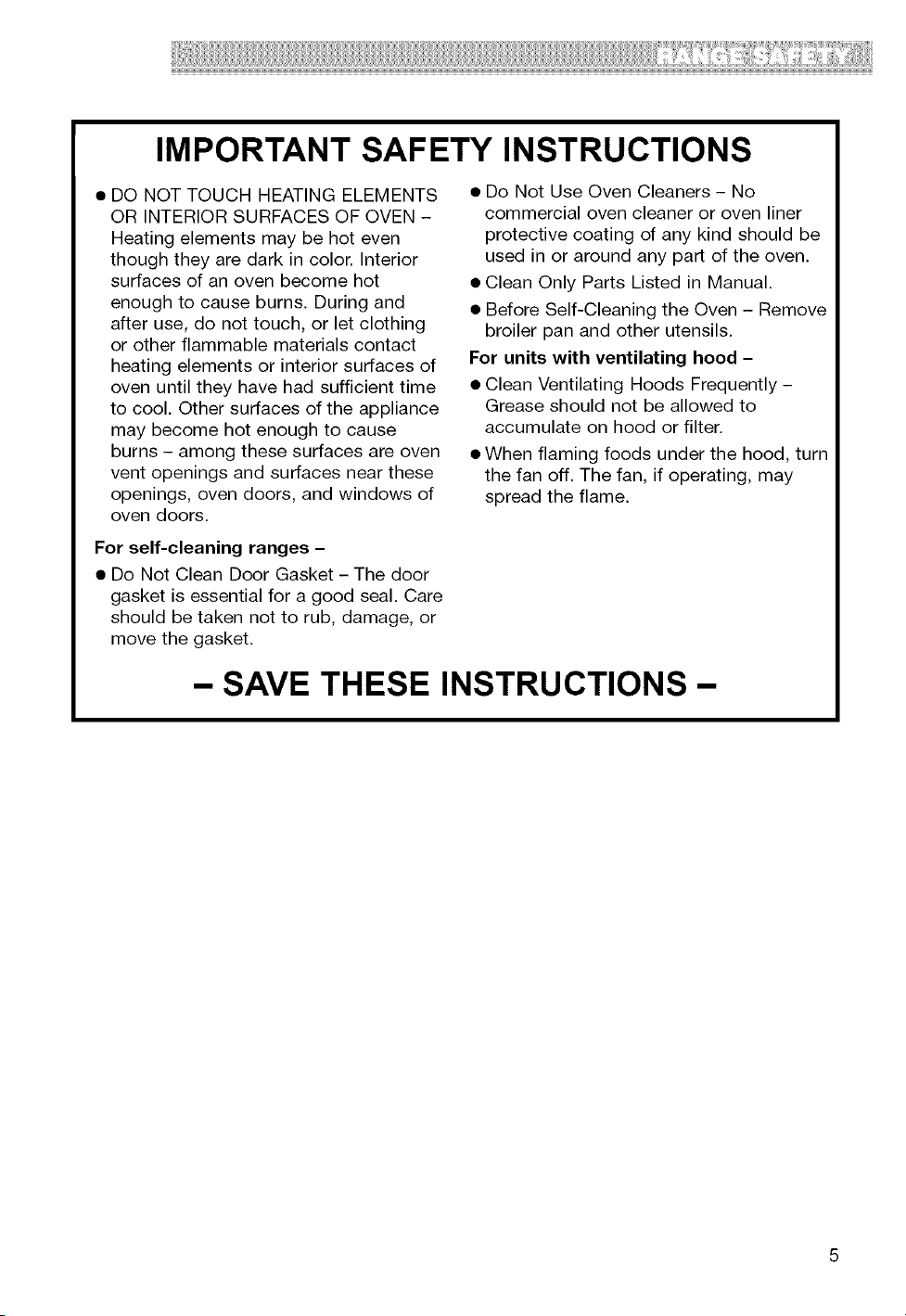

IMPORTANT SAFETY INSTRUCTIONS
• DO NOT TOUCH HEATING ELEMENTS
OR INTERIOR SURFACES OF OVEN -
Heating elements may be hot even
though they are dark in color. Interior
surfaces of an oven become hot
enough to cause burns. During and
after use, do not touch, or let clothing
or other flammable materials contact
heating elements or interior surfaces of
oven until they have had sufficient time
to cool. Other surfaces of the appliance
may become hot enough to cause
burns - among these surfaces are oven
vent openings and surfaces near these
openings, oven doors, and windows of
oven doors.
• Do Not Use Oven Cleaners - No
commercial oven cleaner or oven liner
protective coating of any kind should be
used in or around any part of the oven.
• Clean Only Parts Listed in Manual.
• Before Self-Cleaning the Oven - Remove
broiler pan and other utensils.
For units with ventilating hood -
• Clean Ventilating Hoods Frequently -
Grease should not be allowed to
accumulate on hood or filter.
• When flaming foods under the hood, turn
the fan off. The fan, if operating, may
spread the flame.
For self-cleaning ranges -
• Do Not Clean Door Gasket - The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
- SAVE THESE INSTRUCTIONS -

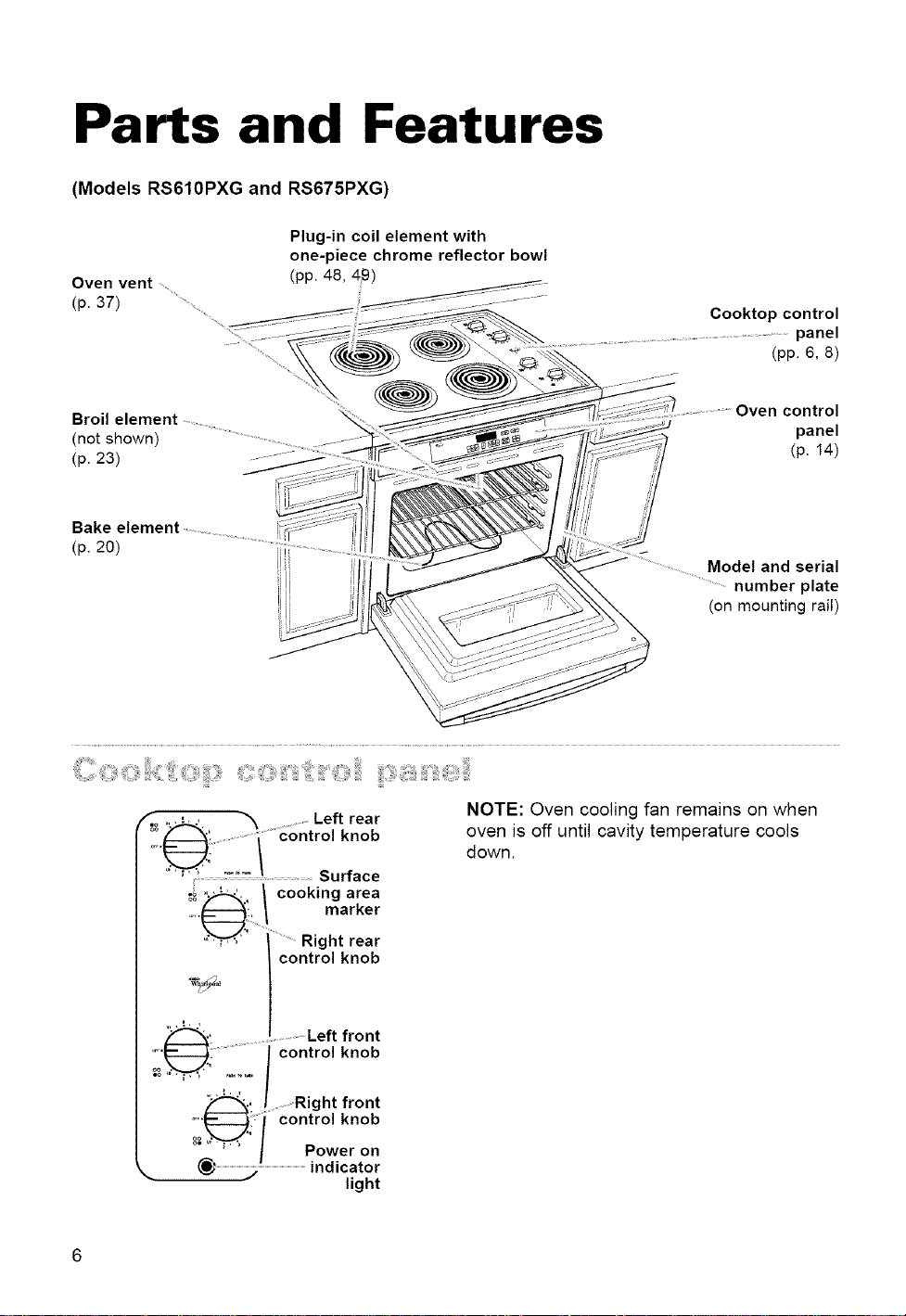

Parts and Features
(Models RS610PXG and RS675PXG)
Oven vent ....
(p. 37)
Plug-in coil element with
one-piece chrome reflector bowl
(pp. 48, 49)
Cooktop control
panel
(pp. 6, 8)
Broil control
(not shown) panel
(p. 23) ............ (p. 14)
Bake element
(p. 20)
Model and serial
number plate
(on mounting rail)
°°_'. ......................control knob
8F_
|
'_"_' '' ..... \ Surface
. ., cooking area
_i: marker
_,, ...........Right rear
control knob
NOTE: Oven cooling fan remains on when
oven is off until cavity temperature cools
down.
_t .................................Left front
_'_i "......... I control knob
_,. !Right front
_,._:/ control knob
'_"_'" / Power on
_ .........................._ ............................................indicator
light

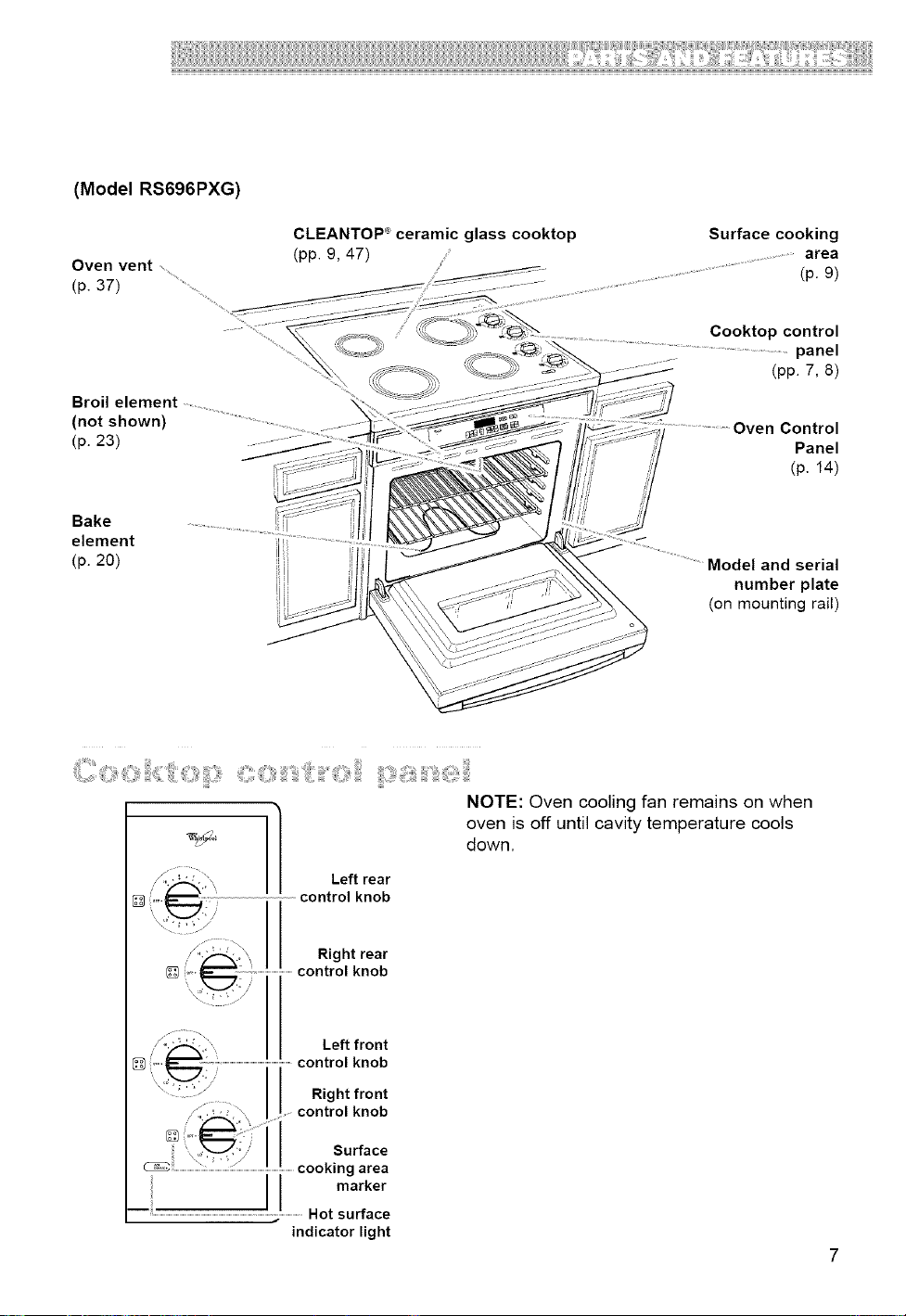

(Model RS696PXG)
Oven vent .......
(p. 37) ..............
Broil
(not shown)
(p. 23)
CLEANTOP _°ceramic glass cooktop
(pp. 9, 47) ......
Surface cooking
...........area
(p. g)
Cooktop control
panel
(pp. 7, 8)
Oven Control
Panel
(p. 14)
Bake
element
(p. 20)
Model and serial
number plate
(on mounting rail)
NOTE: Oven cooling fan remains on when
oven is off until cavity temperature cools
down.
Left rear
control knob
/_.i _, Right rear
@ ,-._ ....................................control knob
," _'/P,,_,," Left front
(_-_,,_ ...................................................................control knob
"\°'_ '"/ Right front
/j',_, \ control knob
," / Surface
..............................................cooking area
marker
-- .................................................................................................................................Hot surface
J
indicator light
Using Your Rang
Push in control knobs before turning

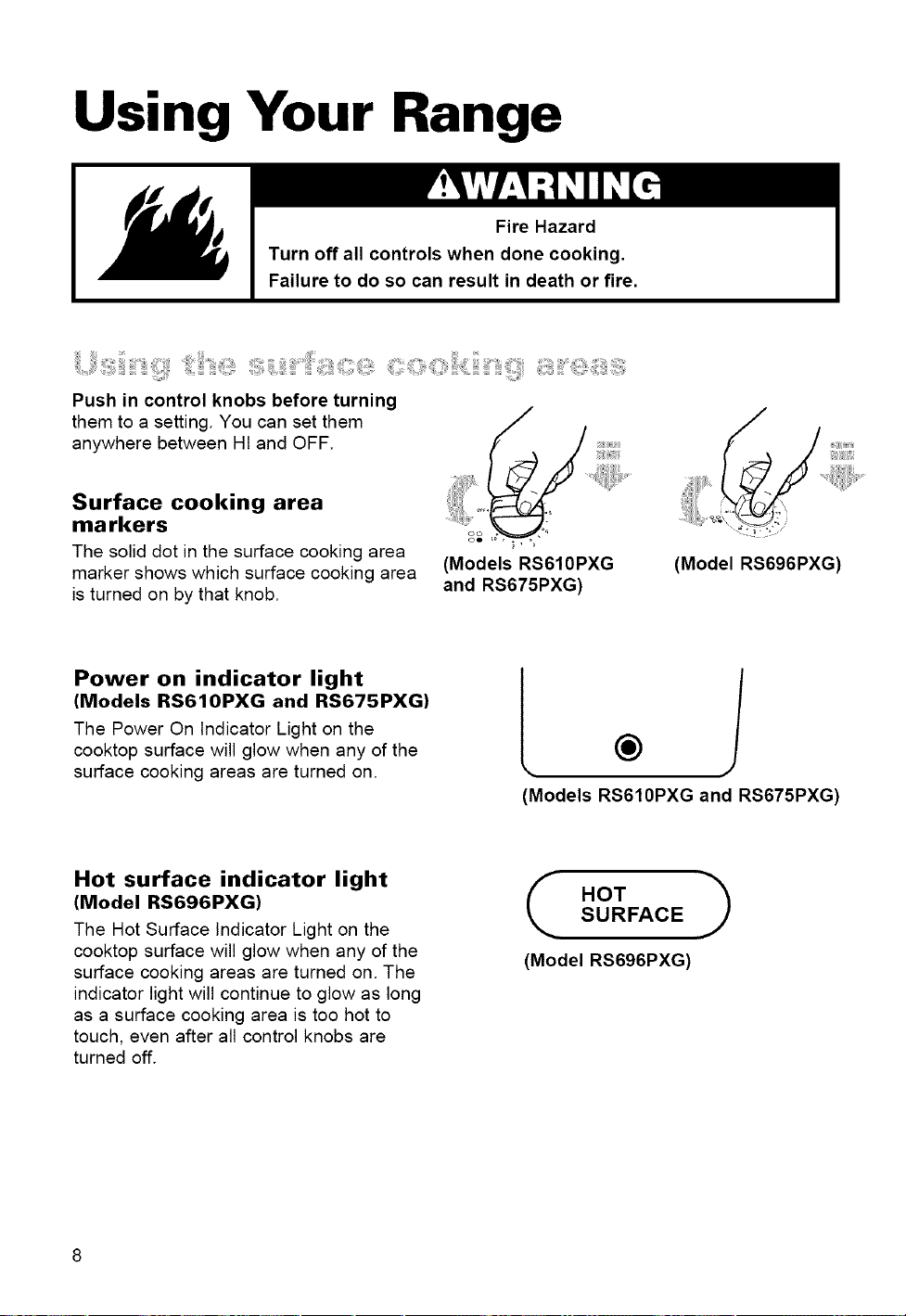

them to a setting. You can set them
anywhere between HI and OFF.
Surface cooking area
markers
The solid dot in the surface cooking area
marker shows which surface cooking area
is turned on by that knob.
ii_iiiiiiiiiiiiiii
!iiii/iiii_iiiiii¢
©o
oo
(Models RS610PXG
and RS675PXG)
(Model RS696PXG)
Power on indicator light
(Models RS610PXG and RS675PXG)
The Power On Indicator Light on the
cooktop surface will glow when any of the
surface cooking areas are turned on.
®
% J
(Models RS610PXG and RS675PXG)
Hot surface indicator light
(Model RS696PXG)
The Hot Surface Indicator Light on the
cooktop surface will glow when any of the
surface cooking areas are turned on. The
indicator light will continue to glow as long
as a surface cooking area is too hot to
touch, even after all control knobs are
turned off.
HOT )
SURFACE
(Model RS696PXG)
!iii ! !

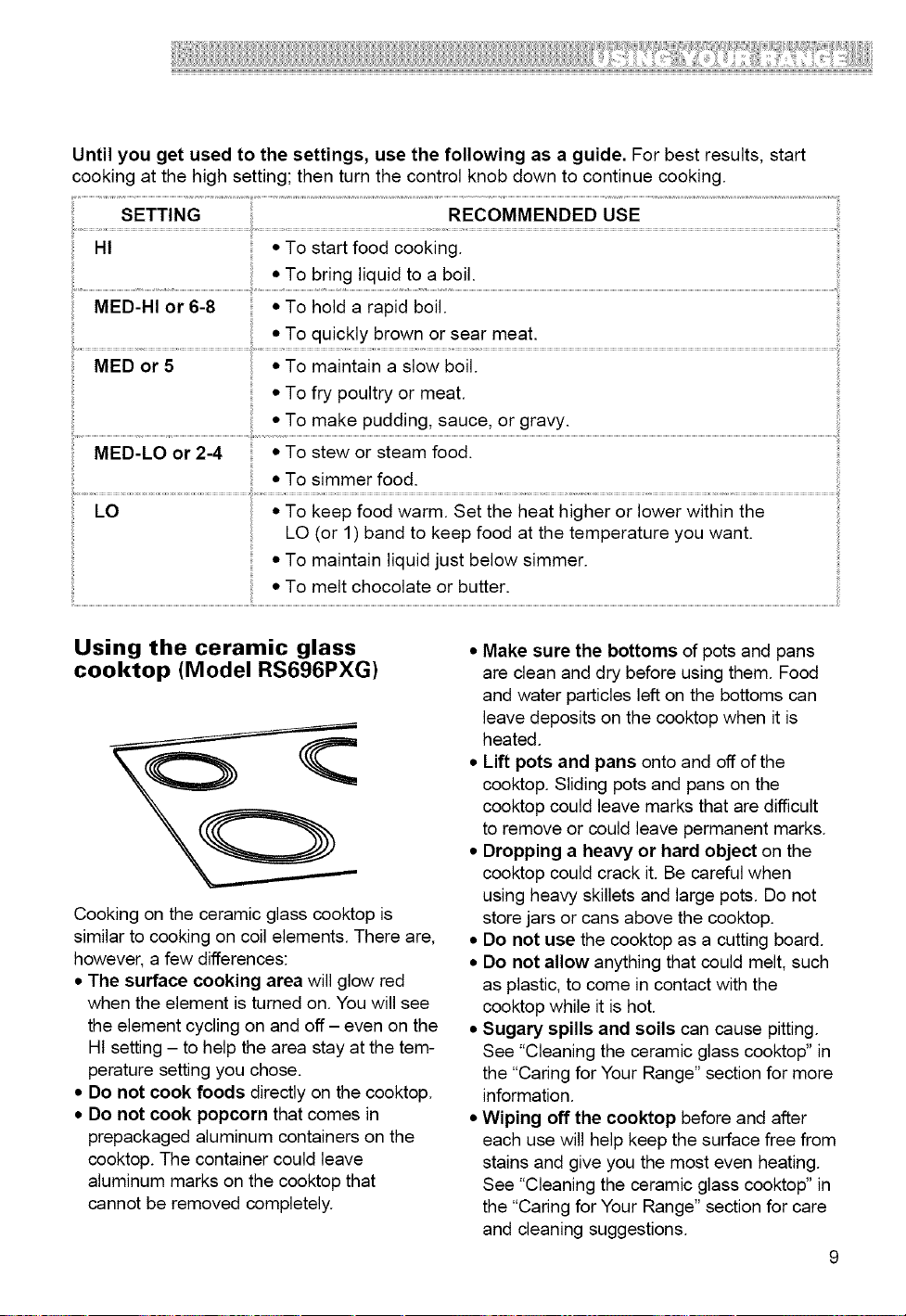

Until you get used to the settings, use the following as a guide. For best results, start
cooking at the high setting; then turn the control knob down to continue cooking.
RECOMMENDED USESETTING
HI
MED-HI or 6-8
MED or 5
• To start food cooking.
• To bring liquid to a boil.
• To hold a rapid boil.
• To quickly brown or sear meat.
• To maintain a slow boil.
• To fry poultry or meat.
iiiii
• To make pudding, sauce, or gravy.
MED-LO or 2-4 • To stew or steam food.
• To simmer food.
LO • To keep food warm. Set the heat higher or lower within the
LO (or 1) band to keep food at the temperature you want.
• To maintain liquid just below simmer.
Using the ceramic glass
cooktop (Model RS696PXG)
Cooking on the ceramic glass cooktop is
similar to cooking on coil elements. There are,
however, a few differences:
• The surface cooking area will glow red
when the element is turned on. You will see
the element cycling on and off - even on the
HI setting - to help the area stay at the tem-
perature setting you chose.
• Do not cook foods directly on the cooktop.
• Do not cook popcorn that comes in
prepackaged aluminum containers on the
cooktop. The container could leave
aluminum marks on the cooktop that
cannot be removed completely.
• Make sure the bottoms of pots and pans
are clean and dry before using them. Food
and water particles left on the bottoms can
leave deposits on the cooktop when it is
heated.
• Lift pots and pans onto and off of the
cooktop. Sliding pots and pans on the
cooktop could leave marks that are difficult
to remove or could leave permanent marks.
• Dropping a heavy or hard object on the
cooktop could crack it. Be careful when
using heavy skillets and large pots. Do not
store jars or cans above the cooktop.
• Do not use the cooktop as a cutting board.
• Do not allow anything that could melt, such
as plastic, to come in contact with the
cooktop while it is hot.
• Sugary spills and soils can cause pitting.
See "Cleaning the ceramic glass cooktop" in
the "Caring for Your Range" section for more
information.
• Wiping off the cooktop before and after
each use will help keep the surface free from
stains and give you the most even heating.
See "Cleaning the ceramic glass cooktop" in
the "Caring for Your Range" section for care
and cleaning suggestions.
9
i!iiiiSi!iiiiiil121:1ii!ii!iii!!!i12111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiiiii!!iiiii!i !i!ii!i! iiii!:i!i

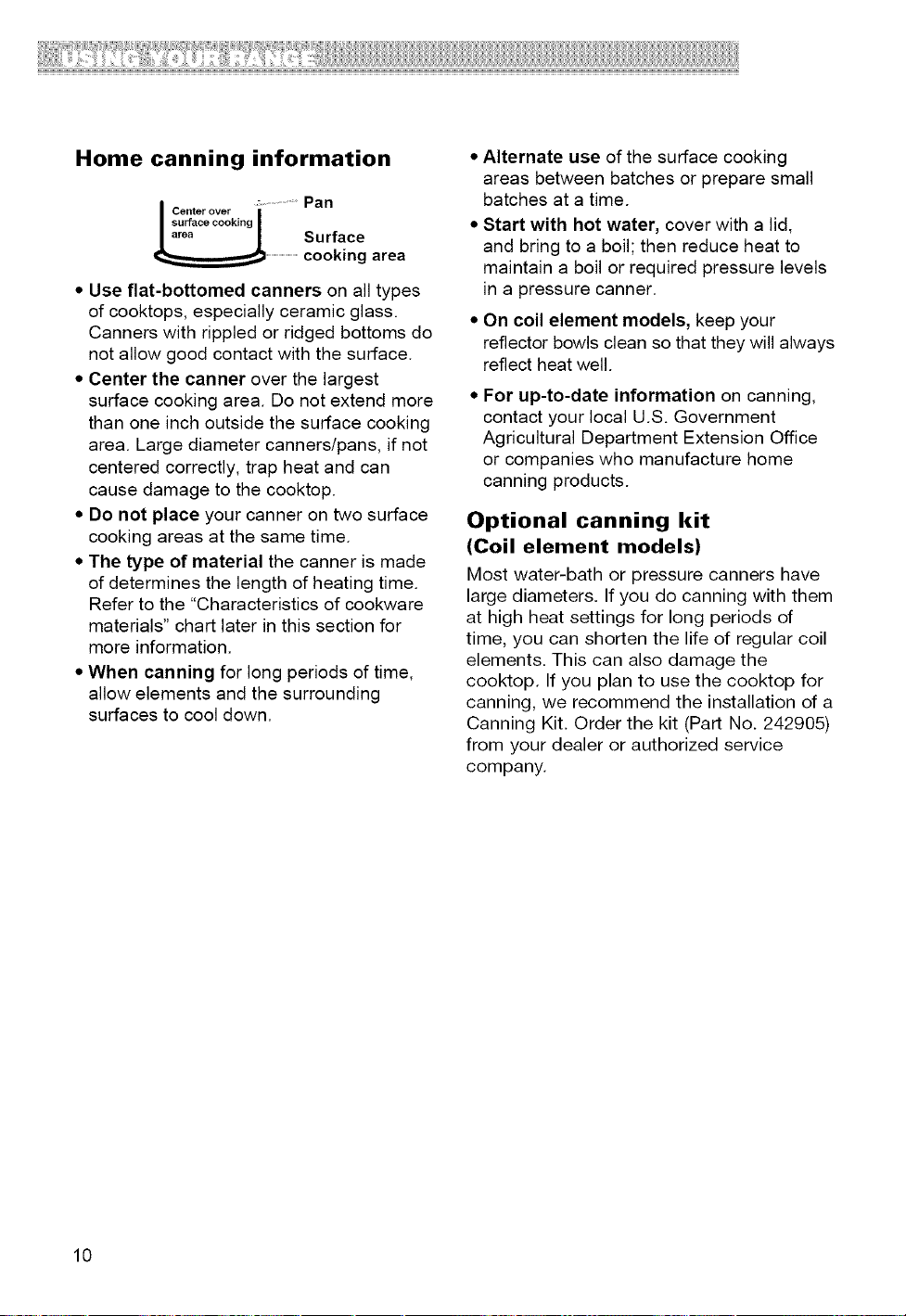

Home canning information
Center over ............. Pan
surface cooking
Surface
..............................cooking area
• Use flat-bottomed canners on all types
of cooktops, especially ceramic glass.
Canners with rippled or ridged bottoms do
not allow good contact with the surface.
• Center the canner over the largest
surface cooking area. Do not extend more
than one inch outside the surface cooking
area. Large diameter canners/pans, if not
centered correctly, trap heat and can
cause damage to the cooktop.
• Do not place your canner on two surface
cooking areas at the same time.
• The type of material the canner is made
of determines the length of heating time.
Refer to the "Characteristics of cookware
materials" chart later in this section for
more information.
• When canning for long periods of time,
allow elements and the surrounding
surfaces to cool down.
• Alternate use of the surface cooking
areas between batches or prepare small
batches at a time.
• Start with hot water, cover with a lid,
and bring to a boil; then reduce heat to
maintain a boil or required pressure levels
in a pressure canner.
• On coil element models, keep your
reflector bowls clean so that they will always
reflect heat well.
For up-to-date information on canning,
contact your local U.S. Government
Agricultural Department Extension Office
or companies who manufacture home
canning products.
Optional canning kit
(Coil element models)
Most water-bath or pressure canners have
large diameters. If you do canning with them
at high heat settings for long periods of
time, you can shorten the life of regular coil
elements. This can also damage the
cooktop. If you plan to use the cooktop for
canning, we recommend the installation of a
Canning Kit. Order the kit (Part No. 242905)
from your dealer or authorized service
company.
10
!iii ! !
iiiii / ii ,

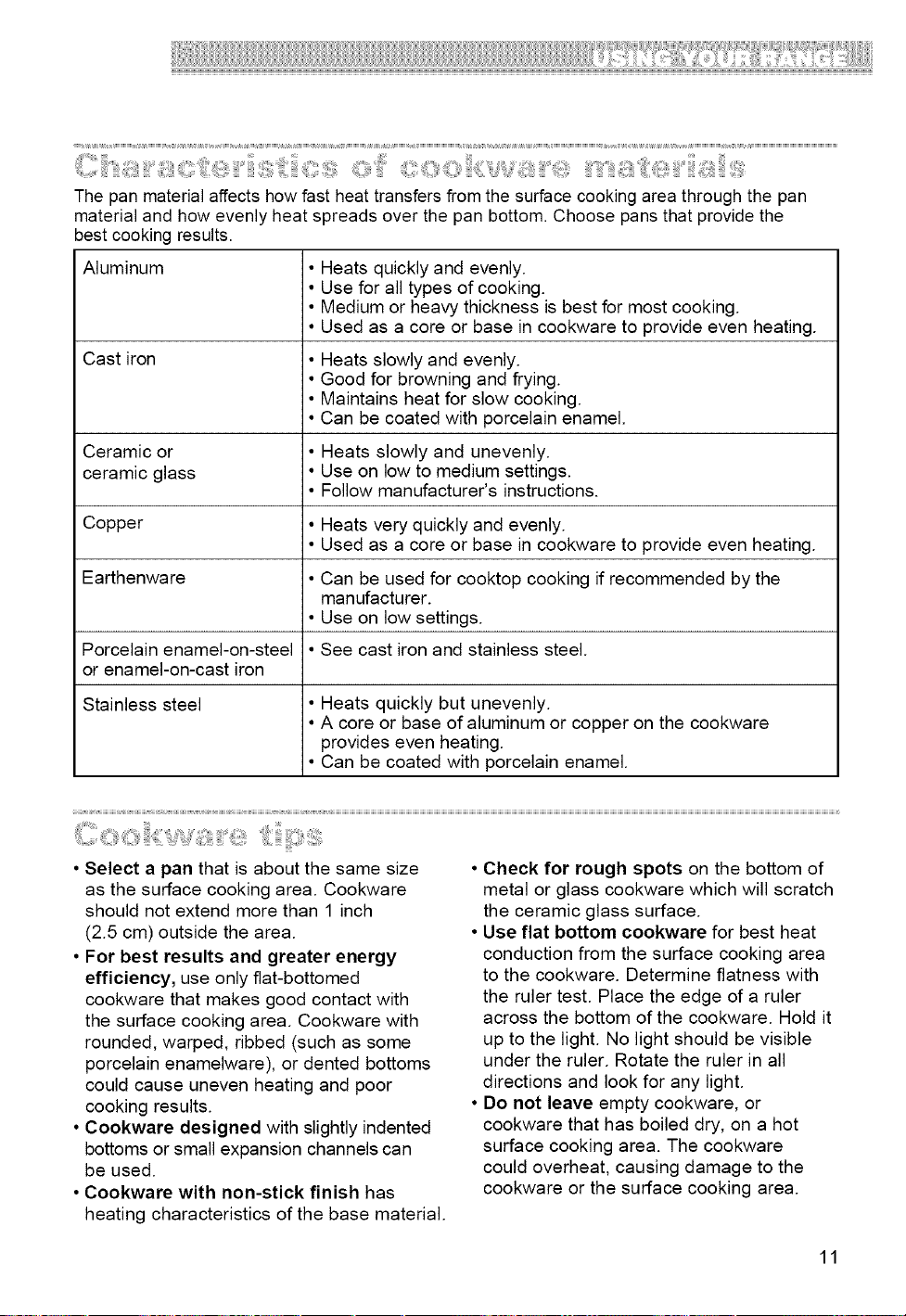

The pan material affects how fast heat transfers from the surface cooking area through the pan
material and how evenly heat spreads over the pan bottom. Choose pans that provide the
best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or • Heats slowly and unevenly.
ceramic glass • Use on low to medium settings.
• Follow manufacturer's instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel • See cast iron and stainless steel.
or enamel-on-cast iron
Stainless steel • Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware
provides even heating.
• Can be coated with porcelain enamel.
iiii iii::w iiiiiii:!!iii
• Select a pan that is about the same size
as the surface cooking area. Cookware
should not extend more than 1 inch
(2.5 cm) outside the area.
• For best results and greater energy
efficiency, use only fiat-bottomed
cookware that makes good contact with
the surface cooking area. Cookware with
rounded, warped, ribbed (such as some
porcelain enamelware), or dented bottoms
could cause uneven heating and poor
cooking results.
• Cookware designed with slightly indented
bottoms or small expansion channels can
be used.
• Cookware with non-stick finish has
heating characteristics of the base material.
• Check for rough spots on the bottom of
metal or glass cookware which will scratch
the ceramic glass surface.
• Use flat bottom cookware for best heat
conduction from the surface cooking area
to the cookware. Determine flatness with
the ruler test. Place the edge of a ruler
across the bottom of the cookware. Hold it
up to the light. No light should be visible
under the ruler. Rotate the ruler in all
directions and look for any light.
• Do not leave empty cookware, or
cookware that has boiled dry, on a hot
surface cooking area. The cookware
could overheat, causing damage to the
cookware or the surface cooking area.
11
i!iiiiSi!iiiiiil121:1ii!ii!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i !i!ii!i! iiii!:i!i

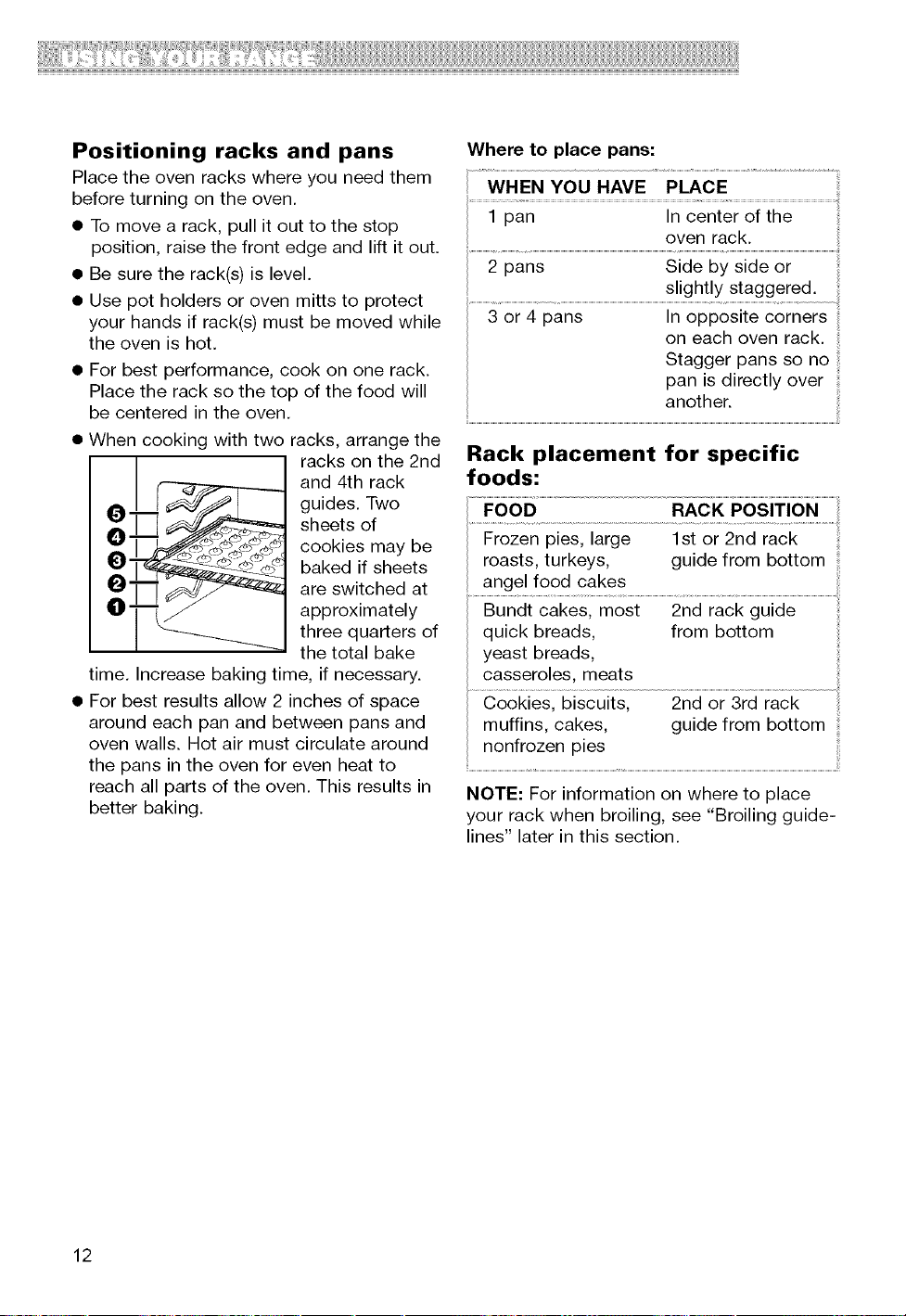

Positioning racks and pans
Place the oven racks where you need them
before turning on the oven.
• To move a rack, pull it out to the stop
position, raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect
your hands if rack(s) must be moved while
the oven is hot.
• For best performance, cook on one rack.
Place the rack so the top of the food will
be centered in the oven.
• When cooking with two racks, arrange the
racks on the 2nd
and 4th rack
guides. Two
sheets of
cookies may be
baked if sheets
are switched at
approximately
three quarters of
the total bake
time. Increase baking time, if necessary.
• For best results allow 2 inches of space
around each pan and between pans and
oven walls. Hot air must circulate around
the pans in the oven for even heat to
reach all parts of the oven. This results in
better baking.
Where to place pans:
i...........................................................................................................................................................................................................................................................................................................................
1 pan In center of the
oven rack.
...................................................................................................................side by Side or..........................................
slightly staggered.
pans................................................................................in opposite corners
on each oven rack.
Stagger pans so no
pan is directly over
another.
Rack placement for specific
foods:
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack
roasts, turkeys, guide from bottom
angel food cakes
Bundt cakes, most 2nd rack guide
quick breads, from bottom
yeast breads,
casseroles, meats
Cookies, biscuits, 2nd or 3rd rack
muffins, cakes, guide from bottom
nonfrozen pies
NOTE: For information on where to place
your rack when broiling, see "Broiling guide-
lines" later in this section.
12
!iii ! !
ii!! i!!!iill ;i i: !iii!!,iil;;il iii , iiil;;!iiiii iiiiili ;ii:iiiii

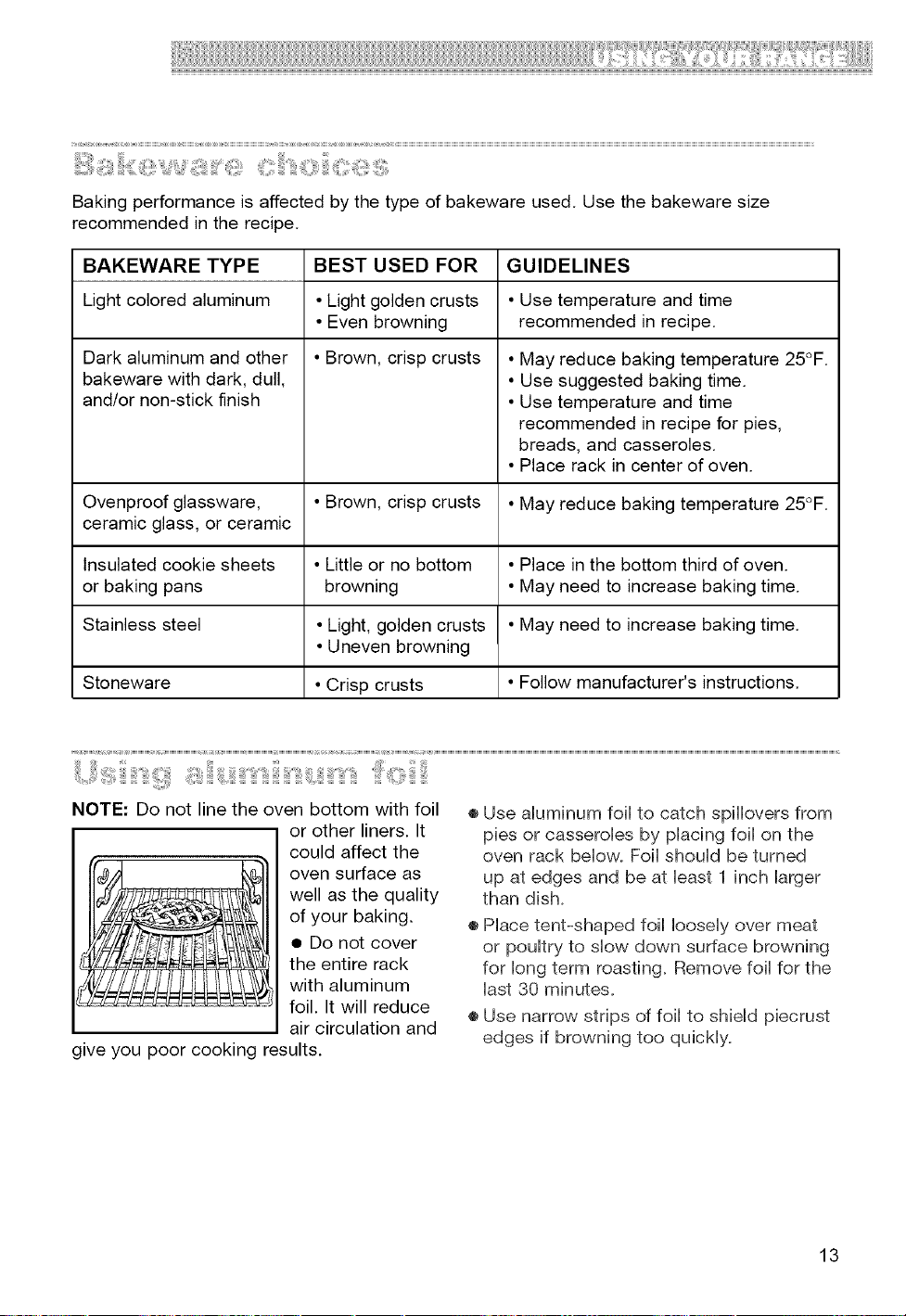

Baking performance is affected by the type of bakeware used. Use the bakeware size
recommended in the recipe.
BAKEWARE TYPE BEST USED FOR GUIDELINES
Light colored aluminum • Light golden crusts • Use temperature and time
• Even browning recommended in recipe.
• Brown, crisp crusts
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time
recommended in recipe for pies,
breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F.
ceramic glass, or ceramic
Insulated cookie sheets • Little or no bottom • Place in the bottom third of oven.
or baking pans browning • May need to increase baking time.
Stainless steel •Light, golden crusts • May need to increase baking time.
• Uneven browning
Stoneware • Crisp crusts • Follow manufacturer's instructions.
NOTE: Do not line the oven bottom with foil
or other liners. It
could affect the
oven surface as
well as the quality
of your baking.
• Do not cover
the entire rack
with aluminum
foil. It will reduce
air circulation and
give you poor cooking results.
® Use aluminum foil to catch spillovers from
pies or casseroles by placing foil on the
oven rack below. Foil should be turned
up at edges and be at least 1 inch larger
than dish.
® Place tent-shaped foil loosely over meat
or poultry to slow down surface browning
for long term roasting. Remove foil for the
last 30 minutes.
® Use narrow strips of foil to shield piecrust
edges if browning too quickly.
13
i!iiiiSi!iiiiiil121iii!il!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i!i!ii!i! iiii!i!i

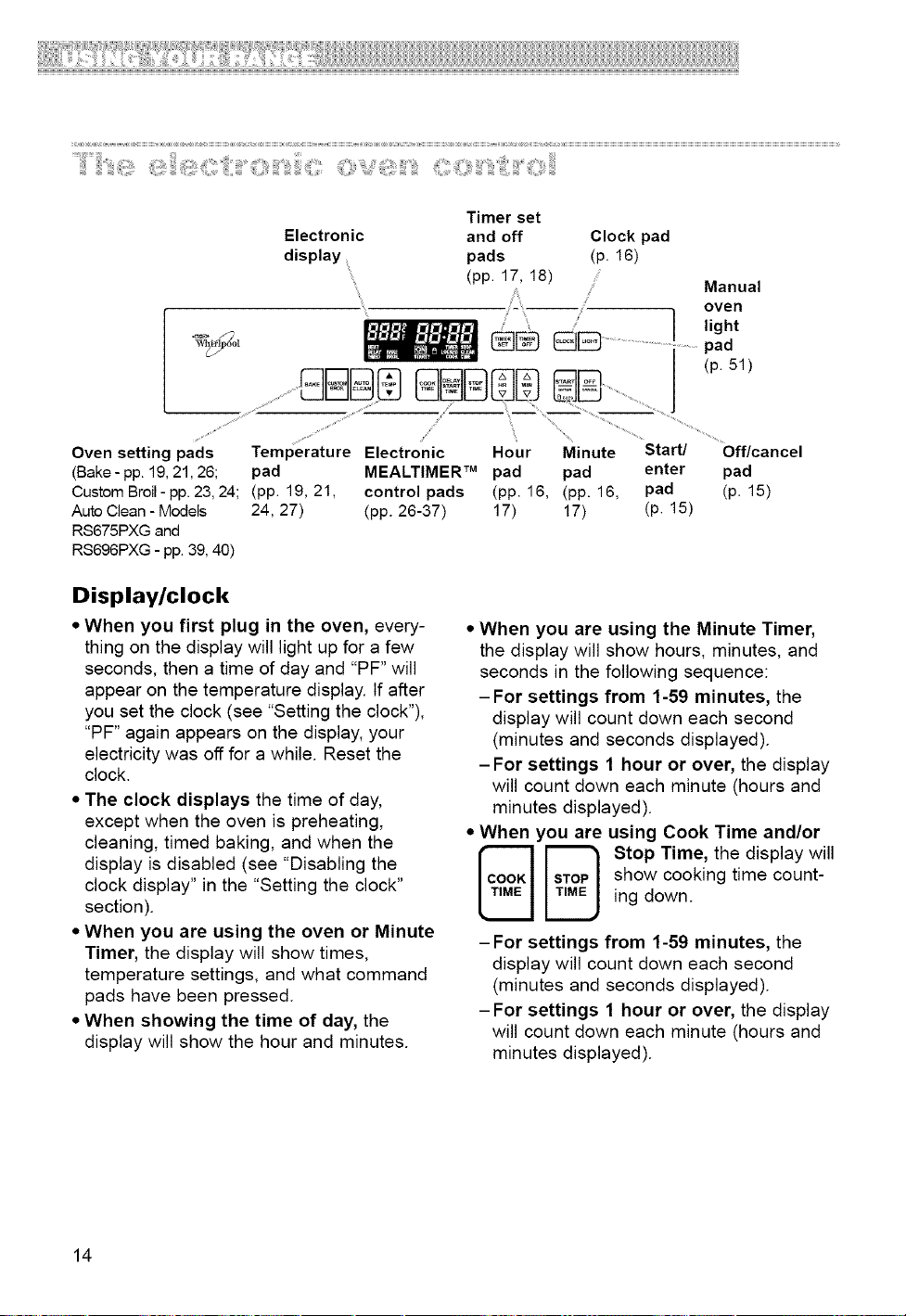

Electronic
display
Oven setting pads Temperature Electronic Hour Minute
(Bake- pp. 19, 21,26; pad MEALTIMER TM pad pad
CustomBroil- pp. 23, 24; (pp. 19, 21, control pads (pp. 16, (pp. 16,
AutoClean- Models 24, 27) (pp. 26-37) 17) 17)
RS675PXGand
RS696PXG- pp. 39, 40)
Timer set
and off Clock pad
pads (p. 16)
(pp. 17, 18) /
Manual
_ _" _[L_J_L_..............................................pad
_i-_ I (p. 51)
o l
Start/ Off/cancel
enter pad
pad (p. 15)
(p. 15)
Display/clock
• When you first plug in the oven, eve_-
thing on the display will light up for a few
seconds, then a time of day and "PF" will
appear on the temperature display, tf after
you set the clock (see "Setting the clock"),
"PF" again appears on the display, your
electricity was off for a while. Reset the
clock.
• The clock displays the time of day,
except when the oven is preheating,
cleaning, timed baking, and when the
display is disabled (see "Disabling the
clock display" in the "Setting the clock"
section).
• When you are using the oven or Minute
Timer, the display will show times,
temperature settings, and what command
pads have been pressed.
• When showing the time of day, the
display will show the hour and minutes.
• When you are using the Minute Timer,
the display will show hours, minutes, and
seconds in the following sequence:
-For settings from 1-59 minutes, the
display will count down each second
(minutes and seconds displayed).
-For settings 1 hour or over, the display
will count down each minute (hours and
minutes displayed).
• When you are using Cook Time and/or
B Stop Time, the display will
show cooking time count-
ing down.
-For settings from 1-59 minutes, the
display will count down each second
(minutes and seconds displayed).
-For settings 1 hour or over, the display
will count down each minute (hours and
minutes displayed).
14
!iii ! !

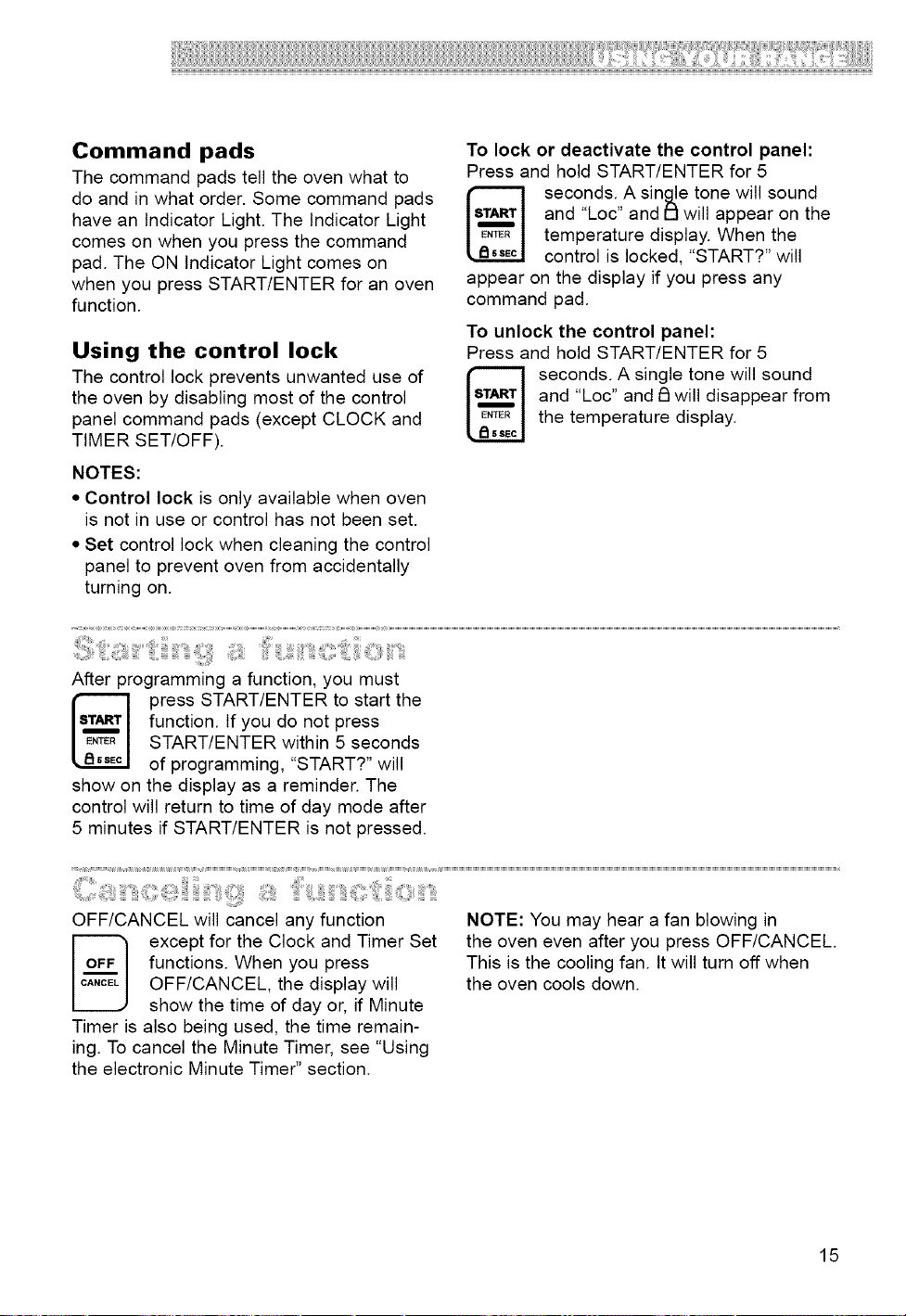

Command pads
The command pads tell the oven what to
do and in what order. Some command pads
have an Indicator Light. The Indicator Light
comes on when you press the command
pad. The ON Indicator Light comes on
when you press START/ENTER for an oven
function.
Using the control lock
The control lock prevents unwanted use of
the oven by disabling most of the control
panel command pads (except CLOCK and
TIMER SET/OFF).
NOTES:
• Control lock is only available when oven
is not in use or control has not been set.
• Set control lock when cleaning the control
panel to prevent oven from accidentally
turning on.
To lock or deactivate the control panel:
Press and hold START/ENTER for 5
seconds. A sin_e tone will sound
and "Loc" and _ will appear on the
temperature display. When the
control is locked, "START?" will
appear on the display if you press any
command pad.
To unlock the control panel:
Press and hold START/ENTER for 5
seconds. A single tone will sound
and "Loc" and t_will disappear from
the temperature display.
After programming a function, you must
press START/ENTER to start the
function. If you do not press
START/ENTER within 5 seconds
of programming, "START?" will
show on the display as a reminder. The
control will return to time of day mode after
5 minutes if START/ENTER is not pressed.
15
i!iiiiSi!iiiiiil121iii!il!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii_ii!l_il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i!i!ii!i!_iiii!i!i

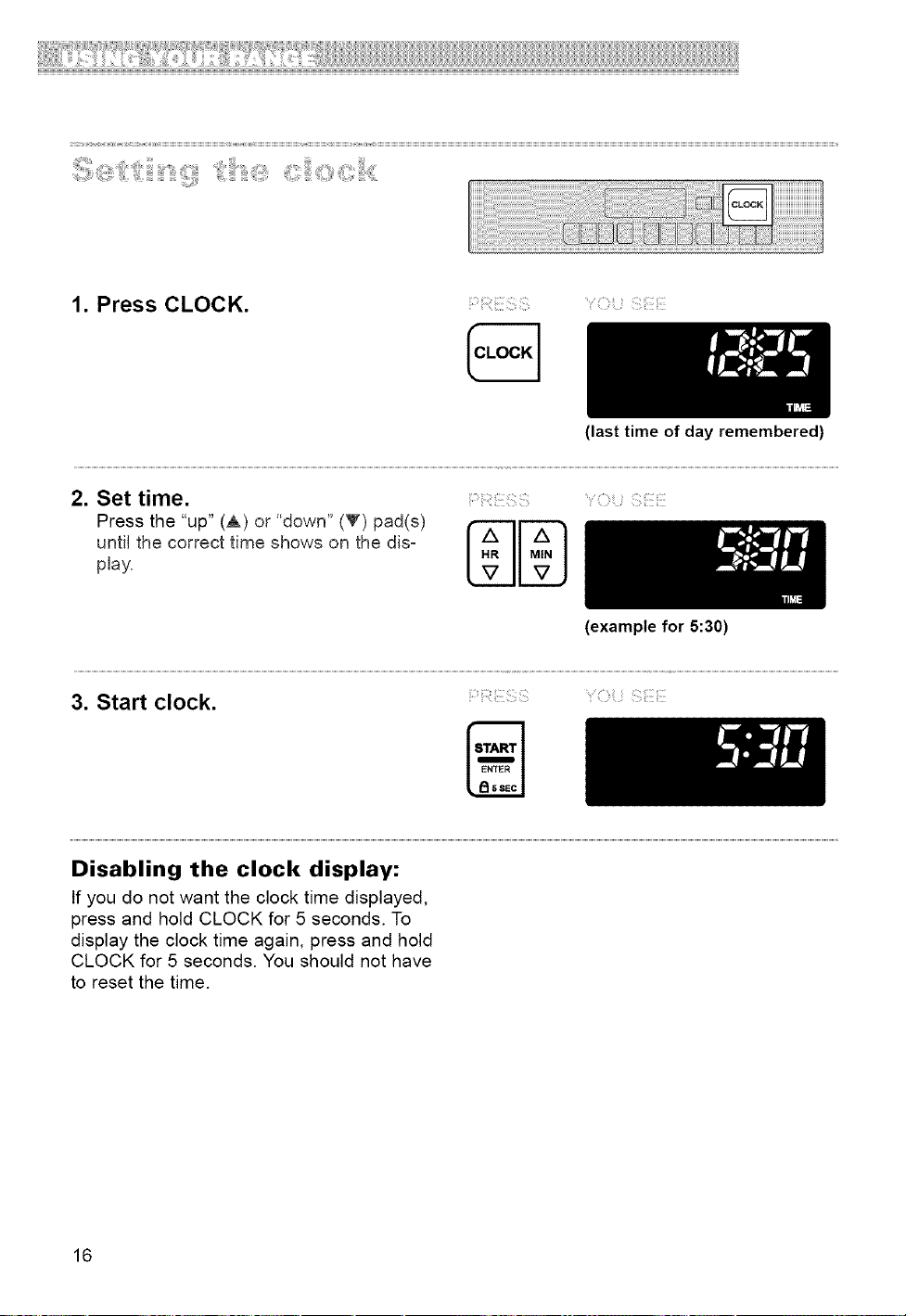

1. Press CLOCK.
(last time of day remembered)
2. Set time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the dis=
play.
HR MIN
_7 _7
(example for 5:30)
3. Start clock.
Disabling the clock display:
If you do not want the clock time displayed,
press and hold CLOCK for 5 seconds. To
display the clock time again, press and hold
CLOCK for 5 seconds. You should not have
to reset the time.
16
!iii ! !

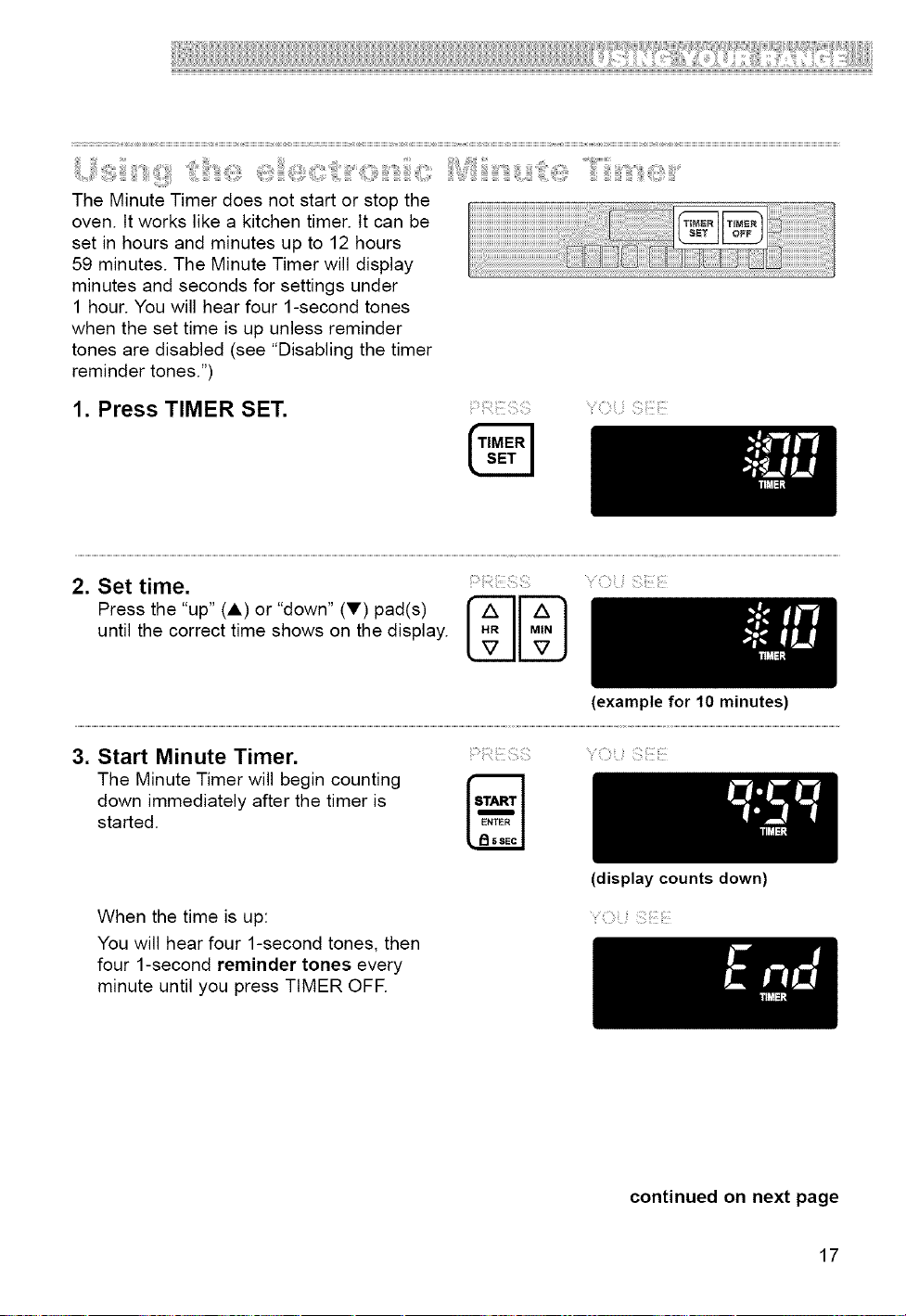

The Minute Timer does not start or stop the
oven. It works like a kitchen timer. It can be
set in hours and minutes up to 12 hours
59 minutes. The Minute Timer will display
minutes and seconds for settings under
1 hour. You will hear four 1-second tones
when the set time is up unless reminder
tones are disabled (see "Disabling the timer
reminder tones.")
1. Press TIMER SET.
2. Set time.
until the correct time shows on the display. _ i'_
v v
Press the "up" (A) or "down" (V) pad(s)
(example for 10 minutes)
3. Start Minute Timer.
The Minute Timer will begin counting I'_
down immediately after the timer is
started.
When the time is up:
You will hear four 1-second tones, then
four 1-second reminder tones every
minute until you press TIMER OFE
(display counts down)
continued on next page
17
i!iiiiSi!iiiiiil121iii!il!iii!!!i12111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiiiii!!iiiii!i!i!ii!i! iiii!i!i

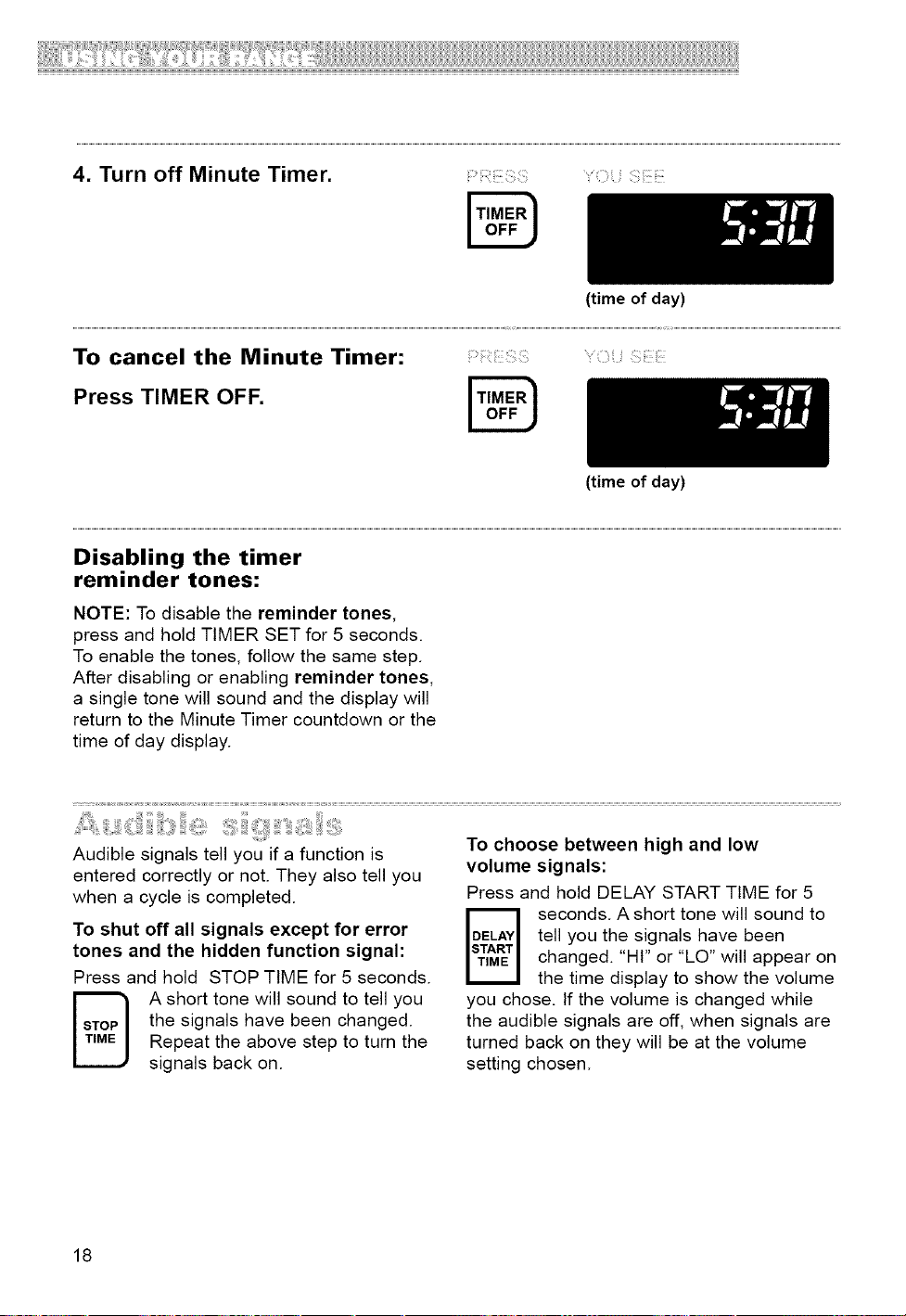

4. Turn off Minute Timer.
(time of day)
To cancel the Minute Timer:
Press TIMER OFF.
(time of day)
Disabling the timer
reminder tones:
NOTE: To disable the reminder tones,
press and hold TIMER SET for 5 seconds.
To enable the tones, follow the same step.
After disabling or enabling reminder tones,
a single tone will sound and the display will
return to the Minute Timer countdown or the
time of day display.
Audible signals tell you if a function is
entered correctly or not. They also tell you
when a cycle is completed.
To shut off all signals except for error
tones and the hidden function signal:
Press and hold STOP TIME for 5 seconds.
B A short tone will sound to tell you
the signals have been changed.
Repeat the above step to turn the
signals back on.
To choose between high and low
volume signals:
Press and hold DELAY START TIME for 5
seconds. A short tone will sound to
tell you the signals have been
changed. "HI" or "LO" will appear on
the time display to show the volume
you chose. If the volume is changed while
the audible signals are off, when signals are
turned back on they will be at the volume
setting chosen.
18
!iii ! !
ii!! i!!!iiiiiiii ,, !:iiiiiili ii ii!!i!i:iiiiii ii" iiii i:iiiii!!i!i:iiiiii

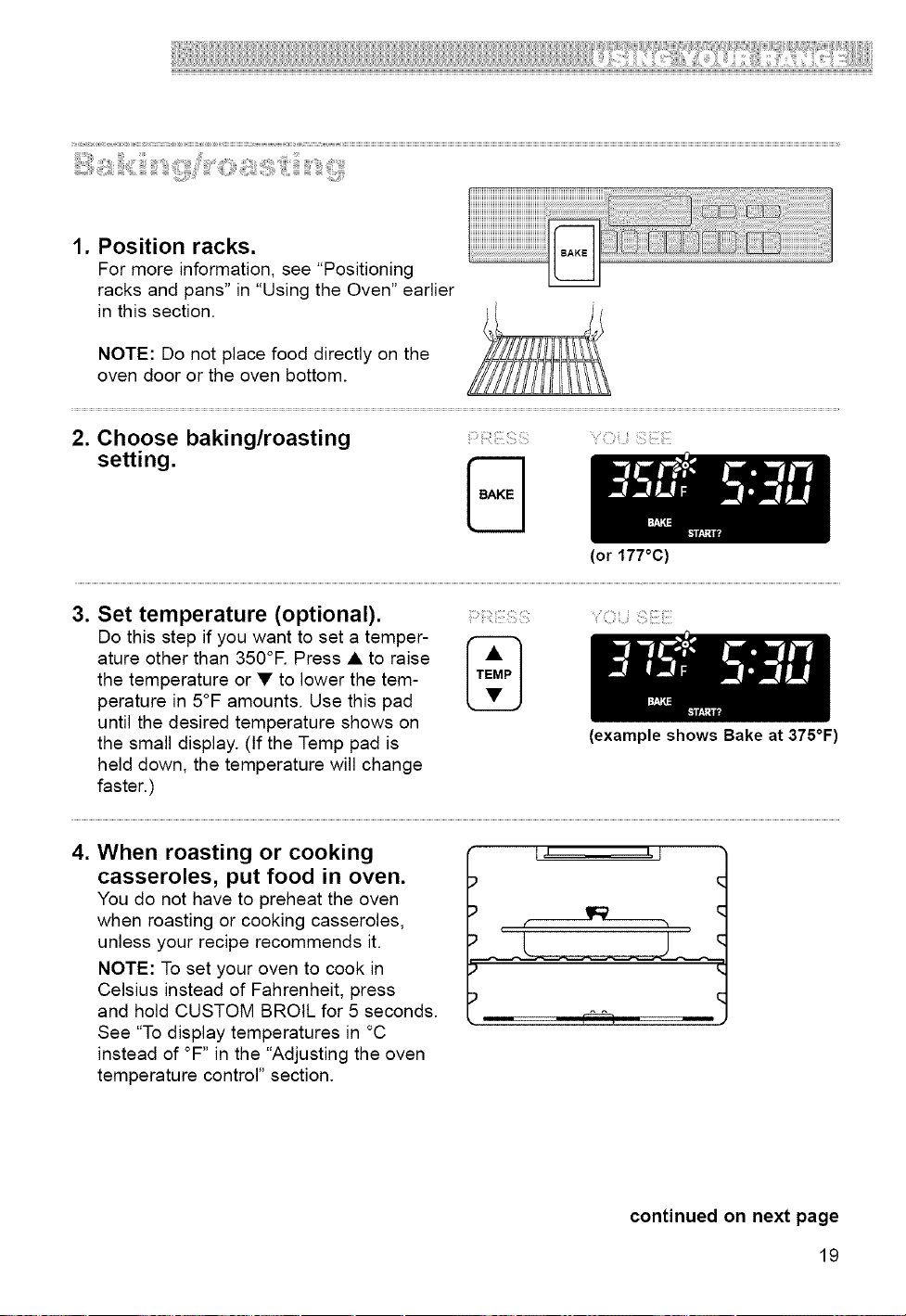

1. Position racks.
For more information, see "Positioning
racks and pans" in "Using the Oven" earlier
in this section.
NOTE: Do not place food directly on the
oven door or the oven bottom.
2. Choose baking/roasting
setting.
(or177°C)
3. Set temperature (optional).
Do this step if you want to set a temper- ("-T--3
ature other than 350°F. Press • to raise
the temperature or • to lower the tem-
perature in 5°F amounts. Use this pad
until the desired temperature shows on
the small display. (If the Temp pad is
held down, the temperature will change
faster.)
(example shows Bake at 375°F)
4. When roasting or cooking
casseroles, put food in oven.
You do not have to preheat the oven
when roasting or cooking casseroles,
unless your recipe recommends it.
NOTE: To set your oven to cook in
Celsius instead of Fahrenheit, press
and hold CUSTOM BROIL for 5 seconds.
See "To display temperatures in °C
instead of °F" in the "Adjusting the oven
temperature control" section.
J
continued on next page
19
i!iiiiSi!iiiiiil121iii!il!iii!!!i12111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiiiii!!iiiii!i!i!ii!i! iiii!i!i

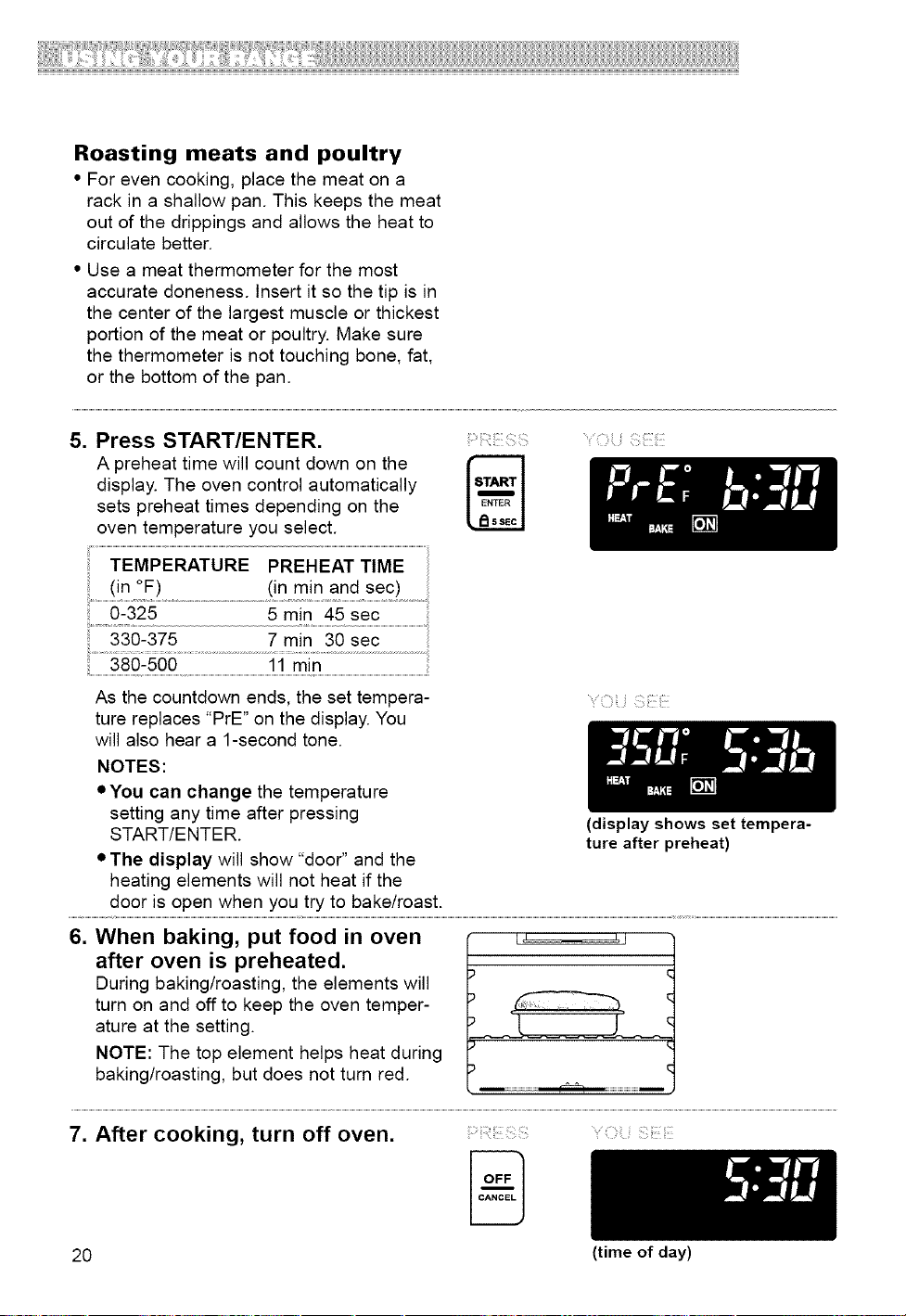

Roasting meats and poultry
• For even cooking, place the meat on a
rack in a shallow pan. This keeps the meat
out of the drippings and allows the heat to
circulate better.
• Use a meat thermometer for the most
accurate aloneness. Insert it so the tip is in
the center of the largest muscle or thickest
portion of the meat or poultry. Make sure
the thermometer is not touching bone, fat,
or the bottom of the pan.
5. Press START/ENTER.
A preheat time will count down on the |
display. The oven control automatically
sets preheat times depending on the
oven temperature you select.
YiT}U 3iiii!iG}i
As the countdown ends, the set tempera-
ture replaces "PrE" on the display. You
will also hear a 1-second tone.
NOTES:
oYou can change the temperature
setting any time after pressing
START/ENTER.
eThe display will show "door" and the
heating elements will not heat if the
door is open when you try to bake/roast.
Y()_i i Siil}}}}}iE
(display shows set tempera-
ture after preheat)
6. When baking, put food in oven r, ,J
after oven is preheated.
During baking/roasting, the elements will
turn on and off to keep the oven temper-
ature at the setting. ' [.... J'
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
• _ ================================
7. After cooking, turn off oven. ' :
B
20 (time of day)
!iii !iii!!i!iii!!!!!!i!!il!i!!!il!!!'ili!!!!ili!iiill! !l!!!!!ii!iiiilliiiil

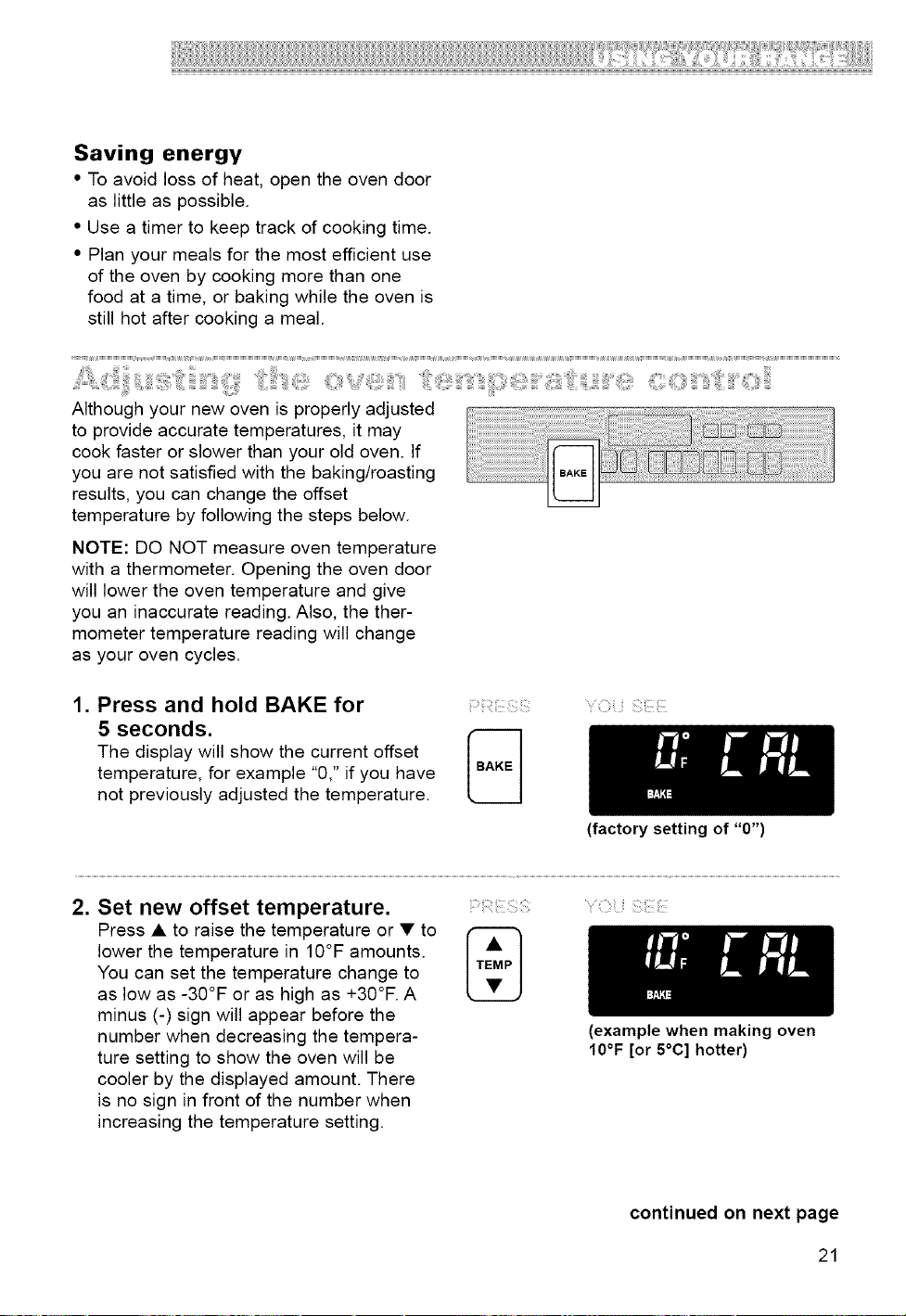

Saving energy
• To avoid loss of heat, open the oven door
as little as possible.
• Use a timer to keep track of cooking time.
• Plan your meals for the most efficient use
of the oven by cooking more than one
food at a time, or baking while the oven is
still hot after cooking a meal.
Although your new oven is properly adjusted
to provide accurate temperatures, it may
cook faster or slower than your old oven. If
you are not satisfied with the baking/roasting
results, you can change the offset
temperature by following the steps below.
NOTE: DO NOT measure oven temperature
with a thermometer. Opening the oven door
will lower the oven temperature and give
you an inaccurate reading. Also, the ther-
mometer temperature reading will change
as your oven cycles.
1. Press and hold BAKE for
5 seconds.
(----"1
The display will show the current offset I _..._ I
temperature, for example "0," if you have
not previously adjusted the temperature.
(factory setting of "0")
2. Set new offset temperature.
Press • to raise the temperature or • to
lower the temperature in 10°F amounts.
You can set the temperature change to
as low as -30°F or as high as +30°F. A
minus (-) sign will appear before the
number when decreasing the tempera-
ture setting to show the oven will be
cooler by the displayed amount. There
is no sign in front of the number when
increasing the temperature setting.
'¢Oi i _i _
(example when making oven
10°F [or 5°C] hotter)
continued on next page
21
!!iiii!illilli!!!i!illiii1!21¸!i]:iii!i]!!I]i:i!!_!_i!Ii!I_iii!][!iii]!!Ii!!iiiiiii!]!i!i]iiii!i!,! !_ ! i!i!i!i!iI!!!i!i!

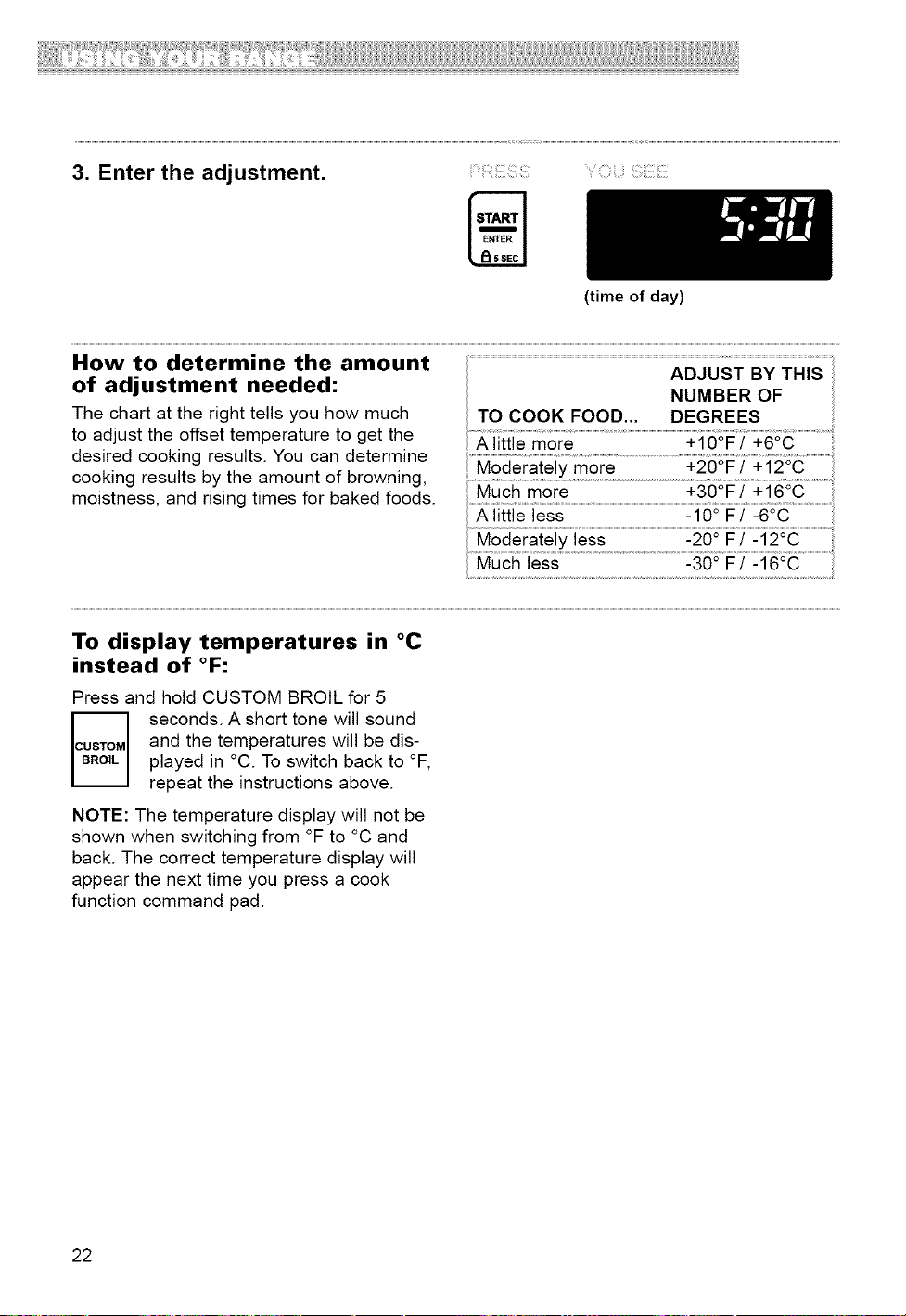

3. Enter the adjustment.
(time of day)
How to determine the amount
of adjustment needed:
The chart at the right tells you how much
to adjust the offset temperature to get the +10°F/ +6oc
desired cooking results. You can determine
cooking results by the amount of browning,
moistness, and rising times for baked foods.
To display temperatures in °C
instead of °F:
Press and hold CUSTOM BROIL for 5
seconds. A short tone will sound
and the temperatures will be dis-
played in °C. To switch back to °F,
repeat the instructions above.
NOTE: The temperature display will not be
shown when switching from OFto oC and
back. The correct temperature display will
appear the next time you press a cook
function command pad.
22
!iii ! !
ii!!i!!!iiii iii iiiiiiiiiiiiiiiii iii i !!!iiilj!

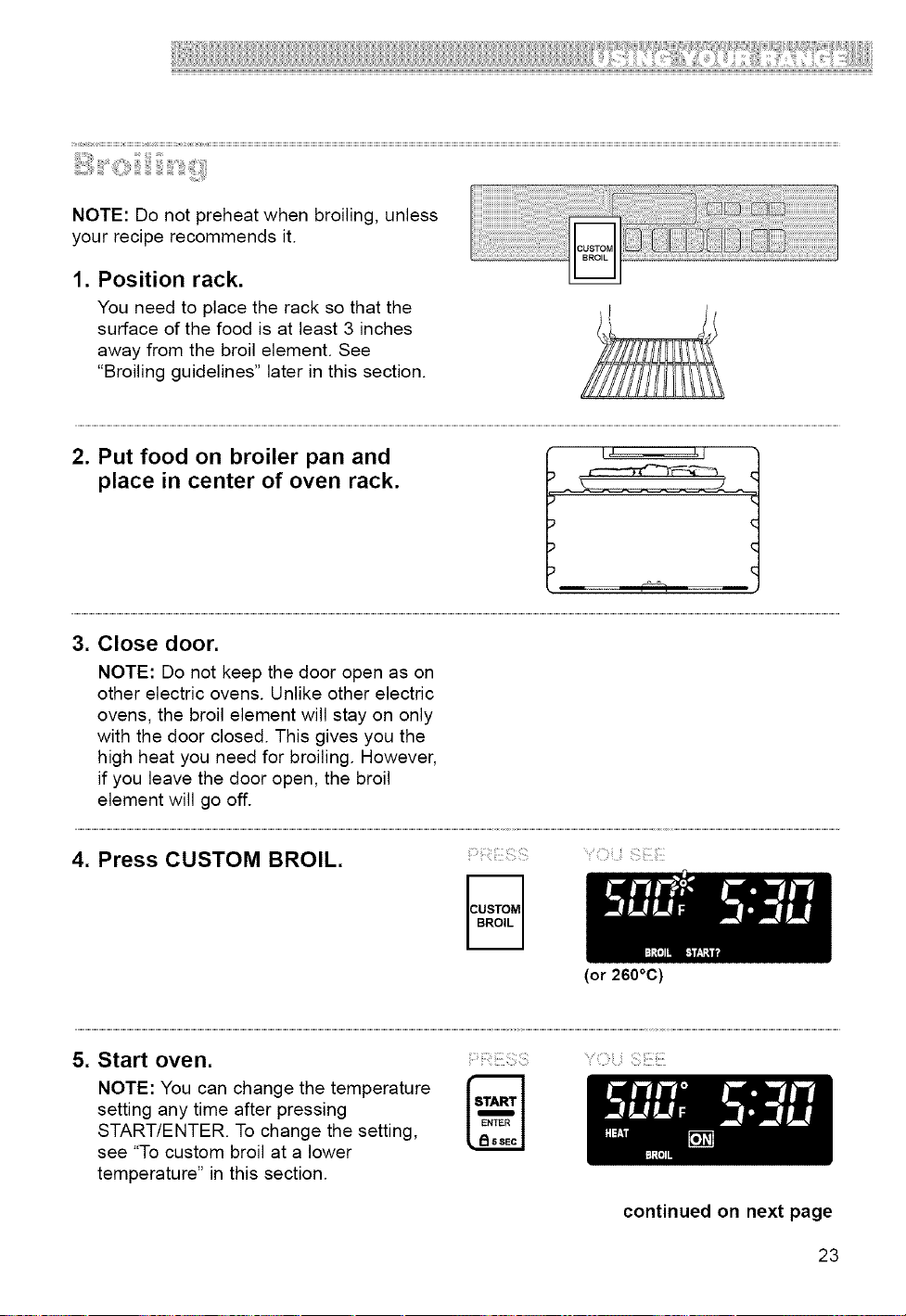

NOTE: Do not preheat when broiling, unless
your recipe recommends it.
1. Position rack.
You need to place the rack so that the
surface of the food is at least 3 inches
away from the broil element. See
"Broiling guidelines" later in this section.
2. Put food on broiler pan and
place in center of oven rack.
<
3. Close door.
NOTE: Do not keep the door open as on
other electric ovens. Unlike other electric
ovens, the broil element will stay on only
with the door closed. This gives you the
high heat you need for broiling. However,
if you leave the door open, the broil
element will go off.
4. Press CUSTOM BROIL.
(or 260°C)
5. Start oven.
NOTE: You can change the temperature
setting any time after pressing
START/ENTER. To change the setting,
see "To custom broil at a lower
temperature" in this section.
_jiili_ii !!!i_!ilii?i¸
continued on next page
23
!!iiii!iiiiiiii!!i!iiiiii1121¸!i]:iii!i]!!l]ii!! ! i!li!l iii!][!iii]!!Ii!!iliiiii!]!i!i]iiii!i!!!!i!!i!i!i!i!il!lii!iili!lli!lli!ll!!!i!i!li!!!i!i!!i!i!i!i!i!i!l

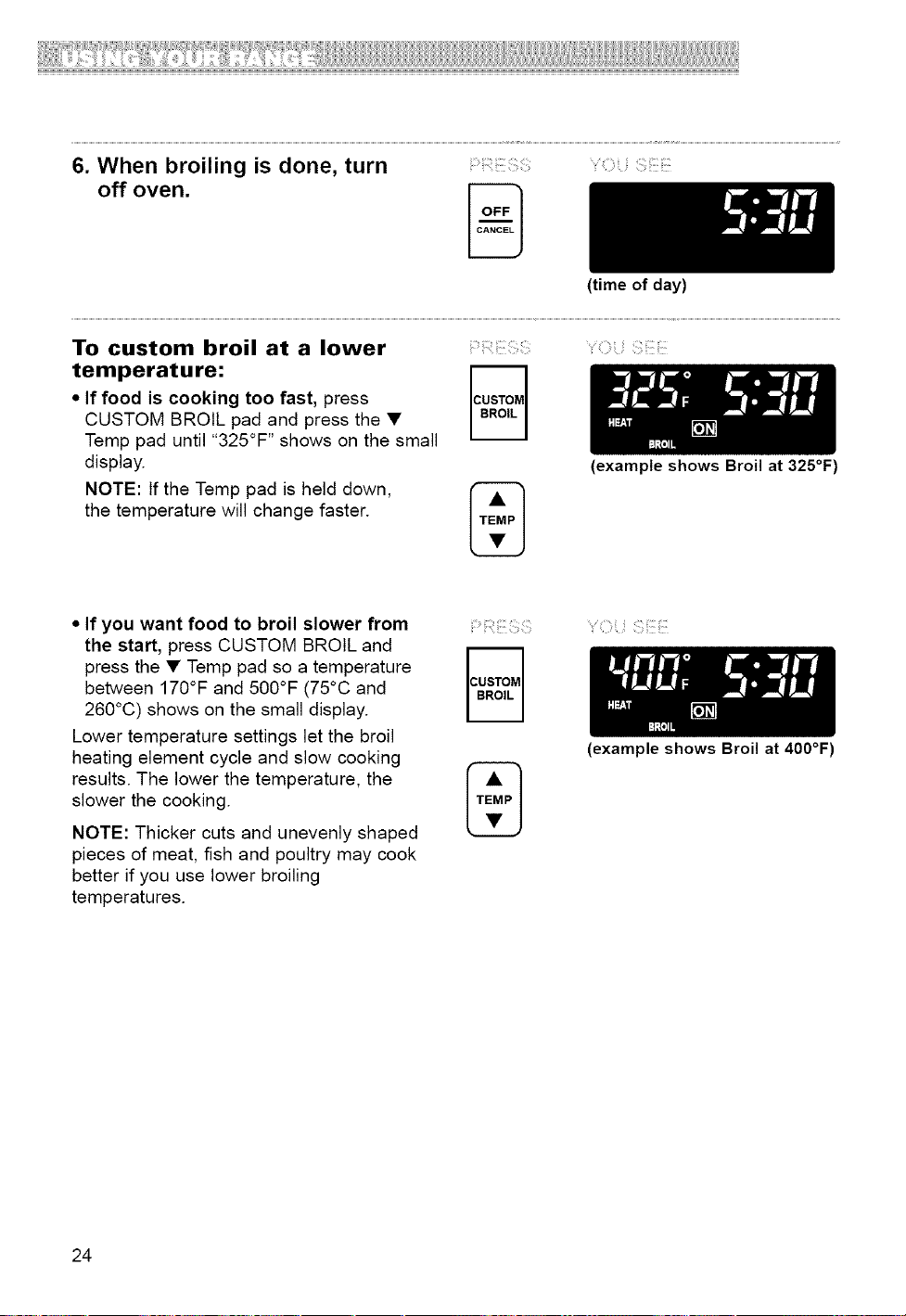

6. When broiling is done, turn
off oven.
(time of day)
To custom broil at a lower
temperature: @
• If food is cooking too fast, press
CUSTOM BROIL pad and press the •
Temp pad until "325°F '' shows on the small
display.
NOTE: If the Temp pad is held down,
the temperature will change faster.
• If you want food to broil slower from SS
the start, press CUSTOM BROIL and
press the • Temp pad so a temperature L.___..I
between 170°F and 500°F (75°C and
260°C) shows on the small display.
Lower temperature settings let the broil
heating element cycle and slow cooking
results. The lower the temperature, the I A I
slower the cooking.
NOTE: Thicker cuts and unevenly shaped
pieces of meat, fish and poultry may cook
better if you use lower broiling
temperatures.
(example shows Broil at 325°F)
'_G%;i !!3ii!ii!Sii¸
(example shows Broil at 400°F)
24
_!iii !iii!!i!iii!!!!!!i!!il!i!!!il!!!'ili!!!!ili_!iiill!!!i_!!!!_ii!!_ii!'_! !!!!iii_!i!_ii_!_l!!!!!ii!iiiilliiiil
ii!!i!!!iill_iiii_'___i:_iiiiiiiiiiii_iii_iiii_!!!ii_!iiiii__;_ii,_ii:iii!ii!_iliiii_l_,i!iiilii_iii_i__i__!!!_i_

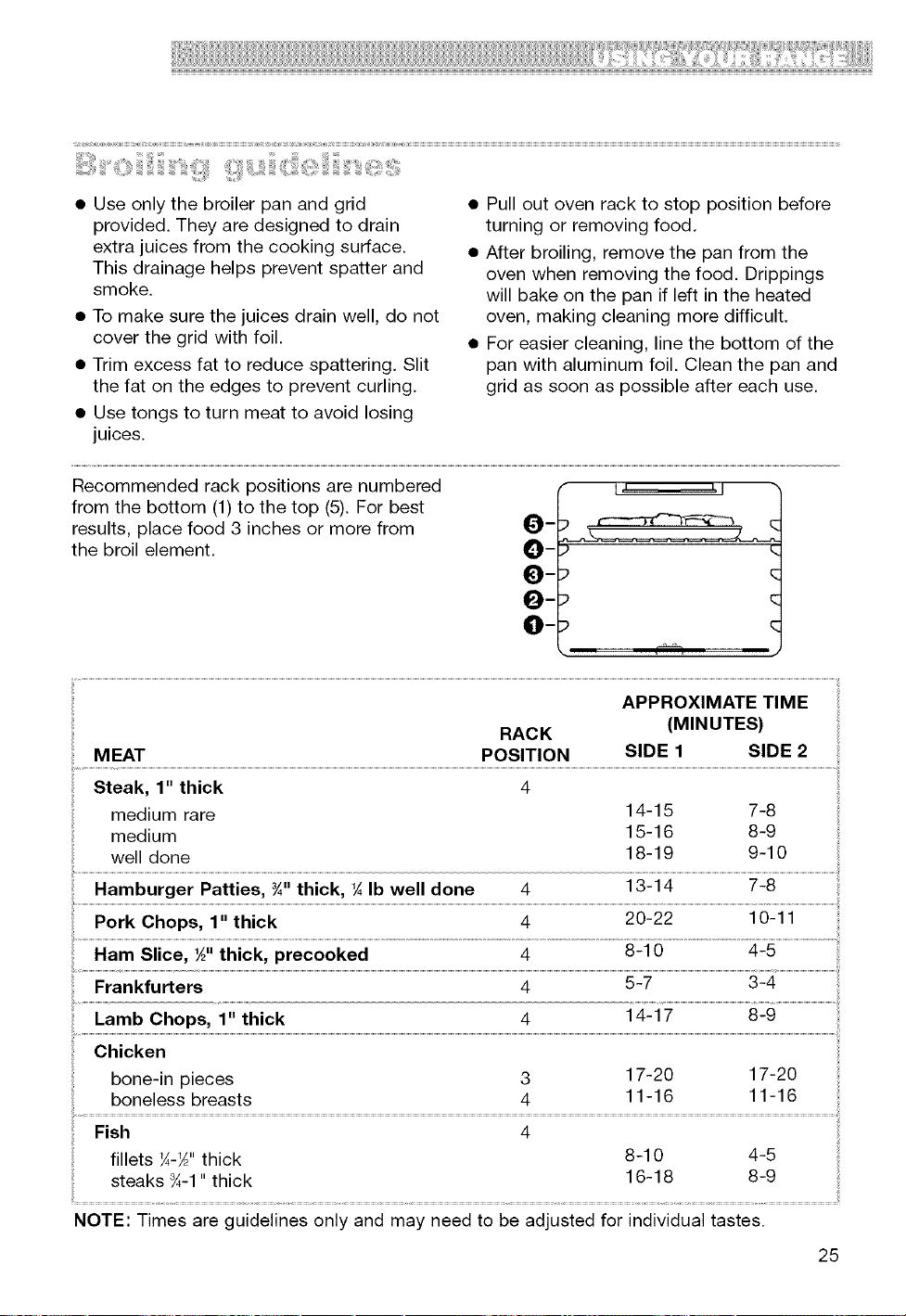

• Use only the broiler pan and grid
provided. They are designed to drain
extra juices from the cooking surface.
This drainage helps prevent spatter and
smoke.
• To make sure the juices drain well, do not
cover the grid with foil.
• Trim excess fat to reduce spattering. Slit
the fat on the edges to prevent curling.
• Use tongs to turn meat to avoid losing
juices.
• Pull out oven rack to stop position before
turning or removing food.
• After broiling, remove the pan from the
oven when removing the food. Drippings
will bake on the pan if left in the heated
oven, making cleaning more difficult.
• For easier cleaning, line the bottom of the
pan with aluminum foil. Clean the pan and
grid as soon as possible after each use.
Recommended rack positions are numbered
from the bottom (1) to the top (5). For best
results, place food 3 inches or more from
the broil element.
m
0-
_)-
O-
APPROXIMATE TIME
RACK (MINUTES)
MEAT POSITION SIDE 1 SIDE 2
Steak, 1" thick 4
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-10
13-14 7-8
Pork Chops, 1" thick 4
i
Ham Slice, _" thick, precooked 4 8-10 4-5
Frankfurters 4 5-7
Lamb Chops, 1" thick 4
Chicken
bone-in pieces 3 17-20 17-20
boneless breasts 4 11-16 11-16
Fish 4
fillets ¼-Y_"thick 8-10 4-5
steaks _-1" thick 16-18 8-9
NOTE: Times are guidelines only and may need to be adjusted for individual tastes.
25
i!iiiiSi!iiiiiil121iii!il!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i!i!ii!i! iiii!i!i
_iiLihs_iiiisgi:iiiiis,s,_!!:::;_@i_!i_i_,s_iis'x},iiiiisiiciiiilVil!iiii!!!!!!!iS:k£71i!'_]liiiii'V_!iiii!!!!!!!i!iii!:ii}}i:_,_,,_c o_ii_s!::_iii_'o!iii

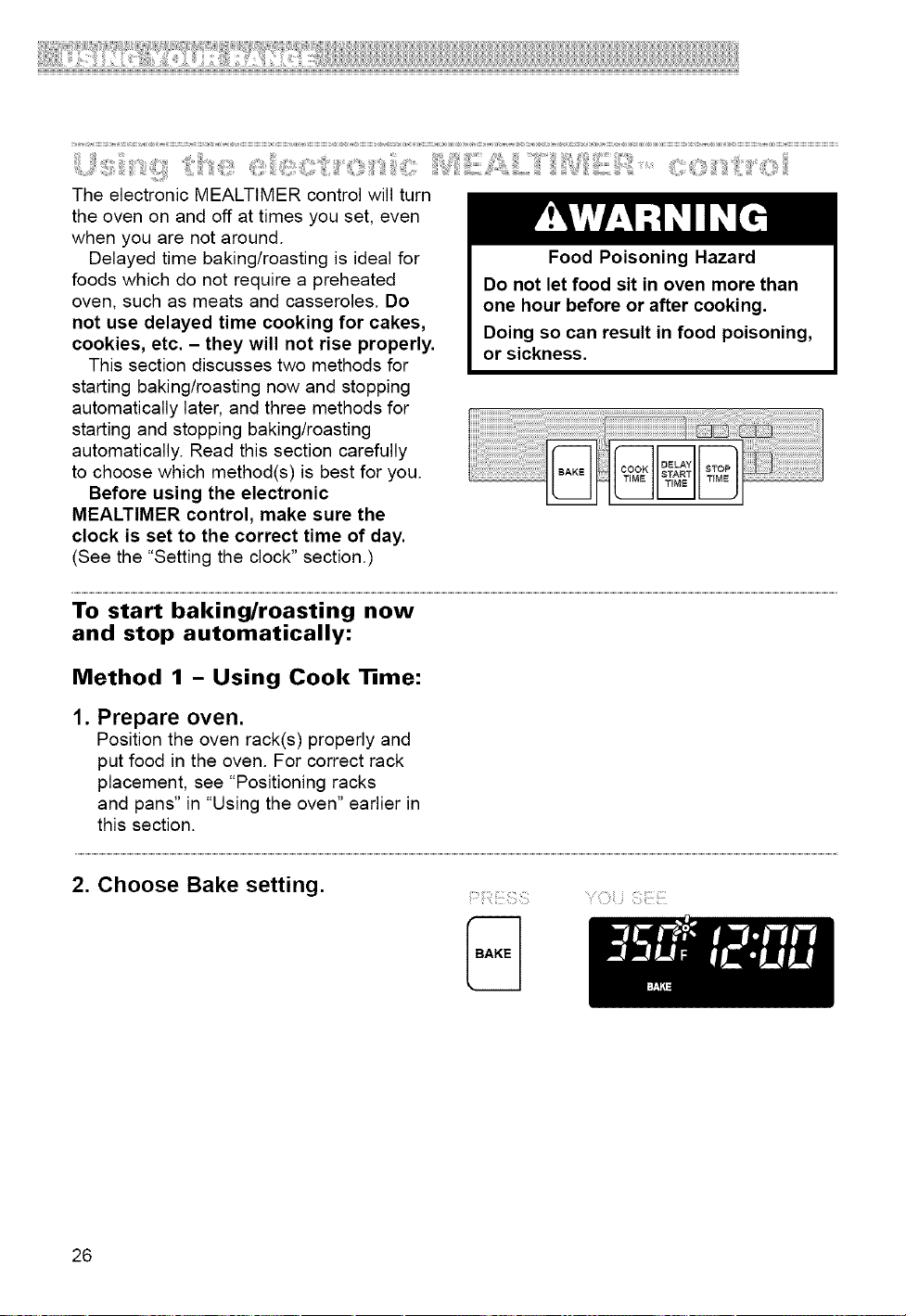

The electronic MEALTIMER control will turn
the oven on and off at times you set, even
when you are not around.
Delayed time baking/roasting is ideal for
foods which do not require a preheated
oven, such as meats and casseroles. Do
not use delayed time cooking for cakes,
cookies, etc. - they will not rise properly.
This section discusses two methods for
starting baking/roasting now and stopping
automatically later, and three methods for
starting and stopping baking/roasting
automatically. Read this section carefully
to choose which method(s) is best for you.
Before using the electronic
MEALTIMER control, make sure the
clock is set to the correct time of day.
(See the "Setting the clock" section.)
Food Poisoning Hazard
Do not let food sit in oven more than
one hour before or after cooking.
Doing so can result in food poisoning,
or sickness.
To start baking/roasting now
and stop automatically:
Method 1 - Using Cook Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks
and pans" in "Using the oven" earlier in
this section.
2. Choose Bake setting.
'_i(}_ii;i 3ilEii?i¸
26
!iii ! !
3. Set temperature (optional).
Do this step if you want to set a
temperature other than 350°E Press • to
raise the temperature or • to lower the
temperature in 5°F amounts. Use this pad
until the desired temperature shows on
the small display. (If the Temp pad is held
down, the temperature will change faster.)
(example shows Bake at
375°F [or 191°C])

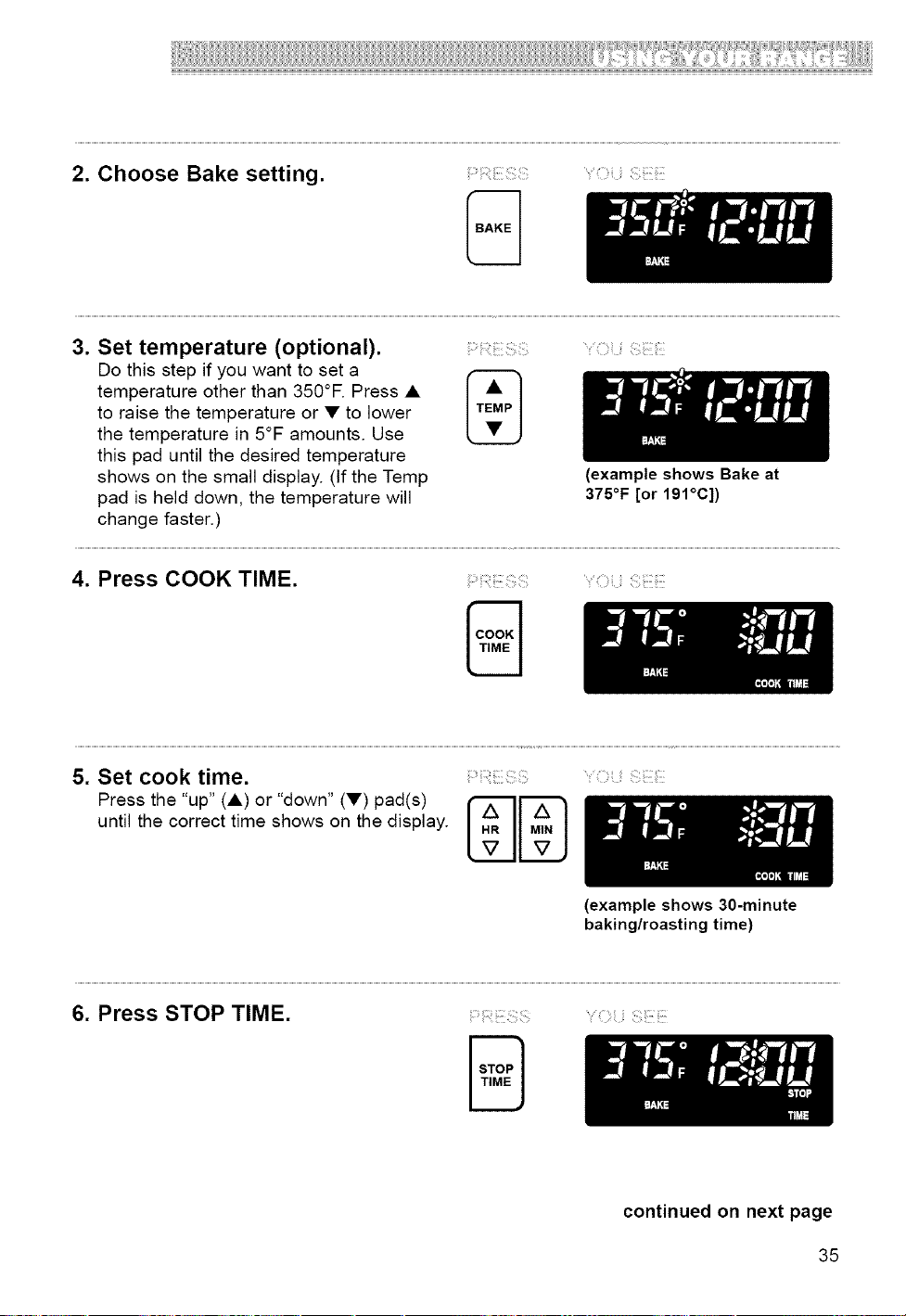

4. Press COOK TIME.
'_"©Li _i!_i!_

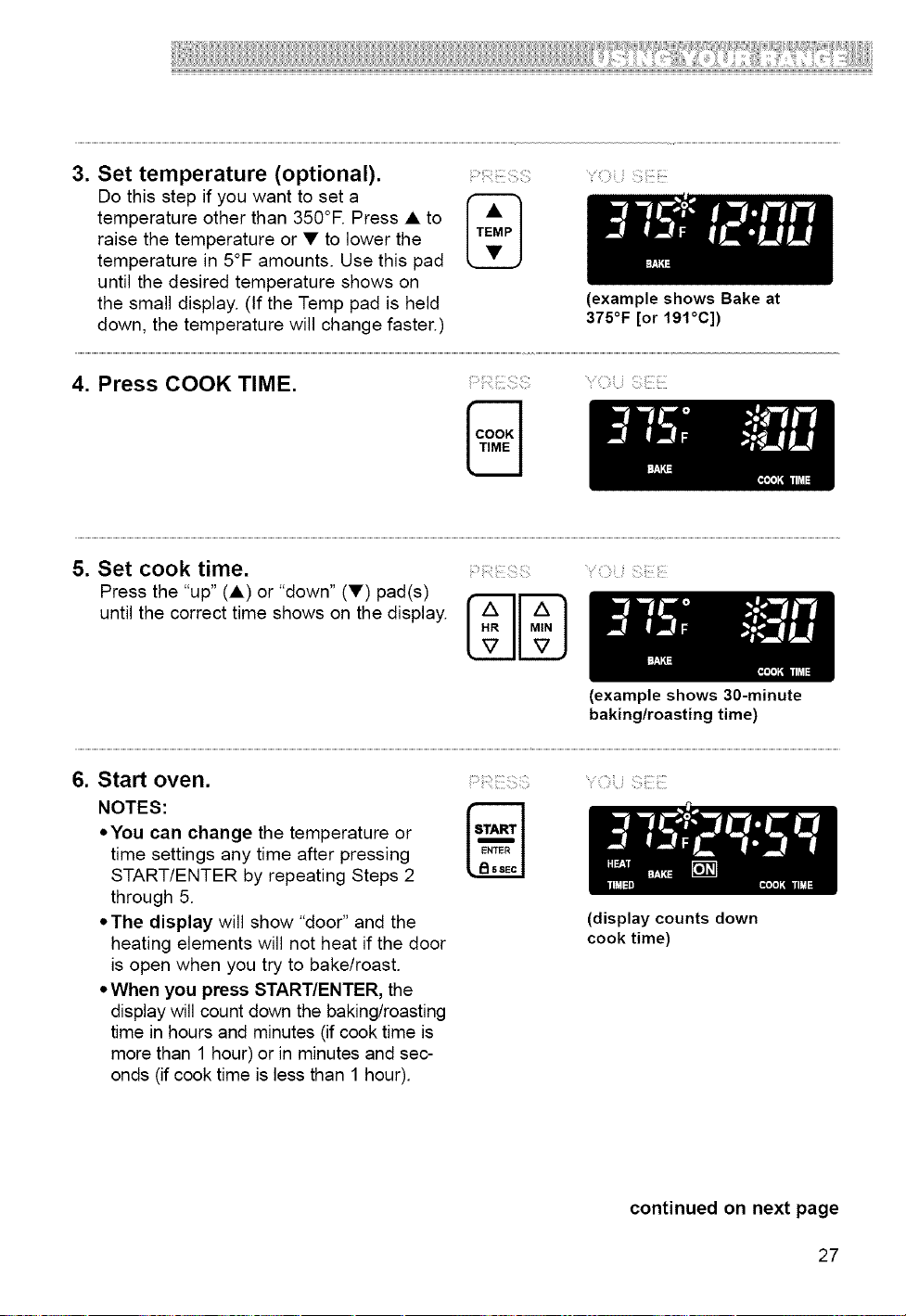

5. Set cook time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the display.
HR MIN
_7 _7
(example shows 30-minute
baking/roasting time)
6. Start oven.
NOTES:
• You can change the temperature or
time settings any time after pressing
START/ENTER by repeating Steps 2
through 5.
• The display will show "door" and the
heating elements will not heat if the door
is open when you try to bake/roast.
• When you press START/ENTER, the
display will count down the baking/roasting
time in hours and minutes (if cook time is
more than 1 hour) or in minutes and sec-
onds (if cook time is less than 1 hour).
(display counts down
cook time)
continued on next page
27
i!iiiiSi!iiiiiil121:1ii!ii!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii_ii!l_il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i_!i!ii!i!_iiii!:i!i
7, YiT}U SilEii?!

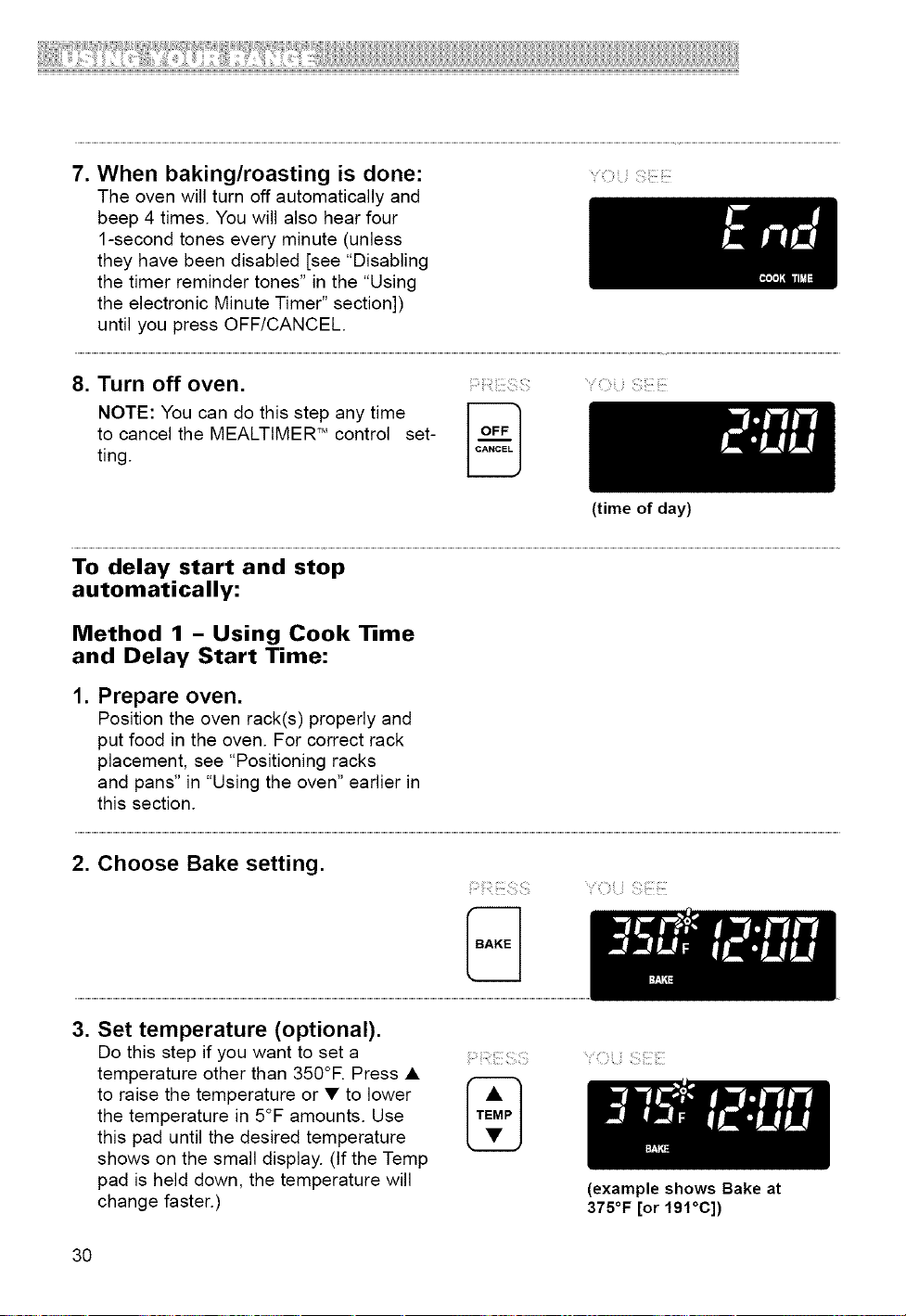

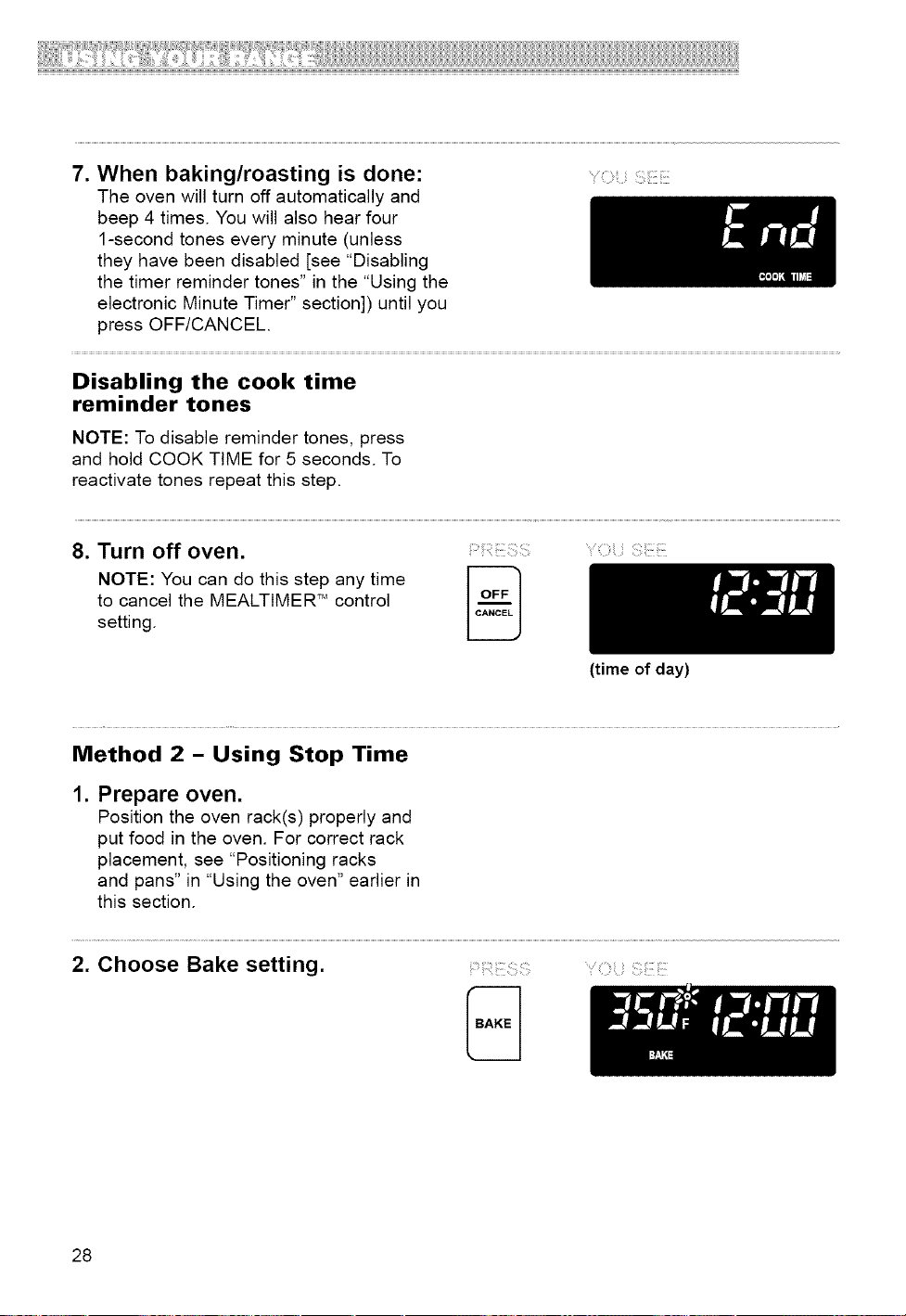

When baking/roasting is done:
The oven will turn off automatically and
beep 4 times. You will also hear four
1-second tones every minute (unless
they have been disabled [see "Disabling
the timer reminder tones" in the "Using the
electronic Minute Timer" section]) until you
press OFF/CANCEL
Disabling the cook time
reminder tones
NOTE: To disable reminder tones, press
and hold COOK TIME for 5 seconds. To
reactivate tones repeat this step.
8. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER TM control
setting.
(time of day)
Method 2 - Using Stop Time
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks
and pans" in "Using the oven" earlier in
this section.
2. Choose Bake setting.
28
!iii ! !
3. Set temperature (optional).
Do this step if you want to set a tem-
perature other than 350°F. Press • to
raise the temperature or • to lower the
temperature in 5°F amounts. Use this
pad until the desired temperature
shows on the small display. (If the Temp
pad is held down, the temperature will
change faster.)
(example shows Bake at
375°F [or 191°C])

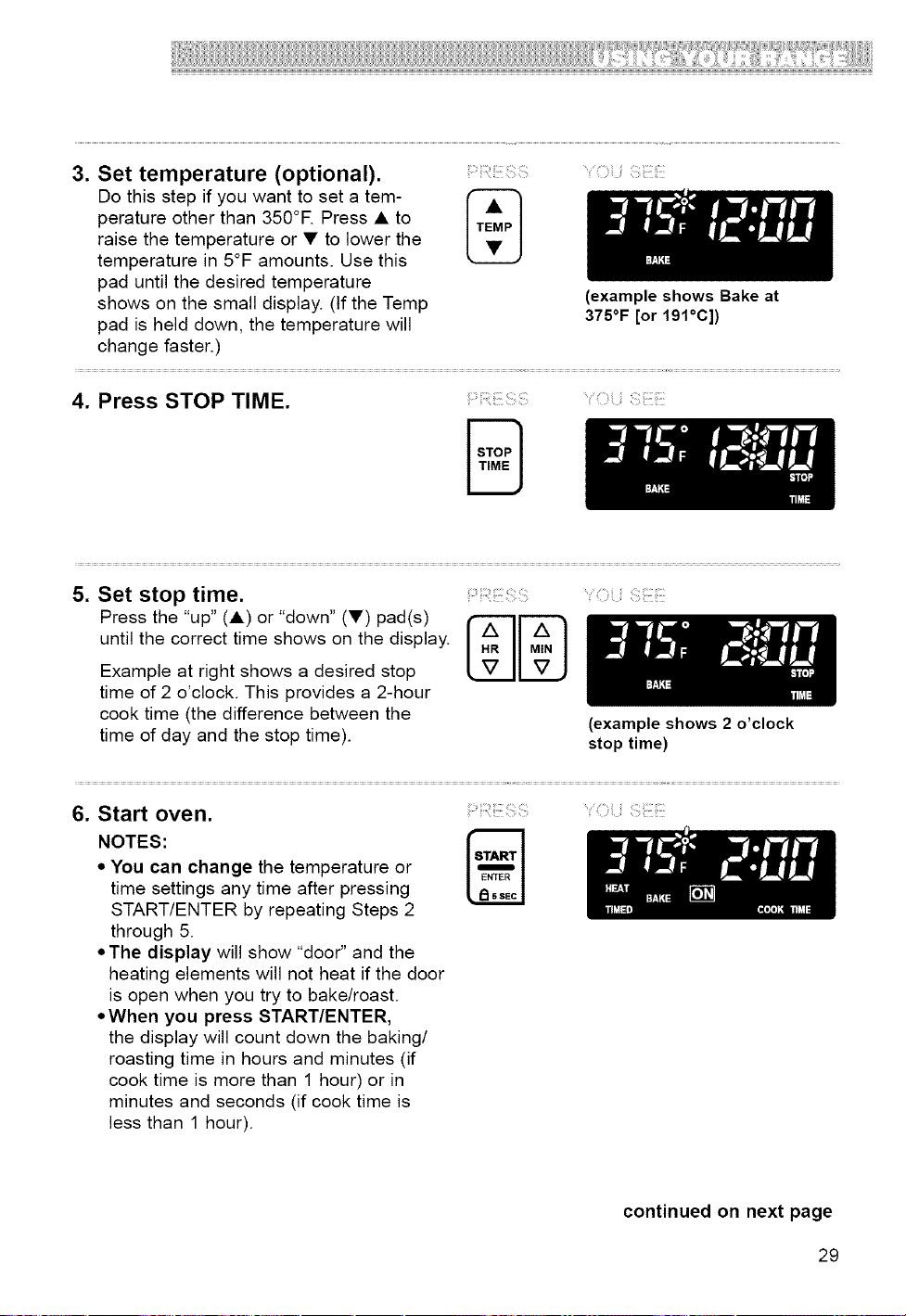

4. Press STOP TIME.
B
5. Set stop time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the display.
Example at right shows a desired stop
time of 2 o'clock. This provides a 2-hour
cook time (the difference between the
time of day and the stop time).
HR MIN
_7 _7
(example shows 2 o'clock
stop time)
6. Start oven.
NOTES:
• You can change the temperature or
time settings any time after pressing
START/ENTER by repeating Steps 2
through 5.
• The display will show "door" and the
heating elements will not heat if the door
is open when you try to bake/roast.
• When you press START/ENTER,
the display will count down the baking/
roasting time in hours and minutes (if
cook time is more than 1 hour) or in
minutes and seconds (if cook time is
less than 1 hour).
continued on next page
29
i!iiiiSi!iiiiiil121iii!il!iii!!!i12111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiiiii!!iiiii!i!i!ii!i! iiii!i!i
When baking/roasting is done:
The oven will turn off automatically and
beep 4 times. You will also hear four
1-second tones every minute (unless
they have been disabled [see "Disabling
the timer reminder tones" in the "Using
the electronic Minute Timer" section])
until you press OFF/CANCEL.
8. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER TM control set-
ting.
(time of day)
To delay start and stop
automatically:
Method 1 - Using Cook Time
and Delay Start Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks
and pans" in "Using the oven" earlier in
this section.
2. Choose Bake setting.
YiT}U 3 iiii!iG}i
.
Set temperature (optional).
Do this step if you want to set a
temperature other than 350°F. Press •
to raise the temperature or • to lower I A I
the temperature in 5°F amounts. Use
this pad until the desired temperature
shows on the small display. (If the Temp
pad is held down, the temperature will
change faster.)
30
(example shows Bake at
375°F [or 191°C])
!iii ! !

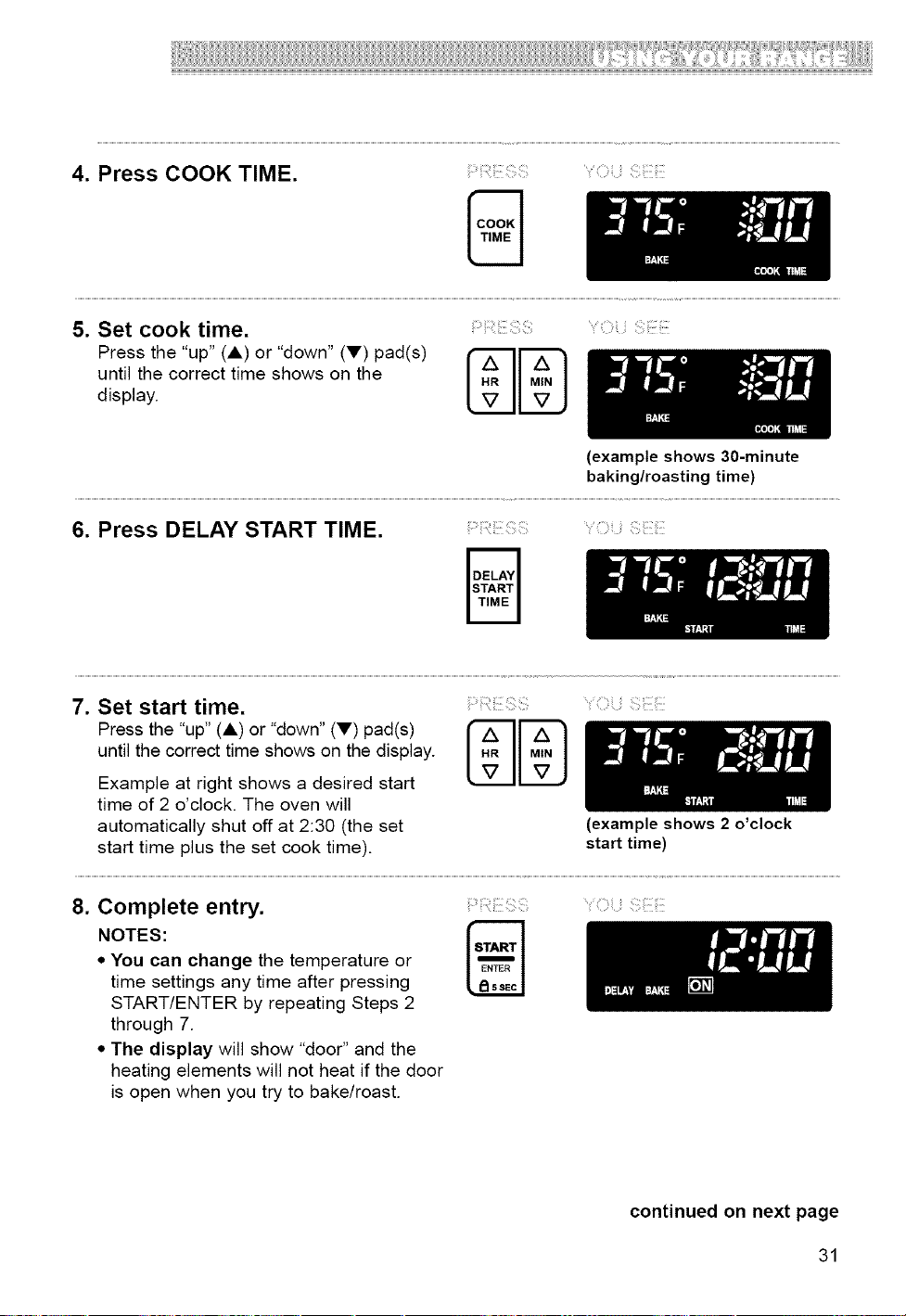

4. Press COOK TIME.
@
5. Set cook time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display.
HR MIN
_7 _7
_©i 9 _i _
(example shows 30-minute
baking/roasting time)

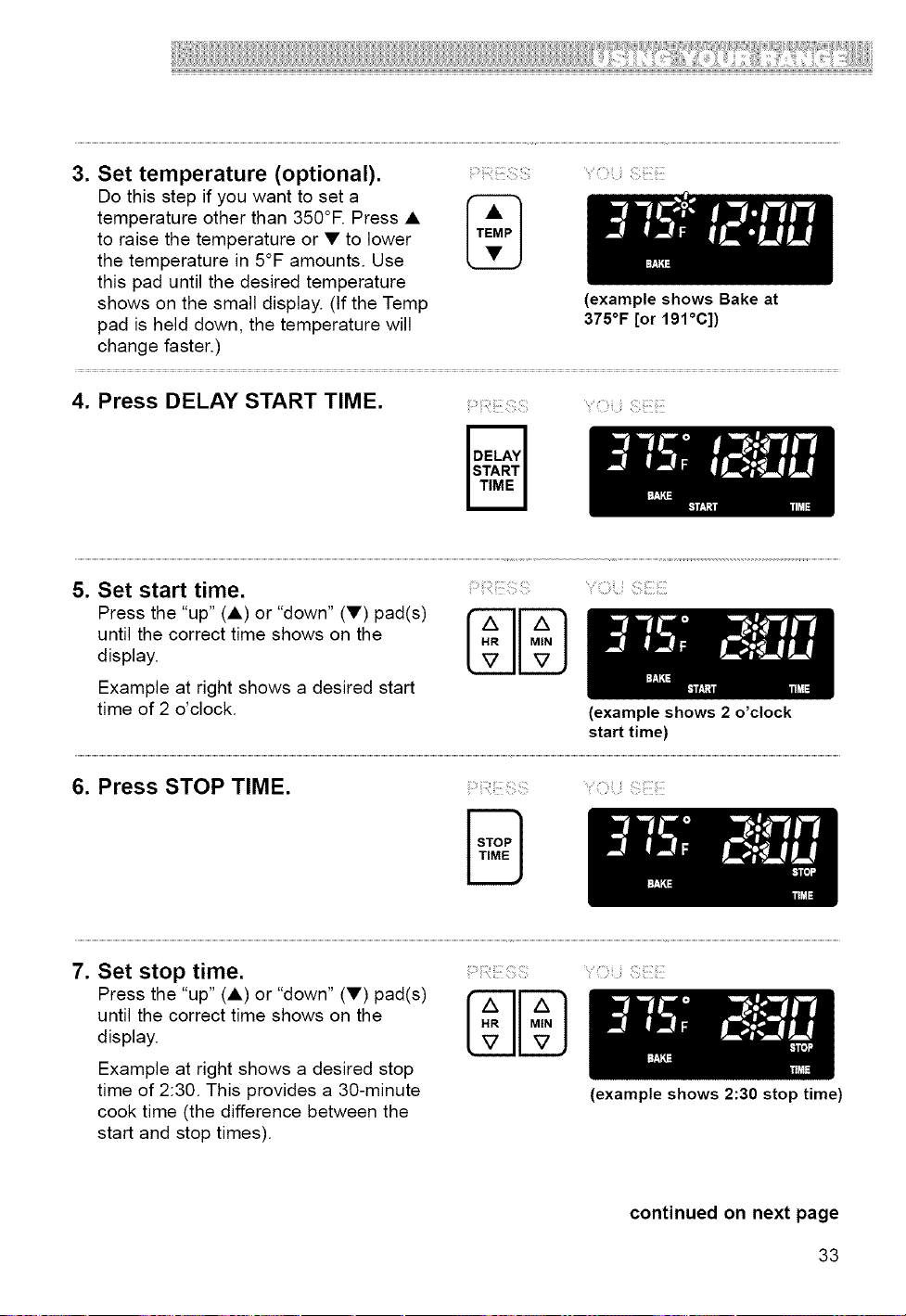

6. Press DELAY START TIME.
E
7. Set start time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the display.
Example at right shows a desired start
time of 2 o'clock. The oven will
automatically shut off at 2:30 (the set
start time plus the set cook time).
HR MIN
_7 _7
'_i_i i _i _
(example shows 2 o'clock
start time)

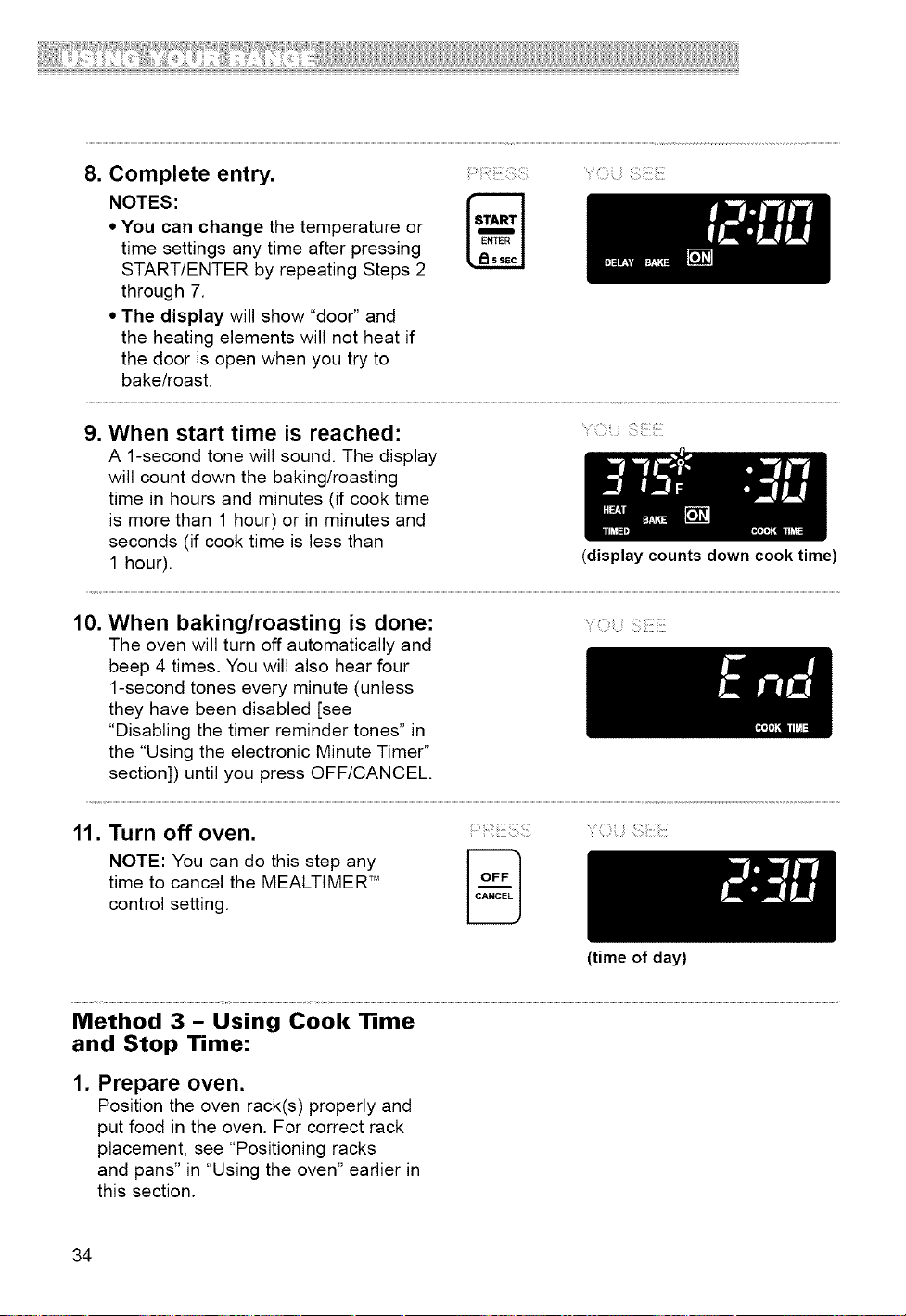

8. Complete entry.
NOTES:
• You can change the temperature or
time settings any time after pressing
START/ENTER by repeating Steps 2
through 7.
• The display will show "door" and the
heating elements will not heat if the door
is open when you try to bake/roast.
'_9i 9 Si_i _
continued on next page
31
i!iiiiSi!iiiiiil121iii!il!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii_ii!l_il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i!i!ii!i!_iiii!i!i

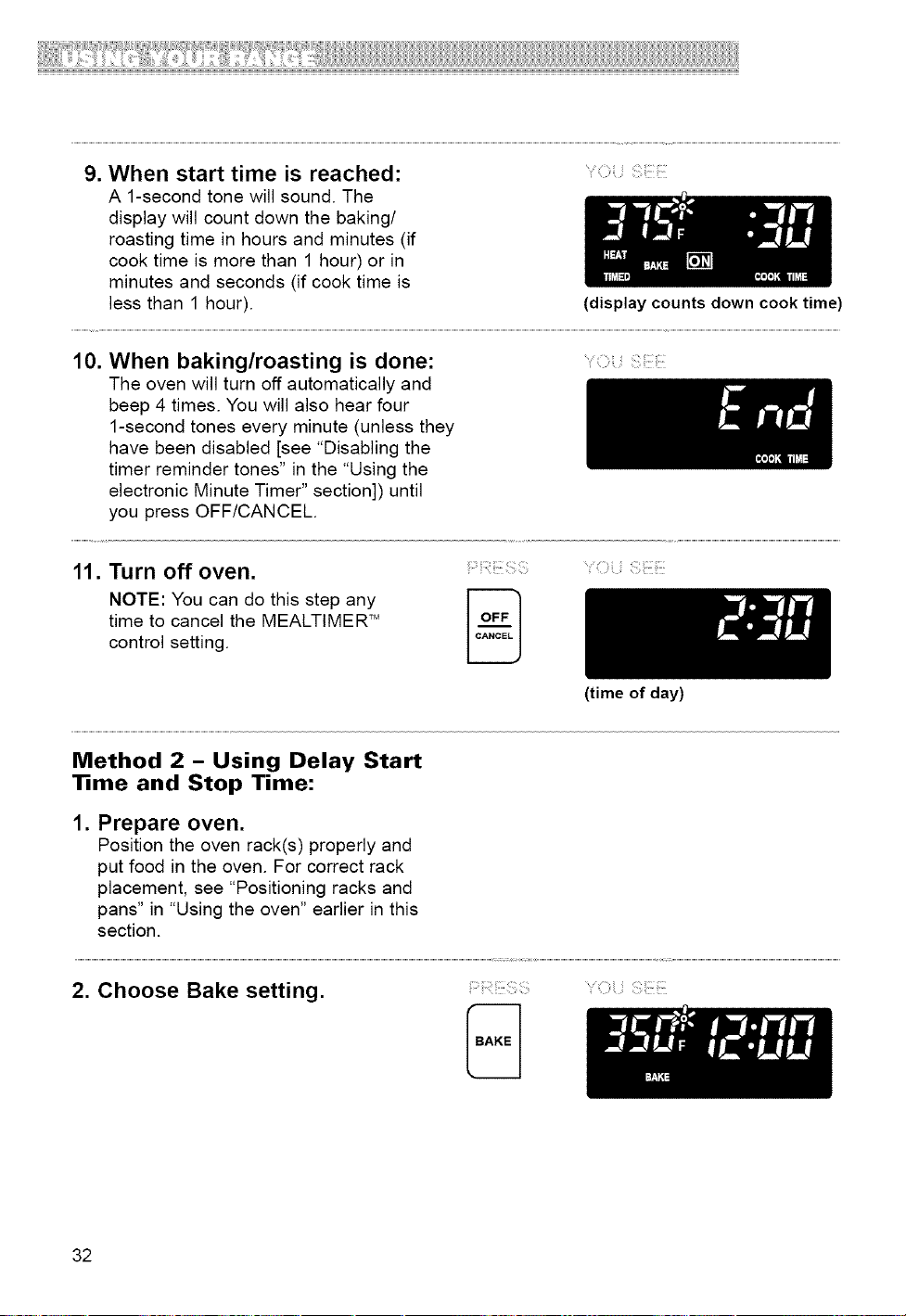

9. When start time is reached:
A 1-second tone will sound. The
display will count down the baking/
roasting time in hours and minutes (if
cook time is more than 1 hour) or in
minutes and seconds (if cook time is
less than 1 hour).
(display counts down cook time)
10.
When baking/roasting is done:
The oven will turn off automatically and
beep 4 times. You will also hear four
1-second tones every minute (unless they
have been disabled [see "Disabling the
timer reminder tones" in the "Using the
electronic Minute Timer" section]) until
you press OFF/CANCEL
11.
Turn off oven.
NOTE: You can do this step any
time to cancel the MEALTIMER TM
control setting.
(time of day)
Method 2 - Using Delay Start
Time and Stop Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks and
pans" in "Using the oven" earlier in this
section.
2. Choose Bake setting.
8
32
!iii ! !
3. Set temperature (optional).
Do this step if you want to set a
temperature other than 350°F. Press •
to raise the temperature or • to lower
the temperature in 5°F amounts. Use
this pad until the desired temperature
shows on the small display. (If the Temp
pad is held down, the temperature will
change faster.)
__i 9 __iili!_
(example shows Bake at
375°F [or 191°C])
4. Press DELAY START TIME.
5. Set start time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the
display.
Example at right shows a desired start
time of 2 o'clock.
HR MIN
v v
(example shows 2 o'clock
start time)
6. Press STOP TIME. : :_
D
7. Set stop time.
Press the "up" (•) or "down" (•) pad(s)
until the correct time shows on the
display.
Example at right shows a desired stop
time of 2:30. This provides a 30-minute
cook time (the difference between the
start and stop times).
[ 11
HR MIN
_7 _7
_©i 9 _iiii!_
(example shows 2:30 stop time)
continued on next page
33
i!iiiiSi!iiiiiil121iii!il!iii!!!i:2111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiii:i!!iiiii!i!i!ii!i! iiii!i!i
8. Complete entry.
NOTES:
• You can change the temperature or
time settings any time after pressing
START/ENTER by repeating Steps 2
through 7.
• The display will show "door" and
the heating elements will not heat if
the door is open when you try to
bake/roast.
9. When start time is reached:
A 1-second tone will sound. The display
will count down the baking/roasting
time in hours and minutes (if cook time
is more than 1 hour) or in minutes and
seconds (if cook time is less than
1 hour).
(display counts down cook time)
10.
When baking/roasting is done:
The oven will turn off automatically and
beep 4 times. You will also hear four
1-second tones every minute (unless
they have been disabled [see
"Disabling the timer reminder tones" in
the "Using the electronic Minute Timer"
section]) until you press OFF/CANCEL
11. Turn off oven,
NOTE: You can do this step any
time to cancel the MEALTIMER TM
control setting.
(time of day)
Method 3 - Using Cook Time
and Stop Time:
1. Prepare oven.
Position the oven rack(s) properly and
put food in the oven. For correct rack
placement, see "Positioning racks
and pans" in "Using the oven" earlier in
this section.
34
_!iii ! _iii!!_!ii_`!_!!!!!i!!i_```!_!`!!i_!!!_!!!!i_i_!_`!!!_!!!!_!!_!_! !!!!_i_`_!_!_i_`!_!!!!!_!iiii_iiii_
2. Choose Bake setting.
3. Set temperature (optional).
Do this step if you want to set a
temperature other than 350°F. Press •
to raise the temperature or • to lower
the temperature in 5°F amounts. Use
this pad until the desired temperature
shows on the small display. (If the Temp
pad is held down, the temperature will
change faster.)
/i% ;i !!!i_ii!ii!ii?i¸
(example shows Bake at
375°F [or 191°C])
4. Press COOK TIME.
@
5. Set cook time.
_resstheo0'''or0o_o'''0a0's'[ II ]
until the correct time shows on the display. A A
HR MIN
_7 _7
(example shows 30-minute
baking/roasting time)
6. Press STOP TIME.
D
continued on next page
35
i!iiiiSi!iiiiiil121iii!il!iii!!!i12111:iiii!!13i!ii!i!ii}i:i!!i!ii ii!l il2i!!i1122111!iiiii!i!iiiiiiii!i!!2!!iiiiiiiii!!iiiii!i!i!ii!i! iiii!i!i

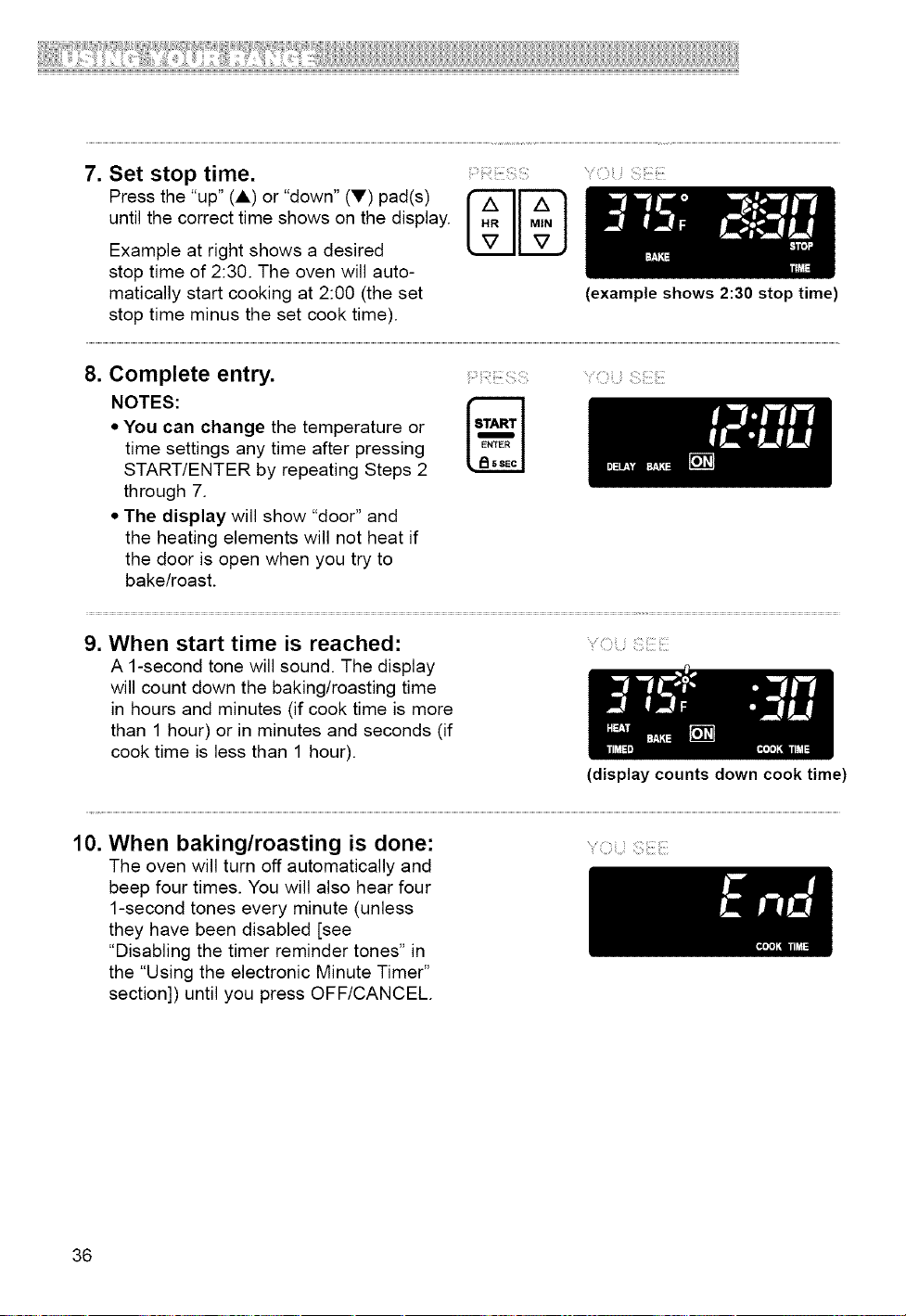

7. Set stop time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the display.
Example at right shows a desired
stop time of 2:30. The oven will auto-
matically start cooking at 2:00 (the set
stop time minus the set cook time).
!Piixi!iiii}}}}}SS
HR MIN
_7 _7
(example shows 2:30 stop time)
8. Complete entry.
NOTES:
• You can change the temperature or
time settings any time after pressing
START/ENTER by repeating Steps 2
through 7.
• The display will show "door" and
the heating elements will not heat if
the door is open when you try to
bake/roast.
Y()U :Sii{iiiiii:::
9. When start time is reached:
A 1-second tone will sound. The display
will count down the baking/roasting time
in hours and minutes (if cook time is more
than 1 hour) or in minutes and seconds (if
cook time is less than 1 hour).
.....
(display counts down cook time)
10. When baking/roasting is done:
The oven will turn off automatically and
beep four times. You will also hear four
1-second tones every minute (unless
they have been disabled [see
"Disabling the timer reminder tones" in
the "Using the electronic Minute Timer"
section]) until you press OFF/CANCEL.
36
!2121111!!i!2! I12!212

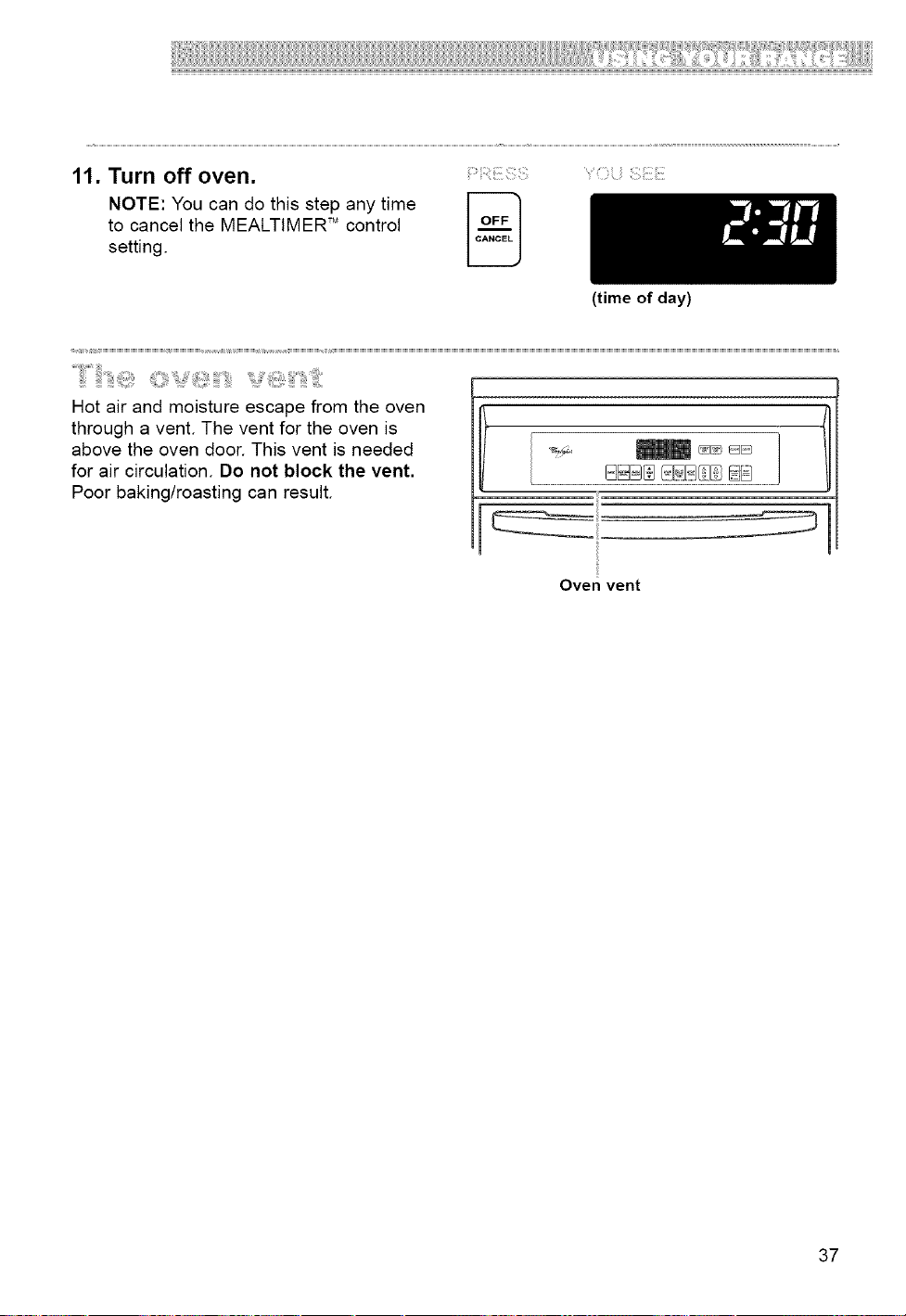

11. Turn off oven.
NOTE: You can do this step any time
to cancel the MEALTIMER TM control
setting.
(time of day)
Hot air and moisture escape from the oven
through a vent. The vent for the oven is
above the oven door. This vent is needed
for air circulation. Do not block the vent.
Poor baking/roasting can result.
I
Oven vent
1
37

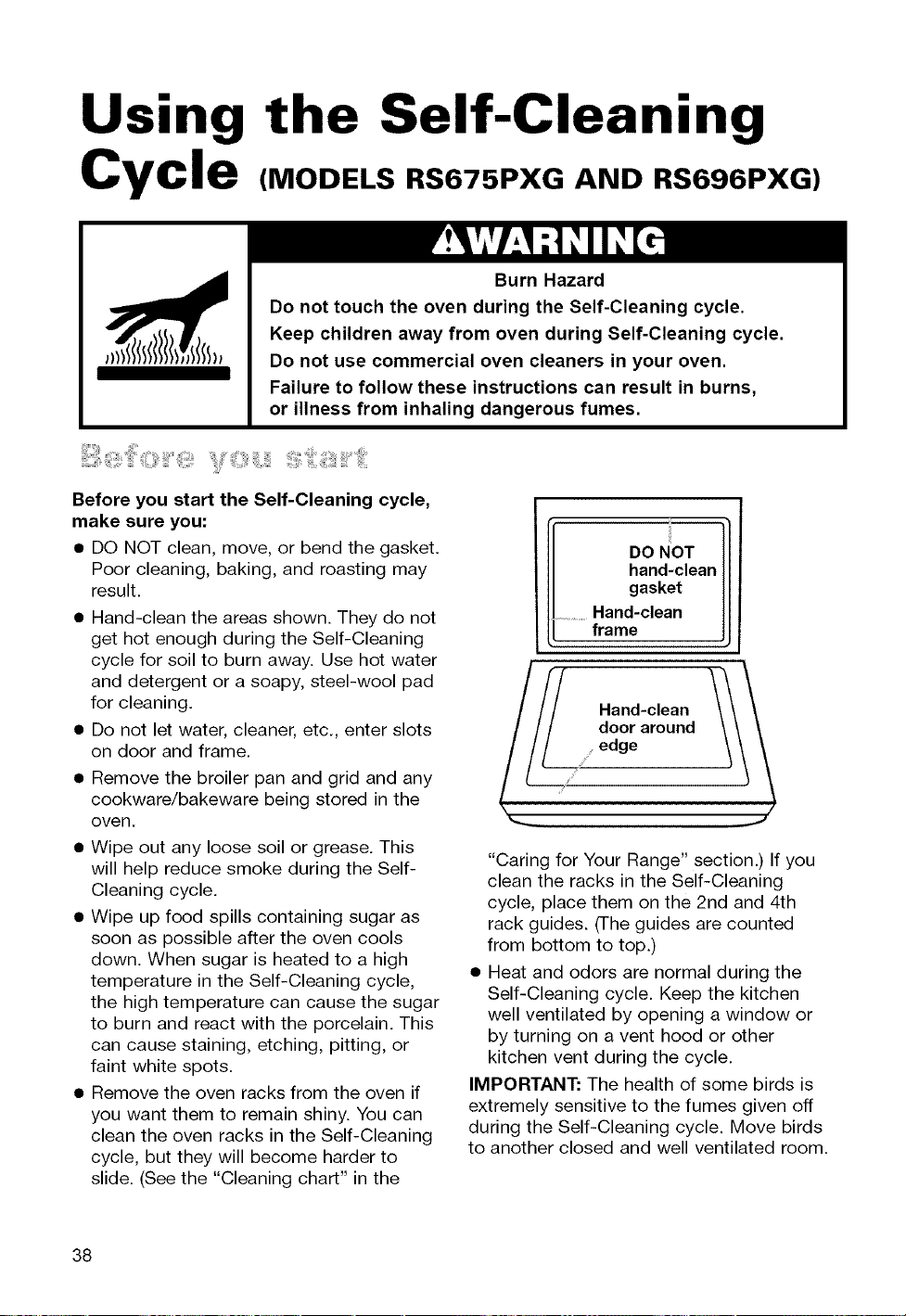

Using the Self-Cleaning
Cycle (MODELS RS675PXG AND RS696PXG)
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns,
or illness from inhaling dangerous fumes.
ii!!i!!!illl_:ii!iii!_,iiii_¸¸O_iiii¸¸'_i_!ili!!__ii_'¸_,_iliiiiiii_,_Jiiii_!i:i:ii__ii_il_i!i!!i__ili¸''i!ill
Before you start the Self-Cleaning cycle,
make sure you:
• DO NOT clean, move, or bend the gasket.
Poor cleaning, baking, and roasting may
result.
• Hand-clean the areas shown. They do not
get hot enough during the Self-Cleaning
cycle for soil to burn away. Use hot water
and detergent or a soapy, steel-wool pad
for cleaning.
• Do not let water, cleaner, etc., enter slots
on door and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the
oven.
• Wipe out any loose soil or grease. This
will help reduce smoke during the Self-
Cleaning cycle.
• Wipe up food spills containing sugar as
soon as possible after the oven cools
down. When sugar is heated to a high
temperature in the Self-Cleaning cycle,
the high temperature can cause the sugar
to burn and react with the porcelain. This
can cause staining, etching, pitting, or
faint white spots.
• Remove the oven racks from the oven if
you want them to remain shiny. You can
clean the oven racks in the Self-Cleaning
cycle, but they will become harder to
slide. (See the "Cleaning chart" in the
!o-T-
I hand-clean
I gasket
I Hand-clean
[ frame
\
Hand-clean
door around
....edge
"Caring for Your Range" section.) If you
clean the racks in the Self-Cleaning
cycle, place them on the 2nd and 4th
rack guides. (The guides are counted
from bottom to top.)
• Heat and odors are normal during the
Self-Cleaning cycle. Keep the kitchen
well ventilated by opening a window or
by turning on a vent hood or other
kitchen vent during the cycle.
IMPORTANT: The health of some birds is
extremely sensitive to the fumes given off
during the Self-Cleaning cycle. Move birds
to another closed and well ventilated room.
38
''!!iiiiii!il!ii!

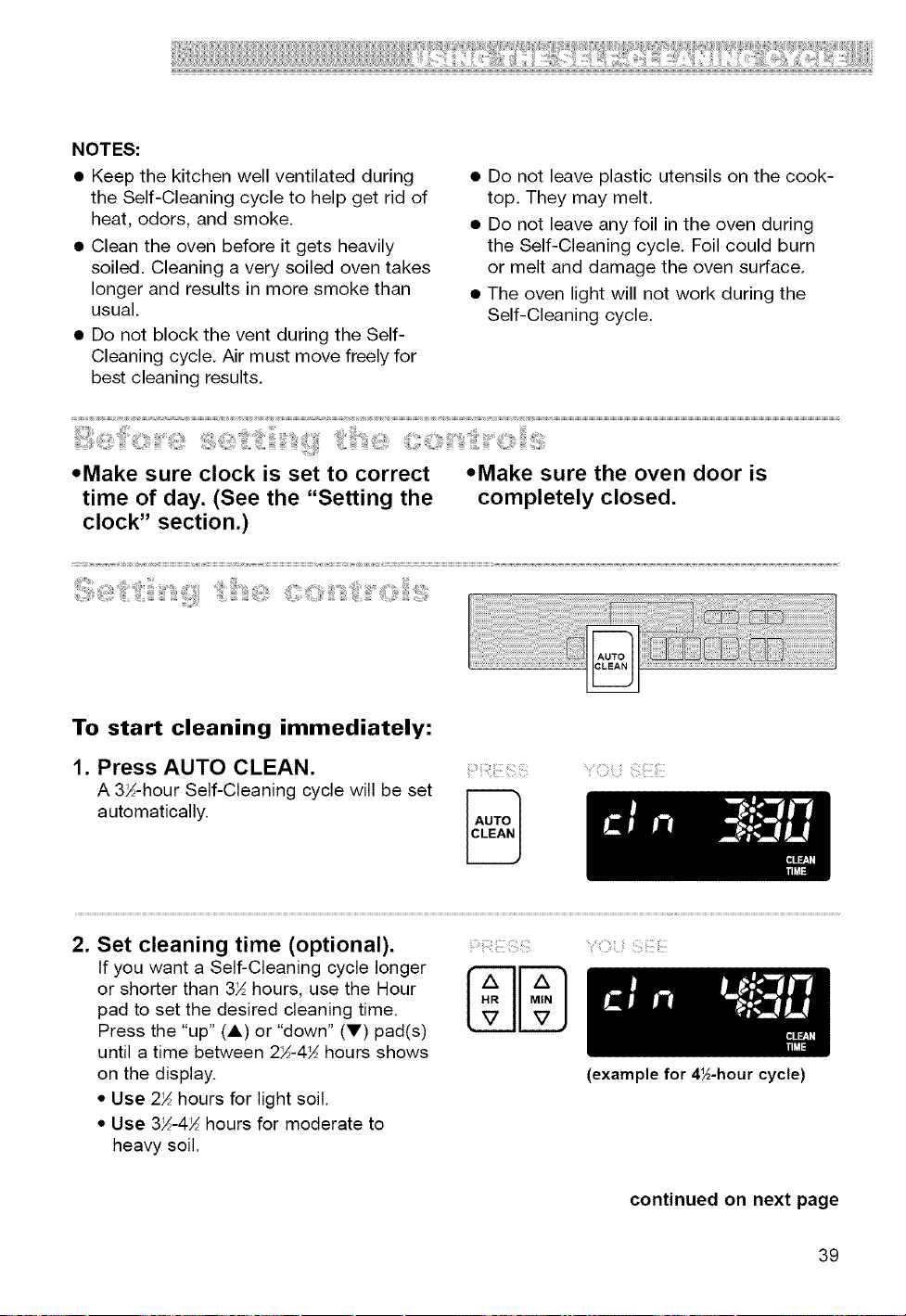

NOTES:
• Keep the kitchen well ventilated during
the Self-Cleaning cycle to help get rid of
heat, odors, and smoke.
• Clean the oven before it gets heavily
soiled. Cleaning a very soiled oven takes
longer and results in more smoke than
usual.
• Do not block the vent during the Self-
Cleaning cycle. Air must move freely for
best cleaning results.
• Do not leave plastic utensils on the cook-
top. They may melt.
• Do not leave any foil in the oven during
the Self-Cleaning cycle. Foil could burn
or melt and damage the oven surface.
• The oven light will not work during the
Self-Cleaning cycle.
,,Make sure clock is set to correct ,,Make sure the oven door is
time of day. (See the "Setting the completely closed.
clock" section.)
To start cleaning immediately:
1. Press AUTO CLEAN.
A 3_-hour Self-Cleaning cycle will be set
automatically.
2. Set cleaning time (optional).
If you want a Self-Cleaning cycle longer
or shorter than 3_ hours, use the Hour
pad to set the desired cleaning time.
Press the "up" (A) or "down" (V) pad(s)
until a time between 2_-4_ hours shows
on the display.
• Use 2_ hours for light soil.
• Use 3_-4_ hours for moderate to
heavy soil.
HR MIN
_7 _7
(example for 4_-hour cycle)
continued on next page
39

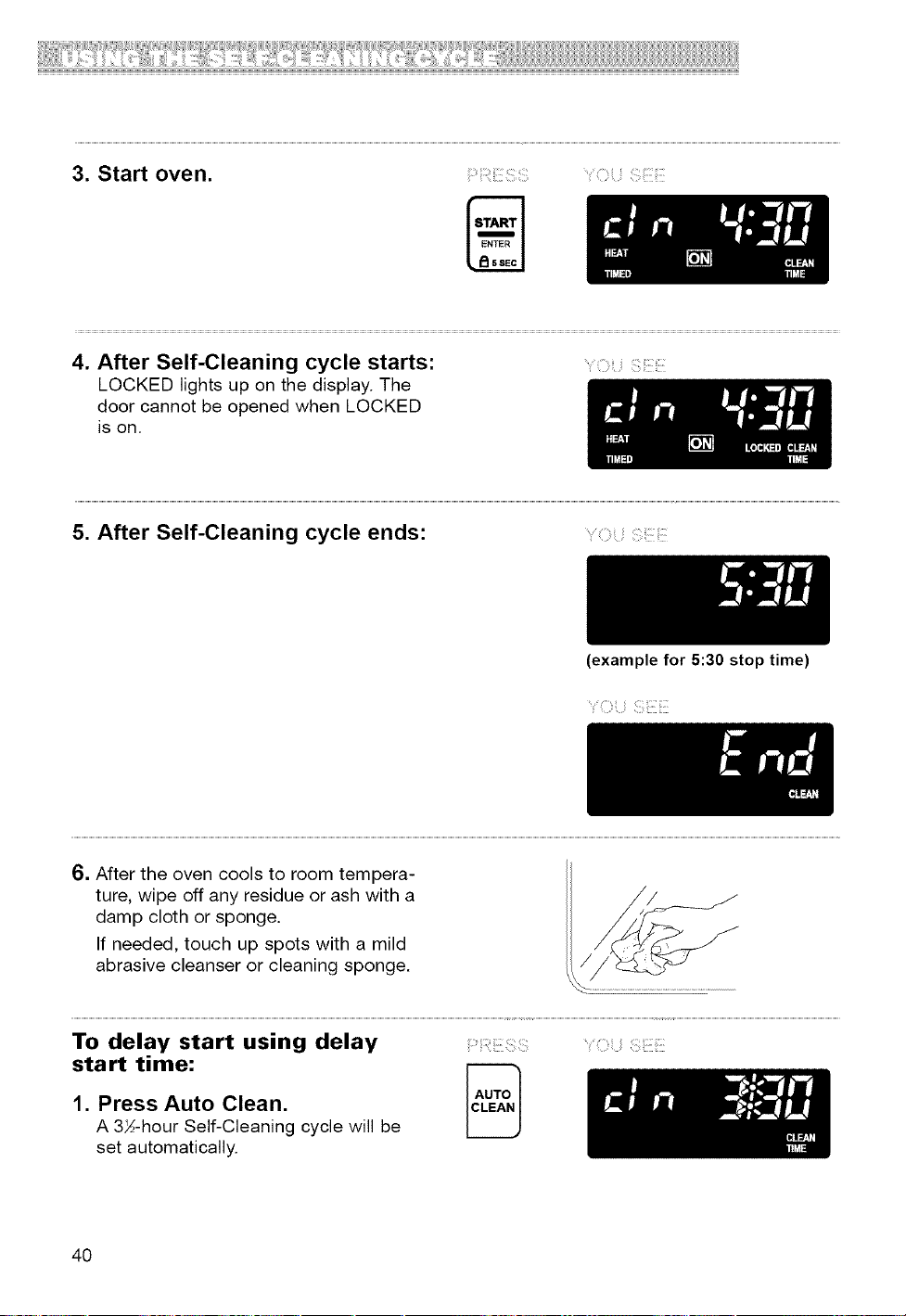

3. Start oven.
4. After Self-Cleaning cycle starts:
LOCKED lights up on the display. The
door cannot be opened when LOCKED
is on.
5. After Self-Cleaning cycle ends: : ;
(example for 5:30 stop time)
6. After the oven cools to room tempera- II
ture, wipe off any residue or ash with a
damp cloth or sponge.
If needed, touch up spots with a mild
abrasive cleanser or cleaning sponge.
To delay start using delay
start time:
1. Press Auto Clean.
A 3X-hour Self-Cleaning cycle will be
set automatically.
'/(}ii ;i SilEii?i¸
40
_!iii_ii!iiii!i!_!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_i!!iii!!i!llii!!i!!!!Iii!i!i_ii!!iil;i!!!!!!!i!!!iiii!'_,_i_iill!!i!iii!'!!_!"l'_i!iiiii!i!I,!iii!!!!_!_'_i!iiil¸'"_iii"I!li!_!!_Iii_!il"i__i__iil"i!;!Ii!_,ii"i!!_'_!_!'ii_!!_!!!i!!!ii111!,_,!iiiiiii'_;_l'"i_!!''!!iiiiii!il!ii!

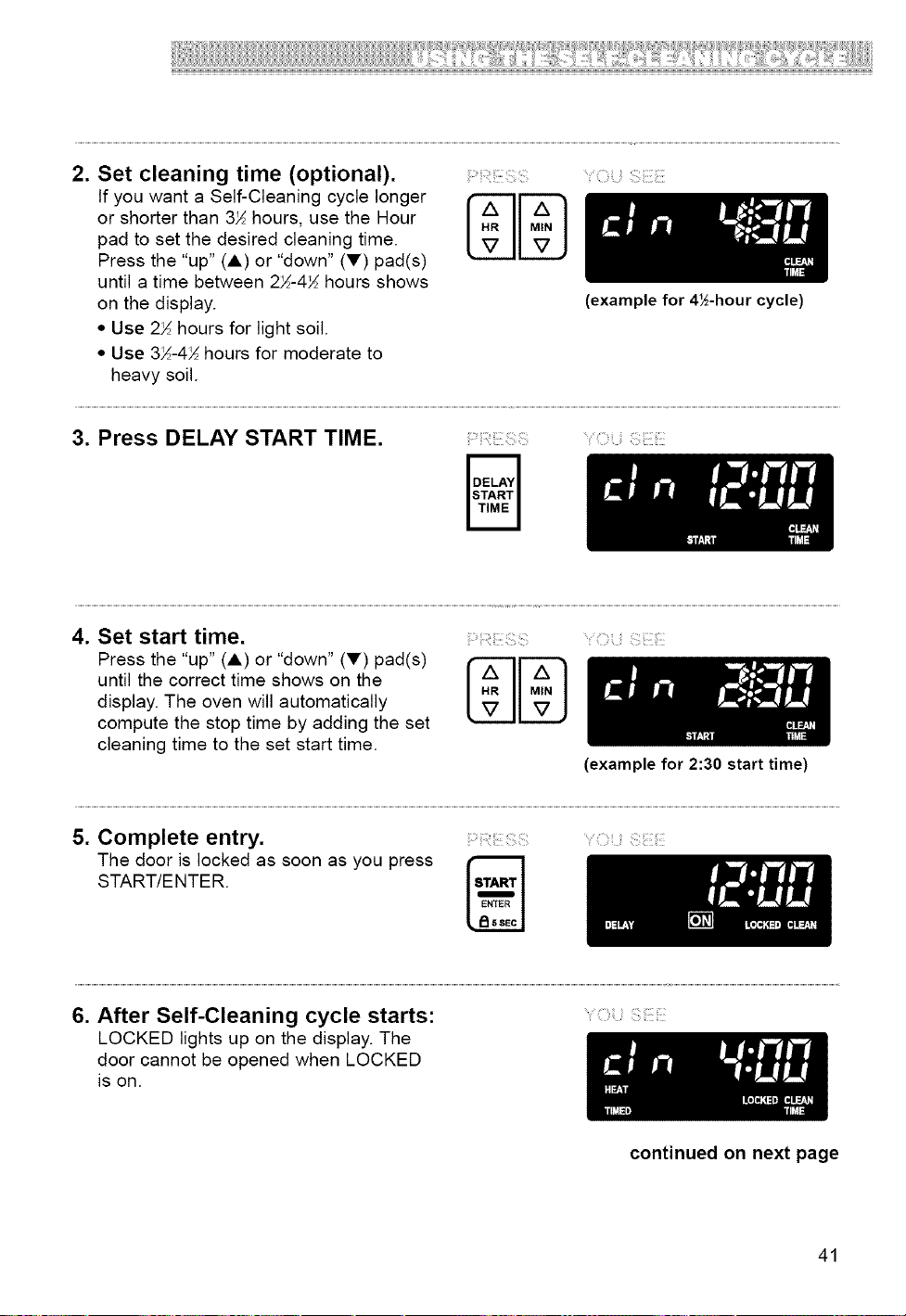

2. Set cleaning time (optional).
If you want a Self-Cleaning cycle longer
or shorter than 3X hours, use the Hour
pad to set the desired cleaning time.
Press the "up" (A) or "down" (V) pad(s)
until a time between 2_-4_ hours shows
on the display.
• Use 2_ hours for light soil.
• Use 3/_-4_"hours for moderate to
heavy soil.
HR MIN
_7 V
(example for 4½-hour cycle)
3. Press DELAY START TIME. '/Ci_i_i !!!i_ii!ii!ii?i¸
4. Set start time.
Press the "up" (A) or "down" (V) pad(s)
until the correct time shows on the
display. The oven will automatically
compute the stop time by adding the set
cleaning time to the set start time.
!i:¸¸_¸ii:;i!iiii!i:i:;:!::ii;
HR MIN
_7 _7
'/Ci_i_i !!!i_ii!ii!ii?i¸
(example for 2:30 start time)
5. Complete entry.
The door is locked as soon as you press
START/ENTER.
6. After Self-Cleaning cycle starts:
LOCKED lights up on the display. The
door cannot be opened when LOCKED
is on.
yx?;_ii !!!iiiiililiii?i¸
continued on next page
41

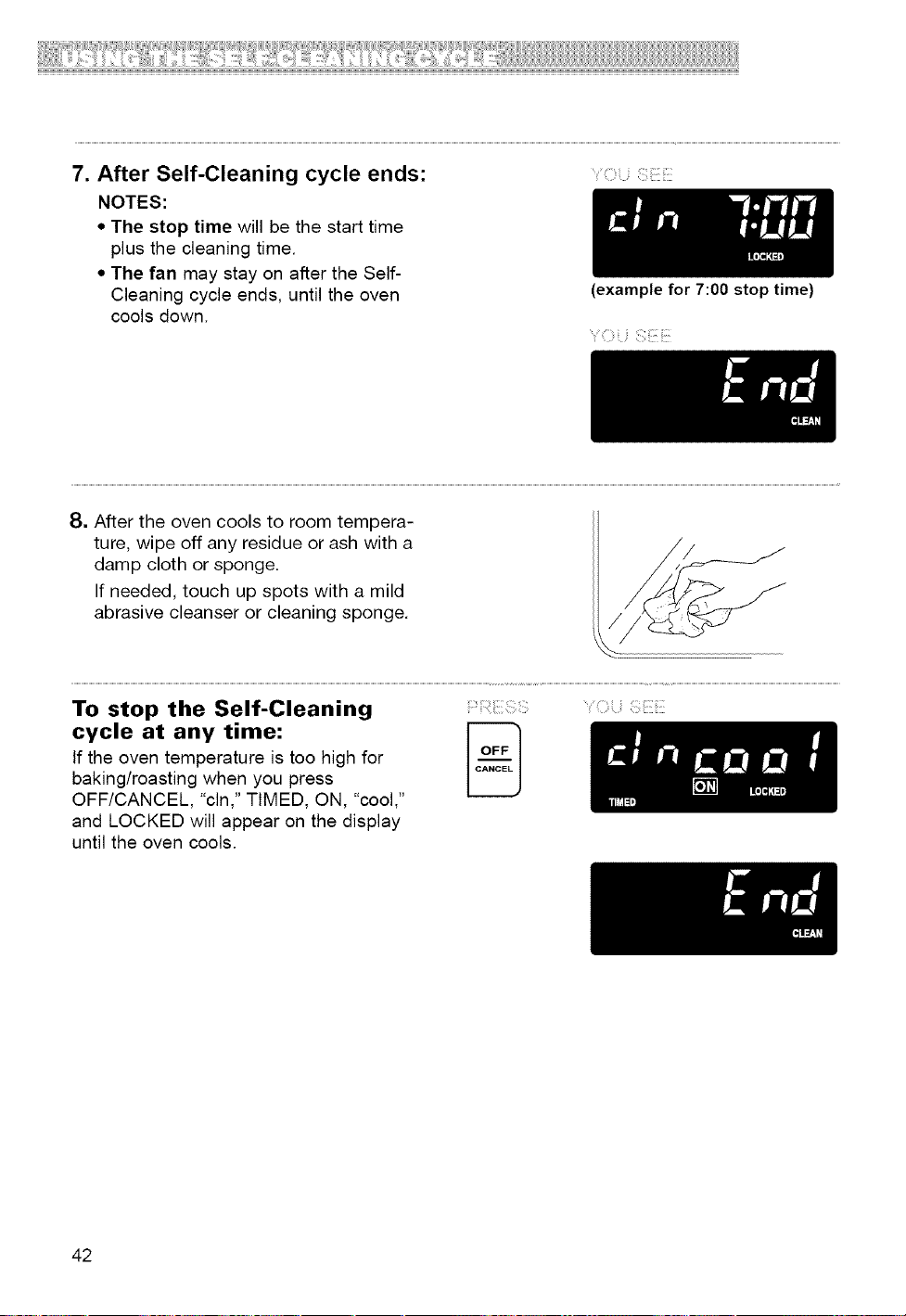

7. After Self-Cleaning cycle ends:
NOTES:
• The stop time will be the start time
plus the cleaning time.
• The fan may stay on after the Self-
Cleaning cycle ends, until the oven
cools down.
Y(}_ii Sii!i!ii?i¸
(example for 7:00 stop time)
i
8. After the oven cools to room tempera-
ture, wipe off any residue or ash with a
clamp cloth or sponge.
If needed, touch up spots with a mild
abrasive cleanser or cleaning sponge.
To stop the Self-Cleaning
cycle at any time: _-_
If the oven temperature is too high for
baking/roasting when you press
OFF/CANCEL, "cln," TIMED, ON, "cool,"
and LOCKED will appear on the display
until the oven cools.
YiT}U Siiii!iG}i
42
''!!iiiiii!il!ii!

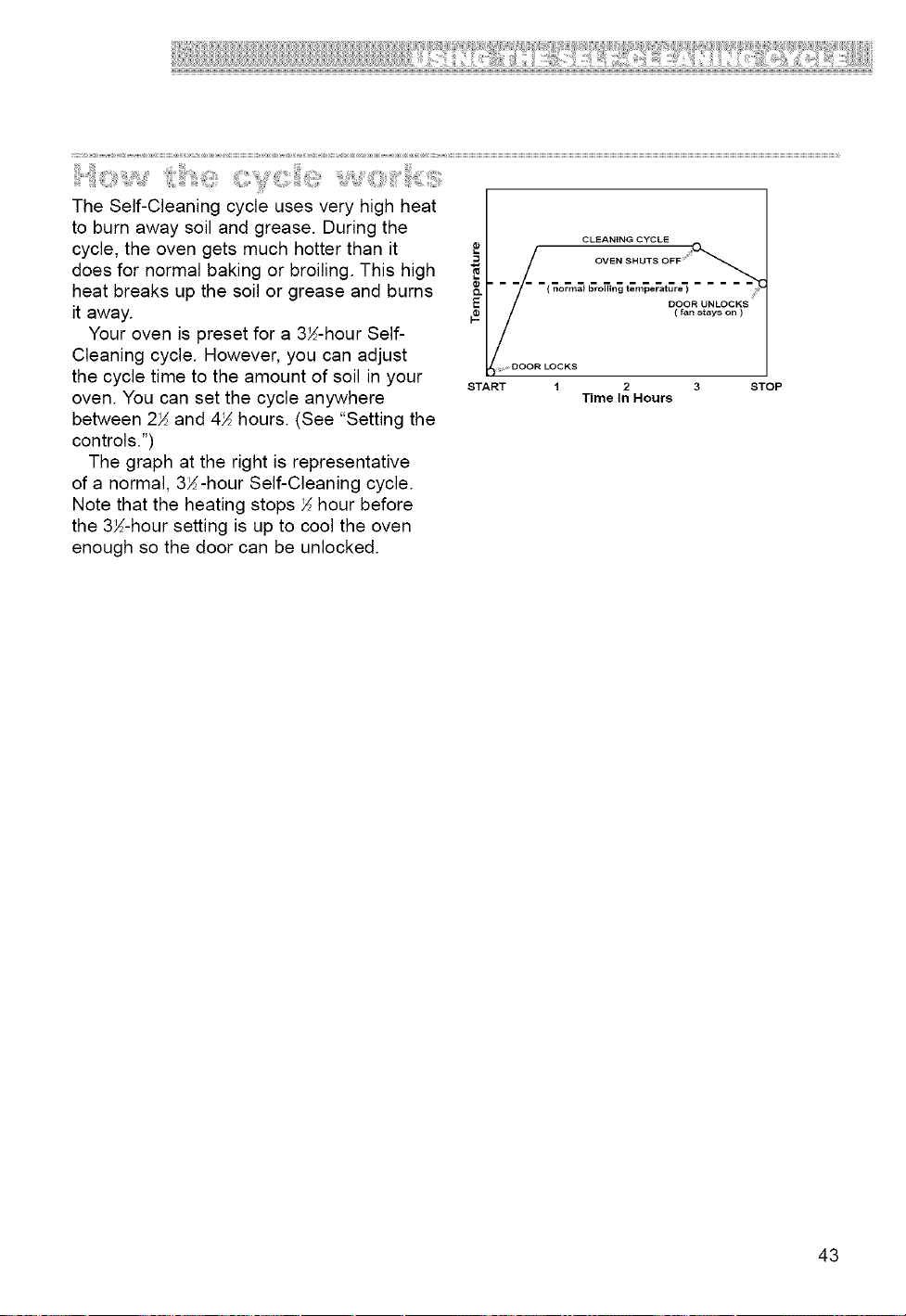

The Self-Cleaning cycle uses very high heat
to burn away soil and grease. During the
cycle, the oven gets much hotter than it
does for normal baking or broiling. This high
heat breaks up the soil or grease and burns
it away.
Your oven is preset for a 3_-hour Self-
Cleaning cycle. However, you can adjust
the cycle time to the amount of soil in your
oven. You can set the cycle anywhere
between 21/2and 4_ hours. (See "Setting the
controls.")
The graph at the right is representative
of a normal, 3_-hour Self-Cleaning cycle.
Note that the heating stops _ hour before
the 3_-hour setting is up to cool the oven
enough so the door can be unlocked.
E
.........DOORLOCKS
START
CLEANING CYCLE
/
( normal broiling temperature ) -- --
DOOR UNLOCKS
( fan stays on )
1 2 3 STOP
Timeln Hours
43

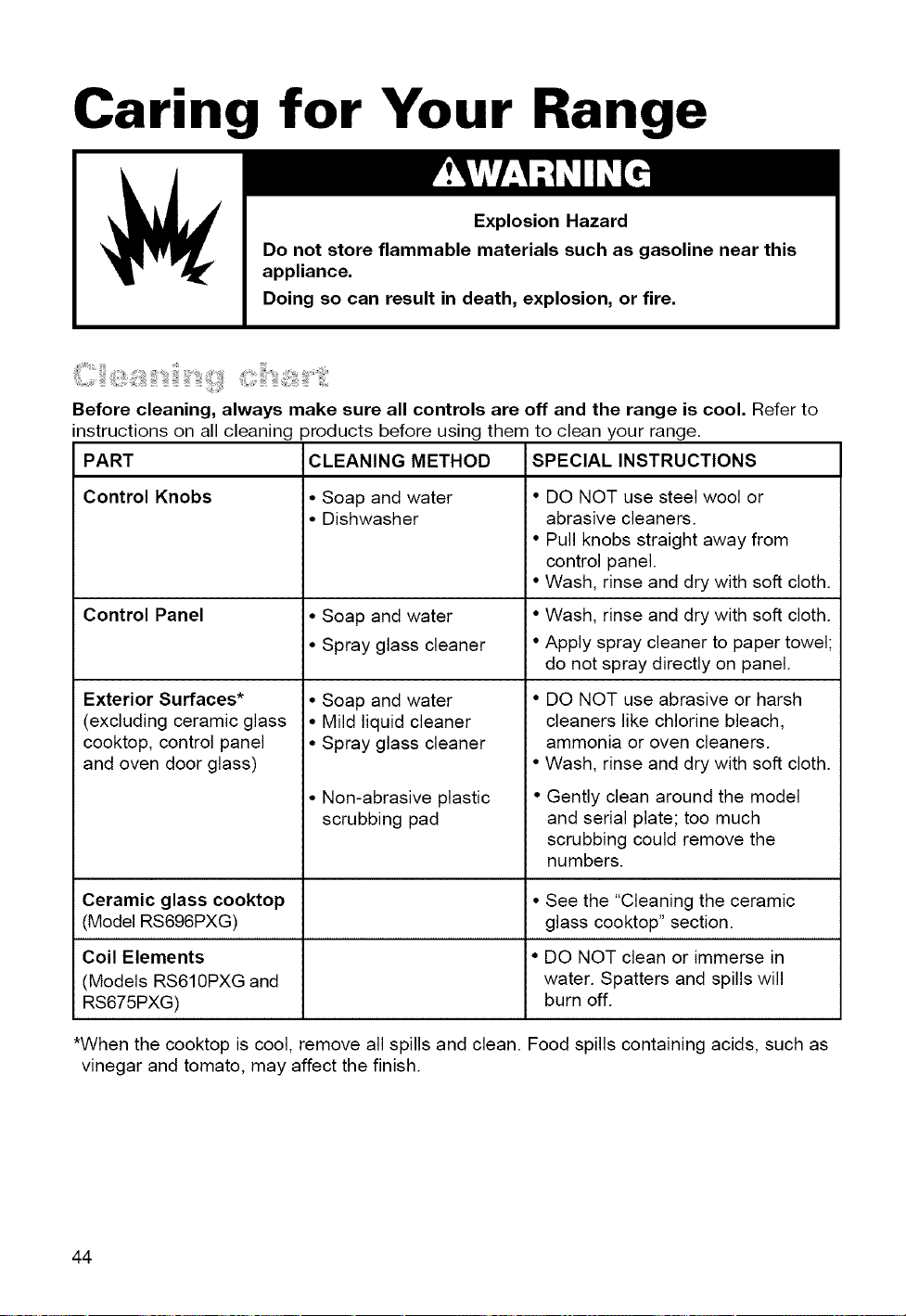

Caring for Your Rang
Explosion Hazard
Do not store flammable materials such as gasoline near this
appliance.
Doing so can result in death, explosion, or fire.
Before cleaning, always make sure all controls are off and the range is cool. Refer to
instructions on all cleaning 3roducts before using them to clean your range.
PART
Control Knobs
Control Panel
Exterior Surfaces*
(excluding ceramic glass
cooktop, control panel
and oven door glass)
Ceramic glass cooktop
(Model RS696PXG)
CLEANING METHOD
• Soap and water
• Dishwasher
• Soap and water
• Spray glass cleaner
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic
scrubbing pad
Coil Elements
(Models RS610PXG and
RS675PXG)
SPECIAL INSTRUCTIONS
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft cloth.
• Wash, rinse and dry with soft cloth.
• Apply spray cleaner to paper towel;
do not spray directly on panel.
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft cloth.
• Gently clean around the model
and serial plate; too much
scrubbing could remove the
numbers.
• See the "Cleaning the ceramic
glass cooktop" section.
• DO NOT clean or immerse in
water. Spatters and spills will
burn off.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as
vinegar and tomato, may affect the finish.
44

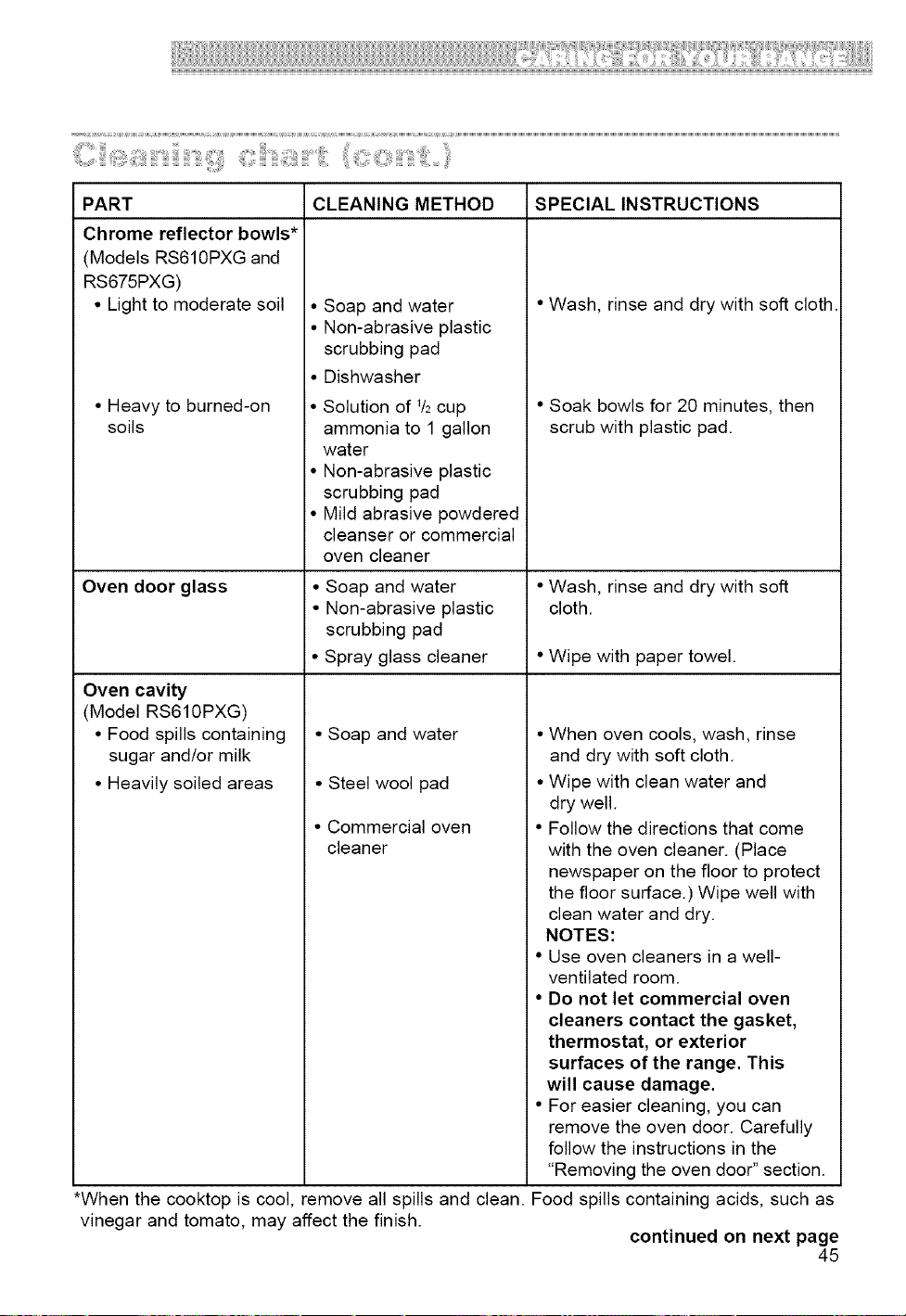

PART
Chromereflector bowls*
(Models RS610PXG and
RS675PXG)
• Light to moderate soil
• Heavy to burned-on
soils
Oven door glass
Oven cavity
(Model RS610PXG)
• Food spills containing
sugar and/or milk
• Heavily soiled areas
CLEANING METHOD
• Soap and water
• Non-abrasive plastic
scrubbing pad
• Dishwasher
• Solution of 1/2cup
ammonia to 1 gallon
water
• Non-abrasive plastic
scrubbing pad
• Mild abrasive powdered
cleanser or commercial
oven cleaner
• Soap and water
• Non-abrasive plastic
scrubbing pad
• Spray glass cleaner
• Soap and water
• Steel wool pad
• Commercial oven
cleaner
*When the cooktop is cool, remove all spills and clean.
vinegar and tomato, may affect the finish.
SPECIAL INSTRUCTIONS
• Wash, rinse and dry with soft cloth.
• Soak bowls for 20 minutes, then
scrub with plastic pad.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth.
• Wipe with clean water and
dry well.
• Follow the directions that come
with the oven cleaner. (Place
newspaper on the floor to protect
the floor surface.) Wipe well with
clean water and dry.
NOTES:
• Use oven cleaners in a well-
ventilated room.
• Do not let commercial oven
cleaners contact the gasket,
thermostat, or exterior
surfaces of the range. This
will cause damage.
• For easier cleaning, you can
remove the oven door. Carefully
follow the instructions in the
"Removing the oven door" section.
Food spills containing acids, such as
continued on next page
45
C:_iiii,_i!:iiii_,,_i_;i__ii;ii_ii_iiii_i_iiii_iii_!!_iiiiiiii,,_ii::ii_iiii_ii__i:iiit__iii"iii:iil_i::_o,_iii_il_1:,,i_

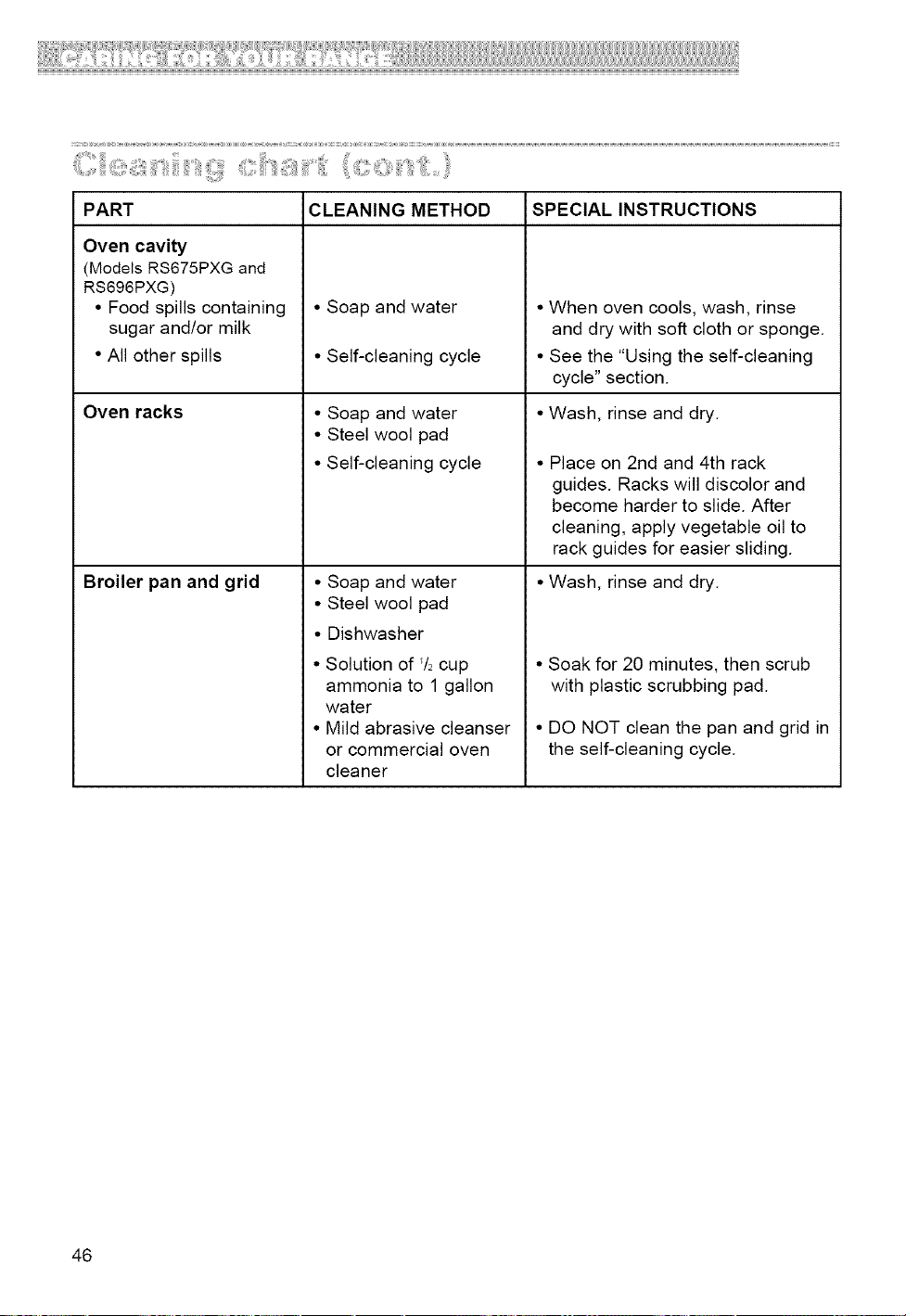

PART CLEANING METHOD SPECIAL INSTRUCTIONS
Oven cavity
(Models RS675PXG and
RS696PXG)
• Food spills containing
sugar and/or milk
• All other spills
Oven racks
Broiler pan and grid
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of '/_cup
ammonia to 1 gallon
water
• Mild abrasive cleanser
or commercial oven
cleaner
• When oven cools, wash, rinse
and dry with soft cloth or sponge.
• See the "Using the self-cleaning
cycle" section.
• Wash, rinse and dry.
• Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid in
the self-cleaning cycle.
46
ii ! !!!!!!iiii!il;iii!!!il ii

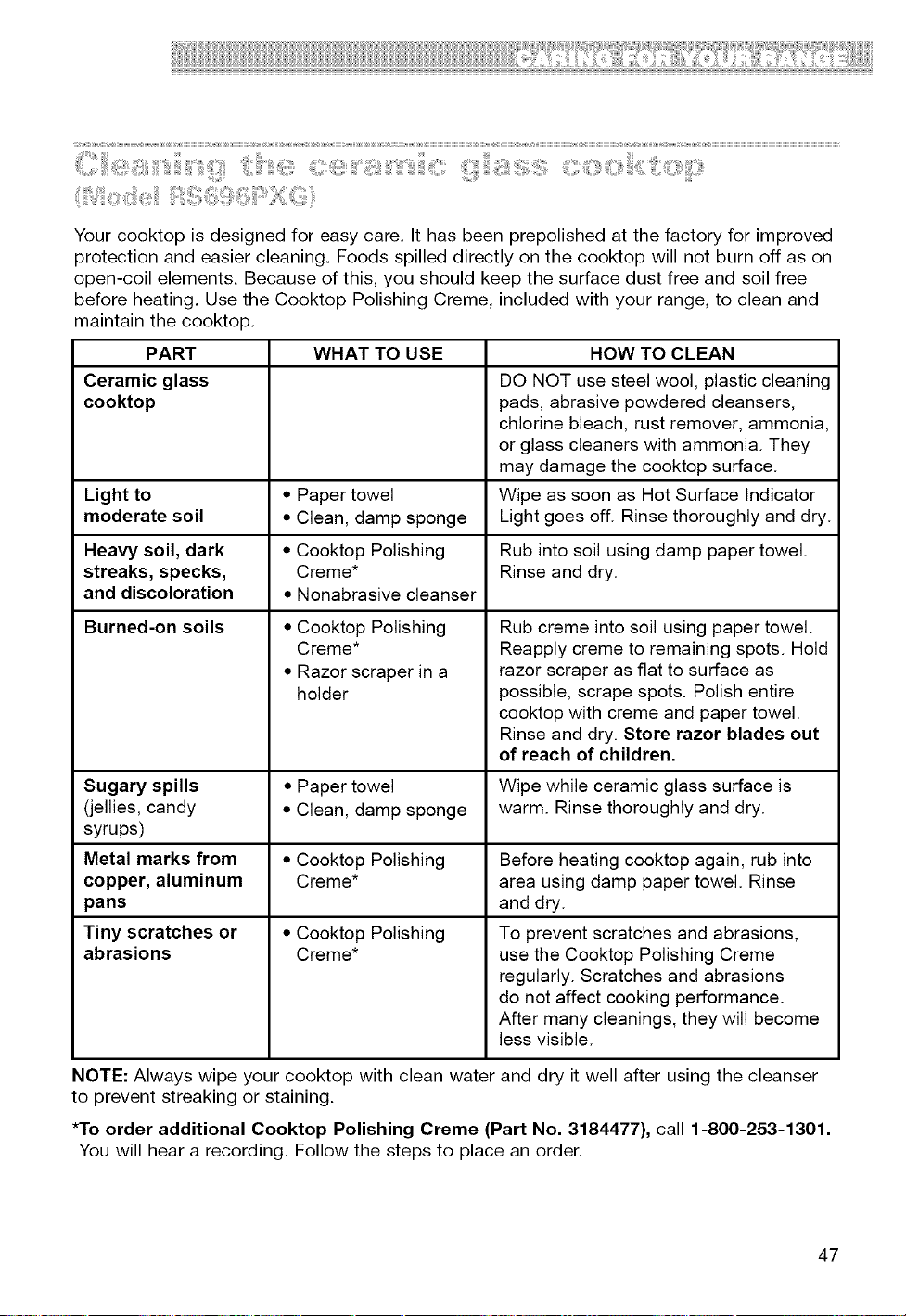

Your cooktop is designed for easy care. It has been prepolished at the factory for improved
protection and easier cleaning. Foods spilled directly on the cooktop will not burn off as on
open-coil elements. Because of this, you should keep the surface dust free and soil free
before heating. Use the Cooktop Polishing Creme, included with your range, to clean and
maintain the cooktop.
PART WHAT TO USE HOW TO CLEAN
Ceramic glass DO NOT use steel wool, plastic cleaning
cooktop pads, abrasive powdered cleansers,
chlorine bleach, rust remover, ammonia,
or glass cleaners with ammonia. They
may damage the cooktop surface.
Light to • Paper towel Wipe as soon as Hot Surface Indicator
moderate soil • Clean, damp sponge Light goes off. Rinse thoroughly and dry.
Heavy soil, dark * Cooktop Polishing Rub into soil using damp paper towel.
streaks, specks, Creme* Rinse and dry.
and discoloration * Nonabrasive cleanser
Burned-on soils
• Cooktop Polishing
Creme*
• Razor scraper in a
holder
Rub creme into soil using paper towel.
Reapply creme to remaining spots. Hold
razor scraper as flat to surface as
possible, scrape spots. Polish entire
cooktop with creme and paper towel.
Rinse and dry. Store razor blades out
of reach of children.
Sugary spills • Paper towel Wipe while ceramic glass surface is
(jellies, candy • Clean, damp sponge warm. Rinse thoroughly and dry.
syrups)
Metal marks from • Cooktop Polishing
copper, aluminum Creme*
pans
Tiny scratches or • Cooktop Polishing
abrasions Creme*
Before heating cooktop again, rub into
area using damp paper towel. Rinse
and dry.
To prevent scratches and abrasions,
use the Cooktop Polishing Creme
regularly. Scratches and abrasions
do not affect cooking performance.
After many cleanings, they will become
less visible.
NOTE: Always wipe your cooktop with clean water and dry it well after using the cleanser
to prevent streaking or staining.
*To order additional Cooktop Polishing Creme (Part No. 3184477), call 1-800-253-1301.
You will hear a recording. Follow the steps to place an order.
47
C_ii:iii_iiiiiii_:i_i;_!iil,iiiiiiii_iii'ii_i_i_!iii!ii_:4iiiii_i_ii_ii:_iii!!iiii__i!!iii_i_iiili_Ciii_i_i!iiii_,_ii_i_;!_i_,_CiliiO!ii_ii'_'_i!:iiiii_,_i:;iii_ii_i"_'!i_i!i!iii_i_

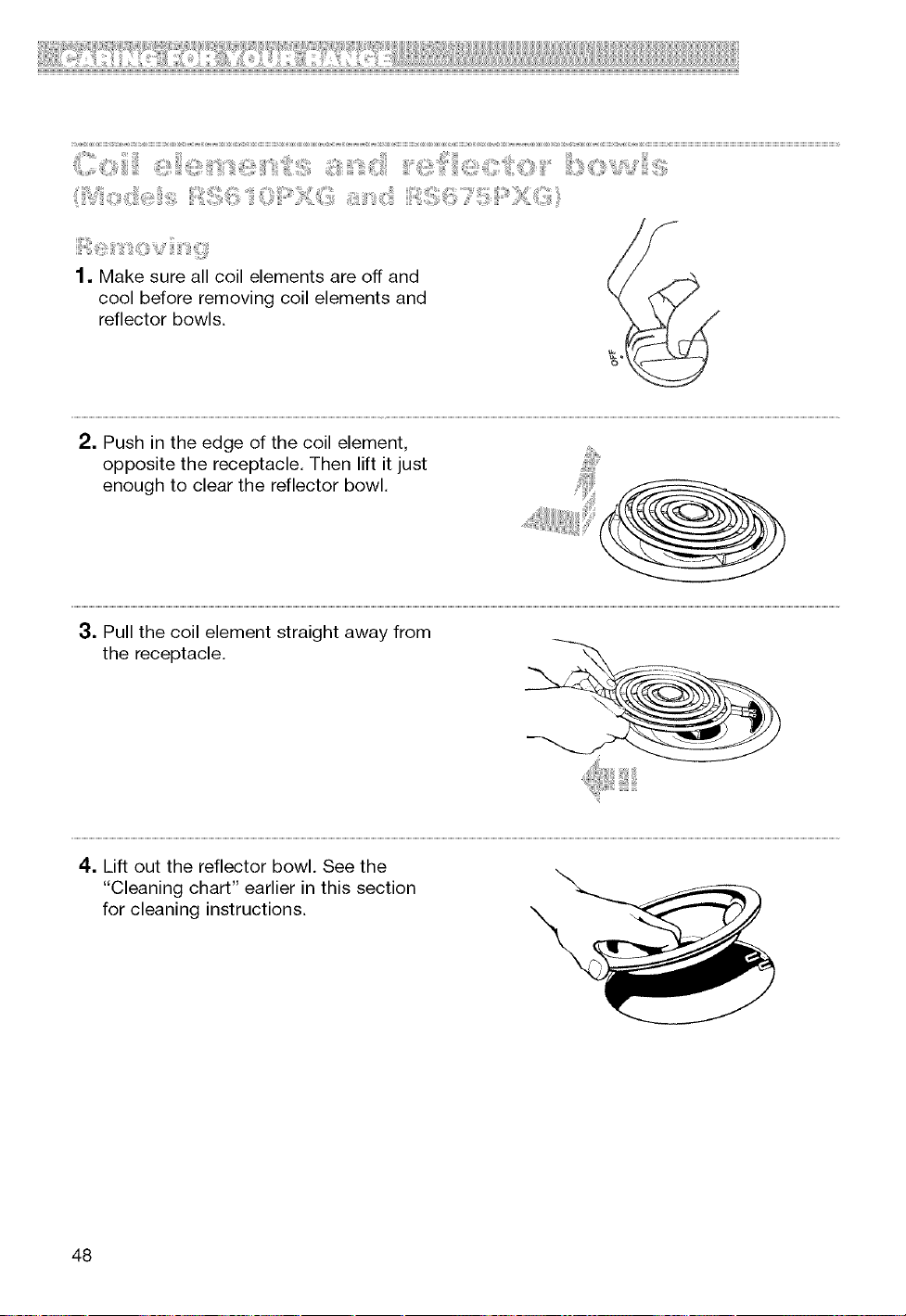

s
1. Make sure all coil elements are off and / j
cool before removing coil elements and "X_ >"//
reflector bowls.
2. Push in the edge of the coil element,
opposite the receptacle. Then lift it just
enough to clear the reflector bowl.
3. Pull the coil element straight away from
the receptacle.
4. Lift out the reflector bowl. See the
"Cleaning chart" earlier in this section
for cleaning instructions.
\
\
48

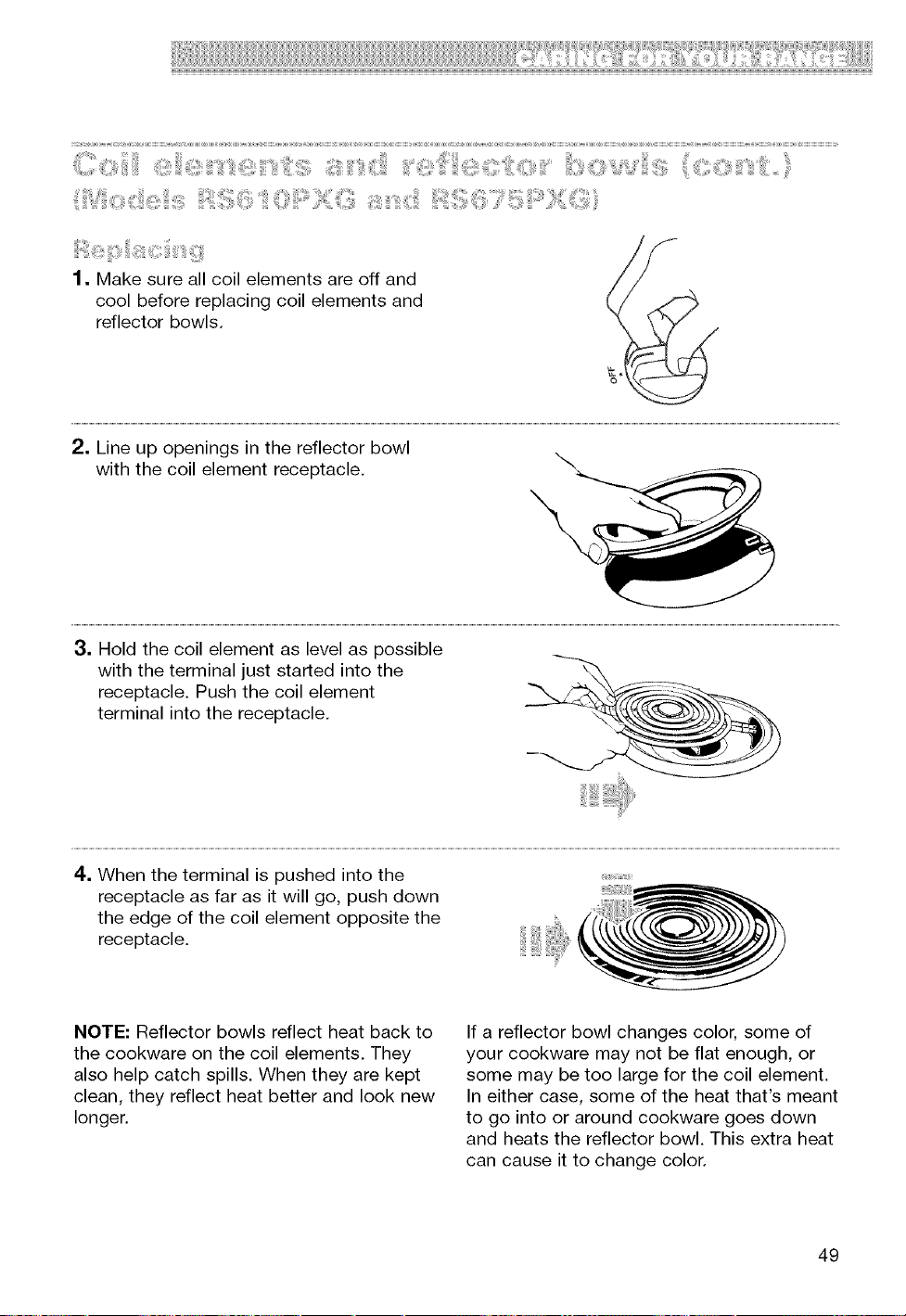

1. Makesureallcoilelementsareoffand
coolbeforereplacingcoilelementsand
reflectorbowls.
2. Lineupopeningsinthereflectorbowl
withthecoilelementreceptacle.
\
3. Hold the coil element as level as possible
with the terminal just started into the
receptacle. Push the coil element
terminal into the receptacle.
4. When the terminal is pushed into the
receptacle as far as it will go, push down
the edge of the coil element opposite the
receptacle.
NOTE: Reflector bowls reflect heat back to
the cookware on the coil elements. They
also help catch spills. When they are kept
clean, they reflect heat better and look new
longer.
If a reflector bowl changes color, some of
your cookware may not be flat enough, or
some may be too large for the coil element.
In either case, some of the heat that's meant
to go into or around cookware goes down
and heats the reflector bowl. This extra heat
can cause it to change color.
49

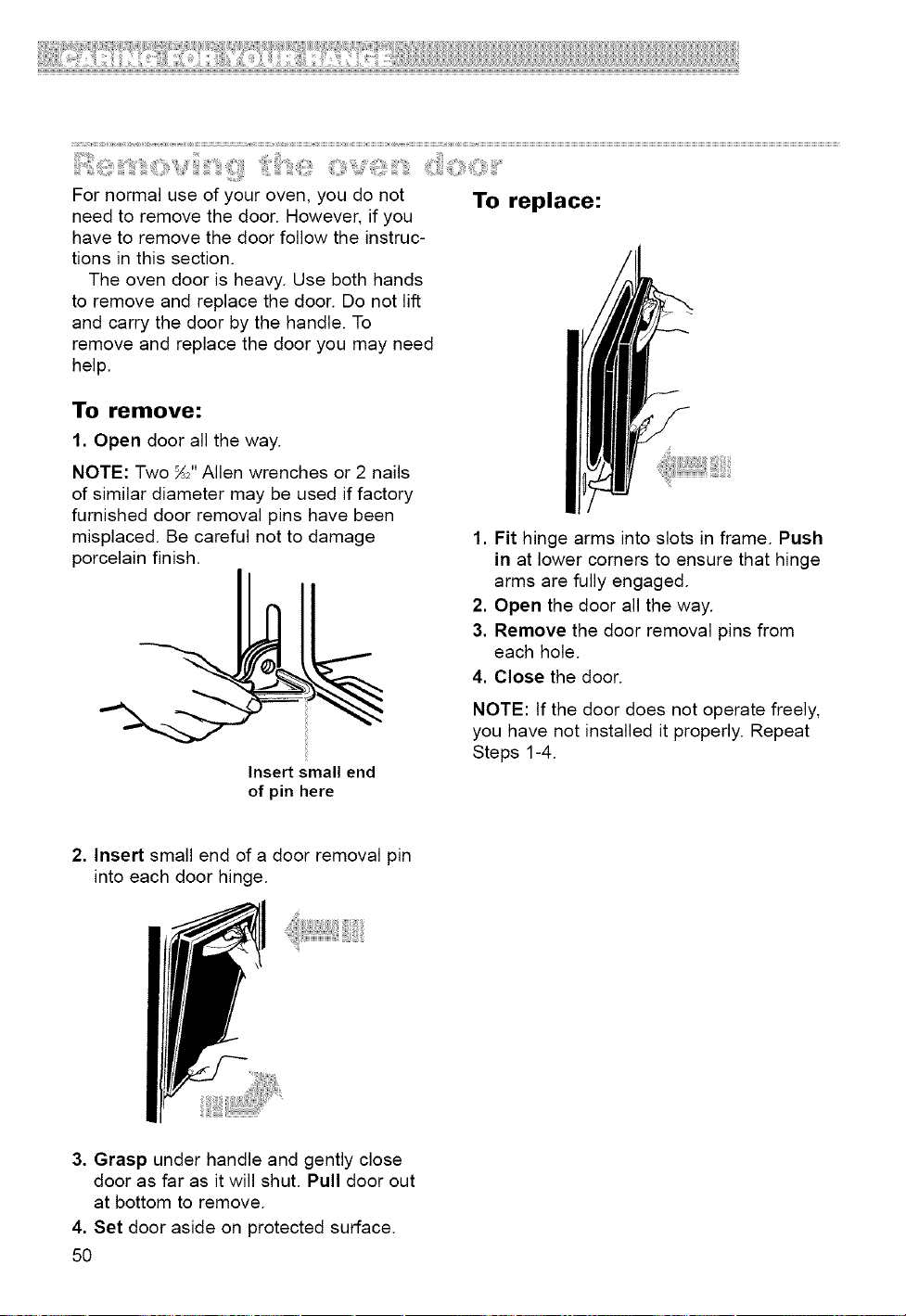

Fornormaluseofyouroven,youdonot
needtoremovethedoor.However,ifyou
havetoremovethedoorfollowtheinstruc-
tionsinthissection.
Theovendoorisheavy.Usebothhands
toremoveandreplacethedoor.Donotlift
andcarrythedoorbythehandle.To
removeandreplacethedooryoumayneed
help.
To remove:
1. Open door all the way.
NOTE: Two %_"Allen wrenches or 2 nails
of similar diameter may be used if factory
furnished door removal pins have been
misplaced. Be careful not to damage
porcelain finish.
Insert small end
of pin here
To replace:
1. Fit hinge arms into slots in frame. Push
in at lower corners to ensure that hinge
arms are fully engaged.
2. Open the door all the way.
3. Remove the door removal pins from
each hole.
4. Close the door.
NOTE: If the door does not operate freely,
you have not installed it properly. Repeat
Steps 1-4.
2. Insert small end of a door removal pin
into each door hinge.
3. Grasp under handle and gently close
door as far as it will shut. Pull door out
at bottom to remove.
4. Set door aside on protected surface.
50

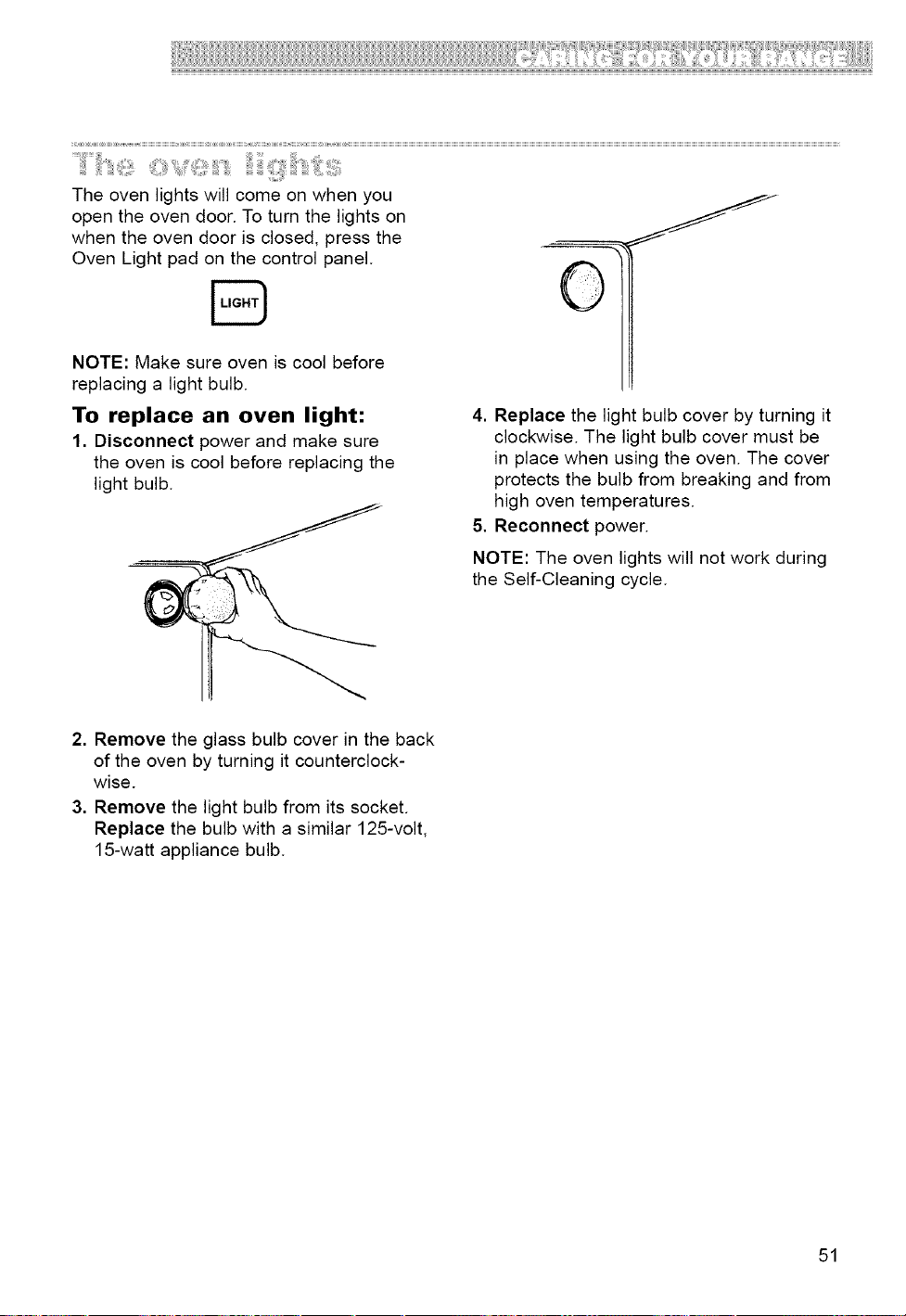

Theovenlightswillcomeonwhenyou
opentheovendoor.Toturnthelightson
whentheovendooris closed,pressthe
OvenLightpadonthecontrolpanel.
NOTE:Makesureoveniscoolbefore
replacingalightbulb.
To replace an oven light:
1. Disconnect power and make sure
the oven is cool before replacing the
light bulb.
©
4. Replace the light bulb cover by turning it
clockwise. The light bulb cover must be
in place when using the oven. The cover
protects the bulb from breaking and from
high oven temperatures.
5. Reconnect power.
NOTE: The oven lights will not work during
the Self-Cleaning cycle.
2. Remove the glass bulb cover in the back
of the oven by turning it counterclock-
wise.
3. Remove the light bulb from its socket.
Replace the bulb with a similar 125-volt,
15-watt appliance bulb.
51

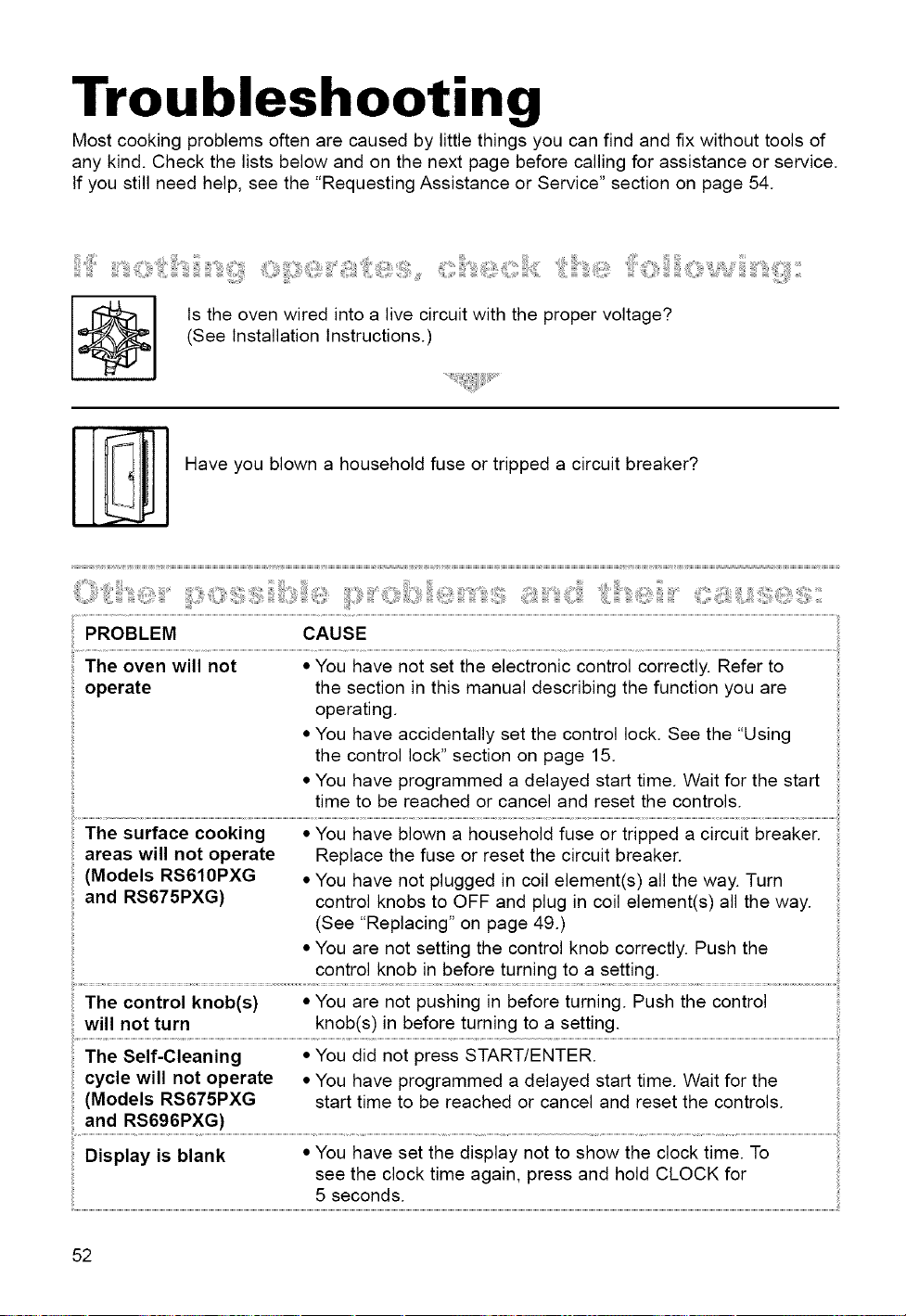

Troubleshooting
Most cooking problems often are caused by little things you can find and fix without tools of
any kind. Check the lists below and on the next page before calling for assistance or service.
If you still need help, see the "Requesting Assistance or Service" section on page 54.
:_1 Is the oven wired into a live circuit with the proper voltage?
(See Installation Instructions.)
Have you blown a household fuse or tripped a circuit breaker?
PROBLEM CAUSE
The oven will not • You have not set the electronic control correctly. Refer to
operate the section in this manual describing the function you are
operating.
• You have accidentally set the control lock. See the "Using
the control lock" section on page 15.
• You have programmed a delayed start time. Wait for the start
time to be reached or cancel and reset the controls.
The surface cooking • You have blown a household fuse or tripped a circuit breaker.
areas will not operate Replace the fuse or reset the circuit breaker.
(Models RS610PXG • You have not plugged in coil element(s) all the way. Turn
and RS675PXG) control knobs to OFF and plug in coil element(s) all the way.
(See "Replacing" on page 49.)
• You are not setting the control knob correctly. Push the
control knob in before turning to a setting.
The control knob(s) • You are not pushing in before turning. Push the control
will not turn knob(s) in before turning to a setting.
The Self-Cleaning • You did not press START/ENTER.
cycle will not operate • You have programmed a delayed start time. Wait for the
(Models RS675PXG start time to be reached or cancel and reset the controls.
and RS696PXG)
Display is blank • You have set the display not to show the clock time. To
see the clock time again, press and hold CLOCK for
5 seconds.
52

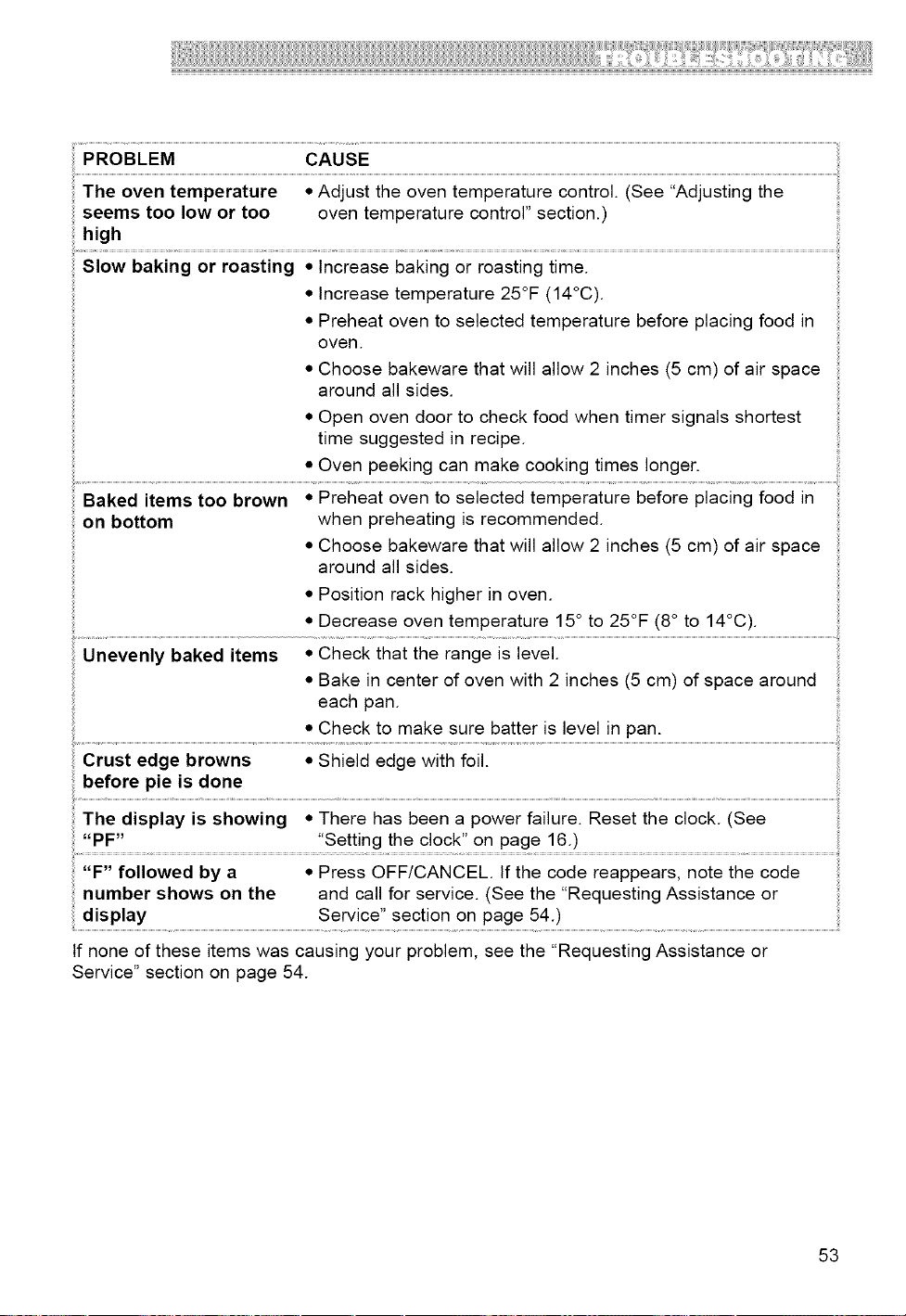

PROBLEM CAUSE
Theoventemperature Adjusttheoventemperaturecontrol.(SeeAdjustingthe
seemstoolowortoo oventemperaturecontrol"section.)
Slowbakingorroasting• Increasebakingorroastingtime.
• Increasetemperature25°F(14°C).
• Preheatoventoselectedtemperaturebeforeplacingfoodin
oven.
• Choose bakeware that will allow 2 inches (5 cm) of air space
around all sides.
• Open oven door to check food when timer signals shortest
time suggested in recipe.
• Oven peeking can make cooking times longer.
Baked items too brown • Preheat oven to selected temperature before placing food in
on bottom when preheating is recommended.
• Choose bakeware that will allow 2 inches (5 cm) of air space
around all sides.
• Position rack higher in oven.
• Decrease oven temperature 15° to 25°F (8° to 14°C).
Unevenly baked items • Check that the range is level.
• Bake in center of oven with 2 inches (5 cm) of space around
each pan.
• Check to make sure batter is level in pan.
Crust edge browns • Shield edge with foil.
before pie is done
The display is showing • There has been a power failure. Reset the clock. (See
"PF .... Setting the clock" on page 16.)
"F" followed by a • Press OFF/CANCEL. If the code reappears, note the code
number shows on the and call for service. (See the "Requesting Assistance or
display Service" section on page 54.)
If none of these items was causing your problem, see the "Requesting Assistance or
Service" section on page 54.
53
Requesting Assistance or Service
To avoid unnecessary service calls, please check the "Troubleshooting" section.
It may save you the cost of a service call. If you still need help, follow the
instructions below.
Call the Whirlpool Consumer Assistance
Center toll free at
1-800-253-1301. Our
consultants are available
to assist you.
When calling:
Please know the purchase date, and the
complete model and serial number of your
appliance (see the "A Note to You" section).
This information will help us better respond
to your request.
Our consultants provide assistance with:
• Features and specifications on our full
line of appliances
• Installation information
• Use and maintenance procedures
• Accessory and repair parts sales
• Specialized customer assistance
(Spanish speaking, hearing impaired,
limited vision, etc.)
• Referrals to local dealers, service
companies, and repair parts distributors
Whirlpool service technicians are
trained to fulfill the product warranty and
provide after-warranty service, anywhere in
the United States.
To locate the authorized Whirlpool
service company in your area, you can also
look in your telephone directory Yellow
Pages.
:,: iiiiiiiiii ii!ii!i iiiii; , i i!i iiiii:i:;iiiiJ,i !!!iii j iii:i'iii::: iiil;
If you need to order replacement parts, we
recommend that you only use FSP®
factory authorized parts. FSP replacement
parts will fit right and work right, because
they are made to the same exacting
specifications used to build every new
WHIRLPOOL ®appliance.
To locate FSP replacement parts in your
area, call our Consumer Assistance Center
telephone number or your nearest
authorized service center.
If you need further assistance, you can
write to Whirlpool with any questions or
concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number
in your correspondence.
54
Index
TOPIC PAGE TOPIC PAGE
A NOTE TO YOU ......................................... 2
ASSISTANCE ............................................ 54
BAKING
Aluminum foil .......................................... 13
Bakeware choices .................................. 13
Pans ...................................................... 12
Racks ...................................................... 12
Setting cycle .......................................... 19
BROILING
Custom broil chart .................................. 25
Grid ........................................................ 25
Guidelines .............................................. 25
Pan ........................................................ 25
Rack position chart ................................ 25
Setting cycle .......................................... 23
CLEANING
Broiler pan and grid ................................ 46
Ceramic glass cooktop .................... 44, 47
Coil elements ............................ 44, 48, 49
Control knobs ........................................ 44
Control panel .......................................... 44
Exterior surfaces .................................... 44
Oven cavity ...................................... 45, 46
Oven door glass .................................... 45
Oven racks ............................................ 46
Reflector bowls .......................... 45, 48, 49
Self-cleaning cycle ................................ 38
SURFACE COOKING AREAS
Ceramic glass cooktop ............................ 9
Control knobs .......................................... 8
Control setting guide ................................ 9
Hot surface indicator light ........................ 8
Power on indicator light ............................ 8
Surface cooking area markers ................ 8
CONTROL PANELS
Audible signals ...................................... 18
Canceling ................................................ 15
Celsius/Fahrenheit .................................. 22
Clock ................................................ 14, 16
Command pads ................................ 14, 15
Control knobs .......................................... 8
Control lock ............................................ 15
Disabling the clock display .................... 16
Display .................................................... 14
Hot surface indicator light ........................ 8
MEALTIMER TM ........................................ 26
Minute timer ............................................ 17
Power on indicator light ............................ 8
Starting .................................................. 15
Surface cooking area markers ................ 8
Tones ...................................................... 18
COOKWARE
Canning .................................................. 10
Characteristics of cookware materials.... 11
Tips ........................................................ 11
FEATURES .............................................. 6, 7
LIGHTS ...................................................... 51
LOCK
Control .................................................... 15
Self-cleaning cycle .......................... 40, 41
MODEL AND SERIAL NUMBER ................ 2
OVEN TEMPERATURE
Adjusting ................................................ 21
Setting ................ 19, 24, 27, 29, 30, 33, 35
OVEN VENT .............................................. 37
PANS ..........................................................
PARTS .................................................... 6, 7
RAC KS ........................................................
REMOVING THE OVEN DOOR ................ 50
ROASTING
Aluminum foil .......................................... 13
Bakeware choices .................................. 13
Pans ........................................................
Racks ...................................................... 12
Setting cycle .......................................... 19
SAFETY .............................................. 3, 4, 5
SELF-CLEANING
Before setting the controls ...................... 39
Before you start ...................................... 38
Delay start .............................................. 40
How cycle works .................................... 43
Notes ...................................................... 39
Setting the controls ................................ 39
Starting immediately .............................. 39
Stopping the cycle .................................. 42
SERVICE .................................................. 54
TIMED COOKING
Canceling ...................... 28, 30, 32, 34, 37
Cook time .................................. 27, 31, 35
Delay start time ................................ 31, 33
Stop time .................................... 29, 33, 35
TROUBLESHOOTING ........................ 52, 53
WARRANTY .............................................. 56
55
¸ iL, iiii , iiii ij
i @@I!;,i:1!iii!@
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP'_replacement parts and repair labor to correct defects in
WARRANTY materials or workmanship. Service must be provided by an
FROM DATE OF authorized Whirlpool service company.
PURCHASE
FULL FIVE-YEAR
WARRANTY
FROM DATE OF
PURCHASE
FSP replacement parts and repair labor for CLEANTOP ®
ceramic glass cooktop to the original purchaser of this product.
Whirlpool warrants that:
- The ceramic glass cooktop will not discolor.
- The ceramic glass cooktop pattern will not wear off.
- The ceramic glass cooktop will not crack due to thermal
shock.
- The surface units will not burn out.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring.
4. Replace owner-accessible light bulbs.
B. Repairs when your range is used in other than normal, single-family household use.
C. Pickup and delivery. Your range is designed to be repaired in the home.
D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of
products not approved by Whirlpool.
E. Repairs to CLEANTOP ceramic glass cooktop if it has not been cared for as
recommended in this Use and Care Guide.
F. Repairs to parts or systems caused by unauthorized modifications made to the
appliance. 8/98
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state
to state.
Outside the United States, a different warranty may apply. For details, please contact
your authorized Whirlpool dealer.
If you need service, first see the "Troubleshooting" section of this book. After checking
"Troubleshooting," additional help can be found by checking the "Requesting Assistance
or Service" section or by calling the Whirlpool Consumer Assistance Center telephone
number, 1-800-253-1301, from anywhere in the U.S.A.
3191537 g/gs
© 1998 Whirlpool Corporation ® Registered trademark/TM Trademark of Whidpool, U.S.A. Printed in U.S.A.
