72393 - CONNECT VESA Mount - Black
CONNECT
MOUNT
VESA MOUNT
2
IPORT CONNECT VESA Mount
Install Manual
Whats in box:
1 - IPORT CONNECT VESA Station
1 - IPORT Security tool - 1.5mm hex key
1 - M4 x 10mm screws
1 - Info Card
Glossary of Terms:
• VESA STATION - The fully assembled CONNECT
PRO VESA Station consisting of the Station,
Cover and screws.
• Station Cover - The thin plastic cover arround the
round charging portion of the VESA Station.
• IPORT Security Tool - The orange handled 1.5mm hex
tool used for locking and unlocking IPORT
Products.
Power Handling
• 9-30V DC 1.5A from a 2-wire connection
• 48VPoE+ when the IPORT PoE+ Upgrade
(72109) is installed.
Product Info Page - https://www.iportproducts.com/
Product/72305
Thank you for purchasing the all new IPORT
CONNECT PRO VESA Station. We hope you enjoy
this revolutionary new system and if at any time
you need more assistance please contact IPORT
Tech Support via Online chart or through our help
desk.
CONNECT
MOUNT
VESA MOUNT
3
1. The IPORT CONNECT VESA Station is
desigend to conform to MIS-D standard
and will work with most 75 mm x 75mm
and 100mm x 100mm VESA mounts.
2. The IPORT CONNECT VESA Station
Ships with provided 10mm screws how-
ever depending on your VESA mount or
stant you may need to source seperate
lenghts 4M screws.
CONNECT
MOUNT
VESA MOUNT
4

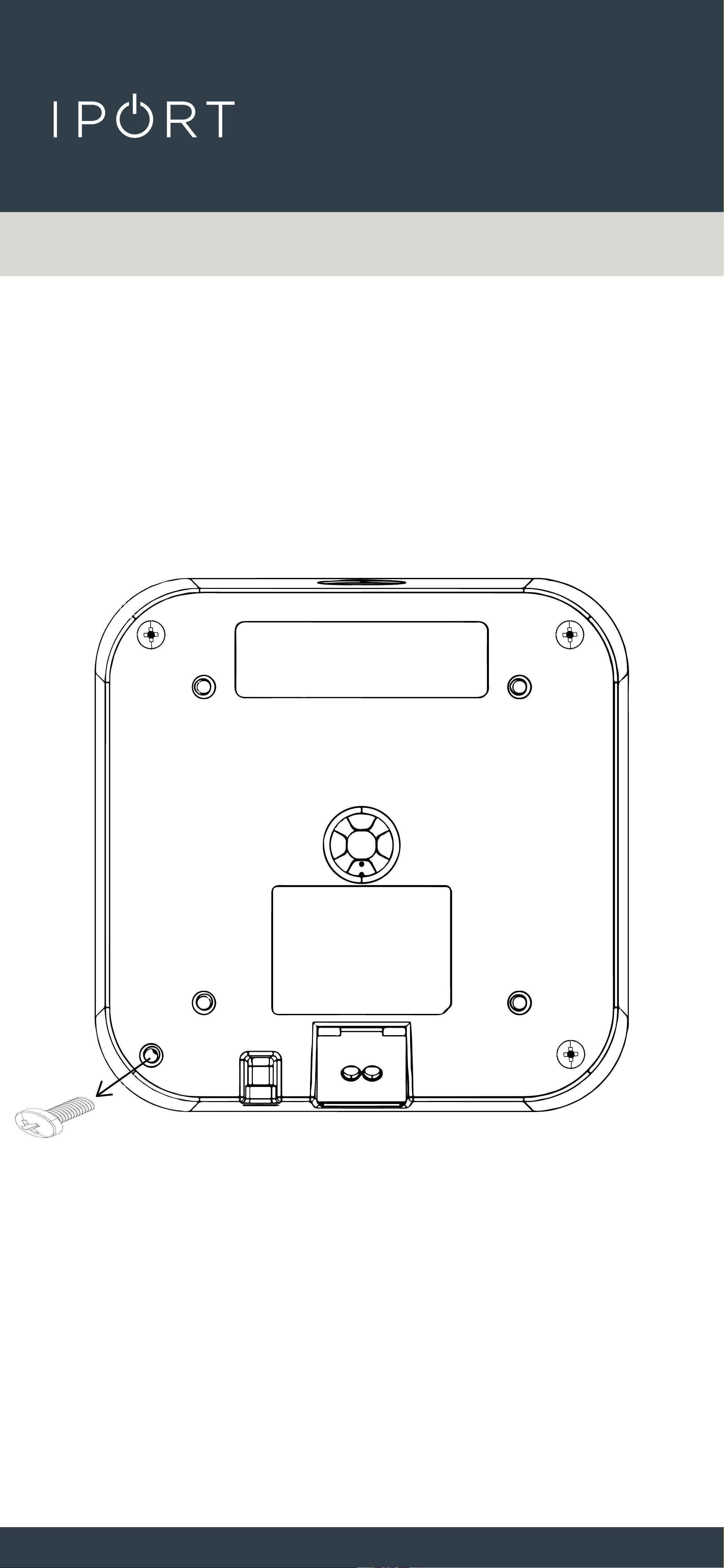

3. Remove the 4ea M4x10mm Screws
from the back of the VESA Station.
X4
CONNECT
MOUNT
VESA MOUNT
5

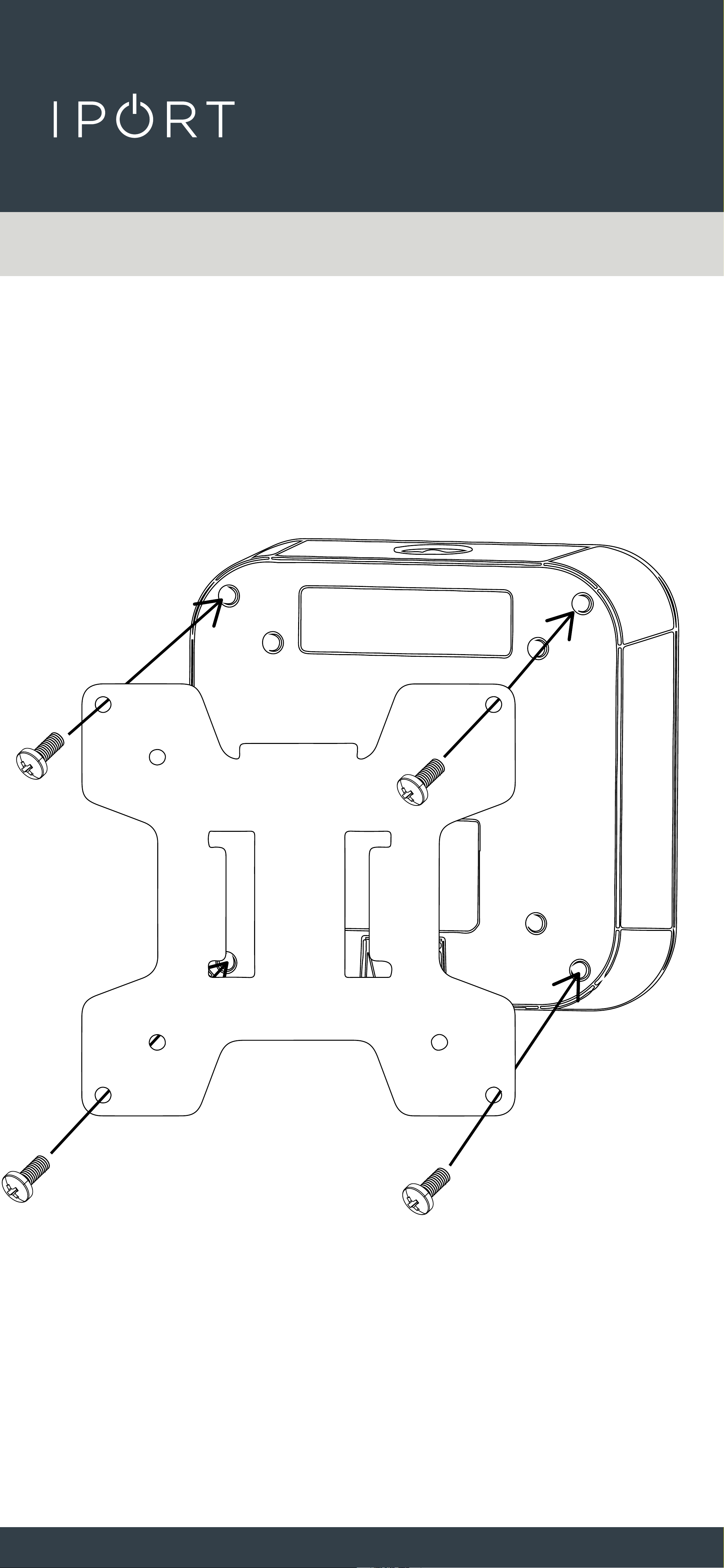

4. Install the Screws through the
appropriate holes for your mount
and screw into the back of the
VESA Mount.
CONNECT
MOUNT
VESA MOUNT
6

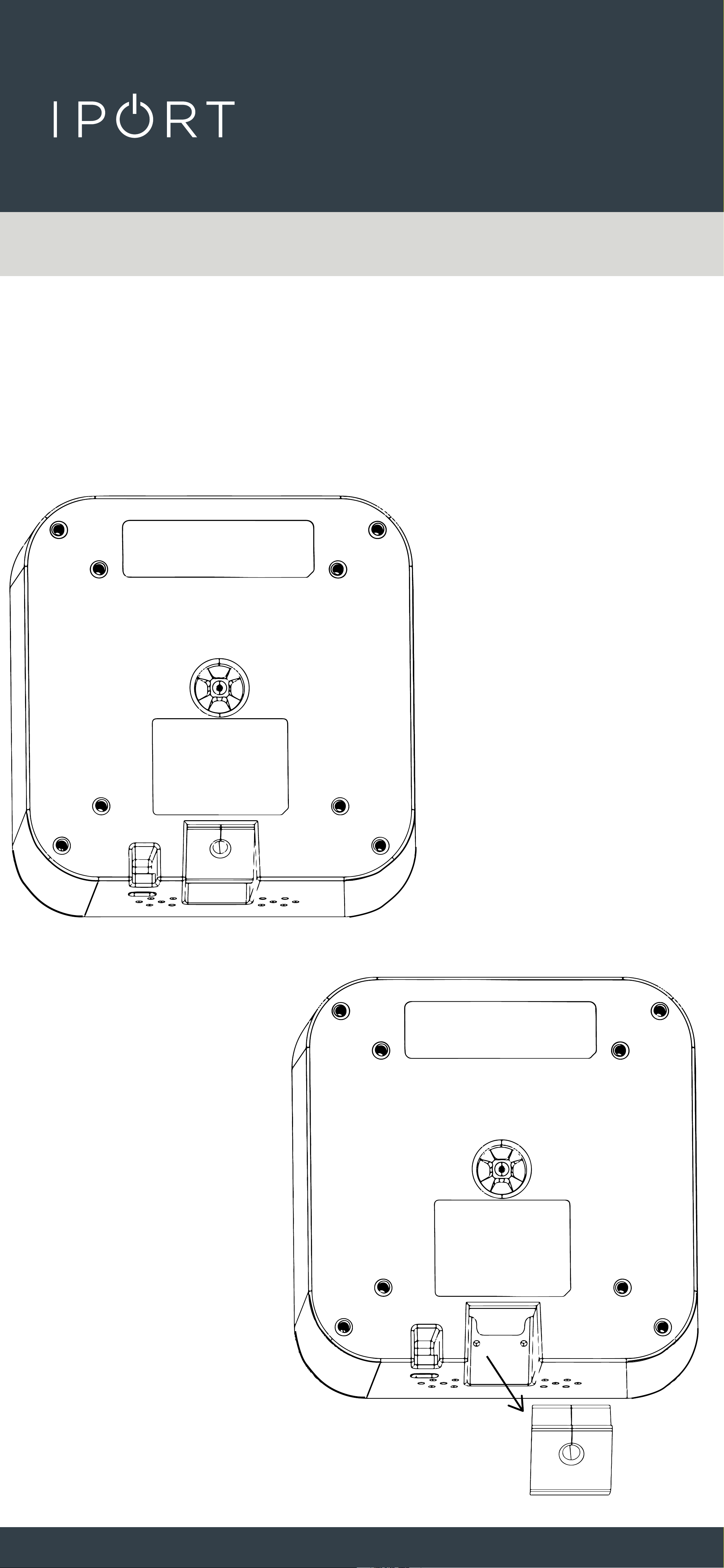

4. Remove the ruber plug from the
bottom of the VESA Mount and set aside
for later.
CONNECT
MOUNT
VESA MOUNT
7

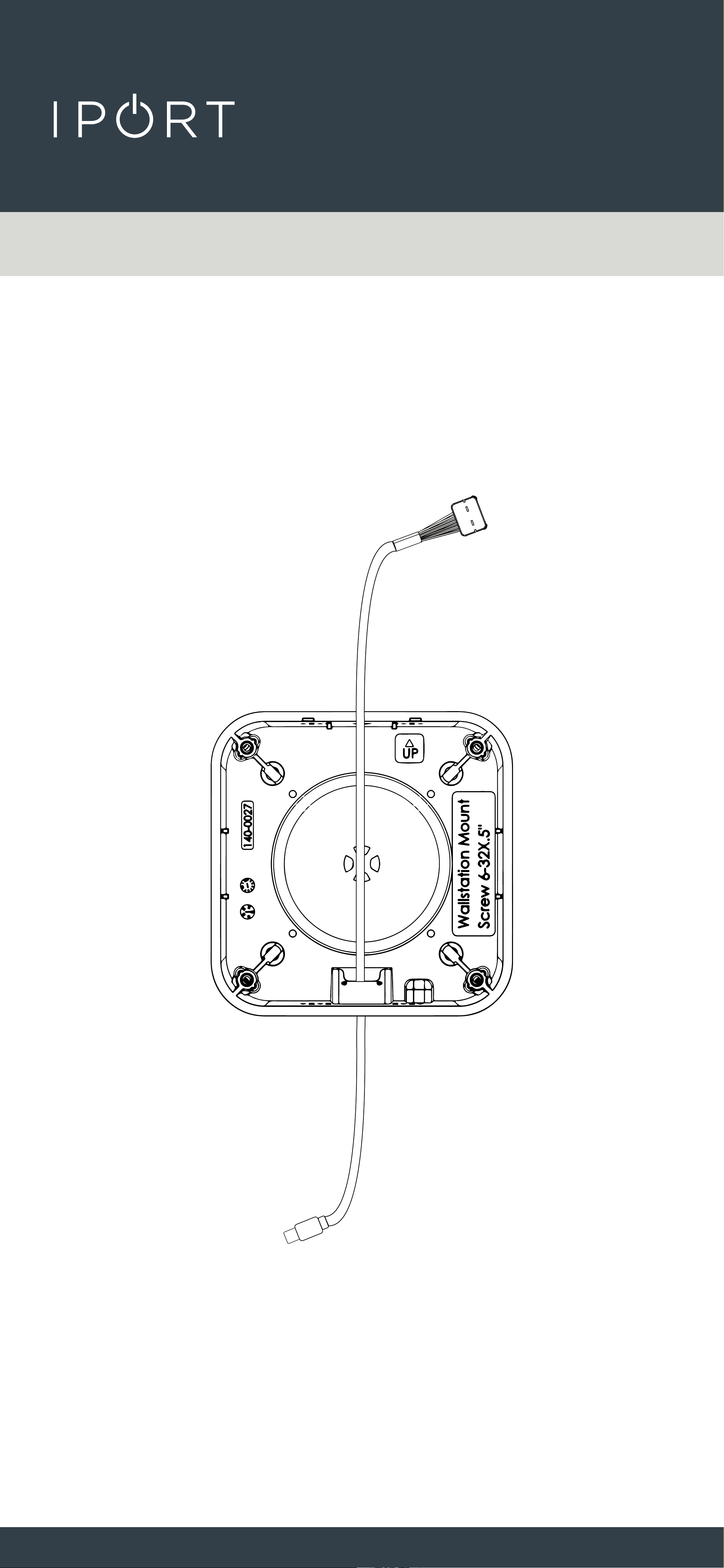

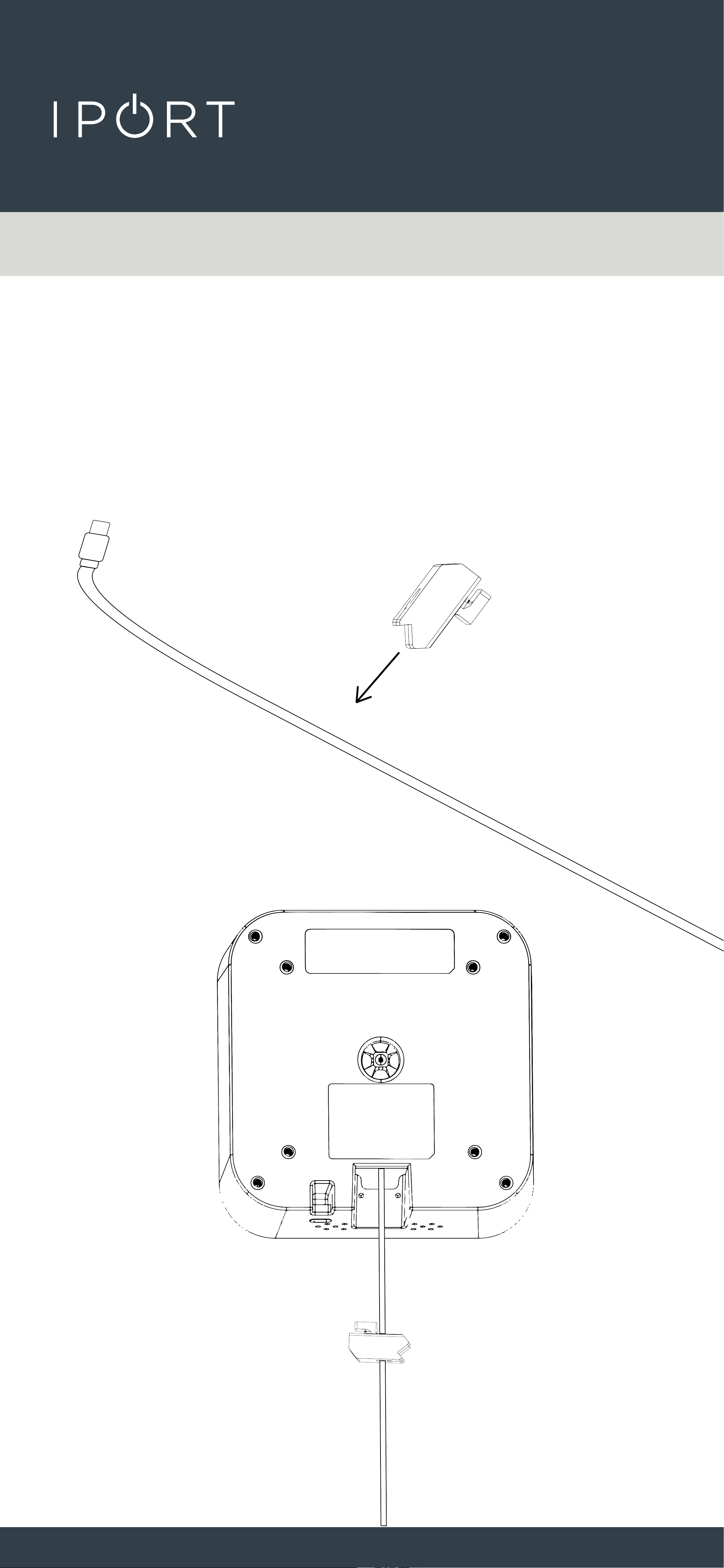

4. Insert the USB-C to Molex Cable
thorugh the hole in the bottom of the
VESA Station.
CONNECT
MOUNT
VESA MOUNT
8

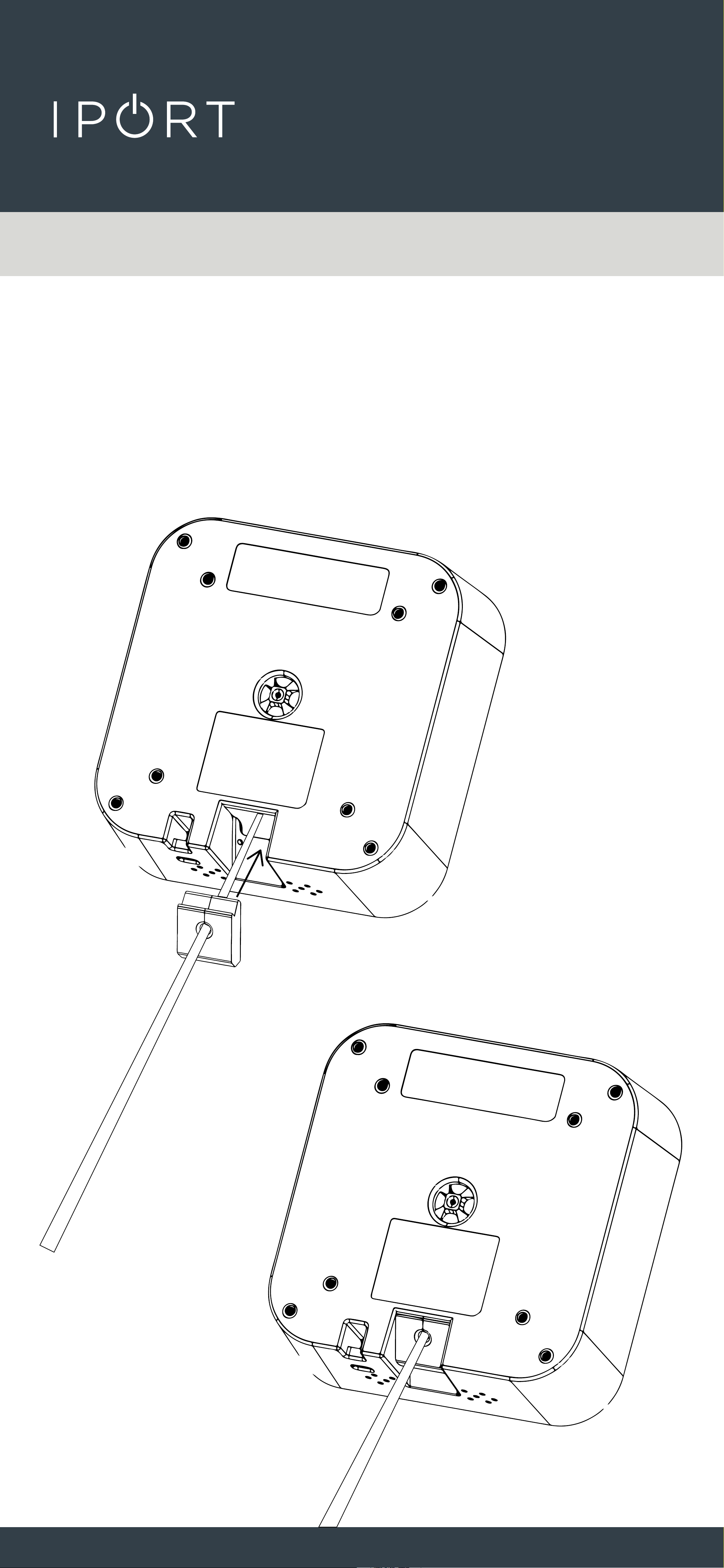

4. Place the rubber grommit over the
USB-C cable making sure to positoin the
hooking end of the grommit away from
the USB-C connector.
CONNECT
MOUNT
VESA MOUNT
9
4. Insert the rubber grommit with the
hook first then pressing the grommit in
all the way to secure it in place.
CONNECT
MOUNT
VESA MOUNT
10
CONNECT
MOUNT
VESA MOUNT
11
CONNECT
MOUNT
VESA MOUNT
12
13. Insert the CONNECT mounting
bracket into the CONNECT CASE
making sure the bracket snaps into
place securely.
CONNECT
MOUNT
VESA MOUNT
13

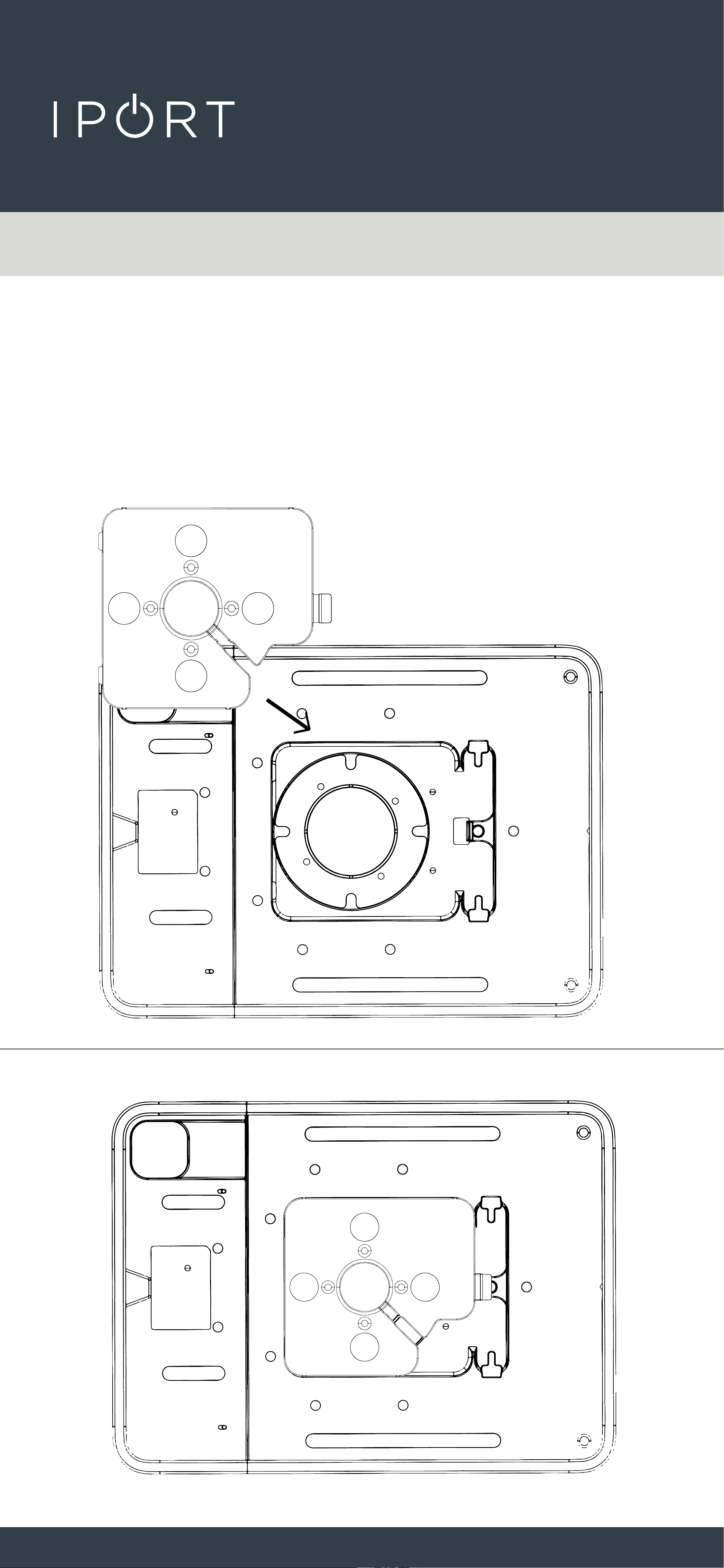

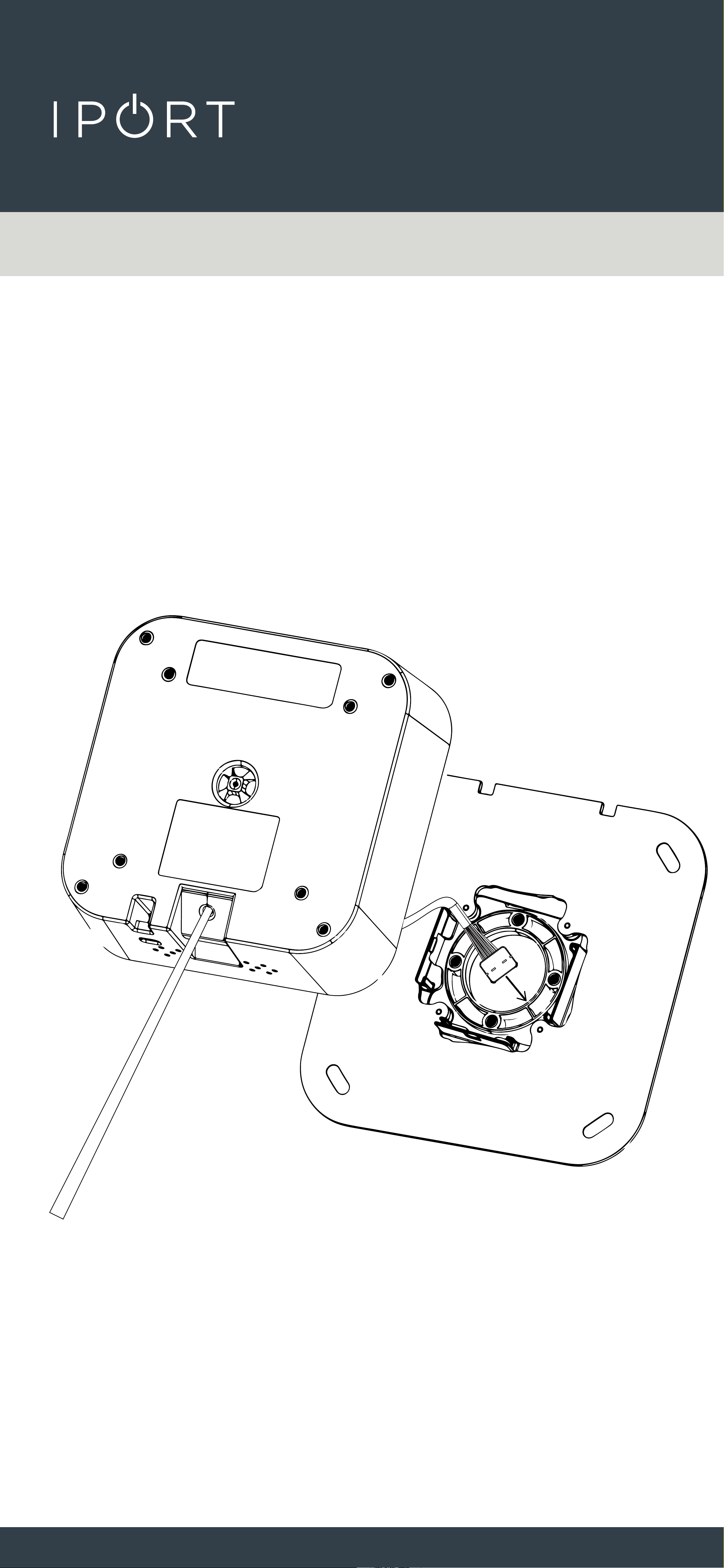

14. Place the Case onto the MOUNT in
the desired portrait or landscape
orientation. Feed the IPORT Molex
cable though the center of the
mounting bracket.
CONNECT
MOUNT
VESA MOUNT
14

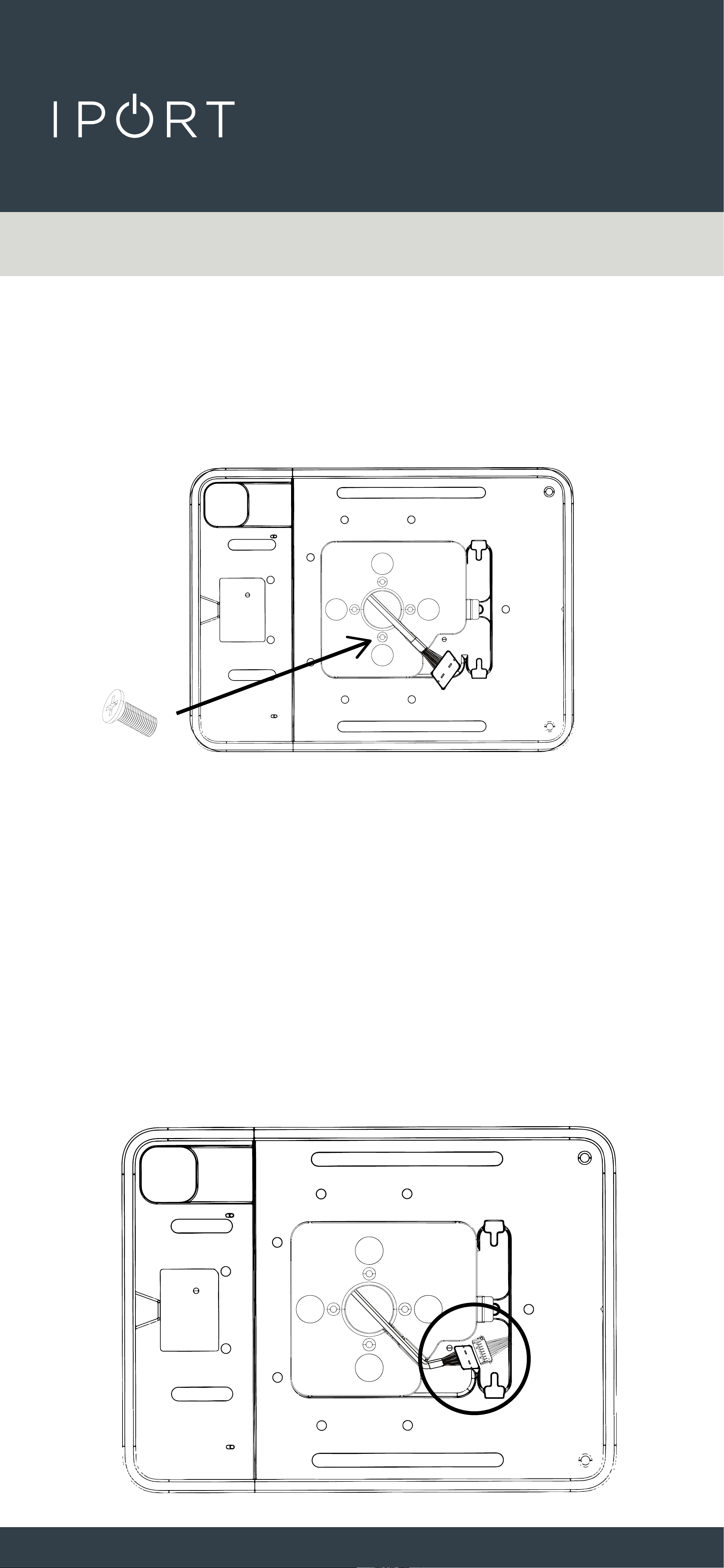

15. Use the provided 4 machine screws
to attach the Mounting Bracket to the
CONNECT Mount Bracket.

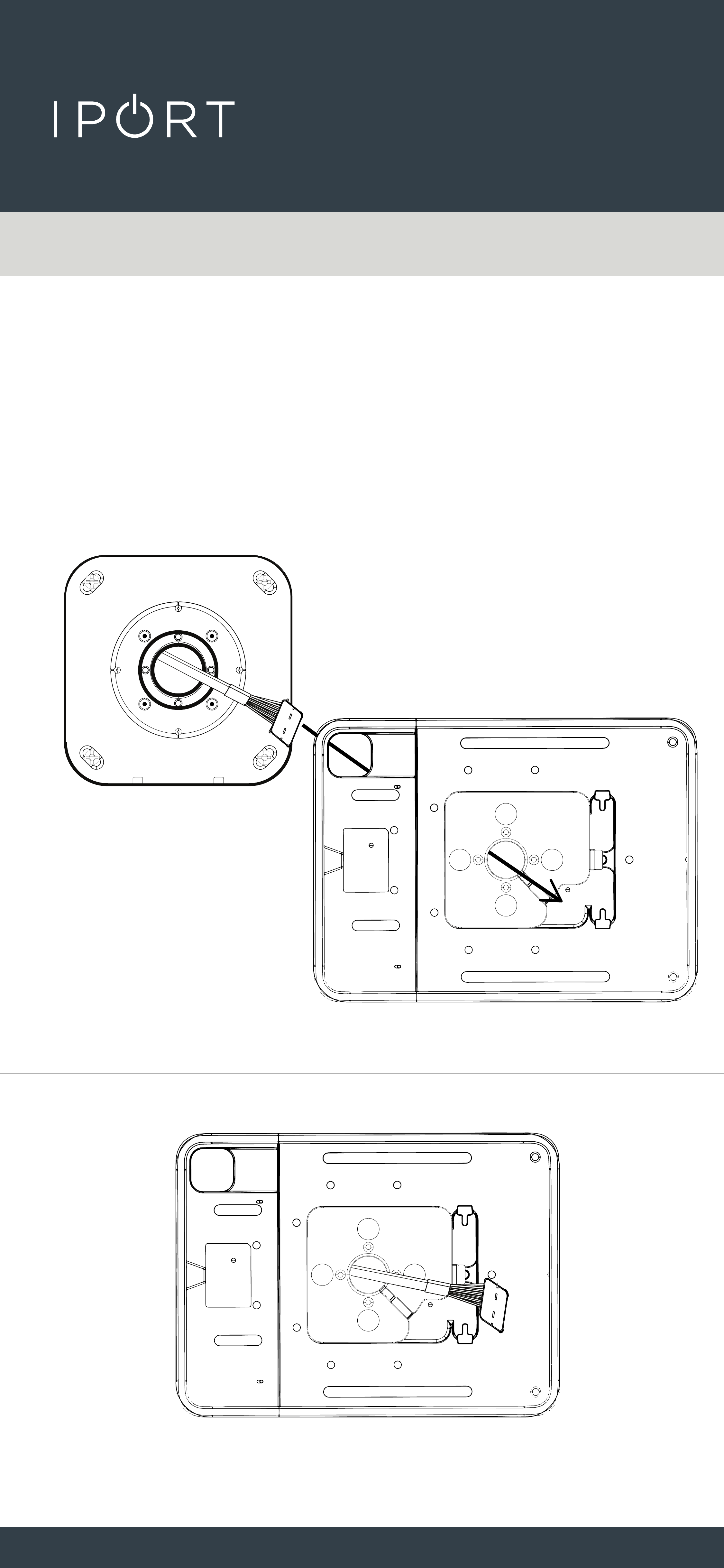

16. Plug the molex connector from the
Mount into the cable on the
CONNECT CASE. Note the gold pins
are facing outward when
connecting into the Mount cable.
Press the Mount cable into the
channel to hold and secure the cable
out of the way of the iPad.
x4
CONNECT
MOUNT
VESA MOUNT
15

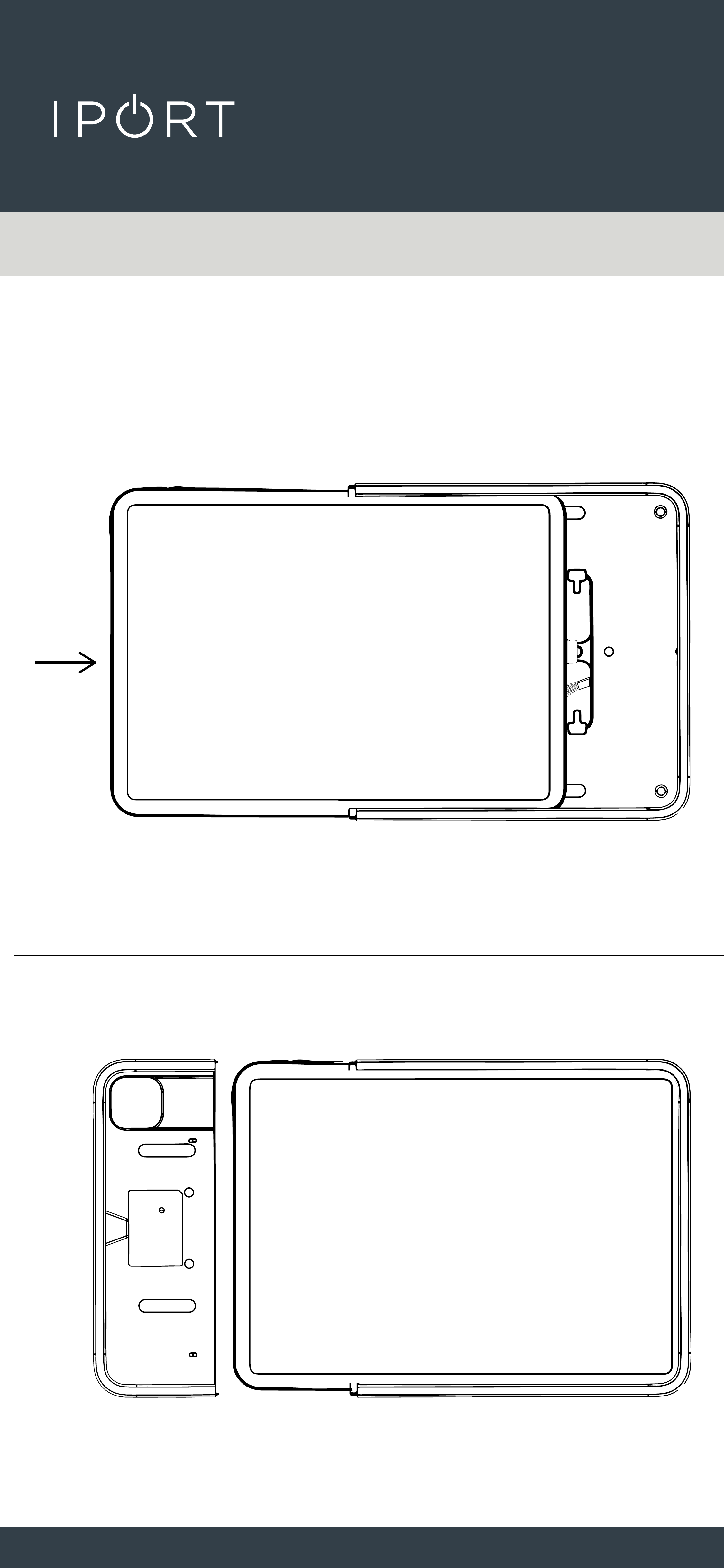

17. Insert the iPad into the attached
Case and install the top onto the
Case.
CONNECT
MOUNT
VESA MOUNT
16

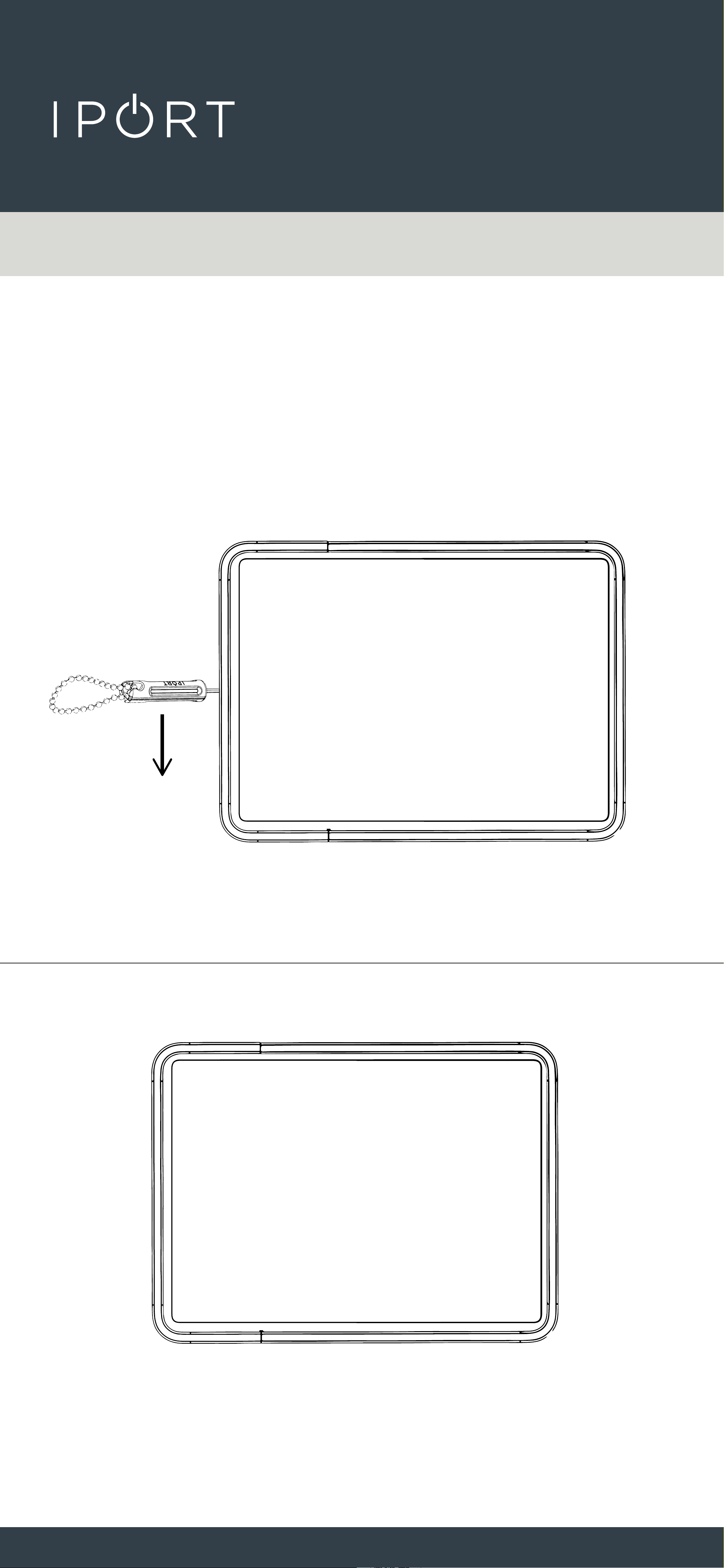

18. Use the provided IPORT Security
tool to lock the Case top onto the
Case securing the iPad.
COMPLETE
