Installation Instructions
Русскоязычная версия настоящего руководства представлена на веб-сайте
компании Tripp Lite по адресу: tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
Notes:
• Be sure product placement is correct prior to using the included hardware to
mount the box to a surface.
• Itisrecommendedtocongureyourinstallationandknockoutthecable
racewaybreakoutspriortomountingthebasepaneltoasurface,asthismay
becomedicultoncetheunitissecuredinplace.
• The included plastic interface connectors are required for connecting the
N235-001-SH6A-1In-LineCouplerora90-degreekeystonejack.
• The below diagram references the N082-012-WH surface-mount box. The box
iscompatiblewithCat5e,Cat6,Cat6aandCat8couplersandkeystonejacks.
See Related Items section of the product’s web page at TrippLite.Eaton.com
for details.

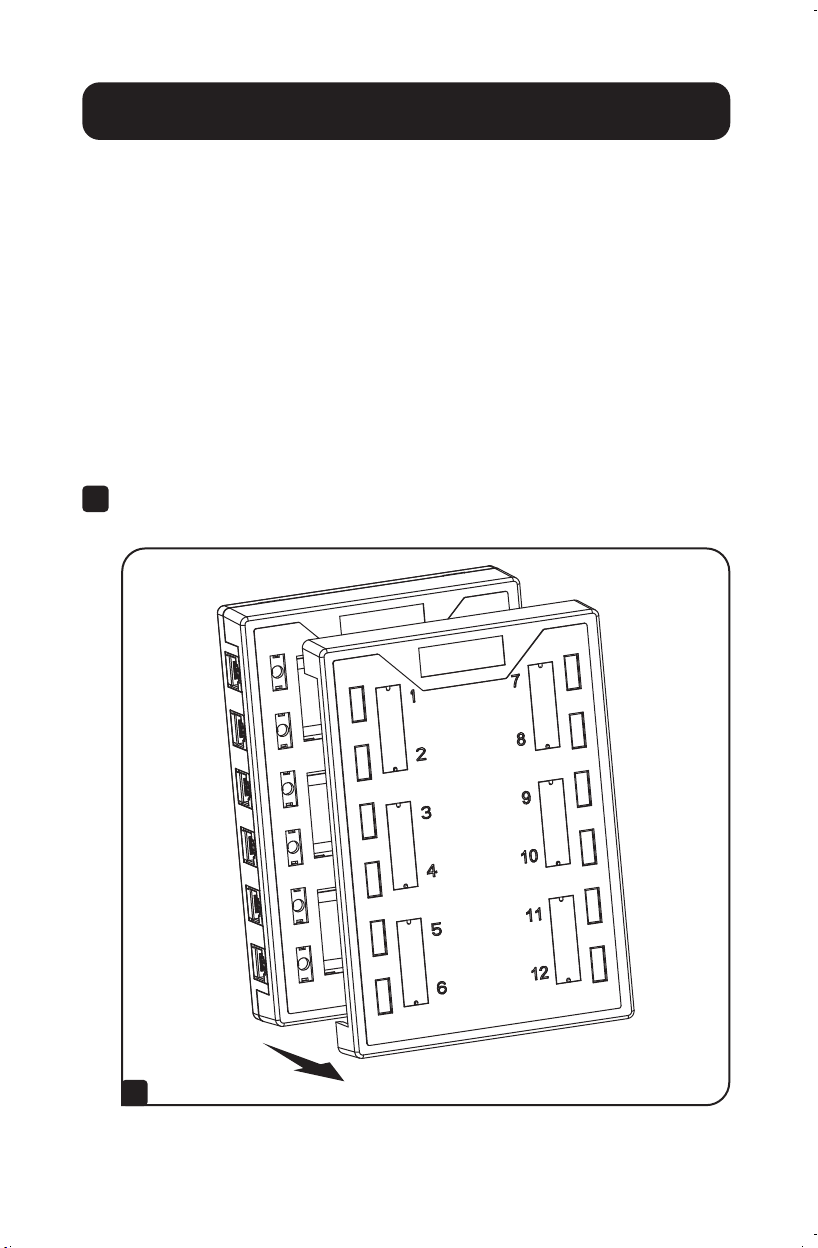

1
Unclasp the front panel from the base panel by pulling each locking
clasp apart from its slot.
Installation
1
3
Installation
2
2

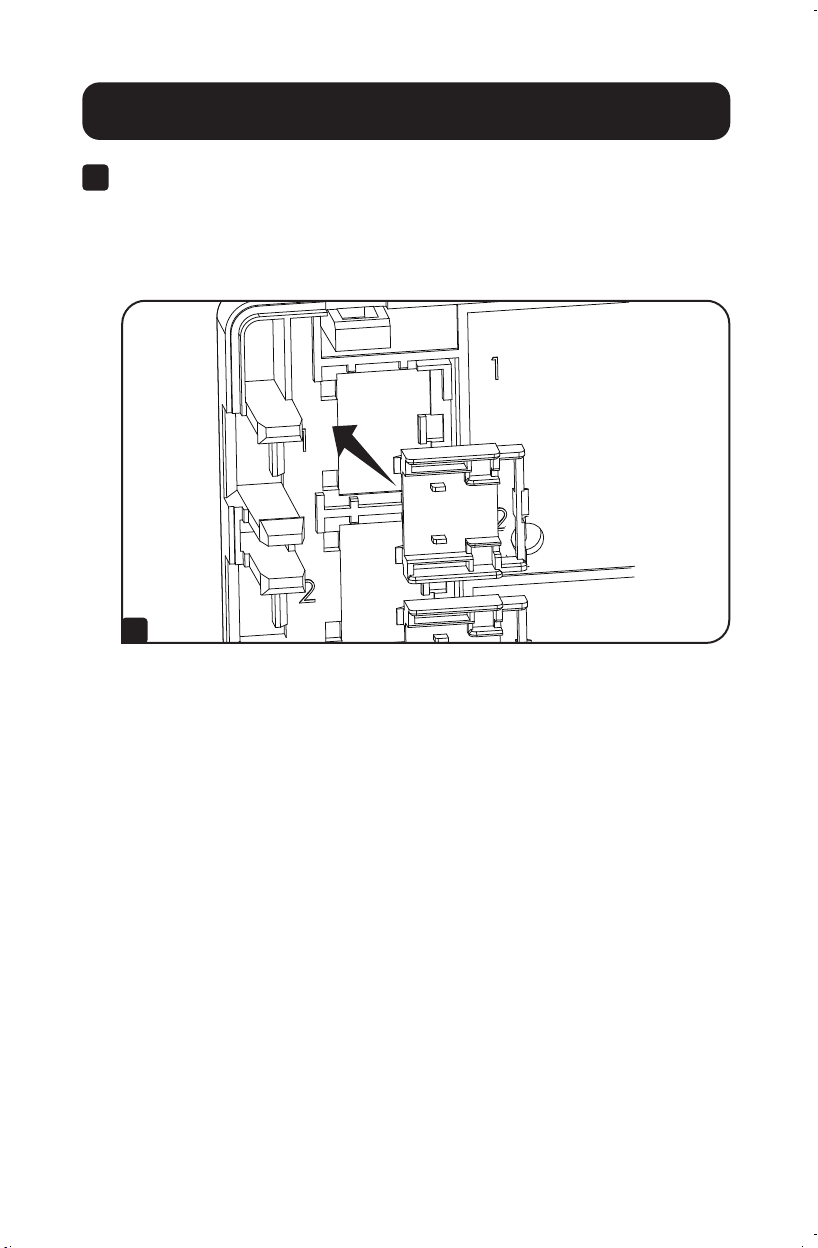

OPTIONAL: Locate the plastic adapter clips in the unit packaging
and install them in as many slots as needed. The clips are required
for installing the N235-001-SH6A In-Line Coupler or 90-degree
keystone jacks (sold separately). The N238-SHC8-TF-1 should be
installed without a clip.
4
Installation
3

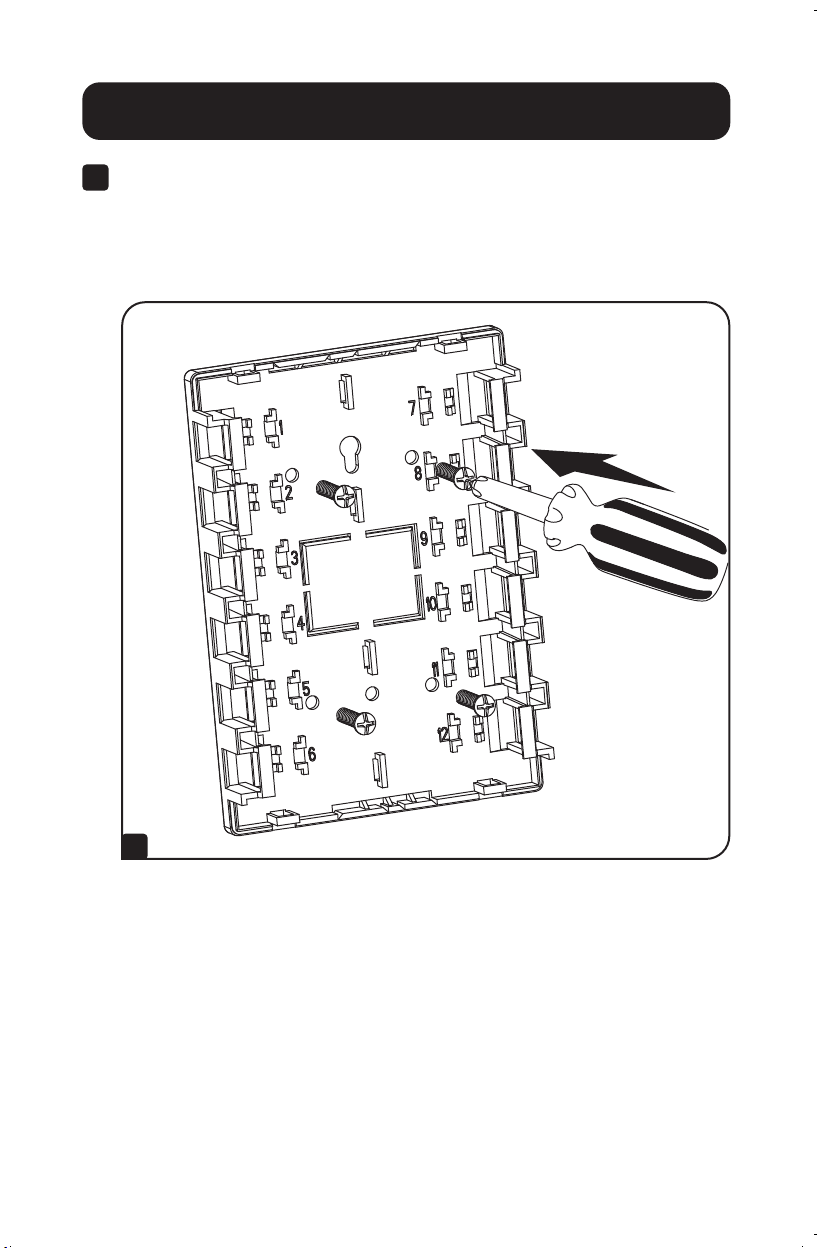

Carefully mount the base panel to a suitable surface using
the included mounting hardware and a user-supplied Phillips
screwdriver. Take care to ensure the panel is oriented correctly
before installation, with the numbered port designators right-side up
as pictured below.
3
5
Installation
4

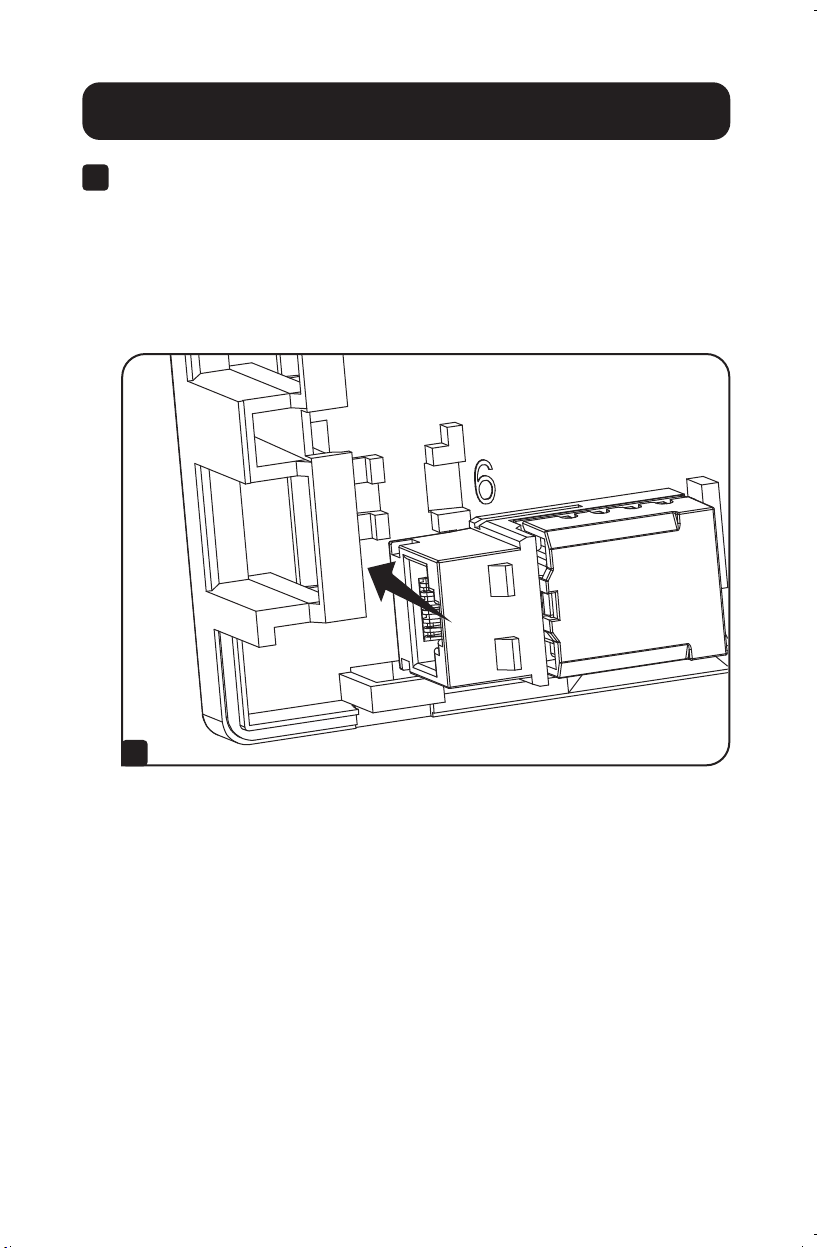

Install up to 12 shielded Cat5e, Cat6, Cat6a or Cat8 keystone jacks
and couplers in the numbered slots on the base panel. Slide each
jack into place with the locking clip facing the surface of the base
panel until it clicks into place.
Note: CablingutilizingtheN238-SHC8-TF-1180-degreekeystonejack
shouldbepre-terminatedpriortoconnectingthekeystonejackintoan
available slot on the N082-012-WH.
4
6
Installation
5

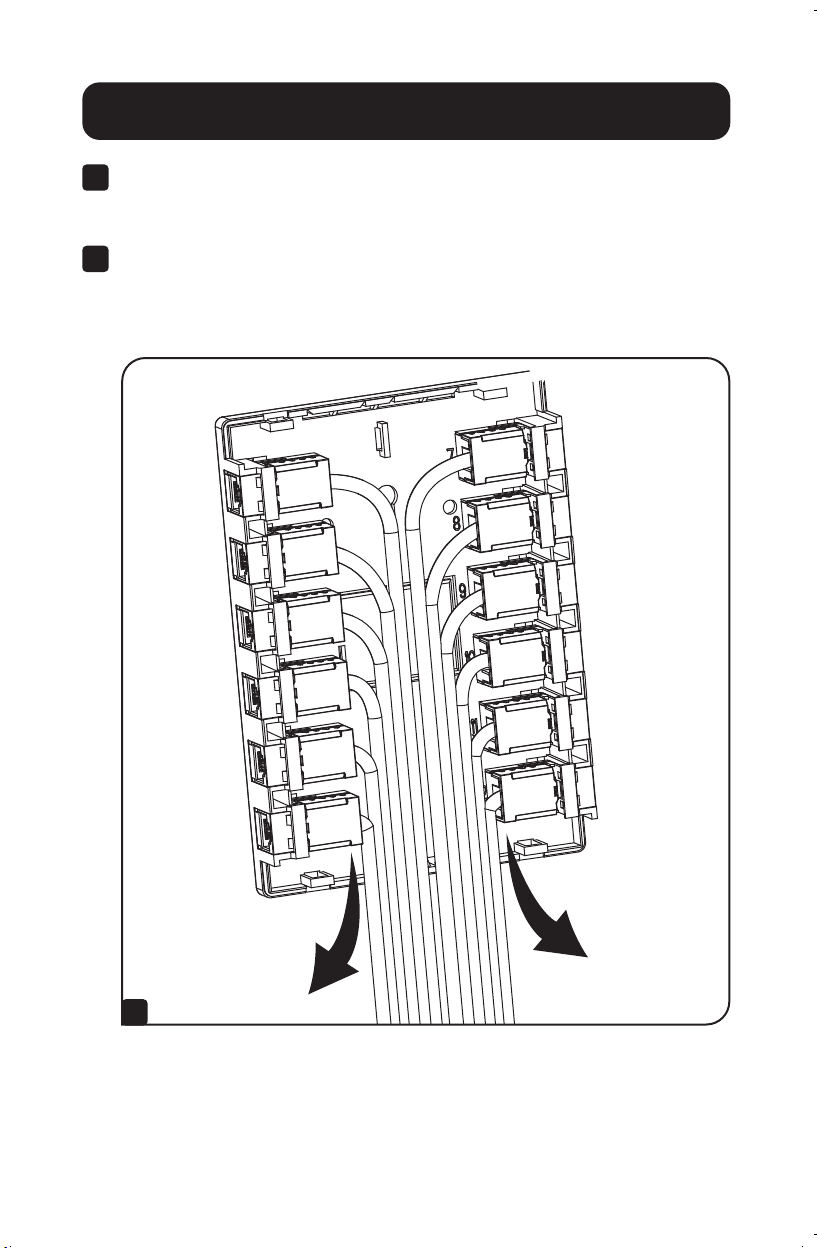

Knock out the raceway breakouts on the top and/or bottom of the
front panel as necessary to create space for running the installed
cabling.
6
Connect compatible cables into the ports of each installed coupler or
keystone jack (if necessary—this is not required for cabling that has
been terminated into an applicable coupler). Use the included cable
ties to organize the installed cabling, as necessary.
6
7
Installation
Uninstalling Cabling
7

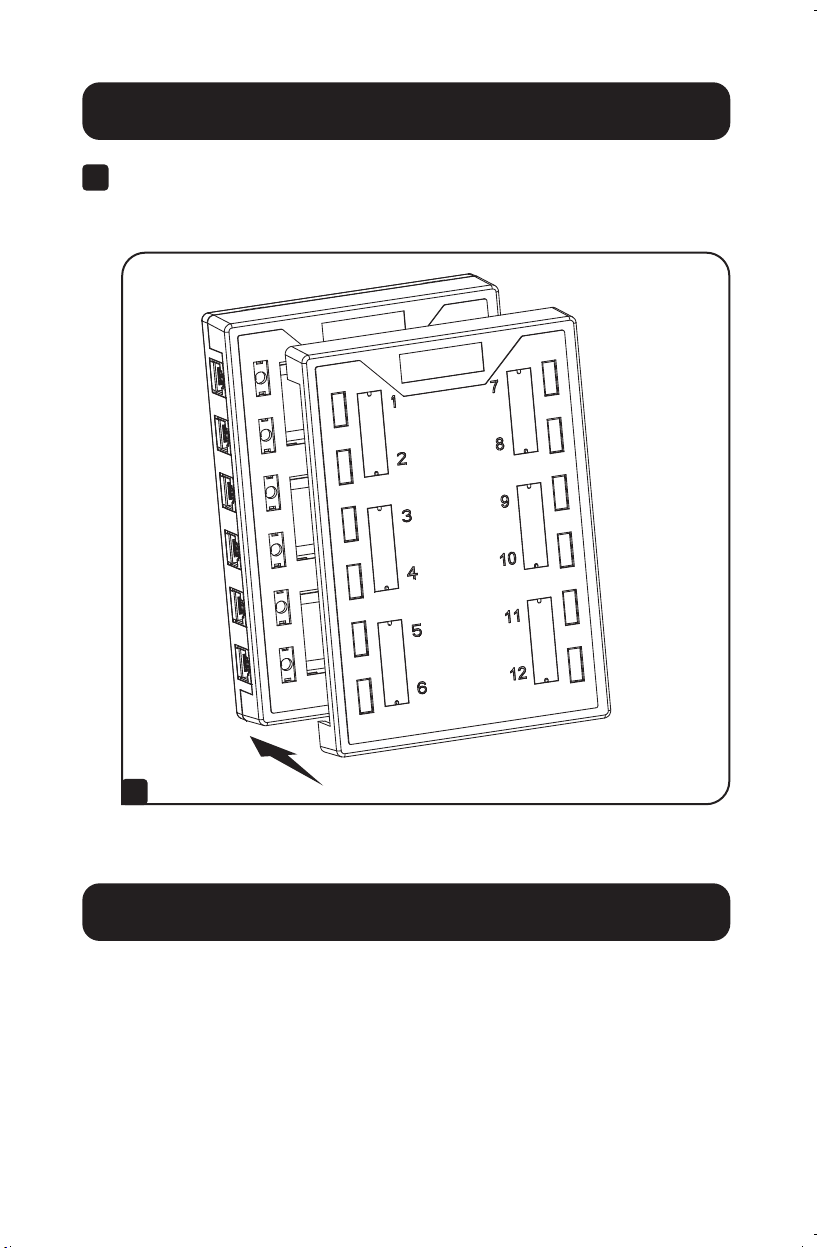

Snap the front panel into place, taking care to ensure the panel is
correctly oriented over the rear panel so that all port designators are
accurate.
7
To remove installed couplers and keystone jacks from the ports on the
surface mount box, rst unplug the connected cabling from the port.
Then, use two hands to press the desired port’s locking teeth in opposite
directions from the jack and carefully unlock the jack from its slot.
8
