User’s Manual
Large Format Display
MultiSync P435
MultiSync P495
MultiSync P555
MultiSync MA431
MultiSync MA491
MultiSync MA551
MODEL: P435, P495, P555, MA431, MA491, MA551
Please find your model name on the label on the rear side of the monitor.
Table of Contents
Important Information ................................................. 2
Recommended Use & Maintenance ........................... 8
Recommended Use .................................................... 8
Maintenance ............................................................... 8
Features
Chapter 1 Installation
Setup Overview ........................................................ 11
Mounting (for Customer) ........................................... 14
Mounting (for Trained Installers) ............................... 15
Mounting Location .................................................... 16
Orientation ................................................................ 17
Ventilation Requirements .......................................... 18
Mounting on Ceilings ................................................ 18
Attaching Mounting Accessories .............................. 18
Installing and Removing the
Optional Table Top Stand .......................................... 19
Chapter 2 Parts Names and Functions
Control Panel ............................................................ 21
Terminal Panel .......................................................... 22
Wireless Remote Control .......................................... 24
Chapter 3 Connections
Wiring Diagram ......................................................... 27
Connecting to a Personal Computer ......................... 28
Connecting to a Media Device with HDMI ................ 28
HDMI-CEC Command .............................................. 30
Internal Video Sources ............................................. 31
Option Boards for the Monitor .................................. 31
Connecting a USB Device ........................................ 31
Chapter 4 Basic Operation
Power ON and OFF Modes ...................................... 33
Operating Range for the Remote Control ................. 34
Using Power Management ....................................... 34
Showing the Information OSD .................................. 35
Switching Between Picture Modes ........................... 35
Setting the Aspect Ratio ........................................... 36
Using Point Zoom ..................................................... 37
OSD (On-Screen Display) Controls .......................... 38
Chapter 5 Advanced Operation
Creating a Power Schedule ...................................... 41
Advanced Color Adjustment ..................................... 42
Using the SpectraView Engine ................................. 42
Using Stand-alone calibration ................................... 45
Using Other Picture Modes ...................................... 48
Setting Security and Locking
the Monitor Controls ................................................. 49
Password Security .................................................... 49
Locking the Button Controls ..................................... 51
Chapter 6 Multi-Monitor Setup
Connecting Multiple Monitors ................................... 54
Video Out Connection .............................................. 57
Setting the Remote Control ID Function ................... 58
Chapter 7 External Control
Controlling the Monitor via RS-232C ........................ 60
Controlling the Monitor via LAN ................................ 61
HTTP Browser .......................................................... 62
OSD Menu Settings in the Monitor Web controls ..... 63
Network Settings ...................................................... 64
Commands ............................................................... 69
Proof of Play ............................................................. 70
Chapter 8 Troubleshooting
Screen Image and Video Signal Issues .................... 72 Hardware Issues ....................................................... 73
Chapter 9 Specifications
Compatible signal list ................................................ 76
P435 ......................................................................... 77
P495 ......................................................................... 78
P555 ......................................................................... 79
MA431 ...................................................................... 80
MA491 ...................................................................... 81
MA551 ...................................................................... 82
Appendix A Trademark and Software License
Appendix B External Resources
Appendix C OSD Controls List
INPUT ....................................................................... 87
PICTURE .................................................................. 90
AUDIO ...................................................................... 96
SCHEDULE .............................................................. 97
SLOT ........................................................................ 98
NETWORK ............................................................. 100
PROTECT ............................................................... 101
SYSTEM ................................................................. 103
Appendix D Manufacturer’s Recycling and Energy Information
Disposing of your old NEC product ........................ 108 Energy Saving ........................................................ 108
English−1
Cable Information
CAUTION: Use the provided specified cables with this product so as not to interfere with radio and television reception.
For HDMI, USB and DisplayPort, please use a shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
FCC Information
WARNING: The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display
Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV
Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
SUPPLIER’S DECLARATION OF CONFORMITY
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515
Tel. No.: (630) 467-3000
Type of Product: Display Monitor
Equipment Classification: Class B Peripheral
Model: P435, P495, P555, MA431, MA491, MA551
• The intended primary use of this product is as Information Technical Equipment in an office or domestic environment.
• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.
NOTE: (1) The contents of this manual may not be reprinted in part or whole without permission.
(2) The contents of this manual are subject to change without notice.
(3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or omissions,
please contact us.
(4) The image shown in this manual is indicative only. If there is inconsistency between the image and the actual product, the actual product
shall govern.
(5) Notwithstanding articles (3) and (4), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using
this device.
(6) This manual is commonly provided to all regions so they may contain descriptions that are pertinent for other countries.
English−2
Important Information
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:
About the Symbols
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well
as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before
reading this manual.
WARNING
Failing to heed this symbol and handling the product incorrectly could result in accidents leading to
major injury or death.
CAUTION
Failing to heed this symbol and handling the product incorrectly could result in personal injury or
damage to surrounding property.
Examples of symbols
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the power outlet.
WARNING
1
UNPLUG THE
POWER CORD
Unplug the power cord if the product malfunctions.
Should the product emit smoke or strange odors or sounds, or if the product has been dropped or
the cabinet broken, turn off the product’s power, then unplug the power cord from the power outlet.
Failure to do so could not only lead to fire or electric shock, it could also result in vision impairment.
Contact your dealer for repairs.
Never try to repair the product on your own. Doing so is dangerous.
2
Do not open or remove the product’s cabinet.
Do not disassemble the product.
There are high voltage areas in the product. Opening or removing product covers and modifying the
product may expose you to electric shock, fire, or other risks.
Refer all servicing to qualified service personnel.
3
Do not use the product if it has structural damage.
If you notice any structural damage such as cracks or unnatural wobbling, please refer servicing
to qualified service personnel. If the product is used in this condition, the product may fall or cause
personal injury.
English−3
WARNING
4
Handle the power cord with care. Damaging the cord could lead to fire or electric shock.
• Do not place heavy objects on the cord.
• Do not place the cord under the product.
• Do not cover the cord with a rug, etc.
• Do not scratch or modify the cord.
• Do not bend, twist or pull the cord with excessive force.
• Do not apply heat to the cord.
Should the cord be damaged (exposed core wires, broken wires, etc.), ask your dealer to replace it.
5
Do not touch the power plug if you hear thunder. Doing so could result in electric shock.
6

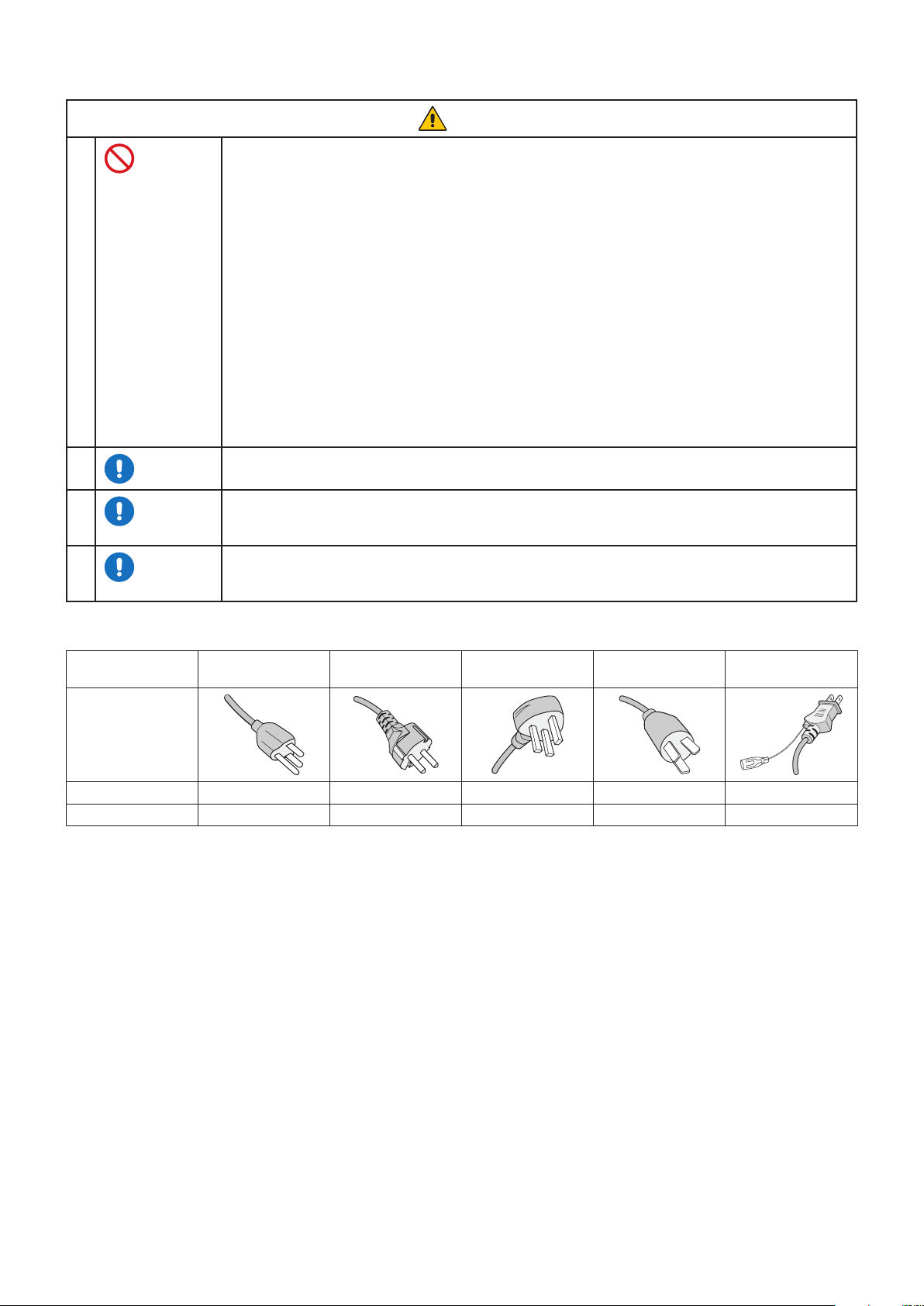

Please use the power cord provided with this product in accordance with the power cord table.
If a power cord is not supplied with this product, please contact NEC. For all other cases, please
use the power cord with the plug style that matches the power socket where the product is located.
The compatible power cord corresponds to the AC voltage of the power outlet and has been
approved by, and complies with, the safety standards in the country of purchase.
7
For proper installation it is strongly recommended to use a trained service person.
Failure to follow the standard installation procedures could result in damage to the product or injury
to the user or installer.
8
Please install the product in accordance with the following information.
This product cannot be used or installed without the table top stand or other mounting accessory for
support.
• P495/P555/MA491/MA551: DO NOT use this product on the floor with the table top stand.
Please use this product on a table or with a mounting accessory for support.
When transporting, moving, or installing the product, please use as many people as necessary to be
able to lift the product without causing personal injury or damage to the product.
We recommend two or more people.
Please refer to the instructions included with the optional mounting equipment for detailed
information about attaching or removing.
Do not cover the vent on the product. Improper installation of the product may result in damage to
the product, an electric shock or fire.
Do not install the product in the locations below:
• Poorly ventilated spaces.
• Near a radiator, other heat sources, or in direct sunshine.
• Continual vibration areas.
• Humid, dusty, steamy, or oily areas.
• Outdoors.
• High-temperature environment where humidity changes rapidly and condensation is likely to
occur.
• A ceiling or wall that is not strong enough to support the product and mounting accessories.

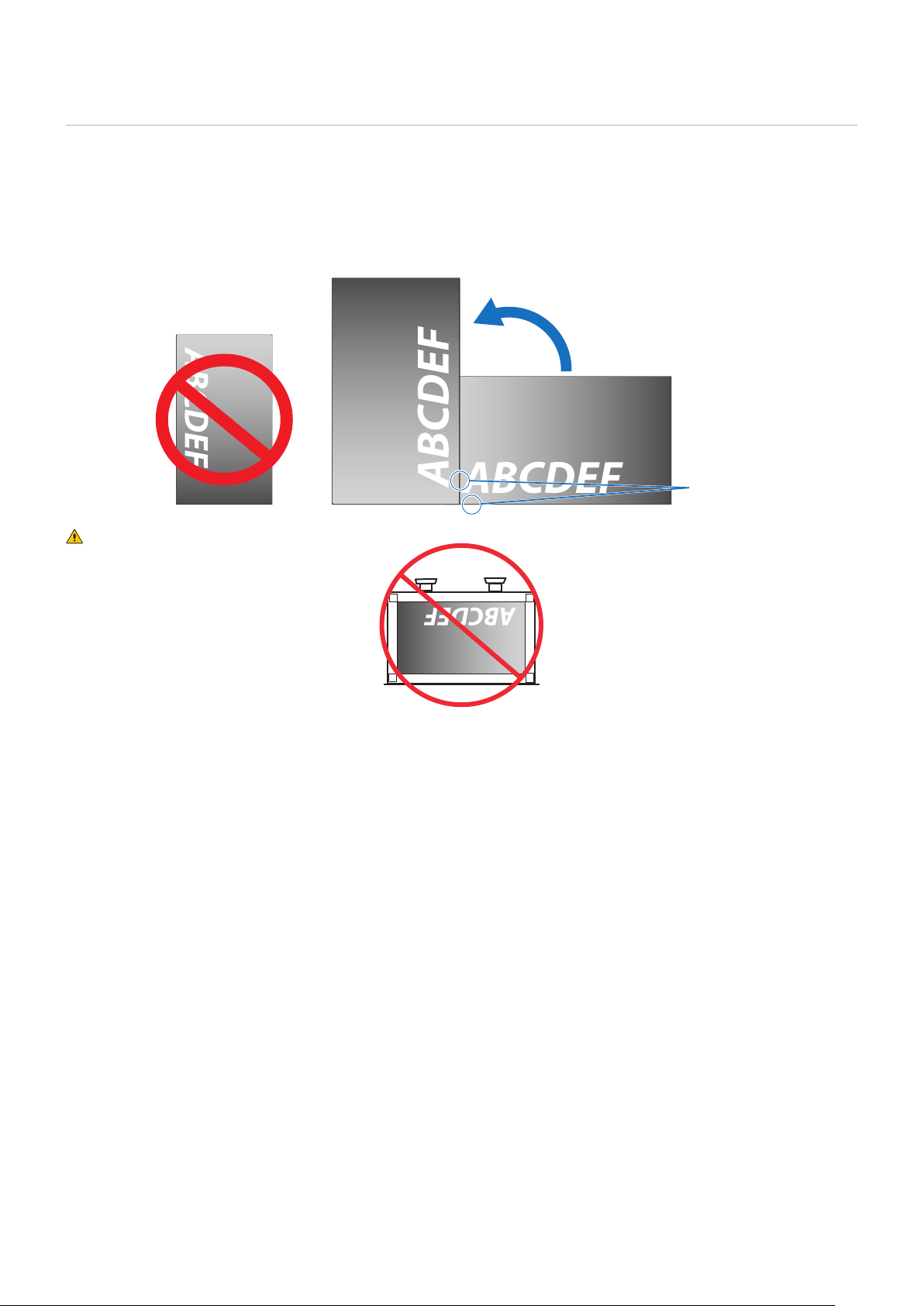

Do not mount the product upside down.
English−4
WARNING
9
Prevent tipping and falling for earthquakes or other shocks.
To prevent personal injury or damage to the product caused by tipping over due to earthquakes or
other shocks, make sure to install the product in a stable location and take measures to prevent
falling.
The measures to prevent falling and tipping are intended for reducing the risk of injury, but may not
guarantee the effectiveness against all earthquakes.
The product may tip causing personal injury.
• When using the product with the optional table top stand, fasten the product to a wall using a
cord or chain that can support the weight of the product in order to prevent the product from
falling. Fasten the cord or chain to the product using the clamps and screws provided with the
product or the table top stand.
Depending on the table top stand, the stand has the structure for preventing tipping.
• Be sure to remove the cord or chain from the wall before moving the product to prevent personal
injury or damage to the product.
The product may fall causing personal injury.
• Do not attempt to hang the product using an installation safety wire.
• Please install the product in an area on the wall or ceiling strong enough to support the weight of
the product.
• Prepare the product using mounting accessories, such as hook, eye bolt, or mounting parts, and
then secure the product with a safety wire. The safety wire must not be tight.
• Please make sure the mounting accessories are strong enough to support the product weight
and size before installing it.
Stability Hazard.
The product may fall, causing serious personal injury or death. To prevent injury, this product must be
securely attached to the floor/wall in accordance with the installation instructions.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• ALWAYS use stands or installation methods recommended by the manufacturer of the product
set.
• ALWAYS use furniture that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the product or its
controls.
• ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled
or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the product to a suitable support.
• NEVER place the product on cloth or other materials that may be located between the product
and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the
top of the product or furniture on which the product is placed.
If the existing product is going to be retained and relocated, the same considerations as above
should be applied.
English−5
WARNING
10
Do not place this product on a sloping or unstable cart, stand or table. Doing so could lead to falling
or tipping and cause personal injury.
11
Do not insert objects of any kind into the cabinet slots. It may cause electric shock, fire, or product
failure. Keep objects away from children and babies.
12
Do not spill any liquids into the cabinet or use your product near water.
Immediately turn off the power and unplug your product from the wall outlet, then refer servicing
to qualified service personnel. It may cause an electric shock or start a fire.
13
Do not use flammable gas sprays to remove dust when cleaning the product. Doing so could lead to
a fire.
14
Securely fasten the Option Board.
Ensure the Option Board is securely fastened using the original screws to prevent the OPTION from
falling out the product. A falling Option Board may expose you to danger.
English−6
CAUTION
1

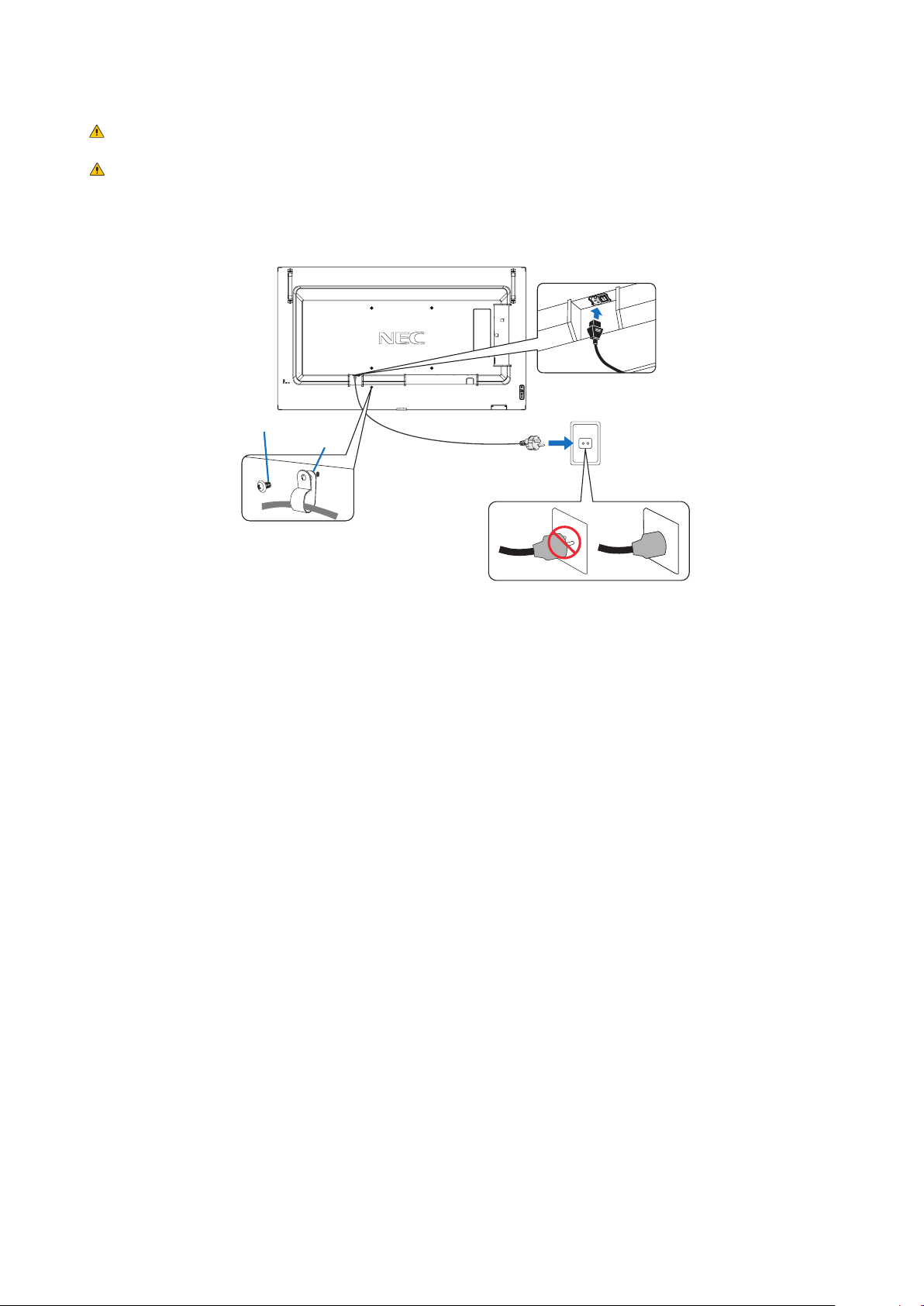

Handling the power cord.
Handle the power cord with care. Damaging the cord could lead to fire or electric shock.
• When connecting the power cord to the product’s AC IN terminal, make sure the connector is
fully and firmly inserted.
• Fasten the power cord to the product by attaching the screw and clamp to prevent loose
connection. (Recommended Fasten Force: 120 - 190 N•cm).
• Do not connect or disconnect the power cord with wet hands.
• When connecting or disconnecting the power cord, pull the power cord out by holding onto its
plug.
• When cleaning the product, for safety purposes, unplug the power cord from the power outlet
beforehand. Regularly dust off the power cord by using a soft dry cloth.
• Before moving the product, make sure the product power is off, then unplug the power cord
from the power outlet and check that all cables connecting the product to other devices are
disconnected.
• When you are not planning to use the product for an extended period of time, always unplug the
power cord from the power outlet.
• This equipment is designed to be used in the condition of the power cord connected to the earth.
If the power cord is not connected to the earth, it may cause electric shock. Please make sure the
power cord is earthed properly.
2
Do not bind the power cord and the USB cable. It may trap heat and cause a fire.
3
Do not connect to a LAN with excessive voltage.
When using a LAN cable, do not connect to a peripheral device with wiring that might have excessive
voltage. Excessive voltage on the LAN port may cause an electric shock.
4
Do not climb on the table where the product is installed. Do not install the product on a wheeled table
if the wheels on the table have not been properly locked. The product may fall, causing damage to
the product or personal injury.
5

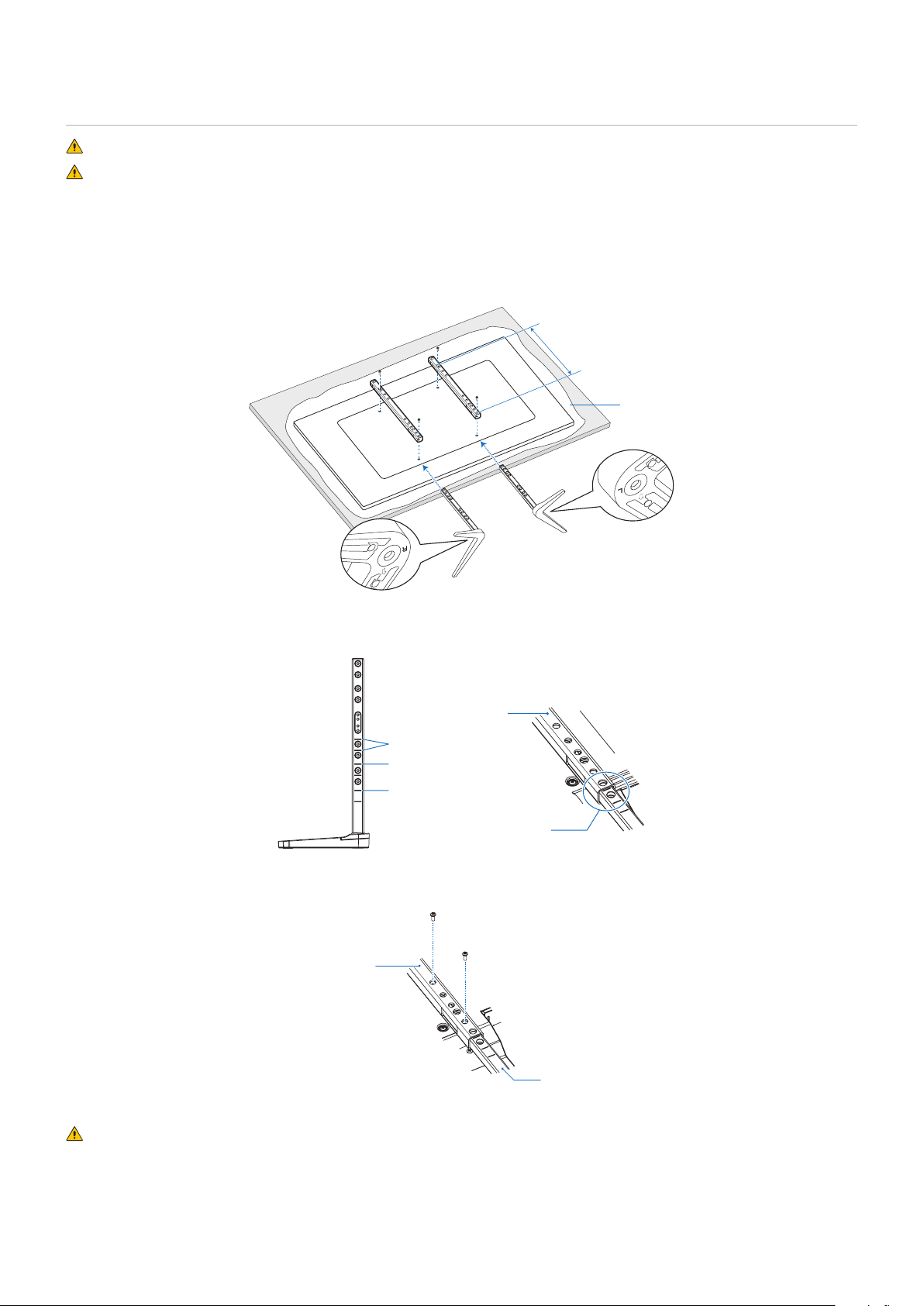

Installation, removal, and height adjustment of the optional table top stand.
• When installing the table top stand, handle the unit with care to avoid pinching your fingers.
• Installing the product at the wrong height can cause tipping.
Please install your product at proper height to prevent personal injury or damage to the product.
6
Do not push or climb on the product. Do not grab or hang onto the product.
The product may fall, causing damage to the product or personal injury.
7
Do not impact the LCD panel surface. It can cause serious damage to the product or personal injury.
English−7
CAUTION
8

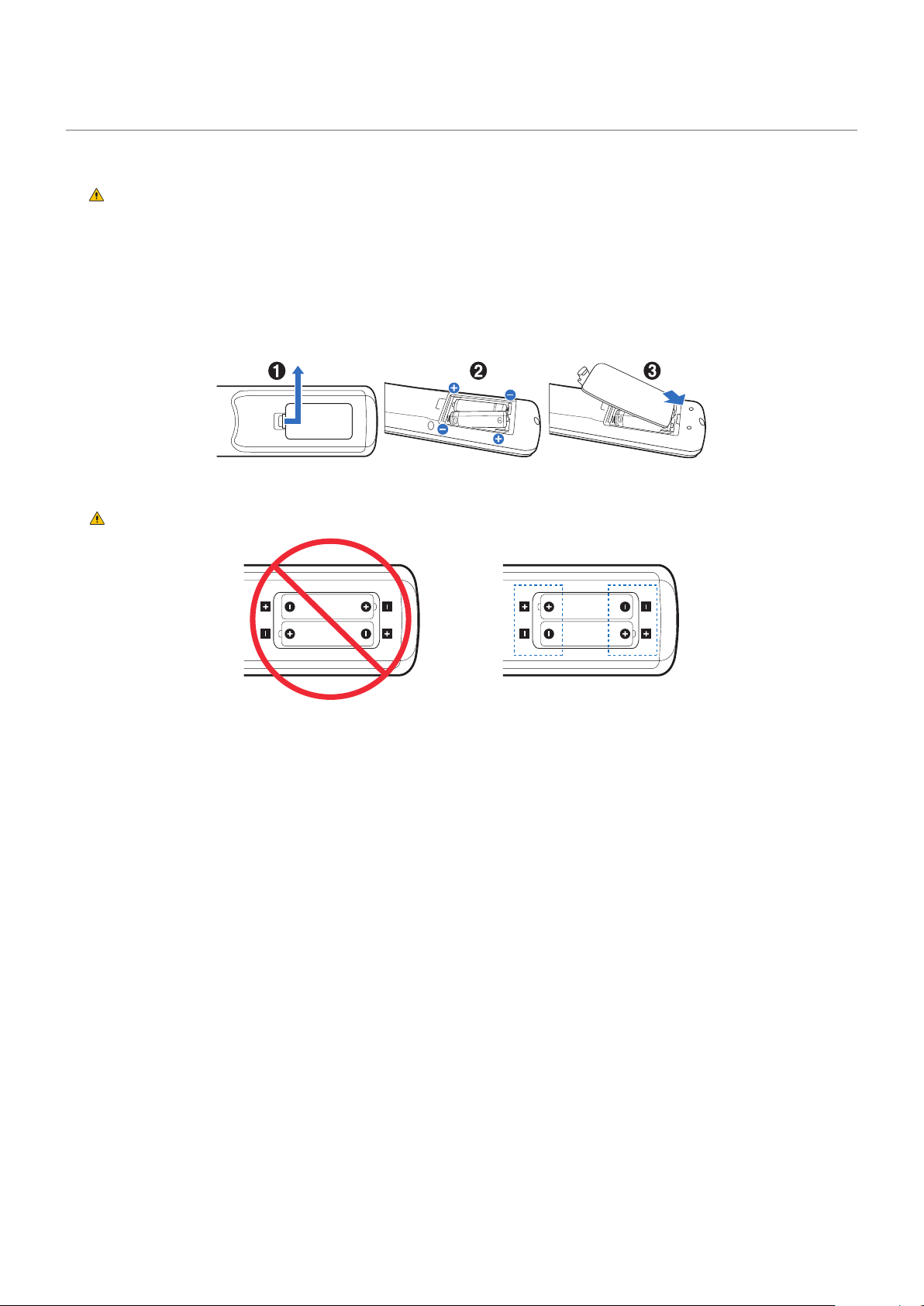

Incorrect usage of batteries can result in leaks or bursting.
• Insert batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the
battery compartment.
• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten battery life or cause liquid leakage of
batteries.
• Remove dead batteries immediately to prevent battery acid from leaking into the battery
compartment.
• Do not touch exposed battery acid, it may injure your skin.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can
result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment, or a battery subject
to extremely low air pressure, can result in an explosion or the leakage of flammable liquid or gas.
• Contact your dealer or local authorities when disposing of batteries.
9
Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing
reflections from the screen.
10
When running the cooling fan continuously, we recommend wiping clean the ventilation holes a
minimum of once a month. Failure to do so could lead to fire or electric shock or damage to the
product.
11
To ensure the product’s reliability, please clean the ventilation holes at the rear side of the cabinet
at least once a year to remove dirt and dust. Failure to do so could lead to fire or electric shock or
damage to the product.
Power Cord Table
Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region U.S.A./Canada EU U.K. China Japan
Voltage 120* 230 230 220 100
* Please use this power cord under 125 V power supply.
NOTE: This product can only be serviced in the country where it was purchased.
Connecting to a TV*
1
• Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code
(NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
• The screen of the coaxial cable is intended to be connected to earth in the building installation.
*
1
: The product you purchased may not have this feature.
English−8
Recommended Use & Maintenance
Recommended Use
Ergonomics
To realize the maximum ergonomic benefits, we recommend the following:
• For optimum performance of the monitor, allow 20 minutes for warming up. Avoid reproduction of still patterns on the monitor
for long periods of time to avoid image persistence (after image effects).
• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections.
• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.
• Get regular eye checkups.
• Use the preset Size and Position controls with standard input signals.
• Use the preset color settings.
• Use non-interlaced signals.
• Do not view the primary color blue on a dark background. It is difficult to see and may cause eye fatigue due to insufficient
contrast.
Maintenance
Cleaning the LCD Screen
• When the LCD screen is dusty, please gently wipe with a soft cloth.
• Clean the LCD screen surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Please do not rub the LCD screen with a hard or abrasive material.
• Please do not apply pressure to the LCD screen surface.
• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD screen surface.
Cleaning the Cabinet
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
NOTE: DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner,
soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time.
These types of fluids and materials can cause the paint to deteriorate, crack or peel.
English−9
Features
• High definition
– UHD panel employed
The high-resolution 4K display (3840 x 2160), which boasts four times the pixel resolution of full-HD displays, enables
precise reproduction of details in 4K video and high-resolution images.
Moreover, use of a wide color gamut panel in combination with our proprietary SpectraView Engine ensures highly
precise reproduction of color.
– 8K Solution
Supports 8K signals. (Input via DisplayPort 1 only)
Combining screens using the Tile Matrix feature (2 V MONITORS x 2 H MONITORS) using DisplayPort Daisy Chain
cabling enables the display of real 8K video.
• Stable and safe operation
– Cooling fan
Depending on the conditions or location of use, a cooling fan works to ensure the liquid crystal display stays cool during
prolonged use, reducing the burden on the display.
– Dual Daisy Chain Mode
Use of both HDMI and DisplayPort output at the same time ensures video continues to be shown even if one of the video
signals is interrupted.
– Equipped with G-sensor
When installing the monitor vertically, viewers are given appropriate installation guidance.
• Simple and convenient
– Remote resource management/operation status management/control
Compatibility with NaViSet Administrator 2 enables network operation of multiple NEC monitors and projectors, as well
as network-based asset management.

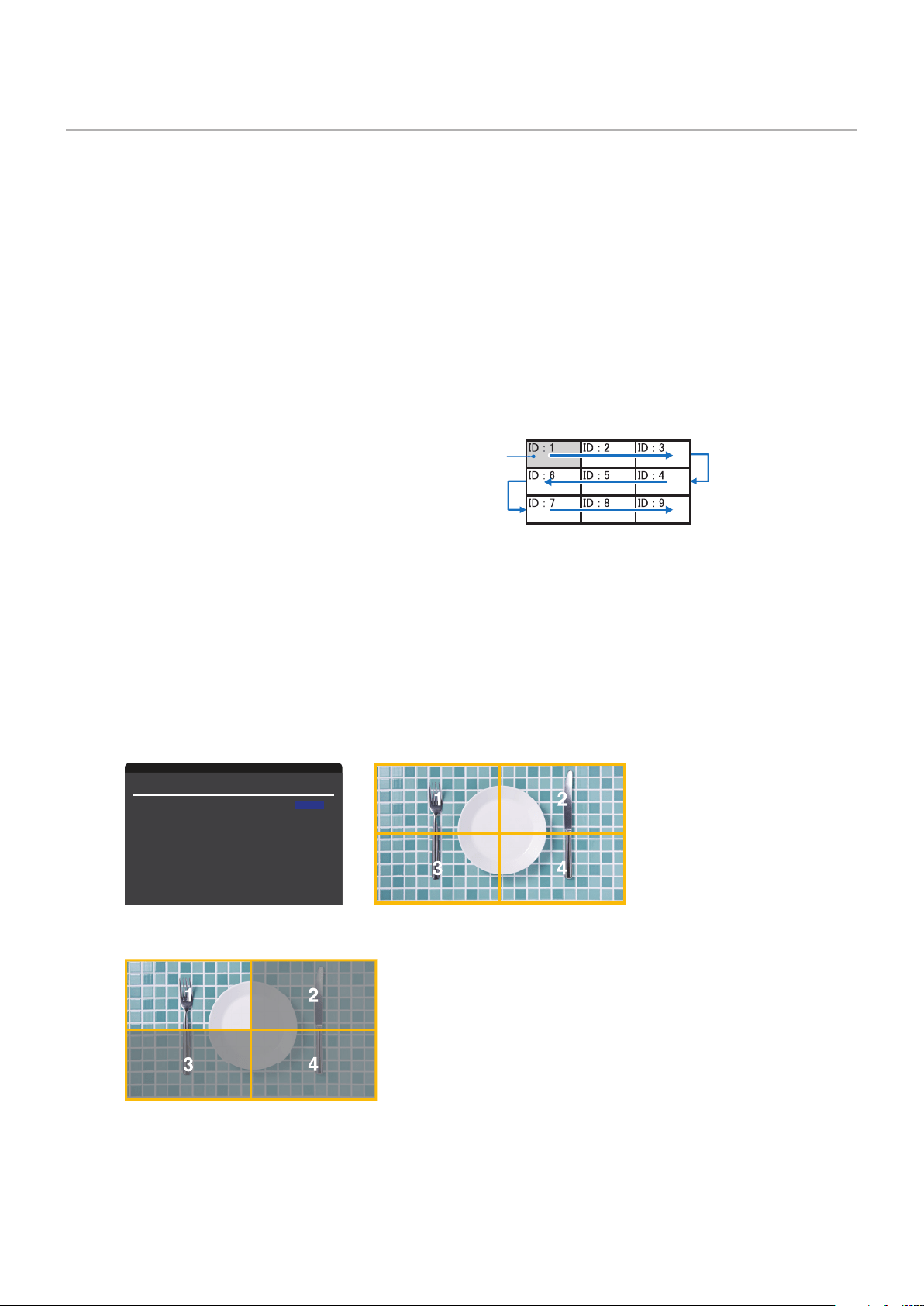

– Simple tile matrix feature
Video signals from HDMI and DisplayPort can easily be shown across multiple screens.
– Preset mode feature
Creating different visual and audio settings for various purposes ensures simple monitor operation.
– Audio/Video Mute
Audio and video can be muted individually.
– Still image feature
Freezes the video so that its still image shows on-screen.
– Multi-picture feature (PIP/PBP)
Supports multi-screen viewing using two or four screens.
– Quick input change
Enables seamless switching between two selected input sources.

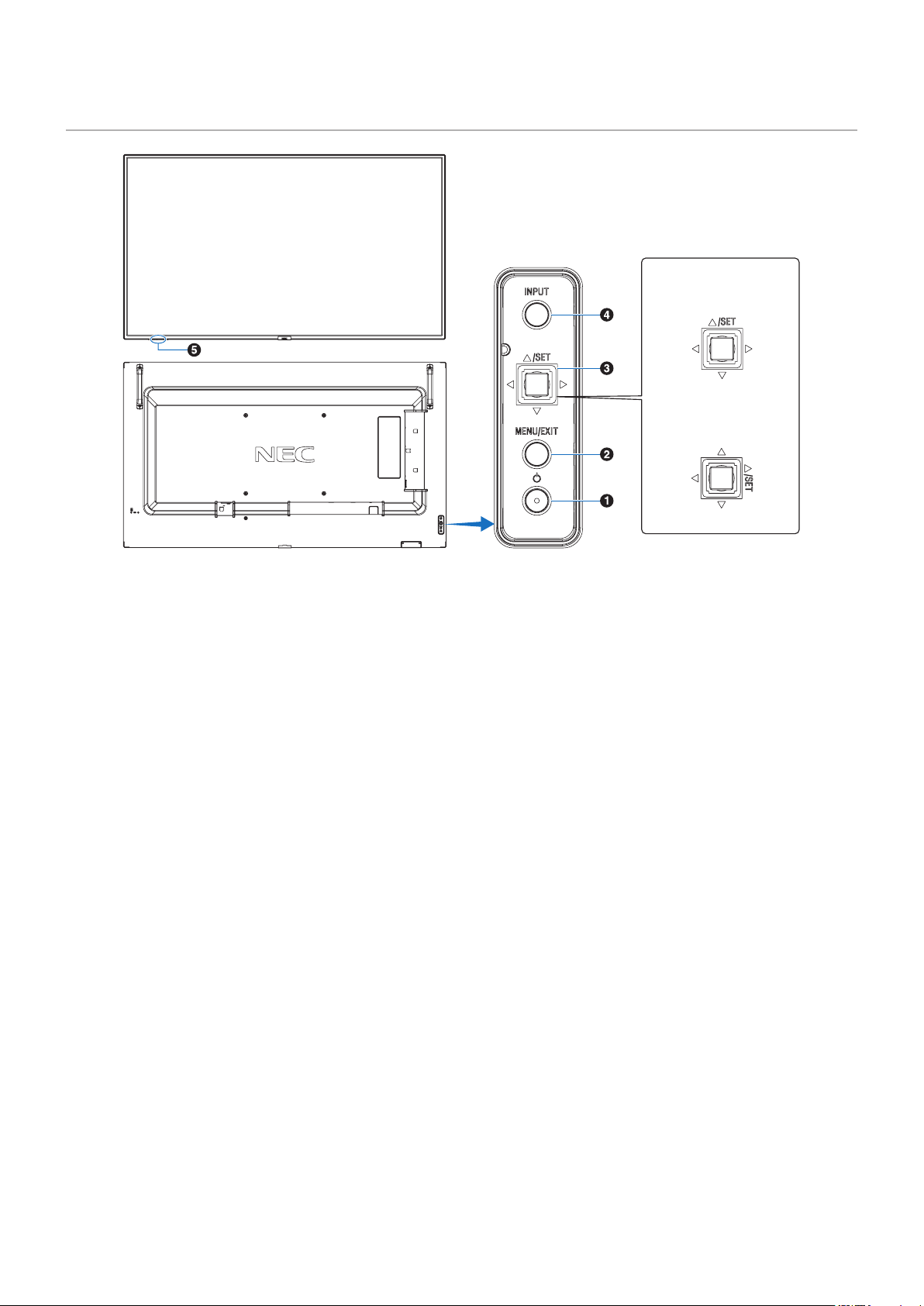

– Joystick key
A joystick-like mechanism on the screen itself enables intuitive operation.
– Automatic time setting
The current time is taken from an NTP server for simple time setting and syncing.
• Wide-ranging expandability
– Intel
®
Smart Display Module (Intel
®
SDM) compatible option slot (Intel
®
SDM Small (Intel
®
SDM-S)/Intel
®
SDM
Large (Intel
®
SDM-L))
Intel
®
SDM enables compatibility with the scaling and operating methods of various systems.
English−10
Chapter 1 Installation
This Chapter Includes:
> “Setup Overview” on page 11
> “Mounting (for Customer)” on page 14
> “Mounting (for Trained Installers)” on page 15
> “Attaching Mounting Accessories” on page 18
NOTE:
For box contents, please refer to the printed contents sheet provided in the box.
Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result
in voiding the warranty.
English−11

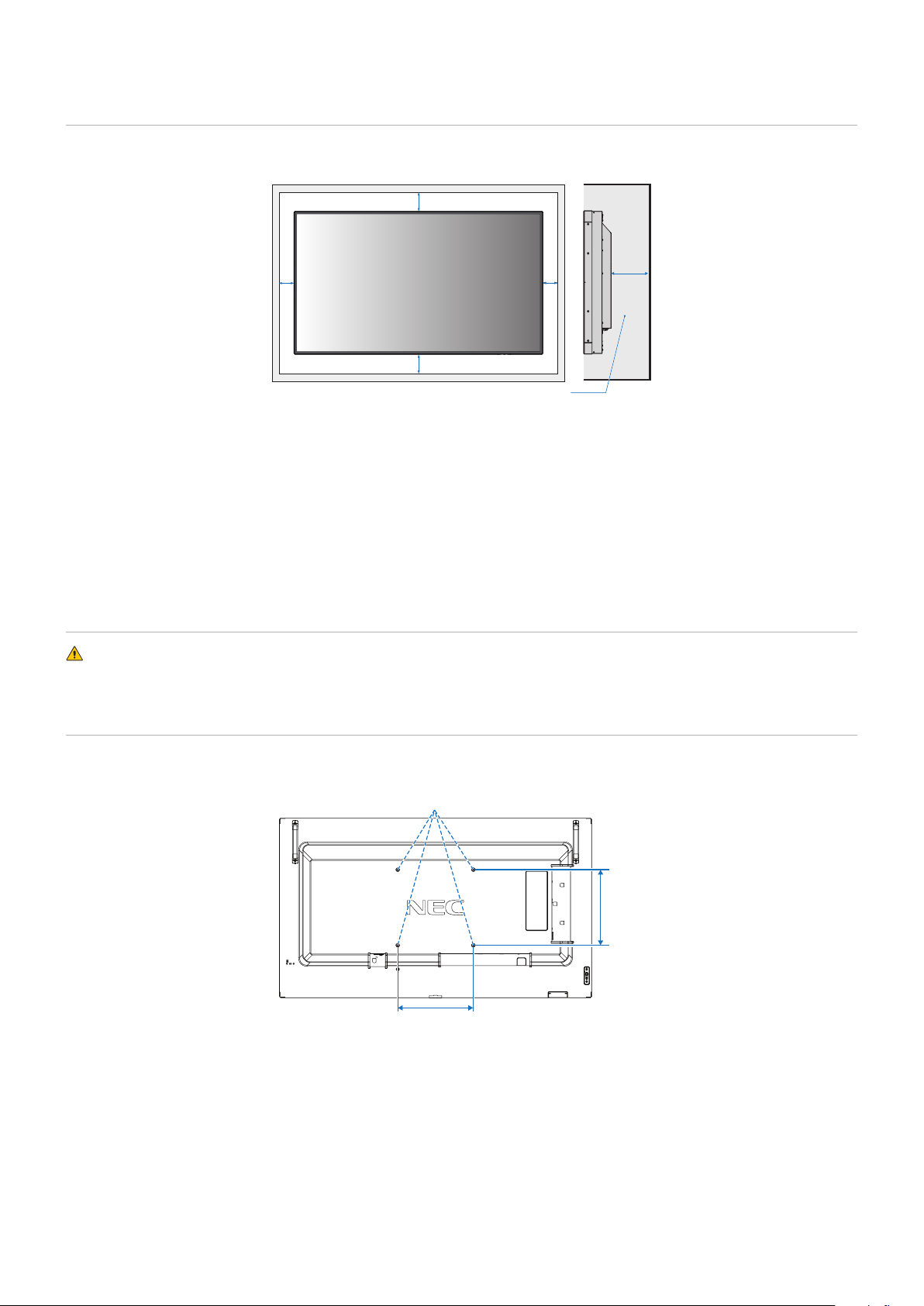

Setup Overview
1. Determine the installation location
WARNING: Please refer to “WARNING 7”, “WARNING 8” and “WARNING 9”.
NOTE: To avoid scratching the LCD panel, always place a soft cloth, such as a blanket that is larger than the monitor’s
screen area, on the table before laying the monitor face down when installing the monitor stand or mounting
accessories.
2. Install the remote control batteries
The remote control is powered by two 1.5 V AAA batteries.
To install or replace batteries:
NEC recommends the following battery use:
CAUTION: Please refer to “CAUTION 8”.
NOTE: If you do not intend to use the remote control for a long period of time, remove the batteries.

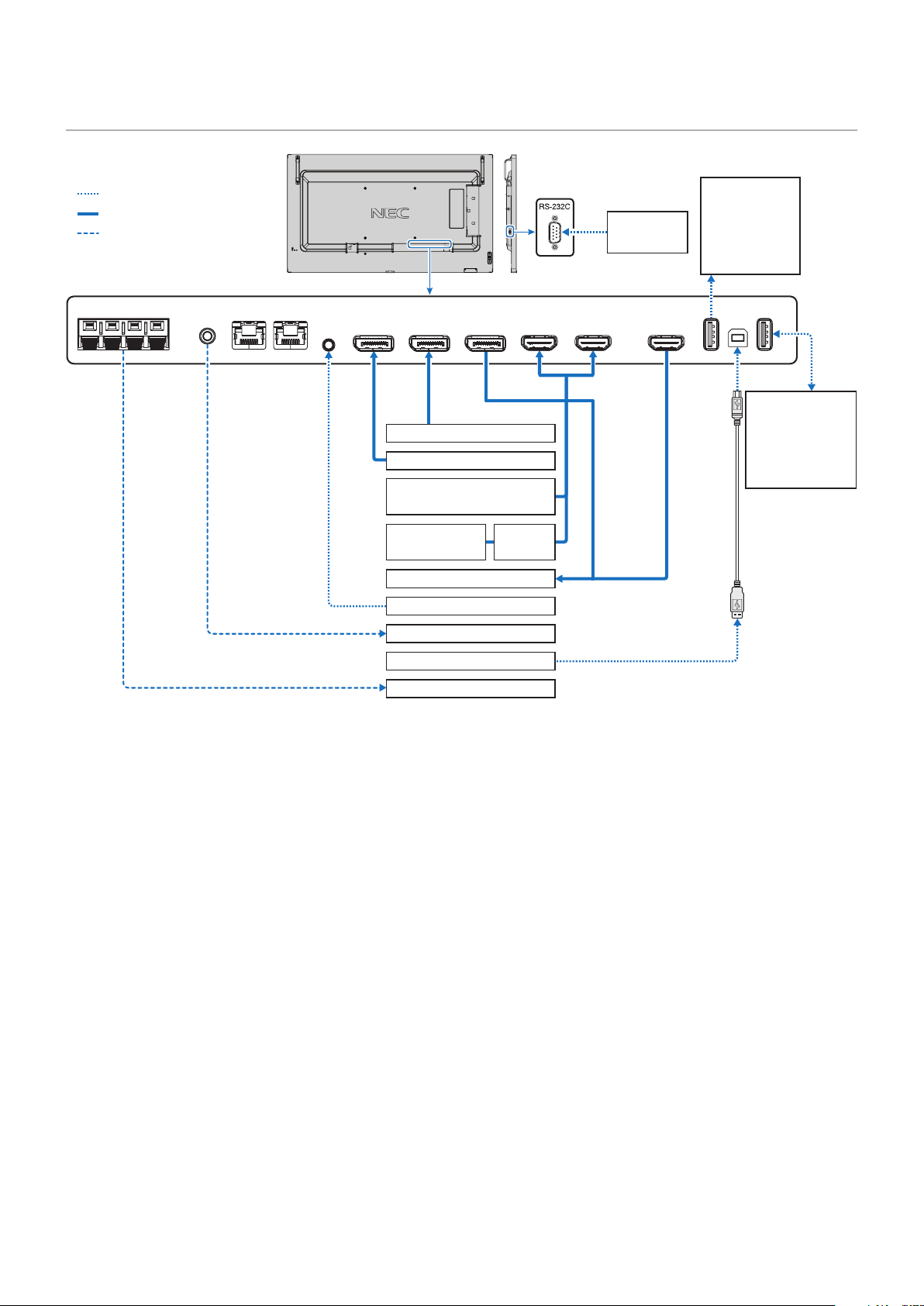

3. Connect external equipment (see page 26)
• To protect the external equipment, turn off the main power before making connections.
• Refer to the user’s manual of your equipment for further information.
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in
loss of image.
English−12
4. Connect the supplied power cord
WARNING: Please refer to the “Important Information” section of this user’s manual for proper selection of an
AC power cord.
CAUTION: Please refer to “CAUTION 1”.
NOTE: • The monitor should be installed close to an easily accessible power outlet.
• Please make sure that enough power is supplied to the monitor. Please refer to the “Power Supply” in the
specification (See “P435” on page 77, “P495” on page 78, “P555” on page 79, “MA431” on page 80,
“MA491” on page 81 and “MA551” on page 82).
Clamp
Screw
5. Cable information
CAUTION: Use the provided specified cables with this product so as not to interfere with radio and television reception.
For HDMI, USB and DisplayPort, please use a shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
6. Turn on the power for the monitor and the external equipment
Switch on the monitor power first.
7. Operate the attached external equipment
Select the input source for the attached equipment to show the image signal on screen.
NOTE: If you have selected anything other than HDMI1 for the input, if the main power is turned off, DDC communication
will not be available.
8. Adjust the sound
Make volume adjustments when required.
9. Adjust the picture settings (see page 90)
If necessary, make adjustments to the backlight, colors, contrast, and image position in the OSD PICTURE menu.
English−13
10. Recommended adjustments
The backlight used for this monitor has a limited life and its brightness decreases with the usage time.
Also, if the same still image is shown for a long time, “Image Persistence” may occur. “Image Persistence” is a phenomenon
in which the image of an LCD remains visible after the device has been turned off.
The “Image Persistence” is gradually eliminated by changing the screen, but if the same screen is shown for too long, the
“Image Persistence” will not disappear.
To avoid shortening this monitor’s lifetime, please note the following:
• Turn off the main power of this monitor when not in use.
• Use the ⏻ button on the main unit or the STANDBY button on the remote control to put the unit in standby mode.
• Use [POWER SAVE SETTINGS] in the [PROTECT] OSD menu. When there is no input signal the monitor will
automatically switch to power save mode.
• If you cover the panel surface of the main unit with a protective cover made of glass or acrylic, the panel surface will be
sealed and the internal temperature will rise.
Use the screen saver, the computer’s power management function, or reduce the monitor’s brightness to prevent the
internal temperature from rising.
• To reduce the load on the LCD panel, use [SCREEN SAVER] in the [PROTECT] OSD menu.
• Use [SCHEDULE] in the OSD menu to automatically power the monitor on or stand by at any time.
NOTE: When using the schedule function, be sure to set [DATE & TIME] in the [SYSTEM] OSD menu.
English−14
Mounting (for Customer)
WARNING: Please refer to “WARNING 7”.
Please contact your supplier as they may be able to provide a list of qualified installation professionals. Mounting on a wall or
ceiling and hiring a technician is the customer’s responsibility.
Maintenance
• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting equipment.
If a problem is detected, please refer to qualified personnel for service.
• Regularly check the mounting location for signs of damage or weakness that may occur over time.
WARNING: Please refer to “WARNING 8”.
Prevent Tipping
WARNING: Please refer to “WARNING 7” and “WARNING 9”.
• Please refer to the table top stand manual of ST-401 or ST-43M for “structure of Prevent Tipping”.
Before attaching the monitor to the wall, make sure that the wall can support the weight of the monitor.

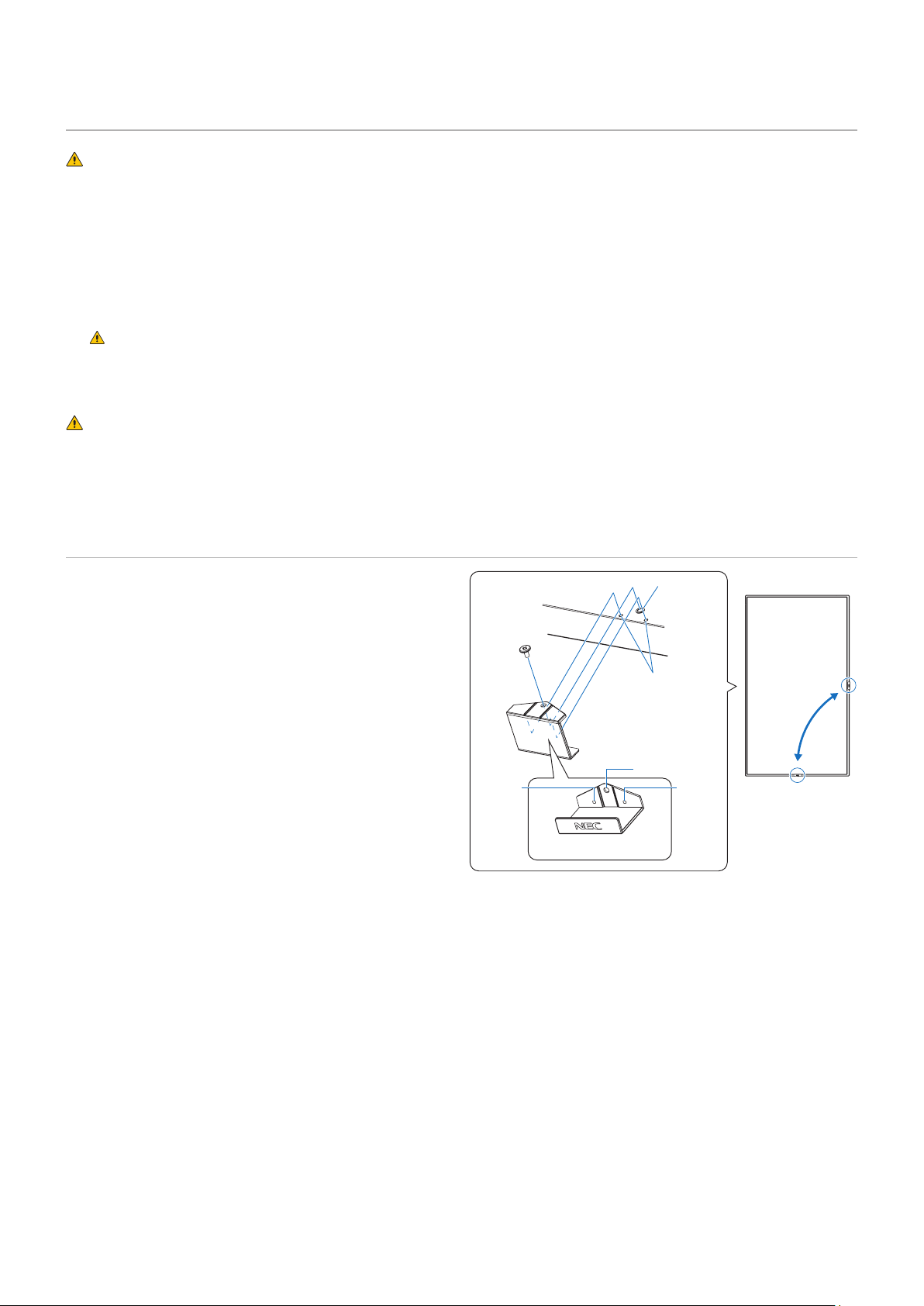

Changing the Logo Ornament Position
When using the monitor in the portrait position, the logo
ornament position can be changed.
Removing the logo ornament: unscrew the installed screw
then take off the logo ornament.
Attaching the logo ornament: adjust the protrusions inside of
the logo ornament into the protrusion holes on the bezel. Make
sure the hole for the screw on the logo ornament and the hole
for the screw on the bezel are aligned. Install the logo ornament
with the screw which is used for installing the logo ornament.
(Recommended Fasten Force: 30-40 N•cm).
NOTE: Do not use any other screw to install the logo ornament.
Inside of logo ornament
Screw hole
Protrusion
Screw hole
Protrusion holes
Protrusion
English−15
Mounting (for Trained Installers)
WARNING: Please refer to “WARNING 9”.
Carefully inspect the location where the unit is to be mounted. Not all walls or ceilings are capable of supporting the weight of
the unit. The weight of this monitor is provided in the specifications (see “P435” on page 77, “P495” on page 78, “P555”
on page 79, “MA431” on page 80, “MA491” on page 81 and “MA551” on page 82). Product warranty does not cover
damage caused by improper installation, re-modeling, or natural disasters. Failure to comply with these recommendations could
result in voiding the warranty.
To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation
location.
WARNING: Please refer to the “Important Information” section.
Please note the following when mounting on a wall or ceiling:
• When using mounting accessories other than those that are NEC approved, they must
comply with the VESA-compatible (FDMlv1) mounting method.
• NEC recommends mounting interfaces that comply with UL1678 standard in North America.
• Prior to mounting, inspect the installation location to ensure that it is strong enough to
support the weight of the unit so that the unit will be safe from harm.
• For detailed information, refer to the instructions included with the mounting equipment.
NEC strongly recommends using the screws as shown below.
If using screws longer than below mentioned, check the depth of the hole.
Screw Size
Bracket Hole
(C)
No Thread
(D)
Recommended
Fasten Force
(A) (B)
M6 10-12 mm + thickness of bracket and washer in length ≤ Ø 8.5 mm 4.5 mm 390 ~ 670 N•cm
NOTE: When used in a video wall configuration for a long time, slight expansion of the monitors may happen due to
temperature changes. It is recommended that a gap of over one millimeter is kept between adjacent monitor edges.
> 1 mm
> 1 mm
A
Unit
C
Washers
Mounting
Bracket
No thread
D
Thickness of
bracket and
washers
B
Gap
English−16
Installing a safety wire
WARNING: Please refer to “WARNING 9”.
CAUTION: Please refer to “CAUTION 7”.
NOTE: When installing, do not apply pressure to the LCD panel or excessive force to any part of the monitor by pushing or
leaning on it. This may cause the monitor to become distorted or damaged.
Handles for safety wire
(Fasten force: 120 - 190 N•cm).
Safety wire for landscape position
Mounting Location
WARNING: Please refer to “WARNING 8”.
NOTE: Allow for adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away
from the monitor and from the mounting equipment.
English−17
Orientation
• When using this monitor in a portrait position (viewing from the front), ensure to rotate it counterclockwise so that the right
side is moved to the top and the left side is moved to the bottom.
• If installed in the wrong orientation, heat may be trapped inside the main unit and the lifetime of the monitor may be
shortened.
• It cannot be installed upside down.
NOTE: When you rotate the monitor in the wrong direction, a warning message is shown on the screen.
Power Indicator
WARNING: Please refer to “WARNING 8”.
English−18
Ventilation Requirements
When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow
heat to disperse, as shown below.
≥100 mm
≥100 mm
≥30 mm
≥100 mm
≥100 mm
<40 °C
NOTE: • Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away
from the unit and the mounting equipment; especially when you use monitors in a multiple screen configuration.
• This monitor has internal temperature sensors.
If the monitor overheats, a “Caution” warning appears. If the “Caution” warning appears, stop using the unit, turn off
the power and allow it to cool.
If the monitor is used in an enclosed area or if the LCD panel is covered with a protective screen, and the
temperature is higher than the normal operating temperature, please turn the cooling fan to [ON] within the
[FAN CONTROL] menu within the OSD menu (see page 101).
Mounting on Ceilings
WARNING: Please refer to “WARNING 8” and “WARNING 9”.
Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting system. Be careful to avoid tipping the monitor when attaching
accessories.
300 mm
300 mm
VESA Mounting Interface M6
Mounting accessories can be attached with the monitor in the face down position. To avoid scratching the LCD panel, always
place a soft cloth, such as a blanket that is larger than the monitor’s screen area, on the table before laying the monitor face
down. Make sure there is nothing on the table that can damage the monitor.
When using mounting accessories other than those that are NEC compliant and approved, they must comply with the VESA Flat
Display Mounting Interface Standard (FDMI).
NOTE: Prior to installation, place the monitor face down on a flat even surface that is larger than the monitor screen.
Use a sturdy table that can easily support the weight of the monitor.
English−19
Installing and Removing the Optional Table Top Stand
WARNING: Please refer to “WARNING 8”.
CAUTION: Please refer to “CAUTION 5”.
For installation, follow the instructions included with the stand or mounting equipment. Use only those devices recommended by
the manufacturer.
NOTE: • Use the ST-401 or ST-43M.
• ONLY use screws which are included with the optional table top stand.
• The monitor can only be used in the landscape orientation with the tabletop stand.
300 mm
Soft cloth
Table
Height adjustment (P555/MA551 only)
1. The lines on the stand pole are indicators of the height adjustment (Figure 1). Please adjust the pipe to the lines.
Figure 1
P555/MA551 High/Low
Pipe
Adjust the pipe to a line.
P495/MA491
P435/MA431
2. Please install the stand pole and the pipe with included screws. Please screw the two screw holes at the pipe (Figure 2).
Pipe
Figure 2
Stand pole
CAUTION: Please refer to “CAUTION 5”.
English−21

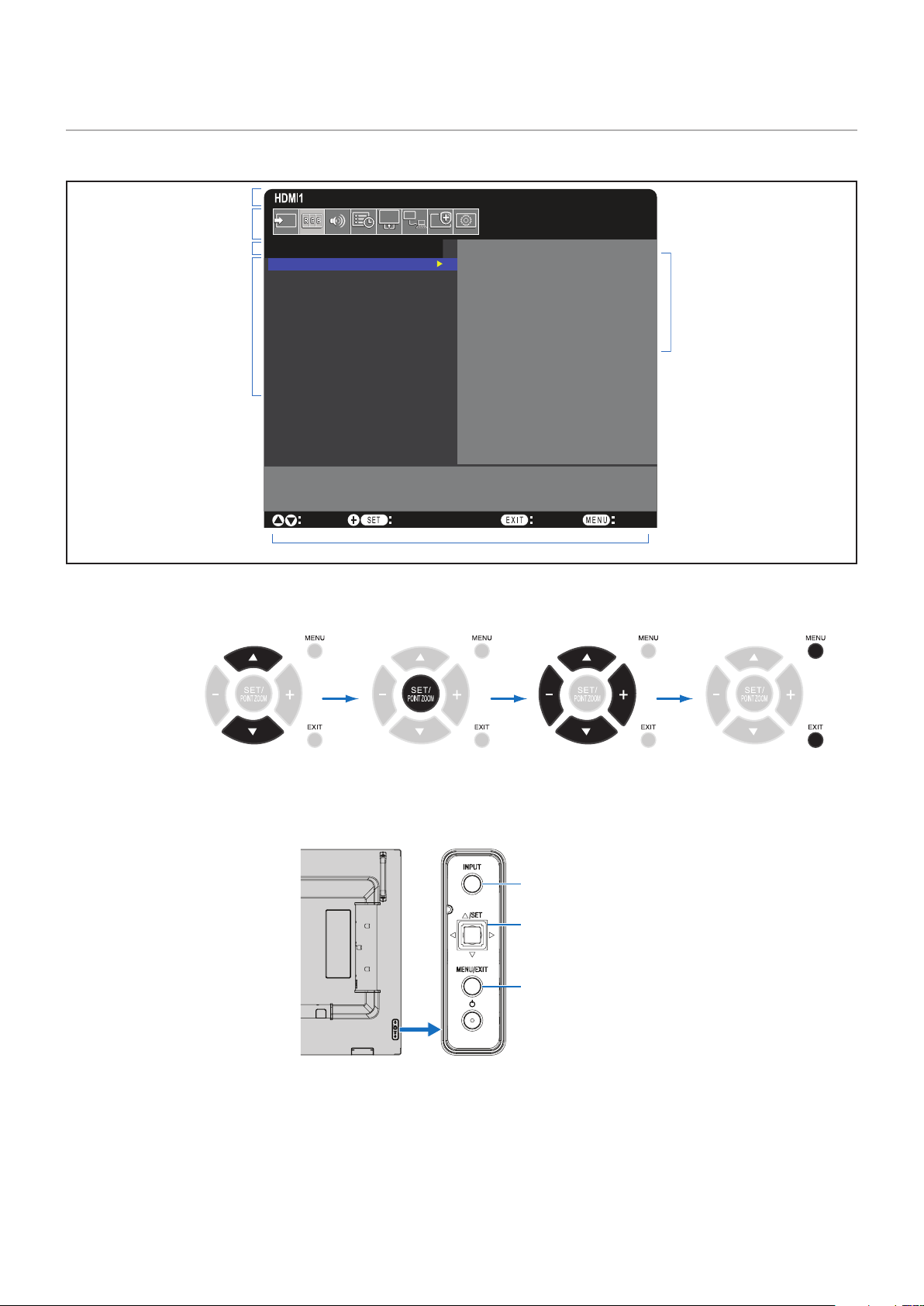

Control Panel
Monitor in
Landscape position
Up
Down
RightLeft
Up
Down
RightLeft
Monitor in
Portrait position
1
⏻ Button (power button)
Switches between power on and standby. See page 33.
2
MENU/EXIT Button
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
3
5-Direction-Key/SET Button*
1
v/w: Navigates to the left or right through the OSD menu.
Move the LEFT/RIGHT key left or right to increase or
decrease the adjustment.
You can adjust the VOLUME directly by moving the LEFT/
RIGHT key while the OSD menu is closed.
s/r: Navigates up or down through the OSD menu.
SET: Acts as a set button when making a selection when the
OSD menu is open.
*
1
: The v, w, r and s functions change according to the monitor orientation
(landscape/portrait).
4
INPUT Button
INPUT: Cycles through the available inputs when the OSD
menu is closed.
[DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2],
[OPTION]*
1
, [COMPUTE MODULE]*
2
. These are
available inputs only, shown as their factory preset
name.
*
1
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
See page 84.
5
Remote Control Sensor, Ambient Light Sensor, and
Power Indicator
Remote Control Sensor: Receives the signal from the
remote control (when using the wireless remote control).
See page 34.
Ambient light sensor: Detects the level of ambient light,
allowing the monitor to make automatic adjustments to the
backlight setting, resulting in a more comfortable viewing
experience. Do not cover this sensor. See page 46.
Power Indicator:
• Glows blue when the monitor is in active mode*
1
.
• Green and Amber blink alternately when the
[SCHEDULE INFORMATION] function is enabled*
1
.
• When a component failure is detected within the monitor,
the indicator will blink red or blink a combination of red
and blue.
• Please refer to the Power ON and OFF Modes table on
page 33.
*
1
: If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
when the monitor is in active mode. See page 106.
English−22

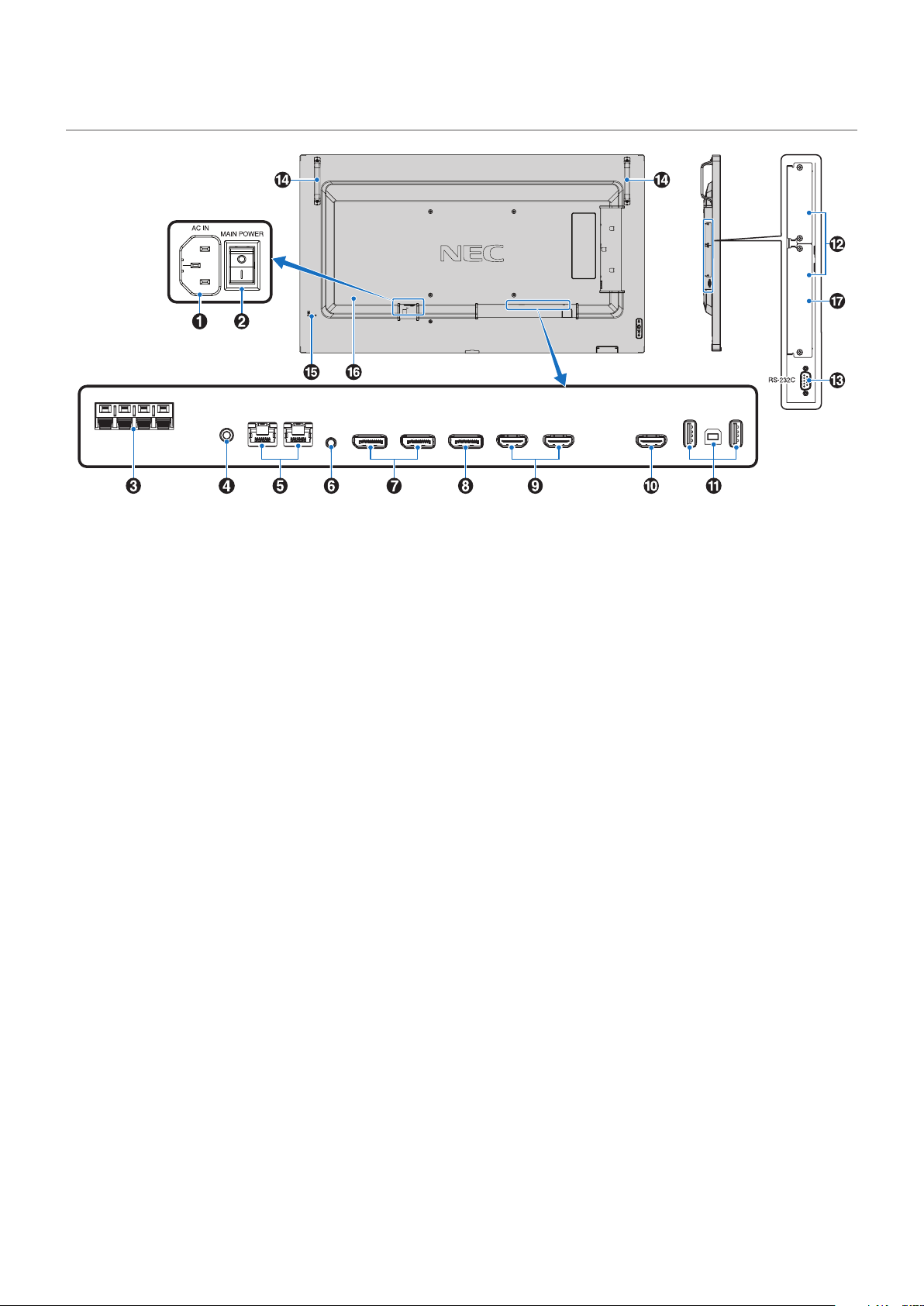

Terminal Panel
USB-A
DisplayPort
IN 1
DisplayPort
IN 2
DisplayPort
OUT
HDMI IN 1
(ARC)
HDMI IN 2 HDMI OUT
LAN 1LAN 2
EXTERNAL SPEAKER
AUDIO OUT
USB-B
SERVICE
REMOTE
IN
HDMI
1
AC IN Connector
Connects with the supplied power cord.
2
Main Power Switch
On/Off switch to turn main power ON/OFF.
3
EXTERNAL SPEAKER TERMINAL
Outputs the audio signal.
Red terminal is plus (+).
Black terminal is minus (–).
NOTE: This speaker terminal is for 15W + 15W (8 ohm)
speaker.
4
AUDIO OUT
Audio signal output from DisplayPort and HDMI to an
external device (stereo receiver, amplifier, etc.).
NOTE: This connector is not a headphone terminal.
5
LAN Port 1/2 (RJ-45)
Connect to LAN in order to manage and control the monitor
over the network. See page 61.
6
REMOTE
Use an optional sensor unit by connecting it to your monitor.
NOTE: Do not use this connector unless specified.
7
DisplayPort IN 1/2
DisplayPort signals input.
8
DisplayPort OUT
DisplayPort signals output.
9
HDMI IN 1/2 (HDMI1 (ARC)/HDMI2)
HDMI signals input.
NOTE: • HDMI1 terminal also supports ARC (Audio
Return Channel) for audio output.
• ARC sends the monitor’s sound to audio
equipment with an HDMI1 ARC connector.
• Use the included ARC-supported HDMI cable.
The audio equipment will output the monitor’s
audio.
• The audio equipment can be controlled with the
included remote control.
0
HDMI OUT
HDMI signals output.
!
USB ports
For the USB port information, please see “Connecting a
USB Device” on page 31.
USB-A (Hub/0.5 A): Downstream port (USB Type-A).
USB-B (Ctrl): Upstream port (USB Type-B).
Service (2A): Service port. Power supply for USB devices.
@
Option Board Slot
Slot for installation of an Intel
®
SDM.
NOTE: Please contact your supplier for a list of
compatible Option Boards.
#

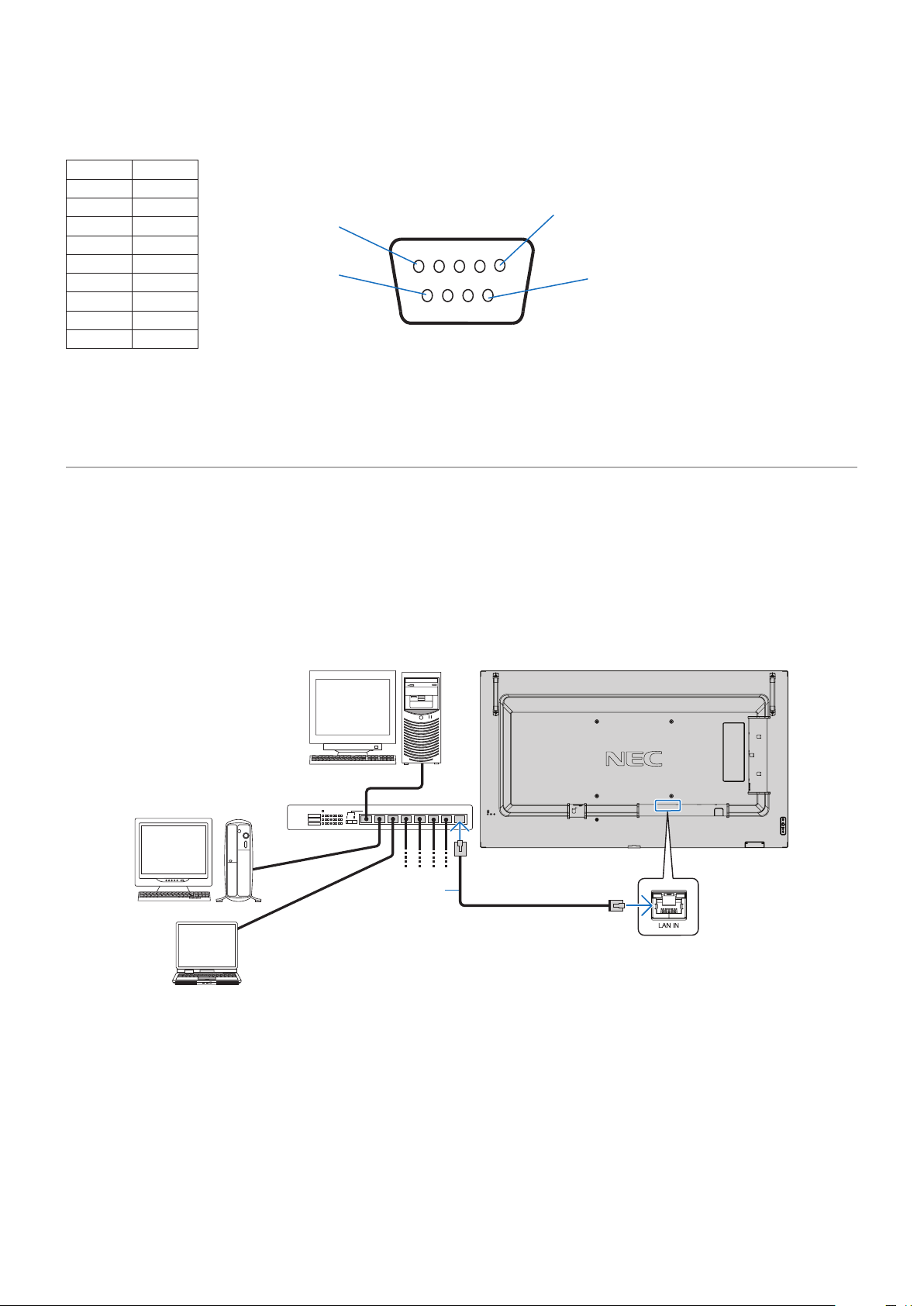

RS-232C IN (D-Sub 9-pin)
Connect RS-232C input from external equipment, such
as a computer, in order to control RS-232C functions.
See page 60.
English−23
$
Handle
%
Security Slot
Security and theft protection lock slot compatible with
Kensington security cables/equipment.
NOTE: For products, visit Kensington’s website.
^
Label
&
Raspberry Pi Compute Module Slot
Slot for installing a Raspberry Pi Compute Module Interface
Board and Raspberry Pi Compute Module. See page 84.
CAUTION: Installation must be performed by a
qualified technician. Do not attempt to
install a Compute Module Interface Board
and Raspberry Pi Compute Module by
yourself.
English−24

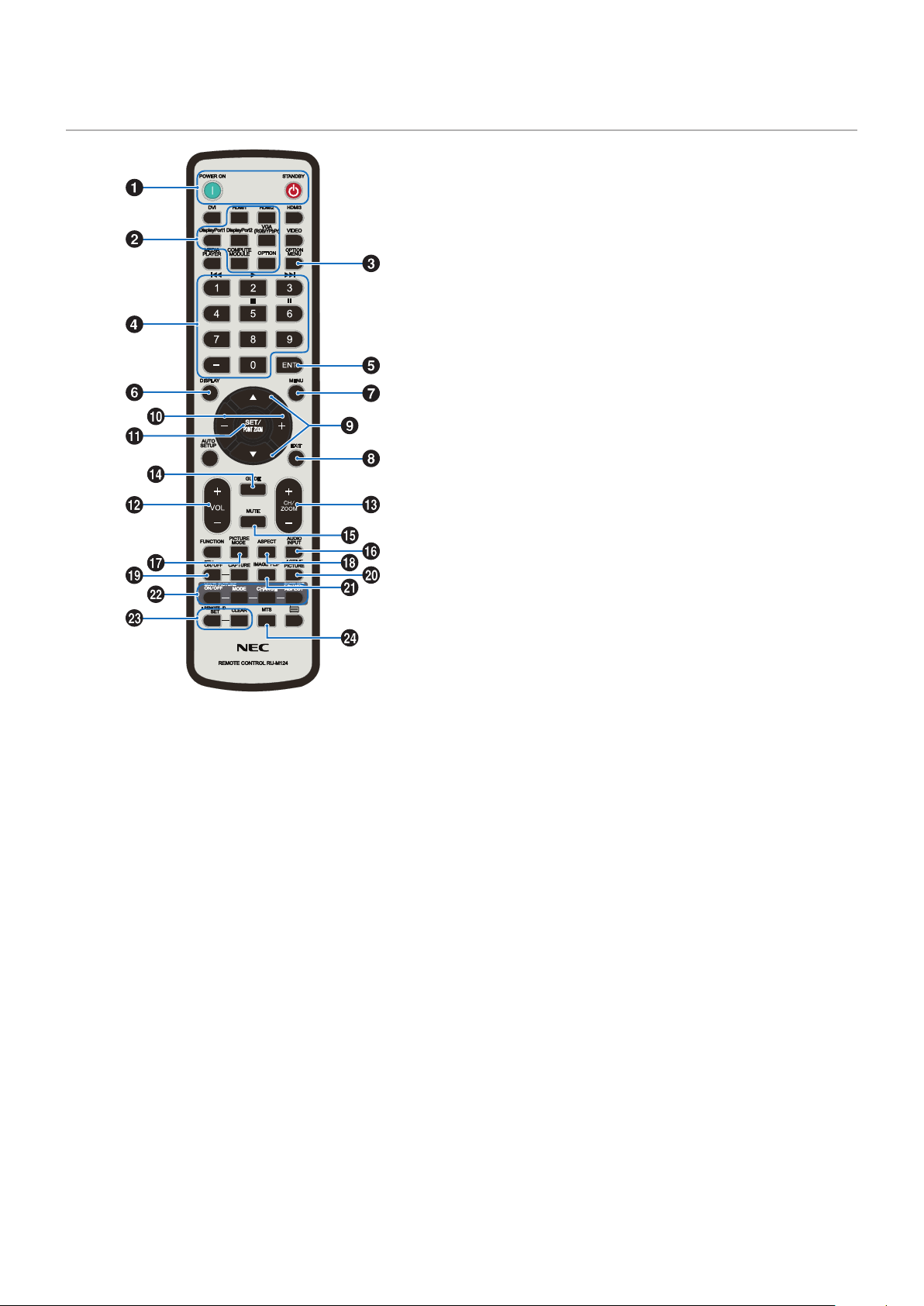

Wireless Remote Control
1
NOTE: The buttons with no explanation are not used with
your monitor model.
1
POWER ON and STANDBY Buttons
POWER ON resumes full power from low power mode.
STANDBY puts the monitor in low power mode.
See page 33.
2
INPUT Button
Cycles through the available inputs.
These are available inputs only, shown as their factory
preset name.
3
OPTION MENU Button
For use when an Option Board is installed. See page 22.
The function depends on which Option Board is installed in the monitor.
4
KEYPAD
Press the buttons to set and change passwords, change the
channel and set the REMOTE ID. See page 58.
Some buttons are used for CEC (Consumer Electronics
Control).
5
ENT Button
Makes selections.
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
Some buttons are used for CEC (Consumer Electronics
Control).
6
DISPLAY Button
Shows/Hides the information OSD. See page 38.
Unlocks the remote control’s buttons if they have been
locked in the [LOCK SETTINGS] in the [PROTECT] menu.
Press and hold the DISPLAY button for more than five
seconds to unlock the remote. See page 51.
7
MENU Button
Opens and closes the OSD menu. See page 38.
8
EXIT Button
Acts as a back button within the OSD to move to the
previous OSD menu.
Acts as an EXIT button to close the OSD menu when on the
main menu.
9
/ Button (up/down button)
Act as navigation buttons, within the OSD menu to move the
highlighted area up or down.
0
–/+ Button (minus/plus button)
Act as navigation buttons, within the OSD menu to move the
highlighted area left or right.
Increases or decreases the adjustment level within the
selected OSD menu setting.
!
SET/POINT ZOOM Button
SET: When the OSD menu is open, this button acts as a set
button when you make a selection.
POINT ZOOM: When the OSD menu is closed, this button
acts as a point zoom button. See page 37.
@
VOLUME +/– Button
Increases or decreases the audio output level.
#
CH/ZOOM +/– Button*
Increases or decreases the point zoom level. Please refer to
the Point Zoom instructions. See page 37.
*: When using with an Option Board, the function depends on which Option
Board is installed in the monitor.
$
GUIDE Button
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
English−25
%
MUTE Button
Mutes the monitor’s audio and video output.
Press it again to unmute the monitor’s audio and video
output. See “MUTE SETTING” on page 106 for details.
^
AUDIO INPUT Button
Selects the audio input source [IN1], [IN2], [HDMI1],
[HDMI2], [DisplayPort1], [DisplayPort2], [OPTION]*
1
and
[COMPUTE MODULE]*
2
.
*
1
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
See page 84.
&
PICTURE MODE Button
Cycles through the picture modes [NATIVE], [RETAIL],
[CONFERENCING], [HIGHBRIGHT], [TRANSPORTATION]
and [CUSTOM]. See page 35.
*
ASPECT Button
Cycles through the picture aspect ratios [FULL], [WIDE]*,
[1:1], [ZOOM] and [NORMAL]. See page 36.
*: HDMI1, HDMI2, OPTION (TMDS)*
2
, COMPUTE MODULE*
1
inputs only.
*
1
: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
*
2
: This function depends on which Option Board is installed in the monitor.
(
STILL Button
ON/OFF button: Activates/deactivates still picture mode.
NOTE: • This function is released if any following
functions is changed: [ASPECT], [MULTI
PICTURE], [TILE MATRIX], [MOTION] in
[SCREEN SAVER], [POINT ZOOM], [IMAGE
FLIP], [QUICK INPUT CHANGE], [OVERSCAN],
[DUAL DAISY CHAIN MODE], if you change
the [AUDIO INPUT] setting, or set [DisplayPort
VERSION] of [DisplayPort1] to [1.4] while [STILL]
is active.
• This function is disabled when one of the
following functions is active: [MULTI PICTURE],
[MOTION] in [SCREEN SAVER], [POINT
ZOOM], [TILE MATRIX], [IMAGE FLIP], [QUICK
INPUT CHANGE], [DUAL DAISY CHAIN MODE],
[ROTATE] or if input is set to [DisplayPort1] then
[DisplayPort VERSION] is set to [1.4].
• If the input signal is [OPTION], this button’s
action depends on which Option Board is
installed in the monitor.
)
ACTIVE PICTURE Button
Selects the active picture when Multi Picture Mode is
enabled. See page 95.
-
IMAGE FLIP Button
Toggle switches between [H FLIP], [V FLIP], [180° ROTATE]
and [NONE]. See page 95.
=
MULTI PICTURE Buttons
ON/OFF button: Turns Multi Picture Mode on and off.
MODE button: Switches between the available Picture-
In-Picture (2PIP) and Picture-By-Picture (2PBP or 4PBP)
modes.
CHANGE button: Swaps the selected inputs between
Picture 1 and Picture 2 when 2PIP is set.
PICTURE ASPECT button: Selects the active picture frame
aspect.
For more information see page 95.
NOTE: If you press SET/INPUT ZOOM button while Multi
Picture is ON, you can change the active picture’s
picture size.
q
REMOTE ID Button
Activates the REMOTE ID function. See page 58.
w
MTS Button
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
English−26
Chapter 3 Connections
This Chapter Includes:
> “Wiring Diagram” on page 27
> “Connecting to a Personal Computer” on page 28
> “Connecting to a Media Device with HDMI” on page 28
> “HDMI-CEC Command” on page 30
> “Internal Video Sources” on page 31
> “Connecting a USB Device” on page 31
Connecting External Equipment
NOTE: • Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power
as this may result in loss of image.
• Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower the
sound level.
Before making connections:
• Turn off the device’s power before connecting it to the monitor.
• Refer to the device’s user manual for available connection types and instructions for the device.
• We recommend turning off the monitor’s main power before connecting or disconnecting a USB storage device to avoid data
corruption.
English−27
Wiring Diagram
EXTERNAL SPEAKER
USB-A
DisplayPort
IN 1
DisplayPort
IN 2
DisplayPort
OUT
HDMI IN 1
(ARC)
HDMI IN 2 HDMI OUT
LAN 1LAN 2
AUDIO OUT
USB-B
SERVICE
REMOTE
IN
Dotted lines = other signal
Solid lines = video signal
Dashed lines = audio signal
USB storage
device.
Devices that
require power supply:
Ex: Multi
Presenter stick.
HDMI video player or
Computer (HDMI)
Blu-ray or DVD
Player (HDMI)
AV
Amplifier
Computer (DisplayPort)
USB devices
such as an
USB camera,
USB storage
device or USB
color sensor*
1
Computer (DisplayPort)
Second Monitor*
Sensor Option
Stereo Amplifier
Computer USB*
1
Computer
(RS-232C)
External Speakers
*: Multiple monitors that are daisy-chained have a limit to the number of connectible monitors.
*
1
: The device connected to USB-B can use the device connected to USB-A. See the “Connecting a USB Device” on page 31.
English−28
Connecting to a Personal Computer
Connecting to a Computer with HDMI
• Please use an HDMI cable with the HDMI logo.
• It may take a moment for the signal to appear after turning on the computer.
• Some display cards or drivers may not show an image correctly.
• When you use a computer with HDMI, please set [OVERSCAN] to [AUTO] or [OFF] as display drivers may not be fully
compatible and may not show an image correctly. See page 89.
• If the source signal is 4K (50 Hz/60 Hz) or HDCP 2.2 or HDR, please set [MODE2] at [HDMI] in [ADVANCED].
See page 88.
• If the monitor’s main power is turned on after a connected computer is turned on, sometimes an image is not shown. In this
case, please turn off the computer then turn it on again.
• When input signal is 4K, please use high-speed HDMI cable.
Connecting a Computer with DisplayPort
• Please use a DisplayPort cable with the DisplayPort compliance logo.
• To use the DisplayPort out connector, please refer to Video out. See page 57.
• It may take a moment for the signal to appear after turning on the computer.
• When connecting a DisplayPort cable to a component with a signal conversion adapter, an image may not appear.
• Some DisplayPort cables feature a locking function. When removing this cable, hold down the top button to release the lock.
• To output DisplayPort audio, set [DisplayPort1] or [DisplayPort2] at [AUDIO INPUT] in the OSD or choose [DisplayPort1] or
[DisplayPort2] using the remote control AUDIO INPUT button.
• If the monitor’s main power is turned on after a connected computer is turned on, sometimes an image is not shown. In this
case, please turn off the computer then turn it on again.
• If input signal is 8K, please use a DisplayPort cable with the 8K logo.
Connecting to a Media Device with HDMI
Connect using a single HDMI cable for the highest picture and audio quality from Blu-ray players, streaming media players, or
game consoles. 4K UHD content is shown when the connected media player also supports 4K content.
Supports HDCP (High-bandwidth Digital Contents Protection) coding, a type of digital rights management that prevents high-
definition content, in Blu-ray discs, DVDs and streaming media, from being copied or broadcast illegally.
NOTE: • Supports 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz,
480i@60Hz, 3840x2160 (30 Hz/24 Hz/25 Hz/50 Hz (MODE2)/60 Hz (MODE2)),
4096x2160 (24 Hz/25 Hz (MODE2)/30 Hz (MODE2)/50 Hz (MODE2)/60 Hz (MODE2)).
• Connect the HDMI cable when both the media player and the monitor are powered off.
• Use an HDMI cable with the HDMI logo.
• Some HDMI cables and devices may not show an image correctly due to different HDMI specifications.
• HDCP is a system for preventing illegal copying of video data sent over a digital signal. If you are unable to view
material via the digital inputs, this does not necessarily mean that the monitor is not functioning properly.
• When input signal is 4K, please use high-speed HDMI cable.
English−29
Connecting to audio equipment with ARC function
If connecting audio equipment with ARC function to HDMI1 (ARC) using the included ARC-supported HDMI cable, the audio
equipment outputs the monitor’s sound.
• The sound via HDMI1 (ARC) is not adjustable by the OSD menu.
• When the ARC function is activated, the monitor’s internal speakers are muted.
• The playing picture’s sound is output to audio equipment via HDMI1 (ARC). The HDMI1 (ARC) does not send an audio signal
that is not supported by the input connector of playing pictures. Please refer to “Specifications” for the supported signal of
each input connector.
HDMI-CEC (Consumer Electronics Control)
HDMI-CEC provides compatible media players, connected via HDMI, the ability to communicate and allow limited control
between the device and the monitor. For example, turning on a Blu-ray player can immediately switch input to the Blu-ray player
without using the remote control. Not all devices are fully compatible, and, in some cases, the media device manufacturer may
only provide compatibility with its own monitors or TVs. See “HDMI-CEC Command” on page 30.
When supported, the monitor’s remote control can be used to control the HDMI media device.
NOTE: The instructions in this section guide you through configuring [CEC] in the monitor’s OSD menu. These settings can
also be configured using the monitor’s web controls. The function names and location in the web controls are the same
as the OSD menu.
Enabling CEC
1. Connect a CEC device to the HDMI port.
Press the HDMI button on the remote control .
2. Press the MENU button to open the OSD menu.
3. Navigate to [ADVANCED] then to [CEC].
4. Select [MODE1] or [MODE2] for [CEC].
5. Select SET under [SEARCH DEVICE].
When the search is complete, the HDMI port with a CEC connected device is shown with its name.
If no CEC device is found, make sure the device is plugged in, turned on, it supports CEC and CEC is enabled. Depending
on the manufacturer, the CEC feature may have a different name. Refer to the device’s product manual.
6. Press the EXIT button on the remote control.
English−30
HDMI-CEC Command
Please connect a HDMI-CEC compatible device to HDMI port.
OSD menu HDMI-CEC command name Explanation Setting
CEC
(Consumer
Electronics
Control)
One Touch Play When a HDMI-CEC compatible device is turned
on, the monitor connected to the device by an
HDMI cable also automatically turns on. After
the monitor powers on, [INPUT] automatically
switches to the [HDMI2].
If the monitor is turned on when HDMI-CEC
compatible devices are turned on, it changes the
[INPUT] from the current one to [HDMI2].
CEC OFF
POWER CONTROL LINK
YES / NO
AUDIO RECEIVER
ENABLE / DISABLE
SEARCH DEVICE
PRESS TO EXECUTE
INPUT-ADVANCED:
INPUT SIGNAL SETTINGS
DisplayPort
HDMI
MULTI PICTURE
SIGNAL FORMAT
CEC
BACKGROUND COLOR
VIDEO OUT SETTINGS
RESET
To set the CEC options, please follow the steps
below.
Press the Menu button to open the OSD.
Using the + – buttons, navigate to [INPUT],
to [ADVANCED], to [CEC], then press SET/
POINT ZOOM button to enter the CEC options.
Use the + – buttons to highlight [MODE1] or
[MODE2], then press SET/POINT ZOOM button
to enable CEC.
Remote Control Pass Through The monitor’s wireless remote control button
operation can function with HDMI-CEC
compatible devices.
For example, if turning on the monitor by
wireless remote control and pressing the play
button, a HDMI-CEC compatible device can also
be turned on and play.
Power Status Connected HDMI-CEC compatible devices
obtain the monitor’s power status, such as if the
monitor is in standby mode or on.
System Information This function obtains the information for a
connected HDMI-CEC compatible device (CEC
version, Physical Address). In addition, this
function copes with the “Change Language
function”.
If the language for the monitor is changed, the
language for a connected HDMI-CEC compatible
device is changed to the same language, which
is selected for the monitor.
For the “Change Language function”, it is
necessary that the connected HDMI-CEC
compatible device be able to cope with multi-
language.
POWER
CONTROL
LINK
System Standby If the monitor is set to standby using the wireless
remote control, HDMI-CEC compatible devices
also go into standby at the same time.
If the monitor goes into standby while an HDMI-
CEC compatible device is recording, the device
remains on. Please refer to the user’s manual
supplied with the HDMI-CEC compatible device
for further information.
Use the buttons to select [POWER
CONTROL LINK].
Use the + – buttons to highlight [YES], then
press the SET/POINT ZOOM button to select
[YES].
AUDIO
RECEIVER
System Audio Control Please connect an audio equipment with ARC
function to HDMI1 (ARC) by the included ARC
supported HDMI cable.
The Volume button on the wireless remote
control can control the volume of the connected
HDMI ARC audio equipment.
While this function is active, the monitor’s
internal speaker is automatically set to MUTE.
Use the buttons to select [AUDIO
RECEIVER] then press SET/POINT ZOOM.
Use the + – buttons to highlight [ENABLE], then
press the SET/POINT ZOOM button to select
[ENABLE].
SEARCH
DEVICE
Device OSD Name Transfer Use the + – buttons to highlight YES, then
press the SET/POINT ZOOM button to start the
search.
Use the buttons to select [SEARCH
DEVICE].
This function searches for CEC compatible
devices on the monitor’s HDMI connections. If
a HDMI-CEC compatible device is successfully
detected, this function obtains the device’s
name. The device’s name and the HDMI
connection it is found on are displayed.
Routing Control By selecting a device name, the HDMI-CEC
compatible device input switches to the input
you selected. After selecting the device, wireless
remote control operation functions for the
selected device.
This CEC function supports Feature Abort.
Please refer to Connections (see page 26) for HDMI-CEC compatible device connection.
English−31
Internal Video Sources
Option Boards for the Monitor
When an Option Board or a Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed
in the monitor, it will show as available in the list in the [INPUT] of the OSD menu. Option Boards, the Raspberry Pi Compute
Module Interface Board and Raspberry Pi Compute Module are available separately and must be physically installed in the
monitor. This document contains instructions for how to use the monitor without any additional options. The locations where an
Option Board and the Raspberry Pi Compute Module Interface Board, Raspberry Pi Compute Module are installed is indicated
on the Terminal Panel diagram (see page 22). Full installation and usage instructions are provided with the individual device
or available online.
NOTE: • The optional DS1-IF20CE Compute Module Interface Board and Raspberry Pi Compute Module are available
separately. Please contact an authorized NEC dealer for more information. Installation must be performed by a
qualified technician. Do not attempt to install a Compute Module Interface Board and Raspberry Pi Compute Module
by yourself. See page 84.
• Please contact your supplier for available Option Boards.
Connecting a USB Device
Some of the USB ports on the monitor’s terminal panel have different uses depending on the type of connected USB device.
Please follow these guidelines when using these ports with supported devices.
USB-A (Hub/0.5A): USB downstream port (Type-A).
Connection used by external USB devices (such as cameras, flash memory, keyboards, etc.)
USB-B (Ctrl): USB upstream port (Type-B).
Connection to a computer with a USB cable. A USB compatible computer connected to USB-B (Ctrl) can
control the devices connected to USB-A (Hub/0.5A) port.
Service (2A): Service port/Power supply port.
This port is for future software upgrades.
Provides up to 2A of power to a connected USB device, such as HDMI streaming media or presenter
sticks. The actual amount of power consumption depends on the connected device. Make sure to use a
USB cable that supports 2A.
Enable [USB POWER] in the [USB] settings of the [SYSTEM] menu in the OSD. See page 106.
Please refer to the specifications pages for power supply information. See page 75.
NOTE: When connecting a color sensor to the Service (2A) port, please set [EXTERNAL CONTROL] in
[USB] to [DISABLE].
CAUTION: Pleaser refer to “CAUTION 2”.
NOTE: • Please make sure the connector shape and orientation is correctly aligned when connecting the USB device or
cable.
• Connecting/disconnecting a USB storage device with the monitor already powered on is not recommended. To
prevent damage to the monitor and possible corruption of the connected device’s data files, the monitor’s main power
switch should be off before making connections or disconnections.
English−32
Chapter 4 Basic Operation
This Chapter Includes:
> “Power ON and OFF Modes” on page 33
> “Operating Range for the Remote Control” on page 34
> “Using Power Management” on page 34
> “Showing the Information OSD” on page 35
> “Switching Between Picture Modes” on page 35
> “Setting the Aspect Ratio” on page 36
> “Using Point Zoom” on page 37
> “OSD (On-Screen Display) Controls” on page 38
English−33

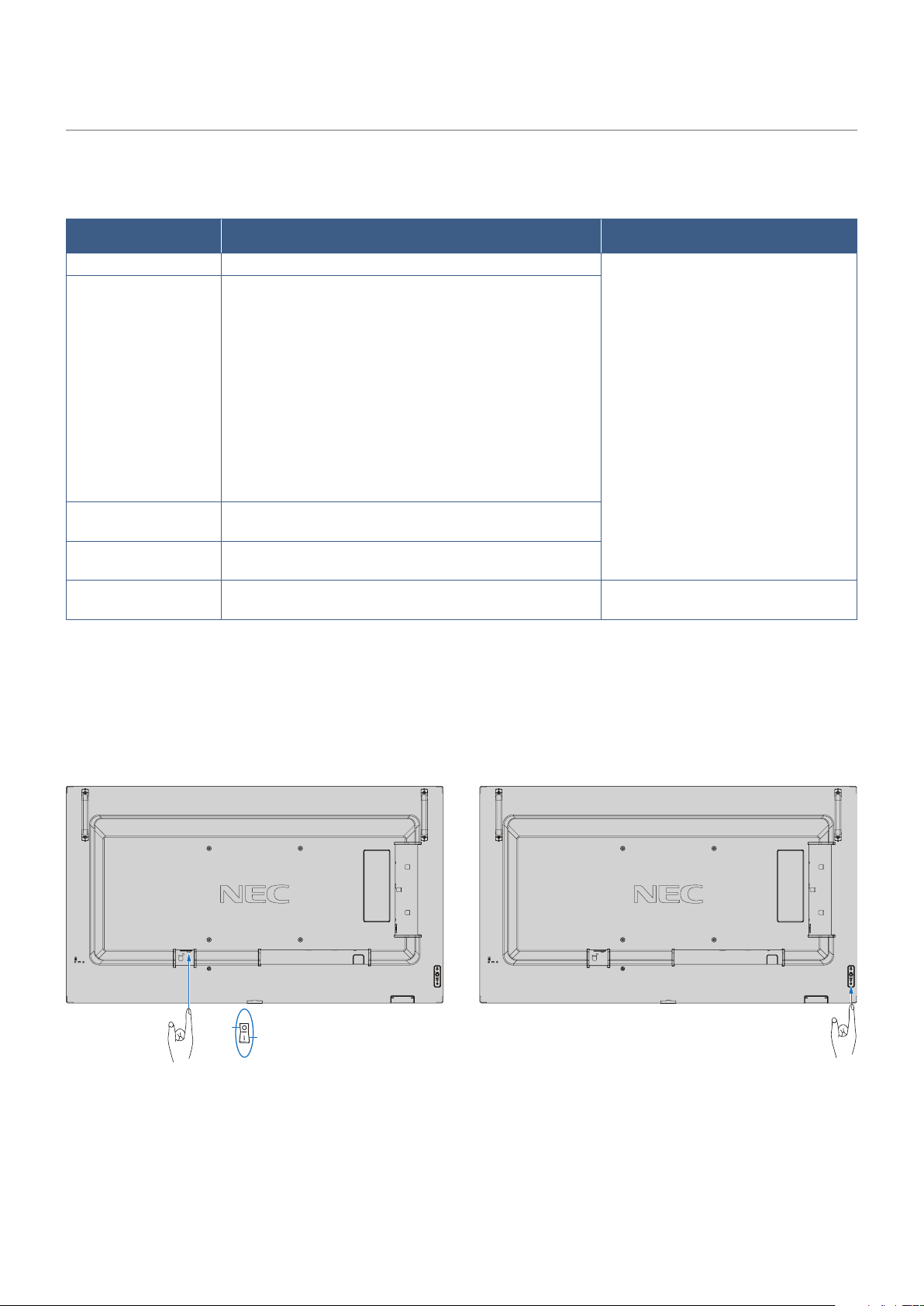

Power ON and OFF Modes
Press the ⏻ button on the Control Panel or POWER ON button on the remote control to turn on the monitor.
The monitor’s power LED indicates the current status of the monitor. Please refer to the following table for information about the
power indicator.
Power indicator status and
lighting pattern
Condition Recovery
Glowing blue Normal 1. Turn on the monitor by the remote
control or the monitor button.
2. Send an AV signal input to the
monitor.
Blinking green*
1
Under any of the conditions below, no input signal has
been detected by the monitor during the period of time
you set:
• The monitor is using an Option Board*
2
.
• [AUTO INPUT CHANGE] is set to a setting except for
[NONE].
• [USB POWER] is set to [ON].
• [SLOT POWER] is set to [ON].
• [POWER CONTROL LINK] of [CEC] is set to [ENABLE].
• [DisplayPort VERSION] is set to [1.2 MST] or [1.4 MST].
• [QUICK START] is [ENABLE].
Glowing amber No AV signal input has been detected by the monitor during
the period of time you set. (with network signal input)
Blinking amber No AV signal input has been detected by the monitor during
the period of time you set. (no network signal input)
Glowing red Turn off the monitor by the remote control or the monitor
button.
Turn on the monitor by the remote
control or the monitor button.
*
1
: Time setting for auto power save is available at [POWER SAVE SETTINGS] (See page 101).
*
2
: [SLOT POWER] is [ON] or [AUTO].
NOTE: • The blue power indicator that the monitor is powered on and functioning normally can be turned off in the monitor’s
OSD menu options. See page 106.
• If the indicator is blinking red in a combination of long and short durations, a certain failure might have occurred.
Please contact your supplier.
The Main Power switch must be in the ON position in order to power up the monitor using the POWER ON button on the remote
control or the ⏻ button on the Control Panel.
Main Power Switch
OFF
ON
⏻ Button
English−34
Operating Range for the Remote Control
Point the top of the remote control toward the monitor’s remote control sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.) from the remote
control sensor, or at a horizontal and vertical angle of within 30° and within a
distance of about 3.5 m (10 ft.).
NOTE: The remote control system may not function when direct sunlight or strong
illumination strikes the remote control sensor, or when there is an object in
the path.
Handling the remote control
• Do not expose to strong shock.
• Do not allow water or other liquid to splash on the remote control.
If the remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Except to install the batteries, do not open the remote control.
Using Power Management
This function decreases the power consumption of the monitor when it is not in use.
When connected to a computer, power consumption by the monitor reduces automatically if the keyboard or mouse are not used
during the time set in the computer’s power management settings. Refer to your computer’s user manual for more information.
When connected to an AV source, such as a Blu-ray, DVD, or streaming video player, power consumption by the monitor
reduces automatically after a certain amount of time has passed since the monitor recognized “no signal input”. This option is
turned on or off in the [POWER SAVE] settings in [POWER SAVE SETTINGS] menu of the OSD. See page 101.
NOTE: • Depending on the computer and display card used, this function may not operate.
• After the video signal is lost, the monitor automatically turns off after a preset time period. Please refer to the [TIME
SETTING] in [POWER SAVE SETTINGS] page 101.
• Schedules can be created for the monitor to power on or off at specific times. See page 41.
English−35
Showing the Information OSD
The Information OSD provides information such as: Input Source, Picture Size, IP Address, Monitor ID, etc.
Press the DISPLAY button on the remote control to bring up the Information OSD.
H
3840 x 2160@60Hz
HDMI1MONITOR ID:1
IP ADDRESS: 192.168.0.10
1
Input name
2
Resolution Information
3
HDR Information
4
Communication Info*
* Shows when [COMMUNICATION INFO.] is [ON].
Green: Connected LAN
Red: Not connected LAN
Switching Between Picture Modes
Press the PICTURE MODE button on the wireless remote control to cycle through the picture modes [NATIVE], [RETAIL],
[CONFERENCING], [HIGHBRIGHT], [TRANSPORTATION] and [CUSTOM].
The picture modes are pre-configured with settings for general use. See “Using Other Picture Modes” on page 48 for
instructions on changing the picture mode settings.
English−36

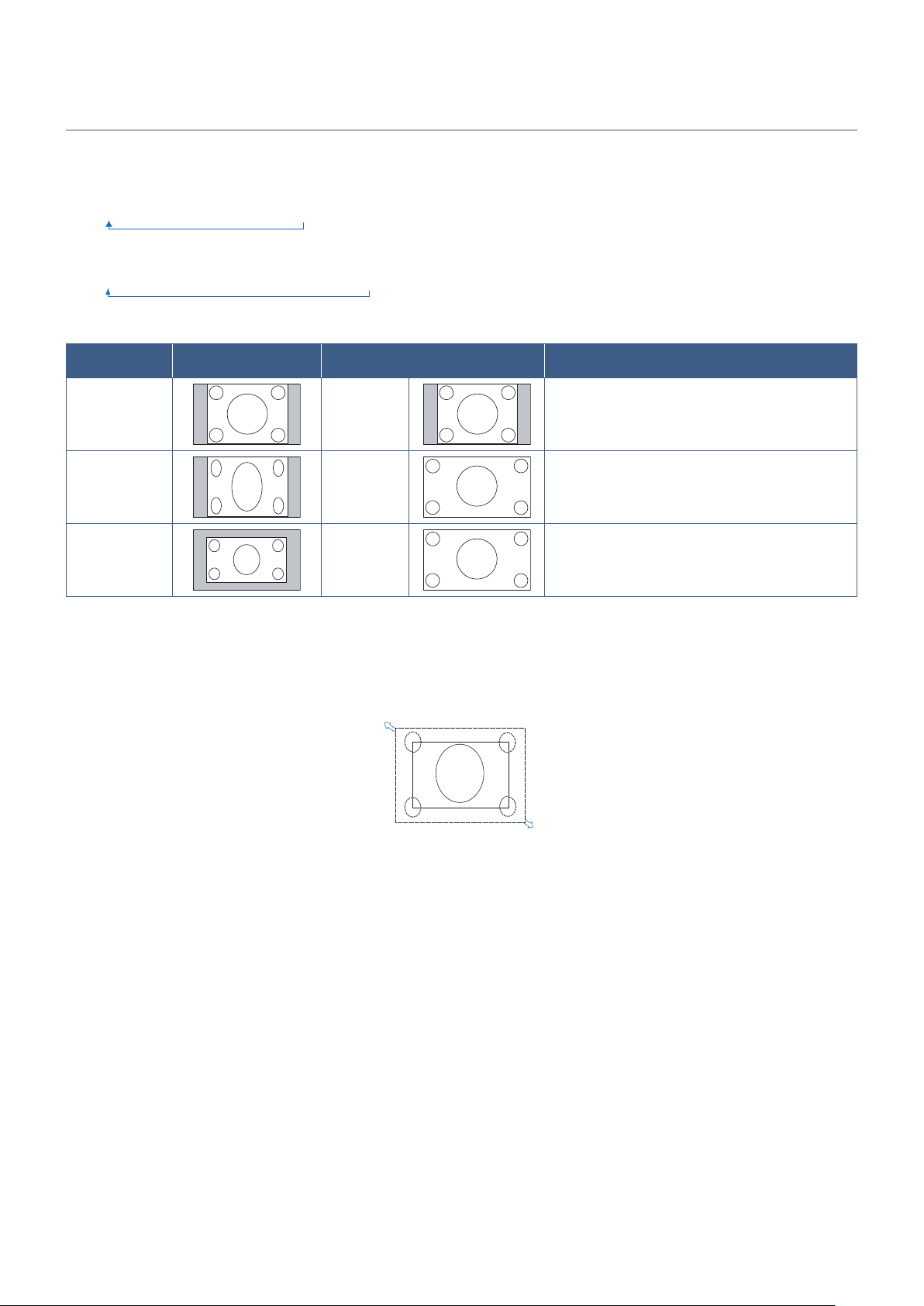

Setting the Aspect Ratio
Press the ASPECT button on the remote control to cycle through the options available for the current input signal.
For DisplayPort1, DisplayPort2, OPTION (DisplayPort)*
1
• [FULL] ➙ [1:1] ➙ [ZOOM] ➙ [NORMAL]
For HDMI1, HDMI2, OPTION (TMDS)*
1
, COMPUTE MODULE*
2
• [FULL] ➙ [WIDE] ➙ [1:1] ➙ [ZOOM] ➙ [NORMAL]
*
1
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
Aspect ratio of
Unchanged view*
3
Recommended selection for picture
aspect*
3
Description
4:3 [NORMAL] Reproduces the aspect ratio that is sent from
the source.
Squeeze [FULL] Fills the entire screen.
Letterbox [WIDE] Expands a 16:9 letter box signal to fill the entire
screen.
*
3
: Gray areas indicate unused portions of the screen.
[1:1]: Shows the image in a 1 by 1 pixel format.
[ZOOM]
• The zoom function increases the image size, which expands the image beyond the active screen area. The parts of the
image outside the active screen area are not shown.
ZOOM
ZOOM
English−37

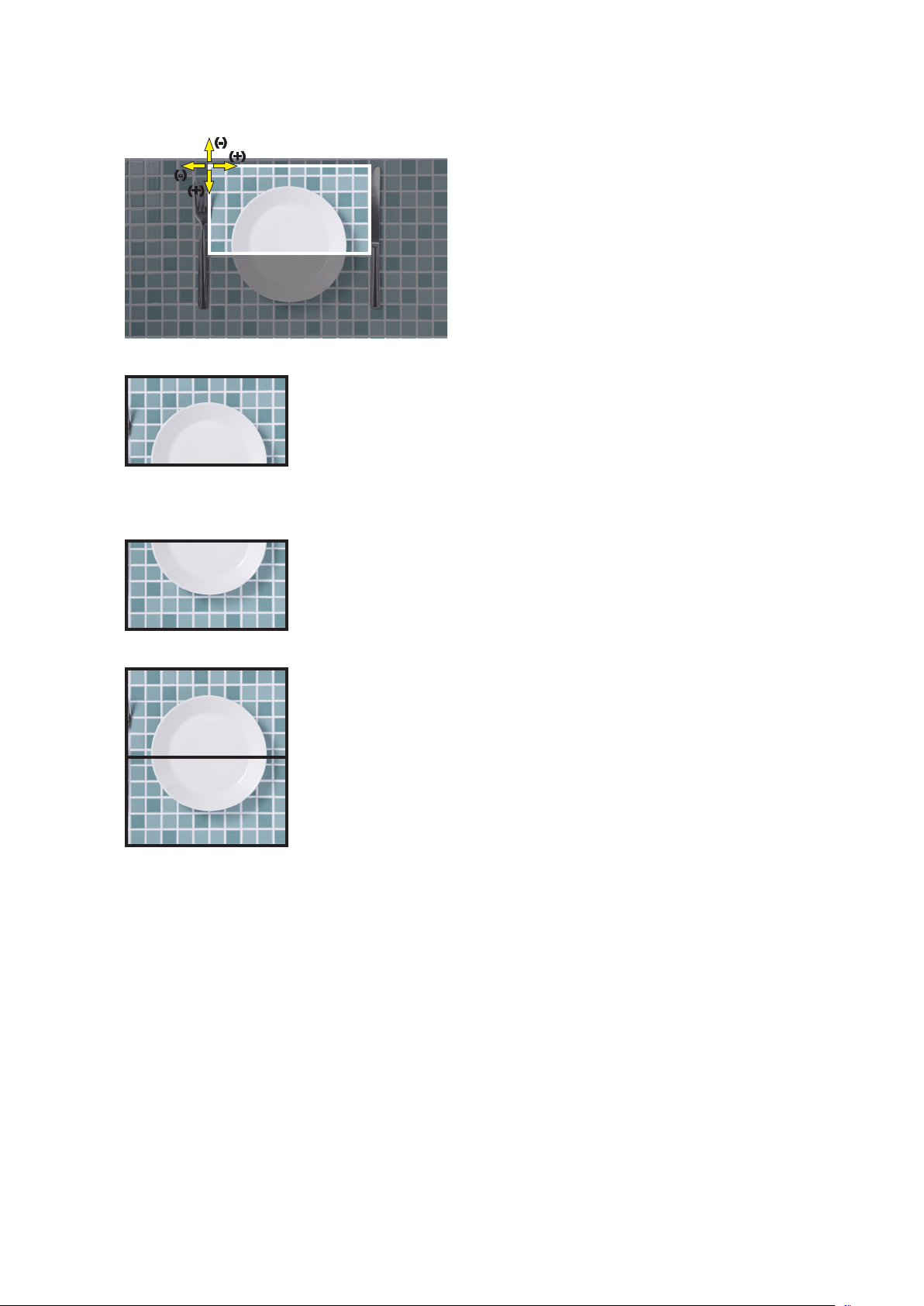

Using Point Zoom
The POINT ZOOM function increases the image size and expands it horizontally and vertically simultaneously. The image can
be increased up to 10 times its size.
1. Press the SET/POINT ZOOM button on the remote control. A magnifier icon appears on-screen.
2. Move the magnifier to the area of the image you want to focus on by pressing the + – buttons.
3. Press the CH/ZOOM+ button to zoom in. Press CH/ZOOM– button to zoom out. When zooming in, the image expands past
the active screen area. The area at the magnifier location shifts closer to the center of the screen at each magnification level.
4. Press the SET/POINT ZOOM button to close the magnifier.
5. The image will remain zoomed in after closing the magnifier. Press the EXIT button to return to the normal image size.
NOTE: • The image may look distorted when using this function.
• This function is disabled when one of these functions is active: [MOTION] in [SCREEN SAVER], [TILE MATRIX],
[MULTI PICTURE], [IMAGE FLIP], [QUICK INPUT CHANGE], [MODE1] or [MODE] in [CEC], [DUAL DAISY CHAIN
MODE], [ROTATE] or if input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4].
• The STILL function does not work when the [POINT ZOOM] function is active.
• When the [ASPECT] setting is [ZOOM], pressing the POINT ZOOM button automatically sets the [ASPECT] to
[FULL] and then starts the POINT ZOOM function.
• After exiting POINT ZOOM, the [ASPECT] will return to the previous [ASPECT] setting. When the [ASPECT] is
changed during the POINT ZOOM operation, [ZOOM] will be set to [FULL].
• The magnifier icon will not move outside the active picture area.
• The image returns to the normal size after changing the input signal or when the monitor is powered off.
• POINT ZOOM is not available with DisplayPort signal 4K (60 Hz) 10bit.
• This function is released when one of these functions is active while this function is operating: [MOTION] in
[SCREEN SAVER], [TILE MATRIX], [MULTI PICTURE], [IMAGE FLIP], [QUICK INPUT CHANGE], [MODE1] or
[MODE] in [CEC], [DUAL DAISY CHAIN MODE], [AUDIO INPUT], [ROTATE] or if input is set to [DisplayPort1] then
[DisplayPort VERSION] is set to [1.4].
English−38
OSD (On-Screen Display) Controls
NOTE: Some functions may not be available depending on the model or optional equipment.
Goto Adjustment
Select
Return Close
PICTURE:
PICTURE MODE
BACKLIGHT
VIDEO BLACK LEVEL
GAMMA
COLOR
CONTRAST
BACKLIGHT DIMMING
SPECTRAVIEW ENGINE
ADVANCED
NATIVE
RETAIL
CONFERENCING
HIGHBRIGHT
TRANSPORTATION
CUSTOM
Input source
Main Menu Icons
Main Menu Item
Sub Menu
Key Guide
Adjustment Settings
Remote Control
Press or
to navigate to a
sub-menu.
Press SET/POINT
ZOOM to select an
option.
Press or , + or –
to select the function or
setting to be adjusted.
Press MENU or EXIT.
Control Panel
Press INPUT to select an option.
Press MENU/EXIT to open or exit the
OSD menu.
Move r, s, v, w keys to select the
function or setting to be adjusted.
Press SET to select an option.
English−39
Below is a brief summary of where controls are under each menu item. A table listing all options is located in “OSD Controls List”
on page 86.
INPUT: Select settings related to the input signal source.
PICTURE: Select one of the default picture modes, manually adjust the color settings, adjust the aspect ratio,
and adjust other settings related to the picture.
AUDIO: Adjust volume, balance, equalizer, and select settings related to the audio.
SCHEDULE: Create auto power on/off schedules, set the daylight savings time, and off timer.
SLOT: Select settings related to an Option Board if installed.
NETWORK: Set network information, security, etc.
PROTECT: Select options related to protecting the monitor hardware, such as configuring the cooling fans,
adjusting automatic power save and power on delay, and enabling the alert mail to be notified when an error
occurs in the monitor.
SYSTEM: View the monitor information, set the date and time, select the languages of the on-screen display
menu, or perform a factory reset.
English−41
Creating a Power Schedule
The schedule function allows the monitor to automatically change between power on and standby modes at different times.
To program the schedule:
1. Enter the [SCHEDULE] menu.
a
Using the remote control, highlight [SCHEDULE SETTINGS] using
the and buttons.
b
Press the SET/POINT ZOOM or the + button to enter the Settings menu.
c
Highlight the desired schedule number and press SET/POINT ZOOM
button.
d
The box next to the number will turn yellow.
The schedule can now be programmed.
2. Use the button to highlight the [POWER]. Use the + and – buttons to
set [ON].
To set a power off schedule, set [OFF].
3. Use the button to highlight the [TIME]. Use the + and – buttons to set the time.
4. Use the and buttons to highlight [INPUT]. Use the + and – buttons to choose the input source.
5. Use the button to select [DATE] or [EVERY WEEK]. Press the SET/POINT ZOOM button on a menu which is suitable for
the schedule.
If the schedule is to be run on a specific day, choose [DATE] and press the SET/POINT ZOOM button.
If a weekly schedule is desired, choose the [EVERY WEEK] using the and buttons and pressing SET/POINT ZOOM
button to select. Then select the specific day and press SET/POINT ZOOM button.
6. After a schedule is programmed, the remaining schedules can then be set. Press MENU button to leave the OSD or press
EXIT button to go back to the previous menu.
NOTE: • The [DATE & TIME] needs to be set before adding schedules.
• Schedules you configure are saved when exiting the [SCHEDULE INFORMATION] window.
• If multiple schedules are set to start at the same time, the conflicting schedule with the highest number is given
priority.
• Schedules will not run when the [OFF TIMER] is set to [ON].
• If an input signal or picture mode is no longer valid, it will show its text in red. Highlight the red text and press SET to
change to a valid setting. For example, an input signal may become invalid if the [INPUT-ADVANCED] settings are
changed for that input after it was selected for the schedule.
• Schedules do not run while the [SCHEDULE INFORMATION] menu is open.
Set date and time to the monitor:
TIME ZONE: Set the time difference between the region where the monitor is used and the UTC (Universal Time, Coordinated).
• Initial value: +00:00.
• When using the monitor in Japan, set the time as [+09:00].
INTERNET TIME SERVER: Sets the current date and time.
• When synchronizing the time with the NTP server on the network to obtain the correct time, set [INTERNET TIME SERVER]
to [ON]. Then enter the IP address of the NTP server or the [HOST NAME] and perform [UPDATE].
IMPORTANT: • When a period of about two weeks has passed after disconnecting the power cord of the monitor, the time will
be initialized and the clock function will stop. When initialized, the date becomes [01.01.2020] and the time
becomes [00:00]. If the clock function has stopped, configure the [DATE & TIME] again.
SCHEDULE:
SCHEDULE SETTINGS
OFF TIMER
RESET
SETTINGS:
1
POWER: ON
TIME: 04 : 03
INPUT: HDMI1
DATE
YEAR: 2020
MONTH: JANUARY
DAY: 01
EVERY WEEK
SUN MON TUE WED
THU FRI SAT
English−42
Advanced Color Adjustment
The SpectraView Engine (SVE) is a custom color processor engine integrated in the monitor. It combines individual
characterization and calibration of the monitor during production together with temperature and time monitoring, to provide an
unparalleled level of color control, accuracy and stability.
Adjustable color uniformity correction is available, utilizing detailed individual factory screen measurements together with the
SVE to produce the best possible matching displays.
The SVE provides the utmost in versatility; from faster and more advanced color calibration, to the ability to accurately emulate
colorspaces such as Adobe
®
RGB and sRGB, to performing printer output emulations using ICC Profiles and internal 3D Look
Up Tables.
The SVE can operate in one of two modes: On or Off.
To enable or disable the SpectraView Engine using the remote control:
1. Using the remote control, press the MENU button.
2. Navigate to the [PICTURE] menu then to [SPECTRAVIEW ENGINE].
Use the + – buttons to navigate the OSD menu.
3. Highlight [ON] or [OFF] and press SET/POINT ZOOM to enable or disable the SpectraView Engine.
4. Press EXIT button to return to the main [PICTURE] menu.
Using the SpectraView Engine
When the SVE is on, the monitor’s internal processor will handle many of the color management features and the user color
controls allow a unique level of precision to be achieved. The white point is adjusted using a CIE x, y control and the grayscale
response of the display is calculated and managed by the monitor itself.
The SVE includes Uniformity Correction, where different levels of compensation can be selected to enable a trade-off between
the most uniform brightness and color vs. maximum brightness.
The SVE has five Picture Mode memories that can be individually configured and selected. Each individual Picture Mode can
store fully customized color settings. This allows you to quickly switch between different settings by just changing between
picture modes.
Using the SVE will also give access to other advanced functionality, such as the ability to emulate several modes of human color
vision deficiency as well as the ability to select the monitor’s output color gamut.
To change the settings in each SVE picture mode:
Presets have been configured with settings for general use as described in the “Preset Types” table next page. When choosing
a preset for the SVE picture mode, all of the settings are immediately adjusted to match the preset. Each setting can be
individually adjusted to customize as needed.
1. Using the remote control, press the MENU button.
2. Navigate to the [PICTURE] menu then to [PICTURE MODE].
Use the + – buttons to navigate the OSD menu.
3. Press the + button to navigate to the [PICTURE MODE] field.
4. Select a setting from 1 through 5 at [PICTURE MODE].
• 1 ➙ 2 ➙ 3 ➙ 4 ➙ 5
English−43
5. Select a preset item at [PRESET].
Choose the [PRESET] that is most suitable for the type of content that is shown or application usage.
Each [PICTURE MODE] includes [LUMINANCE], [BLACK] (Black level), [GAMMA], [WHITE (K)] (color temperature),
[WHITE (x, y)] (White point CIE x, y), [RED] (Red Primary CIE x, y), [GREEN] (Green Primary CIE x, y), and [BLUE] (Blue
Primary CIE x, y), settings. You can change these settings in the “Picture Mode” menu.
If any settings need to be changed, press the button to navigate through the settings and make any adjustments needed
using the + – buttons.
6. Press EXIT button to return to the main [PICTURE] menu.
PICTURE:
PICTURE MODE
EMULATION
6 AXIS COLOR TRIM
UNIFORMITY
BACKLIGHT DIMMING
SPECTRAVIEW ENGINE
ADVANCED
PICTURE MODE 5
PRESET Programmable
3D LUT EMU. MySetting-1
LUMINANCE 400 cd/m
2
BLACK 0.5 cd/m
2
GAMMA Custom
CUSTOM VALUE 2.2
WHITE 10000 K
x: 0.279 y: 0.292
RED x: 0.642 y: 0.332
GREEN x: 0.307 y: 0.602
BLUE x: 0.153 y: 0.053
NOTE: • Changing the settings in the [PICTURE MODE] menu does not change the default settings for the [PRESET].
• “” mark is shown if the Picture Mode settings have been changed from the default preset settings.
Preset Types
PRESET PURPOSE
sRGB The standard color setting of the Internet, Windows
®
operating systems, and many smart-phone and
other digital cameras. Recommended setting for general color management.
AdobeRGB Wider color gamut setting used in high-end graphics applications such as professional digital still
cameras and printing.
eciRGB_v2 Color setting recommended by Europe printing group, ECI (The European Color Initiative).
DCI-P3 Color setting for digital cinema.
Rec.709 Color setting for High-definition television.
Rec.2100 (HLG) Color setting for HDR (High Dynamic Range) broadcasting.
Rec.2100 (PQ) Color setting for HDR (High Dynamic Range) digital cinema on disc and internet streaming.
Low Blue Reduces blue light emitted from the monitor. Paper-like color setting.
(The Low Blue function substantially reduces blue light and helps to alleviate eye-strain.)
Signage Color setting for use in digital signage applications with high ambient lighting conditions where a bright
and high color temperature white point may be desirable.
TV Studio Color setting for use with “on set shooting” where the monitor’s screen will be captured by the camera
and should match the studio set’s incandescent lighting.
Full Native LCD panel color gamut. Suitable for use with color managed applications.
DICOM sim. Color setting for medical imaging that conforms to DICOM GSDF (Grayscale Standard Display
Function).
NOTE: Do not use for diagnostic purposes.
Programmable Programmable preset for MultiProfiler and other supported software. The preset name can be changed
by software.
English−44

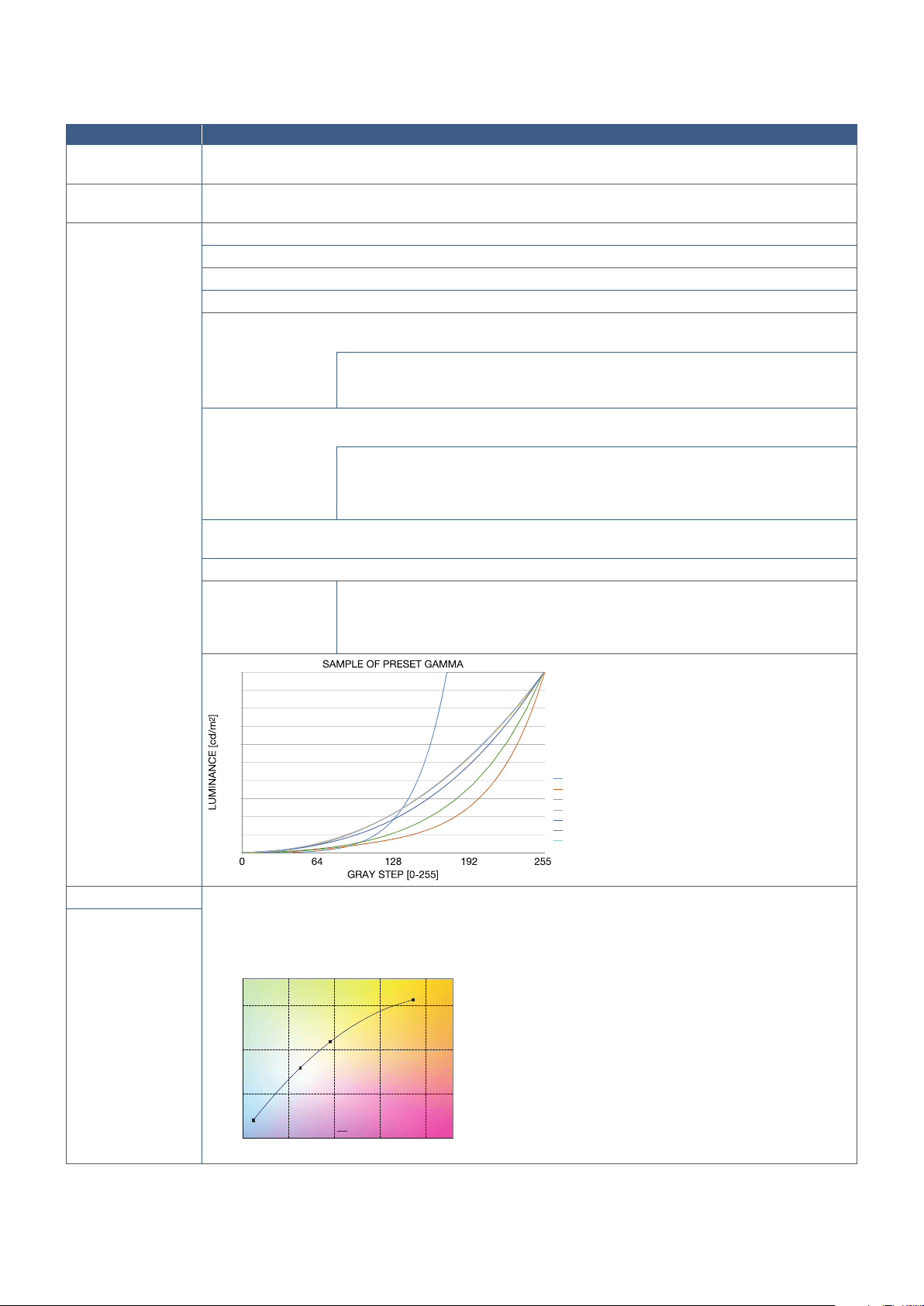

SpectraView Settings
SVE SETTINGS PURPOSE
LUMINANCE Adjusts the overall image and screen background luminance. When the setting is too high to show, the
OSD characters are changed to yellow.
BLACK Adjusts the black luminance. When the setting is too low to show, the OSD characters are changed to
yellow.
GAMMA Allows you to manually select the brightness level of grayscale.
sRGB: Gamma setting for sRGB.
L Star: Gamma setting for the CIELAB color space Lab.
Rec.1886: Gamma setting for HDTV broadcasting.
HDR-Hybrid Log: Gamma setting for HDR, typically for UHD broadcasting. System gamma can be
adjusted.
SYSTEM GAMMA: System gamma is adjustable in 0.5-2.0 range. When “Auto”
is selected, the system gamma is automatically selected according to the
“Luminance” setting.
HDR-ST2084 (PQ): Gamma setting for HDR, typically for UHD disk media and streaming videos.
Peak luminance value is adjustable.
PEAK LUMI.: Sets the peak luminance value to show HDR-ST2084 (PQ)
luminance range. A larger value will improve white saturation but the picture
become darker. When “Auto” is selected, “Luminance” is used as the peak
luminance setting.
DICOM: DICOM GSDF (Grayscale Standard Display Function) is typically used for medical
imaging.
Programmable: A programmable gamma curve can be loaded using optional NEC software.
Custom: CUSTOM VALUE: The gamma value is selected from a range from 0.5 to 4.0 in
0.1 steps. For general images 2.2 is used. Increasing the value will make the
intermediate color darker, and lowering the value will make the intermediate color
brighter.
HDR-ST2084 (PQ)
HDR-Hybrid Log
Custom
Rec.1886
L Star
DICOM
sRGB
100
90
80
70
60
50
40
30
20
10
WHITE (K) Adjusts the white by color temperature (K) or CIE x, y setting. A lower color temperature will result in a
reddish screen and a higher color temperature in a bluish screen. A larger x value will result in a reddish
screen, a larger y value changes the screen to greenish, and smaller x,y values will change the screen
to bluish white.
WHITE RANGE
0.25
0.30
0.35
0.40
0.25 0.30 0.35 0.40 0.45
x
y
WHITE TEMPERATURE
15000K
3000K
6500K
5000K
0.43
0.48
WHITE (x, y)
English−45

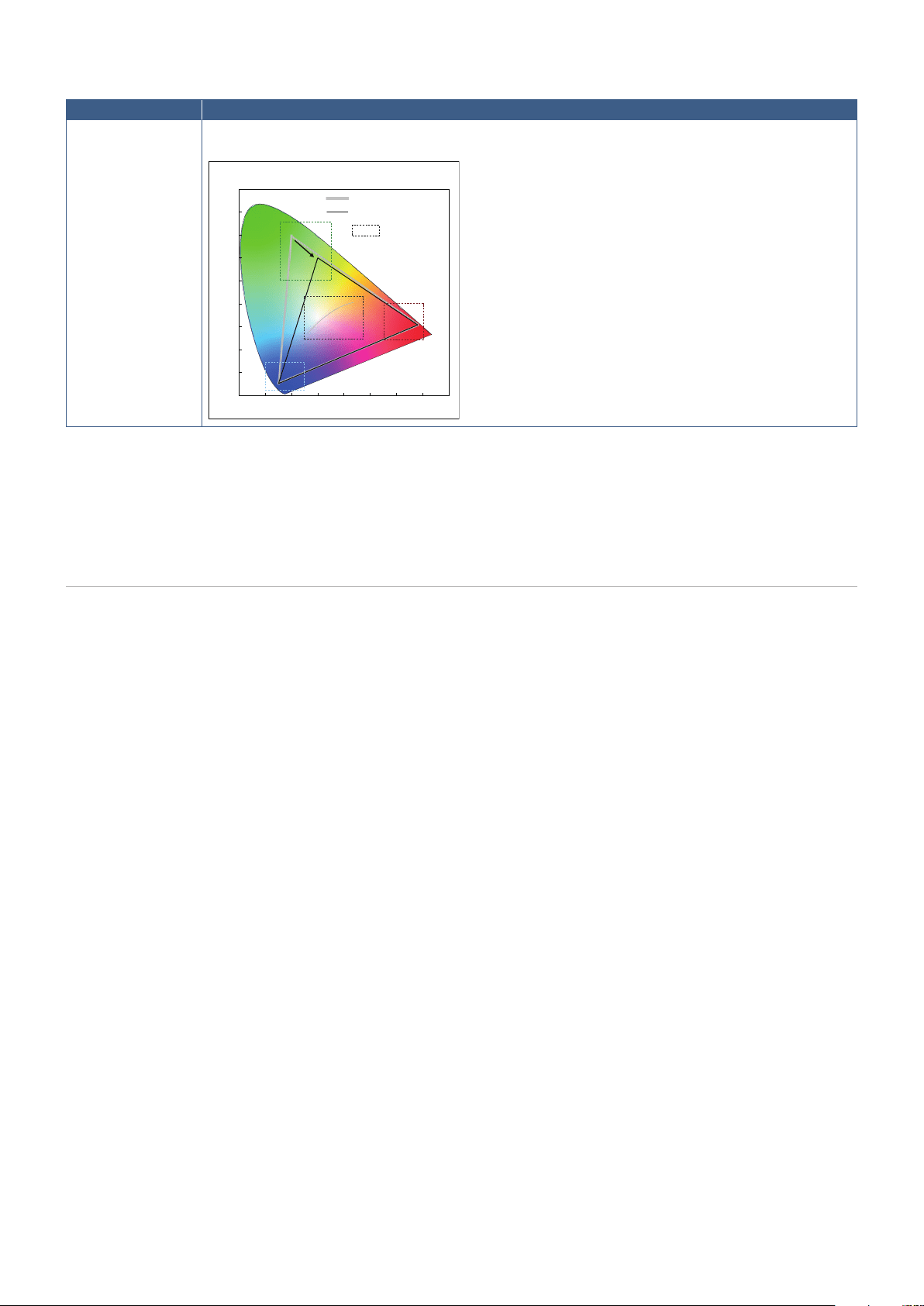

SVE SETTINGS PURPOSE
RED (x,y)
GREEN (x,y)
BLUE (x,y)
Adjusts the color gamut. Set chromaticity with CIE x, y coordinates. It affects all colors except
achromatic like white and gray.
LCD NATIVE GAMUT
GREEN MODIFIED
WHITE
GREEN
RED
BLUE
SETTING
RANGE
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0.80.70.60.50.40.30.20.1
SAMPLE OF RGB GAMUT SETTING
x
y
NOTE: • Settings for [EMULATION], [6 AXIS COLOR TRIM], and [UNIFORMITY] are also stored to each [PICTURE MODE].
• If the ICC Profile on your computer doesn’t match the monitor’s settings then color reproduction may be inaccurate.
• For detailed color settings and to set the ICC profile on your computer automatically, MultiProfiler software is
recommended. Connecting PC and the monitor with a USB cable is recommended. See page 85.
Using Stand-alone calibration
This feature performs color calibration of the monitor without using an external computer or software. This is useful for color
matching a small number of monitors quickly. It also updates the factory color measurement data used by the monitor’s internal
SpectraView Engine (SVE) color processor.
Updating the factory color data with measurements taken from a color sensor results in color related settings, shown on the
OSD, closely matching measurements from the color sensor. In effect, the color sensor’s measurements become the new
reference for all of the SVE’s internal color calculations. All color presets in the monitor automatically update to use the new
reference.
Requirements for Stand Alone Calibration:
• NEC MDSVSENSOR 3 color sensor. This sensor connects directly to the USB Service (2A) port on the monitor. The monitor
automatically takes screen measurements directly from the color sensor. See Appendix A for purchase and availability
information.
Or
• A near-range colorimeter with a measurement readout display in CIE Y/x, y format with Y in units of cd/m
2
. Measurements
are taken manually and each reading must be entered into the monitor via the OSD using the remote control. [VALIDATION]
and [WHITE COPY] are not available.
NOTE: Other color sensor models and types are not supported.
NOTE: • For best calibration results, it is recommended the monitor be allowed to warm up for at least 30 minutes before
starting the calibration or measurement process.
• It is not necessary to recalibrate the other Picture Modes in the monitor after performing the Self Calibration.
Updating the monitor’s internal reference automatically updates all color settings.
• The original factory measurements can be restored at any time.
• Access to each monitor’s USB Service (2A) port is necessary to use this feature with the NEC MDSVSENSOR 3
color sensor. Be sure to provide adequate access when installing the monitors.
• Differences between the factory color measurements and those taken with a color sensor are to be expected.
Differences can be due to many factors, such as variations between color sensor measurement technologies and
device calibration and drift, measurement position on the screen, and video signal differences.
• For color matching and managing a large number of monitors, the NEC Display Wall Calibrator software is
recommended. See Appendix A for details.
• To open Stand Alone Calibration OSD menu, select Calibration (see page 92) on the OSD. Please make sure
[SPECTRAVIEW ENGINE] is [ON] (see page 92).
English−46
To open the STAND-ALONE CALIBRATION window using the remote control:
1. Press the MENU button.
2. Navigate to the [PICTURE] menu then to [SPECTRAVIEW ENGINE].
Use the + – buttons to navigate the OSD menu.
3. Highlight [ON] and press SET/POINT ZOOM button to enable the SpectraView Engine.
4. Navigate to [CALIBRATION] then press SET/POINT ZOOM button. The STAND-ALONE CALIBRATION window appears.
5. Highlight a menu then press SET/POINT ZOOM button.
6. Press the EXIT button to close the OSD window.
Follow the instructions on the OSD message.
USB color sensor
STAND-ALONE CALIBRATION:
FUNCTION SELECTION
SELF CALIBRATION
RESET CALIBRATION
VALIDATION
WHITE COPY
LAST CALIBRATION
2020/03/03 17:15
MDSVSENSOR3: CONNECTED
Press Set key to select function
Service (2A) port
Self calibration
This function updates the monitor’s internal SpectraView Engine color processor to use measurements taken using a supported
color sensor device. These measurements will become the reference for all color settings in the monitor.
When an NEC MDSVSENSOR 3 color sensor is connected to the monitor’s USB Service (2A) port, the monitor takes
measurements and is calibrated automatically. Place the color sensor at the center of the screen and follow the messages
shown.
Otherwise, if using a near-range colorimeter device, measurements must be taken manually with the device and the CIE Y/x/y
values individually entered via the OSD using the remote control. Y is in units of cd/m
2
.
Depending on the monitor usage and other factors, performing a Self Calibration at least once per year is recommended.
Reset calibration
This deletes the color measurement data created by the Self Calibration function and returns to the original factory internal
reference color measurement data. All Picture Modes will automatically be updated. If you are using NEC Display Wall
Calibrator, uniformity adjustment data is also deleted.
Validation
This can be used to determine if the Self Calibration operation should be performed.
It compares measurements taken of various color patches on the screen by the color sensor with the expected values calculated
by the SVE, which uses the current internal reference color measurement data. The result of this comparison is indicated as an
average color difference (dE) value. Larger values mean there is a larger difference between the measurements and the internal
reference. If the dE value is higher than 3.0, Self Calibration is recommended to update the internal reference color data.
The Self Calibration function must have been previously performed before this function is available on the OSD menu.
NOTE: • [Self calibration], [Validation] and [WHITE COPY] are not available if the input is [DISPLAYPORT1] then [DisplayPort
VERSION] is set [1.4].
• The date and time stamped results of the “Self calibration” and “Validation” functions are stored in the monitor
and can be read by software on your computer. Setting the [YEAR], [MONTH], [DAY] and [TIME] in [SYSTEM] ➙
[DATE & TIME] OSD menu is required for this function.
English−47
White copy
This function can be used to “copy” the luminance and white point from another monitor when used in a multi-monitor
installation. This process is done by measuring the color of a monitor and setting those measured values into the monitor being
adjusted. This can be useful in situations where it is necessary to match a monitor in color to neighboring monitors without
having to recalibrate all monitors.
Before starting, it is necessary to input a full-white video signal to all of the monitors. Select the monitor that will be used as the
Target – or source - of the copy operation (A).
This function will measure the luminance and white point of the target monitor (A), and set these values to the current Picture
Mode of the destination monitor (B).
You can also fine-tune the measurement result while checking the screen color. If you want to return to the measured value,
select re-measurement.
The Self Calibration function must have been previously performed before this function is available on the OSD menu.
BA
USB color sensor
Monitor A – SOURCE monitor of white point to copy.
Monitor B – This monitor which performs a copy.
Service (2A) port
NOTE: When adjusting the color of multiple monitors, we recommend that you perform [SELF CALIBRATION] from
[WHITE COPY].
English−48
Using Other Picture Modes
There are different picture modes available when the SpectraView Engine is off in the OSD menu. These picture modes have
also been configured with settings as described in the “Picture Mode Types” table below.
To change picture modes:
Press the PICTURE MODE button on the wireless remote control to cycle through the modes, or select the mode in the
[PICTURE] list in the OSD menu.
These picture modes are available based on the selected input:
• For [DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2], [COMPUTE MODULE]*
2
, [OPTION*
1
]
NATIVE ➙ RETAIL ➙ CONFERENCING ➙ HIGHBRIGHT ➙ TRANSPORTATION ➙ CUSTOM
*
1
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
Picture Mode Types
PICTURE MODE PURPOSE
NATIVE Standard setting.
RETAIL Bright, vivid colors ideal for advertising and branding.
CONFERENCING Lower color temperature and optimized natural human complexions.
HIGHBRIGHT Maximum backlight brightness with higher color temperature for brighter ambient environments.
TRANSPORTATION Maximum backlight brightness with high contrast to read text under all conditions.
CUSTOM Custom setting.
NOTE: Changing any of the settings of the [PICTURE] in the OSD menu will change the settings for the current input only.
English−49
Setting Security and Locking the Monitor Controls
Under normal operation, the monitor can be controlled by any person using the remote control or the monitor control panel. You
can prevent unauthorized use and changes to the monitor settings by enabling the options for Security and Lock Settings.
The security and locking functions covered in this section are:
• Setting the password
• Enabling password security
• Locking the remote control buttons
• Locking the monitor control panel buttons
NOTE: The instructions in this section describe locking access to the monitor controls. Other security settings available for this
monitor are described in the related sections for those controls:

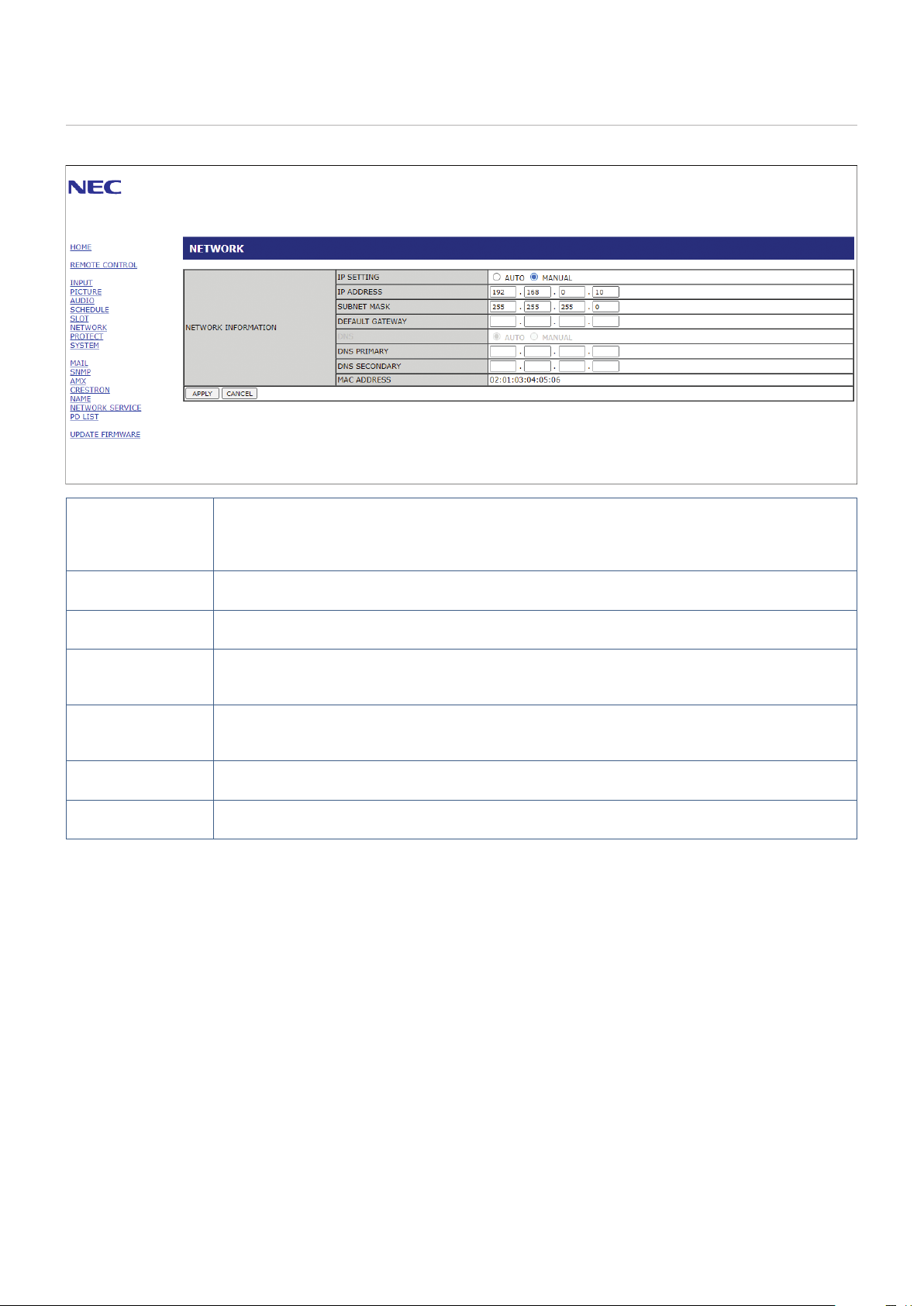

• “Network Settings” on page 64 for the monitor’s web controls.
Settings Location
The instructions in this section guide you through configuring security and locking functions in the monitor’s OSD menu. These
settings can also be configured using the monitor’s web controls. The function names and location in the web controls are the
same as the OSD menu. See page 63.
The menu options for Security and Lock Settings are in the [PROTECT] menu in both the OSD menu and web controls.
PASSWORD:
o o o o
SECURE MODE:
START-UP LOCK
CONTROL LOCK
CHANGE PASSWORD
CURRENT PASSWORD:
o o o o
NEW PASSWORD:
o o o o
CONFIRM PASSWORD:
o o o o
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
Password Security
When password security is enabled, a four-digit passcode is required when turning on the main power and/or accessing the
OSD (see page 50). The monitor will function normally after the password is entered. If no buttons have been pressed for
30 seconds, the monitor will return to SECURE MODE automatically and the password will be required again.
NOTE: If you change the password make a note of the password in a secure location. If you forget your password, you will need
to contact technical support to get a recovery password to access the monitor OSD menu.
English−50
Set a password for the monitor
This step is only required if you want to change the password.
PASSWORD:
o o o o
SECURE MODE:
START-UP LOCK
CONTROL LOCK
CHANGE PASSWORD
CURRENT PASSWORD:
o o o o
NEW PASSWORD:
o o o o
CONFIRM PASSWORD:
o o o o
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [SECURITY SETTINGS].
2. Under [CHANGE PASSWORD], enter the password in the [CURRENT PASSWORD] field. (The default password is: 0 0 0 0).
3. Input a [NEW PASSWORD] and then input it again in the [CONFIRM PASSWORD] field.
4. The new password is immediately saved.
Enable password security
PASSWORD:
o o o o
SECURE MODE:
START-UP LOCK
CONTROL LOCK
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
1. Using the remote control, navigate to [PROTECT] then to [SECURITY SETTINGS].
2. Enter the password in the [PASSWORD] field to access the [SECURE MODE] settings.
3. Select the type of [SECURE MODE] you want to use:
• [START-UP LOCK] – the password is required when turning on the monitor from the main power switch.
When this option is selected the password is only required on power cycle using the main power switch or after power
failure. This option does not prompt for a password when using the remote control POWER ON and STANDBY buttons or
the ⏻ button on the monitor control panel.
• [CONTROL LOCK] – the password is required to use any of the remote control buttons or buttons on the monitor.
English−51
Locking the Button Controls
The lock settings prevent the monitor from responding to button presses on the IR remote control or monitor control panel. When
locking the button controls, some buttons can be configured to remain unlocked for users to adjust the settings. Locking and
unlocking the button controls do not require a password.
Locking the IR Remote Buttons
The [IR] in the [LOCK SETTINGS] prevent the monitor from being controlled using the remote control. Enabling the [IR] does not
lock the buttons on the monitor control panel.
SELECT IR
MODE UNLOCK
POWER
UNLOCK / LOCK
VOLUME
UNLOCK / LOCK
MIN VOL
10
MAX VOL
80
INPUT
UNLOCK / LOCK
PRESS TO EXECUTE
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [LOCK SETTINGS].
2. Under the [SELECT] option, press the , buttons to change the setting to [IR].
3. Under [MODE] choose the lock mode you want to enable.
• [UNLOCK] – all buttons are unlocked.
• [ALL LOCK] – all buttons are locked.
• [CUSTOM LOCK] – all remote buttons are locked except for the following buttons that can be individually set as locked
or unlocked.
• [POWER] – select [UNLOCK] to be able to use the ⏻ button when the IR Remote is locked. Select [LOCK] to lock the
button.
• [VOLUME] – select [UNLOCK] to be able to control the volume with the VOL+, VOL– buttons when the IR Remote is
locked. Select [LOCK] to prevent volume adjustment.
When activating the volume lock, the monitor volume will immediately change to the MIN VOL value.
• [MIN VOL] and [MAX VOL] – the volume buttons are unlocked, and the volume level can only be adjusted within
the [MIN] and [MAX] range set.
The [VOLUME] must be set to [UNLOCK] for this setting to operate.
• [INPUT] – select [UNLOCK] to unlock all input buttons. Select [LOCK] to lock all input buttons.
4. Select [SET] to activate all settings.
Unlocking the IR Remote Controls
• IR Remote Control – to return to normal operation, press-and-hold the DISPLAY button for at least 5 seconds.
English−52
Locking the Control Panel Buttons and key
The [KEY] in the [LOCK SETTINGS] prevents the monitor from being controlled using the buttons and key on the monitor control
panel. Enabling the [KEY] does not lock the buttons on the remote control.
SELECT KEY
MODE UNLOCK
POWER
UNLOCK / LOCK
VOLUME
UNLOCK / LOCK
MIN VOL
10
MAX VOL
80
INPUT
UNLOCK / LOCK
PRESS TO EXECUTE
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [LOCK SETTINGS].
2. Under the [SELECT] option, press the , buttons to change the setting to [KEY].
3. Under [MODE] choose the lock mode you want to enable.
• [UNLOCK] – all keys are unlocked.
• [ALL LOCK] – all key buttons are locked.
• [CUSTOM LOCK] – all key buttons are locked except for the following buttons that can be individually set to be locked or
unlocked.
• [POWER] – select [UNLOCK] to be able to use the ⏻ button when the keys are locked.
• [VOLUME] – select [UNLOCK] to be able to control the volume with the v/w keys when the keys are locked. Select
[LOCK] to prevent volume adjustment.
When activating the volume lock, the monitor volume will immediately change to the [MIN VOL] value.
• [MIN VOL] and [MAX VOL] – the v/w keys are unlocked and the volume can only be adjusted within the [MIN] and
[MAX] set.
The [VOLUME] must be set to [UNLOCK] for this setting to operate.
• [INPUT] – select [UNLOCK] to be able to change the inputs using the INPUT/SET button.
4. Select [SET] to activate all settings.
Unlocking the buttons and key on the monitor control panel
Key/Buttons – to return to normal operation unlock all the buttons/keys on the main unit control panel by pressing the SET key
and MENU/EXIT button on the main unit control panel at the same time for 3 seconds or longer.
OSD Menu – to return to normal operation, use the remote control to navigate to [PROTECT] then to [LOCK SETTINGS]. Under
the [SELECT] option, change the setting to [KEY]. Under [MODE] choose [UNLOCK] and then select [SET].
Locking the IR Remote Buttons and the Control Panel Buttons/key
Select [PROTECT] ➙ [LOCK SETTINGS] ➙ [SELECT] ➙ [KEY & IR] from the OSD menu.
For the subsequent setting procedure, buttons/keys for which the lock is enabled, and unlocking method, refer to “Lock button
operation on remote control” and “Lock button/key operation on the main unit control panel”.
English−54
Connecting Multiple Monitors
Monitors can be connected to each other, both communication and video connections, in multiple monitor installations. Chaining
the video connections together creates a video wall where a single image can be tiled across all displays. When connecting
multiple monitors to install a video wall, communication and video cable connections are necessary and their configuration must
be carefully considered. Please refer to the “Wiring Diagram” on page 27 for making communication and video connections.
The monitor settings for configuring a video wall in the OSD and Monitor Web page settings are under [PICTURE], [SYSTEM].
• [PICTURE-ADVANCED]-[AUTO TILE MATRIX] – automatically configures the multi-display settings when the communication
and video ports are chained together. This automatically sets the [MONITOR ID] and position of the monitors in the video
wall following the physical wiring between the monitors.
Input the number of monitors arranged horizontally and vertically on the master monitor. The following settings are set
automatically when you run the auto setup: OSD menu [H MONITORS], [V MONITORS], [POSITION], [DisplayPort
VERSION], [HDMI MODE], [VIDEO OUT SETTINGS] and Input signal.
NOTE: • [MONITOR ID] in [AUTO ID/IP SETTING] will be automatically executed.
• This function is released if [MOTION] in [SCREEN SAVER] is activated.
• If input is DisplayPort 4K (60Hz) 10bit, this function is disabled.
Example of installation via LAN:
H MONITORS 3
V MONITORS 3
Master monitor
• [PICTURE-ADVANCED]-[TILE MATRIX] – allows one image to be expanded and shown over multiple screens (up to 100)
through a distribution amplifier. Manually input the number of horizontal and vertical monitor in the video wall, position of
the monitor in the wall, and turn on or off Tile Compensation. When tilting HDCP content, please refer to the “Video Out
Connection” on page 57.
• [TILE COMP] - scales the image to compensate for the width of the screen bezel in order to create a seamless image.
• [TILE CUT] - select a part of an image to show in full-screen.
Example of TILE CUT 1x2 (Portrait configuration)
For the monitor on top:
1. Set H MONITORS [2] and V MONITORS [2].
One image will be divided by 4 then put number from 1 to 4.
OSD Monitor screen
Change
Select
Return Close
TILE MATRIX
H MONITORS 2
V MONITORS 2
POSITION 1
TILE COMP ON / OFF
H SIZE 0
V SIZE 0
H ADJUSTMENT 0
V ADJUSTMENT 0
TILE CUT ON / OFF
H ADJUSTMENT 0
V ADJUSTMENT 0
TILE MATRIX ON / OFF
2. Select 1 to 4 at [POSITION].
e.g. Selecting 1
English−55
3.
With [H ADJUSTMENT] and [V ADJUSTMENT] in [TILE CUT], you can move the selected square to the exact spot you
want shown.
(-)
(+)
(-)
(+)
4. Select [ON] at [TILE MATRIX].
For the monitor at the bottom:
Repeat the same steps.
e.g. Selecting 3 at [POSITION]
After individually setting, the 1x2 image (Portrait configuration) will be shown as below.
• [SYSTEM]-[EXTERNAL CONTROL] – sets the monitor ID and group IP for the current monitor. When the monitors LAN ports
are chained together, the ID and IP can be automatically assigned to all monitors.
• [SYSTEM]-[CLONE SETTING] – copies some of the OSD menu categories to other monitors in the video wall, when chained
together.
English−56
• Video daisy chaining.
We strongly recommend using the same monitor model for all monitors in the connected daisy-chain.
MONITORS POSITION is different from ID. Please refer to the figure 1.
H MONITORS: 3
V MONITORS: 3
POSITION: 4, 5, 6
ID:1
1
ID:6
4
ID:7
7
ID:2
2
ID:5
5
ID:8
8
ID:3
3
ID:4
6
ID:9
9
Figure 1
English−57
Video Out Connection
Connector
DisplayPort1 DisplayPort2 HDMI1 HDMI2 OPTION
DisplayPort1 DisplayPort2 HDMI1 (ARC) HDMI2 DisplayPort Slot TMDS Slot COMPUTE MODULE
DisplayPort
Ye s Ye s No No Ye s No No
HDMI
Yes*
1
Yes*
1
Ye s Ye s Yes*
1
Ye s Ye s
*
1
: By inputting [DP TO HDMI CONVERT] is set to [ENABLE], the DisplayPort input can be HDMI output.
DP and HDMI cannot be output simultaneously.
NOTE: • Video Out cannot be performed when [MULTI PICTURE] or [QUICK INPUT CHANGE] are enabled.
For connecting multiple monitors with HDMI cable
• Use the same monitor model.
• Set the same ([MODE1] or [MODE2]) at [HDMI MODE] in [INPUT-ADVANCED] in all connected multiple monitors.
For HDMI Out and DisplayPort Out
• Select DisplayPort1, DisplayPort2 or OPTION input for the monitor to output a signal from DisplayPort Out.
• Select either the HDMI1, HDMI2 or OPTION input for the monitor to output a signal from HDMI OUT.
• If [DP TO HDMI CONVERT] is set to [ENABLE], even when the OSD menu “INPUT” is set to [DisplayPort1] or [DisplayPort2],
the video is output from the HDMI output connector. In this case, the video output of the DP output connector will stop.
• This monitor’s signal output function supports contents protected by HDCP.
HDCP content can be distributed across multiple connected monitors as described below:
• HDCP1: Up to 8 monitors (including this monitor)/HDCP2.2: Up to 5 monitors (including this monitor).
• The time until image is shown depends on the number of connected monitors.
• Without HDCP: Up to 9 monitors (including this monitor).
• When [DUAL DAISY CHAIN MODE] is set to [ENABLE], HDMI and DisplayPort can be output simultaneously.
However, one input cannot be output to both HDMI and DisplayPort at the same time.
Example:
• Even when [DUAL DAISY CHAIN MODE] is set to [ENABLE], DisplayPort1 cannot be output simultaneously from both
HDMI out and DisplayPort out.
• When [DUAL DAISY CHAIN MODE] is set to [ENABLE], DisplayPort1 can be output from DisplayPort out and HDMI2
can be output from HDMI out.
NOTE: • Do not turn the main power switch off/on or connect/disconnect the cable while playing HDCP-protected video
content in a daisy chain connection. Playback of video content may stop. If playback stops, try playing again.
• Depending on the device you use, number of monitor connection will change.
• When showing an image in a multi-monitor setting, do not disconnect cables from the monitors. When you disconnect
cables, please turn the main power off first.
For HDCP Content
HDCP is a system for preventing illegal copying of video data sent over a digital signal. If you are unable to view material via the
digital inputs, this does not necessarily mean that the monitor is not functioning properly. With the implementation of HDCP, there
may be cases in which certain content is protected by HDCP and might not be shown due to the decision/intention of the HDCP
community (Digital Content Protection, LLC).
Due to these security restrictions in video content, HDCP video content can only be tiled across a limited number of monitors.
HDCP video content is generally commercially produced Blu-rays and DVDs, television broadcast, and streaming media
services.
English−58
Setting the Remote Control ID Function
The remote control can be used to control up to 100 individual MultiSync monitors using what is called the REMOTE CONTROL
ID mode. The REMOTE CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 100 individual
MultiSync monitors. For example, if there are many monitors being used in the same area, a remote control in normal mode
would send signals to every monitor at the same time (see Figure 1). Using the remote in REMOTE CONTROL ID mode will
only operate one specific monitor within the group (see Figure 2).
To Set Remote Control ID
While holding down the REMOTE ID SET button on the remote control, use the
KEYPAD to input the Monitor ID (1-100) of the monitor to be controlled via remote.
The remote control can then be used to operate the monitor having that specific
Monitor ID number.
When 0 is selected or when the remote control is in normal mode, all monitors will
be operated.
To Set/Reset Remote Control Mode
ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for
2 seconds.
Normal Mode - To return to Normal Mode press the REMOTE ID CLEAR button
and hold down for 2 seconds.
NOTE: • In order for this feature to work properly, the monitor must be assigned
a Monitor ID number. The Monitor ID number can be assigned under
the SYSTEM menu in the OSD. See page 103.
• Point the remote control toward the remote sensor of the desired
monitor and press the REMOTE ID SET button. The MONITOR ID
number is shown on the screen when your remote control is in ID
mode.
Use the Remote Control to Control all Monitors in Range
1. On the remote control, press and hold down the REMOTE ID SET button while
using the keypad to input the REMOTE CONTROL ID number “0”.
2. All monitors within range of the remote control will now respond to keypad press.
NOTE: When the REMOTE ID is set to “0”, pressing REMOTE ID SET will make all monitors, within range of the remote signal,
show their Monitor ID on screen. This way you can easily see what the Monitor ID is if you want to control a single
monitor, as described below.
Use the remote control to operate a monitor that has a specific MONITOR ID number assigned to it
1. Set the [MONITOR ID] number for the monitor (see page 103). The [MONITOR ID] number can range from 1-100.
This [MONITOR ID] number allows the remote control to operate this specific monitor without affecting other monitors.
2. On the remote control, press and hold down the REMOTE ID SET button while using the keypad to input the REMOTE
CONTROL ID number (1-100). The REMOTE ID NUMBER should match the MONITOR ID number of the monitor to be
controlled.
3. Point the remote control toward the remote sensor of the desired monitor and press the REMOTE ID SET button.
The MONITOR ID number is shown in red on the monitor.
If the REMOTE CONTROL ID is “0”, then all monitors in range will show their particular MONITOR ID number in red.
If the MONITOR ID number is shown in white on the monitor, the MONITOR ID number and the REMOTE CONTROL ID are
not the same.
Monitor ID:1 Monitor ID:2 Monitor ID:3
Monitor ID:1 Monitor ID:2 Monitor ID:3
Remote does
not work
Remote does
not work
Remote works
Remote works Remote works Remote works
Figure 1
Remote in Normal
mode or the
REMOTE ID is
set to 0
Figure 2
Remote set up to
use REMOTE ID:3
You need a remote control
for this function.
English−59
Chapter 7 External Control
This Chapter Includes:
> “Controlling the Monitor via RS-232C” on page 60
> “Controlling the Monitor via LAN” on page 61
> “Commands” on page 69
> “Proof of Play” on page 70
Connecting an external device
There are two options to connect an external device to control the monitor.
• RS-232C terminal.
Connecting an external device to the RS-232C terminal of the monitor with an RS-232C cable.
• LAN port.
Connecting a network to the LAN port of the monitor with a LAN cable (RJ45 category 5 or higher).
English−60
Controlling the Monitor via RS-232C
This monitor can be controlled by connecting a personal computer with an RS-232C (reverse type) terminal.
For example, some of the functions that can be controlled by a personal computer are:
• Power ON or standby.
• Switching between input signals.
• Sound Mute ON or OFF.

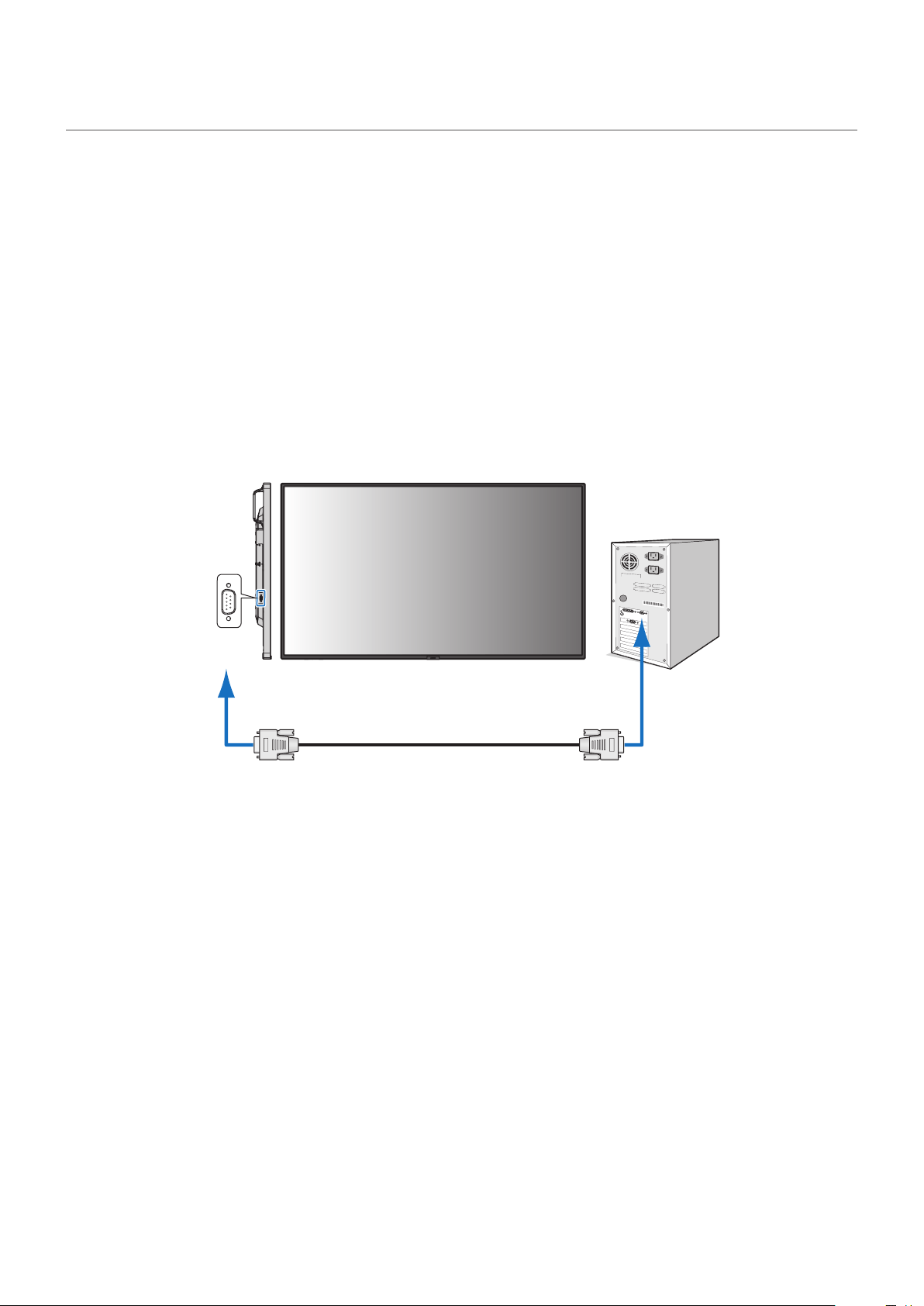

Connection
Monitor + computer.
• Please turn off the monitor’s main power before connecting a computer to the monitor.
• Please turn on the connected computer first then turn on the monitor’s main power.
If you turn on the computer and monitor in reverse order, the com port may not work.
• To control the monitor via commands sent from a computer connected with an RS-232C cable, please use the control
command. Instructions for the control command can be found in the “External_Control.pdf”. See page 84.
RS-232C Cable
Computer
RS-232C
NOTE: • If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required.
Contact your supplier for details.
• For the pin assignment, please see “2) RS-232C input/output” on page 61.
This monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not included) should be used for RS-232C control.
English−61
PIN ASSIGNMENT
RS-232C input/output
1
6
5
9
D-SUB 9P (Monitor side)
Pin No Name
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This monitor uses RXD, TXD and GND lines for RS-232C control.
Controlling the Monitor via LAN
Connecting to a Network
Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings by using an HTTP server function.
To use a LAN connection, you are required to assign an IP address. The monitor will obtain an IP address automatically when
connected to a DHCP network.
Example of LAN connection:
Server
Hub
NOTE: Use a category 5 or higher LAN cable.
LAN cable
English−62
HTTP Browser
Overview
Connecting the monitor to a network allows for remote control of the monitor from a computer connected to the same network.
This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. Refer to the help files for
the web browser to change the settings to use JavaScript and Cookies.
To access the HTTP server, launch a web browser on a computer connected to the same network as the monitor and enter the
following URL in the web address field:
Network Setting
http://<the Monitor’s IP address>/index.html
NOTE: • The default IP address is assigned automatically to the monitor.
• NaViSet Administrator software for managing monitors over the network is recommended. It can be download from
the NEC Display website (See page 84).
• If the MONITOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to
refresh your web browser (or clear the cache).
• If the monitor appears to be slow in response to commands or clicks on buttons in the browser, or the general speed
of operation is unacceptable, this may be due to network traffic or the settings on your network. Should this happen,
consult your network administrator.
• The monitor may not respond if the buttons shown on the browser are repeatedly pressed in rapid intervals. Should
this happen, wait a moment and repeat. If you still can’t get a response, turn the monitor off and then back on.
Preparation Before Use
Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting
method. Although the type of proxy server will be a factor, it is possible that items that have been set will not be shown,
depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is
recommended that a proxy server is not used unless the network environment requires it.
Handling of the Address for Operation via a Browser
A host name can be used in the following cases (corresponding to the IP address of the monitor):
The host name must be registered in the domain name system (DNS) by the network administrator. You can then access the
network settings of the monitor via this registered host name by using a compatible browser.
If the host name has been configured in the “HOSTS” file of the computer being used, you can then access the network settings
of the monitor via this host name by using a compatible browser.
Example 1: When the host name of the monitor has been set to “pd.nec.co.jp”, access is gained to the network setting by
specifying http://pd.nec.co.jp/index.html for the address or the entry column of the URL.
Example 2: When the IP address of the monitor is “192.168.73.1”, access is gained to the mail alert settings by specifying
http://192.168.73.1/index.html for the address or the entry column of the URL.
English−63
Operation
Access the following address to show HOME.
http://<the Monitor’s IP address>/index.html
Click each link on the left-hand column below HOME.

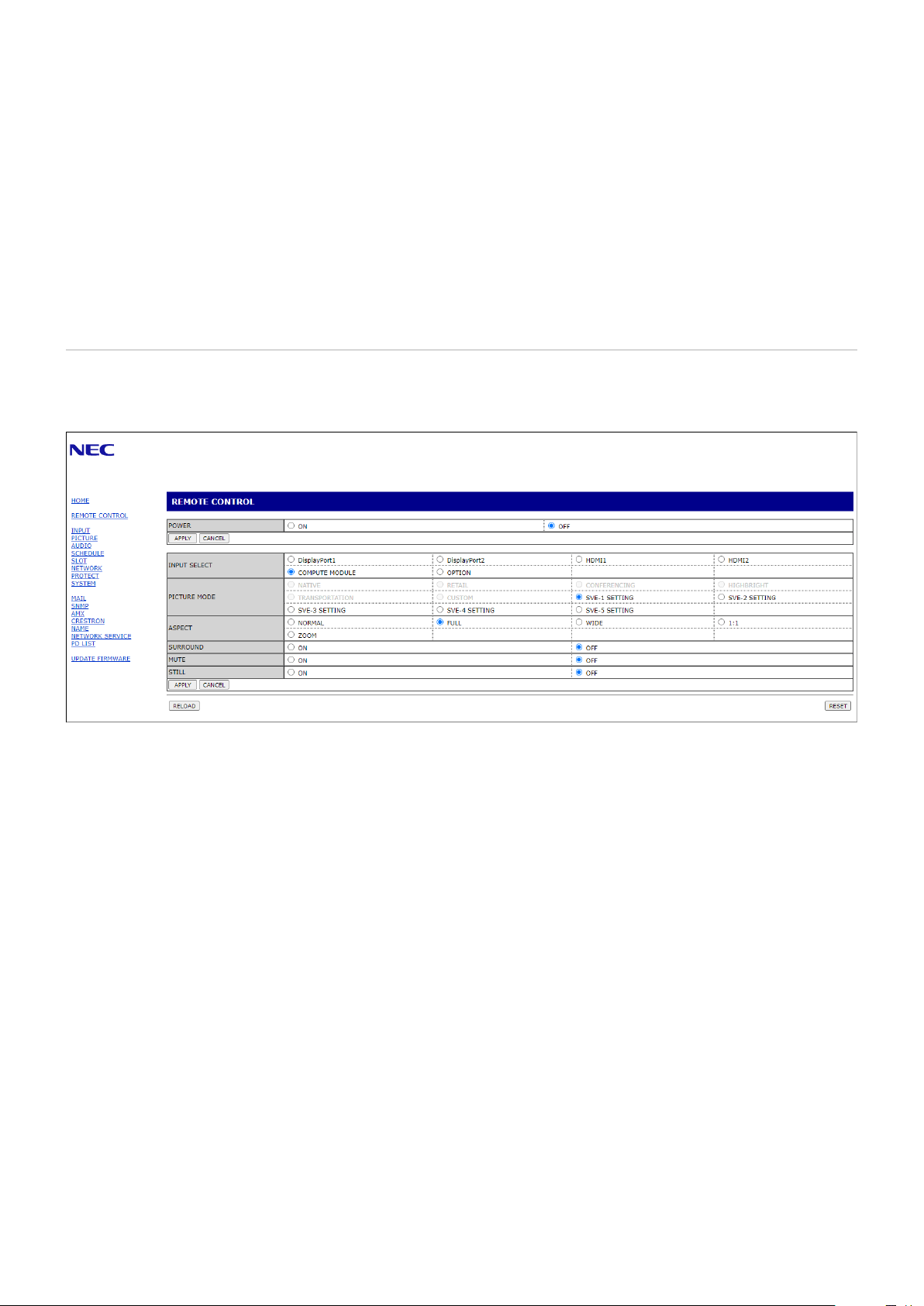

REMOTE CONTROL
Enable an operation to control the monitor equivalent to the keys on the remote control.
OSD Menu Settings in the Monitor Web controls
Select one of the links on the left side of the monitor web controls to configure the settings available in the monitor’s OSD.
Please see page 86 for the full list of OSD menu controls.
[INPUT], [PICTURE], [AUDIO], [SCHEDULE], [SLOT], [PROTECT], [SYSTEM], [NETWORK]
NOTE: The buttons in the monitor web controls function as follows:
[APPLY]: Saves the settings.
[CANCEL]: Returns to the previous settings.
NOTE: CANCEL is disabled after clicking APPLY.
[RELOAD]: Reloads the settings.
[RESET]: Resets to the initial settings.
English−64
Network Settings
Click on “NETWORK” on the left-hand column below HOME.
IP SETTING Select an option for setting the IP ADDRESS.
AUTO: Automatically assign an IP address.
MANUAL: Manually set an IP address for the monitor connected to the network.
NOTE: Consult your network administrator if you have any trouble.
IP ADDRESS Set your IP address for the monitor connected to the network when [MANUAL] is selected for
[IP SETTING].
SUBNET MASK Set your subnet mask data for the monitor connected to the network when [MANUAL] is selected for
[IP SETTING].
DEFAULT GATEWAY Set your default gateway for the monitor connected to the network when [MANUAL] is selected for
[IP SETTING].
NOTE: Set as [0.0.0.0] to delete the setting.
DNS Set for IP ADDRESS setting of DNS server.
AUTO: The DNS server connected to the monitor will automatically assign its IP address.
MANUAL: Manually enter the IP address of the DNS server that is connected to the monitor.
PRIMARY DNS Enter the primary DNS server settings of the network connected to the monitor.
NOTE: Enter [0.0.0.0] to delete the setting.
SECONDARY DNS Enter the secondary DNS server settings of the network connected to the monitor.
NOTE: Enter [0.0.0.0] to delete the setting.
English−65
Mail Setting
Click on “MAIL” on the left-hand column below HOME.
When the Mail settings are configured and enabled, the monitor sends email notifications when an error occurs or if the input
signal is lost. The monitor must be connected to a LAN for this feature to work.
Alert Mail When an error occurs, the monitor will send an error message to the email address(es) listed in
the Recipient’s Address fields. Please see the “Alert error list” table below.
Note that it is not an error when no input signal is detected. The monitor will only send a no signal
input notification email when Status Message is enabled.
Selecting [ENABLE] turns on the Alert Mail feature.
Selecting [DISABLE] turns off the Alert Mail feature.
Status Message This is a setting for whether to include the 'no signal' condition as an alerting condition or not.
Selecting [ENABLE], Alert Mail send mails when the monitor has no signal or is in alerting
conditions.
Selecting [DISABLE], Alert Mail send mails when the monitor is in alerting conditions.
It doesn’t send mail when the monitor has no signal.
Sender’s Address Type in the sender’s address. Up to 60 alphanumeric and symbols characters can be used.
SMTP Server Type in the SMTP server name to be connected with the monitor.
Up to 60 alphanumeric characters can be used.
Recipient’s Address
1 to 3
Type in your recipient’s address. Up to 60 alphanumeric and symbols characters can be used.
Authentication Method This selects the authentication method of the email transmission.
POP3 Server This specifies the address of the POP3 server that is used in the authentication of the email.
User Name This sets the user name for logging into the authentication server when authentication is required
for the email transmission. Up to 60 alphanumeric characters can be used.
Password This sets the password for logging into the authentication server when authentication is required
for the email transmission. Up to 60 alphanumeric characters can be used.
Test Mail Click on this button to send a test email to check if your settings are correct.
NOTE: • If an alert email isn’t received when performing a Test Mail, check that the network and server settings, and the
recipient’s email address are correct.
• If you entered an incorrect address in a test, you may not receive an alert email.
Should this happen, check that the Recipient’s Address is correct.
Alert error list
Error number *
ErrorCode
Alert mail Message Explanation Measure
70h ~ 7Fh
The monitor’s power supply is not
functioning normally.
Standby power abnormal. Please contact your supplier.
80h ~ Fh The cooling fan has stopped. Cooling fan abnormal. Please contact your supplier.
90h ~ 9Fh
The monitor’s backlight unit is not
functioning normally.
Backlight abnormal. Please contact your supplier.
A0h ~ AFh The monitor is overheated. Temperature abnormal. Please contact your supplier.
B0h ~ BFh
The monitor does not receive an input
signal.
No signal. Please check “No picture” in
“Troubleshooting”.
D0h
The remaining capacity of the error log
decreased.
The Proof of Play log memory size is
1 more hour.
Please get a log by using PD external
command. See page 70.
D1h
The battery for clocks is empty. The battery is empty. Please connect the monitor to the
power then recharge the battery.
Please set (DATE & TIME) in OSD.
E0h ~ EFh A system error occurred in the monitor. System error. Please contact your supplier.
English−66
SNMP Settings
Click on “SNMP” on the left-hand column below HOME.
The SNMP protocol is used to get status information and to control a monitor directly via the network.
Version:
SNMP v1 Authenticated plain text by community name, does not return a confirmation message of the trap.
SNMP v2c Authenticated plain text by community name, returns a confirmation message of the trap.
Community name:
The default setting of community name is “public”. It is read-only. You can set community names for up to 3 settings.
Trap:
Sending error message to a specified address when an error occurs in the monitor.
Check Box Explanation Error code
Temperature Temperature abnormal 0xA0, 0xA1, 0xA2
Fan Cooling fan abnormal 0x80, 0x81
Power Power abnormal 0x70, 0x71, 0x72, 0x78
Inverter/Backlight Inverter or backlight abnormal 0x90, 0x91
No Signal No signal 0xB0
PROOF OF PLAY Lower the log storage 0xD0
System Error System error 0xE0
AMX Settings
Click on “AMX” on the left-hand column below HOME.
AMX BEACON To turn on or off for the detection from AMX Device Discovery when connecting to a network
supported by an AMX’s NetLinx control system.
HINT:
When using a device that supports AMX Device Discovery, all AMX NetLinx control systems will
recognize the device and download the appropriate Device Discovery Module from an AMX server.
Selecting [ENABLE] AMX Device Discovery will detect the device.
Selecting [DISABLE] AMX Device Discovery will not detect the device.
English−67
CRESTRON Settings
Click on “CRESTRON” on the left column below HOME.
CRESTRON ROOMVIEW compatibility
The monitor supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and
controlled from a computer or a controller.
For further information, visit http://www.crestron.com
ROOMVIEW ROOMVIEW for managing from the computer.
ON: Enables ROOMVIEW.
OFF: Disables ROOMVIEW.
CRESTRON
CONTROL
CRESTRON CONTROL for managing from the controller.
ON: Enables CRESTRON CONTROL.
OFF: Disables CRESTRON CONTROL.
CONTROLLER IP
ADDRESS
Sets the IP address of the CRESTRON SERVER.
IP ID Sets your CRESTRON SERVER IP ID.
HINT: The CRESTRON settings are required only for use with CRESTRON ROOMVIEW.
For further information, visit http://www.crestron.com
Name Settings
Click on “NAME” on the left-hand column below HOME.
MONITOR NAME Allows you to customize the monitor’s name, up to a maximum of 16 characters long. This name
is shown when searching for devices on the network when using an application such as NaViSet
Administrator. Giving the monitor a unique name allows it to be easily identified when viewing a list of
monitors on the network. The default name is the monitor’s model name.
HOST NAME Type in the hostname of the network to the monitor.
Up to 15 alphanumeric characters can be used.
DOMAIN NAME Type in the domain name of the network which is connected with the monitor.
Up to 60 alphanumeric characters can be used.
English−68
Network Service Settings
Click on “NETWORK SERVICE” on the left-hand column below HOME.
PJLink CLASS Set a class for PJLink*.
NOTE: PJLink is a network interface standard that JBMIA established.
http://pjlink.jbmia.or.jp/index.html
This monitor is available for class1 and class2 command.
NOTIFY FUNCTION
ENABLE
Enable or disable a notification of the monitor network condition. This function is only for class2.
NOTIFY ADDRESS Set an IP ADDRESS to which the monitor network status will be sent. This function is only for class2.
PJLink PASSWORD Set a password for PJLink*. The password must be max. 32 characters long. Do not forget your
password. If you forget your password, consult your supplier.
HTTP PASSWORD Set a password for the HTTP server. The password must be max. 10 characters long.
HTTP PASSWORD
ENABLE
An HTTP PASSWORD is required when logging into the HTTP server.
Set the monitor name as the USER NAME when entering the password.
*What is PJLink?
PJLink is a standardization of protocol used for controlling devices of different manufacturers. This standard protocol was
established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005.
The device supports all commands of PJLink.
PD LIST Information
Click on “PD LIST” on the left column below HOME.
Shows a list of monitor IDs and IP addresses of multiple monitors which are daisy-chained.
NOTE: Only the master monitor can show the list.
English−69
Commands
Connecting the monitor with RS-232C or connecting to a network via LAN, the control commands transmit and receive between
the monitor and a connected device. It allows for remote control of the monitor from a connected device.
Instructions for the both control command can be found in the external documents “External_Control.pdf” (See page 84).
RS-232C Interface
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
LAN Interface
PROTOCOL TCP
PORT NUMBER 7142
COMMUNICATION SPEED AUTO setting (10/100Mbps)
ASCII Control command
This monitor supports control command, which is listed in the “External_Control.pdf” (See page 84), but also supports
common ASCII control command, which is used for controlling the NEC monitor or projector from a connected computer.
For further information please visit our website.
Parameter
Input command Status command
Input signal name Response Parameter Response Error status
HDMI1 hdmi1 hdmi1 or hdmi error:temp Temperature abnormal
HDMI2 hdmi2 hdmi2 error:fan Cooling fan abnormal
DisplayPort1 DisplayPort1 DisplayPort1 error:light Inverter or backlight abnormal
DisplayPort2 DisplayPort2 DisplayPort2 error:system System error
OPTION* option option
COMPUTE MODULE* compute_module compute_module
*
1
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
English−70
Proof of Play
This function allows sending of messages for the current status of the monitor by self-diagnosis.
For the Proof of Play function including self-diagnosis, please see the “External_Control.pdf”. See page 84.
Check item Message
a
INPUT DisplayPort1/DisplayPort2/HDMI1/HDMI2/OPTION*/COMPUTE MODULE*
1
b
Resolution e.g. (H)1920, (V)1080, (H)3840, (V)2160 or No signal or Invalid signal
c
Audio signal Audio in or No Audio in or N/A
d
Picture Image Normal Picture or No Picture
e
AUDIO OUT Normal Audio or No Audio
f
TIME (year)/(month)/(day)/(hour)/(minutes)/(second)
g
EXPANSION DATA
00h: Normal Proof of Play event
01h: Proof of Play event is “last power on time”
20h: Contents Copy from USB
21h: Contents Copy form network folder
30h: Contents Copy Success
31h: Contents Copy Error (No media)
32h: Contents Copy Error (Connect error)
33h: Contents Copy Error (Out of disk space)
34h: Contents Copy Error (Read/Write error)
40h: Human detected (Human sensor Status)
41h: Human detect cleared (Human Sensor Status)
*: This function depends on which Option Board is installed in the monitor.
*
1
: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
Example:
a
HDMI1
b
3840 x 2160
c
Audio in
d
Normal Picture
e
Normal Audio
f
2020/1/1/0h/0m/0s
g
30h: Contents Copy Success
English−72
Screen Image and Video Signal Issues
No picture
• The signal cable should be completely connected to the
display card/computer.
• The display card should be completely seated in its slot.
• Check the main Power Switch, it should be in the ON
position.
• Make sure both the computer and monitor are powered
on.
• Make sure that a supported resolution has been selected
on the display card or system being used. If in doubt,
please refer to the user’s manual of the display controller
or system to change the resolution.
• Check the monitor and your display card with respect to
compatibility and recommended signal timings.
• Check the signal cable connector for bent or pushed-in
pins.
• The monitor automatically goes into standby at the
preset time period after the video signal is lost. Press
the power on button on the remote control or press the
⏻ button on the monitor.
• If you unplug the signal cable when starting the
computer, images may not be shown. Turn off the
monitor and the computer and then connect the signal
cable and turn on the computer and the monitor.
• Check the [OPTION POWER] setting when you use
Option Board accessories.
• Check for HDCP (High-bandwidth Digital Content
Protection) content. HDCP is a system for preventing
illegal copying of video data sent over a digital signal.
If you are unable to view material via the digital inputs,
this does not necessarily mean that the monitor is not
functioning properly. With the implementation of HDCP,
there may be cases in which certain content is protected
by HDCP and might not be shown due to the decision/
intention of the HDCP community (Digital Content
Protection, LLC).
Image persistence
• Please be aware that LCD Technology may experience
a phenomenon known as image persistence. Image
persistence occurs when a residual or “ghost” image of
a previous image remains visible on the screen. Unlike
CRT monitors, the image persistence of monitors is not
permanent, but a single still image being shown for a
long period of time should be avoided. To alleviate image
persistence, put the monitor into standby via remote
control or turn the monitor’s main power off for as long as
the previous image was shown. For example, if an image
was on the monitor for one hour and a residual image
remains, the monitor should be in standby or turned off
for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY
SOLUTIONS recommends showing moving
images, using a moving screen saver, or changing
still images at regular intervals whenever the screen
is idle, or putting the monitor into standby or turning
it off when not in use.
The image is blinking
• If you use a signal repeater or distributor or a long
cable, this may cause image roughness or blink for a
moment. In this case please connect the cable to the
monitor directly without using a repeater or a distributor,
or replace the cable with a higher quality cable. Using
a twisted pair extender may cause image roughness
depending on the environment where the monitor is in or
the cable you are using. For further information please
ask your supplier.
• Some HDMI cables may not show a correct image.
If input resolution is 1920 x 2160, 3840 x 2160 or
4096 x 2160, please use an HDMI cable which is
approved to support 4K resolution.
• When inputting 8K signals, use a DisplayPort cable with
the 8K logo.
English−73
The image is unstable, unfocused or swimming is
apparent
• The signal cable should be completely attached to the
computer.
• Please adjust settings in the [PICTURE MODE] menu by
checking the image on the screen.
• When the display mode is changed, the OSD Image
Adjust settings may need to be re-adjusted.
• Check the monitor and your display card with respect to
compatibility and recommended signal timings.
• If text looks garbled, change the video mode to non-
interlaced and use a 60 Hz refresh rate.
• The image may be distorted when turning the power on
or changing the settings.
The image is not properly reproduced
• Use the OSD Image Adjust controls to increase or
decrease the coarse adjustment.
• Make sure that a supported resolution has been selected
on the display card or system being used.
• If in doubt, please refer to the user’s manual of the
display card or system to change the resolution.
Selected resolution is not displayed properly
• Check the Information OSD to verify the appropriate
resolution has been selected.
• If the resolution you set is over or under a range, an
“OUT of RANGE” window will appear in order to warn
you. Please set supported resolution at the connected
computer.
Video contrast is either too high or too low
• Check that the correct option for the VIDEO RANGE is
selected for the input signal.
– Blacks are crushed and whites are clipped -
change the VIDEO RANGE to FULL.
Crushing blacks and clipping whites can occur when
the monitor’s VIDEO RANGE is set to LIMITED while
the source video signal’s color levels are RGB Full
(RGB 0-255), causing lost details in the shadows
and highlights and the image appears overly high in
contrast.
– Blacks are dark gray and whites are dull -
change the VIDEO RANGE to LIMITED.
Dulling blacks and whites can occur when the
VIDEO RANGE is set to FULL while the source video
signal’s color levels are RGB Limited (RGB 16-235),
which effectively appears to prevent the monitor from
obtaining its full brightness range and the image
appears to be lacking in contrast.
Either light vertical or horizontal stripes may appear, depending on the specific image pattern. This is not a product fault or degradation.
Hardware Issues
⏻ button does not respond
• Unplug the power cord of the monitor from the AC outlet
to turn off and reset the monitor.
• Check the main power switch on the monitor.
No sound
• Check to see if the audio cable is properly connected.
• Check to see if [MUTE] is activated. Use the remote
control to enable or disable the mute function.
• Check to see if [VOLUME] is set to a minimum.
• Check to see if the computer supports an audio signal
through DisplayPort.
If unsure, contact your supplier.
• If HDMI CEC audio device is not connected, please set
[AUDIO RECEIVER] to [DISABLE].
The remote control is not functioning
• The batteries may be drained. Please change the
batteries, then check if the remote control works.
• Check that the batteries are inserted correctly.
• Check that the remote control is pointing at the remote
control sensor of the monitor.
• Check the status of [LOCK SETTINGS].
• The remote control system may not function when direct
sunlight or strong illumination strikes the remote control
sensor of the monitor, or when there is an object in the
path.
The SCHEDULE/OFF TIMER function is not
working properly
• The [SCHEDULE] function will be disabled when the
[OFF TIMER] is set.
• If the [OFF TIMER] function is enabled and the power
to the monitor is turned off when the power supply is
interrupted unexpectedly, then the [OFF TIMER] will be
reset.
English−74
Snowy picture, poor sound in TV
• Check antenna/cable connection. Use new cable if
necessary.
The USB Hub does not operate
• Check to make sure that the USB cable is properly
connected. Refer to your USB device user’s manual.
• Check that the USB upstream port on the monitor is
connected to the USB downstream port on the computer.
Please make sure the computer is [ON] or [USB
POWER] is [ON].
Interference in TV
• Check components for shielding, move away from
monitor if necessary.
USB or RS-232C or LAN control is not available
• Check RS-232C (reverse type) or the LAN cable.
A category 5 or higher LAN cable is required for
connection.
• Check USB cable connected to USB-B port.
Check the [EXTERNAL CONTROL] is set to [ENABLE]
then [PC SOURCE] is set to [EXTERNAL PC].
The monitor goes into standby automatically
• Please check [OFF TIMER] setting.
• Set the [CEC] function to [OFF]. The monitor may go into
standby mode when a connected HDMI-CEC supported
device goes into standby.
• Please check [POWER] in the [SCHEDULE
INFORMATION].
Power Indicator Patterns
LED on the monitor is not lit (no blue or red color
can be seen) (see page 33)
• Make sure the power cord is properly connected to the
monitor and the wall, and make sure the monitor’s main
power switch is ON.
• Make certain the computer is not in a power-saving
mode (touch the keyboard or move the mouse).
• Check that the [POWER INDICATOR] is set to [ON] in
the [CONTROL] settings of the OSD menu.
LED colors, except for blue, are blinking or
glowing
• A certain failure might have occurred, please contact
your supplier.
• If the monitor is powered off due to the internal
temperature being higher than the normal operating
temperature, the LED will blink green or amber or red six
times. Please leave the monitor to cool down for a few
minutes then turn it on again.
• The monitor could be in standby.
Press the power on button on the remote control or
press the ⏻ button on the monitor.
English−76
Compatible signal list
Signal name Resolution
Scanning frequency HDMI
DisplayPort Remarks
Horizontal Vertical MODE1 MODE2
VGA 640 x 480 31.5 kHz 60 Hz Ye s Ye s Ye s
SVGA 800 x 600 37.9 kHz 60 Hz Ye s Ye s Ye s
XGA 1024 x 768 48.4 kHz 60 Hz Ye s Ye s Ye s
HD 1280 x 720 45.0 kHz 60 Hz Ye s Ye s Ye s
WXGA 1280 x 800 49.7 kHz 60 Hz Ye s Ye s Ye s
SXGA 1280 x 1024 64 kHz 60 Hz Ye s Ye s Ye s
WXGA
1360 x 768 47.7 kHz 60 Hz Ye s No Ye s
1366 x 768 47.7 kHz 60 Hz Ye s Ye s Ye s
SXGA+ 1400 x 1050 65.3 kHz 60 Hz Ye s Ye s Ye s
WXGA+ 1440 x 900 55.9 kHz 60 Hz Ye s Ye s Ye s
UXGA 1600 x 1200 75.0 kHz 60 Hz Ye s Ye s Ye s
WSXGA+ 1680 x 1050 65.3 kHz 60 Hz Ye s Ye s Ye s
Full HD 1920 x 1080 67.5 kHz 60 Hz Ye s Ye s Yes
WUXGA 1920 x 1200 74.6 kHz 60 Hz Ye s Ye s Ye s
4K/2 1920 x 2160 133.3 kHz 60 Hz Ye s Ye s Yes
4K
3840 x 2160 54.0 kHz 24 Hz Ye s Ye s No
3840 x 2160 52.4 kHz 24 Hz No No Yes *
3
3840 x 2160 56.3 kHz 25 Hz Ye s Ye s No
3840 x 2160 65.7 kHz 30 Hz No No Ye s
3840 x 2160 67.5 kHz 30 Hz Ye s Ye s No
3840 x 2160 112.5 kHz 50 Hz No Ye s No
3840 x 2160 133.3 kHz 60 Hz No No Ye s * Recommended signal timing
3840 x 2160 135.0 kHz 60 Hz No Ye s No Recommended signal timing
4096 x 2160 52.4 kHz 24 Hz No No Yes*
3
Compressed image
4096 x 2160 54.0 kHz 24 Hz Ye s Ye s No Compressed image
4096 x 2160 56.3 kHz 25 Hz No Ye s No Compressed image
4096 x 2160 65.7 kHz 30 Hz No No Ye s Compressed image
4096 x 2160 67.5 kHz 30 Hz No Ye s No Compressed image
4096 x 2160 112.5 kHz 50 Hz No Ye s No Compressed image
4096 x 2160 133.3 kHz 60 Hz No No Ye s * Compressed image
4096 x 2160 135.0 kHz 60 Hz No Ye s No Compressed image
8K 7680 x 4320 131.4 kHz 30 Hz No No Ye s *
1,
*
2
Compressed image
HDTV (1080p)
1920 x 1080 27.0 kHz 24 Hz Ye s Ye s Ye s
1920 x 1080 28.1 kHz 25 Hz Ye s Ye s Ye s
1920 x 1080 33.8 kHz 30 Hz Ye s Ye s Ye s
1920 x 1080 56.3 kHz 50 Hz Ye s Ye s Ye s
1920 x 1080 67.5 kHz 60 Hz Ye s Ye s Ye s
HDTV (1080i)
1920 x 1080 (Interlaced) 28.1 kHz 50 Hz Ye s Ye s No
1920 x 1080 (Interlaced) 33.8 kHz 60 Hz Ye s Ye s No
HDTV (720p)
1280 x 720 37.5 kHz 50 Hz Ye s Ye s Ye s
1280 x 720 45.0 kHz 60 Hz Ye s Ye s Ye s
SDTV (576p) 720 x 576 31.3 kHz 50 Hz Ye s Ye s Ye s
SDTV (480p) 720 x 480 31.5 kHz 60 Hz Ye s Ye s Ye s
SDTV (576i) 720 x 576 (Interlaced) 15.6 kHz 50 Hz Ye s Ye s No
SDTV (480i) 720 x 480 (Interlaced) 15.7 kHz 60 Hz Ye s Ye s No
*: Only DP version 1.2 or 1.4 is set.
*
1
: DisplayPort1 only.
*
2
: Only DP version 1.4 is set.
*
3
: Only DP version 1.1a is set.
NOTE: • Depending on the input signal’s resolution, characters may look blurred or figures may be distorted.
• Depending on the video card or driver used, the image may not be shown correctly.
English−77
P435
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
43”/108.0 cm diagonal
0.245 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
700 cd/m
2
(Max.) @25 °C
1000:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 941.18 x 529.42 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 2.9 - 1.2 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 90 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
968.2 (W) x 561 (H) x 77.2 (D) mm/38.11 (W) x 22.08 (H) x 3.04 (D) inches (with handle)
968.2 (W) x 561 (H) x 67.1 (D) mm/38.11 (W) x 22.08 (H) x 2.64 (D) inches (without handle)
Weight 18.5 kg (40.8 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−78
P495
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
49”/123.2 cm diagonal
0.280 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
700 cd/m
2
(Max.) @25 °C
1100:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 1073.80 x 604.00 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 3.2 - 1.3 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 105 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
1103.4 (W) x 636.2 (H) x 71.9 (D) mm/43.44 (W) x 25.04 (H) x 2.83 (D) inches (with handle)
1103.4 (W) x 636.2 (H) x 61.1 (D) mm/43.44 (W) x 25.04 (H) x 2.41 (D) inches (without handle)
Weight 22.9 kg (50.5 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−79
P555
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
55”/138.8 cm diagonal
0.315 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
700 cd/m
2
(Max.) @25 °C
1100:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 1209.60 x 680.40 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 3.3 - 1.4 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 110 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
1239.6 (W) x 713 (H) x 71.9 (D) mm/48.80 (W) x 28.07 (H) x 2.83 (D) inches (with handle)
1239.6 (W) x 713 (H) x 61.1 (D) mm/48.80 (W) x 28.07 (H) x 2.41 (D) inches (without handle)
Weight 27.6 kg (60.8 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−80
MA431
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
43”/108.0 cm diagonal
0.245 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
500 cd/m
2
(Max.) @25 °C
1000:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 941.18 x 529.42 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 2.6 - 1.1 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 70 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
968.2 (W) x 561 (H) x 77.2 (D) mm/38.11 (W) x 22.08 (H) x 3.04 (D) inches (with handle)
968.2 (W) x 561 (H) x 67.1 (D) mm/38.11 (W) x 22.08 (H) x 2.64 (D) inches (without handle)
Weight 18.5 kg (40.8 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−81
MA491
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
49”/123.2 cm diagonal
0.280 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
500 cd/m
2
(Max.) @25 °C
1100:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 1073.80 x 604.00 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 2.7 - 1.1 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 85 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
1103.4 (W) x 636.2 (H) x 71.9 (D) mm/43.44 (W) x 25.04 (H) x 2.83 (D) inches (with handle)
1103.4 (W) x 636.2 (H) x 61.1 (D) mm/43.44 (W) x 25.04 (H) x 2.41 (D) inches (without handle)
Weight 22.9 kg (50.5 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−82
MA551
Product Specifications
LCD Module
Pixel Pitch:
Resolution:
Color:
Brightness:
Contrast Ratio:
Viewing Angle:
55”/138.8 cm diagonal
0.315 mm
3840 x 2160
Over 1073 million colors (depending on display card used)
500 cd/m
2
(Max.) @25 °C
1100:1
89° (typ) @ CR>10
Frequency Horizontal:
Vertical:
15 - 136 kHz (HDMI)/22 - 134 kHz (DisplayPort)
23 - 76 Hz
Pixel Clock 25 - 600 MHz (HDMI)
25 - 1040 MHz (DisplayPort1)
25 - 570 MHz (DisplayPort2)
Color Gamut 86 % (DCI-P3)
Viewable Size 1209.60 x 680.40 mm
Input/Output Signal
DisplayPort DisplayPort Connector Digital RGB DisplayPort (Up to 7680 x 4320 (30 Hz)*
1
, HDCP 1.3/2.2)
HDMI HDMI Connector Digital YUV
Digital RGB
HDMI (Up to 4096 x 2160 (60 Hz)*
1
, HDCP 1.4/2.2)
Audio terminal
AUDIO Input DisplayPort Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
HDMI Connector Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
AUDIO
Output
Stereo Mini Jack Analog Audio Stereo L/R 0.5 Vrms
HDMI Connector (ARC*
2
) Digital Audio PCM 32, 44.1, 48 kHz (16/20/24 bit)
Speaker Output External Speaker Jack 15 W + 15 W (8 ohm)
Control RS-232C In:
LAN:
Remote IN:
9 Pin D-sub
RJ-45 10 BASE-T/100 BASE-TX x 2
Stereo Mini Jack 3.5 mm Ø
USB USB-A USB 2.0 Downstream port
USB-B USB 2.0 Downstream port
SERVICE Power supply port, 5 V/2 A (max.)
Firmware update port
Power Supply 2.8 - 1.2 A @ AC 100 - 240 V 50/60 Hz
Power Consumption Normal operation: Approx. 90 W
Operational Environment Temperature*
3
:
Humidity:
Altitude:
0 - 40 °C / 32 - 104 °F
20 - 80 % (without condensation)
0 - 3000 m (Brightness may decrease with altitude)
Storage Environment Temperature:
Humidity:
–20 - 60 °C / –4 - 140 °F
10 - 90 % (without condensation) / 90 % - 3.5 % x (Temp - 40 °C) regarding over 40 °C
Dimension*
4
1239.6 (W) x 713 (H) x 71.9 (D) mm/48.80 (W) x 28.07 (H) x 2.83 (D) inches (with handle)
1239.6 (W) x 713 (H) x 61.1 (D) mm/48.80 (W) x 28.07 (H) x 2.41 (D) inches (without handle)
Weight 27.6 kg (60.8 lbs)
VESA-compatible mounting interface 300 mm x 300 mm (M6, 4 Holes)
Power supply for Option Board 12 V/5.5 A
Power supply for Raspberry Pi Compute Module 12 V/1.67 A
NOTE: Technical specifications are subject to change without notice.
*
1
: Compressed image.
*
2
: HDMI IN1 only.
*
3
: When you use Option Board accessories, please contact your supplier for detailed information.
*
4
: Measurements are of the monitor only and do not include removable parts that protrude.
English−83
Appendix A Trademark and
Software License
Trademarks
Microsoft
®
and Windows
®
are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
NEC is a registered trademark of NEC Corporation.
DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA
®
)
in the United States and other countries.
Adobe and the Adobe logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
MultiSync is a trademark or registered trademark of NEC Display Solutions, Ltd. in Japan and other countries.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries
and areas.
Blu-ray is a trademark of Blu-ray Disc Association.
CRESTRON and CRESTRON ROOMVIEW are trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and other countries.
TILE COMP, MDSVSENSOR, MultiProfiler and TILE MATRIX are trademarks or registered trademarks of NEC Display Solutions, Ltd. in Japan and other
countries.
Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries.
All other brands and product names are trademarks or registered trademarks of their respective owners.
English−84
Appendix B External Resources
Additional specification documents and accessories, and optional software applications referenced in this product manual are
listed below.
NEC Display Solutions regional websites
Global: https://www.nec-display.com/global/
Asia-Pacific: https://www.nec-display.com/ap/contact/
North America: https://www.necdisplay.com
Europe, Russia, Middle East and Africa: https://www.nec-display-solutions.com
Japan: https://www.nec-display.com/jp/
Additional Documentation
“NEC LCD Monitor - External Control” PDF document
This document defines the communications protocol for externally controlling and querying the monitor via either RS-232C or
LAN. The protocol uses encoded binary and requires calculation of checksums, and most functionality in the monitor can be
controlled using these commands. A simpler protocol is also available for less demanding applications (see below).
This document is available for download from the NEC Display Solutions website in your region.
A Python programming language based SDK (Software Development Kit) is also available that encapsulates this
communications protocol into a Python library for rapid development.
https://github.com/NECDisplaySolutions/necpdsdk
“Projector/Monitor Common ASCII Control Command - Reference Manual” PDF document
This document defines the communications protocol for externally controlling the basic functions of the monitor via LAN using a
simple English-like syntax. It is suitable for easy integration into existing control systems. Functionality such as controlling and
querying the power state, video inputs, volume, and status is available. The protocol uses ASCII encoding and doesn’t require
calculation of checksums.
This document is available for download from the NEC Display Solutions website in your region.
“Raspberry Pi Compute Module - Setup Guide” PDF document
This document describes the features, installation, connectivity, and configuration of the Raspberry Pi Compute
Module, which is an optional component available for this model. The required DS1-IF10CE Compute Module
Interface Board and Raspberry Pi Compute Module are available separately. Please contact an authorized NEC
dealer or visit the NEC Display Solutions website in your region for purchase information and availability.
This document can be downloaded from:
https://www.nec-display.com/dl/en/manual/raspberrypi/
English−85
Software
Software is available for download on the NEC Display Solutions global website.
https://www.nec-display.com/dl/en/dp_soft/lineup.html
NEC MultiProfiler Software
This free software provides complete control of the SpectraView Engine color settings in an easy-to-use application
available for Microsoft Windows and macOS. The software can be used to emulate different color-spaces, perform
printer output emulations using ICC Profiles and create 3D Look-Up Tables within the monitor. It requires a USB
connection to the monitor.
The latest version of the MultiProfiler software is available on the NEC Display Solutions website.
NEC Display Wall Calibrator software
This software provides advanced video wall configuration and accurate color matching by calibrating the monitors
using an external color sensor. It is useful when setting up multi-monitor installations - such as a video wall - to
achieve the best possible brightness and color matching between screens and configuring settings applicable to the
video wall. The software, available for Microsoft Windows and macOS, is available for purchase and may require the
use of a supported external color sensor. Please contact an authorized NEC dealer or see the NEC Display Solutions website in
your region for purchase information and availability.
NaViSet Administrator software
This free software is an advanced and powerful network-based control, monitoring and asset management system for
NEC display monitors and projectors. The software is available for Microsoft Windows and macOS.
The latest version of the NaViSet Administrator software is available on the NEC Display Solutions website.
Hardware
MDSVSENSOR 3 USB Color Sensor
This customized X-Rite color sensor can be used with the NEC Display Wall Calibrator software listed above. Please contact an
authorized NEC dealer or see the NEC Display Solutions website in your region for purchase information and availability.
English−87
INPUT
INPUT MENU
INPUT SELECT Selects the input signals source.
DisplayPort1, DisplayPort2, HDMI1, HDMI2, COMPUTE MODULE*
1
or OPTION*
2
.
INPUT SETTINGS
INPUT NAME Renames the current input.
Custom names with a maximum of 14 characters, including spaces, can be set. The characters can be a
mix of letters (A-Z), numbers (0-9), and some symbols.
QUICK INPUT CHANGE Enables high-speed switching between the two input terminals selected for [INPUT1] and [INPUT2].
OFF: Input terminal is changed at normal speed.
ON: Input terminal is changed at high speed.
NOTE: • When [DUAL DAISY CHAIN MODE] is set to [ENABLE], or input is [DisplayPort1] then
[DisplayPort VERSION] is set to [1.4], this function is disabled.
• If this function is deactivated, [MULTI PICTURE], [STILL], [POINT ZOOM] and [AUDIO INPUT]
are also deactivated.
AUTO INPUT CHANGE*
3
This function automatically selects the input terminal with an input signal.
When enabled, this option can detect and change inputs when a signal is applied or lost. Allows for
customization of the input priority.
NOTE: When [DUAL DAISY CHAIN MODE] is set to [ENABLE], this function is deactivated.
NONE The monitor does not search for video signal on the other input connections.
If video signal is lost on the current input, or if the monitor is manually switched to an input that does not
have video signal, the screen will go black and the LED will flash green. If [POWER SAVE] is enabled, the
monitor will enter power saving mode after the period of time set for [POWER SAVE] has passed.
FIRST DETECT The monitor does not search for a video signal on the other input connections while the current input has a
video signal.
If the current input connection does not have video signal present, the monitor will search for video signal
on the other video input connections. If a video signal is found, the monitor will switch from the current
input to the input with the active video source automatically.
LAST DETECT The monitor actively searches for a video signal on the other input connections, even while the current
video signal is present. When a new video signal source is applied to another input connection, the monitor
automatically switches to the newly found video source.
If the video signal is lost on the current input connection, the monitor will search for video signal on the
other video input connections. If a video signal is found, the monitor will switch from the current input to the
input with the active video source automatically.
CUSTOM DETECT The monitor only searches for video signal on the inputs selected for the priority numbers. If the signal
is lost, the monitor searches for signal in the priority order and automatically switches to the highest
priority input it finds with an active video signal. The monitor actively searches these inputs. If the current
signal input is not Priority 1 and a new signal is applied to the input assigned to Priority 1, the monitor will
automatically switch to the higher priority input.
NOTE: • If you select [CUSTOM DETECT], you cannot switch to an input signal for which [PRIORITY]
has not been set.
English−88
INPUT MENU
INPUT SIGNAL INFORMATION Shows input signal information.
CURRENT INPUT These functions shows their current settings in the [INPUT SIGNAL INFORMATION] for the selected input
signal.
NOTE: The functions listed here do not have settings for all input terminals available.
RESOLUTION
FREQUENCY
COLOR FORMAT
HDR EOTF
COLOR DEPTH
(SIGNAL/DISPLAY)
HDCP
VIDEO RANGE
VIDEO ID CODE
OVERSCAN
ADVANCED
INPUT SIGNAL SETTINGS Configure settings specific to the video input terminal.
DisplayPort
DisplayPort1, DisplayPort2,
OPTION (DisplayPort)*
2
inputs only
Selects the type of DisplayPort version.
DisplayPort VERSION The following settings can be made according to the input selection.
When receiving an 8K signal, select [1.4] for [DisplayPort1].
DisplayPort1: 1.1a, 1.2, 1.4
DisplayPort2: 1.1a, 1.2
OPTION (DisplayPort): 1.1a, 1.2
Select [SST] or [MST] when [1.2] or [1.4] is set.
NOTE: • [MST] is available when input is DisplayPort1.
• [1.4] is available when input is DisplayPort1.
• If [1.4] is selected, the following restrictions are applied:
- Deactivates [MULTI PICTURE], [MOTION] in [SCREEN SAVER], [STILL], [POINT ZOOM],
[IMAGE FLIP], [QUICK INPUT CHANGE], [DUAL DAISY CHAIN MODE], [AUDIO INPUT],
[ROTATE], [TILE COMP], [TILE CUT] and [DP to HDMI CONVERT].
- [H MONITORS] and [V MONITORS] in [TILE MATRIX] is up to [2].
HDCP VERSION Depending on the selection in the [DisplayPort VERSION], set items as below.
1.1a: HDCP 1.3
1.2: HDCP 1.3, HDCP 2.2
1.4: HDCP 1.3, HDCP 2.2
NOTE: When [DisplayPort VERSION] is set [1.1a], this function is disabled.
HDR Depending on the selection in the [DisplayPort VERSION], set items as below.
1.1a: DISABLE
1.2: ENABLE, DISABLE
1.4: ENABLE, DISABLE
NOTE: When [DisplayPort VERSION] is set [1.1a], this function is disabled.
EQUALIZER Compensates the video signal for better image stability.
If the image flashes or picture noise occurs, please change the setting.
HDMI
HDMI1, HDMI2, OPTION (TMDS)*
2
inputs only
Sets the HDMI mode.
HDMI MODE Selects the type of HDMI mode (version) [MODE1] or [MODE2].
NOTE: When this setting is changed, the OSD will be closed automatically.
HDCP VERSION Select [HDCP 1.4] or [HDCP 2.2].
HDR MODE1: DISABLE
MODE2: ENABLE, DISABLE
NOTE: If [HDMI MODE] is set to [MODE1], this function is disabled.
EQUALIZER Compensates the video signal for better image stability.
If the image flashes or picture noise occurs, please change the setting.
English−89
INPUT MENU
SIGNAL FORMAT
OVERSCAN
HDMI1, HDMI2, OPTION (TMDS)*
2
,
COMPUTE MODULE*
1
inputs only
Some video formats may require different scanning modes in order to best show the image.
VIDEO RANGE Adjust the gradation range to be shown according to the video signal to improve the whiteout and blackout
of the image.
COLORIMETRY Selects the color space setting.
CEC Provides CEC (Consumer Electronics Control) compatible media players, connected via HDMI, the ability
to communicate and allows limited control between the device and the monitor. Only available for HDMI
inputs.
CEC When [MODE1] or [MODE2] is selected, the following functions are automatically activated:
Also, when the compatible device is started from standby mode, this unit also works together to turn on the
power from standby mode.
- When a connected CEC media device plays, the monitor will turn on and/or change to the HDMI input
with the connected media device.
- The monitor’s wireless remote control can be used to control some of the media player device functions.
When [MODE1] is selected, the wireless remote control CEC functions are:
1 (9), 2 (4), 3 (:), 5 (<), 6 (;), ENT, EXIT, , , +, –, MUTE, VOL+, VOL–.
When [MODE2] is selected, the wireless remote control CEC functions are:
0 to 9 and – on the keypad, ENT, EXIT, , , +, –, GUIDE, MUTE, SET/POINT ZOOM, VOL+, VOL–,
CH/ZOOM+, CH/ZOOM–.
Depending on the type of the connected device, the CEC functions may not work as described.
Not all manufacturers provide the same level of CEC integration and control, or they may only provide
support for their products.
NOTE: When [MODE1] or [MODE2] is selected, [POINT ZOOM] is deactivated.
POWER CONTROL LINK The HDMI-CEC compatible device goes into standby at the same time as the monitor when the STANDBY
button is pressed on the remote control, or when the ⏻ button is pressed on the monitor.
NOTE: The connected HDMI-CEC compatible device may not go into standby if it is recording.
AUDIO RECEIVER When [ENABLE] is selected, the internal speaker is muted and connected audio equipment with ARC
function outputs the sound.
When [DISABLE] is selected, connected audio equipment with ARC function is muted and the internal
speaker outputs the sound.
NOTE: It may take a while to output the sound when changing [AUDIO RECEIVER] settings, but this is
not a failure of the monitor.
SEARCH DEVICE Searches the HDMI input for a connected CEC device. If a device is found, the connected HDMI CEC
device’s type and registered device name are shown.
After detecting HDMI CEC devices, you can switch the device input by selecting the device.
BACKGROUND COLOR Adjusts the color of the borders that show when an image does not fill the entire screen.
For example, these borders are shown when a 4:3 image is displayed, Picture-By-Picture in Multi-Picture
Mode is on and the two inputs do not entirely fill the screen.
Press the + button to make the borders lighter, the level can be increased until the color is white.
Press the – button to make the borders darker, the level can be decreased until the color is black.
English−90
INPUT MENU
VIDEO OUT SETTINGS
DUAL DAISY CHAIN
MODE
When MAIN INPUT signal is not detected, switch input from MAIN INPUT to SUB INPUT signal in a daisy
chain configuration.
MAIN INPUT: DisplayPort1, DisplayPort2, HDMI1, HDMI2, COMPUTE MODULE*
1
, OPTION*
2
.
SUB INPUT: DisplayPort1, DisplayPort2, HDMI1, HDMI2, COMPUTE MODULE*
1
, OPTION*
2
.
NOTE: • This function deactivates [MULTI PICTURE], [STILL], [POINT ZOOM], [QUICK INPUT
CHANGE], [AUTO INPUT CHANGE] and [AUDIO INPUT].
• If input is set to [DisplayPort1] and then [DisplayPort VERSION] is set to [1.4], this function is
deactivated.
• During [DUAL DAISY CHAIN MODE] operation, you cannot switch to an input that is not
specified in the main input or sub input.
DP TO HDMI CONVERT Converts the video signal input from the DisplayPort terminal to HDMI and outputs to HDMI terminal.
NOTE: If input is set to [DisplayPort1] and then [DisplayPort VERSION] is set to [1.4], this function is
deactivated.
RESET Resets all INPUT settings back to factory settings except for [INPUT SELECT], [INPUT NAME], [INPUT1]
and [INPUT2] in [QUICK INPUT CHANGE] and [PRIORITY] in [CUSTOM DETECT] in [QUICK INPUT
CHANGE].
*
1
: This function is only available when Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed. See page 84.
*
2
: This function depends on which Option Board you are using. This function is only available when Option Board is installed.
*
3
: Depending on the device, it may not be detected correctly.
PICTURE MENU
PICTURE MODE
When [SPECTRAVIEW ENGINE] is set to
[OFF]
Provides pre-configured picture settings suitable for various environments where this device may be used,
or customize settings to viewer preference. See page 48.
BACKLIGHT Adjusts the overall image and background brightness. Press [+] or [–] to adjust.
NOTE: [ON] is selected in [AMBIENT LIGHT SENSING] at [ADVANCED], this function cannot be
changed.
VIDEO BLACK LEVEL Adjusts the black luminance. When the setting is too low to show, the OSD characters are changed to
green.
GAMMA
NATIVE Gamma correction is handled by the LCD panel.
2.2 Typical monitor gamma for use with a computer.
2.4 Typical gamma settings for use with videos, such as DVDs and Blu-rays.
S GAMMA Special gamma for certain types of movies. Raises the light parts and lowers the dark parts of the image
(S-Curve).
DICOM SIM. DICOM GSDF curve simulated for LCD type.
HDR-ST2084 (PQ) Gamma setting for HDR, typically for UHD disk media and streaming videos.
HDR-HYBRID LOG Gamma setting for HDR, typically for UHD broadcasting.
PROGRAMMABLE1, 2, 3 A programmable gamma curve can be loaded using optional NEC software.
AUTO HDR SELECT
HDMI input only
GAMMA correction of HDR signal automatically changes to [HDR-ST2084 (PQ)] or [HDR-HYBRID LOG].
COLOR
COLOR Adjusts the color saturation of the screen. Press + or – button to adjust.
COLOR TEMPERATURE Adjusts the color temperature of the entire screen. A low color temperature will result in a reddish screen.
A high color temperature will make the screen bluish. If TEMPERATURE needs further adjustment, the
individual R/G/B/ levels of the white point can be adjusted. To adjust the R/G/B levels, set [CUSTOM] as
[COLOR TEMP] selection.
NOTE: When [PROGRAMMABLE1], [PROGRAMMABLE2] or [PROGRAMMABLE3] is selected in
[GAMMA CORRECTION], this function cannot be changed.
COLOR CONTROL Adjusts the hue of the Red, Yellow, Green, Cyan, Blue and Magenta colors individually. Adjust the hue of
the specified color. For example, you can change red to yellow or purple.
English−91
PICTURE MENU
CONTRAST Adjusts the image brightness in relationship to the input signal. Press + or – button to adjust.
BACKLIGHT DIMMING Automatically adjusts each of the clusters of the backlight of the LCD independently, according to the input
signal.
NOTE: • If [AUTO BRIGHTNESS] is set to [MODE 2], this function cannot be changed to [OFF].
• At the time of shipment from the factory, this function is grayed out and [OFF] cannot be set.
To turn it off, set [AUTO BRIGHTNESS] to something other than [MODE2].
PICTURE MODE
When [SPECTRAVIEW ENGINE]
is set to [ON]
Switches to easily visible pictures suitable for the kind of images or environment where this device is used.
PICTURE MODE
Select [PICTURE MODE] from [1] to [5]. See page 42.
EMULATION
3D LUT EMU. The 3D LUT (Look Up Table) is a three-dimensional table that maps colors into different color spaces.
The SpectraView Engine inside this monitor allows complex color gamuts, such as those for color printers,
to be emulated on the monitor directly. For example, this allows print previews or cinematic or color grading
effects to be performed within the monitor itself.
This feature is used with supporting software. 3D LUTs are uploaded to the monitor via application
software.
ON: Enables/Activates the 3D LUT function for the selected picture mode.
OFF: Disables/Deactivates the 3D LUT function for the selected picture mode.
Compare: In this mode, colors that lie outside the boundaries of the 3D LUT are shown in gray. It is
useful for determining out of gamut colors.
COLOR VISION EMU. Previews various typical human vision deficiencies and is useful for evaluating how people who have such
deficiencies will perceive colors.
This preview is available in types:
• P (Protanopia)
• D (Deuteranopia)
• T (Tritanopia)
Grayscale can be used for evaluating contrast legibility.
NOTE: Depending on the vision of the user, including those with color vision deficiency, there will be
a variation in how the screen’s color is seen and experienced. A simulation is used to illustrate
the view of those with a color vision deficiency. It is not their actual view. The simulation is a
reproduction of those with a strong color vision mode of type P, type D or type T. People with a
slight color vision deficiency will experience little to no difference compared to those with normal
color vision.
6 AXIS COLOR TRIM With these controls, the standard color circle is divided into 6 separate ranges/areas: Reds, Yellows,
Greens, Cyans, Blues, and Magentas. Each range can be individually adjusted in Hue, Saturation, and
Offset (Brightness) for specific matching purposes. Neutral colors (grays) will not be impacted.
RED (HUE/SAT./OFFSET) HUE: Changes the actual color within its range on the color wheel without changing the
saturation and offset. For example, the Red color range shifts reds towards Yellow or
Magenta, the Yellow color range shifts yellows towards Red or Green, and so on.
SAT. (Saturation): Changes the intensity of the color range without changing the hue and offset.
OFFSET: Changes the brightness of the color range without changing the hue and saturation.

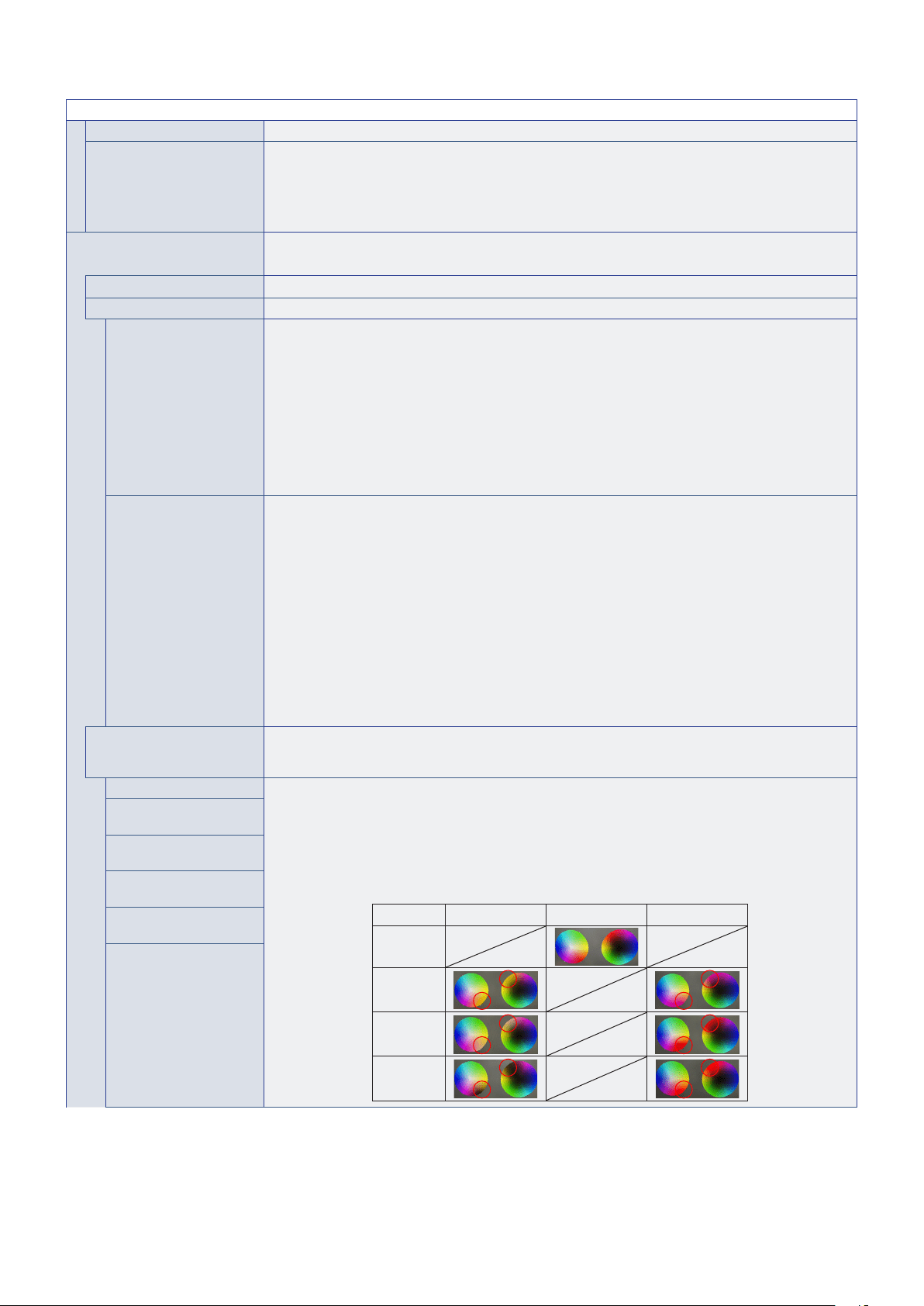

e.g.: This is the color changes when Red color set to minimum
value and maximum value at HUE/SAT./OFFSET.
Minimum value 0 Maximum value
Default
HUE
S AT.
OFFSET
YELLOW (HUE/SAT./
OFFSET)
GREEN (HUE/SAT./
OFFSET)
CYAN (HUE/SAT./
OFFSET)
BLUE (HUE/SAT./
OFFSET)
MAGENTA (HUE/SAT./
OFFSET)
English−92
PICTURE MENU
UNIFORMITY This function improves the color reproduction and evens out the non-uniformity in luminance of the
monitor.
NOTE: A higher number produces a better effect, but may also affect power consumption and lifetime of
the monitor.
BACKLIGHT DIMMING
When [SPECTRAVIEW ENGINE]
is set to [ON]
Automatically adjusts each of the clusters of the backlight of the LCD independently, according to the input
signal.
SPECTRAVIEW ENGINE
SPECTRAVIEW ENGINE Select [ON] to activate [SPECTRAVIEW ENGINE] (see page 42).
NUMBER OF PICT. MODES Limits the number of selectable Picture Modes.
Limiting the number of selectable Picture Modes can be used for the following purposes:
• Locking.
By setting to [1], it will prevent other Picture Modes from being accessed and adjusted.
• Skip.
If there are unused Picture Modes that aren’t needed, they can be skipped when using the Picture Mode
button on the remote control to toggle modes. For example, if [3] is set for [NUMBER OF PICT. MODES],
the available picture modes are [1, 2, 3] and the other modes will be skipped.
METAMERISM Improves the white point color matching when the display is used side-by-side with a standard gamut
display monitor. This feature compensates for the way the human eye perceives colors slightly differently
compared to the scientific instrument used to adjust the monitor during calibration. This function should be
disabled in color critical applications.
CALIBRATION Starts the “Stand-Alone Calibration” when using a USB color sensor. See page 46.
ADVANCED
UHD UPSCALING Achieves high-definition effect.
SHARPNESS Adjusts the crispness of the image. Press + or – button to adjust.
ASPECT Select the aspect ratio of the screen image.
NOTE: • When starting tile matrix in multi-monitor installations, if the [ASPECT] is [ZOOM] it will be
changed to [FULL] before tile matrix starts. After tile matrix is complete, the aspect will return
to [ZOOM].
• If you change [H POSITION] and [V POSITION] settings with a reduced image, the image will
not be changed.
• The [ASPECT] automatically changes to [FULL] when the [SCREEN SAVER] starts. When the
[SCREEN SAVER] stops, the [ASPECT] returns to its previous setting.
• This function is not available when [MOTION] in [SCREEN SAVER] is active.
• The POINT ZOOM function has limitations when [ASPECT] is changed. Please refer to
Point Zoom on page 37.
• [ZOOM] is not available for an image with a DisplayPort input 4K (60 Hz) 10bit.
• If the [ASPECT] is [ZOOM] while tile matrix is active, when tile matrix is released, the
[ASPECT] will be [ZOOM].
NORMAL Shows the aspect ratio as it is sent from the source.
FULL Fills the entire screen.
WIDE Expands a 16:9 letterbox signal to fill the entire screen.
1:1 Shows the image in a 1 by 1 Pixel format. (If the input resolution is higher than the recommended
resolution, the image will be scaled down to fit the screen).
ZOOM Expands/reduces the image.
NOTE: The areas of the expanded image that are outside of the active screen area are not shown.
The reduced image may have some image degradation.
ZOOM Maintains the aspect ratio while zooming.
HZOOM Horizontal zoom value.
VZOOM Vertical zoom value.
H POS Horizontal position.
V POS Vertical position.
English−93
PICTURE MENU
ADAPTIVE CONTRAST
HDMI1, HDMI2, OPTION (TMDS)*
2
,
COMPUTE MODULE*
1
inputs only
Sets the level of adjustment for dynamic contrast.
If HIGH is set, the image is shown clearly but it makes brightness unstable due to the wide gap in contrast
variation.
UNIFORMITY This function improves the color reproduction and evens out the non-uniformity in luminance of the
monitor.
NOTE: When [SPECTRAVIEW ENGINE] is set to [ON], this function is disabled.
AUTO DIMMING Adjusts the backlight of the LCD automatically depending on the amount of ambient light.
AUTO BRIGHTNESS Adjusts the brightness level according to the input signal.
NOTE: • [MODE1] is disabled when [AMBIENT LIGHT SENSING] function is set to [ON].
• When [SPECTRAVIEW ENGINE] is set [ON], this function is disabled.
AMBIENT LIGHT
SENSING
The backlight of the LCD panel can be set to increase or decrease depending on the amount of ambient
light within the room. If the room is bright, the monitor becomes correspondingly bright.
If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the
viewing experience more comfortable to the eye in a variety of lighting conditions.
The ambient parameter setting:
[AMBIENT LIGHT SENSING] in OSD, select [ON] and set [ILLUMINANCE] and [BACKLIGHT].
IN BRIGHT: Setting to use in a bright room.
ILLUMINANCE - The illuminance level in a bright room.
BACKLIGHT - The maximum level of backlight in a bright room.
IN DARK: Setting to use in a dim room.
ILLUMINANCE - The illuminance level in a dim room.
BACKLIGHT - The minimum level of backlight in a dim room.
STATUS: Shows the current setting level of [ILLUMINANCE] and [BACKLIGHT].
When the [AMBIENT LIGHT SENSING] is enabled the Backlight level of the screen changes automatically
according to the lighting conditions of the room (see figure below).
BACKLIGHT level set for
the monitor to use when
ambient lighting is low.
BACKLIGHT level set for the
monitor to use when ambient
lighting is high.
BACKLIGHT setting range.
Dark BrightRoom bright condition
L - ILLUMINANCE level set for the monitor to use when ambient lighting is low.
H - ILLUMINANCE level set for the monitor to use when ambient lighting is high.
BACKLIGHT variable range.
0% 100%
0%
100%
L H
NOTE: • When [AMBIENT LIGHT SENSING] is set, [BACKLIGHT] and [MODE1] in [AUTO
BRIGHTNESS] functions are disabled.
• Do not select this function when [AUTO BRIGHTNESS] function is set to [MODE1].
• Do not cover the optional sensor unit when [AMBIENT LIGHT SENSING] is enabled.
[AMBIENT LIGHT SENSING] is enabled when it is set to [ON].
• When [SPECTRAVIEW ENGINE] is set [ON], this function is disabled.
English−94
PICTURE MENU
HUMAN SENSING*
3
Automatically adjusts the backlight and volume levels based on whether or not a human presence is
detected in front of the monitor.
NOTE: • If [AUTO INPUT CHANGE] is set to other than [NONE], this function is set to [DISABLE].
DISABLE Human sensing function is off.
AUTO OFF The monitor’s backlight automatically turns off, and the volume mutes when no human presence is
detected during the period set at [WAITING TIME].
When a person is near the monitor again, the monitor will automatically return to normal mode.
CUSTOM The monitor’s input signal, backlight and volume levels automatically shift to the setting at [INPUT
SELECT], [BACKLIGHT] and [VOLUME] when no human presence is detected during the period set at
[WAITING TIME].
When a person is near the monitor again, the monitor will automatically return the backlight and volume to
normal levels and reproduce the input signal selected for [INPUT SELECT].
NOTE: When [SPECTRAVIEW ENGINE] is set [ON], [BACKLIGHT] is disabled.
AUTO TILE MATRIX AUTO TILE MATRIX sets the Tile Matrix settings automatically for all monitors in the chain, starting from
the primary monitor. Please refer AUTO TILE MATRIX in the “Connecting Multiple Monitors” on page 54.
TILE MATRIX
TILE MATRIX Allows one image to be expanded and shown over multiple screens (up to 100) through a distribution
amplifier. This option is for manually configuring the TILE MATRIX settings that are automatically
configured when using [AUTO TILE MATRIX SETUP].
NOTE: • Low resolution is not suitable for tiling to a large number of monitors.
• You can operate with a distribution amplifier or DisplayPort out or HDMI out to send signal
to the connected monitors. These functions are not available when [TILE MATRIX] is active:
[MULTI PICTURE MODE], [STILL] and [POINT ZOOM] remote control buttons.
• The tile matrix automatically deactivates when enabling any of the following functions:
- Selecting an [IMAGE FLIP] option in the [IMAGE FLIP] menu (except for [NONE]) or
activating [MOTION] in the [SCREEN SAVER] menu.
• If [ZOOM] is the selected aspect setting, they function as [FULL] aspect when the tile matrix is
active. While the tile matrix is active, changing the aspect setting to [ZOOM] or changing the
zoom level, does not affect the picture. When the tile matrix deactivates, any settings changed
while the tile matrix was active are immediately applied.
• [POINT ZOOM] function automatically deactivates when [TILE MATRIX] is activated. Please
refer to the [POINT ZOOM] function for more detail.
• When input signal is DisplayPort4K (60 Hz)10bit, [TILE MATRIX] is not available.
• If input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4], [H MONITORS] and
[V MONITORS] setting is up to [2].
H MONITORS Number of monitors arranged horizontally.
V MONITORS Number of monitors arranged vertically.
POSITION Select the section of the tiled image to view on the current monitor.
TILE COMP Adjusts the image to compensate for the gap between monitors.
When activated, the image size and position can be adjusted by pressing the + or – button on the remote
control.
NOTE: • If [TILE CUT] is set to [DISABLE], this function is disabled.
• If input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4], this function is
disabled.
TILE CUT Selects part of the image and displays it on the full screen.
Adjust the frame size using [H MONITORS] and [V MONITORS], then choose a frame [POSITION].
The frame position can be adjusted by pressing the + or – button on the remote control.
NOTE: • If [TILE CUT] is set to [DISABLE], this function is disabled.
• If input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4], this function is
disabled.
English−95
PICTURE MENU
IMAGE FLIP
IMAGE FLIP Changes the orientation of the image to left/right, up/down, or rotated.
Press + button or – button to select.
NOTE: • When an IMAGE FLIP option is selected, except for [NONE], the following functions are
disabled: [MULTI PICTURE MODE], [STILL], [POINT ZOOM], [ROTATE] and [TILE MATRIX].
• When the input signal is interlaced, the image may be distorted.
• When an IMAGE FLIP option is selected, except for [NONE], if input is set to [DisplayPort1]
then [DisplayPort VERSION] is set to [1.4] or [SCREEN SAVER] is set to [MOTION], this
function is released.
NONE Normal mode.
H FLIP Flips the image left/right.
V FLIP Flips the image up/down.
180° ROTATE Rotates the image 180 degrees.
OSD FLIP Determines the OSD menu direction.
If [ON] is selected, the OSD orientation will be adjusted based on the selection for [IMAGE FLIP].
MULTI PICTURE
MULTI PICTURE MODE When [OFF] is selected, one picture is shown.
Select [2PIP], [2PBP] or [4PBP] then set input to each picture.
2PIP
A
B
2PBP
BA
4PBP
D
A
C
B
A: PICTURE 1 B: PICTURE 2
C: PICTURE 3 D: PICTURE 4
NOTE: • This function is released when the following functions are active: [MOTION] in [SCREEN
SAVER], [IMAGE FLIP] (except for [NONE]), [TILE MATRIX], [QUICK INPUT CHANGE],
[DUAL DAISY CHAIN MODE] or if input is set to [DisplayPort1] then [DisplayPort VERSION] is
set to [1.4].
• [STILL] or [POINT ZOOM] functions will not work when this function is activated.
• If [CEC] is set to [MODE1] or [MODE2], [MULTI PICTURE] setting via remote control may
have some limitations.
• DisplayPort input has a limitation when picture number is set to [4PBP]. In the selection of
[DP1], [DP2], [OPTION (DisplayPort)], you can set two inputs only. When picture number is set
to [4PBP], [ROTATE] is disabled.
AUDIO Selects which audio source to use when [MULTI PICTURE] is enabled.
When either picture is selected, the sound of that picture is output.
NOTE: This function deactivates [AUDIO INPUT].
ACTIVE PICTURE When [MULTI PICTURE MODE] is [OFF], [PICTURE1] is the active picture. When [MULTI PICTURE
MODE] is [ON], select an active picture from several pictures.
ACTIVE FRAME The active picture is shown within a white frame.
English−96
PICTURE MENU
PICTURE SIZE Sets the Active Picture size.
Press the SET/POINT ZOOM button to adjust the picture size. Press + button or CH/ZOOM+ button to
expand.
Press – button or CH/ZOOM– button to reduce.
NOTE: • When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to [PICTURE1],
this function is deactivated.
• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
PICTURE POSITION Sets the [ACTIVE PICTURE] location.
Pressing the + button moves the Active Picture to the right, and pressing the – button moves it to the left.
Pressing the button moves the Active Picture up, and pressing the button moves it down.
NOTE: • When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to [PICTURE1],
this function is deactivated.
• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
ROTAT E Sets the multi-screen rotation.
NOTE: • The [POINT ZOOM] function will not work if this function is enabled.
• This function is canceled when [DisplayPort VERSION] in [DisplayPort1] is set to [1.4] or
[SCREEN SAVER] is set to [MOTION] or [IMAGE FLIP] is set to [NONE].
• If input signal is Interlaced signal this function is disabled.
• If input is DisplayPort 4K (60 Hz) 10bit, this function is disabled.
ROTATE ALL Rotate all pictures.
PICTURE1 Rotates [PICTURE1].
PICTURE2 Rotates [PICTURE2].
RESET Resets all PICTURE settings back to factory settings except for [PICTURE MODE] and [SPECTRAVIEW
ENGINE].
*
1
: This function is only available when Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed. See page 84.
*
2
: This function depends on which Option Board you are using. This function is only available when Option Board is installed.
*
3
: This function is available only when connecting the optional sensor unit.
AUDIO
AUDIO MENU
AUDIO MODE Provides pre-configured audio settings suitable for various environments where this device may be used,
or customize settings to viewer preference.
NATIVE: Standard setting.
RETAIL: Surround sound for clarity of audio in retail stores.
CONFERENCING: Optimized settings for clarity of audio in conference rooms.
HIGHBRIGHT: Lowest volume level in order to focus on the visual message (audio is mute).
TRANSPORTATION: Lowest volume level in order to avoid disturbance in public spaces (audio is mute).
CUSTOM: Customizable settings.
VOLUME Increase or decrease output volume level.
BALANCE Select [STEREO] or [MONO] for the audio output.
STEREO/MONO STEREO: Independent audio channels for routing audio signal. Sound balance between the left and right
speakers can be adjusted.
- Press the + button to move the audio signal to the right.
- Press the – button to move the audio signal to the left.
MONO: Audio signals are routed through a single audio channel. Balance cannot be adjusted and the
slider will be unavailable.
SURROUND Artificially produces surround sound audio.
NOTE: [LINE OUT] is disabled when this function is set to [ON].
English−97
AUDIO MENU
EQUALIZER
TREBLE Accentuates or reduces the high frequency range of audio signals.
Press the + button to increase [TREBLE].
Press the – button to decrease [TREBLE].
BASS Accentuates or reduces the low frequency sound.
Press the + button to increase [BASS].
Press the – button to decrease [BASS].
ADVANCED
LINE OUT Selecting [VARIABLE] enables control of the line out level with the VOLUME button on the remote control
or monitor control panel.
AUDIO DELAY Select this option if there is a noticeable delay between the video image and the audio signal output. When
this option is on, the audio signal can be delayed for a period of between 0 and 100 milliseconds. This
allows delays in the video, that may occur due to video processing such as DEINTERLACE, to be matched
by an equal delay in the audio signal to avoid lip-sync errors.
AUDIO DELAY
DELAY TIME
AUDIO INPUT Selects the audio to be output during single screen display.
Selects the audio input source: [DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2], [COMPUTE MODULE*]
and [OPTION*
1
].
NOTE: This function is disabled when the following functions are active: [MULTI PICTURE], [QUICK
INPUT CHANGE], [DUAL DAISY CHAIN MODE] or if input is set to [DisplayPort1] then
[DisplayPort VERSION] is set to [1.4].
RESET Resets all AUDIO settings back to factory settings except for [AUDIO MODE].
*: This function is only available when Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed. See page 84.
*
1
: This function depends on which Option Board you are using. This function is only available when Option Board is installed.
SCHEDULE
SCHEDULE MENU
SCHEDULE SETTINGS Creates a working schedule for the monitor (see page 41).
Press the , , +, – buttons to navigate and change the schedule settings. Press the SET/POINT ZOOM
button on the remote control or Input change buttons on the monitor to select settings.
SETTINGS Highlight the number and press SET/POINT ZOOM button to activate the schedule. The box next to the
number has an outline when the schedule is enabled. Up to 14 schedules can be created and enabled.
Press the + or – button to cycle through schedule numbers.
POWER Sets the monitor’s power state for the schedule. Select [ON] if you want the schedule to turn the monitor on
at the specified time. Select [OFF] if you want the schedule to turn the monitor off at the specified time.
TIME Set the start time for the schedule.
NOTE: Fill in both fields for the TIME setting. If either field shows [--], the schedule does not run.
INPUT Select which video input to use for the schedule. To keep the active input when the schedule starts, make
sure the setting is [--].
If you do select a specific input, set [ON] at [POWER].
DAT E
YEAR Select this option if the schedule is only going to run on one day or it is an irregular schedule.
MONTH
DAY
EVERY WEEK Select this option to have the schedule repeat every week.
OFF TIMER Powers off the monitor after the time period shown next to the slider. Press the + or – button on the remote
control to adjust the timer from 1 to 24 hours.
NOTE: Schedules do not run when the [OFF TIMER] is set to [ON].
RESET Resets all SCHEDULE settings back to factory setting, except for [OFF TIMER].
English−98
SLOT
SLOT MENU
OPTION*
2
Configure settings for a connected Option Board.
POWER CONTROL
POWER SUPPLY Controls power to an Option Board.
Select [YES] then press SET on the remote control to power on the device.
Select [NO] then press SET on the remote control to power off the device.
NOTE: The option that is highlighted under [POWER SUPPLY] when you open the [POWER CONTROL]
menu indicates the current power status. If [YES] is highlighted, the power is on. If [NO] is
highlighted, the power is off.
POWER BUTTON Allows the same operation as the power button on the installed Option Board.
FORCE SHUTDOWN Press SET to force a shutdown of the device installed in the option slot.
NOTE: Please use this function only when the operating system cannot be shut down manually.
RESET Press SET to force a shutdown and restart of the Option Board when it does not respond to shutdown
using the [POWER BUTTON] or [FORCE SHUTDOWN] function.
NOTE: • This function may corrupt data files on the Option Board or data files on a storage device
connected to an installed Option Board.
• Please only use this function when [POWER BUTTON] and [FORCE SHUTDOWN] cannot be
carried out.
Connection Status*
3
Shows the connection status of an Option Board. If the status is not “Connected” then a device is not
installed.
Power Status*
3
Shows the operating status of the installed Option Board.
Module*
3
Shows information about the installed Option Board.
POWER SETTING
AUTO POWER UP The installed Option Board will be turned on automatically when the monitor power is turned on.
AUTO SHUTDOWN*
4
The installed Option Board is turned off when the monitor switches into standby mode.
POWER SUPPLY OFF
DELAY
When [OFF] is selected at [OPTION POWER], this sets the time delay after [AUTO SHUTDOWN] executed
until the power to the Option Board is turned off.
AUTO DISPLAY OFF Allows the monitor to switch into the same status when the installed device is switched into standby or
power save mode.
NOTE: If you select [ENABLE], the monitor does not automatically power on when the Option Board
turns on.
OFF WARNING Shows a warning, when shutting down the power to the Option Board, that the device should be turned off
from within the OS of the device. This message cannot be changed.
This function is available when [POWER SUPPLY] is [OFF].
ADVANCED SETTING
CHANNEL SELECT Allows the monitor to show two video signals, DisplayPort and TMDS of the device installed in the option
slot.
When [AUTO] is selected, the screen display is set according to the specifications of the device installed in
the option slot.
INTERFACE CAPABILITY Shows the signals supported by the device installed in the option slot.
English−99
SLOT MENU
COMPUTE MODULE* Configure settings for a Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute
Module.
POWER CONTROL
POWER SUPPLY Controls power to the Compute Module.
Select [YES] then press SET on the remote control to power on the device.
Select [NO] then press SET on the remote control to power off the device.
NOTE: The option that is highlighted under [POWER SUPPLY] when you open the [POWER CONTROL]
menu indicates the current power status. If [YES] is highlighted, the power is on. If [NO] is
highlighted, the power is off.
POWER BUTTON Performs a normal shut down of the Compute Module.
RESET Press SET to force a shutdown and restart of the Compute Module when it does not respond to shutdown
using the [POWER BUTTON] function.
NOTE: This function may corrupt the data files on the Compute Module and data files on a storage
device connected to the Compute Module interface card.
Connection Status*
3
Shows the connection status of a Compute Module. If the status is not “Connected” then a device is not
installed.
Power Status*
3
Shows the operating status of the Compute Module.
Module*
3
Shows information about the Compute Module Interface Board.
POWER SETTING
AUTO POWER UP The Compute Module will be turned on automatically when the monitor power is turned on.
AUTO SHUTDOWN*
4
The Compute Module is turned off when the monitor switches into standby mode.
POWER SUPPLY
OFF DELAY
This sets the time delay after the Shutdown Signal is set until the power to the Compute Module is
turned off. Configure this to allow adequate time for any software to shutdown safely.
AUTO DISPLAY OFF Allows the monitor switch into the same status when the Compute Module goes into standby or power
save mode.
NOTE: If you select [ENABLE], the monitor power is not automatically on when the Compute Module
turns on.
OFF WARNING Shows a warning, when shutting down the power to the Compute Module, that the device should be turned
off from within the OS of the device. This message cannot be changed.
This function is available when [POWER SUPPLY] is [OFF].
ADVANCED SETTING
SHUTDOWN SIGNAL Enables or disables the use of GPIO 23 to signal that power to the Compute Module will be shutting down.
IR SIGNAL Enables or disables the forwarding of IR remote control signals.
MONITOR CONTROL Enables or disables the internal serial connection between the monitor and the Compute Module.
WDT Enables or disables the monitor’s built-in Watchdog Timer function for the Compute Module.
When enabled, the monitor will expect to receive a periodic reset command from the Compute Module via
the internal UART. If the command isn’t received for three consecutive timeout periods, the monitor will
restart the Compute Module.
START UP TIME Sets the time delay for when the monitor should start receiving WDT reset commands after the Compute
Module powers up.
PERIOD TIME Sets the maximum amount of time within which the monitor must receive WDT reset commands from the
Compute Module.
SLOT POWER Allows the monitor to supply power to an Option Board slot during power save mode or standby mode.
[AUTO]: Power is continuously supplied to the Option Board slot, even during power save and standby
modes.
Power to the Option Board slot stops during power save and standby modes, when there is no installed
device.
[ON]: Power is continuously supplied to the Option Board slot, even during power save and standby
modes.
[OFF]: Power to the Option Board slot stops during power save and standby modes.
NOTE: To activate the power management function with no signal input from a device connected to the
Option Board, please set [OPTION POWER] to [AUTO] or [ON].
RESET Resets all SLOT settings back to factory settings, except for [POWER SUPPLY] in [OPTION], [POWER
SUPPLY] and [ADVANCED SETTING] in [COMPUTE MODULE].
*: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed. See page 84.
*
2
: This function depends on which Option Board you are using. This function is only available when an Option Board is installed.
*
3
: Some Option Boards may not show it correctly.
*
4
: When the option board is a computer, check the settings on the computer side.
English−100
NETWORK
NETWORK MENU
NETWORK INFORMATION Configures the monitor’s network settings either automatically or manually.
IP SETTING When [AUTO] is selected, the IP address is automatically obtained from the DHCP server.
When [MANUAL] is selected, the network settings must be entered manually. Contact the Network
Administrator for this information.
NOTE: Consult your network administrator for the IP address when [AUTO] is selected for [IP SETTING].
IP ADDRESS Set the IP address for the monitor connected to the network when [MANUAL] is selected for [IP SETTING].
SUBNET MASK Set the subnet mask data for the monitor connected to the network when [MANUAL] is selected for
[IP SETTING].
DEFAULT GATEWAY Set the default gateway for the monitor connected to the network when [MANUAL] is selected for
[IP SETTING].
NOTE: Enter [0.0.0.0] to delete the setting.
DNS Set the IP addresses of DNS servers.
[AUTO]: The DNS server which is connected to the monitor will automatically assign its IP address.
[MANUAL]: Manually enter the IP address of the DNS server which is connected to the monitor.
NOTE: Consult your network administrator for the IP address when [AUTO] is selected for [DNS].
DNS PRIMARY Enter the primary DNS server settings of the network connected to the monitor.
NOTE: Enter [0.0.0.0] to delete the setting.
DNS SECONDARY Enter the secondary DNS server settings of the network connected to the monitor.
NOTE: Enter [0.0.0.0] to delete the setting.
MAC ADDRESS Shows the monitor’s [MAC ADDRESS].
EXECUTE Executes the network information settings.
NETWORK SECURITY Individually enable or disable the networking component for monitor functions.
When performing the revision update of firmware over the network, please enable all settings.
INTERFACE Enables or disables the network function for controlling the monitor remotely.
When [DISPLAY] is disabled, these functions do not work: External Control, Mail, Daisy chain functions,
HTTP server, SNMP, Crestron, AMX, PJLink.
Disabling the [COMPUTE MODULE] setting disables the ability to control network connections and
monitors using [COMPUTE MODULE].
NOTE: If you disable DISPLAY, monitor control in a daisy chain configuration is not available.
Please be aware of the impact in multi-monitor installations before disabling it.
NETWORK PORT Enables or disables the network port of the selected item. Disabling it closes the port and disables each
feature.
APPLY Apply the network security settings.
PING Confirm successful connection with the network by communicating with a preset IP address.
IP ADDRESS Sets an [IP ADDRESS] for sending [PING].
EXECUTE Checks a reply can be sent to the monitor or not from the [IP ADDRESS] by sending [PING].
RESET Resets all NETWORK settings back to factory settings.
English−101
PROTECT
PROTECT MENU
POWER SAVE SETTINGS
POWER SAVE Enables or disables the monitor entering power saving mode. When [ENABLE] is selected, the monitor
goes into power saving mode after the period of time has passed with no input signal detected or signal
loss has occurred. When the monitor is in power saving mode, the LED power indicator will change color.
Refer to the Power indicator table (see page 74). When [DISABLE] is selected, the monitor doesn’t go
into power saving mode.
Please refer to the monitor’s specifications (see “P435” on page 77, “P495” on page 78, “P555”
on page 79, “MA431” on page 80, “MA491” on page 81 and “MA551” on page 82) for power
consumption information.
NOTE: • When the monitor is connected to a computer, the computer’s display adapter may not stop
sending digital data even though there is no image on-screen. If this occurs the monitor will not
switch into standby mode.
• If [AUTO OFF] or [CUSTOM] is selected in [HUMAN SENSING]*
1
, the power save function
does not work.
*
1
: This function is available only when connecting the optional sensor unit.
TIME SETTING Sets the amount of time the monitor should wait for input signal before going into power save mode.
POWER SAVE MESSAGE Shows a message as the monitor is entering low power mode.
QUICK START When [ENABLE] is selected, the monitor will quickly return to the [ON] state when a signal is detected.
Enabling this option increases standby power consumption.
THERMAL MANAGEMENT
FAN CONTROL When [AUTO] is selected, the fans will only turn on when the internal temperature reaches the temperature
set at any one of the sensors in this menu. The fans will automatically turn off when the monitor is cooler.
When [ON] is selected the fans are always on. The fans cannot be turned off manually.
Use the + and – button on the remote control to adjust the maximum internal temperature the monitor can
reach before the fan turns on when [AUTO] is selected.
FAN SPEED The [FAN SPEED] can be adjusted between LOW and HIGH.
DISPLAY Shows the status of the internal temperature of the monitor.
FAN STATUS Shows the status of the monitor’s internal fan.
INTERNAL
TEMPERATURE
Shows the internal temperature of the monitor.
SLOT Shows the internal temperature of the Option Board.
FAN STATUS Shows the status of the fan for the Option Board.
INTERNAL
TEMPERATURE
Shows the internal temperature of the Option Board.
SYSTEM FAN
REQUIREMENT
Show the requirement operation from the Option Board.
OPTION
COMPUTE MODULE
English−102
PROTECT MENU
SCREEN SAVER Use the [SCREEN SAVER] function to reduce the risk of Image Persistence.
NOTE: • When the screen saver starts, the image aspect is changed to [FULL]. When the screen saver
stops, the aspect will return to the current [ASPECT] setting.
• When the [MOTION] option is set to [ON], these functions are not available: [MULTI PICTURE],
[IMAGE FLIP] (except for [NONE]), [TILE MATRIX], [STILL], [ROTATE] and [POINT ZOOM].
• If input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4], this function is
released.
MOTION Slightly expands the screen image to the pre-set zoom level then moves the image in four directions (up,
down, right, left) at the pre-set interval. Use the + and – button on the remote control to set the time on the
[INTERVAL] slider, and the zoom percentage on the [ZOOM] slider.
NOTE: If input is a DisplayPort signal 4K (60 Hz) 10bit, this function is deactivated.
POWER ON DELAY Delays the monitor from turning on for the amount of time set when the POWER ON button is pressed.
DELAY TIME The delay can be set between 0 and 50 seconds.
LINK TO ID Links the [DELAY TIME] to the monitor’s ID. This helps to prevent power surges that may occur if all
monitors in a multi-monitor installation were to turn on at the same time. The higher the Monitor ID, the
longer the delay is before the monitor powers on.
For example, if the Monitor ID is 20 and the [DELAY TIME] is 5 seconds, the amount of time that passes
between when the POWER ON button is pressed and when the power actually turns on is 95 seconds.
This allows the 19 monitors in the multi-monitor installation to turn on with 5-second intervals between
each power on.
NOTE: If the [DELAY TIME] is set to 0 seconds, there will be no extended delay for [LINK TO ID].
The delay time must be 1 second or higher to delay power on.
SECURITY SETTINGS Sets the security function.
PASSWORD Enters the password.
SECURE MODE Selects when a security password is required to use the monitor.
START-UP LOCK Requires a password for the security function when the power is turned on.
CONTROL LOCK When you press a button on the main unit or a button on the remote control, the password for the security
function is required.
CHANGE PASSWORD Changes the password for the security function.
NOTE: The factory preset password is [0000].
CURRENT PASSWORD Enter the current password.
NEW PASSWORD Enter a new password.
CONFIRM PASSWORD Enter the new password again to confirm the password change.
LOCK SETTINGS Prevents the monitor from being controlled by the wireless remote control, the buttons and key on the
monitor, or both. Please refer to “Locking the Button Controls” (page 51 and page 52).
ALERT MAIL When set to [ON] and the monitor is connected to a network, the monitor can send an email message
when an error occurs. The email settings must be configured in the monitor’s HTTP server settings for an
ALERT MAIL to be sent. See page 65.
RESET Resets all SECURITY settings back to factory setting, except for [POWER ON DELAY] and [SECURITY
SETTINGS].
English−103
SYSTEM
SYSTEM MENU
MONITOR INFORMATION Shows the model name, serial number and firmware version of the monitor.
MODEL
SERIAL
CARBON SAVINGS Shows the estimated carbon saving information in kg-CO2. The carbon footprint factor in the carbon saving
calculation is based on the OECD (2008 Edition).
CARBON USAGE Shows the estimated carbon usage information in kg-CO2. This is the arithmetic estimation, not actual
measurement value. This estimation is based without any options.
FIRMWARE Shows the monitor’s current firmware version.
MAC ADDRESS Shows the monitor’s [MAC ADDRESS].
DATE & TIME NOTE: If the monitor’s main power has been turned off for two weeks, the clock function stops working.
In this case, please set the [DATE & TIME] setting again.
TIME ZONE Set the time difference between the region where the monitor is used and the UTC (Universal Time,
Coordinated).
INTERNET TIME SERVER Synchronizes the time with the NTP server on the network to obtain the correct time.
YEAR Sets the current year. Press the + or – button on the remote control to cycle to the current year. Press
[UPDATE] to apply the change.
MONTH Sets the current month. Press the + or – button on the remote control to cycle to the current month. Press
[UPDATE] to apply the change.
DAY Sets the current day of the month. Press the + or – button on the remote control to cycle to the current day.
Press [UPDATE] to apply the change.
TIME Sets the current time. Highlight the hour field, then press the + or – button on the remote control to cycle to
the current hour, then repeat this for the minutes field. Press [UPDATE] to apply the change.
NOTE: • The monitor’s clock is a 24-hour format.
• If the monitor is at a location that is currently in Daylight Savings, set the TIME field to what
the current time would be when Daylight Savings is not in effect. Then enable the [DAYLIGHT
SAVING] function to have the clock automatically adjust to the current time.
• If the [INTERNET TIME SERVER] is set to [ON], this function is disabled.
CURRENT DATE TIME Shows the current date and time. This data does not reflect changes to the Date and Time settings until
SET is pressed on the remote control.
UPDATE Sets the date and time. When [INTERNET TIME SERVER] is set to [ON], updates the time.
DAYLIGHT SAVING Automatically changes the real-time clock to match Daylight Savings hours.
NOTE: Set the [DATE & TIME] before enabling the [DAYLIGHT SAVING] setting.
DAYLIGHT SAVING Automatically adjusts the current time, when Daylight Saving hours are in effect, based on the start and
end dates selected in this menu.
BEGIN MONTH Set the month, day and time for when Daylight Saving begins.
END MONTH Set the month, day and time for when Daylight Saving ends.
TIME DIFFERENCE Set the time difference for the real-time clock adjustment. When Daylight Saving starts, this is the amount
of time the real-time clock will be adjusted.
EXTERNAL CONTROL Sets the monitor’s ID number, assigns the monitor to groups.
MONITOR ID Sets the monitor’s ID number between 1 and 100. This number is also used by the remote control when in
ID mode.
NOTE: It is strongly recommended so that the monitor can be individually identified and controlled.
GROUP ID This function assigns monitors to groups, which gives you the ability to send commands to all monitors;
however, only monitors with the matching Group ID perform the command. Group IDs allow specific groups
of monitors to be targeted using a single command, providing high-speed parallel operation. It is useful
for scenarios such as rapid switching of video inputs or tile matrix configurations within a video wall. The
[GROUP ID] function is used only via RS-232C commands from your software or control system. Monitors
can be assigned to any of the 10 available Group IDs, labeled A-J. Refer to the External_Control.pdf file
(see page 84) for the monitor’s command codes.
English−104
SYSTEM MENU
AUTO ID/IP SETTING Automatically sets all of the monitor IDs and/or IP addresses in a LAN chain. Highlight [START] and press
SET on the remote control to show the [AUTO ID/IP SETTING] menu.
NOTE: • All changes to the [AUTO ID/IP SETTING] menu should be made on the master monitor,
which is the first monitor in the LAN chain. Automatic numbering consecutively counts up by 1
starting from the master monitor.
• Do not turn off the monitors’ main power switch or put it into standby while [AUTO ID/IP
SETTING] or [AUTO ID/IP RESET] is in progress.
• Do not interrupt the monitors’ LAN chain by connecting network devices between the monitors.
SETTING ITEM Selects which function to automatically number in the LAN chain. Each number is assigned consecutively
starting from the base numbers set in this menu.
MONITOR ID Monitor ID numbers are automatically assigned for all monitors in the LAN chain, starting from the number
set for [BASE NUMBER].
This option does not change the current IP addresses.
IP ADDRESS IP addresses are automatically assigned for all monitors in the LAN chain. The first three octets are set
using the format in [BASE ADDRESS], the fourth octet starts at the BASE NUMBER and counts up by 1
for each subsequent monitor in the LAN chain.
This option does not change the current Monitor IDs.
ID and IP Both the monitor ID and the IP address are assigned for all monitors in the LAN chain, starting from the
[BASE NUMBER] and [BASE ADDRESS].
BASE NUMBER Sets the starting number for the monitor ID and/or IP address.
This is the number that is assigned to the master monitor. The automatic numbering assigns consecutive
numbers, starting from this number and counting up by 1, to each monitor in the LAN chain.
When running AUTO ID:
- Monitor numbers can be between 1-100. However, the master monitor must have a starting number
low enough to include all monitors in the LAN chain. The automatic numbering counts up by 1 until it
reaches 100. For example, if there are 20 monitors in the LAN chain, the BASE NUMBER must be 80 or
lower.
When running AUTO IP:
- This is the fourth octet in the IP address. Octets one to three are set at BASE ADDRESS. The BASE
NUMBER is automatically assigned to the master monitor and counts up by 1 until the end of the LAN
chain.
- If the master monitor is connected to a network, make sure there are no IP address conflicts before
running AUTO IP.
When running IP and ID:
- The BASE NUMBER is the starting number for both the monitor ID and the fourth octet of the IP address.
Due to this, if the master monitor is going to be connected to a network, and a block of IP addresses
are not available at a number that is low enough for starting automatic ID, then it is recommended that
AUTO ID and AUTO IP be run separately instead of using the grouped auto ID and IP function.
BASE ADDRESS Sets the first octet to the third octet for the IP addresses assigned during automatic numbering. If the
master monitor is connected to a network, these fields must match the network IP numbers for the
monitors to be accessed over a LAN, such as 192.168.0 or 10.0.0.
The fourth octet is set at [BASE NUMBER] and counts up by 1 starting from the master monitor.
NOTE: [BASE ADDRESS] is only available when [IP ADDRESS] or [ID and IP] is selected for the
[SETTING ITEM].
ID/IP SETTING START Highlight YES then press SET on the remote control to activate the automatic number function, which first
detects the number of monitors connected in the LAN chain before proceeding.
DETECTED MONITORS Shows the number of detected monitors connected in the LAN chain. If the number is correct, highlight
CONTINUE then press SET on the remote control to start automatic numbering.
If the number of monitors is incorrect, make sure all monitors are powered on and verify the LAN cable
connection between monitors. Then highlight RETRY and press SET to restart the monitor detection.
When the [AUTO ID/IP SETTING] is complete, the status FINISH! will show on screen.
NOTE: Do not turn off the monitors’ main power switch or put it into standby while [AUTO ID/IP SETTING]
is in progress.
English−105
SYSTEM MENU
AUTO ID/IP RESET Resets all of the monitor IDs and/or IP addresses in a LAN chain. Highlight START and press SET on the
remote control to show the [AUTO ID/IP RESET] menu.
RESET ITEM Select which item to reset for all monitors in the LAN chain.
ID/IP RESET START Highlight YES and press SET to reset the selected [RESET ITEM].
[MONITOR ID] will change all of the monitor IDs to 1 (default setting).
[IP ADDRESS] will change all of the monitor IP addresses back to their previous setting.
[ID and IP] will reset both the monitor IDs and IP addresses.
DETECTED MONITORS Shows the number of detected monitors.
COMMAND TRANSFER When [ON] is selected, commands sent to the master monitor are transferred to the other monitors in the
LAN chain.
LANGUAGE Select the language used by the OSD.
OSD
OSD TIME Turns off the OSD after a period of inactivity. The preset choices are 10-240 seconds.
OSD POSITION Determines the location where the OSD appears on the screen.
OSD SIZE Change the size of the OSD on the screen.
INFORMATION OSD Selects whether or not to automatically show information about the monitor when it powers on, changes
input, or the current input signal changes.
The information includes the current input, audio source, aspect ratio, resolution, and refresh rate.
The monitor’s ID and IP address are also shown unless their setting is OFF.
Note that the information OSD is also displayed when pressing the DISPLAY button on the remote control.
The remote control function cannot be turned off.
COMMUNICATION INFO. Selects whether or not to show the [MONITOR ID] and [IP ADDRESS] when the [INFORMATION OSD] is
[ON] or when pressing the DISPLAY button on the remote control.
The information is selected in [EXTERNAL CONTROL] or [NETWORK INFORMATION] in [NETWORK].
OSD TRANSPARENCY Makes the OSD partially transparent.
OSD ROTATION Changes the OSD orientation between landscape and portrait.
LANDSCAPE Shows the OSD in landscape orientation.
PORTRAIT Shows the OSD in portrait orientation.
KEY GUIDE Shows the monitor’s button controls Key Guide when open the OSD Menu.
The Key Guide is aligned to the monitor’s button control panel and does not move if the OSD POSITION
changes. It is a visual guide to indicate the position of the buttons so that features can be easily adjusted
when not using a remote control.
English−106
SYSTEM MENU
CLONE SETTING
CLONE SETTING Copies some of the OSD menu settings to other monitors using a USB storage device (FAT32) or a LAN
cable.
NOTE: The selection of which settings to copy will be reset to default when the monitor is powered off.
TARGET INPUT There are two options, “CURRENT” and “ALL”.
CURRENT: Copies only the current input’s data.
ALL: Copies data for all of the inputs.
INPUT Copies the selected settings.
AUDIO
SCHEDULE
SLOT
NETWORK
PROTECT
SYSTEM
HTTP
COPY START Exports the monitor settings to a connected USB storage device or monitors connected via LAN.
Highlight and press SET to select each setting that needs to be copied to the other monitors, or select
[ALL INPUT]. Highlight [YES] and press SET to start copying the settings.
POWER INDICATOR Turns [OFF] or [ON] the LED that indicates the monitor is powered on and in active mode. The monitor’s
power LED will not glow when this setting is [OFF].
MUTE SETTING Allows you to mute the monitor’s audio and video output.
AUDIO: Mutes the audio output when the remote control’s MUTE button is pressed.
VIDEO: Mutes the video output when the remote control’s MUTE button is pressed.
AUDIO & VIDEO: Mutes the audio and video output when the remote control’s MUTE button is pressed.
NOTE: The MUTE setting is released in the following cases:
• If you change the [INPUT], turn off/on the main power switch, turn off/on with the ⏻ button on
the remote control or the main unit, return from power save, change the [MUTE SETTING],
change the [AUDIO MODE], when the volume is changed with the remote control or the main
unit key, or when the video signal (resolution/scanning frequency) is changed.
USB
PC SOURCE Select which device you want to use to control the monitor and a device connected to USB-A.
AUTO: Automatically selects the PC SOURCE type.
EXTERNAL PC: Select this option to use a PC when it is connected to the USB2 port.
OPTION: Select this option to use an Option board. If an option board is not installed, OPTION will not be
available as a selection.
COMPUTE MODULE: Select this option when a Raspberry Pi Compute Module and Interface Board is
installed. If a Raspberry Pi Compute Module is not installed, COMPUTE MODULE will not be available as
a selection.
NOTE: • The options available depends on if internal PC sources are installed in the monitor or a device
is connected to USB-B.
• Internal USB upstream hub switches to a device connected to USB-B when [EXTERNAL PC]
is set.
USB POWER Supplies power to the USB Service (2A) port. Select [ON] to supply power during standby.
NOTE: Power consumption by devices connected to this port depends on the USB devices.
EXTERNAL CONTROL Enable to allow the monitor to be controlled by a device connected to the USB-B port.
UPDATE FIRMWARE Updates the firmware by connecting the USB storage device (FAT32) that stores the FIRMWARE image
file (PAC file) to the monitor.
RESET Resets all SYSTEM settings back to factory settings, except for [LANGUAGE], [OSD ROTATION],
[KEY GUIDE], [DATE & TIME] and [DAYLIGHT SAVING].
FACTORY RESET
RESET All items are returned to factory shipment state.
English−107
Appendix D Manufacturer’s Recycling and
Energy Information
This Chapter Includes:
> “Disposing of your old NEC product” on page 108
> “Energy Saving” on page 108
> “WEEE Mark (European Directive 2012/19/EU and amendments)” on page 109
NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the
company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing
environmentally friendly products, and always strive to help define and comply with the latest independent
standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades
Union).
English−108
Disposing of your old NEC product
The aim of recycling is to gain an environmental benefit by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and
gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
All required information concerning the disposal of the product and country-specific information on recycling facilities can be
found on our following websites:
https://www.nec-display-solutions.com/p/greenvision/en/greenvision.xhtml (in Europe)
https://www.nec-display.com (in Japan)
https://www.necdisplay.com (in USA).
Energy Saving
This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor,
the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
For additional information visit:
https://www.necdisplay.com/ (in USA)
https://www.nec-display-solutions.com/ (in Europe)
https://www.nec-display.com/global/index.html (Global)
For ErP requirement/For ErP (Network standby) requirement:
Except for conditions below:
[POWER SAVE] is set to [DISABLE].
The monitor is using an Option Board.
[USB POWER] is set to [ON].
[CEC] is set to [MODE1] or [MODE2].
[DisplayPort VERSION] is set to [1.2 MST] or [1.4 MST].
[SLOT POWER] is set to [ON].
[QUICK START] is set to [ENABLE].
Power consumption (Glowing amber): 2.0 W or less.
Time for power management function: 30 sec. (Default setting).
Power consumption (Blinking amber): 0.5 W or less.
Time for power management function: 4 min. (Default setting).
(Except for a condition that the monitor has plural signal inputs.)
English−109
WEEE Mark (European Directive 2012/19/EU and amendments)
Disposing of your used product: In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products
carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you dispose of such products, please
follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable,
follow applicable legislation or agreement you may have. The mark on electrical and electronic products may
only apply to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority
and ask for the correct method of disposal.
For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household
waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in
accordance with legislation.
According to EU directive 2006/66/EC and amendments, the battery can’t be disposed improperly. The battery shall be
separated to collect by local service.
Rev. 2
