Use & Care Guide
Manual de Uso y Cuidado
English / Espafiol
Model/Modelo. 790.3261"
I(enmoreo
IIIIIIL_
P/N 139901306 Rev. A
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sea rs.com
Sears Canada Inc.
Toronto (Ontario) Canada M5B 2C3
www.sears.ca

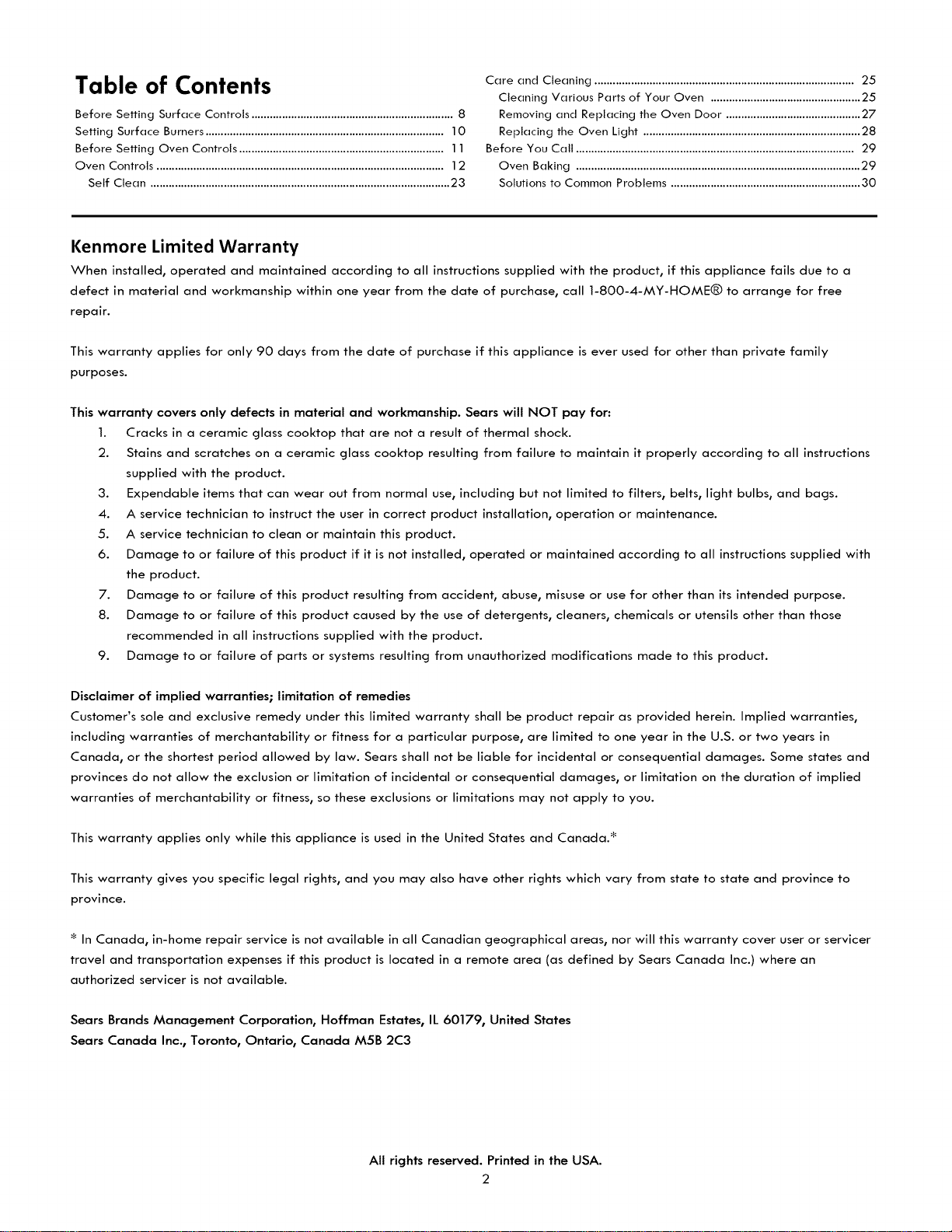

Table of Contents
Before Setting Surface Controls .................................................................. 8

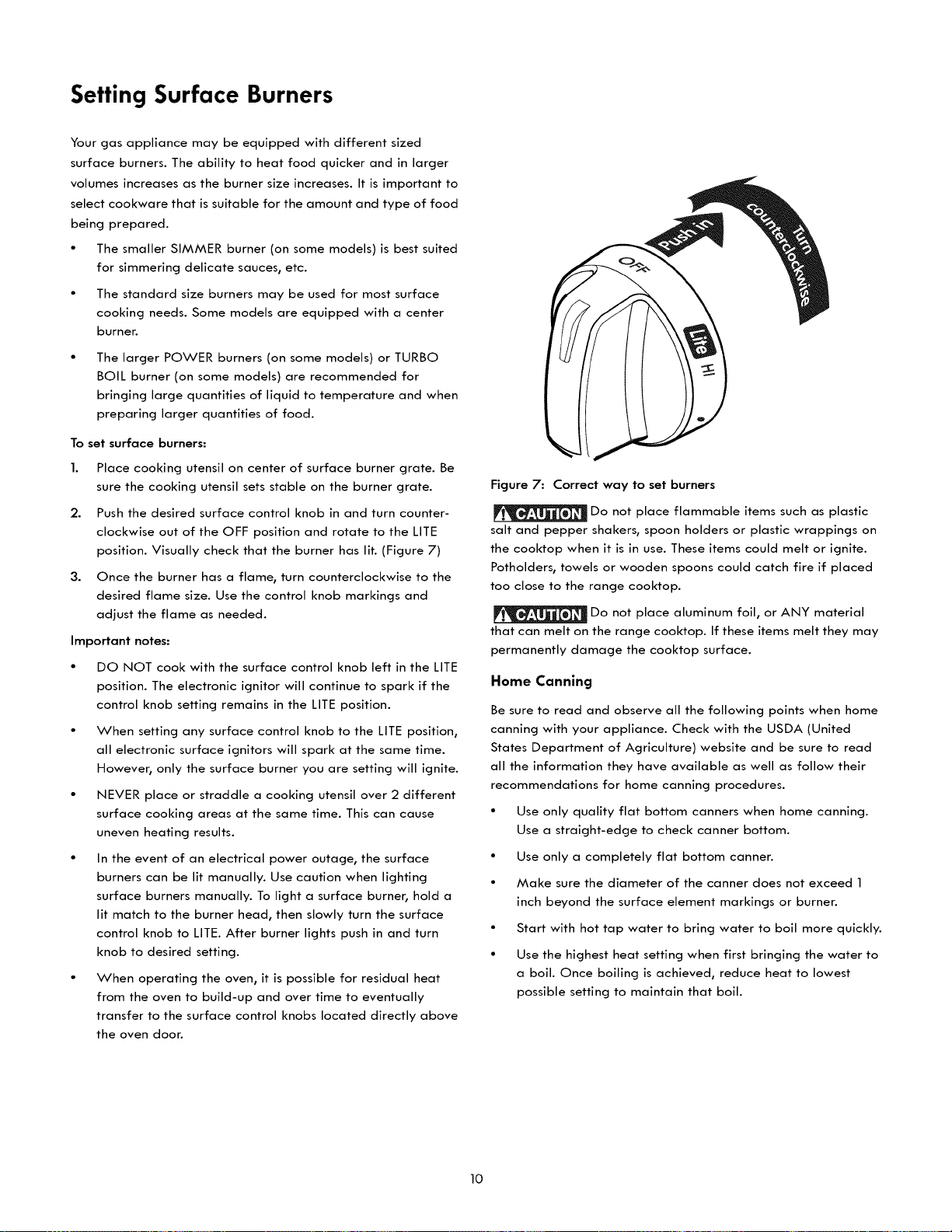

Setting Surface Burners .............................................................................. 10
Before Setting Oven Controls ................................................................... 11

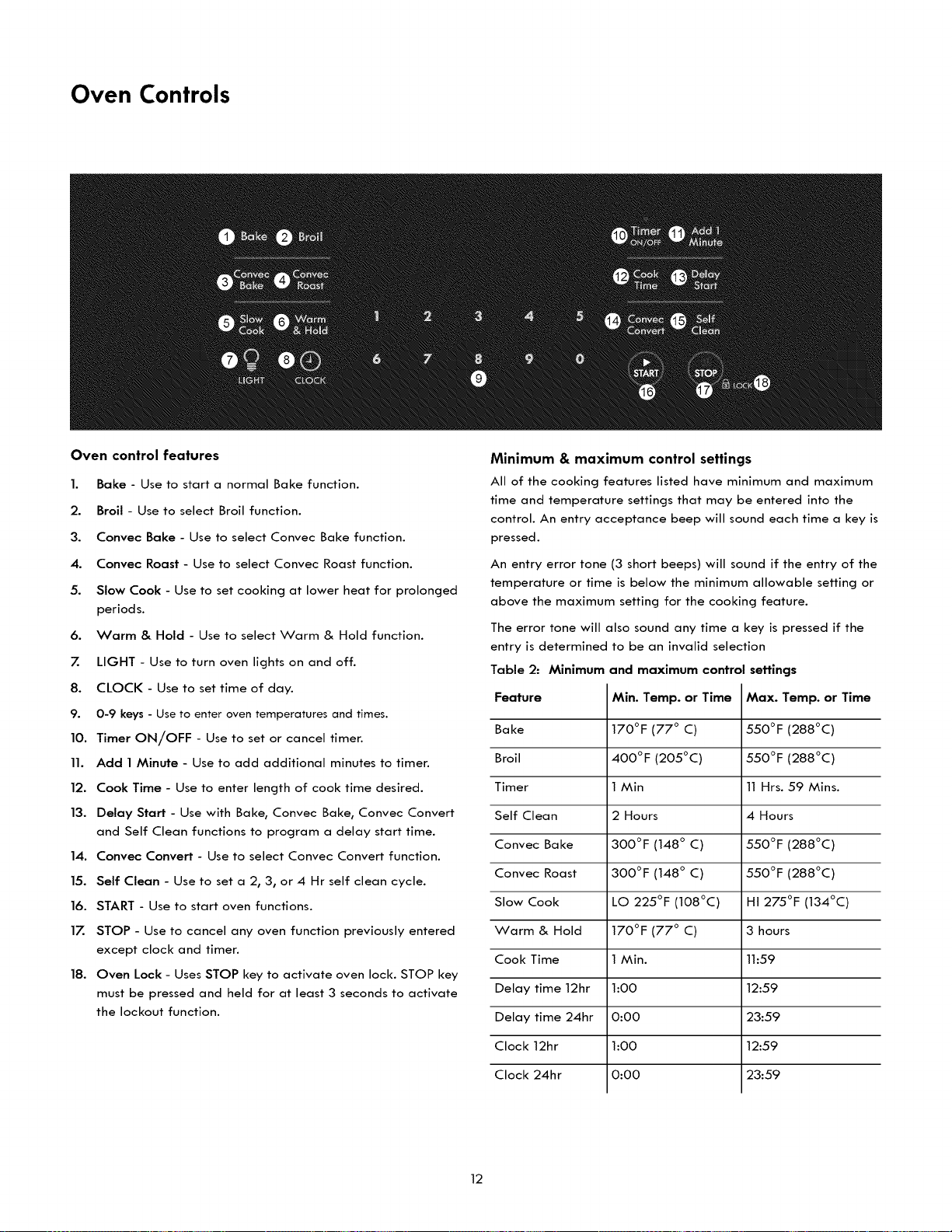

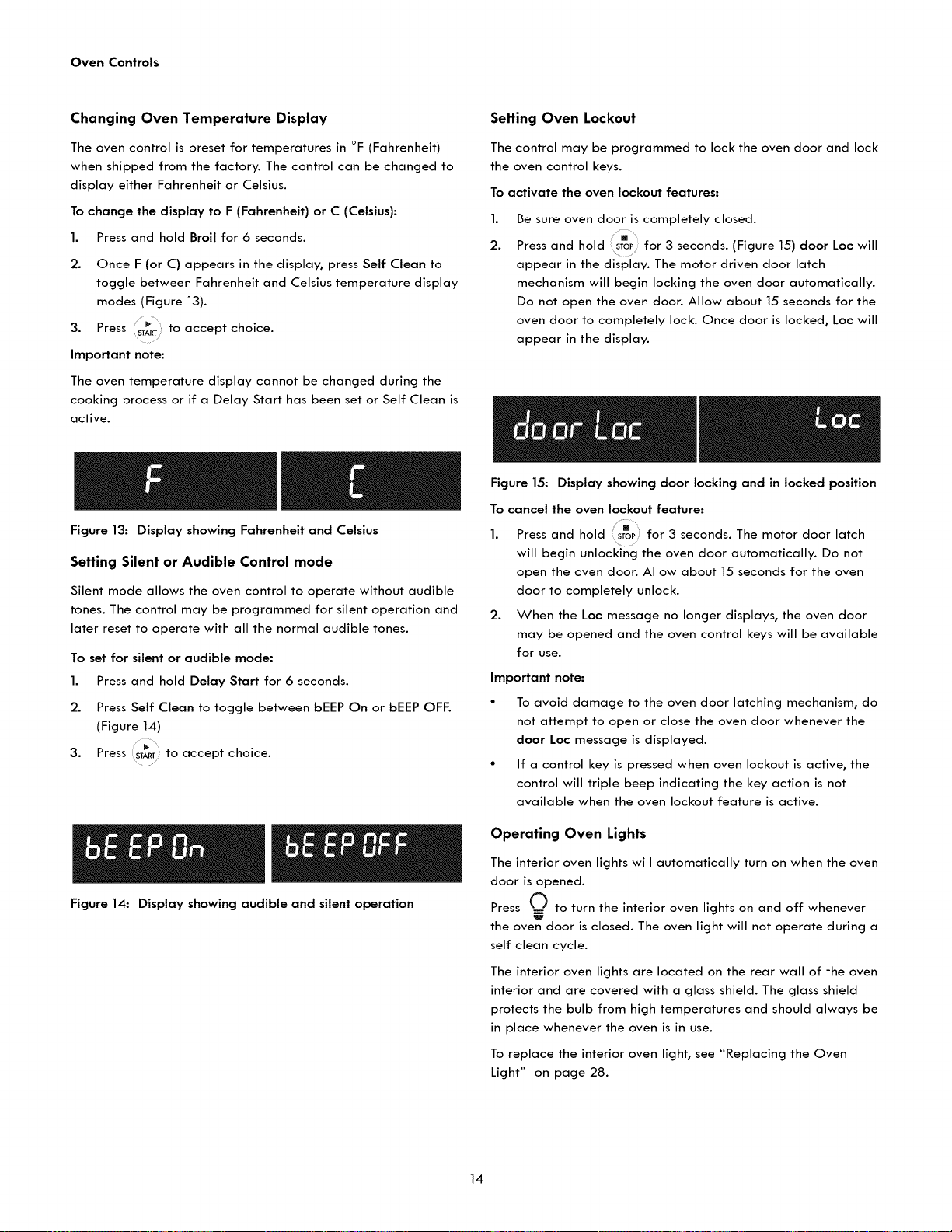

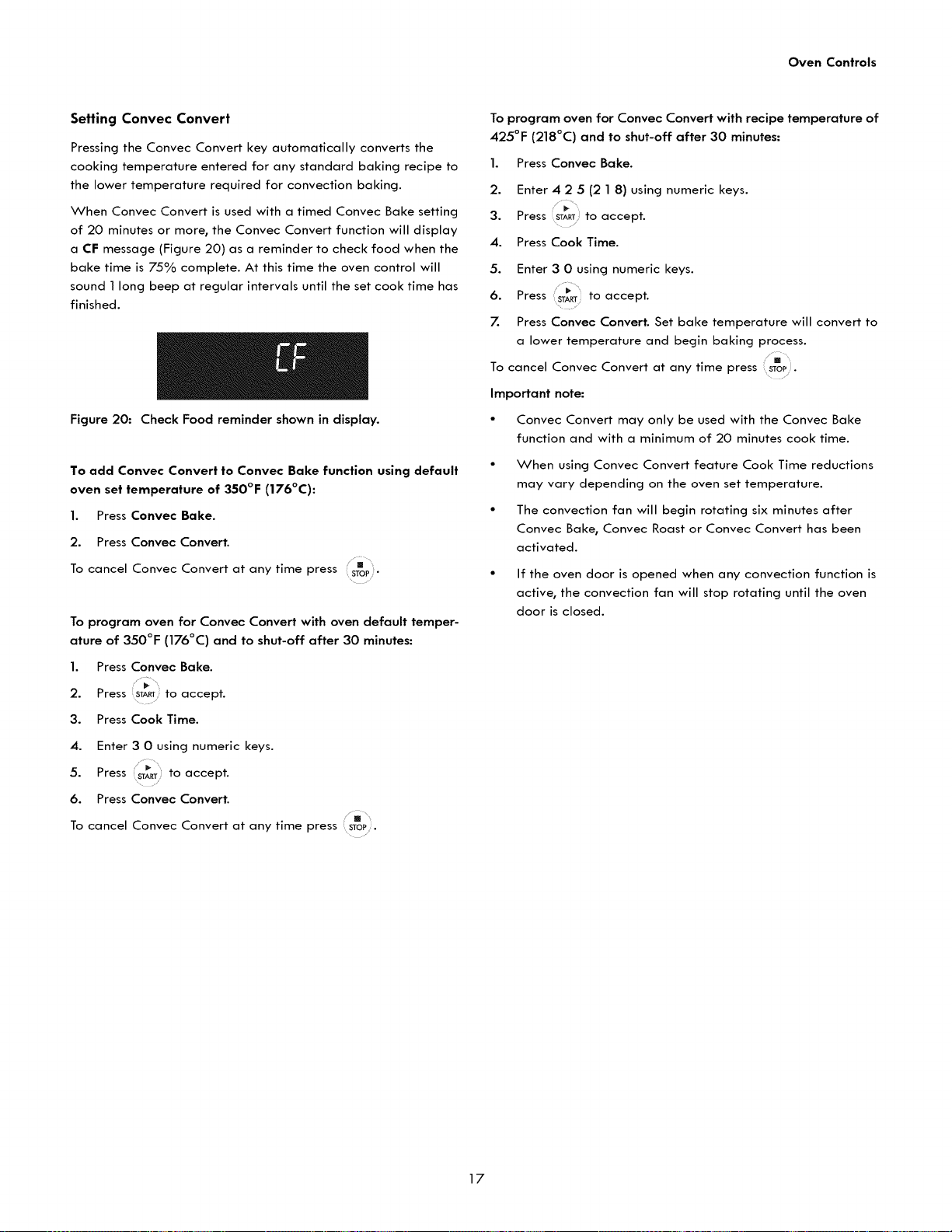

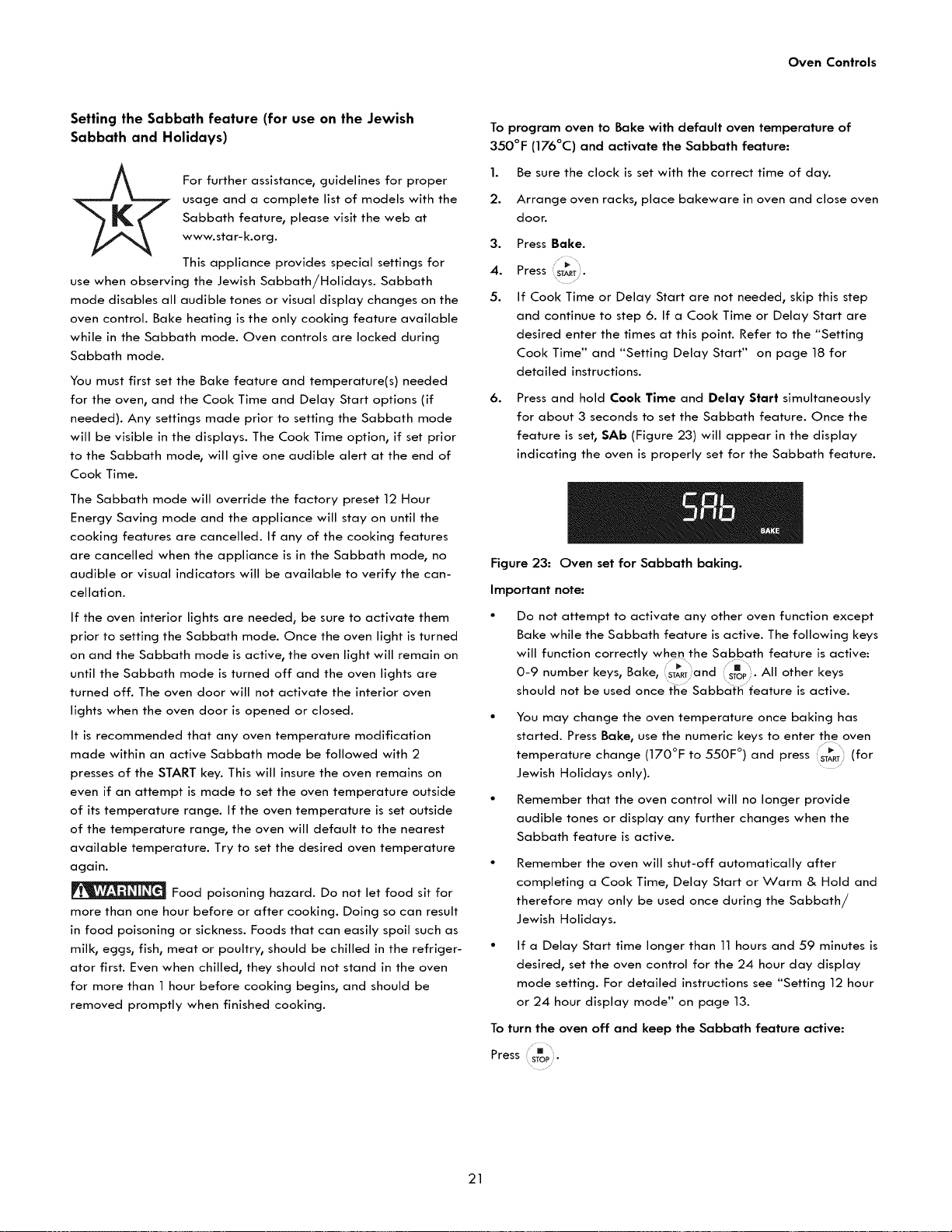

Oven Controls .............................................................................................. 12
Self Clean .................................................................................................. 23
Care and Cleaning ..................................................................................... 25

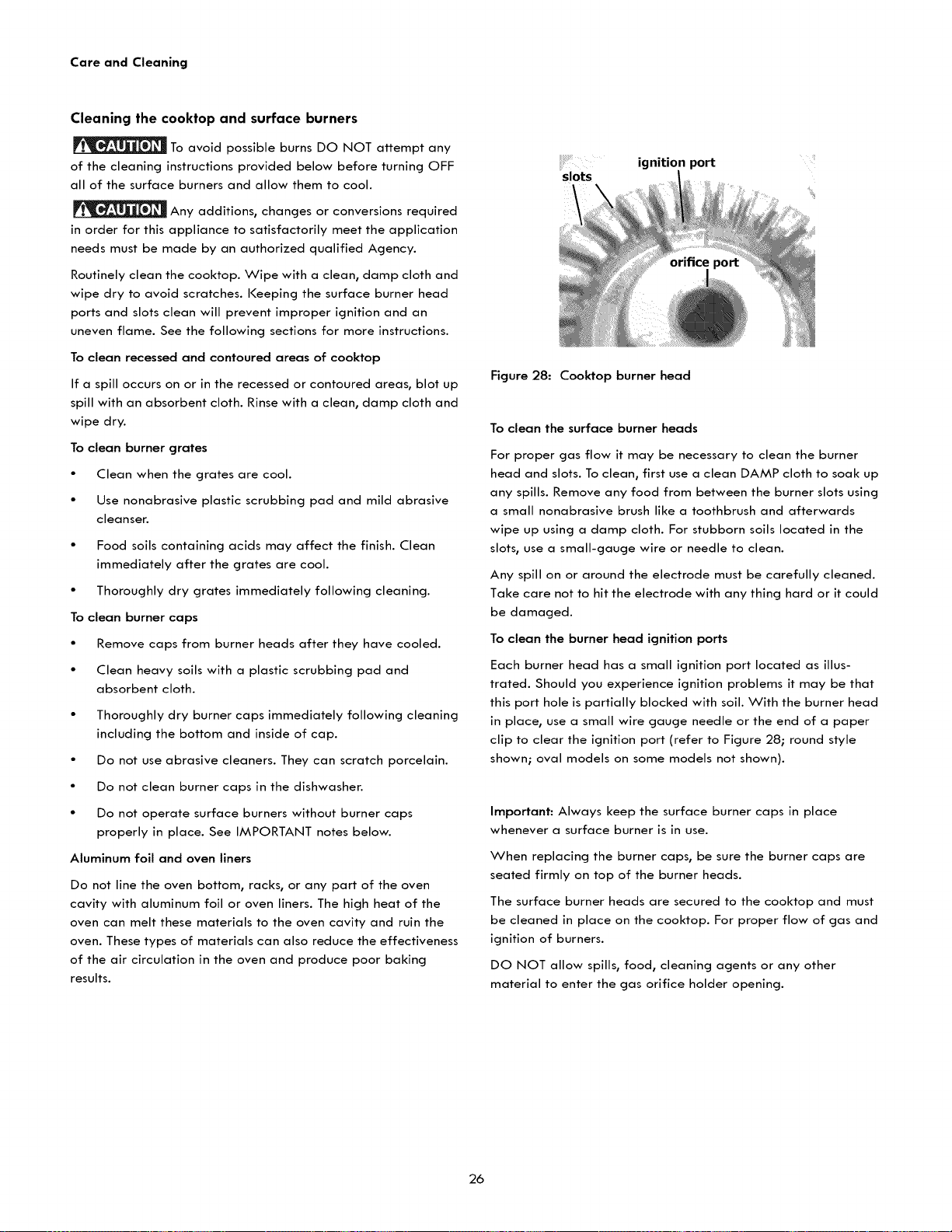

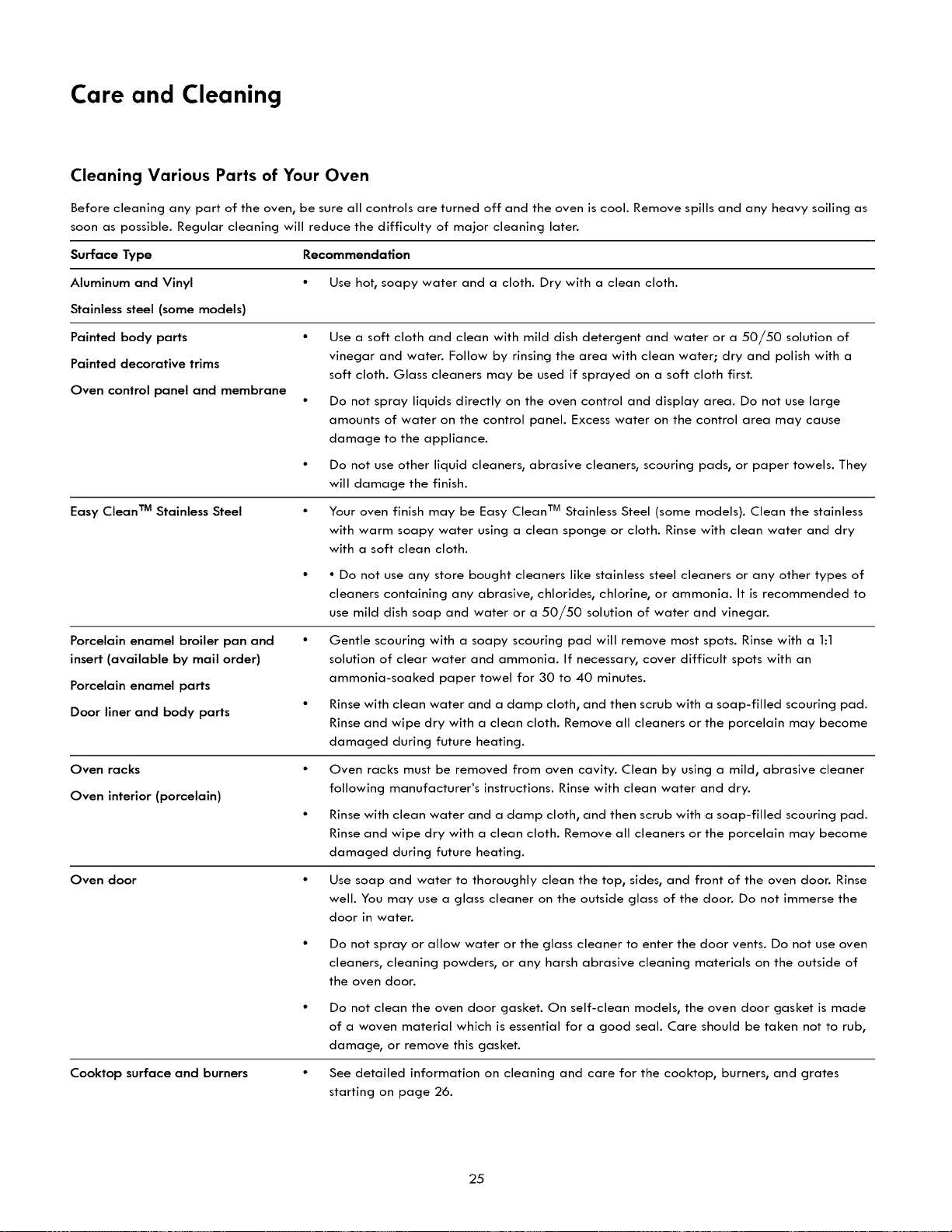

Cleaning Various Parts of Your Oven ................................................. 25

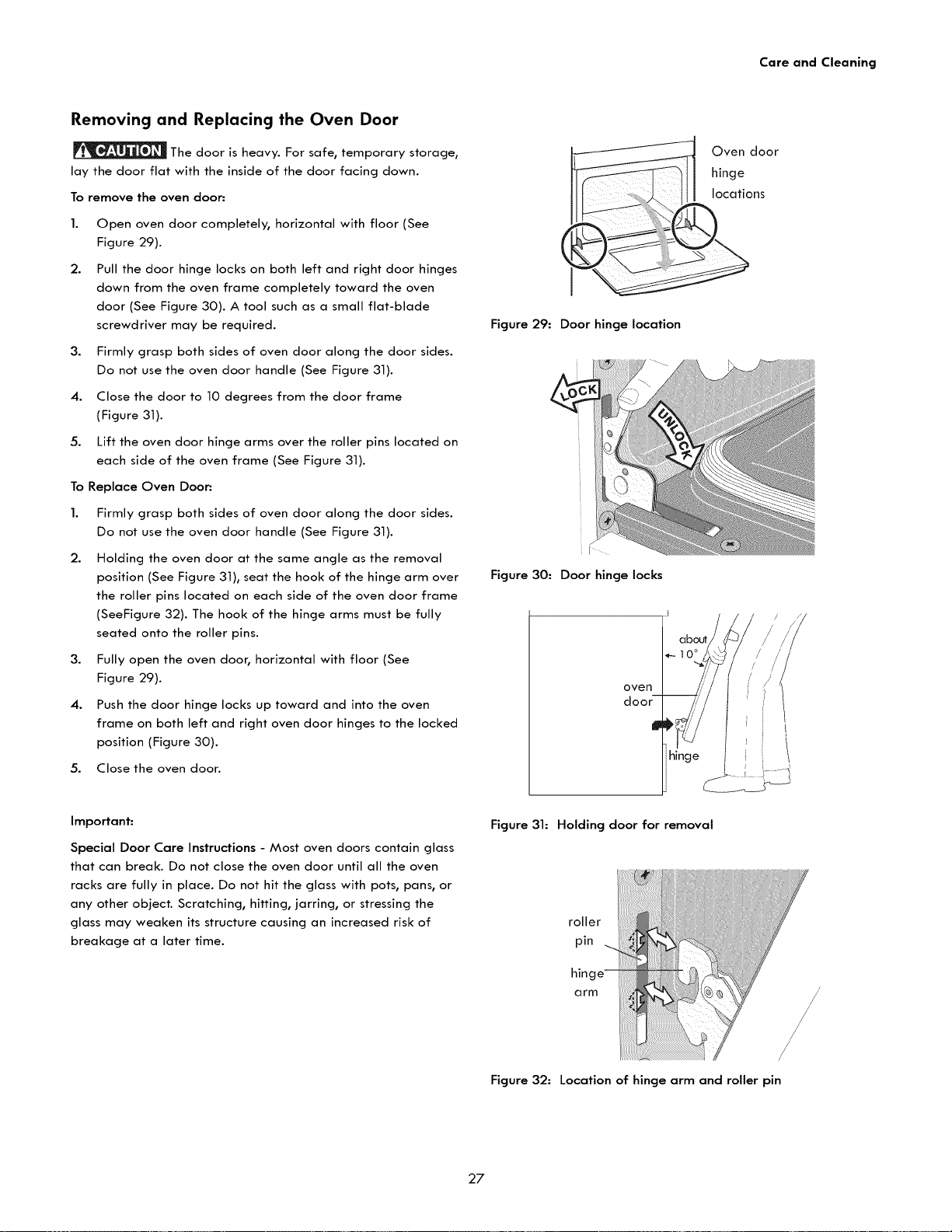

Removing and Replacing the Oven Door ............................................ 27

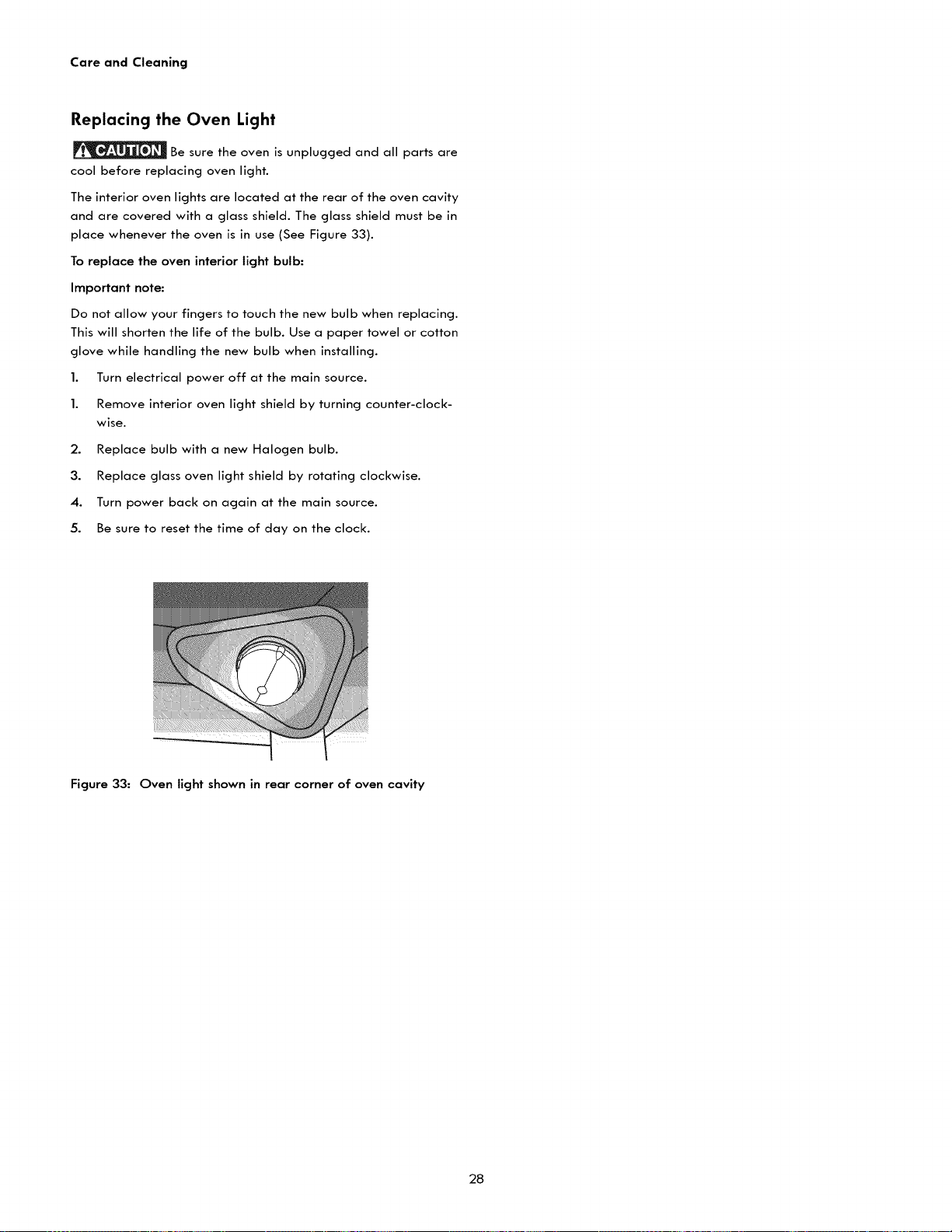

Replacing the Oven Light ....................................................................... 28
Before You Call ........................................................................................... 29

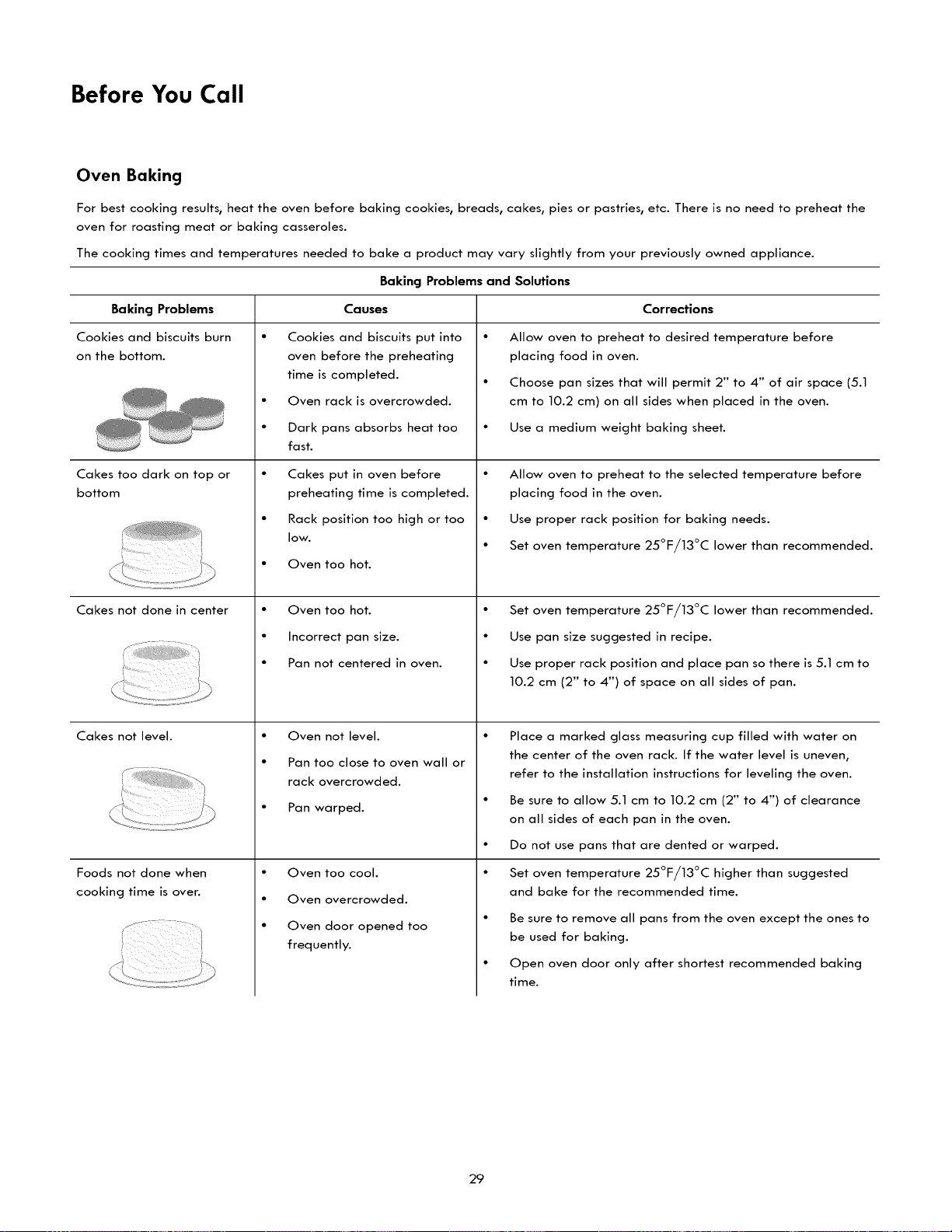

Oven Baking ............................................................................................. 29
Solutions to Common Problems .............................................................. 30
Kenmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free
repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year in the U.S. or two years in
Canada, or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied
warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.*
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to
province.
* In Canada, in-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer
travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an
authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179, United States
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
All rights reserved. Printed in the USA.
2

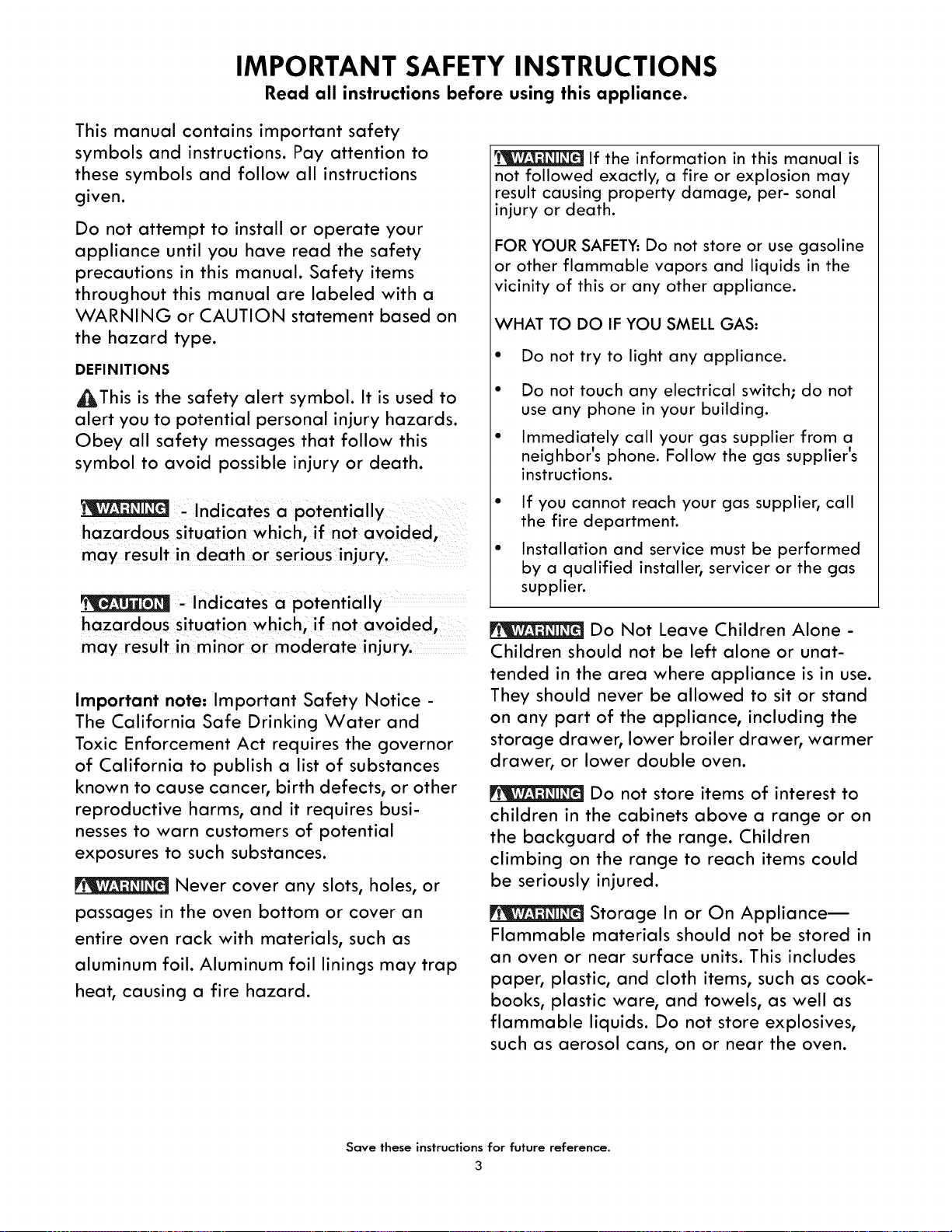

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Pay attention to
these symbols and follow all instructions
given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the hazard type.
DEFINITIONS
_This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in death or serious injury.
- Indicates a potentially
hazardous situation which, if not avoided,
If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, per- sonal
injury or death.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, servicer or the gas
supplier.
Do Not Leave Children Alone -
may result in minor or moderate injury. Children should not be left alone or unat-
tended in the area where appliance is in use.
Important note: Important Safety Notice -
The California Safe Drinking Water and
Toxic Enforcement Act requires the governor
of California to publish a list of substances
known to cause cancer, birth defects, or other
reproductive harms, and it requires busi-
nesses to warn customers of potential
exposures to such substances.
Never cover any slots, holes, or
They should never be allowed to sit or stand
on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer
drawer, or lower double oven.
Do not store items of interest to
children in the cabinets above a range or on
the backguard of the range. Children
climbing on the range to reach items could
be seriously injured.
passages in the oven bottom or cover an
entire oven rack with materials, such as
aluminum foil. Aluminum foil linings may trap
heat, causing a fire hazard.
Storage In or On Appliance m
Flammable materials should not be stored in
an oven or near surface units. This includes
paper, plastic, and cloth items, such as cook-
books, plastic ware, and towels, as well as
flammable liquids. Do not store explosives,
such as aerosol cans, on or near the oven.
Save these instructions for future reference.
3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.

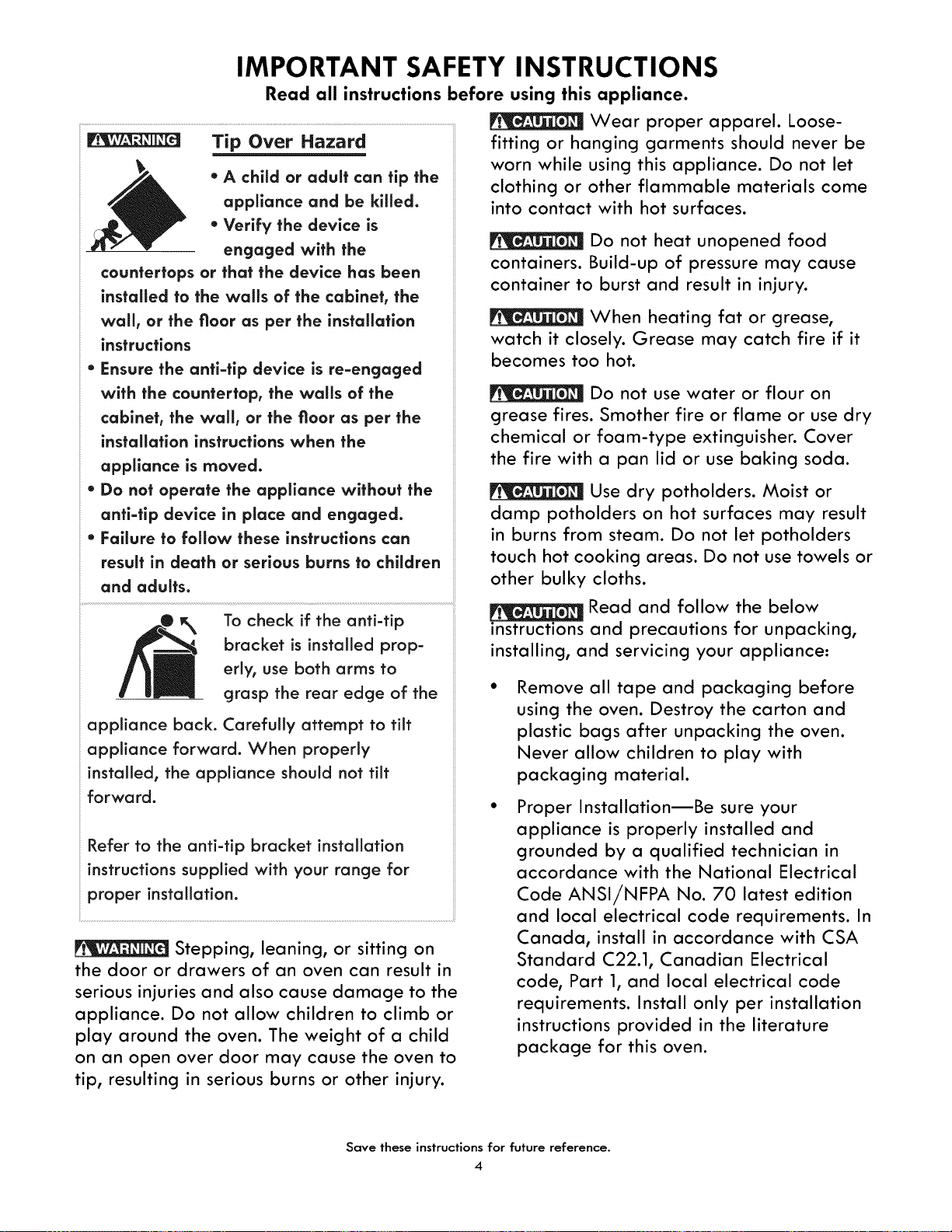

Tip Over Hazard
* A child or aduff can tip the
appliance and be killed.
* Verify the device is
engaged with the
counterfops or that the device has been
installed to the walls of the cabinet, the
wall, or the floor as per the installation
instructions
* Ensure the anti=tip device is re=engaged
with the countertop, the walls of the
cabinet, the wall, or the floor as per the
installation instructions when the
appliance is moved.
" Do not operate the appliance without the
anti=tip device in place and engaged.
* Failure to follow these instructions can
result in death or serious burns to children
and adults.
_,_ To check if the anti-tip
bracket is installed prop-
erly, use both arms to
grasp the rear edge of the
appliance back. Carefully attempt to flit
appliance forward. When properly
installed, the appliance should not tilt
forward.
Refer to the anti-tip bracket installation
instructions supplied with your range for
proper installation.
Stepping, leaning, or sitting on
the door or drawers of an oven can result in
serious injuries and also cause damage to the
appliance. Do not allow children to climb or
play around the oven. The weight of a child
on an open over door may cause the oven to
tip, resulting in serious burns or other injury.
Wear proper apparel. Loose-
fitting or hanging garments should never be
worn while using this appliance. Do not let
clothing or other flammable materials come
into contact with hot surfaces.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Do not use water or flour on
grease fires. Smother fire or flame or use dry
chemical or foam-type extinguisher. Cover
the fire with a pan lid or use baking soda.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam. Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Read and follow the below
instructions and precautions for unpacking,
installing, and servicing your appliance:
Remove all tape and packaging before
using the oven. Destroy the carton and
plastic bags after unpacking the oven.
Never allow children to play with
packaging material.
Proper InstallationmBe sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition
and local electrical code requirements. In
Canada, install in accordance with CSA
Standard C22.1, Canadian Electrical
code, Part 1, and local electrical code
requirements. Install only per installation
instructions provided in the literature
package for this oven.
Save these instructions for future reference.
4
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.

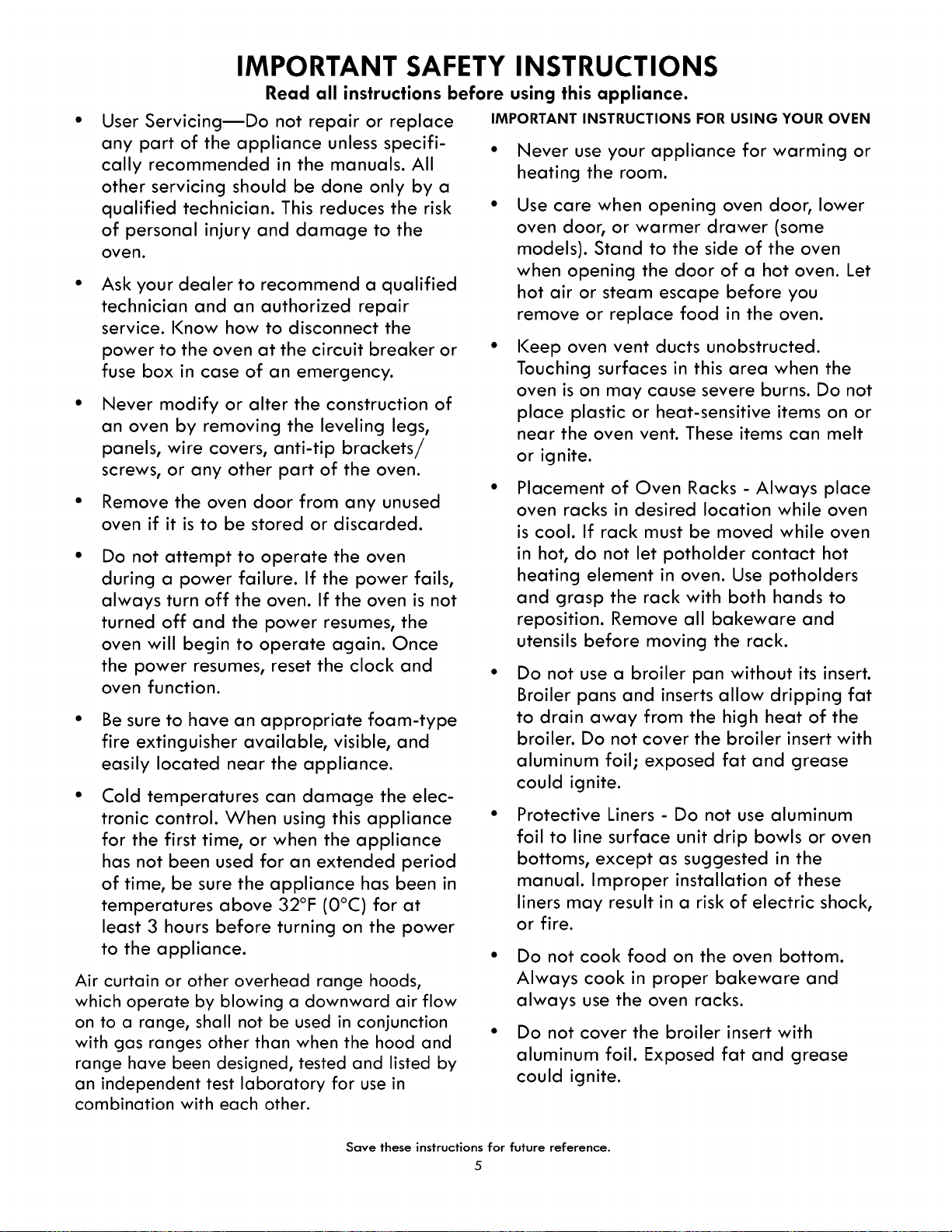

User ServicingmDo not repair or replace
any part of the appliance unless specifi-
cally recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
oven.
Ask your dealer to recommend a qualified
technician and an authorized repair
service. Know how to disconnect the
power to the oven at the circuit breaker or
fuse box in case of an emergency.
Never modify or alter the construction of
an oven by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the oven.
Remove the oven door from any unused
oven if it is to be stored or discarded.
Do not attempt to operate the oven
during a power failure. If the power fails,
always turn off the oven. If the oven is not
turned off and the power resumes, the
oven will begin to operate again. Once
the power resumes, reset the clock and
oven function.
Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily located near the appliance.
Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32°F (0°C) for at
least 3 hours before turning on the power
to the appliance.
Air curtain or other overhead range hoods,
which operate by blowing a downward air flow
on to a range, shall not be used in conjunction
with gas ranges other than when the hood and
range have been designed, tested and listed by
an independent test laboratory for use in
combination with each other.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
Never use your appliance for warming or
heating the room.
Use care when opening oven door, lower
oven door, or warmer drawer (some
models). Stand to the side of the oven
when opening the door of a hot oven. Let
hot air or steam escape before you
remove or replace food in the oven.
Keep oven vent ducts unobstructed.
Touching surfaces in this area when the
oven is on may cause severe burns. Do not
place plastic or heat-sensitive items on or
near the oven vent. These items can melt
or ignite.
Placement of Oven Racks - Always place
oven racks in desired location while oven
is cool. If rack must be moved while oven
in hot, do not let potholder contact hot
heating element in oven. Use potholders
and grasp the rack with both hands to
reposition. Remove all bakeware and
utensils before moving the rack.
Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat
to drain away from the high heat of the
broiler. Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
Protective Liners - Do not use aluminum
foil to line surface unit drip bowls or oven
bottoms, except as suggested in the
manual. Improper installation of these
liners may result in a risk of electric shock,
or fire.
Do not cook food on the oven bottom.
Always cook in proper bakeware and
always use the oven racks.
Do not cover the broiler insert with
aluminum foil. Exposed fat and grease
could ignite.
Save these instructions for future reference.
5
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
IMPORTANT INSTRUCTIONS FOR USING YOUR IMPORTANT INSTRUCTIONS FOR CLEANING YOUR
COOKTOP OVEN
Use Proper Flame Size m Adjust
flame size so it does not extend beyond the
edge of the utensil. The use of undersized
utensils will expose a portion of the burner
flame to direct contact and may result in
ignition of clothing. Proper relationship of
utensil to flame will also improve efficiency.
Know which knob controls each surface
burner. Place a pan of food on the burner
before turning it on, and turn the burner
off before removing the pan.
Always turn knob to the full LITE position
when igniting top burners. Visually check
that burner has lit. Then adjust the flame
so it does not extend beyond the edge of
the utensil.
Utensil handles should be turned inward
and not extend over adjacent surface
burners m To reduce the risk of burns,
ignition of flammable materials, and
spillage due to unintentional contact with
the utensil, the handle of the utensil should
be positioned so that it is turned inward,
and does not extend over adjacent
surface burners.
Never leave surface burners unattended
at high heat settings _ Boilovers cause
smoking and greasy spillovers that may
ignite, or a pan that has boiled dry may
melt.
Glazed cooking utensils _ Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are
suitable for cook top service without
breaking due to the sudden change in
temperature. Check the manufacturer's
recommendations for cook top use.
When you are flaming foods under a
ventilating hood, turn the fan on.
Before manually cleaning any
part ot the oven, be sure all controls are
turned off and the oven is cool. Cleaning a
hot oven can cause burns.
Clean the oven regularly to keep all parts
free of grease that could catch fire. Do not
allow grease to accumulate.
Always follow the manufacturer's recom-
mended directions for use of kitchen cleaners
and aerosols. Be aware that excess residue
from cleaners and aerosols may ignite
causing damage and injury.
Clean ventilating hoods frequently. Grease
should not be allowed to accumulate on the
hood or filter. Follow the manufacturer's
instructions for cleaning hoods.
SELF-CLEANING OVENS
Clean only the parts listed in this manual.
Before using self-clean, remove the broiler
pan, any food, utensils, and bakeware
from the oven. Remove oven racks unless
otherwise instructed.
Do Not Use Oven Cleaners. No commer-
cial oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the oven.
Do Not Clean Door Gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
Some birds are extremely sensitive to the
fumes given off during the self-clean
cycle of any oven. Move birds to another
well-ventilated room.
Do not touch heating elements or
interior surfaces of oven. Heating elements
may be hot even though they are dark in
color. Interior surfaces of an oven become
hot enough to cause burns.
_During and after use, do not
touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have sufficient
time to cool.
Save these instructions for future reference.
6

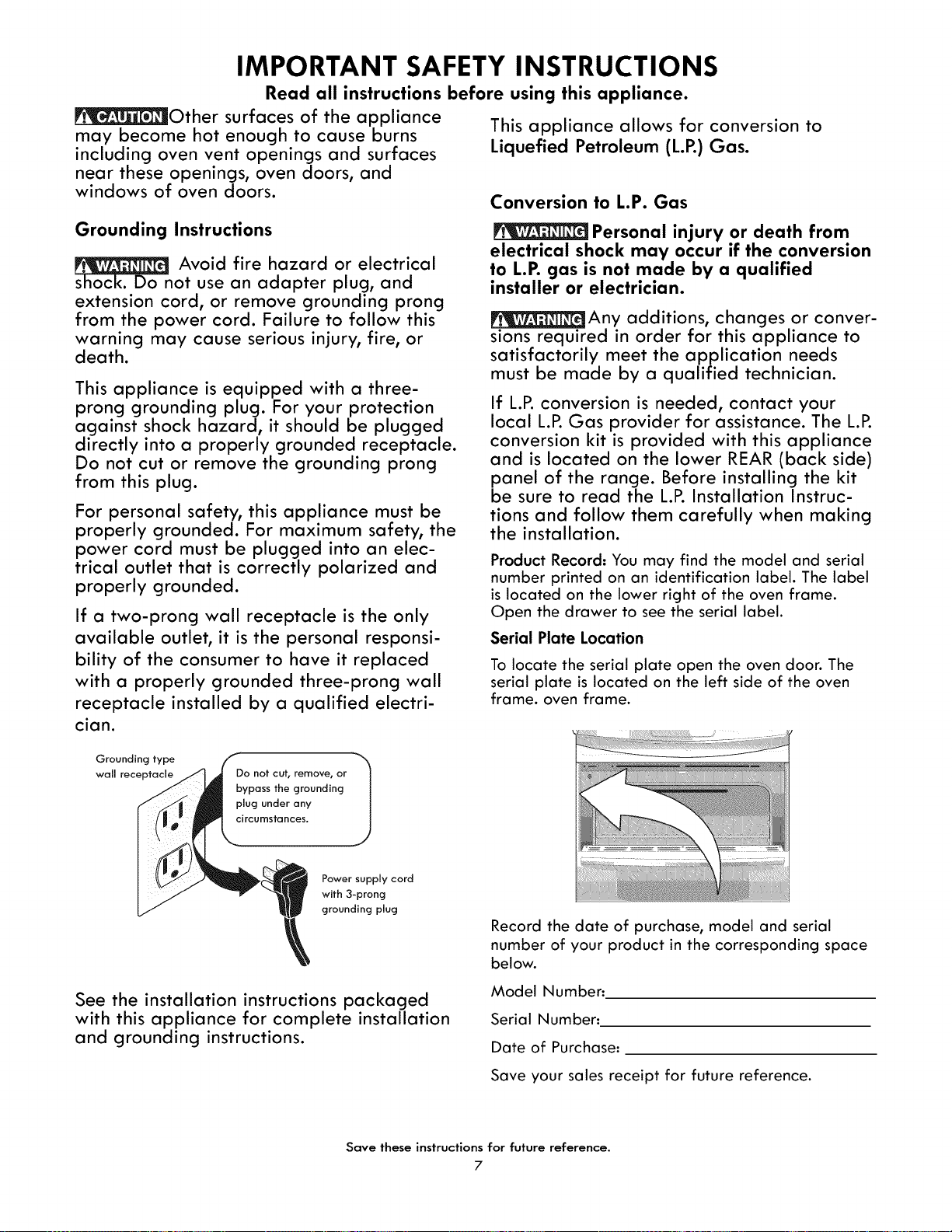

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
_i_[_m_Other surfaces of the appliance
may become hot enough to cause burns
including oven vent openings and surfaces
near these openings, oven doors, and
windows of oven doors.
This appliance allows for conversion to
Liquefied Petroleum (L.P.) Gas.
Conversion to L.P. Gas
Grounding Instructions
Avoid fire hazard or electrical
shock. Do not use an adapter plug, and
extension cord, or remove grounding prong
from the power cord. Failure to follow this
warning may cause serious injury, fire, or
death.
This appliance is equipped with a three-
prong grounding plug. For your protection
against shock hazard, it should be plugged
directly into a properly grounded receptacle.
Do not cut or remove the grounding prong
from this plug.
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be plugged into an elec-
trical outlet that is correctly polarized and
properly grounded.
If a two-prong wall receptacle is the only
available outlet, it is the personal responsi-
bility of the consumer to have it replaced
with a properly grounded three-prong wall
receptacle installed by a qualified electri-
cian.
Personal injury or death from
electrical shock may occur if the conversion
to L.P. gas is not made by a qualified
installer or electrician.
_Any additions, changes or conver-
sions required in order for this appliance to
satisfactorily meet the application needs
must be made by a qualified technician.
If L.P.conversion is needed, contact your
local L.P.Gas provider for assistance. The L.P.
conversion kit is provided with this appliance
and is located on the lower REAR (back side)
panel of the range. Before installing the kit
be sure to read the L.P. Installation Instruc-
tions and follow them carefully when making
the installation.
Product Record. You may find the model and serial
number printed on an identification label. The label
is located on the lower right of the oven frame.
Open the drawer to see the serial label.
Serial Plate Location
To locate the serial plate open the oven door. The
serial plate is located on the left side of the oven
frame, oven frame.
Grounding type
wall receptacle
Do not cut, remove, or
bypass the grounding
plug under any
circumstances.
Power supply cord
with 3-prong
grounding plug
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
Record the date of purchase, model and serial
number of your product in the corresponding space
below.
Model Number:
Serial Number:
Date of Purchase:
Save your sales receipt for future reference.
Save these instructions for future reference.
7
Before Setting Surface Controls
Check burner cap placement before operating the
surface burners
To prevent flare-ups and avoid creation of
harmful by-products, do not use the cooktop without all burner
caps properly installed to insure proper ignition and gas flame
size.
On round style burners, the burner cap lip (Figure 1) should fit
snug into the center of burner head and rest level. Refer to
Figure 2 for correct and incorrect burner cap placement. Once
in place, you may check the fit by gently sliding the burner cap
from side to side (Figure 3) to be sure it is centered and firmly
seated. When the burner cap lip makes contact inside the
center of the burner head you will be able to hear the burner
cap click. Please note that the burner cap should NOT move off
the center of the burner head when sliding from side to side.
Check and be sure that all oval style (some models) burner caps
are correctly in place on oval burner heads.
It is very important to be sure that all surface burner caps and
burner grates are properly installed and in the correct locations
BEFORE operating the cooktop burners.
Remember:
• Always keep surface burner caps in place whenever using a
surface burner.
• When placing the burner caps, be sure that all burner caps
are seated firmly and rest level on top of burner heads.
• For proper flow of gas and ignition of burners DO NOT
allow spills, food, cleaning agents or any other material to
enter the gas orifice port opening.
Installing burner grates:
Do not use the surface burners without the
burner caps and burner grates properly installed. Missing pieces
or improper installation may lead to spills, burns, or damage to
your range and cookware.
Make sure the burner grates are properly placed on the cooktop
before using the surface burners. The grates are designed to rest
inside the recess on the cooktop.
To install burner grates, place grates flat-side down and align
into the cooktop recess. Grates should rest flush against each
other and against the sides of the recess.
Burner cap
I
I
'
Burner cap lip
urner head
Figure 1: Burner cap on burner head
F
Correct burner cap Incorrect burner cap
placement placement
Figure 2: Correct placement (L) Incorrect placement (R)
Figure 3: Moving cap gently until seated properly
Figure 4: How to place burner grates properly
Before Setting Surface Controls
Using Proper Cookware
_DO NOT place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the range cooktop.
Important: DO NOT place aluminum foil, or ANY
material that can melt on the range cooktop. If these
items melt they may damage the cooktop.
For best cooking results, cookware should have flat bottoms that
rest level on the burner grate. Before using cookware, check for
flatness by rotating a ruler across the bottom of the cookware
(Figure 5).
Setting Proper Burner Flame Size *
Never extend the flame beyond the outer edge
of the cooking utensil. A higher flame wastes energy, and
increases your risk of being burned by the flame.
*These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using other
types of pans.
The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust or
clean burner if flame is yellow-orange.
For most cooking
Start on the highest setting and then turn to a lower setting to
complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of
cooking (Table 1)
Figure 5: Check for flat bottom cookware
Please note: The size and type of utensil used, and the amount
and type of food being cooked will influence the burner flame
setting needed for best cooking results.
Cookware material types
The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware resists
staining & pitting).
• Copper - Excellent heat conductor but discolors easily.
• Stainless - Slow heat conductor with uneven cooking results.
Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached.
Porcelain -enamel on metal - Heating characteristics will
vary depending on base material.
Glass - Slow heat conductor.
For deep fat frying
Use a thermometer and adjust the surface knob accordingly. If
the fat is too cool, the food will absorb the fat and be greasy. If
the fat is too hot, the food will brown so quickly that the center
will be under cooked. Do not attempt to deep fat fry too much
food at once as the food will neither brown or cook properly.
Table 1: Suggested flame settings
Flame size
High flame
Medium flame
Low flame
Type of cooking
Start most foods, bring water
to a boil, pan broiling.
Maintain a slow boil, thicken
sauces, gravies, steaming.
Keep foods cooking, poach-
ing and stewing.
W
iilli
flame setting
Figure 6: How to set flame for efficient cooking
Setting Surface Burners
Your gas appliance may be equipped with different sized
surface burners. The ability to heat food quicker and in larger
volumes increases as the burner size increases. It is important to
select cookware that is suitable for the amount and type of food
being prepared.
• The smaller SIMMER burner (on some models) is best suited
for simmering delicate sauces, etc.
• The standard size burners may be used for most surface
cooking needs. Some models are equipped with a center
burner.
The larger POWER burners (on some models) or TURBO
BOIL burner (on some models) are recommended for
bringing large quantities of liquid to temperature and when
preparing larger quantities of food.
To set surface burners:
1. Place cooking utensil on center of surface burner grate. Be
sure the cooking utensil sets stable on the burner grate.
2. Push the desired surface control knob in and turn counter-
clockwise out of the OFF position and rotate to the LITE
position. Visually check that the burner has lit. (Figure 7)
3. Once the burner has a flame, turn counterclockwise to the
desired flame size. Use the control knob markings and
adjust the flame as needed.
Important notes:
• DO NOT cook with the surface control knob left in the LITE
position. The electronic ignitor will continue to spark if the
control knob setting remains in the LITE position.
• When setting any surface control knob to the LITE position,
all electronic surface ignitors will spark at the same time.
However, only the surface burner you are setting will ignite.
NEVER place or straddle a cooking utensil over 2 different
surface cooking areas at the same time. This can cause
uneven heating results.
In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold a
lit match to the burner head, then slowly turn the surface
control knob to LITE. After burner lights push in and turn
knob to desired setting.
When operating the oven, it is possible for residual heat
from the oven to build-up and over time to eventually
transfer to the surface control knobs located directly above
the oven door.
Figure 7: Correct way to set burners
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the range cooktop.
Do not place aluminum foil, or ANY material
that can melt on the range cooktop. If these items melt they may
permanently damage the cooktop surface.
Home Canning
Be sure to read and observe all the following points when home
canning with your appliance. Check with the USDA (United
States Department of Agriculture) website and be sure to read
all the information they have available as well as follow their
recommendations for home canning procedures.
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
• Use only a completely flat bottom canner.
• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner.
• Start with hot tap water to bring water to boil more quickly.
• Use the highest heat setting when first bringing the water to
a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
10

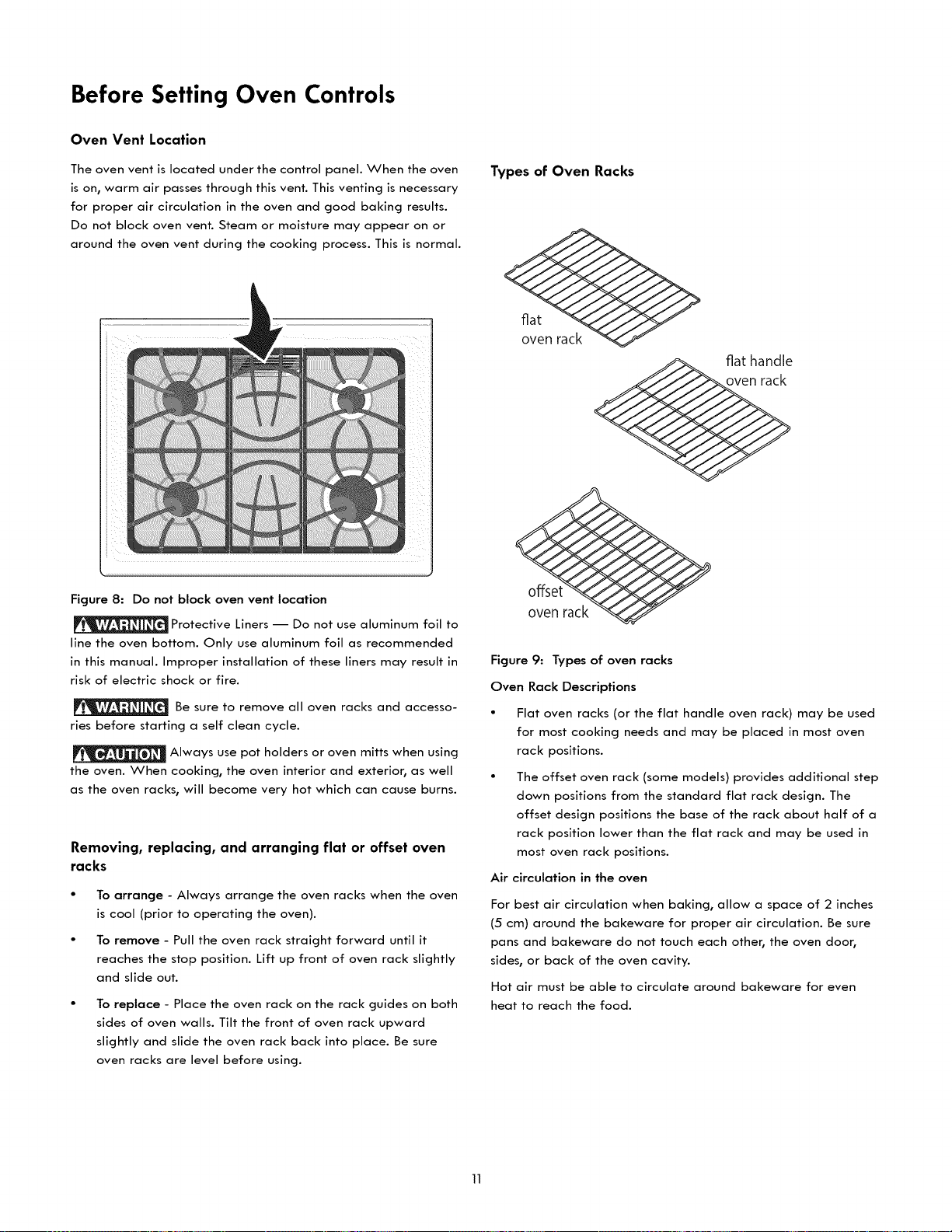

Before Setting Oven Controls
Oven Vent Location
The oven vent is located under the control panel. When the oven
is on, warm air passes through this vent. This venting is necessary
for proper air circulation in the oven and good baking results.
Do not block oven vent. Steam or moisture may appear on or
around the oven vent during the cooking process. This is normal.
Figure 8: Do not block oven vent location
Protective Liners -- Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock or fire.
Be sure to remove all oven racks and accesso-
ries before starting a self clean cycle.
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior and exterior, as well
as the oven racks, will become very hot which can cause burns.
Removing, replacing, and arranging flat or offset oven
racks
• To arrange - Always arrange the oven racks when the oven
is cool (prior to operating the oven).
• To remove - Pull the oven rack straight forward until it
reaches the stop position. Lift up front of oven rack slightly
and slide out.
To replace - Place the oven rack on the rack guides on both
sides of oven walls. Tilt the front of oven rack upward
slightly and slide the oven rack back into place. Be sure
oven racks are level before using.
Types of Oven Racks
_ fiathandle
oven rack _
Figure 9: Types of oven racks
Oven Rack Descriptions
• Flat oven racks (or the flat handle oven rack) may be used
for most cooking needs and may be placed in most oven
rack positions.
• The offset oven rack (some models) provides additional step
down positions from the standard flat rack design. The
offset design positions the base of the rack about half of a
rack position lower than the flat rack and may be used in
most oven rack positions.
Air circulation in the oven
For best air circulation when baking, allow a space of 2 inches
(5 cm) around the bakeware for proper air circulation. Be sure
pans and bakeware do not touch each other, the oven door,
sides, or back of the oven cavity.
Hot air must be able to circulate around bakeware for even
heat to reach the food.
Oven Controls
Oven control features
1. Bake - Use to start a normal Bake function.
2. Broil - Use to select Broil function.
3. Convec Bake - Use to select Convec Bake function.
4. Convec Roast - Use to select Convec Roast function.
5. Slow Cook - Use to set cooking at lower heat for prolonged
periods.
6. Warm & Hold - Use to select Warm & Hold function.
7. LIGHT - Use to turn oven lights on and off.
8. CLOCK - Use to set time of day.
9. 0-9 keys - Use to enter oven temperatures and times.
10. Timer ON/OFF - Use to set or cancel timer.
11. Add 1 Minute - Use to add additional minutes to timer.
12. Cook Time - Use to enter length of cook time desired.
13. Delay Start - Use with Bake, Convec Bake, Convec Convert
and Self Clean functions to program a delay start time.
14. Convec Convert - Use to select Convec Convert function.
15. Self Clean - Use to set a 2, 3, or 4 Hr self clean cycle.
16. START - Use to start oven functions.
1Z STOP - Use to cancel any oven function previously entered
except clock and timer.
18. Oven Lock - Uses STOP key to activate oven lock. STOP key
must be pressed and held for at least 3 seconds to activate
the lockout function.
Minimum & maximum control settings
All of the cooking features listed have minimum and maximum
time and temperature settings that may be entered into the
control. An entry acceptance beep will sound each time a key is
pressed.
An entry error tone (3 short beeps) will sound if the entry of the
temperature or time is below the minimum allowable setting or
above the maximum setting for the cooking feature.
The error tone will also sound any time a key is pressed if the
entry is determined to be an invalid selection
Table 2: Minimum and maximum control settings
Feature
Bake
Broil
Timer
Self Clean
Convec Bake
Convec Roast
Slow Cook
Warm & Hold
Cook Time
Delay time 12hr
Delay time 24hr
Clock 12hr
Clock 24hr
Min. Temp. or Time
170°F (77 ° C)
400°F (205°C)
1 Min
2 Hours
300°F (148 ° C)
300°F (148 ° C)
LO 225°F (108°C)
170°F (77 ° C)
1 Min.
1:00
0:00
1:00
0:00
Max. Temp. or Time
550°F (288°C)
550°F (288°C)
11Hrs. 59 Mins.
4 Hours
550°F (288°C)
550°F (288°c)
HI 275°F (134°C)
3 hours
11:59
12:59
23:59
12:59
23:59
12
Oven Controls

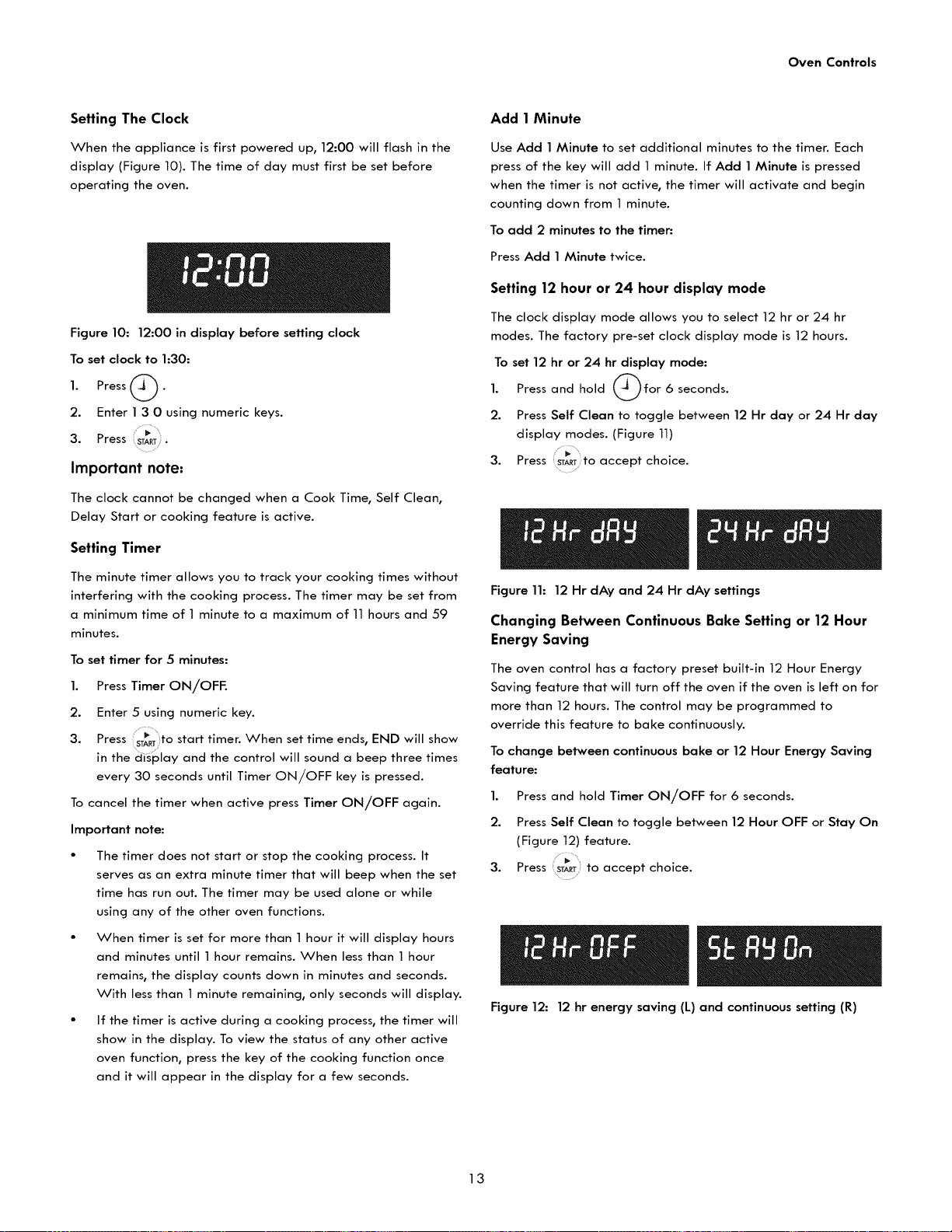

Setting The Clock
When the appliance is first powered up, 12:00 will flash in the
display (Figure 10). The time of day must first be set before
operating the oven.
Figure 10:12:00 in display before setting clock
To set clock to 1:30:
1. Press @.
2. Enter 13 0 using numeric keys.
3. Press START.
Important note.
The clock cannot be changed when a Cook Time, Self Clean,
Delay Start or cooking feature is active.
Setting Timer
The minute timer allows you to track your cooking times without
interfering with the cooking process. The timer may be set from
a minimum time of 1 minute to a maximum of 11hours and 59
minutes.
To set timer for 5 minutes:
1. Press Timer ON/OFF.
2. Enter 5 using numeric key.
3. Press S_RTto start timer. When set time ends, END will show
in the display and the control will sound a beep three times
every 30 seconds until Timer ON/OFF key is pressed.
To cancel the timer when active press Timer ON/OFF again.
Important note:
The timer does not start or stop the cooking process. It
serves as an extra minute timer that will beep when the set
time has run out. The timer may be used alone or while
using any of the other oven functions.
When timer is set for more than 1 hour it will display hours
and minutes until 1 hour remains. When less than 1 hour
remains, the display counts down in minutes and seconds.
With less than 1 minute remaining, only seconds will display.
If the timer is active during a cooking process, the timer will
show in the display. To view the status of any other active
oven function, press the key of the cooking function once
and it will appear in the display for a few seconds.
Add 1 Minute
Use Add 1 Minute to set additional minutes to the timer. Each
press of the key will add 1 minute. If Add 1 Minute is pressed
when the timer is not active, the timer will activate and begin
counting down from 1 minute.
To add 2 minutes to the timer:
Press Add 1 Minute twice.
Setting 12 hour or 24 hour display mode
The clock display mode allows you to select 12 hr or 24 hr
modes. The factory pre-set clock display mode is 12 hours.
To set 12 hr or 24 hr display mode:
1. Press and hold (_for 6 seconds.
2. Press Self Clean to toggle between 12 Hr day or 24 Hr day
display modes. (Figure 11)
3. Press STA_to accept choice.
Figure 11:12 Hr dAy and 24 Hr dAy settings
Changing Between Continuous Bake Settingor 12 Hour
Energy Saving
The oven control has a factory preset built-in 12 Hour Energy
Saving feature that will turn off the oven if the oven is left on for
more than 12 hours. The control may be programmed to
override this feature to bake continuously.
To change between continuous bake or 12 Hour Energy Saving
feature:
1. Press and hold Timer ON/OFF for 6 seconds.
2. Press Self Clean to toggle between 12 Hour OFF or Stay On
(Figure 12) feature.
3. Press STARTto accept choice.
Figure 12:12 hr energy saving (L) and continuous setting (R)
13
Oven Controls
Changing Oven Temperature Display
The oven control is preset for temperatures in °F (Fahrenheit)
when shipped from the factory. The control can be changed to
display either Fahrenheit or Celsius.
To change the display to F (Fahrenheit) or C (Celsius):
1. Press and hold Broil for 6 seconds.
2. Once F (or C) appears in the display, press Self Clean to
toggle between Fahrenheit and Celsius temperature display
modes (Figure 13).
3. Press ......... to accept choice.
: START
Important note:
The oven temperature display cannot be changed during the
cooking process or if a Delay Start has been set or Self Clean is
active.
Figure 13: Display showing Fahrenheit and Celsius
Setting Silent or Audible Control mode
Silent mode allows the oven control to operate without audible
tones. The control may be programmed for silent operation and
later reset to operate with all the normal audible tones.
To set for silent or audible mode:
1. Press and hold Delay Start for 6 seconds.
2. Press Self Clean to toggle between bEEP On or bEEP OFF.
(Figure 14)
3. Press STARTto accept choice.
Figure 14: Display showing audible and silent operation
Setting Oven Lockout
The control may be programmed to lock the oven door and lock
the oven control keys.
To activate the oven lockout features:
1.
2.
Be sure oven door is completely closed.
[]
Press and hold STOPfor 3 seconds. (Figure 15) door Loc will
appear in the display. The motor driven door latch
mechanism will begin locking the oven door automatically.
Do not open the oven door. Allow about 15 seconds for the
oven door to completely lock. Once door is locked, Loc will
appear in the display.
Figure 15: Display showing door locking and in locked position
To cancel the oven lockout feature:
[]
1. Press and hold STOP for 3 seconds. The motor door latch
will begin unlocking the oven door automatically. Do not
open the oven door. Allow about 15 seconds for the oven
door to completely unlock.
2. When the Loc message no longer displays, the oven door
may be opened and the oven control keys will be available
for use.
Important note:
• To avoid damage to the oven door latching mechanism, do
not attempt to open or close the oven door whenever the
door Loc message is displayed.
• If a control key is pressed when oven lockout is active, the
control will triple beep indicating the key action is not
available when the oven lockout feature is active.
Operating Oven Lights
The interior oven lights will automatically turn on when the oven
door is opened.
Press (_) to turn the interior oven lights on and off whenever
the oven door is closed. The oven light will not operate during a
self clean cycle.
The interior oven lights are located on the rear wall of the oven
interior and are covered with a glass shield. The glass shield
protects the bulb from high temperatures and should always be
in place whenever the oven is in use.
To replace the interior oven light, see "Replacing the Oven
Light" on page 28.
14
Oven Controls
Setting Bake
Use the bake feature whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound indicating
when the set bake temperature is reached and to place the food
in the oven. During the baking process the oven will cycle on
and off to maintain the set temperature. Do not open the oven
door too often. Opening the door will reduce the oven tempera-
ture and may increase cook time.
Bake may be set for any oven temperature between 170°F
(77°C) to 550°F (288°C).
Setting Convec Bake
Benefits of the convection bake feature:
• Foods may cook up to 25°/0 faster, saving time and energy.
• Multiple rack baking.
• The convection function uses a fan to circulate the oven's
heat uniformly and continuously around the oven
(Figure 17). This improved heat distribution allows for fast,
even cooking and browning results.
To set Bake for oven temperature of 425°F (218°C):
1. Press Bake.
2. Enter 4 2 5 (2 1 8) using numeric keys.
3. Press
START "
To cancel Bake at any time press
Regular bake rack positions:
• Fully preheat the oven before baking items like cookies,
biscuits and breads.
• When using any single rack, position the rack so that the
food is in the center of the oven.
• For best results when baking cakes using 2 oven racks,
place racks in positions 2 and 4 (Figure 16).
• When baking using 2 oven racks, position bakeware as
shown in Figure 16. Allow at least 2 inches (5 cm) of space
between bakeware for proper air circulation.
• Dark or dull pans absorb more heat than shiny bakeware,
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent overbrowning of some foods. Dark pans are recom-
mended for pies. Shiny pans are recommended for cakes,
cookies and muffins.
• For batter and dough-based baked goods such as cakes,
pastries, and breads, use the regular bake function for best
results.
Figure 17: Air circulation in the convection function
Because most food items will cook faster and more evenly with
the convection feature, it is advisable to reduce recipe's recom-
mended temperature by 25 °.
For best results, follow the recipe's instructions using the
minimum recommended cook time.
Convec Bake may be set for any oven temperature between
300°F (148°C) to 550°F (288°C).
The convection fan will begin rotating six minutes after Convec
Bake, Convec Roast or Convec Convert has been activated.
To set Convec Bake with a default oven set temperature of
350°F (176°C):
1. Press Convec Bake.
2. Press START
To cancel Convec Bake at any time press STOP.
Figure 16: Rack positions and pan spacing recommendations
15
Oven Controls

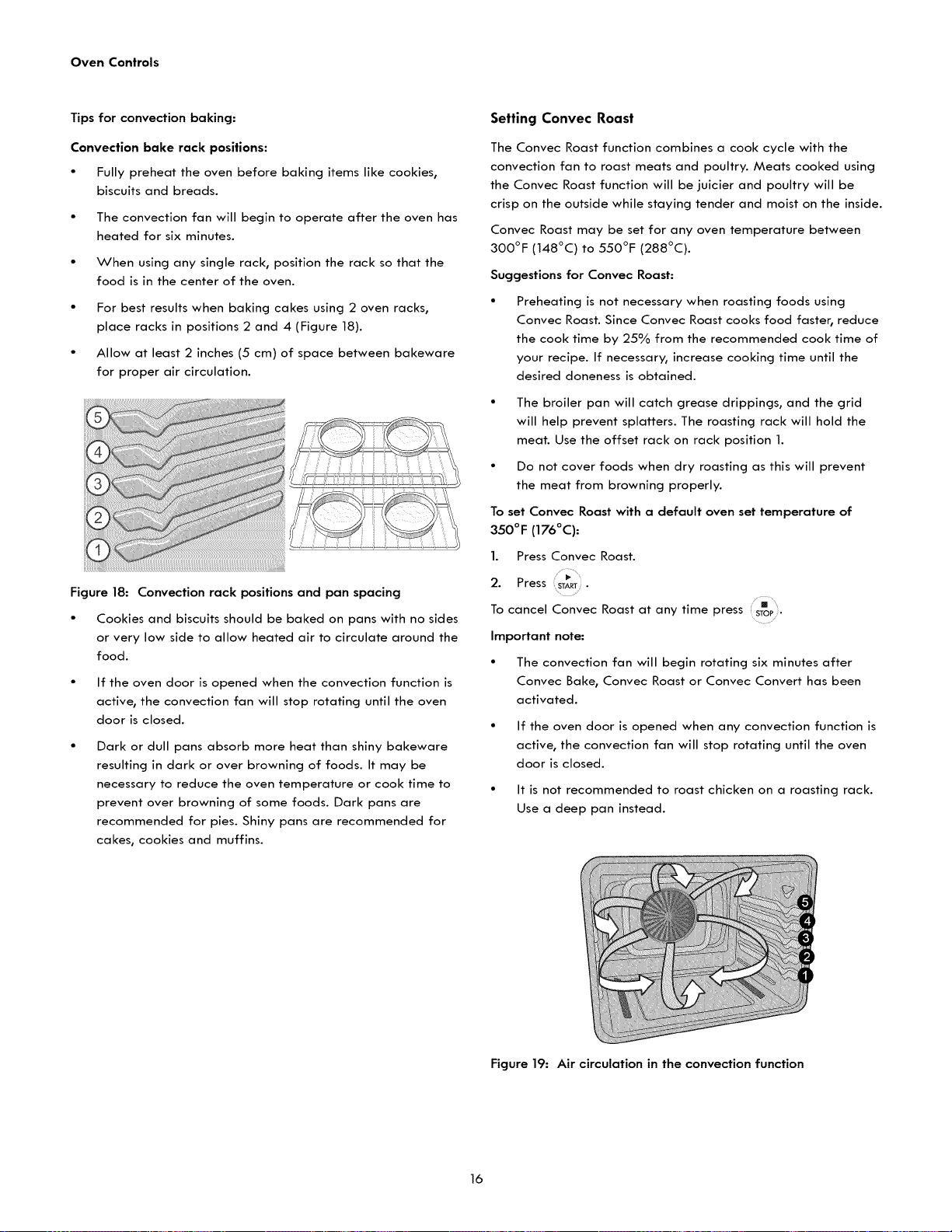

Tips for convection baking:
Convection bake rack positions:
• Fully preheat the oven before baking items like cookies,
biscuits and breads.
• The convection fan will begin to operate after the oven has
heated for six minutes.
• When using any single rack, position the rack so that the
food is in the center of the oven.
• For best results when baking cakes using 2 oven racks,
place racks in positions 2 and 4 (Figure 18).
• Allow at least 2 inches (5 cm) of space between bakeware
for proper air circulation.
Figure 18: Convection rack positions and pan spacing
• Cookies and biscuits should be baked on pans with no sides
or very low side to allow heated air to circulate around the
food.
• If the oven door is opened when the convection function is
active, the convection fan will stop rotating until the oven
door is closed.
Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or over browning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent over browning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended for
cakes, cookies and muffins.
Selling Convec Roast
The Convec Roast function combines a cook cycle with the
convection fan to roast meats and poultry. Meats cooked using
the Convec Roast function will be juicier and poultry will be
crisp on the outside while staying tender and moist on the inside.
Convec Roast may be set for any oven temperature between
300°F (148°C) to 550°F (288°C).
Suggestions for Convec Roast:
Preheating is not necessary when roasting foods using
Convec Roast. Since Convec Roast cooks food faster, reduce
the cook time by 25% from the recommended cook time of
your recipe. If necessary, increase cooking time until the
desired doneness is obtained.
• The broiler pan will catch grease drippings, and the grid
will help prevent splatters. The roasting rack will hold the
meat. Use the offset rack on rack position 1.
• Do not cover foods when dry roasting as this will prevent
the meat from browning properly.
To set Convec Roast with a default oven set temperature of
350°F (176°C):
1. Press Convec Roast.
2. Press START.
m
To cancel Convec Roast at any time press sToP.
Important note:
• The convection fan will begin rotating six minutes after
Convec Bake, Convec Roast or Convec Convert has been
activated.
• If the oven door is opened when any convection function is
active, the convection fan will stop rotating until the oven
door is closed.
• It is not recommended to roast chicken on a roasting rack.
Use a deep pan instead.
Figure 19: Air circulation in the convection function
16
Oven Controls
Setting Convec Convert
Pressing the Convec Convert key automatically converts the
cooking temperature entered for any standard baking recipe to
the lower temperature required for convection baking.
When Convec Convert is used with a timed Convec Bake setting
of 20 minutes or more, the Convec Convert function will display
a CF message (Figure 20) as a reminder to check food when the
bake time is 75% complete. At this time the oven control will
sound 1 long beep at regular intervals until the set cook time has
finished.
Figure 20:
Check Food reminder shown in display.
To add Convec Convert to Convec Bake function using default
oven set temperature of 350°F (176°C):
1. Press Convec Bake.
2. Press Convec Convert.
To cancel Convec Convert at any time press _TaP'__
To program oven for Convec Convert with oven default temper-
ature of 350°F (176°C) and to shut-off after 30 minutes:
1. Press Convec Bake.
2. Press STARTto accept.
3. Press Cook Time.
4. Enter 3 0 using numeric keys.
5. Press STARTto accept.
6. Press Convec Convert.
, []
To cancel Convec Convert at any time press STOP.
To program oven for Convec Convert with recipe temperature of
425°F (218°C) and to shut-off after 30 minutes:
1. Press Convec Bake.
2. Enter 4 2 5 (2 1 8) using numeric keys.
3. Press STARTto accept.
4. Press Cook Time.
5. Enter 3 0 using numeric keys.
6. Press STARTto accept.
Z Press Convec Convert. Set bake temperature will convert to
a lower temperature and begin baking process.
[]
To cancel Convec Convert at any time press sToP.
Important note:
• Convec Convert may only be used with the Convec Bake
function and with a minimum of 20 minutes cook time.
• When using Convec Convert feature Cook Time reductions
may vary depending on the oven set temperature.
• The convection fan will begin rotating six minutes after
Convec Bake, Convec Roast or Convec Convert has been
activated.
• If the oven door is opened when any convection function is
active, the convection fan will stop rotating until the oven
door is closed.
17
Oven Controls
Setting Cook Time
Use Cook Time to program the oven control to automatically
turn the oven function off after a desired length of time.
To program oven to bake with oven default temperature of
350°F (176°C) and to shut-off after 30 minutes:
1. Press Cook Time.
2. Enter 3 0 using numeric keys.
3. Press STARTto accept.
4. Press Bake.
5. Press
START "
When the programmed cook time ends:
End will appear in the display window and the oven will shut-off
automatically. (Figure 21) The oven control will beep 3 times
every 30 seconds as a reminder until [] is pressed.
STOP
Figure 21: Display showing cooking has ended
Important note:
• The Cook Time feature may be set with Bake, Convec Bake,
Convec Roast, Slow Cook and Preheat. Cook Time or Delay
Start will not operate with the Broil function.
• The maximum Cook Time setting is 11hours and 59 minutes
unless oven is set for continuous cooking.
• To check the time remaining during a timed cooking
function, press the Cook Time key once and the time
remaining will appear in the display momentarily.
Setting Delay Start
Delay Start sets a delayed starting time to oven cooking or
cleaning functions. Prior to setting a delay start, be sure the time
of day is set correctly.
Food poisoning hazard.Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refriger-
ator first. Even when chilled, they should not stand in the oven
for more than hour before cooking begins, and should be
removed promptly when finished cooking.
To program oven for a Delay Start beginning at 5:30, to shut-off
automatically after 50 minutes and for baking at 375°F (190°C):
1. Press Cook Time.
2. Enter 5 0 using numeric keys.
3. Press ST_Tto accept.
4. Press Delay Start.
5. Enter 5 3 0 using numeric keys.
6. Press STAR_(to accept.
7. Press Bake.
8. Enter 3 7 5 (1 9 O) using numeric keys.
9. Press START"
When the programmed cook time ends:
End will appear in the display window and the oven will shut off
automatically. The oven contrQ will beep 3 times every 30
seconds as a reminder until stop key is pressed.
Important note:
• Delay Start may be set using a 24 hr clock. To set clock for
24 Hr operation See "Settin( 12 hour or 24 hour display
mode" on page 13 for more information.
The Delay Start feature may be used with Convec Bake,
Convec Roast, Convec Convert, Bake, Slow Cook and
Preheat functions and Self Clean. Delay Start or Cook Time
will not operate with the Broil function.
18
Oven Controls
Setting Broil
Use the broil function to cook meats that require direct exposure
to radiant heat for optimum browning results. The Broil feature is
factory preset to broil at 550°1:. The Broil function temperature
may be set at any temperature between 400°F (205°C) and
550°F (288°C).
The suggested broil settings table (Table 3) are recommenda-
tions only. Depending on cooking preferences you can increase
or decrease cooking times or move food to a different rack
position. If the food you are broiling is not listed in the table,
follow the instructions provided in your cookbook and watch the
item closely.
Should an oven fire occur, close the oven door
and turn the oven off. If the fire continues, use a fire extin-
guisher. Do not put water or flour on the fire. Flour may be
explosive.
Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior, exterior, oven
racks and oven will become very hot which can cause burns.
Important note:
• Always keep the door closed when broiling. Always arrange
oven racks when oven is cool.
For best results when broiling, use quality broil pan along
with a broil pan insert. A broil pan is designed to drain the
fat from food, helping to reduce smoking and avoid
splatter.
• When broiling, always pull the oven rack out to the stop
position before turning or removing food.
To set the Broil with the default temperature of 550°F (288°C):
1. Arrange the oven racks when cool. For optimum browning
results, preheat oven for 5 minutes before adding food.
2. Position bakeware in oven to the preferred rack position.
(Figure 22). Be sure to close oven door before broiling.
3. Press Broil.
4. Press START.
5. Broil on one side until food is browned; turn and broil other side
until done to your satisfaction.
6. When finished broiling press sToP.
7. To cancel Broil at any time press []
STOP"
Figure 22: Rack positions (L) optional broil pan and insert (R)
• Note: A broiler pan and insert are not supplied with this
appliance. To purchase them, call Sears at 1-800-4-MY-
HOME (1-800-469-4663) and order broiler pan kit
5304442087.
Table 3: Suggested Broil Settings
Food _ack Position
Steak 1" thick
Steak 1" thick
Steak 1" thick
Pork chops 3/4" thick
Chicken (bone in)
Chicken (boneless)
Fish
Shrimp
Hamburger 1" thick
Hamburger 1" thick
4th or 5th _
4th or 5th _
4th or 5th _
4th
3rd
]rd
5th _
4th
5th _
Setting
Cook Time in minutes
550°F/288°C
550°F/288°C
550°F/288°C
550°F/288°C
450°F/232°C
450°F/232°C
550°F/288°CF
550°F/288°C
550°F/288°C
550°F/288°C
2nd side
4
5
7
6
10
6
7
4th 8 Well
1st side
6
7
8
8
20
8
- as directed -
- as directed -
9
10
When broiling in 5th position use offset oven rack if available.
Preparation
Medium
Medium-well
Well
Well
Well
Well
Well
Well
Medium
19
Oven Controls
Setting Slow Cook
The Slow Cook feature cooks foods more slowly and at lower
oven temperatures for longer periods of time. Slow Cook is ideal
for roasting beef, pork, and poultry. Slow cooking meats may
result in the exterior of meats becoming dark but will not burn
the outside as it seals in the meat's juices.
Two Slow Cook settings are available, high (Hi) or low (Lo). The
high setting is best for cooking foods between 4 and 5 hours.
The low setting is best for cooking foods up to 9 hours or longer.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refriger-
ator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
Some tips for best results when using Slow Cook:
• Completely thaw all frozen foods before cooking.
• When using a single oven rack, place in oven rack position
2 or 3. Position racks to accommodate the size of various
bakeware when cooking multiple food items.
• Do not open the oven door often or leave the door open
when checking foods. If the oven heat escapes often, the
Slow Cook time may need to be extended.
Cover to keep foods moist or use a loose or vented type
cover to allow foods to turn crisp or brown.
Roasts may be left uncovered so browning can occur. Cook
times will vary depending on the weight, fat content, bone,
and the shape of the roast. Preheating the oven will not be
necessary when using the Slow Cook feature.
• Add any cream or cheese sauces during the last hour of
cooking.
Important note:
• Slow Cook may be used with additional settings of Cook
Time and Delay Start.
• The maximum cook time for Slow Cook function is 11hours
and 59 minutes unless the control has been changed to the
continuous bake mode.
To set Slow Cook:
1. Position bakeware in oven and close oven door.
2.
Press Slow Cook. HI will appear in the display indicating the
default temperature setting is for high.
3. If a low setting is needed, press Slow Cook again to select
the low setting.
4. Press STARTto activate Slow Cook.
[]
To cancel Slow Cook at any time press sToP.
Warm & Hold TM
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness
Warm & Hold should only be used with foods that are already
at serving temperatures. Warm & Hold will keep cooked foods
warm and ready for serving for up to 3 hours after cooking has
finished. After 3 hours the Warm & Hold will shut-off automati-
cally. Warm & Hold will keep the oven temperature at 170 ° F
(77°C).
To set Warm & Hold:
1. If needed, arrange oven racks and place cooked food in
oven.
2. Press Warm & Hold. HLd will appear in the display. If no
other keys are touched within 25 seconds the request for
Warm & Hold will clear.
\
3. Press START.Warm & Hold will automatically turn on and
then turn off after 3 hours unless cancelled.
[]
To turn Warm & Hold off at any time press sToP.
To add Warm & Hold to turn ON after baking 45 minutes with
a set temperature of 425°F (218°C):
1. Press Cook Time.
2. Enter 4 5 using numeric keys.
3. Press .......
START "
4. Press Bake and enter 4 2 5 (2 1 8) on numeric keys.
5. Press to accept.
START
6. Press Warm & Hold. Hid will appear in the display.
Z Press sTARtto accept. When the cook time is over, the Warm
& Hold will automatically turn ON. The Warm & Hold
function will automatically turn OFF after 3 hours.
Important note:
• Warm & Hold will maintain the oven temperature at 170 ° F
(77°C) for 3 hours.
• Warm & Hold may be set when finished cooking or may be
added to automatically turn on after cooking using Cook
Time. Delay Start may also be added.
2O
Oven Controls
Setting the Sabbath feature (for use on the Jewish
Sabbath and Holidays)
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please visit the web at
www.star-k.org.
This appliance provides special settings for
use when observing the Jewish Sabbath/Holidays. Sabbath
mode disables all audible tones or visual display changes on the
oven control. Bake heating is the only cooking feature available
while in the Sabbath mode. Oven controls are locked during
Sabbath mode.
You must first set the Bake feature and temperature(s) needed
for the oven, and the Cook Time and Delay Start options (if
needed). Any settings made prior to setting the Sabbath mode
will be visible in the displays. The Cook Time option, if set prior
to the Sabbath mode, will give one audible alert at the end of
Cook Time.
The Sabbath mode will override the factory preset 12 Hour
Energy Saving mode and the appliance will stay on until the
cooking features are cancelled. If any of the cooking features
are cancelled when the appliance is in the Sabbath mode, no
audible or visual indicators will be available to verify the can-
cellation.
If the oven interior lights are needed, be sure to activate them
prior to setting the Sabbath mode. Once the oven light is turned
on and the Sabbath mode is active, the oven light will remain on
until the Sabbath mode is turned off and the oven lights are
turned off. The oven door will not activate the interior oven
lights when the oven door is opened or closed.
It is recommended that any oven temperature modification
made within an active Sabbath mode be followed with 2
presses of the START key. This will insure the oven remains on
even if an attempt is made to set the oven temperature outside
of its temperature range. If the oven temperature is set outside
of the temperature range, the oven will default to the nearest
available temperature. Try to set the desired oven temperature
again.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refriger-
ator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To program oven to Bake with default oven temperature of
350°F (176°C) and activate the Sabbath feature:
1.
2.
3.
4.
5.
6.
Be sure the clock is set with the correct time of day.
Arrange oven racks, place bakeware in oven and close oven
door.
Press Bake.
Press START.
If Cook Time or Delay Start are not needed, skip this step
and continue to step 6. If a Cook Time or Delay Start are
desired enter the times at this point. Refer to the "Setting
Cook Time" and "Setting Delay Start" on page 18 for
detailed instructions.
Press and hold Cook Time and Delay Start simultaneously
for about 3 seconds to set the Sabbath feature. Once the
feature is set, SAb (Figure 23) will appear in the display
indicating the oven is properly set for the Sabbath feature.
Figure 23: Oven set for Sabbath baking.
Important note:
Do not attempt to activate any other oven function except
Bake while the Sabbath feature is active. The following keys
will function correctly when the Sabbath feature is active:
0-9 number keys, Bake, STARTand STOP"All other keys
should not be used once the Sabbath feature is active.
• You may change the oven temperature once baking has
started. Press Bake, use the numeric keys to enter the oven
......._ (for
temperature change (170°F to 550F °) and press START
Jewish Holidays only).
• Remember that the oven control will no longer provide
audible tones or display any further changes when the
Sabbath feature is active.
Remember the oven will shut-off automatically after
completing a Cook Time, Delay Start or Warm & Hold and
therefore may only be used once during the Sabbath/
Jewish Holidays.
• If a Delay Start time longer than 11 hours and 59 minutes is
desired, set the oven control for the 24 hour day display
mode setting. For detailed instructions see "Setting 12 hour
or 24 hour display mode" on page 13.
To turn the oven off and keep the Sabbath feature active:
Press []
.....sToP.....
21
Oven Controls
To turn off the Sabbath feature:
Press and hold both Cook Time and Delay Start simultaneously
for at least 3 seconds to turn the Sabbath feature off. The
control will provide an acceptance tone and SAb will disappear
from the display. The oven is no longer programmed for the
Sabbath feature.
What to do during a power failure or power interruption after
the Sabbath feature was activated:
Should you experience a power failure or interruption, the oven
will shut-off. When power is restored the oven will not turn back
on automatically. The oven will remember that it is set for the
Sabbath and the oven display will show the message SF for
Sabbath failure (Figure 24).
Figure 24: Display showing Sabbath failure
The food may be safely removed from the oven while still in the
Sabbath feature, however the oven cannot be turned back on
until after the Sabbath/Holidays. After the Sabbath observance
turn off the Sabbath feature. Press and hold both Cook Time
and Delay Start keys for at least 3 seconds simultaneously to
turn the Sabbath feature off. SF will disappear from the display
and the oven may be used with all normal functions.
Restoring Factory Default Settings
Your appliance was set with predetermined (default) oven
control settings. Over time, users may have made changes to
these settings. The following options may have been modified
since the appliance was new:
• 12 or 24 hr display mode
• Continuous bake or 12 Hour Energy Savings mode
• Silent or audible control
• Oven temperature display (Fahrenheit or Celsius)
• Oven temperature adjustments (UPO)
To restore oven control to factory default settings:
_lf you choose to restore any of the options to a
factory default setting using this method, all of the above user
settings will be restored to the factory default settings. This
includes the oven temperature offset that will reset to (0) zero.
1. Press and hold the 7 key until acceptance tone sounds
(about 6 seconds).
2. Press START. The control has been reset with the default
settings.
Adjusting Oven Temperatures
Your appliance has been factory calibrated and tested to ensure
accurate baking temperatures. For the first few uses, follow your
recipe times and temperature recommendations carefully. If you
think the oven is cooking too hot or too cool for your recipe
times, the UPO (User Programmable Offset) allows you to adjust
the control so the oven cooks hotter or cooler than the oven
temperature displayed.
The oven temperature may be increased as much as +35°F
(+19°C) or decreased -35°F (-19°C) from the factory calibrated
settings.
To increase (+) or decrease (-) the oven temperature by 20°F:
1. Press and hold Bake until the control produces an audible
tone (about 6 seconds). The factory offset temperature of
0 (zero) should appear in the display.
2. Enter 2 0 using numeric keys.
3. Press Self Clean to toggle between plus (+) if increasing
temperature or minus (-) if decreasing the temperature.
4. Press STARTto accept change.
Important note:
• Oven temperature adjustments will not change the Broil or
Self Clean function temperatures.
• If the temperature shows an adjustment of -20°F, and a
+20°F adjustment is needed, toggle between the minus (-)
or plus (+) in the display by pressing the Self Clean key.
Do not use oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20 to
40°F degrees from actual temperatures.
The oven temperature adjustment may be made if your
oven control is set to display temperatures in °C (Celsius).
Minimum and maximum settings for Celsius range from plus
(+)19°C to minus (-) 19°C.
22
Oven Controls
Self Clean
A self cleaning oven cleans with very high temperatures well
above normal cooking temperatures. The high temperature elim-
inates soils completely or reduces them to a fine powdered ash
you can wipe away afterwards with a damp cloth.
The Self Clean function allows you to set a cleaning time from 2
hours to 4 hours. A 3 hour cleaning time is recommended for
normal cleaning, 2 hours for light cleaning, and 4 hours for
heavy cleaning.
Read before starting Self Clean:
Do not leave small children unattended near
the appliance. During the self cleaning cycle, the outside of the
oven can become very hot to touch and can cause burns.
Do not line the oven walls, racks, bottom or any other part of the
oven with aluminum foil. Doing so will destroy heat distribution,
produce poor baking results and cause permanent damage to
the oven interior. Aluminum foil will melt to the interior of the
oven.
The health of some birds is extremely sensitive to the fumes
given off during the self cleaning cycle of any oven. Move birds
to another well-ventilated room.
Do not force the door open. This can damage
the automatic door locking system. Use caution when opening
the oven door after self cleaning. The oven may still be very hot
and can cause burns. To avoid possible burns stand to the side
of the oven when opening the oven door to allow hot air or
steam to escape.
Important note:
Completely remove all oven racks and any accessories from
oven cavity to avoid damage to oven racks. If the oven racks
are not removed they may discolor.
• Remove all items from the oven including bakeware, utensils
and any aluminum foil. Aluminum foil will not withstand
high temperatures from a self clean cycle and will melt.
• Do not use oven cleaners or oven protective coatings in or
around any part of the oven interior.
Clean any soil from the oven frame, the door liner outside
the oven door gasket and the small area at the front center
of the oven bottom (Figure 25). These areas heat sufficiently
to burn soil on. Clean using soap and water prior to starting
Self Clean.
Do not clean the oven door gasket (Figure 25). The woven
material of the oven door gasket is essential for a good
seal. Care should be taken not to rub, damage or remove
the gasket. Do not use any cleaning materials on the oven
door gasket. Doing so could cause damage to the door
gasket.
Remove any excessive build up caused by spills. Any spill on
the oven bottom should be wiped up and removed before
starting a self clean cycle. To clean, use hot, soapy water
and a cloth. Large spill residue can cause heavy smoke or
fire when subjected to high temperatures. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after
cleaning.
Figure 25: Oven door area to clean and not clean (gasket).
To set self clean:
1. Be sure the oven is empty and all oven racks are removed.
Remove all items from the oven. Be sure oven door is
completely closed.
2. Press Self Clean and the default 3 hour clean time will
appear in the display. You may accept the default 3 hour
clean time by going to step 3, or choose a different clean
time. Press Self Clean and use the numeric keys to select
any time between 2 hours and 4 hours. Once you have the
desired clean time selected proceed to step 3.
3. Press STARTto activate Self Clean. As soon as Self Clean
becomes active, a motor driven lock mechanism will begin
locking the oven door automatically and door Loc will
appear in the display (Figure 26 on page 24). Do not open
the oven door when door Loc is displayed (allow 15 seconds
for the lock mechanism to lock the oven).
Once the oven door has locked, CLn will appear in the display
indicating Self Clean has started.
Important note: Do not force the oven door open when self-
clean is active. This can damage the automatic door-locking
system. Use caution when opening the door after self-clean
cycle is complete; the oven may still be very hot.
23
Oven Controls
Figure 26: Door locking (L) and active Clean (R) shown
Figure 27: Hot oven door locked (L) door open message (R).
When Self Clean is finished:
Use caution when opening the oven door after
self cleaning. The oven may still be very hot and can cause
burns. To avoid possible burns stand to the side of the oven when
opening the oven door to allow hot air or steam to escape.
1. CIn message will turn off and Hot will appear in display
window (Figure 27).
2. Once the oven has cooled down (about 1 hour) and Hot is
no longer displayed, the door Opn message will appear.
When this message turns off the oven door may be opened.
3. When the oven interior has completely cooled, wipe away
any residue or powdered ash with a damp cloth or paper
towel.
Important note:
The kitchen area should be well ventilated. Use an open window,
ventilation fan or exhaust hood during the first self clean cycle
to help eliminate the normal odors associated with the 1st self
clean cycle.
When the clean time finishes the oven door will remain locked
until the oven has cooled sufficiently. In addition to the clean
time that was programmed, allow about 1 additional hour for
the oven to cool before opening the oven door. The Self Clean
function will not operate when the oven lockout is active.
Setting Delay Start Self Clean
To start a delay Self Clean with default clean time of 3 hours
and a start time of 9:00 o'clock:
1. Be sure the clock is set with the correct time of day, the oven
is empty and ALL oven racks are removed. Be sure oven
door is completely closed.
2. Press Delay Start.
3. Using numeric keys enter 9 0 0 for time to start.
4. Press _" to accept.
STA"T
5. Press Self Clean.
6. Press
START"
If it becomes necessary to stop Self Clean when active:
1. Press sToP.
2. If Self Clean has heated the oven to a high temperature,
allow enough time for the oven to cool and the door Opn
message to appear (Figure 27). When this message turns
off the oven may be opened.
3. Before restarting Self Clean, be sure to read important
notes below.
Important note:
• When Self Clean is active you may check the amount of
clean time remaining by pressing the Self Clean key once.
If your clock is set with the (default) 12 hr display mode, the
Delay Start for a Self Clean can only be programmed to
start up to 11 hours and 59 minutes after the time showing in
the display (be sure to set the clock to current time before
programming a delay start). To set a Delay Start Self Clean
to begin 12 or more hours (maximum is 23 hours and 59
minutes) after the time of setting, be sure to first set the
control in the 24 Hr display mode.
If Self Clean was active and then interrupted by a power
failure or cancelled before the oven was thoroughly
cleaned, it may be necessary to run another Self Clean
cycle.
• If the oven temperature was high enough when Self Clean
was interrupted the oven control may not allow another Self
Clean cycle to be set for up to 4 hours.
24
Care and Cleaning
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, be sure all controls are turned off and the oven iscool. Remove spills and any heavy soiling as
soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.
Surface Type Recommendation
Aluminum and Vinyl • Use hot, soapy water and a cloth. Dry with a clean cloth.
Stainless steel (some models)
Painted body parts • Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of
Painted decorative trims vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first.
Oven control panel and membrane
Easy Clean TM Stainless Steel
Porcelain enamel broiler pan and
insert (available by mail order)
Porcelain enamel parts
Door liner and body parts
Do not spray liquids directly on the oven control and display area. Do not use large
amounts of water on the control panel. Excess water on the control area may cause
damage to the appliance.
Oven racks
Oven interior (porcelain)
• Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels. They
will damage the finish.
• Your oven finish may be Easy Clean TM Stainless Steel (some models). Clean the stainless
with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry
with a soft clean cloth.
• ° Do not use any store bought cleaners like stainless steel cleaners or any other types of
cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is recommended to
use mild dish soap and water or a 50/50 solution of water and vinegar.
Oven door
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes.
Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad.
Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become
damaged during future heating.
Cooktop surface and burners
Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner
following manufacturer's instructions. Rinse with clean water and dry.
Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad.
Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become
damaged during future heating.
• Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the door. Do not immerse the
door in water.
• Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven
cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of
the oven door.
• Do not clean the oven door gasket. On self-clean models, the oven door gasket is made
of a woven material which is essential for a good seal. Care should be taken not to rub,
damage, or remove this gasket.
• See detailed information on cleaning and care for the cooktop, burners, and grates
starting on page 26.
25
Care and Cleaning
Cleaning the cooktop and surface burners
To avoid possible burns DO NOT attempt any
of the cleaning instructions provided below before turning OFF
all of the surface burners and allow them to cool.
Any additions, changes or conversions required
in order for this appliance to satisfactorily meet the application
needs must be made by an authorized qualified Agency.
Routinely clean the cooktop. Wipe with a clean, damp cloth and
wipe dry to avoid scratches. Keeping the surface burner head
ports and slots clean will prevent improper ignition and an
uneven flame. See the following sections for more instructions.
To clean recessed and contoured areas of cooktop
If a spill occurs on or in the recessed or contoured areas, blot up
spill with an absorbent cloth. Rinse with a clean, damp cloth and
wipe dry.
To clean burner grates
• Clean when the grates are cool.
• Use nonabrasive plastic scrubbing pad and mild abrasive
cleanser.
• Food soils containing acids may affect the finish. Clean
immediately after the grates are cool.
• Thoroughly dry grates immediately following cleaning.
To clean burner caps
• Remove caps from burner heads after they have cooled.
• Clean heavy soils with a plastic scrubbing pad and
absorbent cloth.
• Thoroughly dry burner caps immediately following cleaning
including the bottom and inside of cap.
• Do not use abrasive cleaners. They can scratch porcelain.
• Do not clean burner caps in the dishwasher.
• Do not operate surface burners without burner caps
properly in place. See IMPORTANT notes below.
Aluminum foil and oven liners
Do not line the oven bottom, racks, or any part of the oven
cavity with aluminum foil or oven liners. The high heat of the
oven can melt these materials to the oven cavity and ruin the
oven. These types of materials can also reduce the effectiveness
of the air circulation in the oven and produce poor baking
results.
slots
ignition port
orifice
Figure 28: Cooktop burner head
To clean the surface burner heads
For proper gas flow it may be necessary to clean the burner
head and slots. To clean, first use a clean DAMP cloth to soak up
any spills. Remove any food from between the burner slots using
a small nonabrasive brush like a toothbrush and afterwards
wipe up using a damp cloth. For stubborn soils located in the
slots, use a small-gauge wire or needle to clean.
Any spill on or around the electrode must be carefully cleaned.
Take care not to hit the electrode with any thing hard or it could
be damaged.
To clean the burner head ignition ports
Each burner head has a small ignition port located as illus-
trated. Should you experience ignition problems it may be that
this port hole is partially blocked with soil. With the burner head
in place, use a small wire gauge needle or the end of a paper
clip to clear the ignition port (refer to Figure 28; round style
shown; oval models on some models not shown).
Important: Always keep the surface burner caps in place
whenever a surface burner is in use.
When replacing the burner caps, be sure the burner caps are
seated firmly on top of the burner heads.
The surface burner heads are secured to the cooktop and must
be cleaned in place on the cooktop. For proper flow of gas and
ignition of burners.
DO NOT allow spills, food, cleaning agents or any other
material to enter the gas orifice holder opening.
26
Care and Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage,
lay the door flat with the inside of the door facing down.
To remove the oven door:
1. Open oven door completely, horizontal with floor (See
Figure 29).
2.
Pull the door hinge locks on both left and right door hinges
down from the oven frame completely toward the oven
door (See Figure 30). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 31).
4. Close the door to 10 degrees from the door frame
(Figure 31).
5. Lift the oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 31).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 31).
2.
Holding the oven door at the same angle as the removal
position (See Figure 31), seat the hook of the hinge arm over
the roller pins located on each side of the oven door frame
(SeeFigure 32). The hook of the hinge arms must be fully
seated onto the roller pins.
3. Fully open the oven door, horizontal with floor (See
Figure 29).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 30).
5. Close the oven door.
Figure 29: Door hinge location
Figure 30: Door hinge locks
oven
Oven door
hinge
locations
Important:
Special Door Care Instructions - Most oven doors contain glass
that can break. Do not close the oven door until all the oven
racks are fully in place. Do not hit the glass with pots, pans, or
any other object. Scratching, hitting, jarring, or stressing the
glass may weaken its structure causing an increased risk of
breakage at a later time.
Figure 31: Holding door for removal
roller
pin
hinc
arm
/
/
/
/
Figure 32: Location of hinge arm and roller pin
27
Care and Cleaning
Replacing the Oven Light
Be sure the oven is unplugged and all parts are
cool before replacing oven light.
The interior oven lights are located at the rear of the oven cavity
and are covered with a glass shield. The glass shield must be in
place whenever the oven is in use (See Figure 33).
To replace the oven interior light bulb:
Important note:
Do not allow your fingers to touch the new bulb when replacing.
This will shorten the life of the bulb. Use a paper towel or cotton
glove while handling the new bulb when installing.
1. Turn electrical power off at the main source.
1. Remove interior oven light shield by turning counter-clock-
wise.
2. Replace bulb with a new Halogen bulb.
3. Replace glass oven light shield by rotating clockwise.
4. Turn power back on again at the main source.
5. Be sure to reset the time of day on the clock.
Figure 33: Oven light shown in rear corner of oven cavity
28
Before You Call
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Baking Problems and Solutions
Baking Problems
Cookies and biscuits burn
on the bottom.
Cakes too dark on top or
bottom
Cakes not done in center
Cakes not level.
Foods not done when
cooking time is over.
Causes Corrections
Cookies and biscuits put into
oven before the preheating
time is completed.
Oven rack is overcrowded.
Dark pans absorbs heat too
fast.
• Cakes put in oven before
preheating time is completed.
• Rack position too high or too
lOW.
Oven too hot.
• Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Oven not level.
• Pan too close to oven wall or
rack overcrowded.
• Pan warped.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
Allow oven to preheat to desired temperature before
placing food in oven.
Choose pan sizes that will permit 2" to 4" of air space (5.1
cm to 10.2 cm) on all sides when placed in the oven.
Use a medium weight baking sheet.
• Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F/13°C lower than recommended.
• Set oven temperature 25°F/13°C lower than recommended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 5.1 cm to
10.2 cm (2" to 4") of space on all sides of pan.
Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the oven.
• Be sure to allow 5.1 cm to 10.2 cm (2" to 4") of clearance
on all sides of each pan in the oven.
• Do not use pans that are dented or warped.
• Set oven temperature 25°F/13°C higher than suggested
and bake for the recommended time.
Be sure to remove all pans from the oven except the ones to
be used for baking.
Open oven door only after shortest recommended baking
time.
29
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Poor baking results •
Oven does not operate.
Many factors effect baking results. Use proper oven rack position. Center food in the
oven and space pans to allow air to circulate. Preheat oven to the set temperature
before placing food in the oven. Try adjusting the recipe's recommended temperature
or baking time. See "Adjusting Oven Temperatures" on page 22 if you feel the oven is
too hot or cold.
• The time of day is not set. The oven clock must first be set in order to operate the oven.
• Be sure oven controls are set properly. See "Setting The Clock" on page 13 and review
instructions for the desired cooking function in this manual.
• Service wiring is not complete.
Oven light does not work. • Be sure the oven light is secure in the socket. See "Replacing the Oven Light" on
page 28.
Flames inside oven or smoking from • Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe
oven vent. up excessive spills before starting oven. If flames or excessive smoke are present when
using broil, see "Setting Broil" on page 19.
Self clean does not work. • Oven control not set properly. Review "Self Clean" on page 23.
Oven racks discolored or do not • Oven racks left in oven cavity during self clean. Always remove oven racks from oven
slide easily, cavity before starting a self-clean cycle. Clean using a mild abrasive cleaner following
manufacturer's instructions. Rinse with clean water, dry, and replace in oven.
Oven smokes excessively when
broiling.
Oven control panel beeps and
displays any F or E code error.
Soil not completely removed after
self clean.
• Incorrect setting. Follow broiling instructions in "Setting Broil" on page 19 Be sure oven
door is opened to broil stop position when broiling.
• Meat too close to the broil element. Reposition broil rack to provide proper clearance
between the meat and broil element. Remove excess fat from meat. Cut remaining fatty
edges to prevent curling.
• Grease build up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Grease or food splatters will cause excessive smoking.
Oven control has detected a fault or error condition. Press STOP to clear the error
code. Try bake or broil function. If the F or E code error repeats, turn off power to
appliance, wait 5 minutes and then repower appliance. Set clock with correct time of
day. Try bake or broil function again. If fault recurs, press STOP to clear.
• Self Clean was interrupted. Review instructions in "Self Clean" section on page 23.
Excessive spills on oven bottom. Clean before starting self clean.
Failure to clean soil from the oven frame, the door liner outside the oven door gasket,
and the small area at the front center of the oven bottom. These areas are not in the
self-cleaning area, but they get hot enough to burn on residue. Clean these areas
before starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff
nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
30
Before You Call
Appliance is not level • Be sure floor is level, strong and stable enough to adequately support range. If floor is
sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven and place a level on the oven rack.
Adjust leveling legs at base of appliance until the rack is level.
• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are
square and have sufficient room for appliance clearance.
Convection fan does not rotate. * Oven door is open. Convection fan will turn off if oven door is opened when Convection
is active. Close oven door.
Cannot move appliance easily.
Appliance must be accessible for
service.
Entire appliance does not operate.
Surface burners do not light.
Surface burner flame is orange.
Surface burner flame burns half
way around.
• Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted
over carpet.
• Make sure power cord is plugged properly into outlet.
• Electrical power outage. Check house lights to be sure. Call your local electric company
for service outage information.
• Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See back
cover).
• Surface control knob has not been completely turned to LITE. Push in and turn the
surface control knob to LITE until burner ignites and then turn control knob to desired
flame size.
• Burner ports are clogged. With the burners OFF, use a small-gauge wire or needle to
clean ports. See the Care and Cleaning section for complete instructions.
• Appliance power cord is disconnected from outlet. Be sure power cord is securely
plugged into the electrical outlet.
• Electrical power outage.
• Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
• In coastal areas, a slightly orange flame is unavoidable due to salt air.
• Burner ports are clogged. With the burner OFF, clean ports by using a small-gauge wire
or needle.
• Moisture is present after cleaning. Lightly fan the flame and allow burner to operate
until flame is full. Dry the burners thoroughly and follow instructions in the Care and
Cleaning section.
31
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No=lemon" guarantee- replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request- no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1=800=827=6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1=800=381=6665.
Sears installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1=800=4=MY=HOME®.
Acuerdos maestros de proteccibn
Enhorabuena por haber hecho una compra inteligente. Su nuevo
producto Kenmore®est_. disefiado y fabricado para brindarle afios de
funcionamiento liable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones peri6dicas. Es pot eso que
tener un Acuerdo maestro de protecci6n podria ahorrarle dinero y
molestias.
El Acuerdo maestro de protecci6n tambien sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de mosproductos utilizados en
condiciones norrnales de uso, no s61o en caso de defectos de los
productos. Nuestra cobertura va rnucho rn&s all_ que la garantia
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera protecci6n.
[] Servicio t_cnico pot expertos (m_.s de 18800 tecnicos
autorizados de Sears), io cuai significa que quien repare o realice
ei mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y ndmero ilimitado de
Ilarnadas de solicitud de servicio tecnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas': se reemplaza el producto cubierto pot el
acuerdo si ocurren cuatro o m_.s fallas del producto en un periodo
de 12 meses.
[] Reempiazo del producto: en caso de que no se pueda reparar el
producto cubierto pot el acuerdo.
[] Revisi6n anual preventiva de rnantenirniento del producto:
puede solicitada en cualquier momento, sin costo alguno.
[] R_pida asistencia telef6nica, la cual denominamos Soluci6n
r_pida: es decir, asistencia teief6nica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual parlante del
usuario".
[] Protection contra faHas el_ctricas, contra dafios debidos a
fluctuaciones de la corriente electrica.
[] $250 al afio para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecAnica de cualquiera de nuestros refrigeradores o congeladores
cubiertos pot este acuerdo.
[] Devoluci6n de gastos de alquiler de electrodom_sticos si la
reparaci6n de su producto asegurado toma m&s que el tiempo
prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos pot este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastarA una simple
llamada teief6nica para concertar una visita de servicio. Puede Ilamar a
cuaiquier hora del dia o de la noche, o bien concertar una visita de
servicio pot Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garanfia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas lirnitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1=800=827=6655 (en los
EE.UU.).
* La cobertura en Canad& varia en el caso de algunos artfculos. Para
obtener detalles cornpletos al respecto, Ilame al 1=800=361=6665 de
Sears de Canada.
Servicio de instalaci6n de Sears
Para solicitar la instalacidn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de use prioritario en el hogar, Ilarne al 1=800=4=MY=
HOME en los EE.UU. o Canad&.
®RegisteredTrademark/ TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabfica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / MDMarque ddpos_e de Sears Brands, LLC
