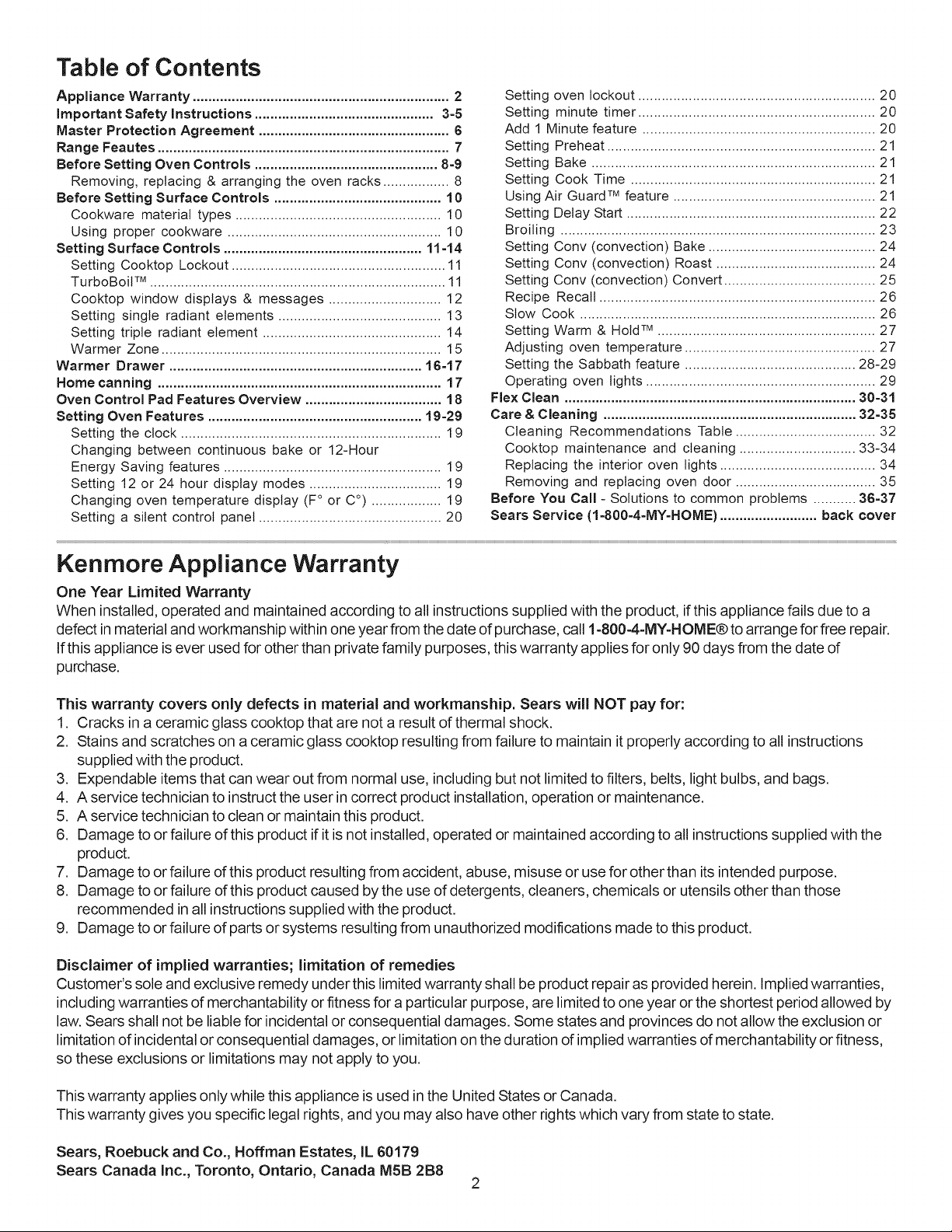

Table of Contents
Appliance Warranty .................................................................. 2
Important Safety Instructions .............................................. 3=5
Master Protection Agreement ................................................. 6
Range Feautes ........................................................................... 7
Before Setting Oven Controls ............................................... 8-9
Removing, replacing & arranging the oven racks ................. 8
Before Setting Surface Controls ........................................... 10

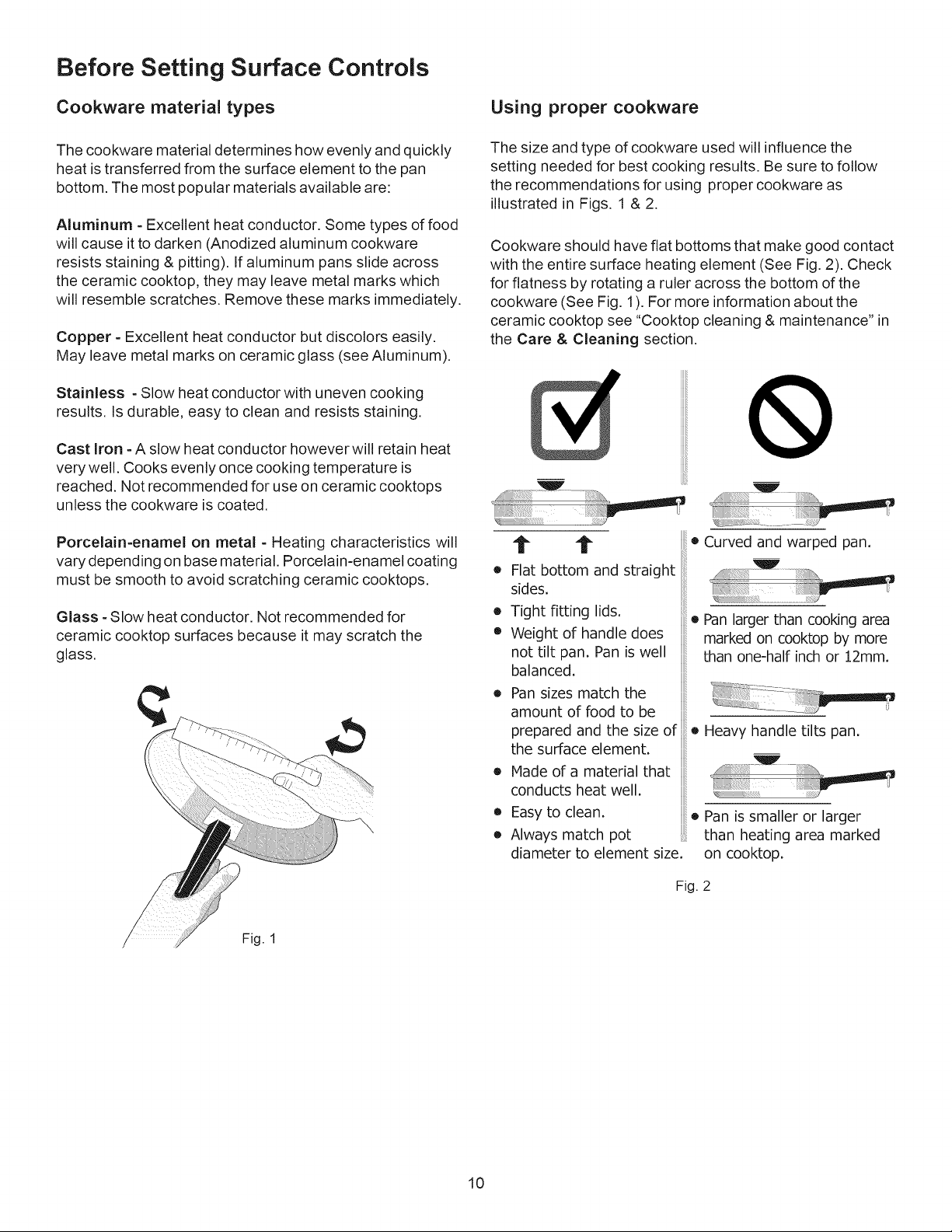

Cookware material types ..................................................... 10
Using proper cookware ....................................................... 10
Setting Surface Controls ................................................... 11-14
Setting Cooktop Lockout ....................................................... 11
TurboBoit TM ............................................................................ 11
Cooktop window displays & messages ............................. 12
Setting single radiant elements .......................................... 13
Setting triple radiant element .............................................. 14
Warmer Zone ........................................................................ 15
Warmer Drawer ................................................................. 16-17
Home canning ......................................................................... 17
Oven Control Pad Features Overview ................................... 18
Setting Oven Features ....................................................... 19-29

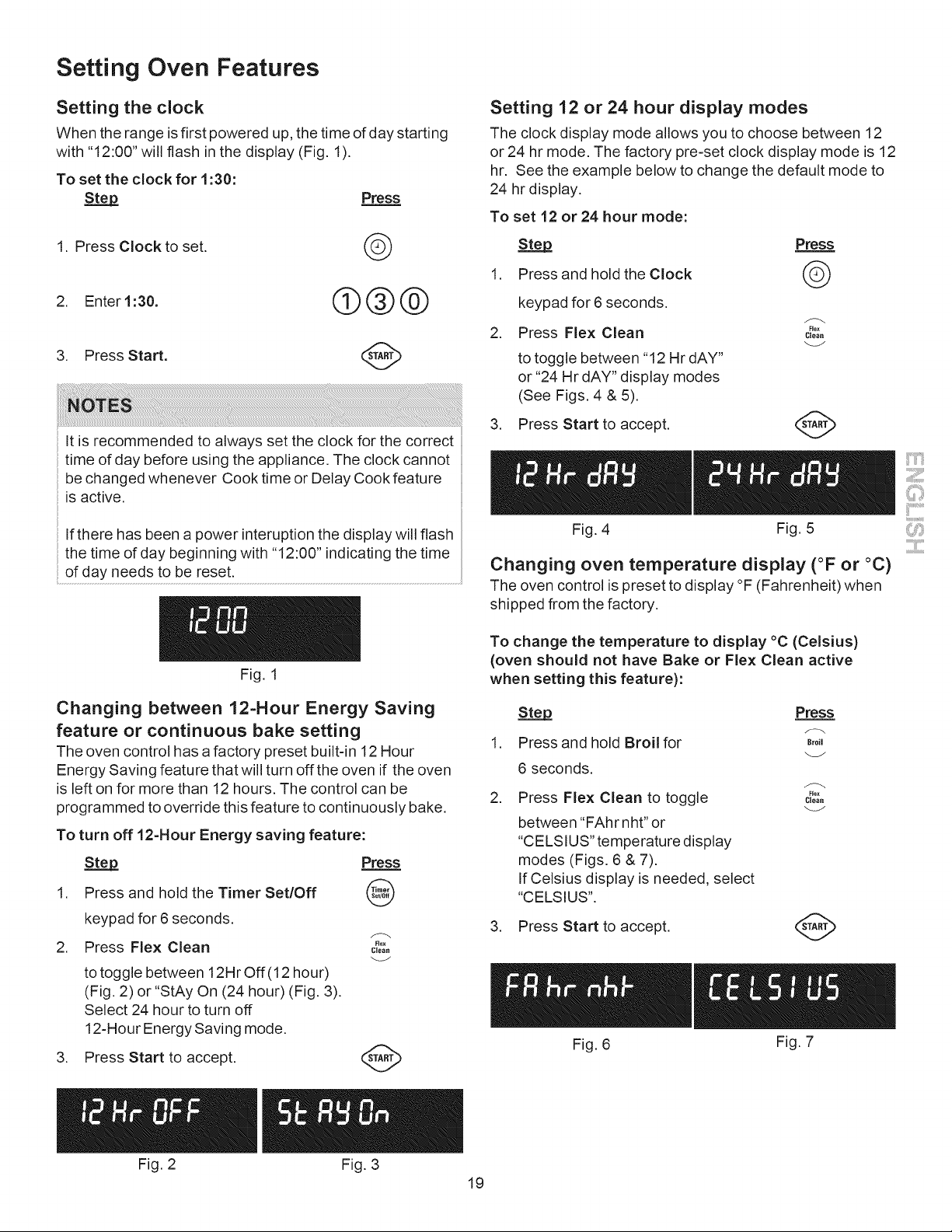

Setting the clock ................................................................... 19
Changing between continuous bake or 12-Hour
Energy Saving features ........................................................ 19
Setting 12 or 24 hour display modes .................................. 19
Changing oven temperature display (F ° or C°) .................. 19
Setting a silent control panel ............................................... 20
Setting oven lockout ............................................................. 20
Setting minute timer ............................................................. 20
Add 1 Minute feature ............................................................ 20
Setting Preheat ..................................................................... 21
Setting Bake ......................................................................... 21
Setting Cook Time ............................................................... 21
Using Air Guard TM feature .................................................... 21

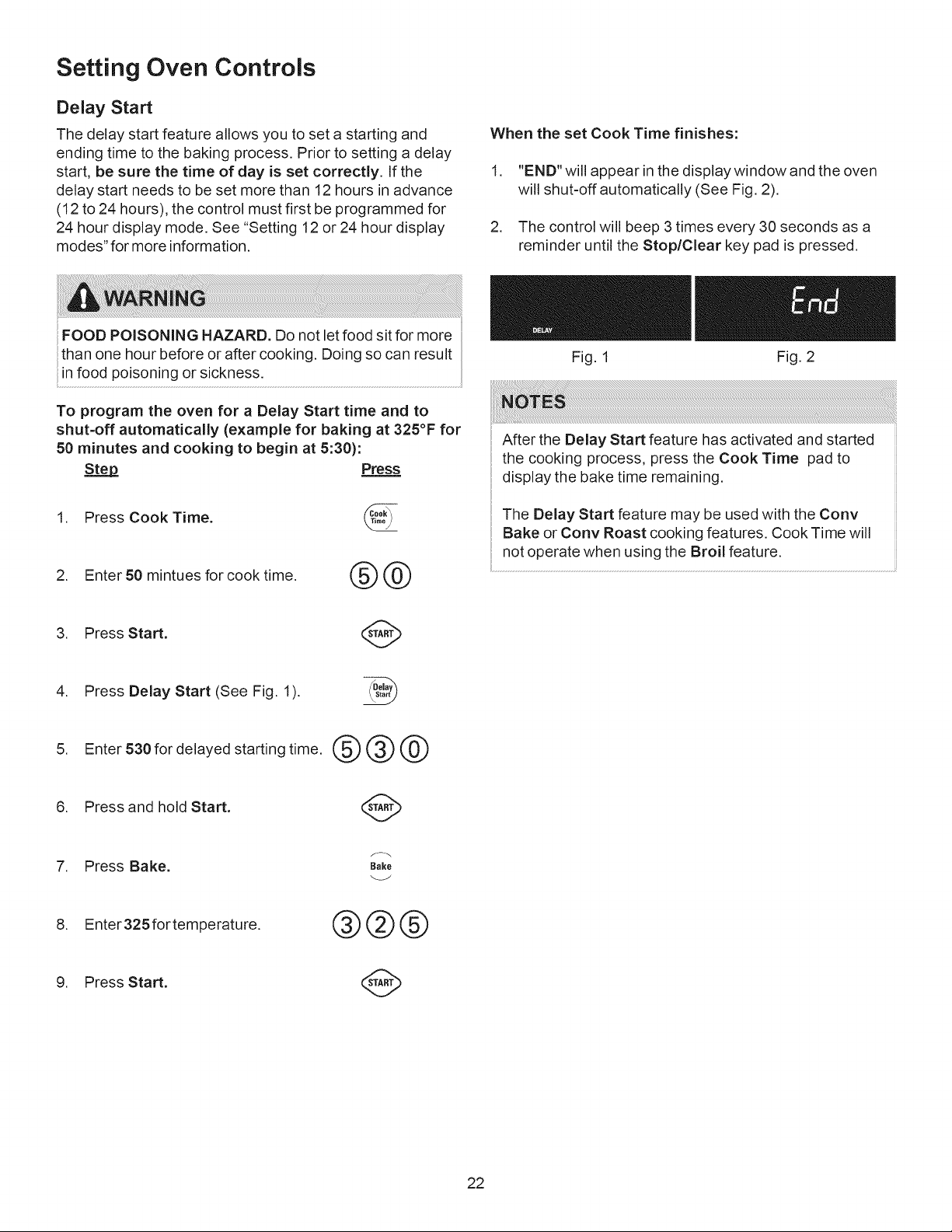

Setting Delay Start ................................................................ 22
Broiling ................................................................................. 23
Setting Conv (convection) Bake ........................................... 24
Setting Conv (convection) Roast ......................................... 24
Setting Conv (convection) Convert ....................................... 25
Recipe Recall ....................................................................... 26
Slow Cook ............................................................................ 26
Setting Warm & Hold TM ........................................................ 27
Adjusting oven temperature ................................................. 27
Setting the Sabbath feature ............................................ 28-29
Operating oven lights ........................................................... 29
Flex Clean ........................................................................... 30-31
Care & Cleaning ................................................................. 32-35
Cleaning Recommendations Table .................................... 32
Cooktop maintenance and cleaning .............................. 33-34
Replacing the interior oven lights ........................................ 34
Removing and replacing oven door .................................... 35
Before You Call - Solutions to common problems ........... 36=37
Sears Service (I=SOO-4=MY-HOME) ......................... back cover
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair,
If this appliance is ever used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase,
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2B8
2

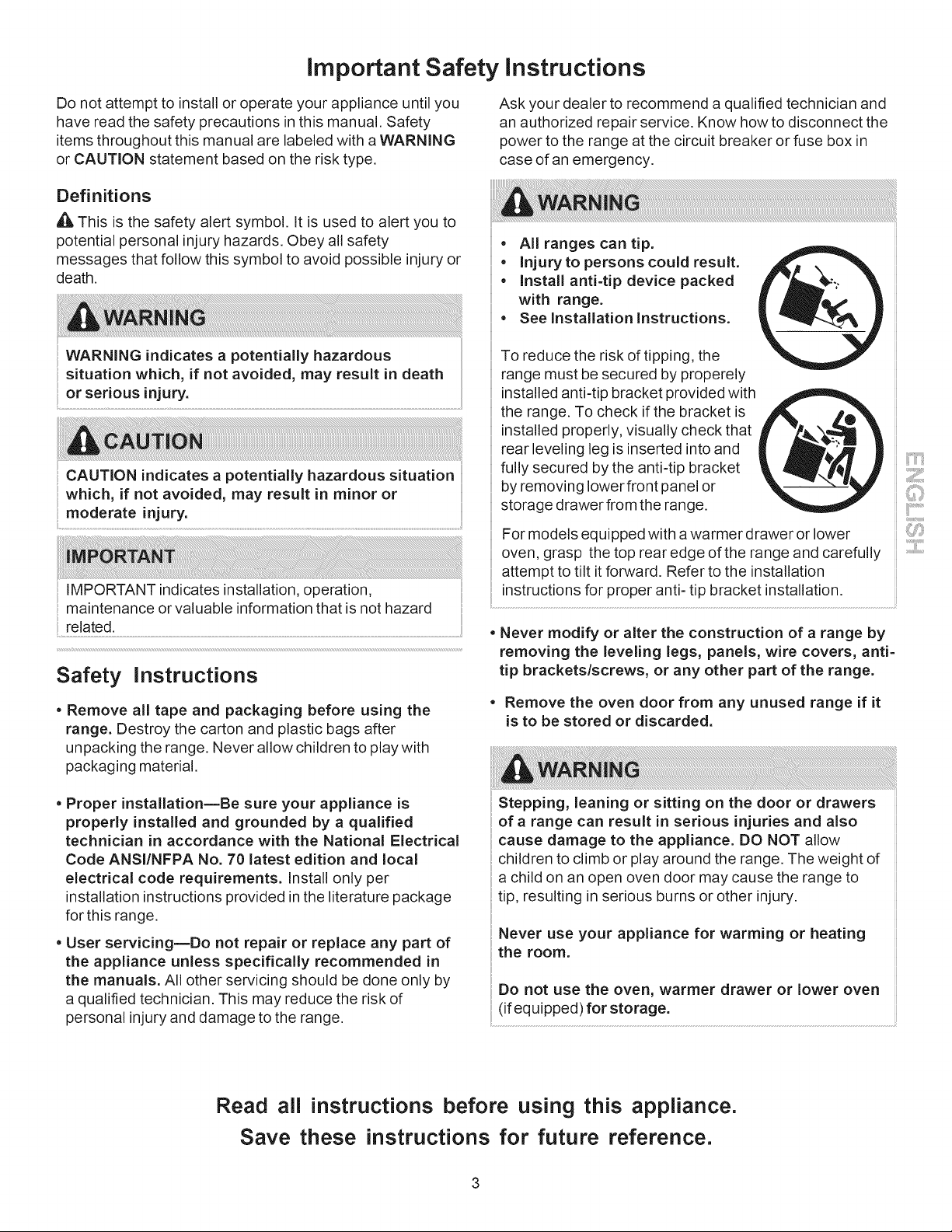

important Safety instructions
Do not attempt to install or operate your appliance until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or
death.
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in death
or serious injury.
CAUTION indicates a potentially hazardous situation
which,ifnotavoided,mayresultinminoror
moderate injury.
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
Safety Instructions
• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency,
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed
with range.
• Seelnstallationlnstructions.
To reduce the risk of tipping, the
range must be secured by properely
installed anti-tip bracket provided with
the range. To check if the bracket is
installed properly, visually check that
rear leveling leg is inserted into and
fully secured by the anti-tip bracket
by removing lower front panel or
storage drawer from the range.
For models equipped with a warmer drawer or lower
oven, grasp the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti- tip bracket installation.
• Never modify or alter the construction of a range by
removing the leveling legs, panels, wire covers, anti-
tip brackets/screws, or any other part of the range.
• Remove the oven door from any unused range if it
is to be stored or discarded.
_iii:S':iJi_
• Proper installationmBe sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition and local
electrical code requirements. Install only per
installation instructions provided in the literature package
for this range,
• User servicingmDo not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by
a qualified technician. This may reduce the risk of
personal injury and damage to the range.
Stepping, leaning or sitting on the door or drawers
of a range can result in serious injuries and also
cause damage to the appliance. DO NOT allow
children to climb or play around the range. The weight of
a child on an open oven door may cause the range to
tip, resulting in serious burns or other injury.
Never use your appliance for warming or heating
the room.
Do not use the oven, warmer drawer or lower oven
(if equipped) for storage.
Read all instructions before using this appliance.
Save these instructions for future reference.

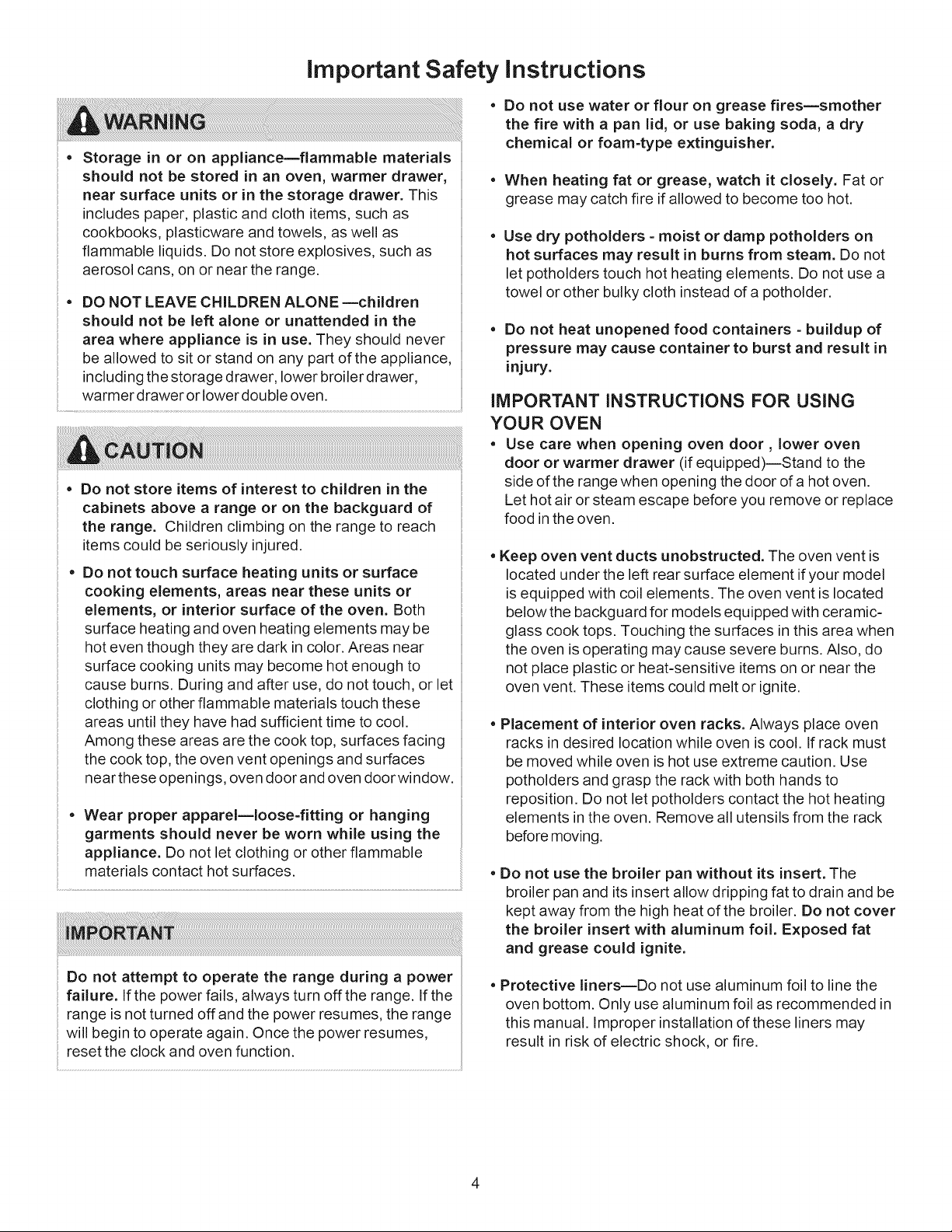

important Safety instructions
• Storage in or on appliance--flammable materials
should not be stored in an oven, warmer drawer,
near surface units or in the storage drawer. This
includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range.
• DO NOT LEAVE CHILDREN ALONE--children
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer,
warmer drawer or lower double oven.
Do not store items of interest to children in the
cabinets above a range or on the backguard of
the range. Children climbing on the range to reach
items could be seriously injured.
• Do not touch surface heating units or surface
cooking elements, areas near these units or
elements, or interior surface of the oven. Both
ii
surface heating and oven heating elements may be
hot even though they are dark in color. Areas near
surface cooking units may become hot enough to
cause burns. During and after use, do not touch, or let
clothing or other flammable materials touch these
ii
areas until they have had sufficient time to cool.
ii
Among these areas are the cook top, surfaces facing
the cook top, the oven vent openings and surfaces
near these openings, oven door and oven doorwindow.
ii
• Wear proper apparel--loose-fitting or hanging
ii
garments should never be worn while using the
ii
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
Do not attempt to operate the range during a power
failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes,
reset the clock and oven function.
• Do not use water or flour on grease fires--smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
Use dry potholders - moist or damp potholders on
hot surfaces may result in burns from steam. Do not
let potholders touch hot heating elements. Do not use a
towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers - buildup of
pressure may cause container to burst and result in
injury.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door, lower oven
door or warmer drawer (if equipped)--Stand to the
side of the range when opening the door of a hot oven.
Let hot air or steam escape before you remove or replace
food in the oven.
• Keep oven vent ducts unobstructed. The oven vent is
located under the left rear surface element if your model
is equipped with coil elements. The oven vent is located
below the backguard for models equipped with ceramic-
glass cook tops. Touching the surfaces in this area when
the oven is operating may cause severe burns. Also, do
not place plastic or heat-sensitive items on or near the
oven vent. These items could melt or ignite.
• Placement of interior oven racks. Always place oven
racks in desired location while oven is cool. If rack must
be moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler. Do not cover
the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Protective liners--Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
4

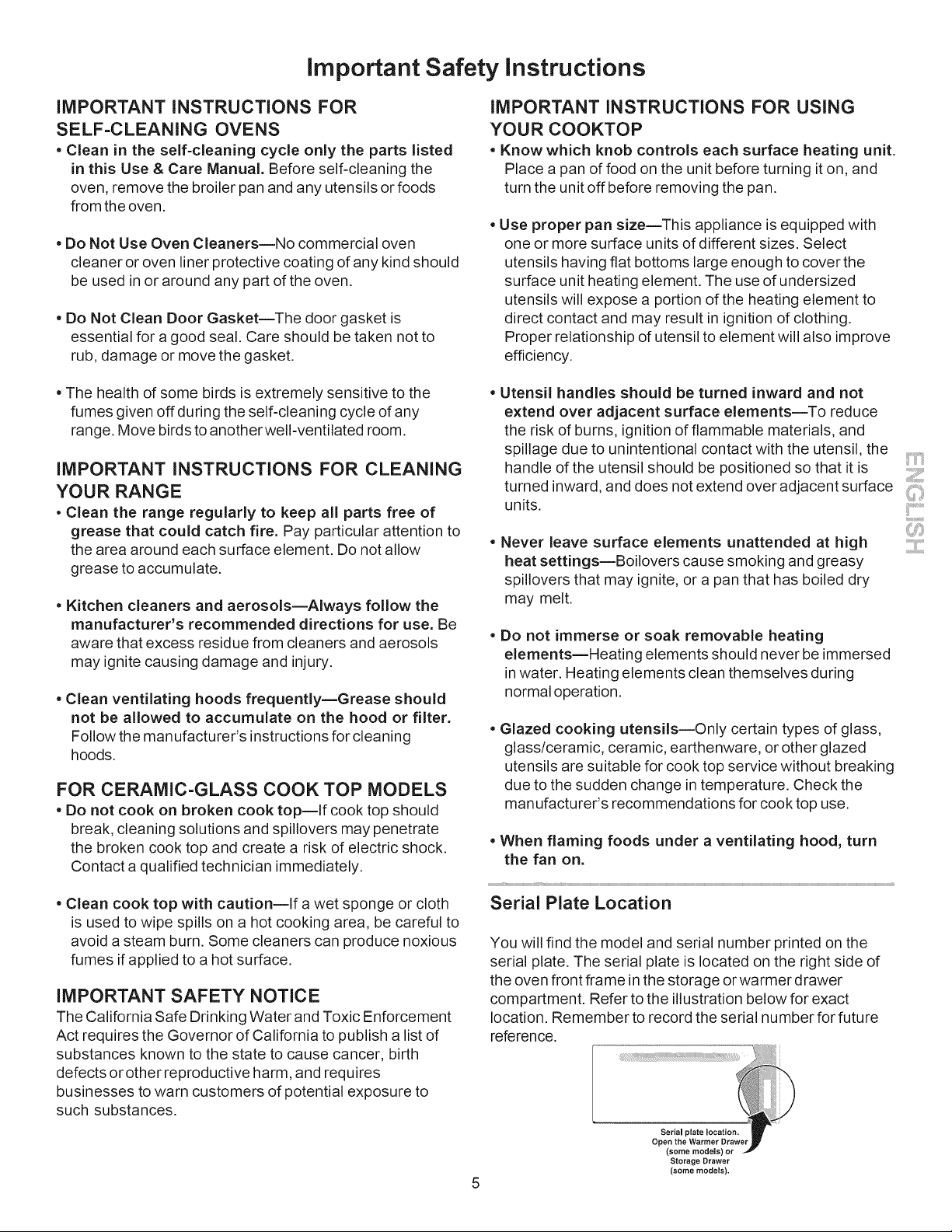

important Safety instructions
iMPORTANT iNSTRUCTiONS FOR
SELF-CLEANING OVENS
=Clean in the self=cleaning cycle only the parts listed
in this Use & Care Manual. Before self-cleaning the
oven, remove the broiler pan and any utensils or foods
from the oven.
• Do Not Use Oven Cleaners--No commercial oven
cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.
Do Not Clean Door Gasket--The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
iMPORTANT iNSTRUCTiONS FOR USING
YOUR COOKTOP
Know which knob controls each surface heating unit.
Place a pan of food on the unit before turning it on, and
turn the unit off before removing the pan.
Use proper pan size--This appliance is equipped with
one or more surface units of different sizes. Select
utensils having fiat bottoms large enough to cover the
surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to
direct contact and may result in ignition of clothing.
Proper relationship of utensil to element will also improve
efficiency.
The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to anotherwell-ventilated room.
iMPORTANT iNSTRUCTiONS FOR CLEANING
YOUR RANGE
. Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention to
the area around each surface element. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols=Always follow the
manufacturer's recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently--Grease should
not be allowed to accumulate on the hood or filter.
Follow the manufacturer's instructions for cleaning
hoods.
FOR CERAMIC=GLASS COOK TOP MODELS
Do not cook on broken cook top--If cook top should
break, cleaning solutions and spillovers may penetrate
the broken cook top and create a risk of electric shock.
Contact a qualified technician immediately.
Clean cook top with caution--If a wet sponge or cloth
is used to wipe spills on a hot cooking area, be careful to
avoid a steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to
such substances.
• Utensil handles should be turned inward and not
extend over adjacent surface elements--To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent surface
units.
• Never leave surface elements unattended at high
heat settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
Do not immerse or soak removable heating
elements--Heating elements should never be immersed
in water. Heating elements clean themselves during
normal operation.
• Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cook top use.
• When flaming foods under a ventilating hood, turn
the fan on.
Serial Plate Location
You will find the model and serial number printed on the
serial plate. The serial plate is located on the right side of
the oven front frame in the storage or warmer drawer
compartment, Refer to the illustration below for exact
location, Remember to record the serial number for future
reference.
Serial plate Iocation_
Open the Warmer Drawer _'
(some models) or
Storage Drawer
(some models).
iii....................
..........iii.........
Master Protection Agreement
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No-lemon" guarantee - replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request - no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1-800-4-MY-HOME ®.
Acuerdos de protecci6n
Acuerdos maestros de proteccion
Enhorabuena por haber hecho una compra inteligente, Su nuevo
producto Kenmore®esta disefiado y fabricado para brindarle afios de
funcionamiento fiable, Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones peri6dicas, Es por eso que
tener un Acuerdo maestro de protecci6n podria ahorrarle dinero y
molestias,
El Acuerdo maestro de protecci6n tambien sirve para prolongar la
durabilidad de su nuevo producto, El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no s61o en caso de defectos de los
productos. Nuestra cobertura va mucho mas alia que la garantia
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera proteccibn.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cual significa que quien repare o realice
el mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y numero ilimitado de
Ilamadas de solicitud de servicio t_cnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas": se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo
de 12 meses.
[] Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisibn anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno.
[] Rapida asistencia telefbnica, la cual denominamos Soluci6n
rapida: es decir, asistencia telef6nica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual parlante del
usuario".
[] Proteccibn contra fallas el_ctricas, contra dafios debidos a
fluctuaciones de la corriente el6ctrica.
[] $250 al aho para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecAnica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devolucibn de gastos de alquiler de electrodom_sticos si la
reparaci6n de su producto asegurado toma masque el tiempo
prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dia o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los
EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de
Sears de Canada.
Servicio de instalacion de Sears
Para soficitar la instalacidn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, Ilame al 1-800-4-MY-
HOME en los EE.UU. o Canada.

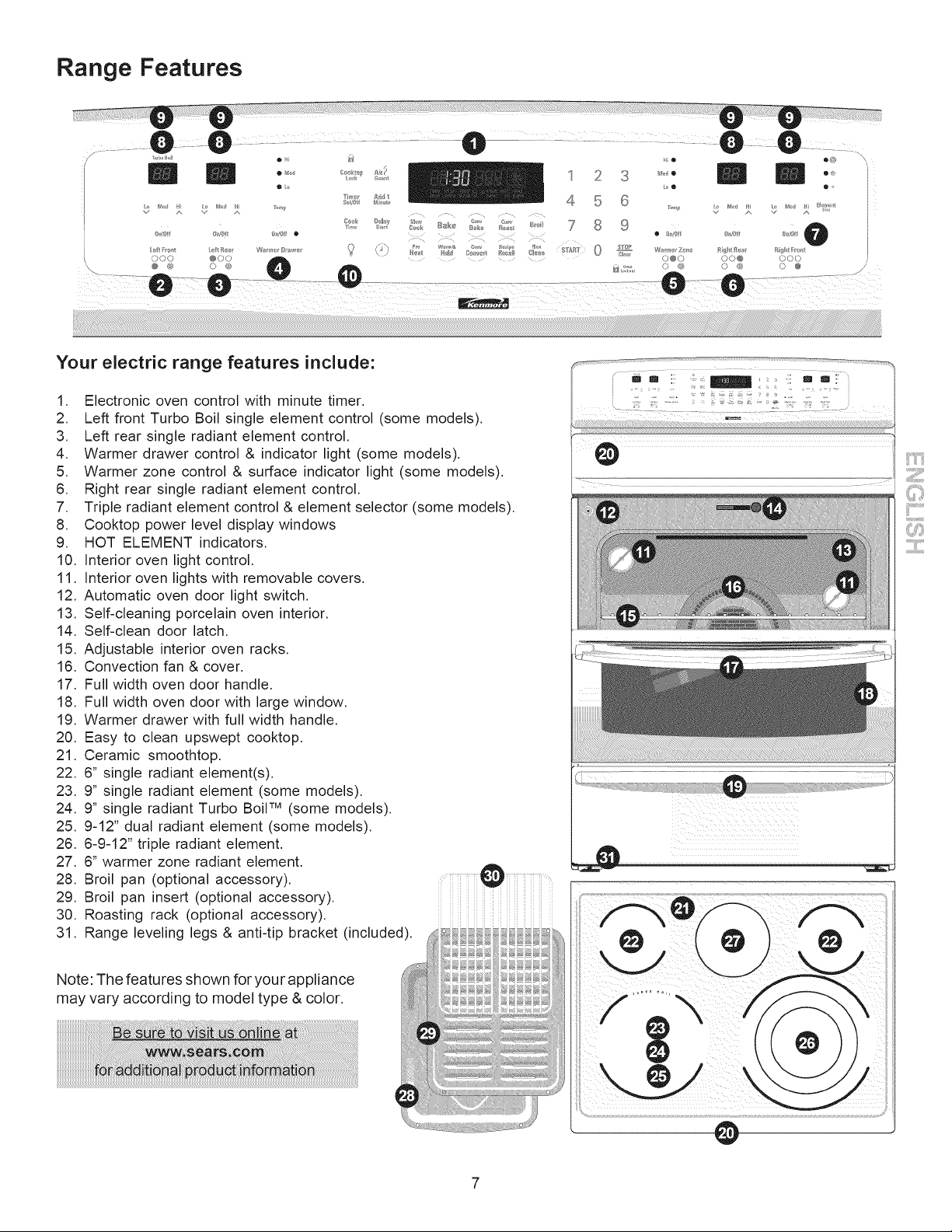

Range Features
.... A, A
I
4
L ®
5 6
8 9
o@
I I
Your electric range features include:
1. Electronic oven control with minute timer.
2. Left front Turbo Boil single element control (some models).
3. Left rear single radiant element control.
4. Warmer drawer control & indicator light (some models).
5. Warmer zone control & surface indicator light (some models).
6. Right rear single radiant element control.
7. Triple radiant element control & element selector (some models).
8. Cooktop power level display windows
9. HOT ELEMENT indicators.
10. Interior oven light control.
11. Interior oven lights with removable covers.
12. Automatic oven door light switch.
13. Self-cleaning porcelain oven interior.
14. Self-clean door latch.
15. Adjustable interior oven racks.
16. Convection fan & cover.
17. Full width oven door handle.
18. Full width oven door with large window.
19. Warmer drawer with full width handle.
20. Easy to clean upswept cooktop.
21. Ceramic smoothtop.
22. 6" single radiant element(s).
23. 9" single radiant element (some models).
24. 9" single radiant Turbo Boil TM (some models).
25. 9-12" dual radiant element (some models).
26. 6-9-12" triple radiant element.
27. 6" warmer zone radiant element.
28. Broil pan (optional accessory).
29. Broil pan insert (optional accessory).
30. Roasting rack (optional accessory).
31. Range leveling legs & anti-tip bracket (included).
/_ -: m m
TM
....., , <
Note: The features shown for your appliance
may vary according to model type & color.
@
Before Setting Oven Controls
Oven vent location
The oven vent is located under the left side of the
control panel (See Fig. 1 ). When the oven is on, warm air
passes through this vent. This venting is necessary for
proper air circulation in the oven and good baking results.
Do not block the oven vent.
oven vent location
Fig. 1
Removing, replacing & arranging oven racks
To remove - pull the rack forward until it stops. Lift up front
of rack and slide out.
To replace - fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into
place.
Arranging - always arrange the oven racks when the oven
is cool (prior to operating the oven).
Oven with visible
bake element - Fig. 2
Types of oven racks
t
handle
oven rack
ove
rack
Oven with hidden
Bake Element - Fig. 3*
Always use oven mitts when using the oven and
handling oven racks, The oven, oven racks and
cooktop will become vew hot which can cause burns.
The flat oven rack (some models) or fiat handle oven
rack (some models) may be used for most cooking needs.
The offset oven rack (some models) is designed to place
the base of the rack about 1/2 rack position lower than the
flat oven rack. This rack design provides several additional
possible positions between the standard positions.
To maximize oven cooking space always place the bottom
oven rack (some models) in rack position 1 for baking or
roasting large cuts of meat. Do not use the bottom oven
rack in any other oven rack position.
Recommended rack positions by food type
Food type Position models with Position models with
visible bake element (Fig. 2) hidden bake element (Fig. 3*)
Broiling meats See broil section See broil section
Cookies, cakes, pies, biscuits & muffins 4 or 5 4 or 5
Frozen pies, angel food cake, yeast, bread, casseroles 2 or 3 2 or 3
Small cuts of meat or poultry 1 or 2 1 or 2
Turkey, roast or ham 2 1 or 2
Before Setting Oven Controls
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity.
Hot air must be able to circulate around the pans and
cookware in the oven for even heat to reach around the
food.
Baking layer cakes or cookies using 1 or 2
oven racks
For best results when baking cakes or cookies using 2
oven racks, position a Flat Handle Oven Rack in oven
rack position 2 and the Offset Oven Rack in oven rack
position 6 (See Fig. 1).
For best results when baking cakes or cookies using only 1
oven rack, use a Flat Handle Oven Rack and place in
oven rack positions 2, 3 or 4 (See Fig. 2).
Fig. 1
Fig. 2
iii....................
..........iii.........
Before Setting Surface Controls
Cookware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom, The most popular materials available are:
Aluminum =Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware
resists staining & pitting). If aluminum pans slide across
the ceramic cooktop, they may leave metal marks which
will resemble scratches. Remove these marks immediately.
Copper - Excellent heat conductor but discolors easily.
May leave metal marks on ceramic glass (see Aluminum).
Stainless =Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron =A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops
unless the cookware is coated,
Porcelain=enamel on metal =Heating characteristics will
vary depending on base material. Porcelain-enamel coating
must be smooth to avoid scratching ceramic cooktops.
Glass =Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass,
Using proper cookware
The size and type of cookware used will influence the
setting needed for best cooking results. Be sure to follow
the recommendations for using proper cookware as
illustrated in Figs, 1 & 2.
Cookware should have flat bottoms that make good contact
with the entire surface heating element (See Fig. 2). Check
for flatness by rotating a ruler across the bottom of the
cookware (See Fig. 1). For more information about the
ceramic cooktop see "Cooktop cleaning & maintenance" in
the Care & Cleaning section.
o
o
iiiiiii
"t 1_ • Curved and warped pan.
sides.Flat bottom and straight ................................................
Tight fitting lids.
Weight of handle does " Pan larger than cooking area
marked on cooktop by more
not tilt pan. Pan is well than one-half inch or 12mm.
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of; o Heavy handle tilts pan.
the surface element.
e Madeofamaterialthat _:-: _ :_,
conducts heat well.
• Easy to clean.
• Pan is smaller or larger
o Always match pot than heating area marked
diameter to element size. on cooktop.
Fig. 2
Fig. 1
10

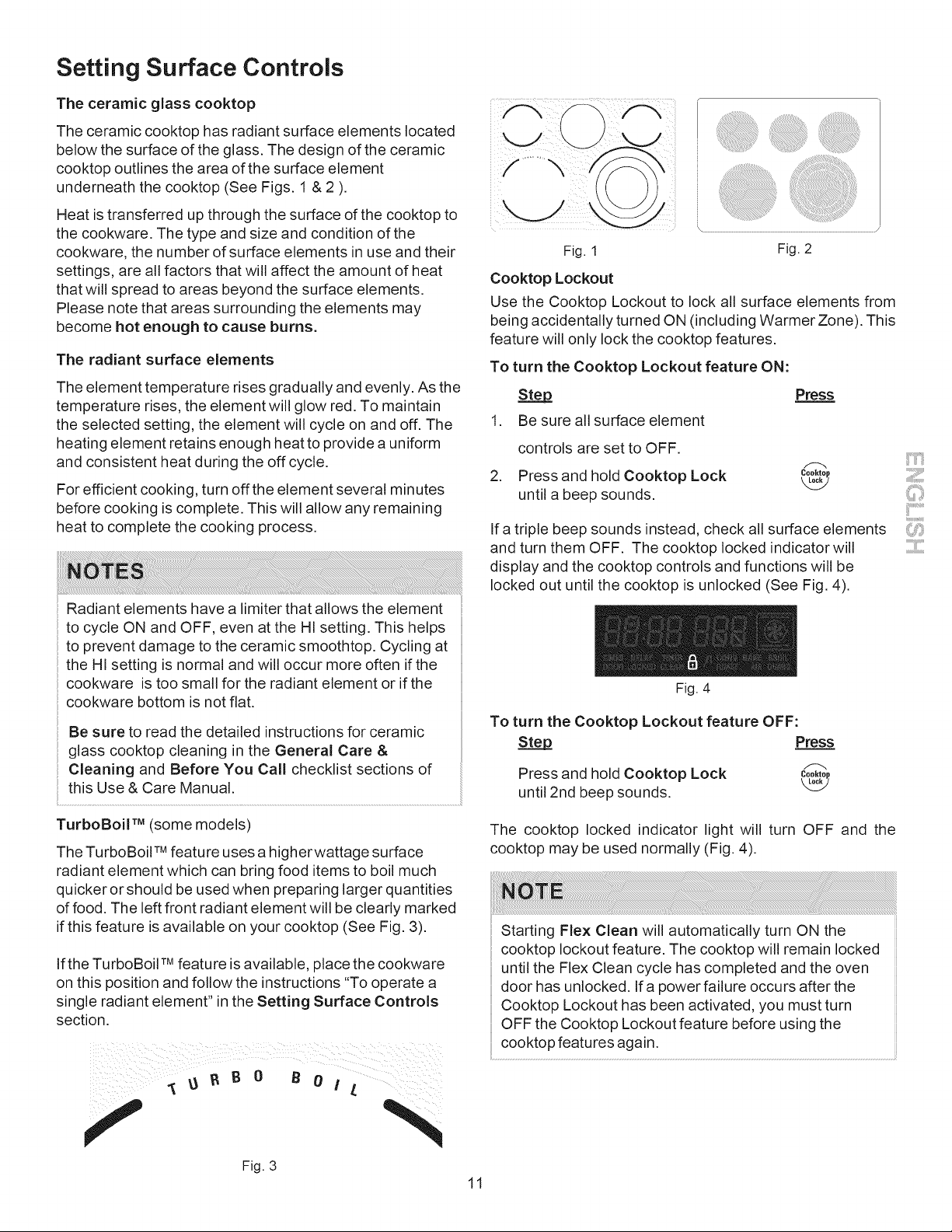

Setting Surface Controls
The ceramic glass cooktop
The ceramic cooktop has radiant surface elements located
below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element
underneath the cooktop (See Figs. 1 & 2 ).
Heat is transferred up through the surface of the cooktop to
the cookware. The type and size and condition of the
cookware, the number of surface elements in use and their
settings, are all factors that will affect the amount of heat
that will spread to areas beyond the surface elements.
Please note that areas surrounding the elements may
become hot enough to cause burns.
The radiant surface elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain
the selected setting, the element will cycle on and off. The
heating element retains enough heat to provide a uniform
and consistent heat during the off cycle.
For efficient cooking, turn off the element several minutes
before cooking is complete. This will allow any remaining
heat to complete the cooking process.
Radiant elements have a limiter that allows the element '
to cycle ON and OFF, even at the HI setting. This helps
to prevent damage to the ceramic smoothtop. Cycling at
the HI setting is normal and will occur more often if the
cookware is too small for the radiant element or if the
cookware bottom is not flat.
ii
Be sure to read the detailed instructions for ceramic
glass cooktop cleaning in the General Care &
Cleaning and Before You Call checklist sections of
ii
this Use & Care Manual.
ii
TurboBoil TM (some models)
The TurboBoilTM feature uses a higherwattage surface
radiant element which can bring food items to boil much
quicker or should be used when preparing larger quantities
of food. The left front radiant element will be clearly marked
if this feature is available on your cooktop (See Fig. 3).
If the TurboBoil TM feature is available, place the cookware
on this position and follow the instructions "To operate a
single radiant element" in the Setting Surface Controls
section.
:ii:iilli!iiiii!i
Fig. 1 Fig. 2
Cooktop Lockout
Use the Cooktop Lockout to lock all surface elements from
being accidentally turned ON (including Warmer Zone). This
feature will only lock the cooktop features.
To turn the Cooktop Lockout feature ON:
St=_.p_ Press
1. Be sure all surface element
controls are set to OFF.
2. Press and hold Cooktop Lock Cook,o_
until a beep sounds.
Ifa triple beep sounds instead, check all surface elements
and turn them OFF. The cooktop locked indicator will
display and the cooktop controls and functions will be
locked out until the cooktop is unlocked (See Fig. 4).
Fig. 4
To turn the Cooktop Lockout feature OFF:
SteD Press
Press and hold Cooktop Lock
until 2nd beep sounds.
Cooktop
The cooktop locked indicator light will turn OFF and the
cooktop may be used normally (Fig. 4).
Starting Flex Clean will automatically turn ON the
cooktop lockout feature. The cooktop will remain locked
' until the Flex Clean cycle has completed and the oven
door has unlocked. If a power failure occurs after the
Cooktop Lockout has been activated, you must turn
OFF the Cooktop Lockout feature before using the
cooktop features again.
iii....................
..........iii.........
f
Fig. 3
11
Setting Surface Controls
Radiant element power level display windows
The radiant element power level display feature provides a
digital display for each of the heating positions located on

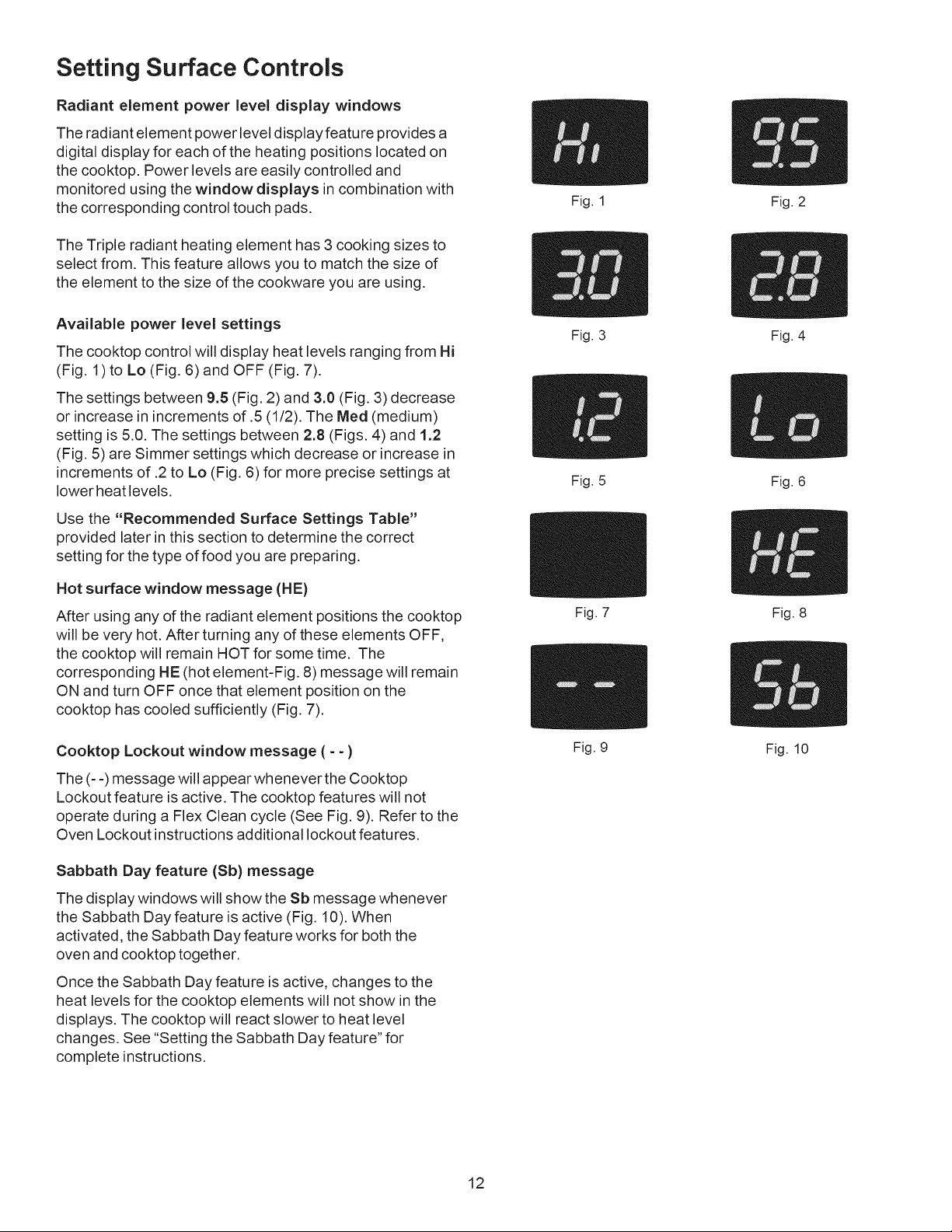

the cooktop. Power levels are easily controlled and
monitored using the window displays in combination with
the corresponding control touch pads.
The Triple radiant heating element has 3 cooking sizes to
select from. This feature allows you to match the size of
the element to the size of the cookware you are using.
Available power level settings
The cooktop control will display heat levels ranging from Hi
(Fig. 1) to Lo (Fig. 6) and OFF (Fig. 7).
The settings between 9.5 (Fig. 2) and 3.0 (Fig. 3) decrease
or increase in increments of .5 (1/2). The Med (medium)
setting is 5.0. The settings between 2.8 (Figs. 4) and 1.2
(Fig. 5) are Simmer settings which decrease or increase in
increments of .2 to Lo (Fig. 6) for more precise settings at
lower heat levels.
Use the "Recommended Surface Settings Table"
provided later in this section to determine the correct
setting for the type of food you are preparing.
Hot surface window message (HE)
After using any of the radiant element positions the cooktop
will be very hot. After turning any of these elements OFF,
the cooktop will remain HOT for some time. The
corresponding HE (hot element-Fig. 8) message will remain
ON and turn OFF once that element position on the
cooktop has cooled sufficiently (Fig. 7).
Cooktop Lockout window message ( - - )
The (- -) message will appear whenever the Cooktop
Lockout feature is active. The cooktop features will not
operate during a Flex Clean cycle (See Fig. 9). Refer to the
Oven Lockout instructions additional lockout features.
Sabbath Day feature (Sb) message
The display windows will show the Sb message whenever
the Sabbath Day feature is active (Fig. 10). When
activated, the Sabbath Day feature works for both the
oven and cooktop together.
Once the Sabbath Day feature is active, changes to the
heat levels for the cooktop elements will not show in the
displays. The cooktop will react slower to heat level
changes. See "Setting the Sabbath Day feature" for
complete instructions.
Fig. 3
m
Fig. 5
//
Fig. 7
//
Fig. 9
Fig. 2
Fig. 4
B
Fig. 6
Fig. 8
Fig. 10
12

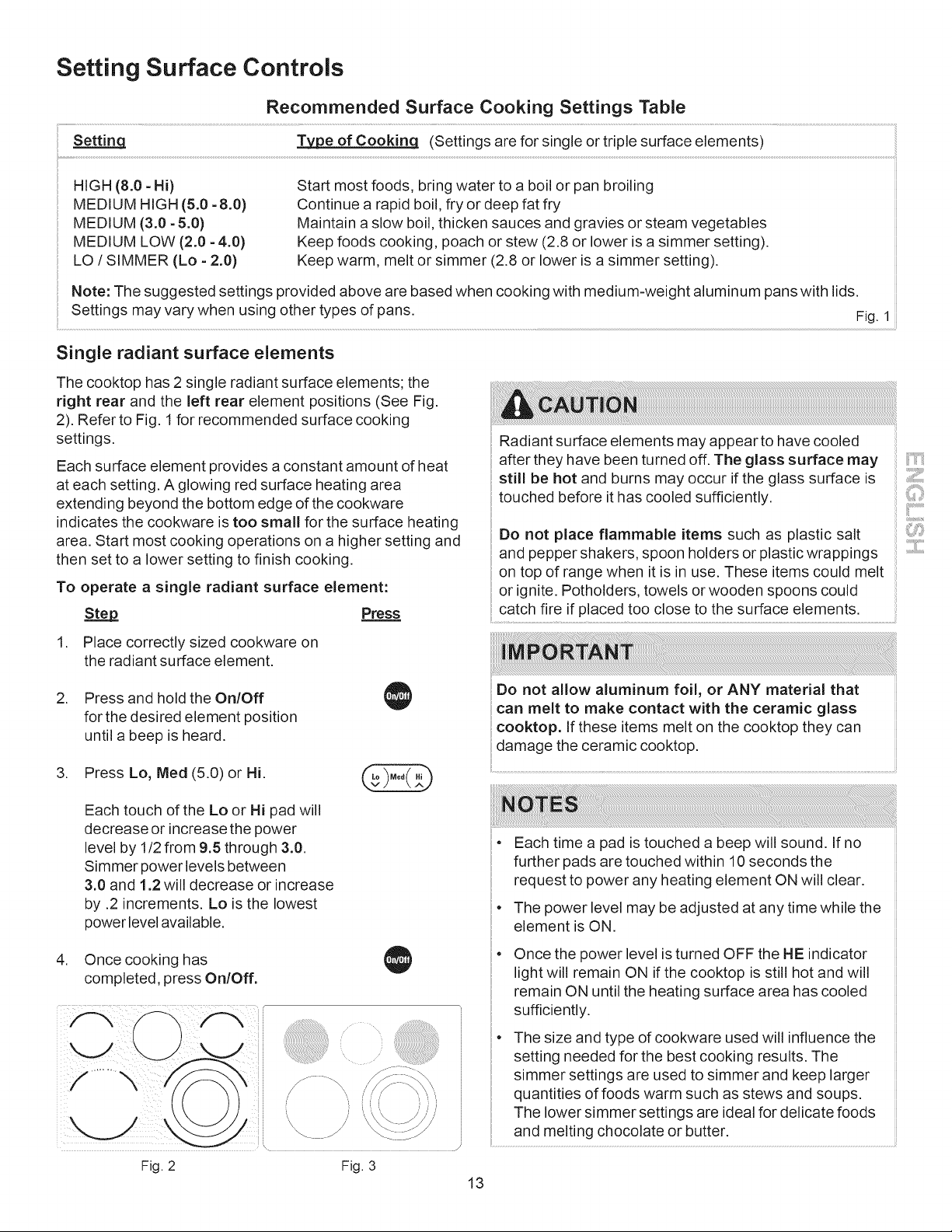

Setting Surface Controls
Recommended Surface Cooking Settings Table
Settinq of or triple surface elements)
Ty_pe Cookinq (Settings are for single
ii
HIGH (8.0 - Hi) Start most foods, bring water to a boil or pan broiling
MEDIUM HIGH (5.0 - 8.0) Continue a rapid boil, fry or deep fat fry
MEDIUM (3.0 - 5.0) Maintain a slow boil, thicken sauces and gravies or steam vegetables
MEDIUM LOW (2.0 - 4.0) Keep foods cooking, poach or stew (2.8 or lower is a simmer setting).
LO / SIMMER (Lo - 2.0) Keep warm, melt or simmer (2.8 or lower is a simmer setting).
Note: The suggested settings provided above are based when cooking with medium-weight aluminum pans with lids.
Settings may vary when using other types of pans. Fig. 1
Single radiant surface elements
The cooktop has 2 single radiant surface elements; the
right rear and the left rear element positions (See Fig.
2), Refer to Fig. 1 for recommended surface cooking
settings.
Each surface element provides a constant amount of heat
at each setting, A glowing red surface heating area
extending beyond the bottom edge of the cookware
indicates the cookware is too small for the surface heating
area, Start most cooking operations on a higher setting and
then set to a lower setting to finish cooking,
To operate a single radiant surface element:
Step Press
1. Place correctly sized cookware on
the radiant surface element.
, Press and hold the On/Off
for the desired element position
until a beep is heard.
3. Press Lo, Meal (5.0) or Hi.
Each touch of the Lo or Hi pad will
decrease or increase the power
level by 1/2 from 9.5 through 3.0.
Simmer power levels between
3.0 and 1.2 will decrease or increase
by ,2 increments, Lo is the lowest
powerlevel available.
4. Once cooking has
completed, press On/Off.
i
[\ /
Fig. 2 Fig. 3
13
Radiant surface elements may appear to have cooled
after they have been turned off, The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic wrappings
on top of range when it is in use, These items could melt
or ignite, Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements.
Donotallowaluminumfoil,orANYmaterialthat
can melt to make contact with the ceramic glass
cooktop. If these items melt on the cooktop they can
damage the ceramic cooktop.
Each time a pad is touched a beep will sound, If no
further pads are touched within 10 seconds the
request to power any heating element ON will clear,
The power level may be adjusted at any time while the
element is ON,
Once the power level is turned OFF the HE indicator
light will remain ON if the cooktop is still hot and will
remain ON until the heating surface area has cooled
sufficiently.
- The size and type of cookware used will influence the
setting needed for the best cooking results, The
simmer settings are used to simmer and keep larger
quantities of foods warm such as stews and soups,
The lower simmer settings are ideal for delicate foods
and melting chocolate or butter.
Setting Surface Controls

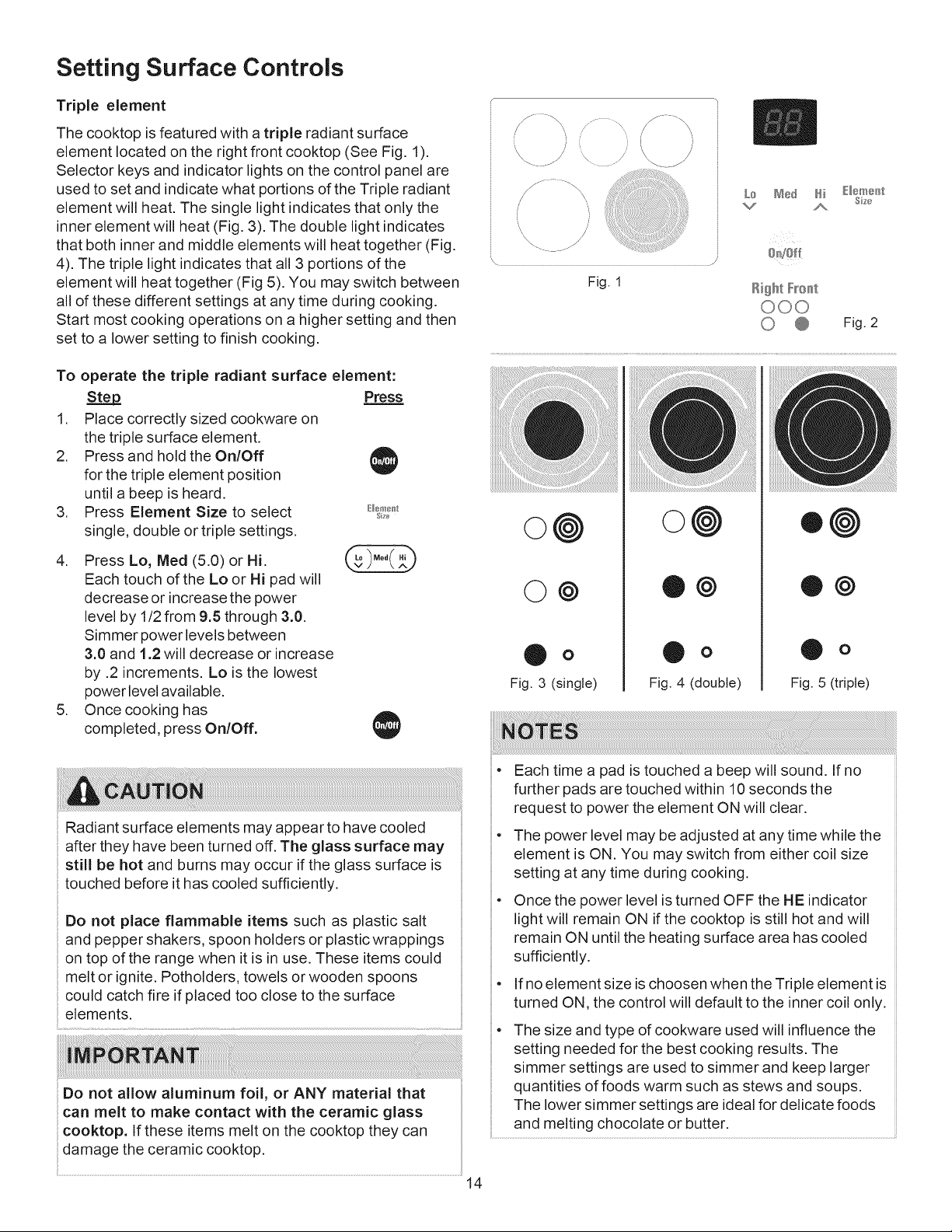

Triple element
The cooktop is featured with a triple radiant surface
element located on the right front cooktop (See Fig. 1).
Selector keys and indicator lights on the control panel are
used to set and indicate what portions of the Triple radiant
element will heat. The single light indicates that only the
inner element will heat (Fig. 3). The double light indicates
that both inner and middle elements will heat together (Fig.
4). The triple light indicates that all 3 portions of the
element will heat together (Fig 5). You may switch between
all of these different settings at any time during cooking.
Start most cooking operations on a higher setting and then
set to a lower setting to finish cooking.
To operate the triple radiant surface element:
Press
1. Place correctly sized cookware on
the triple surface element.
2. Press and hold the On/Off
for the triple element position
until a beep is heard.
3. Press Element Size to select "_'_"_
S_e
single, double or triple settings.
4. Press Lo, Med (5.0) or Hi.
Each touch of the Lo or Hi pad will
decrease or increase the power
level by 1/2 from 9.5 through 3.0.
Simmer power levels between
3.0 and 1.2 will decrease or increase
by .2 increments. Lo is the lowest
power level available.
5. Once cooking has
completed, press On/Off.
i I
'\ //
iJ
\
Fig. 1
S ze
.......f A
Fig. 2
©
0@
O O
Fig. 3 (single)
©
O O
Fig. 4 (double)
®
Fig. 5 (triple)
ii
iiRadiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic wrappings
on top of the range when it is in use. These items could
melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the surface
elements.
i Do not allow aluminum foil, or ANY material that
carl melt to make contact with the ceramic glass
cooktop. If these items melt on the cooktop they can
damage the ceramic cooktop.
• Each time a pad is touched a beep will sound. If no
further pads are touched within 10 seconds the
request to power the element ON will clear.
• The power level may be adjusted at any time while the
element is ON. You may switch from either coil size
setting at any time during cooking.
Once the power level is turned OFF the HE indicator
light will remain ON if the cooktop is still hot and will
remain ON until the heating surface area has cooled
sufficiently.
• If no element size is choosen when the Triple element is "
turned ON, the control will default to the inner coil only.
• The size and type of cookware used will influence the
setting needed for the best cooking results. The
simmer settings are used to simmer and keep larger
quantities of foods warm such as stews and soups.
The lower simmer settings are ideal for delicate foods
and melting chocolate or butter.
14
Setting Surface Controls

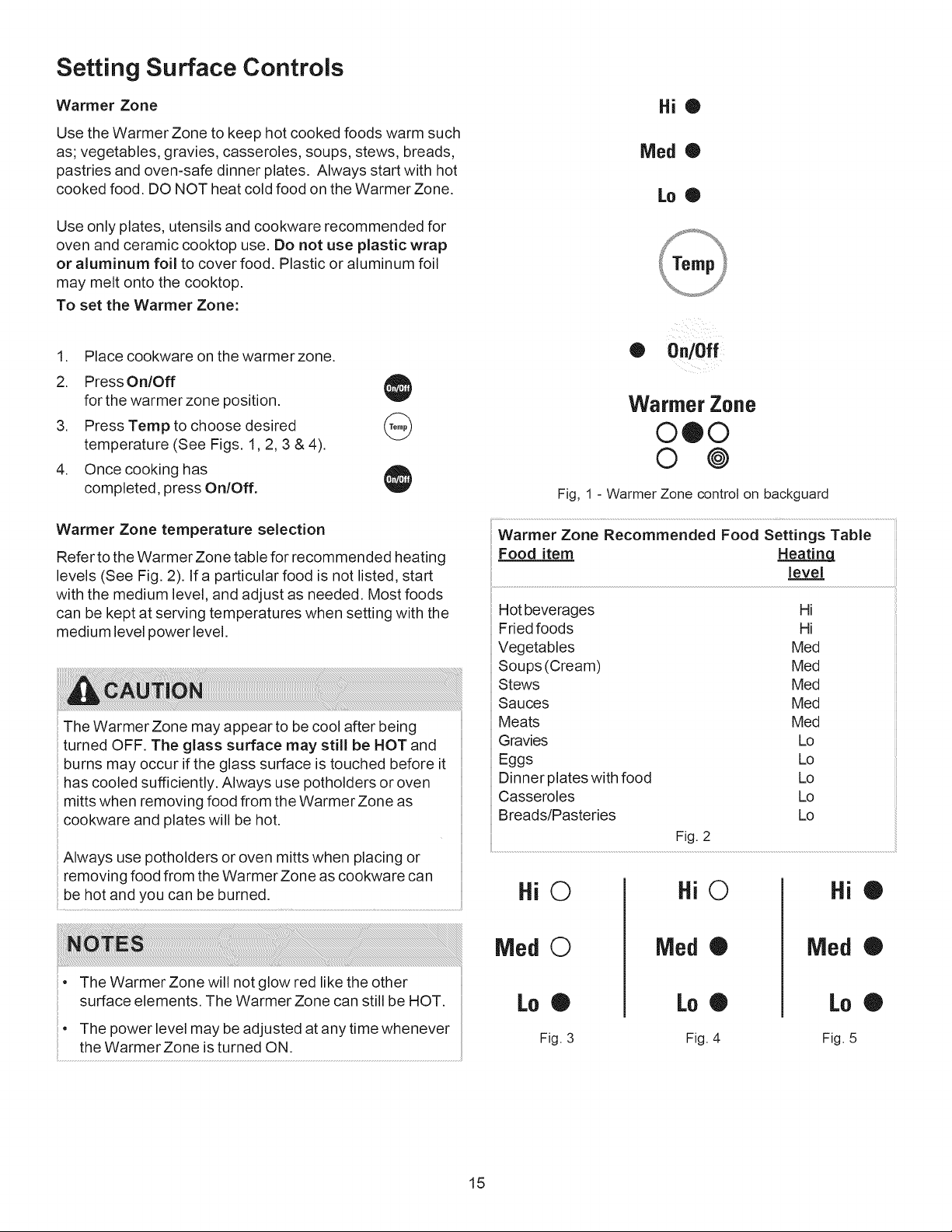

Warmer Zone
Use the Warmer Zone to keep hot cooked foods warm such
as; vegetables, gravies, casseroles, soups, stews, breads,
pastries and oven-safe dinner plates. Always start with hot
cooked food. DO NOT heat cold food on the Warmer Zone.
Use only plates, utensils and cookware recommended for
oven and ceramic cooktop use. Do not use plastic wrap
or aluminum foil to cover food. Plastic or aluminum foil
may melt onto the cooktop.
To set the Warmer Zone:
1. Place cookware on the warmer zone.
2. Press On/Off
for the warmer zone position.
3. Press Temp to choose desired
temperature (See Figs. 1,2, 3 & 4).
4. Once cooking has
completed, press On/Off.
Warmer Zone temperature selection
Refer to the Warmer Zone table for recommended heating
levels (See Fig. 2). If a particular food is not listed, start
with the medium level, and adjust as needed. Most foods
can be kept at serving temperatures when setting with the
medium level power level.
The Warmer Zone may appear to be cool after being
turned OFF. The glass surface may still be HOT and
burns may occur if the glass surface is touched before it
has cooled sufficiently. Always use potholders or oven
mitts when removing food from the Warmer Zone as
cookware and plates will be hot.
Always use potholders or oven mitts when placing or
removing food from the Warmer Zone as cookware can
be hot and you can be burned.
- The Warmer Zone will not glow red like the other
surface elements. The Warmer Zone can still be HOT.
• The power level may be adjusted at any time whenever
the Warmer Zone is turned ON.
ii
Lo •
• On/Off
Warmer Zone
O®O
O @
Fig, 1 - Warmer Zone control on backguard
Warmer Zone Recommended Food Settings Table
Food item Heating
level
Hot beverages Hi
Fried foods Hi
Vegetables Med
Soups (Cream) Med
Stews Med
Sauces Med
Meats Med
Gravies Lo
Eggs Lo
Dinner plates with food Lo
Casseroles Lo
Breads/Pasteries Lo
Fig. 2
Hi O
Med O
Hi O
Med ®
Hi
Med
Lo ® Lo • Lo
Fig. 3 Fig. 4 Fig. 5
®
®
®
15

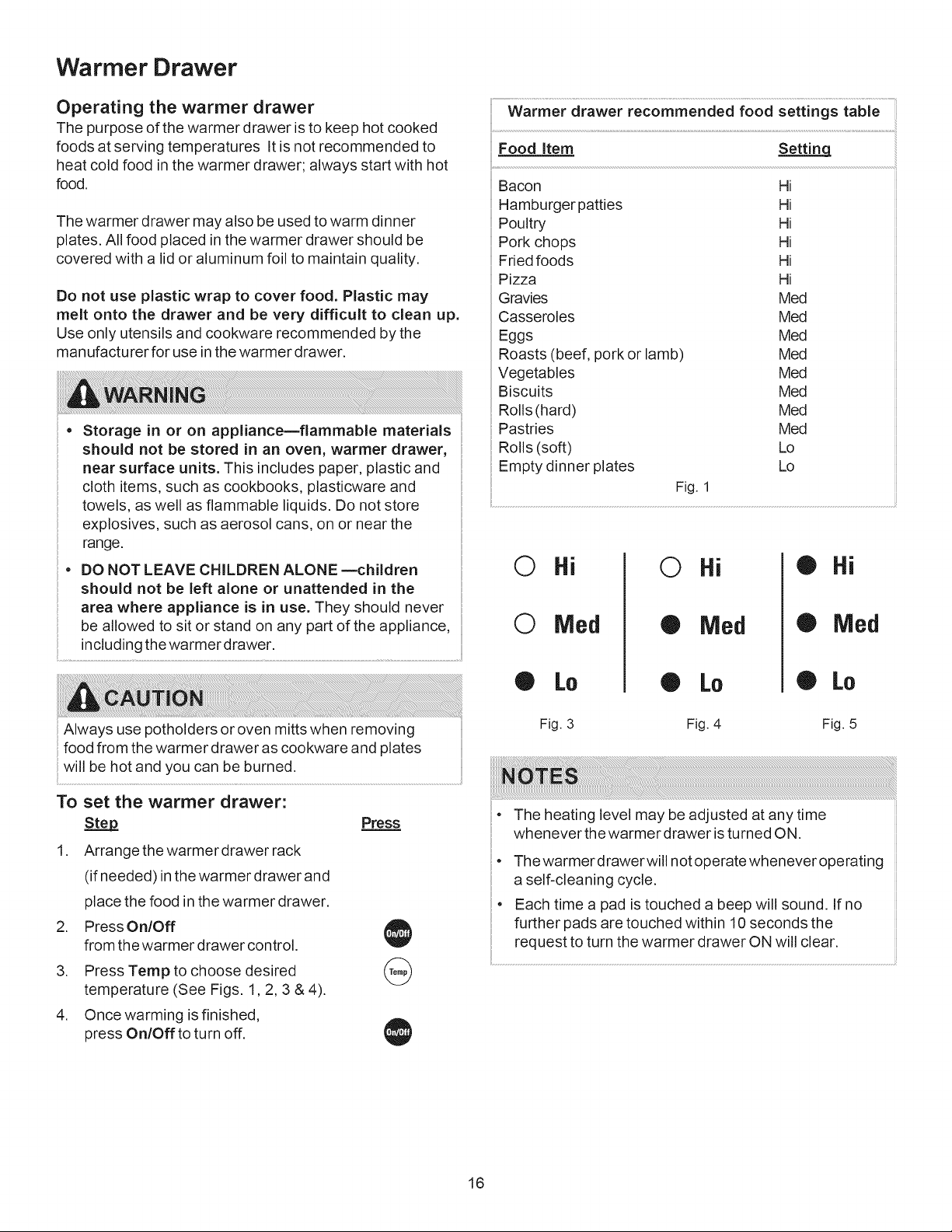

Warmer Drawer
Operating the warmer drawer
The purpose of the warmer drawer is to keep hot cooked
foods at serving temperatures It is not recommended to
heat cold food in the warmer drawer; always start with hot
food.
The warmer drawer may also be used to warm dinner
plates. All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain quality.
Do not use plastic wrap to cover food. Plastic may
melt onto the drawer and be very difficult to clean up.
Use only utensils and cookware recommended by the
manufacturer for use in the warmer drawer.
Storage in or on appliancemflammable materials
should not be stored in an oven, warmer drawer,
near surface units. This includes paper, plastic and
cloth items, such as cookbooks, plasticware and
towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the
range.
• DO NOT LEAVE CHILDREN ALONE mchildren
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the warmer drawer.
Always use potholders or oven mitts when removing
food from the warmer drawer as cookware and plates
will be hot and you can be burned.
To set the warmer drawer:
Step Press
1. Arrange the warmer drawer rack
(if needed) in the warmer drawer and
place the food in the warmer drawer.
2. Press On/Off
from the warmer drawer control.
3. Press Temp to choose desired
temperature (See Figs. 1,2, 3 & 4).
4. Once warming is finished,
press On/Offto turn off.
Warmer drawer recommended food settings table
Food Item Setting
Bacon Hi
Hamburger patties Hi
Poultry Hi
Pork chops Hi
Fried foods Hi
Pizza Hi
Gravies Med
Casseroles Med
Eggs Med
Roasts (beef, pork or lamb) Med
Vegetables Med
Biscuits Med
Rolls (hard) Med
Pastries Med
Rolls (soft) Lo
Empty dinner plates Lo
Fig. 1
O Hi
O Med
• Med
• Med
®
0 Lo • Lo Lo
Fig. 3 Fig. 4 Fig. 5
" The heating level may be adjusted at any time
whenever the warmer drawer is turned ON.
- The warmer drawer will not operate whenever operating
a self-cleaning cycle.
- Each time a pad is touched a beep will sound. If no
further pads are touched within 10 seconds the
request to turn the warmer drawer ON will clear.
16

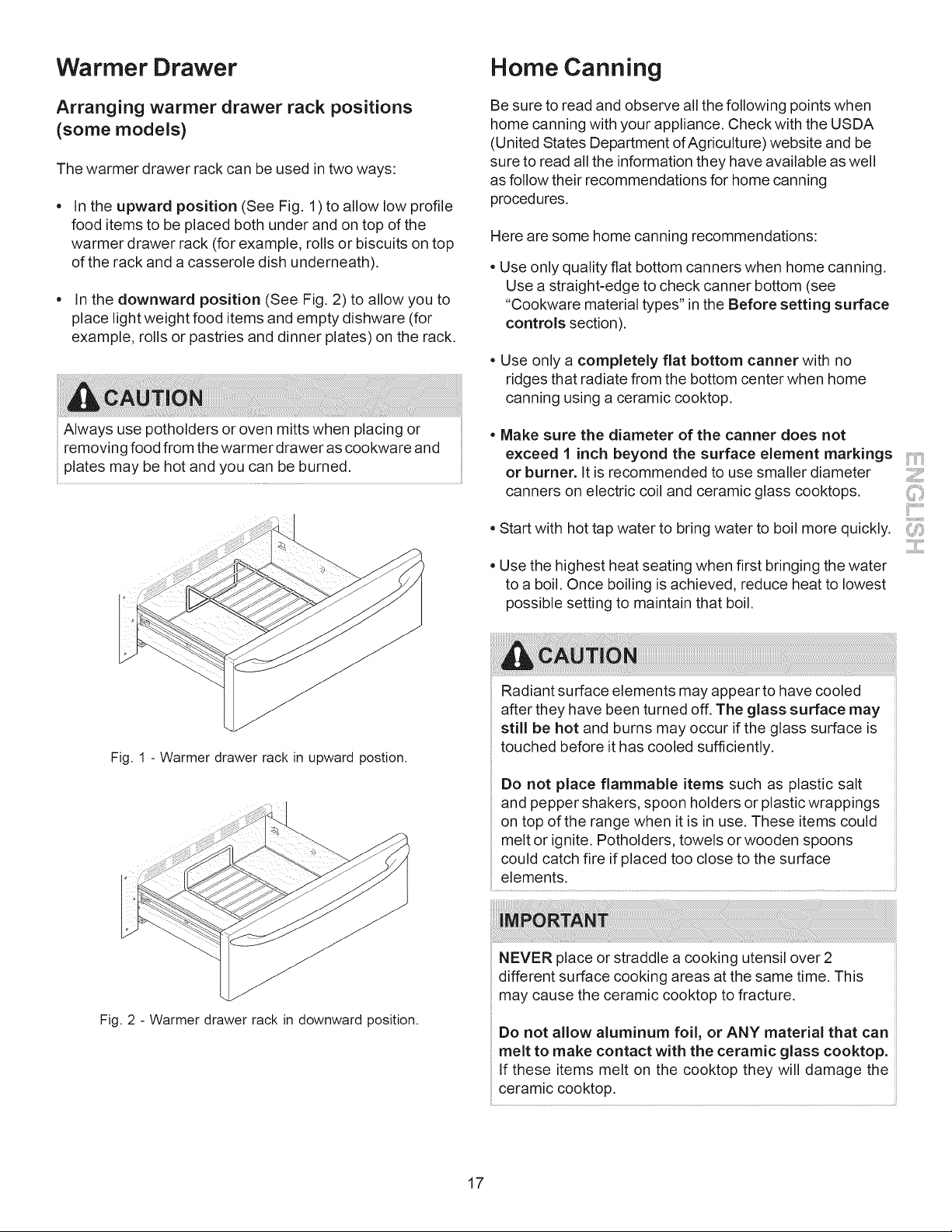

Warmer Drawer
Arranging warmer drawer rack positions
(some models)
The warmer drawer rack can be used in two ways:
In the upward position (See Fig. 1) to allow low profile
food items to be placed both under and on top of the
warmer drawer rack (for example, rolls or biscuits on top
of the rack and a casserole dish underneath).
o In the downward position (See Fig. 2) to allow you to
place light weight food items and empty dishware (for
example, rolls or pastries and dinner plates) on the rack.
Always use potholders or oven mitts when placing or
removing food from the warmer drawer as cookware and
plates may be hot and you can be burned.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for home canning
procedures.
Here are some home canning recommendations:
Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom (see
"Cookware material types" in the Before setting surface
controls section).
• Use only a completely flat bottom canner with no
ridges that radiate from the bottom center when home
canning using a ceramic cooktop.
, Make sure the diameter of the canner does not
exceed 1 inch beyond the surface element markings
or burner. It is recommended to use smaller diameter
canners on electric coil and ceramic glass cooktops.
Start with hot tap water to bring water to boil more quickly.
Use the highest heat seating when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
iii....................
..........iii.........
Fig. 1 - Warmer drawer rack in upward postion.
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic wrappings
on top of the range when it is in use. These items could
melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the surface
elements.
Fig. 2 - Warmer drawer rack in downward position.
[i
NEVER place or straddle a cooking utensil over 2
different surface cooking areas at the same time. This
may cause the ceramic cooktop to fracture.
Do not allow aluminum foil, or ANY material that can
melt to make contact with the ceramic glass cooktop.
If these items melt on the cooktop they will damage the
ceramic cooktop.
17

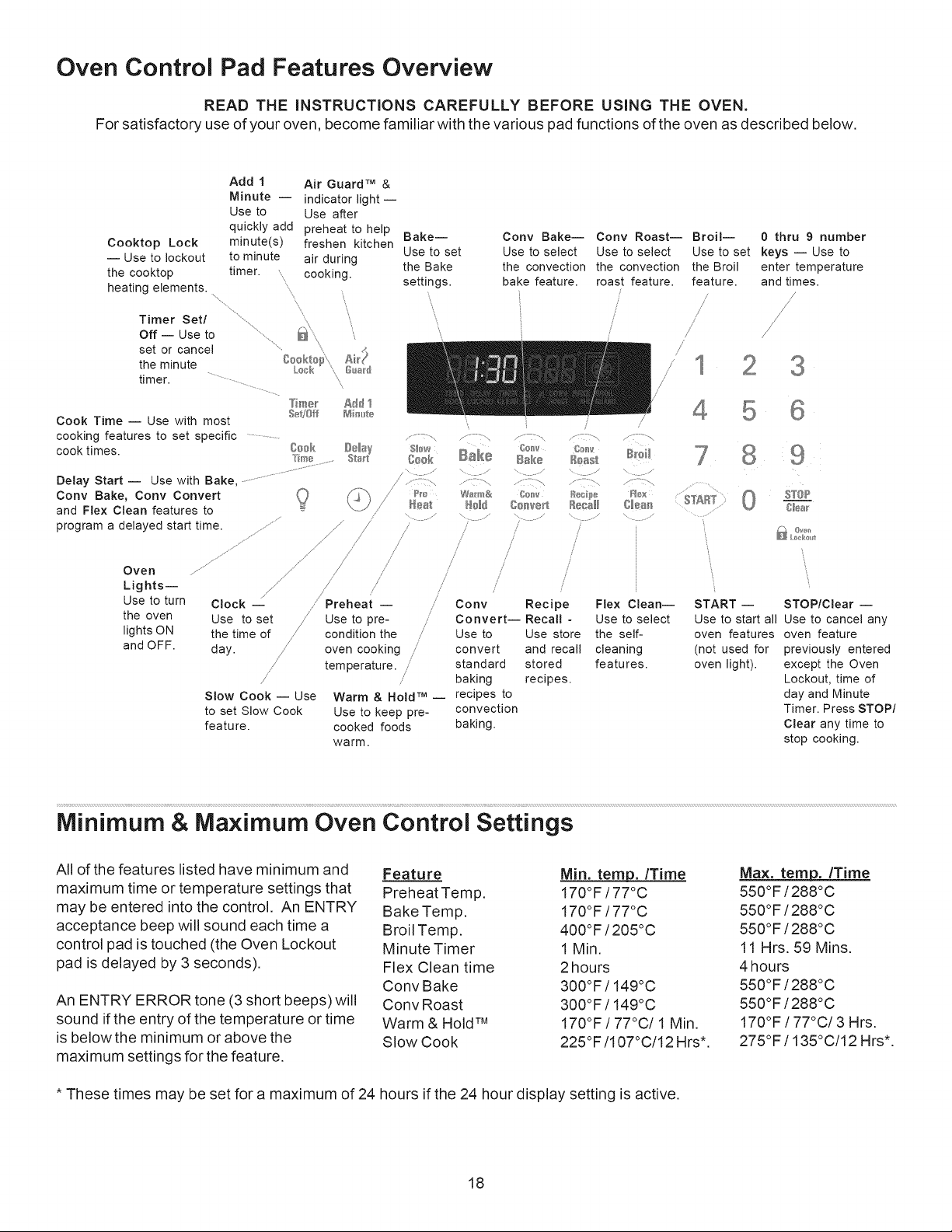

Oven Control Pad Features Overview
READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN.
For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below.
Air Guard TM &
indicator light --
Use after
)reheat to help Bake-- Cony Bake--
Cooktop Lock freshen kitchen
-- Use to lockout air during Use to set Use to select
the Bake the convection
the cooktop cooking.
heating elements, settings, bake feature.
Add 1
Minute --
Use to
quickly add
minute(s)
to minute
timer. .....
Timer Set/ .......
Off- Use to ..................
\
\
set or cancel .......
the minute 8eek_:el_', Ah_
timer. ................. ',
Timer All 1
S_,dOIf I£#H_I_,
Cook Time -- Use with most
cooking features to set specific ...........
cook times. Cook
Yi_m ............
Delay Start -- Use with Bake, ................. . ,
ConvBake,ConvConvert d i)
and Flex Clean features to .......
//"
program a delayed start time. .........
Cony Roast-- Broil--
Use to select Use to set
the convection the Broil
roast feature, feature.
/
/
/
/
/
/
0 thru 9 number
keys -- Use to
enter temperature
and times.
/
/
/
/
b}¢ko
/ /
/
Oven ._.... /
Lights
, /
Use to turn Clock / Preheat Cony Recipe Flex Clean START STOP/Clear --
the oven Use to set Use to pre- Convert Recall - Use to select Use to start all Use to cancel any
lights ON the time of condition the Use to Use store the self- oven features oven feature
and OFF. day ........ oven cooking convert and recall cleaning (not used for previously entered
......" temperature, standard stored features, oven light), except the Oven
/
........ / baking recipes. Lockout, time of
Slow Cook Use Warm & Hold TM -- recipes to day and Minute
to set Slow Cook Use to keep pre- convection Timer. Press STOP/
feature, cooked foods baking. Clear any time to
warm. stop cooking.
Minimum & Maximum Oven Control Settings
All of the features listed have minimum and
maximum time or temperature settings that
may be entered into the control. An ENTRY
acceptance beep will sound each time a
control pad is touched (the Oven Lockout
pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will
sound if the entry of the temperature or time
is below the minimum or above the
maximum settings for the feature.
Feature
Preheat Temp.
Bake Temp.
Broil Temp.
Minute Timer
Flex Clean time
Conv Bake
Conv Roast
Warm & Hold TM
Slow Cook
Min. tern_
170°F/77°C
170°F/77°C
400°F/205°C
1 Min.
2 hours
300°F/149°C
300°F/149°C
170°F/77°C/1 Min.
225°F/107°C/12 Hrs*.
* These times may be set for a maximum of 24 hours if the 24 hour display setting is active.
Max. tem_
550°F/288°C
550°F/288°C
550°F/288°C
11 Hrs. 59 Mins.
4 hours
550°F/288°C
550°F/288°C
170°F / 77°C/3 Hrs.
275°F/135°C/12 Hrs*.
18
Setting Oven Features
Setting the clock
When the range is first powered up. the time of day starting
with "12:00" will flash in the display (Fig. 1).
To set the clock for 1:30:
Step
1. Press Clock to set.
2. Enter1:30.
3. Press Start.
Press
©
®@@
It is recommended to always set the clock for the correct
time of day before using the appliance. The clock cannot
be changed whenever Cook time or Delay Cook feature
is active.
If there has been a power interuption the display will flash
the time of day beginning with "12:00" indicating the time
of day needs to be reset.
Fig. 1
Changing between 12=Hour Energy Saving
feature or continuous bake setting
The oven control has a factory preset built-in 12 Hour
Energy Saving feature that will turn off the oven if the oven
is left on for more than 12 hours. The control can be
programmed to override this feature to continuously bake.
To turn off 12=Hour Energy saving feature:
Step Press
1. Press and hold the Timer Set/Off @
keypad for 6 seconds.
2. Press Flex Clean c_o_,
to toggle between 12Hr Off (12 hour)
(Fig. 2) or "StAy On (24 hour) (Fig. 3).
Select 24 hour to turn off
12-Hour Energy Saving mode.
3. Press Start to accept.
v
Setting 12 or 24 hour display modes
The clock display mode allows you to choose between 12
or 24 hr mode. The factory pre-set clock display mode is 12
hr. See the example below to change the default mode to
24 hr display.
To set 12 or 24 hour mode:
Step Press
1. Press and hold the Clock @
keypad for 6 seconds.
2. Press Flex Clean c,oo.
to toggle between "12 Hr dAY"
or "24 Hr dAY" display modes
(See Figs. 4 & 5).
3. Press Start to accept.
V
Fig. 4 Fig. 5 ',:i
Changing oven temperature display (°F or °C)
The oven control is preset to display °F (Fahrenheit) when
shipped from the factory.
To change the temperature to display °C (Celsius)
(oven should not have Bake or Flex Clean active
when setting this feature):
.
Step Press
Press and hold Broil for B,o,
6 seconds.
2. Press Flex Clean to toggle c_o,,
between "FAhr nht" or
"CELSIUS" temperature display
modes (Figs. 6 & 7).
If Celsius display is needed, select
"CELSIUS".
3. Press Start to accept.
Fig. 6 Fig. 7
Fig. 2 Fig. 3
19

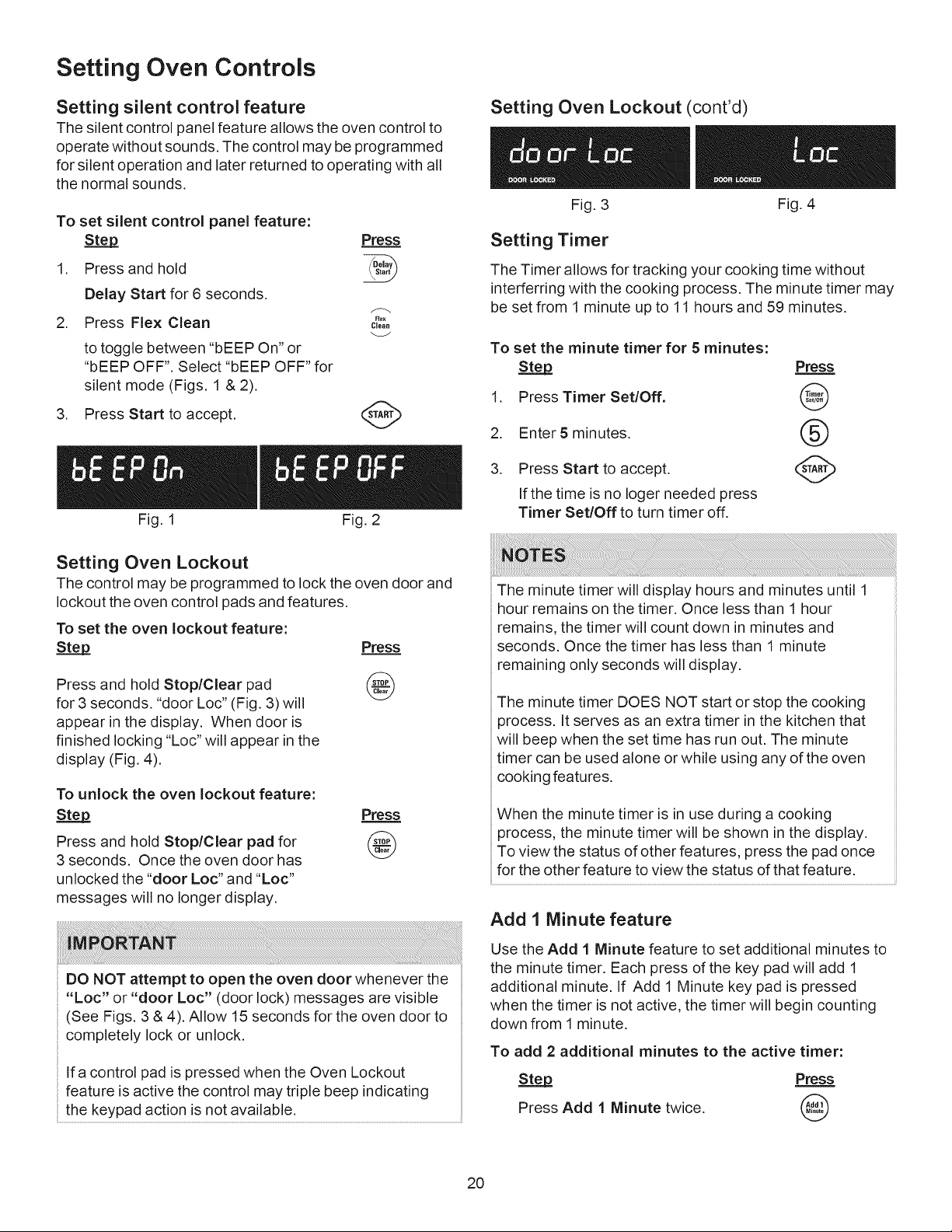

Setting Oven Controls
Setting silent control feature
The silent control panel feature allows the oven control to
operate without sounds, The control may be programmed
for silent operation and later returned to operating with all
the normal sounds•
To set silent control panel feature:
SteD Press
1 Press and hold f_T,_,_
•
Delay Start for 6 seconds.
2. Press Flex Clean ....
Clean
to toggle between "bEEP On" or
"bEEP OFF". Select "bEEP OFF" for
silent mode (Figs. 1 & 2).
3. Press Start to accept.
v
Fig. 1 Fig. 2
Setting Oven Lockout (cont'd)
Fig• 3 Fig• 4
Setting Timer
The Timer allows for tracking your cooking time without
interferring with the cooking process, The minute timer may
be set from 1 minute up to 11 hours and 59 minutes•
To set the minute timer for 5 minutes:
SteD Press
1. Press Timer Set/Off.
2. Enter5 minutes. 1_
3. Press Start to accept.
If the time is no Ioger needed press
Timer Set/Off to turn timer off.
Setting Oven Lockout
The control may be programmed to lock the oven door and
lockout the oven control pads and features•
To set the oven lockout feature:
Step
Press
Press and hold Stop/Clear pad
for 3 seconds. "door Loc" (Fig. 3) will
appear in the display. When door is
finished locking "Loc" will appear in the
display (Fig. 4).
To unlock the oven lockout feature:
Press and hold Stop/Clear pad for
3 seconds. Once the oven door has
unlocked the "door Loc" and "Loc"
messages will no longer display.
Press
DO NOT attempt to open the oven door whenever the
"Loc" or "door Loc" (door lock) messages are visible
(See Figs. 3 & 4). Allow 15 seconds for the oven door to
completely lock or unlock.
Ifa control pad is pressed when the Oven Lockout
feature is active the control may triple beep indicating
the keypad action is not available.
The minute timer will display hours and minutes until 1
' hour remains on the timer. Once less than 1 hour
remains, the timer will count down in minutes and
seconds. Once the timer has less than 1 minute
remaining only seconds will display.
The minute timer DOES NOT start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using any of the oven
cooking features.
When the minute timer is in use during a cooking
process, the minute timer will be shown in the display.
To view the status of other features, press the pad once
for the other feature to view the status of that feature.
Add 1 Minute feature
Use the Add 1 Minute feature to set additional minutes to
the minute timer. Each press of the key pad will add 1
additional minute. If Add 1 Minute key pad is pressed
when the timer is not active, the timer will begin counting
down from 1 minute.
To add 2 additional minutes to the active timer:
SteD Press
Press Add 1 Minute twice.
,,.j
2O

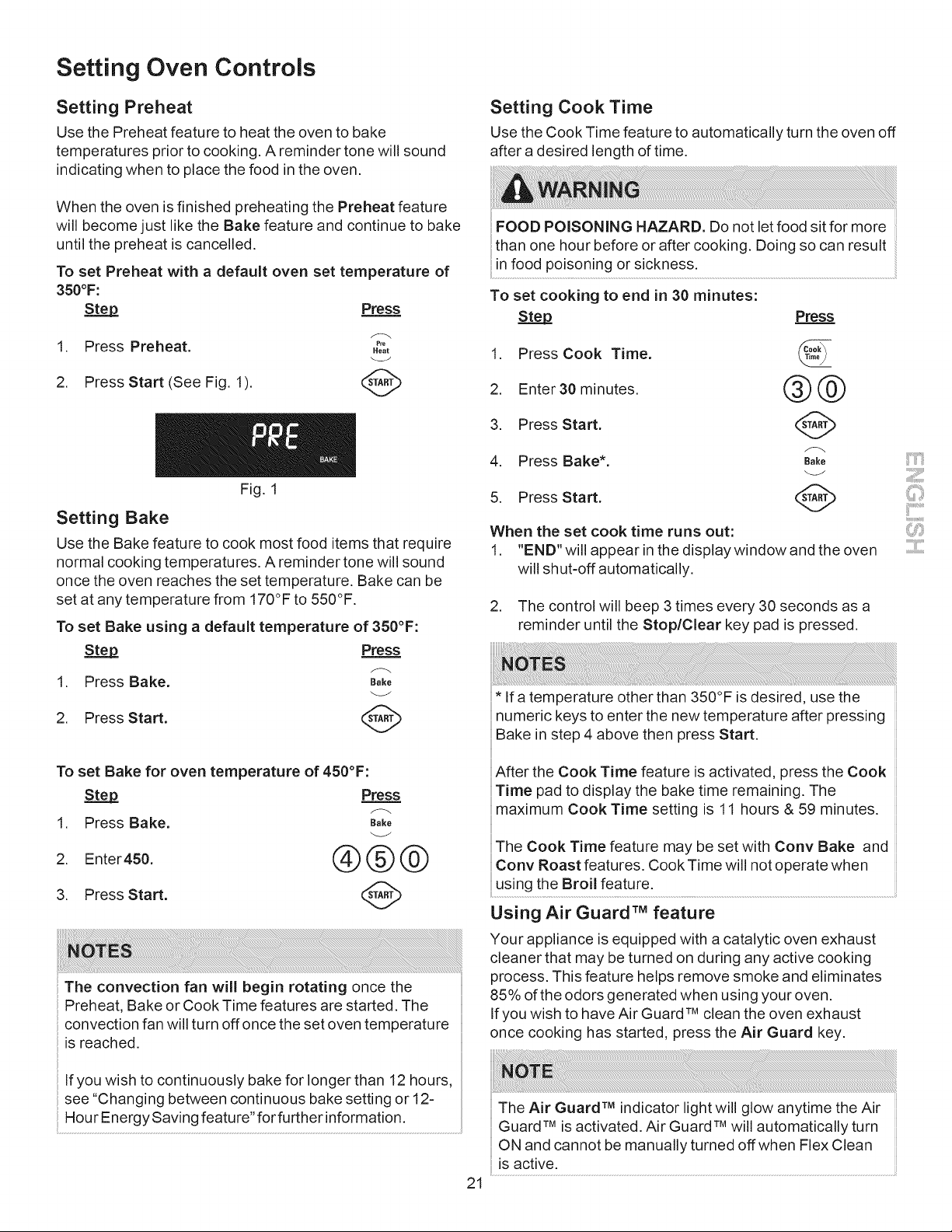

Setting Oven Controls
Setting Preheat
Use the Preheat feature to heat the oven to bake
temperatures prior to cooking. A reminder tone will sound
indicating when to place the food in the oven.
Setting Cook Time
Use the Cook Time feature to automatically turn the oven off
after a desired length of time.
When the oven is finished preheating the Preheat feature
will become just like the Bake feature and continue to bake
until the preheat is cancelled•
To set Preheat with a default oven set temperature of
350°F:
Step Press
1 Press Preheat. H,0
• Heat
2. Press Start (See Fig. 1).
Fig. 1
Setting Bake
Use the Bake feature to cook most food items that require
normal cooking temperatures. A reminder tone will sound
once the oven reaches the set temperature• Bake can be
set at any temperature from 170°F to 550°F•
To set Bake using a default temperature of 350°F:
SteD Press
1. Press Bake. B.k_
2. Press Start.
v
To set Bake for oven temperature of 450°F:
SteD Press
1. Press Bake. B.ke
2. Enter450. @(_@
3. Press Start.
V
))The convection fan will begin rotating once the
Preheat, Bake or Cook Time features are started. The
convection fan will turn offonce the set oven temperature
is reached.
If you wish to continuously bake for longer than 12 hours,
see "Changing between continuous bake setting or 12-
Hour Energy Saving feature" for further information.
)FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To set cooking to end in 30 minutes:
Step Press
1 Press Cook Time. f_
• k22:L
2. Enter30minutes. @@
3. Press Start.
4. Press Bake*. Bake
5. Press Start.
When the set cook time runs out:
1.
"END" will appear in the display window and the oven
will shut-off automatically.
2. The control will beep 3 times every 30 seconds as a
reminder until the Stop/Clear key pad is pressed,
* Ifa temperature other than 350°F is desired, use the
numeric keys to enter the new temperature after pressing
Bake in step 4 above then press Start•
After the Cook Time feature is activated, press the Cook
Time pad to display the bake time remaining• The
maximum Cook Time setting is 11 hours & 59 minutes•
The Cook Time feature may be set with Cony Bake and
Conv Roast features. Cook Time will not operate when
using the Broil feature.
Using Air Guard TM feature
Your appliance is equipped with a catalytic oven exhaust
cleaner that may be turned on during any active cooking
process. This feature helps remove smoke and eliminates
85% of the odors generated when using your oven.
If you wish to have Air Guard TMclean the oven exhaust
once cooking has started, press the Air Guard key.
21
)) ))
))The Air Guard TM indicator light will glow anytime the Air ))
))Guard TMis activated. Air Guard TMwill automatically turn
ON and cannot be manually turned offwhen Flex Clean
::is active.
iii....................
..........iii.........
Setting Oven Controls
Delay Start
The delay start feature allows you to set a starting and
ending time to the baking process. Prior to setting a delay
start, be sure the time of day is set correctly. If the
delay start needs to be set more than 12 hours in advance
(12 to 24 hours), the control must first be programmed for
24 hour display mode. See "Setting 12 or 24 hour display
modes" for more information.
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
h
in food poisoning or sickness.
i
To program the oven for a Delay Start time and to
shut-off automatically (example for baking at 325°F for
50 minutes and cooking to begin at 5:30):
SteD Press
1 Press Cook Time.
• 22J_
2. Enter 50 mintues for cook time• (_) @
When the set Cook Time finishes:
1. "END" will appear in the display window and the oven
will shut-off automatically (See Fig. 2).
2. The control will beep 3 times every 30 seconds as a
reminder until the Stop/Clear key pad is pressed.
Fig. 1 Fig. 2
After the Delay Start feature has activated and started
the cooking process, press the Cook Time pad to
display the bake time remaining•
The Delay Start feature may be used with the Cony
Bake or Cony Roast cooking features. Cook Time will
not operate when using the Broil feature.
3. Press Start.
4. Press Delay Start (See Fig. 1).
5. Enter530fordelayedstartingtime. (_)@@
6. Press and hold Start.
7. Press Bake. B.k_
8. Enter 325 for temperature.
®@®
9. Press Start.
22

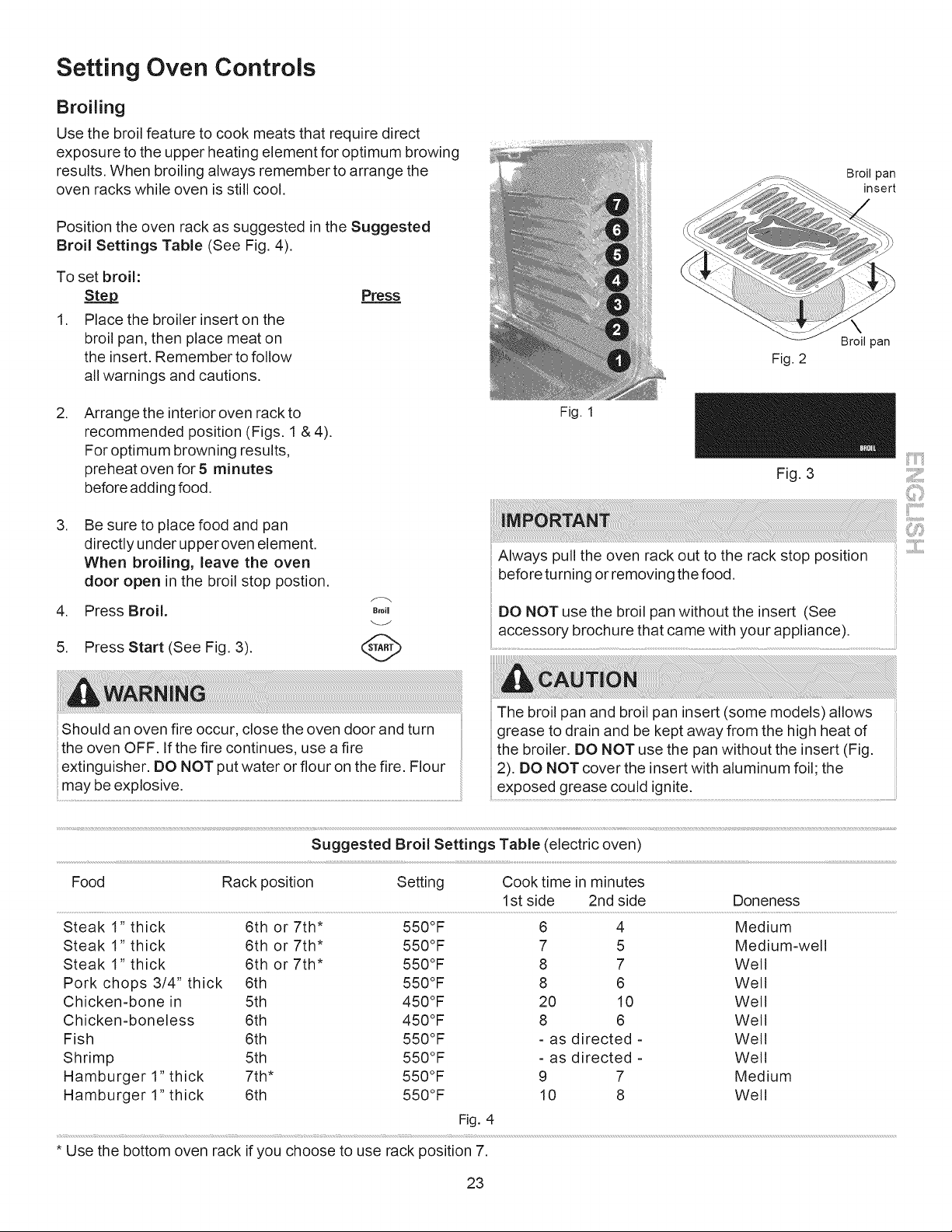

Setting Oven Controls
Broiling
Use the broil feature to cook meats that require direct
exposure to the upper heating element for optimum browing
results, When broiling always remember to arrange the
oven racks while oven is still cool.
Position the oven rack as suggested in the Suggested
Broil Settings Table (See Fig. 4).
To set broil:
1. Place the broiler insert on the
broil pan, then place meat on
the insert. Remember to follow
all warnings and cautions.
Press
.
Arrange the interior oven rack to
recommended position (Figs. 1 & 4).
For optimum browning results,
preheat oven for 5 minutes
before adding food.
Fig. 1
Broil pan
insert
\
Broil pan
Fig. 2
Fig. 3
.
.
5.
Be sure to place food and pan
directly under upper oven element.
When broiling, leave the oven
door open in the broil stop postion.
Press Broil.
Press Start (See Fig. 3).
Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
Always pull the oven rack out to the rack stop position
before turning or removing the food.
DO NOT use the broil pan without the insert (See
accessory brochure that came with your appliance).
The broil pan and broil pan insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert (Fig.
2). DO NOT cover the insert with aluminum foil; the
exposed grease could ignite.
Suggested Broil Settings Table (electric oven)
Food Rack position Setting Cook time in minutes
1st side 2nd side Doneness
Steak 1" thick 6th or 7th* 550°F 6 4
Steak 1" thick 6th or 7th* 550°F 7 5
Steak 1" thick 6th or 7th* 550°F 8 7
Pork chops 3/4" thick 6th 550°F 8 6
Chicken-bone in 5th 450°F 20 10
Chicken-boneless 6th 450°F 8 6
Fish 6th 550°F - as directed -
Shrimp 5th 550°F - as directed -
Hamburger 1" thick 7th* 550°F 9 7
Hamburger 1" thick 6th 550°F 10 8
Fig. 4
Medium
Medium-well
Wel
Wel
Wel
Wel
Wel
Wel
Medium
Well
* Use the bottom oven rack if you choose to use rack position 7.
23

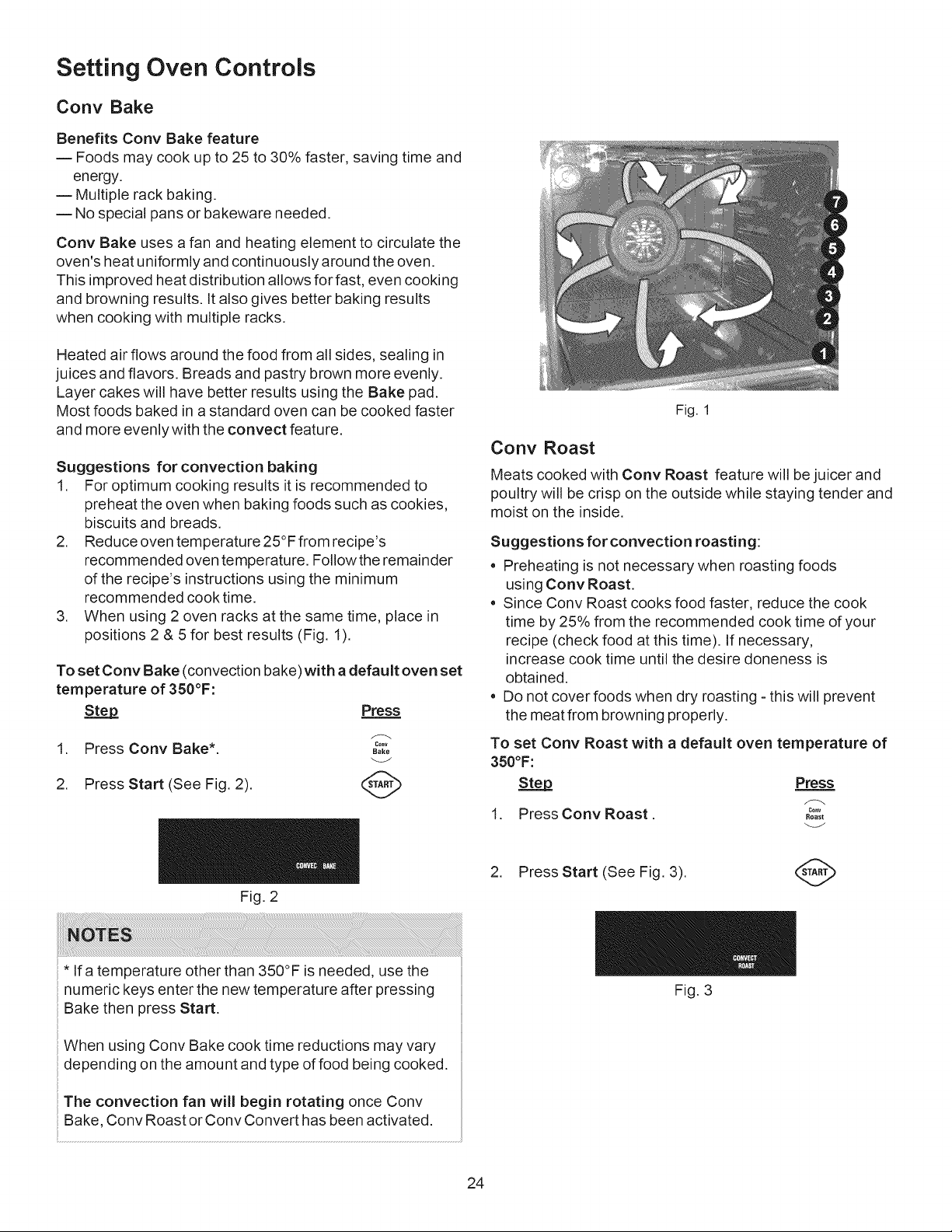

Setting Oven Controls
Conv Bake
Benefits Conv Bake feature
-- Foods may cook up to 25 to 30% faster, saving time and
energy.
-- Multiple rack baking.
-- No special pans or bakeware needed.
Cony Bake uses a fan and heating element to circulate the
oven's heat uniformly and continuously around the oven.
This improved heat distribution allows for fast, even cooking
and browning results. It also gives better baking results
when cooking with multiple racks•
Heated air flows around the food from all sides, sealing in
juices and flavors. Breads and pastry brown more evenly.
Layer cakes will have better results using the Bake pad.
Most foods baked in a standard oven can be cooked faster
and more evenly with the convect feature•
Suggestions for convection baking
1. For optimum cooking results it is recommended to
preheat the oven when baking foods such as cookies,
biscuits and breads.
2• Reduce oven temperature 25°F from recipe's
recommended oven temperature. Followthe remainder
of the recipe's instructions using the minimum
recommended cook time.
3• When using 2 oven racks at the same time, place in
positions 2 & 5 for best results (Fig• 1)•
To set Conv Bake (convection bake) with a default oven set
temperature of 350°F:
St_.p= Press
1 Press Conv Bake*. c0,,
• Bake
2. Press Start (See Fig. 2).
Fig. 2
* Ifa temperature other than 350°F is needed, use the
numeric keys enter the new temperature after pressing
Bake then press Start•
When using Conv Bake cook time reductions may vary
depending on the amount and type of food being cooked•
The convection fan will begin rotating once Conv
Bake, Conv Roast or Conv Convert has been activated.
Fig. 1
Conv Roast
Meats cooked with Cony Roast feature will be juicer and
poultry will be crisp on the outside while staying tender and
moist on the inside•
Suggestions for convection roasting:
• Preheating is not necessary when roasting foods
using Conv Roast.
• Since Conv Roast cooks food faster, reduce the cook
time by 25% from the recommended cook time of your
recipe (check food at this time). If necessary,
increase cook time until the desire doneness is
obtained.
• Do not cover foods when dry roasting - this will prevent
the meat from browning properly•
To set Conv Roast with a default oven temperature of
350°F:
SteD Press
1. Press Conv Roast ....
• Roast
•
A
Press Start
(See Fig. 3). d._b
Fig. 3
24

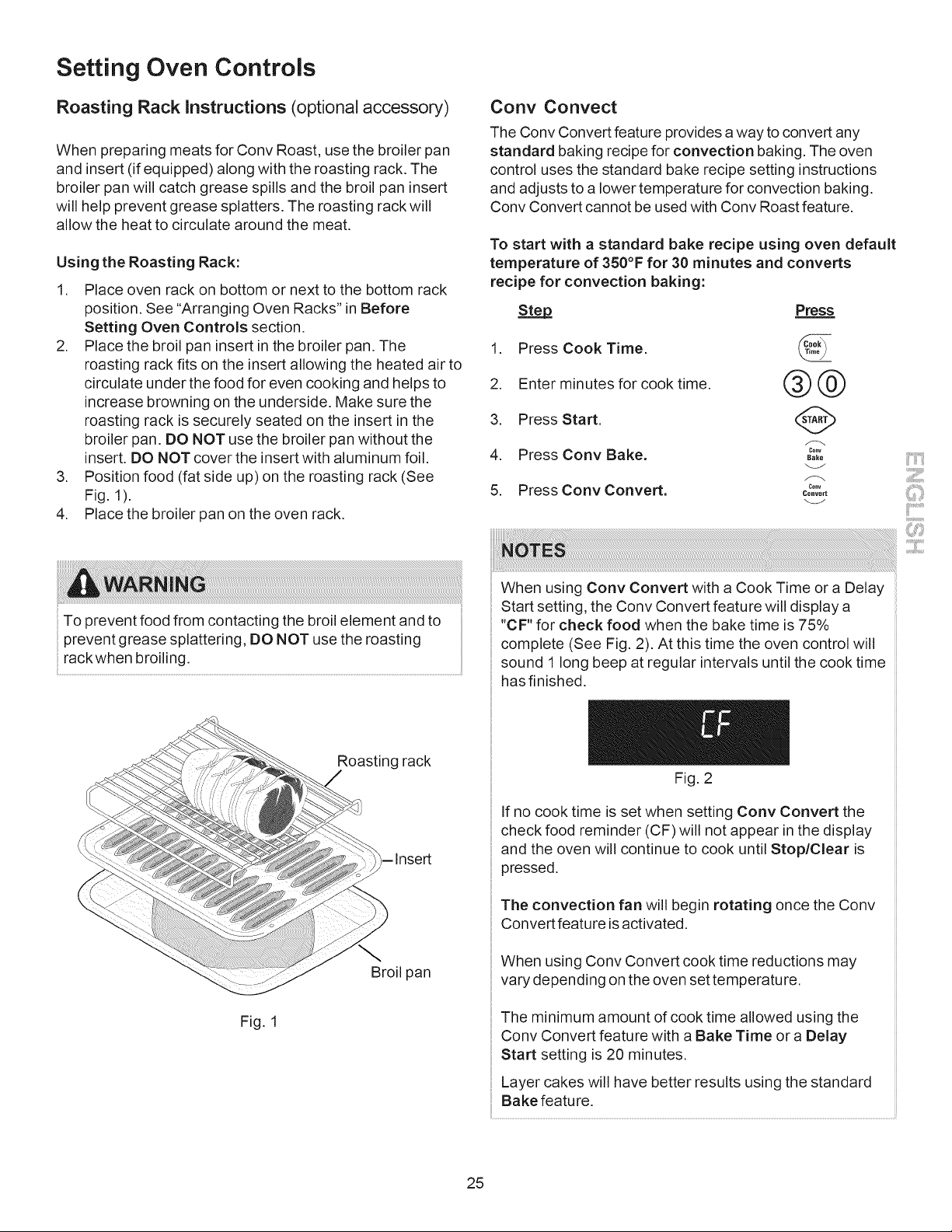

Setting Oven Controls
Roasting Rack instructions (optional accessory)
When preparing meats for Conv Roast, use the broiler pan
and insert (if equipped) along with the roasting rack. The
broiler pan will catch grease spills and the broil pan insert
will help prevent grease splatters. The roasting rack will
allow the heat to circulate around the meat.
Using the Roasting Rack:
1. Place oven rack on bottom or next to the bottom rack
position• See "Arranging Oven Racks" in Before
Setting Oven Controls section.
2• Place the broil pan insert in the broiler pan. The
roasting rack fits on the insert allowing the heated air to
circulate under the food for even cooking and helps to
increase browning on the underside. Make sure the
roasting rack is securely seated on the insert in the
broiler pan. DO NOT use the broiler pan without the
insert. DO NOT cover the insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See
Fig. 1).
4• Place the broiler pan on the oven rack.
To prevent food from contacting the broil element and to
prevent grease splattering, DO NOT use the roasting
rackwhen broiling.
Roasting rack
-Insert
Broil pan
Fig. 1
Conv Convect
The Conv Convert feature provides a way to convert any
standard baking recipe for convection baking. The oven
control uses the standard bake recipe setting instructions
and adjusts to a lower temperature for convection baking•
Conv Convert cannot be used with Conv Roast feature•
To start with a standard bake recipe using oven default
temperature of 350°F for 30 minutes and converts
recipe for convection baking:
Step Press
1 Press Cook Time.
• L_,../
2. Enter minutes for cook time. @ @
3. Press Start.
4. Press Cony Bake. °°"
Bake
5. Press ConvConvert. c0,_
Convert
When using Conv Convert with a Cook Time or a Delay
Start setting, the Conv Convert feature will display a
"CF" for check food when the bake time is 75%
complete (See Fig. 2). At this time the oven control will
sound 1 long beep at regular intervals until the cook time
hasfinished•
Fig. 2
If no cook time is set when setting Conv Convert the
check food reminder (CF) will not appear in the display
and the oven will continue to cook until Stop/Clear is
pressed•
The convection fan will begin rotating once the Conv
Convert feature is activated•
When using Conv Convert cook time reductions may
vary depending on the oven set temperature•
The minimum amount of cook time allowed using the
Conv Convert feature with a Bake Time or a Delay
Start setting is 20 minutes•
Layer cakes will have better results using the standard
Bake feature.
25

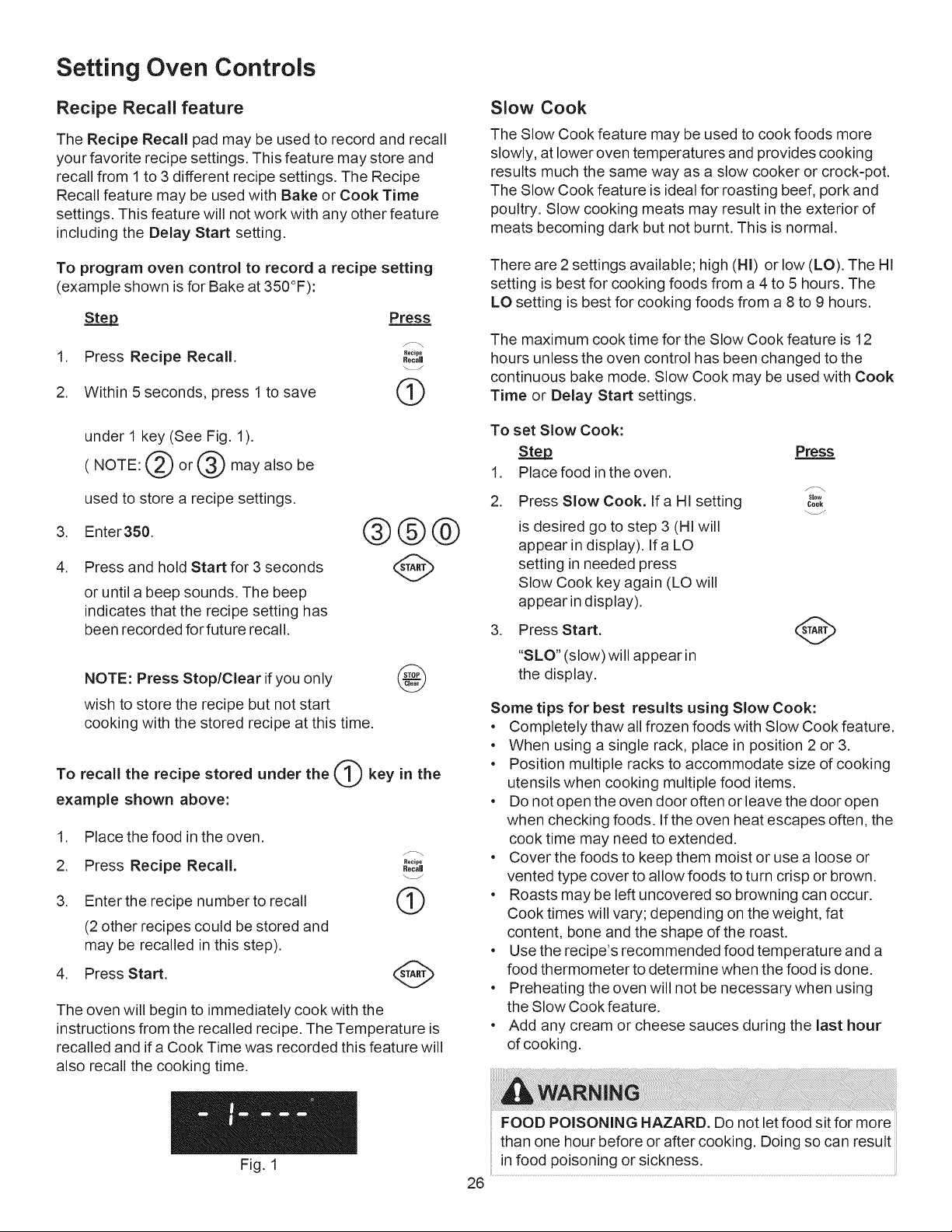

Setting Oven Controls
Recipe Recall feature
The Recipe Recall pad may be used to record and recall
your favorite recipe settings. This feature may store and
recall from 1 to 3 different recipe settings. The Recipe
Recall feature may be used with Bake or Cook Time
settings. This feature will not work with any other feature
including the Delay Start setting•
Slow Cook
The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking
results much the same way as a slow cooker or crock-pot.
The Slow Cook feature is ideal for roasting beef, pork and
poultry. Slow cooking meats may result in the exterior of
meats becoming dark but not burnt• This is normal•
To program oven control to record a recipe setting
(example shown is for Bake at 350°F):
Step Press
1 Press Recipe Recall. ".....• Recall
2. Within 5 seconds, press 1 to save Q
There are 2 settings available; high (HI) or low (LO). The HI
setting is best for cooking foods from a 4 to 5 hours. The
LO setting is best for cooking foods from a 8 to 9 hours•
The maximum cook time for the Slow Cook feature is 12
hours unless the oven control has been changed to the
continuous bake mode. Slow Cook may be used with Cook
Time or Delay Start settings.
.
4.
under 1 key (See Fig. 1).
( NOTE: _ or @ may also be
used to store a recipe settings.
Enter350.
Press and hold Start for 3 seconds
or until a beep sounds. The beep
indicates that the recipe setting has
been recorded for future recall•
®®@
NOTE: Press Stop/Clear if you only
wish to store the recipe but not start
cooking with the stored recipe at this time.
To recall the recipe stored under the _ key in the
example shown above:
1. Place the food in the oven•
2. Press Recipe Recall. ".....Recall
3. Enter the recipe number to recall Q
(2 other recipes could be stored and
may be recalled in this step)•
4. Press Start.
The oven will begin to immediately cook with the
instructions from the recalled recipe. The Temperature is
recalled and if a Cook Time was recorded this feature will
also recall the cooking time.
To set Slow Cook:
1• Place food in the oven.
.
Press Slow Cook. If a HI setting
is desired go to step 3 (HI will
appear in display). Ifa LO
setting in needed press
Slow Cook key again (LO will
appear in display).
Press
Slow
Cook
A
3. Press Start. d.._A"7_)
"SLO" (slow) will appear in
the display.
Some tips for best results using Slow Cook:
• Completely thaw all frozen foods with Slow Cook feature.
• When using a single rack, place in position 2 or 3.
• Position multiple racks to accommodate size of cooking
utensils when cooking multiple food items.
• Do notopen the oven door often orleave the dooropen
when checking foods. If the oven heat escapes often, the
cook time may need to extended.
• Cover the foods to keep them moist or use a loose or
vented type cover to allow foods to turn crisp or brown.
• Roasts may be left uncovered so browning can occur.
Cook times will vary; depending on the weight, fat
content, bone and the shape of the roast.
• Use the recipe's recommended food temperature and a
food thermometer to determine when the food is done.
• Preheating the oven will not be necessary when using
the Slow Cook feature.
• Add any cream or cheese sauces during the last hour
of cooking.
Fig. 1
26
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.

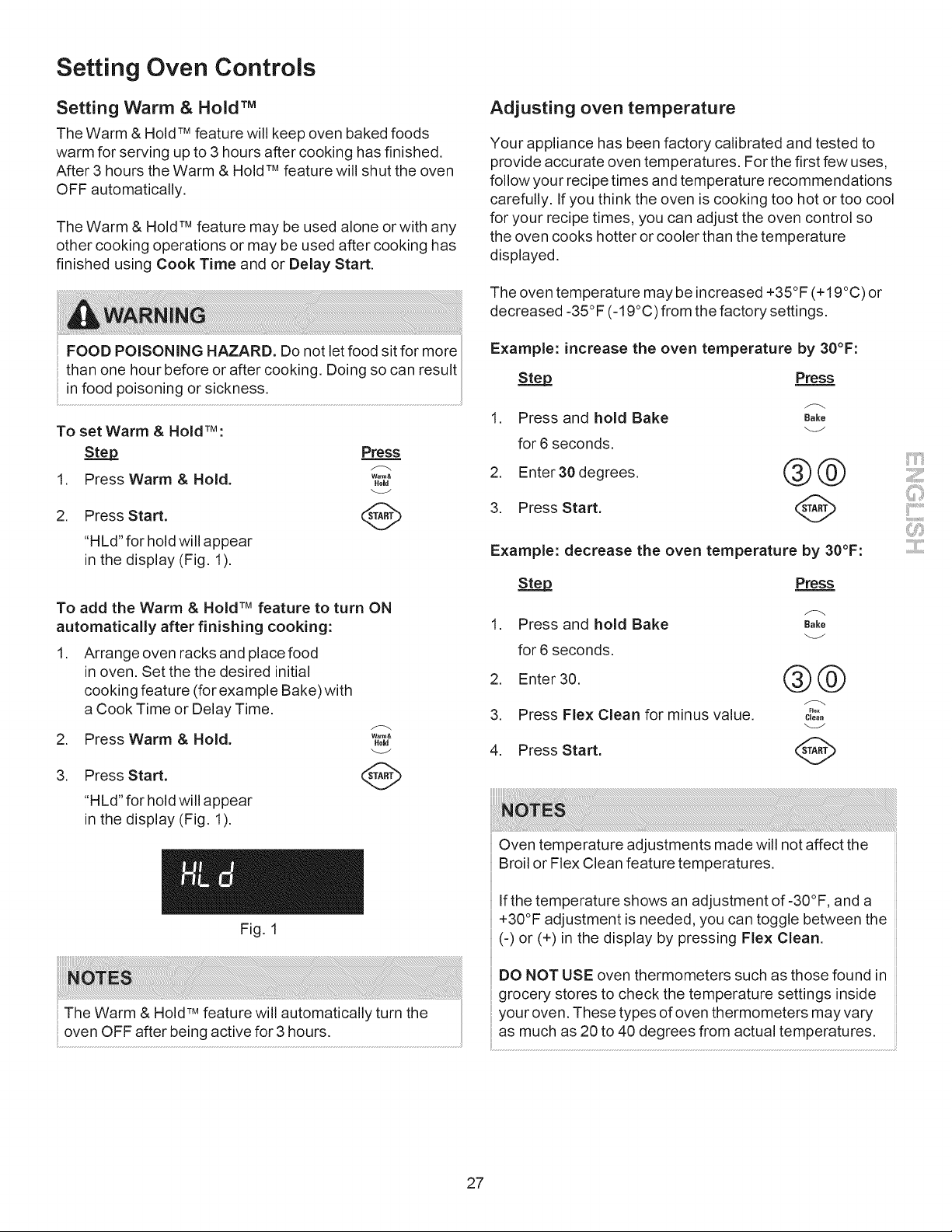

Setting Oven Controls
Setting Warm & Hold TM
The Warm & Hold TM feature will keep oven baked foods
warm for serving up to 3 hours after cooking has finished,
After 3 hours the Warm & Hold TM feature will shut the oven
OFF automatically,
The Warm & Hold TM feature may be used alone or with any
other cooking operations or may be used after cooking has
finished using Cook Time and or Delay Start.
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To set Warm & HoldTM:
Step
1. PressWarm & Hold.
2. Press Start.
"HLd" for hold will appear
in the display (Fig. 1).
Press
W_rm&
Hold
@
To add the Warm & Hold TM feature to turn ON
automatically after finishing cooking:
.
.
3.
Arrange oven racks and place food
in oven. Set the the desired initial
cooking feature (for example Bake) with
a Cook Time or Delay Time.
Press Warm & Hold.
Press Start.
"HLd" for hold will appear
in the display (Fig. 1).
Warm&
liold
@
Fig. 1
The Warm & Hold TM feature will automatically turn the
oven OFF after being active for 3 hours.
Adjusting oven temperature
Your appliance has been factory calibrated and tested to
provide accurate oven temperatures. For the first few uses,
follow your recipe times and temperature recommendations
carefully. If you think the oven is cooking too hot or too cool
for your recipe times, you can adjust the oven control so
the oven cooks hotter or cooler than the temperature
displayed.
The oven temperature may be increased +35°F (+ 19°C) or
decreased -35°F (-19°C) from the factory settings.
Example: increase the oven temperature by 30°F:
Step Press
1. Press and hold Bake
for 6 seconds.
2. Enter 30 degrees.
3. Press Start.
Bake
®®
Example: decrease the oven temperature by 30°F:
Step Press
1. Press and hold Bake Bake
for 6 seconds.
2. Enter30. @@
3. Press Flex Clean for minus value, c,oo.
4. Press Start.
V
Oven temperature adjustments made will not affect the
Broil or Flex Clean feature temperatures.
If the temperature shows an adjustment of-30°F, and a
+30°F adjustment is needed, you can toggle between the
(-) or (+) in the display by pressing Flex Clean.
DO NOT USE oven thermometers such as those found in "
grocery stores to check the temperature settings inside
your oven. These types of oven thermometers may vary
as much as 20 to 40 degrees from actual temperatures.
iii....................
..........iii.........
27

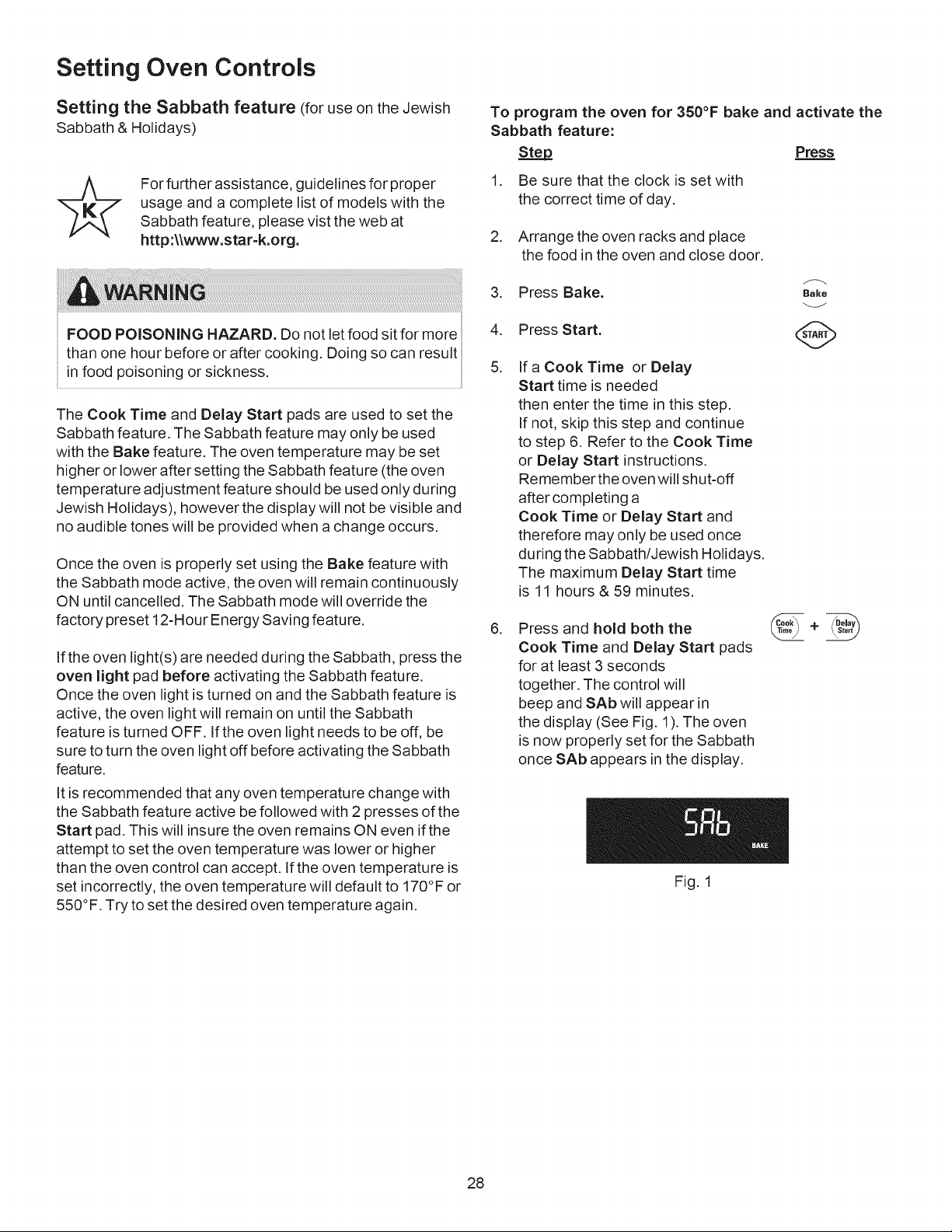

Setting Oven Controls
Setting the Sabbath feature (for use on the Jewish
Sabbath & Holidays)
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please vist the web at
http:\\www.star-k.org.
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
The Cook Time and Delay Start pads are used to set the
Sabbath feature. The Sabbath feature may only be used
with the Bake feature. The oven temperature may be set
higher or lower after setting the Sabbath feature (the oven
temperature adjustment feature should be used only during
Jewish Holidays), however the display will not be visible and
no audible tones will be provided when a change occurs.
Once the oven is properly set using the Bake feature with
the Sabbath mode active, the oven will remain continuously
ON until cancelled. The Sabbath mode will override the
factory preset 12-Hour Energy Saving feature.
If the oven light(s) are needed during the Sabbath, press the
oven light pad before activating the Sabbath feature.
Once the oven light is turned on and the Sabbath feature is
active, the oven light will remain on until the Sabbath
feature is turned OFF. If the oven light needs to be off, be
sure to turn the oven light off before activating the Sabbath
feature.
It is recommended that any oven temperature change with
the Sabbath feature active be followed with 2 presses of the
Start pad. This will insure the oven remains ON even if the
attempt to set the oven temperature was lower or higher
than the oven control can accept. If the oven temperature is
set incorrectly, the oven temperature will default to 170°F or
550°F. Try to set the desired oven temperature again.
To program the oven for 350°F bake and activate the
Sabbath feature:
SteD Press
1. Be sure that the clock is set with
the correct time of day.
2. Arrange the oven racks and place
the food in the oven and close door.
3. Press Bake. 8.ke
4. Press Start.
5. If a Cook Time or Delay
Start time is needed
then enter the time in this step.
If not, skip this step and continue
to step 6. Refer to the Cook Time
or Delay Start instructions.
Remember the oven will shut-off
after completing a
Cook Time or Delay Start and
therefore may only be used once
during the Sabbath/Jewish Holidays.
The maximum Delay Start time
is 11 hours & 59 minutes.
6. Press and hold both the V,_i \s,,,/
Cook Time and Delay Start pads
for at least 3 seconds
together. The control will
beep and SAb will appear in
the display (See Fig. 1). The oven
is now properly set for the Sabbath
once SAb appears in the display.
Fig. 1
28

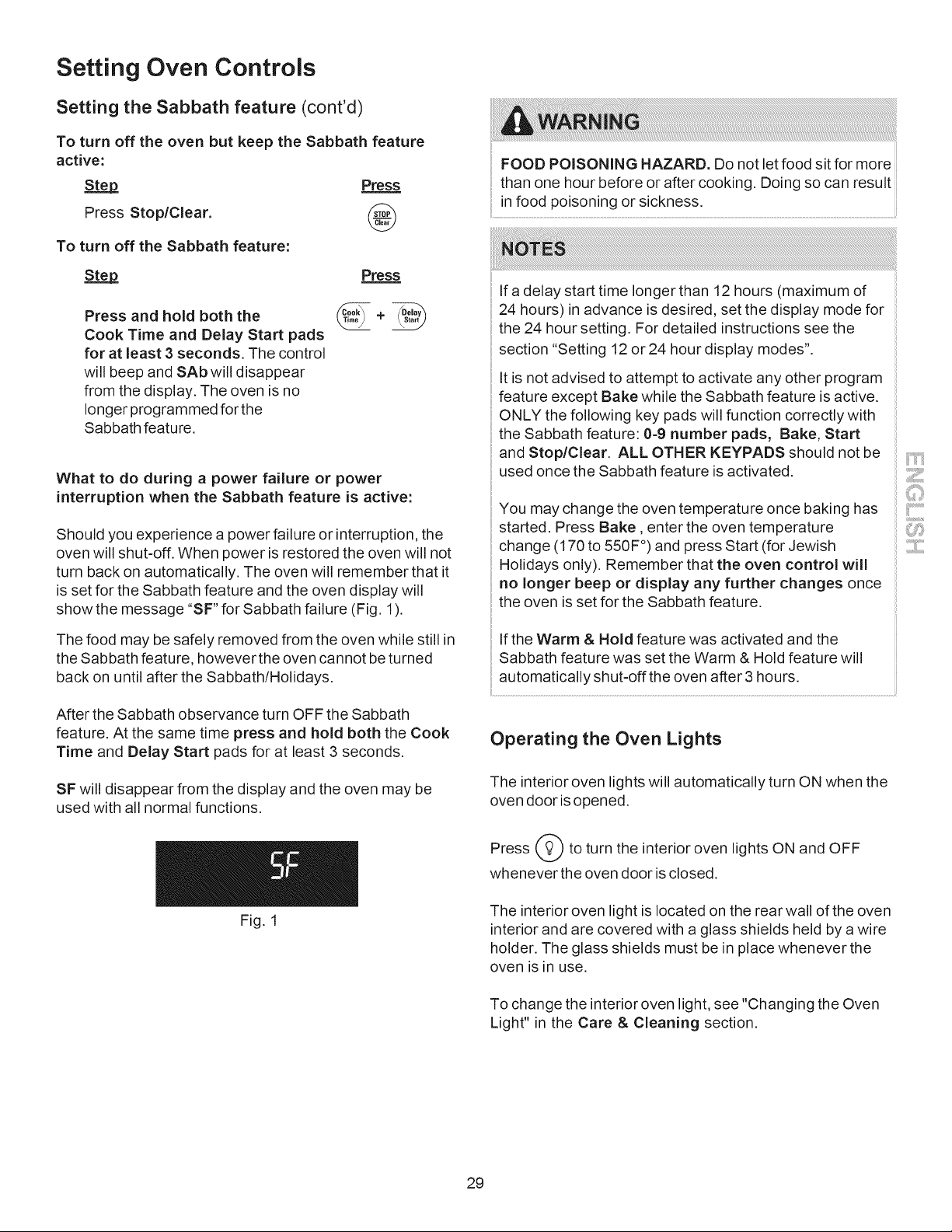

Setting Oven Controls
Setting the Sabbath feature (cont'd)
To turn off the oven but keep the Sabbath feature
active:
Step
Press Stop/Clear.
To turn off the Sabbath feature:
Press
SteD
Press
Press and hold both the
Cook Time and Delay Start pads
for at least 3 seconds. The control
will beep and SAb will disappear
from the display. The oven is no
longer programmed for the
Sabbath feature.
_,me; _Delay_
What to do during a power failure or power
interruption when the Sabbath feature is active:
Should you experience a power failure or interruption, the
oven will shut-off. When power is restored the oven will not
turn back on automatically. The oven will remember that it
is set for the Sabbath feature and the oven display will
show the message "SF" for Sabbath failure (Fig. 1).
The food may be safely removed from the oven while still in
the Sabbath feature, however the oven cannot be turned
back on until after the Sabbath/Holidays.
After the Sabbath observance turn OFF the Sabbath
feature. At the same time press and hold both the Cook
Time and Delay Start pads for at least 3 seconds.
SF will disappear from the display and the oven may be
used with all normal functions.
Fig. 1
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
If a delay start time longer than 12 hours (maximum of
24 hours) in advance is desired, set the display mode for
the 24 hour setting. For detailed instructions see the
section "Setting 12 or 24 hour display modes".
It is not advised to attempt to activate any other program
feature except Bake while the Sabbath feature is active.
ONLY the following key pads will function correctly with
the Sabbath feature: 0=9 number pads, Bake, Start
and Stop/Clear. ALL OTHER KEYPADS should not be
used once the Sabbath feature is activated.
You may change the oven temperature once baking has
started. Press Bake, enter the oven temperature
change (170 to 550F °) and press Start (for Jewish
Holidays only). Remember that the oven control will
no longer beep or display any further changes once
the oven is set for the Sabbath feature.
If the Warm & Hold feature was activated and the
Sabbath feature was set the Warm & Hold feature will
automatically shut-off the oven after 3 hours.
Operating the Oven Lights
The interior oven lights will automatically turn ON when the
oven door is opened.
Press LV) to turn the interior oven lights ON and OFF
whenever the oven door is closed.
The interior oven light is located on the rear wall of the oven
interior and are covered with a glass shields held by a wire
holder. The glass shields must be in place whenever the
oven is in use.
To change the interior oven light, see "Changing the Oven
Light" in the Care & Cleaning section.
29

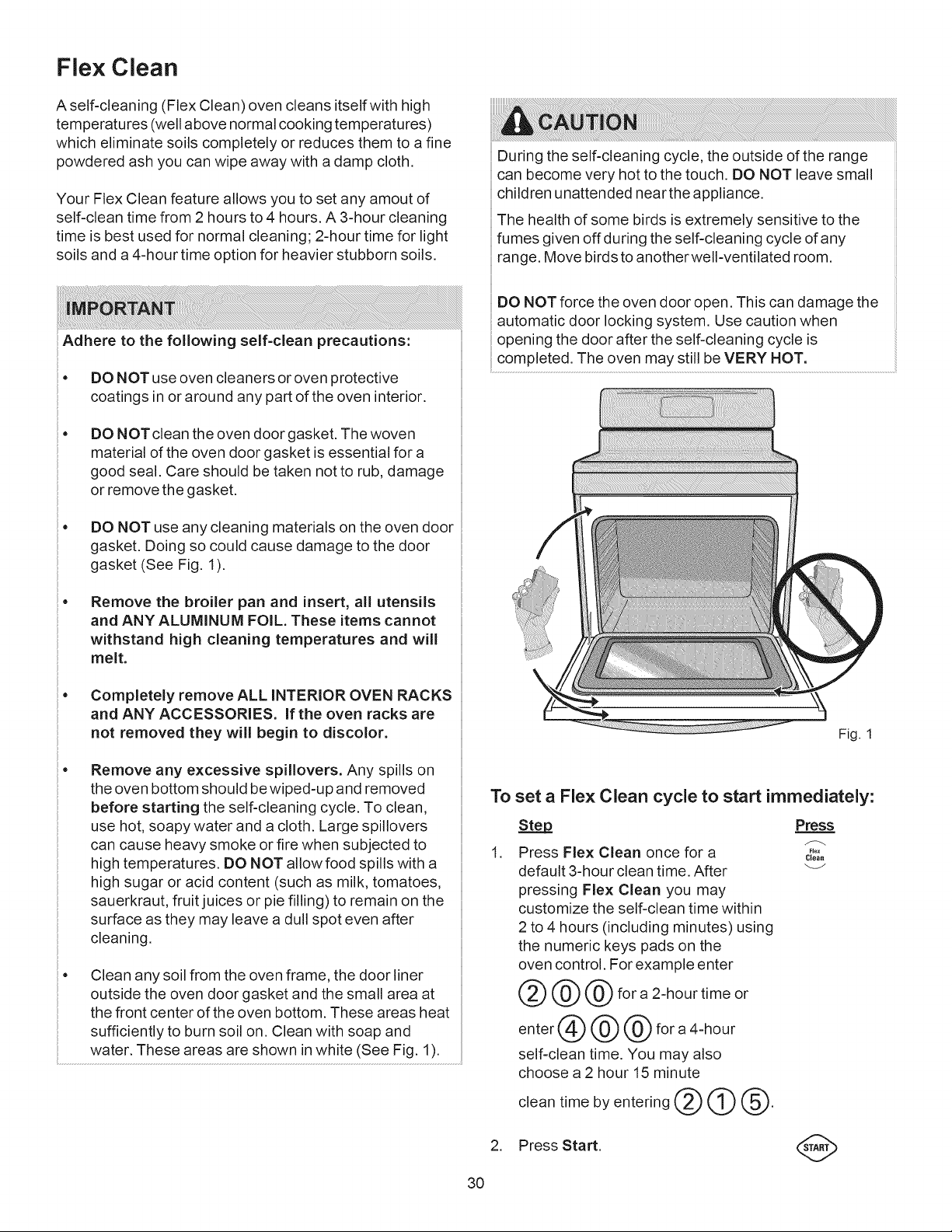

Flex Clean
A self-cleaning (Flex Clean)oven cleans itself with high
temperatures (well above normal cooking temperatures)
which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Your Flex Clean feature allows you to set any amout of
self-clean time from 2 hours to 4 hours. A 3-hour cleaning
time is best used for normal cleaning; 2-hour time for light
soils and a 4-hour time option for heavier stubborn soils.
to the following self=clean precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage
or remove the gasket.
• DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage to the door
gasket (See Fig. 1).
Remove the broiler pan and insert, all utensils
and ANY ALUMINUM FOIL. These items cannot
withstand high cleaning temperatures and will
melt.
• Completely remove ALL INTERIOR OVEN RACKS
and ANY ACCESSORIES. if the oven racks are
not removed they will begin to discolor.
Remove any excessive spillovers, Any spills on
the oven bottom should be wiped-up and removed
before starting the self-cleaning cycle. To clean,
use hot, soapy water and a cloth. Large spillovers
can cause heavy smoke or fire when subjected to
high temperatures. DO NOT allow food spills with a
high sugar or acid content (such as milk, tomatoes, ,,
sauerkraut, fruit juices or pie filling) to remain on the
surface as they may leave a dull spot even after
cleaning.
• Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom. These areas heat
sufficiently to burn soil on. Clean with soap and
water. These areas are shown in white (See Fig. 1).
30
During the self-cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave small
children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to anotherwell-ventilated room.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when
ii
opening the door after the self-cleaning cycle is
completed. The oven may still be VERY NOT.
Fig. 1
To set a Flex Clean cycle to start immediately:
Step Press
1. Press Flex Clean once for a
Clean
default 3-hour clean time. After _-_
pressing Flex Clean you may
customize the self-clean time within
2 to 4 hours (including minutes) using
the numeric keys pads on the
oven control. For example enter
_ @ @ for a 2-hour time or
enter@ @ @ for a 4-hour
self-clean time. You may also
choose a 2 hour 15 minute
clean time by entering _ Q _.
2. Press Start.
Fie× Clean
To set a Flex Clean to start immediately (cont'd):
As soon as the controls are set, the motor driven door
lock will begin to close automatically. "door Lot" will
appear in the display (See Fig. 1). DO NOT open
the
oven door while "door Loc" is displayed (allow 15
seconds for the oven door to completely lock).
Once the door has locked "CLn" will appear in the
display indicating the oven will begin the self-clean
process(Fig.2).
Fig. 1 Fig. 2
When the Flex Clean cycle has completed:
,
2.
The time of day and "Hot" will appear in the display
window (See Fig.3).
Once the oven has cooled down for about I hour and
"Hot" is no longer displayed the "door OPn" message
should appear (Fig. 4). When this message turns off
the oven door may be opened. Use CAUTION and avoid
possible burns when opening the door after the self-
cleaning cycle has completed. The oven may still be
VERY HOT.
When the oven is cool, wipe away any residue or powdered
ash with a damp cloth or paper towel.
Fig. 3 Fig. 4-
If it becomes necessary to stop a Flex Clean cycle
once it has been activated:
1. Press Stop/Clear.
2. If the self-clean cycle has heated the oven to a high
temperature, allow enough time for the oven to cool and
for the "door OPn" message to appear (Fig. 4). When
this message turns OFF the oven door may be opened.
3. Restart the Flex Clean cycle once all conditions have
been corrected.
Setting delayed start Flex Clean cycle
Example: To start a delay Flex Clean with a default
clean time of 3 hours and a start time of 9:00 o'clock:
Step Press
1. Be sure the clock is set with the correct
time of day, ALL the oven racks are
removed and the oven door is closed.
2. Press Delay Start.
\s,,_/
3. Enter 900 for time to start.
®@@
A
4. Press Start.
5. Press Flex Clean. ctoo.
6. Press Start.
v
To avoid possible burns use care when opening the oven
door after the self-clean cycle. Stand to the side of the
oven when opening the door to allow hot air or steam to
escape.
DO NOT force the oven door open. This can damage
the automatic door locking system. Use CAUTION and
avoid possible burns when opening the door after the
Flex Clean cycle has completed. The oven may still be
VERY NOT.
Whenever the Flex Clean feature is active you may check
the amount of time remaining in the cycle by pressing the
Flex Clean pad once.
The oven door will be locked until the range has cooled
sufficiently. You should allow about 1 additional hour to
the time displayed before you can open the oven door.
The Flex Clean feature will not operate whenever a
surface element is turned ON. Flex Clean may be started
if the Cooktop Lockout feature is active. A Flex Clean
cycle cannot be started if the Oven Lockout feature is
active.
If a Flex Clean cycle was started and a power failure
occurs, the oven may not be thourghly cleaned. Once
_ower is restored, set self-clean again to finish.
iiii,_,,,¸.......
31

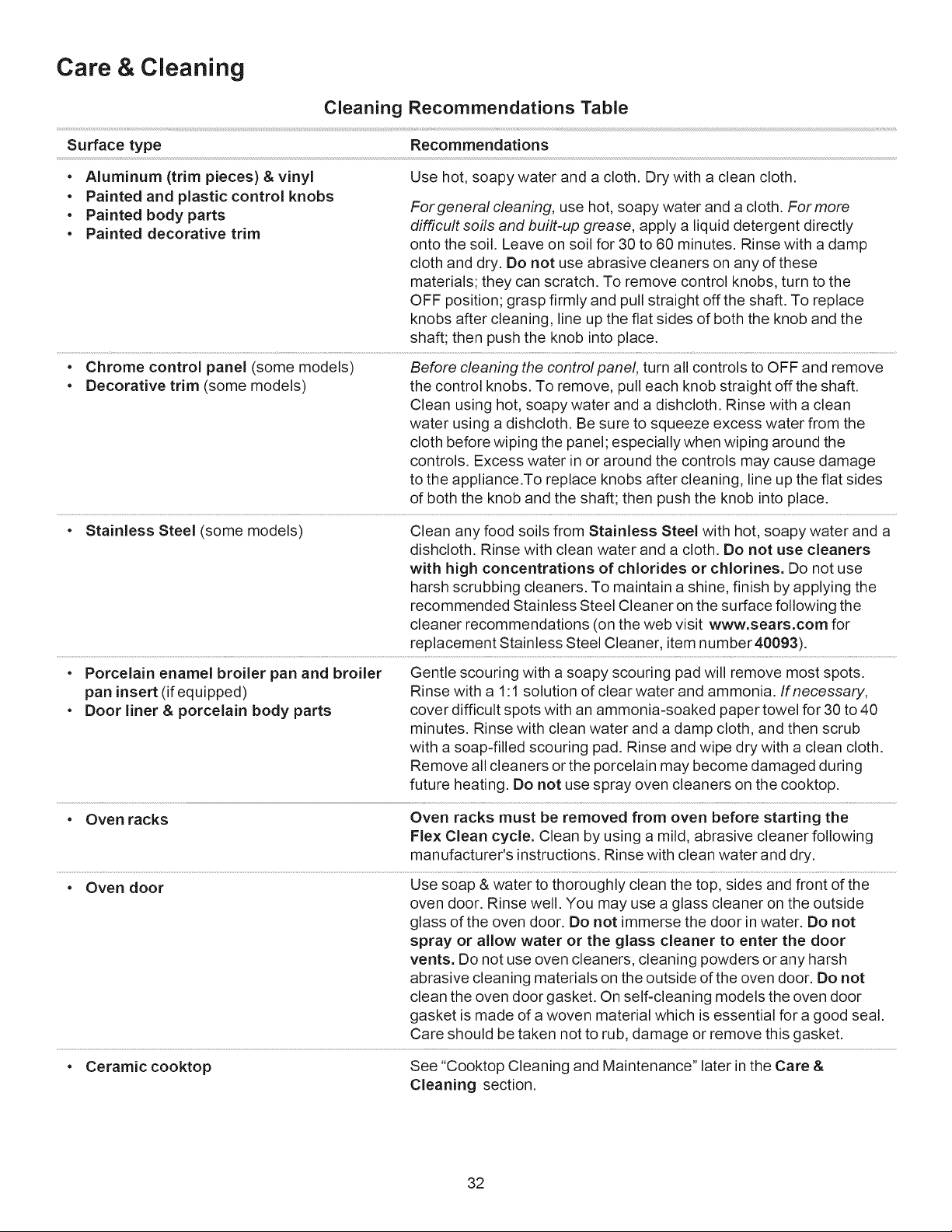

Care & Cleaning
Surface type
Cleaning Recommendations Table
Recommendations
• Aluminum (trim pieces) & vinyl
• Painted and plastic control knobs
• Painted body parts
• Painted decorative trim
Use hot, soapy water and a cloth. Dry with a clean cloth.
For general cleaning, use hot, soapy water and a cloth. For more
difficult soils and built-up grease, apply a liquid detergent directly
onto the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp
cloth and dry. Do not use abrasive cleaners on any of these
materials; they can scratch. To remove control knobs, turn to the
OFF position; grasp firmly and pull straight off the shaft. To replace
knobs after cleaning, line up the flat sides of both the knob and the
shaft; then push the knob into place.
• Chrome control panel (some models) Before cleaning the controlpanel, turn all controls to OFF and remove
• Decorative trim (some models) the control knobs. To remove, pull each knob straight off the shaft.
Clean using hot, soapy water and a dishcloth. Rinse with a clean
water using a dishcloth. Be sure to squeeze excess water from the
cloth before wiping the panel; especially when wiping around the
controls. Excess water in or around the controls may cause damage
to the appliance.To replace knobs after cleaning, line up the flat sides
of both the knob and the shaft; then push the knob into place.
• Stainless Steel (some models) Clean any food soils from Stainless Steel with hot, soapy water and a
dishcloth. Rinse with clean water and a cloth. Do not use cleaners
with high concentrations of chlorides or chlorines. Do not use
harsh scrubbing cleaners. To maintain a shine, finish by applying the
recommended Stainless Steel Cleaner on the surface following the
cleaner recommendations (on the web visit www.sears.com for
replacement Stainless Steel Cleaner, item number 40093).
• Porcelain enamel broiler pan and broiler Gentle scouring with a soapy scouring pad will remove most spots.
pan insert (if equipped) Rinse with a 1:1 solution of clear water and ammonia. If necessary,
• Door liner & porcelain body parts cover difficult spots with an ammonia-soaked paper towel for 30 to 40
minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth.
Remove all cleaners or the porcelain may become damaged during
future heating. Do not use spray oven cleaners on the cooktop.
• Oven racks Oven racks must be removed from oven before starting the
Flex Clean cycle. Clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
• Oven door Use soap & water to thoroughly clean the top, sides and front of the
oven door. Rinse well. You may use a glass cleaner on the outside
glass of the oven door. Do not immerse the door in water. Do not
spray or allow water or the glass cleaner to enter the door
vents. Do not use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door. Do not
clean the oven door gasket. On self-cleaning models the oven door
gasket is made of a woven material which is essential for a good seal.
Care should be taken not to rub, damage or remove this gasket.
• Ceramic cooktop See "Cooktop Cleaning and Maintenance" later in the Care &
Cleaning section.
32

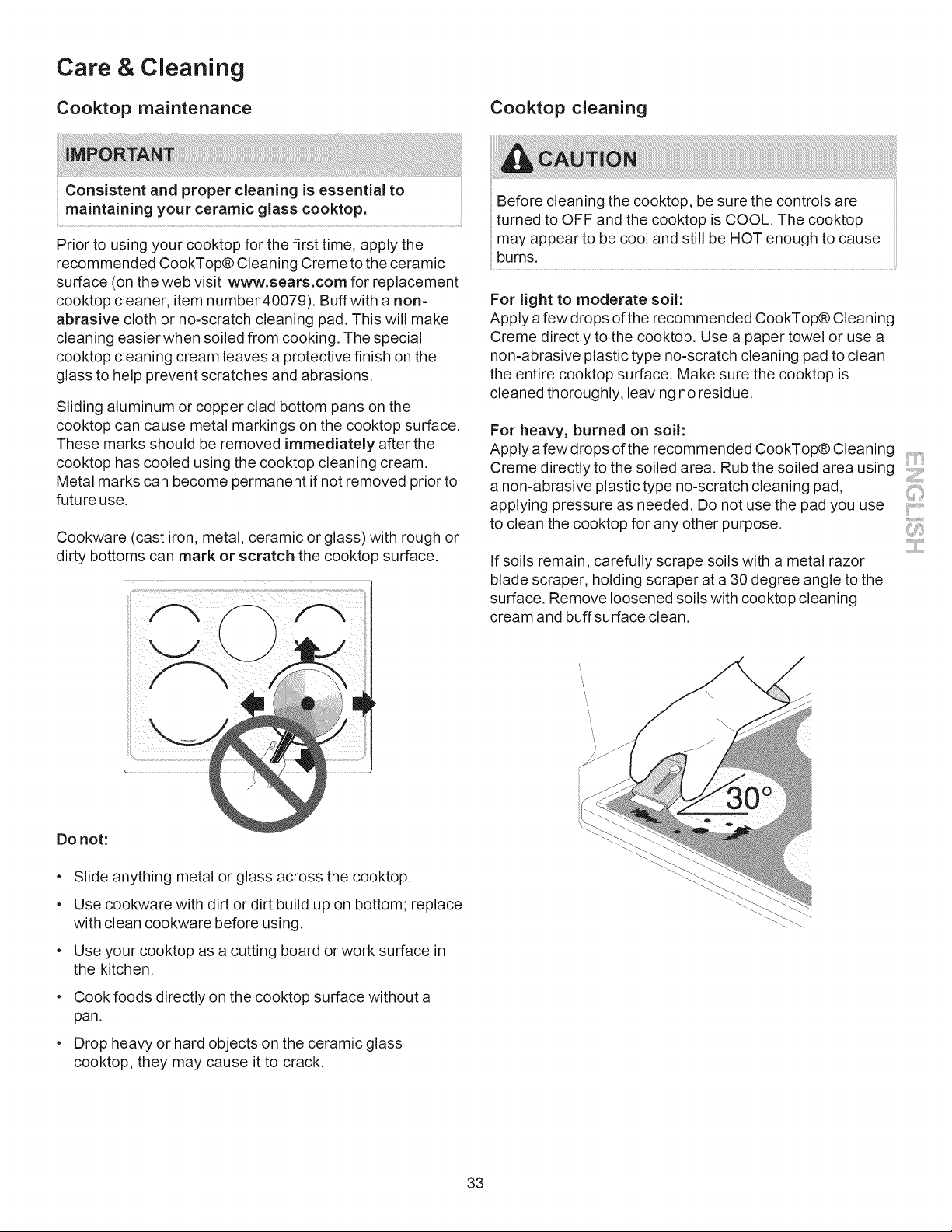

Care & Cleaning
Cooktop maintenance
Cooktop cleaning
Consistent and proper cleaning is essential to
maintaining your ceramic glass cooktop,
Prior to using your cooktop for the first time, apply the
recommended CookTop® Cleaning Creme to the ceramic
surface (on the web visit www.sears.com for replacement
cooktop cleaner, item number 40079). Buffwith a non-
abrasive cloth or no-scratch cleaning pad. This will make
cleaning easier when soiled from cooking. The special
cooktop cleaning cream leaves a protective finish on the
glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the
cooktop can cause metal markings on the cooktop surface.
These marks should be removed immediately after the
cooktop has cooled using the cooktop cleaning cream.
Metal marks can become permanent if not removed prior to
future use.
Cookware (cast iron, metal, ceramic or glass) with rough or
dirty bottoms can mark or scratch the cooktop surface.
Do not:
• Slide anything metal or glass across the cooktop.
• Use cookware with dirt or dirt build up on bottom; replace
with clean cookware before using.
• Use your cooktop as a cutting board or work surface in
the kitchen.
• Cook foods directly on the cooktop surface without a
pan.
• Drop heavy or hard objects on the ceramic glass
cooktop, they may cause it to crack.
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is COOL. The cooktop
may appear to be cool and still be HOT enough to cause
burns.
For light to moderate soil:
Apply a few drops of the recommended CookTop® Cleaning
Creme directly to the cooktop. Use a paper towel or use a
non-abrasive plastic type no-scratch cleaning pad to clean
the entire cooktop surface. Make sure the cooktop is
cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of the recommended CookTop® Cleaning
c e edi ect, tothesoi,e a e . o thesoi,e a eausino
a non-abrasive plastic type no-scratch cleaning pad,
applying pressure as needed. Do not use the pad you use ............
to clean the cooktop for any other purpose. ',i
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils with cooktop cleaning
cream and buffsurface clean.
33

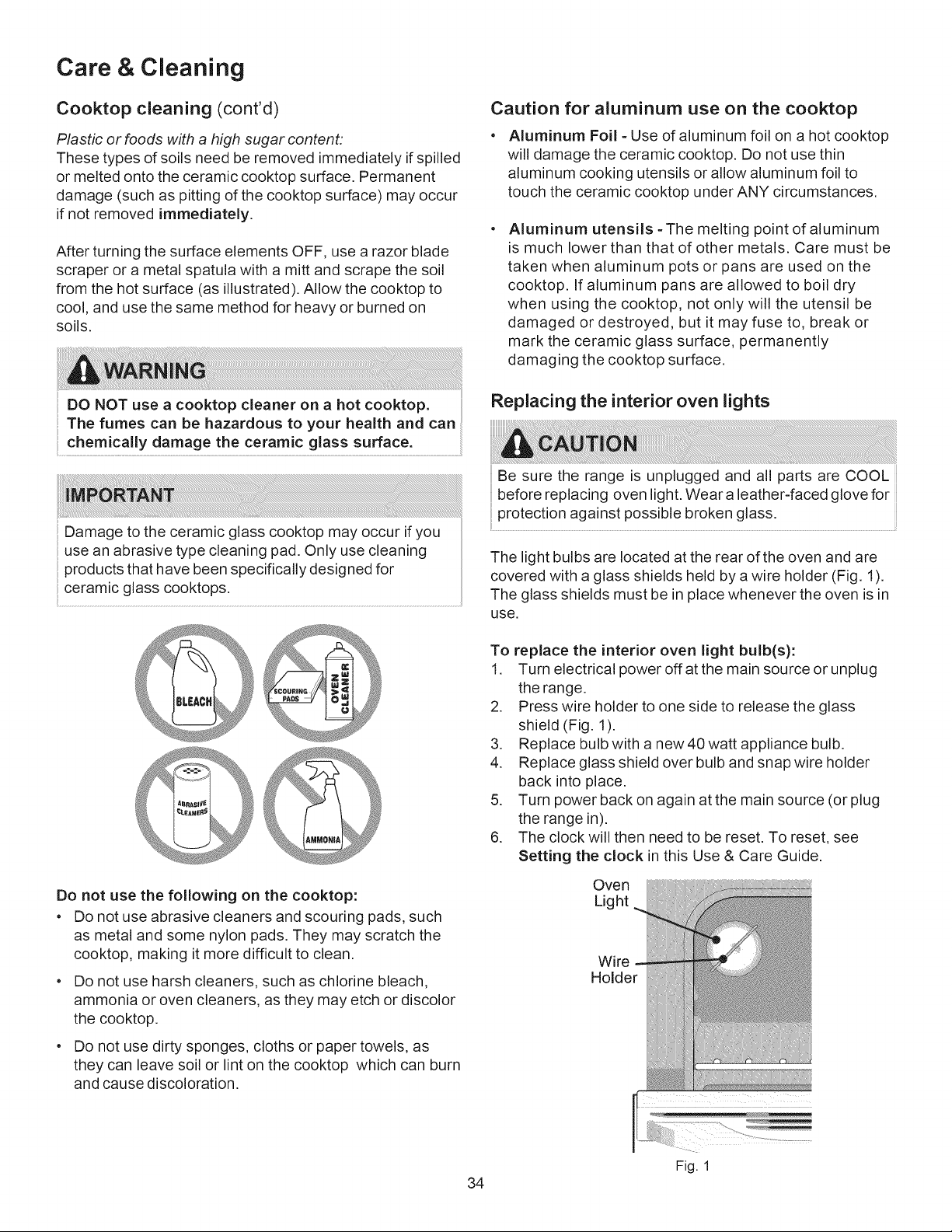

Care & Cleaning
Cooktop cleaning (cont'd)
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled
or melted onto the ceramic cooktop surface. Permanent
damage (such as pitting of the cooktop surface) may occur
if not removed immediately.
After turning the surface elements OFF, use a razor blade
scraper or a metal spatula with a mitt and scrape the soil
from the hot surface (as illustrated). Allow the cooktop to
cool, and use the same method for heavy or burned on
soils.
DO NOT use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health and can
chemically damage the ceramic glass surface: ................................
Caution for aluminum use on the cooktop
• Aluminum Foil - Use of aluminum foil on a hot cooktop
will damage the ceramic cooktop. Do not use thin
aluminum cooking utensils or allow aluminum foil to
touch the ceramic cooktop under ANY circumstances,
Aluminum utensils -The melting point of aluminum
is much lower than that of other metals. Care must be
taken when aluminum pots or pans are used on the
cooktop. If aluminum pans are allowed to boil dry
when using the cooktop, not only will the utensil be
damaged or destroyed, but it may fuse to, break or
mark the ceramic glass surface, permanently
damaging the cooktop surface.
Replacing the interior oven lights
Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning
products that have been specifically designed for
ceramic glass cooktops.
Do not use the following on the cooktop:
• Do not use abrasive cleaners and scouring pads, such
as metal and some nylon pads. They may scratch the
cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach,
ammonia or oven cleaners, as they may etch or discolor
the cooktop.
• Do not use dirty sponges, cloths or paper towels, as
they can leave soil or lint on the cooktop which can burn
and cause discoloration.
Be sure the range is unplugged and all parts are COOL
before replacing oven light. Wear a leather-faced glove for
protection against possible broken glass.
The light bulbs are located at the rear of the oven and are
covered with a glass shields held by a wire holder (Fig. 1).
The glass shields must be in place whenever the oven is in
use.
To replace the interior oven light bulb(s):
1. Turn electrical power off at the main source or unplug
the range.
2. Press wire holder to one side to release the glass
shield (Fig. 1).
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder
back into place.
5. Turn power back on again at the main source (or plug
the range in).
6. The clock will then need to be reset. To reset, see
Setting the clock in this Use & Care Guide.
Ove n
Light
Wire
Holder
34
Fig. 1

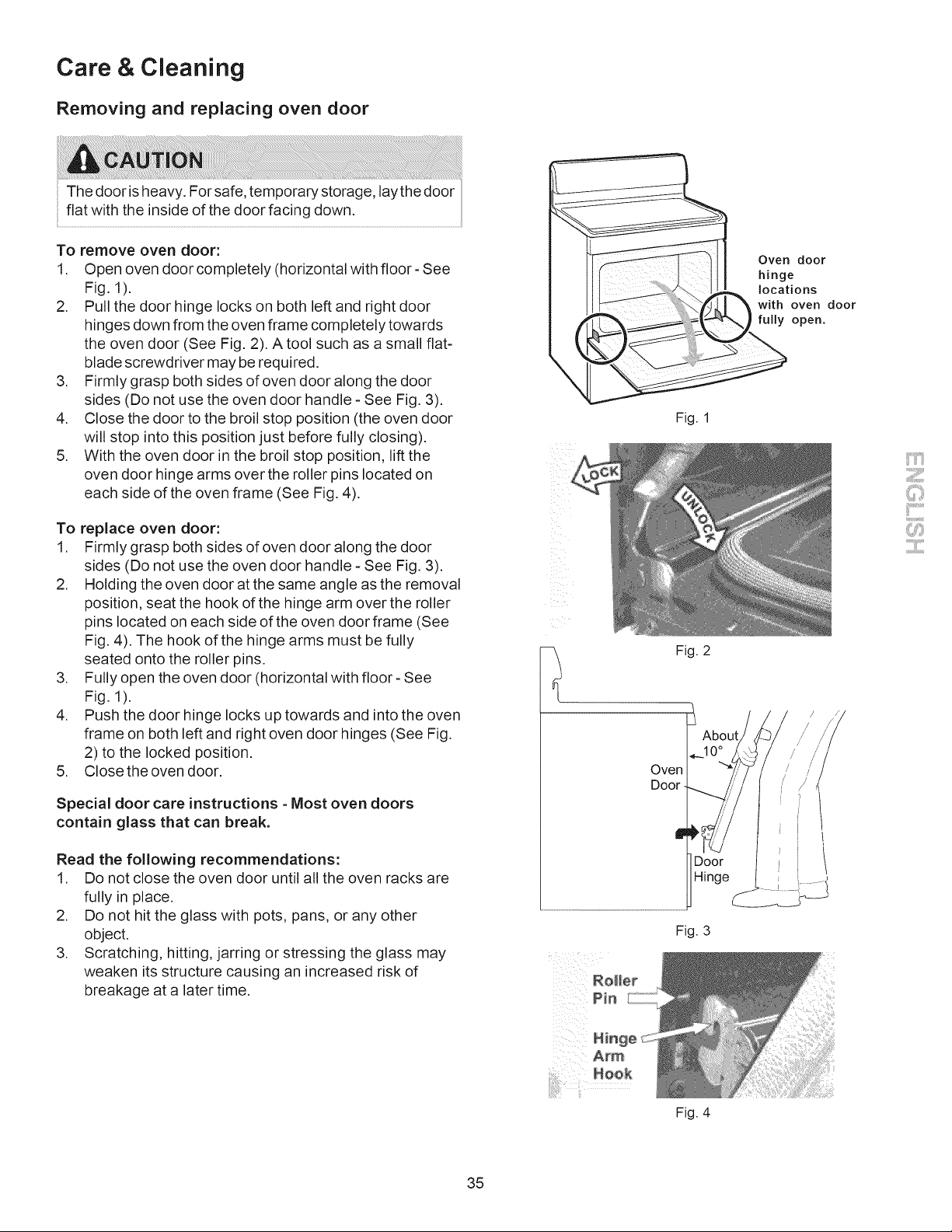

Care & Cleaning
Removing and replacing oven door
The door is heavy. For safe, temporary storage, lay the door
flat with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with floor- See
Fig. 1).
2. Pull the door hinge locks on both left and right door
hinges down from the oven frame completely towards
the oven door (See Fig. 2). A tool such as a small flat-
blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door
will stop into this position just before fully closing).
5. With the oven door in the broil stop position, lift the
oven door hinge arms over the roller pins located on
each side of the oven frame (See Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door
sides (Do not use the oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller
pins located on each side of the oven door frame (See
Fig. 4). The hook of the hinge arms must be fully
seated onto the roller pins.
3. Fully open the oven door (horizontal with floor- See
Fig. 1).
4. Push the door hinge locks up towards and into the oven
frame on both left and right oven door hinges (See Fig.
2) to the locked position.
5. Close the oven door.
Special door care instructions - Most oven doors
contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are
fully in place.
2. Do not hit the glass with pots, pans, or any other
object.
3. Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later time.
Fig. 1
Fig. 2
Oven
Door
Door
Hinge
Fig. 3
Fig. 4
Oven door
hinge
locations
with oven door
fully open.
iii....................
..........iii.........
35

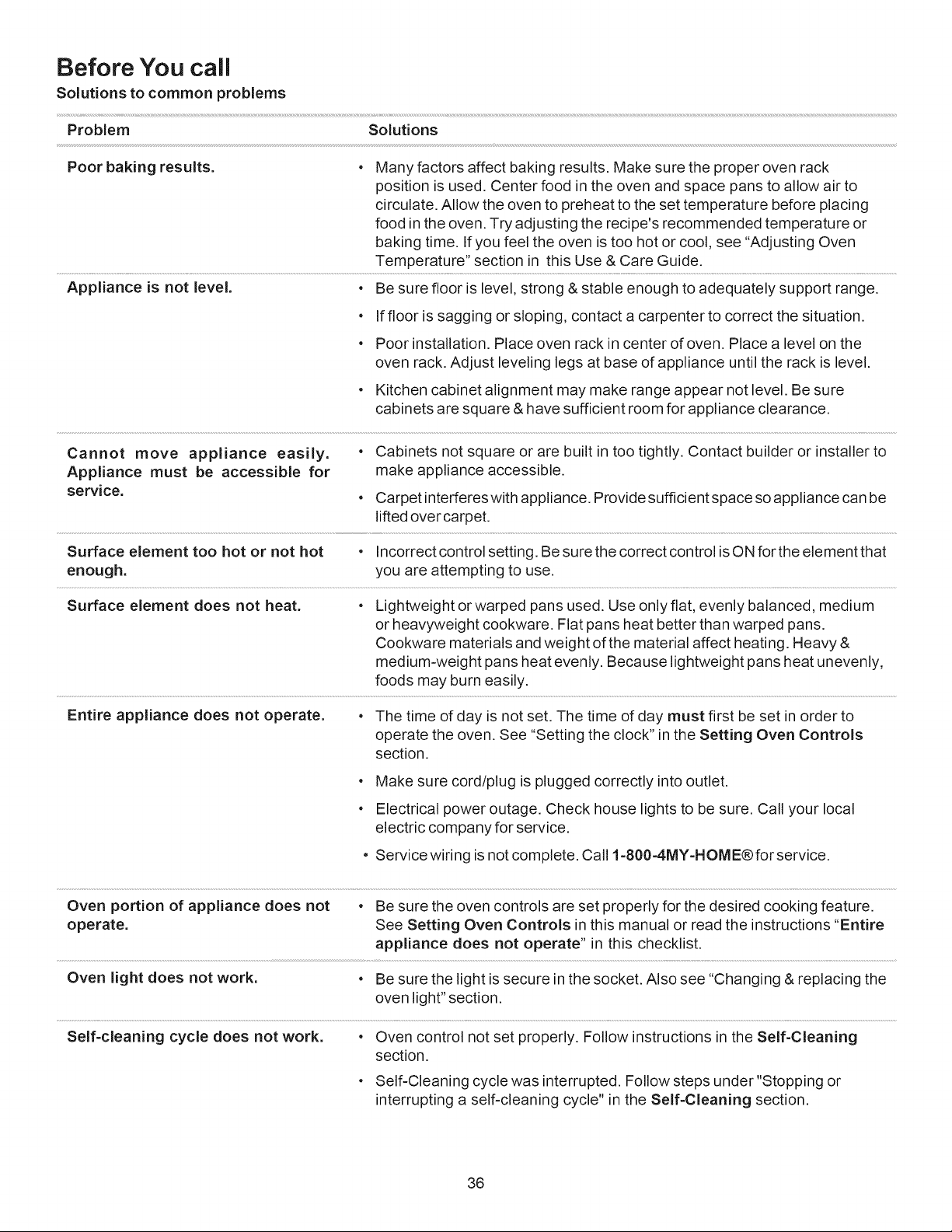

Before You call
Solutions to common problems
Problem Solutions
Poor baking results. • Many factors affect baking results. Make sure the proper oven rack
position is used. Center food in the oven and space pans to allow air to
circulate. Allow the oven to preheat to the set temperature before placing
food in the oven. Try adjusting the recipe's recommended temperature or
baking time. If you feel the oven is too hot or cool, see "Adjusting Oven
Temperature" section in this Use & Care Guide.
Appliance is not level. • Be sure floor is level, strong & stable enough to adequately support range.
• If floor is sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven. Place a level on the
oven rack. Adjust leveling legs at base of appliance until the rack is level.
• Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sufficient room for appliance clearance.
Cannot move appliance easily. • Cabinets not square or are built in too tightly. Contact builder or installer to
Appliance must be accessible for make appliance accessible.
service. • Carpet interfereswith appliance. Provide sufficientspace so appliance can be
lifted overcarpet.
Surface element too hot or not hot • Incorrectcontrolsetting. BesurethecorrectcontrolisONfortheelementthat
enough, you are attempting to use.
Surface element does not heat. • Lightweight orwarped pans used. Use onlyflat, evenly balanced, medium
or heavyweight cookware. Flat pans heat better than warped pans.
Cookware materials and weight of the material affect heating. Heavy &
medium-weight pans heat evenly. Because lightweight pans heat unevenly,
foods may burn easily.
Entire appliance does not operate.
• The time of day is not set. The time of day must first be set in order to
operate the oven. See "Setting the clock" in the Setting Oven Controls
section.
o
o
Make sure cord/plug is plugged correctly into outlet.
Electrical power outage. Check house lights to be sure. Call your local
electric company for service.
Service wiring is not complete. Call 1-800-4MY-HOME®for service.
Oven portion of appliance does not - Be sure the oven controls are set properly for the desired cooking feature.
operate. See Setting Oven Controls in this manual or read the instructions "Entire
appliance does not operate" in this checklist.
Oven light does not work. • Be sure the light is secure in the socket. Also see "Changing & replacing the
oven light" section.
Self-cleaning cycle does not work. • Oven control not set properly. Follow instructions in the Self-Cleaning
section.
• Self-Cleaning cycle was interrupted. Follow steps under"Stopping or
interrupting a self-cleaning cycle" in the Self-Cleaning section.
36

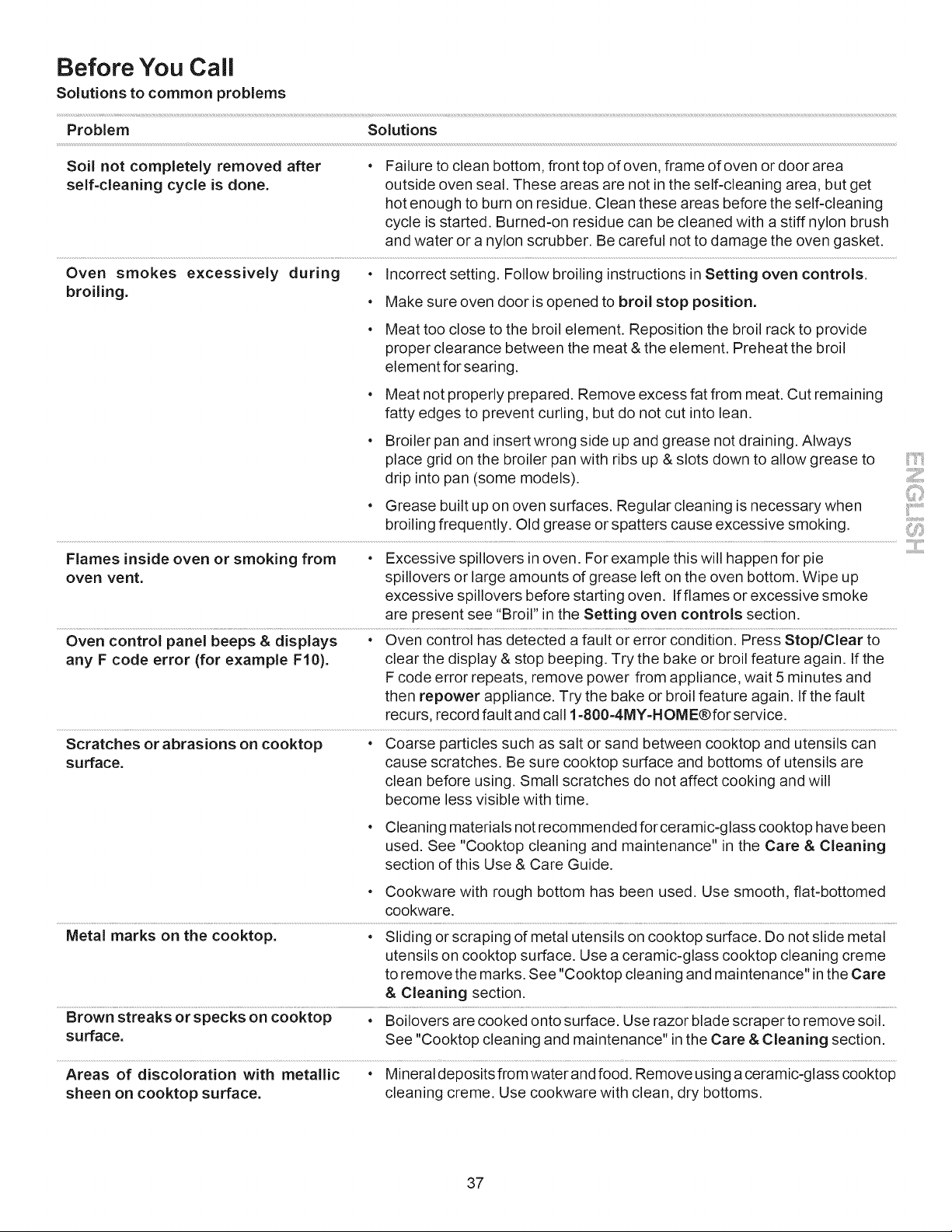

Before You Call
Solutions to common problems
Problem Solutions
Soil not completely removed after • Failure to clean bottom, front top of oven, frame of oven or door area
self-cleaning cycle is done. outside oven seal. These areas are not in the self-cleaning area, but get
hot enough to burn on residue. Clean these areas before the self-cleaning
cycle is started. Burned-on residue can be cleaned with a stiff nylon brush
and water or a nylon scrubber. Be careful not to damage the oven gasket.
excessively during • incorrect setting. Follow broiling instructions in Setting oven controls.
Oven smokes
broiling.
• Make sure oven door is opened to broil stop position.
• Meat too close to the broil element. Reposition the broil rack to provide
proper clearance between the meat & the element. Preheat the broil
element for seari ng.
• Meat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.
• Broiler pan and insertwrong side up and grease not draining. Always
place grid on the broiler pan with ribs up & slots down to allow grease to
drip into pan (some models).
• Grease built up on oven surfaces. Regular cleaning is necessary when !......
broiling frequently. Old grease or spatters cause excessive smoking.
Flames inside oven or smoking from • Excessive spillovers in oven. For example this will happen for pie
oven vent. spillovers or large amounts of grease left on the oven bottom. Wipe up
excessive spillovers before starting oven. If flames or excessive smoke
are present see "Broil" in the Setting oven controls section.
Oven control panel Beeps & displays . Oven coniroi has deiecied a fauii or error condiiionl Press st0piciear io....
any F code error (for example F10). clear the display & stop beeping. Try the bake or broil feature again. If the
F code error repeats, remove power from appliance, wait 5 minutes and
then repower appliance. Try the bake or broil feature again. If the fault
recurs, record fault and call 1-800-4MY-HOME®for service.
Scratches or abrasions on cooktop • Coarse particles such as salt or sand between cooktop and utensils can
surface, cause scratches. Be sure cooktop surface and bottoms of utensils are
clean before using. Small scratches do not affect cooking and will
become less visible with time.
• Cleaning materials not recommended for ceramic-glass cooktop have been
used. See "Cooktop cleaning and maintenance" in the Care & Cleaning
section of this Use & Care Guide.
• Cookware with rough bottom has been used. Use smooth, flat-bottomed
cookware.
Metal marks on the cooktop. • Sliding or scraping of metal utensils on cooktop surface. Do not slide metal
utensils on cooktop surface. Use a ceramic-glass cooktop cleaning creme
to remove the marks. See"Cooktop cleaning and maintenance" in the Care
& Cleaning section.
Brown streaks or specks on cooktop • Boilovers are cooked onto surface. Use razor blade scraper to remove soil.
surface. See "Cooktop cleaning and maintenance" in the Care & Cleaning section.
Areas of discoloration with metallic • Mineraldepositsfromwaterandfood. Removeusingaceramic-glasscooktop
sheen on cooktop surface, cleaning creme. Use cookware with clean, dry bottoms.
37
Notes
38
Notes
iii....................
..........iii.........
39
You r Hom e
iiiiiiiiiiiiiiiiiiiii_,
,,,,,,,,,,,,,,,,,,,,, For expert troubleshooting and home solutions advice:
_J
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For,the replacement parts, accessories and
owner s manuals that you need to do-it=yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1..800..4..MY..HOME® (1-800-469-4663)
,,,, Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
..... our,0
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
. . S:ars Parts& RepairServiceC:nter
1 800 488 1222 (U.S.A.) I 800 469 4663 (Canada)
wv_.sears.com www.sears.ca
TO purch:se a protection agreement on tproduct serviced bY Sears:
I 800 827 6655 (U.S.A.) 1 800 361 6665 (Canada)
Pard pedir servicio de reparaci6n Au Canada pour service en frangais:
a domicilio, y pard ordenar piezas: 1-800-LE-FOYER Mc
............. 1-888"SU-HOGAR® (1=800-533-6937) ....
..........................................................................................................................................................................www:sea2ca............................................................................................
TM SM
® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC
TM
@ Marca Registrada / Marca de Fabrica / SM Marca de Servicio de Sears Brands, LLC
MCMarque de commerce / MD Marque d6pos6e de Sears Brands, LLC © Sears Brands, LLC
