WASHLET
Instruction Manual
■
Thank you for your recent purchase of the product. Please read the enclosed
information to ensure the safe use of your product.
■
Be sure to read this Instruction Manual before using your product and keep it in a
safe place for future reference.
2
The available functions vary according to the model.
Functions
C100 A100
Ref.
Page
SW2034
SW2033 SW2014
Basic
Functions
Cleansing
Rear cleansing
●●●
15
Rear soft cleansing
●●●
Front cleansing
●●●
Changing the washing
method
Wand position adjustment
●●●
Water pressure adjustment
●●●
Oscillating cleansing
●●●
Drying
Warm air drying
●●
—
Changing the temperature
Temperature adjustment
●●●
18, 19
Sanitary
Functions
Removing odors
Deodorizer
●●
—
16, 17
Bowl pre-cleaning
Pre-mist
●●
—
Convenient
Functions
Heating the toilet seat
Heated seat
●●●
-
Saving energy
Energy saver
●●●
20, 21
Maintenance
Main Unit
One-touch removal
●●●
26
Removable toilet lid
●●●
27
Wand cleaning
●●●
28
Your Model
Part No.
Check your model name
and write a check mark in
this field as needed.
Product name (Model)
7
1
3
Product name,
Part No.
Safety Precautions .................... 4
Operational Precautions .......... 11
Parts Names ........................... 12
Preparation .............................. 14
Changing Settings ................... 30
What to Do?............................. 34
●
Freeze Damage Prevention
... 34
●
Long Periods of Disuse ........ 35
Troubleshooting ....................... 36
Specifi cations .......................... 40
Warranty .................................. 41
Basic Operations ..................... 15
Automatic Functions ................ 16
DEODORIZER, PRE-MIST
Temperature Adjustment.......... 18
Energy Saver Feature ............. 20
Power Plug .............................. 24
Main unit .................................. 25
Deodorizing Filter .................... 25
Gap between the Main Unit
and the Toilet Bowl .................. 26
Gap between the Main Unit
and the Toilet Lid ..................... 27
Wand ....................................... 28
Wand cleaning
Water Filter Drain Valve ........... 29

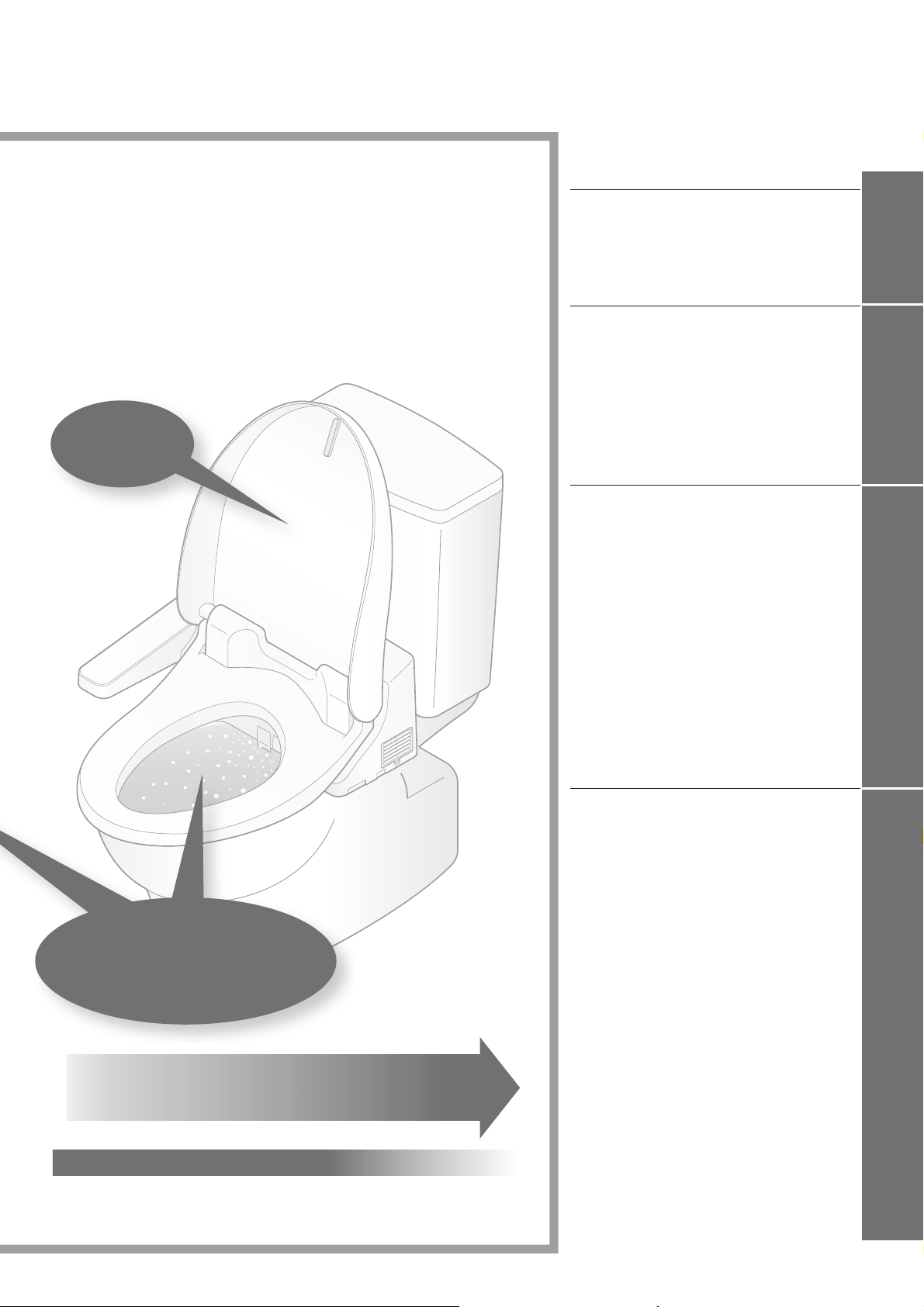

As you sit
A mist is sprayed in the toilet bowl.
The deodorizer operates.
The self-cleaning functions operate
automatically.
(See pages 16 and 17 for details.)
Table of Contents
A mist is automatically sprayed
in the toilet bowl to create a water
cushion, which prevents dirt from
adhering to the surface.
ReferenceMaintenanceOperation
Introduction
4
These precautions are important for safe usage. Be sure to follow them and use the product
correctly.
Symbols and Meanings
WARNING
May result in death or serious injury.
CAUTION
May result in injury or property damage.
The following symbols are used to indicate important safety instructions for the use of the product.
Symbol Meaning
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
This product is classifi ed as Class 1 Equipment and must be grounded.
Install this equipment where the electrical outlet is accessible.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Use the new hose set included with this equipment. Do not reuse an old hose set.
WARNING
Do not plug or unplug the power plug with wet hands.
Doing so may cause electrical shock.
Do not get any water or cleaning solution on the main unit or power plug.
Doing so may cause fi re, electrical shock, heat or short circuit.
Doing so may cause the product to crack resulting in injury or water damage.
Never disassemble, repair or alter.
Doing so may cause fi re, electrical shock, heat or short circuit.
Do not install the product on moving vehicles such as wheeled vehicles or boats.
Doing so may cause fi re, electric shock, short circuit or malfunction.
The toilet seat, toilet lid, main unit or other parts may come loose and fall off, resulting in injury.
Safety Precautions
5
WARNING
Do not use the Washlet if a malfunction occurs.
Always unplug the plug from the outlet.
Close the water shutoff valve to stop water supply.
Possible malfunctions:
Water is leaking from a pipe or the main unit.
The product is cracked or broken.
The product makes a strange noise or emits a strange odor.
The product emits smoke.
The product is abnormally hot.
The toilet seat cushion is out of place.
Continued use after malfunction could cause a fi re, electric shock, heat, short circuit, injury or
water damage.
Only use tap water or potable well water (underground water).
Do not use seawater.
Doing so may cause irritation to the skin and malfunction.
Do not touch the power plug during thunderstorms.
Doing so may cause electrical shock.
Do not allow the water supply hose to touch the power plug or outlet.
Doing so may cause condensation resulting in a fi re, electrical shock, heat or a short.
Do not do anything that may damage the power cord, power plug.
Do not strike, yank, twist, excessively bend, damage, alter, or heat the electrical cords. Also, do
not place anything heavy on, bind or pinch the electrical cords.
Using a damaged electrical cord may result in a fi re, electrical shock, heat or short.
Do not use a loose or faulty electrical outlet.
Doing so may cause fi re or short circuit.
Do no use any outlet or wiring equipment beyond its specifi ed rating.
Plugging too many plugs into the same outlet, for example using outlet splitters, can cause fi re
due to heat.
Do not use any power supply other than the one specifi ed.
AC 120V,60Hz
Doing so may cause fi re or excessive heat.
Do not stick a fi nger or anything else into the warm air outlet.*
Do not place anything on the warm air outlet or drape clothes over it.
Doing so may cause burns, electrical shock or malfunction.
Keep cigarettes and other open fl ames away from the product.
Failure to do so may cause fi re.
* Except SW2014
Introduction
6
WARNING
Beware of irritation or burn.
Improper use of the toilet seat may cause irritation or burn.
When sitting for a long time on the toilet seat, switch the toilet seat temperature adjustment to "OFF".
When any of the following persons use a heated seat or warm air drying, someone should switch the
toilet seat temperature adjustment to "OFF" and switch the drying air temperature to "Low".
Young children, the aged and other users unable to set the temperature appropriately themselves.
The ill, physically disabled and others who do not have freedom of movement.
Those using any medicines that cause drowsiness (sleeping or cold medicine), those who have
been drinking heavily, anyone severely fatigued and anyone else liable to fall asleep.
This is an electrical product. Do not install it anywhere water is likely to get on
the product or anywhere with humidity high enough that water is likely to form
on the surface of this product. When using the product in a bathroom, install
a fan or ventilation port and ensure good air fl ow through the bathroom.
Failure to do so may cause fi re or electrical shock.
Always connect the Washlet to the cold water supply.
Connecting to hot water supply may result in burns and equipment damage.
Make sure that a properly grounded (3 prong) outlet has been installed.
Failure to install a grounded outlet could cause electrical shock in the event of a malfunction or
short circuit.
Insert the power plug securely into the outlet.
Failure to do so may cause fi re, heat or short circuit.
To unplug, hold the plug, not the cord.
Do not unplug by pulling the cord.
Pulling on the cord may cause damage and result in fi re or heat.
If the electric cord is damaged, avoid danger by having the manufacturer’s
repair department or equivalent specialist replace it.
Always disconnect the power plug from the outlet before cleaning,
maintenance or inspection.
Failure to do so may cause electrical shock or malfunction.
* Except when using "Wand cleaning".
Periodically remove dust and dirt from the electrical plug and make sure it is
securely plugged into the wall outlet.
Failure to do so may cause fi re, heat or short circuit.
Pull the plug out from the outlet and wipe clean with a dry cloth.
Always unplug the plug from the outlet before removing the main unit.
Failure to do so could cause a fi re or electrical shock.
Safety Precautions (Continued)
7
WARNING
Preliminary studies in females suggest that overuse of continuous spraying
can increase the possibility of vaginal mucosa drying and potential
reduction in desirable microbial organisms.
Although these studies have not been validated, please consult your
healthcare provider for concerns regarding whether these circumstances
may apply to you.
More importantly, if you are an individual suffering from any immune
defi ciency as a result of disease, chemotherapy, or other medical condition
compromising the immune system you should consult your healthcare
provider before use of this product.
CAUTION
Do not use the product if the main unit is unstable.
Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
Doing so may cause electrical shock or injury.
Replace it immediately.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit. Also do not place any heavy object on the toilet
seat, toilet lid or main unit.
Doing so may cause cracking or cause the main unit to come loose and fall, resulting in injury.
Doing so could damage the product and cause injury or water damage.
Do not lift up this product by the toilet seat or lid.
Do not raise the toilet seat or lid while objects are resting on top of the toilet.
Doing so may cause the main unit to come loose and fall, resulting in injury.
When cleaning or maintaining the plastic parts (main unit etc.) or the water
supply hose, use a kitchen cleaner diluted with water. Do not use any of the
following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon scrubbing pads.
These items may damage or crack the plastic and cause injury or malfunction.
These items could damage the water supply hose and cause a water leak.
Introduction
8
Safety Precautions (Continued)
CAUTION
To prevent a sudden water leak, do not remove the water fi lter drain valve
when the shutoff valve is open.
Doing so will cause water to spurt out.
(Refer to Page 29 for instructions on cleaning the water fi lter drain valve.)
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
Doing so may cause water leaks.
Do not install the base plate, which is not attached.
Doing so could cause a fi re or damage.
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 0°C (32°F) or lower,
prevent damage to the pipes and hoses due to freezing.
Frozen water pipes could cause the main unit and the pipes to break, resulting in a water leak.
Regulate the room temperature to prevent the pipes and hoses from freezing during cold months.
Drain the water.
When not using the Washlet over an extended period of time, drain the
water out of the main unit and the water supply hose after closing the water
shutoff valve, and pull the electrical plug from the outlet.
When using the product again, allow the product to refi ll with water fi rst.
Otherwise, the water in the tank might become contaminated and cause skin infl ammation or
other problems. (Refer to Page 35 for instructions on replenishing the water.)
Leaving the power on may cause fi re or heat.
When installing the water fi lter drain valve, make sure that it is securely
tightened in its proper position.
Failure to securely tighten it may cause a water leaks.
Push the main unit securely on to the base plate.
After pushing the main unit until a click sound is heard, pull it slightly toward you to make sure that
the product does not detach.
Failure to do so could cause the main unit to come loose and fall resulting in injury.
9
DANGER To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store the product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for the product when it has fallen into water. Unplug it immediately.
WARNING
To reduce the risk of burns, electrocution, fi re or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, is not working properly, has
been dropped or damaged, or has been dropped in water. Return the product to a service
center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings on the product or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and other similar items.
6. Never use while sleepy or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
9. Connect this product to a properly grounded outlet only.
See "Grounding Instructions" in Page 10.
10. The tank should be fi lled with water only.
Introduction
10
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current.
The plug must be plugged into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire
to either fl at-head terminal.
Check with a qualifi ed electrician or serviceman if the grounding wire instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
This product is factory equipped with a specifi c electric cord and plug to permit connection
to a proper electric circuit. Make sure that the product is connected to an outlet having the
same confi guration as the plug.
No adapter should be used with this product. Do not modify the plug provided - if it will not fi t
in the outlet, have the proper outlet installed by a qualifi ed electrician.
If the product must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualifi ed service personnel.
If it is necessary to use an extension cord, use only a three wire extension cord that has a
three blade grounding plug, and a three-slot receptacle outlet that will accept the plug on the
product.
Replace or repair a damaged cord.
Grounding pin
Save these instructions.
Safety Precautions (Continued)
11

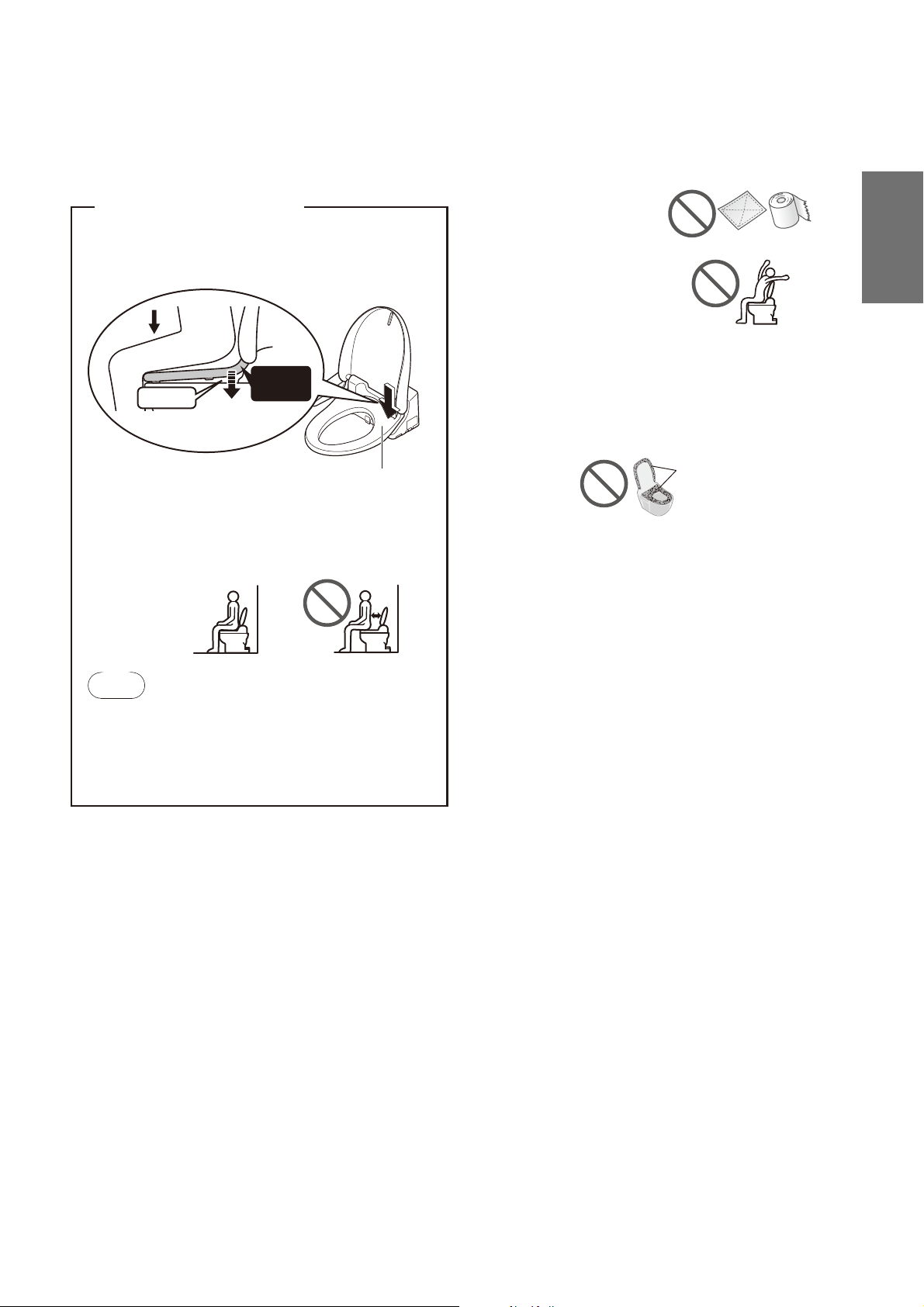

Operational Precautions
■
For prevention of damage
●
Wipe plastic areas such
as the main unit and
control panel with a soft,
wet cloth.
Dry cloth or tissue
●
Do not lean against the
toilet lid.
■
Problem Prevention
●
Disconnect the power plug if there is a risk of lightning.
●
A toilet seat cover or a toilet lid cover cannot be used.
(The seat switch may not function properly.)
Covers
●
Do not urinate on the main unit, toilet seat or wand.
(Doing so may cause pink or brown stains or a
malfunction.)
●
Do not apply strong forces to the control panel.
●
When using a toilet cleaner to clean the toilet, wash it off
within 3 minutes and leave the toilet seat and toilet lid open.
Wipe off any cleaner that remains on the toilet bowl.
(If vapor from a toilet bowl cleaner enters the main unit, it
may cause a malfunction.)
●
Do not expose to direct sunlight.
(Doing so may cause changes in color, irregular heated
seat temperature, the control panel malfunction or
Washlet malfunction due to the change in temperature.)
●
Use radios, etc. away from the Washlet.
(The Washlet could cause interference with the radio signal.)
●
If you use a booster seat for infants or a soft highchair,
remove it after use.
(Keeping it installed may prevent some of the functions
from being used.)
●
Do not place anything on the toilet seat and lid, and do
not press them with hands.
Failure to do so may turn on the seat switch, causing the
fl oor to get wet if buttons on the control panel are touched
and warm water comes out from the wand. (The seat switch
may turn on if force is applied to the toilet seat or lid.)
■
For prevention of malfunctions
< About the seat switch >
●
When you sit on the toilet seat, the seat switch turns
ON, enabling you to use various features.
(A click sound is heard when the seat switch is ACTIVATED.)
Gap
The toilet seat lowers.
Switch
ON
Seat switch
(Built-in)
●
Sit back on the toilet seat.
The seat switch will not turn on unless you sit
on the seat properly.
Note
When a child uses the Washlet, the seat switch
may not be ACTIVATED by their light body weight.
Since the toilet seat is designed to move up
and down, a clearance is provided between the
toilet seat cushion and the toilet bowl.
Introduction
12

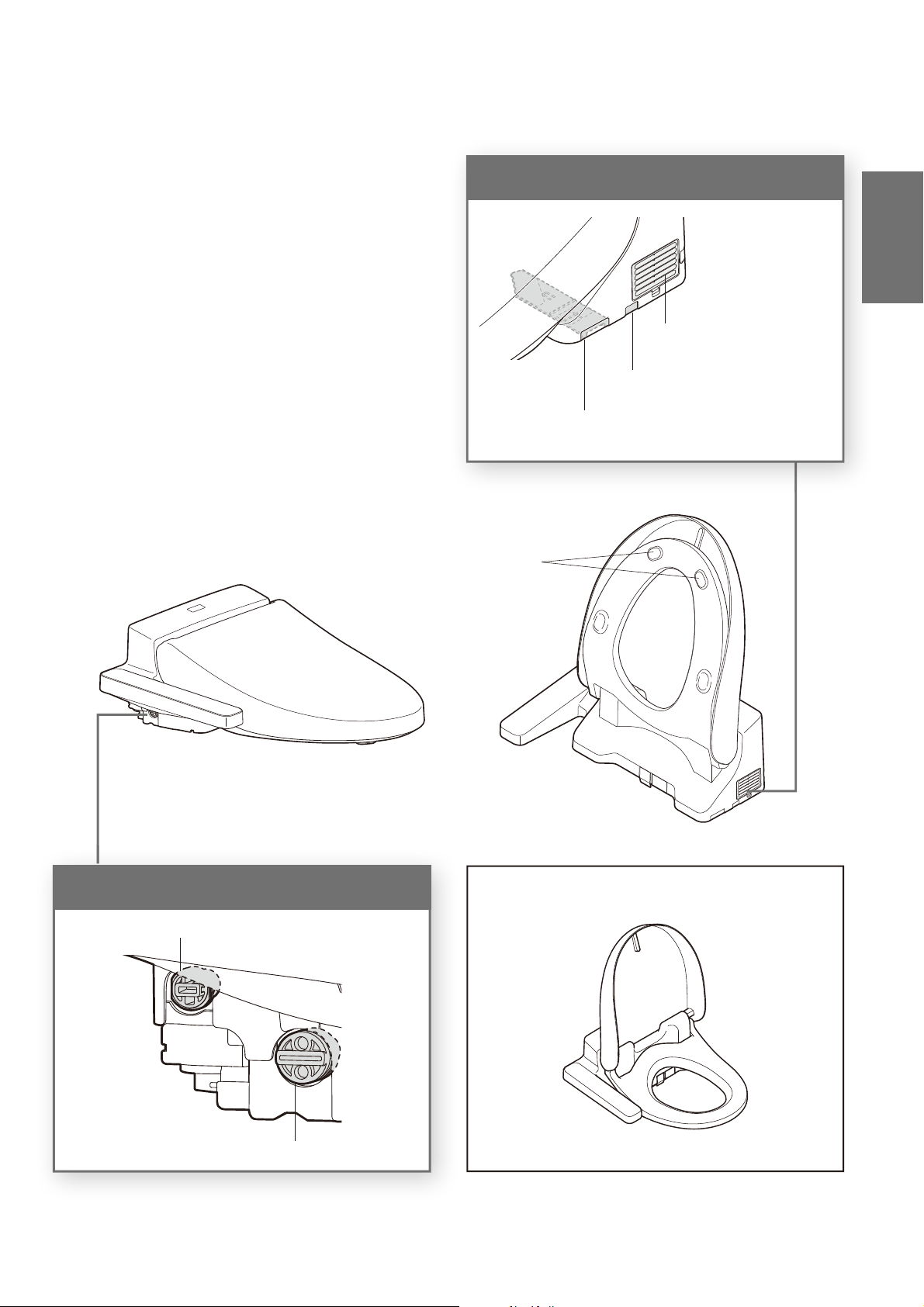

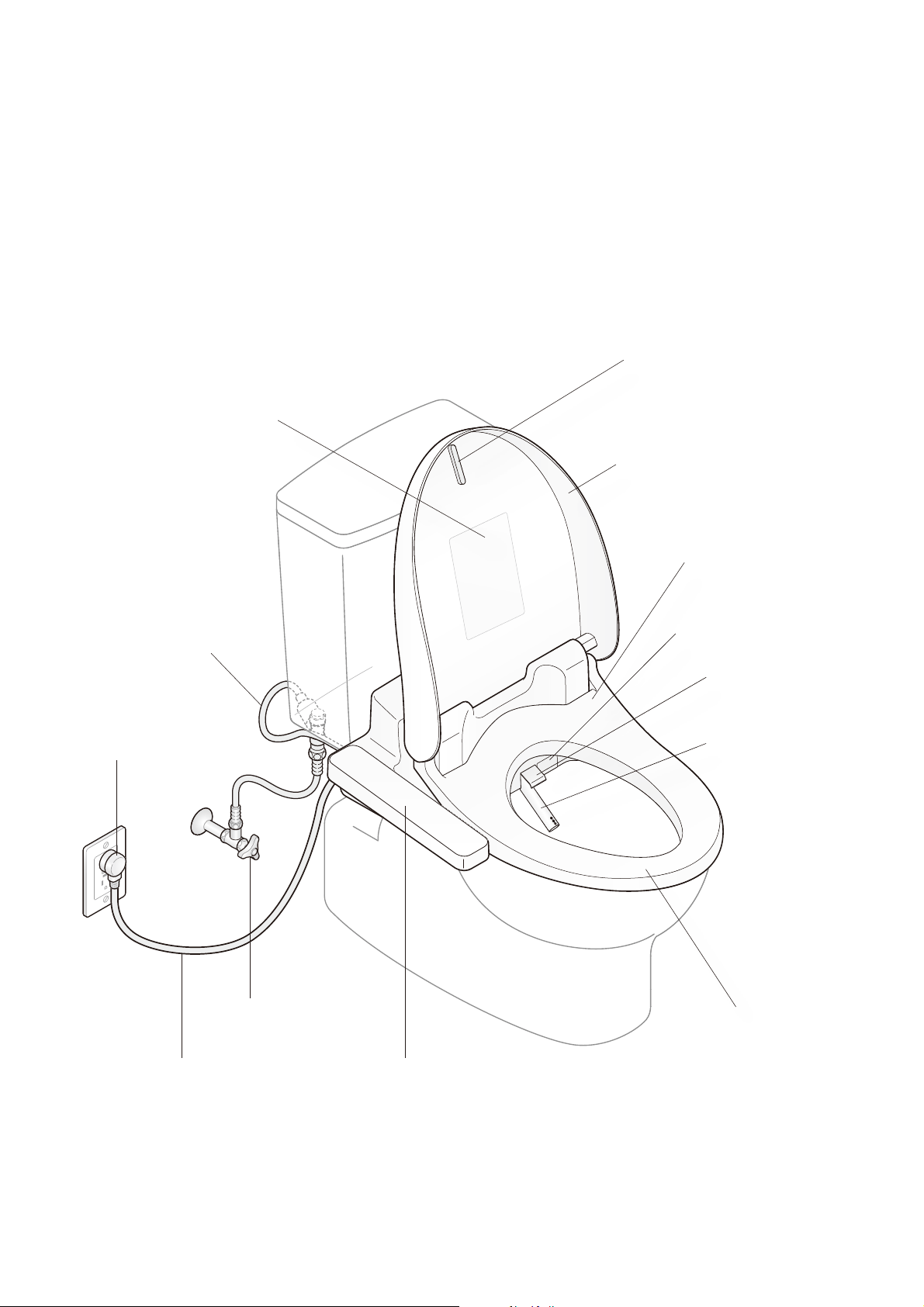

Parts Names
Control panel
(Page.15)
Power plug
(Page.14)
Heated seat
Wand
Wand cover
Warm air outlet cover *
Seat switch
(Built-in)
Toilet lid
Toilet lid cushion
Product name,
part no., etc.
Shutoff valve
(Page.14)
Power cord
Water supply hose
13
Left side of main unit
Toilet seat
cushions
Water fi lter drain valve
(Page 29)
Water drain plug
(Page 35)
SW2033
The toilet seat and lid shape varies by model.
Descriptions in this manual are based on the illustrations of SW2034.* Except SW2014
Right side of main unit
Deodorizer outlet *
Deodorizing fi lter *
(Page.25)
Main unit removal button
(Page.26)
Introduction
14
Preparation

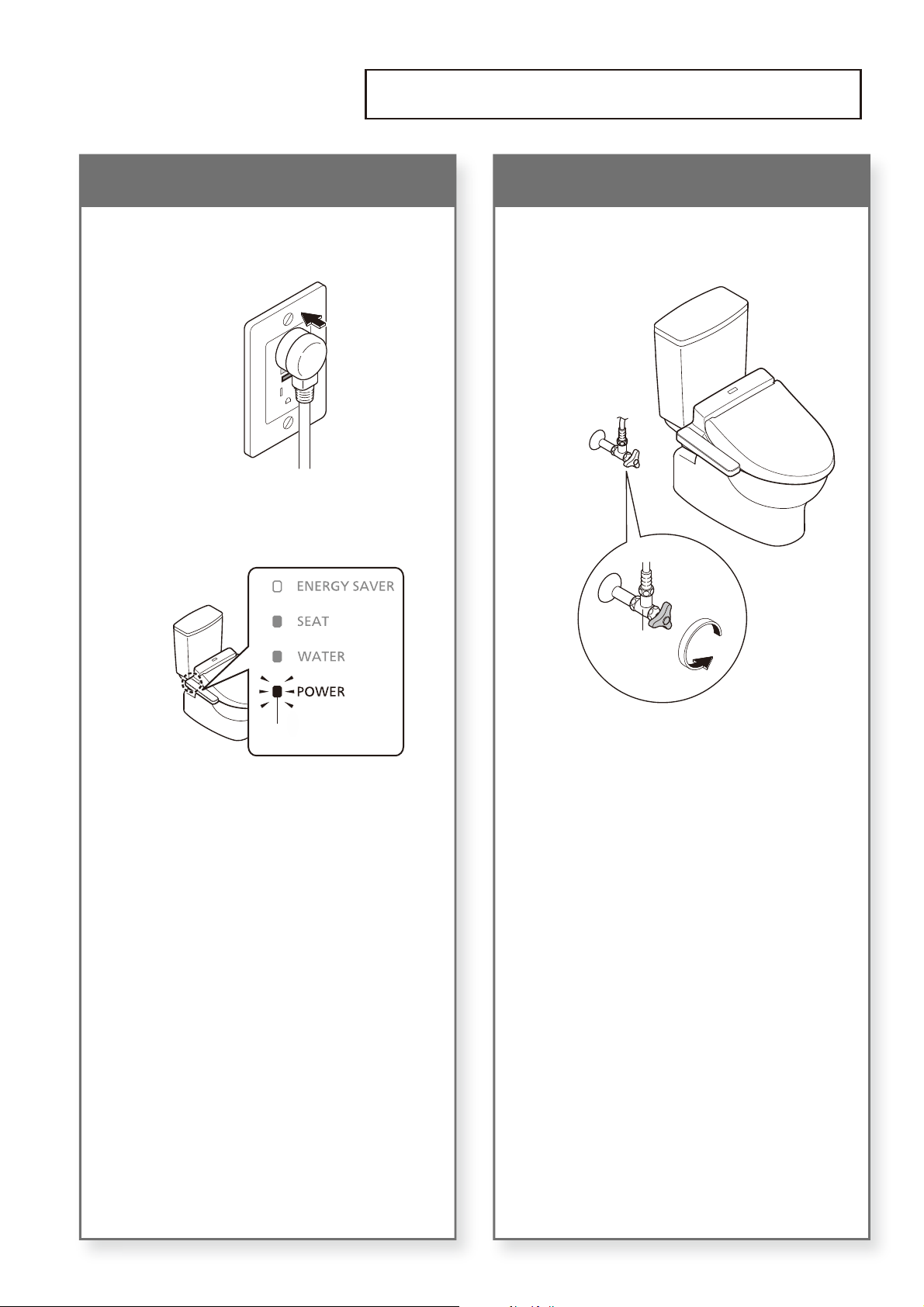

Using the Product for the First Time
2.Open the shutoff valve
1
Fully open the shutoff valve.
Shutoff
valve
1.Turn on the power
1
Insert the power plug.
The wand extends and then retracts.
2
Check that the POWER LED
on the main display is lit up.
Lit
15

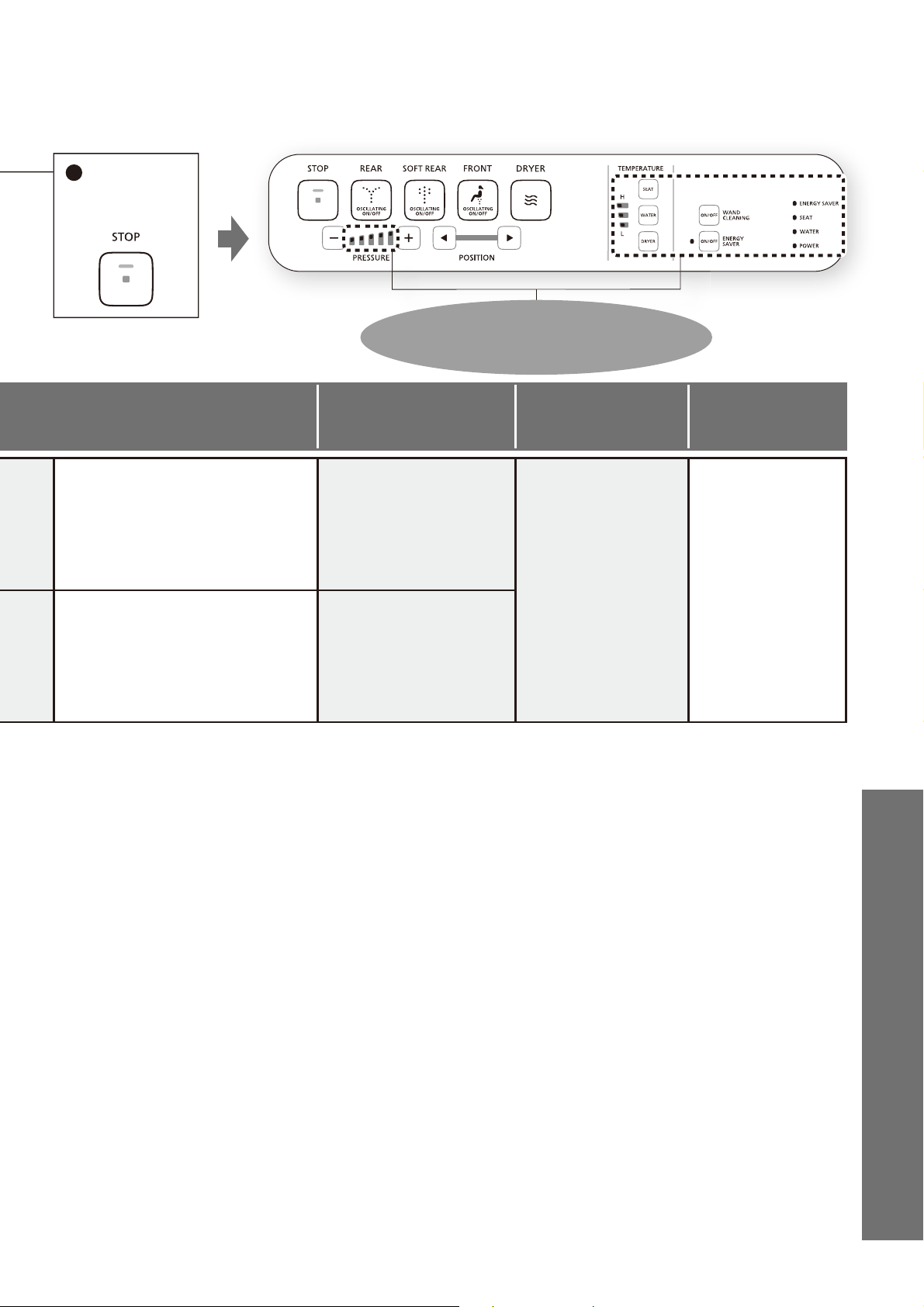

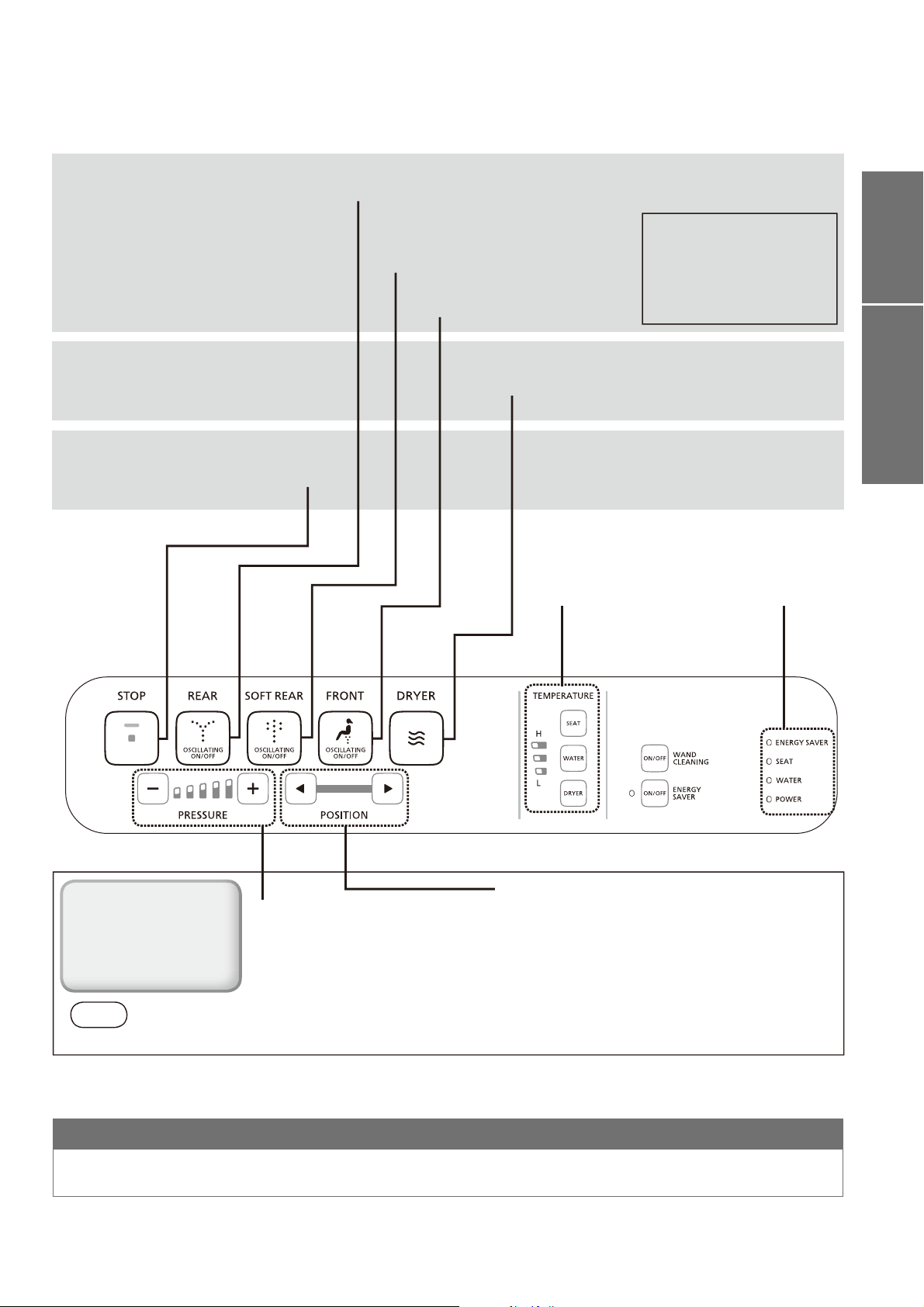

Basic Operations
Stopping
[STOP]
Drying
[DRYER]*
Cleansing
[REAR]
[OSCILLATING]
When you press this button
again during use, the wand
moves back and forth to
wash your rear thoroughly.
[SOFT REAR]
Washes your rear with mild water
pressure.
[FRONT]
Serves as a bidet for ladies.
For your information
●
Water may sometimes come out from around the wand when it expands in the warm water tank, but this is normal.
●
As the warm water tank of hot-water system is used, the temperature of warm water may become lower if it is continuously consumed.
Temperature adjustment button
(Page 18)
• Adjust temperatures
[PRESSURE]
●
You can adjust the water pressure
as desired to 5 different levels.
●
The PRESSURE LEDs lights up
when you sit on the toilet seat.
[POSITION]
●
You can adjust the washing position as desired to 5
different points.
●
The washing position returns to the standard
position (3rd point) when you stand up from the
toilet seat.
Note
• Sitting back on the toilet seat makes it easier to adjust the wand position and to reduce splashing.
●
Functions that
operate when a button
is pressed during
"REAR", "SOFT REAR"
or "FRONT" cleansing.
Indication
LED
Cleanses your rear.
Dries your rear.
* Except SW2014
Introduction
Operation
16

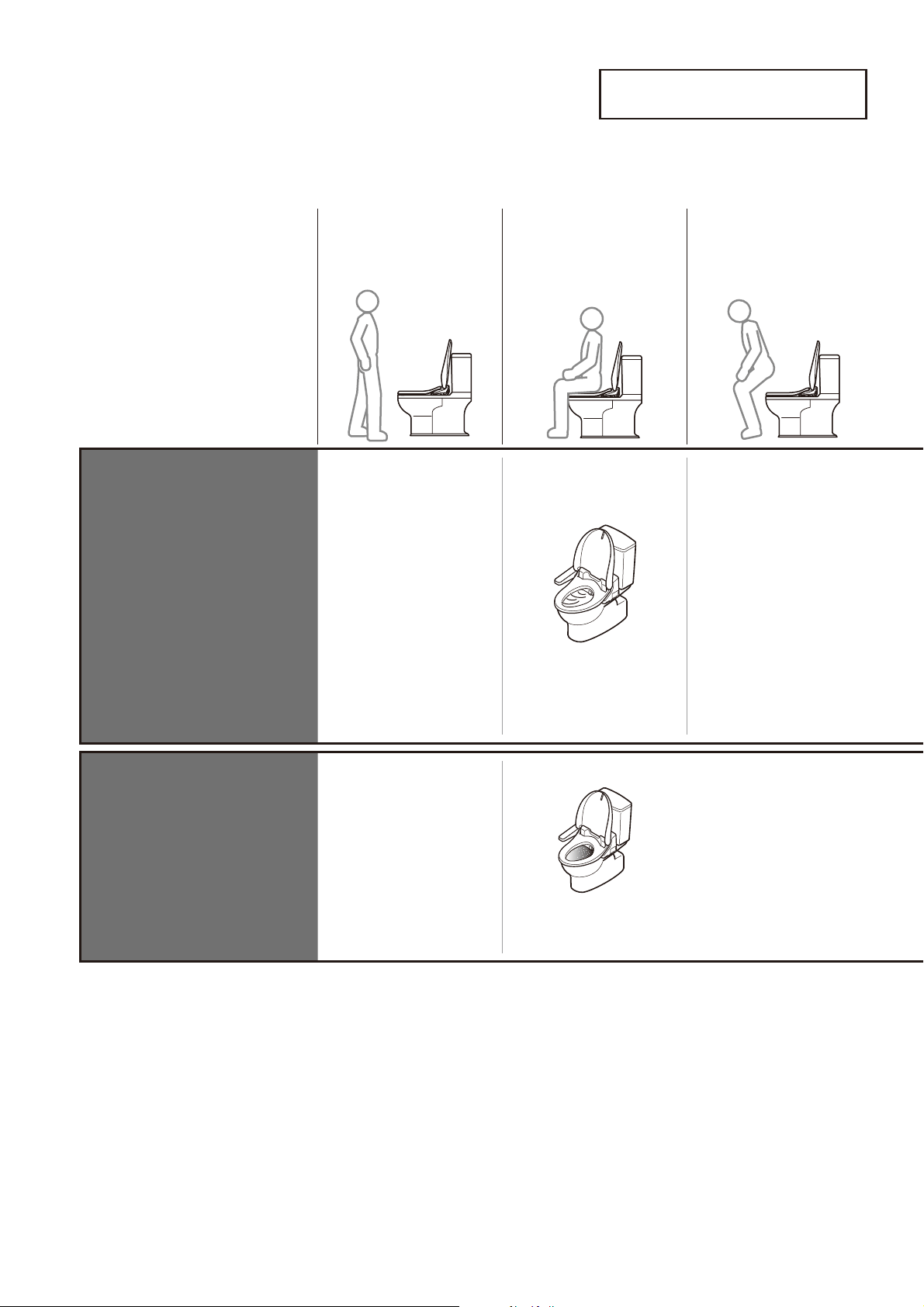

As you approach
As you sit As you stand up*
DEODORIZER
(SW2034, SW2033 only)
Deodorizer stops
➝
It stops after about 2 minutes
Starts the deodorizer
A mist is sprayed inside the
toilet bowl to make it more
diffi cult for dirt to adhere
PRE-MIST
(SW2034, SW2033 only)
A mist is sprayed inside
the toilet bowl
* To sanitize the toilet bowl every time it is used, water remaining in the wand is drained after you stand up from the toilet seat.
Automatic Functions
Cleaning Features
17
Changing
settings
Note
DEODORIZER ON/OFF
(Page 32)
PRE-MIST ON/OFF
(Page 32)
• The pre-mist will not spray for about
90 seconds after you stand up from
the toilet seat.
If dirt adheres...
■
If dirt adheres to the wand
during use, you can extend
the wand to clean it.
●
Cleaning the wand (Page 28)
Operation
18
*

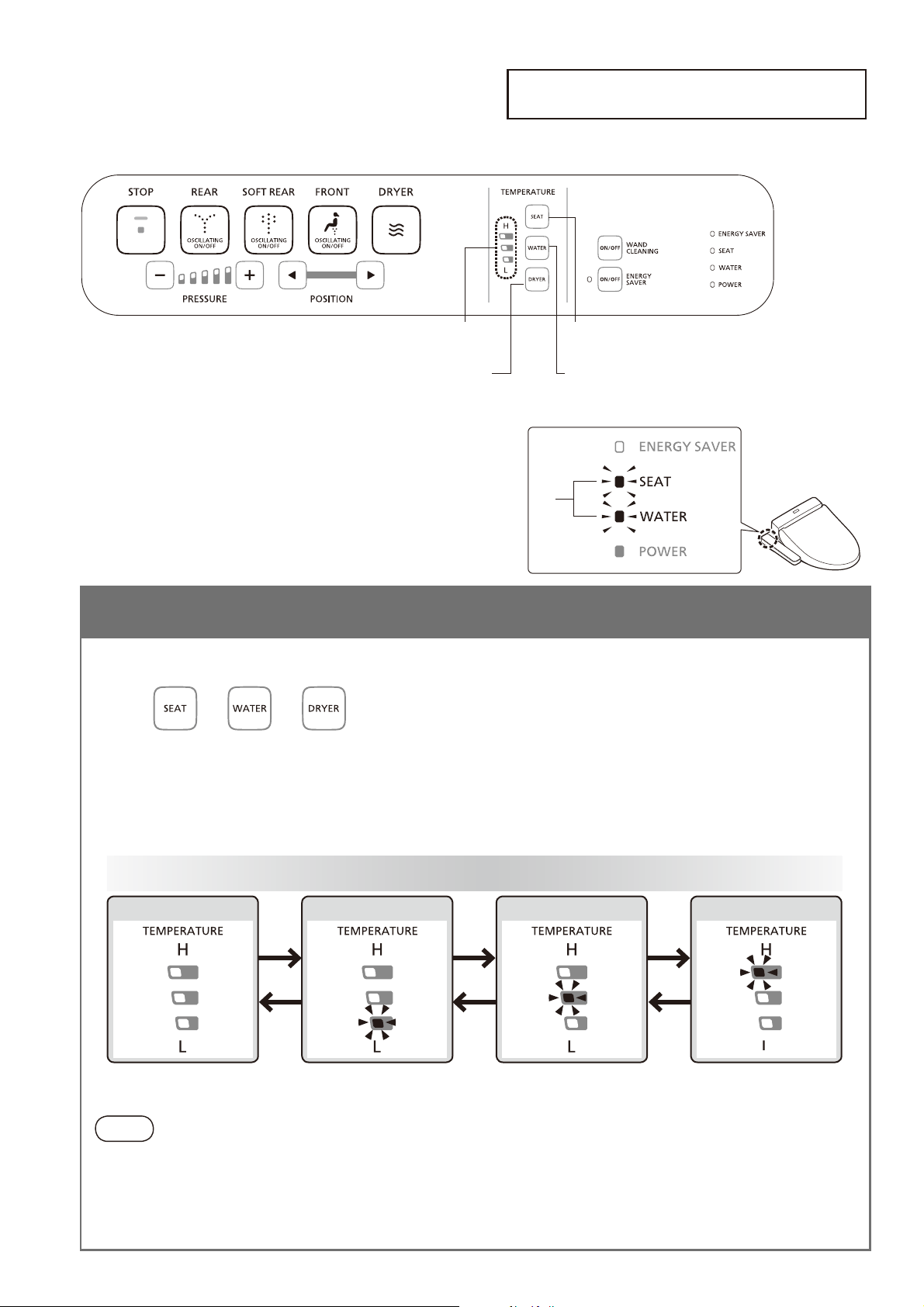

Except SW2014
Lit

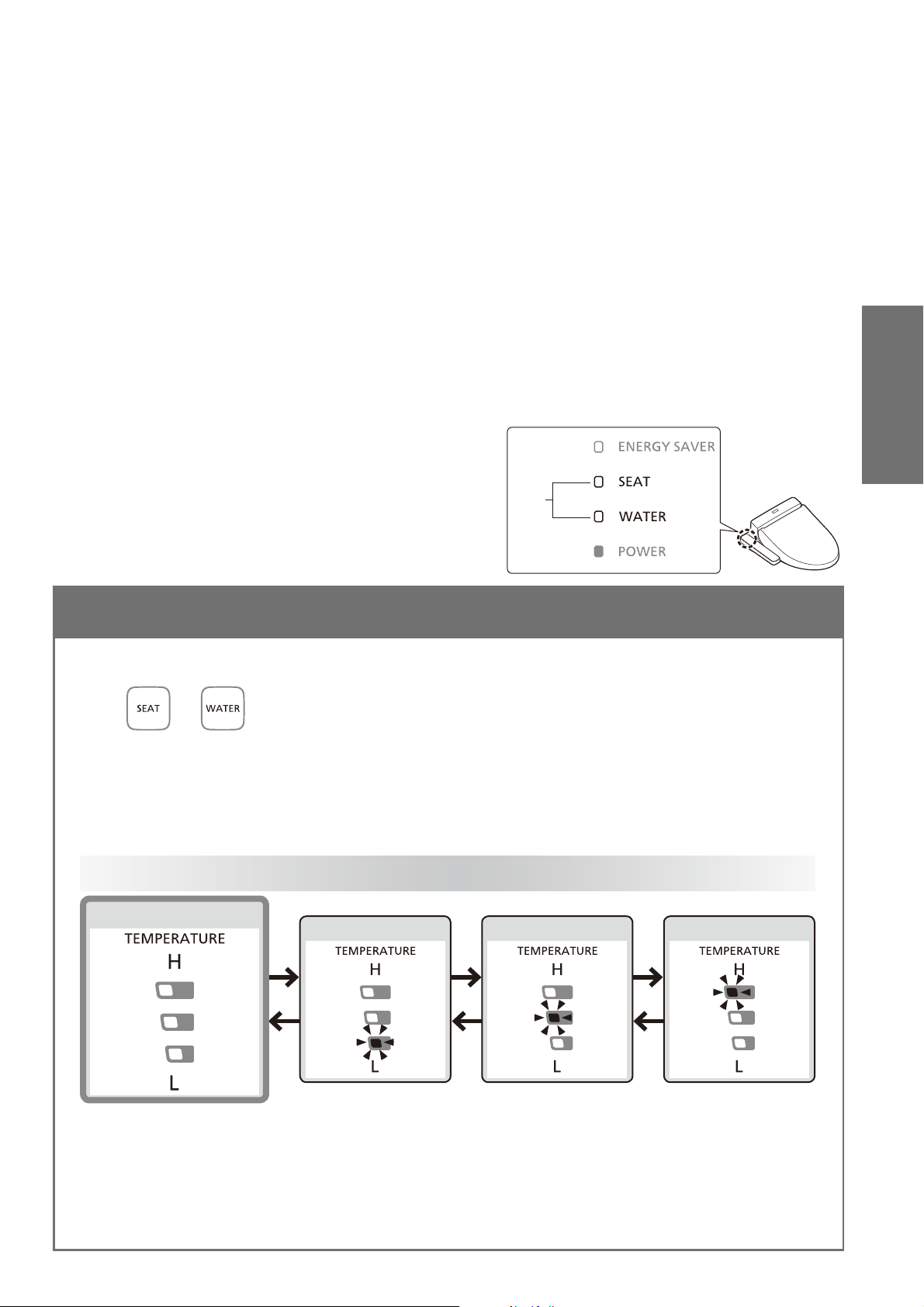

Three different temperature levels (high / medium / low) and "OFF" setting can be made.
When temperature is set
Displaying the temperature level of
the pressed button
Warm water temperature
(When you want to adjust the warm water temperature)
Toilet seat temperature
(When you want to adjust the toilet seat temperature)
Drying air temperature*
(When you want to adjust the drying air temperature)
Adjusting the temperature
1
Select a temperature button you want to set from
· ·
*
and press it.
• The current temperature level appears.
2
Press the button selected in step
1
repeatedly
until a desired temperature level lights up.
The setting changes each time the button is pressed
HIGH
Lit
MEDIUM
Lit
LOW
Lit
OFF
OFF
The "DRYER"* cannot be turned "OFF".
<Setting complete>
Note
• If the button is not pressed for about 10 seconds, the temperature adjustment LED will go off, but the setting
will be retained.
If the temperature adjustment LED goes out before the setting is completed, start all over again at step 1.
• When the toilet seat does not get warm, or when the warm water is not warm enough, even after temperature adjustment.
➞
Is the energy saver set to "ON"? (Page 20)
Temperature Adjustment
Warm Water / Toilet Seat / Drying *
19
OFF
When "OFF"
To turn the warm water temperature and toilet seat temperature "OFF" *The "DRYER" cannot be turned "OFF".
1
Select a temperature button you want to turn "OFF" from
· and press it.
• The current temperature level appears.
2
Press the button selected in step
1
repeatedly
until the temperature level is set to "OFF".
The setting changes each time the button is pressed
HIGH
Lit
MEDIUM
Lit
LOW
Lit
OFF
OFF
<Setting complete>
Operation
20

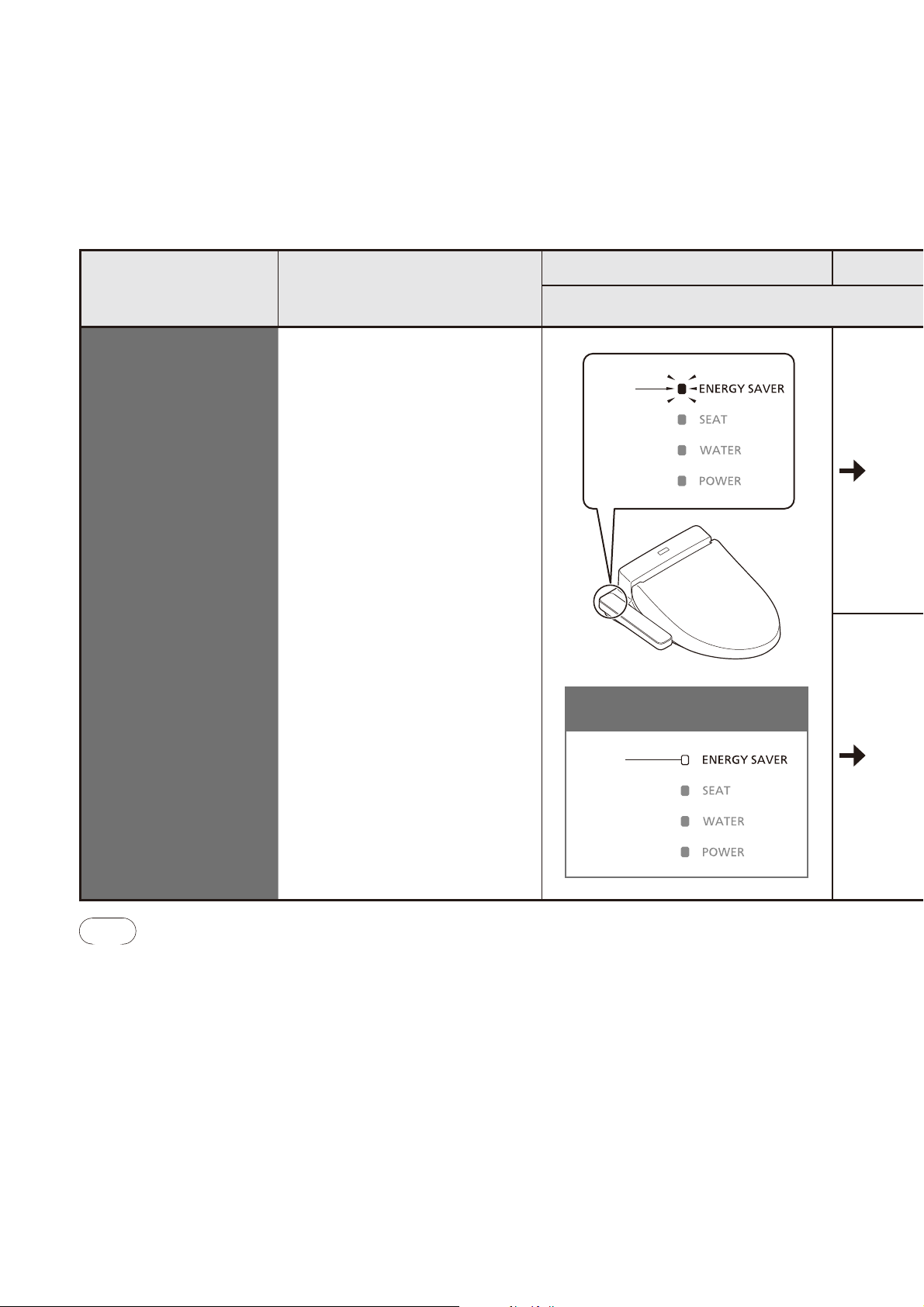

Energy Saver Feature
You can save energy by turning the toilet seat heater to a low temperature (or turning
the heater "OFF") during periods when the toilet will be used infrequently.
It takes about 10 days for the product to determine the periods when it is used relatively less frequently.
Type Situation
When energy saver is set
Main Display
ENERGY
SAVER
You want the Washlet
to save energy
automatically
The Washlet detects time
periods with infrequent use
and lowers the toilet seat
temperature automatically.
Furthermore, it automatically
turns off the toilet seat and warm
water heater during time periods
when the toilet is never used.
Lit
(Green)
OFF
When energy saver is not set
Note
●
Even if the toilet seat heater is being activated (with the toilet seat heater set to "Low" or "OFF," or with the warm water heater
set to "OFF"), the toilet seat will be temporarily heated when you sit on it.
(To reach the setting temperature, the toilet seat and warm water take about 15 minutes and 10 minutes, respectively.)
21

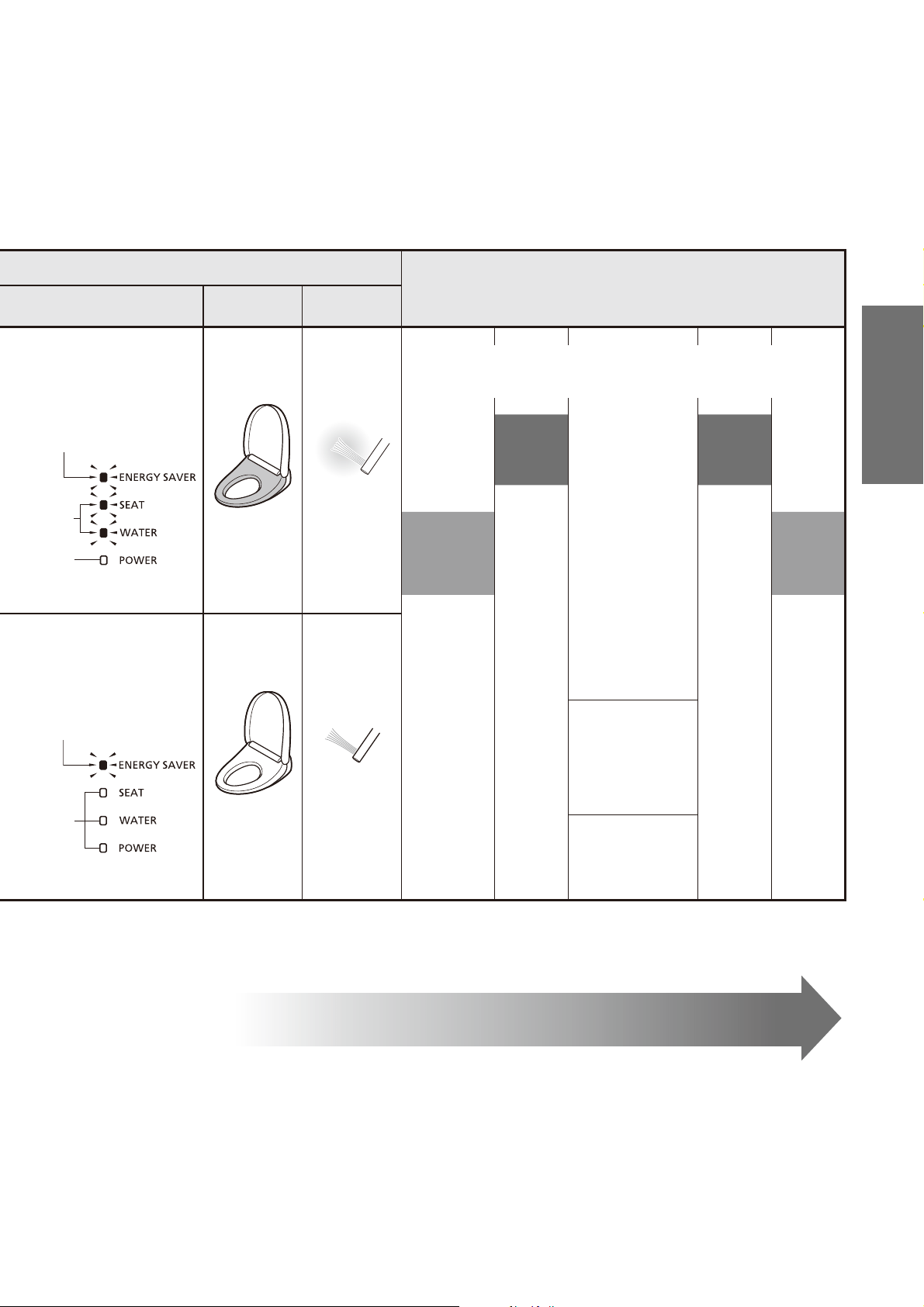

When energy saver is in operation
AM PM
Toilet seat
heater
Warm water
heater
068 590
Time period with
infrequent use
Lit
OFF
Lit
(Orange)
Low
Set
temperature
*1
Example)
Time period with infrequent use (from 9:00PM to 6:00AM): Low
Time period the toilet is never used (8:00AM to 5:00PM): OFF
Set
temperature
*1
Set
temperature
*1
Low
temperature
*2
Low
temperature
*2
Time period the toilet
is never used
OFF
Lit
(Orange)
OFF
OFF
OFF
*3
To set energy saver Page 22
.
23
*1 The temperature set on Page 18.
*2
The time period when the toilet seat heater is set to a "low temperature" by the energy saver. The warm water heater is "Set temperature".
*3 The time period when the toilet seat heater and warm water heater are "OFF".
Operation
22
ENERGY
SAVER
Lit (Orange)
The ENERGY SAVER LED will be lit if the energy saver
feature is working.
ENERGY SAVER : Lit (Orange)
Energy Saver Feature
How to set

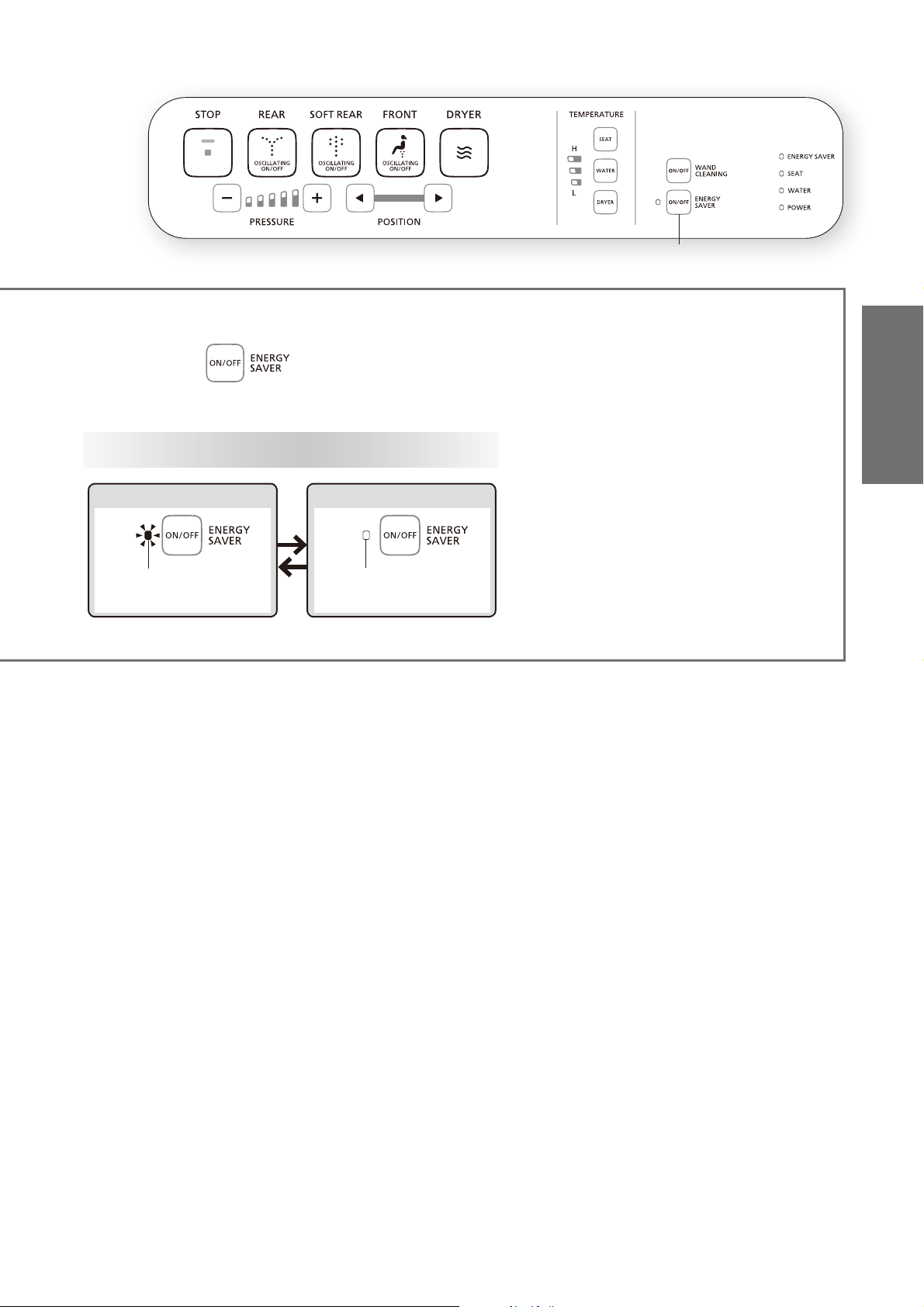

23
1
Press .
The setting changes each time the button is pressed
OFFON
Lit
(Green)
OFF
Energy-saver setting button
Operation
24
WARNING
Always disconnect the power plug from
the outlet before cleaning, maintenance
or inspection. (see left)
(Failure to do so may cause electric shock
or malfunction, resulting in a breakdown.)
* Except when using "Wand cleaning".

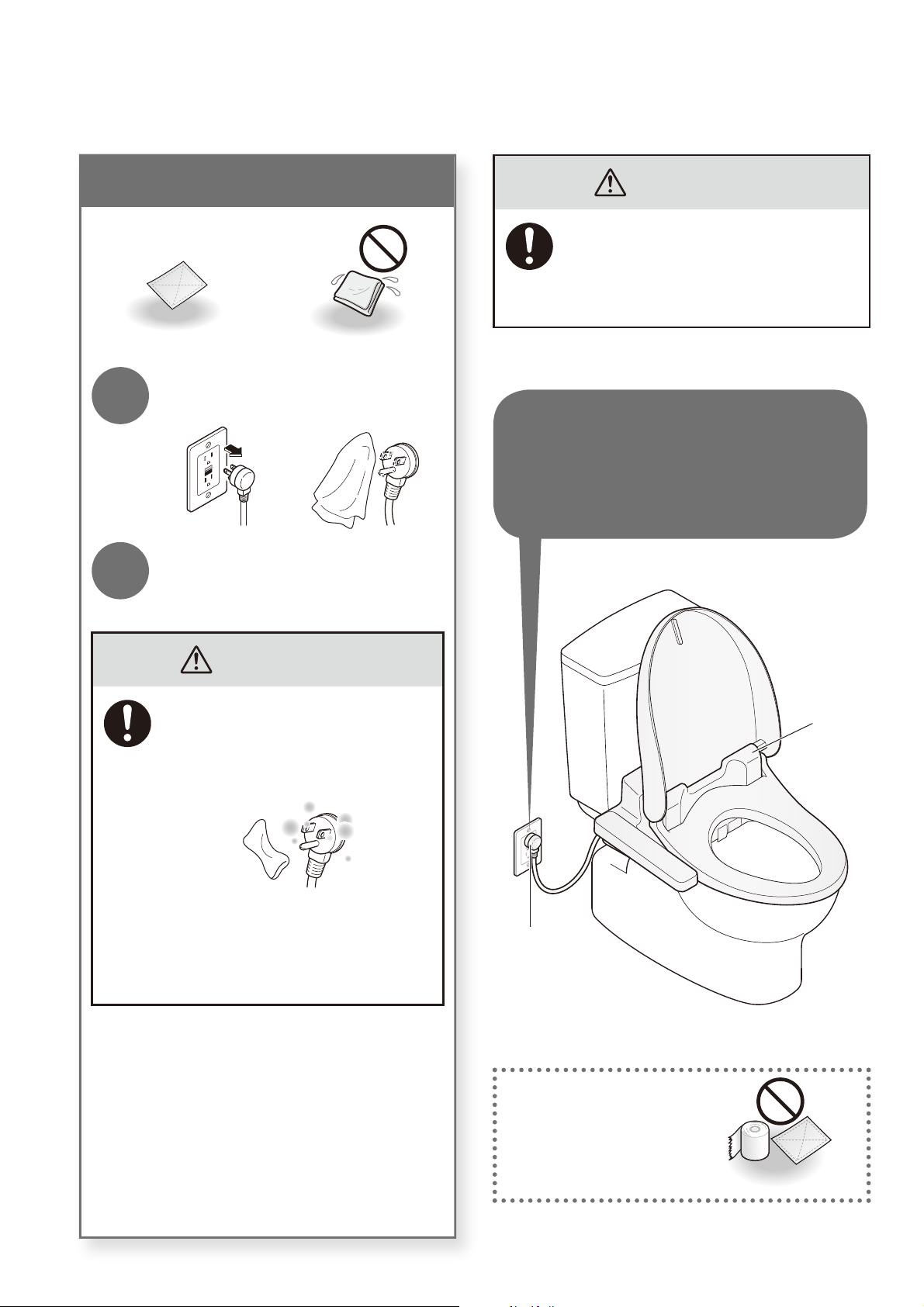

Power plug (Perform monthly)
Dry cloth Wet cloth
1
Disconnect the power plug
and wipe it with a dry cloth.
2
Insert the power plug.
The POWER LED lights up.
WARNING
●
Periodically remove dust from
the blades and other parts of the
power plug.
Disconnect the plug and wipe it
with a dry cloth.
●
Fully insert the power plug.
●
When disconnecting, hold the
main body of the power plug.
Pulling the cord may damage the
plug or cord.
Maintenance
Do not use a dry cloth
or toilet paper on plastic
parts.
(May cause damage.)
Main unit
Power plug
*For safety, disconnect the
power plug before cleaning
or maintenance.
25

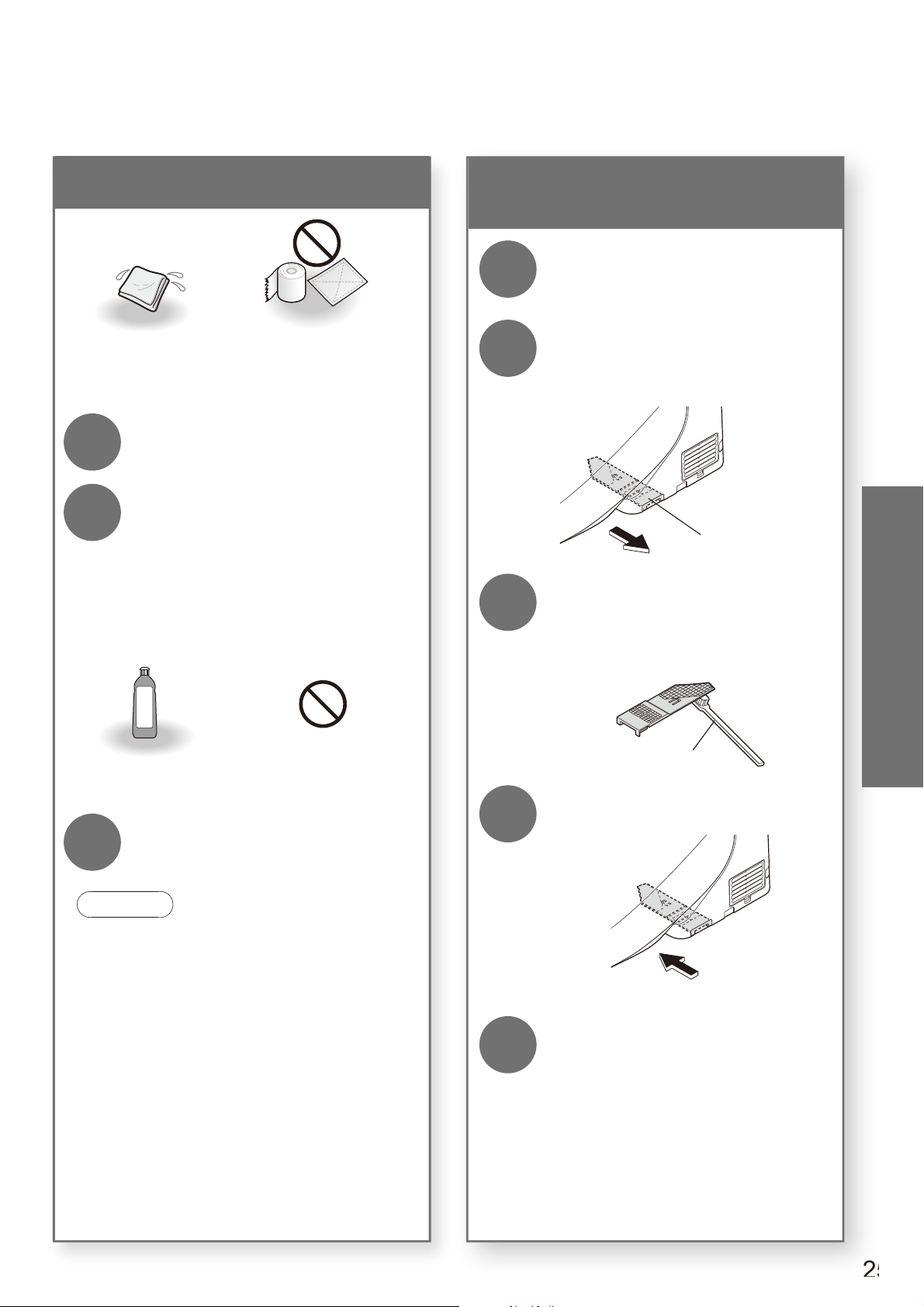

Main Unit (Perform daily)
Soft cloth soaked in water
•
Toilet paper
•
Dry cloth
•
Nylon scrubbing pads
(May cause damage.)
1
Unplug the power plug.
2
Wipe with a soft cloth that has
been soaked in water and
wrung-out thoroughly.
■
For heavy dirt
Wipe with a soft cloth soaked in diluted,
neutral kitchen detergent, and then wipe
with a soft cloth soaked in water.
•
Neutral kitchen detergent
•
Paint thinner
•
Benzene
•
Powdered cleanser
3
Insert the power plug.
The POWER LED lights up.
Attention!
●
The Washlet is an electric appliance.
Be careful not to let water seep inside or
leave detergent in the gap between the main
unit and toilet bowl.
(May damage plastic parts or cause a malfunction.)
●
When using a toilet cleaner to clean the
toilet, wash it off within 3 minutes and leave
the toilet seat and toilet lid open.
Wipe off any cleaner that remains on the toilet
bowl. (If vapor from a toilet bowl cleaner enters
the main unit, it may cause a malfunction.)
●
Do not push or pull the covers around the
wand with undue force.
(May cause damage or malfunction.)
2
5
Deodorizing fi lter (Perform monthly)
<If you notice odors>
(SW2034, SW2033 only)
1
Unplug the power plug.
2
Remove the deodorizing fi lter.
Hold the knob and pull outward.
Do not pull with undue force.
(May cause damage or malfunctions)
Deodorizing fi lter
3
Clean with a tool such as a
toothbrush.
When washing with water, dry off all water
before mounting.
Toothbrush
4
Mount the deodorizing fi lter.
Push fi rmly until a click sound is heard.
5
Insert the power plug.
The POWER LED lights up.
Maintenance
26

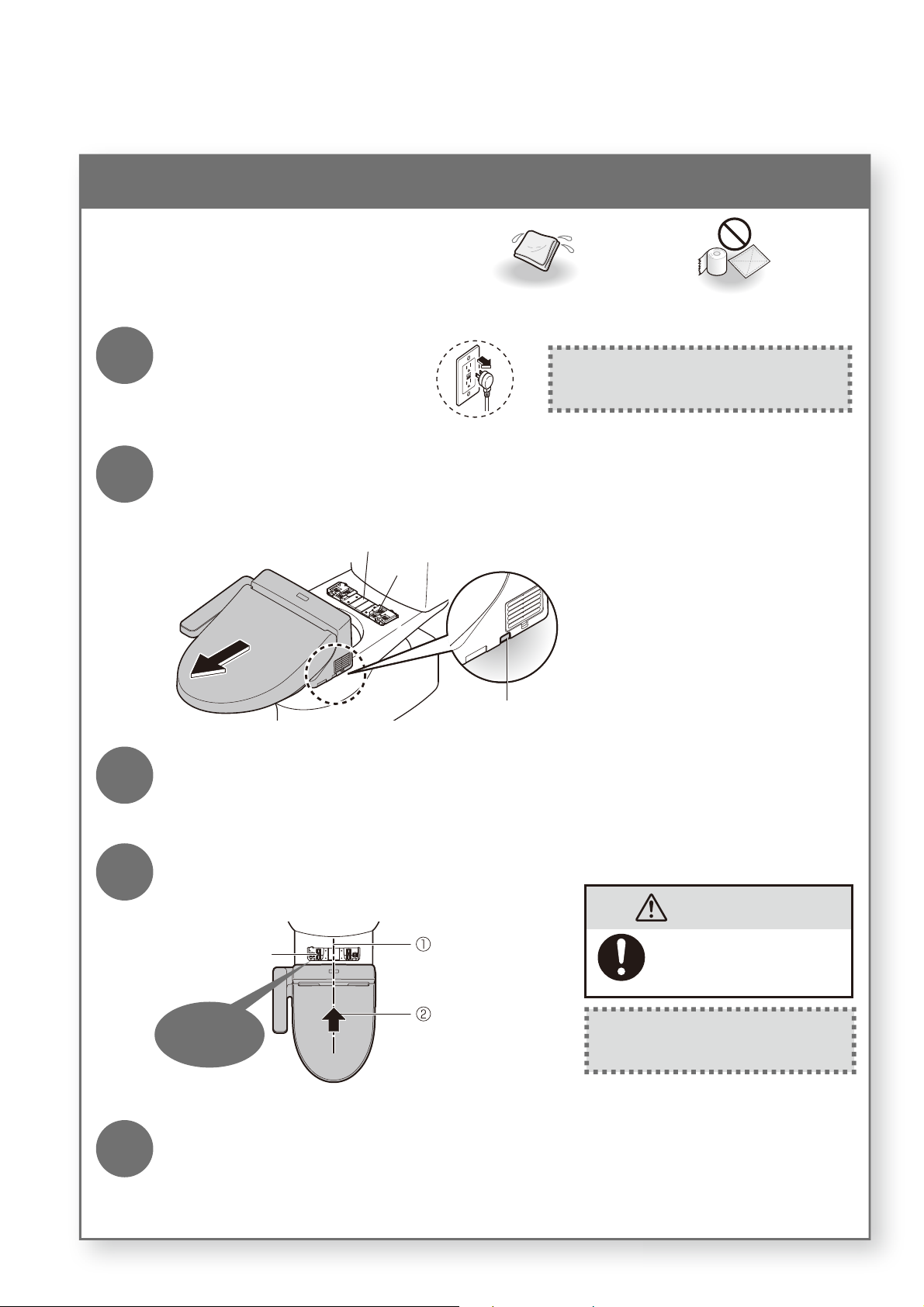

Gap between the Main Unit and Toilet Bowl (Perform monthly)
You can remove the main unit to clean
the top of the toilet bowl and the bottom
of the main unit.
Soft cloth soaked in water Toilet paper, etc. (May cause damage.)
1
Unplug the power plug.
If the power is not unplugged, the unit may
malfunction or cause a failure or electric shock.
2
Remove the main unit.
•
Do not pull the unit with undue force
(because the water supply hose and power cord are attached).
Main unit removal button
Base plate
Bolt
Pull the main unit toward you
while pressing the button.
3
Clean the gap.
• Wipe with a soft cloth soaked in a diluted, neutral kitchen detergent. Then, wipe it with a soft
cloth soaked in water so that no detergent remains.
4
Mount the main unit.
Click
Base plate
Align the center.
Push the main unit
until a click sound
is heard.
CAUTION
Push the main unit fi rmly
onto the base plate until
a click sound is heard.
After mounting, check that the main unit
does not detach even when pulled.
5
Insert the power plug.
The POWER LED lights up.
Maintenance
27
2
7

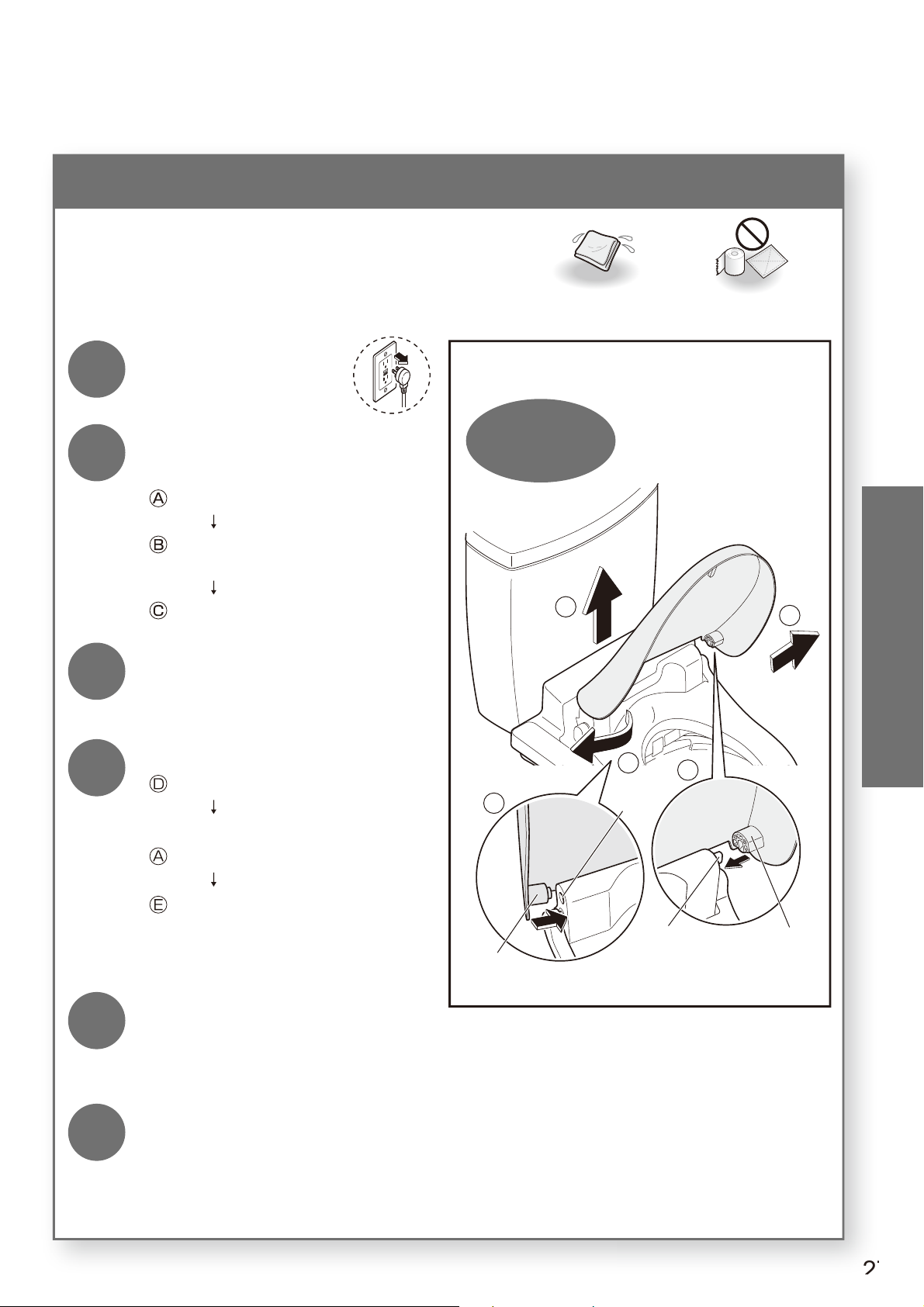

Gap between the Main Unit and the Toilet Lid (Perform monthly)
The toilet lid can be removed for thorough
cleaning.
Soft cloth soaked in water Toilet paper, etc.
(May cause damage.)
1
Unplug the power
plug.
Removing and Reinstalling
A
B
C
D
E
Hold with both
hands
Recess
Hinge
Hinge
Pin
2
Remove the toilet lid.
:Pull the left side outward.
: Disconnect the hinge from the recess
and pull up.
:Disconnect the right side.
3
Wipe with a soft cloth that
has been soaked in water
and wrung-out thoroughly.
4
Reinstall the toilet lid.
:
Join the pin and the hinge on the right side.
Slightly tilt the toilet lid to the front.
:While pulling out the left side,
:
Mount by joining the hinge with the recess.
* Be careful not to pinch your fi ngers.
5
Open and close the toilet lid
to check the mounting, and
then mount the main unit.
6
Insert the power plug.
The POWER LED lights up.
Maintenance
28

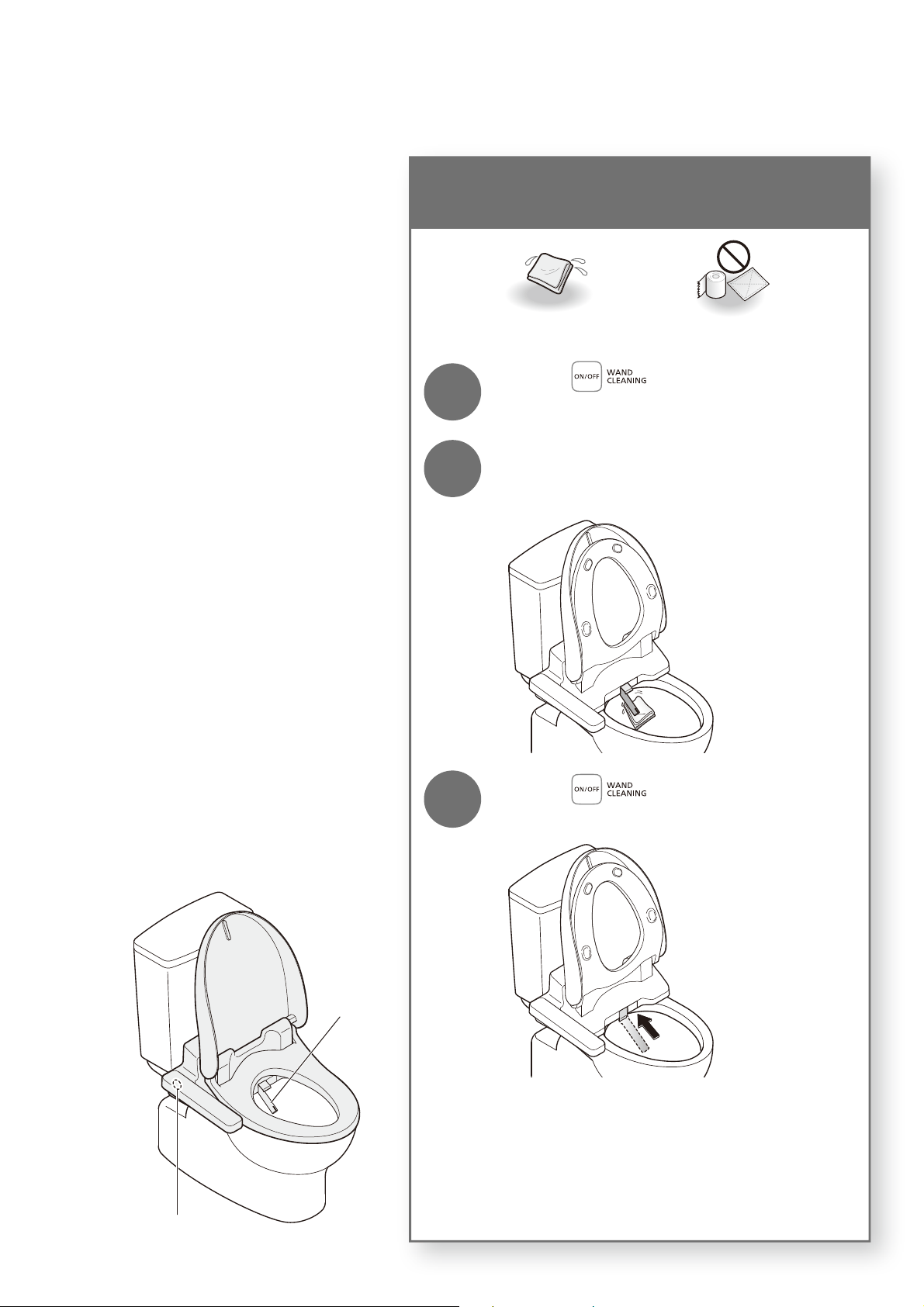

Wand (Perform monthly)
<Wand cleaning> If you notice dirt
Soft cloth soaked in water Toilet paper, etc.
(May cause damage.)
1
Press .
The wand extends and water sprays out for cleaning.
The wand automatically retracts after about 5 minutes.
2
Wipe with a soft, wet cloth.
Do not pull, push or press the wand with excessive
force. (May cause damage or malfunction.)
3
Press .
The wand retracts.
Wand
Water fi lter drain valve
Maintenance
29
29
Water fi lter drain valve (Perform once every 6 months)
<If you think the water pressure has weakened>
1
Close the shutoff valve.
The water supply stops.
Shutoff
valve
CAUTION
Do not remove the water fi lter drain
valve while the shutoff valve is open.
(Otherwise, water may leak out)
2
Press to extend the wand, and then
press
again to return the wand.
(Release the pressure from the water supply pipe.)
3
Unplug the power plug.
4
Remove the water fi lter drain valve.
Loosen with a fl at-head screwdriver and then pull.
Water fi lter drain
valve
5
Clean with a tool such as a toothbrush.
Also, remove any dust from inside the hole of the water fi lter
drain valve.
6
Reinstall the water fi lter drain valve.
Insert the water fi lter drain valve and tighten it securely with
a fl at-head screwdriver.
7
Insert the power plug.
The POWER LED lights up.
8
Open the shutoff valve.
Maintenance

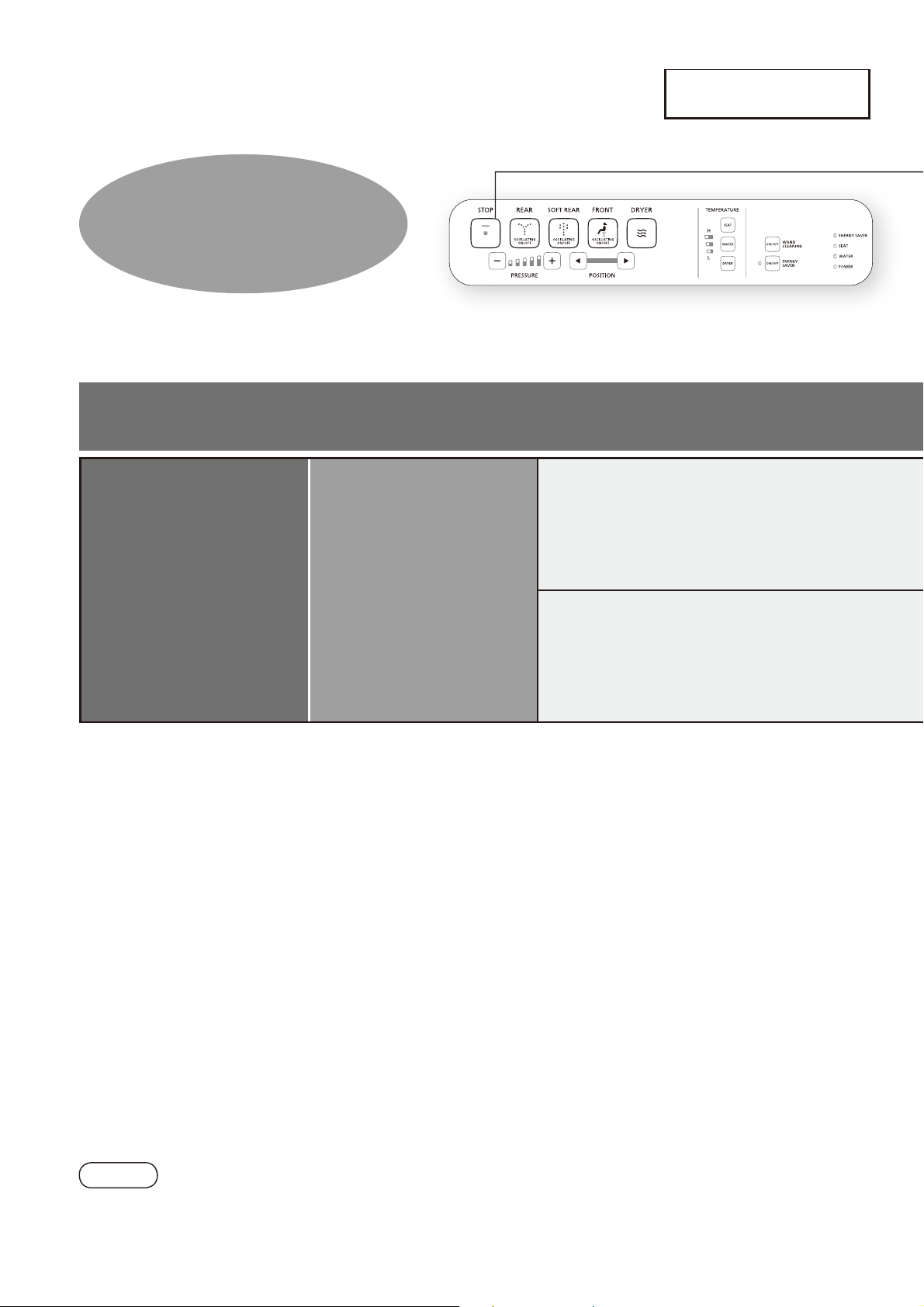

30
To change the settings,
check that all LEDs on the
control panel are flashing!
• If you do not press a next button within about 60 seconds after the LED fl ashes, the fl ashing LED will be disabled.
If you fail to complete the setting, redo from the beginning.
Note
Setting Types
AUTO FUNCTIONS CLEANING
PRE-MIST
DEODORIZER
Changing Settings
Setting List
31
Press about
10 seconds
or longer
All LEDs on the control panel flash.
Settings cannot be changed
unless all LEDs flash
Available Settings*
Applicable Models
Setting Ref.
Page
Set whether or not to spray mist
automatically after sitting on the
toilet seat
ON/OFF
SW2034
SW2033
Page 32
Set whether or not to deodorize
automatically after sitting on the
toilet seat
ON/OFF
*The black text is the initial setting.
Reference
32
CLEANING
Set whether or not to spray mist
automatically after sitting on
the toilet seat
PRE-MIST
(SW2034, SW2033 only)
Set whether or not to deodorize
automatically after sitting on the toilet
seat
DEODORIZER
(SW2034, SW2033 only)
1
Press until all
LEDs on
the control panel
start fl ashing
(about 10 seconds)
Changing Settings
33

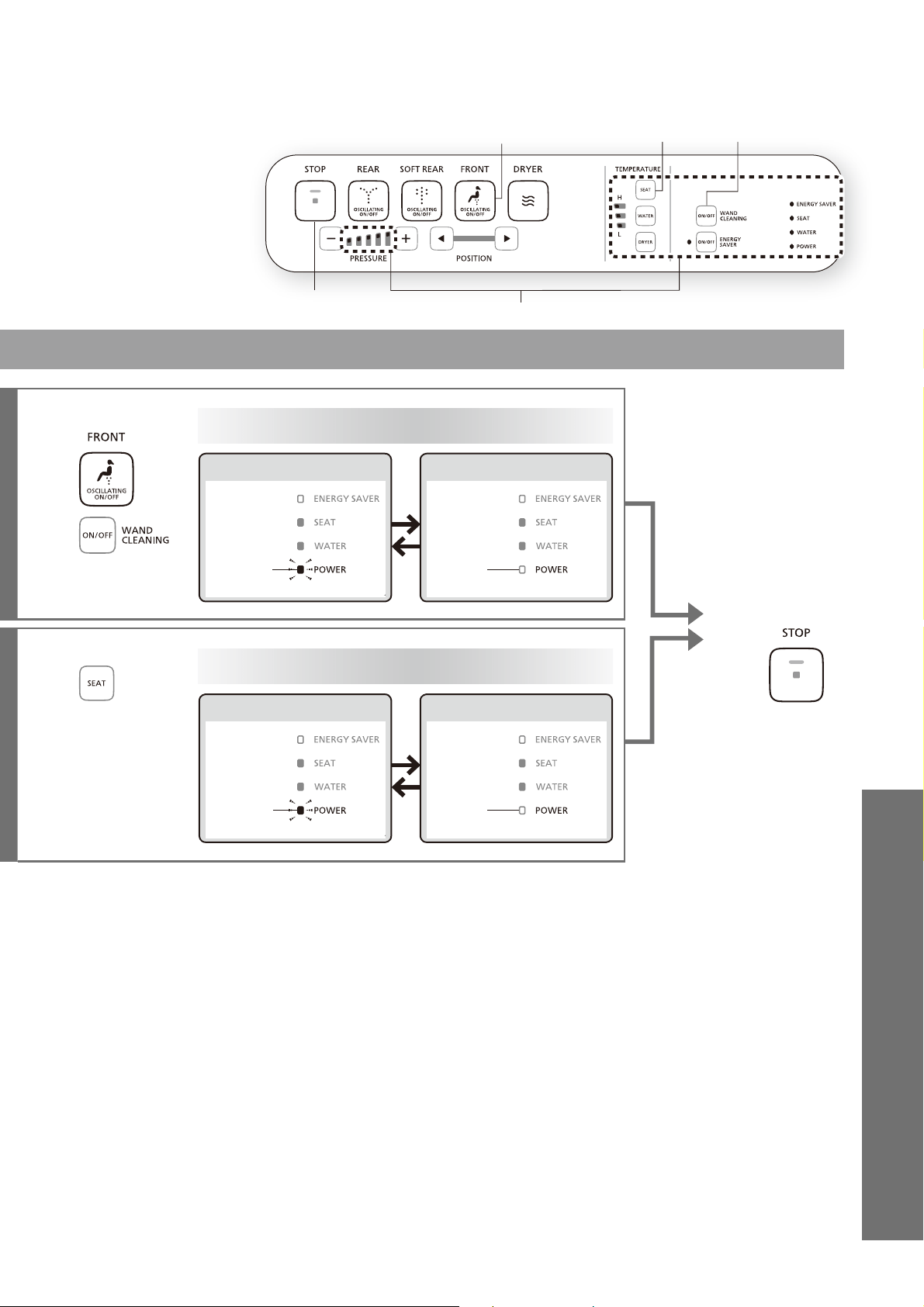

All LEDs fl ash
STOP button
SEAT button
FRONT button
WAND CLEANING button
2
Press
and
at the
same time.
ON OFF
The setting changes each time the button is pressed
OFF
Flickering
(Orenge)
2
Press
.
ON OFF
The setting changes each time the button is pressed
OFF
Flickering
(Green)
3
Press
.
<Settings complete>
Reference
34
When the ambient temperature is likely to drop to 0°C (32°F) or lower, take measures to prevent freezing.
Attention!
●When the ambient temperature is likely to drop to 0°C (32°F) or lower, do not use the energy saver feature.
(May damage the product.)
●
Warm the bathroom or take measures against freezing so that the ambient temperature does not drop below 0°C (32°F).
Freeze damage prevention
1
Close the shutoff valve.
The water supply stops.
Do not remove the water fi lter drain
valve while the shutoff valve is open.
(Otherwise, water may leak out)
D
o not remove the water fi lter drain
v
alve while the shutoff valve is o
p
en
.
(O
therwise, water ma
y
leak out
)
CAUTION
2
Drain the water from
the toilet tank.
Turn the fl ush handle of the
toilet tank to the full fl ush side.
Turn the lever until water fl ow stops.
3
Drain the pipe.
(1) Press to extend the wand, and
then press again to return the wand.
(Release the pressure from the water supply pipe.)
(2) Unplug the power plug.
(3) Remove the water fi lter drain valve.
Water fi lter drain valve
e
r
fi
lt
e
r
d
r
a
i
n
(4) Drain the water from the water supply hose.
Water supply hose
Horizontally
y
y
(5) After draining the water, install the water fi lter
drain valve.
Insert the water fi lter drain valve and use a
fl at-head screwdriver to tighten it securely.
(6)Insert the power plug.

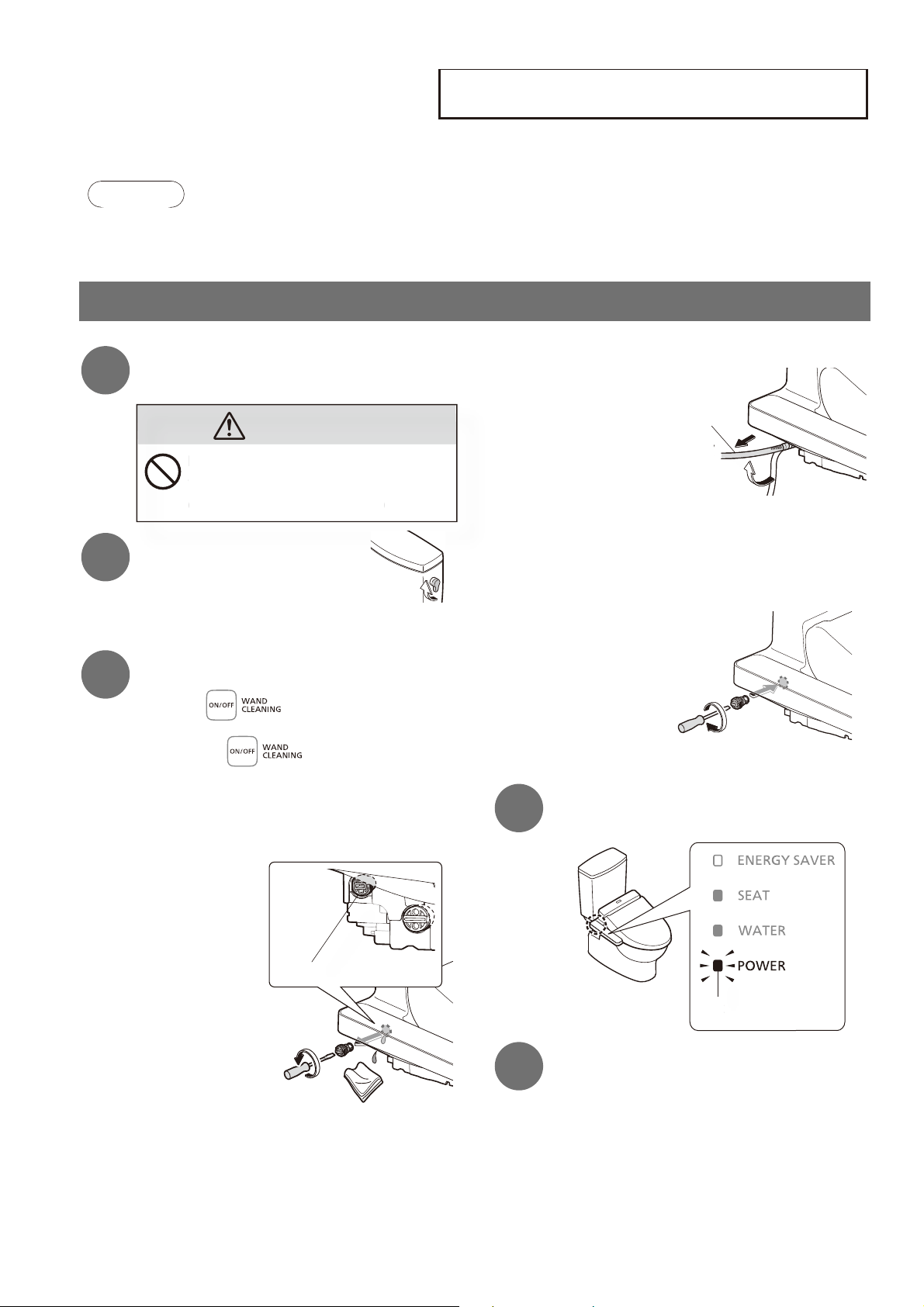

4
Check that the POWER LED on
the main display is lit up.
Liti
t
5
Set the water and toilet seat
temperature to "High".
(Page 18)
(To maintain the temperature.)
When fi nished, close the toilet seat and toilet lid.
■
To use the Washlet again
The water needs to be resupplied. (Page 35)
What to Do?
Freeze Damage Prevention
35

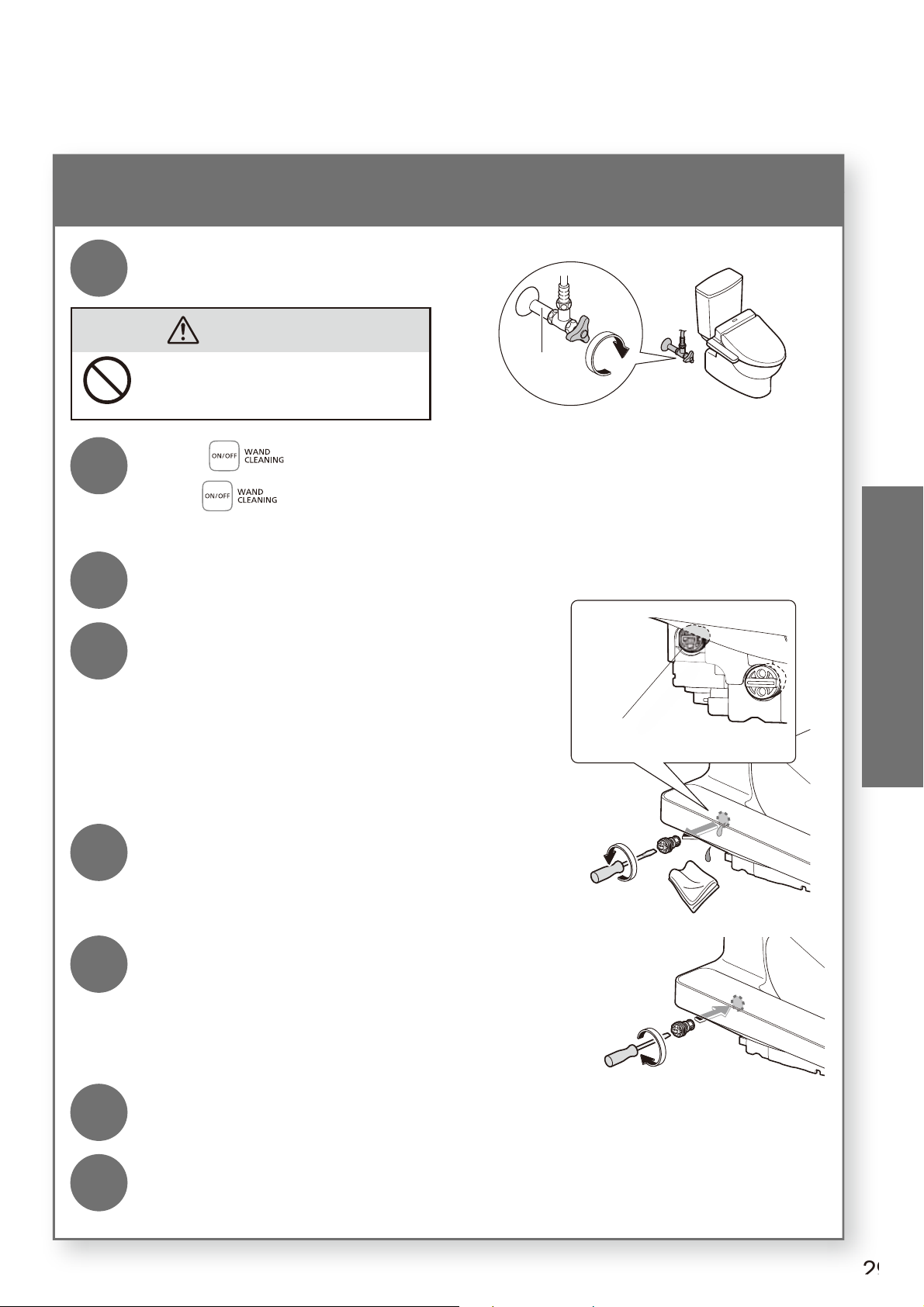

Long Periods of Disuse
If the toilet is in a location you will not visit for a long time, drain the water.
(The water in the tank may become contaminated and cause skin irritation or other problems.)

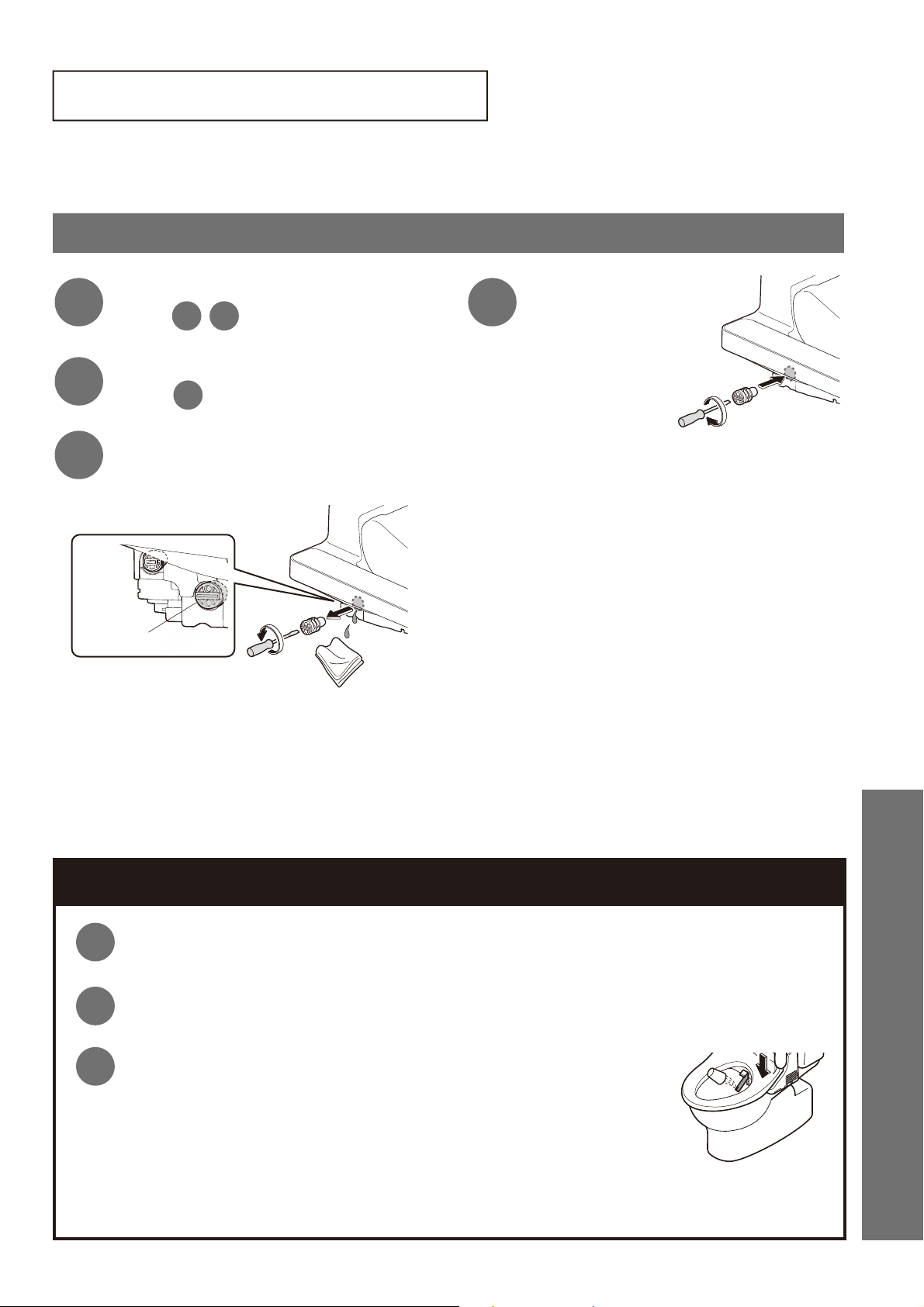

How to drain the water
1
Drain the water from the toilet tank.
(Step
1
2
on Page 34)
2
Drain the pipe.
(Step
3
(1) to (5) on Page 34)
3
Remove the water drain plug.
•
The water comes out from near the wand for
about 90 seconds.
Water drain plug
4
Reinstall the water
drain plug.
■
If water may get frozen
• Add antifreeze solution in the water in the bowl to
prevent freezing.
(The antifreeze solution should not be fl ushed out.
Collect it before using the toilet and dispose of it.)
■
To use the Washlet again
• The water needs to be resupplied. (See below)
Resupplying the Water (After draining)
1
Open the shutoff valve.
• Check that water is not leaking from a pipe or the main unit.
2
If the power is not turned ON
Insert the power plug.
3
Discharge water from the wand.
(1) Pressing down the right side of the toilet seat,
(2) Press [REAR] on the control panel for about two minutes to discharge water from
the wand.
(It takes about one minute before water comes out. Catch the water in a paper cup
or other receptacle.)
■
If the remaining water has frozen and no water comes out
• Heat the inside of the bathroom, and warm the water supply hose and shutoff valve using a cloth soaked in warm water.
Reference
36

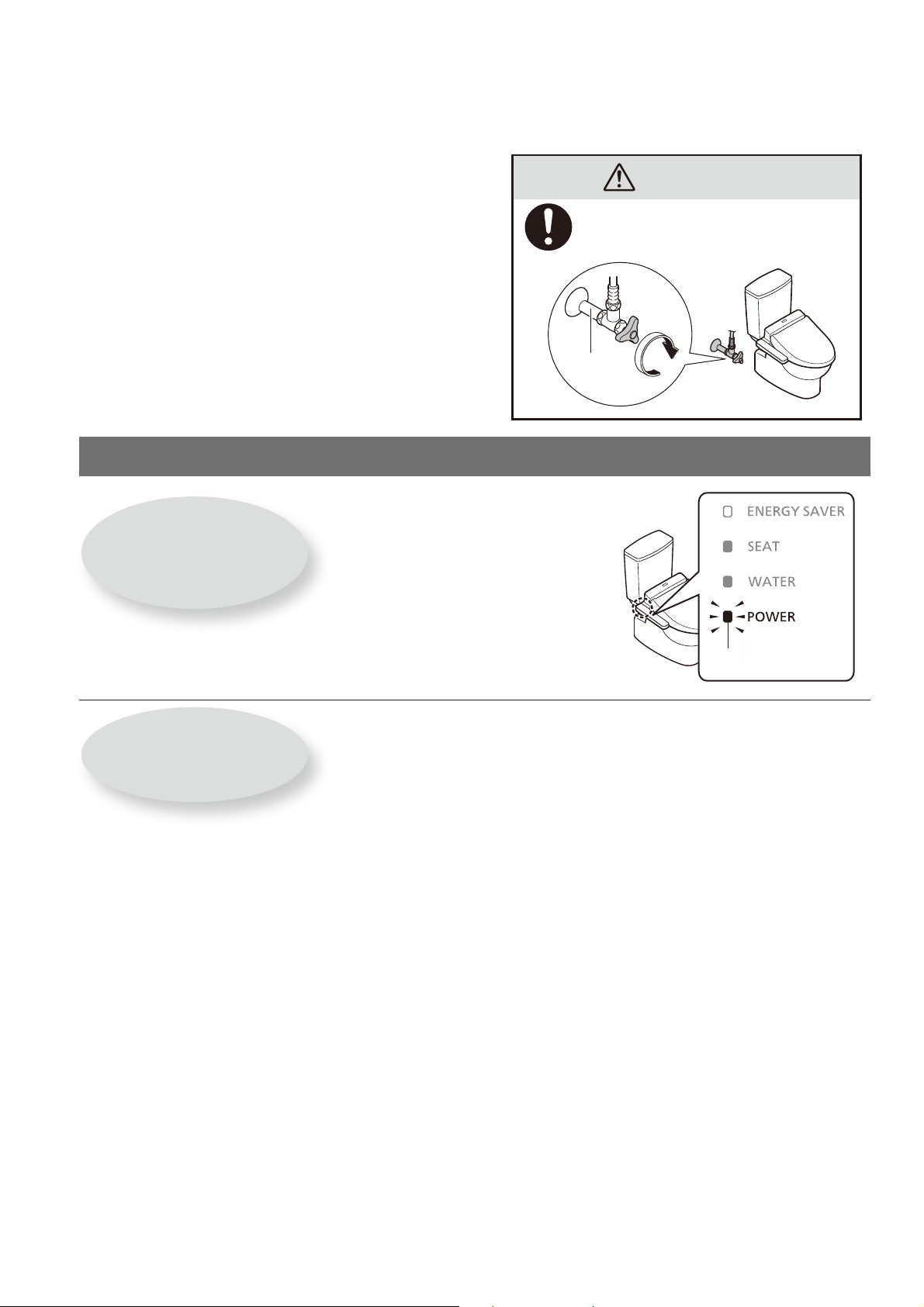

Troubleshooting
First, try the actions described on pages 36 to 39.If
the problem persists, consult the installer, seller or the
contact listed on the back cover of this manual.
CAUTION
If a water leak occurs, close
the shutoff valve.
Shutoff
valve
Please check fi rst
Is the
POWER LED lit?
■
SW2034·SW2033
Is the POWER LED fl ickering?
➞
The main unit is not mounted properly.
Mount the main unit again. (Page 26)
■
Is the breaker on the
distribution board turned
on?
➞
Check whether there is a power
outage or the breaker has turned
"OFF".
Lit
Is the ENERGY
SAVER LED lit?
■
While the LED is lit, energy saver
(Page 20) is in operation,
so the toilet seat temperature may be reduced or the
heater may be turned off.
37
Rear and Rear soft, front cleansing, wand
Trouble Please check
Ref.
Page
The wand
(or cleansing water)
does not come out
●
When the temperature is low, it takes time for the wand to come out after the
control panel button is pressed because the water must be warmed up fi rst.
-
●
Did you sit on the toilet continuously for 2 hours or longer?
(If so, operation is stopped for safety purposes.)
➞
Stand up from the seat and then use again.
-
●
If the water supply pressure drops signifi cantly, for example if water is used
elsewhere or if there is a water failure, the function may stop for safety.
➞
Disconnect the power plug and wait about 10 seconds before inserting it again.
If the same symptom reappears ➞ There may be a malfunction. Consult
with the contact listed on the back cover of this manual.
-
●
The seat switch may have diffi culty detecting some sitting postures.
➞
Sit back on the toilet seat.
11
●
Are you using a toilet seat cover, a toilet lid cover or
a seat for infants?
➞
Remove any covers. When using a seat for infants
or a soft highchair, remove after each use.
Covers
11
The wand extends
but the cleansing
water does not come
out /The cleansing
water pressure is
weak
●
Has a water failure occurred?
➞
Press the "STOP" button and wait until water service is restored.
-
●
Is the shutoff valve closed?
14
●
Is the water fi lter drain valve clogged with foreign matter?
➞
Clean the filter.
29
●
Is the water pressure set to a low level?
15
●
Is the water drain plug loosened?
➞
Tighten the water drain plug securely.
35
The cleansing water
is cold
●
Is the water temperature set to "OFF" or a low level?
●
When the temperature of the water supply or the bathroom is low, the water
temperature may be low when first sprayed.
18
-
Stops in the middle
of use
●
Rear, rear soft and front cleansing stop automatically after 5 minutes of
continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on
the seat, the seating switch may temporarily stop detecting your presence.
-
11
Water comes out
unexpectedly
from the wand
●
Water may sometimes come out from around the wand when it expands in
the warm water tank.
-
Reference
38
Troubleshooting
Warm air drying (SW2034, SW2033 only)
Trouble Please check
Ref.
Page
The dryer
temperature is low
●
Is the control panel preset temperature set to a low level?
18
Stops in the middle
of use
●
The feature stops automatically after 10 minutes of continuous use.
●
Does the seat switch have diffi culty detecting?
➞
Sit back on the toilet seat. If you get up slightly from the seat, or sit forward on
the seat, the seating switch may temporarily stop detecting your presence.
-
11
Toilet Seat and Toilet Lid
Trouble Please check
Ref.
Page
The toilet seat is
cold
●
Is the toilet seat temperature set to "OFF" or a low level?
18
●
Is the ENERGY SAVER LED (orange) lit?
When the SEAT LED (green) is also lit.
➞
The toilet seat temperature has been lowered to save energy. When you sit,
the toilet seat is temporarily heated.
When the SEAT LED is OFF.
➞
Energy saver is operating and has turned off the toilet seat heater. When
you sit on the seat, the toilet seat heater is turned on temporarily and the
seat is warmed in about 15 minutes.
20
●
Have you been seated for a long time?
After about 20 minutes of sitting, the temperature starts going down, and
after about 1 hour, the toilet seat heater is turned "OFF".
➞
Stand up from the seat and then use again.
-
●
Did you put anything on the toilet seat or the toilet lid?
➞
Remove the object from the toilet seat or the toilet lid.
-
●
The seat switch may have diffi culty detecting some sitting postures.
➞
Sit back on the toilet seat.
11
●
Is a toilet lid or seat cover installed?
➞
Remove any covers.
11
Energy Saver
Trouble Please check
Ref.
Page
The energy saver
feature is not
working
●
Because the function takes several days learning the usage conditions before
starting energy saver, the amount of energy saving may be low, depending
on the frequency of use.
➞
Check the energy saver feature.
20
39
Deodorizer (SW2034, SW2033 only)
Trouble Please check
Ref.
Page
The deodorizer
seems to be not
working
●
Is "DEODORIZER" set to "OFF"?
➞
Set to "ON".
●
Even after sitting down, you do not hear operation sounds.
➞
Sit back on the toilet seat.
●
If you hear an operation sound when you sit on the toilet seat.
➞
Clean the deodorizing filter.
32
11
25
A strange odor is
emitted
●
Are you using an air freshener or deodorizer that you purchased separately?
Doing so may reduce the effectiveness of the Washlet deodorizer or cause
strange odors.
➞
Remove the air freshener or deodorizer.
-
Others
Trouble Please check
Ref.
Page
Water is leaking
from the plumbing
connections
●
If any nuts in a connection are loose, fi rmly tighten them with a tool such as a
monkey wrench.
Do not use tools on the water supply hose
connection. Tighten it by hand.
Water supply hose connection
Water supply hose
➞
If the water leak does not stop, close the shutoff valve and seek repair.
-
The main unit is
unstable
●
There is clearance between the toilet seat cushion and the toilet bowl for
activating the seat switch. When you sit on the toilet seat, the toilet seat
subsides slightly to activate the seat switch.
●
Are the bolts that anchor the main unit loose?
➞
Remove the main unit and then firmly tighten the base plate bolts.
11
26
The main unit makes
a sound
<Only when sitting on the toilet seat.>
●
You hear operation sounds for preparing the pre-mist or spraying mist in the
toilet bowl.
➞
You can turn them "OFF". (SW2034, SW2033 only)
<When moving away from the toilet bowl after use>
●
You may hear the sound of the remaining water being drained.
16
32
-
You feel air in the toilet
bowl when sitting on
the toilet seat
(SW2034, SW2033 only)
●
A mist is sprayed inside the toilet bowl to make it more diffi cult for dirt to adhere
when sitting on the toilet seat. You may feel air when a mist is sprayed.
➞
You can turn it "OFF".
16
32
Reference
40
Item
SW2034
SW2014
SW2033
Rated power supply AC 120 V 60 Hz
Rated power consumption 406 W 290 W
Type of water heater Tank type
Power cord length 1.2 m (3.93 ft)
Water protection level IPX4
Functions
Cleansing
Spray
volume
Rear cleansing
Approx. 0.27 to 0.43 L/min. (Approx. 0.07 to 0.11 gal/min.)
<at 0.20 MPa (29 PSI) water pressure>
Rear soft cleansing
Approx. 0.27 to 0.43 L/min. (Approx. 0.07 to 0.11 gal/min.)
<at 0.20 MPa (29 PSI) water pressure>
Front cleansing
Approx. 0.29 to 0.43 L/min. (Approx. 0.08 to 0.11 gal/min.)
<at 0.20 MPa (29 PSI) water pressure>
Water temperature
Adjustable temperature range: OFF,
about 30°C to 40°C (about 86°F to 104°F)
Toilet tank capacity 0.64 L (0.17 gal)
Heater capacity 225 W
Safety device
Temperature fuse, overheat shutoff switch
(bimetal automatic return type), anti-idling fl oat switch
Backfl ow prevention device Vacuum breaker, Check valve
Warm
air
dryer
Warm air temperature
*
Adjustable temperature range :
about 30°C to 60°C
(about 86°F to 140°F)
-
Airfl ow volume
Approx. 0.27 m
3
/min
(Approx. 9.53 ft
3
/min)
-
Heater capacity 347 W -
Safety device Temperature fuse -
Heated
seat
Surface temperature
Adjustable temperature range: OFF, about 28°C to 36°C (about 82°F to 97°F)
<About 26°C (about 79°F) when energy saver is in operation>
Heater capacity 50 W
Safety device Temperature fuse
Deodorizer
Method O
2
deodorization -
Airfl ow volume
Approx. 0.16 m
3
/min
(Approx. 5.65 ft
3
/min)
-
Power consumption Approx. 5.3 W -
Water supply pressure
Minimum required water pressure: 0.05 MPa (7.25 PSI) <dynamic>,
Maximum required water pressure: 0.75 MPa (108.75 PSI) <static>
Water supply temperature 0°C to 35°C (32°F to 95°F)
Working ambient temperature 0°C to 40°C (32°F to 104°F)
Dimensions
W 480 mm × D 531 mm × H 188 mm
(W 1.57 ft × D 1.74 ft × H 0.62 ft)
W 480 mm × D 531 mm × H 188 mm
(W 1.57 ft × D 1.74 ft × H 0.62 ft)
W 480 mm × D 480 mm × H 188 mm
(W 1.57 ft × D 1.57 ft × H 0.62 ft)
Weight About 5 kg (about 11 lb)
* Temperature around the warm air outlet measured by TOTO.
Specifi cations
41
1. TOTO warrants its washlet series ("Washlet") to be free from defects in materials and workmanship during normal use when
properly installed and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to
the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any
subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product is purchased and installed in
USA, Canada.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option,
of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and
serviced in accordance with instructions.
TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO
will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of
removal, return and/or reinstallation of the Product.
3.This warranty does not apply to the following items:
a) Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b) Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or
maintenance of the Product.
c) Damage or loss resulting from sediments or foreign matter contained in a water system.
d) Damage or loss resulting from the quality of water in the region where the product is used.
e) Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous
environment, or improper removal, repair or modification of the Product. This includes locations where the water pressure
is above local codes or standards. (NOTE : Product model codes allow a maximum of 80 PSI. Check local codes or
standards for requirements).
f) Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which
the Product is not specified to tolerate, including failure to use the factory equipped cord and plug or use of a loose or faulty
electrical outlet or use of a current or socket other than a 120V, 60Hz electrical current from a GFI (ground, fused) socket.
g) Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over
time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali,
acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. If the Danger Label which has been placed over the seams on the back of the Product s top unit is broken or otherwise not
intact, this limited warranty is void.
5. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon
purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and
failure to register will not diminish your limited warranty rights.
6. If the Product is used commercially or is installed outside of USA, Canada, TOTO warrants the Product to be free from
defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all
other terms of this warranty shall be applicable except the duration of the warranty.
7. This warranty gives you specific legal rights. You may have other rights which vary from state to state, province to province or
country to country.
8. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service
facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor
or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 (888) 295
8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot
be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt)
shall constitute delivery. In such case, TOTO
may choose to repair the Product at the purchase'r s location or pay to
transport the Product to a service facility.
WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this Product caused by either
chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite).
NOTE: The use of a high concentrate chlorine or chlorine related product's can seriously damage the fittings. This damage
can cause leakage and serious property damage.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER
APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR
FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL
PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS
BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S
RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR
FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
Limited Warranty
Reference
42
43
Reference
2014.10.10
D08886
TOTO U.S.A., Inc. 1155 Southern Road Morrow, GA 30260
Phone : (770) 282 8686
•
You are advised to record the following information to allow quick service.
Date of purchase : Name of shop :
Tel : ( )
Date : year month day
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends On-Line Warranty Registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please
contact TOTO U.S.A. Inc.,
Customer Service Department, 1155 Southern Road, Morrow, GA 30260 (888) 295 - 8134 or (678) 466 - 1300
when calling from outside of U.S.A.
