HCC/HMC1000A, HCC/HMC1000W
Ice Machines
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Following installation, please forward this manual
to the appropriate operations person.
Operation and Service Manual
After Serial Number C20000
Order parts online
www.follettice.com
00171579R12
2
3
Welcome to Follett Corporation
Speci cations
Operation
Cleaning
Weekly exterior care
Monthly condenser cleaning
Semi-annual evaporator cleaning
Service
Ice machine operation

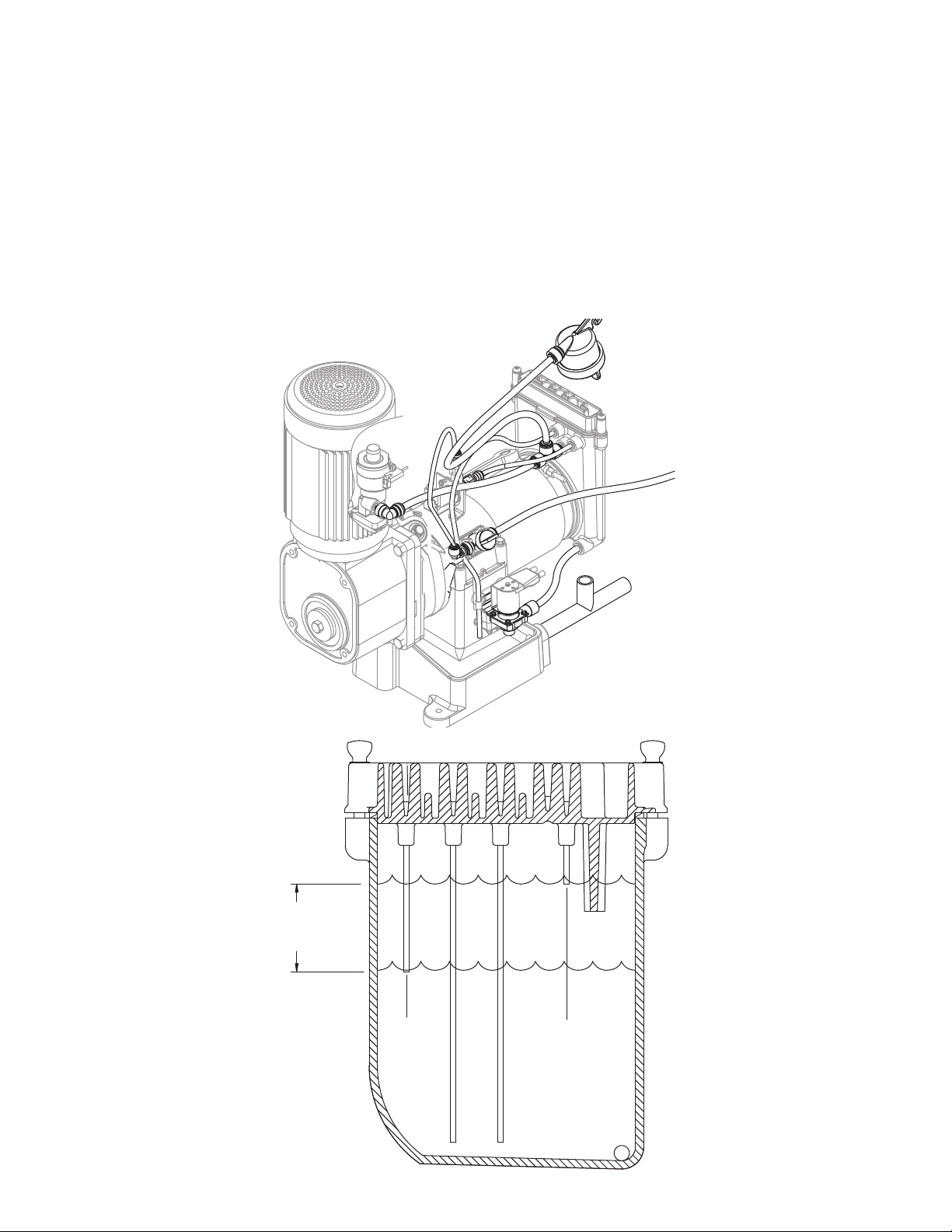

Water system
Electrical system
Normal control board operation
Test points
Error faults
Hard error
Soft errors
Relay output indication
Compressor/refrigerant solenoid output

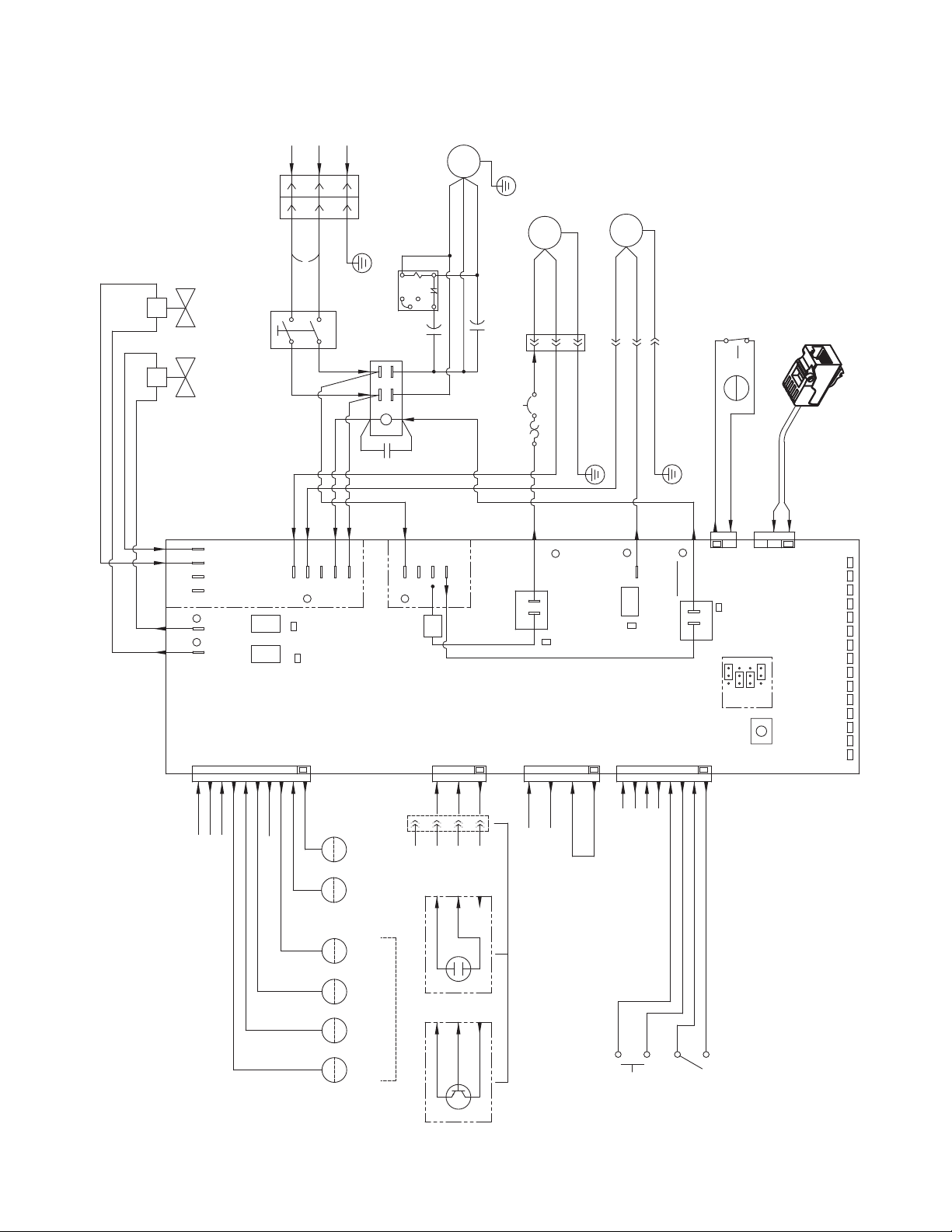

Wiring diagram
Compressor data
Gearmotor data
Resistance of windings
Mechanical system

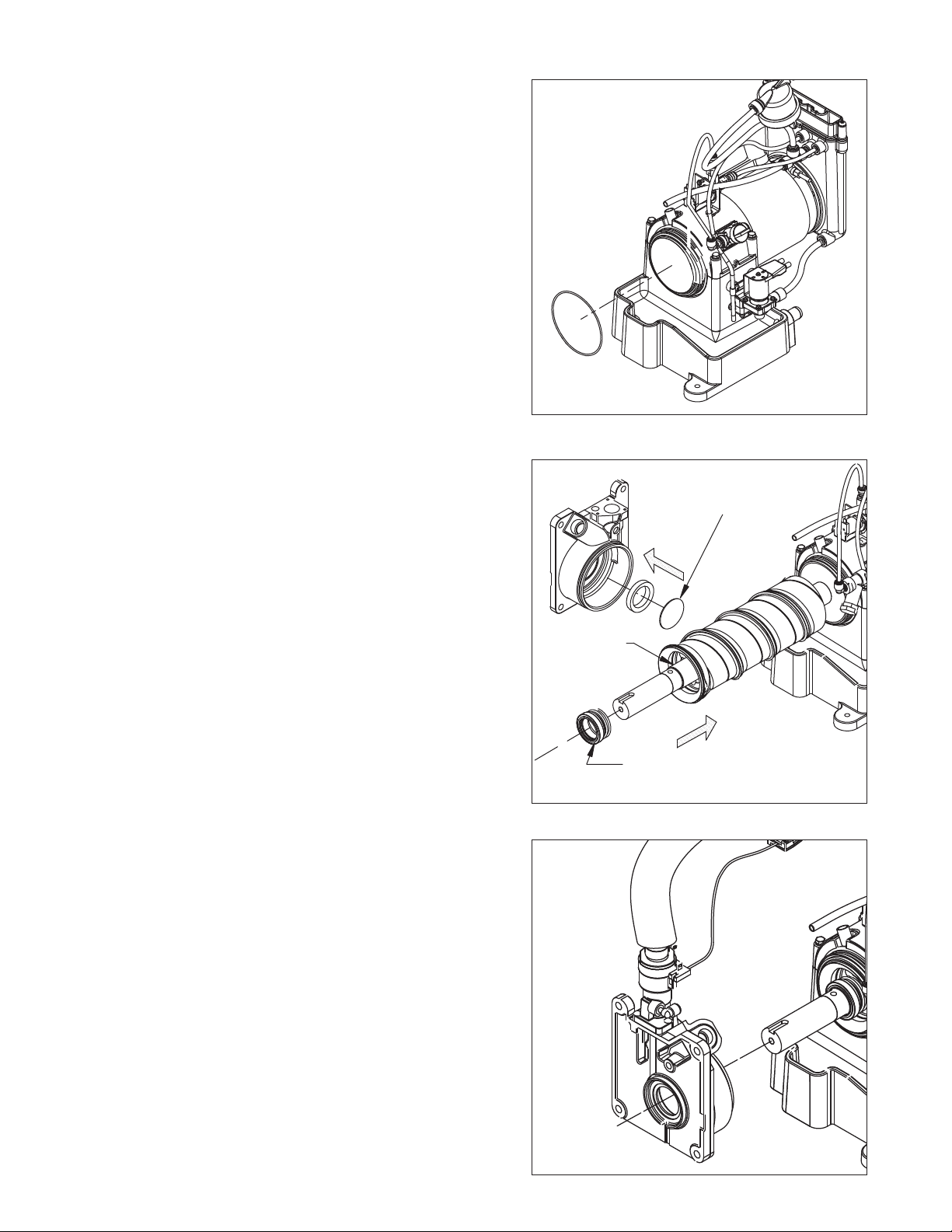

Evaporator disassembly
Evaporator reassembly
Refrigeration system
Refrigeration pressure data

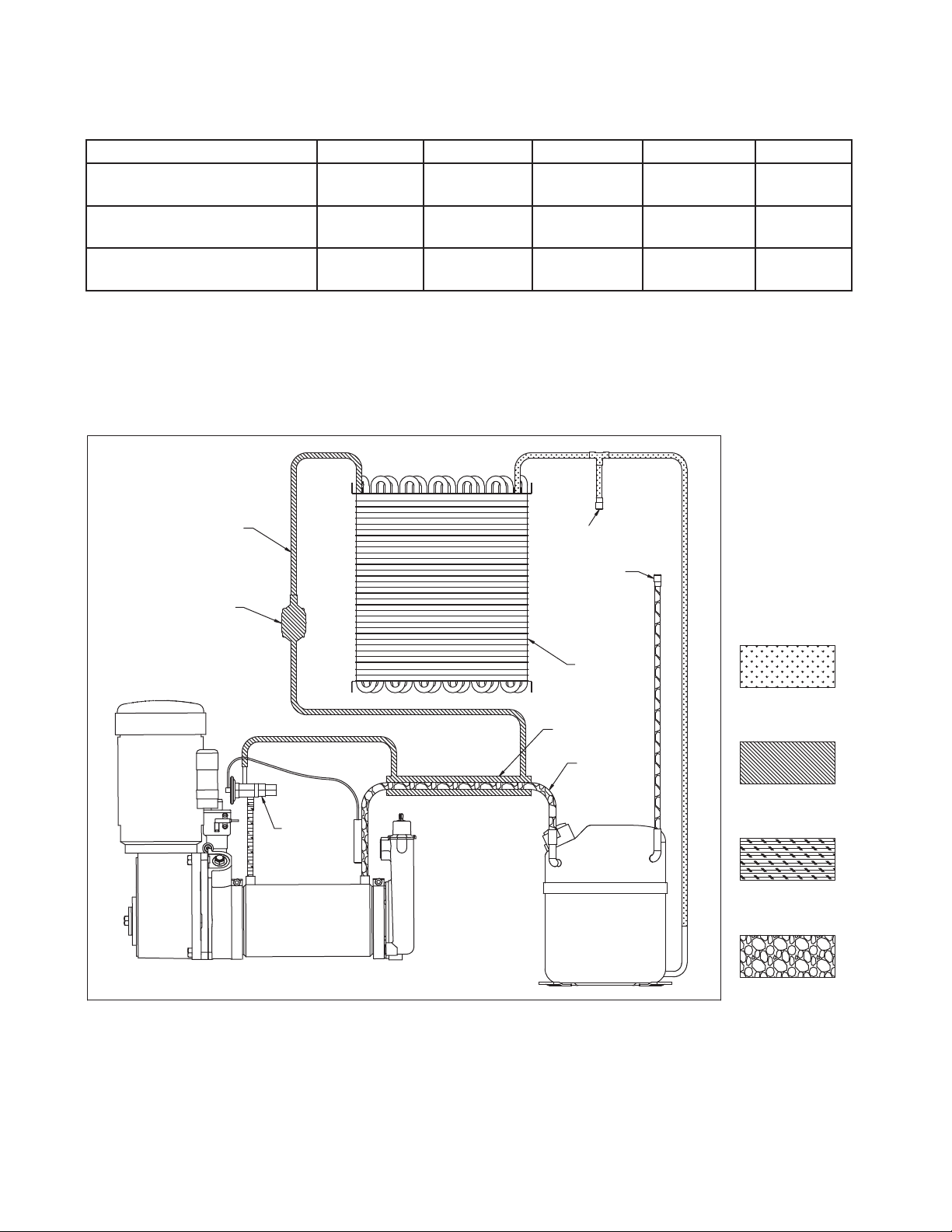

Refrigeration system diagram
Refrigerant charge size
Refrigerant replacement requirements
Evacuation
Ambients
Ice capacity test
Bin full detection system
Troubleshooting

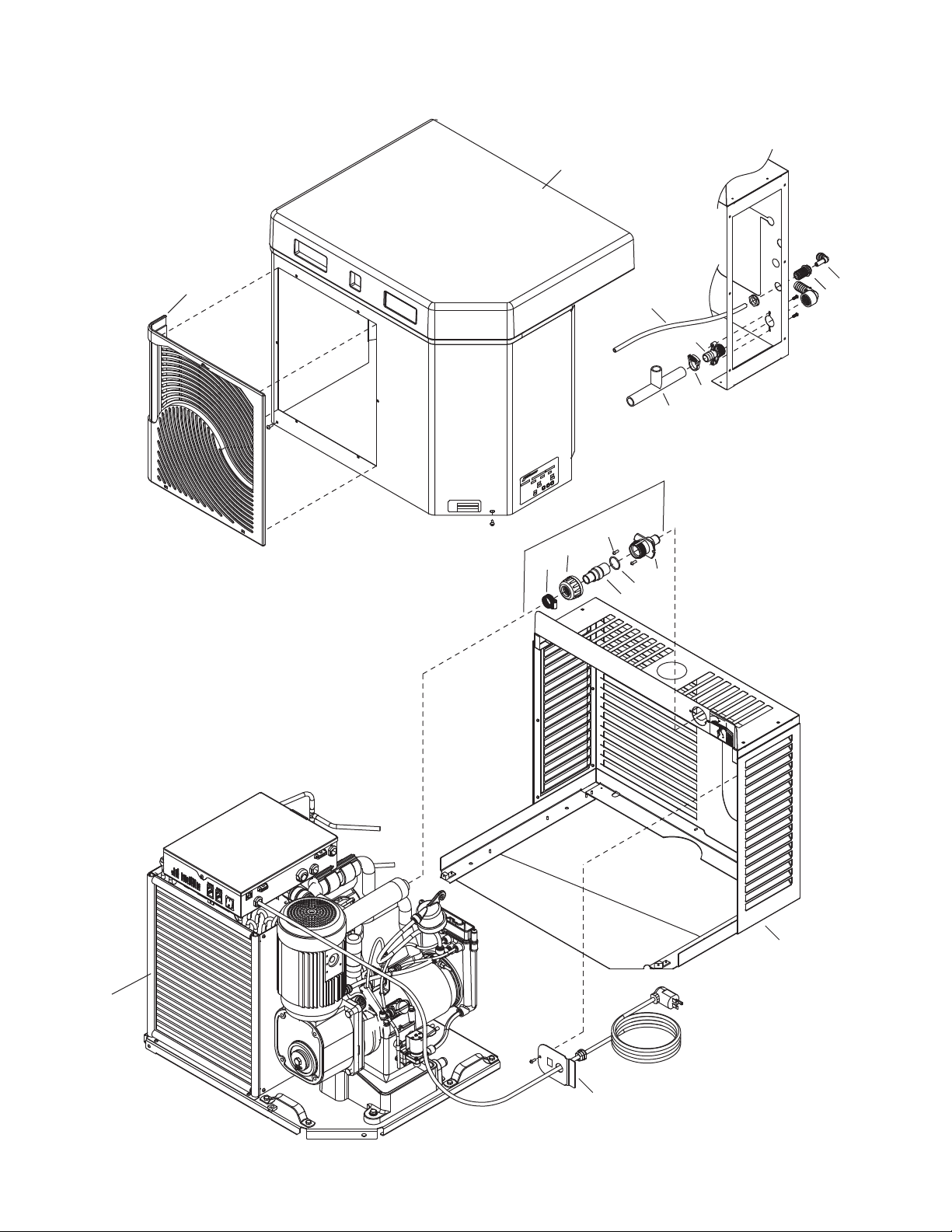

Replacement parts
Table of contents
4
5
6
6
6
6
7
12
12
13
14
14
15
15
15
15
15
15
16
17
17
17
18
18
20
23
23
23
24
24
24
24
24
25
26
28
4
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this equipment delivers the same degree of service, we ask
that you review the installation manual (provided as a separate document) before beginning to install the unit.
Our instructions are designed to help you achieve a trouble-free installation. Should you have any questions or
require technical help at any time, please call our technical service group at (877) 612-5086 or +1 (610) 252-
7301.
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling of a claim,
if necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide information
about the type and capacity of Follett equipment. Following is an explanation of the different model numbers in the
1000 series.
A V SC 700HC
ConfigurationApplication
S RIDE
®
(RIDE remote ice
delivery equipment)
T Top-mount
400 up to
454 lbs
(206kg)
700 up to
750 lbs
(340kg)
1000 up to
1036 lbs
(471kg)
1400 up to
1450 lbs
(658kg)
1650 up to
1580 lbs
(717kg)
V Vision™
H Harmony™
B Ice storage
bin
J Drop-in
M Ice Manager™
diverter valve
system
CondenserSeriesVoltageMachine
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote.
If remote unit, high side is
208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet
(400 Series)
HC Horizon
Chewblet
(1000, 1400,
1650 Series)
HM Horizon
Micro
Chewblet
A Air-cooled, self-contained
W Water-cooled,
self-contained
R Air-cooled, remote
condensing unit
N Air-cooled, no condensing
unit for
connection to parallel rack
system
Chewblet
®
Ice Machine Model Number Configurations
CAUTION
• Warranty does not cover exterior or outside installations.
• Moving parts. Do not operate with front cover removed.
• Hot parts. Do not operate with cover removed.
• To reduce risk of shock, disconnect power before servicing.
• Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution
label on product and follow instructions carefully.
• Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
5
Speci cations
Electrical
Each ice machine requires its own separate circuit with electrical disconnect within 10 ft (6m).
Equipment ground required.
Standard electrical – 208-230/60/1
Maximum ice machine fuse – 15 amps each
Amperage – 11 amps
6 ft (2m) NEMA 6-15 cord and plug provided on ice machine
Plumbing
3/8" OD push-in water inlet
3/4" MPT drain
1/4" FPT condenser inlet (water-cooled condenser only)
1/4" FPT condenser drain (water-cooled condenser only)
Notes: 3/4" vented drain line must slope a minimum of 1/4" per foot (6mm per 30.4cm run).
Drain to be hard piped and insulated.
To prevent back ow, do not connect drains.
Separate drains for ice machine and condenser.
Water shut-off recommended within 10 feet (3m).
Follett recommends installation of Follett water lter system (part# 00130286) in ice machine inlet water
line.
Ambient
Air temperature 100 F/38 C max. 50 F/10 C min.
Water temperature 90 F/32 C max. 45 F/7 C min.
Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (89 kPa)
Note: Water-cooled condenser pressure 150 psi (1034 kPa)
Heat rejection
Air-cooled rejects 11,300 BTU/hr
Water-cooled rejects 12,800 BTU/hr
Ice production
F
C
50
10
60
16
70
21
80
27
90
32
60
16
1135
515
1070
486
1015
461
967
439
924
420
70
21
1100
499
1000
454
938
426
902
410
859
390
80
27
962
437
916
416
871
395
826
375
782
355
90
32
828
376
816
371
794
361
755
343
698
317
100
38
786
357
728
331
686
312
654
297
610
277
lbs
kg
lbs
kg
lbs
kg
lbs
kg
lbs
kg
Inlet Water Temperature F/C
Ambient Air Temperature F/C
F
C
50
10
60
16
70
21
80
27
90
32
60
16
1071
486
1025
465
971
441
912
414
849
386
70
21
1035
470
979
444
932
423
888
403
842
382
80
27
975
443
912
414
870
395
839
381
814
370
90
32
885
402
826
375
786
357
759
345
745
338
100
38
762
346
723
328
683
310
642
292
603
274
lbs
kg
lbs
kg
lbs
kg
lbs
kg
lbs
kg
Inlet Water Temperature F/C
Ambient Air Temperature F/C
Air-cooled ice machine
capacity/24 hrs. hrs.
Air-cooled ice machine
capacity/24 hrs. hrs.
6

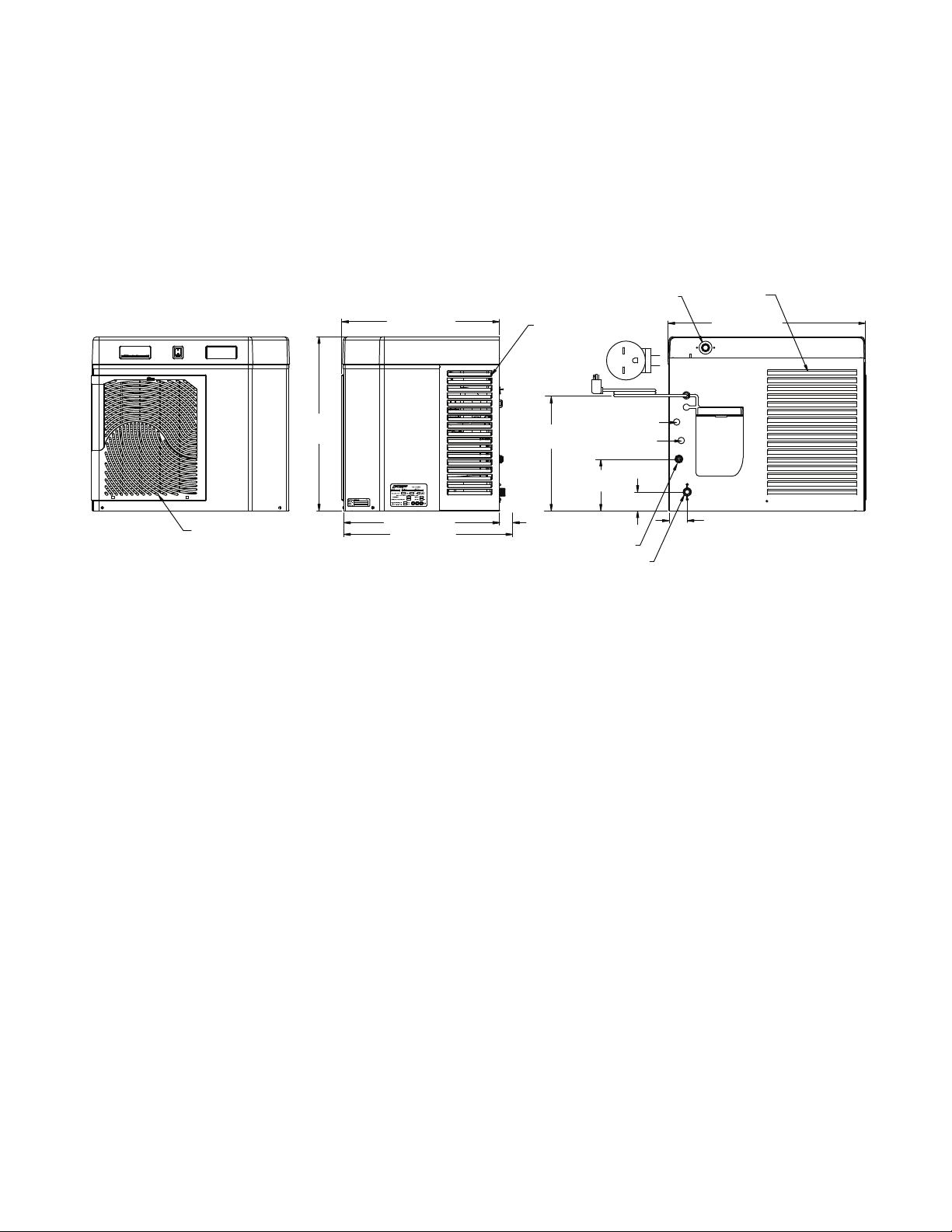

Dimensions and clearances
Entire front of ice machine must be clear of obstructions/connections to allow removal.
1" (26mm) clearance above ice machine for service.
1" (26mm) minimum clearance on sides.
The intake and exhaust air grilles must provide at least 150 sq in (968 sq cm) of open area.
Air-cooled model ice machines – 18" (458mm) minimum clearance between discharge and air intake-grilles.
Air exhaust
both sides
2.43" (62mm)
Ice transport hose connection
26.63" (677mm)
Air exhaust
2.53
(65mm)
3/4" MPT drain
1/4" FPT
condenser inlet
1/4" FPT
condenser drain
1.75" (45mm)
min. req'd
15.56"
(395mm)
6.95"
(177mm)
3/8" OD push-in water inlet
NEMA 6-15
right angle
22.8" (580mm)
21.28" (541mm)
23.50"
(597mm)
21.05" (535mm)
Air intake
Back ViewSide ViewFront View
L1
L2
G
Operation
Cleaning and preventive maintenance (all models)
Note: Do not use bleach to sanitize or clean the ice machine.
Preventive maintenance
Periodic cleaning of Follett’s ice machine system is required to ensure peak performance and delivery of clean,
sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as
recommended, and more often if environmental conditions dictate.
Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the ice machine system,
in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent.
Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed
according to the schedule below. Service problems resulting from lack of preventive maintenance will not be
covered under the Follett warranty.
Weekly exterior care
The exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.
Monthly condenser cleaning (air-cooled ice machine only)
1. Use a vacuum cleaner or stiff brush to carefully clean condenser coils of air-cooled ice machines to ensure
optimal performance.
2. When reinstalling counter panels in front of remote ice machines, be sure that ventilation louvers line up with
condenser air duct.
7

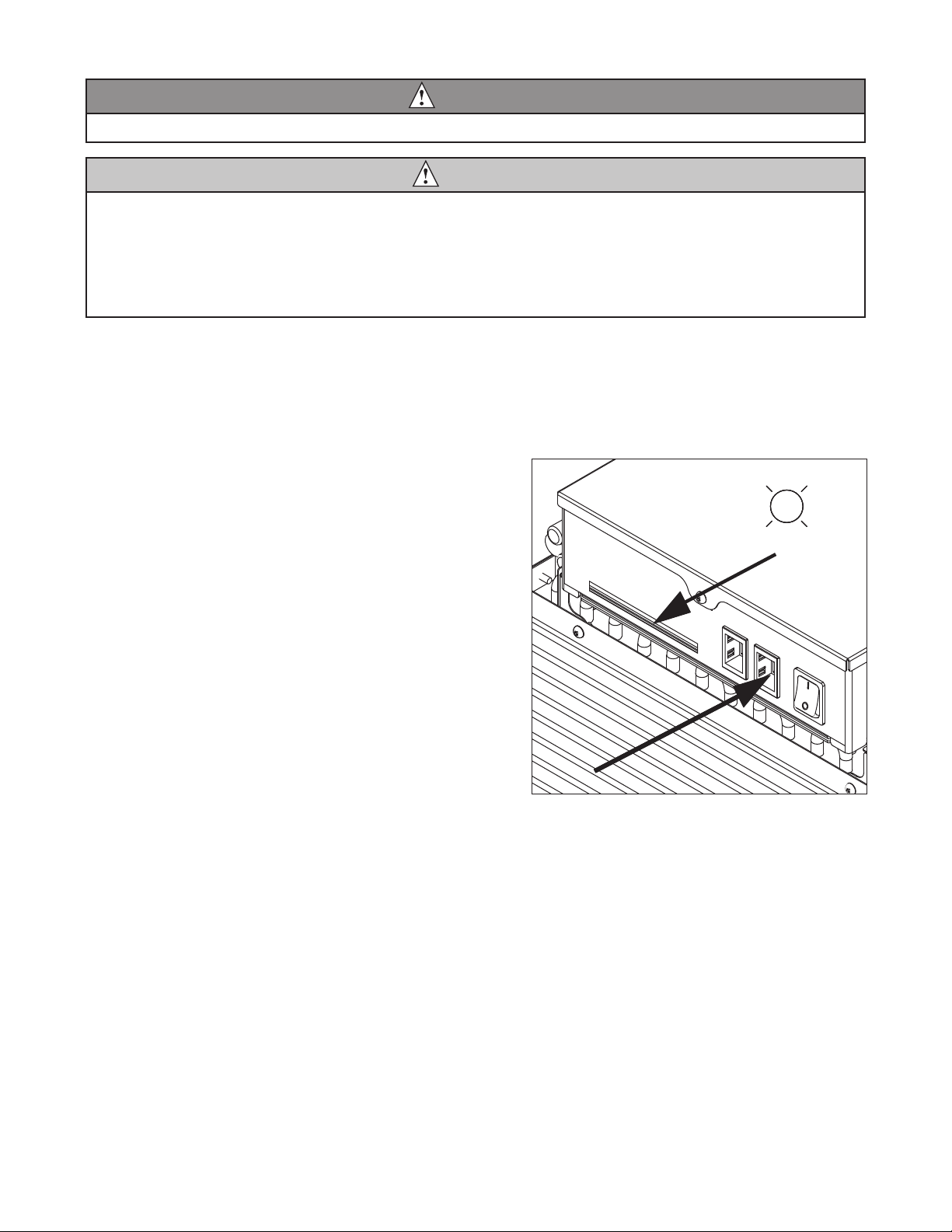

Semi-annual evaporator cleaning (every 6 months)
WARNING
• Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer.
CAUTION
• Use only Follett approved SafeCLEAN™ Cleaner (part #00132001) and NU-CALGON IMS-II SANITIZER.
• Do not mix Cleaner and Sanitizer solutions together.
• DO NOT USE BLEACH.
• It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.
• Read and understand all labels printed on packaging before use.
Note: Complete procedure for cleaning an sanitizing MUST be followed. Ice must be collected for 10
minutes before putting ice machine back into service.
1. To clean – Remove cover. Press the CLEAN button.
The machine will drain. Wait for the LO WATER light
to come on (Fig. 1).
Note: For Ice Manager diverter valve application,
refer to manual #00169045 for ice machine and
diverter valve cleaning process.
LO WATER
C
L
E
A
N
Fig. 1
8
2. Mix 1 gallon (3.8L) 120 F (49 C) water and
7 ounces (198g) (one 7 ounce packet of Follett
SafeCLEAN ice machine cleaner, part#-00132001).
Locate cleaning cup. Fill until HI WATER light comes
on (Fig. 2).
Note: Do not use bleach to sanitize or clean the ice
machine.
HI WATER
Fig. 2
12
Fig. 3
LO WATER
N
A
E
L
C
Fig. 4

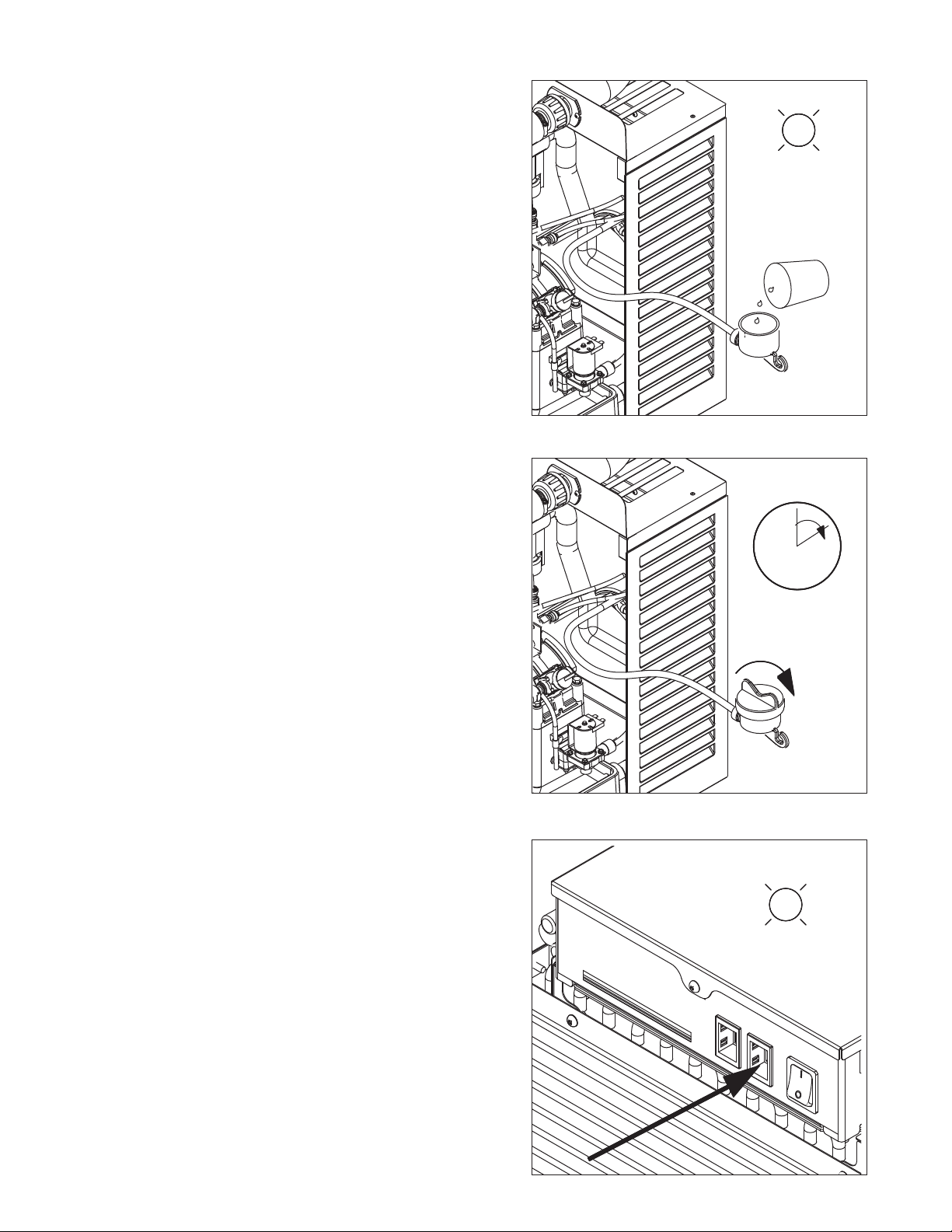

3. Replace cover on cleaning cup. Wait until machine
restarts. Machine will clean, then ush 3 times in
approximately 12 minutes (Fig. 3).
4. To sanitize – Press CLEAN button. The machine
will drain. Wait for LO WATER light to come on
(Fig. 4).
9
HI WATER
Fig. 5
12
Fig. 6
Fig. 7

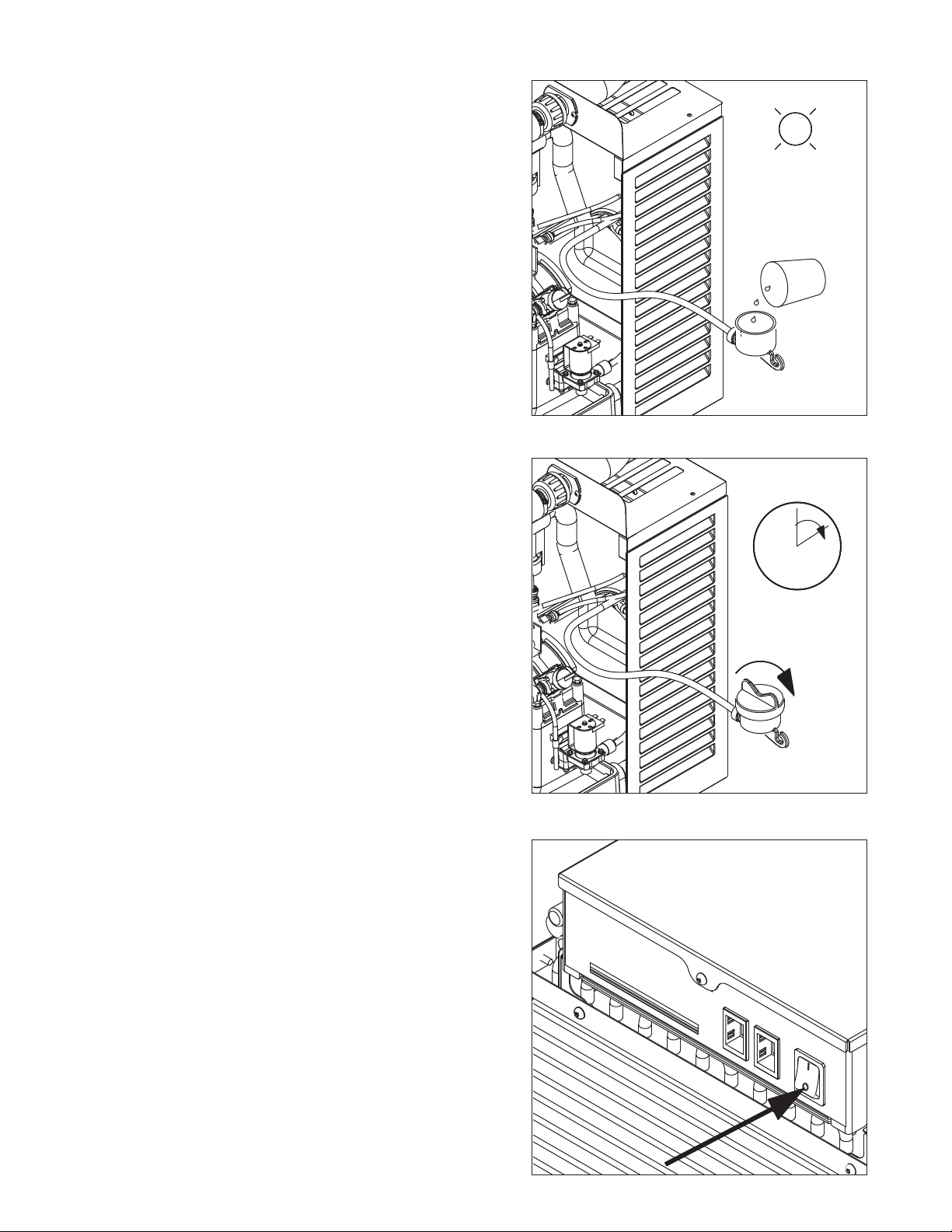

5. Mix 1 gallon 120 F (49 C) water and 1.6 ounces
(48ml) NU-CALGON IMS-II SANITIZER. Fill until
HI WATER light comes on (Fig. 5).
Note: Do not use bleach to sanitize or clean the
ice machine.
6. Replace cover on cleaning cup. Wait until machine
restarts. Machine will sanitize, then ush 3 times in
approximately 12 minutes (Fig. 6).
7. To clean transport tube – Press power switch OFF
(Fig. 7).
10
Fig. 8
1
2
3
16"
(407mm)
Fig. 9
Fig. 10

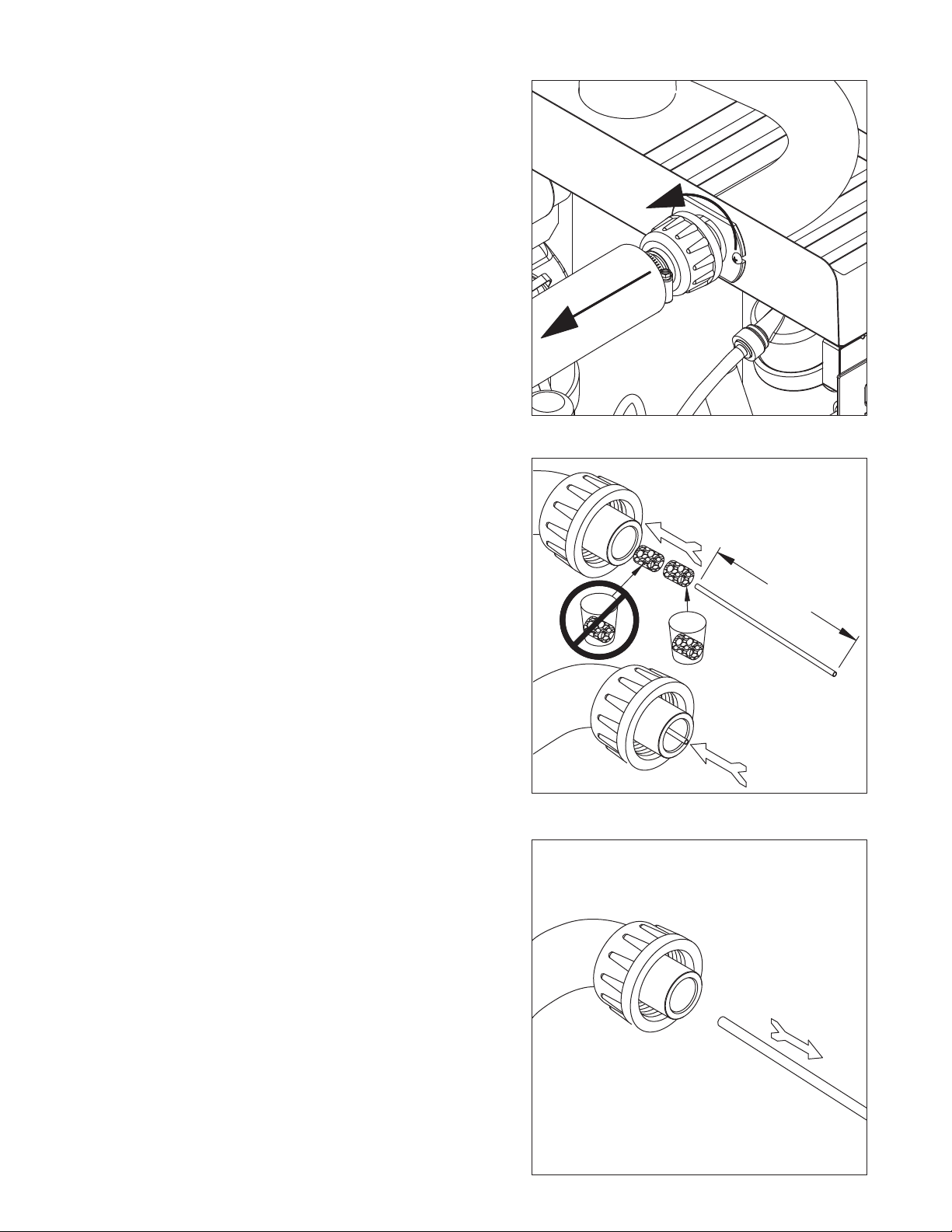

8. Disconnect coupling as shown (Fig. 8).
9. Using disposable food service grade gloves,
insert dry Sani-Sponge
™
(kit part# 00132068).
Next, -insert Sani-Sponge soaked in Nu-Calgon
IMS-II sanitizer solution. Push both Sani-Sponges
down ice transport tube with supplied pusher tube
(Fig.9).
10. Remove and discard 16" (407mm) pusher tube
(Fig. 10).
11
Fig. 11
Fig. 12

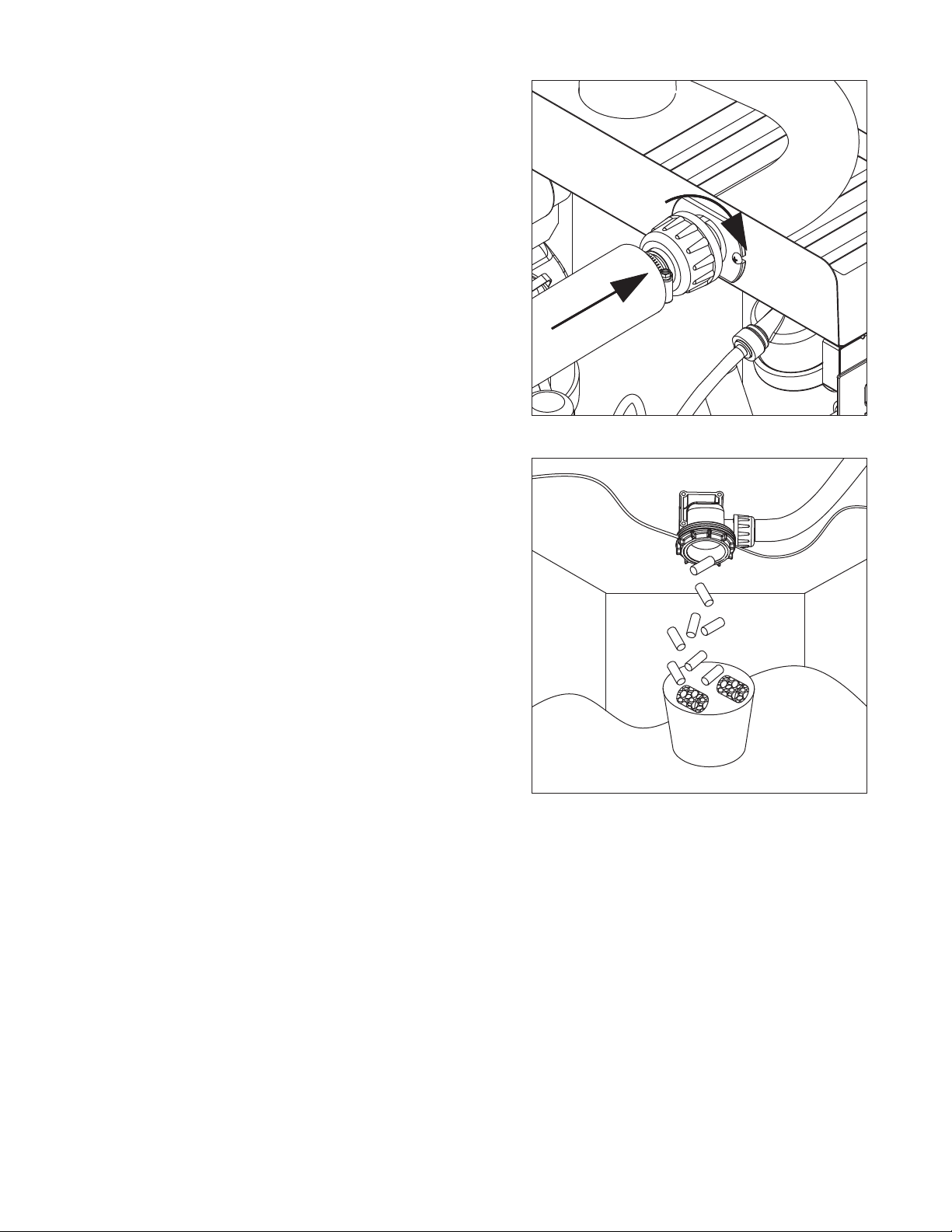

11. Reconnect coupling. Press power switch ON. Ice
pushes Sani-Sponges through tube (Fig. 11).
12. Place a sanitary (2 gallon or larger) container in
bin or dispenser to collect Sani-Sponges and ice
for 10 minutes. Collect 5.5 lbs (3kg) of ice from unit.
Discard ice and Sani-Sponges (Fig. 12).
12
Service
Ice machine operation (all models)
Follett’s ice machine consists of ve distinct functional systems covered in detail as follows:
• Water system
• Electrical control system
• Mechanical assembly
• Refrigeration system
• Bin full

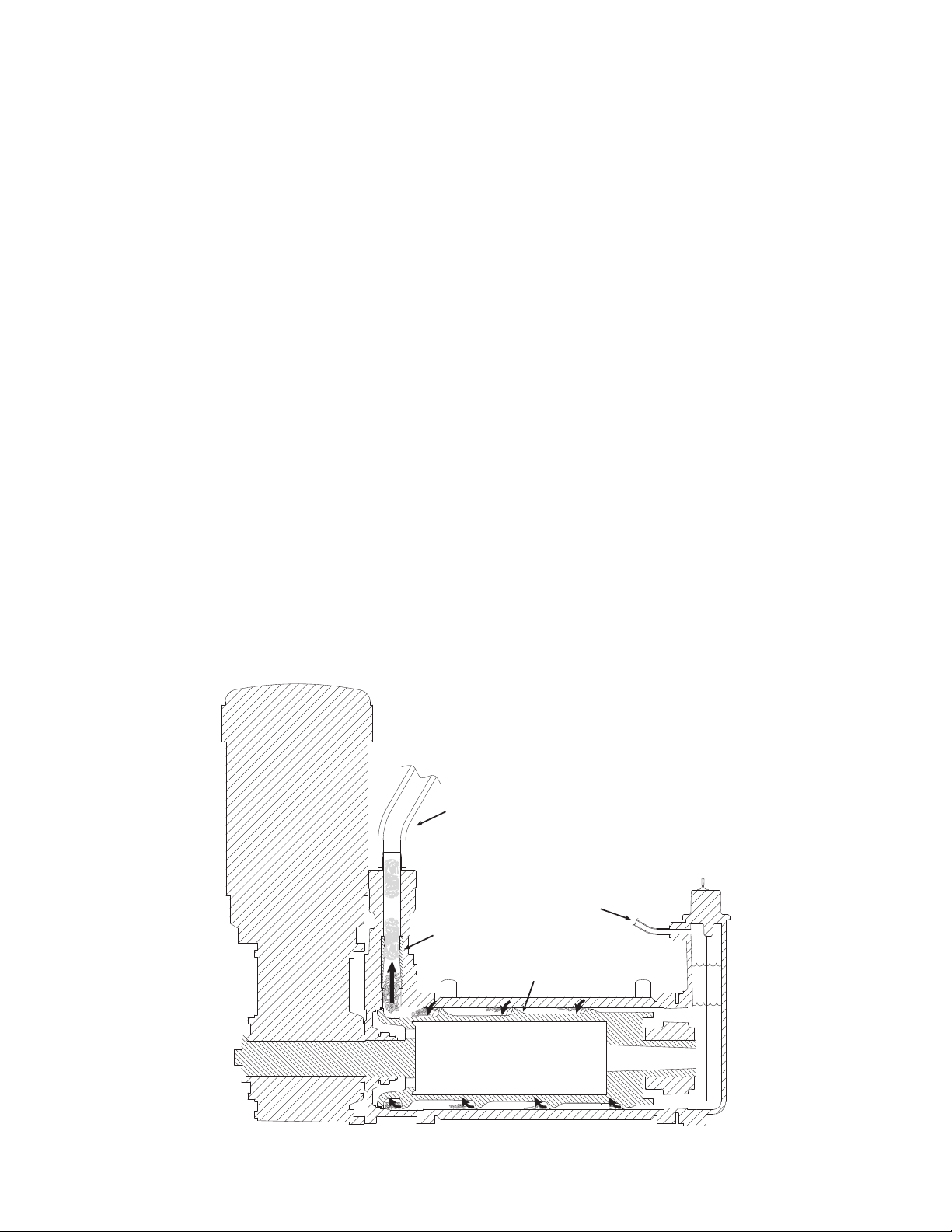

The Horizon ice machine overview
The Follett Horizon ice machine uses a horizontal, cylindrical evaporator to freeze water on its inner surface. The
refrigeration cycle is continuous; there is no batch cycle. The evaporator is ooded with water and the level is
controlled by sensors in a reservoir. A rotating auger (22 RPM) continuously scrapes ice from the inner wall of the
evaporator. The auger moves harvested ice through the evaporator into an ice extrusion canal. The ice is forced
through a restrictive nozzle that squeezes out the water and creates the Chewblet. The continuous extrusion process
pushes the Chewblets through a transport tube into a dispenser or bin.
A solid state PC board controls and monitors the functionality of the ice machine. In addition to sequencing electrical
components, the board monitors various operational parameters. A full complement of indicator lights allows visual
status of the machine's operation. Additionally, the PC board controls the self- ushing feature of the ice machine. The
evaporator water is periodically drained and replenished to remove minerals and sediment.

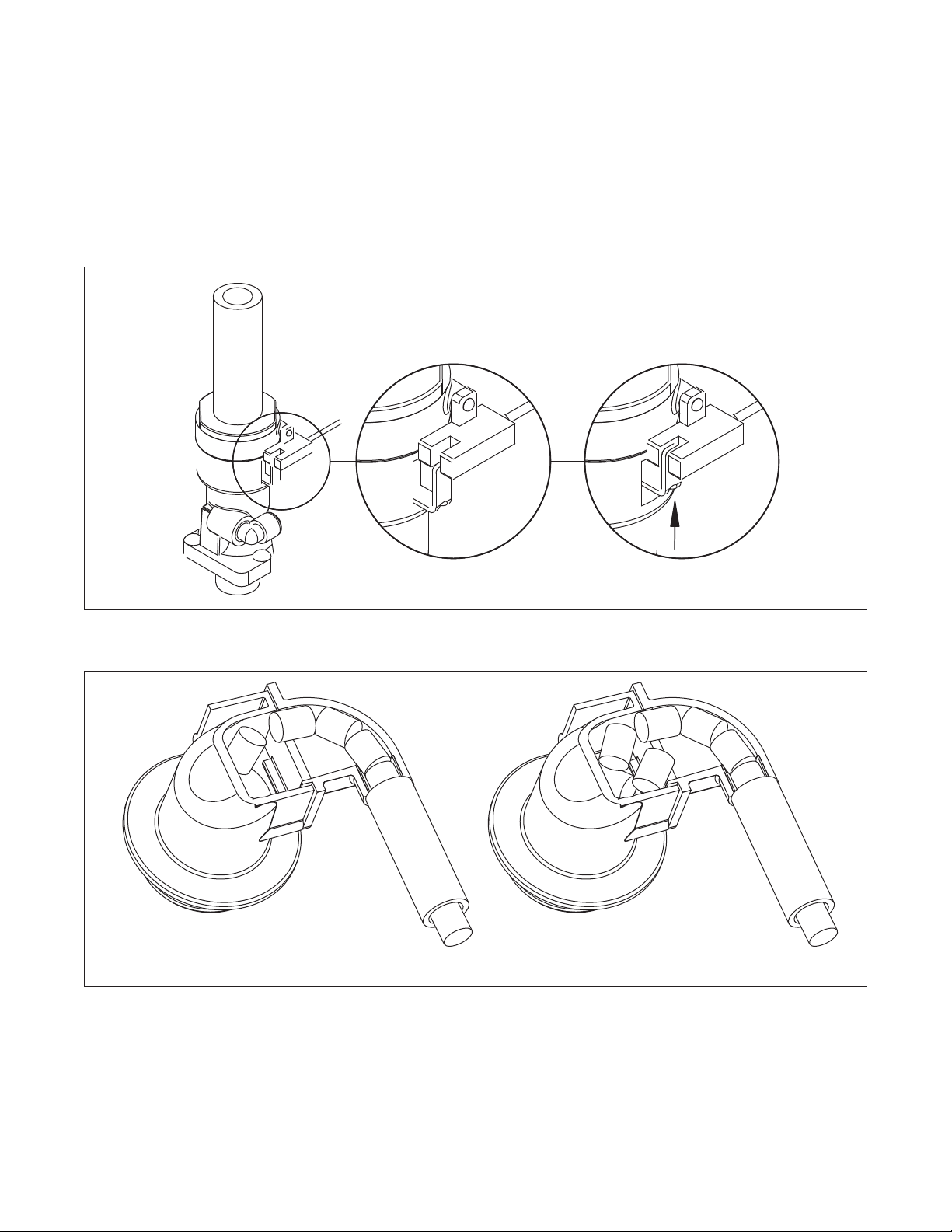

A unique “bin full” detection system is incorporated in the Horizon ice machine. A switch located at the ice discharge
port of the machine detects the position of the transport tube. When the bin lls up with ice, the transport tube
moves out of the normal running position, and the switch turns the ice maker off. A domed housing at the end of the
transport tube contains the ice extrusion loads during shut down.
ice
transport
tube
compression
nozzle
auger
water
inlet
Harvest system diagram
13
Water system
The water level in the evaporator is controlled by a feed solenoid and level detecting sensors. Referencing the
diagram below, water sensing rods extend down into the reservoir at the end of the evaporator assembly. The
system works via electrical conductivity as follows:
One of the longest probes is a common. When water is between any of the other probes and the common, the
PC board will sense the activation. During normal operation, the water level rises and falls between the Normal
High and Normal Low sensors. As water is consumed to make ice, the level will fall until the Normal Low sensor
is exposed, triggering the water feed solenoid on. Water will ll until the Normal High sensor is activated.
Note: The potable water dissolved solids content must be greater than 10 ppm for the water control system
to function properly. If using reverse osmosis water ltration system, ensure T.D.S level is greater than
10ppm.
Normal
operating
range
Normal LO
Common
Normal HI
Alarm LO
Water system diagram
Water level diagram
14
Electrical system
Normal control board operation
The PC board indicator lights provide all the information necessary to determine the machine's status. Green
indicator lights generally represent “go” or normal operation; Yellow indicators represent normal off conditions;
Red indicators generally represent alarm conditions, some of which will lock the machine off.
A green light labeled POWER indicates power to the machine. A ashing green light labeled CPU is normal and
indicates that the Central Processing Unit “heart beat” is working. All other normal operation status indicators are
covered as follows:
Ice machine disposition Operation conditions
FLASHINGON or OFF
Legend:
OFFON
1. Ice machine is making ice.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Normal running.
2. Ice machine is not making ice.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
2. Normal time delay. When the bin lls with ice, the
LOW BIN light goes out and the refrigeration and
auger drive systems immediately shut down. (Note:
The fan motor will continue to run for 10 minutes to
cool condenser) The TIME DELAY light comes on,
initiating the time delay period. When the time delay
expires, the machine will restart provided that the
LOW BIN light is on.
3. Ice machine is not making ice.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
3. Normal purge indicator. After a selected period
of ice making time has elapsed (1 or 2 hours), the
ice machine will automatically self- ush. The com-
pressor will shut down but the fan and gearmotor
will continue to run. After the ush is complete the
machine will re ll and start without a time delay.
15
Test points:
The Horizon PC board incorporates on-board test points that can be used to determine various electrical outputs. The test
point holes allow a standard probe to be inserted for quick voltage measurement. For 208-230 systems, use TP-4 (L2) as the
common for testing outputs for solenoids, motors, etc.
Error faults:
The Horizon PC board monitors various operating parameters including high pressure, auger gearmotor amperage limits,
clogged drain, and high and low water alarm conditions. There are two types of errors namely “hard” or “soft”. A hard error is
one that shuts the machine off and will not allow restart until the reset button is pressed. Even cycling power will not reset
a hard error. A soft error can either be automatically reset should the condition rectify, or if power is cycled. Should an error
occur, consult the troubleshooting guide in this manual or a Follett service technician. Note: there are two types of LO WATER
and HI AMPS errors as listed below.
Soft errors:
HI AMPS: The PC board monitors the amperage of the auger motor. Should the gear motor experience current draw above
the 3.8 amps limit the machine will shut down and the TIME DELAY, HI AMP, and SERVICE LED’s will be illuminated. After the
time delay the machine will restart and the TIME DELAY, HI AMP, and SERVICE LED’s will clear.
LO WATER: During operation, the water level cycles between the normal low and normal high sensors. Should the water
be shut off to a running machine, a soft error will occur. The error sequence is as follows: During operation, the water level
falls to the normal low sensor, and when it does the water feed solenoid is energized. If water is not detected at the normal
low sensor within 120 seconds, a soft error will occur. The machine will shut down, but the water feed solenoid will remain
energized. Should water return, it will ll to the normal low sensor and the machine will resume normal operation. The error
will clear automatically.
DRAIN CLOG: The drain clog sensor, located in the plastic drain pan behind the drain solenoid, will detect the presence
of water just below the top edge of the pan. If water does not properly ow out of the drain pan it will rise to the sensor,
especially during a self- ushing purge cycle. Turning the power switch off and then back on again will restart the ice machine.
For Serial Number D14462 higher:
HI PRESSURE: Should the refrigeration pressure rise above 425 psi, the machine will shut down and the TIME DELAY, HIGH
PRESSURE, and SERVICE LEDs will be illuminated. After the time delay, and if the pressure has fallen back below the reset
point of 295 psi, the machine will restart and the TIME DELAY, HIGH PRESSURE, and SERVICE LEDs will clear.
Hard error:
HI AMPS:
1. “Two strikes” feature. If the gearmotor has a second HI AMP occurrence during the countdown period (6 hours after a HI
AMP time delay) a hard error will occur and the HI AMP and SERVICE LED’s will be illuminated. Reset button must be
pressed to clear this error.
2. No current. To prevent the refrigeration system from running without gearmotor rotation the PC board will indicate HIGH
AMP and SERVICE if the drive relay is energized and there is no current draw. Reset button must be pressed to clear this
error.
For Serial Numbers below D14462:
HI PRESSURE: Should the refrigeration pressure rise above 425 psi, a hard error will occur. Even if pressure falls back below
the reset point of 295 psi, the error will not clear and the machine will not restart. Reset button must be pressed to clear this
error.
LO WATER:
1. There is a sensor in the water reservoir that reaches down to the very bottom. The machine will not start if water is not
present at this sensor.
2. A hard error will occur should water not be present within 60 seconds of power up or if the sensors are disconnected or
damaged. Reset button must be pressed to clear this error.
Relay output indication:
Each relay on the board has an indicator light associated with its output. For example, when the relay for the water feed
solenoid is energized, the adjacent indicator light glows green.
Comp/Sol output:
The output for the compressor is labeled COMP/SOL.
16
LE
LE
2
LOW
NORM
6
HIGH
NORM
LE
3
COM
LE
4
ALARM
LE
LOW
7
LE
8
CLOG
DRAIN
COM
WATER LEVEL
OUT (light on)
-V
(3 WIRE)
+V
RETURN
(CONTACT CLOSURE)
BIN
FULL
S3
CLEAN
MOM
S2
PURGE
MAINT
OR
INPUT 2
1
2
3
4
J51
1
1
1
1
J24
J22 J23
CONTROL BOARD
J21
JUMPER
PURGE (Y)
POWER (G)
LOW BIN (G)
AUGER ON (G)
REFRIG ON (G)
CLEANING (Y)
SERVICE (R)
HI AMPS (R)
HI PRESS (R)
LO PRESS (R)
DRAIN CLOG (R)
TIME DELAY (Y)
LO WATER (R)
CPU (G)
HI WATER (R)
SWITCH
RESET
J34
J33
J32
J31
1Ø/230Vac
SIGNAL
RETURN
2
1
J3
HI
PRESS
HIGH PRESSURE
OPENS @ EXCESS
P
2
PE
OPEN @ 425 PSI
CLOSE @ 295 PSI
K1
C NO
L1
J7
J4
J5
MOTOR
FAN
J17
J18
J2
BRN
BLU
1
2
3
J50
.6 Amp Max
1/2hp Max
NOC
K3
J6
M2
M1
#2
#12
#9
#1
#3
GRN
#34
CB1
COMP
SOL
FAN
DRV
#19
#18
SNUBBER
20FLA
240Vac
CONTACTOR
K10
L2
L1
2
5
#7
#8
S1
O I
240Vac / 20FLA
ON/OFF SWITCH
1
4
~11Amp DRAW RUNNING
50/60Hz
208V/230Vac
#28
#13
#14
#15
#16
#17
#26
#27
#25
P1
K11
C2 START
C1 RUN
COMP
>.50hp
S
R
C
6
4
12
5
#10
J10
J9
L2
J11
J12
J8
#11
#31
#30
#33
#32
FCV-1 FCV-2
230Vac
20Watt 20Watt
230Vac
DRAIN
INPUT
WATER
J16
J13
J14
J15
H2O
IN
POTENTIAL
RELAY
H2O
DRN
TP11
TP4
TP7
TP8
TP6
TP5
TP3
BLU
BRN
GRN
AMP
SENSING
D9
D5
D10
D6
D15
BLU
BLK
BRN
P52 J52
L2
GND
L1
BRN
BLU
1
J1
2
3
ICE MANAGER
CONTROL
(OPTIONAL)
RED / YELLOW
ORANGE / BLACK
BLACK / YELLOW
RED
GREEN
YELLOW
BLUE
ORANGE
GREEN
YELLOW
BLACK
RED
Wiring diagram
17
Compressor data
Compressor current draw at 230 VAC
Air-cooled
Ambient air temp. 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C
7.1 7.5 7.8 7.8 8.1
Water-cooled
Condenser water temp 50 F/10 C 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C
7.0 7.0 7.4 6.7 8.0
Locked rotor amps 54
Gearmotor data
Brother
Gearmotor current 2.8A (nominal)
Locked rotor amps 15 amps
Resistance of windings
208-230 vac gearmotor (Brother) 6.2Ω
Compressor start winding 3.0Ω
Compressor run winding 1.4Ω
Fan motor 38Ω
18
Mechanical system
Evaporator disassembly

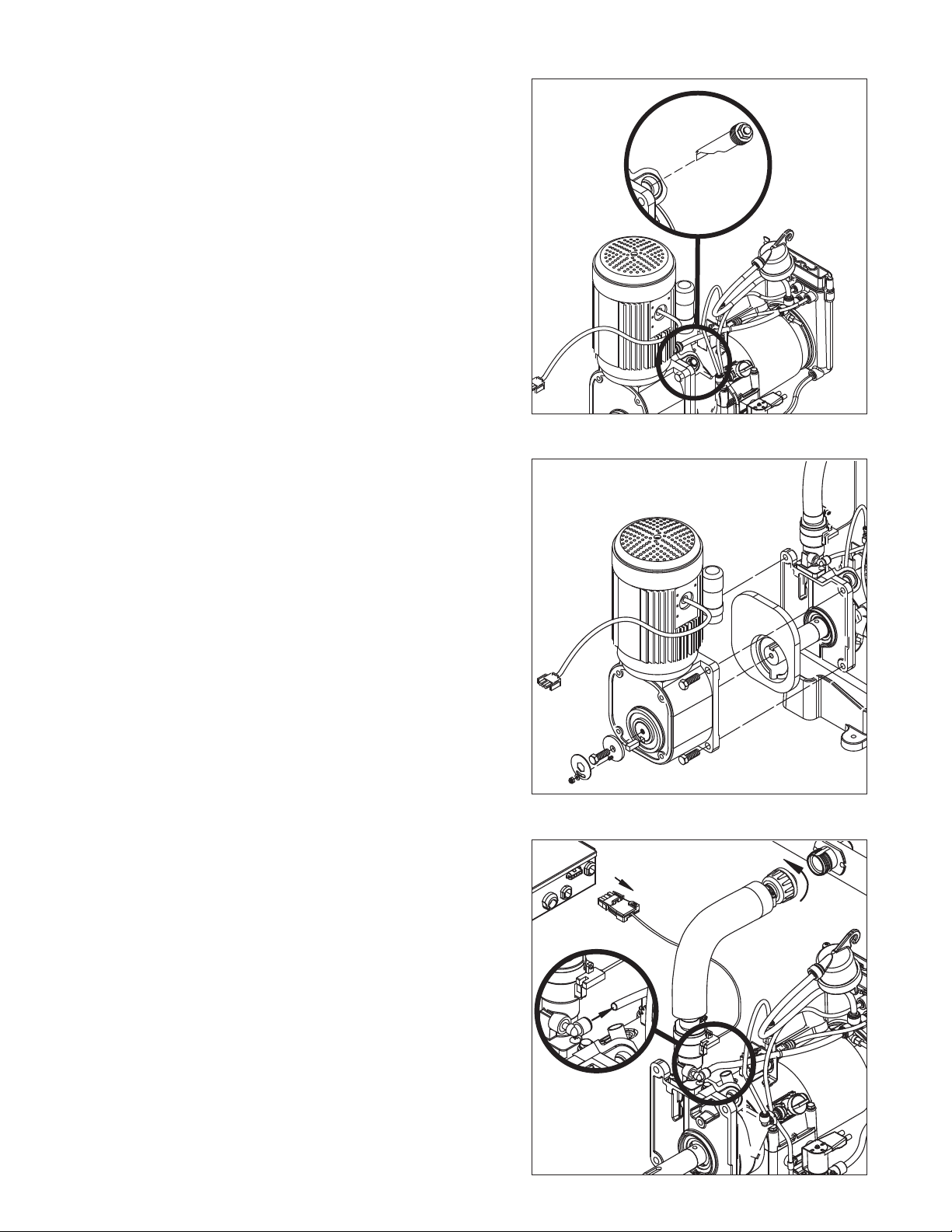

1. Press PURGE button to purge evaporator, and then
turn power OFF.
2. Unscrew and remove stream divider as shown.
3. Unplug and remove gearmotor as shown.
4. Remove all traces of petrol-gel from the auger shaft.
Fig. 13
Fig. 14
Fig. 15
5. Unscrew and disconnect transport tube from
louvered docking assembly.
6. Unplug sensor at the electrical box.
7. Remove vent tube from shuttle housing as shown.
19

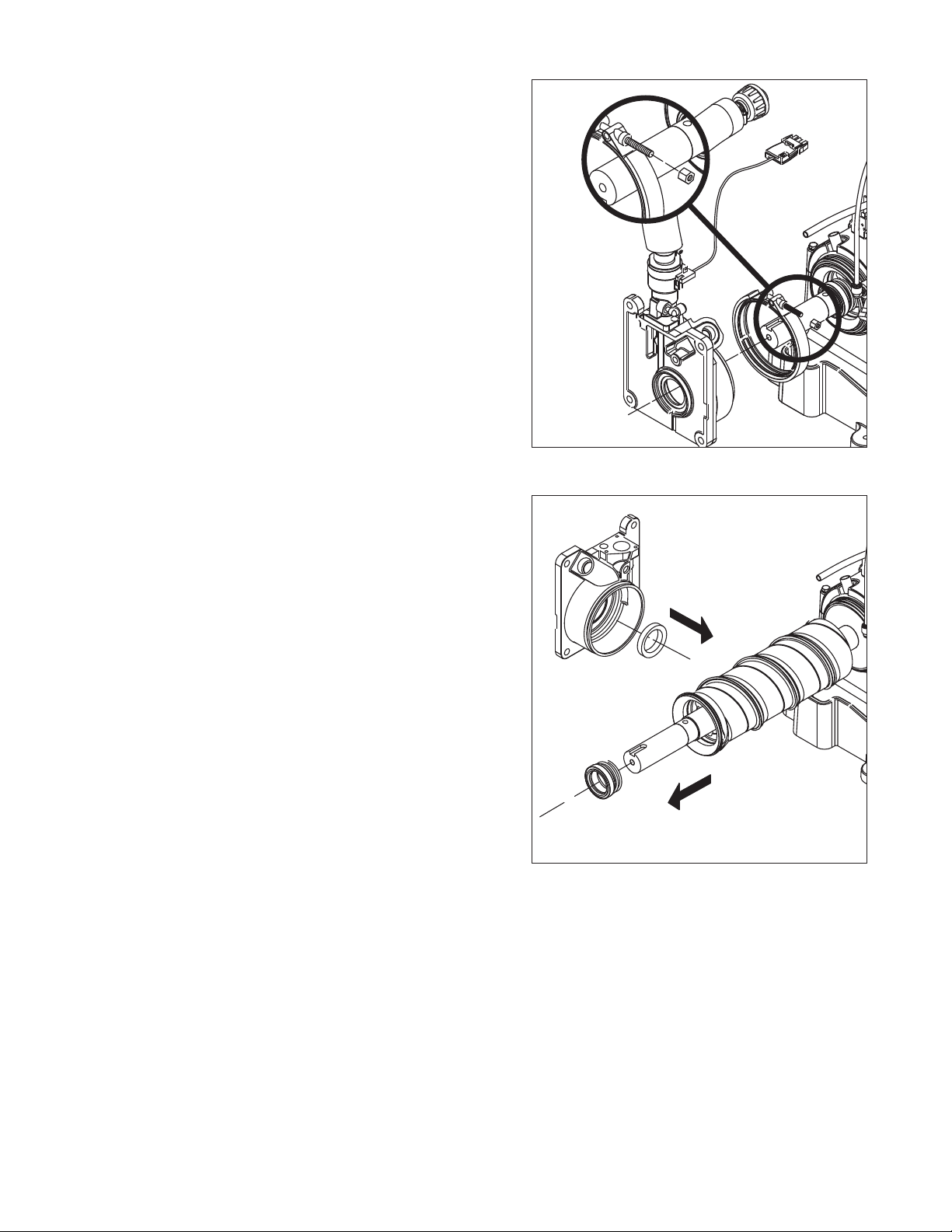

Fig. 16
8. Loosen nut on V-band clamp and remove.
9. Remove V-band clamp from front of evaporator.
10. Remove main housing as shown.
Fig. 17
11. Remove and discard mating ring and seal.
12. Carefully remove auger.
20
Do not
touch
Lubricate with
soap
Cardboard disc
Fig. 19
3. Press new mating ring into main housing as shown.
4. Lube the shaft with liquid soap in the area shown
and slip on seal and spring.
Note: Do not touch the sealing surfaces. Use
cardboard disk to install.
Fig. 20
5. Reinstall main housing as shown.
Fig. 18
Evaporator reassembly
1. Remove and inspect O ring seal. Discard if
damaged in any way.
2. Clean O ring groove. Lubricate O ring with
petrol-gel and reinstall.
21
Fig. 22
11. Reconnect transport tube to louvered
docking assembly.
12. Plug sensor in at the electrical box.
13. Reconnect vent tube to the shuttle housing
as shown.
Apply petrol-gel
Fig. 23
14. Apply a coat of petrol-gel to the auger shaft.
15. Install gearmotor, making sure that insulation is
properly seated between gearmotor and main
housing as shown.
16. Firmly tighten four gearmotor bolts in place.
Note: Shuttle housing
removed for clarity
Fig. 21

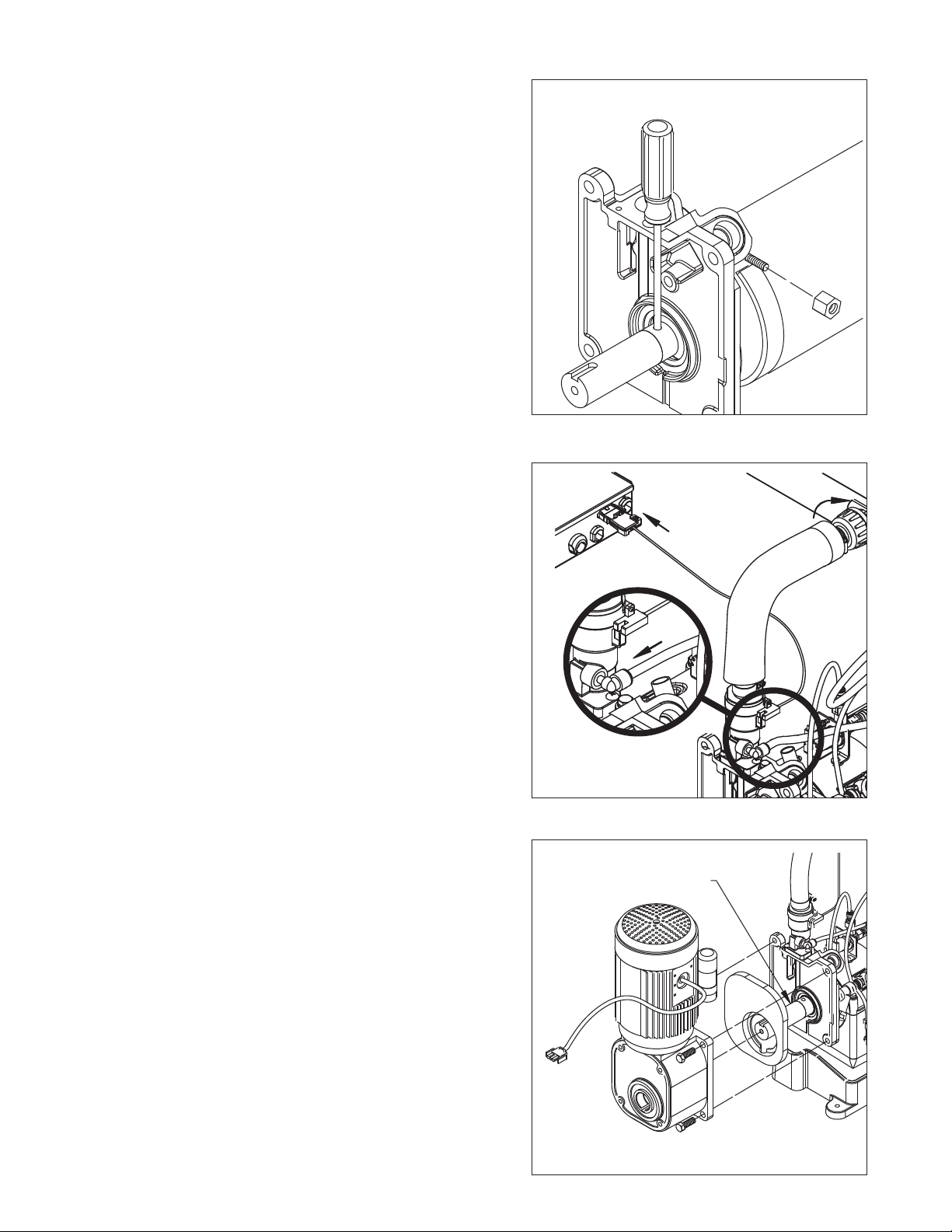

6. Orient auger shaft with keyway in the
upward position.
7. Force main housing into position against evaporator
and place 1/4" (7mm) diameter Phillips screwdriver
into hole in the auger shaft.
8. Replace V-band clamp as shown.
9. Replace nut on V-band clamp and tighten.
10. Remove screwdriver.
22
Fig. 25

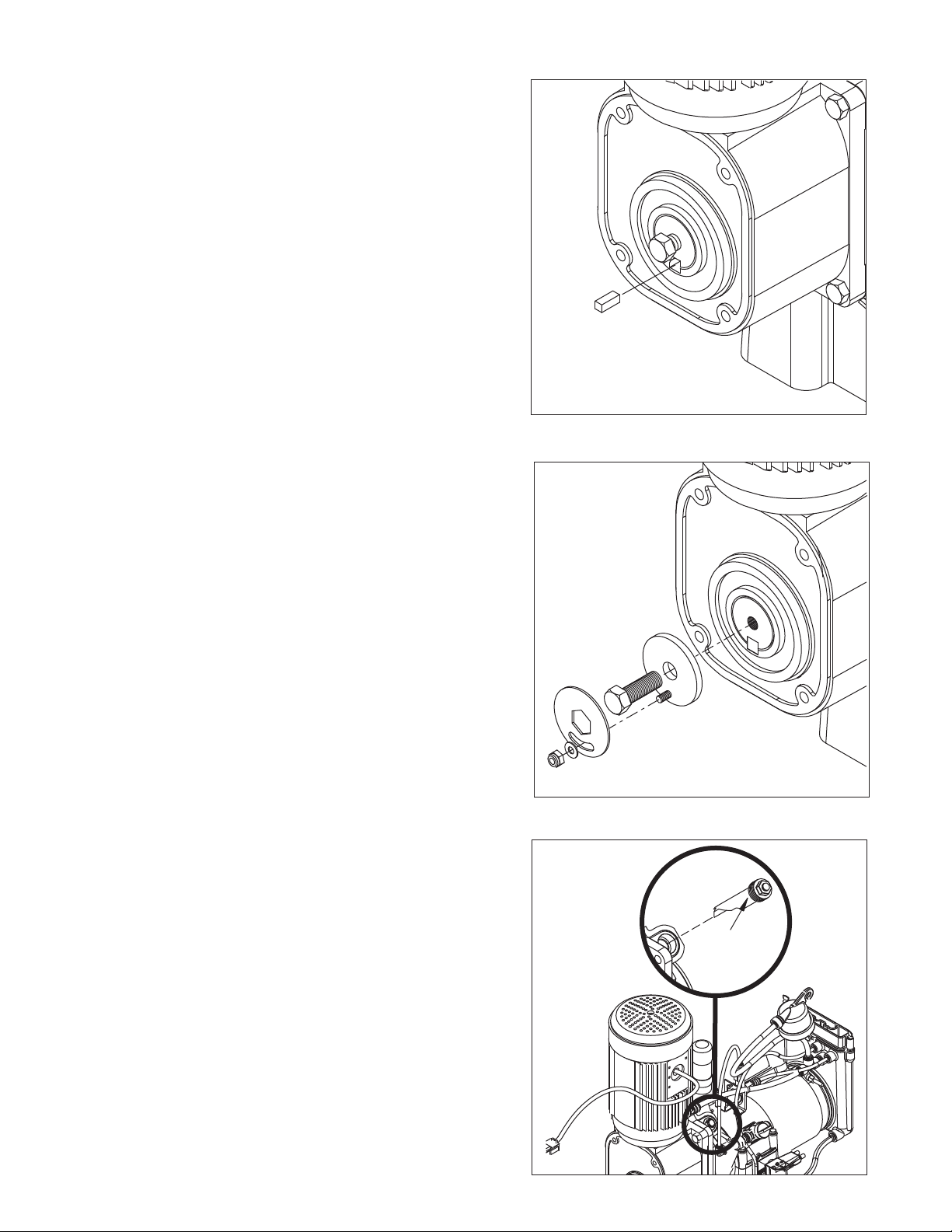

20. Remove bolt and reinstall the washer and bolt.
Place retainer over bolt and secure with nut and
washer.
Apply
petrol-gel
Fig. 26
21. Lubricate body of stream divider with petrol-gel and
reinstall.
22. Plug gearmotor power cord into electrical box.
Fig. 24
17. Insert a bolt into the auger shaft and nger tighten.
18. Using a wrench, rotate the shaft clockwise to align
the keyways in the gear housing and the shaft so as
to accept the key.
19. Insert the key into the keyway.
23
Low pressure vapor
Low pressure liquid
High pressure liquid
compressor
low side
refrigeration
line run
heat exchanger
condenser
low side
service port
high side
service port
thermostatic
expansion
valve
filter
dryer
high side
refrigeration
line run
High pressure vapor
Refrigeration system diagram
Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C
Pressure (psig) discharge/
suction
218/31 241/33 277/35 313/38 349/41
Water-cooled condensers
(water)
60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C
Pressure (psig) discharge/
suction
219/33 225/33 231/33 232/34 236/40
Note: The water control valve is factory set to maintain 230 ± 15 psi discharge pressure @ 70 F water.
Refrigeration system
Refrigerant pressure data
24
Refrigeration charge
All service on refrigeration systems must be performed in accordance with all federal, state and local laws. It is the
responsibility of the technician to ensure that these requirements are met. Recharging ice machine to other than
factory speci cations will void the warranty.
Refrigerant replacement requirements
1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to
the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage
container. If additional refrigerant is required, virgin or reclaimed refrigerant that meets ARI standard 700-88
must be used.
2. In the event of system contamination (for example, a compressor burn out, refrigerant leak, presence of
non-condensibles or moisture), the system must be repaired, evacuated and recharged using virgin or
reclaimed refrigerant that meets ARI standard 700-88.
3. Follett Corporation does not approve of recovered refrigerants. Improper refrigeration servicing procedures
will void the factory warranty.
Evacuation
Evacuate the system to a level of 500 microns. When the 500 micron level is reached, close all valves. Allow the
system to sit for approximately 20 minutes. During this period the system pressure should not rise. If the system
pressure rises and stabilizes there is moisture in the system and further evacuation is needed. If the pressure
continues to rise check the system for leaks.
Ambients Minimum Maximum
Air temperature
1
50 F/10 C 100 F/37.8 C
Water temperature
2
45 F/7 C 90 F/32.2 C
1
Ambient air temperature is measured at the air-cooled condenser coil inlet.
2
Ambient water temperature is measured in the ice machine water reservoir.
Ice capacity test
Ice machine production capacity can only be determined by weighing ice produced in a speci c time period.
1. Replace all panels on ice machine.
2. Run ice machine for at least 15 minutes.
3. Weigh and record weight of container used to catch ice.
4. Catch ice for 15 or 20 minutes.
5. Weigh harvested ice and record total weight.
6. Subtract weight of container from total weight.
7. Convert fractions of pounds to decimal equivalents (ex. 6 lbs 8oz = 6.5 lbs).
8. Calculate production using following formula:
9. Calculated amount per 24 hours should be checked against rated capacity for same ambient and water
temperatures in Ice Production Tables.
R404A ice machine charge speci cations
Model Charge Refrigerant type
HCC/HMC1000A (air-cooled) 24oz (652g) R404A
HCC/HMC1000W (water-cooled) 15oz (426g) R404A
1440 min. x wt. of ice produced
= Production capacity/24 hr. period
Total test time in minutes
25
“Bin full” detection system
The Follett Horizon ice machine incorporates a unique “bin full” detection system that consists of the shuttle and
actuator. The shuttle incorporates a ag and sensor. Referencing the gure below, the normal running position
of the ag is down, out of the sensor. When the bin lls to the top and ice can no longer move through the tube,
the machine will force the shuttle ag up into the sensor, shutting the machine off. The shuttle actuator, located
above the ice bin allows the ice to curl up within it when the bin is full. In this way, there are no loads generated
that would tend to lift off the lid of the bin.
Running
Off
Off
Running
Shuttle ag and sensor
Shuttle actuator
26
Troubleshooting
Please see “Service” section for a description of each function.
Ice machine disposition Possible causes Corrective action
FLASHINGON or OFF
Legend:
OFFON
1. Ice machine is in running
condition but not making ice.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Defective compressor.
2. Defective start relay.
3. Defective start capacitor.
4. Defective run capacitor.
5. Defective main contactor.
6. No output from PC board.
1. Replace compressor.
2. Replace start relay.
3. Replace start capacitor.
4. Replace run capacitor.
5. Replace main contactor.
6. Replace PC board.
2. The CPU is not ashing.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Processor has been damaged. 1. Replace PC board.
3. Machine in TIME DELAY without
full bin.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Ice jamming due to improperly
installed transport tube causing
a false shuttle.
2. Shuttle stuck in up position.
3. Damaged or improperly installed
thermostat (open).
4. Transport tube backed-out of
coupling.
1. Correct transport tube routing.
2. Repair or replace shuttle
mechanism.
3. Replace or reposition
thermostat.
4. Correct coupling installation.
4. Ice machine is not making ice.
Locked in PURGE.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. A self- ush occurred but could
not drain evaporator due to a
failed drain solenoid valve.
2. A self- ush occurred but could
not drain evaporator due to water
reservoir or ice machine not
being level.
1. Replace drain solenoid valve.
2. Level ice machine. Check water
reservoir to make sure it is not
tilted towards the compressor.
5. Ice machine is not making ice.
HI AMPS.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Poor water quality causing ice to
jam auger.
2. Damaged shuttle mechanism or
thermostat (closed).
3. Kinked transport tube
(thermostat systems).
4. Intermittent drive output from
PC board. Evaporator will freeze
causing a hi amps error.
5. Gearmotor is unplugged.
1. Clean ice machine. Increase
ushing frequency.
2. Replace or repair shuttle
mechanism/thermostat.
3. Straighten transport tube.
4. Replace PC board.
5. Plug in gearmotor.
(see page 15 for “no current” details)
27
Ice machine disposition Possible causes Corrective action
FLASHINGON or OFF
Legend:
OFFON
6. Ice machine is not making ice.
HI PRESSURE.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. High ambient temperatures
>100 F (38 C).
2. Poor ventilation or air
recirculation.
3. Clogged condenser.
4. Fan not working properly. No air
ow.
• Blocked fan blades
• No fan output from PC board
• Faulty fan motor
1. Air condition area to below
100F (38 C).
2. Reposition ice machine or
properly ventilate. Prevent
ice machine exhaust from
recirculating.
3. Clean condenser grille.
4. Correct air ow.
• Remove any blockage from
fan blades
• Replace PC board
• Replace fan motor
7. Ice machine is not making ice.
Drain clog.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Drain hose kinked or plugged
causing water to back up.
2. Improper oor drain routing/pitch
causing water to back up.
3. High TDS levels and leaking
drain solenoid may cause an
errant drain clog.
1. Remove kink or blockage from
drain hose.
2. Re-route oor drain.
3. Clean area around drain sensor
and/or replace Drain solenoid
valve.
8. Ice machine is making ice.
Excessive water in bin or
coming into bin from transport
tube.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Failed water sensors. assumes
there is no water when there is
water.
2. Blocked reservoir vent.
3. Defective water feed solenoid
valve. Stuck in open position.
1. Clean or replace water probe
assembly. Check wiring
connections.
2. Clean or replace vent tubes.
3. Replace water feed solenoid
valve.
9. Ice machine is not making ice.
Lo water.
POWER
LOW BIN
AUGER ON
REFRIG ON
PURGE
TIME DELAY
CLEANING
SERVICE
HI AMPS
HI PRESS
DRAIN CLOG
HI WATER
CPU
LO WATER
1. Water supply is turned off.
2. Low water pressure.
3. Defective water feed solenoid
valve. Stuck in closed position.
4. No water feed output from
PC board.
1. Turn water supply on. If
evaporator was completely
empty the reset button may
have to be pressed to restart the
ice machine.
2. Ice machine will eventually start
when water reaches normal lo
level.
3. Replace water feed solenoid
valve.
4. Replace PC board.
28
Replacement parts

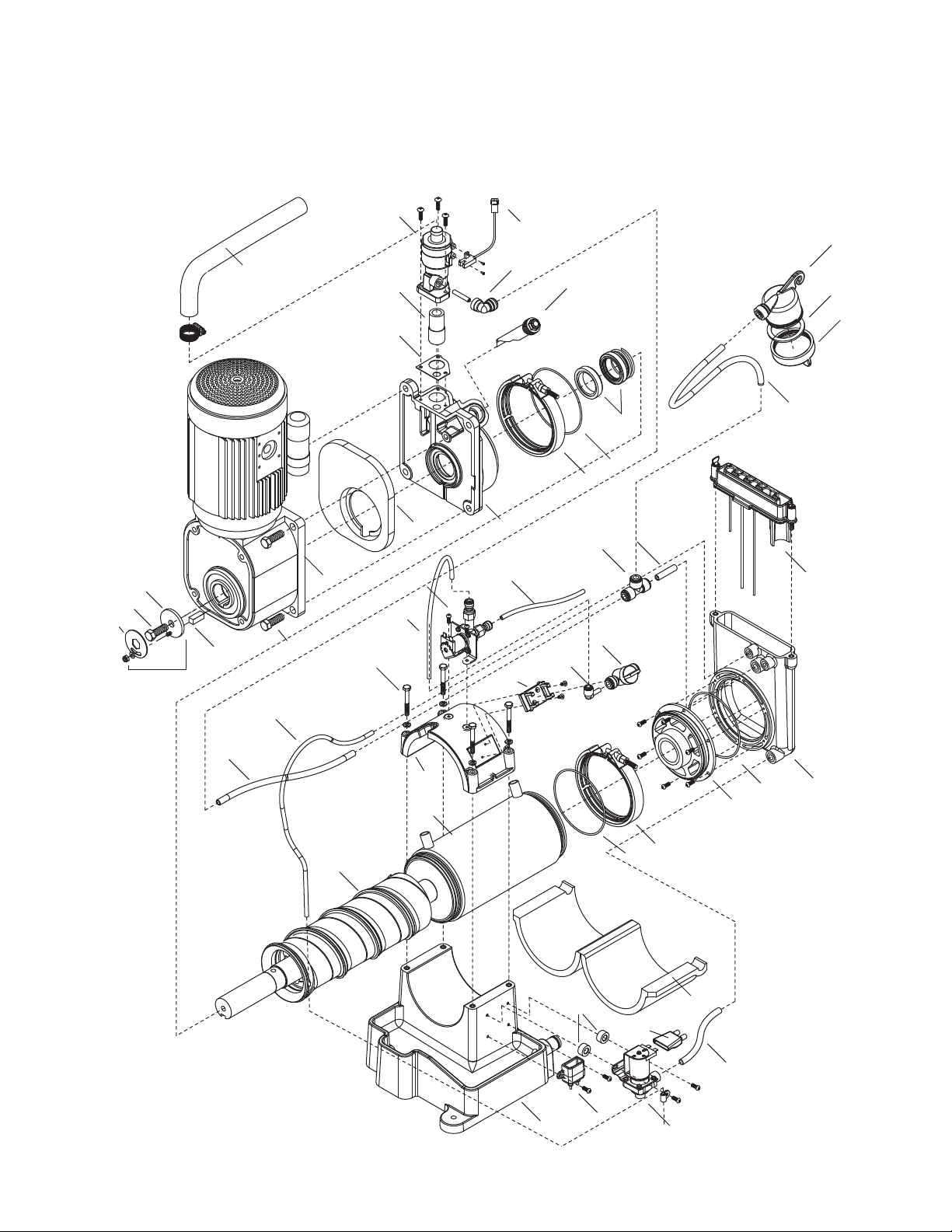

Evaporator assembly
Order parts online
www.follettice.com
8
9
12
11
10
36
28
38
39
23
33
37
40
32
29
34
17
18
18
30
26
23
24
25
24
24
27
23
35
31
23
13
14
15
16
1
3
19
17
23
28
18
5
20
21
22
7
2
4
6
29
Order parts online
www.follettice.com
Reference # Description Part #
1 Tube, ice transport, molded 00175299
2 Shuttle assembly (includes gasket and nozzle) 00130815
3 Switch, optical 00130849
4 Compression nozzle 00115774
5 Elbow, water 00134502
6 Gasket, shuttle 00115600
7 Stream divider 00142513
8 Auger bolt 00116988
9 Washer 00161513
10 Retainer, auger bolt 00161356
11 Kit, auger bolt (auger bolt, washer, retainer, nut and washer) 00161406
12 Key 00117804
13 Bolts, gearmotor mounting (4) 00116988
14 Gearmotor, 240V (includes capacitor) 00130807
15 Gasket, gearmotor 00121632
16 Main housing (includes 00112946 & 00116962) 00142539
17 Coupling, V-band 00130708
18 O ring 00116962
19 Seal, auger shaft 00112946
20 Cup, sanitizer 00130674
21 Gasket, sanitizer 00124032
22 Cap, sanitizer (includes 00124032) 00130880
23 Elbow, water, 1/4" x 3/8" OD 00988030
24 Tubing, water, 1/4" OD 502079
25 Hardware, mounting, evaporator cap 00130989
26 Solenoid, water feed (240V) 00130831
27 Tee, water 00134494
28 Sensor assembly, water level and drain clog 00171363
29 Cap, evaporator (includes 00125468 & 00130989) 00130740
30 Clip, water shut-off valve 502922
31 Valve, shut-off, water 502921
32 Auger (includes 00112946 & 00116962) 00945717
33 Evaporator (includes 00112946, (2) 00116962 & 00121616) 00130724
34 Journal housing and bearing (includes (2) 00116962) 00130716
35 Reservoir, water 00130690
36 Base, evaporator 00130732
37 Boot, solenoid 00160309
38 Solenoid, purge (240V) 00130765
39 Insulation, evaporator 00121616
40 Spacers, solenoid 00160317
Not shown Insulation, evaporator cap 00125468
Not shown Condensate pan 00161612
Not shown Shuttle assembly, Micro Chewblet (inlcudes gasket and nozzle) 00985028
12
11
5
13
14
15
6
4
1
2
3
8
7
10
9

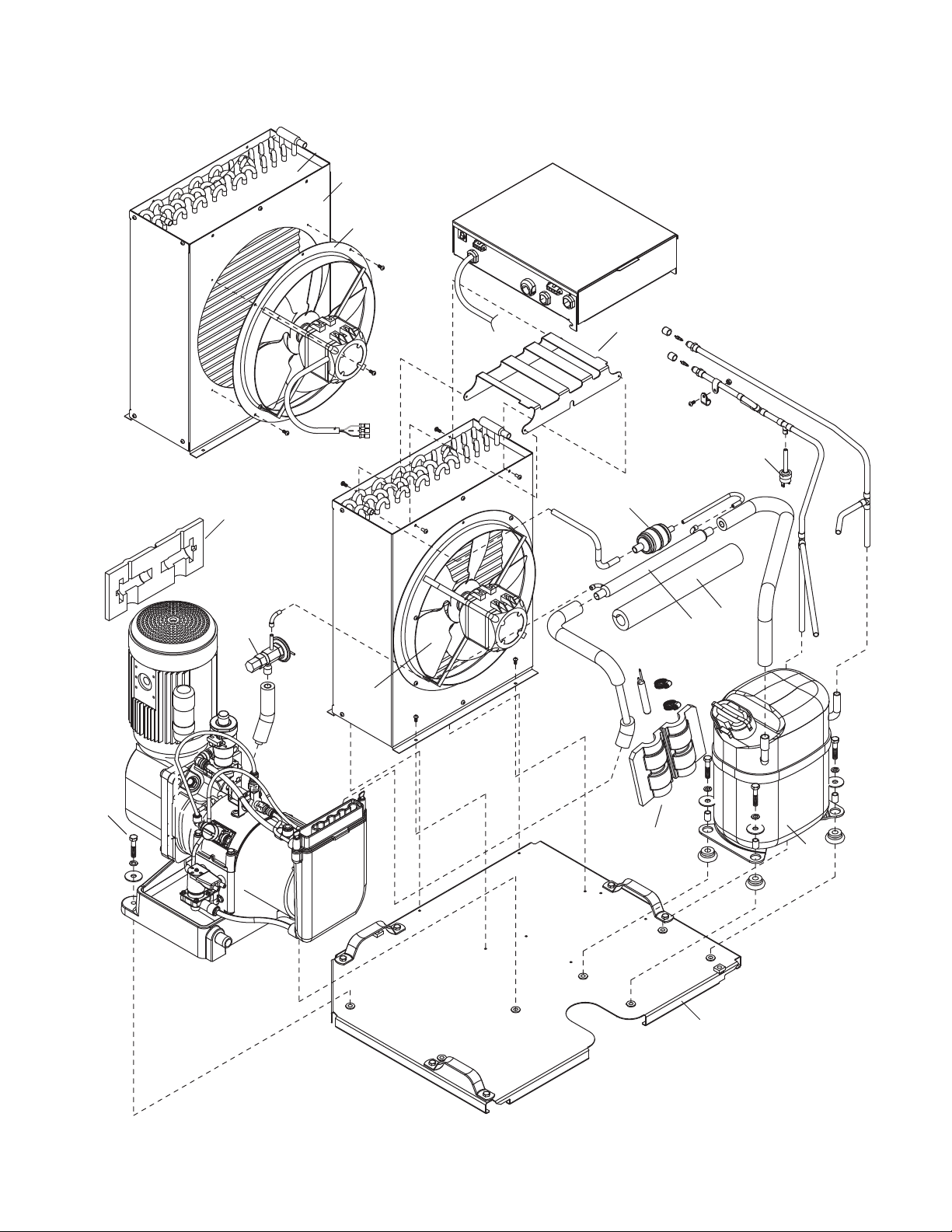

Air-cooled assembly
30
Order parts online
www.follettice.com
31
Order parts online
www.follettice.com
Reference # Description Part #
1 Condenser (includes 00130922) 00130914
2 Shroud, condenser 00130922
3 Fan motor assembly 00130930
4 Electrical box support 00153635
5 Cut-out, high pressure safety 00117077
6 Insulation, bulb, TXV 00106534
7 Drier 502724
8 Valve, expansion, thermal (includes 502830 and 00106534) 00130997
9 Insulation, TXV 502830
10 Hardware, evaporator mounting base (set of four) 00130971
11 Compressor (includes start and run capacitors, relay and drier 00969063
12 Base, ice machine 00130856
13 Heat exchanger (includes 00172361) 00172353
14 Heat exchanger insulation 00172361
15 Fan blade 00170290
32

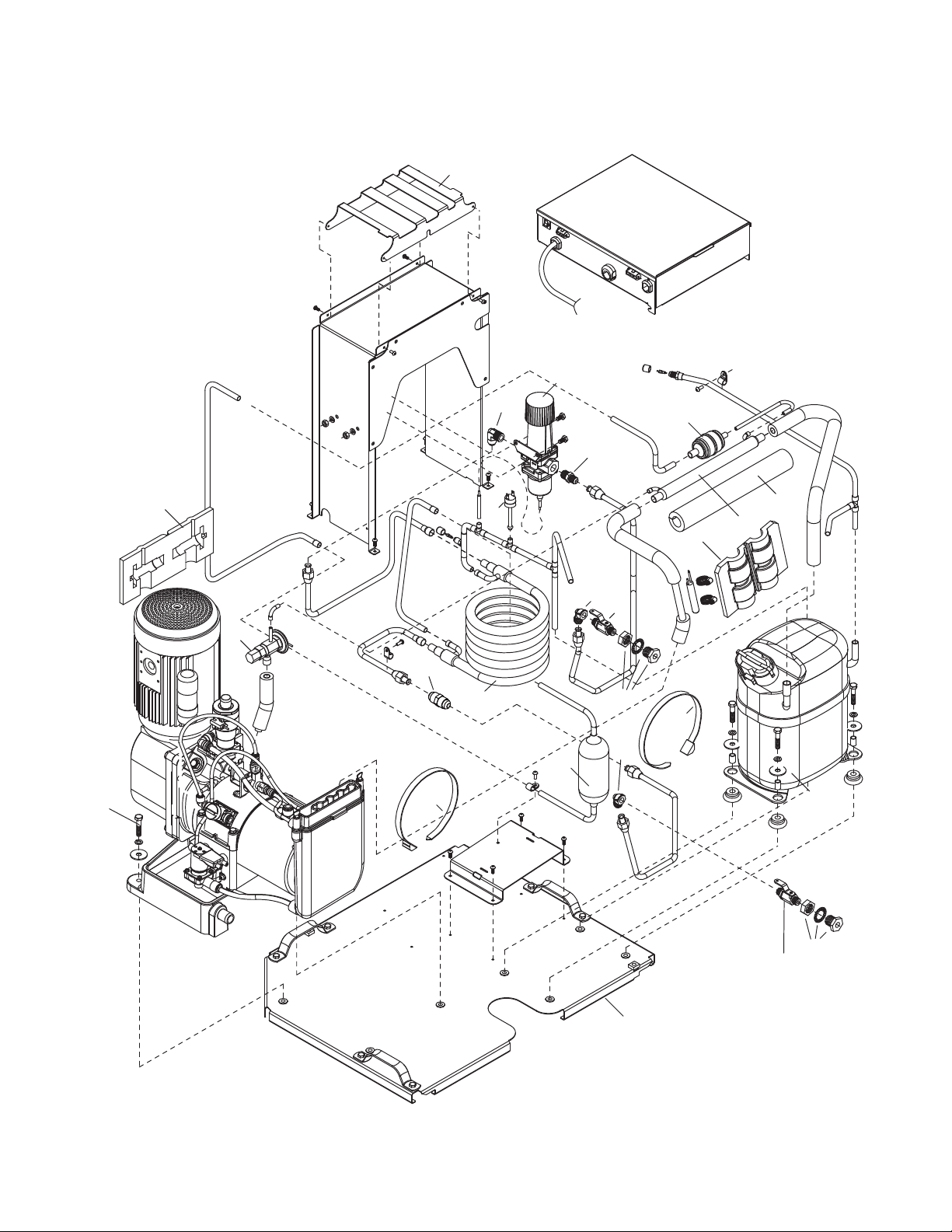

Water-cooled assembly
5
11
12
13
13
10
6
19
20
17
18
1
4
2
8
7
9
15
16
15
12
14
3
11
13
13
21
Order parts online
www.follettice.com
33
Order parts online
www.follettice.com
Reference # Description Part #
1 Electrical box support 00153635
2 Elbow, water 00129486
3 Valve, water regulating 00131052
4 Union, water 202148
5 Cut-out, high pressure safety 00117077
6 Insulation, bulb, TXV 00106534
7 Drier 502724
8 Valve, expansion, thermal (includes 502830 and 00106534) 00130997
9 Insulation, TXV 502830
10 Condenser, w/c 00117234
11 Elbow, water, 90˚ 00129478
12 Valve, shut-off, water 502222
13 Coupling 206411
14 Hardware, evaporator mounting base 00130971
15 Ty-rap 204584
16 Receiver 00123109
17 Compressor (includes start and run capacitors, relay and drier 00969063
18 Base, ice machine 00130856
19 Heat exchanger (includes 00172361) 00172353
20 Heat exchanger insulation 00172361
21 Coupling, 3/8" double are 01039494
34

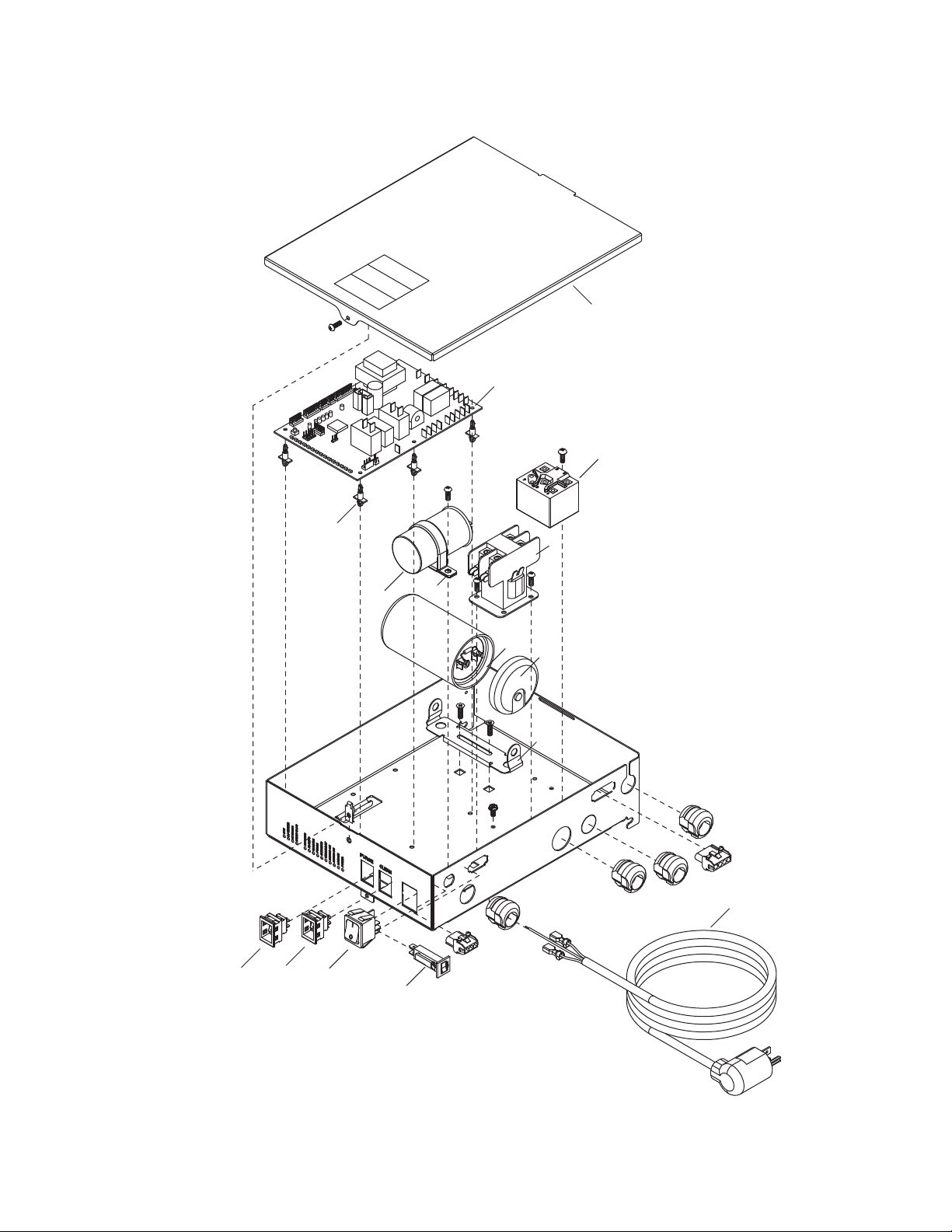

Electrical box
1
2
6
4
5
7
8
9
10
3
15
14
13
12
11
Order parts online
www.follettice.com
35
Order parts online
www.follettice.com
Reference # Description Part #
1 Cover, electrical box, air/water-cooled 00130872
2 Board, control circuit, 240V (includes 00130906) 00132902
3 Stand off’s (set of 6) 00130906
4 Capacitor, compressor run 00121814
5 Clamp, run capacitor 00133603
6 Relay, compressor starting (includes wire harness) 00161810
7 Contactor 00917195
8 Capacitor, compressor starting 001211798
9 Cap, capacitor 00133587
10 Bracket, capacitor 207625
11 Switch, evaporator purge 00114371
12 Switch, evaporator clean 00117036
13 Switch, ice machine power 208867
14 Circuit breaker, 4 amp 00126912
15 Cord, power, 240V 00192096
36

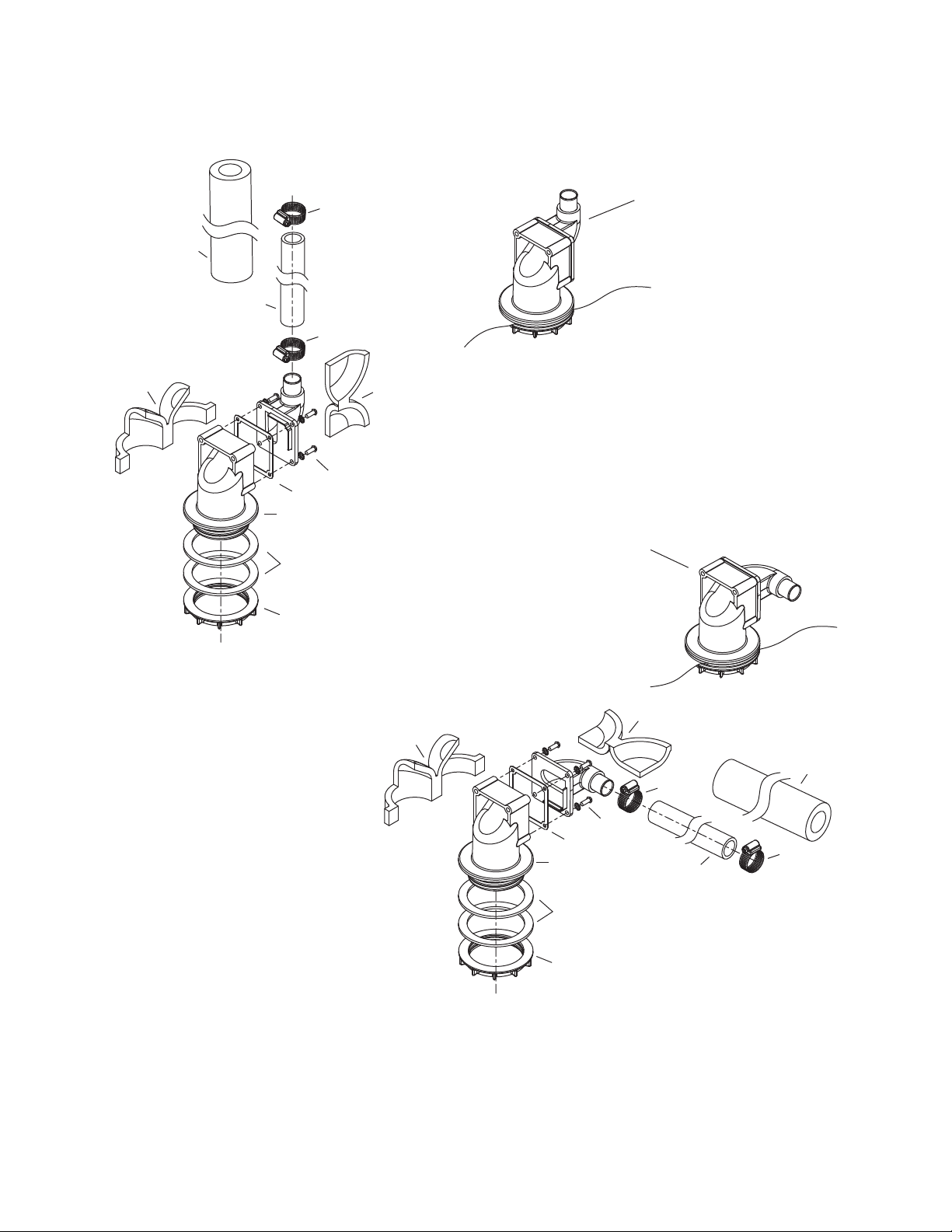

Integration kit – top-mount and RIDE
®
remote ice delivery equipment
Order parts online
www.follettice.com
8
7
6
5
4
11
12
11
12
8
7
6
5
4
13
2
1
10
2
2
10
9
2
1
RIDE model configuration
Top mount configuration
37
Order parts online
www.follettice.com
Reference # Description Part #
1 Shuttle actuator 00171322
2 Clamp 500377
3 Actuator elbow (includes 00167122 and 209100) 00171264
4 Screws 209100
5 Gasket 00167122
6 Actuator body 00171272
7 Gasket, coupling 00126532
8 Ring, locking (includes 00126532) 00171371
9 Ice transport tube, 10' (3m) 00171280
9 Ice transport tube, 20' (6m) 00171298
10 Insulation, transport tube 501176
11 Insulation, elbow 00168922
12 Insulation, actuator 00168930
13 Ice transport tube, top mount, 30" (762mm) 00171306
Not shown Integration kit, top mount 00171389
Not shown Integration kit, RIDE model (requires transport tube) 00171397
Not shown Extension- ll tube, 9" 00135723
Not shown Extension- ll tube, 4" 00153684
Not shown
Diverter plate (single agitator Cornelius dispensers and left-hand
dispense chute on dual-agitator Cornelius dispensers)
307277
Not shown Diverter plate (right-hand dispense chute on dual-agitator dispensers) 00996207
Not shown Follett SafeCLEAN ice machine cleaner (case of 24 x 7oz packets) 00132001
Not shown Sani-Sponge kit 00132068
38
Skins assembly
8
14
9
10
11
17
12
13
1
2
3
4
5
6
7
15
16
NSF
PHASE
SINGLE
U
L
L
U
R
FULL LOA
D AMPS
MOTOR COMPRESSOR THERMALLY PROTECTED
MAX. BRA
NCH CIR
C
UIT FUSE
SIZE
MI
N. BRANC
H C
I
RC
UIT AMPACI
TY
DESIGN PR
ESSURE
HIGH SID
E
AMPS
AMPS
C
R
REFRIGER
ANT
Easton Pen
nsylvania
VOLTS
CHARG
E
LOW SI
DE
HZ
PART NO
CORPOR
ATION
SERIAL N
O
MODEL
PSIG
THE USA
MADE IN
OZ
Product
Module No.
Service No.
Stock Module Identification Plate
208264
18
Order parts online
www.follettice.com
39
Order parts online
www.follettice.com
Reference # Description Part #
1 Grille, intake 00122846
2 Front cover, air- & water-cooled (includes 00122846) 00130625
3 Tubing, water, 1/4" OD 502719
4 Tubing, drain 00144923
5 Fitting, drain 00109728
6 Fitting, water inlet 502924
7 Elbow, water inlet 502925
8 Coupling (includes 00144675) 00171207
9 O ring 00144675
10 Bulkhead tting 00171215
11 Nut 00902338
12 Hose clamp 500377
13 Plate, strain relief 00192070
14 Louvered docking assembly
(includes reference #'s 3, 4, 5, 6, 7, 10, 13, 15, 16)
00130658
15 Clamp, drain line 00114520
16 Screws 208568
17 Bulkhead connector kit 00171223
18 Gasket, condenser 00135574
Not Shown Louver, intake/exhaust (13.75"x17.75") 00128066
Not Shown Gasket, air intake 00913582
00171579R12
© Follet Corporation 5/13
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Horizon, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett Corporation.
Chewblet , RIDE and Follett are registered trademarks of Follett Corporation, registered in the US.
