Installation Guide
Ultra High-Density Fiber
Panel All-In-One Solution
N48M/N48S 1U Series
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Este guía está disponible en español en la página de Tripp Lite: tripplite.com/support
Ce guide est disponible en français sur le site Web de Tripp Lite : tripplite.com/support
Русскоязычная версия настоящего краткого руководства представлена на веб-сайте компании
Tripp Lite по адресу: tripplite.com/support
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: tripplite.com/support
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
Materials Needed:
• Phillips Screwdriver
• Rack-Mounting Screws
Connector Type:
Fiber Panel Model Connector 1 Connector 2
N48S-8L2L-10 LC/UPC Male LC/UPC Male
N48S-6L8L-10 LC/UPC Male LC/UPC Male
N48S-4L16L-10 LC/UPC Male LC/UPC Male
N48S-2L24L-10 LC/UPC Male LC/UPC Male
N48S-2L24L-20 LC/UPC Male LC/UPC Male
N48S-4M3X8M-10 MTP-MPO/APC Female MTP-MPO/APC Female
N48S-2M3X8M-20 MTP-MPO/APC Female MTP-MPO/APC Female
N48S-4M8L4-10 MTP-MPO/APC Female LC/UPC Male
N48S-2M8L4-20 MTP-MPO/APC Female LC/UPC Male
N48S-2M24L12-10 MTP-MPO/APC Female LC/UPC Male
N48S-2M24L12-20 MTP-MPO/APC Female LC/UPC Male
N48M-8L2L-10 LC/PC Male LC/PC Male
N48M-6L8L-10 LC/PC Male LC/PC Male
N48M-4L16L-10 LC/PC Male LC/PC Male
N48M-2L24L-10 LC/PC Male LC/PC Male
N48M-2L24L-20 LC/PC Male LC/PC Male
N48M-4M3X8M-10 MTP-MPO/PC Female MTP-MPO/PC Female
N48M-2M3X8M-20 MTP-MPO/PC Female MTP-MPO/PC Female
N48M-4M8L4-10 MTP-MPO/PC Female LC/PC Male
N48M-2M8L4-20 MTP-MPO/PC Female LC/PC Male
N48M-2M24L12-10 MTP-MPO/PC Female LC/PC Male
N48M-2M24L12-20 MTP-MPO/PC Female LC/PC Male
1

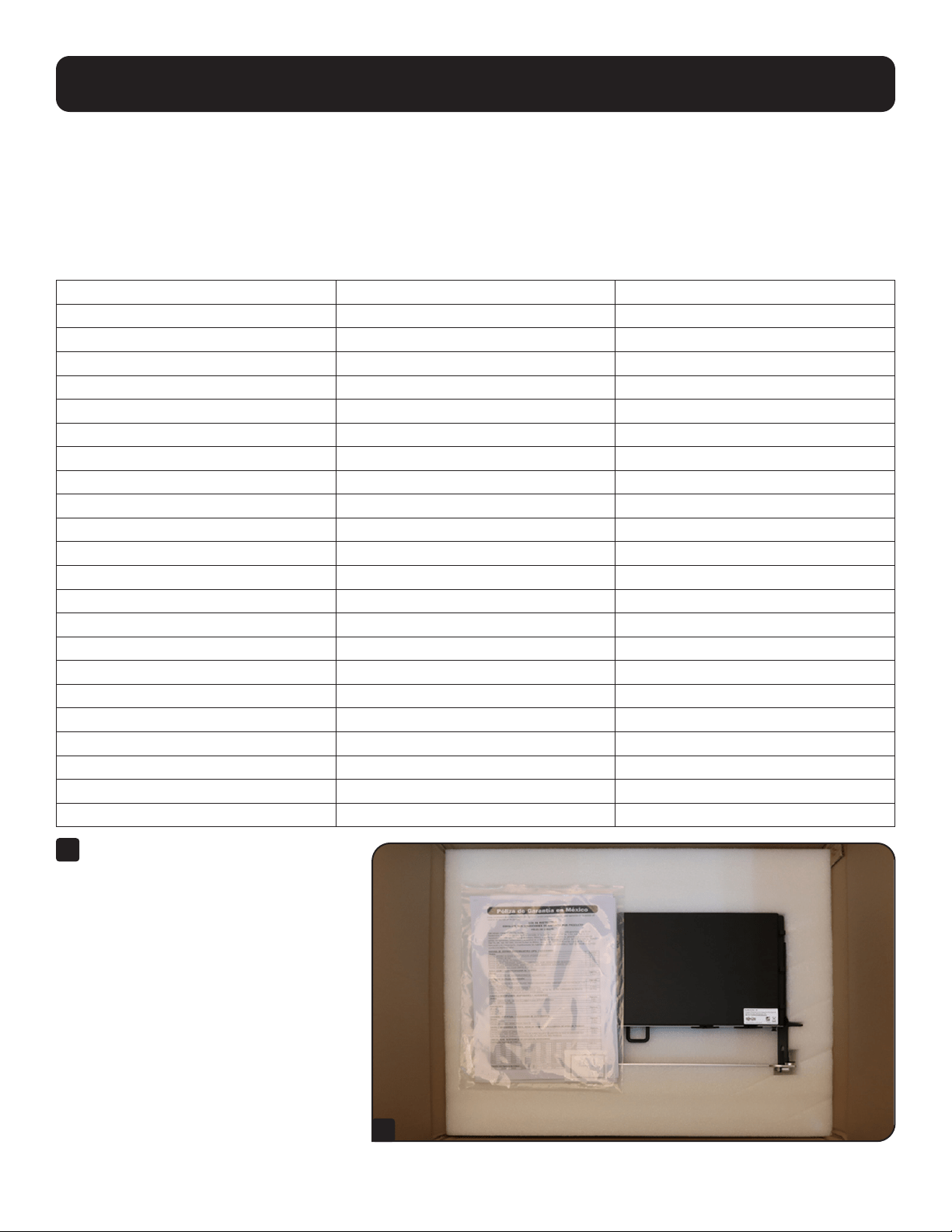

Open the box and unpack its contents.
Installation
1
3
2

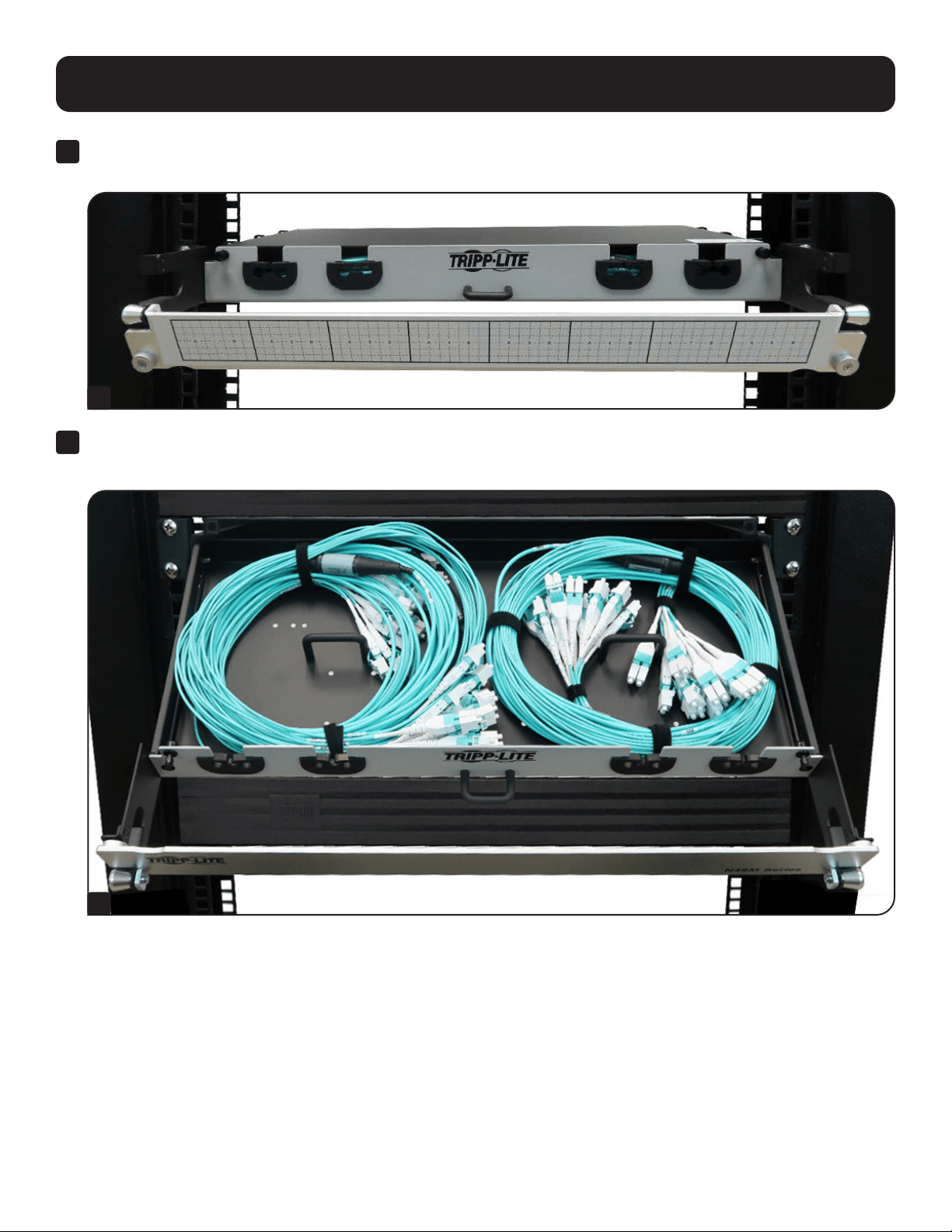

Place the panel into position in an enclosure or open-frame rack. Align the mounting holes and use rack-mounting
screws (2 per side, not included) to secure the unit.
Installation
2
3
To access the LC or MTP-MPO cables, untighten two snap rivets and pull out the tray.
Note: The tray will be tilting down.
3
4
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-05-081 933F24_RevA
Installation
4

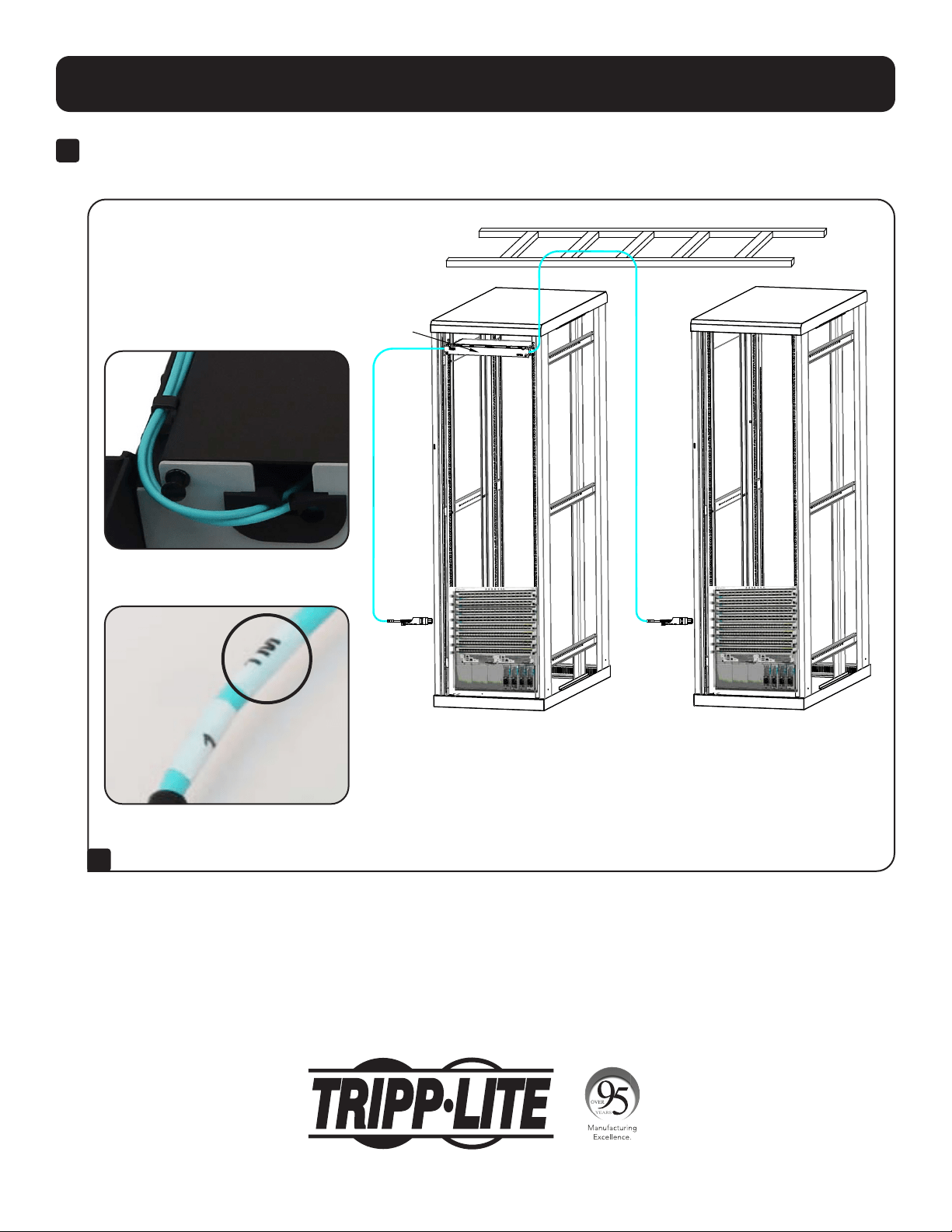

Locate the appropriate LC or MTP-MPO cable. Remove the Velcro strap, then uncoil and pull cable, as required.
Note: Excess cable slack can be recoiled inside the panel.
4
Patch Cord
Preloaded 1U
Panel
Patch Cord
Available front-to-rear
cable access
Cables are labeled
per port in meters
