61XM2 Installation Guide
61” Plasma Display v1.0
Contents
Product Description and Notes Page 1

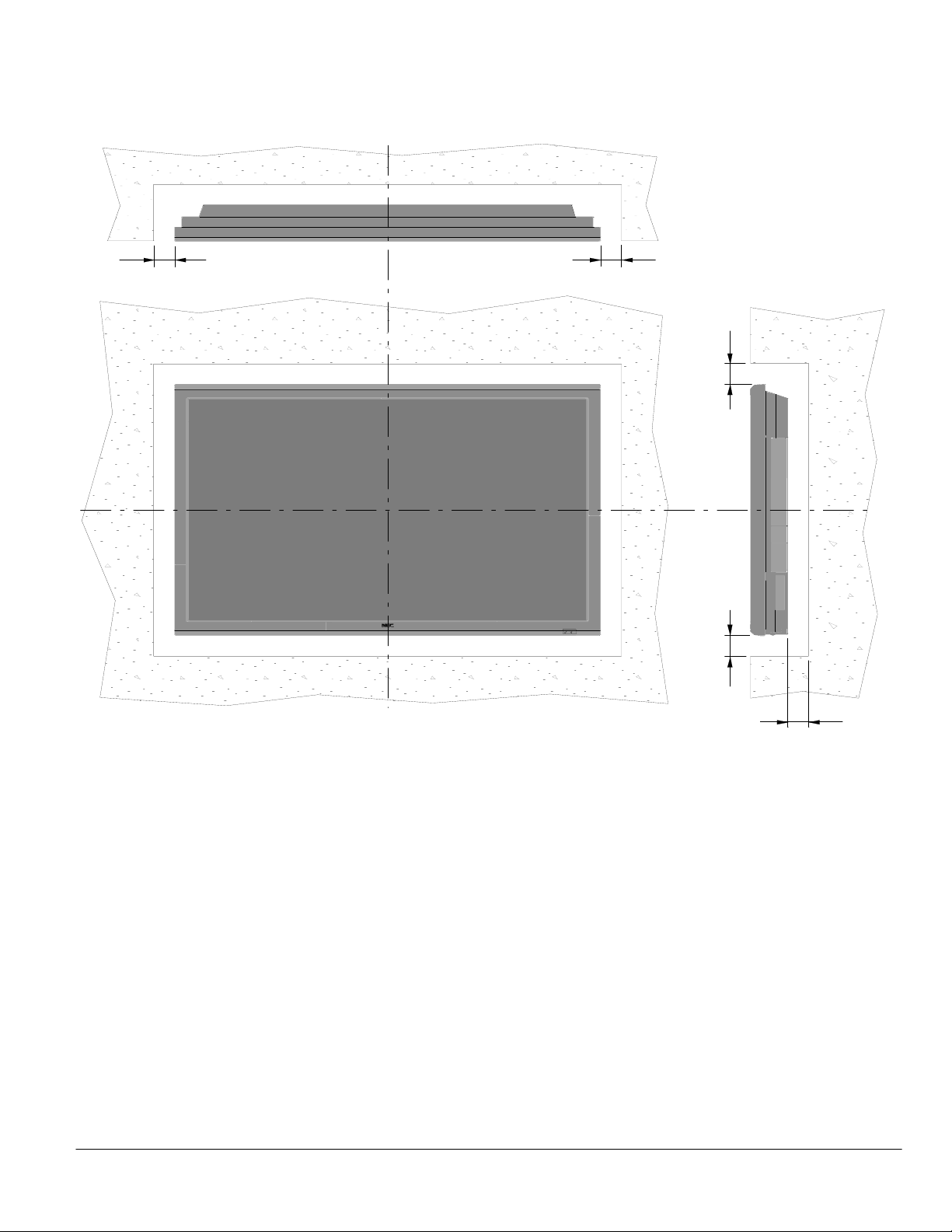

Ventilation Requirements
Page 2

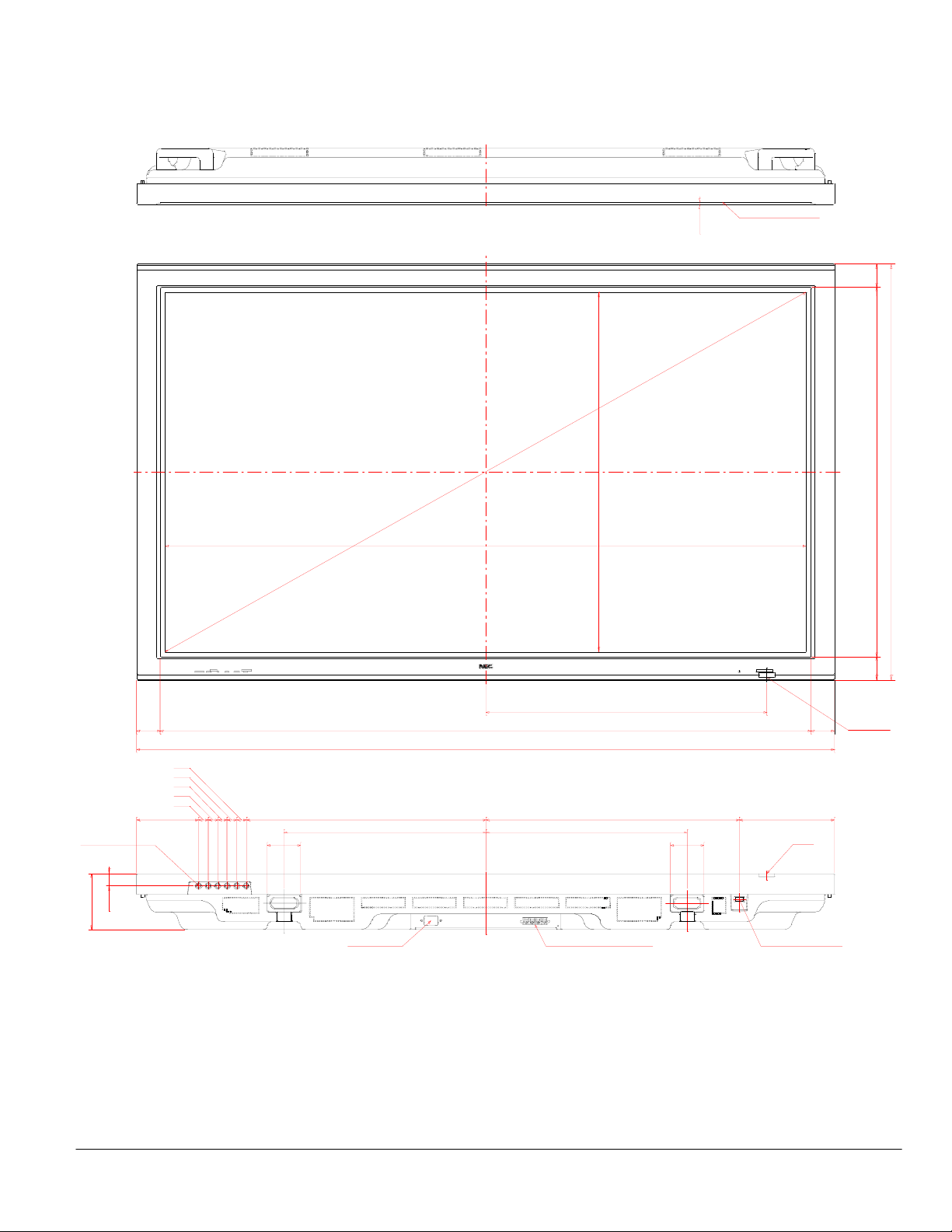

Display Dimensions
Front, Top & Bottom Page 3

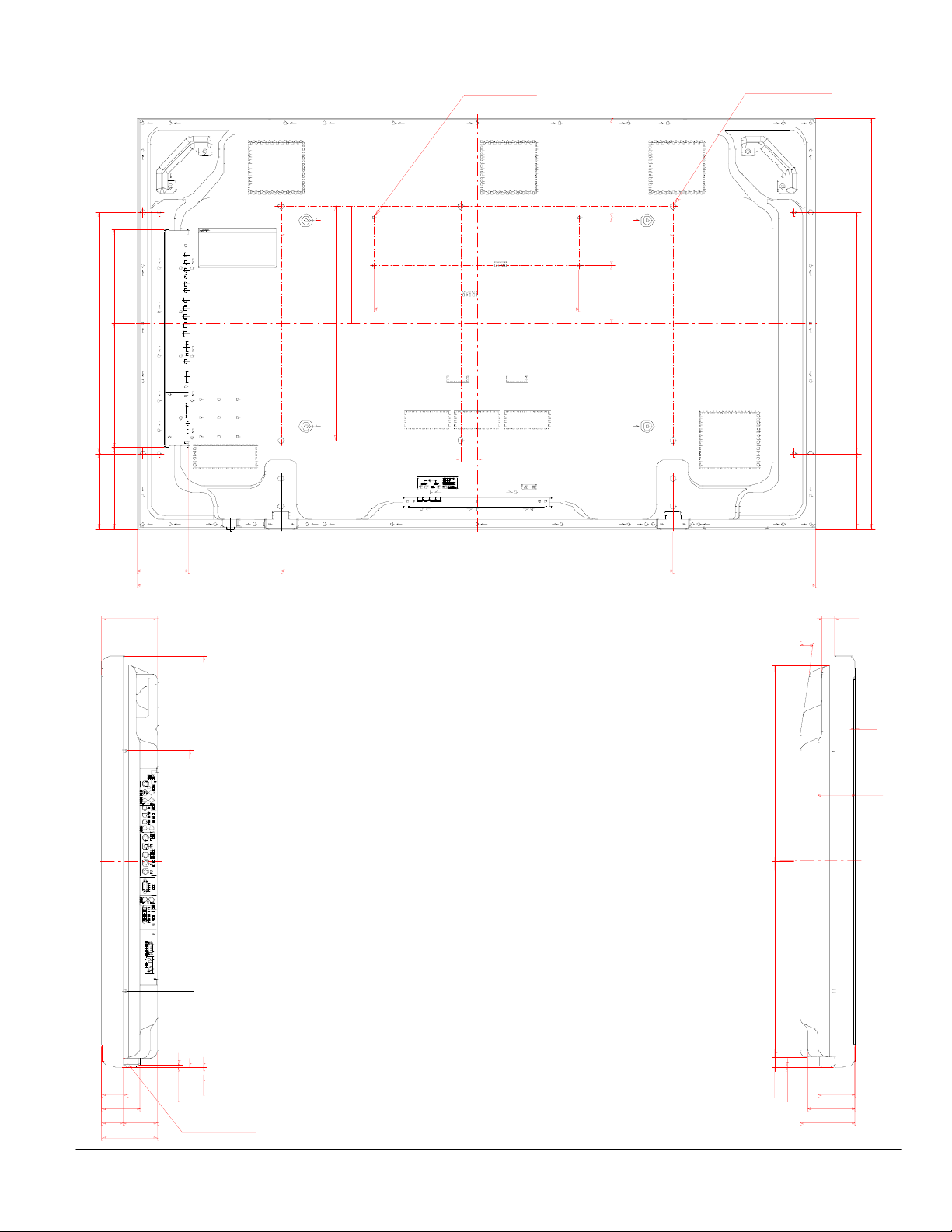

Rear, Left & Right Side Page 4

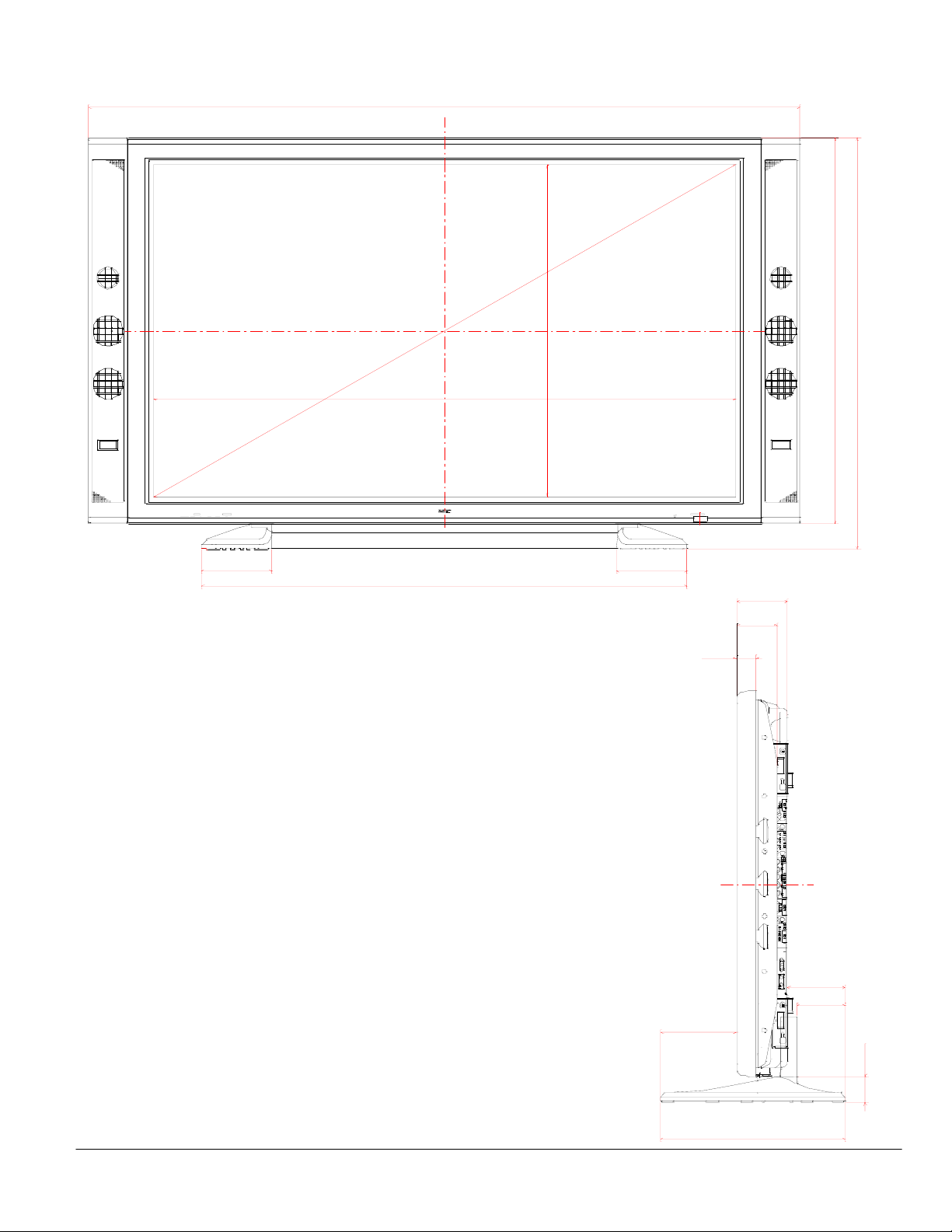

Display Dimensions w/Optional Speakers and Stand
Page 5

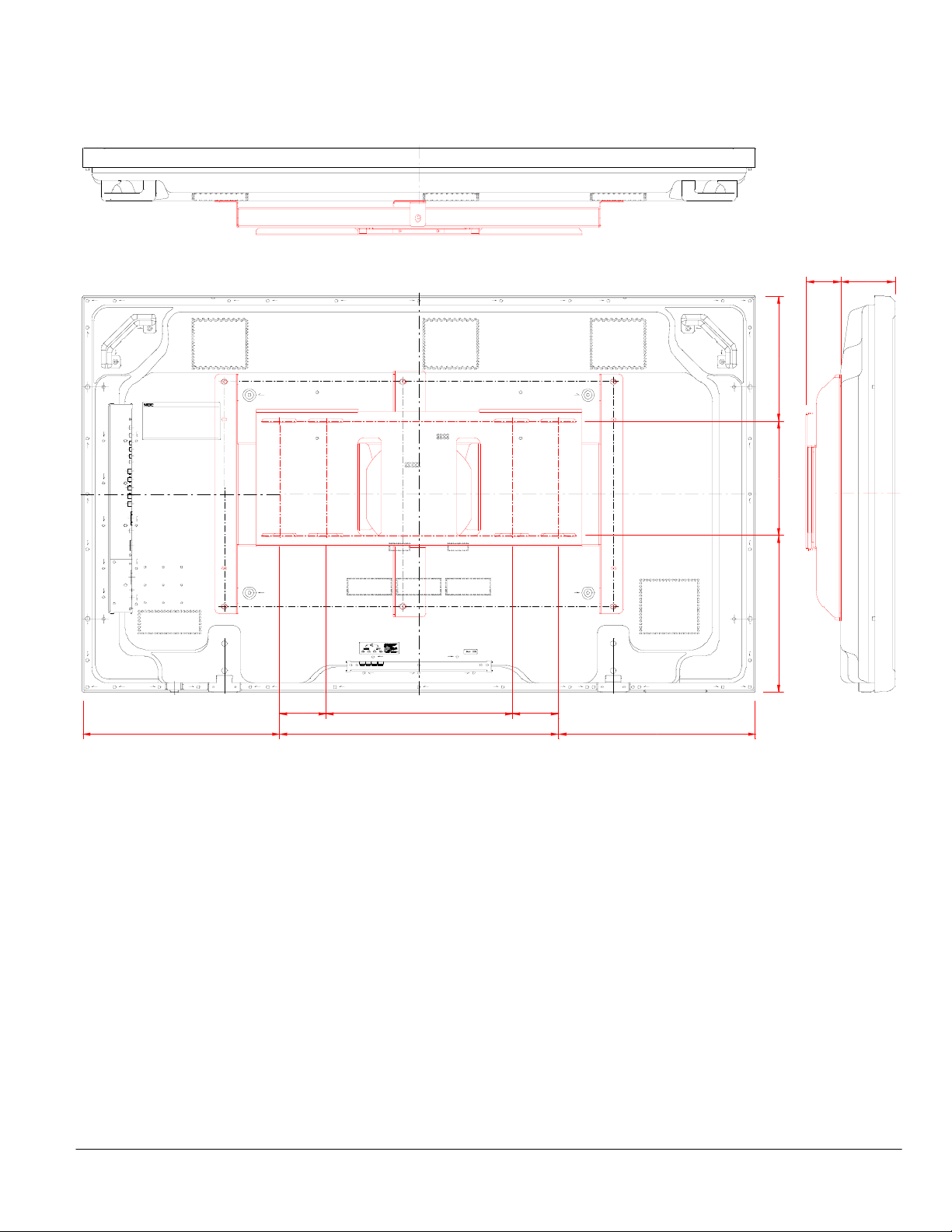

Dimensions w/Optional Flat Wall Mount
Page 6

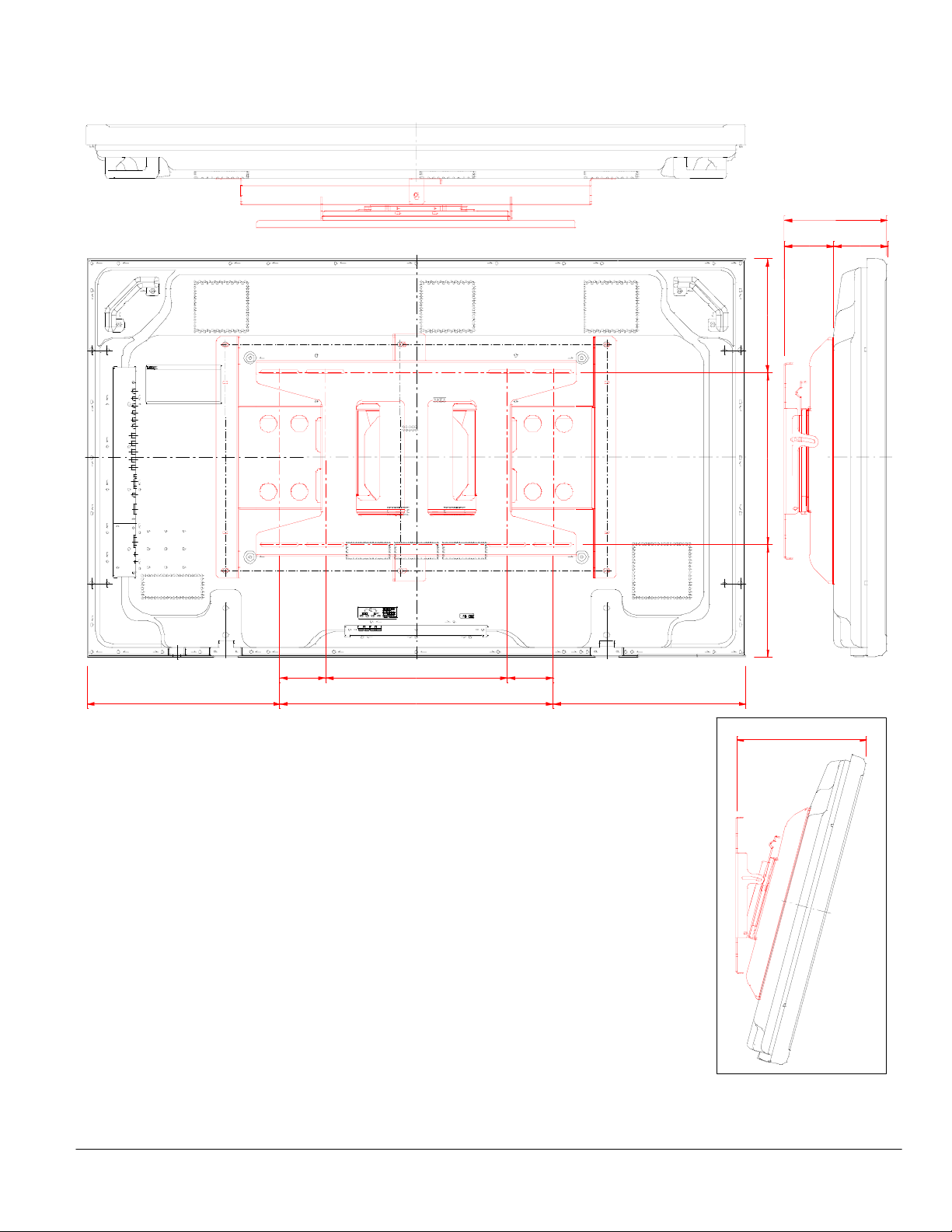

Dimensions w/Optional Tilt Wall Mount
Page 7

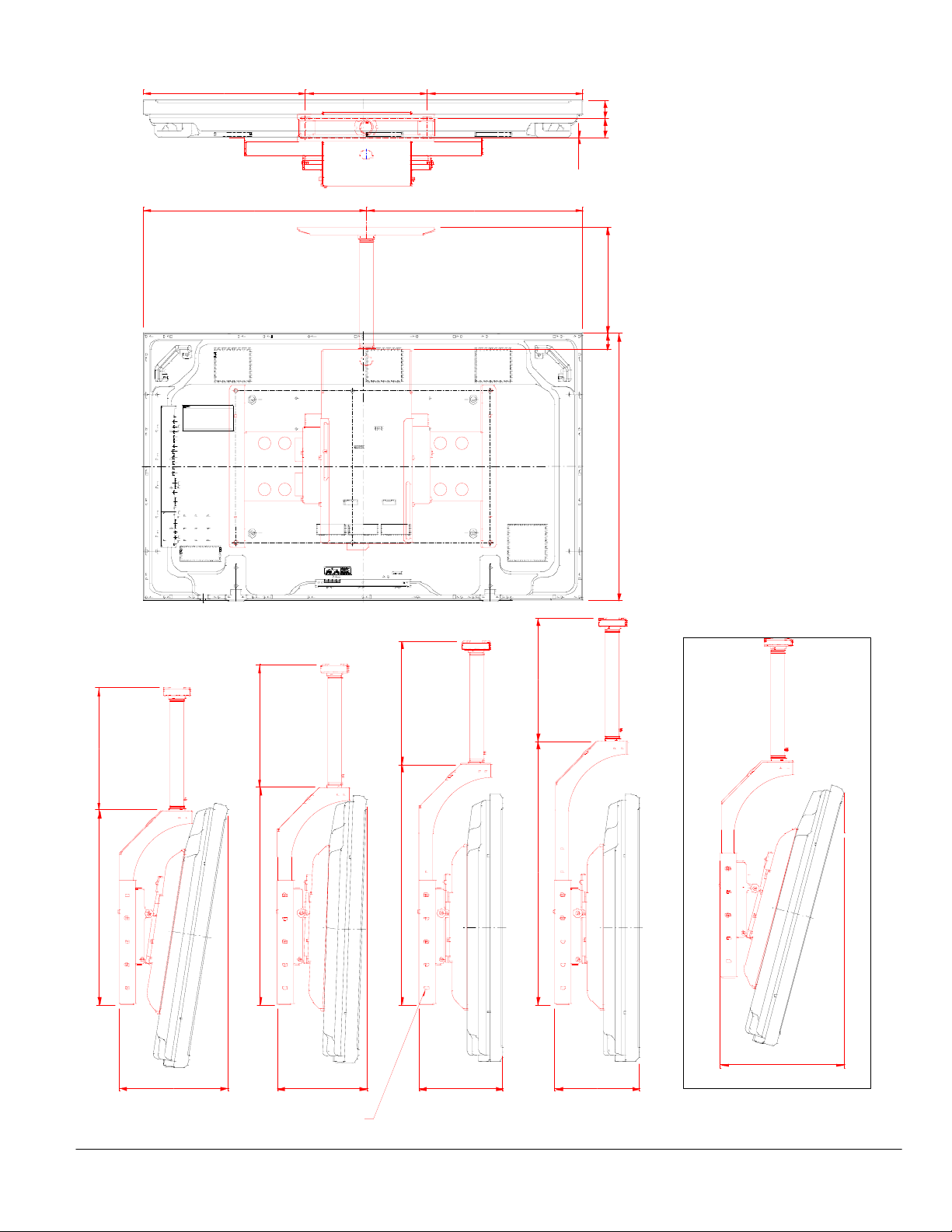

Dimensions w/Optional Ceiling Mount
Page 8
Portrait Mode
Page 9

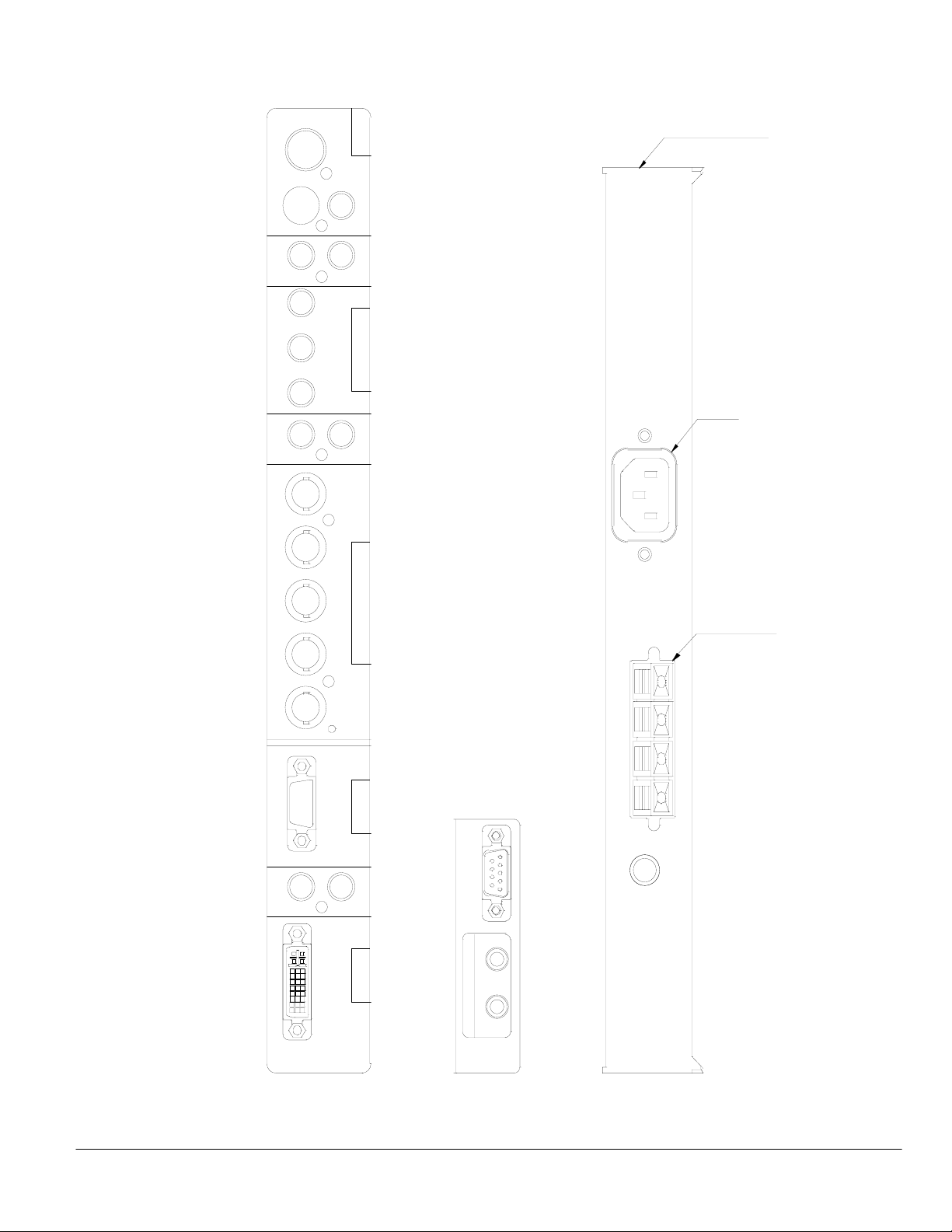

Connections
Page 10
Control Codes
Page 11
Product Description
Type: Plasma Display Screen Surface: Anti-Reflective
Resolution: 1365x768 Dimensions: 57.9”(W) x 34.7”(H) x 4.7”(D)
Aspect Ratio: 16:9 Weight: 134.5 lbs
Color Correction: NEC CCF (Capsulated Color Filter, in panel)
and AccuCrimson (in front filter)
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched
horizontally to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Maximum Tilt Angles
Below are the maximum angles that the display can be tilted in both landscape and portrait mode
Landscape 30°
Portrait 10°
Max Tilt
