1
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
TILGHMAN CEILING FAN
español p. 21
ITEM #0889808
MODEL #WCK44NWZ5L1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.
4009218
APPROVED FOR USE
IN DAMP LOCATIONS
2
SAFETY INFORMATION
TABLE OF CONTENTS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 15 lb (6.8 kg)
READ AND SAVE THESE INSTRUCTIONS
Safety Information .....................................………………………………………......………...…
…
. 2
Package Contents .......................................................................................................................... 4
Hardware Contents ......................................................................................................................... 5
Preparation ..................................................................................................................................... 5
Initial Installation ............................................................................................................................ 5
Downrod Style Fan Mounting .......................................................................................................... 7
Closemount Style Fan Mounting .................................................................................................... 9
Wiring .............................................................................................................................................
11
Final Installation .............................................................................................................................
12
Installing Fan Without Light Kit .....................................................................................................
.
.
16
Operation Instructions ....................................................................................................................
17
Care and Maintenance ................................................................................................................. 18
Troubleshooting ............................................................................................................................. 19
Limited Lifetime Warranty ............................................................................................................... 20
Replacement Parts List ..................................................................................................................
20
3
SAFETY INFORMATION
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
CAUTION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
4

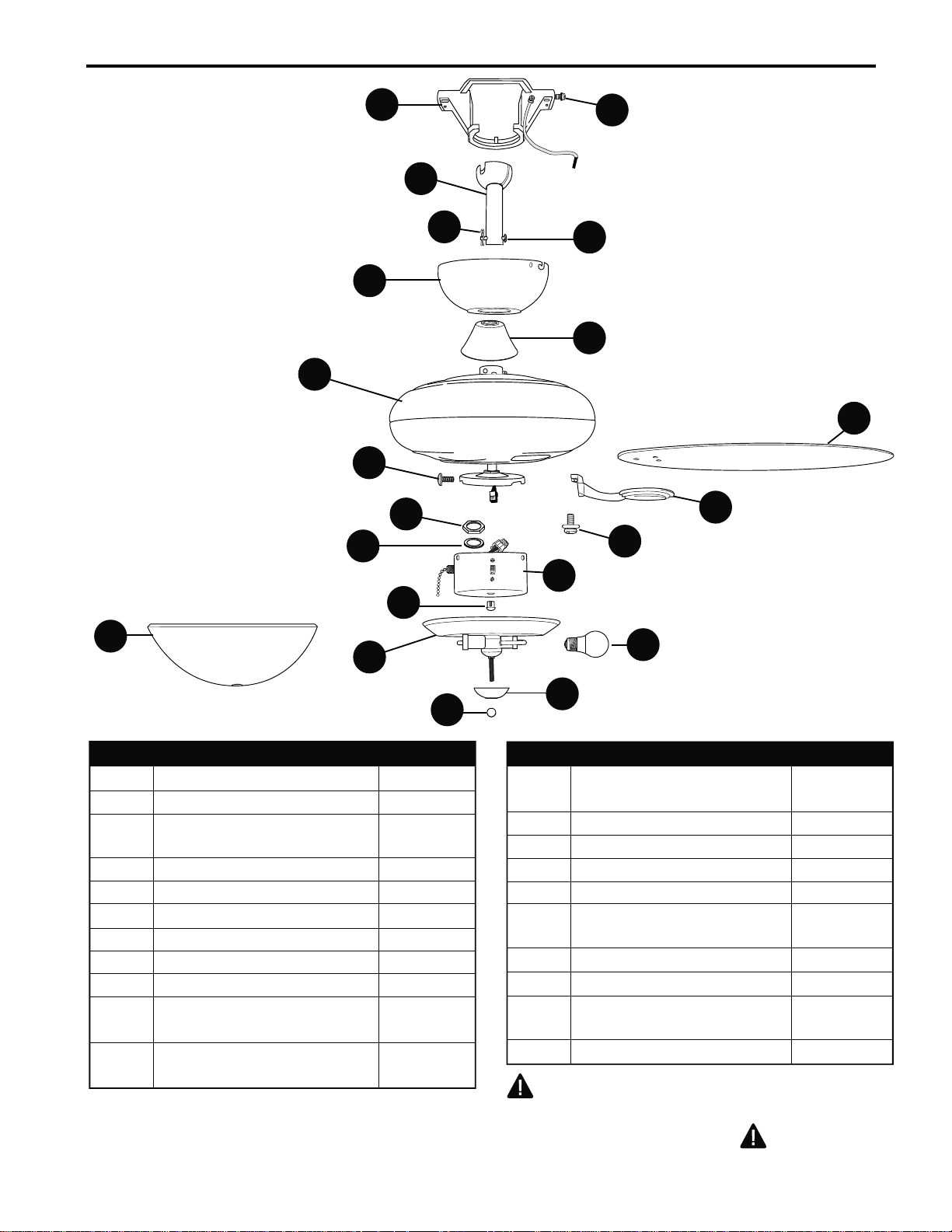

PACKAGE CONTENTS
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
PART DESCRIPTION QUANTITY
L
Canopy Mounting Screw
4
(preassembled)
M
Pin (preassembled)
1
N
Clip (preassembled)
1
O
Light Kit Fitter
1
P
Glass Shade
1
Q Finial Plate
1
(preassembled)
R Finial (preassembled)
1
S Hex Nut (preassembled) 1
T 11 mm Lock Washer 1
(preassembled)
U Cap (preassembled) 1
PART DESCRIPTION QUANTITY
A
Downrod 1
B
Canopy
1
C
Mounting Bracket
1
(preassembled)
D
Motor Housing
1
E
Yoke Cover
1
F
Switch Housing
1
G
Blade
5
H
Blade Arm
5
I LED Bulb
2
J
Motor Screw/Lock Washer 10
(preassembled)
K
Switch Housing Plate
3
Screw (preassembled)
A
E
D
B
F
C
H
G
N
K
M
L
P
I
S
T
O
Q
R
U
J
5

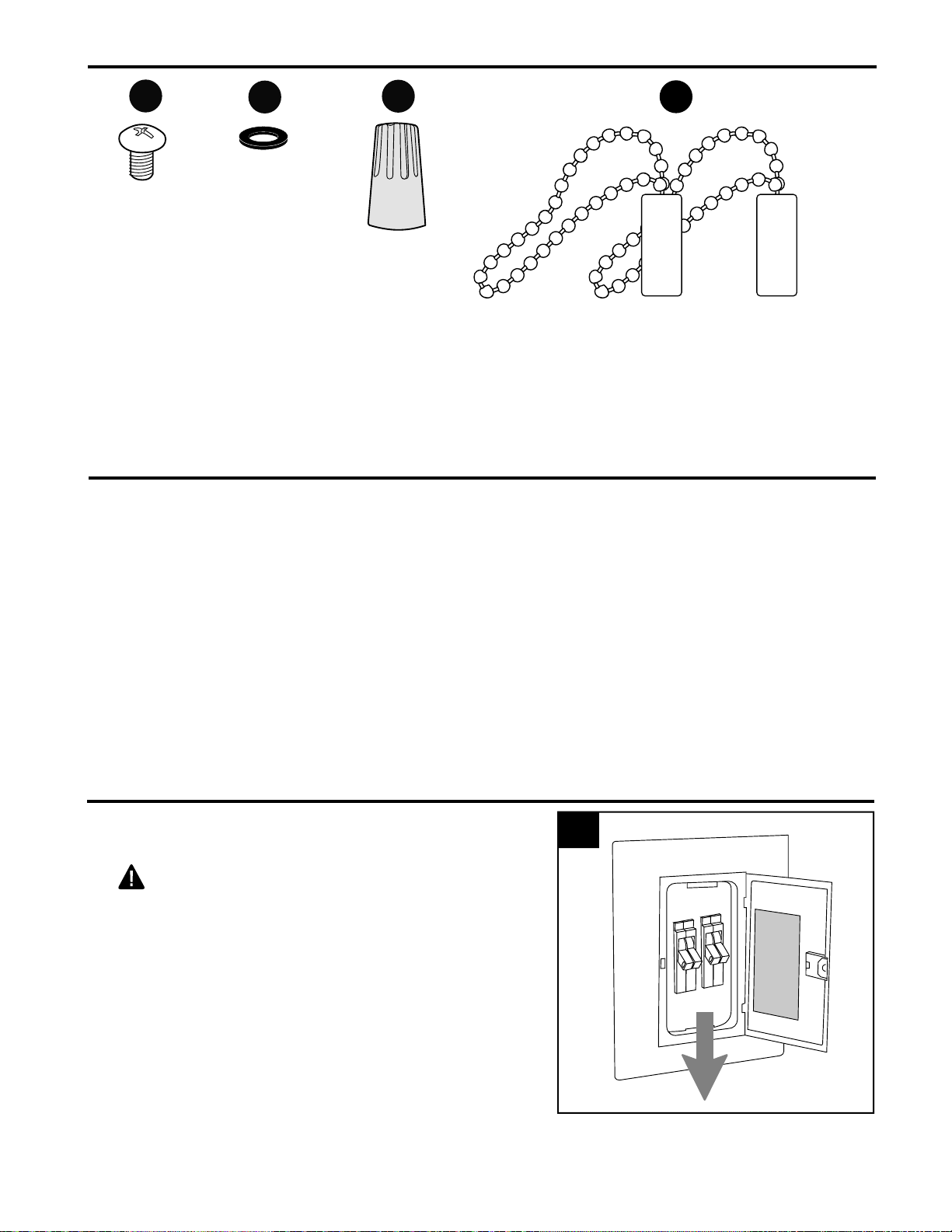

HARDWARE CONTENTS (shown actual size)
AA
CC
AA
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
Pull Chain
Extension
Qty. 2
DD
PREPARATION
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
BB
Rubber
Blade
Washer
Qty. 15
+ 1 extra
6

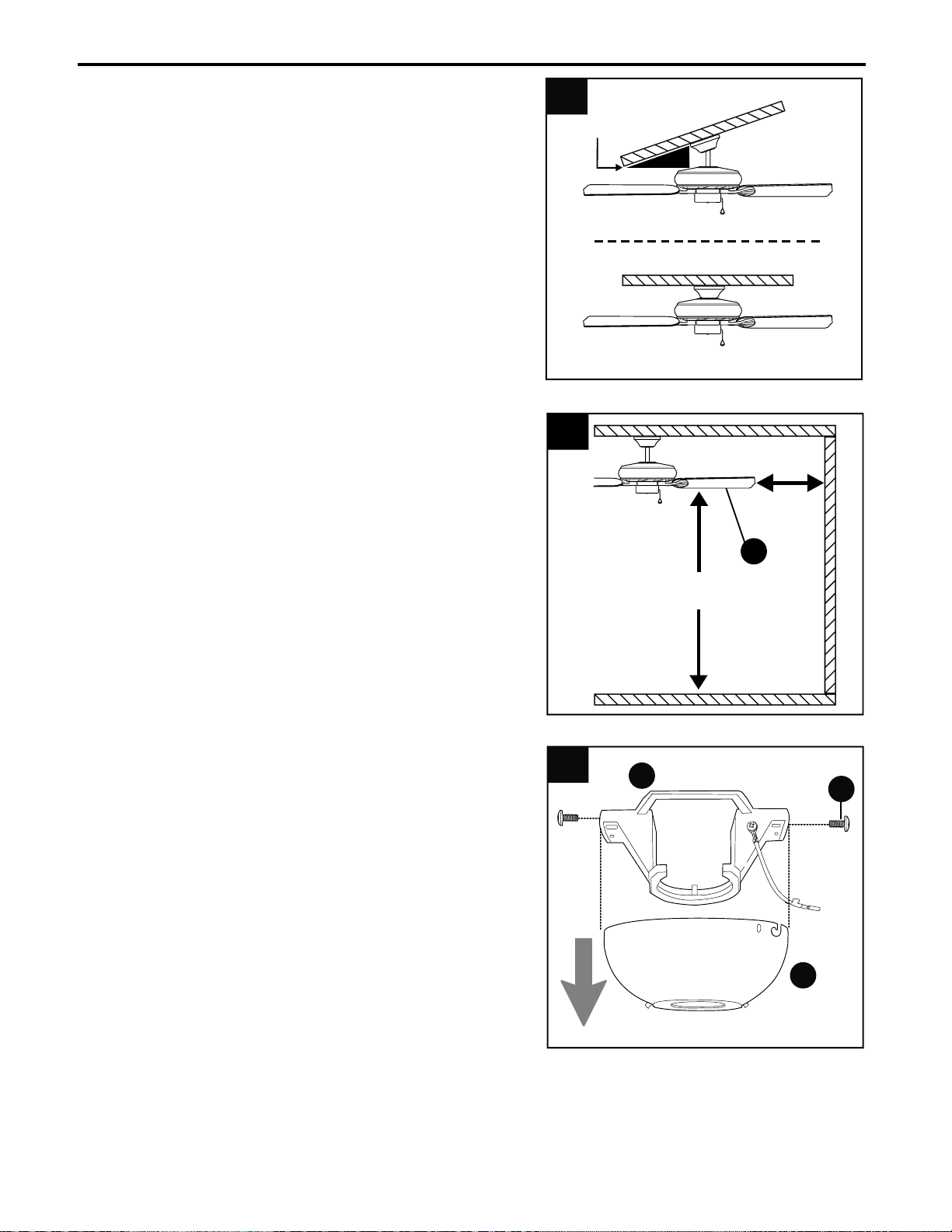

Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod (A)
length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
7 ft.
min.
30 in.
min.
3
G
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
19° max.

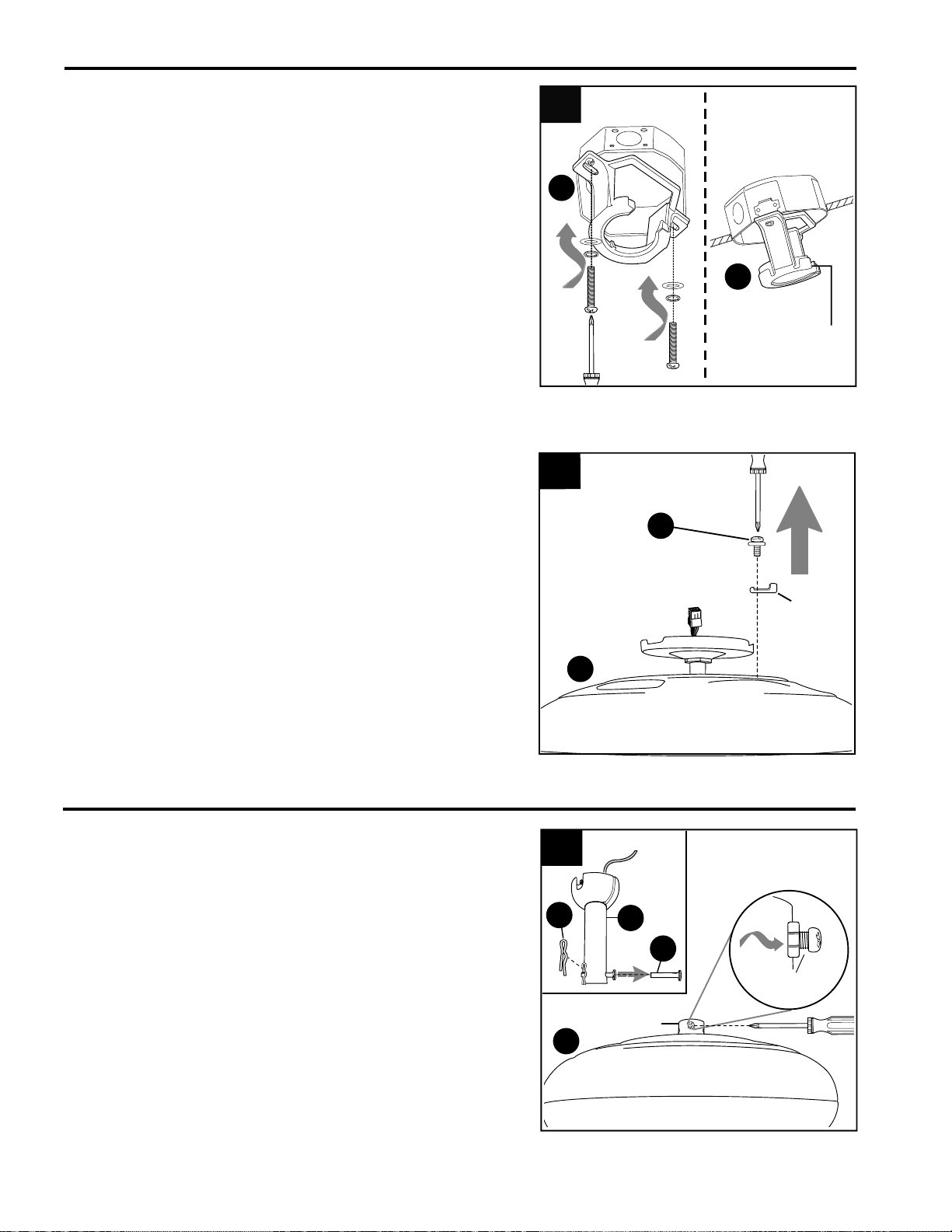

4a.
Loosen canopy mounting screws (L) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (L). Save for later use.
Remove mounting bracket (C) from canopy (B).
4a
C
B
L
INITIAL INSTALLATION
7
5.
DOWNROD STYLE FAN MOUNTING
1.
Remove preassembled motor screws/lock
washers (J) from underside of motor housing (D).
If there are plastic motor blocks installed with the
motor screws/lock washers (J), discard the plastic
motor blocks.
Note: Make sure to keep loose hardware separate
to avoid confusion during installation.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Remove pin (M) and clip (N) from downrod (A).
Partially loosen preassembled set screws and
nuts in yoke at top of motor housing (D).
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 19°.
Open End
4
C
C
ANGLE MOUNTSTANDARD
MOUNT
4b.
4b
5
J
D
Plastic
Motor
Block
1
N
D
M
A
Yoke
Set Screw
& Nut
Side View
8
DOWNROD STYLE FAN MOUNTING
2.

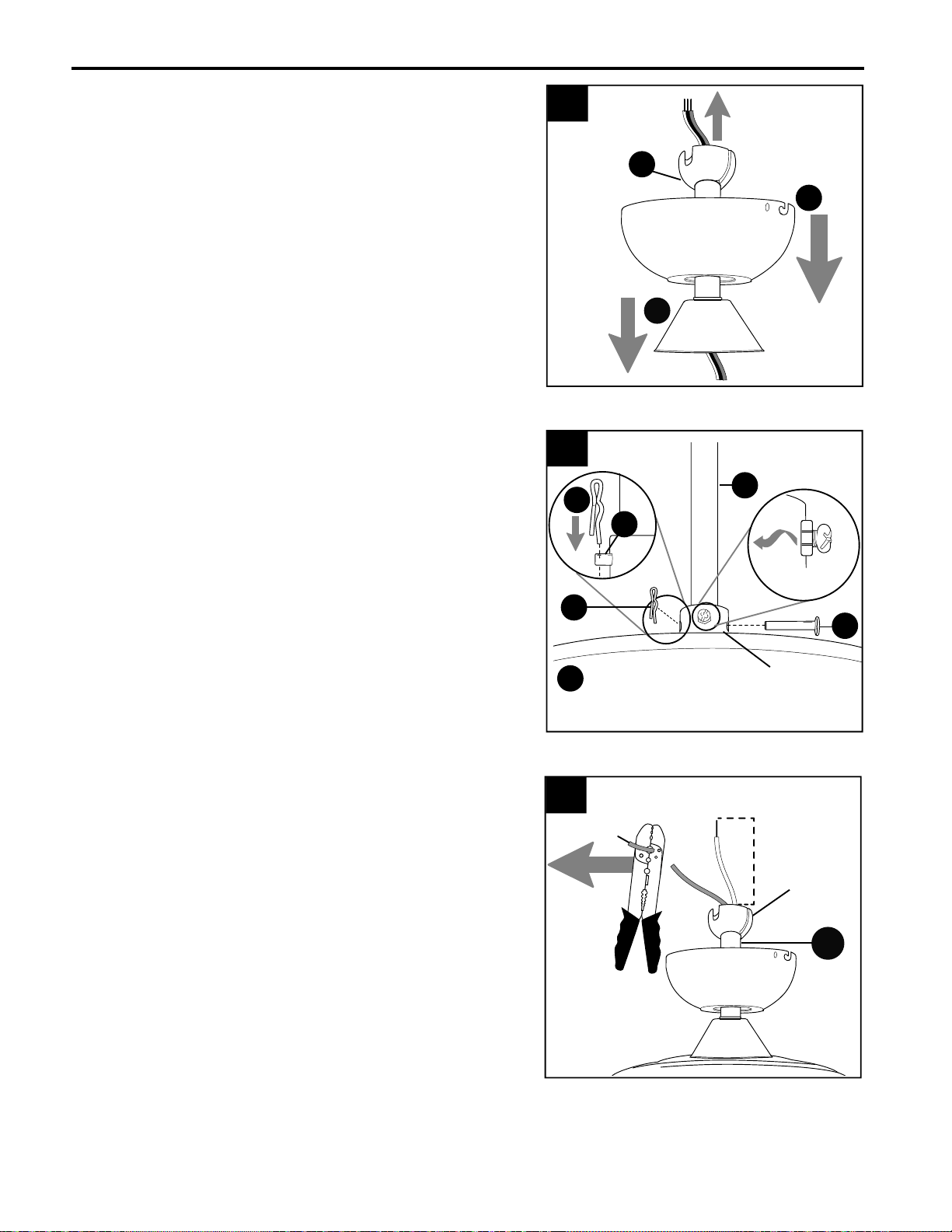

Insert downrod (A) through canopy (B) and yoke
cover (E). Thread wires from motor housing (D)
through downrod (A).
Hanging
Ball
A
E
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the hanging
ball on the downrod (A) and measure 8 in. of
lead wire, and then cut the excess wire off with
wire cutters (not included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you
may proceed to Step 6 instead.
4.
3.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (M) and clip (N). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
4
8 in.
3
A
D
L
M
Yoke
M
L
Set Screw
& Nut
Side View
2
B
A
9
DOWNROD STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom
of canopy (B). NOTE: It may be necessary to use
the handle end of a screwdriver (not included) to
remove the canopy cover by tapping on the
canopy cover from the inside of the canopy (B).
NOTE: The downrod (A), yoke cover (E) and
canopy cover are not used in this type of
installation.
CLOSEMOUNT STYLE FAN MOUNTING
1.
6.

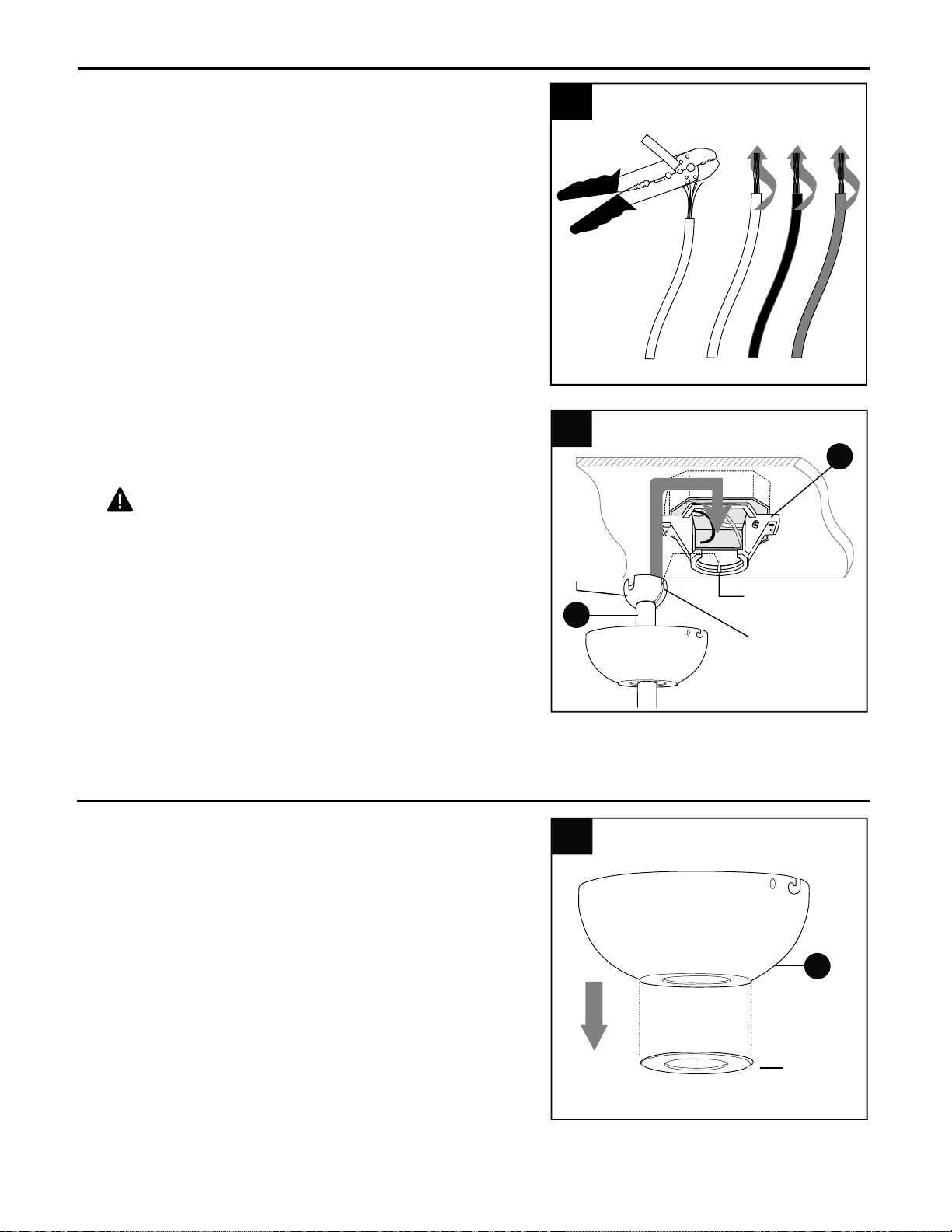

If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5.
5
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Continue to WIRING on page 11.
C
A
6
Slot
Tab
1
Canopy
Cover
B
Hanging
Ball
10
CLOSEMOUNT STYLE FAN MOUNTING

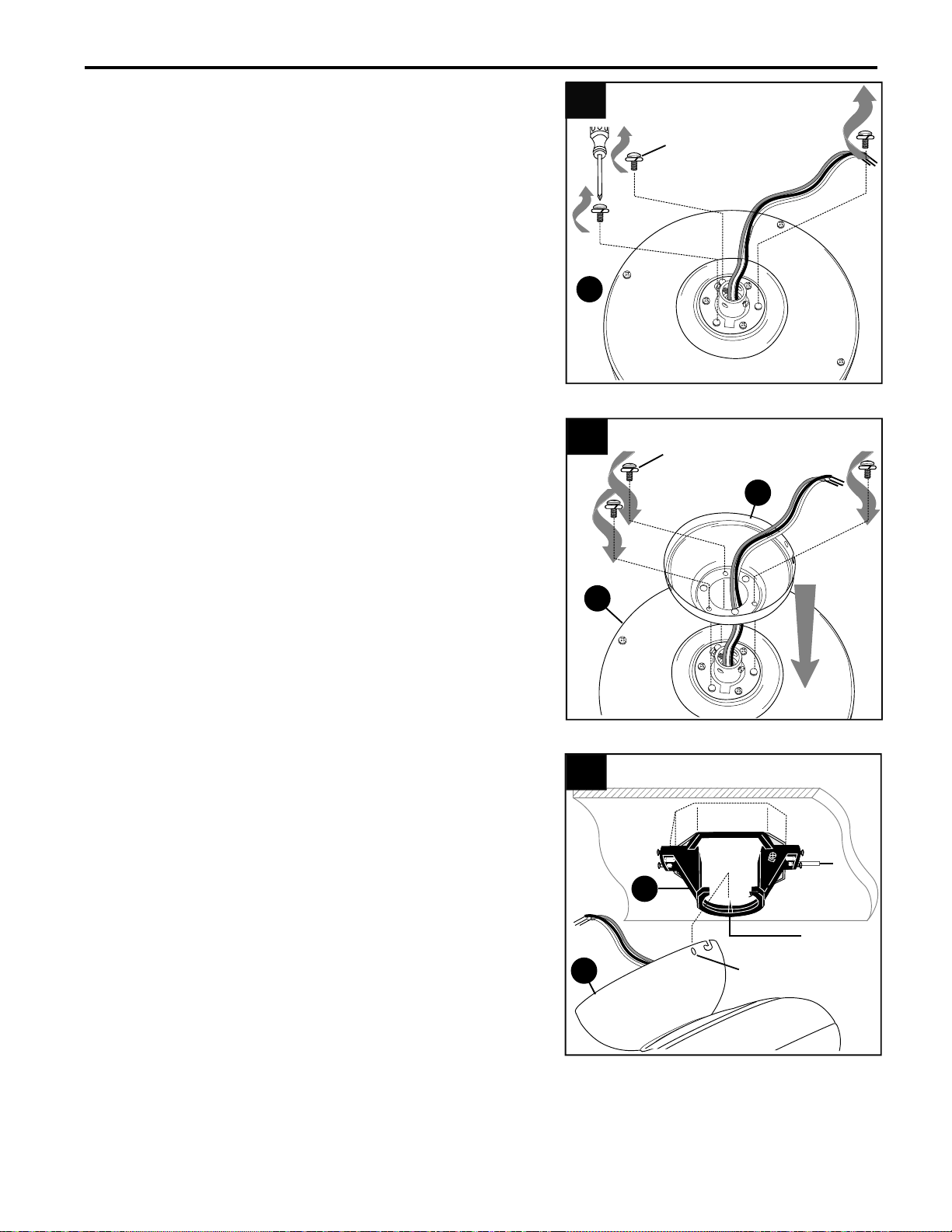

Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
Remove every other preassembled screw/
lock washer from top of motor housing (D).
Tab
C
4
2.
B
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws/lock washers.
3
B
D
2
D
D
Screw/Lock Washer
Screw/Lock Washer
Non-slotted Hole
11

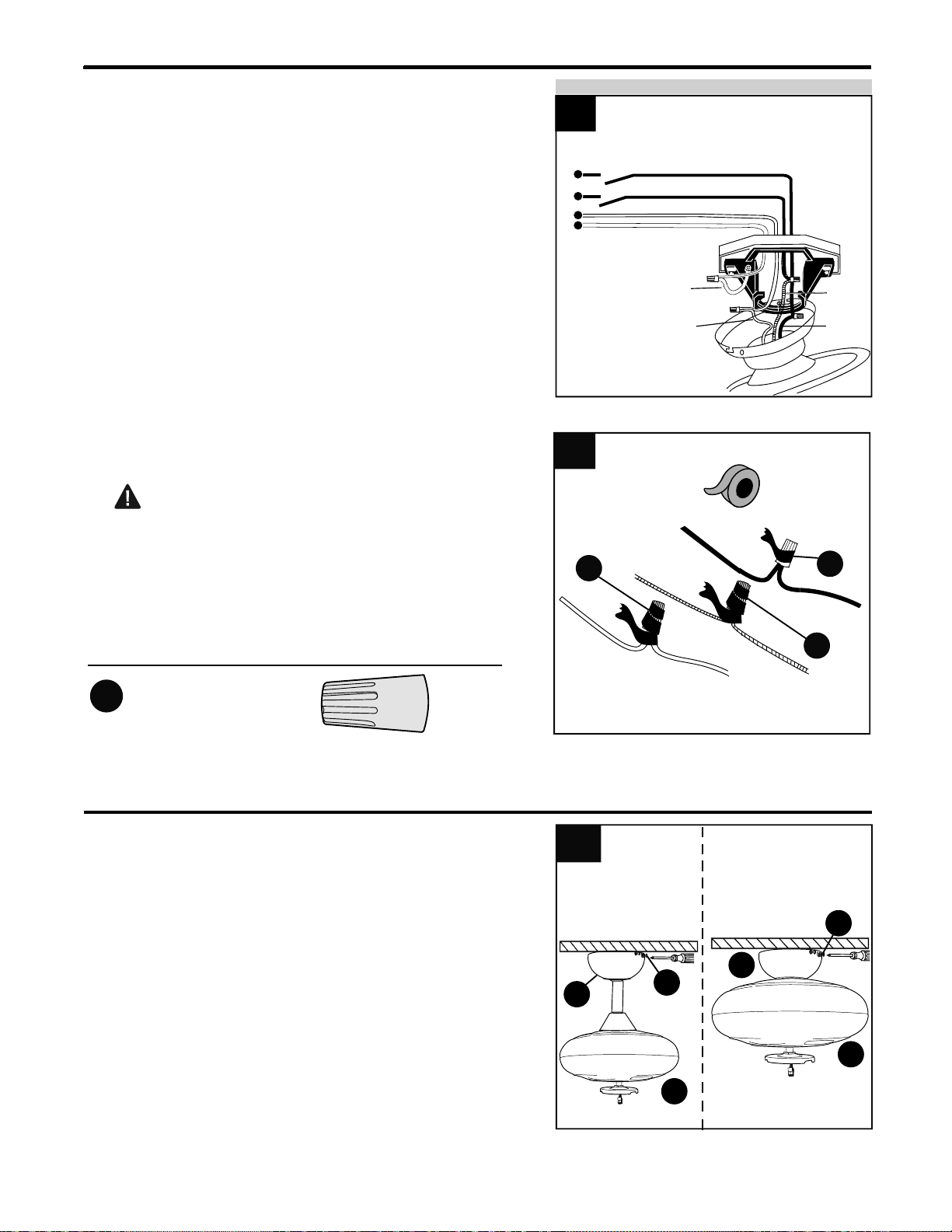

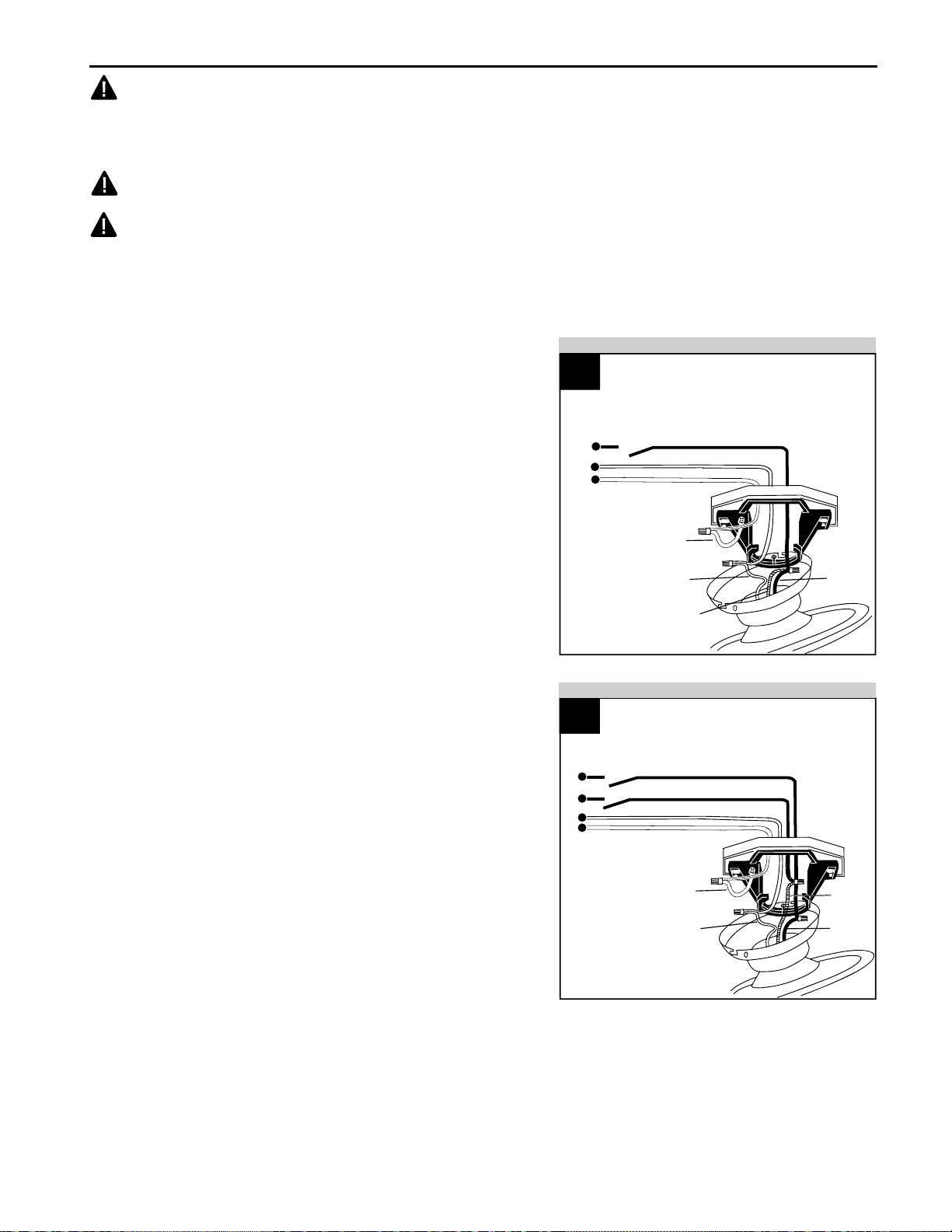

NOTE: This fan is remote control adaptable (remote control sold separately).
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WIRING
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)
that fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each wire
connection below, use one of the wire connectors
(CC) provided, making sure to screw wire connector
(CC) on in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE
BLACK
BLUE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: If you intend to control the fan
light with a separate wall switch, connect BLACK
wire from fan to BLACK wire from ceiling. Connect
BLUE wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket
(C)) to BARE/GREEN wire from ceiling.
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
1b
12
WIRING
WIRING
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect BLUE
wire from fan to the BLACK wire from the other
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (C))
to BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
GREEN
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue (if applicable) connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
CC
2
Lift canopy (B) to mounting bracket (C) and align
slotted holes in canopy (B) with canopy mounting
screws (L) loosened in Step 4a, page 6. Twist
canopy (B) clockwise to lock. Re-insert the two
canopy mounting screws (L) previously removed
(Step 4a, page 6), then tighten all securely.
1.
FINAL INSTALLATION
B
D
L
B
L
1
Downrod
Option
Closemount
Option
D
13
FINAL INSTALLATION

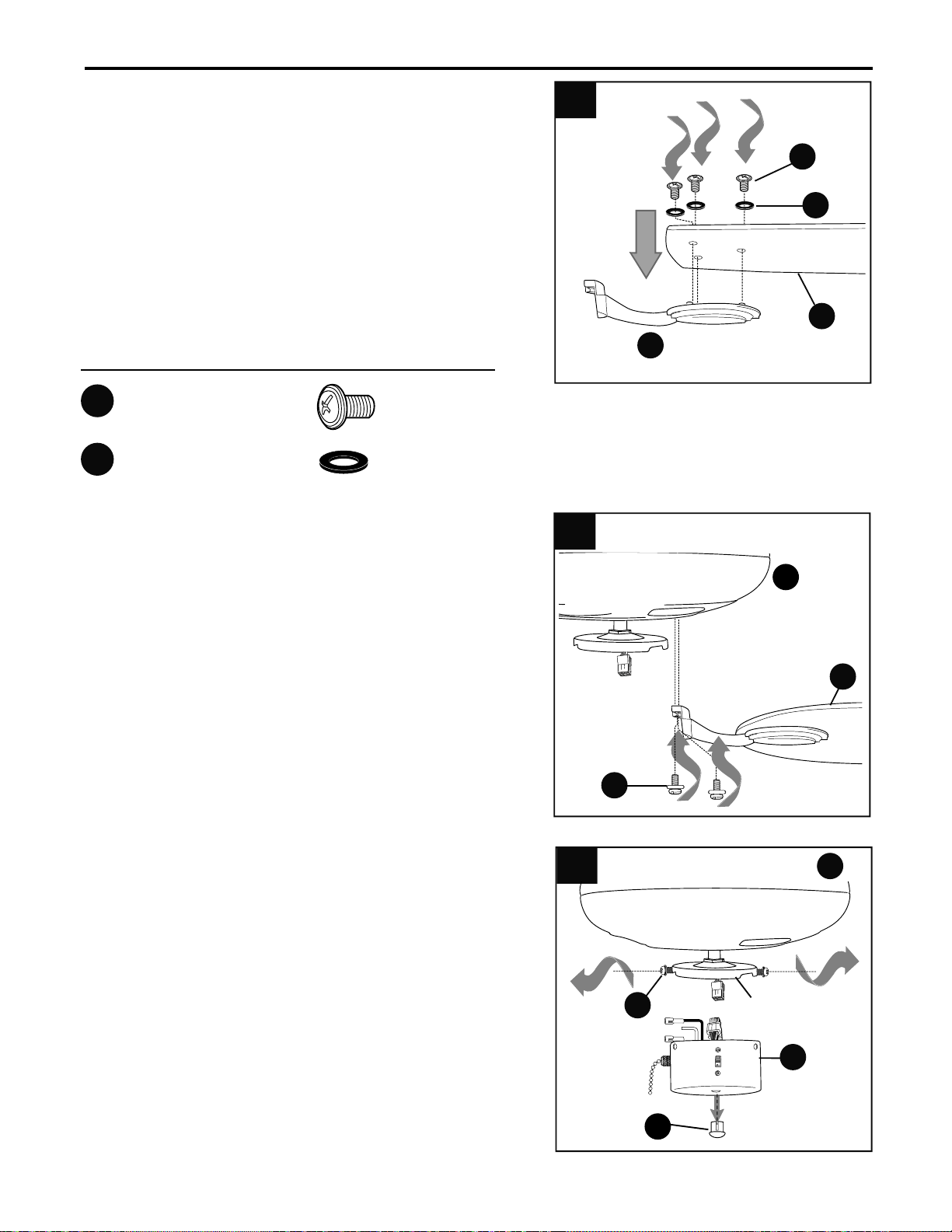

Align posts in blade arm (H) with holes on one
side of blade (G) and then push up on blade arm
(H) until posts go through the holes in blade (G).
[NOTE: Make sure to attach blade (G) with
ridged side facing up and flat side facing the
blade arm (H) -- note label on blade (G)
indicating THIS SIDE UP.] Partially insert three
blade screws (AA), along with three rubber blade
washers (BB), to attach one blade arm (H) to a
blade (G). Then, tighten each blade screw (AA)
starting with the one in the middle.
Repeat Step 2 with the remaining blades (G).
2.
2
H
AA
BB
G
Hardware Used
Blade Screw
x15
AA
Rubber Blade
Washer
x15
BB
3.
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws/lock washers (J)
previously removed (Step 5, page 7). Tighten
motor screws/lock washers (J) securely.
Note: Make sure to completely secure each
blade arm (H) before proceeding to the next.
If you do NOT wish to use the light kit, skip to
INSTALLING FAN WITHOUT LIGHT KIT on
page 16.
If you DO wish to use the light kit, proceed to
Step 4.
H
J
D
3
4.
To install the fan with the light kit, remove
three switch housing plate screws (K) from
preassembled switch housing plate on underside
of motor.
Punch center cap (U) out of switch housing (F)
with a screwdriver (not included). Locate BLUE
(or BLACK) and WHITE wires in switch housing
(F) labeled LIGHT and remove and discard
plastic that holds these two wires together.
4
Switch
Housing Plate
K
F
D
K
U
14
FINAL INSTALLATION

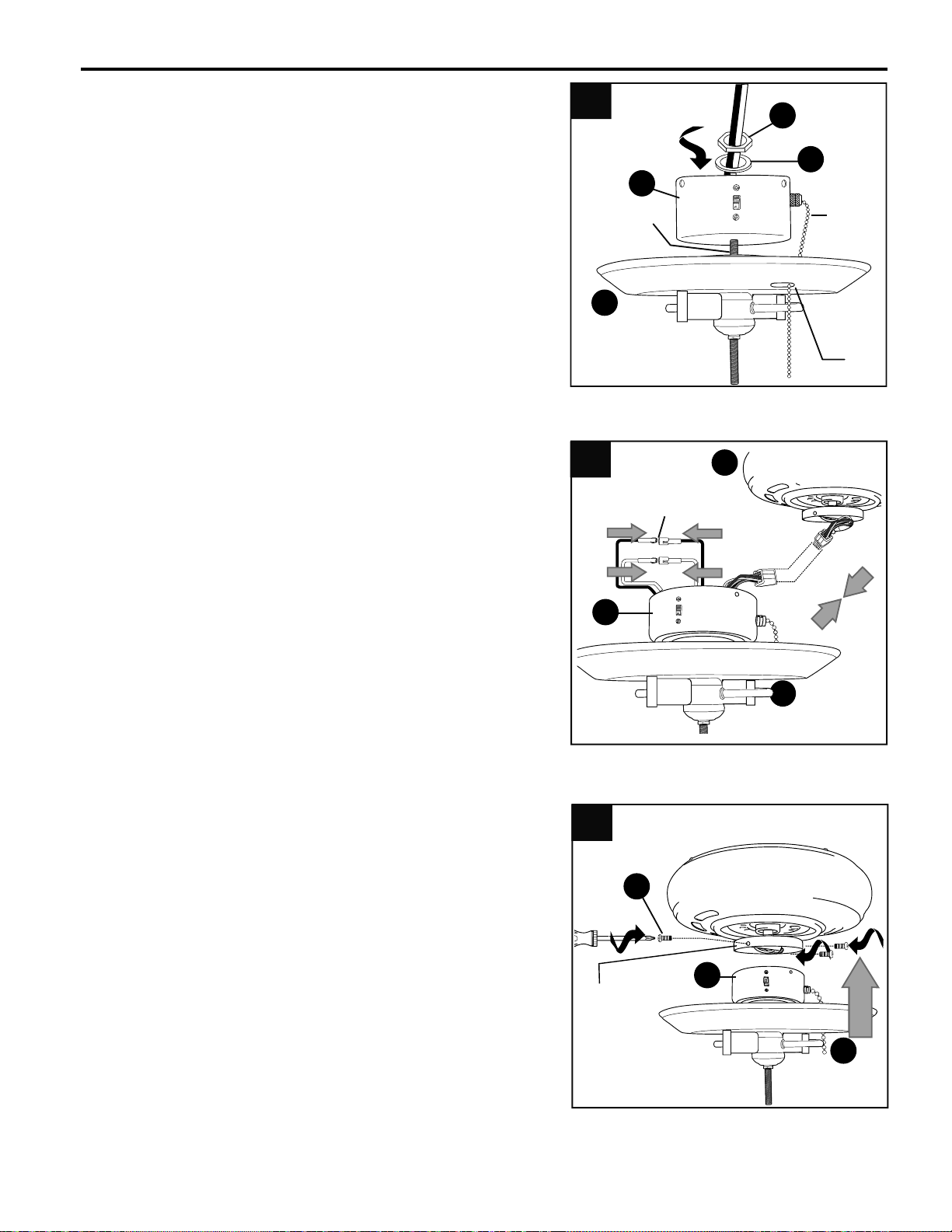

Remove hex nut (S) and 11 mm lock washer (T)
from threaded rod at top of light kit fitter (O). Gently
feed molex (one by one) from light kit fitter (O)
through hole in middle of switch housing (F), and
then screw the switch housing (F) onto the top of the
threaded rod on the light kit fitter (O). [NOTE: Once
the switch housing (F) is tight, make sure the pull
chain on the switch housing (F) lines up with the slot
on the top of the light kit fitter (O). Feed the pull
chain through the slot in the light kit fitter (O).]
Route the previously removed 11 mm lock washer
(T) and hex nut (S) over the wires, tightening the hex
nut (S) securely.
Carefully arrange wiring within switch housing (F).
Align holes in switch housing (F) with holes in switch
housing plate. Re-insert the switch housing plate
screws (K) previously removed (Step 4, page 13).
Tighten all switch housing plate screws (K) securely.
7.
5.
7
Connect WHITE wire from light kit fitter (O) to
WHITE wire from switch housing (F). Connect
BLACK wire from light kit fitter (O) to BLUE (or
BLACK) wire from switch housing (F). Make sure
that molex connections snap together securely.
Connect male plug from motor housing (D) to female
plug from switch housing (F), matching up the colors
on the male plug with the colors on the female plug
for correct fit. Make sure that plugs connect tightly.
6.
Molex
Connections
Switch
Housing
Plate
6
Female
Plug
Male
Plug
D
O
D
F
K
O
5
Threaded
Rod
Slot
T
O
F
S
Pull
Chain
FINAL INSTALLATION
15
8.
9.
Remove finial (R) and finial plate (Q) from
threaded rod at bottom of light kit fitter (O).
Align center hole in the glass shade (P) with
threaded rod, allowing pull chains to come
through corresponding holes in glass shade (P).
Push up gently on glass shade (P) until threaded
rod comes through hole. Thread pull chains
through corresponding holes in finial plate (Q)
and center pull chain through hole in finial (R).
(Align fan pull chain so that it does not rub
against bulbs when fan is in operation.) Tighten
finial (R) to secure glass shade (P) to light kit fitter
(O).
NOTE: Do not overtighten finial (R) as glass may
crack or break.
8
9
Install the two LED bulbs (I).
CAUTION: When replacing bulbs, please
allow bulbs and glass shade to cool down before
touching.
Attach pull chain extensions (DD) supplied in one
of the hardware packs or custom pull chain
extensions (not included) to fan and light pull
chains.
10.
10
(For Fan)
(For Light)
O
I
I
O
P
Q
R
P
Threaded
Rod
DD
DD
Pull Chain x 2
Extension
Hardware Used
DD
15
16
Switch
Housing
Plate
D
INSTALLING FAN WITHOUT LIGHT KIT
D
Male Plug
Female Plug
Switch
Housing
Plate
1.
1
2
2.
Connect male plug from motor housing (D) to
female plug from switch housing (F), matching up
the colors on the male plug with the colors on the
female plug for correct fit. Make sure that plugs
connect tightly.
Align holes in switch housing (F) with holes in
switch housing plate. Re-insert switch housing
plate screws (K) previously removed (Step 1
above). Tighten all switch housing plate screws
(K) securely.
F
D
3.
Attach necessary pull chain extension (DD) or
custom pull chain extension (not included) to
corresponding pull chain for fan.
3
DD
If you do NOT wish to use the light kit, remove
three switch housing plate screws (K) from
preassembled switch housing plate on underside
of motor housing (D).
K
K
Pull Chain Extension x 1
Hardware Used
DD
17
OPERATION INSTRUCTIONS
The pull chain located on the switch housing
(F) has four positions to control fan speed. One
pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
1.
2.
If applicable, the pull chain located in the
middle is used to turn the light ON or OFF.
3.
Use the fan reverse switch, located on the
switch housing (F), to optimize your fan for
seasonal performance. A ceiling fan will allow
you to raise your thermostat setting in summer
and lower your thermostat setting in winter
without feeling a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
F
1
2
F
3
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid
scratching the finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat
of furniture polish to wood blades for added protection.
Important: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 6.5-watt LED bulbs or incandescent/CFL equivalents.
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
3a
3b
3c

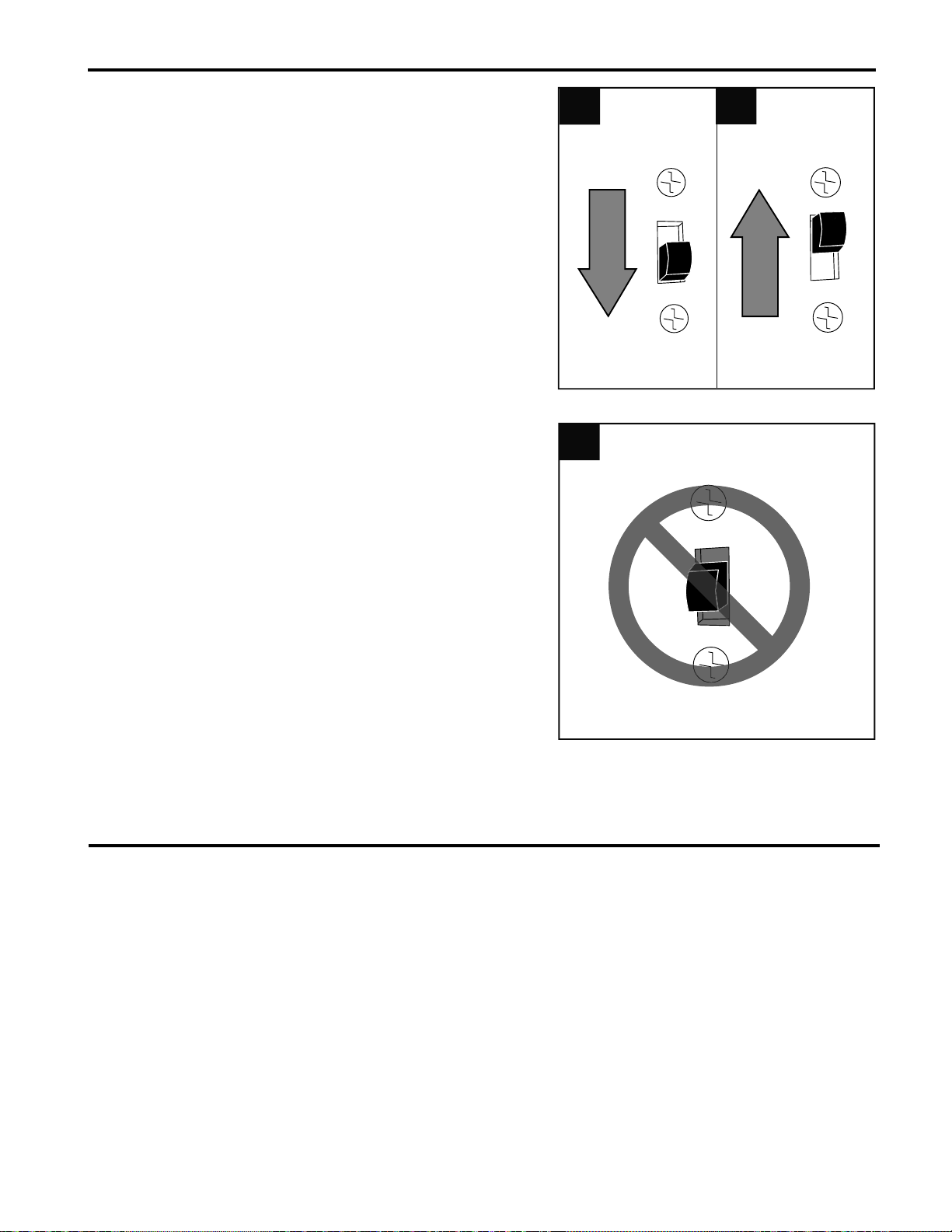

3c. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3a. In warmer weather, setting the reverse
switch in the DOWN position will result in
downward airflow creating a wind chill effect.
3b. In cooler weather, setting the reverse switch
in the UP position will result in upward airflow
that can help move stagnant, hot air off the
ceiling area.
18
19
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that male and female
plugs in light kit fitter are
connected properly according to
instructions on page 14 (or 16).
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
Note: A small amount of "wobble" is normal and should not be considered a defect.
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired properly.
3. Wall switch to fan is off.
4. Wires in switch housing not wired
properly.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure that wall switch to fan
is on.
4. Check that molex connections in
switch housing are connected
properly according to
instructions on page 14.
Fan operates but
light fails.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
20
Printed in China
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
KHLI1707
LIMITED LIFETIME WARRANTY
A
B
C
H
G
O

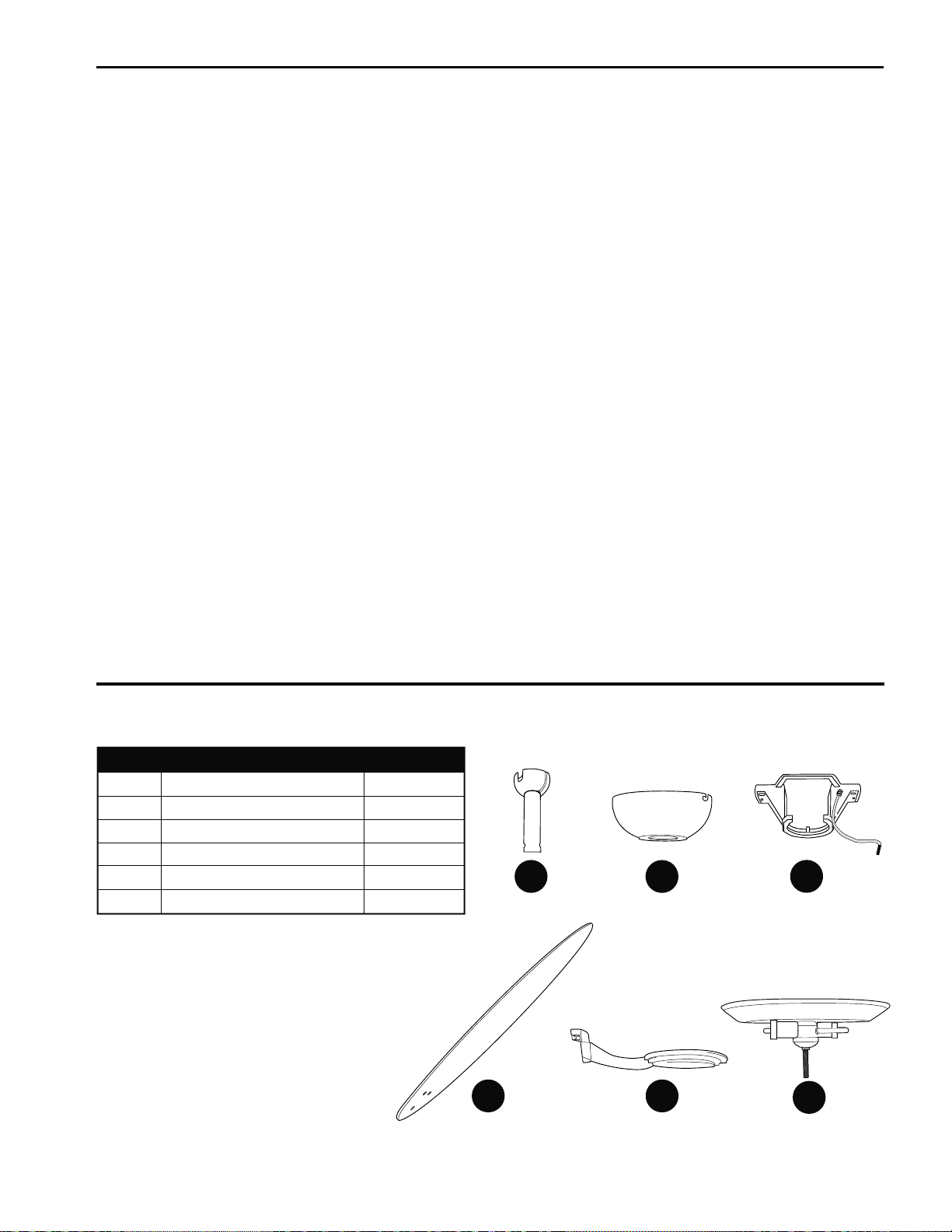

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-527-1292,
8:30 a.m. - 5 p.m., CST, Monday - Friday.
A
Downrod
B
Canopy
C
Mounting Bracket
G
Blade
H
Blade Arm
O Light Kit Fitter
DESCRIPTIONPART
PART #
0889808-A
0889808-B
0889808-C
0889808-G
0889808-H
0889808-O
