Washer
Contents
Agitator 26 Pre-Treating 7, 11, 17
Appliance Registration 2 Problem Solver 20-25
Bleach Dispenser 8 Safety Instructions 3, 4
Care and Cleaning 26 Sorting Clothes 4, 11
Consumer Services 27 Stains 18
Controls Setting Guide 6, 7 Stain Removal Guide 19
Cycle Settings 5 Storage & Vacation Tips 26
Detergents & Other Additives 13-17 User Maintenance Instructions 26
Energy-Saving Tips 8 Warranty Back Cover
Fabric Softener Dispenser 9
Filter-Flo ePan 4, 9, 26
Hard Water 16
Limestone Deposits 14, 26
Loading 4, 12
Mini-Basket TM Tub 10
Mini-Quick Cycle 5, 10
Model and Serial Numbers 2 GE_
Operating the Washer 4, 5 __
Models WWA8827M
WWA8819M
Help us help you... If you need service
Read this book carefully.
It is intended to help you operate
and maintain your new washer
properly.
Keep it handy for answers to your
questions.
If you don't understand something
or need more help, write (include
your phone number):
Consumer Affairs
GE Appliances
Appliance Park
Louisville, KY40225
If you received a
damaged washer...
Immediately contact the dealer
(or builder) that sold you the
washer.
Save time and money.
Before you request service...
check the Problem Solver on
pages 20-25. It lists causes of minor
operating problems that you can
correct yourself.
Write down the model
and serial numbers.
You'll find them on a label on the
lower left side near the front.
These numbers are also on the
Consumer Product Ownership
Registration Card that came with
your washer. Before sending in this
card, please write these numbers
here:
Model Number
Serial Number
To obtain a Spanish language
version of this book, call
GE Answer Center ®
800.626.2000
consumer information service.
Para obtener la versi6n en
espafiol de este manual,
llame a
GE Answer Center, _
servicio de informaci6n
para el consumidor,
tel6fono 800.626.2000.
FOR YOUR SAFETY
Ifyousmellgas:
1.Openwindows.
2. Don't touch
electrical switches*
3,Extinguishany
openflame,
4.Immediatelycall
your gas supplier.
*Don't turn electric switches
on or off because sparks may
ignite the gas.
FOR YOUR SAFETY
Donotstoreoruse
gasolineorother
flammablevaporsand
liquidsinthevicinity
ofthisoranyother
appliance.
Use these numbers in an3,
correspondence or service calls
concerning your washer.
All washing instruction terms in this book contbrm to the Care Lab_ing
Rule established by the Federal Tradc Commission, January 1984.
To obtain service, see the
Consumer Services page in the
back of this book.
We're proud of our service and
want you to be pleased. If for some
reason you are not happy with the
service you receive, here are three
steps to follow for further help.
FIRST, contact the people who
serviced your appliance. Explain
why you are not pleased. In most
cases, this will solve the problem.
NEXT, if you are still not pleased,
write all the details--including
your phone number--to:
Manager, Consumer Relations
GE Appliances
Appliance Park
Louisville, Kentucky 40225
FINALLY, if your problem is still
not resolved, write:
Major Appliance
Consumer Action Panel
20 North Wacker Drive
Chicago. Illinois 60606

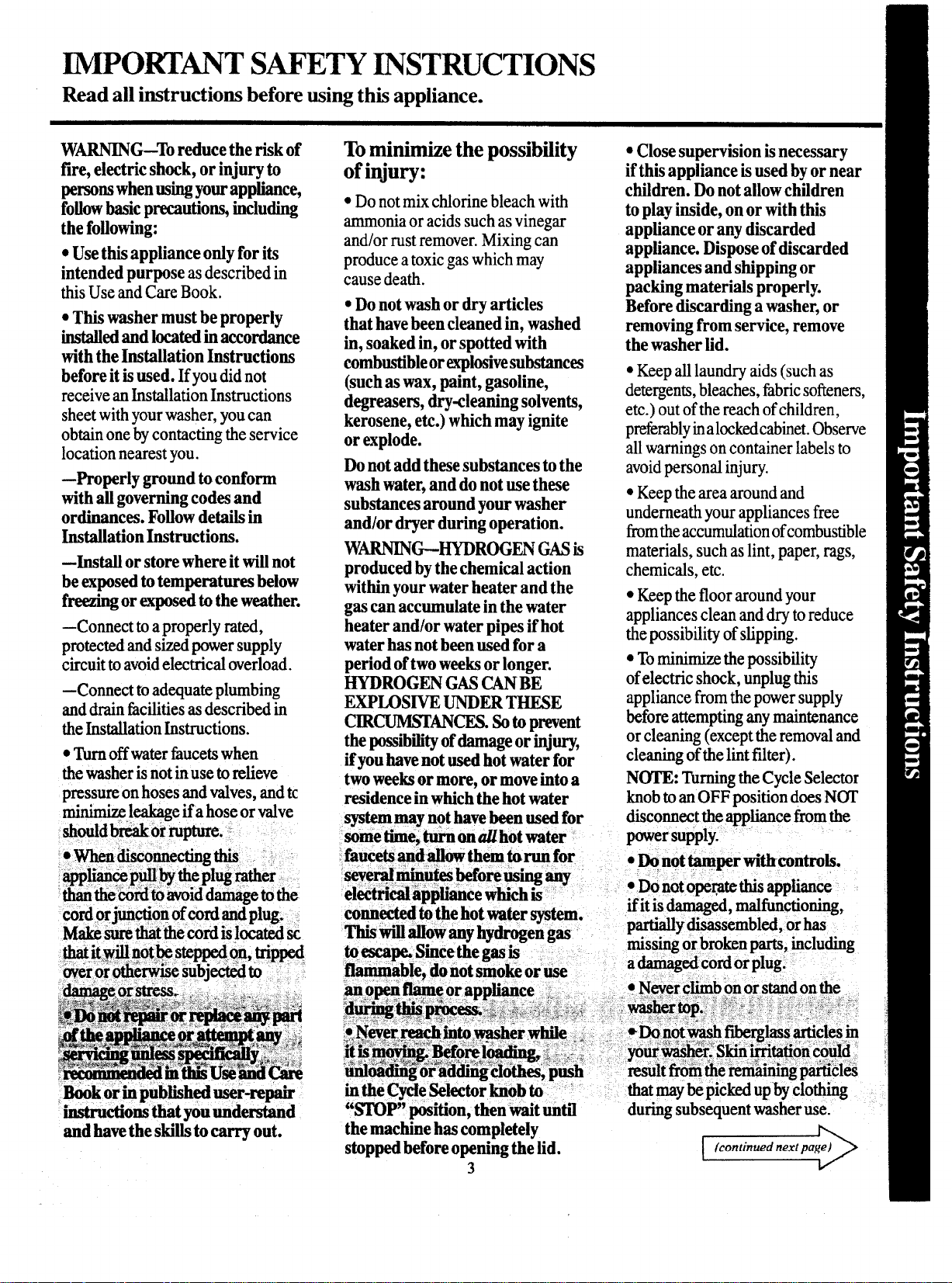

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
WARNING--To reduce the risk of
fire, electric shock, or injury to
persons when using your appliance,
follow basic precautions, including
the following:
s Use this appliance only for its
intended purpose as described in
this Use and Care Book.
•This washer must be properly
installed and located in accordance
with the Installation Instructions
before it is used. If youdid not
receive an Installation Instructions
sheet with your washer, you can
obtain one by contacting the service
location nearest you.
--Properly ground to conform
with all governing codes and
ordinances. Follow details in
Installation Instructions.
--Install or store where it will not
be exposed to temperatures below
freezing or exposed tothe weather.
--Connect to aproperly rated,
protected and sized power supply
circuit toavoidelectrical overload.
--Connect to adequate plumbing
and facnitiesasdescribedin
the Installation Instructions.
•Turn off water faucets when
the washer is not inuse to relieve
pressure on hoses and valves, and tc
tripp
__k orm published user-repair
_ns _t you understand
and have the skills to carry out.
Tominimize the possibility
of injury:
• Do not mix chlorine bleach with
ammonia or acids such as vinegar
and/or rust remover. Mixing can
produce a toxic gas which may
cause death.
• Do not wash or dry articles
that have been cleaned in, washed
in, soaked in, or spotted with
combustible orexplosive substances
(such as wax, paint, gasoline,
degreasers, dry-cleaning solvents,
kerosene, etc.) which may ignite
or explode.
Do not add these substances to the
wash water, and do not use these
substances around your washer
and/or dryer during operation.
WARNING--HYDROGEN GAS is
produced by the chemical action
within your water heater and the
gas can accumulate in the water
heater and/or water pipes if hot
water has not been used for a
period of two weeks or longer.
HYDROGEN GAS CANBE
EXPLOSIVE UNDER THESE
CIRCUMSTANCES. So to prevent
the possibility of damage or injury,
ifyou have not used hot water for
two weeks or more, or move into a
residence inwhich the hot water
system may not have been used for
some time, turn on a//hot water
faucets andallow them torun for
• Close supervision is necessary
if this appliance is used by or near
children. Do not allow children
to play inside, on or with this
appliance or any discarded
appliance. Dispose of discarded
appliances and shipping or
packing materials properly.
Before discarding a washer, or
removing from service, remove
the washer lid.
•Keep all laundry aids (such as
detergents, bleaches, fabric softeners,
etc.) out of the reach of children,
preferably in a locked cabinet. Observe
all warnings on container labels to
avoid personal injury.
•Keep the area around and
underneath your appliances free
from the accumulation of combustible
materials, such as lint, paper, rags,
chemicals, etc.
•Keep the floor around your
appliances clean and dry to reduce
the possibility of slipping.
• Tominimize the possibility
of electric shock, unplug this
appliance from the power supply
before attempting any maintenance
or cleaning (except the removal and
cleaning of the lint filter).
NOTE: Turning the Cycle Selector
knob to an OFF position does NOT
disconnect the appliance from the
power supply.
• Do not tamper withcontrols.
•Do not opera_ this appliance
connected tothe hot water system, if itis damaged, malfunctioning,
This will allow any hydrogen gas partially disassembled, orhas
missing orbroken parts, including
toescape. Sincethe gas is ......
flammable, do not smoke or use a _mc°m°rpmg"
_0_ orapp "liance .... *Neyerc_on or s_don _e
• - • ' • 41_ _ *
_*_ mto,_r while _,_ _r_n_ _fiberglass _cl_ m
g_ _6thes;_p;_ result frofia_e _g p_cles
in the Cycle .Seflectorknob to _ that may be picked upby clothing
"STOP" position, then Waituntil during subsequent w_asheruse.
the machine has completely
stopped before opening the lid. I¢continuednextpag e)
3
Imoortant Safety Instructions (conti.u )
during cycle. This will stop the
wash anclspin a_ztionand prevent
completion of the cycle.
How to operate your clothes washer
WARNING--To reduce the risk of fire, electric shock, or injury to persons,
read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
Was_pie _ee_ _¢iable Water Levi WRs_inse Temp.
_xt_t_c_
_1 Rtstr wJ.u SO7
COLD Cord
.+'+'
0[Nrte M+mUM 8ASKIT
_coto no+
smAtt tCOLD WA_
_" Re OFF _oe_,L+_,..c,o,.o.,+_+.o_lk ,o_..c_,.P........ P....
|/k\ ::,,,
tm.r smL • _m_
Nowm • Cycles
,+,,0;, g
AUTC ilrRl RIN51 Qill STIR_Exlra Clean Cycle
O O O
Sorting and Loading • Position the Filter-Flo pan on the
agitator. Lint will collect in the pan
for easy removal when the wash is
finished.
•Sort clothes carefully by fabric
type, weight, color and amount of
soil according to instructions on
page 11.
• Remove Filter-Flo ® pan and
Mini-Basket TM tub. The underside
of the lid is a good place to put the
pan while loading or unloading
clothes.
Do not use Mini-Basket tub when
washing regular loads. You'll find
complete details on how and when
to use the Mini-Basket tub
on page 10.
• Add measured amount of
detergent. See pages 13 through 17
for information on detergents and
other laundry additives.
• Load clothes into the wash basket,
being careful not to overload it.
Clothes should be below the
retaining ring. See page 12 for
more loading information.
NOTE: Do not use the Filter-Flo
pan as a wash basket. Do not put
any items to be washed in the
Filter-Flo pan.
• See pages 8 and 9 for information
on how to use Bleach and Fabric
Softener Dispensers. For information
on bleaches and fabric softeners,
see page 17.
• Close the lid. Washer will fill but
not agitate or spin with the lid open.
Setting the Controls
Use the Controls Setting Guide on
pages 6 and 7 to help you make the
proper selections.
O Select Wash/Spin Speed.
Select Water Level.
SMALL: Washer is less than 1/3
full of clothes.
MEDIUM: Between 1/3 and 1/2 full.
LARGE: Between 1/2 and 2/3 full.
EXTRA LARGE: Over 2/3 full.
MINI-BASKET: See instructions
on page 10.
0--0
If you wish to increase level after
you've made a selection, turn knob
to "RESET" and select new level.
Select Wash/Rinse Temperature
Cold rinse will be automatically
provided with use of Permanent
Press and Special Cycles. (An
extended cool-down spray rinse
and cold water deep rinse are
provided to minimize setting of
wrinkles.)
Push Cycle Selector Knob in
and turn clockwise to your selected
wash setting.
_[_ Pull Cycle Selector Knob out
to start the washer. If you wish to
change setting after washer has
started, push Cycle Selector Knob
in to stop the washer and reset to
the new position. Setting can be
changed at any time.
Tips to Help YouSelect Settings
R_r Cycles--
For most cottons, linens, work and
play clothes with normal soiling.
Permanent Press Cycles--
For Permanent Press loads such as
shirts, blouses, dresses and similar
wearing apparel with normal
soiling. An extended cool-down
spray rinse is provided to minimize
wrinkling.
OFF .omAt
des l _mm _ O tmm Permanent Press
_o_,.._r_l.& .o Cycles
"0"_ _. i III I .cyclss
IM\"
A_O [JffM IIINS[ Oil' STP'_qls
Extra Clean Cycle
Knits Cycle--
A combination of agitation and
soak for more effective polyester
knits laundering. Plus an extended
noel-down spray rinse is provided
to minimize the setting of wrinkles.
•yam. Special
ou_c_ Cycles
0
Extra Clean Cycle
Mini-Quick Cycle--
For small, lightly soiled loads you
need in ahurry. Use with Mini-
Basket" tub only.
_...,o._\_.€"- -! %Cycln,
_,,._ •I--'--- _..IW"_a speciel
.om*t _I["'---"7 _Crcles
_'0 4_ oF_
AUTOI[Xledl _ _ •STMR1
Extra Clean Cycle
Extra Clean Cycle with
Auto Extra Rinse--
For modern fabrics with heavy
or oily soil. A second rinse is
provided to help remove the
additional detergent that's required
for these soils. See page 15.
_" OFF NORMAL
.,_,_ t:vcte 4.0_
LIGHT SOIL •
NORMAL •
%,,,,
Soak Cycle--
Use with most soaking aids to
loosen embedded soils and stains.
Regular Cycles OFF NORM&L
soakCvc_,,v\ I * 0
"\_
UGHTNIL •
.0,g_-
AUTO EXI"RA RINSE _• S AI
What Happens in Each Setting (Approximate Minutes)
Cycle
Selector
Settings
Wash
Spin
Rinse
Spin
2nd Rinse
Spin
Total
Time
NOTES:
Regular
Light Soak
Heavy Normal Soil
19 15 5
3//= 3V= 3Vz
3V_ 3//2 3V= 3V_
777 7
37 33 23 11V=
Permanent
Press
Normal Light
10 5
2V2 21/_
2V= 2V2
41/2 4//2
Extra Clean
Cycle with Auto
Extra Rinse
15
31/_
3
3
3
7
Special Cycles
Mini-
Knits Quick
2124 19 42
6
21/z
21/2
4//2
4
2
2
2
14
*Total time includes pauses between each phase of cycle,
-Total time does not include water fill time. Fill times vary depending on household
water pressu re and your selected water level.
I TURN THE PAGE
for Controls Setting Guide
Controls Setting Guide for different fabrics and loads
Load '
CottonsandLinens
White/Colorfast
Bright/Non-colorfast "
Work Clothes
Heavy soil
Average soil
Permanent Press, Treated Cottons,
Blends with Cottons
Heavy oroily soil
Average orlight soft
Synth_ics--Potyester, Nylon,
Acrylic Knits and Woven Fabrics
Sturdy
Delicates
Silks, Wools; Blends of Silk
and Wool
RayonandAcetate
Down-filled garments, if machine washing
is recommended
Baby Clothes--Sturdy, such as Diapers,
Nightgowns, Shirts, Pads, Sheets,
Receiving Blankets, Coveralls
Baby Clothes--Delicate
Blankets--Wool, Part-Wool,
Cotton
Blankets--Synthetic, Electric
Curtains--DO NOT MACHINE WASH
FIBERGLASS
Chenille Bedspreads, Robes**
Slipcovers, Draperies, Bathmats and Rugs**
Denims (especially Indigo Blue Jeans) and
other fabrics that bleed
Rubber-coated Items, Laminated Fabrics,
Vinyl, Plastics and Articles with Plastic
Trim
Pillows
Wash/Spin
Speed
Normal
Normal
Normal
Normal
Normal
Normal
Normal
Gentle
Gende
Gentle
Gentle
Normal
Gentle
5 min. soak then
Normal
5 min. soak then
Normal
Gentle
Gentle
Normal
Normal
Gentle
Gentle
Wash Water
Temperature*
Hot OrWarm
Warm orCold
Hot
Hot or Warm
Hot
Warm
Warm
Warm
Warm
Warm
Warm
Hot
Warm
Warm
Warm
Hot or Warm
Hot or Warm
Hot or Warm
Cold or Warm
Warm
Warm
Cycle
RegularCycles
Regular Cycles
Extra Clean Cycle
Regular Cycles
Extra Clean Cycle
Permanent Press Cycles
Permanent Press Cycles
Permanent Press Cycles
Special Cycles
Special Cycles
Permanent Press Cycles
Regular Cycles
Permanent Press Cycles
Regular Cycles
Regular Cycles
Permanent Press Cycles
Permanent Press Cycles
Regular Cycles
Regular Cycles
Special Cycles
Permanent Press Cycles
Cycle Setting •
Normal or Light Soil Setting
Normal or Light Soil Setting
Set at Start
Normal Setting
Set at Start
Normal Setting
Normal Setting
Light Setting
Knits Setting
Knits Setting
Normal Setting
Normal or Light Soil Setting,
depending on amount of soil
Normal Setting
Light Soil Setting
Light Soil Setting
Normal Setting
Normal Setting
Normal Setting
Normal Setting
Knits Setting
Normal or Light Setting,
depending on amount of soil
*Use Cold Rinse to save energy.
**Check size. Some slipcovers, draperies and bedspreads may be too large for automatic home-size washer.
Refer to Garment Manufacturers' Care Labels
Bleach
Liquid chlorine type.
Only non-chlorine bleach when needed.
White or colorfast, liquid chlorine type.
Non-colorfast, only non-chlorine bleach
when needed.
White or colorfast, liquid chlorine type.
Non-colorfast, only non-chlorine bleach
when needed.
Special Instructions
If colorfast is unusually soiled, use hot water. Use maximum detergent recommended on
page 15.Use Extra Clean Cycle with Auto Extra Rinse, Normal or Light Soil Setting.
See page 5.
Use maximum detergent recommended in guide on page 15.
Small loads reduce wrinkling. Use maximum detergent recommended in guide on page 15.
Use Extra Clean Cycle with Auto Extra Rinse. See page 5.
White or colorfast, liquid chlorine type. If unusually soiled, use hot water. Use maximum detergent recommended in guide on
Non-colorfast, only non-chlorine bleach page 15.For heavy or oily soil on sturdy garments, use Extra Clean Cycle with Auto Extra
when needed. Rinse. See page 5. Small loads reduce wrinkling.
No bleach Wash only if recommended by the garment manufacturer. Follow instructions carefully.
Seldom needed. If needed, use only Wash in your washer only if recommended by the garment manufacturer.
non-chlorine bleach.
No bleach Wash frequently to fluff up the down and retain the garment's warmth. Wash separately. Wet
down gives off an odor which may be absorbed by other garments. Odor disappears when
garment is dry. Treat heavily soiled areas with liquid detergent or paste made of water and
granular detergent. Close zippers. Wash 2 or 3 at a time or add towels to balance.
GARMENT MUST BE TUMBLE DRIED.
White or colorfast, liquid chlorine type. You may prefer to use amild-type detergent. Do baby clothes separately. Pretreat spots.
Rinse diapers, nightgowns, pads and sheets after use. Keep diapers in a covered pail of cold
water and conditioning agent like Borateem brand.
Only non-chlorine bleach when needed. You may prefer to use a mild-type detergent. Do hand-knit garments by hand or in Mini-
Basket tub. See page 10.
No bleach Fill washer, add detergent and allow to dissolve before adding blanket. Do one blanket at a
time. Pretreat heavily soiled spots with liquid detergent.
No bleach On electric blanket, sew a strong piece of cloth over plug to protect blanket and washer from
damage. Do one blanket ata time. Pretreat heavily soiled spots with liquid detergent.
White or colorfast, liquid chlorine type. Vacuum out loose dirt before washing.
White or colorfast, liquid chlorine type. If Unusually soiled, use Normal Wash/Spin Speed.
White or colorfast, liquid chlorine type. Wash only 2 or 3 rugs or mats at one time. Shake before washing to remove excess dirt.
No bleach For new "indigo blue" jeans, wash at least 3 times in very small loads with full water fill.
Jeans need ample room to move to avoid white lines at creases. May discolor plastic washer
parts. Subsequent washings will reduce discoloration, but will probably never eliminate it.
The stained parts will not discolor subsequent washing loads.
No bleach Tumble on FLUFF (No Heat).
No bleach Pillows are made of different materials--dacron, fiber, foam, polyester, natural feathers and
down. Many pillows can be machine washed, but manufacturers" care labels must be followed
carefully. If washing is recommended, check pillows for weak seams or holes and mend to
prevent escape of feathers or filling. Fill washer, add detergent and agitate for several minutes
to dissolve detergent. Add two pillows at a time to balance load, using extra large water level.
For more information on care labeling, send for "What's New About CARE LABELS_'
For sale by the Superintendent of Documents,
U.S. Government Printing Office, Washington, D.C. 20402.

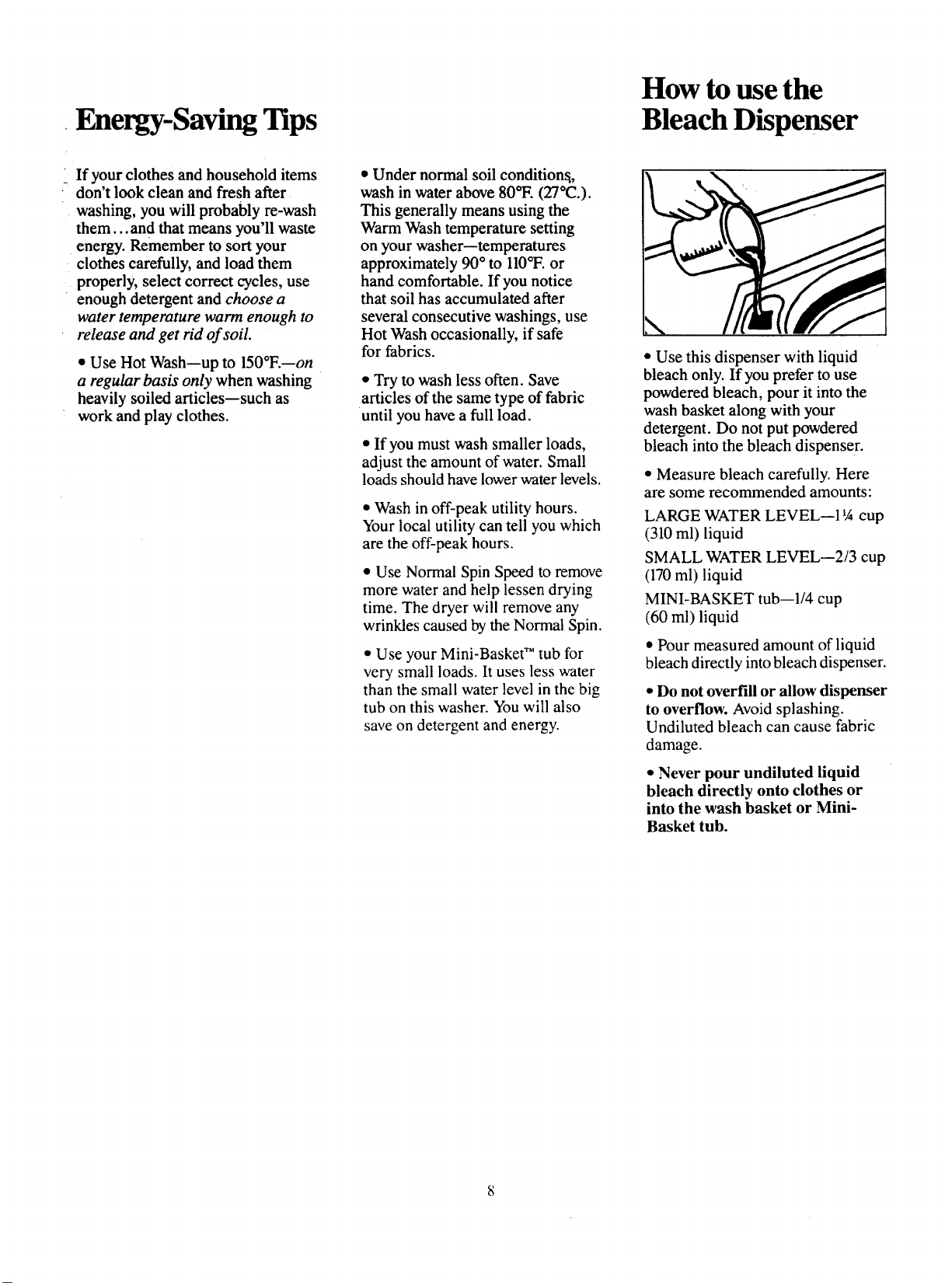

Energy-Saving Tips How to use the
Bleach Dispenser
If your clothes and household items
don't look clean and fresh after
washing, you will probably re-wash
them.., and that means you'll waste
energy. Remember to sort your
clothes carefully, and load them
properly, select correct cycles, use
• enough detergent and choose a
water temperature warm enough to
release and get rid of soil.
• Use Hot Wash--up to 150°F.--on
a regular basis only when washing
heavily soiled articles--such as
work and play clothes.
• Under normal soil condition_,
wash in water above 80°F. (27°(2.).
This generally means using the
Warm Wash temperature setting
on your washer--temperatures
approximately 90 °to ll0°F, or
hand comfortable. If you notice
that soil has accumulated after
several consecutive washings, use
Hot Wash occasionally, if safe
for fabrics.
•Try to wash less often. Save
articles of the same type of fabric
until you have a full load.
• If you must wash smaller loads,
adjust the amount of water. Small
loads should have lower water levels.
• Wash in off-peak utility hours.
Your local utility can tell you which
are the off-peak hours.
•Use Normal Spin Speed to remove
more water and help lessen drying
time. The dryer will remove any
wrinkles caused by the Normal Spin.
* Use your Mini-Basket TM tub for
very small loads. It uses less water
than the small water level in the big
tub on this washer. You will also
save on detergent and energy.
•Use this dispenser with liquid
bleach only. If you prefer to use
powdered bleach, pour it into the
wash basket along with your
detergent. Do not put powdered
bleach into the bleach dispenser.
• Measure bleach carefully. Here
are some recommended amounts:
LARGE WATER LEVEL--1 'A cup
(310 ml) liquid
SMALL WATER LEVEL--2/3 cup
(170 ml) liquid
MINI-BASKET tub--l/4 cup
(60 ml) liquid
• Pour measured amount of liquid
bleach directly into bleach dispenser.
•Do not overfill or allow dispenser
to overflow. Avoid splashing.
Undiluted bleach can cause fabric
damage.
•Never pour undiluted liquid
bleach directly onto clothes or
into the wash basket or Mini-
Basket tub.

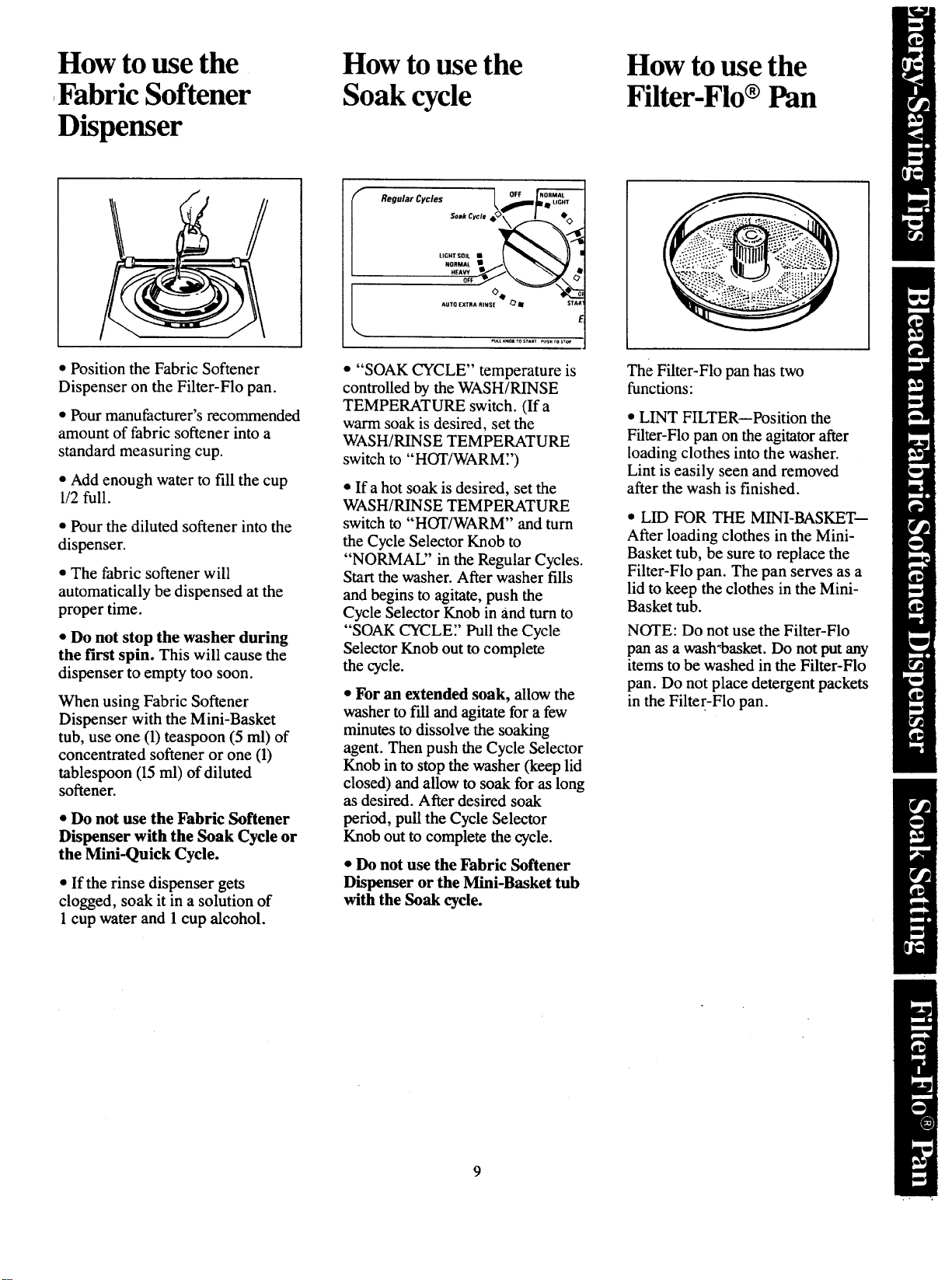

How to use the
Fabric Softener
Dispenser
How to use the
Soak cycle How to use the
Filter-Flo®Pan
• Position the Fabric Softener
Dispenser on the Filter-Flo pan.
• Pour manufacturer's recommended
amount of fabric softener into a
standard measuring cup.
• Add enough water to fill the cup
1/2 full.
• Pour the diluted softener into the
dispenser.
• The fabric softener will
automatically be dispensed at the
proper time.
•Do not stop the washer during
the first spin. This will cause the
dispenser to empty too soon.
When using Fabric Softener
Dispenser with the Mini-Basket
tub, use one (1) teaspoon (5 ml) of
concentrated softener or one (1)
tablespoon (15 ml) of diluted
softener.
•Do not use the Fabric Softener
Dispenser with the Soak Cycle or
the Mini-Quick Cycle.
• If the rinse dispenser gets
clogged, soak it in a solution of
1cup water and 1cup alcohol.
F eg._,,cvc_os l_'_
LIGHTSOIL • II
NORMAL IB
fl[AVY • •
,_,,,0........,,%o,,,
E
• "SOAK CYCLE" temperature is
controlled by the WASH/RINSE
TEMPERATURE switch. (If a
warm soak is desired, set the
WASH/RINSE TEMPERATURE
switch to "HOT/WARM 7)
• If a hot soak is desired, set the
WASH/RINSE TEMPERATURE
switch to "HOT/WARM" and turn
the Cycle Selector Knob to
"NORMAL" in the Regular Cycles.
Start the washer. After washer fills
and begins to agitate, push the
Cycle Selector Knob in _ind turn to
"SOAK CYCLEY Pull the Cycle
Selector Knob out to complete
the cycle.
•For an extended soak, allow the
washer to fill and agitate for a few
minutes to dissolve the soaking
agent. Then push the Cycle Selector
Knob in to stop the washer (keep lid
closed) and allow to soak for as long
as desired. After desired soak
period, pull the Cycle Selector
Knob out to complete the cycle.
*Do not use the Fabric Softener
Dispenser or the Mini-Basket tub
with the Soak cycle.
The Filter-Flo pan has two
functions:
•LINT FILTER--Position the
Filter-Flo pan on the agitator after
loading clothes into the washer.
Lint is easily seen and removed
after the wash is finished.
• LID FOR THE MINI-BASKET--
After loading clothes in the Mini-
Basket tub, be sure to replace the
Filter-Flo pan. The pan serves as a
lid to keep the clothes in the Mini-
Basket tub.
NOTE: Do not use the Filter-Flo
pan as a wash_basket. Do not put any
items to be washed in the Filter-Flo
pan. Do not place detergent packets
in the Filter-Flo pan.
How to use the Mini-Basket TM tub
The Mini-Basket TM tub, designed
for small loads of regular fabrics
or delicate hand-washables, can
be used with any cycle except the
SOAK cycle.
4. Load clothes into the Mini-Basket
tub. See page 11 for sorting help.
Typical Mini-Basket TM tub
wash loads
• Small loads of regular fabrics
(up to 21Apounds).
• Delicate loads such as lingerie,
panty hose, girdles, blouses, sweaters,
socks, shirts, baby clothes and other
small, delicate hand washables.
• Stuffed toys.
•Tennis shoes.
How to wash a small load
of regular fabrics or
delicate hand washables
1. Remove Filter-Flo ®pan.
2. Place Mini-Basket tub on agitator.
Pull the agitator toward the front of
the machine for easier installation
and removal of Mini-Basket tub.
3. Put 1/4 to 1/3 cup (60 to 80 ml)
detergent in the bottom of the Mini-
Basket tub.
5. After loading clothes into the
Mini-Basket tub, be sure to replace
the Filter-Flo pan. The pan serves
as a lid to keep the clothes in the
Mini-Basket tub.
6. Add bleach, if desired. Measure
carefully and pour recommended
amount of liquid bleach--l/4 cup
(60 ml)--directly into the bleach
dispenser. See page 8 for dispenser
instructions.
7. Add fabric softener, if desired.
Place the Fabric Softener Dispenser
on the Filter-Flo pan. Pour 1
teaspoon (5 ml) of concentrated
softener or 1tablespoon (15 ml) of
diluted softener into a standard
measuring cup. Add enough water
to fill the cup 1/2 full. Pour the
diluted softener into the dispenser.
See page 9 for dispenser instructions.
Special instructions for use of the Mini-Basket TM tub
• The Mini-Basket tub can be used
with any cycle except the SOAK
cycle. When using the MINI-
QUICK cycle, the Mini-Basket
tub should be used.
•Do not wash clothes in the regular
wash basket when using the Mini-
Basket tub. There will not be
enough water in the regular basket
and damage to clothes could result.
•Do not use the Fabric Softener
Dispenser with the MINI-QUICK
cycle. The cycle is too short for
proper dispensing of the softener.
• When washing stockings, panty
hose and other easily tangled
items, always handle separately.
To minimize tangling, the use of a
net laundry bag is recommended.
8. Close lid and set controls as
follows:
EXTRA LARGE
f• 0 RESET
LARGE_4)' __,.i MINI.
MEDIUM __ BASKET
SMALL ,4_
--Set Water Level to "MINI-
BASKET" position.
--Select desired Wash/Spin Speed
and Wash/Rinse Temperature. See
page 4.
--Select desired cycle (REGULAR
or PERMANENT PRESS). See
page 4.
9. Pull Cycle Selector Knob out to
start washer.
How to use the MINI-
QUICK cycle
The MINI-QUICK cycle is a
short cycle intended to wash
small loads of lightly soiled
clothes you need in a hurry.
Because this cycle is a short one for
small loads, the Mini-Basket tub
should be used for satisfactory
results.
1. Follow all the steps above and at
left except for cycle selection.
-.,c,_,.o_,T,....,L..Oo_'-" c,_,.
I- B_'I .wJ- Special
UGHTSOIL •m_ t__.,...._mmml r _llr_ Cycles
HEAVY •
AUTOEXTRARINSE 4r _ le START
Extra Clean Cycle
2. Push the Cycle Selector Knob in
and turn it clockwise to the MINI-
QUICK cycle.
3. Pull the Cycle Selector Knob out
to start the washer.
10
How to sort the clothes
Sort by surface texture
Separate
Lint
Producers
from
Lint
LINT PRODUCERS-- Such as
terry toweling and chenille--give
up lint.
LINT COLLECTORS-- such as
man-made fibers and napped
fabrics like velveteen and corduroy
--attract lint. These must be
washed separately.
For more information on lint
control, see page 20.
Sort by fabric
Separate
Linens
from
Cottons &
Blends
from
Poly Knits
from
In addition to sorting to reduce lint
collection, it is recommended that
fabrics of similar construction be
washed together whenever possible.
Sort by soil
Separate
from
Medium
Soil
from
Sort by color
Separate
Whites
from
Lights
from
from
Non-
FOR INSTRUCTIONS ON
DIFFERENT FABRICS AND
LOADS, SEE PAGES 6 and 7.
It pays to check and prepare
clothes for washing.
*Empty pockets, brush out cuffs,
zip zippers, snap snaps, hooks
and buttons.
* Do any necessary mending--rips,
hems, tears.
Check all items for areas of heavy
soil or stain.
* Remove stains. For STAIN
REMOVAL GUIDE, SEE PAGE 19.
Turn Poly Knits inside-out to
minimize fabric surface damage.
Regular Cycle with Extra Rinse--
Special Modern Fabric Cycles for
removable heavy and oily soils.
(See page 5 for instructions.)
See page 6 "Controls Setting
Guide7
See page 20 "The Problem Solver'.'
Soaking and Pre-treating--
a good way to loosen deep soils
and stains.
A thorough soaking with detergent
or special soaking agent is another
way to remove heavy soils,
embedded dirt and even some
stains.
Soaking can be either a completely
separate washing step or a prelim-
inary step to a complete wash cycle.
For detailed information on how
to soak in your washer, see page 9.
FOR INFORMATION ON
SOAKING AGENTS, SEE
PAGE 17.
*Pre-treat heavy soil by rubbing in
a small amount of liquid detergent
or a paste made of water and powdered
detergent or soap. For best results,
wait 1/2 hour before washing.
11
How to load your washer
Special recommendations
for washing permanent press
if you do not have a dryer.
If you are machine-washing
Permanent Press clothes that you
plan to line dry or drip-dry, use
extra care to minimize wrinkling
in the wash process:
* Be careful not to overload
washer. Permanent Press clothes
must have ample room to move
freely. AMedium size Permanent
Press load is the largest that should
be washed.
* Use more water than you would
for aregular load. Use aMedium
Water Level for a Small Load; an
Extra Large Water Level for a
Medium Load.
* Remove clothes promptly as
soon as washer stops and hang
immediately.
• To minimize wrinkling, use
Gentle Wash/Spin Speed.
• Load clothes dry.
* Take a properly sorted group of
clothes and drop them loosely in
the wash bast:e' i_ thi_ order:
O
Large Items--like sheets. Do not
wrap around the agitator.
19
Small Items--like washcloths.
O
Medium Size Items--like towels.
Here is a typical full load:
3 Double Sheets
6 Long Sleeve Shins
3 Boxer Shorts
6 Standard Pillo_ Cases
5 T-shirts
4 Pair Trousers
6 Handkerchiefs
This illustration, with clothes just
reaching the Clothes Retaining
Ring, shows a proper load. Clothes
have ample room to move because
they, are not packed down, nor
wrapped around the agitator.
Clothes are loaded dD' since wet
items are apt to pack down which
encourages overloading. This, size
load requires a full water fill.
What is the best size load of
clothes--large, medium, or
small? Save time, energy and
detergent _, avoiding extra use of
the washer. Try to wash a full load
of clothes. If you can it is better to
save clothes until you have a full
load. If you must wash smaller
loads, save water, energy and
detergent by adjusting the water
level for the size of the load. See
page 4.
To add items after the washer has
started.
• Turn off the washer.
•Carefully remove the Fiher-Flo
pan.
• Add any, additional articles by
submerging next to the agitator.
* Replace the Filter-Flo pan and
restav the washer.
NOTE: Do not use the Filter-FIo
pan as a wash basket. Do no'_ put
any items to be washed in the
Filter-Flo pan. Do not place
detergent packets in the Fiher-Fio
pan.
NOTE: When washing stockings,
panty, hose and other easily tangled
items, always handle separate!y,. To
minimize tangling, we recommend
the use of a net laundry, bag.
Factors to consider in selecting detergents and soap
Products
Phosphate--
Powdered Detergents
Non-Phosphatem
Powdered Detergents
Liquid Detergents
Soaps
Advantages
Perform well in hard or soft water
Wash all types of fabrics well.
Can be used in hot, warm, or
cold water.
Perform satisfactorily in soft
or moderately hard water.
In some areas only non-phosphate
products are available.
Perform well in soft water.
Offer better performance in
hard water than powdered
non-phosphate types.
Cleans synthetics and fabric
blends well.
Are excellent as concentrates
for removing spots.
Completely dissolve even in
cold water.
Perform well in soft water.
Disadvantages
Are not available in some areas.
Generally do not clean well in
hard water.
May be difficult to dissolve,
especially in cold water.
Should not be used in cold water.
Those containing sodium
carbonate as an ingredient may
cause harmful limestone deposits
on clothes and washer when
combined with hard water.
(See page 14.)
May not perform as well as
powdered phosphate products
when diluted in wash water.
Generally do not clean well in
medium-hard or hard water.
May combine with water
hardness minerals to form
sticky soap curd.
13
The results of continued use of carbonate detergents
Is your water hard? If it is, and
if you use a carbonate type non-
phosphate detergent, you will
most probably notice limestone*
deposits on your clothes and
washer surfaces. The hardness
of your water and your washing
frequency will determine how
rapidly the limestone will build
up. If your water is VERY HARD
(U or more grains) and if you wash
just a few loads a week, you may
see limestone buildups in just a few
months.
Effects on clothes
Although limestone buildup occurs
more rapidly on cotton, it will
eventually affect various fabrics in
the following ways:
* Gives a stiff, harsh, rough feel to
fabrics such as toweling.
• Causes colors to fade and become
dull and dingy.
•Causes graying of fabrics.
*Leaves a white, powdery residue
on dark-colored items.
•Causes spot-fading of bright
colors as a result of direct contact
with detergent.
• Reduces wrinkle-resistance of
permanent press fabrics.
• Destroys effectiveness of flame-
retardant finishes on cottons such
as children's sleepwear.
• Increases fabric wear because
of the scrubbing action between
limestone deposits on the fabrics
during washer agitation.
Effects on washer
•Unsightly buildup on all washer
surfaces exposed to the wash
solution.
•Mat-like, crusty formations caused
by lint adhering to the sticky
limestone deposits.
• Increased service calls because
of limestone deposits in the pump,
recirculation water hoses, filters
and other washer parts.
• Reduced useful life of washer.
Recommended methods to
reduce limestone buildups
* Use a powdered phosphate
detergent or a liquid detergent if
these are available in your area.
• Install a home water softener.
This will significantly reduce
limestone buildup.
• Use a packaged non-precipitating
water softener, such as Calgon
brand with phosphate.
Good washing practices
may delay limestone damage
to clothes
The following recommendations
will temporarily delay the effects
of limestone on your clothes.
These are generally good washing
practices and will give better soil
removal whether or not you have
hard water or use carbonate
detergent.
•Use hotter wash water, for
example up to 150°E for cottons.
This also improves oily-soil
removal.
• If you wash in cooler water to
save energy, use more detergent to
promote better washing. Also be
sure to use bleach on bleachable
fabrics. Use hot water whenever
possible.
• Add detergent and allow washer
to fill and agitate for three or four
minutes to dissolve detergent
before adding clothes.
• Increase amount of detergent.
See guide on opposite page for
recommended detergent amounts
in relation to water hardness.
• Increase use of bleaches, presoaks,
packaged water conditioners, prewash
soil and stain removers to help in
removing stubborn soils and stains.
• Use greater care in sorting loads.
Wash very dirty loads separately
and increase detergent to help keep
dirt from redepositing on less
soiled items. Wash delicate items
separately to prevent damage from
heavy, sturdy clothes.
• Wash smaller loads to increase
cleaning action of washer.
• Use fabric softener to counteract
stiffness or harshness in clothes.
How to partially restore clothes
Once clothes have developed
deposits, they may be partially
restored by soaking in a solution
of two cups of vinegar in one gallon
of hot tap water for 15 minutes.
USE A PLASTIC CONTAINER.
Then wash clothes in the washer
using detergent.
CAUTIONS:
•Do not use vinegar soak
solution in washer. The acidic
action of the vinegar may
damage the porcelain.
• Vinegar soak solution may
reduce the wrinkle-resistance
of permanent press fabrics.
•Vinegar soak may damage
the dyes in some fabrics.
*LIMESTONE--technically called CALCIUM CARBONATE--is caused by the
reaction of the calcium in the hard water with the sodium carbonate in the detergent.
]4
How much detergent should you use?
The use Ofa sufficient amount
of detergent is one of the most
important things you can do to
make sure your wash comes out
clean.
Amount required varies
according to:
1. Water hardness
2. Amount of soil
3. Size of load
4. Type of detergent
5. Whsh temperature
Use more detergent if
you have...
1. Hard water
2. Large loads
3. Greasy or oily soils
4. Lower wash temperature
5. Low phosphate detergent
If the recommended amount of
detergent produces too many suds,
switch to a low sudsing detergent
brand, and tbllow instructions on
package.
Using too little detergent is
a common cause of laundry
problems. Always measure
detergent in a standard
measuring cup.
How to use detergent--granular
or powdered:
For best results, add detergent
to the wash basket before loading
clothes. If you load your clothes
first, add detergent next to the
agitator.
If your detergent doesn't dissolve
well, predissolve the detergent in
hot water, then pour directly into
the wash basket.
Recommended amount of detergent foraverage soil load
High Sudsing
Powder Type
Low Sudsing
Concentrated
Powder Type
LIQUID
Whter
Hardness
VERY
HARD
10-20 Gr.
HARD
4-10 Gr.
SOFT
0-4 Gr.
0-10
Grains
0-10
Grains
Extra
Large
2 cups
1¾ cups
t cup
1 cup
Water Level Setting
Large
PA cups
11/2cups
1 cup
¾ cup
Medium Small
Iq2 cups 1% cups
1% cups ¾ cup
3Acup ½ cup
_k cup '/2 cup
FOLLOW PACKAGE DIRECTIONS
Mini
Basket
½cup
_Acup
cup
'A cup
1. Use recommended amount of
detergent for your load and water
hardness as shown in guide.
2. Other detergent types--Low
and normal suds, powders, liquids,
non-phosphate powders, follow
recommendations on package.
3. For Extra Clean Cycles with
Auto Extra Rinse, double the
amount of detergent recommended
in guide.
4. For hard water treatment, see
page 16.
15
Hard water--do you have it?
Before you can decide what to do
about hard water, you need to know
if you have it and, if so, how hard
it is.
•If you live in amunicipal area,
contact your water company.
• If you live in a rural area, or in
some suburban areas, contact your
county agent.
The answer will be "you have 'so
many grains' per gallon" and
means this:
0 to 3 grains per gallon--SOFT
4 to 10 grains--HARD
11to 19 grains--VERY HARD
20 grains and over--
EXTREMELY HARD
If your water is SOFT, you have
no problem. You can use soap or
detergent as you prefer and forget
all about hard water. If you have
HARD water--less than 10 grains--
and you use phosphate detergent,
you also have no problem.
But, if you have more than 10
grains, you will need to soften your
water with either...
1. An installed water softener in
your home, or
2. The use of a packaged water
softener.
For information on water
softeners, see guide below.
Add this much water softener with a full water level
Grains of
hardness
When using
with detergent
When using
with soap
0--10
0
1/3cup
(80 ml)
10--15
_,_cup
(60 ml)
2/3cup
(160 ml)
15--20
v.,cup
(120 ml)
3_cup
(180 ml)
20--25
2_ cup
(160 ml)
1 cup
(240 ml)
25--30
lcup
(240 ml)
Iii._cups
(360 ml)
over 30
1 cup plus 1 tablespoon for every 5 grains above
30 (240 ml plus 15 ml for each extra 5 grains)
1_Acups plus 1 tablespoon for ever), 5 grains above
30 (300 ml plus 15ml tbr each extra 5 grains)
16
Other laundry products
Laundry
product and type How to use it Special instructions
BLEACH
Chlorine Liquid
such as Clorox brand
Non-chlorine such as
Clorox 2 brand
FABRIC SOFTENERS
Rinse additive such as
Downy Brand
Wash Additive such as
Rain Barrel brand
SANITIZER
Chlorine Bleach,
such as Clorox brand
WATER SOFTENER
Non-precipitating
such as Calgon brand
Precipitating such as
Borax brand
Use your Bleach Dispenser according to
instructions on page 8.
Follow package directions.
Put bleach into washer with detergent.
Use your Fabric Softener Dispenser
according to instructions on page 9.
Follow package directions.
Add during wash cycle.
Use in case of infection and
contagious disease.
See under Bleach above.
Follow package directions.
Add at start of wash cycle.
Follow package directions.
Use with detergent or soap in wash cycle.
SOAK AGENT
Such as Biz brand Follow package directions.
PRETREATING, STAIN
AND SPOT REMOVERS
Such as Spray 'n Wash
and K2R brands Follow package directions. Treat only
heavily soiled areas. Check garments'
care labels for instructions.
TINTS AND DYES
Powdered such as Rit
and Tintex brands Follow package directions.
NOTE: Tinted garments may not be
colorfast. Wash separately.
1) Do not pour undiluted liquid chlorine bleach directly into
washer or on dry clothes.
2) Some of today's washable fabrics should not be chlorine
bleached such as: 100% cotton flame-retardant children's
sleepwear, silk, wool, mohair, spandex, leather, or non-fast
colors. Dilute bleach before using on any fabric.
3) Check Manufacturers' Care Labels for special
instructions.
1)May be used on all kinds of fabrics.
2) Is most effective in hot water.
1) Helps make clothes fluffy and soft.
2) Reduces static electricity.
3) Use carefully. Too much may cause staining on
some clothes.
4) Do not pour directly on clothes.
5) For those recommended for adding to the wash cycle,
such as Rain Barrel brand, follow manufacturer's
instructions exactly.
Guards against infection by killing most bacteria and
viruses.
Suspends hardness minerals in solution, keeping
water clear.
Combines with water hardness minerals to form precipitate
which gives cloudy or milky appearance to water.
CAUTION: Washer control panels and finishes may be
damaged by some laundry pretreatment soil and stain
remover products if such products are sprayed on or have
direct contact with the washer. Apply these pretreatment
products away from washer. The fabric may then be washed
normally. Damage to your washer caused by pretreatment
products is not covered by your warranty.
Clean washer to avoid discoloration of next load. Go
through complete cycle (5-minute wash) using hot water,
1/2 cup (120 ml) detergent, I cup (240 ml) bleach. Wipe
exterior parts. Caution: Tinting may discolor plastic in
washer. Subsequent washings will reduce discoloration
but may never eliminate it.
17
How to remove stains
1. Try to remove stains as soon as
possible. The fresher the stain, the
easier it is to remove.
2. Before attempting to remove
any stain, take these steps:
*Find the fabric and the finish in
the chart on the next page, and use
only recommended methods.
• Check the care label instructions
that came with the garment.
*Test stain removal product on a
hidden inside seam or on a sample
of the material.
• Avoid use of hot water on
unknown stain. It can set some
stains.
3. Follow stain removal with a
thorough rinsing.
4. Wash with recommended
amount of soap or detergent.
Stain Removal Hint--
Using Chlorine Bleach for
White and Bleachable Fabrics.
Mix 1/4 cup (60 ml) chlorine
bleach with one gallon (3.8 liter) of
cool water--approximately 80°F.
(27 °C.)--in a sink or pan. Soak
stained area for 5 minutes and
launder in washer.
The Case of the "Invisible" Stain.
Food or booking oils on your
synthetic garments may cause stains
which are virtually invisible and
which you may not notice as you
put your clothes into the washer.
If these stains are not completely
removed in the wash, the oily spots
may pick up dirt from the wash
water. Then they will become very
visible and you may think they were
caused by the wash cycle itself.
Once these spots become visible,
how can you remove them?
*Rub in undiluted liquid detergent
and let stand 30 minutes.
• Re-wash using hottest water the
fabric can stand.
How can you prevent these
"After-You-Wash" stains?
• Increase the amount of detergent
normally used.
,, Increase water temperature where
fabric will permit.
* Wash synthetic garments more
often.
See next page for
Stain Removal Guide.
Stain removal guide
Stain
Adhesives
(Chewing Gum, etc.)
Anti-perspirants,
Deodorants
Blood
Chocolate, Cream,
Ice Cream and Milk
Coffee and Tea
Cosmetics: Eye Shadow,
Lipstick, Mascara, Liquid
or Pancake Makeup, Rouge,
Powder; Crayon; Grease,
Oil, Tar, Cod Liver Oil.
Fresh Fruit, Fruit Juices,
Wine, Vegetables, or Food
Coloring
Grass, Foliage, Flowers,
Mildew, Scorch
Ink, Ballpoint
White and Bleachable Fabrics
See Control Setting Guide, Bleach on Page 7
Rub with ice or immerse in very cold water. Use dull toot to
carefully scrape off as much adhesive or gum as possible. Sponge
with a safe dry cleaning fluid,* then launder.
Apply undiluted liquid detergent. Rinse. If stain remains, bleach
according to Stain Removal Hint on opposite page. If color has
changed, you may be able to restore it by sponging with
ammonia.** Rinse thoroughly.
Soak in cold water, then launder in warm water. If stain remains,
bleach according to Stain Removal Hint on opposite page, launder.
Soak in cold water. Treat stain with a sate dry cleaning fluid*;
Apply undiluted liquid detergent, launder, dry. Bleach according
to Stain Removal Hint on opposite page, launder and dry.
Without cream: Bleach according to Stain Removal Hint on
opposite page. Launder. With cream; Follow guide directions for
cream.
Treat stain with safe dry cleaning fluid.* Apply undiluted liquid
detergent; launder and dry. Bleach according to Stain Removal
Hint on opposite page.
Soak stain in cool water. If stain remains, bleach according to Stain
Removal Hint on opposite page, launder.
Apply undiluted liquid detergent. Launder. (Treat mildew spots
while they are fresh, before mold has a chance to weaken fabric.) If
either type stain remains, bleach according to Stain Removal Hint
on opposite page, launder. (Severe scorch cannot be removed.)
Fresh stains: Place stain face down on an absorbent towel and
sponge with dry cleaning fluid,* or use spray cleaner. Apply
undiluted liquid detergent. Old stains; bleach according to Stain
Removal Hint on opposite page.
Other Washable Fabrics
Same as white and bleachable fabrics.
Same as white and bleachable fabrics
except use non-chlorine bleach.
Sponge or soak in coot water, then launder.
Soak in cold water. Sponge with a safe dry
cleaning fluid.* Apply undiluted liquid
detergent. Launder in warm water.
Sponge with warm water. If stain remains,
apply warm glycerine, let stand 30 minutes
and rinse well, or sponge with a safe dry
cleaning fluid.* Launder.
Sponge with a safe dry cleaning fluid.*
Then launder in warm detergent water.
Sponge with warm water. Bleach remaining
stain with non-chlorine bleach.
Sponge with warm water. Apply undiluted
liquid detergent. Bleach remaining stain
with non-chlorine bleach, then launder.
Old mildew stains can seldom be removed.
Scorch can seldom be removed.
Same as white and bleachable fabrics
except launder using non-chlorine bleach.
Paint and Varnish Soften with oil, lard or Vaseline, then sponge with turpentine or Same as white and bleachable fabrics.
banana oil. Launder in warm water.
Perspiration Apply undiluted liquid detergent and launder in warm water. If
color has changed you may be able to restore it by treating with
ammonia or vinegar** If any stain remains, treat with safe dry
cleaning fluid* or bleach according to Stain Removal Hint on
opposite page, launder and dry.
Launder in warm water. Rinse well. Bleach
with non-chlorine bleach.
Rust Apply rust remover** using manufacturer's directions. Rinse and Same as white andbleachable fabrics.
launder.
*Caution: Because cleaning fluids tend to be toxic, be sure you are in a well ventilated room when using them. No cleaning fluid should be used unless user is
familiar with the limitations and required cautions (usually printed on label). Use extreme caution with flammable compounds.
Under no circumstances should fabrics containing flammable materials (waxes, cleaning fluids, etc.) be washed in washer.
**Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas which may cause death.
Save and refer to garment manufacturers' care labels.
19
Questions?
Use This Problem Solver
PROBLEM POSSIBLE CAUSE AND REMEDY
LINT OR RESIDUE
ON CLOTHES
GREASY OR OILY
STAINS ON
LAUNDERED
GARMENTS
*Incorrect sorting of clothes. Separate lint-producers (such as terry towels and chenille)
from lint-receivers (such as man-made fabrics, velveteen, corduroy).
oWashing too long, especially for smaller loads. For normal soil, wash one minute per
pound of dry clothes.
•Use of non-phosphate detergents which combine with hardness minerals to form a
precipitate which can be mistaken for lint. Use a phosphate or liquid detergent; use
warmer wash water or soften water with an installed mechanical softener or a packaged
water softener.
•Powdery residue from granular detergent may appear to be lint. Predissolve granular
detergent in hot water before adding to washer; make sure detergent is completely
dissolved before adding clothes; switch to liquid or cold water detergent or use warmer
wash water. See page 15.
•Overloading will cause abrasion which creates excessive lint. Wash fewer items with
correct water level.
• Too much bleach. Use correct amount of bleach according to package directions.
•Not enough detergent to hold lint in suspension during wash cycle. Increase amount of
detergent. See page 15.
•Incorrect use of fabric softener. If used in wash cycle, softeners may react with
detergent to create a white deposit. Use softeners in rinse cycle only unless package
specifies adding to wash cycle. Use Fabric Softener Dispenser. See page 9.
•Pilling usually on polyester-cotton blends is caused by normal wear and may look like
lint. Turning clothes inside-out may help.
• Static electricity caused by overdrying will cause attraction. Use fabric softener in
rinse cycle.
These are sometimes called "Invisible Stains" because you may not notice them before
washing clothes. However, if oily soils are not completely removed in wash cycle, the
oi!y spots max' pick up dirt from the wash water. The spots will then be very visible. They
are not caused by the washer. Wash synthetic garments as soon as possible after wearing.
Use more detergent than normal and hottest water fabric can stand. If spots appear, rub in
undiluted liquid detergent, let stand 30 minutes and rewash with extra detergent using
hottest water fabric can stand. Use Regular Cycle with Extra Rinse. See page 5.
PROBLEM
GRAYED
CLOTHES
YELLOWED
CLOTHES
POSSIBLECAUSEANDREMEDY
• Insufficient detergent. You may need to increase amount of detergent used if load is
larger than normal, if soils are oily or heavier than average, if water level is large or if
water is Hard to Extremely Hard.
• Water not hot enough tbr type of load. Be sure water heater is set to deliver hot water
at the washer at t40 °- 150°F. Do not wash when other hot water needs--such as
dishwashing or family baths--are heavy.
•Poor or inferior detergent. Change to phosphate detergent, if possible. Follow these steps:
t. Use water conditioner, (such as Calgon brand)
2. Pro-treat stains
3. Use hottest water possible
4. Use bleach where possible
5. Use pro-soak aids
6. Install water softener
• Washer overloaded. Clothes cannot move freely to loosen and remove soil, causing
gray appearance. Follow correct !oading procedures for size of load.
• Improper soaking with insufficient detergent. Usually a 30-minute soak is sufficient.
However, when using extended soaks for heavily soiled garments you may need to use
twice the recommended amount of detergent.
• Use of soap in hard water. Switch to a phosphate detergent, or follow six steps
described above.
• Washing too long may result in increased soil deposition. Use shorter wash times for
smaller loads.
• Detergent dissolves too slowly. Detergent must be present in the wash solution at the
start of agitation. See page 15.
• To restore grayed clothes, follow one of these procedures:
.
.
Put clothes in washer. Fil! with HOT water. Check Manufacturers' Care Labels to
determine if hot water is suitable for garment.
•Add a non-precipitating type of water softener such as Calgon with phosphate--
use 21/2 times as much as you need for normal water softening.
• Do not use detergent or soap.
• Allow clothes to go through complete cycle.
• Repeat, if necessary.
If you prefer to use the Soak Setting, see page 9. Use the water softener in place of
soak agent or prewash detergent and allow clothes to soak for about 20 minutes.
3. Use Regular Cycle with Extra Rinse. See page 5.
4. Use the Mini-Basket tub. See page 10. Increase detergent.
• Incomplete removal of body soil due to constant use of insufficient detergent. Check
hem of T-shirt or pillow case. If they are white and center is yellow, it contains body
oil. Restore whiteness following procedures on "Grayed Clothes'," above.
(continuednextpage)
21
The Problem Solver (continued)
PROBLEM
YELLOWED
CLOTHES
(continued)
BLUE OR GRAY
COLOR STAINS
SHRINKAGE,
GENERAL
SHRINKAGE,
KNITS
POSSIBLE CAUSE AND REMEDY
•Chlorine bleach may yellow some fabrics with resin finishes. Use oxygen bleach (such
as Clorox 2 brand). Refer to Garment Manufacturers _Care Instructions. Restore color
using color remover (such as Rit or Tintex brands), fbllow package directions.
•Iron or manganese in water may cause overall yellowing or yellow spots.
1. Use extra detergent plus a non-precipitating water softener dissolved in water
before adding clothes. Use non-chlorine bleach.
2. Have a special filter or chemical feeder installed in your home to remove iron and
manganese from water.
3. Run hot water for a few minutes to clean iron residue buildup in lines: drain water
heater occasionally.
4. To remove spots: spread stained portion over pan of boiling water and squeeze
lemon juice through stain. To remove overall yellow, use a commercially available
rust scale remover, following package instructions. If porcelain damage can occur.
do not use in the washer: use a plastic container.
• Improper use of fabric softener. Never pour fabric softener directly on clothes:
always dilute before adding to rinse water. Dilute softener betbre filling your Fabric
Softener Dispenser. (See page 9.) Also, do not lift lid during spin. This may cause
improper dispensing, resulting in stains. To remove stains: dampen stained area and rub
with undiluted liquid detergent. Re-wash, using chlorine bleach it safe for fabric.
• Some fabrics will shrink whether washed in a washer or by hand: others may be safely
washed but will shrink in a dryer. Follow Garment Manufacturers' Care Instructions
exactly. If in doubt, do not machine wash or dry.
• Relaxation shrinkage can occur in knit fabrics that have been improperly stretched
and elongated by the manufacturer. When this occurs, garment may be pressed back into
shape after each wash and dry cycle.
• Progressive or delayed shrinkage is caused when starch or sizing (in some fhbrics) is
gradually removed by laundering. May be noticed in older garments that have been
washed many times without previous shrinkage. Treat as for ReLaxation Shrinkage above.
•Shrinkage caused by overheating occurs in certain knit l:abrics that have been heat-
shaped, When washing, drying or ironing temperatures exceed the temperatures used
to shape set, shrinkage may occur. This cannot be corrected, but it can be prevented by
washing in cool or warm water; drying on Low or Delicate heat.
22
PROBLEM POSSIBLE CAUSE AND REMEDY
WRINKLING IN
PERMANENT PRESS
AND "NO-IRON"
ITEMS
•Leaving clothes in dryer after tumbling stops. Remove and hang clothes immediately.
• Too many clothes in dryer. Dry only one washer load at a time. Do not combine loads.
• Improper loads. Avoid laundering heavy Permanent Press items, such as work
clothes, with lighter Permanent Press items such as shirts or blouses. Do not wash
Permanent Press with regular laundry.
SNAGS, HOLES,
TEARS, RIPS OR
EXCESSIVE WEAR
• Too many clothes in washer. Permanent Press loads should always be smaller than
regular loads.., no more than medium loads to give clothes room to move freely.
•Incorrect wash and dry cycles. Use Permanent Press Wash cycle which provides a
cooldown rinse to minimize wrinkling. Also use Permanent Press Dry cycle.
• Incorrect water level. Use Extra Large Water Level for Medium Load, Medium
Level for Small Load.
•Repeated washing in too hot water. Wash in cold or warm water with plenty
of detergent.
• Accumulation of lime scale due to use of carbonate detergents. If you must use a
non-phosphate detergent, avoid the use of high-carbonate-built detergent.
• Failure to use fabric softener. Proper use will minimize wrinkling.
To remove wrinkles:
• Retumble on "Permanent Press" setting.
• Rerinse and dry on "Permanent Press" setting.
• If unsuccessful, retumble on high heat for 10-12 minutes and hang immediately.
• Iron carefully.
• Send to dry cleaners for pressing.
• Some wrinkles may remain which cannot be removed.
• Pins on garments or sharp objects left in pockets. Check to make sure all such objects
are removed. Also check wash tub.
• Snaps, hooks, sharp buttons, belt buckles, zippers. Fasten hooks, zippers and
buttons. Remove sharp buttons and belt buckles. This is especially important in
washing knits which snag easily. Turn knits inside out.
• Holes with random square shapes with yellow discoloration may be caused by
improper use of chlorine bleach. Use only correct amount of bleach, using Bleach
Dispenser. Never add undiluted bleach to wash tub or allow clothes to come into
contact with undiluted bleach. Do not wipe up bleach spills with clothes.
• Chemicals such as hair bleach, dye, permanent wave solutions, battery acids and
toilet bowl cleaners may cause fabric holes. Rinse all towels and other articles that
came in contact with these chemicals before putting them in wash. Do not contaminate
clothing articles with these chemicals.
• Small, unnoticed tears may enlarge during washing process. Check garments before
washing and mend all rips and tears .... _
{continued next page )
23
The Problem Solver (continued)
PROBLEM POSSIBLE CAUSE AND _MEDY
WEAR
(continued)
process by washing small Permanent Press loads with a
Large Water Level. Do not wash heavy items such as towels with Permanent Press.
Remove collar stays, when possible.
• Roughness or burrs on agitator may cause rips or tears. Check agitator and file rough
spots if necessary.
,• May be caused by use of Normal Wash/Spin speed for delicate articles. Use Gentle
Wash/Spin speed. Refer to Garment Manufacturers' Care Labels.
•Garments weakened by age, sun or atmosphere. This is inevitable and is not caused
by washer. Slow process by
• Too large loads, or too little water. Load washer only with number of items that will
move freely. Select correct water level.
HEAVILY SOILED
AREAS such as
collars and cuffs
WASHER WON'T
OPERATE
WATER
TEMPERATURE
IS INCORREC_
• Pretreat with liquid detergent. Use Regular Cycle with Extra Rinse. See page 5.
• Make sure cord is plugged into outlet.
• Make sure both hot and cold faucets are turned on.
•Make sure controls are set and cycle selector knob is pulled out to ON position.
•Make sure lid is closed. Washer will fill but will not spin or agitate with lid open.
• Check house fuses or circuit breakers. If another appliance is sharing the electrical
outlet, remove it. Washer should have separate outlet.
• Make sure temperature selector controls are
• Make sure hot and cold faucets are turned on
and regulated correctly.
• Make sure hoses are connected to correct
faucets...hot to hot, cold to cold.
•Water valve screens may be stopped up. Remove inlet hoses from
water valve. Clean the screens and reinstall hoses.
• Check household water heater to make sure it is delivering water at 140° to 150°F.
2_
PROBLEM POSSIBLE CAUSE AND REMEDY
WATER WON'T • Make sure drain hose is not kinked.
DRAIN • Top of drain outlet should be less than 8 ft. above floor.
WATER LEAKS * Make sure hose connections are tight at faucets.
• Make sure end of drain hose is correctly inserted in and secured to drain facility.
WASHER IS NOISY • Make sure washer is level and firm to the floor with rubber foot pads in place and
front jam nuts tight. See your Installation Instructions.
• A sharp distinctive sound will be heard at the end of each spin period as the motor
stops and the spin brake inside the transmission "locks in7 This sound is normal.
•Heavily unbalanced loads can cause the washer to vibrate excessively during spin,
and may cause it to move from its original position. In extreme cases, (usually occurs
when washing a single, heavy item or a small load when water level is set higher than
necessary) the spin basket may strike the outer tub, creating a loud but harmless noise.
To correct, open the lid and redistribute the load evenly about the wash basket. Close
the lid and restart.
WASHER PAUSES * Washer normally pauses between washing steps.., such as between wash and spin or
IN CYCLE between spin and rinse.
If you need more help.., call, toll free:
GE Answer Center _9
800.626.2000
consumer information service
25
Care and Cleaning
USER MAINTENANCE
INSTRUCTIONS
The tub. The porcelain is
self-cleaning. Leave lid open after
washing to allow moisture to
evaporate. Do not use harsh
or gritty cleansers.
The exterior. Wipe off any spills of
washing compounds. Wipe or dust
with damp cloth. Try not to hit
surface with sharp objects.
To store washer:
Ask service technician to remove
water from drain pump and hoses
to prevent freezing.
Do not store the washer where it
will be exposed to the weather.
For long vacations:
Be sure water supply is shut off at
faucets and drain all water from
hoses if weather will be below
freezing.
_} ubricate
with grease
or
Petroleum
Jelly.
The Activator _ agitator. Remove
at regular intervals--about 4 to 6
months--and remove any lint that
may have accumulated. No tools
are needed, simply grasp agitator
with both hands and pull straight
up sharply. The slotted section at
the top of the metal shaft has a light
coating of lubricant to prevent parts
sticking together. If this area
appears to be dry, apply a light coat
of grease or petroleum jelly around
the slotted section of the shaft
before replacing the agitator. Do
not overgrease.
When replacing the agitator,
carefully lower straight down onto
the shaft so that it fits into the slots.
Then apply downward pressure
until agitator snaps into its normal
position.
How to remove limestone
deposits from clogged
Filter Fio ®pan
• Soak filter pan in apreheated
160°F. (71°C.) solution of half
vinegar and half water for 15
minutes. Then brush each side of
pan with a stiff bristle brush while
flushing with running water.
CAUTIONS:
• Do not soak in porcelain
container. Vinegar can damage
porcelain.
• Do not exceed 180°F. (82 °C.)
or filter pan may warp.
26
Wdti Be There
With the purchase of );our new GE appliance, receive the
assurance that if you ever need iniormation or assistance
from GE, we'll be there. M1 you have to do is call--toll-free!
In-HomeRepair
Service
800-GE.CARES
(800.4324737)
AGE Consumer Service professional
will provide expert repair service,
scheduled at a time that's convenient
for you. Many GE Consumer Service
company-operated locations offer you
service today or tomorrow, or at your
convenience (7:00 a.m. to 7:00 p.m.
weekdays, 9:00 a.m. to 2:00 p.m. Satur-
days). Our factory-trained technicians
know your appliance inside and out--
so most repairs can be handled in just
one visit.
ServiceContracts
800-626-2224
You can have the secure feeling that
GE Consumer Service will still be
there after your warranty expires. Pur-
chase a GE contract while your war-
ranty is still in effect and you'll receive
a substantial discount. With a multiple-
year contract, you're assured of future
service at today's prices.
PartsandAccessories
800-626-2002
Individuals qualified to service their
own appliances can have needed
parts or accessories sent directly to
their home, free of shipping charge!
The GE parts system provides access
to over 47,000 parts...and all GE
Genuine Renewal Parts are fully
warranted. VISA, MasterCard and
Discover cards are accepted.
User maintenance instructions
contained in this booklet cover proce-
dures intended to be performed by
any user. Other servicing generally
should be referred to qualified ser-
vice personnel. Caution must be
exercised, since improper servicing
may cause unsafe operation.
GEAnswerCenter®
800.626.2000
Whatever your question about any GE
major appliance, GE Answer Center '_
infbrmation service is available m
help. Your call--and your question--
will be answered promptly and
courteously. And you can call any
time. GE Answer Center _ service is
open 24 hours a da}; 7 days a week.
\
Telecommunication Device for the Deaf
==_i I
ForCustomersWith
SpecialNeeds...
800.626.2000
Upon request, GE will provide Braille
controls for a variety of GE appliances,
and a brochure to assist in planning a
barrier-free kitchen for persons with
limited mobility. To obtain these items,
free of charge, call 800.626.2000.
Consumers with impaired hearing
or speech who have access to a TDD
or a conventional teletypewriter may
call 800-TDD-GEAC (800-833-4322)
to request information or service.
YOUR GE AUTOMATIC CLOTHES WASHER
WARRANTY
Save proof of original purchase date such as your sales slip or cancelled check to establish warranty period.
WHAT IS COVERED FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and service labor
in your home to repair or replace
any part of the washer that fails
because of a manufacturing
defect.
LIMITED ADDITIONAL
FOUR-YEAR WARRANTY
For the second through fifth year
from date of original purchase,
we will provide, free of charge,
replacement parts for any part of
the transmission that fails because
of a manufacturing defect. You pay
for the service trip to your home
and service labor charges. Or, if
you desire, we will provide a
completely reconditioned
transmission. You pay for the
shop reconditioning labor,the
service trip to your home and
service labor charges.
This warranty is extended to
the original purchaser and any
succeeding owner for products
purchased for ordinary home use
in the 48 mainland states, Hawaii
and Washington, D.C. In Alaska the
warranty is the same except that it is
LIMITED because you must pay to
ship the product to the service shop
or for the service technician's travel
costs to your home.
All warranty service will be provided
by our Factory Service Centers or
by our authorized Customer Care®
servicers during normal working
hours.
Look in the White or Yellow Pages
of your telephone directory for
GENERAL ELECTRIC COMPANY,
GENERAL ELECTRIC FACTORY
SERVICE, GENERAL ELECTRIC-
HOTPOINT FACTORY SERVICE or
GENERAL ELECTRIC CUSTOMER
CARE ® SERVICE.
WHAT IS NOT COVERED •Service trips to your home to
teach you how to use the product.
Read your Use and Care material.
If you then have any questions
about operating the product,
please contact your dealer or our
Consumer Affairs office at the
address below, or call, toll free:
GE Answer Center •
800.626.2000
consumer information service
• Improper installation.
If you have an installation problem,
contact your dealer or installer.
You are responsible for providing
adequate electrical, plumbing and
other connecting facilities.
•Replacement of house fuses or
resetting of circuit breakers.
•Failure of the product if it is used
for other than its intended purpose
or used commercially.
• Damage to product caused
by accident, fire, floods or acts
of God.
WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are inyour state, consult your local or stateconsumer affairs office or your state's Attorney General.
Warrantor: General Electric Company
If further help is needed concerning this warranty, write:
Manager--Consumer Affairs, GE Appliances, Louisville, KY 40225 11
Part No. 113D5497P182 !Pub. No. 49-9676
6-90 CG
WWA8827M
WWA8819M
