PRECAUTIONS - 391477A235/B
e
PRECAUTIONS 3
General safety instructions 3
For this appliance 6
Appliance purpose 7
This user manual 7
Manufacturer’s liability 7
Identification plate 7
Disposal 7
Information for European Control Bodies 7
Energy efficiency technical data 8
To save energy 8
Light sources 8
How to read the user manual 8
DESCRIPTION 9

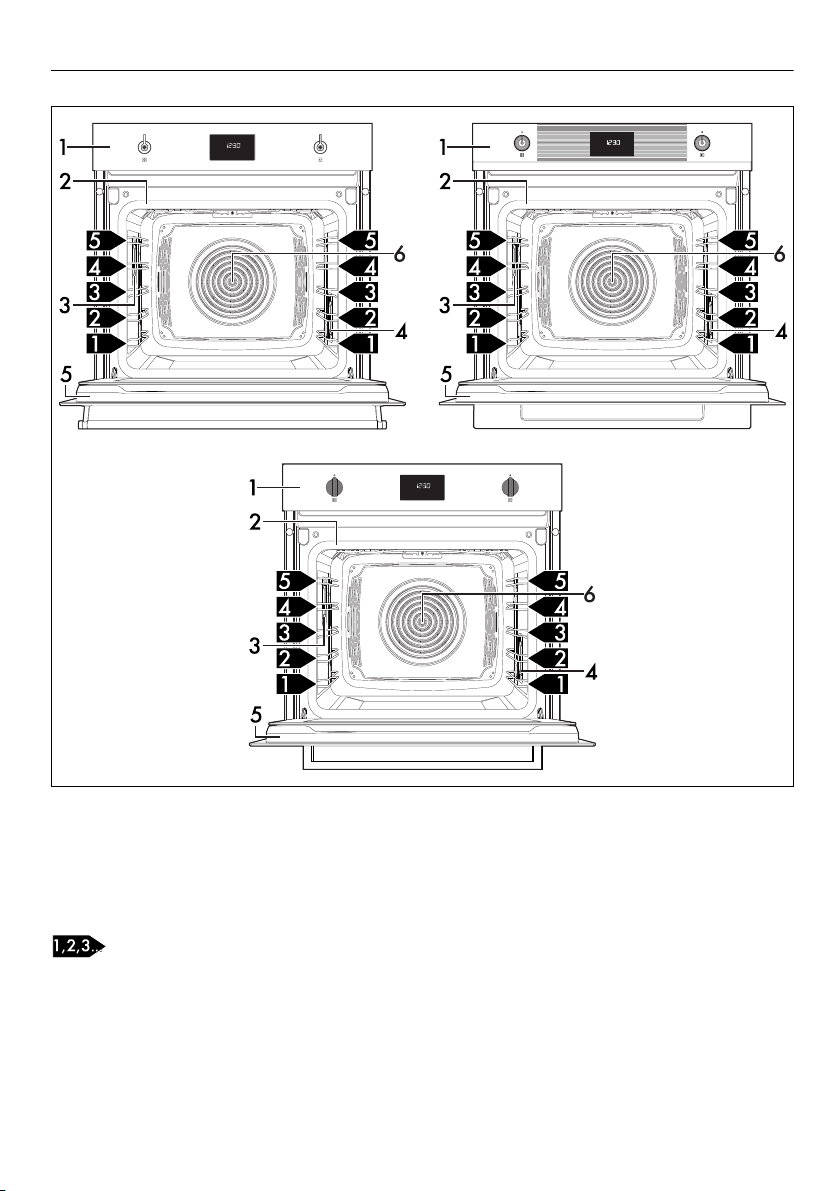

General Description 9
Control panel 10
Other parts 10
Accessories 11
USE 11
Preliminary operations 11
Using the accessories 11
Digital programmer 12
Using the oven 12
Cooking advice 16
Mini guide to accessories 17
Discover the recipes 17
Information for Supervisory Bodies 17
Special functions 18
Settings 20
CLEANING AND MAINTENANCE 22
Cleaning the appliance 22
Cleaning the door 22

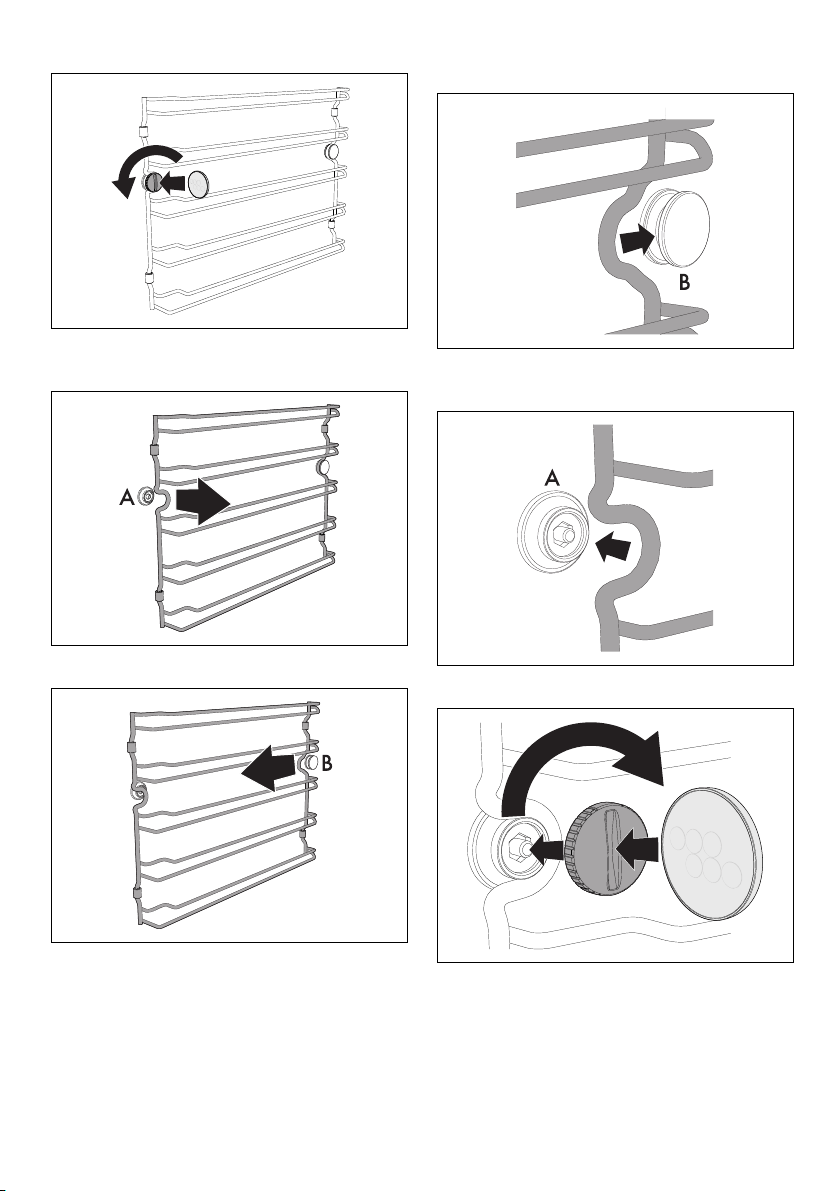

Cleaning the oven cavity 24
Special cleaning functions 26
Vapor Clean (on some models only) 26
Pyrolytic (on some models only) 27
Extraordinary maintenance 29
INSTALLATION 29
Electrical connection 29
Positioning 30
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• ATTENTION: during use, the
appliance and its accessible
parts become very hot.
Children must be kept away
from the appliance.
• ATTENTION: during use, the
appliance and its accessible
parts become very hot. Never
touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use
of electrical appliances,
provided that they are
supervised or instructed by
adults who are responsible for
their safety.
• Children must not play with the
appliance.
• Keep children under the age of
8 at a safe distance unless they
4 - PRECAUTIONS 91477A235/B
are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• The cooking process must
always be monitored. A short
cooking process must be
continuously surveyed.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at
the end of cooking, open the
door 5 cm for a few seconds,
let the steam come out, then
open it fully.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Switch off the appliance
immediately after use.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS
NEAR THE APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• Do not pull the cable to unplug
the appliance.
Risk of damaging the appliance
•Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges), rough or abrasive
materials or sharp metal
scrapers on glass parts as this
could cause scratch the surface
and break the glass. Use
wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
• Racks and trays should be
inserted as far as they will go
into the side guides. The
mechanical safety locks that
prevent them from being
removed must face downwards
and towards the back of the
PRECAUTIONS - 591477A235/B
e
oven cavity.
• Do not use steam jets to clean
the appliance.
• Do not spray any spray product
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Fire hazard: never leave
objects in the oven cavity.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not use plastic cookware or
containers when cooking food.
• Do not place sealed tins or
containers in the oven cavity.
• Remove all trays and racks
which are not required during
cooking.
• Do not cover the bottom of the
oven cavity with aluminium or
tin foil sheets.
• Do not place pans or trays
directly on the bottom of the
oven cavity.
• If necessary, you can use the
tray rack (supplied or sold
separately, depending on the
model) by placing it on the
bottom as a support for
cooking.
•If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air
circulation inside the oven
cavity.
• Do not use the open door to
rest pans or trays on the internal
glass pane.
• Never use the oven door to
lever the appliance into place
when fitting.
• Avoid exerting too much
pressure on the door when
open.
• Do not use the handle to lift or
move this appliance.
For pyrolytic appliances
• When the pyrolitic function is in
use, the surfaces could reach
temperatures that are higher
than usual. Keep children at a
safe distance.
• Before starting the pyrolytic
cycle, remove any food
residues or large spills from
previous cooking operations
from the inside of the oven.
• Before starting the pyrolytic
cycle, remove all accessories
from the oven cavity.
• Before starting the pyrolytic
cycle, switch off the burners or
electric hot plates of the hob
installed above the oven.
Installation and maintenance
• THIS APPLIANCE MUST NOT
BE INSTALLED IN A BOAT OR
CARAVAN.
• The appliance must not be
6 - PRECAUTIONS 91477A235/B
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• To prevent any possible
overheating, the appliance
should not be installed behind
a decoration door or a panel.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• WARNING: while positioning
the appliance, make sure that
the power supply cable is not
caught or damaged.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Allow the appliance to be
disconnected after installation,
via an accessible plug or a
switch in the case of a fixed
connection.
• Fit the power line with an all-
pole circuit breaker with a
contact separation distance
sufficient to provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• WARNING: Make sure that
the appliance has been
switched off and disconnected
from the mains power supply or
that the mains power has been
switched off before replacing
the interior lighting bulbs.
• The bulbs used in this
appliance are specific for
household appliances; do not
use them for home lighting.
• This appliance can be used up
to a maximum altitude of 2,000
metres above sea level.
For this appliance
• Do not rest any weight or sit
on the open door of the
appliance.
• Take care that no objects are
stuck in the doors.
• Do not install/use the
PRECAUTIONS - 791477A235/B
e
appliance outdoors.
• (on some models only) Only
use the temperature probe
provided or recommended by
the manufacturer.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate. It
cannot be used:
• in employee kitchens, shops,
offices and other working
environments.
• in farms/farmhouses.
• by guests in hotels, motels and
residential environments.
• In bed and breakfast
accommodation.
This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
• Read this user manual carefully before using
the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it should
be kept in mind that the appliance may be
equipped with an updated version of the
system, and as such, all that appears on the
display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in the
user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical data,
serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances in
quantities sufficient to be considered hazardous
to health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and electronic
equipment waste, or return it to the retailer
when purchasing an equivalent product, on
a one for one basis.
Our appliances are packaged in non-polluting
and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Information for European Control
Bodies
Fan forced mode
the ECO function used to define the energy
efficiency class complies with the specifications
of European standard EN 60350-1.
Conventional heating mode
To run the STATIC function, the preheating
phase must be skipped (see section "Preheating
phase" in the USE chapter).
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it
unattended.
• Do not let children play with the plastic
bags.
8 - PRECAUTIONS 91477A235/B
Energy efficiency technical data
Information in accordance with the European
energy labelling and ecodesign regulations is
contained in a separate document
accompanying the product instructions.
These data are present in the "Product
information sheet" that can be downloaded
from the website at the page dedicated to the
product in question.
To save energy
• Only preheat the appliance if the recipe
requires you to do so. The preheating stage
can be disabled for all functions (see
chapter “Preheating”) apart from the PIZZA
(preheating cannot be disabled) and ECO
functions (no preheating stage).
• When using the functions (including the
ECO function), avoid opening the door
during cooking.
• Unless otherwise indicated on the package,
defrost frozen foods before placing them in
the oven.
• When cooking several types of food it is
recommended to cook the foods one after
the other to make the best use of the already
hot oven.
• Use dark metal moulds: They help to absorb
the heat better.
• Remove all trays and racks which are not
required during cooking.
• Stop cooking a few minutes before the time
normally used. Cooking will continue for the
remaining minutes with the heat which has
accumulated inside the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the oven clean at all
times.
Light sources
• This appliance contains user-replaceable
light sources.
• The light sources contained in the appliance
are declared suitable for operation at
ambient temperature ≥300°C and intended
for use in high temperature applications such
as ovens.
• This appliance contains light sources of
efficiency class "G".
How to read the user manual
This user manual uses the following reading
conventions:
Warning/Caution
Information/Advice
DESCRIPTION - 991477A235/B
e
DESCRIPTION
General Description
1 Control panel
2 Seal
3 Light bulb
4 Light bulb (on some models only)
5 Door
6 Fan
Frame shelf
10 - DESCRIPTION 91477A235/B
Control panel
1 Function knob
This knob can be used to:
• turn the appliance on and off;
• select a function.
2 Digital programmer
Displays the current time, the minute minder, the
function, the power and the selected cooking
temperature and any time set.
3 Temperature knob
This knob can be used to set:
• the cooking temperature;
• the duration of a function;
• programmed cooking cycles;
• the current time.
Other parts
Shelves
The appliance features shelves to position trays
and racks at different heights. The insertion
heights are indicated from the bottom upwards.
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a short
period of time even after the appliance has
been turned off.
Oven cavity lighting
• The lighting of the oven cavity is activated
when any cooking function is selected,
excluding the function.
Turn the Function knob to the position 0
to immediately complete any cooking
operation.
USE - 1191477A235/B
e
• The interior lighting remains switched off
during the execution of the -
- special functions
and the - cleaning
functions (depending on the models).
• When the door is opened, excluding the
function, the lighting in the oven
cavity is switched on. It switches off
immediately when the door is closed.
• When the door is open, it is not possible to
turn off the interior lighting.
Accessories
• Not all accessories are available on some
models.
• The accessories intended to come into
contact with food are made of materials that
comply with the provisions of current
legislation.
• Original supplied and optional accessories
can be requested to Authorised Assistance
Centres. Use only original accessories
supplied by the manufacturer.
Rack
Used for supporting containers with food during
cooking.
Deep tray
Useful for collecting fat from foods placed on
the rack above and for cooking pies, pizzas,
baked desserts, biscuits, etc.
Tray rack
To be placed over the top of the tray; for
cooking foods which may drip.
USE
Preliminary operations
• Remove any protective film from the outside
or inside of the appliance, including
accessories.
• Remove any labels (apart from the technical
data plate) from the accessories and
shelves.
• Remove and wash all the appliance
accessories (see chapter "CLEANING
AND MAINTENANCE").
First heating
1. Set a cooking time of at least one hour (see
paragraph "Using the oven").
2. Heat the empty oven compartment at the
maximum temperature to burn off any
residues left by the manufacturing process.
When heating the appliance
•air the room;
•don't stay.
Using the accessories
Racks and trays
Racks and trays have to be inserted into the side
guides until they come to a complete stop.
• The mechanical safety locks that prevent the
rack from being removed accidentally must
face downwards and towards the back of
See General safety instructions.
12 - USE 91477A235/B
the oven cavity.
Tray rack
The tray rack has to be inserted into the tray. In
this way fat can be collected separately from
the food which is being cooked.
Digital programmer
The parameters and values for the currently
selected function will be indicated on the
display. To use it, just turn the function and
temperature knobs to select the indicated
values.
Clock indicator light
Minute minder indicator light
Cooking indicator light
Programmed cooking indicator light
Door lock indicator light (pyrolytic models
only)
Control lock indicator light
Showroom indicator light
Defrost indicator light
Temperature indicator light
First use
On the first use, or after a long power failure, the
message will flash on the
appliance's display. To be able to start any
cooking function, the current time must be set.
1. Turn the temperature knob to select the
current time.
2. Press the temperature knob to set the current
time and go to the selection of minutes.
3. Turn the temperature knob to select the
minutes of the current time.
4. Press the temperature knob to finish
adjustment.
Using the oven
Traditional cooking
1. Turn the function knob to the right or to the
left to select the wished function (for
example "FAN-ASSISTED ").
2. Turn the temperature knob to the right or to
the left to select the wished temperature (for
example "200°C").
Wait 3 seconds (or press the temperature knob
before waiting 3 seconds) to start cooking.
After having started cooking, press the
temperature knob to enter any setting of
Gently insert racks and trays into the
oven until they come to a stop.
Clean the trays before using them for
the first time to remove any residues left
by the manufacturing process.
If the time is not set, the oven will not
switch on.
It may become necessary to change the
current time, for example for daylight
saving time.
When the current time is visible, after 2
minutes from the last knob operation it is
displayed with low brightness.
See General safety instructions.
Cooking functions can be interrupted at
any time by turning the function knob to
the 0 position.
USE - 1391477A235/B
e
cooking duration, cooking end time...
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat to the
cooking temperature more quickly.
The indicator light flashes to indicate that
this stage is in progress.
At the end of preheating the indicator light
will stay on permanently, the symbol of the oven
cavity flashes and a buzzer sounds.
1. Open the door
2. Place the dish with the food to be cooked
into the oven cavity.
3. Close the door.
or
If the dish with the food is already inside the
oven cavity, press the temperature knob to start
cooking.
Timed cooking
1. After selecting a cooking function and
temperature, press the temperature knob.
The display shows
flashing.
2. Within 3 seconds turn the temperature knob
to change the temperature
or
3. Press the temperature knob to set the
cooking time (from 1 minute to 13 hours)
(e.g. "25 minutes").
4. Wait 3 seconds.
The indicator light stops flashing, the symbol
lights up and timed cooking begins.
At the end of the cooking time
flashes on the display and a buzzer will sound
that can be deactivated by opening the door
and/or pressing/turning any of the two knobs.
To delete a timed cooking
1. Press the temperature knob.
The indicator light flashes on the display.
2. Within 3 seconds, turn the temperature knob
counter-clockwise until the cooking time is
reset.
3. Wait 3 seconds or press the temperature
knob to exit the timed cooking function and
return to the current time display.
When the door is opened, the function
in progress is interrupted.
The function resumes automatically
when the door is closed.
You can skip the preheating phase by
pressing the temperature knob for a few
seconds.
Timed cooking is the function which
allows a cooking operation to be
started and then ended after a specific
length of time set by the user.
Activation of timed cooking cancels any
minute minder timer which may
previously have been set.
To select a further timed cooking, turn
again the temperature knob.
14 - USE 91477A235/B
Programmed cooking
1. After selecting a cooking function and
temperature, press the temperature knob.
The display shows
flashing.
2 Within 3 seconds turn the temperature knob
to set the cooking time (from 1 minute to 13
hours) (e.g. "25 minutes").
3. Press the temperature knob.
The display shows the suggested flashing time
for immediate cooking.
4. Turn the temperature knob within 3 seconds
to set the end of cooking time (e.g. "13:15").
5. Wait 3 seconds.
The indicator light and the appliance waits
for the set start time.
At the end of the cooking time
flashes on the display and a buzzer will sound
that can be deactivated by opening the door
and/or pressing/turning any of the two knobs.
To delete a programmed cooking
1. Press the temperature knob.
The indicator light flashes on the display.
2. Within 3 seconds, turn the temperature knob
clockwise or counter-clockwise to set a new
timed cooking.
The set cooking has now been deleted.
Minute minder timer during a cooking
process
1. After selecting a cooking function and
temperature, press the temperature knob
two times.
The display shows
and the indicator
Programmed cooking is the function
which allows a cooking operation to be
started at a set time and then ended
after a specific length of time set by the
user.
For safety reasons, it is not possible to
set the end of cooking time by itself
without setting the cooking duration.
In case of confirmation without
modification, cooking starts
immediately. If time is added to the
suggested time, cooking stops
The minutes required for preheating are
already included in the end-of-cooking
time.
Cooking functions can be interrupted at
any time by turning the function knob to
the 0 position.
The minute minder timer does not stop
the cooking operation but rather informs
the user when the set time has run out.
It is not possible to set a minute minder
during a cooking if a timed cooking has
already been set.
USE - 1591477A235/B
e
light flashes.
2. Within 3 seconds turn the temperature knob
to set the duration of the minute minder (from
1 minute to 13 hours).
3. Wait 3 seconds.
The indicator light stops flashing and the
minute minder starts.
4. Wait for the buzzer to indicate that the time
has finished.
The digits
and the indicator light
flash.
5. Turn the temperature knob to select
additional minute minders or press the
temperature knob to deactivate the buzzer
and exit the minute minder during cooking.
After a few seconds, the display shows the
current time and the cooking in progress
continues.
To delete a minute minder timer during
cooking
1. During cooking, press the temperature knob
twice.
The indicator light flashes on the display.
2. Within 3 seconds, turn the temperature knob
counter-clockwise until the minute minder
value is reset.
3. Wait 3 seconds to exit the minute minder
function during cooking.
List of traditional cooking functions
STATIC
FAN ASSISTED
CIRCULAIRE
TURBO
GRILL
FAN WITH GRILL
BOTTOM HEAT
THERMALLY-VENTILATED BASE
ECO
You can also set a minute minder timer
also when cooking is in progress.
Not all functions are available on some
models.
Traditional cooking, ideal for preparing
a single dish. For example cooking
roast meats, fatty meats, bread, pies.
Intense and uniform cooking. Ideal for
biscuits, cakes and cooking on more
than one level.
The heat is distributed quickly and
uniformly. Suitable for all dishes, ideal
for cooking on multiple levels without
mixing smells or flavours.
Allows quick cooking on multiple
shelves without mixing the aromas.
Perfect for large volumes that call for
intense cooking.
Produces excellent grilling and
gratinating results. When used at the
end of cooking, gives a uniform
browning to dishes.
Allows optimal grilling, even for thick
slices of meat. Perfect for larger cuts of
meat.
The heat comes from the bottom of the
cavity. Perfect for cakes, pies, tarts and
pizzas.
Allows you to quickly finish cooking
food already cooked on the surface but
not internally. Perfect for any quiches
and any type of food.
This function is particularly suitable for
cooking on a single shelf with low
energy consumption.
It is recommended for all types of food
except those that may produce a large
amount of moisture (e.g. vegetables).
To obtain maximum energy savings and
reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function, avoid
opening the door during cooking.
16 - USE 91477A235/B
Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times by
increasing the temperature (the food could
be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it needs
another few minutes cooking.
Advice for cooking with the Grill and the Fan
with grill
• Meat can be grilled even when it is put into
the cold oven or into the preheated oven if
you wish to change the effect of the
cooking.
• When using the fan-assisted with grill
function, we recommend that you preheat
the oven before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend that
you set the temperature to the maximum
value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to absorb
the heat better.
• The temperature and the cooking time
depend on the quality and consistency of
the dough.
• To check whether the dessert is cooked right
through: At the end of the cooking time, put
a toothpick into the highest point of the
dessert. If the dough does not stick to the
toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of
the oven, on the next occasion reduce the
set temperature by about 10°C, selecting a
longer cooking time if necessary.
Advice for defrosting and proving
• Place frozen foods without their packaging
in a lidless container on the first shelf of the
oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the
second level and a tray on the first level. In
this way, the liquid from the defrosting food
drains away from the food.
• The most delicate parts can be covered with
aluminium foil.
• For successful proving, a container of water
should be placed in the bottom of the oven.
To save energy
• Stop cooking a few minutes before the time
normally used. Cooking will continue for the
remaining minutes with the heat which has
accumulated inside the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at all
times.
Cooking (and preheating) times are
longer with the ECO function and may
depend on the amount of food in the
oven.
The ECO function is a delicate cooking
function and is recommended for
cooking that does not require
temperatures higher than 210°C. It is
recommended that you select a
different function for cooking at higher
temperatures.
USE - 1791477A235/B
e
Mini guide to accessories
Discover the recipes
To consult the recipes developed for various
categories of food and to get more information
on cooking suggestions, we recommend visiting
the dedicated page on the www.smeg.com
website, which can be reached using the QR
code on the leaflet supplied with the product.
Information for Supervisory Bodies
Fan forced mode
The ECO function used to establish the energy
efficiency class is compliant with the
specifications of European standard EN
60350-1.
See the “To save energy ” section in the
INSTRUCTIONS chapter.
Conventional heating mode
To use the STATIC mode, you have to skip the
preheating stage (see the section “Preheating
stage” in the USE chapter.
See the “To save energy ” section in the
INSTRUCTIONS chapter.
Minute minder
1. With the Function Knob at position 0, press
the temperature knob.
The display shows
and the indicator
light flashes.
2. Within 3 seconds turn the temperature knob
to set the duration of the minute minder (from
1 minute to 13 hours).
3. Wait 3 seconds.
The indicator light stops flashing and the
minute minder starts.
End of the minute minder
1. Wait for the buzzer to indicate that the time
has finished.
The digits
and the indicator light
flash.
2. Turn the temperature knob to select another
minute minder.
or
3. Press the temperature knob to deactivate the
buzzer and exit the minute minder function.
After a few seconds, the display shows the
current time.
To delete a minute minder
1. Press the temperature knob.
The indicator light flashes on the display.
2. Within 3 seconds, turn the temperature knob
counter-clockwise until the minute minder
value is reset.
Rack
We recommend the use of the grill as a support surface for baking moulds/casseroles.
In the absence of the baking tray grill, the grill can be used as a base for grilling with the deep
baking tray placed on a shelf below to collect the juices.
For multilevel baking, place two grills leaving one free shelf between them. Use the
THERMALLY-VENTILATED
and/or THERMALLY-VENTILATED BASE function .
Deep tray
We recommend the use of the deep baking tray for cooking on one level only.
Place the deep baking tray on the centre shelf when using the fan-assisted functions. When
using the STATIC function,
place the deep baking tray on the required shelf.
Place the baking tray on the last shelf with the baking tray grill to cook in GRILL mode .
Tray rack
We recommend using the baking tray grill as a base to collect the juices from the grills.
This function only operates the buzzer
at the end of the countdown.
During the function, the display shifts to
low brightness after 2 minutes from the
last knob operation.
18 - USE 91477A235/B
3. Wait 3 seconds to exit the minute minder
function.
Special functions
1. Turn the function knob until the following text
is displayed.
2. Press the display knob to enter the special
functions menu.
Rapid defrost
1. Place the food to be defrosted inside the
oven.
2. After entering the special functions menu,
turn the temperature knob until the defrost
mode is selected.
3. Press the temperature knob to confirm the
function.
The display shows
and the indicator
lights and flashes.
4. Turn the temperature knob to set the
defrosting time (from 1 minute to 13 hours)
(e.g. "1:30").
5. Wait 3 seconds or press the temperature
knob to start the function.
At the end, the flashing wording is
displayed and a buzzer will sound that can be
deactivated by opening the door and/or
pressing/turning any of the two knobs.
6. Turn the function knob to position 0 to exit
the function.
Proving
1. Position the dough to prove on the second
level.
2. After entering the special functions menu,
turn the temperature knob until Proving mode
is selected.
3. Press the temperature knob to confirm the
function.
4. Wait 3 seconds to start the function or press
the temperature knob to enter any setting of
function duration, function end time...
For functions /
(depending on the model) and
see chapter Special
cleaning functions.
This function allows you to defrost food
on the basis of a selectable time.
For successful proving, a container of
water should be placed in the bottom of
the oven.
USE - 1991477A235/B
e
5. At the end, turn the function knob to position
0 to exit the function.
Sabbath mode
1. Place the dish into the oven cavity.
2. After entering the special functions menu,
turn the temperature knob until the Sabbath
mode is selected.
3. Press the temperature knob to confirm the
function.
4. Turn the temperature knob to set required
temperature (for example "90°C").
5. Press the temperature knob to start the
function.
6. When finished, turn the function knob to
position 0 to end cooking.
PIZZA
1. After entering the special functions menu,
turn the temperature knob until the PIZZA
function is selected.
2. Press the temperature knob to confirm the
function.
3. Wait 3 seconds to start the function or press
the temperature knob to enter any setting of
temperature, cooking duration, cooking end
time...
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat to the
cooking temperature more quickly.
The indicator light flashes to indicate that
this stage is in progress.
When the preheating stage is over, the indicator
light will remain lit steadily and a buzzer
sounds to indicate that the food can be placed
inside the oven cavity.
At the end of the cooking time
flashes on the display and a buzzer will sound
This function results in the appliance
operating in a particular way:
• Cooking can proceed for max. 73 hours, it
is not possible to set any cooking duration.
• No pre-heating will be performed.
• The cooking temperature which can be
selected varies between 60-150 °C.
• Oven light disabled, any operation such as
opening the door (where present) or
manual activation with the knob will not
activate the light.
• The internal fan remains turned off.
• Knob illumination and audible prompts
remain disabled.
After activating the Sabbath mode the
settings cannot be altered.
Any action on the knobs will produce
no effect; only the function knob remains
active to allow you to return to 0 and
switch the function off.
Function designed for cooking pizza.
Perfect not just for pizzas, but also for
biscuits and cakes.
In this function it is not possible to skip
the preheating phase.
20 - USE 91477A235/B
that can be deactivated by opening the door
and/or pressing/turning any of the two knobs.
To continue with the cooking of other pizzas,
after deactivating the buzzer:
• press the function knob again to start the
function
or
• turn the function knob to set a new cooking
time and restart the function.
4. Turn the function knob to position 0 to exit
the function.
Settings
1. Turn the function knob until the following text
appears on the display.
2. Press the temperature knob to access the
settings menu.
Current time
After entering the settings menu, turn the
temperature knob until the current time function is
selected.
1. Press temperature knob to start adjusting the
current time (e.g. "12:30").
During this procedure, the indicator light
and the symbols flash.
2. Turn the temperature knob to select the
current time.
3. Press the temperature knob to set the current
time and go to the selection of minutes.
4. Turn the temperature knob to select the
minutes of the current time.
5. Press the temperature knob to finish
adjustment.
6. Turn the temperature knob to select a new
setting or wait 10 seconds.
USE - 2191477A235/B
e
Control lock (children safety)
1. After entering the settings menu, turn the
temperature knob until the control lock
function is selected.
2. Press the temperature knob to confirm.
The indicator light flashes.
3. Within 10 seconds turn the temperature
knob to activate the control lock function.
4. Press the temperature knob to confirm.
5. Turn the display knob to select a new setting.
Showroom (for showrooms only)
1. After entering the settings menu, turn the
temperature knob until the showroom
function is selected.
2. Press the temperature knob to confirm.
3. Turn the temperature knob to activate the
showroom function.
4. Press the temperature knob to confirm or
wait 10 seconds.
Keep warm
1. After entering the settings menu, turn the
temperature knob until the keep warm
function is selected.
2. Press the temperature knob to confirm.
This mode allows the appliance to lock
the controls automatically after one
minute of normal operation without any
intervention from the user.
In normal operation, the control lock is
indicated by the indicator light
coming on.
Touching or varying the position of the
knobs, the display will show the
wording for two seconds.
To release the lock temporarily during
cooking, hold the temperature knob
down for 5 seconds. One minute after
the last setting the lock will become
active again.
This mode allows the appliance to
deactivate all heating elements, while
keeping the control panel active.
The activated showroom is indicated on
the display by the indicator light on.
To use the appliance normally, set this
function to OFF.
This mode allows the appliance
after cooking finishes with a cooking
cycle for which a duration has been set
(if this is not manually interrupted), to
keep cooked food warm (at low
temperatures) without altering the taste
and aromas obtained during cooking.
22 - CLEANING AND MAINTENANCE 91477A235/B
3. Turn the temperature knob to activate the
keep warm function.
4. Press the temperature knob to confirm.
CLEANING AND MAINTENANCE
Cleaning the appliance
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let them
cool first.
Ordinary daily cleaning
Always and only use specific products that do
not contain abrasives or chlorine-based acids.
Pour the product onto a damp cloth and wipe
the surface, rinse thoroughly and dry with a soft
cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp scrapers as
they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such as
jam) to set inside the oven. If left to set for too
long, they might damage the enamel lining of
the oven.
Cleaning the door
Door disassembly
For easier cleaning it is recommended to
remove the door and place it on a tea towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges indicated in
the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around 30°
and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots.
To use the appliance normally, set this
function to OFF.
See General safety instructions.
CLEANING AND MAINTENANCE - 2391477A235/B
e
4. Lower the door and once it is in place
remove the pins from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen roll. In
case of stubborn dirt, wash with a damp sponge
and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes of
the door can be removed.
1. Lock the door with the appropriate pins.
2. Remove the internal glass pane by pulling
the rear part gently upwards, following the
movement indicated by the arrows 1.
3. Release the front pins following the
movement indicated by the arrows 2
4. Then remove the inner glass pane from the
front profile.
5. Pull the intermediate glass unit downwards
from the door and then lift it upwards.
Note: In some models, the intermediate glass
unit consists of two panes.
During this step, the upper grommets may come
out of their seats.
6. Insert the front grommets into their seats. The
feet of the grommets must be facing the
outer glass
7. Clean the external glass pane and the
panes removed previously.
8. Use absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
24 - CLEANING AND MAINTENANCE 91477A235/B
9. Reinsert the intermediate glass unit and
reposition the inner glass.
10. Be sure to fit the 4 pins of the inner glass well
into their seats on the door.
Cleaning the oven cavity
In order to keep your oven in the best possible
condition, clean it regularly after letting it cool
down.
Avoid letting food residue dry inside the oven
cavity, as this could damage the enamel.
Take out all removable parts before cleaning.
For easier cleaning, it is recommended to
remove:
•the door;
• The rack/tray support frames.
Drying
Cooking food generates moisture inside the
appliance. This is a normal phenomenon and
does not affect the appliance’s operation in any
way.
Each time you finish cooking:
1. Let the appliance cool down.
2. Remove any dirt from inside the appliance.
3. Dry the interior of the appliance with a soft
cloth.
4. Leave the door open until the inside of the
appliance has dried completely.
Removing rack/tray support frames
Removing the rack/tray support frames enables
the sides to be cleaned more easily.
A = front housing
B = rear pin
To remove the rack/tray support frames:
1. Unscrew the front fixing pin located on the
side wall near the opening of the oven
The intermediate glass pane must be
repositioned on the open door so that
the screen printing in the corner can be
read from left to right (the rough part of
the screen printing must face the
external glass pane of the door).
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in order
to eliminate any residue.
In some models, the rear pin B
can be removed and re-
assembled in the same way as
the front housing A.
CLEANING AND MAINTENANCE - 2591477A235/B
e
cavity (you can help yourself with a tool,
e.g. a coin).
2. Carefully pull the frame towards the inside of
the oven cavity to unhook it from front
housing A.
3. Remove the frame from the rear pin B
located at the bottom of the side wall.
4. Repeat the operation for the frame placed
on the other side wall.
To refit the rack/tray support frames:
1. Slide the rear part of the frame into the
housing under the pin B located at the
bottom of the side wall.
2. Replace the front part of the frame in
housing A on the side wall near the opening
of the oven cavity.
3. Screw in the front fixing pin (you can help
yourself with a tool, e.g. a coin).
4. Repeat the operation for the frame placed
on the other side wall.
26 - CLEANING AND MAINTENANCE 91477A235/B
Special cleaning functions
1. Turn the function knob until the following text
appears on the display.
2. Press the temperature knob to access the
special functions menu.
Vapor Clean (on some models only)
Preliminary operations
Before starting the Vapor C lean cycle:
• Completely remove all accessories from
inside the oven.
• Remove the temperature probe, if present.
• Remove the self-cleaning panels, if present.
• Pour approx. 120 cc of water onto the floor
of the oven. Make sure it does not overflow
out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray towards the side
walls, upwards, downwards and towards
the deflector.
• Close the door.
• During the assisted cleaning cycle, wash the
self-cleaning panels (where fitted), which
were previously removed, separately in
warm water and a small amount of
detergent.
Vapor Clean cycle setting
3. After having accessed the special functions
menu, turn the temperature knob to select
the Vapor Clean function.
4. Press the temperature knob to confirm the
function.
5. Wait 3 seconds before starting the function.
6. At the end of the Vapor Clean cycle,
appears on the display and a
buzzer will sound that can be deactivated
See General safety instructions.
The Vapor Clean function is an assisted
cleaning procedure that facilitates the
removal of dirt. Thanks to this process, it
is possible to clean the inside of the
oven very easily. The dirt residues are
softened by the heat and water vapour
for easier removal afterwards.
We recommend spraying approx. 20
times at the most.
Do not spray the deflector if it has a self-
cleaning coating.
If the internal temperature is greater
than the one required, the function will
be stopped immediately and the
following message appears on the
display:
Let the appliance cool down before
activating the function.
The duration and temperature
parameters cannot be changed by the
user.
CLEANING AND MAINTENANCE - 2791477A235/B
e
by opening the door or pressing/turning
one of the two knobs.
7. Turn the function knob to 0 to exit from the
function.
Programmed Vapor Clean cycle
It is possible to program the Vapor Clean
function start time, like all other cooking
functions.
1. After having selected the Vapor Clean
function, turn the temperature knob (the
indicator light comes on) to set the time
at which you want the Vapor Clean function
to end.
2. Wait 3 seconds before confirming the
settings.
The appliance waits until the set start time to start
the Vapor Clean function.
Vapor Clean End
1. Turn the function knob to 0 to exit from the
function.
2. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
3. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
4. In case of grease residues use specific oven
cleaning products.
5. Remove the residual water inside the oven.
6. Replace the self-cleaning panels and the
rack/tray support frames, if fitted.
For greater hygiene and to avoid foods taking
on unpleasant odours:
• We recommend drying the inside of the
oven with a fan assisted function at 160°C
for around 10 minutes.
• If self-cleaning panels are fitted, we
recommend that you dry the inside of the
oven with a simultaneous catalytic cycle.
Pyrolytic (on some models only)
Preliminary operations
Before starting the pyrolytic cycle:
• Clean the internal glass pane following the
usual cleaning instructions.
• Remove any food residues or large spills
from previous cooking operations from the
inside of the oven.
• Completely remove all accessories from
inside the oven.
• For very stubborn encrustations spray an
oven cleaning product onto the glass (read
the warnings on the product); leave for 60
minutes, then rinse and dry the glass using
kitchen roll or a microfibre cloth.
• If present, remove the temperature probe.
• Remove the rack/tray support frames.
• Close the door.
Pyrolytic function setting
1. After entering the special functions menu,
turn the temperature knob until the Pyrolytic
function is selected.
2. Press the temperature knob to confirm the
function.
The display shows the Pyrolytic cycle duration
We recommend wearing rubber gloves
for these operations.
We recommend removing the door in
order to make the manual cleaning of
the parts that are difficult to reach
easier.
See General safety instructions.
Pyrolytic cleaning is an automatic high-
temperature cleaning procedure which
causes dirt to dissolve. This process
makes it possible to clean the inside of
the oven very easily.
28 - CLEANING AND MAINTENANCE 91477A235/B
(factory set to 2 hours).
3. Turn the temperature knob to set the
duration of the Pyrolytic cycle from a
minimum of 2 hours to maximum of 3 hours.
4. Press the temperature knob to confirm the
data entered.
Wait 3 seconds to start the function.
5. Two minutes after the Pyrolytic cycle starts,
the indicator light comes on to indicate
that the door is locked by a device that
prevents the door from being opened.
At the end of the Pyrolytic cycle the flashing
wording is displayed and a
buzzer will sound that can be deactivated by
opening the door and/or pressing/turning any
of the two knobs.
Setting of a programmed Pyrolytic cycle
It is possible to program the Pyrolytic cycle start
time like all other cooking functions.
1. After selecting the Pyrolysis function, turn the
temperature knob (the indicator light
lights up) to set the time at which you want
the Pyrolysis function to end.
2. Wait 3 seconds to confirm the data entered.
The appliance waits until the set start time to start
the Pyrolytic function.
End of pyrolytic function
1. Turn the function knob to position 0 to exit
the function.
2. Open the door and collect the residue
deposited inside the oven cavity with a
damp microfibre cloth.
Recommended pyrolytic cycle duration:
• Little dirt: L01 - 2:00
• Moderately dirty: L02 - 2:30
• Very dirty: L03 - 3:00
It is not possible to select any function
once the door lock device has been
activated.
The door is locked until the temperature
inside the oven cavity returns to a safe
level.
During the Pyrolytic cycle the fans
produce a more intense level of noise
due to a greater rotation speed. This is
an absolutely normal operation,
intended to provide more effective heat
dispersal. At the end of the pyrolytic
cycle, the fans will continue to operate
for long enough to avoid overheating
the walls of adjacent units and the front
of the oven.
During the first Pyrolytic cycle,
unpleasant odours may occur due to
the normal evaporation of oily
manufacturing substances. This is an
absolutely normal phenomenon which
disappears after the first pyrolytic cycle.
If the pyrolytic cycle gives unsatisfactory
results at minimum duration, it is
recommended to set a longer time for
subsequent cleaning cycles.
It is not possible to select any function
once the door lock device has been
activated. It is always possible to switch
the appliance off, by turning the function
knob to the 0 position.
We recommend wearing rubber gloves
for these operations.
For easier manual cleaning of parts that
are difficult to reach, we recommend
removing the door.
INSTALLATION - 2991477A235/B
e
Extraordinary maintenance
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-abrasive
sponge and wash with lukewarm water.
Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Use a tool (e.g. a spoon) to remove the bulb
cover.
4. Slide out and remove the light bulb.
5. Replace the light bulb with one of the same
type (40 W).
6. Refit the cover. Ensure the moulded part of
the glass (A) is facing the door.
7. Press the cover completely down so that it
attaches perfectly to the bulb support.
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
The appliance can work in the following modes:
• 220-240 V~
3 x 1.5 mm² three-core cable.
Power voltage
Danger of electrocution
• Unplug the appliance.
• Wear protective gloves.
Take care not to scratch the enamel of
the oven cavity wall.
Do not touch the halogen light bulb
directly with your fingers, use an
insulating material.
See General safety instructions.
The values indicated above refer to the
cross section of the internal lead.
The aforementioned power cables are
sized taking into account the
coincidence factor (in compliance with
standard EN 60335-2-6).
30 - INSTALLATION 91477A235/B
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Connection with plug and socket
Make sure that the plug and socket are of the
same type.
Avoid using adapters, gang sockets or shunts as
these could cause overheating and a risk of
burns.
Cable replacement
1. Unscrew the rear casing screws and remove
the casing to access the terminal board.
2. Replace the cable.
3. Make sure that the cables (for the oven or
any hob) follow the best route in order to
avoid any contact with the appliance.
Positioning
Position of the power cable
Front panel seal
Glue the supplied seal to the rear part of the
front panel to avoid water or other liquids from
leaking in.
Fastening bushings
1. Remove the bushing covers on the front of
the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the cabinet using
screws.
4. Cover the bushings with the previously
removed covers.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
See General safety instructions.
INSTALLATION - 3191477A235/B
e
Appliance overall dimensions (mm)
32 - INSTALLATION 91477A235/B
Mounting into a column (mm)
*Make sure that the cabinet top/rear
section has an opening approx. 35-40
mm deep.
INSTALLATION - 3391477A235/B
e
Mounting under worktops (mm)
A min. 603 mm
B 560 - 568 mm
C 583 - 585 mm
D 9 - 11 mm
E min. 5 mm
F 121 - 1105 mm
G min. 560 mm
H min. 594 mm
co
Cutout for power cord (min. 6 cm
2
)
jb Electrical connection box
If the appliance is to be built-in under a
worktop, a wooden bar has to be
installed order to use the seal that is
glued to the back of the front panel to
prevent water or other liquids leaking in.
*Make sure that the piece of furniture
top/rear part has an opening approx.
60 mm deep.
34 - INSTALLATION 91477A235/B
Mounting under worktops (mm) (pyrolytic
models only)
Whenever a hob is installed above the oven, a
wooden separator has to be installed at a
minimum distance of 20 mm from the top of the
oven to prevent overheating when the two
appliances are used at the same time. It must
only be possible to remove the separator by
using suitable tools.
A min. 603 mm
B 560 - 568 mm
C 583 - 585 mm
D 9 - 11 mm
Emin. 5 mm
F 121 - 1105 mm
G min. 560 mm
H min. 594 mm
co
Cutout for power cord (min. 6 cm
2
)
jb Electrical connection box
wb Wooden bar (recommended)
INSTALLATION - 3591477A235/B
e
When using a wooden separator, a
wooden bar has to be installed under
the worktop in order to use the seal that
is glued to the back of the front panel to
prevent water or other liquids leaking in.
