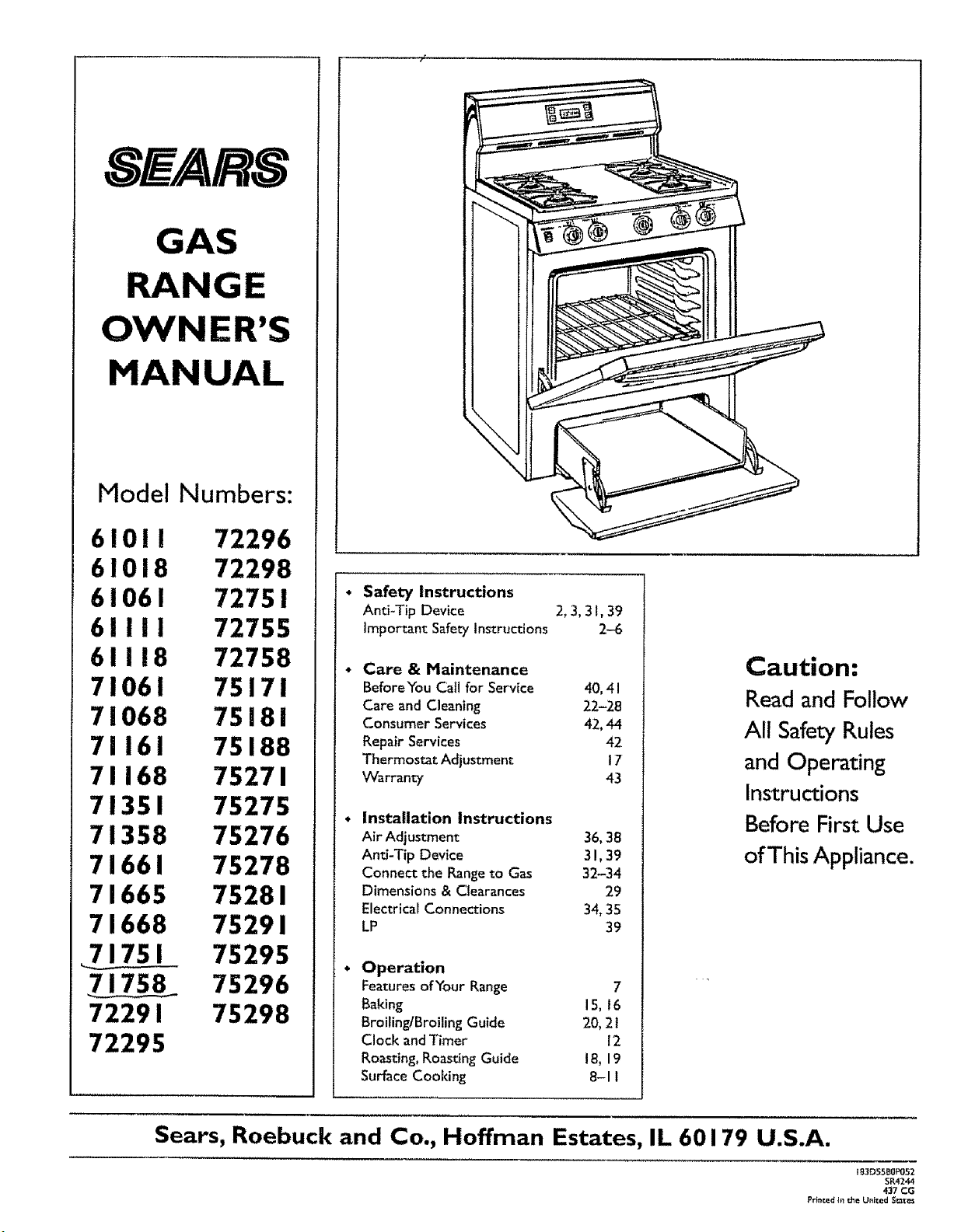

SEARS
GAS
RANGE
OWNER'S
MANUAL
Model Numbers:
61011 72296
61018 72298
61061 72751
61111 72755
61118 72758
71061 75171
71068 75181
71161 75188
71168 75271
71351 75275
71358 75276
71661 75278
71665 75281
71668 75291
_71751 75295
71758 75296
72291 75298
72295
Safety Instructions
Anti-Tip Device 2, 3,3I, 39
Important Safetylnstr_ctions 2-6
Care & Maintenance

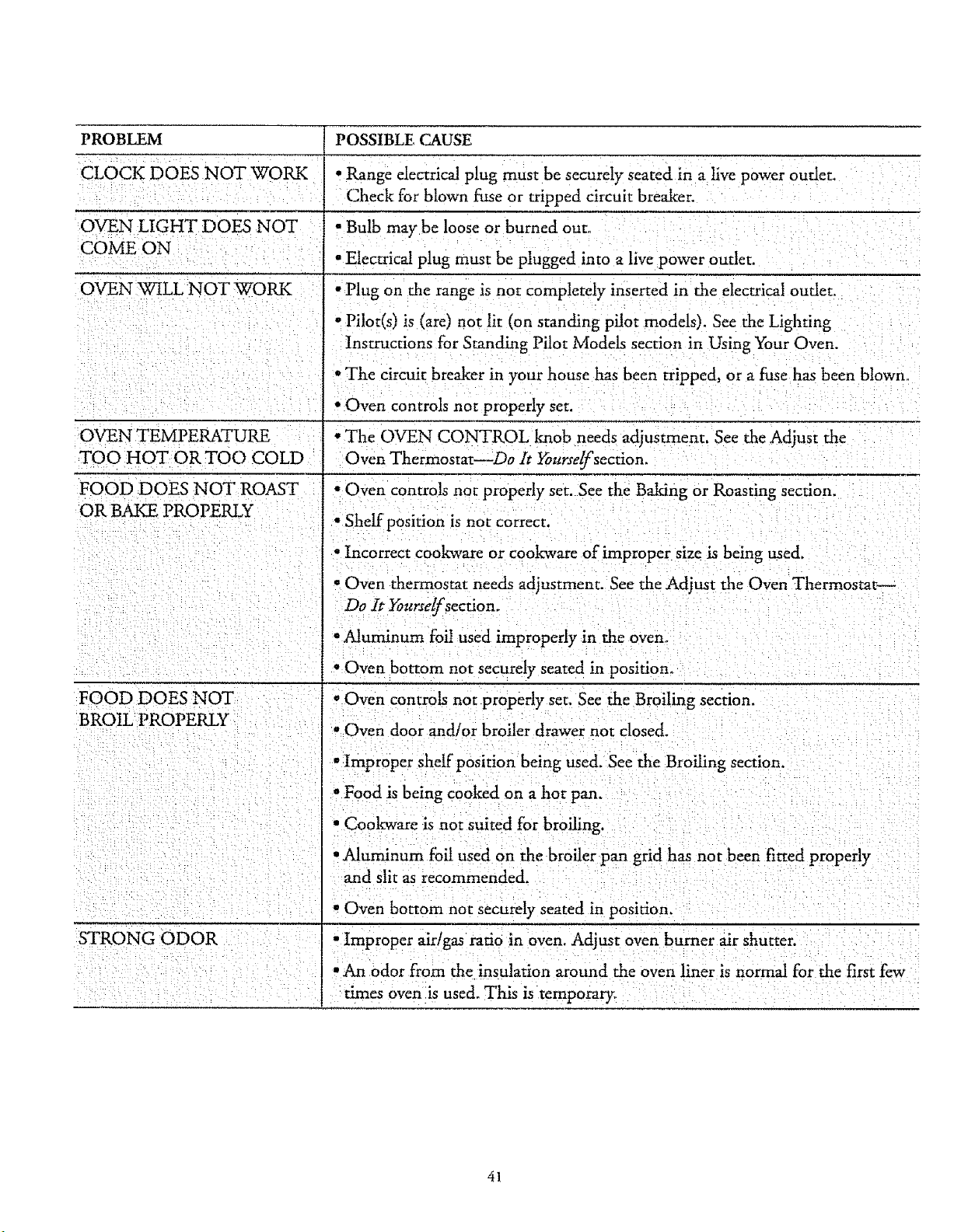

BeforeYou Call for Service 40, 41

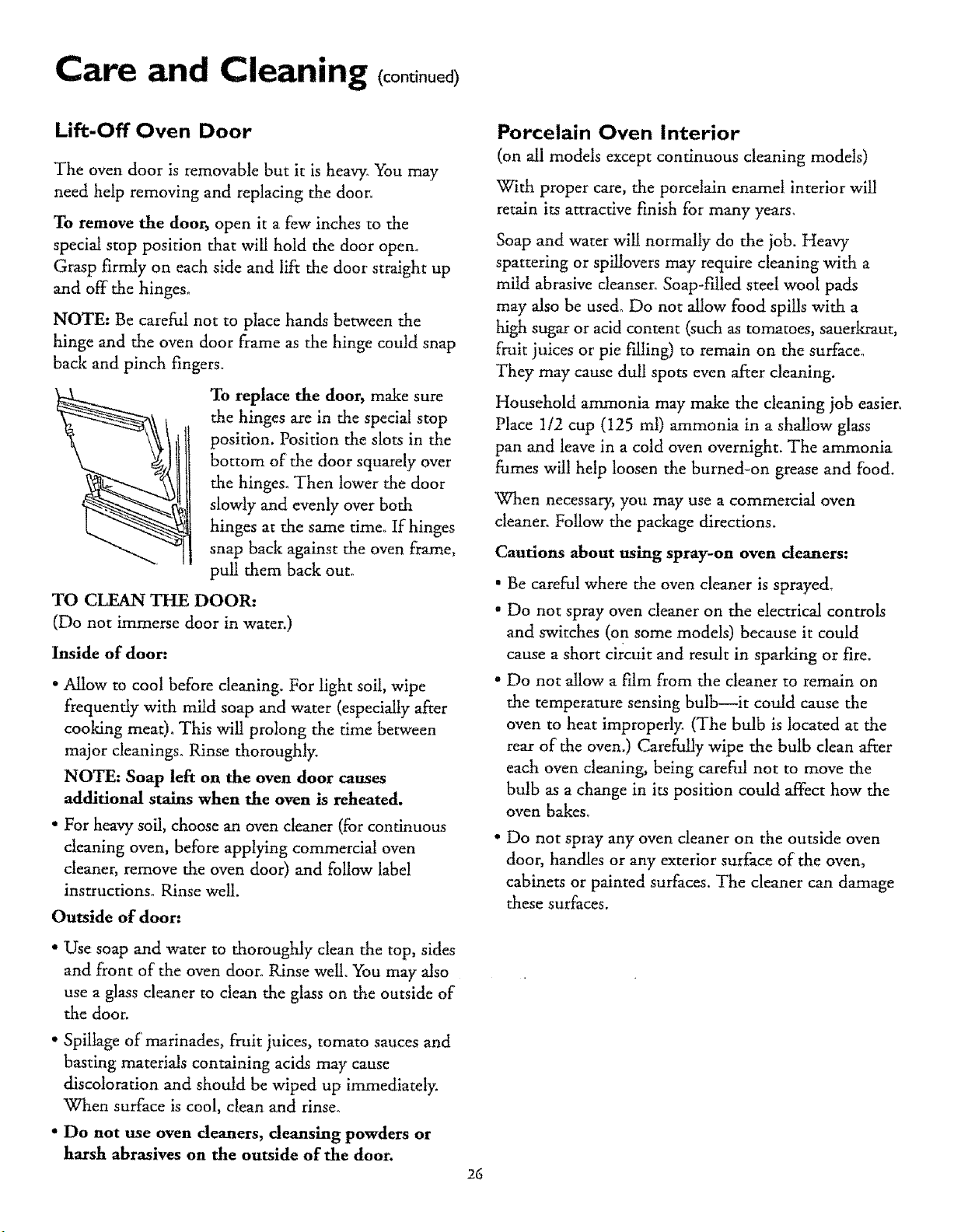

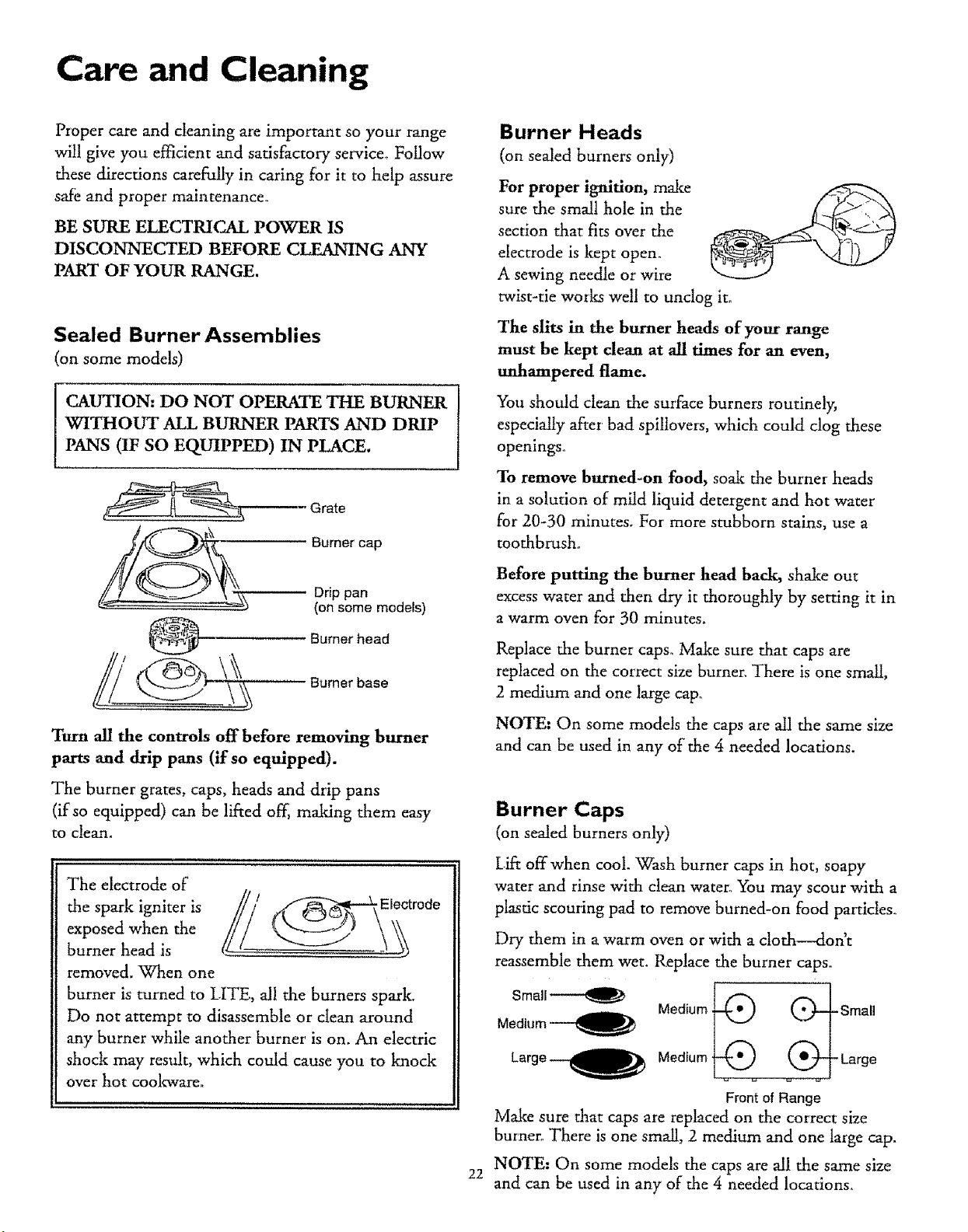

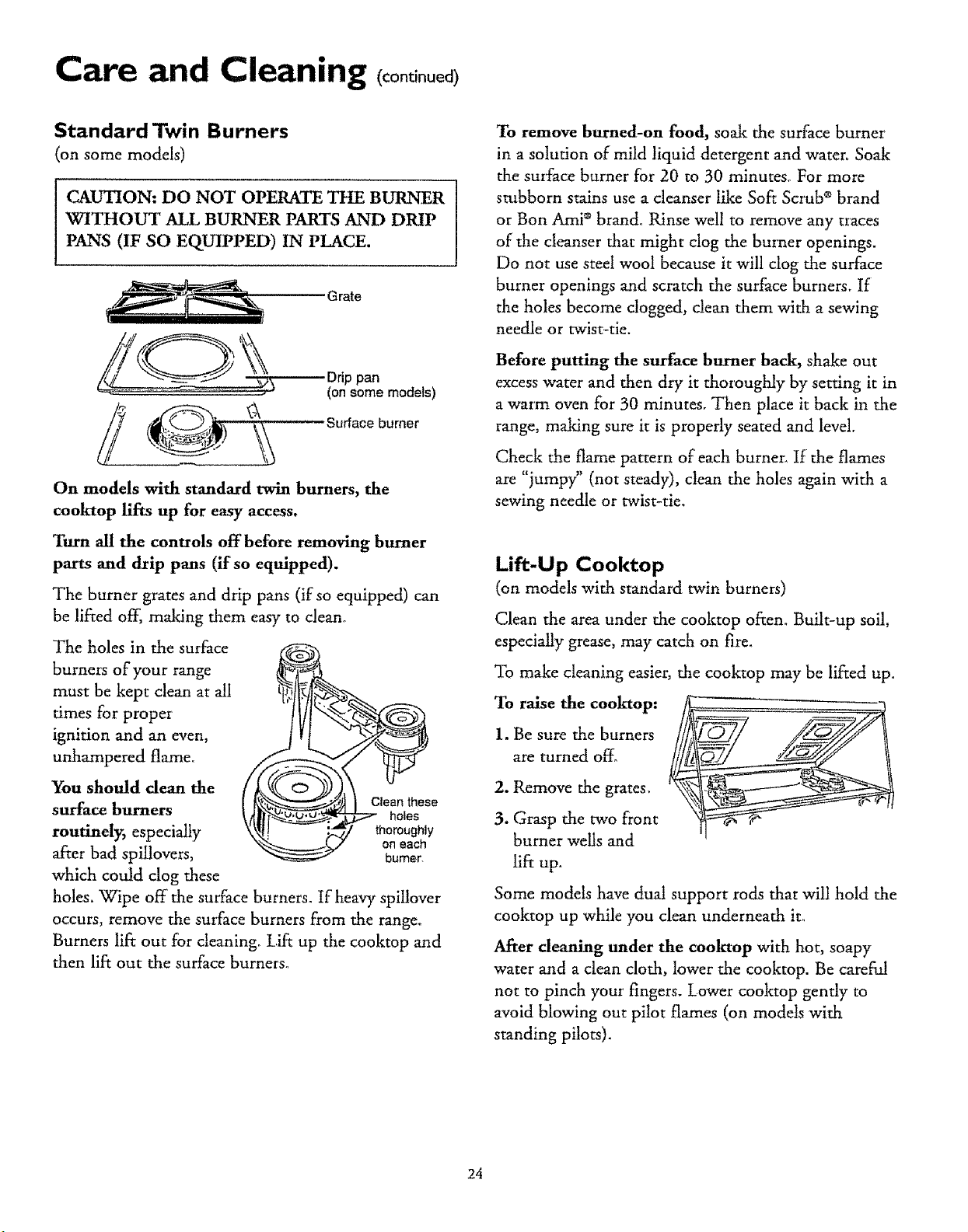

Care and Cleaning 22-28
Consumer Services 42, 44

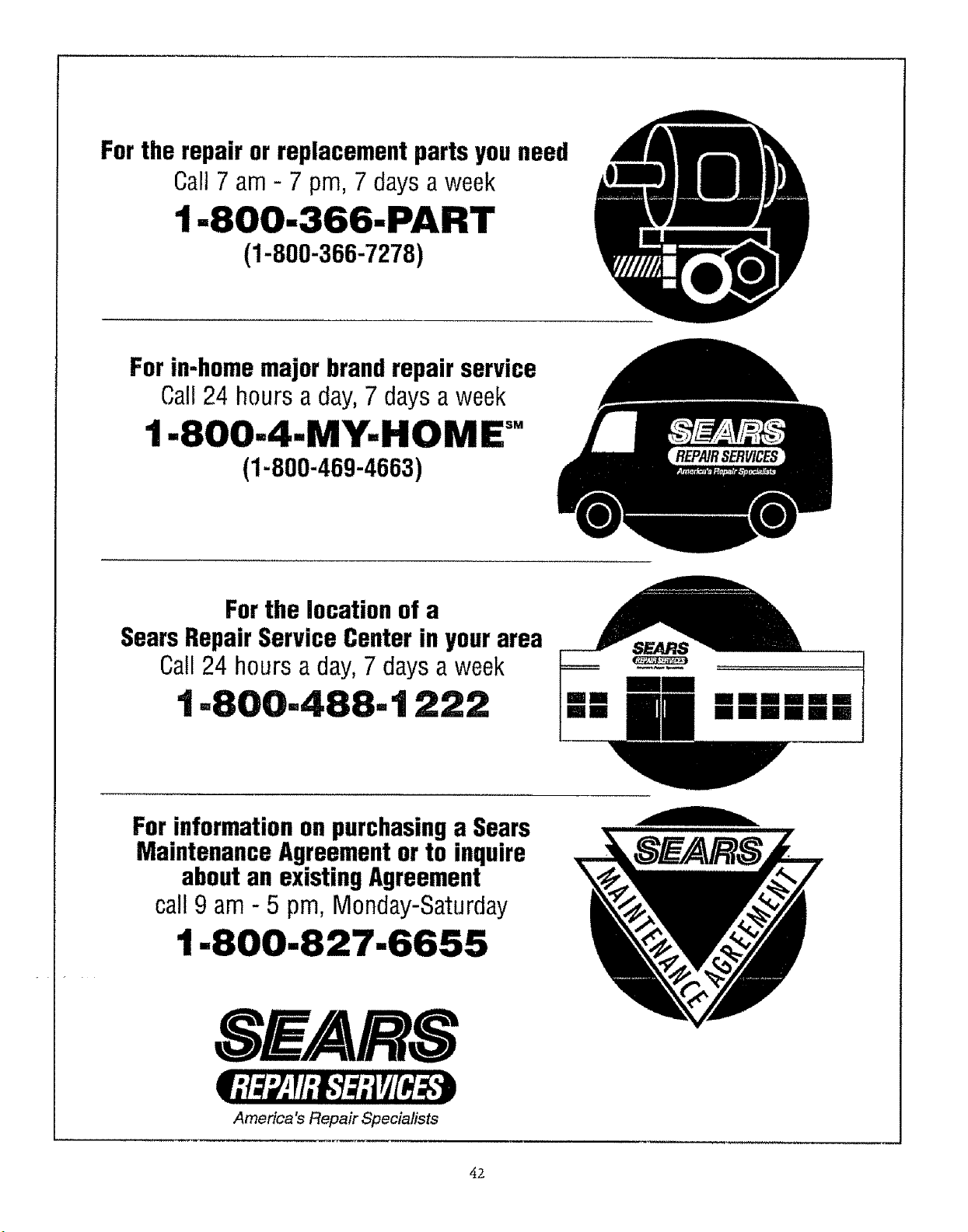

Repair Services 42

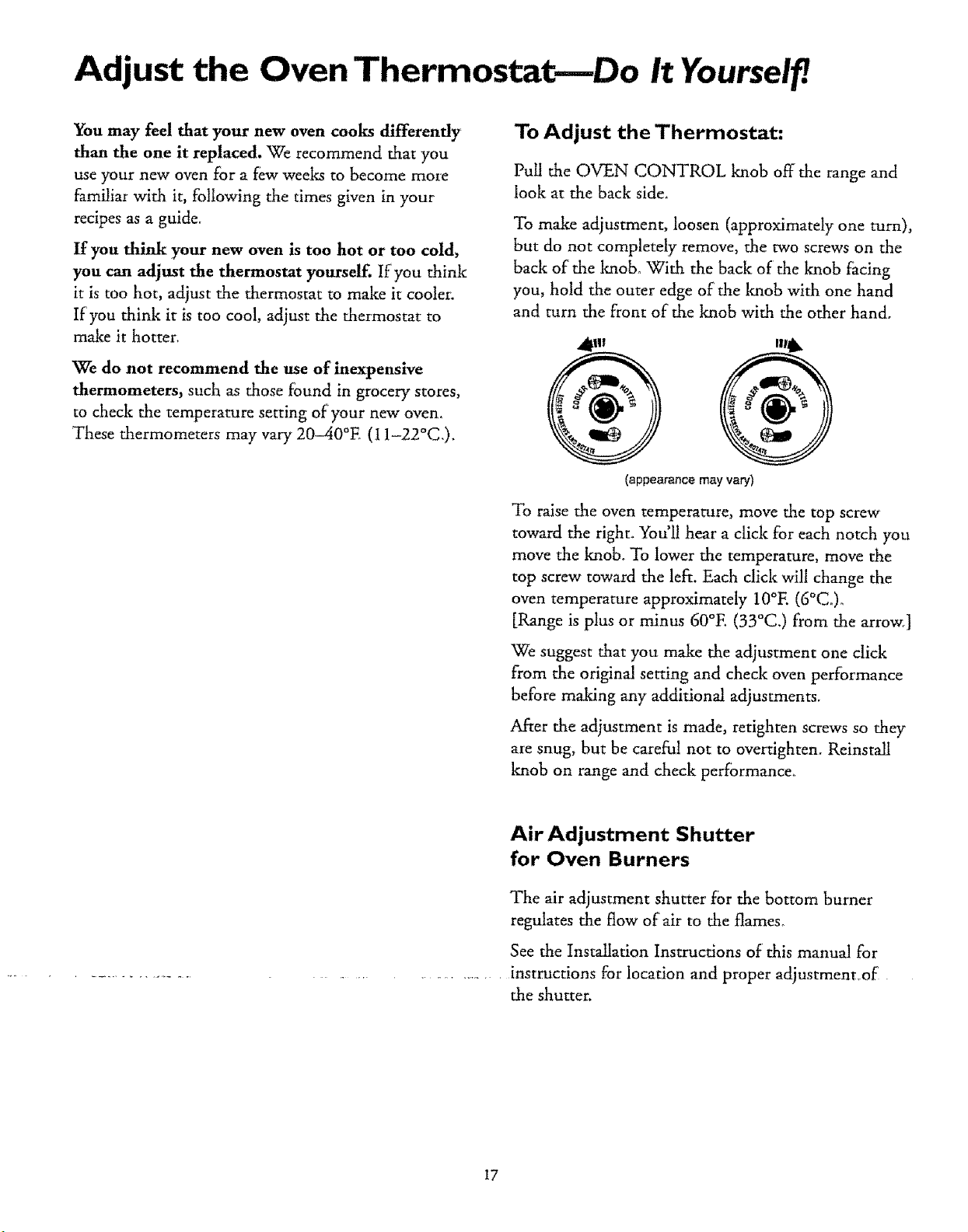

Thermostat Adjustment 17

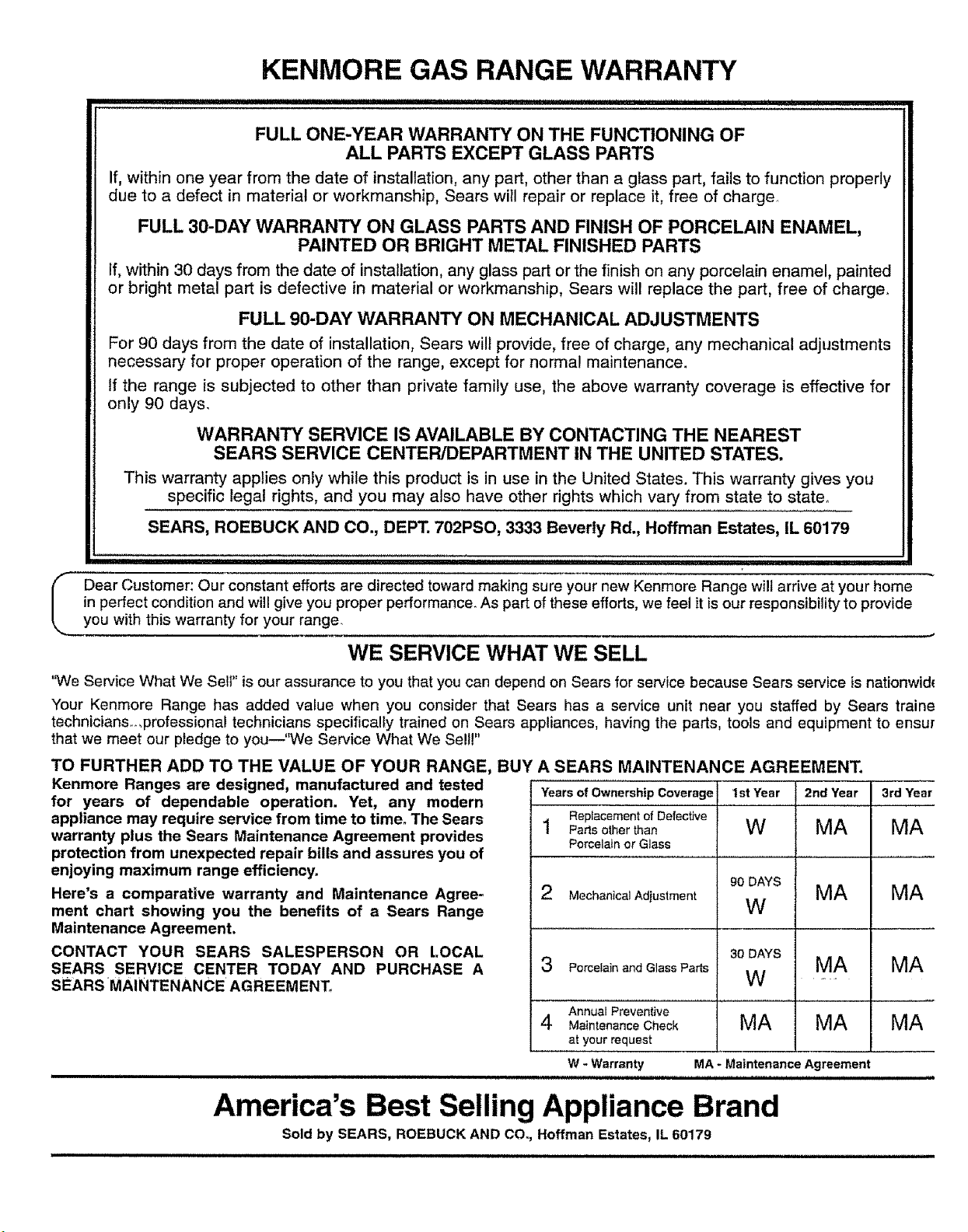

Warranty 43

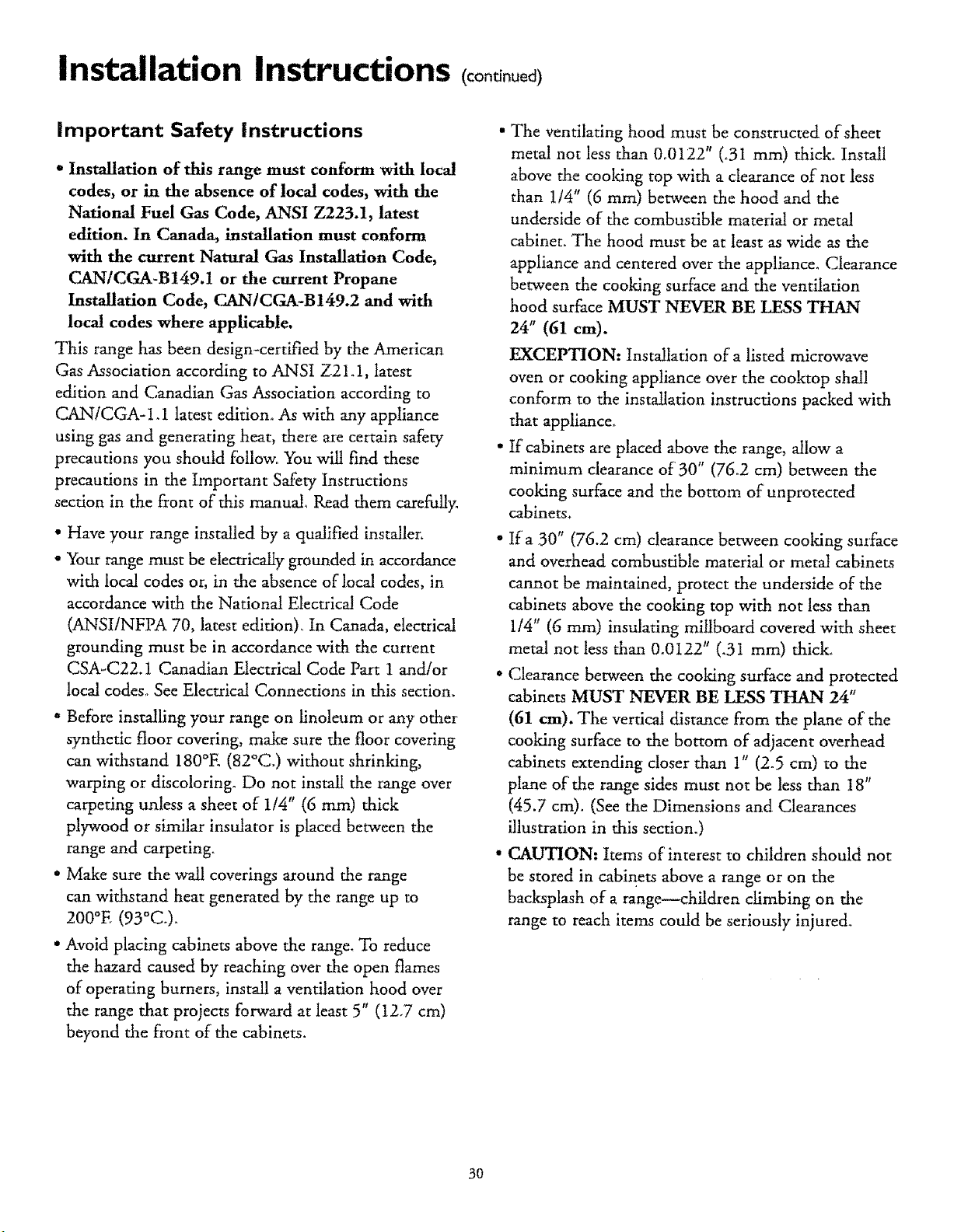

Installation Instructions
Air Adjustment 36,38
Anti-Tip Device 3I, 39
Connect the Rangeto Gas 32-34

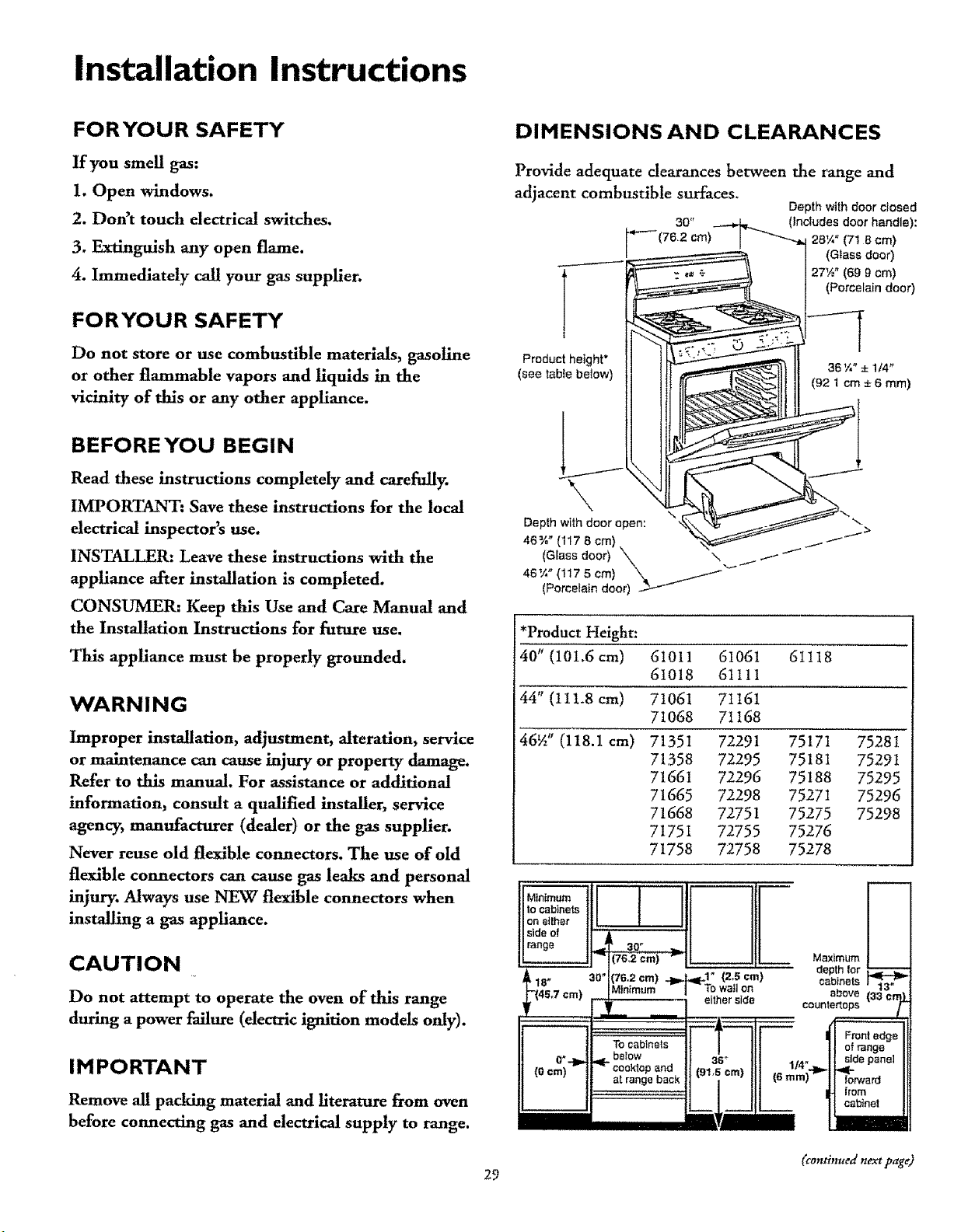

Dimensions & Clearances 29

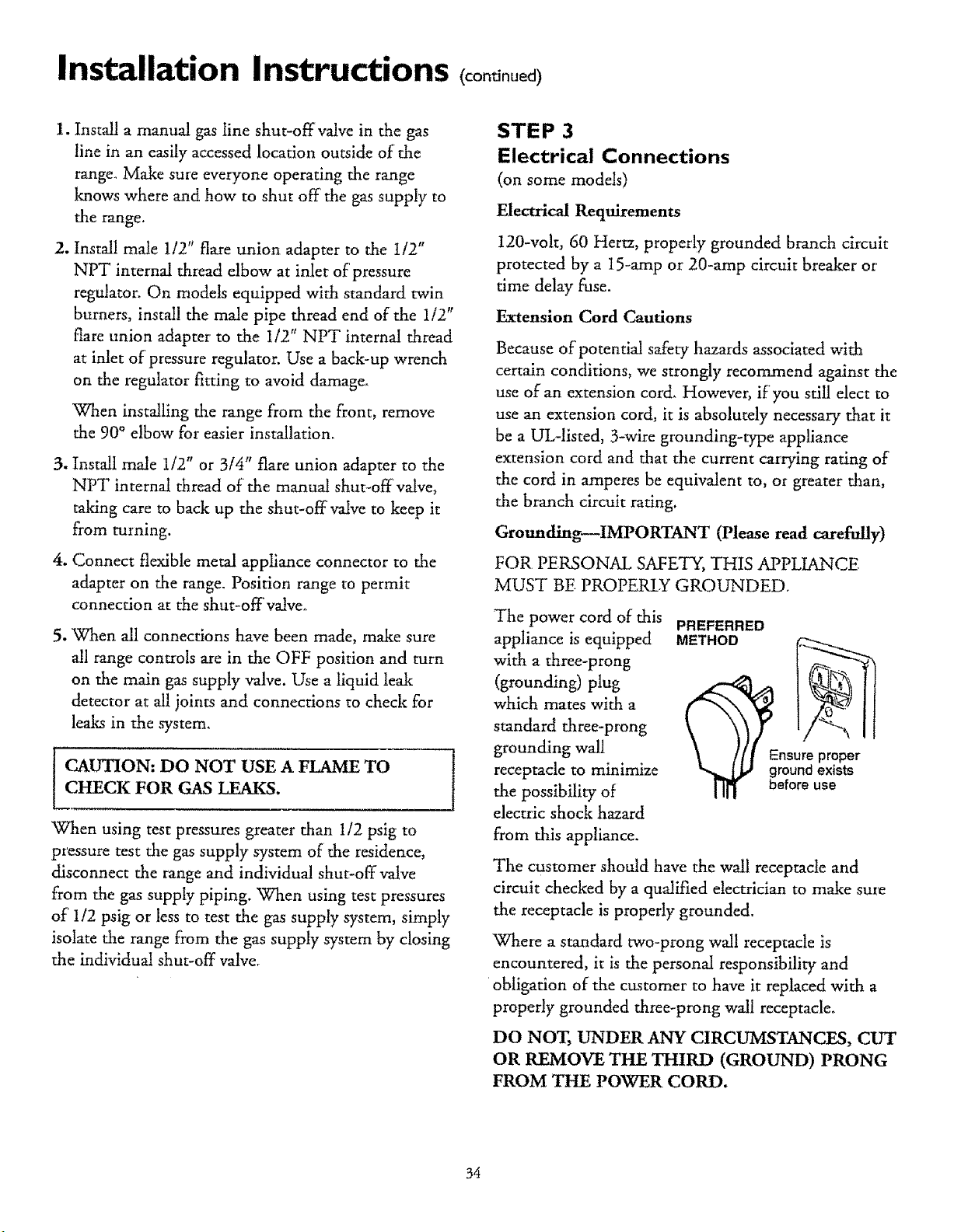

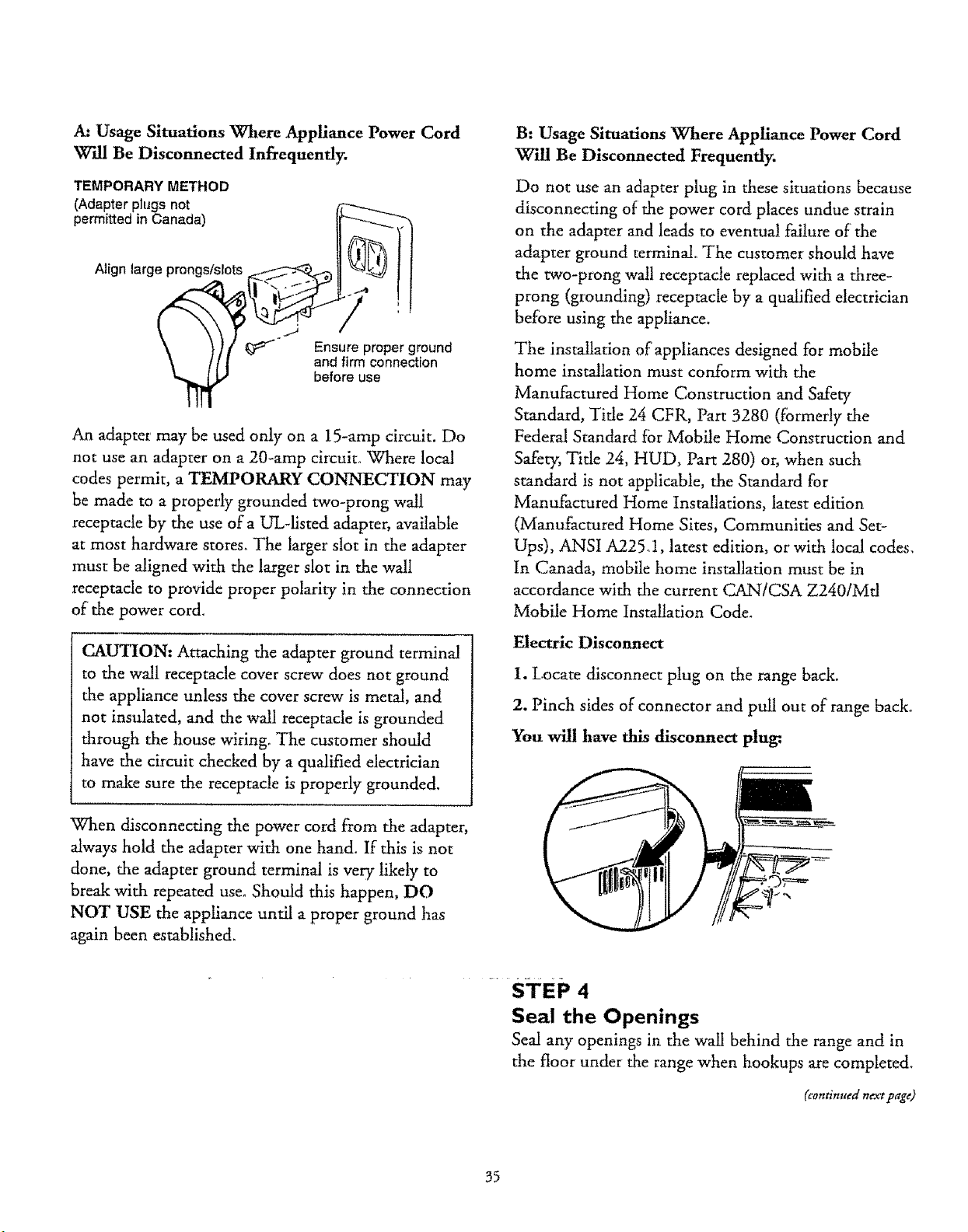

Electrical Connections 34,35
LP 39
Operation
Featuresof Your Range 7

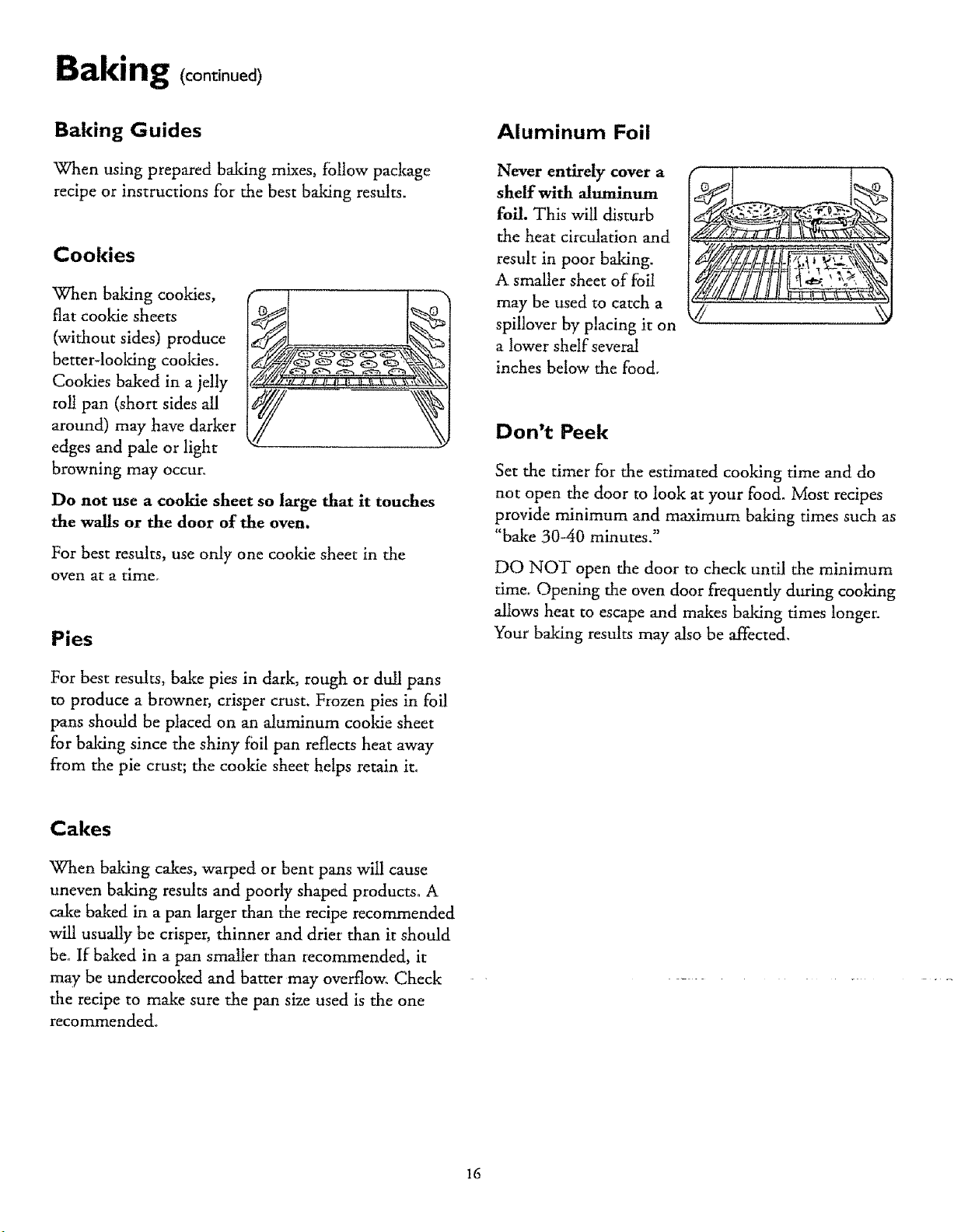

Baking 15,16

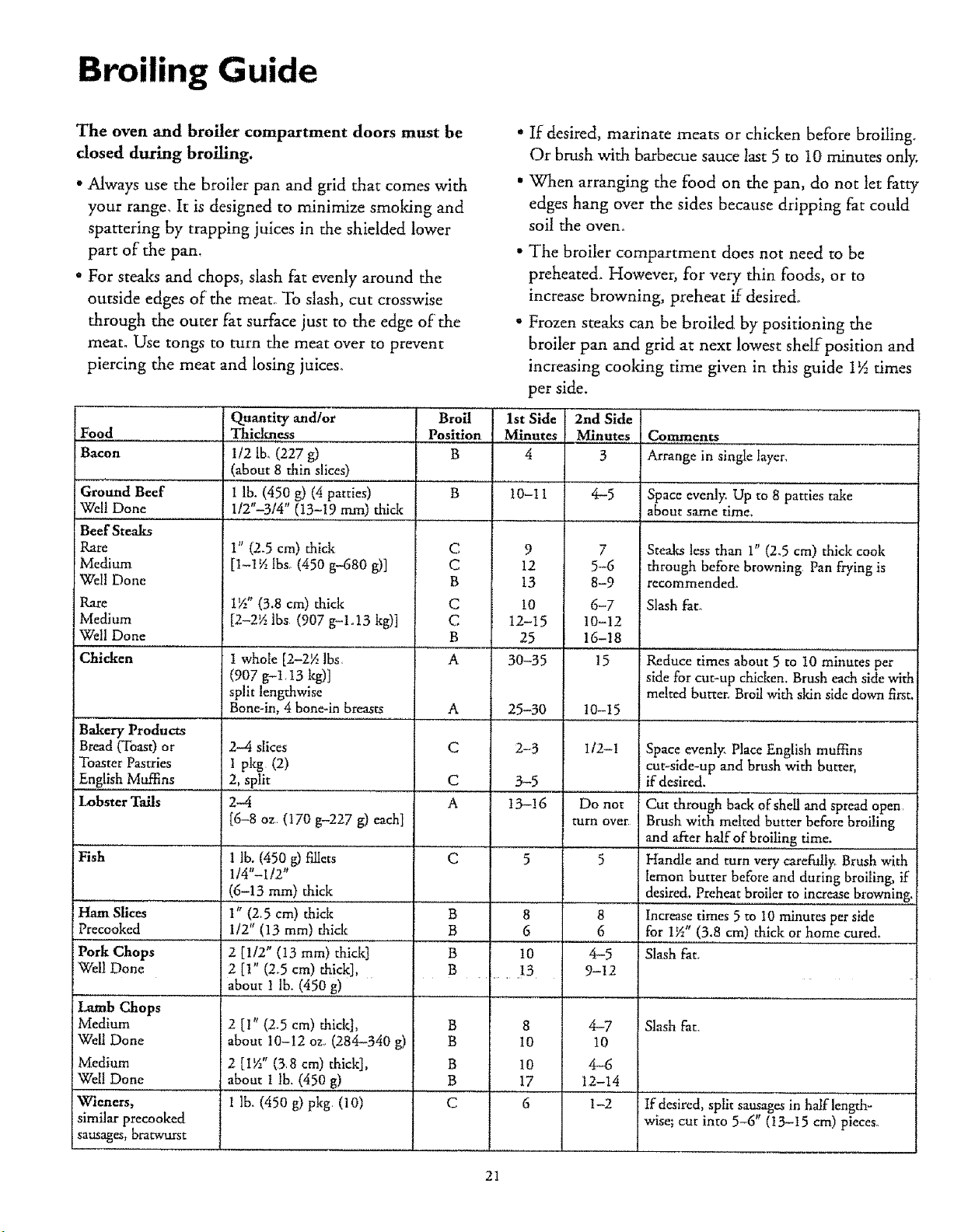

Broiling!Broiling Guide 20, 2
Clock andTimer 12

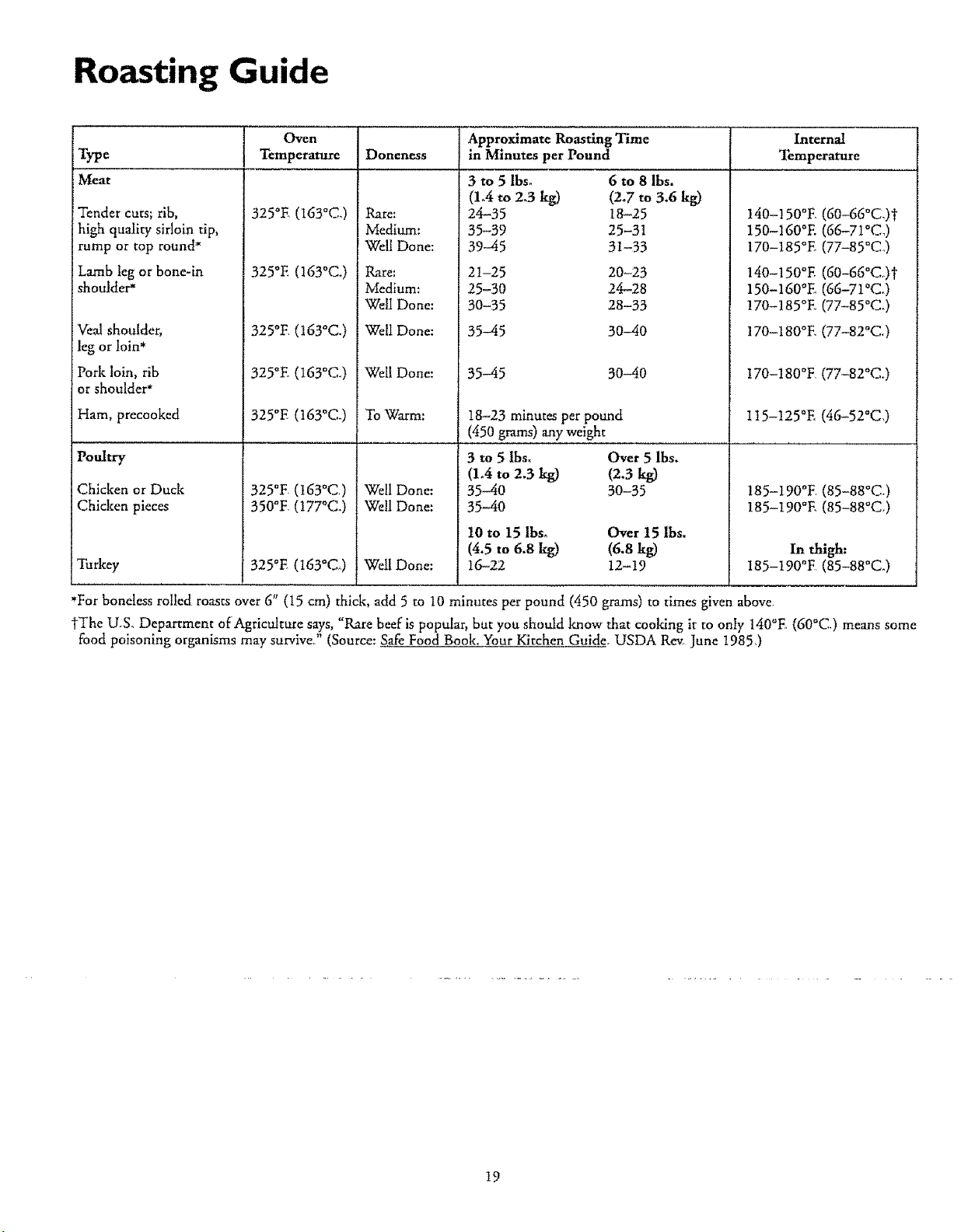

Roasting,Roasting Guide I8, 19
Surface Cooking 8-11
Caution:
Read and Follow
All Safety Rules
and Operating
Instructions
Before First Use
of This Appliance.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
tg3D558(]P052
5R4244
4_7 CG

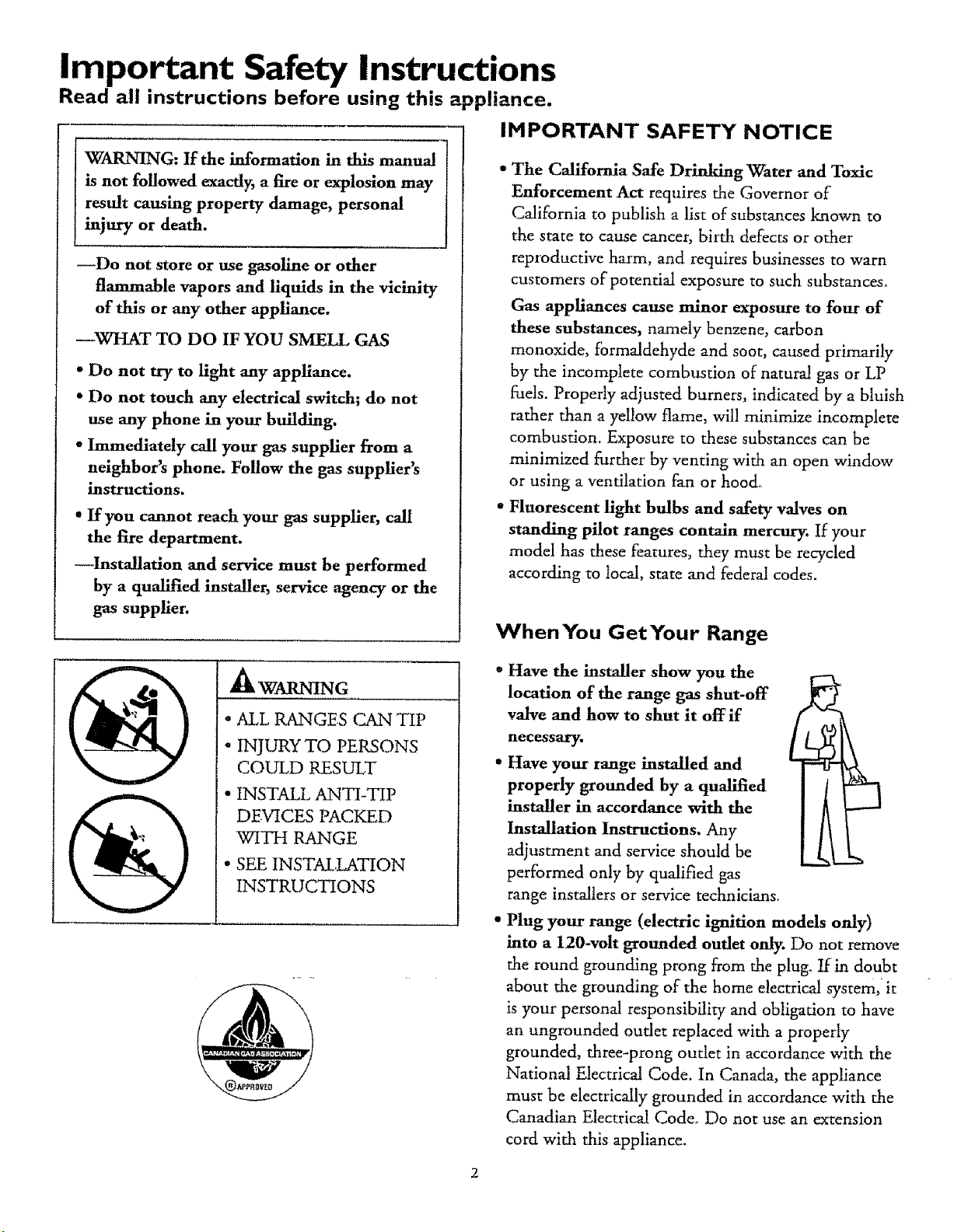

Important Safety Instructions
Read all instructions before using this appliance.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
--Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
--WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers
instructions.
• If you cannot reach your gas supplier, call
the fire department.
--Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
IMPORTANT SAFETY NOTICE
• The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances known to
the state to cause cancer, birth defects or other
reproductive harm, and requires businesses to warn
customers of potential exposure to such substances°
Gas appliances cause minor exposure to four of
these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily
by the incomplete combustion of natural gas or LP
fuels. Properly adjusted burners, indicated by a bluish
rather than a yellow flame, will minimize incomplete
combustion. Exposure to these substances can be
minimized further by venting with an open window
or using a ventilation fan or hood..
° Fluorescent light bulbs and safety valves on
standing pilot ranges contain mercury. If your
model has these features, they must be recycled
according to local, state and federal codes.
When You GetYour Range
A WARNTN G
. ALL RANGES C_N TIP
" INJURY TO PERSONS
COULD RESULT
• INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE
° SEE INSTALLATION
INSTRUCTIONS
Have the installer show you the
location of the range gas shut-off
valve and how to shut it off if
necessary.
Have your range installed and
properly grounded by a qualified
installer in accordance with the
Installation Instructions. Any
adjustment and service should be
performed only by qualified gas
range installers or service technicians.
Plug your range (electric ignition models only)
into a 120-volt grounded outlet only. Do not remove
the round grounding prong from the plug. If in doubt
about the grounding of the home electrical system, _it
is your personal responsibility and obligation to have
an ungrounded outlet replaced with a properly
grounded, three-prong outlet in accordance with the
National Electrical Code. In Canada, the appliance
must be electrically grounded in accordance with the
Canadian Electrical Code, Do not use an extension
cord with this appliance.

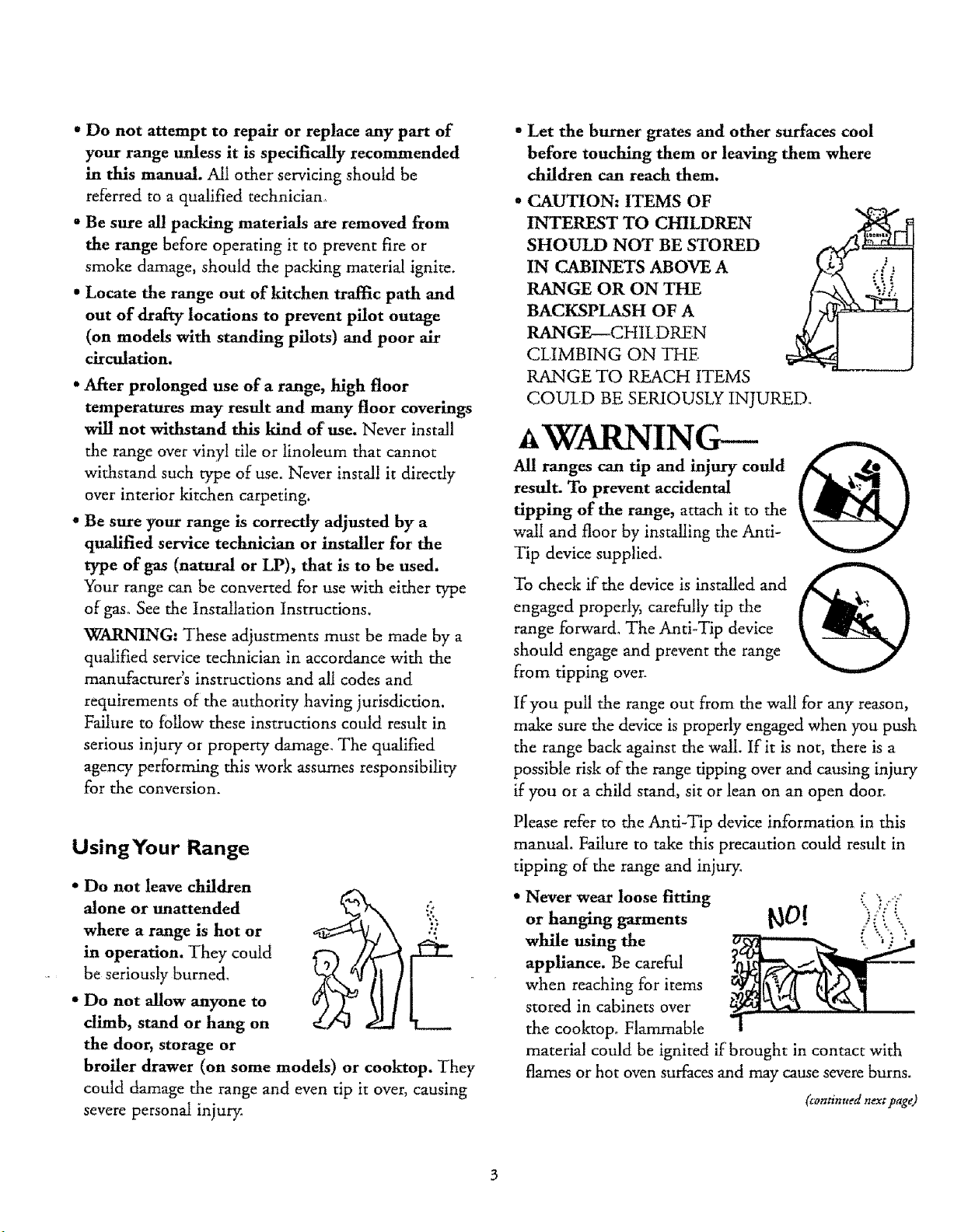

* Do not attempt to repair or replace any part of
your range unless it is specifically recommended
in this manual. All other servicing should be
referred to a qualified technician,
" Be sure al! packing materials are removed from
the range before operating it to prevent fire or
smoke damage, should the packing material ignite.
* Locate the range out of kitchen traffic path and
out of drafty locations to prevent pilot outage
(on models with standing pilots) and poor air
circulation.
• After prolonged use of a range, high floor
temperatures may result and many floor coverings
will not withstand this kind of use. Never install
the range over vinyl tile or linoleum that cannot
withstand such type of use. Never install it directly
over interior kitchen carpeting,
• Be sure your range is correctly adjusted by a
qualified service technician or installer for the
type of gas (natural or LP), that is to be used.
Your range can be converted for use with either type
of gas_ See the Installation instructions.
WARNING: These adjustments must be made by a
qualified service technician in accordance with the
manufacturer's instructions and all codes and
requirements of the authority having jurisdiction.
Failure to follow these instructions could result in
serious injury or property damage. The qualified
agency performing this work assumes responsibility
for the conversion.
UsingYour Range
• Do not leave children
alone or unattended
where a range is hot or
in operation. They could
be seriously burned.
• Do not allow anyone to
climb, stand or hang on
the door, storage or
broiler drawer (on some models) or cooktop. They
could damage the range and even tip it over, causing
severe personal injur_
Let the burner grates and other surfaces cool
before touching them or leaving them where
children can reach them.
CAUTION: ITEMS OF
INTEREST TO CHILDREN
SHOULD NOT BE STORED
IN CABINETS ABOVE A
RANGE OR ON THE
BACKSPLASH OF A
RANGE---CHILDREN
CLIMBING ON THE
RANGE TO REACH ITEMS
COULD BE SERIOUSLY INJURED.

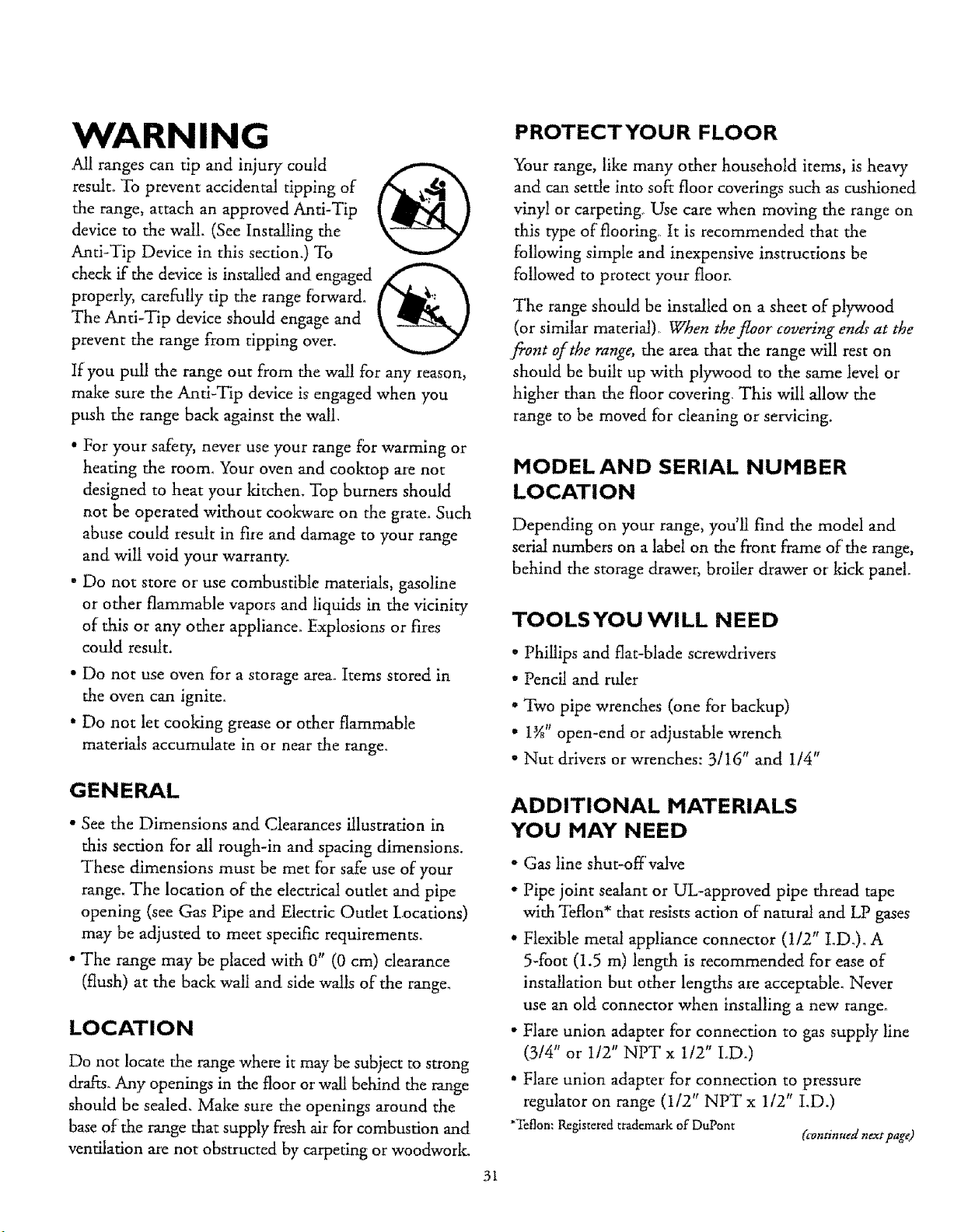

aWARNIN
All rangescan tip and injury could
result. To prevent accidental
tipping of the range, attach it to the
wall and floor by installing the Anti-
Tip device supplied_
To check if the device is installed and
engaged properly, carefully tip the
range forward. The Anti-Tip device
should engage and prevent the range
from tipping over.
If you pull the range out from the wall for any reason,
make sure the device is properly engaged when you push
the range back against the walt. If it is not, there is a
possible risk of the range tipping over and causing injury
if you o_ a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this
manual. Failure to take this precaution could result in
tipping of the range and injury.
* Never wear loose fitting :_ "_.,:.:
or hanging garments _D[ \ :':'"
while using the
appliance. Be careful
when reaching for items
stored in cabinets over
the cooktopo Flammable
material could be ignited if' brought in contact with
flames or hot oven surfaces and may cause severe bums.
(continued next page)

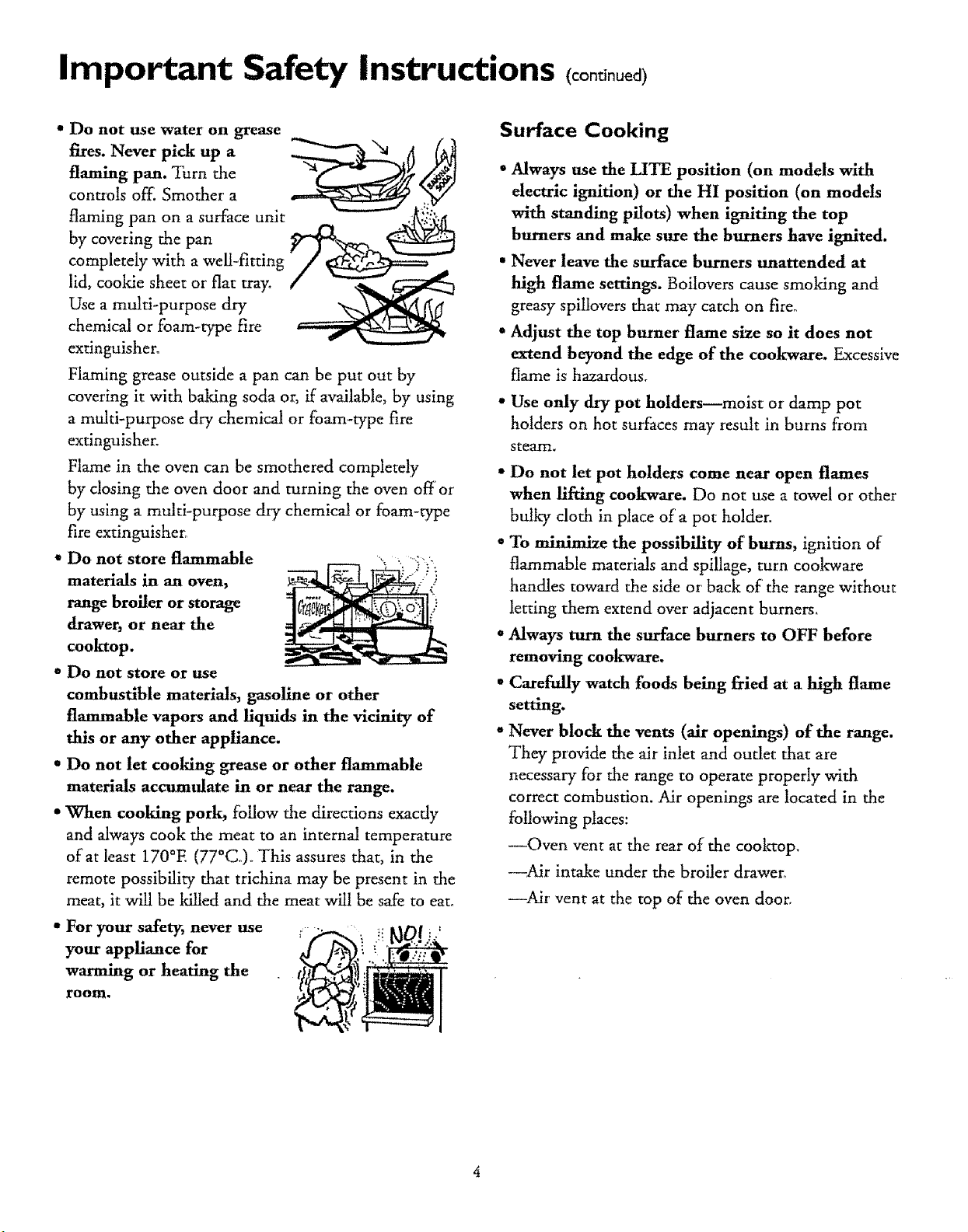

Important Safety Instructions (co0 0u0d)
• Do not use water on grease
fires. Never pick up a
flaming pan. Turn the
controls off. Smother a
flaming pan on a surface unit
by covering the pan
completely with a well-fitting
lid, cookie sheet or flat tray.
Use a multi-purpose dry
chemical or foam-_,pe fire
extinguisher.
Flaming grease outside a pan can be put out by
covering it with baking soda or, if available, by using
a multi-purpose dry chemical or foam-type fire
extinguisher.
Flame in the oven can be smothered completely
by closing the oven door and turning the oven off or
by using a multi-purpose dry chemical or foam-type
fire extinguisher_
• Do not store flammable
materials in an oven,
range broiler or storage
drawer, or near the
cooktop.
• Do not store or use
combustible materials, gasoline or other
flammable vapors and liquids in the vidnlty of
this or any other appliance.
• Do not let cooking grease or other flammable
materials accumulate in or near the range.
• When cooking pork, follow the directions exactly
and always cook the meat to an internal temperature
of at least 170°E (77°C,). This assures that, in the
remote possibility that trichina may be present ia the
meat, it will be killed and the meat wi_ be safe to eat°
• For your safety; never use
your appliance for
warming or heating the
room,
Surface Cooking
* Always use the LITE position (on models with
electric ignition) or the HI position (on models
with standing pilots) when igniting the top
burners and make sure the burners have ignited.
• Never leave the surface burners unattended at
high flame settings. Boilovers cause smoking and
greasy spillovers that may catch on fire°
* Adjust the top burner flame size so it does not
extend beyond the edge of the cookware. Excessive
flame is hazardous°
• Use only dry pot holders--moist or damp pot
holders on hot surfaces may result in burns from
steam,
* Do not let pot holders come near open flames
when lifting cookware. Do not use a towel or other
bulky cloth in place of a pot holder.
, To minimize the possibility" of burns, ignition of
flammable materials and spillage, turn cookware
handles toward the side or back of the range without
letting them extend over adjacent burners,
o Always mm the surface burners to OFF before
removing cookware,
Carefully watch foods being fried at a high flame
setting.
• Never block the vents (air openings) of the range.
They provide the air inlet and outlet that are
necessary for the range to operate properly with
correct combustion. Air openings are located in the
following places:
--Oven vent at the rear of the cooktop,
---Mr intake under the broiler drawer°
---_r vent at the top of the oven door,

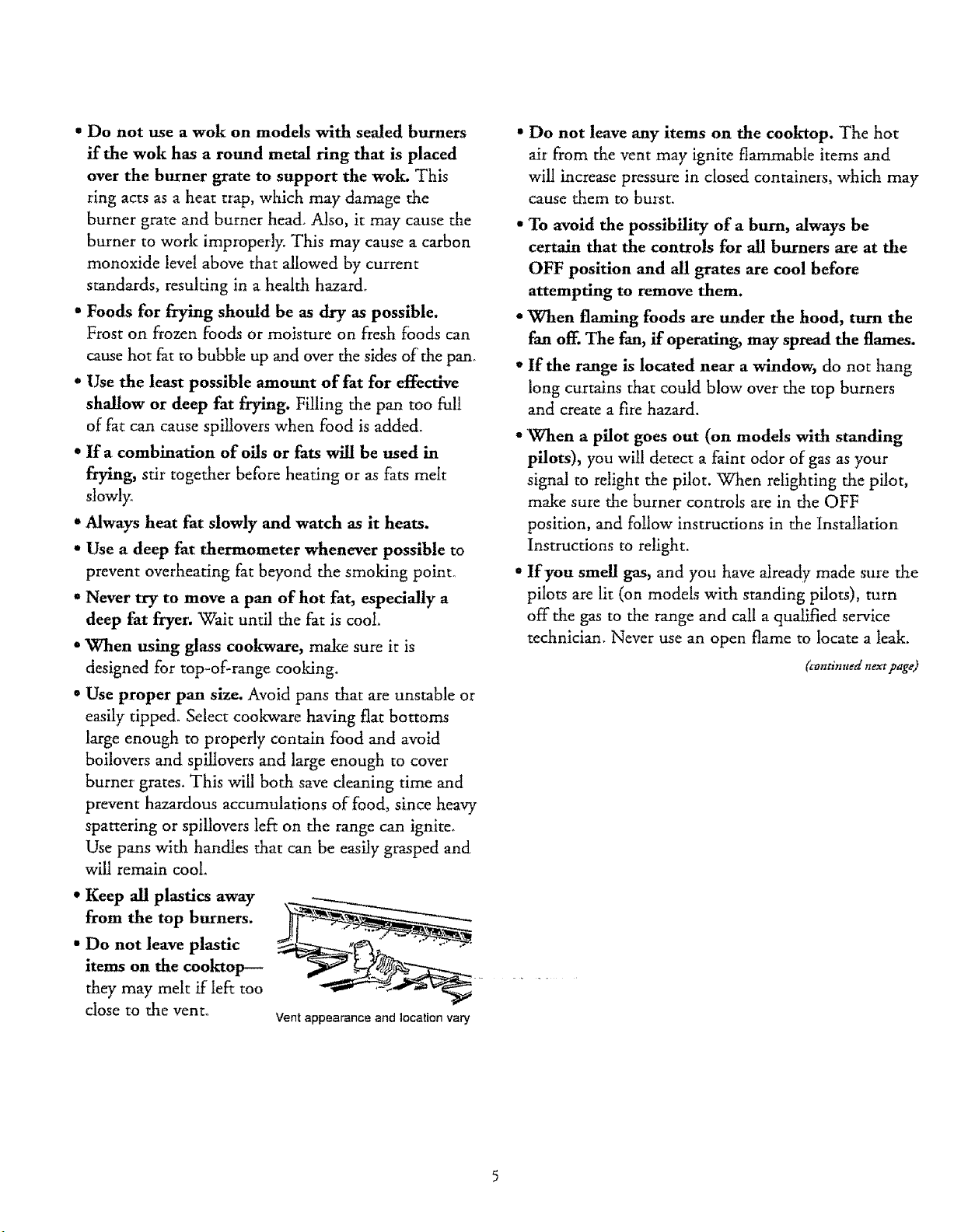

" Do not use a wok on models with sealed burners
ff the wok has a round metal ring that is placed
over the burner grate to support the wok. This
ring acts as a heat trap, which may damage the
burner grate and burner head. Also, it may cause the
burner to work improperly. This may cause a carbon
monoxide level above that allowed by current
standards, resulting in a health hazard_
° Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh foods can
cause hot fat to bubble up and over the sides of the pano
• Use the least possible amount of fat for effective
shallow or deep fat frying. Filling the pan too ful!
of fat can cause spillovers when food is added.
° If a combination of oils or fats will be used in
flying, stir together before heating or as fits melt
slowly_
° Always heat fat slowly and watch as it heats.
• Use a deep fat thermometer whenever possible to
prevent overheating fat beyond the smoking point.
• Never try to move a pan of hot fat, especially a
deep fat fryer. Wait unti! the fat is cool
° When using glass cookware, make sure it is
designed for top-of-range cooking.
• Use proper pan size. Avoid pans that are unstable or
easily tipped. Select cookware having fiat bottoms
large enough to properly contain food and avoid
boilovers and spillovers and large enough to cover
burner grates. This will both save cleaning time and
prevent hazardous accumulations of food, since heavy
spattering or spillovers left on the range can ignite.
Use pans with handles that can be easily grasped and
will remain cool
Do not leave any items on the cooktop. The hot
air from the vent may ignite flammable items and
will increase pressure in closed containe:s, which may
cause them to burst.
" To avoid the possibility of a burn, always be
certain that the controls for all burners are at the
OFF position and all grates are cool before
attempting to remove them.
• When flaming foods axe under the hood, turn the
fan off. The fan, ff operating, may spread the flames.
If the range is located near a window, do not hang
long curtains that could blow over the top burners
and create a rite hazard.
° When a pilot goes out (on models with standing
pilots), you will detect a faint odor of gas as your
signal to relight the pilot, When retighting the pilot,
make sure the burner controls are in the OFF
position, and follow instructions in the Installation
Instructions to relight.
• If you smell gas, and you have already made sine the
pilots are lit (on models with standing pilots), turn
off the gas to the range and call a qualified service
technician. Never use an open flame to locate a leak.
(cantinued next page)
• Keep all plastics away
from the top burners.
• Do not leave plastic
items on the cooktop--
they may melt if left too
close to the vent°
Vent appearance and location vary

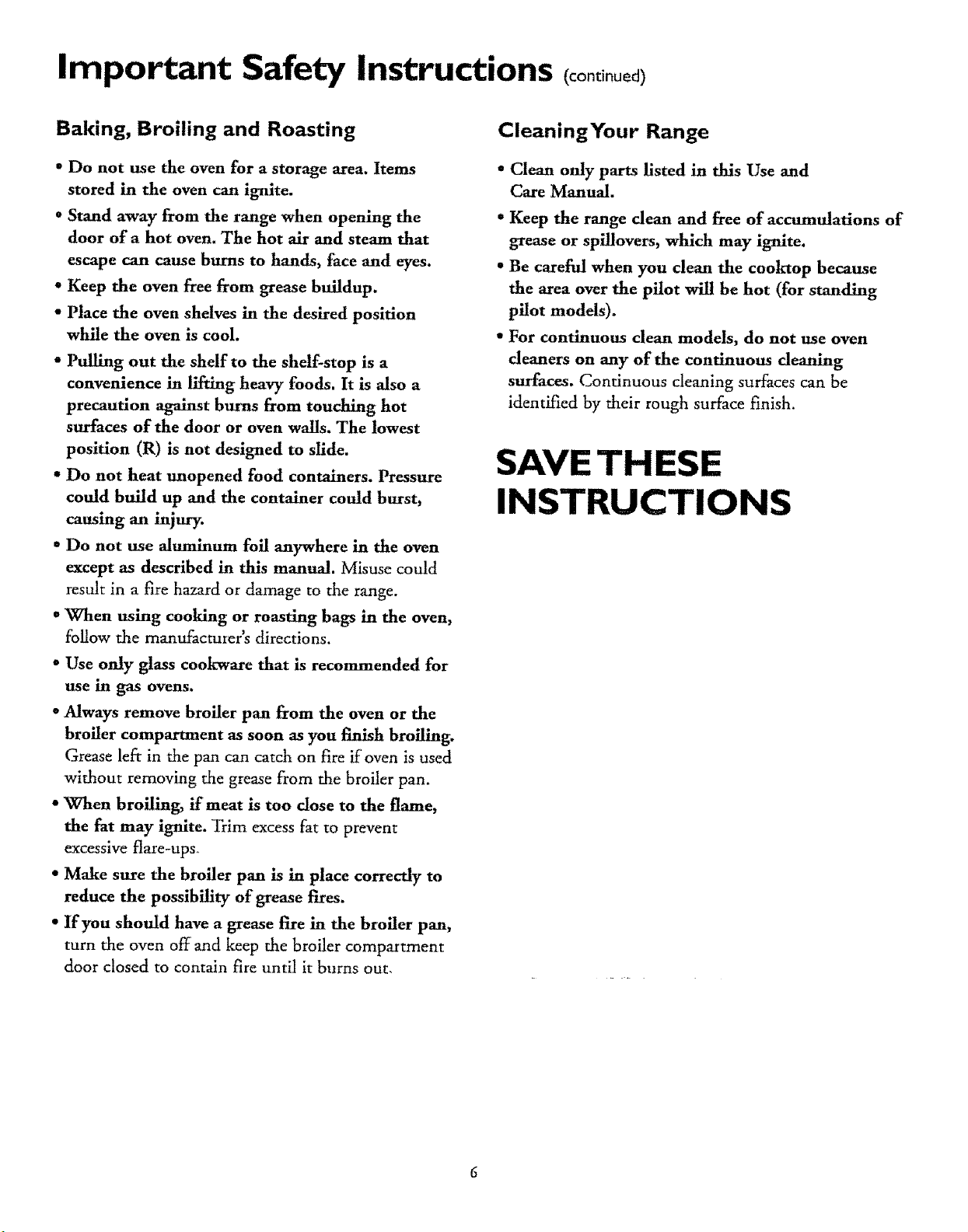

Important Safety Instructions (0o0 i0°0¢
Baking, Broiling and Roasting
* Do not use the oven for a storage area. Items
stored in the oven can ignite.
o Stand away from the range when opening the
door of a hot oven. The hot air and steam that
escape can cause burns to hands, face and eyes.
* Keep the oven free from grease buildup.
o Place the oven shelves in the desired position
while the oven is cool.
• Pulling out the shelf to the shelf-stop is a
convenience in lifting heavy foods. It is also a
precaution against burns from touching hot
surfaces of the door or oven walls. The lowest
position (R) is not designed to slide.
° Do not heat unopened food containers. Pressure
could build up and the container could burst,
causing an injury.
• Do not use aluminum foil anywhere in the oven
except as described in this manual. Misuse could
result in a fire hazard or damage to the range.
• When using cooking or roasting bags in the oven,
follow the manufacturer's directions.
" Use only glass cookware that is recommended for
use in gas ovens.
- Always remove broiler pan from the oven or the
broiler compartment as soon as you finish broiling.
Grease left in the pan can catch on fire if oven is used
without removing the grease from the broiler pan.
When broiling, if meat is too close to the flame,
the fat may ignite. Trim excess fat to prevent
excessive flare-ups_
* Make sure the broiler pan is in place correctly to
reduce the possibility of grease fires,
• If you should have a grease fire in the broiler pan,
turn the oven off and keep the broiler compartment
door closed to contain fire until it burns out,
CleaningYour Range
• Clean only parts listed in this Use and
Care Manual.
• Keep the range dean and free of accumulations of
grease or spillovers, which may ignite.
• Be careful when you clean the cnoktop because
the area over the pilot will be hot (for standing
pilot models).
• For continuous dean models, do not use oven
cleaners on any of the continuous deaning
surfaces. Continuous cleaning surfaces can be
identhqed by their rough surface finish.
SAVE THESE
INSTRUCTIONS
Features of Your Range
NOTE: Not all models have all features. Appearance of features varies.
¢
¢
O
¢
€
¢
!
lI II
!1 II
@
/_ umar CapDEp Pan
_ Burner Head
j
Your range is equipped with
one of the two types of surface
burners shown above,
0
0
Feature Index See Page
I Broiler Compartment .3, 4, 6, 20,
2I, 27, 38
2 Model and Serial Numbers
On front frame of range, behind
broiler compartment, storage
drawer or kick panel.
3 Anti-Tip Device 2, 3, 31, 39
4 Oven Bottom 27
5 Oven Shelves Easily removed 6, 14-I6,
or reposidoned on shelfsupports_ 18, 2I, 25
6 Oven Interior Light 13, 25
(on some models)
7 Oven Light Switch (on some models) I3
8 Surface Burners, Drip Pans 4, 5, 8-I 1,
(on some models), and Grates 22-24, 36, 37
9 Oven Vent (location varies) 5, I4, 25
Feature index See Page
I0 Clock and Timer 12
(on some models)
11 Lift-Up Cooktop 24
(on models with standard twin burners)
12 Surface Burner Control Knobs 4, 10, 1 I, 25
13 Oven Control Knob 13, 15,
t 7-20, 25
I4 Oven Shelf Supports 13-15, 18
I5 Lift-Off Oven Door 3, 20, 26
16 Installation Clearances Label
I7 Air Intake (under storage or broiler 25
drawer or kick panel)
I8 Broiler Pan and Grid 6, 18, 20,
2I, 25
Air Vents 5, 14, 25

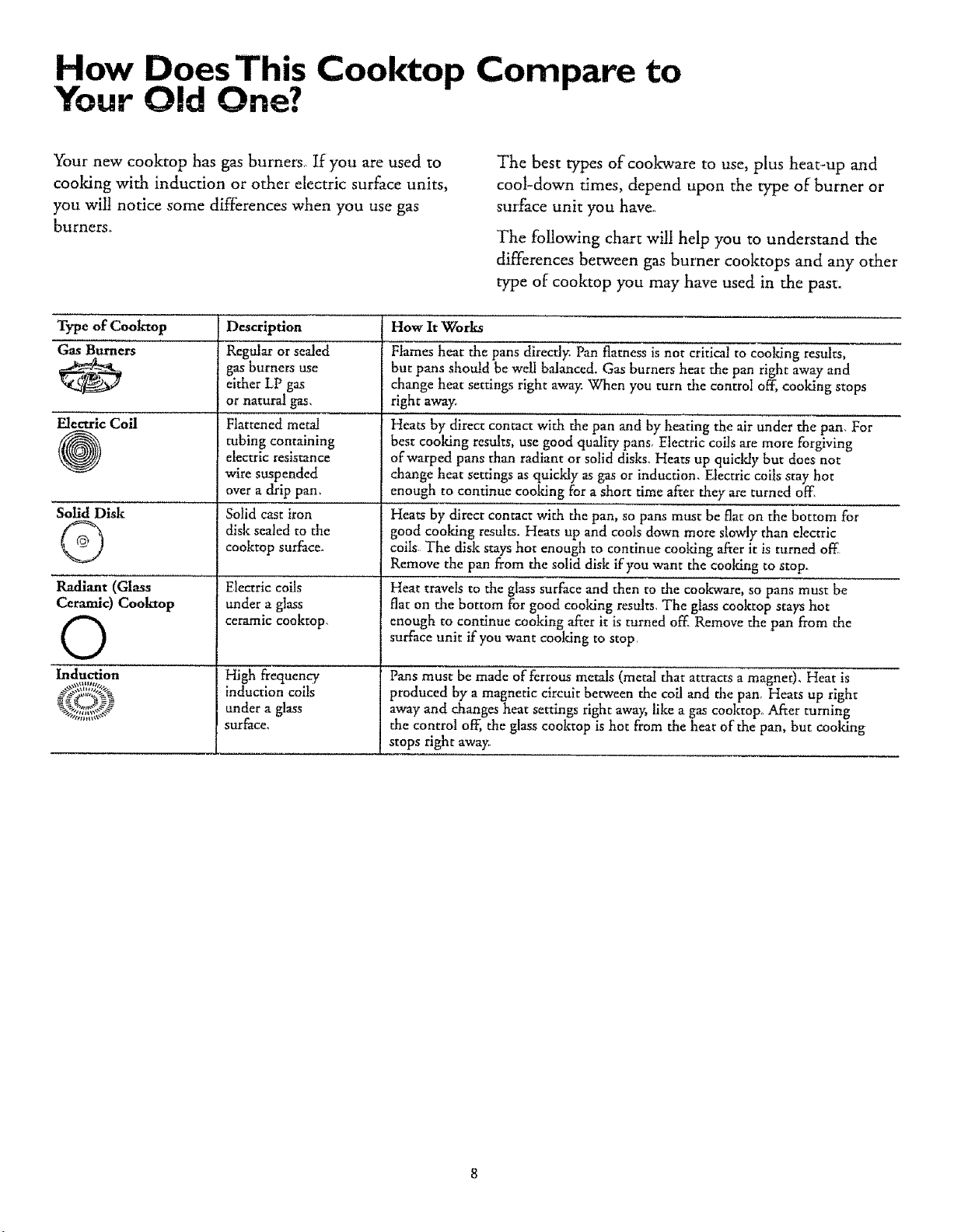

How Does This Cooktop Compare to
Your Old One?
Your new cooktop has gas burnets. If you are used to
cooldng with induction or other electric surface units,
you wilt notice some differences when you use gas
burners°
The best types of coolcware to use, plus heat-up and
cool-down times, depend upon the type of burner or
surface unit you haven
The following chart will help you to understand the
differences between gas burner cooktops and any other
type of cooktop you may have used in the past.
Type of Cooktop
Gas Burners
Hectric Coil
@
Solid Disk
@
Radiant (Glass
Ceramic') Cooktop
O
Induction
Description
Regular or sealed
gasburners use
either LP gas
or natural gas,
Flattened metal
tubing containing
electric resistance
wire suspended
over a drip pan,
Solid cast iron
disk sealed to the
cooktop surface.
Electric coils
under a glass
ceramic cooktop.
High frequency
induction coils
under a glass
5urface_
How It Works
Flames heat the pans directly. Pan flatness is not critiol to cooldng results,
but pans should be well balanced. Gas burners heat the pan right away and
change heat settings right awa_ When you turn the control off, cooking stops
right away°
Heats by direct contact with the pan and by heating the air under the pan. For
best cooking results, use good quality pans, Electric coils are more forgiving
of warped pans than radiantor solid disks, Heats up quictdy but does not
change heat settings as quickly asgas or induction. Electric coils stay hot
enough to continue cooking for a short time afi:er they are turned off,
Heats by direct contact with the pan, so pans must be flat on the bottom for
good cooking results. Heats up and cools down more slowly than electric
coils, The disk stays hot enough to continue cooking after it is turned off',
Remove the pan from the solid disk if you want the cooldng to stop.
Heat travels to the glass surface and then to the cookware, so pans must be
flat on the bottom for good cooking results, The glass cooktop stays hot
enough to continue cooking after it is turned off. Remove the pan from the
surface unit if you want cooking to stop
Pans must be made of ferrous metals (metal that attracts a magnet). Heat is
produced by a magnetic circuit between the coll and the pan. Heats up right
away and changes heat settings right away. like a gas cooktop.. After turning
the control off, the glass cooktop is hot from the heat of the pan, but cooking
stops right away
Surface Cooking
Lighting Instructions for
Standing Pilot Models
The surface burners on these
ranges have standing pilots
that must be lit initially° To
light them:
1. Be sure the surface
burner control knobs are
in the OFF position.
2. Remove the grates and lift the cooktop up (see the
Lift-Up Cooktop section).
3. Locate the two pilot ports and light each of them
with a match.
NOTE: If the pilot is too high or low, you can adjust it.
See the Adjust the Surface Burner Pilots If' Necessary
section of the Installation Instructions.
4. Lower the cooktop. Your surface burners are now
ready for use_
5. Observe the lighted burners. Compare the flames to
pictures in the Problem Solver, If any flame is
unsatisfactory, ca]l for service.
Lighting Instructions for
Electric Ignition Models
Your surface burners are lighted by electric ignition,
eliminating the need for standing pilot lights with
constantly burning flames.
In case of a power failure, you can light the surface
burners on your range with a match. Hold a lighted
match to the burner, then turn the knob to the LITE
position. Use extreme caution when lighting burners
this way.
Surface burners in use when an electrical power failure
occurs will continue to operate normally,
The electrode of the spark igniter is exposed° When
one burner is turned to LITE, all the burners spark,
Do not attempt to disassemble or clean around any
burner while another burner is ono Am electric
shock may result, which could cause you to knock
over hot cookware_
(continued next page)

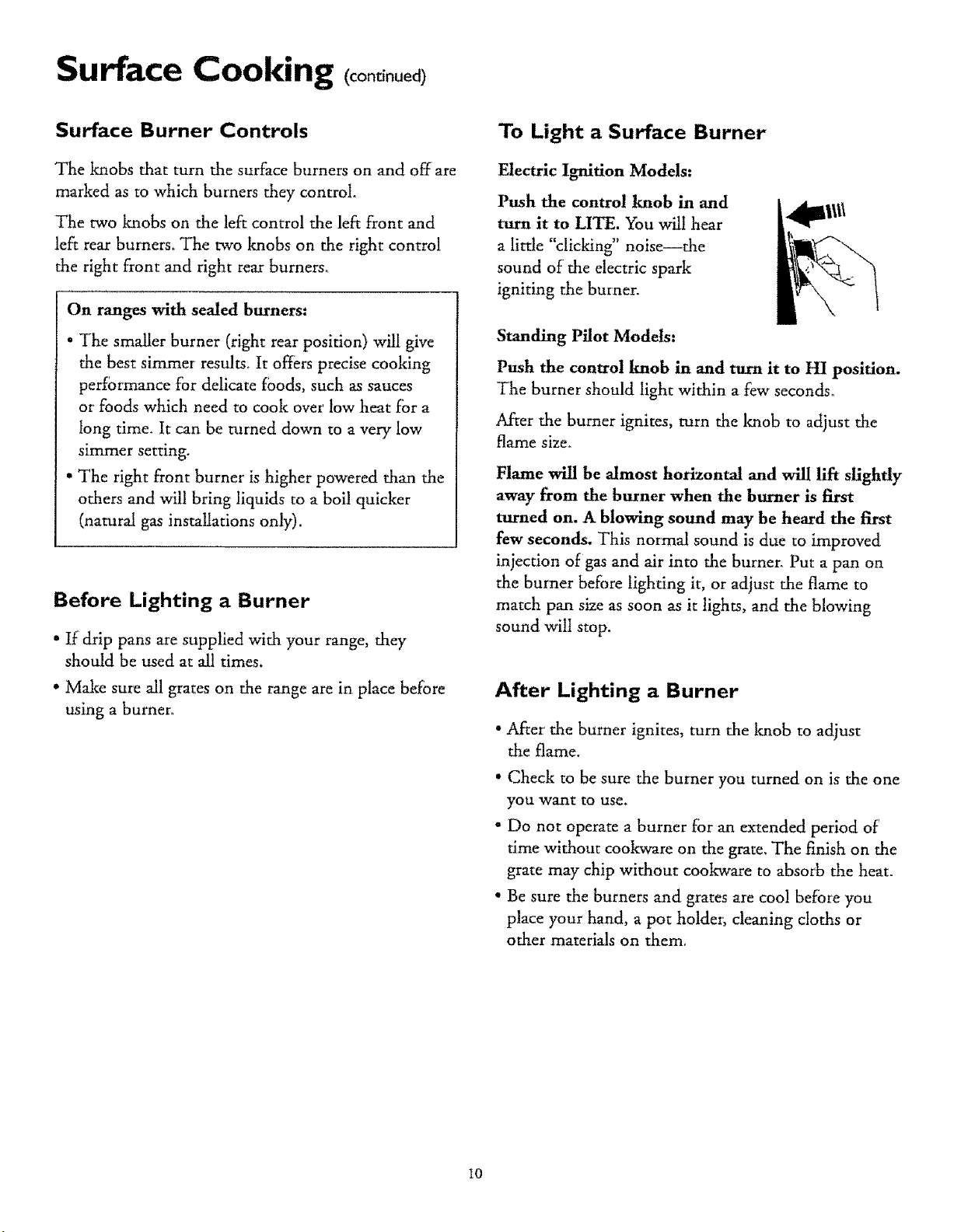

Surface Cooking (0o0 o0od
Surface Burner Controls
The knobs that turn the surface burners on and off are
marked as to which burners they control.
The two knobs on the left contro! the left front and
left rear burners° The two knobs on the right contro!
the right front and right rear burners.
On ranges with sealed burners:
" The smaller burner (right rear position) will give
the best simmer results. It offers precise cooking
performance for delicate foods, such as sauces
or foods which need to cook over !ow heat for a
long time. It can be turned down to a very low
simmer setting.
• The right front burner is higher powered than the
others and will bring liquids to a boil quicker
(natural gas installations only).
Before Lighting a Burner
• Ii:drip pans are supplied with your range, they
should be used at aB times.
• Make sure all grates on the range are in place before
using a burner°
To Light a Surface Burner
Electric Ignition Models:
Push the control knob in and
turn it to LITE. You wilt hear
a little "clicking" noise--the
sound of the electric spark
igniting the burner.
Standing Pilot Models:
Push the control knob in and him it to HI position.
The burner should light within a few seconds°
After the burner ignites, turn the knob to adjust the
flame size.
Flame will be almost horizontal and will lift slightly
away from the burner when the burner is first
turned on. A blowing sound may be heard the first
few seconds. This normal sound is due to improved
injection of gas and air into the burner. Put a pan on
the burner before lighting it, or adjust the flame to
match pan size as soon as it !ights, and the blowing
sound will stop.
After Lighting a Burner
" After the burner ignites, turn the knob to adjust
the flame.
• Check to be sure the burner you turned on is the one
you want to use.
• Do not operate a burner for an extended period of'
time without cookware on the grate, The finish on the
grate may chip without cookware to absorb the heat.
• Be sure the burners and grates are coo! befbre you
place your hand, a pot holdez; cleaning cloths or
other materials on them,
t0

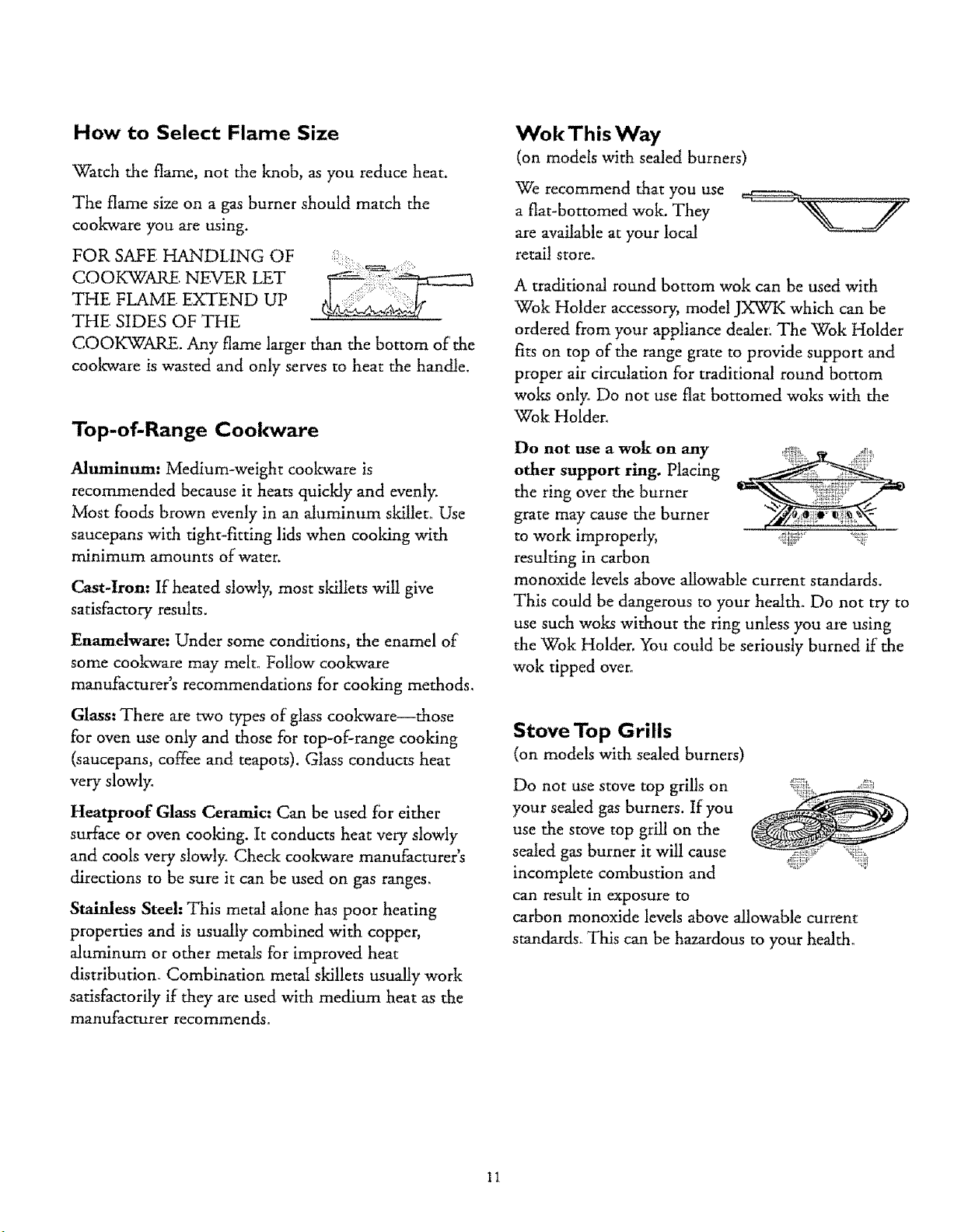

How to Select Flame Size
Watch the flame, not the knob, as you reduce heat.
The flame size on a gas burner should match the
cook'ware you are using.
FOR SAFE HANDLING OF _....
COOKWARE NEVER LET
THE FLAME EXTEND UP
THE SIDES OF THE
COOKWARE. Any flame larger than the bottom of the
cookware is wasted and only serves to heat the handle.
Top-of-Range Cookware
iidttminttm: Medium-weight cookware is
recommended because it heats quickly and evenly.
Most foods brown evenly in an aluminum skillet° Use
saucepans with tight-fitting lids when coo!ring with
minimum amounts of water.
G-st-Iron: If heated slowly, most skillets will give
satisfactory results.
Enamelware: Under some conditions, the enamel of
some cookware may melto Follow cook-ware
manufacturer's recommendations for cooking methods_
Glass: There are two types of glass coolcware----_ose
for oven use only and those for top-of-range cooking
(saucepans, coffee and teapots). Glass conducts heat
very slowl)_
Heatproof Glass Ceramic: Can be used for either
surface or oven cooking. It conducts heat very slowly
and cools very slowly° Check cookware manufacturer's
directions to be sure it can be used on gas ranges_
Stainless Steel: This metal alone has poor heating
properties and is usually combined with copper,
aluminum or other metals for improved heat
distribution_ Combination metal skillets usually work
satisfactorily if they are used with medium heat as the
manufacturer recommends.
Wok This Way
(on models with sealed burners)
We recommend that you use
a flat-bottomed wok. They
are available at your local
retail store.
A traditional round bottom wok can be used with
Wok Holder accessory, model JXWK which can be
ordered from your appliance dealer" The Wok Holder
fits on top of the range grate to provide support and
proper air circulation for traditional round bottom
woks onlyo Do not use flat bottomed woks with the
Wok Holder°
Do not use a wok on any .........
other support ring. Placing
the ring over the burner
grate may cause the burner
to work improperly, _!i::i_"
resulting in carbon
monoxide levels above allowable current standards.
This could be dangerous to your health. Do not try to
use such woks without the ring unless you are using
the Wok Holder. You could be seriously burned if the
wok tipped over.
Stove Top Grills
(on models with sealed burners)
Do not use stove top grills on
your sealed gas burners. If you
use the stove top grill on the
sealed gas burner it will cause '_!_.
incomplete combustion and
can result in exposure to
carbon monoxide levels above allowable current
standards° This can be hazardous to your health°
11
Clock and Timer (onsomomodo,s)
[ ;,2:=o]©
(appearance may vary)
Follow the directions below if your range has the clock
and timer shown above. You have the choice of having
the timer show the time counting down or the time of
day_ In either case, the timer will signal at the end of
the timer period to alert you that the time is up.
To Set the Clock
NOTE: When you first plug in the range or after a
power failure, the entire Clock/Timer display wii!
light up.
I. Press the CLOCK pad.
2. Press and hold the LIP or DOWN pad and the time
of day will change 10 minutes at a time. To change
the time by single minutes, give the pads short taps°
3. Press the CLOCK pad to start the clock.
To Set the Timer
1. Press the TIMER ON/OFF pad.
2. Use the UP and DOWN pads to set the timer.
Short taps on the UP or DOWN pad change the
timers setting one minute at a timer Pressing and
continuing to hold the UP pad increases the setting
ten minutes at a time°
3. Once you have set your timer, press the TIMER
ON/OFF pad to start timing. As the timer counts
down a signal will indicate when one minute is left.
After this signal, the display will count down in
seconds. When time runs out, a final signal will sound.
Press the TIMER ONIOFF pad to stop the signal
To Display the Clock While
the Timer is Operating
Pressing the CLOCK pad while the timer is operating
wilt not interfere with the timer's operation; the display
MII change to show the clock, but the timer will continue
to count down and will still signal when time is up.
Press the TIMER ONIOFF pad again to change the
display back to show the timer.
Conventional Clock and Timer
(on some models)
The clock and timer are helpful devices that serve
several purposes.
The Clock
To set the dock, push in the knob
and turn it to the right. Let the
knob out when the clock hands
reach the correct time° Continue
turning the knob to OFE
Timer
The timer has been combined with the range clock.
Use it to time al! your precise cooking operations.
You'll recognize the timer as the pointer that is
different in color than the clock hands. Minutes are
marked up to 30, and hours are marked up to 4 on the
center ring of the clock.
To set the timer, turn the knob to the left--without
pushing in--until the pointer reaches the number of
minutes or hours you want to time.
At the end of the set time, a buzzer sounds to tell
you time is up. Turn the knob--without pushing
in--until the pointer reaches OFF and the buzzer stops.
To Change or Cancel theTimer Setting
When the timer is counting down, use the UP and
DOWN pads to change the remaining time, or press
the TIMER ON/OFF pad to stop the timer. The timer
cannot be cancelled unless you have fully completed
"set timer" instructions above.
12

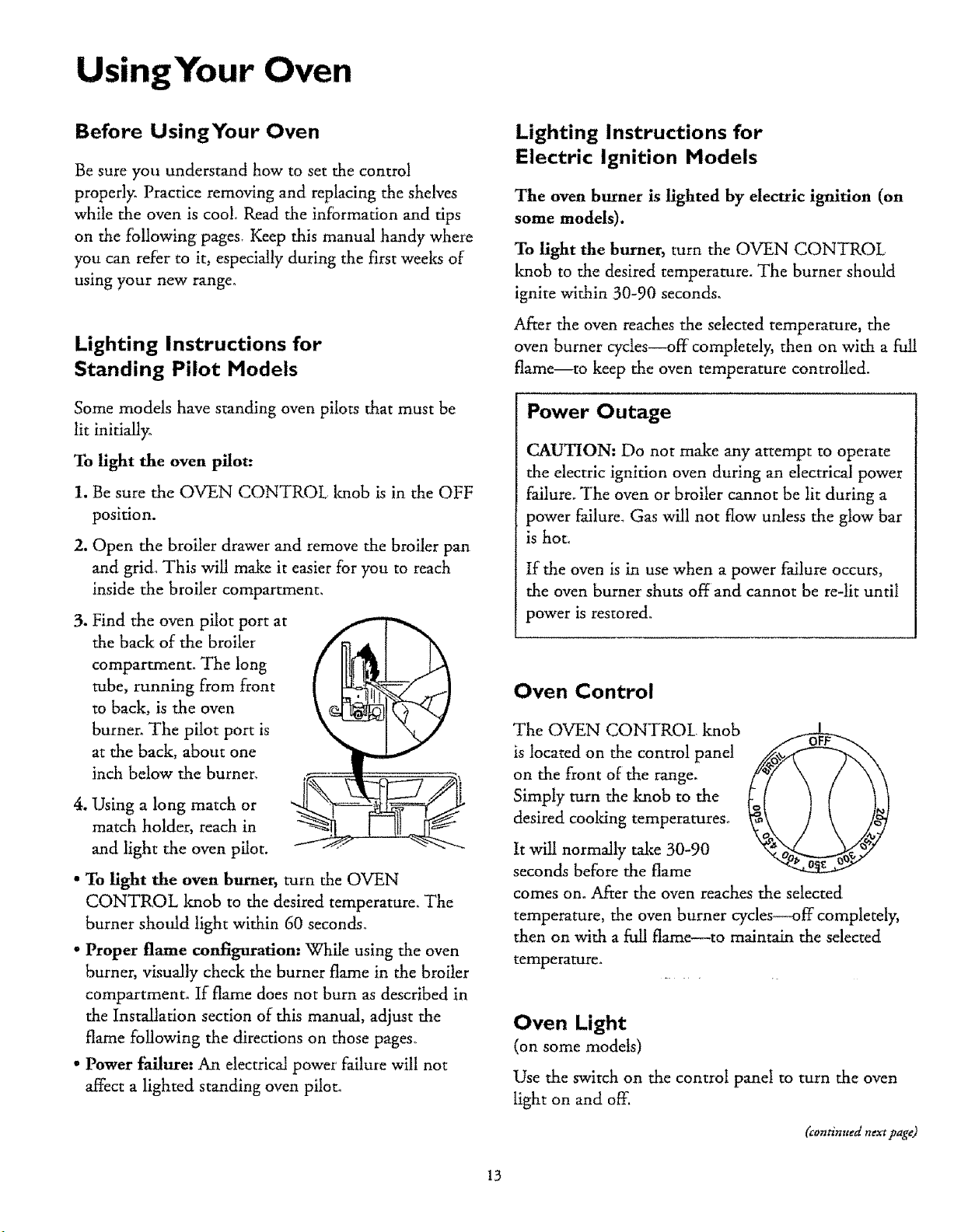

UsingYour Oven
Before UsingYour Oven
Be sure you understand how to set the control
properly. Practice removing and replacing the shelves
while the oven is cool Read the information and tips
on the following pages. Keep this manual handy where
you can refer to it, especially during the first weeks of
using your new range.
Lighting Instructions for
Standing Pilot Models
Some models have standing oven pilots that must be
lit initially_
To fight the oven pilot:
1. Be sure the OVEN CONTROL knob is in the OFF
position.
2. Open the broiler drawer and remove the broiler pan
and grid. This will malce it easier for you to reach
inside the broiler compartment.
3. Find the oven pilot port at _,
the back of the broiler I )
compartment. The long
robe, running from front /"
to back, is the oven
burner. The pilot port is \
at the back, about one '_
inch below the burner.
4. Using a long match or
match holder, reach in
and light the oven pilot.
• To fight the oven burner, turn the OVEN
CONTROL lmob to the desired temperature° The
burner should light within 60 seconds°
• Proper flame configuration: While using the oven
burner, visually check the burner flame in the broiler
compartment° If flame does not burn as described in
the Installation section of this manual, adjust the
flame following the directions on those pages_
• Power failure: An electrical power failure will not
affect a lighted standing oven pilot°
Lighting Instructions for
Electric Ignition Models
The oven burner is righted by electric ignition (on
some models).
To right the burner, turn the OVEN CONTROL
knob to the desired temperature. The burner should
ignite within 30-90 seconds.
After the oven reaches the selected temperature, the
oven burner cycles--off completely, then on with a full
flame--to keep the oven temperature controlled.
Power Outage
CAUTION: Do not make any attempt to operate
the electric ignition oven during an electrical power
failure° The oven or broiler cannot be lit during a
power failure_ Gas will not flow unless the glow bar
is hot.
If the oven is in use when a power failure occurs,
the oven burner shuts off and cannot be re-lit until
power is restored.
Oven Control
The OVEN CONTROL knob
is located on the control panel
on the front of the range.
Simply turn the knob to the
desired cooldng temperatures°
It will normally take 30-90
seconds before the flame
comes OnoAfter the oven reaches the selected
temperature, the oven burner cycles--off completely,
then on with a fiAl flame--to maintain the selected
temperature.
Oven Light
(on some models)
Use the switch on the control panel to turn the oven
light on and off.
(continued next page)
13
Using Your Oven (ooo oood)
Oven Shelves
The shelves are designed
with stop-locks so, when
placed correctly on the
shelf supports, they will
stop before coming
completely out of the
oven and will not tilt
when you are removing
food from them or
placing food on them.
When placing coolcware on a shelf, pull the shelf out
to the bump on the shelfsupporto Place the cookware
on the shelf, then slide the shelf back into the ovem
This will eliminate reaching into the hot oven.
To remove a shdf from
the oven, pull it toward
you, tilt the front end
upward and pull the
shelf out,
To replace, place the
shelf on tile shelf
support with the stop-locks (curved extension of shelf)
facing up and toward the rear of the oven,. Tilt up the
front and push the shelf toward the back of the oven
until it goes past the bump on the shelf supporto Then
lower the front of the shelf and push it all the way back°
Shelf Positions
The oven has five shelf
supports for baking and
roasting as shown in this
illustration--A (bottom),
B, C, D and E (top). It
also has a special low shelf
position (R) for roasting
extra large items, such as
a large turkey--the shelf
is not designed to slide out at this position. The shelf
positions for cooking are suggested in the Baking and
Roasting sections.
Oven Vents
The oven is vented through duct openings at the rear
of the cooktop. See Features section. Do not block
these openings when cooking in the oven--it is
important that the flow of hot air from the oven and
fresh air to the oven burners be uninterrupted.
• The vent openings and nearby surfaces may
become hot. Do not touch them.
• Do not leave plastic
items on the
cooktop---_ey may
melt ff left too
close to the vent.
Vent appearance and location vary
• Handles of pots and pans on the cooktop may
become hot if left too dose to the vent.
• Metal items will become very hot if they are left
on the cooktop and could cause burns.
• Do not leave any items on the cooktop. The hot
air from the vent may ignite flammable items and
wit1 increase pressure in closed containers, which may
cause them to burst°
Oven Moisture
As your oven heats up, the temperature change of
the air in the oven may cause water droplets to
form on the door glass. These droplets are harmless
and will evaporate as the oven continues to heat up.
14
Baking
Your oven temperature is controlled very accurately
using an oven control system. It is recommended that
you operate the oven for a number of weeks to become
familiar with your new oven's performance. If you
think an adjustment is necessary, see the Adjust the
Oven Thermostat section.
How to SetYour Range for Baking
To avoid possible burns, place the shelves in the
correct position before you turn the oven on.
1. Close the oven door_ Turn the OVEN CONTROL.
lmob to the desired temperature.
2, Check tile food for doneness at the minimum time
on the recipe. Cook longer if necessary.
3. Turn the OVEN CONTROL knob to OFF and
then remove food,
Oven Shelves
Arrange the oven shelf
or shelves in the
desired locations while
the oven is cool The
correct shelf position
depends on the kind
of food and the
browning desired.
As a general rule, place most foods in the middle of
the oven, on either shelf position B or C. See the
following chart for suggested shelf positions_
O
Type of Food
Angel food cake
Biscuits or tautens
Cookies-or cupcakes
Brownies
Layer cakes
Bun& or pound cakes
Pies or pie shells
Frozen pies
Casseroles
Roasting
Shelf Position
A
BorC
B orC
B orC
B orC
AorB
B orC
A (on cookie sheet)
BorC
B orR
Preheating
Preheat the oven if the recipe calls for it. Preheat
means bringing the oven up to the specified
temperature before putting the food in the oven. To
preheat, set the oven at the correct temperature--
selecting a higher temperature does not shorten
preheat time.
Preheating is necessary for good results when baking
cakes, cookies, pastry and breads. For most casseroles
and roasts, preheating is not necessary. For ovens
without a preheat indicator light or tone, preheat 10
minutes. After the oven is preheated place the food in
the oven as quickly as possible to prevent heat from
escaping.
Baking Pans
Use the proper baldng pan. The type of finish on the
pan determines the amount of browning that will occur.
• Dark, rough or dull pans absorb heat resulting in a
browner, crisper crust. Use this type for pies.
" Shiny, bright and smooth pans reflect heat, resulting
in a lighter, more delicate browning. Cakes and
cootdes require this type of pan.
• Glass bakdng dishes also absorb heat. When baking in
glass baking dishes, the temperature may need to be
reduced by 25°E (13°C.).
Pan Placement
For even cooking and proper browning, there must be
enough room for air circulation in the oven. Baldng
results will be better if baking pans are centered as
much as possible rather than being placed to the front
or to the back of the oven.
....Pans should not touch each other or the walls of the
oven. Allow 1- to l_-inch (2.5- to 4-cm) space
between pans as well as from the back of the oven, the
door and the sides. If you need to use two shelves,
stagger the pans so one is not directly above the other°
(continuednex_page)
15
Baking ( o0 000d
Baking Guides
When using prepared baking mixes, follow package
recipe or instructions for the best baking restdts.
Cookies
When baking cookies,
flat cookie sheets
(without sides) produce
betterAooking cooldes.
Cookies baked in a jelly
roli pan (short sides all
around) may have darker
edges and pale or light
browning may occur.
Do not use a cookie sheet so large that it touches
the walls or the door of the oven.
For best results, use only one cookie sheet in the
oven at a time.
Pies
For best results, bake pies in dark, rough or dull pans
to produce a browner, crisper crust. Fiozen pies in foil
pans should be placed on an aluminum cookie sheet
for baking since the shiny foil pan reflects heat away
from the pie crust; the cookie sheet helps retain it,
Aluminum Foil
Never entirely cover a
shelf with aluminum
foil. This will disturb
the heat circulation and
result in poor baldng.
A smaller sheet of foil
may be used to catch a
spillover by placing it on
a lower shelf several
inches below the food.
Don't Peek
Set the timer for the estimated cooking time and do
not open the door to look at your food. Most recipes
provide minimum and maximum baking times such as
"bake .30-40 minutes."
DO NOT open the door to check until the minimum
time. Opening the oven door frequently during cooking
allows heat to escape and makes baking times longer.
Your baking results may also be affected.
Cakes
When baking cakes, warped or bent pans wiI! cause
uneven baking results and poorly shaped products. A
c.die baked in a pan larger than the recipe recommended
will usually be crisper, thinner and drier than it should
beo If baked in a pan smaller than recommended, it
may be undercooked and batter may overflow.. Check
the recipe to make sure the pan size used is the one
recommended.
16
Adjust the Oven Thermostat--Do It Yoursel
You may feel that your new oven cooks differently
than the one it replaced. We recommend that you
use your new oven for a few weeks to become more
familiar with it, following the times given in your
recipes as a guide,
If you think your new oven is too hot or too cold,
you can adjust the thermostat yourself. If you think
it is too hot, adjust the thermostat to make it cootet:
If you think it is too coo!, adjust the thermostat to
make it hotter.
We do not recommend the use of inexpensive
thermometers, such as those found in grocery stores,
to check the temperature setting of your new oven.
These thermometers may vary 20-40°E (i 1-22°C,).
To Adjust the Thermostat:
Pull the OVEN CONTROL knob off the range and
look at the back side_
To make adjustment, loosen (approximately one turn),
but do not completely remove, the two screws on the
back of the knob° With the back of the knob facing
you, hold the outer edge of the knob with one hand
and turn the front of the knob with the other hand.
(appearance may vary)
To raise the oven temperature, move the top screw
toward the right. You'll hear a click for each notch you
move the knob° To lower the temperature, move the
top screw toward the left. Each click will change the
oven temperature approximately 10°E (6°C.)o
[Range is plus or minus 60°E (33°C.) from the arrow.]
We suggest that you make the adjustment one click
from the original setting and check oven performance
before making any additional adjustments.
After the adjustment is made, retighten screws so they
a_e snug, but be careful not to overtighten. Reinstall
knob on range and check performance,.
Air Adjustment Shutter
for Oven Burners
The air adjustment shutter for the bottom burner
regulates the flow of air to the flames_
See the Installation Instructions of this manual for
..................... instructions for location and proper adjustment_of
the shutter.
17

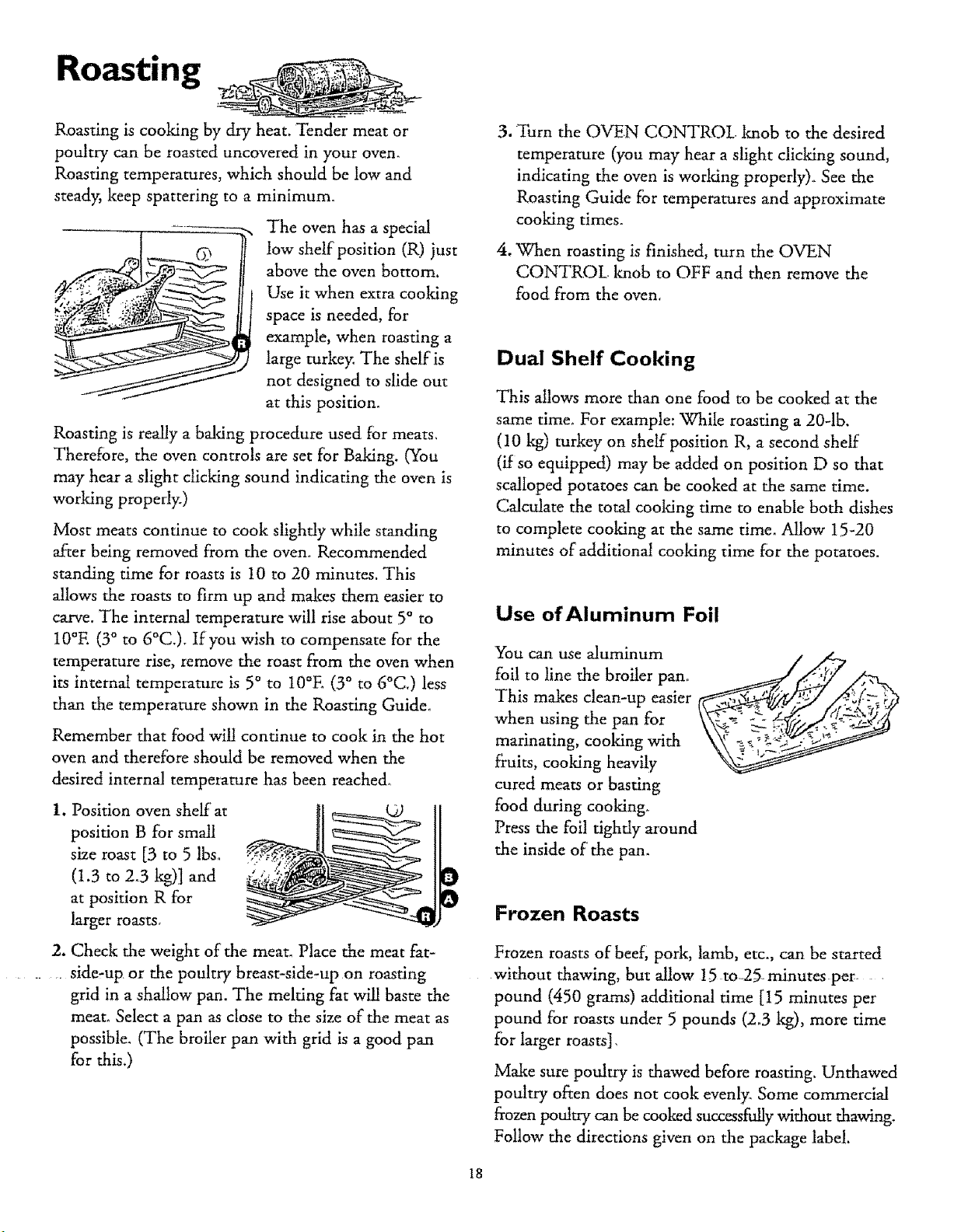

Roasting
Roasting is cooking by dry heat. Tender meat or
poultry can be roasted uncovered in your oven_
Roasting temperatures, which should be low and
steady, keep spattering to a minimum.
The oven has a special
low shelf position (R) just
above the oven bottom.
Use it when extra cooking
space is needed, for
example, when roasting a
large turkey_ The shelf is
not designed to slide out
at this position.
Roasting is real!y a baking procedure used for meats,
Therefore, the oven controls are set for Baldng. (You
may hear a slight clicking sound indicating the oven is
working propedy.)
Most meats continue to cook slightly while standing
afrer being removed from the oven_ Recommended
standing time for roasts is 10 to 20 minutes. This
allows the roasts to firm up and makes them easier to
carve. The internal temperature will rise about 5° to
10°E (3 ° to 6°C.). If you wish to compensate for the
temperature rise, remove the roast from the oven when
its internal temperature is 5° to 10°E (3 ° to 6°C,) less
than the temperature shown in the Roasting Guide.
Remember that food will continue to cook in the hot
oven and therefore should be removed when the
desired internal temperature has been reached°
1. Position oven shelf' at
position B for small
size roast [3 to 5 lbso
(1.3 to 2.3 kg)] and
at position R for
larger roasts°
2, Check the weight of the meat. Place the meat fat-
....... side-up or the poultry breast-side-up on roasting
grid in a shallow pan. The melting fat will baste the
meat. Select a pan as close to the size of the meat as
possible. (The broiler pan with grid is a good pan
for this.)
3. Turn the OVEN CONTROL knob to the desired
temperature (you may hear a slight clicking sound,
indicating the oven is working properly). See the
Roasting Guide for temperatures and approximate
cooking times.
4, When roasting is finished, turn the OVEN
CONTROL lmob to OFF and then remove the
food from the oven,
Dual Shelf Cooking
This allows more than one food to be cooked at the
same timer For example: While roasting a 20-lb.
(!0 kg) turkey on shelf position R, a second shelf
(if so equipped) may be added on position D so that
scalloped potatoes can be cooked at the same time.
Calculate the total cooking time to enable both dishes
to complete cooking at the same time. Allow 15-20
minutes of additional cooking time for the potatoes.
Use of Aluminum Foil
You can use aluminum
foi! to line the broiler pan°
This makes clean-up easier
when using the pan for
marinating, cooking with
fi'uits, cooking heavily
cured meats or basting
food during cooking.
Press the foil tighdy around
the inside of the pan.
Frozen Roasts
Frozen roasts of beef, pork, lamb, etc., can be started
without thawing, but allow !5 to _25 minutes per
pound (450 grams) additional time [1`5 minutes per
pound for roasts under 5 pounds (2.3 kg), more time
fbr larger roasts],
Make sure poultry is thawed before roasting. Unthawed
poultry often does not cook evenly° Some commercial
frozen poultry can be cooked successfully without thawing.
Follow the directions given on the package label.
18
Roasting Guide
Oven Approximate Roasting Time Internal
Type Temperature Doneness in Minutes per Pound Temperature
Meat
Tender cuts; rib,
high quality sirloin tip,
rump or top round*
Lamb leg or bone-in
shoulder*
Veal shoulder,
leg or loin*
Pork loin, rib
or shoulder*
Ham, precooked
Poultry
Chicken or Duck
Chicken pieces
Turkey
325°E (I63°C.)
325°E (163°C.)
325°F, (I63°C.)
325°E (163°C.)
Rare:
Medium:
Well Done:
Rare:
Medium:
Well Done:
Well Done:
Well Done:
3 to 5 lbso
(1.4 to 2.3 kg)
24-35
35-39
39-45
6 to 8 lbs.
(2°7 to 3.6 kg)
18-25
25-31
31-33
21-25 20-23
25-30 24-28
30-35 28-33
35-45 30-40
35-45 30-40
140-150°E (60-66°C.)t
150-160°E (66-7I°C0
170-185°E (77-85°C0
140-150°E (60-66°C)t
150-160°E (66-71°C°)
170-185°E (77-85°C)
170-180°E (77-82"C.)
170-180_F, (77-82°C.)
I t5-125°E (46-52°C,)325°E (163°C.)
325°F (t63°C)
350°F. (I77°Co)
325°E (163°C_)
18-23 minutes per pound
(450 grams) any weight
To Warm:
3 to 5 lbso Over 5 lbs.
(1.4 to 2.3 kg) (2.3 kg)
_ell Done:
Well Done:
Wei1Done:
35-40 30-35
35-40
I0 to 15 lbs, Over 15 Ibs.
(4.5to 6.8 kO (6.8kO
t6-22 12-19
185-190°F,(85-88oC.)
185-19WE (85-88°C.)
In thigh:
185-190°F(85-88°Co)
*For boneless rolled roasts over 6" (t5 cm) thick, add 5 to 10 minutes per pound (450 grams) to times given above.
tThe UoS. Department of Agriculture says, "Rare beef is popular, but you should know that cooldng it to only 140°E (60°C) means some
food poisoning organisms may survive." (Source: Safe Food Book. Your Kitchen Guide. USDA Rev June 1985.)
I9

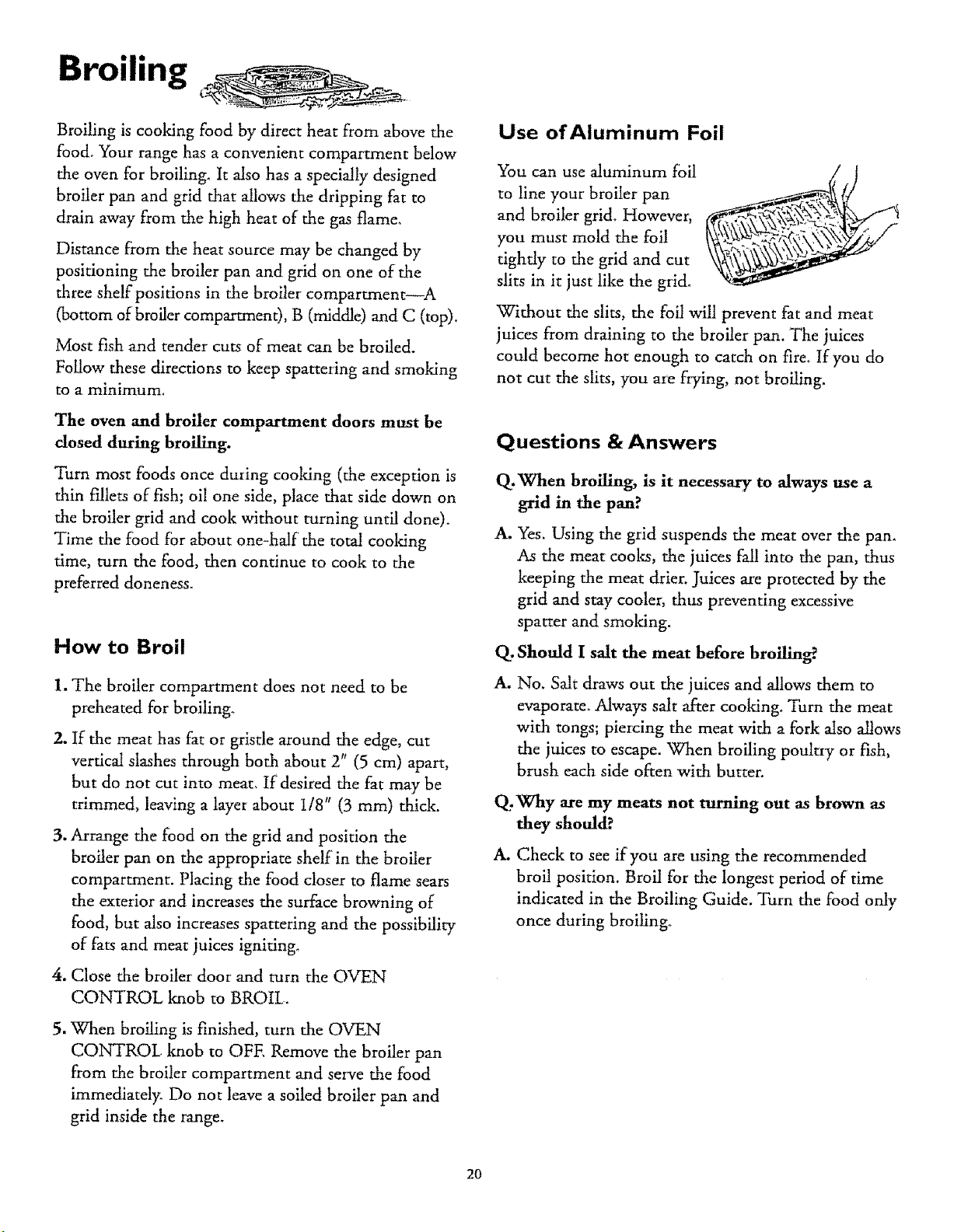

Broiling
Broiling is cooldng food by direct heat from above the
food° Your range has a convenient compartment below
the oven for broiling. It also has a specially designed
broiler pan and grid that allows the dripping fat to
drain away from the high heat of the gas flame.
Distance from the heat source may be changed by
positioning the broiler pan and grid on one of the
three shelf positions in the broiler compartment--A
(bottom of broiler compartment), B (middle) and C (top).
Most fish and tender cuts of meat can be broiled.
Fol]ow these directions to keep spattering and smoking
to a minimum,
The oven and broiler compartment doors must be
closed during broiling.
Turn most foods once during cooking (the exception is
thin fillets offish; oil one side, place that side down on
the broiler grid and cook without turning until done).
Time the food for about one-half the total cooking
time, turn the food, then continue to cook to the
preferred doneness.
How to Broil
I. The broiler compartment does not need to be
preheated for broiling.
2. If the meat has fat or gristle around the edge, cut
vertical slashes through both about 2" (5 cm) apart,
but do not cut into meat, If desired the fat may be
trimmed, leaving a taye_ about 1/8" (3 mm) thick.
3. Arrange the food on the grid and position the
broiler pan on the appropriate shelf in the broiler
compartment. Placing the food closer to flame sears
the exterior and increases the surface browning of
food, but also increases spattering and the possibility
of fats and meat juices igniting.
4, Close the broiler door and turn the OVEN
CONTROL knob to BROIL.
5. When broiling is finished, turn the OVEN
CONTROL knob to OFE Remove the broiler pan
from the broiler compartment and serve the food
immediately= Do not leave a soiled broiler pan and
grid inside the range.
Use of Aluminum Foil
You can use aluminum fbil
to line your broiler pan
and broiler grid° However,
you must mold the foil
tightly to the grid and cut
slits in it just like the grid.
Without the slits, the foil will prevent fat and meat
juices from draining to the broiler pan. The juices
could become hot enough to catch on fire. If you do
not cut the slits, you ale frying, not broiling.
Questions & Answers
Q.When broiling, is it necessary to always use a
grid in the pan?
A.
Yes, Using the grid suspends the meat over the pan.
As the meat coolc% the juices fal! into the pan, thus
keeping the meat drier. Juices axe protected by the
grid and stay cooler, thus preventing excessive
spatter and smoking.
Q. Should I salt the meat before broiling?.
A. No. Salt draws out the juices and allows them to
evaporate° Always salt after cooking. Turn the meat
with tongs; piercing the meat with a fork also allows
the juices to escape. When broiling poultry or fish,
brush each side often with butter.
Q.Why are my meats not turning out as brown as
they should?
A. Check to see if you are using the recommended
broil position. Broil for the longest period of time
indicated in the Broiling Guide. Turn the food only
once during broiling°
2O
Broiling Guide
The oven and broiler compartment doors must be
dosed during broiling.
• Always use the broiler pan and grid that comes with
your range, tt is designed to minimize smoldng and
spattering by trapping juices in the shielded lower
part of the pan,
° For steaks and chops, slash fat evenly around the
outside edges of the meat° To slash, cut crosswise
through the outer fat surface just to the edge of' the
meat. Use tongs to turn the meat over to prevent
piercing the meat and losing juices.
° If desired, marinate meats or chicken before broiling.
Or brush with barbecue sauce last 5 to 10 minutes only.
• When arranging the food on the pan, do not let fatty
edges hang over the sides because dripping fat could
soil the oven,.
• The broiler compartment does not need to be
preheate& However, for very thin foods, or to
increase browning, preheat if desired°
• Frozen steaks can be broiled by positioning the
broiler pan and grid at next lowest shelfposition and
increasing cooking time given in this guide 1_ times
Food Broil
Position Comments
Bacon B Arrange in single layer,
Quantity andlor
Thickness
I/2 lb, (227 g)
(about 8 thin slices)
1lb. (450 g) (4 patties)
1t2"-3/4" (13-I9 mm) thick
I" (2.5 cm) thick
[1-1_ Ibs_(450 g-680 g)]
1'/.,"(3.8 cm) thiclc
[2-2'/. lbs, (907 g-!o13 kO]
I whole [2-2½ lbs
(907 g-t.13 kg)]
split lengthwise
Bone-in, 4 bone-in breasts
per side.
1st Side 2nd Side
Minutes Minutes
4 3
B 10-I ! 4-5 Space evenly. Up to 8 patties take
about same time.
C
C
B
C
C
B
A
Ground Beef
Well Done
Beef Steaks
Rare
Medium
Welt Done
Rare
Medium
Well Done
Chicken
2-4 slices
1 pkg (2)
2, split
2-4
[6-8 oz, (170 g-227 g) each]
C
C
A
9 7
!2 5-6
13 8-9
10 6-7
12-15 10-12
25 16-18
30-35 15
25-30 10-t5
2-3 1/2-1
3-5
I3-!6 Do not
mrn over
5 5
8 8
6 6
lO 4-5
.......!3 9-12
8 4-7
10 10
10 4-6
17 12-I4
6 1-2
Bakery Products
1 lb. (450 g) fillets
1/4"-I/2"
(6-13 mm) thick
1" (2.5 cm) thick
I/2" (13 ram) thick
2 [1/2" (13 mm) thick]
2 [1" (2.5 cm) thick],
about 1 lb. (450 g)
Bread (Toast) or
Toaster Pastries
English Muffins
L_bster Tails
Stealts less than 1" (2.5 cm) thick cook
through before browning, Pan frying is
recommended.
Slash fat_
Reduce times about 5 to I0 minutes per
side for cut-up chicken, Brush each side with
melted butter, Broilwith sldn side down first,
Space evenly_ Place English muffins
cut-side-up and brush with burrer,
if desired.
Cut through back ofsheU and spread open
Brush with melted butter before broiling
and after half of broiling time.
Hsh C Handle and turn very carefull)_ Brush with
lemon butter before and during broiling, if
desired. Preheat broiler to increase browning.
Ham Slices B Increase rimes 5 to 10 minutes per side
Precooked B for I_" (3.8 cm) thick or home cured.
Pork Chops B Slash fat.
Well Done B
2 [I" (2.5 cm) thick],
about 10-12 oz, (284-340 g)
2 [I½" (3,8 cm) thick],
about I lb. (450 g)
lb_(450 g) pkg. (10)
Lamb Chops
Medium
Well Done
B
B
B
B
C
Slash fat.
Medium
Well Done
Wieners, If desired, split sausagesin half length-
similar precooked wise; cut into 5-6" (I3-15 cm) pieces,,
sausages,bratwutst
21
Care and Cleaning
Proper care and cleaning are important so your range
will give you efficient and satisfactory service° Follow
these directions carefully in caring for it to help assure
safe and proper maintenance,
BE SURE ELECTRICAL POWER IS
DISCONNECTED BEFORE C_ING ANY
PART OF YOUR RANGE.
Sealed Burner Assemblies
(on some models)
CAUTION: DO NOT OPERATE THE BURNER
WITHOUT ALL BURNER PARTS AND DRIP
PANS (IF SO EQUIPPED) IN PLACE.
Grate
Burner cap
Drip pan
(on some models)
Burner head
Burner base
Turn all the controls off before removing burner
parts and drip pans (ff so equipped).
The burner grates, caps, heads and drip pans
(if so equipped) can be lifted off, making them easy
to clean.
The electrode of
the spark igniter is
exposed when the
burner head is
removed. When one
burner is turned to LITE, all the burners spark.
Do not attempt to disassemble or clean around
any burner while another burner is on. An electric
shock may result, which could cause you to knock
over' hot coolcwareo
Burner Heads
(on sealed burners only)
For proper ignition, make
sure the small hole in the
section that fits over the
electrode is kept open.
A sewing needle or wire
twist-tie works well to unclog it.
The slits in the burner heads of your range
must be kept clean at all times for an even,
unhampered flame.
You should clean the surface burners routinely,
especially after bad spillovers, which could clog these
openings°
To remove burned-on food, soak the burner heads
in a solution of mild liquid detergent and hot water
for 20-30 minutes. For more stubborn stains, use a
toothbrush°
Before pu_ng the burner head back, shake out
excess water and then dry it thoroughly by setting it in
a warm oven for 30 minutes.
Replace the burner caps. Make sure that caps are
replaced on the correct size burner, There is one small,
2 medium and one large cap.
NOTE: On some models the caps are all the same size
and can be used in any of the 4 needed locations.
Burner Caps
(on sealed burners only)
Lift offwhen cool. Wash burner caps in hot, soapy
water and rinse with clean water_ You may scour with a
plastic scouring pad to remove burned-on food partictes_
Dry them in a warm oven or with a cloth--don't
reassemble them wet. Replace the burner caps.
Medium _ 2._ Small
Med'um l"+x,._ _ _,,_,7 Larg e
Front of Range
Make sure that caps are replaced on the correct size
burnen There is one small, 2 medium and one large cap.
NOTE: On some models the caps are all the same size
22 and can be used in any of the 4 needed locations.
Burner Grates
Hft out when cool
The grates should
be washed regularly
and, of course, after
spilloverso Wash them in hot, soapy water and rinse
with clean water. After cleaning, dry them thoroughly
by putting them in a warm oven for a few minutes.
Don't put the grates back on the range while they are
wet° When replacing the grates, be sure they're
positioned securely over the burners_
To prevent rusting on cast iron grates, apply a light
coating of cooking oil on the bottom of the grates.
To get rid of bttrned-on food, place the grates in a
covered container' (or plastic bag) with I/4 cup (62 n-d)
ammonia to loosen the soil Let sit overnight (or
approximately 12 hours), then scrub with a soap-filled
scouring pad if necessary: Rinse grates thoroughly and
dry completely before replacing them on the range top.
Although they're durable, the grates will gradually lose
their shine, regardless of the best care you can give
them. This is due to their continual exposure to high
temperatures.
Do not operate a burner for an extended period of
time without cookware on the grate. The finish on
the grate may chip without cookware to absorb the heat_
CAUTION: Do not dean the grates in a dishwasher
or in a self-cleaning oven.
Drip Pans
(on some models )
Remove the grates and lift
out the drip pans. The drip
pans can be cleaned in a
dishwasher or by hand.
To get rid of burned-on
food, place the drip pans
in a covered container (or plastic bag) with 1/4 cup
(62 ml) ammonia to loosen the soil. Then scrub
with a soap-filled scouring pad if necessary
When replacing the drip pans, make sure they are in
the correct position_
CAUTION: Do not clean the drip pans in a
self-cleaning oven.
Cooktop Surface
To avoid damaging the porcelain enamel surface of
the cooktop and to prevent it from becoming dull,
clean up spills right away. Foods with a lot of acid
(tomatoes, sauerkraut, fruit juices, etc.) or foods with high
sugar content could cause a dull spot if allowed to sit.
When the surface has cooled, wash and rinse. For
other spills such as fat spatterings, etc., wash with soap
and water once the surface has cooled. Then rinse and
polish with a dry cloth.
Be careful when you clean the cooktop because the
area over the pilot will be hot (on models with
standing pilots).
Do not store flammable materials in an oven or
near the cooktop. Do not store or use combustible
materials, gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
(continued nezt page)
23
Care and Cleaning ( oo oood)
Standard Twin Burners
(on some models)
CAUTION: DO NOT OPERATE THE BURNER
WITHOUT ALL BUtOq-ER PARTS AND DRIP
PANS (IF SO EQUIPPED) 1N PLACE.
Grate
p pan
(on some models)
Surface burner
On models with standard twin burners, the
cooktop lifts up for easy access.
Turn all the controls offbefore removing burner
parts and drip pans (if so equipped).
The burner grates and drip pans (if so equipped) can
be lifted off, making them easy to clean°
The holes in the surface
burners of your range
must be kept clean at all .
times for proper
ignition and an even,
unhampered flame.
You should dean the
surface burners
routinely, especially
after bad spiHovers,
which could clog these
Clean these
holes
thoroughly
on each
humor,
holes. Wipe off the surface burners. If heavy spillover
occurs, remove the surface burners from the range_
Burners lift out for cleaning° Lift up the cooktop and
then lift out the surface burners°
To remove burned-on food, soak the surface burner
in a solution of mild liquid detergent and water. Soak
the surface burner for 20 to 30 minutes For more
stubborn stains use a cleanser like Soft Scrub ®brand
or Ben Ami ® brand. Rinse well to remove any traces
of the cleanser that might clog the burner openings.
Do not use steel wool because it will clog the surface
burner openings and scratch the surface burners° If
the holes become clogged, clean them with a sewing
needle or twist-tie.
Before putting the surface burner back, shake out
excess water and then dry it thoroughly by setting it in
a warm oven for 30 minutes. Then place it back in the
range, maldng sure it is properly seated and level.
Check the flame pattern of each burner° If the flames
are "jumpy" (not steady), clean the holes again with a
sewing needle or twist-tie.
Lift-Up Cooktop
(on models with standard twin burners)
Clean the area under the cooktop often. Built-up soil,
especially grease, may catch on fire.
To make cleaning easier, the cooktop may be lifted upo
To raise the cooktop:
1. Be sure the burners
are turned off°
2. Remove the grates.
3. Grasp the two front
burner wells and
lift up.
Some models have dual support rods that will hold the
cooktop up while you clean underneath ito
After cleaning under the cooktop with hot, soapy
water and a clean cloth, lower the cooktop. Be carefiA
not to pinch your fingers. Lower cooktop gently to
avoid blowing out pilot flames (on models with
standing pilots).
24
Oven Air Vents
Never block the vents (air openings) of the
range. They provide the air inlet and outlet that are
necessary for the range to operate properly with
correct combustion. Air openings are located at the
rear of the cooktop, at the top and bottom of the
oven door, and at the bottom of the range, under
the kick panel, storage drawer or broiler drawer
(depending on the modeI)_
Broiler Pan and Grid
After broiling, remove the broiler pan from the oven
or broiler compartment (depending on your model).
Remove the grid from the pan° Carefully pour out
grease from the pan into a proper container_ Wash and
rinse the broiler pan and grid in hot water with a soap-
filled or plastic scouring pad_
If food has burned on, spfinlde the grid with
detergent while hot and cover with wet paper towels or
a dishcloth. Soaking the pan _ remove burned-on foods.
Both the broiler pan and grid can also be cleaned in a
dishwasher.
Do not store a soiled broiler pan and grid anywhere in
the ranger
CAUTION: Do not clean the broiler pan or grid in a
self-cleaning oven_
Oven Shelves
Clean the shelves with an abrasive deanser or steel
wool. After cleaning, rinse the shelves with clean water
and dry with a clean cloth.
Control Panel and Knobs
It's a good idea to wipe the control panel after each use
of the oven. Clean with mild soap and water, or
vinegar and water, rinse with clean water and polish
dry with a soft cloth_
Do not use abrasive cleansers, strong liquid cleaners,
plastic scouring pads or oven cleaners on the control
panel--they will damage the finish. A 50/50 solution
of vinegar and hot water works well.
The control knobs may be removed for easier
cleaning. To remove lmob, pull it straight off the
stem. If knob is difficult to remove, place a towel or
dishcloth between the knob and control panel and pull
gently. Wash the knobs in soap and water, or vinegar
solution, but do not soak.
Metal parts can be cleaned with soap and water. Do
not use steel wool, abrasives, ammonia, acids or
commercial oven cleaners. Dry with a soft cloth.
Oven Light Bulb
(on some models)
The light bulb is located in ,__._ /t_
the upper left corner of the /. "xj_7_%
oven. Before replacing your
oven light bulb, disconnect
the electrical power to the
range at the main fuse or circuit breaker panel or
unplug the range from the electrical outlet. Let the
bulb cool completely before removing ito Replace the
bulb with a 40 watt appliance bulb only. Do not touch
a hot bulb with a damp cloth as the bulb will break.
(continued next page)
25
Care and Cleaning (co0t 00od)
Lift-Off Oven Door
The oven door is removable but it is heavy. You may
need help removing and replacing the door.
To remove the door, open it a few inches to the
special stop position that will hold the door open°
Grasp firmly on each side and lift the door straight up
and off the hinges°
NOTE: Be careful not to place hands between the
hinge and the oven door frame as the hinge could snap
back and pinch fingers,
To replace the door, make sure
the hinges are in the special stop
position. Position the slots in the
bottom of' the door squarely over
the hinges. Then lower the door
slowly and evenly over both
hinges at the same time° If hinges
snap back against the oven flame,
pull them back out_
TO CLEAN THE DOOR:
(Do not immerse door in water.)
Inside of door:
• ALlow m cool before cleaning. For light soil, wipe
frequently with mild soap and water (especially after
cooking meat). This will prolong the time between
major cleanings. Rinse thoroughly.
NOTE: Soap left on the oven door causes
additional stains when the oven is reheated.
" For heavy soil, choose an oven cleaner (for continuous
cleaning oven, before applying commercial oven
cleaner, remove the oven door) and follow label
instructions. Rinse well.
Outside of door:
• Use soap and water to thoroughly clean the top, sides
and front of the oven door. Rinse well. You may also
use a glass cleaner to clean the glass on the outside of
the door.
• Spillage of' marinades, fruit juices, tomato sauces and
basting materials containing acids may cause
discoloration and should be wiped up immediately.
When surface is cool, clean and rinse.
"Do not use oven deaners, deansing powders or
harsh abrasives on the outside of the door.
Porcelain Oven Interior
(on all models except continuous cleaning models)
With proper care, the porcelain enamel interior will
retain its attractive finish for many years,
Soap and water wil! normally do the job. Heavy
spattering or spiHovers may require cleaning with a
mild abrasive cleanser. Soap-filled steel wool pads
may also be used° Do not allow food spills with a
high sugar or acid content (such as tomatoes, sauerlwaut,
fruit juices or pie Filling) to remain on the surface°
They may cause dull spots even after cleaning.
Household ammonia may make the cleaning job easier°
Place 1/2 cup (125 ml) ammonia in a shallow glass
pan and leave in a cold oven overnight. The ammonia
fumes will help loosen the burned-on grease and food.
When necessary, you may use a commercial oven
cleaner. Follow the package directions.
Cautions about using spray-on oven deaners:
• Be careful where the oven cleaner is spraye&
° Do not spray oven cleaner on the electrical controls
and switches (on some models) because it could
cause a short circuit and result in sparking or fire.
• Do not allow a film from the cleaner to remain on
the temperature sensing bulb--it could cause the
oven to heat improperly. (The bulb is located at the
rear of the oven.) Carefully wipe the bulb clean after
each oven cleaning, being carefifl not to move the
bulb as a change in its position could affect how the
oven bakes.
• Do not spray any oven cleaner on the outside oven
door, handles or any exterior' surface of the oven,
cabinets or painted surfaces. The cleaner can damage
these surfaces.
26

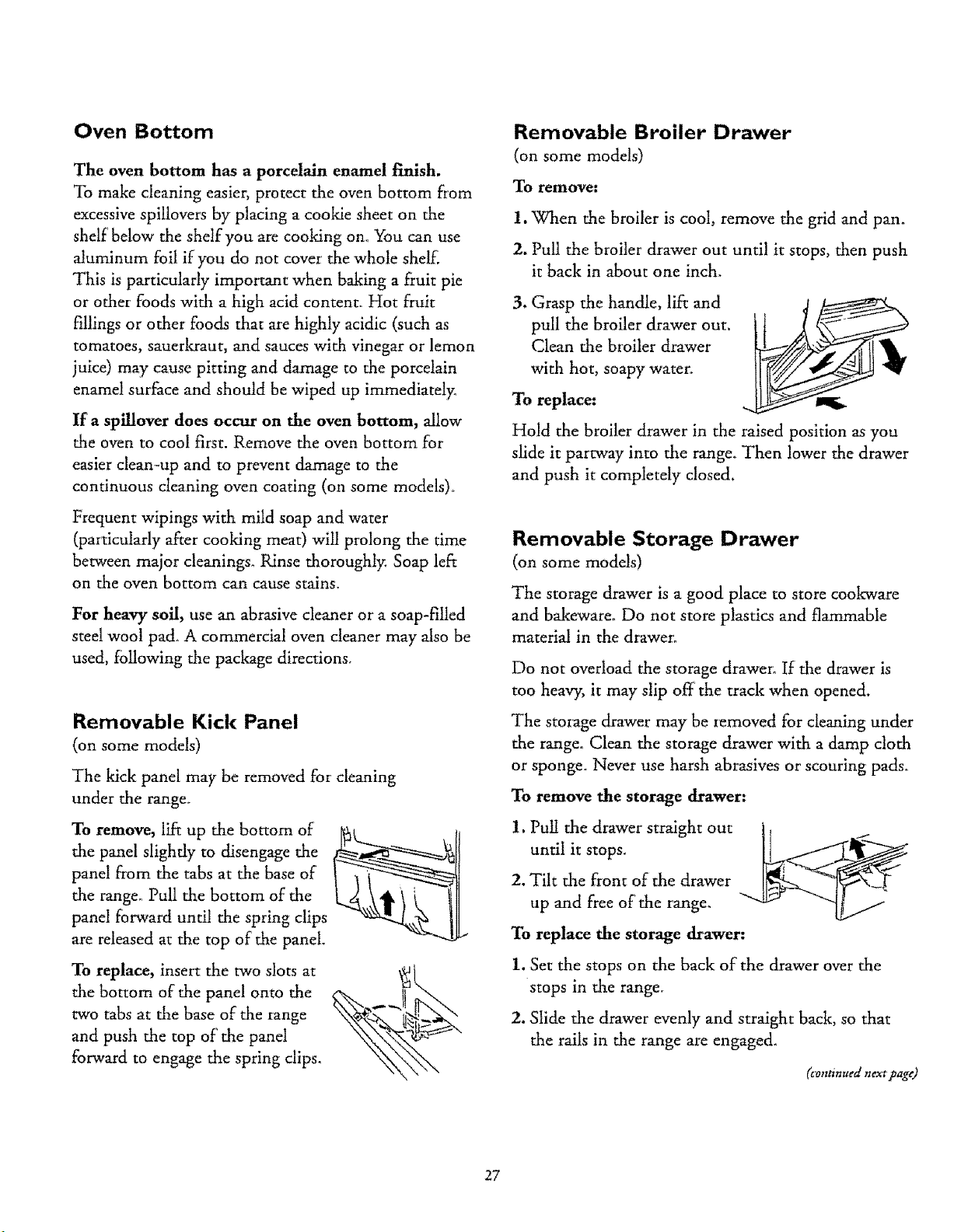

Oven Bottom
The oven bottom has a porcelain enamel finish.
To make cleaning easier, protect the oven bottom from
excessive spillovers by placing a cookie sheet on the
shelf below the shelf you are cooking om You can use
aluminum foil if you do not cover the whole shelE
This is particularly important when baking a fruit pie
or other foods with a high acid content. Hot fruit
fillings or other foods that are highly acidic (such as
tomatoes, sauerkraut, and sauces with vinegar or lemon
juice) may cause pitting and damage to the porcelain
enamel surface and should be wiped up immediately.
If a spillover does occur on the oven bottom, allow
the oven to cool first. Remove the oven bottom for
easier clean-up and to prevent damage to the
continuous cleaning oven coating (on some models)_
Frequent wipings with mild soap and water
(particularly after cooking meat) will prolong the time
between major cleanings. Rinse thoroughly. Soap left
on the oven bottom can cause stains.
For heavy soil, use an abrasive cleaner or a soap-filled
steel wool pad_ A commercial oven cleaner may also be
used, following the package directions°
Removable Kick Panel
(on some models)
The kick panel may be removed for cleaning
under the range.
To remove, lift up the bottom of
the panel slightly to disengage the
panel from the tabs at the base of
the range. Pull the bottom of the
panel forward until the spring clips
are released at the top of the panel.
To replace, insert the two slots at
the bottom of the panel onto the
two tabs at the base of the range
and push the top of' the panel
forward to engage the spring clips,
Removable Broiler Drawer
(on some models)
To remove:
l. When the broiler is coot, remove the grid and pan.
2. Pull the broiler drawer out unti! it stops, then push
it back in about one inch.
3. Grasp the handle, lift and
pull the broiler drawer out,
Clean the broiler drawer
with hot, soapy water.
To replace:
Hold the broiler drawer in the raised position as you
slide it partway into the range° Then lower the drawer
and push it completely closed.
Removable Storage Drawer
(on some models)
The storage drawer is a good place to store cookware
and bakewareo Do not store plastics and flammable
material in the drawer_
Do not overload the storage drawer'° If the drawer is
too heavy, it may slip off the track when opened.
The storage drawer may be removed for cleaning under
the range° Clean the storage drawer with a damp c!oth
or sponge. Never use harsh abrasives or scouring pads.
To remove the storage drawer:
1, Putt the drawer straight out
until it stops_
2. Tilt the front of the drawer
up and free of the range.
To replace the storage drawer:
1. Set the stops on the back of the drawer over the
stops in the ranger
2. Slide the drawer evenly and straight back, so that
the rails in the range are engaged_
(continued nexr page)
27

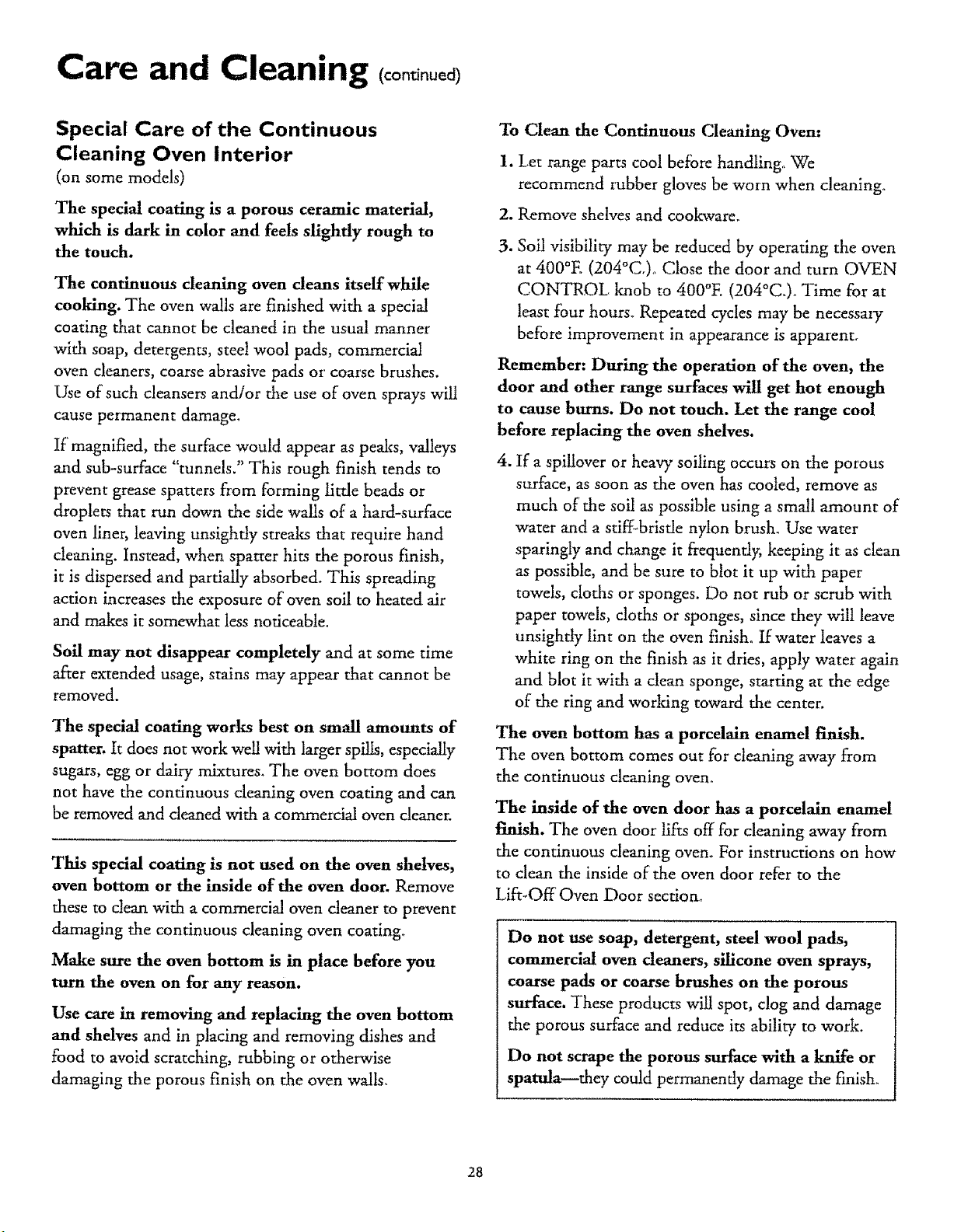

Care and Cleaning (co0 000d)
Special Care of the Continuous
Cleaning Oven Interior
(on some models)
The special coating is a porous ceramic material,
which is dark in color and feels slightly rough to
the touch.
The continuous cleaning oven deans itseffwhile
cooking. The oven w£1s are finished with a special
coating that cannot be cleaned in the usual manner
with soap, detergents, steel wool pads, commercial
oven cleaners, coarse abrasive pads oz' coarse brushes.
Use of such cleansers and/or the use of oven sprays will
cause permanent damage.
If magnified, the surface would appear as peaks, valleys
and sub-surface "tunnels." This rough finish tends to
prevent grease spatters from forming little beads or
droplets that run down the side walls of a hard-surface
oven liner, leaving unsightly streaks that require hand
cleaning. Instead, when spatter hits the porous Finish,
it is dispersed and parda_y absorbed. This spreading
action increases the exposure of oven soil to heated air
and makes it somewhat less noticeable.
Soil may not disappear completely and at some time
after extended usage, stains may appear that cannot be
removed.
The special coating works best on small amounts of
spatter. It does not work well with larger spills, especially
sugars, egg or dairy mixtures. The oven bottom does
not have the continuous cleaning oven coating and can
be removed and cleaned with a commercial oven cleaner.
This special coating is not used on the oven shelves,
oven bottom or the inside of the oven door. Remove
these to clean with a commercial oven cleaner to prevent
damaging the continuous cleaning oven coating.
Make sure the oven bottom is in place before you
turn the oven on for any reason.
Use care in removing and replacing the oven bottom
and shelves and in placing and removing dishes and
food to avoid scratching, rubbing or otherwise
damaging the porous finish on the oven walls_
To Clean the Continuous Cleaning Oven:
I. Let range parts cool before handling° We
recommend rubber gloves be worn when cleaning.
2. Remove shelves and cookware_
.
Soil visibility may be reduced by operating the oven
at 400°E (204°C.), Close the door and turn OVEN
CONTROL knob to 400°E (204°C.)oTime for at
least four hours. Repeated cycles may be necessary
before improvement in appearance is apparent°
Remember: During the operation of the oven, the
door and other range surfaces will get hot enough
to cause burns. Do not touch. Let the range cool
before replacing the oven shelves.
4. If a spillover or heavy soiling occurs on the porous
surface, as soon as the oven has cooled, remove as
much of the soil as possible using a small amount of
water and a stiff-bristle nylon brush. Use water
sparingly and change it frequently, keeping it as clean
as possible, and be sure to b!ot it up with paper
towels, cloths or sponges. Do not rub or scrub with
paper towels, cloths or sponges, since they wilt leave
unsightly lint on the oven finish° If water leaves a
white ring on the finish as it dries, apply water again
and blot it with a clean sponge, starting at the edge
of the ring and wortdng toward the center.
The oven bottom has a porcelain enamel finish.
The oven bottom comes out for cleaning away from
the continuous cleaning oven.
The inside of the oven door has a porcdain enamel
finish. The oven door lifts off for cleaning away from
the continuous cleaning oven° For instructions on how
to clean the inside of the oven door refer to the
Lift-Off Oven Door sectiom
Do not use soap, detergent, steel wool pads,
commercial oven cleaners, silicone oven sprays,
coarse pads or coarse brushes on the porous
surface. These products will spot, clog and damage
the porous surface and reduce its ability to work.
Do not scrape the porous surface with a kJfife or
spatula they could permanently damage the fmisho
28
Installation Instructions
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
FORYOUR SAFETY
Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the
vicinity of this or any other appliance.
BEFORE YOU BEGIN
Read these instructions completely and carefuUy.
IMPORTANT: Save these instructions for the local
electrical inspector's use.
INSTALLER: Leave these instructions with the
appliance after installation is completed.
CONSUMER: Keep this Use and Care Manual and
the Installation Instructions for future use.
This appliance must be properly grounded.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional
information, consult a qualified installer, service
agency, manufacturer (dealer) or the gas supplier.
Never reuse old flexible connectors. The use of old
flexible connectors can cause gas leaks and personal
injury. Always use NEW flexible connectors when
installing a gas appliance.
CAUTION
Do not attempt to operate the oven of this range
during a power failure (electric ignition models only).
IHPORTANT
Remove all padding material and literature from oven
before connecting gas and electrical supply to range.
DIHENSIONS AND CLEARANCES
Provide adequate clearances between the range and
adjacent combustible surfaces.
Depth with door c_osed
30" (Includes door handle):
'_-"-'(76 2 crn) 28½" (71 8 ore)
(Glass door)
27W' (69 9 cm)
(Porcelain door)
Product height" 36 V," ± !t4"
(see tabte below) (92 1 cm ± 6 ram)
\
\
Depth with door open:
46%" (117 8 cm).
(Glass door) x \ -I" ._.
4e'/,°(117s cm)\_'_
(Porcefain door)
*Product Height:
40" (101.6 cm) 61011 61061 61118
61018 61111
44"(111.8 cm) 71061 71161
71068 71168
46½" (118.1 cm) 71351 72291 75171
71358 72295 75181
71661 72296 75188
71665 72298 75271
71668 72751 75275
71751 72755 75276
71758 72758 75278
75281
75291
75295
75296
75298
Minimum
to cabthets
on either
side o!
range
30" (76.2 cm) 4..,t<1.-1" (2,5 cm)
Mthlmum --{ _ To wall on
either side
Maximum !
depth Ior
cabinets
above
countertops
(continued next page)
29
Installation instructions (continued)
important Safety Instructions
" Installation of this range must conform with local
codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1, latest
edition. In Canada, installation must conform
with the current Natural Gas Installation Code,
CAN/CGA-B149.1 or the current Propane
Installation Code, CAN/CGA-B149.2 and with
local codes where applicable.
This range has been design-certified by the American
Gas Association according to ANSI Z21.!, latest
edition and Canadian Gas Association according to
C32q/CGA-1.1 latest edition° As with any appliance
using gas and generating heat, there are certain safety
precautions you should follow° You will find these
precautions in the Important Safety Instructions
section in the front of this manual Read them carefully.
• Have your range installed by a qualified installer.
• Your range must be electrically grounded in accordance
with local codes or, in the absence of local codes, in
accordance with the National Electrical Code
(ANSI/NFPA 70, latest edition), In Canada, electrical
grounding must be in accordance with the current
CSA-C22.1 Canadian Electrical Code Part 1 and/or
local codes° See Electrical Connections in this section.
- Before installing your range on linoleum or any other
synthetic floor covering, make sure the floor covering
can withstand 180°E (82°C.) without shrinking,
warping or discoloring° Do not install the range over
carpeting unless a sheet of 1/4" (6 ram) thick
plywood or similar insulator is placed between the
range and carpeting.
• Make sure the wall coverings around the range
can withstand heat generated by the range up to
200°E (93°C.).
° Avoid placing cabinets above the range. To reduce
the hazard caused by reaching over the open flames
of operating burners, install a ventilation hood over
the range that projects forward at least 5" (12.7 cm)
beyond the front of the cabinets.
The ventilating hood must be constructed of sheet
metal not less than 0_0122" (.31 mm) thick_ Install
above the cooking top with a clearance of not less
than 1/4" (6 ram) between the hood and the
underside of the combustible material or metal
cabinet. The hood must be at least as wide as the
appliance and centered over the appliance. Clearance
between the cooking surface and the ventilation
hood surface MUST NEVER BE LESS THA2_q"
24" (61 cm).
EXCEPTION: Installation of a listed microwave
oven or cooldng appliance over the cooktop shall
conform to the installation instructions packed with
that appliance.
If cabinets are placed above the range, allow a
minimum clearance of 30" (76.2 cm) between the
cooking surface and the bottom of unprotected
cabinets.
Ira 30" (76.2 cm) clearance between cooking surface
and overhead combustible material or metal cabinets
cannot be maintained, protect the underside of the
cabinets above the cooking top with not less than
1t4" (6 mm) insulating millboard covered with sheet
metal not less than 0.0122" (.31 mm) thick°
Clearance between the cooking surface and protected
cabinets MUST NEVER BE LESS THAN 24"
(61 cm). The vertical distance from the plane of the
cooking surface to the bottom of adjacent overhead
cabinets extending c!oser than 1" (2.5 cm) to the
plane of the range sides must not be tess than 18"
(45.7 cm). (See the Dimensions and Clearances
illustration in this section.)
CAUTION: Items of interest to children should not
be stored in cabinets above a range or on the
backsplash of a range--children climbing on the
range to reach items could be seriously injured.
3O
WARNING
All ranges can tip and injury could
result° To prevent accidental tipping of
the range, attach an approved Anti-Tip
device to the wall. (See Installing the
Anti-Tip Device in this section.) To
check if the device is installed and engaged
properly, carefully tip the range fbrward.
The Anti-Tip device should engage and
prevent the range from ripping over.
If you pull the range out from the walt for any reason,
make sure the Anti*Tip device is engaged when you
push the range back against the wall.
• For your safety, never use your range for warming or
heating the room. Your oven and cooktop are not
designed to heat your kitchen. Top burners should
not be operated without cookware on the grate. Such
abuse could result in fire and damage to your range
and will void your warranty.
. Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the vicinity
of this or any other appliance° Explosions or fires
could result.
• Do not use oven for a storage area. Items stored in
the oven can ignite.
• Do not let cooking grease or other flammable
materials accumulate in or near the range°
GENERAL
• See the Dimensions and Clearances illustration in
this section for all rough-in and spacing dimensions.
These dimensions must be met for safe use of your
range. The location of the electrical outlet and pipe
opening (see Gas Pipe and Electric Outlet Locations)
may be adjusted to meet specific requirements.
• The range may be placed with 0" (0 cm) clearance
(flush) at the back wall and side walls of the range.
LOCATION
Do not locate the range where it may be subject to strong
drafts. Any openings in the floor or wall behind the range
should be sealed. Make sure the openings around the
base of the range that supply fresh air for combustion and
ventilation ate not obstructed by carpeting or woodworlc
PROTECTYOUR FLOOR
Your range, like many other household items, is heavy
and can setde into soft floor coverings such as cushioned
vinyl or carpeting_ Use care when moving the range on
this type of flooring. It is recommended that the
following simple and inexpensive instructions be
followed to protect your floor.
The range should be installed on a sheet of plywood
(or similar material), When the ftoor covering endr at the
front of the range, the area that the range wil! rest on
should be built up with plywood to the same level or
higher than the floor covering. This will allow the
range to be moved for cleaning or servicing.
HODELAND SERIAL NUHBER
LOCATION
Depending on your range, you'll find the mode! and
serial numbers on a label on the front frame of the range,
behind the storage drawer, broiler drawer or kick panel.
TOOLSYOU WILL NEED
• Phillips and flat-blade screwdrivers
• Pencil and rider
° Two pipe wrenches (one for backup)
° 1_" open-end or adjustable wrench
• Nut drivers or wrenches: 3116" and 1/4"
ADDITIONAL HATERIALS
YOU HA"( NEED
" Gas line shut-offvalve
° Pipe joint sealant or UL-approved pipe thread tape
with Teflon* that resists action of natural and LP gases
• Flexible metal appliance connector (1/2" I.D.)o A
5-foot (I.5 m) length is recommended for ease of
installation but other lengths are acceptable. Never
use an old connector when installing a new range.
• Flare union adapter for connection to gas supply line
(3/4" or 112" NPT x 1/2" IoD.)
• Flare union adapter for connection to pressure
regulator on range (1/2" NPT x 112" I.D.)
=Teflon: Registered _rademark of DuPont
(_'ontinued next page)
31

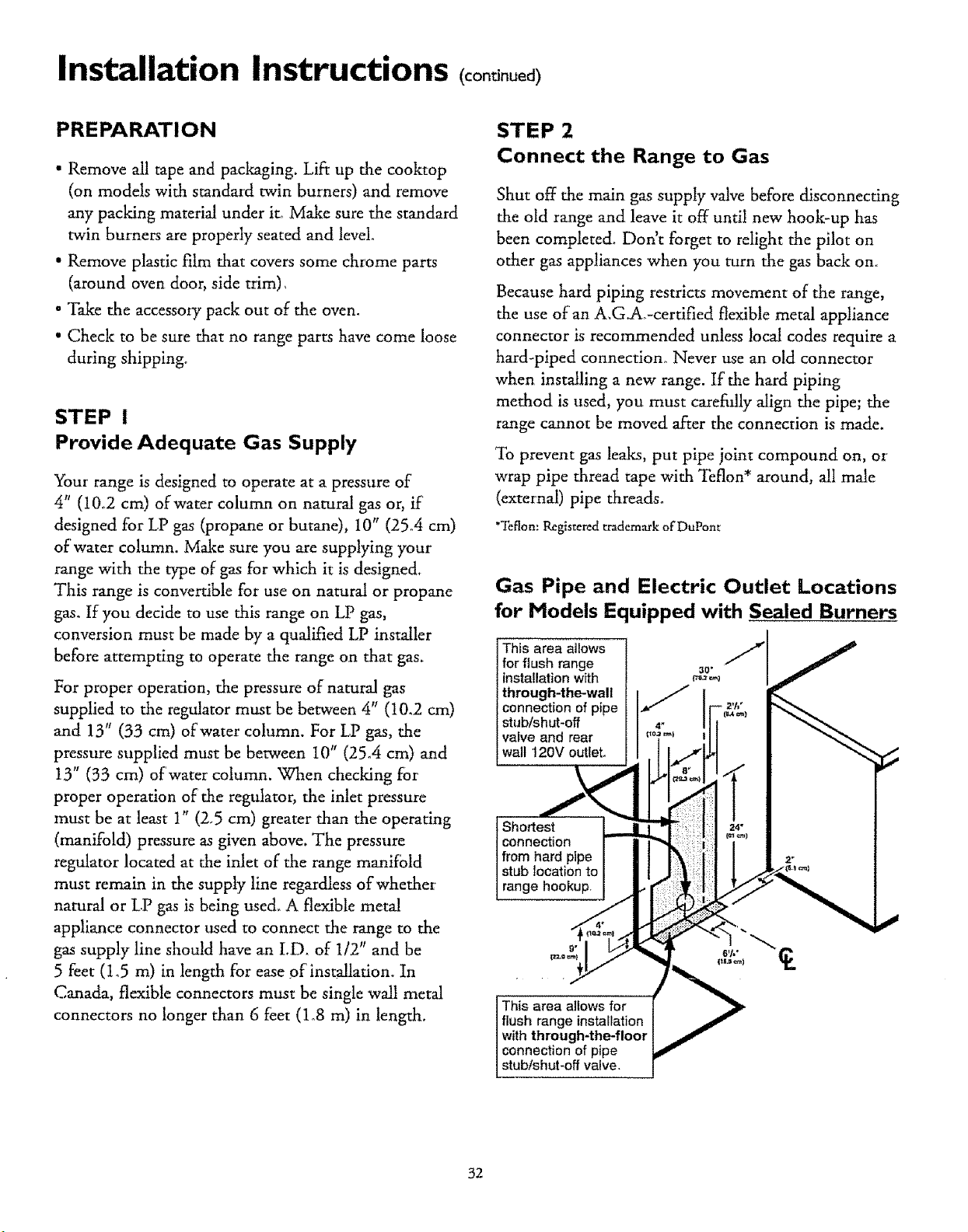

Installation Instructions on oood
PREPARATION
• Remove all tape and packaging. Lift up the cooktop
(on models with standard twin burners) and remove
any packing material under it, Make sure the standard
twin burners are properly seated and level.
• Remove plastic film that covers some chrome parts
(around oven door, side trim),
" Take the accessory pack out of the oven.
• Check to be sure that no range parrs have come loose
during shipping°
STEP I
Provide Adequate Gas Supply
Your range is designed to operate at a pressure of
4" (10_2 cm) of water column on natural gas or, if
designed for LP gas (propane or butane), 10" (25°4 cm)
of water column. Make sure you are supplying your
range with the type of gas for which it is designed.
This range is convertible for use on natural or propane
gas. If you decide to use this range on LP gas,
conversion must be made by a qualified LP installer
before attempting to operate the range on that gas.
For proper operation, the pressure of natural gas
supplied to the regulator must be between 4" (t0.2 cm)
and 13" (33 cm) of water column. For LP gas, the
pressure supplied must be between 10" (25.4 cm) and
13" (33 cm) of water column. When checking for
proper operation of the regulator, the inlet pressure
must be at least 1" (2.5 cm) greater than the operating
(manifold) pressure as given above. The pressure
regulator located at the inlet of the range manifold
must remain in the supply line regardless of whether
natural or LP gas is being used. A flexible metal
appliance connector used m connect the range to the
gas supply line should have an I.D. of 1/2" and be
5 feet (1.5 m) in length for ease ofinstallatiom In
Canada, flexible connectors must be single wall metal
connectors no longer than 6 feet (1o8 m) in length.
STEP 2
Connect the Range to Gas
Shut off the main gas supply valve before disconnecting
the old range and leave it off until new hook-up has
been completed. Don't forget to relight the pilot on
other gas appliances when you turn the gas back on.
Because hard piping restricts movement of the range,
the use of an A,G.Ao-certifled flexible meta! appliance
connector is recommended unless local codes require a
hard-piped connection,, Never use an old connector
when installing a new range. If the hard piping
method is used, you must carefillly align the pipe; the
range cannot be moved after the connection is made.
To prevent gas leaks, put pipe joint compound on, or
wrap pipe thread tape with Teflon* around, all male
(external) pipe threads.
"Teflo n: Registered tradernak of DuPont
Gas Pipe and Electric Outlet Locations
for Hodels Equipped with Sealed Burners
This area aiiows
for flush range
installation with
through-the-wall
connection of pipe
stub/shut-off
valve and rear
wall 120V outlet.
Shortest
connection
from hard pipe
stub location to
range hookUpr
This area allows for
flush range installation
with through-the-floor
connection of pipe
stublshut-off valve,
32

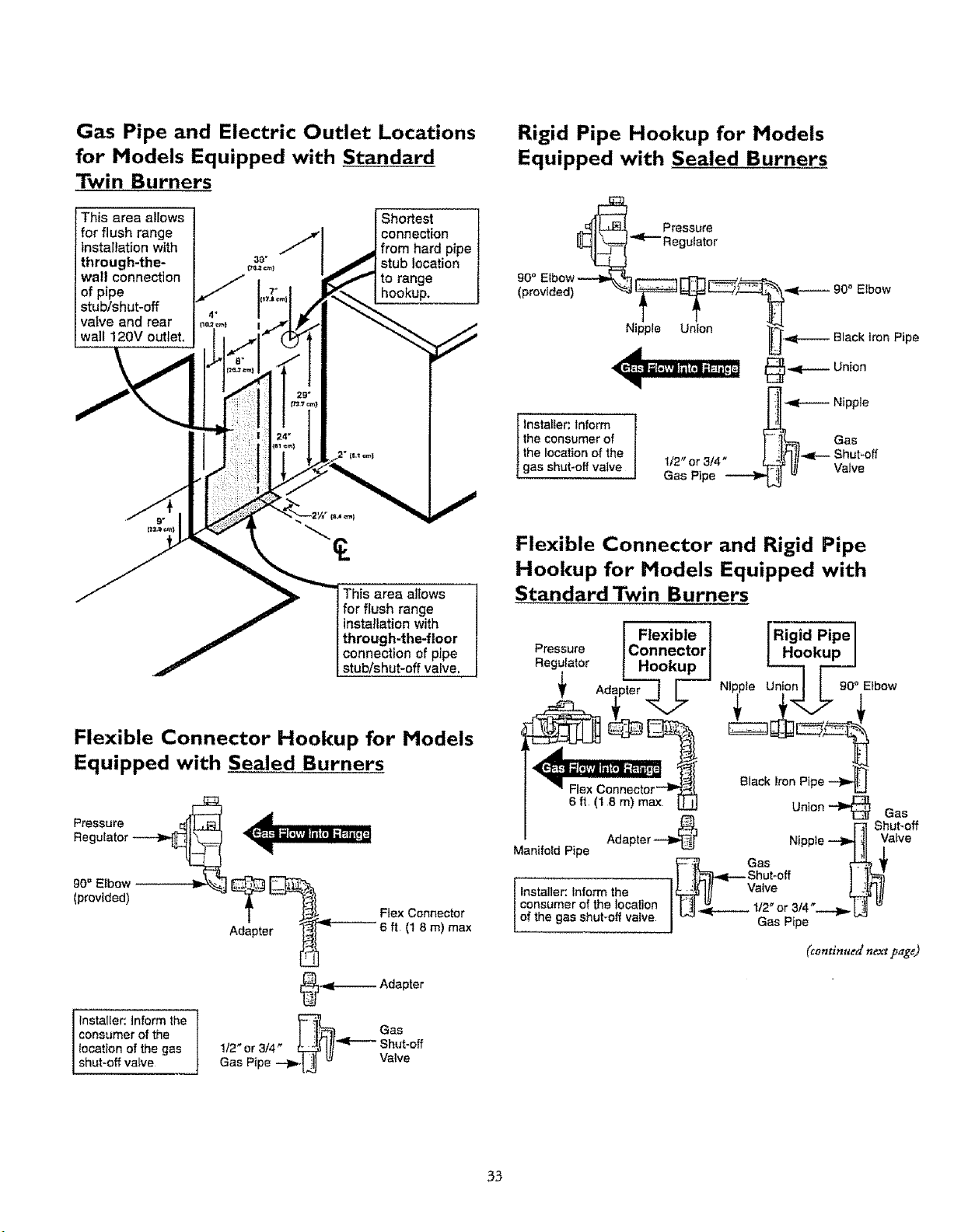

Gas Pipe and Electric Outlet Locations
for Models Equipped with Standard
Twin Burners
This area allows Shortest
for flush range connection
installation with from hard pipe
through-the- s0" stub location
wall connection to range
of pipe hookup.
[stub/shut-off
tvalve and rear 4"
wal 120V outlet.
This area allows
for flush range
installation with
through-the-floor
connection of pipe
stub/shut-off valve.
Flexible Connector Hookup for Models
Equipped with Sealed Burners
Pressure ._J_
Regulator ----_
90_Elbow y_. _
Adapt'er _6ft 118m) max
LL!
_r._ Adapter
Installer: Inform the I _ Gas
consumer of the
location of the gas J 112"or 3/4" _-_EII!"<---- Shut-off
shut-off valve Gas Pipe ---II,..{] _ Valve
Rigid Pipe Hookup for Models
Equipped with Sealed Burners
Flexible Connector and Rigid Pipe
Hookup for Models Equipped with
Standard Twin Burners
I Flexible ] [Rigid Pipe
Pressure IConnector/ L_okup
Regulator { Ho_ m /
j. I Hooku,. j
Black Iron Pipe
[-_ Shut-off
Adapter _' Nippte--_ _I Valve
Manifo,d P,pe _'= Gas _
_ _Shut-off
installer: Inform the " Valve = Nil
consumer of the location I I l!._=_____ 1/2_or3/4 - I;t m
o L_m ---"-- _L_i
f the gas shut-off vafve I Gas Pipe
(continued next page)
33
Installation Instructions coo 0ood)
1. Install a manual gas line shut-off valve in the gas
line in an emily accessed location outside of the
range_ Make sure everyone operating the range
knows where and how to shut off the gas supply to
the range.
2. Install mate 1/2" flare union adapter to the i/2"
NPT internal thread elbow at inlet of pressure
regulator. On models equipped with standard twin
burners, install the male pipe thread end of the 1/2"
flare union adapter to the 112" NPT internal thread
at inlet of pressure regulator. Use a back-up wrench
on the regulator fitting to avoid damage°
When installing the range from the front, remove
the 90 ° elbow for easier installation.
3. Install male 1/2" or 3/4" flare union adapter to the
NPT internal thread of the manual shut-offvatve,
taking care to back up the shut-off valve to keep it
from mining.
4. Connect flexible metal appliance connector to the
adapter on the range. Position range to permit
connection at the shut-offvalve.
5. When all connections have been made, make sure
all range controls are in the OFF position and mrn
on the main gas supply valve. Use a liquid leak
detector at all joints and connections to check for
leaks in the system.
CAUTION: DO NOT USE A FLAME TO
CHECK FOR GAS LEAKS.
When using test pressures greater than 112 psig to
pressure test the gas supply system of the residence,
disconnect the range and individual shut-off valve
from the gas supply piping. When using test pressures
of 1/2 psig or less to test the gas supply system, simply
isolate the range from the gas supply system by c!osing
the individual shut-off valve.
STEP 3
Electrical Connections
(on some models)
Electrical Requirements
120-volt, 60 Hertz, properly grounded branch circuit
protected by a 15-amp or 20-amp circuit breaker or
time delay fuse.
Extension Cord Cautions
Because of potential safety hazards associated with
certain conditions, we strongly recommend against the
use of an extension cord. However, if you still elect to
use an extension cord, it is absolutely necessary that it
be a ULdisted, 3-wire grounding-type appliance
extension cord and that the current carrying rating of
the cord in amperes be equivalent to, or greater than,
the branch circuit rating.
Grounding--IMPORTANT (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power cord of this
appliance is equipped
with a three-prong
(grounding) plug
which mates with a
standard three-prong
grounding wall
receptacle to minimize
the possibility of
electric shock hazard
from this appliance.
PREFERRED
METHOD __,._
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make sure
the receptacle is properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with a
properly grounded three-prong wall receptacle.
DO NOT, UNDER ANY CIRCUMSTANCES, CIFI"
OR REMOVE THE THIRD (GROUND) PRONG
FROM THE POWER CORD.
34
A: Usage Sit_aations Where Appliance Power Cord
W_dl Be Disconnected Infrequently.
TEMPORARY METHOD
(Adapter plugs not
permitted in Canada) _.___,
Atign large prongs/slots _ _"_'_J J f
\ _/I/' _" Ensure proper ground
'It t/ ! I and firm oonnection
before use
An adapter may be used only on a 15-amp circuit. Do
not use an adapter on a 20-amp circuit° Where local
codes permit, a TEMPORARY CONNECTION may
be made to a properly grounded two-prong wall
receptacle by the use of a UL-listed adapter, available
at most hardware stores. The larger slot in the adapter
must be aligned with the larger slot in the wall
receptacle to provide proper polarity in the connection
of the power cord.
CAUTION: Attaching the adapter ground terminal
to the wall receptacle cover screw does not ground
the appliance unless the cover screw is metal, and
not insulated, and the wall receptacle is grounded
through the house wiring. The customer should
have the circuit checked by a qualified electrician
to make sure the receptacle is properly grounded.
When disconnecting the power cord from the adapter,
always hold the adapter with one hand. If this is not
done, the adapter ground terminal is very likely to
break with repeated use. Should this happen, DO
NOT USE the appliance until a proper ground has
again been established.
B: Usage Sltuataons Where Applianc Power Cord
W'Lll Be Disconnected Frequently.
Do not use an adapter plug in these situations because
disconnecting of the power cord places undue strain
on the adapter and leads to eventual failure of the
adapter ground terminal.. The customer should have
the two-prong wall receptacle replaced with a three-
prong (grounding) receptacle by a qualified electrician
before using the appliance.
The installation of appliances designed for mobile
home installation must conform with the
Manufactured Home Construction and Safety
Standard, Tide 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD, Part 280) or, when such
standard is not applicable, the Standard for
Manufactured Home Installations, latest edition
(Manufactured Home Sites, Communities and Set-
Ups), ANSI A225.1, latest edition, or with local codes.
In Canada, mobile home installation must be in
accordance with the current CAN/CSA Z240/Mtl
Mobile Home Installation Code.
Electric Disconnect
1. Locate disconnect plug on the range back°
2. Pinch sides of connector and pull out of range back°
You will have this disconnect plug:
STEP 4
Seal the Openings
Seal any openings in the wall behind the range and in
the floor under the range when hookups are completed.
(continued next page)
35
Installation Instructions ( o0 ,0uod)
STEP 5
Light the Pilots
(for models equipped with standing pilots)
The range should be installed in its permanent
position before any pilots are lit or adjusted.
Hght the Surface Burner Pilots
CAWHON: Make sure the surface burner control
lmobs are in the OFF position before attempting to
light the pilots,
1. Raise the cooktop.
2. Hght both pilots with a match.
3. To avoid pilot outage, use caution when dosing
cooktop after lighting pilots.
NOTE: Do not leave standing pilot lit in a newly
constructed or remodeled home or apartment that will
be unoccupied for more than a month°
Each pilot flame was adjusted at the factory to be
approximately 5/16" (8 ram) tall A tinge of yellow
appearing at the upper tip is normal. If you find pilot
adjustment is necessary, follow instructions at right.
Adjust the Surface Burner
Pilots If Necessary
1. Raise the cooktop°
2. Locate the pilot adjustment screw. It can be accessed
through the small hole near the center of the
manifold panel
3. To adjust, use a blade-
type screwdriver with
a shaft diameter of
less than 3/t 6"
(5 mm). Turn pilot
adjustment screw
until pilot is 5/16"
(8 mm) high. Do not
reduce the flame to less than 5/16" (8 mm) or pilot
outage may occur. A pilot flame burning higher
than recommended may generate soot (carbon
black) on the bottom of your cooktop_
Hght the Oven Pilot
CAUTION: Make sure the OVEN CONTROL knob
is in the OFF position before attempting to light the
pilot.
1. Remove the broiler drawer by sliding the drawer all
the way out and then lifting slightly to remove it
from its tracks.
2. Locate the pilot at the back of the broiler
compartment. The pilot is attached to the left side
of the oven burner.
3w
Light the pilot with a
match. No adjustments
are required for natural
gas. If range is connected
to LP gas, contact the
person who installed
your range or made the
conversiom
36
Stand-by pilot flame
Heater pilot flame
4. Turn the OVEN CONTROL knob to a setting above
200°F (93°C). The pilot flame will increase in size
and impinge on the temperature-response element°
The oven burner will light in 30-90 seconds.
The oven burner will operate until the set temperature
is reached. The oven burner will continue to cycle on
and off as necessary to maintain the oven at the
temperature indicated by the OVEN CONTROL !mob.
STEP 6
Check Ignition of Surface Burners
Operation of all cooktop and oven burners should be
checked after the pilots have been lighted (on some
models) and range and gas supply lines have been
carefully checked for lealcso
Standing Pilot Models
Select a top burner knob and simultaneously push in
and turn to HI position. The burner should light
within a few seconds. Try each burner in succession
until all burners have been checked.
Hectric Ignition Models
Select a top burner knob and simultaneously push in
and turn to LITE position. You will hear a snapping
sound indicating proper operation of the spark module°
Once the air has been purged from the supply lines,
burners should light within 4 seconds. After burner
lights, rotate knob out of the LITE position. Try each
burner in succession until all burners have been checked.
Quality of Flames
The combustion quality of burner flames needs to be
determined visually,
(A) Yellow flames--Call
for service
(B) Yellow tips on outer
cones--Normal for LP gas
(C) Soft blue flames--
Normal for natural gas
if burner flames look like (A), call for service. Normal
burner flames should look like (B) or (C), depending
on the type of gas you use.
With LP gas, some yellow tipping on outer cones is
normal.
STEP 7
Check Ignition of Oven Burner
Your oven is designed to operate quietly and
automatically. To operate the oven, turn the OVEN
CONTROL knob to a setting above 200°E (93°C°)o
After 30-90 seconds, the oven burner will ignite and
burn until the set temperature is reache& The oven
burner will continue to cycle on and off as necessary to
maintain the oven at the temperature indicated by the
OVEN CONTROL knob.
Hectric ignition models require electrical power to
operate. The oven cannot be lit during a power
outage. Gas wilt not flow unless the glow bar is hot.
If the oven is in use when a power outage occurs, the
oven burner wil! shut off and cannot be re-lit until
power is restore&
(continued next page)
37

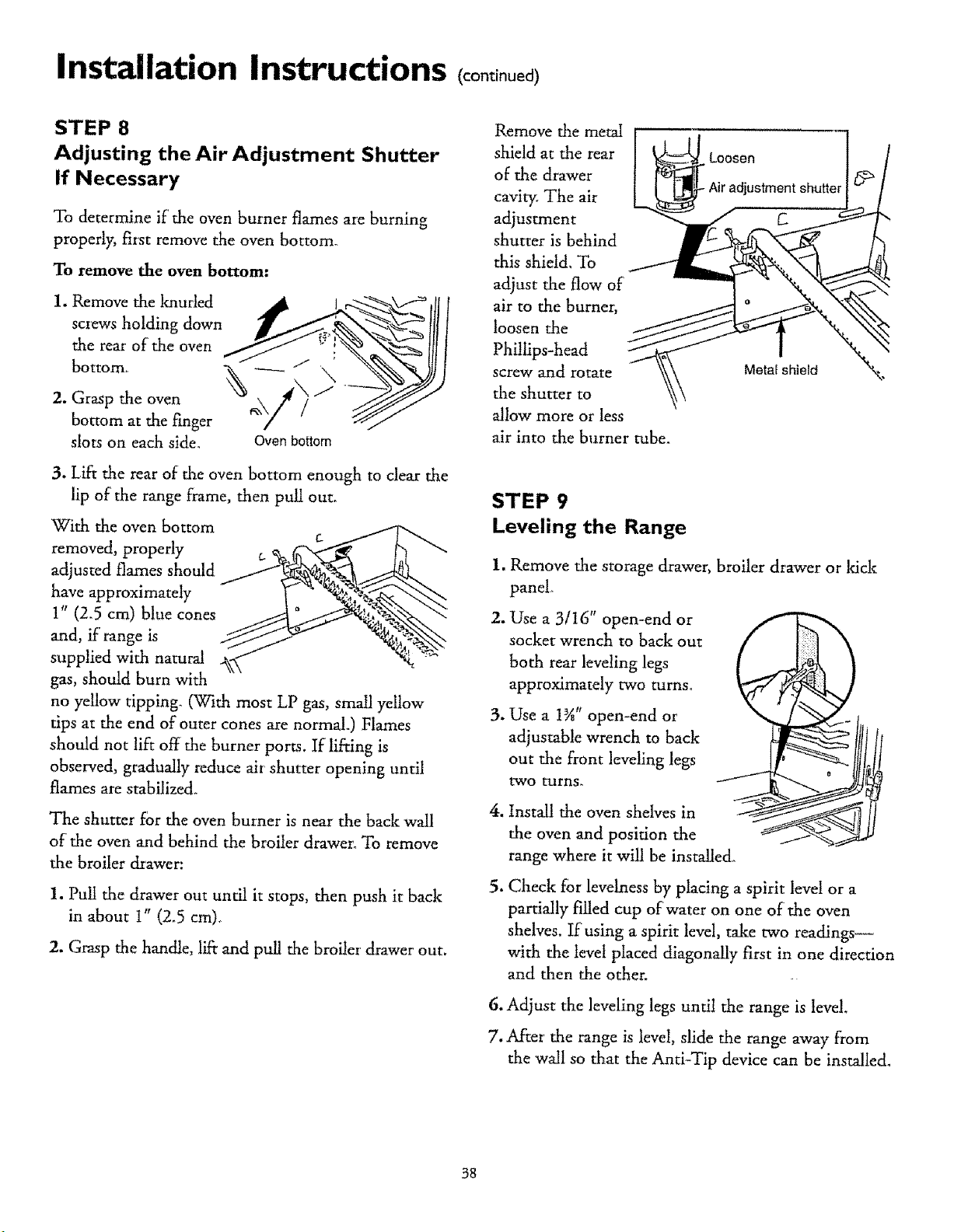

Installation Instructions
STEP 8
Adjusting the Air Adjustment Shutter
if Necessary
To determine if the oven burner flames are burning
properly, first remove the oven bottom_
To remove the oven bottom:
I. Remove the knurled j -_
bottom /t :
2. Grasp the oven /
bottom at the finger
slots on each side° Oven bosom
3. Lift the rear of the oven bottom enough to clear the
lip of the range frame, then pull out.
With the oven bottom
removed, properly
adjusted flames should
have approximately
1" (2.5 cm) blue cones
and, if range is
supplied with natural ._-_
gas, should burn with
no yellow tipping_ (With most LP gas, small yellow
tips at the end of outer cones are norma!.) Flames
should not lift off the burner ports. If lifting is
observed, gradually reduce air shutter opening until
flames are stabilized_
The shutter for the oven burner is near the back wall
of the oven and behind the broiler drawer. To remove
the broiler drawer:
1. Pull the drawer out until it stops, then push it back
in about i" (2.5 cm)
2. Grasp the handle, lift and pull the broiler drawer out,
Remove the metal
shield at the rear
of the drawer
cavity. The air
adjustment
shutter is behind
this shield, To
adjust the flow of
air to the burner,
!oosen the
Phillips-head
screw and rotate
the shutter to
allow more or less
air into the burner tube.
Loosen
shu_er
Metat shield
STEP 9
Levelingthe Range
1. Remove the storage drawer, broiler drawer or ldck
panel_
2. Use a 3116" open-end or
J
socket wrench to back out /€
both rear leveling legs
approximately two turns°
3. Use a 1_" open-end or
adjustable wrench to back
out the front leveling legs
two turns. /
4. Install the oven shelves in
the oven and position the
range where it wi!l be installed.
)
5. Check for levelness by placing a spirit level or a
partially filled cup of water on one of the oven
shelves. If using a spirit level, take two readings--
with the level placed diagonally first in one direction
and then the other.
6. Adjust the leveling legs until the range is level.
7. After the range is level, slide the range away from
the walt so that the Anti-Tip device can be installed.
38

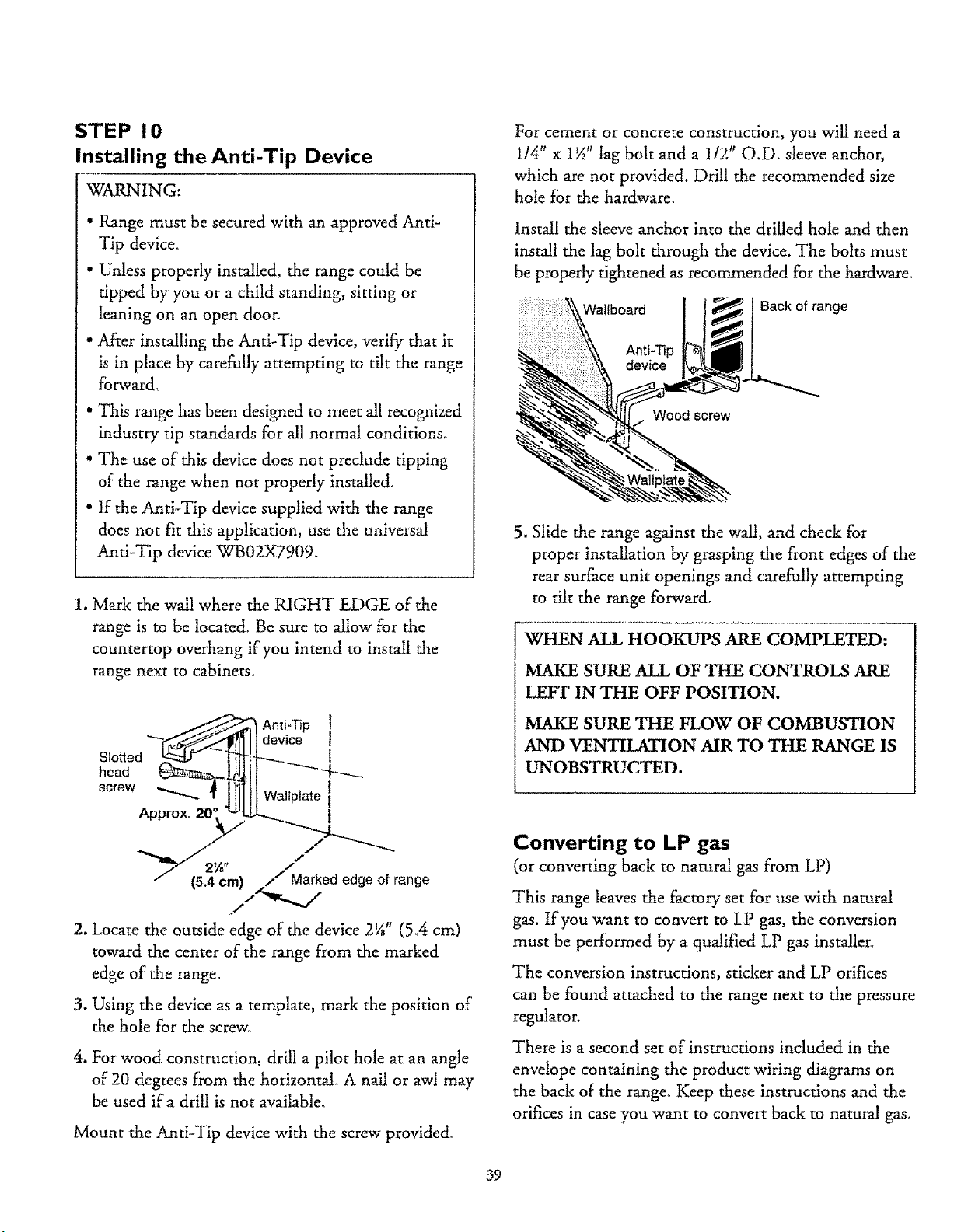

STEP !0
Installing the Anti-Tip Device
WARNING:
• Range must be secured with an approved Anti-
Tip device_
• Unless properly installed, the range could be
tipped by you or a child standing, sitting or
leaning on an open door.
• AFter installing the Anti-Tip device, verify that it
is in place by carefully attempting to tilt the range
forward.
• This range has been designed to meet all recognized
industry tip standards for all normal conditions°
• The use of this device does not preclude tipping
of the range when not properly installed.
• If the Anti-Tip device supplied with the range
does not fit this application, use the universal
Anti-Tip device WB02X7909o
1. Mark the wall where the RIGHT EDGE of the
range is to be located. Be sure to allow for the
countertop overhang if you intend to install the
range next to cabinets.
...._ _>_'_Anti-Tip l
"_.¢'_ !_]] device [
head '_i__ 'LIII
1
Approx. 20 °. _ I
7 2¼'
"" (8,4 era) .,,," Marked edge of range
2. Locate the outside edge of the device 2W' (5,4 cm)
toward the center of the range from the marked
edge of the range.
3. Using the device as a template, mark the position of
the hole for the screw.
4. For wood construction, drill a pilot hole at an angle
of 20 degrees from the horizontal A nail or awl may
be used if a drill is not available.
Mount the Anti-Tip device with the screw provided.
For cement or concrete construction, you will need a
1t4" x 1_" lag bolt and a 112" O.D. sleeve anchor,
which are not provided. Drill the recommended size
hole for the hardware,
Install the sleeve anchor into the drilled hole and then
install the lag bolt through the device. The bolts must
be properly tightened as recommended for the hardware.
Wallboard
Anti-Tip
device
Wood screw
Back of range
5. Slide the range against the walt, and check for
prope_ installation by grasping the front edges of the
rear surface unit openings and carefully attempting
to tilt the range forward.
WHEN ALL HOOKUPS ARE COMPLETED:
MAKE SURE ALL OF THE CONTROLS ARE
LEFT IN THE OFF POSITION.
MAKE SURE THE FLOW OF COMBUSTION
AND "vENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
Converting to LP gas
(or converting back to natural gas from LP)
This range leaves the factory set for use with natural
gas, If you want to convert to IP gas, the conversion
must be performed by a qualified LP gas insta!lero
The conversion instructions, sticker and LP orifices
can be found attached to the range next to the pressure
regtflator.
There is a second set of instructions included in the
envelope containing the product wiring diagrams on
the back of the range_ Keep these instructions and the
orifices in case you want to convert back to natural gas_
39

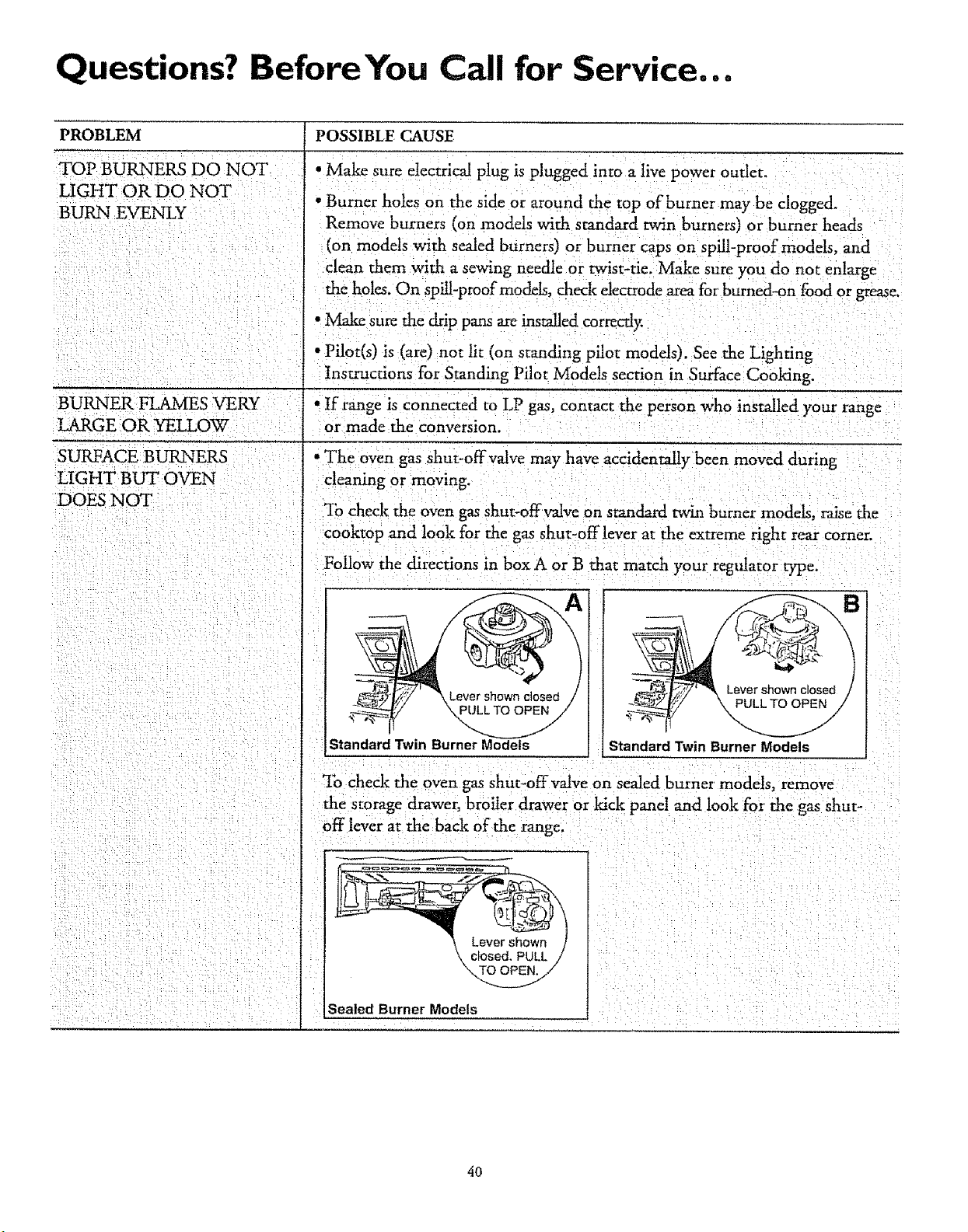

Questions? Before You Call for Service...
PROBLEM POSSIBLE CAUSE
TOP BURNERS DO NOT
LIGHT OR DO NOT
BURN EVENLY
•Make sure electrical plug is plugged into a live power outlet.
• Burner holes on the side or around the top of burner may be clogged.
Remove burners (on models with standard twin burners) or burner heads
(on models with sealed burners) or burner caps on spill-proof models, and
clean them with a sewing needle or twist-tie. Make sure you do not enlarge
the holes. On spill-proof models, check electrode area for burned-on food or grease.
•Make sure the drip pans are installed correctly
BURNER FLAMES VERY • tf range is connected to LP gas, contact the person who installed your range
LARGE OR YELLOW t or made the Conversion.
SURFACE BURNERS
LIGHT BUT OVEN
DOES NOT
• Pilot(s) is (are)not lit (on standing pilot models). See the Lighting
Instructions for Standing Pilot Models section in Surface Cooking.
• The oven gas Shut-offvalve may have accidentally been moved during
cleaning or moving.
To check the oven gas shut-offvalve on standard twin burner models, raise the
cooktop arid !ook for the gas shut-offlever at the extreme right rear corner.
Follow the directions in boxA or B that match your regulator type.
shown closed/
Standard Twin Burner Models
[ \B
I Lever shown closed /
Standard Twin Burner Models
_Ib check the oven gas shUt-off valve on sealed burner models, remove
the storage drawer, broiler drawer or kick panel and look for the gas shut-
off lever at the back of the range.
-<<........ f2
g '
Sealed Burner Models
4O
PROBLEM
CLOCK DOES NOT WORK
OVEN LIGHT DOES NOT
COME ON
OVEN WILL NOT WORK
OVEN TEMPERATURE
TOO HOT OR TOO COLD
FOOD DOES NOT ROAST
OR BAKE PROPERLY
FOOD DOES NOT
BROIL PROPERLY
STRONG ODOR
POSSIBLE CAUSE
• Range electrical plug must be securely seated in a live power outlet,
Check for blown fuse or tripped circuit breaker.
• Bulb may be loose or burned out,
• Electrical plug must be plugged into a live power outlet.
• Plug on the range is not completely inserted in the electrical outlet.
• Pilot(s) is (are) not lit (on standing pilot models). See the Lighting
Instructions for Standing Pilot Models section in Using Your Oven.
• The circuit brealcer in your house has been tripped, or a fuse has been blowm
° Oven controls nor properly set.
° The OVEN CONTROL knob needs adjustment, See the Adjust the
Oven Thermostat--Do It Yourself section.
° Oven controls noc properly set. See the Baking or Roasting section.
• Shelf position is not correct.
• Incorrect cookware or cookware of improper size is being used.
" Oven thermostat needs adjustment. See the Adjust the Oven Thermostat--
Do It Yourself secdono
° Aluminum foil used improperly in the oven.
° Oven bottom not securely seated in position.
"Oven controls not properly set. See the Broiling section.
° Oven door and/or broiler drawer not closed.
° Improper shelf position being used. See the Broiling section.
° Food is being cooked on a hot pan,
• Cookware is not suited for broiling.
• Aluminum foil used on the btoilerpan grid has not been fitted properly
and slit as recommended,
• Oven bottom not securely seated in position,
• Improper airtgas ratio in oven. Adjust oven burner air shutter.
• An Odor from the insulation around the oven liner is normal for the first few
times oven is used. This is temporary.
41
Forthe repairor replacementpartsyouneed
Call7 am - 7 pm, 7 daysaweek
1-800-366-PART
(1-800-366-7278)
Forin-homemajorbrandrepairservice
Call24 hoursa day,7 daysaweek
1-800-4-MY-HOME
(1-800-469-4663)
Forthe locationofa
SearsRepairServiceCenterinyourarea
Call24 hours aday,7 daysa week
t -800-488-t 222
mmmmm=
mmmmmm
Forinformationonpurchasinga Sears
MaintenanceAgreementor to inquire
aboutan existingAgreement
call 9 am - 5 pm, Monday-Saturday
1-800-827-6655
America's Repair Specialists
42
KENMORE GAS RANGE WARRANTY
''"' '"'"'"'"'" '"'"" '""'" '"' '" "'"'" "" ' ' ' "' II I= I I
FULL ONE-YEAR WARRANTY ON THE FUNCTIONING OF
ALL PARTS EXCEPT GLASS PARTS
If, within one year from the date of installation, any part, other than a glass part, fails to function properly
due to a defect in material or workmanship, Sears will repair or replace it, free of charge
FULL 30-DAY WARRANTY ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL,
PAINTED OR BRIGHT METAL FINISHED PARTS
If,within 30 days from the date of installation,any glass part or the finish on any porcelain enamel, painted
or bright metal part is defective in material or workmanship, Sears will replace the part, free of charge,
FULL 90-DAY WARRANTY ON MECHANICAL ADJUSTMENTS
For 90 days from the date of installation, Sears will provide, free of charge, any mechanical adjustments
necessary for proper operation of the range, except for normal maintenance.
If the range is subjected to other than private family use, the above warranty coverage is effective for
only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES.
This warranty applies only while this product is in use in the United States. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state_
SEARS, ROEBUCK AND CO., DEPT, 702PSO, 3333 Beverly Rd., Hoffman Estates, IL 60179
if Dear Customer: Our constant efforts are directed toward making sure your new Kenmore Range wilt arrive at your home
| in perfect condition and will give you proper performance. As part of these efforts, we feel it is our responsibility to provide
[,,..__ou with this warranty for your range.
WE SERVICE WHAT WE SELL
"We Service What We Self is our assurance to you that you can depend on Sears for service because Sears service is nationwide
Your Kenmore Range has added value when you consider that Sears has a service unit near you staffed by Sears traine
technicianso.,professiona! technicians specifically trained on Sears appliances, having the parts, tools and equipment to ensur
that we meet our pledge to you--"We Service What We Se!l!"
TO FURTHER ADD TO THE VALUE OF YOUR RANGE, BUY A SEARS MAINTENANCE AGREEMENT.
Kenmore Ranges are designed, manufactured and tested
for years of dependable operation. Yet, any modern
appliance may require service from time to time. The Sears
warranty plus the Sears Maintenance Agreement provides
protection from unexpected repair bills and assures you of
enjoying maximum range efficiency.
Here's a comparative warranty and Maintenance Agree-
ment chart showing you the benefits of a Sears Range
Maintenance Agreement.
CONTACT YOUR SEARS SALESPERSON OR LOCAL
SEARS SERVICE CENTER TODAY AND PURCHASE A
SEARS MAINTENANCE AGREEMENT.
Years of Ownership Coverage I st Year 2nd Year 3rd Year
Replacement of Detective
1 P._sotherthan W MA MA
Porcelain or Glass
90 DAYS
2 MechanicalA_iustmant W MA MA
30 DAYS
3 PoroelainaodGlas_Pa_ MA MA
W = ,
Annual Preventive
4 Mainton.noeCheck MA MA MA
at your request
W - Warranty MA _ Maintenance Agreement
America's Best Selling Appliance Brand
Sold by SEARS, ROEBUCKAND CO°,Hoffman Estates, IL 60179
SW/ARS
OWNER'S
MANUAL
Model Numbers:
61011 72296
61018 72298
61061 72751
61111 72755
61118 72758
71061 75171
71068 75181
71161 75188
71168 75271
71351 75275
71358 75276
71661 75278
71665 75281
71668 75291
71751 75295
71758 75296
72291 75298
72295
To Call
Toll Free
For Service:
1-800-4-MY-HOME _"
(I-800-469-4663)
For Parts:
1-800-FON-PART
(I-800-366-7278)
GAS RANGE
The model number of your gas range is
found on the serial plate fastened to the
front frame behind the broiler compartment,
storage drawer or kick panel.
All repair parts are available for immediate
purchase or special order when you visit
your nearest Sears Service Center, or the
Service Department at most Sears Stores.
To request service or order parts by phone,
call the toll free numbers listed to the left.
When requesting service or ordering parts,
always provide the following information:
• Product Type
• Model Number
• Part Number
• Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
