802259 - B, BA, BHA, BAHA, Quick Start Guide - July 2015 - V2.00
QUICK START GUIDE -
(B & BA Res models)
Note: This quick start guide must be read in conjunction with
the main installation and user instructions
Before installing ensure that the following have been
provided at the Installation site:
• Review all the technical specifications.
• Ensure the underbench can support the product weight when full of water,
(allow an extra 3-4kg when full. )
• Sufficient space in the cupboard to install all of the undersink units in
accordance with these Installation Instructions. Refer to technical specification
for dimensions. Make allowance for a booster heater and / or water softener if
required. Refer to section 3 & 4, for Installation instructions.
• For Zip HydroTap B & BA models, a 220-240Vac, 10A GPO will be required.
For Zip HydroTap BHA & BAHA models, two 220-240Vac, 10A GPOs will be
required. (One GPO is for the Zip HydroTap and the other for the Booster
heater).
NOTE: Check all cable and hose lengths against inlet /outlet
positions before proceeding (See section 5 for general layout).
• A potable water supply connection with isolating valve inside the cupboard
within reach of the braided hoses and positioned so that the connection
point and the stop cock will not be obstructed when the undersink units are
installed.
• If an external filtration or water softening device is required, then it is
important to allow extra space for these items.
• A cold water supply with a minimum working pressure of 172kPa (200kPa
when a booster is fitted) and a maximum working pressure of 700kPa
connected via an isolation valve.
• The appliance must be placed with it’s base in a horizontal position.
IMPORTANT!
Do not proceed with the Installation if these requirements are
not met.
STEP 1-
Prepare and fit the Taps
Hole positioning: Position the tap such that it dispenses into
the sink bowl with ample clearance for a cup or tea pot. Alternatively,
the tap could be mounted away from the sink using a Zip Font,
available as an accessory.
Apply a light smearing of silicon sealant
on the underside of the upper spacer to
ensure a watertight fi t.
For HydroTap & Mixer taps
cut a 35mm hole in the bench
or sink top.
BENCH TOP
Ø35mm
HydroTap and Elite Tap
Mixer Tap
4-in-1
(If required)
All-In-One Tap
(If required)
ALL THREAD
ROD
STAINLESS
STEEL
WASHER
SPIDER
CLAMP
NUT
BLACK
PLASTIC
SPACER
NOTE: feed each of the three tubes and
electrical cable evenly in between the legs of
the SPIDER CLAMP when installing.
Fit the
STAINLESS STEEL
WASHER,
SPIDER CLAMP,
AND 6mm NUT.
6mm
NUT
SPIDER
CLAMP
Stainless
washer
Black plastic
spacer
35mm dia hole
Sink
O-RING
LOWER
RUBBER
WASHER
WASHER
NUT
White Hose
External
Mains
Blue band
Mixer IN
Red band
Mixer Out
For All-In-One taps cut a 50mm hole in the bench or sink top.
50mm
Note: make sure the tap location will allow the nozzle to drain into the sink.
Bench top
HydroTap Arc/Cube
(If required)
Spout locating
screws (2)
Plastic spring
clip
Upper locating
positions
Lower locating
positions
Clip locating
holes (2)
Undercut
for loom
Plastic spring clip
Dimples
•
F
it the O-ring into the recess on the
underside of the Mixer tap. (Note:
If mounting on an uneven surface,
a light smear of silicone on the seal
ring will ensure a water tight seal)
• Affix the three hoses to the tap,
noting their colour coding.
• Pass all hoses through the 35mm
hole and position the tap so that it
discharges into the sink.
• Fit the lower rubber seal to the
threaded extension.
• Secure the tap in position with the
metal washer and N
ut.
Parts Supplied Description Parts Supplied Description
1 off
Hydrotap Tap
and hoses
1 off
Undersink Unit
with water filter
1 off
HydroTap
Booster heater
and hoses
(Supplied with
BCHAV model)
1 x Restrictaflow
valve and Tee
piece for Mixer
Taps and select
models
1 x Mixer tap for
3-in-1 and 4-in-1
models (with
hoses)
1 off Mains water
connection hose
1 x User guide and
1 x Quick start
guide
Guide
1.
Remove the 2 x spout locating screws and lower the spout to expose the plastic
spring clip
NOTE: The plastic spring clip has two internal dimples that may be positioned in the 6
upper or 6 lower, pre drilled holes in the spout (see diags. below & Figs. 1.7 & 1.8)
2.
To reposition the spout, gently spread the plastic spring clip to release the dimples
from the spout holes. When released, slide the clip on the spout so that it ends up
between the two rows of holes.
3.
Rotate the plastic clip on the spout to orient the dimples, so they are in line with the
newly selected holes.
NOTE: When determining which of the 6 holes are required for the new spout height and
orientation, check the new plastic clip position will clear the undercut and that the
wiring loom will not be pinched, when assembled.
4.
Slide the plastic clip up/down to engage with the selected holes, making sure the
two dimples engage simultaneously with the two selected holes.
NOTE: The clip will not fit correctly if one dimple engages before the other. Both dimples
must engage at the same time.
5.
With the clip fitted to the newly selected holes, carefully raise the spout (ensure
the wiring loom is a neat fit in
the undercut and is located
between the open ends of
the clip) until the clip locating
holes are in line with the spout
locating screws.
6.
Replace the 2 x locating
screws.
7.
If mounting on an uneven
surface, apply a light smearing
of silicon sealant on the O ring
to ensure a watertight fit. (See
fig. 1.9)
8.
Pass the assembly through the
35mm hole and position the tap
so it discharges into the sink.
9.
Fit the lower rubber seal to the
threaded extension.
10.
Secure the tap in position with
the metal washer and nut.
11.
Fit the tube kit, as supplied.
NOTE: The tube kit must be fitted after the HydroTap has been mounted on the benchtop
or sink. Refer to the tube kit assembly instructions, supplied with the tap kit.

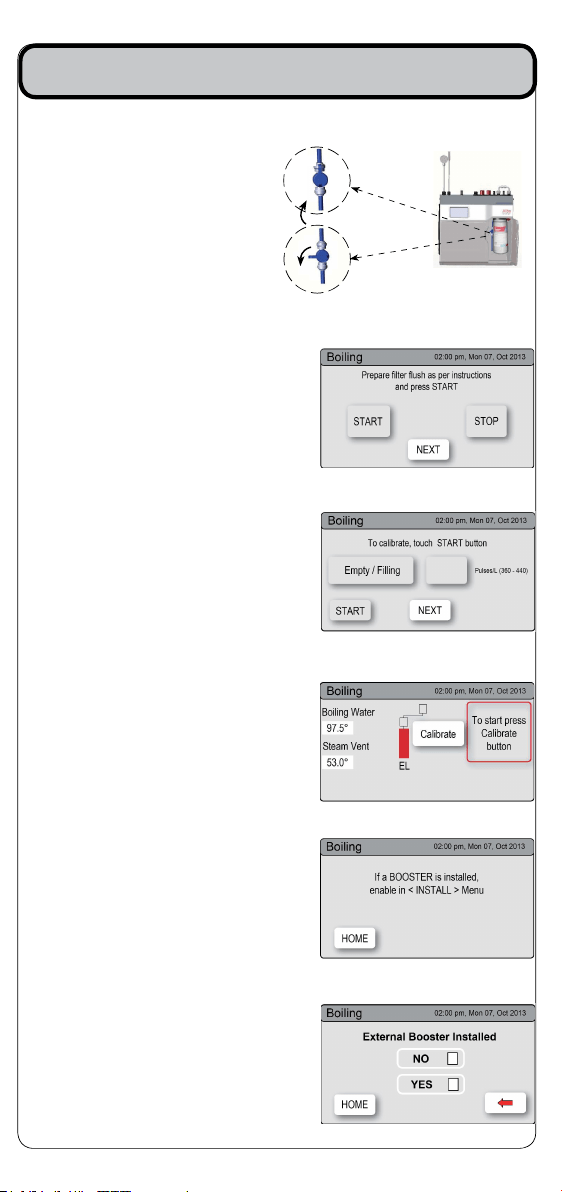

NOTE: the spout is fixed and does not swivel
