General Care and Safety Guide
TECHNICAL SPECIFICATION
Model No: GEPH201 (PH-ET201), GEPH201-2PK (PH-ET201)
Supply: 220-240VAC 50Hz
Wattage: 425W

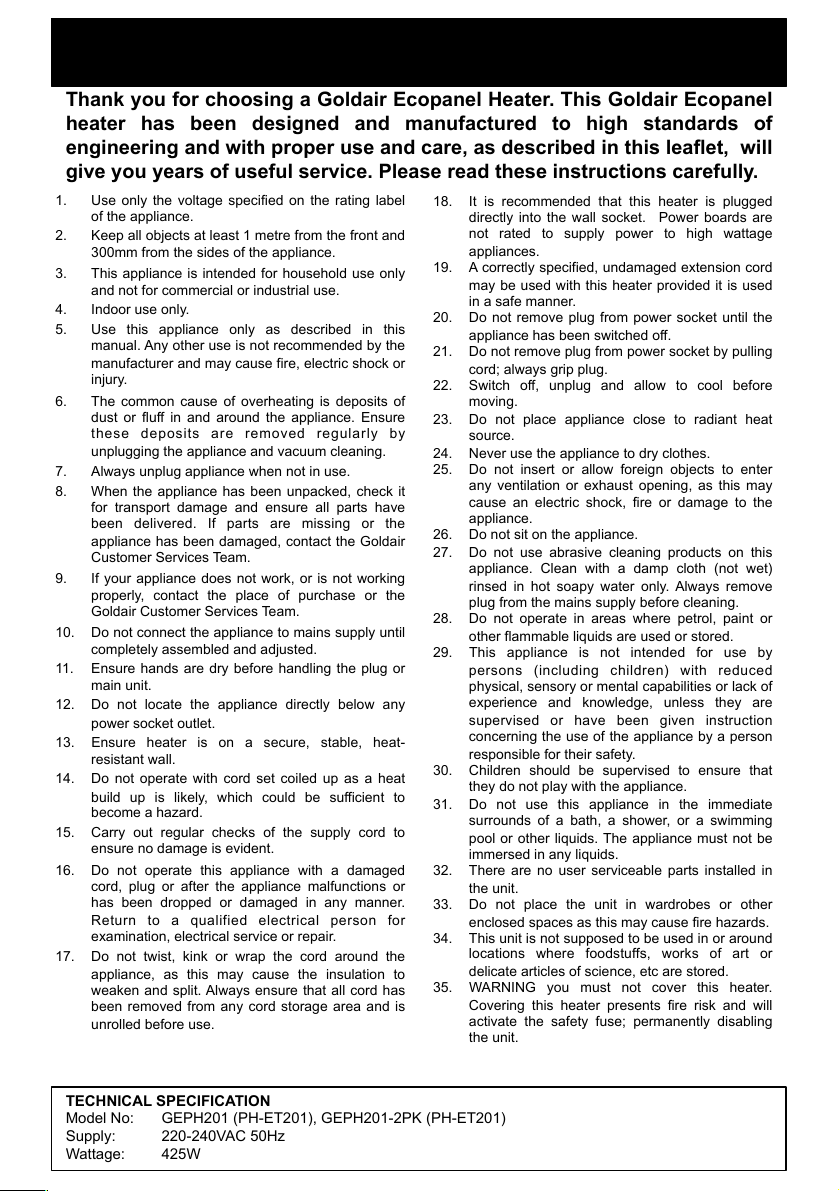

Thank you for choosing a Goldair Ecopanel Heater. This Goldair Ecopanel
heater has been designed and manufactured to high standards of
engineering and with proper use and care, as described in this leaflet, will
give you years of useful service. Please read these instructions carefully.
1. Use only the voltage specified on the rating label
of the appliance.
2. Keep all objects at least 1 metre from the front and
300mm from the sides of the appliance.
3. This appliance is intended for household use only
and not for commercial or industrial use.
4. Indoor use only.
5. Use this appliance only as described in this
manual. Any other use is not recommended by the
manufacturer and may cause fire, electric shock or
injury.
6. The common cause of overheating is deposits of
dust or fluff in and around the appliance. Ensure
these deposits are removed regularly by
unplugging the appliance and vacuum cleaning.
7. Always unplug appliance when not in use.
8. When the appliance has been unpacked, check it
for transport damage and ensure all parts have
been delivered. If parts are missing or the
appliance has been damaged, contact the Goldair
Customer Services Team.
9. If your appliance does not work, or is not working
properly, contact the place of purchase or the
Goldair Customer Services Team.
10. Do not connect the appliance to mains supply until
completely assembled and adjusted.
11. Ensure hands are dry before handling the plug or
main unit.
12. Do not locate the appliance directly below any
power socket outlet.
13. Ensure heater is on a secure, stable, heat-
resistant wall.
14. Do not operate with cord set coiled up as a heat
build up is likely, which could be sufficient to
become a hazard.
15. Carry out regular checks of the supply cord to
ensure no damage is evident.
16. Do not operate this appliance with a damaged
cord, plug or after the appliance malfunctions or
has been dropped or damaged in any manner.
Return to a qualified electrical person for
examination, electrical service or repair.
17. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord has
been removed from any cord storage area and is
unrolled before use.
18. It is recommended that this heater is plugged
directly into the wall socket. Power boards are
not rated to supply power to high wattage
appliances.
19. A correctly specified, undamaged extension cord
may be used with this heater provided it is used
in a safe manner.
20. Do not remove plug from power socket until the
appliance has been switched off.
21. Do not remove plug from power socket by pulling
cord; always grip plug.
22. Switch off, unplug and allow to cool before
moving.
23. Do not place appliance close to radiant heat
source.
24. Never use the appliance to dry clothes.
25. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the
appliance.
26. Do not sit on the appliance.
27. Do not use abrasive cleaning products on this
appliance. Clean with a damp cloth (not wet)
rinsed in hot soapy water only. Always remove
plug from the mains supply before cleaning.
28. Do not operate in areas where petrol, paint or
other flammable liquids are used or stored.
29. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge, unless they are
supervised or have been given instruction
concerning the use of the appliance by a person
responsible for their safety.
30. Children should be supervised to ensure that
they do not play with the appliance.
31. Do not use this appliance in the immediate
surrounds of a bath, a shower, or a swimming
pool or other liquids. The appliance must not be
immersed in any liquids.
32. There are no user serviceable parts installed in
the unit.
33. Do not place the unit in wardrobes or other
enclosed spaces as this may cause fire hazards.
34. This unit is not supposed to be used in or around
locations where foodstuffs, works of art or
delicate articles of science, etc are stored.
35. WARNING you must not cover this heater.
Covering this heater presents fire risk and will
activate the safety fuse; permanently disabling
the unit.
Wall Mounting Position Instructions
NOTE: Your Goldair Ecopanel heater should be installed with at least
300mm clearance from the floor and any other surrounding parts
including other appliances, side walls, ceilings, shelves and soft
furnishings.
!""##$
!""##$
!""##$
!""##$
1. Mark the positions of the four holes to be
drilled on the wall. Ensure there is a
300mm clearance on all sides of the
heater.
2. Drill holes with an appropriate drill bit for
the wall surface you are mounting the
heater on to.
3. Insert the plastic rail fittings into the holes.
4. Install the panel heater onto the four rail
fittings matching the four holes on the heater.
5. Screw the four screw bolts into the plastic rail
fittings.
6. Put the caps onto the end of the screw bolts.
It is recommended to use some normal glue
to stick the caps onto the bolts steadily.
Wall Mounting Position Instructions
Always choose a safe location for the heater, keeping in mind the safety
precautions outlined. Ensure all packaging and the wall mounting
accessories pack has been removed from the unit before use.
To remove the unit from the wall, simply remove the bolt caps, unscrew the bolts with a screw driver
and take the heater down.
General Care and Safety Guide
WARNING: Keep all objects at least 1 metre
from the front and 300mm from the sides of
the appliance.
WARNING: In order to avoid overheating, do
not cover the heater.
WARNING: Never leave this heater unattended.
CONTENTS
1 x Goldair Ecopanel heater
1 x Wall mounting accessories pack
2 x drill bits (1 x 7mm for plasterboard or wooden
walls, 1 x 8mm for drilling masonry)
4 x Rail fittings
4 x Screw bolts
4 x Bolt caps
NOTE: Please ensure you use the correct drill bit
for the wall surface material you are mounting on
to. Please contact your local hardware retailer or
builder for advice.
OVERVIEW OF YOUR GOLDAIR ECOPANEL
HEATER
Your Goldair Panel Heater will provide
background warmth.
Your Panel Heater is designed to take the chill off
the room.
The surface of this Panel Heater can be painted
with good quality paint (acrylic or enamel).
Note: Do not run power cord behind the heater.
To ensure the power cord is set to the closet
power socket, this heater can be rotated
clockwise and fixed to the wall in any 360degree
position, with the power cord in the corner closest
to the socket.
Decorating tip: All wall mounted heaters may
cause paint to discolour or wall paper to lift.
WARNING: Take care when positioning
anything near your heater, using the timer
will mean the heater will come on
automatically. Fire may result if placed next
to combustible material.
OPERATING INSTRUCTIONS
Before plugging in and using your new Goldair
panel heater, check all surfaces to ensure the
heater is not damaged in any way.
Check that the On/Off switch is set to the Off
position before plugging the heater into the
mains supply.
Use the On/Off switch along the side of the
heater to turn your heater on.
TIMER:
Turn the outer dial of the timer in a clockwise
direction until the time of the day (24-hour clock)
corresponds with the triangular marking.
Example if it is 2pm (1400 hours) then set the
triangular mark in line with 14. One complete
turn of the dial corresponds to 24 hours.
There are 96 “riders”, positioned around the dial,
each rider represents 15 minutes.
Where all the “riders” are pushed to the outside
of the timer the heater will be ON continuously.
To set a specific time for example:
If you want the heater to be on from 6pm to
10pm, then set all the riders from 18 to 22 (1800
hours to 2200 hours) to the outside of the rim
and all other riders to the inside of the timer. The
unit will then turn on automatically at 6pm and off
again at 10pm.
Indicates actual
time
Riders pushed to
the outside rim to
turn ON
General Care and Safety Guide
CARE AND CLEANING
Do not attempt to dismantle the heater. There are
no user serviceable parts. For service or repair,
contact an authorised electrical service
technician.
Unplug the heater from the mains supply before
cleaning. Ensure that the heater has been
allowed to cool down completely before cleaning.
To remove the unit from the wall, simply remove
the bolt caps, unscrew the bolts with a screw
driver and then take the heater down. Use a
vacuum cleaner to remove dust and fluff from
behind the heater.
The outside can be cleaned by wiping it over with
a soft dry cloth.
NOTE: Do not use abrasive cleaning agents or
polish, this can damage the surface and finish.
For short term non-use, simply turn off the unit
with the power switch on the side of the heater
and disconnect the mains power supply at the
wall.
CAUTION
This heater generates heat during use. Proper
precautions must be taken to prevent the risk of
burns, scalds, fires or other damage to persons.
SAFETY FEATURE
In case of overheating, this heater is fitted with a
thermal fuse which is located inside the
construction of the heater. If this thermal fuse
activates it will turn the heater off however the
light in the power switch will remain on to let you
know there is still power going into the heater.
In the event that this happens, turn the heater off
at the switch and the wall socket and unplug it.
Then contact our Customer Service Team
PROOF OF PURCHASE
To receive warranty retain receipt as proof of
purchase. (Refer to back of booklet).
PLEASE NOTE: As the GEPH201 model is fitted with a timer, the timer has
been set to the “ON” position. Please refer to the timer section for setting
instructions.
SUPPORT AND TECHNICAL ADVICE
Goldair – New Zealand
Monday – Friday 8am-5pm
Phone +64 (0)9 917 4000
Phone 0800 232 633
Goldair – Australia
Monday – Friday 8am-5pm
Phone +61 (0)3 9365 5100
Phone 1300 465 324
info@cdbgoldair.com.au
Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in
normal domestic use for a period of three years. In non-domestic use Goldair limits the voluntary warranty to three
months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during
the warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by
anyone other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in
relation to the goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Three Year Warranty
Goldair Three Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due$to$con)nual$design$improvements,$the$product$illustrated$in$this$User$Manual$may$differ$slightly$from$the$actual$product.$
Goldair$–$New$Zealand$
%&'$()*+,-.$
/0$')1$2""34"4$
567686%$
9:;<*,=+$
$
/>)=?$@AB$C"DE$E24$B"""$
/>)=?$"F""$G!G$A!!$
HHH6I)*+,-.6;)6=J$$
Goldair$–$Australia$
%&'$()*+,-.$9:KL.,*-,$/LM$
/0$')1$N4B$
7):L>$8).,=I$
O-;L).-,P$!4NG$
$
/>)=?$@A2$C"D!$E!AN$N2""$
/>)=?$2!""$(0Q&9RS$$C2!""$BAN$!GBD$
HHH6I)*+,-.6;)#6,:$$
