QUICK START GUIDE
30683 Rev_C
BrightShield™ Collection
QUICK START GUIDE
2
WELCOME TO U-LINE
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired
innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height
compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers.
®
clean integrated look allow you
PRODUCT INFORMATION
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
GENERAL INQUIRIES
U-Line Corporation
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Parts Email: onlineparts@u-line.com
QUICK START GUIDE
This Quick Start Guide covers the basics of installation and general use of your product.
For more details, see the complete User Guide & Service Manual on u-line.com.
This product is eligible for an additional one-year warranty at no charge when you register your product on u-line.com.
See complete warranty for details.
CONTENTS
Safety and Warning 4
Environmental Requirements 5
Electrical 5
Water Hookup 6

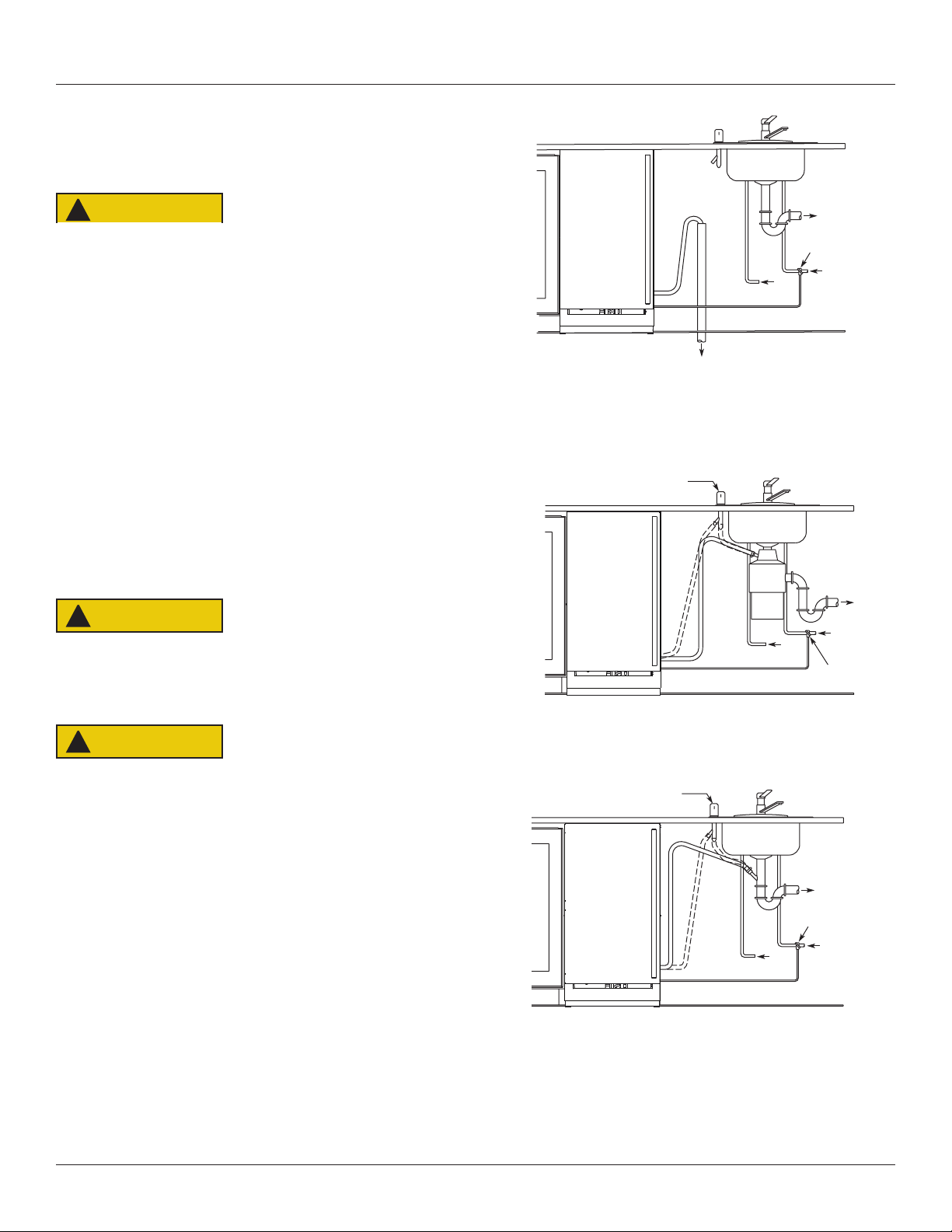

Drain 9
Door Swing 10

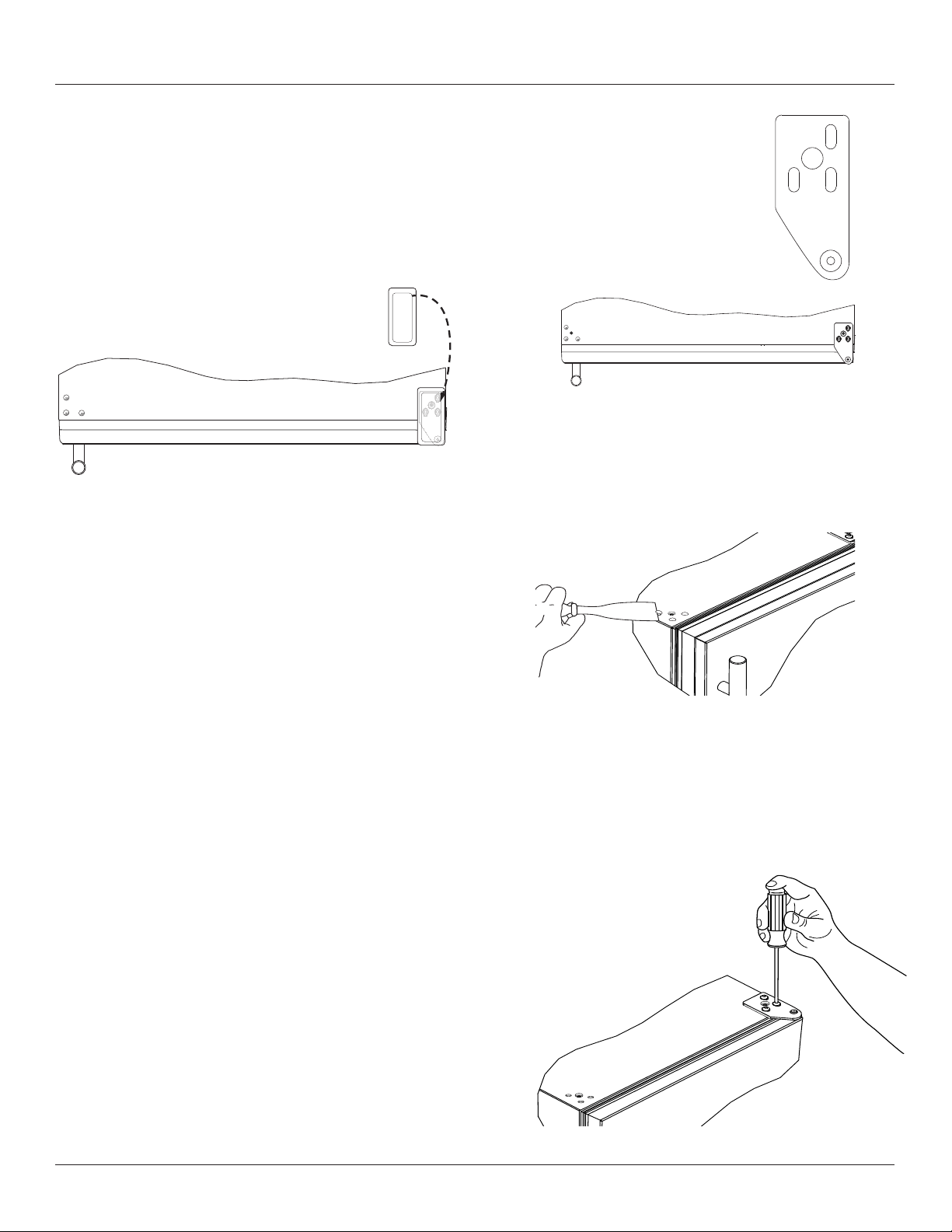

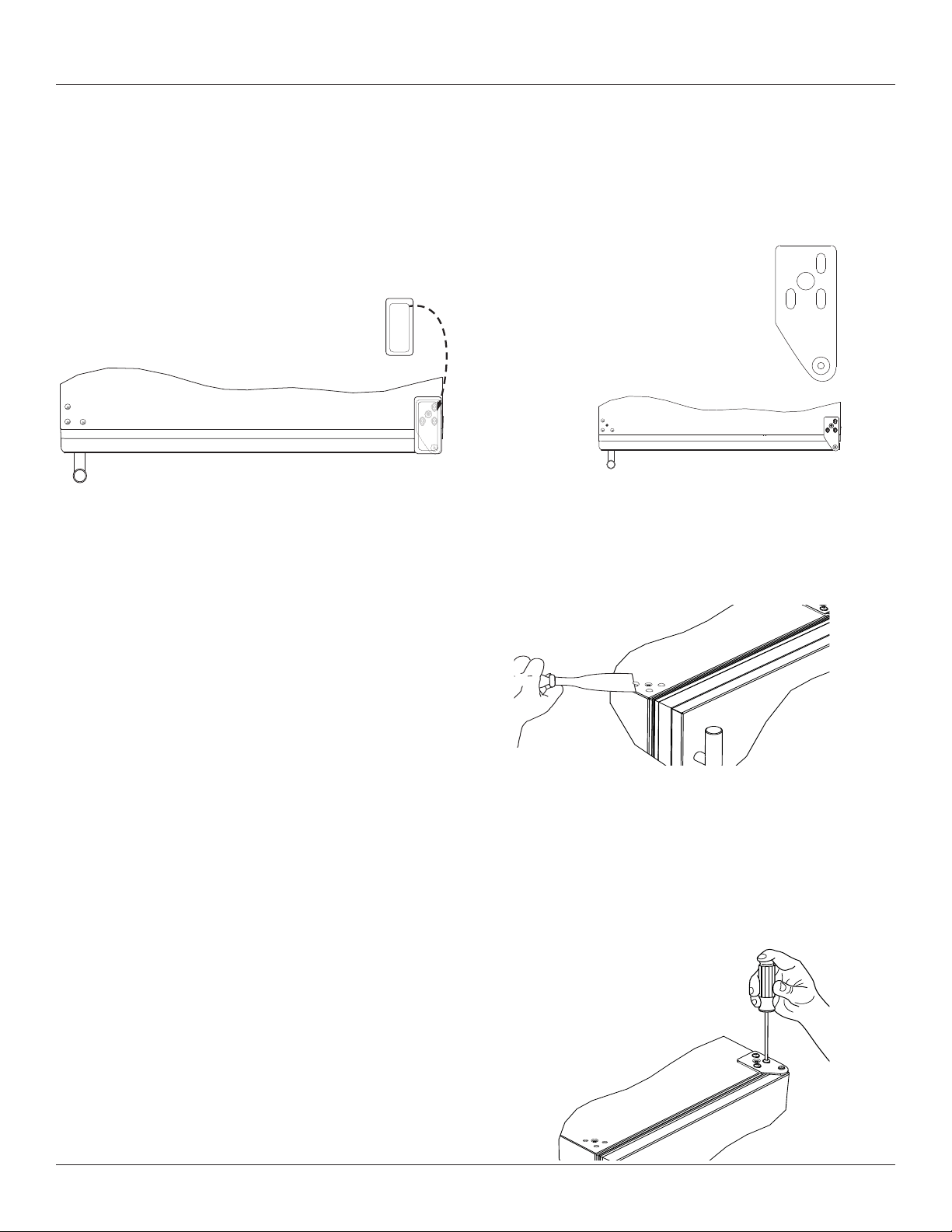

Door Adjustments 11
General Installation 18
Anti-Tip Bracket 18

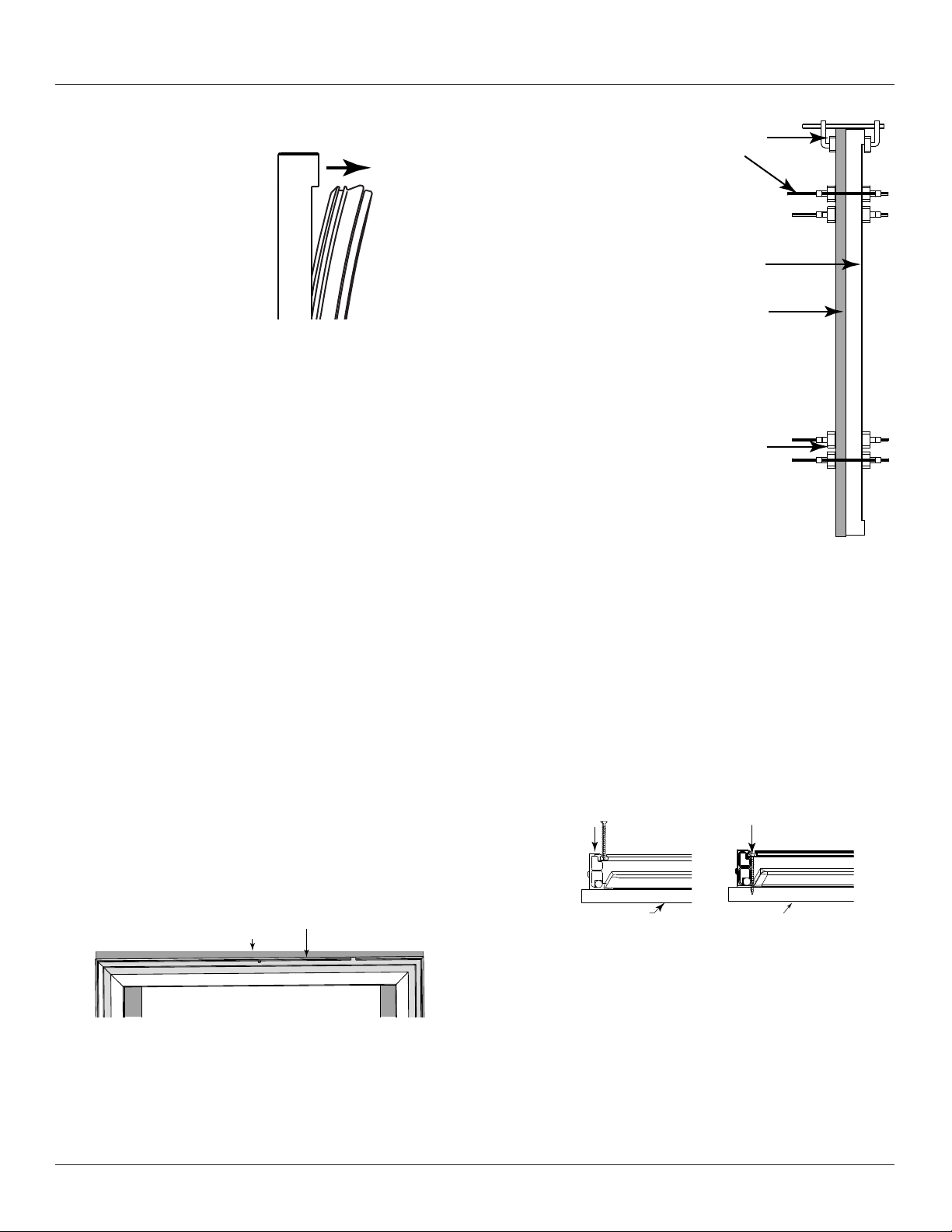

Integrated Panel Installation 20

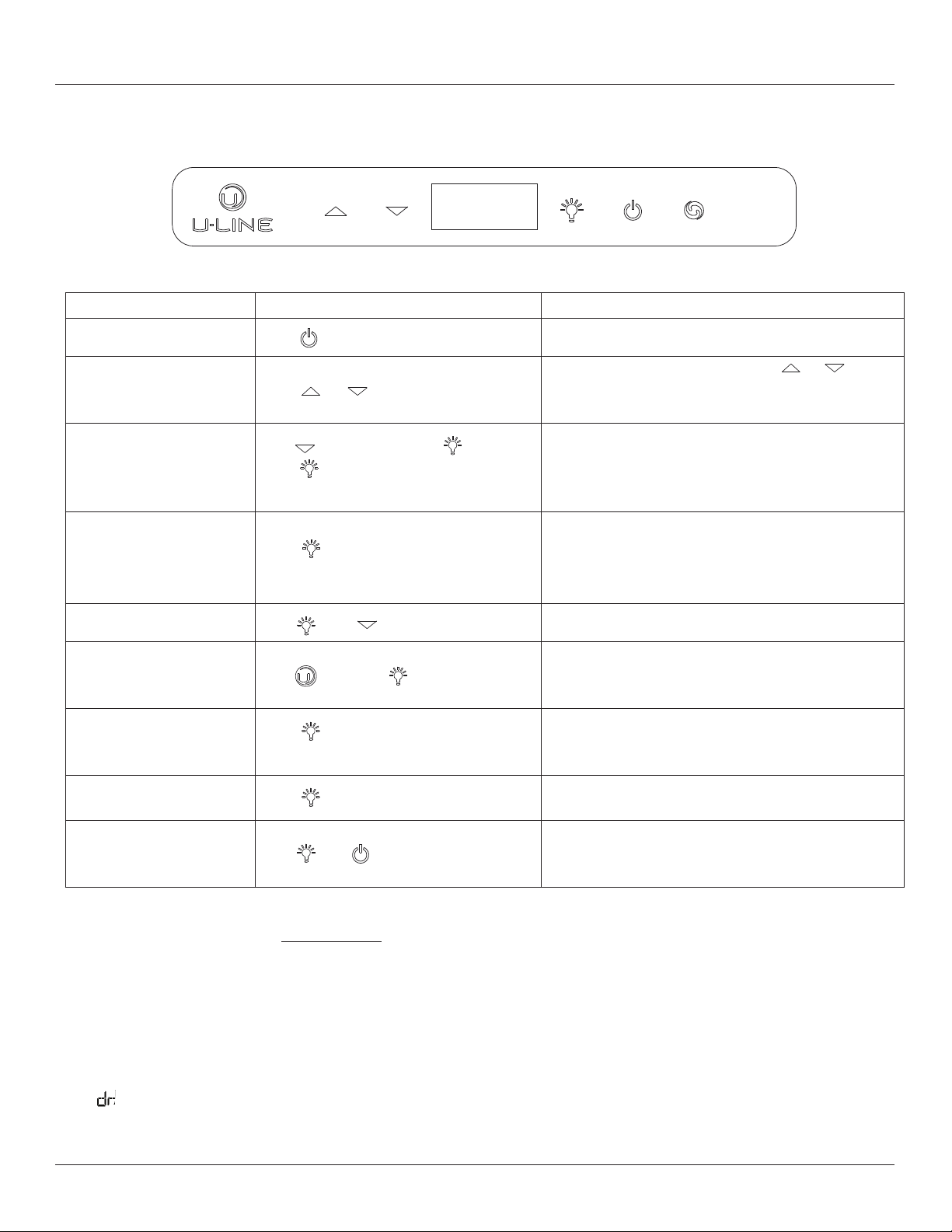

Control Operation 21
BrightShield™ Information 25
First Use 25

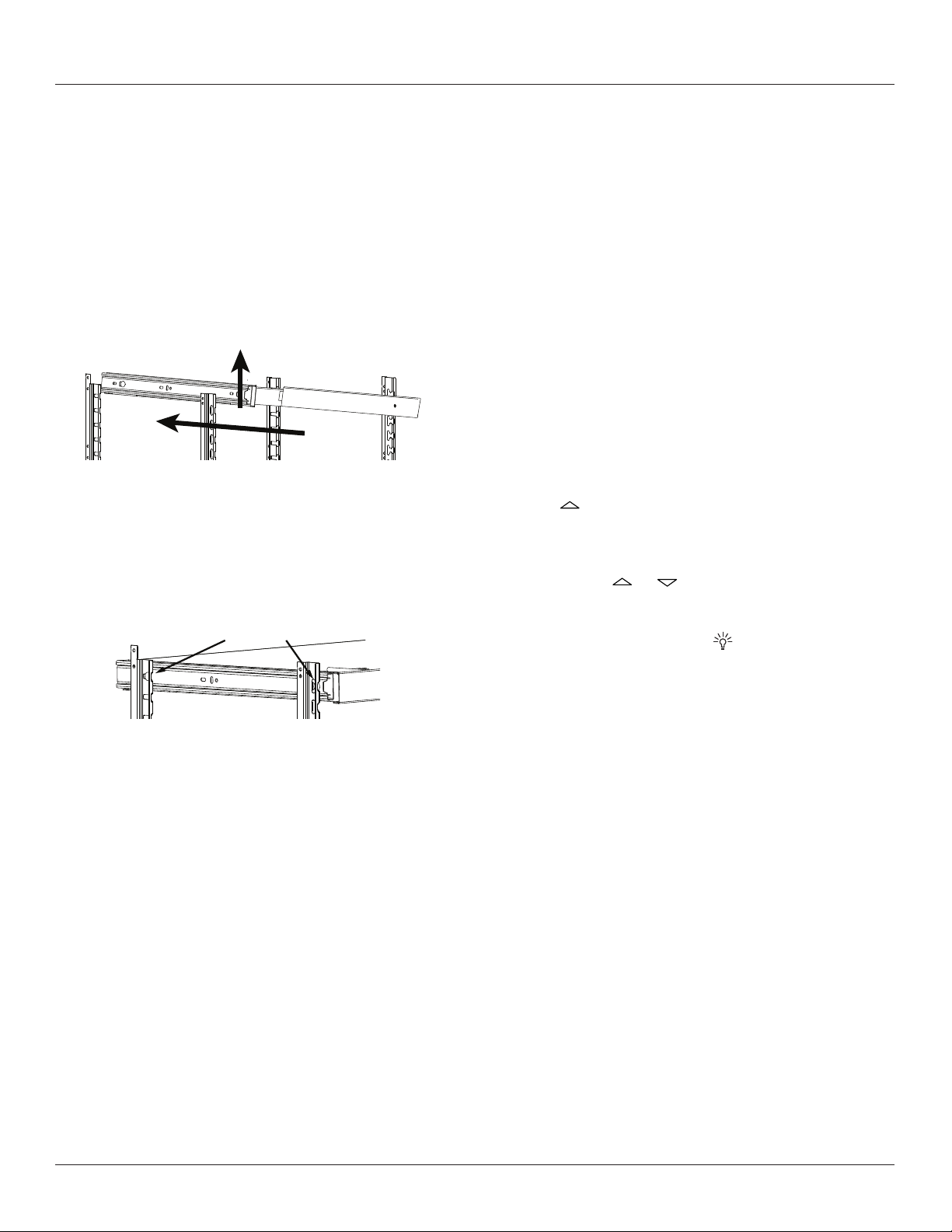

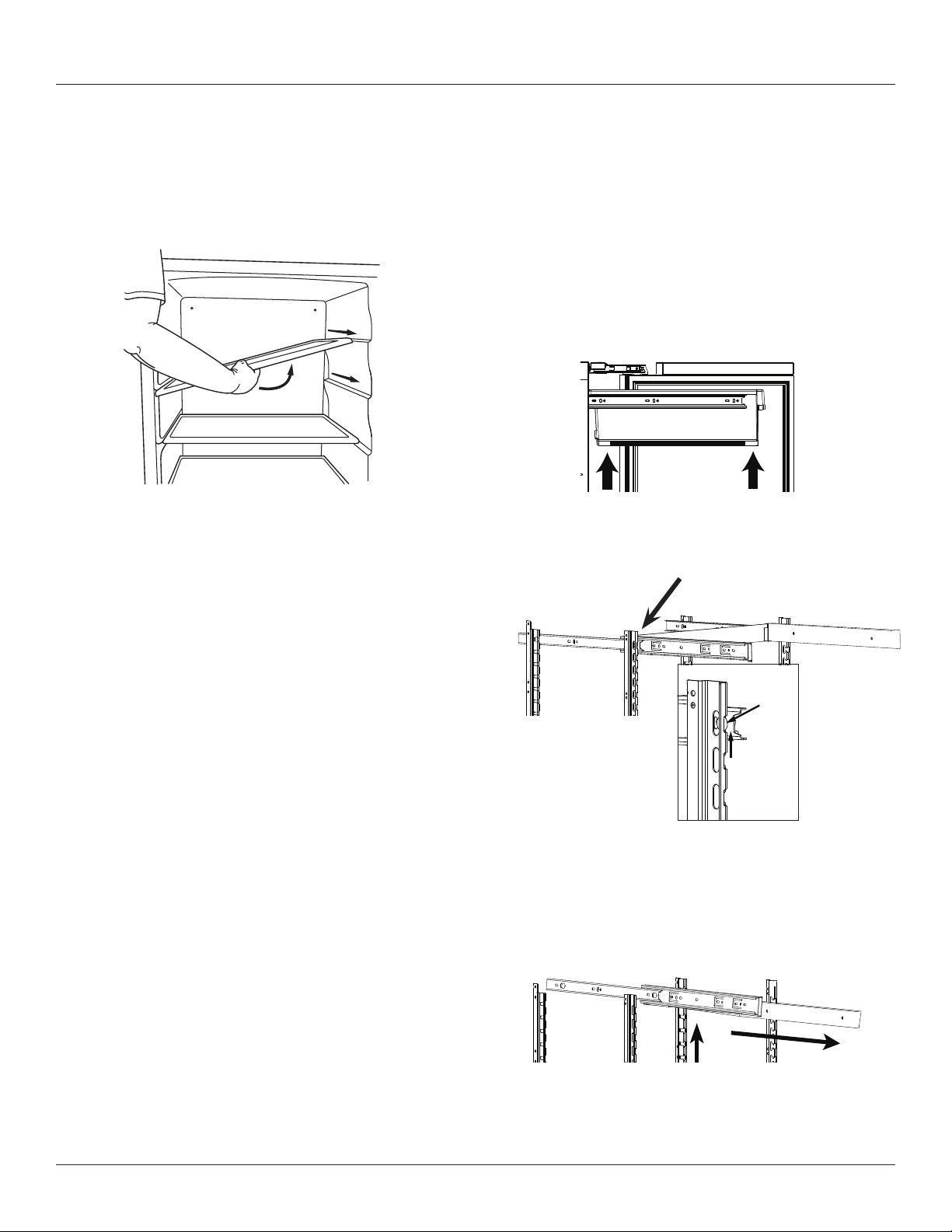

Interior Adjustments 27

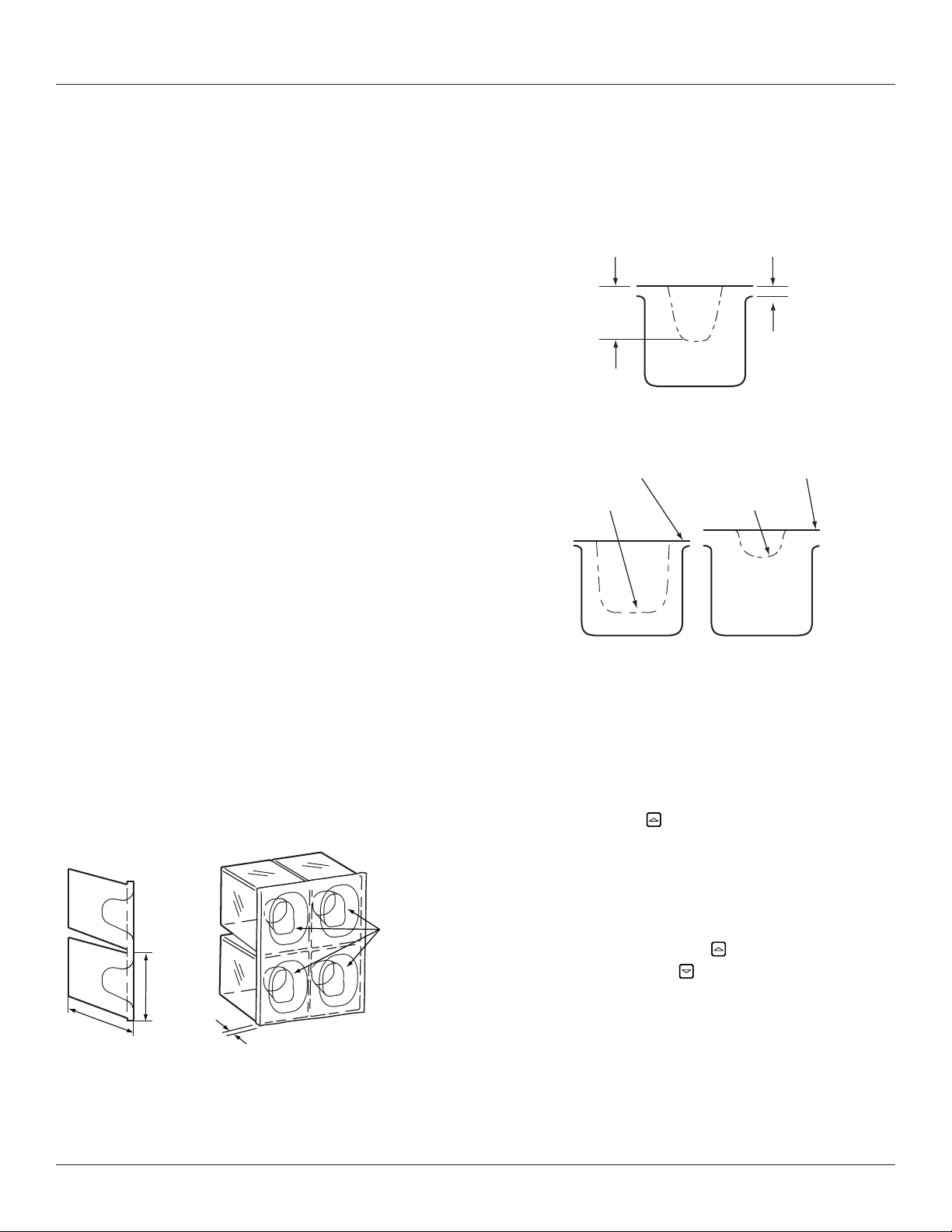

Ice 28
Cleaning 30
Warranty 35
3
QUICK START GUIDE
4
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
QUICK START GUIDE
5
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/exposed
to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will evaporate
when the humidity drops.
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
CAUTION
!
Electrical
SHOCK HAZARD - Electrical Groundining Required.
Never attempt to repair or perform maintenance
on the unit until the electricity has been
disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord, remov-
ing power plug, or direct wiring can cause serious
injury, re, loss of property and/or life, and will
void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle that
has been placed by a qualied electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
-
pliances and is not recommended for your unit because it
could be prone to nuisance tripping. However, be sure to
consult your local codes.
receptacle location.
WARNING
!
QUICK START GUIDE
6
Water Hookup
NUGGET ICE MACHINES
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
compression tting. U-Line recommends using accessory
water hook up kit – part # 80-54674-00. The kit includes
a 10’ (3 m) braided exible water supply line and a brass
hose tting.
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply
When connecting the water supply, please note the
following:
• Water Mineral Content:
◦
TDS: greater than 5 ppm (mg/l) but less than
400 ppm (mg/l)
◦
Hardness: Less than 200 mg/l (12 gpg)
• Not recommended for use with softened water
• A TDS meter is included with your unit
• Water Treatment Options
◦
TDS between 400-600 and/or hardness
between 13-20 can be treated by U-Line’s in-line water
filter accessories available at u-line.com or your local
dealer:
ULALINEFILTER — Standard
ULALINEFILTERL — Large
ULALINEFILTERHEAD — 3/8” NPT, initial
setup requires head & filter
• Use bypass level 6
Water Quality 1-3 Users 4+ Users
400 TDS and/or 12
gpg hardness or less
Optional
Standard Filter
Change 1x per year
Optional
Large Filter
Change 1x per year
401-600 TDS and/or
13-20 gpg hardness
Required
Large Filter
Change 1x per year
Required
Large Filter
Change 2x per year
601+ TDS, and/or
21+ gpg hardness
Contact your local water professional
• The water pressure should be between 20 and 120 psi
(138 and 827 kPa).
• The water line MUST have a shut-o valve in the
supply line.
• The water line should be looped into 2 coils. This
will allow the unit to be removed for cleaning and
servicing. Make certain that the tubing is not pinched
or damaged during installation.
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.

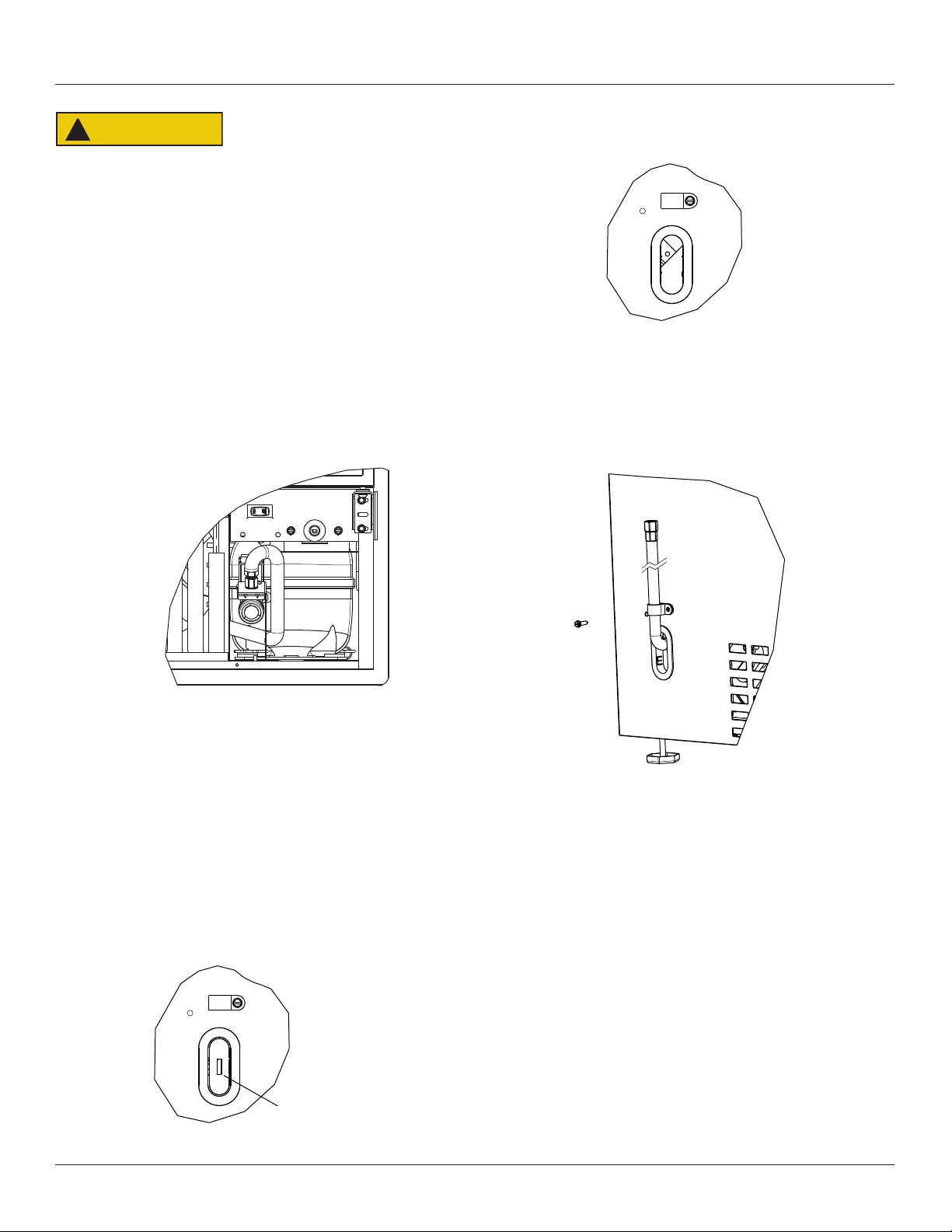

Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.

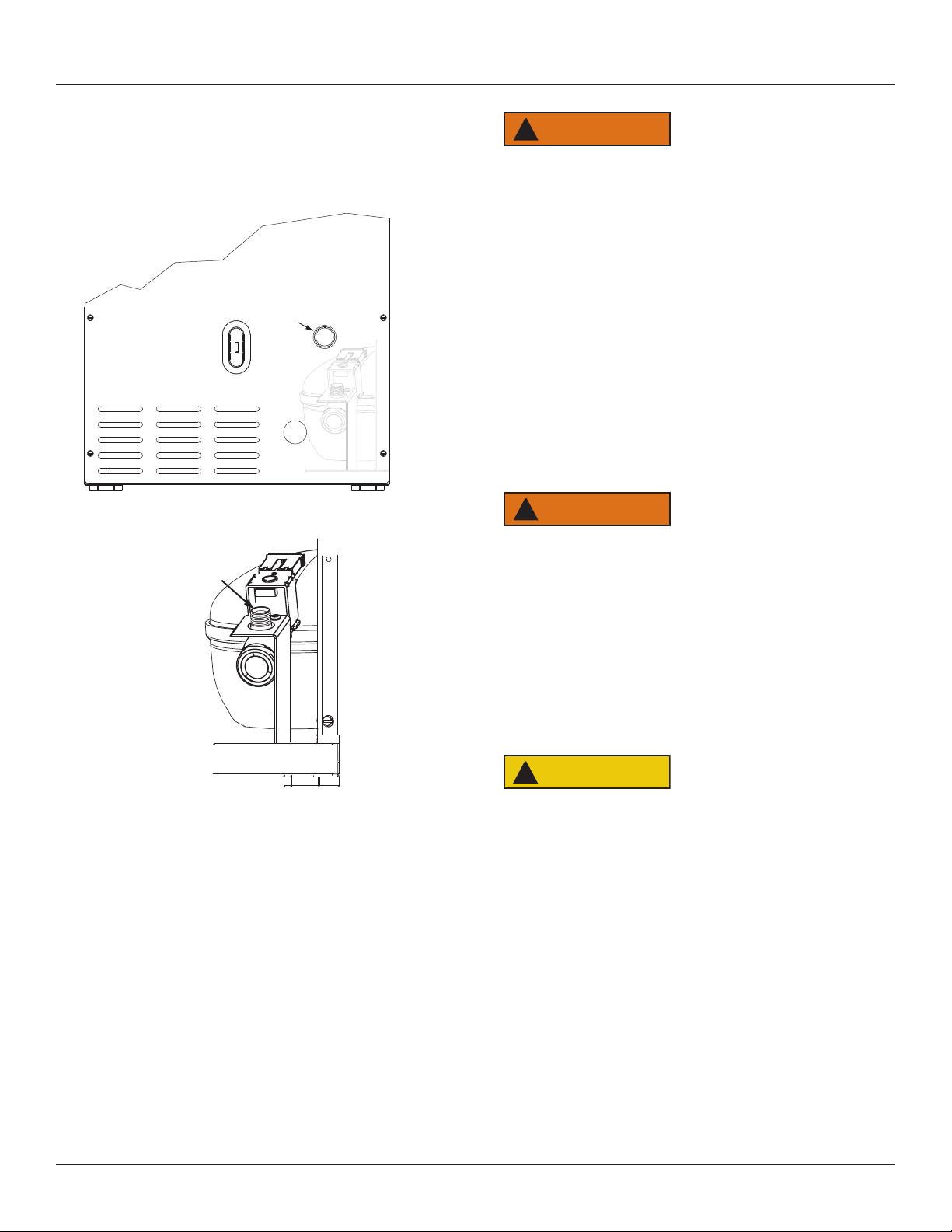

HOOKUP WATER
1. Turn o water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the back panel.
CAUTION
!
CAUTION
!
CAUTION
!
QUICK START GUIDE
7
3. Thread water line through back panel hole (with
bushing).
4.
5. Turn on water supply and check for leaks.
6. Reinstall back panel.
CLEAR ICE MACHINES
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
water hook up kit – part # 80-54674-00. The kit includes
3
4
Prior to installation, determine if this product
contains a gravity style drain or factory installed
drain pump. Products without a drain pump may
only use a gravity style drain. Failure to connect
water supply or drain line connections properly
may result in water leakage, personal injury,
and/or property damage. Disconnect power
and turn o water to the unit before attempting
to alter these connections. These connections
are the responsibility of the owner and must be
connected per local plumbing code. If you are
uncertain of how to safely and properly install
this product, contact a licensed plumber.
Water Supply Connection
Connect to potable water supply only.
Review, obey, and understand the local plumbing
codes before you install your unit. Connect to the
cold water supply. The water pressure should
be between 20 and 120 psi (138 and 827 kPa).
The water line MUST have a shut-o valve on the
supply line.
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
WARNING
!
WARNING
!
CAUTION
!
QUICK START GUIDE
8

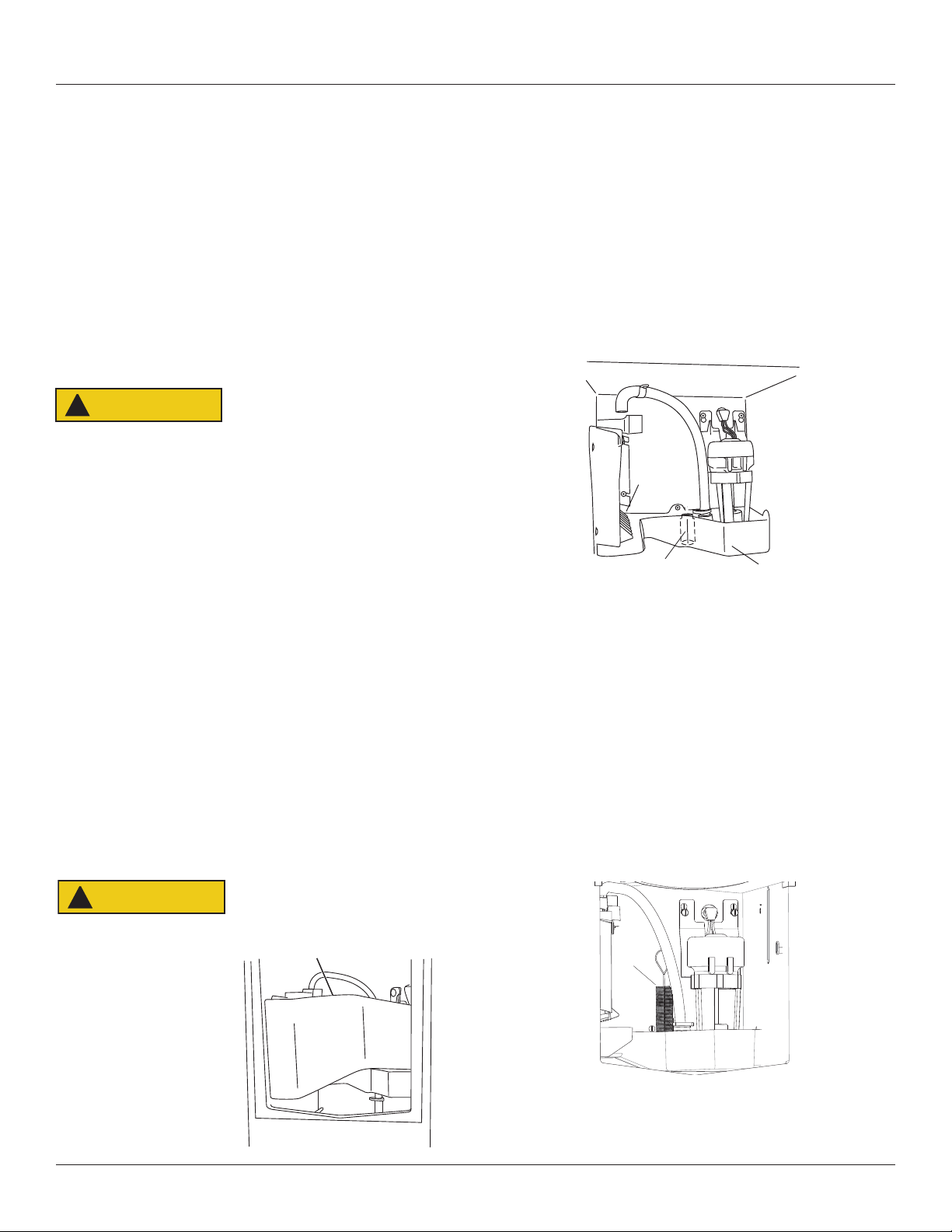

Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
1.
to product prior to attempting installation.
2. Remove the grille/access panel in the front and the
back panel.
3.
water supply line through.
NOTICE
Route the water supply line through the unit
so it does not come into contact with any
internal components other than the solenoid
valve. Normal operation creates some vibration.
A water supply line contacting an internal
component or cabinet wall can cause excessive
noise during operation or damage to the line.
4.
CAUTION
!
u-line.com
INSTALLATION & INTEGRATION
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
ZLWKɠDW
u-line.com
INSTALLATION & INTEGRATION
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
Remove
ZLWKɠDW
screwdrive
r
u-line.com
INSTALLATION & INTEGRATION
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
ZLWKɠDW
u-line.com
INSTALLATION & INTEGRATION
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
ZLWKɠDW
5. Thread water line through back panel hole (with
bushing) and connect to cold water supply line.
6. Turn on water supply and check for leaks.
7. Reinstall back panel and grille/front access panel.
8. Install retaining clip.
QUICK START GUIDE
9
The oor drain must be large enough to
accommodate drainage from all attached drains.
Follow these guidelines when installing drain
lines to prevent water from owing back into
the ice maker storage bin and/or potentially
owing onto the oor, which may result in
personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
DRAIN CONNECTION
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
If you need to install a P60 drain pump into your unit, see
See below for typical installations requiring a drain pump.
FACTORY INSTALLED DRAIN PUMP
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Disposal Assembly
P60 Pump Required
The maximum lift for the P60 drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
NOTICE
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
P60 Pump Required
QUICK START GUIDE
10
Door Swing
UNITS WITH TOP MOUNTED HINGES
UNITS WITH FRONT MOUNTED HINGES
u-line.com
Door Swing
Wall Wall
90
Door Swing
90
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require
2-1/8" (54 mm) door clearance to accommodate the
handle if installed next to a wall.
Integrated models require 1/4" (6mm) clearance if
installed next to a wall. Allow for additional space for any
knobs or pulls installed on the integrated panel/frame.
u-line.com
Door Swing
-
Wall
Wall
90°
Door Swing
90°
Door Swing
Space Required
For any Knobs or Pulls
2-1/4" MIN
(57 mm MIN)
Integrated
Solid
1/2" (13 mm)
QUICK START GUIDE
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1.
2. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver.
3. Align door squarely with cabinet.
4.
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove arrow clips:
1.
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove grille:
Remove the grille (see GRILLE INSTALLATION section of
this guide).
Remove top hinge and door:
1. Hold door to keep it from falling.
2. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws. Set aside and
save for possible future use.
Hinge Cover
1 CLASS NONINTEGRATED REFRIGERATORS
11
QUICK START GUIDE
3.
bottom hinge. Retain shoulder washers; they will be
reused.
4. Insert arrow clips into holes
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a T-25 TORX
screw driver to remove three screws.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
Note: When reversing the door, it is necessary to
remove and switch the shelf-mounting hardware.
This will allow the shelf to extend out of the unit
beyond the door.
Remove bottom shelf:
1. Pull out shelf as far as it will go.
2. Locate the tabs inside the right and left shelf slides.
3. Push down on the tab on the right and pull slightly on
the shelf to allow it to pass beyond the lock.
4. While holding the shelf so it does not re-lock on the
right, lift up on the left-side tab, and pull the shelf
toward you until it is completely free from the unit.
Install slide spacers on opposite sidewalls:
1. Take out 4 screws and remove the two brackets and
spacers from the sidewalls of the unit - leave the
screws in the brackets and spacers to keep them
together.
2. Using 4 screws, install the spacers and brackets on
the opposite sidewalls - the open ends of the brackets
need to remain toward the front of the unit.
Note: Be sure that the hinge side of the unit has
the slide bracket with the thicker spacer.
Push tab
down
Spacer
+
+
Back of Unit
Non-hinge Side
Open end of bracket
+
+
Hinge Side
Thicker end
of spacer
Open end of bracket
Back of Unit
Pull tab
up
Spacer
12
QUICK START GUIDE
3. Line up shelf slide with slide brackets and push shelf
in all the way. Pull shelf outward all the way to make
sure locks are engaged.
Install top hinge and door:
1. Install hinge with longer straight edge aligned to
outside edge of cabinet. Do not tighten.
2. Rotate door 180
o
and set on bottom hinge.
3. Align edge of the hinge with the outer edge of the
unit.
4. Tighten three hinge screws.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Install grille and hinge cover
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not
sealing properly. If the door is not sealed, the unit may
not cool properly, or excessive frost may form in the
NOTICE
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
To align and adjust the door:
1. Loosen (do not remove) top and bottom hinge screws.
2. Align door squarely with cabinet.
3. Make sure gasket is firmly in contact with cabinet all
the way around the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and
installed on the opposite side of the cabinet.
1 CLASS INTEGRATED DOOR REFRIGERATOR
13
QUICK START GUIDE
3.
bottom hinge. Retain shoulder washers; they will be
reused.
4. Insert arrow clips into holes.
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a T-25 TORX
screw driver to remove three screws.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
TO REVERSE THE DOOR
Remove arrow clips:
1.
2.
Remove top hinge and door:
1.
2.
14
QUICK START GUIDE
Install top hinge and door:
1. Use alternate hinge supplied with unit and reinstall the
screws. Do not tighten.
ift the door on to the
bottom hinge.
Align flat edge of the hinge with the outer edge of
theunit.
Tighten three screws.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT).
Install grille:
Install the grille.
Remove bottom hinge:
Install bottom hinge:
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost or condensation may form in
the interior.
NOTICE
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
Do not attempt to use the door to raise or pivot
your unit. This would put excessive stress on
the hinge system.
Alignment and Adjustment Procedure
Note: One hinge includes a metal spacer. Spacer
must be used with that hinge when reversing the
Align and adjust the door:
CAUTION
!
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
Do not attempt to use the door to raise or pivot
your unit. This would put excessive stress on
the hinge system.
Alignment and Adjustment Procedure
Open door and remove gasket near the hinges.
Using a T-25 Torx bit, loosen each pair of Torx head
screws both the upper and lower hinge plates.
Square and align door as necessary.
Tighten Torx head screws on hinge.
Reinstall gasket into the channel starting at the corner.
Note: One hinge includes a metal spacer. Spacer
must be used with that hinge when reversing the
Align and adjust the door:
T-25 Torx Screw
T-25 Torx Screw
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
Do not attempt to use the door to raise or pivot
your unit. This would put excessive stress on
the hinge system.
Alignment and Adjustment Procedure
REVERSING THE DOOR
Open door.
Using T-25 Torx bit loosen screw #1 and remove screw
#2 on top and bottom hinge. Slide and remove the
door from the unit.
Note: One hinge includes a metal spacer. Spacer
must be used with that hinge when reversing the
door.
Remove caps from screw heads on opposite side (2 on
top and 2 on bottom). Using #2 Phillips bit, remove
the 4 underlying screws. Reinstall the screws and caps
on the opposite side.
Partially install screw #1 in the outer most holes on
top and bottom. Rotate door 180o, align hinge over
screw #1 and slide/seat into position. Reinstall screw
#2 on top and bottom. Tighten both screws and install
hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT
AND ADJUSTMENT).
2
1
5 CLASS REFRIGERATOR & NUGGET ICE MACHINE
15
QUICK START GUIDE
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1.
2. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver on the top and a 1/4”
socket on the bottom.
3. Align door squarely with cabinet.
4.
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove arrow clips:
1.
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove top hinge and door:
1. Remove hinge cover from top of unit
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws.
Hinge Cover
CLEAR ICE MACHINE
16
QUICK START GUIDE
4.
bottom hinge. Retain shoulder washers; they will be
reused.
5. Insert arrow clips into holes
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4”
socket.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
PREPARE DOOR FOR REINSTALLATION
Rotate gasket
1.
putty knife, gently pry up
beneath the gasket and
spacer until completely free
from the door surface.
2. Continue removing the
gasket by grabbing hold
and gently pulling outward,
exposing the gasket
channel.
3. Remove the 3 pieces of
gasket channel filler and
reinstall on the opposite end
of door.
4. Install gasket into channel,
beginning at one corner and
pressing in firmly.
5. Press down on middle
horizontal portion of gasket
until it adheres to the door
surface.
Install top hinge and door:
1. Remove pivot screw
over, and install the
pivot screw in the same
hole from the opposite
surface.
2. Lift the door onto the
bottom hinge.
3. Align edge of the hinge with the outer edge of the unit.
4. Tighten three screws and replace hinge cover.
5. Replace hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
Gasket Channel
Filler
Gasket With Spacer
Beneath
Gasket Channel
Press down firmly
Note: It may be
necessary to apply
a strip of two-sided
tape for a firm
adhesion.
17
QUICK START GUIDE
General Installation
LEVELING INFORMATION
1. Use a level to
2.
3.
INSTALLATION TIP
INSTALLATION
1.
2.
3.
4.
5.
1
Turn to Adjust
Anti-Tip Bracket
1.
Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately ”
(3 mm) below the countertop.
6. Secure bracket into adjoining surface.
UNITS WITH TOP-MOUNTED DOOR HINGES
18
QUICK START GUIDE
1.
Slide unit out so screws on front of unit are easily
accessible.
2. Remove the two screws from the front of the unit.
3. Bend bracket along one of the perforations to allow
attachment to the desired adjoining surface.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately ”
(3 mm) below the countertop.
6. Secure bracket to adjoining surface.
FLOOR MOUNTED ANTI-TIP INSTALLATION
(For free-standing applications)
1. Locate two anti-tip brackets included with the kit.
2. Place the unit into the area where it will be installed.
test to make sure the door opens and closes freely.
3.
center of the unit.
4. Remove the unit. Using a square, extend center line
“B” (see chart below). This line serves as the back
edge for the anti-tip brackets. From the center line,
edge of each bracket.
C
L
Back wall
Back of unit
Front of unit
Surrounding
area (Top view)
A
A
B
515 518 524
A 7 9” 11 ”
B 22” 22” 22”
5.
drawn for the outer edge. Mark spots for the screw
holes.
C
L
Surrounding
area (Top view)
Drill holes and
mount anti-tip
brackets to floor
Back wall
Front
of
unit
Back
of
unit
A
A
B
6. Use a 1/8” drill to make two starter holes and fasten
provided.
7. Place the unit back into position, making sure the
feet engage the anti-tip brackets properly. Check
3 with the position of the front feet to ensure proper
positioning.
Anti-Tip Bracket
UNITS WITH FRONT-MOUNTED DOOR HINGES
19
QUICK START GUIDE
Integrated Panel Installation
1. Fully open door.
2. Starting at corner, pull
gasket away from door.
3. Continue to pull gasket free
from gasket channel.
4.
If the unit has front-mounted hinges, skip ahead
to Step 9.
5. Partially loosen the 3 screws securing the top hinge to
the top of the cabinet.
6. Align the panel with the outside edge (opposite the
hinge) and high enough to align with the highest point
in the door.
7. Insert panel underneath top hinge and apply upward
pressure while bringing the lower portion of the panel
8. Align door with cabinet. Tighten the top 3 screws,
securing the top hinge to the cabinet.
NOTICE
Due to dierences in oor construction or
surrounding cabinetry, the panel may not sit ush
with the top of the door.
9. With panel aligned
to the door, secure
panel to door using
clamps. A robust tape
may also be used.
the use of bar clamps
to secure the panel
to the door. If using
tape, be certain the
tape will not damage
removal.
10. Using a 7/64” (3 mm)
drill bit, drill 6 pilot
holes into the wood
panel 1/2” (12 mm)
deep using the holes
in the door frame as
a guide.
NOTICE
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid splits
in the wood when hardwood is installed.
11.
with your unit.
12. Using a Phillips screwdriver, place one screw into each
of the 6 pilot holes and screw down. Do not over-
tighten screws.
13.
channel.
14. Remove clamps from door.
NOTICE
If panel requires additional adjustment after
removing clamps, slightly loosen each screw and
adjust panel as necessary. Tighten screws upon
completion.
15. Starting at the corners, re-install the gasket into the
fully seated.
Integrated Panel
Integrated Panel
u-line.com
Integrated Panel Installation
Door
Panel
Wood
Panel
Door/Drawer
Bar
Clamp
Bar
Clamp
20
QUICK START GUIDE
Control Operation
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust Temperature Press or and release
adjust the set point temperature. Note: temperature
displayed is the actual temperature inside unit
Hold press and release .
options
Option Open Door Closed Door
00 White White
01
TM
TM
02
TM
Door Closed
º
F /
º
C
release
The
o
F /
o
Press and release
The
º
F /
º
command to return to normal operation
for more details.
DOOR ALERT NOTIFICATION
•
•
will appear in display
• Closed door to silence alert and reset
1 CLASS REFRIGERATOR
21
QUICK START GUIDE
Control Operation
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust Temperature Press or and release
adjust the set point temperature. Note: temperature
displayed is the actual temperature inside unit
Hold press and release .
options
Option Open Door Closed Door
00 White White
01
TM
TM
02
TM
Door Closed
º
F /
º
C
Hide Display Hold and press
continue to operate. Repeat command to turn on
display
release
The
o
F /
o
Press and release
The
º
F /
º
command to return to normal operation
for more details.
DOOR ALERT NOTIFICATION
•
•
will appear in display
• Closed door to silence alert and reset
5 CLASS REFRIGERATOR
22
QUICK START GUIDE
Control Operation
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust light color
Hold press and release .
Press to scroll through lighting
options
Option Open Door Closed Door
00 White White
01 BrightShield
TM
BrightShield
TM
02 (default) White BrightShield
TM
Toggle interior light -
Door Closed
Press and release to toggle interior
light option; press again to deactivate
Toggle depends on light color option above.
Light output 50%
Adjust ice density See “Ice” section
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
interior light will function. Unit will not cool. Repeat
command to return to normal operation
www.star-k.org for more details.
DOOR ALERT NOTIFICATION
When the door is left open for more than 30 minutes:
• Ice production will cease
• A tone will sound for several seconds every minute
•
will appear in display
NUGGET ICE MACHINE
23
QUICK START GUIDE
Control Operation
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust light color
Hold press and release .
Press to scroll through lighting
options
Option Open Door Closed Door
00 White White
01 BrightShield
TM
BrightShield
TM
02 (default) White BrightShield
TM
Toggle interior light -
Door Closed
Press and release to toggle interior
light option; press again to deactivate
Toggle depends on light color option above.
Light output 50%
Adjust ice thickness See “Ice” section
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Silent Mode (ice
production suspended for
3 hours)
Hold and
Display will countdown the hours: 3H, 2H,
1H
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
interior light will function. Unit will not cool. Repeat
command to return to normal operation
www.star-k.org for more details.
CLEAR ICE MACHINE
24
QUICK START GUIDE
u-line.com
First Use
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
Initial startup requires no adjustments. When plugged
in, the unit will begin operating under the factory default
simply press and the unit will immediately switch on. To
NOTICE
Temperature displayed reflects actual
temperature inside unit.
unit is progressing towards the selected temperature. Time
to reach set point varies based upon ambient temperature,
temperature of product loaded, door openings, etc. U-Line
recommends allowing the unit to reach set points before
loading.
First Use
REFRIGERATORS
ICE MACHINES
25
BrightShield™
BrightShield™
• Kills* and prevents the growth of viruses, bacteria, fungi, yeasts, mold, and mildew
• Provides continuous antimicrobial action to keep surfaces clean
•
• Reduces odors caused by bacteria, fungi, yeasts, mold, and mildew
•
the amount of light that is reaching the surfaces in the space where the product is installed and the length of time of exposure. Use of Vyv™
whenever the door is closed and standard bright white when the door is open. See Control Operations sections for
details and other options.
For more information about BrightShield™ visit www.u-line.com
www.vyv.tech
u-line.com
First Use
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
QUICK START GUIDE
Restricting airow may result in poor product
performance, product failure, and uneven internal
temperatures and may freeze contents.
• Do not block the front grille - no additional clearance
around sides, top or rear of unit is needed for ventilation
• Do not install behind a closed door
• When loading, leave space between internal fans, vents,
and side walls to allow air to circulate freely
NOTICE
AIRFLOW
External
PRODUCT LOADING
Bottles and cans come in many shapes and sizes. Not
When determining capacities U-Line uses typical 12 oz.
cans, 12 oz. bottles, 750 mL white wine and red wine
bottles shown below.
Airow and Product Loading
Typical Can
(12 oz)
4
(123 mm)
(66 mm)
2
⁄”
⁄”
Typical Bottle
(12 oz)
9”
5
2
⁄”
⁄”
(135 mm)
(64mm)
(229 mm)
Typical White
Wine Bottle
11
(298 mm)
(750 mL)
3
¾”
(184 mm)
(82 mm)
11
¼”
¼”
Typical Red
Wine Bottle
11
(302 mm)
8
3”
⁄”
¾”
(222 mm)
(750 mL)
(76 mm)
Typical
Champagne Bottle
(750 mL)
3 ⁄”
7
¾”
⁄”
(299 mm)
(94 mm)
(195 mm)
11
Magnum Bottle
(1.5 L)
13
10
3
⁄”
(334 mm)
⁄”
(263 mm)
⁄”
(98 mm)
Internal
External Airow
ALL MODELS
time, or the unit will not perform as expected. DO NOT
install the unit behind a closed door.
Internal Airow
REFRIGERATORS
• When loading, leave space between internal fans,
vents, and side walls to allow air to circulate freely.
PRODUCT LOADING
Bottles and cans come in many shapes and sizes. Not
bottles shown below.
26
QUICK START GUIDE
27
1 CLASS REFRIGERATOR
u-line.com
Interior Adjustments
INTERIOR SHELVES
Removing and Installing Interior
Shelves
NOTICE
Make sure the shelves are inserted fully into the
unit.
The edge strip toward the rear prevents cans
and bottles from freezing against the cold
evaporator.
2
3
1
5 Class Refrigerator
All 5 Class models feature side mounted rack supports
with 19 adjustment positions.
All refrigerators ship with 3 Slide and Secure storage bins.
Remove and reposition as desired.
Slide and Secure Storage Bin Removal
1. Empty and remove bin.
2. Firmly grasp both sides of storage bin frame and lift
slot.
3. Pull frame towards you until all pins are clear of the
slots. If only repositioning the frame, do not remove
4. Slightly tilt one side. Gently pull frame towards you to
remove from unit.
Note: Take care when removing frame to avoid
scratching interior of unit.
Center
the pin
QUICK START GUIDE
28
5. Once removed, retract the slides.
Note: The slides on the frame have a thin coating
which is used to block moisture and provide
lubrication. Use care when handling.
Slide and Secure Storage Bin Installation
1. Insert empty storage bin frame into unit with one side
tilted slightly downward until back pin is between front
and rear rail supports.
2. Tilt frame back to horizontal and line up 2 back pins
with rear rail support. Line up left side of frame with
rear and front rail support. Continue inserting frame
until both pins engage. The front will set down slightly
and lock into place. Repeat on right side.
3. Fully extend frame, position bin over frame and lower
Slide and Secure Storage Bins
inserts may be removed when storing produce or other
Clean the storage bins with soap and water.
Center
the pins
Front Pin
Back Pin
u-line.com
Ice
NUGGET ICE MACHINE
QUICK START GUIDE
29
u-line.com
Ice
ICE CUBE THICKNESS ADJUSTMENT
NOTICE
Ice thickness adjustment should only be made
one increment at a time. Allow ice maker
production to stabilize for 24 hours before
rechecking ice thickness.
Ice is produced in layers resulting in a clear cube. Ice in
bin may develop surface frost which disappears when cube
is placed in liquid.
Ice cubes in any given batch will vary, so it is necessary
to choose cubes from the sample area for comparison
when making adjustments.
The ice cube thickness is factory set for best overall
performance. The factory setting is designed to maintain
an ice bridge of approximately 1/16" to 1/8" (1.6 mm to
3.2 mm) under normal conditions, resulting in a dimple of
approximately 1/4" to 1/2" (6.4 mm to 12.7 mm) in
depth. A fuller cube with less of a dimple results in a
thicker ice bridge. As the ice bridge becomes thicker, the
tendency for the cubes to stay together as a slab
increases. A bridge thicker than 1/8" (3.2 mm) may cause
cubes to overfill the ice bucket.
32 ice cubes are formed on a 4 x 8 slab during each cycle.
Each cycle takes approximately 15-20 minutes at the
default cube thickness (0).
Your clear ice machine is pre-set to produce ice between
the optimal dimensions illustrated below:
Ice thickness adjustments are made using the control
panel as follows:
1. To enter the thickness adjustment mode:
• Press and hold for 5 seconds.
• The display will switch to “0” to confirm the
thickness adjustment mode has been selected.
The factory setting is “0”. Use to raise the setting and
thicken the ice bridge, or to lower the setting to thin
the ice bridge.
Ice cubes in any given batch will vary, so it is necessary
to choose cubes from the sample area for comparison
when making adjustments.
DIMPLES
ICE BRIDGE
7/8"
(22 mm)
7/8"
(22 mm)
THINNER BRIDGE
THICKER BRIDGE
DEEPER DIMPLE
SHALLOWER DIMPLE
1/4" TO 1/2"
(6.4 mm to 12.7 mm)
DIMPLE
1/16" TO 1/8"
(1.6 mm to 3.2 mm)
ICE BRIDGE
Cube Details
Factory Default Setting - 0
< 0
SETTING
> 0
SETTING
CLEAR ICE MACHINE
QUICK START GUIDE
30
REFRIGERATORS
u-line.com
Cleaning
Stainless Models
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on
any glass surfaces.
Do not use cleaners not specifically intended for
stainless steel on stainless steel surfaces (this
includes glass, tile and counter cleaners).
Using abrasive pads such as Scotchbrite™ will
cause the graining in the stainless steel to
become blurred.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
Integrated Models
INTERIOR CLEANING
Do not use any solvent-based or abrasive
cleaners.
DEFROSTING
CAUTION
!
DO NOT use an ice pick or other sharp
instrument to help speed up defrosting. These
instruments can puncture the inner lining or
damage the cooling unit. DO NOT use any type of
heater to defrost. Using a heater to speed up
defrosting can cause personal injury and
damage to the inner lining.
QUICK START GUIDE
u-line.com
NOTICE
The drain pan was not designed to capture the
water created when manually defrosting. To
prevent water from overflowing the drain pan
and possibly damaging water sensitive flooring,
the unit must be removed from cabinetry.
To defrost:
NUGGET ICE MACHINE
NUGGET ICE MACHINE CLEANING CYCLE
This ice machine has an automatic clean alert function.
The control will indicate
CL in the display, reminding you
to clean your unit. When
CL is displayed, ice production
will continue. Depending on water conditions, more
frequent cleaning may be necessary: see chart below.
Cleaning removes lime scale, other mineral deposits, and
sanitizes the machine. Poor ice quality and reduced ice
output are signs that cleaning is necessary.
Do not use cleaners not specically intended for
TDS (Total Dissolved Solids)
Level mg/L (ppm)
Cleaning Interval
5 - 150 6 months
150 - 250 4 months
250 - 400 3 months (or sooner)
Hardness Level mg/L (ppm) Cleaning Interval
0 - 66 6 months
67 - 133 4 months
134 - 200 3 months (or sooner)
Under normal conditions cleaning should be done
when the display shows
CL. You may initiate a
cleaning cycle at any time by pressing and holding
the clean button for 10 seconds.
0 1 will appear
in the display indicating the start of the cleaning
process.
Failure to clean may reduce the quality and quantity of ice
produced. Once the clean cycle begins, it can be canceled
by pressing three times. Press once more to start
making ice. The clean cycle will automatically cancel if user
fails to activate control at steps 2, 3b, and 5b within 2 hours.
Required for cleaning:
• Clean potable water
• Bucket and cleaning sponge
•
ULANUGGETFILTER**
•
• ” ID x
Register your product at u-line.com and receive
a free cleaning kit - ULANUGGETCLEANKIT**
** available for purchase at u-line.com or your local dealer
Need more cleaner? Visit u-line.com
CAUTION
!
Use only SafeCLEAN Plus™ Cleaner. Use of any
other cleaner may damage the nish of the
evaporator and will void the warranty.
Follow safety and handling instructions printed on
the SafeCLEAN Plus™ bottle.
Notice:
Select models include a water lter. The lter
must remain in place when using and cleaning
the machine. The lter is designed to lter out
scale, sediment, particles and cloudiness as well
as reduce chlorine and other o tastes and odors.
U-Line recommends replacing the lter (Part No.
ULANUGGETFILTER) when you clean your machine.
The lter is available at u-line.com.
31
QUICK START GUIDE
other cleaner may damage the nish of the
Select models include a water lter. The lter
the machine. The lter is designed to lter out
as reduce chlorine and other o tastes and odors.
U-Line recommends replacing the lter (Part No.
The lter is available at u-line.com.
1. Press and Hold for 10 seconds
a.
0 1 will appear in the display
b. Remove access shield
c. Remove all ice in bin
d. Remove any ice protruding from the ice dispenser
tube.
2. Insert the end of the cleaning tube into the ice
dispenser; slowly pour in approximately 1 quart of
inside the dispenser tube. It is normal for some water
vent tube while pouring. Omit this step if no ice is in
the ice dispenser tube.
3. Press and release
a.
02 will appear in the display
b. Mix 4 ounces of SafeCLEAN Plus™ with 2 quarts of
potable water.
4. Wait until
03 appears in the display
a. Using the funnel and cleaning tube, slowly pour
of the cleaning solution into the dispenser
tube. Air and some water will exit the vent tube.
b. Press and release
5
. 04 will appear in the display
a. The machine will circulate the solution, cleaning
and sanitizing the internal components, for
approximately 20 minutes.
b. While the machine is circulating the cleaning
solution, use of the remaining cleaning solution
and a sponge to wipe down the inside of the ice bin
and scoop. Rinse with clean potable water.
Cl
Cleaning Tube
and Funnel
Ice
Dispenser
Tube
Vent Tube
6. When 05 appears in the display, 3 soft tones will
sound, indicating the cleaning phase is complete
rotating turn counterclockwise.
b. Use the remaining cleaning solution to wipe the
manifold and surrounding area. Rinse with clean
potable water.
c. Using the hose and funnel, slowly pour 1.5 quarts
dispenser tube. Air and some water will exit the
vent tube.
turn
clockwise
e. Press and release
7.
06 will appear in the display
a. Reinstall shield and close door.
b. The machine will circulate water and perform
minutes.
c. The unit will resume making ice - indicated by 3
soft tones and
ICE scrolling in the display.
Manifold
32
QUICK START GUIDE
u-line.com
Cleaning
CLEAR ICE MACHINE CLEANING CYCLE
Your U-Line clear ice machine has an automatic clean
alert function. Cleaning cycles should be run as notified.
Otherwise, to maintain operational efficiency the unit
should be cleaned every three months. Depending on
water conditions, more frequent cleaning may be
necessary. If the ice machine requires more frequent
cleaning, consult a plumber to test the water quality and
recommend appropriate treatment.
CAUTION
!
Wear rubber gloves and safety goggles and/or
face shield when handling Ice Machine Cleaner.
u-line.com
ULACLRCLEAN), available for purchase at
or see your dealer
5. Re-install the standpipe into the water trough.
6. Clean the Interior Bin as follows:
• Dilute one packet of CLR cleaner into two quarts of
water.
• Using a sponge or cloth, clean interior of ice bin,
tubing and door. This cleaner will remove all mineral
deposits and other contaminants from the surfaces.
• Using a bottle brush, clean out the trough drain tube
and pump tubing where needed.
Standpipe
Evaporator
Water trough
Brush
u-line.com
ULACLRCLEAN), available for purchase at
or see your dealer
2. Remove all ice from the storage bin.
3. Remove evaporator cover.
4. Remove the standpipe by lifting it up while using a
slight back and forth motion to loosen it from the drain
hole. The water in the reservoir will flow down the
drain.
u-line.com
NOTICE
Use only U-Line Ice Machine Cleaner (Part No.
ULACLRCLEAN), available for purchase at
u-line.com or see your dealer. It is a violation
of federal law to use this solution in a manner
inconsistent with its labeling. Use of any other
cleaner can ruin the finish of the evaporator
and will void the warranty. Read and
understand all labels printed on the package
before use.
U-Line Ice Machine Cleaner is used to remove lime scale
and other mineral deposits. Refer to the following steps to
initiate the self-cleaning cycle.
CAUTION
!
Never use anything
to force ice from the
evaporator. Damage
may result.
1. Turn the ice
machine off and
allow any ice to melt
off of the
evaporator.
Evaporator cover
CLEAR ICE MACHINE
33
QUICK START GUIDE
u-line.com
ULACLRCLEAN), available for purchase at
or see your dealer
7. Turn unit on by pressing .
8. Place the unit into CLEAN mode by holding for
5 seconds.
u-line.com
9. When water begins flowing over the evaporator
(approximately 3 minutes), pour 1 packet of CLR
cleaner into the water trough. The cleaning process will
last approximately 45 minutes.
10.Dilute 1 tablespoon bleach in 1 gallon of warm water.
Apply this solution to the entire inside of the storage
area. Then rinse thoroughly with water.
The unit will resume operation approximately 15 minutes
after the automated cleaning process is completed. The
water fill valve will energize, fill the water reservoir, and
shut-off after three minutes. The compressor begins to
operate and water flows over the evaporator assembly (ice
mold). Initially, the water flow may not be uniform,
causing uneven sized cubes or water to spill into the ice
storage bin. This is a normal situation that will correct
itself within the first 24 hours of operation.
NOTICE
Discard all ice produced in the first harvest.
Should power to the unit be interrupted during
the self-clean cycle, it will be necessary to
repeat the complete cleaning cycle after power
is restored.
REFRESH KIT
Due to variations in water quality or inadequate
maintenance your unit may become excessively coated in
lime scale or calcium. U-Line offers a cost effective
refresh kit which replaces many interior components and
will return your unit to like new condition. Refresh kits
may be ordered from your local distributor and installed
by your local service company. For information on your
local distributor or service company please visit
www.u-line.com.
34
CopyrighU-Line Corporation. All Rights Reserved. | Publication Number 30379 | /20 Rev.
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase. Nugget Ice Machine proof of purchase must include the purchase of an in-line
water filter and filter head to qualify for this additional limited warranty.
Five Year Sealed System Limited Warranty
For
five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414.354.0300
35
