Your new tumble dryer
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Table of contentsen Installation and operating instructions
8 Intended use 4
( Safety instructions 4
7 Energy-saving tips 12
5 Installing and connecting the appliance 12
9 Quick reference guide 17
* Familiarising yourself with your appliance 18
Y Display 20
/ Overview of programmes 22
0 Programme settings 24
Z Laundry 25
1 Operating the appliance 27
2 Appliance settings 32
D Cleaning and maintenance 35
3 Help with the appliance 40
L Transporting the appliance 42
[ Consumption values 43
{ Technical specifications 44
) Disposal 44
4 After-sales service 45
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of explosions/fire!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of poisoning/material damage!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Energy-saving tips
Energy-saving tips
Note:
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
5 Installing and connecting the appliance
Installing and connecting the appliance
Included with the appliance:

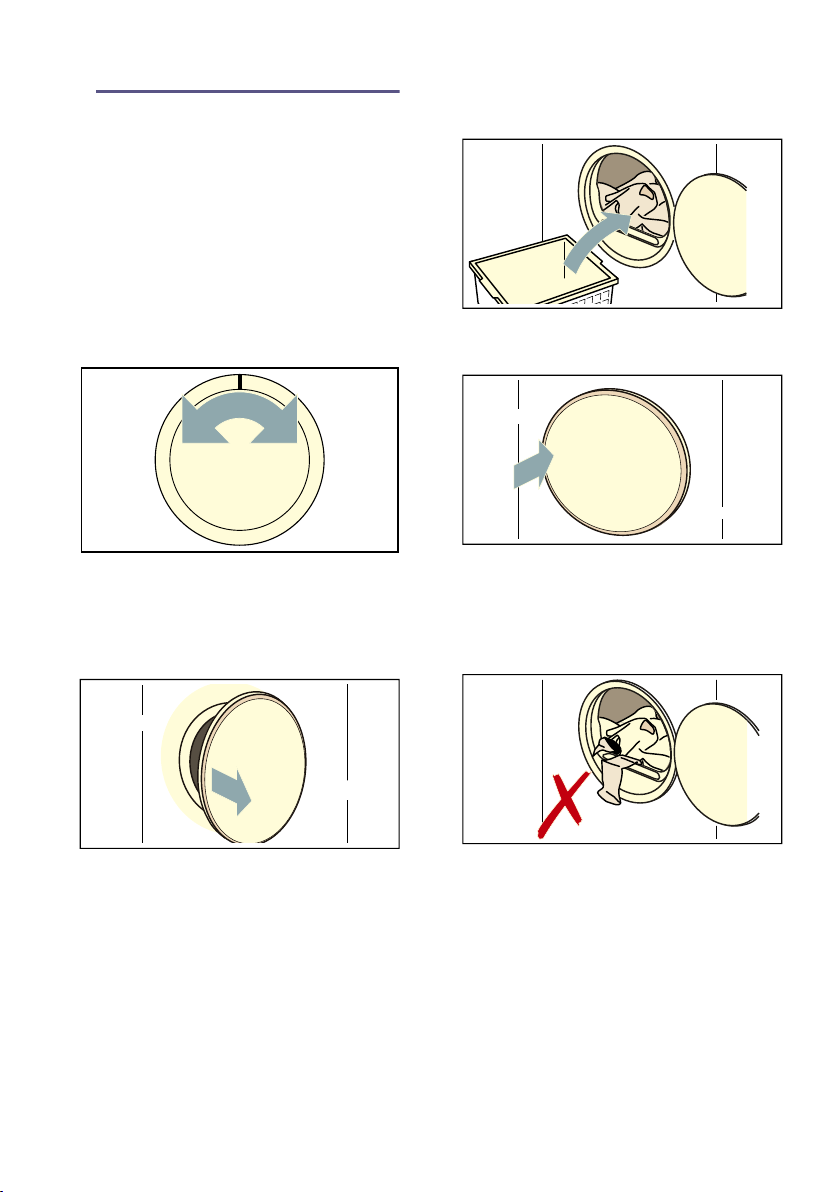

1. Remove any packaging and protective covers completely from the appliance.
2. Open the door.
3. Remove all the accessories from the drum.
Caution!
Risk of material damage/damage to the appliance
Installing the appliance
: Warning
Risk of death!
: Warning
Risk of explosions/fire!
: Warning
Risk of fire/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/ damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Caution!
Risk of material damage and damage to the appliance
1. Place the appliance on a clean, even, solid surface.
2. Check that the appliance is level using a spirit level.
3. If necessary, turn the appliance feet to make sure it is level.
Notes
Connecting the appliance
: Warning
Risk of electric shock/fire/material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/material damage/damage to the appliance!
: Warning
Risk of fire/material damage/damage to the appliance!
: Warning
Risk of injury!
1. Plug the appliance's mains plug into the designated socket.
2. Check that the mains plug is in securely.
Caution!
Risk of material damage/damage to the appliance
Note:
If in doubt, have your appliance connected by a qualified professional.
Before using the appliance for the first time
Note:
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
Optional accessories
9 Quick reference guide
Quick reference guide
Note:
The appliance must be correctly installed and connected. ~ Page 12
* Familiarising yourself with your appliance
Familiarising yourself with your appliance

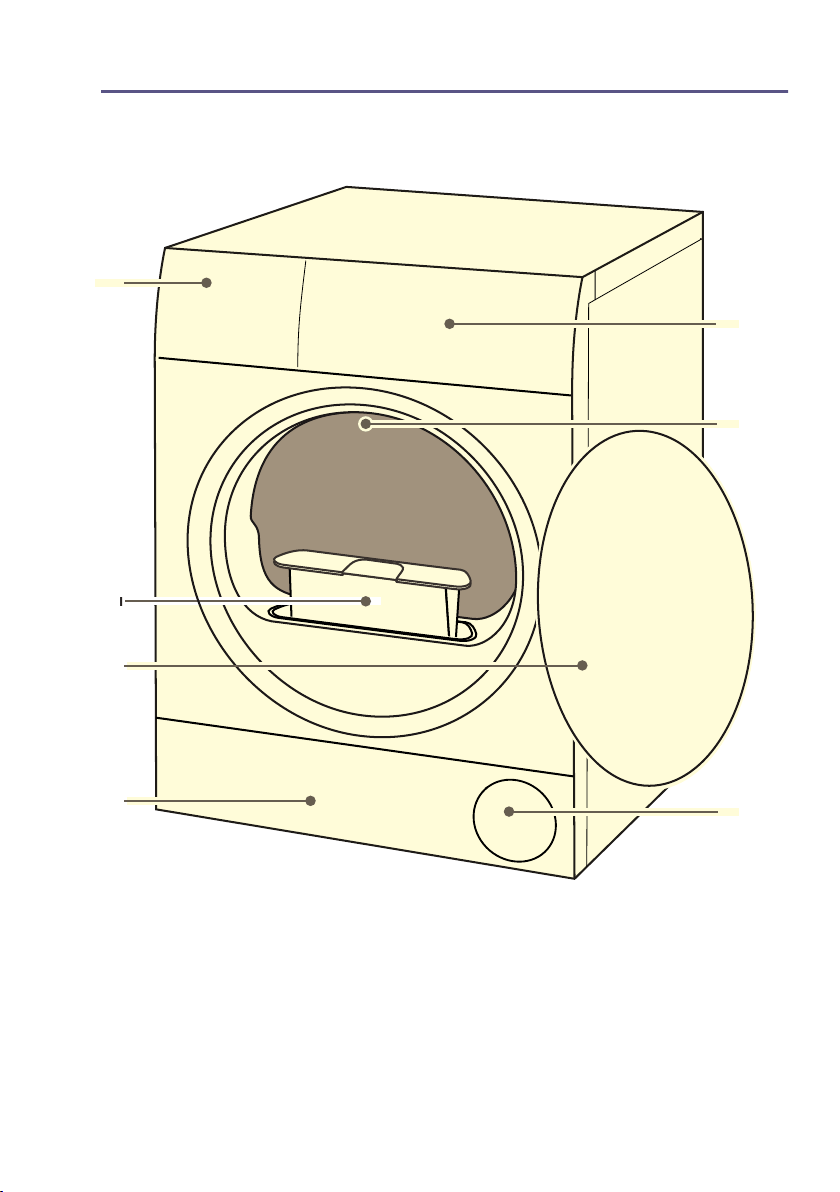

Appliance overview
Panel
Programme selector
Y Display
Display
Indicator/ symbol
Description
Information
Notes
Programme settings
Appliance settings
/ Overview of programmes
Overview of programmes
Programme
Maximum load
Notes
Note:
Note:
Notes
Notes
0 Programme settings
Programme settings
Program setting
Function
Note:
Note:
Z Laundry
Laundry
Preparing the laundry
: Warning
Risk of explosions/fire!
Caution!
Risk of damage to the drum and laundry
Notes
Sorting laundry
Note:
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
Caution!
Risk of material damage to the dryer or laundry
Note:
You can select a timed programme to add extra drying time for laundry that is still damp.
Caution!
Risk of material damage to the appliance and laundry
1 Operating the appliance
Operating the appliance
Loading laundry and switching on the appliance
Note:
The appliance must be correctly installed and connected. ~ Page 12

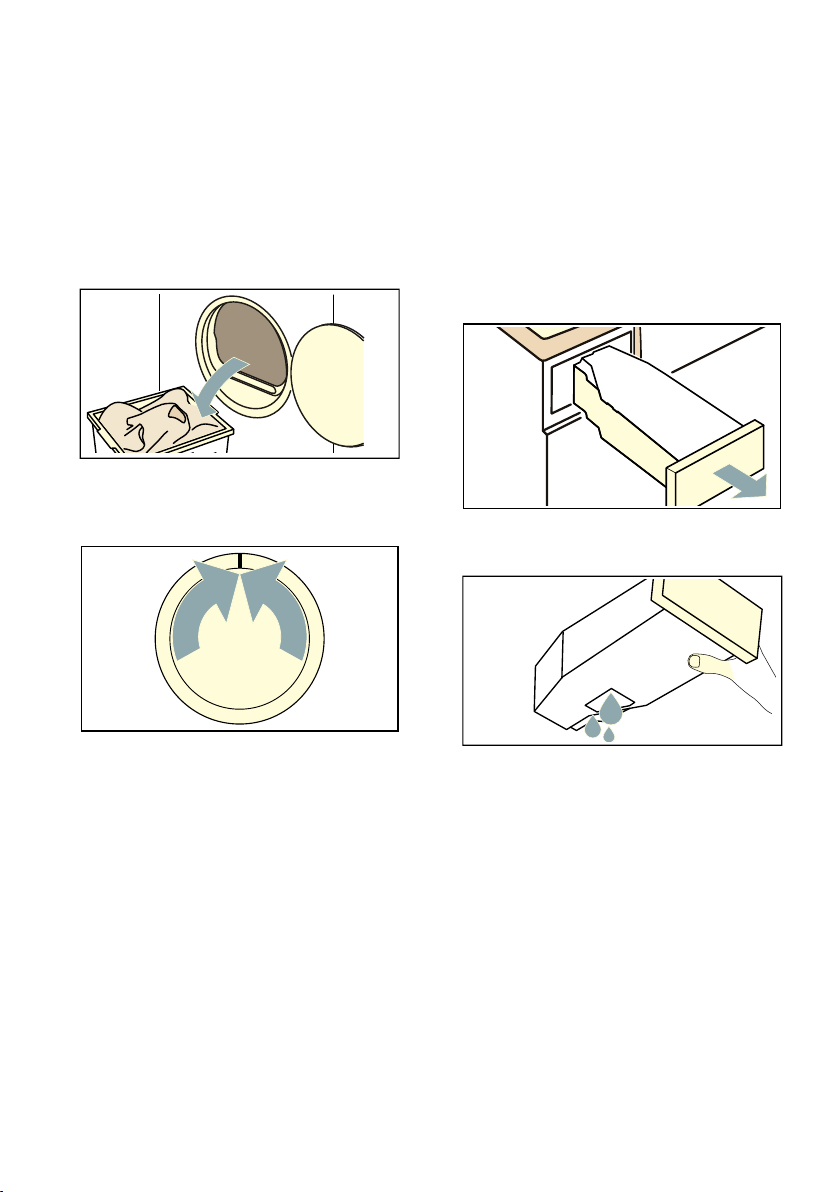

1. Prepare and sort the laundry.
2. Turn the programme selector to switch on the appliance.
3. Open the door.
4. Load the laundry unfolded into the drum.
5. Close the appliance door.
Caution!
Risk of material damage to the appliance or laundry.
Note:
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
Setting a programme
Note:
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 32
1. Set the programme you require.
2. Adjust the programme settings, if required. ~ "Programme settings" on page 24
Starting a programme
Note:
If you want to prevent the programme from being adjusted inadvertently, you can activate the childproof lock. ~ Page 32
Programme progress
Note:
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
Changing the programme or adding more laundry
1. Open the door or press Start/Pause/ /Départ/Pause (Start/Pause) to pause the programme.
Note:
2. Add or remove laundry.
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 22 ~ "Programme settings" on page 24
Note:
4. Close the door.
5. Press Start/Pause//Départ/Pause (Start/Pause) .
Note:
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
Cancelling the programme
Caution!
Risk of fire. Laundry may catch fire.
Programme end
Removing laundry and switching off the appliance
1. Remove the laundry.
2. Turn the programme selector to switch off the appliance.
Emptying the condensation container
Note:
After each drying cycle, empty the condensate container; otherwise the next drying programme may be cancelled as a result of the condensate container being full.
1. Pull out the condensation container horizontally.
2. Pour out the condensation water.
Caution!
Risk of harm to health and material damage
3. Push the condensation container back into the appliance until you feel it lock into place.
Removing the fluff
Note:
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is clogged or dirty, this reduces the flow of air, preventing the appliance from achieving optimal drying results. Dirty fluff filters increase the pow...

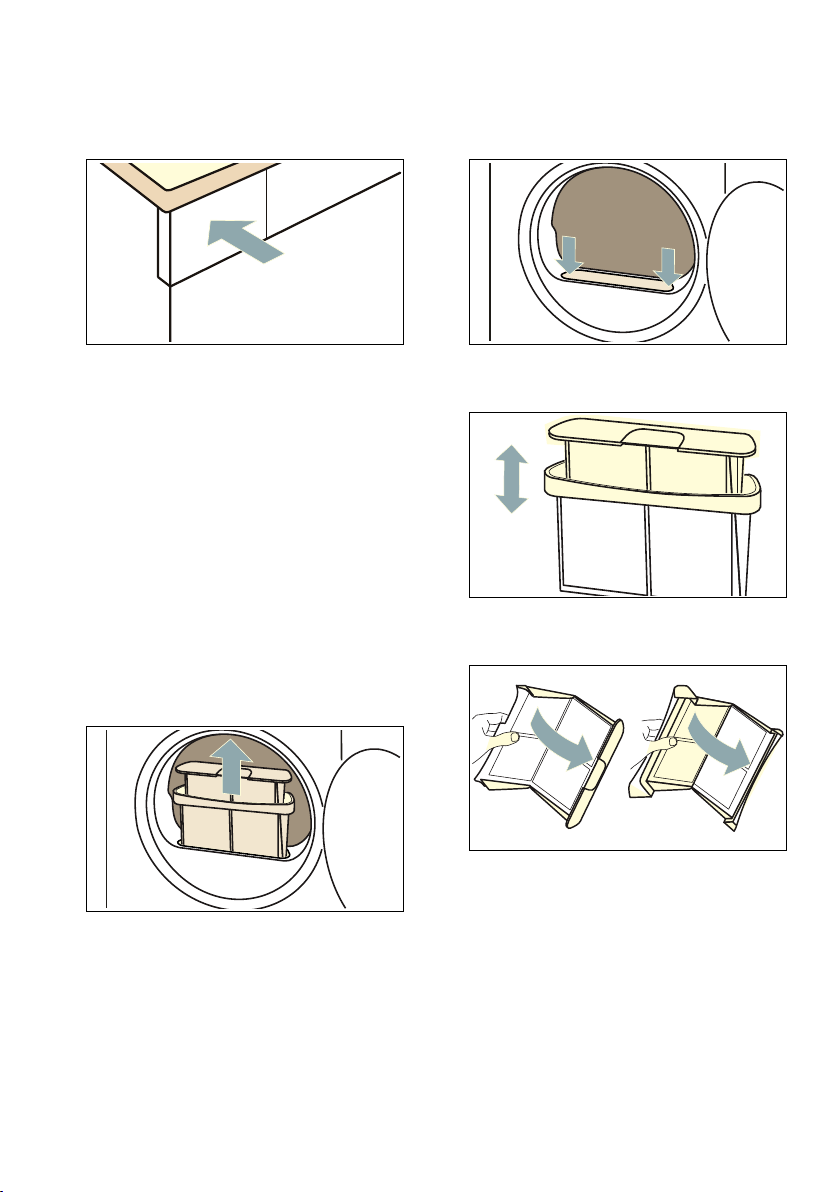

Clean the fluff filter after each drying cycle:
1. Open the door and remove all fluff from it.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
4. Pull the two-part fluff filter apart.
5. Open the two parts of the filter.
6. Remove all fluff from both parts of the filter.
7. Rinse off fluff under warm, running water.
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
Caution!
Material damage/damage to the appliance
2 Appliance settings
Appliance settings
Childproof lock
Notes
Altering the appliance settings
1. Set the programme to position 1.
2. Press and hold Start/Pause//Départ/ Pause (Start/Pause) . At the same time:
3. Set the programme to position 2.
4. Release Start/Pause//Départ/Pause (Start/Pause) .
Adjusting the volume of the audible notification signals
1. Set the programme to position 3.
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
Settings:
3. Alter any additional appliance settings you require or save and exit the appliance settings.
Adjusting the volume of the audible operating signals
1. Set the programme to position 4.
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
Settings:
3. Alter any additional appliance settings you require or save and exit the appliance settings.
Changing the spin speed
Note:
The set spin speed does not change the drying time for the time programme.
1. Set the programme to position 2.
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
Settings:
3. Alter any additional appliance settings you require or save and exit the appliance settings.
Saving and exiting the appliance settings
1. Turn the programme selector to switch off the appliance.
2. Wait 5 seconds.
Note:
The selected settings will be retained even after the appliance has been switched off.
D Cleaning and maintenance
Cleaning and maintenance
Cleaning the appliance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
Cleaning the moisture sensor
Note:
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...

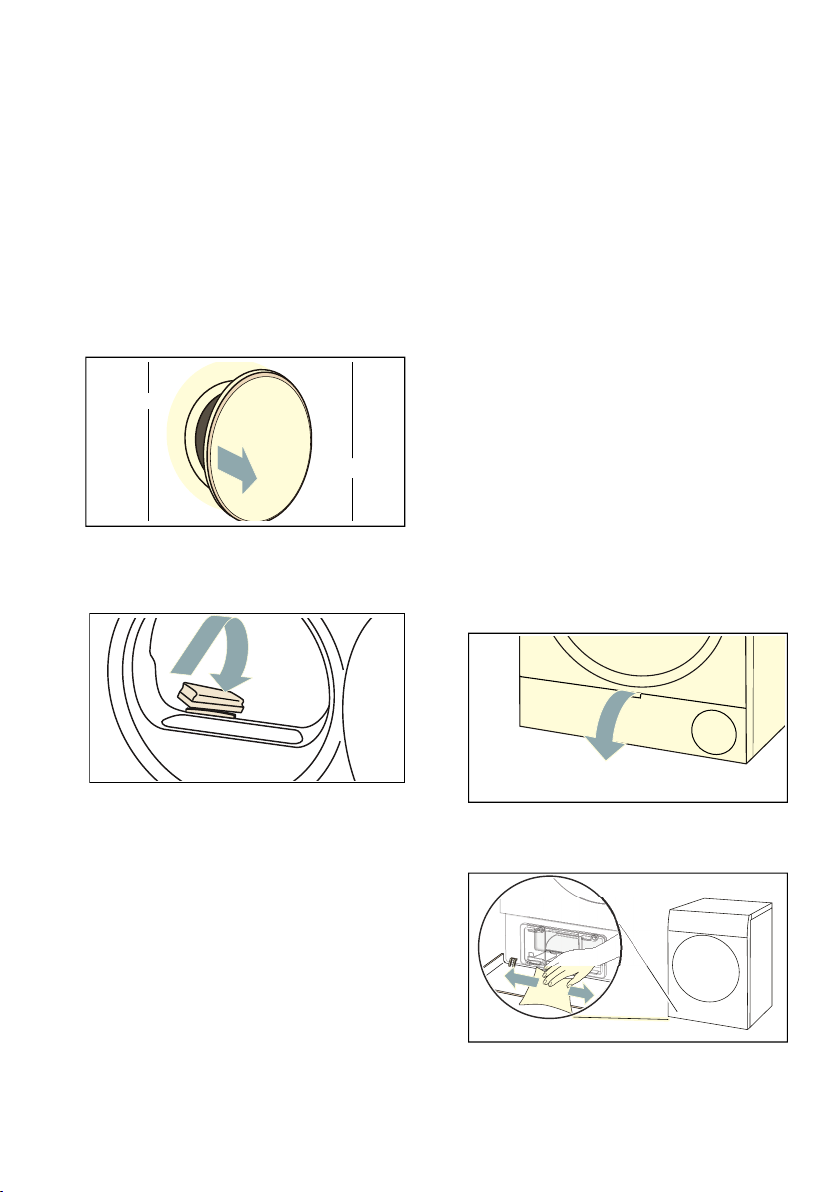

1. Open the door.
2. Clean the moisture sensor with a rough sponge.
Caution!
Risk of damaging the moisture sensor.
Cleaning the base unit
: Warning
Risk of injury!
Note:
Allow the appliance to cool down for approximately 30 minutes after use before commencing cleaning.
1. Clean the fluff filter.~ Page 30
2. Open the maintenance flap by the handle.
3. Clean the maintenance flap with a soft, damp cloth.

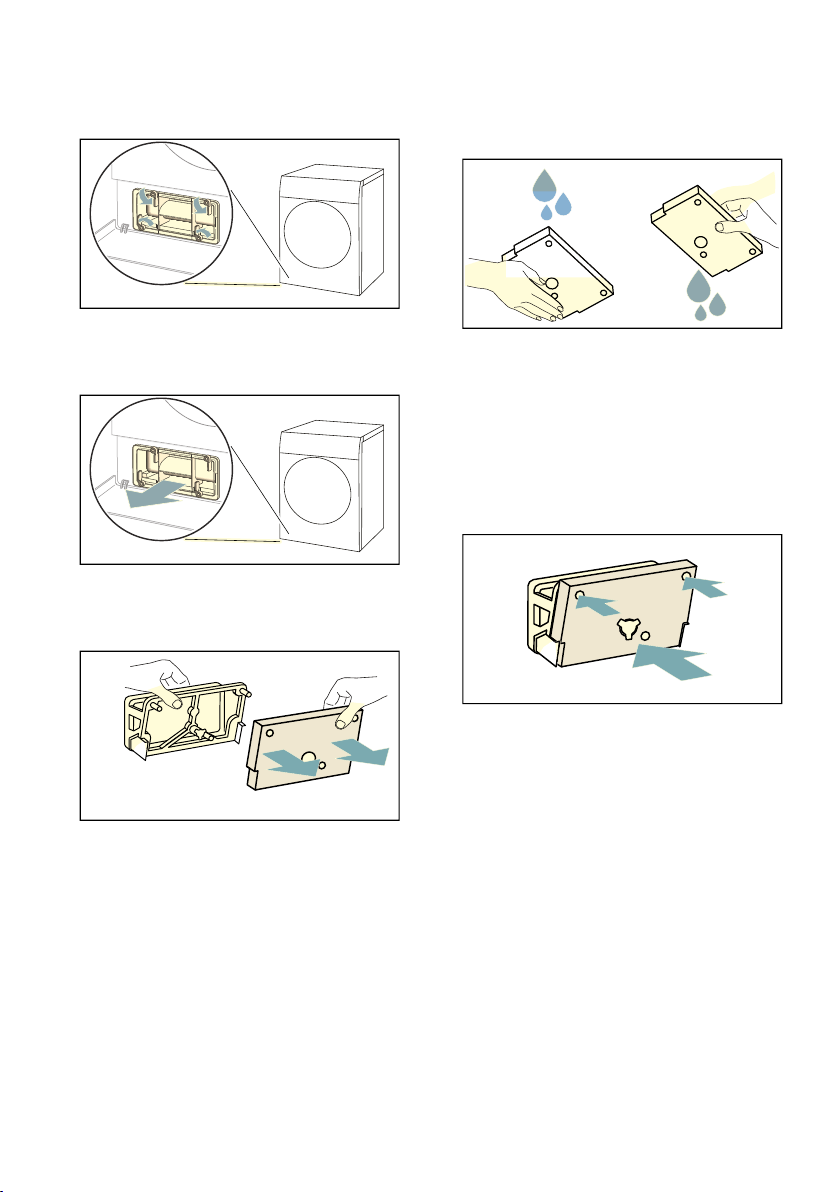

4. Unlock the levers on the heat exchanger cover.
5. Pull the heat exchanger cover out by its grip.
6. Carefully remove the filter mat from the heat exchanger cover.
Note:
7. Use a soft brush to clean the heat exchanger cover.
Note:
8. Rinse the filter mat under running water and squeeze out the water with your hand.
Notes
9. Position the filter mat fully on the retainers in the heat exchanger cover.
Notes

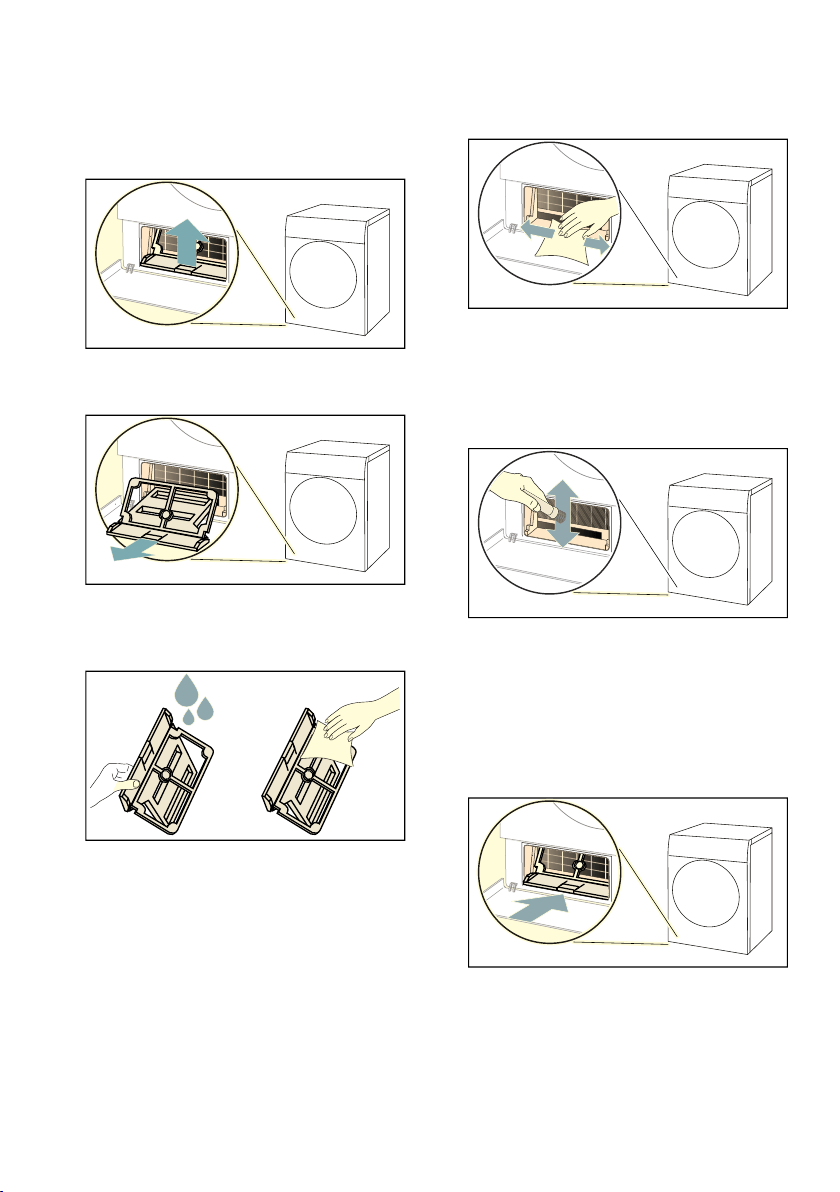

10. If there is visible soiling, carry out the following steps (optional):
a) Lift the middle tab on the insert slightly.
b) Pull the insert out horizontally.
c) Rinse the insert under running water and dry it off.
d) Clean the opening in the appliance with a soft, damp cloth.
Note:
e) Carefully clean the fins on the heat exchanger with a vacuum cleaner and brush attachment.
Note:
f) Push the insert in horizontally until you hear the tab click into place.
11. Slide the heat exchanger cover in by its grip.
Note:
12. Lock the levers on the heat exchanger cover.
13. Close the maintenance flap.
3 Help with the appliance
Help with the appliance
Faults
Cause/remedy
Note:
Note:
Note:
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 45
L Transporting the appliance
Transporting the appliance
: Warning
Risk of injury/material damage/ damage to the appliance!
: Warning
Risk of injury!
1. Pull out the condensation container horizontally and empty it.
2. Push the condensation container back into the appliance until you feel it lock into place.
3. Switch on the appliance.
4. Set any programme.
5. Press Start/Pause//Départ/Pause (Start/Pause) .
6. Wait for 5 minutes.
7. Empty the condensation container again.
8. Switch off the appliance.
9. Disconnect the appliance's mains plug from the power supply.
Caution!
Risk of material damage/damage to the appliance
[ Consumption values
Consumption values
Consumption values table
7 kg
3.5 kg
7 kg
3.5 kg
1400
155
96
1.49
0.90
1000
175
108
1.69
1.01
800
195
120
1.89
1.13
1400
117
73
1.12
0.68
1000
137
85
1.32
0.79
800
157
97
1.52
0,91
3.5 kg
3.5 kg
800
67
0.57
600
78
0.67
Most efficient programme for cotton laundry
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme + dryness level
Load
(in kg)
Energy consumption
(in kWh)
Programme duration
(in min)
{ Technical specifications
Technical specifications
) Disposal
Disposal
Caution!
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
4 After-sales service
After-sales service
Page 1/48
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Contents
Table of Contents
Search
Previous
Next
Bookmarks
en
Installation and operating instructions
Tumble dryer
WTR83VF0CH
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 5470880_wtr83vf0ch-02.pdf
File size: 2.24 MB
File Language: English
Pages: 48
Author: Bosch
File created: 2018-07-30
Published: 2023-10-24
Updated: 2023-10-24
Download File
Other documents for Bosch WTR83VF0CH/02
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WTR83VF0CH/02
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
TES50159DE/05
DWW062450B/01
SBA46AX00N/09
HVA531NS0/01
WAE12060SG/21
Related Products
Bosch WTR83VV9
Bosch WTR83V20
Bosch WTR83V00
Bosch WTR85VP8SN/02
Bosch WTR83V00NL
Bosch WTC82100US/02
Bosch WTE86300US/02
Bosch WTV76100US/02
Bosch WTR87TW8GR/01
Bosch WTW87F91CH/08
Bosch WTB86202UC/02
Bosch WTB86201UC/02
Bosch WTG86400UC/02
Bosch WTB86200UC/02
Bosch WTB66200BY/02
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Energy-saving tips 12
3
5 Installing and connecting the appliance 12
3
9 Quick reference guide 17
3
* Familiarising yourself with your appliance 18
3
Y Display 20
3
/ Overview of programmes 22
3
0 Programme settings 24
3
Z Laundry 25
3
1 Operating the appliance 27
3
2 Appliance settings 32
3
D Cleaning and maintenance 35
3
3 Help with the appliance 40
3
L Transporting the appliance 42
3
[ Consumption values 43
3
{ Technical specifications 44
3
) Disposal 44
3
4 After-sales service 45
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Energy-saving tips
12
Energy-saving tips
12
Note:
12
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
12
5 Installing and connecting the appliance
12
Installing and connecting the appliance
12
Included with the appliance:
12
1. Remove any packaging and protective covers completely from the appliance.
12
2. Open the door.
12
3. Remove all the accessories from the drum.
12
Caution!
12
Risk of material damage/damage to the appliance
12
Installing the appliance
13
: Warning
13
Risk of death!
13
: Warning
13
Risk of explosions/fire!
13
: Warning
13
Risk of fire/material damage/damage to the appliance!
13
: Warning
13
Risk of injury/material damage/ damage to the appliance!
13
: Warning
14
Risk of injury!
14
Caution!
14
Material damage/damage to the appliance
14
Caution!
14
Risk of material damage and damage to the appliance
14
1. Place the appliance on a clean, even, solid surface.
14
2. Check that the appliance is level using a spirit level.
14
3. If necessary, turn the appliance feet to make sure it is level.
14
Notes
14
Connecting the appliance
15
: Warning
15
Risk of electric shock/fire/material damage/damage to the appliance!
15
: Warning
15
Risk of electric shock/fire/material damage/damage to the appliance!
15
: Warning
15
Risk of fire/material damage/damage to the appliance!
15
: Warning
15
Risk of injury!
15
1. Plug the appliance's mains plug into the designated socket.
15
2. Check that the mains plug is in securely.
15
Caution!
15
Risk of material damage/damage to the appliance
15
Note:
15
If in doubt, have your appliance connected by a qualified professional.
15
Before using the appliance for the first time
16
Note:
16
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
16
Optional accessories
16
9 Quick reference guide
17
Quick reference guide
17
Note:
17
The appliance must be correctly installed and connected. ~ Page 12
17
* Familiarising yourself with your appliance
18
Familiarising yourself with your appliance
18
Appliance overview
18
Panel
19
Programme selector
19
Y Display
20
Display
20
Indicator/ symbol
20
Description
20
Information
20
Notes
21
Programme settings
21
Appliance settings
21
/ Overview of programmes
22
Overview of programmes
22
Programme
22
Maximum load
22
Notes
22
Note:
22
Note:
22
Notes
23
Notes
23
0 Programme settings
24
Programme settings
24
Program setting
24
Function
24
Note:
24
Note:
24
Z Laundry
25
Laundry
25
Preparing the laundry
25
: Warning
25
Risk of explosions/fire!
25
Caution!
25
Risk of damage to the drum and laundry
25
Notes
25
Sorting laundry
26
Note:
26
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
26
Caution!
26
Risk of material damage to the dryer or laundry
26
Note:
26
You can select a timed programme to add extra drying time for laundry that is still damp.
26
Caution!
26
Risk of material damage to the appliance and laundry
26
1 Operating the appliance
27
Operating the appliance
27
Loading laundry and switching on the appliance
27
Note:
27
The appliance must be correctly installed and connected. ~ Page 12
27
1. Prepare and sort the laundry.
27
2. Turn the programme selector to switch on the appliance.
27
3. Open the door.
27
4. Load the laundry unfolded into the drum.
27
5. Close the appliance door.
27
Caution!
27
Risk of material damage to the appliance or laundry.
27
Note:
27
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
27
Setting a programme
28
Note:
28
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 32
28
1. Set the programme you require.
28
2. Adjust the programme settings, if required. ~ "Programme settings" on page 24
28
Starting a programme
28
Note:
28
If you want to prevent the programme from being adjusted inadvertently, you can activate the childproof lock. ~ Page 32
28
Programme progress
28
Note:
28
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
28
Changing the programme or adding more laundry
28
1. Open the door or press Start/Pause/ /Départ/Pause (Start/Pause) to pause the programme.
28
Note:
28
2. Add or remove laundry.
28
3. If required, select a different programme or a different programme setting.~ "Overview of programmes" on page 22 ~ "Programme settings" on page 24
28
Note:
28
4. Close the door.
28
5. Press Start/Pause//Départ/Pause (Start/Pause) .
28
Note:
28
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
28
Cancelling the programme
28
Caution!
28
Risk of fire. Laundry may catch fire.
28
Programme end
29
Removing laundry and switching off the appliance
29
1. Remove the laundry.
29
2. Turn the programme selector to switch off the appliance.
29
Emptying the condensation container
29
Note:
29
After each drying cycle, empty the condensate container; otherwise the next drying programme may be cancelled as a result of the condensate container being full.
29
1. Pull out the condensation container horizontally.
29
2. Pour out the condensation water.
29
Caution!
29
Risk of harm to health and material damage
29
3. Push the condensation container back into the appliance until you feel it lock into place.
30
Removing the fluff
30
Note:
30
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is clogged or dirty, this reduces the flow of air, preventing the appliance from achieving optimal drying results. Dirty fluff filters increase the pow...
30
Clean the fluff filter after each drying cycle:
30
1. Open the door and remove all fluff from it.
30
2. Pull out the two-part fluff filter.
30
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
30
4. Pull the two-part fluff filter apart.
30
5. Open the two parts of the filter.
30
6. Remove all fluff from both parts of the filter.
31
7. Rinse off fluff under warm, running water.
31
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
31
Caution!
31
Material damage/damage to the appliance
31
2 Appliance settings
32
Appliance settings
32
Childproof lock
32
Notes
32
Altering the appliance settings
32
1. Set the programme to position 1.
32
2. Press and hold Start/Pause//Départ/ Pause (Start/Pause) . At the same time:
32
3. Set the programme to position 2.
32
4. Release Start/Pause//Départ/Pause (Start/Pause) .
32
Adjusting the volume of the audible notification signals
33
1. Set the programme to position 3.
33
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
33
Settings:
33
3. Alter any additional appliance settings you require or save and exit the appliance settings.
33
Adjusting the volume of the audible operating signals
33
1. Set the programme to position 4.
33
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
33
Settings:
33
3. Alter any additional appliance settings you require or save and exit the appliance settings.
33
Changing the spin speed
34
Note:
34
The set spin speed does not change the drying time for the time programme.
34
1. Set the programme to position 2.
34
2. Press Programmdauer/Durée de programme (Programme Duration) or Fertig in/Fin dans (Ready in) until the required setting appears on the display.
34
Settings:
34
3. Alter any additional appliance settings you require or save and exit the appliance settings.
34
Saving and exiting the appliance settings
34
1. Turn the programme selector to switch off the appliance.
34
2. Wait 5 seconds.
34
Note:
34
The selected settings will be retained even after the appliance has been switched off.
34
D Cleaning and maintenance
35
Cleaning and maintenance
35
Cleaning the appliance
35
: Warning
35
Risk of death!
35
: Warning
35
Risk of poisoning!
35
: Warning
35
Risk of electric shock/material damage/damage to the appliance!
35
Caution!
35
Material damage/damage to the appliance
35
Cleaning the moisture sensor
36
Note:
36
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...
36
1. Open the door.
36
2. Clean the moisture sensor with a rough sponge.
36
Caution!
36
Risk of damaging the moisture sensor.
36
Cleaning the base unit
36
: Warning
36
Risk of injury!
36
Note:
36
Allow the appliance to cool down for approximately 30 minutes after use before commencing cleaning.
36
1. Clean the fluff filter.~ Page 30
36
2. Open the maintenance flap by the handle.
36
3. Clean the maintenance flap with a soft, damp cloth.
36
4. Unlock the levers on the heat exchanger cover.
37
5. Pull the heat exchanger cover out by its grip.
37
6. Carefully remove the filter mat from the heat exchanger cover.
37
Note:
37
7. Use a soft brush to clean the heat exchanger cover.
37
Note:
37
8. Rinse the filter mat under running water and squeeze out the water with your hand.
37
Notes
37
9. Position the filter mat fully on the retainers in the heat exchanger cover.
37
Notes
37
10. If there is visible soiling, carry out the following steps (optional):
38
a) Lift the middle tab on the insert slightly.
38
b) Pull the insert out horizontally.
38
c) Rinse the insert under running water and dry it off.
38
d) Clean the opening in the appliance with a soft, damp cloth.
38
Note:
38
e) Carefully clean the fins on the heat exchanger with a vacuum cleaner and brush attachment.
38
Note:
38
f) Push the insert in horizontally until you hear the tab click into place.
38
11. Slide the heat exchanger cover in by its grip.
39
Note:
39
12. Lock the levers on the heat exchanger cover.
39
13. Close the maintenance flap.
39
3 Help with the appliance
40
Help with the appliance
40
Faults
40
Cause/remedy
40
Note:
40
Note:
40
Note:
41
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 45
41
L Transporting the appliance
42
Transporting the appliance
42
: Warning
42
Risk of injury/material damage/ damage to the appliance!
42
: Warning
42
Risk of injury!
42
1. Pull out the condensation container horizontally and empty it.
42
2. Push the condensation container back into the appliance until you feel it lock into place.
42
3. Switch on the appliance.
42
4. Set any programme.
42
5. Press Start/Pause//Départ/Pause (Start/Pause) .
42
6. Wait for 5 minutes.
42
7. Empty the condensation container again.
42
8. Switch off the appliance.
42
9. Disconnect the appliance's mains plug from the power supply.
42
Caution!
42
Risk of material damage/damage to the appliance
42
[ Consumption values
43
Consumption values
43
Consumption values table
43
7 kg
43
3.5 kg
43
7 kg
43
3.5 kg
43
1400
43
155
43
96
43
1.49
43
0.90
43
1000
43
175
43
108
43
1.69
43
1.01
43
800
43
195
43
120
43
1.89
43
1.13
43
1400
43
117
43
73
43
1.12
43
0.68
43
1000
43
137
43
85
43
1.32
43
0.79
43
800
43
157
43
97
43
1.52
43
0,91
43
3.5 kg
43
3.5 kg
43
800
43
67
43
0.57
43
600
43
78
43
0.67
43
Most efficient programme for cotton laundry
43
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
43
Standard programmes for cottons in accordance with current EU regulation 932/2012
43
Programme + dryness level
43
Load
43
(in kg)
43
Energy consumption
43
(in kWh)
43
Programme duration
43
(in min)
43
{ Technical specifications
44
Technical specifications
44
) Disposal
44
Disposal
44
Caution!
44
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
44
4 After-sales service
45
After-sales service
45
Search:
×
Search
