ICP CAC030AKA1 User Manual
ICP CAC030AKA1 condensing unit
Installation Instructions
For CAC030AKA1.
PDF File Manual
,
13 pages
,
Read Online
|
Download pdf file

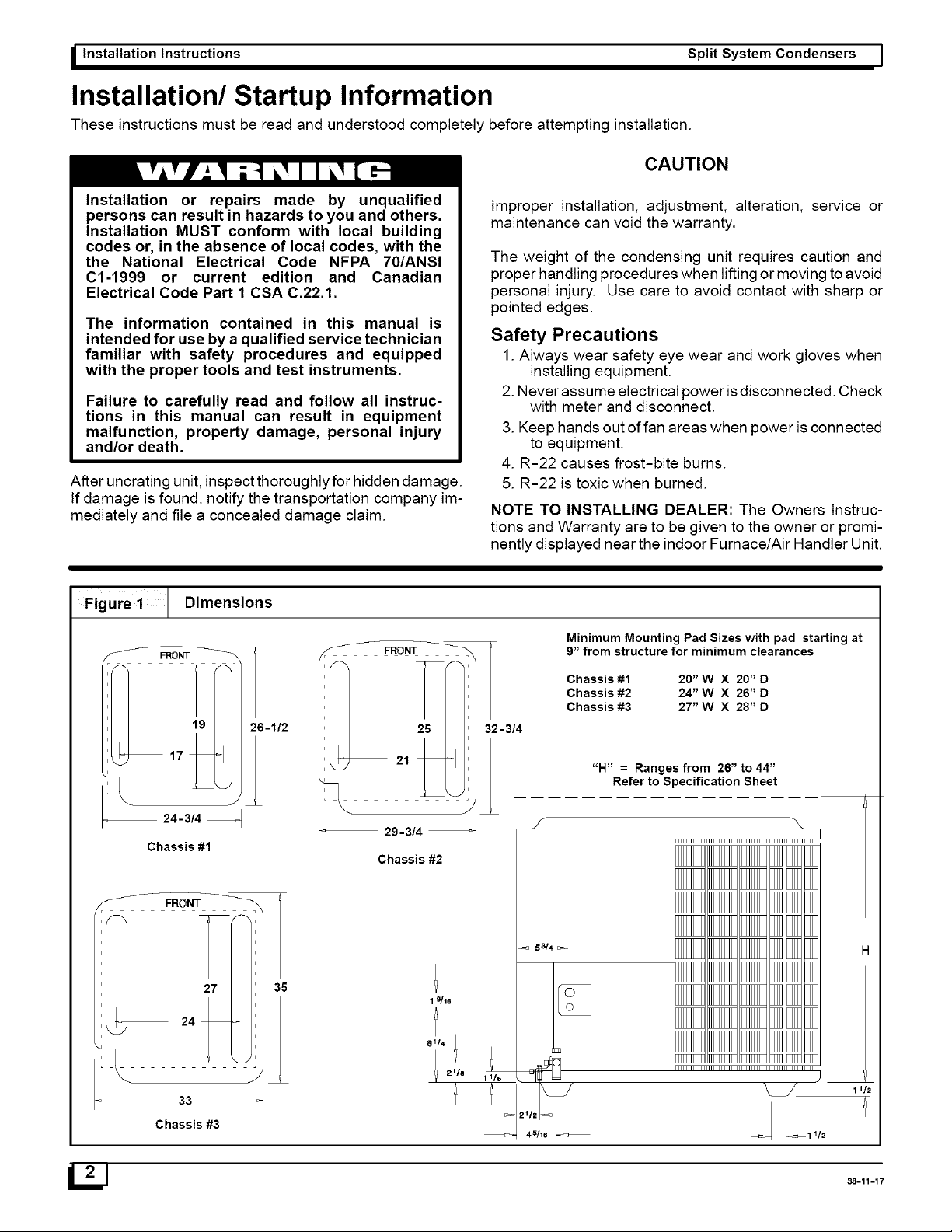

Installation/ Startup Information
Safety Precautions

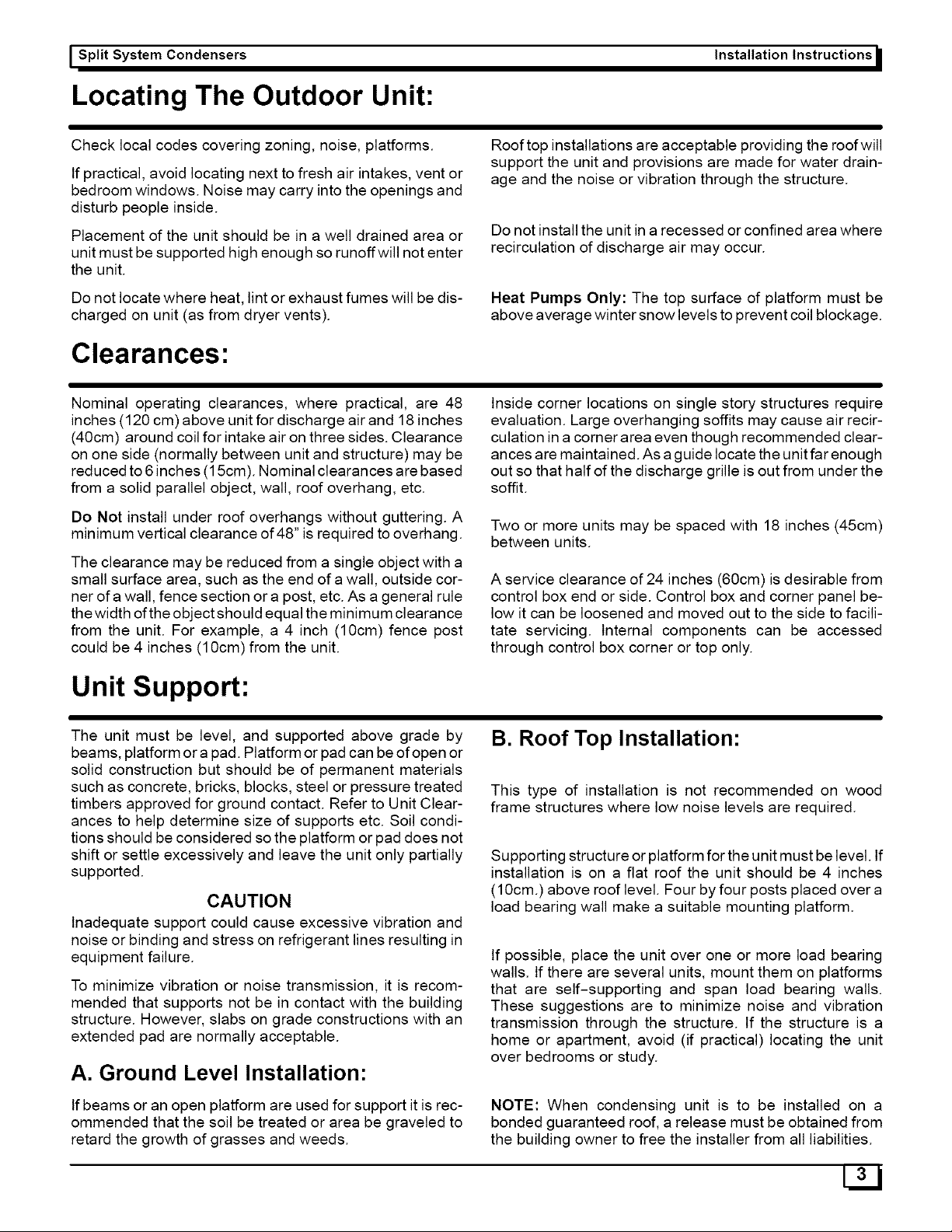

Locating The Outdoor Unit

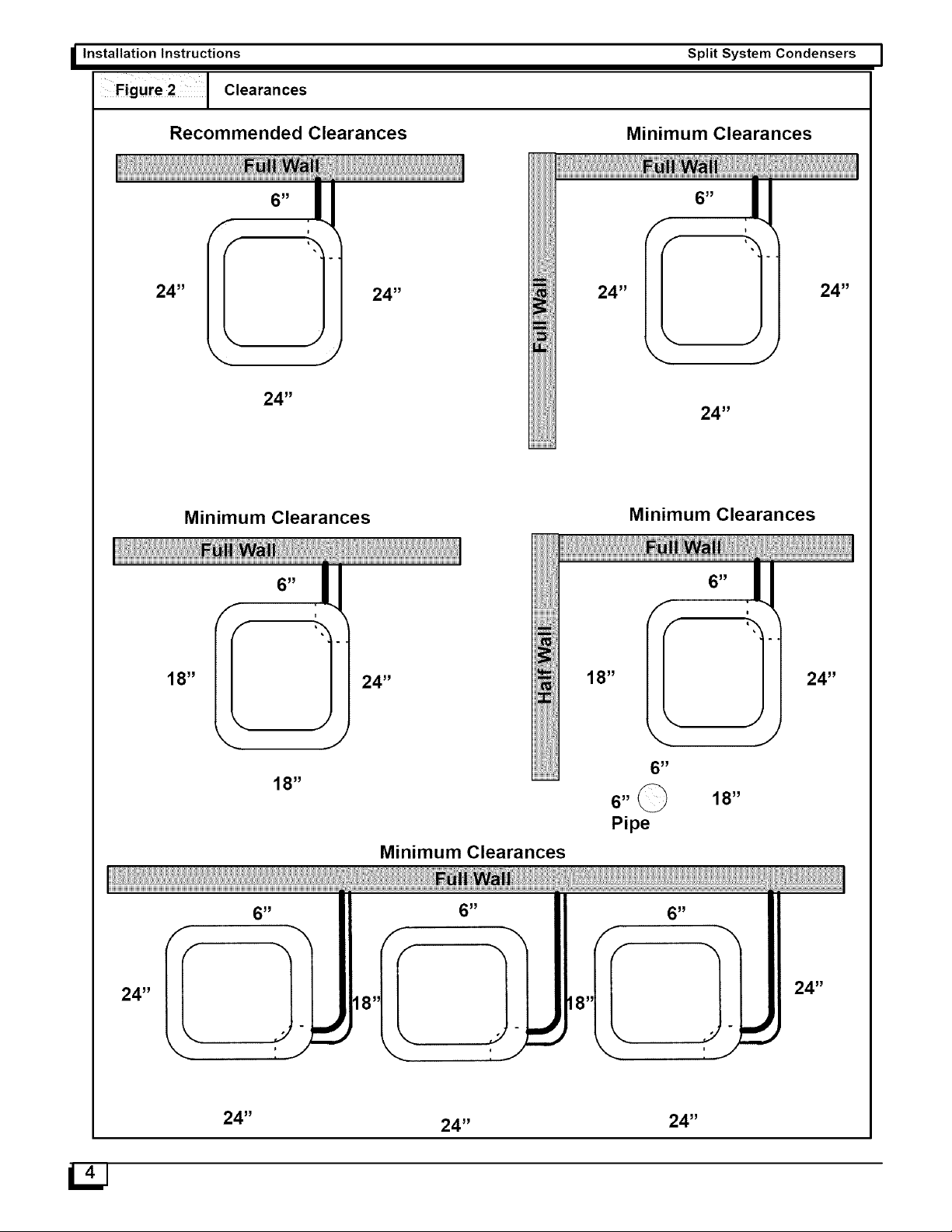

Clearances
Unit Support
Ground Level Installation
Roof Top Installation

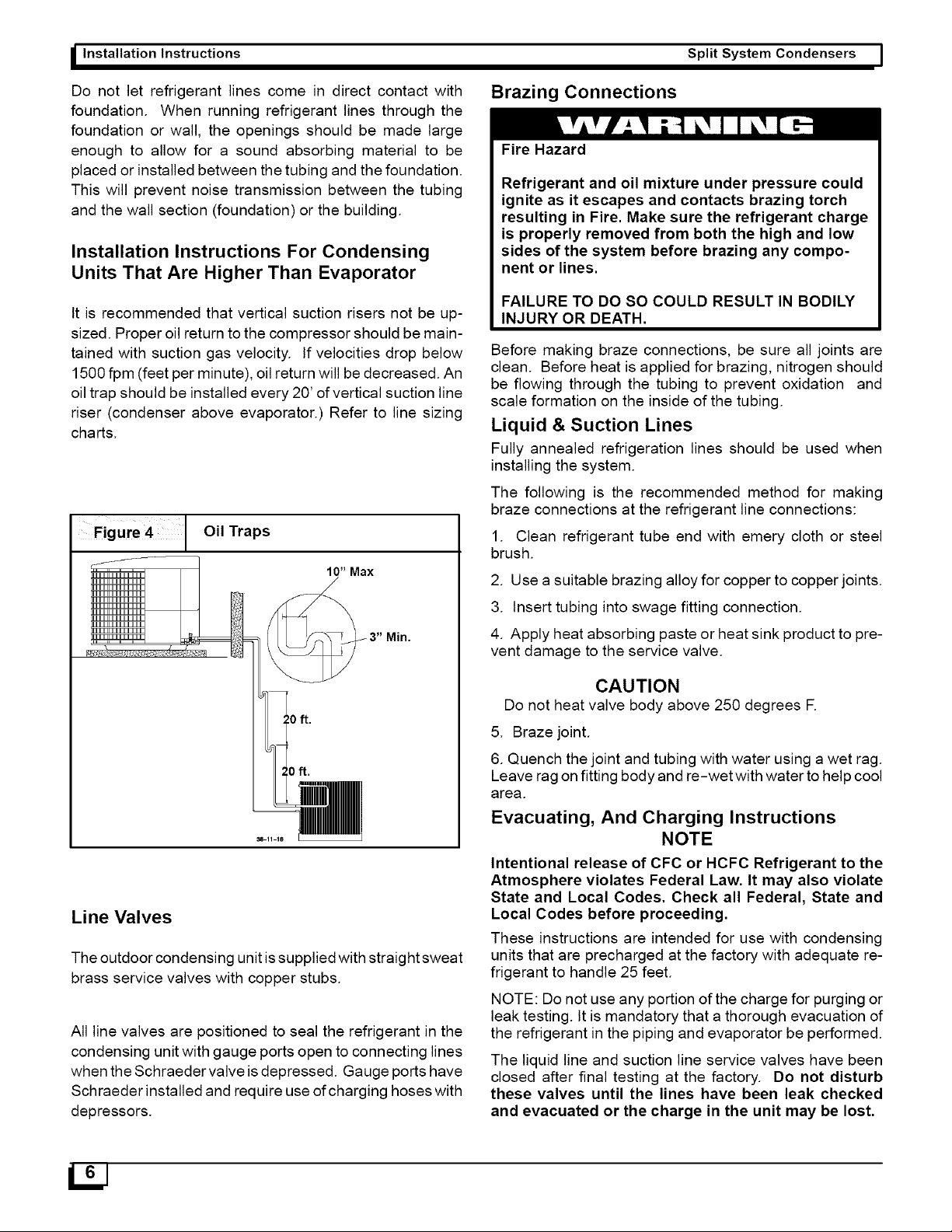

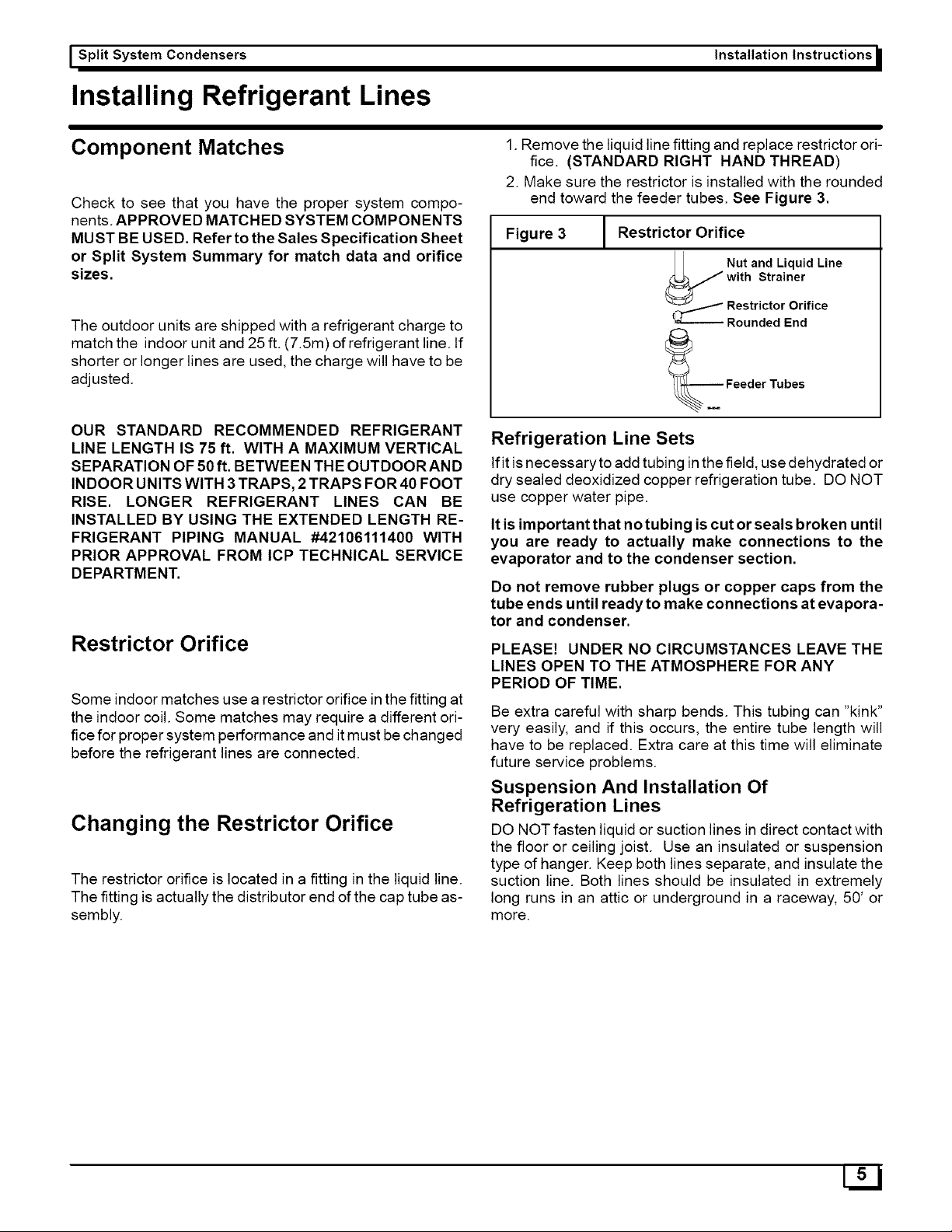

Installing Refrigerant Lines
Component Matches
Restrictor Orifice
Changing The Restrictor Orifice

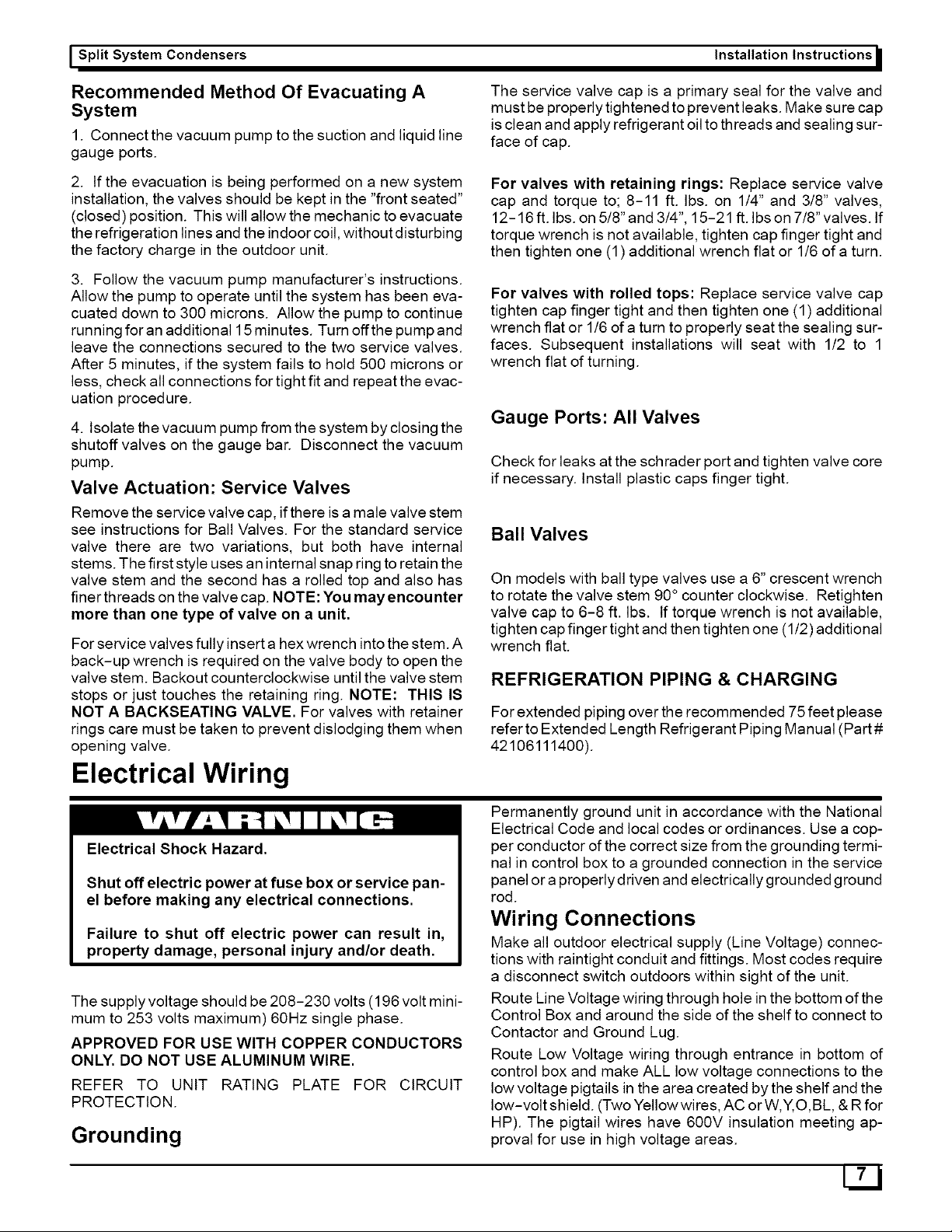

REFRIGERATION PIPING & CHARGING
Electrical Wiring
Grounding
Wiring Connections

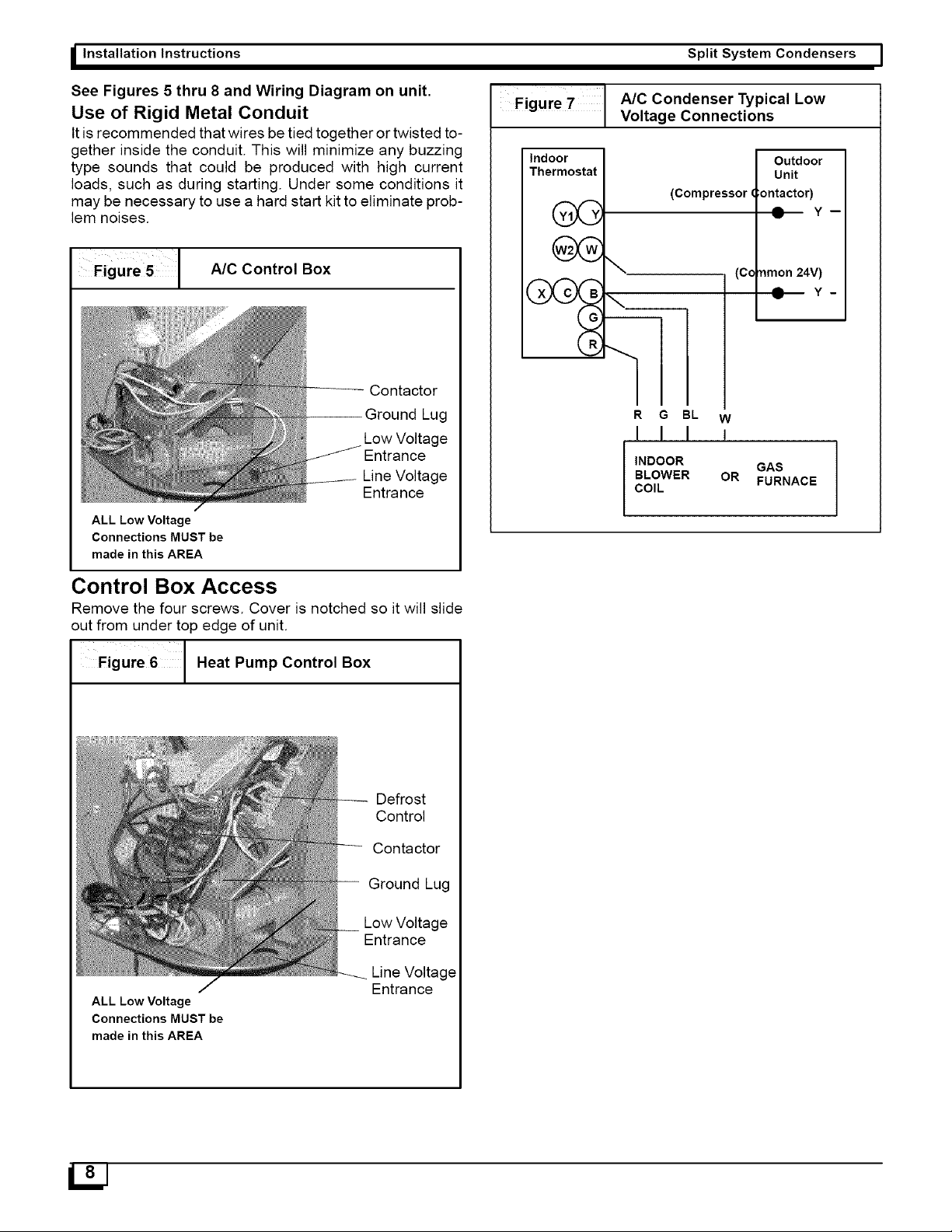

Use Of Rigid Metal Conduit
Control Box Access
Start–Up Procedure

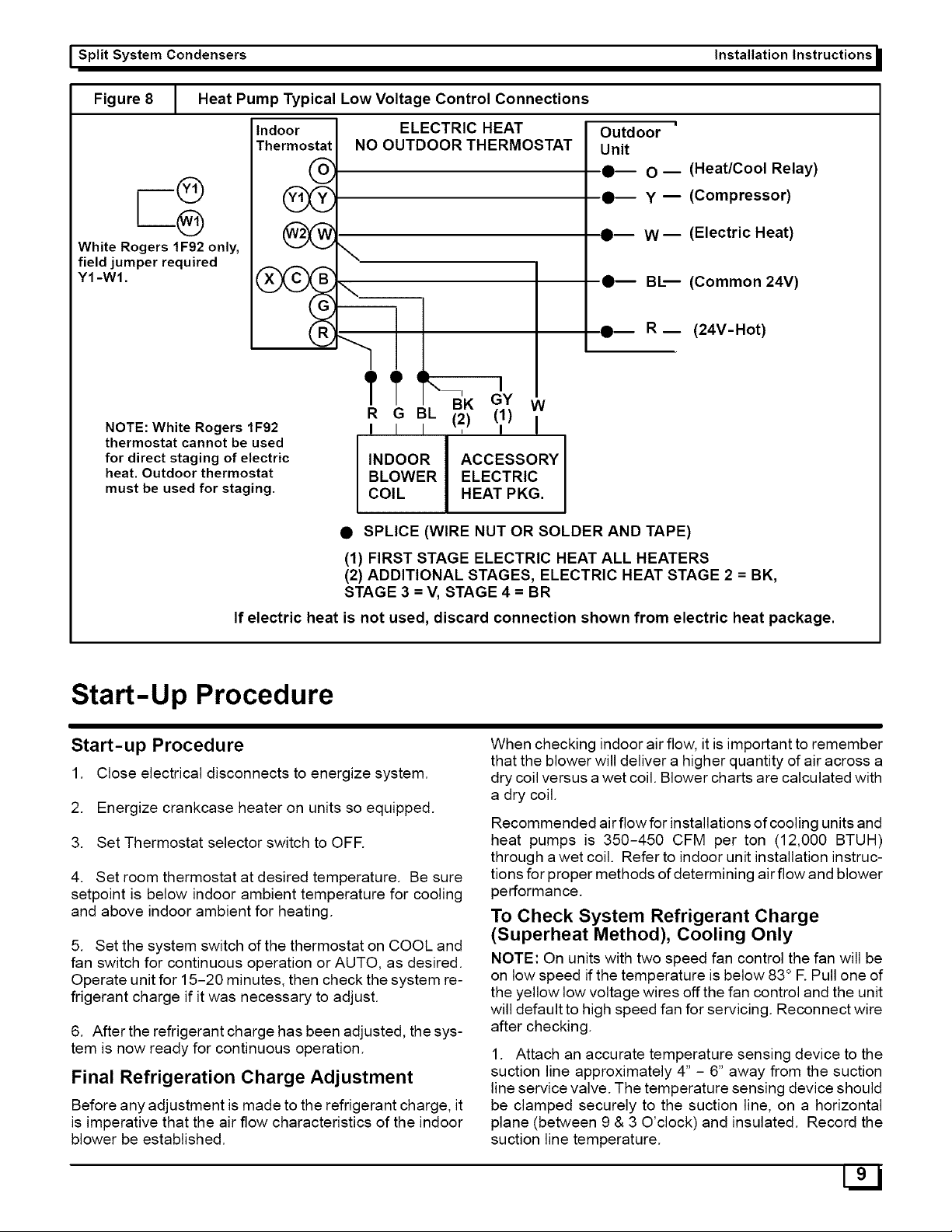

Start–up Procedure
Final Refrigeration Charge Adjustment

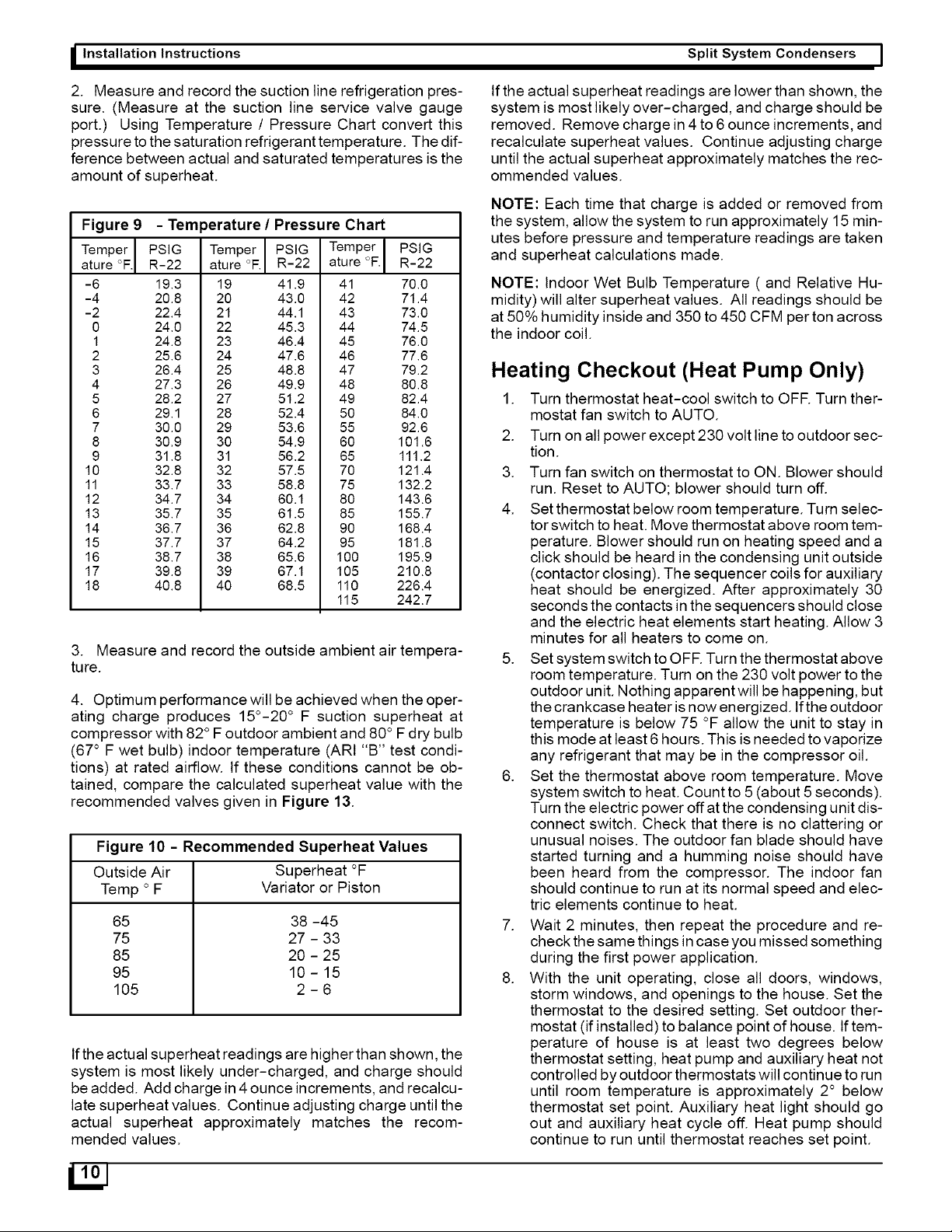

To Check System Refrigerant Charge (Superheat Method), Cooling Only
Heating Checkout (Heat Pump Only)

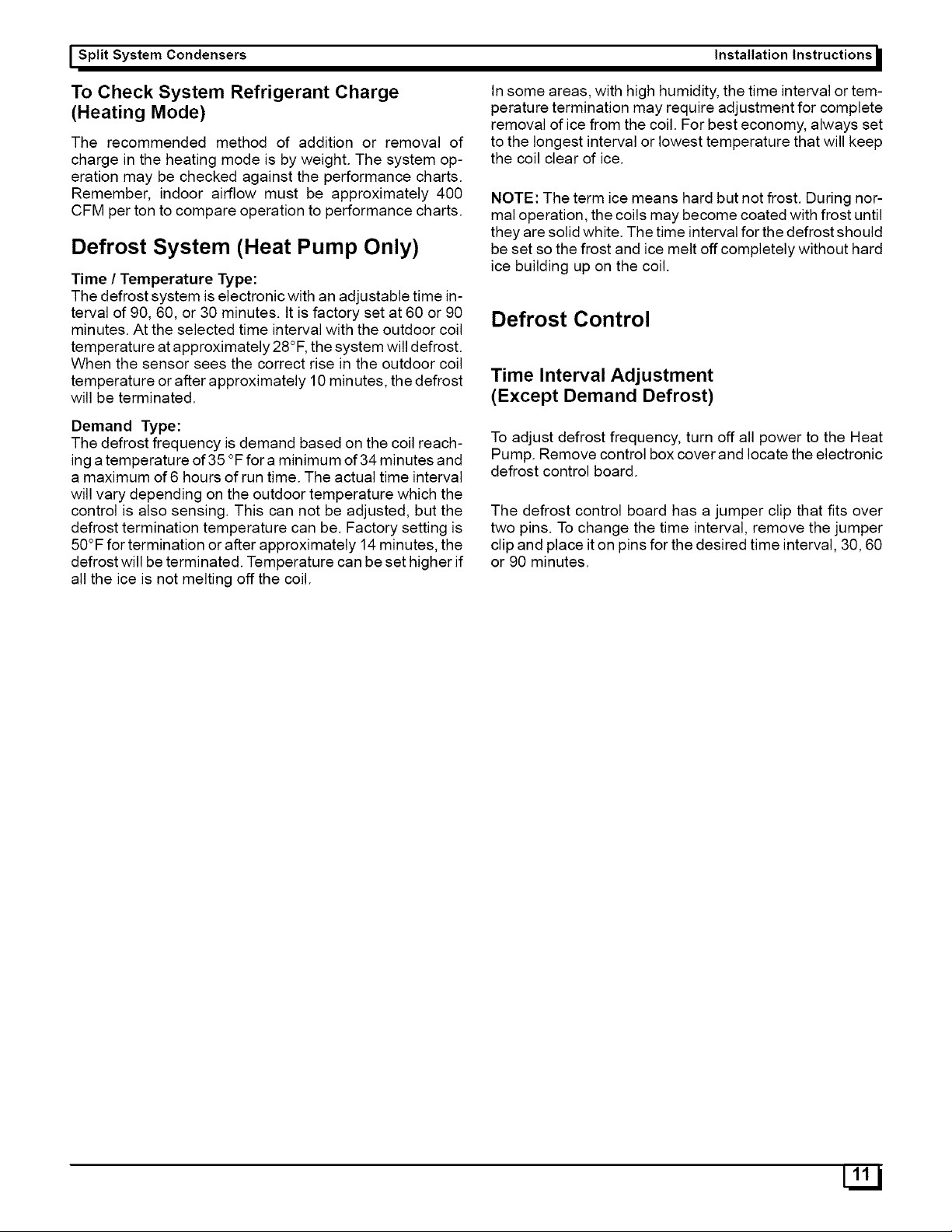

To Check System Refrigerant Charge (Heating Mode)
Defrost System (Heat Pump Only)
Defrost Control

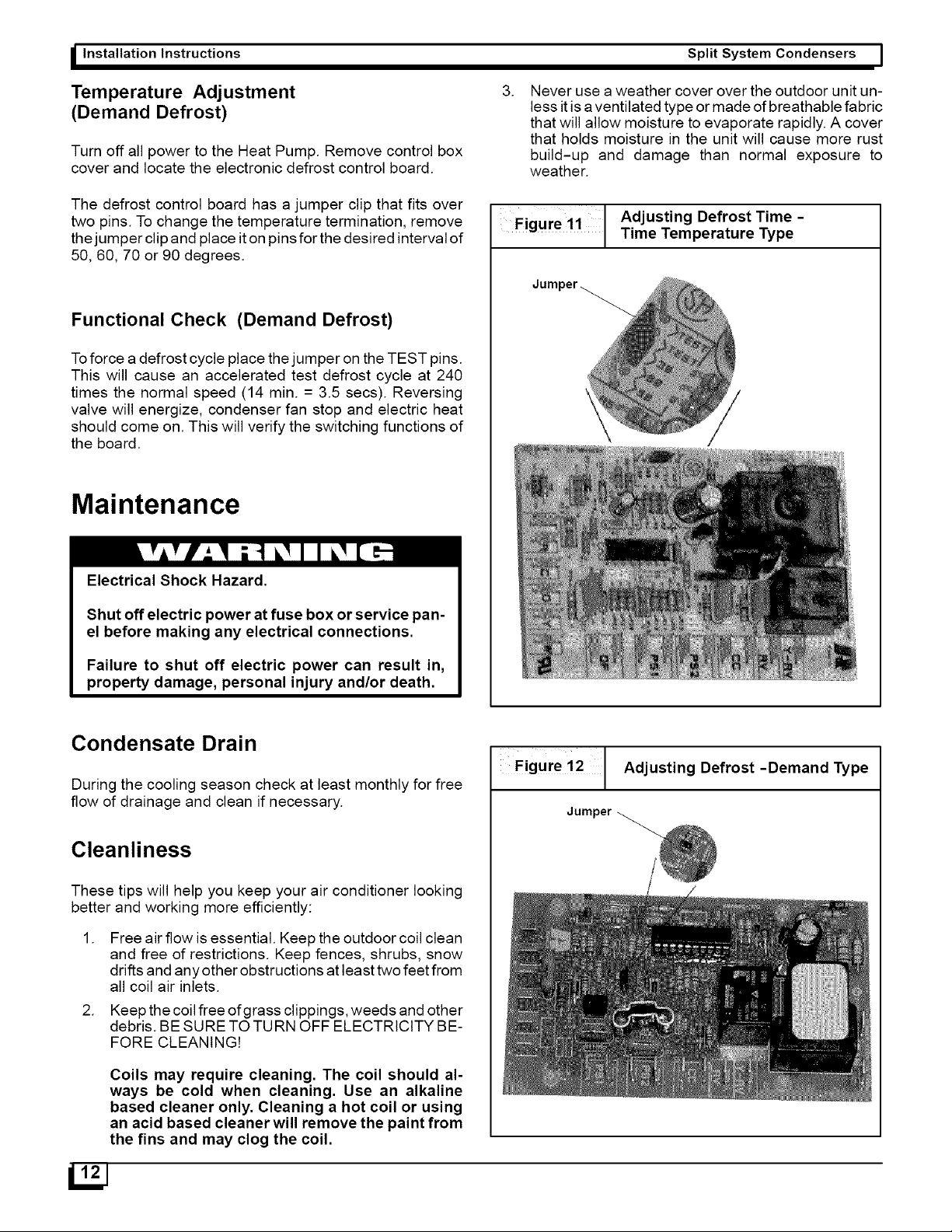

Maintenance
Condensate Drain
Cleanliness
