SONY XR-85X93L / 85X93CL / 75X93L / 75X93CL / 65X93L / 65X93CL
[EN, FR] 5-049-617-11(1)
5-049-617-11(1)
TV’s rear cover / Couvercle arrière du téléviseur
Wall-Mount Bracket / Support de fixation murale
M6
9 – 13 (mm)
Optional Camera and Microphone Unit (not supplied) Cable Management / Gestion du câble de la caméra avec microphone en option (non fourni)
EN
MIC
Light
sensor*
1
*
2
Buzzer*
2
*
3
The remote control shape, layout, availability
and function of remote control buttons may
vary depending on your region/country/TV
model/TV settings.*
4
(Power)
TV:
Display TV channel list or switch to
input.
(Quick settings): Display Quick
Settings.
(Input): Display and select the input
source, etc.
(Control menu): Display the
Control menu.
/ / / / : On screen menu
navigation and selection.
(Back)
(Home)
(Google Assistant / Microphone):
Use Google Assistant*
5
*
6
.
+ / – (Volume)
(Mute)*
7
CH + / – (Channel)
(Dashboard): Display Dashboard.
(Guide): Display the digital program
guide of TV or Cable/Satellite box*
8
.
App buttons
*1 The remote control backlight will illuminate
when the light sensor detects the ambient
light is low. Automatic illumination of the
backlight can be turned off.
*2 RMF-TX910U only. To see the model name
of the remote control, open the remote
control cover and see the label on the
remote control.
*3 The buzzer will emit a sound when you use
the remote control finder function. Refer to
the online Help Guide for details.
*4 For other remote control models, refer to
the online Help Guide for details.
*5 Only for limited region/country/model/
language.
*6 Google Assistant requires an Internet
connection.
*7 Accessibility shortcut is available by
pressing and holding
(Mute).
*8 [Cable/Satellite box setup] setting is
required.
Note
•Instructions about “Installing the TV to the
Wall” are included within this TV’s instruction
manual.
•Read the supplied safety documentation for
additional safety information.
Location of the identification label
Labels for the TV Model No. and Power Supply
rating are located on the rear of the TV. They can
be found by removing the terminal cover.
IMPORTANT NOTICE
Owner’s Record
The model and serial numbers are located at
the side and/or rear of the TV. Record these
numbers in the spaces provided below. Refer
to them whenever you call upon your Sony
dealer regarding this TV.
Model Name
Serial No.
Safety Information
Notice for customers in the United States of
America
Supplier’s Declaration of Conformity
Trade Name: SONY
Model: XR-85X93L / XR-85X93CL /
XR-75X93L / XR-75X93CL / XR-65X93L /
XR-65X93CL
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone Number: 858-942-2230
Compatible Wall-Mount Bracket Information
Use the following Sony Wall-Mount Bracket with
your TV model.
Sony TV Model No.
XR-65X93L /
65X93CL
Sony Wall-Mount
Bracket Model No.
SU-WL855*
1
Use with other Wall-Mount Brackets*
2
may
cause instability and could result in property
damage or injury.
*1 Only for limited region/country/model.
*2 For instructions on using the Wall-
Mount Bracket with your TV please go to
https://www.sony.com/am/support for
your TV model and download “Wall-Mount
Bracket”.
To Customers
Sufficient expertise is required for TV
installations. Be sure to subcontract the
installation to a Sony dealer or licensed
contractor and pay adequate attention to safety
during the installation.
Before setting up your TV
Some TV models are packaged with a detached
Table-Top Stand so you can mount your TV to
a wall right away. See “Installing the TV to the
Wall” if you want to mount the TV to a wall. If
you are not mounting the TV to a wall, you will
need to attach the Table-Top Stand (refer to the
Setup Guide).
Be sure to consider the following while setting
up your TV:
•Disconnect all cables when carrying the TV.
•Before transporting the TV set, remove the
terminal covers.
•Two or more persons (three or more persons
for 214.8 cm (85 inches) and above TV) are
needed to transport a large TV set.
•Correct hand placement while carrying the
TV is very important for safety and to avoid
damage.
XR-85X93L / 85X93CL
XR-75X93L / 75X93CL / 65X93L / 65X93CL
Securing the TV
Sony strongly recommends
taking measures to prevent
the TV from toppling over.
Unsecured TVs may topple
and result in property damage,
serious bodily injury or even
death.
Preventing the TV from Toppling
•Secure the TV to a wall and/or Stand.
•Do not allow children to play or climb on
furniture and TV sets.
•Avoid placing or hanging items on the TV.
•Never install the TV on:
— slippery, unstable and/or uneven surfaces.
— furniture that can easily be used as steps,
such as a chest of drawers.
•Install the TV where it cannot be pulled,
pushed, or knocked over.
•Install the TV so that the TV’s Table-Top Stand
does not protrude out from the Stand (not
supplied). If the Table-Top Stand protrudes out
from the Stand, it may cause TV set to topple
over, fall down, and cause personal injury or
damage to the TV.
•Route all AC power cords and connecting
cables so that they are not accessible to
curious children.
Recommended Measures to Secure the TV
Consider the following measures when securing
your TV to a Stand (not supplied).
1 Secure the Stand for the TV.
Make sure the Stand can adequately support
the weight of the TV. Use two angle braces
(not supplied) to secure the Stand. For each
angle brace use the appropriate hardware to:
•Attach one side of the angle brace to the
wall stud.
•Attach the other side to the Stand.
Angle brace
(not supplied)
Stand
2 Secure the TV to the Stand.
Use the optional hardware listed as follows
(not supplied):
•M6 machine screws (screwed into the TV’s
rear cover).
•A screw or similar (attach it to the Stand).
•Rope or chain (strong enough to support
the weight of the TV). Make sure that there
is no excess slack in the rope or chain.
Screw hole on the
rear cover
M6 machine screw
(not supplied)
Rope or chain
(not supplied)
Screw
(not supplied)
1.5 N·m
{15 kgf·cm}
The length of the M6 machine screw differs
depending on the rope or chain diameter.
Please refer to below illustration.
Rope or chain
TV’s rear cover
9 – 13 (mm)
Screw (M6)
3 Anchor the TV to the wall by using bolts, wall
anchor and chain (or rope).
Wall-mount holes
M6 eye bolts (not supplied)
Rope or
chain (not
supplied)
Wall-anchor
(not supplied)
Please refer to below illustration for M6 eye
bolt length.
9 – 13 (mm)
M6 eye bolt
TV’s rear cover
Note
•Your TV is shipped with screws attached to
the rear of the TV depending on the TV model.
(They are fastened in the screw holes for wall
mounting.) Be sure to remove the upper two
screws prior to anchoring the TV to a wall.
•Securing the TV to the Stand without securing
the TV and the Stand to the wall provides
minimum protection against the TV toppling
over. For further protection, be sure to follow
the three measures recommended.
The BRAVIA® 4K TV Experience
Thank you for choosing Sony! Your new
BRAVIA® TV opens the door to the “4K TV
Experience”. This document will help you get
the most out of your TV. Please take a
moment to register your TV at:
U.S.A.:
https://productregistration.sony.com
Canada:
https://www.sony.ca/registration
This TV displays all video input signals in a
resolution of 3840 dots × 2160 lines.
Note
•For supported PC formats, refer to the online
Help Guide.
Guidelines for IR Remote Control
•Point your remote control directly at the IR
sensor located on your TV.
•Make sure that no objects are blocking the
path between the remote control and the IR
sensor on your TV.
•Fluorescent lamps can interfere with your
remote control; try turning off the fluorescent
lamps.
•If you are having problems with the remote
control, reinsert or replace your batteries and
make sure that they are correctly inserted.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket (SU-WL855
only)* (not supplied)
To Customers:
For product protection and safety reasons, Sony
strongly recommends that installation of your
TV be performed by Sony dealers or licensed
contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the
installation, periodic maintenance and
examination of this product.
Wall-Mount Bracket Installation
Information
For instructions on Wall-Mount Bracket
installation, see the Installation Information
(Wall-Mount Bracket) on the Sony Customer
Support website for your TV model at the
following address.
https://www.sony.com/am/support
•Follow the instruction guide provided with the
Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV,
especially to determine the strength of the
wall for withstanding the TV’s weight.
•Sony is not liable for any damage or
injury caused by mishandling or improper
installation.
•Be sure to store the unused screws and Table-
Top Stand in a safe place until you are ready to
attach the Table-Top Stand. Keep the screws
away from small children.
Note
•Read the supplied safety documentation for
additional safety information.
* Only for limited region/country/model.
Using the optional Wall-Mount Bracket (Except
SU-WL855) (not supplied)
This TV’s instruction manual only provides the
steps to prepare the TV for Wall-Mount
installation before it is installed on the wall.
Your TV can be mounted to a wall using a
suitable Wall-Mount Bracket (not supplied). If
the Table-Top Stand is attached to the TV, the TV
may require detaching the Table-Top Stand; see
“Detaching the Table-Top Stand from the TV”.
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety reasons,
Sony strongly recommends that installation
of your TV on the wall be performed by
qualified professionals. Do not attempt to
install it yourself.
•Follow the instruction guide provided with the
Wall-Mount Bracket for your model. Sufficient
expertise is required in installing this TV,
especially to determine the strength of the
wall for withstanding the TV’s weight.
•The screws for installing the Wall-Mount
Bracket to the TV are not supplied.
•Refer to the following table for wall-mount
hole pattern.
Model Name
Wall-mount hole
pattern
×
XR-85X93L / 85X93CL 400 × 400 mm
XR-75X93L / 75X93CL 300 × 300 mm
XR-65X93L / 65X93CL 300 × 300 mm
•Be sure to store the unused screws and Table-
Top Stand in a safe place until you are ready to
attach the Table-Top Stand. Keep the screws
away from small children.
Note
•Read the supplied safety documentation for
additional safety information.
•For more detailed information, visit Sony
Customer Support website.*
* Only for limited region/country/model.
1 Remove the terminal covers.
XR-85X93L / 85X93CL / 75X93L / 75X93CL
1
1
2
2
3
3
https://rd1.sony.net/help/tv/
kusltn1/h_usltn/
Lisez ce manuel avant d’utiliser le produit
Service à la clientèle Sony
Canada :
https://www.sony.ca/support
États-Unis :
https://www.sony.com/tvsupport
Canada
1.877.899.SONY
États-Unis
1.800.222.SONY
Appelez le numéro de téléphone qui
apparaît sur votre carte/police de
garantie.
Ne retournez pas le produit au magasin.
XR-85X93L / 85X93CL / 75X93L
XR-75X93CL / 65X93L / 65X93CL
Reference Guide
Manuel de référence
Television
Téléviseur
Read this manual before using this product
Sony Customer Support
U.S.A.:
https://www.sony.com/tvsupport
Canada:
https://www.sony.ca/support
United States
1.800.222.SONY
Canada
1.877.899.SONY
Call the telephone number that appears
on your warranty card/policy.
Please do not return the product to the
store.
XR-65X93L / 65X93CL

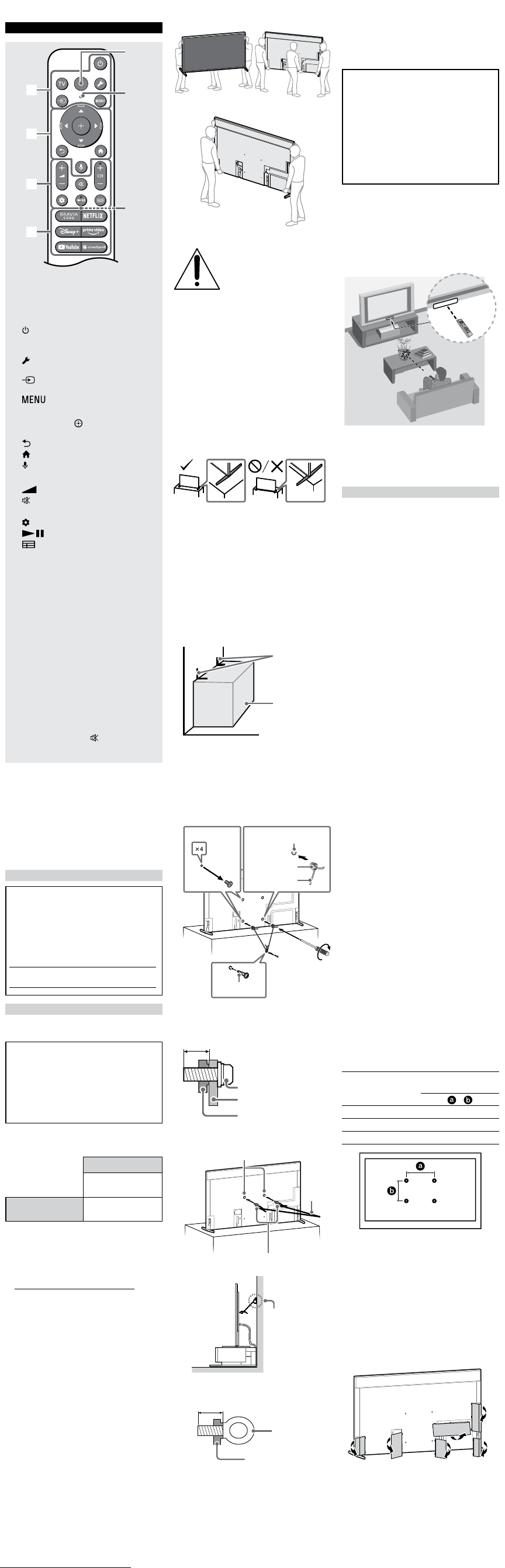

2 Remove the screws from the rear of the TV.
3 Attach the Wall-Mount Bracket (not
supplied) using the screws (not supplied).
Wall-Mount Bracket
(not supplied)
Screw
(not supplied)
Note
•If using an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
Detaching the Table-Top Stand from the TV
To detach the Table-Top Stand from the TV,
remove the screws
.
Note
•Be careful when lifting the TV as the
Table-Top Stand is detached, the Table-Top
Stand may topple over and cause personal
injury.
•Take care when removing the Table-Top
Stand from the TV to prevent it from falling
over and damaging the surface that the TV
is sitting on.
•Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
•Be sure the TV is vertical before turning on.
To avoid uneven picture uniformity do not
power on the TV with the LCD panel facing
down.
•When attaching the Table-Top Stand again,
be sure to fasten the screws (previously
removed) to the original holes on the rear
of the TV.
Troubleshooting
General troubleshooting for issues like: black
screen, no sound, frozen picture, TV does not
respond, or network is lost, do the following
steps.
1 Restart your TV by pressing the power
button on the remote control for about five
seconds. The TV will restart. If the TV does
not recover, try unplugging the AC power
cord then press the power button on the TV
and release it. Wait for two minutes, and
plug in the AC power cord.
Or, press the power button on the TV for
about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and
perform a software update. Sony
recommends you to keep your TV software
updated. Software updates provide new
features and performance improvements.
4 Visit Sony support website (information
provided at the end of each language).
5 Perform the factory data reset.
When you plug in the TV, the TV may not
be able to turn on for a while even if you
press the power button on the remote
control or the TV.
It takes time to initialize the system. Wait for
about one minute, then operate it again.
How to reset the TV to factory settings
WARNING: The reset will clear all of your
customized settings including the parental
lock setting.
•You can reset the TV to factory settings by
selecting [Factory data reset]. How to select
[Factory data reset], refer to the online Help
Guide.
•To force factory data reset, unplug the AC
power cord. Press and hold
button on the
TV, then plug in the AC power cord.
•For security purposes, be sure to remove all
personal and account information before
discarding, selling or passing your TV to
someone else by: unlinking/unregistering,
signing out of and deactivating all network
services as well as factory reset the TV.
The remote control does not function.
•Replace the batteries.
The parental lock password has been
forgotten.
•Enter 4357 for the PIN and enter the new PIN.
For more information, refer
to the Help Guide.
Press
(Input) on the
remote control and select
[Help]. If [Help] does not
exist, select [Edit] and add
[Help].
Specifications
System
TV system
NTSC: National Television System Committee
ATSC: 8VSB Terrestrial
NEXTGEN TV: ATSC 3.0 compliant (Single
tuner)*
1
QAM on cable: ANSI/SCTE 07 2000 (Does not
include CableCARD functionality)
Channel coverage
Depending on your country/area selection/TV
model
Analog terrestrial: 2 - 69 / Digital terrestrial:
2 - 69*
2
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system
LCD (Liquid Crystal Display) Panel, LED
Backlight
Speaker output (W)
10 + 10 + 10 + 10 + 10 + 10
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 4.2
Input/Output jacks
CABLE/ANTENNA
75 ohm external terminal for RF inputs
HDMI IN 1/2/3/4 (HDCP 2.3-compatible)
Video:
4096 × 2160p (60 Hz)*
3
*
4
, 4096 × 2160p
(24 Hz)*
3
, 3840 × 2160p (60 Hz)*
4
, 3840 ×
2160p (24, 30 Hz), 1080p (24, 30, 60, 120 Hz),
1080i (60 Hz), 720p (24, 30, 60 Hz), 480p,
PC Formats*
5
3840 × 2160p (120 Hz)*
4
*
6
Audio:
In eARC (Enhanced Audio Return Channel)
mode
Refer to the online Help Guide for details.
Except eARC mode
5.1 channel linear PCM: 32/44.1/48/88.2/96/
176.4/192 kHz 16/20/24 bits, Dolby Audio,
Dolby Atmos, DTS
eARC/ARC (Enhanced Audio Return Channel/
Audio Return Channel) (HDMI IN 3 only)*
7
In eARC mode
Refer to the online Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits,
Dolby Audio, Dolby Atmos, DTS
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM:
48 kHz 16 bits, Dolby Audio, DTS)
1, 2
USB port 1 supports High Speed USB
(USB 2.0)
USB port 2 supports Super Speed USB
(USB 3.2 Gen 1)
LAN
10BASE-T/100BASE-TX connector
(Depending on the operating environment
of the network, connection speed may differ.
The communication rate and quality are not
guaranteed.)
Home Network supported files and formats*
5
REMOTE
RS-232C mini jack, IR IN mini jack
These jacks are for receiving the external
control signal.
Power and others
Power requirements
110 V - 240 V AC, 50/60 Hz (U.S.A./Canada
120 V AC, 60 Hz)
Power consumption
In use (W)
XR-85X93L / 85X93CL: 495
XR-75X93L / 75X93CL: 412
XR-65X93L / 65X93CL: 359
In standby*
8
*
9
Less than 0.5 W with 120 V AC and less than
0.5W with 240 V AC
Screen size (measured diagonally) (Approx.)
(cm/inches)
XR-85X93L / 85X93CL: 214.8 / 84.6 (85”class)
XR-75X93L / 75X93CL: 189.3 / 74.5 (75”class)
XR-65X93L / 65X93CL: 163.9 / 64.5 (65”class)
Display resolution (horizontal × vertical)
(pixels)
3840 × 2160
Output rating
500 mA (for USB 1), 900 mA (for USB 2)
Others
Optional accessories
Wall-Mount Bracket: SU-WL855 (XR-65X93L /
65X93CL only)
Camera and Microphone Unit: CMU-BC1
Operating temperature
0 ºC – 40 ºC / 32 ºF – 104 ºF
*1 Only for limited region/country/model.
*2 2 – 36 for NEXTGEN TV scanning range in
U.S.A.
*3 When 4096 × 2160p is input and [Wide
mode] is set to [Normal], the resolution
is displayed as 3840 × 2160p. To display
4096 × 2160p, set [Wide mode] setting to
[Full 1] or [Full 2].
*4 Refer to the on screen menu to set [HDMI
signal format].
*5 Refer to the online Help Guide for details.
*6 HDMI IN 3 and 4 only. Use the Ultra High
Speed HDMI Cable to connect.
*7 Connect your audio system to the HDMI IN 3
to route TV audio to your audio system.
*8 Specified standby power is reached
after the TV finishes necessary internal
processes.
*9 Standby power consumption will increase
when your TV is connected to the network.
Note
•Optional accessories availability depends on
countries/region/TV model/stock.
•Design and specifications are subject to
change without notice.
•Subscriptions for services and applications
may be required and additional terms,
conditions and/or charges may apply when
using Google Assistant.
•Power consumption will increase when
the built-in MIC is enabled as it is always
listening.
•Visit Sony website for more information on
product specifications.
Licensing Information
•Dolby, Dolby Vision, Dolby Atmos, Dolby
Audio, and the double-D symbol are
trademarks of Dolby Laboratories Licensing
Corporation. Manufactured under license
from Dolby Laboratories. Confidential
unpublished works. Copyright © 1992-2022
Dolby Laboratories. All rights reserved.
•Gracenote, the Gracenote logo and logotype,
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote, Inc. in the United States and/or
other countries.
•For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS, Inc.
DTS, Digital Surround, and the DTS logo are
registered trademarks or trademarks of DTS,
Inc. in the United States and other countries.
© 2020 DTS, Inc. ALL RIGHTS RESERVED.
•TUXERA is a registered trademark of
Tuxera Inc. in the US and other countries.
For Your
Convenience
Online Registration:
Be sure to register your TV.
United
States
https://
productregistration.
sony.com
Canada
https://www.sony.
ca/registration
FR
MIC
Capteur de
lumière*
1
*
2
Avertisseur*
2
*
3
La forme de la télécommande,
l’agencement, la disponibilité et la fonction
des touches de la télécommande peuvent
varier selon votre région ou pays ou le
modèle/réglages du téléviseur.*
4
(Alimentation)
TV :
Affiche la liste des canaux de
télévision ou commute sur l’entrée.
(Réglages rapides) : Affiche
Réglages rapides.
(Entrée) : Permet d’afficher et de
sélectionner la source d’entrée, etc.
(Menu Contrôle) : Affiche le
Menu Contrôle.
/ / / / : Navigation et
sélection dans le menu à l’écran.
(Retour)
(Accueil)
(Assistant Google / Micro) : Utilisez
l’Assistant Google*
5
*
6
.
+ / – (Volume)
(Sourdine)*
7
CH + / – (Canal)
(Tableau de bord) : Affichez le
tableau de bord.
(Guide) : Affiche le guide des
programmes numériques du téléviseur
ou du Syntoniseur câble/satellite*
8
.
Touches de l’application
*1 Le rétroéclairage de la télécommande
s’allume quand le capteur de lumière
détecte que la lumière ambiante est
faible. L’éclairage automatique du
rétroéclairage peut être désactivé.
*2 RMF-TX910U uniquement. Pour connaître
le nom du modèle de la télécommande,
ouvrez le couvercle de la télécommande
et consultez l’étiquette sur la
télécommande.
*3 L’avertisseur émet un son lorsque vous
utilisez la fonction de recherche de la
télécommande. Veuillez vous référer au
Manuel d’aide en ligne pour plus de
détails.
*4 Pour les autres modèles de
télécommande, veuillez vous référer au
Manuel d’aide en ligne pour plus de
détails.
*5 Uniquement pour certaines régions/
pays/modèles/langues.
*6 L’Assistant Google nécessite une
connexion Internet.
*7 Le raccourci d’accessibilité est disponible
en maintenant la touche
(Sourdine)
enfoncée.
*8 Le réglage [Configuration d’un
syntoniseur câble ou satellite] est
nécessaire.
Remarque
•Des instructions pour « Fixer le téléviseur au
mur » sont incluses dans le mode d’emploi
de ce téléviseur.
•Lisez la documentation de sécurité fournie
pour plus de renseignements sur l’utilisation
en toute sécurité.
Emplacement de l’étiquette d’identification
Les étiquettes indiquant le numéro de modèle
et les caractéristiques nominales de
l’alimentation du téléviseur se trouvent à
l’arrière du téléviseur. Vous pouvez les trouver
en retirant le couvercle des terminaux.
AVIS IMPORTANT
Fiche d’identification
Les numéros de modèle et de série sont
indiqués à l’arrière et/ou sur le côté du
téléviseur. Inscrivez ces numéros dans les
espaces ci-dessous. Faites-y référence
chaque fois que vous appelez votre
détaillant Sony au sujet de ce téléviseur.
Nom du modèle
N° de série
Consignes de sécurité
Avis pour les clients aux États-Unis d’Amérique
Déclaration de conformité du fournisseur
Appellation commerciale : SONY
Modèle : XR-85X93L / XR-85X93CL /
XR-75X93L / XR-75X93CL / XR-65X93L /
XR-65X93CL
Partie responsable : Sony Electronics Inc.
Adresse : 16535 Via Esprillo, San Diego,
CA 92127 U.S.A.
Numéro de téléphone : 858-942-2230
Information sur le support de fixation murale
compatible
Utilisez le support de fixation murale Sony
ci-dessous correspondant au modèle de votre
téléviseur.
Numéro de modèle
de téléviseur Sony
XR-65X93L /
65X93CL
Numéro de modèle
du support de
fixation murale Sony
SU-WL855*
1
L’utilisation d’autres supports de fixation
murale*
2
peut provoquer l’instabilité de
l’appareil et causer des blessures ou des
dommages matériels.
*1 Uniquement pour certaines régions/pays/
modèles.
*2 Pour des instructions sur l’utilisation du
support de fixation murale avec votre
téléviseur, veuillez accéder à la page du
site https://www.sony.com/am/support
correspondant au modèle de votre
téléviseur et télécharger le document
« Support de fixation murale ».
À l’attention des clients
L’installation de ce téléviseur nécessite
une certaine compétence. Veillez à confier
l’installation à un détaillant Sony ou à un
entrepreneur autorisé et portez une attention
particulière à la sécurité pendant l’installation.
© 2023 Sony Corporation
Dimensions and weight (without Table-Top Stand) / Dimensions et poids (sans support de table)
Dimensions and weight (Table-Top Stand) / Dimensions et poids (support de table)
The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness / La longueur des vis pour le support de
fixation murale diffère selon l’épaisseur du support de fixation murale
(mm)/(inches/pouces)*
1
(kg)/(lb.)*
1
XR-85X93L /
85X93CL
1889/74
3
/
8
1 889/74
3
/
8
1086/42
7
/
8
1 086/42
7
/
8
56/2
1
/
4
56/2
1
/
4
53.2/117.2
53,2/117,2
XR-75X93L /
75X93CL
1667/65
3
/
4
1 667/65
3
/
4
961/37
7
/
8
961/37
7
/
8
56/2
1
/
4
56/2
1
/
4
42.7/94.1
42,7/94,1
XR-65X93L /
65X93CL
1443/56
7
/
8
1 443/56
7
/
8
835/32
7
/
8
835/32
7
/
8
60/2
3
/
8
60/2
3
/
8
32.1/70.8
32,1/70,8
*1 (Approx. / Environ)
(mm)/(inches/pouces)*
1
(kg)/(lb.)*
1
1 2 3 1 2 3
XR-85X93L /
85X93CL
1889/74
3
/
8
1 889/74
3
/
8
1097/43
1
/
4
1 097/43
1
/
4
1110/43
3
/
4
1 110/43
3
/
4
1158/45
5
/
8
1 158/45
5
/
8
450/17
3
/
4
450/17
3
/
4
1888/74
3
/
8
1 888/74
3
/
8
758/29
7
/
8
758/29
7
/
8
1888/74
3
/
8
1 888/74
3
/
8
54.7/120.5
54,7/120,5
XR-75X93L /
75X93CL
1667/65
3
/
4
1 667/65
3
/
4
972/38
3
/
8
972/38
3
/
8
984/38
3
/
4
984/38
3
/
4
1033/40
3
/
4
1 033/40
3
/
4
391/15
1
/
2
391/15
1
/
2
1665/65
5
/
8
1 665/65
5
/
8
571/22
1
/
2
571/22
1
/
2
1665/65
5
/
8
1 665/65
5
/
8
44.1/97.2
44,1/97,2
XR-65X93L /
65X93CL
1443/56
7
/
8
1 443/56
7
/
8
846/33
3
/
8
846/33
3
/
8
859/33
7
/
8
859/33
7
/
8
907/35
3
/
4
907/35
3
/
4
343/13
5
/
8
343/13
5
/
8
1442/56
7
/
8
1 442/56
7
/
8
514/20
1
/
4
514/20
1
/
4
1442/56
7
/
8
1 442/56
7
/
8
33/72.7
33/72,7
*1 (Approx. / Environ)
Loading ...
Loading ...
Loading ...
