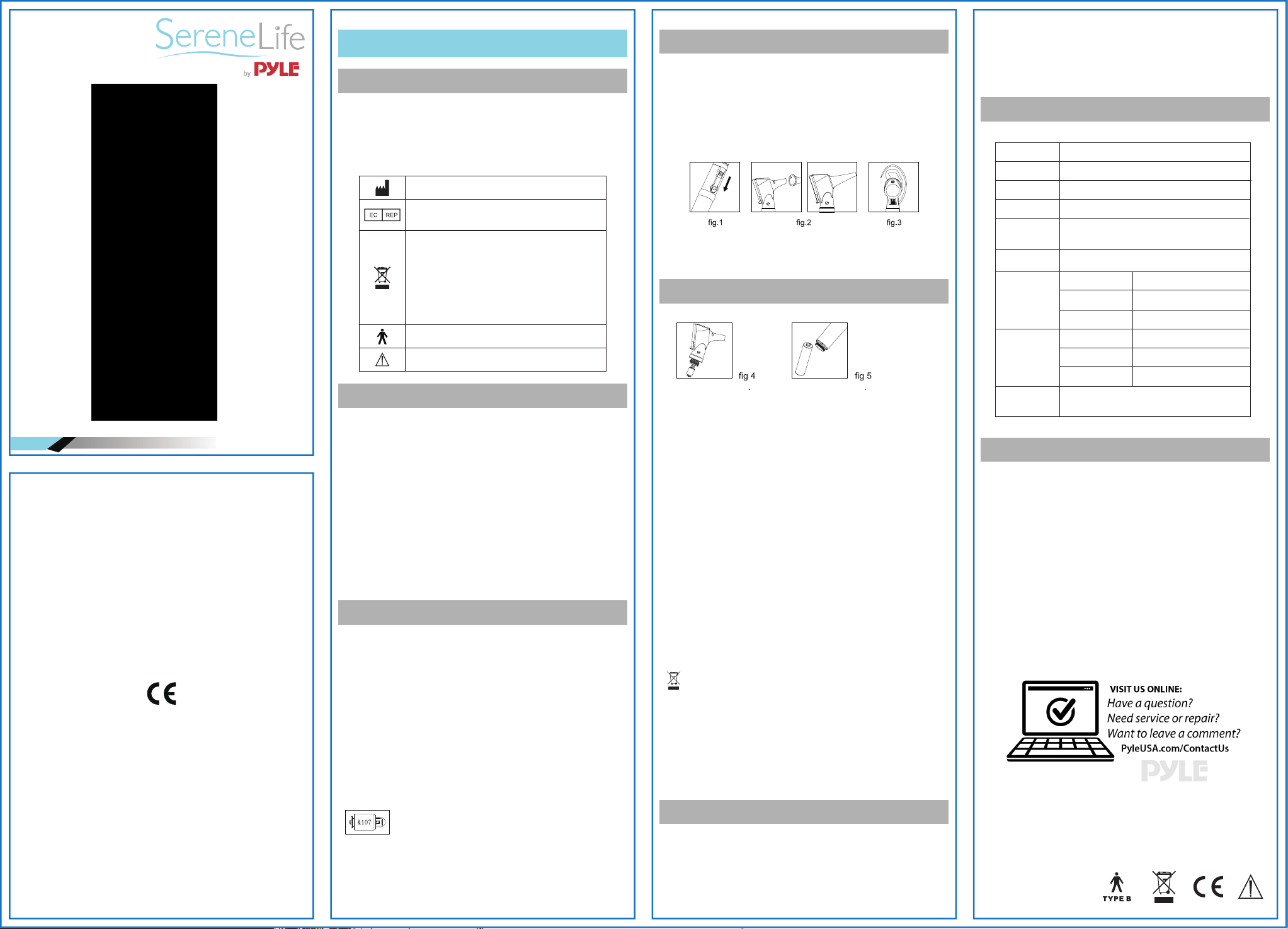

1. Changing the bulb ( g.4 )
A. Turn o the power and unscrew the head from the handle
of device;
B. Pull the old bulb downwards, and replace with new one;
C. Screw the head back on to the handle.
Attention:
• Please use the specialized bulb (Model: 8107) for this
device.
• After the bulb burns out, the temperature will remain high
for approximately 5 minutes. Please wait for a moment to
avoid injury.
2. Changing the batteries ( g.5 )
A. Unscrew the bottom cover from the handle
B. Remove the old AA batteries, and replace with new ones.
Ensure the anode of the batteries points to the head of the
device
C. Screw on the bottom cover of the handle.
Attention:
• AA alkaline batteries are recommended.
• Replace all batteries simultaneously and do not use alkali
manganese batteries with lithium as bulb life will be
reduced.
• Do not leave worn batteries in the handle.
• Please take out batteries from the device if not in use for a
prolonged period.
• Batteries should be disposed of in accordance with local
regulations.
Cleaning and Disinfection:
A. Clean the surface of device with 75% alcohol solution at
least once a week, avoiding the magnifying glass (viewing
window) in the head. And corrosive or polishing detergent
is prohibited.
B. Disinfect the tips of otoscope with saturated steam for 20
minutes at 273.2°F
Attention:
Do not soak, autoclave or let water dip into the device
SLOTOSPE014
OTOSCOPE
by
User Manual
OTOSCOPE
USER MANUAL
Otoscope instructions for ophthalmologist. It is an internally
powered device. Please read through this brochure before
use, and keep it handy for future reference.
Manufacturer
Authorized Representative in the
European Community
Symbol for the marking of electrical and
electronics devices according to Directive
2002/96/EC. The device, accessories and the
packaging have to be disposed of waste
correctly at the end of the usage. Please
follow Local Ordinances or Regulations for
disposal.
Type B Applied Part
Attention, consult accompanying doctuments
SAFETY INFORMATION
To assure the correct use of the product, basic safety
measures should always be followed including the
warnings and cautions listed in this instruction manual.
WARNINGS & CAUTIONS:
• Do not use the device where it may be exposed to
ammable gas.
• Protect this device from water, moisture, Impact,
dropping, direct sunlight, heat and re.
• Do not touch the lens directly by hand or something hard.
• Please use the bulb type specied in this instruction
brochure.
• Keep the device out of the reach of unsupervised infants
and children.
• Do not disassemble or attempt to repair the device or
components.
GENERAL
DESCRIPTION:
The otoscope is a classic medical device in ENT. The devices
adopt the total reection of optical ber, and make the
light path and observation of light tend to be coaxial
through the optimization design, which increase the visual
eld of view. It is used to view the tympanic membrane and
external ear canal to diagnose outer and middle ear
pathologies.
TECHNICAL SPECIFICATIONS:
• Enhanced XHL Xenon Halogen Technology.
• 3x magnication for the viewing window.
• 8107 bulb used.
• Fiber optic illumination.
• An insufflation bulb for pneumatic testing.
HOW TO USE THIS DEVICE
• Turn on (or off) the device by pushing downwards
(or upwards) as g.1;
• Select a reasonable tip for patient's ear canal and push it
onto the head and screw the tip clockwise, refer to g.2.
Generally, the tip size of 4mm is for adults and 2.4mm is for
children;
• Put the otoscope with a tip into the ear canal of patient
(g.3) , and exarnine through the viewing window which is
with 3x magnication;
ATTENTION:
The otoscope should only be used to examine ear when a tip
is tted. It is an intermittent operated device, 1 minute ON, 5
minutes OFF.
SYMBOLS:
MAINTENANCE
CHANGING SPARE PARTS:
PERIODIC SAFETY CHECKS
Preventive inspection and maintenance to be performed
including the frequency of such maintenance. The following
safety check should be performed at least every 12 months
by a qualied person who has adequate training, knowledge,
and practical experience to perform these tests.
SPECIFICATION
ELECTRICAL CLASSIFICATION
• Inspect the equipment and accessories for rnechanical and
functional damage.
• Inspect the safety relevant labels for legibility.
• Verify that the device functions properly as described in the
instructions for use.
Equipment Classication with respect to protection from
electric shock: Internally powered equipment.
Degree of protection from electric shock: TYPE B.
Equipment not suitable for use in the presence of ammable
mixture: Yes.
Mode of operation: intermittent operation.
The manufacturer reserves the right to make technical
changes without notice in the interest of progress. Prior
notices will not be given in case of any amendments within
this manual.
Illumination
Luminance
Magnication
Tip Sizes
Bulb
Batteries
Operation
Storage &
Transport
Standards
Fiber Optic Illumination / Direct Illumination
18. 5 Lumen
3 x
2.4mm, 3mm, 4mm, 5mm
Specied Model: 8107 2.5V, 0.7A, Φ = 4.8mm
2 AA alkaline batteries
Temperature 50°F~ 95°F
Humidity 30% ~ 75%
Air pressure 700 hPa - 1060 hPa
Temperature -68°F ~ 158°F
Humidity
10% ~ 90%
(without condensation)
Air pressure 500 hPa - 1060 hPa
MDD 93/42/EEC Class I
IEC 60601-1:1995, IEC 60601-1-2:2007
