Operating and installation
instructions
Induction cooktops
It is essential to read these operating and installation instructions
before installing and using the appliance. This prevents both personal
injury and damage to the appliance.
en-AU, NZ M.-Nr. 12 265 280
Contents
2
Warning and Safety instructions...................................................................... 4
Caring for the environment .............................................................................. 15
Overview............................................................................................................. 16
Cooktop............................................................................................................... 16
KM7575-2FR, KM7575-2FL ....................................................................... 16
KM7594-2FR, KM7594-2FL ....................................................................... 17
Controls and display ........................................................................................... 18
Cooking zone data .............................................................................................. 19
Before using for the first time .......................................................................... 21
Cleaning the cooktop for the first time................................................................ 21
Switching on the cooktop for the first time ......................................................... 21
Miele@home ........................................................................................................ 22
Con@ctivity.......................................................................................................... 25
How it works ...................................................................................................... 28
Noises.................................................................................................................. 28
Power management ............................................................................................ 29
Cookware ........................................................................................................... 30
Tips on saving energy ...................................................................................... 32
Power level range .............................................................................................. 33
Operation............................................................................................................ 34
Operating principles ............................................................................................ 34
Switching on the cooktop ................................................................................... 35
Setting the power level........................................................................................ 35
Switching off a cooking zone/the cooktop.......................................................... 35
Residual heat indicator........................................................................................ 35
Setting the power level – extended power level range........................................ 35
PowerFlex cooking area ...................................................................................... 36
Auto heat-up ....................................................................................................... 37
Booster................................................................................................................ 38
Keeping warm ..................................................................................................... 39
Timer................................................................................................................... 40
Minute minder ..................................................................................................... 40
Auto switch-off .................................................................................................... 41
Using both timer functions at the same time ...................................................... 42
Additional functions .......................................................................................... 43
Stop & Go............................................................................................................ 43
Contents
3
Recall................................................................................................................... 43
Wipe protection ................................................................................................... 44
Demonstration mode........................................................................................... 44
Displaying cooktop data ..................................................................................... 44
Safety features................................................................................................... 45
System lock/Safety lock...................................................................................... 45
Safety switch-off ................................................................................................. 46
Overheating protection........................................................................................ 47
Programming ..................................................................................................... 48
Cleaning and care ............................................................................................. 51
Problem solving guide ...................................................................................... 53
Messages in the display...................................................................................... 53
Unexpected behaviour ........................................................................................ 55
Unsatisfactory results.......................................................................................... 56
General problems or technical faults................................................................... 56
Optional accessories ........................................................................................ 57
Service................................................................................................................ 58
Contact in case of fault ....................................................................................... 58
Data plate ............................................................................................................ 58
Warranty .............................................................................................................. 58
Installation.......................................................................................................... 59
Safety instructions for installation ....................................................................... 59
Safety distances.................................................................................................. 60
Installation notes ................................................................................................. 63
Surface-mounted installation ......................................................................... 63
Flush-fit installation ........................................................................................ 64
Sealing strip.................................................................................................... 64

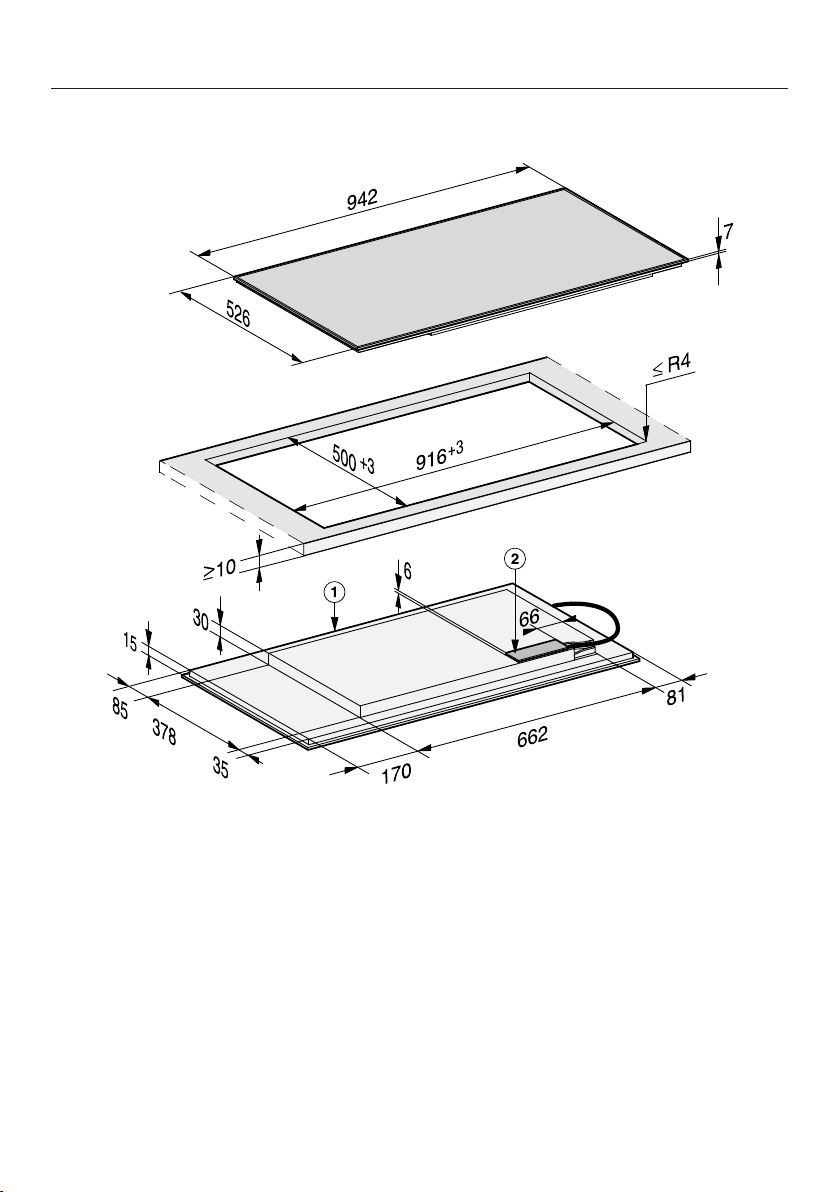

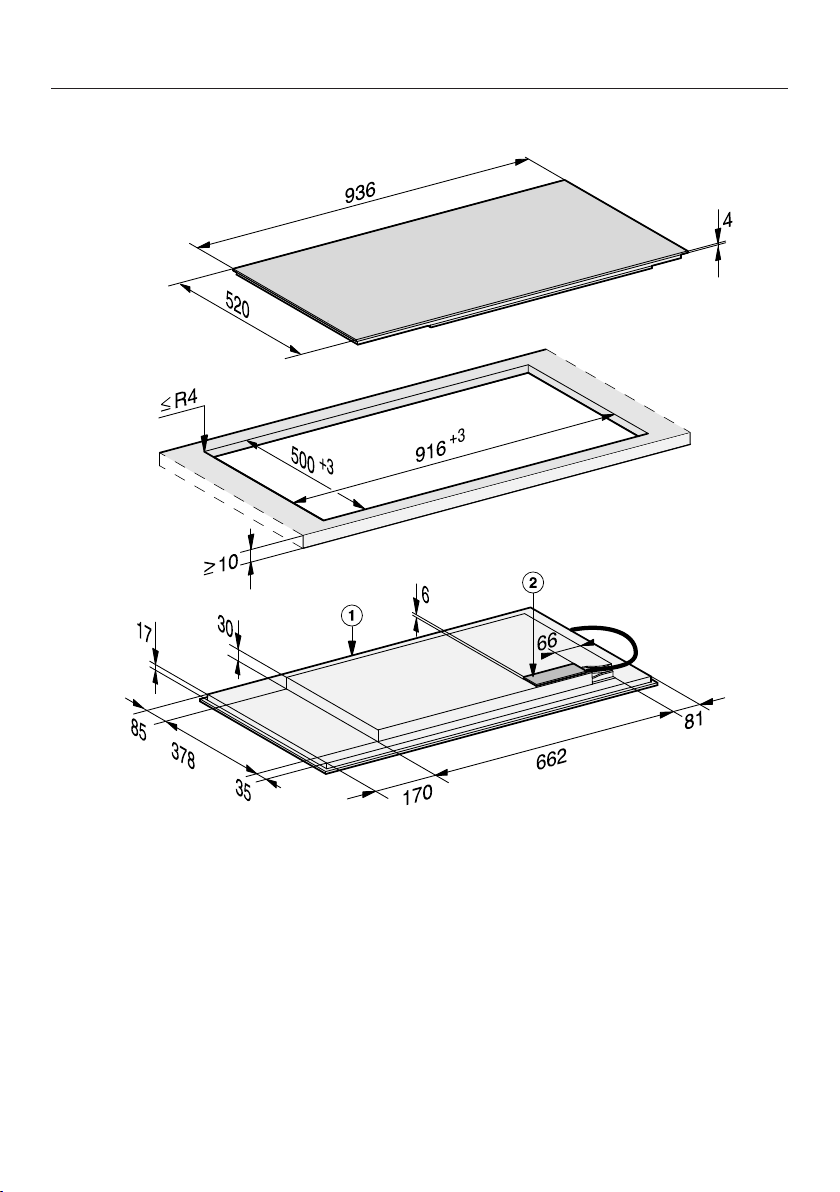

Installation dimensions – Surface-mounted........................................................ 65
KM 7575-2FR ................................................................................................ 65
KM 7575-2FL................................................................................................. 66
KM 7594-2FR ................................................................................................ 67
KM 7594-2FL................................................................................................. 68
Surface-mounted installation .............................................................................. 69
Installation dimensions–Flush-fit ....................................................................... 70
KM 7575-2FL................................................................................................. 70
KM 7594-2FL................................................................................................. 71
Flush-fit installation ............................................................................................. 72
Electrical connection ........................................................................................... 73
Warning and Safety instructions
4
This cooktop complies with all relevant local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the cooktop. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the cooktop.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
5
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This cooktop is not intended for use by people (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
and instruction concerning its use by a person responsible for their
safety. They may only use the cooktop unsupervised if they have
been shown how to use it in a safe way. They must be able to
recognise and understand the potential dangers of improper use.
Warning and Safety instructions
6
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance if its operation has
been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning! Do not store anything which might arouse a
child's interest in storage areas above or behind the cooktop.
Otherwise children could be tempted to climb onto the cooktop with
the risk of burning themselves.
Danger of burning and scalding! Turn the handles of pots and
pans on the cooktop to the side or the rear so that children cannot
pull them down and burn themselves.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Activate the system lock to ensure that children cannot switch on
the cooktop inadvertently. Use the safety lock when the cooktop is in
use to prevent children from altering the settings selected.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
Damage to the cooktop can compromise your safety. Check the
appliance for visible signs of damage. Do not use the cooktop if it is
damaged.
Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks,
back-up systems) is possible. A requirement for the operation is that
the energy supply system complies with all current local and national
requirements that apply to stand-alone, solar and/or battery
systems.
The protective measures provided in the installation and in this Miele
product must also be assured in their function and operation in
isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains electricity supply,
ensure that the connection data on the data plate (voltage and
frequency) matches the mains electricity supply. This data must
correspond in order to avoid the risk of damage to the appliance.
Do not connect the cooktop to the mains electricity supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
8
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop is not intended for use with an external timer switch
or a remote control system.
The cooktop must be connected to the electricity supply by a
qualified electrician (see “Installation – Electrical connection”).
If the mains connection cable is damaged, it must be replaced
with a special mains connection cable by a qualified and competent
electrician in order to avoid a hazard (see “Installation - Electrical
connection”).
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
- the mains circuit breaker is switched off, or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Warning and Safety instructions
9
Danger of electric shock! If the ceramic surface is faulty, cracked,
chipped or damaged in any way, do not use the cooktop and switch
it off immediately. Disconnect the cooktop from the electricity
supply. Contact Miele.
If the cooktop is installed behind a furniture door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door. This can result in damage to the cooktop,
the housing unit and the floor. Do not close the door until the
appliance has cooled down and the residual heat indicators have
gone out.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
Warning and Safety instructions
10
Correct use
The cooktop gets hot when in use and remains hot for a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the cooktop. Cutlery inserts must be heat-
resistant.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
Warning and Safety instructions
11
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the cooktop heating up, with the danger of
burning. Depending on the material, other items left on the cooktop
could also melt or catch fire. Damp pan lids might adhere to the
ceramic surface and be difficult to dislodge. Do not use the
appliance as a resting place. Switch the cooking zones off after use
and do not rely on the pan detector.
You could burn yourself on the hot cooktop. Protect your hands
with heat-resistant pot holders or oven gloves when handling hot
pots and pans. Do not let them get wet or damp, as this causes heat
to transfer through the material more quickly with the risk of scalding
or burning yourself.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Placing hot pans on the sensors and indicators could damage the
electronics underneath. Do not place hot pans on the sensors or
indicators.
Warning and Safety instructions
12
Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the cooktop when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, switch off
the appliance and scrape off all the sugar, plastic or aluminium
residues whilst still hot, using a shielded scraper blade suitable for
use on glass. Wear oven gloves when doing this. Allow the ceramic
surface to cool down and then clean it with a suitable ceramic
cooktop cleaning agent.
Pans which boil dry can cause damage to the ceramic glass. Do
not leave the cooktop unattended whilst it is being used.
Only use pots and pans with smooth bases. Rough bases will
scratch the ceramic glass.
Lift pans into position on the cooktop. Sliding them into place can
cause scuffs and scratches.
Because induction heating works extremely quickly, the base of
the pan could heat up to the temperature at which oil or fat self-
ignites within a very short time. Do not leave the cooktop unattended
whilst it is being used.
Heat oil or fat for a maximum of one minute. Never use the
Booster function to heat oil or fat.
For people fitted with a heart pacemaker: please note that the
area immediately surrounding the cooktop is electromagnetically
charged when it is switched on. It is very unlikely to affect a
pacemaker. However, if in any doubt, consult the manufacturer of
the pacemaker or your doctor.
To prevent damage to items which are susceptible to
electromagnetic fields, e.g. credit cards, digital storage devices,
pocket calculators, etc., do not leave them in the immediate vicinity
of the cooktop.
Warning and Safety instructions
13
Metal utensils stored in a drawer under the cooktop can become
hot if the appliance is used intensively for a long time. Do not store
any metal items or utensils in a drawer under the cooktop.
The cooktop is fitted with a cooling fan. If a drawer is fitted directly
underneath the cooktop, ensure that there is sufficient space
between the drawer and its contents and the underside of the
cooktop in order to ensure sufficient ventilation for the cooktop.
If a drawer is fitted directly underneath the cooktop, do not store
pointed or small items, paper, serviettes etc. in the drawer. They
could get in through the ventilation slots or be sucked into the casing
by the fan and damage the fan or impair cooling.
Never use two pans on a cooking zone or extended zone at the
same time.
If the cookware only partially covers a cooking zone or extended
zone, the handle could become very hot.
Always place cookware in the middle of a cooking zone or extended
zone!
If an induction adapter plate is used for cookware, the induction
generator may be damaged or even destroyed. Do not use induction
adapter plates.
Warning and Safety instructions
14
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
If the cooktop is built in over a pyrolytic oven, the cooktop should
not be used whilst the pyrolytic process is being carried out, as this
could trigger the overheating protection mechanism on the cooktop
(see “Safety features - Overheating protection”).
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your cooktop.
Caring for the environment
15
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
16
Cooktop
KM7575-2FR, KM7575-2FL
a
PowerFlex cooking zone with TwinBooster
b
PowerFlex cooking zone with TwinBooster
can be combined with PowerFlex cooking zone to form PowerFlex cooking
area
c
PowerFlex cooking zone with TwinBooster
can be combined with PowerFlex cooking zone to form PowerFlex cooking
area
d
PowerFlex cooking zone with TwinBooster
can be combined with PowerFlex cooking zone to form PowerFlex cooking
area
e
PowerFlex cooking zone with TwinBooster
f
PowerFlex cooking zone with TwinBooster
g
Controls and indicators
Overview
17
KM7594-2FR, KM7594-2FL
a
PowerFlex cooking zone with TwinBooster
b
PowerFlex cooking zone with TwinBooster
can be combined with PowerFlex cooking zone to form PowerFlex cooking
area
c
Cooking zone with TwinBooster
d
PowerFlex cooking zone with TwinBooster
can be combined with PowerFlex cooking zone to form PowerFlex cooking
area
e
PowerFlex cooking zone with TwinBooster
f
Controls and indicators
Overview
18
Controls and display
b
a c ed f
i
l
h
j
g
k
a
Stop&Go sensor
For stopping/starting a cooking process in progress
b
Cooktop On/Off sensor
c
Wipe protection sensor
For locking the sensors
d
PowerFlex cooking zones sensor
For manual connection/disconnection of PowerFlex cooking zones
e
Keeping warm sensor
For activating/deactivating the Keeping warm function
f
Numerical keybank sensors
– For setting the power level
– For setting the times
g
Booster display
Booster function is activated
h
Residual heat indicator lights
i
Automatic switch-off sensor
Switches the cooking zones off automatically
j
Cooking zone allocation auto switch-off indicator light
Auto switch-off for the cooking zone is activated
k
Timer display
: to
:
Duration
System lock/Safety lock is activated
Demo mode is activated
l
Minute minder sensor
Overview
19
Cooking zone data
KM7575-2FR, KM7575-2FL
Cooking
zone
Size in cm Max. rating
in watts for 230V
3
Linked
cooking
zone
4
Ø
1
2
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
+ 22–23 23x39 Normal
TwinBooster, level 1
TwinBooster, level 2
3150
3400
3650
-
+
+
22–23 23x39 Normal
TwinBooster, level 1
TwinBooster, level 2
3400
4800
7300
-
Total
9200
1
Pans with a base diameter within the given range may be used.
2
The given range corresponds to the maximum base surface of the pans that may be used.
3
The power level given may vary depending on the size and material of the pans used.
4
The cooking zone is linked to this cooking zone electrically so that the rating can be increased (see
“How it works – Power management”).
Overview
20
KM7594-2FR, KM7594-2FL
Cooking
zone
Size in cm Max. rating
in watts for 230V
3
Linked
cooking
zone
4
Ø
1
2
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
18–28 – Normal
TwinBooster, level 1
TwinBooster, level 2
2600
3000
3650
-
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
15–23 19x23 Normal
TwinBooster, level 1
TwinBooster, level 2
2100
3000
3650
+
+
22–23 23x39 Normal
TwinBooster, level 1
TwinBooster, level 2
3400
4800
7300
-
Total
9200
1
Pans with a base diameter within the given range may be used.
2
The given range corresponds to the maximum base surface of the pans that may be used.
3
The power level given may vary depending on the size and material of the pans used.
4
The cooking zone is linked to this cooking zone electrically so that the rating can be increased (see
“How it works – Power management”).
Before using for the first time
21
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers (except the data plate).
Cleaning the cooktop for the
first time
Before using for the first time, clean
the cooktop with a damp cloth only
and then wipe dry.
Switching on the cooktop for
the first time
The metal components have a
protective coating which may give off a
slight smell when heated up for the first
time. The induction coils may also give
off a slight smell for the first few hours
of operation. This smell will be less
noticeable with each subsequent use
before dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Please note that the heating up time
on induction cooktops is significantly
shorter than on conventional
cooktops.
Before using for the first time
22
Miele@home
Prerequisite: Home Wi-Fi network
Your cooktop is equipped with an
integrated Wi-Fi module. The cooktop
can be connected to the household Wi-
Fi network.
If your Miele rangehood is also
connected to the home Wi-Fi network,
you can control the rangehood
automatically via the Con@ctivity
function. Further information can be
found in the operating and installation
instructions of your rangehood.
Make sure there is sufficient signal
strength for your Wi-Fi network
where the cooktop is installed.
There are a number of ways of
connecting your cooktop to your Wi-Fi
network.
The cooktop requires max. 2W in
networked standby.
Availability of the Wi-Fi connection
The Wi-Fi connection shares a
frequency range with other appliances
(including microwave ovens and remote
control toys). This may result in
sporadic or even complete connection
failures. Therefore, a constant
availability of featured functions cannot
be guaranteed.
Miele@home availability
The ability to use the Miele App
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele App
You can download the Miele App from
the Apple App Store
®
or the Google
Play Store™ free of charge (only
functional in selected countries).
After installing the Miele App on a
mobile device, you can do the
following:
- Call up information on the operating
status of your cooktop
- Call up information on the
programme sequence of your
cooktop
- Set up a Miele@home network with
other Wi-Fi enabled Miele appliances
Before using for the first time
23
Setting up Miele@home
Connecting via the App
The Miele App can be used to connect
to your network.
Install the Miele App on your mobile
device.
To log in you will need:
1. Your Wi-Fi network password.
2. The password of your cooktop.
The password for your cooktop
consists of the last nine digits of the
serial number. This can be found on the
appliance's data plate.
Switch the cooktop on.
Start the Miele App.
Touch the 0sensor on any of the
numerical keybanks.
Touch the0 and 5 sensors at the
same time for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, the code : is
displayed in the timer display for
10seconds.
You now have 10 minutes to configure
the Wi-Fi.
Follow the instructions in the App.
Connecting via WPS
You must have a WPS (Wi-Fi
protected setup) compatible router.
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch the0 and 6 sensors at the
same time for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, a progress light will
appear during the connection attempt
(for max. 120seconds).
The WPS login is only active during
these 120seconds.
Activate the WPS function on your
router.
If the connection was successful, the
code : appears in the timer display.
If the connection could not be
established, the timer display will show
the code:. You have probably not
activated WPS on your router quickly
enough. Repeat the steps above.
Useful tip: If your Wi-Fi router does not
support WPS, please connect via the
Miele App.
Before using for the first time
24
Cancelling the process
Touch any sensor.
Resetting settings
It is not necessary to reset the
cooktop when you replace the router.
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch the0 and 9 sensors at the
same time for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, the code : is
displayed in the timer display for
10seconds.
Reset the settings if you are disposing
of your cooktop, selling it or putting a
used cooktop into operation. This is the
only way to ensure that all personal
data has been removed and, in the case
of the latter situation, the previous
owner will no longer be able to access
the cooktop.
Before using for the first time
25
Con@ctivity
Con@ctivity is the direct communication
system between an electric Miele
cooktop and a Miele rangehood.
Con@ctivity enables the rangehood to
operate automatically depending on the
operational state of your Miele cooktop.
Further information can be found in the
operating and installation instructions of
your rangehood.
The cooktop requires max. 2W in
networked standby.
Availability of the Wi-Fi connection
The Wi-Fi connection shares a
frequency range with other appliances
(including microwave ovens and remote
control toys). This may result in
sporadic or even complete connection
failures. Therefore, a constant
availability of featured functions cannot
be guaranteed.
Setting up Con@ctivity
You can set up Con@ctivity via the
home Wi-Fi network or via a direct Wi-
Fi connection between the cooktop and
the rangehood.
Con@ctivity via the home Wi-Fi
network (Con@ctivity 3.0)
Prerequisites:
- Home Wi-Fi network
- Wi-Fi-enabled Miele rangehood.
Connect the rangehood and the
cooktop to your home Wi-Fi network
(see “Before using for the first time –
Miele@home”).
The Con@ctivity function will be
activated automatically.
You will find the necessary information
for integrating the rangehood in the
relevant operating and installation
instructions.
Before using for the first time
26
Con@ctivity via a direct Wi-Fi
connection (Con@ctivity3.0)
Prerequisite: Wi-Fi-enabled Miele
rangehood
You will find the necessary information
for integrating the rangehood in the
relevant operating and installation
instructions.
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch and hold the0 and 7 sensors
on the numerical keybank at the
same time for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, a progress light will
appear in the timer display during the
connection attempt. If the connection
was successful, the code : appears
in the timer display. If the connection
could not be established, the timer
display will show the code:. Repeat
the steps above.
When successfully connected, 2 and 3
will light up constantly on the
rangehood.
Quit connection mode on the
rangehood by pressing the run-on
control.
Con@ctivity has now been activated.
With a direct Wi-Fi connection, it is not
possible to connect the cooktop and
the rangehood to a home network. If
this is desired later, the direct Wi-Fi
connection between the cooktop and
the rangehood must first be reset (see
“Before using for the first time –
Con@ctivity” and in the operating and
installation instructions for the
rangehood see “Disconnecting the Wi-
Fi”).
Before using for the first time
27
Cancelling the process
Touch any sensor.
Resetting settings
It is not necessary to reset the
cooktop when you replace the router.
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch the0 and 9 sensors at the
same time for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, the code : is
displayed in the timer display for
10seconds.
Reset the settings if you are disposing
of your cooktop, selling it or putting a
used cooktop into operation. This is the
only way to ensure that all personal
data has been removed and, in the case
of the latter situation, the previous
owner will no longer be able to access
the cooktop.
How it works
28
An induction coil is located under each
cooking zone. The coil creates a
magnetic field that reacts directly with
the base of the pan and heats it up. The
cooking zone itself is heated up
indirectly by the heat given off by the
pan.
An induction cooking zone only works
when a pan with a magnetic base is
placed on it (see "Cookware").
Induction automatically recognises the
size of the pan.
The pan base material and the position
of the pan on the cooking zone affect
the power of the induction coils. This
can affect the cooking behaviour.
Risk of burning due to hot items!
When the cooktop is switched on,
either deliberately or by mistake, or
when there is residual heat present,
there is a risk of metal items placed
on the cooktop heating up.
Do not use the cooktop as a resting
place for anything else.
After use, switch the cooktop off with
the sensor control.
Noises
When using an induction cooking zone,
the following noises can occur in the
pan, depending on what it is made of
and how it has been constructed.
On the higher power settings, the
appliance might buzz. This will
decrease or cease altogether when the
power setting is reduced.
If the pan base is made of layers of
different materials (e.g. in a sandwiched
base), it might emit a cracking sound.
Whistling might occur if linked zones
(see “Operation - Booster”) are being
used at the same time, and the pans
also have bases made of layers of
different materials.
You might hear a clicking sound from
the electronic switches, especially on
lower power settings.
You might hear a whirring sound when
the cooling fan switches on. It switches
on to protect the electronics when the
cooktop is being used intensively. The
fan may continue to run after the
cooktop has been switched off.
How it works
29
Power management
The cooktop has a maximum total
permitted power consumption which
cannot be exceeded for safety reasons.
Cooking zones can be linked together
in pairs on the cooktop. This allows
additional power to be transferred from
one cooking zone to another.
The values for the maximum total
permitted power consumption and
which cooking zones are linked
together can be found in “Overview –
Cooking zone data”.
If the power is transferred from one
cooking zone (A) to a linked cooking
zone (B), the power is reduced on
cooking zone (A).
Example: the Booster for cooking zone
(B) is activated.
If the new cooking zone requires more
power than the first cooking zone can
provide, this may result in the following
consequences for the first cooking
zone:
- The power level is reduced.
- Auto heat-up will be deactivated.
Cooking continues at the set level. If
the power is not sufficient, the power
level will be reduced again.
- The Booster function is deactivated.
- The cooking zone is switched off.
If the most recently set power level is
reduced or the Booster function is
switched off, the power level for the
linked cooking zone can be increased
again.
Cookware
30
Suitable pans
- stainless steel pans with a base that
can be magnetised
- enamelled steel pans
- cast iron pans
Please be aware that the properties of
the pan base can affect the evenness
with which the food heats up (e.g. when
making pancakes). The base of the pan
must be able to distribute the heat
evenly. Cookware with a base made of
multi-layered material (sandwich or
encapsulated base) is suitable.
Unsuitable pans
- stainless steel pans with a base
which cannot be magnetised
- aluminium or copper pans
- glass, ceramic or earthenware pots
and pans
Testing cookware
To test whether a pot or pan is suitable
for use on an induction cooktop, hold a
magnet to the base of the pan in
several different places. If the magnet
sticks, the pan is generally suitable.
No pan/Unsuitable pan display
The set power level flashes in the
numerical keybank for the cooking zone
- if the cooking zone is switched on
without a pan in place, or if the pan is
unsuitable (non-magnetic base).
- the diameter of the base of the pan is
too small.
- the cookware is taken off the cooking
zone while it is switched on.
If no pan or an unsuitable pan is placed
on the cooking zone, the cooking zone
will switch off automatically after
3minutes.
Using a cooking zone
Place a suitable item of cookware on
the cooking zone within 3minutes.
The flashing power level goes out. The
cooking process is continued with the
previously selected settings.
If you are using a different item of
cookware and/or food, modify the
settings.
Not using a cooking zone
Switch the cooking zone off.
Cookware
31
Useful tips
- To make optimum use of the cooking
zones, choose pans with a suitable
base diameter (see "Overview -
Cooking zone data"). If the pan is too
small, it will not be recognised.
- Position the cookware as centrally as
possible on the relevant cooking
zone/cooking area.
- Use only pots and pans with smooth
bases. Rough bases can scratch the
ceramic glass.
- Always lift the cookware to move it.
This will help prevent scratching. If
any scratches do appear as a result
of cookware being pushed around,
this will not affect the function of the
cooktop. These scratches are normal
signs of use and are not grounds for
making a complaint.
- Please note that the maximum
diameter quoted by manufacturers
often refers to the diameter of the top
rim of the pot or pan. The diameter of
the base (generally smaller) is more
important.
- Where possible, use cookware with
vertically straight sides. If a pan has
angular sides, induction also acts on
the sides of the pan. The sides of the
pan may discolour or the coating
may peel off.
Tips on saving energy
32
- Cook in covered pots and pans if
possible. This prevents heat escaping
unnecessarily.
- Select a smaller pan when cooking
small quantities. A smaller pan uses
less energy than a larger pan with
very little in it.
- Cook with as little water as possible.
- Once food has come to the boil or
the pan is hot for frying, reduce the
heat to a lower power level.
- Use a pressure cooker to reduce the
cooking duration.
Power level range
33
The cooktop is programmed with 9power levels at the factory. If you wish to fine-
tune a setting, you can extend the power level range to 17power levels (see
"Programming").
Power level range
Default
setting
(9 power
levels)
Extended
settings
(17 power
levels)
Melting butter
Melting chocolate
Dissolving gelatine
1–2 1–2.
Warming up small quantities of liquid
Keeping warm food which sticks easily
Cooking rice or porridge
Defrosting vegetables frozen in a block
2–4 2–3.
Warming up liquid and semi-solid food
Steaming fruit
Simmering potatoes (pans with lids)
4–6 3.–5.
Making omelettes or lightly fried eggs
Gently frying rissoles
Steaming fish and vegetables
Cooking dumplings and dried pulses
Defrosting and warming up frozen food
Thickening sauces, e.g. Hollandaise
5–7 4.–7.
Gently frying meat, fish, sausages and eggs (without
overheating the fat)
6–8 6–7.
Cooking potato fritters, pancakes etc. 7–8 7–8.
Deep frying, e.g. chips 9 8.–9
Boiling large quantities of water
Bringing to the boil
Searing large amounts of meat
9–Booster 8.–Booster
These settings should only be taken as a guide. The power of the induction coils will vary
depending on the size and material of the pan. For this reason, it is possible that the
settings will need to be adjusted slightly to suit your pans. As you use the cooktop, you will
get to know which settings suit your pans best. When using new pans that you are not
familiar with, set the power level below the one specified.
Operation
34
Operating principles
This ceramic cooktop is equipped with
electronic sensor controls which react
to finger contact. For safety reasons,
when switching the appliance on, the
On/Off sensor needs to be touched
for a little longer than the other sensors.
Each time you touch a sensor, an
acoustic signal sounds.
Only the printed On/Off symbol is
visible when the cooktop is switched
off. More sensor controls light up when
the cooktop is switched on.
Malfunction due to dirty and/or
covered sensors.
If the sensors are dirty or covered,
this could cause them to fail to react,
to activate a function inadvertently or
even to switch the appliance off
automatically (see "Safety features –
Safety switch-off"). Placing hot pans
on the sensor controls/indicators can
damage the electronic unit
underneath.
Keep the sensors and indicators
clean.
Do not place anything over the
sensors or indicators.
Do not place hot pans over the
sensors or indicators.
a
Sensor controls and indicators
Operation
35
Risk of fire due to overheated
food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Please note that the heating-up time
on induction cooktops is much
shorter than on conventional
cooktops.
Switching on the cooktop
Touch the sensor.
Further sensor controls will light up.
If no further entry is made, the
cooktop will switch itself off after a
few seconds for safety reasons.
Setting the power level
Permanent pan recognition is
activated as standard (see
“Programming”). When the cooktop is
switched on and you place a pan on
one of the cooking zones, all the
sensors for that cooking zone's
numerical keybank will light up.
Place a pan on the cooking zone you
want to use.
Touch the sensor control for the
desired power level on the respective
numerical keybank.
Switching off a cooking zone/
the cooktop
To switch off a cooking zone, touch
the 0sensor for that cooking zone.
To switch off the cooktop and all the
cooking zones, touch the sensor.
Residual heat indicator
If a cooking zone is still hot, the residual
heat indicator will light up after the zone
has been switched off. Depending on
the temperature, a dot will appear
above power levels 1, 2 and 3.
The dots of the residual heat indicator
will go out one after another as the
cooking zone cools down.
Risk of burning on hot cooking
zones!
The cooking zones will be hot after
use.
Do not touch the cooking zones
while the residual heat indicators are
on.
Setting the power level –
extended power level range
Touch the numerical keybank
between two number sensors.
The sensors in front of and after the
interim level will light up brighter than
the other sensors.
Example:
If you have set power level 7., the
numbers 7 and 8 will be brighter than
the other numbers.
Operation
36
PowerFlex cooking area
The PowerFlex cooking zones combine
automatically to form a PowerFlex
cooking area when you place a
sufficiently large pot or pan on them
(see "Overview - Cooktop"). Settings for
the linked cooking area are controlled
by the numerical keybank of the front or
left PowerFlex zone (depending on
model). The PowerFlex cooking area
can also be switched on and off
manually:
Touch the sensor.
Positioning cookware
Refer to the cooking zone data for your
cooktop model for information about
cookware sizes and the corresponding
positions (see “Overview – Cooking
zone data”).
PowerFlex cooking zone
PowerFlex cooking area (pot)
PowerFlex cooking area (oven
dishes)
Operation
37
Auto heat-up
When Auto heat-up has been activated,
the highest setting automatically
switches on and then switches to the
continued cooking setting which you
have previously selected. The heat-up
time depends on which continued
cooking setting has been chosen (see
chart).
Activating Auto heat-up
Touch the sensor for the continued
cooking setting you want until a tone
sounds and the sensor starts to
pulsate.
During the heat-up time (see chart), the
continued cooking setting selected will
pulsate.
With extended power levels (see
“Programming”) and a selected interim
power level, the sensors for the power
levels in front of and after the interim
power level will pulsate.
Changing the continued cooking
setting while heating up deactivates
Auto heat-up.
Deactivating Auto heat-up
Touch the sensor for the continued
cooking setting.
Or
Set a different power level.
Continued
cooking setting*
Heat-up time
[min:sec]
1 approx. 00:15
1. approx. 00:15
2 approx. 00:15
2. approx. 00:15
3 approx. 00:25
3. approx. 00:25
4 approx. 00:50
4. approx. 00:50
5 approx. 2:00
5. approx. 5:50
6 approx. 5:50
6. approx. 2:50
7 approx. 2:50
7. approx. 2:50
8 approx. 2:50
8. approx. 2:50
9 –
* The continued cooking settings with a dot
after the number are only available if the
power level range has been extended (see
"Programming").
Operation
38
Booster
When activated, the power is boosted
so that large quantities can be heated
up quickly, e.g. when boiling water for
cooking pasta. The boost in power is
active for a maximum of 15minutes.
When the Booster feature is activated,
the settings for the linked cooking
zone may be changed (see “How it
works – Power management”).
For a cooktop with a maximum of
5cooking zones, the Booster feature
can be used on a maximum of
2cooking zones or 1PowerFlex
cooking area at the same time.
For a cooktop with 6cooking zones, the
Booster feature can be used as follows:
- Booster on 2 cooking zones at the
same time,
or
- Booster on middle or right PowerFlex
cooking area,
or
- Booster on left PowerFlex cooking
area and 1 cooking zone
If the Booster function is switched on
when
- no power level has been selected,
the power level will revert
automatically to power level9 at the
end of the Booster time or if the
Booster function is switched off
before this.
- a power level has been selected, the
power level will revert automatically
to the power level selected at the end
of the Booster time or if the Booster
function is switched off before this.
Activating TwinBooster
Level 1
Place a pan on the cooking zone you
want to use.
Select a power level if necessary.
Touch theB sensor control.
The indicator light for TwinBooster
level 1lights up.
Level 2
Place a pan on the cooking zone you
want to use.
Select a power level if necessary.
Touch theB sensor control twice.
The indicator light for TwinBooster
level 2lights up.
Deactivating TwinBooster
Touch theB sensor control
repeatedly until the indicator lights go
out.
or
Set a different power level.
Operation
39
Keeping warm
This function is for keeping food warm
which has just been cooked and is still
hot. It is not for reheating food that
has gone cold.
The maximum duration for keeping food
warm is 2hours.
- Only keep food warm in suitable
cookware (pots/pans). Cover the pot/
pan with a lid.
- Stir firm or viscous food (mashed
potatoes, stew) occasionally.
- Nutrients are lost when food is
cooked, and continue to diminish
when food is kept warm. The longer
food is kept warm for, the greater the
loss of nutrients. Try to keep food
warm for as short a time as possible.
Activating/Deactivating the keeping
warm function
Touch the sensor for the cooking
zone you wish to use.
Keeping warm temperatures
A keeping warm temperature of 85°C is
set as standard. You can change the
keeping warm temperature (see
“Programming”).
Use Temperature°C
Melting chocolate 50–55
Keeping solid
food and thick
liquids warm
65–75
Keeping clear
soups warm
80–90
The cooking result can be negatively
affected if food is kept warm at
excessively high temperatures. Food
can change colour and even spoil.
Timer
40
The cooktop has to be switched on if
you wish to use the timer.
The timer can be used for the following
2 functions:
- For setting the minute minder
- For automatically switching a cooking
zone off
You can use the functions
simultaneously.
A duration of between 1minute (:)
and 9hours 59minutes (:) can be
set.
Durations of up to 59minutes are
shown in minutes (00:59) and durations
of more than 60minutes are shown in
hours and minutes. Durations are
entered in the order of hours, followed
by minutes in tens and then units.
Example:
59 minutes = 00:59 hours,
Enter: 5-9
80 minutes = 1:20 hours,
Enter: 1-2-0
After the first number has been entered,
the timer display will light up constantly.
After the second number has been
entered, the first number will move to
the left. After the third number has been
entered, the first and second numbers
will move to the left.
Minute minder
The minute minder is set using the left
or front left numerical keybank
(depending on model).
Setting the minute minder
Touch the sensor.
The timer display flashes.
Set the required time.
Touch the sensor or wait 10seconds
to start the minute minder.
Changing the time set for the minute
minder
Touch the sensor.
The timer display flashes.
Set the required time.
Cancelling the minute minder
Touch the sensor.
Touch on the numerical keybank.
Timer
41
Auto switch-off
You can set a time after which the
cooking zone will switch off
automatically. This function can be
used on all zones at the same time.
If the time programmed is longer than
the maximum operational time
allowed, the safety switch-off will
switch off the cooking zone after the
maximum permitted safety time has
elapsed (see "Safety features - Safety
switch-off").
The switch-off time is set with the
numerical keybank for each cooking
zone you want to switch off
automatically.
Setting the switch-off time
Select a power level for the cooking
zone you wish to use.
Touch the sensor.
The timer display flashes.
Set the required time.
Touch the sensor or wait 10seconds
to start the switch-off time.
The cooking zone allocation auto
switch-off indicator light pulsates.
To set a switch-off time for another
cooking zone, follow the same steps
as described above.
If more than one switch-off time is
programmed, the shortest time left will
be displayed, and the corresponding
indicator light will pulsate. The other
indicator lights will light up constantly.
To display the remaining times
running in the background, touch the
sensor repeatedly until the
indicator light for the desired cooking
zone pulses.
Changing the switch-off time
Touch the sensor repeatedly until
the indicator light for the cooking
zone you require pulsates.
The timer display flashes.
Set the required time.
Deleting the switch-off time
Touch the sensor repeatedly until
the indicator light for the cooking
zone you require pulsates.
The timer display flashes.
Touch the sensor on the numerical
keybank.
Timer
42
Using both timer functions at
the same time
If you use both functions
simultaneously, the shortest time is
always displayed. The sensor
(minute minder) or the indicator light of
the cooking zone with the shortest time
pulsates.
Touch the orsensor if you want
to show the times left counting down
in the background.
If a switch-off time has been
programmed for several cooking
zones, touch the sensor
repeatedly until the indicator for the
required cooking zone pulsates.
Additional functions
43
Stop & Go
When Stop & Go is activated, the power
of all cooking zones in use is reduced to
power level1.
The power levels set for the cooking
zones and the timer settings cannot be
changed, the cooktop can only be
switched off. The minute minder,
switch-off, Booster and Auto heat-up
times continue to run.
When Stop & Go is deactivated, the
cooking zones will operate at the power
level previously selected.
If the function is not deactivated within
1hour, the cooktop will switch off.
Activating/Deactivating
Touch the sensor.
Use this function if there is a danger of
food boiling over.
Recall
If the cooktop is switched off
inadvertently during operation, this
function can be used to reset all
settings. For this to work, the cooktop
must be switched on again within
10seconds of being switched off.
Switch the cooktop on again.
The previously set power levels will
flash.
Press one of the flashing power level
indicators immediately.
All the cooking zones and the timer will
continue to operate using the settings
selected previously.
Additional functions
44
Wipe protection
The cooktop sensors can be locked
for 20seconds in order, for example,
to remove soiling. The sensor
control is not locked.
Activating
Touch the sensor.
The time counts down in the timer
display.
Deactivating
Touch the sensor control until the
timer display goes out.
Demonstration mode
This function enables the cooktop to be
demonstrated in showrooms without
heating up.
Activating/Deactivating
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Then touch the0 and 2 sensors at
the same time for 6seconds.
In the timer display, flashes
alternately with (demonstration mode
activated) or (demonstration mode
deactivated) for a few seconds.
Displaying cooktop data
The model designation and software
version can be displayed. There must
not be any pots or pans on the
cooktop.
Model number/Serial number
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch the 0 and 4sensor controls at
the same time.
Numbers will appear in the timer display
one after another, separated by a dash.
Example: (Model number
KM1234)– (Serial
number)
Software version
Switch the cooktop on.
Touch the 0sensor on any of the
numerical keybanks.
Touch the 0 and 3sensor controls at
the same time.
Numbers appear in the timer display:
Example: : = Software version 2.00
Safety features
45
System lock/Safety lock
Your cooktop is equipped with a system
lock and a safety lock to prevent the
cooktop and the cooking zones being
switched on or any settings being
altered unintentionally.
The system lock is activated when the
cooktop is switched off. If the system
lock is activated, the cooktop cannot be
switched on and the timer cannot be
used. A set minute minder time
continues to count down. The cooktop
is programmed so that the system lock
must be activated manually. It can be
programmed so that the system lock
activates automatically 5minutes after
the cooktop has been switched off (see
"Programming").
The safety lock is activated while the
cooktop is switched on. When the
safety lock is activated, the cooktop
can only be operated to a limited
extent:
- The cooking zones and the cooktop
can only be switched off.
- A set minute minder time can be
modified.
If an unavailable sensor is touched
whilst the system lock or safety lock is
activated, will appear in the timer
display for a few seconds and a tone
will sound.
Activating the system lock
Touch the sensor for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, will appear in the
timer display. The system lock is
switched on.
Deactivating the system lock
Touch the sensor for 6seconds.
will appear briefly in the timer
display and then the seconds will count
down. The system lock is deactivated
once the time has elapsed.
Activating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The safety lock is
activated.
Deactivating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
will appear briefly in the timer
display and then the seconds will count
down. The safety lock is deactivated
once the time has elapsed.
Safety features
46
Safety switch-off
Sensor controls are covered
Your cooktop will switch off
automatically if one or several of the
sensors remain covered for longer than
10seconds, for example, by finger
contact, food boiling over or by an
object such as an oven glove or tea
towel. flashes briefly above the
sensor control and a tone will sound.
will go out once you have removed
the object and/or cleaned the cooktop
and the cooktop will be ready to use
again.
Excessive operating time
The safety switch-off mechanism is
triggered automatically if a cooking
zone is heated for an unusually long
period of time. This time depends on
the power level selected. If it has been
exceeded, the cooking zone switches
off and the residual heat indicator for
that zone appears. If you switch the
cooking zone on and off again, it is
ready for operation again.
The cooktop is programmed to safety
setting0 at the factory. If required, you
can set a higher safety setting with a
shorter maximum operating time (see
chart).
Power level* Maximum operating time
[h:min]
Safety setting
0** 1 2
1 10:00 8:00 5:00
1. 10:00 7:00 4:00
2/2. 5:00 4:00 3:00
3/3. 5:00 3:30 2:00
4/4. 4:00 2:00 1:30
5/5. 4:00 1:30 1:00
6/6. 4:00 1:00 00:30
7/7. 4:00 00:42 00:24
8 4:00 00:30 00:20
8. 4:00 00:30 00:18
9 1:00 00:24 00:10
* The power levels with a dot after the
number are only available if the power level
range has been extended (see "Power level
range").
** Factory default setting
Safety features
47
Overheating protection
All the induction coils and cooling
elements for the electronics are fitted
with an overheating protection
mechanism. Before the induction coils
and/or cooling elements get too hot, the
overheating protection mechanism
activates in one of the following ways:
Induction coils
- Any Booster function in operation will
be switched off.
- The set power level is reduced.
- The cooking zone switches off
automatically. will flash alternately
with in the timer display.
You can use the cooking zone again as
usual when the fault message has gone
out.
Cooling elements
- Any Booster function in operation will
be switched off.
- The set power level is reduced.
- The cooking zones switch off
automatically.
The affected cooking areas can only be
used again as usual once the cooling
element has cooled down to a safe
level.
The overheating protection may be
triggered under the following
circumstances:
- The pot or pan being used is empty.
- Fat or oil being heated on a high
power level.
- Insufficient ventilation to the
underside of the cooktop.
- A hot cooking zone being switched
on after an interruption to the power
supply.
If, despite removing the cause, the
overheating protection mechanism
triggers again, contact Miele.
Programming
48
You can adapt the programming of the
cooktop to your personal needs.
Several settings can be altered in
succession.
After accessing programming mode,
the symbol appears and will
appear in the timer display. After a few
seconds : (Programme 01) will flash
alternately with : (Code) in the timer
display.
Changing the programming
Calling up programming
The sensor is located approx.
1cm (index finger width) to the left of
the sensor.
With the cooktop switched off,
press and hold the and sensor
controls together until the symbol
lights up and appears in the timer
display.
Setting a programme
For a two-digit programme number
you need to first set the tens position.
Whilst the programme is visible in the
display (e.g. :), touch
thesensor repeatedly until the
number for the programme you want
appears in the display or touch the
appropriate number on the numerical
keybank.
Setting the code
While the code is visible in the display
(e.g. :), touch the sensor
repeatedly until the number for the
code you want appears in the display
or touch the appropriate number on
the numerical keybank.
How to save the settings
While the programme is visible in the
display (e.g. :), touch the
sensor control until the indicators go
out.
How to avoid saving the settings
While the code is visible in the display
(e.g.:), touch the sensor until
the indicators go out.
Programming
49
Programme
1
Code
2
Settings
P:01
Demonstration mode
C:00
Demonstration mode off
C:01
Demo mode on
3
P:03
Factory default setting
C:00
Do not restore the factory default settings
C:01
Restore factory default settings
P:04
Number of cooking zone power
levels
C:00
9 power levels + Booster
C:01
17 power levels + Booster
4
P:06
Confirmation tone when a
sensor control is touched
C:00
Off
5
C:01
Quiet
C:02
Medium
C:03
Loud
P:07
Timer signal tone
C:00
Off
C:01
Quiet
C:02
Medium
C:03
Loud
P:08
System lock
C:00
System lock can only be activated
manually
C:01
Activating the system lock automatically
P:09
Maximum operating time
C:00
Safety setting 0
C:01
Safety setting 1
C:02
Safety setting 2
P:10
Signing Wi-Fi on
C:00
Not active/deactivated
C:01
Active but not configured
C:02
Active and configured (cannot be
selected; displays whether connection
was successful)
C:03
Connection possible via WPS push
button
C:04 Wi-Fi is reset to default (C:00)
C:05
Direct Wi-Fi connection of cooktop and
rangehood without Miele App
(Con@ctivity3.0)
Programming
50
Programme
1
Code
2
Settings
P:12
Sensor controls reaction speed
C:00
Slow
C:01
Normal
C:02
Fast
P:15
Permanent pan recognition
C:00
Permanent pan recognition off
C:01
Permanent pan recognition on
P:25
Keeping warm temperature
C:00
50°C
C:01
55°C
C:02
60°C
C:03
65°C
C:04
70°C
C:05
75°C
C:06
80°C
C:07
85°C
C:08
90°C
1
Unlisted programmes are not assigned.
2
The factory-set code is shown in bold.
3
After the cooktop has been switched on, appears in the timer display for a few
seconds.
4
In the text and charts the extended power levels are shown with a dot after the number
for better understanding.
5
The confirmation tone of the On/Off sensorcontrol cannot be switched off.
Cleaning and care
51
Risk of burning due to hot
surfaces!
The cooking zones will be hot after
use.
Switch the cooktop off.
Allow the cooking zones to cool
down before cleaning the cooktop.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner
could reach electrical components
and cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching.
Remove any residual cleaning agent
immediately.
Never use abrasive sponges or
cleaning agents.
Clean the cooktop after every use.
Dry the cooktop thoroughly after
every cleaning to avoid limescale
residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- washing-up liquid
- cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides
- cleaning agents containing descaling
agents
- stain and rust removers
- abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
- solvent-based cleaning agents
- dishwasher cleaners
- grill and oven cleaners
- glass cleaning agents
- hard, abrasive brushes or sponges
(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents
- dirt eraser sponges
Cleaning and care
52
Cleaning the ceramic surface
Risk of damage by pointed
objects.
The seal between the cooktop and
the worktop could be damaged.
The seal between the ceramic
surface and the frame could be
damaged.
Do not use pointed objects for
cleaning.
Do not use washing-up liquid to
clean the appliance. Using washing-
up liquid will not remove all soiling
and residues. An invisible film can
develop that can lead to
discolouration of the ceramic glass
surface. This discolouration cannot
be removed.
Clean the ceramic surface regularly
with a proprietary ceramic glass
cleaning agent.
Remove any coarse soiling with a
damp cloth and more stubborn
soiling with a glass scraper.
Then clean the ceramic glass surface
with the Miele ceramic and stainless
steel cooktop cleaner (see “Optional
accessories”) or with a proprietary
ceramic glass cleaner applied with
paper towel or a clean cloth. Do not
apply the cleaner while the cooktop is
still hot, as this can result in marking.
Please follow the cleaning agent
manufacturer's instructions.
Finally wipe the cooktop with a damp
cloth and dry it with a soft, dry cloth.
Residues can burn onto the cooktop
the next time it is used and cause
damage to the glass ceramic surface.
Ensure that all cleaner residues are
removed.
Spots caused by limescale, water
and aluminium residues (spots with a
metallic appearance) can be removed
using the Miele ceramic and stainless
steel cooktop cleaner.
Risk of burning due to hot
surfaces!
The cooking zones are hot during
use.
Wear oven gloves when removing
residues of sugar, plastic or
aluminium foil from a hot cooktop
with a glass scraper.
Should any sugar, plastic or
aluminium foil spill or fall onto a hot
cooking zone while it is in use, first
switch off the appliance.
Then carefully scrape off these
residues immediately whilst they are
still hot, using a shielded scraper
blade suitable for use on glass.
Afterwards, clean the ceramic surface
in its cooled state, as described
above.
Problem solving guide
53
Many malfunctions and minor faults that can occur in daily operation can be
corrected without contacting Miele. This will save you time and money because
you will not need a service call.
You can find information on how to remedy faults yourself at www.miele.com/
service.
Please note, however, that a call-out charge will be applied to unnecessary service
visits where the problem could have been rectified as described in these operating
instructions.
Messages in the display
Problem Possible cause and remedy
will flash alternately
with in the timer
display and a tone will
sound.
The cooktop is incorrectly connected.
Disconnect the cooktop from the electricity supply.
Contact Miele. The cooktop must be connected to
the mains according to the wiring diagram.
After the cooktop has
been switched on,
appears in the timer
display for a few
seconds.
The system lock or safety lock is activated.
Deactivate the system lock or safety lock (see
"Safety features - System lock / Safety lock").
After the cooktop has
been switched on,
appears in the timer
display for a few
seconds. The cooking
zones do not heat up.
The cooktop is in demonstration mode.
Touch the 0sensor on any of the numerical
keybanks.
Then touch the and sensors at the same time
until flashes alternately with in the timer
display.
The cooktop has
switched off
automatically. When the
cooktop is switched
back on, appears
above the On/Off
sensor.
One or more of the sensors are covered, e.g. by
finger contact, food boiling over or an object.
Clean off any dirt and/or remove the object (see
"Safety features - Safety switch-off").
will flash alternately
with in the timer
display.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
Problem solving guide
54
Problem Possible cause and remedy
will flash alternately
with, or in
the timer display.
The fan is blocked or defective.
Make sure the fan has not been blocked by an
object.
Remove the obstruction.
If this fault code continues to appear in the
display, contact Miele.
In the timer display E-
number, e.g. E-0, will
flash alternately with
, , , , ,
, , or .
The fan is blocked or defective.
Make sure the fan has not been blocked by an
object.
Remove the obstruction.
If this fault code continues to appear in the
display, contact Miele.
A message not listed in
this table is appearing
in the timer display.
There is an electronic unit fault.
Interrupt the power supply to the cooktop for
approx. 1minute.
If the problem persists after power is restored,
please contact Miele.
Problem solving guide
55
Unexpected behaviour
Problem Possible cause and remedy
The power level
selected is flashing.
There is no pan on the cooking zone, or the pan is
unsuitable.
Use suitable pans (see “Cookware - Suitable
pans”).
Power level9 is
automatically reduced if
you also set power
level9 for the
connected cooking
zone.
Operating both zones at power level9 exceeds the
permitted maximum power for the two zones.
Use a different cooking zone.
A cooking zone
switches itself off
automatically.
It has been operated for too long.
You can use the cooking zone again by switching
it back on (see “Safety features - Safety switch-
off”).
A cooking zone is not
working in the usual
way on the power level
selected.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
A cooking zone or the
whole cooktop switches
off automatically.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
The Booster has
automatically switched
off early.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
Problem solving guide
56
Unsatisfactory results
Problem Possible cause and remedy
The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched on.
There is too much food in the pan.
Start cooking at the highest power level and then
turn down to a lower one manually later on.
The pan is not conducting heat properly.
Use a different pan which is better able to conduct
heat.
General problems or technical faults
Problem Possible cause and remedy
The cooktop or cooking
zones do not switch on.
There is no power to the cooktop.
Check if the circuit breaker has tripped. Contact
an electrician or Miele (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Disconnect the appliance from the mains
electricity supply for approx. 1 minute. To do this:
– switch off at the wall socket and withdraw the
plug, or
– switch off at the residual current device.
If, after switching the circuit breaker or residual
current device back on, the appliance will still not
switch on, contact a qualified electrician or Miele.
A smell and vapours are
given off when the new
appliance is being used.
The metal components have a protective coating.
When the appliance is used for the first time, this
causes a smell and possibly also vapour. The
material from which the induction coils are made also
gives off a smell in the first few hours of operation.
This smell will be less noticeable with each
subsequent use before dissipating completely. The
smell and any vapours given off do not indicate a
faulty connection or appliance and they are not
hazardous to health.
A noise can be heard
after the appliance is
switched off.
The fan will continue running until the cooktop has
cooled down. It will then switch itself off
automatically.
Optional accessories
57
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Cookware
Miele offers a large selection of
cookware for purchase. These have all
been optimised in terms of functionality
and dimensions for Miele appliances.
Detailed information can be found on
the Miele website.
Cleaning and care products
Original Miele ceramic and stainless
steel cooktop cleaner 250ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose microfibre
cloth
Removes finger marks and light soiling.
Service
58
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
You can book a Miele customer service call-out online at www.miele.com.au/
service or www.miele.co.nz/service.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of these
operating and installation instructions.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
Installation
*INSTALLATION*
59
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Risk of electric shock.
Incorrect connection to the power supply may result in an electric shock.
The cooktop must be connected to the power supply by a qualified electrician.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
This cooktop must not be installed above ovens unless these
have a built-in cooling fan.
After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
The connection cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
Carefully observe the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
60
Safety distances
Safety distance above the cooktop
The safety distance specified by the
manufacturer of the rangehood must be
maintained between the cooktop and
the rangehood above it.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance of 500 mm
must be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 500mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, observe the greatest
specified safety distance.
Installation
*INSTALLATION*
61
Safety distances to the sides and
back of the appliance
The minimum distance shown below
must be maintained between the back
edge of the cooktop and a tall unit or
wall.
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
200mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
right edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
left edge of the cooktop to a
combustible surface:
50mm.
Minimum safety distance underneath
the cooktop
To ensure sufficient ventilation to the
cooktop, a minimum distance must be
left between the underside of the
cooktop and any oven, interim shelf or
drawer.
The minimum safety distance between
the underside
1
of the cooktop and
- the top edge of an oven: ≥ 15 mm
- the top edge of an interim shelf: ≥ 15
mm
- the top edge of a drawer: ≥ 8 mm
- the base of a drawer: ≥ 75 mm
1
The underside is the outside of the
cooktop casing. Other items that are
attached lower down, such as
connection boxes and spacer plates, do
not count as the lowest point and are
not relevant when calculating the
minimum safety distance.
Installation
*INSTALLATION*
62
Interim shelf
It is not necessary to fit an interim shelf
underneath the cooktop but one may
be fitted if you wish.
Side view
a
Front
b
Front air gap
c
Rear air gap
A gap of 20mm is recommended at
the front between the cabinet and
intermediate shelf for better ventilation
of the cooktop.
Leave a gap of 30mm at the back
between the cabinet and the
intermediate shelf to accommodate
the mains connection cable.
Installation
*INSTALLATION*
63
Installation notes
Surface-mounted installation
Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
Installation
*INSTALLATION*
64
Flush-fit installation
A flush-fit cooktop is suitable only for
installation in natural stone (granite,
marble), solid wood and tiled
worktops. When using a worktop
made from any other material, please
check first with the worktop
manufacturer that it is suitable for
installing a flush-fit cooktop.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation – Installation
dimensions – Flush-fit”), so that the
cooktop is easily accessible from
underneath after installation and the
bottom half of the casing can be
removed for maintenance. If the
underside of the cooktop is not freely
accessible after installation, any
sealant used to plug the gaps around
the appliance must be removed to
enable the cooktop to be lifted out of
the cut-out should this be necessary.
Natural stone worktops
The cooktop is placed directly in the
cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The cooktop is placed on a wooden
frame inside the cut-out. The frame
must be provided on site and is not
supplied with the appliance.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip
before reinstalling the cooktop.
Installation
*INSTALLATION*
65
Installation dimensions – Surface-mounted
All dimensions in this instruction booklet are given in mm.
KM 7575-2FR
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
Installation
*INSTALLATION*
66
KM 7575-2FL
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
Installation
*INSTALLATION*
67
KM 7594-2FR
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
Installation
*INSTALLATION*
68
KM 7594-2FL
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
Installation
*INSTALLATION*
69
Surface-mounted installation
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
Attach the sealing strip provided
underneath the edge of the cooktop.
Do not apply the sealing strip under
tension.
Risk of damage from incorrect
connection.
The electronics of the cooktop may
be damaged if a short-circuit occurs.
The mains connection cable must be
connected to the cooktop by a
qualified electrician.
Connect the mains connection cable
by following the instructions in the
wiring diagram on the cooktop (see
“Installation – Electrical connection”).
Feed the mains connection cable
down through the worktop cut-out.
Place the cooktop centrally in the
cut-out. When doing this make sure
that the seal of the appliance sits
flush with the worktop on all sides.
This is important to ensure an
effective seal with the worktop.
If the seal does not meet the worktop
correctly on the corners, the corner
radius (≤ R4) can be carefully scribed
to suit.
Connect the cooktop to the electricity
supply (see “Installation – Electrical
connection”).
Check that the cooktop works.
Installation
*INSTALLATION*
70
Installation dimensions–Flush-fit
All dimensions in this instruction booklet are given in mm.
KM 7575-2FL
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
c
Stepped cut-out, natural stone worktop
d
Wooden strip 12mm (not supplied)
Installation
*INSTALLATION*
71
KM 7594-2FL
a
Front
b
Mains connection box
The mains connection cable (L=1,440mm) is supplied loose
c
Stepped cut-out, natural stone worktop
d
Wooden strip 12mm (not supplied)
Installation
*INSTALLATION*
72
Flush-fit installation
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Safety
distances").
Solid wood, tiled and glass worktops:
Fix a wooden frame 5.5mm below
the top edge of the worktop.
Risk of damage from incorrect
connection.
The electronics of the cooktop may
be damaged if a short-circuit occurs.
The mains connection cable must be
connected to the cooktop by a
qualified electrician.
Connect the mains connection cable
by following the instructions in the
wiring diagram on the cooktop (see
“Electrical connection – Wiring
diagram”).
Attach the sealing strip provided
underneath the edge of the cooktop.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cut-out.
Centre the cooktop in the cut-out.
The gap between the ceramic surface
and the worktop must be at least
2mm wide. This is required so that
the cooktop can be sealed.
Connect the cooktop to the mains
electricity supply (see "Electrical
connection").
Check that the cooktop works.
Seal the gap between the cooktop
and worktop with a silicone sealant
that is heat-resistant to at least
160°C.
Damage caused by unsuitable
sealant.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.
Installation
*INSTALLATION*
73
Electrical connection
Risk of damage from incorrect
connection.
Incorrect installation, maintenance
and repairs can be dangerous to
users.
Miele cannot be held liable for
damage or injury caused by incorrect
or unauthorised installation,
maintenance or repair work, or by an
inadequate or faulty on-site earthing
system (e.g. electric shock).
All electrical work must be carried
out by a suitably qualified and
competent electrician, in strict
accordance with current national and
local safety regulations, and any
additional regulations of the local
electricity provider.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is quoted on the
data plate. Please ensure this
information matches the household
mains supply.
Please see the wiring diagrams for
connection.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
Disconnecting devices
Connection must be made via a
suitable isolator switch which provides
disconnection on all poles and which
complies with national and local safety
regulations. When switched off there
must be an all-pole contact gap of at
least 3 mm in the isolator switch. The
isolator switch must be easily
accessible after the appliance has been
built in.
Installation
*INSTALLATION*
74
Mains connection cable
The cooktop must be connected to the
electrical supply with a special
connection cable, type H 07 RN-F
(rubber insulated) with a suitable cross-
section in accordance with the wiring
diagram.
Please see the wiring diagrams for
connection.
See the data plate on the cooktop for
the correct voltage and rated load.
Replacing the mains connection
cable
Danger of electric shock!
Incorrect connection to the electricity
supply may result in an electric
shock.
The mains connection cable must
only be replaced in accordance with
current local and national safety
regulations.
When replacing the mains connection
cable, it must be replaced with cable
type H 07 RN-F (rubber insulated) by a
Miele authorised service technician or a
suitably qualified and competent
electrician in order to avoid a hazard.
These cables are available from Miele.
Installation
*INSTALLATION*
75
Wiring diagram
Some connection methods are not
permitted in all installation locations.
Ensure compliance with national
regulations and any additional
regulations issued by the local
electricity provider.
L1
200-240 V~
200-240 V~
200-240 V~
ab
cde
-
L2 L3 N
-
L2
b
L1
a cd
N
e
(L3)
200-240 V~
200-240 V~
a
L1
bcd
N
e
-
(L2)
200-240 V~
Miele Head Office Melbourne:
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
and Head Office Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
Miele Experience Centre Doncaster:
1136/7 Doncaster Shopping Centre
619 Doncaster Rd, Doncaster, VIC 3108
M.-Nr. 12 265 280 / 00en-AU, NZ
KM 7575-2 FR, KM7575-2FL, KM 7594-2 FR, KM7594-2FL
