IS0201E_01
For future use,
STORE USER GUIDE in
compartment at rear of base.
©2020 Artsana USA, Inc. 08/20
www.chiccousa.com
Convertible
Car Seat
User Guide
MAX
®
TABLE OF CONTENTS
Registration and Recall 2
Child Guidelines 4
Safe Use Checklist 6
Important Warnings 8
Best Practices 14
Need Help? 15

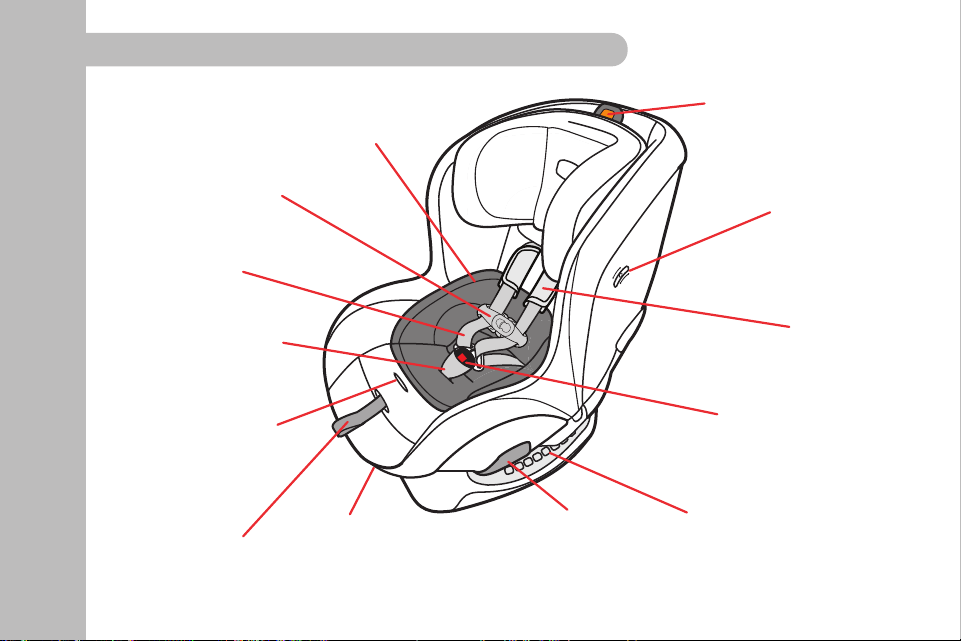

Child Restraint Components 16
LATCH and Tether Components
18
LATCH and Tether Storage 20
Selecting Rear/Forward-Facing Position 22
Adjusting Crotch Strap 26
Newborn Positioner 28

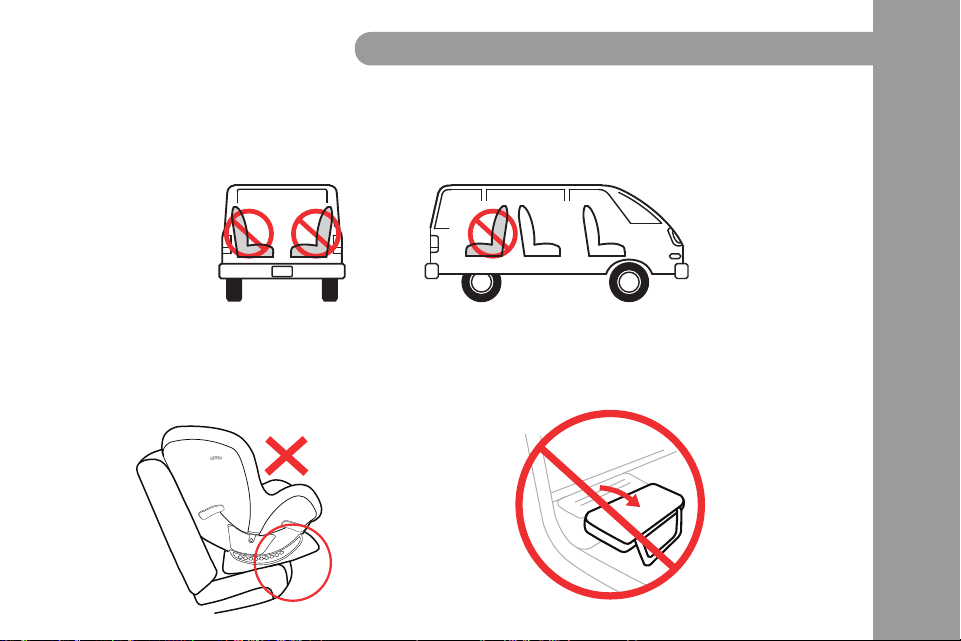

Vehicle Seating Positions 30
Vehicle Seat Belts 32

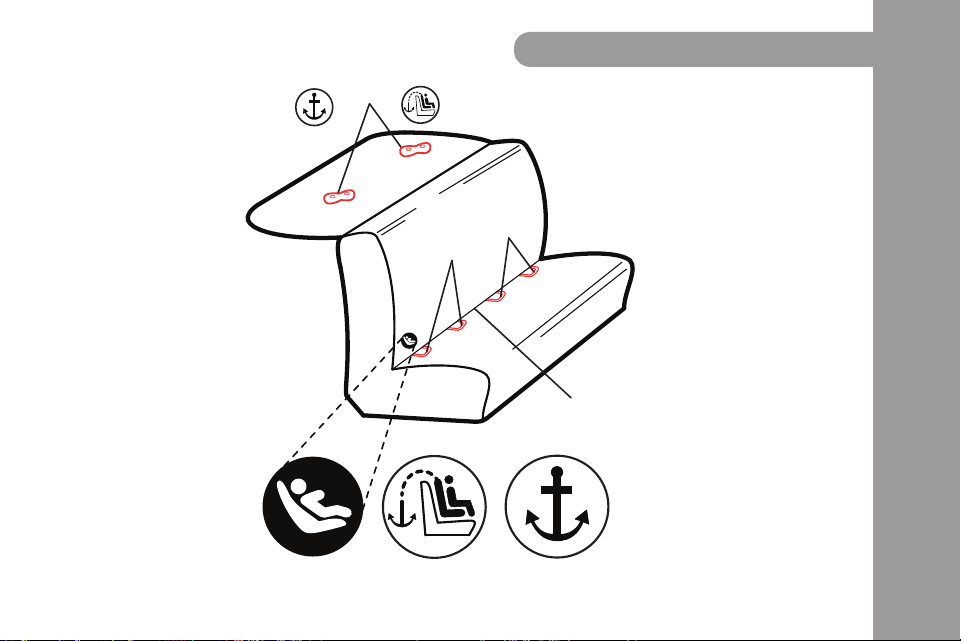

What is LATCH? 34

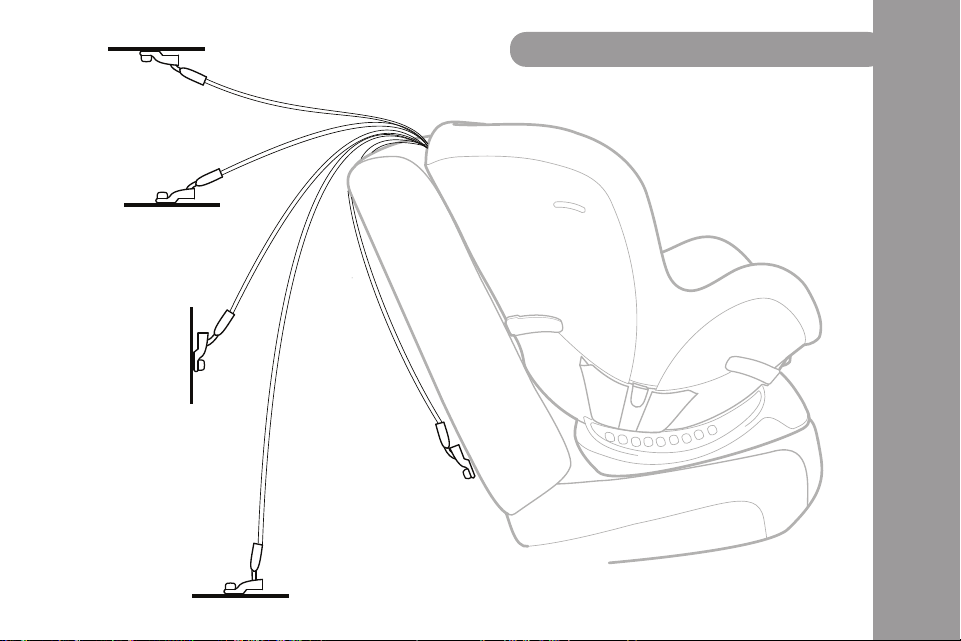

What is a Tether? 36
Rear-Facing Setup 38
Install Using LATCH 42
Install Using LAP-SHOULDER BELT 48
Install Using LAP BELT ONLY 52
Forward-Facing Setup 56
Install Using LATCH 60
Install Using LAP-SHOULDER BELT 66
Install Using LAP BELT ONLY
72
Securing Child with Harness 76
Secure Child Checklist 88
Installation on an Aircraft 90
Cup Holder 92
Cleaning and Maintenance 94
VEHICLE INFORMATION
CHILD RESTRAINT OVERVIEW
REAR-FACING INSTALLATION
FORWARD-FACING INSTALLATION
SECURING YOUR CHILD
ADDITIONAL INFORMATION
If you have any problems with your Chicco Child Restraint,
or any questions regarding installation or use, please call:
Chicco Customer Service
1-877-424-4226
Please have Model and Serial Number available when you call.
These are located on a label on the bottom of the Child Restraint.
For future reference, fill in the information below. The information can be found on the label
on the bottom of the Child Restraint.
Model Number:
Serial Number:
Manufactured In:
TABLE OF CONTENTS
Registration and Recall 2
Child Guidelines 4
Safe Use Checklist 6
Important Warnings 8
Best Practices 14
Need Help? 15
Child Restraint Components 16
LATCH and Tether Components
18
LATCH and Tether Storage 20
Selecting Rear/Forward-Facing Position 22
Adjusting Crotch Strap 26
Newborn Positioner 28
Vehicle Seating Positions 30
Vehicle Seat Belts 32
What is LATCH? 34
What is a Tether? 36
Rear-Facing Setup 38
Install Using LATCH 42
Install Using LAP-SHOULDER BELT 48
Install Using LAP BELT ONLY 52
Forward-Facing Setup 56
Install Using LATCH 60
Install Using LAP-SHOULDER BELT 66
Install Using LAP BELT ONLY
72
Securing Child with Harness 76
Secure Child Checklist 88
Installation on an Aircraft 90
Cup Holder 92
Cleaning and Maintenance 94
VEHICLE INFORMATION
CHILD RESTRAINT OVERVIEW
REAR-FACING INSTALLATION
FORWARD-FACING INSTALLATION
SECURING YOUR CHILD
ADDITIONAL INFORMATION
If you have any problems with your Chicco Child Restraint,
or any questions regarding installation or use, please call:
Chicco Customer Service
1-877-424-4226
Please have Model and Serial Number available when you call.
These are located on a label on the bottom of the Child Restraint.
For future reference, fill in the information below. The information can be found on the label
on the bottom of the Child Restraint.
Model Number:
Serial Number:
Manufactured In:
2
3
REGISTRATION AND RECALL REGISTRATION AND RECALL
Please complete the Registration Card that came with
your Child Restraint and mail it promptly.
Child Restraints could be recalled for safety reasons. You must register this restraint to be reached in
a recall. Send your name, address, e-mail address if available, and the restraint’s model number and
manufacturing date to:
Artsana USA, Inc.
1826 William Penn Way
Lancaster, PA 17601
or call 1-877-424-4226
or register online at http://www.chiccousa.com/carseatregistration.aspx
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.
PAGE INTENTIONALLY LEFT BLANK
2
3
REGISTRATION AND RECALL REGISTRATION AND RECALL
Please complete the Registration Card that came with
your Child Restraint and mail it promptly.
Child Restraints could be recalled for safety reasons. You must register this restraint to be reached in
a recall. Send your name, address, e-mail address if available, and the restraint’s model number and
manufacturing date to:
Artsana USA, Inc.
1826 William Penn Way
Lancaster, PA 17601
or call 1-877-424-4226
or register online at http://www.chiccousa.com/carseatregistration.aspx
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.
PAGE INTENTIONALLY LEFT BLANK
4
5

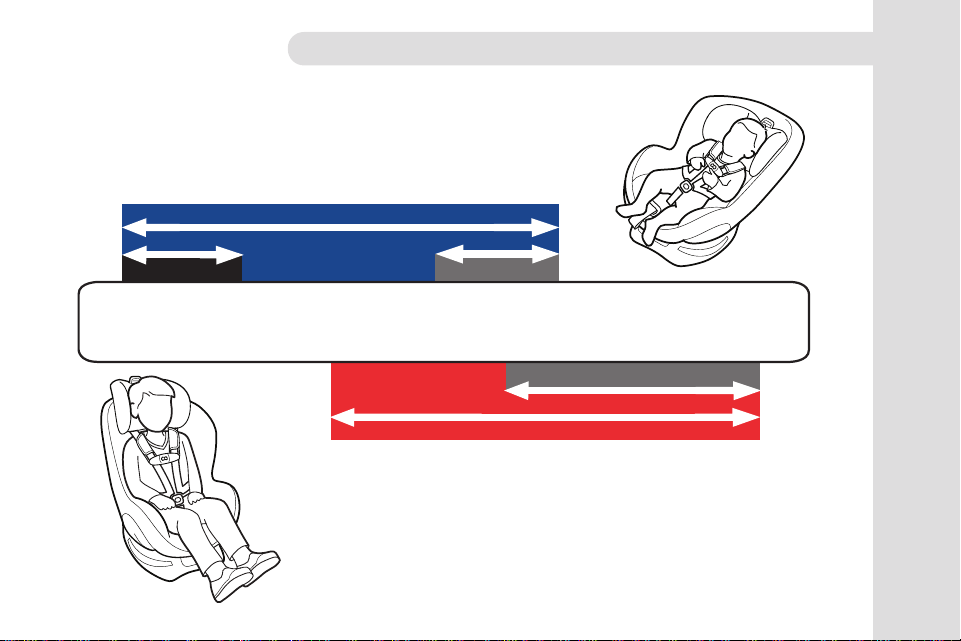

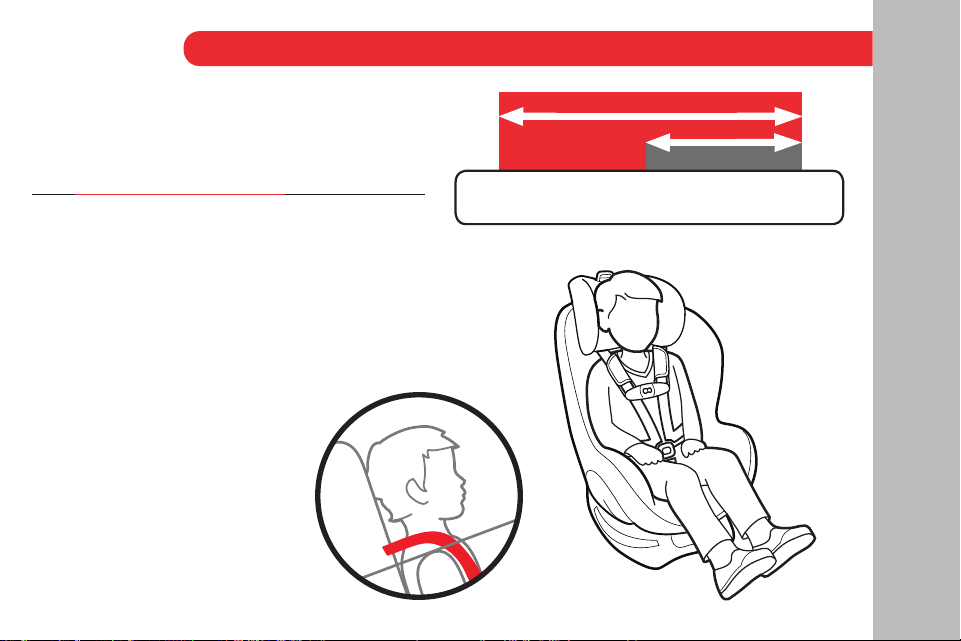

This Child Restraint is designed for children ages Birth to 6 years old.
ONLY use this Child Restraint if the child meets BOTH of the following
Weight and Height requirements:
• Weight is between 4 and 65 pounds (1.8 and 29.5 kg).
• Height is 49 inches (125 cm) or less.
CHILD GUIDELINES
For premature infants, you must consult the infant's
doctor before using this Child Restraint. A premature
infant may have difficulty breathing or have other medical
problems when placed in a seated position.
CHILD GUIDELINES
FORWARD - FACING
REAR - FACING
NO LATCH
See Select
Rear-Facing
on page 22.
NO LATCH
NEWBORN INSERT

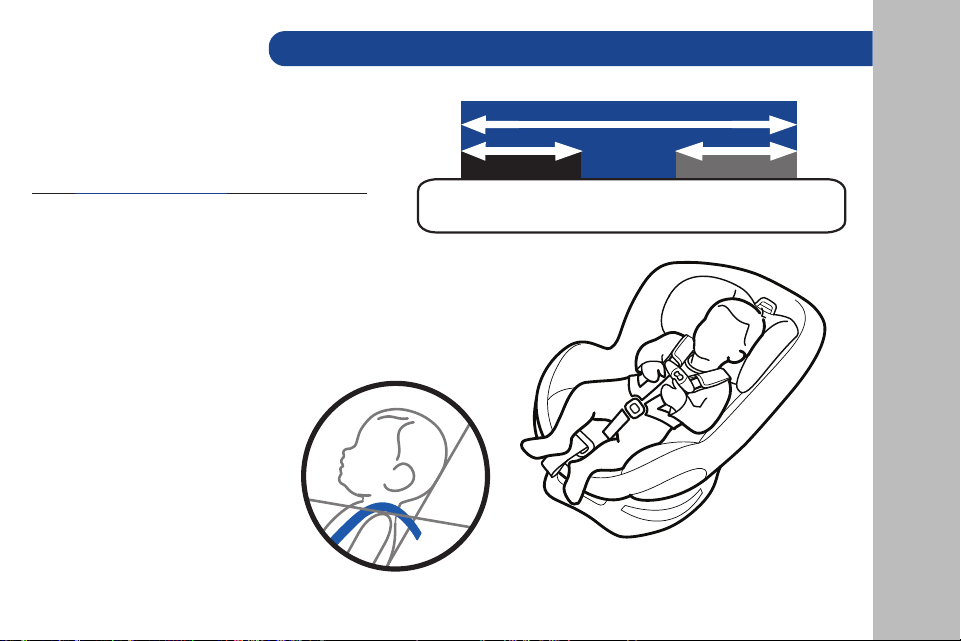

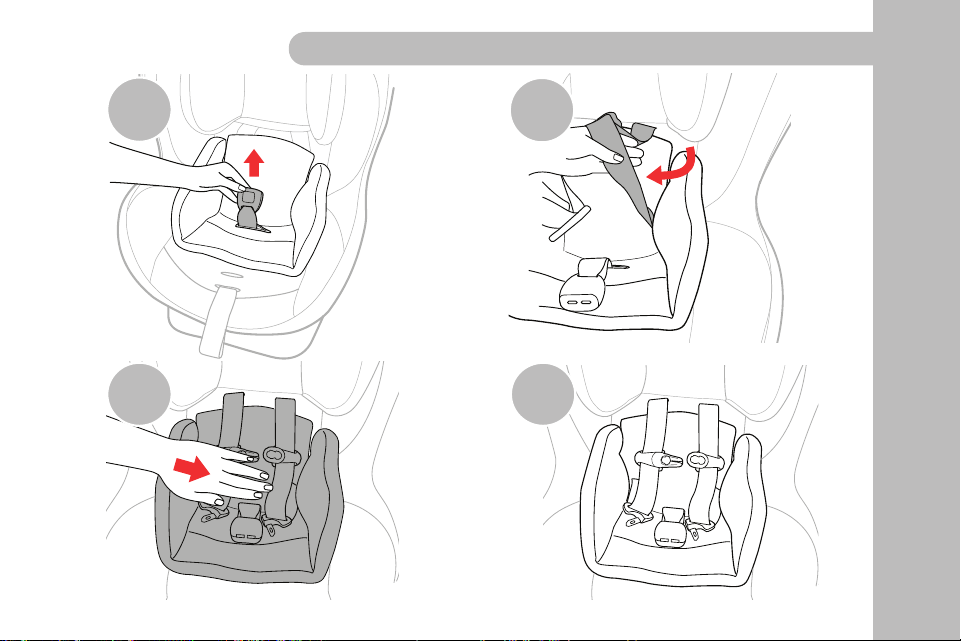

The Newborn Positioner is only for infants who weigh between 4 and 11
pounds (1.8 and 5 kg). See Newborn Positioner on page 28.
See Select
Forward-Facing
on page 24.
4 lbs. 11 lbs. 35 lbs. 50 lbs.
(1.8 kg) (5 kg) (15.9 kg) (22.7 kg)
40 lbs.
(18 kg)
22 lbs.
(10 kg)
65 lbs.
(29.5 kg)
4
5
This Child Restraint is designed for children ages Birth to 6 years old.
ONLY use this Child Restraint if the child meets BOTH of the following
Weight and Height requirements:
• Weight is between 4 and 65 pounds (1.8 and 29.5 kg).
• Height is 49 inches (125 cm) or less.
CHILD GUIDELINES
For premature infants, you must consult the infant's
doctor before using this Child Restraint. A premature
infant may have difficulty breathing or have other medical
problems when placed in a seated position.
CHILD GUIDELINES
FORWARD - FACING
REAR - FACING
NO LATCH
See Select
Rear-Facing
on page 22.
NO LATCH
NEWBORN INSERT
The Newborn Positioner is only for infants who weigh between 4 and 11
pounds (1.8 and 5 kg). See Newborn Positioner on page 28.
See Select
Forward-Facing
on page 24.
4 lbs. 11 lbs. 35 lbs. 50 lbs.
(1.8 kg) (5 kg) (15.9 kg) (22.7 kg)
40 lbs.
(18 kg)
22 lbs.
(10 kg)
65 lbs.
(29.5 kg)
6
7
Make sure your child meets the age, weight, and height requirements:
Refer to the “Child Guidelines” section on page 4.
Choose the proper Child Restraint configuration:
Select a safe seating location in your car:
Refer to the “Vehicle Seating Positions” section on page 30 and 31.
SAFE USE CHECKLIST
YOUR CHILD’S SAFETY DEPENDS ON YOU! You MUST follow the
detailed instructions in this User Guide to ensure the steps below are
performed correctly!

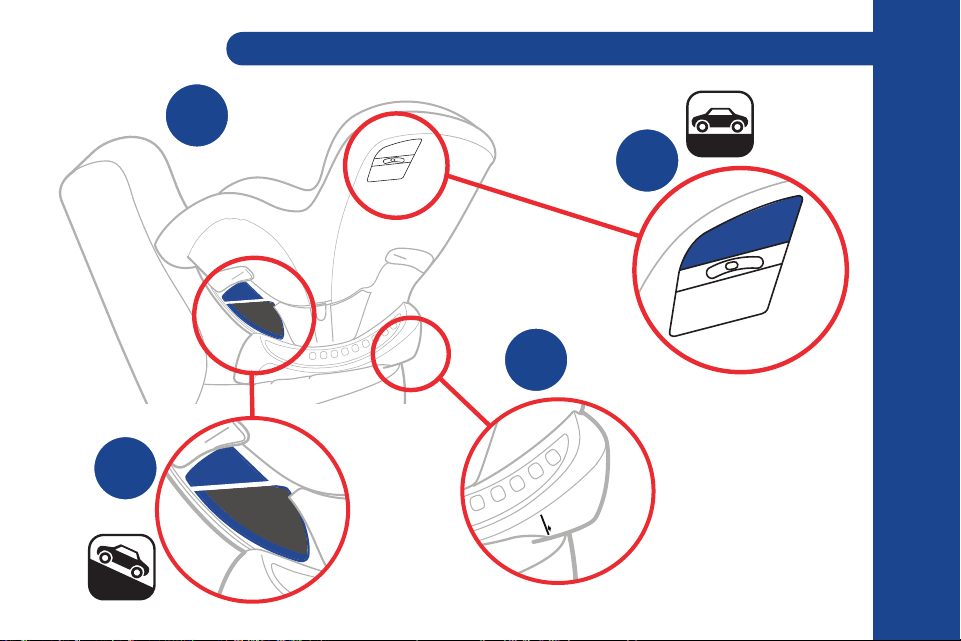

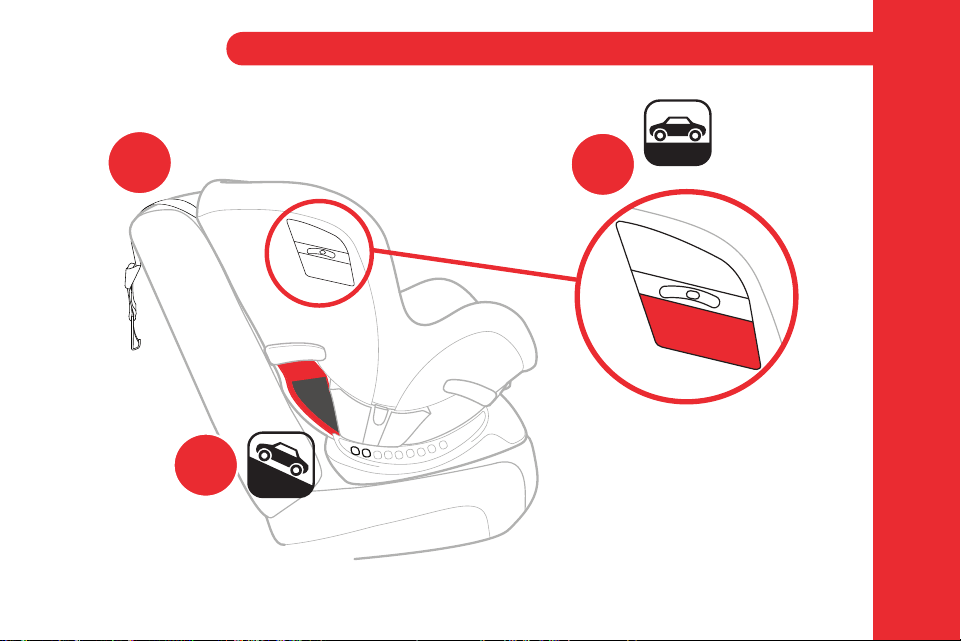

Ensure that the Child Restraint is properly leveled when installed:
Check Child Restraint for a snug fit in your car:
While holding Child Restraint near belt path used, pull side to side and forward.
Belt should remain tight and Child Restraint should not move more than
1” (25 mm) from vehicle seat back or side-to-side.
Secure your child:
Refer to the “Securing Your Child” section on page 76.
SAFE USE CHECKLIST
REAR-FACING requirements on page 22
FORWARD-FACING requirements on page 24
REAR-FACING requirements on page 38
FORWARD-FACING requirements on page 56
6
7
Make sure your child meets the age, weight, and height requirements:
Refer to the “Child Guidelines” section on page 4.
Choose the proper Child Restraint configuration:
Select a safe seating location in your car:
Refer to the “Vehicle Seating Positions” section on page 30 and 31.
SAFE USE CHECKLIST
YOUR CHILD’S SAFETY DEPENDS ON YOU! You MUST follow the
detailed instructions in this User Guide to ensure the steps below are
performed correctly!
Ensure that the Child Restraint is properly leveled when installed:
Check Child Restraint for a snug fit in your car:
While holding Child Restraint near belt path used, pull side to side and forward.
Belt should remain tight and Child Restraint should not move more than
1” (25 mm) from vehicle seat back or side-to-side.
Secure your child:
Refer to the “Securing Your Child” section on page 76.
SAFE USE CHECKLIST
REAR-FACING requirements on page 22
FORWARD-FACING requirements on page 24
REAR-FACING requirements on page 38
FORWARD-FACING requirements on page 56
8
9
IMPORTANT WARNINGS
FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT
LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.
Take Time to Read This User Guide
• Carefully read and understand all instructions and warnings in this User Guide. Your child’s safety depends
on you knowing how to setup, install and use this Child Restraint properly.
• Before installing this Child Restraint in a vehicle, be sure to also check the vehicle owner’s manual for
information on proper installation.
• NEVER allow others to use this Child Restraint until they have read and understood all instructions in this
User Guide.
• This Child Restraint is not intended for use outside of the vehicle.
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Make Sure Child Fits This Child Restraint
• Use only with children who weigh between 4 lbs (1.8 kg) and 65 lbs (29.5 kg) and whose height is 49 inches
(125 cm) or less. Determine the right installation setup for your child’s age, weight and height.
• ONLY USE the Newborn Positioner REAR-FACING and only if the child weighs between 4 and 11 lbs (1.8 and 5 kg).

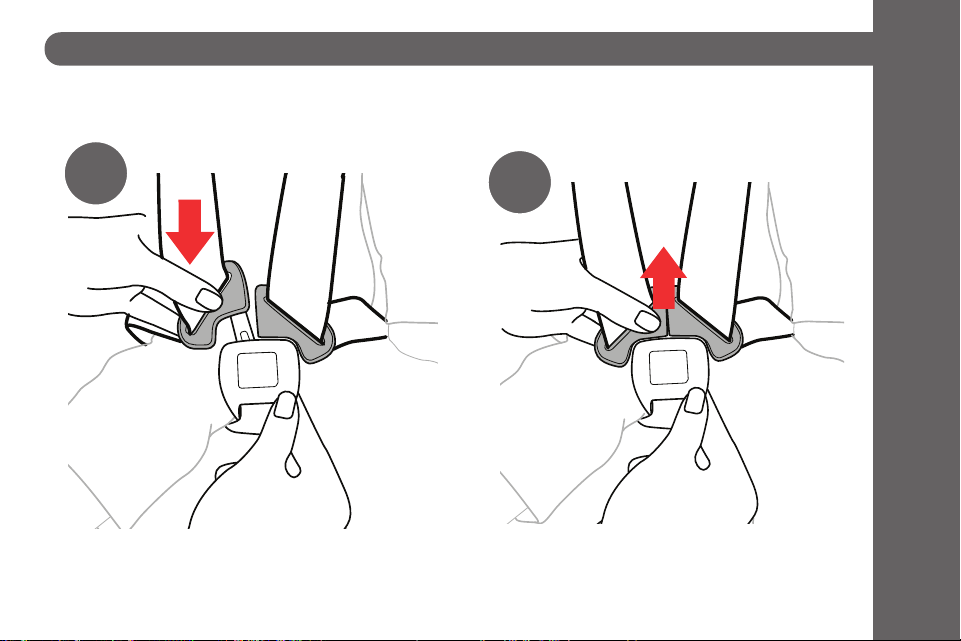

• ALWAYS check to make sure buckle is securely latched. If buckle separates, child could be killed or seriously injured.
• NEVER leave child unattended. Do not allow children to play in or around the Child Restraint.
• ALWAYS keep child properly secured in harness whenever child is in Child Restraint.
Secure Child Properly
• Snugly adjust the harness around your child. A loose harness could cause the child to be ejected in a sudden
stop or crash, resulting in serious injury or death.

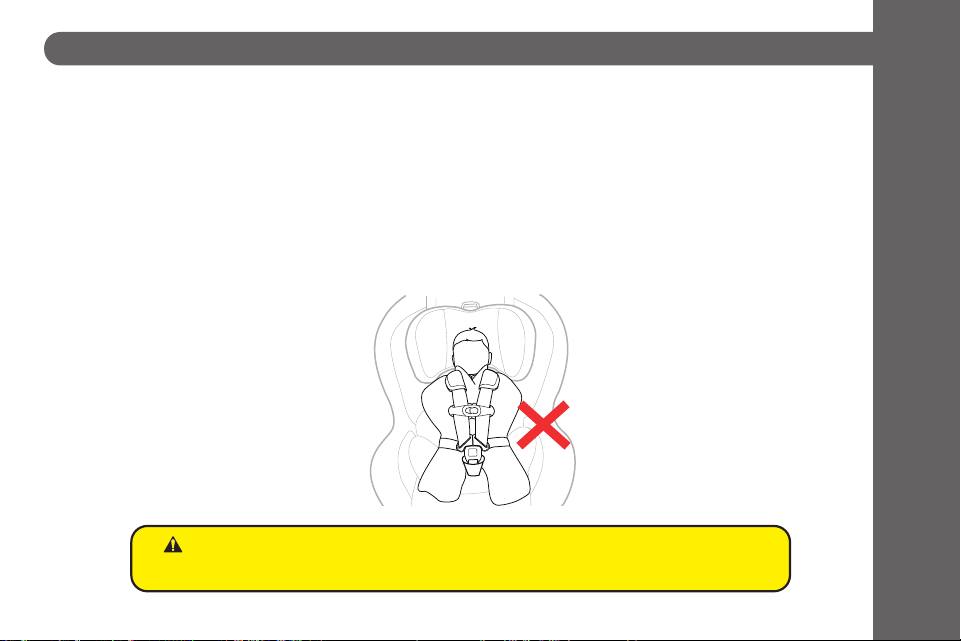

• NEVER use clothing or blankets that interfere with fastening or tightening the harness. An unsecured child
could be ejected in a sudden stop or crash!
A snug strap should not allow any slack. It lies in a relatively straight line without sagging.
It does not press on the child’s flesh or push the child’s body into an unnatural position.
To keep child warm, place a blanket over child and restraint AFTER you have properly secured
child in harness.
8
9
IMPORTANT WARNINGS
FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT
LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.
Take Time to Read This User Guide
• Carefully read and understand all instructions and warnings in this User Guide. Your child’s safety depends
on you knowing how to setup, install and use this Child Restraint properly.
• Before installing this Child Restraint in a vehicle, be sure to also check the vehicle owner’s manual for
information on proper installation.
• NEVER allow others to use this Child Restraint until they have read and understood all instructions in this
User Guide.
• This Child Restraint is not intended for use outside of the vehicle.
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Make Sure Child Fits This Child Restraint
• Use only with children who weigh between 4 lbs (1.8 kg) and 65 lbs (29.5 kg) and whose height is 49 inches
(125 cm) or less. Determine the right installation setup for your child’s age, weight and height.
• ONLY USE the Newborn Positioner REAR-FACING and only if the child weighs between 4 and 11 lbs (1.8 and 5 kg).
• ALWAYS check to make sure buckle is securely latched. If buckle separates, child could be killed or seriously injured.
• NEVER leave child unattended. Do not allow children to play in or around the Child Restraint.
• ALWAYS keep child properly secured in harness whenever child is in Child Restraint.
Secure Child Properly
• Snugly adjust the harness around your child. A loose harness could cause the child to be ejected in a sudden
stop or crash, resulting in serious injury or death.
• NEVER use clothing or blankets that interfere with fastening or tightening the harness. An unsecured child
could be ejected in a sudden stop or crash!
A snug strap should not allow any slack. It lies in a relatively straight line without sagging.
It does not press on the child’s flesh or push the child’s body into an unnatural position.
To keep child warm, place a blanket over child and restraint AFTER you have properly secured
child in harness.
10
11
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Install Child Restraint Correctly
• ALWAYS use the top tether strap on this Child Restraint when installed FORWARD-FACING, if a tether
anchor is available. NEVER use the top tether strap on this child restraint when installed REAR-FACING.
• NEVER use Child Restraint in a vehicle seating position where it cannot be secured tightly. A loosely
installed Child Restraint will not protect your child in a crash.
• Never leave Child Restraint unsecured in your vehicle even when it is unoccupied. It could injure other
occupants in a sudden stop or crash.

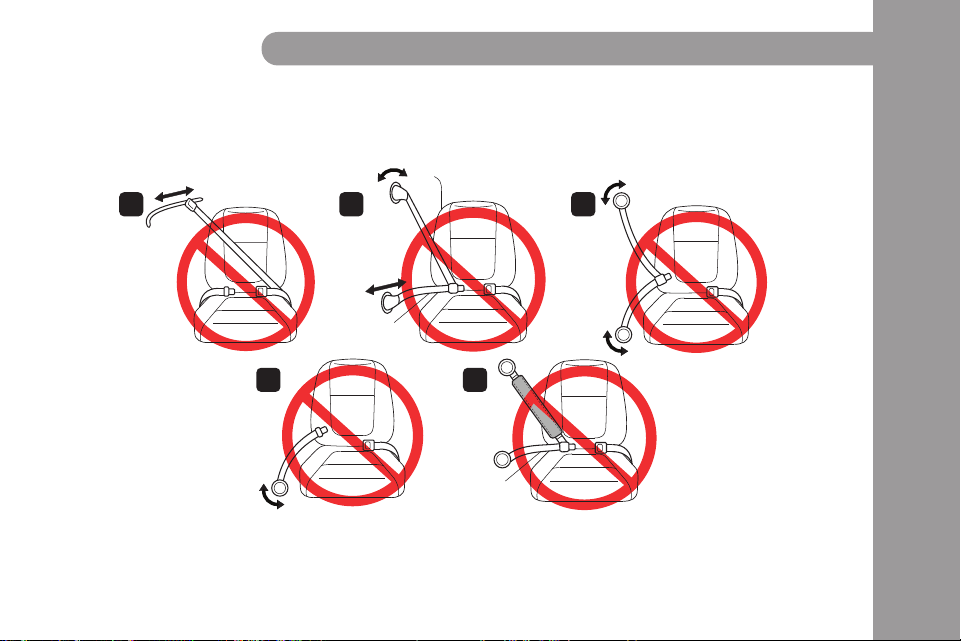

• DO NOT install this Child Restraint using an inflatable seat belt. The interaction of the inflatable portion of
the vehicle’s belt with this Child Restraint can result in serious injury or death. Install using LATCH instead,
or move the car seat to a position with a suitable seat belt type.
Ensure Child’s Safety When Using Child Restraint
• NEVER leave your child unattended in the vehicle.
• STRANGULATION HAZARD: Your child can strangle in a loose Restraint Harness. Never leave a child in
the Child Restraint with straps loose or undone.
• To prevent ejection or breathing difficulties, proper recline is required. When installing the Child
Restraint, check the bubble level on the side of the Child Restraint.
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Install Child Restraint Correctly
• WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT IN
VEHICLE SEATING LOCATION WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED
OFF. If the airbag inflates, it can cause serious injury or death to your child. For vehicles with side air bags,
refer to your vehicle owner’s manual for information on your Child Restraint installation.
• ALWAYS install this Child Restraint in a back seat if possible.
• NEVER install on a rear-facing or side-facing vehicle seat, or on the back of a folded down vehicle seat.
• ALWAYS secure this Child Restraint with the vehicle’s Child Restraint anchorage system (LATCH) if available
OR the vehicle seat belt. Refer to Page 5 for proper use/child weight limits when installing with LATCH.
• DO NOT use the lower anchors of the Child Restraint anchorage system (LATCH system) to attach this
Child Restraint REAR-FACING when restraining a child weighing more than 35 lbs (15.9 kg) or
FORWARD-FACING when restraining a child weighing more than 40 lbs (18 kg).
According to accident statistics, children are safer when properly restrained in the rear seating
positions rather than in the front seat.
10
11
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Install Child Restraint Correctly
• ALWAYS use the top tether strap on this Child Restraint when installed FORWARD-FACING, if a tether
anchor is available. NEVER use the top tether strap on this child restraint when installed REAR-FACING.
• NEVER use Child Restraint in a vehicle seating position where it cannot be secured tightly. A loosely
installed Child Restraint will not protect your child in a crash.
• Never leave Child Restraint unsecured in your vehicle even when it is unoccupied. It could injure other
occupants in a sudden stop or crash.
• DO NOT install this Child Restraint using an inflatable seat belt. The interaction of the inflatable portion of
the vehicle’s belt with this Child Restraint can result in serious injury or death. Install using LATCH instead,
or move the car seat to a position with a suitable seat belt type.
Ensure Child’s Safety When Using Child Restraint
• NEVER leave your child unattended in the vehicle.
• STRANGULATION HAZARD: Your child can strangle in a loose Restraint Harness. Never leave a child in
the Child Restraint with straps loose or undone.
• To prevent ejection or breathing difficulties, proper recline is required. When installing the Child
Restraint, check the bubble level on the side of the Child Restraint.
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Install Child Restraint Correctly
• WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT IN
VEHICLE SEATING LOCATION WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED
OFF. If the airbag inflates, it can cause serious injury or death to your child. For vehicles with side air bags,
refer to your vehicle owner’s manual for information on your Child Restraint installation.
• ALWAYS install this Child Restraint in a back seat if possible.
• NEVER install on a rear-facing or side-facing vehicle seat, or on the back of a folded down vehicle seat.
• ALWAYS secure this Child Restraint with the vehicle’s Child Restraint anchorage system (LATCH) if available
OR the vehicle seat belt. Refer to Page 5 for proper use/child weight limits when installing with LATCH.
• DO NOT use the lower anchors of the Child Restraint anchorage system (LATCH system) to attach this
Child Restraint REAR-FACING when restraining a child weighing more than 35 lbs (15.9 kg) or
FORWARD-FACING when restraining a child weighing more than 40 lbs (18 kg).
According to accident statistics, children are safer when properly restrained in the rear seating
positions rather than in the front seat.
12
13
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Check Condition of Restraint
• DO NOT use if the Harness or LATCH straps are cut, frayed or damaged.
• DO NOT use this Child Restraint if it is more than 8 years old. Check manufacturer’s label on underside
of Child Restraint for the “Do Not Use After” date.
• DO NOT use any accessories, pads or products not included with this Child Restraint, unless
approved by Chicco USA. Doing so will void the warranty of this Child Restraint.
• You MUST replace this Child Restraint if it has been involved in a crash, even if you cannot see visible
damage. A damaged Child Restraint may not protect your child in a future crash.
• Do not modify your Child Restraint.

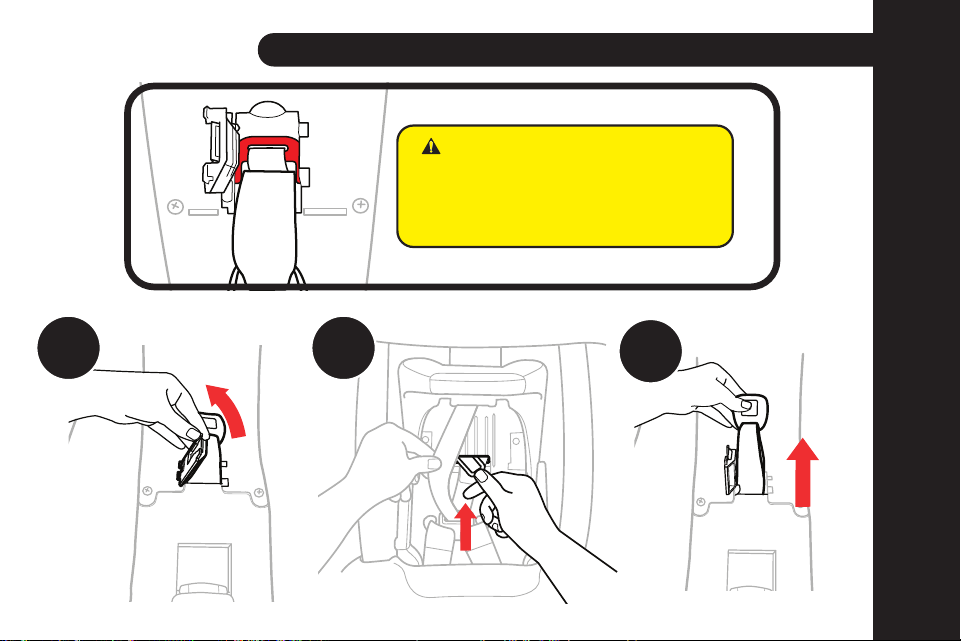

• NEVER remove harness from Child Restraint without the proper removal and installation instructions
available from Chicco USA. Contact us by visiting the Chicco website at www.chiccousa.com or
call 1-877-424-4226.
• Do not use Child Restraint if any component is damaged, broken, or missing parts.
Call 1-877-424-4226 to find out if the damaged part or parts can be replaced.
IMPORTANT WARNINGS
PAGE INTENTIONALLY LEFT BLANK
12
13
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Check Condition of Restraint
• DO NOT use if the Harness or LATCH straps are cut, frayed or damaged.
• DO NOT use this Child Restraint if it is more than 8 years old. Check manufacturer’s label on underside
of Child Restraint for the “Do Not Use After” date.
• DO NOT use any accessories, pads or products not included with this Child Restraint, unless
approved by Chicco USA. Doing so will void the warranty of this Child Restraint.
• You MUST replace this Child Restraint if it has been involved in a crash, even if you cannot see visible
damage. A damaged Child Restraint may not protect your child in a future crash.
• Do not modify your Child Restraint.
• NEVER remove harness from Child Restraint without the proper removal and installation instructions
available from Chicco USA. Contact us by visiting the Chicco website at www.chiccousa.com or
call 1-877-424-4226.
• Do not use Child Restraint if any component is damaged, broken, or missing parts.
Call 1-877-424-4226 to find out if the damaged part or parts can be replaced.
IMPORTANT WARNINGS
PAGE INTENTIONALLY LEFT BLANK
14
15
BEST PRACTICES
• Ensure all vehicle occupants are properly restrained before traveling. Unrestrained
occupants can be thrown around and may be seriously injured or seriously injure other
occupants in a sharp turn, sudden stop or crash.
• Do not leave loose objects, such as books, bags, etc., in the back of the vehicle. In the
event of a sharp turn, sudden stop, or crash, loose objects can be thrown around and
possibly cause serious injury to vehicle occupants.
• Cover the Child Restraint when the vehicle is parked in sunlight. Parts of a Child Restraint
can become very hot if left in the sun. Contact with these parts can burn a child’s skin.
Always check the surface of any metal or plastic parts before putting your child in the
Child Restraint.
• To avoid strangulation, Do not allow children to play with vehicle seat belts. If possible,
move unused belts out of reach.
• Do not use anything to raise the Child Restraint off the vehicle seat such as a noodle
or towel. In a sharp turn, sudden stop, or crash, the Child Restraint could slide and
potentially cause serious injury.
• Never use a second-hand Child Restraint with an unknown history.
• Never use any accessories that are not included with this Child Restraint, unless
specifically approved by Chicco. For more information, go to www.chiccousa.com.
NEED HELP?
Need Help Securing Your Child Restraint?
The following sources are available to help ensure your Child Restraint is
properly installed:
• Contact Chicco, USA by visiting our website at www.chiccousa.com or
calling our Customer Service 1-877-424-4226. Please have Model and
Serial Number available when you call. These are located on a label on
the bottom of the Child Restraint.
• Refer to your vehicle manual for Child Restraint installation tips.
• Contact a certified Child Passenger Safety Technician in your area by
visiting safercar.gov and select “Find Local Child Seat Help” or call
1-866-SEAT CHECK (1-866-732-8243).
14
15
BEST PRACTICES
• Ensure all vehicle occupants are properly restrained before traveling. Unrestrained
occupants can be thrown around and may be seriously injured or seriously injure other
occupants in a sharp turn, sudden stop or crash.
• Do not leave loose objects, such as books, bags, etc., in the back of the vehicle. In the
event of a sharp turn, sudden stop, or crash, loose objects can be thrown around and
possibly cause serious injury to vehicle occupants.
• Cover the Child Restraint when the vehicle is parked in sunlight. Parts of a Child Restraint
can become very hot if left in the sun. Contact with these parts can burn a child’s skin.
Always check the surface of any metal or plastic parts before putting your child in the
Child Restraint.
• To avoid strangulation, Do not allow children to play with vehicle seat belts. If possible,
move unused belts out of reach.
• Do not use anything to raise the Child Restraint off the vehicle seat such as a noodle
or towel. In a sharp turn, sudden stop, or crash, the Child Restraint could slide and
potentially cause serious injury.
• Never use a second-hand Child Restraint with an unknown history.
• Never use any accessories that are not included with this Child Restraint, unless
specifically approved by Chicco. For more information, go to www.chiccousa.com.
NEED HELP?
Need Help Securing Your Child Restraint?
The following sources are available to help ensure your Child Restraint is
properly installed:
• Contact Chicco, USA by visiting our website at www.chiccousa.com or
calling our Customer Service 1-877-424-4226. Please have Model and
Serial Number available when you call. These are located on a label on
the bottom of the Child Restraint.
• Refer to your vehicle manual for Child Restraint installation tips.
• Contact a certified Child Passenger Safety Technician in your area by
visiting safercar.gov and select “Find Local Child Seat Help” or call
1-866-SEAT CHECK (1-866-732-8243).
16
17
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT COMPONENTS CHILD RESTRAINT COMPONENTS
SuperCinch®
LATCH Tightener
(PULL 2
nd)
Tether
Storage
Instruction Manual
Storage
Tether
Strap
Forward-Facing
Lock-Off
LATCH
Adjuster
(PULL 1
st
)
Forward-Facing
Lock-Off
LATCH
Connector
Storage
LATCH
Connector Storage
Harness
Buckle
Harness
Strap
Crotch
Strap Pad
Harness
Adjustment
Strap
Harness
Release Button
(under fabric)
Chest Clip
Rear-Facing
Lock-Off
(Each Side)

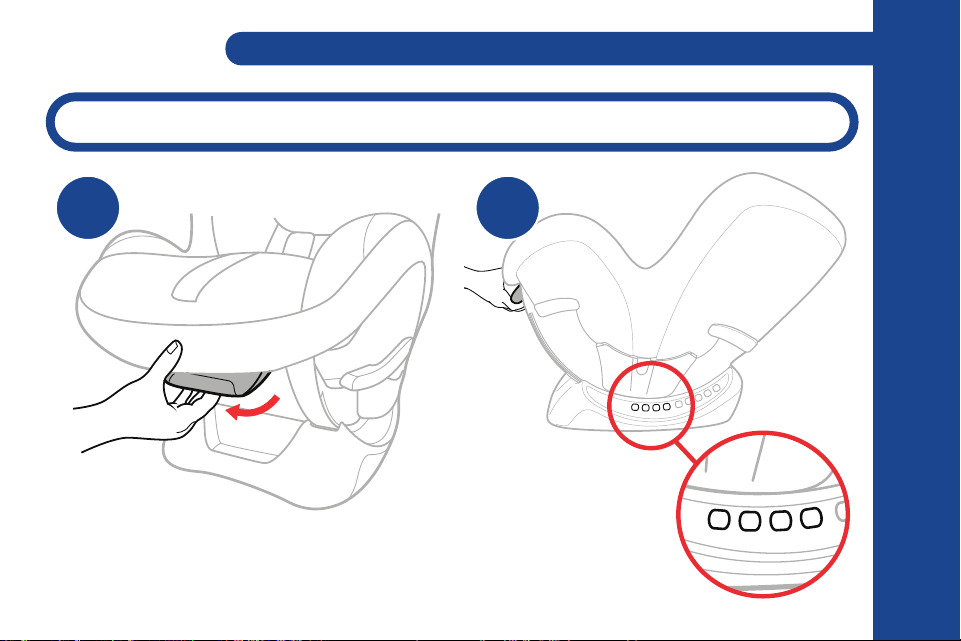

Recline
Adjustment
Handle
Adjustment Handle
(Head Rest)
Newborn Positioner
Shoulder
Pads
Recline Position
Indicator
Bubble Level
Indicator
(Each Side)
16
17
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT COMPONENTS CHILD RESTRAINT COMPONENTS
SuperCinch®
LATCH Tightener
(PULL 2
nd)
Tether
Storage
Instruction Manual
Storage
Tether
Strap
Forward-Facing
Lock-Off
LATCH
Adjuster
(PULL 1
st
)
Forward-Facing
Lock-Off
LATCH
Connector
Storage
LATCH
Connector Storage
Harness
Buckle
Harness
Strap
Crotch
Strap Pad
Harness
Adjustment
Strap
Harness
Release Button
(under fabric)
Chest Clip
Rear-Facing
Lock-Off
(Each Side)
Recline
Adjustment
Handle
Adjustment Handle
(Head Rest)
Newborn Positioner
Shoulder
Pads
Recline Position
Indicator
Bubble Level
Indicator
(Each Side)
18
19
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW

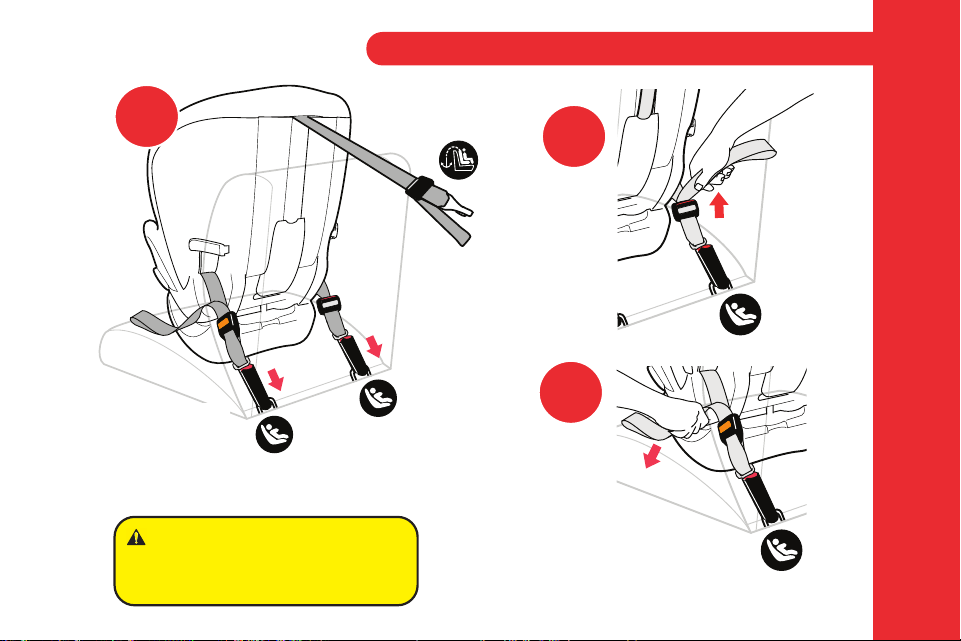

LATCH AND TETHER COMPONENTS
A
B
C
D
Tether Strap
Tether Strap Adjuster
Tether Hook
LATCH Adjuster (PULL 1
st
)
SuperCinch® LATCH Tightener (PULL 2
nd
)
LATCH Strap
LATCH Connectors
E
F
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
D
G
A
B
C
F
G
E
Tether
LATCH
G
TETHER:
LATCH:
F
LATCH AND TETHER COMPONENTS
18
19
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
LATCH AND TETHER COMPONENTS
A
B
C
D
Tether Strap
Tether Strap Adjuster
Tether Hook
LATCH Adjuster (PULL 1
st
)
SuperCinch® LATCH Tightener (PULL 2
nd
)
LATCH Strap
LATCH Connectors
E
F
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
D
G
A
B
C
F
G
E
Tether
LATCH
G
TETHER:
LATCH:
F
LATCH AND TETHER COMPONENTS
20
21
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
LATCH AND TETHER STORAGE LATCH AND TETHER STORAGE
2
1
2
3
4
5
6
7
8
9
1a
1
LATCH STORAGE:
1
Store each LATCH strap in the compartments located on either side of
the Child Restraint base when not in use. Make sure Lower
Anchor ConnectorStorage compartments are properly closed.
Fold SuperCinch® LATCH Tightener (Pull 2
nd
) strap as shown (1a).
Always make sure LATCH Components are properly
stored in the compartments when not in use.

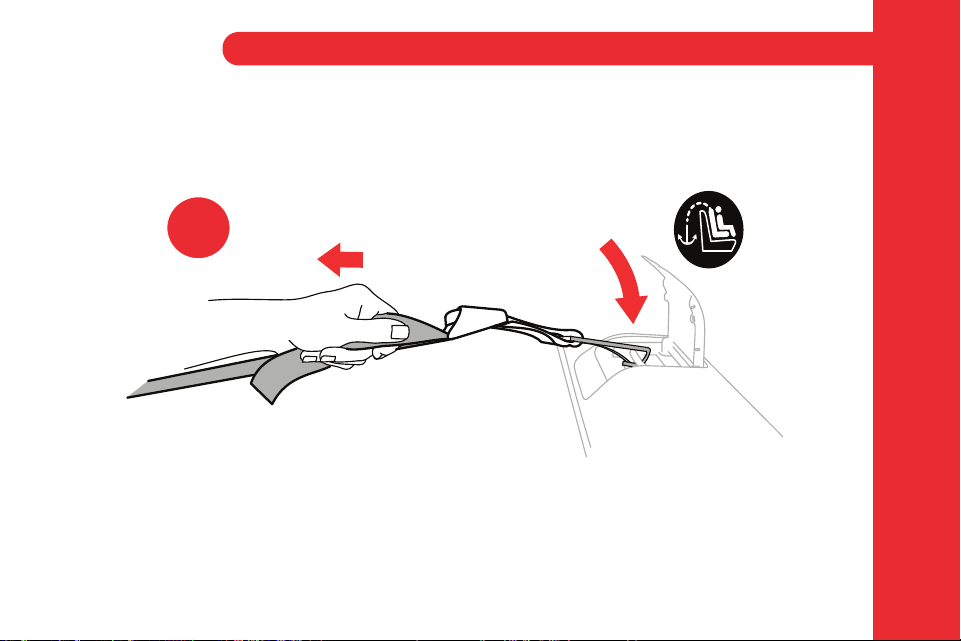

TETHER STORAGE:
Store Tether in the compartment in the back of Child Restraint when
not in use. Hook on bar and pull strap tight. Make sure
compartment door is properly closed.
2
20
21
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
LATCH AND TETHER STORAGE LATCH AND TETHER STORAGE
2
1
2
3
4
5
6
7
8
9
1a
1
LATCH STORAGE:
1
Store each LATCH strap in the compartments located on either side of
the Child Restraint base when not in use. Make sure Lower
Anchor ConnectorStorage compartments are properly closed.
Fold SuperCinch® LATCH Tightener (Pull 2
nd
) strap as shown (1a).
Always make sure LATCH Components are properly
stored in the compartments when not in use.
TETHER STORAGE:
Store Tether in the compartment in the back of Child Restraint when
not in use. Hook on bar and pull strap tight. Make sure
compartment door is properly closed.
2
22
23
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
SELECT REAR-FACING POSITION
WARNING! REAR-FACING use of this Child Restraint is ONLY for
children who meet ALL of the requirements shown here. If the child is
not within these requirements because the child is too large, review the
FORWARD-FACING guidelines on page 24.
REAR-FACING:
4 – 50 lbs (1.8 – 22.7 kg)
Use REAR-FACING with children:
• Who weigh between 4 and 50 lbs
(1.8 –22.7 kg).
• Who are no taller than 43” (109 cm).
• When Harness Straps can be positioned
at or below the child’s shoulders*.
See Harness Height
Adjustment on page 80.
SELECT REAR-FACING POSITION
*
REAR - FACING
NEWBORN INSERT
4 lbs. 11 lbs. 35 lbs. 50 lbs.
(1.8 kg) (5 kg) (15.9 kg) (22.7 kg)
NO LATCH
NEVER turn this Child Restraint FORWARD-FACING
with an infant less than one year of age.
22
23
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
SELECT REAR-FACING POSITION
WARNING! REAR-FACING use of this Child Restraint is ONLY for
children who meet ALL of the requirements shown here. If the child is
not within these requirements because the child is too large, review the
FORWARD-FACING guidelines on page 24.
REAR-FACING:
4 – 50 lbs (1.8 – 22.7 kg)
Use REAR-FACING with children:
• Who weigh between 4 and 50 lbs
(1.8 –22.7 kg).
• Who are no taller than 43” (109 cm).
• When Harness Straps can be positioned
at or below the child’s shoulders*.
See Harness Height
Adjustment on page 80.
SELECT REAR-FACING POSITION
*
REAR - FACING
NEWBORN INSERT
4 lbs. 11 lbs. 35 lbs. 50 lbs.
(1.8 kg) (5 kg) (15.9 kg) (22.7 kg)
NO LATCH
NEVER turn this Child Restraint FORWARD-FACING
with an infant less than one year of age.
24
25
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
WARNING! FORWARD-FACING use of this Child Restraint is ONLY for
children who meet ALL of the requirements shown here. If the child is not
within these requirements because they are too large, select a different child
seat. If the child is not within these requirements because the child is too
small, review the REAR-FACING guidelines on page 22.
SELECT FORWARD-FACING POSITION SELECT FORWARD-FACING POSITION
FORWARD-FACING:
22 – 65 lbs (10 – 29.5 kg)
Use FORWARD-FACING with children:
• Who are at least one year old.
• Who weigh between 22 and 65 lbs
(10 –29.5 kg).
• Who are no taller than 49” (125 cm) OR when the
top of the ears are below the top of the Head Rest.
• When Harness Straps can be positioned at or
above the child’s shoulders*.
See Harness Height
Adjustment on page 80.
FORWARD - FACING
NO LATCH
22 lbs. 40 lbs. 65 lbs.
(10 kg) (18 kg) (29.5 kg)
*
NEVER turn this Child Restraint FORWARD-FACING
with an infant less than one year of age.
24
25
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
WARNING! FORWARD-FACING use of this Child Restraint is ONLY for
children who meet ALL of the requirements shown here. If the child is not
within these requirements because they are too large, select a different child
seat. If the child is not within these requirements because the child is too
small, review the REAR-FACING guidelines on page 22.
SELECT FORWARD-FACING POSITION SELECT FORWARD-FACING POSITION
FORWARD-FACING:
22 – 65 lbs (10 – 29.5 kg)
Use FORWARD-FACING with children:
• Who are at least one year old.
• Who weigh between 22 and 65 lbs
(10 –29.5 kg).
• Who are no taller than 49” (125 cm) OR when the
top of the ears are below the top of the Head Rest.
• When Harness Straps can be positioned at or
above the child’s shoulders*.
See Harness Height
Adjustment on page 80.
FORWARD - FACING
NO LATCH
22 lbs. 40 lbs. 65 lbs.
(10 kg) (18 kg) (29.5 kg)
*
NEVER turn this Child Restraint FORWARD-FACING
with an infant less than one year of age.
26
27
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW

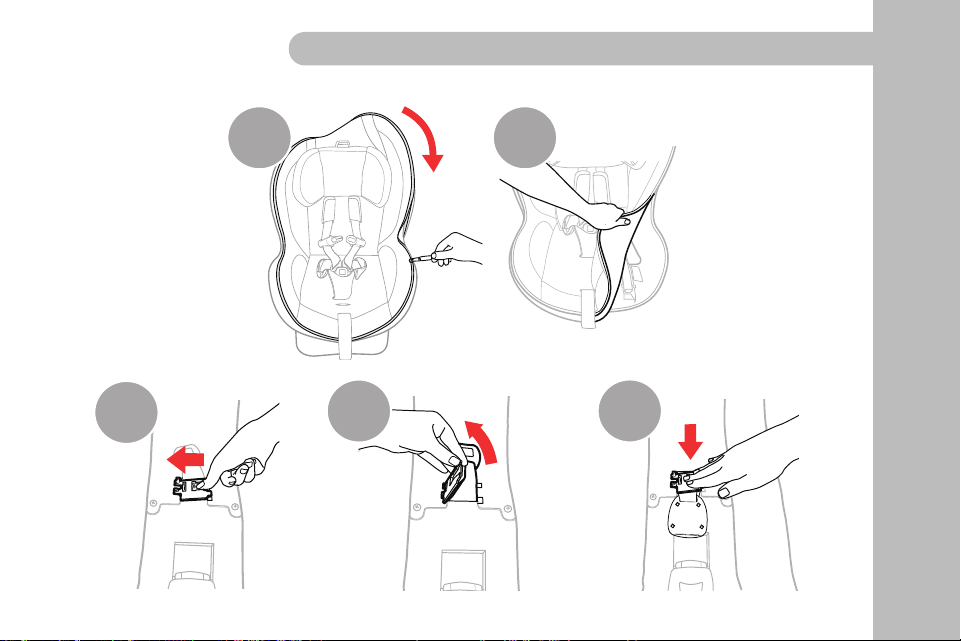

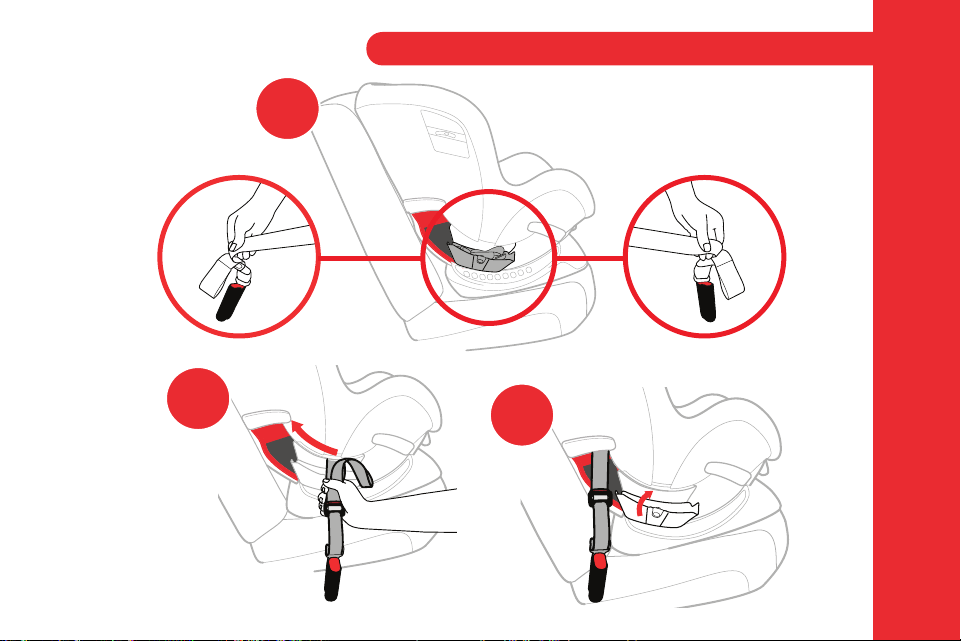

ADJUSTING CROTCH STRAP ADJUSTING CROTCH STRAP
2a
2b
3
Unbuckle Harness Straps. Remove Crotch Strap Pad (Refer to page 94).
Unzip the seat padding halfway (a).
Pull seat pad to the side to access
the Crotch Strap compartment (b).
Slide the orange button on the Crotch Strap lock while pulling up on the
Crotch Strap to open the compartment (a, b). Then pull the Crotch Strap
forward or backward into desired position.
Close the compartment by pushing down on the door until it locks back
into place. Check to make sure compartment is locked by pulling up on
the Crotch Strap. Re-attach the seat pad.
3
1a 1b
2
1
Adjust Crotch Strap if strap is underneath child.
26
27
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
ADJUSTING CROTCH STRAP ADJUSTING CROTCH STRAP
2a
2b
3
Unbuckle Harness Straps. Remove Crotch Strap Pad (Refer to page 94).
Unzip the seat padding halfway (a).
Pull seat pad to the side to access
the Crotch Strap compartment (b).
Slide the orange button on the Crotch Strap lock while pulling up on the
Crotch Strap to open the compartment (a, b). Then pull the Crotch Strap
forward or backward into desired position.
Close the compartment by pushing down on the door until it locks back
into place. Check to make sure compartment is locked by pulling up on
the Crotch Strap. Re-attach the seat pad.
3
1a 1b
2
1
Adjust Crotch Strap if strap is underneath child.
28
29
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
NEWBORN POSITIONER NEWBORN POSITIONER
1
2
3a 3b
To ensure a better fit for smaller infants the Newborn Positioner may be needed.
Do NOT use any other infant insert or pillows. Only use the one provided by
Chicco for this Child Restraint.
Pull Harness Buckle through slot in the bottom of Newborn Positioner.
Pull both Harness Straps over the side panels of Newborn Positioner.
Push Newborn Positioner firmly into Child Restraint(a) to make sure it is
properly positioned (b).
1
2
3
WARNING
- ONLY use the newborn positioner if the child
weighs between 4 and 11 lbs (1.8 and 5 kg).
Remove Crotch Strap Pad before installing Newborn Positioner. Refer to page 94.
28
29
CHILD RESTRAINT OVERVIEW
CHILD RESTRAINT OVERVIEW
NEWBORN POSITIONER NEWBORN POSITIONER
1
2
3a 3b
To ensure a better fit for smaller infants the Newborn Positioner may be needed.
Do NOT use any other infant insert or pillows. Only use the one provided by
Chicco for this Child Restraint.
Pull Harness Buckle through slot in the bottom of Newborn Positioner.
Pull both Harness Straps over the side panels of Newborn Positioner.
Push Newborn Positioner firmly into Child Restraint(a) to make sure it is
properly positioned (b).
1
2
3
WARNING
- ONLY use the newborn positioner if the child
weighs between 4 and 11 lbs (1.8 and 5 kg).
Remove Crotch Strap Pad before installing Newborn Positioner. Refer to page 94.
31
VEHICLE INFORMATION
30
VEHICLE INFORMATION
VEHICLE SEATING POSITIONS VEHICLE SEATING POSITIONS
Some vehicles have no seating positions which are compatible with this Child
Restraint. If in doubt, contact the vehicle manufacturer for assistance. Only
forward-facing vehicle seats can be used with this Child Restraint.
The back seat is the safest place for children 12 and under. See your
vehicle owner’s manual for Child Restraint installation and instructions.
Make sure no more than 3 inches
(76 mm) of the Child Restraint base
is past the edge of the vehicle seat.
Do not use on a folded down
vehicle seat back.
WARNING! WHEN USING THIS CHILD RESTRAINT
REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT
IN A VEHICLE SEATING LOCATION WITH A FRONTAL AIR
BAG, UNLESS THE AIR BAG CAN BE TURNED OFF.
31
VEHICLE INFORMATION
30
VEHICLE INFORMATION
VEHICLE SEATING POSITIONS VEHICLE SEATING POSITIONS
Some vehicles have no seating positions which are compatible with this Child
Restraint. If in doubt, contact the vehicle manufacturer for assistance. Only
forward-facing vehicle seats can be used with this Child Restraint.
The back seat is the safest place for children 12 and under. See your
vehicle owner’s manual for Child Restraint installation and instructions.
Make sure no more than 3 inches
(76 mm) of the Child Restraint base
is past the edge of the vehicle seat.
Do not use on a folded down
vehicle seat back.
WARNING! WHEN USING THIS CHILD RESTRAINT
REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT
IN A VEHICLE SEATING LOCATION WITH A FRONTAL AIR
BAG, UNLESS THE AIR BAG CAN BE TURNED OFF.
33
VEHICLE INFORMATION
32
VEHICLE INFORMATION
For simplest installation use LATCH - Refer to page 34 for details.
Vehicle seat belts differ from vehicle to vehicle. Refer to your vehicle owner’s
manual for specific information about seat belts and their use with Child Restraints.

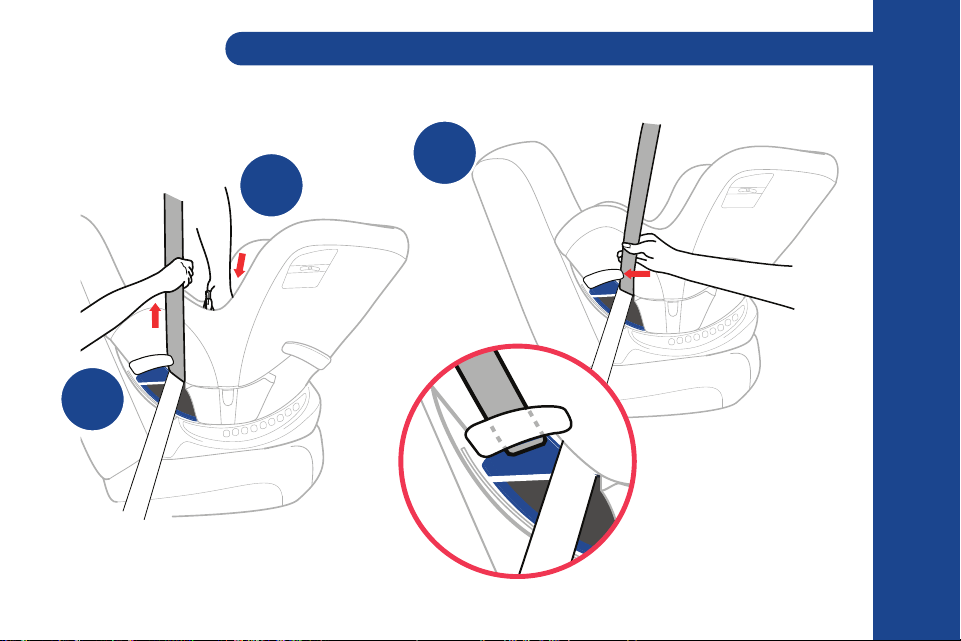

Shoulder belt with switchable retractor:
Putting the shoulder belt in the locked/switched mode as the last step is
optional. The shoulder belt Lock-Off replaces the need for the locked/switched
mode. When the Child Restraint is rear-facing using the locked/switched mode may
cause Child Restraint to tilt.
VEHICLE SEAT BELTS
The information in this section applies to installation with vehicle seat belts only.
VEHICLE SEAT BELTS
The following types of vehicle belts MUST NOT be used to install this Child Restraint.
If any of the belt types listed below are in the chosen seating position, choose another
vehicle seating position or use LATCH if available.
1 2 3
4
1.
Motorized (automatic) vehicle belts.
2.
Door mounted vehicle belts.
4.
Non-Locking (ELR) Lap Belts.
3.
Lap-shoulder Belts with 2 retractors (unless Lap Belt has a “Lock Mode”).
5
5.
Inflatable seat belts.
33
VEHICLE INFORMATION
32
VEHICLE INFORMATION
For simplest installation use LATCH - Refer to page 34 for details.
Vehicle seat belts differ from vehicle to vehicle. Refer to your vehicle owner’s
manual for specific information about seat belts and their use with Child Restraints.
Shoulder belt with switchable retractor:
Putting the shoulder belt in the locked/switched mode as the last step is
optional. The shoulder belt Lock-Off replaces the need for the locked/switched
mode. When the Child Restraint is rear-facing using the locked/switched mode may
cause Child Restraint to tilt.
VEHICLE SEAT BELTS
The information in this section applies to installation with vehicle seat belts only.
VEHICLE SEAT BELTS
The following types of vehicle belts MUST NOT be used to install this Child Restraint.
If any of the belt types listed below are in the chosen seating position, choose another
vehicle seating position or use LATCH if available.
1 2 3
4
1.
Motorized (automatic) vehicle belts.
2.
Door mounted vehicle belts.
4.
Non-Locking (ELR) Lap Belts.
3.
Lap-shoulder Belts with 2 retractors (unless Lap Belt has a “Lock Mode”).
5
5.
Inflatable seat belts.
35
VEHICLE INFORMATION
34
VEHICLE INFORMATION
WHAT IS LATCH? WHAT IS LATCH?
LATCH = Lower Anchors and Tethers for CHildren
United States Motor Vehicle Safety Standards have defined a system for installing
Child Restraints in vehicles called LATCH. LATCH may ONLY be used IN PLACE
OF vehicle belt if the vehicle is equipped with LATCH anchor points. DO NOT
use both the seat belt and LATCH at the same time. Please refer to the vehicle
owner’s manual for designated LATCH locations in vehicles.

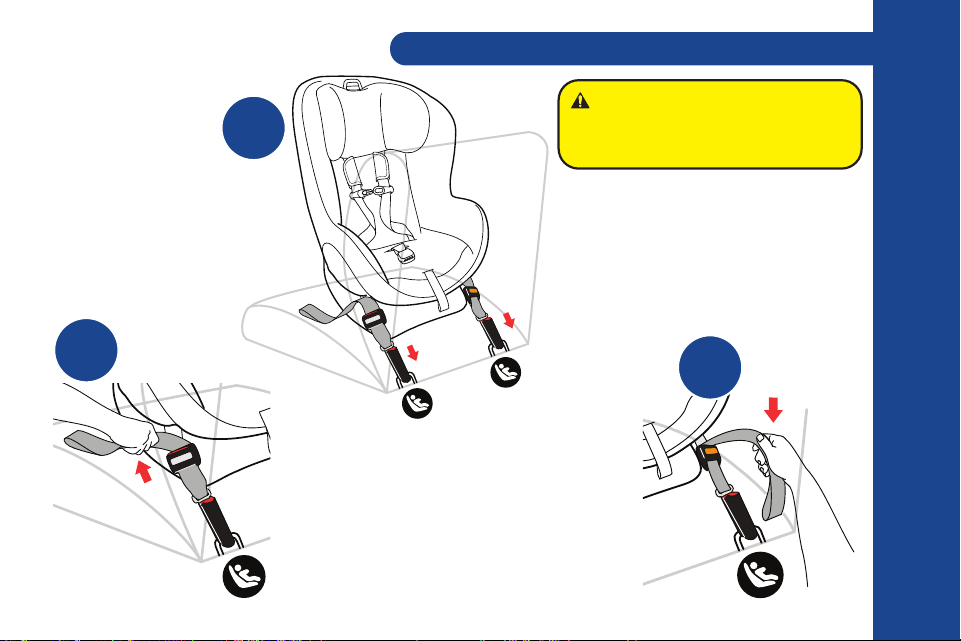

LATCH in the vehicle consists of a top tether anchor point and two lower anchor
points. Some vehicles owner’s manual use the term “ISOFIX”. LATCH can also be
used in vehicle seating positions equipped with ISOFIX.
If the vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at
the seat crease. If not visible, the seating position may be marked with a symbol (fig. a) or
a colored dot. Check the vehicle owner’s manual for vehicle top tether anchor locations.
They may be identified using one of the anchor symbols (fig. b or fig. c).
WARNING: This Child Restraint is designed to be used with
lower anchors at the standard spacing (11 inches (28 cm)) ONLY!
Refer to vehicle owner’s manual for information about LATCH and
Child Restraint installation positions.
Vehicle
Top Tether Anchor
Points
Vehicle
Lower Anchor
Points
Vehicle
Seat Crease
(Fig. a) (Fig. b) (Fig. c)
35
VEHICLE INFORMATION
34
VEHICLE INFORMATION
WHAT IS LATCH? WHAT IS LATCH?
LATCH = Lower Anchors and Tethers for CHildren
United States Motor Vehicle Safety Standards have defined a system for installing
Child Restraints in vehicles called LATCH. LATCH may ONLY be used IN PLACE
OF vehicle belt if the vehicle is equipped with LATCH anchor points. DO NOT
use both the seat belt and LATCH at the same time. Please refer to the vehicle
owner’s manual for designated LATCH locations in vehicles.
LATCH in the vehicle consists of a top tether anchor point and two lower anchor
points. Some vehicles owner’s manual use the term “ISOFIX”. LATCH can also be
used in vehicle seating positions equipped with ISOFIX.
If the vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at
the seat crease. If not visible, the seating position may be marked with a symbol (fig. a) or
a colored dot. Check the vehicle owner’s manual for vehicle top tether anchor locations.
They may be identified using one of the anchor symbols (fig. b or fig. c).
WARNING: This Child Restraint is designed to be used with
lower anchors at the standard spacing (11 inches (28 cm)) ONLY!
Refer to vehicle owner’s manual for information about LATCH and
Child Restraint installation positions.
Vehicle
Top Tether Anchor
Points
Vehicle
Lower Anchor
Points
Vehicle
Seat Crease
(Fig. a) (Fig. b) (Fig. c)
37
VEHICLE INFORMATION
36
VEHICLE INFORMATION
Rear Shelf
Back Wall
Back of Seat
Vehicle Floor
Vehicle Roof
WHAT IS A TETHER? WHAT IS A TETHER?

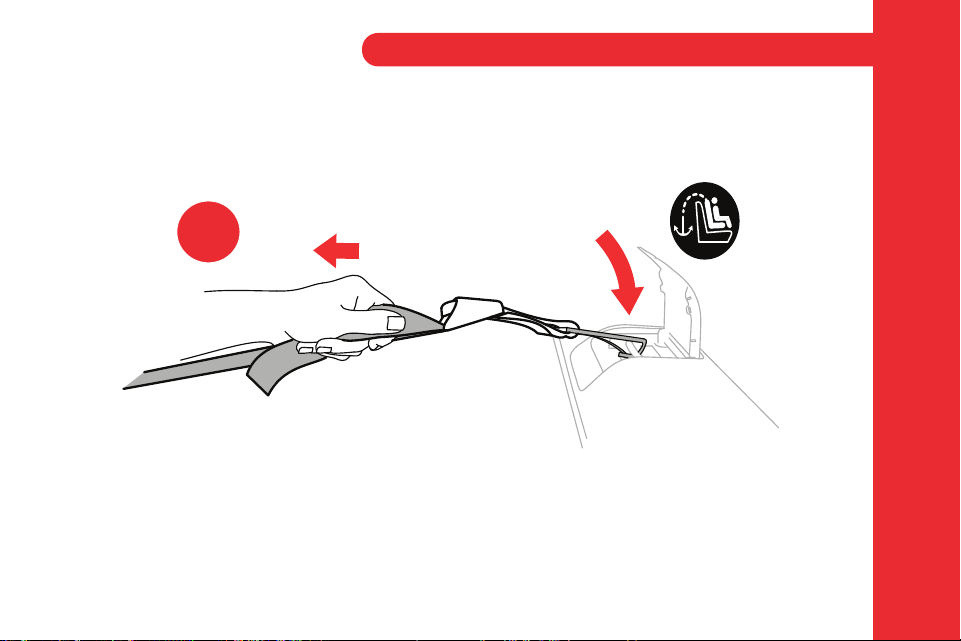

The tether is a strap on your child restraint that connects to
a tether anchor in your vehicle. Tether anchor locations vary
from vehicle to vehicle. Check your vehicle owner’s manual
and look for the tether anchor symbol as shown. A tether
reduces movement of a forward-facing Child Restraint in a
crash and helps to achieve a tight installation.
Vehicle tether anchors can be found in many different locations. Some of
the typical locations are shown on the next page. Refer to your vehicle
owner’s manual for exact locations, anchor identification, and requirements.
37
VEHICLE INFORMATION
36
VEHICLE INFORMATION
Rear Shelf
Back Wall
Back of Seat
Vehicle Floor
Vehicle Roof
WHAT IS A TETHER? WHAT IS A TETHER?
The tether is a strap on your child restraint that connects to
a tether anchor in your vehicle. Tether anchor locations vary
from vehicle to vehicle. Check your vehicle owner’s manual
and look for the tether anchor symbol as shown. A tether
reduces movement of a forward-facing Child Restraint in a
crash and helps to achieve a tight installation.
Vehicle tether anchors can be found in many different locations. Some of
the typical locations are shown on the next page. Refer to your vehicle
owner’s manual for exact locations, anchor identification, and requirements.
38
39
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
REAR-FACING SETUP REAR-FACING SETUP
See page 30 for “Vehicle Seating Positions” before installing. Make sure the
vehicle is on a level surface, if possible.
Squeeze the Recline Adjustment Handle on front of Child Restraint and pull
forward to adjust to a reclined position as shown (a).
If a change in recline position is necessary after child restraint is installed,
loosen the current method of installation and adjust the recline. Repeat
installation steps and refer to pages 40-55 to ensure child restraint is
installed correctly.
2
1
2
1
5
2
3
4
6
7
8
9
2a
Infants may have difficulty breathing when in a sitting
position. Make sure the seat is reclined properly so that
your child’s head does not fall forward. Failure to properly
recline the Child Restraint could increase the child’s risk
of serious injury or death.
Do not use Tether in REAR-FACING mode. Tether must be properly stored - See “ Tether Storage” page 20.
LEVEL
SLO PE
1
5
2
3
4
6
7
8
9
38
39
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
REAR-FACING SETUP REAR-FACING SETUP
See page 30 for “Vehicle Seating Positions” before installing. Make sure the
vehicle is on a level surface, if possible.
Squeeze the Recline Adjustment Handle on front of Child Restraint and pull
forward to adjust to a reclined position as shown (a).
If a change in recline position is necessary after child restraint is installed,
loosen the current method of installation and adjust the recline. Repeat
installation steps and refer to pages 40-55 to ensure child restraint is
installed correctly.
2
1
2
1
5
2
3
4
6
7
8
9
2a
Infants may have difficulty breathing when in a sitting
position. Make sure the seat is reclined properly so that
your child’s head does not fall forward. Failure to properly
recline the Child Restraint could increase the child’s risk
of serious injury or death.
Do not use Tether in REAR-FACING mode. Tether must be properly stored - See “ Tether Storage” page 20.
LEVEL
SLO PE
1
5
2
3
4
6
7
8
9
40
41
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
Place Child Restraint rear-facing on selected vehicle seat. Make sure it
is not blocking the vehicle belt buckle. Do not exceed the rear-facing
maximum overhang of 3 inches over the front edge of the vehicle seat.
4
3
REAR-FACING SETUP REAR-FACING SETUP
1
2
3
4
5
6
7
8
9
3
4
• LATCH installation continued on page 42.
• Lap-Shoulder Belt installation continued on page 48.
• Lap Belt Only installation continued on page 52.
Installation Options:
1
2
3
4
5
6
7
8
9
Installation on a Level Surface: Locate the Bubble Level Indicator
label and re-adjust the seat recline to any position that the Bubble
falls between the lines for REAR-FACING installation.
Installation on a Slope: Locate the level line on the blue label
near the rear-facing belt path. Adjust the seat recline so that the
level line is level with the ground.
L E V E L
SLO PE
L E V E L
SLO PE
1
2
3
4
5
6
7
8
9
L E V E L
SLOPE
4
L E V E L
SLOPE
3
1
2
3
4
5
6
7
8
9
DO N0T EXCEED
REAR-FACING
Maximum Overhang
40
41
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
Place Child Restraint rear-facing on selected vehicle seat. Make sure it
is not blocking the vehicle belt buckle. Do not exceed the rear-facing
maximum overhang of 3 inches over the front edge of the vehicle seat.
4
3
REAR-FACING SETUP REAR-FACING SETUP
1
2
3
4
5
6
7
8
9
3
4
• LATCH installation continued on page 42.
• Lap-Shoulder Belt installation continued on page 48.
• Lap Belt Only installation continued on page 52.
Installation Options:
1
2
3
4
5
6
7
8
9
Installation on a Level Surface: Locate the Bubble Level Indicator
label and re-adjust the seat recline to any position that the Bubble
falls between the lines for REAR-FACING installation.
Installation on a Slope: Locate the level line on the blue label
near the rear-facing belt path. Adjust the seat recline so that the
level line is level with the ground.
L E V E L
SLO PE
L E V E L
SLO PE
1
2
3
4
5
6
7
8
9
L E V E L
SLOPE
4
L E V E L
SLOPE
3
1
2
3
4
5
6
7
8
9
DO N0T EXCEED
REAR-FACING
Maximum Overhang
42
43
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION

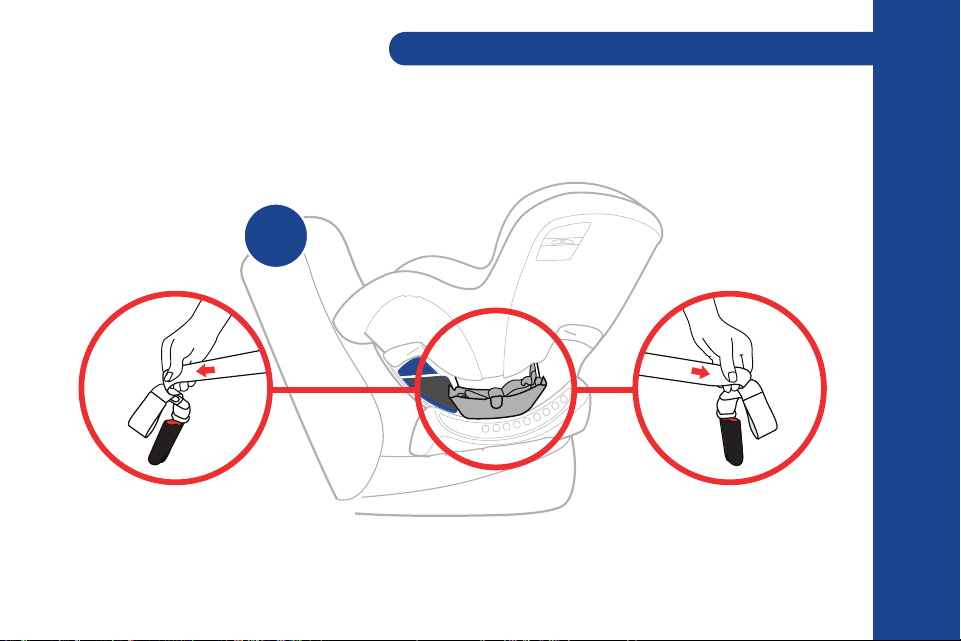

INSTALL USING LATCH
1
2
3
4
5
6
7
8
9
PULL
1
PULL
2
1
Make sure
SuperCinch® LATCH
Tightener strap (Pull
2
nd
) is loosened to
the full length.
Make sure LATCH
Adjuster strap (Pull
1
st
) is loosened to
the full length.
INSTALL USING LATCH
Locate the LATCH Connector Storage compartments. Remove LATCH
straps. Make sure LATCH Adjuster strap (Pull 1
st
) and SuperCinch®
LATCH Tightener strap (Pull 2
nd
) are loosened to their full length.
1
Do not use the lower anchors of the Child Restraint anchorage system
(LATCH system) to attach this Child Restraint when restraining a child weighing
more than 35 lbs (15.9 kg) with the internal harness of the Child Restraint.
When installing with LATCH in vehicle equipped with inflatable seat
belts, the unused seat belt should NOT be buckled behind the Child
Restraint System as this will engage the inflatable portion of the belt.
42
43
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
INSTALL USING LATCH
1
2
3
4
5
6
7
8
9
PULL
1
PULL
2
1
Make sure
SuperCinch® LATCH
Tightener strap (Pull
2
nd
) is loosened to
the full length.
Make sure LATCH
Adjuster strap (Pull
1
st
) is loosened to
the full length.
INSTALL USING LATCH
Locate the LATCH Connector Storage compartments. Remove LATCH
straps. Make sure LATCH Adjuster strap (Pull 1
st
) and SuperCinch®
LATCH Tightener strap (Pull 2
nd
) are loosened to their full length.
1
Do not use the lower anchors of the Child Restraint anchorage system
(LATCH system) to attach this Child Restraint when restraining a child weighing
more than 35 lbs (15.9 kg) with the internal harness of the Child Restraint.
When installing with LATCH in vehicle equipped with inflatable seat
belts, the unused seat belt should NOT be buckled behind the Child
Restraint System as this will engage the inflatable portion of the belt.
44
45
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION

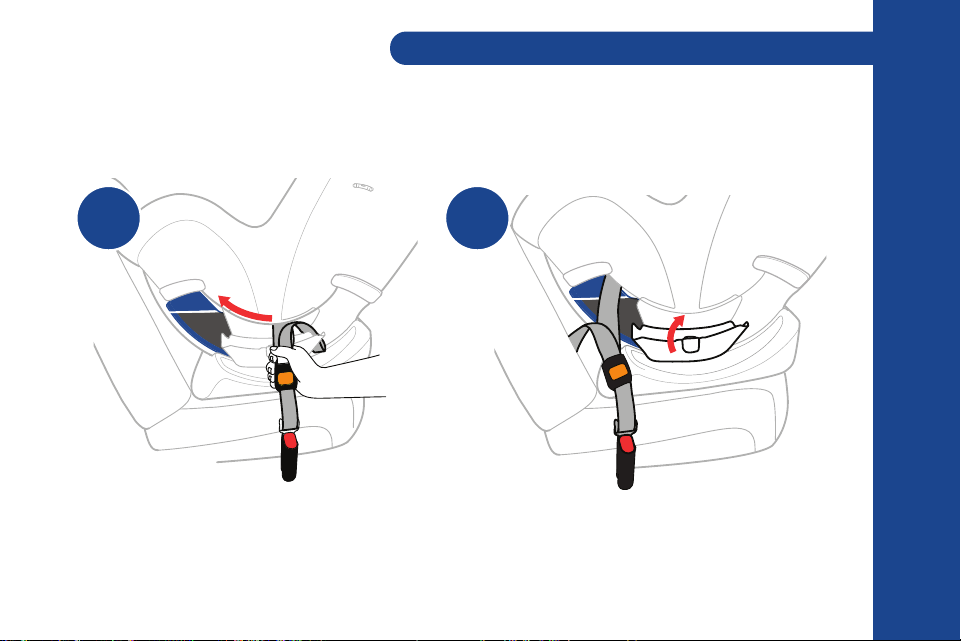

Grab both ends of LATCH straps. Slide LATCH strap to blue
REAR-FACING opening on both sides. Note: Both LATCH Connector
Storage compartments must be open and both LATCH straps must
be loosened to their full length in order to slide LATCH straps into
position.
Close both LATCH Connector Storage compartments.
2
3
When not accessing the LATCH or changing the belt path ALWAYS
keep LATCH Connector Storage compartments closed.
2 3
INSTALL USING LATCHINSTALL USING LATCH
44
45
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
Grab both ends of LATCH straps. Slide LATCH strap to blue
REAR-FACING opening on both sides. Note: Both LATCH Connector
Storage compartments must be open and both LATCH straps must
be loosened to their full length in order to slide LATCH straps into
position.
Close both LATCH Connector Storage compartments.
2
3
When not accessing the LATCH or changing the belt path ALWAYS
keep LATCH Connector Storage compartments closed.
2 3
INSTALL USING LATCHINSTALL USING LATCH
46
47
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
“CLICK”
“CLICK”
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
Locate the LATCH anchor bars in your vehicle. Attach both LATCH
Connectors to the vehicle LATCH bars.
Pull up on the end of the LATCH Adjuster strap (Pull 1
st
) until
strap is tight.
Pull on the SuperCinch® LATCH Tightener strap (Pull 2
nd
) to secure the
Child Restraint.
5
4
6
4
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Child Restraint should not move more than 1” (25 mm) from
vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the Latch Strap, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
PULL
1
5
PULL
1
PULL
2
6
Do not install by this
method for a child weighing
more than 35 lbs (15.9 kg).
INSTALL USING LATCHINSTALL USING LATCH
46
47
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
“CLICK”
“CLICK”
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
Locate the LATCH anchor bars in your vehicle. Attach both LATCH
Connectors to the vehicle LATCH bars.
Pull up on the end of the LATCH Adjuster strap (Pull 1
st
) until
strap is tight.
Pull on the SuperCinch® LATCH Tightener strap (Pull 2
nd
) to secure the
Child Restraint.
5
4
6
4
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Child Restraint should not move more than 1” (25 mm) from
vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the Latch Strap, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
PULL
1
5
PULL
1
PULL
2
6
Do not install by this
method for a child weighing
more than 35 lbs (15.9 kg).
INSTALL USING LATCHINSTALL USING LATCH
48
49
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9

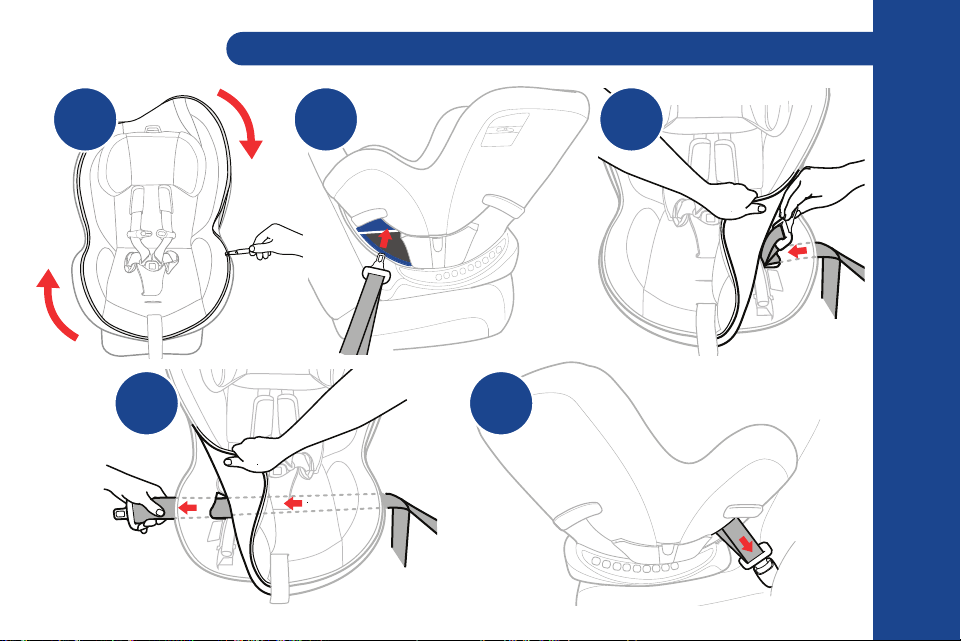

Unzip seat pad.
Route vehicle lap-shoulder belt through the blue REAR-FACING seat
belt path on the side of Child Restraint (a). Pull seat pad to the side
and route the vehicle lap-shoulder belt through the blue REAR-FACING
seat belt path on the side of Child Restraint (b).
Route the vehicle belt UNDER the seat pad (a). Vehicle belt must be
routed behind the Crotch Strap when the Crotch Strap is in the foward
postion (closest to the Harness Release Button) or in front of the Crotch
Strap when it is in the rear postion.
Pull vehicle belt down through the blue REAR-FACING seat belt path
on opposite side of Child Restraint. Buckle the vehicle belt (b). Then
re-attach the zippered seat pad.
1
INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT
2
3
1
1
5
2
3
4
6
7
8
9
2a 2b
3a 3b
48
49
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9
Unzip seat pad.
Route vehicle lap-shoulder belt through the blue REAR-FACING seat
belt path on the side of Child Restraint (a). Pull seat pad to the side
and route the vehicle lap-shoulder belt through the blue REAR-FACING
seat belt path on the side of Child Restraint (b).
Route the vehicle belt UNDER the seat pad (a). Vehicle belt must be
routed behind the Crotch Strap when the Crotch Strap is in the foward
postion (closest to the Harness Release Button) or in front of the Crotch
Strap when it is in the rear postion.
Pull vehicle belt down through the blue REAR-FACING seat belt path
on opposite side of Child Restraint. Buckle the vehicle belt (b). Then
re-attach the zippered seat pad.
1
INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT
2
3
1
1
5
2
3
4
6
7
8
9
2a 2b
3a 3b
50
51
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
While pushing down on the Child Restraint (a) pull the vehicle shoulder
belt (b) to tighten vehicle lap belt.
While still pulling the shoulder belt tight, slide the vehicle shoulder belt
into the Lock-Off. Always use the Lock-Off on the opposite side of the
vehicle belt buckle.
INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT
4
5
4a
4b
1
2
3
4
5
6
7
8
9
5
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Vehicle belt should remain tight and Child Restraint should
not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
50
51
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
While pushing down on the Child Restraint (a) pull the vehicle shoulder
belt (b) to tighten vehicle lap belt.
While still pulling the shoulder belt tight, slide the vehicle shoulder belt
into the Lock-Off. Always use the Lock-Off on the opposite side of the
vehicle belt buckle.
INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT
4
5
4a
4b
1
2
3
4
5
6
7
8
9
5
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Vehicle belt should remain tight and Child Restraint should
not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
52
53
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9
1 2a
1
5
2
3
4
6
7
8
9

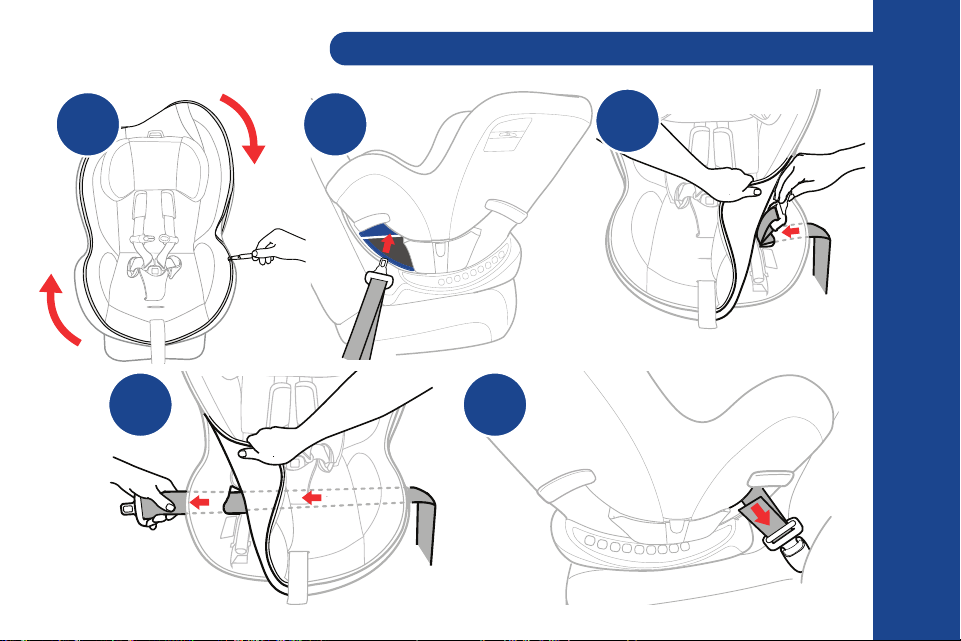

Unzip seat pad.
Route vehicle lap-shoulder belt through the blue REAR-FACING seat
belt path on the side of Child Restraint (a). Pull seat pad to the side
and route the vehicle lap-shoulder belt through the blue REAR-FACING
seat belt path on the side of Child Restraint (b).
Route the vehicle belt UNDER the seat pad (a). Vehicle belt must be
routed behind the Crotch Strap when the Crotch Strap is in the foward
postion (closest to the Harness Release Button) or in front of the Crotch
Strap when it is in the rear postion.
Pull vehicle belt down through the blue REAR-FACING seat belt path
on opposite side of Child Restraint. Buckle the vehicle belt (b). Then
re-attach the zippered seat pad.
1
INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY
2
3
2b
3a 3b
52
53
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
1
2
3
4
5
6
7
8
9
1 2a
1
5
2
3
4
6
7
8
9
Unzip seat pad.
Route vehicle lap-shoulder belt through the blue REAR-FACING seat
belt path on the side of Child Restraint (a). Pull seat pad to the side
and route the vehicle lap-shoulder belt through the blue REAR-FACING
seat belt path on the side of Child Restraint (b).
Route the vehicle belt UNDER the seat pad (a). Vehicle belt must be
routed behind the Crotch Strap when the Crotch Strap is in the foward
postion (closest to the Harness Release Button) or in front of the Crotch
Strap when it is in the rear postion.
Pull vehicle belt down through the blue REAR-FACING seat belt path
on opposite side of Child Restraint. Buckle the vehicle belt (b). Then
re-attach the zippered seat pad.
1
INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY
2
3
2b
3a 3b
54
55
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION

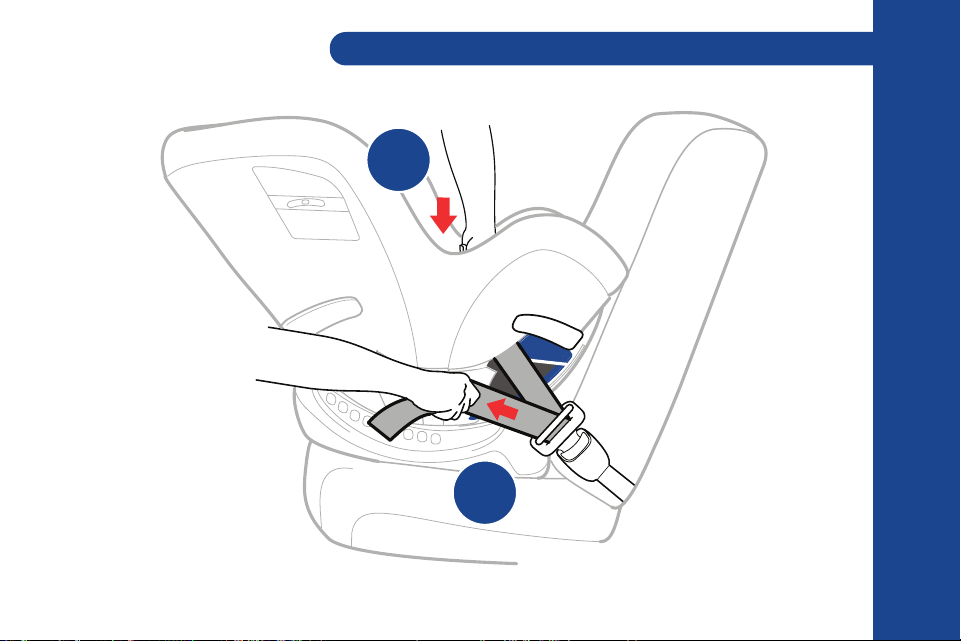

While pushing down on the Child Restraint (a) pull the loose end of
the vehicle lap belt (b) to tighten belt.
4
INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY
4b
4a
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Vehicle belt should remain tight and Child Restraint should
not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
54
55
REAR-FACING INSTALLATION
REAR-FACING INSTALLATION
While pushing down on the Child Restraint (a) pull the loose end of
the vehicle lap belt (b) to tighten belt.
4
INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY
4b
4a
CHECK YOUR WORK
Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side
to side and forward. Vehicle belt should remain tight and Child Restraint should
not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head
does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and
repeat installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
56
57
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION

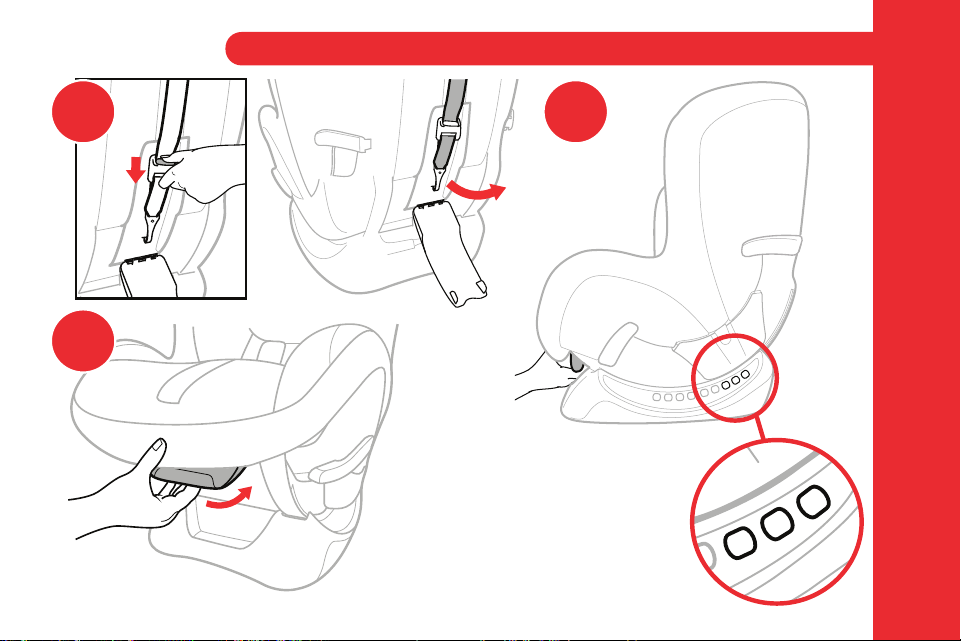

FORWARD-FACING SETUP
Before placing the Child Restraint in the vehicle, remove Tether from
the Tether Compartment. You may need to squeeze the Tether Button
and pull down to loosen the strap before removing. If a Tether Anchor
is not available, the Tether should be stored properly.
See page 30 for “Vehicle Seating Positions” before installing. Make sure
the vehicle is on a level surface, if possible.
Squeeze the Recline Adjustment Handle on front of Child Restraint and
push back to adjust to an upright position as shown (a).
If a change in recline position is necessary, after Child Restraint is
installed, loosen the current method of installation and adjust the
recline. Repeat installation steps and refer to pages 58-75 to ensure
Child Restraint is installed correctly.
LEVEL
SLO PE
2
1
FORWARD-FACING SETUP
3
1
5
2
3
4
6
7
8
9
3
1 3a
1
5
2
3
4
6
7
8
9
56
57
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
FORWARD-FACING SETUP
Before placing the Child Restraint in the vehicle, remove Tether from
the Tether Compartment. You may need to squeeze the Tether Button
and pull down to loosen the strap before removing. If a Tether Anchor
is not available, the Tether should be stored properly.
See page 30 for “Vehicle Seating Positions” before installing. Make sure
the vehicle is on a level surface, if possible.
Squeeze the Recline Adjustment Handle on front of Child Restraint and
push back to adjust to an upright position as shown (a).
If a change in recline position is necessary, after Child Restraint is
installed, loosen the current method of installation and adjust the
recline. Repeat installation steps and refer to pages 58-75 to ensure
Child Restraint is installed correctly.
LEVEL
SLO PE
2
1
FORWARD-FACING SETUP
3
1
5
2
3
4
6
7
8
9
3
1 3a
1
5
2
3
4
6
7
8
9
58
59
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
FORWARD-FACING SETUP
FORWARD-FACING SETUP
Place Child Restraint facing forward on selected vehicle seat. Make
sure it is not blocking the vehicle belt buckle. Lay Tether Strap over the
back of the vehicle seat.
5
4
• LATCH installation continued on page 60.
• Lap-Shoulder Belt installation continued on page 66.
• Lap Belt Only installation continued on page 72.
Installation Options:
4
5
9
8
L E V E L
SLOPE
L E V E L
SLOPE
5
Installation on a Level Surface: Locate the Bubble Level Indicator
label and re-adjust the seat recline to any position that the Bubble
falls between the lines for FORWARD-FACING installation.
Installation on a Slope: If vehicle is on a slope adjust the seat
recline to position 8 or 9 ONLY.
L E V E L
SLO PE
L E V E L
SLO PE
58
59
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
FORWARD-FACING SETUP
FORWARD-FACING SETUP
Place Child Restraint facing forward on selected vehicle seat. Make
sure it is not blocking the vehicle belt buckle. Lay Tether Strap over the
back of the vehicle seat.
5
4
• LATCH installation continued on page 60.
• Lap-Shoulder Belt installation continued on page 66.
• Lap Belt Only installation continued on page 72.
Installation Options:
4
5
9
8
L E V E L
SLOPE
L E V E L
SLOPE
5
Installation on a Level Surface: Locate the Bubble Level Indicator
label and re-adjust the seat recline to any position that the Bubble
falls between the lines for FORWARD-FACING installation.
Installation on a Slope: If vehicle is on a slope adjust the seat
recline to position 8 or 9 ONLY.
L E V E L
SLO PE
L E V E L
SLO PE
60
61
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LATCH
PULL
2
PULL
1
1
2
3
Make sure SuperCinch®
LATCH Tightener strap
(Pull 2
nd
) is loosened to
the full length.
Make sure LATCH
Adjuster strap (Pull 1
st
)
is loosened to the full
length.
INSTALL USING LATCH
Do not use the lower anchors of the Child Restraint anchorage system
(LATCH system) to attach this Child Restraint when restraining a child weighing
more than 40 lbs (18 kg) with the internal harness of the Child Restraint.
When installing with LATCH in vehicle equipped with inflatable seat
belts, the unused seat belt should NOT be buckled behind the Child
Restraint System as this will engage the inflatable portion of the belt.
Locate LATCH Connector Storage compartments. Remove LATCH straps.
Make sure SuperCinch® LATCH Tightener strap (Pull 2
nd
) and LATCH
Adjuster strap (Pull 1
st
) are loosened to their full length.
Grab both ends of LATCH straps. Slide LATCH strap to red
FORWARD-FACING opening on both sides. Note: Both LATCH Connector
Storage compartments must be open and both LATCH straps must be
loosened to their full length in order to slide LATCH straps into position.
Close both LATCH Connector Storage compartments.
2
1
3
60
61
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LATCH
PULL
2
PULL
1
1
2
3
Make sure SuperCinch®
LATCH Tightener strap
(Pull 2
nd
) is loosened to
the full length.
Make sure LATCH
Adjuster strap (Pull 1
st
)
is loosened to the full
length.
INSTALL USING LATCH
Do not use the lower anchors of the Child Restraint anchorage system
(LATCH system) to attach this Child Restraint when restraining a child weighing
more than 40 lbs (18 kg) with the internal harness of the Child Restraint.
When installing with LATCH in vehicle equipped with inflatable seat
belts, the unused seat belt should NOT be buckled behind the Child
Restraint System as this will engage the inflatable portion of the belt.
Locate LATCH Connector Storage compartments. Remove LATCH straps.
Make sure SuperCinch® LATCH Tightener strap (Pull 2
nd
) and LATCH
Adjuster strap (Pull 1
st
) are loosened to their full length.
Grab both ends of LATCH straps. Slide LATCH strap to red
FORWARD-FACING opening on both sides. Note: Both LATCH Connector
Storage compartments must be open and both LATCH straps must be
loosened to their full length in order to slide LATCH straps into position.
Close both LATCH Connector Storage compartments.
2
1
3
62
63
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LATCH
INSTALL USING LATCH
Locate the LATCH bars in your vehicle. Attach both LATCH Connectors
to the vehicle LATCH anchor bars.
Pull up on the end of the LATCH Adjuster strap (Pull 1
st
) until strap is
tight.
Pull on the SuperCinch® LATCH Tightener strap (Pull 2
nd
) to
secure Child Restraint.
5
4
6
PULL
1
st
2
nd
PULL
6
5
PULL
1
st
2
nd
PULL
“CLICK”
“CLICK”
4
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
When not accessing the LATCH or changing the belt path ALWAYS
keep LATCH Connector Storage compartments closed.
Do not install by this
method for a child weighing
more than 40 lbs (18 kg).
62
63
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LATCH
INSTALL USING LATCH
Locate the LATCH bars in your vehicle. Attach both LATCH Connectors
to the vehicle LATCH anchor bars.
Pull up on the end of the LATCH Adjuster strap (Pull 1
st
) until strap is
tight.
Pull on the SuperCinch® LATCH Tightener strap (Pull 2
nd
) to
secure Child Restraint.
5
4
6
PULL
1
st
2
nd
PULL
6
5
PULL
1
st
2
nd
PULL
“CLICK”
“CLICK”
4
PULL
1
st
2
nd
PULL
PULL
1
st
2
nd
PULL
When not accessing the LATCH or changing the belt path ALWAYS
keep LATCH Connector Storage compartments closed.
Do not install by this
method for a child weighing
more than 40 lbs (18 kg).
64
65
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path.
Pull side to side and forward. Child Restraint should not move more
than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the LATCH and Tether Straps, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
INSTALL USING LATCH
INSTALL USING LATCH
Locate Tether anchor in your vehicle. Attach Tether Hook.
Pull Tether Adjuster strap to tighten.
7
7
64
65
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path.
Pull side to side and forward. Child Restraint should not move more
than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the LATCH and Tether Straps, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
INSTALL USING LATCH
INSTALL USING LATCH
Locate Tether anchor in your vehicle. Attach Tether Hook.
Pull Tether Adjuster strap to tighten.
7
7
66
67
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT

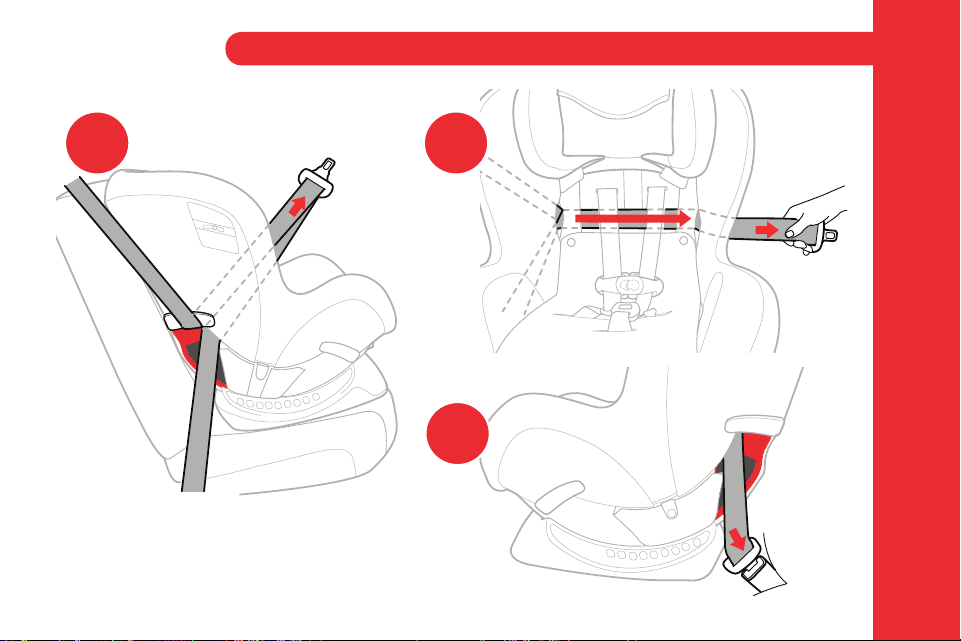

Route vehicle lap-shoulder belt through the red FORWARD-FACING
seat belt path on the side of Child Restraint. Lift the padding on the
back of the seat and pull the vehicle belt through the opening on the
side of Child Restraint.
Pass the vehicle belt along the back of the Child Restraint as shown.
Pull the vehicle belt down through the red FORWARD-FACING seat
belt path on the opposite side of Child Restraint. Buckle the vehicle
belt. Replace the seat back padding.
1
2
3
21
3
66
67
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT
Route vehicle lap-shoulder belt through the red FORWARD-FACING
seat belt path on the side of Child Restraint. Lift the padding on the
back of the seat and pull the vehicle belt through the opening on the
side of Child Restraint.
Pass the vehicle belt along the back of the Child Restraint as shown.
Pull the vehicle belt down through the red FORWARD-FACING seat
belt path on the opposite side of Child Restraint. Buckle the vehicle
belt. Replace the seat back padding.
1
2
3
21
3
68
69
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT

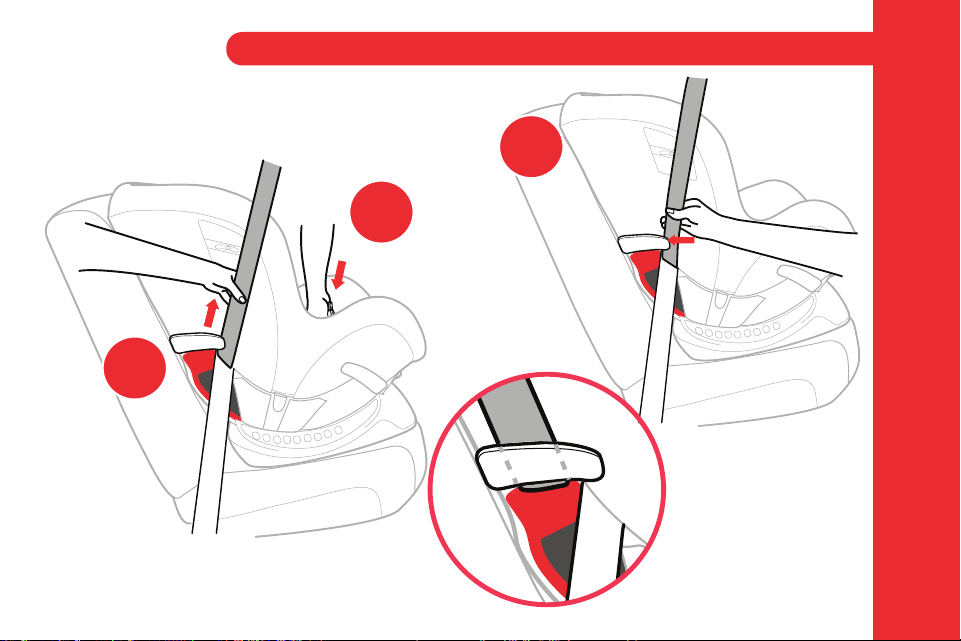

While pushing down on the Child Restraint (a) pull the vehicle shoulder
belt (b) to tighten vehicle lap belt.
While still pulling the shoulder belt tight, slide the vehicle shoulder
belt into the Lock-Off. Always use the Lock-Off on the opposite side of
the vehicle belt buckle.
4
5
4a
4b
5
68
69
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT
While pushing down on the Child Restraint (a) pull the vehicle shoulder
belt (b) to tighten vehicle lap belt.
While still pulling the shoulder belt tight, slide the vehicle shoulder
belt into the Lock-Off. Always use the Lock-Off on the opposite side of
the vehicle belt buckle.
4
5
4a
4b
5
70
71
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
Locate Tether Anchor in your vehicle. Attach Tether Hook.
Pull Tether Adjuster strap to tighten.
6
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull
side to side and forward. Vehicle belt should remain tight and Child Restraint
should not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
6
70
71
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
Locate Tether Anchor in your vehicle. Attach Tether Hook.
Pull Tether Adjuster strap to tighten.
6
INSTALL USING LAP-SHOULDER BELT
INSTALL USING LAP-SHOULDER BELT
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull
side to side and forward. Vehicle belt should remain tight and Child Restraint
should not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
6
72
73
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION

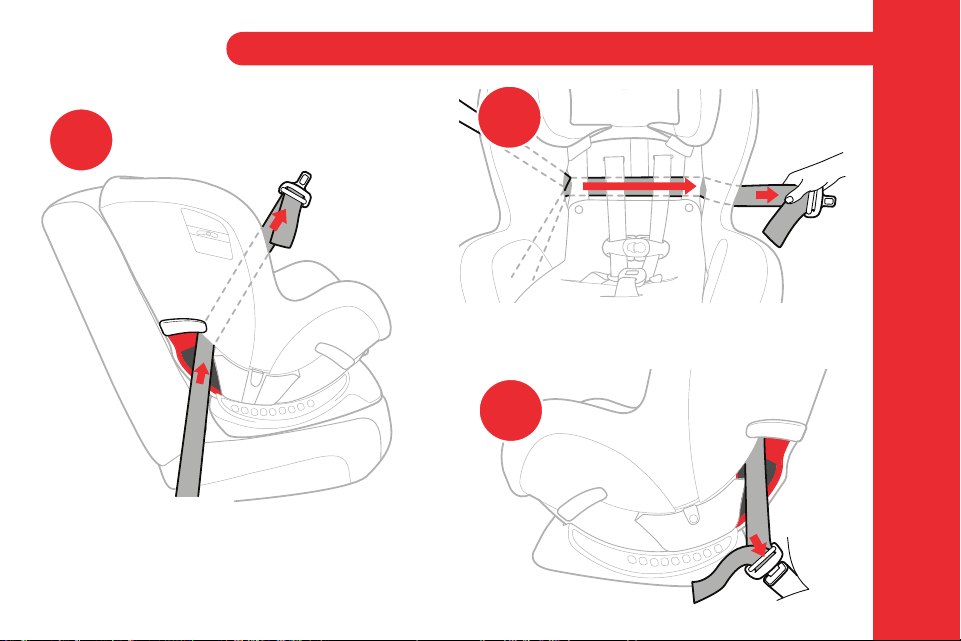

Route vehicle lap belt through the red FORWARD-FACING seat belt
path on the side of Child Restraint. Lift the padding on the back of the
seat and pull the vehicle belt through the opening on the side of the
Child Restraint.
Pass the vehicle belt along the back of the Child Restraint as shown.
Pull the vehicle belt down through the red FORWARD-FACING seat
belt path on the opposite side of Child Restraint. Buckle the
vehicle belt. Replace the seat back padding.
1
INSTALL USING LAP BELT ONLY
INSTALL USING LAP BELT ONLY
2
3
2
3
1
72
73
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
Route vehicle lap belt through the red FORWARD-FACING seat belt
path on the side of Child Restraint. Lift the padding on the back of the
seat and pull the vehicle belt through the opening on the side of the
Child Restraint.
Pass the vehicle belt along the back of the Child Restraint as shown.
Pull the vehicle belt down through the red FORWARD-FACING seat
belt path on the opposite side of Child Restraint. Buckle the
vehicle belt. Replace the seat back padding.
1
INSTALL USING LAP BELT ONLY
INSTALL USING LAP BELT ONLY
2
3
2
3
1
74
75
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION

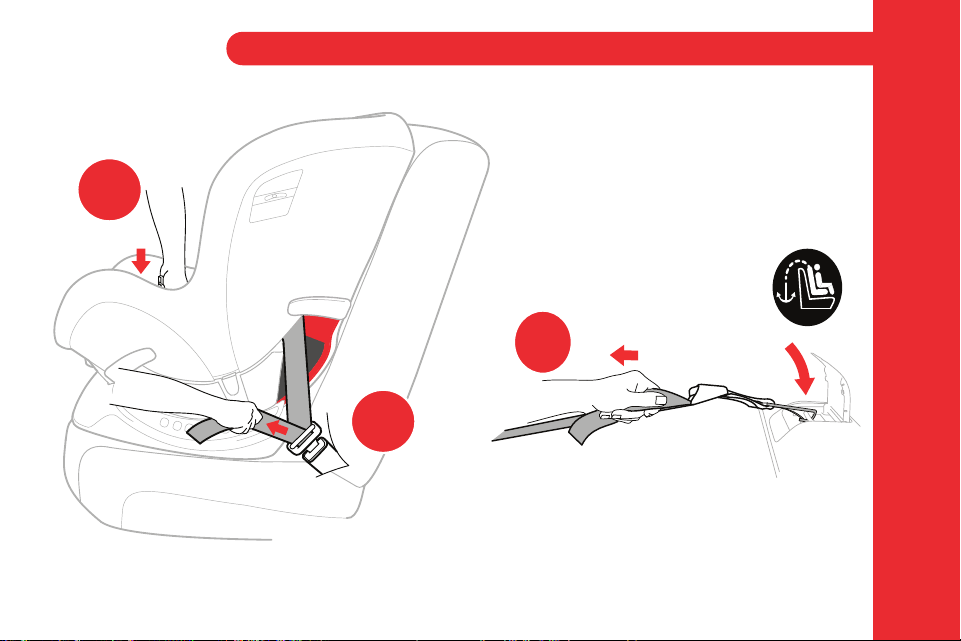

While pushing down on the Child Restraint (a) pull the loose end of the
vehicle lap belt (b) to tighten.
Locate Tether Anchor in your vehicle. Attach Tether Hook. Pull Tether
Adjuster Strap to tighten.
5
4
INSTALL USING LAP BELT ONLY
INSTALL USING LAP BELT ONLY
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull
side to side and forward. Vehicle belt should remain tight and Child Restraint
should not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
4b
4a
5
74
75
FORWARD-FACING INSTALLATION
FORWARD-FACING INSTALLATION
While pushing down on the Child Restraint (a) pull the loose end of the
vehicle lap belt (b) to tighten.
Locate Tether Anchor in your vehicle. Attach Tether Hook. Pull Tether
Adjuster Strap to tighten.
5
4
INSTALL USING LAP BELT ONLY
INSTALL USING LAP BELT ONLY
CHECK YOUR WORK
Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull
side to side and forward. Vehicle belt should remain tight and Child Restraint
should not move more than 1” (25 mm) from vehicle seat back or side-to-side.
Make sure Bubble is between lines on label for FORWARD-FACING use. If
necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat
installation steps to make sure Child Restraint is installed properly.
Check installation before every use!
4b
4a
5
76
77
SECURING YOUR CHILD
SECURING YOUR CHILD
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

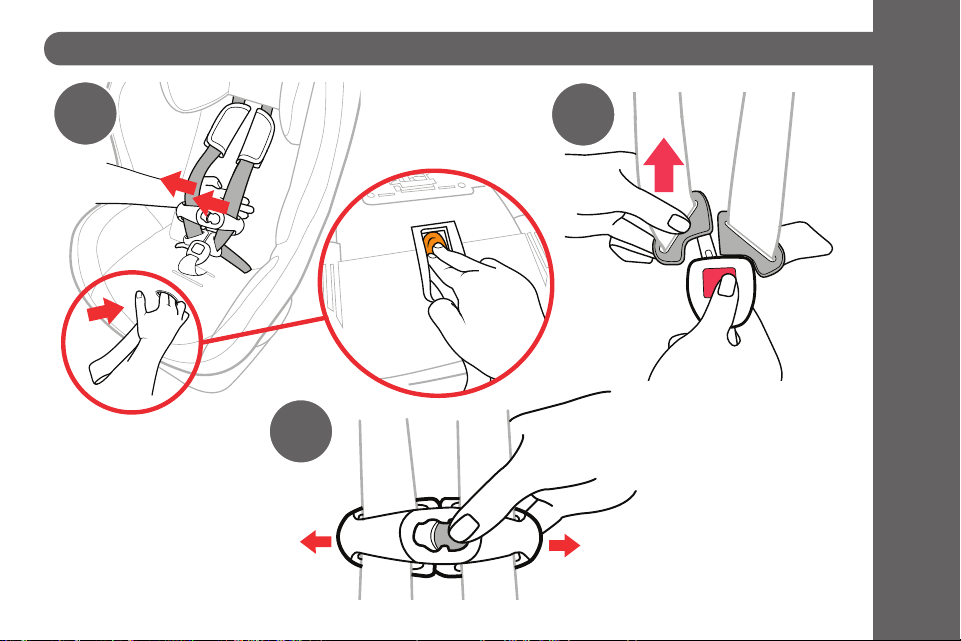

Loosen Harness by pressing Harness Release Button (under the fabric) on
the front of the Child Restraint and pulling forward on both of the Harness
Straps.
Unbuckle Harness by pressing the button on Harness Buckle and pulling
out both Buckle Tongues.
Open Chest Clip by squeezing both button in the middle of the clip and
pulling apart.
1
2
3
I
f Crotch Strap is under child, the crotch strap will need to be re-positioned, refer to
page 26 “Adjusting Crotch Strap”.
3
2
1
For a better fit in the Child Restraint with smaller infants, the Newborn
Positioner provided may be needed. See page 28-29 for more details.
Additionally, crotch strap pad and shoulder pads may need to be removed.
76
77
SECURING YOUR CHILD
SECURING YOUR CHILD
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
Loosen Harness by pressing Harness Release Button (under the fabric) on
the front of the Child Restraint and pulling forward on both of the Harness
Straps.
Unbuckle Harness by pressing the button on Harness Buckle and pulling
out both Buckle Tongues.
Open Chest Clip by squeezing both button in the middle of the clip and
pulling apart.
1
2
3
I
f Crotch Strap is under child, the crotch strap will need to be re-positioned, refer to
page 26 “Adjusting Crotch Strap”.
3
2
1
For a better fit in the Child Restraint with smaller infants, the Newborn
Positioner provided may be needed. See page 28-29 for more details.
Additionally, crotch strap pad and shoulder pads may need to be removed.
78
79
SECURING YOUR CHILD
SECURING YOUR CHILD
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

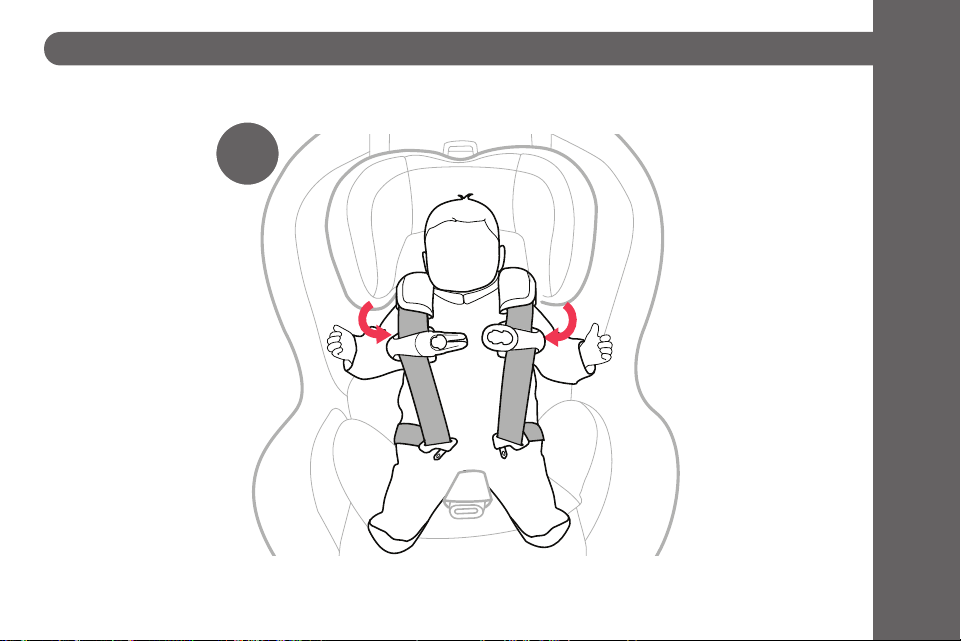

Place child in Child Restraint with child’s back flat against the back of the
seat. Pull Harness Straps over the child’s shoulders and around the child’s
waist. Make sure there are no twists in Harness Strap.
4
4
Clothing, such as bulky winter coats that interfere with the proper placement or
adjustment of the Harness system should never be used. Make sure the Harness
Straps lie flat on the child’s shoulders, are adjusted snugly so that clothing is
compressed and the child cannot lean forward, and the Chest Clip is at arm level.
78
79
SECURING YOUR CHILD
SECURING YOUR CHILD
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
Place child in Child Restraint with child’s back flat against the back of the
seat. Pull Harness Straps over the child’s shoulders and around the child’s
waist. Make sure there are no twists in Harness Strap.
4
4
Clothing, such as bulky winter coats that interfere with the proper placement or
adjustment of the Harness system should never be used. Make sure the Harness
Straps lie flat on the child’s shoulders, are adjusted snugly so that clothing is
compressed and the child cannot lean forward, and the Chest Clip is at arm level.
80
81
SECURING YOUR CHILD
SECURING YOUR CHILD
*
*

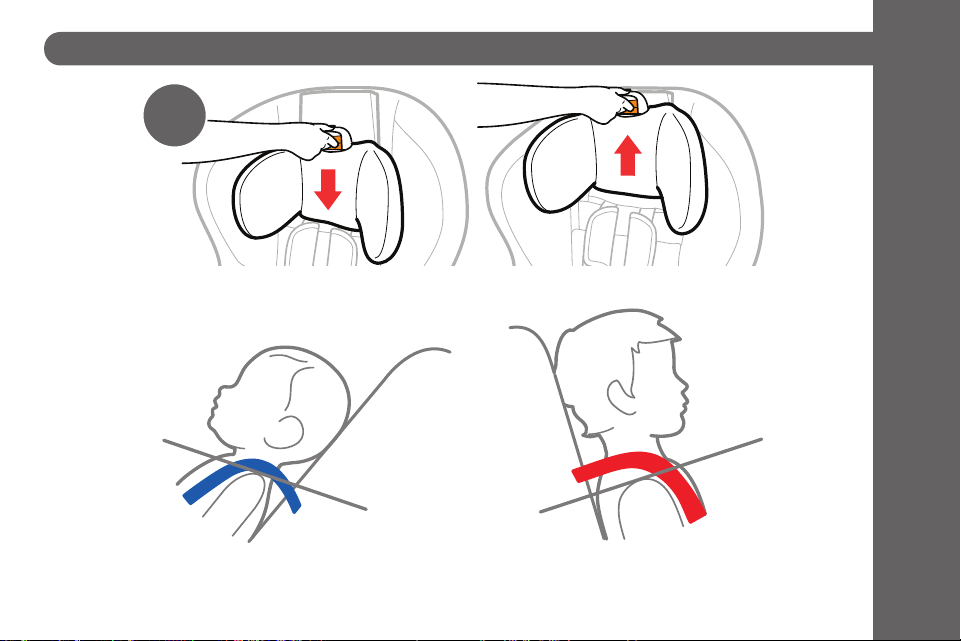

Adjust Harness Strap height position up or down by squeezing
Adjustment Handle on top of Head Rest. Make sure Head Rest
locks into position before tightening Harness.
REAR-FACING POSITION - Position the Harness Straps
at or below the child’s shoulders.
FORWARD-FACING POSITION - Position the Harness Straps
at or above the child’s shoulders.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
5
5
REAR-FACING
AT OR BELOW
FORWARD-FACING
AT OR ABOVE
If using lowest Head Rest/Harness Position, make sure the seat back
padding panel is folded under.
80
81
SECURING YOUR CHILD
SECURING YOUR CHILD
*
*
Adjust Harness Strap height position up or down by squeezing
Adjustment Handle on top of Head Rest. Make sure Head Rest
locks into position before tightening Harness.
REAR-FACING POSITION - Position the Harness Straps
at or below the child’s shoulders.
FORWARD-FACING POSITION - Position the Harness Straps
at or above the child’s shoulders.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
5
5
REAR-FACING
AT OR BELOW
FORWARD-FACING
AT OR ABOVE
If using lowest Head Rest/Harness Position, make sure the seat back
padding panel is folded under.
82
83
SECURING YOUR CHILD
SECURING YOUR CHILD
Insert each Buckle Tongue into Harness Buckle; listen for a click
(a). Pull up firmly on both Buckle Tongues to make sure that they
are securely latched (b).
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
6
“CLICK”
6b
6a
82
83
SECURING YOUR CHILD
SECURING YOUR CHILD
Insert each Buckle Tongue into Harness Buckle; listen for a click
(a). Pull up firmly on both Buckle Tongues to make sure that they
are securely latched (b).
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
6
“CLICK”
6b
6a
84
85
SECURING YOUR CHILD
SECURING YOUR CHILD
“CLICK”

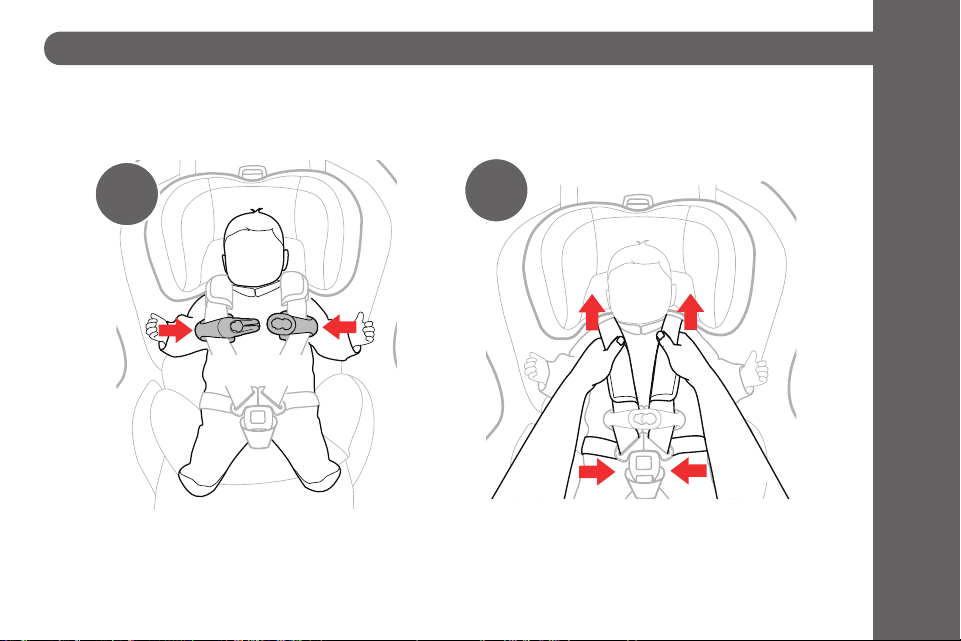

Fasten Chest Clip by snapping both sides together; listen for a click.
Push Chest Clip and Shoulder Pads down away from the child’s neck
and towards the Harness Buckle. Pull up on both shoulder straps to
remove all slack from below.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
7
8
7
8
Harness straps must fit snugly and lay flat on the center of your child’s shoulders.
84
85
SECURING YOUR CHILD
SECURING YOUR CHILD
“CLICK”
Fasten Chest Clip by snapping both sides together; listen for a click.
Push Chest Clip and Shoulder Pads down away from the child’s neck
and towards the Harness Buckle. Pull up on both shoulder straps to
remove all slack from below.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
7
8
7
8
Harness straps must fit snugly and lay flat on the center of your child’s shoulders.
86
87
SECURING YOUR CHILD
SECURING YOUR CHILD

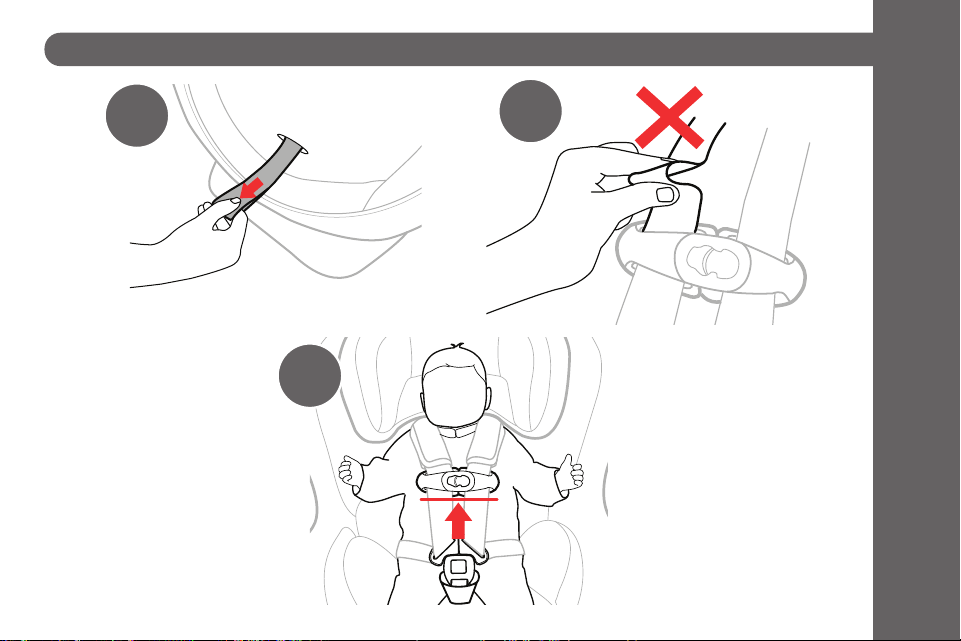

Tighten the harness by pulling slowly on Harness Adjustment Strap until
the harness is snug on child (a). If you can pinch a fold in the strap at the
child’s shoulders, harness is too loose (b). If the harness is too loose pull
the Harness Adjustment strap more.
Move the Shoulder Pads up to the child’s shoulders. Slide Chest Clip up to
center of child’s chest, level with the armpits.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
9
10
WARNING - If harness is not snug around your child, child could be
ejected in a sudden stop or crash resulting in serious injury or death.
9a
9b
10
86
87
SECURING YOUR CHILD
SECURING YOUR CHILD
Tighten the harness by pulling slowly on Harness Adjustment Strap until
the harness is snug on child (a). If you can pinch a fold in the strap at the
child’s shoulders, harness is too loose (b). If the harness is too loose pull
the Harness Adjustment strap more.
Move the Shoulder Pads up to the child’s shoulders. Slide Chest Clip up to
center of child’s chest, level with the armpits.
SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS
9
10
WARNING - If harness is not snug around your child, child could be
ejected in a sudden stop or crash resulting in serious injury or death.
9a
9b
10
88
89
SECURING YOUR CHILD
SECURING YOUR CHILD
Check the position of Chest Clip: Chest Clip should be centered on the child’s chest, level
with the armpits.
Never secure child in Child Restraint with child dressed in bulky garments or heavy clothing.
Heavy clothing can prevent harness from being properly tightened around child.
Never secure child in Child Restraint with child wrapped in a blanket. To keep child warm,
place a blanket over child AFTER you have properly secured and tightened harness around child.
Harness Straps must be snug. If you can pinch a fold in
the strap, the harness is too loose. A snug strap
should not allow any slack. It lies in a relatively straight
line without sagging. It does not press on the child’s
flesh or push the child’s body into an unnatural position.
To ensure a better fit for smaller infants, the Newborn Positioner may be needed. Never
place extra padding under or behind the child. Only use the Newborn Positioner.
Straps must lay flat, free of twists and centered on top of the child’s shoulders.
Check the height of the Harness Straps: Position the Harness Straps at or below the child’s
shoulders for REAR-FACING and at or above the child’s shoulders for FORWARD-FACING.
SECURING CHILD CHECKLIST SECURING CHILD CHECKLIST
WARNING - If harness is not snug around your child, child could be
ejected in a sudden stop or crash resulting in serious injury or death.
*
*
REAR-FACING
FORWARD-FACING
NO Bulky Clothing
88
89
SECURING YOUR CHILD
SECURING YOUR CHILD
Check the position of Chest Clip: Chest Clip should be centered on the child’s chest, level
with the armpits.
Never secure child in Child Restraint with child dressed in bulky garments or heavy clothing.
Heavy clothing can prevent harness from being properly tightened around child.
Never secure child in Child Restraint with child wrapped in a blanket. To keep child warm,
place a blanket over child AFTER you have properly secured and tightened harness around child.
Harness Straps must be snug. If you can pinch a fold in
the strap, the harness is too loose. A snug strap
should not allow any slack. It lies in a relatively straight
line without sagging. It does not press on the child’s
flesh or push the child’s body into an unnatural position.
To ensure a better fit for smaller infants, the Newborn Positioner may be needed. Never
place extra padding under or behind the child. Only use the Newborn Positioner.
Straps must lay flat, free of twists and centered on top of the child’s shoulders.
Check the height of the Harness Straps: Position the Harness Straps at or below the child’s
shoulders for REAR-FACING and at or above the child’s shoulders for FORWARD-FACING.
SECURING CHILD CHECKLIST SECURING CHILD CHECKLIST
WARNING - If harness is not snug around your child, child could be
ejected in a sudden stop or crash resulting in serious injury or death.
*
*
REAR-FACING
FORWARD-FACING
NO Bulky Clothing
ADDITIONAL INFORMATION
90
91
ADDITIONAL INFORMATION
INSTALLATION ON AN AIRCRAFT
• This Child Restraint is certified for use on aircraft. Contact the airline
prior to travel to discuss their Child Restraint policy.
• Install Child Restraint on an aircraft the same way it is installed in a
vehicle when using a vehicle lap belt. Reference Rear-Facing on page 52
or Forward-Facing on page 72.
PAGE INTENTIONALLY LEFT BLANK
When traveling by airplane with your child, Chicco recommends taking the Child
Restraint on the airplane with you so that you can use it with your child. Not only
will it protect your child during take-off, landing, and turbulence, it will also allow
your child to be more comfortable.
ADDITIONAL INFORMATION
90
91
ADDITIONAL INFORMATION
INSTALLATION ON AN AIRCRAFT
• This Child Restraint is certified for use on aircraft. Contact the airline
prior to travel to discuss their Child Restraint policy.
• Install Child Restraint on an aircraft the same way it is installed in a
vehicle when using a vehicle lap belt. Reference Rear-Facing on page 52
or Forward-Facing on page 72.
PAGE INTENTIONALLY LEFT BLANK
When traveling by airplane with your child, Chicco recommends taking the Child
Restraint on the airplane with you so that you can use it with your child. Not only
will it protect your child during take-off, landing, and turbulence, it will also allow
your child to be more comfortable.
ADDITIONAL INFORMATION
92
93
ADDITIONAL INFORMATION

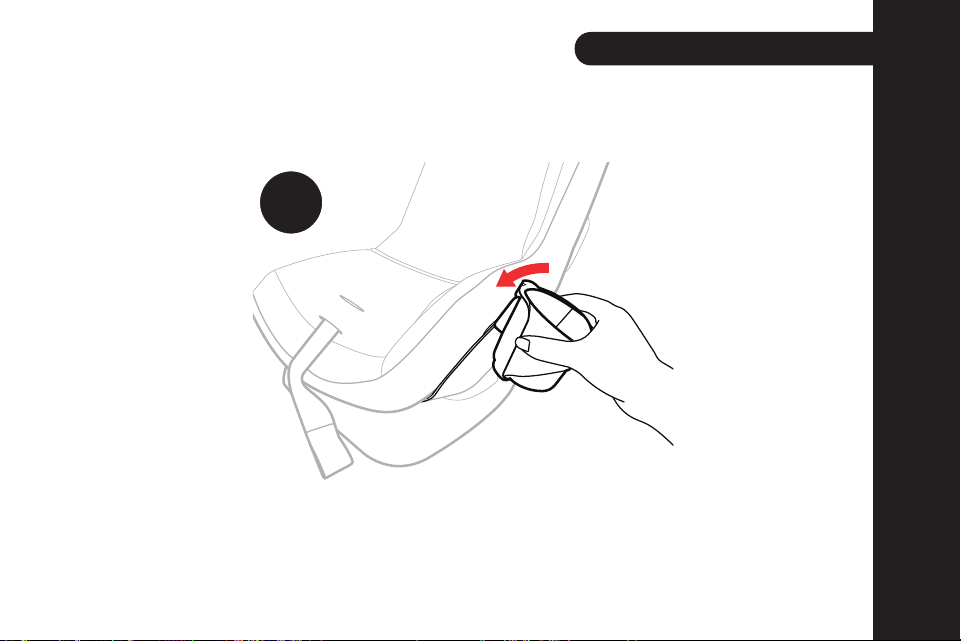

CUP HOLDER CUP HOLDER
WARNING - Do NOT use Cup Holder to hold hot liquids.
PLASTIC
CONTAINERS ONLY - No glass or metal containers. Only use
cups with less than 12 oz. (355 ml) capacity. Never place sharp
or pointed objects in Cup Holder. In a crash these objects
could hit you or your child and cause serious injuries.
Slide Cup Holder into either side of Child Restraint where indicated
by the Cup Holder icon.
To remove, gently pull the Cup Holder away from the seat then lift
past the built-in lip.
1
1
ADDITIONAL INFORMATION
92
93
ADDITIONAL INFORMATION
CUP HOLDER CUP HOLDER
WARNING - Do NOT use Cup Holder to hold hot liquids.
PLASTIC
CONTAINERS ONLY - No glass or metal containers. Only use
cups with less than 12 oz. (355 ml) capacity. Never place sharp
or pointed objects in Cup Holder. In a crash these objects
could hit you or your child and cause serious injuries.
Slide Cup Holder into either side of Child Restraint where indicated
by the Cup Holder icon.
To remove, gently pull the Cup Holder away from the seat then lift
past the built-in lip.
1
1
ADDITIONAL INFORMATION
94
95
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE

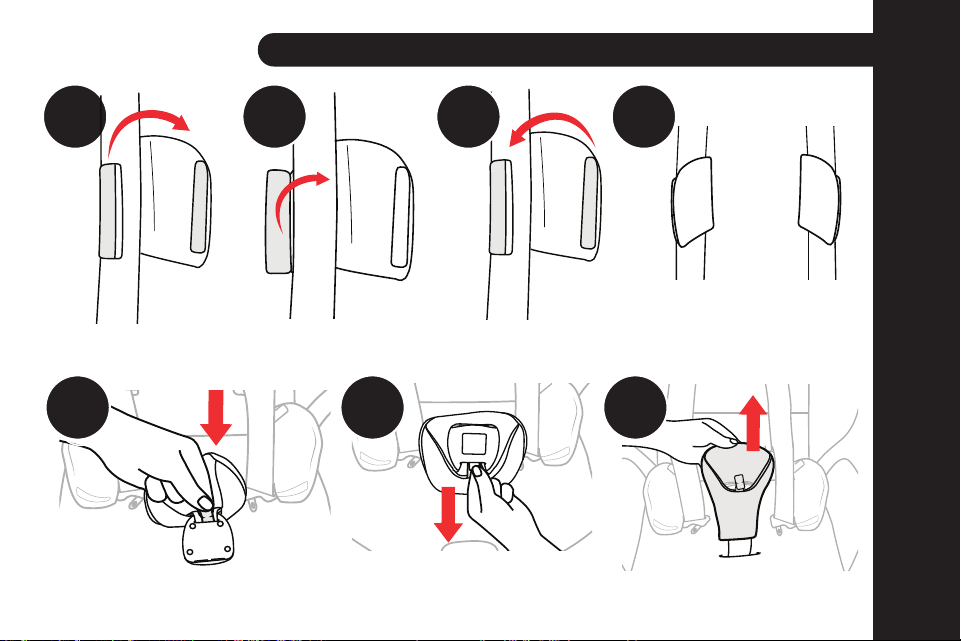

REMOVING SHOULDER PADS:
Unhook the hook and loop and remove Shoulder Pads as shown.
1
CLEANING AND MAINTENANCE
1 2c2a 2b
INSTALL SHOULDER PADS:
Re-attach Shoulder Pads by folding the hook and loop Tab over the
Harness Strap (a). Secure both hook and loop Tabs together (b). Make
sure they are oriented as shown (c).
Locate the Tab on the Crotch Strap Pad and push it through the Harness
Buckle (a). Pull the Tab out through the front of the Harness Buckle (b)
and remove the Crotch Strap Pad (c).
2
3a 3b 3c
3
REMOVING CROTCH STRAP PAD:
ADDITIONAL INFORMATION
94
95
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
REMOVING SHOULDER PADS:
Unhook the hook and loop and remove Shoulder Pads as shown.
1
CLEANING AND MAINTENANCE
1 2c2a 2b
INSTALL SHOULDER PADS:
Re-attach Shoulder Pads by folding the hook and loop Tab over the
Harness Strap (a). Secure both hook and loop Tabs together (b). Make
sure they are oriented as shown (c).
Locate the Tab on the Crotch Strap Pad and push it through the Harness
Buckle (a). Pull the Tab out through the front of the Harness Buckle (b)
and remove the Crotch Strap Pad (c).
2
3a 3b 3c
3
REMOVING CROTCH STRAP PAD:
ADDITIONAL INFORMATION
96
97
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE

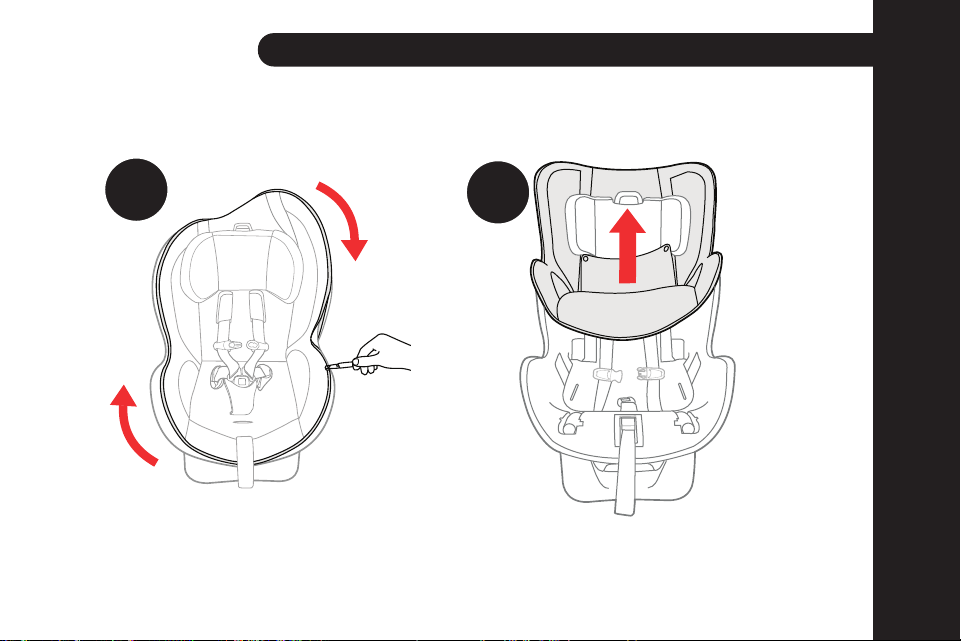

REMOVING SOFTGOODS:
Locate the Zipper Tab at the top of the Child Restraint and unzip all the
way around.
Unbuckle the Harness. Unsnap Seat Bottom Panel and pull forward.
Carefully pull the Seat Pad away from the Child Restraint.
7
9
NEVER use Child Restraint without the Seat Pad.
INSTALL SOFTGOODS:
Reverse the removing instructions above to reinstall.
CLEANING AND MAINTENANCE
8
7
8
ADDITIONAL INFORMATION
96
97
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
REMOVING SOFTGOODS:
Locate the Zipper Tab at the top of the Child Restraint and unzip all the
way around.
Unbuckle the Harness. Unsnap Seat Bottom Panel and pull forward.
Carefully pull the Seat Pad away from the Child Restraint.
7
9
NEVER use Child Restraint without the Seat Pad.
INSTALL SOFTGOODS:
Reverse the removing instructions above to reinstall.
CLEANING AND MAINTENANCE
8
7
8
ADDITIONAL INFORMATION
98
99
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
CLEANING AND MAINTENANCE
REMOVING CROTCH STRAP:
Fully recline the seat (position 1). Open the compartment, slide the
button on the Crotch Strap lock while pulling up on the Crotch Strap (a).
Turn metal bar slightly on underside of seat and get corner to go through
slot (b). Push metal bar through slot while pulling crotch belt out (c).
1
INSTALL CROTCH STRAP:
Reverse the removing instructions above to reinstall.
2
1a 1b
1c
DO NOT USE Child Restraint if any part of the harness is
damaged. For proper removal and installation of the harness
straps visit the Chicco website at www.chiccousa.com or call
1-877-424-4226.
NEVER use Child Restraint without the Crotch Strap
installed.
When removing Crotch Strap
DO NOT remove the Adjuster Strap
Clip. Your child’s safety depends on
this clip being installed correctly.
ADDITIONAL INFORMATION
98
99
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
CLEANING AND MAINTENANCE
REMOVING CROTCH STRAP:
Fully recline the seat (position 1). Open the compartment, slide the
button on the Crotch Strap lock while pulling up on the Crotch Strap (a).
Turn metal bar slightly on underside of seat and get corner to go through
slot (b). Push metal bar through slot while pulling crotch belt out (c).
1
INSTALL CROTCH STRAP:
Reverse the removing instructions above to reinstall.
2
1a 1b
1c
DO NOT USE Child Restraint if any part of the harness is
damaged. For proper removal and installation of the harness
straps visit the Chicco website at www.chiccousa.com or call
1-877-424-4226.
NEVER use Child Restraint without the Crotch Strap
installed.
When removing Crotch Strap
DO NOT remove the Adjuster Strap
Clip. Your child’s safety depends on
this clip being installed correctly.
ADDITIONAL INFORMATION
100
101
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
DO NOT USE BLEACH, solvents or household cleaners as they may
weaken plastics and straps.
DO NOT USE SOAPS OR LUBRICANTS on Harness Adjuster Strap,
Buckle and LATCH hardware. It may cause them to malfunction.
• Cleaning Softgoods:
Hand wash using mild soap and water, or machine wash in cold water
on delicate cycle using mild detergent. Hang to dry. See page 96 for
removal instructions.
• Cleaning Shoulder Pads:
Hand wash using mild soap and water. Hang to dry.
• Cleaning Plastics:
Sponge clean using warm water and mild soap. Towel dry.
NEVER use Child Restraint without the seat pad.
For softgood removal instructions visit the Chicco website at
www.chiccousa.com or call 1-877-424-4226.
CLEANING AND MAINTENANCE
Do NOT remove LATCH or Adjuster straps. For additional information visit the Chicco
website at www.chiccousa.com or call 1-877-424-4226.
• Cleaning Cup Holder:
Cup Holder is dishwasher safe on top rack only.
• Cleaning Harness:
Sponge clean using warm water and mild soap. Air dry. Do NOT machine wash.
• Cleaning LATCH and Adjuster Strap:
LATCH Straps cannot be replaced. Sponge clean
using warm water only. Air dry.
• Cleaning Buckle and LATCH Hardware:
Sponge clean, using warm water only. If debris in
buckle, remove and rinse in warm cup of water.
Air dry. See page 98 for removal instructions.
DO NOT USE Child Restraint if any part of the harness is damaged. For
proper removal and installation of the harness straps visit the Chicco website
at www.chiccousa.com or call 1-877-424-4226.
ADDITIONAL INFORMATION
100
101
ADDITIONAL INFORMATION
CLEANING AND MAINTENANCE
DO NOT USE BLEACH, solvents or household cleaners as they may
weaken plastics and straps.
DO NOT USE SOAPS OR LUBRICANTS on Harness Adjuster Strap,
Buckle and LATCH hardware. It may cause them to malfunction.
• Cleaning Softgoods:
Hand wash using mild soap and water, or machine wash in cold water
on delicate cycle using mild detergent. Hang to dry. See page 96 for
removal instructions.
• Cleaning Shoulder Pads:
Hand wash using mild soap and water. Hang to dry.
• Cleaning Plastics:
Sponge clean using warm water and mild soap. Towel dry.
NEVER use Child Restraint without the seat pad.
For softgood removal instructions visit the Chicco website at
www.chiccousa.com or call 1-877-424-4226.
CLEANING AND MAINTENANCE
Do NOT remove LATCH or Adjuster straps. For additional information visit the Chicco
website at www.chiccousa.com or call 1-877-424-4226.
• Cleaning Cup Holder:
Cup Holder is dishwasher safe on top rack only.
• Cleaning Harness:
Sponge clean using warm water and mild soap. Air dry. Do NOT machine wash.
• Cleaning LATCH and Adjuster Strap:
LATCH Straps cannot be replaced. Sponge clean
using warm water only. Air dry.
• Cleaning Buckle and LATCH Hardware:
Sponge clean, using warm water only. If debris in
buckle, remove and rinse in warm cup of water.
Air dry. See page 98 for removal instructions.
DO NOT USE Child Restraint if any part of the harness is damaged. For
proper removal and installation of the harness straps visit the Chicco website
at www.chiccousa.com or call 1-877-424-4226.
PMS 2747and CMYK Gradient
