PMS 419
2023
OWNER’S
MANUAL
Sportsman Touring 570 Tractor
Sportsman X2 570 Tractor
For Maintenance and Safety
WARNING
Read this manual carefully. It contains important safety
information. This is an adult vehicle only.
Operation is prohibited for those under 16 years of age.
!
WARNING
Read, understand, and follow all of the instructions and safety
precautions in this manual and on all product labels.
Failure to follow the safety precautions
could result in serious injury or death.
For videos and more information
about a safe riding experience with
your Polaris vehicle, scan this QR
Code® with your smartphone
or visit: www.polaris.com/en-us/safety/
2023 Tractor Owner’s Manual
Sportsman Touring 570 EPS
Sportsman X2 570 EPS
Loctite® is a registered trademark of Henkel Corporation. MACPHERSON
MACPHERSON RIDE® is a registered trademark of Aftermarket Auto Parts
Alliance, Inc. NYOGEL® is a registered trademark of Nye Lubricants, Inc.
Bluetooth® is a registered trademark of Bluetooth Sig, Inc. QR Codes® is a
registered trademark of DENSO WAVE INCORPORATED. BatteryMinder® is
a registered trademark of VDC Electronics, Inc. Phillips® is a registered
trademark of the Phillips Screw Company. Unless noted, trademarks are the
property of Polaris Industries Inc.
Copyright 2023 Polaris Industries Inc. All information contained within this
publication is based on the latest product information at the time of
publication. Due to constant improvements in the design and quality of
production components, some minor discrepancies may result between the
actual vehicle and the information presented in this publication. Depictions
and/or procedures in this publication are intended for reference use only. No
liability can be accepted for omissions or inaccuracies. Any reprinting or
reuse of the depictions and/or procedures contained within, whether whole or
in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are
provided as translations of the original instructions.
Printed in Czech Republic
9941287 R01
Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide
family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for
the latest news, new product introductions, upcoming events, career
opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and recreational
products. We believe POLARIS sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of experience
have gone into the engineering, design, and development of your POLARIS
vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual contains
instructions for minor maintenance, but information about major repairs is
outlined in the POLARIS Service Manual and can be performed by a factory
certified Master Service Dealer (MSD) technician.
Your POLARIS dealer knows your vehicle best and is interested in your total
satisfaction. Your POLARIS dealership can perform all of your service needs
during and after the warranty period.
For the most up-to-date owner’s manual visit https://www. polaris.
com/en-us/owners-manuals.
3
WELCOME
Introduction . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . 15
Features and Controls . . . . . . . . . . . . . . 37
Operation . . . . . . . . . . . . . . . . . . . . 89
Winch Guide. . . . . . . . . . . . . . . . . . . 113
Emission Control Systems . . . . . . . . . . . . . 123
Maintenance . . . . . . . . . . . . . . . . . . 125
Specifications . . . . . . . . . . . . . . . . . . 171
POLARIS Products . . . . . . . . . . . . . . . . 177
Troubleshooting . . . . . . . . . . . . . . . . . 179
Warranty . . . . . . . . . . . . . . . . . . . . 185
Maintenance Log . . . . . . . . . . . . . . . . 191
5
6
INTRODUCTION
IMPORTANT WARNING ABOUT THIS MANUAL
WARNING
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. A POLARIS ATV is not a toy and can be
hazardous to operate. This vehicle handles differently than other vehicles,
such as motorcycles and cars. A collision or rollover can occur quickly, even
during routine maneuvers like turning, or driving on hills or over obstacles, if
you fail to take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a POLARIS ATV. Keep this manual
with the ATV.
• Never operate an ATV without proper instruction. Take a certified ATV safety
training course. In the United States, certified training can be found at www.
atvsafety.org.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for
anyone under 16 years of age.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety training
course. In the United States, certified training can be found at www.
atvsafety.org.
7
INTRODUCTION
SAFETY SYMBOLS AND SIGNAL WORDS
The following signal words and symbols appear throughout this manual and on
your vehicle. Your safety is involved when these words and symbols are used.
Become familiar with their meanings before reading the manual.
DANGER
DANGER indicates a hazardous situation which, if not avoided, WILL result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, COULD result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, COULD result
in minor to moderate injury.
NOTICE
NOTICE provides key information by clarifying instructions.
IMPORTANT
IMPORTANT provides key reminders during disassembly, assembly, and
inspection of components.
The Prohibition Safety Sign indicates an action NOT to take in
order to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to
be taken to avoid a hazard.
8
INTRODUCTION
RADIO COMPLIANCE STATEMENTS
EUROPEAN UNION (EU) RADIO COMPLIANCE
This vehicle may contain the following radio equipment or components that
contain radio equipment:
COMPONENT
B1 Gauge Bluetooth® LE
COMPONENT ID
CYBLE-222014-01
MANUFACTURER
Cypress Semiconductor
TRANSMITTING FREQUENCY*
2402 - 2480 MHz
MAX RF TRANSMITTING PWR
0.78 mW
* Other transmitting radio frequencies may exist outside of EU markets.
Hereby, Polaris Industries Inc. declares that the above radio equipment is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address:
https://www.polaris.com/en-us/radio-conformity/
9
INTRODUCTION
VEHICLE IDENTIFICATION NUMBERS
Record your vehicle's identification numbers and key number in the spaces
provided. Remove the spare key and store it in a safe place. An ignition key can
be duplicated only by ordering a POLARIS key blank (using your key number)
and mating it with one of your existing keys. The ignition switch must be
replaced if all keys are lost.

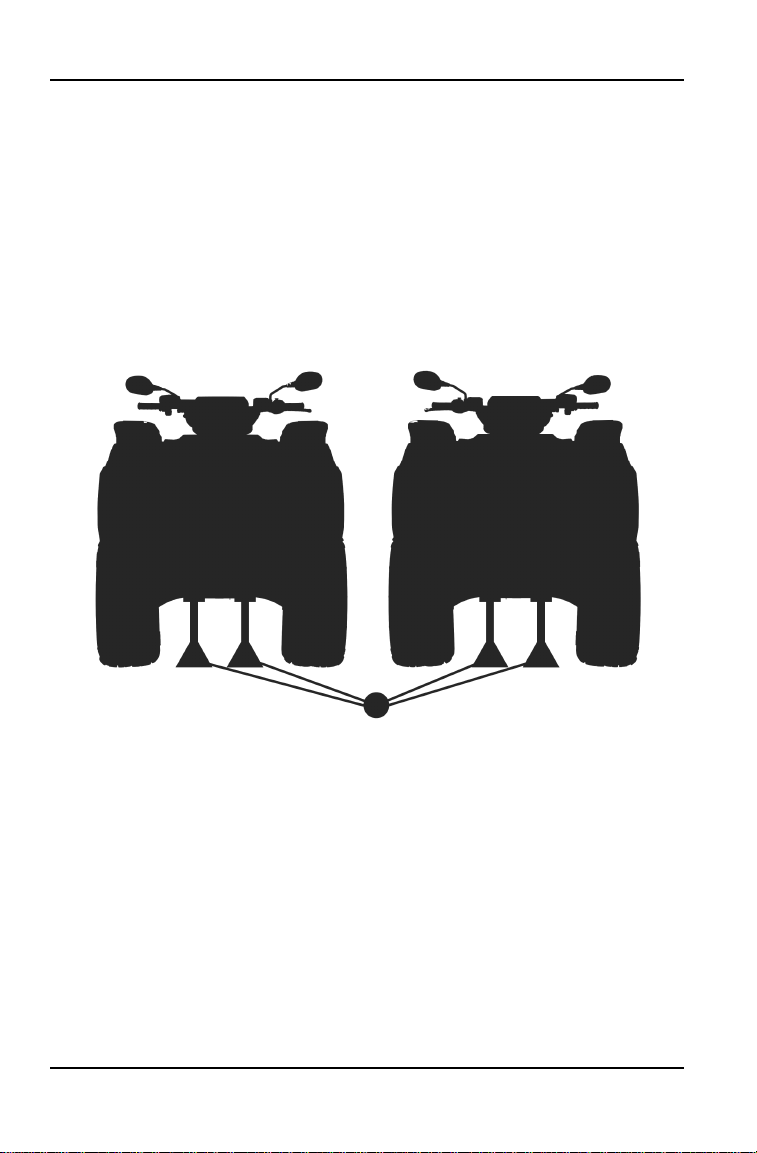

The vehicle serial number
q
can be found stamped on lower frame rail on the
front right-hand side of the vehicle.
NOTICE
The figures below are for reference only. Your model may differ slightly.
Vehicle Model Number
Vehicle Identification Number (VIN)
q
Engine Serial Number
w
Key Number
NEAR-FIELD COMMUNICATION (NFC)
(IF EQUIPPED)
Some Polaris vehicles come equipped with a near-field communication (NFC)
chip. The NFC chip is embedded in the Polaris emblem located at the front of
the vehicle and seamlessly connects you to a digital platform of vehicle
information and tools. See your dealer for more information.
IMPORTANT
Not all devices are equipped with an NFC reader. Additionally, some devices
require third party applications to access NFC content. For questions regarding
the NFC reader on your device, refer to the device’s user manual.
12
INTRODUCTION
On models equipped with NFC, place your smartphone directly over the Polaris
emblem to do the following:
• View vehicle-specific
information
• Access your Polaris Garage
• Download and view the
owner’s manual
• View accessory instructions
• Watch how-to videos
• Access warranty information
• Check for service notifications
RIDE COMMAND WITH NFC
Additional NFC features are available when using the Ride Command mobile
app. To access these features, do the following:
1. Download the Ride Command mobile app from the Apple App Store® or
Google Play® store.
2. Create or log in to an existing account.
3. From the Ride Command mobile app home screen, select Add Vehicle.
4. On the vehicle, tap the NFC-enabled badge with the phone to scan the
vehicle.
5. Confirm information, name your vehicle, and tap add to garage.
SYSTEM REQUIREMENTS
Refer to device manufacturer’s instructions to verify NFC read capability, and/or
NFC-capable add-ons.
13
INTRODUCTION
14
SAFETY
SAFETY WARNING
As the operator of the vehicle, you are responsible for your personal safety, the
safety of others (including your passenger), and the protection of our
environment. Read and understand your owner's manual, which includes
valuable information about all aspects of your vehicle, including safe operating
procedures.
Ride responsibly. Know all laws and regulations concerning the operation of this
vehicle in your area.
Failure to follow the warnings in this manual can result in serious injury or death.
This POLARIS vehicle is not a toy and can be hazardous to operate. A collision
or rollover can occur quickly, even during routine maneuvers, if you fail to take
proper precautions.
Read and understand your owner's manual and all warnings before operating
this POLARIS vehicle.
SAFETY TRAINING
Safety training is a top priority for POLARIS. POLARIS strongly encourages you
and any family members who will be riding this vehicle to take a training course.
For more information about safety, contact an authorized POLARIS dealer or
visit the POLARIS web site at www.polaris.com.
Your POLARIS vehicle is considered an off-road vehicle. Familiarize yourself
with all laws and regulations concerning the operation of this vehicle in your
area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance program
is designed to ensure that all critical components on your vehicle are thoroughly
inspected at specific intervals.
15
SAFETY
SAFE RIDING GEAR
Always wear helmet, eye protection, gloves,
long-sleeve shirt, long pants, and over-the-ankle
boots at all times. Protective gear reduces the
chance of injury.
q
Helmet
w
Eye Protection
e
Long Sleeves
r
Gloves
t
Long Pants
y
Over-the-Ankle Boots
HELMET
Wearing a helmet can prevent a severe head injury. Whenever riding this
POLARIS vehicle, always wear a helmet that meets or exceeds established
safety standards. Clasp the buckle and pull each strap tight to ensure the helmet
is properly secured to the head.
Approved helmets in the USA and Canada bear a
U.S. Department of Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
16
SAFETY
EYE PROTECTION
Do not depend on eyeglasses or sunglasses for eye protection. Whenever riding
this POLARIS vehicle, always wear shatterproof goggles or use a shatterproof
helmet face shield. POLARIS recommends wearing approved Personal
Protective Equipment (PPE) bearing markings such as VESC 8, V-8, Z87.1, or
CE. Make sure protective eye wear is kept clean.
GLOVES
Wear gloves for comfort and for protection from sun, cold weather and other
elements.
BOOTS
Wear sturdy over-the-ankle boots for support and protection. Never ride a
POLARIS vehicle with bare feet or sandals.
CLOTHING
Wear long sleeves and long pants to protect arms and legs.
SAFETY WARNINGS
WARNING
Failure to operate this vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the operation
section of this owner’s manual for proper operating procedures.
OPERATING WITHOUT INSTRUCTION
Operating this ATV without proper instruction
increases the risk of an accident. The
operator must understand how to operate the
ATV properly in different situations and on
different types of terrain.
Beginning and inexperienced operators
should complete the recommended safety
training before operating this vehicle.
Never permit a guest to operate the ATV
unless the guest has read this manual and all
product labels and has completed a certified
safety training course.
17
SAFETY
AGE RESTRICTIONS
This vehicle is an ADULT VEHICLE ONLY.
Operation is prohibited for anyone under 16
years of age.
Never allow anyone under 12 years of age to
ride as a passenger on a 2-up ATV.
Even though a child may be within the
recommended age group for operating some
ATVs, they may not have the skills, abilities,
or judgment needed to operate or ride on this
ATV safely and could be susceptible to
accident or injury.
USING ALCOHOL OR DRUGS
Never consume alcohol or drugs before or
while operating this vehicle.
Operating this vehicle after consuming
alcohol or drugs could adversely affect
operator judgment, reaction time, balance
and perception.
FAILURE TO INSPECT BEFORE OPERATING
WARNING
Failure to inspect and verify that the vehicle is in safe operating condition
before operating increases the risk of an accident.
Always perform the pre-ride inspection before each use of your vehicle to
make sure it's in safe operating condition.
Always follow the inspection and maintenance procedures and schedules
described in this owner’s manual.
18
SAFETY
HANDLING GASOLINE
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always refuel with the engine stopped, and outdoors or in a well ventilated
area.
• Never carry fuel or other flammable liquids on this vehicle. Failure to follow
this instruction could lead to serious burn injuries or death.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
EXPOSURE TO EXHAUST
CAUTION
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
Operate this vehicle only outdoors or in well-ventilated areas.
PROTECTIVE APPAREL
Riding in this vehicle without wearing an
approved helmet and protective eye wear
increases the risk of a serious injuries in the
event of an accident.
Always wear a helmet, eye protection,
gloves, long-sleeve shirt, long pants and
over-the-ankle boots.
FORESTRY APPLICATION AND CROP SPRAYING
This vehicle does not have a Falling Objects Protective Structure (FOPS). Do
not use the vehicle in forestry application situations where the risk of falling
objects may be present.
19
SAFETY
This vehicle is not equipped for protection against hazardous substances. It
does not offer any protection against substances which are harmful to health.
Always wear proper personal protective equipment if this vehicle is used for crop
spraying or other applications requiring the use of hazardous substances.
OPERATING ON PUBLIC ROADS
This vehicle is approved for on-road use.
OPERATING AT EXCESSIVE SPEEDS
Operating this vehicle at excessive speeds
increases the operator's risk of losing control.
Always operate at a speed that's appropriate
for the terrain, the visibility and operating
conditions and your skills and experience.
20
SAFETY
CARRYING MORE THAN ONE
PASSENGER ON A 2-UP ATV
Carrying more than one passenger on a 2-up
ATV greatly reduces the operator's ability to
balance and control the ATV, which may
result in an accident or rollover. Never carry
more than one passenger on a 2-up ATV.
PHYSICAL CONTROL OF THE VEHICLE
Removing even one hand or foot can reduce ability to control the vehicle or
could cause loss of balance and ejection from the ATV.
If a person's feet are not firmly planted on the footrests, they could come into
contact with the wheels or other moving parts and lead to accident or injury.
Always keep both hands on the handlebars and both feet on the footrests of the
ATV during operation.
TURNING IMPROPERLY
CAUTION
Turning improperly could cause loss of traction, loss of control, accident or
rollover. Always follow proper procedures for turning as described in this
owner’s manual.
Avoid sharp turns. Never turn while applying heavy throttle. Never make abrupt
steering maneuvers. Practice turning at slow speeds before attempting to turn at
faster speeds.
21
SAFETY
JUMPS AND STUNTS
Exhibition driving increases the risk of an
accident or rollover. DO NOT do power
slides, “donuts”, jumps or other driving stunts.
Avoid exhibition driving.
IMPROPER HILL CLIMBING
Improper hill climbing could cause loss of control or rollover. Use extreme
caution when operating on hills. Always follow proper procedures for hill climbing
as described in this owner's manual. See the New Operator Driving Procedures
section for details.
DESCENDING HILLS IMPROPERLY
Improperly descending a hill could cause loss of control or rollover. Always
follow proper procedures for traveling down hills as described in this owner’s
manual. See the New Operator Driving Procedures section for details.
CROSSING HILLSIDES
Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or rollover. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a hillside is unavoidable, always follow proper procedures as
described in this owner's manual. See the New Operator Driving Procedures
section for details.
22
SAFETY
STALLING WHILE CLIMBING A HILL
Stalling, rolling backwards or improperly
dismounting while climbing a hill could cause
a rollover.
• Always maintain a steady speed when
climbing a hill.
• Always engage ADC mode (if equipped)
before ascending or descending a hill. If
ADC mode is not equipped, apply AWD
mode before ascending or descending a
hill.
If all forward speed is lost:
• Lean forward to keep body weight uphill. A passenger should also lean uphill.
• Apply the brakes.
• Lock the parking brake when fully stopped.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual.
If the ATV begins rolling downhill:
• Keep operator and passenger body weight uphill.
• Never apply engine power.
• Apply the brake lever gradually.
• When fully stopped, apply the auxiliary brake as well, and then lock the
parking brake.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill. Have a passenger dismount first, then the operator
may dismount.
• Turn the ATV around and remount, following the procedure described in the
owner's manual.
23
SAFETY
OPERATING ON STEEP HILLS
Operating on excessively steep hills could
cause an overturn.
Never operate on hills too steep for the ATV
or for your abilities.
Never operate this ATV on hills steeper than
15 degrees.
OPERATING ON SLIPPERY TERRAIN
Failure to use extra caution when operating
on excessively rough, slippery or loose
terrain could cause loss of traction, loss of
control, accident or overturn.
Do not operate on excessively rough, slippery
or loose terrain until you've learned and
practiced the skills necessary to control the
vehicle on such terrain.
Always use extra caution on rough, slippery
or loose terrain.
OPERATING IN UNFAMILIAR TERRAIN
Failure to use extra caution when operating on unfamiliar terrain could result in
an accident or rollover.
Unfamiliar terrain may contain hidden rocks, bumps, or holes that could cause
loss of control or rollover.
Travel slowly and use extra caution when operating on unfamiliar terrain. Always
be alert to changing terrain conditions.
24
SAFETY
IMPROPER TIRE MAINTENANCE
Operating this vehicle with improper tires or
with improper or uneven tire pressure could
cause loss of control or accident.
Always use the size and type of tires
specified for your vehicle.
Always maintain proper tire pressure as
described in the owner's manual and on
safety labels.
OPERATING IMPROPERLY IN REVERSE
Improperly operating in reverse could result in a collision with an obstacle or
person. Always follow proper operating procedures as outlined in this manual.
See the New Operator Driving Procedures section for details.
Before shifting into reverse gear, always check for obstacles or people behind
the vehicle. When it's safe to proceed, back slowly.
OPERATING OVER OBSTACLES
Improperly operating over obstacles could
cause loss of control or rollover.
Before operating in a new area, check for
obstacles. Avoid operating over large
obstacles such as large rocks and fallen
trees. Always follow the proper procedures
outlined in this manual when operating over
obstacles. See the New Operator Driving
Procedures section for details.
25
SAFETY
SKIDDING OR SLIDING
Failure to use extra caution when operating
on excessively rough, slippery or loose
terrain could cause loss of traction, loss of
control, accident or rollover. Do not operate
on excessively slippery surfaces. Always
slow down and use additional caution when
operating on slippery surfaces.
Skidding or sliding due to loss of traction can
cause loss of control or rollover (if tires regain
traction unexpectedly). Always follow proper
procedures for operating on slippery surfaces
as described in this owner's manual. See the
New Operator Driving Procedures section for
details.
OPERATING THROUGH WATER
Operating through deep or fast-flowing water can cause loss of traction, loss of
control, rollover or accident. Never operate in fast-flowing water or in water that
exceeds the floor level of the vehicle.
Always follow proper procedures for operating in water as described in this
owner’s manual.
Wet brakes may have reduced stopping ability. After leaving water, test the
brakes. Apply them lightly several times while driving slowly. The friction will help
dry out the pads.
IMPROPER CARGO LOADING
Overloading the vehicle or carrying cargo improperly may cause changes in
stability and handling, which could cause loss of control or an accident.
• Always follow the instructions in this owner’s manual for carrying cargo.
• Never exceed the stated load capacity for this vehicle.
• Cargo should be properly distributed and securely attached.
• Reduce speed when carrying cargo or pulling a trailer. Allow a greater
distance for braking.
OPERATING ON FROZEN BODIES OF WATER
Severe injury or death can result if the vehicle and/or the operator fall through
the ice. Never operate the vehicle on a frozen body of water unless you have
first verified that the ice is sufficiently thick to support the weight and moving
force of the vehicle, you and your cargo, together with any other vehicles in your
party.
26
SAFETY
Always check with local authorities and residents to confirm ice conditions and
thickness over your entire route. Vehicle operators assume all risk associated
with ice conditions on frozen bodies of water.
OPERATING IN LIGHTNING
Avoid operating this vehicle when lightning could occur unless the vehicle is
equipped with a fully enclosed cab. Rubber tires, rubber handgrips and a foam
seat will not protect a rider from lightning strikes. Always seek safe shelter when
lightning is imminent.
POOR VISIBILITY
CAUTION
Operating this vehicle in darkness or inclement weather could result in a
collision or accident, especially if operating on a road or street. Use caution
and drive at reduced speeds in conditions of reduced visibility such as fog, rain
and darkness. Clean headlights frequently and replace burned out headlamps
promptly.
PHYSICAL SKILLS
Safe operation of this rider-active vehicle requires good judgement and physical
skills. Persons with cognitive or physical disabilities who operate this vehicle
have an increased risk of overturn and loss of control.
HOT EXHAUST SYSTEMS
WARNING
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system.
Use caution when traveling through tall grass, especially dry grass and when
traveling through muddy conditions. Always inspect the underside of the
vehicle and areas near the exhaust system after driving through tall grass,
weeds, brush, other tall ground cover, and muddy conditions. Promptly remove
any grass, debris or foreign matter clinging to the vehicle and pay particular
attention to the exhaust system area.
UNAUTHORIZED USE OF THE VEHICLE
Leaving the keys in the ignition can lead to unauthorized use of the vehicle by
someone under the age of 16, without a drivers license, or without proper
training. This could result in an accident or rollover. Always remove the ignition
key when the vehicle is not in use.
27
SAFETY
TRAILER HITCH WARNING (IF EQUIPPED)
If using a hitch, ensure the receiver does not exceed a two inch drop or raise.
WARNING
When trailering with your ATV, be aware that the exhaust is located above the
hitch ball receiver and the trailer hitch. During operation of the ATV, the
exhaust will produce hot exhaust gas that should not be inhaled and that may
elevate the surface temperature of surrounding surfaces, including trailer
surfaces (e.g., trailer hitch, trailer tongue, trailer walls, . . . etc.). To reduce the
risk of inhaling exhaust gases and to avoid risk of burn or injury, shut off your
engine and allow time for the exhaust gases to dissipate and for the surfaces
surrounding the exhaust to cool, including the trailer surfaces, before
connecting or disconnecting a trailer. To reduce the potential for the trailer hitch
or trailer tongue from getting too hot, do not use a receiver hitch with a rise of
more than two inches.
OPERATING A DAMAGED VEHICLE
CAUTION
Operating a damaged vehicle can result in an accident. After any rollover or
other accident, have a qualified service dealer inspect the entire machine for
possible damage, including (but not limited to) brakes, throttle, and steering
systems.
MAINTENANCE AFTER ACCIDENT
If a Tractor has been involved in an accident, always have an authorized dealer
inspect the entire vehicle for possible damage, including (but not limited to)
brake, throttle and steering systems.
OCCUPANT PROTECTION DEVICE
This vehicle is not equipped with an Occupant Protection Device capable of
protecting the operator from falling objects. Please be aware of your
surroundings at all times when operating this vehicle.
EQUIPMENT MODIFICATIONS
Your POLARIS vehicle is designed to provide safe operation when used as
directed. Modifications to your vehicle may negatively impact vehicle stability.
Failure of critical machine components may result from operation with any
modifications, especially those that increase speed or power. This vehicle may
become less stable at speeds higher than those for which it is designed. Loss of
control may occur at higher speeds.
28
SAFETY
Do not install any non-POLARIS-approved accessory or modify the vehicle for
the purpose of increasing speed or power. Any modifications or installation of
non-POLARIS-approved accessories could create a substantial safety hazard
and increase the risk of bodily injury.
The POLARIS limited warranty on your POLARIS vehicle will be terminated if
any non-POLARIS approved equipment and/or modifications have been added
to the vehicle that increase speed or power.
The addition of certain accessories, including (but not limited to) mowers,
blades, tires, sprayers, or large racks, may change the handling characteristics
of the vehicle. Use only POLARIS-approved accessories, and familiarize
yourself with their function and effect on the vehicle.
For more information about ATV safety, see the Safety Training section.
29
SAFETY
SAFETY LABELS AND LOCATIONS
Warning labels have been placed on the vehicle for your protection. Read and
follow the instructions of the labels on the vehicle carefully. If any of the labels
depicted in this manual differ from the labels on your vehicle, always read and
follow the instructions of the labels on the vehicle.
If any label becomes illegible or comes off, contact your POLARIS dealer to
purchase a replacement. Replacement safety labels are provided by POLARIS
at no charge. The part number is printed on the label.
SPORTSMAN 570 TOURING
NOTE
The images below are for reference only. Your model may differ slightly.
q
General Alert
w
Override Alert
e
4x4 (AWD) Alert
r
Greasing Points Alert
t
Hill Operation Alert
y
Clutch Cover Alert
u
Tire Pressure Alert
i
Rack Alert
o
Fuel Alert
30
SAFETY
GENERAL ALERT (7181540)
Before you operate this vehicle, read the owner’s manual. Never allow anyone
under 16 years of age to operate this vehicle. Wear approved helmet, goggles,
and protective clothing. Never use alcohol or drugs before or while operating.
NEVER carry more than one passenger. This vehicle is approved for on-road
use.
OVERRIDE ALERT (7181544)
Improper use of override button can lead to loss of
control resulting in severe injury or death. Do not
activate override while throttle is engaged. Always
apply throttle gradually while in reverse.
32
SAFETY
4X4 (AWD) ALERT (7181543)
Do not push switch to engage 4X4 (AWD) if the rear
wheels are spinning. This may cause severe drive
shaft and clutch damage.
GREASING POINTS ALERT (7300027)
Lubricate as recommended.
HILL OPERATION ALERT (7181536)
Never operate this vehicle on HILLS
steeper than 15°.
CLUTCH COVER ALERT (7181427)
Keep body parts away from belt.
Label Location: on the clutch cover.
33
SAFETY
TIRE PRESSURE ALERT (7183263)
TIRE PRESSURE IN kPa:
FRONT – 48,3 kPa
REAR – 48,3 kPa
RACK ALERT — TOURING MODELS
WARNING
DO NOT TOW FROM RACK OR
BUMPER. Vehicle damage or
tipover may result causing
severe injury or death. Tow only
from tow hooks or hitch.
Maximum Rack Loads: Front 41
kg. Rear 82 kg.
RACK ALERT — X2 MODELS
WARNING
DO NOT TOW FROM RACK OR
BUMPER. Vehicle damage or
tipover may result causing
severe injury or death. Tow only
from tow hooks or hitch.
Maximum Rack Loads:
FRONT – 41 kg
34
SAFETY
CRUSH ALERTS
To prevent a crushing injury to hands and fingers, keep
hands and fingers away from the lower front edge of
the cargo box while lowering the box.
FUEL ALERT
Compatible Fuel Types:
• E5
• E10
BOX ALERT — X2 MODELS
WARNING
Remove flammable material containers from box before filling. Passengers can
be thrown off. This can cause serious injury or death. Never carry passengers in
cargo box.
Maximum Box Load:
181 kg
35
SAFETY
36
IGNITION SWITCH
WARNING
Do not attach a large key fob or key ring to the main switch. It may contact the
gas tank cap when turning, causing an interruption to the electrical system and
an unexpected engine shut-down during operation. This could result in serious
injury or death.
SWITCH
POSITION
FUNCTION
End all electrical power to the vehicle
The LIGHTS ON position turns the headlights on. The
engine stop switch must be in the RUN position.
Start the engine. The headlights are not on in this position.
After starting the engine, release the key switch to the
PARKING LIGHTS ON position. The parking lights and
taillights are on in this position.
39
FEATURES AND CONTROLS
ENGINE STOP SWITCH
NOTICE
The engine will not start or run when the switch is in the OFF position.
Push the stop switch down to stop the engine quickly. Pull the stop switch up to
the RUN position before attempting to start the engine.
Both the main switch and the engine stop switch will shut off all electrical power
to the vehicle, including lights.
SWITCH
POSITION
FUNCTION
OFF
RUN
MODE / REVERSE OVERRIDE SWITCH
This vehicle is equipped with a reverse speed limiter system. To gain additional
wheel speed while backing, release the throttle and depress the override switch.
WARNING
Pressing the override switch while the throttle is open can cause loss of
control, which may result in serious injury or death. Always release the throttle
before pressing the override switch.
The reverse override switch also acts as a MODE button when held down for
approximately one half second. The transmission cannot be in reverse when
using the override switch as a MODE button.
40
FEATURES AND CONTROLS
HEADLIGHT AND MOMENTARY HIGH BEAM
SWITCH
The lights do not operate unless the main key switch is on and the engine stop
switch is in the RUN position.
SWITCH
POSITION
FUNCTION
High Beam
Low Beam
Press this switch with your left forefinger to activate the headlight high beam.
The lights will return to low beam when the switch is released.
WORK LIGHT SWITCH (IF EQUIPPED)
The work light switch controls a light located in the pod. Use the light when
additional light is needed at the front of the vehicle, but turn the work light off
when driving the vehicle (on-road).
TURN SIGNAL SWITCH
Push the toggle switch either left or right to activate the corresponding turn
signal light. The indicator in the gauge will also flash. Return the toggle to the
center position and push it inward to end the signal.
41
FEATURES AND CONTROLS
DRIVELINE MODE SWITCH
The driveline mode switch
q
controls
the All Wheel Drive (AWD) system. Use
this switch to change the driveline
modes between Turf Mode, 2WD, AWD,
and ADC (if equipped). The vehicle
automatically engages AWD when
operating in reverse if the driveline
mode is set to AWD.
WINCH SWITCH
See the Winch Guide chapter of your owner’s manual for winch information.
HAZARD WARNING SWITCH
Push the hazard warning switch to cause all turn signal lights to flash
simultaneously. Use this feature to alert others of an emergency or other
situation requiring caution.
HORN SWITCH
Press the horn switch to sound the horn.
VARIABLE LOW SPEED SWITCH (IF EQUIPPED)
The variable low speed switch (if equipped) allows you to
limit the speed of your ATV. The speed limiter can be set
at any speed between 11–22 km/h.
To activate the variable low speed feature, the following
conditions must all be met:
• The Engine must be running
• You must be in Low gear
• The Variable Low Speed switch must be in the on
position
When all 3 of the above conditions are met, the gauge will
read: LIMIT ON. Use the up and down arrows to set the
desires maximum speed (between 11–22 km/h).
42
FEATURES AND CONTROLS
THROTTLE LEVER
WARNING
Operating an ATV with sticking or improperly operating throttle controls could
cause an accident. Never start or operate an ATV that has a sticking or
improperly operating throttle. Immediately contact your POLARIS dealer or
other qualified person for service if throttle problems arise.
Failure to check or maintain proper operation of the throttle system can result
in an accident if the throttle lever sticks during operation. Always check the
lever for free movement and return before starting the engine. Also check
occasionally during operation.
Engine speed and vehicle movement
are controlled by pressing the throttle
lever
q
. The throttle lever is spring
loaded. Engine speed returns to idle
when the lever is released.
WARNING
Modifications to the electronic throttle control could result in failure to perform
as designed, which could result in an accident. Do not attempt to modify the
throttle control system or replace it with any after market throttle mechanisms.
43
FEATURES AND CONTROLS
BRAKE LEVER
WARNING
Operating the ATV with a spongy brake lever can result in loss of braking,
which could cause an accident. Never operate the ATV with a spongy-feeling
brake lever. Always contact your dealer for service before operating the
vehicle.
Squeeze the brake lever
q
toward the
handlebar to apply the front and rear
brakes. These brakes are hydraulically
activated disc type brakes that are
activated by only one lever. Always test
brake lever travel and master cylinder
fluid level before riding. When
squeezed, the lever should feel firm.
Any sponginess would indicate a
possible fluid leak or low master
cylinder fluid level, which must be
corrected before riding. Contact your
POLARIS dealer or other qualified
service facility for proper diagnosis and
repairs.
BRAKE MONITORING SYSTEM
The Brake Monitoring System monitors brake fluid
pressure while the brake lever is depressed.
If brake fluid pressure is lost, or a drop in pressure is
detected, the brake warning light will illuminate.
NOTICE
The brake monitoring system is very sensitive. Resting your fingers on the
brake lever may cause the brake warning indicator to illuminate. It is not
recommended to rest hand on the brake lever while the vehicle is in motion. If
the brake warning indicator lamp falsely illuminates, depress the brake lever
for 3 seconds to reset the indicator lamp. If the brake warning light remains
illuminated, and the brake lever feels soft, check the brake fluid level, inspect
the brake lines for leaks. See your dealer or other qualified technician for
assistance. Do not operate the vehicle with a malfunctioned brake system.
44
FEATURES AND CONTROLS
MASTER CYLINDER/BRAKE FLUID
WARNING
An over-full master cylinder may cause brake drag or brake lock-up, which
could result in an accident. Maintain brake fluid at the recommended level. Do
not overfill.
Check the brake fluid in the master cylinder before each ride.
1. Position the ATV on a level surface.
2. Position the handlebars so the
master cylinder
q
is level.
3. View the brake fluid level through
the indicator window
w
on the top of
the master cylinder. The eye will
appear dark when the fluid level is
full. When fluid is low, the eye will be
clear.
4. If the fluid level is low, remove the cover screws and add fluid to the fill line.
Do not overfill. Use DOT 4 brake fluid only.
5. Reinstall the cover. Torque screws to specification.
TORQUE
Brake Fluid Cover Screws:
7 in-lbs (8 N·m)
WARNING
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake
fade and the possibility of brake failure, which could result in an accident. After
opening a bottle of brake fluid, always discard any unused portion.
45
FEATURES AND CONTROLS
PARKING BRAKE
LOCKING THE PARKING BRAKE
WARNING
Operating the ATV while the parking brake is engaged could result in an
accident or fire. Always check to be sure the parking brake is disengaged
before operating.
1. Place the transmission in PARK.
2. Squeeze and release the brake
lever
q
two or three times, then
squeeze and hold.
3. Push the parking brake lock
w
forward to engage the lock.
4. Release the brake lever.
5. To release the parking brake lock,
squeeze and release the brake
lever. It will return to its unlocked
position.
The parking brake may relax if left on for a long period of time. Always block the
wheels to prevent rolling. Always block the wheels on the downhill side of the
ATV if leaving it parked on a hill. Another option is to park the ATV in a sidehill
position. Never depend on the parking brake alone if the ATV is parked on a hill.
Always block the wheels to prevent rolling.
46
FEATURES AND CONTROLS
AUXILIARY FOOT BRAKE
WARNING
Never back down a hill. Applying the auxiliary brake when backing down a hill
may cause rear tipover, which could result in serious injury or death. Use
caution when applying the auxiliary brake.
The auxiliary brake system is intended to be used as a backup for the main
brake system. Should the main system fail, use the auxiliary foot brake. The
auxiliary foot brake is located on the inside of the right footrest. Operate this
brake with your right foot. If the rear wheels slide while using the auxiliary brake,
reduce brake pedal pressure to brake the rear wheels without skidding.
NOTE
If service brake system is fully functioning, the auxiliary foot brake will brake on
4 wheels. The auxiliary brake can be used when starting the vehicle. To start
the vehicle using the auxiliary foot brake, depress the foot brake and turn the
ignition key to the start position.
BRAKE FLUID LEVEL
Check the brake fluid level frequently for the auxiliary brake system. The
reservoir is located under the seat.
Maintain the fluid level between the maximum and minimum marks. Use DOT 4
brake fluid only.
47
FEATURES AND CONTROLS
MIRRORS
Use the mirrors to assist in traffic maneuvers. Always check and adjust the
mirrors before driving the Tractor.
ELECTRONIC POWER STEERING (IF
EQUIPPED)
Electronic power steering (EPS), if equipped, engages when the ignition key is
turned to the ON position. EPS remains engaged whether the vehicle is moving
or idle. See the Instrument Cluster section for EPS Warning Indicator
information.
FUEL CAP
This vehicle is equipped with a digital fuel gauge that will indicate a low fuel
condition. Refuel when the gauge indicates a low fuel condition.
Always refuel with the engine stopped,
and outdoors or in a well ventilated
area. Refuel on a level surface.
Remove the fuel tank cap to add fuel to
the fuel tank. Use unleaded gasoline
with a minimum pump octane number of
87 = (R + M/2) octane. Do not use fuel
with ethanol content greater than 10
percent, such as E-85 fuel.
Compatible fuel types: E5, E10
48
FEATURES AND CONTROLS
PASSENGER SEAT BACKREST (TOURING)
The passenger backrest can be adjusted vertically.
1. Unzip the two zippers at the bottom
of the backrest pad. Lift the pad
upward to remove it from the
backrest frame.
2. To adjust the backrest upward or
downward, loosen the four vertical
adjustment screws
q
on the front
side of the backrest frame. Slide the
backrest upward or downward to the
desired position and tighten the
screws.
3. Reinstall the backrest pad.
SEAT REMOVAL
1. Locate the seat removal latch in the center of the seat’s rear.
2. Pull on the latch handle to disengage the seat from the vehicle’s frame.
3. Remove the seat.
49
FEATURES AND CONTROLS
EXTREME USE BATTERY
An optional extreme use battery may be available for your model. If the
performance of the factory-installed battery is inadequate due to operation in
extreme cold or due to extended use of multiple electrical accessories, your
POLARIS dealer can assist. Your dealer can provide any installation procedures
that may differ for an extreme use battery.
BATTERY CHARGE PORT
Your vehicle is equipped with a battery
charge port
q
. The battery charge port
allows you to quickly and easily connect
a battery charger to your vehicle’s
battery.
HITCHES
See the Specifications section for hitch weight capacities.
WARNING
Do not operate a combination Tractor-machine or Tractor-trailer unless all
instructions have been followed. See the Hauling Cargo section for details.
WARNING
Whenever the Tractor is towing, always stay clear of the area between the
Tractor and the towed object.
REAR HITCH
Use the rear hitch for towing a trailer. See the Hauling Cargo section for
procedures.
The values below are specific to the factory-installed rear hitch. For the
maximum vertical load and maximum towable mass on the hitch at the vehicle
level, see the Specifications chapter.
REAR HITCH SPECIFICATIONS PER COMPONENT CERTIFICATE
Maximum Vertical Load
85 kg applied on coupling point
Maximum Towable Mass
2000 kg
50
FEATURES AND CONTROLS
REAR HITCH SPECIFICATIONS PER COMPONENT CERTIFICATE
Approval #
E20 55R-01 4430
Maximum Dynamic Force (D)
10,2 kN
REAR HITCH CERTIFICATION LABEL
The hitch certification label is located
near the hitch on models equipped with
a factory-installed rear hitch.

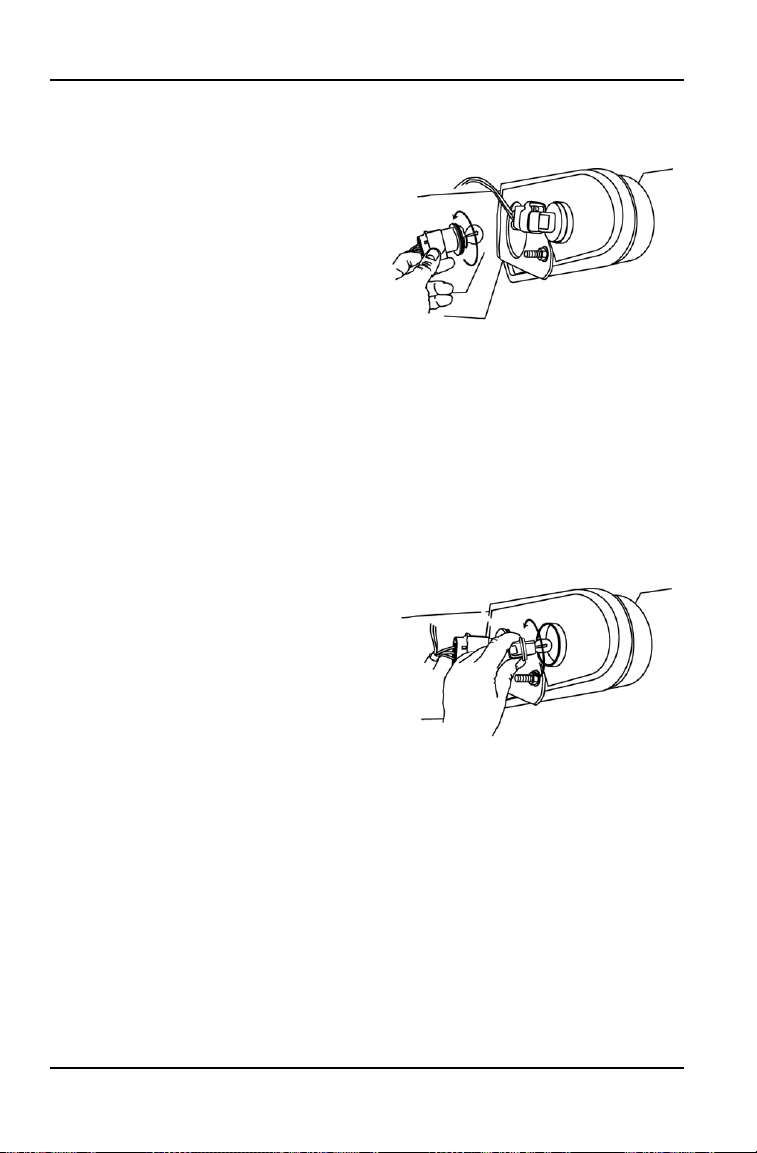

HITCH REMOVAL / INSTALLATION
1. To remove the hitch, remove the cotter pin
q
and hitch pin
w
. Remove the
hitch, then reinstall the hitch pin
w
and secure the cotter pin
q
.
2. To install the hitch, remove the cotter pin
q
from the hitch pin and remove
the hitch pin
w
.
3. Install the hitch to the receiver.
4. Reinstall the hitch pin (from the left side of the hitch) through the bore of both
the receiver and the hitch.
5. Reinstall the cotter pin. Make sure the hitch assembly is secure at that the
cotter pin is properly engaged over the hitch pin.
NOTICE
After 1000 km of use, tighten the bolt holding the trailer ball to the hitch to 445
N·m.
51
FEATURES AND CONTROLS
AUTOMATIC TRANSMISSION GEAR SELECTOR
The transmission gear selector
w
is located on the right side of the vehicle.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
To shift gears, brake to a complete stop.
When the engine is idling, move the
lever to the desired gear.
NOTE
Shifting gears with the engine speed above idle or while the vehicle is moving
could cause transmission damage.
Whenever the ATV is left unattended, always place the transmission in PARK
and lock the parking brake.
TIP
To extend belt life, use low forward gear when pulling a heavy load at less than
seven miles per hour for extended periods and when operating uphill at a slow
speed.
52
FEATURES AND CONTROLS
ALL WHEEL DRIVE SYSTEM
NOTICE
Switching to AWD or 4WDC AWD (if equipped) while the rear wheels are
spinning may cause severe drive shaft and gearcase damage. Always switch
to AWD or 4WDC AWD (if equipped) while the rear wheels have traction or are
at rest.
The All Wheel Drive system is
controlled by the AWD momentary
switch
q
. Engage AWD before getting
into conditions where front wheel drive
may be needed. If the rear wheels are
spinning, release the throttle before
switching to AWD.
AWD (4X4) MODE
When the switch is on AWD, the ATV is four-wheel drive, and the AWD indicator
icon in the instrument cluster display will be visible.
When in AWD, the demand drive unit will automatically
engage any time the rear wheels lose traction. When
the rear wheels regain traction, the demand drive unit
will automatically disengage. There is no limit to the
length of time the vehicle may remain in AWD. The
vehicle automatically engages AWD when operating in
reverse if the switch is set to either AWD position.
2X4 MODE
When the switch is on 2X4, the ATV is in two-wheel
drive at all times.
53
FEATURES AND CONTROLS
TURF MODE (IF EQUIPPED)
When operating in TURF mode, the inside rear wheel will rotate independently
from the outside wheel during turns. Operate in TURF mode only as needed to
protect smooth, level surfaces from tire damage. DO NOT operate in TURF
mode when climbing or descending hills, when sidehilling, or when operating on
uneven, loose, or slippery terrain such as sand, gravel, ice, snow, obstacles, and
water crossings. Always operate in ADC 4X4 or 4X4 on these types of terrain.
WARNING
Operating in TURF mode when on sloped, uneven, or loose terrain could
cause loss of control and result in serious injury or death. One rear wheel may
slip and lose traction or may lift up and grab when it touches the ground again.
ADC 4X4 MODE (IF EQUIPPED)
When the switch is on ADC 4X4, the ADC system
allows engine braking to all four wheels when the
vehicle descends a hill or incline. Always move the
4X4 switch to ADC 4X4 before ascending or
descending a hill.
ENGAGING FOUR-WHEEL DESCENT CONTROL
The 4WDC system will automatically engage when all of the following conditions
occur:
• 4WDC is engaged
• The throttle must be closed (throttle lever released)
• The transmission must be in gear (high, low or reverse)
DISENGAGING FOUR-WHEEL DESCENT CONTROL
The 4WDC system will automatically disengage if at least one of the following
conditions occur:
• The 4X4 switch is moved out of the 4WDC position
• The throttle is open (throttle is applied)
• The transmission is shifted to neutral or park
• The vehicle is on flat ground, or not actively descending a hill
54
FEATURES AND CONTROLS
INSTRUMENT CLUSTER
OVERVIEW
NOTICE
Features and telltales vary by model.
DISPLAY AREA FUNCTION
q
Gear Indicator
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
– = Gear Signal Error (or shifter between gears)
w
Display Area 2
This area displays odometer, trip meter, trip meter 2,
voltage, engine temperature, engine hour meter,
programmable service hour interval, ground speed,
or engine RPM.
e
Display Area 1
This area displays engine RPM, ground speed, or
coolant temperature.
r
Fuel Gauge
The segments of the fuel gauge show the level of
fuel in the fuel tank. When the last segment clears, a
low fuel warning is activated. All segments including
the fuel icon will flash. Refuel immediately.
55
FEATURES AND CONTROLS
DISPLAY AREA FUNCTION
t
Service Indicator
A flashing wrench symbol alerts the operator that the
preset service interval has been reached. Your
POLARIS dealer can provide scheduled
maintenance. See page 86 for more information.
y
Clock
The clock displays time in a 12-hour or 24-hour
format.
u
Driveline Mode
Indicator
Segments of the indicator illuminate based on
driveline mode engaged.
INDICATOR LAMPS
INDICATOR ICON FUNCTION
Check Engine
This indicator appears if a fault occurs.
Do not operate the vehicle if this warning
appears. Serious engine damage could
result. Your authorized POLARIS dealer
can assist.
EPS Warning (if
equipped)
This indicator illuminates when a fault has
occurred in the EPS system. Your
authorized POLARIS dealer can assist.
EPS operation is possible with key
on/engine off for up to 5 minutes.
Engine Hot
This lamp illuminates to indicate an
overheated engine. If the indicator
flashes, a severe overheating condition
exists.
Neutral
This lamp illuminates when the
transmission is in neutral and the ignition
key is in the ON position.
Helmet/Seat
Belt
This lamp flashes for several seconds
when the key is turned to the ON position.
The lamp is a reminder to wear helmet
and seat belt (if equipped) before
operating.
56
FEATURES AND CONTROLS
INDICATOR ICON FUNCTION
High Beam
This lamp illuminates when the headlamp
switch is set to high beam.
Brake Failure (if
equipped)
Lamp illuminates when Brake System (if
Brake Failure Alarm is equipped) detects
low pressure in brake hydraulic system.
Verify brake fluid in reservoirs.
Trailer Indicator
The Turn Trailer Indicator is illuminating
when the trailer turn signals are active.
DISPLAY AREA 1
Pressing the MODE button
will change the information
displayed in Area 1
q
.
DISPLAY AREA 1 FUNCTION
Speed The vehicle’s speed will be displayed in mph, or km/h.
Engine
Temperature
The vehicle’s current engine temperature will be
displayed.
RPM The vehicle’s RPM will be displayed.
57
FEATURES AND CONTROLS
DISPLAY AREA 2
Toggle the Up/Down
buttons to change the
information displayed in
Area 2
w
.
DISPLAY AREA 2 FUNCTION
Odometer The vehicle’s odometer reading will be displayed.
Engine
Temperature
The vehicle Engine Temperature will be displayed.
Trip 1 The vehicle Trip 1 mileage will be displayed.
Trip 2 The vehicle Trip 2 mileage will be displayed.
RPM The vehicle RPM will be displayed.
Voltage The vehicle’s current battery voltage will be displayed.
Speed The vehicle’s current speed will be displayed.
Engine Hours The vehicle’s engine hours will be displayed.
Service Hours The vehicle’s service hours will be displayed.
58
FEATURES AND CONTROLS
OPTIONS MENU
From the options menu you
can view diagnostic codes,
access the advanced menu,
set the clock, and much more.
For a full list of available
options see below.
To enter the Options Menu,
press and hold the MODE
button.
OPTIONS MENU NOTES
Diagnostic Codes Only displays if fault codes are
present or stored
Units - Distance Select MPH or KPH
Units - Temp Select between °F and °C
Clock (if equipped) Select between 12H or 24H, and set
time
Backlight Color Select between Blue or Red
Backlight Level Set backlight brightness level
Service Hours View/Set Service hours
Exit Menu Exit
59
FEATURES AND CONTROLS
ELECTRONIC POWER STEERING (EPS)
Electronic power steering (EPS), if equipped, engages when the ignition key is
turned to the ON position. EPS remains engaged whether the vehicle is moving
or idle. See the Instrument Cluster section for EPS Warning Indicator
information.
NOTICE
Never switch EPS modes while the vehicle is in motion. Ensure the vehicle is
fully stopped and no force is applied to the steering system before switching
EPS modes.
EPS has three modes: high,
medium, low. To set the EPS
mode, do the following.
1. Stop the ATV and put it in
PARK.
2. Press and hold the MODE
button to enter the Options
Menu. “OPTIONS” will
display on the screen for 3
seconds before showing the
first menu item.
3. Select “EPS” from the
Options Menu by pressing
the MODE button.
4. Toggle the Up/Down Buttons to choose between the high, medium, and low
modes.
5. Press the MODE button to lock in the EPS setting.
DIAGNOSTIC CODE
Diagnostic Code Screen will show available MIL that has come on during that
ignition cycle.
60
FEATURES AND CONTROLS
To access the Diagnostic Code
Screen, do the following:
1. Press and hold the MODE
button to enter the Options
Menu. “OPTIONS” will
display on the screen for 3
seconds before showing
first menu item.
2. Select “Diagnostic Codes” from the Options Menu by pressing the MODE
button.
Toggle the Up/Down Buttons to cycle through Code(s).
NOTICE
This option will only be available if a fault code was set or is active during the
current ignition key 'on' cycle. Turning off the ignition will clear any save fault
codes from the gauge.
q
Display area 1 will show FMI
w
Display area 2 will show SPN
e
Clock Area will show Count.
NOTICE
When the gauge is displaying a fault code, the warning telltale (check engine
or EPS) will blink to indicate which controller set the fault code.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
61
FEATURES AND CONTROLS
DIAGNOSTIC DISPLAY CODE DEFINITIONS
Open Load:There is a break in the wires that lead to the item listed in the chart
(injector, fuel pump, etc.), or the item has failed.
Short-to-Ground:The wire is shorted to ground between the electronic control
unit and the item listed in the chart.
Shorted Load:The wires leading to the item listed in the chart are shorted
together, or the item has shorted internally.
Short-to-Battery:The wire leading from the item listed in the chart to the
electronic control unit is shorted to a wire at battery voltage.
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Accelerator Position 2
Data Valid But Above
Normal Operational
Range
29
0
Not Plausible 2
Voltage Too High 3
Voltage Too Low 4
Throttle Position
Sensor 1
Data Valid But Above
Normal Operational
Range
51
0
Data Valid But Below
Normal Operational
Range
1
Signal Out of Range 2
Voltage Too High 3
Voltage Too Low 4
Abnormal Rate Of
Change
10
Out Of Calibration 13
Vehicle Speed Sensor
Data Valid But Above
Normal Operational
Range
84
0
Data Valid But Below
Normal Operational
Range
1
62
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Data Erratic or
Intermittent (or
missing)
2
Voltage Too High 3
Voltage Below
Normal, Or Shorted
To Low Source
4
Abnormal Frequency
Or Pulse Width Or
Period
8
Abnormal Update
Rate
9
Abnormal Rate Of
Change
10
Bad Intelligent Device
Or Component
12
Received Vehicle
Speed Has Error
19
Accelerator Position 1
Voltage Too High
91
3
Voltage Too Low 4
Fuel Level Signal
Data Erratic,
Intermittent Or
Incorrect
96
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Too Low 4
Data Valid But Above
Normal Operating
Range
16
Data Valid But Below
Normal Operating
Range
18
Manifold Absolute
Pressure Sensor
Data Erratic,
Intermittent Or
Incorrect
102
2
63
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Too Low 4
Mechanical System
Not Responding Or
Out Of Adjustment
7
Abnormal Rate Of
Change
10
Intake Air
Temperature Sensor
(T-MAP)
Data Valid But Above
Normal Operational
Range - Most Severe
Level
105
0
Data Erratic,
Intermittent Or
Incorrect
2
Voltage Too High 3
Voltage Too Low 4
Abnormal Rate Of
Change
10
Data Valid But Above
Normal Operating
Range
15
Intake Air Pressure
Sensor
Data Valid But Above
Normal Operational
Range
106
0
Data Valid But Below
Normal Operational
Range
1
Data Erratic,
Intermittent Or
Incorrect
2
Voltage Too High 3
Voltage Too Low 4
Barometric Pressure
Sensor
Data Erratic,
Intermittent Or
Incorrect
108
2
64
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Abnormal Rate Of
Change
10
Engine Temperature
Sensor
Engine Overheat
Shutdown
110
0
Data Erratic,
Intermittent Or
Incorrect
2
Voltage Too High 3
Voltage Too Low 4
Abnormal Rate Of
Change
10
Data Valid But Above
Normal Operating
Range
15
Temperature Too
High
16
Data Valid But Below
Normal Operating
Range
17
Received Network
Data In Error
19
Battery Potential
Voltage Above
Normal, Or Shorted
To High Source
158
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Transmission Range
Invalid 162 2
System Power
Data Valid But Above
Normal Operational
Range - Most Severe
Level
168
0
65
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Data Erratic,
Intermittent Or
Incorrect
2
Voltage Too High 3
Voltage Too Low 4
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
16
Data Valid But Below
Normal Operating
Range - Moderately
Severe Level
18
Engine Speed
Data Valid But Above
Normal Operational
Range - Most Severe
Level
190
0
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Data Erratic,
Intermittent Or
Incorrect
2
Mechanical System
Not Responding Or
Out Of Adjustment
7
Received Engine
Speed Has Error
19
Error in Engine Speed
Computation
31
Gear Sensor Signal
Data Erratic,
Intermittent Or
Incorrect
523
2
Voltage Above
Normal, Or Shorted
To High Source
3
66
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Voltage Too Low 4
Abnormal Update
Rate
9
Root Cause Not
Known
11
Transmission
Requested Gear
Received Network
Data In Error
525
19
Cruise Control Panel
Switches
Condition Exists
527
31
Brake Switch
Data Erratic,
Intermittent Or
Incorrect
597
2
Abnormal Update
Rate
9
Abnormal Rate Of
Change
10
Received Network
Data In Error
19
System Voltage
Data Valid But Above
Normal Operating
Range - Least Severe
Level
627
15
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
ECU Memory
Bad Intelligent Device
Or Component
628
12
Out Of Calibration 13
Calibration
Out Of Calibration
630
13
Checksum/CRC Error 19
Crankshaft Position
Sensor
Plausibility Fault
636
2
Abnormal Frequency
Or Pulse Width Or
Period
8
Camshaft Position
Sensor
Mechanical System
Not Responding Or
Out Of Adjustment
637
7
67
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Abnormal Frequency
Or Pulse Width Or
Period
8
Injector 1 (MAG)
Voltage Below
Normal / Shorted To
Low Source / Driver
Circuit Grounded.
651
4
Current Below Normal
/ Open Circuit / Driver
Circuit Open /
Grounded
5
Injector 2 (PTO)
Voltage Above
Normal, Or Shorted
To High Source /
Driver Circuit Short to
B+
652
3
Voltage Below
Normal, Or Shorted
To Low Source /
Driver Circuit
Grounded
4
Current Below Normal
Or Open Circuit /
Driver Circuit Open /
Grounded
5
Starter Solenoid
Driver Circuit
Voltage Above
Normal, Or Shorted
To High Source
677
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Rear Differential
Output (Turf)
Driver Circuit Short to
B+
746
3
Driver Circuit
Grounded
4
Driver Circuit Open /
Grounded
5
Fan Relay Driver
Circuit
Voltage Above
Normal
1071
3
Voltage Below
Normal
4
68
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Current Below Normal
Or Open Circuit
5
Ignition Coil Primary
Driver 1 (MAG)
Voltage Above
Normal
1268
3
Voltage Below
Normal
4
Current Below Normal
Or Open Circuit
5
Starter Enable Circuit
Voltage Above
Normal
1321
3
Voltage Below
Normal
4
Current Below Normal
Or Open Circuit
5
Fuel Pump Driver
Circuit
Voltage Above
Normal
1347
3
Voltage Below
Normal
4
Current Below Normal
Or Open Circuit
5
Abnormal Frequency
Or Pulse Width Or
Period
8
EFI Relay Control
Circuit
Voltage Above
Normal
1485
3
Voltage Below
Normal
4
Current Below Normal
Or Open Circuit
5
Fan Driver 2
Voltage Above
Normal
1557
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
69
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
PTO Solenoid Driver
Circuit
Voltage Above
Normal, Or Shorted
To High Source
1888
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Vehicle Speed
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
2590
16
Oxygen Sensor Bank
1 Sensor 1
Data Erratic,
Intermittent Or
Incorrect
3056
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Bad Intelligent Device
Or Component
12
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
ECU Output Supply
Voltage 1
Data Valid But Above
Normal Operational
Range - Most Severe
Level
3597
0
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
70
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
16
Data Valid But Below
Normal Operating
Range - Moderately
Severe Level
18
ECU Output Supply
Voltage 2
Data Valid But Above
Normal Operational
Range - Most Severe
Level
3598
0
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
16
Data Valid But Below
Normal Operating
Range - Moderately
Severe Level
18
ECU Output Supply
Voltage 3
Data Valid But Above
Normal Operational
Range - Most Severe
Level
3599
0
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
71
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
16
Data Valid But Below
Normal Operating
Range - Moderately
Severe Level
18
CAN1 Bus Hardware
Root Cause Not
Known
65559
11
Condition Exists 31
ETC Accelerator
Position Sensor
Correlation
Data Erratic,
Intermittent Or
Incorrect
65613
2
Cylinder Misfire
Mechanical System
Not Responding Or
Out Of Adjustment
65590
7
Cylinder 1 Misfire
Mechanical System
Not Responding Or
Out Of Adjustment
65591
7
ETC Accelerator
Position Sensor
Outputs 1 & 2
Correlation
Data Erratic,
Intermittent Or
Incorrect
65613
2
CAN 1
Abnormal Update
Rate
516125
9
Idle Engine speed
Received Network
Data In Error
516178
19
Winch In Commanded
State
Data Valid But Below
Normal Operational
Range - Most Severe
Level
516246
1
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Winch Out
Commanded State
Voltage Above
Normal, Or Shorted
To High Source
516247
3
72
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Voltage Below
Normal, Or Shorted
To Low Source
4
Winch Auto Stop
Signal
Voltage Below
Normal, Or Shorted
To Low Source
516248
4
Plowing In High
Range
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
516249
16
CAN1 Bus Wiring
Condition Exists
520141
31
Throttle Release
Signal
Data Erratic,
Intermittent Or
Incorrect
520194
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Mechanical System
Not Responding Or
Out Of Adjustment
7
Throttle Position
Sensor 2
Data Valid But Above
Normal Operational
Range - Most Severe
Level
520198
0
Data Valid But Below
Normal Operational
Range - Most Severe
Level
1
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Abnormal Rate Of
Change
10
Out Of Calibration 13
73
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Canister Purge Valve
Voltage Above
Normal, Or Shorted
To High Source
520202
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Front Wheel Back
Drive (Active Descent
System)
Voltage Above
Normal, Or Shorted
To High Source
520203
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Fuel Correction Front
Data Valid But Above
Normal Operating
Range - Least Severe
Level
520204
15
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
Fuel Correction Rear
Data Valid But Above
Normal Operating
Range - Least Severe
Level
520205
15
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
Reverse Alarm
Data Erratic,
Intermittent Or
Incorrect
520206
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
74
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Current Below Normal
Or Open Circuit
5
All Wheel Drive
Control Circuit
Voltage Above
Normal, Or Shorted
To High Source
520207
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Chassis Relay
Voltage Above
Normal, Or Shorted
To High Source
520208
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Idle Speed
Voltage Above
Normal, Or Shorted
To High Source
520211
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Accessory Relay
Voltage Above
Normal, Or Shorted
To High Source
520219
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Battery Charge Relay
Voltage Above
Normal, Or Shorted
To High Source
520220
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
75
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Steering Over Current
Shut Down
Current Above
Normal Or Grounded
Circuit
520221
6
Bad Intelligent Device
Or Component
12
Steering Excessive
Current Error
Current Above
Normal Or Grounded
Circuit
520222
6
Steering Torque
Partial Failure
Condition Exists
520223
31
Steering Torque Full
Failure
Condition Exists
520224
31
EPS Inverter
Temperature
Data Valid But Above
Normal Operational
Range - Most Severe
Level
520225
0
Bad Intelligent Device
Or Component
12
Data Valid But Above
Normal Operating
Range - Moderately
Severe Level
16
EPS Communications
Receive Data Error
Data Erratic,
Intermittent Or
Incorrect
520226
2
Condition Exists 31
EPS CAN
Communications
Transmit Error
Data Erratic,
Intermittent Or
Incorrect
520227
2
Position Encoder
Error
Root Cause Not
Known
520228
11
Bad Intelligent Device
Or Component
12
Condition Exists 31
Software Error
Bad Intelligent Device
Or Component
520229
12
Condition Exists 31
76
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
IC CAN
Communication with
EPS
Condition Exists
520230
31
EPS Power Save
Condition
Condition Exists
520231
31
Fuel Pull Solenoid
Relay Driver Circuit
(Low Side)
Voltage Above
Normal, Or Shorted
To High Source
520273
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Current Below Normal
Or Open Circuit
5
Accelerator
Position/Brake
Position Interaction
Condition Exists
520275
31
Throttle Position
Sensor (1 or 2
Indeterminable)
Data Erratic,
Intermittent Or
Incorrect
520276
2
Bad Intelligent Device
Or Component
12
Throttle Body Control
- Power Stage
Data Erratic,
Intermittent Or
Incorrect
520277
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Abnormal Frequency
Or Pulse Width Or
Period
8
Condition Exists 31
Throttle Body Control
- Return Spring Check
Failed
Condition Exists
520278
31
Throttle Body Control
- Adaption Aborted
Condition Exists
520279
31
77
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Throttle Body Control
- Limp Home Position
Check Failed
Condition Exists
520280
31
Throttle Body Control
- Mechanical Stop
Adaptation Failure
Condition Exists
520281
31
Throttle Body Control
- Repeated
Adaptation Failed
Condition Exists
520282
31
Throttle Body Control
Data Erratic,
Intermittent Or
Incorrect
520283
2
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
Throttle Body Control
- Position Deviation
Fault
Condition Exists
520284
31
Brake Switch (1 or 2
Indeterminable)
Data Erratic,
Intermittent Or
Incorrect
520285
2
ECU Monitoring Error
Condition Exists
520286
31
ECU Monitoring Error
(Level 3)
Condition Exists
520287
31
ECU Monitoring of
Injection Cut Off
(Level 1)
Condition Exists
520288
31
ECU Monitoring of
Injection Cut Off
(Level 2)
Condition Exists
520289
31
Throttle Body Control
- Requested Throttle
Angle Not Plausible
Condition Exists
520305
31
ECU ADC Fault - No
Load
Condition Exists
520306
31
ECU ADC Fault -
Voltage
Condition Exists
520307
31
78
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Accelerator Sensor
Sync Fault - Sensor
Diff Exceeds Limit
Condition Exists
520308
31
ECU Fault - ICO
Condition Exists
520309
31
ECU Fault - Hardware
Disruption
Condition Exists
520311
31
Idle Fuel Correction
Bank 1
Data Valid But Above
Normal Operating
Range - Least Severe
Level
520342
15
Idle Fuel Correction
Bank 2
Data Valid But Above
Normal Operating
Range - Least Severe
Level
520343
15
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
Adaptive Fuel
Correction Bank 1
Data Valid But Above
Normal Operating
Range - Least Severe
Level
520344
15
Data Valid But Below
Normal Operating
Range - Least Severe
Level
17
Internal fault - Chassis
Output Disabled
Condition Exists
520376
31
Non Functional
Application SW
Installed
Condition Exists
520381
31
Stator
Voltage Below
Normal, Or Shorted
To Low Source
520498
4
Current Below Normal
Or Open Circuit
5
Display Relay
Current Below Normal
Or Open Circuit
520522
5
Drive Mode Select
Switch
Data Erratic,
Intermittent Or
Incorrect
524067
2
79
FEATURES AND CONTROLS
DIAGNOSTIC CODES
COMPONENT CONDITION SPN FMI
Voltage Above
Normal, Or Shorted
To High Source
3
Voltage Below
Normal, Or Shorted
To Low Source
4
EPS Fault Lamp
Driver Circuit
Bad Intelligent Device
Or Component
524085
12
EPS SEPIC Voltage
Error
Voltage Above
Normal, Or Shorted
To High Source
524086
3
Voltage Below
Normal, Or Shorted
To Low Source
4
UNIT SELECTION DISTANCE
80
FEATURES AND CONTROLS
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Units-Distance” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (MPH or KPH)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
UNIT SELECTION TEMPERATURE
81
FEATURES AND CONTROLS
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Units - Temp” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (°F or °C)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
82
FEATURES AND CONTROLS
CLOCK
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Clock” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (12H or 24H)
e
With the correct unit displayed, Press the mode button which will set the
unit.
r
Toggle the Up/Down Buttons to change the units (Cycles Hours)
t
With the correct unit displayed, Press the mode button which will set the
unit.
y
Toggle the Up/Down Buttons to change the units (Cycles 10s of Minutes)
u
With the correct unit displayed, Press the mode button which will set the
unit.
i
Toggle the Up/Down Buttons to change the units (Cycles 1s of Minutes)
o
With the correct unit displayed. Press the mode button which will set the
unit and return to the Options menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
83
FEATURES AND CONTROLS
BACK LIGHT COLOR
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Backlight Color” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (Blue or Red)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
84
FEATURES AND CONTROLS
BACK LIGHT LEVEL
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Backlight Level” from the Options Menu by pressing the MODE
button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (Increase or De-
crease Level)
e
With the correct unit displayed, Press the mode button which will set
the unit and return to the Options Menu.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
85
FEATURES AND CONTROLS
SERVICE HOURS
1. Press and hold the MODE button to enter the Options Menu.
NOTICE
“OPTIONS” will display on the screen for 3 seconds before showing first menu
item.
2. Select “Service Hours” from the Options Menu by pressing the MODE button.
Reference the image shown above:
q
Press the MODE button.
w
Toggle the Up/Down Buttons to change the units (0, 5, 10 - 95, 100)
e
With the correct unit displayed, press the MODE button, which will set
the unit and return you to the Options Menu.
NOTICE
To reset service hours after they have counted down to "0.0", reselect the
existing setpoint or select a new service hour value.
3. To exit the Options Menu the user can select Exit Menu function from
Options Menu, can hold Mode Button and exit out of Options Menu, or not
press any button for 10 seconds, which will exit out of the Options Menu.
86
FEATURES AND CONTROLS
BLUETOOTH® (IF EQUIPPED)
The Bluetooth® functionality
allows users to pair their
phones with the vehicle’s
digital gauge. This function
allows users to receive call
and text alerts while
operating the vehicle.
If a text message is received
while the vehicle is moving
faster than 2 KPH, only the
sender’s name is shown
onscreen.
If you are browsing any of the Bluetooth® menus and the vehicle starts to move
faster than 2 KPH, the menu will automatically display VEHICLE MOVING. If
you attempt to access Bluetooth® menus while the vehicle is moving faster than
2 KPH, the screen will display VEHICLE MOVING momentarily, and then it will
redirect to the options menu.
PAIRING YOUR PHONE TO THE GAUGE
Use the following procedure to pair your phone with the vehicle’s digital gauge.
NOTICE
Bluetooth® functionality is compatible with both iOS® and Android® phones.
For iOS® phones, you must go to the Settings option and enable notifications.
Most Android® phones will prompt the user automatically to enable
notifications as part of the pairing process.
1. Make sure Bluetooth® is enabled on your phone.
2. Access the options menu on the vehicle’s digital gauge and select BT PAIR.
The Bluetooth® icon will begin to blink.
3. Find and select Polaris Gauge on your phone’s Bluetooth® menu or prompt.
Pairing should occur momentarily. Pairing mode will continue for up to 90
seconds or if you exit the BT PAIR menu.
After successfully pairing the phone, the vehicle’s digital gauge will automatically
reconnect with the phone each time it is powered on and within range. No further
action is required by the user at this point.
87
FEATURES AND CONTROLS
88
OPERATION
IMPORTANT INFORMATION
WARNING
Failure to operate the vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
VEHICLE BREAK-IN PERIOD
The break-in period for your new POLARIS vehicle is the first 25 hours of
operation, or the time it takes to use the first two tanks full of gasoline. No single
action on your part is as important as a proper break-in period. Careful treatment
of a new engine and drive components will result in more efficient performance
and longer life for these components. Perform the following procedures
carefully.
NOTICE
Excessive heat build-up during the first three hours of operation will damage
close-fitted engine parts and drive components. Do not operate at full throttle
or high speeds during the first three hours of use.
Use of any improper oils may cause serious engine damage. POLARIS PS-4
Full Synthetic 5W-50 4-Cycle Oil is specifically formulated for your 4-cycle
engine.
89
OPERATION
ENGINE AND DRIVETRAIN BREAK-IN
1. Fill the fuel tank with gasoline. See the Fuel Tank section for details. Always
exercise extreme caution whenever handling gasoline.
2. Check the oil level. See the Oil Check section for reference. Add the
recommended oil as needed to maintain the oil level in the safe operating
range.
3. Drive slowly at first. Select an open area that allows room to familiarize
yourself with vehicle operation and handling.
4. Avoid aggressive use of the brakes.
5. Vary throttle positions. Do not operate at sustained idle.
6. Pull only light loads.
7. Perform regular checks on fluid levels, controls and areas outlined on the
daily pre-ride inspection checklist.
8. During the break-in period, change both the oil and the filter at 25 hours or
250 miles.
9. Check fluid levels of transmission and all gearcases after the first 25 hours of
operation and every 100 hours thereafter.
PVT BREAK-IN (CLUTCHES/BELT)
Always break in the clutches and drive belt of new vehicles, as well as after a
belt replacement.
A proper break-in of the clutches and drive belt will ensure a longer life and
better performance. Break in the clutches and belt by operating at slower
speeds during the break-in period as recommended. Pull only light loads. Avoid
aggressive acceleration and high speed operation during the break-in period.
If a belt fails, always clean any debris from the PVT intake and outlet duct and
from the clutch and engine compartments when replacing the belt.
BRAKE SYSTEM BREAK-IN
Apply only moderate braking force for the first 50 stops. Aggressive or overly
forceful braking when the brake system is new could damage brake pads and
rotors.
90
OPERATION
PRE-RIDE CHECKLIST
Failure to inspect and verify that the ATV is in safe operating condition before
operating increases the risk of an accident. Always inspect the ATV before each
use to make sure it's in safe operating condition.
ITEM REMARKS REF.
Passenger seat latch (if
equipped)
Ensure latch is secure
page 49
Hand brake/lever travel
Ensure proper operation page 142
Foot brake
Ensure proper operation page 142
Brake fluid
Ensure proper levels page 140
Front suspension
Inspect, lubricate if
necessary
page 130
Rear suspension
Inspect, lubricate if
necessary
page 130
Steering Ensure free operation
–
Tires
Inspect condition and
pressure
page 144
Wheels/fasteners
Inspect, ensure fastener
tightness
page 144
page 145
Frame nuts, bolts,
fasteners
Inspect, ensure tightness
–
Fuel and oil
Ensure proper levels
page 32
page 131
Coolant level
Ensure proper level page 138
Coolant hoses
Inspect for leaks
–
Throttle
Ensure proper operation page 43
Indicator lights/switches Ensure proper operation page 37
Engine stop switch Ensure proper operation page 40
Air filter, pre-filter Inspect, clean page 148
Headlights Check operation page 41
Brake light/tail lamp Check operation page 156
91
OPERATION
ITEM REMARKS REF.
Riding gear
Wear approved helmet,
goggles, and protective
clothing
page 16
Mirrors (if equipped)
Adjust for best side/rear
vision
–
Winch (if equipped) Inspect cable and switch. page 113
Grass and Leaves
Remove grass, leaves,
foreign matter, and other
flammable material or
debris, especially near the
exhaust system
-
BOARDING AND DISMOUNTING THE TRACTOR
BOARDING
If boarding from the left side of the vehicle, grasp the left handlebar grip with
your left hand. Step onto the footrest and place your right foot and leg across the
seat. Sit astride the vehicle.
If boarding from the right side of the vehicle, grasp the right handlebar grip with
your right hand. Step onto the footrest and place your left foot and leg across the
seat. Sit astride the vehicle.
DISMOUNTING
1. Position the vehicle on a level surface.
2. Place the transmission in PARK (or neutral).
3. Stand on the footrests and dismount the vehicle, holding onto the handlebar
for support.
92
OPERATION
STARTING THE ENGINE
1. Position the vehicle on a level surface outdoors or in a well- ventilated area.
2. Place the transmission in PARK.
3. Lock the parking brake.
TIP
The starter interlock will prevent the engine from starting if the transmission is
in drive gear and the brake is not engaged.
IMPORTANT
The starter interlock is disabled if the brake warning indicator lamp is
illuminated. The vehicle can start without applying brakes, but shift lever must
be in the Park or Neutral position.
4. Sit on the vehicle and move the engine stop switch to RUN.
TIP
Do not press the throttle while starting the engine.
5. Turn the ignition key past the ON position to engage the starter. Activate the
starter for a maximum of five seconds, releasing the key when the engine
starts.
6. If the engine does not start, return the key to the OFF position and wait five
seconds before attempting to start again. Activate the starter for another five
seconds if necessary. Repeat this procedure until the engine starts.
NOTICE
Operating the vehicle immediately after starting could cause engine damage.
Allow the engine to warm up for several minutes before operating the vehicle.
STOPPING THE ENGINE
1. Release the throttle pedal completely and brake to a complete stop.
2. Place the transmission in PARK.
3. Turn the key to the OFF position.
4. Slowly release the brake pedal and make sure the transmission is in PARK
before exiting the vehicle.
93
OPERATION
WARNING
A rolling vehicle can cause serious injury. Always place the transmission in
PARK before stopping the engine.
PARKING THE VEHICLE
1. Stop the vehicle on a level surface. When parking inside a garage or other
structure, be sure that the structure is well ventilated and that the vehicle is
not close to any source of flame or sparks, including any appliance with pilot
lights.
2. Place the transmission in PARK.
3. Turn the engine off.
4. Engage the parking brake (if equipped).
5. Slowly release the brake pedal and make sure the transmission is in PARK
before exiting the vehicle.
6. Remove the ignition key to prevent unauthorized use.
COLD WEATHER OPERATION
If the vehicle is used year-round, check the oil level frequently. A rising oil level
could indicate the accumulation of contaminates such as water or excess fuel in
the bottom of the crankcase. Water in the bottom of the crankcase can lead to
engine damage and must be drained. Water accumulation increases as outside
temperature decreases.
See your dealer for engine heater kits, which provide quicker warm-ups and
easier starting in colder weather.
WHEN TO USE LOW AND HIGH RANGE
CONDITION RANGE TO USE
Operating at speeds less than 11 km/h (7 MPH) Low
Towing heavy loads Low
Operating in rough terrain (swamps, mountains,
etc.)
Low
Operating at speeds greater than 11 km/h (7 MPH) High
94
OPERATION
DRIVING PROCEDURES
NEW OPERATOR DRIVING PROCEDURES
1. Wear protective riding gear. See the Safe Riding Gear section.
2. Perform the pre-ride inspection.
3. Place the transmission
in PARK.
4. Lock the brake holding
latch.
5. Mount the vehicle from
the left side.
6. Sit upright with both
feet on the footrests
and both hands on the
handlebars.
7. Start the engine and
allow it to warm up.
8. Shift the transmission into gear.
9. Check your surroundings and determine your path of travel.
10.Release the brake holding latch.
11. Slowly depress the throttle with your right thumb and begin driving.
12.Drive slowly. Practice maneuvering and using the throttle and brakes on level
surfaces.
DRIVING WITH A PASSENGER
1. Never carry more than one passenger on a 2-up ATV.
2. Do not carry a passenger on a 2-up ATV until you have at least two hours of
driving experience with the vehicle.
3. Never allow anyone under 12 years of age to ride as a passenger on a 2-up
ATV. Make sure any passenger is tall enough to comfortably and safely
reach the grab handles and footrests.
4. Make sure the passenger is wearing appropriate riding gear, including an
approved helmet with a rigid chin guard.
5. Perform the pre-ride inspection.
6. Lock the parking brake.
95
OPERATION
7. Mount the vehicle from the left side. After the operator is seated, the
passenger should mount the vehicle from the left side. Always make sure the
brake is engaged to ensure the vehicle remains motionless whenever a
passenger mounts or dismounts.
8. A passenger should always be seated in the passenger seat with both feet
on the footrests and both hands on the passenger grab handles at all times.
The passenger should never hold on to the operator. Never secure a
passenger to the vehicle or to the operator with a belt, rope or similar device.
9. Slow down. Control may be more difficult with a passenger on board. Allow
more time and distance for braking.
10.Ride to the ability of your passenger, instead of to your own ability. Avoid
unexpected or aggressive maneuvers that could cause a passenger to fall
from the vehicle.
11. Do not cross a hillside with a passenger on board.
12.Make sure the passenger understands the importance of "active riding."
When hillclimbing or performing maneuvers, a passenger should shift body
weight in the same manner in which the driver shifts body weight. For
example, the passenger should lean to the inside of a turn along with the
operator and should always lean uphill when climbing and descending hills.
TURNING THE VEHICLE
Both rear wheels drive equally at all times. This means that the outside wheel
must travel a greater distance than the inside wheel when turning, and the inside
tire must slip traction slightly.
1. Slow down.
2. Never turn quickly when carrying cargo.
3. Steer in the direction of the turn.
4. Keep both feet on the footrests.
5. Lean your upper body to the inside of the turn while supporting your weight
on the outer footrest. This technique alters the balance of traction between
the rear wheels, allowing the turn to be made smoothly. The same leaning
technique should be used for turning in reverse.
6. Practice making turns at slow speeds before attempting to turn at faster
speeds.
WARNING
Turning improperly can result in vehicle overturn. Never turn abruptly or at
sharp angles. Never turn at high speeds.
96
OPERATION
DRIVING ON SLIPPERY SURFACES
WARNING
Skidding or sliding can cause loss of control or rollover (if tires regain traction
unexpectedly). When operating on slippery surfaces such as ice or loose
gravel, reduce speed and use extra caution to reduce the chance of skidding or
sliding out of control. Do not operate on excessively slippery surfaces.
Whenever riding on slippery surfaces such as wet trails or loose gravel, or
during freezing weather, follow these precautions:
1. Do not operate on excessively rough, slippery or loose terrain.
2. Slow down when entering slippery areas.
3. Engage 4X4 before wheels begin to lose traction.
NOTICE
Severe damage to drive train may occur if the 4X4 is engaged while the wheels
are spinning. Allow the rear wheels to stop spinning before engaging 4X4, or
engage 4X4 before wheels begin to lose traction.
4. Maintain a high level of alertness, reading the trail and avoiding quick, sharp
turns, which can cause skids.
5. Never apply the brakes during a skid. Correct a skid by turning the
handlebars in the direction of the skid and shifting your body weight forward.
97
OPERATION
DRIVING UPHILL
Braking and handling are greatly affected when operating in hilly terrain.
Improper procedure could cause loss of control or overturn. Whenever traveling
uphill, follow these precautions:
1. Always engage 4WDC before ascending or descending a hill.
2. Drive straight uphill.
3. Avoid steep hills. Maximum incline is: 15°
4. Always check the terrain carefully before ascending any hill.
5. Never climb hills with excessively slippery or loose surfaces.
6. Keep both feet on the footrests.
7. Shift body weight uphill.
8. Proceed at a steady rate of speed and throttle opening. Opening the throttle
suddenly could cause the ATV to flip over backwards.
9. Never go over the top of any hill at high speed. An obstacle, a sharp drop, or
another vehicle or person could be on the other side of the hill.
10.Remain alert and be prepared to take emergency action. This may include
quick dismounting of the vehicle.
98
OPERATION
DRIVING DOWNHILL
When driving downhill, follow these precautions:
1. Always check the terrain carefully before descending a hill.
2. Always engage 4WD or 4WDC mode (if equipped) before ascending or
descending a hill.
3. Avoid steep hills. Maximum incline is 15°
4. Always descend a hill with the transmission in forward gear. Do not descend
a hill with the transmission in neutral.
5. Slow down. Never travel down a hill at high speed.
6. Drive straight downhill. Avoid traveling down a hill at an angle, which would
cause the vehicle to lean sharply to one side.
7. Shift body weight uphill.
8. Apply the brakes slightly to aid in slowing. Applying the brakes too firmly may
cause the rear wheels to lock, which could result in loss of control.
99
OPERATION
DRIVING ON A SIDEHILL (SIDEHILLING)
Driving on a sidehill is not recommended. Improper procedure could cause loss
of control or overturn. Avoid crossing the side of any hill unless absolutely
necessary.
If crossing a sidehill is unavoidable, follow these precautions:
1. Slow down.
2. Avoid crossing the side of a steep hill.
3. Lean into the hill, transferring your upper body weight toward the hill while
keeping your feet on the footrests.
4. If the vehicle begins to tip, quickly turn the front wheel downhill, if possible, or
dismount on the uphill side immediately!
100
OPERATION
TURNING AROUND ON A HILL (K-TURN)
If the vehicle stalls while climbing a hill, never back it down the hill! Use the
K-turn to turn around.
1. Stop and lock the parking brake while keeping body weight uphill.
2. Always move the 4X4 switch to ADC 4X4 (if equipped) before ascending or
descending a hill. See the Switch Location section for details.
3. Leave the transmission in forward and shut off the engine.
4. Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill.
5. Staying uphill of the vehicle, turn the handlebars full left.
6. While holding the brake lever, release the parking brake lock and slowly
allow the vehicle to roll around to your right until it's pointing across the hill or
slightly downward.
7. Lock the parking brake. Remount the vehicle from the uphill side, keeping
body weight uphill. Start the engine with the transmission still in forward.
8. Release the parking brake and proceed slowly, controlling speed with the
brake lever, until the vehicle is on more level ground.
101
OPERATION
DRIVING THROUGH WATER
NOTICE
Major engine damage can result if the vehicle is not thoroughly inspected after
operation in water. Perform the services outlined in the Periodic Maintenance
Chart. The following areas need special attention: engine oil, transmission oil,
demand drive fluid and all grease fittings.
If the vehicle tips or overturns in water, or if the engine stops during or after
operating in water, service is required before starting the engine. Your
POLARIS dealer can provide this service. If it's impossible to bring the vehicle
in before starting the engine, perform the service outlined in the Vehicle
Immersion section of this manual, and take the vehicle in for service at the first
opportunity.
Your ATV can operate through water with a maximum recommended depth
equal to the bottom of the footrests.
Follow these procedures
when operating through
water:
1. Determine water
depths and current
before entering water.
2. Choose a crossing
where both banks have
gradual inclines.
3. Avoid operating
through deep or
fast-flowing water.
4. After leaving water, test the brakes. Apply them lightly several times while
driving slowly. The friction will help dry out the pads.
If it’s unavoidable to enter water deeper than the footrest level:
• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops. Do not
make sudden throttle changes.
102
OPERATION
DRIVING OVER OBSTACLES
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for hazards
such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar terrain. Not
all obstacles are immediately visible.
4. Never attempt to operate over large obstacles, such as rocks or fallen trees.
5. Always have a passenger dismount before operating over an obstacle that
could cause a fall from the vehicle or vehicle tipover.
103
OPERATION
DRIVING IN REVERSE
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle.
2. Always avoid backing downhill.
3. Back slowly.
4. Apply the brakes lightly for stopping.
5. Avoid turning at sharp angles.
6. Never open the throttle suddenly.
7. Do not use the override switch unless additional wheel speed is required for
vehicle movement. Use the override with caution as rearward vehicle speed
is greatly increased. Do not operate at wide open throttle. Operate the
throttle just enough to maintain a desired speed.
NOTICE
Excessive throttle operation while in the speed limit mode may cause fuel to
build in the exhaust, resulting in engine popping and/or engine damage.
104
OPERATION
PARKING ON AN INCLINE
Avoid parking on an incline if possible. If it's unavoidable, follow these
precautions:
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Always block the rear wheels on the downhill side.
OPERATING IN LIGHTNING
Avoid operating this vehicle when lightning could occur unless the vehicle is
equipped with a fully enclosed cab. Rubber tires, rubber handgrips and a foam
seat will not protect a rider from lightning strikes. Always seek safe shelter when
lightning is imminent.
105
OPERATION
HAULING CARGO
WARNING
Overloading the vehicle or carrying or towing cargo improperly can alter
vehicle handling and may cause loss of control or brake instability. Always
follow these precautions when hauling cargo.
• Read and understand the load distribution warnings listed on the vehicle
warning labels.
• Never exceed the stated load capacity for this vehicle. When determining
the weight you are adding to the vehicle, include the weight of the operator,
passenger, accessories, loads in the rack or box and the load on the trailer
tongue. The combined weight of these items must not exceed the maximum
weight capacity.
• REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO OR TOWING. Use extreme caution when
applying brakes. Avoid situations that require backing downhill.
• WEIGHT DISTRIBUTION on models with front and rear racks should be 1/3
on the front rack and 2/3 on the rear rack. Carrying loads on only one rack
increases the possibility of vehicle overturn.
• CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads
high on the racks raises the center of gravity of the vehicle and creates a
less stable operating condition.
• SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the
vehicle.
• OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the
load and operate with extra caution. Always attach the tow load to the hitch
point designated for your vehicle.
• HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain
or situations that may require backing downhill.
• USE EXTREME CAUTION when operating with loads that extend over the
rack sides. Stability and maneuverability may be adversely affected, causing
the vehicle to overturn.
• Towing is approved OFF-ROAD ONLY unless your vehicle is approved for
on-road operation.
• TOWING SPEED should never exceed 16 km/h. Never exceed 8 km/h when
towing loads in rough terrain, while cornering, or while ascending or
descending hills.
106
OPERATION
1. Never exceed the weight capacities specified for your vehicle on warning
labels and in the Specifications section of this manual.
2. On models with front and rear racks, cargo weight should be evenly
distributed ( 2/3
q
on the rear and 1/3
w
on the front) and mounted as low
as possible.
3. All Models:
NEVER exceed 80 km/h when rear cargo loads are above 34 kg and/or front
cargo loads are above 17 kg.
4. 2–Up Models:
2-Up Models: NEVER exceed 80 km/h while carrying a passenger.
5. X2 Models:
NEVER exceed 16 km/h when rear cargo loads are above 91 kg. Make sure
the cargo box dump latch is securely latched before loading and operating.
Unintentional dumping will result if weight is placed in the rear of the box and
the latch is not secured.
6. When operating over rough or hilly terrain, reduce speed and cargo weight to
maintain stable driving conditions.
7. Do not obstruct the headlight beam with cargo.
8. Use low forward gear when hauling or towing heavy cargo to extend belt life.
9. Always operate the vehicle with extreme caution whenever hauling or towing
loads. Balance, handling, and control may be affected.
107
OPERATION
TOWING LOADS
NOTICE
Strictly follow the instructions outlined in the operator’s manual of the mounted
or trailered machinery or trailer. Never operate the combination tractor –
machine or tractor – trailer unless all instructions have been followed.
• Do not tow any trailer on a grade steeper than 15°.
• The combination of rear rack cargo weight and tongue weight must not
exceed the rear rack capacity.
• The total load (operator, passenger, accessories, cargo and weight on hitch)
must not exceed the maximum weight capacity of the vehicle.
CAPACITIES REAR HITCH
Maximum Towed Load (Level
Ground)
270 kg (unbraked trailer)
830 kg (inertia-braked trailer)
Maximum Vertical Hitch Weight 75 kg
WARNING
Using an improper hitch or exceeding the maximum tongue weight capacity
can result in serious damage to the vehicle and will void your warranty. Never
install a hitch longer than 13 cm. Never install automotive accessories on your
POLARIS Tractor. Always install POLARIS-approved (or equivalent)
accessories designed for Tractor use.
DUMPING CARGO (X2)
WARNING
If cargo weight is placed toward the rear of the cargo box, the load may dump
unexpectedly and cause serious injury. When loading cargo, always position
the weight as far forward and as low as possible.
1. Select a level site to dump the cargo box. Do not attempt to dump or unload
the vehicle while parked on an incline.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Dismount the vehicle.
5. Lower the tailgate.
108
OPERATION
6. Pull one of the two cargo box release levers
q
upward.
7. Firmly grasp one of the cargo box handles
w
and slowly lift the front of the
cargo box to dump the cargo.
WARNING
To prevent a crushing injury to hands and fingers, keep hands and fingers
away from the lower front edge of the cargo box while lowering the box.
8. Lower the cargo box and make sure the release latch is secured.
9. Secure the tailgate.
WARNING
Driving with the cargo box in the raised position can cause serious injury and
damage to the vehicle. The cargo box could close unexpectedly and injure the
driver. The rear tires will also catch the rear of the bed, damaging the vehicle
and creating hazardous driving conditions. Never drive this vehicle with the
cargo box in the raised position. Never leave this vehicle parked or unattended
with the cargo box in the raised position.
109
OPERATION
TIE-DOWN LOCATIONS
q
Front tie-down point
w
Left side tie-down points
e
Rear tie-down points
r
Right side tie-down points
TOWING THE TRACTOR
If towing the Tractor is necessary, shift the transmission into neutral for better
mobility and to prevent damage to the belt. Always attach the tow cable to the
front tow loop of the disabled Tractor. A rider must be on board to steer the
disabled Tractor while towing.
110
OPERATION
TRAILERING THE TRACTOR
Follow these procedures when transporting the vehicle.
1. Stop the engine.
2. Place the transmission in PARK.
3. Secure the fuel cap, oil cap and seat.
4. Remove the key to prevent loss during transporting.
5. Always tie the frame of the Tractor to the transporting unit securely with
suitable straps or rope. Do not attach tie straps to the front A-arm bolt
pockets, racks or handlebars.
111
OPERATION
112
WINCH GUIDE
WINCH SAFETY
These safety warnings and instructions apply if your vehicle came equipped with
a winch or if you choose to add an accessory winch to your vehicle.
WARNING
Improper winch use can result in SEVERE INJURY or DEATH. Always follow
all winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially designed
synthetic rope. The term “winch cable” will be used for either unless noted
otherwise.
WINCH SAFETY PRECAUTIONS
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the winch.
5. Always keep body, hair, clothing and jewelry clear of the winch cable, fairlead
and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving vehicle.
See the Shock Loading section on page 121.
7. Always keep the area around the vehicle, winch, winch cable, and load clear
of people (especially children) and distractions while operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch are not
being used.
9. Always be sure that at least five (5) full turns of winch cable are wrapped
around the winch drum at all times. The friction provided by this wrapped
cable allows the drum to pull on the winch cable and move the load.
10.Always apply your vehicle’s park brake and/or park mechanism to hold the
vehicle in place during winching. Use wheel chocks if needed.
11. Always align the vehicle and winch with the load directly in front of the
vehicle as much as possible. Avoid winching with the winch cable at an angle
to the winching vehicle’s centerline whenever possible.
113
WINCH GUIDE
12.If winching at an angle is unavoidable, follow these precautions:
a. Look at the winch drum occasionally. Never let the winch cable “stack” or
accumulate at one end of the winch drum. Too much winch cable at one
end of the winch drum can damage the winch and the winch cable.
b. If stacking occurs, stop winching. Follow step 15 of Winch Operation to
feed and rewind the cable evenly before continuing the winch operation.
13.Never winch up or down at sharp angles. This can destabilize the winching
vehicle and possibly cause it to move without warning.
14.Never attempt to winch loads that weigh more than the winch’s rated
capacity.
15.The winch motor may become hot during winch use. If you winch for more
than 45 seconds, or if the winch stalls during operation, stop winching and
permit the winch to cool down for 10 minutes before using it again.
16.Never touch, push, pull or straddle the
winch cable while winching a load.
17.Never let the winch cable run through
your hands, even if wearing heavy gloves.
18.Never release the clutch on the winch
when the winch cable is under load.
19.Never use the winch for lifting or
transporting people.
20.Never use the winch to hoist or suspend a
vertical load.
21.Always inspect your winch and winch cable before each use.
22.Never winch the hook fully into the winch. This can cause damage to winch
components.
23.Unplug the remote control from the vehicle when the winch is not in use to
prevent inadvertent activation and use by unauthorized persons.
24.Never grease or oil the winch cable. This will cause the winch cable to collect
debris that will shorten the life of the cable.
114
WINCH GUIDE
WINCH OPERATION
Read the Winch Safety Precautions in the preceding pages before using your
winch.
TIP
Consider practicing the operation and use of your winch before you actually
need to use it in the field.
WARNING
Improper winch use can result in SEVERE INJURY or DEATH. Always follow
all winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able to
deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls for any
signs of damage or parts in need of repair or replacement before each use.
Pay particular attention to the first 3 feet (1 meter) of winch cable if the winch
is being used (or has been used) for lifting an accessory plow assembly.
Promptly replace any worn or damaged cable.
2. Never operate a winch or a vehicle in
need of repair or service.
3. Always apply your vehicle’s park brake
and/ or park mechanism to hold the
vehicle in place during winching. Use
wheel chocks if needed.
4. Always use the hook strap when handling
the hook.
115
WINCH GUIDE
WARNING
Never put your fingers into the hook. This could lead to SEVERE INJURY.
• Attach the hook itself onto the load or use a tow strap or chain to secure the
load to the winch cable.
TIP
A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING
Never use a recovery strap when winching due to the excessive energy that
can be released if the winch cable breaks. This can result in SEVERE INJURY
or DEATH. See the Shock Loading section on page 121.
• Never hook the winch cable back onto itself. This will damage the winch cable
and may result in winch cable failure.
WARNING
Replace the winch cable at the first sign of damage to prevent SEVERE
INJURY or DEATH in the event of failure. For your safety, always replace
POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer, or other
qualified dealer.
116
WINCH GUIDE
• If possible, keep the winch cable aligned with the centerline of the winching
vehicle. This will help the spooling of the winch cable and reduce the load on
the fairlead.
• If freeing a stuck vehicle by attaching to a tree, use an item such as a tow
strap to avoid damaging the tree during winch operation. Sharp cables and
chains can damage and even kill trees. Please remember to Tread Lightly℠
(treadlightly.org).
• Before operating the winch, be sure that the safety latch on the winch cable
hook is fully seated when the load is attached.
• Never operate your winch with a damaged hook or latch. Always replace
damaged parts before using the winch.
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided by this
wrapped cable allows the drum to pull on the winch cable and move the load.
8. Read and adhere to the following information for winch damping to ensure
safe winch use.
a. In order to absorb energy that could be released by a winch cable failure,
always place a “damper” on the winch cable. A damper can be heavy
jacket, tarp, or other soft, dense object. A damper can absorb much of the
energy released if a winch cable breaks when winching. Even a tree limb
can help as a damper if no other items are available to you.
b. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
117
WINCH GUIDE
c. On a long pull, it may be necessary to stop winching so that the damper
can be repositioned to the new mid-point of the winch cable. Always
release the tension on the winch cable before repositioning the damper.
d. Avoid being directly in line with the winch cable whenever possible. Also,
never permit others to stand near or in line with the winch cable during
winch operation.
9. Never hook the winch cable back onto itself. This will damage the winch
cable and may result in winch cable failure.
10.Never use straps, chains or other rigging items that are damaged or worn.
11. The ONLY time a winch-equipped vehicle should be moving when using the
winch is when that vehicle itself is stuck. The winch equipped vehicle should
NEVER be in motion to “shock” load the winch cable in an attempt to move a
second stuck vehicle. See the Shock Loading section on page 121. For your
safety, always follow these guidelines when winching a vehicle free:
a. Release the winch clutch and spool out the necessary length of winch
cable.
b. Align the winch cable as close as possible to the winching vehicle’s
centerline.
c. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
d. Re-engage the clutch on the winch.
e. Slowly winch in the slack in the winch cable.
f. Select the proper vehicle gear to propel the stuck vehicle in the direction
of winching.
g. Shift to the lowest gear available on the stuck vehicle.
h. Slowly and carefully apply vehicle throttle and winch together to free the
vehicle.
i. Stop winching as soon as the stuck vehicle is able to propel itself without
the help of the winch.
j. Detach the winch cable hook.
k. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.
12.Never attempt to winch another stuck vehicle by attaching the winch cable to
a suspension component, brush guard, bumper or cargo rack. Vehicle
damage may result. Instead, attach the winch to a strong portion of the
vehicle frame or hitch.
118
WINCH GUIDE
13.Extensive winching will run down the battery on the winching vehicle. Let the
winching vehicle’s engine run while operating the winch to prevent the
battery from running low if winching for long periods.
14.The winch motor may become hot during winch use. If you winch for more
than 45 seconds, or if the winch stalls during operation, stop winching and
permit the winch to cool down for 10 minutes before using it again.
15.After winching is complete, especially if winching at an angle, it may be
necessary to re-distribute the winch cable across the winch drum. You will
need an assistant to perform this task.
a. Release the clutch on the winch.
b. Feed out the winch cable that is unevenly bunched up in one area.
c. Re-engage the winch clutch.
d. Have an assistant pull the winch cable tightly with about 100 lbs. (45 kg)
of tension using the hook strap.
e. Slowly winch the cable in while your assistant moves the end of the winch
cable back and forth horizontally to evenly distribute the winch cable on
the drum.
f. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
119
WINCH GUIDE
WINCH CABLE CARE
WARNING
Use of worn or damaged cable could lead to sudden failure and SEVERE
INJURY.
For your safety, always replace POLARIS winch parts (including the cable) with
genuine POLARIS replacement parts available at your authorized POLARIS
dealer, or other qualified person.
1. Always inspect your winch before each use. Inspect for worn or loose parts
including mounting hardware. Never use the winch if any part needs repair or
replacement.
2. Always inspect your winch cable before each use. Inspect for worn or kinked
winch cable.
A kinked winch cable made of wire rope
is shown at right. Even after being
“straightened out,” this cable has
already been permanently and severely
damaged. Promptly discontinue use of
a winch cable in this condition.
A kinked winch cable made of wire rope
that has been “straightened out” is
shown at right. Even though it may look
usable, the cable has been permanently
and severely damaged. It can no longer
transmit the load that it could prior to
kinking. Promptly discontinue use of a
winch cable in this condition.
A winch cable made of synthetic rope
should be inspected for signs of fraying.
Replace the cable if fraying is observed
(shown below). Promptly discontinue
use of a winch cable in this condition.
Also replace the winch cable if there are
fused or melted fibers. Such an area of
the synthetic rope will be stiff and
appear smooth or glazed. Promptly
discontinue use of a winch cable in this
condition.
120
WINCH GUIDE
SHOCK LOADING
WARNING
Your winch cable is very strong but it is NOT designed for dynamic, or “shock”
loading. Shock loading may tension a winch cable beyond its strength and
cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both wire-rope
and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never take up
slack in the winch cable by moving the winching vehicle in an attempt to
move an object. This is a dangerous practice. It generates high winch cable
loads that may exceed the strength of the cable. Even a slowly moving
vehicle can create large shock loads in a winch cable.
WARNING
SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”). This puts
extra load on the winch, winch cable, and generates excessive heat from the
motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an object with a
winch produces shock loading of the cable even when towing at slow
speeds. Towing from a winch also positions the towing force high on the
vehicle. This can cause instability of the vehicle and possibly lead to an
accident.
4. Never use recovery straps with your winch. Recovery straps are designed to
stretch and can store energy. This stored energy in the recovery strap is
released if a winch cable fails making the event even more hazardous.
Similarly, never use elastic “bungie” cords for winching.
5. Never use the winch to tie down a vehicle to a trailer or other transportation
vehicle. This type of use also causes shock loading that can cause damage
to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads produced
by the winch motor when operated from a stationary vehicle. Always
remember that the winch and winch cable are NOT designed for shock
loading.
121
WINCH GUIDE
WINCH MAINTENANCE AND SERVICE SAFETY
WARNING
Improper or lack of winch maintenance and service could lead to SEVERE
INJURY or DEATH. Always follow all winch instructions and warnings in this
manual.
1. Always inspect your winch before each use. Inspect for worn or kinked winch
cable. Also inspect for worn or loose parts including mounting hardware.
2. Permit your winch motor to cool down prior to servicing your winch.
3. Never work on your winch without first disconnecting the battery connections
to prevent accidental activation of the winch.
4. For your safety, always replace POLARIS winch parts (including the cable)
with genuine POLARIS replacement parts available at your authorized
POLARIS dealer, or other qualified person.
5. Some winch models use wire rope as the winch cable. Other winches use a
specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade polymer
rope such as can be purchased in a hardware store. Although they may look
similar, they are NOT alike. A polymer rope not designed for winch use will
stretch and store excessive energy when winching.
WARNING
Failure of a stretched rope under winching conditions will release all of the
stored energy. This will increase the chances of SEVERE INJURY or DEATH.
122
WINCH GUIDE
EMISSION CONTROL SYSTEMS
NOISE EMISSION CONTROL SYSTEM
Do not modify the engine, intake or exhaust components, as doing so may affect
compliance with governmental noise level requirements.
SPARK ARRESTER
Your POLARIS vehicle has a spark arrester that was designed for on-road and
off-road operation. It is required that this spark arrester remain installed and
functional when the vehicle is operated.
EXHAUST EMISSION CONTROL SYSTEM
Exhaust emissions are controlled by engine design. An electronic fuel injection
(EFI) system controls fuel delivery. The engine and EFI components are set at
the factory for optimal performance and are not adjustable.
ELECTROMAGNETIC INTERFERENCE
This vehicle complies with the EMC requirements of European Directive
2014/30/EU.
Non-ionizing Radiation: This vehicle emits some electromagnetic energy.
People with active or non-active implantable medical devices (such as heart
monitoring or controlling devices) should review the limitations of their device
and the applicable electromagnetic standards and directives that apply to this
vehicle.
CARBON DIOXIDE (CO2) EMISSION
Carbon dioxide (CO2) emission: 1055 g/kWh
This CO2 measurement results from testing over a fixed test cycle under
laboratory conditions a(n) (parent) engine representative of the engine type
(engine family) and shall not imply or express any guarantee of the performance
of a particular engine representative of the engine type (engine family) and shall
not imply or express any guarantee of the performance of a particular engine.
123
EMISSION CONTROL SYSTEMS
124
MAINTENANCE
PERIODIC MAINTENANCE
Any qualified repair shop or person may maintain, replace or repair the emission
control devices or systems on your vehicle. An authorized POLARIS dealer can
perform any service that may be necessary for your vehicle. POLARIS also
recommends POLARIS parts for emissions-related service, however equivalent
parts can be used.
It is a potential violation of the EU law if a part supplied by an aftermarket parts
manufacturer reduces the effectiveness of the vehicle’s emission controls.
Tampering with emission controls is prohibited by law.
Owners are responsible for performing the scheduled maintenance identified in
this owner’s manual. Careful periodic maintenance will help keep your vehicle in
safe, reliable condition. Inspect, clean, lubricate, adjust and replace parts as
necessary. When inspection reveals the need for replacement parts, genuine
POLARIS parts are available from your POLARIS dealer. Equivalent parts may
be used for emissions-related service.
Record maintenance and service in the Maintenance Log beginning on page
191. Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, a qualified
dealer can perform these operations. Maintenance intervals in the following
chart are based upon average riding conditions and an average vehicle speed of
approximately 10 miles per hour. Vehicles subjected to severe use must be
inspected and serviced more frequently.
SEVERE USE DEFINITION
Severe use is defined as:
• Frequent immersion in mud, water, or sand
• Frequent or prolonged operation in dusty environments
• Short trip cold weather operation
• Racing or racing-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
125
MAINTENANCE
ELEVATING THE VEHICLE FOR SERVICE
Some service procedures require elevation of the vehicle. Always position the
vehicle on a firm, level surface before elevating. Do not position a jack or jack
stand under any components other than the frame.
Use an appropriate lift or floor jack. This vehicle is not equipped with dedicated
jacking points. Place the floor jack at the front (or rear) of the vehicle, directly
under the center of the unit. Make sure the floor jack makes contact only with the
frame of the vehicle while lifting
q
.
Do not allow the vehicle to remain elevated on a floor jack. After elevating, place
jack stands under the frame on each side of the floor jack, then lower the floor
jack.
126
MAINTENANCE
MAINTENANCE CHART
SYMBOL DESCRIPTION
XU Perform these procedures more often for vehicles subjected to severe use.
D Have an authorized Polaris dealer or other qualified person perform these services.
WARNING
Improperly performing the procedures marked with a D could result in
component failure and lead to serious injury or death. Have an authorized
POLARIS dealer or other qualified person perform these services.
Perform all services at whichever maintenance interval is reached first. Record
maintenance and service in the Maintenance Log.
ITEM
MAINTENANCE INTERVAL
(WHICHEVER COMES FIRST)
REMARKSHOURS CALENDAR
MILES
(KM)
Steering
Pre-Ride
Inspect and make adjustments as
needed.
Front Suspension
Rear Suspension
Tires
Brake Fluid Level
Brake Lever Travel
Brake System
Wheels / Fasteners
CV Boot
Frame Fasteners
Engine Oil Level
Winch (if equipped)
XU
Air Filter
(Pre-Filter)
-
Daily
-
Inspect; clean often; replace as
needed
Coolant -
Daily
-
Check level daily, change coolant
every two years
Head Lights / Tail
Lights
-
Daily
-
Check operation; apply dielectric
grease if replacing
Power Steering
unit
(If equipped)
-
Daily Inspect daily, clean often
127
MAINTENANCE
ITEM
MAINTENANCE INTERVAL
(WHICHEVER COMES FIRST)
REMARKSHOURS CALENDAR
MILES
(KM)
XU
D
Brake Pad Wear 10 H
Monthly
100
(160)
Inspect periodically
Battery
20 H
Monthly
200
(320)
Check terminals; clean; test
Fuel and EVAP
System (if
equipped)
20 H
Monthly
-
Inspect; cycle key to pressurize fuel
pump; check lines and fittings for
leaks and abrasion. Replace as
needed
XU
Engine Oil Change
25 H 1 M -
Break-in oil and filter change
Engine Breather
25 H 1 M
250
(400)
Inspect; replace as needed
XU
Demand Drive
Fluid
25 H 1 M
250
(400)
Break-in fluid change
XU Rear Gearcase Oil 25 H 1 M
250
(400)
Break-in fluid level check
XU Transmission Fluid 25 H 1 M
250
(400)
Break-in fluid level check
XU
General
Lubrication
50 H 3 M
500
(800)
Lubricate all fittings, pivots, cables,
etc.
Shift Linkage
50 H 3 M
500
(800)
Inspect
D
Steering
50 H 6 M
500
(800)
Lubricate
XU
Front/Rear
Suspension
50 H 6 M
500
(800)
Lubricate
XU
Throttle Release
Switch (if
equipped)
50 H 6 M
500
(800)
Inspect; adjust; lubricate; replace if
necessary
Throttle Body
Intake Duct
50 H 6 M
500
(800)
Inspect ducts for proper sealing / air
leaks
Drive Belt 50 H 6 M
500
(800)
Inspect; replace as needed
XU
Air Filter (main
element)
50 H 6 M
500
(800)
Inspect; replace as needed
Cooling System
50 H 6 M
1000
(1600)
Inspect coolant strength seasonally;
pressure test system yearly
XU Radiator 50 H 6 M
1000
(1600)
Inspect; clean external surfaces
XU
Cooling Hoses
50 H 6 M
1000
(1600)
Inspect for leaks
XU Shocks 50 H -
500
(800)
Inspect for leaks, loose joints, and
wear
XU
Oil lines and
fasteners
100 H 6 M
1000
(1600)
Inspect for leaks and loose fittings
128
MAINTENANCE
ITEM
MAINTENANCE INTERVAL
(WHICHEVER COMES FIRST)
REMARKSHOURS CALENDAR
MILES
(KM)
XU
Engine oil change
100 H 6 M
1000
(1600)
Change the oil and filter
D
Fuel and EVAP
System (if
equipped)
100 H 12 M
1000
(1600)
Inspect; cycle key to pressurize fuel
pump; check lines and fittings for
leaks and abrasion. Replace as
needed
XU
Engine Mounts
100 H 12 M
1000
(1600)
Inspect
Exhaust Pipe /
Silencer / Joints
100 H 12 M
1000
(1600)
Inspect; replace worn parts
XU
Spark Plug
100 H 12 M
1000
(1600)
Inspect; replace as needed
XU
Wiring
100 H 12 M
1000
(1600)
Inspect for wear, routing, security;
apply dielectric grease to connectors
subjected to water, mud, etc.
D
Clutches
(Drive/Driven)
100 H 12 M
1000
(1600)
Inspect; clean; replace worn parts
D
Wheel Bearings
100 H 12 M
1000
(1600)
Inspect; replace as needed
D Brake Fluid 200 H 24 M
2000
(3200)
Change every two years
XU
Demand drive fluid
(normal use)
200 H 24 M
2000
(3200)
Change fluid
XU
Rear gearcase oil
200 H 24 M
2000
(3200)
Change fluid
XU Transmission oil 200 H 24 M
2000
(3200)
Change fluid
XU Valve Clearance 200 H -
2000
(3200)
Inspect; adjust as needed
XU
D
Shocks 250 H -
2500
(4000)
Replace shocks
Spark Arrestor
300 H 36 M
3000
(4800)
Clean out; or remove clean out plug.
If driving in mud, service/clean spark
arrestor daily.
XU Coolant - 60 M -
Replace coolant (50/50 Extended
Life Coolant)
D
Toe Adjustment
-
Inspect periodically; adjust as
needed
Headlight Aim
-
Adjust as needed
129
MAINTENANCE
LUBRICATION GUIDE
Check and lubricate all components at the intervals outlined in the Periodic
Maintenance Chart. Items not listed in the chart should be lubricated at the
General Lubrication interval.
The a-arms and upper control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
ITEM SUGGESTED
LUBRICANT
CAPACITY AT
FLUID
CHANGE
FILL PLUG
TORQUE
DRAIN PLUG
TORQUE
REF.
Engine Oil
PS-4 5W-50
4-Cycle Oil
1.9 l
(2 qt.)
–
19-23 Nm
(14-17 ft-lbs)
page
131
Brake Fluid
DOT 4 Brake
Fluid
– – –
page
140
Transmis-
sion Oil
AGL Gearcase
Lubricant &
Transmission
Fluid
946 ml
(32 oz.)
27-34 Nm
(20-25 ft-lbs)
27-34 Nm
(20-25 ft-lbs)
page
135
Demand
Drive Fluid
(Front
Gearcase)
Demand Drive
Fluid
275 ml
(9.3 oz.)
11–14 Nm
(8–10 ft-lbs)
15 Nm
(11 ft-lbs)
page
136
Rear
Gearcase
Oil
ATV Angle
Drive Fluid (or
GL5 80–90
weight gear
lube)
210 ml
(7.1 oz.)
14–19 Nm
(10–14 ft-lbs)
14–19 Nm
(10–14 ft-lbs)
page
136
Front Prop
Shaft Yoke
U-Joint Grease
Grease fitting (3 pumps maximum) every 800 km (500 miles),
before long periods of storage, or after pressure washing or
submerging.
130
MAINTENANCE
ENGINE OIL
Always check and change the oil at the intervals outlined in the Periodic
Maintenance Chart. Always use the recommended engine oil. Always change
the oil filter whenever changing oil.
Pay special attention to the oil level. A rise in oil level during cold weather can
indicate contaminants collecting in the oil sump or crankcase. Change oil
immediately if the oil level begins to rise. Monitor the oil level, and if it continues
to rise, discontinue use and determine the cause. Your dealer can assist.
WARNING
Vehicle operation with insufficient, deteriorated, or contaminated engine oil will
cause accelerated wear and may result in engine seizure, accident and injury.
Always perform the maintenance procedures as outlined in the Periodic
Maintenance Chart.
OIL RECOMMENDATIONS
Always change the oil filter whenever changing oil.
POLARIS recommends the use of POLARIS PS-4 Full Synthetic 5W-50 4-cycle
oil or a similar oil for this engine. Oil may need to be changed more frequently if
POLARIS oil is not used. Always use 5W-50 oil. Follow the manufacturer's
recommendations for ambient temperature operation.
See the Lubrication Guide section for fluid recommendations, capacities and
plug torques.
NOTICE
Mixing brands or using a non-recommended oil may cause serious engine
damage. Always use the recommended oil. Never substitute or mix oil brands.
131
MAINTENANCE
OIL LEVEL
Check the oil level when the engine is cold. Never check the oil with the engine
running.
1. Position the vehicle on a level surface.
2. Access the oil dipstick and fill tube from the right side of the ATV
q
. Remove
the dipstick. Wipe it dry with a clean cloth.
3. Reinstall and tighten the dipstick.
4. Remove the dipstick and check the oil level
5. Add the recommended fluid as needed. Maintain the oil level in the safe
range between the FULL and ADD marks. Do not overfill.
6. Reinstall and tighten the dipstick.
132
MAINTENANCE
OIL CHANGE
IMPORTANT
Always change the oil filter whenever changing oil.
See the fluid recommendation table for
capacities and plug torques. Always
change the oil and filter at the intervals
outlined in the Periodic Maintenance
Chart.
1. Position the vehicle on a level surface.
2. Start the engine. Allow it to warm up at idle for two to three minutes.
3. Stop the engine.
4. Clean the area around the drain plug
q
.
5. Place a drain pan under the crankcase.
6. Remove the drain plug
q
. Allow the oil to drain completely.
CAUTION
Hot oil can cause burns to skin. Do not allow hot oil to contact skin.
7. Install a new sealing washer on the drain plug. The sealing surfaces on drain
plug and crankcase should be clean and free of burrs, nicks or scratches.
8. Reinstall the drain plug. Torque to specification.
TORQUE
11 +/- 1 ft-lbs (16 +/- 1.5 Nm)
133
MAINTENANCE
OIL FILTER CHANGE
IMPORTANT
Always change the oil filter whenever changing oil.
See the fluid recommendation table for
capacities and plug torques. Always
change the oil and filter at the intervals
outlined in the Periodic Maintenance
Chart.
1. Place shop towels beneath the oil filter
w
. Using an oil filter wrench
(available from your POLARIS dealer), turn the filter counter- clockwise to
remove it.
2. Using a clean dry cloth, clean the filter sealing surface on the crankcase.
3. Lubricate the o-ring on the new filter with a film of fresh engine oil. Check to
make sure the o-ring is in good condition.
4. Install the new filter and rotate it clockwise by hand until the filter gasket
contacts the sealing surface, then turn it an additional 3/4 turn.
5. Remove the dipstick.
6. Add the proper amount of the recommended oil. Do not overfill.
7. Reinstall the dipstick.
8. Place the transmission in PARK.
9. Lock the parking brake.
10.Start the engine. Allow it to idle for one to two minutes.
11. Stop the engine.
12.Check for leaks.
13.Check the oil level. Add oil as needed to bring the level to the upper mark on
the dipstick.
14.Dispose of used filter and oil properly.
134
MAINTENANCE
TRANSMISSION OIL
TORQUE
Fill Plug: 20–25 ft lbs. (27–34 Nm)
Always check and change the transmission oil at the intervals outlined in the
Periodic Maintenance Chart. See the Fluid Recommendation table for capacities
and plug torques. Maintain the oil level at the bottom of the fill plug hole. The fill
plug is located on the right side of the ATV behind the footwell. The drain plug is
located on the bottom rear side of the gearcase.
OIL CHECK
1. Remove the fill plug
q
. Check the
oil level.
2. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
3. Reinstall the fill plug. Torque to
specification.
4. Reinstall the footwell.
OIL CHANGE
TORQUE
Drain Plug: 20–25 ft lbs. (27–34 Nm)
1. Place a drain pan under the
gearcase. Remove the drain plug
w
.
Allow the oil to drain completely.
2. Clean and reinstall the drain plug.
Torque to specification.
3. Remove the fill plug. Add the proper
amount of the recommended oil.
4. Reinstall the fill plug. Torque to
specification.
5. Check for leaks.
6. Reinstall the footwell.
7. Dispose of used oil properly.
135
MAINTENANCE
FRONT GEARCASE (DEMAND DRIVE) FLUID
Always check and change the demand drive fluid at the intervals outlined in the
Periodic Maintenance Chart.
Change the front gearcase fluid every 25 hours if the ADC unit is exposed to
extreme use. Extreme use includes any of the following:
• operation in ADC mode for prolonged periods
• constant ADC operation on hilly or mountainous terrain
• ADC is the primary mode of all-wheel-drive operation
TIP
If the front gearcase is makes excessive noise during ADC operation, change
the demand drive fluid. If the noise continues, please see your POLARIS
dealer or other qualified service facility for service.
Use the recommended fluid. Use of other fluids may result in improper operation
of components. Maintain the fluid level at the bottom of the fill hole threads. The
fill plug is located on the right side of the demand drive unit. The drain plug is
located on the bottom right side of the unit.
FLUID CHECK
TORQUE
Fill Plug: 8–10 ft lbs (11–14 Nm)
1. Position the vehicle on a level
surface. Remove the fill plug
q
.
Check the fluid level.
2. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
3. Reinstall the fill plug. Torque to
specification.
136
MAINTENANCE
FLUID CHANGE
TORQUE
Drain Plug: 11 ft lbs (15 Nm)
1. Position the vehicle on a level surface. Remove the fill plug.
2. Place a drain pan under the demand drive unit. Remove the drain plug
w
.
Allow the fluid to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Add the proper amount of the recommended fluid.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks. Dispose of used fluid properly.
COOLING SYSTEM
The engine coolant level is controlled, or maintained, by the recovery system.
The recovery system components are the recovery bottle, the radiator filler neck,
the radiator pressure cap and the connecting hose.
As coolant operating temperature increases, the expanding (heated) excess
coolant is forced out of the engine, past the pressure cap, and into the recovery
bottle. As engine coolant temperature decreases the contracting (cooled)
coolant is drawn back up from the bottle, past the pressure cap, and into the
radiator.
Some coolant level drop on new vehicles is normal as the system is purging
itself of trapped air. Check the coolant level and maintain as recommended by
adding coolant to the recovery bottle.
POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This
antifreeze is already premixed and ready to use. Do not dilute with water. See
the Polaris Products section for the part numbers.
137
MAINTENANCE
RECOVERY BOTTLE COOLANT
The recovery bottle fluid level can be viewed from inside the front right wheel
well. Access the recovery bottle cap under the front box.
1. View the fluid level in the bottle.
2. If the level is low, remove the bottle cap and add coolant as needed. Maintain
the coolant level between the minimum and maximum marks on the bottle
(when the fluid is cool).
3. Reinstall the cap.
4. Close and secure the front box and cover.
RADIATOR COOLANT
To ensure that the coolant maintains its ability to protect the engine, we
recommend that the system be completely drained every five (5) years and fresh
Antifreeze 50/50 Premix added.
Any time the cooling system has been drained for maintenance or repair,
replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery bottle has
run dry, check the level in the radiator. Add coolant as needed.
CAUTION
Escaping steam can cause burns. Never remove the pressure cap while the
engine is warm or hot. Always allow the engine to cool before removing the
pressure cap.
1. Access the pressure cap under the front box. See the Front Compartment
section for details.
2. Remove the pressure cap.
3. Using a funnel, slowly add coolant through the radiator filler neck.
4. Reinstall the pressure cap. Use of a non-standard pressure cap will not allow
the recovery system to function properly. Your POLARIS dealer can provide
the correct replacement part.
5. Close and secure the front box and cover.
138
MAINTENANCE
BRAKES
BRAKE FLUID
Check brake fluid levels for both brake systems before each ride. Always
maintain brake fluid at the recommended level. Do not overfill.
The brakes should feel firm when they’re applied. Spongy or weak brakes may
indicate a fluid leak or low fluid level. A low fluid level may also mean that brake
pads are worn and need to be replaced. Do not operate the vehicle with spongy
or weak brakes. See your dealer for service.
WARNING
Operating the Tractor with a spongy brake can result in loss of braking, which
could cause an accident. Never operate the Tractor with spongy-feeling
brakes.
If the fluid level is low add DOT 4 brake fluid only. See the POLARIS Products
section for part numbers.
WARNING
An over-full master cylinder may cause brake drag or brake lock-up, which
could result in serious injury or death. Maintain brake fluid at the recommended
level. Do not overfill.
Under normal operation, the diaphragm extends into the reservoir as fluid level
drops. If the fluid level is low and the diaphragm is not extended, a leak is likely
and the diaphragm should be replaced. To ensure proper diaphragm operation,
always fill the reservoir as needed whenever the cover is loosened or removed.
Do not overfill.
WARNING
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake
fade and the possibility of accident or severe injury. After opening a bottle of
brake fluid, always discard any unused portion.
139
MAINTENANCE
HAND BRAKE
The master cylinder
q
is located on the
left handlebar. Maintain the fluid level 6
mm below the top edge of the master
cylinder. Do not overfill.
1. Position the vehicle on a level surface. Make sure the handlebars are
straight.
2. View the fluid level through the indicator window (eye)
w
on the top of the
master cylinder.
TIP
The eye will appear dark when the fluid level is full
e
. When fluid is low
r
, the
eye will be clear.
3. If the fluid level is low, remove the cover screws and add fluid to the fill line.
Do not overfill.
4. Reinstall the cover. Torque screws to 0.8 Nm (7 in-lbs).
140
MAINTENANCE
FOOT BRAKE
Check the brake fluid level frequently for the foot brake system. The foot brake
fluid reservoir
q
is located under the seat.
1. Position the vehicle on a level surface.
2. Remove the seat.
3. View the fluid level in the reservoir.
4. Remove the cap and add the recommended fluid as needed.
5. Maintain the fluid level between the minimum
e
and maximum
w
marks. Do
not overfill.
6. Reinstall the reservoir cap.
7. Reinstall the seat.
141
MAINTENANCE
BRAKE INSPECTION
WARNING
Brake components may be hot with prolonged use and can cause burns. Allow
sufficient time after use for the brake components to cool and use protective
gloves when inspecting the brake.
The front and rear brakes are hydraulic disc brakes, activated by applying the
foot brake. The handlebar brake is also hydraulic. Both brake systems are
self-adjusting.
Perform the following checks to keep the brake systems in good operating
condition. Check more often if brakes are used heavily under normal operation.
1. Always keep brake fluid at an adequate level.
2. Check the brake systems regularly for fluid leaks.
3. Check the brakes for excessive travel or spongy feel.
4. Check the friction pads for wear, damage, and looseness. Replace the pads
when the friction material is worn to 0.762 mm.
5. Check the security and surface condition of the disc. Clean any grease using
a recommended brake cleaner or alcohol. Do not use spray lubricants or
other petroleum-based products. If you discover any damage (cracks,
excessive corrosion, warping) see your dealer for service before operating.
142
MAINTENANCE
HANDLEBAR ADJUSTMENT
The handlebars can be adjusted for rider preference.
NOTICE
Improper adjustment of the handlebars or incorrect torquing of the adjuster
block tightening bolts can cause limited steering or loosening of the
handlebars, resulting in loss of control. Follow the adjustment procedures
exactly, or see your authorized dealer for service.
1. Remove the upper headlight pod.
2. Loosen the four handlebar bolts.
3. Adjust the handlebar to the desired
height.
4. Be sure the handlebars do not
contact the gas tank or any other
part of the machine when turned
fully to the left or right.
5. Torque the front two bolts
q
to
14-17 Nm, then torque the rear two
bolts. A gap of up to 3 mm will
remain at the rear of the clamp
blocks.
POWER STEERING UNIT
If your model is equipped with power steering, frequently clean the areas around
and on the power steering unit to allow proper cooling. Clean these areas
thoroughly.
STEERING ASSEMBLY
The steering assembly of the ATV should be checked periodically for loose nuts
and bolts. If loose nuts and bolts are found, see your authorized dealer or other
qualified service facility before operating the vehicle.
SIDE PANEL REMOVAL
CAUTION
Be careful not to damage heat shield when removing the side panel.
To remove the side panel, do the following:
143
MAINTENANCE
1. Remove the seat.
2. Using the Polaris provided pliers in
the tool kit, remove the side panel
rivets
q
.
3. Grasp near the front, by fuel tank,
and pull up on the side panel until
clips disengage.
4. Pull the panel outward and rearward
to remove.
FOOTWELL/FOOTWELL SUPPORT REMOVAL
To remove the footwell, do the following:
1. Remove the six screws on the bottom of the footwell.
2. Use a flat screwdriver to remove the plastic rivets securing the footwell to the
fenders.
3. Remove the footwell.
4. If removing the footwell support is necessary to access the clutch cover,
remove the hex flange screw securing the support to the frame.
TIRES
WARNING
Operating your ATV with worn tires, improperly inflated tires, non-standard tires
or improperly installed tires will affect vehicle handling and could cause an
accident resulting in serious injury or death. Always follow all tire maintenance
procedures as outlined in this manual and on the labels on the vehicle. Always
use original equipment size and type when replacing tires.
Refer to the specifications section for recommended tire type, size and pressure.
TIRE TREAD DEPTH
Always replace tires when tread depth
is worn to 3 mm (1/8”) or less.
144
MAINTENANCE
FRONT WHEEL HUB TIGHTENING
Front wheel bearing tightness and spindle nut retention are critical component
operations. All service must be performed by your authorized dealer or other
qualified service facility.
WHEEL REMOVAL
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Loosen the wheel nuts slightly.
WARNING
Do not service axle nuts that have a cotter pin installed. Your authorized dealer
can assist.
5. Elevate the side of the vehicle by placing a suitable stand under the foot rest
frame.
6. Remove the wheel nuts.
7. Remove the wheel.
WHEEL INSTALLATION
1. Place the transmission in PARK.
2. Lock the parking brake.
3. Place the wheel on the hub with the valve stem toward the outside and
rotation arrows on the tire pointing toward forward rotation (if equipped).
4. Install the wheel nuts and finger-tighten them.
5. Lower the vehicle to the ground.
6. Torque the wheel nuts to specification.
WARNING
Loose nuts could cause a tire to come off during operation, which could result
in an accident or overturn. Always ensure that all nuts are torqued to
specification.
145
MAINTENANCE
TOE ALIGNMENT
WARNING
Severe injury or death can result from improper toe alignment and adjustment.
Do not attempt to adjust tie rod alignment. All tie rod adjustments should be
performed by an authorized POLARIS dealer or other qualified service facility.
Use the following procedure to check the toe alignment of the vehicle. The
recommended toe alignment is 1/4-1/2 inch (6-12 mm).
1. Position the vehicle on a level surface.
2. Place the handlebars in a straight-ahead position.
3. Tie a length of string between two stands as shown in the illustration.
Position the stands so that the string is flush with the side of the rear tire. If
available, you may use a long straight-edge instead of string.
4. Measure the distance from the string to the rim at the front
q
and rear
w
of
the front rim. The rear measurement should be 1/8–1/4 inch (3–6 mm) more
than the front measurement on each side of the vehicle to obtain the
recommended 1/4–1/2 inch (6–12 mm) toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for service.
147
MAINTENANCE
AIR FILTER
1. Remove the seat. Remove the air
box cover clips. Remove the air box
cover
q
.
2. Remove the filter.
3. Remove the fabric type pre- filter
from the main filter. Wash the
pre-filter in soapy water, then rinse
and let dry.
4. Reinstall the pre-filter over the main filter. Install a new main filter if needed.
5. Reinstall the filter into the air box.
6. Reinstall the air box cover and the seat.
BREATHER VALVE/HOSE
The breather valve is on the hose that runs between the engine and air box.
1. Remove the left side panel.
2. Remove the hose clamps from the valve and pull the valve out of the hoses.
3. Inspect the valve for debris. Blow gently through the valve to check for
clogging. Replace a damaged or clogged valve.
4. Check the hoses for cracks, deterioration, abrasion, or leaks. Replace as
needed.
5. Reinstall the valve and hose clamps.
NOTICE
Operation of your vehicle without a breather valve can cause engine damage.
Always reinstall the breather valve after removing it for service.
148
MAINTENANCE
FUSE REPLACEMENT
If the engine stops or will not start, or if
you experience other electrical failures,
a fuse may need replacement. Locate
and correct any short circuits that may
have caused the blown fuse, then
replace the fuse. Spare fuses are
provided in a compartment on the top of
the access door.
1. Open the front box cover.
2. Remove the access panel.
3. Remove fuse box cover.
4. Remove the suspect fuse from the fuse panel
q
. If the fuse is blown, install a
new fuse with the same amperage.
5. Secure the fuse box cover and access panel.
6. Secure the front box cover.
q
Fuse Box
w
Labels Inside Box Cover
149
MAINTENANCE
LIGHTS
CAUTION
Poor lighting can result in reduced visibility when driving. Headlight and taillight
lenses become dirty during normal operation. Clean headlights frequently and
replace burned out headlamps promptly.
Always make sure lights are adjusted properly for best visibility.
WORK LIGHT ADJUSTMENT
The work light can be adjusted slightly upward or downward. Use the following
procedure to make the adjustment.
NOTE
Image below is for reference only. Your model may differ slightly.
1. Position the vehicle on a level surface with the headlight approximately 25 ft.
(7.6 m) from a wall
q
. Place the transmission in PARK.
2. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
3. Start the engine. Turn the headlight switch to high beam.
150
MAINTENANCE
4. Observe the headlight aim on the wall. The most intense part of the headlight
beam should be 2 in. (5 cm) below the mark on the wall
w
. Include rider
weight on the seat when measuring.
5. 570 SP Models:
The adjustment screw is located on the right side of the headlight pod. To
adjust the beam, loosen the screw. Adjust the headlamp to the desired
position, then tighten the screw.
All Other Models:
The adjustment knob is located on the right side of the headlight pod. Adjust
the beam to the desired position by turning the knob either clockwise or
counter-clockwise.
HEADLIGHT ADJUSTMENT
To adjust the front headlights, do the following:
1. Place the vehicle on a level surface with the headlight approximately 23 ft (7
m) from a wall.
NOTICE
Rider weight must be included on the seat while performing this procedure.
2. Place the transmission in PARK.
3. Measure the distance from the floor to the center of the headlight and make a
mark on the wall at the same height.
4. Turn ignition ON and switch the headlight to low beam.
5. Observe the headlight aim on the wall. The horizontal line, separating the
lit-zone from the unlit-zone, should be aimed 8 in (20 cm) below the mark
placed on the wall in step 3.
151
MAINTENANCE
6. Open the front rack.
7. Adjust the beam to desired position by tightening or loosening the screws at
the top of the lights. Adjust each light independently.
WARNING
Due to the nature of ATVs and where they are operated, headlight lenses can
become dirty. Frequent washing is necessary to maintain lighting quality.
Riding with poor lighting can result in severe injury or death.
152
MAINTENANCE
HEADLIGHT BULB REPLACEMENT
To replace the headlight bulb, do the following:
1. Disconnect the headlight
harness
q
and pull the
harness away from the
headlight assembly. Be sure
to pull on the connector, not
on the wiring.
2. Remove the rubber cap
w
from the back of the housing.
3. Turn the plastic collar
e
counterclockwise to access
the bulb.
4. Remove the bulb and replace
with a new bulb.
5. Re-attach plastic collar and
turn clockwise to secure.
6. Install the rubber cap and
re-connect the harness to the
headlight assembly.
HEADLIGHT HOUSING REPLACEMENT (570 SP
MODELS)
To replace the headlight housing, do the following:
1. Remove the seven (7) headlight pod screws.
2. Pull the pod cover forward.
3. Unplug the headlamp from the wiring harness.
4. Use a small screwdriver to remove the o-rings from the headlight mounting
tabs.
5. Pull the headlight housing up from bracket for removal.
6. Reverse the steps to install the new housing and reassemble the pod.
153
MAINTENANCE
HEADLIGHT HOUSING REPLACEMENT
(570 / 570 EPS / X2)
1. Remove the two screws on the lower front corners of the headlight pod.
2. Lift the pod slightly while depressing the tabs at the rear of the pod.
3. Lift the pod cover and disconnect the speedometer harnesses from the
speedometer.
4. Unplug the headlamp from the wiring harness.
5. Use a small screwdriver to remove the o-rings from the headlight mounting
tabs.
6. Pull the headlight housing up to release it from the locking tabs.
7. Lift the adjusting knob up to remove it from the locking tabs.
8. Carefully pull the assembly up and out of the pod.
9. Reverse the steps to install the new housing and reassemble the pod. The
distance from the headlamp parting line to the end of the adjustment knob
stop is 13 cm (5 1/8”)
q
.
10.Adjust the headlight aim by turning the adjustment knob.
154
MAINTENANCE
HEADLIGHT/PARKING LIGHT LAMP
REPLACEMENT
WARNING
Poor lighting can result in loss of control or an accident. Lights become dirty
during normal operation. Wash the headlights and taillights frequently.
Hot components can cause serious burns to skin. Do not service the
headlamps until they've cooled.
When servicing a halogen lamp, do not touch the lamp with bare fingers. Oil
from your skin leaves a residue, causing a hot spot that will shorten the life of the
lamp. Hold the plastic part of the lamp.
1. Place the transmission in PARK.
2. Reach under the front bumper area to locate the lighting connectors.
3. Parking Light Lamp: Disconnect the harness connector. Turn the socket
counter-clockwise 1/8 turn and remove the lamp assembly. Pull the lamp
straight out to remove it from the socket.
4. Headlight Lamp: Disconnect the harness connector. Remove the rubber
cover from the back of the headlight. Press and turn the locking collar
counter-clockwise (left headlight) or clockwise (right headlight) to release the
lamp assembly.
5. Install the new lamp. Apply a small amount of dielectric grease to the lamp
socket or terminals.
6. Reverse all steps to reassemble components.
155
MAINTENANCE
TAILLIGHT / BRAKELIGHT LAMP REPLACEMENT
(SPORTSMAN)
1. Place the transmission in PARK.
2. Rotate the taillight socket
counter-clockwise to remove it.
3. Remove the lamp.
4. Apply dielectric grease to the socket.
5. Install the new lamp. Test the lamp
for proper operation.
6. Reinstall all components in reverse
order.
FRONT TURN SIGNAL REPLACEMENT
If a front turn signal light becomes inoperable, the lamps cannot be replaced.
Replace the entire signal lamp assembly.
REAR TURN SIGNAL LAMP REPLACEMENT
(SPORTSMAN)
1. Place the transmission in PARK.
2. Rotate the turn signal socket
counter-clockwise to remove it.
3. Remove the lamp.
4. Apply dielectric grease to the socket.
5. Install the new lamp. Test the lamp
for proper operation.
6. Reinstall all components in reverse
order.
156
MAINTENANCE
SPARK PLUGS
SPARK PLUG RECOMMENDATIONS
Refer to the Specifications section for the recommended spark plug type and
gap for your vehicle.
NOTICE
Using non-recommended spark plugs can result in serious engine damage.
Always use POLARIS-recommended spark plugs.
PLUG CONDITION
TORQUE SPECIFICATION
New Spark Plug 12 Nm (9 ft-lbs)
Previously Installed Spark Plug 12 Nm (9 ft-lbs)
SPARK PLUG INSPECTION
Spark plug condition is indicative of engine operation. Check the spark plug
firing end condition after the engine has been warmed up and the vehicle has
been driven at higher speeds. Immediately check the spark plugs for correct
color.
CAUTION
A hot exhaust system and engine can cause burns. Wear protective gloves
when removing a spark plug for inspection.
NORMAL SPARK PLUG
The normal insulator tip is gray, tan or light brown. There will be few combustion
deposits. The electrodes are not burned or eroded. This indicates the proper
type and heat range for the engine and the service.
The tip should not be flaky and white. A white insulator tip indicates overheating,
caused by use of an improper spark plug or incorrect fuel.
WET FOULED SPARK PLUG
The wet fouled insulator tip is black. A damp oil film covers the firing end. There
may be a carbon layer over the entire nose. Generally, the electrodes are not
worn. General causes of fouling are excessive oil, use of non-recommended oil
or incorrect throttle body adjustments.
157
MAINTENANCE
SPARK PLUG REMOVAL
1. Remove the left-side panel. See the
Footwell Removal section for details.
2. Remove the spark plug cap.
3. Use the spark plug wrench to remove the
spark plug. Turn the plug
counter-clockwise to remove it.
4. Inspect the electrodes for wear and
carbon buildup. Replace worn or fouled
plugs. Verify that the gap is at
specification before installation.
5. Reinstall the spark plug. Torque to
specification.
6. Reinstall the spark plug cap.
VEHICLE IMMERSION
If your vehicle becomes immersed, major engine damage can result if the
machine is not thoroughly inspected. Take the vehicle to your dealer before
starting the engine. If it's impossible to take your ATV to a dealer before starting
it, follow the steps outlined below.
1. Move the ATV to dry land or at the very least, to water below the footrests.
2. Check the air box. If water is present, dry the air box and replace the filter
with a new filter.
3. Remove the spark plug.
4. Turn the engine over several times using the electric start.
5. Dry the spark plug. Reinstall the plug or install a new plug.
6. Attempt to start the engine. If necessary, repeat the drying procedure.
7. Take the ATV to your dealer for service as soon as possible, whether you
succeed in starting it or not.
8. If water has been ingested into the PVT, follow the procedure for drying out
the PVT in the PVT Drying section.
158
MAINTENANCE
SPARK ARRESTER
WARNING
Do not perform clean out immediately after the engine has been run, as the
exhaust system becomes very hot. Serious burns could result from contact
with exhaust components.
To reduce fire hazard, make sure that there are no combustible materials in the
area when purging the spark arrestor.
Wear eye protection.
Do not stand behind or in front of the vehicle while purging the carbon from the
spark arrestor.
Never run the engine in an enclosed area.Exhaust contains poisonous carbon
monoxide gas.
Do not go under the machine while it is inclined.Set the hand brake and block
the wheels to prevent roll back.
Failure to heed these warnings could result in serious personal injury or death.
The exhaust pipe must be periodically purged of accumulated carbon as follows:
159
MAINTENANCE
Periodically clean the spark arrester to remove accumulated carbon.
1. Place the transmission in PARK.
2. Remove the arrester retaining bolt and nut
q
.
3. Remove the arrester from the end of the muffler
w
.
4. Use non-synthetic brush to clean the arrester screen. A synthetic brush may
melt if the components are warm. If necessary, blow debris from the screen
with compressed air.
5. Inspect the screen for wear and damage. Replace a worn or damaged
screen.
6. Reinstall the arrester.
7. Torque the bolt to specification.
TORQUE
7–9 ft. lbs. (10–12 Nm)
PVT SYSTEM
WARNING
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of
balance, creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the
following responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your dealer as outlined in the owner's manual.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
160
MAINTENANCE
WHEN TO USE LOW AND HIGH RANGE
CONDITION RANGE TO USE
Operating at speeds less than 11 km/h (7 MPH) Low
Towing heavy loads Low
Operating in rough terrain (swamps, mountains,
etc.)
Low
Operating at speeds greater than 11 km/h (7 MPH) High
PVT DRYING
There may be some instances when water is accidently ingested into the PVT
system. Use the following instructions to dry it out before operating.
1. Position the vehicle on a level surface.
2. Remove the drain plug. Allow the water to drain completely. Reinstall the
drain plug.
3. Start the engine. Place the transmission in PARK.
4. Apply varying throttle for 10-15 seconds to expel the moisture and air-dry the
belt and clutches. Do not hold the throttle wide open for more than 5
seconds.
5. Allow the engine RPM to settle to idle speed, then shift the transmission to
low range.
6. Test for belt slippage. If the belt slips, repeat the process. Your vehicle
requires service as soon as possible, which your authorized dealer can
provide.
161
MAINTENANCE
BATTERY
WARNING
Improperly connecting or disconnecting battery cables can result in an
explosion and cause serious injury or death. When removing the battery,
always disconnect the negative (black) cable first. When reinstalling the
battery, always connect the negative (black) cable last.
WARNING
Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can
result from contact with skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.
Ventilate when charging or using in an enclosed space. Always shield eyes
when working near batteries. KEEP OUT OF REACH OF CHILDREN.
Your vehicle may have either a sealed battery, which requires little
maintenance, or a conventional battery. A sealed battery can be identified by
its flat covers on the top of the battery. A conventional battery has six filler caps
on the top of the battery.
Always keep battery terminals and connections free of corrosion. If cleaning is
necessary, remove corrosion with a stiff wire brush. Wash with a solution of
one tablespoon baking soda and one cup water. Rinse well with tap water and
dry off with clean shop towels. Coat the terminals with dielectric grease or
petroleum jelly. Be careful not to allow cleaning solution or tap water into a
conventional battery.
162
MAINTENANCE
BATTERY INSTALLATION
Using a new battery that has not been fully charged can damage the battery and
result in a shorter life. It can also hinder vehicle performance. Follow the battery
charging instructions in the Battery Charging sections before installing the
battery.
An optional extreme use battery may be available for your model. If the
performance of the factory-installed battery is inadequate due to operation in
extreme cold or due to extended use of multiple electrical accessories, please
see your POLARIS dealer. Ask your dealer to provide any installation
procedures that may differ for an extreme use battery.
WARNING
Battery gases could accumulate in an improperly installed vent tube and cause
an explosion, resulting in serious injury or death. Always ensure that the vent
tube is free of obstructions and is securely installed as recommended.
1. Ensure that the battery is fully charged.
2. Place the battery in the battery holder.
3. With conventional batteries, install the battery vent tube (sealed batteries do
not have a vent tube). The vent tube must be free of obstructions and
securely installed. Route the tube away from the frame and vehicle body to
prevent contact with electrolyte.
4. On conventional batteries, coat the terminals with dielectric grease or
petroleum jelly.
5. Connect and tighten the red (positive) cable first.
6. Connect and tighten the black (negative) cable last.
7. Install the battery cover (if equipped).
8. Secure the battery hold-down strap.
9. Verify that cables are properly routed. Cables should be safely tucked away
at the front and rear of the battery.
163
MAINTENANCE
BATTERY REMOVAL
NOTICE
If electrolyte spills, immediately wash it off with a solution of one tablespoon
baking soda and one cup water to prevent damage to the vehicle.
1. Disconnect the battery hold-down strap.
2. Remove the battery cover (if equipped).
3. On conventional batteries, remove the battery vent tube.
4. Disconnect the black (negative) battery cable first.
5. Disconnect the red (positive) battery cable last.
6. Lift the battery out of the ATV. Be careful not to tip a conventional battery
sideways, which could spill electrolyte.
BATTERY STORAGE
Whenever the vehicle is not used for a period of three months or more, remove
the battery from the vehicle, ensure that it's fully charged, and store it out of the
sun in a cool, dry place. Check battery voltage each month during storage and
recharge as needed to maintain a full charge.
POLARIS recommends maintaining
battery charge by using a POLARIS
Battery Tender charger or by charging
once a month using the battery tender
port
q
. Battery Tender can be left
connected during the storage period,
and will automatically charge the battery
if the voltage drops below a
pre-determined point. See the Polaris
Products section for the part numbers.
164
MAINTENANCE
BATTERY FLUID (CONVENTIONAL BATTERY)
A poorly maintained battery will
deteriorate rapidly. Check the
battery fluid level often. Maintain the
fluid level between the upper
q
and
lower level
w
marks.
Add only distilled water. Tap water
contains minerals that are harmful to
a battery.
BATTERY CHARGING (CONVENTIONAL BATTERY)
1. Remove the battery from the vehicle to prevent damage from leaking or
spilled electrolyte during charging.
2. Charge the battery with a charging output no larger than 1/10 of the battery’s
amp/hr rating. Charge as needed to raise the specific gravity to 1.270 or
greater.
3. Reinstall the battery. Make sure the positive terminal is toward the front of the
vehicle.
BATTERY CHARGING (SEALED BATTERY)
The following battery charging instructions apply only to the installation of a
sealed battery. Read all instructions before proceeding with the installation of
this battery.
The sealed battery is already filled with electrolyte and has been sealed and fully
charged at the factory. Never pry the sealing strip off or add any other fluid to this
battery.
The single most important thing about maintaining a sealed battery is to keep it
fully charged. Since the battery is sealed and the sealing strip cannot be
removed, you must use a voltmeter or multimeter to measure DC voltage.
WARNING
An overheated battery may explode, causing severe injury or death. Always
watch charging times carefully. Stop charging if the battery becomes very
warm to the touch. Allow it to cool before resuming charging.
For a refresh charge, follow all instructions carefully.
165
MAINTENANCE
1. Check the battery voltage with a voltmeter or multimeter. A fully charged
battery will register 12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery at 1.2 amps or less
until battery voltage is 12.8 or greater.
TIP
When using an automatic charger, refer to the charger manufacturer's
instructions for recharging. When using a constant current charger, use the
guidelines below for recharging.
Always verify battery condition before and 1-2 hours after the end of charging.
STATE OF
CHARGE
VOLTAGE ACTION CHARGE TIME*
100% 12.8-13.0 volts None, check at 3
mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of
charge
0%-25% 11.5 volts or less Needs charge with
desulfating charger
At least 20 hours
*(Using constant current charger @ standard amps specified on top of battery)
166
MAINTENANCE
CLEANING AND STORAGE
WASHING THE VEHICLE
Keeping your POLARIS vehicle clean will not only improve its appearance but it
can also extend the life of various components.
NOTICE
High water pressure may damage components. POLARIS recommends
washing the vehicle by hand or with a garden hose, using mild soap.
Certain products, including insect repellents and chemicals, will damage
plastic surfaces. Do not allow these types of products to contact the vehicle.
The best and safest way to clean your POLARIS vehicle is with a garden hose
and a pail of mild soap and water.
1. Use a professional-type washing cloth, cleaning the upper body first and the
lower parts last.
2. Rinse with clean water frequently.
3. Dry surfaces with a chamois to prevent water spots.
WASHING TIPS
• Avoid the use of harsh cleaners, which can scratch the finish.
• Do not use a power washer to clean the vehicle.
• Do not use medium to heavy duty compounds on the finish.
• Always use clean cloths and pads for cleaning and polishing. Old or reused
cloths and pads may contain dirt particles that will scratch the finish.
If a high pressure water system is used for cleaning (not recommended),
exercise extreme caution. The water may damage components and could
remove paint and decals. Avoid directing the water stream at the following items:
• Wheel bearings
• Radiator
• Transmission seals
• Cab and body panels
• Electrical components
• Switches and controls
• Fuel system components
• Labels and decals
167
MAINTENANCE
If an informational or graphic label becomes illegible or comes off, contact your
POLARIS dealer to purchase a replacement. Replacement safety labels are
provided by POLARIS at no charge.
Grease all zerk fittings immediately after washing. Allow the engine to run for a
while to evaporate any water that may have entered the engine or exhaust
system.
POLISHING THE VEHICLE
POLARIS recommends the use of common household aerosol furniture polish
for polishing the finish on your POLARIS vehicle. Follow the instructions on the
container.
POLISHING TIPS
• Avoid the use of automotive products, some of which can scratch the finish of
your vehicle.
• Always use clean cloths and pads for cleaning and polishing. Old or reused
cloths and pads may contain dirt particles that will scratch the finish.
CHROME WHEEL CARE (IF EQUIPPED)
Proper maintenance will protect chrome wheels from corrosion, preserve wheel
life and ensure a "like new" appearance for many years. Chrome wheels
exposed to road salt (or salt in the air in coastal areas) are more susceptible to
corrosion if not properly cleaned. Clean chrome wheels more often if they're
exposed to salt or other corrosive elements.
1. Wash chrome wheels frequently. Use a mild detergent. Never use abrasive
cleaners on plated or painted surfaces.
2. Rinse well with clear water. Soap, detergents, salt, dirt, mud, and other
elements can cause corrosion.
3. Polish the clean chrome wheels periodically. Use an automotive grade
chrome polish.
4. Routinely and liberally apply a weather resistant wax to each polished
chrome wheel. Choose a product suitable for chrome finishes. Read and
follow the product labels and instructions.
REMOVING CORROSION
If light rust is found on the chrome finish, use steel wool (#0000-OTT grade) to
remove it. Gently rub the affected areas with the steel wool until the corrosion
has been removed. Clean and polish the wheel as outlined above.
168
MAINTENANCE
STORAGE TIPS
NOTICE
Starting the engine during the storage period will disturb the protective film
created by fogging and damage could occur. Never start the engine during the
storage period.
CLEAN THE EXTERIOR
Make any necessary repairs and clean the vehicle as recommended. See the
Washing the Vehicle section.
STABILIZE THE FUEL
1. Fill the fuel tank.
2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer or
equivalent fuel treatments or stabilizers. Follow the instructions on the
container for the recommended amount. Carbon Clean removes water from
fuel systems, stabilizes fuel and removes carbon deposits from pistons,
rings, valves and exhaust systems.
3. Allow the engine to run for 15-20 minutes to allow the stabilizer to disperse
through the entire fuel delivery system.
OIL AND FILTER
Change the oil and filter. See the Engine Oil section.
AIR FILTER / AIR BOX
1. Inspect and clean (or replace) the pre-cleaner and air filter. See the Air Filter
section.
2. Clean the air box.
FLUID LEVELS
Inspect the fluid levels. Add or change fluids as recommended in the Periodic
Maintenance Chart.
• Demand drive fluid (front gearcase)
• Rear gearcase fluid (if equipped)
• Transmission fluid
• Brake fluid (change every two years and any time the fluid looks dark or
contaminated)
• Coolant (test strength/fill)
169
MAINTENANCE
FOG THE ENGINE
1. Treat the fuel system with POLARIS Carbon Clean or other equivalent fuel
treatment. Follow the instructions on the container. Start the engine. Allow it
to idle for several minutes so the Carbon Clean reaches the injectors. Stop
the engine.
2. Remove the spark plugs and add 1–1.5 oz. (29.5–44 cc.) of engine oil. To
access the plug holes, use a section of clear 6 mm (1/4”) hose and a small
plastic squeeze bottle filled with the pre-measured amount of oil. Do this
carefully! If you miss the plug holes, oil will drain from the spark plug cavities
into the hole at the front of the cylinder head, and appear to be an oil leak.
3. Reinstall the spark plugs. Torque to specification.
4. Apply dielectric grease to the inside of each spark plug cap. Do not reinstall
the cap onto the plug at this step.
5. Turn the engine over several times. Oil will be forced in and around the
piston rings and ring lands, coating the cylinder with a protective film of fresh
oil.
6. Reinstall the spark plug caps.
7. If POLARIS fuel system additive is not used, fuel tank, fuel lines, and
injectors should be completely drained of gasoline.
INSPECT AND LUBRICATE
Inspect all cables and lubricate all areas of the vehicle as recommended in the
Periodic Maintenance Chart.
BATTERY MAINTENANCE
Remove the battery and recharge it as outlined in the Battery Charging section.
Store the battery in a cool, dry place.
STORAGE AREA / COVERS
Set the tire pressure and safely support the vehicle with the tires slightly off the
ground. Be sure the storage area is well ventilated. Cover the vehicle with a
genuine POLARIS cover. Do not use plastic or coated materials. They do not
allow enough ventilation to prevent condensation, and may promote corrosion
and oxidation.
ACCESSORIES
Auxiliary power outlets provide 12-volt power for operating accessories.
Accessory outlets are available for all models. POLARIS also has a wide range
of additional accessories available for your ATV. Always install accessories that
are approved for ATV use. Your dealer can assist.
170
MAINTENANCE
SPECIFICATIONS
SPORTSMAN 570 TOURING TRACTOR
SPORTSMAN 570 TOURING EPS TRACTOR
Maximum Weight Capacity 191 kg (includes operator, cargo, accessories,
tongue weight)
Dry Weight (+/- 7% based on configuration) 345 kg
Front Rack/Box Capacity 41 kg
Rear Rack Capacity 82 kg
Unbraked Trailer Mass 270 kg
Braked Trailer Mass 830 kg
Overall Length 220 cm
Overall Width 122 cm
Overall Height 122 cm
Wheelbase 142.3 cm
Ground Clearance 28 cm
Minimum Turning Radius 165 cm unloaded
Fuel Capacity 25,5 l
Engine Oil Capacity 1,9 l
Coolant Capacity 2,5 l
Demand Drive Fluid Capacity 275 ml
Transmission Oil Capacity 948 ml
Engine Dual overhead cam, 4 valve 4 stroke single
cylinder
Displacement 567 cc
Bore x Stroke 99mm x 73.6mm
Alternator Output 660 W @ 7000 RPM
Compression Ratio 10:1
Starting System Electric
Fuel System Electronic Fuel Injection
171
SPECIFICATIONS
SPORTSMAN 570 TOURING EPS TRACTOR
Ignition System ECU
Spark Plug / Gap MR7F / 0.7-0.8 mm
Lubrication System Wet Sump
Driving System Type Automatic PVT (POLARIS Variable
Transmission)
Front Suspension MacPherson RIDE® strut with 21 cm travel
Rear Suspension Progressive rate with 24 cm travel
Transmission H/L/N/R/P
Gear Reduction, Low 23.91:1
Gear Reduction, Reverse 21.74:1
Gear Reduction, High 10.57:1
Drive Ratio, Front 3.82:1
Tires/Pressure (25 in) (Front) 25x8-12 / 48,3 kPa (0.48 bar / 7,01 PSI)
(Rear) 25x11-12 / 48,3 kPa (0.48 bar / 7,01 PSI)
Tires/Pressure (26 in) (Front) 26x8-14 / 48,3 kPa (0.48 bar / 7,01 PSI)
(Rear) 26x10-14 / 48,3 kPa (0.48 bar / 7,01 PSI)
Brake, Hand Single-Control Hydraulic Disc
Brake, Foot Foot-Activated Hydraulic Disc
Brake, Parking Transmission park lock and hydraulic lock, all
wheel
Winch Front permanent Installed winch with 2500 Lbs,
1125 Kg Capacity
Headlight 2 dual beam on bumper (55/60 watt)
1 single beam on headlight pod (50 watt) 2
single beam on bumper (50 watt)
Work Lights 50 watts
Parking Lights 5 watts
Taillights 8,26 watts
Brake Light 26,9 watts
Instrument Cluster LCD
172
SPECIFICATIONS
SPORTSMAN 570 TOURING EPS TRACTOR
Noise by ear dB(A) 79 dB
Noise in motion 81,8 dB
CLUTCHING CHART
ALTITUDE
IN METERS
(FEET)
SHIFT
WEIGHT
DRIVE
CLUTCH
SPRING
DRIVEN
CLUTCH
SPRING
HELIX
0-3700
(0-12000)
25-52G
PN 5632409
Black
PN 7043594
Red
PN 7041782
EBS
PN 3235639
SPORTSMAN X2 570 TRACTOR
SPORTSMAN X2 570 TRACTOR
Maximum Weight Capacity 320 kg (operator, cargo, accessories)
Dry Weight (+/- 7% based on configuration) 354 kg
Front Rack/Box Capacity 41 kg
Rear Rack/Cargo Box Capacity 181 kg
Unbraked Trailer Mass 270 kg
Braked Trailer Mass 830 kg
Overall Length 228 cm
Overall Width 122 cm
Overall Height 122 cm
Wheelbase 142.3 cm
Ground Clearance 28 cm
Minimum Turning Radius 165 cm unloaded
Fuel Capacity 25,5 l
Engine Oil Capacity 1,9 l
Coolant Capacity 2,5 l
Demand Drive Fluid Capacity 275 ml
Transmission Oil Capacity 948 ml
173
SPECIFICATIONS
SPORTSMAN X2 570 TRACTOR
Engine Dual overhead cam, 4 valve 4 stroke single
cylinder
Displacement 567 cc
Bore x Stroke 99mm x 73.6mm
Alternator Output 660 W @ 7000 RPM
Compression Ratio 10:1
Starting System Electric
Fuel System Electronic Fuel Injection
Ignition System ECU
Spark Plug / Gap MR7F / 0,7-0,8 mm
Lubrication System Wet Sump
Driving System Type Automatic PVT (POLARIS Variable
Transmission)
Front Suspension MacPherson RIDE® strut with 21 cm travel
Rear Suspension Progressive rate with 24 cm travel
Transmission H/L/N/R/P
Gear Reduction, Low 23.91:1
Gear Reduction, Reverse 21.74:1
Gear Reduction, High 10.57:1
Drive Ratio, Front 3.25:1
Tires/Pressure, Front 25x8-12 / 48,3 kPa (0.48 bar / 7,01 PSI)
Tires/Pressure, Rear 25x11-12 / 48,3 kPa (0.48 bar / 7,01 PSI)
Brake, Hand Single-Control Hydraulic Disc
Brake, Foot Foot-Activated Hydraulic Disc
Brake, Parking Transmission park lock and hydraulic lock, all
wheel
Winch Front permanent Installed winch with 1125 Kg
Capacity
Headlight 2 dual beam on bumper (55/60 watt)
174
SPECIFICATIONS
SPORTSMAN X2 570 TRACTOR
1 single beam on headlight pod (50 watt) 2
single beam on bumper (50 watt)
Work Lights 50 watts
Parking Lights 5 watts
Taillights 8.26 watts
Brake Light 26.9 watts
Instrument Cluster LCD
Noise by ear dB(A) 79 dB
Noise in motion 81,8 dB
CLUTCHING CHART
ALTITUDE
IN METERS
(FEET)
SHIFT
WEIGHT
DRIVE
CLUTCH
SPRING
DRIVEN
CLUTCH
SPRING
HELIX
0-3700
(0-12000)
25-52G
PN 5632409
Black
PN 7043594
Red
PN 7041782
EBS
PN 3235639
175
SPECIFICATIONS
POLARIS PRODUCTS
LUBRICANTS / MISCELLANEOUS
PART
NUMBER
DESCRIPTION
Engine Lubricant
2870791 Fogging Oil (Aerosol)
2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (.95 L)
2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (3.8 L)
2878920 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (.95 L)
2878919 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (3.8 L)
Gearcase / Transmission Lubricants
2878068 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(.95 L)
2878069 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(3.8 L)
2877922 Demand Drive Plus Fluid (.95 L)
2877923 Demand Drive Plus Fluid (3.8 L)
2870465 Pump for 3.8 L Jug
Coolant
2880514 Antifreeze 50/50 Premix (.95 L)
2880513 Antifreeze 50/50 Premix (3.8 L)
Grease / Specialized Lubricants
2871312 Grease Gun Kit, Premium All Season
2871322 All Season Grease (89 ml cartridge)
2871423 All Season Grease (414 ml cartridge)
2871460 Premium Starter Grease
2871515 U-Joint Grease (89 ml cartridge)
177
POLARIS PRODUCTS
TROUBLESHOOTING
DRIVE BELT WEAR / BURN
POSSIBLE CAUSE SOLUTION
Driving onto a pickup or tall
trailer in high range
Use low range.
Starting out going up a steep
incline
Use low range or turn around using the K-turn.
Driving at low RPM or ground
speed (5-11 kmh)
Drive at a higher speed or use low range more frequently.
Insufficient warm-up at low
ambient tempera- tures
Warm the engine at least 5 minutes. With the transmission in
neutral, advance the throttle to about 1/8 throttle in short bursts, 5
to 7 times. The belt will become more flex- ible and prevent belt
burning.
Slow/easy clutch engage-
ment
Use the throttle quickly and effectively.
Towing/pushing at low
RPM/low ground speed
Use low range only.
Utility use/plowing Use low range only.
Stuck in mud or snow Shift the transmission to low range. Carefully use fast, aggressive
throttle application to engage clutch.
WARNING: Excessive throttle may cause loss of control and
vehicle rollover.
Climbing over large objects
from a stopped position
Belt slippage from water or
snow ingestion into the PVT
system
Dry out the PVT. Inspect clutch seals for damage if repeated
leaking occurs.
Clutch malfunction See your authorized dealer.
Slippage from failure to warm
up belt
Always warm up the belt by operating below 40 km/h for
1.5 km (8 km or more when temperature is below freezing).
Poor engine performance Check for fouled plugs or foreign material in gas tank or fuel lines.
See your dealer.
Wrong or missing belt Install the recommended belt.
Improper break-in Always break in a new belt and/or clutch.
ENGINE DOESN’T TURN OVER
POSSIBLE CAUSE SOLUTION
Tripped circuit breaker Reset the breaker
Low battery voltage Recharge the battery to 12.8 VDC
179
TROUBLESHOOTING
POSSIBLE CAUSE SOLUTION
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
ENGINE TURNS OVER, FAILS TO START
POSSIBLE CAUSE SOLUTION
Out of fuel Refuel.
Water is present in fuel Drain the fuel system and refuel.
Old or
non-recommended fuel
Replace with fresh recommended fuel.
Fouled or defective
spark plug
Inspect plug and replace if necessary.
No spark to spark plug Inspect plug and replace if necessary.
Water or fuel in
crankcase
Your authorized dealer can assist.
Low battery voltage Recharge the battery to 12.8 VDC.
Mechanical failure Your authorized dealer can assist.
ENGINE BACKFIRES
POSSIBLE CAUSE SOLUTION
Weak spark from spark plug Inspect, clean and/or replace spark plug
Incorrect spark plug gap or
heat range
Set gap to specs or replace plug
Old or non-recommended fuel Replace with fresh recommended fuel
Incorrectly installed spark plug
wires
Your authorized dealer can assist
Mechanical failure Your authorized dealer can assist
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with fresh recommended fuel
180
TROUBLESHOOTING
ENGINE PINGS OR KNOCKS
POSSIBLE CAUSE SOLUTION
Poor quality or low octane fuel Replace with recommended fuel.
Incorrect ignition timing Your authorized dealer can assist.
Incorrect spark plug gap or
heat range
Set gap to specs or replace plugs.
ENGINE RUNS IRREGULARLY, STALLS OR
MISFIRES
POSSIBLE CAUSE SOLUTION
Fouled or defective
spark plug(s)
Inspect, clean and/or replace spark plugs
Worn or defective spark
plug wires
Your authorized dealer can assist
Incorrect spark plug gap
or heat range
Set gap to specs or replace plugs
Loose ignition
connections
Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.8 VDC
Kinked or plugged fuel
tank vent line
Inspect and replace
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter
malfunction
Your authorized dealer can assist
Electronic throttle
control malfunction
Your authorized dealer can assist
Other mechanical
failure
Your authorized dealer can assist
181
TROUBLESHOOTING
POSSIBLE LEAN
FUEL CAUSE
SOLUTION
Low or contaminated
fuel
Add or change fuel, clean the fuel system
Kinked or plugged fuel
tank vent line
Inspect and replace
Low octane fuel Replace with recommended fuel
Clogged air filter Your authorized dealer can assist
Incorrect fuel Replace with recommended fuel
POSSIBLE RICH FUEL
CAUSE
SOLUTION
Fuel is very high octane Replace with lower octane fuel
Stopping/starting
without adequate
warm-up
Allow engine to warm up before operating and/or
stopping
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
ENGINE STOPS OR LOSES POWER
POSSIBLE CAUSE SOLUTION
Out of fuel Refuel, cycle key to ON position three times for 5
seconds each, then start
Kinked or plugged fuel
vent line
Inspect and replace
Water is present in fuel Replace with new fuel
Fouled or defective
spark plug(s)
Inspect, clean and/or replace spark plugs
Worn or defective spark
plug wires
Your authorized dealer can assist
Incorrect spark plug gap
or heat range
Set gap to specs or replace plug
182
TROUBLESHOOTING
POSSIBLE CAUSE SOLUTION
Loose ignition
connections
Check all connections and tighten
Low battery voltage Recharge the battery to 12.8 VDC
Incorrect fuel Replace with fresh recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter
malfunction
Your authorized dealer can assist
Electronic throttle
control malfunction
Your authorized dealer can assist
Other mechanical
failure
Your authorized dealer can assist
Overheated engine Clean radiator screen and core, clean engine
exterior. Your POLARIS dealer can assist.
ENGINE OVERHEATING
POSSIBLE CAUSE SOLUTION
Debris lodged in screen Clean the screen
Plugged Radiator Use a garden hose to flush any
debris from the radiator fins.
NOTE: High pressure washers can
deform the radiator fins and reduce
cooling efficiency.
183
TROUBLESHOOTING
184
WARRANTY
LIMITED WARRANTY
POLARIS Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a TWO
YEAR LIMITED WARRANTY on all components of your POLARIS vehicle
against defects in material or workmanship. POLARIS further warrants that the
spark arrester in this product will meet the efficiency requirements of USFS
standard 5100-1C for at least 1000 hours when subjected to normal use and
when maintenance and installation are in accordance with POLARIS
recommendations.
This warranty covers parts and labor charges for repair or replacement of
defective parts and begins on the date of purchase by the original retail
purchaser. This warranty is transferable to another owner during the warranty
period through a POLARIS dealer, but any such transfer will not extend the
original term of the warranty. The duration of this warranty may vary by
international region based upon local laws and regulations.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed by your
dealer and submitted to POLARIS within ten days of purchase. Upon receipt of
this registration, POLARIS will record the registration for warranty. No
verification of registration will be sent to the purchaser as the copy of the
Warranty Registration Form will be your proof of warranty coverage. If you have
not signed the original registration and received the customer copy, please
contact your dealer immediately. NO WARRANTY COVERAGE WILL BE
ALLOWED UNLESS YOUR VEHICLE IS REGISTERED WITH POLARIS. Initial
dealer preparation and set-up of your vehicle is very important in ensuring
trouble-free operation. Purchasing a machine in the crate or without proper
dealer set-up will void your warranty coverage.
185
WARRANTY
WARRANTY COVERAGE AND EXCLUSIONS
LIMITATIONS OF WARRANTIES AND REMEDIES
This POLARIS limited warranty excludes any failures that are not caused by a
defect in material or workmanship. THIS WARRANTY DOES NOT COVER
CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of
God, accidental damage, normal wear and tear, abuse or improper handling.
This warranty also does not cover any vehicle, component, or part that has been
altered structurally, modified, neglected, improperly maintained or used for
racing, competition or purposes other than for which it was designed.
This warranty excludes damages or failures resulting from improper lubrication;
improper engine timing; improper fuel; surface imperfections caused by external
stress, heat, cold or contamination; operator error or abuse; improper
component alignment, tension, adjustment or altitude compensation; snow,
water, dirt or other foreign substance ingestion/contamination; improper
maintenance; modified components; use of aftermarket or unapproved
components, accessories, or attachments; use of unapproved software or
calibration; unauthorized repairs; or repairs made after the warranty period
expires or by an unauthorized repair center.
This warranty excludes damages or failures caused by abuse, accident, fire, or
any other cause other than a defect in materials or workmanship and provides
no coverage for consumable components, general wear items, or any parts
exposed to friction surfaces, stresses, environmental conditions and/or
contamination for which they were not designed or not intended, including but
not limited to the following items:
• Wheels and tires
• Suspension components
• Brake components
• Seat components
• Clutches and components
• Steering components
• Batteries
• Light bulbs/Sealed beam lamps
• Filters
• Lubricants
• Bushings
• Finished and unfinished surfaces
• Carburetor/Throttle body
components
• Engine components
• Drive belts
• Hydraulic components and fluids
• Circuit breakers/Fuses
• Electronic components
• Spark plugs
• Sealants
• Coolants
• Bearings
186
WARRANTY
LUBRICANTS AND FLUIDS
1. Mixing oil brands or using non-recommended oil may cause engine damage.
We recommend the use of POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or
fluids is not covered by this warranty.
This warranty provides no coverage for personal loss or expense, including
mileage, transportation costs, hotels, meals, shipping or handling fees, product
pick-up or delivery, replacement rentals, loss of product use, loss of profits, or
loss of vacation or personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE,
AT POLARIS' OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE
MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH
IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY
PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO
LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF
EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT,
NEGLIGENCE, OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF
CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS
INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE
EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS
EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED
WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE
ABOVE TWO YEAR WARRANTY PERIOD. POLARIS DISCLAIMS ALL
EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME
COUNTRIES DO NOT PERMIT THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON
THE DURATION OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS
MAY NOT APPLY TO YOU IF INCONSISTENT WITH CONTROLLING
APPLICABLE LAW.
187
WARRANTY
HOW TO OBTAIN WARRANTY SERVICE
If your vehicle requires warranty service, you must take it to a POLARIS
Servicing Dealer. When requesting warranty service you must present your copy
of the Warranty Registration Form to the dealer. (THE COST OF
TRANSPORTATION TO AND FROM THE DEALER IS YOUR
RESPONSIBILITY.) POLARIS suggests that you use your original selling dealer;
however, you may use any POLARIS Servicing Dealer to perform warranty
service.
IN THE COUNTRY WHERE YOUR PRODUCT WAS
PURCHASED:
Warranty or Service Bulletin repairs must be done by an authorized POLARIS
dealer, or other qualified person. If you move or are traveling within the country
where your product was purchased, Warranty and Service Bulletin repairs may
be requested from any authorized POLARIS dealer, or other qualified person,
that sells the same line as your product.
OUTSIDE THE COUNTRY WHERE YOUR PRODUCT
WAS PURCHASED:
If you are traveling temporarily outside the country where your product was
purchased, you should take your product to an authorized POLARIS dealer, or
other qualified person. You must show the dealer photo identification from the
country of the selling dealer's authorized location as proof of residence. Upon
residence verification, the servicing dealer will be authorized to perform the
warranty repair.
IF YOU MOVE:
If you move to another country, be sure to contact POLARIS Customer
Assistance and the customs department of the destination country before you
move. Product importation rules vary considerably from country to country. You
may be required to present documentation of your move to POLARIS in order to
continue your warranty coverage. You may also be required to obtain
documentation from POLARIS in order to register your product in your new
country. You should warranty register your product at a local POLARIS dealer in
your new country immediately after you move to continue your warranty
coverage and to ensure that you receive information and notices regarding your
product.
IF YOU PURCHASE FROM A PRIVATE PARTY:
If you purchase a POLARIS product from a private party, to be kept and used
outside of the country in which the product was originally purchased, all warranty
coverage will be denied. You must nonetheless register your product under your
name and address with a local POLARIS dealer in your country to ensure that
you receive safety information and notices regarding your product.
188
WARRANTY
EXPORTED PRODUCTS
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT
IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S
AUTHORIZED LOCATION. This policy does not apply to products that have
received authorization for export from POLARIS. Dealers may not give
authorization for export. You should consult an authorized dealer to determine
this product's warranty or service coverage if you have any questions. This
policy does not apply to products registered to government officials or military
personnel on assignment outside the country of the selling dealer's authorized
location. This policy does not apply to Safety Bulletins.
NOTICE
If your product is registered outside of the country where it was purchased and
you have not followed the procedure set above, your product will no longer be
eligible for warranty or service bulletin coverage of any kind, other than safety
bulletins. Products registered to government officials or military personnel on
assignment outside of the country where the product was purchased will
continue to be covered by the Limited Warranty.
Please work with your dealer to resolve any warranty issues. Dealership
contacts can be found via this website, if needed:
www.polaris.com/en-us/contact
Should your dealer require any additional assistance, they will contact the
appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state or in different countries. If any of the above terms
are void because of applicable laws, all other warranty terms will remain in
effect.
For questions call POLARIS Customer Assistance:
United States & Canada: 1-800-POLARIS (1-800-765-2747)
French: 1-800-268-6334
189
WARRANTY
190
192
4X4 (AWD) Alert (7181543) ......... 33
A
Accessories ........................... 170
ADC 4X4 Mode (if equipped)........ 54
Age Restrictions ........................ 18
Air Filter................................. 148
Air Filter / Air Box..................... 169
All Wheel Drive System............... 53
2X4 Mode ............................. 53
Automatic Transmission Gear
Selector ................................. 52
Auxiliary Foot Brake ................... 47
AWD (4x4) Mode ....................... 53
B
Battery .................................. 162
Charging ............................ 165
Battery Charge Port ................... 50
Battery Charging (Conventional
Battery)................................ 165
Battery Fluid (Conventional
Battery)................................ 165
Battery Installation ................... 163
Battery Maintenance ................ 170
Battery Removal...................... 164
Battery Storage ....................... 164
Bluetooth® Pairing..................... 87
Boarding and Dismounting the
Tractor................................... 92
Boots ...................................... 17
Brake Fluid............................. 139
Brake Fluid Level....................... 47
Brake Inspection ..................... 142
Brake Lever.............................. 44
Brake Monitoring System ............ 44
Brake System Break-in ............... 90
Breather Valve/Hose ................ 148
C
Carbon dioxide (CO2) emission .. 123
Chrome Wheel Care ................ 168
Clean the Exterior.................... 169
Clothing................................... 17
Clutch Cover Alert ..................... 33
Clutching Chart ................. 173, 175
Cold Weather Operation.............. 94
Controls
Locations.............................. 37
Cooling System....................... 137
Crossing Hillsides ...................... 22
Crush Alerts ............................. 35
D
Descending Hills Improperly ........ 22
Diagnostic Display Code
Definitions .............................. 62
Drive Belt Wear / Burn .............. 179
Driveline Mode Switch ................ 42
Driver’s Seat Vibration .............. 176
Driving Over Obstacles ............. 103
Driving Procedures
Driving Downhill ..................... 99
Driving in Reverse ................ 104
Driving on a Sidehill
(Sidehilling) ....................... 100
Driving on Slippery Surfaces ..... 97
Driving Through Water........... 102
Driving Uphill ......................... 98
Driving with a Passenger............. 95
Dumping Cargo (X2) ................ 108
E
Electromagnetic Interference ..... 123
Electronic Power Steering (EPS)... 48
Tri-Mode Settings ................... 60
Elevating the Vehicle for
Service ................................ 126
Engine and Drivetrain Break-in ..... 90
Engine Backfires ..................... 180
Engine Doesn’t Turn Over ......... 179
Engine Oil .............................. 131
Engine Overheating ................. 183
Engine Pings or Knocks ............ 181
Engine Runs Irregularly, Stalls
or Misfires ............................ 181
193
Engine Stop Switch .................... 40
Engine Stopping........................ 93
Engine Turns Over, Fails to
Start.................................... 180
Exhaust Emission Control
System ................................ 123
Exported Products ................... 189
Exposure to Exhaust .................. 19
Extreme Use Battery .................. 50
Eye Protection .......................... 17
F
Failure to Inspect Before
Operating ............................... 18
Fluid Levels............................ 169
Fog the Engine ....................... 170
Foot Brake ............................. 141
Footwell Removal .................... 144
Forestry Application and Crop
Spraying ................................ 19
Four-Wheel Descent Control
Disengage ............................ 54
Engage ................................ 54
Front Gearcase (Demand
Drive) Fluid ........................... 136
Front Turn Signal Replacement .. 156
Front Wheel Hub Tightening ...... 145
Fuel Cap.................................. 48
Fuel Stabilizer......................... 169
Fuse Replacement................... 149
G
General Alert (7181540).............. 32
Gloves .................................... 17
Greasing Points Alert (7300027) ... 33
H
Hand Brake ............................ 140
Handlebar Adjustment .............. 143
Handlebars
Controls ............................... 38
Switches............................... 38
Handling Gasoline ..................... 19
Hauling Cargo......................... 106
Hazard Warning Switch............... 42
Headlight
Bulb Replacement ................ 153
Headlight and Momentary High
Beam Switch........................... 41
Headlight Housing
Replacement ........................ 154
Headlight Housing
Replacement (570 SP
Models) ............................... 153
Headlight/Parking Light Lamp
Replacement ........................ 155
Helmet .................................... 16
Hill Operation Alert (7181536) ...... 33
Hitch Removal / Installation.......... 51
Hitches.................................... 50
Horn Switch.............................. 42
Hot Exhaust Systems ................. 27
How To Obtain Warranty
Service ................................ 188
I
Ignition Switch .......................... 39
Improper Cargo Loading ............. 26
Improper Hill Climbing ................ 22
Improper Tire Maintenance .......... 25
Inspect and Lubricate ............... 170
Instrument Cluster
Back Light Color ..................... 84
Back Light Level ..................... 85
Bluetooth® (if equipped) .......... 87
Clock ................................... 83
Diagnostic Code..................... 60
Display Area 1 ....................... 57
Display Area 2 ....................... 58
Indicator Lamps ..................... 56
Options Menu ........................ 59
Overview .............................. 55
Service Hours ........................ 86
Unit Selection Distance............ 80
Unit Selection Temperature....... 81
194
J
Jumps and Stunts...................... 22
L
Lights.................................... 150
Headlight Adjustment ............ 151
Limited Warranty ..................... 185
Lubricants / Miscellaneous ........ 177
Lubrication Guide .................... 130
M
Maintenance After Accident ......... 28
Maintenance Chart .................. 127
Maintenance Log..................... 191
Master Cylinder/Brake Fluid......... 45
Mirrors .................................... 48
Mode / Reverse Override Switch ... 40
Modifications to Vehicle .............. 28
N
Near-field Communication
(NFC) .................................... 12
New Operator Driving
Procedures............................. 95
Noise Emission Control
System ................................ 123
Normal Spark Plug................... 157
O
Occupant Protection Device......... 28
Oil and Filter ........................... 169
Oil and Filter Change................ 133
Oil Filter Change ..................... 134
Oil Level ................................ 132
Oil Recommendations .............. 131
Operating a Damaged Vehicle ...... 28
Operating at Excessive Speeds .... 20
Operating Improperly in Reverse... 25
Operating in Lightning ..........27, 105
Operating in Unfamiliar Terrain ..... 24
Operating on Frozen Bodies of
Water .................................... 26
Operating on Public Roads .......... 20
Operating on Slippery Terrain ....... 24
Operating on Steep Hills ............. 24
Operating Over Obstacles ........... 25
Operating Through Water ............ 26
ORV Certificate of Pre-Delivery
Inspection .............................. 10
Override Alert (7181544)............. 32
P
Parking Brake ........................... 46
Parking on an Incline ................ 105
Parking the Vehicle .................... 94
Passenger Seat Backrest
(Touring) ................................ 49
Periodic Maintenance ............... 125
Physical Control of the Vehicle ..... 21
Physical Skills........................... 27
Polishing the Vehicle ................ 168
Poor Visibility............................ 27
Power Steering Unit ................. 143
Pre-Ride Checklist ..................... 91
Protective Apparel ..................... 19
PVT Break-in (Clutches/Belt) ....... 90
PVT Drying ............................ 161
PVT System ........................... 160
R
Radiator Coolant ..................... 138
Radio Compliance Statements .......9
Rear Hitch................................ 50
Rear Hitch Certification Label ....... 51
Rear Turn Signal Lamp
Replacement (Sportsman) ....... 156
Recovery Bottle Coolant ........... 138
Registration, Warranty .............. 185
S
Safe Riding Gear....................... 16
195
Safety Labels and Locations ... 30, 35
Rack Alert ............................. 34
Scrambler XP 1000 S
Fuel Alert ........................... 35
Sportsman 570 Touring............ 30
Sportsman 570 X2 .................. 31
Sportsman XP 1000 S
Fuel Alert ........................... 35
Rack Alert .......................... 34
Safety Symbols ........................... 8
Safety Training.......................... 15
Safety Warning ......................... 15
Safety Warnings........................ 17
Carrying More Than One
Passenger on a 2-Up ATV....... 21
Safety, Winch Maintenance........ 122
Seat
Removal............................... 49
Severe Use Definition ............... 125
Shock Loading the Winch .......... 121
Side Panel Removal................. 143
Signal Words .............................. 8
Skidding or Sliding ..................... 26
Spark Arrester .................. 123, 159
Spark Plug Inspection............... 157
Spark Plug Recommendations ... 157
Spark Plug Removal ................ 158
Specifications
Sportsman 570 Touring EPS
Tractor.............................. 171
Sportsman X2 570 Tractor...... 173
Stabilize the Fuel ..................... 169
Stalling While Climbing a Hill ........ 23
Starting the Engine .................... 93
Steering Assembly................... 143
Stopping the Engine ................... 93
Storage ................................. 169
Storage Area / Covers .............. 170
T
Taillight / Brakelight Lamp
Replacement (Sportsman) ....... 156
Throttle Lever ........................... 43
Tire Pressure Alert (7183263) ...... 34
Tire Tread Depth ..................... 144
Tires ..................................... 144
Toe Alignment......................... 147
Towing Loads ......................... 108
Towing the Tractor ....................110
Trademarks................................ 2
Trailer Hitch Warning.................. 28
Trailering
Tie Down Locations................110
Trailering the Tractor ................. 111
Transmission Oil...................... 135
TURF Mode ............................. 54
Turn Signal Switch ..................... 41
Turning Around on a Hill
(K-Turn) ............................... 101
Turning Improperly..................... 21
U
Unauthorized Use of the Vehicle ... 27
V
Variable Low Speed Switch.......... 42
Vehicle Break-in Period............... 89
Vehicle Identification Numbers ..... 12
Vehicle Immersion ................... 158
Vehicle Tie-Down
Tie Down Locations................110
W
Warning Symbols ........................ 8
Washing the Vehicle................. 167
Welcome Page ........................... 3
Wet Fouled Spark Plug ............. 157
Wheel Installation .................... 145
Wheel Nuts
Torque Specifications ............ 146
Wheel Removal....................... 145
When to Use Low and High
Range .............................94, 161
Winch
Winch Operation ...................115
Winch Safety Precautions .......113
Winch Cable Care ................... 120
196
For your nearest Polaris dealer,
visit www.polaris.com
Polaris Sales Europe Sarl
Place de l’Industrie 2
1180 Rolle
Switzerland
Part No. 9941287 R.01
01.2023
