INSTRUCTION MANUAL
2kW Convector Heater Series
Models: ML2TA, ML2TSFA, ML2TS, ML2TSF
08/55073/0 Issue 1
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE
INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product
for the first time and keep them in a safe place.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Cleaning and user maintenance shall not be made by children.
• CAUTION: Some parts of this product can become very hot and cause
burns. Particular attention must be given where children and vulnerable
people are present.
• IMPORTANT: Only use this heater on a horizontal and stable surface
with the feet attached.
• WARNING: In order to avoid overheating, do not cover the heater.
• The Heater carries this warning symbol indicating that it must
not be covered.
• DO NOT COVER or obstruct the air inlet and outlet openings in any way.
• DO NOT use the heater in the immediate surroundings of a bath, a
shower or a swimming pool.
• DO NOT use this heater if it has been dropped.
• DO NOT use if there are visible signs of damage to the heater.
• DO NOT place the heater directly below a fixed socket outlet.
• The socket-outlet used to plug in the heater must be accessible at all
times to enable the mains plug to be disconnected as quickly as possible
if required.
• DO NOT operate the heater with the mains lead overhanging the outlet
grille.
• WARNING: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit that
is regularly switched on and off by the utility.
• WARNING: Risk of fire – Do not use this appliance connected through an
2
extension lead or any external switching device such as a plug-in timer or
remote control plug in adaptor. All heating appliances draw high current
through the mains supply and any weakness in the design, connections
or components in these devices can easily result in overheating of the
connection points resulting in melting, distortion and even the risk of
fire.
• DO NOT pull, lift, carry or move the appliance using the mains lead.
• IMPORTANT: If the mains lead of this appliance is damaged, it must be
replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar
coverings.
• DO NOT route cord under furniture or appliances. Take care to position
the cord away from traffic areas and where it will not be a tripping
hazard.
• WARNING: To avoid the risk of accidental strangulation from the supply
cord all children and vulnerable people must be supervised when in the
vicinity of the product whether it is working or not.
• Although this appliance complies with safety standards, we do not
recommend its use on use the heater on deep pile carpets or the long
hair type of rugs, or less than 750mm away from any overhanging
surface.
• WARNING: To reduce the risk of fire, keep textiles, curtains, soft or hard
furnishings or any other flammable or heat sensitive material a minimum
distance of 1m from the front air outlet of the heater.
• Keep combustible materials such as drapes and other furnishings clear
from the front, sides and rear of the heater.
• Do not use heater to dry your laundry.
• WARNING: Do not use this heater in small rooms when they are occupied
by persons not capable of leaving the room on their own, unless constant
supervision is provided.
• WARNING: To avoid danger of suffocation please remove all packaging
materials particularly plastic and EPS and keep these away from
vulnerable people, children and babies.
• This instruction leaflet belongs to the appliance and must be kept in a
safe place. If changing owners, the leaflet must be surrendered to the
new owner.
3

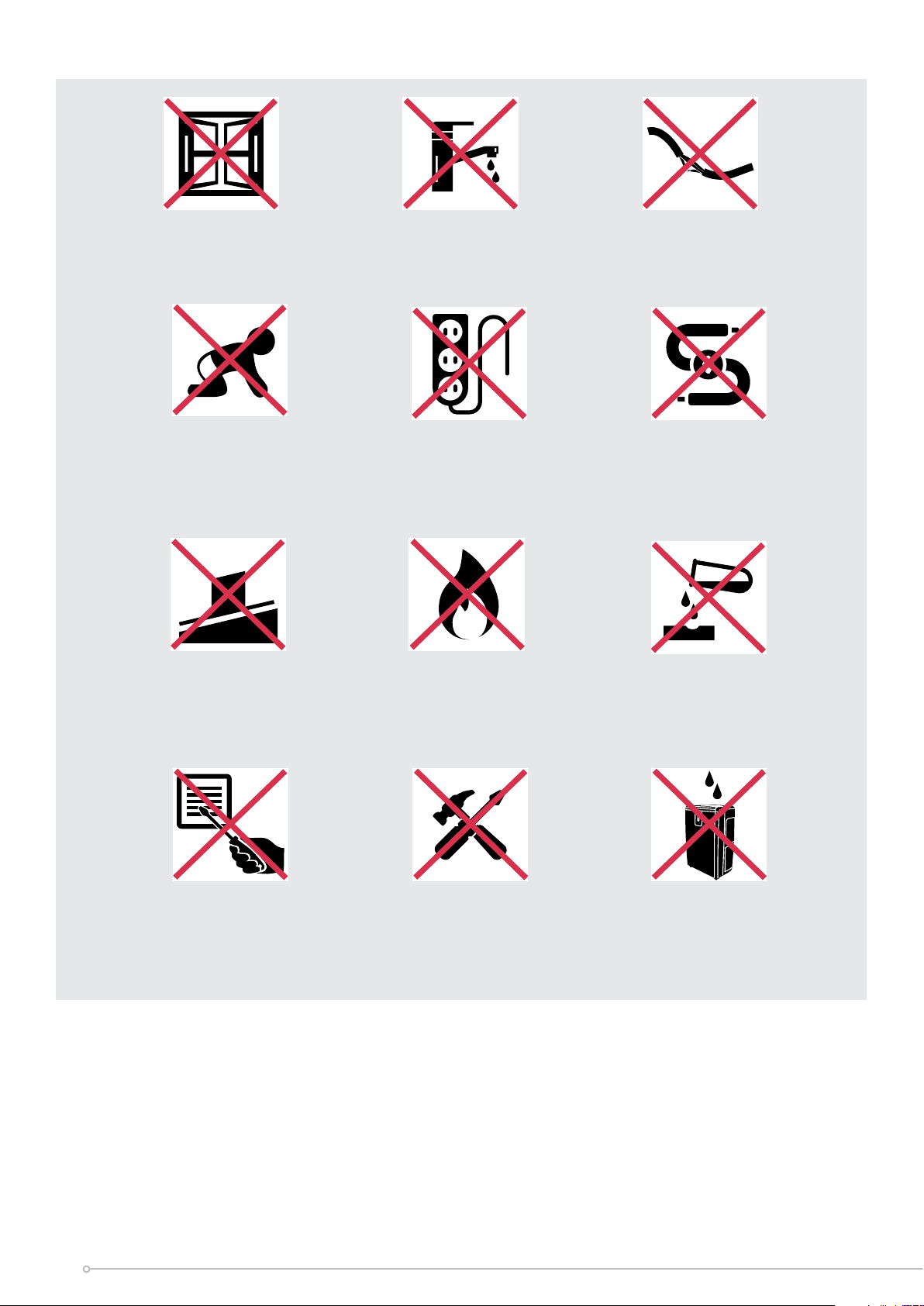

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
4
Model no.
ML2TA & ML2TS ML2TSFA & ML2TSF
Power supply
230-240V~, 50Hz
Rated power
2000W
Heat settings
2
Thermostat Y
Turbo Fan N Y
Weight (net) 3.75kg 4.24kg
Dimensions (w x d x h) 577 x 233 x 443mm
Specifications
For greater precision, please always refer to the rating label placed on the product.
WARNING THIS APPLIANCE MUST BE EARTHED

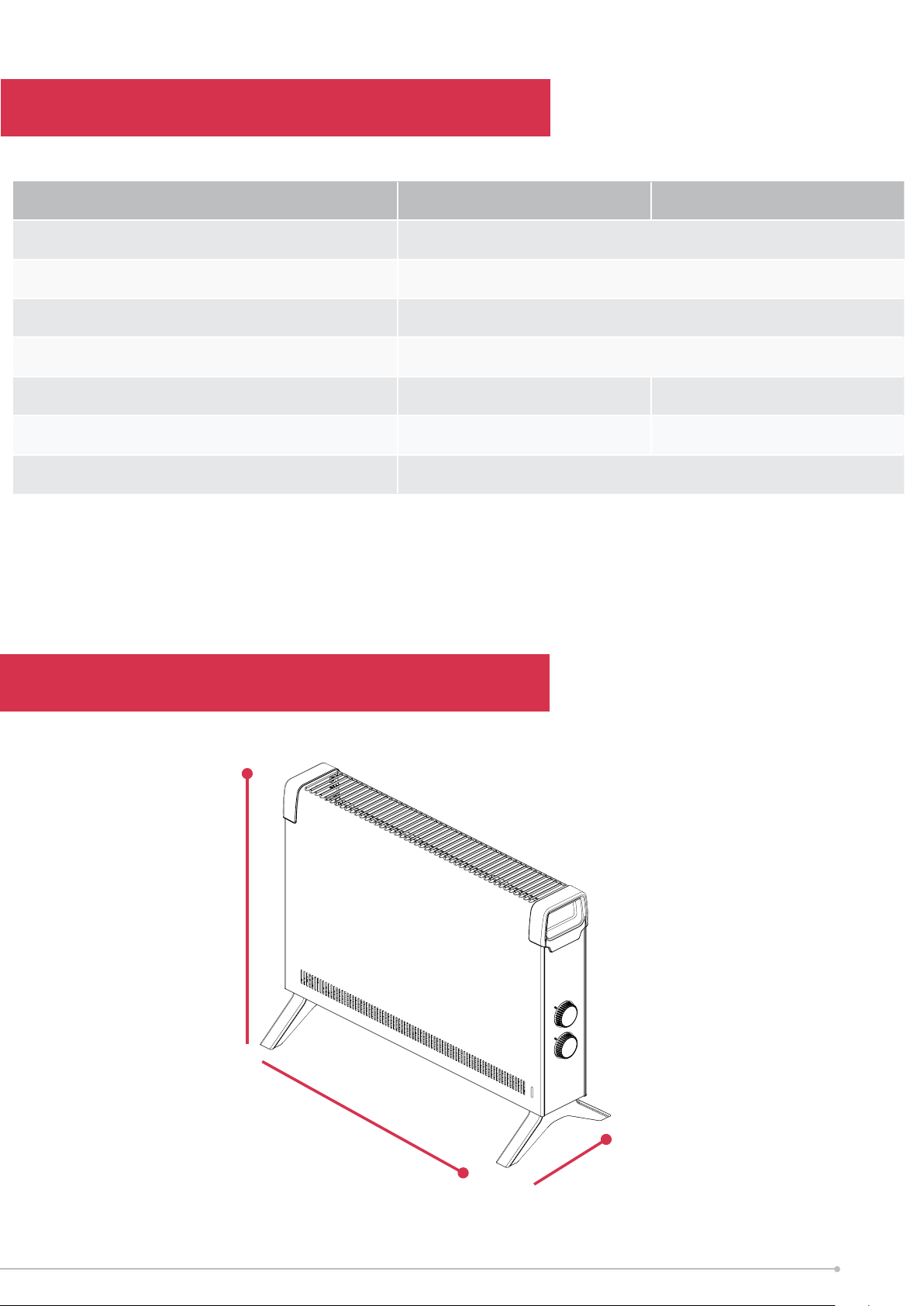

Dimensions
577mm
233mm
443mm
Note: All 4 models have the same dimensions
5
Assembly
WARNING: DO NOT USE THE HEATER UNTIL THE FEET ARE FITTED CORRECTLY.
WARNING: ALWAYS ENSURE THAT THE HEATER IS STOOD ON A FIRM LEVEL
BASE NEAR TO, BUT NOT DIRECTLY UNDERNEATH A SUITABLE MAINS SUPPLY
SOCKET.
WARNING: ENSURE THAT CURTAINS AND FURNITURE ARE NOT POSITIONED
CLOSE TO THE CHOSEN POSITION
WARNING: PLEASE ENSURE THE MINIMUM CLEARANCE DIMENSIONS ARE
MAINTAINED
Note: These heaters are designed for operation on an AC electricity supply, and are
suitable for use in domestic dwellings and similar indoor locations. These heaters
are supplied with feet and handles for ease of movement. A mechanical rotary
switch provides the ability to choose an available heat output and control the room
temperature. These heaters are supplied with a cord and plug and are ready for use
once the feet have been correctly fitted.
Note: The ML Convector Series can only be used as portable heaters.

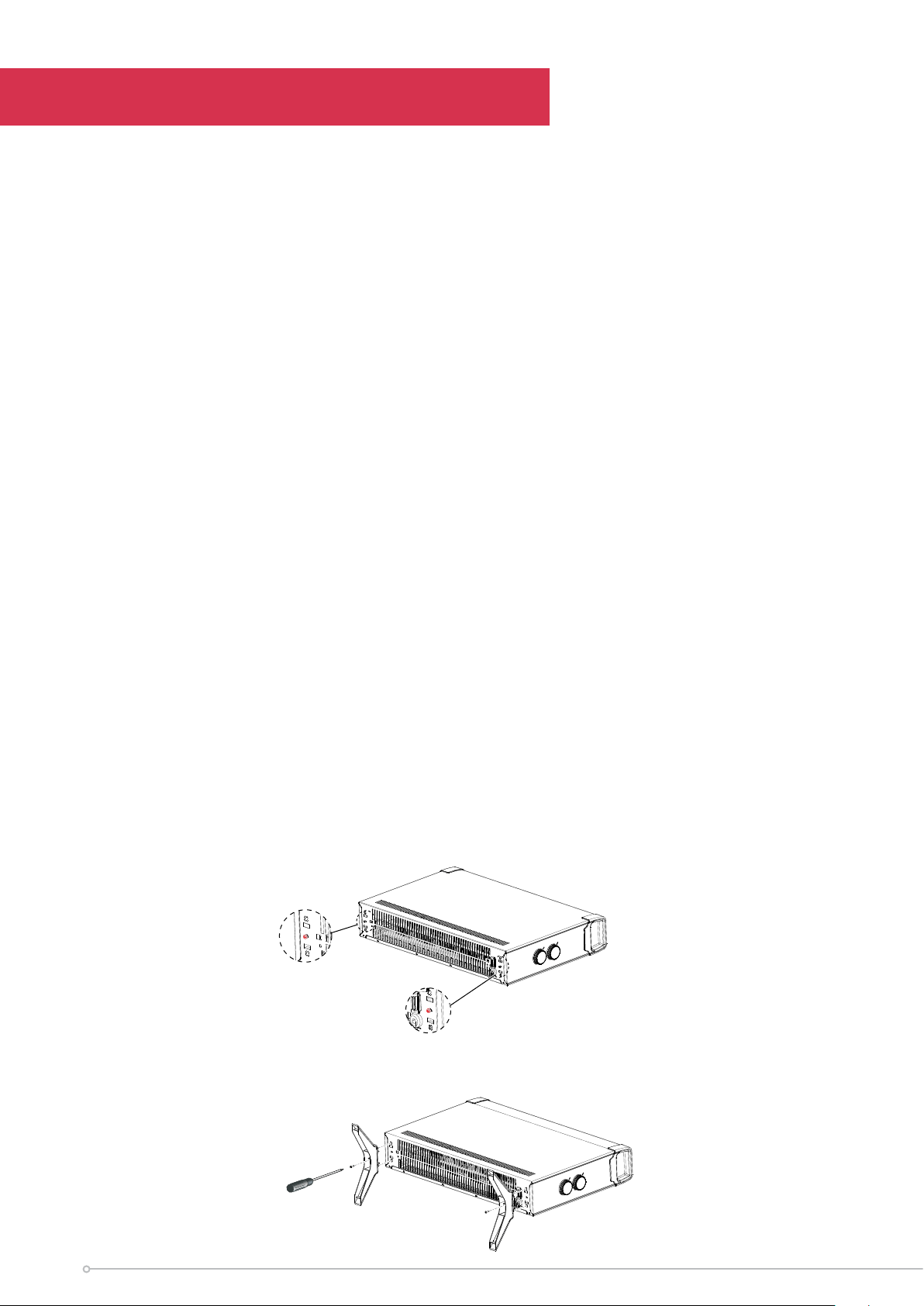

1. To install the feet, lay the heater on its back and remove the two foot fixing screws.
2. Assemble the feet by pressing them firmly into the convector body. The feet
should clip into position.
3. Secure the feet into the convector body with the two foot fixing screws. Return
the heater upright, and the unit is now ready for use.
6
Controls & Operation
Thermostat
The thermostat controls the heat output according to the room temperature. This
ensures that the heater will not produce heat uneccessarily when the room is warm.
1. To set the temperature you require, gradually turn the thermostat clockwise until
your desired temperature is reached. Allow some time between increments for the
room temperature to stabalise.
2. Alternatively to heat a cold room quickly, turn the thermostat to the max position.
When the room has reached your desired temperature, turn the thermostat
anti-clockwise until the thermostat clicks off. The heater will then automatically
maintain this room temperature.
3. The thermostat also has a frost protection setting marked
. This setting is useful
in areas such as gargages to prevent frost damage. If the thermostat is set to its
minimum setting , the heater will cycle ON and OFF to maintain a temperature
of approximately 5°C to help protect against frosty conditions.
Note: Should the heater fail to come on when the thermostat is at a low setting, this
may be due to the room temperature being higher than the thermostat setting.
Heat
The heat output can be altered to suit the application, conditions and to improve the
economy of operation. Switch the heat knob
Switch Setting
Model
0 I II
ML2TA/ML2TS Off 1200W 2000W N/A
ML2TSFA/ML2TSF Off 1200W 2000W 2000W
Indicator Neon Light
The indicator neon comes on when the appliance is connected to the mains supply.
Turbo Fan
Only the ML2TSFA and ML2TSF models contain a turbo fan. The turbo fan is used
to boost the airflow around the room. This circulates the heat better and results in
a reduced heat up time and a more even heat distribution. To use the turbo fan on
selected models, turn the heat switch to as per above.
7
Controls & Operation
Note: Although these units are manufactured to comply with the relevant safety
standards, certain types of carpet could become discoloured by the temperatures
under a portable heater. If you are concerned about this, we recommend that you
contact the carpet manufacturer for guidance. Alternatively, stand the heater on a
suitable base to shield the carpet.
You may notice some parts of the element appearing to be hotter from time to time
because of the variable airflow through the heater. This does not cause a safety
hazard.
The heat outlet grille may become discoloured with use - this is caused by airborne
pollution and is not a fault.
8
Cleaning
Over time, dust can accumulate on the heater which can effect performance. It is
recommended to clean the unit at least once a month.
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush or vacuum cleaner with a soft brush
attachment.
3. Wipe the outer surface of the unit with a soft damp cloth. Mild detergent can be
used for any stubborn marks.
IMPORTANT
The controls and other parts must not come into contact with water or any other
liquids.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Recycling: Do not dispose of electrical appliances as unsorted municipal
waste. Use separate collection facilities. Contact your local government
for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the ground water, polluting the food chain and damaging
health and well-being.
