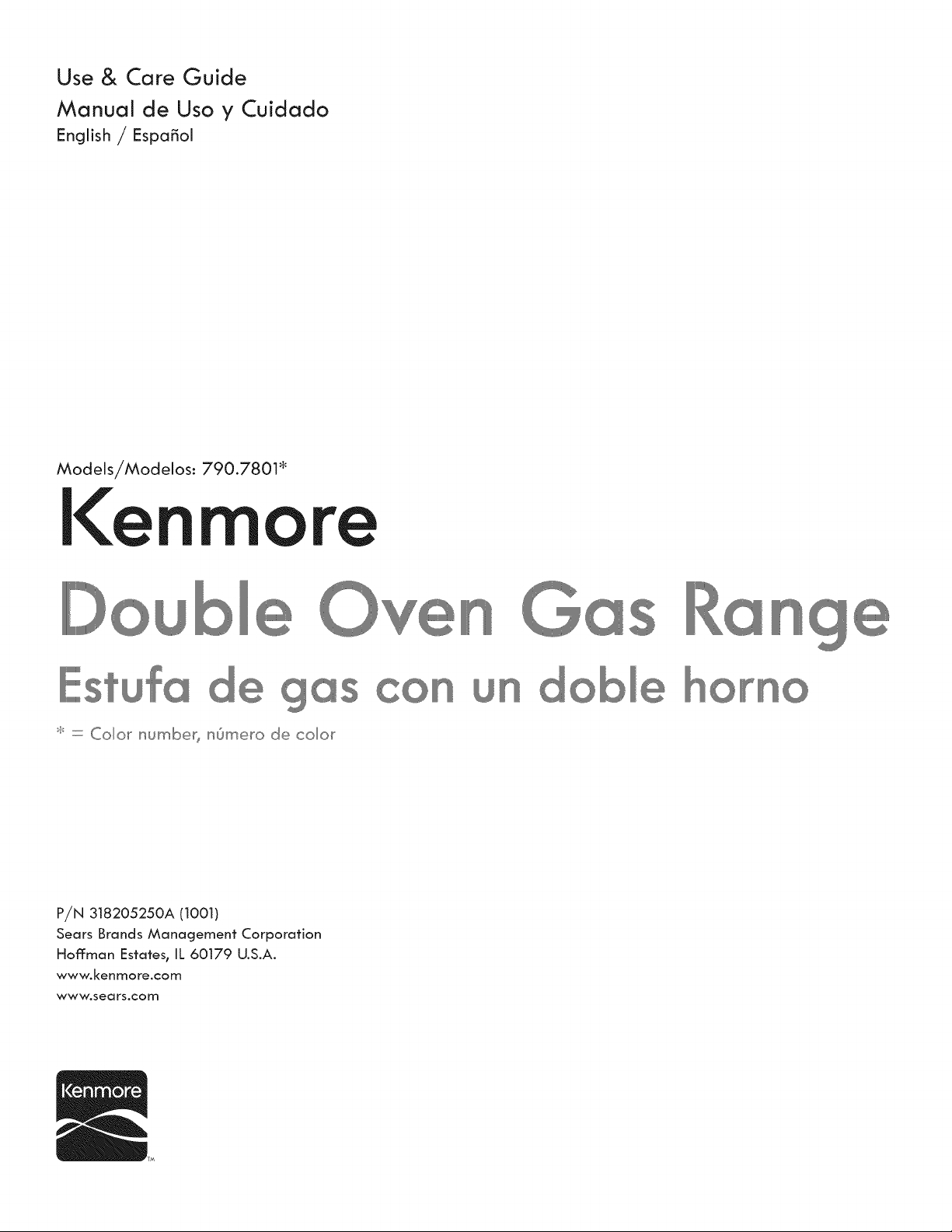

Use & Care Guide
Manual de Uso y Cuidado
English / Espa_ol
Models/Modelos: 790.7801 _
Ke
do_l_
P/N 318205250A(lOOl)
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com

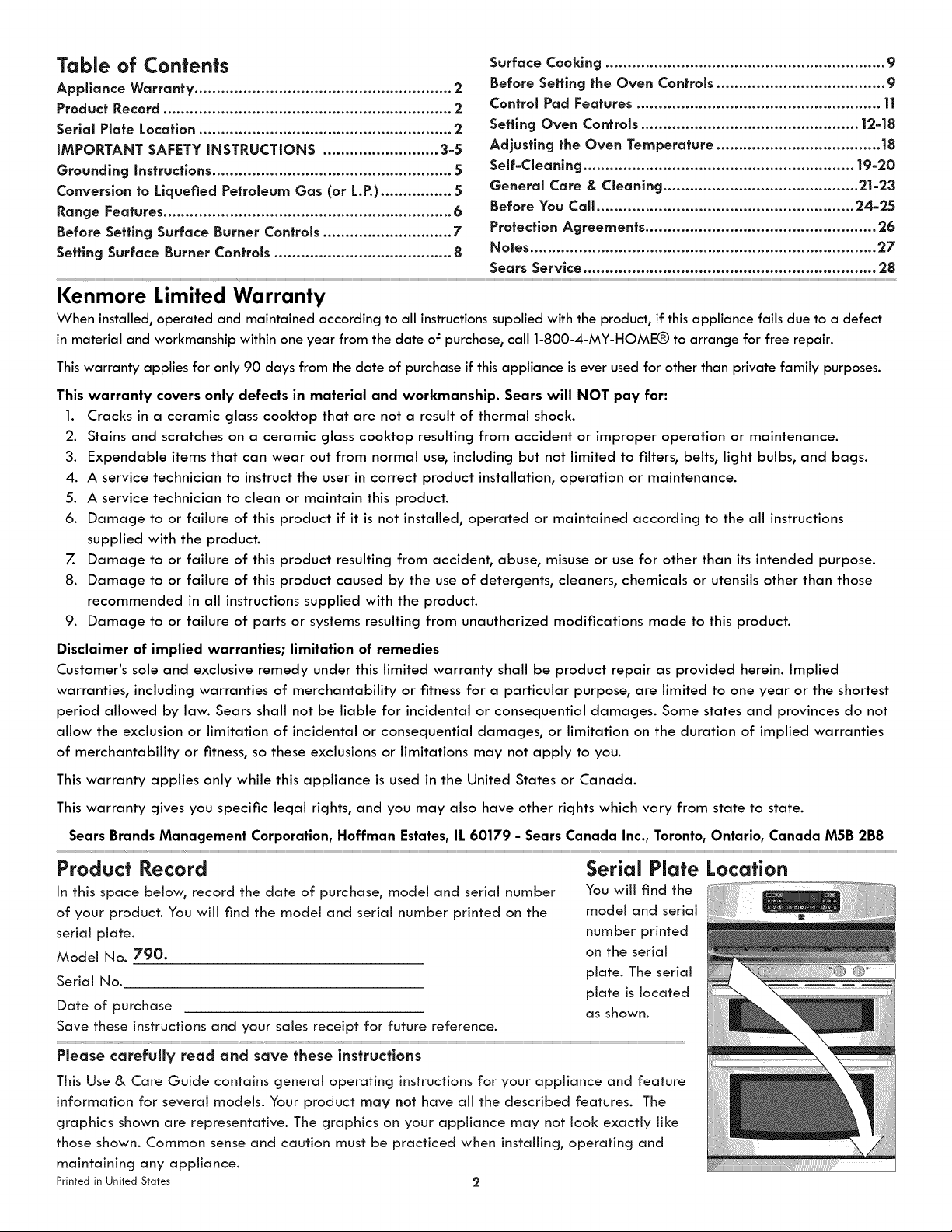

Table of Contents
Appliance Warranty .......................................................... 2
Product Record ................................................................. 2
Serlal Plate Location ......................................................... 2
IMPORTANT SAFETY INSTRUCTIONS .......................... 3-5

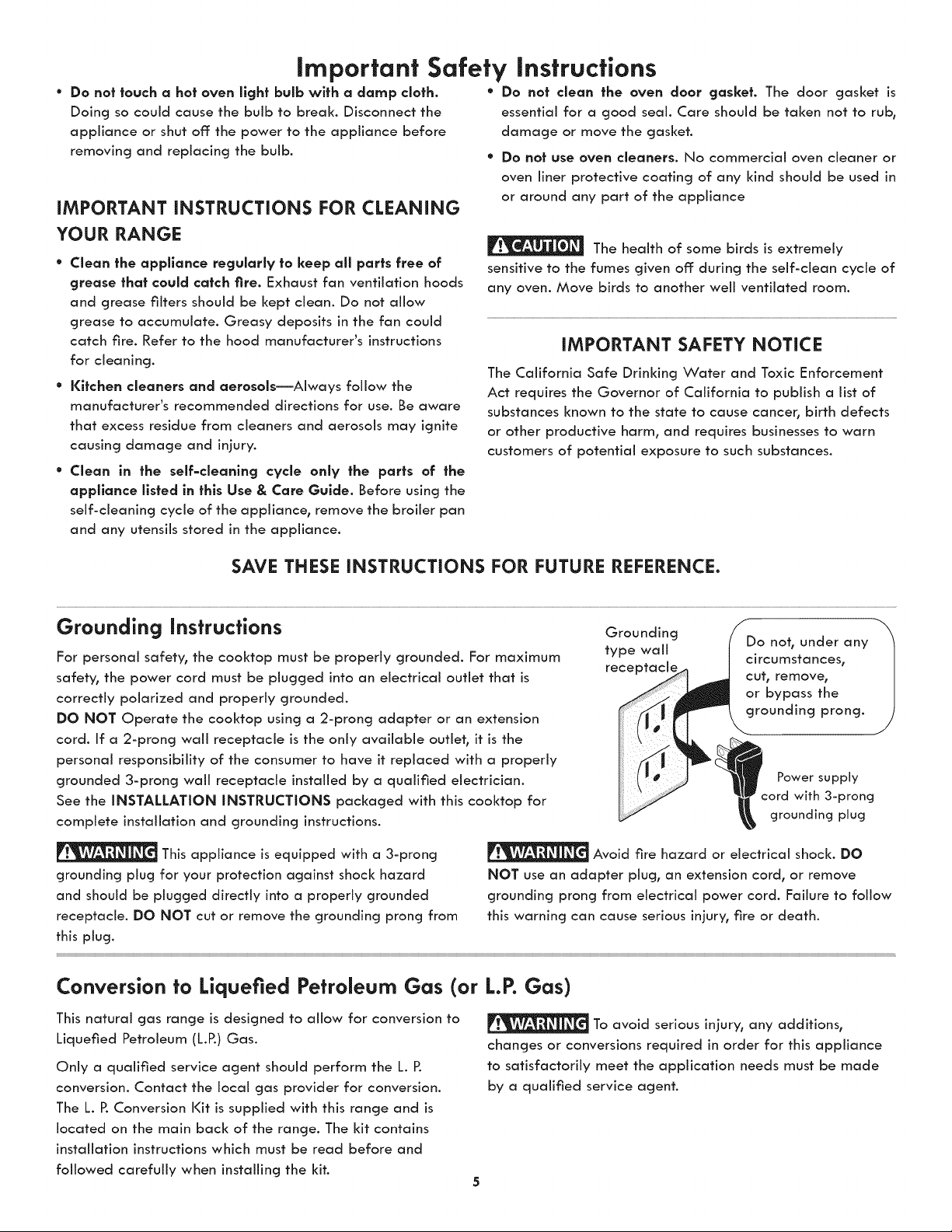

Grounding Instructlons ...................................................... 5
Conversion to Liquefied Petroleum Gas (or L.P.) ................ 5

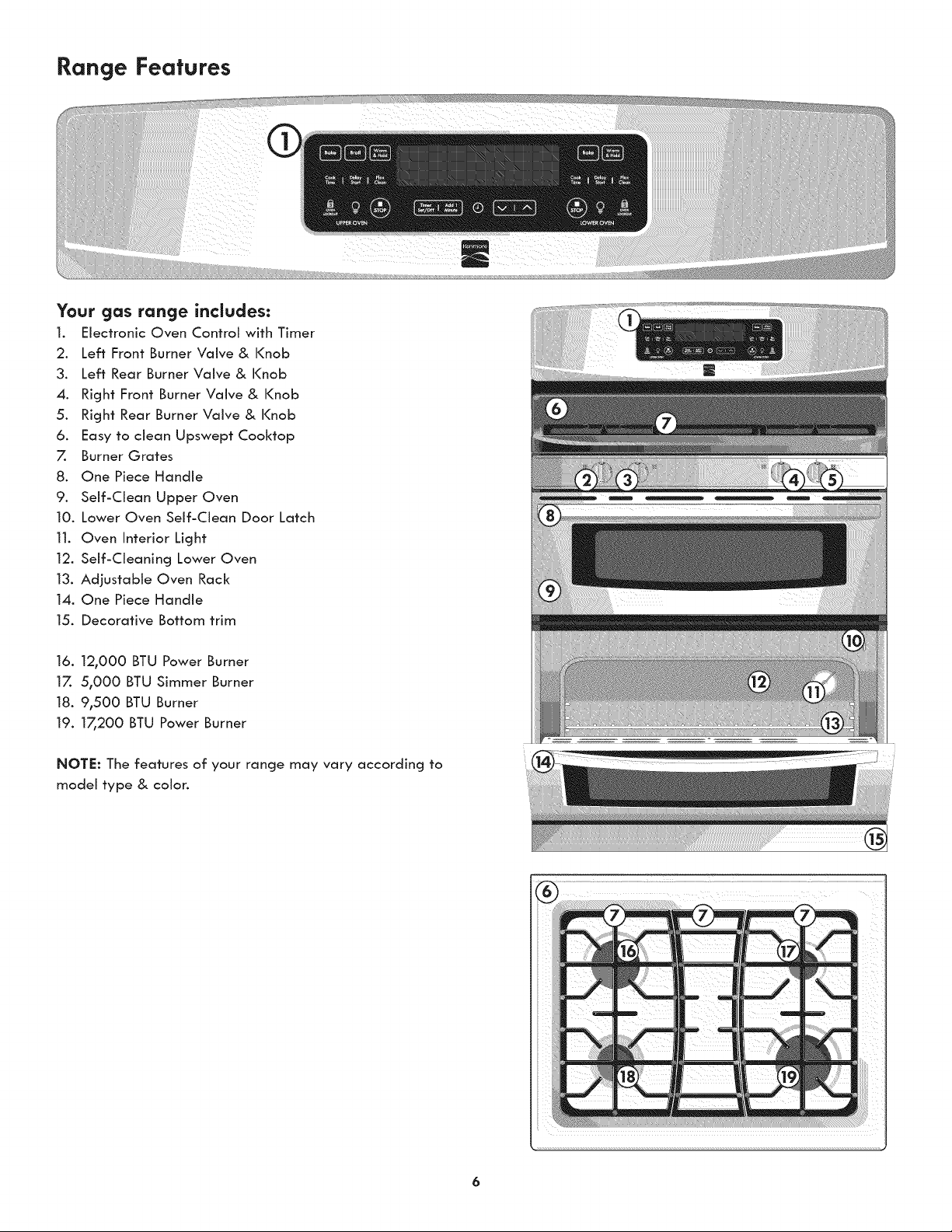

Range Features ................................................................. 6

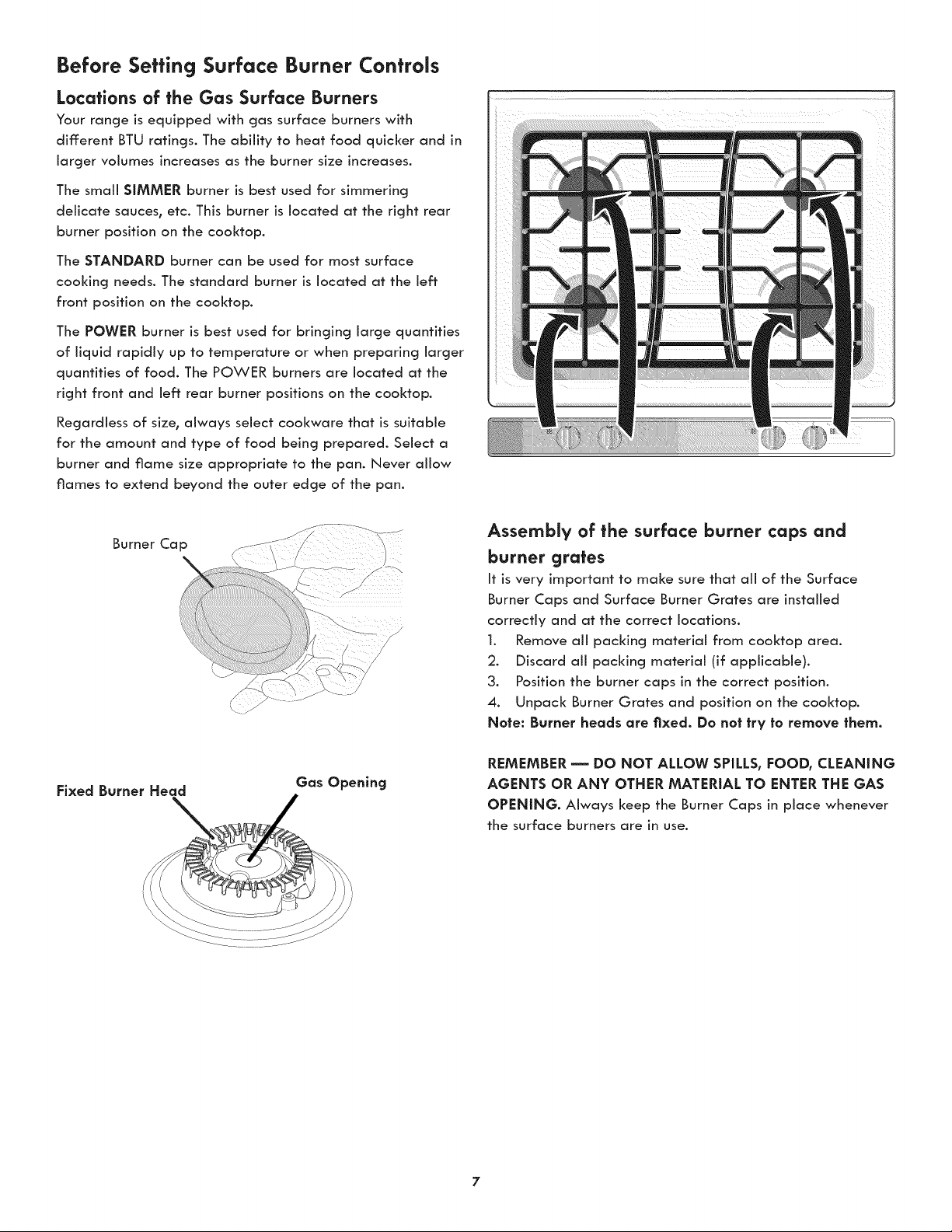

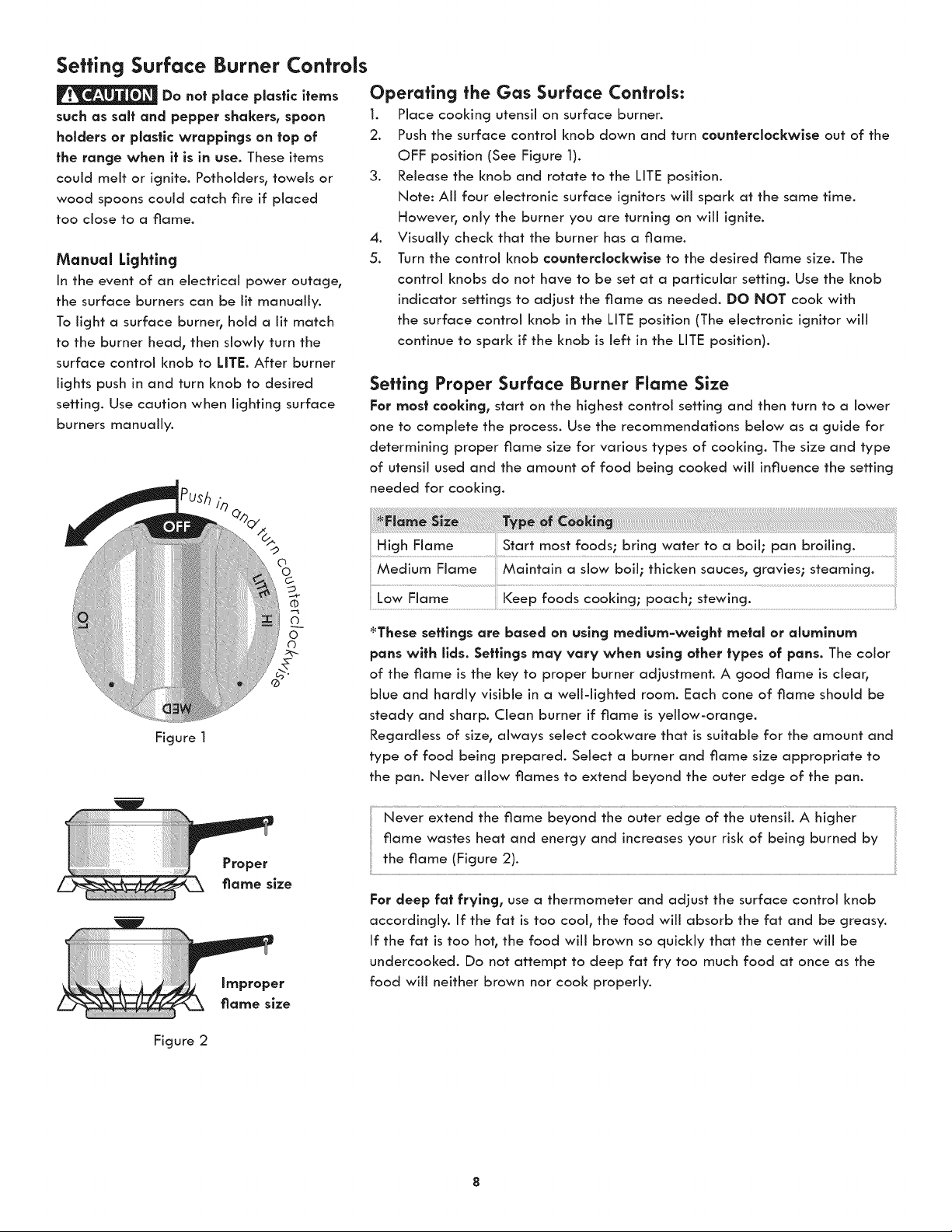

Before Setting Surface Burner Controls ............................. 7
Setting Surface Burner Controls ........................................ 8

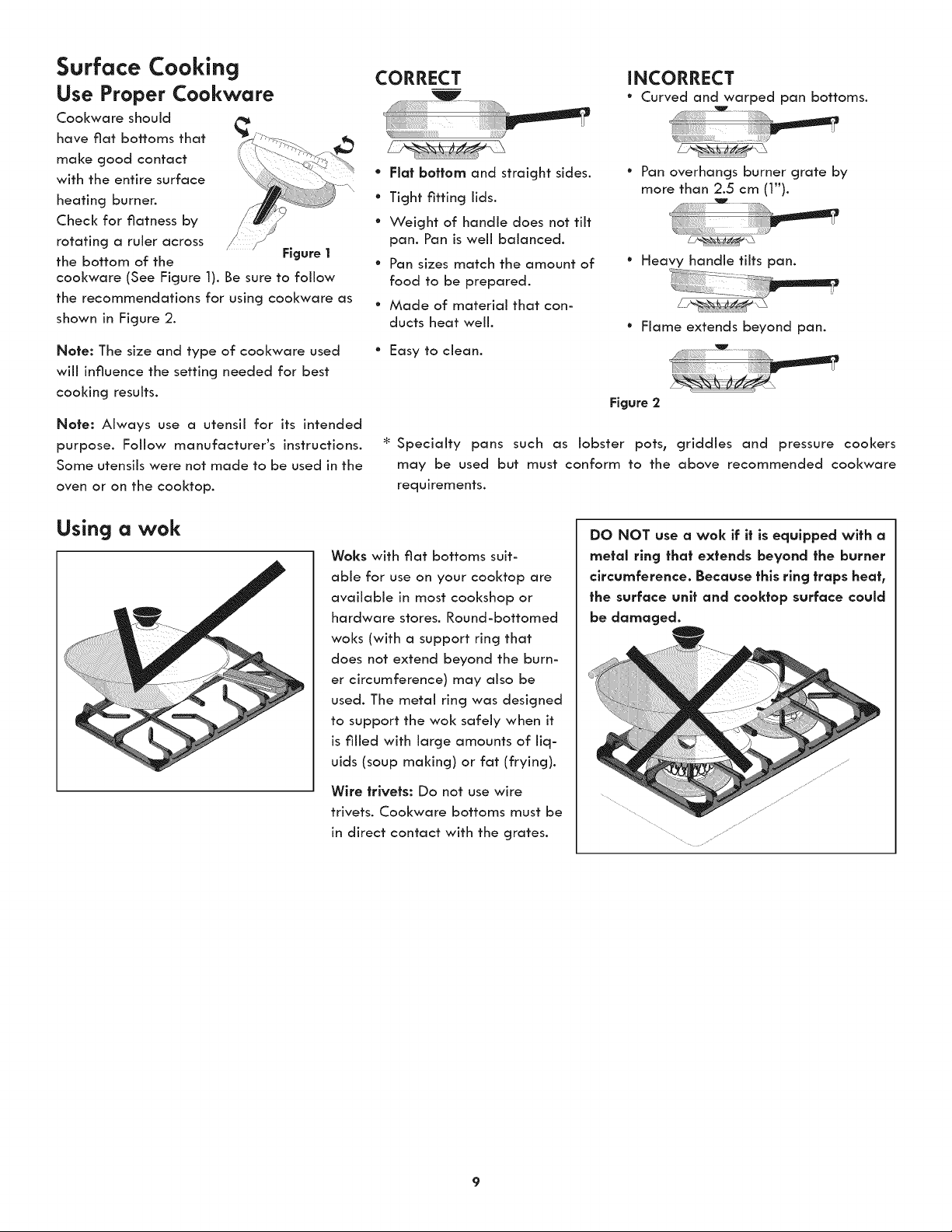

Surface Cooking ............................................................... 9

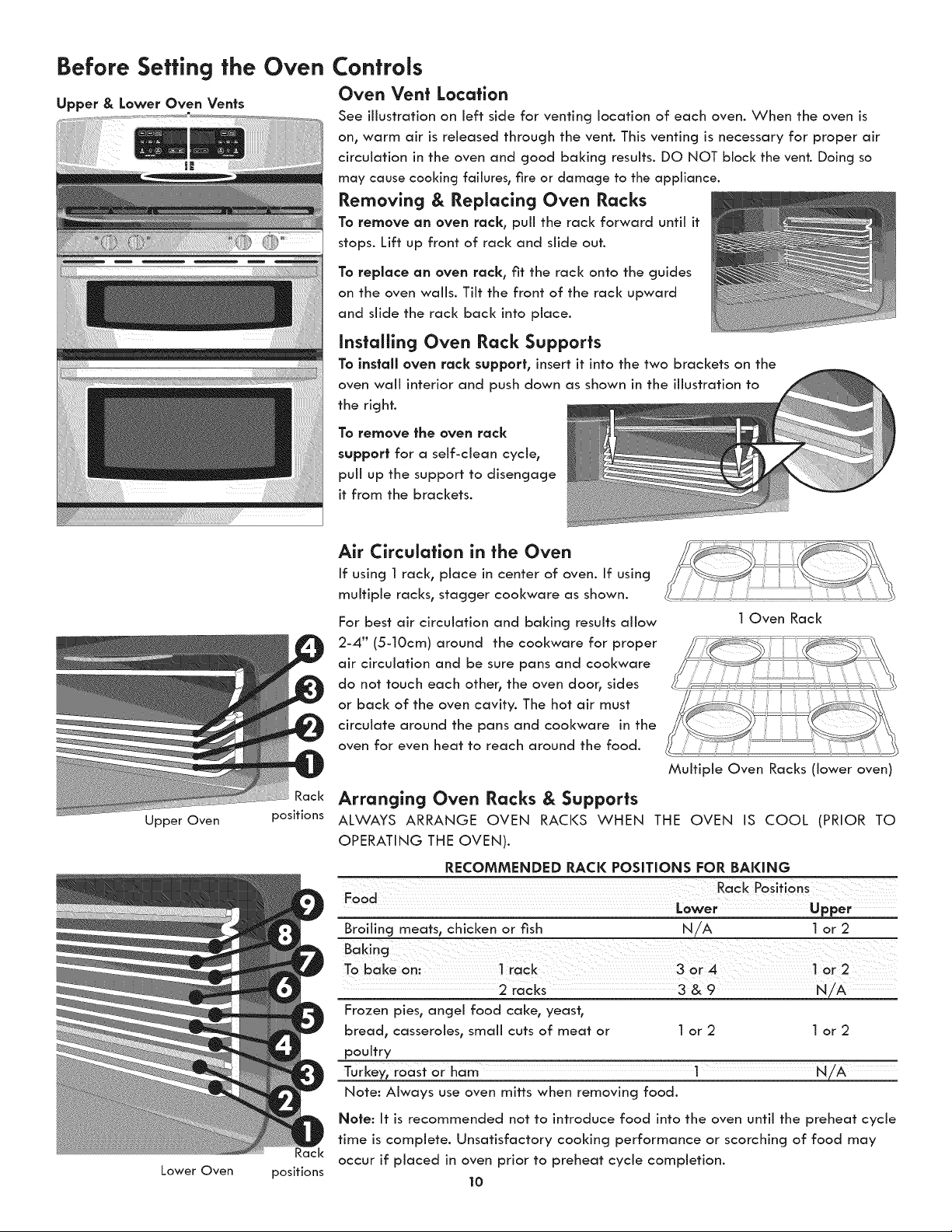

Before Setting the Oven Controls ...................................... 9

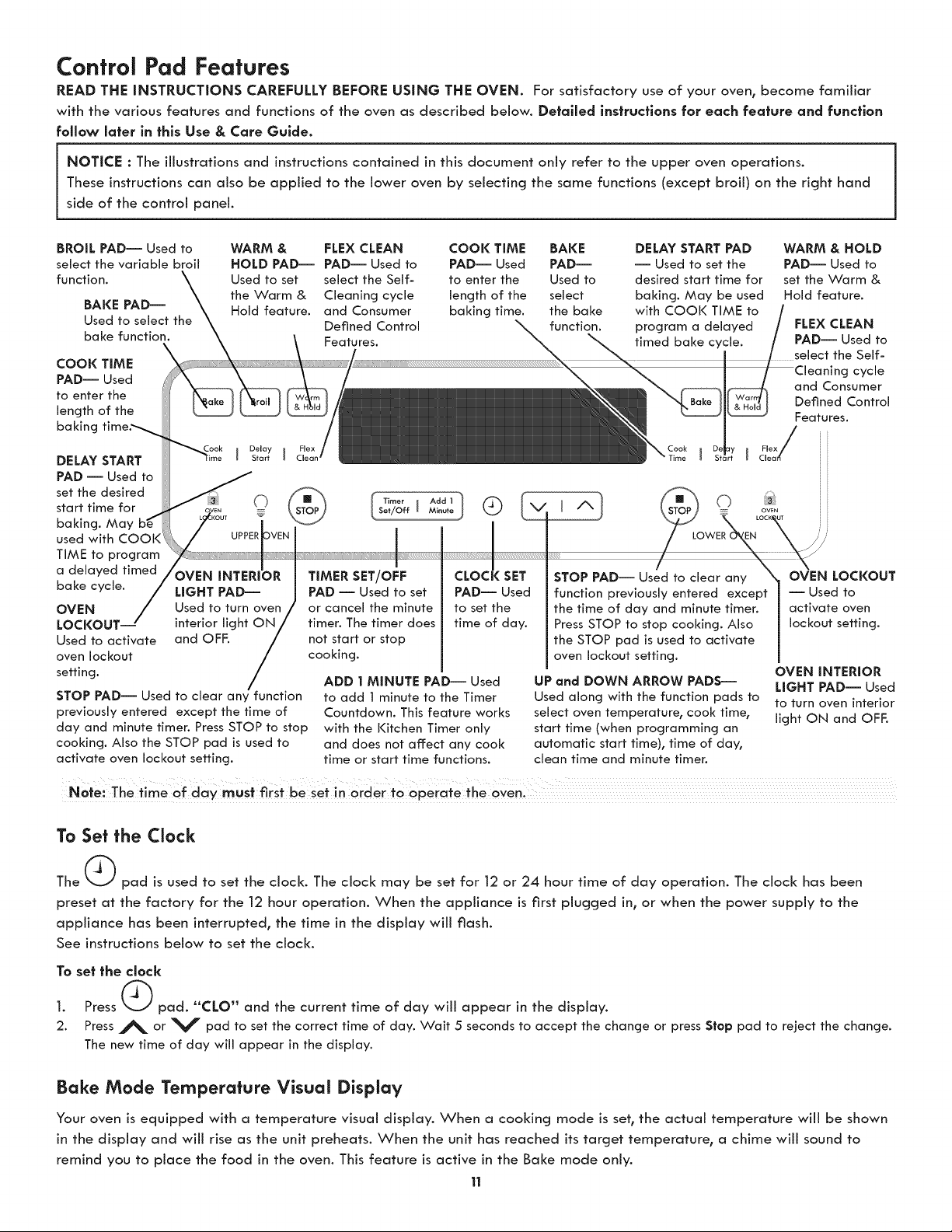

Control Pad Features ....................................................... 11

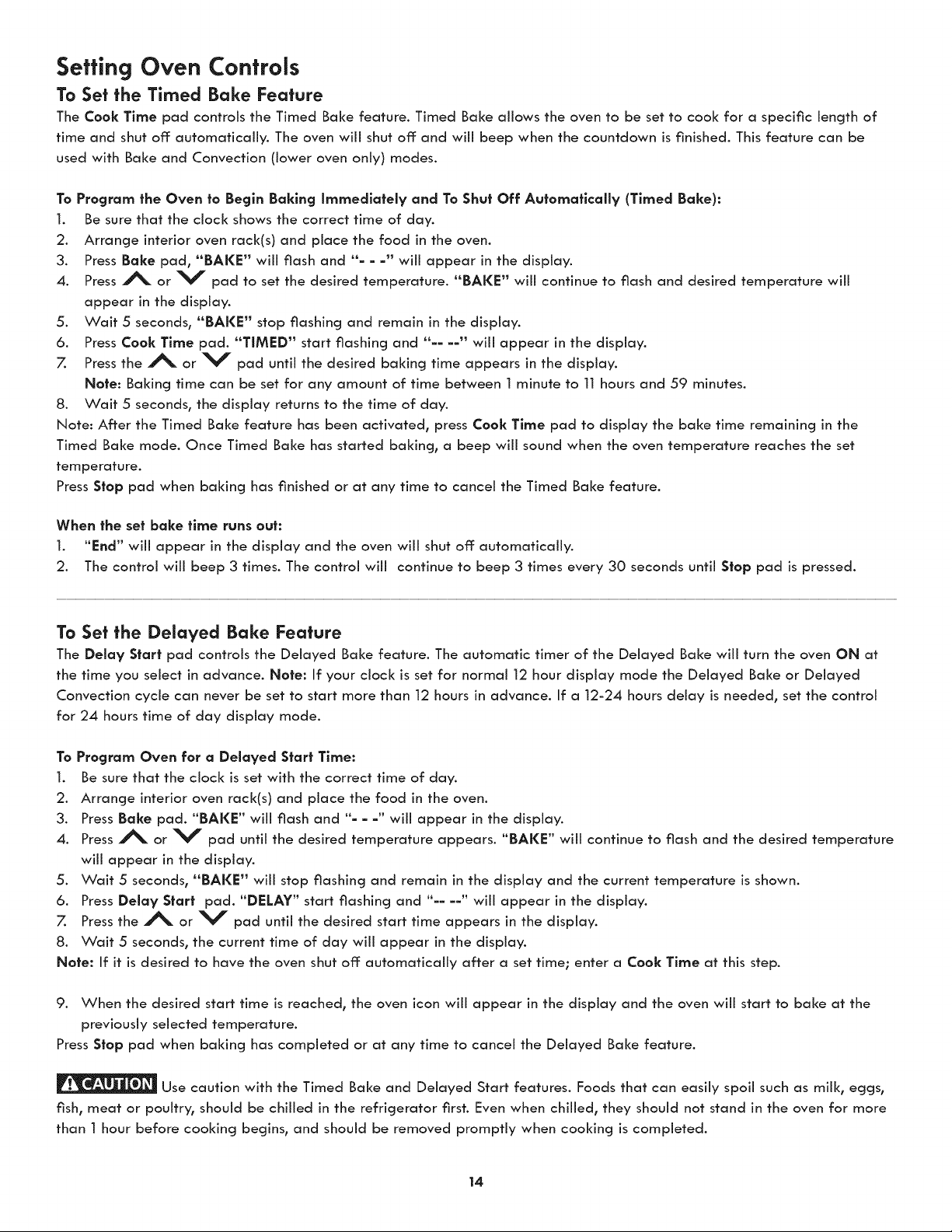

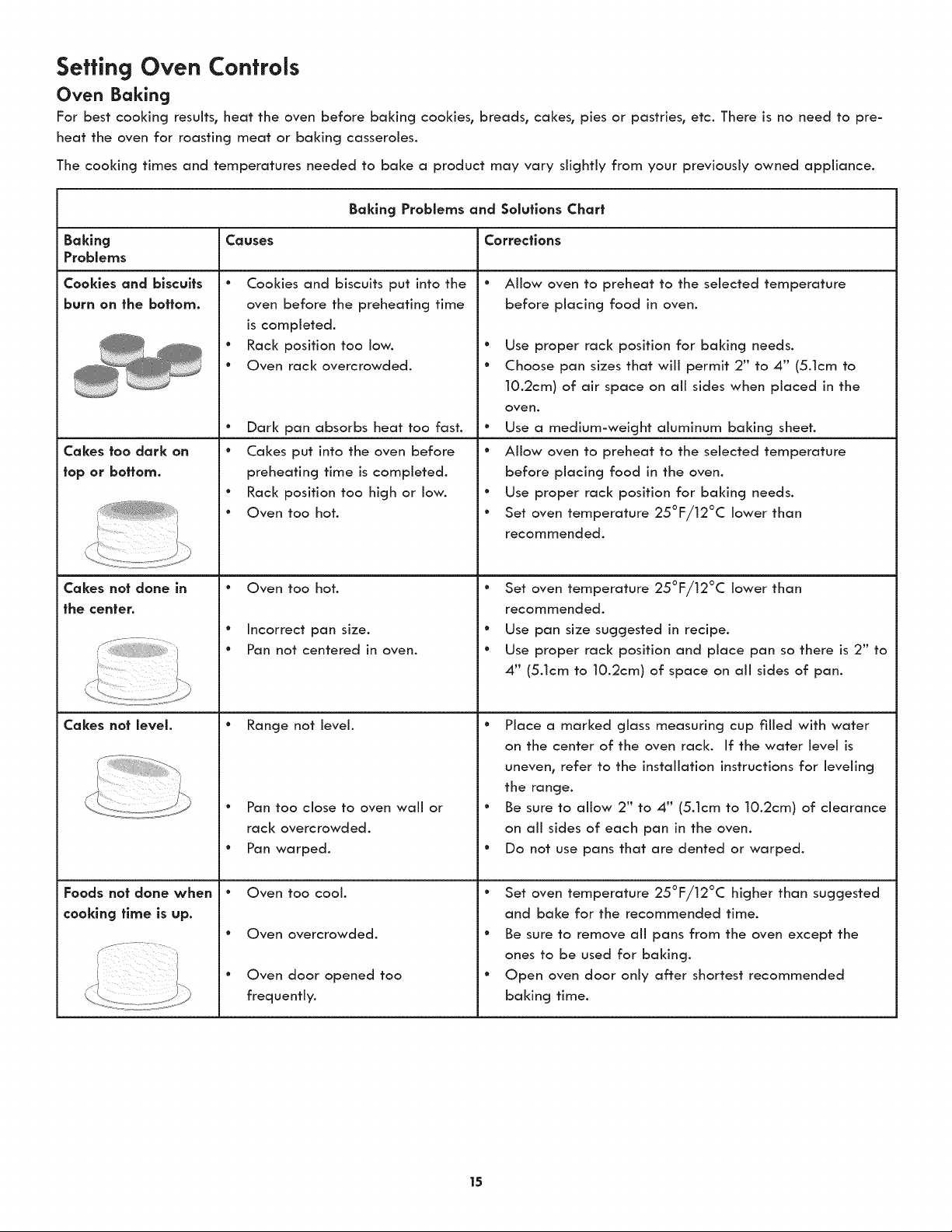

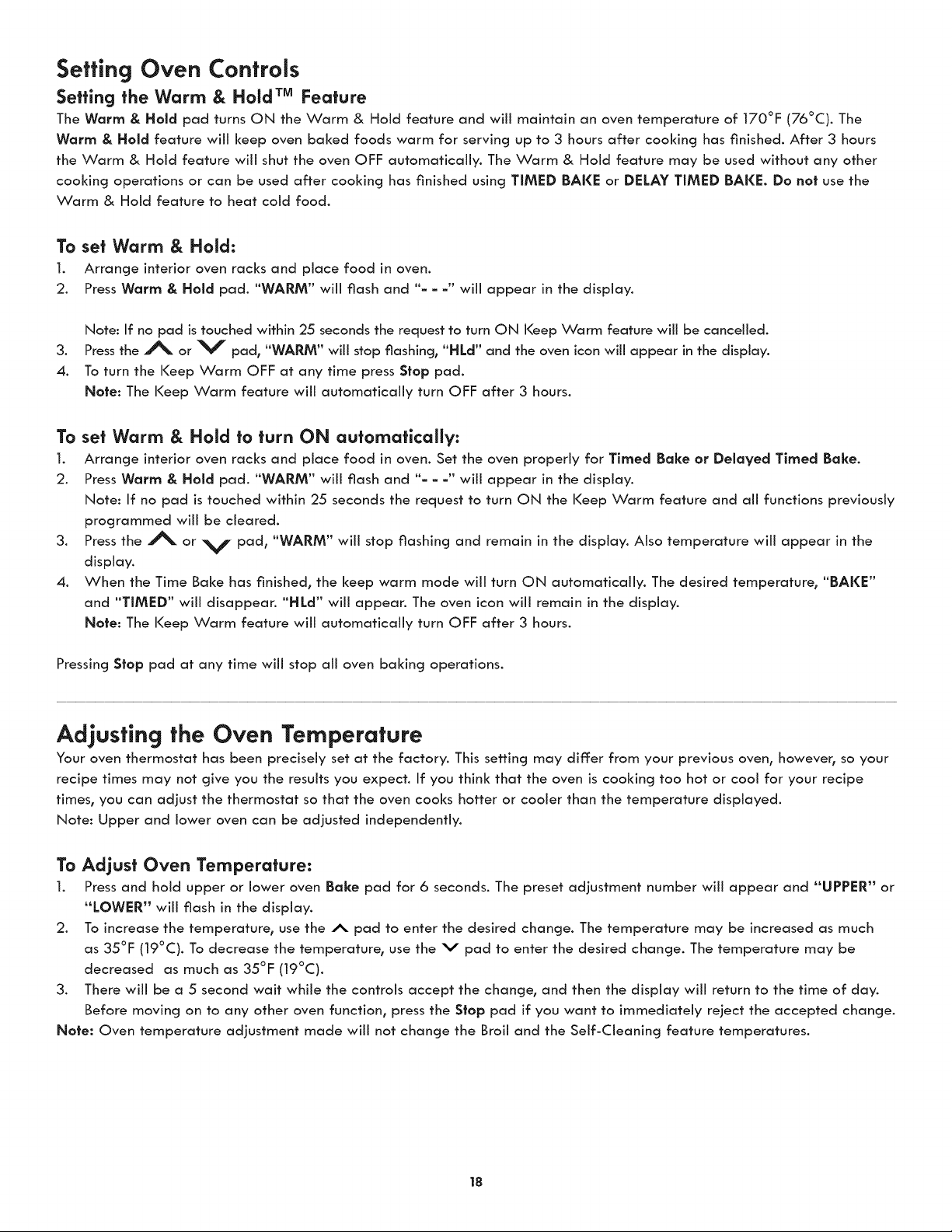

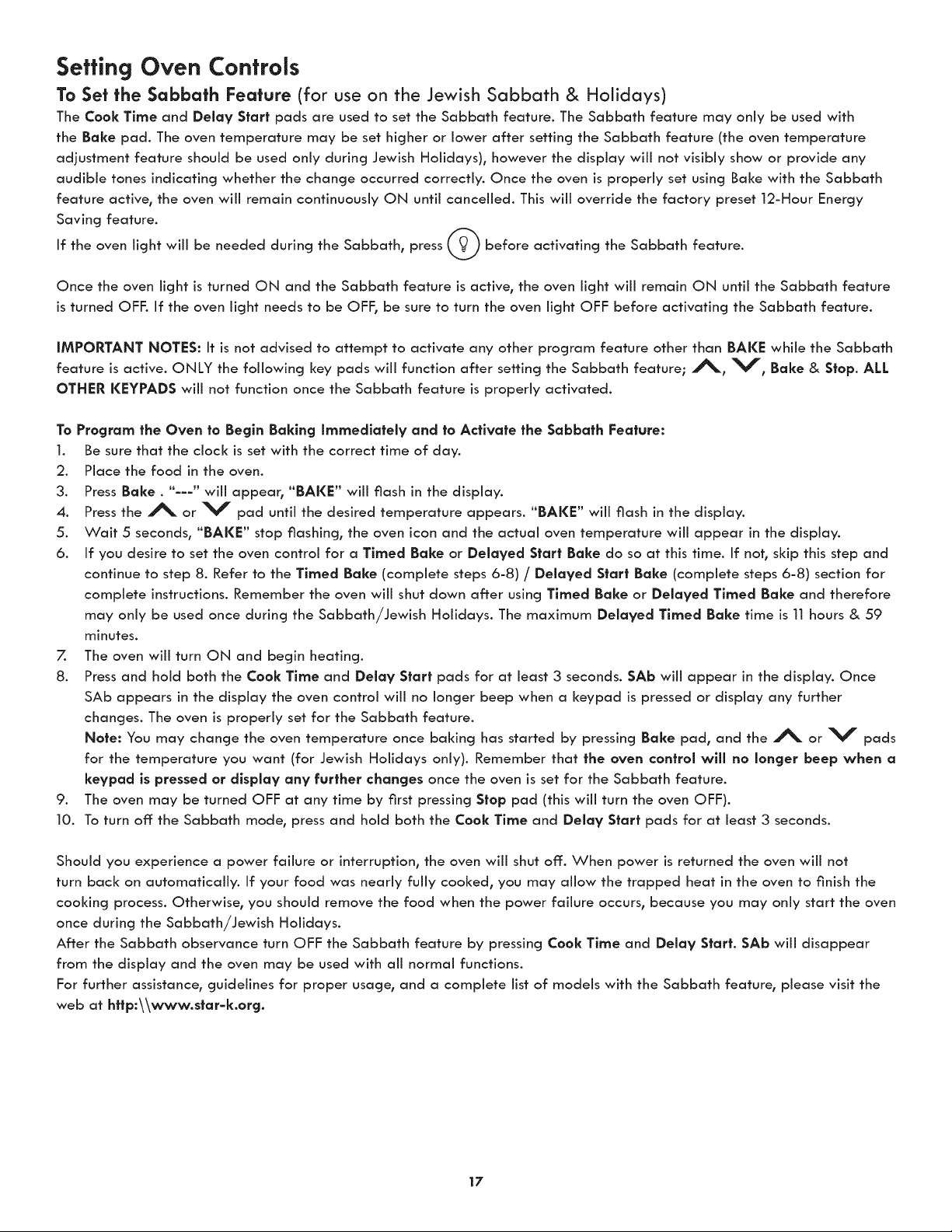

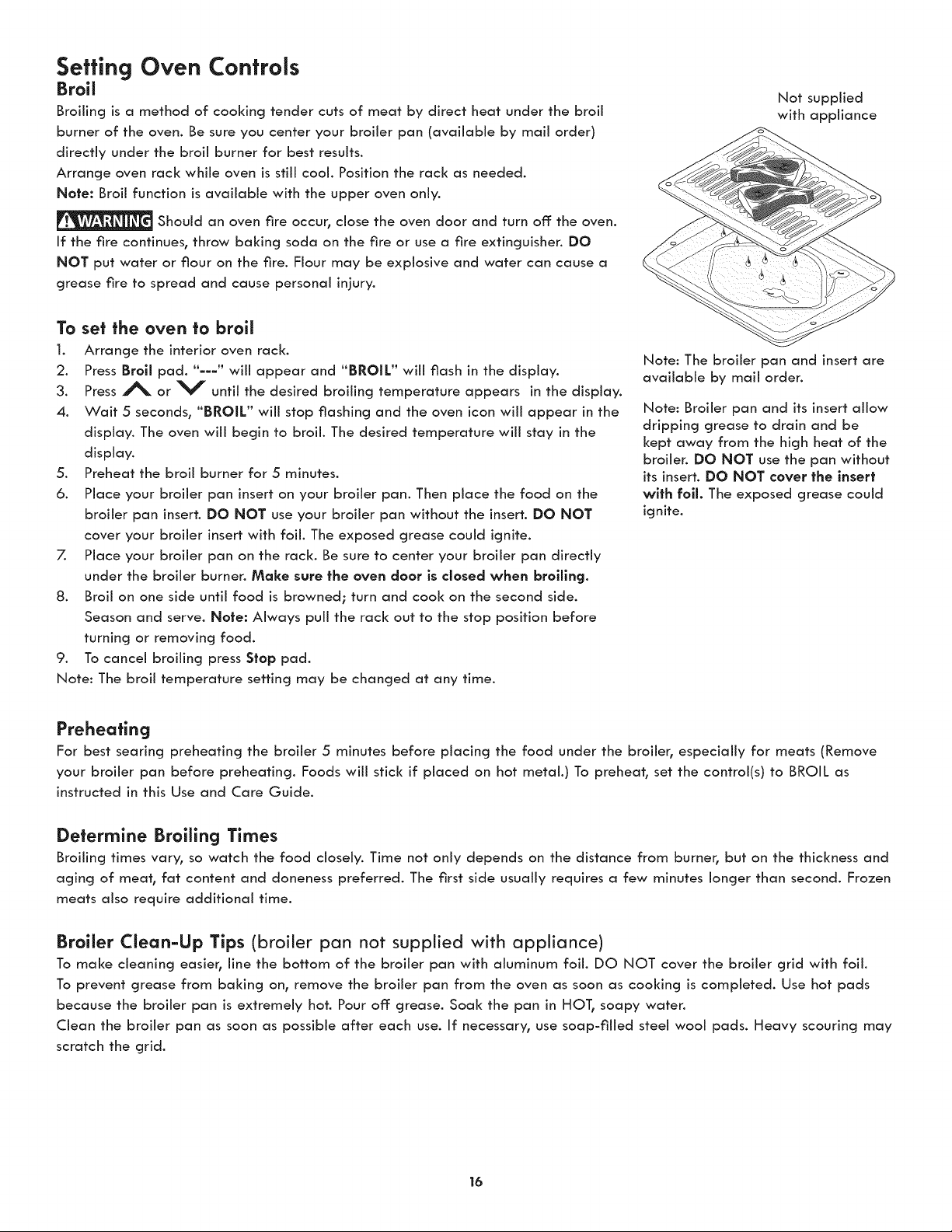

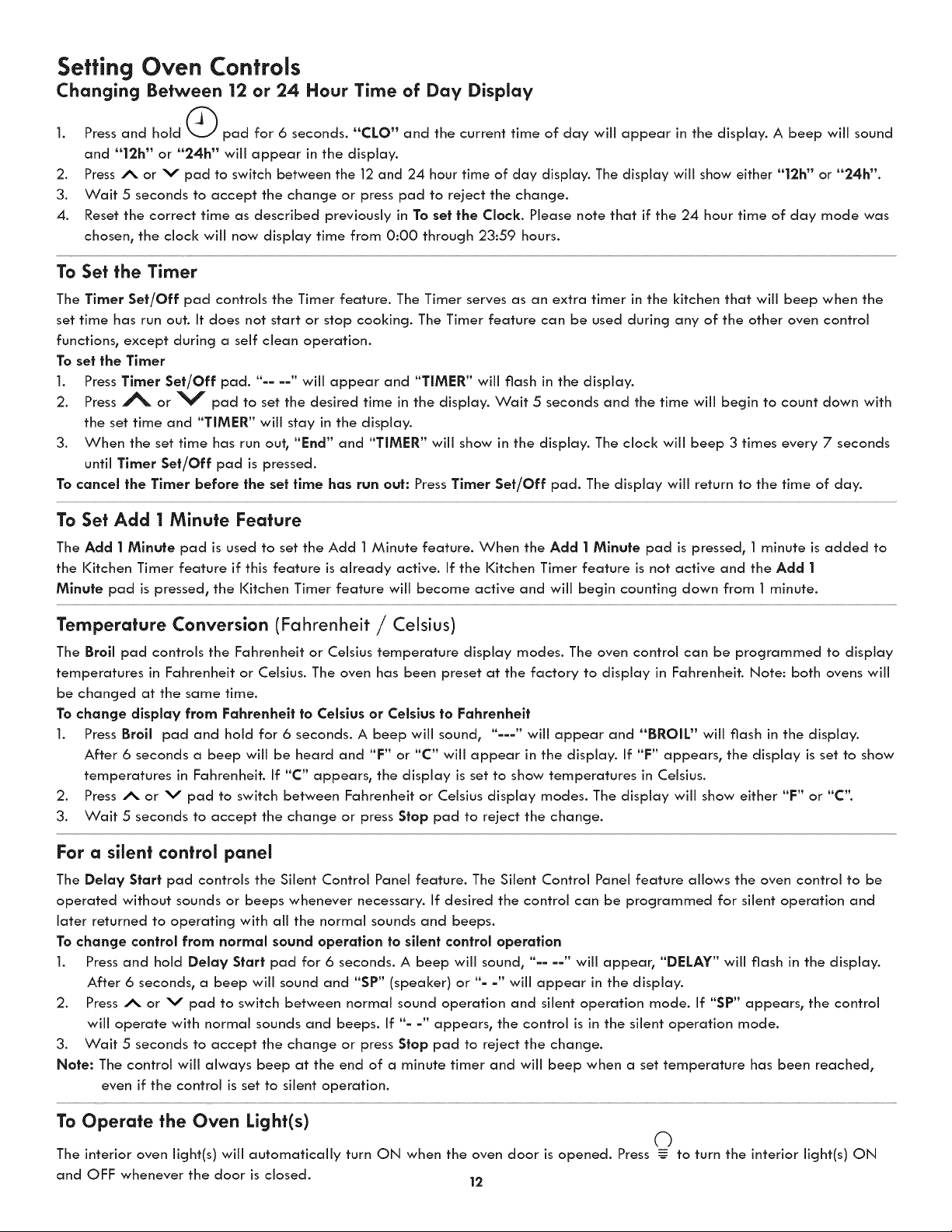

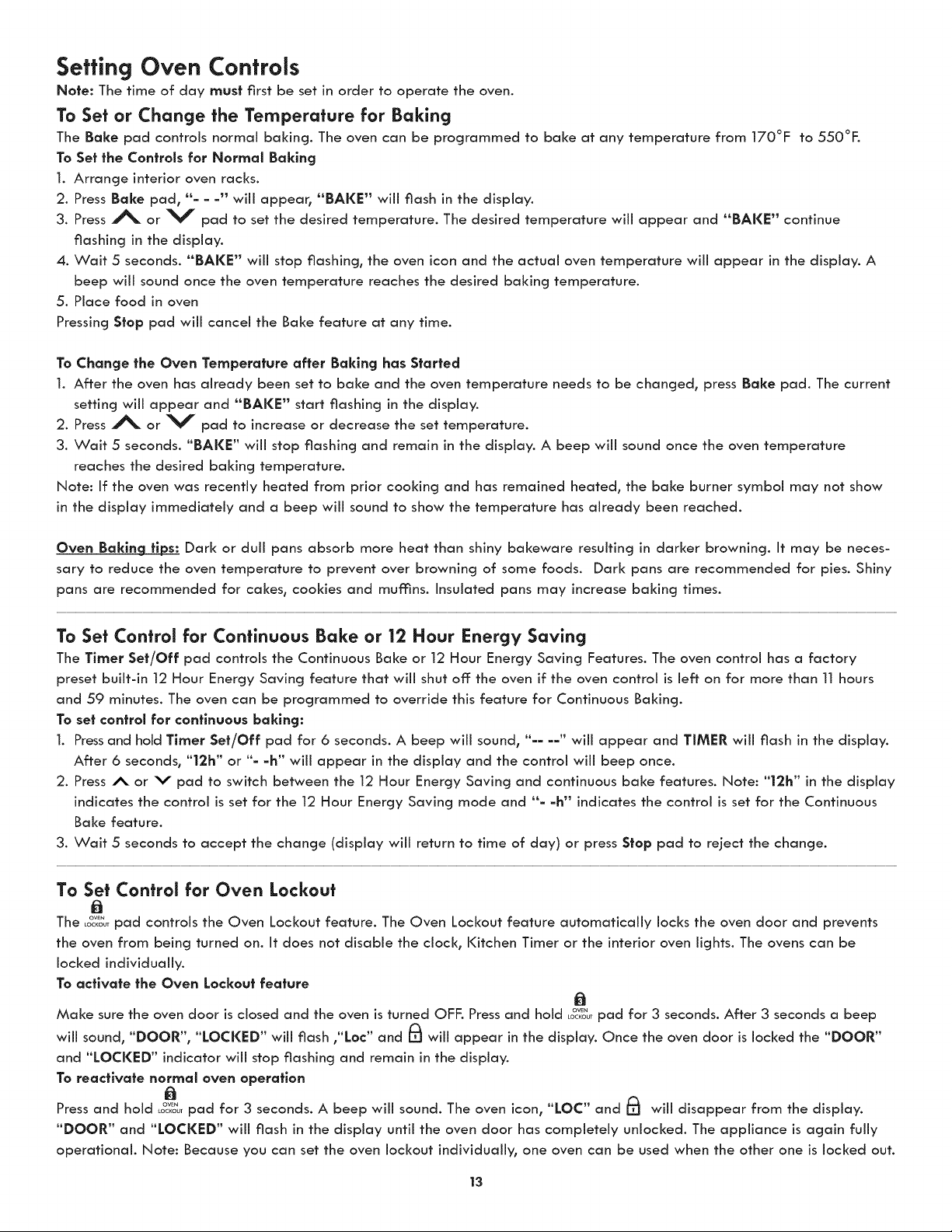

Setting Oven Controls ................................................. |2-18
Adjusting the Oven Temperature ..................................... 18

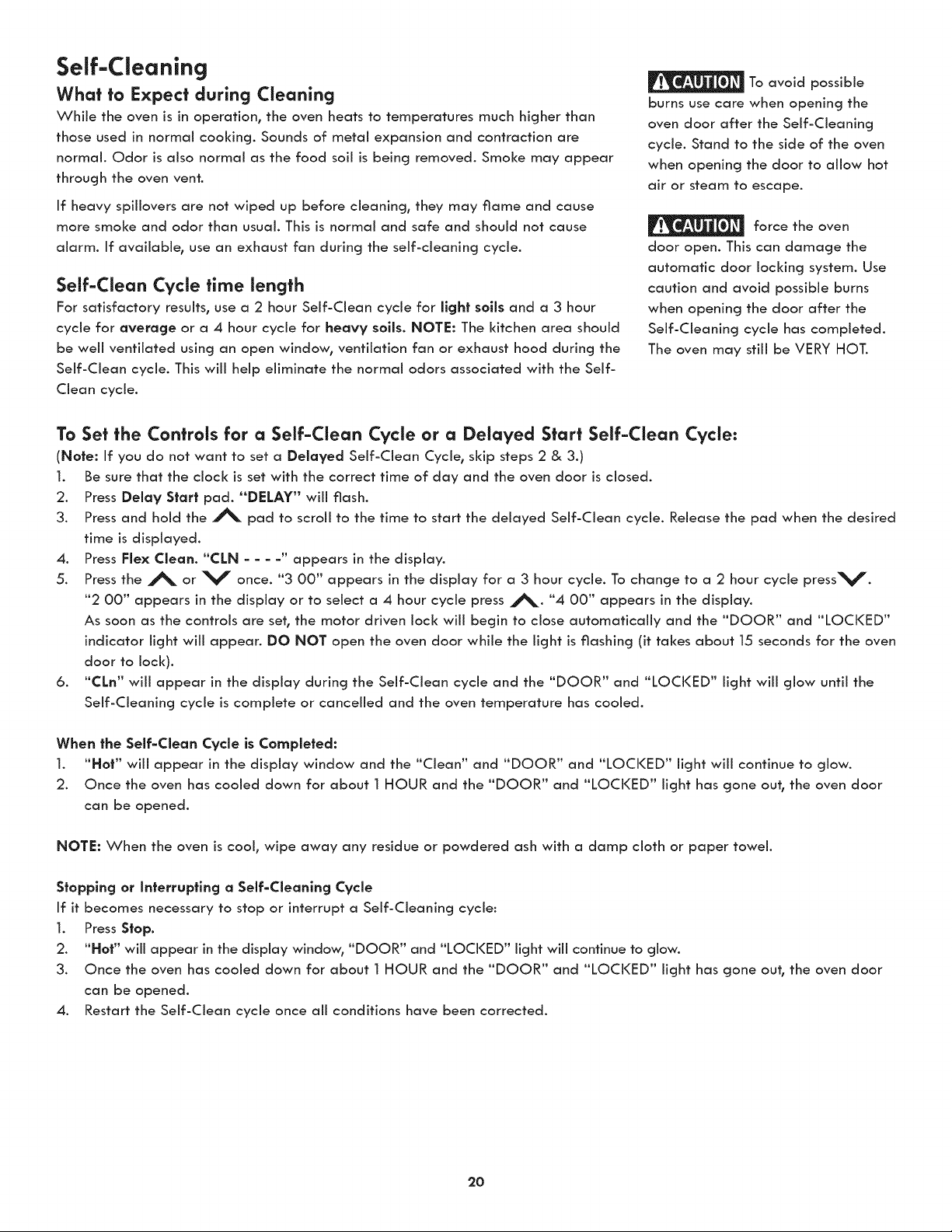

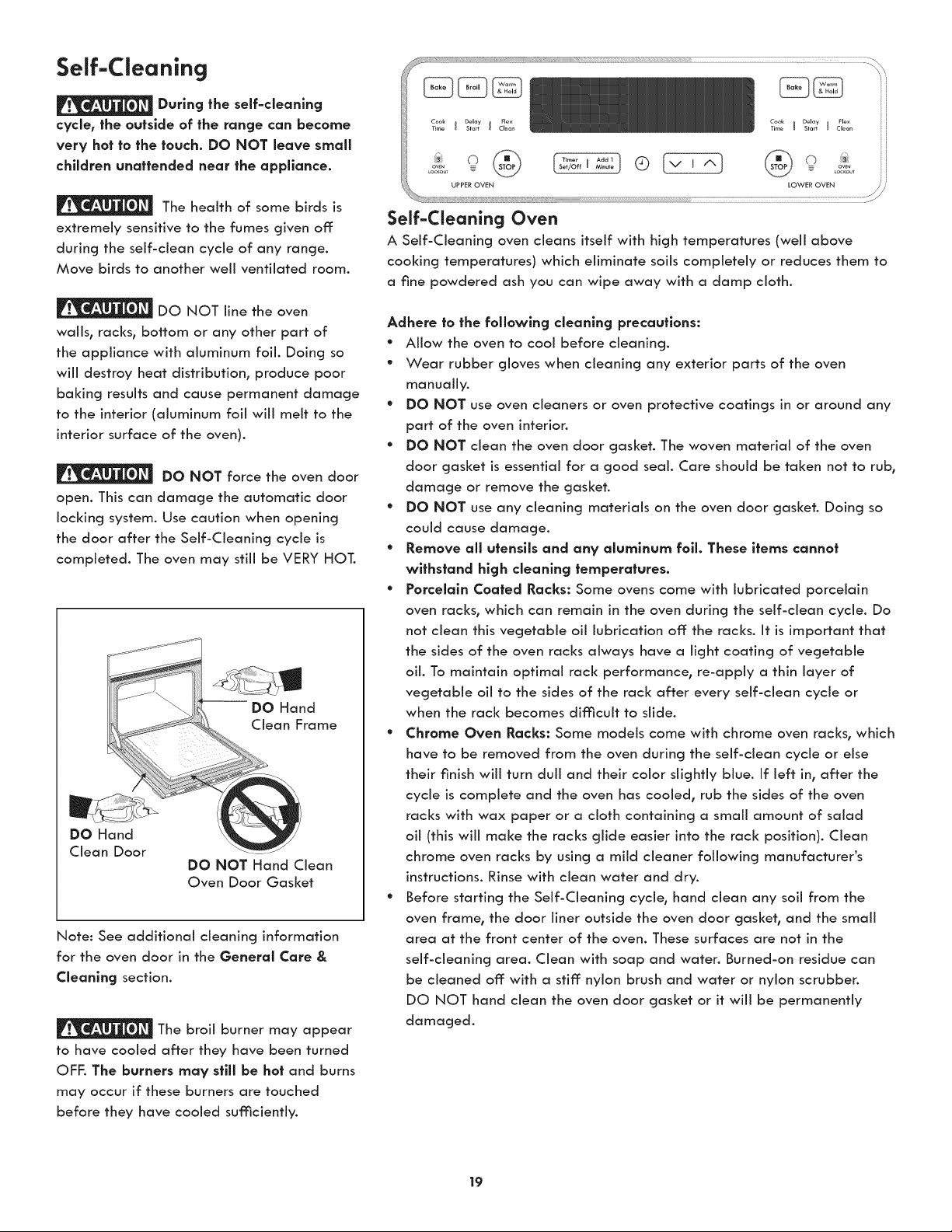

Self-Cleanlng ............................................................. 19-20

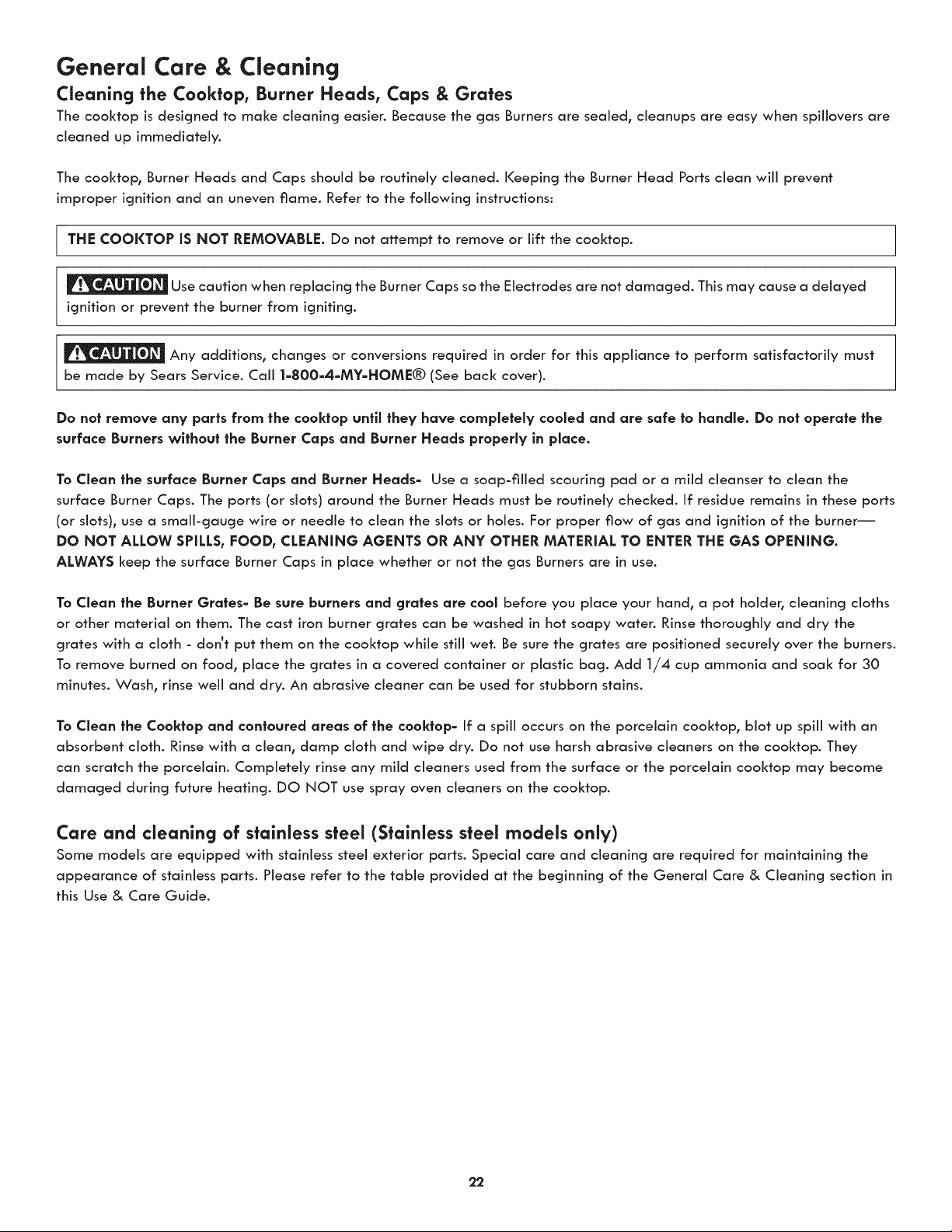

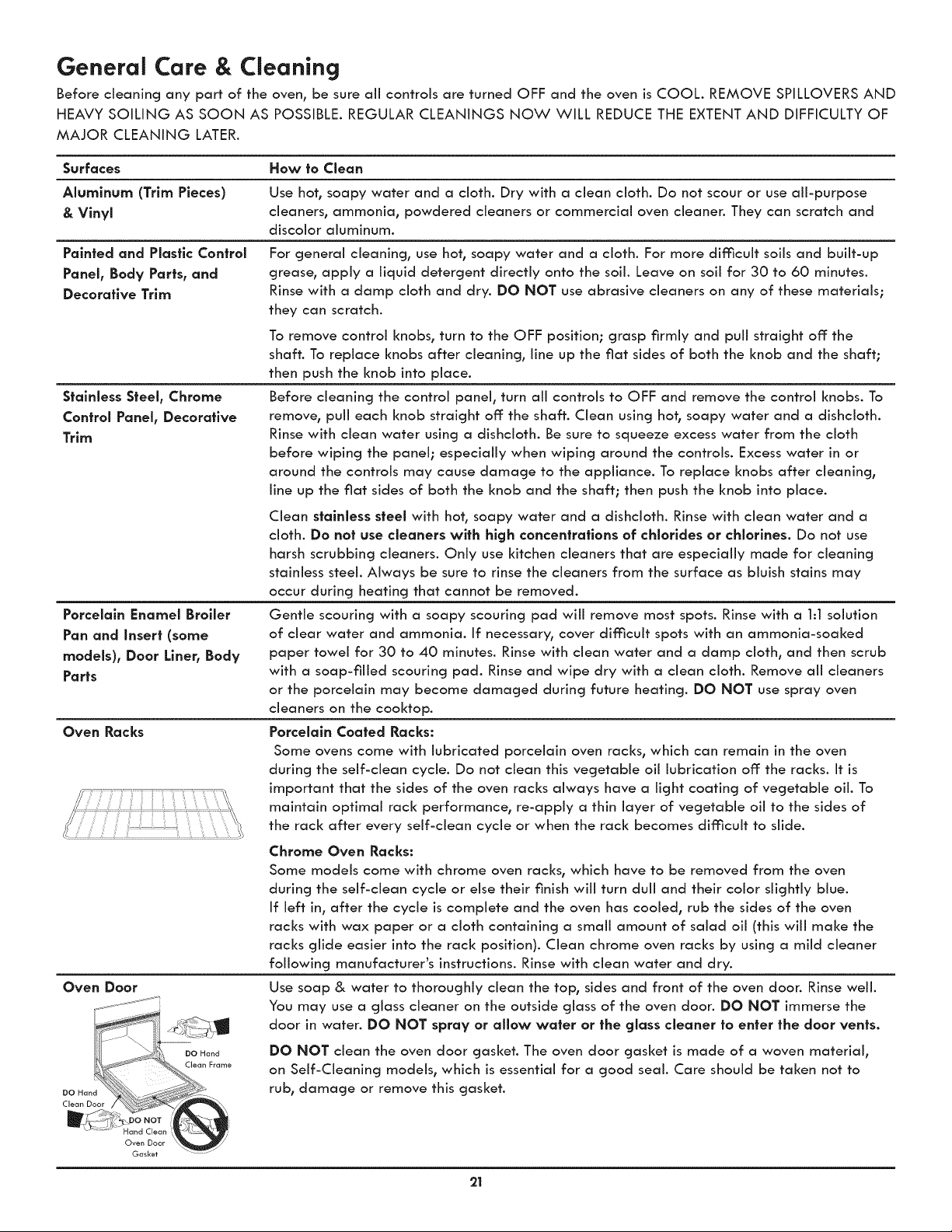

General Care & Cleaning ............................................ 21-23

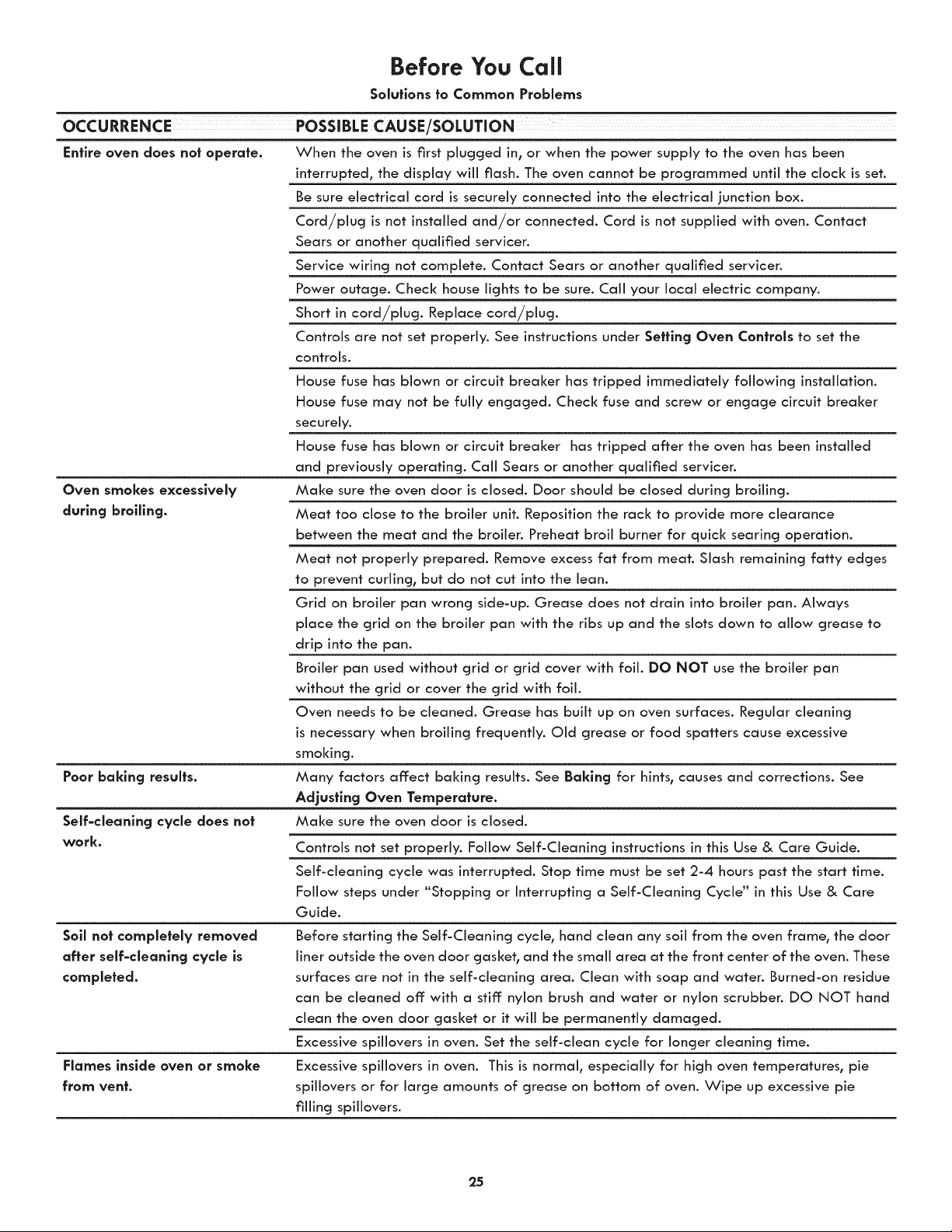

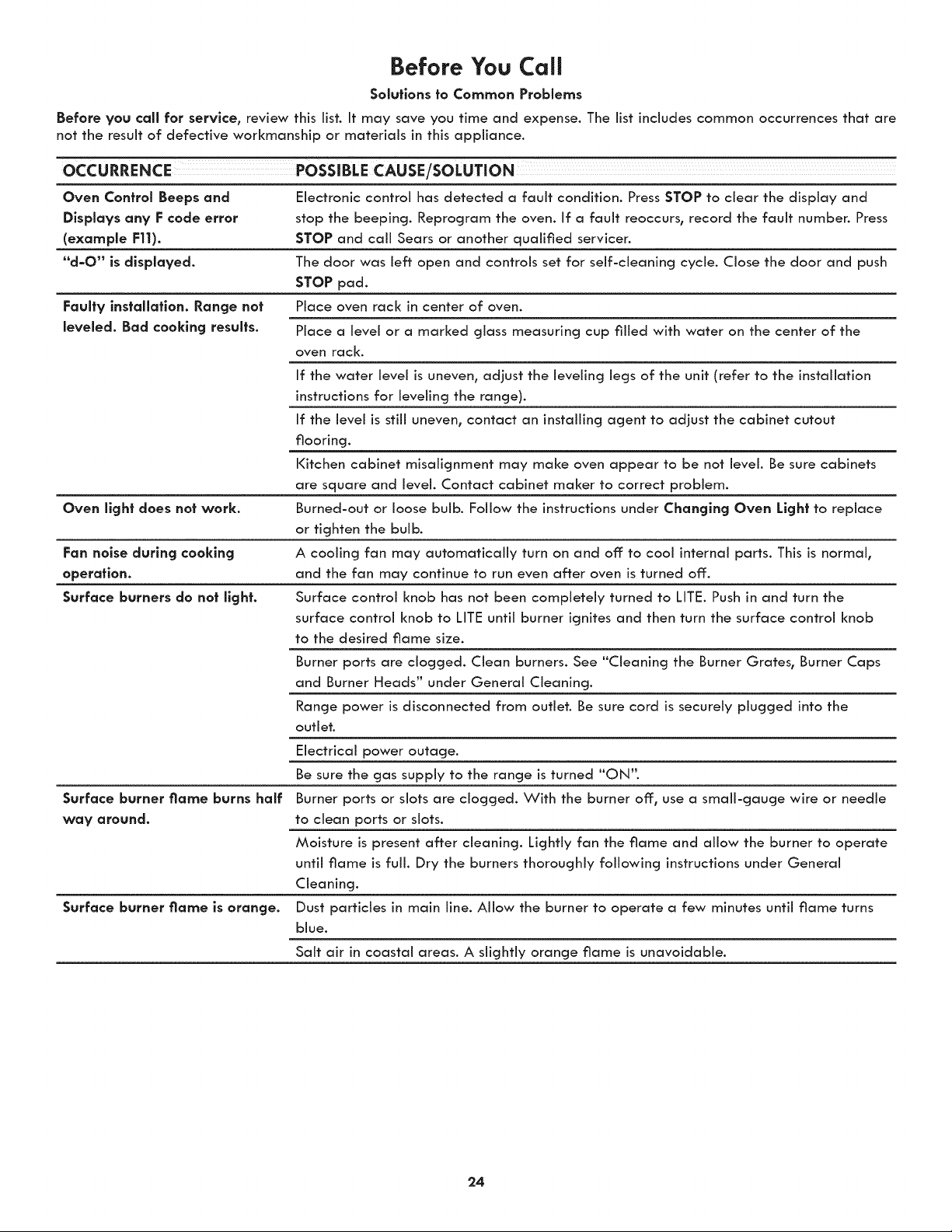

Before You Call .......................................................... 24-25

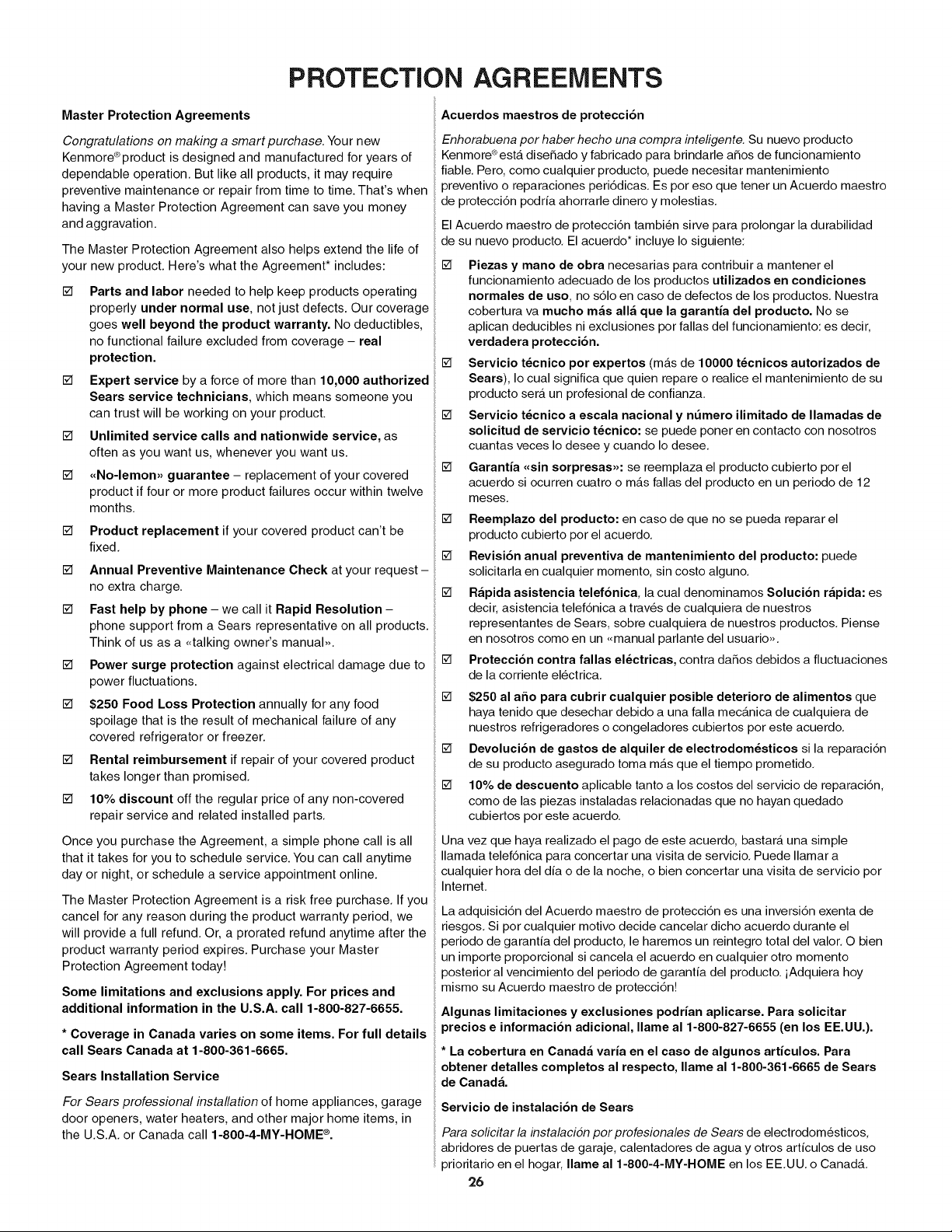

Protection Agreements .................................................... 26
Notes .............................................................................. 27

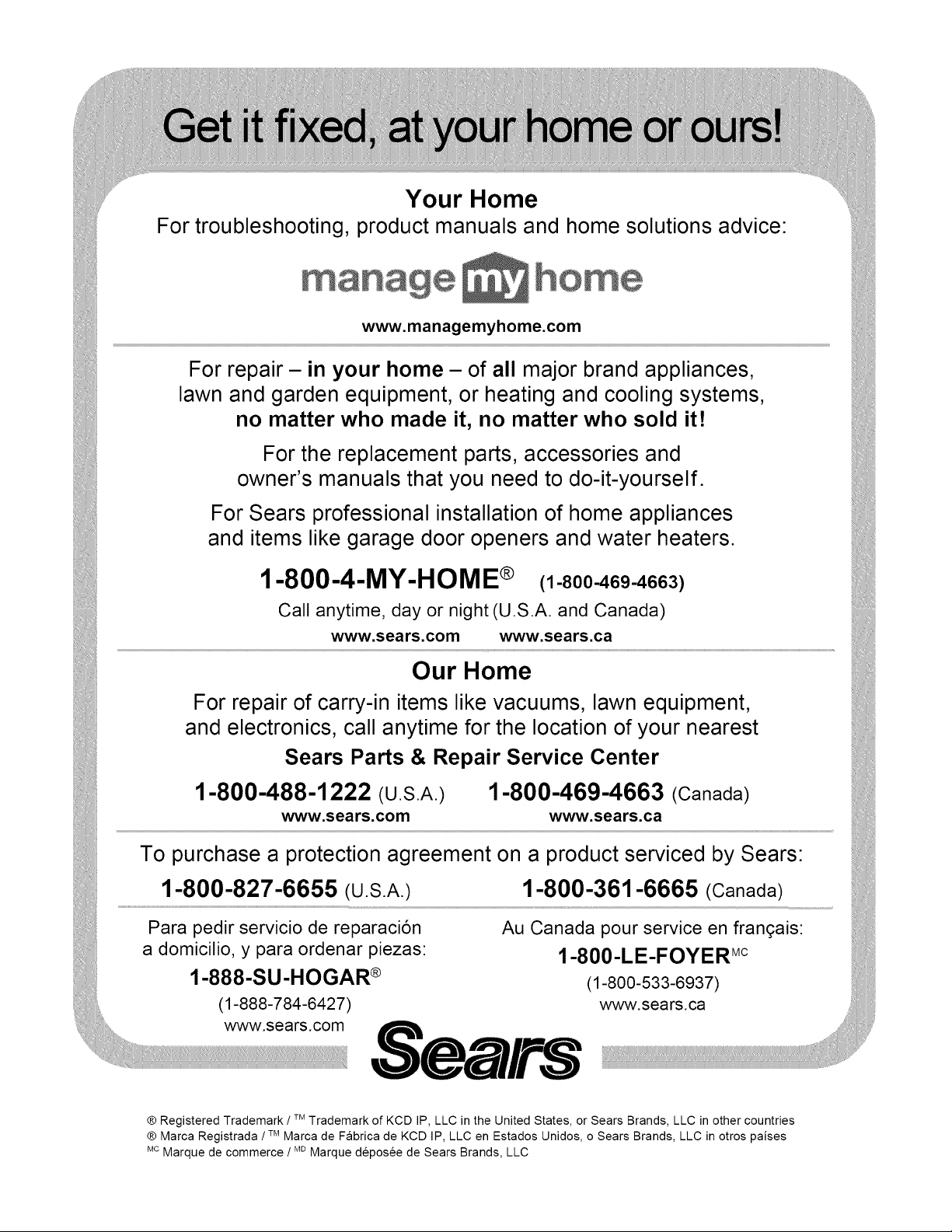

Sears Service .................................................................. 28
I(enmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect
in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties
of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 - Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Product Record
In this space below, record the date of purchase, model and serial number
of your product. You wili find the model and serial number printed on the
serial plate.
Model No. 790.
Serial No.
Date of purchase
Save these instructions and your sales receipt for future reference.
Serial Plate Location
You will find the
model and serial
number printed
on the serial
plate. The serial
plate is located
as shown.
Please carefuffV read and save these instructions
This Use & Care Guide contains general operating instructions for your appliance and feature
information for several models. Your product may not have all the described features. The
graphics shown are representative. The graphics on your appliance may not look exactly like
those shown. Common sense and caution must be practiced when installing, operating and
maintaining any appliance.
Printed in United States

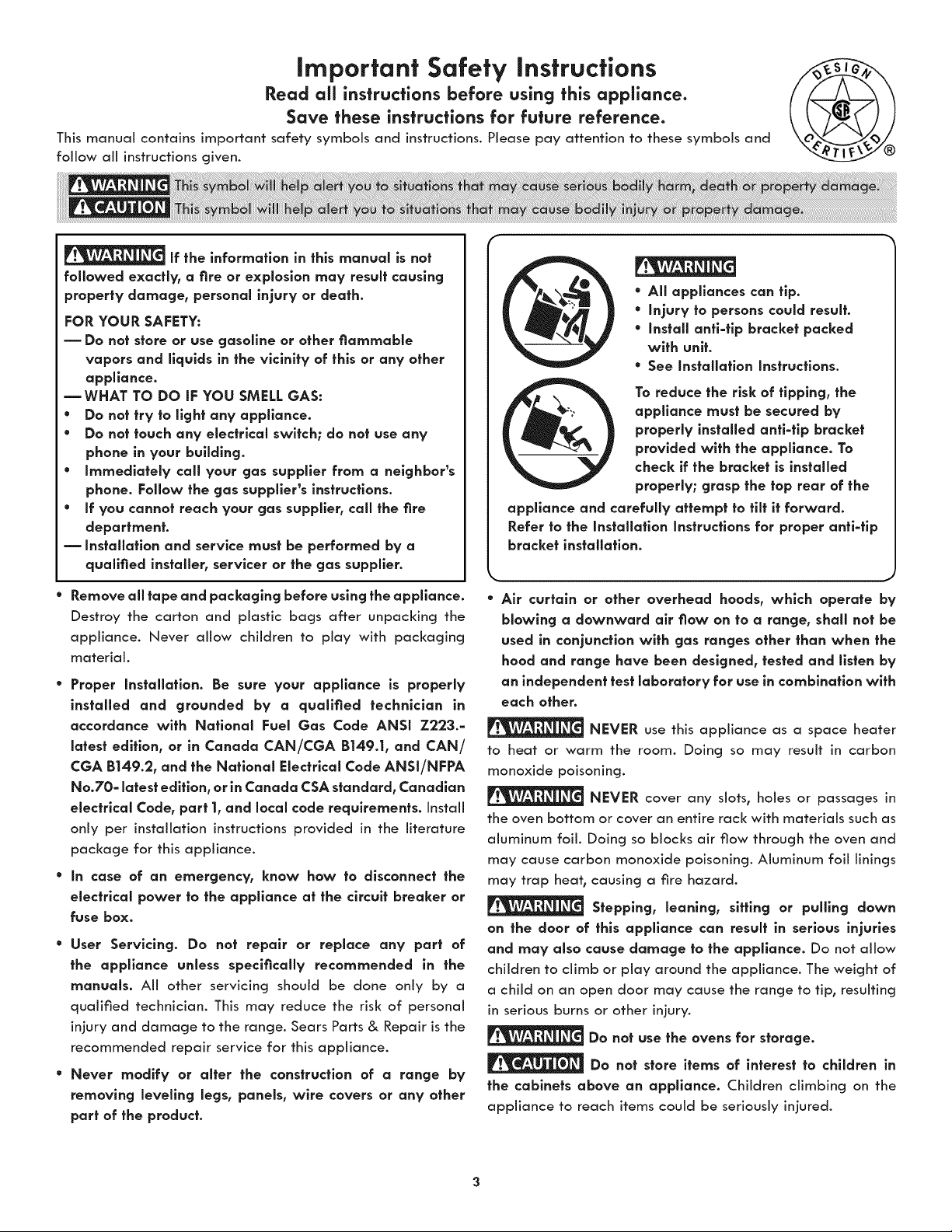

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and
follow all instructions given.
If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
m Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
mWHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any
phone in your building.
* Immedlately call your gas supplier from a neighbor's
phone. Follow the gas suppller's instructions.
" If you cannot reach your gas supplier, call the fire
department.
Installatlon and service must be performed by a
qualified installer, servicer or the gas supplier.
• Remove all tape and packaging before using the appliance.
Destroy the carton and plastic bags after unpacking the
appliance. Never allow children to play with packaging
material
• Proper Installatlon. Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with National Fuel Gas Code ANSi Z223.=
latest edition, or in Canada CAN/CGA B149.1, and CAN/
CGA B149.2, and the National Electrical Code ANSI/NFPA
No.70= latest edition, or in Canada CSA standard, Canadian
electrical Code, part 1, and local code requirements. Install
only per installation instructions provided in the literature
package for this appliance.
• In case of an emergency, know how to disconnect the
electrlcal power to the appliance at the circuit breaker or
fuse box.
• User Servicing. Do not repair or replace any part of
the appliance unless specificaffy recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range. Sears Parts & Repair is the
recommended repair service for this appliance.
• Never modlfy or alter the construction of a range by
removing leveling legs, panels, wire covers or any other
part of the product.
• All appliances can tip.
• Injury to persons could result.
• Install anti=tip bracket packed
with unit.
• See Installatlon Instructlons.
To reduce the risk of tipping, the
appliance must be secured by
properly installed anti=tlp bracket
provided with the appliance. To
check if the bracket is installed
properly; grasp the top rear of the
appliance and carefully attempt to tilt it forward.
Refer to the Installatlon Instructlons for proper anti=tip
bracket installation.
,. j,
* Air curtain or other overhead hoods, which operate by
blowing a downward air flow on to a range, shall not be
used in conjunction with gas ranges other than when the
hood and range have been designed, tested and listen by
an independent test laboratory for use in combination with
each other.
NEVER use this appliance as a space heater
to heat or warm the room. Doing so may result in carbon
monoxide poisoning.
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks air flow through the oven and
may cause carbon monoxide poisoning. Aluminum foil linings
may trap heat, causing a fire hazard.
Stepping, leaning, silting or puffing down
on the door of this appliance can result in serious injuries
and may also cause damage to the appliance. Do not allow
children to climb or play around the appliance. The weight of
a child on an open door may cause the range to tip, resulting
in serious burns or other injury.
Do not use the ovens for storage.
Do not store items of interest to children in
the cabinets above an appffance. Children climbing on the
appliance to reach items could be seriously injured.

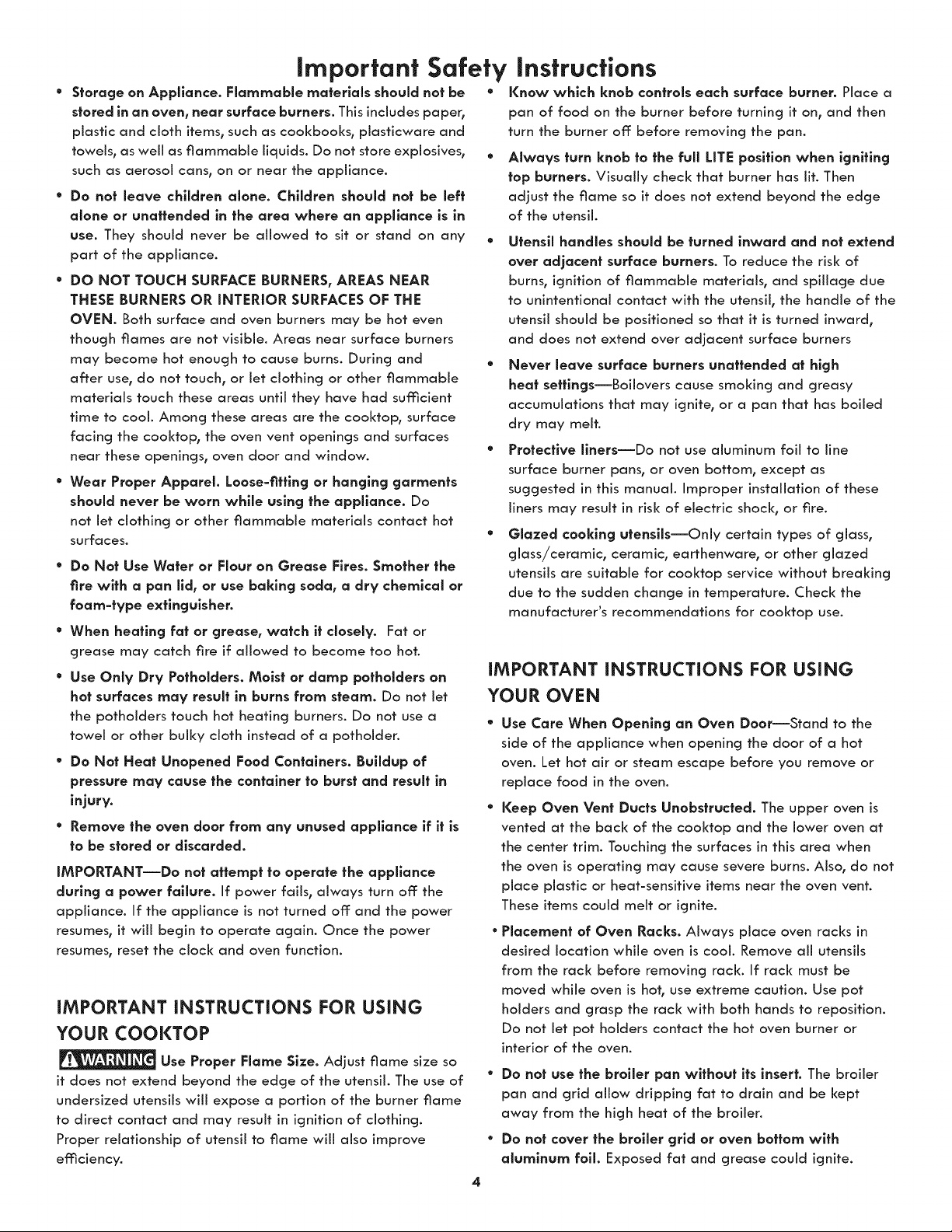

Important Safety
Storage on Appliance. Flammable materials should not be
stored in an oven, near surface burners. This includes paper,
plastic and cloth items, such as cookbooks, plasficware and
towels, as well as flammable liquids. Do not store explosives,
such as aerosol cans, on or near the appliance.
* Do not leave children alone. Children should not be left
alone or unattended in the area where an appliance is in
use. They should never be allowed to sit or stand on any
part of the appliance.
* DO NOT TOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS OR INTERIOR SURFACES OF THE
OVEN. Both surface and oven burners may be hot even
though flames are not visible. Areas near surface burners
may become hot enough to cause burns. During and
after use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sumcient
time to cool. Among these areas are the cooktop, surface
facing the cooktop, the oven vent openings and surfaces
near these openings, oven door and window.
" Wear Proper Apparel. Loose=riftlng or hanging garments
should never be worn while using the appliance. Do
not let clothing or other flammable materials contact hot
surfaces.
* DO Not Use Water or Flour on Grease Fires. Smother the
fire with a pan lld, or use baking soda, a dry chemlcal or
foam=type extinguisher.
* When heating fat or grease, watch it c_oseJy. Fat or
grease may catch fire if allowed to become too hot.
* Use Only Dry Potholders. Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
the pothoiders touch hot heating burners. Do not use a
towel or other bulky cloth instead of a potholder.
* Do Not Heat Unopened Food Containers. Buildup of
pressure may cause the container to burst and result in
injury.
* Remove the oven door from any unused appliance if it is
to be stored or discarded.
IMPORTANT--Do not attempt to operate the appliance
during a power failure. If power fails, always turn off: the
appliance. If the appliance is not turned off: and the power
resumes, it will begin to operate again. Once the power
resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
Use Proper Flame Size. Adjust flame size so
it does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame
to direct contact and may result in ignition of clothing.
Proper relationship of utensil to flame will also improve
e_iciency.
Instructions
* Know which knob controls each surface burner. Place a
pan of food on the burner before turning it on, and then
turn the burner off: before removing the pan.
" Always turn knob to the fun LITE position when igniting
top burners. Visually check that burner has lit. Then
adjust the flame so it does not extend beyond the edge
of the utensil.
* Utensil handles should be turned inward and not extend
over adjacent surface burners. To reduce the risk of
burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface burners
* Never leave surface burners unattended at high
heat sefflngs--Boilovers cause smoking and greasy
accumulations that may ignite, or a pan that has boiled
dry may melt.
* Protective llners--Do not use aluminum foil to line
surface burner pans, or oven bottom, except as
suggested in this manual. Improper installation of these
liners may result in risk of electric shock, or fire.
* Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cooktop service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cooktop use.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Use Care When Opening an Oven Door--Stand to the
side of the appliance when opening the door of a hot
oven. Let hot air or steam escape before you remove or
replace food in the oven.
Keep Oven Vent Ducts Unobstructed. The upper oven is
vented at the back of the cooktop and the lower oven at
the center trim. Touching the surfaces in this area when
the oven is operating may cause severe burns. Also, do not
place plastic or heat=sensitive items near the oven vent.
These items could melt or ignite.
Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. Remove all utensils
from the rack before removing rack. If rack must be
moved while oven is hob use extreme caution. Use pot
holders and grasp the rack with both hands to reposition.
Do not let pot holders contact the hot oven burner or
interior of the oven.
* Do not use the broiler pan without its insert. The broiler
pan and grid allow dripping fat to drain and be kept
away from the high heat of the broiler.
* Do not cover the broiler grid or oven bottom with
aluminum foil. Exposed fat and grease could ignite.
important Safely
* Do not touch a hot oven light bulb with a damp cloth.
Doing so could cause the bulb to break. Disconnect the
appliance or shut off: the power to the appliance before
removing and replacing the bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING
instructions
* Do not cleon the oven door gasket. The door gasket is
essential for a good seal. Care should be taken not to rub,
damage or move the gasket.
* Do not use oven cleaners. No commercial oven cleaner or
oven liner protective coating of any kind should be used in
or around any part of the appliance
YOUR RANGE
* Clean the appliance regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation hoods
and grease filters should be kept dean. Do not allow
grease to accumulate. Greasy deposits in the fan could
catch fire. Refer to the hood manufacturer's instructions
for cleaning.
* Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
* Clean in the self-cleanlng cycle only the parts of the
appliance Jlsfed in fhls Use & Care Guide. Before using the
self-cleaning cycle of the appliance, remove the broiler pan
and any utensils stored in the appliance.
The health of some birds is extremely
sensitive to the fumes given off: during the self-clean cycle of
any oven. Move birds to another well ventilated room.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects
or other productive harm, and requires businesses to warn
customers of potential exposure to such substances.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Grounding instructions
For personal safety, the cooktop must be properly grounded. For maximum
safety, the power cord must be plugged into an electrical outlet that is
correctly polarized and properly grounded.
DO NOT Operate the cooktop using a 2-prong adapter or an extension
cord. If a 2-prong wail receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with a properly
grounded 3-prong wail receptacle installed by a qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with this cooktop for
complete installation and grounding instructions.
Grounding
type waJJ Do not, under any
circumstances,
rece
cut, remove,
or bypass the
grounding prong.
Power supply
:ord with 3-prong
grounding plug
This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard
and should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong from
this plug.
Avoid fire hazard or electrical shock. DO
NOT use an adapter plug, an extension cord, or remove
grounding prong from electrical power cord. Failure to follow
this warning can cause serious injury, fire or death.
Conversion to
Liquefied Petroleum Gas (or L.R Gas)
This natural gas range is designed to allow for conversion to
Liquefied Petroleum (L.R) Gas.
Only a qualified service agent should perform the L. R
conversion. Contact the local gas provider for conversion.
The L. R Conversion Kit is supplied with this range and is
located on the main back of the range. The kit contains
installation instructions which must be read before and
followed carefully when installing the kit.
To avoid serious injury, any additions,
changes or conversions required in order for this appliance
to satisfactorily meet the application needs must be made
by a qualified service agent.
Range Features
Your gas range includes:
1. Electronic Oven Control with Timer
2. Left Front Burner Valve & Knob
3. Left Rear Burner Valve & Knob
4. Right Front Burner Valve & Knob
5. Right Rear Burner Valve & Knob
6. Easy to clean Upswept Cooktop
7. Burner Grates
8. One Piece Handle
9. Self-Clean Upper Oven
10. Lower Oven Self-Clean Door Latch
11. Oven Interior Light
12. Self-Cleaning Lower Oven
13. Adjustable Oven Rack
14. One Piece Handle
15. Decorative Bottom trim
16. 12,000 BTU Power Burner
17. 5,000 BTU Simmer Burner
18. 9,500 BTU Burner
19. 17,200 BTU Power Burner
NOTE: The features of your range may vary according to
model type & color.
Before Setting Surface Burner Controls
Locations of the Gas Surface Burners
Your range is equipped with gas surface burners with
different BTU ratings. The ability to heat food quicker and in
larger volumes increases as the burner size increases.
The small SIMMER burner is best used for simmering
delicate sauces, etc. This burner is located at the right rear
burner position on the cooktop.
The STANDARD burner can be used for most surface
cooking needs. The standard burner is located at the left
front position on the cooktop.
The POWER burner is best used for bringing large quantities
of liquid rapidly up to temperature or when preparing larger
quantities of food. The POWER burners are located at the
right front and left rear burner positions on the cooktop.
Regardless of size, always select cookware that is suitable
for the amount and type of food being prepared. Select a
burner and flame size appropriate to the pan. Never allow
flames to extend beyond the outer edge of the pan.
Burner Cap
Fixed Burner Head
Gas Opening
Assembly of the surface burner caps and
burner grates
It is very important to make sure that all of the Surface
Burner Caps and Surface Burner Grates are installed
correctly and at the correct locations.
1. Remove all packing material from cooktop area.
2. Discard all packing material (if applicable).
3. Position the burner caps in the correct position.
4. Unpack Burner Grates and position on the cooktop.
Note: Burner heads are fixed. Do not try to remove them.
REMEMBER m DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS
OPENING. Always keep the Burner Caps in place whenever
the surface burners are in use.
Seffing Surface Burner Controls
Do not place plastic items
such as salt and pepper shakers, spoon
holders or plastic wrappings on fop of
the range when if is in use. These items
could melt or ignite. Pofholders, towels or
wood spoons could catch fire if placed
too close to a flame.
Manual Lighting
In the event of an electrical power outage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to UTE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
Operating the Gas Surface Controls:
1. Place cooking utensil on surface burner.
2. Push the surface control knob down and turn counterclockwise out of the
OFF position (See Figure 1).
3. Release the knob and rotate to the LITE position.
Note: All four electronic surface ignitors will spark at the same time.
However, only the burner you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knob counterclockwise to the desired flame size. The
control knobs do not have to be set at a particular setting. Use the knob
indicator settings to adjust the flame as needed. DO NOT cool< with
the surface control knob in the LITE position (The electronic ignitor will
continue to spark if the knob is left in the LITE position).
Seffing Proper Surface Burner Flame Size
For most cooking, start on the highest control setting and then turn to a lower
one to complete the process. Use the recommendations below as a guide for
determining proper flame size for various types of cooking. The size and type
of utensil used and the amount of food being cooked will influence the setting
needed for cooking.
Figure I
©
o
d-
(3
o
©
Medium Flame Maintain a slow boil; thicken sauces_ gravies; steaming.
Low Flame Keep foods cooking; poach; stewing.
_These setflngs are based on using medlum=welghf metal or aluminum
pans wlfh llds. Sefflngs may vary when using other types of pans. The color
of the flame is the key to proper burner adjustment. A good flame is clear,
blue and hardly visible in a well-lighted room. Each cone of flame should be
steady and sharp. Clean burner if flame is yellow-orange.
Regardless of size, always select cookware that is suitable for the amount and
type of food being prepared. Select a burner and flame size appropriate to
the pan. Never allow flames to extend beyond the outer edge of the pan.
Figure 2
flame wastes heat and energy and increases your risk of being burned by
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy.
If the fat is too hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cool< properly.
Surface Cooking
Use Proper Cookware
Cookware should
have flat bottoms that
make good contact
with the entire surface
heating burner.
Check for flatness by
rotating a ruler across
the bottom of the Figure 1
cookware (See Figure 1). Be sure to follow
the recommendations for using cookware as
shown in Figure 2.
Note: The size and type of cookware used
will influence the setting needed for best
cooking results.
Note: Always use a utensil for its intended
purpose. Follow manufacturer's instructions.
Some utensils were not made to be used in the
oven or on the cooktop.
CORRECT
* Flat bottom and straight sides.
° Tight fitting lids.
° Weight of handle does not flit
pan. Pan is well balanced.
° Pan sizes match the amount of
food to be prepared.
° Made of material that con-
ducts heat well.
Easy to clean.
INCORRECT
° Curved and warped pan bottoms.
IL......
° Pan overhangs burner grate by
more than 2.5 cm (1").
° Heavy handle tilts pan.
° Flame extends beyond pan.
Figure 2
Specialty pans such as lobster pots, griddles and pressure cookers
may be used but must conform to the above recommended cookware
requirements.
Using a wok
Woks with flat bottoms suit-
able for use on your cooktop are
available in most cookshop or
hardware stores. Round-bottomed
woks (with a support ring that
does not extend beyond the burn-
er circumference) may also be
used. The metal ring was designed
to support the wok safely when it
is filled with large amounts of liq-
uids (soup making) or fat (frying).
Wire trivets: Do not use wire
trivets. Cookware bottoms must be
in direct contact with the grates.
DO NOT use a wok if it is equipped with a
metal ring that extends beyond the burner
circumference. Because this ring traps heat,
the surface unit and cooktop surface could
be damaged.
Before Setting
Upper & Lower Oven Vents
Upper Oven
the Oven Controls
Oven Vent Location
See illustration on left side for venting location of each oven. When the oven is
on, warm air is released through the vent. This venting is necessary for proper air
circulation inthe oven and good baking results. DO NOT block the vent. Doing so
may cause cooking failures_ fire or damage to the appliance.
Removing & Replacing Oven Racks
To remove an oven rack, pull the rack forward until it
stops. Lift up front of rack and slide out.
To replace an oven rack, fit the rack onto the guides
on the oven wafts. Tilt the front of the rack upward
and slide the rack back into place.
installing Oven Rack Supports
To install oven rack support, insert it into the two brackets on the
oven wall interior and push down as shown in the illustration to
the right.
To remove the oven rack
support for a self-clean cycle,
pull up the support to disengage
it from the brackets.
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using
multiple racks, stagger cookware as shown.
For best air circulation and baking results allow
2-4" (5-10cm) around the cookware for proper
air circulation and be sure pans and cookware
do not touch each other, the oven door, sides
or back of the oven cavity. The hot air must
circulate around the pans and cookware in the
oven for even heat to reach around the food.
1 Oven Rack
Rack
positions
Multiple Oven Racks (lower oven)
Arranging Oven Racks & Supports
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN).
RECOMMENDED RACK POSITIONS FOR BAKING
Rack Positions
Broiling meats, chicken or fish
N/A 1 or 2
Lower Oven
Rack
positions
2 racks 3 & 9 NJA
Frozen pies, angel food cake, yeast,
bread, casseroles, small cuts of meat or 1 or 2 1 or 2
poultry
Turkey, roast or harn 1 N/A
Note: Always use oven mitts when removing food.
Note: It is recommended not to introduce food into the oven until the preheat cycle
time is complete. Unsatisfactory cooking performance or scorching of food may
occur if placed in oven prior to preheat cycle completion.
10
Control Pad Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar
with the various features and functions of the oven as described below. Detalled instructions for each feature and function
follow later in this Use & Care Guide.
NOTICE : The illustrations and instructions contained in this document only refer to the upper oven operations.
These instructions can also be applied to the lower oven by selecting the same functions (except broil) on the right hand
side of the control panel.
BROIL PAD-- Used to WARM & FLEX CLEAN COOl( TIME BAKE
select the variable broil HOLD PAD-- PAD-- Used to PAD-- Used PAD--
function. Used to set select the Self- to enter the Used to
the Warm & Cleaning cycle length of the select
BAKE PAD-- Hold feature, and Consumer baking time. the bake
Used to select the Defined Control function.
bake function. Features.
COOK TIME
PAD-- Used
to enter the
length of the
baking
DELAY START
PAD -- Used to
set the desired
start time for
baking. May
used with COOl<
TiME to program
a delayed timed
bake cycle.
OVEN
Delay
@
UPPER
)VEN INTERIOR
LIGHT PAD--
Used to turn oven
interior light ON
and OFF.
Used to activate
oven lockout
setting.
STOP PAD-- Used to clear an
previously entered except the time of
day and minute timer. Press STOP to stop
cooking. Also the STOP pad is used to
activate oven lockout setting.
DELAY START PAD
-- Used to set the
desired start time for
baking° May be used
with COOl< TIME to
program a delayed
timed bake cycle.
WARM & HOLD
PAD-- Used to
set the Warm &
Hold feature.
FLEX CLEAN
PAD-- Used to
select the Self-
g cycle
and Consumer
Defined Control
Features.
I I Flex/
Clea_
J
i
i
STOP PAD-- Used to clear any Xt OVEN LOCKOUT
function previously entered except I -- Used to
the time of day and minute timer.| activate oven
Press STOP to stop cooking. Also | lockout setting.
the STOP pad is used to activate |
oven lockout setting. |
OVEN INTERIOR
UP and DOWN ARROW PADS-- LIGHT PAD-- Used
Used along with the function pads to
to turn oven interior
select oven temperature, cook time, light ON and OFF.
start time (when programming an
automatic start time), time of day,
clean time and minute timer.
Timer Add1] Q_Off I Minute
TIMER SET/OFF CLOCK SET
PAD -- Used to set PAD-- Used
or cancel the minute to set the
timer. The timer does time of day.
not start or stop
cooking.
ADD | MINUTE PAD-- Used
to add 1 minute to the Timer
Countdown. This feature works
with the Kitchen Timer only
and does not affect any cool<
time or start time functions.
Note: ]'he time of day must first be Set in order to operate the oven.
To Set the Clock
The _ pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the appliance is first plugged in, or when the power supply to the
appliance has been interrupted, the time in the display will flash.
See instructions below to set the clock.
To set the clock
1. Press (_ pad. "CLO" and the current time of day will appear in the display.
2. Press A or V pad to set the correct time of day. Wait 5 seconds to accept the change or press Stop pad to reject the change.
The new time of day will appear in the display.
Bake Mode Temperature Visual Display
Your oven is equipped with a temperature visual display. When a cooking mode is set, the actual temperature wiii be shown
in the display and will rise as the unit preheats. When the unit has reached its target temperature, a chime will sound to
remind you to place the food in the oven. This feature is active in the Bake mode only.
11
Setting Oven Controls
Changing Between 12 or 24 Hour Time of Day Display
1. Press and hold (_ pad for 6 seconds. "CLO" and the current time of day will appear in the display. A beep will sound
and "12h" or "24h" wiii appear in the display.
2. Press A or V pad to switch between the 12 and 24 hour time of day display. The display will show either "12h" or "24h'.
3. Wait 5 seconds to accept the change or press pad to reject the change.
4. Reset the correct time as described previously in To set the Clock. Please note that if the 24 hour time of day mode was
chosen, the clock wiii now display time from 0:00 through 23:59 hours.
To Set the Timer
The Timer Set/OFF pad controls the Timer feature. The Timer serves as an extra timer in the kitchen that wiii beep when the
set time has run out. It does not start or stop cooking. The Timer feature can be used during any of the other oven control
functions, except during a self clean operation.
To set the Timer
1. Press Timer Set/Off pad. "-- --" wiii appear and "TIMER" wiii flash in the display.
2. Press A or V pad to set the desired time in the display. Wait 5 seconds and the time wiii begin to count down with
the set time and "TIMER" wiii stay in the display.
3. When the set time has run out, "End" and "TIMER" will show in the display. The clock will beep 3 times every 7 seconds
until Timer Set/Off pad is pressed.
To cancel the Timer before the set time has run out: Press Timer Set/Off pad. The display will return to the time of day.
To Set Add I Minute Feature
The Add | Minute pad is used to set the Add 1 Minute feature. When the Add | Minute pad is pressed, 1 minute is added to
the Kitchen Timer feature if this feature is already active. If the Kitchen Timer feature is not active and the Add |
Minute pad is pressed, the Kitchen Timer feature will become active and will begin counting down from 1 minute.
Temperature Conversion (Fahrenheit / Celsius)
The Broil pad controls the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit. Note: both ovens will
be changed at the same time.
To change dlsplay from Fahrenheit to Celsius or Celslus to Fahrenheit
1. Press Broil pad and hold for 6 seconds. A beep will sound, "---" will appear and "BROIL" will flash in the display.
After 6 seconds a beep will be heard and "F" or "C" will appear in the display. If "F" appears, the display is set to show
temperatures in Fahrenheit. If "C" appears, the display is set to show temperatures in Celsius.
2. Press A or V pad to switch between Fahrenheit or Celsius display modes. The display will show either "F" or "C'.
3. Wait 5 seconds to accept the change or press Stop pad to reject the change.
For a sitent control panel
The Delay Start pad controls the Silent Control Panel feature. The Silent Control Panel feature allows the oven control to be
operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation and
later returned to operating with all the normal sounds and beeps.
To change control from normal sound operation to silent control operation
1. Press and hold Delay Start pad for 6 seconds. A beep will sound, %- --" will appear, "DELAY" will flash in the display.
After 6 seconds, a beep will sound and "SP" (speaker) or % -" will appear in the display.
2. Press A or V pad to switch between normal sound operation and silent operation mode. If "SP" appears, the control
will operate with normal sounds and beeps. If % -" appears, the control is in the silent operation mode.
3. Wait 5 seconds to accept the change or press Stop pad to reject the change.
Note: The control will always beep at the end of a minute timer and will beep when a set temperature has been reached,
even if the control is set to silent operation.
To Operate the Oven Light(s)
©
The interior oven light(s) will automatically turn ON when the oven door is opened. Press _ to turn the interior light(s) ON
and OFF whenever the door is dosed.
12
Setting Oven Controls
Note: The time of clay must first be set in order to operate the oven.
To Set or Change the Temperature for Baking
The Bake pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F.
To Set the Controls for Normal Baking
1. Arrange interior oven racks.
2. Press Bake pad, "= = =" will appear, "BAKE" will flash in the display.
3. Press A or V pad to set the desired temperature. The desired temperature will appear and "BAKE" continue
flashing in the display.
4. Wait 5 seconds. "BAKE" will stop flashing, the oven icon and the actual oven temperature will appear in the display. A
beep will sound once the oven temperature reaches the desired baking temperature.
5. Place food in oven
Pressing Stop pad wiii cancel the Baize feature at any time.
To Change the Oven Temperature after Baking has Started
1. After the oven has already been set to baize and the oven temperature needs to be changed, press Bake pad. The current
setting will appear and "BAKE" start flashing in the display.
2. Press A or V pad to increase or decrease the set temperature.
3. Wait 5 seconds. "BAKE" will stop flashing and remain in the display. A beep will sound once the oven temperature
reaches the desired baking temperature.
Note: If the oven was recently heated from prior cooking and has remained heated, the baize burner symbol may not show
in the display immediately and a beep will sound to show the temperature has already been reached.
Oven Bakln_ Dark or dull pans absorb more heat than shiny bakeware resulting in darker browning. It may be neces-
sary to reduce the oven temperature to prevent over browning of some foods. Dark pans are recommended for pies. Shiny
pans are recommended for cakes, cookies and muffins. Insulated pans may increase baking times.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The Timer Set/Off pad controls the Continuous Baize or 12 Hour Energy Saving Features. The oven control has a factory
preset built-in 12 Hour Energy Saving feature that will shut off: the oven if the oven control is left on for more than 11 hours
and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.
To set control for continuous baking:
1. Pressand hold Timer Set/Off pad for 6 seconds. A beep will sound, %= ==" will appear and TIMER will flash in the display.
After 6 seconds, "12h" or % =h" wiii appear in the display and the control wiii beep once.
2. Press A or V pad to switch between the 12 Hour Energy Saving and continuous baize features. Note: "12h" in the display
indicates the control is set for the 12 Hour Energy Saving mode and "= =h" indicates the control is set for the Continuous
Bake feature.
3. Wait 5 seconds to accept the change (display wiii return to time of day) or press Stop pad to reject the change.
To Set Control for Oven Lockout
The _o°V_o%_pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and prevents
the oven from being turned on. It does not disable the clock, Kitchen Timer or the interior oven lights. The ovens can be
locked individually.
To activate the Oven Lockout feature
Make sure the oven door is closed and the oven is turned OFF. Press and hold L%_uTpad for 3 seconds. After 3 seconds a beep
will sound, "DOOR", "LOCKED" will flash ,"Loc" and J_ will appear in the display. Once the oven door is locked the "DOOR"
and "LOCKED" indicator will stop flashing and remain in the display.
To reactivate normal oven operation
Press and hold _o%%,pad for 3 seconds. A beep will sound. The oven icon, "LOC" and _ will disappear from the display.
"DOOR" and "LOCKED" will flash in the display until the oven door has completely unlocked. The appliance is again fully
operational. Note: Because you can set the oven lockout individually, one oven can be used when the other one is locked out.
13
Setting Oven Controls
To Set the Timed Bake Feature
The Cook Time pad controls the Timed Bake feature. Timed Bake allows the oven to be set to cool< for a specific length of
time and shut off automatically. The oven will shut off and will beep when the countdown is finished. This feature can be
used with Bake and Convection (lower oven only} modes.
To Program the Oven to Begin Baking Immedlately and To Shut Off Automatically (Timed Bake):
1. Be sure that the dock shows the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press Bake pad, "BAKE" wiii flash and "- - -" wiii appear in the display.
4. Press A or V pad to set the desired temperature. "BAKE" wiii continue to flash and desired temperature wiii
appear in the display.
5. Wait 5 seconds, "BAKE" stop flashing and remain in the display.
6. Press Cook Time pad. "TUMED" start flashing and "-_ -_" wiii appear in the display.
7. Press the A or V pad until the desired baking time appears in the display.
Note: Baking time can be set for any amount of time between 1 minute to 11 hours and 59 minutes.
8. Wait 5 seconds, the display returns to the time of day.
Note: After the Timed Bake feature has been activated, press Cook Time pad to display the bake time remaining in the
Timed Bake mode. Once Timed Bake has started baking, a beep wiil sound when the oven temperature reaches the set
temperature.
Press Stop pad when baking has finished or at any time to cancel the Timed Bake feature.
When the set bake tlme runs out:
1. "End" wiii appear in the display and the oven wiii shut off: automatically.
2. The control will beep 3 times. The control will continue to beep 3 times every 30 seconds until Stop pad is pressed.
To Set the Delayed Bake Feature
The Delay Start pad controls the Delayed Bake feature. The automatic timer of the Delayed Bake will turn the oven ON at
the time you select in advance. Note: If your clock is set for normal 12 hour display mode the Delayed Bake or Delayed
Convection cycle can never be set to start more than 12 hours in advance. If a 12-24 hours delay is needed, set the control
for 24 hours time of day display mode.
To Program Oven for a Delayed Start Time:
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press Bake pad. "BAKE" will flash and % - -" will appear in the display.
4. Press A or V pad until the desired temperature appears. "BAKE" will continue to flash and the desired temperature
will appear in the display.
5. Wait 5 seconds, "BAKE" will stop flashing and remain in the display and the current temperature is shown.
6. Press Delay Start pad. "DELAY" start flashing and "-- --" will appear in the display.
7. Press the A or V pad until the desired start time appears in the display.
8. Wait 5 seconds, the current time of day will appear in the display.
Note: If it is desired to have the oven shut off: automatically after a set time; enter a Cook Time at this step.
9. When the desired start time is reached, the oven icon wiii appear in the display and the oven wiii start to bake at the
previously selected temperature.
Press Stop pad when baking has completed or at any time to cancel the Delayed Bake feature.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more
than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
14
Setting Oven Controls
Oven Baking
For best cooking results_ heat the oven before baking cookies_ breads_ cakes_ pies or pastries_ etc. There is no need to pre=
heat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Cookies and biscuits
burn on the bottom.
Cakes too dark on
top or bottom.
Baking Problems and Solutions Chart
Causes Corrections
° Cookies and biscuits put into the ° Allow oven to preheat to the selected temperature
oven before the preheating time before placing food in oven.
is completed.
° Rack position too low.
° Oven rack overcrowded.
e
e
Use proper rack position for baking needs.
Choose pan sizes that will permit 2" to 4" (5.1cm to
10.2cm) of air space on all sides when placed in the
oven.
° Dark pan absorbs heat too fast.
° Cakes put into the oven before
preheating time is completed.
° Rack position too high or low.
• Oven too hot.
° Use a medium-weight aluminum baking sheet.
• Allow oven to preheat to the selected temperature
before placing food in the oven.
° Use proper rack position for baking needs.
° Set oven temperature 25°F/12°C lower than
recommended.
Cakes not done in ° °
the center.
e
e
Cakes not level.
Foods not done when
cooking time is up.
Oven too hot.
Incorrect pan size.
Pan not centered in oven.
" Range not level.
" Pan too close to oven wall or
rack overcrowded.
° Pan warped.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
e
e
Set oven temperature 25°F/12°C lower than
recommended.
Use pan size suggested in recipe.
Use proper rack position and place pan so there is 2" to
4" (5.1cm to 10.2cm) of space on aii sides of pan.
" Place a marked glass measuring cup filled with water
on the center of the oven rack. If the water level is
uneven_ refer to the installation instructions for leveling
the range.
° Be sure to allow 2" to 4" (5.1crn to 10.2cm) of clearance
on aii sides of each pan in the oven.
° Do not use pans that are dented or warped.
" Set oven temperature 25°F/12°C higher than suggested
and bake for the recommended time.
° Be sure to remove aii pans from the oven except the
ones to be used for baking.
° Open oven door only after shortest recommended
baking time.
15
Setting Oven Controls
Broil
Broiling is a method of cooking tender cuts of meat by direct heat under the broil
burner of the oven. Be sure you center your broiler pan (available by mail order)
directly under the broil burner for best results.
Arrange oven rack while oven is still cool. Position the rack as needed.
Note: Broil function is available with the upper oven only.
Should an oven fire occur, close the oven door and turn off: the oven.
If the fire continues, throw baking soda on the fire or use a fire extinguisher. DO
NOT put water or flour on the fire. Flour may be explosive and water can cause a
grease fire to spread and cause personal injury.
To set the oven to broil
1. Arrange the interior oven rack.
2. Press Broil pad. ".n" wiii appear and "BROIL" wiii flash in the display.
3. Press ,A, or V until the desired broiling temperature appears in the display.
4. Wait 5 seconds, "BROIL" wiii stop flashing and the oven icon wiii appear in the
display. The oven wiii begin to broil. The desired temperature wiii stay in the
display.
5. Preheat the broil burner for 5 minutes.
6. Place your broiler pan insert on your broiler pan. Then place the food on the
broiler pan insert. DO NOT use your broiler pan without the insert. DO NOT
cover your broiler insert with foil. The exposed grease could ignite.
7. Place your broiler pan on the rack. Be sure to center your broiler pan directly
under the broiler burner. Make sure the oven door is closed when broiling.
8. Broil on one side until food is browned; turn and cook on the second side.
Season and serve. Note: Always puli the rack out to the stop position before
turning or removing food.
9. To cancel broiling press Stop pad.
Note: The broil temperature setting may be changed at any time.
Not supplied
with appliance
Note: The broiler pan and insert are
available by mail order.
Note: Broiler pan and its insert allow
dripping grease to drain and be
kept away from the high heat of the
broiler. DO NOT use the pan without
its insert. DO NOT cover the insert
with foil The exposed grease could
ignite.
Preheating
For best searing preheating the broiler 5 minutes before placing the food under the broiler, especially for meats (Remove
your broiler pan before preheating. Foods wiii stick if placed on hot metal.) To preheah set the control(s) to BROIL as
instructed in this Use and Care Guide.
Determine Broiling Times
Broiling times vary, so watch the food closely. Time not only depends on the distance from burner, but on the thickness and
aging of meat, fat content and doneness preferred. The first side usually requires a few minutes longer than second. Frozen
meats also require additional time.
Broiler Clean-Up Tips (broiler pan not supplied with appliance)
To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT cover the broiler grid with foil.
To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed. Use hot pads
because the broiler pan is extremely hot. Pour off: grease. Soak the pan in HOT, soapy water.
Clean the broiler pan as soon as possible after each use. If necessary, use soap-filled steel wool pads. Heavy scouring may
scratch the grid.
16
Setting Oven Controls
To Set the Sabbath Feature (far use an the Jewish Sabbath & Holidays)
The Cook Time and Delay Start pads are used to set the Sabbath feature. The Sabbath feature may only be used with
the Bake pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature
adjustment feature should be used only during Jewish Holidays), however the display wiil not visibly show or provide any
audible tones indicating whether the change occurred correctly. Once the oven is properly set using Bake with the Sabbath
feature active, the oven wiil remain continuously ON until cancelled. This wiil override the factory preset 12-Hour Energy
Saving feature.
If the oven light wiil be needed during the Sabbath, press (9) before activating the Sabbath feature.
Once the oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature
is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.
IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the Sabbath
feature is active. ONLY the following key pads will function after setting the Sabbath feature; A, V, Bake & Stop. ALL
OTHER Ki_YPADS will not function once the Sabbath feature is properly activated.
To Program the Oven to Begin Baking Immedlafely and to Activate the Sabbath Feature:
1. Be sure that the clock is set with the correct time of day.
2. Place the food in the oven.
3. Press Bake. "---" will appear, "BAKE" will flash in the display.
4. Press the A or V pad until the desired temperature appears. "BAKE" will flash in the display.
5. Wait 5 seconds, "BAKE" stop flashing, the oven icon and the actual oven temperature will appear in the display.
6. If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time. If not, skip this step and
continue to step 8. Refer to the Timed Bake (complete steps 6-8) / Delayed Start Bake (complete steps 6-8) section for
complete instructions. Remember the oven wiJJ shut down after using Timed Bake or Delayed Timed Bake and therefore
may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Timed Bake time is 11 hours & 59
minutes.
7. The oven wiJJ turn ON and begin heating.
8. Press and hold both the Cook Time and Delay Start pads for at least 3 seconds. SAb will appear in the display. Once
SAb appears in the display the oven control wiii no longer beep when a keypad is pressed or display any further
changes. The oven is properly set for the Sabbath feature.
Note: You may change the oven temperature once baking has started by pressing Bake pad, and the A or V pads
for the temperature you want (for Jewish Holidays only). Remember that the oven control wiff no longer beep when a
keypad is pressed or dlsplay any further changes once the oven is set for the Sabbath feature.
9. The oven may be turned OFF at any time by first pressing Stop pad (this will turn the oven OFF).
10. To turn off the Sabbath mode, press and hold both the Cook Time and Delay Start pads for at least 3 seconds.
Should you experience a power failure or interruption, the oven wiii shut off. When power is returned the oven will not
turn back on automatically. If your food was nearly fully cooked, you may allow the trapped heat in the oven to finish the
cooking process. Otherwise, you should remove the food when the power failure occurs, because you may only start the oven
once during the Sabbath/Jewish Holidays.
After the Sabbath observance turn OFF the Sabbath feature by pressing Cook Time and Delay Start. SAb will disappear
from the display and the oven may be used with all normal functions.
For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the
web at hffp:\\www.star-k.org.
17
Setting Oven Controls
Setting the Warm & Hold TM Feature
The Worm & Hold pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F (76°C). The
Worm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours
the Warm & Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other
cooking operations or can be used after cooking has finished using TIMED BAKE or DELAY TIMED BAKE. Do not use the
Warm & Hold feature to heat cold food.
To set Warm & Hold:
1. Arrange interior oven racks and place food in oven.
2. Press Worm & Hold pad. "WARM" wiii flash and "- - -" wiii appear in the display.
.
4.
Note: If no pad is touched within 25 seconds the request to turn ON Keep Warm feature will be cancelled.
Press the A or V pad, "WARM" will stop flashing, "HLd" and the oven icon will appear in the display.
To turn the Keep Warm OFF at any time press Stop pad.
Note: The Keep Warm feature will automatically turn OFF after 3 hours.
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delayed Timed Bake.
2. Press Warm & Hold pad. "WARM" will flash and "= = =" wiii appear in the display.
Note: If no pad is touched within 25 seconds the request to turn ON the Keep Warm feature and all functions previously
programmed will be cleared.
3. Press the A or V pad, "WARM" will stop flashing and remain in the display. Also temperature will appear in the
display.
4. When the Time Bake has finished, the keep warm mode will turn ON automatically. The desired temperature, "BAKE"
and "TIMED" will disappear. "HLd" will appear. The oven icon will remain in the display.
Note: The Keep Warm feature will automatically turn OFF after 3 hours.
Pressing Stop pad at any time will stop aii oven baking operations.
Adjusting the Oven Temperature
Your oven thermostat has been precisely set at the factory. This setting may differ from your previous oven, however, so your
recipe times may not give you the results you expect. If you think that the oven is cooking too hot or cool for your recipe
times, you can adjust the thermostat so that the oven cooks hotter or cooler than the temperature displayed.
Note: Upper and lower oven can be adjusted independently.
To Adjust Oven Temperature:
1. Press and hold upper or lower oven Bake pad for 6 seconds. The preset adjustment number will appear and "UPPER" or
"LOWER" will flash in the display.
2. To increase the temperature, use the A pad to enter the desired change. The temperature may be increased as much
as 35°F (19°C). To decrease the temperature, use the v pad to enter the desired change. The temperature may be
decreased as much as 35°F (19°C).
3. There will be a 5 second wait while the controls accept the change, and then the display will return to the time of day.
Before moving on to any other oven function, press the Stop pad if you want to immediately reject the accepted change.
Note: Oven temperature adjustment made wili not change the Broil and the Self-Cleaning feature temperatures.
18
Self-Cleaning
During the self=cleanlng
cycle, the outside of the range can become
very hot to the touch. DO NOT leave small
children unattended near the appliance.
v_ The health of some birds is
extremely sensitive to the fumes given off
during the self-clean cycle of any range.
Move birds to another well ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the appliance with aluminum foil. Doing so
will destroy heat distribution, produce poor
baking results and cause permanent damage
to the interior (aluminum foil will melt to the
interior surface of the oven),
DO NOT force the oven door
open. This can damage the automatic door
locking system. Use caution when opening
the door after the Self-Cleaning cycle is
completed. The oven may still be VERY HOT.
DO Hand
Clean Frame
DO Hand
Clean Door
DO NOT Hand Clean
Oven Door Gasket
Note: See additional cleaning information
for the oven door in the General Core &
Cleaning section.
The broil burner may appear
to have cooled after they have been turned
OFF. The burners may still be hot and burns
may occur if these burners are touched
before they have cooled sumciently.
Delay Flex
..... c?OX ?o_ ..... _ ..... _i
.............. j
UPPER OVEN LOWER OVEN _s
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces them to
a fine powdered ash you can wipe away with a damp cloth.
Adhere to the following cleanlng precoutlons:
* Allow the oven to cool before cleaning.
* Wear rubber gloves when cleaning any exterior parts of the oven
manually.
* DO NOT use oven cleaners or oven protective coatings in or around any
part of the oven interior.
* DO NOT dean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
* DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
* Remove all utensils and any aluminum foil. These items cannot
withstand high cleaning temperatures.
* Porcelain Coated Racks: Some ovens come with lubricated porcelain
oven racks, which can remain in the oven during the self-clean cycle. Do
not clean this vegetable oil lubrication off the racks. It is important that
the sides of the oven racks always have a light coating of vegetable
oil. To maintain optimal rack performance, re-apply a thin layer of
vegetable oil to the sides of the rack after every self-clean cycle or
when the rack becomes difncult to slide.
* Chrome Oven Racks: Some models come with chrome oven racks, which
have to be removed from the oven during the self-clean cycle or else
their finish will turn dull and their color slightly blue. If left in, after the
cycle is complete and the oven has cooled, rub the sides of the oven
racks with wax paper or a cloth containing a small amount of salad
oil [this will make the racks glide easier into the rack position). Clean
chrome oven racks by using a mild cleaner following manufacturer's
instructions. Rinse with dean water and dry.
* Before starting the Self-Cleaning cycle, hand clean any sol from the
oven frame, the door liner outside the oven door gasket, and the small
area at the front center of the oven. These surfaces are not in the
self-cleaning area. Clean with soap and water. Burned-on residue can
be cleaned off with a stiff nylon brush and water or nylon scrubber.
DO NOT hand dean the oven door gasket or it will be permanently
damaged.
19
Self-Cleaning
What to Expect during Cleaning
While the oven is in operation_ the oven heats to temperatures much higher than
those used in normal cooking. Sounds of metal expansion and contraction are
normal. Odor is also normal as the food soil is being removed. Smoke may appear
through the oven vent.
If heavy spillovers are not wiped up before cleaning, they may flame and cause
more smoke and odor than usual. This is normal and safe and should not cause
alarm. If available° use an exhaust fan during the self-cleaning cycle.
Self-Clean Cycle time length
For satisfactory results, use a 2 hour Self-Clean cycle for light sails and a 3 hour
cycle for average or a 4 hour cycle for heavy sails. NOTE: The kitchen area should
be well ventilated using an open window, ventilation fan or exhaust hood during the
Self-Clean cycle. This will help eliminate the normal odors associated with the Self-
Clean cycle.
To avoid possible
burns use care when opening the
oven door after the Self-Cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot
air or steam to escape.
force the oven
door open. This can damage the
automatic door locking system. Use
caution and avoid possible burns
when opening the door after the
Self-Cleaning cycle has completed.
The oven may still be VERY HOT.
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to set a Delayed Self-Clean Cycle, skip steps 2 & 3.)
1. Be sure that the clock is set with the correct time of day and the oven door is closed.
2. Press Delay Start pad. _'DELAY" will flash.
3. Press and hold the A pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the desired
time is displayed.
4. Press Flex Clean. "CLN .... " appears in the display.
5. Press the A or V once. "3 00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle pressV.
"2 00" appears in the display or to select a 4 hour cycle press A. "4 00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the '"DOOR" and "LOCKED"
indicator light will appear. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven
door to lock).
6. "CLn" will appear in the display during the Self-Clean cycle and the "DOOR" and "LOCKED" light will glow until the
Self-Cleaning cycle is complete or cancelled and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. "Hat" wiil appear in the display window and the "Clean" and "DOOR" and %OCKED" light wiil continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "DOOR" and "LOCKED" light has gone out_ the oven door
can be opened.
NOTE: When the oven is cool_ wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping ar Interruptlng a Self-Cleanlng Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press Stop.
2. "Hat" will appear in the display window° "DOOR" and "LOCKED" light will continue to glow.
3. Once the oven has cooled down for about 1 HOUR and the "DOOR" and "LOCKED" light has gone out_ the oven door
can be opened.
4. Restart the Self-Clean cycle once all conditions have been corrected.
2O
General Care & Cleaning
Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND
HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIFFICULTY OF
MAJOR CLEANING LATER.
Surfaces How to Clean
Aluminum (Trim Pieces) Use hot, soapy water and a cloth. Dry with a clean cloth. Do not scour or use all-purpose
& Vlnyl cleaners, ammonia, powdered cleaners or commercial oven cleaner. They can scratch and
discolor aluminum.
Painted and Plastic Control
Panel, Body Parts, and
Decorative Trim
For general cleaning, use hot, soapy water and a cloth. For more dimcult soils and built-up
grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.
Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials;
they can scratch.
Stainless Steel, Chrome
Control Panel, Decorative
Trim
To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the fiat sides of both the knob and the shaft;
then push the knob into place.
Before cleaning the control panel, turn all controls to OFF and remove the control knobs. To
remove, pull each knob straight off the shaft. Clean using hob soapy water and a dishcloth.
Rinse with clean water using a dishcloth. Be sure to squeeze excess water from the cloth
before wiping the panel; especially when wiping around the controls. Excess water in or
around the controls may cause damage to the appliance. To replace knobs after cleaning,
line up the fiat sides of both the knob and the shaft; then push the knob into place.
Porcelain Enamel Broiler
Pan and insert (some
models), Door Liner, Body
Parts
Oven Racks
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with dean water and a
cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not use
harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning
stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may
occur during heating that cannot be removed.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution
of clear water and ammonia. If necessary, cover dimcult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a dean cloth. Remove all cleaners
or the porcelain may become damaged during future heating. DO NOT use spray oven
cleaners on the cooktop.
Porcelain Coated Racks:
Some ovens come with lubricated porcelain oven racks, which can remain in the oven
during the self-clean cycle. Do not clean this vegetable oil lubrication off: the racks. It is
important that the sides of the oven racks always have a light coating of vegetable oil. To
maintain optimal rack performance, re-apply a thin layer of vegetable oil to the sides of
the rack after every self-clean cycle or when the rack becomes dimcult to slide.
Oven Door
DO Hand
Clean Frame
DO Hand
Clean Door
Chrome Oven Racks:
Some models come with chrome oven racks, which have to be removed from the oven
during the self-clean cycle or else their finish will turn dull and their color slightly blue.
If left in, after the cycle is complete and the oven has cooled, rub the sides of the oven
racks with wax paper or a cloth containing a small amount of salad oil (this will make the
racks glide easier into the rack position). Clean chrome oven racks by using a mild cleaner
following manufacturer's instructions. Rinse with dean water and dry.
Use soap & water to thoroughly dean the top, sides and front of the oven door. Rinse well.
You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the
door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material,
on Self-Cleaning models, which is essential for a good seal. Care should be taken not to
rub, damage or remove this gasket.
Oven Door
Gasket
21
General Care & Cleaning
Cleaning the Cooktop, Burner Heads, Caps & Grates
The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when spillovers are
cleaned up immediately.
The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent
improper ignition and an uneven flame. Refer to the following instructions:
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a delayed
ignition or prevent the burner from igniting.
_Any additions, changes or conversions required in order for this appliance to perform satisfactorily must
be made by Sears Service. Caii |-800-4-MY-HOME® (See back cover).
Do not remove any parts from the cooktop until they have completely cooled and are safe to handle. Do not operate the
surface Burners without the Burner Caps and Burner Heads properly in place.
To Clean the surface Burner Caps and Burner Heads- Use a soap-filled scouring pad or a mild cleanser to clean the
surface Burner Caps. The ports Car slots) around the Burner Heads must be routinely checked. If residue remains in these ports
(or slots), use a small-gauge wire or needle to dean the slots or holes. For proper flow of gas and ignition of the burner--
DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS OPENING.
ALWAYS keep the surface Burner Caps in place whether or not the gas Burners are in use.
To Clean the Burner Grates- Be sure burners and grates are cool before you place your hand, a pot holder, cleaning cloths
or other material on them. The cast iron burner grates can be washed in hot soapy water. Rinse thoroughly and dry the
grates with a cloth - don't put them on the cooktop while still wet. Be sure the grates are positioned securely over the burners.
To remove burned on food, place the grates in a covered container or plastic bag. Add 1/4 cup ammonia and soak for 30
minutes. Wash, rinse well and dry. An abrasive cleaner can be used for stubborn stains.
To Clean the Caoktop and contoured areas of the cooktop- If a spill occurs on the porcelain cooktop, blot up spill with an
absorbent cloth. Rinse with a dean, damp cloth and wipe dry. Do not use harsh abrasive cleaners on the cooktop. They
can scratch the porcelain. Completely rinse any mild cleaners used from the surface or the porcelain cooktop may become
damaged during future heating. DO NOT use spray oven cleaners on the cooktop.
Care and cleaning of stainless steel (Stainless steel models only)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section in
this Use & Care Guide.
22
General Care & Cleaning
Removing and Replacing the Lift-Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
Hinge
Roller pin
Hinge arm
hook
Fig. 2
Fig. 3
Fig. 4
door
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Puii the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small
flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
4. Close the door to about a 10 degree angle as shown in Fig. 3.
5. With the oven door in this position, lift the oven door hinge arms away from
the roller pins located on each side of the oven frame (See Fig. 4).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the hook
of the hinge arm onto the roller pins located on each side of the oven door
frame (See Fig. 4). The hook of the hinge arms must be fully seated onto the
roller pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Speclal Door Care Instructlons = Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until aii the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
Changing the Oven Light
On some models an interior oven light will turn automatically when the oven
door is opened. The oven light may be turned on when the door is closed by
C)
pushing - located on thecontrol panei. Onsome modeis, the lamp is covered
with a glass shield held in place by a wire holder. THE GLASS SHIELD MUST BE
iN PLACE WHENEVER THE OVEN IS iN USE.
To replace the light bulb:
CAUTION: BE SURE THE OVEN iS COOL.
1. Turn the power off: at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with 40-watt appliance bulb only.
4. For models with glass shield, press holder on one side to release glass shield,
change bulb and be sure to replace the glass shield.
23
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are
not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven Control Beeps and Electronic control has detected a fault condition. Press STOP to dear the display and
Displays any F code error stop the beeping. Reprogram the oven. If a fault reoccurs, record the fault number. Press
(example Fll). STOP and call Sears or another qualified servicer.
"d-O" isdisplayed. The door was left open and controls set for self-cleaning cycle. Close the door and push
STOP pad.
Faulty installation. Range not Place oven rack in center of oven.
leveled. Bad cooking results. Place a level or a marked glass measuring cup filled with water on the center of the
oven rack.
If the water level is uneven, adjust the leveling legs of the unit (refer to the installation
instructions for leveling the range).
If the level is still uneven, contact an installing agent to adjust the cabinet cutout
flooring.
Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets
are square and level. Contact cabinet maker to correct problem.
Oven light does not work. Burned-out or loose bulb. Follow the instructions under Changing Oven Light to replace
or tighten the bulb.
Fan noise during cooking A cooling fan may automatically turn on and off to cool internal parts. This is normal,
operation, and the fan may continue to run even after oven is turned off.
Surface burners do not light. Surface control knob has not been completely turned to LITE. Push in and turn the
surface control knob to LITE until burner ignites and then turn the surface control knob
to the desired flame size.
Burner ports are clogged. Clean burners. See "Cleaning the Burner Grates, Burner Caps
and Burner Heads" under General Cleaning.
Range power is disconnected from outlet. Be sure cord is securely plugged into the
outlet.
Electrical power outage.
Be sure the gas supply to the range is turned "ON".
Surface burner flame burns haft Burner ports or slots are clogged. With the burner off:, use a small-gauge wire or needle
way around, to clean ports or slots.
Moisture is present after cleaning. Lightly fan the flame and allow the burner to operate
until flame is full. Dry the burners thoroughly following instructions under General
Cleaning.
Surface burner flame is orange. Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
Salt air in coastal areas. A slightly orange flame is unavoidable.
24
Before You Call
Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTiON
Entire oven does not operate. When the oven is first plugged in, or when the power supply to the oven has been
interrupted, the display will flash. The oven cannot be programmed until the clock is set.
Be sure electrical cord is securely connected into the electrical junction box.
Cord/plug is not installed and/or connected. Cord is not supplied with oven. Contact
Sears or another qualified servicer.
Service wiring not complete. Contact Sears or another qualified servicer.
Power outage. Check house lights to be sure. Call your local electric company.
Short in cord/plug. Replace cord/plug.
Controls are not set properly. See instructions under Setting Oven Controls to set the
controls.
House fuse has blown or circuit breaker has tripped immediately following installation.
House fuse may not be fully engaged. Check fuse and screw or engage circuit breaker
securely.
House fuse has blown or circuit breaker has tripped after the oven has been installed
and previously operating. Call Sears or another qualified servicer.
Oven smokes excessively Make sure the oven door is closed. Door should be closed during broiling.
during broiling. Meat too close to the broiler unit. Reposition the rack to provide more clearance
between the meat and the broiler. Preheat broil burner for quick searing operation.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges
to prevent curling, but do not cut into the lean.
Grid on broiler pan wrong side-up. Grease does not drain into broiler pan. Always
place the grid on the broiler pan with the ribs up and the slots down to allow grease to
drip into the pan.
Broiler pan used without grid or grid cover with foil. DO NOT use the broiler pan
without the grid or cover the grid with foil.
Oven needs to be cleaned. Grease has built up on oven surfaces. Regular cleaning
is necessary when broiling frequently. Old grease or food spatters cause excessive
smoking.
Poor baking results. Many factors affect baking results. See Baking for hints, causes and corrections. See
Adjusting Oven Temperature.
Make sure the oven door is closed.
Self-cleanlng cycle does not
work.
Soll not completely removed
after self-cleanlng cycle is
completed.
Flames inside oven or smoke
from vent.
Controls not set properly. Follow Self-Cleaning instructions in this Use & Care Guide.
Self-cleaning cycle was interrupted. Stop time must be set 2-4 hours past the start time.
Follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in this Use & Care
Guide.
Before starting the Self-Cleaning cycle, hand clean any soil from the oven frame, the door
liner outside the oven door gasket, and the small area at the front center of the oven. These
surfaces are not in the self-cleaning area. Clean with soap and water. Burned-on residue
can be cleaned off with a stiff nylon brush and water or nylon scrubber. DO NOT hand
clean the oven door gasket or it will be permanently damaged.
Excessive spillovers in oven. Set the self-clean cycle for longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or for large amounts of grease on bottom of oven. Wipe up excessive pie
filling spillovers.
25
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmordeproduct is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money
and aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles,
no functional failure excluded from coverage - real
protection.
[] Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you
can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] ,,No-lemon,, guarantee- replacement of your covered
product if four or more product failures occur within twelve
months.
[]
[]
[]
Product replacement if your covered product can't be
fixed.
Annual Preventive Maintenance Check at your request -
no extra charge.
Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all products.
Think of us as a ,_talking owner's manual,,.
[] Power surge protection against electrical damage due to
power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[] 10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime
day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in
the U.S.A. or Canada call 1-800-4-MY-HOME ®.
Acuerdos maestros de protecci6n
Enhorabuena por haber hecho una compra inteligente. Su nuevo producto
Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento
fiable. Pero, come cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones peri6dicas. Es per eso que tener un Acuerdo maestro
de protecci6n podria ahorrarle dinero y molestias.
El Acuerdo maestro de protecci6n tambien sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en condiciones
normales de uso, no s61o en case de defectos de los productos. Nuestra
cobertura va mucho mas alia que la garantia del producto. No se
aplican deducibles ni exclusiones per fallas del funcionamiento: es decir,
verdadera protecci6n.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos autorizados de
Sears), Io cual significa que quien repare o realice el mantenimiento de su
producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y ndmero ilimitado de Ilamadas de
solicitud de servicio t_cnico: se puede poner en contacto con nosotros
cuantas veces Io desee y cuando Io desee.
[] Garantia ,<sin sorpresas,,: se reemplaza el producto cubierto per el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo de 12
meses.
[] Reemplazo del producto: en case de que no se pueda reparar el
producto cubierto per el acuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto: puede
solicitarla en cualquier memento, sin costo alguno.
[] Rapida asistencia telef6nica, la cual denominamos Soluci6n rapida: es
decir, asistencia telef6nica a traves de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros come en un ,,manual parlante del usuario,,.
[] Protecci6n contra fallas el_ctricas, contra daSos debidos a fluctuaciones
de la corriente electrica.
[] $250 al aSo para cubrir cualquier posible deterioro de alimentos que
haya tenido que desechar debido a una falla mecanica de cualquiera de
nuestros refrigeradores o congeladores cubiertos per este acuerdo.
[] Devoluci6n de gastos de alquiler de electrodom_sticos si la reparaci6n
de su producto asegurado toma mas que el tiempo prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de reparaci6n,
come de las piezas instaladas relacionadas que no hayan quedado
cubiertos per este acuerdo.
Una vez que haya realizado el page de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hera del dia o de la noche, o bien concertar una visita de servicio per
Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n exenta de
riesgos. Si per cualquier motive decide cancelar dicho acuerdo durante el
periodo de garantia del producto, le haremos un reintegro total del valor. O bien
un importe proporcional si cancela el acuerdo en cualquier otro memento
posterior al vencimiento del periodo de garantia del producto, iAdquiera hey
mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de Sears
de Canada.
Servicio de instalaci6n de Sears
Para solicitar la instalacion por profesionales de Sears de electrodomesticos,
abridores de puertas de garaje, calentadores de agua y otros articulos de use
prioritario en el hogar, Ilame al 1-800-4-MY-HOME en los EE.UU. o CanadA.
26
Notes
27
Your Home
For troubleshooting, product manuals and home solutions advice:
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran(_ais:
1-800-LE-FOYER M°
(1-800-533-6937)
www.sears.ca
www.sears.com
® Registered Trademark / TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / UDMarque deposee de Sears Brands, LLC
