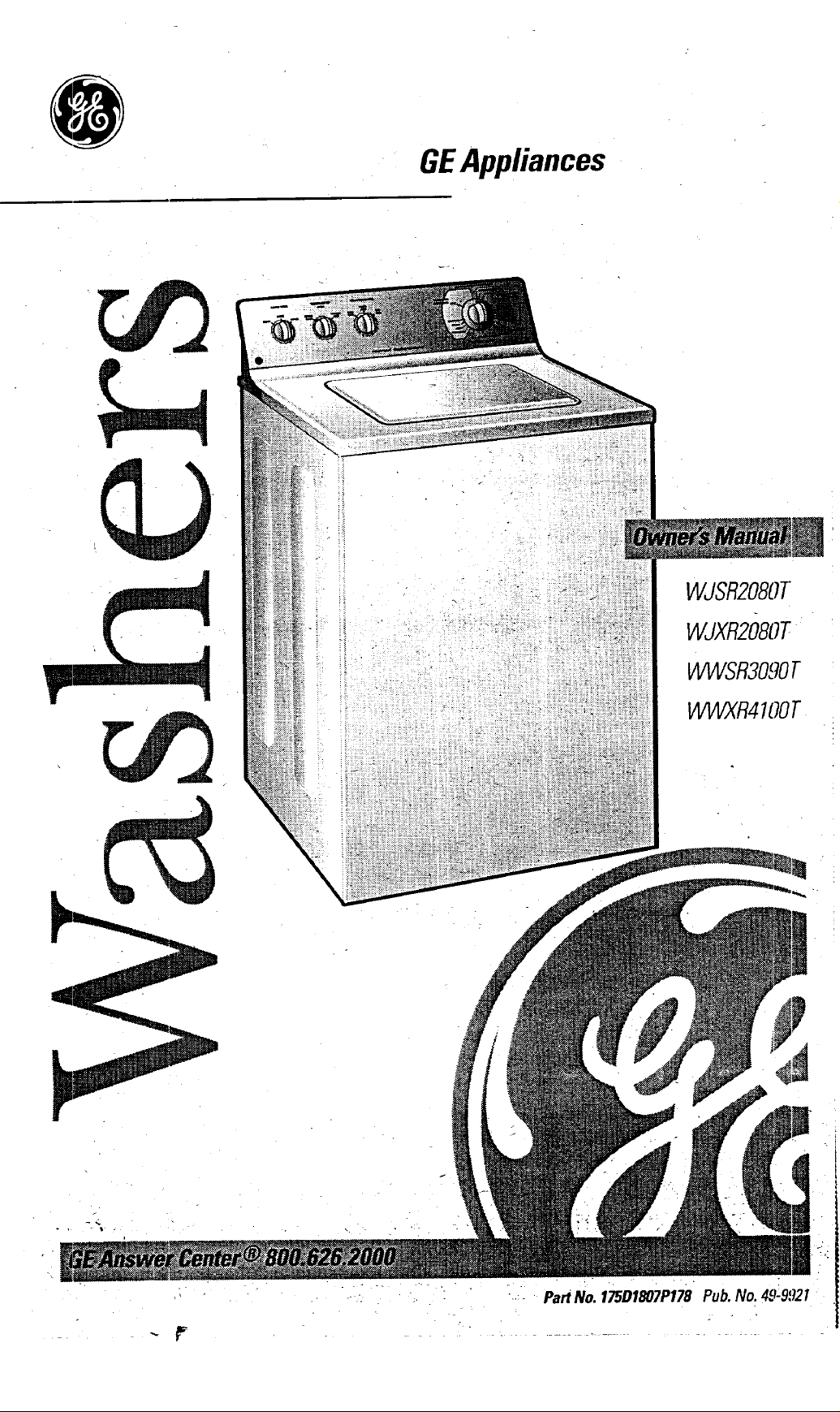

GEAppliances
• ;- -" • i
WJSR2OSOT
WJXR2OSOT
WWSR3OgOT
WWXR4100T
Part No. 175D1807P178Pub.No. 49:9921

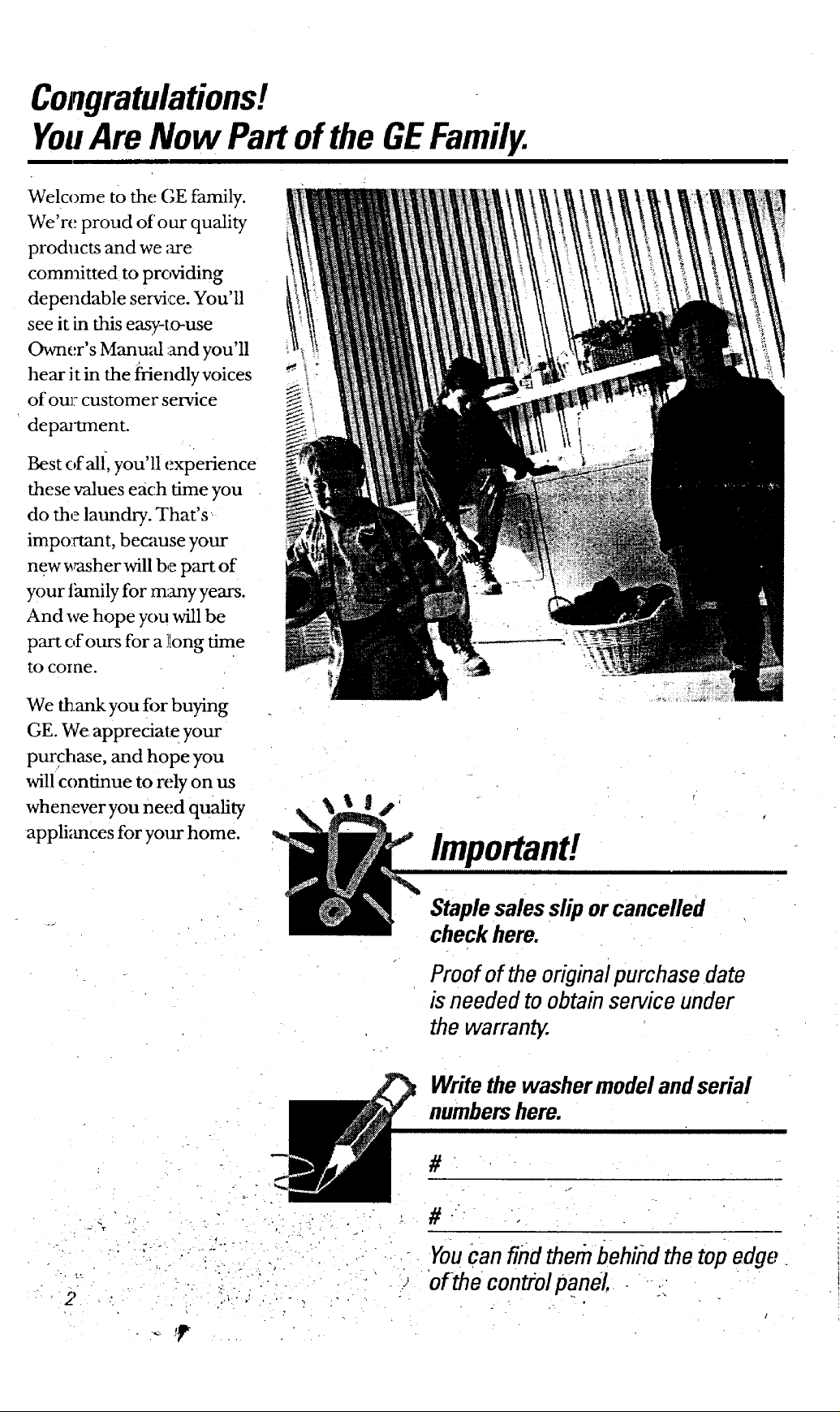

Congratulations!
YouAre Now Partof the GEFamily.
Welcome to the GE family.
We're proud ofour quality
products and we are
committed to providing
dependable service. You'll
see it in this easy-to-use
Owner's Manual ;and you'll
hear it in the friendly voices
of our customer service
department.
Best of all, you'll experience
these values each time you
do the laundry. That's _
impo:rtant, because your
new,_rasher will be part of
your tamily for re;any years.
And we hope you will be
part of ours for a ][ong time
tO come.
We thank you fi)r buying
GE. We appreciate your
purchase, and hope you
will continue to rely on us
whenever you need quality
appli_mces for your home.
I!
Staple sales slip or cancelled
check here.
Proof of the original purchase date
is needed to obtain service under
the warranty.
Write the washer model andserial
numbershere.
#
2
_ % /ii_ .i¸ i
Youcan find theth behind the top edge
'of the control panel. .
i

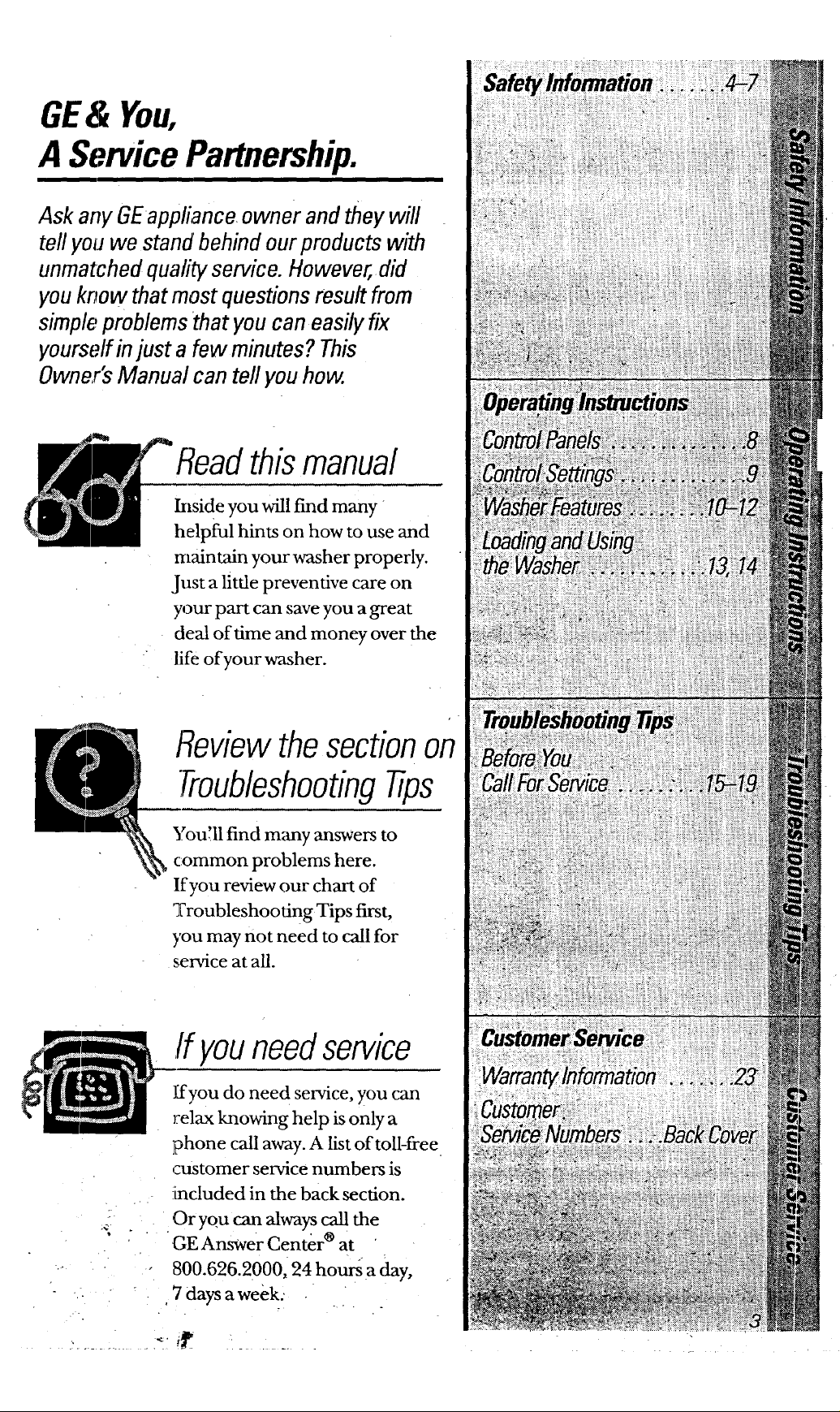

GE& You,
A ServicePartnership.
Ask any SEappliance owner and they will
tell you we stand' behind our products with
unmatched quafity service. However, did
you know that most questions result from
simple problems that you can easily fix
yourse,lf injust a few minutes? This
Owner's Manual can tell you how.
Readthismanual
Inside you will find many
helpful hints on how to use and
maintain your washer properly.
Just a little preventive care on
p_ur part can save you a great
deal of time and money over the
life of your washer.
Reviewthesectionon
Troubleshootingtips
You,ll find many answers to
common problems here.
If you review our chart of
Troubleshooting Tips first,
you may not need to call for
service at all.
,Ifyouneedservice
_
ffyou do need service, you can
relax knowing help is only a
phone call away. A list of toll-free
customer service numbers is
:included in the back section.
. . .Or you can always call the
GE Answer Center ®at
800.626.2000, 24 hours a day,
.7 days a week.,
o.5;z.

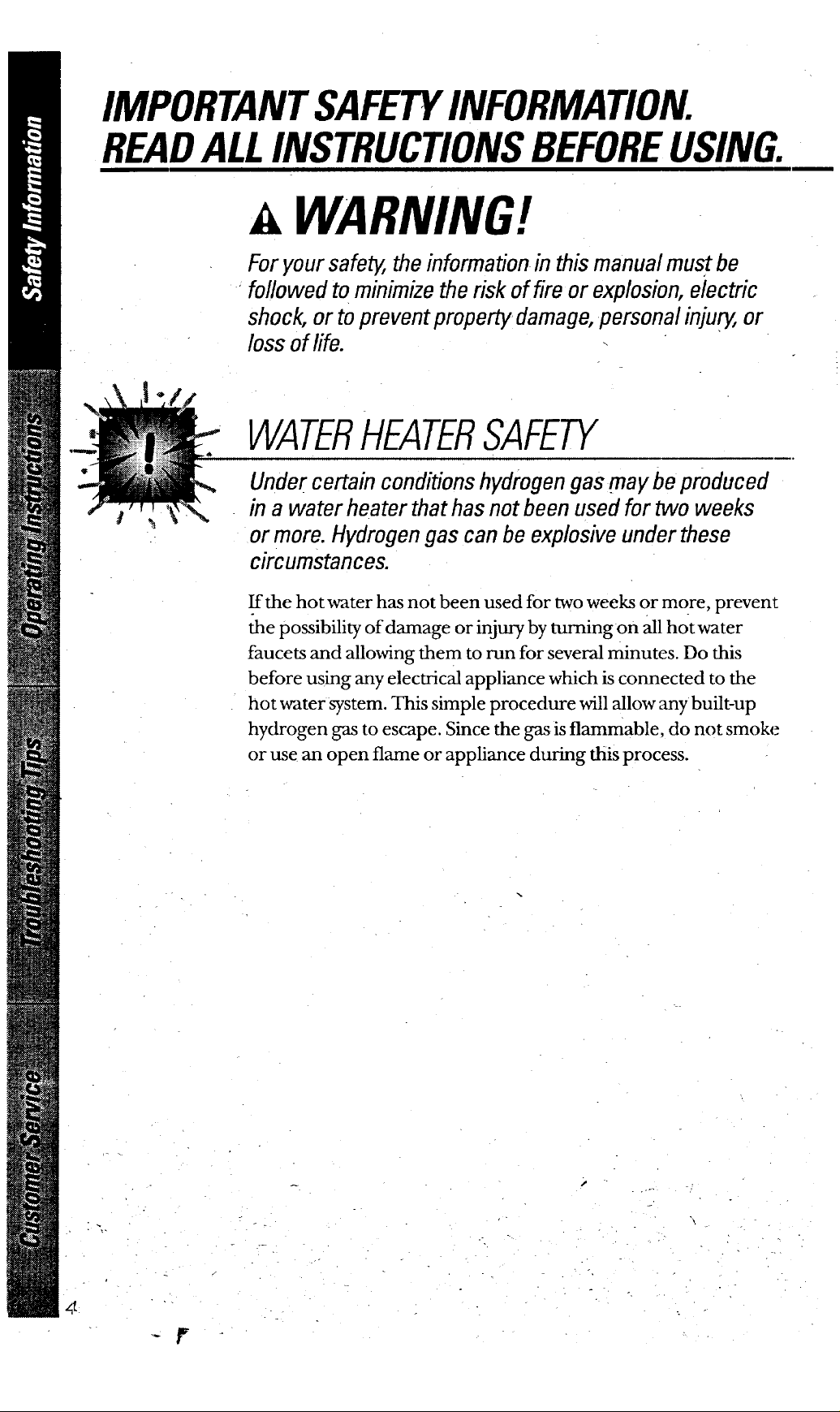

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
A WARNING!
For your safety, the information in this manual must be
followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, personal inju_ or
loss of life.
WATERHEATERSAFETY
Under certain conditions hydrogen gas may be produced
in a water heater that has not been used for two weeks
or more. Hydrogen gas can be explosive under these
circumstances.
If the hot water has not been used for two weeks or more, prevent
the possibility of damage or injury by turning on all hot water
faucets and allowing them to run for several minutes. Do this
before using any electrical appliance which is connected to the
hot water system. This simple procedure will allow any built-up
hydrogen gas to escape. Since the gas is flammable, do not smoke
or use an open flame or appliance during this process.
4
-- r

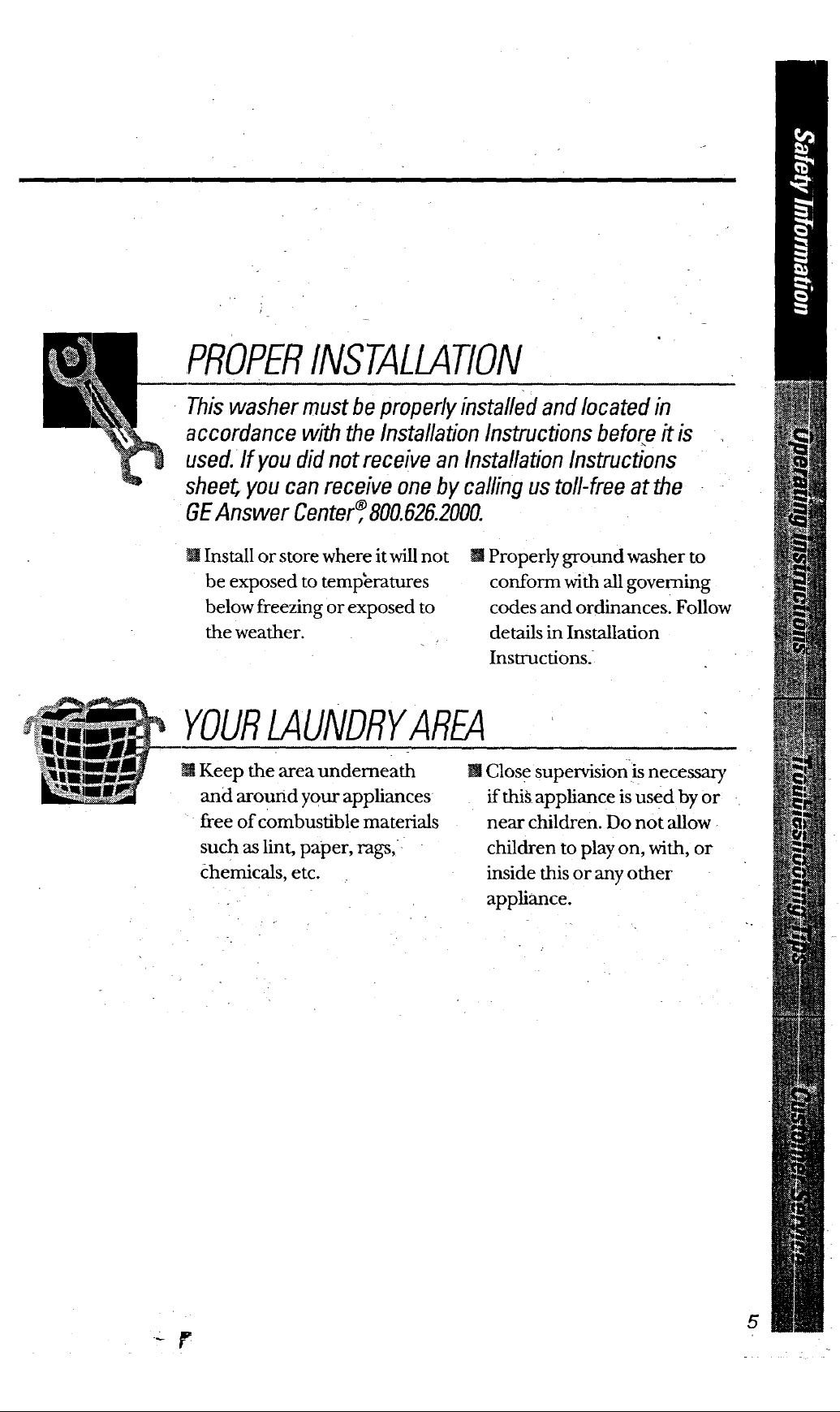

PROPERINSTALLATION
This washer must be properly installed and located in
accordance with the Installation Instructions before it is
used. If you did not receive an Installation Instructions
sheet, you can receive one by calling us toll-free at the
GEAnswer Center_,800.626.2000.
m Install or store where it will not
be exposed to tempkratures
below freezing or exposed to
the weather.
11Properly ground washer to
conform with all governing
codes and ordinances. Follow
details in Installation
Instructions.
YOURLAUNDRYAREA
m Keep the area underneath
and around your appliances
free of combustible materials
such as lint, paper, rags,
chemicals, etc.
m Close supervisionis necessary
if this appliance is used by or
near children. Do not "allow
children to play on, with, or
inside this or any other
appliance.
r
5

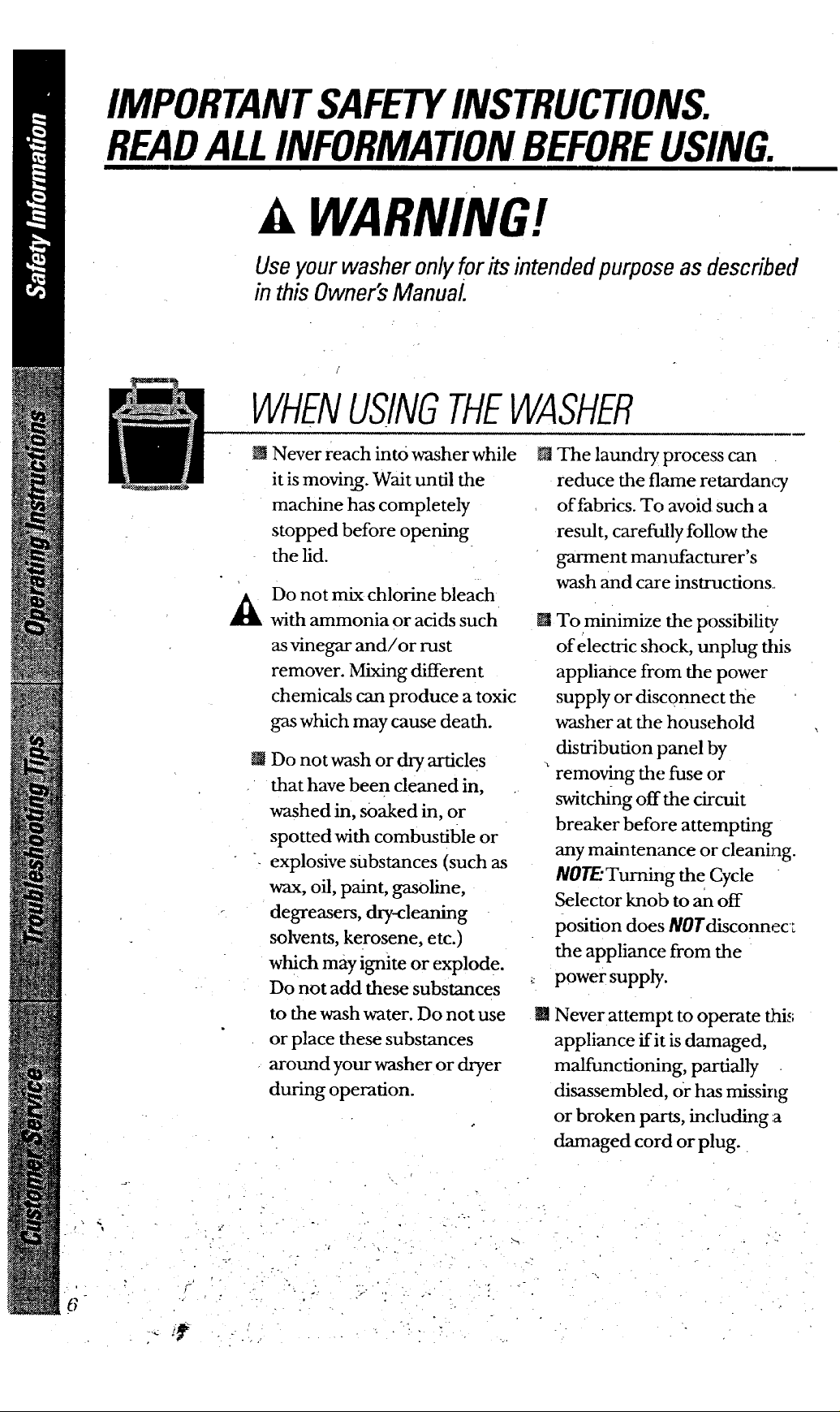

IMPORTANT SAFETYINSTRUCTIONS.
READALL INFORMATIONBEFOREUSING.
A WARNING!
Use your washer only for its intended purpose as described
in this Owner's Manual
!
WHENUSINGTHEWASHER
W Never reach into washer while
it is moving. Wait until the
machine has completely
stopped before opening
the lid.
Do not mix chlorine bleach
A with ammonia or acids such
as vinegar and/or rust
remover. Mixing different
chemicals can produce a toxic
gas which may cause death.
W
Do not wash or dry articles
that have been cleaned in,
washed in, soaked in, or
spotted with combustible or
explosive substances (such as
wax, oil, paint, gasoline,
degreasers, dry-cleaning
solvents, kerosene, etc.)
which may ignite or explode.
Do not add these substances
to the wash water. Do not use
or place these substances
around your washer or dryer
during operation.
The laundry process can
reduce the flame retardan,u
of fabrics. To avoid such a
result, carefully follow the
garment manufacturer's
wash and care instructions
_1 To minimize the possibiliw
of electric shock, unplug this
appliance from the power
supply or disconnect the
washer at the household
distribution panel by
' removing the fuse or
switching off the circuit
breaker before attempting
any maintenance or cleaning.
NOTF'Tuming the Cycle
Selector knob to an off
position does NOTdisconnec_
the appliance from the
power supply.
!
Never attempt to operate this
appliance if it is damaged,
malfunctioning, partially
disassembled, or has missing
or broken parts, including :a
damaged cord or plug.
4
Z
- °
t-

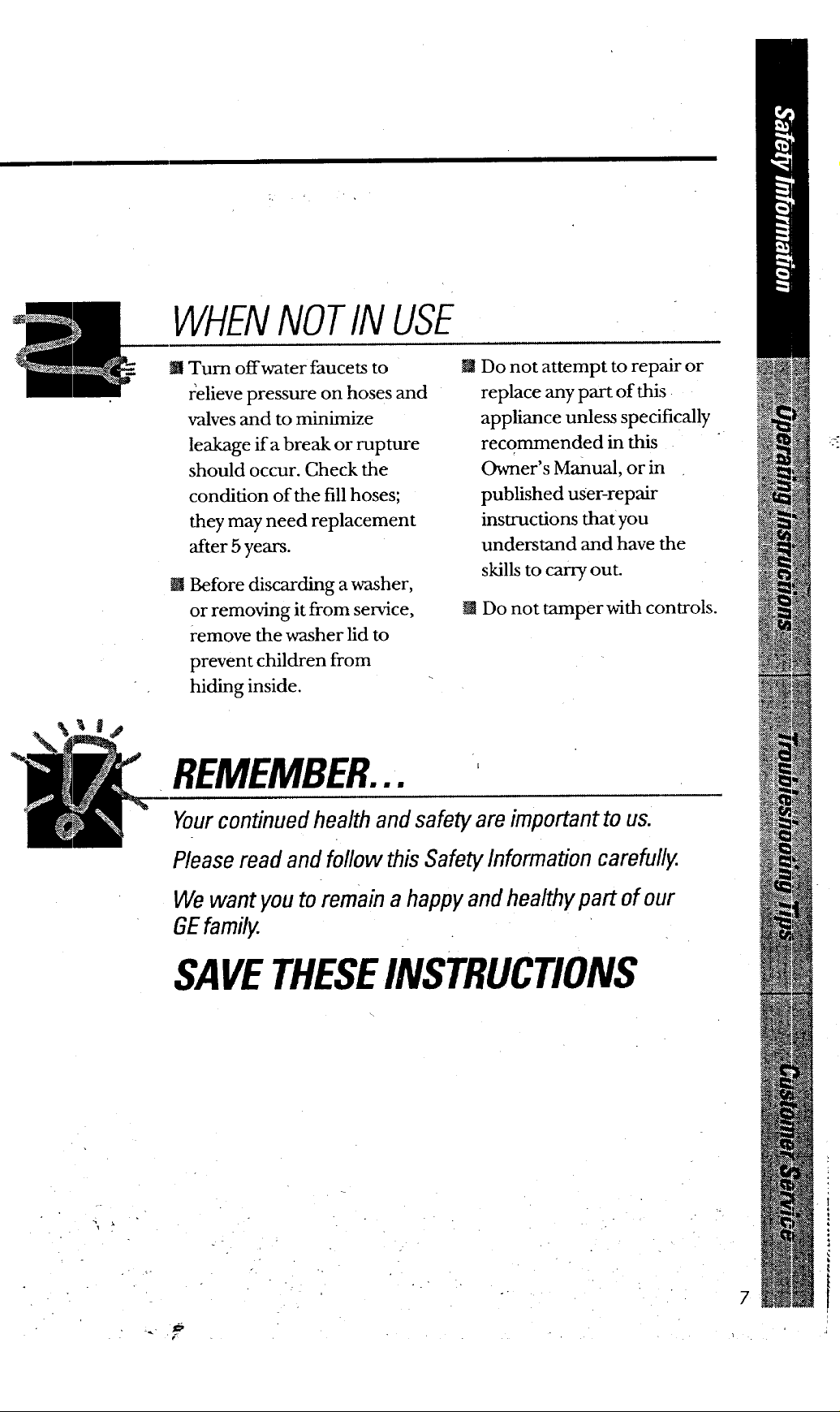

WHENNOTINUSE
N
M
Turn offwater faucets to
{elieve pressure on hoses and
valves and to minimize
leakage ifa break or rupture
should occur. Check the
condition of the fill hoses;
they may need replacement
after 5 years.
Before discarding a washer,
or removing it from service,
remove the washer lid to
prevent children from
hiding inside.
lW
Do not attempt to repair or
replace any part of this
appliance unless specifically
recommended in this
Owner's Manual, or in
published user-repair
instructions thatyou
understand and have the
skills to carry out.
m Do not tamper with controls.
REMEMBER...
Yourcontinued health and safety are important to us.
Please read and follow this Safety Information carefully.
We want you to remain a happy and healthy part of our
GEfamily.
SAVETHESEINSTRUCTIONS
:7""-:-zZ-..':-+:'.:,'._.:+:-,;+"-: ->_
t
r

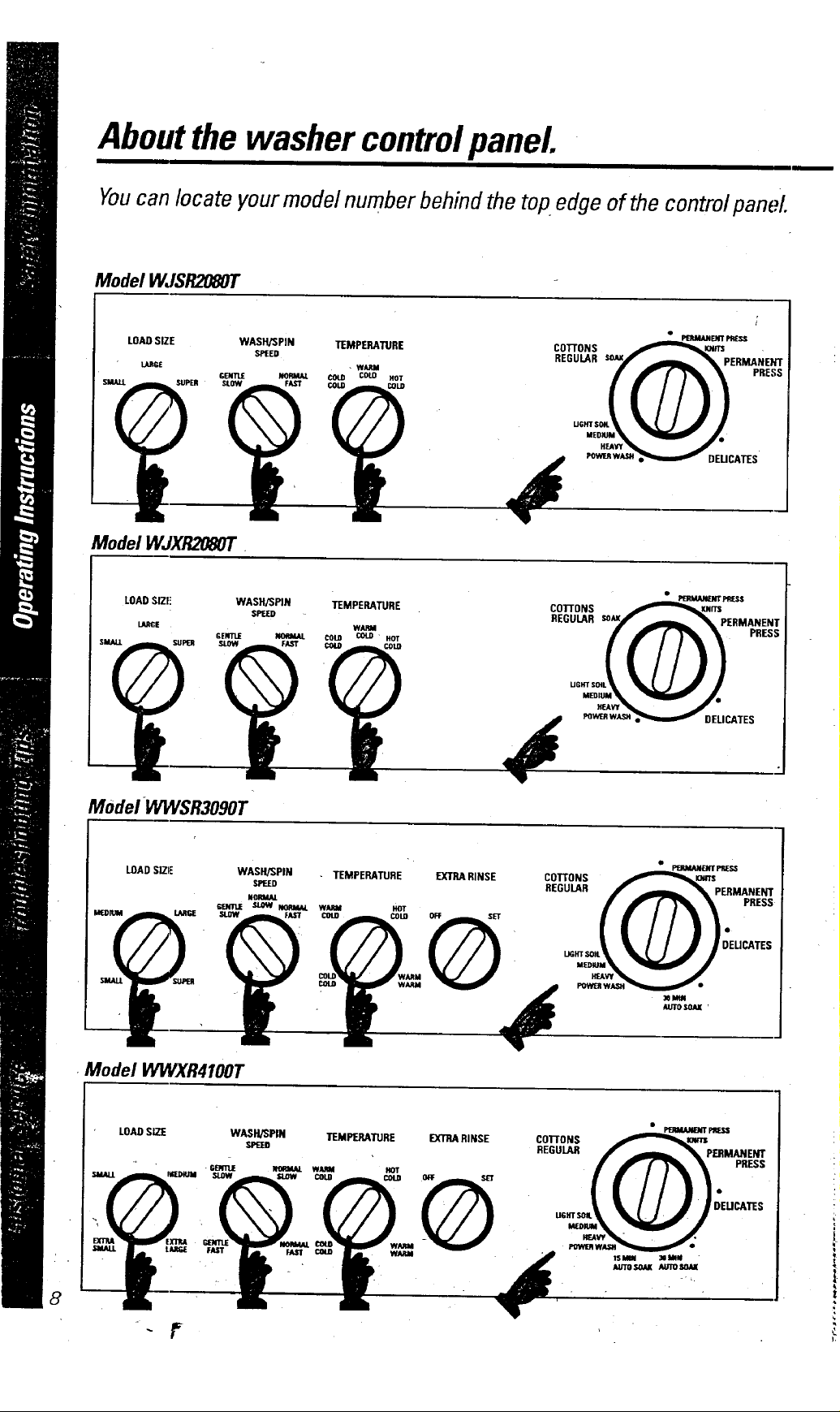

Aboutthe washercontrolpanel
Youcan locate your model number behind the top edge of the control panel.
Model WJSR2OSOT
LOADSIZE WASHJSPIN TEMPERATURE COTrONS
,S,'_EED REGULAR
LARGE - WARM
DEUCATES
Model WJXR2OSOT
LOADSIZE
WASH/SPIN TEMPERATURE
SPEED
WARM
GENXiJE _ CO_J_ COLD POT
Model WWSR3090T
COTTDNS
REGULAR
LOAD SIZE WASH/SPIN - TEMPERATURE EXTRA RINSE COTTONS
SPEED REGULAR
GENTI.£ _ _ WkllJd HOT
Model WWXR4100T
3em
AUTO$OAJ( '
LOADSIZE WASH/SPIN TEMPERATURE EXTRARINSE C01-1"ONS
SP'EF.O REGULAR
-- i,
PERMANENT
Z

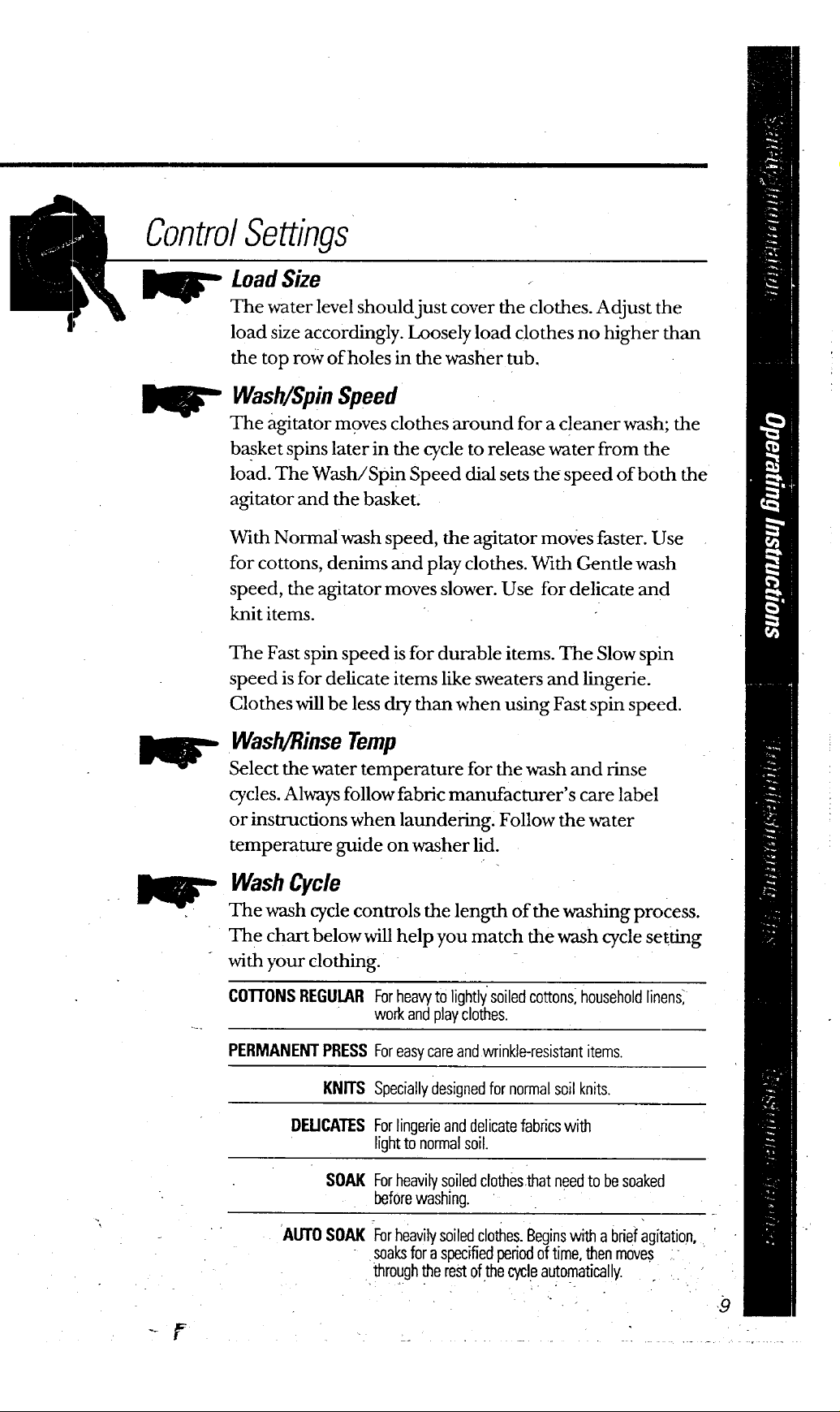

ControlSettings
LoadSize
The water level should just cover the clothes. Adjust the
load size accordingly. Loosely load clothes no higher than
the top row of holes in the washer tub.
Wash/SpinSpeed
The agitator moves clothes around for a cleaner wash; the
bmket spins later in the cycle to release water from the
load. The Wash/Spin Speed dial sets the speed of both the
agitator and the basket.
With Normalwash speed, the agitator moves faster. Use
for cottons, denims and play clothes. With Gentle wa_sh
speed, the agitator moves slower. Use for delicate and
knit items.
The Fast spin speed is for durable items. The Slow spin
speed is for delicate items like sweaters and lingerie.
Clothes will be less dry than when using Fast spin speed.
Wash/RinseTemp
Select the water temperature for the wash and rinse
cycles. Always follow fabric manufacturer's care label
or instructions when laundering. Follow the water
temperature guide on washer lid.
Wash Cycle
The wash cycle controls the length of the washing process.
The chart below will help you match the wash cycle setting
with your clothing.
COTI'ONSREGULARForheawto lightlysoiledcottonslhouseholdlinens_
workandplayclothes.
PERMANENTPRESSForeasycareandwrinkle-resistantitems.
KNITS Speciallydesignedfor normalsoilknits.
DEUCATESForlingerieanddelicatefabricswith
lighttonormalsoil.
SOAKForheavilysoiledclothes,thatneedto besoaked
befOrewashing.
'AUTOSOAK'Forheavilysoiledclothes.Beginswithabdefagitation,.
soaksforaspecifiedperiodoftime,thenmoves _
throughtherestofthecycleautomatically..
'" -9
L_

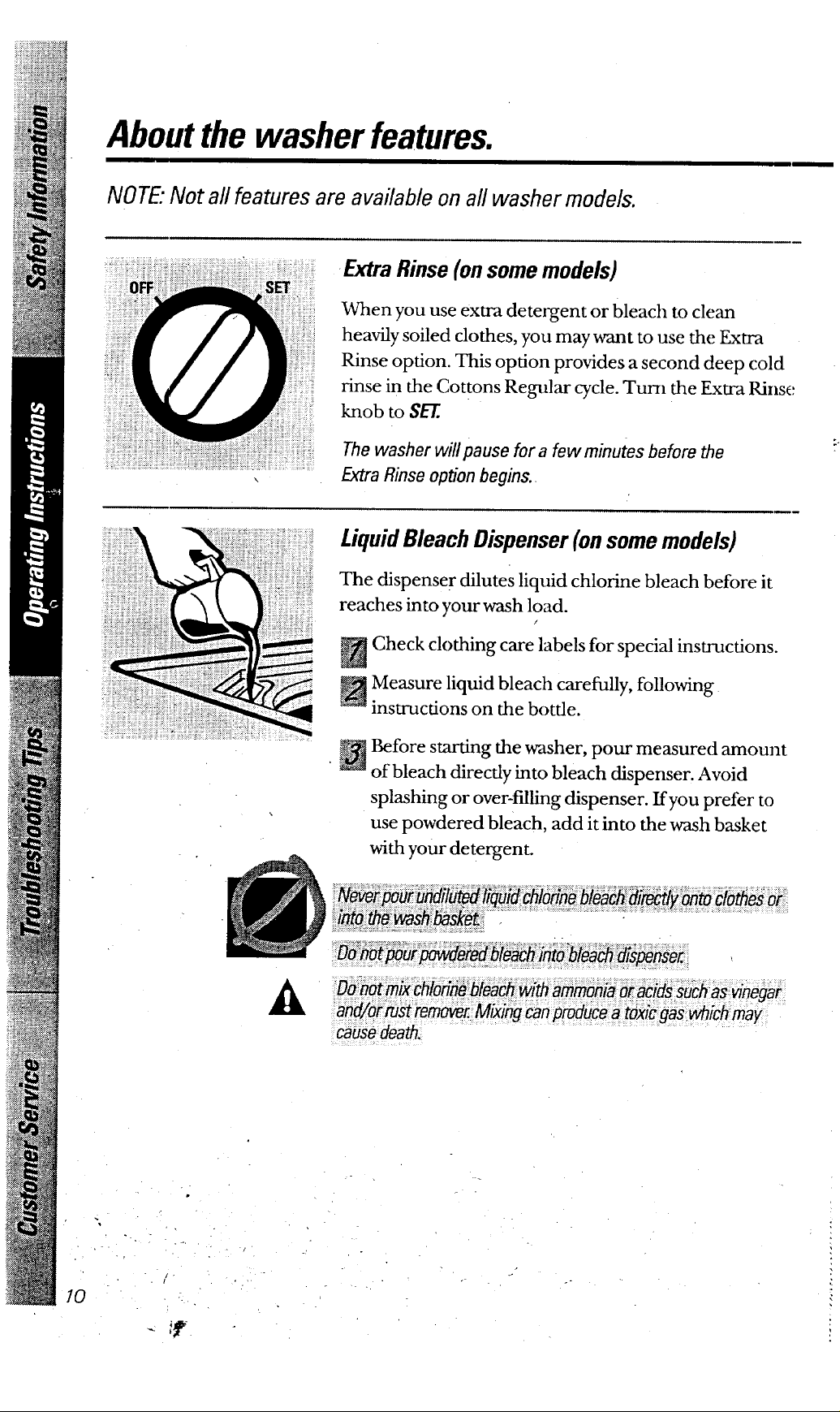

Aboutthewasherfeatures.
NOTE:Not all features are available on all washer models.
ExtraRinse (onsomemodels)
When you use extra detergent or bleach to clean
heavily soiled clothes, you may want to use the Extra
Rinse option. This option provides a second deep cold
rinse in the Cottons Regular cycle. Turn the Extra Rinse
knob to SET.
The washer will pause for a few minutes before the
Extra Rinse opdon begins..
Liquid Bleach Dispenser(onsome models)
The dispenser dilutes liquid chlorine bleach before it
reaches into your wash load.
/
Check clothing care labels for special instructions.
N easure liquid bleach carefully, following
instructions on the bottle.
Before starting the washer, pour measured amount
of bleach directly into bleach dispenser. Avoid
splashing or over-filling dispenser. If you prefer to
use powdered bleach, add it into the wash basket
with your detergent.
A
N notrolxChiod_bieo_h;w/thaminoi,_oroCi'dss_Chas_.egai
a_d/o_cOs_re_ Mixing can_roducea toxicgas whichma_
Nusedeath. ...................................................................................................'
10
,#.

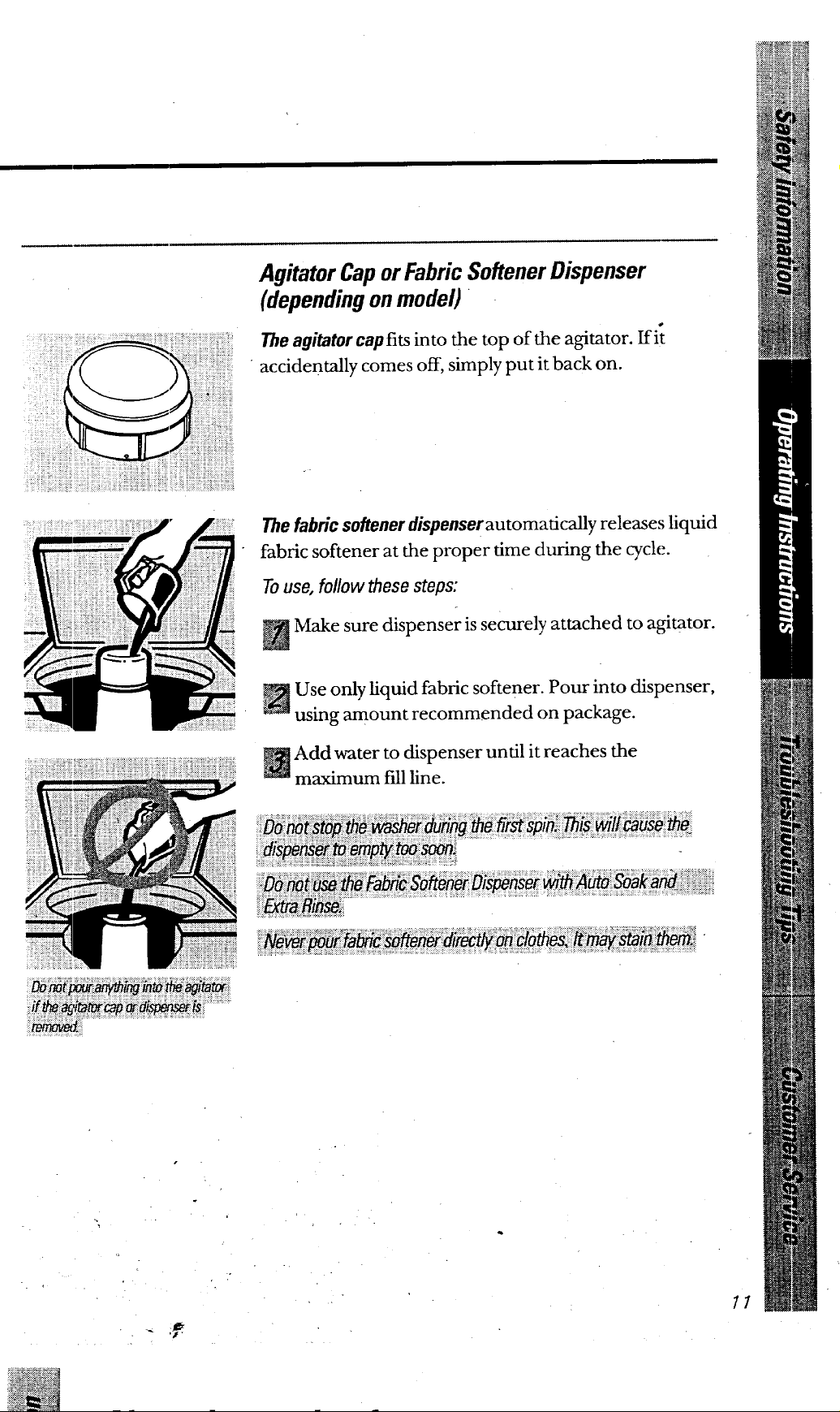

Agitator Capor Fabric SoftenerDispenser
(dependingon model) _
The agitatorcapfits into the top of the agitator, flit
•accidentally comes of/, simply put it back on.
The fabric softener dispenserautomatically releases liquid
fabric softener at the proper time during the cycle.
Touse, follow these steps:
Make sure dispenser is securely attached to agitator.
Use only liquid fabric softener. Pour into dispenser,
using amount recommended on package.
Add water to dispenser until it reaches the
maximum fill line.
i
ff
About the washer features.

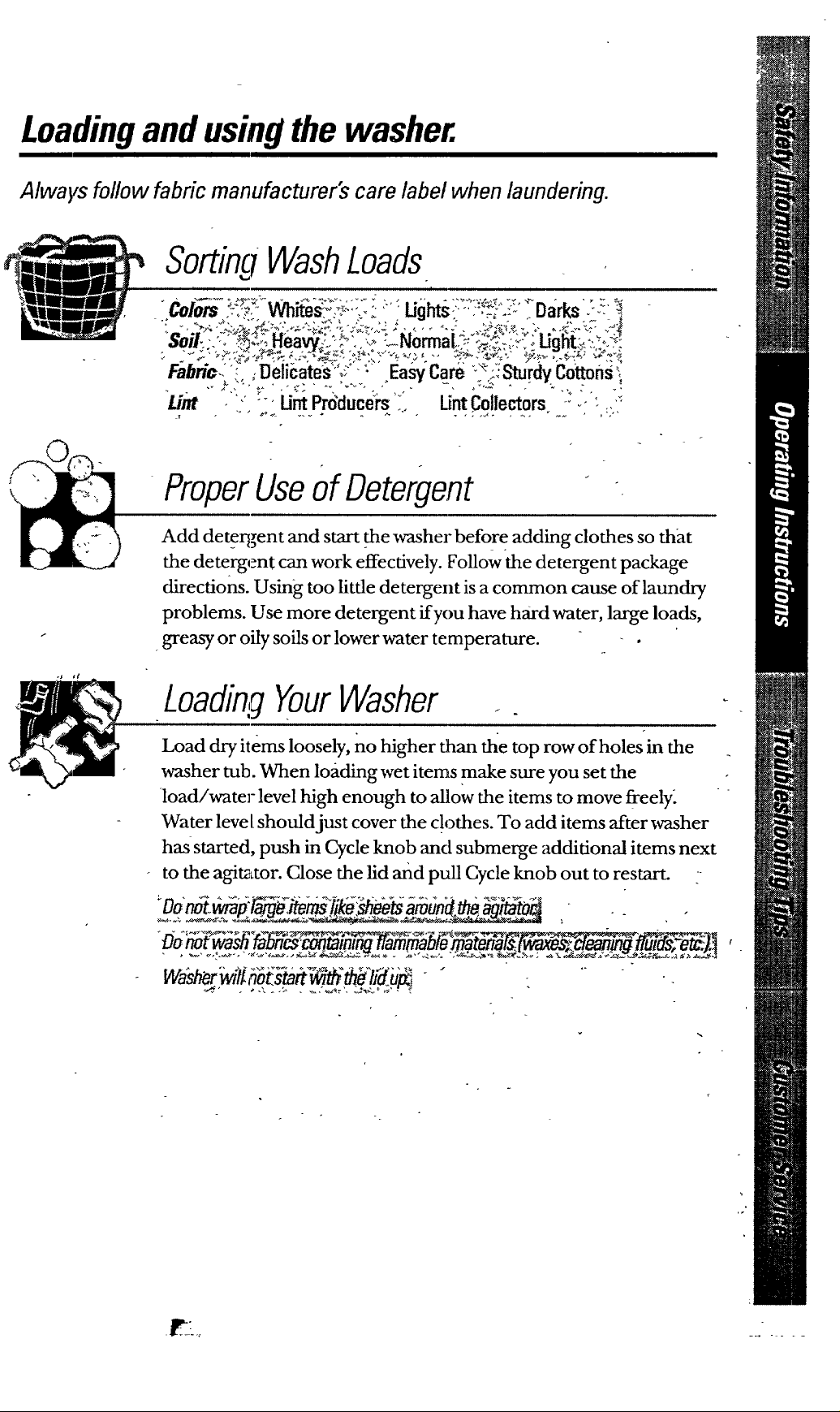

Loadingandusingthe washer.
Always follow fabric manufacturer's care label when laundering.
Sorti_TWashLoads
Colors ,YoU; Wbrtes_:°.,_+""+;:" Lights:-- :':U.:: ,.Barks -:_
Soil:-.':;":!_:._--Hea_.L+. :.-._Normal._;'_>...:-_; Ught:+.:...';=+:
Fab,'i¢.._._,.Delicate s",;_: °Easy Care =_Sturdy COttons_
_irt " _." _ : 5_ 1_6du#ei_':: UntO;lectors :: "-.'. ;;
ProperUseOfDetergent
Add detergent and start the _washer befor e adding clothes so that
the detergent can work effectively. Follow the detergent package
directions. Using too little detergent is a common cause of laundry
problems. Use more detergent ifyou have hard water, large loads,
greasy or oily soils or lower water temperature.
LoadingYourWasher .
Load dry items loosely, no higher than _e top row of holes in the
washer tub. When loading wet items make sure you set the
load/water level high enough to allow the items to move freely_
Water level should just cover the clothes. To add items after _washer
has started, push in Cycle knob and submerge additional items next
to the agitator. Close the lid and pull Cycle knob out to restart.
+ + " 2.+_.++ .... _,_,_-,+++. ,,+_ . +
Washerwill not start _, _ _ li_ UI__ -
Loadingandusingthe washer.

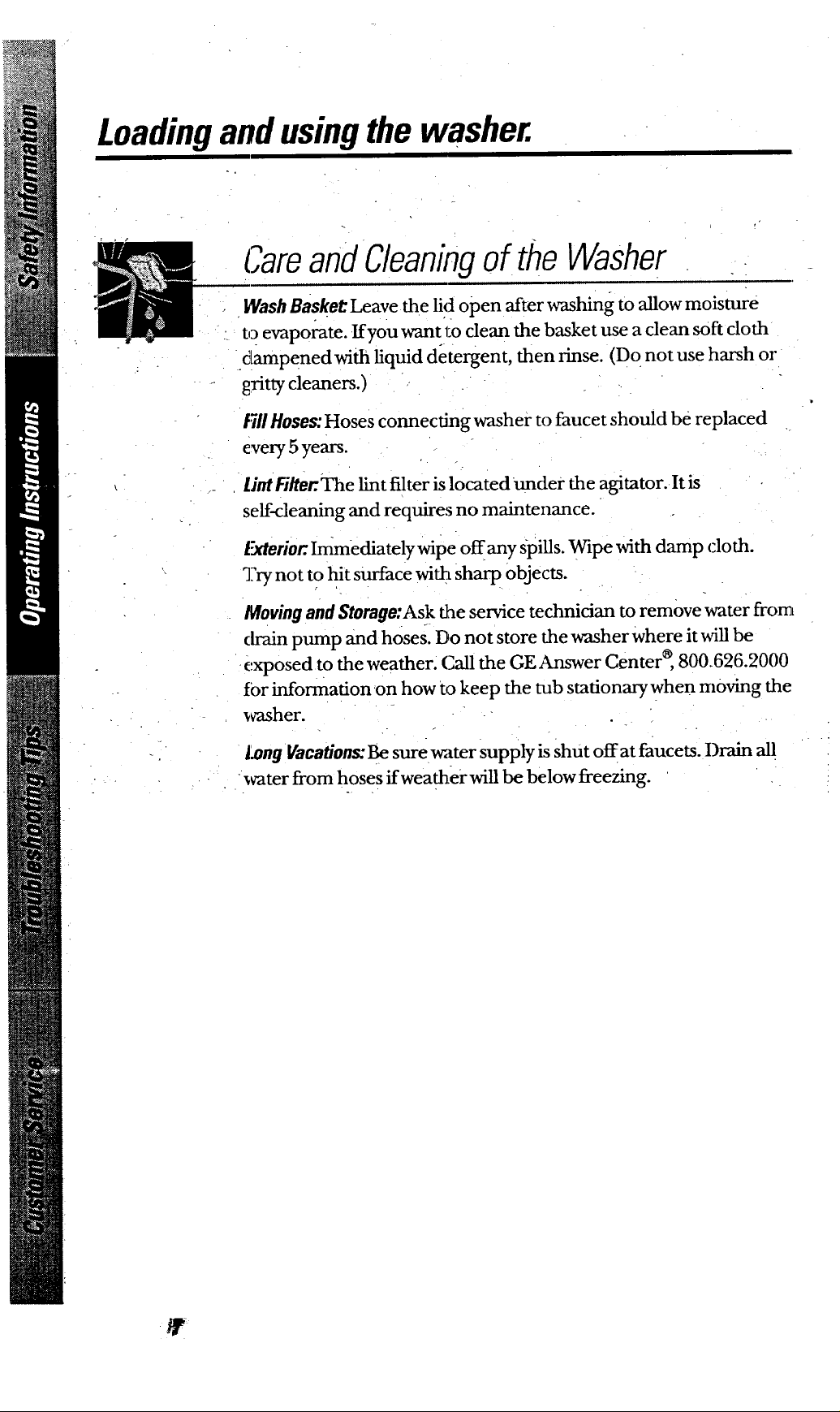

CareandCleaningof the Washer
Wash Basket Leave the lid open after washing to allow moisture
t0 evaporate. If you want to clean the basket use a clean soft cloth
dampened with liquid detergent, then rinse. (Do not use harsh oi"
gritty cleaners.)
1"711Hoses."Hoses connecting washer to faucet should be replaced
every 5 years.
Lint Filter. The lint filter is located under the agitator. It is
self-cleaning and requires no maintenance.
l':xterior:Immediately wipe off any spills. Wipe with damp cloth.
Try not to hit surface wit_h sharp objects.
Moving and Storage:As k the service technician to remove water from
drain pump and hoses. Do not store the washer where itwiU be
exposed to the weather. Call the GE Answer Center _, 800.626.2000
for information on how to keep the tub stationary when moving the
_¢asher.
l_ng Vacations."Be surewater supply is shut off at faucets. Drain all
water from hoses if weather will be below freezing.

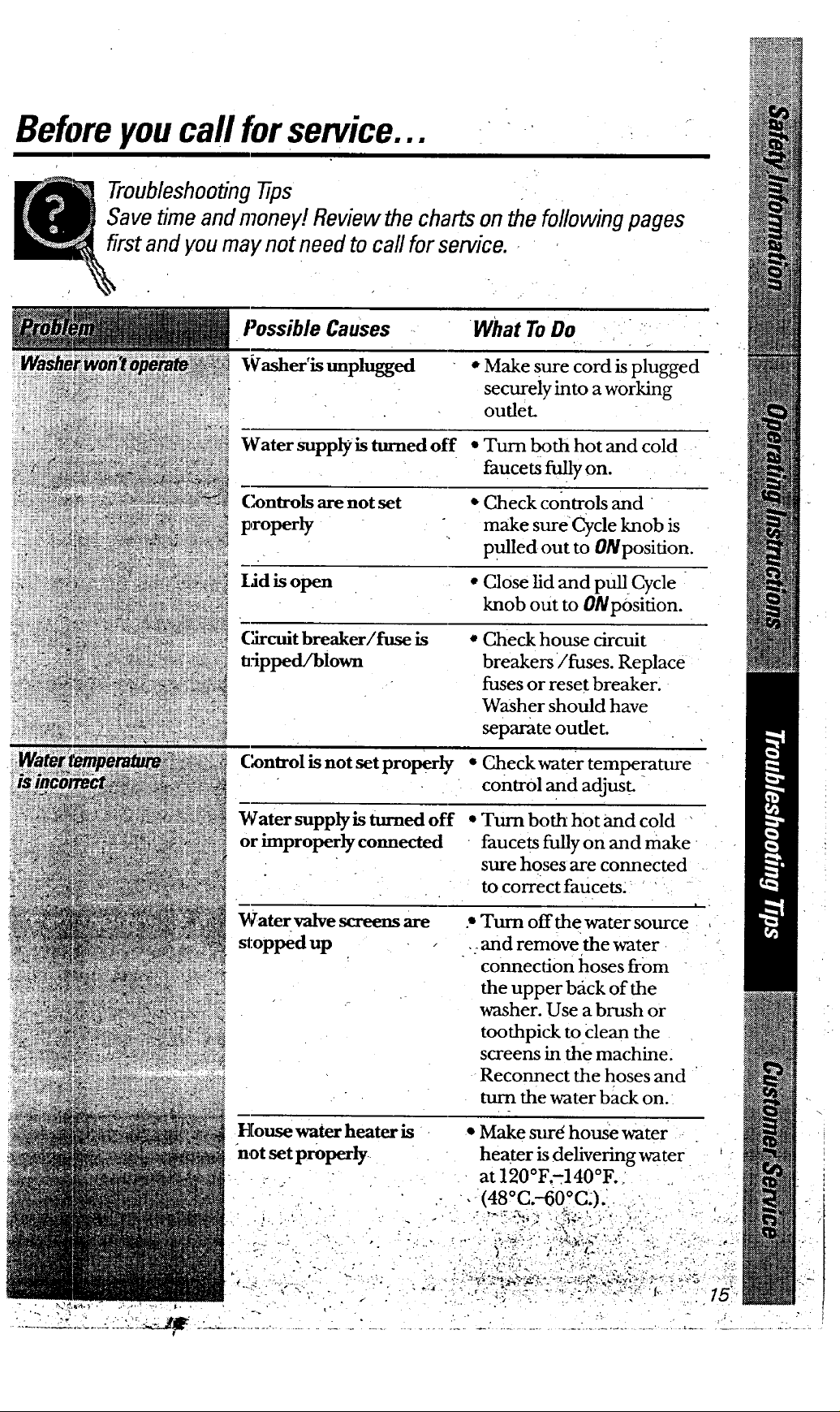

Beforeyoucall forservice...
Troubleshooting tips
Save time and n7oney! Review the charts on the following pages
first and you may not need to call for service.
. /
.Possible Causes -- What ToDo ,. "_
Washer'is unplugged
" * Make sure cord is plugged
securely into a working
outlet.
Water supply is turned off
* Turn both hot and cold
faucets fully on.
(kmtrols are not set * Check controls and
properly make sureCycle knob is
pulled out to ONposition.
lid is open • Close rid and pullCycle
knob out to ONposition.
Circuit breaker/fuse is • Check house circuit
Wipped/biown breakers/fuses. Replace
fuses or reset breaker.
Washer should have
separate outlet.
Control is not set properly • Checkwater temperature
control and adjusL
Water supply is turned off
or improperly connected
Water valvescreensare
stopped up
* Turn both hot and cold
faucets fully on and make
sure hoses are connected
to correct faucets:
| .
.*Turn offthe water source
•and remove the water
connection hoses from
the upper brick of the
washer. Use a brush or
toothpick to Clean the
screens in the machine.
Reconnect the hoses and
turn the water back on.
House water heater is * Make sur6 house water
not set properly heater is delivering water
o o
at120 F.-140 F.
O " O -
- , (48 C.-60 C.).. _ ....
-`, .. _. :- : - : -?.

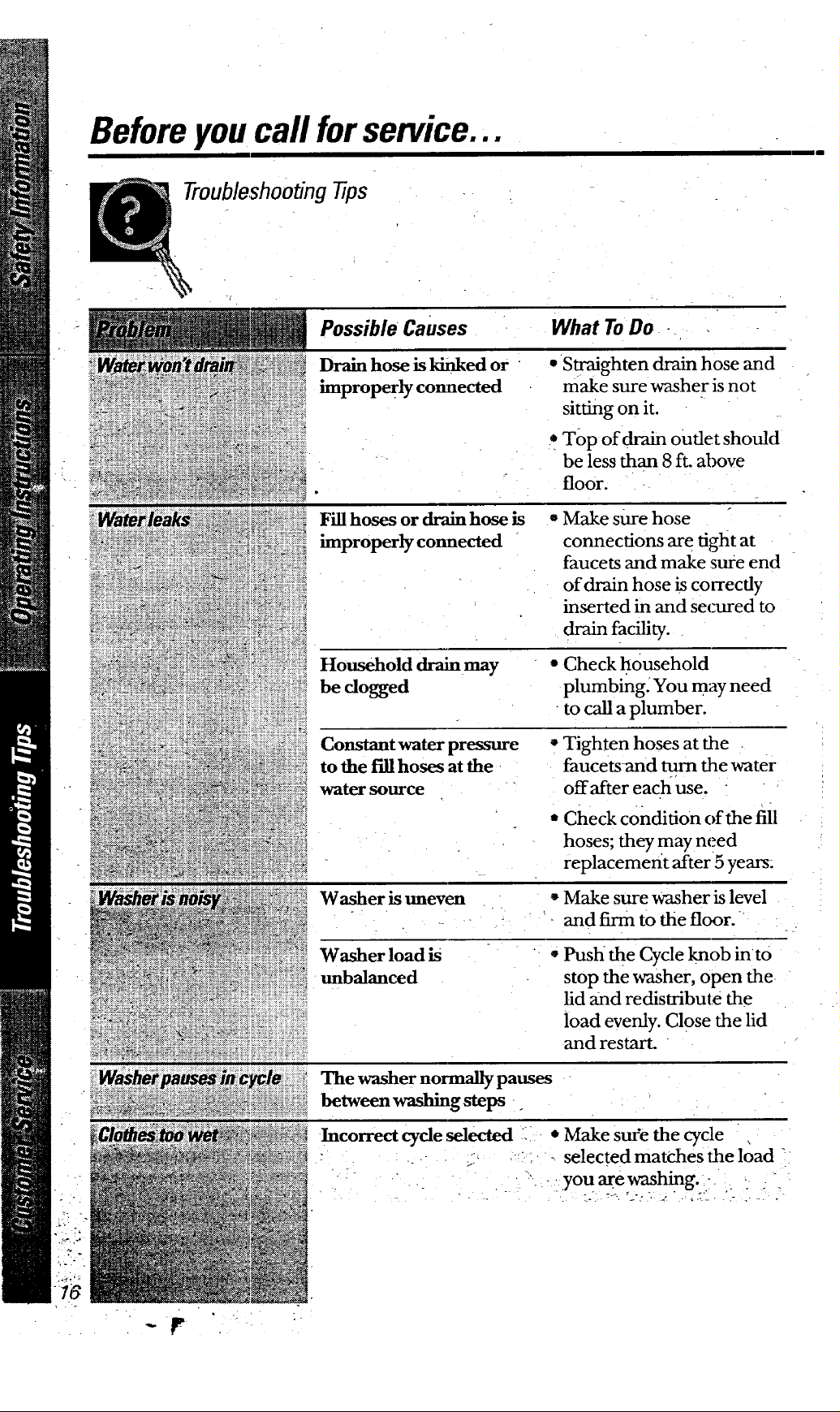

Beforeyoucall forservice...
Troubleshooting tips
Possible Causes
What To Do -
Drain hose is kinked or
improperly connected
• Straighten drain hose and
make sure washer is not
sitting on it.
* Top of drain outlet should
be less than 8 ft. above
floor.
Fill hoses or drain hose is
improperly connected
Constant water pressure
to the fill hoses at the
water source
Washer is uneven
Make sure hose
connections are tight at
faucets and make suce end
of drain hose is correctly
inserted in and Secured to
drain facility.
='Check household
plumbing. You may need
• to call a plumber.
Tighten hoses at the
faucetsand turn the water
offafter eacla use.
Check condition of the fill
hoses; they may need
replacement after 5 years.
• Make sure washer is level
and firm to the floor.
Washer load is
unbalanced
Push the Cycle knob into
stop the washer, open the
lid and redistribute the
load evenly. Close the lid
and restart.
The washer normally pauses
between washing steps
Incorrect eyrie selected : * Make sure the cycle
" ;, selected matChes the load
you _e washing. - °
: _ _ i • ..

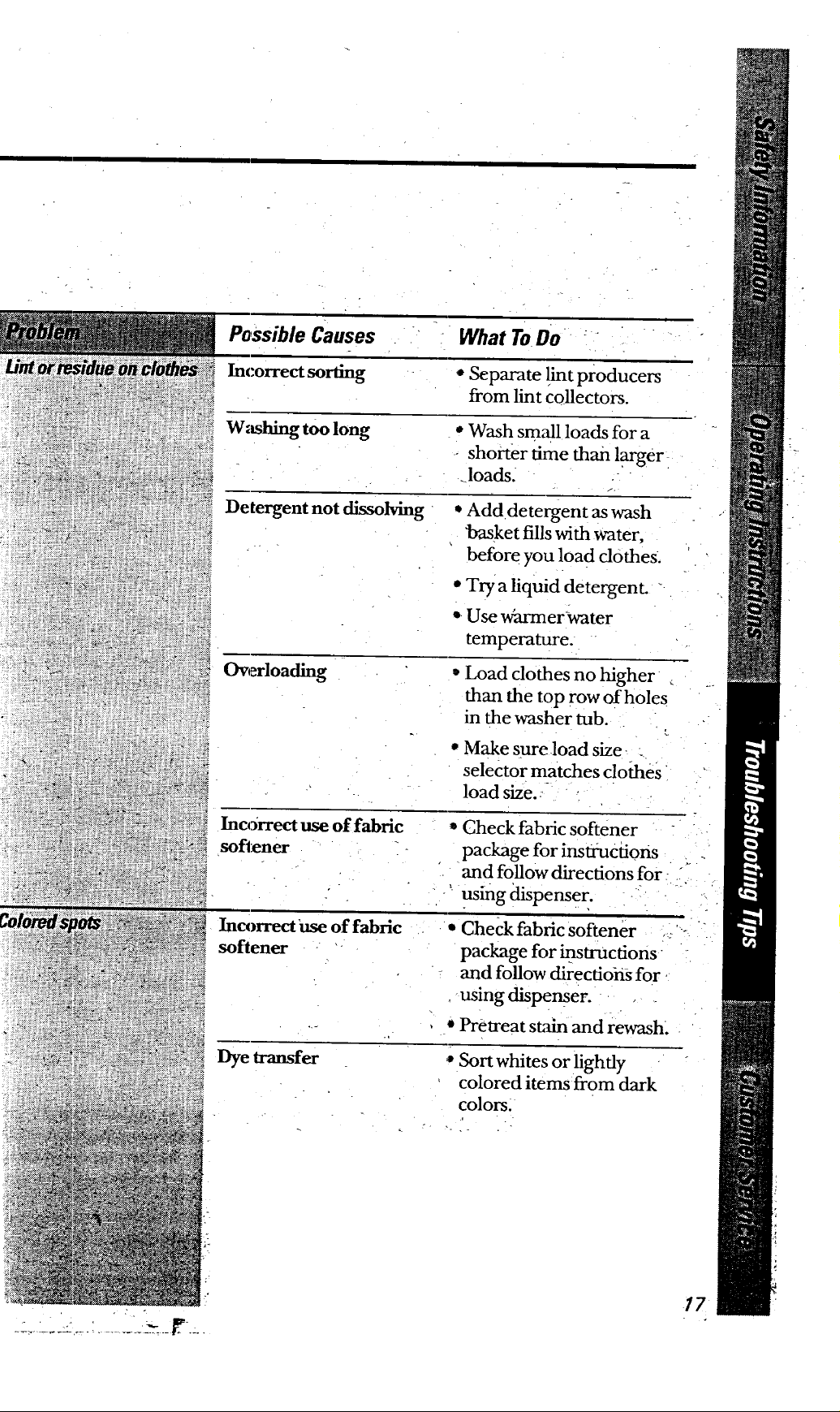

Possible Causes What To Do : "
Im:orrect sorting * Sepm-ate tint producers
from lint collectors.
Washing too long
Detergent not dissolving
Overloading
* Wash small loads for a
• shorter time than larger
.!oadsl
/.
* Add detergent as wash
lyasket fills with water,
before you load clothes.
° Try a liquid detergent. "
o Use w_armerwater
temperature.
• Load clothes no higher
than the top row of holes
in the washer tub.
L
° Make sure load size.
selector matches clothes
load size.
Incorrect use of fabric * Check fabric softener -
softener " - package for instnaCfiOns
and follow directions for: °
• -' using dispenser.
Incorrectizse of fabric ° Check fabric softener ,_ -
softener package for instructions
and follow directions for
using dispenser.
• Pretreat stain and rewash.
Dye transfer
* Sort whites or tightly
colored items from dark
colors.
-. _ .
/7

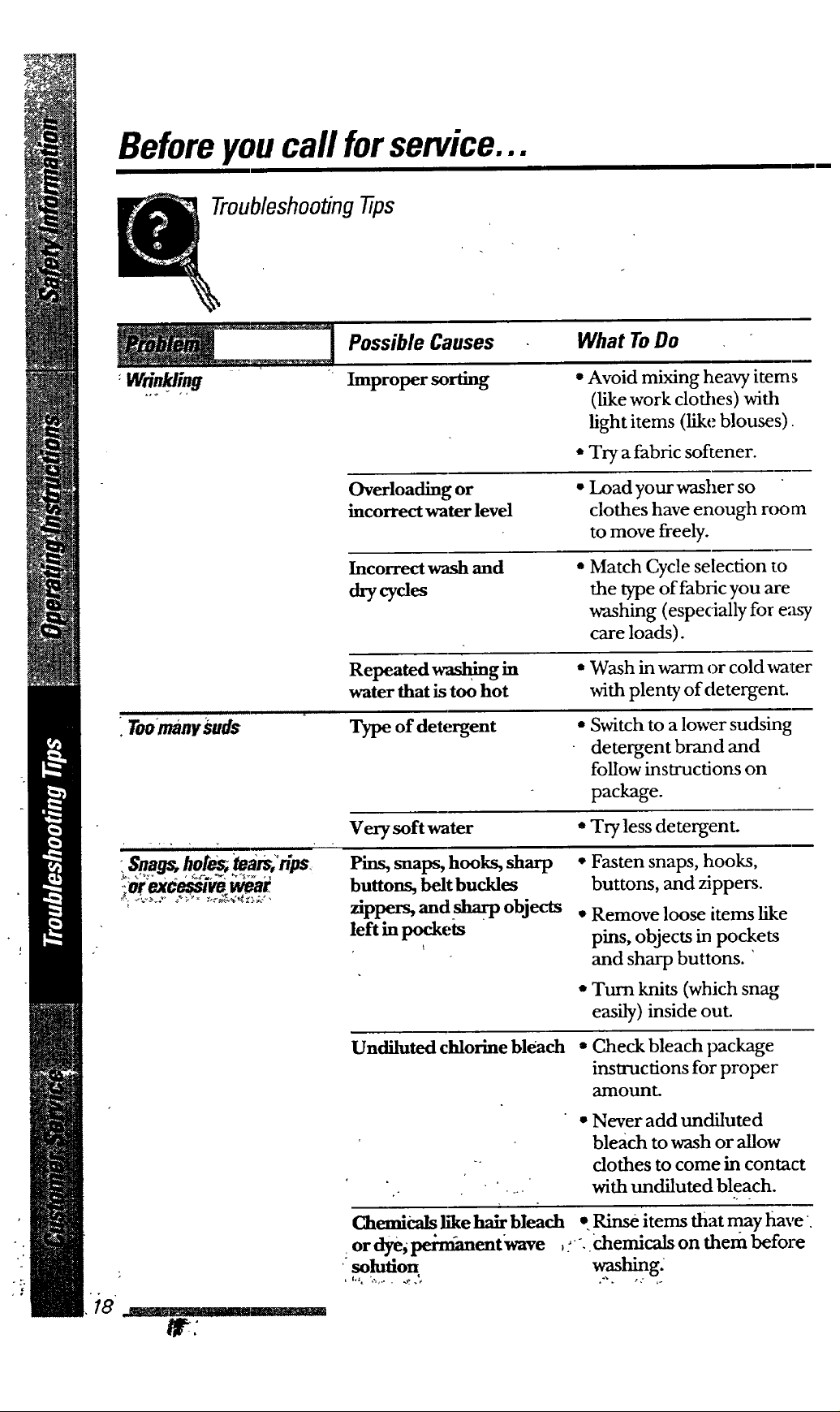

Beforeyoucall forservice...
Troubleshooting tips
_ Possible Causes What ToDo
wq'n m3 Improperso d g
Overloading or
incorrect water level
Incorrect wash and
dry cycles
• Avoid mixing heavy items
(like work clothes) with
light items (like blouses).
* Try a fabric softener.
• Load your washer so
clothes have enough room
to move freely.
Match Cycle selection to
the type of fabric you are
washing (espedally for e:_/
care loads).
•Toomanv_ds
i8
tit:
Repeated washin"g in
water that is too hot
• Wash in warm or cold water
with plenty of detergent.
Type of detergent
Switch to a lower sudsing
detergent brand and
follow instructions on
package.
Very soft water
° Try less detergent.
Pins, snaps, hooks, sharp
buttons, belt buckles
zippers,andsharp objects
left ha pockets
"Fasten snaps, hooks,
buttons, and zippers.
• Remove loose items like
pins, objects in pockets
and sharp buttons. '
• Turn knits (which snag
easily) inside out.
Undiluted chlorine bleach • Check bleach package
instructions for proper
alTlOUnL
• Never add undiluted
bleach to washor allow
clothes to come in contact
with undiluted bleach.
Chemii:als ll_e hair bleach ¶ Rinse items that may hm,e
: or dyei pei-m_entwave "'. Ohemicals on them before
solution ..washing.

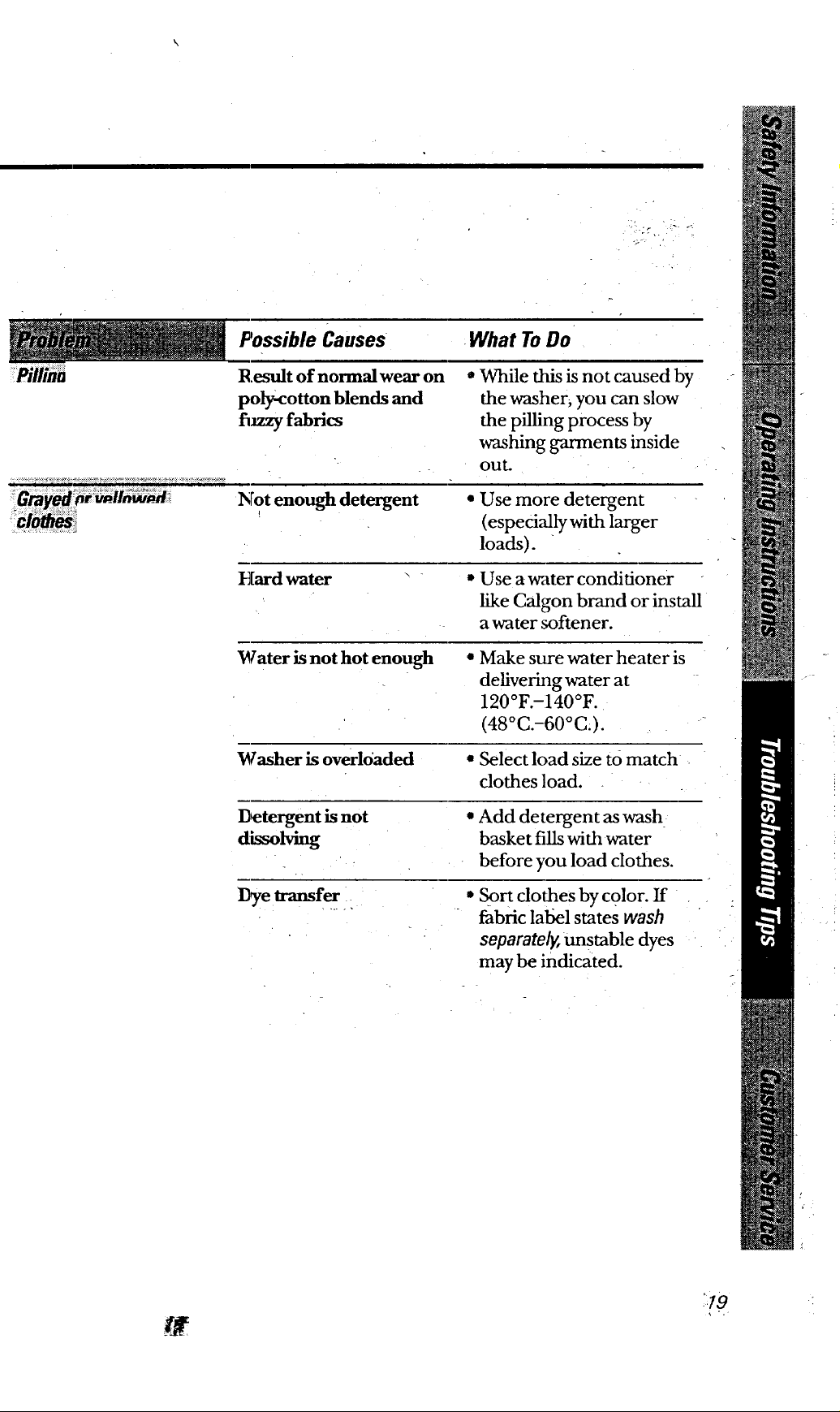

Possible Causes :What To Do
Pillina Result of normalwear on *
poly:cotton blends and
fabric
i " _"_T _:'i"v__ =>T__:::__i:i_:_:_"_ :__ _: __"_ ::':_:
°
Not enough detergent
While this is not caused by
the washer, you can slow
the pilling process by
washing garments inside
OuL
"Use more detergent
(especially with larger
loads).
Hard water • Use a water conditioner
like Calgon brand or install
a water softener.
Water is not hot enough
Make sure water heater is
delivering water at
120°F.-140°F.
(48oc.-60oc3.
Washer is overloaded
• Select load size tO match
clothes load.
I3_etergent is not
dissolving
137e transfer
• Add detergent as wash
basket fills with water
before you load clothes.
Sort clothes by color. If
fabric label states wash
separately, unstable dyes
may be indicated.
::19

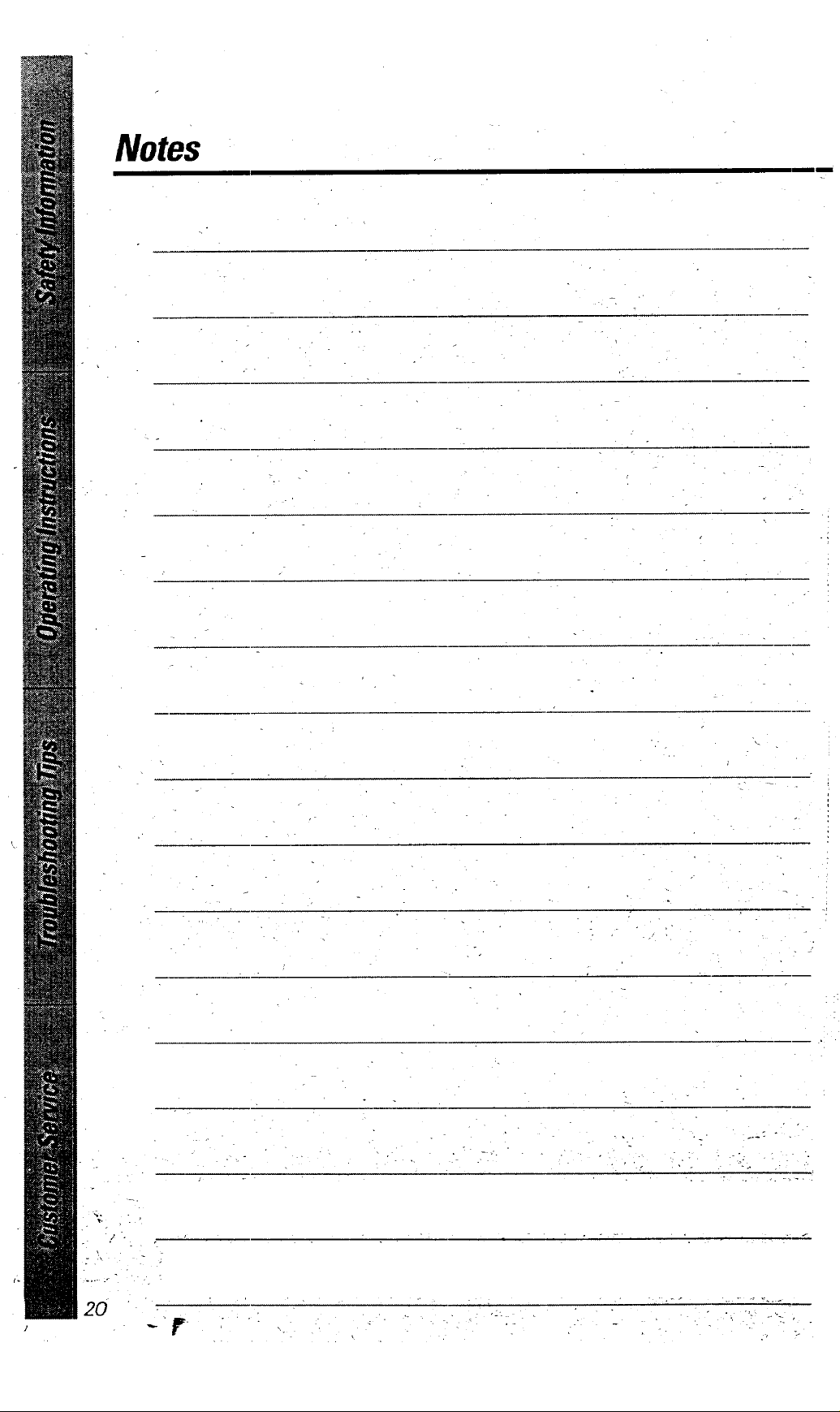

Notes
i
. . o
20
\ -
, 1
k_
• • " _ , .I " r"_¸ _'¸ . • l _:'L _ • • • _ _ ., _'. -L • . .
.,
1

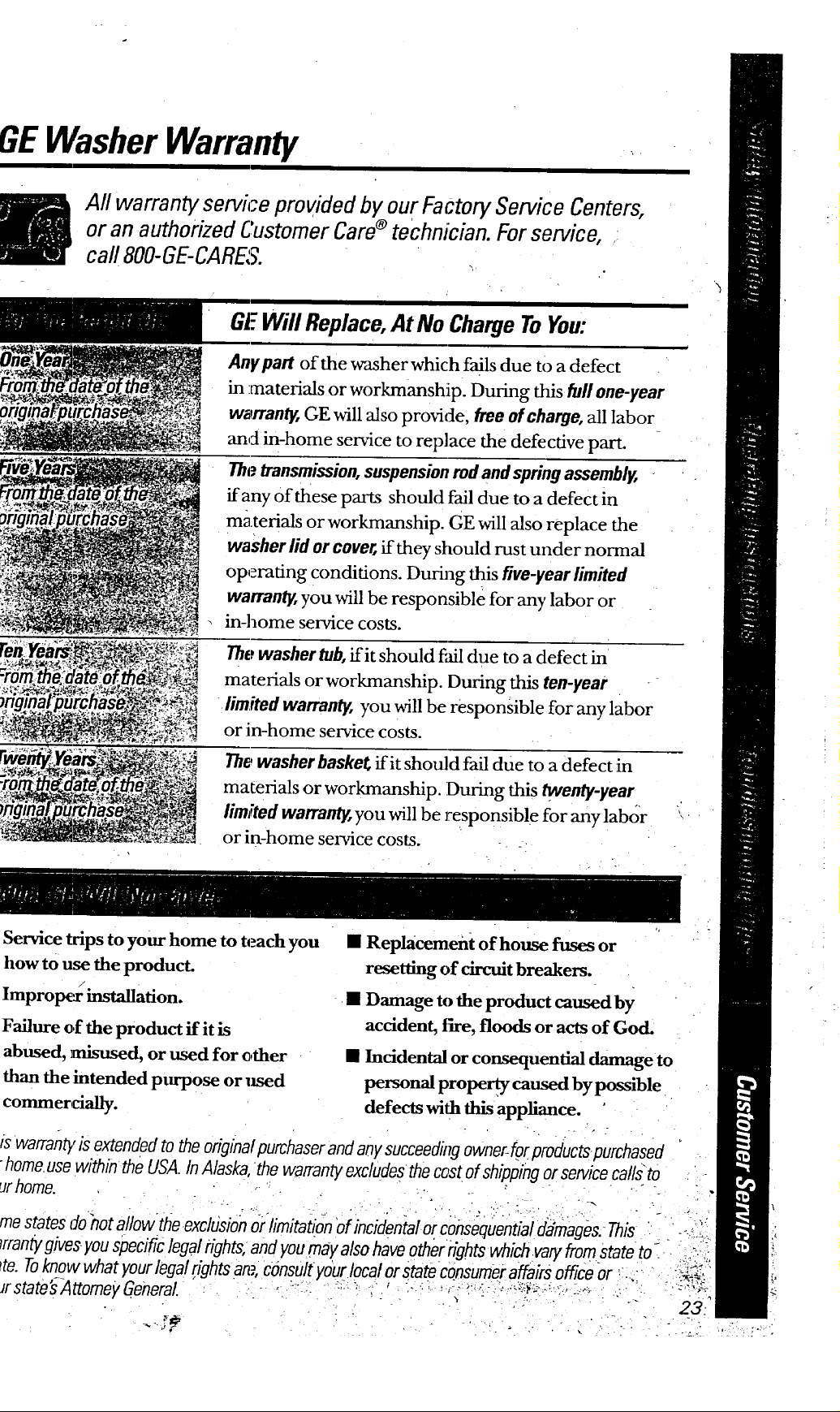

GEWasherWarranty
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. For service,
call 800-GE-CARES. ,.
GF Will Replace, At No Charge ToYou:
Anypart of the washer which fails due tO a defect
in :materials or workmanship. During this full one-year
warranty, GE will also provide, free of charge, all labor
and in-home service to replace the defective part.
The transmission,suspensionrodandspring assembly,
if any of these parts should fail due to a defect in
ma.terials or workmanship. GE will also replace the
washer lid or cover, if they should rust under normal
operating conditions. During this five-year limited
warranty, you will be responsible for any labor or
in-home service costs.
The;washer tub,if it should fifil due to a defect in
materials or workmanship. During this ten-year
limited watran_ you will be responsible for any labor
or in-home service costs.
The,washer basket if it should fail due to a defect in
materials or workmanship. During this _en_,-year
limited warranty,you will be responsible for an), labor
or in-home service costs..:
• i:
IService trips to your home to teach you
how to use the product.
Imprope_ installation.
Failure o,f the product if it is
abused, misused, or used for other
than the intended purpose or lined
commercially.
• Rephcem.ent of house fixs_ or
rese_ng of ch_fit breakers.
• Damage to _e product caused by
acddenh i_e, floods or ads of Go&
• _dden_d or consequen_d _n_e to
personal property caused bypo_ble
defec_ vfi_ tiffs appliance.
fis warrantyis extendedto the originalpurchaserandanysucceedingowner-forproductspurchased
r home.usewithin the USA.In Alaska,the warrantyexcludesthe cast ofshipping orservicecalls'to
ur home.
,mestatesdo'not allowthe exclusionorlimitation "ofincidentalorcohsequentia}da'mages.This '. -./-::i.
_rrantygivesyou specificlegalfights,and youmayalsohaveotherfights whicl7vary fromStateto-_-.;;/.i.
_te.Toknow what your legairigtTtsa'm,,consultyourfocalor Stateconsumeraffairs officeor .. '_i_:!
,Jrstate_Attomey General. _. " .:.... . '-'::: :':!_ ,:_.'. " •: ':,"_": ,;:__!_:':-:"::'_' ..: i '"_23:':

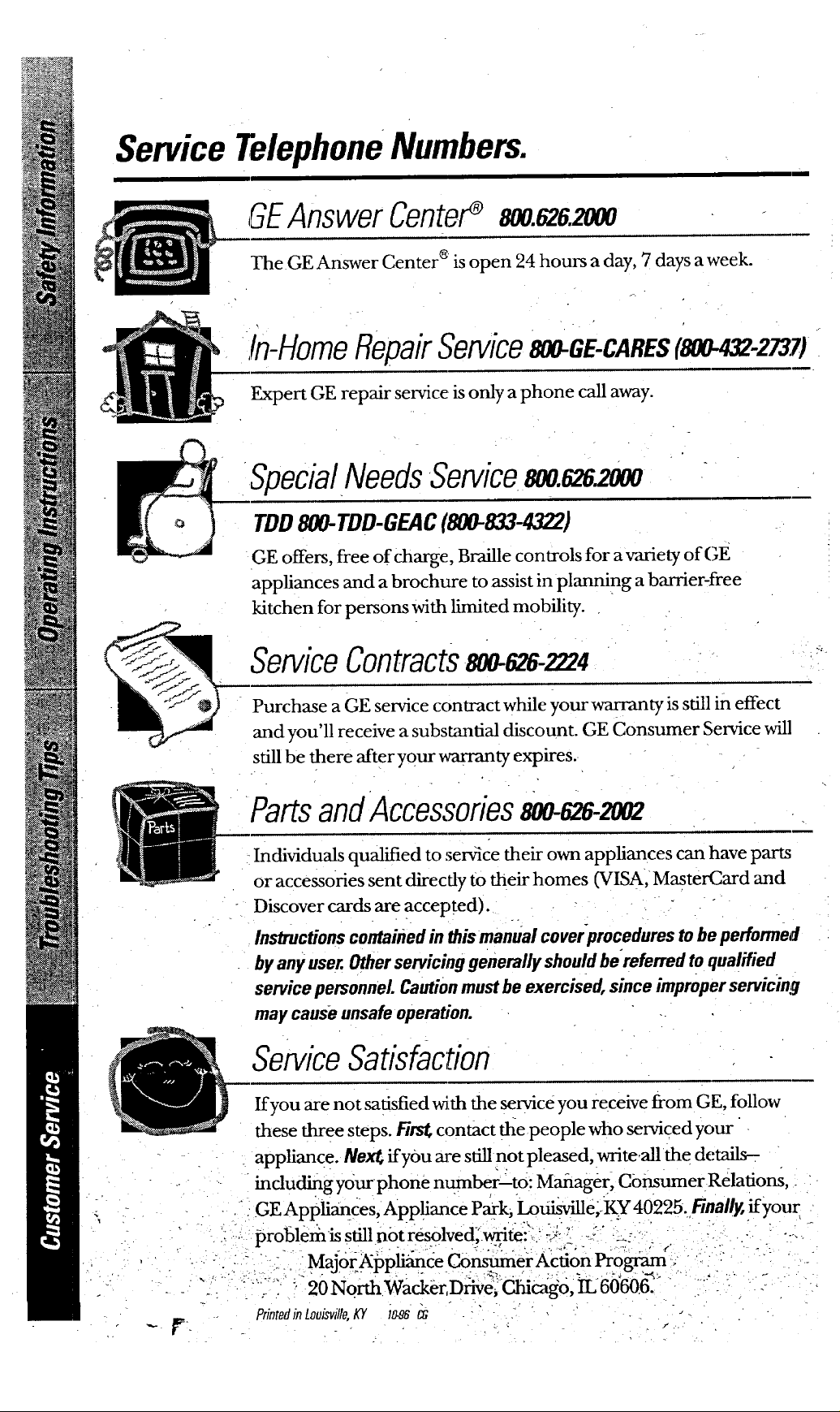

ServiceTelephoneNumbers.
GEAnswerCenter_ 80o.626.200o
The GE Answer Center is open 24 hours a day, 7 days a week.
In-HomeRepairService800-GE-CARES1800-432-2737)
Expert GE repair service is only a phone call away.
4.
SpecialNeedsService_._._
TDD800-TDD-GEAC(800-833-4322)
GE offers, free of charge, Braille controls for a variety of GE
appliances and a brochure to assist in planning a barrier-free
kitchen for persons with limited mobility.
ServiceContractseO_696-2224
Purchase a GE service contract while your warranty is still in effect
and vou'll receive a substantial discount. GE Consumer Service will
still be there after your warranty expires.
PartsandAccessories_¢_-zooz
Individuals qualified to servlce their own appliances can have parts
or accessories sent direc@ to their homes (VISA, MasterCard and
Discover cards are accepted).
_.
Instructionscontained in this manual coverprocedures to be performed
by anyuser. Otherservicing generally shouldbereferred toqualified
service personnel Cautionmustbe exercised, since improperservicing
may causeunsafe operation.
ServiceSatisfaction
If you are not satisfied with the service you receive from GE, follow
these three steps. Firs_ contact the people who serviced your
appliance. Nex/; if you are still not pleased, write,all the details-
including y0 m"phone number2to: Maflage r, Consumer Relations,
GE Appliances, Appliance Park, LodgMlle;KY40225.Finallg ifyour
• i;_: problem is stillnbtresolved, w[i'tei_;__J-_ J :_: : i i -:.
- • :. :." ': MajorAppliance Co nsumerAction Pro grmn; ': : ' " ' ....
,.. , .." ,. "-" " ".' • . . '" " .2. '"_ • _ ;-- ,.. •" " '_':_- " ," -'- . *- .- .
_ _ _.- '._ " 20 North Wacker, Drive, Cliicago, IL60606. ".- - "
PrintedinLouisville,/(Yt_8 _ •-
