Model Number: BSAVR-1
INFRARED SEAR BURNER INSTRUCTIONS
1. To install the optional infrared burner,
begin by rst removing the cooking grid,
vaporizer and heat zone divider. The
vaporizer will not be re-installed over the
burner and cooking grid will be replaced
with the v-grate.
2. Remove the bowtie burner by removing the
cotter pins that hold it in place at the rear of
the grill. Use needle nose plyers to remove
the cotter pins. Once removed, lift and
remove the bowtie burner.
3. Remove the far left crossre hood only.
The crossre hood is a "T" shaped channel
located between and towards the rear of
the burners. The crossre hood is removed
by unscrewing the fastener which holds it in
place. The crossre will not be reinstalled.
4. Install the infrared burner into the grill in
the same way that the bowtie burner was
installed. Center the venturi tube over the
orice at the front of the grill and place the
rear mounting over the pin at the rear of
the grill.
It is critical that the venturi tube is centered over the
orice before using the grill.
WARNING
! !
5. Replace the cotter pins to hold the burner
rmly in place.
6. Replace the heat zone divider and install
the new cooking v-grate, but not the
vaporizer.
7. Burn off your new sear burner and v-grate
on high before the rst use. It is normal to
see it smoke as it burns off the oils from
manufacturing. Burn off until it is nished
smoking (roughly 5 minutes).
TOOLS NEEDED:
• Needle Nose Plyers
• #2 Phillips Screw Driver

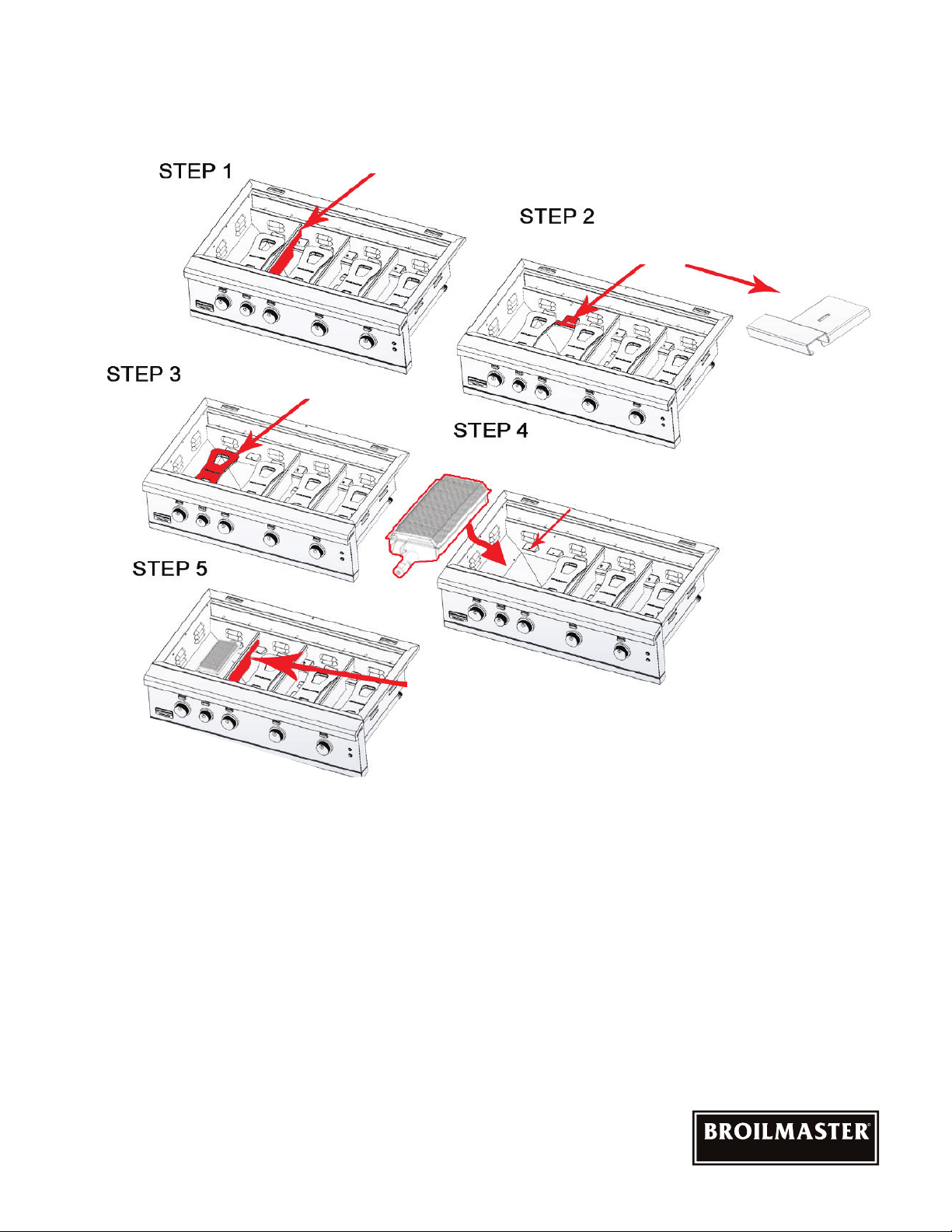

HOW TO REPLACE A CONVENTIONAL
