Send Us a Text: 1-
812-652-2525
(US and Canada Only. Carrier Fees May Apply)
Find Us Online: www.
maxicosi.com
Email Us:
Give Us a Call: 1-800-951-4113
(Toll Free, US and Canada Only)
• Buckle Assembly
• ClipQuick
TM
Chest Clip
• Seat Pad Set
• Removable Cup Holder (1)
• Lower Anchor Belt
• Top Tether
• Locking Clip
• Instructions
For parts availability and
questions, call, text, or chat.
If requested color is not
available, similar color will be
substituted.
Applicable tax and shipping &
handling will also be added.
Replacement Parts List
(on select models)
4358-8198 4.27.22
Pria Max All-in-One
Convertible Car Seat
Your model may look different than one shown on cover.
Read all instructions BEFORE USING this car seat.
KEEP INSTRUCTIONS FOR FUTURE USE.
Failure to follow the warnings on
the labels and in the instruction manual can
result in serious injury or death to your child.
Welcome to the
Maxi-Cosi Family!
Thank you for
choosing this car
seat, also known as
a child restraint!

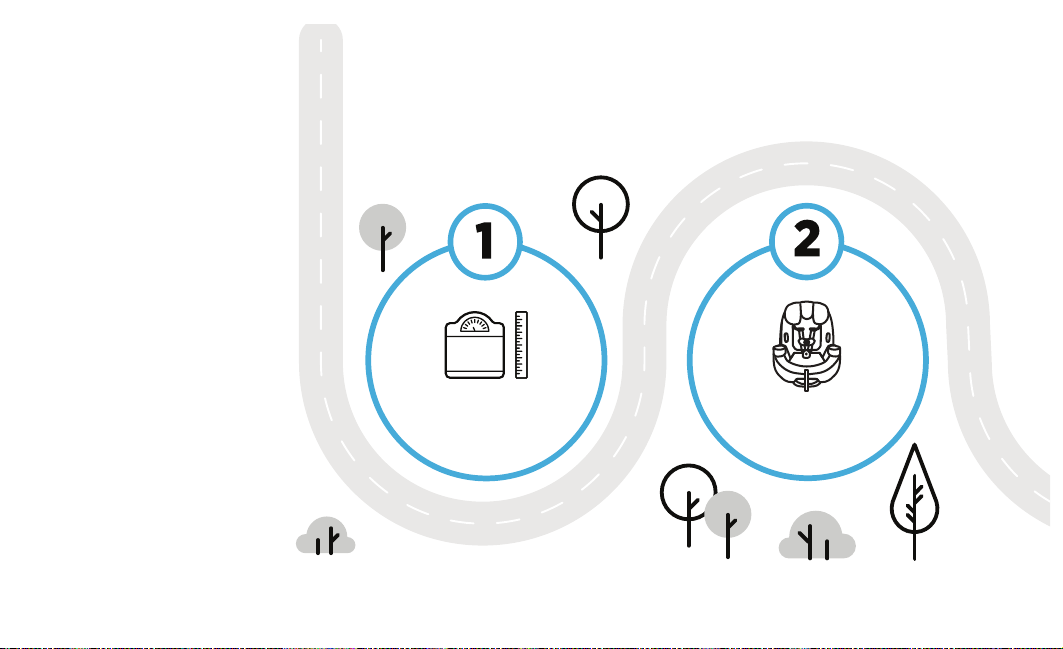

To help you get started
using your child’s new
car seat, here are the
4 main tasks you’ll
need to complete.
Measure
Your Child
Adjust Car Seat to
Fit Your Child
Your child’s safety is
Install Car Seat
into Your Vehicle
Secure Your Child
in Car Seat
Your child’s safety is
worth the time it will
take to read and follow
these instructions.
Ready? Let’s go!
Pages 1-4 will introduce
you to the parts of the car
seat.
The back cover of this
manual and page 65 has
our contact information.
If at any point you would
like assistance, please feel
free to reach out to us.
Contents
1 Getting Started
1 Parts of Car Seat
3 Accessory Use
5 Choosing Car Seat Mode
7 Rear-Facing Section
9 Rear-Facing Child Fit
12 Rear-Facing Vehicle Install
19 Forward-Facing Section
21 Forward-Facing Child Fit
23 Forward-Facing Vehicle Install
29 Securing Child in Car Seat
33 Booster Seat Section
35 Storing Harness System
39 Booster Seat Use in Vehicle
41 Booster Seat Child Fit
42 Making Adjustments to Car Seat
42 Changing Headrest/Harness Height
43 Changing Buckle Position
45 Buckle Adjustments for Smaller Infants
46 Reclining Car Seat
©2022 Dorel Juvenile Group, Inc. (800) 951-4113 www.maxicosi.com. Styles and colors may vary. Les styles et les couleurs peuvent varier. Made in USA from American
and imported parts (including seat pad). Fabriqué aux ÉTATS-UNIS. Distributed by (distribué par) Dorel Juvenile Group, Inc., 2525 State St., Columbus, IN 47201-7494.
Dorel Juvenile Canada, 2233 Argentia Road, Suite 110, Mississauga, ON L5N 2X7. Importado y Distribuido en Chile por: Comercial e Industrial Silfa S.A. - San Ignacio
0201 / Parque Industrial Portezuelo Quilicura, Santiago Chile. Fono (562) 2339 9000. En Perú por: Comexa S.A. - Los Libertadores 455 – San Isidro, Lima – Perú. Fono
(511) 4469014. En Centro América, Caribe y Ecuador por: Best Brands Group S.A. – Av. Balboa, Bay Mall Plaza, Planta Baja, local 9, Panamá. - Fono: (507) 300 2884.
En Colombia por: Baby Universe S.A.S. Vía 40 No. 77-29, Barranquilla, Colombia - Fono: (575) 353 1110 Importador: DJGM, S.A. DE C.V. Gabriel
Mancera No. 1041 Col. Del Valle, Benito Juárez C.P. 03100 México, Ciudad de México R.F.C. DJG140305GN9 Tel. (55) 67199202
47 Wash & Care
47 Removing Seat Pad Set
51 Cleaning Parts of Car Seat &
Installing Seat Pad Set
52 LATCH & Vehicle Belt Information
52 LATCH: Lower Anchor Belt
54 Vehicle Belts
58 Top Tether
59 Safety Information
59 Child Restraint Use
60 Vehicle Seating Position
61 Installation in Vehicle
62 Replacement & Expiration
63 Registration & Safety Notices
64 Aircraft Information
65 Warranty
Parts of Car Seat
1
Adjustable Headrest
EZ Out Harness Covers
*
In and Out Harness Holders
(on select models)
Harness Release Lever
(through opening in pad)
Head Pillow
*
Back Pillow
*
Recline Handle (under pad)
Harness Adjustment Strap
Headrest/Harness
Adjustment Handle
LATCH: Lower Anchor Belt
(bag may be in the Forward-
Facing Belt Path)
Small Infant Positioning Pillow
*
Removable Cup Holders
*
Your model may look dierent than one shown.
*See pages 3 - 4 for Accessory Use.
2
Harness System
Forward-
Facing
Belt Path
Rear-Facing
Level Line
Base
Rear-Facing
Belt Path
LATCH: Lower
Anchor Belt
Storage
Attachments
Tether Strap
Tether Storage
Attachment
Instruction
Manual Storage
Harness Strap
Splitter Plate
Tether Strap
Adjuster
Shoulder
Harness Slots
(behind
harness
covers)
ClipQuik
TM
Chest Clip
Harness
Straps
EZ Out Buckle
Cover
*
Buckle
Your model may look dierent than one shown.
*See pages 3 - 4 for Accessory Use.
*See pages 3 - 4 for Accessory Use.
Small Infant Positioning Pillow
Accessory Use
3
Remove the infant pillow once they can sit in the car seat
EZ Out Harness Covers
For Use in
Rear-Facing Mode or
Forward-Facing Mode
Harness covers help provide comfort to
the neck. If the harness covers will not
allow proper positioning of the chest clip
or interfere with getting a tight enough
harness fit for a smaller baby, remove and
do not use.
Store until your child is large enough
to use these harness covers while main-
taining a properly fitting harness.
To remove, undo fasteners on headrest
pad. Pull the fastening strips on covers
apart. Pull harness straps out of covers.
Slide covers out from behind headrest pad.
To install, undo fasteners on headrest. With the back of the
harness covers facing you slide covers behind headrest pad.
Place harness straps into covers. Fasten harness covers.
Front View
Back View
EZ Out Buckle Cover
To install, slide buckle into opening in
front of buckle cover.
NOTE: Slide buckle cover only through slot
in pad and not through buckle slot in shell.
It lays flat underneath the pad as shown.
To remove, pull up on buckle cover and
slide it off of the buckle and pull it out of
the buckle slot in the seat pad.
Head Pillow & Back Pillow
(on select models)
Only For Use in Rear-Facing Mode
The head and back pillows MUST be
used together.
To remove head pillow, pull it out from
behind the back pillow.
To remove back pillow, loosen the
harness straps and slide pillow out from
behind the harness straps.
Small Infant Positioning Pillow
Only For Use in Rear-Facing
Mode
When using the small infant
positioning pillow, you must also
use the back and head pillows.
This pillow helps position your infant in the seat in order to
achieve proper harness fit.
To determine if the pillow is needed:
1. Place headrest in lowest position.
2. Place infant in car seat without the pillow.
3. Make sure the infant’s bottom and back are flat against
the car seat.
Check often to see how much your infant has grown.
4
Removable Cup Holder(s)
(on select models)
For Use in All Modes
The cup holder(s) is top-rack
dishwasher safe.
To remove cup holder, twist the cup
holder counterclockwise. Pull it out
of the slot in the car seat.
Remove the infant pillow once they can sit in the car seat
without the infant pillow and the harness slots are at or
below their shoulders AND you can still achieve a snug
harness fit.
To remove, lift the infant pillow up and pull the buckle &
buckle cover down out of the buckle slot in the infant pillow.
To install, feed the buckle & buckle cover up into the 1st or
2nd buckle slot in the infant pillow, matching the buckle slot
in the car seat.
To learn how to check buckle position, see page 11.
To learn how to check harness tightness, see pages
29-31.
Use Pillow
if Shoulder
Harness Slots
are Above
Shoulders
Do Not Use
Pillow
if Shoulder
Harness Slots
are At or Below
Shoulders
the buckle slot in the seat pad.
Your child’s height, weight, and age determine how the car
seat should be placed in the vehicle.
Children vary widely in body size, shape, and temperament—
please consult your doctor before switching between
any modes within the limits and fit requirements of the
car seat.
State Laws
Please be certain to follow your state’s laws regarding car
seat use.
American Academy of Pediatrics
Recommendations
Infants and Toddlers
Should ride in a rear-facing car seat as long as possible, until
they reach the highest weight or height allowed by their car seat.
Toddlers and Preschoolers
Once they are facing forward, children should use a forward-
facing car seat with a harness for as long as possible, until they
reach the height and weight limits for their car seats.
School-Aged Children
Once they have outgrown their forward-facing car seat, children
should use a belt-positioning booster seat until the vehicle’s
lap and shoulder seat belt fits properly. This is often when they
have reached at least 4 feet 9 inches in height and are 8 to 12
years old.
Older Children
All children younger than 13 years should be restrained in the
rear seats of vehicles for optimal protection.
Measure your child’s weight and height
(DO NOT guess) before choosing this car
seat’s mode.
Choosing Car Seat Mode
WARNING:
5
rear seats of vehicles for optimal protection.
Rear-Facing Mode
4-40 lb (1.8-18 kg) and
19-40 in. (48-101.6 cm)
Rear-Facing Section
PAGE 7
Rear-Facing Child Fit
PAGE 9
Rear-Facing Vehicle Install
PAGE 12
Forward-Facing Mode
22-65 lb (10.1-29 kg) and
29-49 in. (73.6-125 cm) and
at least 1 year old
Forward-Facing Section
PAGE 19
Forward-Facing Child Fit
PAGE 21
Forward-Facing Vehicle Install
PAGE 23
6
Booster Seat Mode
40-100 lb (18.1-45.4 kg) and
43-52 in. (110.1-132.1 cm)
Booster Seat Section
PAGE 33
Storing Harness System
PAGE 35
Booster Seat Use in Vehicle
PAGE 39
Booster Seat Child Fit
PAGE 41
In this car seat, your child can remain Rear-Facing
until they outgrow any one of the following:
• Weight Limit: 40 lb (18 kg); OR
• Height Limit: 40 in. (101.6 cm); OR
• Rear-Facing Child Fit requirements, see page 9.
Before installing the car seat in your vehicle, check your
child’s fit in the car seat.
This way you won’t have to redo the vehicle installation to
make adjustments to the car seat.
Rear-Facing Child Fit: Page 9
Rear-Facing Vehicle Install: Page 12
Rear-Facing Section
4-40 lb (1.8-18 kg) and 19-40 in. (48-101.6 cm)
Children under 1 year of age MUST ride Rear-Facing.
7
• Rear-Facing Child Fit requirements, see page 9.
Rear-Facing Vehicle Install: Page 12
NEVER install a rear-
facing child restraint
in the front seat of a
vehicle equipped with
an active frontal airbag.
DO NOT use the tether for rear-
facing mode. Secure the tether strap
hook to its storage attachment.
DO NOT use the lower anchor belt
along with the vehicle lap or lap/
shoulder belt.
DO NOT fasten multiple lower
anchor hooks on the same lower
anchor bar in the vehicle.
Check the vehicle belt or the lower
anchor belt before each use. Use
ONLY if the belt can be tightened
properly and locked securely in
place.
Even when unoccupied, this child
restraint MUST be firmly secured
to the vehicle with the lower anchor
belt or with the vehicle seat belt.
This child restraint MUST ALWAYS
face the rear of the vehicle until
the child is at least 1 year old and
weighs 22 lb (10 kg).
WARNING:
8
1 2
Rear-Facing Child Fit
9
Fully Loosen Harness Straps
Place your hand between
the harness cover &
harness strap.
You may need to undo the
harness cover or move the
chest clip down.
Push down on harness
release lever (through
opening in pad) while
pulling out on harness
straps as shown.
Release Chest Clip
Hold the chest clip with
both hands and press in
on the top and bottom
buttons with your index
finger and thumb as
shown.
While holding the buttons
in, pull the right (top) half
of the clip apart from
the left (bottom) half to
release the magnet and
separate the chest clip.
chest clip down.
On select models: You may
use the In and Out Harness
Holders to place the harness
straps out of the way.
Your child’s bottom and
back should be flat against
the car seat.
Place Child in Car Seat
4
Undo Buckle
3
Check Head Position
The top of your child’s head
MUST be at least 1 in.
(2.5 cm) below the top of
the car seat’s headrest.
5
10
continued on next page
Rear-Facing Vehicle Install
Check Buckle Position
• Use the slot closest to your child.
• The buckle should not be
underneath or behind your child.
DO NOT use the 3rd buckle slot in
Rear-Facing Mode.
1
2
Check Harness
Strap Position
The harness strap MUST
be
at or slightly below
the shoulders; never
above.
6 7
Buckle
Strap
Buckle
To change the harness
strap height, see page
42.
To change the buckle
position, see page 43.
To learn how to check
harness tightness, see
pages 29-31.
If you cannot achieve
a snug harness fit for
your child, see page 45.
11
Before installing the car seat in your
vehicle, check to see if you need to
adjust the buckle position for your
child. See page 9 for child fit.
Once the car seat is installed, you
will not be able to adjust the buckle
position.
Review Vehicle Owner’s Manual
Determine what kind of vehicle
belts your car has and how to use
them to lock a car seat in place OR
where LATCH: lower anchor seating
positions are located in your vehicle.
There are 2 different methods for install.
Use only one:
Vehicle Belt
DO NOT use both the LATCH: lower anchor belt and vehicle
belt at the same time to install the car seat.
LATCH: Lower Anchor Belt
Rear-Facing Vehicle Install
OR
WARNING:
12
continued on next page
Place Car Seat Rear-
Facing
in Back Seat
The car seat base MUST be
flat on the vehicle seat.
1
For children who cannot sit up
unassisted, the Rear-Facing
Level Line on the car seat MUST
be parallel with the ground using
either Position 3 or 2.
For children who can sit up
unassisted, you may make the car
seat more upright in Position 2.
Recline Car Seat &
Check
Rear-Facing
Level Line
2
Recline handle is at
front of car seat.
13
Locate Rear-Facing Belt Path & Route
Vehicle Belt or Lower Anchor Belt Through It
Vehicle Belt or Lower
Anchor Belt Goes:
• under the car seat pad; AND
• across the car seat; AND
• in front of the buckle; AND
• out the other Rear-Facing
Belt Path opening.
DO NOT twist the belt.
For the LATCH belt: You may need to fully lengthen the belt before routing it into
the belt path. Squeeze the adjuster button and pull the belt out as shown.
Thread the connector without the adjuster closest to it through the Rear-Facing
Belt Path opening as shown.
1
2
3
OR
4
14
continued on next page
Attach Lower Anchor Belt
Connectors to Vehicle’s
Lower Anchors
On select models: Make sure the arrows on the
connectors are facing up.
Fasten one lower anchor belt connector to the
anchor located in the vehicle seat.
Repeat for other side of car seat.
Buckle Vehicle Belt
If your car has a switchable
retractor, use it to lock the
vehicle belt. Review page
56 of this manual or your
vehicle owner’s manual.
Finished Lower
Anchor Belt
Routing
The lower anchor
belt adjuster MUST
be on the child’s
right.
5
OR
Adjuster
15
Check Belt Tightness
Hold the Rear-Facing Belt
Path
with your non-dominant
hand. Push and pull the car
seat from side to side.
The car seat should not move
more than 1 in. (2.5 cm).
7
If the car seat
moves more than
1 in. (2.5 cm), you
can try:
• Pulling the belt
tighter; OR
• Reinstalling the
car seat; OR
• Changing to a
different seating
location; OR
• Switching to a
different install
method (LATCH
or vehicle belt).
Tighten Belt
Place your hand in the car seat and firmly push the car seat
down and back towards the vehicle seat. Pull the belt towards
you and parallel (in line) with the belt path as shown.
For the LATCH belt or Lap Only Vehicle Belt: it may be easier
to tighten if you route the free end of the belt back into the
Rear-Facing Belt Path, reach into the Rear-Facing Belt Path,
and pull the free end of the belt towards you.
6
continued on next page
16
Recheck Rear-
Facing Level Line
Redo the installation if the
car seat is not reclined
correctly for your child.
See step 2 and info box
on page 13.
Only if necessary, you may place a tightly
rolled towel(s) or foam pool noodle(s)
under the front of the car seat base to
help make the Rear-Facing Level Line
parallel with the ground.
Check often to make sure padding is still
in place and the belt is tight.
9
Secure Child in
Car Seat
See pages 29-31.
8
17
FINISHED!
Lap Belt
Lap/Shoulder Belt
LATCH: Lower
Anchor Belt
Vehicle Belt Install: Is the vehicle belt locked?
See step 5.
LATCH: Lower Anchor Belt Install: Are the connectors
securely attached to the vehicle’s lower anchors?
See step 5.
Is the belt tightened enough so that the car seat does not
move more than 1 in (2.5 cm) from side to side? Check
the tightness of the install often to make sure it has not
loosened. See steps 6 and 7.
If your child cannot sit up unassisted, is the Rear-Facing
Level Line parallel with the ground? See steps 2, 8, 9,
and info box on page 17.
18
Forward-Facing Section
In this car seat, your child can remain harnessed
Forward-Facing until they outgrow any one of the
following:
• Weight Limit: 65 lb (29 kg); OR
• Height Limit: 49 in. (125 cm); OR
• Forward-Facing Child Fit requirements, see page 21.
Before installing the car seat in your vehicle, check your
child’s fit in the car seat.
This way you won’t have to redo the vehicle installation
to make adjustments to the car seat.
Forward-Facing Child Fit: Page 21
Forward-Facing Vehicle Install: Page 23
22-65 lb (10.1-29 kg) and 29-49 in. (73.6-125 cm) and at least 1 year old
Children MUST be at least 1 year of age to ride Forward-Facing.
19
DO NOT use the lower anchors of the child
restraint anchorage system (LATCH system) to
attach this child restraint when restraining a
child weighing more than 40 lbs (18 kg).
The vehicle belt MUST be used for installation
if your child weighs more than 40 lb (18 kg).
When anchors are available, you MUST
ALWAYS attach, adjust, and secure the tether
(top anchorage) strap when installing the car
seat in the Forward-Facing Mode with internal
harness.
DO NOT use the lower anchor belt along with
the vehicle lap or lap/shoulder belt.
Check the vehicle belt or the lower anchor belt
before each use.
Use ONLY if the belt can be tightened properly
and locked securely in place.
DO NOT fasten multiple lower anchor hooks on
the same lower anchor bar in the vehicle.
Even when unoccupied, this child restraint
MUST be firmly secured to the vehicle with the
lower anchor belt or with the vehicle seat belt.
In this child restraint your child MUST be at
least 1 year old and weigh 22 lb (10.1 kg)
before they sit forward-facing.
WARNING:
20
Forward-Facing Child Fit
21
1 2
Fully Loosen Harness Straps
Place your hand
between the
harness cover &
harness strap.
You may need to
undo the harness
cover or move the
chest clip down.
Push down on
harness release
lever (through
opening in pad)
while pulling out
on harness straps
as shown.
Undo Chest Clip
Hold the chest clip
with both hands and
press in on the top
and bottom
buttons with your
index finger and
thumb as shown.
While holding the
buttons in, pull the
right (top) half of the
clip apart from the
left (bottom)
half to release
the magnet and
separate the
chest clip.
Undo Buckle
3
Head Position
The tops of your
child’s ears MUST be
below the top of the
car seat’s headrest.
22
On select models:
You may use the In
and Out Harness
Holders to place the
harness straps out
of the way.
Your child’s bottom
and back should be
flat against the car
seat.
Place Child in
Car Seat
buttons in, pull the
Buckle Position
• Use the slot closest
to your child.
• The buckle should
not be underneath
or behind your child.
The buckle can be used
in any buckle slot.
1
2
3
Buckle
Strap
Buckle
To change the
harness strap
height, see page 42.
To change the
buckle position,
see page 43.
To learn how to
check harness
tightness, see
pages 29-31.
If you cannot
achieve a snug
harness fit for your
child, see page 45.
Harness Strap
Position
The harness strap
MUST be at or
slightly above
the shoulders;
never below.
4 65 7
23
Forward-Facing Vehicle Install
Before installing the car seat in your
vehicle, check to see if you need to
adjust the buckle position for your
child. See page 21 for child fit.
Once the car seat is installed, you
will not be able to adjust the buckle
position.
Review Vehicle Owner’s Manual
Determine what kind of vehicle
belts your car has and how to use
them to lock a car seat in place OR
where LATCH: lower anchor seating
positions are located in your vehicle.
There are 2 different methods for install.
Use only one:
Vehicle Belt
for children up to 65 lb (29 kg)
LATCH: Lower Anchor Belt
for children up to 40 lb (18 kg)
WARNING:
DO NOT use both the LATCH: lower anchor belt and vehicle belt
at the same time to install the car seat.
When anchors are available, you MUST ALWAYS attach, adjust,
and secure the tether (top anchorage) strap when installing the
car seat in the Forward-Facing Mode with internal harness.
OR
Put Car Seat into
Position 1 & Place
Car Seat
Forward-
Facing in Back Seat
The vehicle seat back
MUST be upright.
1
Locate Vehicle Top
Tether Anchors
Review your vehicle
owner’s manual for top
tether anchor locations
and how to route the
tether strap when there
are vehicle headrests.
2
Only use semi-
reclined Position
2 if necessary to
install the car seat
flush against the
vehicle seat back.
If your vehicle has
a headrest that
interferes with a
flush car seat fit,
check your vehicle
owner’s manual
to see if it can be
removed, adjusted,
or if there are other
possible seating
locations for you
to install.
Recline handle is at
front of car seat.
3
Lift Tether
Adjuster to
Loosen Tether
Strap
continued on next page
24
25
4
Loosely Attach
Tether Hook to
Vehicle’s Top
Tether Anchor
5
OR
Locate Forward-Facing Belt Path & Route
Vehicle Belt or Lower Anchor Belt Through It
For the LATCH belt: You may need to fully lengthen
the belt before routing it into the belt path. Squeeze
the adjuster button and pull the belt out as shown.
Thread the connector with the adjuster closest to it
through the
Forward-Facing Belt Path opening as
shown.
Vehicle Belt or Lower
Anchor Belt Goes:
• under the car seat pad;
AND
• across the car seat;
AND
• out the other
Forward-
Facing Belt Path
opening. DO NOT twist
the belt.
6
Finished Lower
Anchor Belt
Routing
The lower anchor belt
adjuster MUST be on
the child’s left.
Adjuster
Place your hand in the car
seat and firmly push the car
seat down and back towards
the vehicle seat. Pull the belt
towards you and parallel (in
line) with the belt path as
shown.
For the LATCH belt or Lap
Only Vehicle Belt: it may be
easier to tighten if you route
the free end of the belt back
into the Forward-Facing
Belt Path, reach into the
Forward-Facing Belt Path,
and pull the free end of the
belt towards you.
Tighten Belt
8
Buckle Vehicle Belt
If your car has a
switchable retractor,
use it to lock the vehicle
belt. Review page 56
of this manual or your
vehicle owner’s manual.
7
Attach Lower Anchor Belt
Connectors to Vehicle’s
Lower Anchors
On select models: Make sure the
arrows on the connectors are
facing up.
Fasten one lower anchor belt
connector to the anchor located
in the vehicle seat bight.
Repeat for other side of car seat.
OR
26
continued on next page
27
Tighten Tether
Push firmly on the back of
the car seat and pull the free
end of the tether strap to
remove all of the slack.
9
Check Belt Tightness
Hold the Forward-Facing
Belt Path with your non-
dominant hand. Push and pull
from side to side.
The car seat should not move
more than 1 in. (2.5 cm).
10
If the car seat moves more
than 1 in. (2.5 cm), you can
try:
• Pulling the belt tighter; OR
• Reinstalling the car seat; OR
• Changing to a different
seating location; OR
• Switching to a different
install method (LATCH or
vehicle belt).
FINISHED!
Lap Belt + Tether
for children up to 65 lb (29 kg)
Lap/Shoulder Belt + Tether
for children up to 65 lb (29 kg)
LATCH: Lower Anchor Belt +
Tether
for children up to 40 lb (18 kg)
Vehicle Belt Install: Is the vehicle belt locked?
See step 7.
LATCH: Lower Anchor Belt Install: Are the
connectors securely attached to the vehicle’s lower
anchors? See step 7.
Is the belt tightened enough so the car seat does
not move more than 1 in (2.5 cm) from side to side?
Check the tightness of the install often to make sure
it has not loosened. See steps 8 & 10 and info box on
page 27.
Has the tether been installed and tightened? See
steps 4 and 9.
28
29
Do not use this chest clip with children who have
an implanted electronic medical device.
A magnet is used to help secure the chest clip
locking mechanism together which may inter-
fere with the proper function of an implanted
electronic medical device.
Parents or caregivers who have an implanted
electronic device should keep their device away from the chest clip
and consult their doctor and medical device manufacturer for specific
information before using this chest clip.
If a parent/caregiver or child has an implanted electronic medical device,
please contact Dorel (see back cover) for a replacement (non-magnetic)
chest clip free of charge.
IMPLANTED
ELECTRONIC
MEDICAL
DEVICES
WARNING:
Securing Child in Car Seat
Place Child in
Car Seat
Your child’s bottom
and back should be
flat against the car
seat.
1
Buckle Harness
Pull the harness straps
up to make sure the
buckle is locked.
32
Fasten Chest Clip
Lay the right (top) half of the chest clip over the left
(bottom) half and it will automatically snap together
and lock.
Pull gently on each half of the chest clip together
to make sure it is locked.
30
Tighten Harness
Pull the harness
adjustment strap
straight out to snugly
tighten the harness.
4
continued on next page
Position Chest Clip
Slide the chest clip up
the harness straps and
position it at mid-chest
(even with armpits) and
away from your child’s
neck.
Unfasten the harness
covers.
Try to pinch the harness
at the shoulders vertically
between index finger and
thumb as shown.
If your fingers slip
off, the harness is tight
enough.
If you can pinch the
harness strap, tighten
more.
Fasten the harness covers.
5 6
A snug strap should not
allow any slack.
It lies in a relatively straight
line without sagging.
It does not press on the
child’s flesh or push
the child’s body into an
unnatural position.
Check Harness Tightness
31
32
Failure to fasten and tighten the harness
system correctly may allow the child to be
ejected from the child restraint in a crash
or sudden stop causing serious injury or
death.
DO NOT mistake comfort for safety. The
harness system MUST be snugly adjusted.
DO NOT put snowsuits or
bulky garments on your child
when placing them in the
child restraint.
Bulky clothing can prevent
the harness straps from
being tightened properly.
FINISHED!
Your child is now secured in the car seat.
Check your child’s fit often and make any
needed adjustments to the car seat as
they grow.
To Remove Child from Car Seat:
1. Loosen Harness Strap
2. Unbuckle Harness
3. Release Chest Clip
4. Remove Child
Troubleshooting
1. If the buckle or harness
release lever sticks: DO NOT
lubricate. Check for dropped
food, sticky spilled drinks, dirt,
leaves, etc.
Clean with warm water and/or
remove the object with tweezers.
If you cannot get the harness to
adjust and remain tight with the
buckle securely locked, DO NOT
use this car seat.
2. If your harness twists:
Straighten the harness each time
you put your child in the car seat.
Lock the buckle and tighten the
harness so it will be ready for next
use.
WARNING:
Booster Seat Section
In this car seat, your child can remain in a Booster
Seat until they outgrow any one of the following:
• Weight Limit: 100 lb (45.4 kg); OR
• Height Limit: 52 in. (132.1 cm); OR
• Booster Seat Child Fit requirements, see page 41.
You MUST store the harness system and remove the
accessories, except the cup holder(s), when using the
Booster Seat Mode.
To remove accessories, see pages 3-4.
Storing Harness System: Page 35
Booster Seat Use in Vehicle: Page 39
Booster Seat Child Fit: Page 41
40-100 lb (18.1-45.4 kg) and 43-52 in. (110.1-132.1 cm)
33
Booster Seat Child Fit: Page 41
34
DO NOT use the harness system when using
as a booster seat.
DO NOT use LATCH when using as a booster
seat. Secure the lower anchor belt and the
tether strap to their storage attachments.
Use ONLY the vehicle’s lap and shoulder
belt system when restraining the child in this
booster seat.
DO NOT use only the lap belt
when using this seat as a
booster seat. The shoulder
belt MUST always be adjusted
snugly across the child’s chest.
NEVER place shoulder belt under the child’s
arms or behind their back.
DO NOT use this booster seat if the tops of
your child’s ears are above the top of the
booster seat’s headrest.
WARNING:
Recline Car Seat
Reach under the
car seat. Rotate the
buckle’s metal retainer
and push it up through
the car seat.
Storing Harness System
35
Fully Loosen Harness Straps
Place your hand
between the
harness cover and
harness strap.
You may need to
undo the harness
cover or move the
chest clip down.
Push down on
harness release lever
(through opening in
pad) while pulling out
on harness straps
as shown.
1 32 4
Unthread Harness
Unthread the harness
strap from the harness
slots, chest clip & buckle.
From Back of
Seat, Remove
Harness Strap
Loops From
Splitter Plate
Pull Buckle with
Buckle Tongues &
Buckle Cover Out
of Car Seat
Store the buckle with
buckle tongues, buckle
cover & chest clip in a
safe place for future use.
36
Adjust Headrest
to Highest
Position
On Select Models:
Undo Fasteners
on Headrest
Pad & Seat Pad
Pull Headrest Pad
Off Bottom
of Headrest
chest clip down.
5 6 7 8
continued on next page
From Back of
Seat, Thread
Harness Straps
Over Metal Bar
DO NOT twist
harness straps.
Rethread Harness
Straps into the
Top Shoulder
Harness Slots
DO NOT use the
lower shoulder
harness slots.
Attach Harness
Strap Loops to
Splitter Plate
If the harness straps
have been removed
from the splitter
plate, chest clip &
buckle, follow steps
9-11 on this page
and steps 11-12 to
rethread them.
DO NOT use the lower
shoulder harness slots.
9 10 11
37
The sewn ends of the
harness strap loops MUST
face towards you.
DO NOT twist the harness
strap or the harness
adjustment strap.
Make sure the same
harness strap loops are
fitted completely on both
sides of the splitter plate.
sewn
end
Tighten Harness
Remove any slack
from the harness
system.
Wrap Headrest
Pad Around
Bottom
of Headrest
On select models:
Attach the fasteners on
the headrest pad and
the seat pad.
FINISHED!
The car seat has
been converted to the
Booster Seat Mode.
See next page for
Booster Seat Use in
Vehicle.
38
Place Harness
Straps Behind
Headrest
Thread Harness
Straps into
Slots on Sides
of Headrest
12 13 14 15
39
1
Booster Seat Use in Vehicle
Put Booster Seat into
Position 1
The vehicle seat back
MUST be upright.
Recline handle is at
front of car seat.
If your vehicle has
a headrest that
interferes with a flush
car seat fit, check
your vehicle owner’s
manual to see if it
can be removed,
adjusted, or if there
are other possible
seating locations for
you to install.
Only use
semi-reclined
Position 2 if
necessary
to install the
booster seat
flush against
the vehicle
seat back.
Have Child Sit in
Booster Seat
The tops of your
child’s ears should
never be above the
top of the booster
seat’s headrest.
2
Position Lap Belt
on Child
Route the lap belt portion of
the vehicle belt through the
Booster Seat Belt Path as
shown. The lap belt should
lay snugly across your child’s
hips; not on their stomach.
3
Buckle Vehicle Belt
Pull the lap belt up to
tighten.
4
FINISHED!
5
Position Shoulder Belt on Child
Check periodically to
make sure your child
has not moved out of
position and loosened
the shoulder belt.
To rethread harness strap, see
info box & step 10 on page 49 and
also steps 11-12 & info box on
page 50.
Keep the
booster seat
securely belted
even when
unoccupied.
Thread the shoulder belt
through the belt-positioning
guide in the headrest.
Pull the shoulder belt up to
tighten so that it lies snugly
across the center of your
child’s shoulder and across
their chest.
For models with In and
Out Harness Holders:
The shoulder belt should
lay under the In and Out
Harness Holder.
For models without In
and Out Harness Holders:
The shoulder belt will fall
naturally into place.
40
you to install.
Changing Headrest/Harness Height
41
Head Position
The tops of your child’s
ears should never be
above the top of the
booster seat’s headrest.
5 in. (12.7 cm)
Shoulder Belt Position
The shoulder belt should lay
snugly across the center of
your child’s shoulder and
across their chest.
Lap Belt Position
The lap belt should
lay snugly across your
child’s hips; not on their
stomach.
Booster Seat Child Fit
Car Position
DO NOT use the booster
seat if your child’s head is
less than 5 in. (12.7 cm)
below the roof of the car.
Consult your vehicle manual
for proper seatbelt usage.
Adjust Headrest/Harness Height
1. Squeeze the
adjustment handle
lever up.
2. Move the
headrest up or
down to the proper
height for your child.
3. Release the
handle to lock
in place.
4. Make sure it is
locked securely.
1
2
For Rear-Facing Child Fit,
see page 9.
For Forward-Facing Child
Fit, see page 21.
To learn how to check
harness tightness, see
pages 29-31.
If you cannot achieve a
snug harness fit for your
child, see page 45.
Check the harness straps
often for any wear or
damage.
Changing Headrest/Harness Height
42
Fully Loosen Harness Straps
Place your hand
between the
harness cover and
harness strap.
You may need to
undo the harness
cover or move the
chest clip down.
Push down on
harness release lever
(through opening in
pad) while pulling out
on harness straps
as shown.
Changing Buckle Position
1
Undo Buckle
It may be easier to undo
the buckle by pressing
in towards the top of the
button.
2
Recline Car Seat
Reach under the car seat.
Rotate the buckle’s metal
retainer and push it up
through the car seat.
Failure to place buckle’s
metal retainer completely
through pad and child
restraint can result in
serious injury or death.
WARNING:
3
From Top of Car Seat,
Pull Buckle &
Buckle Cover Out of
Car Seat & Pad
43
54
Insert Buckle’s
Metal Retainer
into Buckle Slot
Closest to Child
Tuck the ends of the
buckle cover into the
same pad slot as the
buckle.
Slide Buckle Cover
into Seat Pad Slot
Closest to Child
1
2
3
1
2
3
Reach Under Car
Seat Between
Base & Car Seat
Pull the buckle’s metal
retainer completely
through the seat pad
& car seat.
6
Check Buckle
Pull the buckle up
to make sure it is
secured.
The buckle MUST
NOT pull out.
7
For Rear-Facing Child
Fit, see page 9.
For Forward-Facing
Child Fit, see page 21.
To learn how to
check harness
tightness, see pages
29-31.
If you cannot achieve
a snug harness fit
for your child, you
may need to adjust the
buckle strap length and
location as shown on
page 45.
44
Reclining Car Seat
With Buckle in 1st
Slot, Fully Recline
Car Seat
If you need to move
the buckle to the 1st
slot, see pages 43-44.
1
Pull Front of
Car Seat Pad Up
2
Buckle Adjustments for Smaller Infants
The harness system MUST be installed correctly. DO NOT use a child restraint with damaged harness straps.
WARNING:
45
Reach Under
Car Seat
Pull the buckle’s metal
retainer down and
then push it up into the
middle slot as shown.
3
From Top of Car
Seat, Lay Metal
Retainer Flat
Against Car Seat
4
5
Tuck Car Seat Pad
Around Front of Car
Seat & Check Buckle
Pull the buckle up to make
sure it is secured. The
buckle MUST NOT pull out.
Reclining Car Seat
This car seat has 3 positions.
Rear-Facing Mode - 3 Reclined or 2 Semi-reclined
For children who cannot sit up unassisted, the Rear-
Facing Level Line on the car seat MUST be parallel with
the ground using either Position 3 or 2.
For children who can sit up unassisted, you may make the
car seat more upright in Position 2.
Forward-Facing Mode - 1 Upright or 2 Semi-reclined
*
Booster Seat Mode - 1 Upright or 2 Semi-reclined
*
To Recline: Pull the recline handle out and push the top of
the car seat back.
For More Upright: Pull the recline handle out and pull the
top of the car seat forward.
*
When used in Forward-
Facing Mode or Booster
Seat Mode, semi-reclined
Position 2 is ONLY to
be used if necessary to
install the car seat flush
against the vehicle seat
back.
The vehicle seat back
MUST be upright.
46
On Select Models:
Undo Fasteners
on Headrest Pad
& Seat Pad
2
Adjust Headrest to
Highest Position
Removing Seat Pad Set
You do not need to
remove the harness
system to remove
the pad from the
car seat.
DO NOT fully pull
the harness strap
out of the car seat.
Leave it threaded
in the hip harness
slots. If removed,
you will not be able
to rethread it.
To remove
accessories, see
pages 3-4.
3
47
1
Fully Loosen Harness Straps
Place your hand
between the
harness cover and
harness strap.
You may need to
undo the harness
cover or move the
chest clip down.
Push down on
harness release
lever (through
opening in pad)
while pulling out on
harness straps
as shown.
continued on next page
Gently Pull
Headrest Pad
Off Bottom
of Headrest
5
Lower Headrest
to Middle of
Car Seat
6
48
7
Locate Seat Pad
Tabs on Sides
of Seat
Release elastic straps
from tabs.
4
Locate Pad Fabric Tab Slots
in Headrest
Pull the fabric tabs out of the slots in the
headrest as shown.
chest clip down.
8
Pull Pad Down &
Off of In & Out
Harness Holders
(on select models)
9
Pull Seat Pad
Around Headrest
& Off of Car Seat
10
49
Rethread Harness
Thread the harness
strap into the buckle,
chest clip, & shoulder
harness slots.
The harness strap ends
go through the back of
the buckle tongues &
through the chest clip
front to back.
11
If the harness straps
have been removed
from the splitter
plate, chest clip &
buckle, follow step
11 on this page and
steps 12-13 & info
box on page 50 to
rethread them.
DO NOT use the
lower shoulder
harness slots.
Pull Seat Pad Off
Sides & Front of
Car Seat
front to back.
harness slots.
From Back of Car Seat,
Thread Harness Straps
OVER Metal Bar
Attach Harness Strap
Loops to Splitter Plate
12
13
The sewn ends of the harness strap loops
MUST face towards you.
DO NOT twist the harness strap or the
harness adjustment strap.
Make sure the same harness strap loops
are fitted completely on both sides of the
splitter plate.
sewn
end
50
Cleaning Pad & Accessories
Machine wash separately with cold water on a gentle cycle.
Make sure the harness covers are closed so the fastening
strips are not exposed. DO NOT use bleach. Tumble
dry separately for 10-12 minutes on low heat. Remove
immediately.
Cleaning Harness Strap
Check the harness straps often for any wear or damage.
Spot clean using warm sudsy water and damp cloth. Spilled
food and liquids on the car seat may result in mold or bacterial
growth over time. These spills could also attract insects or
rodents.
Cleaning Buckle & Car Seat
Spot clean using warm sudsy water and damp cloth. DO NOT
submerge into water.
Installing Seat Pad Set
1. Lower Headrest to Middle of Car Seat
2. Pull Seat Pad Around Headrest and onto Car Seat
3. On Select Models: Pull Seat Pad Down & Around In & Out
Harness Holders
4. Pull Headrest Pad onto Headrest
5. Push Headrest Pad Fabric Tabs into Slots in Headrest
6. On Select Models: Attach All Pad Fasteners
DO NOT fully pull the harness strap out of the car seat. Leave it threaded in the hip harness slots. If
removed, you will not be able to rethread it. DO NOT use the child restraint without the seat pad or with
damaged harness straps.
Cleaning Parts of Car Seat & Installing Seat Pad Set
WARNING:
51
LATCH: Lower Anchor Belt
Your vehicle’s features may be considerably different
than those pictured here.
The lower anchors of LATCH (Lower Anchors and Tethers for
CHildren) is a universal system for installing car seats
without using vehicle seat belts. The LATCH: lower anchor
belt can ONLY be used in vehicles that have the lower
anchor bars installed in designated seating positions. Most
vehicles manufactured after September 2002 are equipped
with LATCH: lower anchor bars. Check your vehicle owner’s
manual to see which seating positions may be equipped with
LATCH: lower anchor bars.
Lower Anchor Belt
Storage Location
Lower Anchor
Belt Parts
Connectors
Adjuster
To Remove Lower Anchor Belt from
Storage Location on Car Seat
Press the release button on each connector, then pull the
connectors off of storage attachments.
LATCH: Lower Anchor Belt
52
continued on next page
To Store Lower Anchor Belt
The lower anchor belt MUST be properly stored in its
storage location when:
• using the vehicle belts to install the car seat; OR
• using the Booster Seat Mode; OR
• the car seat is not installed in a vehicle.
Secure the connectors to the attachments in the storage
location as shown. Gently tighten the belt to remove slack.
To Remove Lower Anchor Belt from
Vehicle’s Lower Anchor Bars
1. Remove the tension from the belt by pushing down on the
side of the car seat with the adjuster.
2. Then press the adjuster’s button to loosen the belt.
3. Press the release button on each connector, then pull the
connectors out of the vehicle seat.
DO NOT use both the lower anchor belt and vehicle belt at the same time.
WARNING:
Vehicle Belts
53
54
You MUST Review Your
Vehicle Owner’s Manual
Your vehicle owner’s manual
will let you know which vehicle
belts and seating positions car
seats can be installed in.
1
Your vehicle’s features may be considerably different
than those pictured here.
If LATCH: lower anchors are not an option or if your child
weighs more than 40 lb (18 kg), you MUST use the vehicle
seat belt system to install the car seat.
Not all vehicle belts and seating positions will work
with car seats. Please go through the following steps to
understand how to lock a car seat in
Rear-Facing Mode
or Forward-Facing Mode with a vehicle belt.
Vehicle Belts
continued on next page
32
The vehicle belt MUST NOT
loosen after tightening.
This means there needs to be
a way to lock the vehicle belt.
The ways this can be done are:
• By using the seat belt’s
retractor (see step 3); OR
• By using the seat belt’s latch
plate (see step 4).
Retractors pull seat belts
into stored positions
and lock the belt to hold
passengers in place.
See the next page for
some common types of
vehicle belt retractors
that will work with
this car seat.
Check How This Car Seat Will Be Locked Into Place Check Retractor
Types of Retractors
55
plate (see step 4).
56
Types of Retractors
Automatic Locking Retractor
This retractor always locks.
It will automatically lock after slowly
pulling the seat belt out at least halfway
and letting the belt go back into the
retractor 1-2 in. (2.5-5 cm).
Emergency Locking Retractor
See Step 4
“Check Latch Plates”
If the retractor does not lock, it is most
likely an Emergency Locking Retractor.
These retractors only lock during a
sudden stop or collision.
You will need to determine if your seat
belt’s latch plate can lock the belt. See
step 4, “Check Latch Plates”.
Switchable Retractor
(most vehicles have this type)
This retractor can be switched to a
locking mode.
You MUST have the retractor in the
locking mode to use the seat belt with
this car seat.
Switching to locking mode: Slowly pull
the shoulder belt all the way out, then let
it go back in 1-2 in. (2.5-5 cm).
As it goes back in, you will most likely
hear a ratcheting sound.
Gently pull the belt to see if it has
locked. You will not be able to pull any
more belt out if the lock has engaged.
continued on next page
Latch plates are the part of the seat belt
that goes into the buckle.
To see if the latch plate locks:
1. Buckle Vehicle Belt
2. Firmly Tug Lap Portion of Seat Belt
While Pulling It Up
If the vehicle belt does not slide through
the latch plate, it’s locked.
If the latch plate slides up and down the
vehicle belt, it is a sliding latch plate.
Sliding latch plates easily slip between
the lap and shoulder portions of the
belt.
4
Check Latch Plates
Locking
Latch Plate
Emergency
Locking
Retractor with
a Sliding Latch
Plate
If you have an Emergency
Locking Retractor with a
Sliding Latch Plate, you
MUST use a locking clip.
Please contact us for one,
see the back cover of the
manual.
Never Use the
Following With
This Car Seat:
• Emergency Locking
Retractor Lap Only Belt
• Inflatable Seat Belts
Top Tether
57
58
Your vehicle’s features may be considerably different
than those pictured here.
When anchors are available, you MUST always attach,
adjust, and secure the tether (top anchorage) strap
when installing the car seat in the Forward-Facing Mode
with internal harness. Tethers improve the installation and
stability of car seats and reduce the risk of injury. Attach
the tether hook to the tether anchor designated by your
vehicle manufacturer for that seating position. Check your
vehicle owner’s manual for more information. If the seating
position does not have a tether anchor, use a different
seating position or see your dealer or a qualified mechanic
and have one installed.
Storing Top Tether Strap
The tether strap MUST be properly stored
in its storage location when:
• installing in
Rear-Facing Mode; OR
• using the Booster Seat Mode; OR
• the car seat is not installed in a vehicle.
Attach the tether hook to its storage
location as shown. Gently tighten to
remove slack.
Top Tether
Using this child restraint without the tether strap
anchored as required by the manufacturer would be a
misuse of the child restraint and, in a sudden stop or
crash, could result in serious injury or death.
DO NOT fasten multiple tether hooks on the same
tether anchor in the vehicle.
WARNING:
Child Restraint Use
NEVER take your child out of the child restraint
while the vehicle is moving.
NEVER leave your child unattended. Placing your
child in a hot child restraint may result in burns.
DO NOT use a child restraint with damaged or
missing parts.
DO NOT use a child restraint with cut, frayed, or
damaged harnesses.
DO NOT substitute parts or try to modify the child
restraint in any way. DO NOT lubricate buckles
and fasteners.
DO NOT use any child restraint accessory except
those approved by Dorel Juvenile Group.
NEVER allow any child to play with this child
restraint; it is not a toy.
DO NOT remove or cover up any of the warning
labels or other labels on the child restraint.
This child restraint has been certified for use in
passenger vehicles. DO NOT use in a boat, on a
motorcycle or in a cargo van or bus where there
are no seat belts or tether anchors.
Read all instructions for additional warnings.
WARNING:
Vehicle Seating Position
59
60
NEVER place a child rear-facing
in a seating position with an active
frontal air bag.
Check the vehicle owner’s manual for more
information about air bag/child restraint use.
Use the child restraint only on
vehicle seats that face forward.
DO NOT use on seats that face the
sides or rear of the vehicle.
For vehicles without a back seat,
refer to your vehicle owner’s manual.
Children are safer when
properly restrained in rear
seating positions than in the
front seating positions.
According to accident statistics, children in rear
seating positions are statistically safer, whether
you have air bags, advanced air bags, or no air
bags at all.
If you are not sure where to place the car seat in
your vehicle:
• Consult your vehicle owner’s manual; OR
• Contact Dorel Juvenile Group Consumer Care
Department; OR
• Visit your local Child Passenger Inspection Station. Go
to
https://www.nhtsa.gov/equipment/car-seats-
and-booster-seats
to find your closest station.
Vehicle Seating Position
WARNING:
Installation in Vehicle
Check the vehicle belt or lower anchor belt
before each use. Use only if the belt can be
tightened properly and locked securely in place.
Even when unoccupied, this child restraint
MUST be firmly secured to the vehicle with the
lower anchor belt or with the vehicle seat belt.
Even when unoccupied, this booster seat MUST
be firmly secured to the vehicle with the vehicle
seat belt.
In a crash or sudden stop, an unsecured child
restraint or booster seat could injure occupants.
To avoid your child being seriously burned, take
the following precautions:
• Park in the shade or where the sun does not directly
hit the car seat.
• Cover the car seat with a sheet or blanket when not
in use.
• Check for hot seat and buckles before placing child in
car seat.
To help protect your vehicle seat’s upholstery
from damage:
you may use an accessory approved by
Dorel Juvenile Group or a single layer towel underneath
and behind car seat.
WARNING:
Replacement & Expiration
61
62
DO NOT risk your child’s safety.
To keep your child as safe as possible, Dorel Juvenile Group
strongly recommends replacing the car seat even after a minor
crash; even if it was not occupied at the time.
Replacement After a Minor Crash
The National Highway Traffic Safety Administration states
that for a crash to be considered minor ALL of the following
MUST be true:
• Vehicle able to drive away from the crash site; AND
• Vehicle door nearest the car seat was not damaged;
AND
• No passengers were injured; AND
• Airbags did not deploy; AND
• There is no visible damage to the car seat.
If the crash your car seat was involved in meets ALL the
criteria, you may not need to replace the car seat.
If one or more of these criteria are not true or if you are
uncertain of any of your answers, replace the car seat
immediately.
Replacement After a Moderate to Severe Crash
You MUST replace this car seat if it has been in a moderate
to severe car crash.
This car seat is intended to protect a child in a single crash.
During a crash, the car seat and all of its parts absorb crash
energy which can deform or weaken it. Damage is not always
visible. A damaged car seat MUST be replaced immediately.
Expiration
On the side of the car seat there is a date
of manufacture label as shown.
DO NOT use this car seat more than 10
years after the date of manufacture.
Replacement & Expiration
Please complete the postage-paid registration card that came
with your child restraint, and send it to us.
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in a recall.
Send your name, address, e-mail address if available and the
restraint’s model number and manufacturing date to:
Dorel Juvenile Group
2525 State Street
Columbus, IN 47201
or call 1-800-951-4113 or register online at
https://www.maxicosi.com/us-en/registration/.
For recall information, call the U.S. Government’s Vehicle
Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153),
or go to www.NHTSA.gov.
Registration & Safety Notices
If you don’t have the card or if your
address changes, you will find the
model number, manufacture date,
and line code on the label located
on the side of the car seat.
Example of model number, manufacture date, and line code.
Maxi-Cosi Car Seat
05/16/2015
Aircraft Information
63
64
Forward-Facing Aircraft
Installation
Follow the steps on pages 24-27,
skipping the LATCH: Lower Anchor &
tether strap steps.
Rear-Facing Aircraft Installation
Follow the steps on pages 13-17,
skipping the LATCH: Lower Anchor steps.
Install the car seat in a window seat to avoid blocking
the aisle. If the aircraft lap belt is too short, ask the flight
attendant for a belt extender.
Use only on forward-facing aircraft seats. Contact the airline
for their specific policies.
Some airlines may ask to see a label
stating that this car seat is certified for
aircraft use.
There is an airplane certification label
located on the side of this car seat as
shown.
This restraint is certified for aircraft use when used with the
internal harness.
You MUST store the lower anchor belt and tether
strap when installing with aircraft belts.
Booster Seat
This restraint is not certified for aircraft
use when used as a booster seat because
aircraft seats do not have shoulder belts.
Aircraft Information
WARNING:
Warranty
Dorel Juvenile Group, Inc. (DJG) warrants this product to
the original retail purchaser as follows: This product is
warranted against defective materials or workmanship
for one year from the date of original purchase.
An original receipt is required to validate your
warranty.
DJG will, at its option, provide replacement parts or
replace this product. DJG reserves the right to substitute
if the part or model has been discontinued.
To make a claim under this warranty, please contact our
Consumer Care Department by phone: 1-800-951-
4113 or text: 1-812-652-2525. Our hours of operation
are from 8:00 a.m. to 6:00 p.m. EST Monday through
Thursday and from 8:00 a.m. to 4:30 p.m. on Friday.
Proof of purchase is required and shipping charges
are the responsibility of the consumer.
Warranty Limitations:
This warranty does not include
damages which arise from misuse or abuse of this
product.
Limitation of Damages:
The warranty and remedies
as set forth are exclusive and in lieu of all others, oral
or written, expressed or implied. In no event will DJG or
the dealer selling this product be liable to you for any
damages, including incidental or consequential damages,
arising out of the use or inability to use this product.
Limitation of warranties and other warranty terms
and state law rights:
Any implied warranties, including
implied warranties of the merchantability and fitness for
a particular purpose, shall be limited to the duration and
terms of the express written warranty.
Some states do not allow limitations as to how long an
implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the
above limitations may not apply to you.
65
This warranty gives you specific legal rights, and
you may have other rights, which vary from state to
state. Neither DJG nor the dealer selling this product
authorized any person to create for it any other warranty,
obligation, or liability in connection with this product.
Please note: Our product warranty only applies when
purchased from an authorized Maxi-Cosi retailer.
The origin of products not purchased through these
authorized retailers is unknown and could be counterfeit.
We cannot support products from an unknown origin
as we cannot verify the handling or condition of
such merchandise. We maintain a strong network of
authorized retailers to ensure you are purchasing safe
and complete products.
Fulfillment by a third party does not guarantee you
are purchasing from one of these authorized retailers.
Pricing which is inconsistent with the majority of retailers
is a strong indication that the retailer is not authorized,
as we have a consistent price offering across all
authorized retailers.
If you are unsure of the authorization status of a retailer
you are considering purchasing from, or have purchased
from, you can check www.maxicosi.com/us-en/find-
a-retailer; or call our Consumer Care Department at
1-800-951-4113; or text us at 1-812-652-2525.
above limitations may not apply to you.
66
